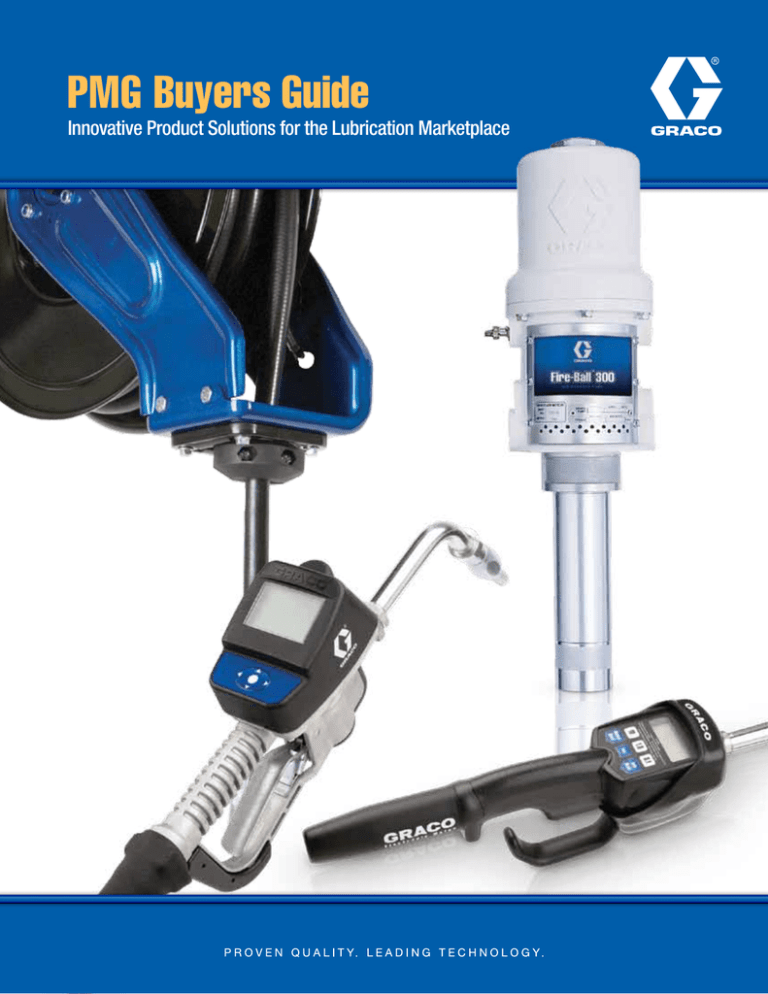

PMG Buyers Guide

PMG Buyers Guide

Innovative Product Solutions for the Lubrication Marketplace

22

The E-Z FAX Document Ordering System

Get the documents you need 24-hours-a-day!

Go online at www.graco.com/lubrication for:

• Literature

• Instruction Manuals

• Buyer’s Guide

• Product Knowledge Exchange

• Distributor Locator

• What’s New

• GEDI

®

GEDI is the “Graco Extranet Distributor Information” area on our web site where distributors have access to up-to-the-minute pricing, product order and shipping status and order entry. Information is accessed by an account number and a confidential password.

To Find Your Nearest Authorized Graco Lubrication

Equipment Distributor

Call:

1-800-533-9655

(toll free North America)

Fax:

1-800-533-9656

Literature Index | Service Manuals | Literature

Simply Call 1-800-533-9655

2

ABC the number of the service manual or literature document you need.

The documents you request will be faxed directly to you!

www.graco.com

Table of Contents

Oil Pumps and Packages

Oil Pumps Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Fast-Ball

®

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

LD Series Pumps and Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

LD Series Tank Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

LD Series Pump Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Mini Fire-Ball

®

225, Fire-Ball 300, Fire-Ball 425 and Packages . . . . . . . . . . . . . . . . . . . 12-18

Oil Pump Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

NXT ™ High-Flo

®

and NXT Dura-Flo

®

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

Grease Pumps and Packages

Grease Pumps Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

LD Series Pumps and Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Mini Fire-Ball 225. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Fire-Ball 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

Fire-Ball 425 and Bulldog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-36

Grease Pump Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38

NXT Check-Mate

Transfer Pumps

®

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Air-Operated Double-Diaphragm Pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Fast-Flo

®

(Stainless Steel). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-42

Electrical Powered Oil and Fuel Pumps

Hurricane™ Electric Dispense Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

APEX™ Electric Dispense Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44-45

GTP10 and GTP12 Fuel Transfer Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Specialty Pump Package Solutions

Diesel Exhaust Fluid (DEF) Dispense Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47-48

Lube Truck and Undercoating/Rust-Proofing Packages . . . . . . . . . . . . . . . . . . . . . . . . . . 49-50

Windshield Washer and Coolant Dispense Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Hydraulic Oil and Grease Pumps

Dyna-Star

®

, Power-Star™ and Viscount

®

II Pumps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52-53

Manually Operated Oil and Grease Pumps and Packages

Hose Reels

Oil and Grease Dispense. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Windshield Wash and Coolant Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

LD, SD, XD, 700 and 750 Hose Reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56-62

Reel Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64-65

Dispense Consoles

Multi-Station Consoles and Oil Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Dispense Meters and Control Valves

LD, SD, EM6, EM12 and In-Line Electronic Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67-71

Mechanical Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

SDV15, XDV20, Pro-Shot™ and Accu-Shot™ Control and Dispense Valves . . . . . . . . . . 74-76

Fluid Management Systems

Horizon ™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77-78

Fluid Commander ™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79-80

Manual Grease Guns

Grease Guns, Accessories and Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81-83

Fluid Reclaim Packages

Oil King™, Coolant King™, Oil Ace™ and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 84-87

Hoses, Fittings and Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88-93

Ordering and Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94-95

Index and Pricing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96-99

www.graco.com

3

Oil Pumps Quick Reference

Technical Specifications and Selection Chart

Annual Usage

Fast-Ball, 1:1

Line Length

5,000 gal

(19,000 l)

< 100 ft (30 m))

Dispense Points

1 (no reels)

Fluids

Motor Oil, ATF,

Hydraulic Fluid

LD Series, 3:1

20,000 gal

(75,000 l)

300 ft (91 m) 1 to 2

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

LD Series, 5:1

20,000 gal

(75,000 l)

300 ft (91 m) 1 to 2

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Mini Fire-Ball 225, 3:1

30,000 gal

(113,500 l)

250 ft (76 m) 1 to 2

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Fire-Ball 300, 5:1

35,000 gal

(132,000 l)

500 ft (152 m)

Fire-Ball 425, 3:1

>35,000 gal

(132,000 l)

Up to 250 ft

(76 m)

1 to 3

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

3 to 4

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Fire-Ball 425, 6:1

>35,000 gal

(132,000 l)

Up to 500 ft

(152 m)

3 to 4

Fire-Ball 425, 10:1

>35,000 gal

(132,000 l)

Up to 750 ft

(228.6 m)

3 to 4

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Air Inlet

1/4 in npt(f)

Fluid Inlet Fluid Outlet

1-1/2 in npt(f)

3/4 in npt(f)

1/4 in npt(f)

1/4 in npt(f)

3/8 in npt(f)

3/8 in npt(f)

1/4 in npt(f)

1/4 in npt(f)

1/4 in npt(f)

1 in npt(f)

1 in npt(f)

1-1/2 in npt(f)

1-1/2 in npt(f)

1-1/2 in npt(f)

1-1/2 in npt(f)

1-1/2 in npt(f)

1/2 in npt(f)

1/2 in npt(f)

1/2 in npt(f)

1/2 in npt(f)

3/4 in npt(f)

3/4 in npt(f)

3/4 in npt(f)

4

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Oil Pumps Quick Reference

Technical Specifications and Selection Chart

Annual Usage

Dura-Flo, 6:1

Line Length

>35,000 gal

(132,000 l)

Up to 500 ft

(152 m)

Dispense Points Pump Ratio(s)

2 to 4 6:1

Output

Per Cycle

1000 cc

Fluids

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Dura-Flo, 10:1

>35,000 gal

(132,000 l)

Up to 750 ft

(228.6 m)

2 to 4 10:1 1000 cc

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Dura-Flo, 12:1 Carbon Steel or Dura-Flo, 12:1 Stainless Steel

>35,000 gal

(132,000 l)

Up to 1000 ft

(305 m)

2 to 4 12:1 580 cc

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Dura-Flo, 23:1

>35,000 gal

(132,000 l)

Up to 1000 ft

(305 m)

2 to 4 23:1 580 cc

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Annual Usage

High-Flo, 3.5:1

Line Length

>35,000 gal

(132,000 l)

Up to 250 ft

(76 m)

Dispense Points Pump Ratio(s)

4 to 5 3.5:1

Output

Per Cycle

2000 cc

Fluids

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

High-Flo, 4.5:1

>35,000 gal

(132,000 l)

Up to 450 ft

(137.1 m)

4 to 5

High-Flo, 6:1

>35,000 gal

(132,000 l)

Up to 500 ft

(152.5 m)

4 to 5

4.5:1

6:1

1500 cc

2000 cc

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

Motor Oil, Gear Oil, ATF,

Hydraulic Fluid

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

5

6

Fast-Ball

®

1:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

Pump Performance

• Fleet service facilities

• Service shops psi

(bar)

120

(8.3)

25 cycles/min

50 75 100 scfm

(m3/min)

10

(0.3)

• In-plant

• Lube trucks

80

(5.5)

8

(0.23)

Inlet Air Pressures:

=100 psi

(6.9 bar)

• Mining

40

(2.7)

6

(0.17)

=70 psi

(4.8 bar)

0

gpm

(lpm)

4

(0.12)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

20

(1.4)

1 2 3 4

(3.8) (7.6) (11) (15)

2

(0.08)

TEST FLUID: No. 10 Weight Oil

Technical Specifications

Cycles per Gallon ...................................................................................................................................10 (45.5 liters)

Fluid Flow gal/min @ 80 cpm .....................................................................................................................5 (19 liters)

Maximum Fluid Pressure ................................................................................................................. 180 psi (12.5 bar)

Air Motor Effective Diameter ............................................................................................................... 1.4 in (35.6 mm)

Air Operating Range ............................................................................................................ 40-180 psi (2.7-12.5 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm ...............................................................................................5 scfm

Wetted Materials ............................................................................................................................... CS, Polyurethane

Air Inlet Port Size ....................................................................................................................................... 1/4 in npt(f)

Fluid Inlet Port Size .................................................................................................................................1-1/2 in npt(f)

Fluid Outlet Port Size.................................................................................................................................. 3/4 in npt(f)

Line Length‡ .........................................................................................................................Up to 100 ft (30.5 m)

Dispense Points ...............................................................................................1 (not recommended with hose reel)

Annual Usage ................................................................................................................ Up to 5,000 gal (19,000 l)

Typical Applications ..........................................................Continuous duty, maintenance facility dispensing motor oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Package

Container Size

Package No.

Pump

Dispense Kit

Regulator Assembly

Hose

Hose Length

Bung Adapter

Instruction Manual

Non-Metered

Dispense

222602

U.S./Metric

Metered

Dispense

55 gal (200 l)

239702

218115

109125

6 ft (1.8 m)

218316

222103

239703

Bung-Mounted Bung-Mounted

222308

222103

275 gal (1040 l)

222104

222104

307637 307906

Universal

Universal

222051

222051

239702

‡ Consult your local authorized Graco representative for line or pipe sizing

222103

222602

222051 222104

www.graco.com

LD Series 3:1 Pump

Air-Powered Oil Pumps and Packages

Features and Benefits

• Built-in thermal relief protects your equipment from thermal expansion

• Three inch air motor provides more power to create better flow

• Cup and plate design eliminates the need for O-rings that wear out faster

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Fast lube centers

• Service shops

• Lube trucks

58

Cycles per minute

116 174 232

40

(1.1)

400

(27.6)

300

(20.7)

A

200

(13.8)

B

C

100

(6.9)

B

A

30

(.8)

20

(.6)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

0

0

C

Recommended Operating Range

1

(3.8)

2

(7.6)

3

(11.4)

4

(15.1)

Fluid Flow (gpm)

(lpm)

5

(18.9)

6

(22.7)

7

(26.5)

8

(30.3)

10

(.3)

0

9

(34.1)

Technical Specifications

Maximum Fluid Working Pressure .....................................................................................450 psi (31 bar, 3.10MPa)

Fluid Pressure Ratio .............................................................................................................................................. 3:1

Suction Lift (feet of oil) ........................................................................................................................................... 10

Air Operation Range ..................................................................................................20 to 150 psi (1.37 to 10.3 bar)

Recommended Air Pressure (for optimum life) .............................................................<125 psi (8.6 bar, 0.86 MPa)

Max Recommended Pump Speed ............................................................................................120 cycles per minute

Cycles Per Gallon/pound (l/kg) ........................................................................ 29 cycles per gallon (7 cycles per liter)

Recommended Pump Speed (for maximum life) ...........................................................75 cycles per minute or lower

Wetted Parts ..................................Zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum

Sound Pressure Level ................................................................................................................................ 72.9 dB(a)

Sound Power Level.................................................................................................................................. 82 dB(a)

Approximate Wieght ...................................................................................................................7 pounds (3.2 kg)

Air Inlet ....................................................................................................................................................... 1/4 in

Fluid Inlet ........................................................................................................................................................1 in

Fluid Outlet ..................................................................................................................................................1/2 in

Free Flow ..................................................................................................................................................7.8gpm

Annual Usage .............................................................................................................. Up to 20,000 gal (76,000 l)

Inlet Air Pressures:

A

=100 psi

(6.9 bar)

B

=70 psi

(4.8 bar)

C

=40 psi

(2.8 bar)

Ordering Information

LD Series 3:1 Pumps

24G576 3:1 Universal Oil Pump with Bung Adapter (24F918)

24G579 3:1 Oil Pump with Cut to length Down Tube, and Bung Adapter (24F918)

24G582 3:1 Oil Pump with 55 gallon (200 liter) Down Tube and Bung Adapter (24F918)

24G585 3:1 Oil Pump with 275 gal (1040 liter) Down Tube and Bung Adapter (24F918)

LD Series 3:1 Pump

www.graco.com

7

8

LD Series 5:1 Pump

Air-Powered Oil Pumps and Packages

Features and Benefits

• Built-in thermal relief protects your equipment from thermal expansion

• Three inch air motor provides more power to create better flow

• Cup and plate design eliminates the need for O-rings that wear out faster

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Fast lube centers

600

(41.4)

500

(34.5)

Pump Performance

Tested with ISO 46 Hyd Oil

A

74

Cycles per minute

148 222

A

40

(1.1)

Inlet Air Pressures:

A

=100 psi

(6.9 bar)

B

=70 psi

(4.8 bar)

C

=40 psi

(2.8 bar)

• Service shops

400

(27.6)

300

(20.7)

30

(.8)

• Lube trucks

200

(13.8)

100

(6.9)

B

B

20

(.6)

Typical Fluids Handled

C

C

10

(.3)

0

0

Recommended Operating Range

1

(3.84)

2

(7.6)

3

(11.4)

7

(26.5)

0

• Petroleum- and synthetic-based oils

4

(15.1)

5

(18.9)

Fluid Flow (gpm)

(lpm)

6

(26.5)

Technical Specifications

Maximum Fluid Working Pressure ..................................................................................750 psi (51.7 bar, 5.17MPa)

Fluid Pressure Ratio .............................................................................................................................................. 5:1

Suction Lift (feet of oil) ........................................................................................................................................... 10

Air Operation Range ..................................................................................................20 to 150 psi (1.37 to 10.3 bar)

Recommended Air Pressure (for optimum life) .............................................................<125 psi (8.6 bar, 0.86 MPa)

Max Recommended Pump Speed ............................................................................................180 cycles per minute

Cycles Per Gallon/pound (l/kg) ......................................................................37 cycles per gallon (10 cycles per liter)

Recommended Pump Speed (for maximum life) ...........................................................75 cycles per minute or lower

Wetted Parts ..................................Zinc plated carbon, steel, aluminum, nitrile, polyurethane, nickel plated aluminum

Sound Pressure Level ................................................................................................................................ 72.9 dB(a)

Sound Power Level.................................................................................................................................. 82 dB(a)

Approximate Wieght ................................................................................................................7.7 pounds (3.5 kg)

Air Inlet ....................................................................................................................................................... 1/4 in

Fluid Inlet ........................................................................................................................................................1 in

Fluid Outlet ..................................................................................................................................................1/2 in

Free Flow ..................................................................................................................................................6.7gpm

Annual Usage .............................................................................................................. Up to 20,000 gal (76,000 l)

Ordering Information

LD Series 5:1 Pumps

24G588 5:1 Universal Oil Pump with Bung Adapter (24F918)

24G591 5:1 Oil Pump with Cut to Length Down Tube and Bung Adapter (24F918)

24G594 5:1 Oil Pump with 55gal (200 liter) Down Tube and Bung Adapter (24F918)

24G597 5:1 Oil Pump with 275 gal (1040 liter) Down Tube and Bung Adapter (24F918)

LD Series 5:1 Pump

www.graco.com

LD Series Pump Packages

Air-Powered Oil Pumps and Packages

Ordering Information

3:1 Wall Mount Packages

24H689

24H695

3:1 Oil Wall Mount Package - Drum. Includes: 3:1 Universal oil pump

(24G576), 6 ft LD oil pump suction hose kit for 55 gal drum (24F935),

Wall mount bracket (24F910)

3:1 Oil Wall Mount Package - Tote. Includes: 3:1 Universal oil pump

(24G576), 6 ft LD Oil pump section hose kit for 275 gal tote (24H666),

Oil hose kit (24H859), Wall mount bracket (24F910)

3:1 Tote Mount Packages

24H702

3:1 Oil Tote Mount Package - Top. Includes: 3:1 275 gal (1040L) Oil pump (24G585), 6 ft Oil hose kit (24J495), Top mount tote bracket

(24F930), LD Reel bracket kit (24F932), Meter tray (24F914), LDM5

Rigid Meter (256215), 1/2" x 35' LD oil hose reel (24H662)

24H704

24H726

24H728

3:1 Oil Tote Mount Package - Top. Includes: 3:1 275 gal (1040L) Oil pump (24G585), 6 ft Oil hose kit (24J495), Top mount tote bracket

(24F930), LD Reel bracket kit (24F932), Meter tray (24F914), LDP5

Rigid Meter (256216), 1/2" x 35' LD oil hose reel (24H662)

3:1 Oil Tote Mount Package - Drain. Includes: 3:1 Universal oil pump

(24G576), 6ft Oil hose kit (24J495), 6 ft Suction hose kit (24H669),

Tote mount pump bracket (24F920), Top mount tote bracket (24F931),

LD Reel bracket kit (24F932), Meter tray (24F914), LDM5 Rigid meter

(256215), LD oil hose reel, 1/2" x 35' (24H662)

3:1 Oil Tote Mount Package - Drain. Includes: 3:1 Universal oil pump

(24G576), 6ft Oil hose kit (24J495), 6ft Suction hose kit (24H669),

Tote mount pump bracket (24F920), Top mount tote bracket (24F931),

LD Reel bracket kit (24F932), Meter tray (24F914), LDP5 Rigid meter

(256216), LD oil hose reel, 1/2" x 35' (24H662)

3:1 Mobile Packages

24H751

24H753

24H775

3:1 Oil Mobile Package with LD Reel. Includes: 3:1 200L Oil pump

(24G582), 6ft Oil hose kit (24J495), LDM5 Rigid meter (256215),

55 gal Cart (24F915), LD oil hose reel, 1/2" x 35' (24H662)

3:1 Oil Mobile Package with LD Reel. Includes: 3:1 200L Oil pump

(24G582), 6ft Oil hose kit (24J495), LDP5 Rigid meter (256216),

55 gal Cart (24F915), LD oil hose reel, 1/2" x 35' (24H662)

3:1 Oil Mobile Package. Includes: 3:1 200 L Oil pump (24G582),

Fluid hose kit, 5 M (24H865), LDM5 Rigid meter (256215),

55 gal Cart (24F915)

24H777

3:1 Oil Mobile Package. Includes: 3:1 200 L Oil pump (24G582),

Fluid hose kit, 5 M (24H865), LDP5 Rigid meter (256216),

55 gal Cart (24F915)

3:1 Stationary Packages

24H800

24H802

3:1 Oil Stationary Package. Includes: 3:1 Multilength oil pump

(24G579), 6ft Oil hose kit (24H859), LDM5 Rigid meter (256215)

3:1 Oil Stationary Package. Includes: 3:1 Multi-length oil pump

(24G579), 6 ft Oil hose kit (24H859), LDP5 Rigid meter (256216)

5:1 Wall Mount Packages

24H836

5:1 Oil Wall Mount Package - Drum. Includes: 5:1 Oil universal pump

(24G588), 6 ft LD oil pump suction hose kit for 55gal drum(24F935),

Wall mount bracket (24F910)

24H842

5:1 Oil Wall Mount Package - Tote. Includes: 5:1 Oil universal pump

(24G588), 6ft Oil hose kit (24H859), 6ft LD Oil pump section hose kit for 275gal tote (24H666), Wall mount bracket (24F910)

5:1 Tote Mount Packages

24H868

24H870

5:1 Oil Tote Mount Package - Top. Includes: 5:1 1040L Oil pump

(24G597), 6 ft Oil hose kit (24J495), Tote top mount bracket (24F930),

LD Reel bracket (24F932), Meter tray (24F914), LDM5 rigid meter

(256215), 1/2" x 35' LD oil hose reel (24H662)

5:1 Oil Tote Mount Package - Top. Includes: 5:1 1040L Oil pump

(24G597), 6 ft Oil hose kit (24J495), Tote top mount bracket (24F930),

LD Reel bracket (24F932), Meter tray (24F914), LDP5 Rigid meter

(256216), 1/2" x 35' LD oil hose reel (24H662)

24H892

24H894

5:1 Oil Tote Mount Package - Drain. Includes: 5:1 Oil universal pump

(24G588), 6 ft Oil hose kit (24J495), Suction hose kit tote (24H669),

Tote mount pump bracket (24F920), Tote top mount bracket (24F931),

LD reel bracket kit (24F932), Meter tray (24F914), LDM5 Rigid meter

(256215), LD oil hose reel, 1/2" x 35' (24H662)

5:1 Oil Tote Mount Package - Drain. Includes: 5:1 Oil universal pump

(24G588), 6 ft Oil hose kit (24J495), Suction hose kit tote (24H669),

Tote mount pump bracket (24F920), Tote top mount bracket (24F931),

LD reel bracket kit (24F932), Meter tray (23F914), LDP5 Rigid meter

(256216), LD oil hose reel, 1/2" x 35' (24H662)

5:1 Mobile Packages

24H916

24H918

24H941

5:1 Oil Mobile Package with LD Reel. Includes: 5:1 55 gal (200 L)

Oil pump (24G594), 6 ft Oil hose kit (24J495), LDM5 Rigid meter

(256215), 55 gal Cart (24F915), LD oil hose reel, 1/2" x 35' (24H662)

5:1 Oil Mobile Package with LD Reel. Includes: 5:1 55 gal (200 L) Oil pump (24G594), 6ft Oil hose kit (24J495), LDP5 Rigid meter (256216),

55 gal Cart (24F915), LD oil hose reel, 1/2" x 35' (24H662)

5:1 Oil Mobile Package. Includes: 5:1 55 gal (200 L) oil pump

(24G594), Fluid hose kit, 5M (24H865), LDM5 Rigid meter (256215),

55 gal Cart (24F915)

24H943

5:1 Oil Mobile Package. Includes: 5:1 55gal (200L) oil pump (24G594),

Fluid hose kit, 5M (24H865), LDP5 Rigid meter (256216),

55 gal Cart (24F915)

5:1 Stationary Packages

24H965

24H967

5:1 Oil Stationary Package. Includes: 5:1 Oil multi-length pump

(24G591), Fluid oil hose kit (24H859), LDM5 Rigid meter (256215)

5:1 Oil Stationary Package. Includes: 5:1 Oil multi-length pump

(24G591), Fluid oil hose kit (24H859), LDP5 Rigid meter (256216)

24H728

24H753

www.graco.com

9

10

LD Series Pump Tank Packages

Air-Powered Oil Pumps and Packages

Ordering Information

3:1 Tank Packages with LD Reel

24J776

3:1 LD Tank Package. Includes: 3:1 Universal oil pump (24G576),

LDM5 Manual meter (256215), 1/2" x 35' LD oil hose reel (24H662),

1/2" Oil inlet kit (24C538), LD swivel mount bracket (24C772)

3:1 Tank Packages with SD Reel

24J733

24J734

3:1 Tank Package - Manual. Includes: 3:1 Universal Oil pump

(24G576), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 50' (HPM65B), SD Reel Inlet Kit (218549)

3:1 Tank Package - Preset. Includes: 3:1 Universal Oil pump (24G576),

LDP5 Preset meter with rigid extension (256216), SD oil reel,

1/2" x 50' (HPM65B), SD Reel Inlet kit (218549)

24K836

3:1 Tank Package - Manual Flex: 3:1 Universal Oil pump (24G576),

LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x

50' (HPM65B), SD Reel Inlet Kit (218549)

3:1 Deluxe Tank Packages with SD Reel

24K777

24K797

24K799

24K832

24K834

3:1 Deluxe Tank Package - Preset Rigid: 3:1 Universal Oil Pump

(24G576), LDP5 Preset meter with rigid extension (256216), SD oil reel, 1/2" x 50' (HPM65B), 6ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

3:1 Deluxe Tank Package - Manual Rigid: 3:1 Universal Oil Pump

(24G576), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

3:1 Deluxe Tank Package - Manual Flex: 3:1 Universal Oil Pump

(24G576), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

3:1 Deluxe Tank Package - Manual Flex: 3:1 Universal Oil Pump

(24G576), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x 35' (HPM33B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

3:1 Deluxe Tank Package - Manual Rigid: 3:1 Universal Oil Pump

(24G576), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 35' (HPM33B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

3:1 Tote Mount Packages

24K838

24K840

24K842

3:1 Oil Tote Mount with SD Reel -Preset Rigid. Includes: 3:1 Oil pump with 275 gal (1040 liter) steel down tube (24G585), LDP5 Preset meter with rigid extension (256216), SD oil reel, 1/2"x50' (HPM65B), 6 ft Air &

Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930),

SD reel bracket for tote mount, Meter tray (24F914)

3:1 Oil Tote Mount with SD Reel -Manual Rigid. Includes:

3:1 Oil pump with 275 gal (1040 liter) steel down tube (24G585),

LDM5 Manual meter with rigid extension (256215), SD oil reel,

1/2"x50' (HPM65B), 6ft Air & Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930), SD reel bracket for tote mount, Meter tray (24F914)

3:1 Oil Tote Mount with SD Reel -Manual Flex. Includes: 3:1 Oil pump with 275 gal (1040 liter) steel down tube (24G585), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air &

Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930),

SD reel bracket for tote mount, Meter tray (24F914)

5:1 Tank Packages with LD Reel

24J777

5:1 LD Tank Package. Includes: 5:1 Universal oil pump (24G588),

LDM5 Manual meter (256215), 1/2" x 35' LD oil hose reel (24H662),

1/2" Oil inlet kit (24C538), LD swivel mount bracket (24C772)

5:1 Tank Packages with SD Reel

24J735

24J736

5:1 Tank Package - Manual. Includes: 5:1 Multi-length oil pump

(24G588), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 50' (HPM65B), SD Reel Inlet kit (218549)

5:1 Tank Package - Preset. Includes: 5:1 Multi-length oil pump

(24G588), LDP5 Preset meter with rigid extension (256216), SD reel,

1/2" x 50' (HPM65B), SD Reel Inlet Kit (218549)

24K837

5:1 Tank Package - Manual Flex: 5:1 Universal Oil pump (24G588),

LDM5 Manual meter with flex extension (258693), SD oil reel,

1/2" x 50' (HPM65B), SD Reel Inlet Kit (218549)

5:1 Deluxe Tank Packages with SD Reel

24K796

24K798

24K800

24K833

24K835

5:1 Deluxe Tank Package - Preset Rigid: 5:1 Universal Oil Pump

(24G588), LDP5 Preset meter with rigid extension (256216), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

5:1 Deluxe Tank Package - Manual Rigid: 5:1 Universal Oil Pump

(24G588), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

5:1 Deluxe Tank Package - Manual Flex: 5:1 Universal Oil Pump

(24G588), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

5:1 Deluxe Tank Package - Manual Flex: 5:1 Universal Oil Pump

(24G588), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2" x 35' (HPM33B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

5:1 Deluxe Tank Package - Manual Rigid: 5:1 Universal Oil Pump

(24G588), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 35' (HPM33B), 6 ft Air & Fluid hoses with fittings (24J495),

1/4" x 3/8" Mini air regulator with valve (24H420)

5:1 Tote Mount Packages

24K839

24K841

24K843

5:1 Oil Tote Mount with SD Reel -Preset Rigid. Includes: 5:1 Oil pump with 275 gal (1040 liter) steel down tube (24G597), LDP5 Preset meter with rigid extension (256216), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air

& Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930),

SD reel bracket for tote mount, Meter tray (24F914)

5:1 Oil Tote Mount with SD Reel -Preset Rigid. Includes: 5:1 Oil pump with 275 gal (1040 liter) steel down tube (24G597), LDM5 Manual meter with rigid extension (256215), SD oil reel, 1/2" x 50' (HPM65B), 6 ft Air

& Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930),

SD reel bracket for tote mount, Meter tray (24F914)

5:1 Oil Tote Mount with SD Reel -Preset Rigid. Includes: 5:1 Oil pump with 275 gal (1040 liter) steel down tube (24G597), LDM5 Manual meter with flex extension (258693), SD oil reel, 1/2"x50' (HPM65B), 6 ft Air &

Fluid hoses with fittings (24J495), Pump tote mount bracket (24F930),

SD reel bracket for tote mount, Meter tray (24F914)

www.graco.com

LD Series Pump Accessories

Air-Powered Oil Pumps and Packages

Ordering Information

Drum Covers

24F904 Cover for 35 lb (16 kg) pails

24F905 Cover for open-head 120 lb drums

24F906 Cover for open-head 400 lb drums

Follower Plates

24F901 For 35lb (16 kg) pails with LD 50:1 pumps

24F902 For 120 lbs drum with LD 50:1 pumps

24F903 For 400 lb drums with LD 50:1 pumps

Suction Kits

24F935

24H666

24H669

LD Oil Pump Suction hose kit for 55 gal (200 L) drum. Includes: 55 gal (200 L) drum length metal down tube, bung adapter, foot valve, and 6 ft of 1" suction hose

LD Oil Pump Suction hose kit for 275 gal (1040 L) drum. Includes: 275 gal (1040 L) tote length metal down tube, bung adapter, foot valve, and 6 ft of 1" suction hose

LD Oil Pump Suction hose kit and adapter for mounting pump to the side of IBC tote and dispensing from drain. Includes 1" x 3' Suction hose, 1" Elbow fitting, and union fitting (160022)

Hose & Fitting Kits

24H865

24H859

15 ft LD pump fluid hose kit. Includes 1/2" x 15 ft fluid hose, 3/8" x 6 ft Air hose, Swivel (157705), and union fitting (156684)

6ft LD pump fluid hose kit. Includes 1/2" x 6ft fluid hose, 3/8" x 6 ft Air hose, Swivel (157705), and union fitting (156684)

24H862 6 ft LD pump grease hose kit. Includes 1/4" x 6' grease hose, 3/8" x 6 ft air hose, and fittings

Air Regulators

24H420 Mini air pressure regulator with valve, 1/4 inch NPT x 3/8 inch NPT

Tote Mount Accessories

24F914 Meter drip tray for mounting to the side of IBC tote

24F932 LD Reel bracket for mounting reel to IBC top mount tote bracket (24F930 & 24F920)

24F920 Tote mounting bracket to mount reel on top of IBC tote, (pump mounting bracket is not included)

24F930 Top of tote mounting bracket. For mounting LD pump in top of IBC tote

24F931 Bracket for mounting LD pump on the side of IBC tote

Mounting Hardware

24F910 LD pump wall mounting bracket. For use with LD 3:1 & 5:1 pumps

24F918 Bung adapter for LD 3:1 & 5:1 pumps

Carts

24F915 Drum cart with pneumatic wheels for 400 lb drums, includes chain for securing drum to cart

24H422 Drum cart with pneumatic wheels for 120 lb drums, includes chain for securing drum to cart

24F901

24F914

24F931

24F910

24F904

24H422

24F930

24F932

24F915

www.graco.com

11

Mini Fire-Ball

®

225 3:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining

Typical Fluids Handled

• Petroleum- and synthetic-based oils psi

(bar)

500

(31.4)

400

(21)

300

(10.4)

200

(5.2)

100

(5.2)

0 gpm

(lpm)

Pump Performance

43.5 cycles/min

87 130.5 174 scfm

(m3/min)

40

(0.3)

32

(0.23)

24

(0.23)

1 2 3 4

(3.8) (7.6) (11.4) (15)

0

TEST FLUID: No. 10 Weight Oil

16

(0.17)

8

(0.12)

Inlet Air Pressures:

= 100 psi

(6.9 bar)

= 70 psi

(4.8 bar)

= 40 psi

(2.8 bar)

Technical Specifications

Cycles per Gallon .............................................................................................................................. 43.5 (11.4 liters)

Fluid Flow gal/min @ 80 cpm ............................................................................................................. 1.84 (7.0 liters)

Maximum Fluid Pressure ....................................................................................................................540 psi (37 bar)

Air Motor Effective Diameter ............................................................................................................2.25 in (57.2 mm)

Air Operating Range .............................................................................................................. 40-180 psi (2.8-12 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm ............................. 8.5 scfm @ 2.1 gpm, (0.241 m3/min @ 7.9 lpm)

Wetted Materials .................................................................................Steel, Buna-N, Polyurethane, Aluminum, Rulon ®

Air Inlet Port Size ....................................................................................................................................... 3/8 in npt(f)

Fluid Inlet Port Size .................................................................................................................................1-1/2 in npt(f)

Fluid Outlet Port Size.................................................................................................................................. 1/2 in npt(f)

Line Length‡ .........................................................................................................................Up to 250 ft (76.2 m)

Dispense Points ........................................................................................................................................... 1 to 2

Annual Usage ............................................................................................................ Up to 35,500 gal (132,000 l)

Typical Applications ..........................................................Continuous duty, maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Mini Fire-Ball 225 3:1 Pump

248097 3:1 Universal Oil Pump with suction tube (15C502) and bung adapter (222308)

246775 3:1 Universal Oil Pump

246775

12

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

300 5:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining psi

(bar)

450

(31.4)

300

(21)

150

(10.4)

75

(5.2)

0

gpm

(lpm)

Pump Performance

26 cycles/min

53 80 107 scfm

(m3/min)

10

(0.3)

8

(0.23)

6

(0.17)

4

(0.12)

1 2 3 4

(3.8) (7.6) (11) (15)

2

(0.08)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

Technical Specifications

Cycles per Gallon ..................................................................................................................................28.4 (8.6 liters)

Fluid Flow gal/min @ 80 cpm .................................................................................................................2.8 (9.3 liters)

Maximum Fluid Pressure .....................................................................................................................900 psi (62 bar)

Air Motor Effective Diameter ................................................................................................................. 3 in (76.2 mm))

Air Operating Range ............................................................................................................... 40-180 psi (2.8-12 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm ................................. 27 scfm @ 3 gpm (0.765 m

3

/min @ 11.5 lpm)

Wetted Materials .............................................................................................Steel, Polyurethane, Aluminum, Buna-N

Air Inlet Port Size ........................................................................................................................................... 3/8 npt(f)

Fluid Inlet Port Size .....................................................................................................................................1-1/2 npt(f)

Fluid Outlet Port Size...................................................................................................................................... 1/2 npt(f)

Line Length‡ .......................................................................................................................Up to 500 ft (152.5 m)

Dispense Points ........................................................................................................................................... 1 to 3

Annual Usage ............................................................................................................ Up to 35,500 gal (132,000 l)

Typical Applications ..........................................................Continuous duty, maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Fire-Ball 300 5:1 Pump

203876 5:1 Universal Oil Pump

203872 5:1 Oil Pump, 16 gal (120 lb) drum size, for cover mount

203857 5:1 Oil Pump, 55 gal (400 lb) drum size, for cover mount

204254 5:1 Oil Pump, 55 gal (400 lb) drum size, bung mount

222087 5:1 Oil Pump, 275 gal (1040 lb) tank size, bung mount

203876

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

13

Fire-Ball

®

425 3:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining psi

(bar)

450

(55)

350

(41)

250

(27)

150

(13)

50

gpm

(lpm)

Pump Performance

12 cycles/min

36 60 84 scfm

(m3/min)

60

(1.7)

45

(1.2)

30

(0.9)

2 6 10 14

(7.5) (23) (38) (53)

0

TEST FLUID: No. 10 Weight Oil

15

(0.4)

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

Technical Specifications

Cycles per Gallon .......................................................................................................................................6 (1.6 liters)

Fluid Flow gal/min @ 80 cpm .............................................................................................................13.4 (50.6 liters)

Maximum Fluid Pressure .....................................................................................................................540 psi (37 bar)

Air Motor Effective Diameter ...........................................................................................................4.25 in (107.9 mm)

Air Operating Range ............................................................................................................... 40-180 psi (2.8-12 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm .............................. 58 scfm @ 13.4 gpm (1.64 m

3

/min @ 50.6 lpm)

Wetted Materials ................................................................................................Steel, Polyurethane, Aluminum, Nitrile

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Fluid Inlet Port Size .................................................................................................................................1-1/2 in npt(f)

Fluid Outlet Port Size.................................................................................................................................. 3/4 in npt(f)

Line Length‡ .........................................................................................................................Up to 250 ft (76.2 m)

Dispense Points ........................................................................................................................................... 3 to 4

Annual Usage ............................................................................................................. Over 35,500 gal (132,000 l)

Typical Applications ................................................High flow, low pressure maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Fire-Ball 425 3:1 Pump

237526 3:1 Universal Oil Pump

237526

14

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

425 6:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining psi

(bar)

800

(55)

600

(41)

400

(27)

200

(13)

0

gpm

(lpm)

Pump Performance

28 cycles/min

55 78 105 scfm

(m3/min)

80

(2.2)

60

(1.7)

40

(1.1)

2 4 6 8

(7.6) (15.4) (22.7) (30.3)

0

TEST FLUID: No. 10 Weight Oil

20

(0.6)

Inlet Air Pressures:

= 100 psi

(6.9 bar)

= 70 psi

(4.8 bar)

= 40 psi

(2.8 bar)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

Technical Specifications

Cycles per Gallon .....................................................................................................................................12 (3.2 liters)

Fluid Flow gal/min @ 80 cpm ...............................................................................................................6.6 (25.3 liters)

Maximum Fluid Pressure .................................................................................................................. 1100 psi (76 bar)

Air Motor Effective Diameter ..........................................................................................................4.25 in (107.9 mm))

Air Operating Range ................................................................................................................ 40-180 psi 2.8-12 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm .............................49.5 scfm @ 6.8 gpm (.334 m

3

/min @ 25.7 lpm)

Wetted Materials ................................................................................................Steel, Polyurethane, Aluminum, Nitrile

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Fluid Inlet Port Size .................................................................................................................................1-1/2 in npt(f)

Fluid Outlet Port Size.................................................................................................................................. 3/4 in npt(f)

Line Length‡ .......................................................................................................................Up to 500 ft (152.5 m)

Dispense Points ........................................................................................................................................... 3 to 4

Annual Usage ............................................................................................................ Up to 35,500 gal (132,000 l)

Typical Applications ........................................ High flow, medium pressure, maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Fire-Ball 425 6:1 Pump

238108 6:1 Universal Oil Pump

238108

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

15

Fire-Ball

®

425 10:1

Air-Powered Oil Pumps and Packages

Features and Benefits

• In-line design with fewer parts for less pump wear

• Differential air motor ensures smooth pumping

• Double-acting pump provides reliable fluid flow

Typical Applications

• Lubricant transfer

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining

Pump Performance psi

(bar)

1800

(125)

1400

(96)

1000

(70)

20 40 cycles/min

60 80 100 scfm

(m3/min)

80

(2.2)

60

(1.7)

40

(1.1)

600

(42)

200

(14)

gpm

(lpm)

1

(3.8)

2 3 4 5

(7.6) (11.4) (15) (19)

TEST FLUID: No. 10 Weight Oil

0

20

(0.6)

Inlet Air Pressures:

= 100 psi

(6.9 bar)

= 70 psi

(4.8 bar)

= 40 psi

(2.8 bar)

Typical Fluids Handled

• Petroleum- and synthetic-based oils

Technical Specifications

Cycles per Gallon ................................................................................................................................ 19.6 (5.2 liters)

Fluid Flow gal/min @ 80 cpm ...............................................................................................................4.1 (15.4 liters)

Maximum Fluid Pressure ................................................................................................................ 1800 psi (124 bar)

Air Motor Effective Diameter ...........................................................................................................4.25 in (107.9 mm)

Air Operating Range ............................................................................................................... 40-180 psi (2.8-12 bar)

Approx. Air Use and Flow @ 100 psi and 80 cpm ................................ 32 scfm @ 4.1 gpm (.555 m

3

/min @ 15.4 lpm)

Wetted Materials ................................................................................................Steel, Polyurethane, Aluminum, Nitrile

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Fluid Inlet Port Size .................................................................................................................................1-1/2 in npt(f)

Fluid Outlet Port Size.................................................................................................................................. 3/4 in npt(f)

Line Length‡ .......................................................................................................................Up to 750 ft (228.6 m)

Dispense Points ........................................................................................................................................... 3 to 4

Annual Usage ............................................................................................................. Over 35,500 gal (132,000 l)

Typical Applications .............................................................Long distance, maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid

Ordering Information

Fire-Ball 425 10:1 Pump

205626 10:1 Universal Oil Pump

222065 10:1 Oil Pump, 55 gal (400lb) drum size, cover mount

222095 10:1 Oil Pump, 55 gal (400lb) drum size, bung mount

205626

16

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

Oil Pump Packages

Air-Powered Oil Pumps and Packages

Mini Fire-Ball 225 and Fire-Ball 300 Ordering Information

Packages Portable Cover-Mounted Bung-Mounted

55 gal (200 l) 275 gal (1040 l) Container Size

Mini Fire-Ball 225,

3:1 Package

Mini Fire-Ball, 225

3:1 Pump

Fire-Ball 300,

5:1 package

16 gal (60 l)

246903 (4)

225728 (2), (4)

246904

(4)

225094

(3), (4)

Fire-Ball 300

Pump

Dispense/Hose

Fitting Kit

203872

237075

246906 (4)

248097 (1) , (3)

225642 (3), (4)

203857

246907 (3), (4)

225640 (3), (4)

204254

222063

225931 (3), (4)

222087

Fluid Hose

Air Hose

Air Regulator

Cover

Caster Base

Bung Adapter for

300, 5:1

225, 3:1 Manual

300, 5:1 Manual

224512

204574

203622 —

307884

6 ft x 1/2 in

(1.8 m x 12.7 mm)

6 ft x 3/8 in

(1.8 m x 9.5 mm)

200326

309868

307883

222308

Universal

Universal

248230 (3), (4)

246775

225852 (3), (4)

203876

222062

1.5 ft x 1/2 in

(0.5 m x 9.5 mm)

1.5 ft x 3/8 in

(0.5 m x 9.5 mm)

306520

(1)

248097 includes suction tube (15C502) and bung adapter (222308)

(2)

Use 3/8 in (9.5 mm) installation kit (224512) as required

(3)

Use 3/8 in (9.5 mm) air regulator 109075 as required; must be ordered separately

(4)

Order low-level cut-off 203688 (1 1/2 inch NPT) separately for metered dispense systems

Fire-Ball 425 Package Ordering Information

Packages Cover-Mounted Bung-Mounted Universal Supply Wall-Mounted

Container Size

Fire-Ball 425, 3:1 Package

Fire-Ball 425, 3:1 Pump

Fire-Ball 425, 6:1 Package

Fire-Ball 425, 6:1 Pump

Fire-Ball 425, 10:1 Package

Fire-Ball 425, 10:1 Pump

Hose/Fitting Kit

Fluid Hose

Air Hose

Cover

Filter Regulator

Air Shutoff Valve

Fluid Shutoff Valve

Wall Mount Bracket

Instruction Manual

55 gal (200 l)

225782 (1) (2)

225786 (1) (2)

222065 222095

222066

6 ft x 3/4 in (1.8 m x 19.05 mm)

6 ft x 1/2 in (1.8 m x 12.7 mm)

200326 —

307883

Universal

225853 (1) (2)

244846 ( 3)

237526

244628 (3)

238108

244847

205626 205626

222068

1.5 ft x 3/4 in (0.5 m x 19.05 mm)

1.5 ft x 1/2 in (0.5 m x 12.7 mm)

— —

217072

110225

306520

108537

238245

309351

(1)

Use 1/2 in (12.7 mm) air regulator (104266) and air pressure gauge (100960) as required; must be ordered

(2) separately—see mounting accessories section

Order low-level cut off (203688) separately for metered dispense systems—see mounting accessories section

(3)

Includes pump plus: Filter Regulator (217072), Hose and Fitting Kit (222068), Air Shutoff Valve (110225),

Fluid Shutoff (108537), Wall Mount Bracket, (238245)

www.graco.com

Cover-mounted

Universal Supply

Portable

Bung-mounted

17

18

Fluid Dispense Packages

Air-Powered Oil Pumps and Packages

Mini Fire-Ball ® 225, 3:1 Bulk-Oil Dispensing Packages

Mini Fire-Ball 225, 3:1 Pump Package

248623*

248622*

Includes: Mini Fire-Ball 225, 3:1 Universal pump with bung adapter and down tube (248097), SD

Series reel with 50 ft (15.2 m) x 1/2 in (12.7 mm) fluid hose (HPM65B), LDM5 meter (256215)

Includes: Mini Fire-Ball 225, 3:1 Universal pump with bung adapter and down tube (248097), SD

Series reel with 25 ft (7.6 m) x 1/2 in (12.7 m) fluid hose (HPM33B), LDM5 meter (256215)

*Order 218549 (1/2 in x 24 in) hose reel inlet kit separately NOTE: Tanks not included

Fire-Ball 300, 5:1 Deluxe Bulk-Oil Dispensing Packages

Fire-Ball 300, 5:1 Pump Packages

241633*

224541*

244038*

224534*

Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075),

3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD

Series reel with 25 ft (7.6 m) x 1/2 in (12.7 mm) hose (HPM33B), SDM5 meter (255350)

Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075),

3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD

Series reel with 50 ft (15.3 m) x 1/2 in (12.7 mm) hose (HPM65B), 18 in (45.7 cm) hose (220598),

90º swivel (inlet on hose reel) (157416), SDM5 meter (255350)

Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075),

3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD

Series reel with 50 ft (15.3 m) x 1/2 in (12.7 mm) hose (HPM65B), 18 in (45.7 cm) hose (220598),

90º swivel (157416), SDP5 meter (255200)

Dispensing from Bench-Top Tanks with Fire-Ball 300, 5:1 Pump Package. Includes: Fire-Ball 300,

5:1 pump, Universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075), Air filter (106148), 3/8 in

(9.5 mm) x 3/8 in (9.5 mm) nipple (156849), SD Series reel with 50 ft (15.3 m) x 1/2 in 12.7 mm) hose (HPM65B), Drain valve (106151), 72 in (182.9 cm) hose kit (222063), Thermal relief valve

(237893), 90º swivel (157416), SDM5 Meter (255350)

*Order 218549 (1/2 in x 24 in) hose reel inlet kit separately NOTE: Tanks not included

Package

248623

(tank not included)

Package

224541

(tank not included)

Package

224534

(tank not included)

www.graco.com

Fire-Ball

®

and Oil Pump Accessories

Air-Powered Oil Pumps and Packages

Hose and Fittings Kits for Mini Fire-Ball 225, 3:1 and Fire-Ball 300, 5:1 Pumps

222062

222063

18 in (0.5 m) for connecting wall-mounted Mini Fire-Ball 225, 3:1 and Fire-Ball 300, 5:1 pumps to piping. Includes air hose (204560) with swivel elbow (155494), fluid hose (220598) with swivel elbow

(155470). Instruction manual 306520

6 ft (1.8 m) for use with drum-mounted Mini Fire-Ball 225, 3:1 and Fire-Ball 300, 5:1 pumps.

Includes air hose (203320) with swivel elbow (155494), fluid hose (220591) with swivel elbow

(155470). Instruction manual 307883

Dispense Kits for Mini Fire-Ball 225, 3:1 and Fire-Ball 300, 5:1 Pumps

237075

6 ft (1.8 m) for use with portable lubricators powered by the Fire-Ball 300, 5:1. Includes fluid hose

(220591) and SDM5 gear lube valve (255349). Instruction manual: 307884

Hose and Fittings Kits for Fire-Ball 425, 3:1, 6:1 and 10:1

222068

18 in (0.5 m) for connecting wall-mounted Fire-Ball 425, 10:1 pumps to piping. Includes air hose

(218093) with swivel elbow (155470), fluid hose (109108) with swivel elbow (160327). Instruction manual: 306520

238246

222066

24 in (0.6 m) for use with Fire-Ball 425, 3:1 and 6:1 wall-mounted pumps to piping. Includes air hose

(218093) with swivel elbow (155470), fluid hose (238247) with swivel elbow (160327)

6 ft (1.8 m) for use with drum-mounted Fire-Ball 425, 10:1 pumps. Includes air hose (205418) with swivel elbow (155470), fluid hose (109105) with swivel elbow (160327). Instruction manual: 307883

Suction Kits

236054

6 ft (1.8 m) Suction Kit for 55-gal. (200 l) drums. Includes: 55-gal. (200 l) drum tube, bung adapter and 6 ft (1.8 m) of 3/4 in fluid hose with 3/4 in ID x 1-1/2 in bushing to adapt to any universal Graco oil pump. Allows use of Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 or Fire-Ball 425, 10:1 universal pumps with barrels. Order wall brackets separately. Use with low-level cut-off (203688) when metering fluids. Instruction manual: 308335

Drum Covers

200326

Cover for open-head 55 gal (200 l) drums. Use with Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 or

Fire-Ball 425, 10:1 pump. Use adapter 160754 for cover-mounting bung-style pumps

204574

222058

Cover for open-head 16 gal (60 l) or 70 lb (32 kg) drums. Mounts Fast-Ball 1:1, Mini-Fire-Ball or

Fire-Ball pumps

Cover for 5 gal (20 l) pails. Mounts Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 and 15:1 pumps. Bung adapter (222308) and bung adapter plate (160754) sold separately

160754

Bung-adapter plate for 55 gal (200 l) or 16 gal (60 l) covers. Mounts to 55 gallon (400 lb; 200 l),

16 gal (120 lb; 60 l) drum or 5 gal (20 1) pail covers and converts mounting to standard 2 npt bung opening. Allows use of bung-mounted pumps with drum covers

Wall-Mounting Brackets

203987

For universal Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 and Fire-Ball 425, 10:1 pumps.

Clamps onto universal pump tube

238245 For use with Fire-Ball 425, 3:1, 6:1 and 10:1 pumps. Mounts directly to pump flange

236778

For use with Fire-Ball 425, 3:1, Dyna-Star 1/4:1 and Power-Star 1:1 pumps. Clamps to pump tube and provides mounting to wall surface by flange

Clamps

203156

210880

Open-drum pump clamp. Attaches to side of open-head drum and mounts on any size pump except

Fire-Ball 425, 3:1

Open-drum pump clamp for Fire-Ball 300, 5:1 and Fire-Ball 425, 10:1 pumps. Clamps onto pump tube and attaches to open-drum lip

Tools for Working on Fire-Ball Air Motors

207579 Padded pliers

171818 Poppet gauge

168085 Insert tool

Carts

203650

222243

Cart for 5, 10 and 16 gal (20, 40, and 60 l) drums. Drums fit into recess on formed base. Rim clamps secure drum to cart. Use with pail clamp (159952) when using cart with 5 gal (20 l) pails

Heavy-Duty Cart with Pneumatic Wheels for 120 lb (55 kg) drums. Used for moving lubrication equipment over rough terrain. Requires: Hold down kit (222061)

111470 55 gal (200 l) Drum Truck. Heavy-duty drum truck secures 55 gal (200 l) drum on roll-around base

203650

www.graco.com

210880

160754

203156

200326

204574

203987

111470

19

20

Fire-Ball

®

and Oil Pump Accessories

Air-Powered Oil Pumps and Packages

Ordering Information

Portable Bases

205054 Band Dolly for 5 gal (20 l) pails (11-1/2 in ID)

204144 Band Dolly for 10 and 16 gal (40 and 60 l) drums (14 in ID)

203622 Caster Base for 5, 10 and 16 gal (20, 40 and 60 l) drums

Drum Elevator

241663

Air-powered elevator to speed-up 55 gal (200 l) drum changes. Maximum raised height is 39.5 in

(100.3 cm). Includes cover support (207562), drum elevator (204385), and air control kit (207561)

Suction Tubes For Pumps

238592

For 16 gal (60 l) cover-mounted Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 and Fire-Ball

425, 10:1. Use bung adapter 222308 on all current production models. Includes (191126) 14-1/2 in

(0.36 m) extension (110127) foot spacer

238593 For 55-gal (200 l) cover-mounts. Includes (191128) 21-3/4 in (0.55 m) extension (110127) foot spacer

238595

For 55 gal (200 l) bung-mounted Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball 300, 5:1 and

Fire-Ball 425, 10:1. Use bung adapter 222308 on all current production models. Includes (191130)

26 in (0.66 m) extension (110127) foot spacer

238596 For 275-gal (1100 l) bung-mounts. Includes (191131) 36 in (0.91 m) extension (110127) foot spacer

15C502 Universal Down Tube 1-1/2 in tube marked for standard container lengths from 20-41 in (0.51-1.04 m)

Bung Adapters

222308

238125

For Fast-Ball 1:1; Mini Fire-Ball 225, 3:1; Fire-Ball 300, 5:1; and Fire-Ball 425, 10:1 Pumps. Allows direct mounting of all universal length and extended Fast-Ball 1:1, Mini Fire-Ball 225, 3:1, Fire-Ball

300, 5:1 and Fire-Ball 425, 10:1 pumps into standard 2 npt drum bung

For Mini Fire-Ball 225, 3:1; Fire-Ball 300, 5:1; and the Fire-Ball 425, 10:1. Includes double tap bushing (191075), 1 ft 3/8 in hose (238370), and 90º 3/8 in adapter (155494) for mounting universal pumps to tanks (see 308403 for details)

214583

For Fast-Flo 1:1 Pumps, allows direct mounting of full-length pump into standard 2 npt drum bung.

Comes with bushing sleeve (172405)

187754 Acetal Bung Adapter includes (100220) thumbscrew (for Fire-Ball 300, 15:1 SST undercoating pump)

176684 Bung Adapter for Suction Kit (203992). Includes (100220) thumbscrew

Sealed Bung Adapters (prevents rain water and other fluids from entering drum when pump is outdoors.)

204076

Sealed bung adapter for full-length Fire-Ball with 2-1/8 in (53.9 mm) bung and Mini Fire-Ball 225,

3:1 (2.140 inch diameter)

224579

Sealed bung adapter for universal length Fire-Ball pumps, 2.159 inch diameter (will not fit

Mini Fire-Ball 225, 3:1 or old style pumps with bottom foot valve)

217359 Sealed bung adapter for Fast-Flo pumps; can be used with suction kit 236054

Low-Level Cut-Offs (Prevents air from entering pump by closing intake when fluid supply to pump is exhausted.

Can be used with suction hose kit or standard suction tube without changing tube length.)

203688

Low-level cut-offs for Fast-Ball and Fire-Ball pumps that have a universal design with suction tube extension supplying metered outlets; replaces stand-off suction tube; 1.5 npt (f) inlet. 3 in (76 mm) h

Thermal Relief Valve Kits (includes valve, hose and fittings)

235998 Mini Fire-Ball 225, 3:1 thermal relief valve rated to 600 psi (41 bar)

237893 Fire-Ball 300, 5:1 and Fire-Ball 425, 6:1 thermal relief valve rated to 900 psi (62 bar)

248296

Fire-Ball 300, 5:1 and Fire-Ball 425, 6:1 thermal relief valve rated to 900 psi (62 bar) (same as

237893 minus bung adapter and swivel. Includes 6 foot hose)

237601 Fire-Ball 425, 3:1 thermal relief valve rated to 600 psi (41 bar)

240429 Fire-Ball 425, 10:1 thermal relief valve rated to 1600 psi (110 bar)

248324

Fire-Ball 425, 10:1 thermal relief valve rated to 1600 psi (110 bar) (same as 240429 minus bung adapter and swivel. Includes 6 foot hose)

238899 Diaphragm pump thermal relief valve rated to 150 psi (10.4 bar)

112353 Diaphragm pump thermal relief valve for fuel dispense; rated to 50 psi (3.4 bar), valve only

204144

3"

241663

203622

203688

www.graco.com

Fire-Ball

®

and Oil Pump Accessories

Air-Powered Oil Pumps and Packages

Ordering Information

Bleed-Type Air Shut-Off Valves (rated to 250 psi [17.4 bar]) Female ends

110223 1/4 in (6.4 mm)

110224 3/8 in (9.5 mm)

110225 1/2 in (12.7 mm)

110226 3/4 in (19.1 mm)

Fluid Shut-Off Valves (rated to 2000 psi [138 bar]) For isolating oil dispense lines.

108458 1/2 in (12.7 mm)

240418 3/8 in (9.5 mm)

108537 3/4 in (19.1 mm)

110314 1 in (25.4 mm)

240417

Fluid T-Strainers 60 Mesh Strainer, 750 psi (51 bar) working pressure. Prevents foreign material from entering dispense lines. Not for use with grease lines. 1/2 in npt(f) swivel x 1/2 in npt(m) ports

Mesh Strainer Replacement for 240417

3 replacement Elements 25 replacement Elements Mesh

238433

238431

238429

238434

238432 n/a

40 mesh

60 mesh (standard)

100 mesh

Y-Strainers 400 psi (28 bar) max. working pressure filters material before it enters the pump. 20 mesh screen.

Y-Strainer Replacement Screens Inlet/Outlet

101078

110877

110878

180199

110906

110907

3/4 npt(f) both ends

1/2 npt(f) both ends

1 npt(f) both ends

Mounting Accessories

Pump

Fast-Ball

1:1

Bung Adapter

Connection Hose Kit

222118

18 inch

(45.7 cm)

222119

72 inch

(182.8 cm)

Wall Mounting Bracket

Thermal Relief Kit

Air Regulator and Gauge

Air Filter

Air Lubricator

FRL*

Airline Shutoff Valve

Fluid Shutoff Valve

Fluid Outlet Filter

Low-Level Cutoff

Suction Hose Kit

-

110147

110146

110148

110149

110223

108537

* Filter, Regulator, Lubricator and Gauge

**Recommend 1-1/2 in, 6 ft hose assembly as suction kit

‡Must be wall-mounted or flange-mounted

Mini Fire-Ball

225, 3:1

222308

222063

Fire-Ball

300, 5:1

222062

18 inch (45.7 cm)

72 inch (182.8 cm)

203987

235998

109075

237893

106148

214847

110150

110224

108458

240417

236054

203688

101078

N/A**

Fire-Ball

425, 3:1

N/A‡

Fire-Ball

425, 6:1

N/A‡

Fire-Ball

425, 10:1

222308

238246

24 inch (60.9 cm)

238245

237601 240429

104266/100960

222068

18 inch

(45.7 cm)

222066

72 inch

(182.8 cm)

203987

106149

214848

217072

110225

108537

N/A**

www.graco.com

108458

101078

240417

21

22

NXT

High-Flo

®

Air-Powered Oil Pumps and Packages

Features and Benefits

• Move large amounts of oil fast–dispenses up to 31 gallons of oil per minute

• Tested to outperform and outlast all other pumps on the market with its long-life packing design

• Models available with intuitive, easy-to-use DataTrak

™ material usage tracking and pump runaway protection

controls–gives you pump diagnostics,

• Reduces icing and noise–new NXT air motor is up to 50% quieter than previous models

Typical Applications

• In-plant to supply long-pipe runs or large volume header systems with multiple dispense locations

• Fill remote reservoirs or feed an automated lubrication system

• Transfer and dispense large amounts of lubricant to supply a production process

• Mines/construction for rapid refill of lube trucks and to service off-road equipment

Package Number with DataTrak

Package Number without DataTrak

Ratio

Mounting

Pump with DataTrak and thermal relief kit

Inlet/ Outlet

Pump w/o DataTrak and thermal relief kit

Output per Cycle

Output at 60 CPM*

Motor Size

Maximum Fluid Pressure

Maximum Air Input Pressure

System Manual

Pump Manual

Pump Lower Manual

Motor Manual

Pump Inlet Size

Pump Outlet Size

3/4 in x 4 ft Air Hose

1 in x 6 ft Fluid Hose

*Graco recommends 20 CPM or less for supply applications

Performance Charts

A = 100 psi (7.0 bar) air pressure

B = 70 psi (4.9 bar) air pressure

C = 40 psi (2.8 bar) air pressure

247888 247889 247892 247893

24D602

3.5:1

Wall (255143)

24D590

24D603

4.5:1

Wall (255143)

24D591

24D606

6:1

Wall (255143)

24D594

24D607

6:1

Stand (218742)

24D594

24D596 24D597

2000cc

31.5 gpm (119.2 lpm)

NXT 3400

1500 cc

23.2 gpm (87.8 lpm)

350 psi (24.1 bar) 450 psi (31.0 bar)

100 psi (6.9 bar)

312862

24D600 24D600

2000 cc

31.5 gpm (119.2 lpm)

NXT 6500

2000 cc

31.5 gpm (119.2 lpm)

500 psi (35.2 bar)

75 psi (5.2 bar)

311211

311690

311831

311832

311238

1 1/2 in npt (f)

1 in npt (f)

2 in npt (f)

2 in npt (f)

110048

115042 247969

A = 100 psi (7.0 bar) air pressure

B = 70 psi (4.9 bar) air pressure

C = 40 psi (2.8 bar) air pressure

Test Fluid is No. 10 Weight Oil for all pumps

A = 70 psi (4.9 bar) air pressure

B = 55 psi (3.7 bar) air pressure

C = 40 psi (2.8 bar) air pressure

www.graco.com

NXT

High-Flo

®

Air-Powered Oil Pumps and Packages

Performance Charts

A = 7 bar (100 psi) air pressure or 105 bar (1500 psi) hydraulic oil pressure

B = 4.9 bar (70 psi) air pressure or 75 bar (1050 psi) hydraulic oil pressure

C = 2.8 bar (40 psi) air pressure or 42 bar (600 psi) hydraulic oil pressure

Test Fluid is No. 10 Weight Oil for all pumps

Package Number with DataTrak

Package Number without DataTrak

Inlet/ Outlet

Ratio

Mounting

Pump with DataTrak and thermal relief kit

Pump w/o DataTrak and thermal relief kit

Output per Cycle

Output at 60 CPM*

Motor Size

Max. Fluid Pressure

Max. Air Input Pressure

System Manual

Pump Manual

Pump Lower Manual

Motor Manual

Pump Inlet Size

Pump Outlet Size

3/4 in x 4 ft Air Hose

1 in x 6 ft Fluid Hose

*Graco recommends 20 CPM or less for supply applications

www.graco.com

247890 247894 247891 247895

24D604 24D608 24D605 –

6:1 10:1 12:1 23:1

24D592

24D598

1000cc

17.4 gpm (65.9 lpm)

24D595

24D601

NXT 3400

620 psi (42.7, 4.3 bar)

NXT 6500

1180 psi (81.3 bar)

100 psi (6.9 bar)

Wall (255143)

24D593

24D599

580cc

9.2 gpm (34.8 lpm)

NXT 3400

1190 psi (82.1 bar)

NXT 6500

1725 psi (118.9 bar)

75 psi (5.2 bar)

312862

311833

311717

311826

311825

311238

2 in npt(f)

1 1/2 in npt(m)

110048

115042

23

Grease Pumps Quick Reference

Technical Specifications and Selection Chart

Annual Usage

Line Length

LD Series , 50:1

7,000 lb

(3,125 kg)

300 ft (91 m)

Dispense Points

1 to 2

Air Inlet

1/4 in npt(f)

Material Inlet

Priming Piston

Material Outlet

1/4 in npt(f)

Mini Fire-Ball 225, 50:1

10,000 lb

(4,535 kg)

100 ft (30 m) 1

3/8 in npt(f)

Slotted

Fire-Ball 300, 50:1

10,000 lb

(4,535 kg)

250 ft (76 m) 1 to 2

3/8 in npt(f)

Slotted

Fire-Ball 425, 50:1

20,000 lb

(9,072 kg)

250-500 ft

(76-152 m)

4 or more

1/2 in npt(f)

Slotted

Fire-Ball 425, 75:1

20,000 lb

(9,072 kg)

250-500 ft

(76-152 m)

4 or more

1/2 in npt(f)

Slotted

Fire-Ball 300, 15:1

10,000 lb

(4,535 kg)

250 ft (76 m) 1 to 2

3/8 in npt(f)

Slotted

Fire-Ball 425, 10:1

20,000 lb

(9,072 kg)

250-500 ft

(76-152 m)

4 or more

1/2 in npt(f)

Slotted

24

‡ Consult your local authorized Graco representative for line or pipe sizing

1/4 in npt(f)

1/4 in npt(f)

3/8 in npt(f)

3/8 in npt(f)

1/4 in npt(f)

1 in npt(f)

www.graco.com

Grease Pumps Quick Reference

Technical Specifications and Selection Chart

Annual Usage Line Length

Check-Mate, 14:1**

20,000 lb

(9,072 kg)

Up to 100 ft

(76 m)

Dispense Points Pump Ratio(s)

1 14:1

Output

Per Cycle

500 cc

Fluids

Grease

Check-Mate, 26:1

20,000 lb

(9,072 kg)

Up to 250 ft

(76 m)

Check-Mate, 55:1

20,000 lb

(9,072 kg)

Up to 250 ft

(76 m)

1-2

Check-Mate, 29:1

20,000 lb

(9,072 kg)

Up to 250 ft

(76 m)

4 or more

1-2

Check-Mate, 63:1**

20,000 lb

(9,072 kg)

Up to 250 ft

(76 m)

Check-Mate, 68:1**

20,000 lb

(9,072 kg)

Up to 500 ft

(152 m)

1-2

1-2

26:1

29:1

55:1

63:1

68:1

500 cc

250 cc

250 cc

100 cc

200 cc

Grease

Grease

Grease

Grease

Grease

‡ Consult your local authorized Graco representative for line or pipe sizing

**NXT Check-Mate pump is available in floor stand or RAM Package.

www.graco.com

25

26

LD Series 50:1 Pump

Air-Powered Grease Pumps and Packages

Features and Benefits

• Built-in thermal relief protects your equipment from thermal expansion

• Three inch air motor provides more power to create better flow

• Cup and plate design eliminates the need for O-rings that wear out faster

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Fast lube centers

• Service shops

• Lube trucks

Pump Performance

50:1 Performance Curve

Tested with ISO 46 Hyd Oil

47

Cycles per minute

94

8000

(551.6)

7000

(482.6)

6000

(413.7)

5000

(344.7)

4000

(275.8)

3000

(206.8)

2000

(137.9)

1000

(68.9)

0

0.00

B

C

0.50

(.23)

A

Recommended Operating Range

1.00

(.45)

1.50

(.68)

2.00

(.91)

2.50

(1.13)

141

A

B

C

3.00

(1.36)

3.50

(1.59)

10

(.3)

0

4.00

(1.81)

30

(.8)

20

(.6)

50

(1.4)

40

(1.1)

Inlet Air Pressures:

A

=100 psi

(6.9 bar)

B

=70 psi

(4.8 bar)

C

=40 psi

(2.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Maximum Fluid Working Pressure ............................................................................... 7500 psi (517 bar, 51.7 MPa)

Fluid Pressure Ratio ............................................................................................................................................ 50:1

Air Operation Range ..................................................................................................20 to 150 psi (1.37 to 10.3 bar)

Recommended Air Pressure (for optimum life) .............................................................<125 psi (8.6 bar, 0.86 MPa)

Max Recommended Pump Speed ............................................................................................120 cycles per minute

Cycles Per Gallon/pound (l/kg) ................................................................... 247 cycles per pound (103 cycles per kg)

Recommended Pump Speed (for maximum life) ...........................................................60 cycles per minute or lower

Wetted Parts ......................................................................Steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal

Sound Pressure Level ................................................................................................................................ 72.9 dB(a)

Sound Power Level.................................................................................................................................. 82 dB(a)

Approximate Wieght ........................ 35 pound drum–11.2 pounds (5.1 kg), 120 pound drum–15.0 pounds (6.8 kg),

400 pound drum– 17.0 pounds (7.7 kg)

Air Inlet ....................................................................................................................................................... 1/4 in

Fluid Inlet ........................................................................................................................................ Priming Piston

Fluid Outlet ..................................................................................................................................................1/4 in

Free Flow* ................................................................................................................................................ 5lb/min

Annual Usage ...................................................................................................................Up to 7,000 lb (3175 kg)

Ordering Information

LD Series 50:1 Pumps

24G600 35 lb (16 kg) Grease Pump - 50:1

24G603 120 lb (55 kg) Grease Pump - 50:1

24G606 400 lb (180 kg) Grease Pump - 50:1

LD Series 50:1 Pump

www.graco.com

Mini Fire-Ball

®

225, 50:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant

Pump Performance psi

(bar)

8000

(552)

6000

(414)

4000

(276)

2000

(138)

0 lb/min

(kg/min)

30 cycles/min

60 90

0.17 0.32 0.49

(0.08) (0.15) (0.22)

TEST FLUID: No. 10 Weight Oil

7

(0.2)

4

(0.1)

0 scfm

(m

3

/min)

14

(0.4)

10.5

(0.3)

Inlet Air Pressures:

=140 psi

(9.6 bar)

=100 psi

(6.9 bar)

=80 psi

(5.5 bar)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ...................................................................................................0.32 lb/min (0.15 kg/min)

Maximum Fluid Pressure ................................................................................................................ 8400 psi (578 bar)

Air Motor Effective Diameter ..............................................................................................................2.25 in (57.2 mm)

Operating Range ....................................................................................................................... 40-140 psi (3-10 bar)

Approximate Air Use ......................................................7.3 scfm @ 0.41 lb/min. (.18 kg/min) @ 100 psi @ 80 cpm

Wetted Materials .............................................................. Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin ®

Air Inlet Port Size ........................................................................................................................................3/8 in npt(f)

Material Inlet ....................................................................................................................................................Slotted

Material Outlet ........................................................................................................................................... 1/4 in npt(f)

Line Length‡ .........................................................................................................................Up to 100 ft (30.5 m)

Dispense Points ..................................................................................................................................................1

Annual Usage ................................................................................................................ Up to 10,000 lb (4,535 kg)

Ordering Information

Mini Fire-Ball 225 50:1 Pumps

246909 35 lb (16 kg) Grease Pump - 50:1

246780 120 lb (55 kg) Grease Pump - 50:1

246781 400 lb (180 kg) Grease Pump - 50:1

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

27

Fire-Ball

®

300, 15:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant psi

(bar)

1200

(83)

900

(62)

600

(41)

300

(21)

0

gpm

(lpm)

Pump Performance

22 cycles/min

45 67 90 scfm

(m3/min)

12

(0.34)

9

(0.26)

6

(0.17)

0.25 .50 .75 1

(0.95) (1.7) (2.9) (3.8)

3

(0.08)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ............................................................................................................................. 0.7 gpm

Maximum Fluid Pressure ................................................................................................................ 2700 psi (186 bar)

Air Motor Effective Diameter ......................................................................................................................3 in (7.6 cm)

Operating Range ................................................................................................................. 40-180 psi (2.8-12.5 bar)

Approximate Air Use ............................................................................................................17 [email protected] 100 psi (7 bar)

Wetted Materials .......................................................................................................... CS, AL, Leather, PTFE, Rubber

Air Inlet Port Size ....................................................................................................................................... 3/8 in npt(f)

Material Inlet ........................................................................................................................... 1 in npt(f) Straight Inlet

Material Outlet ........................................................................................................................................... 1/4 in npt(f)

Line Length‡ ........................................................................................................................

Up to 250 ft (76.2 m)

Dispense Points ........................................................................................................................................... 1 to 2

Annual Usage ..............................................................................................................

Up to 10,000 lb (4,535 kg))

Ordering Information

Fire-Ball 300 15:1 Pumps

206405 35 lb (16 kg) Grease Pump - 15:1

206699 120 lb (55 kg) Grease Pump - 15:1

206700 400 lb (180 kg) Grease Pump - 15:1

28

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

300, 50:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant

Pump Performance psi

(bar)

8000

(552)

6000

(414)

30 cycles/min

60 90 scfm

(m3/min)

40

(1.13)

4000

(276)

2000

(138)

30

(0.85)

20

(0.57)

0

lb/min

(kg/min)

1.0

(.5)

2.0 3.0 4.0

(.9) (1.4) (1.8)

TEST FLUID: NLG1 #1 Grease at 70 F (21 C)

0

10

(0.28)

Inlet Air Pressures:

=150 psi

(10.3 bar)

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ...................................................................................................1.19 lb/min. (.54 kg/min.)

Maximum Fluid Pressure ................................................................................................................ 8400 psi (580 bar)

Air Motor Effective Diameter ....................................................................................................................3 in (76.2 cm)

Operating Range ................................................................................................................... 30-140 psi (3.0-9.7 bar)

Approximate Air Use .........................................................................................................22.8 cfm @100 psi (7 bar)

Wetted Materials .....................................................................................................CS, Delrin ® , Buna-N, Polyurethane

Air Inlet Port Size ....................................................................................................................................... 3/8 in npt(f)

Material Inlet ....................................................................................................................................................Slotted

Material Outlet ........................................................................................................................................... 1/4 in npt(f)

Line Length‡ ........................................................................................................................

Up to 250 ft (76.2 m)

Dispense Points ........................................................................................................................................... 1 to 2

Annual Usage ...............................................................................................................

Up to 10,000 lb (4,535 kg)

Ordering Information

Fire-Ball 300 15:1 Pumps

239877 35 lb or 70 lb (16 kg or 32 kg) Grease Pump - 50:1

239887 120 lb (55 kg) Grease Pump - 50:1

239888 400 lb (180 kg) Grease Pump - 50:1

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

29

Fire-Ball

®

425, 10:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant

Pump Performance psi

(bar)

7500

(510)

13 cycles/min

27 41

53 scfm

(m3/min)

6000

(408)

4500

(306)

3000

(204)

40

(1.1)

30

(.85)

20

(0.56)

0

lb/min 1 2 3 4

(kg/min) (0.45) (.9) (1.4) (1.8)

10

(0.28)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ............................................................................................................................. 3.5 gpm

Maximum Fluid Pressure ................................................................................................................ 1800 psi (124 bar)

Air Motor Effective Diameter .............................................................................................................. 4.25 in (10.8 cm)

Operating Range ................................................................................................................. 40-180 psi (2.8-12.5 bar)

Approximate Air Use ............................................................................................................13 cfm @100 psi (7 bar)

Wetted Materials ........................................................................................... Steel, Bass, Aluminum, Leather, Buna-N

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Material Inlet ....................................................................................................................................................Slotted

Material Outlet ...............................................................................................................................................1 in npt(f)

Line Length‡ ......................................................................................................................

Up to 500 ft (152.4 m)

Dispense Points ..................................................................................................................................... 4 or more

Annual Usage ...........................................................................................................

20,000 lb or more (9,072 kg)

Ordering Information

Fire-Ball 425 10:1 Pumps

965124 Stubby mount Fire-Ball 425, 10:1 pump only

30

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

425, 50:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant

Pump Performance psi

(bar)

7500

(510)

13 cycles/min

27 41 53 scfm

(m3/min)

6000

(408)

40

(1.1)

4500

(306)

3000

(204)

30

(.85)

20

(0.56)

0

lb/min 1 2 3 4

(kg/min) (0.45) (.9) (1.4) (1.8)

10

(0.28)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=150 psi

(6.9 bar)

=100 psi

(4.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ....................................................................................................3.35 lb/min (1.5 kg/min.)

Maximum Fluid Pressure ................................................................................................................ 7500 psi (517 bar)

Air Motor Effective Diameter .............................................................................................................. 4.25 in (10.8 cm)

Operating Range ................................................................................................................. 40-150 psi (2.8-10.4 bar)

Approximate Air Use ...........................................................................................................19 cfm @70 psi (4.8 bar)

Wetted Materials ....................................................................................................................................... CS, Leather

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Material Inlet ....................................................................................................................................................Slotted

Material Outlet ........................................................................................................................................... 3/8 in npt(f)

Line Length‡ .........................................................................................................................Up to 250 ft (76.2 m)

Dispense Points ..................................................................................................................................... 4 or more

Annual Usage ...........................................................................................................

20,000 lb or more (9,072 kg)

Ordering Information

Fire-Ball 425 50:1 Pumps

205394 120 lb (55 kg) Grease Pump - 50:1

205395 400 lb (180 kg) Grease Pump - 50:1

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

31

Fire-Ball

®

425, 75:1

Air-Powered Grease Pumps and Packages

Features and Benefits

• Non-corrosive air motor design for long life

• Double-acting pump ensures smooth fluid flow

• Robust grease inlet cage withstands the most abusive handling

Typical Applications

• Medium pressure, low to medium volume grease dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube and service centers

• Fleet service facilities

• Lube trucks

• Mining

• In-plant

Pump Performance psi

(bar)

7500

(510)

13 cycles/min

27 41

53 scfm

(m3/min)

6000

(408)

4500

(306)

3000

(204)

40

(1.1)

30

(.85)

20

(0.56)

0

lb/min 1 2 3 4

(kg/min) (0.45) (.9) (1.4) (1.8)

10

(0.28)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

Typical Fluids Handled

• Grease up to NLGI #2

Technical Specifications

Continuous-Duty Flow Rate ...................................................................................................1.95 lb/min (0.88 kg/min)

Maximum Fluid Pressure ................................................................................................................ 7500 psi (517 bar)

Air Motor Effective Diameter .............................................................................................................. 4.25 in (10.8 cm)

Operating Range ...................................................................................................................... 40-100 psi (2.8-7 bar)

Approximate Air Use ............................................................................................................26 cfm @100 psi (7 bar)

Wetted Materials ....................................................................................................................................... CS, Leather

Air Inlet Port Size ....................................................................................................................................... 1/2 in npt(f)

Material Inlet ....................................................................................................................................................Slotted

Material Outlet ........................................................................................................................................... 3/8 in npt(f)

Line Length‡ .......................................................................................................................Up to 500 ft (152.5 m)

Dispense Points ..................................................................................................................................... 4 or more

Annual Usage ............................................................................................................ 20,000 lb or more (9,072 kg)

Ordering Information

Fire-Ball 425 75:1 Pumps

239729 120 lb (55 kg) Grease Pump - 75:1

239730 400 lb (180 kg) Grease Pump - 75:1

239731 35/70 lb (16/32 kg) Grease Pump - 75:1

32

‡ Consult your local authorized Graco representative for line or pipe sizing

www.graco.com

Fire-Ball

®

Grease Pump Packages

Air-Powered Grease Pumps and Packages

Portable Dispense

Package with

Caster Base

35 lb. Stationary

Supply Package with Dispense Kit

35 lb. Portable

Supply Package with Dispense Kit

120 lb. Stationary

Supply Package

400 lb. Stationary

Supply Package

400 lb. Stationary

Supply Package with

Dispense Kit

Mini Fire-Ball ® 225, 50:1 Grease Pumps and Packages

Portable Pail

Dispenser

Stationary Pail

Dispenser

Cart-Mounted Pail

Dispenser

Stationary

Supply Package

Portable Package w/ Caster Base

Portable Package w/ 2-Wheel Cart

Container Size

Package No.

Pump Only.

Container

Follower Plate

Dispense Kit

Fluid Hose

Air Hose

35 lb (16 kg) pail 35 lb (16 kg) pails or 70 lb (32 kg) bulk

246910 + 246911 + 246913 +

246909

220653

222059

*

236058

12 ft x 1/4 in

204134

(3.7 m x 6.4 mm)

204574

*

204574

246914 +

222072

6 ft x 1/4 in

(1.8 m x 6.4 mm)

6 ft x 3/8 in

(1.8 m x 9.5 mm)

Cover

Cart

Manual

222059

— — 203650

204574

309967

203622

+ Order 3/8 in (9.5 mm) air regulator (109075) separately * Order follower plate 220653 separately for 35 lb (16 kg) pails or 220654 for 70 lb (32 kg) bulk

120 lb (55 kg)

246915 +

246780

220654

246916 +

236058

12 ft x 1/4 in

(3.7 m x 6.4 mm)

203650

Fire-Ball ® 300, 15:1 Grease Pumps and Packages

Container Size lb (kg)

Package No.

Pump Only

Dispense Kit

Fluid Hose

Drum Cover

Instruction Manual

Stationary Pail Dispenser

35 lb (16 kg)

222078

206405

222080

15 ft x 3/8 in (4.6 m x 9.5 mm)

222058

Stationary Drum Dispenser

120 lb (55 kg)

220170

206699

222081

25 ft x 3/8 in (7.6 m x 9.5 mm)

204574

307882

Stationary Supply

Package

400 lb (180 kg)

246917 +

246781

223845

222072

6 ft x 1/4 in

(1.8 m x 6.4 mm)

6 ft x 3/8 in

(1.8 m x 9.5 mm)

200326

Cover-Mounted Drum Dispenser

400 lb (180 kg)

220171

206700

222081

25 ft x 3/8 in (7.6 m x 9.5 mm)

200326

www.graco.com

33

Fire-Ball

®

Grease Pump Packages

Air-Powered Grease Pumps and Packages

Fire-Ball ® 300, 50:1 35-70 lb (16-32 kg) Grease Pumps and Packages

Container Size

Package No.

Metered Package**

Pump No.

Dispense Kit

Fluid Hose

Follower Plate

Cover

Holster

Container

Cart

Elevator

Inductor Plate

Instruction Manual

Portable Pail Dispenser

35 lb (16 kg)

222069 *

245694

220653

222059

Stationary Pail Dispenser

35 lb or 70 lb (16 kg or 32 kg)

Cart-Mounted Pail Dispenser

35 lb or 70 lb (16 kg or 32 kg)

225827 *

239877

222070

12 ft x 1/4 in (3.7 m x 6.4 mm)

225773 *

245695

† †

204574

203976

204134 204134

307878

203650

Cart-Mounted Pail Topper

35 lb (16 kg)

226012 *

203664

204351

* Use 3/8 in (9.5 mm) air regulator 109075; must be ordered separately ** Metered grease package includes 233807 Accu-Shot instead of 242056 Pro-Shot † Order follower plate 220653 for 35 lb (16 kg) containers, and follower plate 220654 for 70 lb (32 kg) containers; must be ordered separately

Portable Dispense

Package with

Two-Wheel Cart

Stationary Supply

Topper-Inductor

34

Portable Dispense

Package with

Caster Base

Portable Dispense

Package with

Heavy-Duty Cart

Fire-Ball ® 300, 50:1 Packages For 120 lb (55 kg) Containers

Container Size lb (kg)

Package Number

Metered Package

Pump Only

Dispense Kits

Fluid Hose

Portable with

Caster Base

120 (55)

225006 *

239887

222070

12 ft x 1/4 in

(3.7 m x 6.4 mm)

Portable with

Two-Wheel Cart

120 (55)

225026 *

245696 **

239887

222070

Portable with

Heavy-Duty Cart

120 (55)

222245 *

239887

222383

25 ft x 1/4 in

(7.6 m x 6.4 mm)

Air Hose — — —

Follower Plate

Cover

Holster

Caster Base

Cart

Elevator

Pump Support

Hold Down Kit

Instruction Manual

220654

204574

203976

203622

307878

220654

204574

203976

203650

307878

220654

222060

222243

222061

307878

* Use 3/8 in (9.5 mm) air regulator 109075; must be ordered separately ** Metered grease package includes 233807 Accu-Shot instead of 242056 Pro-Shot

† Pump support assembly includes dust cover, base, inductor plate and 6 ft (1.8 m) fluid & air hose

Stationary

Supply

Stationary Supply

120 (55)

225014 *

239887

222072

6 ft x 1/4 in

(1.8 m x 6.4 mm)

6 ft x 3/8 in

(1.8 m x 9.5 mm)

220654

204574

307880

www.graco.com

Stationary Supply

Topper-Inductor

120 (55)

222073 *

239887

-

6 ft x 1/4 in

(1.8 m x 6.4 mm)

6 ft x 3/8 in

(1.8 m x 9.5 mm)

204121

222074†

306523

Fire-Ball

®

Grease Pump Packages

Air-Powered Grease Pumps and Packages

Fire-Ball ® 300, 50:1 Packages for 400 lb (180 kg) Containers

Container Size lb (kg)

Package Number

Pump Only

Hose & Fitting Kit

Fluid Hose

Air Hose

Follower Plate

Cover

Carriage

Elevator

Inductor Plate

Base

Instruction Manual

* Use 3/8 in (9.5 mm) air regulator 109075; must be ordered separately

Stationary

400 (180)

225016*

239888

222072

6 ft (1.8 m) x 1/4 in (6.4 mm)

6 ft (1.8 m) x 3/8 in (9.5 mm)

223845

200326

307880

Topper-Inductor

400 (180)

226013*

239888

204467

6 ft (1.8 m) x 1/4 in (6.4 mm)

6 ft (1.8 m) x 3/8 in (9.5 mm)

204461

204385

204353

205339

306556

400 lb. Stationary

Supply Package

120 lb. Stationary

Supply with

Topper-Inductor

Fire-Ball ® 425, 10:1 Packages

10:1 Pump for Closed Head Drum for 400 lb (180 kg)

965129

Fire-Ball 425, 10:1 pump complete with bung adapter. For open head drum, remove bung adapter and mount to 200326, 400 lb (180 kg) drum cover. Ideal for transferring grease from 400 lb (180 kg) drum or side pocket of tote tank. Can be modified for stubby horizontal mount on tote tanks.

For more information contact Lubrication Equipment Technical Assistance

Fire-Ball 425, 10:1 Pump Only

205394 Fire-Ball 425, 10:1 pump only, fits 120 lb. Open Drum

205395 Fire-Ball 425, 10:1 pump only, fits 400 lb. Open Drum

965124 Fire-Ball 425, 10:1 pump only, Stubby Universal Mount

Stationary Supply

Package

Fire-Ball ® 425, 50:1; Bulldog ® 3:1 Packages for 120-400 lb (56-180 kg) Containers

Description Stationary Supply Stationary Supply

Stationary Supply

Topper-Inductor

Ram

Container Size lb (kg)

Package Number

Pump Only

Air Hose Kit

Fluid Hose

Air Hose

Cover

Follower Plate

Carriage

Elevator

Inductor Plate

Base

Ram

Air Regulator

Adapter Plate

Adapter Kit

120 (55)

223108*

205394

222076

204574

223344

400 (180)

225781*

205395

222076

200326

223846

400 (180)

226018*

205395

205102

6 ft x 3/8 in (1.8 m x 9.5 mm)

6 ft x 1/2 in (1.8 m x 12.7 mm)

204461

204385

205699

205339

400 (180)

244905

205395

222076

244844

162225

224266

Manual 307880 307880 306556 309345

* Use 1/2 in (12.7 mm) air regulator 104266 and gauge 100960; must be ordered separately For Fire-Ball 425, 50:1 Lube Truck Packages, see the Specialty Pump Section

www.graco.com

400 lb. Stationary

Supply with

Topper-Inductor

Bulldog 3:1 (Sinker)

400 (180)

244848

205148

208610

222404

207651

309345

35

Fire-Ball

®

Grease Pump Packages

Air-Powered Grease Pumps and Packages

36

246916

226012

246911 or 225827

Fire-Ball ® 425, 75:1 Packages for 35-400 lb (16-180 kg) Containers

Description Cover-Mount Cover-Mount Inductor

246913 or 225773

246910 or

222069

Container Size lb (kg)

Package Number

Pump Only

Hose and Fitting Kit

Drum Cover

Follower Plate

Carriage

Elevator

Base

Inductor

Ram

Air Regulator

Adapter Plate

Adapter Kit

120 (55)

244635*

239729

222076

204574

223344

400 (180)

244636*

239730

222076

200326

223846

400 (180)

244637*

239730

205102

204461

204385

205339

205699

Ram

400 (180)

244906

239730

222076

244844

162225

224266

Pail Length

35/70 lb (16/32 kg)

239731

204574

**

Bung or Cover

400 (180)

239730

Manual 307880 307880 306556 09345 —

* Use 1/2 in (12.7 mm) air regulator (104266) and gauge (100960); must be ordered separately ** 35 lb: 220653/ 70 lb: 223344 • For Lube Truck Packages, see the Specialty Pumps and Packages Solution Section

RAM Assemblies

Description

System Package

Bare Pump

Ram

Pump Mount Kit

Adapter Kit

Air Regulator and Gauge

Ram Plate Seal Kit

Air Hose 3/4 in x 6 ft

Fire-Ball 300, 50:1

*

239888

257435

247336

224267

203716

247335

*Order individual components **Drum clamp when required 206537

Fire-Ball 425, 75:1

244906

239730

247337

224266

244844

247335

Fire-Ball 425, 50:1

244905

205395

247337

224266

244844

247335

Fire-Ball 425, 10:1

*

965129

247337 not needed

207468

247335

Bull Dog, 3:1**

244641

205148

207651

224829

208610

Drum Systems

Ram-Mount

• Force feed high volume pumps

• Extreme viscous grease

• Reduce waste

• Clean and convenient method of drum change

Inductor-Mount

• Reduce waste

• Clean and convenient method of drum change

Cover-Mount with Follower Plate

• Economical

www.graco.com

Fire-Ball

®

Grease Pump Accessories

Air-Powered Grease Pumps and Packages

Dispense, Hose and Fitting Kits

Rated to 4,000-5,000 psi (345 bar) for Portable Fire-Ball 300, 50:1 or Mini Fire-Ball 225, 50:1 Pumps

222080

For Fire-Ball 300, 15:1. Includes: 15 ft (4.6 m) of 4,000 psi, 3/8 in (9.5 mm) fluid hose (109165), grease dispense valve (242056), Z-Swivel (202577), 3/8 in (9.5 mm) closed nipple (156849), quick-disconnect nipple (169971), quick-disconnect air coupler (110198) and 3/8 in (9.5 mm) air regulator (110234)

222081

For Fire-Ball 300, 15:1. Includes: 25 ft (7.6 m) of 4,000 psi, 3/8 in (9.5 mm) fluid hose (109167), grease dispense valve (242056), Z-Swivel (202577), 3/8 in (9.5 mm) closed nipple (156849), quick-disconnect nipple (169971), quick-disconnect air coupler (110198) and 3/8 in (9.5 mm) air regulator (110234)

236058

222070

For Mini Fire-Ball 225, 50:1. Includes: 12 ft (3.6 m) fluid hose (109151), air coupler (208536), air nipple (169971), grease dispense valve (242056) and Z-Swivel (202577)

For Fire-Ball 300, 50:1. Includes: 12 ft (3.6 m) fluid hose (109151), air coupler (208536), air nipple

(169971), grease dispense valve (242056) and Z-Swivel (202577). Instruction manual 307878

222383

For Portable Units Powered by the Mini Fire-Ball 225, 50:1 or Fire-Ball 300, 50:1 Pumps. Includes dispense kit: grease dispense valve (242056), 25 ft (7.6 m) fluid hose (109154), air coupler

(208536), air nipple (169971) and Z-Swivel (202577). Instruction manual 307878

Hose and Fitting Kits

Rated to 5000 psi (345 bar) for Stationary Drum-Mounted Fire-Ball 300, 50:1 Pumps

222072

Hose and Fittings Kit. Includes: 6 ft (1.8 m) air hose (203320) with swivel elbow (155494) and 6 ft

(1.8 m) fluid hose (109150) with swivel elbow (155541). Instruction manual 307880

Rated to 4000 psi (276 bar) for Stationary Drum-Mounted Fire-Ball 425, 50:1 Pumps

222076

Hose and Fittings Kit. Includes: 6 ft (1.8 m) air hose (205418) with swivel elbow (155470) and 6 ft

(1.8 m) fluid hose (109163) with swivel elbow (155494). Instruction manual 307880

Bung Adapters

239965 For Fire-Ball 425, 50:1 and 75:1 Pumps, 1.65 in ID

239966 For Fire-Ball 300, 15:1 and 50:1 Pumps

Lincoln-to-Graco Adapter Kit

241246 For Fire-Ball 300, 50:1 when replacing a Series 20 Lincoln

Flange Mounting Accessories for Fire-Ball Pumps

948393 Flange adapter (male) Fire-Ball 300

948392 Flange adapter (male) Fire-Ball 425

512874 Coupler (female)

Follower Plates

220653 For 35 lb (16 kg) pails with Mini Fire-Ball 225, 50:1, Fire-Ball 300, 15:1 and 50:1 pumps

220654

For 70 and 120 lb (32/55 kg) drum, Mini Fire-Ball 225, 50:1, Fire-Ball 300, 15:1 and 50:1 pumps

223344 For 120 lb (55 kg) drums with Fire-Ball 425, 50:1 and 75:1 pumps

223700 For 120 lb (55 kg) drums with Dyna-Star 5:1 pumps

223845 For 400 lb (180 kg) drum, Mini Fire-Ball 225, 50:1, Fire-Ball 300, 15:1 and 50:1 pumps, 1.19 in ID

204130 Follower plate same as 223845, but without flexible wiper

223846 For 400 lb (180 kg) drums with Fire-Ball 425, 50:1 and 75:1 pumps, 1-13/32 in ID

205337 Follower plate same as 223846, but without flexible wiper

223701 For 400 lb (180 kg) drums with Dyna-Star 5:1 and Fire-Ball 425, 10:1 pumps, 2.1 in ID

Drum Covers

200326

Cover for open-head 400 lb (180 kg) drums. Use with any Mini Fire-Ball 225-50:1, Fire-Ball 300-15:1 and 50:1, Fire-Ball 425-10:1 or Dyna-Star 5:1 pump. Use adapter 160754 for bung mounted pumps

204574

222059

160754

Cover for open-head 120 lb (55 kg) or 70 lb (32 kg) drums. Mounts Mini Fire-Ball 225, Fire-Ball grease pumps or Dyna-Star 5:1 pump. Use adapter 160754 for bung mounted pumps

Cover for 35 lb (16 kg) pails. Mounts Mini Fire-Ball 225, 50:1 and Fire-Ball 300, 50:1 pumps using friction-style clutch lock. Allows use of 70 lb (32 kg) length pump with 35 lb (16 kg) pail

Bung-adapter plate. Mounts to standard 400 lb (180 kg) or 120 lb (55 kg) drum cover and converts mounting to standard 2 npt bung opening. Allows use of bung-mounted pumps with drum covers

www.graco.com

220653

204574

200326

222059

160754

37

38

Fire-Ball

®

Grease Pump Accessories

Air-Powered Grease Pumps and Packages

Portable Bases

205054 Band Dolly for 35 lb (16 kg) pails

204144 Band Dolly Base for 70 lb (32 kg) or 120 lb (55 kg) drums

203622 Caster Base for 35 lb (16 kg), 70 lb (32 kg) or 120 lb (55 kg) drums

Carts

203650

For 35 lb (16 kg), 70 lb (32 kg) and 120 lb (55 kg) drums. Drums fit onto recess on formed base. Rim clamps secure drum onto cart. Use with pail clamp 159952 when using cart with 35 lb (16 kg) pails

222243 For 120 lb (55 kg) drums with pneumatic wheels for rough terrain

111470 Heavy-duty drum truck for 400 lb (180 kg) drums secures drum onto roll-around base

Drum Elevators

241663

Air-Powered Elevator to speed drum changes. Maximum raised height: 39.5 in (100.33 cm). Includes:

Cover Support (207562), Drum Elevator, (204385), Air Control Kit (207561)

Air Shut-Off Valves, Bleed-type, rated to 250 psi (17.4 bar)

110223

1/4 in (6.4 mm)

110224 3/8 in (9.5 mm)

110225

1/2 in (12.7 mm)

110226 3/4 in (19.1 mm)

High-Pressure Grease Shut-Off Valves

202869 5000 psi (345 bar) high-pressure needle valve, 1/2 npt(f) ported valve for drop-line isolation

204144

241663

111470

203622

202869

203650

www.graco.com

NXT

Check-Mate

®

Packages

Air-Powered Grease Pumps and Packages

Ordering Information

Package Number with

DataTrak

247973

Package Number without

DataTrak

24E006

247976

24E007

Ratio

Pump with DataTrak

Pump w/o DataTrak

Mounting

3/4 in x 6 ft Air Hose

1 in x 6 ft Fluid Hose

System Manual

Pump Manual

14:1

P14MCS

P14DCS

115042

Pump Lower Manual

Motor Manual

Note: Graco recommends 20 cpm or less for supply applications

26:1

P26MCS

P26DCS

Performance Charts

A = 100 psi (7 bar)

B = 70 psi (5.0 bar)

C = 40 psi (2.8 bar)

D = 90 psi (6.3 bar)

Test Fluid : #10 Weight Oil for all pumps

247974 247977

24E008 24E009

29:1

P29MCS

55:1

P55MCS

P29DCS P55DCS

Floor Stand (223952)

208610

244657

312863

312376

312375

311238

247975

24E010

63:1

P63MCS

P63DCS

247978

24E011

68:1

P68MCS

P68DCS

Ordering Information

NXT Check-Mate RAM Packages

Ratio

Package Number

Mounting

Operation Manual

www.graco.com

14:1

247979

63:1

247980

RAM System

312371

68:1

247981

39

Diaphragm Pumps and Accessories

Air-Operated Double Diaphragm Transfer Pumps

40

D31255

241906 647648

DB3525

DF3525

DK3525

Ordering Information and Technical Specifications

Key OT = Oil Transfer OE = Oil Evacuation WA = Water, Anti-Freeze FD = Fuel Dispense

(with 50 psi relief valve)

FT = Fuel Transfer WWS = Windshield Wash Solution

Body/Diaphragm Description

Part

Number

Typical

Application

Max.

Air

SCFM

Air

Inlet

NPT

Max. psi

(bar)

Fluid

Inlet/

Outlet

Free Flow gpm (lpm)

Air Valve

Replacement

Kit

Kits

(Seats, Balls,

Diaphragms)

Diaphragm

Kit

Manual

307 3/8 in Diaphragm Pump

Acetal/TPE

D31255

OT, WA,

WWS

7 (1) 1/4

100

(7)

3/8 7 (31.8) 239952 D03255 D03005 308553

515 3/4 in Diaphragm Pump

Aluminum/Buna N

716 3/4 in Diaphragm Pump

Acetal/Buna Dual Inlet

1 in Diaphragm Pumps

1050A Aluminum/TPE (UL)

1050A Aluminum/TPE (UL)

1050A Aluminum/TPE

243669

241906

647016

647648

647666

1590 1-1/2 in Diaphragm Pump

Aluminum/TPE

2150 2 in Diaphragm Pump

Aluminum/TPE

DB3525

DF3525

3275 3 in Diaphragm Pump

Aluminum/TPE

NOTE: All pumps are 1:1 ratio

DK3525

(1)

Max air use at 100 psi (7.0 bar)

OT, OE,

WA, WWS

50/50

WWS, WA

OE, WA,

FT

(leaded fuel only)

28

28

67

(1)

(1)

1/4

1/4

1/2

100

(7)

100

(7)

120

(8.2)

3/4

3/4

1

16 (60.6)

16 (61)

50 (189)

FD

OT, OE,

WA

OT, OE,

WA

OT, OE,

WA

20

67

90

175

(2)

(2)

(3)

(3)

1/2

1/2

1/2

1/2

50

(3.4)

125

(8.6)

120

(8.3)

120

(8.3)

1

1

1 1/2

2

32 (121)

50 (189)

90 (341)

150 (567)

OT, OE,

WA

325 (3) 3/4

(2)

Max air use at 125 psi (8.6 bar)

120

(8.3)

3

275

(1,041)

(3)

Max air use at 120 psi (7.0 bar)

241657

241657

24B766

236273

236273

238765

D05277

D05277

24B634 and

24B639

D0B525

D0F525

D0K525

Mounting Accessories

Pump

Air Line Filter

Air Regulator & Gauge

Air Quick-Connect Coupler

Air Quick-Connect Nipple

Bleed Type Air Valve

Wall Bracket

Thermal Relief Kit

Thermal Relief Valves

150 psi (10.3 bar)

307

110147 110147

208536, 1/4 npt(f)

169970, 1/4 npt(m)

238899

110146

110223

224835

515/716

113497 al/bn, 112119 ss/tf

238428

1050

106148

244844

110224

246637

1590

106149

202858

110199, 1/2 npt(f)

110196, 1/2 npt(f)

N/A

N/A

Grounding Wire and Clamp

Suction Hose Kit

Flange Adapter Kit

Dual Inlet Manifold

N/A

N/A

236054

N/A

*

N/A

685984 **

Instruction Manual 308553 308573 & 308981 308326 & 308479

*243669 comes with dual inlet **Dual inlet must be ordered separately for 685984

222011

N/A

N/A

N/A

308441

110225

2150

106150

206199

N/A

N/A

113497 al/bn , 112119 ss/tf

N/A

N/A

N/A

308368

D05007

D05007

24B624

D0B005

D0F005

D0K005

3275

106150

207651

N/A

N/A

110226

N/A

N/A

N/A

N/A

N/A

308639

308573

308573

313597

313597

312877

308441

308368

308639

www.graco.com

Fast-Flo

®

1:1

Transfer Pumps and Accessories

Features and Benefits

• Differential air motor for smooth operation and reliability

• Stainless steel models available for corrosion resistance

Typical Applications

• Low pressure, high volume transfer of low viscosity fluids

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

Pump Performance

• Fleet service facilities

• Service shops psi

(bar)

120

(8.3)

25 cycles/min

50 75 100 scfm

(m3/min)

10

(0.3)

• In-plant

• Lube trucks

80

(5.5)

8

(0.23)

• Mining

40

(2.7)

6

(0.17)

20

(1.4)

Typical Fluids Handled

• Water

• Anti-freeze

• Windshield wash fluid

• Used oil

• Used anti-freeze

NOTE: Use Fast-Ball 1:1 for petroleum-based products.

0

gpm

(lpm)

4

(0.12)

1 2 3 4

(3.8) (7.6) (11) (15)

2

(0.08)

TEST FLUID: No. 10 Weight Oil

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Technical Specifications

Flow Rate gpm (lpm) .......................................................................................................................................... 5 (19)

Maximum Fluid Pressure psi (bar) ...............................................................................................................180 (12.4)

Operating Range (1) psi (bar) ...............................................................................................................40-180 (2.8-12)

Wetted Materials ...............................................................................................................................See Ordering Info

Air Inlet Size .................................................................................................................................................. 1/4 npt(f)

Material Inlet (2) ..........................................................................................................................................1-1/2 npt(f)

Material Outlet .............................................................................................................................................. 3/4 npt(f)

Line Length‡ .................................................................................................................................Up to 100 ft (30 m)

Dispense Points ..................................................................................................................................................1

Annual Usage .................................................................................................................. Up to 5000 gal (18921 l)

(1) Max Operating Air Pressure for 226951 is 60 psi (4.2 bar)

(2) For universal pumps

‡ Consult your local authorized Graco representative for line or pipe sizing

226948

226947

www.graco.com

41

42

Fast-Flo

®

1:1

Transfer Pumps and Accessories

Ordering Information

Universal-Length Pumps (includes motor and pump-lower assembly)

Part Number 226948 226952 237130

Material

Std. Seal Repair Kits

Material

Typical Fluids

CS

218112

Rubber

SST

218112

Rubber

CS

213012

Leather

Note: All seal repair kits are interchangeable with other Fast-Flo pumps.

Drum-Length Pumps (includes motor and pump-lower assembly)

Part Number

Wetted Parts

Std. Seal Repair Kits

226947

CS

226951 †

CS

218112

226953

SST

Material Rubber

Typical Fluids

Note: All seal repair kits are interchangeable with other Fast-Flo pumps.

* UL-listed

** UL-listed and CE-marked

† Adjustable down tube length between 18 in (457 mm) to 46.4 in (1180 mm)

237131

CS

213013

PTFE

Motor Oil

237132

SST

213013

PTFE

226943 *

CS

213012

Leather

226944 **

CS

215964

Polyethylene

226945 **

SST

215964

Polyethylene

Anti-Freeze, Windshield Wash

237133

CS

213012

Leather

237134

CS

213013

237129

SST

PTFE

Motor Oil

226940

CS

213012

Leather, PTFE,

Leather

226941

CS

215964

226942

SST

Polyethylene, UHMWPE

A/W

Accessories

Motor Service Kits for all Fast-Flo 1:1 Pumps

220168

Motor Service Kits for all Fast-Flo 1:1 Air Valve Piston Assembly (used with repair kit 214584, which must be ordered separately)

Hose and Fittings Kits

222118

222119

18 in (0.5 m) for connecting wall-mounted Fast-Flo 1:1 pumps to piping. Includes: air hose (109123) with swivel elbow (155541), fluid hose (109108) with swivel elbow (160327)

6 ft (1.8 m) for use with drum-mounted Fast-Flo 1:1 pumps. Includes: air hose (109125) with swivel elbow (155541), fluid hose (109105) with swivel elbow (160327)

Bung Adapters

214583 Allows direct mounting of full-length Fast-Flo 1:1 pumps into standard 2 npt drum bung

217359 Sealed bung adapter for Fast-Flo pumps; can be used with suction kit 236054

Installation Kits

218316 Includes shut-off valve, regulators, gauges and fittings as necessary for normal installation

www.graco.com

Hurricane

Electrical Powered Pumps and Packages

Features and Benefits

• Electric pump with 6 ft (1.8 m) grounded power cord

• Digital metering standard on all units

• Quick-change bung adapter

• Pumps synthetic- or petroleum-based oils, ATF and antifreeze (up to 50/50 mix)

• Simple two button operation

• Fits any container up to 44 in (1.1 m) tall with a 2 in =NPT opening

• Measures in quarts, gallons, pints or liters

• Available with 8 ft or 25 ft (2.4 m or 7.6 m) meter and hose or built-in tapper

• Variety of portable package options

Typical Fluids Handled

• Synthetic- and petroleum-based oils

• Automatic transmission fluid

• Anti-freeze (50/50 mix)

Technical Specifications

Voltage ............................................................................................................................................ 110 Volts / 60 Hz

Maximum current ............................................................................................................................................6 Amps

Flow rate ...................................................................................................................................... 1.50 gpm (6.0 lpm)

Maximum container height ..................................................................................................................... 44 in (1.1 m)

Weight (varies by model) ................................................................................................................Up to 20 lbs (9 kg)

Meter accuracy .............................................................................................................................................. ± 1.5%

Instruction manual ..........................................................................................................................................311216

Note: ETL listed in US and Canada

Ordering Information

Hurricane Dispense Systems

248918

234902

249294

Hurricane metered tapper unit

Hurricane 8 ft (2.4 m) hose and meter

Hurricane 25 ft (7.6 m) hose and meter

Portable Packages with 25 Gallon Dispense Cart

249783

249771

Hurricane metered tapper unit

Hurricane 8 ft (2.4 m) hose and meter

249821 Hurricane 25 ft (7.6 m) hose and meter

Portable Packages for 16 Gallon (60 l) Barrels

253487

253486

253494

Accessories

253683

Hurricane caster base with metered tapper

Hurricane caster base with 8 ft (2.4 m) hose and meter

Hurricane caster base with 25 ft (7.6 m) hose and meter

Hurricane caster base

249771 and 249821

Portable package with 25 gallon dispense cart

234902 and

249294

Hurricane with meter

& hose

253486 and 253494

Portable package

16 gallon barrel not included

248918

Hurricane tapper unit

www.graco.com

234902 and 249294

Hurricane with meter & hose

43

44

APEX

and APEX On-Demand

Electrical Powered Pumps and Packages

APEX Transfer Pumps

• Available with 12 VDC, 115 VAC and 230 VAC electric motors

• Self-priming, positive displacement design

• Pumps petroleum- and synthetic-based lubricants up to 8 gpm (30 lpm)

• Built-in bypass valve

• Transfer used oil with inlet suction screen (260306)

• TENV electric motor for demanding environments, models 260105,

260106, 260108 and 260109

• System includes suction tube, fluid hose, dispense valve and bung adapter for models 260100, 260101, 260102 and 260104

APEX On-Demand Dispensing Pumps

• On-demand sensing system automatically starts and stops the pump

• Low operating and installation costs

• Available in 12 VDC and 115 VAC

• TENV electric motor for demanding environments

• Extremely quiet pump operation

• Output flow is continuous and non-pulsating

• Inlet and outlet check valves with thermal relief valves included

80

(5.5, 0.5)

70

(4.8, 0.4)

60

(4.1, 0.4)

50

(3.4, 0.3)

40

(2.7, 0.2)

30

(2.0, 0.2)

20

(1.3, 0.1)

10

(0.6, 0.06)

0

gpm

0

(lpm)

Pump Performance

2

(7.6)

A

C

B

4

(15.1)

6

(22.7)

FLOW RATE

8

(30.2)

Typical Applications

• Filling bulk tanks from drums

• Agricultural equipment

• Lubricant transfer from remote locations

• Filling in-plant machinery

• Construction equipment

• Evacuating used oil receivers

• Automotive and truck service garages

• Fleet marine and personal boat service

180

(12, 1.2)

160

(11, 1.1)

140

(9.6, 0.9)

120

(8.2, 0.8)

100

(6.8, 0.6)

80

(5.5, 0.5)

60

(4.1, 0.4)

40

(2.7, 0.2)

20

(1.3, 0.1)

0

gpm

0

(lpm)

1

(3.8)

A

2

(7.6)

PART NUMBERS

A = 260101, 260104

B = 260100

C = 260102

B

C

LEGEND

Relief valve opens

D

3 4

(11.4) (15.1)

5

(19)

FLOW RATE

6 7 8

(22.7) (26.4) (30.2)

Typical Fluids Handled

• Synthetic oil

• Petroleum oil*

• Used oil*

• Anti-freeze

• Hydraulic fluids

• Cutting oils

• Liquid soap

• Non-flammable oil based solvents

• Oil-based herbicide carriers

*Not for food grade use

700

(48.2, 4.8)

600

(41.3, 4.1)

500

(34.4, 3.4)

400

(27.5, 2.7)

300

(20.6, 2.1)

200

(13.7, 1.3)

100

(6.8, 0.6)

0

gpm

0

(lpm)

C

A

1

(3.7)

PART NUMBERS

A = 260105, 260106

B = 260108

C = 260240

D = 260109

LEGEND

Relief valve setting at 150 psi

(10.3 bar, 1.0 MPa)

B

D

E

2

(7.6)

3

(11.3)

FLOW RATE

4

(15.1)

10

(37.8)

9

(34)

5

(18.9)

PART NUMBERS

A = 260112

B = 260110

C = 260111

D = 260114

E = 260113

LEGEND:

Pressure switch opens

APEX 115 VAC oil transfer system

APEX On-Demand

12 volt DC dispensing pump

www.graco.com

APEX

and APEX On-Demand

Transfer Pumps and Packages

APEX Transfer System

Part Number

Motor

Hertz

Horsepower

Maximum Current

Maximum Flow Rate

Maximum Pressure

Inlet Port

Outlet Port

260100

12 VDC

NA

0.75

35 amps

5.8 gpm (22 lpm)

9.2 amps

4.25 gpm (16 lpm)

65 psi (4.5 bar)

260101

115 VAC

0.50

60 Hz

1 npt(f)

3/4 npt(f)

260102*

115 VAC

0.75

9.0 amps

8.0 gpm (30 lpm)

30 psi (2.1 bar)

Weight 34 lbs (15 kg) 25 lbs (11 kg)

Instruction manual 311305

Note: All oil transfer systems come with 3/4 in x 8 ft hose, 1 in x 34 in suction tube & 3/4 in outlet dispense valve

*Designed for fluid viscosities of 1000 centistokes or less. If fluid viscosity is greater than 1000 centistokes use part 260101.

260104

230 VAC

50/60 Hz

0.50

3.9 amps

4.25 gpm (16 lpm)

65 psi (4.5 bar)

APEX Transfer Pumps

Part Number

Motor

Hertz

Horsepower

Maximum Current

Maximum Flow Rate

Maximum Pressure

Inlet Port

Outlet Port

Weight

Instruction Manual

Note: All oil transfer pumps come with bung adapter.

*Part no. 260105 is a wall mount unit

260105*

7.5 amps

260106

3.0 gpm (11 lpm)

25 lb (11 kg)

3/4 npt

311306

260108 260109

115 VAC

60 Hz

1.00

9.0 amps 11.0 amps

4.0 gpm (15 lpm) 8.0 gpm (30 lpm)

150 psi (10 bar)

1 npt

30 lb (14 kg)

APEX On-Demand Pumps

Part Number

Voltage

Hertz

Horsepower

260110 260111

115 VAC

60 Hz

0.75

1.00

Maximum Current 10 amps 13 amps

Maximum Flow Rate 2.3 gpm (9 lpm) 3 gpm (11 lpm)

260113

1.50

18 amps

260114

2.00

21 amps

4.0 gpm (15 lpm)

260112

12 VDC

N/A

0.75

Maximum Pressure 370 psi (25 bar) 550 psi (38 bar) 470 psi (32 bar) 650 psi (45 bar) 400 psi (28 bar)

Inlet Port 3/4 npt

Outlet Port -12 JIC (m)

75 amps

3 gpm (11 lpm)

27 lb (12 kg) Weight

Instruction Manual

27 lb (12 kg) 32 lb (15 kg)

Note: All on-demand pumps come with bung adapter

Accessories

260145 Wall Mounting Bracket, fits all models

41 lb (19 kg)

311307

52 lb (24 kg)

260238 “Y” Strainer with 3/4" npt female in-line strainer for used oil transfer

260306 Inlet Suction Screen Assembly, required for used oil applications, 20 mesh screen

260124 55 in (1.3 m) PVC Suction Tube With inlet check valve

APEX 115 VAC oil transfer system

NA

APEX On-Demand

12 volt DC dispensing pump

www.graco.com

45

GTP10 and GTP12

Transfer Pumps and Packages

Features and Benefits

• Heavy-duty, die-cast aluminum

• CSA listed motor

• Built-in relief valve and filter strainer

• Easy-to-lock security

• High quality, UV resistant automotive finish

• Rain proof for extreme weather conditions

• Two year warranty

Typical Applications

• Fuel transfer for the construction, agriculture, manufacturing and marine industries

Typical Fluids Handled

• Gasoline

• Diesel fuel

• Kerosene

• Bio-fuels

Ordering Information

Kit Number

Voltage

Inlet Port

Outlet Port

Current

Power Cord

Hose

Suction Tube

Weight

Max Fluid Flow

Instruction Manual

260000

12 VDC

260020

24 VDC

260025

115 VAC

260022

230 VAC

1 npt

3/4 npt

12 amps

18 ft (5.5 m)

6 amps 1.7 amps

N/A

1 amps

3/4 in x 12 ft (19 mm x 3.7 m)

1 in x 34 in (25 mm x 0.9 m)

20 lbs (9 kg)

10 gpm (38 lpm) 12 gpm (45 lpm)

311304

Accessories

260078 Unleaded nozzle

260083 Unleaded nozzle with auto shut-off

260082 Regular/diesel nozzle with auto shut-off

260079 Regular/diesel nozzle

260523 8 ft x 34 in (2.4 m) npt UL Listed hose

260521 12 ft x 3/4 in (3.7 m) npt UL Listed hose

Fuel Transfer Kit: Includes pump, fuel nozzle, bung adapter, 34 in (0.9 m) suction tube, 12 ft (3.7 m) grounded hose, elbow fitting, 18 ft (5.5 m) power cable, wire nuts and strain relief

NOTE: AC units do not include power cable, wire nuts or strain relief

260083

46 www.graco.com

Diesel Exhaust Fluid (DEF) Dispense Systems

Specialty Pumps and Packages

Features and Benefits

All packages come with quick changeover inlet kit, air controls, air-operated double diaphragm pump, inlet hose, dispense hose and manual or auto shut-off nozzle.

Simple bolt together assembly with no special tools.

Typical Applications

• Automotive and heavy-duty dealerships

• Mining

• Service and fast lube centers

• Fleet service facilities

• In-plant

• Lube trucks

Typical Fluids Handled

• Diesel Exhaust Fluid

Ordering Information

Tote/Wall DEF Package with Meter

24F531

Package includes: Air-Operated Diaphragm pump (24G745), Tote/Wall mounting bracket with nozzle holder (24F870), Automatic shut off SST nozzle with swivel (24F529), DEF meter package for auto nozzle (24H293), Quick connect inlet kit (24F532), DEF Inlet hose–6 ft, 3/4 in BSPP

(M) (124581), DEF Dispense hose, 20 ft, 3/4 in BSPP, MBE (124603), Air Controls: Regulator

(110147), vent (110223), 50 psi valve (124963)

Tote/Wall DEF Package without Meter

24F878

Package includes: Air-Operated Diaphragm pump (24G745), Tote/Wall mounting bracket with nozzle holder (24F870), Automatic shut off SST nozzle with swivel (24F529), Quick connect inlet kit

(24F532), DEF Inlet hose–6 ft, 3/4 in BSPP (M) (124581), DEF Dispense hose, 20 ft, 3/4 in BSPP,

MBE (124603), Air Controls: Regulator (110147), vent (110223), 50 psi valve (124963)

Drum DEF Package without Meter

24F947

Air-Operated Diaphragm pump (24G745), Drum mounting bracket with nozzle holder (24F679),

Manual nozzle (125078), Quick connect inlet kit (24F532), DEF Inlet hose–

2 ft, 3/4 in BSPP X cut (124875), DEF Dispense hose–12 ft, 3/4 in BSPP M x cut end (125079),

Air Controls: Regulator (110147), vent (110223), 50 psi valve(124963)

Pumps

24G745

24G636

HSDD5A

HSDD5B

Air-Operated Diaphragm pump (15 gpm free flow, polypropylene–3/4 in BSPP (F)

Pump, hand, DEF compatible

Reels

DEF XD-30 hose reel, 3/4 x 50, white (see XD hose reel section for dimension details)

DEF XD-30 hose reel, 3/4 x 50, blue (see XD hose reel section for dimension details)

HSDD5F

HSDDDA

HSDDDB

HSDDDF

DEF XD-30 hose reel, 3/4 x 50, yellow (see XD hose reel section for dimension details)

DEF XD-30 hose reel, bare, white (see XD hose reel section for dimension details)

DEF XD-30 hose reel, bare, blue (see XD hose reel section for dimension details)

DEF XD-30 hose reel, bare, yellow (see XD hose reel section for dimension details)

24F531

24G745

24G636

24F947

HSDD5B

www.graco.com

47

48

Diesel Exhaust Fluid (DEF)

Specialty Pumps and Packages

Hoses

124875

124581

125478

24F532

DEF hose, 2 ft, 3/4 in BSPP(M) x cut end (inlet hose)

DEF hose, 6 ft, 3/4 in BSPP(M) x cut end (inlet hose)

DEF hose, 4 ft, 3/4 in BSPP cut both ends (for hand pump only)

125079

124671

124603

125074

DEF hose,12 ft, 3/4 in BSPP(M) x cut end

DEF hose,12 ft, 3/4 in BSPP (mbe)

DEF hose, 20 ft, 3/4 in BSPP (mbe)

DEF hose, 20 ft, 3/4 in BSPP(M) x cut end

DEF hose, 50 ft, 3/4 BSPP X 3/4 BSPP 125242

Mounting

24F870

24F679

124541

Meter Kits

24G738

Tote/Wall mounting bracket with nozzle holder

Drum mounting bracket with nozzle holder

Holder, nozzle bath

24H293

Nozzles

124398

Meter only, 1/2 in BSPP(F/F)

Meter Kit with fittings for SST auto nozzle

24F529

125078

Automatic shut off SST nozzle without swivel–3/4 in BSPP(F)

Automatic shut off SST nozzle with swivel–3/4 in BSPP(F)

Manual nozzle

24F524 SST Swivel, 3/4BSPP (M) x 3/4 BSPP(F)

Inlet Kits and Accessories

Quick connect inlet kit: Includes: 24F532 drum coupler, 124549 drum insert and

124550 down tube

Drum coupler 124548

124549

125014

124550

124963

125479

Drum insert with NPS thread

Drum insert with buttress thread

Down tube

50 psi air safety valve

Suction tube (DEF hand pump)

24F679

24H293

124671

24F870

24F529

24F532

www.graco.com

Fire-Ball

®

Lube Truck Oil and Grease Packages

Specialty Pumps and Packages

Oil Package Selection and Ordering Information

Ratio

Container Size

Package Number

Pump Only

Hose/Fitting Kit

Hose Length

Air Regulator

Hold-Down Kit

Fire-Ball 300

Cover-Mounted Package

16 gal (60 l) Open-head

222086

203872

6 ft (1.8 m)

(1)

Fire-Ball 300

Cover-Mounted Package

5:1

Fire-Ball 300

Bung-Mounted Package

55 gal (200 l) Closed-head*

206655 204264

203857

222063

6 ft (1.8 m)

(1)

204254

6 ft (1.8 m)

(1)

Fire-Ball 425

Cover-Mounted Package

10:1

Fire-Ball 425

Bung-Mounted Package

55 gal (200 l) Closed-head*

206656 222067

222065

6 ft (1.8 m)

(2)

Drum Cover

Bung Adapter

Pump Clamp

222061

222060

-

-

207367

-

-

-

204076 (2.140 in Dia.)

204095

207361

207367

-

-

(3)

Instruction Manual 307883

* For closed-head drums, pump mounts off-center on drum cover. Pump draws through standard 2 npt bung opening and is equipped with grommet for rain-tight seal to the drum cover.

(1) Order 3/8 in (9.5 mm) air regulator and gauge separately, (109075).

(2) Order 1/2 in (12.7 mm) air regulator (104266) and gauge (100960) separately.

(3) Off set drum cover

222066

222095

6 ft (1.8 m)

(2)

-

224579 (2.159 in Dia.)

204095

Grease Package Selection and Ordering Information

Fire-Ball 300

Cover-Mounted

Package

Fire-Ball 300

Cover-Mounted

Package

Fire-Ball 425

Cover-Mounted

Package

50:1 Ratio

Container Size

Package Number

Pump Only

120 lb (55 kg)

Open-head

222085

239887

Hose/Fitting Kit

Hose Length

Air Regulator

Hold-Down Kit

222072

Drum Cover

Follower Plate

222061

222060

220654

Instruction Manual

* Order 3/8 in (9.5 mm) air regulator and gauge separately, (109075).

** Order 1/2 in (12.7 mm) air regulator (104266) and gauge (100960).

*

400 lb (180kg)

Open-head

222071

239888

207361

207366

223845

120 lb (55 kg)

Open-head

223107

205394

222061

222060

223344

6 ft (1.8 m)

307880

Fire-Ball 425

Cover-Mounted

Package

400 lb (180 kg)

Open-head

222075

205395

**

207361

207366

223846

222076

Fire-Ball 425

Cover-Mounted

Package

120 lb (55 kg)

Open-head

243817

239729

222061

222060

223344

75:1

Fire-Ball 425

Cover-Mounted

Package

400 lb (180 kg)

Open-head

243818

239730

*

207361

207366

223846

222086

www.graco.com

206656

222067

223107

243818

49

50

Fire-Ball

®

300, 15:1 Undercoating/Rust-Proofing Packages

Specialty Pumps and Packages

Features and Benefits

• Available in carbon steel for petroleum-based or SST for water-based materials

• Durable air motor provides trouble-free operation

Typical Applications

• Undercoating, rust-proofing and sound-deadening materials

• Automotive and heavy-duty vehicle dealerships

• Fast lube centers and service shops

• Fleet service facilities psi

(bar)

1200

(83)

900

(62)

600

(41)

Pump Performance

22 cycles/min

45 67 90 scfm

(m3/min)

12

(0.34)

9

(0.26)

Typical Fluids Handled

• Undercoating and rust-proofing

(verify chemical compatibility for pump’s wetted components with undercoating material supplier or contact Graco directly at 1-800-533-9655)

300

(21)

0

gpm

(lpm)

6

(0.17)

0.25 .50 .75 1

(0.95) (1.7) (2.9) (3.8)

3

(0.08)

TEST FLUID: No. 10 Weight Oil

Technical Specifications

Maximum Fluid Pressure ............................................................................................................2700 psi (186 bar)

Effective Air Motor Diameter ............................................................................................................ 3 in (76.2 mm)

Operating Range ........................................................................................................... 40-180 psi (2.8-12.5 bar)

Continuous-Duty Flow Rate ....................................................................................................... . 0.7 gpm (2.7 lpm)

Approx. Air Consumption @ 100 psi (7 bar) ................................................................................................. 17 cfm

Air Inlet ................................................................................................................................................. 3/8 npt(f)

Material Outlet ....................................................................................................................................... 1/4 npt(f)

Material Inlet for Non-SST Pump ............................................................................................... 1 npt (straight inlet)

Material Inlet for 224825 (SST Pump) ........................................................................................ 1 npt (barbed inlet)

Wetted Parts for Non-SST Pump ................................................................................. CS, Aluminum, PTFE, Rubber

Wetted Parts for SST pump .......................................................................... SST, Aluminum, Leather, PTFE, Rubber

Instruction Manual for non-SST Pump ........................................................................................................ 306531

Instruction Manual for SST Pump ............................................................................................................... 308069

Inlet Air Pressures:

=100 psi

(6.9 bar)

=70 psi

(4.8 bar)

=40 psi

(2.8 bar)

Ordering Information

Style

Container Size

Package Number

Pump Only

Dispense Kit

Tip

Hose Length

Cover

Portable

35 lb (16 kg)

222077

206405

222079

15 ft (4.6 m)

222058

Undercoating

Portable Dolly-Mounted

120 lb (54 kg)

226342

206699

222079

286517

15 ft (4.6 m)

204574

Stationary

400 lb (180 kg)

226269

206700

222082

25 ft (7.6 m)

200326

Spray Masking

Bung-Mounted Stationary

400 lb (180 kg)

224826*

224825 (SST pump)

224023

286211 / 286621

25 ft (7.6 m)

-

Caster Base

Instruction Manual

204144

307879/306531

-

308069

* Package 224826 includes flexible short tube (224022) long enough for 400 lb (180 kg) container, but can be trimmed to accommodate smaller containers.

214570 60-mesh Aluminum filter (3/8 npt(f) inlet; 1/4 npt(f) outlet). Max. working pressure: 3000 psi (210 bar)

Replacement Screen Elements (SST) 3-pack/25-pack

224458/238436 30-mesh | 224459/238438 60-mesh | 224468/238440 100-mesh

202577

206496

234237

239966

Z-Swivel allows non-binding movement for hard-to-reach spots. Order 155570 adapter separately to accommodate 234237 gun

Nozzle Extension delivers 360º coating fan into blind areas. Length 30-3/4 in (99 cm) x 7/8-14(f) end. Tip 206502, size .043

4 Finger Silver Gun with tip guard 243161 and tip 286517. 4,500 psi (310 bar) x 3/8 npt(f) inlet.

Must order 155570 adapter and 239663 straight swivel to accommodate gun to 1/4” (mbe) hose

Bung Adapter

224826

226269

www.graco.com

Windshield Wash and Coolant Dispense

Specialty Pumps and Packages

Packages for Pre-Mixed Windshield Wash Solvent and Coolant Dispense

307 Air-Operated Double-Diaphragm Pump

237161

Complete package includes the following: 307 Diaphragm Pump (D31255), 6 ft (1.8 m) air hose

(109125), 4 ft (1.2 m) coupled nitrile fluid hose (220596), air filter (110146), air gauge (108190), air line fitting (111511), 1/4 npt air regulator (110318), elbow (100611), 15 in (381 mm) 3/8 in ID tube,

(187479), mounting bracket (190125), adapter (156022), 1/4-18 npt nipple (156971), suction hose kit (223888), 6 ft (1.8 m) coupled PVC hose and 304 SST 16 mesh strainer, wall bracket (224835)

237160 Includes all items listed above except diaphragm pump and wall bracket

Bulk Anti-Freeze and Windshield Solvent Transfer Packages

Description 1050 AODD 1050 AODD 716 AODD

Package Number

Pump

Air Regulator

Fluid Connect Hose

Air Connect Hose

Air Shut-off Valve

Wall Mount Bracket

Dual Inlet Manifold

Suction Kit

Thermal Relief Kit

Instruction Manual

Dual Inlet

244679

647016

109075

115042

205418

110224

24C637

685984

2-236054

238428

309353

Single Inlet

244680

647016

109075

115042

205418

110224

24C637

236054

238428

309353

Dual Inlet

244681

243669

110147

109105

109125

110223

224835

2-236054

113497

309353

716 AODD

Single Inlet

244682

241906

110147

109105

109125

110223

224835

236054

113497

309353

www.graco.com

51

52

Dyna-Star

®

and Power-Star

Pumps

Hydraulic Powered Pumps and Packages

Features and Benefits

• Ties into existing hydraulic systems on mobile equipment

• Operates quieter than air driven pumps and doesn’t require mufflers

• Eliminates the need for air compressors

• Provides self-lubrication for long life and reliability

• Hydraulic changeover is faster with less pulsation allowing smoother output pressure, even with long plumbing runs

Typical Applications

• Low pressure, high volume oil transfer

• High pressure, high volume grease dispense

• Heavy-duty dealerships

• Fleet service facilities

• Service shops

• In-plant

• Lube trucks

• Mining

Typical Fluids Handled

• Petroleum- and synthetic-based oils

• Grease up to NLGI #2

Ordering Information for Oil Packages

Oil Applications

Power-Star,

1:1

Dyna-Star

®

,

1:1

Drum Size

Pump Number

Max. Input Pressure

Max. Fluid Input Volume

Max. Output Flow Rate

Maximum CPM

Max. Fluid Output

Pressure

Hydraulic Supply Inlet

Hydraulic Return Outlet

Fluid Outlet

Fluid Inlet

Max. Incoming Fluid

Temp.

Instruction Manual

Applications

Universal

236754

1500 psi

(102 bar)

12 gpm

(45.4 lpm)

12 gpm

(45.4 lpm)

60

1500 psi

(102 bar)

3/4 npt

1-1/4 npt

1/2 npt

1-1/2 npt

Universal

224741

1500 psi

(102 bar)

3 gpm

(11.4 lpm)

3 gpm

(11.4 lpm)

60

1500 psi

(102 bar)

3/8 npt

3/4 npt

1/2 npt

1-1/2 npt

Dyna-Star,

1:1

55 gal

(200 l) Bung- or Cover-

Mounted

224742

1500 psi

(102 bar)

3 gpm

(11.4 lpm)

3 gpm

(11.4 lpm)

60

1500 psi

(102 bar)

3/8 npt

3/4 npt

1/2 npt

1-1/2 npt

236753

1500 psi

(102 bar)

3 gpm

(11.4 lpm)

10 gpm

(37.9 lpm)

60

375 psi

(25.1 bar)

3/8 npt

3/4 npt

1/2 npt

1-1/2 npt

130º F (54º C) 130º F (54º C) 130º F (54º C) 130º F (54º C) 130º F (54º C)

308391

Bulk oil transfer

308155 308155

Oil dispensing Oil dispensing

Dyna-Star,

1/4:1

Universal

308390

Bulk oil transfer

Stainless Steel

Dyna-Star, 1:1

Universal

308155

Anti-freeze dispensing

237653

1000 psi

(70 bar)

3 gpm

(11.4 lpm)

3 gpm

(11.4 lpm)

60

1500 psi

(102 bar)

3/8 npt(f)

3/4 npt(f)

1/2 npt(f)

1-1/2 npt

www.graco.com

Dyna-Star

®

and Viscount

®

II Pumps

Hydraulic Powered Pumps and Packages

Ordering Information for Grease Packages

Grease Applications Dyna-Star, 5:1 Dyna-Star, 10:1

Part No. – Drum Size

224912 – 35 lb (16 kg)

224751 – 120 lb (55 kg)

224752 – 400 lb (180 kg)

1500 psi (102 bar)

247540 – 60 lb (27 kg)

247443 – 120 lb (55 kg)

247450 – 400 lb (180 kg)

600 psi (41 bar) Max. Input Pressure

Max. Hydraulic Fluid

Input Vol.

Max Grease Flow

Output Rate

Maximum CPM

Max. Fluid Output

Pressure

Hydraulic Supply Inlet

Hydraulic Return Outlet

Fluid Outlet

Maximum Incoming

Hydraulic Fluid Temp.

Instruction Manual

3 gpm (11.4 lpm)

4 lb/min (1.8 kg)

60

7,500 psi (517 bar)

3/8 npt

3/4 npt

1/2 npt

130º F (54º C)

308156

3 gpm (11.4 lpm)

1.1 lb/min (0.5 kg)

60

7,500 psi (517 bar)

3/4-16 in. JIC (37º Flare)

3/4 npt

1/2 npt

200º F (93º C)

312350

Viscount II, 2.4:1

222902 – 400 lb (180 kg)

1500 psi (102 bar)

12 gpm (45.4 lpm)

54 lb/min (20.4 kg)

60

2,300 psi (159 bar)

3/4 npt

1 npt

1-1/2 npt

130º F (54º C)

308149

Hydraulic Fluid Controls (Required for each pump)

236864

Dyna-Star Fluid Controls [1500 psi (102 bar); 3 gpm (11.4 lpm)]. Includes manifold with pressurereducing valve, flow control valve, pressure gauge, shut-off ball valves and 3 ft (0.9 m) supply and return hoses. Instruction manual 308395.

236865

Power-Star and Viscount II Fluid Controls [1500 psi (102 bar); 12 gpm (45.4 lpm)]. Includes manifold with pressure-reducing valve, flow control valve, pressure gauge, shut-off ball valves and 3 ft (0.9 m) supply and return hoses. Instruction manual 308395.

237904 1:1 Dyna-Star Thermal Relief Valve, 1600 psi (110 bar)

235998 Mini Fire-Ball 225, 3:1 thermal relief valve rated to 600 psi (41 bar)

Accessories

Follower Plates

224916 Follower plate for 35 lb (16 kg)

223700 Follower plate for 120 lb (55 kg)

223701 Follower plate for 400 lb (180 kg)

Covers

224915 Cover for 35 lb (16 kg)

204574 Cover for 120 lb (55 kg)

200326 Cover for 400 lb (180 kg)

Tie-Down Covers

222060* Tie-Down Cover for 120 lb (55 kg)

207366** Tie-Down Cover for 400 lb (180 kg)

*Use with hold-down kit 222061 **Use with hold-down kit 207361

236754

222902

224741

247540

www.graco.com

53

54

Oil and Grease Dispensing Packages

Manually Operated Pumps

16 Gallon (60 l) Metered and

Non-Metered Dispensing Packages

Designed for manual dispensing of fluid oil from bulk containers to point of application.

Description

Portable

Metered

ATF

Dispenser

225880 Package Number

Pump Only

Metered Dispense Kit

Dispense Kit

Hose Diameter

Hose Length

Drum Cover

Caster Base

Cart

Instruction Manual

* Hydraulic; can be used for gear oil dispensing.

-

239707

-

-

-

203622

Portable

Metered

Gear Lube

Dispenser

225376

Cart-Mounted

Metered

Gear Lube

Dispenser

225384

204867

239705

-

-

-

Stationary

Non-Metered

Gear Lube

Dispenser

225380

-

214658

1/2 in (12.7 mm)

6 ft (1.8 m)

-

204574

-

203650

306436

-

-

Portable

Non-Metered

Gear Lube

Dispenser

225378 *

203622

-

-

214658

225880

Pail Dispensing Package for 5 gal (20 l) Pails

Mounts on top of a standard 5 gal (20 l) pail (pail not included).

Delivery hose has curved nozzle that stores in cover port.

Description

Package No.

Hose length

Economy Gear-Lube Dispenser (Dispenses 1.6 to 1.9 oz. [47.3 to 56.2 ml] per stroke)

226289

4 ft (1.2 m)

Instruction manual 306875

225376

225380

226289

225384

225378

www.graco.com

Windshield Wash and Coolant Transfer

Manually Operated Pumps

Pumping Bulk Lubricants out of 16 gal (60 l) or

55 gal (200 l) Drums (1)

All pumps come with suction tube and bung adapter.

Description Lever Pump (2) Rotary Pump (3)

Pump Number

Delivery rate

Fluids Handled

114829

0.1 gal (0.4 l) per downstroke

Petroleum-based

products, Anti-freeze

-

-

226290

1 gal (3.7 l) per 18 cycles

Petroleum-based products

Hose Length

Instruction manual

(1) Drums not included

(2) Telescopic suction tube mounts 2 npt bung opening of 16 gal (60 l) or 55 gal (200 l) drum.

(3)

Package includes bung adapter and spout outlet.

Package has adjustable 2 npt bung mounting to allow use with either 16 gal (60 l) or

(4)

55 gal (200 l) drum. Package includes bung adapter and spout outlet.

A double-action high volume pump for gasoline and similar petroleum products.

Fits 30 gal (113 l) to 55 gal (200 l) drum. Complete with an 8 ft (2.4 m) hose with 3/4 in fittings and aluminum telescoping suction pipe. Delivers approximately

(5) one gallon per nine strokes.

This package is recommended for gasoline, diesel, heating oil and petroleum products, but NOT recommended for water-based fluids, solvents or weak acids.

-

306876

Hand-Lever

Diaphragm Pump (4)

112202

1 gal (3.7 l) per 9 cycles

Petroleum-based products (5)

8 ft (2.5 m)

-

Manual Dispense from Bulk Containers

Description

Container Size

Package No.

Pump

Dispense Kit

Booster Gun

Cover and Follower Plate

Instruction Manual

Buckshot Luber with Booster Gun

225914 (1)

203697

Buckshot Luber without Booster Gun

203702

203703

35 lb (16 kg)

225844 (1)

-

203701

306455

Grease Gun

Fill Pump

112197 (2)

-

Grease Gun

Fill Pump

120 lb (55 kg)

112198

Filler Adapter (3)

-

(2)

-

-

-

-

-

-

(1) Delivers 1/4 oz (0.7 grams) of grease per stroke at pressures to 3,000 psi (207 bar). Can service fittings directly or be used to charge a booster gun for more efficiency at higher pressures.

(2) Fills all three-way loading grease guns equipped with filler fittings.

(3) Dispense kit 203703 can be used for direct greasing applications (must be ordered separately).

226290

112197

114829

112198

112202, 2 inch bung adapter, (2) 3/4 in npt(f) inlets includes down tube and hose

225914

www.graco.com

55

LD Series Enclosed Hose Reels

Hose Reels and Packages

Features and Benefits

• Designed for light-duty applications

• Enclosed for safety and protection, extends hose life

• Flexible mounting options–hang on wall or ceiling; bench, table or tank top-mount options are available

• Full-flow swivel maximizes fluid flow with minimal pressure drop

• Easy spring tension adjustment–increase or decrease pressure spring tension while reel is pressurized

Typical Applications

• Small maintenance shops

• Tire/muffler shops

• Small fast lubes

• Independent repair facilities

• Industrial manufacturing facilities

Typical Fluids Handled

• Petroleum– and synthetic–based oils

• Grease

• Air only

• Air/water

• Anti-Freeze

• Windshield Washer

A

C

D

A

B

Dimensions

LD SERIES

7.1 in (180 mm)

23.0 in (585 mm)

18.5 in (470 mm)

25.6 in (650 mm)

D

B

C

Enclosed hose reel comes with ceiling/wall mounting swivel bracket. Required inlet hose kit sold separately.

56

NPT Replacement Reels* Ordering Information

Part

Number

Application

Hose Size

Id x Length

Pressure psi (bar)

24H655

24H656

Air Only

Air Only

6 mm x 11 m 1/4 in x 35 ft 250 (17.2)

6 mm x 15 m 1/4 in x 50 ft 250 (17.2)

24H657

24H658

Air/Water 10 mm x 11 m 3/8 in x 35 ft 250 (17.2)

Air/Water 10 mm x 15 m 3/8 in x 50 ft 250 (17.2)

Air/Water 12 mm x 11 m 1/2 in x 35 ft 250 (17.2) 24H659

24H660

24H661

24H662

Air/Water 12 mm x 14 m 1/2 in x 45 ft 250 (17.2)

Oil

Oil

10 mm x 11 m 3/8 in x 35 ft 1800 (124)

12 mm x 11 m 1/2 in x 35 ft 1800 (124)

24H663 Grease

*Reel only. Mounting Hardware is not included

6 mm x 11 m 1/4 in x 35 ft 5000 (345)

Hose Inlet Kits for LD Enclosed Hose Reel

Part

Number

Hose Inlet

Description

Fits Reel

24C443 Air

24C444

Air/water

24C445

24C537

Oil

24C538

24C539 Grease

* NPT hose connection when using BSP to NPT adapter (included)

24H655

24H656

24H657

24H658

24H661

24H662

24H663

Pressure psi (bar)

250 (17.2)

1,800 (124)

5,000 (345)

Connection Size

Inlet NPT(m) x Outlet NPT(m)

1/2 in x 1/4 in

1/2 in x 1/4 in

1/2 in x 3/8 in

1/2 in x 3/8 in

1/2 in x 1/2 in

1/2 in x 1/2 in

1/2 in x 3/8 in

1/2 in x 1/2 in

3/8 in x 1/4 in

Hose id in (mm)

1/4 (6)

3/8 (10)

1/2 (12)

3/8 (10)

1/2 (12)

1/4 (6)

Length in (mm)

36 in (915)

Hose Inlet Kit for

LD enclosed reels

Hose Inlet in

1/4 npt(m)*

1/2 npt(m)*

Hose Outlet in

1/4 npt(m)*

3/8 npt(m)*

1/2 npt(m)*

3/8 npt(m)*

1/2 npt(m)*

1/4 npt(m)* 1/4 npt(m)*

www.graco.com

LD Series Enclosed Hose Reels

Hose Reels and Packages

Wall Mount Package* (NPT)

Package Part

Number

24F735

Application

Air

Hose Size

Id x Length

1/4 in x 35 ft

24F736

24F737

24F738

24F739

24F740

24F741

24F742

Air

Air/Water

Air/Water

Air/Water

Air/Water

Oil

Oil

24F743 Grease

*Hose Reel, Inlet Kit , Wall Mount Bracket Kit Included

1/4 in x 50 ft

3/8 in x 35 ft

3/8 in x 50 ft

1/2 in x 35 ft

1/2 in x 45 ft

3/8 in x 35 ft

1/2 in x 35 ft

1/4 in x 35 ft

Fixed Mount Package* (NPT)

Package Part

Number

Application

Hose Size

Id x Length

24F753

24F754

24F755

24F756

24F757

24F758

24F759

24F760

24F761

*Reel, Inlet kit, Fixed Bracket Kit

Air

Air

Air/Water

Air/Water

Air/Water

Air/Water

Oil

Oil

Grease

1/4 in x 35 ft

1/4 in x 50 ft

3/8 in x 35 ft

3/8 in x 50 ft

1/2 in x 35 ft

1/2 in x 45 ft

3/8 in x 35 ft

1/2 in x 35 ft

1/4 in x 35 ft

Swivel Mount Package* (NPT)

Package Part

Number

Application

Hose Size

Id x Length

24F771

24F772

24F773

24F774

24F775

24F776

24F777

Air

Air

Air/Water

Air/Water

Air/Water

Air/Water

Oil

24F778 Oil

24F779

Grease

*Hose Reel, Inlet Kit, Swivel Bracket Kit

1/4 in x 35 ft

1/4 in x 50 ft

3/8 in x 35 ft

3/8 in x 50 ft

1/2 in x 35 ft

1/2 in x 45 ft

3/8 in x 35 ft

1/2 in x 35 ft

1/4 in x 35 ft

Mounting Kits Ordering Information

Part

Number

24G866

24G865

Wall Mount Kit

Fixed Bracket New Installation Kit

24E506

24C772

Fixed Bracket Replacement Kit

Swivel Bracket Kit

Description

Reel (NPT)

24H655

24H656

24H657

24H658

24H659

24H660

24H661

24H662

24H663

Reel (NPT)

24H655

24H656

24H657

24H658

24H659

24H660

24H661

24H662

24H663

Reel (NPT)

24H655

24H656

24H657

24H658

24H659

24H660

24H661

24H662

24H663

Wall Mount Kit

24G866

24G866

24G866

24G866

24G866

24G866

24G866

24G866

24G866

Inlet Kit

24C443

24C443

24C444

24C444

24C444

24C444

24C537

24C538

24C539

Wall Mount Kit

24G865

24G865

24G865

24G865

24G865

24G865

24G865

24G865

24G865

Inlet Kit

24C443

24C443

24C444

24C444

24C444

24C444

24C537

24C538

24C539

Wall Mount Kit

24C772

24C772

24C772

24C772

24C772

24C772

24C772

24C772

24C772

Inlet Kit

24C443

24C443

24C444

24C444

24C444

24C444

24C537

24C538

24C539

Ceiling/Wall Stationary

Bracket 24E506

Tote, Bench or Wall

Mount Post 24C772

www.graco.com

57

SD Series Hose Reels

Hose Reels and Packages

Features and Benefits

• Designed for daily use applications, such as dealerships, fleet service and maintenance facilities

• Structurally engineered frame made from high strength steel won’t bend or flex

• Long-lasting spring provides constant spring torque through the entire range of motion

• Flexible positioning of guide arm for mounting on bench or ceiling, wall or utility truck

• Steel spool for demanding applications

• Open swivel ports ensure high fluid flow with minimal pressure loss

• Enclosure kits available–ideal when appearance and protection is important

• Available in six colors. Metallic blue is standard

Typical Applications

• Car dealerships

• Light/medium-duty truck dealers

• Fleet maintenance

• Mining maintenance

• Public works garages

• Construction vehicle maintenance

• Light-utility service trucks

Typical Fluids Handled

• Petroleum and synthetic based oils

• Grease

• Air

• Water

• Anti-freeze

• Windshield washer

Dimensions

D

E

F

A

B

C

SD SERIES SIZE 10

7.0 in (177 mm)

16.2 in (412 mm)

21.0 in (533 mm)

17.1 in (435 mm)

19.5 in (495 mm)

22.5 in (571 mm)

A

F E

D

E

F

A

B

C

SD SERIES SIZE 20

7.0 in (177 mm)

18.1 in (460 mm)

23.4 in (594 mm)

19.2 in (488 mm)

21.8 in (554 mm)

25.2 in (640 mm)

C

D

B

Single pedestal with metal spool. Inlet Hose Kit sold separately.

58

Ordering Information

Applications

Air, Water,

Anti-freeze,

Windshield

Washer Fluid

Petroleum or

Synthetic based Oils

Grease

Technical Specifications

Model numbers by color

Metallic

Blue

White Red Black Dark Blue Yellow

HPL23B HPL23A HPL23C HPL23D HPL23E HPL23F

HPL25B HPL25A HPL25C HPL25D HPL25E HPL25F

Pressure Hose psi (bar) id

(in)

Length ft (mt)

300 (20.7) 3/8 35 (11)

300 (20.7) 3/8 50 (15)

HPL33B HPL33A HPL33C HPL33D HPL33E HPL33F

HPL56B HPL56A HPL56C HPL56D HPL56E HPL56F

HPL65B HPL65A HPL65C HPL65D HPL65E HPL65F

300 (20.7) 1/2 35 (11)

300 (20.7) 3/8 65 (20)

300 (20.7) 1/2 50 (15)

HPM33B HPM33A HPM33C HPM33D HPM33E HPM33F 2,000 (138) 1/2 35 (11)

HPM3BB* HPM3BA* HPM3BC* HPM3BD* HPM3BE* HPM3BF* 2,000 (138) 1/2 35 (11)

HPM65B HPM65A HPM65C HPM65D HPM65E HPM65F 2,000 (138) 1/2 50 (15)

HPM6DB* HPM6DA* HPM6DC* HPM6DD* HPM6DE* HPM6DF* 2,000 (138) 1/2 50 (15)

HPH15B HPH15A HPH15C HPH15D HPH15E HPH15F 5,000 (345) 1/4 50 (15)

HPH23B HPH23A HPH23C HPH23D HPH23E HPH23F 4,000 (276) 3/8 35 (11)

HPH1DB* HPH1DA* HPH1DC* HPH1DD* HPH1DE* HPH1DF* 5,000 (345) 3/8 35 (11)

HPH55B HPH55A HPH55C HPH55D HPH55E HPH55F 4,000 (276) 3/8 50 (15)

HPH5DB* HPH5DA* HPH5DC* HPH5DD* HPH5DE* HPH5DF* 4,000 (276) 3/8 50 (15)

1/2

1/2

1/2

1/2

3/8

Connection Size

Inlet npsm(m)

1/2

1/2

Outlet

3/8 npt (m)

3/8 npt (m)

1/2 npt (m) 1/2

1/2

1/2

3/8 npt (m)

1/2 npt (m)

1/2 npt (m)

1/2 npsm (f)

1/2 npt (m)

1/2 npsm (f)

1/4 npt (m)

3/8

3/8

3/8

3/8

1/4 npt (m)

1/4 npt (f)

1/4 npt (m)

1/4 npt (f)

* Bare Reel–hose sold separately Wetted parts–bare hose reel only: zinc plated steel, steel, nitrile rubber Dry Weight: 52 lbs (23.5 kg) Instruction Manual: 313431

Operating

Temp.

-20º–190º F

(-28º–87º C)

-40º–200º F

(-40º–93º C)

www.graco.com

SD Hose Reel Packages and Accessories

Hose Reels and Packages

SD Reel Packages with Enclosure Kit

Application SD Packages Hose Reel Hose Inlet Kit White Enclosure Valve/Meter Fitting

Air/Water 24D989 HPL23B 218549 24A217 – –

Air/Water 24D990 HPL25B 218549 24A217 – –

Air/Water

Air

Water

Water

24D991

24D992

24D993

24D994

HPL33B

HPL23B

HPL23B

HPL33B

218549

218549

218549

218549

Motor Oil

Motor Oil

24D995

24D996

HPM33B

HPM33B

218549

218549

Motor Oil 24D997 HPM33B 218549

SD Reel Packages without Enclosure Kit

Application SD Packages Hose Reel Hose Inlet Kit

24A217

24A217

24A217

24A217

24A217

24A217

24A217

218545

180685 150287

180685 159842

255350

255348

Enclosure Valve/Meter Fitting

Air

Water

Motor Oil

24D998

24D999

24E001

HPL23B

HPL23B

HPM33B

218549

218549

218549

218545 –

180685 150287

255350 –

Motor Oil 24E002 HPM33B 218549 – 255348 –

Hose Inlet Kits for SD and XD10 and 20 Pressure psi (bar) Hose id in (mm) Length in (mm) Hose Inlet

218549

218550

Low/medium pressure

High pressure

2000 (137)

4000 (276)

1/2 (12)

3/8 (10)

24 (610)

24 (610) npt(m) npt(m)

224417 High pressure

Enclosure Kits

Reel Enclose Kits for

One Reel

Provides protection to extend the life of hoses and bearings for SD single pedestal reels

White*

5000 (345)

Metallic Blue Red

1/4 (6) 24 (610)

Black Dark Blue npt(m)

Yellow

Size 10 Enclosure

Size 20 Enclosure

Size 10 End Caps (2)

Size 20 End Caps (2)

24A217

24A218

24A940

24A945

24A941 24A942 24A943

24A946 24A947 24A948

— 24A950

— 24A951

24A944

24A949

Enclosure Mounting channel

Enclosure mounting channel kits include all parts for mounting hose reels to walls or ceilings

Description

1 Reel 2 Reels 3 Reels 4 Reels 5 Reels 6 Reels

SD10/SD20 Open

XD10/XD20 Open

24A934

24A219

24A935

24A220

24A936

24A221

24A937

SD Enclosed 203521 203522 203523 203524

Mounting Channel, Brackets and Ball Stop Kits

Retrofit Adapter Kits

24A938

203525

24A939

24A222

203526

24A224

24C100

Includes all parts to mount hose reel to existing 500 series mounting pattern

Includes all parts to convert SD10 hose reels to fit existing 250 series enclosures

Mounting Bracket (Secures mounting channel to I-beam without drilling)

Two brackets are required for 1-3 hose reels; three brackets for 4-6 hose reels 204741

Ball Stop Kits

222225 For 1/4 in (6.4 mm) i.d. hose (

Not for use with XD30, 700 or 750)

218340

218341

237872

237873

For 1/4-3/8 in (6.4-9.5 mm) i.d. hose (

1.0 ID used for 5/8 in (15.9 mm) hose

Not for use with XD30, 700 or 750)

.782 ID used for 3/8 in and 1/2 in (9.5 mm and 12.7 mm) hose (

1.123 ID used for 3/4 in (19.1 mm) hose

Not for use with XD30, 700 or 750)

237874

24D132

24D133

1.374 ID used for 1 in (25.4 mm) hose

For 3/8 in (9.5 mm) o.d. hose

For 1/2 in (12.7 mm) o.d. hose

www.graco.com

Mounting Bracket

Mounting Channel

Hose Inlet Kit for SD and

XD open reels

59

60

XD Series Hose Reels

Hose Reels and Packages

Features and Benefits

• Designed for robust/heavy-duty applications such as mobile lube trucks or large equipment service, yet with a narrow footprint to fit more reels into small spaces

• Dual pedestal frame provides increased strength for extreme-duty applications

• Long lasting spring is sealed for protection against the weather

• Durable steel spool rides on sealed roller bearings to ensure trouble-free performance

• Available in four colors. Metallic blue is standard

• Available with arms removed for bulkhead mounting

Typical Applications

• Heavy-duty truck dealers

• Fleet maintenance

• Mining maintenance

• Public works garages

• Construction vehicle maintenance

• Heavy-duty mobile service trucks

• Mining

Typical Fluids Handled

• Petroleum and synthetic based oils

• Grease

• Fuel evacuation

• Pressure wash

• Air

• Water

• Anti-freeze

• Windshield washer

Note: Hose Inlet Kit for all XD Reels sold separately.

C

D

A

B

E

F

Dimensions

XD SERIES SIZE 10

7.5 in (196 mm)

16.2 in (412 mm)

21.0 in (533 mm)

18.0 in (457mm)

18.5 in (470 mm)

22.5 (571 mm)

XD SERIES SIZE 20

A 7.5 in (196 mm)

B 18.1 in (460 mm)

C 23.4 in (594 mm)

D 20.0 in (508 mm)

E 21.0 in (533 mm)

F 25.2 in (640 mm)

D

E

A

B

XD SERIES SIZE 30

9.0 in (229 mm)

21.50 in (546.00 mm)

C

F

25.96 in (659.45 mm)

22.12 in (561.73 mm)

23.10 in (588.00 mm)

27.60 in (700.82 mm)

Size 10

Size 20

A

Size 30

C

B

D

www.graco.com

E

F

XD Series Hose Reels

Hose Reels and Packages

Ordering Information

Applications

Metallic Blue

HSL25B

Model numbers by color

White

HSL25A HSL25F HSL25G

Technical Specifications

Pressure

Yellow Desert Sand psi (bar) id in

3/8

Hose

Length ft (m)

50 (15)

Connection Size

Inlet in

Outlet in

3/8 npt(m)

Air, water,

Anti-freeze, windshield

Washer fluid

Petroleum– and synthetic– based oils

Grease

Pressure wash

HSL33B

HSL56B

HSL65B

HSLC8B

HSL33A

HSL56A

HSL65A

HSLC8A

HSL33F

HSL56F

HSL65F

HSLC8F

HSL33G

HSL56G

HSL65G

HSLC8G

300 (20.7)

HSLD5B

HSM33B

HSLD5A

HSM33A

HSLD5F

HSM33F

HSM3BB * HSM3BA * HSM3BF

HSM65B HSM65A HSM65F

HSLD5G

HSM33G

HSM3BG

HSM65G

2,000 (138)

1/2

HSM6DB * HSM6DA * HSM6DF * HSM6DG

HSMC8B HSMC8A HSMC8F HSMC8G 1,500 (103)

HSMCFB * HSMCFA * HSMCFF * HSMCFG * 2,000 (138)

HSMD5B HSMD5A HSMD5F HSMD5G 1,250 (86) 3/4

HSMDDB * HSMDDA * HSMDDF * HSMDDG * 2,000 (138) 3/4

1/2

3/8

1/2

1/2

3/4

HSH15B

HSH1DB *

HSH15A

HSH1DA *

HSH55B HSH55A

HSH5DB* HSH5DA*

HSH15F

HSH1DF *

HSH55F

HSH5DF*

HSH15G

HSH1DG *

HSH55G

HSH5DG*

5,000 (345)

4,000 (276)

5,000 (345)

1/4

3/8

1/2

HSHC5B HSHC5A HSHC5F HSHC5G

HSHCDB * HSHCDA * HSHCDF * HSHCDG *

HSPB8B HSPB8A HSPB8F HSPB8G

HSHFFB * HSHFFA * HSHFFF * HSHFFG *

5,000 (345)

4,000 (276) 3/8

35 (11)

65 (20)

50 (15)

75 (23)

1/2 npsm(m)

1/2 npt(m)

3/8 npt(m)

1/2 npt(m)

1/2 npt(m)

50 (15) 3/4 npsm(m) 3/4 npt(m)

35 (11) 1/2 npt(m)

35 (11)

50 (15)

1/2 npsm(m)

1/2 npt(f)

1/2 npt(m)

50 (15)

75 (23)

1/2 npt(f)

1/2 npt(m)

75 (23) 1/2 npsm(f)

3/4 npt(m)

50 (15) 3/4 npsm(m)

3/4 npsm(f)

50 (15) 3/8 npsm(m) 1/4 npt(m)

35 (11) 3/8 npt(f)

1/4 npt(m)

1/2 npsm(m)

50 (15)

75 (23) 1/2 npsm(m)

3/8 npsm(f))

1/2 npt(m)

1/2 npsm(f)

3/8 npt(m)

3/8 npsm(f)

Fuel/Evacuation HSLE3B HSLE3A HSLE3F HSLE3G

DEF

HSDD5B

HSDDDB

HSDD5A

HSDDDA

HSDD5F

HSDDDF

NA

NA

Maximum dry weight with hose: XD10 = 54 lbs (24.5 kg), XD20 = 59 lbs (27 kg), XD30 = 98 lbs (44.5 kg)

Wetted parts–Bare hose reel only: zinc plated steel, anodized aluminum, nitrile rubber

Instruction Manuals: XD10 and XD20: 313431, XD30: 3A0138

* Bare reel–hose sold separately

** Not recommended for overhead installation. Maximum installed height is 7 feet (2.13 meters).

125 (8.6)

50 (3.4)

1

3/4

30 (9) 3/4 npsm(m) 1 npt(m)

50 (15) 3/4 bspp(m) 3/4 bspp ORB

Operating

Temp.

-

20–190º F

(-28–87º C)

-

40–180º F

(-40–82º C)

-

20–190º F

(-28–87º C)

-

40–180º F

(-40–82º C)

-

40–200º F

(-40º–93º C)

-

40–180º F

(-40–82º C)

-

20–225º F

(-28–107º C)

-

40–120º F

(-40–49º C)

12

–140º F

(-11–60º C)

www.graco.com

61

XD Series HN Model Hose Reels

Hose Reels and Packages

Features and Benefits

Ideally suited for lube truck installations where space is a premium. Structurally engineered frame and spool is made from high strength steel that won’t bend or flex. Long-lasting spring provides constant spring torque through the entire range of motion. Open swivel ports ensure high fluid flow with minimal pressure loss.

Typical Applications

• Mining maintenance

• Public works garages

• Construction vehicle maintenance

• Light-utility service trucks

Typical Fluids Handled

• Petroleum and synthetic based oils

• Grease

• Air/Water

• Anti-freeze

• Fuel Evacuation

A

Dimensions

C

D

A

B

XD30 Hose Reels

HN Model

9.0" (229 mm)

13.77" (350.00 mm)

21.50" (546.00 mm)

23.10" (588.00 mm)

D

B

C

62

Ordering Information Technical Specifications

Applications

Air, Water, Anti-

Freeze, Windsheild

Washer Fluid

Model numbers by color

Metallic

Blue

HNL56B

White

HNL56A

Yellow

HNL56F

24C246^ 24C245^ 24C247^

HNL65B HNL65A HNL65F

24C249^ 24C248^ 24C250^

HNLC8B

HNLD5B

HNLC8A

HNLD5A

HNLC8F

HNLD5F

Pressure psi (bar)

300 (20.7)

300 (20.7)

300 (20.7)

300 (20.7)

300 (20.7)

300 (20.7) id in.(M)

3/8

3/8

1/2

1/2

1/2

3/4

Hose

Length ft (m)

65

65

50

50

75

50

Connection Size

Inlet npsm(m)

Outlet

1/2 npsm(m) 3/8npt(m)

1/2 npsm(m) 3/8npt(m)

1/2 npsm(m) 1/2 npt(m)

1/2 npsm(m) 1/2 npt(m)

1/2 npsm(m) 1/2 npt(m)

3/4 npsm(m) 3/4 npt(m)

Operating

Temp.

-20º F to 190º F

(-28º C to 87º C)

-40º F to 180º F

(-40º C to 82º C)

Petroleum- and synthetic based oils

HNM65B HNM65A HNM65F 2000 (138)

24C252^ 24C251^ 24C253^ 2000 (138)

HNMC8B HNMC8A HNMC8F 1500 (103)

HNMD5B HNMD5A HNMD5F 1250 (86)

HNMDDB* HNMDDA* HNMDDF* 2000 (138)

HNH55B HNH55A HNH55F 4800 (331)

24C255^ 24C254^ 24C256^ 4800 (331)

1/2

1/2

1/2

3/4

3/4

3/8

3/8

1/2

1/2

3/8

50

50

75

50

50

50

50

50

50

75

1/2 npsm(m)

1/2 npsm(m)

1/2 npsm(m)

1/2 npt(m)

1/2 npt(m)

1/2 npt(m)

3/4 npsm(m) 3/4 npt(m)

3/4 npsm(m) 3/4 npt(m)

3/8 nptsm(m) 1/4 npt(m)

3/8 nptsm(m) 1/4 npt(m)

-20º F to 190º F

(-28º C to 87º C)

-40º F to 180º F

(-40º C to 82º C)

-40º F to 200º F

(-40º C to 93º C)

Grease

Pressure Wash

Fuel/ Evacuation

HNHC5B

HNHCDB*

HNPB8B

HNHC5A

HNHCDA*

HNPB8A

HNHC5F

HNHCDF*

HNPB8F

HNHFFB* HNHFFA* HNHFFF*

HNLE3B HNLE3A HNLE3F

5000 (345)

5000 (345)

4000 (276)

4000 (276)

1250 (86)

3/8

1

75

30

1/2 npsm(m) 1/2 npt(m)

1/2 npsm(m) 1/2 npt(m)

1/2 npsm(m)

3/4 npsm(m)

3/8 npt(m)

1/2 npsm(m) 3/8 npsm(f)

1 npt(m)

-40º F to 180º F

(-40º C to 82º C)

-20º F to 225º F

(-28º C to 107º C)

-40º F to 100º F (-40º C to 49º C)

*Bare reel- hose sold seperately ^ Reel package includes hose guide kit 15Y478

Wetted parts–bare hose reel only: zinc plated steel, steel, nitrile rubber HN Dry Weight: 64 pounds (29.0 kg) Instruction Manual: 3A0138

Wetted parts–HSL, HSM, HNL, and HNM Models are Nickel Plated Carbon Steel, Aluminum, Buna N Rubber, UHMWPE. HSH, HSP, HNH, and HNP Models are Nickel Plated Stainless Steel, Buna N Rubber, UHMWPE

www.graco.com

700 Series Hose Reels

Hose Reels and Packages

Features and Benefits

• Fully ported swivel and shaft for unrestricted flow

• Handles hose lengths up to 75 ft (23 m)

• Heavy-duty ball bearings outlast sleeved-type bearings

• Easy rewind with minimal hose guidance

Typical Applications

• Heavy-duty truck dealers

• Fleet maintenance

• Mining maintenance

• Public works garages

• Construction vehicle maintenance

• Heavy-duty mobile service trucks

• Mining

Dimensions

700 SERIES

A 26.25 in (628 mm)

B 24.0 in (609 mm)

C 11.83 in (300 mm)

Typical Fluids Handled

• Petroleum and synthetic based oils

• Grease

• Fuel evacuation

• Pressure wash

• Air

• Water

• Anti-freeze

• Windshield washer

Technical Specifications

A

B

C

Inlet npsm (m)

1 npt(f)

Outlet npt (m)

1 npt(f)

Max. Pressure

Psi (bar)

Maximum

Vacuum

1500 psi

(bare reel))

24 in Hg

Operating

Temp.

-40º F to

180º F

(-40º C to

82º C)

Wetted

Parts

Carbon

Steel,

Buna

Weight

(bare reel)

Instruction

Manual

103 lb

(46.7 kg)

Ordering Information

Medium-Pressure Oil Dispense Reels (rated to 1500 psi/103 bar)

237728 Bare Hose Reel

237879 * Hose Reel with 3/4 in x 75 ft (19.1 mm x 23 m) hose

Medium-Pressure Oil Evacuation and Dispense Reels (rated to 212 psi/14.6 bar)

241910 * Hose Reel with 1 in x 50 ft (25.4 mm x 15 m) hose; 24 in (0.3 m) Hg vacuum

Medium-Pressure Fuel Dispense Reel (rated to 125 psi/8.6 bar)

237884 * Hose Reel with 1 in x 50 ft (25.4 mm x 15 m) hose

* Not recommended for overhead installation

308546

237875 with 237932

Overhead mounting kit.

Includes all parts needed for ceiling-mounting.

www.graco.com

63

64

700 Series Hose Reels

Hose Reels and Packages

Features and Benefits

• Heavy-duty, high volume reel

• Industrial-grade paint for high abrasion and corrosion resistance

• Full-flow shaft

• Heavy-duty brackets and springs

• Rugged base and hose rollers

• Heavy-duty latch mechanism

Typical Applications

• Heavy-duty truck dealers

• Fleet maintenance

• Mining maintenance

• Public works garages

• Construction vehicle maintenance

• Heavy-duty mobile service trucks

• Mining

Typical Fluids Handled

• Petroleum and synthetic based oils

• Water

• Anti-freeze

• Unleaded and diesel fuels

C

A

Dimensions

750 Series

A 26.25 in (667 mm)

B 26.25 in (667 mm)

C 21.88 in (556 mm)

D 13.75 in (349 mm)

E 24.25 in (616 mm)

F 17.50 in (445 mm)

G 22.125 in (562 mm)

H 13.50 in (343 mm)

F

H

B

G

E

D

Technical Specifications

Inlet npsm (m)

1-1/2 npt(f)

Outlet npt (m)

1-1/2 npt(f)

Max. Pressure

Psi (bar)

375 psi

(26 bar)

Hose

Capacity

50 ft

(15.2m) x

1.50 in ID

Hose

Operating

Temp.

150º F

(65º C)

Wetted

Parts

Carbon

Steel, Buna

Weight

(bare reel)

Instruction

Manual

139 lbs

(63 kg)

309442

Ordering Information

Bulk Dispense Reels (rated to 125psi/8.6 bar))

245410 Bare hose reel

www.graco.com

XD, 700 and 750 Series Hose Reel Accessories

Hose Reels and Packages

Ordering Information

Reel Enclosure

Mounting

Channel

SD10/SD20 Open

Accommodates one, two, three, four, five or six reels (includes all parts for wall or ceiling mounts)

1 Reel

24A934

2 Reels

24A935

3 Reels

24A936

4 Reels

24A937

5 Reels

24A938

6 Reels

24A939

XD10/XD20 Open 24A219 24A220 24A221 — — 24A222

SD Enclosed

24C100

Mounting Bracket

203521 203522 203523 203524 203525

Retrofit Adapter Kits

24A224 Includes all parts to mount hose reel to existing 500 series mounting pattern

Includes all parts to convert SD10 hose reels to fit existing 250 series enclosures

204741

Ball Stop Kits

222225

218340

218341

237872

237873

203526

Secures mounting channel to I-beam without drilling. Two brackets are required for 1-3 hose reels; three brackets for 4-6 hose reels

Typical Hose id

For 1/4 in (6.4 mm) i.d. hose (

Not for use with XD30, 700 or 750)

For 1/4-3/8 in (6.4-9.5 mm) i.d. hose (

Not for use with XD30, 700 or 750)

.782 ID used for 3/8 in and 1/2 in (9.5 mm and 12.7 mm) hose (

Not for use with XD30, 700 or 750)

1.0 ID used for 5/8 in (15.9 mm) hose

1.123 ID used for 3/4 in (19.1 mm) hose

237874

24D132

1.374 ID used for 1 in (25.4 mm) hose

For 3/8 in (9.5 mm) o.d. hose

24D133 For 1/2 in (12.7 mm) o.d. hose

Hose Inlet Kits for SD and XD10 and 20 Pressure psi (bar) Hose id in (mm) Length in (mm) Hose Inlet

218549

218550

Low/medium pressure

High pressure

224417 High pressure

Hose Inlet Kits for XD30

2000 (137)

4000 (276)

1/2 (12)

3/8 (10)

24 (610)

24 (610) npt(m) npt(m)

5000 (345) 1/4 (6) 24 (610) npt(m)

Pressure psi (bar) Hose id in (mm) Length in (mm) Hose Inlet

24E283

24E284

High pressure

Low/medium pressure

24E285 Low pressure (for fuel)

700 Series Reels Accessories

5000 (345)

1250 (86)

125 (8.6)

1/2 (12)

3/4 (19)

1/2 (12)

24 (610)

24 (610)

24 (610) npt(m) npt(m) npt(m)

237932*

237944*

109064

Overhead mounting kit includes all parts needed for ceiling-mounting reel (one required per reel)

Roller support kit includes roller support accessories for ceiling mounted reels (reel not included)

Hose inlet kit 1 (mbe) x 28 in (71 cm)

*Required for overhead mounting

DEF Hoses

124875

124581

DEF hose, 2 ft, 3/4 in BSPP (M) x cut end (inlet hose)

DEF hose, 6 ft, 3/4 in BSPP (M) x cut end (inlet hose)

Valve Hanger Kit

224444 Mounts to side of reel to allow hanging of non-metered and high flow dispensing valves

Metal Label Kits (includes one 3/4 in x 4-1/4 in (1.9 cm x 10.8 cm) metal label and mount)

218670

218671

180698

Motor oil

Grease

218675

218676

218672 Gear lube

Self Adhesive Identification Label Set

218677

Air

Water

Anti-freeze

218674

218673

218678

Hydraulic Oil

ATF

Evacuation

Set includes: 1 in x 5 in (25.4 mm x 127 mm) hose reels labels for Anti-Freeze, Water, SAE 5-40,

SAE 10-40, SAE 20W, Hydraulic, Gear, SAE 10W, SAE 10-30, SAE 30W, Dexron, Air, Chassis, ATF

Retrofit Bracket to fit 500 Series

Mounting Channel

Mounting Bracket

Ball Stop Kit

Hose Inlet Kit for SD and

XD open reels

237944

www.graco.com

65

Dispense Consoles

Multi-Station Consoles and Accessories

Multi-Station Consoles*

Six-Station Console

222629

Includes upper and lower floor plates with roller guides and brackets (1-110236; 5-196471) to hold one water bib and five Graco LDM dispense valves. Console dimensions (without brackets): 27 in high x 54 in long x 12 in wide (68.58 cm high x 139.7 cm long x 25.4 cm wide). Console requires a floor opening of 6 in x 51 in (15.2 cm x 122.4 cm)

Four-Station Console

223448

Includes upper and lower floor plates, roller guides and brackets (1-110236; 3-196471) to hold one water bib and three Graco LDM dispense valves. Console dimensions (without brackets): 27 in high x 36 in long x 12 in wide (68.58 cm high x 139.7 cm long x 25.4 cm wide). Console requires floor opening of 6 in x 33 in (15.2 cm x 83.8 cm)

Single Add-On Fluid Module

222645

For adding-on to four- or six-station consoles. Includes add-on module, floor plates with roller guides to fit module and one 196471. Console requires floor opening of 6 in x 8-1/2 in (15.2 cm x 21.6 cm).

Add-on fluid module dimensions 27 in high x 9 in long x 10 in wide (68.5 cm high x 22.86 cm long x

25.4 cm wide)

*Hoses not included

Lubricant Dispense Consoles Accessories

110236 Water bib bracket

110237 Em6 mounting bracket

110285 Pistol-grip dispense valve bracket

196471 Universal dispense valve bracket for EM5 and PM5

249440 Matrix dispense valve bracket

222641 Console roller repair kit (upper)

218591 Floor plate roller repair kit (lower)

178670 Roller only

234423 End panel replacement comes with 8 screws

Oil Dispense Bar

220107

Tough metal cabinet with baked-on enamel finish. Constructed with single-dispense tap and waste pan with plated, perforated metal service area and drain connection. Modular convenient design allows up to 2 oil dispense taps or 3 meters to be added at the time of installation, or later if required.

Instruction manual 307742. Maximum working pressure 900 psi (62 bar). 22.6 in H x 13.25 in D x

18.3 in W (57.4 cm H x 33.7 cm D x 46.5 cm W)

Tap Kit

220112

Add to oil dispense bar to convert into two or three taps, as needed. Kit also includes non-drip dispense valve, manifold and all necessary mounting hardware

Meter Kit

239706

Any individual tap on the oil dispense bar can be fitted with a fluid meter. Kit includes meter 239824 and all necessary mounting hardware. Maximum working pressure 500 psi (34 bar)

220110 Spigot valve replacement

Floor

Plate

Roller

218591

220107

Console

Roller

222641

222629

222629

66

LUBRICATION EQUIPMENT z DISPENSE CONSOLES

234423

222645

www.graco.com

LD Series Electronic Meters

Dispense Meters and Control Valves

Features and Benefits

• Manual and Preset Dispense

• Dispenses in gallons, quarts, pints and liters

• Easy to read LCD display with durable switches for long life

• Rugged engineered material for superior impact resistance and long life

• Ergonomically-designed handle for optimum comfort

• Standard rigid extension kit and automatic thermal compensating nozzle

• Optional extensions available

Typical Applications

• Metered oil dispense

• Heavy-duty dealerships

• Fleet service facilities

• For indoor use only

• Automotive dealerships

• Fast lube centers

• Service shops

• In-plant

Typical Fluids Handled

• Petroleum- and synthetic-based oils

• Anti-freeze

Technical Specifications

Flow Range (1) ................................................................................................................ 0.1 - 5 gpm (0.4 - 19 lpm)

Maximum Working Pressure .........................................................................................................1000 psi (69 bar)

Units of measure .......................................................................... Quarts, pints, gallons, liters (factory set to quarts)

Weight ............................................................................................................................................ 3 lb (1.36 kg)

Inlet ...................................................................................................................................................... 1/2 in npt

Outlet .................................................................................................................................................... 1/2 in npt

Operating Temperature Range........................................................................................... 32 - 120º F (0 - 48.8º C)

Storage Temperature Range...................................................................................... -30 - 120º F (-34.4 - 48.8º C)

Battery ............................................................................................................................................ 9 volt alkaline

Battery Life .............................................................................................................................................. one year

Wetted Parts ............................................................................................................. sst, nitrile rubber, zinc, cs, lcp

Meter Pressure Loss (1) ....................................................................................... 90 psi (6.2 bar) @ 5 gpm (19 lpm)

Accuracy (2) ................................................................................................................................................. ±0.5%

Dimensions (without extension) ................................................................................... 11 in L x 3.25 in W x 3.25 H

(28 cm L x 8.3 cm W x 8.3 cm H)

Maximum Totalizer ........................................................................................................... 999,999 gallons or liters

Maximum Recorded Dispense ............................................................................................ 999.9 Units (LDP5 only)

Warranty ............................................................................................................................................... Two Years

Instruction Manual .................................................................................................................................... 312668

(1) Tested in 10W oil at 70ºF. Flow rates vary with fluid pressure, temperature, viscosity, inlet fitting and nozzle type.

(2) @ 2.5 gpm (9.5 lpm) @ 70º F (21º C) with 10 wt. oil and 1 gal (3.8 l) dispensed.

May require re-calibration. Out-of-box accuracy ±1.25%. Not recommended for in-line installation.

Ordering Information

LDM5 Manual Dispense Meters

255751

256215

1/2 in npt(f) swivel, flexible extension and automatic nozzle for oil and anti-freeze

1/2 in npt(f) swivel, rigid extension, trigger guard/boot and automatic nozzle for oil and anti-freeze

258693

1/2 in npt(f) swivel, flexible extension, trigger guard/boot and automatic nozzle for oil and anti-freeze

LDP5 Preset Dispense Meters

255277

256216

258694

1/2 in npt(f) swivel, flexible extension and automatic nozzle for oil and anti-freeze

1/2 in npt(f) swivel, rigid extension, trigger guard/boot and automatic nozzle for oil and anti-freeze

1/2 in npt(f) swivel, flexible extension, trigger guard/boot and automatic nozzle for oil and anti-freeze

www.graco.com

256215

255751

258693

256216

255277

258694

67

68

SD Series Electronic Meters

Dispense Meters and Control Valves

Features and Benefits

• Fluid inlet options (½ in and ¾ in npt) meets standard and high-flow requirements

• Large LCD display and simple operator controls

• Locking trigger (LDP5/LDP15 models) and durable cast guard prevents accidental triggering

• Flush-mount nozzle valve design prevents leaks and contamination

Typical Applications

• Automotive dealerships • Heavy-duty dealerships • Fast lube centers • Lube trucks

• Fleet service facilities • Service shops • In-plant • Mining

Typical Fluids Handled

• Petroleum- and synthetic-based oils • Anti-freeze

Technical Specifications

Flow Range (1) ..............................................................................................................0.1–14 gpm (0.4 - 53 lpm)

Maximum Working Pressure .................................................................................................. 1500 psi (103.4 bar)

Weight ........................................................................................................................................... 5 lbs (2.3 kg)

Inlet ......................................................................................................................3/4 in–14 npt or 1/2 in–14 npt

Outlet .......................................................................................................... 3/4 in–16 straight thread O-ring Boss

Maximum Totalizer .......................................................................................................... 999,999 gallons or liters

Maximum Recorded Dispense ..............................................................................................................999.9 Units

Maximum Pre-Set Volume ...................................................................................................................999.9 Units

Storage Temperature Range...............................................................................................-40–158º F (-40-70º C)

Operating Temperature Range...............................................................................................4–158º F (-20-70º C)

Battery ......................................................................................................................4 AA alkaline or 4 AA lithium

Battery Life (3) . . . Preset Models – six months w/alkaline, manual models – one year w/alkaline 4 AA alkaline/lithium

Wetted Parts .............................................................................................. Aluminum, sst, pbt/pc, nitrile rubber, cs

Meter Pressure Loss (1) ...................................................................................180 psi (12 bar) @ 14 gpm (53 lpm)

Accuracy (2) ............................................................................................................................................+/- 0.5%

Dimensions (without extension) ......................................13 in L x 3.75 in W x 5.75 in H , (33cm x 9.5cm x 14.6cm)

Warranty ................................................................................................ Five years overall, three years electronics

Instruction Manual ...................................................................................................................................312865

(1) Tested in 10W oil at 70º F. Flow rates vary with fluid pressure, temperature, viscosity, inlet and nozzle type.

(2) At 2.5 gpm (9.5 lpm) @ 70º F (21º C) with 10 wt. oil and 1 gal (3.8 l) dispensed. May require re-calibration. Out-of-box accuracy ±1.25%.

(3)

Average shop use with alkaline batteries (included); 30-35% longer life with lithium AA.

Ordering Information

SDM5 MANUAL DISPENSE ELECTRONIC METER, 5 GPM OR LESS

255350 1/2 in npt(f) swivel, rigid extension with standard automatic non-drip quick-close nozzle for oil

255348 1/2 in npt(f) swivel, flexible extension with standard automatic non-drip quick-close nozzle for oil

255349 1/2 in npt(f) swivel, extension with standard quick-close nozzle for gear lube

255802 1/2 in npt(f) swivel, rigid extension with standard quick-close nozzle for anti-freeze

255803 1/2 in npt(f) swivel, flexible extension with standard quick-close nozzle for anti-freeze

SDM15 MANUAL DISPENSE ELECTRONIC METER, 14 GPM OR LESS

256836 1/2 in npt(f) swivel, rigid extension with high flow, quick-close nozzle for oil and anti-freeze

256837 1/2 in npt(f) swivel, flexible extension with high flow, quick-close nozzle for oil and anti-freeze

255800 3/4 in npt(f) swivel, rigid extension with high flow, quick-close nozzle for oil and anti-freeze

255801 3/4 in npt(f) swivel, flexible extension with high flow, quick-close nozzle for oil and anti-freeze

SDP5 PRESET DISPENSE ELECTRONIC METER, 5 GPM OR LESS

255200 1/2 in npt(f) swivel, rigid extension with standard automatic non-drip quick-close nozzle for oil

255351 1/2 in npt(f) swivel, flexible extension with standard automatic non-drip quick-close nozzle for oil

255352 1/2 in npt(f) swivel, extension with standard quick-close nozzle for gear lube

255355 1/2 in npt(f) swivel, rigid extension with standard quick-close nozzle for anti-freeze

255356 1/2 in npt(f) swivel, flexible extension with standard quick-close nozzle for anti-freeze

SDP15 PRESET DISPENSE ELECTRONIC METER, 14 GPM OR LESS

256838 1/2 in npt(f) swivel, rigid extension with high flow, quick-close nozzle for oil and anti-freeze

256839 1/2 in npt(f) swivel, flexible extension with high flow, quick-close nozzle for oil and anti-freeze

255353 3/4 in npt(f) swivel, rigid extension with high flow, quick-close nozzle for oil and anti-freeze

255354 3/4 in npt(f) swivel, flexible extension with high flow, quick-close nozzle for oil and anti-freeze

255350

www.graco.com

EM6

Electronic Meter

Dispense Meters and Control Valves

Features and Benefits

• Screw-tight nozzle for positive shut off

• Ball bearing swivel for ease of use

• Durable design ideal for use in harsh environments

• Reset capable for periodic dispense history information

Typical Applications

• Metered oil dispense in demanding environments

• Automotive dealerships • Heavy-duty dealerships

• Fleet service facilities • In-plant • Lube trucks

Typical Fluids Handled*

• Petroleum- and synthetic-based oils

* Not recommended for use with anti-freeze or windshield washer fluid

• Service and fast lube centers

• Mining

Technical Specifications

Maximum Operating Pressure ............................................................................................1500 psi (105 bar, 10.5,)

Operating Temperature Range.............................................................................................. -40-180º F (-40-82º C)

Storage Temperature Range................................................................................................. -40-140º F (-40-60º C)

Inlet ........................................................................................................................................................... 1/2 npt

Outlet ......................................................................................................................................................... 1/2 npt

Wetted Parts ................................................................................ aluminum, SST, CS, acetal, nitrile rubber, Geolast ™

Instruction Manual .....................................................................................................................................308642

Accuracy/Repeatability .............................................................................................................................+/- 0.6%

Geolast™ is a registered trademark of Advanced Elastomer Systems.

Ordering Information

EM6 Electronic Meters

243599 U.S. measure (rigid extension)

243600 U.S. measure (gear lube extension)

243601 U.S. measure (flexible extension)

243602 Metric measure (rigid extension)

243603 Metric measure (gear lube extension)

243604 Metric measure (flexible extension)

243992 1/2 in (12.7 mm) bare valve (without locking trigger)

Accessories

235878 U.S. Electronic Control Replacement

235901 Metric Electronic Control Replacement

203655 Twist Lock Nozzle Replacement 1/4 npt(m)

203687 Flex Extension, hose with 203655 tip

201701 Gear Lube Extension with tip

203265 Rigid Extension with tip

Color-coded Impact Guards for Electronic Meters

Color-code various fluids dispensed to reduce errors, match store colors, or create a customized appearance.

For electronic meters only

191782 Black

191783 Red

191784 Blue

243599

243392

235878

www.graco.com

191782

69

70

EM12

Electronic Meter

Dispense Meters and Control Valves

Features and Benefits

• Reset capable for periodic dispense history information and locking trigger for hands-free operation

• High-flow capability provides up to 12 gpm (45 lpm)

• Rugged design withstands demanding environments

Typical Applications

• Automotive and heavy-duty dealerships

• Service and fast lube centers

• In-plant

• Mining

• Fleet service facilities

• Lube trucks

Typical Fluids Handled*

• Petroleum- and synthetic-based oils

* Not recommended for use with anti-freeze or windshield washer fluid

Technical Specifications

Maximum Recommended Flow Rate ........................................................................................... 12 gpm (45.4 lpm)

Maximum Operating Pressure ..................................................................................................... 1500 psi (105 bar)

Operating Temperature Range................................................................................................ -4-130º F (-20-55º C)

Storage Temperature Range................................................................................................. -40-140º F (-40-60º C)

Inlet .........................................................................................................................................1/2 npt and 3/4 npt

Outlet ......................................................................................................................................................... 1/2 npt

Wetted Parts .................................................................................. aluminum, SST, CS, acetal, nitrile rubber, Geolast

Instruction Manual .....................................................................................................................................308642

Ordering Information

EM12 Electronic Meters with 3/4 in npt(f) swivel inlet

238636 U.S. measure, rigid extension

238637 U.S. measure, flexible extension

238638 Metric measure, rigid extension

238639 Metric measure, flexible extension

EM12 Electronic Meters with 1/2 in npt(f) swivel inlet

238640 U.S. measure, rigid extension

238641 U.S. measure, flexible extension

238642 Metric measure, rigid extension

238643 Metric measure, flexible extension

Bare Valves with Locking Trigger (no meter or extension)

238647 Inline flow through with 1/2 npt(f) swivel inlet and outlet

238646 Inline flow through 3/4 npt(f) swivel inlet; 1/2 npt(f) outlet

Accessories

235878 U.S. Electronic control replacement

235901 Metric electronic control replacement

223920 High flow twist lock nozzle, 1/2 npt(f) with 1 in diameter tip

238400 Automatic nozzle 1/2 npt(f) with 1 in diameter tip

185416 Filter 40 mesh stainless steel

Color-coded Impact Guards for Electronic Meters

For color-coding fluids dispensed to reduce errors, match store colors, or to protect vehicle’s finish. For electronic meters only.

191782 Black

191783 Red

191784 Blue

238641

223920

238647

191782

www.graco.com

In-Line Electronic Meters

Dispense Meters and Control Valves

IM5 Low Pressure Meter

• Heavy-duty construction for outdoor use

• Easy-to-use meter dispenses pints, quarts, liters or gallons

• Compatible with windshield wash solvent or anti-freeze

Typical Applications

• Automotive dealerships • Fast lube centers

Typical Fluids Handled

• Petroleum- and synthetic-based oils • Anti-freeze

• Service shops • In-plant

• Windshield wash fluid

247453

IM6 and SDI15 Medium/High Pressure Meters

• Reset capable for periodic dispense history information

• Shock-resistant durable design ideal for rugged environments

• Easy-to-use meter dispenses pints, quarts, liters or gallons

Typical Applications

• Automotive and large truck dealerships • Fast lubes and service shops

• Fleet service facilities • Lube trucks (IM6 only)

244075

• Mining

• In-plant

Typical Fluids Handled*

• Petroleum- and synthetic-based oils

* Not recommended with anti-freeze or windshield wash

239824

Technical Specifications

Flow Range*

Max. Working Pressure

Weight

Units of Measurement

Accuracy

Inlet/Outlet

Operating Temperature Range

Storage Temperature Range

Outdoor

Max Totalizer

Max Recorded Dispense

Meter Pressure Loss

Battery

Wetted Parts

Instruction Manual

IM5 In-Line Meter

0.5 to 5 gpm (1.9 to 19 lpm)

500 psi (34 bar)

1.8 lb (0.8 kg)

± 0.5%

1/2 npt*

-4 - 122º F (-20 - 50º C)

-13 - 122º F (-25 - 50º C) yes

99,999

999.99

15 psi (1 bar) @ 5 gpm (19 lpm)

9-volt, alkaline nickel, zinc, zenite, nitrile rubber

308687

IM6 In-Line Meter

0.12 to 12.0 gpm (0.46 to 45.6 lpm)

1500 psi (103 bar)

1.9 lb (0.95 kg)

Quarts, pints, gallons, liters (factory-set to quarts)**

± 1.0%

1/2 npt*

-4º - 130º F (-20º - 55º C)

-40º - 140º F (-40º - 60º C) yes

19,999

999.99

120 psi (8.3 bar) @ 6 gpm (23 lpm)

SDI15 In-Line Meter

0.1 to 14 gpm (0.4 to 53 lpm)

1500 psi (103 bar)

1.8 lb (0.82 kg)

± 0.5%

1/2 npt*

-4 - 122º F (-20 - 50º C)

-13 - 122º F (-25 - 50º C) no

99,999

999.99

22 psi (1.5 bar) @ 14 gpm (53 lpm)

Lithium aluminum, carbon steel, nitrile rubber, nickel, bronze, SST #304, cast ALNICO 8

307965

2AA alkaline aluminum, carbon steel, nitrile rubber, nickel, bronze, SST, Geolast

313048

*Tested with number 10 motor oil. Flow rates vary with fluid pressure and viscosity. ** Display shows quantity in 0.01 increments up to 999.99 gallons, quarts, pints, or liters. Totalizes in gallons or liters up to 99,999 units (IM5 only).

Ordering Information

IM5 In-Line Meter

239824

IM5 In-Line Meter

IM6 In-Line Electronic Meter

244075

In-Line Meter (U.S.)

244076

In-Line Meter (Metric)

235878

235901

Replacement Electronics (U.S.)

Replacement Electronics (Metric)

SDI15 In-Line Electronic Meter

247453

In-Line Meter (U.S.)

www.graco.com

71

72

Mechanical Meters

Dispense Meters and Control Valves

Features and Benefits

• Balanced, lightweight, rugged construction, and comfortable grip

• Non-resettable totalizing register helps manage material usage

• Handles a variety of petroleum- and synthetic-based oils and anti-freeze

• Ideal for indoor and outdoor use

Typical Applications

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• In-plant

• Lube trucks

• Mining

Typical Fluids Handled

• Petroleum- and synthetic-based oils and anti-freeze

Technical Specifications

Maximum Flow* ......................................................................................................................... 4 gpm (15.1 lpm)

Minimum Flow* ......................................................................................................................... 0.4 gpm (1.5 lpm)

Maximum Operating Pressure .................................................................................................. 1000 psi (68.9 bar)

Operating Temperature Range............................................................................................ -40-140º F (-40-60º C)

Accuracy .............................................................................................................................................. ± 0.65%

Weight ........................................................................................................................................... 6.0 lb (2.7 kg)

Inlet and outlet connections .................................................................................................................... 1/2 npt(f)

For use with petroleum-based fluids only.

*Tested with Mobil® DTE-25 motor oil. Minimum/maximum flow rates will vary with fluid viscosity.

Ordering Information

Manual Meters

256556 16 Quart Meter with flexible extension and twist lock nozzle

253601 10 Liter Meter with flexible extension and twist lock nozzle

256786 16 Quart Meter with rigid extension and twist lock nozzle

256788 10 Liter Meter with rigid extension and twist lock nozzle

256787 16 Quart Meter with gear lube extension and automatic nozzle

256789 10 Liter Meter with gear lube extension and automatic nozzle

Preset Meters

207738 60 Quart Meter valve with rigid extension and automatic nozzle

207739 60 Gallon Meter valve with rigid extension and automatic nozzle

207742 60 Liter Meter valve with rigid extension and automatic nozzle

Nozzles

255459 Quick-close nozzle only for oil

255460 Quick-close nozzle only for anti-freeze

255470 Quick-close nozzle only for gear lube

256556

256787

256786

207738

www.graco.com

Accessories

Dispense Meters and Control Valves

LDM and LDP Accessories

Nozzle Extension Kits

255861 Automatic nozzle with flexible extension for oil and anti-freeze*

239949 Automatic thermal compensating nozzle with rigid extension for oil and anti-freeze

239951 Automatic thermal compensating nozzle with flexible extension for oil and anti-freeze

239950 Automatic thermal compensating nozzle with rigid extension for gear lube

239829 Automatic thermal compensating nozzle for oil and anti-freeze without extension

238371 Automatic thermal compensating gear lube nozzle without extension

*Economical extension used on model 255751

Additional LDM5 Accessories

240416 Inlet Swivel

114017 Inlet Filter, 80 mesh

196471 Valve Bracket for Dispense Console

240453 Valve Repair Kit

Swivel Covers

191294* Black

191287 Red

191288 Blue

191289 Green

191295 Yellow

Protective Boots with Trigger Guard

247759* Black

243835 Red

243836 Blue

243837 Green

247760 Yellow

*Included on meter 256215, 256216, 258693 and 258694

SDM and SDP Accessories

Nozzle Extension Replacement Kits For SD Series Meters

255852 Automatic non-drip quick-close nozzle with rigid extension for oil

255853 Automatic non-drip quick-close nozzle with flexible extension for oil

255854 Non-drip quick-close nozzle with rigid extension for gear lube

255855 Non-drip quick-close nozzle with rigid extension for anti-freeze

255856 Non-drip quick-close nozzle with flexible extension for anti-freeze

255459 Automatic non-drip quick-close nozzle only for oil

255460 Quick-close nozzle only for anti-freeze

255470 Quick-close nozzle only for gear oil

255857 Non-drip quick-close high-flow nozzle with rigid extension for oil and anti-freeze

255858 Non-drip quick-close high-flow nozzle with flexible extension for oil and anti-freeze

255461 Quick-close high-flow nozzle only for oil and anti-freeze

Swivel Covers

15T366 Black swivel cover (standard color with meter)

15T367 Red swivel cover

15T368 Blue swivel cover

15T369 Green swivel cover

15T370 Yellow swivel cover

Filter Kits for SD Series Meters

255885 Filter kit includes (10) filters/strainers, (10) spacers and (10) O-rings (155332)

255861

239949

239951

239950

247759

191294

255854

255852

255853

255857

15T366

www.graco.com

73

74

SDV15 Control Valve

Dispense Meters and Control Valves

Features and Benefits

• Moves fluid up to 15 gpm (56.8 lpm)

(15 gpm obtained with high-flow nozzle–purchased separately)

• Sturdy cast body designed for use in tough environments

• Lock-on trigger

• 1/2 in npt(f) inlet with built-in ball bearing swivel allows for ergonomic operation

• Inlet screen aids in keeping fluids clean

Typical Applications

• Automotive dealerships

• Fast lube centers

• Service shops

• Lube trucks

• Heavy-duty dealerships

• Fleet service facilities

• In-plant

• Mining

Typical Fluids Handled

• Motor oils • Transmission fluid • Anti-freeze

Technical Specifications

Maximum Recommended Flow Rate ......................................................................................... 15 gpm (18.9 lpm)

Maximum Operating Pressure .................................................................................................... 1500 psi (103 bar)

Weight .........................................................................................................................................0.4 lb (0.18 kg)

Operating Temperature Range..........................................................................................-40º–180º F (-40º–82º C)

Inlet ......................................................................................................................................................... 1/2 npt

Outlet ........................................................................................................... 3/4 in, 16 straight thread O-ring boss

Wetted Parts ......................................................................................... Aluminum, sst, cs, acetal, nitrile rubber, tpe

Warranty .............................................................................................................................................. Five years

Instruction Manual ................................................................................................................................... 312789

1. Tested in 10W oil at 70º F. Flow rates vary with fluid pressure, temperature, viscosity, inlet fitting and nozzle type.

Ordering Information

SDV15 Control Valves

247712

247713

1/2 in npt(f) swivel, locking open trigger, rigid extension and standard automatic non-drip quick-close nozzle for oil products

1/2 in npt(f) swivel, locking open trigger, flexible extension and standard automatic non-drip quick-close nozzle for oil products

247714 1/2 in npt(f) swivel locking open trigger, gear lube extension and standard quick-close nozzle

247715 1/2 in npt(f) swivel locking open trigger, rigid extension and standard quick-close nozzle for anti-freeze

247716 1/2 in npt(f) swivel locking open trigger, flexible extension and standard quick-close nozzle for anti-freeze

Bare Valve (no extension)

247717

Accessories

1/2 in npt(f) swivel locking open trigger, 3/4 in - 16(f) straight thread O-ring boss outlet, and trigger lock, no extension

256164 Filter kit includes (10) filters/strainers (185416)

255459 Quick-close nozzle only for oil

255460 Quick-close nozzle only for anti-freeze

255470 Quick-close nozzle only for gear lube

255857 Non-drip quick-close high-flow nozzle with rigid extension for oil and anti-freeze

255858 Non-drip quick-close high-flow nozzle with flexible extension for oil and anti-freeze

255461 Quick-close high-flow nozzle only for oil and anti-freeze

247712

www.graco.com

XDV20 Control Valve

Dispense Meters and Control Valves

Features and Benefits

• Moves fluid up to 20 gpm (76 lpm)

• Lock-on/lock-off trigger for hands-free operation

• Rugged cast-body design withstands harsh environments

• Built-in ball bearing swivel allows for ergonomic operation

• Inlet screen aids in keeping fluids clean

• Quick close high flow nozzle for high volume dispensing–moves fluids fast!

Typical Applications

• High-flow, non-metered oil dispense

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• In-plant

• Lube trucks

• Mining

Typical Fluids Handled

• Motor oils

• Transmission fluid

• Anti-freeze

Technical Specifications

Maximum Recommended Flow Rate .......................................................................................... 20 gpm (45.4 lpm)

Maximum Operating Pressure .................................................................................................... 1500 psi (105 bar)

Assembly Weight (no meter) .......................................................................................................... 0.4 lb (0.18 kg)

Operating Temperature Range.......................................................................................... -40º–180º F (-40–82º C)

Inlet ....................................................................................................................................... 1/2 npt and 3/4 npt

Outlet ................................................................................................................ 7/8-14 straight thread o-ring boss

Wetted Parts ................................................................................. aluminum, SST, CS, acetal, nitrile rubber, Geolast

Instruction Manual ................................................................................................................................... 308642

Ordering Information

XDV20 Control Valves

247718

247721

247722

247723 3/4 npt(f) swivel inlet, 1/2 in (12.7 mm); flexible extension, high flow, quick-close nozzle

Bare Valves (no extension)

247724

247725

Has locking trigger and in-line flow through 1/2 npt(f) swivel inlet; 7/8-14 straight thread O-ring boss outlet

Has locking trigger and in-line flow through 3/4 npt(f) swivel inlet; 7/8-14 straight thread O-ring boss outlet

Accessories

1/2 npt(f) swivel inlet, 1/2 in (12.7 mm); rigid extension, high flow, quick-close nozzle

1/2 npt(f) swivel inlet, 1/2 in (12.7 mm); flexible extension, high flow, quick-close nozzle

3/4 npt(f) swivel inlet, 1/2 in (12.7 mm); rigid extension, high flow, quick-close nozzle

255793

255859

255921

Quick-close high flow nozzle for oil, ATF and anti-freeze; 7/8-14 straight thread O-ring boss inlet

(XDV20 only)

Flex extension with quick-close nozzle (255793) for XDV20

Rigid extension with quick-close nozzle (255793) for XDV20

247722

247724

www.graco.com

75

76

Grease Dispense Valves

Dispense Meters and Control Valves

Pro Shot ™ Non-Metered Grease Valves

• Rugged design for harsh environments

• Pressure-assisted trigger for ease of operation

• Easy top adjustment with locking nut

• Pro-Shot adjustment nut protected by rigid guard

Typical Applications

• Service shops

• Heavy-duty dealerships

• Fast lube centers

• Automotive dealerships

• In-plant

• Lube trucks

• Mining

Typical Fluids Handled

• Grease up to NLGI #2

Ordering Information

Pro-Shot Grease Dispense Valve

242056

242055

242058

242057

224872

1/4 npt(f) inlet with coupler and extension 200389

1/4 npt(f) inlet without coupler or extension

3/8 npt(f) inlet with coupler and extension 200389

3/8 npt(f) inlet without coupler or extension

Includes 30 in (76.2 cm) whip hose (109148), Z-Swivel (202577) and grease valve (242056)

Accu-Shot ™ Metered Grease Valves

• Accurate grease metering within ±3%

• Easy-to-read LCD display

• Handles pressure up to 5000 psi (345 bar) and flow up to 36 oz/min (1 kg/min)

Typical Applications

• Lube trucks

• Heavy-duty dealerships

• In-plant

• Fleet service facilities

• Mining

Typical Fluids Handled

• Grease up to NLGI #2

Ordering Information

Accu-Shot Electronic Metered Grease Valve

233807 U.S. Measurement, includes extension and hydraulic coupler

233933 Metric Measurement, includes extension and hydraulic coupler

242056

233807

www.graco.com

Horizon

Fluid Management Systems

Features and Benefits

• Allows multiple technicians to dispense simultaneously

• Easily configured and expandable for any facility

• Increases technician productivity

• Password-protected to prevent unauthorized dispensing

• Tracks inventory levels and alerts operators to low inventory conditions to minimize out-of-stock situations

Typical Applications

• Bulk-dispensing to multiple service bays

• Automotive dealerships

• Heavy-duty dealerships

• Fleet service facilities

Typical Fluids Handled

• Petroleum- and synthetic-based oils

• Anti-freeze

Technical Specifications

System Specifications

Control Modules on a System (1 Master only, plus 39 Slaves) ........... 40 maximum

Keypads on a System (1 keypad per Control Module) ....................... 40 maximum

Solenoids on a System (40 Control Modules, 6 ports each) ............. 240 maximum

Meters on a System (40 Control Modules, 6 ports each) ................. 240 maximum

Fluids on a System ...........................................................................10 maximum

Dispense Areas (reel banks) ..............................................................99 maximum

Operator Names / PIN Numbers ......................................................100 maximum

Dispense Records Stored................................................................668 maximum

Simultaneous Dispenses (same and/or different fluids): .................... 12 maximum

Jobs Waiting in Queue ......................................................................12 maximum

Printer per System OR Attached Computer per System .........................1 maximum

(either must be connected to Master Control Module)

Accuracy of System ..................................................................................±0.6%

Control Module Ports

Solenoid Ports (air or fluid) per Control Module .................................................... 6

Pulse Meter Ports per Control Module ................................................................ 6

Port for Keypad per Control Module .................................................................... 1

Port for Printer or Computer per Master Control Module ...................................... 1

Voltage Input

90-120 Volts AC, 50/60 Hz, single phase, 2 amps maximum draw

208-240 Volts AC, 50/60 Hz, single phase, 1 amp maximum draw

Operating Temperature Range................................40 - 140º F (4 - 60º C) ambient

Pre-set or Free-flow Options

Maximum Preset or Free-Flow Dispense .............................................. 999.9 units

Minimum Preset Dispense ...................................................................... 0.5 units

Units of Measure

Dispense .........................liters, quarts, gallons or pints (configurable for each fluid)

Inventory ..........................liters or gallons (dependent upon dispense units chosen)

Maximum Cable Lengths

From Keypad to Control Module .......................................................50 ft (15.3 m)

From Solenoid to Control Module .....................................................50 ft (15.3 m)

From Pulse Meter to Control Module ................................................50 ft (15.3 m)

From Printer/Computer to Master Control Module .............................50 ft (15.3 m)

From one end of the Control Module Network to the other end (daisy-chained) .......

...................................................................................................2000 ft (610 m)

Reference Data

Instruction Manual .................................................................................. 308607

www.graco.com

77

78

Horizon

Fluid Management Systems

Ordering Information

Control Module drives air and fluid solenoids, and counts pulses from meters. On-board memory contains a map of available system resources, and a power supply that supports both 120 and 240 Volt AC operation. Combine one Master Control Module with up to 39 Slave Control Modules per system

238624 Master Control Module (one per system)

238625 Slave Control Module (up to 39 per system)

Keypads: Basic, Enhanced and Administrative

113551 Basic Keypad for navigating through the Horizon’s menus

113553 Administrative Keypad is needed to set up and make changes to the system parameters

191368 Keypad Wall-Mounting Bracket

Air Solenoids open and close the air supply to the fluid pump air motor. Each solenoid can be up to 50 ft (15.3 m) from a Control Module. Up to 6 solenoids (air or fluid) can be connected to each Control Module

215407 For pumps requiring normal air flow (Mini Fire-Ball 225, 3:1 and Fire-Ball 300, 5:1)

512926 For pumps requiring higher air flow (Fire-Ball 425, 6:1 and 3:1)

Fluid Solenoids start and stop the fluid dispense cycles. These must be placed at each dispense point for each fluid being dispensed. Each fluid solenoid can be up to 50 ft (15.3 m) from a control module. Up to 6 solenoids

(either air or fluid) can be connected to each control module. The low-flow model is available in a kit with a ready light which alerts the operator when the job is ready to dispense

215487 Low-flow: supports 3 gpm (11.4 lpm)

512927 Higher-flow: supports up to 6 gpm (22.7 lpm)

514150 Anti-Freeze Solenoid

218588 Low-flow Solenoid with Ready Light Kit

238996 Ready Light Kit (only; less the solenoid)

Pulse Meters measure fluid flow to dispense points and send a train of pulses back to the Control Modules which are counted to determine how much fluid has been dispensed. If there are multiple meters for a single fluid, check valves (111620) should be placed in series with each meter to prevent “cross talk” and oscillations. Pulse Meters can be used for either U.S. or metric units

238618 For oils, gear lube, automatic transmission fluid

215474 For anti-freeze

111620 Check Valve, 1/2 in

Thermal Relief Kits

235998 600 psi (41 bar)

102527 Thermal Relief Valve, 900 psi (62 bar)

237893 900 psi (62 bar)

240429 1600 psi (110 bar)

System Printer prints job tickets after each dispense is complete, plus has save function for later analysis

113774 Printer

514037 Printer paper, 1 roll

Keypad or Printer Cables

191393 25 Ft (7.6 M) cable with connectors

191394 Cable with connectors. 50 Ft (15.3 M)

Control Module Network

113559 500 Ft (152.5 M) bulk cable

113560 1000 Ft (305 m) bulk cable

Pulse Meter Cable

113555 Length: 500 ft (152.5 m)

113556 Length: 1000 ft (305 m)

Solenoids Cable

113557 Length: 500 ft (152.5 m)

113558 Length: 1000 ft (305 m)

Computer Cable with Connectors

192873 Computer I/O 25 ft (7.6 m)

192874 Computer I/O 50 ft (15.3 m)

113553

215487

238624

113774

113551

215407

238618

www.graco.com

Fluid Commander

Fluid Management Systems

Features and Benefits

• Provides increased accuracy over mechanical counters

• PIN code prevents unauthorized dispensing

• Dispense totals tracked by location

• Easy to read display

• Accurate controlled dispense with parts room authorization

Typical Applications

• Parts room authorized dispensing for inventory control

• Automotive dealerships

• Heavy-duty dealerships

• Fleet service facilities

Typical Fluids Handled

• Petroleum- and synthetic-based oils

• Anti-freeze

Easy to Use

1. Service technician enters the service bay number, type of product, and amount to be dispensed, then activates the dispense button.

2. A “ready” light (located on the hose reel or dispense bar of the target service bay) signals when dispensing can begin.

3. As fluid is dispensed, the Fluid Commander tallies the amount dispensed and shuts-off when the pre-set amount is reached.

No further dispensing takes place until new dispensing data is entered.

Technical Specifications

Maximum Number of Fluids ........................................................................ 1 or 2

Dispense Stations/Bays ............................................................................ 6 or 12

Air Solenoids Required .................................................................... 1 (per pump)

Fluid Solenoids Required ........................................... 1 (per fluid dispense station)

Electrical Requirements .................................................... 120 V, 60 Hz, .25 amps

Weight .................................................................................... 4 lb, 5 oz. (8.0 kg)

Wiring Requirements ......................................................................... 90V; 2-wire

Distance/Gauge .....200 ft (61 m) = 18 gauge, 201 to 500 ft (61 m to 152 m) = 16 gauge, ...........................................................501 ft (152 m) or more = 14 gauge

Instruction Manual .................................................................................. 308238

Typical Fluid Commander System Layout

KEY

A. Control*

B. Pressure Relief Kit, 237893, 1–1/2 npt (m x f)

C. Supply Tank

D. Air Shutoff Valve, bleed-type

E. Air Filter

F. Air Solenoid Valve*, 215407

G. Air Regulator, 202156

H. Pump

J. Flexible Hose, 3–6 ft (0.9–1.8 m) long

K. Check Valve*, 111620 (required)

L. Fluid Filter, 223179

M. Pulse Meter*, 236763 or 236764

N. Fluid Shutoff Valve, 108458, 1/2”

P. Fluid Solenoid Valve*, 215487

Q. Hose Reel

R. Ready Light, 238996

S. Dispense Valve

* These parts are included with Model 232076, 240448, or 241905.

www.graco.com

79

80

Fluid Management Systems

Fluid Commander

Ordering Information

Fluid Commander Systems

232076

240448

U.S. Measure Fluid Commander System for 2 products and 6 stations. Includes: One 2-product/

6-station Fluid Commander (235532), oil meter (236763), fluid solenoid valve (215487), air solenoid valve (215407), Check valve (111620)

Metric Measure Fluid Commander System for 2 products and 6 stations. Includes: One 2-product/

6-station Fluid Commander (232077), oil meter (236764), Fluid Solenoid valve (215487), Air Solenoid valve (215407), check valve (111620)

Accessories

111620 Check valve

236763 Electronic Pulse Meter (quarts)

236764 Electronic Pulse Meter (liters)

215474 Mechanical Pulse Meter (quarts)

215745 Mechanical Pulse Meter (liters)

244342

Meter Pulse Converter, used when upgrading old-style modular fluid commander to electronic allows use of 215474/215475 with the EFC. Instruction manual 309276

Air Solenoid Valves

215407

Air Solenoid Valve, 150 psi (10 bar) (1/2 npsm(f) conduit ports for wiring; 1/4 npt(f) air ports, adapted to 3/8(f) IN, 3/8(m) OUT) operates on 24V DC and 110 VAC. Automatically shuts-off air inlet to pump when pre-set dispensed amount is reached. Materials of construction: brass, SST, Buna

105474

Air Solenoid Valve (bare) 150 psi (10 bar), same as 215407 but without wire connectors or adapters.

1/2 npsm(f) conduit ports for wiring; 1/4 npt(f) air ports.150 psi (10.3 bar) max. working pressure

Fluid Solenoid Valves

215487

Fluid Solenoid Valve, 1/2 npt(f) 3000 psi (207 bar) operates on 24V DC. Automatically shuts-off fluid when pre-set dispensed amount is reached. Includes tube, valve, pin connector, wire plug connector and adapter

514150 Fluid Solenoid Valve for anti-freeze, 150 psi max. (10 bar), 1/2 npt(f), same as features as 215487

110025

Bare Fluid Solenoid Valve, 1/2 npt(f) 3000 psi, same features as 215487 above, but without wiring connectors or adapters

Ready-Light Kits

218588

Ready-Light Kit, signals operator when dispensing can begin. Includes “ready to dispense” Indicator

Light (239019), Strainer (240417), Fluid Solenoid Valve (215487) and hardware. Manual 307696

238996 Ready-Light with Junction Box (no solenoid or strainer)

239019 Ready-to-Dispense Indicator Light only

113859 Lamp for Indicator Only

Installation Components

223179 Fluid Filter Kit (for bare electronic meter)

186472 Wall-Mounting Bracket

108458 Fluid Shut-Off Valve

237893

Thermal Relief Kit for 900 psi (62 bar), relieves excess heat-induced pressure from dispense system.

Male and female ends allow for simple installation. Instruction manual 308403

Connecting Cables for Connecting Solenoids and Consoles, 90-volt, 2-wire, 18-gauge

215481 100 ft (30.5 m) pre-connected at both ends

215407

215487

215481

www.graco.com

Manually Operated Grease Guns

Grease Guns, Accessories and Fittings

Ordering Information

Grease Guns

202600

110218

110216

110203

1/8 npt(f) Power-Shot Booster Gun boosts incoming pressure up to 18,000 psi (1,242 bar). Use with any high-pressure lubricator. Maximum inlet pressure: 5000 psi (345 bar). Includes nozzle

(200389). (Hose swivel 202579 must be ordered separately). Instruction Manual: 306271

Standard Lever-Action Grease Gun: Develops up to 6000 psi (400 bar) working pressure and pumps

1.8 oz (51 g) per 40 strokes. Can be loaded via cartridge or bulk fill. Optional loader fitting available.

Equipped with rigid extension and hydraulic coupler

Heavy-Duty Lever-Action Grease Gun with high-pressure variable low-volume. Three-way loading: bulk fill, loader fitting or 14 oz cartridge. Pumps 1.24 oz per 40 strokes. Includes air bleeder valve.

Equipped with rigid extension and hydraulic coupler (M IL-G-3859). Can develop up to 10,000 psi

(690 bar). Comes with 236171, easy fill valve

Pistol-Matic Grease Gun with three-way loading: bulk fill, loader fitting or cartridge. Pumps .72 oz

(28.4 g) per 40 strokes. Includes air bleeder valve. Equipped with rigid extension and hydraulic coupler. Can develop up to 3500 psi (241 bar)

203697

110202

112196

110201

1/8 npt(f) Hot-Shot Portable Booster Gun for portable operation without continuous connection to grease supply. Has 4 oz (113 g) grease reservoir in handle capable of servicing up to 100 fittings before needing a refill. Has grease fitting for recharging from either manual or air-powered luber.

Single-hand operation squeeze handle develops up to 10,000 psi (690 bar). Includes grease extension and nozzle 200389. Instruction Manual: 306460

Pistol-Matic Grease Gun is the same as 110203 but with 12 in (30.4 cm) flexible rubber hose and hydraulic coupler

1/4 npt Pistol-Style Air-Operated Grease Gun is a spring-primed, single-shot gun. Three-way loading: bulk fill, loader fitting or 14 oz (400 g) cartridge. Air input range of 75 to 100 psi (5 to 7 bar); working pressure of 6000 psi (414 bar). Pumps 1.2 oz (34 g) per 40 pulls at 100 psi (7 bar).

Includes standard gun coupler and bleeder valve, 1/8 in-27 NPT rigid extension. (1/4 npt air input connection)

Suction Gun for evacuating and filling fluids into gear housings, differentials, transmissions and related applications. Holds 1 pint (16 oz/473 cc), comes with red clear plastic 12 in (30.4 cm) hose

Z-Swivels

202579

202577

224569

207948

1/8 npt(m) x 1/4 npt(f) free-ball bearing

1/4 npt(m) x 1/4 npt(f) free-ball bearing use with dispense valve 242055 and 242056

3/8 npt(m) x 3/8 npt(f) free-ball bearing use with dispense valve 242057 and 242058

1/2 npt(m) x 1/2 npt(f) free-ball bearing

Straight Swivels

204082

204083

1/8 npt(m) x 1/8 npt(f) 8000 psi (550 bar) free-ball bearing

1/4 npt(m) x 1/8 npt(f) 8000 psi (550 bar) free-ball bearing

204084

214925

214926

1/4 npt(m) x 1/4 npt(f) 8000 psi (550 bar) free-ball bearing

3/8 npt(f) x 1/4 npsm(f-union) 5000 psi (345 bar)

3/8 npt(f) x 1/2 npsm(f-union) 5000 psi (345 bar)

207946 3/8 npt(f) x 1/2 npsm(f-union) 5000 psi (345 bar)

207947

360º Swivels

1/2 npt(m) x 1/2 npt(f) 6000 psi (414 bar)

Swivels and locks into full 360º angle. Use for maximum coupler adaptability and reach

203597 360º Grease Swivel with tapered-nose coupler (200325)

203198 360º Grease Swivel, 8,000 psi (552 bar) maximum working pressure (without coupler)

110218

204082

110203

110202

203597

203198

www.graco.com

202600

110216

112196

202577

81

Manually Operated Grease Guns

Grease Guns, Accessories and Fittings

Grease Nozzles

200389

Standard nozzle. Includes straight 6 in (15.2 cm), 1/8 npt(m) extension tube (197471) and tapered nose coupler (200325)

204072

204897

Swivel nozzle. Includes straight 6 in (15.2 cm), 1/8 npt(m) extension tube (197471) and tapered nose coupler (200325). Coupler has 360º swivel adapter (203198) for added convenience

Swivel nozzle. Includes straight 12 in (30.4 cm), 1/8 npt(m) extension tube (155836) and tapered nose coupler (200325)0. Coupler has 360º swivel adapter (203198) for added convenience

204204* Flexible 12 in (30.4 cm) hose nozzle. 1/8 npt(m) includes tapered-nose coupler (200325)

203504*

Flexible 12 in (30.4 cm) hose nozzle. 1/8 npt(m) includes tapered-nose coupler (200325) and lock sleeve connector (203497) for quick connection to any grease nozzle having tapered-nose coupler

109145 12 In (30.4 cm) hose nozzle without coupler

112255 18 In (45.8 cm) hose nozzle without coupler

109148*

30 In (76.2 cm) hose nozzle without coupler, has 1/8 npt(m) both ends. Use as alternate for rigid nozzle with tapered-nose coupler 200325

*Warning: potential injection hazard. Not for use above 5000 psi (345 bar).

Grease Couplers

200325

202650

1/8 npt(f) inlet standard tapered-nose coupler. Hardened jaws grip grease fittings through wide-sealing angle, but release easily. Maximum working pressure 8000 psi (551 bar)

1/8 npt(f) inlet standard straight nose grease coupler for manual operated grease guns only.

Maximum working pressure 3000 psi (206 bar)

200020 1/8 npt(f) inlet standard button-head coupler. Gives fast, positive seal on button-head fittings

200021 1/8 npt(f) inlet giant button-head coupler. Gives fast, positive seal on larger button-head fittings

Adapters have lock-sleeve quick-connector, works with any grease nozzle with a tapered-nose coupler

201881 Hydraulic-to-push adapter. Used for U-joints and low-pressure service

205532

Hydraulic-to-steel needle adapter. Used for flush fittings. 250 psi (17 bar) max, not for air grease applications or guns

205582

Hydraulic-to-nylon needle adapter. Used for removable plugs. 250 psi (17 bar) max, not for air grease applications or guns

223187 90º hydraulic-to-push adapter (K-car). Refer to instruction manual 306708

203497

236171

204929

205592

Lock sleeve connector. 1/8 npt(f) outlet. Allows for quick connection to tapered-nose coupler.

Inlet is standard grease fitting with sleeve to lock connector in place

Easy-fill valve. For faster loading of graco hand grease guns with gun loaders. Replaces hydraulic fittings on all grease guns with 1/8 npt(f)

Grease loader valve. For use with lever-operated, high-volume grease pumps. Permits quick bulk-filling of hand-operated grease lever guns equipped with easy-fill valve 236171

Hydraulic adapter assortment package. Contains needle adapter (205568), plug adapter (205554), push adapter (201881), nylon needle adapter (205582), hydraulic-to-steel needle adapter (205532) and whip hose nozzle connector (203504)

200020

205532

205582

200325

203497

200389

204072

82

Grease Gun Fittings

1/8 npt Threaded Grease Fittings (steel; ball-check)

Part No.

Shank

100054

101277

9/32

1-9/32

100970

100834

100971

100833

9/32

9/32

9/32

9/32

Description

1/8 npt straight

1/8 npt straight

1/8 npt 30º angle

1/8 npt 45º angle

1/8 npt 65º angle

1/8 npt 90º angle

Pressure Rating

10,000 psi (690 bar)

205592

100970

100833

www.graco.com

Manually Operated Grease Guns

Grease Guns, Accessories and Fittings

1/4 npt Threaded Grease Fittings (steel; ball-check)

100848 3/8

100846

100847

3/16

13/64

1/4 npt 67º angle

1/4-28 straight

1/4-28 45º angle

101283

101281

110702

100835

3/16

11/32

19/64

12/32

1/4-28 90º angle

1/4-28 straight

1/4-28 65º angle

1/4-28 straight

1/4 npt Thread-Forming Grease Fittings (steel; ball-check)

10,000 psi (690 bar)

110703

110705

13/64

13/64

1/4-28 straight

1/4-28 90º angle

3/16 npt Thread-Forming Grease Fittings (steel; ball-check)

110706

110709

3/32

7/32

Drive-Type Grease Fittings (steel; no check)

3/16 npt straight

3/16 npt 65º angle

110713

101312

110710

101287

1/4

1/4

1/4

17/64

Standard Button-Head Grease Fitting (steel)

100837 7/16

101297

110711

33/64

35/64

1/4 npt straight

3/8 npt straight

1/2 npt straight

10,000 psi (690 bar)

10,000 psi (690 bar)

3/16 npt straight

3/16 npt straight

5/16 npt straight

1/4 npt straight

Giant Button-Head Grease Fitting (steel)

110712 9/16

100854

Grease Accessory Packages

1/2

202654

Shank

9/32

9/32

9/32

3/16

13/64

Easy-Outs

3/8 npt straight

1/4 npt straight

Convenient Storage Box Contains the following threaded fittings in the quantity listed:

Description

1/8 npt straight

1/8 npt 30º angle

1/8 npt 90º angle

1/4-28 straight

1/4-28 45º angle

Grease Fitting No.

100054

100970

100833

100846

100847

Quantity

30

10

10

20

10

101604

101605

1/8 npt

1/4-28 unf

101605

101287

101297

100834

110712

202654

101604

www.graco.com

83

84

Oil King,

Coolant King

and Oil Ace

Fluid Reclaim Packages and Accessories

Oil King and Coolant King

• Large 25 gallon capacity with sight gauge

• Convenient tool trays and filter areas

• Large offset collection pan with screen

• Oversized tires to get over hose and rough floors

• Color specific receiver for easy identification

Typical Applications

• Used fluid receiver

• Automotive dealerships

• Heavy-duty dealerships

• Fast lube centers

• Fleet service facilities

• Service shops

Typical Fluids Handled

• Used oil–Oil King

• Used antifreeze–Coolant King

Ordering Information

Oil King Oil Receiver

238866

25 gal (95 l) Polyethylene tank with used-filter tray, tool holders and sight gauge. Includes all hardware for topside evacuation or bottom drain*. Instruction manual 308667

Coolant King Anti-Freeze Receiver

248632

25 gal (95 l) Polyethylene tank with used-filter tray, tool holders and sight gauge. Includes all hardware for topside evacuation or bottom drain*

* Must use 224873 for topside evacuation. Must ship via truck.

Oil Ace

• Easy to drain using shop air pressure

• Large 24 gallon capacity

• Large offset collection pan with screen

Typical Applications

• Pressurized used oil receiver • Service shops

• Automotive dealerships • Fast lube centers

• Heavy-duty dealerships • Fleet service facilities

Typical Fluids Handled

• Used oil

Ordering Information

Oil Ace

119577 24 gal (90 l) Steel-tank Pressurized Oil Drain

248632

www.graco.com

238866

Oil Receivers and Drains

Fluid Reclaim Packages and Accessories

Ordering Information

16 gal (60 l) Used-Oil Receiver with drum

239301 Use with evacuation kit 240832. Instruction manual 306449

16 gal (60 l) Used-Oil Receiver without drum

239302 Instruction manual 306449

Funnel Kit

243650 Use with 238866, 239301, 239302 and 248632. Includes tray and pipe

Wall-Mounted Funnel Drain

154616

Use with Pedestal Receiver 225272 to open automatic check-valve and drain used oil through wall to waste tank. Drain has 1-1/4 npt(f) outlet

Drum-Mounted Funnel Drain

156789

Use with Pedestal Receiver (225272) to open automatic check-valve and drain used oil into standard drum. Funnel drain has 2 npt bung fitting for use with 55 gal (210 l) or 16 gal (60 l) drums, or 275 gallon (1,100 l) tanks

ATF Drain Funnel

208009

Use with Pedestal Receiver (225272) to extend funnel reach. Use for draining transmissions.

(Not equipped with drain plug.) 16 in x 24 1/2 in

Rolling Used-Oil Receiver

218969

Specially designed for car and truck fast-lube facilities where speed and mobility are important.

Adjustable steel rollers fit track widths of 39 in (99 cm) to 46 inches (117 cm), with a minimum running width of 2-1/2 in (63.5 mm). Front and rear drain fittings allow use of two drains on a single track, permitting two receivers to be drained simultaneously. Instruction manual 307727. Unit includes 30 gal (114 l) steel tank, 1-1/2 npt drain valve (108204), 1-1/2 npt quick coupler (108202) and 1-1/2 npt coupler cap. Dimensions: 24 in (61 cm) wide; 33 in (84 cm) long; 11 in (28 cm) deep;

3 in (7.6 cm) diameter wheels. 1-1/2 in drain hose–see manual provided

Narrow Rolling Used-Oil Receiver

235346

Same as 218969 above, except track width range is from 34.2 in (87 cm) to 42.2 in (108 cm). 27 gal

(102 l) capacity. Instruction manual 307727. See accessories on page 101

Big Hauler ™ Truck Drain

244055

Specially-designed for truck maintenance facilities, the Big Hauler Truck Drain boasts a large capacity and easy maneuverability. Dimensions: 42 in (106.7 cm) long; 30 in (76.2 cm) wide; 9 in (22.9 cm) deep. Capacity: 26 gallons (98 l). Instruction manual 309194. Gravity drain valve at bottom of unit allows for easy drain access. 3/4 in npt outlet can also be used with 224873 for diaphragm evacuation. 240832 can be ordered separately for existing diaphragm pump evacuation systems.

Instruction manual 308719

239301

244055

208009

218969

www.graco.com

85

86

Oil Evacuation

Fluid Reclaim Packages and Accessories

Packages for Used-Oil Evacuation with Air-Operated Diaphragm Pumps

Wall-Mounted Packages

24E166

224873

Includes: 1050A (1 in) diaphragm pump (647016), wall bracket (189233), air installation kits

(240684), fluid installation kits (240685), drum style adapter kits (240832)

NOTE: Used-oil receivers are not included and must be ordered separately. See instruction manual 313597 for more information.

Includes: 716 (3/4 in) diaphragm pump (241906), wall bracket (224835), air installation kits, fluid installation kits (240685), drum style adapter kits (240832)

NOTE: Used-oil receivers are not included and must be ordered separately.

Stationary Gear-Oil Evacuation Systems with 716 or 1050 Diaphragm Pump

System evacuates lube from differential case using suction generated by a diaphragm pump. Nylon tubes ranging in size from 3/16 in OD to 1/2 in OD are included to fit through sight plug to completely drain the case. Evacuated gear lube is then pumped to waste tank. Piping and waste tank not included. Systems are fully-groundable and bondable for safe transfer of used oil

224955

Includes: 716 diaphragm pump (241906), air control kit (110149), mounting kit (224759), swivel union (157785), hose coupler (111474),suction hose/wand** (221146) and control valve** (220969)

** Order additional suction hose/wand (221146) and additional control valve (220969) for each additional suction point.

Note: Order grounding clamp (222011) or use locally-supplied grounding wires and clamps in accordance with applicable codes.

24E167

Includes: UL-listed 1050A diaphragm pump (647016), air control kit, hose and fitting kit (222149), evacuation, suction hose/wand** (221146) and wall bracket (189233)

** Order additional suction hose/wand 221146 and additional control valve 220969 for each additional suction point.

Note: Order grounding clamp 222011 or use locally-supplied grounding wires and clamps in accordance with applicable codes.

See instruction manual 313597 for more information.

Port-Evacuation Pump

223695

Port-Evacuation allows fast, clean withdrawal of gear lube, ATF, anti-freeze, and related fluids.

Includes: 716 diaphragm pump (241906), mounting kit with 10 ft (3 m) suction hose (223697) which attaches to wands of four different diameters (suction wand kit, 223696): 1/2 in (12.7 mm); 3/8 in

(9.5 mm); 1/4 in (6.4 mm), and 3/16 in (4.7 mm). Instruction manual 308035

Suction Wand Kits

223696 15 in (38.1 cm)

224762 48 in (121.9 cm)

223696 15 in (38.1 cm)

224762 48 in (121.9 cm)

Used-Oil Handling Accessories

Tandem Drain Kit

218970

108491

Tandem drain kit connects two rolling receivers for flow-through draining operation. Kit includes connector hose, shut-off valve, pipe nipple, and quick-connect nipple. Instruction manual 307727

Drain hose kit allows rolling used-oil receiver to be drained directly into the used-oil line. Kit is 24 in

(0.6 m) in length with camlock coupler on one end

Swing-Arm Drain Kit

221007

Used for servicing single rolling used-oil receiver (218969). When used with tandem drain kit

(218970) it can service two receivers on a single track. Kit includes swivel elbow (108867), connector hose, dust cap (108203) and male adapter (108202)

Oil Tank Monitor

116229

Shuts off air to the pump when tank is full. Mounted at either end of fast lube service pit, swing-arm drain stores against pit wall and is rotated into position for use

Accessories for Port-Evac Pump (223695)

223888 6 ft (1.8 m) suction hose for ATF and anti-freeze. Includes filter screen

Fluid Reclaim Accessories

243167 U-tube for used-oil drain cart evacuation system. 1/2 npt (mbe)

222011 Grounding clamp for all used-oil handling systems includes 25 ft (7.6 m) grounding wire

*Package 224873

(Package does not include

238866 receiver or tank)

223695

116229

218970

223888

www.graco.com

Oil Evacuation

Fluid Reclaim Packages and Accessories

Fas-Vac Evacuation Systems

224667*

Fas-vac evacuation system (without drum) basic system includes 716 diaphragm pump and mounting hardware. Instruction manual 308154

224700*

224701*

16 gallon (60 l) system includes pump (224667), dolly (224665), wand storage kit (224666), evacuation hose (224669) and 16 gallon (60 l) drum (111468). Instruction manual 308154

55 gallon (200 l) system (without drum) includes pump (224667), 55 gallon (200 l) drum truck

(111470), wand storage kit (224666) and evacuation hose (224702). Instruction manual 308154

187359 4-way valve 1/2 npt(f) ports

*224759 FLR mounting kit and 110149 FRL must be ordered separately. See instruction manual 308163.

Hoses, Fittings and Accessories

Air Filters

Centrifugal action 1/4, 3/8 and 1/2 npt. (with 20 micron filters); 3/4 npt having 40 micron filters to remove water and foreign particles from air supply

110146

106149

1/4 npt(fbe)

1/2 npt(fbe)

Automatic Filter Drain

106148

106150

3/8 npt(fbe)

3/4 npt(fbe)

106151

Float-type drain for automatic emptying of accumulated fluid in a filter assembly. 1/4 npt(m)

(does not fit air filter 110146)

Air Regulators

Provides precision control of outlet air pressure. Feedback principle provides constant pressure to pump regardless of air demand rate and fluctuations in supply pressure. (Additional fittings required except air regulators with installation kits.)

110318 1/4 npt(fbe)

110147

110234

109075

202858

1/4 npt(fbe) with gauge

3/8 npt(fbe)

3/8 npt(fbe) with gauge

3/8 npt(m) x 1/2 npsm(f) with gauge

104266

244844

1/2 npt(fbe)

1/2 npt(fbe) with gauge

207755 3/4 npt(fbe)

244845 3/4 npt(fbe) with gauge

Installation Kits

Installation kits include: shut-off valve, regulators, gauges and fittings as necessary for normal installation

218316 Installation kits for Fast-Flo, Fire-Ball, or Husky 307 and 716 diaphragm pumps

224512 Installation kits for Mini Fire-Ball 225 and Fire-Ball

Air Lubricators

Extends pump life and smooths pump movement by applying measured lubricant to all moving parts within the pump air motor. Control knob and sight window allow adjustment of dispensed lubricant

214848

110148

214847

214849

1/2 npt(fbe)

1/4 npt(fbe)

3/8 npt(fbe)

3/4 npt(fbe)

www.graco.com

106151

224701

106148

109075

224512

214847

87

88

Accessories

Hoses and Fittings

FRL Combination Units

Each includes filter, regulator, pressure gauge, lubricator and connection fittings

110149 1/4 npt (fbe)

110150 3/8 npt (fbe)

217072

217073

1/2 npt (fbe)

3/4 npt (fbe)

Bleed-type Air Shut-off Valves

Closes air inlet to pump and relieves trapped air pressure down line from valve. Recommended for each pump drop line. Note: Be certain to install correctly: if installed backwards air will constantly escape from the valve

110223 1/4 npt(fbe)

110224

110225

110226

3/8 npt(fbe)

1/2 npt(fbe)

3/4 npt(fbe)

107142

107141

1/2 npt(mxf)

3/4 npt(mxf)

Air Line Shut-off Valves Ball valve-type air line shut-off valve; non-pressure relieving

208390 1/4 npt(mbe)

208393 3/8 npt(mbe)

208630

109077

1/2 npt(m) x 3/8 npt(f)

3/4 npt(fbe)

118464 1 npt(fbe)

Quick-Connect Coupler

Permits quick, convenient attachment of air supply hoses

208536 1/4 npt(fbe)

110198 3/8 npt(f)

110199

110200

1/2 npt(f)

3/4 npt(f)

Quick-Connect Nipple

Allows quick attachment of air supply hoses to pump motor

169970

169967

169971

1/4 npt(m)

1/4 npt(f)

3/8 npt(m)

110196

110197

1/2 npt(m)

3/4 npt(m)

Air Needle Valve

Controls pump speed by restricting air flow to pump or other air-operated equipment

205090

206264

1/4 npt(f) outlet port; 1/4 npt(m) inlet port

1/8 npt(f) outlet port; 1/4 npt(m) inlet port

Air Pressure Relief Valve

Prevents pump from operating beyond recommended working pressure by opening at a pre-set maximum air pressure

103347

110065

90 psi (6 bar)

60 psi (4 bar)

169970

205090

110065

www.graco.com

110150

106151

110223

107142

208536

Accessories

Hoses and Fittings

Air Pressure Gauge

Allows visual check of air pressure being supplied to the pump. Rated to 200 psi (14 bar)

110319 1/8 npt(m) bottom inlet; black

100960 1/4 npt(m) bottom inlet; black

101180

Air manifold

1/4 npt(m) bottom inlet; chrome

Supply several pumps from one supply line. Larger port delivery ensures adequate air flow to all pumps

158990 Four outlet ports; 3/8 npt(f)

601950 Three outlet ports; 1/2 npt(f)

Runaway Valve

Prevents pump damage by automatically closing the air line to stop the pump when a runaway pump condition occurs due to an empty barrel or hose leak

224040

Blow Guns

3/4 npt(fbe)

208627

236211

Air Blow Gun, 1/4 npt(f), use with coupler 208536

Safety Blow Gun tip swivels freely and cannot be removed. Tip pressure will not exceed 30 psi (2 bar), adequate for cleaning. Maximum working pressure 150 psi (10 bar). Use with coupler 208536

Tire Inflators

236205

236206

218545

Water Valve

Heavy-duty Tire Inflator includes 12 in (30 cm) hose with swivel dual-foot chuck and pop-out gauge.

Tapered chuck nut fits wheel-cover holes on cars and light trucks. Gauge ranges from 0-120 psi in

2 psi increments. Maximum working pressure 250 psi (18 bar), 1/4 npt(f) inlet

Passenger Car Tire Inflator includes 12 in (30 cm) hose with straight-on chuck and pop-out gauge.

Tapered chuck nut fits wheel cover holes on cars and light trucks. Ideal for use on reels. Gauge ranges from 0-90 psi in 2 psi increments. Maximum working pressure 250 psi (18 bar), 1/4 npt(f) inlet

1/4 npt(f) Tire Chuck, durable, full-volume tool for adding/relieving air pressure

180685

180685

Water/Anti-Freeze Bib is a durable, full-volume dispense nozzle for water, anti-freeze and windshield washer fluid. Nitrile rubber seals with 1/4 npt(f) inlet. Maximum pressure is 100 psi (7 bar).

Water/Anti-Freeze Bib is a durable, full-volume dispense nozzle for water, anti-freeze and windshield washer fluid. Nitrile rubber seals with 1/4 npt (f) inlet. Maximum pressure is 100 psi (7 bar)

Heavy-Duty Reinforced Hoses

Heavy-duty reinforced hose for use with grease, oil and undercoating material. Hoses are black, male at both ends.

Lubrication hoses listed are grounded for static electrical discharge.

1/4 in ID hoses with maximum pressure rating of 5000 psi (345 bar)

Part No.

109145

109146

109147

109148

109149

109150

109151

109152

109153

109154

109156

109157

109158

Length

12 in (0.3 m)

15 in (0.4 m)

24 in (0.6 m)

30 in (0.8 m)

48 in (1.2 m)

72 in (1.8 m)

12 ft (3.6 m)

15 ft (4.6 m)

20 ft (6.1 m)

25 ft (7.6 m)

35 ft (10.6 m)

40 ft (12.2 m)

50 ft (15.3 m)

Fittings

1/8 in x 1/8 in (4.8 mm x 4.8 mm) with bend restrictor

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

1/8 in x 1/8 in (4.8 mm x 4.8 mm) with bend restrictor

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

158990

208627

www.graco.com

100960

224040

236211

236206

180685

89

90

Lubrication Hoses

Hoses and Fittings

3/8 in ID hoses with maximum pressure rating of 4000 psi (276 bar)

Part No.

Length Fittings

109160

109161

12 in (0.3 m)

24 in (.62 m)

1/4 in x 1/2 in (6.4 mm x 12.7 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

109162

109163

109165

48 in (1.2 m)

72 in (1.8 m)

15 ft (4.6 m)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

109170

109169

109170

50 ft (15.3 m)

40 ft (12.2 m)

50 ft (15.3 m)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

Lubrication Hoses (Oil)

1/2 in ID hoses with maximum pressure rating of 3000 psi (207 bar)

Part No.

110069

220598

220600

220591

220590

220592

220593

220608

Length

15 in (0.4 m)

18 in (0.5 m)

54 in (1.4 m)

72 in (1.8 m)

10 ft (3.1 m)

16 ft (4.9 m)

20 ft (6.1 m)

25 ft (7.6 m)

Fittings

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

221092

221093

237861

109108

109105

111010

237865

237866

40 ft (12.2 m)

50 ft (15.3 m)

75 ft (22.9 m)

18 in (0.4 m)

72 in (1.8 m)

10 ft (3.0 m)

75 ft (22.9 m)

50 ft (15.2 m)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 3/4 in (12.7 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

1/2 in x 1 in (12.7 mm x 25.4 mm)

1/2 in x 1 in (12.7 mm x 25.4 mm)

1 in ID hose rated to maximum pressure of 125 psi (8.7 bar)

Part No.

Length Fittings

249058 50 ft (15.2) 1 in x 1 in (25.4 mm x 25.4 mm)

1 in ID hose rated to maximum pressure of 212 psi (14.6 bar)

Part No.

241908

Length

50 ft (15.2)

Fittings

1 in x 1 in (25.4 mm x 25.4 mm)

241907 30 ft (9.1 m) 1 in x 1 in (25.4 mm x 25.4 mm)

Air/Water Hoses

Hoses for air, water, anti-freeze and windshield washer fluid. Hoses are red with male fittings at both ends.

Coiled 1/4 in ID hose with maximum pressure rating of 180 psi (12 bar)

Part No.

Length Fittings

205600 50 ft (15.3 m) 1/4 in x 50 ft (6.4 mm x 15.3 m)

www.graco.com

Air/Water Hoses

Hoses and Fittings

Fabric-Reinforced 1/4 in ID hoses with maximum pressure rating of 180 psi (12 bar)

Part No.

Length Fittings

109123 18 in (0.5 m) 1/4 in x 1/4 in (6.4 mm x 6.4 mm)

204560

109130

203320

109131

110326

109132

109133

109124

109125

109126

109127

4 ft (1.2 m)

6 ft (1.8 mm)

10 ft (3.1 m)

25 ft (7.6 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/4 in (6.4 mm x 6.4 mm)

1/4 in x 1/2 in (6.4 mm x 12.7 mm)

109128

218491

40 ft (12.2 m)

40 ft (12.2 m)

1/4 in x 1/2 in (6.4 mm x 12.7 mm)

3/8 in x 1/4 in (9.5 mm x 6.4 mm)

3/8 in ID hoses with maximum pressure rating of 180 psi (12 bar)

Part No.

Length Fittings

18 in (0.5 m)

4 ft (1.2 m)

6 ft (1.8 m)

10 ft (3.1 m)

16 ft (4.9 m)

25 ft (7.6 m)

30 ft (9.2 m)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

3/8 in x 3/8 in (9.5 mm x 9.5 mm)

1/4 in x 3/8 in (6.4 mm x 9.5 mm)

3/8 in x 1/2 in (9.5 mm x 12.7 mm)

3/8 in x 1/2 in (9.5 mm x 12.7 mm)

109134 40 ft (12.2 m) 3/8 in x 1/2 in (9.5 mm x 12.7 mm)

109135 60 ft (18.3 m) 3/8 in x 1/2 in (9.5 mm x 12.7 mm)

1/2 in ID hose with maximum pressure rating of 180 psi (12 bar)

Part No.

218093

110046

205418

Length

22 in (0.56 m)

4 ft (1.2 m)

6 ft (1.8 m)

Fittings

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

214656

248312

10 ft (3.1 m)

25 ft (7.6 m)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

1/2 in x 1/2 in (12.7 mm x 12.7 mm)

248313 50 ft (15.2 m) 1/2 in x 1/2 in (12.7 mm x 12.7 mm)

3/4 in ID hoses with maximum pressure rating of 180 psi (12 bar)

Part No.

110047

110048

Length

18 in (0.5 m)

4 ft (1.2 m)

Fittings

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

208610

214955

208611

6 ft (1.8 m)

10 ft (3.1 m)

25 ft (7.6 m)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

3/4 in x 3/4 in (19.1 mm x 19.1 mm)

www.graco.com

91

92

Pipe Fittings and Swivels

Hoses and Fittings

Bushing – reducing, standard and expanding

Part No.

Thread Size (m x f) Part No.

100030

100081

1/4 in x 1/8 in

1/2 in x 3/4 in

159841

100615

100896

Pipe Adapters

3/4 in x 1/2 in 100380

Part No.

150171

150287

156022

Thread Size (m x f) Part No.

1/8 in x 1/8 in 159840

1/4 in x 3/8 in

3/8 in x 1/2 in

159842

168595

Street Elbows

Part No.

Thread Size (m x f) Part No.

100840

176393

1/4 in x 1/4 in

3/4 in x 3/4 in

155699

Coupling (standard)

Part No.

100451

Thread Size

1/8 in

Part No.

113093

158581 1/2 in

Hex Nipple (standard and reducing)

100385

Part No.

151519

165198

159239

Thread Size

1/4 in x 1/8 in

3/8 in x 1/4 in

1/2 in x 3/8 in

157191 3/4 in x 1/2 in

Square-Head Plug

Part No.

156971

156849

158491

175013

Part No.

111697

Thread Size

1/4 in

104663 3/4 in

Straight Swivel Adapter*

Part No.

208434

155665

158256

Rigid (m) x Swivel (f)

1/8 in x 1/4 in

3/8 in x 3/8 in

1/2 in x 3/8 in

Part No.

100040

Part No.

156823

162505

157785

160022 1 in x 1 in

90º Swivel Adapter*

Part No.

Rigid f) x Swivel (f) Part No.

157676 1/4 in x 1/4 in

157416 1/2 in x 1/2 in

Straight Swivel Adapter*

Part No.

155570

155653

156172

90º Swivel*

Part No.

155541

155677

156589

Rigid (f) x Swivel (f) Part No.

1/4 in x 1/4 in 159153

1/2 in x 1/4 in

3/5 in x 3/4 in

161077

158383

Rigid (M) x Swivel (F) Part No.

1/4 in x 1/4 in 155495

217430 3/8 in x 1/2 in 161037

160327 3/4 in x 3/4 in

45º Swivel Adapter*

Part No.

Rigid (M) x Swivel (F) Part No.

161889 3/8 in x 3/8 in 105281

*Not a “live” swivel, position is stationary after tightened

Thread Size (m x f) Part No.

3/8 in x 1/4 in

3/4 in x 1/4 in

1 in x 1/2 in

100206

100505

158586

Thread Size (m x f) Part No.

1/8 in x 1/4 in

1/4 in x 1/2 in

1/2 in x 3/4 in

Thread Size (m x f)

3/8 in x 3/8 in

Thread Size

1/4 in

3/4 in

Thread Size

1/4 in x 1/4 in

3/8 in x 3/8 in

1/2 in x 1/2 in

3/4 in X 3/4 in

Thread Size

3/8 in

Rigid (m) x Swivel (f) Part No.

1/4 in x 1/4 in

3/8 in x 1/2 in

3/4 in x 3/4 in

Rigid (f) x Swivel (f)

3/8 in x 3/8 in

3/4 in x 3/4 in

156580

150286

Part No.

158683

Part No.

162024

100474

Part No.

156296

162449

194048

158555

Part No.

100737

157705

156684

202965

Part No.

159801

Rigid (f) x Swivel (f) Part No.

3/8 in x 1/4 in

1/2 in x 3/8 in

1 in x 1 in

156173

155865

Rigid (M) x Swivel (F) Part No.

3/8 in x 1/4 in 155494

1/2 in x 3/8 in 155470

Rigid (M) x Swivel (F) Part No.

3/4 in x 3/4 in

Thread Size (m x f)

1/2 in x 1/4 in

3/4 in x 3/8 in

1 in x 3/4 in

Thread Size (m x f)

1/8 in x 3/8 in

3/8 in x 3/8 in

Thread Size (m x f)

1/2 in x 1/2 in

Thread Size

3/8 in

1 in

Thread Size

3/8 in x 1/8 in

1/2 in x 1/4 in

3/4 in x 3/8 in

1 in x 3/4 in

Thread Size

1/2 in

Rigid (m) x Swivel (f)

1/4 in x 3/8 in

1/2 in x 1/2 in

1 in x 3/4 in

Rigid (f) x Swivel (f)

3/8 in x 1/2 in

Rigid (f) x Swivel (f)

3/8 in x 3/8 in

1/2 in x 1/2 in

Rigid (M) x Swivel (F)

3/8 in x 3/8 in

1/2 in x 1/2 in

Rigid (M) x Swivel (F)

www.graco.com

Tube and Fittings

Hoses and Fittings

Tube Fittings

Maximum pressure rating of 3000 psi (207 bar) with appropriate tubing wall thickness

Tube Union Flow 90º Elbow

Part No.

101012

101376

Tube Union – Straight

Part No.

101009

101340

Male Connector

Part No.

Tube OD

5/8 in

7/8 in

Tube OD

5/8 in

7/8 in

Tube OD

7/8 in 101339

Female Connector – Straight

Part No.

101008

Tube Tee with Female Branch

Tube OD

5/8 in

-

-

-

-

-

-

Thread

3/4 npt

Thread

1/2 npt

Part No.

101013

Tube OD

5/8 in

Thread

5/8 npt

NOTE: Consult you local distributor for additional tube-fitting requirements (ie: high-pressure, low-pressure, etc.) and fitting recommendations: Parker;

AeroQuip; Weatherhead; Lenz; Crawford; or Imperial Eastmand.

Technical Information

Always use a qualified installer and ensure the installer follows the detailed instructions included with every Graco product.

1. Always use new pipe. Make certain that pipes are clean and free of rust and scale.

2. When cutting pipe remove burrs and chips that may damage dispense valves and meters.

3. Always flush the system with oil before attaching dispense valves and meters.

Air Lines

Main Line Branch Line Pump Model

3/4 in or 1 in ID pipe 3/8 in or 1/2 in ID pipe Fast-Ball; Mini Fire-Ball 225

3/4 in or 1 in ID pipe 1/2 in ID pipe

Fluid Lines

This information applies to typical automotive flow rate service requirements

Fire-Ball

Chassis Grease Lubricant Supply Lines (based upon 5000 psi (345 bar) maximum working pressure)

Supply Line Length

Up to 50 feet

Supply Pump

50:1 Fire-Ball 300, 425

Hydraulic Supply Line Tubing

5/8" OD x .109" Wall Tube

50 to 100 feet

100 to 200 feet

100 to 200 feet

200 feet and up

50:1 Fire-Ball 300, 425

50:1 Fire-Ball 300

50:1 Fire-Ball 425

50:1 Fire-Ball 300, 425

5/8" OD x .109" Wall Tube

N/A

N/A

N/A

Motor Oil, Gear Lube, or ATF Lubricant Supply Lines (based upon 1000 psi maximum working pressure)

Supply Line Length Supply Pump Hydraulic Supply Line Tubing

Up to 50 feet

Up to 50 feet

50 to 100 feet

5:1 Fire-Ball 300

10:1 Fire-Ball 425

5:1 Fire-Ball 300

5/8" OD x .049" Wall Tube

3/4" OD x .049" Wall Tube

3/4" OD x .049" Wall Tube

50 to 100 feet

100 to 200 feet

100 to 200 feet

200 feet and up

200 feet and up

10:1 Fire-Ball 425

5:1 Fire-Ball 300

10:1 Fire-Ball 425

5:1 Fire-Ball 300

10:1 Fire-Ball 425

1" OD x .049" Wall Tube

1" OD x .049" Wall Tube

1-1/2" OD x .095" Wall Tube

1-1/2" OD x .095" Wall Tube

1-1/2" OD x .095" Wall Tube

www.graco.com

93

Petroleum Management Group

Ordering and Warranty Information

94

This Price List supersedes all previous price lists dated prior to January 2, 2011.

Prices, discount codes, and family codes subject to change without notice.

$50.00 U.S. net minimum billing, exclusive of application taxes and transportation.

The goods are sold to Distributor EX Works (Incoterms 2000) Graco’s premises or the premises of Graco’s Supplier. All freight charges, handling, insurance, duty, taxes and other charges are at Distributor’s expense, with the following exception: for single orders and/or shipments to USD $2,500 net value or more, Graco will prepay surface freight charges to the U.S. port of exit or the U.S. freight forwarder of Distributor’s choice.

All prices are F.O.B. shipping point.

Returns will not be accepted on configured or low demand products built to special customer order. These orders are subject to a cancellation fee.

Graco strives to ship all orders within 48 hours. If you have need for an emergency shipment and your order is received before 2:30 p.m.

Central Time, you may request same day shipment.

Graco Inc. reserves the right to correct any typographical errors in this price list.

Possession of this list does not permit any party to purchase any or all of the items listed herein.

Prices, as shown herein, do not include any sales tax, excise tax, or other similar tax which must be added when, as, and if applicable.

This price list does not list parts that are obsolete or discontinued.

Always refer to the most recent lists and instruction forms.

GEDI

®

Website

GEDI stands for Graco Extranet for Distributor Information and is for use exclusively by authorized Graco distributors. This online tool features up-to-the-minute list price, net price, order/product information, product availability and shipping information. Access to this portion of the

www.graco.com website requires your Graco account number and the assignment of a GEDI password.

If you would like to access GEDI, visit

www.graco.com for easy online instructions.

Product Orders and Inquiries

• Order entry

• Product availability

• List and net prices

• Literature orders

• Order status

• Shipping charges

• Tracking information

• Same day shipping*

*All orders entered and credit approved by noon qualify for same day shipping

Fax Order Line

(orders only please)

Toll Free: 800-533-9656

(In Minnesota Twin Cities Metro Area, dial 612-378-3590)

Free-up phone lines. Fax your orders day or night.

You will receive a fax conformation of your order, which includes:

• Shipping location

• Graco sales release number

• Total net order entry value

• Line item pricing

• Quantity available by line item

• Part description

Customer Service and Technical Assistance

Toll Free: 800-533-9655

(In Minnesota Twin Cities Metro Area, dial 612-623-6928)

• Product information

• Product application questions

• Delivery date changes

• Product availability dates

• Maintenance and repair advice

• Correct order and invoice errors

• Product pre-return authorization (RGA)

• Resolves shipping & traffic questions

For additional information visit www.graco.com

• Product search

• Product photos

• Product listing

• Literature information

(service manuals, catalogs, etc.)

• Sales rep location

• GEDI access

EZ Fax* Document Ordering System

Get the documents you need 24-hours-a-day

• Service Manual

• Data Sheets

• Literature Index

www.graco.com

Petroleum Management Group

Ordering and Warranty Information

Standard Graco Warranty

1 Year Warranty Policy

Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,

Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY

OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR

PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of

Graco, or otherwise.

Graco Petroleum Management Group Equipment Extended Warranty

Graco warrants all equipment referenced in this document that is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. Graco will, for a period as defined in the table below from the date of sale, repair or replace equipment covered by this warranty and determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

Oil/Grease Pumps and Packages

5 Year Warranty

LD Pumps

Fastball / Fast-Flo

AODD

LD Meters

Mini-Fireball 225

Fireball 300

7 Year Warranty

Electronic Meters and Valves

LD Meter Electronics (2 years) All other meter series electronics (3 years)

Hose Reels and Packages

All reel series wear parts, including but not limited to: hose, swivel seats, roller guides (12 months). All bare hose reels, all components (12 months).

LD Series Reels and Packages

Matrix Meters

SD Electronic Meters

EM6/EM12 Electronic Meters

IM5/IM6 Electronic Meters

SDI15 Electronic Meters

SDV15 Valve

XDV20 Valve

SD Series Reels & Packages

XD Series Reels & Packages

700 Series Reels

Accessories Oil King

Coolant King

Oil Ace

Equipment or components not identified are not covered by this warranty. Complete part number list available by request.

10 Year Warranty

Fireball 425

NXT Pumps

www.graco.com

95

2012 Index and Pricing

Part No. Page No.

Part No. Page No.

Part No. Page No.

Part No. Page No.

96

15C502 ..........................................12, 17, 20

15T366 ...................................................... 73

15T367 ...................................................... 73

15T368 ...................................................... 73

15T369 ...................................................... 73

15T370 ...................................................... 73

15Y478 ...................................................... 62

23F914 ........................................................ 9

24A217 ..................................................... 59

24A218 ..................................................... 59

24A219 ................................................59, 65

24A220 ................................................59, 65

24A221 ................................................59, 65

24A222 ................................................59, 65

24A224 ................................................59, 65

24A934 ................................................59, 65

24A935 ................................................59, 65

24A936 ................................................59, 65

24A937 ................................................59, 65

24A938 ................................................59, 65

24A939 ................................................59, 65

24A940 ..................................................... 59

24A941 ..................................................... 59

24A942 ..................................................... 59

24A943 ..................................................... 59

24A944 ..................................................... 59

24A945 ..................................................... 59

24A946 ..................................................... 59

24A947 ..................................................... 59

24A948 ..................................................... 59

24A949 ..................................................... 59

24A950 ..................................................... 59

24A951 ..................................................... 59

24B624 ..................................................... 40

24B634 ..................................................... 40

24B639 ..................................................... 40

24B766 ..................................................... 40

24C100 ................................................59, 65

24C245 ..................................................... 62

24C246 ..................................................... 62

24C247 ..................................................... 62

24C248 ..................................................... 62

24C249 ..................................................... 62

24C250 ..................................................... 62

24C251 ..................................................... 62

24C252 ..................................................... 62

24C253 ..................................................... 62

24C254 ..................................................... 62

24C255 ..................................................... 62

24C256 ..................................................... 62

24C443 ................................................56, 57

24C444 ................................................56, 57

24C445 ..................................................... 56

24C537 ................................................56, 57

24C538 ..........................................10, 56, 57

24C539 ................................................56, 57

24C637 ................................................51, 86

24C772 ................................................10, 57

24C793 ..................................................... 57

24D132 ................................................59, 65

24D133 ................................................59, 65

24D590 ..................................................... 22

24D591 ..................................................... 22

24D592 ..................................................... 23

24D593 ..................................................... 23

24D594 ..................................................... 22

24D595 ..................................................... 23

24D596 ..................................................... 22

24D597 ..................................................... 22

24D598 ..................................................... 23

24D599 ..................................................... 23

24D600 ..................................................... 22

24D601 ..................................................... 23

24D602 ..................................................... 22

24D603 ..................................................... 22

24D604 ..................................................... 23

24D605 ..................................................... 23

24D606 ..................................................... 22

24D607 ..................................................... 22

24D608 ..................................................... 23

24D989 ..................................................... 59

24D990 ..................................................... 59

24D991 ..................................................... 59

24D992 ..................................................... 59

24D993 ..................................................... 59

24D994 ..................................................... 59

24D995 ..................................................... 59

24D996 ..................................................... 59

24D997 ..................................................... 59

24D998 ..................................................... 59

24D999 ..................................................... 59

24E001 ...................................................... 59

24E002 ...................................................... 59

24E006 ...................................................... 39

24E007 ...................................................... 39

24E008 ...................................................... 39

24E009 ...................................................... 39

24E010 ...................................................... 39

24E011 ...................................................... 39

24E166 ...................................................... 86

24E167 ...................................................... 86

24F524 ...................................................... 48

24F529 .................................................47, 48

24F531 ...................................................... 47

24F532 .................................................47, 48

24F679 .................................................47, 48

24F735 ...................................................... 57

24F736 ...................................................... 57

24F737 ...................................................... 57

24F738 ...................................................... 57

24F739 ...................................................... 57

24F740 ...................................................... 57

24F741 ...................................................... 57

24F742 ...................................................... 57

24F743 ...................................................... 57

24F753 ...................................................... 57

24F754 ...................................................... 57

24F755 ...................................................... 57

24F756 ...................................................... 57

24F757 ...................................................... 57

24F758 ...................................................... 57

24F759 ...................................................... 57

24F760 ...................................................... 57

24F761 ...................................................... 57

24F771 ...................................................... 57

24F772 ...................................................... 57

24F773 ...................................................... 57

24F774 ...................................................... 57

24F775 ...................................................... 57

24F776 ...................................................... 57

24F777 ...................................................... 57

24F778 ...................................................... 57

24F779 ...................................................... 57

24F870 .................................................47, 48

24F878 ...................................................... 47

24F901 ...................................................... 11

24F902 ...................................................... 11

24F903 ...................................................... 11

24F904 ...................................................... 11

24F905 ...................................................... 11

24F906 ...................................................... 11

24F910 ...................................................9, 11

24F914 .............................................9, 10, 11

24F915 ...................................................9, 11

24F918 ...............................................7, 8, 11

24F920 ...................................................9, 11

24F930 .............................................9, 10, 11

24F931 ...................................................9, 11

24F932 ...................................................9, 11

24F935 ...................................................9, 11

24F947 ...................................................... 47

24G576 ..............................................7, 9, 10

24G579 ....................................................7, 9

24G582 ....................................................7, 9

24G585 ..............................................7, 9, 10

24G588 ..............................................8, 9, 10

24G591 ....................................................8, 9

24G594 ....................................................8, 9

24G597 ..............................................8, 9, 10

24G600 ..................................................... 26

24G603 ..................................................... 26

24G606 ..................................................... 26

24G636 ..................................................... 47

24G738 ..................................................... 48

24G745 ..................................................... 47

24G865 ..................................................... 57

24G866 ..................................................... 57

24H293 ................................................47, 48

24H420 ................................................10, 11

24H422 ..................................................... 11

24H655 ................................................56, 57

24H656 ................................................56, 57

24H657 ................................................56, 57

24H658 ................................................56, 57

24H659 ................................................56, 57

24H660 ................................................56, 57

24H661 ................................................56, 57

24H662 ......................................9, 10, 56, 57

24H663 ................................................56, 57

24H666 ..................................................9, 11

24H669 ..................................................9, 11

24H689 ....................................................... 9

24H695 ....................................................... 9

24H702 ....................................................... 9

24H704 ....................................................... 9

24H726 ....................................................... 9

24H728 ....................................................... 9

24H751 ....................................................... 9

24H753 ....................................................... 9

24H775 ....................................................... 9

24H777 ....................................................... 9

24H800 ....................................................... 9

24H802 ....................................................... 9

24H836 ....................................................... 9

24H842 ....................................................... 9

24H859 ..................................................9, 11

24H862 ..................................................... 11

24H865 ..................................................9, 11

24H868 ....................................................... 9

24H870 ....................................................... 9

24H892 ....................................................... 9

24H894 ....................................................... 9

24H916 ....................................................... 9

24H918 ....................................................... 9

24H941 ....................................................... 9

24H943 ....................................................... 9

24H965 ....................................................... 9

24H967 ....................................................... 9

24HJ495 ...................................................... 9

24J495 ...................................................9, 10

24J733 ...................................................... 10

24J734 ...................................................... 10

24J735 ...................................................... 10

24J736 ...................................................... 10

24J776 ...................................................... 10

24J777 ...................................................... 10

24K777...................................................... 10

24K796...................................................... 10

24K797...................................................... 10

24K798...................................................... 10

24K799...................................................... 10

24K800...................................................... 10

24K832...................................................... 10

24K833...................................................... 10

24K834...................................................... 10

24K835...................................................... 10

24K836...................................................... 10

24K837...................................................... 10

24K838...................................................... 10

24K839...................................................... 10

24K840...................................................... 10

24K841...................................................... 10

24K842...................................................... 10

24K843...................................................... 10

38439........................................................ 50

100030...................................................... 92

100040...................................................... 92

100054.................................................82, 83

100081...................................................... 92

100206...................................................... 92

100220...................................................... 20

100380...................................................... 92

100385...................................................... 92

100451...................................................... 92

100474...................................................... 92

100505...................................................... 92

100611...................................................... 51

100615...................................................... 92

100737...................................................... 92

100833.................................................82, 83

100834.................................................82, 83

100835...................................................... 83

100837...................................................... 83

100840...................................................... 92

100846...................................................... 83

100847...................................................... 83

100848...................................................... 83

100854...................................................... 83

100896...................................................... 92

100960......................... 17, 21, 35, 36, 49, 89

100970.................................................82, 83

100971...................................................... 82

101008...................................................... 93

101009...................................................... 93

101012...................................................... 93

101013...................................................... 93

101078...................................................... 21

101180...................................................... 89

101277...................................................... 82

101281...................................................... 83

101283...................................................... 83

101287...................................................... 83

101297...................................................... 83

101312...................................................... 83

101339...................................................... 93

101340...................................................... 93

101376...................................................... 93

101604...................................................... 83

101605...................................................... 83

102527...................................................... 78

103347...................................................... 89

104266......................... 17, 21, 35, 36, 49, 87

104663...................................................... 92

105281...................................................... 92

105474...................................................... 80

106148.....................................18, 21, 40, 87

106149...........................................21, 40, 87

106150.................................................40, 87

106151...........................................18, 87, 88

107141...................................................... 88

107142...................................................... 88

108190...................................................... 51

108202.................................................85, 86

108203...................................................... 86

108204...................................................... 85

108458...........................................21, 79, 80

108491...................................................... 86

108537.................................................17, 21

108867...................................................... 86

109054...................................................... 37

109064...................................................... 65

109075........17, 18, 21, 33, 34, 35, 49, 51, 87

109077...................................................... 88

109105.....................................19, 42, 51, 90

109108...........................................19, 42, 90

109123.................................................42, 91

109124...................................................... 91

109125.......................................6, 42, 51, 91

109126...................................................... 91

109127...................................................... 91

109128...................................................... 91

109130...................................................... 91

109131...................................................... 91

109132...................................................... 91

109133...................................................... 91

109134...................................................... 91

109135...................................................... 91

109145.................................................82, 89

109146...................................................... 89

109147...................................................... 89

109148...........................................76, 82, 89

109149...................................................... 89

109150.................................................37, 89

109151.................................................37, 89

109152...................................................... 89

109153...................................................... 89

109154...................................................... 89

109156...................................................... 89

109157...................................................... 89

109158...................................................... 89

109160...................................................... 90

109161...................................................... 90

109162...................................................... 90

109163.................................................37, 90

109165.................................................37, 90

109167...................................................... 37

109169...................................................... 90

109170...................................................... 90

110025...................................................... 80

110046...................................................... 91

110047...................................................... 91

110048...........................................22, 23, 91

110065.................................................88, 89

110069...................................................... 90

110127...................................................... 20

110146.....................................21, 40, 51, 87

110147...............................21, 40, 47, 51, 87

110148.................................................21, 87

110149.....................................21, 86, 87, 88

110150.................................................21, 88

110196.................................................40, 88

110197...................................................... 88

110198.................................................37, 88

110199.................................................40, 88

110200...................................................... 88

110201...................................................... 81

110202...................................................... 81

110203...................................................... 81

110216...................................................... 81

110218...................................................... 81

110223......................... 21, 38, 40, 47, 51, 88

110224...............................21, 38, 40, 51, 88

110225...............................17, 21, 38, 40, 88

110226.....................................21, 38, 40, 88

110234.................................................37, 87

110236...................................................... 66

110237...................................................... 66

110285...................................................... 66

www.graco.com

2012 Index and Pricing

Part No. Page No.

Part No. Page No.

Part No. Page No.

Part No. Page No.

110314...................................................... 21

110318.................................................51, 87

110319...................................................... 89

110326...................................................... 91

110702...................................................... 83

110703...................................................... 83

110705...................................................... 83

110706...................................................... 83

110709...................................................... 83

110710...................................................... 83

110711...................................................... 83

110712...................................................... 83

110713...................................................... 83

110877...................................................... 21

110878...................................................... 21

110906...................................................... 21

110907...................................................... 21

111010...................................................... 90

111468...................................................... 87

111470...........................................19, 38, 87

111474...................................................... 86

111511...................................................... 51

111620...........................................78, 79, 80

111697...................................................... 92

112119...................................................... 40

112196...................................................... 81

112197...................................................... 55

112198...................................................... 55

112202...................................................... 55

112255...................................................... 82

112353...................................................... 20

113093...................................................... 92

113497.................................................40, 51

113551...................................................... 78

113553...................................................... 78

113555...................................................... 78

113556...................................................... 78

113557...................................................... 78

113558...................................................... 78

113559...................................................... 78

113560...................................................... 78

113774...................................................... 78

113859...................................................... 80

114017...................................................... 73

114829...................................................... 55

115042.....................................22, 23, 39, 51

116229...................................................... 86

118464...................................................... 88

119577...................................................... 84

124398...................................................... 48

124541...................................................... 48

124548...................................................... 48

124549...................................................... 48

124550...................................................... 48

124581...........................................47, 48, 65

124603.................................................47, 48

124671...................................................... 48

124875...........................................47, 48, 65

124963.................................................47, 48

125014...................................................... 48

125074...................................................... 48

125078.................................................47, 48

125079.................................................47, 48

125242...................................................... 48

125478...................................................... 48

125479...................................................... 48

150171...................................................... 92

150286...................................................... 92

150287.................................................59, 92

150622...................................................... 82

151519...................................................... 92

154616...................................................... 85

155332...................................................... 73

155470...........................................19, 37, 92

155494.....................................19, 20, 37, 92

155495...................................................... 92

155541...........................................37, 42, 92

155570.................................................50, 92

155653...................................................... 92

155665...................................................... 92

155677...................................................... 92

155699...................................................... 92

155836...................................................... 82

155865...................................................... 92

156022.................................................51, 92

156172...................................................... 92

156173...................................................... 92

156296...................................................... 92

156580...................................................... 92

156589...................................................... 92

156684.................................................11, 92

156789...................................................... 85

156823...................................................... 92

156849...........................................18, 37, 92

156971.................................................51, 92

157191...................................................... 92

157416.................................................18, 92

157676...................................................... 92

157705.................................................11, 92

157785.................................................86, 92

158256...................................................... 92

158383...................................................... 92

158491...................................................... 92

158555...................................................... 92

158581...................................................... 92

158586...................................................... 92

158683...................................................... 92

158990...................................................... 89

159153...................................................... 92

159239...................................................... 92

159801...................................................... 92

159840...................................................... 92

159841...................................................... 92

159842.................................................59, 92

159952.................................................19, 38

160022.................................................11, 92

160327...........................................19, 42, 92

160754.................................................19, 37

161037...................................................... 92

161077...................................................... 92

161889...................................................... 92

162024...................................................... 92

162225.................................................35, 36

162449...................................................... 92

162505...................................................... 92

165198...................................................... 92

168085...................................................... 19

168595...................................................... 92

169967...................................................... 88

169970.................................................40, 88

169971.................................................37, 88

171818...................................................... 19

172405...................................................... 20

175013...................................................... 92

176393...................................................... 92

176684...................................................... 20

178670...................................................... 66

180199...................................................... 21

180685.................................................59, 89

180698...................................................... 65

185416.................................................70, 74

186472...................................................... 80

187359...................................................... 87

187479...................................................... 51

187754...................................................... 20

190125...................................................... 51

191126...................................................... 20

191128...................................................... 20

191130...................................................... 20

191131...................................................... 20

191287...................................................... 73

191288...................................................... 73

191289...................................................... 73

191294...................................................... 73

191295...................................................... 73

191368...................................................... 78

191393...................................................... 78

191394...................................................... 78

191782.................................................69, 70

191783.................................................69, 70

191784.................................................69, 70

192873...................................................... 78

192874...................................................... 78

194048...................................................... 92

196471.................................................66, 73

200020...................................................... 82

200021...................................................... 82

200325.................................................81, 82

200326............. 17, 19, 33, 35, 36, 37, 50, 53

200389...........................................76, 81, 82

201701...................................................... 69

201881...................................................... 82

202156...................................................... 79

202577.....................................37, 50, 76, 81

202579...................................................... 81

202600...................................................... 81

202650...................................................... 82

202654...................................................... 83

202858.................................................40, 87

202869...................................................... 38

202965...................................................... 92

203156...................................................... 19

203198.................................................81, 82

203265...................................................... 69

203320...........................................19, 37, 91

203497...................................................... 82

203504...................................................... 82

203521.................................................59, 65

203522.................................................59, 65

203523.................................................59, 65

203524.................................................59, 65

203525.................................................59, 65

203526.................................................59, 65

203597...................................................... 81

203622......................... 17, 20, 33, 34, 38, 54

203650...............................19, 33, 34, 38, 54

203655...................................................... 69

203664...................................................... 34

203687...................................................... 69

203688.....................................17, 19, 20, 21

203697.................................................55, 81

203701...................................................... 55

203702...................................................... 55

203703...................................................... 55

203716...................................................... 36

203857...........................................13, 17, 49

203872...........................................13, 17, 49

203876...........................................13, 17, 18

203976...................................................... 34

203987.................................................19, 21

203992...................................................... 20

204072...................................................... 82

204076.................................................20, 49

204082...................................................... 81

204083...................................................... 81

204084...................................................... 81

204095...................................................... 49

204121...................................................... 34

204130...................................................... 37

204134.................................................33, 34

204144...........................................20, 38, 50

204204...................................................... 82

204254...........................................13, 17, 49

204264...................................................... 49

204351...................................................... 34

204353...................................................... 35

204385.....................................20, 35, 36, 38

204461.................................................35, 36

204467...................................................... 35

204560.................................................19, 91

204574..17, 19, 33, 34, 35, 36, 37, 50, 53, 54

204741.................................................59, 65

204867...................................................... 54

204897...................................................... 82

204929...................................................... 82

205054.................................................20, 38

205090...................................................... 88

205102.................................................35, 36

205148.................................................35, 36

205337...................................................... 37

205339.................................................35, 36

205394...........................................31, 35, 49

205395.....................................31, 35, 36, 49

205418.....................................19, 37, 51, 91

205532...................................................... 82

205554...................................................... 82

205568...................................................... 82

205582...................................................... 82

205592...................................................... 82

205600...................................................... 90

205626.................................................16, 17

205699.................................................35, 36

206199...................................................... 40

206264...................................................... 88

206405...........................................28, 33, 50

206496...................................................... 50

206502...................................................... 50

206537...................................................... 36

206655...................................................... 49

206656...................................................... 49

206699...........................................28, 33, 50

206700...........................................28, 33, 50

207279...................................................... 36

207361.................................................49, 53

207366.................................................49, 53

207367...................................................... 49

207468...................................................... 36

207561.................................................20, 38

207562.................................................20, 38

207579...................................................... 19

207651...........................................35, 36, 40

207738...................................................... 72

207739...................................................... 72

207742...................................................... 72

207755...................................................... 87

207946...................................................... 81

207947...................................................... 81

207948...................................................... 81

208009...................................................... 85

208390...................................................... 88

208393...................................................... 88

208434...................................................... 92

208536.....................................37, 40, 88, 89

208610.....................................35, 36, 39, 91

208611...................................................... 91

208627...................................................... 89

208630...................................................... 88

210880...................................................... 19

213012...................................................... 42

213013...................................................... 42

214570...................................................... 50

214583.................................................20, 42

214584...................................................... 42

214656...................................................... 91

214658...................................................... 54

214847...........................................21, 87, 88

214848.................................................21, 87

214849...................................................... 88

214925...................................................... 81

214926...................................................... 81

214955...................................................... 91

215407...........................................78, 79, 80

215474.................................................78, 80

215475...................................................... 80

215481...................................................... 80

215487...........................................78, 79, 80

215745...................................................... 80

215964...................................................... 42

217072...........................................17, 21, 88

217073...................................................... 88

217359.................................................20, 42

217430...................................................... 92

218093.................................................19, 91

218112...................................................... 42

218115........................................................ 6

218316.............................................6, 42, 87

218340.................................................59, 65

218341.................................................59, 65

218491...................................................... 91

218545.................................................59, 89

218549.....................................10, 18, 59, 65

218550.................................................59, 65

218588.................................................78, 80

218591...................................................... 66

218670...................................................... 65

218671...................................................... 65

218672...................................................... 65

218673...................................................... 65

218674...................................................... 65

218675...................................................... 65

218676...................................................... 65

218677...................................................... 65

218678...................................................... 65

218969.................................................85, 86

218970...................................................... 86

220107...................................................... 66

220110...................................................... 66

220112...................................................... 66

220168...................................................... 42

220170...................................................... 33

220171...................................................... 33

220590...................................................... 90

220591.................................................19, 90

220592...................................................... 90

220593...................................................... 90

220596...................................................... 51

220598...........................................18, 19, 90

220600...................................................... 90

220608...................................................... 90

220653.....................................33, 34, 36, 37

220654.....................................33, 34, 37, 49

220969...................................................... 86

221007...................................................... 86

221092...................................................... 90

221093...................................................... 90

221146...................................................... 86

222011.................................................40, 86

222051........................................................ 6

222058...........................................19, 33, 50

222059...........................................33, 34, 37

222060...........................................34, 49, 53

222061.....................................19, 34, 49, 53

222062...........................................17, 19, 21

222063...............................17, 18, 19, 21, 49

222065...........................................16, 17, 49

222066.....................................17, 19, 21, 49

222067...................................................... 49

222068...........................................17, 19, 21

www.graco.com

97

2012 Index and Pricing

Part No. Page No.

Part No. Page No.

Part No. Page No.

Part No. Page No.

98

222069.................................................34, 36

222070.................................................34, 37

222071...................................................... 49

222072...............................33, 34, 35, 37, 49

222073...................................................... 34

222074...................................................... 34

222075...................................................... 49

222076.....................................35, 36, 37, 49

222077...................................................... 50

222078...................................................... 33

222079...................................................... 50

222080.................................................33, 37

222081.................................................33, 37

222082...................................................... 50

222085...................................................... 49

222086...................................................... 49

222087.................................................13, 17

222090...................................................... 84

222095...........................................16, 17, 49

222103........................................................ 6

222104........................................................ 6

222118.................................................21, 42

222119.................................................21, 42

222149...................................................... 86

222225.................................................59, 65

222243...........................................19, 34, 38

222245...................................................... 34

222308..................... 6, 12, 17, 18, 19, 20, 21

222383.................................................34, 37

222404...................................................... 35

222417.................................................59, 65

222602........................................................ 6

222629...................................................... 66

222641...................................................... 66

222645...................................................... 66

222902...................................................... 53

223107...................................................... 49

223108...................................................... 35

223179.................................................79, 80

223187...................................................... 82

223344.....................................35, 36, 37, 49

223448...................................................... 66

223695...................................................... 86

223696...................................................... 86

223697...................................................... 86

223700.................................................37, 53

223701.................................................37, 53

223845.....................................33, 35, 37, 49

223846.....................................35, 36, 37, 49

223888.................................................51, 86

223920...................................................... 70

223952...................................................... 39

223965...................................................... 86

224023...................................................... 50

224040...................................................... 89

224266.................................................35, 36

224267...................................................... 36

224444...................................................... 65

224458...................................................... 50

224512.................................................17, 87

224534...................................................... 18

224541...................................................... 18

224569...................................................... 81

224579.................................................20, 49

224665...................................................... 87

224666...................................................... 87

224667...................................................... 87

224669...................................................... 87

224700...................................................... 87

224701...................................................... 87

224702...................................................... 87

224741.................................................52, 53

224742...................................................... 52

224751...................................................... 53

224752...................................................... 53

224759.................................................86, 87

224762...................................................... 86

224825...................................................... 50

224826...................................................... 50

224829...................................................... 36

224835...........................................40, 51, 86

224872...................................................... 76

224873.................................................85, 86

224912...................................................... 53

224915...................................................... 53

224916...................................................... 53

224955...................................................... 86

225006...................................................... 34

225014...................................................... 34

225016...................................................... 35

225026...................................................... 34

225094...................................................... 17

225272...................................................... 85

225376...................................................... 54

225378...................................................... 54

225380...................................................... 54

225384...................................................... 54

225640...................................................... 17

225642...................................................... 17

225728...................................................... 17

225773.................................................34, 36

225781...................................................... 35

225782...................................................... 17

225786...................................................... 17

225827.................................................34, 36

225844...................................................... 55

225852...................................................... 17

225853...................................................... 17

225880...................................................... 54

225914...................................................... 55

225931...................................................... 17

226012.................................................34, 36

226013...................................................... 35

226018...................................................... 35

226269...................................................... 50

226289...................................................... 54

226290...................................................... 55

226342...................................................... 50

226940...................................................... 42

226941...................................................... 42

226942...................................................... 42

226943...................................................... 42

226944...................................................... 42

226945...................................................... 42

226947.................................................41, 42

226948.................................................41, 42

226951.................................................41, 42

226952...................................................... 42

226953...................................................... 42

232076.................................................79, 80

232077...................................................... 80

233807.................................................34, 76

233933...................................................... 76

234237...................................................... 50

234423...................................................... 66

234902...................................................... 43

235346...................................................... 85

235532...................................................... 80

235878...........................................69, 70, 71

235901...........................................69, 70, 71

235998.....................................20, 21, 53, 78

236054......................... 19, 20, 21, 40, 42, 51

236058.................................................33, 37

236171.................................................81, 82

236205...................................................... 89

236206...................................................... 89

236211...................................................... 89

236265...................................................... 86

236267...................................................... 40

236273...................................................... 40

236753...................................................... 52

236754.................................................52, 53

236763.................................................79, 80

236764.................................................79, 80

236778...................................................... 19

236864...................................................... 53

236865...................................................... 53

237075.................................................17, 19

237129...................................................... 42

237130...................................................... 42

237131...................................................... 42

237132...................................................... 42

237133...................................................... 42

237134...................................................... 42

237160...................................................... 51

237161...................................................... 51

237526.................................................14, 17

237601.................................................20, 21

237653...................................................... 52

237728...................................................... 63

237861...................................................... 90

237865...................................................... 90

237866...................................................... 90

237872.................................................59, 65

237873.................................................59, 65

237874.................................................59, 65

237875...................................................... 63

237879...................................................... 63

237884...................................................... 63

237893......................... 18, 20, 21, 78, 79, 80

237904...................................................... 53

237932.................................................63, 65

237944...................................................... 65

238108.................................................15, 17

238125...................................................... 20

238245...........................................17, 19, 21

238246.................................................19, 21

238247...................................................... 19

238370...................................................... 20

238371...................................................... 73

238400...................................................... 70

238428.................................................40, 51

238429...................................................... 21

238431...................................................... 21

238432...................................................... 21

238433...................................................... 21

238434...................................................... 21

238436...................................................... 50

238437...................................................... 50

238438...................................................... 50

238440...................................................... 50

238592...................................................... 20

238593...................................................... 20

238595...................................................... 20

238596...................................................... 20

238618...................................................... 78

238624...................................................... 78

238625...................................................... 78

238636...................................................... 70

238637...................................................... 70

238638...................................................... 70

238639...................................................... 70

238640...................................................... 70

238641...................................................... 70

238642...................................................... 70

238643...................................................... 70

238646...................................................... 70

238647...................................................... 70

238765...................................................... 40

238866...........................................84, 85, 86

238899.................................................20, 40

238996...........................................78, 79, 80

239019...................................................... 80

239301...................................................... 85

239302...................................................... 85

239663...................................................... 50

239702........................................................ 6

239703........................................................ 6

239705...................................................... 54

239706...................................................... 66

239707...................................................... 54

239729...........................................32, 36, 49

239730...........................................32, 36, 49

239731.................................................32, 36

239824.................................................66, 71

239829...................................................... 73

239877.................................................29, 34

239887...........................................29, 34, 49

239888.....................................29, 35, 36, 49

239949...................................................... 73

239950...................................................... 73

239951...................................................... 73

239952...................................................... 40

239965...................................................... 37

239966.................................................37, 50

240416...................................................... 73

240417.................................................21, 80

240418...................................................... 21

240429...........................................20, 21, 78

240448.................................................79, 80

240453...................................................... 73

240684...................................................... 86

240685...................................................... 86

240832.................................................85, 86

241246...................................................... 37

241633...................................................... 18

241657...................................................... 40

241663.................................................20, 38

241905...................................................... 79

241906...........................................40, 51, 86

241907...................................................... 90

241908...................................................... 90

241910...................................................... 63

242055.................................................76, 81

242056.....................................34, 37, 76, 81

242057.................................................76, 81

242058.................................................76, 81

243161...................................................... 50

243167...................................................... 86

243392...................................................... 69

243599...................................................... 69

243600...................................................... 69

243601...................................................... 69

243602...................................................... 69

243603...................................................... 69

243604...................................................... 69

243650...................................................... 85

243669.................................................40, 51

243817...................................................... 49

243818...................................................... 49

243835...................................................... 73

243836...................................................... 73

243837...................................................... 73

243992...................................................... 69

244038...................................................... 18

244055...................................................... 85

244075...................................................... 71

244076...................................................... 71

244342...................................................... 80

244628...................................................... 17

244635...................................................... 36

244636...................................................... 36

244637...................................................... 36

244641...................................................... 36

244657...................................................... 39

244679...................................................... 51

244680...................................................... 51

244681...................................................... 51

244682...................................................... 51

244844.....................................35, 36, 40, 87

244845...................................................... 87

244846...................................................... 17

244847...................................................... 17

244905.................................................35, 36

244906...................................................... 36

245410...................................................... 64

245694...................................................... 34

245695...................................................... 34

245696...................................................... 34

246637...................................................... 40

246775...........................................12, 13, 17

246780.................................................27, 33

246781.................................................27, 33

246903...................................................... 17

246904...................................................... 17

246906...................................................... 17

246907...................................................... 17

246909.................................................27, 33

246910.................................................33, 36

246911.................................................33, 36

246913.................................................33, 36

246914...................................................... 33

246915...................................................... 33

246916.................................................33, 36

246917...................................................... 33

247335...................................................... 36

247336...................................................... 36

247337...................................................... 36

247443...................................................... 53

247450...................................................... 53

247453...................................................... 71

247540...................................................... 53

247712...................................................... 74

247713...................................................... 74

247714...................................................... 74

247715...................................................... 74

247716...................................................... 74

247717...................................................... 74

247718...................................................... 75

247721...................................................... 75

247722...................................................... 75

247723...................................................... 75

247724...................................................... 75

247725...................................................... 75

247759...................................................... 73

247760...................................................... 73

247888...................................................... 22

247889...................................................... 22

247890...................................................... 23

247891...................................................... 23

247892...................................................... 22

247893...................................................... 22

247894...................................................... 23

247895...................................................... 23

247969...................................................... 22

247973...................................................... 39

247974...................................................... 39

247975...................................................... 39

247976...................................................... 39

247977...................................................... 39

247978...................................................... 39

247979...................................................... 39

247980...................................................... 39

247981...................................................... 39

248097...........................................12, 17, 18

248230...................................................... 17

248296...................................................... 20

248312...................................................... 91

www.graco.com

2012 Index and Pricing

Part No. Page No.

Part No. Page No.

Part No. Page No.

Part No. Page No.

248313...................................................... 91

248324...................................................... 20

248622...................................................... 18

248623...................................................... 18

248632.................................................84, 85

248918...................................................... 43

249058...................................................... 90

249294...................................................... 43

249440...................................................... 66

249771...................................................... 43

249783...................................................... 43

249821...................................................... 43

253486...................................................... 43

253487...................................................... 43

253494...................................................... 43

253601...................................................... 72

253683...................................................... 43

255143...................................................... 23

255200.................................................18, 68

255277...................................................... 67

255348.................................................59, 68

255349...................................................... 68

255350...........................................18, 59, 68

255351...................................................... 68

255352...................................................... 68

255353...................................................... 68

255354...................................................... 68

255355...................................................... 68

255356...................................................... 68

255459...........................................72, 73, 74

255460...........................................72, 73, 74

255461.................................................73, 74

255470...........................................72, 73, 74

255751.................................................67, 73

255793...................................................... 75

255800...................................................... 68

255801...................................................... 68

255802...................................................... 68

255803...................................................... 68

255852...................................................... 73

255853...................................................... 73

255854...................................................... 73

255855...................................................... 73

255856...................................................... 73

255857.................................................73, 74

255858.................................................73, 74

255859...................................................... 75

255861...................................................... 73

255885...................................................... 73

255921...................................................... 75

256164...................................................... 74

256215.................................9, 10, 18, 67, 73

256216.............................................9, 10, 67

256556...................................................... 72

256786...................................................... 72

256787...................................................... 72

256788...................................................... 72

256789...................................................... 72

256836...................................................... 68

256837...................................................... 68

256838...................................................... 68

256839...................................................... 68

257435...................................................... 36

258693.................................................10, 67

258694...................................................... 67

260000...................................................... 46

260020...................................................... 46

260022...................................................... 46

260025...................................................... 46

260078...................................................... 46

260079...................................................... 46

260082...................................................... 46

260083...................................................... 46

260100.................................................44, 45

260101.................................................44, 45

260102.................................................44, 45

260104.................................................44, 45

260105.................................................44, 45

260106.................................................44, 45

260108.................................................44, 45

260109.................................................44, 45

260110...................................................... 45

260111...................................................... 45

260112...................................................... 45

260113...................................................... 45

260114...................................................... 45

260124...................................................... 45

260145...................................................... 45

260238...................................................... 45

260306.................................................44, 45

260521...................................................... 46

260523...................................................... 46

263265...................................................... 40

286211...................................................... 50

286517...................................................... 50

286621...................................................... 50

308403...................................................... 20

309345...................................................... 35

512874...................................................... 37

512926...................................................... 78

512927...................................................... 78

514037...................................................... 78

514150.................................................78, 80

601950...................................................... 89

647016...........................................40, 51, 86

647648...................................................... 40

685984.................................................40, 51

948392...................................................... 37

948393...................................................... 37

965124.................................................30, 35

965129.................................................35, 36

D0B005 ..................................................... 40

D0B525 ..................................................... 40

D0F005...................................................... 40

D0F525...................................................... 40

D0K005 ..................................................... 40

D0K525 ..................................................... 40

D03005 ..................................................... 40

D03255 ..................................................... 40

D05007 ..................................................... 40

D05277 ..................................................... 40

D31255 ................................................40, 51

DB3525 ..................................................... 40

DB5525 ..................................................... 40

DF3525...................................................... 40

DK3525 ..................................................... 40

HNH55A ..................................................... 62

HNH55B ..................................................... 62

HNH55F ..................................................... 62

HNHC5A ..................................................... 62

HNHC5B ..................................................... 62

HNHC5F ..................................................... 62

HNHCDA..................................................... 62

HNHCDB..................................................... 62

HNHCDF ..................................................... 62

HNHFFA...................................................... 62

HNHFFB ..................................................... 62

HNHFFF ...................................................... 62

HNL56A ..................................................... 62

HNL56B ..................................................... 62

HNL56F ...................................................... 62

HNL65A ..................................................... 62

HNL65B ..................................................... 62

HNL65F ...................................................... 62

HNLC8A ..................................................... 62

HNLC8B ..................................................... 62

HNLC8F ..................................................... 62

HNLD5A ..................................................... 62

HNLD5B ..................................................... 62

HNLD5F ..................................................... 62

HNLE3A ..................................................... 62

HNLE3B ..................................................... 62

HNLE3F ...................................................... 62

HNM65A .................................................... 62

HNM65B .................................................... 62

HNM65F..................................................... 62

HNMC8A .................................................... 62

HNMC8B .................................................... 62

HNMC8F .................................................... 62

HNMD5A .................................................... 62

HNMD5B .................................................... 62

HNMD5F .................................................... 62

HNMDDA .................................................... 62

HNMDDB .................................................... 62

HNMDDF .................................................... 62

HNPB8A ..................................................... 62

HNPB8B ..................................................... 62

HNPB8F ..................................................... 62

HPH1DA ..................................................... 58

HPH1DB ..................................................... 58

HPH1DC ..................................................... 58

HPH1DD ..................................................... 58

HPH1DE ..................................................... 58

HPH1DF ..................................................... 58

HPH5DA ..................................................... 58

HPH5DB ..................................................... 58

HPH5DC ..................................................... 58

HPH5DD ..................................................... 58

HPH5DE ..................................................... 58

HPH5DF ..................................................... 58

HPH15A ..................................................... 58

HPH15B ..................................................... 58

HPH15C ..................................................... 58

HPH15D ..................................................... 58

HPH15E ..................................................... 58

HPH15F ..................................................... 58

HPH23A ..................................................... 58

HPH23B ..................................................... 58

HPH23C ..................................................... 58

HPH23D ..................................................... 58

HPH23E ..................................................... 58

HPH23F ..................................................... 58

HPH55A ..................................................... 58

HPH55B ..................................................... 58

HPH55C ..................................................... 58

HPH55D ..................................................... 58

HPH55E ..................................................... 58

HPH55F ..................................................... 58

HPL23A...................................................... 58

HPL23B...................................................... 58

HPL23C ..................................................... 58

HPL23D ..................................................... 58

HPL23E ...................................................... 58

HPL23F ...................................................... 58

HPL25A...................................................... 58

HPL25B...................................................... 58

HPL25C ..................................................... 58

HPL25D ..................................................... 58

HPL25E ...................................................... 58

HPL25F ...................................................... 58

HPL33A...................................................... 58

HPL33B...................................................... 58

HPL33C ..................................................... 58

HPL33D ..................................................... 58

HPL33E ...................................................... 58

HPL33F ...................................................... 58

HPL56A...................................................... 58

HPL56B...................................................... 58

HPL56C ..................................................... 58

HPL56D ..................................................... 58

HPL56E ...................................................... 58

HPL56F ...................................................... 58

HPL65A...................................................... 58

HPL65B...................................................... 58

HPL65C ..................................................... 58

HPL65D ..................................................... 58

HPL65E ...................................................... 58

HPL65F ...................................................... 58

HPM3BA .................................................... 58

HPM3BB .................................................... 58

HPM3BC .................................................... 58

HPM3BD .................................................... 58

HPM3BE ..................................................... 58

HPM3BF ..................................................... 58

HPM6DA .................................................... 58

HPM6DB .................................................... 58

HPM6DC .................................................... 58

HPM6DD .................................................... 58

HPM6DE .................................................... 58

HPM6DF..................................................... 58

HPM33A .................................................... 58

HPM33B ...................................10, 18, 58, 59

HPM33C .................................................... 58

HPM33F ..................................................... 58

HPM65A .................................................... 58

HPM65B .........................................10, 18, 58

HPM65C .................................................... 58

HPM65D .................................................... 58

HPM65E ..................................................... 58

HPM65F ..................................................... 58

HRL56B ..................................................... 59

HRM33D .................................................... 58

HRM33E ..................................................... 58

HSDD5A ................................................47, 61

HSDD5B ................................................47, 61

HSDD5F ................................................47, 61

HSDDDA ................................................47, 61

HSDDDB ................................................47, 61

HSDDDF ................................................47, 61

HSH1DA ..................................................... 61

HSH1DB ..................................................... 61

HSH1DF ..................................................... 61

HSH1DG ..................................................... 61

HSH5DA ..................................................... 61

HSH5DB ..................................................... 61

HSH5DF ..................................................... 61

HSH5DG ..................................................... 61

HSH15A ..................................................... 61

HSH15B ..................................................... 61

HSH15F ..................................................... 61

HSH15G ..................................................... 61

HSH55A ..................................................... 61

HSH55B ..................................................... 61

HSH55F ..................................................... 61

HSH55G ..................................................... 61

HSHC5A ..................................................... 61

HSHC5B ..................................................... 61

HSHC5F ..................................................... 61

HSHC5G ..................................................... 61

HSHCDA ..................................................... 61

HSHCDB ..................................................... 61

HSHCDF ..................................................... 61

HSHCDG ..................................................... 61

HSHFFA ...................................................... 61

HSHFFB ...................................................... 61

HSHFFF ...................................................... 61

HSHFFG ..................................................... 61

HSL25A...................................................... 61

HSL25B...................................................... 61

HSL25F ...................................................... 61

HSL25G ..................................................... 61

HSL33A...................................................... 61

HSL33B...................................................... 61

HSL33F ...................................................... 61

HSL33G ..................................................... 61

HSL56A...................................................... 61

HSL56B...................................................... 61

HSL56F ...................................................... 61

HSL56G ..................................................... 61

HSL65A...................................................... 61

HSL65B...................................................... 61

HSL65F ...................................................... 61

HSL65G ..................................................... 61

HSLC8A ..................................................... 61

HSLC8B ..................................................... 61

HSLC8F ...................................................... 61

HSLC8G ..................................................... 61

HSLD5A ..................................................... 61

HSLD5B ..................................................... 61

HSLD5F ...................................................... 61

HSLD5G ..................................................... 61

HSLE3A ...................................................... 61

HSLE3B ...................................................... 61

HSLE3F ...................................................... 61

HSLE3G...................................................... 61

HSM3BA .................................................... 61

HSM3BB .................................................... 61

HSM3BF ..................................................... 61

HSM3BG .................................................... 61

HSM6DA .................................................... 61

HSM6DB .................................................... 61

HSM6DF..................................................... 61

HSM6DG .................................................... 61

HSM33A .................................................... 61

HSM33B .................................................... 61

HSM33F ..................................................... 61

HSM33G .................................................... 61

HSM65A .................................................... 61

HSM65B .................................................... 61

HSM65F ..................................................... 61

HSM65G .................................................... 61

HSMC8A .................................................... 61

HSMC8B .................................................... 61

HSMC8F ..................................................... 61

HSMC8G .................................................... 61

HSMCFA ..................................................... 61

HSMCFB..................................................... 61

HSMCFF ..................................................... 61

HSMCFG .................................................... 61

HSMD5A .................................................... 61

HSMD5B .................................................... 61

HSMD5F..................................................... 61

HSMD5G .................................................... 61

HSMDDA .................................................... 61

HSMDDB .................................................... 61

HSMDDF .................................................... 61

HSMDDG .................................................... 61

HSPB8A ..................................................... 61

HSPB8B ..................................................... 61

HSPB8F...................................................... 61

HSPB8G ..................................................... 61

P14DCS ..................................................... 39

P14MCS..................................................... 39

P26DCS ..................................................... 39

P26MCS..................................................... 39

P29DCS ..................................................... 39

P29MCS..................................................... 39

P55DCS ..................................................... 39

P55MCS..................................................... 39

P63DCS ..................................................... 39

P63MCS..................................................... 39

P68DCS ..................................................... 39

P68MCS..................................................... 39

www.graco.com

99

AMERICAS

MINNESOTA

Worldwide Headquarters

Graco Inc.

88-11th Avenue N.E.

Minneapolis, MN 55413

MAILING ADDRESS

P.O. Box 1441

Minneapolis, MN 55440-1441

Tel: 612-623-6000 Fax: 612-623-6777

EUROPE

BELGIUM

European Headquarters

Graco N.V.

Industrieterrein-Oude Bunders

Slakweidestraat 31

3630 Maasmechelen, Belgium

Tel: 32 89 770 700 Fax: 32 89 770 777

ASIA PACIFIC

AUSTRALIA

Graco Australia Pty Ltd.

Suite 17, 2 Enterprise Drive

Bundoora, Victoria 3083

Australia

Tel: 61 3 9468 8500 Fax: 61 3 9468 8599

CHINA

Graco Hong Kong Ltd.

Shanghai Representative Office

Building 7

1029 Zhongshan Road South,

Huangpu District

Shanghai, 200011

The People’s Republic of China

Tel: 86 21 649 50088 Fax: 86 21 649 50077

INDIA

Graco Hong Kong Ltd. India Liaison Office

Room 443, Augusta PointRegus Business Centre

53Golf Course Road Gurgaon, HaryanaIndia

122001 Tel: 91 124 435 4208 Fax: 91 124 435

4001

JAPAN

Graco K.K.

1-27-12 Hayabuchi

Tsuzuki-ku

Yokohama City, Japan 2240025

Tel: 81 45 593 7300 Fax: 81 45 593 7301

KOREA

Graco Korea Inc.

Shinhan Bank Building

4th Floor #1599

Gwanyang-Dong, Dongan-Ku,

Anyang-si, Korea 431-060

Tel: 82 31 476 9400 Fax: 82 31 476 9801

©2011 Graco Inc. 303245 Rev. J 12/11 All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.

Graco’s got you covered

Facilities Worldwide for Global Support

Quality First

At Graco we pride ourselves on providing best-in-class products.

Engineered solutions are manufactured in our own facilities, with the highest standards in the industry. We provide you with world-class customer support and expertise to help solve your lubrication challenges.

Global Reach

Graco has facilities across the globe to provide you with the products and service you need, where you live. Plus,

Graco has dedicated field experts in all areas of the world to support the products we sell.

Product Capabilities

Graco has a broad range of products to provide solutions that meet your needs.

Our products are engineered and tested to perform in the harshest environments so you can be certain your equipment is protected and working at peak performance.

Contact us today!

Call

800-533-9655

to speak with a Graco representative, or visit

www.graco.com

for more information.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
