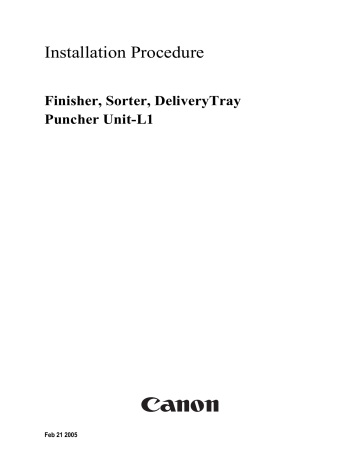

Canon ir5870c, ir5870ci, ir6870c, ir6870ci Digital Camera Manual

Installation Procedure
Finisher, Sorter, DeliveryTray
Puncher Unit-L1
Feb 21 2005
Application
This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and
repair of products. This manual covers all localities where the products are sold. For this reason, there may be
information in this manual that does not apply to your locality.
Corrections
This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products.
When changes occur in applicable products or in the contents of this manual, Canon will release technical information
as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will
issue a new edition of this manual.
The following paragraph does not apply to any countries where such provisions are inconsistent with local law.
Trademarks
The product names and company names used in this manual are the registered trademarks of the individual companies.
Copyright
This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may not be copied,
reproduced or translated into another language, in whole or in part, without the written consent of Canon Inc.
COPYRIGHT © 2001 CANON INC.
Printed in Japan
Caution
Use of this manual should be strictly supervised to avoid disclosure of confidential information.
Introduction
Symbols Used
This documentation uses the following symbols to indicate special information:
Symbol
Description
Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning.
Indicates an item requiring care to avoid electric shocks.
Indicates an item requiring care to avoid combustion (fire).
Indicates an item prohibiting disassembly to avoid electric shocks or problems.
Indicates an item requiring disconnection of the power plug from the electric outlet.
Indicates an item intended to provide notes assisting the understanding of the topic in question.
Memo
Indicates an item of reference assisting the understanding of the topic in question.
REF.
Provides a description of a service mode.
Provides a description of the nature of an error indication.
Introduction
The following rules apply throughout this Service Manual:
1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical
and mechanical systems with reference to the timing of operation.
In the diagrams,
the arrow
represents the path of mechanical drive; where a signal name accompanies the symbol ,
indicates the direction of the electric signal.
The expression "turn on the power" means flipping on the power switch, closing the front door, and closing the
delivery unit door, which results in supplying the machine with power.
2. In the digital circuits, '1'is used to indicate that the voltage level of a given signal is "High", while '0' is used to
indicate "Low".(The voltage value, however, differs from circuit to circuit.) In addition, the asterisk (*) as in
"DRMD*" indicates that the DRMD signal goes on when '0'.
In practically all cases, the internal mechanisms of a microprocessor cannot be checked in the field. Therefore, the
operations of the microprocessors used in the machines are not discussed: they are explained in terms of from
sensors to the input of the DC controller PCB and from the output of the DC controller PCB to the loads.
The descriptions in this Service Manual are subject to change without notice for product improvement or other
purposes, and major changes will be communicated in the form of Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this Service Manual and all relevant
Service Information bulletins and be able to identify and isolate faults in the machine."
Contents
Contents
第1章
Installation Procedure
1.1 Making Pre-Checks ............................................................................................................................................... 2
1.1.1Checking the Contents..................................................................................................................................... 2
1.1.2Installing the Accessories ................................................................................................................................ 4
1.2 Unpacking and Checking the Components ........................................................................................................... 8
1.2.1Unpacking ....................................................................................................................................................... 8
1.3 Installation Procedure............................................................................................................................................ 9
1.3.1Disconnecting the Finisher from its Host Machine......................................................................................... 9
1.3.2Connecting to the Finisher ............................................................................................................................ 12
1.3.3Preparing the Host Machine for Installation ................................................................................................. 15
1.3.4Connecting to the Host Machine ................................................................................................................... 18
1.3.5Checking the Height/Tilt ............................................................................................................................... 19
1.4 Making Adjustments ........................................................................................................................................... 22
1.4.1Adjusting the Height/Tilt............................................................................................................................... 22
1.4.2Work After Making Checks/Adjustments ..................................................................................................... 25
1.5 Attaching the Labels etc. ..................................................................................................................................... 29
1.5.1Attaching the Label ....................................................................................................................................... 29
Contents
Chapter 1 Installation
Procedure
Chapter 1
1.1 Making Pre-Checks
1.1.1 Checking the Contents
0003-0202
<Finisher-Q1/Finisher-Q3/Saddle Finisher-Q2/Saddle Finisher-Q4>
[9]
[12]
[8]
[13]
[11][7]
[12]
[12]
[4]
[6]
[10]
[1]
[13]
[3]
[13]
[2]
F-1-1
<Finisher-R1/Saddle Finisher-R2>
2
[10]
[5]
Chapter 1
[9]
[11]
[12]
[10]
[5]
[13]
[7]
[12]
[12]
[6]
[4]
[10]
[1]
[13]
[3]
F-1-2
<Finisher-T1/Saddle Finisher-T2>
[9]
[5]
[11]
[13]
[1]
[13]
[3]
F-1-3
3
Chapter 1
T-1-1
[1] Punch front lower cover
1 pc.
[8] Surface cover
1 pc.*1
1 pc.*1
[9] Mounting stepped screw
2 pc.
1 pc.
[10] Stepped screw (M4)
2 pc.
fixing plate 2
1 pc.*2
[11] Stepped screw (M4x10)
2 pc.
[5] Punch Jam Removal label
1 pc.
[12] Screw (binding; M4x6)
5 pc.*3
[6] Punch fixing plate (FC5-
1 pc.*5
[13] Screw (tapping; M4x2)
3 pc.*4
[2] Punch front lower
extension cover
[3] Punch front lower cover
fixing plate 1
[4] Punch front lower cover
4098)
[7] Punch fixing plate (FC5-
1 pc.*5
4076)
*1: Only for the Finisher-Q1/Finisher-Q3/Saddle Finisher-Q2/Saddle Finisher-Q4.
*2: Only for the Finisher-Q1/Finisher-Q3/Finisher-R1.
*3: 4 pc. used if for the Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle Finisher-R2.
Only 1 screw is used for the Finisher-T1 and the Saddle finisher-T2.
*4: 2 pc. used if for the Finisher-R1/Saddle Finisher-R2/Finisher-T1/Saddle Finisher-T2.
*5: It is not used for the Finisher-T1 or the Saddle finisher-T2. The special fixing plate included
in the package of the finisher is used for them.
1.1.2 Installing the Accessories
0003-0203
If you are installing the puncher unit at the same time as other accessories, be sure to install the host machine and
then install the accessories in the following order:
<When installing the Finisher-R1 or the Saddle finisher-R2 to the iRC 6800 series, or when installing the
Finisher-Q1, Q3, the Saddle finisher-Q2, or Q4 to the iRC 3100 series>
1. Side paper deck (See the Side Paper Deck Installation Procedure.)
2. Finisher [1], [2] (See "Preparing for the Installation of the Finisher" in the Finisher/Saddle Finisher Installation
Procedure.)
3. Inner 2Way Tray-C1 [3] and buffer pass unit [4] (See "Installing the Inner 2Way Tray-C1 and the Buffer Pass
Unit" in the Finisher-Q1/Finisher-Q3/Saddle Finisher-Q2/Saddle Finisher-Q4 Installation Procedure.)
4. Additional finisher tray [5] (See the Additional finisher tray Installation Procedure.)
5. Puncher unit [6] (See the instructions herein.)
6. Connection to the host machine (See "Connecting to the Host Machine" and thereafter.)
In the case of the Finisher-R1/Saddle Finisher-R2, the Inner 2Way Tray-C1 [3] and the buffer pass unit [4] are not
part of the configuration. The figure shows the Finisher-Q1/Finisher-Q3/Saddle Finisher-Q2/Saddle Finisher-Q4.
4
Chapter 1
[1]
[5]
[2]
[3]
[6]
[4]
F-1-4
Before starting the work, be sure to go through the following on the host machine:
1. Turn off the control panel power switch.
2. Turn off the main power switch.
3. Disconnect the power cable (from the power outlet).
<When Installing the Finisher-Q3/Saddle Finisher-Q4 to an iR4570/3570/,2870/2270 Series Machine>
1. Side Paper Deck (See the Side Paper Deck Installation Procedure.)
2. Finisher [1], [2] (See the descriptions up to "Preparing for the Host Machine."
3. Installing the 3-Way Unit-A1 (See the 3-Way Unit-A1 Installation Procedure.)
4. Installing the Buffer Unit (See "Installing the Buffer Path Unit.")
5. Finisher extra tray [5] (See the Finisher Extra Tray Installation Procedure.)
6. Puncher unit [6] (See the Puncher Unit Installation Procedure.)
7. Connecting to the Host Machine (See "Connecting to the Host Machine" or the instructions under "Connecting to
the Host Machine" in the Puncher Unit Installation Procedure.
5
Chapter 1
[1]
[5]
[2]
[3]
[6]
[4]
F-1-5
* 3. Some models come with the 3 Way Unit-A1 as standard.
Be sure to go through the following steps on the host machine before starting the work
1. Hold down the control panel power switch for 3 sec or more.
2. Go through the shutdown sequence as instructed on the screen so that you may turn off the main power switch.
3. Turn off the main power switch.
4. Disconnect the power cable (from the wall outlet).
＜ When installing the Finisher-T1 or the Saddle finisher-T2 to the iR 6570/5570 series ＞
1. Side paper deck (Refer to “Installation Manual for Side paper deck”.)
2. Finisher [1], [2] (Refer to the part from the beginning to the “Preparation of the Finisher for installing” in this
manual.)
3. Puncher unit [3] (Refer to “Installation Manual for Puncher unit”.)
4. Connecting to the host machine. (Refer to this manual or the part of “Connecting to the host machine” and the
rest in the “Installation Manual for Puncher unit”.)
6
Chapter 1
[1]
[3]
[2]
F-1-6
Turning Off the Main Power
When turning off the main power, be sure to go through the following steps to avoid damage to the machine’s hard
disk:
1. Hold down on the control panel power switch for 3 sec or more.
2. Operate on the touch panel as instructed on the screen for shut-down sequence so that the
machine’s main power switch may be turned off.
3. Turn off the main power switch.
4. Disconnect the power cable (for the power outlet).
7
Chapter 1
1.2 Unpacking and Checking the Components
1.2.1 Unpacking
0003-0205
MEMO:
The machine is fitted with tape and cushioning material to protect against vibration and shock during transit. Be sure
to remove all of it as instructed before the installation work. It is a good idea to store away the removed tape
and cushioning material for possible future relocation and shipment for repairs.
1) Remove the attachments and the puncher unit from the shipping box.
2) Remove the tape from the outside of the puncher unit.
3) Open the punch upper cover.
4) Remove the 2 fixing screws [1] each, and detach the front and rear punch fixing plates [2].
[1]
[2]
F-1-7
8
Chapter 1
1.3 Installation Procedure
1.3.1
Disconnecting the
Finisher from its Host
Machine
[1]
0003-0206
[2]
F-1-9
3) In the case of the Finisher-Q1/Finisher-Q3/
If a finisher has been installed, you will have to
Finisher-R1, remove the foot cover and the
disconnect it from its host machine before installing
extension cover (if Finisher-Q1/Finisher-Q3).(For
the puncher unit. If you are installing the finisher
the Finisher-T1, it is not necessary to remove
and the puncher unit at the same time, on the other
them.)
hand, install the finisher as instructed in "Preparing
<Finisher-Q1/Finisher-Q3>
for the Installation of the Finisher"; and then, go
Remove the screw [1], and detach the lower front
through the steps under "Connecting to the
extension cover [2].Remove the screw [1], and detach
Finisher" herein.
the front foot cover [3].
1) Turn off the host machine, and disconnect the
power plug (from the power cutlet).
2) Disconnect the interface cable [1] of the finisher
from the host machine.
<Finisher-Q1/Finisher-Q3/Saddle
[2]
Finisher-Q2/
Saddle Finisher-Q4/Finisher-T1/Saddle FinisherT2>
[1]
[3]
F-1-10
<Finisher-R1>
Remove the screw[1], and detach the front foot cover
[2].
[1]
F-1-8
<Finisher-R1/Saddle Finisher-R2>
Free the interface cable [1] from the cable clamp [2].
[1]
[2]
F-1-11
4) Remove the front cover.
9
Chapter 1
<Finisher-Q1/Finisher-Q3/Finisher-R1>
Open the front door [1], and remove the 3 screws [2];
then, detach the front cover [3]. (The figure shows the
Finisher-Q1/Finisher-Q3.)
[1]
[2]
[2]
[3]
[1]
F-1-14
[2]
<Finisher-R1/Saddle
F-1-12
Finisher-R2/Finisher-T1/
Saddle Finisher-T2>
Remove the stepped screw [2], and detach the fixing
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle
plate [1] (front) of the host machine; then, disconnect
Finisher-R2/Finisher-T1/Saddle Finisher-T2>
the finisher (front) from its host machine. (The figure
Open the front cover. (The figure shows the Saddle
shows the Finisher-R1.)
Finisher-Q2/Saddle Finisher-Q4.)
[1]
[2]
[1]
F-1-13
F-1-15
5) Disconnect the finisher at the front from its host
6) Remove the screw [1], and detach the upper rear
machine.
<Finisher-Q1/Finisher-Q3/Saddle
(small) cover [2] of the finisher; then, remove the
Finisher-Q2/
Saddle Finisher-Q4>
stepped screw [3], and disconnect the finisher at the
rear from its host machine.
Remove the stepped screw [2], and detach the fixing
<Finisher-Q1/Finisher-Q3/Saddle
plate [1] (front) of the host machine; then, disconnect
Saddle Finisher-Q4>
the finisher (front) from its host machine. (The figure
(The figure shows the Finisher-Q1/Finisher-Q3.)
shows the Finisher-Q1/Finisher-Q3.)
10
Finisher-Q2/
Chapter 1
[5] [1]
[2]
[3]
[1]
[3]
[1]
[2]
[4]
F-1-18
<Saddle Finisher-R2>
F-1-16
<Finisher-R1/Saddle
Remove the screw [1], and detach the front foot cover
Finisher-R2/Finisher-T1/
Saddle Finisher-T2>
[2].Remove the screw [1], and detach the rear foot
cover [3].
(The figure shows the Finisher-R1.)
[3]
[1]
[1]
[2]
[3]
[1]
[2]
F-1-19
9) In the case of the Finisher-Q1/Finisher-Q3, remove
the 2 screws [1], and detach the inlet guide [2];
F-1-17
then, remove the 4 screws [3], and detach the right
cover [4].
7) In the case of the Saddle Finisher-Q2/Saddle
Finisher-Q4/Saddle
Finisher-R2/Finisher-T1/
[4]
Saddle Finisher-T2, close the front cover. In the
[3]
case of the Finisher-Q1/Finisher-Q3/Finisher-R1,
[2]
mount the front cover using 3 screws.
8) In the case of the Saddle Finisher-Q2/Saddle
Finisher-Q4/Saddle Finisher-R2, remove the foot
cover and the extension cover (if Saddle Finisher-
[3]
[1]
F-1-20
Q2/Saddle Finisher-Q4).(For the Finisher-T1, it is
not necessary to remove them.)
<Saddle Finisher-Q2/Saddle Finisher-Q4>
Remove the 2 screws [1] and [2], and detach the lower
If the finisher is a Finisher-Q1/Finisher-Q3/Saddle
front extension cover [3]. Remove the screw [1], and
Finisher-Q2/Saddle Finisher-Q4 and, moreover, a
detach the front foot cover [4]. Remove the screw [1],
rubber sheet that comes with the buffer pass unit is
and detach the rear foot cover [5].
attached to the pickup surface of the finisher, leave the
11
Chapter 1
rubber sheet as it is. Be sure that the rubber sheet you
may be attaching to the pickup surface of the puncher
[4]
unit is a new one.
[3]
[2]
10) Remove the 2 screws [1], and detach the 2 fixing
plates [2] and [3] of the host machine.(For the
[3]
Finisher-T1 or the Saddle finisher-T2, it is not
[1]
F-1-23
necessary to remove them.)
<Finisher-Q1/Finisher-Q3/Saddle
Finisher-Q2/
2) Fit the 2 mounting stepped screws [1] to the pickup
Saddle Finisher-Q4>
assembly of the finisher.
<Finisher-Q1/Finisher-Q3/Finisher-R1>
[3]
[1]
[1]
F-1-24
[1]
[2]
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle
F-1-21
Finisher-R2/Finisher-T1/Saddle Finisher-T2>
<Finisher-R1/Saddle Finisher-R2>
[1]
[3]
F-1-25
[1]
[1]
[2]
F-1-22
3) Route the connector cable [1] of the puncher unit to
the rear; hold it as shown, and hook the hole [2] of
1.3.2 Connecting to the
Finisher
the joint assembly on the 2 mounting stepped
screws.
0003-0207
1) In the case of the Finisher-Q1/Finisher-Q3, remove
the 2 screws [1], and detach the inlet guide [2];
then, remove the 4 screws [3], and detach the right
cover [4]. (Skip this step if it has already been
removed.)
12
Chapter 1
[2].
[2]
[1]
F-1-29
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle
[1]
[2]
Finisher-R2>
F-1-26
Detach the cable cover [1], and remove the 6 screws
[2]; then, detach the rear cover [3].
[3]
In the case of the Finisher-Q1/Finisher-Q3/FinisherR1, the joint assembly may interfere. Keep the upper
cover [1] of the finisher open when hooking it on the
puncher unit [2].
[1]
[2]
[1]
[2]
F-1-30
<Finisher-T1/Saddle Finisher-T2>
F-1-27
Unscrew 4 screws [1] and detach the upper rear cover
[2].
4) Secure the puncher unit to the finisher using 2
stepped screws [1] (M4x10).
[1]
[1]
F-1-28
[2]
[1]
5) Remove the rear cover from the finisher.
F-1-31
<Finisher-Q1/Finisher-Q3/Finisher-R1>
Remove the 3 screws [1], and detach the rear cover
6) Cut off the surface cover [3] using nippers.
13
Chapter 1
<Finisher-Q1/Finisher-Q3/Finisher-R1/FinisherT1/Saddle Finisher-T2>
[3]
[2]
[1]
[2]
[1]
F-1-34
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle
Finisher-R2>
F-1-32
Connect to the connectors J804 [3] and J805 [4] of the
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle
Finisher-R2>
saddle drive PCB, and secure the connector cable with
two cable clamps [5].
[4]
[3]
[3]
[2]
[1]
[5]
F-1-35
<Finisher-T1/Saddle Finisher-T2>
F-1-33
Plug the connector cables into the connectors on the
saddle driver PCB, J884 [1] and J885 [2], and run the
7) Connect the connector of the puncher unit to the
cables through the cable clamps [3] at 2 points to fix.
connector of the finisher PCB securely.
[1]
[2]
Check to make sure that the connector is fully in
contact. If the puncher unit happens to malfunction
after
installation,
try
disconnecting
and
then
connecting the connector to see the fault has been
corrected.
<Finisher-Q1/Finisher-Q3/Finisher-R1>
Connect to the connectors J705 [1] and J706 [2] of the
[3]
F-1-36
finisher controller PCB.
8) In the case of the Finisher-Q1/Finisher-Q3/Saddle
Finisher-Q2/Saddle Finisher-Q4, attach the rubber
sheet [1] that comes with the Buffer Pass Unit-E1 to
14
Chapter 1
the puncher unit along the marking [2] found on the
right side of the unit.
[2]
[1]
[1]
F-1-37
[2]
9) In the case of the Finisher-Q1/Finisher-Q3/
Finisher-R1, mount the rear cover of the finisher
F-1-38
using 3 screws. In the case of the Saddle FinisherQ2/Saddle Finisher-Q4/Saddle Finisher-R2, mount
the rear cover of the finisher using 6 screws; then,
attach the cable cover. For the Finisher-T1 or the
Saddle finisher-T2, attach the upper rear cover
using 4 screws.
12) In the case of the Saddle Finisher-Q2/Saddle
Finisher-Q4, mount the lower front extension stay
[1] using 2 screws [2] (binding; M4x6). (Skip this
step if it has already been mounted.)
10) Mount the upper rear (small) cover of the finisher
using a screw.
11) In the case of the Finisher-Q1/Finisher-Q3/
Finisher-R1, mount the punch lower front cover
fixing plate 2 [1] to the finisher using a screw [2]
(binding; M4x6). (The figure shows the Finisher-
[2]
[1]
F-1-39
R1.)
1.3.3 Preparing the Host
MEMO:
In the case of the Saddle Finisher-Q2/Saddle Finisher-
Machine for Installation
0003-0208
Q4/Saddle Finisher-R2/Finisher-T1/Saddle FinisherT2, the punch lower front cover fixing plate 2 is
mounted at time of shipment from the factory. (It is
shaped differently from the punch lower front fixing
Before connecting the finisher to its host machine,
plate 2 of the Finisher-Q1/Finisher-Q3/Finisher-R1.)
mount the fixing plate that comes with the puncher
unit to the host machine. If the host machine has
already been installed and the finisher has been
disconnected from it as instructed in "Disconnecting
the Finisher from the Host Machine," go to step 3).
1) Cut out the face plate from the host machine.
<When Installing the Finisher-Q1/Finisher-Q3/
Saddle Finisher-Q2/Saddle Finisher-Q4 to an
iRC3100 Series Machine>
1-1) Remove the 4 screws [1], and detach the host
15
Chapter 1
machine's left cover [2]; then, cut the 2 locations [3]
[4] of the face plate. Cut the point [6] indicated on
1-6) Remove the 4 screws [1], and detach the left
cover [2] of the host machine.
the face plate [6] of the rear left cover. Mount the
1-7) Cut the face plate [3] of the left cover.
left cover and the rear left over.
1-8) Cut the face plate [5] of the inside rear cover
(lower) [4].
1-9) Cut the face plate [7] of the rear left cover [6].
[6]
[5]
[4]
[1]
[7]
[2]
[1]
[3]
[6]
F-1-40
[5]
<When
Connecting
the
[4]
Finisher-Q3/Saddle
Finisher-Q4 to an iR4570/3570/,2870/2270 Series
Machine>
[3]
[1]
1-1) Open the upper front cover [1].
[2]
[1]
F-1-43
1-10) Mount the left cover.
1-11) Mount the front cover [3] using 2 screws [2];
then, fit the rubber piece.
F-1-41
1-2) Remove the face rubber member [1].
At this time, be sure to slide the front cover to the right
so that its claws will match the host machine.
1-3) Remove the binding screw [2].
1-4) Remove the RS tightening screw [3].
1-5) Detach the front cover unit [4] as indicated by the
arrow in the figure.
F-1-44
F-1-42
16
Chapter 1
1-12) Close the upper front cover [1].
covers [3] on the left cover using nippers and
attach the left cover and the delivery cover to the
host machine.
[3]
[1]
[2]
F-1-45
[1]
F-1-48
<Finisher-R1/Saddle Finisher-R2>
1-1) Remove the 3 screws [1], and detach the left
cover [2] of the host machine. Cut off the 2 surface
covers [3] from the left cover; then, mount the left
2) For the Finisher-R1 or the Saddle finisher-R2,
mount the upper/lower inlet guide.
For the Finisher-T1 or the Saddle finisher-T2, mount
the delivery guide.
cover to the machine.
<Finisher-R1/Saddle Finisher-R2>
Slide the inlet guides upper [1] and lower [2] along the
[3]
delivery assembly of the host machine, and fix them
in place using screws [3] (1 pc. each; tapping;
M4x12).
[1]
[2]
F-1-46
<Finisher-T1/Saddle Finisher-T2>
[1]
[2]
1-1) Detach the copy tray if it is mounted on the
delivery assembly of the host machine.
1-2) Unscrew 3 screws [1] and detach the delivery
[3]
F-1-49
cover [2] of the host machine.
<Finisher-T1/Saddle Finisher-T2>
Fit 6 claws of the delivery guide [1] into the slots on
the delivery assembly [2] of the host machine.
[1]
[2]
F-1-47
1-3) Unscrew 4 screws [1] and detach the left cover
[2] of the host machine. Cut away 2 blanking
17
Chapter 1
<Finisher-T1/Saddle Finisher-T2>
Use the fixing plate [1] 4A3-1923 and [2] 4A3-1922.
(They are included in the package of the finisher.)
[2]
[2]
[2]
[1]
[3]
[1]
[3]
F-1-50
F-1-53
3) Mount the front fixing plate [1] and the rear fixing
plate [2] in place using 2 screws [3] each (binding;
1.3.4 Connecting to the
Host Machine
M4x6).
<Finisher-Q1/Finisher-Q3/Saddle
0003-0209
Finisher-Q2/
Saddle Finisher-Q4>
Use the fixing plate [1] FC5-4098 and [2] FC5-4076.
(They are included in the package of the puncher
unit.)
Check to make sure that the host machine is off and its
power plug is disconnected from the power outlet.
1) Remove the 3 screws [1], and detach the rear cover
[2] of the puncher unit.
[2]
[3]
[3]
[1]
[2]
F-1-51
[1]
F-1-54
<Finisher-R1/Saddle Finisher-R2>
Use the fixing plate [1] FC5-4098 and [2] FC5-4076.
(They are included in the package of the puncher
unit.)
2) In the case of the Finisher-Q1/Finisher-Q3/Saddle
Finisher-Q2/Saddle
Finisher-Q4,
mount
the
included surface cover [1].
3) Connect the puncher unit to its host machine, and
secure the fixing plates (front and rear) using a
screw [2] (1 pc. each; stepped; M4).
<Finisher-Q1/Finisher-Q3/Saddle
[2]
Saddle Finisher-Q4>
[3]
[1]
[3]
F-1-52
18
Finisher-Q2/
Chapter 1
7) Fit the positioning pin [1] into the hole of the punch
lower front cover fixing plate 2 [2] to mount the
[2]
punch lower front cover. (The figure shows the
Finisher-R1.)
[1]
[1]
[2]
F-1-55
[2]
<Finisher-R1/Saddle Finisher-R2/Finisher-T1 and
F-1-58
Saddle finisher-T2>
Secure the front fixing plate in place using a stepped
screw after opening the punch front cover [3].
8) Open the punch upper front cover [1], and secure
the punch lower front cover [2] from above using a
screw [3] (tapping; M4x12). (The figure shows the
[2]
Finisher-Q1/Finisher-Q3.)
[3]
[3]
[2]
[1]
F-1-56
[2]
F-1-59
4) Mount the rear cover of the puncher unit using 3
screws.
5) Mount the punch lower front cover fixing plate 1
[1] to the punch lower front cover [2] using a screw
1.3.5 Checking the Height/
Tilt
0003-0210
[3] (tapping; M4x12).
6) In the case of the Finisher-Q1/Finisher-Q3/Saddle
Finisher-Q2/Saddle Finisher-Q4, mount the punch
front lower extension cover [4] to the punch lower
A finisher may already exist and the height/tilt may
front cover using a screw [3] (tapping; M4x12).
have been adjusted in relation to the host machine.
You may sill have to adjust the height/tilt newly to
make up for changes that may have occurred because
[2]
of the installation of the puncher unit. If the height/tilt
is not correct, jams can occur frequently in the
[1]
puncher unit pickup assembly. When you have
[3]
installed the puncher unit, be sure to go through the
following steps to check and adjust the height/tilt.
[4]
F-1-57
1) Check the height of the puncher unit and its host
19
Chapter 1
puncher unit and the upper edge of the delivery cover
machine.
<Finisher-Q1/Finisher-Q3/Saddle
Finisher-Q2/
on the host machine is within 58+/-2 mm. Measure
Saddle Finisher-Q4>
the distance at 2 points of the front/rear, and check if
Place a ruler on the buffer pass unit as shown and
the difference between the front and rear is 1.5 mm or
check to see if it is as indicated on the right side of the
less.
puncher unit (falling between the top and bottom
index lines). Check the height at both front and rear by
referring to the 2 sets of index lines; be sure that the
discrepancy in height is 1.5 mm or less.
58
2mm
F-1-62
F-1-60
2) Check the tilt of the puncher unit and the host
<Finisher-R1/Saddle Finisher-R2>
machine.
Check to see if the difference in height between the
<Finisher-Q1/Finisher-Q3/Saddle
top cover of the puncher unit and the top edge of the
Saddle Finisher-Q4>
delivery cover of the host machine is 53±2 mm. Take
Check to see if the gap between the top cover of the
measurements at 2 locations at both front and rear;
puncher unit and the delivery cover of the host
then, see if the difference in height between the front
machine is 3±1.5 mm. Take measurements at 2
and the rear is 1.5 mm or less.
locations (front and rear); then, check to see that the
Finisher-Q2/
difference in the gap between the front and the rear is
1.5 mm or less. Moreover, check to see that the gap
running from top to bottom between the finisher and
the host machine is parallel when viewed from the
53
2mm
53 2mm
F-1-61
<Finisher-T1 and Saddle finisher-T2>
Check if the distance between the upper cover of the
20
front.
Chapter 1
parallel from top to bottom when viewed from the
3 1.5mm
front.
3 1.5mm
10 1
.5m
m
10 1.5mm
F-1-63
<Finisher-R1/Saddle Finisher-R2>
Check to see that the gap between the upper cover of
15 3mm
the puncher unit and the delivery cover of the host
machine is 3±1.5 mm or less. Take measurements at 2
locations (front and rear); then, check to be surer that
the difference in the gap between the front and the rear
is 1.5 mm or less. Moreover, check to be sure that the
mm
15 3
gap running form top to bottom between the finisher
and host machine is parallel when viewed from the
front.
F-1-65
3 1.5mm
3 1.5mm
3) If the height/tilt is correct, end the installation work
as instructed in "Work After Making Checks/
Adjustments." Otherwise, make adjustments as
instructed in "Adjusting the Height/Tilt."
F-1-64
<Finisher-T1 and Saddle finisher-T2>
Check if the clearance between the front/rear cover of
the puncher unit and the delivery cover of the host
machine is within 15+/-3 mm and 10+/-1.5 mm
respectively. Before checking, measure the clearance
at 2 points of the front and rear. Also check if the
clearance between the finisher and the host machine is
21
Chapter 1
1.4 Making Adjustments
1.4.1 Adjusting the Height/Tilt
0003-0211
If the difference in height between the puncher unit and the host machine or the tilt is not as indicated, make
adjustments as follows; be sure to adjust the height before adjusting the tilt:
A. Preparing for Adjustment
In the case of the Finisher-Q1/Finisher-Q3/Finisher-R1/Finisher-T1, you may need to remove the auxiliary ring and
the rear foot cover of the finisher before adjusting the height; be sure to remove the auxiliary ring without
disconnecting the finisher from its host machine to prevent the finisher from tumbling over.
<Finisher-Q1/Finisher-Q3/Finisher-R1/Finisher-T1>
1) If the height at the rear must be corrected, remove the auxiliary ring and the left rear foot cover.
<Finisher-Q1/Finisher-Q3>
Remove the 4 screws [1], and detach the auxiliary ring [2]. Remove the screw [3], and detach the left rear foot cover
[4].
[3]
[4]
[2]
[1]
F-1-66
<Finisher-R1/Finisher-T1>
Remove the 4 screws [1], and detach the auxiliary ring [2]. Remove the 2 screws [3], and detach the left rear foot
cover [4].
22
Chapter 1
[3]
[4]
[1]
[2]
[1]
F-1-67
2) Remove the 3 screws, and detach the front cover. (Skip this step if it has already been removed.)
3) From the back of the front cover, remove the fixing screw, and detach the spanners [1].(The figure shows the
Finisher-R1.)
[1]
F-1-68
<Saddle Finisher-Q2/Saddle Finisher-Q4/Saddle Finisher-R2/Saddle Finisher-T2>
1) Open the front cover; then, from the back of the front cover, remove the fixing screw, and detach the spanners [1].
(The figure shows the Saddle Finisher-Q2/Saddle Finisher-Q4.)
[1]
F-1-69
B. Adjusting the Height
1) Loosen the 2 fixing screws [1] each on the front and rear casters on the pickup side of the finisher.
2) To increase the height of the finisher and the puncher unit, turn the adjusting bolt [2] in the direction of the arrow
A (A full turn of the adjusting bolt will increase the height of the finisher by 1.75 mm.). Refer to the index while
turning the bolt, and perform this for both front and rear casters.
3) To decrease the height of the finisher and the puncher unit, turn the adjusting bolt [2] in the direction of the arrow
B (A full turn of the adjusting bolt will decrease the height of the finisher by 1.75 mm.). Refer to the index while
turning the bolt, and perform this for both front and rear casters.
23
Chapter 1
[2]
[1]
B
A
F-1-70
C. Adjusting the Tilt
1) Loosen the 2 fixing screws [1] each on the front and rear casters on the delivery side of the finisher.
2) To decrease the gap between the punch unit and the host machine, turn the adjusting bolt [2] in the direction of
the arrow A (A full turn of the adjusting bolt will increase the height of the finisher by 1.75 mm.). Refer to the index
on the caster while turning the bolt, and perform this for both front and rear casters.
3) To increase the gap between the puncher unit and the host machine, turn the adjusting bolt [2] in the direction of
the arrow B (A full turn of the adjusting bolt will decrease the height of the finisher by 1.75 mm.). Refer to the index
on the caster while turning the bolt, and perform this for both front and rear casters.
[2]
[1]
B
A
F-1-71
D. Making Checks After Adjustment
1) Check to see once again the that the difference in height between the finisher and the puncher unit and the tilt are
as indicated; otherwise, make adjustments once again.
2) When done, tighten the 2 fixing screws [1] each on the casters.
3) To prevent the adjusting bolts from becoming loose during transit for possible relocation after installation, tighten
the bolts [2] 90 deg in the direction of the arrow. Take care, however; excess tightening will affect the height/tilt.
[2]
90
[1]
F-1-72
4) Attach the spanners to the back of the front cover using a screw.
24
Chapter 1
5) End the installation work as instructed in "Work After Making Checks/Adjustments."
1.4.2 Work After Making Checks/Adjustments
0003-0212
<Finisher-Q1/Finisher-Q3/Finisher-R1/Finisher-T1>
1) If you removed the auxiliary ring, fit the left rear foot cover, adjust the length of the
auxiliary rail to suit the needs of the user, and mount it using 4 screws.
2) Mount the front cover to the finisher using 3 screws.
3) Mount the covers.
<Finisher-Q1/Finisher-Q3>
Mount the lower front extension cover [1] using a screw [2] (RS tightening; M3x8). Mount the front foot cover [3]
using a screw [2] (RS tightening; M3x8).
[1]
[2]
[3]
F-1-73
<Finisher-R1/Finisher-T1>
For the Finisher-T1, open the front cover.
Mount the front foot cover [1] using a screw [2] (RS tightening: M3x8).(The figure shows the Finisher-R1.)
[2]
[1]
F-1-74
4) Connect the finisher and the host machine using the interface cable [1].
When connecting the interface cable, be sure to turn off the host machine and disconnect its power plug from the
power outlet. Otherwise, you can suffer an electric shock.
<Finisher-Q1/Finisher-Q3/Finisher-T1>
25
Chapter 1
[1]
F-1-75
<Finisher-R1>
Fit the cable clamp [2] to the host machine, and route the interface cable [1] through it.
[1]
[2]
F-1-76
<Saddle Finisher-Q2/Saddle Finisher-Q4>
1) Detach the punch lower front cover once; then, remove the front and rear stepped screws (1 pc. each), and separate
the puncher unit and the host machine.
2) Mount the lower front extension cover [1] using a screw [2] (RS tightening; M3x8) and anther screw [3] (tapping;
M4x12).
3) Mount the front foot cover [4] using a screw [2] (RS tightening; M3x8).
4) Mount the rear foot cover [5] using a screw [2] (RS tightening; M3x8).
[5] [2]
[1]
[2]
[3]
[4]
F-1-77
5) Connect the puncher unit and the host machine; then, secure them at the front and the rear
using stepped screws (1 pc. each).
6) Mount the punch lower front cover.
7) Connect the finisher and the host machine with the interface cable [1].
26
Chapter 1
When connecting the interface cable, be sure to turn off the host machine and disconnect its power plug from the
power outlet. Otherwise, you can suffer an electric shock.
[1]
F-1-78
<Saddle Finisher-R2/Saddle Finisher-T2>
1) Mount the front foot cover [1] using a screw [2] (RS tightening; M3x8).
2) Align the rear foot cover claw [3] with the rear cover and mount the rear foot cover [4] with a screw (tapping;
M4x12) [5].(The figure shows the Saddle Finisher-R2.)
[4]
[3]
[5]
[2]
[1]
F-1-79
3) Connect the finisher and the host machine with the interface cable.
When connecting the interface cable, be sure to turn off the host machine and disconnect its power plug. Otherwise,
you may suffer an electric shock.
<Saddle Finisher-R2>
Connect the finisher and the host machine with the interface cable [1]. Fit the cable clamp [2] to the host machine,
and route the interface cable [1] through it.
27
Chapter 1
[1]
[2]
F-1-80
<Saddle Finisher-T2>
Connect the finisher and the host machine with the interface cable [1].
[1]
F-1-81
28
Chapter 1
1.5 Attaching the Labels etc.
1.5.1 Attaching the Label
0003-0213
1) Open the front cover of the puncher unit, and attach the Jam Removal label [1] of the appropriate language where
indicated. (The figure shows the Finisher-Q1/Finisher-Q3.)
[1]
F-1-82
29
Feb 21 2005

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
