Instruction Manual

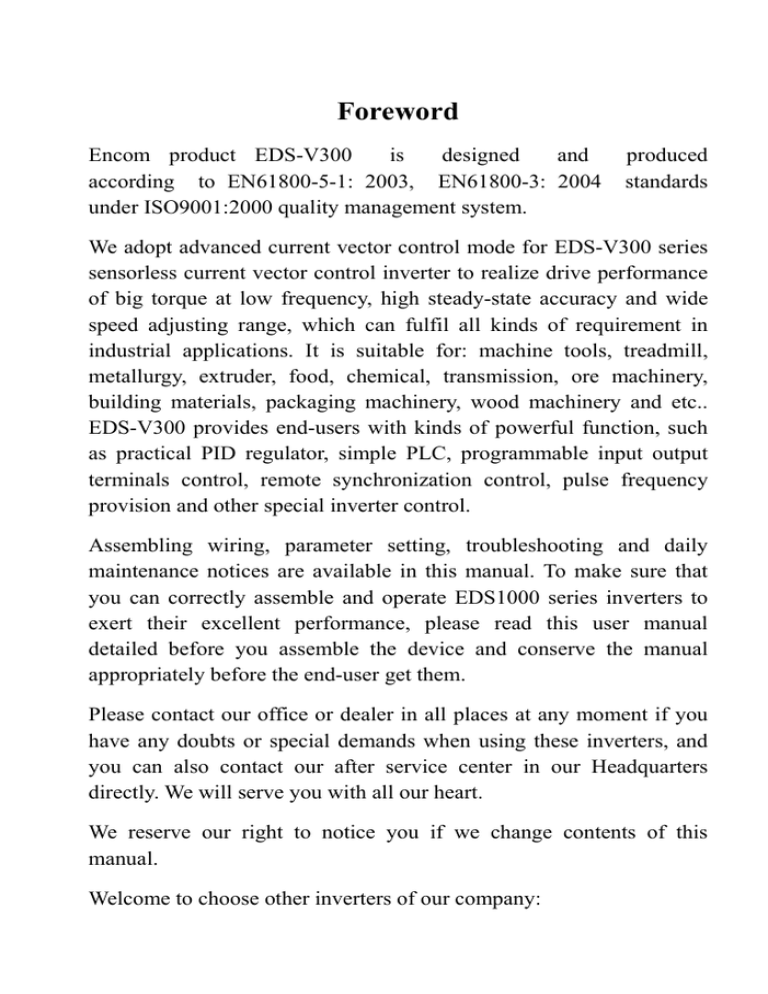

Foreword

Encom product EDS-V300 is designed and produced according to EN61800-5-1: 2003, EN61800-3: 2004 standards under ISO9001:2000 quality management system.

We adopt advanced current vector control mode for EDS-V300 series sensorless current vector control inverter to realize drive performance of big torque at low frequency, high steady-state accuracy and wide speed adjusting range, which can fulfil all kinds of requirement in industrial applications. It is suitable for: machine tools, treadmill, metallurgy, extruder, food, chemical, transmission, ore machinery, building materials, packaging machinery, wood machinery and etc..

EDS-V300 provides end-users with kinds of powerful function, such as practical PID regulator, simple PLC, programmable input output terminals control, remote synchronization control, pulse frequency provision and other special inverter control.

Assembling wiring, parameter setting, troubleshooting and daily maintenance notices are available in this manual. To make sure that you can correctly assemble and operate EDS1000 series inverters to exert their excellent performance, please read this user manual detailed before you assemble the device and conserve the manual appropriately before the end-user get them.

Please contact our office or dealer in all places at any moment if you have any doubts or special demands when using these inverters, and you can also contact our after service center in our Headquarters directly. We will serve you with all our heart.

We reserve our right to notice you if we change contents of this manual.

Welcome to choose other inverters of our company:

EDS800 series mini inverter

EDS1000 series multi-function universal inverter

EDS2000 series high performance universal inverter

EDS2800 series engineering current vector special

inverter

EDS2860 series special integrative inverter for injection

molding machine

EDS3000 series high performance closed loop vector

control inverter (in developing)

1

CONTENTS

Safety information and use n

otice points

1

1.2 use range

2

2

4

2

Type and specification of the inverter

5

5

5

6

6

7

8

9

3

Installation and wiring

3.1 installation ambient

12

12

3.3 wiring notice points

12

13

13

13

14

15

15

16

19

24

26

30

3.7.3 relation of long-distance wiring and current leak

and the countermeasure

31

3.7.4 installation demand for electromagnetic on-off

4

electronic device

31

Run and operation explanation for inverter

4.1 run of inverter

32

33

4.1.6 Run mode

34

34

4.2.1 layout

37

4.2.2 function

4.2.3 LED and indicator light

37

38

4.2.4 key board display

38

4.3.2 first electrification

5

Function parameter schedule graph

6

Detailed function description

6.2 start-up, stop, braking function parameter group:F1

6.4 Closed-loop run control parameter group: F3

68

70

79

6.8 frequency-provision parameter group:F7

104

6.12 Failure record function parameter: Fd

112

7

Troubleshooting

7.3 failure settlement

8

Maintenance

9

8.4 storage

121

Fitting parts

9.1.2 communication cable

10

Serial port RS485 communication protocol

Appendix 1 Modbus communication protocol

133

Appendix 2 Braking resistance

140

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 1 Safety information and use notice points

1 Safety information and use notice points

In order to ensure the safety of your personal and equipment, before using the inverter, please read this chapter of contents conscientiously.

1.1 Safety precautions

There are four kinds of safe relevant warnings in this service manual, they are as follows:

This symbol is briefed on some useful information.

note

!

This symbol briefs on: If does not operate on request, may make the body injured or the equipment damaged.

!

This symbol briefs on: If does not operate on request, may cause death, severely injured or serious property loss.

!

(1) Forbid to connect U, V, W output end to AC power supply, otherwise cause the complete damage of the inverter.

(2) Don't make P- and P + short-circuited, otherwise cause the inverter to be damaged.

(3) The inverter is forbidden to install on the flammables, otherwise have danger of fire.

(4) Don't install it in the environment with explosive gas, otherwise have danger of causing explosion.

(5) After connecting main loop, should carry on insulating treatment to bare wiring end, otherwise have danger of getting an electric shock.

(6) If being connected to the power supply, don't operate the inverter with moist hands, otherwise have danger of getting an electric shock.

(7) The ground terminal of the inverter must be grounded well.

(8) Inverter being connected to power supply, please don't open cover and carry on wiring, can connect the wire or check only after closing power for10 minutes.

(9) Only qualified personnel may carry on wiring and forbid leaving over any conductive thing in machine, otherwise have danger of getting an electric shock or causing damage of the inverter.

(10) Inverter stored for over 2 years, should be stepped up gradually with voltage regulator first while having the electricity, otherwise have danger of getting electric shock and explosion.

1

1

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 1 Safety information and use notice points

!

(1) It is prohibited that connect AC220V signal to control ends except TA, TB, TC, otherwise have danger of damaging property.

(2) If the inverter is damaged or without all parts, please don't install and operate it, otherwise have danger of fire or cause personnel to be injured.

(3) When installing, should choose a place where can endure the inverter, otherwise have danger of injuring personnel or damaging property while falling down.

1.2 Use range

(1) This inverter is only suitable for three phases AC asynchronous motor in general industrial field.

(2) While applying inverter to such equipments that relate much to the life, great property, safety devices etc., must handle cautiously, and consult with producer, please.

(3) This inverter belongs to the control device of general industrial motor, if used in dangerous equipment, must consider the security safeguard procedures when the inverter breaks down.

1.3 Use notice points

(1) EDS300 series inverter is voltage-type inverter, so temperature, noise and vibration slightly increasing compared to power source running when using, belongs to normal phenomenon.

(2) If need to run for a long time with constant torque of low-speed, must select motor of frequency conversion for use. Use general asynchronous AC motor when running at a low speed, should control temperature of the motor or carry on heat dissipation measure forcedly, so as not to burn the generator.

(3) Such mechanical device needing lubricating as the gearbox and gear wheel, etc., after running at a low speed for a long time, may be damaged as lubrication result become poor, please take necessary measure in advance.

(4) When the motor running with frequency above specified, besides considering the vibration, noise increase of the motor, must also confirm speed range of the motor bearing and the mechanical device.

2

2

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 1 Safety information and use notice points

(5) For hoist and great inertia load, etc., the inverter would shut off frequently due to over-current or over-voltage failure, in order to guarantee normal work, should consider choosing proper brake package.

(6) Should switch on/off the inverter through terminal or other normal order channels. It is prohibited that switch on/off the inverter frequently by using strong electric switch such as magnetic control conductor, otherwise will cause the equipment to be damaged.

(7) If need to install such switch as the magnetic control conductor, etc. between inverter output and the motor, please guarantee the inverter is switched on/off without output, otherwise may damage the inverter.

(8) The inverter may meet with mechanical resonance of the load within certain range of frequency output, can set up jumping frequency to evade.

(9) Before using, should confirm the voltage of the power is within the working voltage range allowed, otherwise should vary voltage or order special inverter.

(10) In the condition of altitude above 1000 meters, should use the inverter in lower volume, reduce output current by 10% of specified current after each

1500 meters height increasing.

(11) Should make insulation check to the motor before using it for the first time or after a long time placement. Please inspect with 500V voltage-type megohm meter according to method shown as graph 1-1 and insulation resistance should not be smaller than 5 MΩ, otherwise inverter may be damaged.

(12) To forbid assembling capacitor for improving power factor or lightningproof voltage-sensible resistance etc., otherwise will cause malfunction trip of the inverter or damage of the parts, shown as graph 1-2.

3

3

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 1 Safety information and use notice points

EDS-V300

After wiring, short-circuit U,

V, W to measure insulation resistance. motor

U V

W

U

V

W

M

Grounding part

Megohm meter

Fig.1-1 motor insulation measure Fig.1-2 capacitor at output side forbidden

1.4 Scrap notice points

When disposing scrap inverter and its parts, please note:

(1) The unit: please discard as industrial useless.

(2) Electrolytic capacitor: when burning the inverter electrolytic capacitor in it may explode.

(3) Plastic: when plastic, rubber parts etc. in the inverter are burning, they may bring bad, poisonous gas, so please be ready to safeguards.

4

4

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

2 Type and specification of the inverter

2.1 Incoming inverter inspect

(1) Check if there is damage during transportation and inverter itself has damage or fall-off parts.

(2) Check if parts presented in packing list are all ready.

(3) Please confirm rated data of the inverter is in line with your order requirement.

Our product is guaranteed by strict quality system during manufacturing, packing, transportation etc., please contact our company or local agent rapidly if some careless omission or mistake arise, we’ll deal with it as soon as possible.

2.2 Type explanation

EDS – V300 – 4 T 0022 B

Inverter serial no.

code Volt.grad

2 220V

4 380V

S

T

Single phase

Three phase

Fig. 2-1 type description code

B

C

E

code

0004

0007

0220

Fitting part built-in brake unit built-in brake unit

&brake resistance remote-control keypad

Motor power

(KW)

0.4

0.75

22

If the inverter hasn’t relevant content or can be defaulted, code after “/” will be ignored.

note

2.3 Nameplate explanation

Nameplate presented as figure 2-2 with type and rating data at the bottom of inverter right side.

Series Name

Type

Rated input Volt.and frequenncy

Output apparent power and current

Serial No

Manufacture

Fig. 2-2 Nameplate

5

5

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

2.4 Series type explanation

Table 2-1 series type explanation

Inverter type

(G: general with constant torque:

P: special for blower water pump)

Input voltage

(V)

Rated power

(KVA)

Rated output current (A)

EDS-V300-2S0004

Adapted motor

(KW)

1.1 3 0.4

EDS-V300-2S0015 phase

220V

±15%

2.8 7.5 1.5

EDS-V300-4T0007

EDS-V300-4T0015

1.5 2.3 0.75

2.4 3.7 1.5

EDS-V300-4T0037 5.6 8.5 3.7

EDS-V300-4T0185

±15%

25.7 39 18.5

2.5 Appearance and parts name explanation

LED top cover keypad

Analog terminal cover nameplate control cable inlet vent power input and inverter output terminal

6

6

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

LED keypad digital potentiometer nameplate control cable inlet ventilation hole bottom fitting hole output end power supply input end

Fig. 2-3 Parts name sketch

2.6 Outer size and gross weight

Fig.a outer dimension Fig.b outer dimension

Fig.c outer dimension

Fig.2-4 outer dimension

7

7

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

Table 2-1 EDS-V300-2S0004EDS-V300-4T0550 mounting size

Inverter type

A

(mm)

B

(mm)

W

(mm)

H

(mm)

D

(mm)

D1

(mm)

Fixing apertur e

(mm)

Gross weight

(mm)

(kg)

EDS-V300-2S0004

EDS-V300-2S0007

EDS-V300-2S0015

EDS-V300-4T0007

EDS-V300-4T0015

EDS-V300-2S0022

EDS-V300-2S0037

EDS-V300-4T0022

EDS-V300-4T0037

EDS-V300-4T0055

EDS-V300-4T0075

EDS-V300-4T0110

EDS-V300-4T0150

EDS-V300-4T0185

EDS-V300-4T0220

EDS-V300-4T0300

EDS-V300-4T0370

EDS-V300-4T0450

EDS-V300-4T0550

110

140

185

135

180

200

200

250

160

215

275

330

410

485

515

620

125 170 123.2

135.5

155 230 155

200 290 178

218 345 210

260 430 252

280 505 252

300 535 252

370 645 258

164

187

221

261

261

261

267

Fig

4 1.5

Fig

.a

5 3.5

Fig

.b

6 6.1

Fig .b

7 10 Fig.c

9 17 Fig.c

9 22

Fig

.c

9 26 Fig.c

12 50 Fig.c

2.7 Outer size of keypad and its fixing box

(unit: mm)

Fig.2-5 EN-KB19 outer size Fig.2-6 EN-KB19 hole size

8

8

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

Fig.2-7 EN-KB20 outer size Fig.2-8 EN-KB20 hole size

2.8 Product technic index and spec

item

Rating volt., frequency

Item description

3 phase 380V grade: 3 phase 380V ,50Hz/60Hz;

1 phase 220V grade: 1 phase 220V ,50Hz/60Hz

Input

Allowed work volt. range

3 phase 380 V grade: 320V~460V

1 phase 220V grade: 200V~260V

Voltage

380V grade: 0~380V; 220V grade: 0~220V output

Frequency 0Hz-400Hz

Over loading capacity

150% of rating current for1 minute,

200% of rating current for 0.5 second;

Control mode

Un-speed sensorless current vector control, open loop V/F control

Speed regulation range 1: 100

Start-up torque 150% of rating torque at 0.5 Hz frequency

Control performance

Running speed stable state precision

0.5% of rating synchronous speed

Torque limit

Frequency precision

Current control to decomposition torque.set torque in 50%~200%

Digital setting: max. frequency×±0.01%;analog setting: max.frequency×±0.5%

Analog setting 0.1% of max. frequency

Frequency resolution

Digital setting precision : <100Hz 0.01Hz; ≥100hz: 0.1Hz

Exterior impulse 0.5% of max. frequency

9

9

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

Torque boost

V/F curve (volt. frequency characteristic)

Automatic torque boost,manual torque boost

0.1%~20.0%

Set rating frequency randomly at range of

5~400Hz,can choose constant torque, degressive torque 1, degressive torque 2, degressive torque 3 and user-defined V/F in total 5 kinds of curve

Accelerating decelerating curve

2 modes: straight line accelerating decelerating and

S curve accelerating decelerating; 7 kinds of accelerating decelerating time (unit minute/second can be optioned), max. time 6000 minutes.

Running function keypad brake

Powerconsumption brake Interior or exterior brake resistance.

DC brake

Optional start-up and stop,action frequency 0~15Hz, action volt. 0~15%,action time 0~20.0 s

Jog

Jog frequency range: 0.50Hz~50.00Hz; jog accelerating decelerating time 0.1~60.0s can be set

Multisection speed running Realized by interior PLC or control terminal

Interior PID controller Be convenient to make closed-loop system

Automatic volt. regulation

(AVR)

Automatic current limiting

Running order specified channel

Running frequency specified channel

Can keep constant output volt. When power source voltage varies.

Limit running current automatically to avoid frequent over-current which will cause trip

Key pad specified, control terminal specified, serial port specified

Digital provision, analog provision, impulse provision, serial port provision, combined provision,can be switched at any time by kinds of method pulse output channel

Analog output channel

LED display

Impulse square wave signal output of 0.1~20KHz, can realize output of physical parameter such as setting frequency, output frequency etc.

2 channel of analog signal output,thereinto AO1 channel can be 4~20mA or 0~10V and AO2 channel is 0~10V; through them the inverter can realize output of physical parameter such as setting frequency, output frequency etc.

Can display setting frequency, output frequency, output voltage, output current etc.

Lock the button

Lock all or part of the buttons(analog potentiometer can’t be locked)

Protection function

Over-current protection, over-voltage protection, lack-voltage protection, over-heat protection, over-load protection, etc.

10

10

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 2 Type and specification of the inverter

!

Fitting parts brake subassembly, remote-control keypad, connecting cable for remote-control keypad etc. ambient

Use ambient altitude

Ambient temperature

Ambient humidity vibration

Storage temperature indoor,not bare to sunlight,no dust, no corrosive gas, no flammable gas, no oil fog, no vapor, no water drop or salt etc.

Lower than 1000m ,if higher than 1000m ,need to reduce amont to use.

-10ºC~+40ºC(under ambient temperature 40ºC

~50ºC, please reduce the volume or strengthen heat sink)

Smaller than 95%RH, no condensation water

Smaller than 5.9m/s²(0.6g)

-40ºC~+70ºC configuration

Defending grade

Cooling mode

Mounting mode

note

IP20

By fan with automatic temperature control

Wall hanging

To exert excellent performance of this inverter, please choose correct type and check relevant content according to this chapter before wiring for use.

Must choose correct type, otherwise may cause abnormal running of the motor or damage of the inverter.

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

12

12

3 Installation and wiring

3.1 Installation ambient

3.1.1 Demand for installation ambient

(1) Installed in drafty indoor place,ambient temperature within -10ºC~40ºC,need external compulsory heat sink or reduce the volume if temperature exceeds

40ºC.

(2) Avoid installing in place with direct sunlight, much dust, floating fiber and metal powder.

(3) Forbid to install in place with corrosive, explosive gas.

(4) Humidity should be smaller than 95%RH,without condensation water.

(5) Installed in place of plane fixing vibration smaller than 5.9m/s²(0.6g).

(6) Keep away from electromagnetic disturbance source and other electronic apparatus sensible to electromagnetic disturbance.

3.1.2 Installation direction and space

(1) Normally the inverter should be mounted vertically, horizontal mounting will seriously affect heat dissipation and the inverter must be used in lower volume.

(2) Demand for minimum mounting space and distance,please see Fig. 3-1.

(3) When install multiple inverters up and down, must apply leading divider between them, see Fig. 3-2.

Fan exhaust

110mm or more

Fan exhaust

200mm or more

50mm or more

50mm or more

200mm or more

200mm or more

110mm or more

200mm or more

Fig. 3-1 mounting space

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

Leading divider

Fig. 3-2 mounting of multiple inverters

3.2 Parts disassembly and installation

3.2.1 Key board disassembly and installation

(1) Disassembly

Let the forefinger press finger inlet on

Mounting claw the keypad,depress fixing flexible plate on the top lightly, draw it outward, then

Hook

Mounting claw you can disassemble the keypad.

(2) Assembly

Fig.3-3 mounting sketch of keypad

First place the fixing hook at the bottom of keypad onto mounting claw on keypad mounting hole, let forefinger press fixing flexible plate on top of keypad and then push it inside, release it in proper location(after a crisp sound), see Fig. 3-3 。.

3.2.2 Plastic/metal cover disassembly and installation

Plastic cover disassembly and installation:

(1) Disassembly

Put the finger into handle hole on the bottom of cover, lift it in force, till buckle between cover and unit body off, draw the cover backward, then you can disassemble the cover.

(2) Assembly

1> tilt the cover for 5~10 degree;

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

2> put the mounting claw into relevant hole on the unit body and then press downward in force, see fig. 3-4-a.

Metal cover disassembly and installation

(1) disassembly

First take off 2 screws at sides of the cover and move it a bit outward horizontally, then tilt it at 15 degree and draw it outward at direction shown in right figure, now you can take the cover off.

(2) assembly

First put down the cover in parallel with unit body and make it just locked at 2 sides of the inverter, secondly force it ahead and make fixing part on its top inserted into fixing slot of unit body, at last screw the cover and finish assembly for the cover. As shown in

Fig.3-4-b.

Fig. 3-4 disassembly and mounting sketch of plastic cover

Fig.3-5 disassembly and assembly

for metal cover

!

3.3 wiring notice points

(1)Assure power cut off completely for above 10 minutes before wiring,otherwise have danger of getting electric shock.

(2)Forbid connecting power wire to output U, V, W of the inverter.

(3)There is current leakage in the inverter and leak current of middle/high power inverter is bigger than 5mA,for safety reason,inverter and motor must be earthed safely,commonly use 3.5mm² above copper wire as ground wire and ground resistance smaller than 10Ω.

(4)Before shipment compression resistance test of the inverter is passed,so user should not conduct compression resistance test again.

(5)Should not assemble electromagnetic contactor and absorbing capacitance or other absorbing device, see fig. 3-5.

(6)To be convenient to over current protect of input side and power off maintenance inverter should be connected to power supply through relay.

(7)Connecting wire for relay input and output loop(X1~X8, OC1~OC4, FWD, REV), should use above 0.75mm² glued wire or shielding wire,one shielding layer end hung in the air, the other connected to grounding end PE or E, connecting wire

14

14

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

!

(1)Before wiring, assure power supply is cut off completely for 10 minutes and all LED indicators light extinguished.

(2)Before internal wiring, confirm that DC volt. Between main loop end P+ and P- fall down to below DC36V.

(3)Wiring can only be done by professional person trained and qualified.

(4)Before electrification, check if voltage grade of the inverter is in line with that of power supply volt.,otherwise will cause personnel injured and device damaged.

U

EDS1000

V

M

W

Fig.3-6 banned magnetic control conductor and absorbing capacitance

between inverter and motor

3.4 Main loop terminal wiring

3 phase breaker

3 phase

AC power supply

R

S

T

EDS-V300

V M

W

PE

U

Fig.3-7 main loop simple wiring

3.4.1 Connection between inverter and fitting parts

(1) Must assemble disjunction device such as isolation switch etc. between power source and the inverter to assure personal safety when repairing the inverter and needing compulsory power off.

(2) Power supply loop must have breaker or fuse with over current protection function to avoid malfunction expanding caused by failure of after device.

(3) AC input reactor

If high-order harmonics between inverter and power supply is biggish which can’t fulfill system requirement,or need to improve input side power factor,

AC input reactor is needed.

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

(4) Magnetic control conductor only be applied to power supply control and don’t apply magnetic control conductor to controlling on/off of the inverter

(5) Input side EMI filter

Can use EMI filter to inhibit high-frequency conduction disturbance and emission disturbance from inverter power supply wire.

(6) Output side EMI filter

Can use EMI filter to inhibit emission disturbance noise and wire leakage current from output side.

(7) AC output reactor

Advise assembling AC output reactor to avoid motor insulation damage, too large over current and inverter frequent protection when connecting wire from inverter to motor exceeds 50m.But voltage drop of AC output reactor must be considered. Improve input output

R

S

T

N

R S T

EDS-V300

U

Isolation switch

Breaker or fuse

AC input reactor (in option)

Magnetic control conductor

Input EMI filter (in option)

DC output reactor (in option)

Brake unit (in option)

V

Brake resistance (in option) voltage of the inverter or let the motor in lower volume to avoid

Output EMI filter (in option) burning off the motor.

(8)

Complete ground wire

Inverter and motor must be earthed

AC output reactor (in option)

M and grounding resistor smaller than

10Ω.Grounding wire should be

Fig.3-8 connection of inverter

shorter enough and wire diameter be bigger enough(not smaller than following standard):7.5KW or below motor: 3.5mm² above copper wire;11~15KW motor:

8mm² above copper wire. 18.5~37KW motor 14mm² above copper wire; 45~

55KW motor: 22mm² above copper wire.

3.4.2 Main loop terminal wiring

For main loop input output terminal, see table 3-1.

16

16

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

Table 3-1 main loop input output terminal description

Adapted type

EDS-V300-2S0004

~

EDS-V300-2S0015

EDS-V300-2S0022

EDS-V300-2S0037

EDS-V300-4T0007

~

EDS-V300-4T0015

EDS-V300-4T0022C

~

EDS-V300-4T0075C

EDS-V300-4T0110B

~

EDS-V300-4T0150B

Main loop terminal

L1 L2 P+ P- U V W E

L1 L2 P+

PB P- U V W E

L1 L2 P+ PB PPE U V W

R S

T P+ PU

R S T P+ PB P-

E

V W E

U V W

R S T P P+ PB P- U V W E

Zero wire live wire

DC volt. Positive end

DC volt. negative end

3 phase AC output end

Grounding terminal

Zero wire live wire

DC volt. Positive end

Reserved end for external braking resistance

DC volt. negative end

3 phase AC output end

Grounding terminal

Zero wire

Live wire

DC volt. Positive end

Reserved end for external braking resistance

DC volt. negative end

Grounding terminal

3 phase AC output end

3 phase AC 380V input terminal

DC volt. Positive end

DC volt. negative end

3 phase AC output end

Grounding terminal

3 phase AC 380V input terminal

DC volt. Positive end

DC volt. negative end

Reserved end for external braking resistance

Grounding terminal

3 phase AC output end

3 phase AC 380V input terminal

DC side voltage positive terminal P, P+ can connect

DC reactor

DC side voltage negative terminal

DC braking resistance can be connected between P and

PB

3 phase AC output terminal

Shield grounding terminal

L1

L2

End name

P+

P-

U,V,W

E

L1

L2

P+

PB

P-

U,V,W

E

L1

L2

P+

PB

P-

PE

U,V,W

R,S,T

P+

P-

U,V,W

E

R,S,T

P+

P-

PB

E

U,V,W

R,S,T

P

P+

P-

PB

U,V,W

E

Function description

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

EDS-V300-4T0185

~

EDS-V300-4T0550

R S T P P+ P- U V W E

P+

P-

R, S, T

P

U,V, W

E

3 phase AC 380V input terminal

DC side voltage positive terminal

Reserved terminal for exterior DC reactor

DC side voltage negative terminal

3 phase AC output terminal

Shield grounding terminal

note

(1) Can connect braking unit between P+ and P- externally if necessary.

(2) Can connect DC braking resistor between PB and P+ externally if necessary.

(3) DC reactor can be connected between P and P+ if necessary.

(4) P and P+ must be short-circuited before shipment, otherwise the inverter can’t work.

18

18

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

3.5 Basic running wiring diagram

Adapted type:

EDS-V300-2S0004~EDS-V300-4T0550

Braking resistance (external, fitting part)

Braking unit (external, fitting part)

Reactor (external)

3 phase

380V

50/60Hz

Breaker

Forward run/stop

Reverse run/stop

Multi-function 1

Multi-function 2

Multi-function 3

Multi-function 4

Multi-function 5

Multi-function 6

Multi-function 7

(H-speed impulse input)

Multi-function 8

(H-speed impulse input)

P

P+

R (L1 220V AC)

S (L2 220V AC)

T

FWD

REV

X1

X2

X3

X4

X5

X6

X7

X8

COM

Speed command

0~10V

0~10V 或 4~20mA

0~5V 或 0~10V

+10V/5V

VCI

CCI

YCI

PB

EDS-V300

GND

P-

U

V

W

E

GND

AO1

AO2

DO

COM

OC1

OC2

OC3

OC4

COM

TA

TB

TC

― +

M

DC amperemeter

4-20mA current signal

DC voltmeter

0~10V voltage signal

Cymometer

Output 24V impulse signal

Open circuit collector output

Malfunction relay output

RS485+

RS485-

GND

RS485communication port

Fig. 3-9 basic wiring diagram

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring

3.6 Control loop collocation and wiring

3.6.1 Location &function of terminal and jump-wire:

For location of terminal and slide switch on the CPU board, please see Fig.3-10.

Function description of terminal provided for the user, please see Table 3-2, function and setup description of jumping-wire switch, please see Table 3-3, terminal CN1, CN3 and are for manufacturer’s use. Should carry on terminal wiring correctly and set all wiper switch on the CPU board before using the inverter,to use 1mm² above conducting wire as terminal connecting wire is recommended.

V300 control board A

V300 control board B

Fig. 3-10 wiper switch on CPU board

Table 3-2 function description of terminal provided for user

symbol function

RS485

JP15

RS485, JP15 communication port

JP1 Malfunction relay signal output

CN2 External terminal input output control

Description connection port for remote-control keypad , upper machine control or cascade and synchronous control

Always-open connect pin of the relay closed when malfunction in inverter occurs

Use this port when external terminal control inverter running

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

Table 3-3 function description of wiper switch provided for user

Symbol

JP7

JP8

JP9

JP6

Function Setting Factory default

YCI: 5V/10V voltage input mode selection

VCI:5V/10V voltage input mode selection

CCI:current/voltage input mode selection

0~5V voltage signal;

0~10V voltage signal

: 0~10V voltage signal ;

: voltage signal

: 0/4~20mA current signal;

: 0~10V voltage signal

: 0~10V:AO1 terminal output analog output terminal AO1 output voltage signal current/voltage type selection : 4~20mA : AO1 terminal output current signal

0~5V

0~10V

0/4~20mA

0~10V

3.6.2 Explanation for control CPU board

(1) control loop terminal CN2 arranged as follows for inverter below 1.5kw:

X1

X2 X3 X4 X5 X6 COM X7 X8 FWD

COM REV 24V

485A 485B 10V/5V YCI VCI

CCI GND

AO1

AO2 OC1 OC2

COM DO

(2) control loop terminal CN2 arranged as follows for inverter above 2.2kw:

X1

X2 X3 X4 X5 X6 COM X7 X8 FWD COM

REV 24V

10V YCI VCI CCI GND

AO1

AO2

OC1

OC2 OC3

(3)

CN2 terminal function description as Table 3-4.

OC4

COM DO

Table 3-4 CPU board CN2 terminal function table

item symbol name Function description Spec

FWD Forward run command Forward reverse run Optocoupler isolation command, see F5.08 group input

REV Reverse run command double-wire and three-wire control function description

Input impedance:

R=2KΩ

X1

X2

X3

X4

Multi-function input 1 Used for multi-function input terminal, for detailed

Multi-function input 2

Multi-function input 3

Max. input frequency:

200Hz see Chapter 6 Section 6.6 terminal function

X1~X8

FWD, REV

Multi-function input 4 parameter (F5 group)input

COM

Close effective

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring

X5

X6

X7

X8

+24V

Multi-function input 5 end function description.

X7, X8 can be set as

Multi-function input 6

H-speed impulse input port, Input impedance of X7,

Multi-function input 7 for detailed see Chapter 6

Section 6.6 terminal

X8 input channel:

R=2KΩ

Multi-function input 8 function parameter(F5 group)input end function description.

(common end: COM)

Max. output Freq.:

20KHz

Input voltage range:

15~24V

+24V power supply

Provide +24V power supply.

(negative pole: COM)

Max. output current:

150mA

+10V

COM

GND

CCI

+10V power supply

Common end+24V power supply negative pole

Analog value input

CCI

+10V power supply negative pole

YCI Analog value input YCI supply.

(negative pole: GND)

50mA

Common end and reference ground of digital signal input

Reference ground of analog signal and +10V power

Internal isolating between COM and

GND supply

Input voltage range:

Accept analog voltage/current input, voltage, current optioned by wiper switch JP9,factory

0~10V

(input impedance:

70KΩ)

Input current range: default is current.

(reference ground: GND)

4~20mA

(input impedance:

250Ω)

Resolution: 1/1000

Accept analog voltage input, 0~5V or 0~10V optioned by wiper switch

JP7, factory default is

0~5V. Can control running direction of the motor directly.

(reference ground: GND)

Input voltage range:

0~5V(input impedance

70KΩ),

0~10V(input impedance

36KΩ)

Resolution: 1/1000

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

VCI Analog value input VCI

AO1 Analog value output1

Accept analog voltage input,0~5V or 0~10V optioned by wiper switch

JP8,factory default is

0~10V.

(reference ground: GND)

Input voltage range:

0~10V (input impedance: 70KΩ) resolution: 1/1000

Provide analog voltage/current output,can express 6 kinds of parameter see F5.17 parameter description, output voltage/current

Current output range:

4~20mA

AO2 Analog value output 2

OC1

OC2

OC3

Open circuit collector output terminal 1

Open circuit collector output terminal 2

Open circuit collector output terminal 3

JP6,factory default output

0~10V voltage.

(reference ground: GND)

Provide analog voltage output

(reference ground: GND)

Used for multi-function

(common end: COM) optocoupler isolation output switch output terminal, for detailed see Chapter 6 description.

Work voltage range:

15~30V

Section 6.6 terminal function parameter (F5 group) output end function

Max. output current:

50mA

Use method see

Description of parameter F5.10~F5.13

OC4

Open circuit collector output terminal 4

DO

H-speed impulse output terminal

Used for multi-function impulse signal output terminal, for detailed see

Output impulse voltage:

Chapter 6 Section 6.6

24V terminal function

Output frequency range: parameter(F5 group) output depending on parameter

F5.24, max.20KHz

end function description.

(common end: COM)

Table 3-4 CPU board CN2 terminal function table

(4) terminal RS485,arranged as follows(platform of RS485 terminal):

RS485 terminal arrangement

No. 1 2 3 4 5 6 7 8 name 485+ * 485* * GND * +5V

1 2 3 4 5 6 7 8

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring

!

“*” terminal is for the manufacturer, user can’t use.

(5) RS485 terminal and JP15 function description as table 3-5

Table 3-5 CPU board RS485 terminal function table

item communication symbol

RS485+

RS485- name Function description

485 difference signal positive end

RS485 communication interface

485 difference signal negative end

485 connector spec

For standard RS-485 communication interface please use twisted-pair or STP

JP15

Note

You can choose crystal plug or connector for communication cable.

(6) control terminal JP1,arranged as follows:

TA TB TC

(7) JP1 terminal function description as Table 3-6.

Table 3-6 CPU board JP1 terminal function

Item symbol name Function description Spec

Relay output terminal

TA

Inverter malfunction output relay

Normal: TB-TC closed, TA-TC open

Malfunction: TB-TC open, TA-TC closed

TB-TC: always-closed,

TA-TC: always-open

Contact capacity:

AC250V/2A (COSΦ=1)

AC250V/1A (COSΦ=0.4)

DC30V/1A

3.6.3 Analog input output terminal wiring

(1) VCI terminal accepts analog voltage signal input,wiring as follow:

VCI voltage input

EDS-V300

+10V

+

0~+10

Or 0~+5V

Shielded wire close end grounded

VCI

GND

PE(E)

Fig.3-11 VCI terminal wiring diagram

0~+10V

VCI voltage input

0~+5V

JP8

JP8

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

(2) CCI terminal accepts analog signal input,slide switch decide to input voltage(0~10V) or input current(4~20mA),wiring mode as follows:

+

0~+10V

Or 0~+5V

Shielded wire close end grounded

+10V

CCI

EDS-V300

GND

PE(E)

CCI current input

0/4~20mA

JP9

CCI voltage input

JP9

(3) YCI terminal accepts analog voltage signal input,wiring mode as follows:

EDS-V300

+10V

+

0~+10V

YCI

Or 0~+5V

GND

Shielded wire close end grounded

PE(E)

YCI current input

0~+5V

YCI volt.

JP7

JP7

Fig.3-13 YCI terminal wiring diagram

0~+10V

Explanation: relation between YCI input voltage and set frequency is as following figure:

1> when YCI input voltage is 0~+10V:

V

10V

- high limit frequency

(REV)

5V

+high limit frequency

(FWD)

F (Hz)

0V

2> when YCI input voltage is 0~+5V:

V

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring

5V

- high limit frequency

(REV)

2.5V

+ high limit frequency

(FWD)

0V

F (Hz)

(4) wiring of analog output terminals AO1, AO2 analog output terminals AO1, AO2 connected to analog meter and kinds of physical data can be indicated, there into AO1 can output current (4~20mA) or voltage (0~10V) decided by slide switch JP6. Terminal wiring mode as Fig.3-13.

Analog current output

Analog meter

AO1

JP6

EDS-V300

AO2

0~10V

Analog voltage output

GND

4~20mA

Fig.3-14 analog output terminal wiring

JP6

Note

(1) When inputting analog signal,can connect filter capacitor or common module inductance between VCI and GND or between CCI and GND or between YCI and GND.

(2) Analog input, output signal is easy to be disturbed,so must use shielded cable when wiring and well grounded, wiring length should be as short as possible.

3.6.4 Communication terminal wiring

EDS-V300 inverter provides RS485 serial communication interface for the user.

Following wiring methods make single-main single-sub control system or single-main multi-sub control system possible. Using upper machine (PC or PLC controller) software can realize real time supervision to inverter in the industrial control system so that realize complicated run control such as long-distance control, high autoimmunization etc; you can also take one inverter as mainframe and the others as submachine to form cascade or synchronous control network.

(1) When inverter RS485 interface connected to other devices with RS485 interface, you can connect wire as below figure.

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

EDS-V300

RS485

(E)PE

1(485+)

3(485- )

A (485+)

B (485- )

Device with

RS485 interface or

EDS-V300

(2) To connect remote control keypad, you can connect plug of remote control keypad to RS485 directly. No need to set any parameter,inverter local keypad and remote control keypad can work at one time.

(3) Connection between inverter RS485 interface and upper machine (with

RS232 interface):

Terminal explain Name cable

Signal Pin no.

PE shell

5Vpower positive +5V

RXD 2

Sending data line TXD

TXD 3

Receiving data line RXD

GND 5

5V Power ground GND

DTR 4

Terminal explain Name

DSR 6

RI 9

Signal negative end

Signal Positive end

B

A

B

A

Signal negative end

Signal Positive end

CD 1

RTS 7

CTS 8

Fig. 3-16 RS485 communication wiring

(4) Multiple inverters can be connected together per RS485 and 31pcs inverter can be connected together at most. Communication system is more prone to disturbance as connected inverters increasing, following wiring is recommended:

EDS-V300

CPU board

Mainframe

A B

PE

EDS-V300

CPU board

Submachine

A B

PE

……

EDS-V300

CPU board

Submachine

A B

PE

Fig. 3-18 recommended wiring for multiple inverters communication (all inverters and motors well earthed)

Normal communication still not available if using above wiring, can try to take

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring following measure:

1> Provide separate power supply for PLC (or upper machine) or isolate its power supply.

2> Apply magnetic circle on the communication wire.

3> Reduce inverter carrier wave frequency properly.

(1) When form the network only by inverters, you must set local address parameter F2.15 of the mainframe EDS-V300 to 0.

note (2) For programming of RS485 interface,please refer to appendix communication protocol.

3.7 Installation guide for anti-jamming

Main circuit of the inverter is composed of high-power semiconductor switch gear,so some electromagnetic noise will arise during work,to reduce or stop disturbance to environment,show you assembling method of inverter disturbance suppressing from many aspects such as disturbance suppressing, spot wiring, system grounding, leak current, usage of power supply filter etc. In this section to be referred to during spot assembling.

3.7.1 Restraining to noise disturbance

Disturbance brought by the working inverter may affect nearby electronic device, effect degree relates to surrounding electromagnetic environment of the inverter and anti-disturbance capacity of this device.

(1) Type of disturbance noise

According to work principle of the inverter, there are mainly 3 kinds of noise disturbance source:

1> circuit conduction disturbance;

2> space emission disturbance;

3> electromagnetic induction disturbance; disturbance conduction disturbance space emission disturbance electromagnetic induction disturbance

Leak current grounding loop disturbance

Road①

Power supply wire high-order

Input wire induction

Inverter power parts induction

Output wire induction

Road⑥ Road⑦

Road②

Emission disturbance of

Inverter main loop switch

And switching power supply

Emission disturbance from motor wire U, V, W

Emission disturbance from power supply wire R, S, T

Road③

Road④

Road⑤

Fig.3-18 type of noise disturbance

Road⑧

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

(2) Noise spread road

TV

② power supply

⑤ inverter

Wireless set meter sensor

⑤ motor

Fig.3-19 noise disturbance spread road sketch

(3) Basic countermeasure for suppressing disturbance

Table 3-7 disturbance suppressing countermeasure tables

Noise spread road

Countermeasure of weakening effect

When grounding wire of peripheral device and wiring of the inverter compose closed-loop, inverter grounding wire leakage current would make the device do wrong action. Can reduce wrong action if the device is not earthed here.

High-order harmonic from the inverter would make voltage and current transmit through power supply wire when peripheral device and the inverter electrified by same power supply, would disturb other devices in this same power supply system, can take following suppressing measure: assemble electromagnetic noise filter at inverter input end;Isolate other devices by isolation transformer; connect power supply for peripheral device with remote power source; install ferrite filter magnetic circle for R, S, T three-phase conducting wire of the inverter to suppress conduction of high-frequency harmonic current.

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 Installation and Wiring

③④⑤

 Keep device and signal wire prone to disturbance from the inverter. Should use shielded signal wire, shielding layer single end earthed and try best to keep away from the inverter and its input, output wire. If signal wire must intersect strong power cable, must keep them in real intersection and avoid parallel.

 Install high-frequency noise filter(ferrite common module choke, folksay magnetic circle) separately at input, output root,which can effectively suppress emission disturbance from dynamic wire.

 Should place motor cable shield of biggish thickness, for instance set it in tube with biggish thickness (above 2mm) or bury it in cement slot. Dynamic wire set into metal tube and use shielding wire to be grounded (use 4-core motor cable, one side is earthed through the inverter, the other side connected to motor shell).

⑥⑦⑧

To prevent parallel or bundled power and weak conducting wire;should keep away from inverter mounted device to the best and its wiring should keep away from power wire of the inverter such as R, S, T, U, V, W etc.. Should pay attention to relative mounting place between device with strong electric field or strong magnetic field and the inverter, should keep distance and vertical intersection.

3.7.2 Local wiring and earthing

(1) Avoid parallel cable from inverter to motor (U, V, W terminal education wire) and power supply wire (R, S, T terminal input wire). Should keep distance of

30cm above.

(2) Try your best to place motor table from U, V, W terminals in metal tube or metal wiring slot.

(3) Should use shielded cable as common control signal cable,shielding layer close-to–inverter side earthed after connected with PE terminal of inverter.

(4) Cable educed from inverter PE terminal must be connected directly to earth-plate and can’t be connected to ground through grounding wire of other devices.

(5) Powerful cable(R, S, T, U, V, W) should not parallel control signal cable closely, say nothing of being bundled together, must keep distance of

20~60cm above (related to size of powerful current).

Power supply wire or motor cable

Should cross each other vertically if intersection, as Fig.3-20.

Control signal cable

Fig.3-20 system wiring demand

(6) Powerful grounding wire must be connected to earth separately from weak grounding cable such as control signal and sensor cable etc.

(7) Forbid to connect other electricity consumption device to inverter power supply input end(R, S, T).

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 3 Installation and Wiring

3.7.3 Relation of long-distance wiring and current leak and the countermeasure

High-order harmonic will form between-line leak current through distributing capacitor and to-earth leak current when long-distance wiring between inverter and motor commence. Can adopt following method to suppress:

(1) Install ferrite magnetic circle or output reactor at inverter output side.

!

End voltage of the motor will be reduced markedly when installing reactor of 5% above rated voltage down and make long-distance wiring to U, V, W. Fully loaded motor have the danger of burning itself,should work in lower volume or step up its input output voltage.

(

2) Reduce carrier wave frequency but motor noise would increase accordingly.

3.7.4 Installation demand for electromagnetic on-off electronic device

Relay,magnetic control conductor and electromagnetic iron and so on, these electromagnetic on-off electronic device would bring lots of noise during work, so you should pay full attention to when installing them beside the inverter or in the same control chamber with the inverter and must install surge absorbing device as shown in Fig. 3-20.

Diode

24V

DC

+

Voltage-sensible resistor

_

Inverter or other electric apparatus

RC-filter

220V

AC

220V

AC

Fig.3-21 installation demand for electromagnetic on-off device

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

4 Run and operation explanation for inverter

4.1 Run of inverter

4.1.1 Operation of Inverter

Start

Select control mode

( F0.16)

Vector control mode?

Yes

Motor parameter tuning

See 4.1.2

Setting specific channel

F0.00

Setting appropriate frequency

Setting accel. /decel. time

Setting up/down mode

Run motor

Yes

Achieve requirements?

End

No

No

Fig.4-1 Operating Flow reference Chart

32

32

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

4.1.2 The tuning of motor parameters

Motor parameters need auto-tuning when chooses speed sensorless vector control.

The parameters of motor nameplate should be rightly entered before self-tuning.

For details, see F8.17 and motor parameter tuning flow chart 4-2.

Start

Initial display status

Enter the motor nameplate parameters

F8.01~F8.06

Select tuning mode

F8.17

Tuning start

Tuning

Display status see F8.17

Tuning accomplish

Recover to initial display

End

Fig.4-2 Motor Parameter Tuning Flow Chart

4.1.3 Running order channels

There are 3 kinds of order channel for controlling run action of the inverter such as run, stop, jog etc.:

0: keypad

1: control terminal

Use control terminal FWD, REV, COM to make of double-line control,or

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter use one terminal of X1~X8 and FWD or REV to make of three-line control.

2: serial port

Control run and stop of the inverter through upper machine or other device which can communicate with the inverter.

Choose order channel by setting function code F0.02;and also can choose by multi-function input terminal(F5.00~F5.07 choose function 29, 30, 31).

!

Please make switching debugging in advance when switch the order channel to check if injuring personal.

Fig.3-11 CCI terminal wiring diagram

4.1.4 Frequency-provision channel

EDS1000 common run mode there are 10 kinds of provision channel:

0: keypad analog potentiometer provision

1: direct digital frequency provision

2: terminal UP/DOWN provision(store after power-off or stop)

3: serial port provision

4: analog value VCI provision

5: analog value CCI provision

6: analog value YCI provision

7: terminal pulse(PULSE) provision

8: combination set;

9: terminal UP/DOWN provision (not store after power-off or stop)

4.1.5 Work state

Work state of EDS1000 is classified as waiting state and running state: waiting state: If there is no running command after the inverter electrified or after stop command during running state, the inverter enters into waiting state. running state: the inverter enters into running state after receiving run command.

4.1.6 Run mode

EDS1000 inverter have 6 kinds of run mode,following is in turn according to their priority: jog run→closed-loop run→PLC run→multisection speed run→ swing frequency run→common run. Shown as Fig.4-3.

34

34

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter high priority electrification waiting state

Y

Any jog command?

N

Jog run

N

Run command effective?

Y

Y

Closed-loop effective?

N

Y

Closed-loop invalidation end closed?

N closed-loop run

PLC effective?

Y

N

Y

Multisection end effective?

Y

N

PLC invalidation end closed?

N

PLC run multisection run low priority

Traverse run?

N

Y traverse

run

Common run?

Y common run

0: jog run

N

Fig.4-1 logic flow chart of EDS-V300 inverter run state

during waiting state, the inverter run at jog frequency (see function code F2.06~F2.08).

1: closed-loop run

The inverter will come into closed-loop run mode when closed –loop run control effective parameter is set (F3.00=1). Namely carry on PID adjustment to specified value and feedback value(proportion integral differential calculation,see F3 group function code) and PID adjustor output is inverter output frequency. Can make

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter closed-loop run mode ineffective and switch to lower level run mode by multi-function terminal (function 20).

2: PLC run

The inverter will enter into PLC run mode and run according to run mode preset(see F4 group function code description) through setting PLC function effective parameter(F4.00 last bit≠0). Can make PLC run mode ineffective and switch to lower level run mode by multi-function terminal (function 21).

3: multi-section speed run

By nonzero combination of multi-function terminal(1, 2, 3, 4 function),choose multisection frequency 1~7(F2.30~F2.36) to run at multisection speed.

4: common run

Common open loop run mode of general inverter.

In above 6 kinds of run mode except “jog run” the inverter can run according to kinds of frequency setting method. In“PID run”“PLC run”“multisection run”

“ common run”mode the inverter can also carry on pendular frequency adjustment.

36

36

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

4.2 Operation and use of key board

4.2.1 Keypad layout

Keypad is main unit for receiving command, displaying parameter. Outer dimension of EN-KB6 is as Fig.4-4:

Failure alarm indicator light

Mode indicator light

Forward run

Reverse run indicator light

Current unit (A)

Digital display (LED)

Voltage unit (V)

Frequency unit (Hz)

Stop, reset key

Run key

Analog potentiometer

Shift/supervision

Program, exit key

Rev/Jog key

Confirm/data key

Data modification key

Fig.4-2 keypad layout sketch(EN-KB6)

4.2.2 Keypad function description

There are 8 key-presses and one adjusting button for analog potentiometer on inverter Keypad and function definition of each key is as shown in table 4-1.

Table 4-1 keypad function table key name Function description

ESC

MENU

SHIFT

Program/Exit key Enter into or exit programming state

Shift/Supervision key

Can choose modification digit of set data under editor state;can switch display status supervision parameter under other state.

ENTER

DATA

REV

JOG

RUN

STOP

RESET

Function/Data key Enter into the next menu or data confirmation

Rev/Jog key

Run key

Stop/reset key

Under keypad mode, to press this key can set reverse run or Jog run according to the 2 nd

bit of parameter F0.03

Enter into forward run under keypad mode

In common run status the inverter will be stopped according to set mode after pressing this key if run command channel is set as keypad stop effective mode. The inverter will be reset and resume

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter normal stop status after pressing this key when the inverter is in malfunction status.

Analog potentiometer

Be used to set frequency; when F0.00=0 value set by analog potentiometer is frequency provision

Increasing button

To increase data or function code (to press it continuously can improve increasing speed)

Decreasing button

To decrease data or function code (to press it continuously can improve decreasing speed)

4.2.3 LED and indicator light

4 status indicator light: they are MOD (mode), ALM (alarm), FWD (forward run),

REV(reverse run)from left to right on the LED, their respective indicating meaning is as shown in table 4-2.

Table 4-2 status indicator light description

item Function description

Digital display Display current run status parameter and set parameter

A, Hz, V unit for relevant current digital displayed physical parameter(for current is A, for voltage is V, for frequency is Hz)

MOD

This indicator light is lit in nonsupervision status and extinguished if no key pressed for a minute, then come back to supervision status

ALM

Alarm indicator light, indicate that the inverter is in over current or over voltage suppressing status or failure alarm status currently

FWD

REV

Forward run indicator light,indicate that the inverter output forward phase order and the

The inverter work in connected motor rotate in reverse direction

DC brake status if connected motor rotate in forward direction reverse run indicator light, indicate that the inverter output reverse phase order and the

FWD, REV indicator light is lit at the same time

4.2.4 Key board display status

EDS-V300 keypad display status is classified as waiting status parameter display, function code parameter editing status display, malfunction alarm status display, run status parameter display in total 4 kinds of status. LED indicator light will all be lit after the inverter electrified, and digital display LED will display character“-EN-”, then enter into set frequency display. As shown in Fig.4-5 a.

38

38

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

(1) Waiting parameter display status

The inverter is in waiting status and waiting status supervision parameter is displayed on keyboard, normally parameter F3.28 decide which status supervision parameter to be displayed. As shown in Fig.4-5 b,the unit is indicated by rightward unit indicator light. circularly(display 15 kinds of supervision parameter of C group acquiescently, whether the last 7 kinds of supervision parameter are displayed is defined by function code F2.11,F2.12, for detail please see C group status supervision parameter in function parameter schedule graph of chapter 5).

(2) Run parameter display status

The inverter enters into run status when receiving effective run command and normally parameter F3.28 decide which status supervision parameter to be displayed on the keypad. As shown in Fig.4-5 c,unit is displayed by rightward unit indicator light. circularly (defined by function code F2.11 and F2.12). During displaying, can otherwise will display the last displayed parameter all along.

Set frequency

Output frequency

Fig.a

electrification, display-EN-

Fig.b

waiting status,display waiting status parameter

Fig.c

run status, display run status parameter

Fig.4-5 inverter electrification, waiting, run status display

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

(3) Failure alarm display status

The inverter enters into failure alarm display status upon detecting failure signal and display failure code sparklingly(as shown in Fig.4-6); over current in accelerating parameter after stopping running;Can

Fig.4-6 failure alarm

want to search failure information. communication command on the keypad after troubleshooting. Keep displaying failure code if failure exist continuously.

!

For some serious failure,such as inverse module protect,over current, over voltage etc., must not carry on failure reset forcibly to make the inverter run again without failure elimination confirmed. Otherwise have danger of damaging the inverter!

(4) function code editing status

editing status(If user password is set,can enter into editing status after inputting the password,see also FF.00 description and Fig.4-12),and editing status is displayed according to three classes menu mode,as shown in Fig. 4-7. To press

key can enter into one class by one class. Under function parameter

DATA

To press key can only come back to upper class menu without storing modified parameter.

40

40

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

MENU

First class menu ENTER

Second-class menu

ENTER

Third-class menu

Set frequency

Switch display run parameter

MENU /ESC

Waiting status

MENU /ESC

Frequency setting mode

Digital provision

MENU/ESC

ENTER/DATAstore para.

Editing status parameter

Display or run status parameter display or

Fig.4-7 keypad display status switching

(5) Special display function

You can change set frequency under supervision state directly when keypad potentiometer is effective (F0.00=0) or keypad digital setting is effective

(F0.00=1). Here the inverter displays set frequency if it’s stop or displays output frequency if it’s running. After set frequency stops changing for 1 second the inverter will go back to normal display status.

4.2.5 Method for operating keypad

Can carry on various operation to the inverter through keypad,for example:

(1) status parameter display switching:

displaying one supervision parameter code for 1 second, will display this parameter value automatically.

LED displayed

50.00

content

Key operation

Set frequency order

C-01

1s

Para. value C-02

SHIFT

Output frequency

SHIFT

1s

Para. value

Output current parameter

1s

C-14 parameter

1s

C-03

SHIFT

Pulse input

SHIFT

∫…∫

Output voltage

SHIFT

Fig. 4-8 waiting status parameter display operating example

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

Description:

1> All status parameters C-00~C-14 can be displayed when the inverter leaves factory. You can make a change by modifying function code F2.11, F2.12 if you want to, for detail please refer to F2.11, F2.12function code description. status directly when the user see about status supervision parameter.

(2) function code parameter setting

Take function code F2.06 modified from 5.00Hz to 6.00Hz as example.

Boldface in Fig.4-7 shows flickering digit.

LEDdisplayed content

Key operation order

ESC

MENU

50.00

status

-F2-

ESC

MENU

-F0-

Enter into

editing status menu

F2.07

-F2-

ENTER

DATA

Choose

F2 group function code

06.00

F2.00 F2.06

ENTER

DATA

Function

Choose group confirmation

Go into second-class function code menu

F2.06

05.00

05.00

Go back to

First-class menu

ESC

MENU

ENTER

DATA value,back to second-class menu

Display next function code

Parameter modification,

5→6

SHIFT

Parameter modification,

Choose parameter digit

Fig.4-9 example for parameter setting and modification

Function code confirmation,

Enter into third-class menu

Description: under third-class menu, if the parameter has no blinking digit,this function code can’t be modified,possible reasons are as follows:

1> This function code shouldn’t be modified, for example actual detected status parameter, run record parameter etc.;

2> This function code can’t be modified under run status and can be changed after stopping running;

3> Parameter protected. All the function code can’t be modified when function code F2.13=1 or 2,in order to avoid wrong operation. Need to set the function code F2.13 to 0 if you want to edit function code parameter.

(3) specified frequency adjustment for common run

Take example modifying specified frequency from 50.00Hz to 40.00Hz at

F0.00=0 during running for explanation.

42

42

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

LED displayed content

Key operation order

50.00

49.99

Press decreasing button for one time

45.00

Adjust frequency based on requirement

40.00

Stop pressing after set value reached, go back to normal display status

Fig. 4-10 set frequency adjustment operation example

after 1 second

(4) jog run operation

For example, keypad as current run command channel, jog run frequency 5Hz, waiting status.

LED displayed content order

Key operation

50.00

press waiting

REV

JOG

Display set frequency

0.01

5.00

release keep

REV

JOG

REV

JOG

Display run

Output output frequency frequency

Increased by 5Hz

Fig.4-11 jog run operating example

0.01

50.00

waiting

Output frequency

Fall down to 0Hz

Stop running

(5) operation for entering to function code editing status after setting user password

“user password”FF.00 is set to“6886”. Boldfaced digit in Fig.4-7 shows blinking bit.

LED displayed content

50.00

Key operation order

0.0.0.0

ESC

MENU user password

None diting status effective, go into password validation status

-F06.8.8.6

0.0.0.6

SHIFT

At first last

Digit flash,

Increase to“6”

6.8.0.6

0.0.0.6

move cursor position to first digit

6.8.0.6

6.0.0.6

6.0.0.6

Increase to“6”

ENTER

DATA

Key, pass validation,

Go into editing status

Increase to“8”

Third digit

SHIFT

Move to

Increase to“8”

Move to

Second digit

Fig.4-12 inputting password to go into function code operation

SHIFT

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

(6) See about failure parameter under failure status:

LED displayed content

E001

Key-press operation order

SHIFT

SHIFT

1500

1s

Fd.06

1s

50:00

Failure set freq.

Fd.14

1111

1s

Fd.07

45:00

SHIFT

Failure output freq.

SHIFT

1s

Fd.13

380

Fd.08

1s

1s

5.5

Failure current

Fd.09

Failure run time

SHIFT

Failure terminal status

SHIFT

Failure output volt.

∫…∫

SHIFT

Fig.4-13 failure status searching operation example

Description: function code parameter, search range Fd.06~Fd.14,LED first display function function code after 1s.

ENTER

DATA switch back to failure alarm display status (E0XX)

(7) keypad key-press locking operation

For detailed operation please refer to 2 nd

bit of F2.13 function code.

44

44

www.enc.net.cn/en Tel/Fax: 86-755-26984485/26985120 4 Run and operation explanation for inverter

4.3 Inverter electrification

4.3.1 Check before electrification

Please carry on wiring based on operation requirement provided in “inverter wiring” of this Service manual.

4.3.2 First electrification

Close input side AC power supply switch after correct wiring and power supply confirmed, electrify the inverter and keypad LED display “-EN-”, contactor closed normally, LED displayed set frequency shows that electrification is finished. First electrification operation process is shown as figure in the page. start wiring based on 3.5 section

N wiring correct?

N

Y input voltage correct?

Y electrify

Y

N display-EN-?

Y

Hear contactor closed sound?

N

Y display set frequency

Y success

N failure cut off power check reason

Fig. 4-14 first electrification operation flow

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

5 Function parameter schedule graph

5.1 Symbol description

×

---- parameter can’t be changed in process of running

○ ---- parameter can be changed in process of running

* ---- read-only parameter, unmodifiable

5.2 Function parameter schedule graph

F0 –basic run function parameter group

Function code

F0.00

Name

Provided/Frequenc y input channel selection

Set range

F0.01 Freq. digit setting Lower limit Freq.~upper limit Freq.

F0.02

Run command channel selection

0: keypad run control

1: terminal run command control

(keypad stop command ineffective)

2: terminal run command control

(keypad stop command effective)

3: serial port run command control

(keypad stop command ineffective)

4: serial port run command control

(keypad stop command effective)

Min.

Factory unit default

0: keypad analog potentiometer setting

1: keypad digital setting

2: terminal UP/DOWN adjust setting

(stored after power off)

3: serial port setting(not stored after power off)

4: VCI analog setting (VCI-GND)

5: CCI analog setting (CCI-GND)

6: YCI analog setting (YCI-GND)

1 1

7: terminal pulse (PULSE) setting

8: combination setting

9: terminal UP/DOWN adjust setting

(not stored after power off)

10: serial port setting(stored after power off)

0.01Hz 50.00Hz

1 0

F0.03

Run direction setting

1 st

bit: 0, forward run; 1, reverse run

2 nd

bit: 0, reverse run allowed

1, reverse run banned

3 rd

bit: REV/JOG key selection

1 100

0: as reverse run key

1: as jog key

F0.04

F0.05

Acce/Dece mode selection

S curve start section time

0: linear accelerating decelerating mode

1: S curve accelerating decelerating mode

10.0(%)-50.0(%)(Acce/Dece time)

F0.05+F0.06≤90(%)

1 0

0.1(%) 20.0(%)

Modification

×

46

46

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F0.06 S curve risetime

F0.07

Acce Dece time unit

F0.08 Acce time 1

10.0(%)-70.0(%)(Acce/Dece time)

F0.05+F0.06≤90(%)

0: second

1: minute

0.1(%) 60.0(%)

1 0

F0.09 Dece time 1

F0.10 Upper limit freq. Lower limit freq.-400.00Hz 0.01Hz 50.00Hz

F0.11 Lower limit freq. 0.00-Upper limit freq.

0: run at lower limit freq.

F0.12

Lower limit freq. run mode

1: stop by slow down

2: free stop(when the provided freq. is higher than lower limit freq. then recover)

0.01Hz 0.00Hz

1 0

F0.13 Torque boost mode

0: manual boost

1: automatic boost

0.0-12.0 (%)

F0.15 V/F curve setting

1 0

0.1(%) 2.0(%)

0: constant torque curve

1: degressive torque curve 1(the 2.0nd power)

2: degressive torque curve 2 (the 1.7th power)

3: degressive torque curve 3 (the 1.2th power)

4: End-user sets VF curve himself(determined

1 by F2.37~F2.44)

F2.37 VF Freq. value 0

F2.38 VF voltage value 0

F2.39 VF Freq. value 1

0.01Hz

0.01%

F2.40 VF voltage value 1

F2.41 VF Freq. value 2

F2.42 VF voltage value 2

F2.43 VF Freq. value 3

F2.44 VF voltage value 3

Remark: VF frequency and voltage can’t be 0 or maximum

0.01Hz

0.01%

0.01Hz

0.01%

0.01Hz

0.01%

0

10.00Hz

20.00%

20.00Hz

40.00%

25.00Hz

50.00%

40.00Hz

80.00%

×

×

×

×

×

×

×

×

×

×

×

×

×

F0.16 selection 1: no-speed sensor vector control

1 0 ×

F1 –start-up, stop, brake function parameter group

Function code

Name Set range

Min. unit

Factory default

Modifi

-cation

F1.00 Start-up run mode

0: start at start-up freq.

1: first brake, then start at start-up freq.

1 0 ×

F1.02

F1.03 start-up freq. duration

DC brake volt. at start-up

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F1.04

F1.06

F1.07

F1.08

DC brake time at start-up

0: Dec stop

1: free stop

2: Dec+DC brake stop

1 0 ×

DC brake initiative freq. when

0.0-15.00Hz 0.01Hz stop running

DC brake time when stop

0.0-20.0s 0.1s running

DC brake voltage when stop

0-15(%) 1 running

F2 –auxiliary run function parameter group

Function code

F2.00

F2.01

F2.02

F2.04

F2.05

Name Set range

Min. unit

Factory default

Analog filter time constant

Forward reverse run dead-section time dead-section time Compensation fixed 0~150(%)

Slip frequency compensation

Carrier wave freq.

1 100

0: no action

1: action all the time

2: no action only during Dec

1 2

0~150(%)0-no slip frequency compensation

1 0 depend on

2-14.0K 0.1K machine type

Modification

×

×

×

F2.06 Jog run frequency

F2.07 Jog time

F2.09

Provided/Frequency input channel combination

0: VCI+CCI

1: VCI-CCI

2: YCI+CCI

3: RS485+YCI

4: VCI+YCI

5: reserved

6: exterior pulse provision+CCI

7: exterior pulse provision-CCI

8: reserved

9: reserved

10: reserved

11: reserved

12: reserved

13: VCI,CCI any nonzero value effective, VCI preferred

14: reserved

1 0 ×

48

48

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

15: RS485+CCI

16: RS485-CCI

17: RS485+VCI

18: RS485-VCI

19: RS485+keypad potentiometer

20: RS485- keypad potentiometer

21: VCI+ keypad potentiometer

22: VCI- keypad potentiometer

23: CCI+ keypad potentiometer

24: CCI- keypad potentiometer

25: reserved

26: reserved

27: reserved

28: reserved

F2.10

Principal subordinate machine communication frequency provision proportion

F2.11

F2.12

F2.13

LED display control 1

LED display control 2

Parameter operation

0000-1111 first bit: running time

0: not display

1: display second bit: accumulative time

0: not display

1: display third bit: input terminal status

0: not display

1: display kilobit(fourth bit): output terminal status

0: not display

1: display

0000-1111 first bit: analog input VCI

0: not display

1: display second bit: analog input YCI

0: not display

1: display third bit: analog input CCI

0: not display

1: display kilobit(fourth bit): exterior pulse input

0: not display

1: display

LED 1 st

bit:

1 0000

1 1111

1 0

×

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph control 0: all parameter allowed to be modified

1: except this parameter,all other parameter not allowed to be modified

2: except F0.01 and this parameter, all other parameter not allowed to be modified

LED 2 nd

bit:

0: no action

1: restore default value

2: clear history failure record

LED 3 rd

bit:

0: lock all buttons

1: lock all buttons but not

STOP key

2: lock all buttons but not

, STOP key

3: lock all buttons but not

RUN, STOP key

4: lock all buttons but not

SHIFT, STOP key

LED first bit: baud rate selection

0: 1200BPS

1: 2400BPS

2: 4800BPS

3: 9600BPS

4: 19200BPS

5: 38400BPS

LED second bit: data format

0: 1-8-1format, no checkout

1: 1-8-1 format, even checkout

2: 1-8-1 format, odd checkout

1 03

0-127,127 is broadcast address.

The inverter only receive but not

1 1 send when it is set to be 127, 0 is address for main device.

×

F2.18

F2.19

F2.20

Acce time 2

Dece time 2

Acce time 3

50

50

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F2.21

F2.22

F2.23

F2.24

F2.25

F2.26

F2.27

F2.28

F2.29

F2.30

F2.31

F2.32

F2.33

F2.34

Dece time 3

Acce time 4

Dece time 4

Acce time 5

Dece time 5

Acce time 6

Dece time 6

Acce time 7

Dece time 7

Multisection freq. 1

Multisection freq. 2

Multisection freq. 3

Multisection freq. 4

Multisection freq. 5

F2.35

F2.36

F2.37

F2.38

F2.39

F2.40

F2.41

F2.42

F2.43

F2.44

Multisection freq. 6

Multisection freq. 7

VF frequency value 0

VF voltage value 0

VF frequency value 1

VF voltage value 1

VF frequency value 2

VF voltage value 2

VF frequency value 3

VF voltage value 3

F2.45

F2.46

Jumping freq. 1

Jumping freq. 1 range

F2.47 Reserved

F2.48 Reserved

F2.49 Reserved

F2.50 Reserved

F2.51 Setting time

F2.52 Accumulative run time

F2.53

RS485/232 communication frame format selection

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

Lower limit freq.-upper limit freq. 0.01Hz

0.00-F2.39

0.00-F2.40

F2.37-F2.41

F2.38-F2.42

0.01Hz

0.01%

0.01Hz

0.01%

F2.39-F2.43

F2.40-F2.44

F2.41-high limit frquency

F2.42-100.0% (rated voltage)

0.01Hz

0.01%

0.01Hz

0.01%

0-65535 hours

0-65535 hours

1

1

0

0

0: a ASCII frame of 14 byte or 18 byte

1: a hex frame of 8 byte or 10 byte, original response not changed

2: a hex frame of 8 byte or 10 byte,

12 command has no response 1 0

3: a hex frame of 8 byte or 10 byte,

14 command has no response

4: a hex frame of 8 byte or 10 byte, both 12 and 14 command have no response

5.00Hz

10.00Hz

20.00Hz

30.00Hz

40.00Hz

45.00Hz

50.00Hz

10.00Hz

20.00%

20.00Hz

40.00%

25.00Hz

50.00%

40.00Hz

80.00%

*

×

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F3– closed-loop run function parameter group

Function code

F3.00

F3.01

F3.02

F3.03

F3.04

F3.05

F3.06

F3.07

Name Set range

Min. unit

Factory default

Modification

Closed-loop run control selection

Provision channel selection

Feedback channel selection

0: closed-loop control ineffective

1: PID closed-loop control effective

2: constant pressure water supply PID control effective(F5.10~F5.13 must be set to 21)

0: digital provision

1: VCI analog 0-10V voltage provision

2: CCI analog provision

3: keypad potentiometer provision

0: VCI analog input voltage 0-10V

1: CCI analog input

2: VCI+CCI

3: VCI-CCI

4: Min { VCI, CCI }

5: Max { VCI, CCI }

6: pulse feedback

1 0

1 1

1 1

Specified value digital setting

Minimum specified value feedback value responding to minimum specified value

0.0-maximum specified value; percentage relative to 10.00V

0.1(%)

0.0-100.0(%) 0.1(%) maximum specified value feedback value responding to maximum specified value

Minimum specified value

- 100.0(%)

0.1(%)

0.0-100.0(%) 0.1(%)

0.000

0.000

100.0(%)

100.0(%)

F3.09

F3.10

Integral gain Ki

Differential gain Kd ○

0.1(%) 2.0(%) ○

Integral separation

F3.13

F3.14 threshold

Closed-lop preset frequency

F3.15 frequency holding time

F3.16 Reserved

0-upper limit frequency 0.01Hz

00.00

52

52

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F3.17 Reserved

F3.18 Reserved

F3.19 Reserved

F3.20 Reserved

F3.21 Reserved

F3.22 Reserved

F3.23

Reserved

F3.24

Run speed display factor

F3.25 Reserved

F3.26

F3.27 supervision parameter display selection

0: C-11, C-12 denote voltage value of VCI, CCI

1: C-11, C-12 denote PID specified pressure and

Closed-loop adjusting characteristic feedback pressure

0: Forward function

1: Reverse function

F3.28

LED initial supervision parameter selection

0: set frequency

1: output frequency

2: output current

3: output voltage

4: DC bus bar voltage

5: motor speed

6: heat sink temperature

7: run time

8: accumulative run time

9: input terminal status

10: output terminal status

11: analog input VCI/PID provision

12: analog input CCI/PID feedback

13: analog input YCI

14: exterior pulse inputs

F3.29 Reserved

F3.30

0: inverter running(RUN)

1: frequency arriving signal(FAR)

2: frequency level detect signal (FDT1)

3: reserved

4: overload warning alarm signal (OL)

5: output frequency reach high limit(FHL)

Failure relay TA,TB,

6: output frequency reach low limit(FLL)

TC function selection

7: inverter under voltage blockage stop (LU)

8: external failure stop-running(EXT)

9: inverter zero speed running

10: PLC running

11: simple PLC section running finished

12: PLC finish a cycle running

13: reserved

14: inverter ready to run (RDY)

1 0

0

1

15

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F3.31 Reserved

15: inverter failure

16: reserved

17: interior counter reach final value

18: interior counter reach specified value

19: set run time arriving

20: interior timing arriving

21: reserved

22: reserved

23: reserved

24: reserved

F4 –simple PLC function parameter group

Function code

F4.00

F4.01

Name Set range

Simple PLC running setting

Section 1 setting

LED first bit:

0: no action

1: stop after single circulation

2: keep final value after single circulation

3: consecutive circulation

LED second bit:

0: start again from first section

1: continue to run at mid-section frequency

LED third bit: PLC run time unit

0: second

1: minute

000-621

LED first bit: frequency setting

0: multisection freq. i (i=1~7)

1: freq. determined by F0.00 function code

LED second bit: run direction selection

0: forward run

1: reverse run

2: determined by run command

LED third bit: Acc/Dec time selection

0: Acc/Dec time 1

1: Acc/Dec time 2

2: Acc/Dec time 3

3: Acc/Dec time 4

4: Acc/Dec time 5

5: Acc/Dec time 6

Min.

unit

Factory default

Modification

1 000 ×

1 000 ○

54

54

F4.02

F4.03

F4.04

F4.05

F4.06

F4.07

F4.08

F4.09

F4.10

F4.11

F4.12

F4.13

F4.14

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

6: Acc/Dec time 7

Section 1 run time

Section 2 setting

Section 2 run time

Section 3 setting

Section 3 run time

Section 4 setting

Section 4 run time

Section 5 setting

Section 5 run time

Section 6 setting

Section 6 run time

Section 7 setting

Section 7 run time

F5 –terminal correlative function parameter group

Function code

F5.00

Name Set range

0: leave control terminal unused

1: multisection speed control terminal 1

2: multisection speed control terminal 2

3: multisection speed control terminal 3

4: multisection speed control terminal 4

5: external forward run jog control

6: external reverse run jog control

7: Acc/Dec time option terminal 1

8: Acc/Dec time option terminal 2

9: Acc/Dec time option terminal 3

10: external device failure input

11: external reset input

Input terminal X1

12: free stop input function selection

13: external stop-running order

14: stop DC braking input command DB

15: inverter run banned

16: frequency increasing control (UP)

17: frequency degression control (DOWN)

18: Acc/Dec ban command

19: three-line run control

20: closed-loop ineffective

21: PLC ineffective

22: simple PLC pause control

23: PLC stop status reset

24: frequency provision channel option 1

25: frequency provision channel option 2

26: frequency provision channel option 3

Min.

unit

Factory default

Modification

1 0 ×

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F5.01

F5.02

F5.03

F5.04

F5.05

F5.06

F5.07

F5.08

F5.09

27: frequency switched to CCI

28: command switched to terminal

29: run command channel option 1

30: run command channel option 2

31: run command channel option 3

32: reserved

33: reserved

34: interior counter reset end

35: interior counter triggering end

36: interior timer reset end

37: interior timer triggering end

38: pulse frequency input(only effective forX7,X8)

39: reserved

40: reserved

41: reserved

42: reserved

Input terminal X2

Same as above function selection

Input terminal X3 function selection

Same as above

Input terminal X4 function selection

Same as above

Input terminal X5

Same as above function selection

Input terminal X6

Same as above function selection

Input terminal X7 function selection

Same as above

Input terminal X8 function selection

Same as above

0: double-line control mode 1

FWD/REV run mode 1: double-line control mode 2 selection 2: three-line control mode 1

3: three-line control mode 2

UP/DOWN velocity

0.01-99.99Hz/s

0: inverter running(RUN)

1: frequency arriving signal(FAR)

2: frequency level detect signal (FDT1)

1

1

1

1

1

1

1

0

0

0

0

0

0

0

1 0 ×

0.01Hz/s 1.00Hz/s

×

×

×

×

×

×

×

F5.10 collector output terminal

OC1 output setting

4: overload warning alarm signal (OL)

5: output frequency reach high limit(FHL)

6: output frequency reach low limit(FLL)

7: inverter under voltage blockage stop (LU)

8: external failure stop-runnin(EXT)

9: inverter zero rotate speed running

1 0 ×

56

56

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F5.11

F5.12

F5.13

F5.14

10: PLC running

11: simple PLC section running finished

12: PLC finish a cycle running

13: reserved

14: inverter ready to run (RDY)

15: inverter failure

16: reserved

17: interior counter reach final value

18: interior counter reach specified value

19: set run time arriving

20: interior timing arriving

21: multi-function input terminal signal input

22: reserved

23: reserved

24: reserved

Open circuit terminal OC2 output setting

Open circuit collector output terminal OC3 output setting

1

1

0

0

Open circuit collector output terminal OC4 output setting

Same as above 1 0

Frequency arriving

(FAR) checkout 0.00-50.00Hz 0.01Hz 5.00Hz

scope

×

×

×

F5.15

F5.17

0.01Hz 10.00Hz

○ level) electric level

0.00-50.00Hz 0.01Hz 1.00Hz

0: output frequency(0-high limit frequency)

1: set frequency(0-high limit frequency)

2: output current(0-2×rated current)

3: output voltage(0-1.2×load motor rated voltage)

Analog output (AO1) 4: bus-bar voltage(0-800V) selection 5: PID provision (0.00-10.00V)

6: PID feedback (0.00-10.00V)

7: reserved

8: reserved

9: reserved

1 0 ○

F5.18

(AO1) gain

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F5.20

F5.21

F5.22

F5.23 offset

Analog output (AO2)

Same as F5.17 selection

1

Analog output

(AO2) gain

0.10-2.00 0.01

Analog output

(AO2) offset

0.00-10.00V 0.01

DO terminal output

Same as F5.17 function selection

1

0

0

F5.24 0.1KHz

10.0 ○ frequency F5.23

Set interior

F5.25 reaches provision

Specified interior

F5.26 reaches provision

F5.27 setting

F6 –swing frequency special function parameter group

Function code

Name

F6.00 Reserved

F6.01

Set range

Min.

unit

Factory default

Modification

Suppression oscillator lower limit freq.

0.00-2.00 0.01Hz

0.50Hz

F6.02

F6.03

F6.04

Suppression oscillator upper

8.50-35.00 0.01Hz

12.50Hz

limit freq.

Suppression oscillator gain

100.0-130.0(%) 0.1(%)

100.0(%) compensation

Torque limit value 50.0-200.0% 0.1% 150.0%

F6.05 Speed loop proportion gain 0.000-6.000 0.001

0.700

F6.06

Speed loop integral time

0.000-9.999 0.001

constant

F6.07 Reserved

0.360

F7–frequency provision function parameter group

Function code

F7.01

F7.03

Name

VCI min. provision corresponding freq.

Set range

Min.

unit

0.00-F7.02 0.01V

Factory default

0.00V

0.00-high limit frequency 0.01Hz

0.00 Hz

0.00-10.00V 0.01V

9.9V

VCI max. provision corresponding freq. 0.00-high limit frequency 0.01 Hz 50.00 Hz

Modification

58

58

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F7.04

F7.05

F7.06

F7.07

F7.09

F7.11

F7.12

CCI min. provision

CCI min. provision corresponding freq.

CCI max. provision

0.00-F7.06 0.01V

0.00V

0.00-high limit frequency 0.01 Hz 0.00 Hz

0.00-10.00V 0.01V

9.9V

CCI max. provision corresponding freq. 0.00-high limit frequency 0.01 Hz 50.00 Hz

YCI min. provision corresponding freq.

YCI max. provision corresponding freq.

YCI dead area setting

0.00-F7.10 0.01V

0.00-high limit frequency

(reverse run)

0.00-10.00V 0.01V

0.00V

0.01 Hz 50.00 Hz

9.9V

0.00-high limit frequency

(forward run)

0.01 Hz 50.00 Hz

0.00V-2.00V 0.01V

0.10V

F7.13

F7.15

F7.17

PULSE max. input pulse 0.01-20.0K 0.01K

0.0-F7.16(PULSE max. provision)

0.01K

10.0K

0.0K

PULSE min. provision corresponding freq. 0.00-high limit frequency 0.01 Hz 0.00 Hz

F7.14 (PULSE min. provision) - F7.13 (max. 0.1K

input pulse)

10.0K

PULSE max. provision corresponding freq. 0.00-high limit frequency 0.01 Hz 50.00 Hz

Function code

F8–motor and vector control parameter group

Name Set range

0: G type constant torque/ saltation load use

1: L type light load/steady load use

2: J type large inertia load/heavy load use

Min. unit

Factory default

Modification

1 0

F8.03 Motor rated frequency

1-480V 1V device type

×

1.00-400.00Hz 0.01 Hz

1-9999r/min 1r/min

Depend on device type

Depend on device type

Depend on device type

×

×

×

2-14 2 device type

×

Depend on device type

×

0.000-9.9999ohm 0.001 ohm

Depend on device type

×

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F8.09 Stator leakage inductance

0.000-9.9999ohm

0.0-999.9mH

0.0-999.9mH

0.0-999.9mH

0.001 ohm

0.1 mH

0.1 mH

0.1 mH

Depend on device type

Depend on device type

Depend on device type

Depend on device type

×

×

×

×

F8.12 Motor no load current

F8.13 Reserved

F8.14 Reserved

F8.15 Reserved

F8.16 Reserved

0.1-999.9A 0.1A device type

×

0: no action

1: static selfTune

2: rotate no load selfTune

×

Function code

F9.00

F9.01

F9.02

F9.03

F9.04

F9.05

F9.06

F9.07

F9.08

F9.09

F9 –protection correlative function parameter group

Name Set range

Min. unit

Instantaneous power off restarting latency time

Failure self-renew times

Failure self-renew interval

Motor overload protection mode selection

Motor overload protection coefficient

Overload warning alarm checkout level

Overload warning alarmDelay time

0.0-10.0S

0 indicates ineffective power off restarting

0-10

0 shows no automatic reset function

0.5-20.0S

0: no action

1: inverter close off output

20.0-120.0(%)

20-200(%)

0.0-20.0s

Reserved

Overvoltage stall point

Automatic current limit level

120-150(%)

110-200(%)

Factory default

Modification

0.1S 0.0S ×

1 0 ×

0.1S 5.0S ×

1 1 ×

0.1(%) 100.0(%)

1(%) 130(%)

×

0.1s 5.0s ○

1(%) 130(%)

1(%) 150(%)

×

60

60

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

F9.10

F9.11

Frequency declining rate during current limiting

0.00-99.99Hz/s

Automatic current limiting action selection

0: constant speed ineffective

1: constant speed effective remark: Acc/Dec always effective

0.01Hz/s 10.00Hz/s

FA – stop assistant function parameter group

1 0 ×

Function code

Name

FA.00 auxiliaryDC brake time

FA.01 auxiliaryDC brake time

FA.02 Reserved

FA.03 Reserved

Set range

Fd –failure record function parameter group

Mini. unit

Factory setting

Modification

0—10.0(%) 0.1(%) 0.0(%)

Function code

Fd.00

Fd.01

Fd.02

Fd.03

Fd.04

Fd.05

Fd.06

Name Setting range

Previous one time failure record Previous one time failure record

Previous two time failure record Previous two time failure record

Previous three time failure record Previous three time failure record

Previous four time failure record Previous four time failure record

Previous five time failure record

Previous six time failure record

Set freq. of previous failure

Previous five time failure record

Previous six time failure record

Set freq. of previous failure

Fd.07

Fd.08

Fd.09

Fd.10

Fd.11 output freq. of previous failure output freq. of previous failure output current of previous failure output current of previous failure output voltage of previous failure output voltage of previous failure

DC bus-bar voltage of previous failure

DC bus-bar voltage of previous failure

Load motor speed of previous failure

Load motor speed of previous failure

0.01Hz

0.1A

1V

1V

1(r/m)

Min.

unit

1

1

1

1

1

1

0.01Hz

Fd.12

Fd.13

Fd.14

Module temperature of previous failure

Input terminal status of previous failure

Module temperature of previous failure

Accumulative run time of previous Accumulative run time of previous failure failure

Factory default

0

0

0

0

0

Modification

*

*

*

*

*

0 *

0 *

0 *

0 *

0 *

0

0

*

*

1℃ 0 *

*

0 *

FF –password and manufacturer function parameter group

Function code

FF.00

Name

User password

Setting range

0000-9999

Min. unit Factory default Modification

1 0000 ×

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 5 Function parameter schedule graph

0000-9999 1 0000 ×

Function code

C-00

C-01

C-02

C-03

C-04

C-05

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14

C –supervision function parameter group

Name Description

Min. unit

Factory default

Modification

Set frequency

Output freq.

Output current

Output voltage

DC bus-bar voltage

Load motor speed

Module temperature

Run time

Current set frequency

Current output freq.

Virtual value of current output current

Virtual value of current output voltage

Current DC bus-bar voltage

Product of output frequency and load motor speed emendation factor

0.01HZ

0.01HZ

*

0.1A *

1V *

1V *

1(r/m) *

IGBT heat sink temperature

Inverter electrification run time accumulative run time Inverter accumulative run time

Input terminal status Switch value input terminal status

1℃ *

1h *

1h

――

*

*

――

* output terminal status Switch value output terminal status

Analog input VCI Analog input value of VCI

Analog input YCI Analog input value of YCI

Analog input CCI

Exterior pulse input

Analog input value of CCI

Exterior pulse input

V *

V *

V *

0.1KHz

*

(1) input terminal status corresponding relation is as follows:

: shows terminal input ineffective

: shows terminal input effective

X1terminal status

X2 terminal status

X3 terminal status

X4 terminal status

REV input terminal

FWD input terminal

X6 terminal status

X5 terminal status

(2) output terminal status corresponding relation is as follows:

: shows that terminal has no output

: shows that terminal has output

OC1output terminal

OC2 output terminal

OC4 output terminal

OC3 output terminal

62

62

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

6 Detailed function description

Listed column content for parameter function code description in this chapter is as follows:

Code Name

6.1 Basic run function parameter group: F0

F0.00

Provided/Frequency input channel

selection range: 0~16 0

0: keypad analog potentiometer. Set running frequency by keypad analog potentiometer.

1: keypad frequency number setting. Initial set frequency value is F0.01, can change set frequency by changing F0.01 parameter through keypad,and you can also modify F0.01 by , key.

2: terminal UP/DOWN adjust set frequency(stored after power off

orstop). Initial set frequency value is the value stored during the last power off time,and you can adjust set running frequency by terminal UP/DOWN.

3: serial port provision(no memory after electric off). Serial port frequency set initial value is F0.01,change set frequency by setting F0.01 through serial port,after electic off ,it need to set the new specified frequency value.

4: VCI analog setting(VCIGND).Frequency setting determined by VCI terminal analog voltage,input voltage range: DC0~10V.

5: CCI analog setting (CCIGND). Frequency setting determined by CCI terminal analog voltage /current,input range: DC0~10(CCI jumping wire choose

V side),DC: 4~20mA (CCI jumping wire choose A side).

6: YCI analog setting (YCIGND). Frequency setting determined by YCI terminal analog voltage,input range: DC0~10V(YCI jumping wire choose10V side)or DC0~5V(YCI jumping wire choose 5V side).

7: terminal pulse (PULSE) setting. Frequency set by terminal pulse(only input through X7 or X8,see F5.06~F5.07 definition),input pulse signal spec: voltage range15~24V;frequency range 0~20.0KHz.

8: combination setting. See function parameter F2.09,set frequency by eachchannel combination setting.

9: terminal UP/DOWN adjust set frequency(not stored after power off or

stop)Initial set frequency value is F0.01and adjust set running frequency

by terminal UP/DOWN.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

10:serial port specified(memory after electric off):when the inverter is disconnected with electic,it will keep the currently running frequency,and next time it will keep the former frequency running the electric on .

Note

Relation between frequency and input information is determined by function code F7.00~F7.17 when frequency input channel is 4, 5, 6, 7, please see Section 6.8.

F0.01 Freq. number setting

range: low limit high limit

50.00Hz

F0.01 parameter is original set frequency of the inverter when frequency setting channel is defined as number setting (F0.00=1, 3).

F0.02 Run command channel selection range: 0~4

0

0: keypad run frequency command channel. Start and stop the inverter

RUN

STOP

REV

JOG

1: terminal run command channel(keypad STOP comand ineffective).

Start and stop the inverter by exterior control terminal FWD, REV, X1~X8 etc..

2: terminal run command channel(keypad STOP command effective).

Start and stop the inverter by exterior control terminal FWD, REV, X1~X8 etc..

3: serial port run command channel(keypad STOP command ineffective).

Start and stop the inverter by RS485 interface.

4: serial port run command channel(keypad STOP command effective).

Start and stop the inverter by RS485 interface.

The inverter can change run command channel by modifying F0.02

! during waiting and running,please confirm that modification is allowed during running on the spot.

F0.03 Run direction setting

The 1 st

Range: 0, 1

100

The 2

bit:

0: inverter forward run

1: inverter reverse run

nd

bit:

0: reverse run allowed

1: reverse run banned. The inverter will stop output when there is reverse run command.

The 3 rd

bit:

REV/JOG key selection

0: as REV key

64

64

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

note

1: as JOG key

If the 2 nd

bit is set to“1”,this function is effective for keypad run command channel, terminal run command channel and serial port run command channel.

F0.04 Accelerating decelerating mode selection

range: 0, 1 0

0 : linear Acce/Dece mode. Output frequency increases or decreases according to constant slope, just as shown in Fig.6-1.

1

: S curve Acce/Dece mode. Output frequency increases or decreases according to S curve, just as shown in Fig.6-2.

Freq.

50.00Hz

Freq.

50.00Hz

② time ③

③ time t

2 t

1 t

2

Fig.6-1 linear Acce/Dece Fig.6-2 S curve Acce/Dece

F0.05 S curve starting time

range: 10.0(%)50.0(%) (Acc/Dec

time)F0.05F0.0690(%)

range: 10.0(%)70.0(%) (Acc/Dec

time)F0.05F0.0690(%)s

20.0(%)

60.0(%)

F0.05, F0.06 is only effective when S curve Acc/Dec mode(F0.04=1)is selected during Acc/Dec selection, and F0.05 ,F0.06≤90%.

S curve starting time is shown as Fig. 6-2③,slope of output frequency variation increases by degrees from 0.

S curve rising time is shown as Fig.6-2②,slope of output frequency variation is constant.

S curve ending time is shown as Fig.6-2①,slope of output frequency variation steps down to 0.

S curve Acc/Dec mode,suitable for starting and stopping elevator, deferent belt,

note carrier transporter load etc..

F0.07 Acc/Dec time unit range: 0, 1

This function determines Acc/Dec time unit.

0: second

0

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

note

1: minute

(1) This function is effective for all Acc/Dec process except for jog run.

(2) To choose second as time unit is recommended.

F0.08 Acc time 1

F0.09 Dec time 1

range: 0.16000.0

range: 0.16000.0

20.0

20.0

Accelerating time is defined as time for inverter accelerating from 0Hz to high limit frequency,see t1 in Fig.6-3,Dec time is defined as time for inverter decelerating from high limit frequency to 0Hz, see t2 in Fig.6-3.

Output freq.

50.00Hz time t

1 t

2

Fig.6-3 Acc/Dec time definition

note

(1) In EDS-V300 series inverter 7 kinds of Acc/Dec time are defined in total,here we only define Acc/Dec time 1,Acc/Dec time 2~7 are defined in F2.18~F2.29,please refer to Section 6.3.

(2) Can choose time unit minute or second for Acc/Dec time 1~7 by F0.07, factory default is second.

F0.10 high limit frequency

range: low limit400.00Hz

50.00Hz

F0.11 low limit frequency

range: 0.00high limit

0.00Hz range: 0:run at low limit freq.

F0.12

Low limit freq. run mode

1: Slow down stop 2: Free stop(when the provided freq. is higher than lower limit freq.

0 then recover)

The inverter will decrease output frequency gradually in set decelerating time when actual set frequency is lower than low limit frequency,after reaching low limit frequency,the inverter will run at low limit frequency if low limit frequency running mode set to 0;The inverter will reduce output frequency sequentially to zero frequency run if low limit frequency running mode set to 1; The inverter will

66

66

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description free stop if low limit frequency running mode set to 2. The inverter will begin to re-start from 0HZ and accelerate to a given value if given value higher than low limit frequency.

0: manual boost. Torque boost voltage is determined completely by parameter

F0.14,its characteristic is boost voltage fixed,but the motor is prone to magnetic saturation when lightly loaded.

1: automatic torque boost. Torque boost voltage varies as stator current of the motor changes,bigger stator current corresponds to bigger boost voltage.

Boost volt.= ×motor rated volt.×

F0.14

100 inverter output current

2×inverter rated current

F0.14 Torque boost

Range: 0.012.0(%)

2.0(%)

To improve inverter’s low frequency torque characteristic,can carry on boost compensation for output voltage,degressive torque curve and constant torque curve torque boost are separately shown as Fig.6-4a, b. voltage voltage motor rated volt. motor rated volt.

Volt.

Boost

Freq.

Volt.

Boost

Freq.

rated freq.

(a)degressive torque curve torque boost graph

(b) constant torque curve torque boost graph

Fig.6-4 torque boost graph

note

(1) improper setting to this parameter can cause motor heating or over current protection.

(2) advise the user to adopt manual torque boost and to adjust V/F curve according to motor parameter and usage occasion when driving synchronous motor.

F0.15 V/F curve setting range: 0~4 0

This function code defines EDS-300 flexible V/F setting mode to satisfy different load characteristic. Can choose 4 kinds of fixed curve and one custom curve according to definition of F0.15.

If F0.15=0,V/F curve bears constant torque characteristic;as curve 0 in

Fig.6-5a .

If F0.15=1,V/F curve bears 2.0 order power degressive torque characteristic;as curve 3 in Fig.6-5a .

If F0.15=2,V/F curve bears 1.7 order power degressive torque characteristic;as

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description curve 2 in Fig.6-5a .

If F0.15=3,V/F curve bears 1.2 order power degressive torque characteristic;as curve 1 in Fig.6-5a .

The user can choose 1, 2, 3 V/F curve run mode according to load characteristic to reach better energy save result while the inverter is driving degressive torque load such as blower and water pump etc..

If F0.15=4, you can set V/F curve yourself by setting F2.37-F2.44 parameters.

Rated volt.

Output volt.

100%

Voltage %

V3

V2

2

3

V1

0

Frequency Hz

Output freq.Hz rated freq.

F1 F2

F3 Fb

V1~V3:The 1th-3th voltage percentage of VF multi section

F1~F3:The1th-3th of multi section VF frequency points

Fb:Setting frequency

Fig.6-5 a V/F curve b Users set the general form of V / F

F0.16

Control mode selection

0: V/F control

1: no-speed sensor vector control

range: 0~ 1

6.2 Start-up, stop, braking function parameter group: F1

0

note

F1.00 Start-up run mode range: 0, 1, 2 0

0: start from starting frequency. The inverter start according to F1.01 starting frequency and F1.02 starting frequency holding time.

1: first braking then starting. First brake according to DC braking voltage and time (F1.03, F1.04),then start at starting frequency.

(1) start-up mode 0: Advise the user to adopt start-up mode 0 in common application occasion and when driving synchronous motor.

(2) start-up mode 1: Be applicable to small inertia load with forward run or reverse run phenomena when the moter doesn’t drive any device, for big inertia load, advise not to adopt start-up mode 1.

68

68

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F1.01 Starting frequency

range: 0.010.00Hz

0.00 Hz

F1.02 Starting freq. holding time

range: 0.020.0S

0.0S

Starting frequency means initial frequency at which the inverter start up,as fs shown in Fig.6-6;Starting freq. holding time means consecutive run time during which the inverter run at starting frequency,as t

1 shown in Fig.6-6. freq. Hz f max f s starting freq. time starting t

1 time

Fig.6-6 starting freq. and starting time

Starting frequency is not limited by low limit frequency.

note

When F1.00=1,F1.03, F1.04 is effective,as shown in Fig.6-7.

F1.04 DC braking time when starting

range: 0.020.0S

0(%)

0.0S

output freq.

Output freq. stop braking initiative freq. output volt. time output volt.

(virtual value)

DC braking value

(virtual value)

DC braking value run command

DC braking time time run command stop braking time

Fig.6-7 starting mode 1 Fig.6-8 Dec stop+DC braking

F1.03 is percentage relative to inverter rated input voltage. Have no DC braking process when starting DC braking time is 0.0.

F1.05 Stop mode Range: 0, 1, 2 0

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

0: Dec stop. The inverter reduces output frequency gradually according to set Dec time upon receival of stop command and stops running after frequency is reduced to 0.

1: free stop. The inverter stop outputting at once when receiving stop command and the load stops freely according to mechanical inertia.

2: Dec plus DC braking stop. The inverter reduces output frequency gradually according to set Dec time upon receival of stop command and start DC braking when F1.06 stop braking initiative frequency is reached.

F1.06

Stop DC braking initiative frequency

F1.07 Stop DC braking time

F1.08 Stop DC braking voltage

range: 0.015.00Hz

range: 0.020.0S

range: 015(%)

3.00Hz

0.0S

0

F1.08 is percentage relative to inverter rated input voltage. Have no DC braking process if stop braking time is 0.0s,as shown in Fig.6-8.

6.3 Auxiliary run function parameter group: F2

F2.00 Analog filtering time constant

range: 0.0030.00S

0.20S

The time constant used when the inverter filter sampled value when frequency is set by exterior analog channel. Can improve the situation by increasing this filtering time constant if connecting wire is long or disturbance is serious which cause unstable set frequency.

Analog filtering time constant must be bigger than F3.11(sampling cycle), otherwise the system would run unsteadily.

F2.01 FWD REV run dead-section time

range: 0.03600.0S

0.1S

During process of transiting from forward run to reverse run or from

Output frequency reverse run to forward run, transition time during which the inverter wait at time zero output frequency, as t

1 shown in

Fig.6-10. t

1

Fig.6-10 FWD REV run dead-section time

70

70

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F2.02 dead-section time compensate amend range: 0~150 (%)

Manual adjust dead-section time compensate.

0

F2.03 AVR function range: 0, 1, 2 0

AVR namely automatic voltage adjusting function. Indicate that the inverter can output constant voltage by AVR function when the inverter input voltage fluctuates.

0: no action

1: action all the time

2: no action only during Dec

(1) when input voltage is higher than rated value, under normal situation should set

F2.03=1. When F1.05=0 namely inverter in decelerating stop,motor Dec time is short and running current would be bigger. But the motor decrease speed placidly with small

note run current and long Dec time if choose AVR action all the time.

(2) should set F2.03=0, namely AVR function ineffective when the motor system oscillates which caused by choosing AVR function.

F2.04

Slip freq. compensation

Range 0150(%)

0— no Slip freq. compensation

0

This function can adjust output frequency properly

Output current

100% Slip compensation as the load varies to compensate slip frequency

150% of the asynchronous motor dynamically, so that control

100

%

50%

Before slip compensation

After slip compensation

Motor speed motor speed in constant value.

If act with automatic torque

Fig.6-10 slip freq. compensation graph

boost function, can get better low speed moment characteristic. As shown in

Fig.6-10.

When set it at the mode of vector control ,can adjust slip freq. improve control

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description accuracy of inverter. Restrain the static errors of speed control.

F2.05 Carrier freq.

range: 214.0K

Depend on device type

Carrier frequency mainly affects motor noise and heat consumption during running.Relation between carrier frequency and motor noise, current leakage, disturbance is as follows:

Carrier frequency increase(↑),motor noise decrease(↓),motor current leakage increase(↑),disturbance to environment increase(↑);

Carrier frequency decrease (↓),motor noise increase (↑),motor current leakage decrease (↓),disturbance to environment decrease (↓)。

Should decrease carrier frequency properly to reduce heat consumption of the inverter when ambient temperature is high and motor load is heavy. Relation of

EDS-V300 each type and carrier frequency is as shown in Table 6-1. device type

Table 6-1 relation table of device type and carrier frequency

carrier freq.

Max.carrier freq.

(KHz)

Min. carrier freq

(KHz) factory default

(KHz)

(1) To get better control characteristic,suggest that the ratio of carrier frequency to inverter

note max. run frequency be not smaller than 36.

(2) Error exists in current displayed value when carrier frequency is small.

F2.06 Jog run frequency

range: 0.1050.00Hz

5.00Hz

F2.07 Jog Acc time

F2.08 Jog Dec time

range: 0.160.0S

range: 0.160.0S

20.0S

20.0S

72

72

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Jog frequency has the highest priority. Under any status, the inverter would transit to run at jog frequency at once according to set jog accelerating, decelerating time as long as jog command is inputted, as shown in Fig.6-12.

Jog accelerating time means time during which the inverter accelerate from

0Hz to high limit frequency,Jog Dec time means time during which the inverter deceleratefrom high limit frequency to 0Hz.

Jog freq.

Jog accelerating time

Jog freq.

Jog decelerating time

Jog signal

Fig.6-11 jog run

Jog signal

(1) Keypad, control terminal and serial port can do jog control all.

note

(2) The inverter will stop according to Dec stop mode after jog run command is withdrawn.

F2.09 Freq. input channel combination

range: 028

0

0: VCICCI

1: VCICCI

2: YCICCI

YCI specified frequency is positive or negative. Here YCI input 0~+10V corresponds to frequency -50.00Hz~+50.00Hz , 0~5V corresponds to frequency -50.00~0Hz,5~10V corresponds to 0~+50.00Hz.

3: RS485+YCI

When you choose RS485+YCI,YCI input voltage 0~5V—YCI dead band

(F7.12) corresponds to -50.00Hz—0.00Hz,5V—YCI dead band (F7.12)≤

YCI≤5V+YCI dead band (F7.12) corresponds to 0Hz,YCI>5V+YCI dead band (F7.12) corresponds to 0.00~+50.00Hz. You can carry out tension control by this function.

4: VCIYCI

5: reserved

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

6: external pulse provisionCCI

7: external pulse provisionCCI

8: reserved

9: reserved

10: reserved

11: reserved

12: reserved

13: VCICCI any nonzero value effectiveVCI preferred

14: reserved

15: RS485+CCI

16: RS485-CCI

17: RS485+VCI

18: RS485-VCI

19: RS485+keypad analog potentiometer

20: RS485- keypad analog potentiometer

21: VCI+ keypad analog potentiometer

22: VCI- keypad analog potentiometer

23: CCI+ keypad analog potentiometer

24: CCI- keypad analog potentiometer

25: reserved

26: reserved

27: reserved

28: reserved main&sub inverter communication freq.

F2.10 provision proportion range:

0500(%)

100(%)

Main&sub inverter communication freq. provision proportion,this parameter need to be set in sub inverter but not need in main inverter.

F2.11 LED display control 1 range: 0000-1111 0000

F2.11 make use of 4 bits of the parameter to set if C.07—C.10 is displayed in parameter, thereinto 0 indicates not displayed, 1 indicates displayed. Set parameter of 4 bit is as following figure:

74

74

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

4 th

bit 3 rd

bit 2 nd

bit 1 st

bit

C-07: run time

C-08: accu. run time

C-09: input end status

C-10: output end status

F2.12 LED display control 2 range: 0000-1111 1111

F2.12 make use of 4 bit of the parameter to set if C.11—C.14 is displayed in parameter, thereinto 0 indicates not displayed, 1 indicates displayed. Set parameter of 4 bit is as following figure:

4 th

bit 3 rd

bit 2 nd

bit 1 st

bit

C-11: analog input VCI

C-12: analog input YCI

C-13: analog input CCI

C-14: outer pulse input

F2.13 Parameter operation control

LED 1 st

bit

range: LED 1 st

LED 2

bit: 0~2 nd

LED 3 rd

bit: 0~2

bit: 0~4

0

0: all parameter allowed to be modified

1: except this parameterall other parameter not allowed to be changed

2: except F0.01 and this parameterall other parameter not allowed to

be changed

LED 2 nd

bit

0: no action

1: renew factory default

2: clear history failure record

LED 3 rd

bit

0: all the buttons locked

1: all the buttons locked except STOP key

2: all the buttons locked except , STOP key

3: all the buttons locked except RUN, STOP key

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

4: all the buttons locked except SHIFT, STOP key

(1)Factory default of this function parameter is 0i.e., all the function parameter can

be modified.After modifying the parameter, please first set this function code to 0 if you want to modify function code setting.After modifying the parameter you can change this function code setting to expected protection grade if parameter protection

note

is needed.

(2)

After clearing memory information or renewing manufacturer parameter, the 1 st bit of this function code will resume 0 automatically.

( 3) After the 3

rd

bit of F2.13 is setted, the keypad will be locked after you press ESC for 5 seconds, and then corresponding keys is locked. Please press ESC for 5 seconds again for unlocking the keypad.

F2.14 communication deployment

F2.14 make use of 1 st

bit, 2 nd communication,thereinto LED 1 st

range: LED 1

LED 2 st nd

bit: 0~5

bit: 0, 1, 2

bit to set baud rate and data format of serial

03

bit represents communication baud rate, set value as follows:

0: 1200BPS

1: 2400BPS

2: 4800BPS

3: 9600BPS

4: 19200BPS

5: 38400BPS

LED 2 nd

bit: represents data format,set value as follows:

0: 181 format, no checkout. Namely: 1 bit for starting, 8 bits for data,

1 bit for stop, no checkout.

1: 181 formateven checkout. Namely: 1 bit for starting, 8 bits for data,

1 bit for stop, even checkout.

2: 181 formatodd checkout. Namely: 1 bit for starting, 8 bits for data,

1 bit for stop, odd checkout.

F2.15 Local address

range: 0127127 is broadcast address 1

This function code is used to identify address of this inverter during serial port communication.127 is for main inverter during main and sub device communication between inverters.

note

127 is broadcast address,can only receive and execute broadcast command from upper machine but not respond to upper machine when 127 is set to broadcast address.

76

76

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

range: 0.01000.0S

0.0S

When serial port communication fails and its continuous time exceed set value of this function code,the inverter judge it as communication failure.

The inverter would not detect serial port communication signal, namely this function ineffective when set value is 0.

F2.17 Local response delay time

range: 0200ms

5ms

Local response delay time represents the time within which the inverter serial port receive and execute command from upper device and then respond to upper device,this function is just used for setting this delay time.

F2.18 Accelerating time 2

F2.19 Decelerating time 2

F2.20 Accelerating time 3

range: 0.16000.0

range: 0.16000.0

range: 0.16000.0

20.0

20.0

20.0

F2.21 Decelerating time 3

F2.22 Accelerating time 4

range: 0.16000.0

range: 0.16000.0

20.0

20.0

F2.23 Decelerating time 4

range: 0.16000.0

20.0

F2.24 Accelerating time 5

F2.25 Decelerating time 5

F2.26 Accelerating time 6

F2.27 Decelerating time 6

range: 0.16000.0

range: 0.16000.0

range: 0.16000.0

range: 0.16000.0

20.0

20.0

20.0

20.0

F2.28 Accelerating time 7

F2.29 Decelerating time 7

range: 0.16000.0

range: 0.16000.0

20.0

20.0

Can define 3 kinds of accelerating decelerating time and can choose accelerating decelerating time 1~7 during inverter run process by different combination of control terminal,please see definition for function of accelerating decelerating time terminal in F5.00~F5.07.

Accelerating decelerating time 1 is defined in F0.08 and F0.09.

note

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F2.30 Multi-step freq. 1

range: low limit high limit

F2.31 Multi-step freq. 2

range: low limit high limit

F2.32 Multi-step freq. 3

range: low limit high limit

F2.33 Multi-step freq. 4

range: low limit high limit

5.00Hz

10.00Hz

20.00Hz

30.00Hz

F2.34 Multi-step freq. 5

range: low limit high limit

F2.35 Multi-step freq. 6

range: low limit high limit

F2.36 Multi-step freq. 7

range: low limit high limit

40.00Hz

45.00Hz

50.00Hz

These set frequency will be used in multi-step speed run mode and simple

PLC run mode,please refer to multi-step speed run terminal function of F5.00~

F5.07 and F4 group simple PLC function.

F2.37 VF frequency value 0

F2.38 VF voltage value 0

F2.39 VF frequency value 1

F2.40 VF voltage value 1

F2.41 VF frequency value 2

F2.42 VF voltage value 2

F2.43 VF frequency value 3

F2.44 VF voltage value 3

See decription for F0.15.

0.00-F2.39

0.00-F2.40

F2.37-F2.41

F2.38-F2.42

F2.39-F2.43

F2.40-F2.44

F2.41-high limit frquency

F2.42-100.0% (rated voltage)

F2.45 Jumping freq. 1

range: 0.00400.00Hz

F2.46 Jumping freq. 1 range

range: 0.0030.00Hz

F2.47 reserved

F2.48 reserved

F2.49 reserved

0.00Hz

0.00Hz

10.00Hz

20.00%

20.00Hz

40.00%

25.00Hz

50.00%

40.00Hz

80.00%

F2.50 reserved

F2.45~F2.46 function is set for keeping inverter output frequency away from resonance frequency of mechanical load.

Inverter set frequency can jump around some frequency point according to mode shown in Fig. 6-13, at most 3 jumping range can be defined.

78

78

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Jumping

Jumping

Set freq. after adjusted

Jumping

Jumping

Jumping

Jumping

Set

Fig.6-12 jumping frequency and range graph

F2.51 Set run time

range: 065535h

0

F2.52 Run time accumulation

range: 065535h

0

After run accumulative time reach set run time (F2.51),the inverter will output indicator signal,please refer to F5.10~F5.13 function introduction.

F2.52 denotes accumulative run time of the inverter from leaving factory to now.

F2.53 RS485/232 frame format selection

range: 04

0

0: a frame of 14 bytes or 18 bytes ASCII

1: a frame of 8 bytes or 10 bytes hexprimary response not changed

2: a frame of 8 bytes or 10 bytes hex12 command has no response

3: a frame of 8 bytes or 10 bytes hex14 command has no response

4: a frame of 8 bytes or 10 bytes hexboth 12 and 14 command have no

response

6.4 Closed-loop run control parameter group: F3

Analog feedback control system:

Input pressure specified value through VCI port, send 4~20mA feedback value of pressure sensor to inverter CCI input port,make up of analog closed-loop control system by built-in PID adjustor,as shown in Fig.6-14.

3 phase

380V

QF

R

S

T

FWD

EDS-V300

U

V

W

PE

M send out

P

COM

+10V/+5V

CCI

GND

4~20mA provision 1-3K

VCI

GND

Fig.6-13 built-in PID analog feedback control system

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Specified value can also be provided with option by F0.00 function code.

note

EDS-V300 built-in PID adjustor make up of control system and its work principle chart is as follows: proportion specified value

Closed-loop specified value

adjusting

(F3.04,F3.06)

+

_ e error limit

(F3.12) integral gain

(F3.09) differential gain

(F3.10)

+

+ closed-loop output feedback adjusting

(F3.05,F3.07) gain

(F3.08) closed-loop feedback value

Fig.6-15 PID control principle diagram

In above diagram Kp: proportion gain;Ki: integral gain;Kd: differential gain

In above Fig.6-14 ,definition of closed-loop specified value, feedback value, error limit and proportion integral differential parameter is same as that of common PID adjustor parameter, see respectively (F3.01~F3.12) definition, relation of specified value and expected feedback value is as shown in Fig.6-15.

Thereinto specified value take 10V as reference and feedback take 20mA as reference.

Specified value adjusting and feedback value adjusting in Fig.6-14 is for confirming corresponding relation and unitive dimension between specified value and feedback value.

Expected feedbck value

20mA

4mA specified value

0 10V

Fig.6-16 specified value and expected feedback value

When the system is determined,basic steps for setting closed-loop parameter are as follows:

(1) determine closed-loop provision and feedback channel(F3.01, F3.02)

(2) need to set relation between closed-loop provision and feedback for analog

80

80

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description closed-loop (F3.04~F3.07)

(3) set closed-loop presetting frequency function (F3.14, F3.15)

(4) set closed-loop proportion gain, integral gain, differential gain, sampling cycle, error limit (F3.08~F3.12)

F3.00 Closed-loop run control selection range: 0~1 0

0: closed-loop run control ineffective

1: PID closed-loop run control effective

F3.01 provision channel selection range: 0~3 1

0: digital provision.

1: VCI analog 010V voltage provision

2: CCI analog provision. Can choose 0~10V voltage or 4~20mA current provision

3: keypad analog potentiometer provision

F3.02 Feedback channel selection range: 0~6 1

0: VCI analog input voltage 010V

1: CCI analog input

2: VCI+CCI

3: VCI-CCI

4: Min { VCI, CCI }

5: Max { VCI, CCI }

When CCI analog input is selected to be current input, it will be converted to voltage value in the inverter.

6: pulse feedback

F3.03 Specified value digital range: 0.009.999V

1.000

When F3.00=1, figure given value F3.03 will be as specified value of closed-loop control system directly.

F3.04 min. specified value

F3.05 corresponding feedback value of min. specified value

F3.07 corresponding feedback value of max. specified value

range: 0.0max. specified

value

range: 0.0100.0(%)

range: min. specified value

-100.0(%)

000.0

000.0

100.0(%)

range: 0.0%100.0(%)

100.0(%)

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F3.04~F3.07 define relation curve of analog closed-loop provision and expected feedback. Their set value is percentage of provision and feedback actual value relative to reference (10V or 20mA) corresponding feedback value of max. specified value corresponding feedback value of min. specified value positive adjusting feedback min. provision max. provision corresponding feedback value of min. specified value negative adjusting feedback corresponding feedback value of max. specified value

F3.08 Proportion gain Kp

min. provision max. provision

Fig.6-17 provisionfeedback curve

range: 0.0009.999

F3.09 Integral gain Ki

range: 0.0009.999

0.050

0.050S

F3.10 Differential gain Kd

F3.11 Sampling cycle T

range: 0.0009.999

range: 0.011.00S

0.000

0.10S

The more big Kp proportion gain is, the more quick the response is,but overbig is prone to bringing surge.

Only applying proportion gain Kp adjustment can’t eliminate offset completely,can apply integral gain Ki and differential gain to make up of PID control in order to eliminate residual offset. The bigger Ki is, the more quickly the system responds to changing offset, but overbig is prone to bringing surge.

Sampling cycle T is sampling cycle for feedback value,during each sampling cycle PID adjustor calculate for one time,the longer the sampling cycle is , the slower the system responds.

F3.12 Offset limit

range: 0.020.0(%)

2.0(%)

For Max. offset of closed-loop specified value,as shown in Fig.6-17,PID adjustor stops adjusting when feedback value is within this range. To utilize this function reasonably redound to harmonizing the conflict between system output precision and stabilization.

82

82

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Feedback value output freq. specified value offset limit preset freq. time

Output

Freq. time preset freq. holding time time T

Fig.6-18 offset limit Fig.6-19 closed-loop preset freq.

range: 0.0100.0%

100.0

%

PID integral separation,integral don’t react when specified value and feedback value are bigger than this limit,only when specified value and feedback value are smaller than or equal to this limit,integral react. Can adjust system response speed by adjusting this parameter.

F3.14 closed-loop preset frequency range: 0-high limit freq.

00.00

F3.15 closed-loop preset frequency holding time range: 0.0-6000S 000.0

This function can make closed-loop adjusting enter into stable phase quickly.

After closed-loop run starts, the inverter first accelerates to preset frequency

F3.14 in terms of accelerating time,and after running at this frequency for a period of time F3.15, it runs according to closed-loop characteristic. As shown in Fig.6-19.

Set preset freq. and holding time to “0’ if closed-loop preset freq. function is not needed.

note

F3.16 Reserved

F3.17 Reserved

F3.18 Reserved

F3.19 Reserved

F3.20 Reserved

F3.21 Reserved

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F3.22 Reserved

F3.23 Reserved

F3.24

Speed display coefficient

range: 0.014.00S

1.00

Speed sisplay coefficient Show that speed ratio relationship for existing gearing devise between the motor shaft and its load .when set this parameter factory default(1.00)Monitoring parameter C-05 display speed of motor shaft .If dead in speed ratio between the motor shaft and the load shaft because of transmission device ,the parameter displyed by Monitoring parameter C-05 show running speed of the load (such as machine tool shaft and so on )

F3.25 Reserved

F3.26 Water supply supervision Para. display range: 0~1

0: C-11, C-12 display VCI,CCI voltage.

1: C-11, C-12 display PID specified pressure and feedback pressure.

F3.27 Closed-loop adjusting characteristic range: 0, 1

0

0

0: Forward function. motor speed increases as specified value increases.

1: Reverse function. motor speed decreases as specified value increases.

F3.28 LED initial supervision Para. selection range: 0~14 1

This parameter defines initial supervision parameter selection during running or stop. For example F3.28=3, LED displays output voltage initially, please press

SHIFT key if you want to see about other supervision parameter.

0: set frequency:Standby mode display set the frequency, output frequency is displayed after running.

1: output frequency:Display output frequency not only standby but also running .

2: output current

3: output voltage

4: DC bus bar voltage

5: motor speed

6: heat sink temperature

7: run time

8: accumulative run time

9: input terminal status

10: output terminal status

11: analog input VCI/PID provision

84

84

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

12: analog input CCI/PID feedback

13: analog input YCI

14: exterior pulse input

F3.29 Reserved

F3.30 Failure relay TATBTC function selection

range: 0~24 15

Same as detailed description for F5.10.

F3.31 Reserved

6.5 Simple PLC run function parameter group: F4

The user can set by himself the output frequency direction and running time of the inverter during a running cycle by simple PLC function according to spot craft demand, as shown in Fig.6-20.

EDS-V300 serial inverter simple PLC run function provide 7 kinds of multi-step speed run mode,see below an example of 7 step speed. In Fig.6-20, a

1

~a

5

, d

1

~d

5

is accelerating or decelerating time of relative step , set by accelerating decelerating time parameter F0.08, F0.09 and F2.18~F2.29 in total 7 kinds of parameter,f

1

~f

7

, T

1

~T

7

indicating set frequency and run time set by function code F4.01~F4.14.

d

7 f

7 a

1

T

1 f

1 a

2 f

2

Simple PLC run f

5 a

6

T d

3 a

3 f

3 a

5

2

T

3 a

4

T d

5 f

4

4

T

5

T

6 f

6

T

7 d

7

PLC step finishing indication

PLC circle finishing indication

500ms

Fig.6-20 simple PLC run

EDEDS-V300 series inverter simple PLC run function can provide 7 kinds of multi-speed operation mode, takethe fowling 7speed for example Figure 6 -21 , a1~ a5, d1~d5Is the speed up time and the deceleration time of the stage, they are

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description setted by the acceleration time parameters F 0.08,F0.09and F2.18~F2.29, a total of seven kinds of parameters,the run frequency and run time of f1~ f7, T1~ T7 are setted by function code F4.01~f4.14. f

6 a

2 f

2

Simple PLC run f

5 a

6 d

7 f

7 a

1 f

1 a d

3

3 f

3 a

4 f

4 d a

5

5 d

7

T

1

T

2

T

3

T

4

T

5

T

6

T

7

RUN command

Fig.6-21 stop after PLC single circle

PLC step finishing and circle finishing indication can be realized by outputting

500mS pulse indicator signal through open circuit collector terminal OC1~OC4, detailed function defined by F5.10~F5.13.

F4.00

Simple PLC run setting range: LED 1 st

bit: 0~3 LED 2 nd

bit:

0, 1 LED 3 rd

bit :0, 1

000

This function code make use of its 1st bit, 2nd bit, 3rd bit to set PLC run mode,

PLC rerun mode after interruption,set run time unit,detail as follows:

LED 1 st

:

0: no action. PLC run mode ineffective.

1: stop after single circle. As shown in Fig.6-21,the inverter stops automatically after finishing a circle,can only start when another run command is available.

2: keep final value after single circle. As shown in Fig.6-22,the inverter keep running according to frequency, direction of final step after finishing a circle,the inverter won’t stop according to set decelerating time until the stop command is available.

86

86

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description a

1 f

1 a

2

T

1

T

2 f

2 f

5 a

6 f

6 d

7 f

7 d

3 a

5 a

3

T f

3 a

4 f d

5

4

3

T

4

T

5

T

6

T

7 d

7

RUN command

STOP command

Fig.6-22 holding mode after PLC single circle

f

6 f

6 f

2 f

7 f

2 f

7 f

1 f

5 f

1 f

5

PLC run d f

1

1 d

1 d

2 f

3 f

3 f

4 f

4

T1 T2 T3 T4 T5 T6 T7 T1 T2 T3 T4 T5 T6 T7 T1

First circle

Second circle

RUN command

STOP

Fig.6-23 PLC consecutive circle mode

3: consecutive circle. As shown in Fig.6-23,the inverter start next circle automatically after finishing a circle,until there is stop command.

LED 2 nd

bit:

0: start from first step. Stop during running caused by stop command, failure or power off,after restarting the inverter will run from first step.

1: continue to run from step frequency of interruption moment. When stop during running caused by stop command or failure,the inverter will record current step used time automatically and enter into this step automatically after restarting,continue to run for residual time according to defined frequency of this step, as shown in Fig.6-24. The inverter will rerun from first step after restarting if power off.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Interruption signal output freq.Hz a

1 f

1 d

2 a

2 f

2 a

3 f

3

Time t

Step 1 Step 2

Used time

Step 2 residual time a

1

: step 1 accelerating time a

2

: step 2 accelerating time a

3

: step 3 accelerating time d

2 f

1

: step 1 frequency f

2

: step 2 decelerating time

: step 2 frequency f

3

: step 3 frequency

Fig.6-24 PLC starting mode 1

LED 3 rd

bit : PLC run time unit

0: second; 1: minute

This unit is only effective to PLC run step time,for accelerating decelerating time of PLC run period, their unit selection is determined by F0.07.

(1) If run time of PLC segment is set to 0,this segment is ineffective.

note

(2) can make PLC process a pause, ineffective, work etc. through terminal,for detail please refer to terminal correlative function parameter group F5.

F4.01 Step 1 setting

F4.02 Step 1 runtime

F4.03 Step 2 setting

F4.04 Step 2 runtime

F4.05 Step 3 setting

F4.06 Step 3 runtime

F4.07 Step 4 setting

F4.08 Step 4 runtime

F4.09 Step 5 setting

F4.10 Step 5 runtime

F4.11 Step 6 setting

F4.12 Step 6 runtime

F4.13 Step 7 setting

F4.14 Step 7 runtime

88

88

range: 000621

range: 06000.0

range: 000621

range: 06000.0

range: 000621

range: 06000.0

range: 000621

range: 06000.0

range: 000621

range: 06000.0

range: 000621

range: 06000.0

range: 000621

range: 06000.0

10

000

10

000

10

000

10

000

000

10

000

10

000

10

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F4.01~F4.14 utilize LED 1st bit, 2nd bit, 3rd bit to separately define frequency setting,direction and accelerating decelerating time of PLC Run, see following for detail:

LED1 st

bit: frequency setting

0: multi-step frequency i i=1~7 is defined by F2.30~F2.44.

1: frequency is determined by function code F0.00

LED 2 nd

bit: run direction selection

0: forward run

1: reverse run

2: determined by run command (FWD,REV)

LED3 rd

bit: accelerating decelerating time selection

0: accelerating decelerating time 1

1: accelerating decelerating time 2

2: accelerating decelerating time 3

3: accelerating decelerating time 4

4: accelerating decelerating time 5

5: accelerating decelerating time 6

6: accelerating decelerating time 7

6.6 Terminal correlative function parameter group: F5

F5.00 Input terminal X1 function selection range: 0~42

F5.01 Input terminal X2 function selection range: 0~42

F5.02 Input terminal X3 function selection range: 0~42

F5.03 Input terminal X4 function selection range: 0~42

F5.04 Input terminal X5 function selection range: 0~42

F5.05 Input terminal X6 function selection range: 0~42

0

0

0

0

0

0

F5.06 Input terminal X7 function selection range: 0~42 0

F5.07 Input terminal X8 function selection range: 0~42 0

Multi-function input terminal X1~X8 provides 43 kinds of selection mode for the user,can choose based on spot requirement. For parameter function table please see Table 6-2.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Item

Table 6-2 multifunction input function selection table

Corresponding function Item Corresponding function

0 Leave control terminal unused

2 Multi-step speed control terminal 2

4 Multi-step speed control terminal 4

6 External reverse run jog control

8 Accel/Decel time selecting terminal 2

10 External device failure input

12 Free stop input

14 stop DC braking input command DB

16 Frequency increasing command(UP)

18 Accel/Decel prohibited command

20 Closed-loop ineffective

22 Simple PLC pause command

1 Multi-step speed control terminal 1

3 Multi-step speed control terminal 3

5 External forward run jog control

7 Accel/Decel time selecting terminal 1

9 Accel/Decel time selecting terminal 3

11 External restoration input

13 External stop command

15 Inverter run prohibition

17 frequency descending command(DOWN)

19 Three-wire run control

21 PLC ineffective

23

PLC stop status restoration (reset variable of PLC interruption moment, make it restart from first segment)

25 Frequency provision channel selection 2

24 Frequency provision channel selection 1

26 Frequency provision channel selection 3

28 Command switched to terminal

30 Run command channel selection 2

32 Swing frequency running

34 interior counter clearing end

36 Interior timer clearing end

27 Frequency switched to CCI

29 Run command channel selection 1

31 Run command channel selection 3

33 External interruption input

35 interior counter triggering end

37 interior timer triggering end

38

Pulse frequency input(only effective for

39

X7,X8)

40 Reserved

Reserved

41 Reserved

42 Reserved

Now explain listed function in Table 6-2 as follows:

1~4: Multi-step speed control terminal. Can set 15 step speed run frequency by choosing ON/OFF combination of these function terminal.

Table 6-3 multi-step speed run selection table

K

4

K

3

K

2

K

1

Frequency setting

90

90

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

OFF

OFF

OFF

OFF

ON

ON

OFF

ON

Multi-step frequency 2

Multi-step frequency 3

OFF

OFF

ON

ON

ON

ON

OFF

ON

Multi-step frequency 6

Multi-step frequency 7

Above multi-step frequency can be used in multi-step speed run and simple PLC run, please see below an example of multi-step speed run:

We now define control terminal X1, X2, X3, separately as follows:

After set F5.00=1, F5.01=2, F5.03=3, X1, X2, X3, are used for realizing multi-step run,as shown in Fig.6-25

Output frequency

Common set freq.

Speed1

Speed2

Speed6

Speed7

Time

Run command

Multi-stepspeed control terminal 1 on

Multi-stepspeed control terminal 2 on

Multi-stepspeed control terminal 3 on

Fig.6-25 multi-step run

K1

K2

K3

K4

In fig.6-26 see an example of terminal run command channel,can make forward, reverse run control by K5, K6. In Fig.6-25, by different logic combination of K2,

K3, K4,the inverter can run according to common set frequency or 1~7multi-step frequency multi-speed operation based on above table.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

3 phase breaker

3 phase

AC power supply

R

S

T

K1

K2

K3

K4

COM

U

V

W

PE

M

KM

X5

FWD

REV

COM

K5

K6

COM

Fig.6-26 multi-step speed run Fig.6-27exterior device failure always-open input

5~6: external jog run control input JOGF/JOGR.When run commandchannel is set to terminal run command channel F0.02=1,JOGF is jog forwardrun,JOGR is jog reverse run,jog operation frequency, jog accelerating decelerating time is defined in F2.06~F2.08 (remark: jog run command channel is determined by F0.02)

7~9: Accel&Decel time terminal selection

Table 6-4 Accel&Decel time terminal selection logic mode

Terminal 2 Terminal 2 Terminal 1 Accel/Decel time selection

OFF OFF OFF Accel time 1/ Decel time 1

OFF

OFF

OFF

ON

OFF

ON

ON

OFF

ON

OFF

ON

OFF

Accel time 2/ Decel time 2

Accel time 3/ Decel time 3

Accel time 4/ Decel time 4

Accel time 5/ Decel time 5

ON

ON

OFF

ON

ON

OFF

Accel time 6/ Decel time 6

Accel time 7/ Decel time 7

Can realize selection for Accel&Decel time1~7 by ON/OFF combination of

Accel&Decel time terminal.

10: external equipment fault input. Can input fault signal of external equipment by this terminal to be convenient for the inverter to monitor fault of external equipment. The inverter displays “E0.14”, namely external equipment fault alarm after receiving the external equipment fault signal.

92

92

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

11: exterior restoration input.

After the fault alarm takes place in the inverter, can restore the inverter through this terminal. Its function is same as function of key on the operation panel.

12: free stop input. This function is same as free stop during running defined in F1.05,but it’s realized by control terminal to be convenient for long-distance control.

13: exterior stop command. This command is effective to all run command channel,when this function is effective the inverter stops running in mode set by F1.05.

14: DC injection braking input command DB during stop. Implement

DC injection braking to the motor during stop by control terminal,in order to realize urgent parking and accurate orientation of the motor. Braking initial frequency, braking time are defined in F1.06, F1.07.

15: inverter run forbiddance. The inverter during running stops freely when this terminal is effective and forbidden to start in waiting status. Mainly applied to occasion needing safe linkage.

16~17: frequency increasing command UP/descending command

DOWN. Realize frequency increasing or descending by control terminal, which substitute for keypad to realize long-distance control. Effective during common run if F0.00=2.Increasing descending speed is set by F5.09.

18: Accel&Decel speed forbidden command. Let the motor not effected by any foreign signal(except stop command),keep running at current frequency.

Ineffective during normal decelerating stop.

note

19: three-wire run control. Please refer to function description of F5.08 run mode (three-wire run mode).

note

20: closed-loop ineffective. Realize flexible switch to lower level runmode under closed-loop run status.

(1) can switch between closed-loop and lower level run mode only during closed-loop run(F3.00=1).

(2) start stop control, direction and Accel&Decel time are subject to setting of corresponding run mode when it’s switched to lower level run mode.

21: PLC ineffective. Realize flexible switch to lower level run mode underPLC run status.

93

93

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

note

(1) can switch between PLC and lower level run mode only during PLC run(F4.00≠0).

(2) start stop control, direction and Accel&Decel time are subject to setting of corresponding run mode when it’s switched to lower level run mode.

22: simple PLC pause command. Implement pause control to PLC processduring running,run at zero frequency when this terminal is effective,not time for PLC run;after ineffective implement automatic speed tracking start and continue PLC run. For application method please refer to function description of

F4.00~F4.14.

23: PLC stop status restoration. Under stop status of PLC run mode, willclear PLC run step, runtime, run frequency etc. recorded when PLC run stops if this terminal is effective,please see F4 group function description.

24~26: terminal frequency provision channel selection. Through

ON/OFF combination of frequency provision channel selection terminal 24, 25,

26,can realize frequency provision channel switch shown in Table 6-5. For relation of terminal switch and function code F0.00 setting, that is, latter effective.

Table 6-5 terminal frequency provision channel selection logic mode

frequency provision channel selection end 3

OFF frequency provision channel selection end 2

OFF frequency provision channel selection end 1

OFF frequency provision channel selection hold freq. setting

OFF ON OFF keypad number provision

ON OFF OFF serial port provision

ON ON ON end PULSE provision

27: switch frequency to CCI. Frequency provision channel is switched to

CCI provision compulsorily when this function terminal is effective, frequency provision channel come back to previous status when this function terminal is ineffective.

28: command switched to terminal. Run command channel is switched to terminal run command channel compulsorily when this function terminal is effective.

94

94

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

29~31: terminal select run command channel

Table 6-6 run command channel logic mode

channel selection terminal 3 channel selection terminal 2

Run command channel selection terminal 1

Run command channel

OFF OFF OFF hold run command channel end run command channel ineffective) end run command channel effective) serial port run command command ineffective) serial port run command command effective)

Can realize control command selection shown in Table 6-6 by ON/OFF combination of run command channel selection terminal,For relation of terminal switch and function code F0.00 setting, that is, latter effective.

32: swing frequency jump-in. When swing frequency start mode is manual jump-in,swing frequency function effective if this terminal effective,see F6 function parameter description.

33: exterior interruption input.The inverter close off output and run at

zerofrequency during running upon receiving exterior interruption signal. The inverter implement automatic speed tracking start-up to resume running once external interruption signal is relieved.

34: interior counter clearing end. To clear built-in counter in the inverter with cooperation of counter triggering signal.

35: interior counter triggering end. Counting pulse input port of built-in counter,pulse max. frequency: 200Hz,see function code F5.24, F5.25.

36: interior timer clearing end. To clear built-in timer in the inverter with cooperation of timer triggering signal.

95

95

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

37: interior timer triggering end. Please see function description for parameter F5.27.

38: pulse frequency input(only effective to X7,X8). Only effective formultifunction input terminal X7, X8,this function terminal receive pulse signal as frequency provision, for relation between inputted signal pulse frequency and set frequency in detail, please refer to F7 group parameter.

39: reserved

40: reserved

41: reserved

42: reserved

F5.08 FWD/REV run mode selection range: 03

0

This parameter defines 4 kinds of exterior terminal control mode for inverter running.

0: 2-wire control mode 1

K2 K1 run command

0 0 stop

0 0

1 0 stop

K

1

K

2

K

2

EDS-V300

FWD

REV

1 1 stop

1: 2-wire control mode 2

K2 K1 run

COM

Fig.6-28 2-wire run mode 1

EDS-V300

K

1

FWD

REV

COM

Fig.6-29 2-wire run mode 2

96

96

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

2: 3-wire control mode 1

SB2

EDS-V300

FWD thereinto:

SB1: stop button

SB1

Xi

SB2: forward run button

SB3: reverse run button

SB3

REV

COM

Fig.6-30 3-wire run mode 1

Xi is multifunction input terminal of X1~X8, here should define its corresponding terminal function as No. 19 “3-wire run control” function.

3: 3-wire control mode 2

SB1: stop button

SB2: run button

SB2

SB1

FWD

Xi

EDS-V300

K2 run direction selection

K2

REV

COM

Fig.6-31 3-wire run mode 2

Xi is multifunction input terminal X1~X8, here should define its corresponding terminal function as No. 19 “3-wire run control” function.

The inverter restores after failure and start at once if run command channel selecting terminal and terminal FWD/REV is effective during warning alarm stop.

F5.09 UP/DOWN speed

range: 0.0199.99Hz/S

1.00 Hz/S

This function code defines varying rate of the set frequency when it’s modified by

UP/DOWN terminal.

97

97

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F5.10

Open collector output terminal

OC1 output setting

Open collector output terminal

F5.11

OC2 output setting

Open collector output terminal

F5.12

OC3 output setting

Open collector output terminal

F5.13

OC4 output setting range: 0~24 range: 0~24 range: 0~24 range: 0~24

0

0

0

0

OC1~OC4 open collector output terminal,Table 6-7 shows option of above 4 function parameter,choosing same output terminal function repeatedly is allowed.

Table 6-7 output terminal function selection table

Item Corresponding function Item corresponding function

0 Inverter running signal (RUN)

2

Frequency level detecting signal (FDT1)

4 Overload warning signal(OL)

6

Output Freq. reach low limit(FLL)

8 Stop for exterior failure(EXT)

10 In PLC run process

1 Frequency arriving signal (FAR)

3 reserved

5 Output Freq. reach high limit(FHL)

7

Inverter stops for under voltage blockage (LU)

9 Inverter zero speed running

11 Simple PLC segment run finished

12 PLC finish one cycle run

14 Inverter is ready for run(RDY)

16

18

Swing Freq. high&low limit restriction

Interior counter specified value arrive

Interior timer timing arrive

20

13 reserved

15 Inverter failure

17

Interior counter final value arrive

19

Set runtime arrive

21

OC1- variable Freq. for the 1 st

pump

OC2- power source for the 1 st

pump

OC3- variable Freq. for the 2 nd

pump

OC4- power source for the 2 nd pump

23 reserved 22 reserved

24 reserved

Now introduce function listed in Table 6-7 as follows:

98

98

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

0: inverter during running(RUN). The inverter is in run status,output indicator signal.

1: frequency arriving signal(FAR). Refer to function description of F5.14.

2: Frequency level detecting signal(FDT1). Refer to function description of

F5.15~F5.16.

3: reserved

4: overload warning signal(OL)

.

Inverter output current exceed F9.05 overload detect level and time exceed F9.06 overload detect time,output indicator signal.

5: output frequency reach high limit(FHL). When set frequency≥high limit frequency and run frequency reach high limit frequency,output indicator signal.

6: output frequency reach low limit(FLL). When set frequency≤low limit frequency and run frequency reach low limit frequency,output indicator signal.

7: Inverter stops for under voltage blockage(LU). When the inverter is running, LED displays“P.OFF”and output indicator signal if DC bus-bar voltage is lower than limitative level.

8: stop for exterior failure(EXT). When the inverter give the alarm (E014) and stops for exterior failure, output indicator signal.

9: inverter zero speed running. When the inverter output zero frequency but in run status, output indicator signal.

10: In PLC run process

11: Simple PLC segment run finished. After simple PLC current segment run is finished,output indicator signal(single pulse signal,width 500ms).

12: PLC finish one cycle run

13: reserved

14: Inverter is ready for run(RDY). If this signal is effective, shows that bus-bar voltage is normal and run prohibition terminal is ineffective, the inverter can receive start-up command.

15: Inverter fault. If failure takes place when the inverter is running, the inverter output indicator signal.

16: Swing freq. high&low limit restriction. After choosing swing frequency function, if frequency fluctuant range based on center frequency of swing frequency is above high limit frequency F0.10 or under low limit frequency F0.11, the inverter will output indicator signal, as shown in Fig. 6-32.

99

99

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

High limit

Low limit

Y1: swing freq. fluctuation

Set

Freq.

Y output checkout range time time

Fig.6-32 swing freq. range restriction Fig.6-33 freq. arriving signal output

17: Interior counter final value arrive

18: Interior counter specified value arrive

17~18 please refer to function description of F5.25~F5.26.

19: Set runtime arrive. When accumulative runtime of the inverter (F2.52) reach set runtime(F2.51),output indicator signal.

20: Interior timer timing arrive. Refer to function description for F5.27.

21: OC1- variable Freq. for the 1 st

pump

OC2- power source for the 1 st

pump

OC3- variable Freq. for the 2 nd

pump

OC4- power source for the 2 nd

pump

22: Reserved

23: Reserved

24: Reserved

F5.14 Freq. arriving(FAR)detect range

range: 0.0050.00Hz

5.00Hz

This parameter is supplementary definition to No. 1 function in Table 6-7.As shown in Fig.6-34 , when output frequency of the inverter is within high&lowdetect range of set frequency,output pulse signal.

F5.15

FDT1(freq. level) electric level

range: 0.00high limit

frequency

10.00Hz

F5.16 FDT1 lag

range: 0.0050.00Hz

1.00Hz

F5.15~F5.16 is supplementary definition to No.2 function in Table 6-7, introduce as follows:When output frequency exceed the set frequency(FDT1 electric level), output indicator signal,till output frequency descend to be some frequency(FDT1 electric level-FDT1 lag) lower than FDT1 electric level,as shown in Fig.6-33.

100

100

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F5.17

Analog output(AO1)selection

range: 09

0: output frequency(0high limit frequency)

1: set frequency(0high limit frequency)

2: output current(02×rated current)

3: output voltage(01.2×load motor rated voltage)

4: bus-bar voltage(0800V)

5: PID provision (0.00-10.00V)

6: PID feedback (0.00-10.00V)

7: reserved

8: reserved

9: reserved

F5.18 Analog output(AO1)gain

range: 0.002.00

0

1.00

F5.19 Analog output(AO1) offset

range: 0.0010.00V

0.00

For AO1 and AO2 analog output, the user can modify display measuring range or emend meter head error by adjusting output gain if necessary.

F5.20

Analog output(AO2)selection

range: 09

0

Same as F5.17 function parameter description.

F5.21 Analog output(AO2)gain

range: 0.102.00

1.00

F5.22 Analog output(AO2) offset

range: 0.0010.00V

0.00

Same as F5.18 and F5.19 function parameter description.

This function makes real-time effect to analog output when it’s being

note

F5.23 DO terminal output function selection

Same as F5.17 function parameter description.

range: 0~9 0

F5.24 DO max. pulse output freq.

range: 0.120.0(max. 20KHz)

10.00

DO port max. output pulse frequency corresponds to maximum value optioned by

F5.23,for example 0: output frequency,then max. Output pulse frequency corresponds to high limit frequency.

F5.25

Set interior count number arriving provision range: 0--9999 0

Specified interior count number

F5.26 range: 0--9999 0 arriving provision

101

101

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F5.25, F5.26 is supplementary definition to No. 17, 18 function in Table 6-7.

Set count number provision,shows that when some number of pulse are inputted to Xi(count triggering signal input function terminal), OCi (open collector Output terminal) output a indicator signal.

As shown in Fig.6-34,OC1 output an indicator signal when the 8th pulse is inputted to Xi. Here F5.25=8.

Specified count number provision,shows that when some number of pulse are inputted to Xi, OCi output a indicator signal,till set count number is reached.

As shown in Fig.6-34,OC2 start to output an indicator signal when the 5th pulse is inputted to Xi. Until set count number 8 is reached. Here F5.26=5. Specified count number is ineffective when it is bigger than set count number.

Xi input

1

2

3

4 5 6

7 8

9

OC1

OC2

Fig.6-34 Set count number and specified count number provision

F5.27 Interior timer timing setting

range: 0.16000.0s

60.0

This parameter is used to set timing time of interior timer of the inverter.The timer is activated by exterior triggering end(triggering end selected by F5.00~F5.07), the timer begins timing upon receiving exterior triggering signal, after it’s up to timing time one effective pulse signal of 0.5s will be outputted from relative OC end.

6.7 Vector control parameter group: F6

F6.00 Reserved

F6.01

Oscillation suppression lower limiting frequency

Range:0.00-2.00 0.50Hz

F6.02

Oscillation suppression

Range:8.50-35.00

upper limiting frequency

F6.03

Oscillation suppression

Compensation gain

Range:100.0-130.0(%)

12.50Hz

100.0(%)

102

102

note

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

1. In many industrial applications, current oscillations easily appear when the motor no-load operation in certain frequency bands, with the power to increase this phenomenon is more obvious. This could lead to instability in the motor running, and converter’s serious over-current. When the operating frequency increases, the current oscillation has eased, F6.01 and F6.02 can be set corresponding upper and lower limit frequency ,which is the current oscillation range.

2. When F6.03 is set 100% of the compensation amount to zero, be careful that compensation amount should not be too large while setting, or it will cause over-current fault.

3. The amount of compensation may be different for different power of motor , please under the guidance of the engineer.

F6.04 Torque limit value

Range:50.0-200.0% 150.0%

Torque limit is used to limit torque current output the speed controller. Torque limit value 50.0-200.0% is the percentage of inverter rated current; Torque limit =

100%, that is, the torque current limit set to the rated current.

!

Torque limit of factory default is 150% factory, try not to set in the application of the torque limit value too large and long running at

150% of rated current , or it would shorten the drive's life of internal

IGBT due to thermal fatigue, but also affect the life of the motor.

F6.05 Speed loop gain proportion

Range:0.000-6.000 0.700

F6.06

Speed loop integral time

Range:0.000-9.999

constant

0.360

F6.05, F6.06 can set the speed regulator proportional gain and integration time, thus changing the speed of response of vector control.

note

PI speed loop parameters is closely related to electric condition, it requires reasonable adjustment on the basis of factory default for different application during operating. Thus to meet to meet different requirements, to achieve the best results.

F6.07 reserved

103

103

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

6.8 Frequency provision function parameter group: F7

F7.00 VCI minimum provision

range: 0.00F7.02

F7.01

Corresponding freq. to

VCI minimum provision

F7.02 VCI max. provision

range: 0.00high limit

frequency

range: 0.0010.00V

F7.03

Corresponding freq. to

VCI maximum provision

range: 0.00high limit

frequency

F7.04 CCI minimum provision

range: 0.00F7.06

F7.05

Corresponding freq. to

CCI minimum provision

range: 0.00high limit

frequency

F7.06 CCI max. provision

F7.07

Corresponding freq. to

CCI max. provision

range: 0.0010.00V

range: 0.00high limit

frequency

F7.08 YCI minimum provision

range: 0.00F7.10

F7.09

Corresponding freq. to

YCI minimum provision

F7.10 YCI max. provision

F7.11

Corresponding freq. to

YCI max. provision

range: 0.00high limit

frequency(REV)

range: 0.0010.00V/5V

range: 0.00high limit

frequency(FWD)

0.0V

0.00Hz

9.9V

50.00Hz

0.00V

0.00Hz

9.9V

50.00Hz

0.00V

0.00Hz

9.9V

50.00Hz

F7.12

YCI dead band range setting

range: 0.00V2.00V

0.10V

The inverter can decide FWD run or REV run according to YCI input when YCI is selected to be frequency provision(i.e. F0.00=6). YCI frequency defined in

F2.09 may be positive or negative when YCI isn’t selected to be frequency provision.

Shown as the figure: 0—dead band the frequency is negative.

5V-dead band—5V+dead band YCI set frequency is 0

5V+ dead band—10V the frequency is positive

F7.13 PULSE max. pulse input

range: 0.0120.0K

10.0K

F7.14

PULSE minimum provision

range: 0.0F7.16

0.0K

F7.15

Corresponding freq.To

PULSE min. provision

range: 0.00high limit

frequency

0.00Hz

104

104

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F7.16 PULSE max. provision range: F7.14(PULSE min.

provision)F7.13(max.

input pulse)

10.0K

F7.17

Corresponding freq. to

PULSE max. provision

range: 0.00high limit

frequency

50.00Hz

F2.00 sets the analog channel filtering time constant,to filter input signal, the more long filtering time is, the more great anti-jamming ability is, but response speed descend; the more short filtering time is, the more fast the inverter respond, but anti-jamming ability is weakened.

See below relation curve of VCI and set frequency:

Set freq.

Set freq. fmax fmax fmin

A fmin

A

Amin

Amax

Amin

Amax

(1)plus characteristic

(2)minus characteristic

A:VCI provision

Amin:min. provision fmin:corresponding freq. of min. provision

Amax:max. provision fmax:corresponding freq. of max. provision

See below relation curve of CCI and set frequency: fmax fmin

Set freq.

A

Amin

Amax

(1) plus characteristic fmax fmin

Set freq.

A

Amin

Amax

(2) minus characteristic

A:CCI provision

Amin: min. provision fmin: corresponding freq. to min. provision

Amax: max. provision fmax: corresponding freq. to max. provision

105

105

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

See below relation curve of YCI and set frequency: fmax

FWD

REV

Amin

Amax

5V

0 10V dead band fmin

A:YCI provision

Amin: min. provision fmin: corresponding freq. to min. provision

Amax: max. provision fmax: corresponding freq. to max. provision

See below relation curve of PULSE and set frequency:

Set freq.

Set freq. fmax fmax fmin

P fmin

P

Pmin

Pmax

(1) plus characteristic

Pmin

Pmax

(2) minus characteristic

P: PULSE provision

Pmin: min. provision fmin: corresponding freq. to min. provision

Pmax: max. provision fmax: corresponding freq. to max. provision

6.9 Motor parameter groupF8

F8.00 Load type

Range02

0G Type Constant torque/ Mutations load application

1L Type Light load/ Smooth load application

2J Type Large Large inertia /heavy load application

F8.01 Motor rated voltage

F8.02 Motor rated current

Range1480V

Range0.1999.9A

0

Depend on

device type

Depend on

device type

F8.03

Motor rated frequency

Range1.00400.00Hz

Depend on

device type

106

106

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F8.04 Motor rated speed

F8.05 Motor pole quantity

F8.06 Motor rated power

Range19999r/min

Range214

Range0.1999.9KW

Depend on

device type

Depend on

device type

Depend on

device type

Please set above parameters according to rated data of motor drived by the inverter for the sake of safe running.

F8.07

Motor stator resistance

Range: 0.000 9.999

ohm

Depend on device type

Motor rotor resistance

Range: 0.000 9.999

F8.08 ohm

Depend on device type

F8.09

F8.10

F8.11

Motor stator inductance leak

Motor rotor inductance leak

Motor mutual inductance

F8.12 Motor no-load current

Range: 0.0999.9mH

Range: 0.0999.9mH

Range: 0.0999.9mH

Range: 0.1999.9A

Depend on device type

Depend on device type

Depend on device type

Depend on device type

The inverter will set F8.07~F8.12 to be default standard motor parameter everty time after motor rated data modified.

F8.13 Reserved

F8.14 Reserved

F8.15 Reserved

F8.16 Reserved

F8.17 Parameter Self Tune

Range02

0

0Inaction

1Static Self Tune

When the load can not be torn off motor or tedious process for motor being torn off, choose static Self Tune. Before Self Tune, input the correct motor nameplate

107

107

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description begins.

While Self Tune is going on, Keypad will display the ID-1 ID-2 and with flash.

When Self Tune is over, ID-1 / 2 won’t be displayed any longer. the Self Tune data of stator resistance, rotor resistance, stator leakage inductance and rotor leakage inductance, Which are stored in the F8.07 ~ F8.10.

Motor no-load current and mutual inductance will not be able to Self Tune, the user can enter the appropriate values provided by the motor factory or data in motor test report. If there is no corresponding data, you can use the factory default values, but it may impact motor control performance. During Self Tune process,

2Rotating no-load auto-tuning

If the motor load is less than 30% of the rated load or the load carried by a large inertia load can not choose to rotate the auto-tuning, but try to disengage the load, the motor at rest and no-load state, or the auto-tuned parameters may not be correct.

Before setting, input the motor nameplate parameters (F8.01 ~ F8.06) correctly, auto-tuning keep going, keypad will display the ID-1, ID -2, ID-3, and flashing; when auto-tuning end, keypad won’t displayed no longer. At this time all the parameters (F8.01 ~ F8.12) required by vector control have been auto-tuned. In parameter self-tuning

108

108

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

6.10 Protection function parameter: F9

F9.00 reserved

F9.01 failure self-restoration times

F9.02

failure self-restoration interval

range: 010

0

range: 0.520.0S

5.0S

During run process, failure will take place accidently due to load fluctuation and the inverter will cut off output, here failure self-restoration function can be applied in order to let the device continue to run. During self-restoration, the inverter will try to resume running in speed checking restart mode but stop outputting and failure protected if the inverter can’t resume running successfully within set times.

Self-restoration function will be shut down if failure self-restoration times is set to 0.

(1) To use failure self-restoration function must take device allowance and no essential

note failure in the inverter as preconditions.

(2) Self-restoration function is ineffective to failure protection caused by overload and over heat.

F9.03 Motor overload protection mode selection range: 0, 1 1

This parameter defines protecting action mode when overload, overheat take place in the inverter.

0: no action. No motor overload protection characteristic(apply with caution),here the inverter have no overload protection for load motor;

1: inverter cut off output at once. The inverter cut off output and motor stop freely when overload, overheat take place.

F9.04 motor overload protection coefficient range: 20.0-120.0(%) 100.0(%)

This parameter sets sensibility of the inverter implementing thermal relay protection to load motor, can implement correct heat protection to the motor by setting this value when output current value of load motor don’t match rated current of the inverter, as shown in Fig.6-35.

Value of this parameter can be determined by following formula:

note

[F9.04]= ×100

inverter rated output current

The inverter will lose thermal relay protecti on function when a piece of inverter drive multi ple motors in parallel. Please assemble heat protection relay at input side of each motor to protect them effectively.

109

109

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description time

1minute

[F9.04]=50

%

[F9.04]=100

%

Alarm level

[F9.05]

Yn

Output current current

55% 110%

105%

150% (G)

120% (P) high

[F9.06

]

[F9.06] high time

Fig.6-35 electronic thermal relay protection Fig.6-36 overload alarm

F9.05 overload alarm checkout level

range: 20200(%)

130(%)

F9.06 overload alarm delay time

range: 0.020.0S

5.0S

If output current exceeds electric level set by parameter F9.05 continuously,open collector outputs effective signal(refer to Fig.6-36 and interrelated description of parameter F5.10~F5.13) after delay time set by F9.06 passed.

F9.07 Overvoltage stall selection range: 0, 1 1

F9.08 Stall overvoltage point

0: banned

1: allowed

range: 120-150(%) 130(%)

Actual descending rate of motor speed may be lower than that of output frequency due to effect from load inertia when the inverter is in decelerating run process, here the motor will feed electric energy back to inverter which will make DC bus-bar voltage of the inverter increase, overvoltage protection will takes place if not take steps.

Overvoltage stall protection function, indicates that output frequency of the inverter stops descending if bus-bar voltage detected during run process stall overvoltage point exceed stall voltage point defined by

F9.08 (relative to standard bus-bar voltage) and the inverter continue to implement decelerating run when bus-bar voltage detected again is lower than stall overvoltage point. As shown in Fig. 6-37. output freq. time time

Fig.6-37 overvoltage stall function

110

110

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

F9.09 automatic current limiting level

range: 110200(%)

150(%)

F9.10 frequency descending rate during current limiting

range: 0.0099.99HzS

0.00Hz/S

F9.11 automatic current limiting action selection range: 0, 1 0

By automatic current limiting function the inverter can limit load current not to exceed automatic current limiting level set by F9.09 to avoid tripping out for failure caused by rushing current. This function is especially suitable for some biggish inertia or acutely changing load occasion.

Automatic current limiting (F9.09) defines current threshold value of automatic current limiting action, its value is the percentage relative to inverter rated current.

Frequency descending rate during current limiting (F9.10) defines adjusting rate to output frequency during automatic current limiting action.

If frequency descending rate during automatic current limiting F9.10 is too small, inverter isn’t easy to get rid of automatic current limiting state which may cause overload failure finally;If descending rate F9.10 is too big, the inverter may be in generating state for long time which will cause overvoltage protection.

Automatic current limiting function is effective in accelerating decelerating state and whether it’s effective in constant speed run state is determined by automatic current limiting action selection (F9.11).

F9.11=0 indicates that automatic current limiting is ineffective during constant speed running;

F9.11=1 indicates that automatic current limiting is effective during constant speed running;

Output frequency may varies during automatic current limiting action , so automatic current limiting function is not suitable for occasion demanding stable output frequency during constant speed run.

Select the vector control, The percentage of automatic current limiting level

(F9.09) should not set less than the torque limit value (F6.04) in the setted value.

111

111

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

6.11 Stop auxiliary function parameter group: FA

FA.00 Auxiliary DC brake time

Range0.0—20.0s

0.0s

FA.01 Auxiliary DC brake 0

Auxiliary DC brake means when the inverter stop DC brake is finished give the second stage DC braking.

Role in some special circumstances require rapid braking, and stop long time in the state of DC braking, but to prevent motor heat circumstances.

V(%)

F1.08

FA.01

0

F1.07

FA.00 t(s)

FA.02 Reserved

FA.03 Reserved

6.12 Failure record function parameter: Fd

Fd.00 previous one failure record range: 0~23 0

Fd.01 previous two failure record

Fd.02 previous three failure record

Fd.03 previous four failure record

Fd.04 previous five failure record range: 0~23 0 range: 0~23 0 range: 0~23 0 range: 0~23 0

Fd.05 previous six failure record

0: no failure

range: 0~23 0

1―23: failure E0.01-E0.23,please see chapter 7 for specified failure type

112

112

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 6 Detailed function description

Fd.06 Set freq. at previous failure

Fd.07 Output freq. at previous failure

Fd.08 output current at previous failure

Fd.09 output volt. at previous failure range: 0-high limit 0 range: 0-high limit 0 range: 0-999.9A range: 0-999V

Fd.10 DC bus-bar vlot. at previous failure range: 0~800V

Fd.11 Load motor speed at previous failure range: 0~9999

0

0

0

0

Fd.12 Module temp. at previous failure

Fd.13 Input end state at previous failure

Fd.14 Accu. runtime at previous failure range: 0~100 range: 0~65535h

0

0

0

6.13 Code and manufacturer function parameter: FF

FF.00 user password

range: 00009999

1

User password setting function is used for prohibiting unauthorized personnel from consulting and modifying function parameter.

Set this function code to 0000 when user password function isn’t wanted.

First input 4 bits number as user password and press key to confirm, then the password will come into effect at once.

ENTER

DATA

Password modification:

ENTER

DATA

ESC

MENU primary 4 bits password parameter editing state is available,choose FF.00(here

FF.00=0000),input new password and press key to confirm,then the password come into effect at once.

Please keep the password you set without fail, in case the password is missing please

note consult the manufacturer.

FF.01 manufacturer password

range: 00009999

0000

Setting function for the manufacturer, user need not to modify it.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 7 Troubleshooting

7 Troubleshooting

7.1 Failure and countermeasure

Possible failure types in EDS-V300 are shown in Table 7-1 and failure code is from E001 to E023. Some failure code is reserved for intelligent automatic diagnosis function which will be executed continuously in future. When failure takes place in the inverter, the user should check according to note of this table first and record failure phenomena detailedly. Please contact our after-sale service and technical support Department or agent in your local place when technical service is needed.

Table 7-1 failure type and the countermeasure

failure code failure type possible reason countermeasure

E001 overcurrent during accelerating process

Accelerating time is too short Prolong accelerating time

Adjust V/F curve setting,adjust

Improper V/F curve manual torque boost or change to automatic torque boost

Restart rotating motor

Low power source voltage

Set deceleration restart function

Check input power supply

Too small power of the inverter Choose inverter with high-power

Decelerating time is too short Prolong decelerating time E002 overcurrent during decelerating process

E004 overvoltage during accelerating process

Have potential energy load or big Increase braking power of external

Inertia load energy consumption braking subassembly

E003 overcurrent speed process

Power of inverter is a bit small Choose inverter with high-power

Load change suddenly or during constant Have unwonted phenomena

Check or reduce break of the load

Accel/Decel time is set to too short low power source voltage

Prolong accelerating decelerating time properly

Check input power supply

Power of inverter is a bit small Choose inverter with high-power

Unwonted input voltage Check input power supply

Accel time is set to too short

Restart rotating motor

Prolong accelerating time properly

Set speed checking restart function

114

114

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 7 Troubleshooting

E005 overvoltage during decelerating process

Decelerating time is too short Prolong decelerating time

Have potential energy load or big Increase braking power of external inertia load energy consumption braking subassembly

Unwonted input voltage Check input power supply E006 Overvoltage during constant

Accel/Decel time is set to too speed process short

Prolong accelerating decelerating time properly

Input voltage change abnormally Assemble reactor

Load inertia is a bit big Use energy consumption subassembly power supply overvoltage

E008 Inverter overload

Check input power supply or look for service

Accel time is set to too short Prolong accelerating time

DC injection braking is too big Reduce DC injection braking improper V/F curve current,prolong braking time

Adjust V/F curve and torque boost

Restart rotating motor Set speed checking restart function power source voltage is too low check power source voltage

Load is too big Choose inverter with high-power

E009 Motor overload improper V/F curve Adjust V/F curve and torque boost power source voltage is too low check power source voltage

General motor run at low speed with big load

Can choose frequency conversion motor for long time low speed run motor overload protection factor to set motor overload protection set incorrectly factor correctly motor blocked up or load change Check the load too suddenly and quickly heating

To clear air-path or improve ventilation condition

Ambient temperature is too high Improve ventilation condition, lower carrier frequency

Fan damaged Replace the fan

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 7 Troubleshooting

E011 reserved

E012 reserved reserved reserved reserved reserved inverter phase to phase short circuit or earthing short circuit of output 3 phase overcurrent wiring again failure control board loose

Unwonted current wave caused Check wiring by missing output phase etc.

Assistant power supply damaged Look for service from manufacturer and drive voltage lacking or agent

Unwonted control board Look for service from manufacturer or agent

Look up operation mode non-keypad run mode

Use sudden stop key

STOP under condition of stall

Set running parameter correctly

Sudden stop terminal for external Open external failure terminal after failure closed external failure is settled

E015 current detecting circuit control board loose

Assistant power supply damaged Look for service from manufacturer failure or agent

Hall component damaged Look for service from manufacturer or agent

Unwonted amplifying circuit Look for service from manufacturer or agent

Baud rate set improperly set Baud rate properly

E016 RS485

Failure warning parameter set communication improperly

RESET service

Modify F2.16, F2.17

116

116

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 7 Troubleshooting failure Upper device doesn’t work Check if upper device work and wiring is correct

Select the suitable power inverter setting in setting

When processing motor rotating Configurating external dynamic setting and starting to decelerate, braking assembly or corresponding there is over volt. caused by big braking power inertia check spot input voltage failure

E020 reserved

E021 Failure.not remove.or hardware circuit failure

Failure not remove hardware circuit failure

E022 reserved reserved

E023 reserved reserved

Remove failure, inspect hardware,

Look for service reserved reserved

P.OFF DC bus-bar under vlot.

Input power supply unusual

7.2 Failure record lookup

Check spot input voltage

This series inverter can record latest 6 failure code and inverter run parameter of the last failure, to search these informations can redound to finding out reason of the failure.

Failure information is all stored in Fd group parameter,please enter into Fd group parameter to see about information by referring to keypad operation method. code content code Content

Fd.00 previous one failure record

Fd.01 previous two failure record

Fd.02 previous three failure record

Fd.08

output current at previous failure

Fd.09

output volt. at previous failure

Fd.10

DC bus-bar vlot. at previous failure

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 7 Troubleshooting

Fd.03 previous four failure record

Fd.04 previous five failure record

Fd.05 previous six failure record

Fd.06 set freq. at previous failure

Fd.07 output freq. at previous failure

Fd.11

load motor speed at previous failure

Fd.12

module temp. at previous failure

Fd.13

input end state at previous failure

Fd.14

Accu. runtime at previous failure

— —

7.3 Failure reset

(1) Before reset you must find out reason of failure downright and eliminate it,

! otherwise may cause permanent damage to the inverter.

(2) If can’t reset or failure takes place again after resetting, should look for reason and continuous resetting will damage the inverter.

(3) Reset should take place 5 minutes after overload, overheat protection action.

To resume normal running when failure takes place in the inverter, you can choose following any kind of operation:

(1) After you set any terminal of X1~X8 to be inputted by external RESET

(F5.00~F5.07=11), you can open it after connected to COM.

(2) When failure code is displayed,press

STOP

RESET key after restoration is confirmed.

(3) Cut off power supply.

118

118

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 8 Maintenance

8 Maintenance

8.1 Daily maintenance

When you use ESD-V300 series you must assemble and operate it according to demand listed in this《service manual》strictly. During run state, temperature, humidity, vibration and aging parts may affect it. To avoid this, it is recommended to perform routine inspections.

Table 8-1 Daily inspection items

daily periodic

√ period Inspection

Inspection content item

(1)output current

Run state parameter

(2)output voltage

(3)inside temp.

Cooling

(1)installing ambient system

(2)local fan

Criterion

(1)within range of rated value

(2)within range of rated value

(3)temp. increment < 35℃

(1)good ventilation, unblocked air-path

(2)rotate normally without abnormal noise

(1)heating (1)no

Motor abnormality

(2)noise (2)even

(1) vibration, heating

√ Inverter

(2)noise

(1)vibration balanced, proper wind temp.

(2) without abnormal sound

(3)fixation of lead, terminal (3)fixed screw don’t loose

(1)temperature, humidity (1)-10℃~+40℃

40℃~50℃used in lower volume or

Run execute compulsory heat dissipating ambient

(2)dust, water and leakage (2)no water leakage imprint, no dust

Recommend to inspect with following instrument:

Input voltage: electric voltmeter;output voltage: rectifying voltmeter;input output current: pincers ammeter.

8.2 Inspection and replacement of damageable parts

Some component parts in the inverter will be abraded or bear descending performance for long-term usage,to assure that the inverter can run stably and reliably, it is recommended to perform defending maintenance and replace corresponding parts if necessary.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 8 Maintenance

(1) cooling fan

Abnormal noise, even oscillation may take place if the fan have wearing bearing, aging blade, here replacement of the fan should be considered.

(2) filter electrolyte capacitance

When frequent-changing load causes increasing pulsant current and aging electrolyte under high ambient temperature, the electrolyte capacitance may be damaged and here should replace it.

8.3 Repair guarantee

(1) Within 12 months from purchasing date, if failure caused by inverter itself takes place under normal conservation and usage, we will provide free repair service.

(2) We will take some upkeep if one of following situations takes place within period of repair guarantee. a. If did not use the inverter according to《service manual》strictly or did not use it under ambient demanded in《service manual》, which cause failure. b. Failure caused by applying the inverter to non-normal function; c. Failure caused by self-repair, refit which is not already allowed; d. Damage caused by bad keeping, falling down from high place or other extrinsic factor after purchasing the inverter; e. Failure caused by natural disaster or its reason such as unwonted voltage, thunderbolt, water fog, fire, salt corroding, gas corroding, earthquake and storm etc.; f. Make bold to tear up product logo (such as: nameplate etc.); Body serial number don’t accord with that in repair guarantee card.

note

(3) We calculate service fee based on actual cost, which is subject to contract if any.

(4) You can contact the agent and also our company directly if you have questions.

After repair guarantee period, we shall also provide lifetime charged repair service for our products.

Our company will also provide lifetime repair service with fee for inverter which is not within period of repair guarantee.

120

120

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 8 Maintenance

8.4 Storage

The user must pay attention to following points for temporary storage and long-term storage after purchasing the inverter:

(1) Avoid storing the inverter in high temperature, moist place and place of dust, metal powder and assure good ventilation.

(2) Longtime storage will cause electrolyte capacitance of low quality, so must assure that it’s electrified for one time within 2 years and electrification time is not shorter than 5 hours and input voltage must be increased to rated value gradually by voltage adjustor.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 9 Fitting parts

9 Fitting parts

9.1 Communication subassembly

9.1.1 Long-distance operation key board

Maximum electric distance from local keypad to inverter is 2m.

RS485 communication mode is adopted between inverter and long-distance keypad,only a four-core cable is needed between them and maximum electric distance can reach 1000m.They communicate with each other in main-auxiliary mode, namely take long-distance keypad as main device and inverter as auxiliary one. Connecting wire end is fixed by common screw which is easy to maintain.

This series of inverter support usage of local keypad and long-distance keypad at the same time,no priority order,both can operate the inverter synchronously.

Following function can be realized by long-distance keypad:

(1) Can control run, stop, jog, failure restoration, changing set frequency modifying function parameter and run direction of auxiliary device.

(2) Can identify auxiliary device type and monitor run frequency, set frequency output voltage, output current, analog closed loop feedback, analog closed loop setting and exterior counting value of auxiliary device.

EN-KB8

Fig.9-1 long-distance keypad

9.1.2 Communication cable

(1) Long-distance keypad communication cable

Type: EN-LC0030 (3.0m)

Used for connecting between long-distance keypad and inverter.

Remark: 1m, 2m, 3m, 5m, 10m, 15m are standard deployment for our company’s inverter,it’s needed to subscribe for the cable if it exceeds 15m.

122

122

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

10 Serial port RS485 communication protocol

10.1 Summarization

We provide general RS485/RS232 communication interface in our Inverters (such asEDS-V300 series, EDS1000 series, EDS2000 series, EDS2800 series, etc.) for the user. Through this communication interface upper device (such as PC, PLC controller etc.) can perform centralized monitor to the inverter (such as to set inverter parameter, control run of inverter, read work state of the inverter) and also long-distance control keypad can be connected to realize various usage requirement of the user.

This communication protocol is interface criterion file designed for realizing above-mentioned function, please read it earnestly and program according to it so that realize long-distance and network control to the inverter.

10.2 Protocol content and description

10.2.1 Communication net buildup mode

mainframe is PC or mainframe is PLC or

EDS-V300 mainframe

RS232

232-485 conversion module

RS485

EDS-V300

EDS-V300 EDS800 EDS800

Fig.10-1 net buildup graph

10.2.2 Communication mode

At present, EDS-V300 inverter can be used not only as auxiliary device but also mainframe device in RS485,if the inverter used as auxiliary ddevice,master device can be completed by PC,PLC or human interface,and if used as mainframe device ,the main- auxiliary control of the inverter can be complement by it, Specific communication mode is as mentioned below:

(1) PC or PLC as mainframe,inverter as auxiliary device,point-to-point communication between mainframe and auxiliary device.

(2) Auxiliary device don’t response when mainframe send out command by broadcast address.

(3) User can set local address, baud rate and data format of the inverter through auxiliary device keypad.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

(4) Auxiliary device report current failure information to mainframe in the last response frame.

(5) EDS-V300 provides RS485 interface.

10.2.3 Transport mode

Asynchronous serial,semiduplex transport mode. Default format and transport rate: 8-N-1,9600bps.For specific parameter setting please see description for

F2.14~F2.17 group function code.

10.2.4 Data command frame format

main device command frame format sending order

1 2 3 4 5 6 7 8 9 10

Definition head address command area sending byte

Index area

4 setting data area

4 checkout area

4 end

1

auxiliary device response frame format sending order

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Definitihead address on sending byte reponse area

1 2 2

Index area

4

124

124

Run data area Checkout area end

4 4 1

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

Fig.10-2 command/response frame format

Remark:

(1) “Setting data area” and “run data area” may not be existent in some command/data frame format, so in protocol command list it’s marked with

“nothing”.

(2) In protocol effective character set is: ~, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E,

F and hex data 0DH,ASCII lowercase a, b, c, d, e, f are invalid.

(3) Effective command frame length is 14 or 18 byte.

10.2.5 Explanation and description for format

(1) frame head

It’s character“~”(namely hex 7E),single byte.

(2) auxiliary device address

Data meanings: local address of auxiliary device, double byte. ASCII format.

Inverter factory default is 01.

(3) mainframe command/auxiliary device respond

Data meanings: mainframe send out command and auxiliary device respond to the command. Double byte, ASCII format.

Response code function classification:

Species 1>: command code=“10”,mainframe ask auxiliary device to report current preparation state and control situation.

Table 10-1 response code meanings for command code10 response code

ASCII

10 preparation state of auxiliary device

Don’t get ready meanings

Control from mainframe is allowed no meaning

To set frequency is allowed

13 get ready allow allow don’t allow allow allow don’t allow

14 get ready don’t allow don’t allow

Species 2>: command code=“11”~“15”, 5 kinds of function command which mainframe send to auxiliary device, for detail please see protocol command list.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

Table 10-2 response code meanings for command code “11~15”

response code

ASCII

Meanings of response code description

00

20

Auxiliary device communication and control is normal;function code modification is effective; password is correct.

(1) frame checkout error;

(2)“command area”data overrun;

(3)“index area”data overrun;

(4) frame length error/non ASCII byte exist in area except frame head, frame end.

When this response code is reported, data of “command area”, “index area” and “running data area” are not reported.

30

(1) control to auxiliary device is ineffective;

(2) ineffective function code parameter modification;

(3)“setting/running data”area data overrun.

Whether report this response code relate to current set state of auxiliary device. When report data of area”,

“ index area” and “run data area” are reported according to protocol requirement.

(4) password error.

(4) auxiliary index/command index/failure index

Data meanings: include auxiliary index byte and command index byte.

For mainframe, auxiliary index, command index are used for cooperating mainframe command in realizing specific function.

For auxiliary device, auxiliary index, command index are used for reporting failure state code, command index are reported without modification.

Data type: hex,4 byte, ASCII format.

Command index occupy 2 low byte, data range: “00”~“FF”.

Auxiliary index occupy 2 high byte, data range: “00”~“FF”.

Auxiliary device failure state occupy“auxiliary index”byte,see Appendix table 10-3.

Table 10-3 failure type description

failure code failure code description

1 description

Accelerating run over current

13 Converting module protection

126

126

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

5

6

7

8

2

3

4

10 decelerating run over current

Constant speed run over current accelerating run over voltage decelerating run over voltage

Constant speed run over voltage

Controller power supply over voltage

Inverter overload

Inverter over heat

14

15

16

17 reserved

18 reserved

20

22

External device failure current detecting circuit failure

RS485 communication failure

System disturbance

Reserved

Reserved

12 reserved

(5) checkout sum

Data meanings: frame checkout,4 byte, ASCII.

Calculation method: accumulative sum of ASCII code value of all byte from“auxiliary device address”to“run data”.

(6) frame end

Hex 0D,single byte.

10.2.6 Protocol command list

Frame 7E and frame end 0D, address, checkout sum,ASCII character format are omitted in following description.

Name

Table 10-4 protocol command table

Mainframe sending

MainAuxiframe order liary index order index run data example,such as PC control operation of setting range run data inverter(C language cluster format,auxiliary precision device address is set to description

01)

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol look up auxiliary motor state

10 00 00 no ~010A00000192\r 1 current set freq.

11 00 00 current run freq. 11 00 01

Output voltage 11 00 02

Output current 11 00 03

Bus-bar voltage 11 00 04

Load motor speed 11 00 05

Module temp. 11 00 06

Runtime 11 00 07 accumulative time 11 00 08

Input terminal output terminal

11 00 09

11 00 0A no

~010B00000193\r

0.01Hz

no no no no no no

~010B00010194\r 0.01Hz

~010B00020195\r 1V

~010B00030196\r 0.1A

~010B00040197\r 1V

~010B00050198\r 1rpm

~010B00060199\r 1

0

C no ~010B0007019A\r 1h no ~010B0008019B\r 1h no ~010B0009019C\r no no

~010B000A01A3\r no no ~010B000B01A6\r 0.01V

no ~010B000C01A7\r 0.01V no ~010B000D01A8\r 0.01V no

~010B000E01A9\r 0.01Hz

analog input VCI 11 00 0B analog input YCI 11 00 0C analog input CCI 11 00 0D exterior pulse

11 00 0E input read inverter state 11 00 0F auxiliary device run command set current run frequency provision of auxiliary device auxiliary device run with run freq.

provision

12

12

12

00

00

00

00

01

02 auxiliary device forward run

12 00 03 no no

~010B000F01AA\r no

~010C00000194\r no

0Hz~high limit freq.

Set freq.

~010C00010FA0027C\r 0.01Hz

=40.00Hz

auxiliary

0Hz~ high

~010C00020FA0027D\r 0.01Hz

limit freq.

device run set freq. no

~010C00030197\r no

=40.00Hz

auxiliary device reverse run

12 00 04 no

~010C00040198\r no

128

128

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol auxiliary device forward run with run freq. provision

12 00 05 auxiliary device reverse run with run freq. provision

12 00 06 auxiliary device stop

12 00 07 forward

0Hz~ high

~010C00050FA00280\r 0.01Hz

limit freq.

run boot-strap set freq.

=40.00Hz

reverse

0Hz~ high

~010C00060FA00281\r 0.01Hz

limit freq.

run boot-strap set freq. no no

=40.00Hz

~010C0007019B\r auxiliary device jog run

12 00 08 no

~010C0008019C\r no auxiliary device forward jog run

12 00 09 no

~010C0009019D\r no no no auxiliary device reverse jog run auxiliary device stop jog run auxiliary device failure restoration auxiliary device urgent stop

Run freq. digital setting F0.01

Run direction setting F0.03 accelerating time1

F0.08

12 0A

12 00 0B

12 00 0C

12 00 0D

13 00 01

13 00 03

13 00 08 no no no no no no

~010C000A01A5\r

~010C000B01A6\r

~010C000C01A7\r

~010C000E01A8\r no no no

~010D00010196\r 0.01Hz

~010D0008019D\r 0.1S

~010D00030198\r 1 decelerating time1

F0.09

13 00 09 no

~010D0009019E\r 0.1S

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

Run freq. digital setting F0.01

Run direction setting

F0.03 accelerating time1

F0.08 decelerating time1

F0.09

14

14

14

14

00

00

00

00

01

03

08

09

Set function

0Hz~ high limit freq.

~010E00011388026B\r 0.01Hz

code

F0.01=50.

00Hz

0, 1 ~010E00030001025A\r 1

Set function code F0.03 to reverse run

0~8CA0 ~010E000803E8028B\r

0~8CA0 ~010E000903E8028C\r

0.1S

0.1S

Set function code F0.08 to 10.0s

Set function code F0.09 to 10.0s

Query auxiliary device software version

15 00 00 no ~010F00000197\r

130

130

Bit1

Bit2

Bit3

Bit4

Bit5

Bit6

Bit7

Table 10-5 response state word meanings of reading inverter state command

signification bit description 0 1

Logo for under voltage

FWD/REV run logo

Swing freq. run mode logo

Common run mode logo jog run mode logo

PLC run mode logo multi-step freq. run mode logo stop normal no no no

Forward run ineffective ineffective run

Under voltage

Reverse run effective effective jog yes yes

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol

Bit8

Bit9

PI closed loop run mode logo

Set counting value arriving logo

Bit10 specified counting value arriving no no no yes yes yes

Bit11~15 reserved

Table 10-6 read auxiliary device function code parameter

function Read auxiliary device function code parameter: all function code parameter except definition meanings frame head address user password and manufacturer password order order index run data checkout sum frame end mainfram e order byte quantity

7EH ADDR 4 BCC 0DH

1 2 2 4 0 4 1 auxiliary device respond

7EH ADDR

Function code para.

BCC 0DH byte quantity remark

1 2 2 4 4 4 1

Command index=combinated by function code group number and hex code of function code number. For instance:

If want to read parameter of F0.05 function code, order index=0005;

If want to read parameter of F2.11 function code, order index =020B;

If want to read parameter of F2.15 function code, order index =020F;

If want to read parameter of F2.13 function code, order index =020D;

Corresponding relation between decimal and hex value of function code group function group decimal hex function group decimal hex

F0 0

F1 1 01H F7 7 07H

F2 2 02H F8 8 08H

F3 3 03H F9 9 09H

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 10 Serial port RS485 communication protocol virtual data

0~FFFF (namely 0~65535)

Please input correct “user password” before you set user function code parameter.

Table 10-7 set auxiliary devsice function code parameter

function definition

Set auxiliary device function code parameter: all function code parameter except user password and manufacturer password meanings frame head address order order index run data checkout sum frame end mainframe order

7EH ADDR 14 see byte quantity auxiliary device respond

1 2 2

7EH ADDR 06 see

4

Function code para.

BCC

4 0 4

0DH

1

BCC 0DH byte quantity remark

1 2 2 4 4 4 1

Command index=combinated by function code group number and hex code of function code number. For instance:

If want to set parameter of F0.05 function code, order index=000B;

If want to set parameter of F2.11 function code, order index =020B;

If want to set parameter of F2.15 function code, order index =020F;

If want to set parameter of F2.13 function code, order index =020D;

Corresponding relation between decimal and hex value of function code group No. function group decimal hex function group decimal hex

F0 0

Virtual data 0~FFFF (namely 0~65535)

132

132

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

Appendix 1 Modbus communication protocol

1.1 Summarization

We provide general RS485 communication interface in our inverters (such as

EDS800 series, EDS1000 series, EDS-V300 series and etc.) for the user. Through this communication interface upper device (such as HMI, PC, PLC controller and etc.) can perform centralized monitor to the inverter (such as to set inverter parameter, control run of inverter, read work state of the inverter).

This communication protocol is interface criterion file designed for realizing above-mentioned function, please read it earnestly and program according to it so that realize long-distance and network control to the inverter.

1.2 Communication net buildup mode

mainframe is PC or mainframe is PLC

RS232

232-485 conversion module

RS485

EDS-V300 EDS-V300

EDS800 EDS800

Fig.1 net buildup graph

1.3. Communication mode

At present, EDS-V300 inverter can be used only as auxiliary device in RS485 net. Can realize communication between inverters through PC, PLC or HMI if it’s needed. Specific communication mode is as mentioned below:

(1) PC or PLC as mainframe,inverter as auxiliary device, point-to-point communication between mainframe and auxiliary device.

(2) Auxiliary device don’t response when mainframe send out command by broadcast address.

(3)

User can set local address, baud rate and data format of the inverter through auxiliary device keypad or serial communication mode.

(4) EDS-V300 provides optional RS485 interface.

(5) Default mode: Asynchronous serial,semiduplex transport mode. RTU mode.

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

Default format and transport rate: 8-N-1, 9600bps.

For specific parameter setting please see description for function code

F2.14~F2.17 as follows:

(remark:Below definition for F2.14~F2.17 is only effective under Modbus communication mode, and definition for other parameters are the same as original)

F2.14

Communication configuration

F2.15

Local address

LED first bit:baud rate selection

0:1200BPS

1:2400BPS

2:4800BPS

3:9600BPS

4:19200BPS

5:38400BPS

LED second bit:data format

0:1-8-1 format,no checkout

1:1-8-1 format,even checkout

2:1-8-1 format,odd checkout

LED third bit:response selection

0:Respond to host command and reply to data packet

1:Respond to host command, but not reply

0-127,0 is broadcast address

F2.16

Communication timeout detection time

0.0-1000.0s

,

0 means communication timeout detection invalid

F2.17

Local response delay 0-200ms

1.4 RTU Communication Mode

0.1s 0.0s ×

1ms 5ms ×

1.4.1 Data frame format

Using RTU mode, messages are sent at least 3.5 character time interval pause. The first transmitted field is device address, the character you can transfer is hexadecimal 0x00 ~ 0xFF. Network equipment Continuously monitor the bus, including pauses. When the address field is received, all equipment determine whether it is sent to their own. when the last character of the packet transfer is complete, at least a 3.5 character times pause mean the end of the message. A new message can begin after this pause.

The entire message frame must be transmitted as a continuous flow. If a new message start transmitting in less than 3.5 character times after a message and then receiving device will consider it a continuation of the previous message. This will cause an error, because in the final CRC field value can not be right.

RTU frame format as the talbe below:

134

134

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

Frame Header

Slave address

Communication command code

Data content DATA

Data content DATA

……

……

3.5 characters time pause

Slave value:1~127

03H:read slave parameter

06H:write slave parameter

The contents of packet:

Parameter address(16bit);

Number of parameter or bytes of parameter value;

Parameter value(16bit)

16bit Unsigned check value CRC check value low byte

CRC check value high byte

Closing Flag 3.5 characters time pause

Regarding generation method of CRC check value, please refer to this Appendix check way paragraph.

1.4.2 Host read slave parameter

Command code 03H. Host can read or one or more parameter( up to ten) by initiating a communication transaction .

E.g., read 2 contiguous inverter parameter values from the address 0000H of inverter whoes address is 01, the contents of host command :

ADR 01H

CMD 03H

Parameters initial address high byte

Parameters initial address low byte

00H

00H

Number of parameter high byte

Number of parameter low byte

CRC check value low byte

CRC check value high byte

00H

02H

Be calculated

Be calculated

The contents of slave reply:

ADR 01H

CMD 03H

Parameter value bytes 04H

Address 0000H content high byte

Address 0000H content low byte

Address 0001H content high byte

Address 0001H content low byte

CRC check value low byte

CRC check value high byte

00H

01H

13H

88H

Be calculated

Be calculated

1.4.3 Host write slave parameter

Command code 06H. Host can write an parameter by initiating a communication transaction .

E.g.,The decimal system 5000 (1388H) written to the inverter 0001H address whose slave address is 02,host command including:

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

ADR

CMD

Parameter address high byte

Parameter address low byte

Parameter value high byte

Parameter value low byte

CRC check value low byte

CRC check value high byte

02H

06H

00H

01H

13H

88H

Be calculated

Be calculated

The contents of slave reply:

ADR 02H

CMD 06H

Parameter address high byte

Parameter address low byte

Address 0903H content high byte

Address 0903H content low byte

CRC check value low byte

CRC check value high byte

00H

01H

13H

88H

Be calculated

Be calculated

1.5 Data communication address allocation

1.5.1 Function code Fd-F0 group communication address

Inverter function parameter’s MODBUS communication address addressing process follows PPnn way: PP means high byte of the address, corresponding to function parameter’s group number; nn means low byte of the address, corresponding to function code parameter’s group internal code. For example:

F3.21 function code’s communication address is 0315H, 03H is the hex form of group number 3, 15H is the hex form of grop internal code 21.

F0.00~F9.11 communication address is 0000H~090BH, Fd group fault record parameter start address is 0D00H.

1.5.2 control command and status word communication address

Variable Name Communication address

Reading-writing attribute

Command data or response value meaning run command word

2000H Writing only 1: inching run

2: inching stop

3: forward inching run

4: reversal inching run

5: run

6: stop

7: forward run

8: reversal run

9: fault reset

10: emergency stop

136

136

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

Serial port frequency provision

Inverter status

Alarm code

2100H

2180H writing

Reading only

Read frequency

1: forwarder running

2: reversal running

3: stop

4: alarm status

0: without alarm

1~23:mean E001~E023 alarm

1.5.3 Monitor parameter communication address

Monitor parameter Name Communication address (read)

C-00

C-01

C-02

C-03

C-04

C-05

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

Set frequency

Output frequency

Output current

Output voltage

DC bus-bar vlotage

Load motor speed module temperature.

Power on running time

Accumulative running time

Input terminal status

Output terminal status

Analog input VCI value

Analog input CCI value

Analog input YCI value

1000H

1001H

1002H

1003H

1004H

1005H

1006H

1007H

1008H

1009H

100AH

100BH

100CH

100DH

C-14 External impulse frequency 100EH

1.6 Communication error processing

Inverter receiving data packet detection error, it finds reading&writing parameter address or parameter value invalid, so reply to the host with communication error response packet. Communication error response packet (host command code

+80H) as command code, with 1 byte error code.

0x03

0x04

0x05

0x06 www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

Format for communication error response packet as follows:

ADR 01H

CMD 83H/86H communication error code 01H~06H (for details, please check below table)

Low byte of CRC checksum Obtain by calculating

High byte of CRC checksum Obtain by calculating

Meaning for each communication error code value as follows:

Communication error code value

0x01

Type of communication error

CRC checksum error

Register address visited illegal

Value to register illegal

Not allow to modify parameters

Register number read illegal

138

138

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix1 Modbus communication protocol

1.7CRC checksum mode

CRC checksum value calculating function written by C language is as follows:

unsigned int cal_crc_value (unsigned char *pval, unsigned char len)

{ unsigned int crc_value=0xFFFF;

unsigned int i; while(len--)

{

crc_value ^= *pval++;

for(i=0; i<8; i++)

{

{ crc_value 1;

}

else

{ crc_value 1;

}

}

}

return(crc_value);

}

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120 Appendix 2 Braking resistance

Appendix 2 Braking resistance

1.1 Braking resistance

The motor’s electric potential energy will charge inverter’s capacitance up reversely if speed of the motor decends too quickly or load of the motor wobbles too quickly while the inverter is running, which will increase the voltage upon power modules suddenly and is easy to make the inverter damaged. The inverter will control it according to load size and performance. You only need to connect external braking resistance to realize timely energy discharge when the braking function is needed. To connect external resistance is a kind of energy consumption braking mode, as all the energy is consumed by the braking resistance.

We can add built-in braking unit for EDS-V300-2S0004~2S0037 with additional cost upon receival of your requirement; EDS-V300-4T0007~4T0150 have built-in braking unit, but no braking resistance.

When braking function needed, please connect external braking resistance according to below table.

Type

Braking unit&braking resistance configuration and External braking resistance configuration table

Built-in braking unit

Built-in braking resistance

External braking resistance

Qty.

Power of external braking resistance

EDS-V300-2S0004 Need to be customized N/A

≥150Ω

1 200W

EDS-V300-2S0007 Need to be customized

EDS-V300-2S0015 Need to be customized

N/A

N/A

≥100Ω

≥70Ω

1 250W

1 400W

EDS-V300-2S0022 Need to be customized

EDS-V300-2S0037 Need to be customized

N/A

N/A

≥50Ω

≥30Ω

1 600W

1 1000W

EDS-V300-4T0007 Yes

EDS-V300-4T0015 Yes

EDS-V300-4T0022 Yes

EDS-V300-4T0037 Yes

N/A

N/A

N/A

N/A

≥300Ω

≥300Ω

≥300Ω

≥125Ω

1 200W

1 200W

1 200W

1 400W

EDS-V300-4T0055 Yes

EDS-V300-4T0075 Yes

EDS-V300-4T0110 Yes

EDS-V300-4T0150 Yes

N/A

N/A

N/A

N/A

≥80Ω

≥80Ω

≥50Ω

1 650W

1 650W

1 1000W

140

140

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
