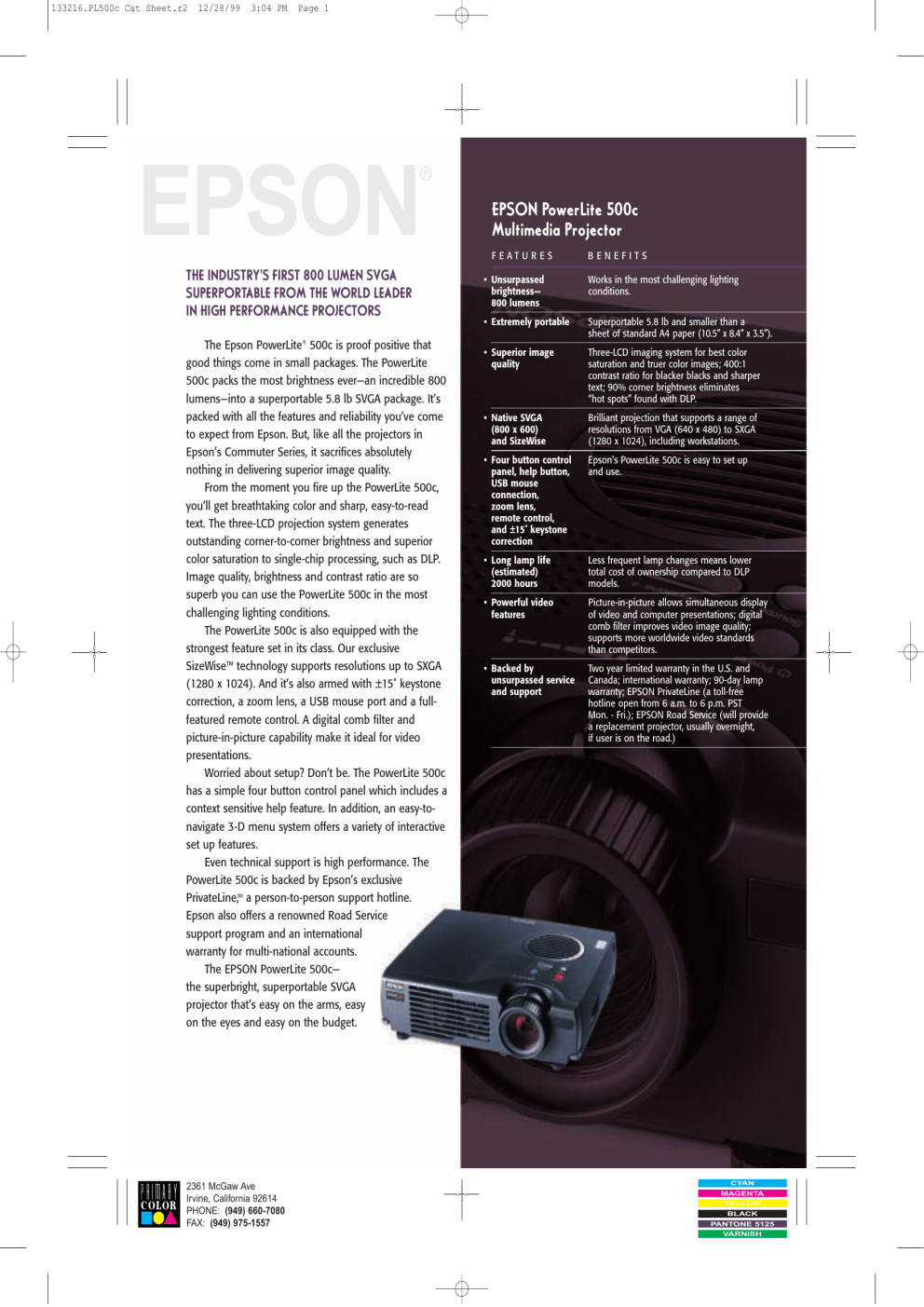

Epson 500C Projector Brochure

133216.PL500c Cat Sheet.r2
12/28/99
3:04 PM
Page 1
EPSON
®
THE INDUSTRY’S FIRST 800 LUMEN SVGA
SUPERPORTABLE FROM THE WORLD LEADER
IN HIGH PERFORMANCE PROJECTORS
The Epson PowerLite® 500c is proof positive that
good things come in small packages. The PowerLite
500c packs the most brightness ever—an incredible 800
lumens—into a superportable 5.8 lb SVGA package. It’s
packed with all the features and reliability you’ve come
to expect from Epson. But, like all the projectors in
Epson’s Commuter Series, it sacrifices absolutely
nothing in delivering superior image quality.
From the moment you fire up the PowerLite 500c,
you’ll get breathtaking color and sharp, easy-to-read
text. The three-LCD projection system generates
outstanding corner-to-corner brightness and superior
color saturation to single-chip processing, such as DLP.
Image quality, brightness and contrast ratio are so
superb you can use the PowerLite 500c in the most
challenging lighting conditions.
The PowerLite 500c is also equipped with the
strongest feature set in its class. Our exclusive
SizeWise™ technology supports resolutions up to SXGA
(1280 x 1024). And it’s also armed with ±15˚ keystone
correction, a zoom lens, a USB mouse port and a fullfeatured remote control. A digital comb filter and
picture-in-picture capability make it ideal for video
presentations.
Worried about setup? Don’t be. The PowerLite 500c
has a simple four button control panel which includes a
context sensitive help feature. In addition, an easy-tonavigate 3-D menu system offers a variety of interactive
set up features.
Even technical support is high performance. The
PowerLite 500c is backed by Epson’s exclusive
PrivateLine,SM a person-to-person support hotline.
Epson also offers a renowned Road Service
support program and an international
warranty for multi-national accounts.
The EPSON PowerLite 500c—
the superbright, superportable SVGA
projector that’s easy on the arms, easy
on the eyes and easy on the budget.
2361 McGaw Ave
Irvine, California 92614
PHONE: (949) 660-7080
FAX: (949) 975-1557
EPSON PowerLite 500c
Multimedia Projector
F E AT U R E S
BENEFITS
• Unsurpassed
brightness—
800 lumens
Works in the most challenging lighting
conditions.
• Extremely portable
Superportable 5.8 lb and smaller than a
sheet of standard A4 paper (10.5” x 8.4” x 3.5”).
• Superior image
quality
Three-LCD imaging system for best color
saturation and truer color images; 400:1
contrast ratio for blacker blacks and sharper
text; 90% corner brightness eliminates
“hot spots” found with DLP.
• Native SVGA
(800 x 600)
and SizeWise
Brilliant projection that supports a range of
resolutions from VGA (640 x 480) to SXGA
(1280 x 1024), including workstations.
• Four button control
panel, help button,
USB mouse
connection,
zoom lens,
remote control,
and ±15˚ keystone
correction
Epson’s PowerLite 500c is easy to set up
and use.
• Long lamp life
(estimated)
2000 hours
Less frequent lamp changes means lower
total cost of ownership compared to DLP
models.
• Powerful video
features
Picture-in-picture allows simultaneous display
of video and computer presentations; digital
comb filter improves video image quality;
supports more worldwide video standards
than competitors.
• Backed by
unsurpassed service
and support
Two year limited warranty in the U.S. and
Canada; international warranty; 90-day lamp
warranty; EPSON PrivateLine (a toll-free
hotline open from 6 a.m. to 6 p.m. PST
Mon. - Fri.); EPSON Road Service (will provide
a replacement projector, usually overnight,
if user is on the road.)
CYAN
MAGENTA
YELLOW
BLACK
PANTONE 5125
VARNISH
133216.PL500c Cat Sheet.r2
12/28/99
EPSON
3:04 PM
POWERLITE
Page 2
500
C
S P EC I F I C AT I O N S
Projection System
Power Requirements/Consumption
EPSON Original Prism technology
AC 100 to 120V/200 to 240V
±10%, 50/60Hz
180W
LCD Panel
EPSON 1.32" Poly-Silicon TFT; Active-matrix
Number of Pixels
2,359,296 pixels
(1024 x 768) x 3 panels
Pixel Arrangement
Stripe
Lens
Manual zoom /manual focus
1.2:1 zoom, F = 2.0 - 2.2, f = 35 - 42 mm
Keystone Correction
Electronic ±15 degrees
Lamp
Ultra High Efficiency (UHE) 2000 hrs. (est.)
120W (user replaceable)
Image Size
Multiple Aspect Ratio
5:4
4:3
16:9
SXGA, UXGA
VGA, SVGA, XGA
Wide screen video
Interface Standards
NTSC, NTSC 4.43,
NTSC 5.0
PAL, PAL-M, PAL-N
PAL-N, PAL-60
SECAM
NTSC, Chroma subcarrier
frequency 3.58 MHz, 4.43 MHz
Chroma subcarrier frequency
CCIR, Chroma
Subcarrier frequency 4.43 MHz
CCIR, Carrier frequency
4.43 MHz
Physical Characteristics
10.5” x 3.5” x 8.4” (W x D x H); 5.8 lb
Supplied Accessories
3.9' - 52' (1.2m - 15.7m)
PS/2 mouse cable, Macintosh® mouse cable, USB
mouse cable, computer cable, AV cable, power cable,
CD-ROM, remote control, 2 AA batteries, user’s guide,
Quick Start poster
Color Reproduction
Product/Accessory Part Numbers
Diagonal 26" - 300"
Projection Distance
400:1
EPSON PowerLite 500c
multimedia projector EMP-500
Optional Accessories
Wheeled soft case for projector/laptop
ELPKS18
Soft shell shoulder case for projector/laptop ELPKS13
Replacement lamp unit
ELPLP10S
Illumination Ratio
Warranty
24 bit, 16.7 million colors
Brightness
800 ANSI lumens (typical)
Contrast Ratio
90% (typical)
Projection Methods
Front projection
Rear/ceiling mount
Audio
Built-in monaural speaker
1w
TM
Two year limited warranty in the U.S. and Canada;
international warranty; 90-day lamp warranty; EPSON
PrivateLine and EPSON Road Service.
Support - The Epson Connection
SM
Pre-Sales Support U.S. & Canada
800-463-7766
Automated Technical Support
800-922-8911
Internet Website
http://www.epson.com
http://www.presentersonline.com
Pixel Clock
13.5 - 160 MHz
H Sync
15 - 92 kHz
V Sync
50 - 87 Hz
Operating Noise Level
<40 dB
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada, Ltd.
550 McNicoll, Willowdale, Ontario M2H 2E1
Epson Latin America, Inc.
6303 Blue Lagoon Drive, Miami, FL 33126
Specifications and terms are subject to change without notice. EPSON is a registered trademark of Seiko Epson Corporation. PowerLite is a registered trademark, SizeWise is a
trademark and PrivateLine, Epson Connection and Presenters Online are service marks of Epson America, Inc. All other product and brand names are trademarks and/or
registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. © Copyright 1999 Epson America, Inc. CPD-9361 50K 12/99
