-J06102
REV. 2014-07-30

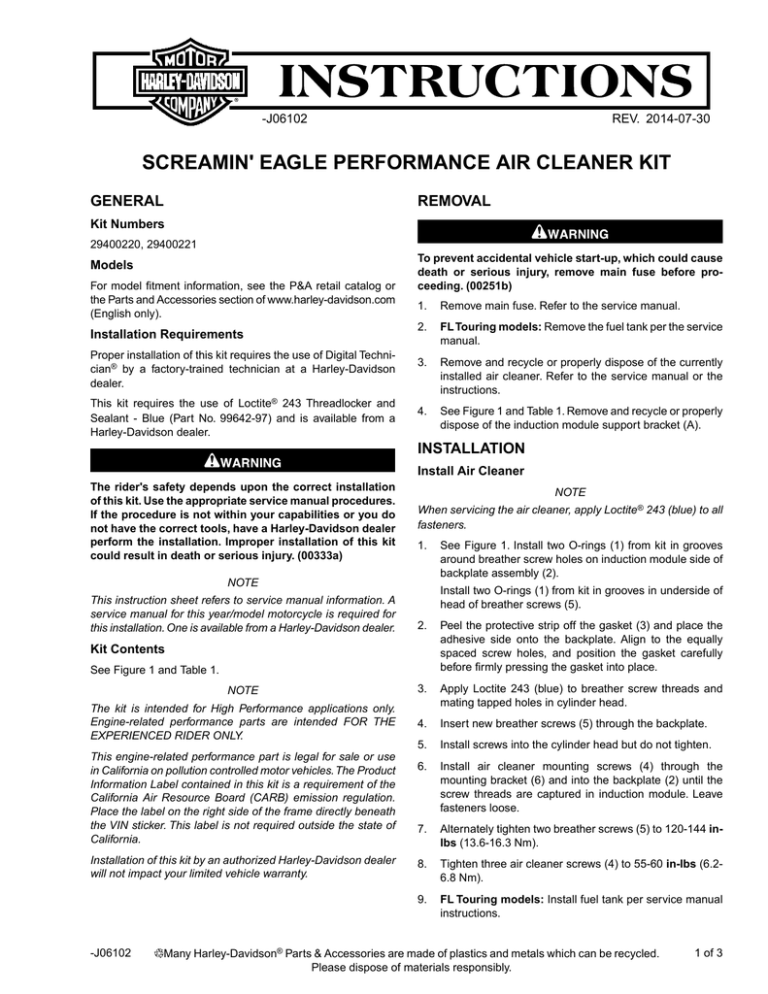

SCREAMIN' EAGLE PERFORMANCE AIR CLEANER KIT
GENERAL
REMOVAL
Kit Numbers
29400220, 29400221
Models
For model fitment information, see the P&A retail catalog or
the Parts and Accessories section of www.harley-davidson.com
(English only).
Installation Requirements
Proper installation of this kit requires the use of Digital Technician® by a factory-trained technician at a Harley-Davidson
dealer.
This kit requires the use of Loctite® 243 Threadlocker and
Sealant - Blue (Part No. 99642-97) and is available from a
Harley-Davidson dealer.
To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before proceeding. (00251b)
1.
Remove main fuse. Refer to the service manual.
2.
FL Touring models: Remove the fuel tank per the service
manual.
3.
Remove and recycle or properly dispose of the currently
installed air cleaner. Refer to the service manual or the
instructions.
4.
See Figure 1 and Table 1. Remove and recycle or properly
dispose of the induction module support bracket (A).
INSTALLATION
Install Air Cleaner
The rider's safety depends upon the correct installation
of this kit. Use the appropriate service manual procedures.
If the procedure is not within your capabilities or you do
not have the correct tools, have a Harley-Davidson dealer
perform the installation. Improper installation of this kit
could result in death or serious injury. (00333a)
NOTE
When servicing the air cleaner, apply Loctite® 243 (blue) to all
fasteners.
1.
NOTE
This instruction sheet refers to service manual information. A
service manual for this year/model motorcycle is required for
this installation. One is available from a Harley-Davidson dealer.
See Figure 1. Install two O-rings (1) from kit in grooves
around breather screw holes on induction module side of
backplate assembly (2).
Install two O-rings (1) from kit in grooves in underside of
head of breather screws (5).
2.
Peel the protective strip off the gasket (3) and place the
adhesive side onto the backplate. Align to the equally
spaced screw holes, and position the gasket carefully
before firmly pressing the gasket into place.
NOTE
3.
The kit is intended for High Performance applications only.
Engine-related performance parts are intended FOR THE
EXPERIENCED RIDER ONLY.
Apply Loctite 243 (blue) to breather screw threads and
mating tapped holes in cylinder head.
4.
Insert new breather screws (5) through the backplate.
5.
Install screws into the cylinder head but do not tighten.
6.
Install air cleaner mounting screws (4) through the
mounting bracket (6) and into the backplate (2) until the
screw threads are captured in induction module. Leave
fasteners loose.
7.
Alternately tighten two breather screws (5) to 120-144 inlbs (13.6-16.3 Nm).
8.
Tighten three air cleaner screws (4) to 55-60 in-lbs (6.26.8 Nm).
9.
FL Touring models: Install fuel tank per service manual
instructions.
Kit Contents
See Figure 1 and Table 1.
This engine-related performance part is legal for sale or use
in California on pollution controlled motor vehicles. The Product
Information Label contained in this kit is a requirement of the
California Air Resource Board (CARB) emission regulation.
Place the label on the right side of the frame directly beneath
the VIN sticker. This label is not required outside the state of
California.
Installation of this kit by an authorized Harley-Davidson dealer
will not impact your limited vehicle warranty.
-J06102
Many Harley-Davidson® Parts & Accessories are made of plastics and metals which can be recycled.
Please dispose of materials responsibly.
1 of 3
99883-88T). Or, a 12 fl oz/0.35 L sprayer bottle as part of
the Filter Care Service Kit (Part No. 99850-92T).
Install air cleaner filter and cover.
NOTE
Whenever the air cleaner cover is installed, apply Loctite 243
(blue) to the air cleaner cover screw (8).
1.
See Figure 1. Install the air cleaner element (7), air filter
screen (11), and cover (9). Before tightening the center
screw, align the cover using the medallion for best
appearance. Tighten center screw to 36-60 in-lbs (4.16.8 Nm).
NOTE
Apply a small amount of dish soap to medallion O-ring to aid
in installation of medallion.
2.
Install the medallion into the center hole by pressing in
place. Do not damage the O-ring.
•
K&N Air Filter Oil is also available from a Harley-Davidson
dealer, either alone (12.25 oz/347 gram aerosol can, Part
No. 99882-88T). Or, a 6.5 oz/184 gram aerosol can as
part of the Filter Care Service Kit.
•
DO NOT OVER-OIL THE AIR FILTER. Over-oiling can
interfere with the proper performance of the engine and/or
certain engine components. If oil is still draining or dripping
from the filter media 20 minutes after oiling, clean and oil
the filter element again.
2.
To clean the element:
a.
Remove the center medallion by inserting a small flat
blade screwdriver in the slot at the bottom of the
medallion. Carefully work around the center portion
without scratching the finish of the air cleaner cover.
Rotating the medallion aids in removal.
b.
Remove the air cleaner cover center screw.
c.
Tap the element to dislodge any loose dirt. Gently
brush with a soft bristle brush.
d.
Spray air filter cleaner liberally onto the cotton filter
media and let soak for ten minutes. Or, roll and soak
the cotton filter media in a shallow pan of air filter
cleaner. Remove immediately, and let soak for ten
minutes.
e.
Rinse off the filter media (flowing from the clean side
to the dirty side), with low-pressure tap water.
f.
After rinsing, shake off all excess water, and let the
filter media air dry. DO NOT use compressed air or
a heat gun to speed drying.
g.
After the filter media is dry, EITHER spray air filter oil
along each pleat, once only, holding the spray nozzle
approximately 3 in (76 mm) away from the media. Or,
carefully use a squeeze bottle to deposit oil along
each pleat, once only.
Completion
NOTE
Verify that the ignition key switch is in the OFF position before
installing the main fuse.
1.
Install the main fuse. See the service manual.
NOTES
Install the rain sock over the air filter element in wet or rainy
conditions to prevent water intrusion.
Install the pre-charger (13) over the air filter element under
these circumstances.
Recalibrate ECM
You must recalibrate the ECM when installing this kit.
Failure to properly recalibrate the ECM can result in severe
engine damage. (00399b)
Have a Harley-Davidson dealer install the new ECM calibration
using Digital Technician™.
Air Filter Element Maintenance
1.
•
•
Inspect the air filter element every 5000 miles (8000 km),
or more often under dusty conditions.
NOTES
The use of cleaning, drying or oiling methods or products
other than those shown damages the filter and void the
manufacturer's warranty
Let the oil absorb into the filter media for 20
minutes before proceeding.
After 20 minutes, inspect the filter media. Carefully
apply oil to any remaining visible white spots on the
filter media. Allow to absorb.
K&N® Air filter Cleaner is available from a Harley-Davidson
dealer, either alone (1 qt/0.95 L sprayer bottle, Part No.
-J06102
2 of 3
SERVICE PARTS
is07256a
A
3
1
5
7
13
2
11
6
4
8
10 12
9
Figure 1. Service Parts, Screamin' Eagle Performance Air Cleaner Kit
Table 1. Service Parts
Item
Description (Quantity)
Part Number
1
O-ring, #2-113 (4)
11292
2
Backplate, chrome (Kit 29400123)
Backplate, black (Kit 29400124)
29000080
29000079
3
Gasket, throttle body
29241-08
4
Screw, socket head cap, 1/4-20 x 1.75 in (44.5 mm) long (3)
Not sold separately
5
Bolt, breather (2)
29400081
6
Bracket, mounting
29400072
7
Air filter element
29400065
8
Screw, hex socket, flat head, 5/16-18 x 2.0 in (51 mm) long
Not sold separately
9
Cover, air cleaner
Not sold separately
10
Medallion, Screamin' Eagle
14100367
11
Screen, air filter, chrome (Kit 29400221)
Screen, air filter, black (Kit 29400220)
29400082
29400100
12
O-ring, medallion
11170
13
Pre-charger
29400121
Items mentioned in text, but not included in kit:
A
-J06102
Induction module bracket
3 of 3
