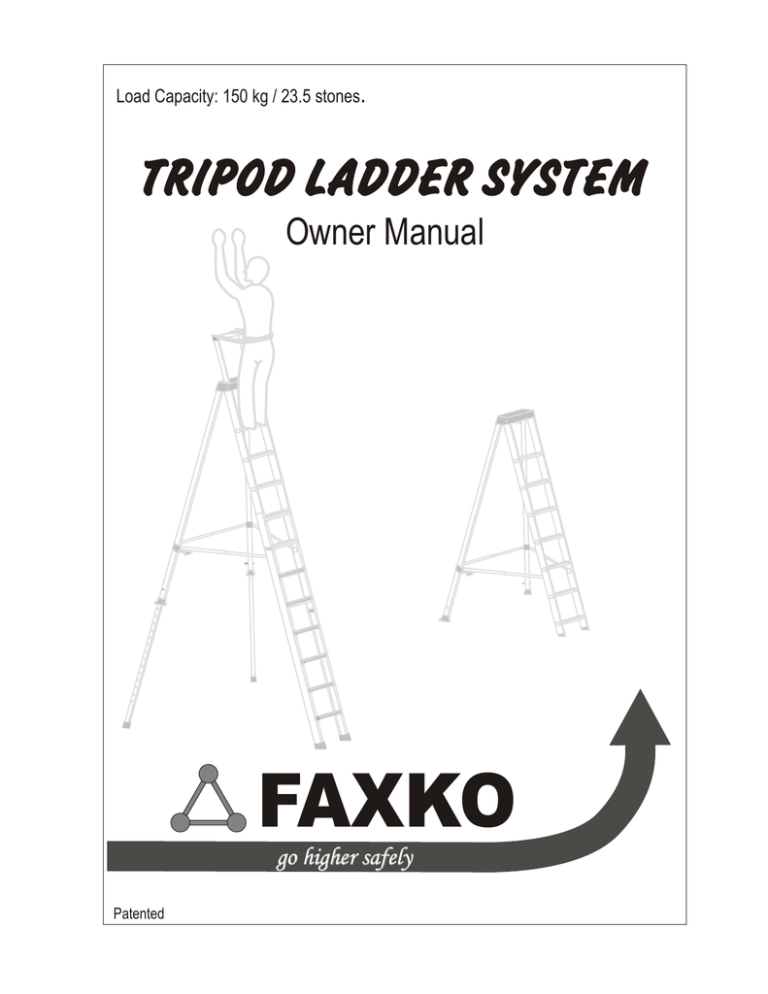

Load Capacity: 150 kg / 23.5 stones

.

Owner Manual

Patented

FAXKO

Table of Contents

Introduction

Product Overview ............................................................................ 3

Terminology ..................................................................................... 4

Specification .................................................................................... 5

Operation Instruction

Application ....................................................................................... 6

Lock Operation ................................................................................ 7

Safety Belt ....................................................................................... 8

Safety

Inspection ....................................................................................... 9

Proper Set-up ................................................................................. 9

Proper Climbing and Use .............................................................. 10

Proper Care ................................................................................... 10

Setup Demonstration ..................................................................... 11

ELECTROCUTION HAZARD

2

Failure to read and follow all instructions on this ladder, including those on the extension parts may

Death

WATCH FOR

WIRE

THIS LADDER

CONDUCTS

ELECTRICITY

For more information, please visit http://www.faxko.com

Introduction

Product Overview

The followings are the unique features for the Tripod Ladder System.

SAFETY:

The system is the safest ladder in its class. The wide support base provides stability that is unparalleled by any other stepladders.

The Safety belt would allow hand free operations and provides additional protection in case you are out of balanced positions.

CAPABILITY:

The system can provide higher elevations than any other stepladders available for general consumers. It is perfect for those who has a high ceiling house.

VERSATILITY:

The Fly Section of the system can be used independently without the extension members. It is lighter weight for low elevation applications.

The 3 independently adjustable LEGS can be used on uneven surfaces.

The feature is convenient for outdoor applications.

Also the system can be adjusted to use for against-wall applications. It is safer than using a traditional extension ladder.

CONVENIENCE:

Relatively small package size and light weight for ease of storage and transportation.

Since the system can perform as high/low stepladders and replace extension ladders, home owners would not need multiple ladders.

The system can be operated by one person without safety concerns.

For more information, please visit http://www.faxko.com

3

Introduction

Terminology

Handle

Top Cap

Upper

Support Leg

Spreaders

Lower

Support Leg

(Extension Leg)

Ball Lock Pin

System

Lock

J Lock

Safety Belt

Handle Lock

Upper Ladder

Rungs

Side Rails

Lower Ladder

(Extension Ladder)

4

Fly Section is the upper ladder section without the extension members

For more information, please visit http://www.faxko.com

Specification

Models

Dimensions

A

B

C

Descriptions

Highest Standing Level

Max. Reach *

Storage Length

Fly Section

Weight

Total System

Equivalent Traditional Stepladder Size

(3.69M)

(5.67M)

(3.11M)

(5.09M)

(2.62M) (2.31M)

28.6 lb

(13.0 kg)

26.2 lb

(11.9 kg)

48.0 lb

(21.8 kg)

43.8 lb

(19.9 kg)

16 ft.

14 ft.

Introduction

Load Capacity: 150kg per EN131

Elevation Adjustment Resolution

Ladder: 12 inches

Support Legs: ~ 3 inches

For more information, please visit http://www.faxko.com

5

Operation

Application

Use the ladder in the following applications only

The Fly Section can be used without extension members on a firm level surface only

The ladder can be used with or without extended handle

6

The full ladder system can be used on even and uneven surfaces.

All the 3 spreaders must be level before use for open space applications.

WALL

1. Support leg shoes contact with the wall

2. The top cap must be at least 10 in. (25 cm) away from the wall

2

Note: this is the only application to allow the 2 spreaders at the ladder side to be sloping.

The 3rd spreader between the legs is always level.

1

AGAINST WALL

For more information, please visit http://www.faxko.com

Operation

Lock Operations

System

Lock

LOCK

LOCK

UNLOCK

UNLOCK

PUSH

Lock the system at close position

Push up the lock mechanism to unlock the system

J Lock

Ball Lock Pin

Insert lock tabs completely into the side rail hole before use

Support Leg

2

1

Pull the lock tab out and twist slightly

2

1

1. Press the knob

2. Insert the pin into the hole and release visible pin tip

1. Press the knob

2. Pull the pin out of the hole

Handle Lock

LOCK

The spring would push the pin through the holes when they are aligned. Visible pin tips confirm the proper engagements.

UNLOCK

Pull the pins to the center of the top cap and rotate the pin to rest on the parking bracket.

For more information, please visit http://www.faxko.com

7

Safety Belt

Operation

Secure at the handle holes

8

OUTER BELT secures the body to the ladder and the INNER BELT would secure the belt to the body.

Wrap the BELT around your waist and adjust the OUTER BELT so that each of the end clip is approximately 16 inches from the center of the side body. Then, adjust the INNER BELT and buckle on your waist.

Use both hands in climbing and secure each of the end clips at the appropriate holes on the handle.

Note: At least one of your hands must hold the ladder all the time until the

Safety Belt is properly secured.

Warning:Always wear the safety belt before climbing the ladder

For more information, please visit http://www.faxko.com

Safety

Inspection

1. Inspect upon receipt and before each use: never climb a damaged, bent, or broken ladder. All parts must be in good working order

2. Make sure all rivets, joints, nuts, and bolts are tight; steps, rungs, spreaders and top cap secure; spreaders, all the locks, extension ladder and support legs function properly.

3. Keep ladder clean, free from grease, oil, mud, snow, wet paint, and other slippery material. Keep your shoes clean, leather soles should not be used.

4. Never make temporary repairs of damaged or missing parts.

5. Do not use the ladder, if one of the components (including the safety belt) has degradation due to fire, chemical corrosion, aging, excessive UV exposure and etc..

Proper Setup

1. Release the ladder system locks, pull the support legs divergently from the ladder and securing the spreaders by pressing down the center pivots.

2. If additional elevation is required, extend the ladder one step and follow up with 4 position holes at each of the legs. Do not adjust (up or down) more than one foot at a

time from an optimum position. Repeat the above process until reach to your desired height.

Level

LOCK

SUPPORT

LEG

UNLOCK

LADDER

4 POSITIONS ON THE SUPPORT LEG

PER ONE LADDER STEP ADJUSTMENT

For more information, please visit http://www.faxko.com

9

3. To have an optimum (most stable) position, all the 3 spreaders must be level * before use. If the ladder is setup on a level surface, the optimum positions can be reached by matching the number on the extension leg that first appear from the upper leg with the number on the rung at the J Locks.

2

UPPER LADDER

UPPER

LEG

3

4

LOWER LADDER

5

4

M

A

T

C

H

3

J Lock

2

Proper Climbing and Use

1. Read this manual and all the Labels on the ladder.

2. Setup the ladder properly.

3. Level all the 3 Spreaders. *

4. Secure all the Locks.

5. Wear the safety belt before climbing.

6. Uses both hands in climbing and secure the safety belt on the handle.

7. Always face ladder and maintain firm grip until the safety belt is secured.

8. Do not over reach. Always keep your bellybutton between the side rails.

9. Never use a ladder if you are not in good physical and mental condition.

10. Total weight (a person and materials) not to exceed 150kg.

11. NEVER use this ladder near electrical current.

12. Do not use ladder in windy conditions.

13. Do not use in front of unlocked doors

Proper Care

1. Store the ladder system in safe and dry place. Keep away from direct sun light.

2. Properly secure and support ladder while in transit.

3. Never store materials on ladder.

4. Keep ladder clean and free of all foreign materials.

5. Lubricate all the moving parts regularly.

* exception for the Against Wall applications (see page 6).

10 For more information, please visit http://www.faxko.com

Safety

Setup Demonstration

1

3

Release system Lock

4

Open

2

5

Level Spreaders

Safety

Extend 1step at Ladder Extend 4 holes at Leg1 Extend 8 holes at Leg2

6

7

Repeat until reach your desired height

Extend additional 4 holes at Leg1

Extend additional 1 step at Ladder

Note: The images showed extending the height by 2 ft.

(i.e. 2 ladder steps).

For more information, please visit http://www.faxko.com

11

Updated: September 9, 2011

FAXKO

LLC

www.faxko.com

P/N: MU-01
