User Manual - Video Management Solutions

User Manual - Video Management Solutions

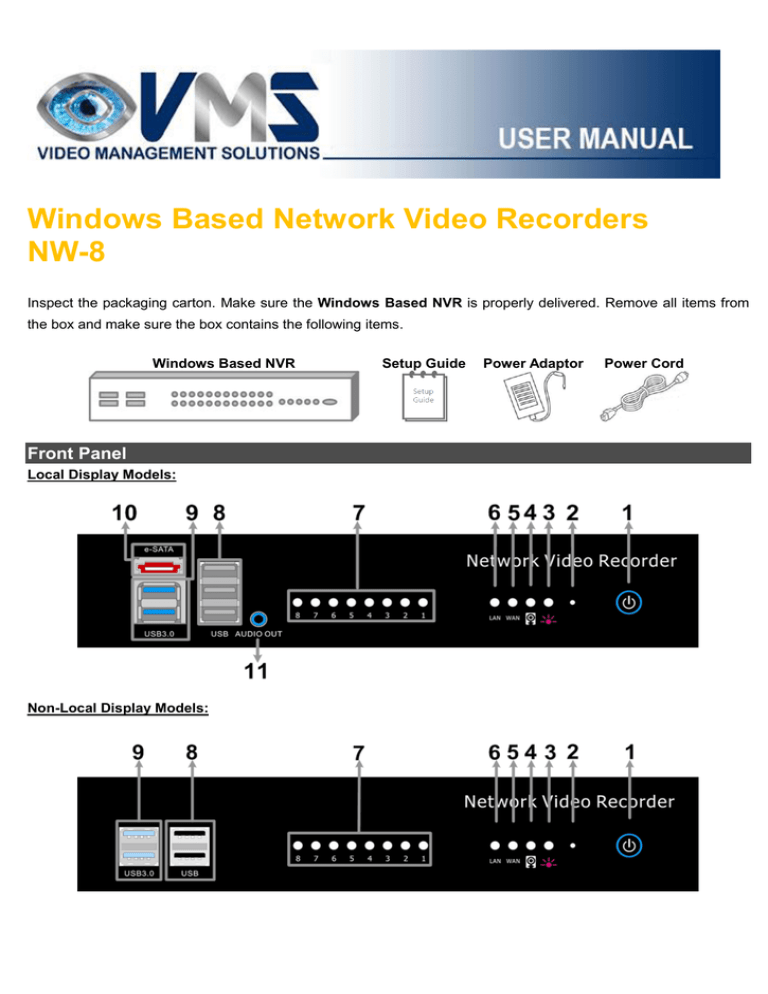

Windows Based Network Video Recorders
NW-8
Inspect the packaging carton. Make sure the Windows Based NVR is properly delivered. Remove all items from
the box and make sure the box contains the following items.
Windows Based NVR
Front Panel
Local Display Models:
Non-Local Display Models:
Setup Guide
Power Adaptor
Power Cord
1
Power Key
2
Reset Switch
3
PoE LED
4
HDD LED
5
WAN LED
6
UpLink LED
7
Camera LEDs
8
USB 2.0 Ports
9
USB 3.0 Ports
10
11
e-SATA
(Local Display
Models Only)
Audio Out
(Local Display
Models Only)
1. Blue: The NVR system is on. The power key will not respond while the
system is running.
2. Green: They NVR system is shutdown but PoE switch is still alive.
Press the power key to startup the system.
3. OFF: The power cord is disconnected.
Insert a pin to force restart the system.
The PoE LED will start to blink when the output power is reaching to the
limit.
1. Blink: The HDD/CF Card is running.
2. OFF: No storage device is found.
3.
1. Orange: Network speed is 10/100 Mbps.
2. Green: Network speed is 1000 Mbps.
With different models of NVR, the number of Camera LEDs is also
different. The following is description of the lightened LEDs.
1. Orange: The power is supplied by the camera itself.
2. Green: The power is supplied by the PoE switch at the rear panel.
The USB 2.0 ports allow users to connect external USB devices, such as
a USB mouse, a USB keyboard, a USB storage device, etc. Local display
models contain three USB 2.0 ports, and non-local display models include
two USB 2.0 ports.
The USB 3.0 ports support all 3.0, 2.0 and 1.0 devices. Users can connect
external USB devices, such as a USB mouse, a USB keyboard, a USB
storage device, etc.
Users can connect an e-SATA storage device via this port.
An audio out connector is provided to output sounds.
Rear Panel
Local Display Models:
2
1
VGA Monitor
The VGA output connector is offered for connection to a VGA monitor.
2
e-SATA
Users can connect an e-SATA storage device via this port.
3
HDMI Monitor
4
UpLink – SFP
A HDMI connector is provided for connection to a HDMI monitor.
Users can connect an SFP module that expands the NVR’s private
network connection by fiber ports. This port has absolute priority over
5
UpLink – RJ-45
6
WAN – RJ-45
7
PoE Switch
8
Power Jack
the RJ-45 port for uplink, and they will not function simultaneously.
This is for connection to a router or switch within the NVR’s private
network, to share the network connection. The RJ-45 port will not
function when the SFP port is connected, no matter before or after.
This port is for network connection to the internet.
The PoE switch provides connection to IP cameras. With different
models of NVR, the number of PoE switch is also different.
Connect the power cord and the power adaptor shipped with the
NVR. Use of other power supply may cause overloading.
Non-Local Display Models:
1
Audio Out
An audio out connector is provided to output sounds.
2
VGA Monitor
The VGA output connector is offered for connection to a VGA monitor.
3
HDMI Monitor
A HDMI connector is provided for connection to a HDMI monitor.
4
e-SATA
Users can connect an e-SATA storage device via this port.
5
RS232
6
UpLink – SFP
7
UpLink – RJ-45
8
WAN – RJ-45
9
PoE Switch
10
Power Jack
This port provides connection to a RS232 device.
Users can connect a SFP module that expands the NVR’s private
network connection by fiber ports. This port has absolute priority over
the RJ-45 port for uplink, and they will not function simultaneously.
This is for connection to a router or switch within the NVR’s private
network, to share the network connection. The RJ-45 port will not
function when the SFP port is connected, no matter before or after.
This port is for network connection to the internet.
The PoE switch provides connection to IP cameras. With different
models of NVR, the number of PoE switch is also different.
Connect the power cord and the power adaptor shipped with the
NVR. Use of other power supply may cause overloading.
Connect Required Devices and Power on the NVR
Before power on the NVR, connect the following devices first.
 USB Mouse & USB Keyboard
 IP Cameras (via PoE Ports)
 Monitor (VGA or HDMI)
 Internet (WAN)
Lastly, connect the power cord to the NVR and login the Windows system. Note that the power source should be
between AC 110V ~ AC 240V.
Startup the NVR on Standby
When the system is shutdown but the power is still on (Green LED), users can press the power key to restart the
NVR.
3
NOTE: Due to security concern, the Power key will not respond while the Windows is running.
NOTE: If USB hub and KVM switch are required for application, insert these devices AFTER THE SYSTEM
SUCCESSFULLY BOOTS UP. Otherwise, the unknown devices may cause boot-up failure.
Windows System Setting
Internet Information Server (IIS)
If users have any software that needs to use port 80, users have to change the setting of IIS and VSS connection
port. Refer to the following instructions.
 Switch ON the IIS via <Control Panel>  <System and Security>  <Administrative Tools>  <Services> 
<World Wide Web Publishing Service>  <Startup type>  <Enable>.
 At VSS, click on the <Setting> button of VSS and select <Client Setting> tab. Change the port number at
<Connect Port> at top-right. Note that the port number must be changed to a different number that is not often
used, such as 20000. Click <OK> to save the setting.
System Restore
It is recommended to create a restore point when users first start up the system. Once unexpected system errors
occur, users can restore the system to the restore point. The following describes how to create a restore point and
restore the system.
 Click on <Start> menu and right click on <Computer>. Click on <Properties>  <System Protection>. <System
Properties> will be displayed.
 Click on <Create…>button below to setup a restore point. Users will be asked to name the restore point. After
users input a name, click on <Create> button. A message window will indicate a restore point is being created.
Users will be notified that the setting is completed, and can click <Close> to exit.
 Click on <System Restore…> under “System Restore” section. <System Restore> will pop out. Click on <Next>
button, and a list of restore points will be displayed. Select a preferred restore point, and click on <Next> button.
Click on <Finish> button to start restoring the system.
 A warning window will be displayed. Select <Yes> to start restoring the system.
This process may take a while, so please wait patiently. The system will reboot by itself. An information window will
pop
out,
indicating
the
system
restore
has
finished.
For
more
details,
please
visit
http://windows.microsoft.com/en-US/windows7/products/features/system-restore
Turn Off Windows Updates
To prevent the NVR from stopping recording due to automatic system restart after Windows updates, it is
recommended to turn off Windows Updates. Follow the steps to disable this function.
 Go to <Control Panel>  <System and Security>  <Windows Update>  <Change Settings>.
 Select <Never check for updates (not recommended) > under “Important updates” section.
 Uncheck the selections under “Recommended updates” section, and “Who can install updates” section. Then,
click <OK> to save the settings and exit.
4
 After the above setting is done, click on <Start> menu, right click on <Computer>, and then select <Manage>.
Select <Service> under <Services and Applications> on the left.
 Double click on <Windows Update>. Select <Disabled> next to “Startup type:”, and click <Stop> under “Service
Status” section. Click < OK > to apply the setting and exit.
Conditionally Turn On Windows Updates
If users wish to update Windows system, follow the steps below to enable this function.
 Go to <Control Panel>  <System and Security>  <Windows Update>  <Change Settings>.
 Select <Install updates automatically (recommended) > under “Important updates” section.
 Click <OK> to save the settings and exit. Automatic Windows Updates will begin.
NOTE: After Windows is updated, users MUST turn off Windows Updates by following the same steps in
“Turn Off Windows Updates” section.
Local Display NVR vs. Non-Local Display NVR
For NVR with CPU supporting local display, Video Storage Server (VSS) and Video Management Solutions (VMS)
are pre-installed. Startup the NVR system and VSS & VMS will automatically startup as well.
For NVR requiring Live video display at a different PC, only Video Storage Server (VSS) will be pre-installed. Startup
the NVR system and VSS will automatically startup as well. The following sections with VMS contents do not apply
to the non-local display NVR. Users can install and operate VMS at a different PC according to the User’s Manual of
VMS.
NOTE: If users turn on the Windows Firewall, please add VSS and VMS to the exception list of the Windows
Firewall to avoid them from being block by the firewall.
NOTE: If users already have any familiar backend software other than VSS, please refer to the software’s
manual for installation and operation.
Auto Connection of VSS and VMS
Refer to the following for details of auto connection and auto setting of VSS and CMS.
 VSS and VMS will be automatically login with the username “admin” and the password “1234”.
 IP cameras connected via the PoE ports are plug-and-play. They will be automatically added to the start group of
VSS.
 The <Schedule Record> setting will be unavailable. VSS is preset to record all sites at all times.

VMS will automatically add VSS as the start group and videos from the connected IP cameras will be
automatically retrieved and displayed.

5
Auto HDD Management
The Auto HDD Management function of VSS helps to automatically add all connected HDDs, except the C drive, as
the storage folders of the recorded videos. If the system has detected any portable HDD at any time, it will be added
to the folder list as well. Click on the <Setting> button and select the <File Path> tab to see the folder list. Check the
box in front of <Hard Disk Auto Detection> to enable or disable this function.
NOTE: WD RED and WD Se series HDDs are recommended for the Windows Based NVR.
Add More IP Camera Sites
If any PoE port is not connected to IP cameras, users can add IP camera connections via internet. Follow the steps
below.
 Click on the <Setting> button. Right click on <New Group> in the site tree and select <Add a site> to add another
connected IP camera. Input the IP address of the IP camera or find it via <Device Search>. Input the username
and password to complete adding the IP camera site.
 Alternatively, users can also right click on <New Group> in the site tree and select <Add sites…> to add multiple
IP camera sites at once. Press and hold the “Ctrl” key to select IP cameras. Then input username and password
for each site
 Enable auto streaming configuration for the added IP cameras.
 Click on <OK> at the bottom to save the setting.

Default IP Addresses for IP Cameras and VSS
The connected IP cameras will each be automatically assigned a unique IP address, for connection from other
devices in the same local area network. The default IP address for CH1 is 192.168.50.11; for CH2 is
192.168.50.12; and so on. Note that the network setting of the IP cameras need to be set to DHCP or the NVR will
not be able to assign the default IP addresses to them.
In the mean time, VSS also has a default IP for LAN connection, which is 192.168.50.27 for 16CH models and
192.168.50.35 for 24CH models. This IP address can be found when users check <Control Panel>  <Network and
Sharing Center>  <Local Area Connection>  <Details>.
NOTE: The IP address of the VSS for WAN connection can be found via <Control Panel>  <Network and
Sharing Center>  <Local Area Network 3>  <Details>.
6
NVR Remote and Mobile Apps Support
Users can also connect to VSS via NVR Remote, the remote monitoring software, and/or Apps such as NetGuard /
NetGuardHD (iOS) or DroidGuard / DroidGuardHD (Android) on portable handy devices. After VSS is connected,
users can view both Live / Playback videos and can search the video database. Refer to the User’s Manual of VSS
and the App’s Help info for detailed description.
NSW - Silverwater
VIC
ACT
Unit 4, 52 Holker Street
Unit 3 / 1 Rocklea Drive
22 Isa Street
Silverwater NSW 2128
Port Melbourne VIC 3207
Fyshwick ACT 2609
E: [email protected]
E: [email protected]
E: [email protected]
P: +61 2 9395 1400
P: +61 3 9646 4166
P: +61 2 6162 4600|
F: +61 2 9647 0014
F: +61 3 9646 4155
F: +61 2 6162 4605
NSW - Sydney City
QLD
WA
Unit 10, 10 Bradford Street
Unit 2/ 40 Borthwick Ave
28a Teddington Rd
Alexandria NSW 2015
Murarrie QLD 4172
Burswood WA 6100
E: [email protected]
E:[email protected]
E: [email protected]
P: +61 2 9304 4555
P: +61 7 3399 5280
P: +61 8 9361 7000
F: +61 2 9700 8055
F: +61 7 3399 9805
F: +61 8 9361 7011
7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
