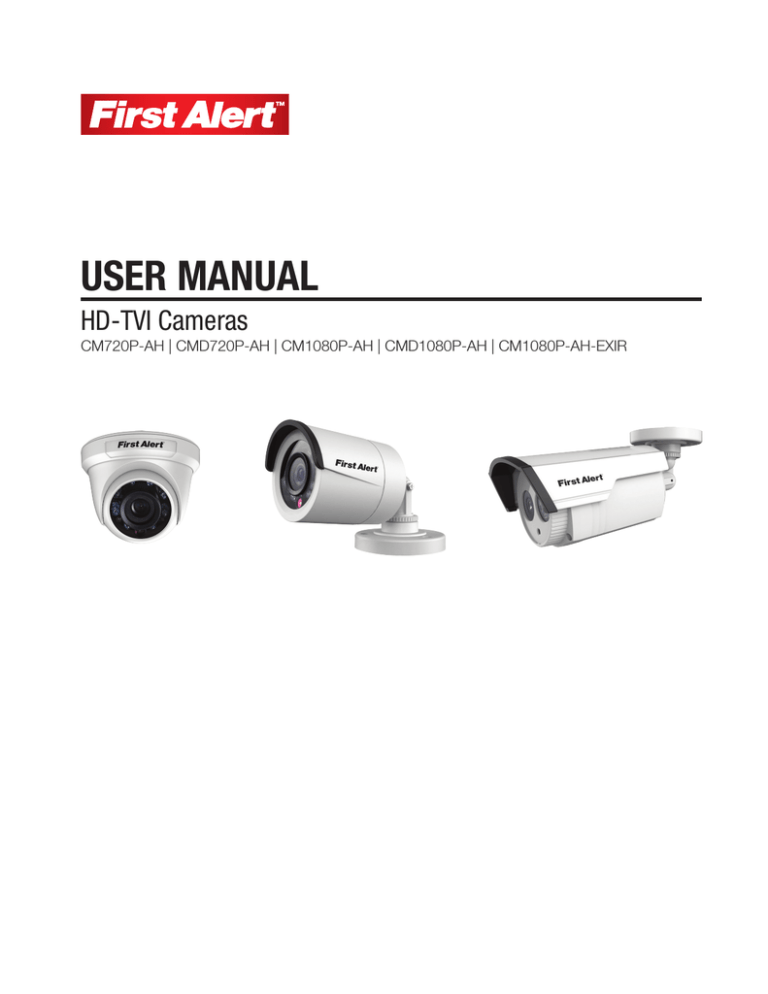

USER MANUAL
HD-TVI Cameras
CM720P-AH | CMD720P-AH | CM1080P-AH | CMD1080P-AH | CM1080P-AH-EXIR
INTRODUCTION
Thank You & Key Product Features
Welcome
Thank you for choosing First Alert for your security needs!
For more than half a century, First Alert has made the home-safety and security products that make your life easier.
Our products are built to the highest standard which has earned us a leadership role in the home-safety and security
product categories. We are committed to serving our customers, from the professionals who install our products, to
the families and businesses who count on them. First Alert has been helping families and businesses stay safe for over
50 years. By having a First Alert Security System, you’re taking the first step in protecting your home or business from
damage or theft.
This manual is written for the HD-TVI CM720P-AH, CMD720P-AH, CM1080P-AH, CMD1080P-AH, CM1080P-AHEXIR cameras. It was accurate at the time it was completed. However, because of our ongoing effort to constantly
improve our products, additional features and functions may have been added since that time and on-screen
displays may change. We encourage you to visit our website at www.firstalert.com to check for the latest manuals
(English and Spanish), firmware updates, downloads, other security camera products and announcements.
Main Description
HDTVI cameras have 720P or 1080P high definition resolution. These cameras are compatible with HDTVI DVRs. Visit
www.firstalert.com for more information on products in the HDTVI series.
Product Features
•
HD resolution using analog BNC cables
•
Indoor/outdoor use
•
Night vision
•
Remote viewing and controlling from Smartbridge HD app
Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.
The figures in this manual are for reference only.
This manual is applicable to the models listed in the following table.
Model
Type
CM720P-AH
CMD720P-AH
CM1080P-AH
HDTVI Cameras
CMD1080P-AH
CM1080P-AH-EXIR
Page 2
SAFETY
Caution Statements
Safety Precautions
•
•
•
•
•
•
Do not drop, puncture, or disassemble the cameras or DVR.
Do not tug on the power adapter. Use the plug to remove it from the wall.
Do not expose the cameras or DVR to high temperatures.
For your own safety, avoid using the DVR when there is a storm or lightning in your area.
Use the cameras and DVR with care. Avoid pressing hard on the cameras or DVR body.
Do not use power cable if it is damaged or crushed.
Instructions For Use
•
•
•
•
•
Always purchase the correct size and grade of battery most suitable for the intended use.
Replace all batteries of a set at the same time.
Clean the battery contacts and also those of the device prior to battery installation.
Ensure the batteries are installed correctly with regard to polarity (+ and -).
Remove batteries from equipment that is not to be used for an extended period of time.
FCC Compliance for HD-TVI Cameras
Federal Communications Commission (FCC) Compliance Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice: Only peripherals complying with FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by First Alert / BRK Brands,
Inc. is likely to result in interference to radio and TV reception. Changes or modifications to the product, not expressly approved by First Alert / BRK Brands, Inc., could void the user’s authority to
operate the equipment.
We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Certification (if applicable)
This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of the FCC Rules for intentional radiators. Products that contain a radio transmitter are
labeled with an FCC ID.
Fire and Electric Shock Hazard Statement
Caution!
CAUTION
When working with electrostatic sensitive devices
such as hard disk or DVR unit, make sure you use
a static-free workstation. Any electrostatic energy
coming in contact with the hard disk or DVR can
damage it permanently.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM
THE DVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN
RESULT IN DAMAGE TO THE DVR OR ITS COMPONENTS AS
WELL AS INJURY OR DEATH.
Disposal
These symbols indicate that it is prohibited to
dispose of these batteries in the household
waste. Take spent batteries that can no longer
be charged to the designated collection points
in your community.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle, is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS DVR UNIT TO RAIN OR MOISTURE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT
Page 3
PRODUCT OVERVIEW
Package Contents
,
What s in the Box*
IR Dome Camera*
IR Bullet Camera*
IR EXIR Bullet Camera*
BNC Cable with
Video and Power
User Manual
Protected by First
Alert Stickers (3)
*The box contains one of the following HDTVI camera models
Page 4
PRODUCT OVERVIEW
Camera and Power Connections
Installing Cameras
Installing Cable-Safe Mounting Bracket
Decide if the camera is to be wall or ceiling mounted and if cable will be fed through
mounting surface hidden directly behind the bracket or fed through the side of the
bracket so cable is exposed. Mark area where you will drill your hole. The Cable-Safe
Mounting Bracket has three Adjusting Points. 1) Rotates Bracket 360° relative to
mounting surface, 2) Adjusts bracket hinge 180° and 3) Rotates camera body 360° to
level image.
Step 1: Select the position for the camera and drill your hole for the cable. Feed
cable through mounting surface. Mount bracket to surface.
Step 2: Aim camera at target and using Adjusting Points 1 and 2 in tandem position
camera. Tighten Ring and Thumb Screw.
Step 3: Rotate camera body using Adjusting Point 3 to the proper view angle making
sure the Camera Shield is always on top and parallel to the ground so the image is
level in the Live View Screen. See “Camera Orientation” Info box. Tighten screw.
Step 4: Attach proper length of cable and run from camera to DVR location. Note:
Power cable ends are different. Be sure the correct power connector end matches
“To Camera” or “To DVR”. Tip - Connect cable at camera end before running cable to
verify orientation is correct. Also, see Information box on “Longer Cable Runs”.
Step 5: Check camera orientation via the Live View screen.
Adjust as required.
Use First Alert Cameras Only
Connecting Devices
IR Dome Camera
PTZ & Alarm Connections
(Cameras not included)
Follow this diagram to make device connections. Note, some devices are not
included with this kit. See “What’s in the Box” for included devices.
Power
Splitter
RCA Audio Out to
Powered Speakers
(Not included)
Tablet & Smartphone App
HDMI Cable
VGA Cable
Use First Alert
Power Supply
Only
RCA Audio In from Audio
Cameras or Powered
Microphone (Not included)
BNC Cable with
Video & Power
USB Mouse
Ethernet to
Internet
RS-485 Device
Additional Cameras can be Connected from
Power Splitter with BNC Cables
NOTE :
Only the HDTVI camera and BNC cable is included.
Page 5
Power
Splitter
APPENDIX
Specifications
Technical Specifications
Item
Specifications
Model
CM720P-AH
CMD720P-AH
CM1080P-AH
CMD1080P-AH
CM1080P-AH-EXIR
Image Sensor
1/3" CMOS
1/3" CMOS
1/3” CMOS
1/3” CMOS
1/3” CMOS
Effective Pixels
1280(H)*720(V)
1280(H)*720(V)
1920(H)*1080(V)
1920(H)*1080(V)
1920(H)*1080(V)
IP66
IP66
IP66
IP66
IP66
24
24
24
24
1
20m
20m
20m
20m
40m
indoor/outdoor
indoor/outdoor
indoor/outdoor
indoor/outdoor
indoor/outdoor
2.8mm
2.8mm
2.8mm
2.8mm
3.6mm
View Angle
99.7 degrees
99.7 degrees
90 degrees
90 degrees
90 degrees
Frame Rate
[email protected]/[email protected]
[email protected]/[email protected]
108[email protected]/[email protected]
[email protected]/[email protected]
[email protected]/[email protected]
0.01 Lux @ (F1.2, AGC ON) 0
Lux with IR
0.01 Lux @ (F1.2, AGC ON) 0
Lux with IR
0.01 Lux @ (F1.2, AGC ON) 0
Lux with IR
0.01 Lux @ (F1.2, AGC ON) 0
Lux with IR
0.01 Lux @ (F1.2, AGC ON) 0
Lux with IR
No
No
No
No
No
>52dB
>52dB
>52dB
>52dB
>52dB
Shutter Speed
1/25(1/30)s ~ 1/50,000s
1/25(1/30)s ~ 1/50,000s
1/25(1/30)s ~ 1/50,000s
1/25(1/30)s ~ 1/50,000s
1/25(1/30)s ~ 1/50,000s
Video Output
1 Analog HD Output
1 Analog HD Output
1 Analog HD Output
1 Analog HD Output
1 Analog HD Output
Power Supply
12 VDC
12 VDC
12 VDC
12 VDC
12 VDC
-40 F to 140 F
-40 F to 140 F
-40 F to 140 F
-40 F to 140 F
-40 F to 140 F
IP Rating
Number of infrared LED’s
Night-Vision Range
Indoor/Outdoor
Lens
Minimum Illumination
Audio
S/N Ratio
Operating Temperature
Page 6
APPENDIX
Warranty
Warranty
PRODUCT LIMITED WARRANTY
BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase (the “Warranty
Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any
component of the product found to be defective during the Warranty Period. Replacement or repair will be made with a new or remanufactured
product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your
exclusive warranty.
This warranty is valid for the original retail purchaser only from the date of initial retail purchase and is not transferable. In order to obtain warranty
service, you must keep the original sales receipt and proof of purchase in the form of the UPC code from the package. BRK dealers, service centers,
or retail stores selling BRK products do not have the right to alter, modify or any way change the terms and conditions of this warranty.
WARRANTY EXCLUSIONS
Parts and Labor: 1 year limited (warranted parts do not include bulbs, LEDs, and batteries)
This warranty does not apply to bulbs, LEDs, and batteries supplied with or forming part of the product.
This warranty is invalidated if non- BRK accessories are or have been used in or in connection with the product or in any modification or repair is
made to the product.
This warranty does not apply to defects or damages arising by use of the product in other than normal (including normal atmospheric, moisture and
humidity) conditions or by installation or use of the product other than in strict accordance with the instructions contained in the product owner’s
manual.
This warranty does not apply to defects in or damages to the product caused by (i) negligent use of the product, (ii) misuse, abuse, neglect, alteration,
repair or improper installation of the product, (iii) electrical short circuits or transients, (iv) usage not in accordance with product installation, (v) use
of replacement parts not supplied by BRK, (vi) improper product maintenance, or (vii) accident, fire, flood or other Acts of God.
This warranty does not cover the performance or functionality of any computer software included in the package with the product. BRK makes no
warranty that the software provided with the product will function without interruption or otherwise be free of anomalies, errors, or “Bugs.” This
warranty does not cover any costs relating to removal or replacement of any product or software installed on your computer.
BRK reserves the right to make changes in design or to make additions to or improvements in its products without incurring any obligations to
modify any product which has already been manufactured. BRK will make every effort to provide updates and fixes to its software via its website.
This warranty does not cover any alteration or damage to any other software that may be or may become resident on the users system as a result
of installing the software provided. This warranty is in lieu of other warranties, expressed or implied, and BRK neither assumes nor authorizes any
person to assume for it any other obligation or liability in connection with the sale or service of the product. In no event shall BRK be liable for any
special or consequential damages arising from the use of the product or arising from the malfunctioning or non-functioning of the product, or for any
delay in the performance of this warranty due to any cause beyond its control.
BRK does not make any claims or warranties of any kind whatsoever regarding the product’s potential, ability, or effectiveness to prevent, minimize,
or in any way affect personal or property damage or injury. BRK is not responsible for any personal damage, loss, or theft related to the product
or to its use for any harm, whether physical or mental related thereto. Any and all claims or statements, whether written or verbal, by salespeople,
retailers, dealers, or distributors to the contrary are not authorized by BRK, and do not affect this provision of this warranty.
BRK’s responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement or refund, as set forth above. These
remedies are the sole and exclusive remedies for any breach of warranty. BRK is not responsible for direct, special, incidental, or consequential
damages resulting from any breach of warranty or under any other legal theory including but not limited to, loss profits, downtime, goodwill, damage
to or replacement of equipment and property and any costs of recovering, reprogramming or reproducing any program or data stored in or used with
a system containing the product accompanying software.
BRK does not warrant the software will operate with any other software except that which is indicated. BRK cannot be responsible for characteristics
of their party hardware or software which may effect the operation of the software included.
Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration
to the duration of the above Warranty Period. Some states, provinces, or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights that vary from state to state, or province to province, or jurisdiction to
jurisdiction.
OBTAINING SERVICE
If service is required, do not return the product to your place of purchase. In order to obtain warranty service, contact the Consumer Affairs Division
at 1-800-323-9005. To assist us in serving you, please have the model number and date of purchase available when calling.
For more information and updates, please visit www.firstalert.com
After contacting the Consumer Affairs Division and it is determined that the product should be returned for Warranty Service, please mail the product
to: BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122.
Page 7
©2015 BRK Brands, Inc.
A Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
www.firstalert.com / www.brkelectronics.com
M08-0561-000
10/15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
