Yamaha VKE2015_VKE2012_VKE2010 Installation Guide

SPEAKER SYSTEM
VEK0650
VKE2015 VKE2012 VKE2010
Mounting the Speaker to a Ceiling
EN
Yamaha cannot be held responsible for damage or injury caused by insufficient strength of the support structure or improper installation.
Installation Guide
Thank you for purchasing the Yamaha VKE2015, VKE2012, VKE2010 Speaker System (hereinafter referred to as“the speaker”).
CAUTION
This guide is intended for qualified installation contractors and explains how to install the speaker and connect to an amplifier. After reading this guide, please
keep it available for future reference.
*The example illustrations used in this guide are taken from the VKE2012, if not otherwise specified.
• Before doing any installation or construction work, consult with your Yamaha dealer.
• Do not attach the speaker to thin plywood or soft wall surface materials, as the screws may tear free from flimsy surfaces, causing the speaker to fall
and be damaged, or result in personal injury.
• To avoid accidents resulting from tripping over loose speaker cables, fix these to the wall along with the speaker.
Precautions
• The installation should be checked thoroughly at regular intervals. Some fittings may deteriorate over extended periods of time due to wear and/or
corrosion.
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed
below to avoid the possibility of serious injury
or even death from electrical shock, shortcircuiting, damages, fire or other hazards.
These precautions include, but are not limited
to, the following:
If you notice any abnormality
• If any of the following problems occur, immediately
turn off the power of the amplifier.
– Unusual smells or smoke are emitted.
– Some object, or water has been dropped into the
product.
– There is a sudden loss of sound during use of the
product.
– Cracks or other visible damage appear on the
product.
Then have the product inspected or repaired by
qualified Yamaha service personnel.
Do not open
• This product contains no user-serviceable parts.
Do not attempt to disassemble the internal parts or
modify them in any way.
Water warning
• Do not expose the product to rain, use it near
water or in damp or wet conditions, or place on it
any containers (such as vases, bottles or glasses)
containing liquids which might spill into any
openings.
Fire warning
• Do not place any burning items or open flames near
the product, since they may cause a fire.
Hearing loss
• Before turning the power of all devices on or off,
make sure that all volume levels are set to the
minimum. Failing to do so may result in hearing loss,
electric shock, or device damage.
• When turning on the AC power in your audio system,
always turn on the power amplifier LAST, to avoid
hearing loss and speaker damage. When turning the
power off, the power amplifier should be turned off
FIRST for the same reason.
• Do not fasten the speaker to the ceiling with nails, adhesives, or other unsound hardware. Long-term use and vibrations may cause them to pull free.
CAUTION
Always follow the basic precautions listed
below to avoid the possibility of physical
injury to you or others. These precautions
include, but are not limited to, the following:
Location and connection
• Do not place the product in an unstable position or
a location with excessive vibration, where it might
accidentally fall over and cause injury.
• Keep this product out of reach of children. This
product is not suitable for use in locations where
children are likely to be present.
• Do not place the product in a location where it may
come into contact with corrosive gases or salt air.
Doing so may result in malfunction.
• Before moving the product, remove all connected
cables.
• When transporting, moving, or installing the product,
always use two or more people. Attempting to lift the
product by yourself may result in injuries, such as
back injuries, or cause the product to be dropped and
broken, which could lead to other injuries.
• Do not use the speaker’s handles for suspended
installation. Doing so can result in damage or injury.
• Do not hold the bottom of the product when
transporting or moving it. In doing so, you may pinch
your hands under the product, and result in injury.
• Do not press the rear panel of the product against the
wall. Doing so may cause the plug and speaker cable
to come in contact with the wall and detach from the
power cord, resulting in short circuiting, malfunction,
or even fire.
• Always consult qualified Yamaha service personnel
if the product installation requires construction work.
Improper installation might cause accidents, injuries,
damage or malfunction of this product.
• Use only speaker cables for connecting speakers to
the speaker jacks. Use of other types of cables may
result in fire.
Handling caution
• Do not rest your weight on the product or place heavy
objects on it.
• When choosing a power amplifier for use with this
product, make sure that the output power of the
amplifier is lower than the power capacity of this
product. If the output power is higher than the power
capacity, malfunction or fire may occur.
• Do not input excessively loud signals that may result
in clipping in the amplifier or cause the following:
– Feedback, when using a microphone
– Continuous and extremely loud sound from a
musical instrument, etc.
– Continuous and excessively loud distorted sound
– Noise caused by plugging/unplugging the cable
while the amplifier is turned on
Even if the output power of the amplifier is lower
than the power capacity of this product (program),
damage to the product, malfunction or fire may
occur.
Notice
Notice
The required length of a screw differs depending on the mounting bracket to be used. Select a screw which is suitable for use with the mounting bracket and can
be fully inserted into the hole on the speaker.
To avoid the possibility of malfunction/damage to
the product, or damage to other property, follow the
notices below.
Handling and maintenance
You can mount the speaker to the ceiling by using commercially available mounting brackets. To fix the speaker to a mounting bracket, use commercially
available screws (M10 × 2) inserted to the screw holes on the top or both sides of the speaker as shown below.
• Do not expose the product to excessive dust or
vibration, or extreme cold or heat, in order to prevent
the possibility of panel disfiguration, unstable
operation, or damage to the internal components.
• Do not touch the speaker driver unit, since it might
cause malfunction.
• Do not place vinyl, plastic or rubber objects on
the product, since this might cause alteration or
discoloration of the panel.
• When cleaning the product, use a dry and soft cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths, since this might
cause alteration or discoloration.
• Protection Circuit
This speaker system has an internal protection circuit
that shuts off the HF driver unit when an excessive
input signal is applied. If the HF driver unit emits
no sound, reduce the volume level of the amplifier
immediately. (The sound will return automatically in
several seconds.)
• Do not place the speaker face down, as deformation
of the grille may result.
• Air blowing out of the bass reflex ports is normal,
and often occurs when the speaker is handling
program material with heavy bass content.
Screw type: M10
Screw length: 35 mm or longer
100 mm
100 mm
Top
Sides
Connecting to Your Amplifier
CAUTION
• Before making connections, make sure that the amplifier is switched off.
• Do not connect the speakers in parallel as it may cause damage or
malfunction to the connected amplifier.
■ Connection
Use speaker cables with Neutrik NL4 speakON plugs to connect an amplifier
as shown below.
Notice
Information
• Use only Neutrik NL4 plugs for connecting speakON connectors.
About this guide
speakON plug
• For more details in connection, refer to your amplifier's manual.
• The illustrations as shown in this guide are for
instructional purposes only.
• The company names and product names in this guide
are the trademarks or registered trademarks of their
respective companies.
About disposal
■ SpeakON connector wiring
Connect the wiring for the plug as shown below.
Insert all the way inside the
jack and turn the plug to lock
VKE
VKE
(2-: Unused)
• This product contains recyclable components.
When disposing of this product, please contact the
appropriate local authorities.
(2+: Unused)
1+:
Amplifier
1-:
Yamaha cannot be held responsible for damage
caused by improper use or modifications to the
product.
Mounting to the Pole Socket
The socket at the bottom is compatible with commercially available speaker
stands and speaker poles of 35 mm diameter.
Removing the Speaker Grille
For maintenance purposes, you can remove the speaker grille by removing the
attachment screws (VKE2015: 10 pcs, VKE2012: 8 pcs, VKE2010: 6 pcs) on
the grille. Be careful not to lose any of the removed
screws since they will be necessary for attaching the
speaker grille again.
Notice
• Be careful not to scratch yourself with the edge of
the speaker grille.
• Be sure to work on a stable place.
bottom
1
ADDRESS LIST
Specifications
VKE2015
System Type
VKE2012
VKE2010
2-way bass reflex
15" (38 cm) cone
LF
12" (30 cm) cone
Nominal Impedance
10" (25 cm) cone
8Ω
(-10 dB)
Frequency Range*1
U.S.A.
55 Hz - 20 kHz
55 Hz - 20 kHz
56 Hz - 20 kHz
2.2 kHz
1.5 kHz
2.2 kHz
Crossover Frequency
Coverage Angle
Yamaha Canada Music Ltd.
135 Milner Avenue, Toronto, Ontario,
M1S 3R1, Canada
Tel: +1-416-298-1311
1.4" (3.6 cm) compression driver
HF
Components
CANADA
Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena Park, CA 90620,
U.S.A.
Tel: +1-714-522-9011
H70° × V100°
*1
Power Rating
Sensitivity*1
Maximum SPL
*2
NOISE
350 W
350 W
300 W
PGM
700 W
700 W
600 W
MAX
1,400 W
1,400 W
1,200 W
(1 W, 1 m)
98 dB SPL
96 dB SPL
95 dB SPL
(Calculated, 1 m, Peak)
129 dB SPL
127 dB SPL
126 dB SPL
Connector
CENTRAL & SOUTH AMERICA
MEXICO
Power limiting to protect HF transducer
Material
Enclosure
Plywood t15
Finish
Material
Grille
Finish
Powder coating, black
Rigging Points
M10 x 2 - P100 mm 3 places (Top/Sides)
⌀35 × 1 (Bottom)
Pole Socket
Dimensions (W × H × D)
431 × 700 × 456 mm
372 × 600 × 395 mm
309 × 535 × 344 mm
24.5 kg
19.9 kg
15.6 kg
Weight
Included Accessory
Yamaha Music Latin America, S.A.
Edif. Torre Banco General, Piso 7, Urbanización
Marbella, Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, República de Panamá
Tel: +507-269-5311
*1: Full-space (4n)
*2: Calculated based on power rating and sensitivity
*The contents of this guide apply to the latest specifications as of the publishing date. To obtain the latest guide, access the Yamaha website then download the guide file.
EUROPE
THE UNITED KINGDOM/IRELAND
Yamaha Music Europe GmbH (UK)
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, U.K.
Tel: +44-1908-366700
Dimensions
■ VKE2015
GERMANY
456
431
SWITZERLAND/LIECHTENSTEIN
315
230
Yamaha Music Europe GmbH, Branch
Switzerland in Thalwil
Seestrasse 18a, 8800 Thalwil, Switzerland
Tel: +41-44-3878080
100
700
5 × M10
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-303-0
215
100
AUSTRIA/BULGARIA/
CZECH REPUBLIC/HUNGARY/
ROMANIA/SLOVAKIA/SLOVENIA
4 × M10
■ VKE2012
Yamaha Music Europe GmbH
Branch Austria
Schleiergasse 20, 1100 Wien, Austria
Tel: +43-1-60203900
395
372
195
Yamaha Music Europe GmbH
Sp.z o.o. Oddział w Polsce
ul. Wielicka 52, 02-657 Warszawa, Poland
Tel: +48-22-880-08-88
100
600
270
200
POLAND
5 × M10
MALTA
Olimpus Music Ltd.
Valletta Road, Mosta MST9010, Malta
Tel: +356-2133-2093
100
4 × M10
344
309
Yamaha Music Europe GmbH, Branch Italy
Via Tinelli N.67/69 20855 Gerno di Lesmo (MB),
Italy
Tel: +39-039-9065-1
Yamaha Music Europe GmbH Ibérica, Sucursal
en España
Ctra. de la Coruña km. 17,200, 28231
Las Rozas de Madrid, Spain
Tel: +34-91-639-88-88
Philippos Nakas S.A. The Music House
19th klm. Leof. Lavriou 190 02 Peania – Attiki,
Greece
Tel: +30-210-6686168
SWEDEN/FINLAND/ICELAND
Yamaha Music Europe GmbH Germany filial
Scandinavia
JA Wettergrensgata 1, 400 43 Göteborg, Sweden
Tel: +46-31-89-34-00
DENMARK
Yamaha Music Denmark,
Fillial of Yamaha Music Europe GmbH, Tyskland
Generatorvej 8C, ST. TH. , 2860 Søborg, Denmark
Tel: +45-44-92-49-00
NORWAY
Yamaha Music Europe GmbH Germany Norwegian Branch
Grini Næringspark 1, 1332 Østerås, Norway
Tel: +47-6716-7800
CYPRUS
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-303-0
RUSSIA
Yamaha Music & Electronics (China) Co.,Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
Tel: +86-400-051-7700
INDIA
Yamaha Music India Private Limited
P-401, JMD Megapolis, Sector-48, Sohna Road,
Gurugram-122018, Haryana, India
Tel: +91-124-485-3300
INDONESIA
PT Yamaha Musik Indonesia Distributor
Yamaha Music Center Bldg. Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: +62-21-520-2577
KOREA
Yamaha Music Korea Ltd.
11F, Prudential Tower, 298, Gangnam-daero,
Gangnam-gu, Seoul, 06253, Korea
Tel: +82-2-3467-3300
MALAYSIA
Yamaha Music (Malaysia) Sdn. Bhd.
No.8, Jalan Perbandaran, Kelana Jaya, 47301
Petaling Jaya, Selangor, Malaysia
Tel: +60-3-78030900
SINGAPORE
Yamaha Music (Asia) Private Limited
Block 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
Tel: +65-6740-9200
TAIWAN
Yamaha Music & Electronics Taiwan Co.,Ltd.
2F., No.1, Yuandong Rd., Banqiao Dist.,
New Taipei City 22063, Taiwan (R.O.C.)
Tel: +886-2-7741-8888
THAILAND
Siam Music Yamaha Co., Ltd.
3, 4, 15, 16th Fl., Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: +66-2215-2622
VIETNAM
Yamaha Music Vietnam Company Limited
15th Floor, Nam A Bank Tower, 201-203 Cach
Mang Thang Tam St., Ward 4, Dist.3,
Ho Chi Minh City, Vietnam
Tel: +84-8-3818-1122
Yamaha Music (Russia) LLC.
Room 37, entrance 7, bld. 7, Kievskaya street,
Moscow, 121059, Russia
Tel: +7-495-626-5005
OTHER ASIAN REGIONS
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-3030
AUSTRALIA
OTHER EUROPEAN REGIONS
AFRICA
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: +971-4-801-1500
MIDDLE EAST
http://asia.yamaha.com/
OCEANIA
Yamaha Music Australia Pty. Ltd.
Level 1, 80 Market Street, South Melbourne,
VIC 3205, Australia
Tel: +61-3-9693-5111
REGIONS AND TRUST TERRITORIES
IN PACIFIC OCEAN
http://asia.yamaha.com/
TURKEY
Yamaha Music Europe GmbH
Merkezi Almanya Türkiye İstanbul Şubesi
Mor Sumbul Sokak Varyap Meridian Business
1.Blok No:1 113-114-115
Bati Atasehir Istanbul, Turkey
Tel: +90-216-275-7960
OTHER REGIONS
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: +971-4-801-1500
166
Head Office/Manufacturer: Yamaha Corporation 10-1, Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, Japan
Importer (European Union): Yamaha Music Europe GmbH Siemensstrasse 22-34, 25462 Rellingen, Germany
Importer (United Kingdom): Yamaha Music Europe GmbH (UK) Sherbourne Drive, Tilbrook, Milton Keynes, MK7 8BL, United Kingdom
231
535
170
5 × M10
ITALY
ASIA
THE PEOPLE’S REPUBLIC OF CHINA
PA57
100
■ VKE2010
Yamaha Music Europe
7 rue Ambroise Croizat, Zone d'activités de Pariest,
77183 Croissy-Beaubourg, France
Tel: +33-1-6461-4000
GREECE
PANAMA AND OTHER LATIN
AMERICAN/CARIBBEAN REGIONS

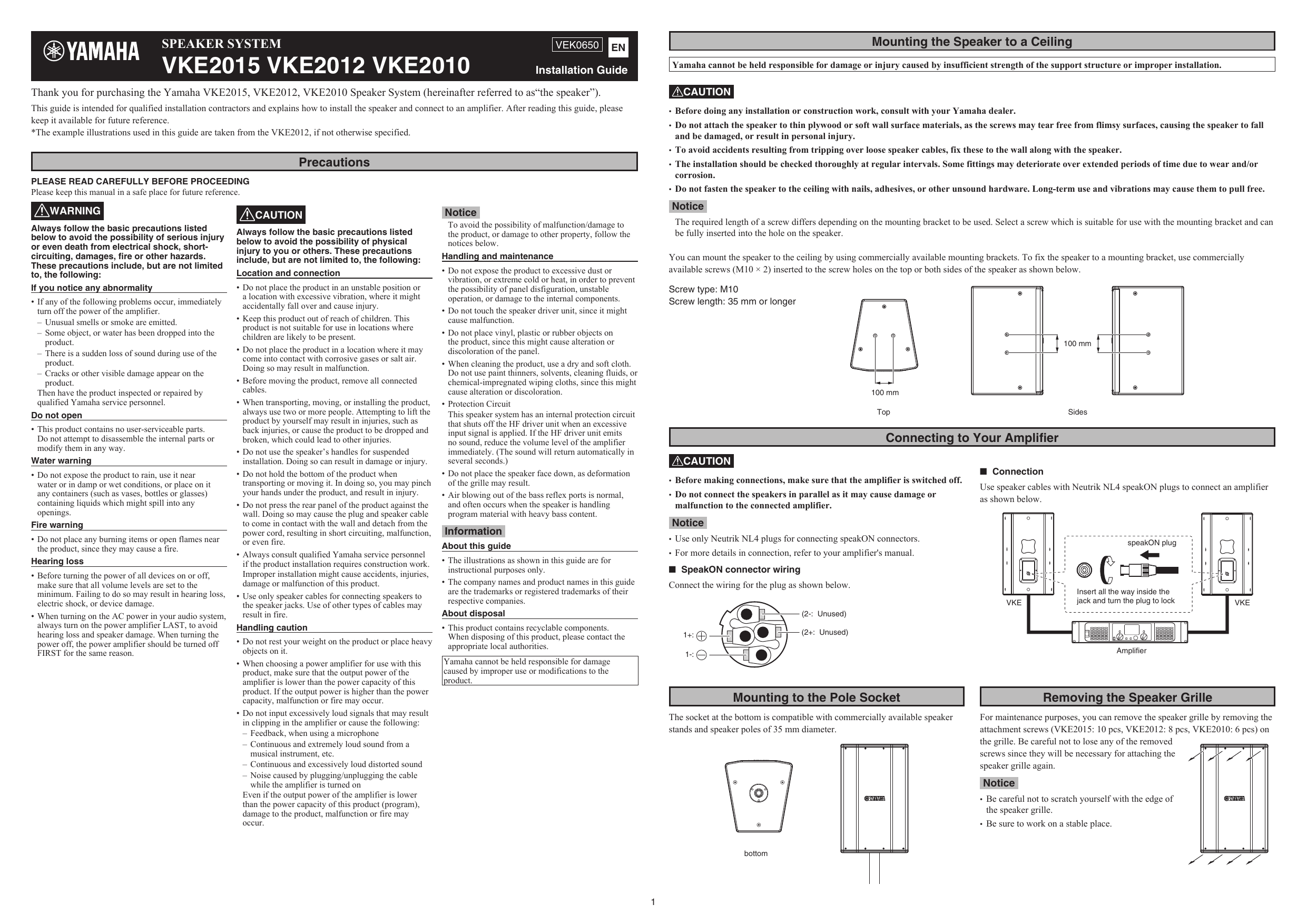

Installation Guide
FRANCE
Yamaha Musical do Brasil Ltda.
Praça Professor José Lannes, 40, Cjs 21 e 22, Brooklin
Paulista Novo CEP 04571-100 – São Paulo – SP,
Brazil
Tel: +55-11-3704-1377
Yamaha Music Latin America, S.A.,
Sucursal Argentina
Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK,
Buenos Aires, Argentina
Tel: +54-11-4119-7000
Punching metal / cloth (back)
Yamaha Music Europe Branch Benelux
Clarissenhof 5b, 4133 AB Vianen, The Netherlands
Tel: +31-347-358040
SPAIN/PORTUGAL
ARGENTINA
PU painting, black
NETHERLANDS/BELGIUM/
LUXEMBOURG
Yamaha de México, S.A. de C.V.
Av. Insurgentes Sur 1647 Piso 9, Col. San José
Insurgentes, Delegación Benito Juárez, CDMX,
C.P. 03900, México
Tel: +52-55-5804-0600
BRAZIL
Neutrik speakON NL4MP × 1
Overload Protection
NORTH AMERICA
Yamaha Pro Audio global website
https://www.yamahaproaudio.com/
100
4 × M10
Unit: mm
Yamaha Downloads
https://download.yamaha.com/
2
Manual Development Group
© 2022 Yamaha Corporation
Published 02/2022
CROD-A0

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
