Chicco OneFit™ Softgoods Removal Product Manual

PMS 2747 and PMS 186
WARNING: Avoid serious injury or death to your child. Never
use your OneFit Child Restraint without the softgoods in place. You
must read and understand the Softgoods Removal instructions and
the instructions in the User Guide. If you do not understand these
instructions, DO NOT attempt to remove the softgoods, STOP
SS0034E_01
and call Chicco at 1-877-424-4226.

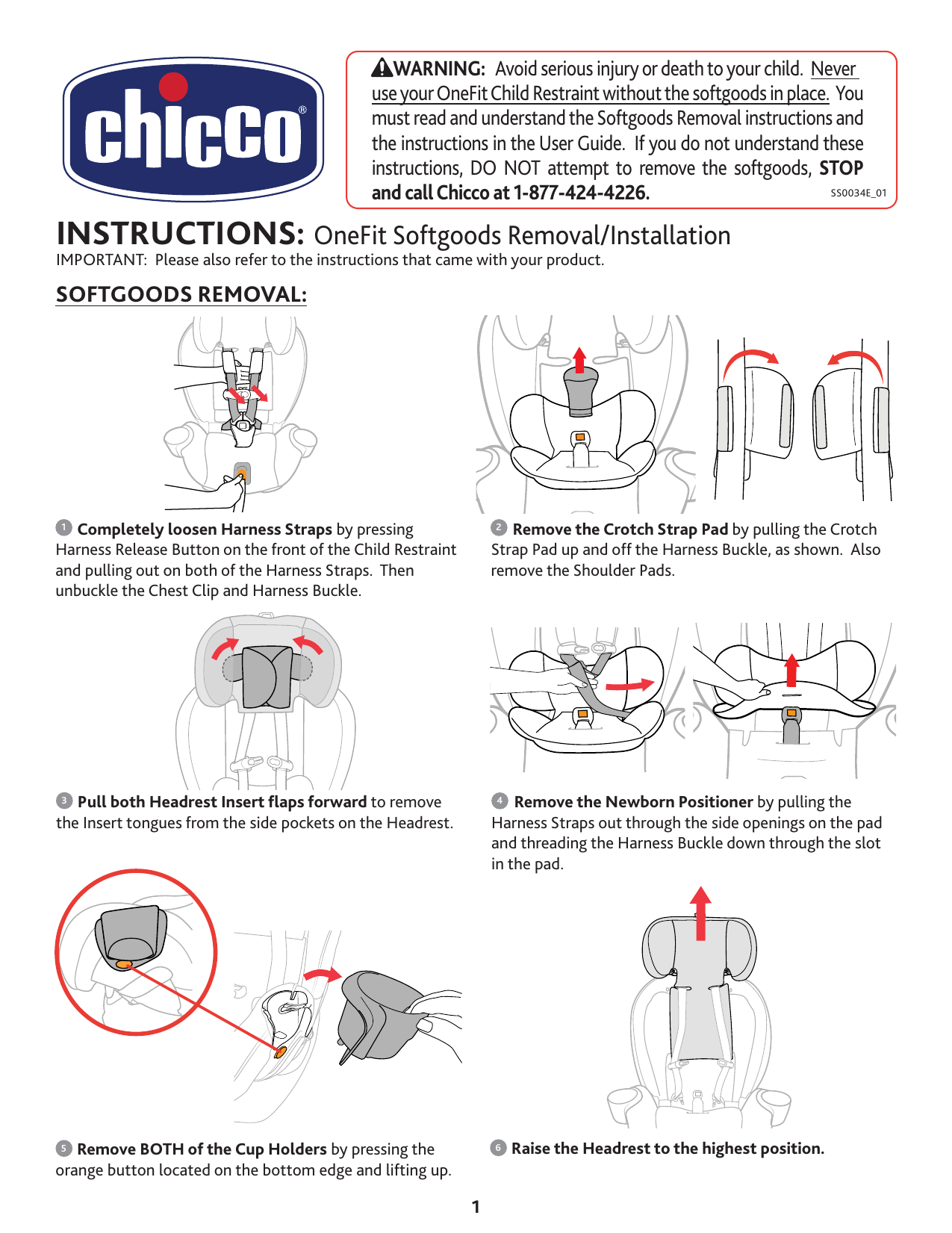

INSTRUCTIONS: OneFit Softgoods Removal/Installation
IMPORTANT: Please also refer to the instructions that came with your product.
SOFTGOODS REMOVAL:
Completely loosen Harness Straps by pressing
Harness Release Button on the front of the Child Restraint
and pulling out on both of the Harness Straps. Then
unbuckle the Chest Clip and Harness Buckle.
Remove the Crotch Strap Pad by pulling the Crotch
Strap Pad up and off the Harness Buckle, as shown. Also
remove the Shoulder Pads.
Pull both Headrest Insert flaps forward to remove
the Insert tongues from the side pockets on the Headrest.
Remove the Newborn Positioner by pulling the
Harness Straps out through the side openings on the pad
and threading the Harness Buckle down through the slot
in the pad.
1
2
3
4
Remove BOTH of the Cup Holders by pressing the
orange button located on the bottom edge and lifting up.
6
5
1
Raise the Headrest to the highest position.
At the back of the Headrest, pull back gently on both
of the plastic tabs at the top of the Headrest and pull up
on the Headrest fabric.
With the Child Restraint facing you, gently pull the
fabric UP and AWAY from the Headrest, then guide it off
of the Headrest frame. Undo both snap buttons holding
the Headrest fabric in place at the bottom of the Headrest
frame, as shown.
7
8
Thread the Harness Buckle down through the slot in
the pad and pull the fabric up around the front and sides of
the Seat Frame. Then carefully pull the fabric around the
Harness Adjuster Strap Cover and remove the Seat Bottom
Pad. The plastic Harness Adjuster Strap Cover is NOT
removable. Remove the fabric.
On one side of the Child Restraint open the LATCH
storage compartment. Locate and unhook the elastic
loop, as shown. Pull the fabric edge out and around the
orange Lap Belt Guide.
14
13
Cleaning Instructions:
Undo both snap buttons on the inside of the Seat
Pad, as shown. Then lower the Headrest to the lowest
position.
At the top edge of the seat back, pull back gently
on both of the plastic tabs and lift up fabric. Remove the
fabric from the top edge of the seat back.
9
10
Fabrics may be hand washed using mild soap and water, or machine washed in cold water on delicate cycle using mild
detergent. Hang to dry. DO NOT BLEACH. Please consult your product manual for additional care and maintenance
instructions.
DO NOT remove the Harness Straps. Contact Chicco Customer Service at 1-877-424-4226 for assistance or additional
information.
CROTCH STRAP REMOVAL:
With the Child Restraint facing you, pull gently
forward on the fabric. Guide it off of the Seat Frame and
then around the Headrest frame.
Release both elastic straps located inside the Cup
Holder attachment cutout. Repeat this step for the
other side.
11
12
4
Open the Crotch Strap Lock compartment and fully recline the seat (Position 1). Tilt the Child Restraint back
and locate the crotch strap metal bar underneath the seat. Turn metal bar slightly and push the corner through the slot.
Work the metal bar through the slot while pulling the Crotch Strap out on the other side.
NEVER use Child Restraint without the Crotch Strap installed.
15
5
CROTCH STRAP INSTALLATION:
Guide one corner of the metal bar through slot in the Crotch Strap Lock compartment. With the seat fully
reclined (Position 1), pull the metal bar through the slot from underneath the seat. Make sure the metal bar lays flat on
the bottom of the seat, as shown.
NEVER use Child Restraint without the Crotch Strap installed.
16
20
While pulling on the front elastic strap, press in on
the fabric guiding it into the groove. Wrap the elastic
strap around the post inside the Cup Holder cutout. Tuck
the fabric edge around the outside Cup Holder frame,
making sure the grooves in the Cup Holder frame are not
covered by the fabric.
Pull on the other elastic strap while guiding the fabric
down and around the Cup Holder edge and into the notch.
Wrap the elastic strap around the post and repeat for the
other side.
22
Pull the Harness Straps through the openings in the
fabric and attach the Chest Clip and the Harness Buckle.
Press and push the fabric around the inside edge of
the orange Lap Belt Guide. If this becomes difficult, the
blunt end of a pen or something similar may be used to help
tuck the fabric around the edge.
Locate the elastic strap near the back of the Lap Belt
Guide, pull on the strap and tuck the fabric around the
upper edge of the Lap Belt Guide. Wrap the elastic strap
around the post inside the LATCH storage compartment.
Close the compartment and repeat for the other side.
Tuck and press the fabric into both side edges of the
Child Restraint. At the top of edge of the Child Restraint,
locate the plastic tabs. Press both tabs into the top edge
until they stay in position under the tab cutouts.
21
SOFTGOODS INSTALL:
23
Make sure the Headrest is in the lowest position and open the LATCH storage compartments. Place the Seat Pad
onto the Seat Frame and thread the Harness Buckle up through the correct slot in the Seat Pad. Then carefully guide the
fabric around the Harness Adjuster Strap Cover.
17
25
24
Pull the fabric down and around the front edge and
insert the Headrest into the top opening in the fabric. Pull
the fabric around the back of the Seat Frame.
At the front of the Child Restraint start tucking the
fabric edge into the outside groove following it up the side
to the Cup Holder attachment.
19
18
6
7
32 If desired, attach the Crotch Strap Pad. Thread the
Crotch Strap Pad tongue down into the same opening as the
Crotch Strap.
For child weighing between 5 and 11 lbs (2.3 and 5
kg), place the Newborn Positioner on the Child Restraint.
Thread the Harness Straps into the side openings on the
insert pad and thread the Harness Buckle up into the
slot in the pad.
31
Attach both snap buttons on the seat fabric, as shown. Pull the Headrest up to the highest position. Slide the
Headrest fabric onto and around both sides of the Headrest frame. Tuck the fabric edges into the Headrest frame
edges, as shown.
26
Guide
R
L
Pin
Attach the Cup Holders to the Child Restraint. Match the “R” and “L” Cup Holders to the Child Restraint, as shown.
Make sure the fabric is tucked in along the Child Restraint lip to allow the Cup Holder to be attached properly. Line up
the Cup Holder pin and the two guides with the openings on the Child Restraint, as shown. Push in and then push down
on the Cup Holder until it clicks into place. Repeat for the other side.
33
At the back edge of the Headrest locate the plastic
tabs. Press them into the Headrest frame until they click
into position, as shown.
28 Attach both snap buttons on the Headrest fabric to
the Headrest frame, as shown. Then pull the Harness
Straps around to lay on top of the Headrest fabric.
27
Learn how to
INSTALL & USE
The OneFit Car Seat
ChiccoOnefit.com
Slide both Headrest Insert tongues into the side
pockets on the Headrest.
If desired, attach both sides of the Hook and Loop
Tabs on the outside of the Shoulder Pad, as shown.
Repeat for the other Shoulder Pad.
29
30
8
9
