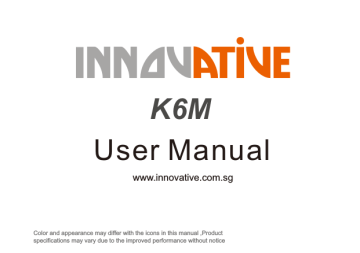

innovative
K6M
User Manual
www.innovative.com.sg
Color and appearance may differ with the icons in this manual ,Product
specifications may vary due to the improved performance without notice
Thank you for using our LED mini projector!
After you reading this manual, you will know how to use the projector,
experiencing its full function and briefly operations.
The projector is a handheld device, designed for family, entertainment,
business presentation, and it will project a big screen as you like at any time.
The projector integrates high performance optical engine and friendly
interfaces with high reliability. Driven by RGB LED and DLP, it provides you
with vivid images.
Features:
Support AirPlay DLNA Miracact wireless connection(optional)
R/G/B LED, over 20000 hours lamp life;
Standard HDMI Port;
Built-in multimedia,USB TF card support MovieMusic/Photo/E-book/1080P;
Built-in high-capacity li-ion battery, as a power bank charging for phone ;
Instant ON/OFF, without waiting for the machine to cool;
23
Safety Instructions
To ensure using the projector safely, please follow below instructions.
Please use the adaptor specified by the company, other company's products may damage
the projector.
Do not disassemble, modify, throw, drop the projector, otherwise it may cause damage;
Projector failure can only be repaired by professionals;
The battery is integrated device, do not cover up or modify. The battery can only be
replaced by qualified person;
Do not drop metal objects into the projector vents, or fall into the projector, otherwise it
will result in machine damage; if any external objects into, please turn off the power quickly,
contact the after-sales service person to handle;
Do not place liquids near or on the projector. If liquid has been spilled into the machine,
immediately turn off the power, and then call the authorised service center to maintain the
projector;
Please use the projector in a well-ventilated, temperature 0-35C/humidity 0~85%/Elevation
0~2000M of the environment;
Please do not block the air outlet vents, do not use the projector on the bedding, blankets
and other soft surface; Do not cover the whole with a cloth or other objects; If the projector
ventilation holes are serious disrupted, excessive internal temperature may damage the
projector, or may cause a fire hazard;
Do not use the projector under high light, dirty, dusty or high magnetic field;
Do not look directly in the source of lens while the projector is running, it will damage your
eyes;
24
Packing List
Please unpack the box carefully, and check below items. If there is lack one or some
of the them, please contact the distributor.
Projector
HDMI CABLE
Tripod
USB CABLE
25
Carry Bag
Warranty Card
Summary
9
10
1.Lens
2.Air outlet
3.ON/OFF Charging Switch
Miracast/DLNA
8
7
6
5
4
1
2
3
11
16
12
14
15
13
26
4.Charging Indicator
5.DC
6.USB Interface
7.TF CARD
8.HDMI/MHL InterfaceЈOptiona
9.Touch Key
10.Battery Level Indicator
11.Focus
12.Support Knob
13.Air Inlet
14.Tripod Hole
15.Speaker
16.Headphone
Touch Key
Source
OK/Menu
Up/Vol+
Right/Next/Fast Forward
Left/Previous/Fast Backward
Down/VolReturn
Charging
Charging Indicator
When Charging, insert one end of the USB cable
to the USB of the projector, the other end to PC/
Laptop/mobile power adaptor.
*Charging after 5 hours, the projector is fully charged,
the LED light off.
*Please turn off the projector before charging, only power
off the projector will charge the internal battery.
Phone Charger
Please use the random distribution of USB line
27
(5v/2A)
AC
Charging for mobile devices
The internal battery not only can be used for
projection,but also can charging for mobile devices.
Push the Power switch forward and reach to charging
mode, Operation instruction as below:Charging power
for cellphone via USB: Plug one end of the USB cable
to the projector USB, the other end to the mobile
devices.
Please do not charge the tablet PC by our projector
because the current of tablet exceed our projector's limit.
Battery Indicator
Green Normal
Red
Low
Turn on/off the projector
Push the switch backward for 3 seconds to turn on/off
the projector.
Brightness Mode
Push the switch backward fast, can switch freely between
the standard mode and brightness mode.
Note: Under Wifi-Display Mode, the brightness can not be adjusted.
28
USB 5V 500mA
Mobile Devices Connect to Projector
HDMI Connection
*Use the HDMI cable to connect the HDMI
output device and projector, projector will select
the source automatically after a few seconds,
or you can also select the source manually.
TF
*TF-card (Max 32GB support)
USB
*U-disk (Max 32GB support)
*USB cable charge for mobile devices
(Note: USB port does not support mobile Harddisk play)
Headphone Interface
*3.5mm Audio output(earphone or sonic
equipment connection)
Focus Adjustmeng
Can Stir the focus to adjust the focal length, get
clear image.
29
Select “Source”Input
Press 【 】, switch to signal input channel, there is corresponding icon and character prompted
after switch.
WIFI Display
Smart devices via wireless signal or wireless network WiFi to connect to
projector to play images, select here to entre.
TF
Projector play content of TF card, select here to entre.
30
USB
Projector play content of flash memory, select here to entre.
HDMI
Projector connect to device which have HDMI output to play image or video
select here to entre.
USB/TF Play
Quick press 【 】button on projector when video playing ,you will find the quick operation
menu ,press 【 】【 】to choose the function you need, and press【 】to confirm ,press
【 】to quit.
Pause
FB
FF
Prev.
Next.
Stop
Repeat
List
Info
Slow FW
Step FW
Zoom In
ZoomOut
Move
Setting Menu
Press ˇ ˇon the projector long, appear corresponding menu, press ˇ ˇˇ ˇ
ˇ ˇˇ ˇto select the menu you want to adjust, press ˇ ˇorˇ ˇˇ ˇto enter
menu, press ˇ ˇto quit after adjustment.
31
Set A
WiFi-Display Mode Select(Optional)
Appearing following screen after selecting WiFi-Display. There are two mode under WiFi-Display
push the projector on/off button forward to switch between Miracast and DLNA.
Version:3.0.0-rc3
Name:Projector-XXXXXX
Projector on/off
Status:Waitingforconnection...
LAN:
Device:
MAC:
PORT:
Push forward to switch between
Miracast and DLNA.
Difference Between Miracast And DLNA
Miracast is that the smart devices connect to projector via wireless signal, and mirror the image
of smart device and output to projector. The smart device must have the Miracast function. When
the smart device locked, the projector will stop to play.
DLNA is that the software installed on the smart device have the DLNA function, little relationship
to operating system, when the software application play video or photo, it will output to projector
via wireless signal connection or same wireless network. Only the smart device have WiFi and the
software application have DLNA function, it can play. Different from Miracast, DLNA can not mirror
screen of smart device and output to projector. When the smart device locked or exit directly or
do not select stop on control interface, it will play all the time only the movie is over.
32
Miracast
Under Miracast mode, the projector can mirror the movie or photo of smart phone or tablet.
Please confirm your smart device support Miracast. If you want to know that the tablet, TV box or
other smart device support Miracast or not, please consult to device supplier.
Open WiFi-Display on your smart phone or tablet, find the projector default name, after connection
it can mirror the movie or photo.
Version:3.0.0-rc3
Selected WiFi-Display Mode
Default name
Name:Projector-XXXXXX
Status:Waitingforconnection...
LAN:
Device:
MAC:
PORT:
*if the smart device brush unofficial genuine brush pack, it ma not support Miracast.
*In order not to affect performance, there can not be a obstacle between the projector and
smart phone, and the distance can not exceed 5m.
*As Miracast demand high-performance phones or high soft optimization ability ,delay or stop may appear when some phone run the big
application.It is normal phenomenon, you can try to reconnect or wait for self-optimization by phone.
*If the initial connection failed ,you can try more times connection or reboot your mobile phone, then can connect successfully.
33
Several Smart Phone Miracast Connection
The setting and name of Miracast of smart phone or tablet is different, please refer to its detailed
description.
Connection Instruction:
Samsung Phone
1.Enter menu of Samsung S3
find setting option.
2.Select more setting.
3.Select AllShare Cast
4.Find P-XXXX”, click on it and wait few seconds, then
the projection image is screen of Samsung S3.
Projector-XXXX
34
DLNA
Under DLNA mode, can output photo, movie, music of smart phone or internet to projector and
then project via wireless transmission technology. Before using DLNA, the smart device need to
install software application that support DLNA, like PPTV, Tencent video, Soho Video, etc.
The method of iPhone or android phone is basically same.
Open WiFi of smart device, find the default name and connect, input the password“12345678”
Default name
Name:Projector-XXXXXX
Status:Waitingforconnection...
LAN:
Selected WiFi-Display Mode
SSID:
WAN:
OpenWiFiandconnectto`LOLLIPOP-XXXXXX`(password:12345678)
Andthenopenwebbrowseronyourdeviceandvisit
http://192.168.49.1/indexhtml
35
Password
Play Local Video By DLNA
To use the iMediaShare Lite-v4.02 as an example, open iMediaShare Lite, select my videos appear
device selection interface, select“P-XXXXX”, wait a few seconds then the projector play.
Projector-XXXX
Phone Control Interface
*Some client software do not support to play local file by DLNA.
36
Play Internet Content By DLNA
After connection successfully, open browser, input“192.168.49.1”Select
, click“Scan”,
select the network you want to connect, input password of the network, connect to the wireless
router.After connected successfully, enjoy home entertainment share.
Scaning Wireless network
Select Wireless Network
Input Password
37
Menu Introduction
Click“
”,display wireless network selection
menu, select set wireless network.
Click“
and DLNA.
”to switch between Miracast
Click“
”appear playing control buttons
Select control play video or control by client
Click“
38
”to adjust the picture aspect.
Some client software should open the DLNA on "Setting". If the DLNA does not open, there is
no DLNA Icon
on the control menu of player.
39
*If the transfer process is not smooth or the buffer time is too long, one reason is that the
distance between the smart device and wireless router is too long, sending and receiving data
drops significantly, resulting slow data transfer, replace high power wireless router, or near to
wireless router; the other reason is the bandwidth of router is too narrow, suggest you to select
the bandwidth of wireless router above 150M. If the screen is freezing during play, please restart
the projector.
*The smart device should use the same wireless network if you want to use DLNA。
*The version of clinet should be the latest version. Some old version do not support DLNA.
40
Mirror iPhone/iPad By DLNA
1.Switch to DLNA mode.
(If the projector and the mobile
phone are under same wifi ,please
skip the step 2 and 3.)
2.Enter Setting on iPhone/iPad,
select WLAN.Find the default
device name"TIDA-A6A5A9",
input password"12345678".
3.To connect your projector
with wifi ,please check the
page 37.If there is no wifi
here ,please skip this step.
4.Slide from the bottom
of the screen, enter control
centre.Select "Airplay".
5.After select Airplay, you
can find the selectable
device "TIDA-A6A5A9-iTV".
6.Select mirror, then the
projection image is your
phone mirrored screen.
Projector-XXXX
Note:*parts of video play can not do full screen mirroring.
*when screen mirroring ,parts of big game may cause the projection image stop ,the mobile phone will process the game running speed
on the phone screen first, outbound speed will slow down ,it is not the projector problem.
*Some Apple product: iPhone ,iPad can not support screen mirroring function ,as :IPHONE 4,4S ,IPAD 1 and earlier ones.
*Please update your IOS to 7.0 version or above.
41
Technical Specifications
Product Name
Native Resolution
Display Technology
Lamp
Projection Size
HDMI
WiFi
Media Player
Support Storage Device File System
Headphone Output
Speaker
Power Supply
Power Output
Battery
Projection Mode
Charging Mode
Power Consumption
Working Temperature
Working Humidity
Dimension(L×W×H)
Weight
LED Mini Projector
854×480
DLP
R,G,B LED
37.8''@1m
Standard HDMI Input
WiFi-Display AirPlay DLNA/Miracast*
Built-in 1080P media player
TF USB NTFS,FAT16,FAT32
3.5mm stereo headphone
8Ω/1W
5V 2A
5V 500mA
5000mAh Li-ion Battery
Max 120 minutes
150% (eg.Samsung Galaxy S2)
Projection:6W Charging:3W
0℃-35℃
0-85%
145×78×16mm
190g
This product and user manual for future improvement or supplemented without notice.
42
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
