High-Speed Counter

High-Speed Counter

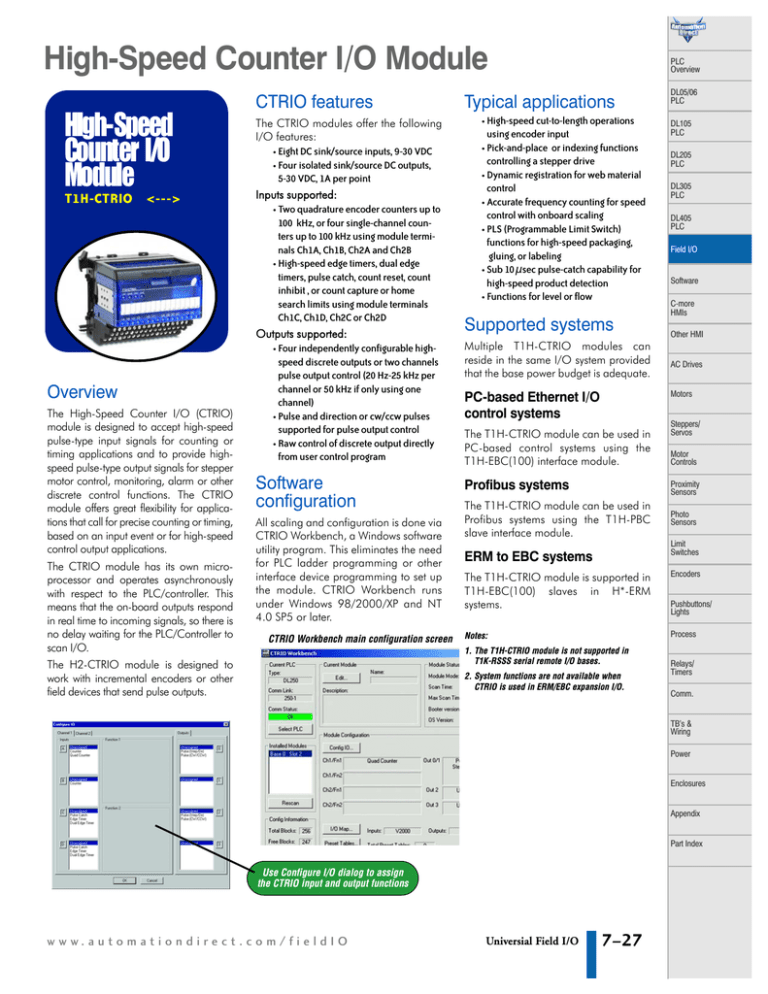

High-Speed Counter I/O Module
CTRIO features
HIgh-Speed
Counter I/O
Module
T1H-CTRIO <--->
Overview
The High-Speed Counter I/O (CTRIO)
module is designed to accept high-speed
pulse-type input signals for counting or
timing applications and to provide highspeed pulse-type output signals for stepper
motor control, monitoring, alarm or other
discrete control functions. The CTRIO
module offers great flexibility for applications that call for precise counting or timing,
based on an input event or for high-speed
control output applications.
The CTRIO module has its own microprocessor and operates asynchronously
with respect to the PLC/controller. This
means that the on-board outputs respond
in real time to incoming signals, so there is
no delay waiting for the PLC/Controller to
scan I/O.
The CTRIO modules offer the following
I/O features:
• Eight DC sink/source inputs, 9-30 VDC
• Four isolated sink/source DC outputs,
5-30 VDC, 1A per point
Inputs supported:
• Two quadrature encoder counters up to
100 kHz, or four single-channel counters up to 100 kHz using module terminals Ch1A, Ch1B, Ch2A and Ch2B
• High-speed edge timers, dual edge
timers, pulse catch, count reset, count
inhibit , or count capture or home
search limits using module terminals
Ch1C, Ch1D, Ch2C or Ch2D
Outputs supported:
• Four independently configurable highspeed discrete outputs or two channels
pulse output control (20 Hz-25 kHz per
channel or 50 kHz if only using one
channel)
• Pulse and direction or cw/ccw pulses
supported for pulse output control
• Raw control of discrete output directly
from user control program
Software
configuration
All scaling and configuration is done via
CTRIO Workbench, a Windows software
utility program. This eliminates the need
for PLC ladder programming or other
interface device programming to set up
the module. CTRIO Workbench runs
under Windows 98/2000/XP and NT
4.0 SP5 or later.
CTRIO Workbench main configuration screen
PLC
Overview
Typical applications
• High-speed cut-to-length operations
using encoder input
• Pick-and-place or indexing functions
controlling a stepper drive
• Dynamic registration for web material
control
• Accurate frequency counting for speed
control with onboard scaling
• PLS (Programmable Limit Switch)
functions for high-speed packaging,
gluing, or labeling
• Sub 10 µsec pulse-catch capability for
high-speed product detection
• Functions for level or flow
Supported systems
Multiple T1H-CTRIO modules can
reside in the same I/O system provided
that the base power budget is adequate.
PC-based Ethernet I/O
control systems
DL105
PLC
DL205
PLC
DL305
PLC
DL405
PLC
Field I/O
Software
C-more
HMIs
Other HMI
AC Drives
Motors
The T1H-CTRIO module can be used in
PC-based control systems using the
T1H-EBC(100) interface module.
Steppers/
Servos
Motor
Controls
Profibus systems
Proximity
Sensors
The T1H-CTRIO module can be used in
Profibus systems using the T1H-PBC
slave interface module.
Sensors
ERM to EBC systems
Limit
Switches
The T1H-CTRIO module is supported in
T1H-EBC(100) slaves in H*-ERM
systems.
Encoders
Notes:
Process
1. The T1H-CTRIO module is not supported in
T1K-RSSS serial remote I/O bases.
The H2-CTRIO module is designed to
work with incremental encoders or other
field devices that send pulse outputs.
DL05/06
PLC
2. System functions are not available when
CTRIO is used in ERM/EBC expansion I/O.
Pushbuttons/
Lights
Relays/
Timers
Comm.
TB’s &
Wiring
Power
Enclosures
Appendix
Part Index
Use Configure I/O dialog to assign
the CTRIO input and output functions
w w w. a u to m at i o n d i re c t . c o m / f i e l d I O
Universial Field I/O
7–27
High-Speed Counter
I/O Specifications
General
Module Type
Modules Per Base
I/O Points Used
Field Wiring Connector
Internal Power Consumption
Operating Environment
Manufacturer
Isolation
Intelligent
Limited only by power consumption
None, I/O map directly in PLC V-memory or PC control access
Standard removable terminal block
400 mA Max at +5V from Base Power Supply, Maximum of 6 Watts
(All I/O in ON State at Max Voltage/Current)
32°F to 140°F (0°C to 60°C), Humidity (non-condensing) 5% to 95%
Host Automation Products, LLC
2500 V I/O to Logic, 1000 V among Input Channels and All Outputs
T1H-CTRIO Input Specifications
Inputs
Minimum Pulse
Width
Input Voltage Range
Maximum Voltage
Input Voltage
Protection
Rated Input Current
Minimum ON
Voltage
Maximum OFF
Voltage
Minimum ON
Current
Maximum OFF
Current
OFF to ON Response
ON to OFF Response
T1H-CTRIO Output Specifications
8 pts sink/source
Outputs
4 pts, independently isolated, current sourcing or sinking
FET Outputs: open drain and source with floating gate drive
5 µsec
Voltage Range
Maximum Voltage
Output Clamp Voltage
Maximum Load Current
Maximum Load Voltage
Maximum Leakage
Current
Inrush Current
OFF to ON Response
ON to OFF Response
ON State V Drop
External Power Supply
Overcurrent Protection
Thermal Shutdown
Overtemperature Reset
Duty Cycle Range
Configurable Presets
a) single
b) multiple
5 VDC - 36 VDC
36 VDC
60 VDC
1.0 A
9-30 VDC
30 VDC
Zener Clamped at 33 VDC
8 mA typical 12 mA maximum
9.0 VDC
2.0 VDC
5.0 mA (9 VDC required to
guarantee ON state)
2.0 mA
Less than 3 µsec
Less than 3 µsec
36 VDC
100 µA
5 A for 20 ms
Less than 3 µsec
Less than 3 µsec
0.3 V
For loop power only, not required for internal module function*
15 A max
Tjunction = 150°C
Tjunction = 130°C
1% to 99% in 1% increments (default = 50%)
a) Each output can be assigned one preset, or
b) Each output can be assigned one table of presets, one table can contain max. 128
presets, max. predefined tables = 255
* User supplied power source required for stepper drive configuration.
T1H-CTRIO Input Resources
(2 per 4 input channel group)
Counter/Timer 4,
up to 100 kHz
1X, 2X, or 4X Quadrature, Up or
Down Counter, Edge Timer, Dual
Edge Timer, Input Pulse Catch, Reset,
Inhibit, Capture
Resource
Options
Timer Range / 4.2 billion (32 bits); 1 µsec
Resolution
Counter Range
7–28
T1H-CTRIO Output Resources
Pulse output / Discrete outputs Pulse outputs: 2 channels (2 outputs each channel) Discrete outputs: 4 pts.
Resource Options
Pulse outputs: pulse/direction or cw/ccw; Profiles:Trapezoid, S-Curve,
Symmetrical S-Curve, Dynamic Position, Dynamic Velocity, Home Search,
Velocity Mode, Run to Limit Mode and Run to Position Mode
Discrete outputs: 4 configurable for set, reset, pulse on, pulse off, toggle,
reset count functions (assigned to respond to Timer/Counter input functions).
Raw mode: Direct access to discrete output from user application program
Target Position Range
± 2.1 billion (32 bits or 31 bits + sign bit)
± 2.1 billion
(31 bits + sign bit)
Universial Field I/O
1 - 80 0 - 633 - 0405
High-Speed Counter
PLC
Overview
DL05/06
PLC
Status indicators
T1H-CTRIO LED Descriptions
OK
ER
1A - 1D
2A - 2D
CH1
CH2
Y0 - Y3
DL105
PLC
T1H-CTRIO- LED Diagnostic Definitions
Module OK
LED OK
LED ER
DL205
PLC
Description
User Program Error
ON
OFF
All is well - RUN Mode
Ch1A - Ch1D Input Status
ON
ON
Hardware Failure
Ch2A - Ch2D Input Status
Blinking
Blinking
Channel 1 Status
Blinking
OFF
Channel 2 Status
OFF
Blinking
Output Status
OFF
ON
Module Error Due to Watchdog Timeout
OFF
OFF
No Power to Module
DL305
PLC
Boot Mode - Used for Field OS Upgrades
DL405
PLC
Program Mode
Module Self-diagnostic Failure
Field I/O
Software
T1H-CTRIO LED Diagnostic Definition
CH1
CH2
Y0 - Y3
C-more
HMIs
Blinks when Channel 1 Function 1 is counting or timing
Blinks when Channel 2 Function 1 is counting or timing
Other HMI
Follow actual output state; ON = output is passing current
Installation and wiring
AC Drives
The T1H-CTRIO module has two independent input channels, each consisting of four optically isolated input points
(points 1A-1D on common 1M and points 2A-2D on common 2M). The inputs can be wired to either sink or source current.
The module has four optically isolated output points (points Y0-Y3 on isolated commons C0-C3, respectively). The outputs must
be wired so that positive current flows into the Cn terminal and then out of the Yn terminal (see the diagram below and the
schematic on the following page).
The module is configured, using CTRIO Workbench, to accommodate the user’s application. The function of each input (counting,
timing, reset, etc.) and output (pulse output, discrete output, etc.) is defined in the configuration of the module.
See the notes below for further details about power source considerations, circuit polarities, and field devices.
1B 1C
1D
Y0 Y0
Y1
Y1
2A
2B
2C
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Input / Output Channels
1A
Motors
2D
Y2
Y2
Y3
Encoders
Y3
T1H–CTRIO
Pushbuttons/
Lights
OK ERR CH1 CH2
Channel Commons
1M
1M 1M
1M
C0 C0
C1
C1
2M 2M
2M
Process
2M
C2
C2
C3 C3
1A 1B 1C 1D
Y0 Y1
2A 2B 2C 2D
Y2 Y3
Relays/
Timers
2
Comm.
User Bus Terminals (no internal connection to CTRIO)
–––––––USER BUS 1–––––––
TB’s &
Wiring
–––––––USER BUS 2–––––––
Power
Notes:
1. Inputs (1A, 1B, 1C, 1D and 2A, 2B, 2C, 2D) require user-provided 9-30 VDC power sources. Terminals 1M and 2M are the commons for
Channel 1 and Channel 2 inputs. Maximum current consumption is 12 mA per input point.
2. Polarity of the input power sources can be reversed. Consideration must be given, however, to the polarity of the field device. Many
field devices are designed for only one polarity and can be damaged if power wiring is reversed.
3. Outputs have one polarity only and are powered by user-provided
5-36 VDC power sources. The maximum allowable current per output circuit is 1A.
4. User Bus 1 and User Bus 2 are independent 8-wire terminal buses. They can be used for additional power rail connections.
w w w. a u to m at i o n d i re c t . c o m / f i e l d I O
Universial Field I/O
7–29
Enclosures
Appendix
Part Index
High-Speed Counter
Solid state input
wiring device
Pulse output schematic
DC types of field devices are configured to
either sink or source current. This affects
the wiring of the device to the CTRIO
module. Refer to the sinking/sourcing
section of the appendix in this catalog for
a complete explanation of sinking and
sourcing concepts.
Cn (where n=0, 1, 2, 3)
CTRIO
Output
+5 to 36 VDC
Yn
+
Load
-
NPN Field Device (sink)
+
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
Load
+5 to 36 VDC
Cn (where n=0, 1, 2, 3)
1A
Sensing Circuit
CTRIO
Output
Yn
24
- VDC
+
1M
The same circuitry is present at the
corresponding Channel 2 terminal.
Stepper/servo drive
wiring example
24 VDC
PNP Field Device (source)
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
+
-
Input / Output Channels
1A
Sensing Circuit
1B 1C
1D
Y0 Y0
Y1
Y1
2A
2B
2C
2D
Y2
Y2
Y3
Y3
Step Amplifier
1A
Step Amplifier
5-36 VDC
- +
5-36 VDC
OPTO Power
Pulse
Channel Commons
+ -
Pulse
(or CW)
1M
1M 1M
1M
C0 C0
C1
C1
2M 2M
2M
OPTO Power
2M
C2
C2
C3 C3
(or CW)
Direction (or CCW)
Direction (or CCW)
User Bus Terminals (no internal connection to CTRIO)
–––––––USER BUS 1–––––––
–––––––USER BUS 2–––––––
1M
The same circuitry is present at the
corresponding Channel 2 terminal.
7–30
Universial Field I/O
1 - 80 0 - 633 - 0405
High-Speed Counter
PLC
Overview
CTRIO Workbench configure I/O setup
Fill-in-the-blank
configuration software
The CTRIO Workbench is the software utility used to configure the CTRIO
module and to scale signals to desired engineering units. Workbench
also allows you to perform various other functions, such as switching
between the CTRIO’s Program mode and Run mode, monitoring I/O
status and functions, and diagnostic control of module functions. The
CTRIO Workbench utility ships with the CTRIO User Manual. You can
also download the latest version free at the Host Automation Products,
L.L.C. Web site: www.hosteng.com.
The Configure I/O dialog is the location where input
and output functions are assigned to the module. The
choice of input and output functions determines which
options are available. The input function boxes prompt
you with selections for supported functions. The
Workbench software automatically disallows any unsupported configurations.
DL05/06
PLC
DL105
PLC
DL205
PLC
DL305
PLC
DL405
PLC
Field I/O
CTRIO Workbench main configuration screen
Software
C-more
HMIs
Select modules from
multiple networked PLCs
Other HMI
T1H-CTRIO
Save and load configurations
with Read/Write File feature
AC Drives
Configure I/O screen
Motors
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Detailed snap-shot of module
status and configurations
Sensors
CTRIO Workbench diagnostics and monitoring
The Monitor I/O dialog is accessible from the main Workbench dialog
when the module is in Run Mode. This allows for a convenient way to test
and debug your configuration prior to installation. The Monitor I/O dialog
is divided into three functional areas: Input Functions, Output Functions and
System Functions. The data displayed under the Input Functions tab includes
all input Dword parameters, status bits and the current status of each configured input and output function. The fields displayed under the Output
Functions tab includes all output Dword parameters and configuration information that can be altered during runtime and the bits that indicate
successful transfers or errors. The System Functions can be used to read from
or write to the CTRIO’s internal registers.
Monitor I/O screen
Limit
Switches
Encoders
CTRIO Workbench on-board scaling
Scaling raw signals to engineering units is accomplished
using the Scaling Wizard. The Scaling Wizard options are
different for the Counter functions as compared with the
Timer functions. “Position” and “Rate” scaling are available when you select a Counter function. “Interval”
scaling is available when you select a Timing function.
Pushbuttons/
Lights
Process
Relays/
Timers
Comm.
TB’s &
Wiring
Scaling Wizard screen
Power
Monitor I/O dialog included
for easy de-bug features
Enclosures
Appendix
Part Index
w w w. a u to m at i o n d i re c t . c o m / f i e l d I O
Universial Field I/O
7–31
High-Speed Counter
High-speed counting
High-speed input operations
The CTRIO can be configured for counting functions for the
use of an encoder input, (up to two quadrature encoders per
module) with available connections for external reset and
inhibit signals. In a simple cut to length application as shown,
the encoder provides an input position reference for the material to the module. The module's high speed outputs are wired
to the cutting device and to the clutch and/or braking device.
When the count from the encoder is equal to a preprogrammed setpoint within the module, the high speed
outputs are activated to stop and cut the material to a repeatable fixed length. Additionally, the clutch/brake signal can be
used for an inhibit signal to not accumulate counts while the
material is being cut.
The CTRIO module is capable of a wide variety of high
speed input and output operations all within one
module. With its flexible 2-channel input and separate
2-channel output design, the CTRIO can satisfy both
high-speed counting, timing, pulse catch operations,
along with high speed discrete output or several profile
choices of pulse output operations. Not all combinations of input functions and output functions are
possible within the resources of the module, but the
following examples are some of the most common
applications for the CTRIO. Check out these examples
and see how they relate to your high speed application
needs.
High-speed timing
The CTRIO can be configured for timing functions
based on both count or rate. Using a common configuration of a proximity switch sensing the teeth on a gear,
the module is able to calculate the velocity of the gear
based on the rate it receives its counts. This value can
be scaled within the module to the engineering units
required for the application.
High-speed cut-to-length application
Interface device with CTRIO module
Motor
Interface
Motor
control
lines
Gearbox, clutch and
brake interface
CTRIO high
speed output
High-speed timing application
Interface device with CTRIO module
Encoder
Cutter interface
Cutter assembly
Material to be
cut to length
Gear
Proximity switch
Photoelectric switch
Using Configure I/O screen to configure
CTRIO for high-speed counting
Using Configure I/O screen to configure CTRIO for high-speed timing
Point-click selections of
hardwired connection for
Counting, Reset, and Inhibit
Powerful edge timing functions clicking on the edge button cycles through
the available edge timing functions
7–32
Universial Field I/O
1 - 80 0 - 633 - 0405
High-Speed Counter
PLC
Overview
Pulse output operations
DL05/06
PLC
Interface device with CTRIO module
DL105
PLC
Using Edit Pulse Profile screen to select
Trapezoid pulse output profile
DL205
PLC
DL305
PLC
CTRIO pulse
output signals
Fill spout
DL405
PLC
Field I/O
Software
Stepper or
servo drive
C-more
HMIs
Fill-in-the-blank parameters
allow precise tuning of the
pulse output profile
Pulse output for stepper/servo control
The CTRIO module is capable of multiple configurations for pulse
output control, most often when connected to a stepper or servo
drive system. The module can deliver a pulse output signal up to a
maximum of 25 kHz on two channels with support for pulse-anddirection or CW/CCW pulses. The available profile choices
include Trapezoid, S-Curve, Symmetrical S-Curve, Dynamic
Positioning, and Pulse to Limit. All profiles can be easily configured
using the CTRIO Workbench software with fill-in-the-blank parameter fields and a graphic representation of the selected profile.
Three additional profiles are available that are completely
controlled by the user program (no CTRIO profile is configured).
They are Velocity Mode, Run to Limit Mode and Run to Position
Mode.
Example application
In a simple rotary indexing application, as shown above, a fixed
Trapezoid profile is chosen. The CTRIO for this application is wired
to a stepper drive for pulse-and-direction. The requirement for this
application is to provide a smooth movement of the rotary table to
allow product to be filled into individual containers equal distance
apart. The predetermined number of pulses required for each
movement is entered into the CTRIO Workbench as "Total Pulses"
along with the Starting Frequency, Ending Frequency, and
Positioning Frequency (speed after acceleration). The Acceleration
and Deceleration parameters are entered in units of time, so no
ramp-distance calculations are required. After all parameters are
entered, a graphical representation of the configured profile is
shown automatically. Once the configuration has been downloaded to the module, all that is needed from the PLC CPU is the
Enable Output signal to begin a movement.
Stepper motor
inside housing
Circular turn table
Other HMI
AC Drives
Rotary indexing liquid fill application
Other common pulse output applications:
• S-Curve accel/decel profile for signaling a stepper or servo
drive that needs a curved acceleration and deceleration pro
file, i.e. for diminishing any initial “jerk” upon movement of
static products, boxes on conveyors, liquids in containers on
an indexer, printing registrations, etc.
• Dynamic Positioning for any run-to-a-specific-position
requirement, either by a pre-programmed count of an external
high speed discrete input wired to the module. This is
popular in winding or webcontrol with any dynamic
registration mark or variable speed requirement.
• Home Search routines to seek a home position based on
CTRIO discrete input limit(s).
Motors
Steppers/
Servos
Motor
Controls
Proximity
Sensors
Sensors
Limit
Switches
Encoders
Pushbuttons/
Lights
Process
Example of S-Curve acceleration and
deceleration pulse output profile
Relays/
Timers
Comm.
TB’s &
Wiring
Power
Enclosures
Appendix
Part Index
Calculate Profile displays
graphical representation of
pulse output profile
w w w. a u to m at i o n d i re c t . c o m / f i e l d I O
Universial Field I/O
7–33
High-Speed Counter
Multihead drill machine application
Combining high-speed
input and pulse output
operations
Using CTRIO Workbench to configure the
module for simultaneous high-speed input
and high-speed pulse output operation
Proximity switch
Proximity switch
Proximity switch
Encoder
Stepper or
servo drive
Interface device with CTRIO module
High-Speed inputs and pulse output
combinations
The flexible design of the CTRIO module allows for combining
high speed inputs and delivering high speed pulse outputs signals
simultaneously. There are limitations to this type of configuration in
that the module does not internally support closed loop control.
Providing closed loop control with the CTRIO involves additional
PLC code to coordinate this control, making the application
subject to the PLC CPU program scan. Simple position/speed
monitoring, via a high speed counting input for non-critical
response while providing pulse outputs to a drive, is easily achievable for the CTRIO.
Master Controller program
Example application
In the simple drill-head application shown above, the CTRIO pulse
outputs are wired to a stepper and/or servo drive. The inputs are
wired to an encoder attached to the lead screw on the movable
portion of the drill-head assembly. The CTRIO module output
pulse train to the drive allows the motor to spin the lead screw
making the drill move forward into the passing material. The
encoder monitors the speed and position of the drill-head. Prox
switches at each end act as limit switches ensuring the drill-head
will not over-travel. A home sensor is positioned in the middle of
the assembly, allowing the PLC to reset the count.
CTRIO pulse output profile
Note: Closed loop control for the CTRIO module
requires control program interaction to
close the loop. This makes the application
subject to the master controller scan.
CTRIO high-speed input pulse train
7–34
Universial Field I/O
1 - 80 0 - 633 - 0405
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
