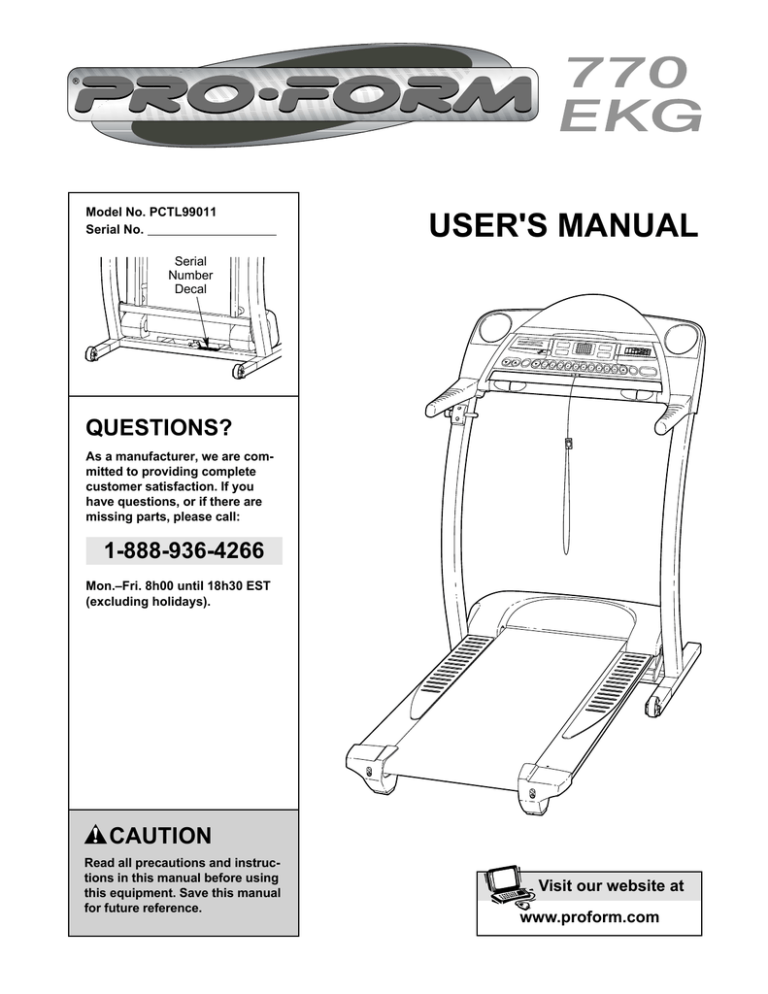

USER`S MANUAL

Model No. PCTL99011

Serial No.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call:

1-888-936-4266

Mon.–Fri. 8h00 until 18h30 EST

(excluding holidays).

USER'S MANUAL

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Visit our website at www.proform.com

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this manual.

12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

3. Place the treadmill on a level surface, with at least 2.5 m (8 ft.) of clearance behind it and

0.5 m (2 ft.) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

13. Keep the power cord and the surge suppressor away from heated surfaces.

14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)

15. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid sudden jumps in speed.

7. The treadmill should not be used by persons weighing more than115 kgs (250 lbs.).

8. Never allow more than one person on the treadmill at a time.

17. The pulse sensor is not a medical device.

Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill.

Athletic support clothes are recommended for both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

18. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and move the on/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the on/off circuit breaker.)

10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor

(not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

19. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 21.) You must be able to safely lift 20 kg (45 lbs.) in order to raise, lower, or move the treadmill.

11. Use only a CUL-listed surge suppressor, rated at 15 amps, with a 1 mm 2 (14-gauge) cord of 1.5 m (5 ft.) or less in length. Do not use an extension cord.

20. Do not change the incline of the treadmill by placing objects under the treadmill.

21. When folding or moving the treadmill, make sure that the storage latch is fully closed.

22. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the

“chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

23. When using iFIT.com CDs and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next

“chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.

25. Inspect and tighten all parts of the treadmill regularly.

26. Never insert or drop any object into any opening.

27.

DANGER:

Always unplug the power cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

24. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.

28. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call 1-888-936-4266 to order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 27). Apply the replacement decal in the location shown.

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM ®

770 EKG treadmill. The 770 EKG treadmill combines advanced technology with innovative design to help you get the most from your exercise program in the convenience and privacy of your home. And when you’re not exercising, the unique 770 EKG can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you need more information, call our Customer Service Department at 1-888-936-4266,

Monday through Friday 8h00 until 18h30 Eastern Time

(excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is

PCTL99011. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Water Bottle

Holder (Bottle not included)

Handgrip Pulse Sensor

Lock Knob

LEFT SIDE

Key/Clip

Book Holder

Console

Handrail

RIGHT SIDE

On/Off Circuit Breaker

Foot Pad

Walking Belt

Power Cord

Front Wheel

Cushioned Walking Platform

Rear Roller

Adjustment Bolts

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screw-

driver and rubber mallet .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the treadmill to the upright position as shown.

Insert one of the Extension Legs (55) into the treadmill as shown. Make sure that the Extension Leg is turned so the Base Pad (44) is on the bottom. If necessary, tip the

Uprights (64) forward as you insert the Extension Leg.

Insert the other Extension Leg (not shown) in the same way.

If there are plastic ties on the Pulse Sensors (54), remove them.

1

54

Plastic Ties

64

44

55

2. With the help of a second person, carefully lower the

Uprights (64) as shown. Note: It may be helpful to place your foot on one of the Wheels (58) as you tip the

Uprights. Make sure that the Extension Legs (55) re-

main in the Uprights.

Attach each Extension Leg (55) with two Extension

Screws (35) as shown.

Note: One replacement Base Pad (44) may be included.

If a Base Pad becomes worn and needs to be replaced, use the replacement Base Pad.

2

64

58

44

55

44

35

55

44

35

6

3. With the help of a second person, carefully tip the

Uprights (64) back to the vertical position.

Attach the Latch Assembly (32) to the left Upright (64) with two Extension Screws (35).

Note: There may already be two pieces of Foam Tape

(82) attached to each post. If there are not, peel the paper off two of the included pieces of Foam Tape. Press the

Foam Tape onto the left post in the locations shown.

Press the other two pieces of Foam Tape onto the right post in the same way.

3

35

32 Post

82

64

4. Turn a Handrail Extension (34) so that the two larger holes are on the bottom as shown. Insert the Handrail

Extension as far as possible into the post on the left

Upright (64). If necessary, tap the Handrail Extension with a rubber mallet to fully insert it. Next, attach the Handrail

Extension by tightening three Extension Screws (35) into the indicated holes.

Identify the Left Foam Grip (31) (see the inset drawing).

Remove any remaining paper from the two indicated pieces of Foam Tape (82). Apply a small amount of water to the Foam Tape. Slide the Left Foam Grip as far as possible onto the post on the left Upright (64). Note: It may

be helpful to lubricate the Handrail Extension (34)

with soapy water. Press two Plastic Fasteners (9) into the Foam Grip and the Handrail Extension (34). If necessary, use a blunt object to press in the Fasteners.

Attach the other Handrail Extension (not shown) and the

Right Foam Grip (43) as described above. Note: Make sure that the Extension Screws (35) are attached on the outside of the post as shown.

4

9

31

Holes

35

Post

64

34

82

31

43

5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 24). To protect the floor or carpet from damage, place a mat under the treadmill.

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBE TM , a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

DANGER:

Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock.

Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

1

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right).

Use only a single-outlet surge suppressor that is

CUL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding

2

Grounding Pin

Grounded Outlet

Grounding Plug

Grounded Outlet Box

Lug

Metal Screw

Adapter

Surge Suppressor

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

8

CONSOLE DIAGRAM

Manual/Program Indicators Display Program Display Display Program Profiles

Note: If there is a thin sheet of plastic on the face of the console, remove it.

Key

Clip

CAUTION:

Before operating the console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill.

• Adjust the speed in small increments to avoid sudden jumps in speed.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

FEATURES OF THE CONSOLE

The advanced console offers an impressive array of features to help you get the most from your exercise.

When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor. Note: See page 20 for information about an optional chest pulse sensor.

Four certified personal trainer programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout. Two heart rate programs are also featured. Each program controls the speed and incline of the treadmill to keep your heart rate near a target level during your workouts.

The console also features new iFIT.com interactive technology. IFIT.com technology is like having a personal trainer right in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (available separately).

IFIT.com CD programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. Each CD features two programs designed by certified personal trainers.

In addition, you can connect the treadmill to your VCR and TV and play iFIT.com video programs (videocassettes are available separately). Video programs offer the same benefits as iFIT.com CD programs, but add the excitement of working out with a class and an instructor—the hottest new trend at health clubs.

With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.

For more information, please call our Customer

Service Department at 1-888-936-4266.

To use the manual mode of the console, follow the steps beginning on page 10. To use a personal trainer

program, see page 12. To use a heart rate program, see page 13. To use an iFIT.com CD or video pro-

gram, refer to page 17. To use an iFIT.com program

directly from our Web site, see page 19.

HOW TO TURN ON THE POWER

1

Plug in the power cord (see page 8).

2

Locate the on/off circuit breaker near the power cord. Move the on/off circuit breaker to the on position.

On

Position

3

Stand on the foot pads of the treadmill. Find the clip attached to the key (see the drawing on page

9) and slide the clip onto the waistband of your clothes. Next, insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by carefully taking a few

steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

1

Insert the key fully into the console.

3

See HOW TO TURN ON THE POWER above.

2

Select the manual mode.

When the key is inserted, the manual mode will be selected and the Manual Control indicator will light. If a program has been selected, press the Program button repeatedly to reselect the manual mode.

Press the Start button or the Speed

button to start the walking belt.

A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by pressing the Speed

▼ and

▲ buttons.

Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5

mph. To change the speed setting quickly, press the Quick Speed buttons. Note: The console can

display speed and distance in either miles or kilometers. For simplicity, all instructions in this section refer to miles.

During the first few minutes that the treadmill is used, inspect the alignment of the walking belt, and align it if necessary (see page 24).

To stop the walking belt, press the Stop button.

The Time/Incline/Segment Time display will begin to flash. To restart the walking belt, press the Start button or the Speed

▲ button.

4

Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline buttons. Each time a button is pressed, the incline will change by

0.5%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.

5

Follow your progress with the LED track and the displays.

The LED Track—When the manual mode or the iFIT.com mode is selected, the program display will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light in sequence until you have completed 1/4 mile. A new lap will then begin.

Calories/Fat Calories/

Heart Rate display

This display shows the approximate numbers of

calories and fat calories you have burned (see

FAT BURNING on page 25). The display will change from one number to the other every few seconds, as shown by the indicators in the display. The display will also show your heart rate when you use the handgrip pulse sensor (refer to step 6 on page 11) or the optional chest pulse sensor (refer to page 20).

10

Time/Incline/Segment

Time display—When the manual mode or the iFIT.com mode is selected, this display will show the elapsed time and the incline level of the treadmill. The display will change from one number to the other every few seconds, as shown by the indicators in the display. When a personal trainer program or a heart rate program is selected, the display will show the time remaining in the program, the time remaining in the current segment of the program, and the incline level. Note: Each time the incline changes, the display will show the current incline setting for several seconds.

Distance/Laps

display—This display shows the distance that you have walked and the number of 1/4-mile laps you have completed. The display will change from one number to the other every few seconds, as shown by the indicators in the display.

Speed/Min-Mile

display—This display shows the speed of the walking belt and your current pace (pace is measured in minutes per

mile). The display will change from one number to the other every few seconds, as shown by the indicators in the display. Note: Each time the speed changes, the display will show the current speed setting for several seconds.

Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, hold down the

Stop button while inserting the key into the console. An “E” for English miles or an “M” for metric kilometers will appear in the display. Press the

Speed ▲ button to change the unit of measurement. When the desired unit of measurement is selected, remove the key and then reinsert it.

To reset the displays, press the Stop button, remove the key, and then reinsert the key.

6

Measure your heart rate, if desired.

Note: Before using the handgrip pulse sensor, make sure that your hands are clean.

To measure your heart rate, stand

on the foot pads

and place your hands on the metal contacts on the handrail. Your palms must be resting on the contacts—avoid moving your hands. When your pulse is detected, the heart-shaped indicator in the

Calories/Fat Calories/Heart Rate display will flash, and then your heart rate will be shown. For the

most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

7

When you are finished exercising, remove the key.

Step onto the foot pads, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi-

tion or the treadmill will be damaged. Next, remove the key from the console and put it in a secure place. Note: If the displays and various indi-

cators on the console remain lit after the key is removed, the console is in the “demo” mode.

See page 20 and turn off the demo mode.

When you are finished using the treadmill, move the on/off circuit breaker near the power cord to the off position and unplug the power cord.

HOW TO USE PERSONAL TRAINER PROGRAMS

1

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page 10.

2

Select one of the personal trainer programs.

When the key is inserted, the manual mode will be selected.

To select one of the personal trainer programs, press the Program button repeatedly until one of the four personal trainer program indicators lights. When a personal trainer program is selected, the Time/Incline/Segment Time display will flash the maximum incline setting for the program for six seconds, and the Speed/Min-mile display will flash the maximum speed setting.

The four profiles on the right side of the console show how the speed and incline of the treadmill will change during the programs. The numbers beside the profiles show the maximum speed and incline settings for the programs.

The program display will show the first speed settings for the program.

The Time/Incline/

Segment Time display will show how long the program will last.

3

Press the Start button or the Speed

button to start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.

Each program is divided into several time segments of different lengths. The Time/Incline/

Segment Time display will show both the time remaining in the program and the time remaining in the current segment. One speed setting and one incline setting are programmed for each segment.

(The same speed setting and/or incline setting may be programmed for consecutive segments.) The speed setting for the first segment will be shown in the flashing Current

Segment column of the program display. (The incline settings are not shown in the program display.) The speed settings for the next four segments will be shown in the four columns to the right.

Current Segment

When only three seconds remain in the first segment of the program, both the Current Segment column and the column to the right will flash and a tone will sound. In addition, if the speed and/or incline of the treadmill is about to change, the

Speed/Min-Mile display and/or the Time/Incline/

Segment Time display will flash to alert you, and three tones will sound. When the first segment is completed, all speed settings will move one col-

umn to the left. The speed setting for the second segment will then be shown in the flashing

Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment.

The program will continue in this way until the speed setting for the last segment is shown in the

Current Segment column and no time remains in the Time/Incline/Segment Time display. The walking belt will then slow to a stop.

Note: Each time a segment ends and the speed settings move one column to the left, if all of the

indicators in the Current Segment column are lit, the speed settings will move downward so that only the highest indicators in the columns will appear in

the program display. When the speed settings move to the left again and not all of the indicators in the Current Segment column are lit, the speed settings will move back up.

If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the Speed or

Incline buttons. Every few times one of the Speed buttons is pressed, an additional indicator will light or darken in the Current Segment column. If any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well.

Important: When the current segment of the program ends, the treadmill will automatically adjust to the speed and incline settings for the next segment.

12

To stop the program temporarily, press the Stop button. The Time/Incline/Segment Time display will begin to flash. To restart the program, press the Start button or the Speed

▲ button. To end the program, press the Stop button, remove the key, and then reinsert the key.

4

Follow your progress with the displays.

See step 5 on page 10.

HOW TO USE HEART RATE PROGRAMS

CAUTION:

If you have heart problems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.

5

Measure your heart rate, if desired.

See step 6 on page 11.

6

When the program is completed, remove the key from the console.

When the program has ended, make sure that

the incline of the treadmill is at the lowest set-

ting. Next, remove the key from the console and put it in a safe place. Note: If the displays and

various indicators on the console remain lit after the key is removed, the console is in the

“demo” mode. Refer to page 20 and turn off the demo mode.

When you are finished using the treadmill, move the on/off circuit breaker near the power cord to the off position and unplug the power cord.

Follow the steps below to use the heart rate programs.

Note: You must wear the optional chest pulse sensor (see page 20) to use the heart rate programs.

1

2

Put on the chest pulse sensor.

Refer to the instructions included with the optional chest pulse sensor.

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page 10.

3

Select a heart rate program.

When the key is inserted, the manual mode will be selected.

To select one of the heart rate programs, press the Program button repeatedly until one of the two heart rate program indicators lights.

The two profiles on the left side of the console show how the target heart rate will change during the programs. The numbers above the profiles represent percentages of your estimated maxi-

mum heart rate. (Your estimated maximum heart rate is determined by subtracting your age from

220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute [220 – 30 = 190]. If you are 30 years old, a target heart rate setting of 50% is equal to 95 beats per minute [50% of 190 is 95].)

During heart rate programs, the program display will show a graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.

4

Enter your age.

When a heart rate program is selected, the letters AGE and the current age setting will begin to flash in the Calories/ Fat

Calories/Heart Rate display. You must enter your age to use a heart rate program. If you have already entered your age, go to step 5. If you have not entered your age, press the Incline (Age Set) buttons until your age is shown. Your age will then be saved in memory.

5

Press the Start button or the Speed

button to start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.

Each heart rate program is divided into one-minute segments. The Time/Incline/Segment Time display will show both the time remaining in the program and the time remaining in the current segment of the program. One target heart rate setting is programmed for each segment. (The same target heart rate setting may be programmed for consecutive segments.)

When only three seconds remain in the first oneminute segment of the program, a series of tones will sound and the Time/Incline/Segment Time display and the Speed/Min-Mile display will flash.

The speed and/or incline of the treadmill will then change, if needed, to bring your heart rate closer to the target heart rate setting for the next segment.

The program will continue until no time remains in the program. The walking belt will then slow to a stop.

If the speed or incline setting for the current segment is too high or too low, you can adjust the setting with the Speed or Incline buttons. However, if you decrease the speed, the incline will automatically increase; if you increase the speed, the incline will decrease. If you increase the incline, the speed will decrease; if you decrease the incline, the speed will increase. The treadmill will always

attempt to keep your heart rate near the target

heart rate setting for the current segment. Note:

When the incline reaches the lowest setting, the speed cannot be increased any further. When the incline reaches the highest setting, the speed cannot be decreased any further.

If your pulse is not detected during the program, the letters PLS will flash in the Calories/Fat

Calories/Heart Rate display and the speed and incline of the treadmill may automatically decrease until your pulse is detected. If this occurs, refer to the instructions included with the chest pulse sensor.

To stop the program at any time, press the Stop button. Heart rate programs should not be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.

6

Follow your progress with the displays.

See step 5 on page 10.

7

When the program is completed, remove the key from the console.

See step 7 on page 11.

14

HOW TO CONNECT THE TREADMILL TO YOUR

CD PLAYER, VCR, OR COMPUTER

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.

To use iFIT.com CDs, the treadmill must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 15 and

17 for connecting instructions. To use iFIT.com video-

cassettes, the treadmill must be connected to your

VCR. See page 17 for connecting instructions. To use

iFIT.com programs directly from our internet site, the treadmill must be connected to your home computer. See page 16 for connecting instructions.

A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.

A

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the

PHONES jack.

A

AUDIO OUT

RIGHT

LEFT

B. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Adapter

B

Audio

Cable

Headphones

LINE OUT

Audio

Cable

B. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.

B

C. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.

Audio

Cable

PHONES

PHONES

3.5mm

Y-adapter

C

PHONES

3.5mm

Y-adapter

Headphones

Audio

Cable

Headphones

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.

A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter.

Plug the adapter into the LINE OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.

A

A

CD

VCR

Amp

LINE OUT

LINE OUT

LINE OUT

Audio

Cable

Audio

Cable

Adapter

B. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the

Y-adapter.

B

PHONES

B

CD

VCR

Amp

LINE OUT

Audio

Cable

3.5mm

Y-adapter

Headphones/Speakers

Audio

Cable

RCA

Y-adapter

Adapter

Wire removed from

LINE OUT jack

16

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 16.

A. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

A

Audio

Cable

Adapter

ANT. IN

VIDEO AUDIO

IN

3

CH

4

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

B. Plug one end of the audio cable into the jack on the front of the treadmill near the power cord. Plug the other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.

B

OUT

ANT. IN

3

CH

4

RF OUT

RCA Y-adapter

Audio

Cable

Adapter

Wire removed from

AUDIO OUT jack

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER on pages

15 to 17. Note: To purchase iFIT.com CDs or video-

cassettes, call our Customer Service Department at 1-888-936-4266.

Follow the steps below to use an iFIT.com CD or video program.

1

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

2

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected.

To use iFIT.com CDs or videocassettes, press the Program button repeatedly until the iFIT.com indicator lights.

3

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com

videocassette, insert the videocassette into your

VCR.

4

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Incline/Segment

Time display is flashing, press the Start button or the Speed

▲ button on the console. The treadmill will not respond to a CD or video program when the Time/Incline/Segment Time display is flashing.

During the CD or video program, an electronic

“chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is

heard, the speed and/or incline will change to the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Incline/

Segment Time display will begin to flash. To restart the program, press the Start button or the

Speed ▲ button. After a moment, the walking belt will begin to move at 1.0 mph. When the next

“chirp” is heard, the speed and incline will change to the next settings of the CD or video

program. The program can also be stopped by pressing the Stop button on your CD player or

VCR.

When the CD or video program is completed, the walking belt will stop and the Time/Incline/Segment

Time display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 17.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:

• Make sure that the iFIT.com indicator is lit and that the Time/Incline/Segment Time display is not flashing. If the Time/Incline/Segment Time display is flashing, press the Start button or the Speed

button on the console.

• Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the console may not detect the program signals.

• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.

• See the instructions near the bottom of page

24.

5

Follow your progress with the LED track and the displays.

See step 5 on page 10.

6

Measure your heart rate, if desired.

See step 6 on page 11.

7

When the program is completed, remove the key.

See step 7 on page 11.

CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player or VCR when you are finished using them.

18

HOW TO USE PROGRAMS DIRECTLY FROM

OUR WEB SITE

7

Return to the treadmill and stand on the foot pads. Find the clip attached to the key and slide the clip onto the waistband of your clothes.

Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 16. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.

Follow the steps below to use a program from our

Web site.

When the on-screen countdown ends, the program will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic

“chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is

heard, the speed and/or incline will change to the next settings for the program.

1

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 10.

2

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected.

To use a program from our Web site, press the

Program button repeatedly until the iFIT.com indicator lights.

To stop the walking belt at any time, press the

Stop button on the console. The Time/Incline/

Segment Time display will begin to flash. To restart the program, press the Start button or the

Speed

▲ button. After a moment, the walking belt will begin to move at 1.0 mph. When the next

“chirp” is heard, the speed and incline will

change to the next settings of the program.

When the program is completed, the walking belt will stop and the Time/Incline/Segment Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.

3

Go to your computer and start an internet connection.

4

5

Start your web browser, if necessary, and go to our Web site at www.iFIT.com.

Follow the desired links on our Web site to select a program.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Incline/Segment Time display is not flashing. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

Read and follow the on-line instructions for using a program.

8

Follow your progress with the LED track and the displays.

6

Follow the on-line instructions to start the program.

See step 5 on page 10.

When you start the program, an on-screen countdown will begin.

9

When the program has ended, remove the key.

See step 7 on page 11.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following information will be shown:

The Time/Incline/Segment

Time display will show the total number of hours the treadmill has been used.

THE OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor adds even more features to the console. The chest pulse sensor offers hands-free operation, and enables you to use the console’s two heart rate programs. To purchase the

chest pulse sensor, please call our Customer

Service Department at 1-888-936-4266.

The Distance/Laps display will show the total number of miles (or kilometers) that the walking belt has moved.

An “E” for english miles or an

“M” for metric kilometers will appear in the Speed/Min-Mile display. Press the Speed ▲ button to change the unit of measurement.

IMPORTANT: The Calories/

Fat Calories/Heart Rate dis-

play should be blank. If a “d” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a “d” ap-

pears in the Calories/Fat Calories/Heart Rate display when the information mode is selected, press the

Speed

button so the display is blank.

To exit the information mode, remove the key from the console.

20

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord.

CAUTION: You must be able to safely lift 20 kg (45 lbs.) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at the right. CAUTION: To decrease the possibility of

injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway to the vertical position.

2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the catch is past the latch pin. Slowly release the latch knob. Make

sure that the catch is securely held by the latch pin.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 30°C (85°F).

1

2

Latch

Knob

Pin

Catch

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the catch

is securely held by the latch pin.

1. Hold the handrails as shown and place one foot against a wheel.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location.

Never move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.

3. Place one foot on a wheel, and carefully lower the treadmill until it is resting in the storage position.

Open

Closed

Base

Wheels

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.

1

2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. Do not drop the treadmill frame

to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

2

Latch

Knob

Pin

Catch

Open

22

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-888-

936-4266, Monday through Friday 8h00 until 18h30 Eastern Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see on page 8). Important: Use only a CUL-listed surge suppressor, rated at 15 amps, with a 1 mm 2 (14-gauge) cord of 1.5 m (5 ft.) or less in length.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. c. Check the on/off circuit breaker located on the treadmill near the power cord. If the switch protrudes as shown, the on/off circuit breaker has tripped. To reset the on/off circuit breaker, wait for five minutes and then press the switch back in.

PROBLEM: The power turns off during use

c

Tripped

Reset

SOLUTION: a. Check the on/off circuit breaker located on the treadmill frame near the power cord (see c.

above). If the on/off circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, please call our Customer Service Department.

PROBLEM: The speed display on the console does not function properly

SOLUTION: a. Remove the key and UNPLUG THE POWER CORD.

Carefully lower the Uprights (64) to the floor. Remove the three indicated Small Screws (37). a

64

37

Raise the Uprights (64) to the vertical position. Pivot the Hood (1) off.

Locate the Reed Switch (18) and the Magnet (48) on the left side of the Pulley (78). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 3 mm (1/8”). If necessary, loosen the 3/4” Screw (24) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.

3 mm

24

18

Top

View

64

78

48

1

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you should be able to lift each side of the walking belt 7 to 10 cm (3 to 4 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

b

7–10 cm

Rear Roller Adjustment Bolts c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key and run the treadmill for a few minutes.

Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 7 to 10 cm (3 to 4 in.) off the walking platform.

Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a b

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com

CDs and videos are played

SOLUTION: a. With the key inserted in the console, press one of the Incline buttons. While the incline is

changing, remove the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline.

24

CONDITIONING GUIDELINES

WARNING:

Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.

The pulse sensor is not a medical device.

Various factors, including your movement, may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid in determining heart rate trends in general.

ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone.

For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.

Aerobic Exercise

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.

Fat Burning

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.

During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-

The key to success is to make exercise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

1

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.

Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

3

2

4

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

5

26

ORDERING REPLACEMENT PARTS

To order replacement parts, call toll-free 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time

(excluding holidays). When ordering parts, please be prepared to give the following information:

• the MODEL NUMBER OF THE PRODUCT (PCTL99011)

• the NAME OF THE PRODUCT (PROFORM ® 770 EKG treadmill)

• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• the KEY NUMBER OF THE PART(S) (see the EXPLODED DRAWING and the PART LIST attached in the center of this manual)

• the DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and the PART LIST attached in the center of this manual).

ICON of Canada, Inc.

900 de l’Industrie

St-Jérôme, Québec

Canada, J7Y 4B8

PLACE

STAMP

HERE

LIMITED WARRANTY

ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period one year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment.

ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8

®

™ o f / d u C a n a d a I n c .

PRODUCT WARRANTY REGISTRATION

IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE

NAME:

ADDRESS:

PHONE:

COUNTY: POSTCODE:

MODEL NO.

RETAILER NAME:

SERIAL NO.

PURCHASE DATE:

RETAILER ADDRESS:

1) Primary user(s) of product:

Male

Female

2) Age of primary user:

0–24

25–34

35–44

45–54

3) Annual household income:

0–9,999

10,000–14,999

15,000–19,999

20,000+

Family

55–64

65 and over

4) How many times a week do you exercise?

Less than 3 times

3 times or more

5) Have you ever purchased an ICON product before?

Yes

No

6) Where did you first see or hear about ICON products?

Magazine

Newspaper Ad

Other

Friend/relative

Store

7) What was the primary reason for purchasing this ICON product?

Store Employee

Television Ads

Colour

Electronic Features

Magazine Ads

Price

Product Design

Product Innovation

Other Features

8) Did you consider purchasing fitness equipment from another manufacturer?

No

Yes

What other manufacturer?

9) Based on your impression of what you have purchased, would you buy another ICON product?

Yes

No

No Opinion

If not, what other brand equipment would you purchase?

10) What other type of exercise equipment do you own?

Bicycle

Home Gym

Cardio Glide

Exercise Cycle

Treadmill

Weight Bench

Stepper

Other

11) Which type of magazines do you read regularly?

Sports

Business

Fitness

Computer

Motoring

General

12) Do you wish to be sent further bulletins about ICON products?

Yes

No

THANK YOU FOR YOUR TIME

© 2003 ICON of Canada, Inc. Printed in Canada

Part No. 195645 R0303A Printed in Canada © 2003 ICON OF/DU CANADA, INC.

PART LIST—Model No. PCTL99011

R0303A

Key

No.

Qty.

Description

1

3

4

5*

8

9

61

7 1

2

4

1

1

1

8

10

11

12

13

14

15

161

17 1

1

1

2

1

1

1

Motor Hood

Pivot Nut

Motor Belt

Motor Assembly

Flywheel

Motor

Frame Spacer

Plastic Fastener

Front Roller Adj. Bolt

Motor Pivot Bolt

Lift Frame Pivot Bolt

Ground Wire

Motor Tension Nut

Motor Washer

Motor Pivot Nut

Motor Tension Bolt

22

23

24

25

18

19

20

21

5

1

1

1

1

1

1

1

Reed Switch

2” Incline Motor Bolt

Reed Switch Clip

Lift Frame

Motor Star Washer

Controller Bracket

3/4” Screw

Controller

261

27 1

28

29

1

1

Choke

Power Board

Plastic Stand-Off

Power Board Bracket

30

31

1

1

Key/Clip

Left Foam Grip

32 1 Latch Assembly

33 28 Screw

34 2 Handrail Extension

35 22 Extension Screw/

361

37 8

Handlebar Screw iFIT.com Wire

Small Screw

Key

No.

Qty.

Description

Key

No.

Qty.

Description

42

43

44

45

38

39

40

41

1

1

1

1

Console Base

Left Cup Holder

Console Back

Book Holder

1

1

Console

Right Foam Grip

6Base Pad

2 Platform Screw

67

68

69

70

461

47

48

49

50

51

52

53

54

55

58

59

60

61

62

63

64

2

1

1

1

1

1

2

4

2

562

57 2

(Rear)

Crossbar

Ground Screw

Magnet

Upright Wire

Right Cup Holder

Frame

Incline Motor Bolt

Caution Decal

Pulse Sensor

Extension Leg

Wheel Bolt

2

1

Roller Star Washer

Wheel

1

1

Incline Motor

Stop Bracket

1

2

Power Cord

Grommet

Static Decal

1 Upright

65 1

66* 2

On/Off Circuit Breaker

Extension Leg

1

1

1

2

Frame Nut

Belly Pan

Audio Wire

Frame Pivot Bolt

71

72

73

2

4

2

Base Endcap

Isolator

Belt Guide

74

75

761

77 1

78

79

80

81

82

83

84

85

90

91

92

93

94

95

1

2

3

1

1

1

961

97

98

99

#

#

#

#

#

#

#

4

3

2

1

861

87 1

88

89

4

4

1

1

1

9

1

1

1

2

1

1

1

1

1

1

1

1

# These parts are not illustrated

* Includes all parts shown in the box

Belt Guide Screw

Platform Screw

Foot Pad (Right)

Walking Belt

Front Roller/Pulley

Foot Pad (Left)

Walking Platform

8” Cable Tie

Foam Tape

Tie Holder Clamp

Releasable Tie

Pulse Wire

Belly Pan Clip

Rear Roller

Rear Foot (Right)

Motor Controller Wire iFIT.com Jack

Rear Roller Adj. Bolt

Roller Adj. Washer

Rear Endcap (Right)

Allen Wrench

Rear Foot (Left)

Rear Endcap (Left)

Warning Decal

Latch Plate Screw

Latch Plate

8” White Wire, 2F

8” White Wire, M/F

14” Blue Wire, 2F

4” Blue Wire, 2F

12” Green Wire, F/R

4” Red Wire, M/F

User's Manual

REMOVE THIS EXPLODED DRAWING AND PART

LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.

EXPLODED DRAWING—Model No. PCTL99011

R0303A

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
