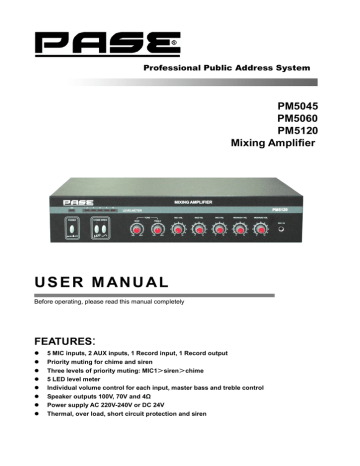

USER MANUAL
Professional Public Address System
PM5045
PM5060
PM5120
Mixing Amplifier
U S E R M AN U A L
Before operating, please read this manual completely
FEATURES:
l
l
l
l
l
l
l
l
5 MIC inputs, 2 AUX inputs, 1 Record input, 1 Record output
Priority muting for chime and siren
Three levels of priority muting: MIC1>siren>chime
5 LED level meter
Individual volume control for each input, master bass and treble control
Speaker outputs 100V, 70V and 4Ω
Power supply AC 220V-240V or DC 24V
Thermal, over load, short circuit protection and siren
Left blank for memo
2
FRONT PANEL
1
2 3
4 5
6
7
9
8
10
11
1. Led Power Indicator
7. Treble Control
2. Power Switch
8. Mic1, 2, 3 Volume Control
3. Led Level Meter
9. Mic4 / Aux1 Volume Control
4. Chime
10. Mic5 / Aux2 Volume Control
5. Siren
11. 6.3mm Jack Type Mic1 Input
6. Bass Control
NOTE:
When all 5 LED level meters remain lit, sound is distorted. In such case, adjusting
each volume control button till LED 4 (+8dB) and LED 5 (+10dB) flash.
REAR PANEL
1
8 9 10 11
2
3
12 13 14
4
5
6
15
16
17
7
18
1. Mic2 : XLR Input
7. Fan Exhaust Window
14. Record output or
2. Mic2 : 6.3mm Input
8. AUX 1 / Mic4 Switch
Amplifier link
3. Mic3 : 6.3mm Input
9. Mic4 : 6.3mm Input
15. Record input
4. Mic3 : XLR Input
10. AUX 1 : Line Input
16. 24V DC Fuse
5. Output Terminals
11. AUX 2 : Line Input
17. 240V AC Power cord
6. 24V DC Supply Input
12. AUX 2 / Mic5 Switch
18. 240V AC Fuse
Terminal
13. Mic5 : 6.3mm Input
3
CONNECTION
MIC2
LOW
IMPEDANCE SPEAKER
4 ohm, 8 ohm, 16 ohm
MIC3
100V,
70V,
SPEAKER
+
LINE
一
24V
Emergency Panel
AMPLIFIER
MIC4
(6.35mm Socket )
TAPE RECORDER
MIC5
(6.35mm Socket)
CD PLAYER
Speaker output terminals are on the rear panel. The terminal under the label “COM” is COMMON. The
terminals under the labels “4Ω, 70V, 100V” are Hot. The connection ways shall be COM-4Ω / COM-70V /
COM-100V.
Normally the “rated power” (70V / 100V) output terminal is used in output connection. The connected
speaker should be with a transformer, and the gross power of speakers should be less than the rated
power of the amplifier.
“Rated Impedance”(4-16Ω) output terminal can be used when speakers are fixed closely, and the gross
impedance of speakers should be 4-16Ω.
Note:
l
Never connect two hot terminals (labeled 4Ω, 70V, 100V) together.
l
Only choose one pair of output terminals for speaker connection. The connection ways shall
be COM-4Ω / COM-70V / COM-100V.
Tone and volume:
“BASS” and “TREBLE” knob provides the tone control of overall system.
MIC1, 2, 3, 4, 5 have separate volume control. MIC4 and AUX1 or MIC5 and AUX2 have a common
volume control knob.
4
MIC: MIC inputs are balanced with phantom power. Two types of MIC inputs available: 6.3mm (MIC1, 4,
5) and XLR (MIC 2, 3). MIC 4 & 5 inputs are compatible with AUX 1 & 2 inputs. “MIC4/AUX1” and
“MIC5/AUX2” can be selected through the switches on the back panel. MIC1 has the highest level of
priority muting function and can override all input signals.
Note: To prevent howling, keep volume level down to minimum before connecting microphone.
Chime / Siren: Pressing the “CHIME” / “SIREN” button will activate the chime or siren circuitry.
The LED indicator above the button will be lit up simultaneously. Pressing the “SIREN” button again will
stop siren broadcasting and the LED will be turned off.
Levels of priority muting: MIC1, siren and chime have priority muting functions. MIC1 has the
highest level of priority muting and can override all other input signals. Siren has the second level.
Chime has the third level and can override all input signals except for MIC1 and siren.
REC input / output: REC input can connect to an external source (CD player, tuner, cassette
player, etc.) The volume of this input is not adjustable. While recording program signal can send to REC
input and at the same time signal send out to recording equipment through REC output. REC output also
can be used for monitoring the other input signals.
PRECAUTION OF INSTALLATIOM
1. Do not block ventilation holes.
2. Do not use this amplifier if the power cord is frayed or broken.
3. The amplifier should not be placed in any of the areas:
1) poor ventilation
2) exposed to sunlight directly
3) high ambient temperature or adjacent to heat-generating equipment;
4) high humidity or heavy dust;
5) Susceptible to vibration.
4. Make sure the plug conforms to the socket.
5. For safety, please make grounding.
6. Short-circuit fault happens when short alarm rings during operation, In such case, switch off the
power immediately and check the faults before switching on again.
l
CAUTION
For safety, when “Power switch” is off, please detach the power plug from the power point.
l
The apparatus shall not be exposed to dripping or plashing and no objects filled with liquids,
l
l
such as vases, shall be placed on the apparatus.
To reduce the risk of electric shock, do not remove the cover.
No user serviceable parts inside. Refer servicing to qualified service personnel.
5
SPECIFICATIONS:
Model
PM5045
PM5060
PM5120
Rated Output
45W
60W
120W
Output Regulation
Ratio
Speaker Output
REC Output
Inputs
Less than 3 dB from no-load to full load
4Ω Balanced,70V、100 V
600Ω 1V
MIC1, 2, 3, 4, 5: 600Ω, 6mV Balanced
AUX1, 2: 10kΩ, 270mV unbalanced;REC IN:10kΩ,300mV
Frequency Response
Distortion
Line:50Hz-20kHz (±3dB);Microphone:100Hz-10kHz (±3dB)
< 0.5%
at 1kHz , 1/3 rated power
MIC1, 2, 3, 4, 5: 70dB
S/N Ratio
AUX1, 2: 75dB
Bass: ±12 dB at 100Hz
Tone Control
Protection
Treble: ±12dB at 10KHz
AC fuses, DC fuses, overload, short circuit
MIC1 overrides other input signals (Attenuation: 0 to -30dB)
Muting
Function
Power Supply
Requirements
SIREN overrides other input signals(except MIC1)
(Attenuation: 0 to -30dB)
CHIME overrides other input signals(except MIC1,SIREN)(Attenuation: 0 to -30dB)
AC220-240V / 50-60Hz, DC24V
Power
Consumption
80W
100W
200W
Dimensions
430×360×88mm
430×360×88mm
430×360×88mm
Gross Weight
11.5 kg
11.7kg
13.5kg
Net Weight
10.2kg
10.5kg
12.1kg
Specifications are subject to change without notice
6
