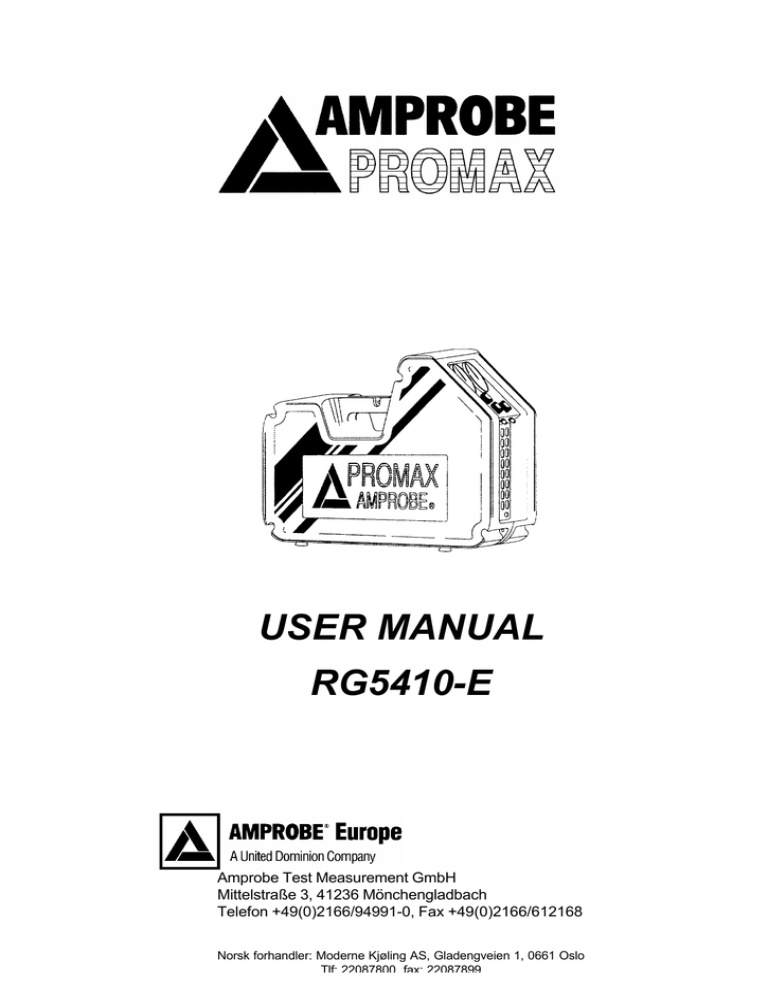

USER MANUAL RG5410-E

USER MANUAL RG5410-E

USER MANUAL

RG5410-E

Amprobe Test Measurement GmbH

Mittelstraße 3, 41236 Mönchengladbach

Telefon +49(0)2166/94991-0, Fax +49(0)2166/612168

Norsk forhandler: Moderne Kjøling AS, Gladengveien 1, 0661 Oslo

Tlf: 22087800 fax: 22087899

AMPROBE EUROPE

RG5410-E

TABLE OF CONTENTS

I) Safety Precautions

A) The Safe Way is the Only Way!

B) Refrigerant Gas Recovery & Containment

II) Important General Information

III) Operational Procedures

A) Operating Your RG5410 hp

B) Self Purging Your RG5410 hp

C) Set- up Procedures

D) Purging the Non-Condensable Gases

IV) Diagrams

A) Parts List

B) Refrigerant Flow Diagram

C) Wiring Diagram

D) Technical Data

V) Care and Maintenance

VI) Safety Pressure Switch

VII) Helpful Hints

1

2

3

4

5

6,7,8

9

10

11

12

13

14

15

16,17,18

Design specifications and material are subject to change without notice.

REV032001TWH

This manual may not be reproduced in any way, shape or form without express written consent of PROMAX AMPROBE

AMPROBE EUROPE RG5410-E

THE SAFE WAY IS THE ONLY WAY!

NOTE! IF YOU ARE NOT A QUALIFIED REFRIGERANT SERVICE TECHNICIAN,

DO NOT USE THIS EQUIPMENT

1. The technician should always wear goggles and gloves when working on

refrigeration systems.

2. Be sure that any room where you are working is thoroughly ventilated,

especially if a leak is suspected. Refrigerant vapor is hazardous to your health

and can cause death.

3. Always think before acting. Familiarity breeds carelessness and carelessness

can be harmful to your health or, worse, result in death.

4. Read the Material Safety Data Sheets (MSDS) on all compounds with which

you are likely to come in contact. Read MSDS on refrigerant and refrigerant oil.

Obtain MSDS sheets from your refrigerant supplier.

5. Never use oxygen when testing for leaks. Any oil in contact with oxygen under

pressure will form an explosive mixture.

6. Refrigerant systems are generally electrically driven and controlled. Be sure to

disconnect the unit from the power source before servicing it.

7. Always store refrigerant containers in a cool, dry place.

8. Always open service and cylinder valves slowly. This allows quick control of the

flow of gasses if there is any danger. Once it is determined that there is no

danger, the valves may be opened fully.

9. Do not mix refrigerant in a system, a tank or anywhere else. Each type of

refrigerant must have its own tank, filters, etc.

10. If moisture enters the refrigerant system, it is likely to cause considerable

damage. Keep everything connected with the refrigeration system thoroughly

dry and clean.

11. This equipment should be used in locations with mechanical ventilation providing

at least four air changes per hour, or the equipment should be located at least

45cm (18”) above the floor. Do not use this equipment in the vicinity of spilled or

open containers of gasoline or any other flammable liquid.

AMPROBE EUROPE

REFRIGERANT GAS

RECOVERY & CONTAINMENT

RG5410-E

Safety comes first. Read all safety information for the safe handling of refrigerant including the Material Safety Data Sheet provided by your refrigerant supplier. Never operate unit in an explosive environment. Wear safety glasses and protective gloves.

Work area must be well ventilated. This unit should only be operated by a qualified technician.

REFRIGERANT STORAGE CONTAINERS

***HANDLE WITH CARE**

CAUTION: Never use a standard disposable 30 lb. tank (the type of container in which virgin refrigerant is sold) to recover refrigerant. Use only DOT CFR Title 49 or UL approved storage containers for recovered refrigerant..

NOTE: Recovery cylinders are designed for different pressures.

DO NOT exceed the working pressure of each cylinder.

Safety codes recommend that closed tanks not be filled over 80% of volume with liquid.

The remaining 20% is called head pressure room.

NEVER TRANSPORT AN OVERFILLED CYLINDER

Refrigerant expands when it gets warm and may cause a tank to explode if overfilled.

Cylinder temp. 16 °C 21 °C 38 °C 54 °C 66 °C

STARTING WITH

CYLINDER 80%

FULL BY VOLUME

SPACE

OCCUPIED BY

80 % 81% 83% 90% 94%

LIQUID

STARTING WITH

CYLINDER 90%

FULL BY VOLUME

SPACE OCCUPIED

BY LIQUID

90% 92% 96% 100%

AMPROBE EUROPE RG5410-E

IMPORTANT

GENERAL INFORMATION

BEFORE OPERATING THE RG5410 hp RECOVERY UNIT, READ THE

FOLLOWING

1) Always isolate large amounts of refrigerant and close off valves after use so if a leak should develop anywhere in the system the refrigerant does not escape.

2) Storage cylinders sometimes have valves that are not properly seated when manufactured. Keeping caps on these valves will guard against refrigerant leakage.

3) Always operate the unit on a flat level surface.

4) Your RG5410 hp has one internal pressure shut off switche. If the pressure inside the system should go above 38,5 bar (550 psi), the system will automatically shut itself off.

CAUTION !

The 38,5 bar (550 psi) switch does not prevent tank overfill. If your system shuts off on high pressure and is connected to your tank, you may have overfilled your tank and created a very dangerous situation! Take immediate measures to relieve any high pressure and/or tank overfill.

5) WARNING! Never overfill storage tanks. Overfilling may cause tanks to explode.

6) Tanks and filters should be designated for one refrigerant only. Before using a tank previously used for another refrigerant, completely empty the tank, evacuate it, purge the tank using dry nitrogen, and re-evacuate it. Use only Promax Amprobe storage tank part No.

RGT30 hp or RGT50 hp with this refrigerant recovery equipment.

7) Special care should be taken when recovering from a burned-out system. Use two high acid capacity filters, in series. Alco type

EK-162-F or Sporlan type C-162-F are recommended. When you have finished recovering from the system, flush your RG5410 hp with a small amount of refrigerant oil and a small amount of clean refrigerant to purge off any foreign substances left in the unit.

8) Always empty refrigerant from the unit into a storage tank; see Self Purge/Auto

Evacuate procedure. Liquid refrigerant left in the condenser may expand, causing damage to components

AMPROBE EUROPE RG5410-E

OPERATING YOUR RG5410

Procedure for Normal System Recovery

1 Inspect the RG5410 hp thoroughly to insure that it is in good operating condition.

2. Make sure all connections are correct and tight (see set-up diagram on page 6).

3. Open the liquid port of the recovery cylinder (always open valves slowly to check

hoses and connections for leaks).

4. Make sure the Recover/Purge valve is set on Recover.

5. Open the output port of the RG5410 hp.

6. Open the liquid port on the manifold gauge set; opening the liquid port will

remove the liquid from the system first, greatly reducing the recovery time (after

the liquid has been removed, open the manifold vapor port to finish evacuating

the system).

7. Connect your RG5410 hp to a 230 V outlet.

a. Switch the main power switch to the ON position. You should hear the fan

running.

b. Press the compressor start switch. This "momentary" switch will start the

compressor; (It may be necessary, under certain circumstances, to press this

switch more than once to start the compressor.)

8. Slowly open the input port on the RG5410 hp .

a. If the compressor starts to knock, slowly throttle back the input valve until the

knocking stops.

b. If the input valve was throttled back, it should be fully opened once the liquid

has been removed from the system (the manifold vapor port should also be

opened at this time).

9. Run until minimum EPA required vacuum is achieved. a. Close the manifold vapor and liquid ports. b. Close the RG5410 hp input port. c. Shut unit off and proceed with the Self Purge procedure on the next page.

Always purge the RG5410 hp after each use (see Self Purge procedure on page

5). Failure to purge the remaining refrigerant from the RG5410 hp could result in the acidic degradation of internal components, ultimately causing premature

failure of the unit.

AMPROBE EUROPE RG5410-E

1

SELF PURGING YOUR RG5410

Procedure for Purging Remaining Refrigerant From the RG5410

Close the ports of the system being serviced that are connected to the input

port of the RG5410.

2. Close the input port on the RG5410.

3. Turn off the RG5410.

4. Turn the Recover/Purge valve to the purge position.

5. Restart the RG5410.

6. Run until desired vacuum is achieved.

7. Close the ports on the recovery tank and the RG5410.

8. Turn the RG5410 off.

9. Return the Recover/Purge valve to the recover position.

10. Disconnect and store all hoses.

11. Replace the in-line filter on your RG5410 after every large

job or any time excessive contaminant is encountered.

SELF PURGE / AUTO EVACUATE

Note

- To change from Recovery mode to Purge:

Close the Input port, turn the unit off (to prevent high pressure

AMPROBE EUROPE

shutoff),

switch to Purge position and restart the unit.

RG5410-E

AMPROBE EUROPE RG5410-E

SET-UP DIAGRAM FOR REFRIGERANT RECOVERY

This method is the fastest method for recovering vapor refrigerant..

(OPTIONAL)

INPUT

MANIFOLD GAUGE SET

OUTPUT

LIQUID

A scale must be used to avoid overfilling the storage tank

NORMAL RECOVERY

AMPROBE EUROPE RG5410-E

RG5410 REFRIGERANT RECOVERY

ADDITIONAL INFORMATION

To achieve the deepest final vacuum, use the tank cooling method to lower the head pressure on the recovery tank. Repeat as necessary to achieve the desired vacuum level. NOTE: If there is no liquid in the recovery tank, then the cooling method will not work. In this case, use an empty tank that has been fully evacuated to achieve the final vacuum level required.

To maximize recovery rates use the shortest possible length of 3/8” or larger hose. A hose no longer than 3’0” is recommend. Always remove all unnecessary hose core depressors and Schrader valves from port connections (using the proper valve core tool) for maximum throughput. Deformed rubber seals and core depressors in hoses and faulty or unnecessary Schrader valves can restrict flow by up to 90%.

If the tank pressure exceeds 300 psi, use the tank cooling procedure to reduce the tank pressure. When recovering large amounts of liquid, use the “PUSH/PULL” method of recovery (see diagram below).

CAUTION: When using the “PUSH/PULL” method, you must use a scale to prevent overfilling the storage tank. Once the “PUSH/PULL” siphon is started, it can continue and overfill the storage tank even if the tank is equipped with a float level sensor. The siphon can continue even when the machine is turned off. You must manually close the valves on the tank and the unit to prevent overfilling the recovery tank.

SET-UP DIAGRAM FOR “PUSH/PULL” METHOD

Push pull only works with large systems where the liquid is readily accessible. Do not use this method on systems that contain less than 15 pounds as it may not work.

INPUT

OPTIONAL MOISTURE

INDICATIING SIGHT GLASS

The sight glass is used to provide a method of determining the moisture content and quality of a system’s refrigerant.

VAPOR

OUTPUT

LIQUID

A scale must be used to avoid overfilling the storage tank.

AMPROBE EUROPE RG5410-E

AMPROBE EUROPE RG5410-E

SET-UP DIAGRAM FOR TANK PRE OR SUB

COOLING PROCEDURE

INPUT

VAPOR

OUTPUT

LIQUID

To start you must have a minimum of

2,5 kg of liquid refrigerant in the tank.

Throttle the output valve so that the output pressure is 7 bar (100 psi) greater than the input pressure, but never more than 31,5 bar (450 psi).

Run until the tank is cold.

OPTIONAL RECOVERY / TANK PRE OR SUB

COOLING FOR FIXED HOSE SET UP

MANIFOLD GAUGE SET

INPUT

OUTPUT

LIQUID

VAPOR

A SCALE MUST BE

USED TO AVOID

NORMAL RECOVERY: Tank Vapor valve is closed.

TANK PRE OR SUB COOLING: Tank Vapor valve is open and both Manifold Gauge

Set valves are closed. Follow above procedure.

AMPROBE EUROPE RG5410-E

RG5410 hp RECOVERY

PURGING THE NON-CONDENSABLE GASSES FROM IDENTIFIED

REFRIGERANT IN A TANK

1) Allow the tank to sit undisturbed for 24 hours. (This allows the air to rise to the top.

2) Connect a manifold to the tank and read the amount of pressure in the tank by

looking at the output pressure gauge.

3) Determine the ambient temperature in the room.

4) Refer to a Refrigerant pressure/temperature chart. Find the temperature on the

chart and look across to the corresponding pressure for the type of refrigerant in

the tank. Determine how that relates to the reading on the gauge.

5) If the pressure reading is higher than the pressure shown on the chart, very

slowly (so as not to cause turbulence inside the tank) crack open the vapor port

valve. Watch the pressure on the gauge decrease. To prevent venting, add 0,3 -

0,35 bar (4 - 5 psi) to the pressure shown on the chart. When the gauge

corresponds to that pressure, close the vapor port valve.

6) Allow the tank to sit for 10 minutes and check the pressure again.

7) Repeat the process again if necessary.

AMPROBE EUROPE

PARTS LIST RG5410-E

RG5410-E

Pos.

Description Part #

1 PLASTIC CASE

2 FAN GRILL

3 AXIAL FAN

4 CONDENSER

5 MOTOR

6 COUPLER

7 BELL HOUSING

8 COMPRESSOR

9 MANIFOLD

MC5000

SH5022

EL1818

CD1201

EL1822

CP1315

CP1001

CP1320

MA1020

10 INPUT GAUGE GA1030

11 OUTPUT GAUGE GA1080

12 GAUGE LENS GA1000

13 ON/OFF SWITCH EL1310

14 START EL1309

15 BLUE KNOB

16 RED KNOB

17 BLACK KNOB

18 FRONT PANEL

19 FILTER

20 FLARE CAP

21 CORD SET

22 PRESSURE SW.

HA1003

HA1003

HA1003

SH5020

FL1201

NB6501

WR2003

EL2802

AMPROBE EUROPE

RG5410-E

REFRIGERANT-FLOW DIAGRAM

CONDENSER COMPRESSOR

MOTOR

OUTPUT

INPUT

FILTER

NOTE:

A filter must always be used. Failure to use a filter will invalidate your warranty.

The use of a filter will greatly reduce the risk of damage to your RG50410 hp by preventing foreign material from entering the unit.

Special consideration for filtration must be given when you know you are servicing a machine that has "Burned Out".

We recommend the use of two size 162 filter driers, in line, to be used for that job and that job only.

AMPROBE EUROPE

RG5410-E

RG5410-E WIRING DIAGRAM

Plug AC Male

Power sw switch w s gn rt

High Pressure switch rt gn

Fan motor gn w s

3 ge

Start switch bl ge ge

Motor,

1/2 PS

AMPROBE EUROPE

RG5410-E

Technical Specifications RG 5410-E

Application

Suitable Refrigerants

Refrigerant recovery Gas or Vapor

R11,R12, R13B1, R123, R134a, R141b, R22, R23,

R401A, R401B, R402A, R402B, R404A, R407A,

R407B, R407C, R408A, R409A, R410A, R500, R502,

R503, R507

Power Source

Power

Dimensions

Weight

Recovery Rate

Displacement

Rpm’s

Max Working Pressure

Safety Device

230V/50Hz

380 W

343 x 229 x 483

14 kg

Vapor

Liquid up to 33 Kg/h up to 80 Kg/h

Push Pull up to 380 Kg/h

8,2 cm

3

1437 U/min

550 p.s.i. (38,5 bar)

Safety pressure switch type P100 DA with manual reset (550 p.s.i. / 38,5 bar)

ATTENTION:

The RG5410-E should not be used with inflammable gases nor with gases containing ammonia.

- 13 -

AMPROBE EUROPE

RG5410-E

CARE AND MAINTENANCE OF YOUR

RG5410 hp

A filter must always be used and should be replaced frequently. Failure to use a filter will invalidate your warranty. The use of a filter will greatly reduce the risk of damage to your

RG5410 hp by preventing foreign material from entering the unit.

Special consideration for filtration must be given when you know the machine you are servicing has "burned out". We recommend the use of two size 162 filter driers, in line, to be used for that job and that job only. We also recommend that a clean filter be used for every service job. Each filter should be labeled and used exclusively for one type of refrigerant only.

Do not use this unit in the vicinity of spilled or open containers of gasoline or other combustible liquids

Avoid the use of extension cords. If you must use an extension cord it should be a minimum of 12 AWG and not longer than 15 ft. Not using an extension cord will greatly reduce the risk of fire.

Always purge the unit of any refrigerant left after completing a service job. Refrigerant left in the machine can expand and may cause damage to components.

If the unit is to be stored or not used for any length of time, we recommend that it be completely evacuated of any residual refrigerant and purged with dry nitrogen.

Whenever you perform any type of maintenance work on your RG5410 hp, insure that it is disconnected from the power supply before you begin.

- 14 -

AMPROBE EUROPE

RG5410-E

Safety Pressure Switch (with manual reset function)

The RG5000 is equipped with an internal Safety Pressure Switch. If the pressure inside the system exceeds 27,5 bar, the system is switched off automatically.

If the Safety Pressure Switch is activated automatically whilst filling a bottle, it could be caused by the bottle becoming overfilled.

THIS IS A VERY DANGEROUS SITUATION! You should take steps immediately to reduce the overpressure and/or to eliminate the overfilling of the bottle.

If the Safety Pressure Switch switches the unit off...

The following precautions should be taken if the Safety Pressure Switch is activated: a) Suspected overfilling of the recovery bottle,

Connect the recovery bottle to another bottle with spare capacity so that the pressure is reduced to a safe level. This action should also reduce the pressure in the output line from the RG5000. Proceed as normal after resetting the Safety Pressure Switch (see below). b) Cause of activation of Safety Pressure Switch unknown,

Check that the recovery bottle is not overfilled.

Close the system valves, recovery bottle valves and RG5000 valves.

Disconnect RG5000 from flexible pipes.

Disconnect RG5000 from the power supply.

Open the input and output valves very slowly.

Investigate the reason for the failure.

Once activated the Safety Pressure Switch has to be reset manually as follows:

Remove the black protection cover to reveal the reset button (see picture below).

Reset by pushing the reset button with a tool such as a screwdriver.

Replace the cover.

- 15 -

AMPROBE EUROPE

RG5410-E

- 16 -

AMPROBE EUROPE

RG5410-E

Helpful Hints for Refrigerant Recovery

Refrigerant recovery has come a long way in a few short years.

On the surface it’s simply the process of taking refrigerant out of a system and putting it into a tank. However, this simple process can quickly become problematic if a few items are overlooked. The following are some tips and pointers we’ve accumulated over the last few years that can save you time and make the process go smoother.

First you need to identify the refrigerant type and quantity in the system you are servicing.

If you determine it’s a burnout, you need a special tank (a tank that’s identified as containing burnout or other unidentified gases), and you need to use extra filtration prior to recovery.

If, on the other hand, you know the gas in the system is relatively clean or new, then a new tank should be used. If you’re planning on putting the refrigerant back into the same system after you have finished the service or if the refrigerant is going to be reclaimed, then use a tank that has the same refrigerant in it. A word of caution about the Environmental

Protection Agency (EPA): If you use a variety of refrigerant gasses in your service work - as evidenced by your refrigerant purchases - and you only own one tank, you are asking for trouble. You would be well advised to own at least one tank for every refrigerant type serviced, plus an extra for burnouts and other unknowns.

Planning Ahead

Knowing the quantity of refrigerant is important for planning storage requirements, as well as planning for the actual recovery. For instance, any system with more than 5lbs. of refrigerant is likely to have areas where the liquid can get trapped.

The key to a quick recovery procedure is to get the liquid out first, and then get the remaining vapor out. However most systems are not “recovery friendly.” That is they don’t have access ports at their lowest points. If some units you’re servicing are on maintenance contracts, you would save significant time by installing access ports at all of the lowest points in the system, where liquid is likely to accumulate. Since most systems don’t have these ports you need to be prepared to boil of the trapped liquid with a heat gun, when ever it’s found. An indicator of trapped liquid in a system is frost or condensation forming on the plumbing or components where the liquid is trapped. The trapped liquid may be in an area that is not visible. In all cases trapped liquid in a system during recovery causes the recovery process to slow down, regardless of the size or type of machine

If you are unable to locate the trapped liquid (but you know it’s there, because the recovery job is taking “forever”), turn on the system compressor (if it’s operable) for a few seconds.

This will get the refrigerant moving to another part of the system and in.

- 17 -

AMPROBE EUROPE

RG5410-E

Hoses and Valves

Hoses and Schraeder valves have a large impact on recovery speed. In general, the larger the hose, the less friction on the flow of refrigerant, the quicker the recovery time.

Many contractors are now using 3/8” lines for the input to the recovery machine, even if those lines originate out of 1/4” fittings.

Schraeder valves must be removed from the connection prior to an expedient recovery. Most wholesalers sell a tool for removing these cores, while keeping the connection sealed. The core depressor, in the end of the hose, should also be removed.

These two items can turn a 20 minute job into one that goes on for hours. So, be sure to remove Schraeder valves and core depressors before every recovery job.

Another hose consideration is the little rubber grommet at the end of the hose that makes a seal with the flare fitting. We’ve seen these seals so worm and deformed that when the hose is connected to the flare fitting the grommet virtually seals off the the connection. This is probably never noticed in charging, because the pressure opens the grommet, but during recovery (or with suction) the deformed grommet severely restricts the flow of refrigerant.

Refrigerant Recycling

Current regulations state that used refrigerant shall not be sold, or used in a different owner’s equipment, unless the refrigerant has been laboratory analyzed and found to meet the requirements of ARI 700 (latest edition). As a result, recycling and verifying ARI 700 conformance isn’t economically justified in most cases. It’s still a great idea to do as much cleaning of refrigerant going back into the same system (or owners system) as possible. We recommend using the largest, high-acid capacity filter that are economically feasIble. Put these filters on the suction or inlet side of the recovery unit.

Change filters often.

The recovery of large amounts of liquid refrigerant can sometimes carry with it large quantities of oil, if the system being serviced doesn’t have an adequate oil separator installed. If this recovered refrigerant isn’t going to be liquid charged back into the same system, you might want to separate the refrigerant from the oil in order to measure the oil (to know how much oil to charge back into the system). However refrigerant sent back for reclaim does not need to have the oil removed. One of the simplest and most cost effective ways to achieve this is to use a 30 or 50 lb. tank in line with your recovery machine. Connect the the system to the liquid port of the tank then from the vapor port of the tank connect to the input of your recovery machine a second tank, for storing refrigerant, should then be connected to the output of the recovery machine. If you encounter large amounts of liquid you will need to put a band heater around the first tank.

When the recovery job is complete the oil can be removed, from the first tank, by applying a small amount of pressure, using nitrogen, to one of the ports and expressing the oil from the other. If you are going to remove the oil from the vapor port you will need to turn the tank upside down. Always wear safety glasses when performing this operation as the oil may be acidic and could cause severe burning

- 18 -

AMPROBE EUROPE

RG5410-E

Keeping the Dirt Out

During the recovery process your recovery machine can be exposed to debris that can, potentially, damage it. Including brazing spatter and copper and brass slithers. Further contamination can be introduced from the refrigerant storage tanks. To prolong the life of your recovery machine always use an in-line filter.

Whenever you are charging a system from a recovery cylinder it is a good idea to use an in-line filter to protect the system from contamination. Again, change your in-line filters often.

Getting the Liquid Out (See diagram on page 7 of this manual)

Push-pull is a method of removing bulk liquid from a system using the pressure differential created by the recovery machine. Push-pull will generally not work on smaller systems because there is no bulk liquid reservoir to create a siphon from.

Push-pull is mostly used on systems with a receiver tank or those with greater than 20 lbs. of refrigerant, or when transferring from one tank to another. The rate of liquid transfer id very much dependent on hose size, with larger hoses providing much better throughput.

Another trick is to chill the tank, if it’s partially filled, prior or during recovery. This operation will lower the pressure in the storage tank and therefore speed up recovery.

There must be a minimum of 5 lbs of liquid refrigerant in the tank you wish to chill. This operation can be performed prior to or during the recovery. See the two set up diagrams and procedures on page 8 of this manual.

There is nothing magic here, you are simply using your recovery machine to make a refrigerator where the tank is the evaporator. By throttling the output valve, you’re effectively creating a capillary tube or an expansion device, but you need to adjust the back pressure to suit the conditions and the refrigerant. Five to ten minutes of chilling can produce some very dramatic tank cooling, depending on the conditions. If there are any non condensibles in the tank this process will not work. Also the greater the quantity of refrigerant in the tank the longer the process will take.

- 19 -

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
