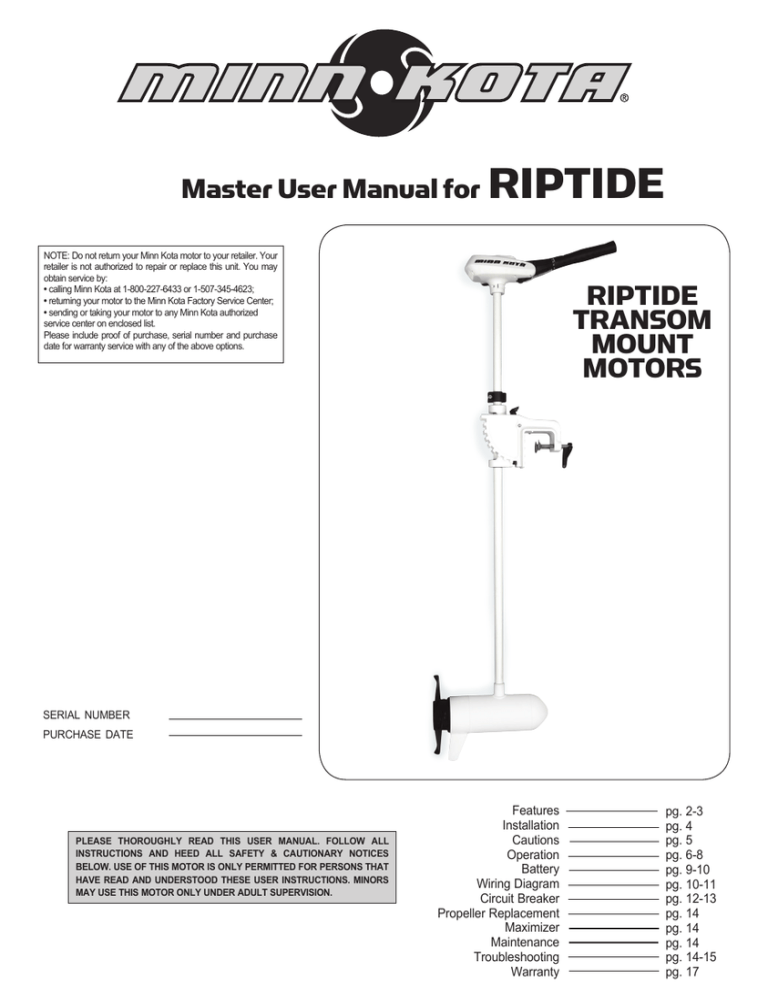

Master User Manual for

RIPTIDE

NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by:

calling Minn Kota at 1-800-227-6433 or 1-507-345-4623;

returning your motor to the Minn Kota Factory Service Center;

sending or taking your motor to any Minn Kota authorized service center on enclosed list.

Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.

RIPTIDE

TRANSOM

MOUNT

MOTORS

serial number purchase date

PLEASE THOROUGHLY READ THIS USER MANUAL. FOLLOW ALL

INSTRUCTIONS AND HEED ALL SAFETY & CAUTIONARY NOTICES

BELOW. USE OF THIS MOTOR IS ONLY PERMITTED FOR PERSONS THAT

HAVE READ AND UNDERSTOOD THESE USER INSTRUCTIONS. MINORS

MAY USE THIS MOTOR ONLY UNDER ADULT SUPERVISION.

Features

Installation

Cautions

Operation

Battery

Wiring Diagram

Circuit Breaker

Propeller Replacement

Maximizer

Maintenance

Troubleshooting

Warranty pg. 2-3 pg. 4 pg. 5 pg. 6-8 pg. 9-10 pg. 10-11 pg. 12-13 pg. 14 pg. 14 pg. 14 pg. 14-15 pg. 17

RIPTIDE TRANSOM OVERVIEW

Tilt Twist Tiller Extension & 6” Handle

Battery Meter

Maximizer / Permanently

Sealed Electronics

Multi-position Mounting Bracket

Propeller

Lifetime Warranty Flexible Composite Shaft

Permanent Magnet Motor

2

Specifications subject to change without notice.

RIPTIDE TRANSOM MOUNT

Quick Release Depth Collar

Steering Tension / Vertical Stow Knob

Tilt Lock Lever

Clamp Screws

Transom

3

4

INSTALLATION OF THE PRODUCT:

Install the motor on the transom of the boat. Be sure to (hand only) tighten the clamp screws securely. Place the motor on the included transom saver making sure the motor has clearance through the full rotation. Mark and drill holes through transom and secure the transom saver with included screws.

Tilt Lock Lever

Transom

Clamp Screws

Attention:

•Avoid running your motor with the propeller outside of the water. This may result in injuries from the rotating propeller.

•It is recommended to set the speed selector to zero and place the motor in the deployed position prior to connecting power cables. Disconnect power cables prior to stowing.

•Always ensure that the power cables are not twisted or kinked; and that they are securely routed to avoid a safety or trip hazard. Ensure cables are unobstructed in all locations to avoid damaging the wire insulation. Damage to the insulation could result in failure or injury.

•Always inspect the insulation of the power cables prior to use to ensure they are not damaged.

•Disregarding these safety precautions may result in an electrical short of the battery(s) and/or motor.

Always disconnect the motor from the battery(s) before cleaning or checking the propeller.

•Avoid submerging the complete motor as water may enter the lower unit through control head and shaft.

Water in the lower unit may cause an electrical short and damage the lower unit. This damage will not be covered by warranty.

Caution!

•Always operate the motor in a safe distance away from obstructions. Never approach the motor when the propeller is running. Contact with a spinning propeller may endanger you or others.

•Always exercise safe practices when using your motor; stay clear of other watercrafts, swimmers, and any floating objects. Always obey water regulations applicable to your area of operation.

•Never operate the motor while under the influence of alcohol, drugs, medication, or other substances which may impair your ability to safely operate equipment.

•This motor is not suitable for use in strong currents exceeding the thrust level of the motor.

The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5m/sec≈.

5

OPERATION OF THE PRODUCT:

Stowing and Deploying Your Motor:

There are 2 methods for stowing your motor for travel:

Horizontal Stow: While firmly holding the motor shaft, loosen the steering tension knob, press the tilt release lever down, grab the motor shaft and tilt the motor into the boat. Be sure to retighten the steering tension knob and slide the quick release depth collar down to the top of the steering tension knob for transport. To deploy your motor from this stowed position, loosen the quick release collar, reposition and retighten to desired depth location, hold the motor shaft or head firmly, and loosen the steering tension knob, press the tilt release lever while holding control head and gently lower the motor into the water. Retighten the quick release collar. Retighten the steering tension knob to the desired steering tension.

Vertical Stow: While firmly holding the motor shaft, loosen the steering tension knob and lift up on the motor.

Retighten the steering tension knob to retain the vertical stow position of the motor. Be sure to slide the quick release depth collar down to the top of the steering tension knob for added security. To deploy your motor from this vertically stowed position, loosen the quick release collar, hold the motor shaft firmly, and loosen the steering tension knob, and gently lower the motor into the water. Retighten the quick release collar. Retighten the steering tension knob to the desired steering tension.

Quick Release Depth Collar

Steering Tension /

Vertical Stow Knob

Tilt Lock Button

6

WARNING : WHEN RAISING OR LOWERING

MOTOR, KEEP FINGERS CLEAR OF ALL HINGE

AND PIVOT POINTS AND ALL MOVING PARTS.

OPERATION OF THE PRODUCT CONT’D:

Tilt and Extension Handle Operation:

Your Riptide Transom trolling motor features 7 usable handle tilt positions…45°, 30°, and 15° up and down from the 0° (horizontal) position. To use the down positions, you must first press the release button located on the left underside of the pivot handle.

Your Riptide Transom trolling motor handle also features a unique stow position, that is useful for limiting the amount of space required for storage or travel.

IMPORTANT: THE MOTOR MUST BE IN THE OFF POSITION TO USE TO USE THE STOW POSITION!

FAILURE TO PUT THE MOTOR IN THE OFF POSITION BEFORE

STOWING THE HANDLE WILL RESULT IN JOINT FAILURE.

First press the release button located on the left underside of the pivot handle, then push the handle down until you feel the handle “lock in” to the stowed position. This will be almost parallel to the motor shaft.

To extend the handle, pull the handle towards you to the desired position. The handle will extend a full 6 inches.

To retract, push the handle in until it meets the face of the motor control head.

Handle controls on/off, steering, forward/reverse

Release button

CAUTION: NEVER OPERATE YOUR MOTOR WHEN IT IS OUT OF THE WATER.

7

OPERATION OF THE PRODUCT CONT’D:

Steering Tension Adjustment:

The steering tension can be adjusted by tightening or loosening the steering tension knob for the desired steering tension.

Depth Adjustment

The Quick Release Depth Collar can easily be adjusted by opening the lever arm to release to depth collar, sliding it to the desired depth, and then closing the lever arm again. The tension of the quick release depth collar can be adjusted with a screw driver to obtain the proper “feel”. Be careful not to over tighten!

Lever Arm

Steering Tension /

Vertical Stow Knob

8

PINCH POINT WARNING!!

BE SURE TO FIRMLY HOLD THE MOTOR SHAFT

WHENEVER MAKING ADJUSTMENTS TO THE QUICK

RELEASE DEPTH COLLAR. THE MOTOR CAN SLIDE

DOWN QUICKLY AND CAUSE INJURY.

BATTERY INFORMATION:

The motor will operate with any deep cycle marine 12 volt battery/batteries. For best results use a deep cycle, marine battery with at least a 115 ampere hour rating. As a general on the water estimate, your 12 volt motor will draw one ampere per hour and your 24 volt motor will draw .75 ampere per hour for each pound of thrust produced when the motor is running on high.

The actual ampere draw is subject to your particular environmental conditions and operation requirements. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will significantly improve the battery life.

Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a variable rate charger to avoid overcharging.

If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/ batteries for your Minn Kota trolling motor.

Advice regarding batteries:

Never connect the (+) and the (–) terminals of the battery together. Take care that no metal object can fall onto the battery and short the terminals. This would immediately lead to a short and utmost fire danger.

Recommendation: Use battery boxes and covered battery terminal clamps like Minn Kota accessory #MK-BC-1.

These motors are equipped with a “push to test” battery gauge. The LED provides an accurate display of the remaining charge in the battery. It is only accurate when the motor is off. The gauge reads as:

• Four lights indicate full charge.

• Three lights indicate good charge.

• Two lights indicate low charge.

• One light indicates recharge.

9

10

HOW TO CONNECT THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)

36 VOLT SYSTEMS:

To trolling motor negative

+36 Volts to trolling motor positive (or circuit breaker)

1. Make sure that the motor is switched off

(speed selector on “0”).

2. Three 12 volt batteries are required.

24 Volt Connection 36 Volt Connection

3. The batteries must be wired in series, only as directed in wiring diagram, to provide 36 volts.

Neg Pos + Neg Pos + a. Connect a connector cable to the positive ( + ) terminal of battery 1 and to the negative ( – ) terminal

Battery #1 (Low Side) Battery #2

36 Volt Series Connection of battery 2 and another connector cable from the positive ( + ) terminal of battery 2 to the negative ( – ) terminal of battery of battery 3.

b. Connect positive ( + ) red lead to positive ( + ) terminal on battery 3.

c. Connect negative ( – ) black lead to negative ( – ) terminal of battery 1.

Neg Pos +

Battery #3 (High Side)

4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.

CAUTION

• Improper wiring of 24/36 volt systems could cause battery explosion!

• Keep leadwire wing nut connection tight and solid to battery terminals.

• Locate battery in a ventilated compartment.

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.

12-24-36 VOLT VARIABLE SPEED MODELS

THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR

MOTORS VOLTAGE FOR PROPER CONNECTIONS

Over-Current Protection Devices not shown in illustrations.

CONTROL BOARD

BLACK

SPEED ADJUSTMENT KNOB

MOTOR

BLACK B-

RED B+

12v

12V BATT 1

24v

RED

BATTERY GAUGE

BLACK

12V BATT 1 12V BATT 2

36v

12V BATT 1

12V BATT 2

12V BATT 3

11

12

BOAT RIGGING AND PRODUCT INSTALLATION:

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualifi ed marine technician. The following specifi cations are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet we recommend that you contact a qualifi ed marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for the circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 - Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats.

*Conductor Gauge and Circuit Breaker Sizing Table

Motor

Thrust

Max

Amp

Draw

30

Circuit Breaker

5 feet

30#

40#, 45#

50#, 55#

70#

80#

101#

112#

E-Drive

46

52

40

42

50

42

56

50 Amp @ 12 VDC

60 Amp @ 12 VDC

10 AWG

10 AWG

8 AWG

50 Amp @ 24 VDC 10 AWG

60 Amp @ 24 VDC

50 Amp @ 36 VDC

8 AWG

8 AWG

60 Amp @ 36 VDC 8 AWG

50 Amp @ 48 VDC 10 AWG

Wire Extension Length

10 feet

10 AWG

8 AWG

6 AWG

10 AWG

8 AWG

8 AWG

8 AWG

10 AWG

15 feet

8 AWG

6 AWG

4 AWG

8 AWG

8 AWG

8 AWG

8 AWG

10 AWG

20 feet

6 AWG

4 AWG

4 AWG

8 AWG

6 AWG

8 AWG

8 AWG

10 AWG

*The conductor and circuit breaker sizing table above is only valid for the following assumptions.

1. No more than three (3) conductors are bundled together inside a sheath or conduit outside of engine spaces.

2. Each conductor has 105 degree C temp rated insulation.

3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

25 feet

4 AWG

4 AWG

2 AWG

6 AWG

6 AWG

8 AWG

8 AWG

10 AWG

"BATEAU GRÉEMENT ET PRODUIT DE L'INSTALLATION :"

"Pour des raisons de sécurité et de conformité, nous recommandons de suivre les normes de l’American"

"Boat And Yacht Council (ABYC) lorsque truquer votre bateau. Modifi er le câblage du bateau doit être complété par un technicien marin qualifi é. Les spécifi cations suivantes sont uniquement des directives générales :"

"Avertissement : Ces directives s'appliquent au gréement générale à l'appui de votre moteur Minn Kota."

"Alimenter plusieurs moteurs ou des dispositifs électriques supplémentaires depuis le même circuit de puissance peut infl uencer la taille recommandée de la jauge du conducteur et disjoncteur. Si vous utilisez fi l plus long que celui fourni avec votre unité, suivre le conducteur jauge et le disjoncteur dimensionnement tableau ci-dessous.

Si votre fi l longueur d’extension est plus de 7.5 metres nous recommandons que vous contacter un technicien marin qualifi é."

"Un dispositif de protection de surintensité (disjoncteur ou fusible) doit être utilisé. Les exigences de"

"la Garde-Côte américain disent que chaque conducteur sans fondement de porteurs de courant doit être protégé par un disjoncteur mise en circuit, à déclenchement libre ou un fusible. Le type (tension et courant nominal) du fusible ou disjoncteur doit être dimensionné en conséquence pour le moteur utilisé. Le tableau ci-dessous donne les directives pour le calibrage de disjoncteur."

“Référence :”

“United States Code of Federal Regulations : CFR 33 183 – bateaux et équipement connexe”

“ABYC E-11: AC et DC des systèmes électriques à bord de bateaux”

"* Jauge de conducteur et disjoncteur Table de dimensionnement Longueur totale de chef d'orchestre “

Moteur poussée

Max

Ampère

Disjoncteur

50 Amp @ 12 VDC

1.5 mètres

5 mm

Fil Longueur d'extension

3 mètres

5 mm

4.5 mètres

8 mm

6 mètres

13 mm 30#

40#, 45#

50#, 55#

70#

80#

101#

112#

E-Drive

56

46

52

40

30

42

50

42

60 Amp @ 12 VDC

50 Amp @ 24 VDC

60 Amp @ 24 VDC

50 Amp @ 36 VDC

60 Amp @ 36 VDC

50 Amp @ 48 VDC

5 mm

8 mm

5 mm

8 mm

8 mm

8 mm

5 mm

8 mm

13 mm

5 mm

8 mm

8 mm

8 mm

5 mm

13 mm

21 mm

8 mm

8 mm

8 mm

8 mm

5 mm

21 mm

21 mm

8 mm

13 mm

8 mm

8 mm

5 mm

7.5 mètres

21 mm

21 mm

33 mm

13 mm

13 mm

8 mm

8 mm

5 mm

"* Le disjoncteur tableau ci-dessus de dimensionnement et chef d'orchestre est uniquement valable"

"pour les hypothèses suivantes."

"1. Pas plus de 3 conducteurs sont regroupés à l'intérieur d'une gaine ou conduites à l'extérieur des espaces de moteur."

"2. Chaque conducteur a 105oc temp, évalué à isolation."

"3. Pas plus d'une chute de tension de 5 % a permis à la puissance du moteur complet en fonction des besoins de puissance produit publié."

BOAT RIGGING AND PRODUCT INSTALLATION:

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualifi ed marine technician. The following specifi cations are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet we recommend that you contact a qualifi ed marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for the circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 - Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats.

*Conductor Gauge and Circuit Breaker Sizing Table

Motor

Thrust

Max

Amp

Draw

30

Circuit Breaker

5 feet

30#

40#, 45#

50#, 55#

70#

80#

101#

112#

E-Drive

46

52

40

42

50

42

56

50 Amp @ 12 VDC

60 Amp @ 12 VDC

10 AWG

10 AWG

8 AWG

50 Amp @ 24 VDC 10 AWG

60 Amp @ 24 VDC

50 Amp @ 36 VDC

8 AWG

8 AWG

60 Amp @ 36 VDC 8 AWG

50 Amp @ 48 VDC 10 AWG

Wire Extension Length

10 feet

10 AWG

8 AWG

6 AWG

10 AWG

8 AWG

8 AWG

8 AWG

10 AWG

15 feet

8 AWG

6 AWG

4 AWG

8 AWG

8 AWG

8 AWG

8 AWG

10 AWG

20 feet

6 AWG

4 AWG

4 AWG

8 AWG

6 AWG

8 AWG

8 AWG

10 AWG

*The conductor and circuit breaker sizing table above is only valid for the following assumptions.

1. No more than three (3) conductors are bundled together inside a sheath or conduit outside of engine spaces.

2. Each conductor has 105 degree C temp rated insulation.

3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

25 feet

4 AWG

4 AWG

2 AWG

6 AWG

6 AWG

8 AWG

8 AWG

10 AWG

"BATEAU GRÉEMENT ET PRODUIT DE L'INSTALLATION :"

"Pour des raisons de sécurité et de conformité, nous recommandons de suivre les normes de l’American"

"Boat And Yacht Council (ABYC) lorsque truquer votre bateau. Modifi er le câblage du bateau doit être complété par un technicien marin qualifi é. Les spécifi cations suivantes sont uniquement des directives générales :"

"Avertissement : Ces directives s'appliquent au gréement générale à l'appui de votre moteur Minn Kota."

"Alimenter plusieurs moteurs ou des dispositifs électriques supplémentaires depuis le même circuit de puissance peut infl uencer la taille recommandée de la jauge du conducteur et disjoncteur. Si vous utilisez fi l plus long que celui fourni avec votre unité, suivre le conducteur jauge et le disjoncteur dimensionnement tableau ci-dessous.

Si votre fi l longueur d’extension est plus de 7.5 metres nous recommandons que vous contacter un technicien marin qualifi é."

"Un dispositif de protection de surintensité (disjoncteur ou fusible) doit être utilisé. Les exigences de"

"la Garde-Côte américain disent que chaque conducteur sans fondement de porteurs de courant doit être protégé par un disjoncteur mise en circuit, à déclenchement libre ou un fusible. Le type (tension et courant nominal) du fusible ou disjoncteur doit être dimensionné en conséquence pour le moteur utilisé. Le tableau ci-dessous donne les directives pour le calibrage de disjoncteur."

“Référence :”

“United States Code of Federal Regulations : CFR 33 183 – bateaux et équipement connexe”

“ABYC E-11: AC et DC des systèmes électriques à bord de bateaux”

"* Jauge de conducteur et disjoncteur Table de dimensionnement Longueur totale de chef d'orchestre “

Moteur poussée

Max

Ampère

Disjoncteur

50 Amp @ 12 VDC

1.5 mètres

5 mm

Fil Longueur d'extension

3 mètres

5 mm

4.5 mètres

8 mm

6 mètres

13 mm 30#

40#, 45#

50#, 55#

70#

80#

101#

112#

E-Drive

56

46

52

40

30

42

50

42

60 Amp @ 12 VDC

50 Amp @ 24 VDC

60 Amp @ 24 VDC

50 Amp @ 36 VDC

60 Amp @ 36 VDC

50 Amp @ 48 VDC

5 mm

8 mm

5 mm

8 mm

8 mm

8 mm

5 mm

8 mm

13 mm

5 mm

8 mm

8 mm

8 mm

5 mm

13 mm

21 mm

8 mm

8 mm

8 mm

8 mm

5 mm

21 mm

21 mm

8 mm

13 mm

8 mm

8 mm

5 mm

7.5 mètres

21 mm

21 mm

33 mm

13 mm

13 mm

8 mm

8 mm

5 mm

"* Le disjoncteur tableau ci-dessus de dimensionnement et chef d'orchestre est uniquement valable"

"pour les hypothèses suivantes."

"1. Pas plus de 3 conducteurs sont regroupés à l'intérieur d'une gaine ou conduites à l'extérieur des espaces de moteur."

"2. Chaque conducteur a 105oc temp, évalué à isolation."

"3. Pas plus d'une chute de tension de 5 % a permis à la puissance du moteur complet en fonction des besoins de puissance produit publié."

13

PROPELLER REPLACEMENT:

• Disconnect motor from battery prior to changing the propeller.

• Hold the propeller and loosen the anode/nut with a wrench.

• Remove anode/nut and washer. If the drive pin is sheared/broken, you will need to hold the shaft steady with a screwdriver blade pressed into the slot on the end of the shaft.

• Turn the old prop to horizontal (as illustrated) and pull it straight off. If drive pin falls out, push it back in.

• Align new propeller with drive pin.

• Install prop washer and anode/nut.

• Tighten anode/ nut 1/4 turn past snug. [25-35 inch lbs.]

Be careful, over tightening can damage prop.

CAUTION: DISCONNECT THE MOTOR

FROM THE BATTERY BEFORE BEGINNING

ANY PROP WORK OR MAINTENANCE.

anode/nut

Weedless Propeller

Washer

Slot End

Drive pin

MAXIMIZER™:

(On Select Models)

The built-In Maximizer’s electronics create pulse width modulation to provide longer running time and extended battery life.

With the Maximizer speed control, you may, in some applications, experience interference in your depth finder display.

We recommend that you use a separate deep cycle marine battery for your trolling motor and that you power the depth finder from the starting / cranking battery. If problems still persist, call our service department at 1-800-227-6433.

MAINTENANCE OF THE PRODUCT:

1. After use, these units should be rinsed with fresh water, then wiped down with a cloth dampened with an aqueous based silicone spray such as Armor All®.

2. The propeller must be cleaned of weeds and fishing line.

The line can get behind the prop, wear away the seals and allow water to enter the motor. Check this after every 20 hours of operation.

3. Before each use, check to see that the prop nut is secure.

4. To prevent accidental damage during trailering or storage, disconnect the battery whenever the motor is off of the water. For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.

5. For maximum performance, restore battery to full charge before each use.

6. Keep battery terminals clean with fine sandpaper or emery cloth.

7. The weedless wedge propeller is designed to provide absolute weed free operation with very high efficiency.

To maintain this top performance, the leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine sandpaper.

14

TROUBLESHOOTING:

1. Motor fails to run or lacks power:

• Check motor for obstructions. The motor may have gone into current limit. To reset: return to off position, remove obstruction and resume operation.

• Failure to put the motor in the off position before stowing the handle will result in joint failure.

• Check battery connections for proper polarity.

• Make sure terminals are clean and corrosion free. Use fine sandpaper or emery cloth to clean terminals.

• Check battery water level. Add water if needed.

2. Motor looses power after a short running time:

• Check battery charge, if low, restore to full charge.

3. Motor is hard to steer:

• Loosen the steering tension knob on the top of bracket.

• Lubricate the composite shaft.

4. Bracket shifts or “walks” on transom:

• With some boats, the transom bracket may loosen or shift during heavy use.

5. You experience prop vibration during normal operation:

• Remove and rotate the prop 180°. See removal instructions in prop section.

NOTE:

For all other malfunctions, see enclosed authorized service center listing for nearest service center.

REPAIR AND TROUBLESHOOTING

We off er several options to help you troubleshoot and/or repair your product. Please read through the options listed below.

FREQUENTLY ASKED QUESTIONS

Did you know that we have over 100 FAQ’s to help answer all of your Minn Kota questions? Visit www.minnkotamotors.com and click on “Frequently Asked Questions” under the “Service” tab to fi nd an answer to your question.

http://www.minnkotamotors.com/service/faq.aspx?linkidentifi er=id&itemid=817

AUTHORIZED SERVICE CENTERS

Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit www.minnkotamotors.com and click on “Service Center Locator” under the “Service” tab to locate a service center in your area. http://www.minnkotamotors.com/service/asclocator.aspx

CALL US (FOR U.S. AND CANADA)

are calling to order parts, please have the 11-character serial number from your product, specifi c part numbers, and credit card information available. This will help expedite your call and allow us to provide you with the best customer service possible. You can reference the parts list located in your manual to identify the specifi c part numbers.

EMAIL US

You can email our customer service department with questions regarding your Minn Kota products. To email your quesiton, visit www.minnkotamotors.com and click on “Contact Us” under the “Service” tab.

http://www.minnkotamotors.com/service/contact.aspx

15

16

LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT,

LIMITED TWO-YEAR WARRANTY ON ENTIRE PRODUCT:

Composite Shaft

Johnson Outdoors Marine Electronics, Inc. warrants to the original purchaser that the composite shaft of the purchaser’s Minn Kota® trolling motor is free from defects in materials and workmanship appearing within the original purchaser’s lifetime. Johnson Outdoors Marine Electronics,

Inc. will provide a new shaft, free of charge, to replace any composite shaft found to be defective more than two (2) years after the date of purchase. Providing such a new shaft shall be the sole and exclusive liability of Johnson

Outdoors Marine Electronics, Inc. and the sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to install, any new composite shaft provided by Johnson Outdoors Inc.

Entire Product

Johnson Outdoors Marine Electronics, Inc. warrants to the original purchaser that the purchaser’s entire Minn Kota® trolling motor is free from defects in materials and workmanship appearing within two (2) years after the date of purchase. Johnson Outdoors Marine Electronics, Inc. will, at its option, either repair or replace, free of charge, any parts, including any composite shaft, found to be defective during the term of this warranty. Such repair or replacement shall be the sole and exclusive liability of Johnson

Outdoors Marine Electronics, Inc. and the sole and exclusive remedy of the purchaser for breach of this warranty.

Terms Applicable to Both Warranties

These limited warranties do not apply to motors used commercially nor do they cover normal wear and tear, blemishes that do not affect the operation of the motor, or damage caused by accidents, abuse, alteration, modification, misuse or improper care or maintenance. DAMAGE TO

MOTORS CAUSED BY THE USE OF REPLACEMENT

PROPELLERS OR OTHER REPLACEMENT PARTS NOT

MEETING THE DESIGN SPECIFICATIONS OF THE

ORIGINAL PROPELLER AND PARTS WILL NOT BE COV-

ERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not defective are the responsibility of the purchaser.

To obtain warranty service in the U.S., the motor or part believed to be defective, and proof of original purchase

(including the date of purchase), must be presented to a

Minn Kota® Authorized Service Center or to Minn Kota®’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota® Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser.

Motors purchased outside of the U.S. must be returned prepaid with proof of purchase

(including the date of purchase and serial number) to any

Authorized Minn Kota® Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn Kota® Authorized Service Center listed on the enclosed sheet, or by contacting the factory at 1-800-227-

6433 or fax 1-800-527-4464. Note: Do not return your

Minn Kota® motor to your retailer. Your retailer is not authorized to repair or replace them.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN

THESE LIMITED WARRANTIES. IN NO EVENT SHALL

ANY IMPLIED WARRANTIES (EXCEPT ON THE COM-

POSITE SHAFT), INCLUDING ANY IMPLIED WAR-

RANTIES OF MERCHANTABILITY OR FITNESS FOR

PARTICULAR PURPOSE, EXTEND BEYOND TWO

YEARS FROM THE DATE OF PURCHASE. IN NO

EVENT SHALL JOHNSON OUTDOORS MARINE

ELCTRONCIS, INC. BE LIABLE FOR INCIDENTAL, CON-

SEQUENTIAL OR SPECIAL DAMAGES.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

“WARNING: This product contains chemical(s) known to the state of California to cause cancer and/or reproductive toxicity.”

17

18

RT112/T

112 LBS THRUST

36 VOLT / 52 AMPS

52” SHAFT

1000

1020

1015

1010

40

41

360

This page provides MinnKota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/ or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

Tools required:

Flat Head screw driver, Phillips screw driver, Socket set, Pliers.

200

205

208

210

210

215

390

380

385

365

370

375

405

410

135

136

425

395

400

420

415

230

220

235

240

225

340

345

260 255

315

320

305

290

305

250

265

275

270

245

285

280

295

300

310

325

19

335

330

21

20

115

120

70

30

35

110

50

65

85

25

90

71

60

100

95 15

80

1

5

10

In the U.S.A., replacement parts may be ordered directly from MINN KOTA Parts Dept., 121 Power Drive,P.O. Box 8129 Mankato, Minnesota 56002-8129. In

Canada, parts may be ordered from any of the Canadian Authorized Service Centers shown on the enclosed list. Be sure to provide the model and serial numbers of your motor when ordering parts. Please use the correct part numbers from the parts list. Payment for any parts ordered from the MINN KOTA parts department, may be by cash, personal check, Discover Card, MasterCard or VISA. To order, call 1-800-227-6433 or FAX 1-800-527-4464.

Item P/N

1 2317091

10 140-014

15 788-040

19 2002014

21 582-016

30 421-241

35 144-017

200 2095605

205 2060296

208 2325666

210 2074082

215 2043427

220 2184017

n 2888411

225 2303434

230 2062503

235 2062905

240 2303412

245 2263434

250 2383406

255 2061517

260 2333101

265 2991521

Bearing

Tube 52”

Description Qty Item P/N

36V Motor 52” SW

5 2-100-245 Armature assembly

Retaining ring

20 2-200-340 Center housing assemby

Retaining clip

25 2-300-151 Brush end housing assembly

Plain end housing assembly STD

Flange bearing

40 880-025

41 725-095

Seal

Paper tube - seal bore

50 188-095 Brush

60 9-738-011 Brush plate assembly

65 975-045

n 2881450

70 701-098

71 701-046

80 701-009

85 2053410

90 830-094

95 990-051

100 990-052

110 2777312

115 990-011

120 992-011

135 640-041

136 640-141

Brush spring

Seal and O-ring Kit

[40, 70-80]

O-ring, plain end

O-ring, brush end

O-ring, thru-bolt

Screw, 10-32 x 1/2”

Thru-bolt 12-24

Washer, steel

Washer, nylatron

Ferrite bead w/ shrink

Washer, shim

Washer, belleville

Leadwire, black 52”

Leadwire, red 52”

Decal, c-box cover

C-box cover

Decal - Minn Kota

Battery meter, 36V SW

Screw, #8 x 7/8 SS

Control board, 24/36V

Potentiometer Replacement Kit

Screw, #8-30 x 5/8 SS

Control box, VARS, SW

Strain relief

Screw, #6 x 5/8 SS

Screw, #8 x 1 SS

Screw, #10-24 x 2” PPH SS

Collar, c-box

Nut, 10-24, nylock, SS

Cam lock/depth collar assy

1

1

1

1

1

1

1

1

1

2

1

1

1

2

1

2

1

2

1

2

2

1

1

1

1

1

2

1

2

1

2

1

2

2

1

1

6

2

1

1

1

1

Description Qty

290 2071863 Hinge-SW

295 2332700

300 2333001

305 2037301

310 2073604

315 2071942

320 2070514

325 2991303

330 2331700

335 2263452

Spring-(T-bar), SS

E-ring, SS

Bushing, hinge

T-bar, (e-coat)

Bracket, die cast SW

Pin-Hinge, 3/8 x 3.5, SS

Clamp screw, handle assy.

Washer-clamp screw, SS

Screw, 1/4-20 x 3/4 SHCS, SS

n 2994844

340 2053421

345 2058415

n

2990957

360 2990456

365 2060015

370 2063405

375 2884092

380 2302742

385 2060005

390 2060900

395 2302745

400 2063700

405 2060905

410 2303412

415 2062715

420 2061700

425 2992523

n

n

1378160

2994876

1000 2341160

1010 2262658

1015 2091701

1020 2198401

Bag assembly, transom extrusion

Screw 1/4-14 x 1 PFH, SS

Transom extrusion

Handle assy, VARS

Grip/handle assy, VARS

Bearing, handle

Screw, #6 PFH SS

Propeller kit WW2

Propeller bag assy

Propeller WW2

Drive pin, large

[360-410]

[1000-1020]

[1010-1020]

Washer, prop, large

Nut, nylock, prop, Anode

[360-375]

Yoke / spider assy, VARS

Spring, detent, off

Bearing, handle pivot

Handle pivot, top

Spring, release button

Button, release

Handle pivot, bottom

Screw, #6 x 5/8 SS

Spring, handle pivot

Washer, pot holder

1

2

1

1

2

2

1

2

1

1

2

1

1

1

1

1

1

1

1

1

1

6

1

1

2

1

1

1

2

1

Leadwire assy, includes [235]

1

n 2991714

270 2011366

275 2062801

280 2077202

285 2070512

Bracket assy, Aluminum

[270-335]

1

Knob, screw-collar, SS

Tension block

Lever-tilt, transom bracket

Pin-hinge, 1/8 x 1

1

1

1

1

* This item is part of an assembly. This item cannot be sold separately due to machining and /or assembly that is required.

Item P/N

Fuera de los Estados Unidos, consultar la lista anexa para ubicar el Centro de servicio autorizado MINN

KOTA. No dejar de incluir el número del MODELO y el número de SERIE del motor para el cual se solicitan las piezas. Usar siempre los números de pieza correctos indicados en la lista de piezas.

Description Qty Item P/N Description Qty

P/N 2094926 REV. A ECN 34956 12/13

Minn Kota accessories available for your motor.

Portable Chargers

Power Center

Quick Plugs

Extension Handles

Visit our website at www.minnkotamotors.com

© 2010 Johnson Outdoors Marine Electronics, Inc. p/n 2097124 REV. H ECN 35816 12/13

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
