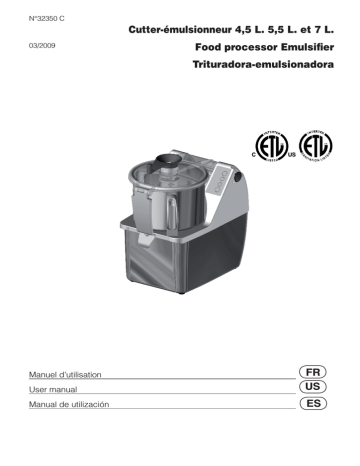

Cutter-émulsionneur 4,5 L. 5,5 L. et 7 L.

Food processor Emulsifi er

Trituradora-emulsionadora

Manuel d’utilisation

User manual

Manual de utilización

FR

US

ES

1.

1

2.

1

2.

3a

A B C

D

E

F

3.

1

3.

3

3.

3a

3.

2

3.

3b

K45-K55-K70 US 06 08

3.

3

3.

3c

3.

4

K45-K55-K70 US 06 08

Refer to the numbered drawings that relate to the numbered paragraphs

GB

01/2008

Contents

Introduction

Installation

Use and safety

Cleaning and hygiene

Fault-fi nding

2

4

1

1

4

Maintenance

Compliance with regulations

Parts list - exploded view

Electrical diagrams

Introduction

The User Manual contains useful information for the user on how to work correctly and in complete safety, and is designed to make it easier to use the machine (called “machine” or “appliance” below).

What follows is in no case intended to be a long list of warnings and constraints, but rather as a series of instructions meant to improve the service provided by the machine in every respect, and particularly to avoid a series of injuries or damage to equipment that might result from inappropriate procedures for use and management.

It is essential that all the people responsible for transporting, installing, commissioning, using, maintaining, repairing or dismantling the machine should consult this manual and read it carefully before proceeding with the various operations, in order to avoid any incorrect or inappropriate handling that might be result in damage to the machine or put people’s safety at risk.

Introduction

1.

1

DESCRIPTION

• This professional food processor / emulsifi er can be used in the preparation of minces, blends and emulsions, in particular in a hospital environment, in gourmet catering and in dietetics.

It can also be used as a food processor / mixer by removing the scraper for grinding or kneading the hardest of products.

• For special preparations which do not come under the scope of food: (PLEASE CONTACT US)

1.

1

A Removable bowl-lid scraper handle with centre pourer hole

It is just as important that the Manual should always be available to the operator and it should be kept carefully where the machine is used ready for easy and immediate consultation in case of any doubt, or in any case, whenever the need arises.

If after reading the Manual, there are still any doubts concerning how to use the machine, please do not hesitate to contact the

Manufacturer or approved After Sales Service provider, who is constantly available to ensure quick and careful service for improved machine operation and optimum effi ciency.

Note that the safety, hygiene and environmental protection standards currently applicable in the country where the machine is installed must always be applied during all phases of machine operation. Consequently it is the user’s responsibility to ensure that the machine is operated and used solely under the optimum safety conditions laid down for people, animals and property.

B Removable transparent lid with centre pourer hole

C Lid locking handle

D Bowl handle

E Bowl (capacity 4.5, 5.5 or 7 litres depending on model)

F Casing

G Non-slip pads

H Body

I Power supply lead

J Control panel

K Locking pin

Installation

ATTENTION!!

Machine storage: -25°C to +50°C

Ambient temperature during operation: +4°C to +40°C

This machine is for professional use and must be used by staff trained to use, clean and maintain it, in terms or reliability and safety.

Use the machine in adequately lit premises (See applicable technical standard for the country of use. In Europe, refer to standard

EN 12464-1)

When handling the machine, always check that the parts taken hold of are not mobile elements: risk of dropping and injury to the lower limbs.

The machine is not designed for use in explosive atmospheres.

2.

1

DIMENSIONS - WEIGHT (INDICATION ONLY)

A Gross packaged weight (Kg)

B Net weight (Kg)

C Packaging dimensions (mm): L x W x H

2.

1

D Machine dimensions: L x W x H (mm)

E Space required for opening and removal: L1 x W x H1

(mm)

2.

2

POSITION

• Stand the appliance on a working surface (table, base, etc.) of a height of between 700 and 900 mm. Its 4 pads provide it with perfect stability.

• It does not need to be fi xed and can easily be moved.

K45-55-70 GB 01 08

1

A

M

4

5

2.

3

ELECTRICAL CONNECTION

ATTENTION!!

Connection to the electrical power supply must be done according to proper professional practice by a qualifi ed and authorised person (see current standards and legislation in the country of installation).

If an adapter is used on the socket, a check must be made that the electrical characteristics of this adapter are not lower than those of the machine.

Do not use multiple plugs

The AC power supply to the machine must comply with the following conditions;

- Maximum voltage variation: ±5%

- Maximum frequency variation: ±1% on a continuous basis, ± 2% over short periods

ATTENTION: the electrical installation must comply (for design, creation and maintenance) with the legal and standard requirements in the country where used.

- Check that the electric mains voltage, the value shown on the specifi cation plate and the label on the power cable are the same.

- The machine’s electrical power supply must be protected against voltage surges (short-circuits and excess voltages) by using fuses or thermal relays of the appropriate gauge relative to the place of installation and machine specifi cations – see the specifi cations shown in column G of fi gure 2.3a

ATTENTION: Concerning protection against indirect contact (depending on the type of power supply provided and connection of the exposed conductive parts to the equipotential protection circuit), refer to point 6.3.3 of EN 60204-1 (IEC

60204-1) with the use of protection devices for automatic shut-off of power in the event of an insulation fault with a TN or

TT, system, or for the IT system, with the use of a permanent insulation or differentials controller for automatic shut-off.

The requirements of IEC 60364-4-41, 413.1 must apply for this protection.

For example: in a TT system, a differential circuit breaker must be installed upline of the power supply, with a suitable power cut-off (e.g.: 30 mA) on the earthing installation for the place where it is planned to install the machine.

ATTENTION: Failure to comply with these instructions means the customer runs the risk of machine failure and/or accidents due to direct or indirect contacts.

• This food processor is available in three versions:

- Single speed : Single phase - one voltage only.

- Two-speed : Three-phase - one voltage only.

- Variable speed : Single phase - one voltage only.

• Check that the electric mains voltage and the value shown on the specifi cation plate and the power cable label are the same.

• The machine must be protected by a residual current device

(RCD) and one fuse per phase, of a rating shown in column Fof the specifi cations.

2.

3

• Motor specifi cations:

A Number of phases (1 = single phase or 3 = three-phase)

B Nominal voltage in volts

C Frequency (Hertz)

D Nominal rating (Watts)

E Nominal current (Amperes)

F Rating of the fuse protecting the electric line (Amperes)

Single phase, one voltage, one speed only

• A single phase 2-pole + earth wall socket rated at 16 A will be required.

Three-phase, one tension, two speeds

• A standard 3-phase + Earth wall socket rated at 20A will be required and an appropriate sealed plug to be fi tted onto the power lead.

Must be earthed by green/yellow wire.

• Check the direction of rotor rotation at both speeds:

- Press the On button (see § 3.1).

- Make a visual check through the lid that the rotor turns in an anti-clockwise direction ( ) at both speeds (see arrow etched on the rotor handle).

- If the direction of rotation is reversed, change over the 2 phase wires on the power socket.

Single phase, one voltage, variable speed

• The food processor is powered by single phase current up to the variable speed unit which transforms the current to power the three-phase motor.

• An easily accessible, standard 2-pole + earth sealed wall socket rated at 16 A will be required.

• Warning to the installer:

This electronic variable speed food processor is fi tted with an integral fi lter which does not pass through the variable speed unit. To be effective, the machine's earth must be of good quality, otherwise interference may pass through via the variable speed unit and damage it.

Must be earthed by green/yellow wire.

• No earth connection = no protection = risk of failure +

DANGER for the user!

Note: The earth values are defi ned according to the residual differential current (See standard NFC 15100 and PROMOTELEC guide) and must be checked by an electrician.

Damage caused by a lack of earth will not be covered by the warranty

In certain cases, depending on the sensitivity of the protective RCD, SI-type (Super Immunity) devices may need to be fi tted to prevent unwanted tripping.

To PAT test the Electrolux Range of Food Preparation Equipment, the PCB board needs to be disconnected before any test is done.

This is due to the fact that the boards are fi tted with a grounding diode that can give incorrect result during such a test. Also on a standard appliance a fl ash test of 25 amps and up to 3000v is used but, as you would expect, to use this on equipment, which has a printed circuit, board would be quite destructive to that board. We would recommend the use of a PAT tester approved for computer systems which use a lower rate of amps.

The appliance is perfectly safe and is CE certifi cated. There are two ways to get overcome this problem.

· Disconnect the board as instructed and test using test for

PC’s,

· Or install the mixer on a fused spur (no plug) as this takes it away from being a portable appliance and the PAT test is then not needed.

K45-55-70 GB 01 08

2

Use and safety

ATTENTION!!

Clean the machine properly prior to its fi rst use

Uncontrolled closure of the lid or ram press involves a risk of crushing the fi ngers.

Never put a hand in the ejection area while the machine is in operation; risk of injury. It is strictly forbidden to put the safety systems out of action or modify them: Risk of permanent injury!!!!

Check that the safety devices operate correctly each time before using (see paragraph on «safety system adjustments»). Never put a hand, a hard or frozen object in the appliance

For health and safety reasons, always use a washable or disposable strong head covering that covers the hair completely.

ATTENTION: All operations, whether using, cleaning or maintenance, present risks of cuts; never force and always keep hands a reasonable distance from cutting edges.

Always use appropriate protective equipment when carrying out these operations.

3.

1

OPERATION - SAFETY

• The user's safety is assured by:

- The motor stopping on releasing the lid.

- The need to have the bowl in position before it will start

- The need to press on the On button after each stoppage

("voltage loss’’ device).

- The braked stoppage of the motor before accessing the rotor.

- Operation by sustained pressure to check the progress of work.

- The automatic locking of the rotating rotor through its bayonet system.

- The dimension of the centre pourer hole providing the means for the addition of products in OPERATION.

- The design of the bowl (no-leak shaft).

- The easy removal of the bowl, the lid and its seal, the rotor and the scraper for cleaning them.

3.

1

• Control panel

A ON button.

B OFF button.

C ON button by sustained pressure.

Variable speed model

A ON button at the selected speed.

B OFF button.

C ON button by sustained pressure at the selected speed.

E Display of the selected speed

F To increase the speed

G To decrease the speed

• The food processor can be started up if:

- The bowl is properly in place

- The locking pin is correctly engaged (see § 3.3)

- The lid is correctly locked.

a) Continual operation:

Press button A or D.

For the variable-speed model, the speed can be increased or reduced while running or when at a stop by using the buttons

F or G.

b) Operation by sustained pressure:

Press button C and hold down. This provides the means for controlling the progress of fi ne work.

c) Stop

Press button B

A ON button at low speed.

B OFF button.

C ON button by sustained pressure at low speed.

D ON button high speed.

E Display of the speed selected

Note:

Do not stop the food processor by releasing the lid.

3.

2

CHOICE OF EQUIPMENT

3.

2

• The food processor / emulsifi er is fi tted as standard with a bowl-lid scraper and a very hard stainless steel dual-knife rotor

(smooth knives for the single speed models and micro-toothed knives for the 2-speed and variable speed models).

Note: Optional rotors suitable for other work (see table §3.5).

PLEASE CONTACT US.

• Usage as a food processor / mixer is possible by removing the scraper from the existing lid or by using a second lid with no scraper for the following types of work:

- Minced meat, vegetables, etc.

- Grinding and reduction to powder.

- Kneading dough.

K45-55-70 GB 01 08

3

3.

3

STARTING UP

3.

3A

• Before starting any work, always check the cleanliness of the rotor R, the bowl E, the lid B and its seal N, the scraper P and its handle A and the drive shaft L.

• To remove the lid:

3.

3B

- Release the lid using the handle C.

- Open the lid as far as the rear stop

- Withdraw the locking pin

- Withdraw the lid

• Use the notch at the back of the lid to withdraw the seal N.

• For re-assembly, proceed in the reverse order, making sure that the locking pin is fully pushed in when the lid is in the fully open position.

• Raise the bowl E vertically by its handle D. The rotor R is released automatically. The rotor can also be removed separately.

• To fi t the scraper onto the lid see §3.4.

• To equip the food processor, install:

3.

3C

- The bowl E on the centre axis, making sure the bowl locking stud is properly positioned in its housing M.

- The rotor R on the drive shaft L as far as the stop. Next introduce the products to be worked (never before installing the rotor).

- Pull down the lid B (fi tted with its seal N) onto the bowl E and lock it with the handle C.

The appliance is ready for use.

3.

4

USING

3.

4

• Fitting the scraper onto the lid:

- Fit the scraper P underneath in the lid centre hole.

- Position the handle A lug in the scraper housing and lower it to the stop.

- Hold the scraper hub with one hand and, while exerting pressure between the 2 parts, turn the handle clockwise ( ) (seen from above) to lock them.

• To remove the scraper:

- Hold the scraper hub with one hand and, while exerting pressure between the 2 parts, turn the handle anti-clockwise

( ) (seen from above) to release them.

Note:

The lid centre hole can be closed off with the stopper supplied with the machine when the scraper is not being used.

• Always start at slow speed before changing to a faster speed.

• Use the speed under sustained pressure to start or fi nish work requiring a certain amount of surveillance or a precise degree of fi nishing.

• While working, turn the handle clockwise ( ) (seen from above) to clean the bowl and lid walls and to give consistency to the product. To loosen doughy products from the scraper, turn the handle sharply clockwise ( ) and then anti-clockwise

( ).

Note:

- Liquid products or ingredients may be introduced by the handle chute.

- The slope in the knives ensures a fast, consistent mix.

Never introduce the hand or hard bodies into the bowl when the machine is on.

K45-55-70 GB 01 08

4

3.

5

SOME EXAMPLES OF USE (THE QUANTITIES ARE GIVEN AS AN INDICATION ONLY)

Do not work hard products (whole vegetables, chunks of meat, etc.) with the scraper - risk of damaging it.

Sausage meat min. max.

Minced steak / min. steak tartare max.

Quantity by weight of fi nished product

Type of knife

K45 1-Sp K45 2-Sp K45 V-Sp K55 1-Sp K55 2-Sp K55 V-Sp K70 1-Sp K70 2-Sp K70V-Sp

Smooth 100 g 100 g 200 g

Smooth

Smooth

Smooth

1,5 kg

100 g

1,5 kg

2 kg

100 g

2 kg

2,5 kg

200 g

2,5 kg

Onion min. max.

Parsley min. max.

Mayonnaise min. max.

Smooth

Smooth

Smooth

Smooth

Either

Either

150 g

1 kg

150 g

1,5 kg 1,3 kg à 1,5 kg 2 kg

150 g

2 kg 2,5 kg

1 bunch (approx.100 g) 1 bunch (approx. 100 g) 1 bunch (approx. 100 g)

3 bunches (approx. 300 g) 4 bunches (approx. 400 g) 5 bunches (approx. 500 g)

100 g

2 kg

100 g

2,5 kg

100 g

3,5 kg

Carrot emulsion

Garlic and parsley min. Micro-toothed max. Micro-toothed min. max.

Smooth

Smooth

600 g

1 kg

200 g

1 kg 1,5 kg

600 g

1,5 kg

300 g

1,2 kg 1,8 kg

1 kg

2,5 kg

300 g

1,8 kg 2,5 kg

Shortcrust pastry min. Micro-toothed

Dough

( 60 % fl our)

Almonds or

Hazel

Parmesan max. Micro-toothed min. max. min. max.

Either

Either min. Micro-toothed max. Micro-toothed

Smooth

Smooth

350 g

1,3 kg

160 g

160 g

2 kg

100 g

1 kg

100 g

750 g

350 g

1,7 kg

160 g

160 g

2,4 kg

100 g

1,5 kg

100 g

1 kg

350 g

2,5 kg

160 g

160 g

3 kg

200 g

2 kg

200 g

1,5 kg

Cleaning and Hygiene

ATTENTION!!

Before dismantling any part, disconnect the appliance from the power supply.

Before using any cleaning product, be sure to read the instruction and safety instructions accompanying the product and use appropriate protective equipment.

Do not clean the machine with a pressure cleaner

Take care when handling the rotor, screens and plates. (Risk of CUTS – ELECTRIC SHOCK).

K45-55-70 GB 01 08

5

4.

1

BETWEEN TWO DIFFERENT SESSIONS

• Remove the bowl, the lid and its seal, the scraper and the rotor

(see § 3.3 and 3.4).

• Clean the above items under a tap or in a basin with hot water with the addition of detergent/disinfectant product or a degreasing product (if working fatty products).

• Check the various items have been cleaned properly.

Note:

- Use cleaning products which are compatible with the plastic

(polycarbonate) and stainless steel parts.

- Do not use abrasive products for cleaning the transparent lid.

Handle the rotor with care. (Risk of CUTS - SHOCKS).

4.

2

AFTER USING

• Unplug the machine.

• For bowl, lid, scraper and rotor removal and cleaning, see §

3.3 and 3.4.

• Where necessary, clean the outside of the machine with a damp sponge with the addition of a detergent/disinfectant product, paying particular attention to the rotor drive shaft, the bowl support zone and the bowl positioning stud housing and then rinse.

Note:

- Use cleaning products which are compatible with the machine component materials.

- The drive shaft and the inside of the rotor must be kept absolutely clean.

- The bowl, the lid, the scraper and the rotor may be put in a dishwasher with the knives protected against impacts.

Do not clean the machine with a pressure cleaner.

- To prevent acid stains on the rotor knives, it is recommended that they are carefully dried before storage and the rotor is put in a cold room in order to limit the development of microbes.

- After cleaning the lid, do not lock it. Leaving the air to circulate prevents condensation and the concentration of any residual odours.

Fault fi nding

5.

1

IF THE APPLIANCE WILL NOT START, CHECK THAT:

• The machine is plugged in properly.

• The socket is correctly supplied with electric power.

• If the food processor stops while in use:

- The motor temperature sensor has tripped. Wait a few minutes before restarting.

• The lid is locked properly (see § 3.3).

• The pin is pushed in properly (see § 3.3).

- Reduce the volume of product.

5.

2

ABNORMAL NOISE

• Stop the machine.

• Check:

- The bowl, the rotor and the scraper are properly in place.

- That there are no foreign bodies inside the bowl.

• Remove, clean where necessary and refi t.

• If the noise persists and the appliance lacks power, check:

- For three-phase motors, that the motor is not running on two phases.

If the incident persists, contact your dealer's service department.

5.

3

WORK QUALITY

• For work which is beyond reproach, quick and with no heating up:

- Always use properly sharpened knives which are impactfree.

- Keep an additional rotor for use on fi ne work (e.g.: chopping parsley with smooth knives, kneading with serrated knives).

- Do not work with too-large volumes of products which causes heating up (meat and dough).

Note:

- The micro-toothed knives have the cutting qualities of a smooth and serrated knife, which reduces sharpening them.

- Where necessary, rework the edge of the knives on the side opposite the sharp area using a sharpening stone.

Maintenance

6.

1

MECHANISM

Maintenance may only be carried out by persons who are qualifi ed, trained and authorised.

• The food processor requires only minimum maintenance (the motor and mechanism bearings are greased for life).

• It is recommended that at least once a year the following are checked:

- Grease the seal located at the base of the drive shaft with an edible fat.

- Check the condition of the electrical connections

6.

2

SAFETY DEVICE ADJUSTMENT

• The correct operation of the safety devices should be checked frequently. The motor should stop by braking on opening the lid in less than 4 seconds.

• If this function is not carried out:

- Do not use the machine.

- Have it adjusted by your dealer's service department.

K45-55-70 GB 01 08

6

6.

3

ELECTRICAL COMPONENTS

• Access to the electrical components:

- Unplug the machine and turn it over.

- Remove the casing (4 nuts – 7 mm spanner).

Residual voltage on the capacitor terminals.

• Component identifi cation:

S1 : Lid safety device

S2 : Bowl safety device

S3 : Motor probe

S5 : Locking pin safety device

• The capacitors may remain electrically charged.

In order to avoid any risk, on working on the machine it is recommended that these are discharged by connecting their terminals using an insulated conductor (for example, a screwdriver).

See electrical wiring diagrams at the end of this manual.

• Wire colour identifi cation:

- Power circuit: black

- Control circuit: red

- Motor: A: red - B: green - C: yellow - D: white - E: blue - F: black - G: orange - H: purple - I: grey - J: brown - K: pink

- Phases: L Single phase ; L1 - L2 - L3 Three-phase

- Neutral: N

- Earth: Green/Yellow B/C

V : Variable speed unit

CC : Control card

CPU: Power card

CD : Start capacitor

CP : Running capacitor

K1 : Start relay

B1 : Terminal block

Fur : Spare fuse

X : Power supply cord

DT : Dubber of tension

6.

4

ADDRESS FOR SERVICE REQUIREMENTS

We advise you fi rst to contact the dealer who sold you the machine.

For any requests for information or orders for spare parts, specify the type of machine, the serial number and the electrical specifi cations.

The manufacturer reserves the right to modify and make improvements to its products without notice.

Dealer's stamp

Date of purchase: ...............................................

Compliance with regulations

The machine has been designed and manufactured in compliance with:

- Machine directive 2006/42 CEE.

- CEM directive 2004/108 CEE.

- Low voltage directive 2006/95/CEE,

- Machine recycling directive 2002/95/CEE

- directive "WEEE" 2002/96/CEE

The “ ” symbol on the product indicates that this product should not be considered as household rubbish. Instead, it should be taken to a recycling area for electric and electronic equipment. By making sure that the product is correctly disposed of in this way, you are assisting in preventing damage to the environment and to the health of persons which may result following uncontrolled disposal of this product. For further information on recycling this product, please contact the sales department or the product retailer, the after-sales department or the waste treatment department in question.

- directive "Waste" 2006/12/CEE

The machine is designed in such a way that it does not contribute, or contributes as little as possible, to increasing the quantity or noxiousness of waste and the risks of pollution.

Make sure you respect the recycling conditions.

- directive "Packaging and packaging waste" 94/62/CEE

The machine packaging is designed in such a way that it does not contribute, or contributes as little as possible, to increasing the quantity or noxiousness of waste and the risks of pollution.

Make sure you eliminate the various parts of the packaging in the appropriate recycling points.

- European standards:

EN 12852- Food processors. Instructions relating to health and safety.

This compliance is certifi ed by:

- The CE conformity mark, affi xed on the machine,

- The relevant CE declaration of conformity, associated with the warranty.

- This instruction manual, which must be given to the operator.

Acoustic specifi cations:

- The acoustic pressure level measured in accordance with the test code EN ISO 3743.1-EN ISO 3744 < 70 dBA.

Protection indices according to standard EN 60529-2000:

- electrical controls IP55

- machine overall IP34

Integral safety:

- The machine has been designed and manufactured respecting the regulations and standards relating to it indicated above.

- The operator must be trained before using the machine and informed of any residual risks.

Food hygiene:

The machine is made from materials that conform to the following regulations and standards:

- Directive 1935/2004/CEE: materials and objects in contact with foodstuffs,

- Standards EN 601-2004: cast aluminium alloys in contact with foodstuffs.

- Directive EN 1672-2 : Prescriptions relating to hygiene

The surfaces of the food area are smooth and easy to clean. Use detergents which are approved for food hygiene, observing the instructions for their use.

K45-55-70 GB 01 08

7

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
