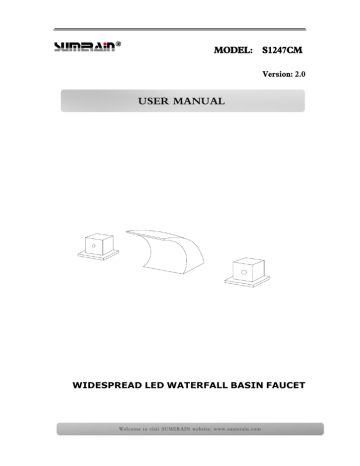

S1247CM User Manual

S1247CM User Manual
MODEL:
S1247CM
Version: 2.0
WIDESPREAD LED WATERFALL BASIN FAUCET
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for
purchasing SUMERAIN products. It is our sincere hope that you are
completely satisfied with your new purchase. We welcome any
questions or comments you may have and look forward to assisting you
in the future.
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained
in the packaging. Keep the product in its original box until you ready
to install it.
2. Shut off the water supply if replacing a previously-installed faucet.
3. Observe all plumbing and building codes in your area.
4. It is recommended that installation of the product be done by a
professional plumber.
5. SUMERAIN reserves the right to make revisions in the design of
faucets without notice, as specified with the price book.
Tools you may need when installing the faucet
Specification
Function
Feature
Style
Finish
Installation Holes
Number of Handles
Faucet Total Height
Spout Spread
Spout Width
Spout Height
Valve Type
Faucet Body Material
Faucet Spout Material
SPOUT Net Weight
Gross Weight
Working water press
LED power supply
LED Color changing
Water temperature
Water temperature
Water temperature
Bathroom Sink Faucets
LED, Waterfall, Widespread
Contemporary
Chrome
Three Holes
Two knobs
90mm [3.54 Inch]
85mm [3.35 Inch]
81mm [3.19 Inch]
86mm [3.39 Inch]
Ceramic Valve
Brass
Stainless steel
0.6 KG
2.2 KG
0.2 ~0.8 Mpa
Water flow generator
< 28 ℃
28 ℃~ 38 ℃
> 38 ℃
Blue color
Green color
Red color
Dimension
CODE
ITEM NAME
A
Faucet Body
Foam gasket
Escutcheon
Nut
Rubber gasket
Nut
T-pipe
Hex wrenches
C
E
G
I
K
M
O
QTY
CODE
ITEM NAME
QTY
1PCS
Q
2PCS
D
F
H
J
L
N
P
Valve body (Cold)
Knob
Rubber gasket
Shank
Rubber gasket
Valve body(Hot)
G1/2” Hoses
Hot/cold sign
1PCS
2PCS
1PCS
1PCS
2PCS
1PCS
2PCS
2PCS
2PCS
1PCS
1PCS
2PCS
1PCS
1PCS
Step 1:
Screw the Shank ”H” with the faucet body “A” on the table ,screw
nut ”K” and Rubber gasket “F”.
Step 2:
Screw nut ”K” and put Rubber gasket “J” on Valve body “L”, fixing the
Escutcheon “E” with Foam gasket “C” and knob “D” on the table
use the hex wrench “O” screw the knob “D” and then put the hot sign
“P” on.
Install another cold valve body with the same way.
Step 3:
Connecting the flexible hoses “N” to the cold and hot water inlet (“L”
and “Q”), the other end of the hoses connect to the cold and hot water
supply system
Step 4:
Connecting the other connection pipes according to above diagram
■Clean the faucets and showers as and when required. Regular
cleaning can prevent calcification.
■Never use cleaning materials contain hydrochloric, formic,
phosphoric or acetic acid, which may cause considerable damage.
■Never use cleaning materials or appliances with an abrasive effect,
such as unsuitable cleaning powders, sponge pads, or micro fiber
cloths.
■After cleaning, rinse thoroughly the faucet with clean water to
remove any cleaner residue.
■Unscrew and clean the aerator regularly.
TROUBLESHOOTING
Symptom
Faucet leaks from
the handle
The
pressure
low
water
is too
Solution
A. Tighten the packing nut
B.
Replace the "O" ring or packing
A. Make sure the water supply valves under the sink are
turned on all the way
B. Clean or replace the aerator
C. Check plumbing system for water pressure problems
The spout sprays
water all over
A. Clean or replace the aerator
B. Replace the aerator washer
Water is leaking
from the faucet
under the sink
A. Check the water supply connections to the faucet
B. Inspect the water supply lines or hoses for leaks
Handle is loose
LED
does
illuminate
not
A. Remove the cap and tighten the screw
B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the
stem.
A. Increase the water press
B. Clean the strainer of hot and cold water inlet
