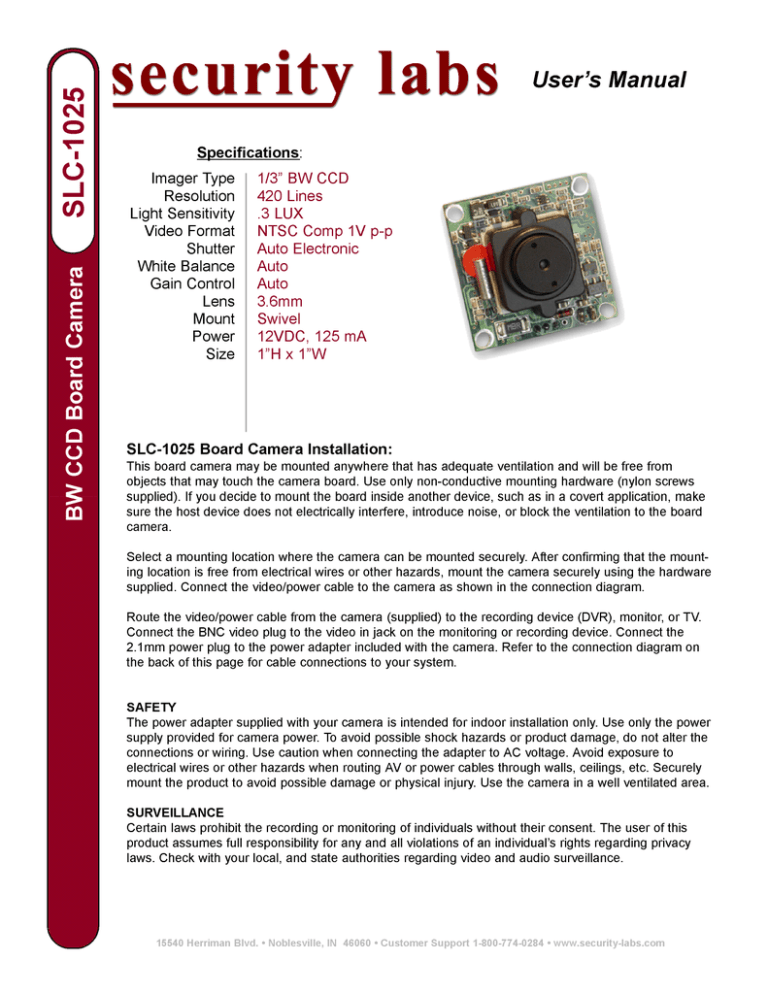

y User`s Manual
security labs users mana
Specifications:
Imager Type | 1/3” BW CCD
Resolution | 420 Lines
Light Sensitivity | .3 LUX
Video Format | NTSC Comp 1V p-p
Shutter | Auto Electronic
White Balance | Auto
Gain Control | Auto
Lens | 3.6mm
Mount | Swivel
Power | 12VDC, 125 mA
Size | "Hx 1"W
SLC-1025
SLC-1025 Board Camera Installation:
This board camera may be mounted anywhere that has adequate ventilation and will be free from
objects that may touch the camera board. Use only non-conductive mounting hardware (nylon screws
supplied). If you decide to mount the board inside another device, such as in a covert application, make
sure the host device does not electrically interfere, introduce noise, or block the ventilation to the board
camera.
©
@
=
с
©
<
бы
©
О
a
С)
©,
©
=
a
Select a mounting location where the camera can be mounted securely. After confirming that the mount-
ing location is free from electrical wires or other hazards, mount the camera securely using the hardware
supplied. Connect the video/power cable to the camera as shown in the connection diagram.
Route the video/power cable from the camera (supplied) to the recording device (DVR), monitor, or TV.
Connect the BNC video plug to the video in jack on the monitoring or recording device. Connect the
2.1mm power plug to the power adapter included with the camera. Refer to the connection diagram on
the back of this page for cable connections to your system.
SAFETY
The power adapter supplied with your camera is intended for indoor installation only. Use only the power
supply provided for camera power. To avoid possible shock hazards or product damage, do not alter the
connections or wiring. Use caution when connecting the adapter to AC voltage. Avoid exposure to
electrical wires or other hazards when routing AV or power cables through walls, ceilings, etc. Securely
mount the product to avoid possible damage or physical injury. Use the camera in a well ventilated area.
SURVEILLANCE
Certain laws prohibit the recording or monitoring of individuals without their consent. The user of this
product assumes full responsibility for any and all violations of an individual's rights regarding privacy
laws. Check with your local, and state authorities regarding video and audio surveillance.
Camera-Monitor Systems
Camera video
Camera
Power
Power
supply
CL
Camera-Recorder-Monitor Systems
Camera video
Camera
Power
|
Power
supply
Powe
plug
i 50’ video/power = /
Hs
Recorder back panel
Power
plug
] N
e or TV
O
Video MONITOR
plug VIDEO
©)
MONITOR
AUDIO
4 \
Monitor or TV
©)
MONITOR
VI DEO
©)
MONITOR
AUDIO
| = LL |
Video plug to
open video
input
security labs
POWER
©]
LAN-ETHERNET
=
©) ©)
AUDIO AUDIO
IN OUT
VIDEO VIDEO VIDEO VIDEO MONITOR
VIDEO
IN IN IN IN
CH1 CH2 CH3 CHA OUT
990909 (©)
Questions? Call Security Labs Toll Free Customer Support at 800-774-0284
