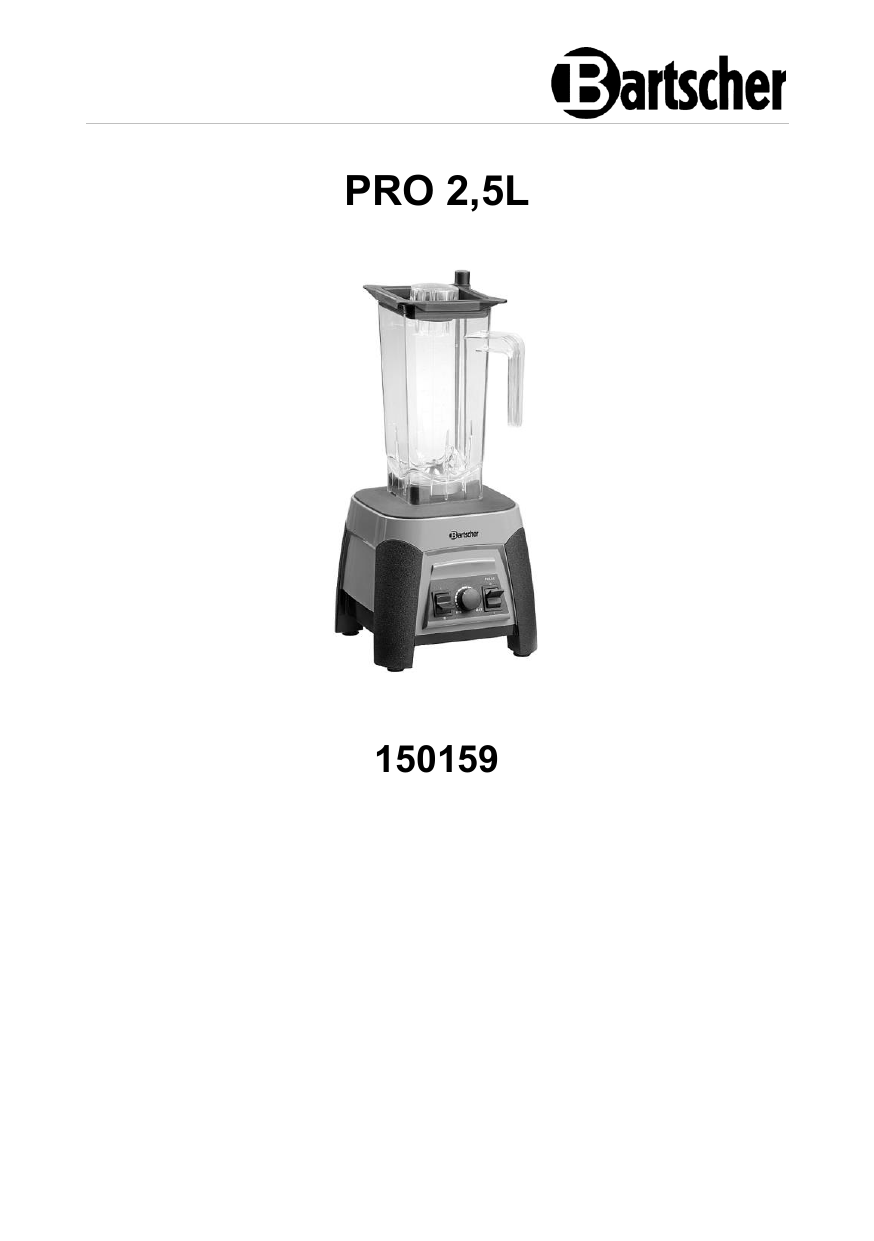

Bartscher 150159 Blender PRO 2,5l Operating instructions

PRO 2,5L
150159
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 2.0
Date of preparation: 2022-02-18
EN
Original instruction manual
1
2
3
4
5
6
7
8
Safety ............................................................................................................ 2
1.1
Explanation of Signal Words .................................................................... 2
1.2
Safety instructions.................................................................................... 3
1.3
Intended Use ........................................................................................... 4
1.4
Unintended Use ....................................................................................... 5
General information ....................................................................................... 6
2.1
Liability and Warranty .............................................................................. 6
2.2
Copyright Protection ................................................................................ 6
2.3
Declaration of Conformity ........................................................................ 6
Transport, Packaging and Storage ................................................................ 7
3.1
Delivery Check ......................................................................................... 7
3.2
Packaging ................................................................................................ 7
3.3
Storage .................................................................................................... 7
Technical Data............................................................................................... 8
4.1
Technical Specifications .......................................................................... 8
4.2
Functions of the Appliance ....................................................................... 9
4.3
List of Components of the Appliance ..................................................... 10
Installation and operation ............................................................................ 13
5.1
Installation.............................................................................................. 13
5.2
Operation ............................................................................................... 14
Cleaning ...................................................................................................... 17
6.1
Safety Instructions for Cleaning ............................................................. 17
6.2
Cleaning................................................................................................. 18
Possible Malfunctions .................................................................................. 19
Disposal ....................................................................................................... 20
150159
1 / 22
Safety
Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kennt nis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hrift en und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und mus s i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on
weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1
EN
Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1
Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
2 / 22
150159
Safety
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
, di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2
Safety instructions
Electrical Current
•
•
•
•
•
•
•
•
•
•
•
•
•
Too high a mains voltage or incorrect installation may cause electric shock.
The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
To avoid short-circuit, the appliance should be kept dry.
If there are malfunctions during operation, disconnect the appliance from the
power supply.
Do not touch the appliance’s plug with wet hands.
Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
Do not transport the appliance, holding it by the power cord.
Do not allow the power cord to come into contact with heat sources or sharp
edges.
Do not bend, pinch nor knot the power cord.
Always completely unwind the power cord.
Never place the appliance or other objects on the power cord.
Always take hold of the plug to disconnect the appliance from the power supply.
150159
3 / 22
EN
Safety
•
Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Supervised Usage only
•
•
Only supervised appliance may be used.
Always remain in an immediate vicinity of the appliance.
Operating personnel
•
•
This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Improper Use
EN
•
•
•
•
•
•
•
•
•
•
Unintended or prohibited use may cause damage to the appliance.
The appliance may only be used when its technical condition is flawless and
allows for safe operation.
The appliance may only be used when all connections are executed according
to rules of law in force.
The appliance may only be used when it is clean.
Use only original spare parts. Never attempt to repair the appliance on your own.
Do not introduce any changes in the appliance nor modify it.
Do not move nor shake the appliance during operation to avoid damaging the
motor block, mixing beaker and knife mechanism.
Insert the mixing beaker onto the motor block and remove it from the motor
block only when the appliance is off.
Do not use inoperative, damaged, or cracked mixing beakers. Continuously
supervise the mixing beaker.
Never use the damaged knife. Inspect the knife for grooves, wear, and damages
of the cutting blades. In case of damages contact the service company and
replace the beaker with the knife system.
1.3
4 / 22
Intended Use
150159
Safety
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–
1.4
Mincing, mixing, mashing, shaking, and chopping of suitable food
products.
Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–
Ice cube crushing.
EN
150159
5 / 22
General information
2
General information
2.1
Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
EN
2.2
Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3
Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 22
150159
Transport, Packaging and Storage
3
3.1
Transport, Packaging and Storage
Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2
Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3
Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
150159
7 / 22
EN
Technical Data
4
Technical Data
4.1
EN
Technical Specifications
Name:
Blender PRO 2,5L
Art. No.:
150159
Material:
plastic ABS
Mixing beaker material:
plastic
Knife design:
stainless steel
Volume, in l:
2,5
Usable volume, in l:
2,0
Rotational speed (RPMs), max.:
25000
Connected load:
1,5 kW | 220-240 V | 50/60 Hz
Dimensions (W x D x H), in mm:
225 x 225 x 555
Weight, in kg:
4,45
We reserve the right to implement technical modifications.
8 / 22
150159
Technical Data
Version / Characteristics
•
•
•
•
•
•
•
•
•
•
Colour: grey/black
Designed for:
– mincing
– mixing
– mashing
– shaking
– chopping
Control:
– electronic
– rocker switch
– knob
Speed control: with use of RPM controller
Pulse operation function
ON/OFF switch
Safety switch
Feet: hard rubber
Other features:
– filling opening at top of the appliance
– integrated dosing cap
– anti-slip stand
– handy handle
The set includes: 1 pusher
4.2
EN
Functions of the Appliance
High-power motor and ease of operation help in preparing smoothies, soups,
cocktails, sauces, dressings and desserts.
150159
9 / 22
Technical Data
4.3
List of Components of the Appliance
EN
Fig. 1
1.
3.
5.
7.
9.
Lid
Tube/lid sensor
Mixing beaker handle
Motor block
Feet (4 pcs)
10 / 22
2. Lid plug
4. Mixing beaker
6. Knife
8. Control panel
10. Pusher
150159
Technical Data
Control panel
11. ON/OFF switch
12. Speed controller
13. PULSE switch (impulse
operation)
Fig. 2
Protective Measures
Safety Function
This functions allows the motor to be started only with the mixing beaker lid
installed. The protection consists of a magnet in the lid and inductive proximity
switch at the tube next to the mixing beaker.
Overload/Overheating Protection
This protection is activated automatically in the case of motor overheating due too
long an operation or overloading.
To restore the appliance to operation-ready
status, perform the following steps:
– Wait for the appliance to cool
down.
– Remove the mixing beaker.
– Press the RESET button at the
bottom of the appliance.
Then the appliance may be re-started.
Fig. 3
150159
11 / 22
EN
Technical Data
Equipment (Optional)
Acoustic Shield PRO 2,5L
Thanks to this acoustic shield, using the PRO
2.5L blender on a buffet counter top is not a
problem any more. The enclosed acoustic
mat provides for additional noise volume
reduction and protects the surface against
scratching.
Material: plastic
Designed for: Blender PRO 2,5L
Version: Front flap, lockable
Dimensions: 254 x D 350 x H 535 mm
Weight: 4 kg
Art. No. 150176
EN
12 / 22
With acoustic mat
Top opening with a plug
Cord outlet opening
4 suction cups providing for stability
150159
Installation and operation
5
Installation and operation
5.1
Installation
Unpacking / Positioning
•
Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•
•
•
•
•
If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
Be careful not to damage the rating plate and warning labels fixed on the
appliance.
Never place the appliance in humid or wet environment.
Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
•
Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•
The surface where the appliance is installed must be easily accessible and
large. In order to assure comfortable operation and proper air circulation leave
at least 15 cm clearance at both sides and at the back from walls, cabinets, etc.,
as well as 50 cm in front and over the top.
150159
13 / 22
EN
Installation and operation
Power supply connection
•
•
•
Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2
Operation
WARNING
Injury hazard!
If during motor operation an unsuitable object will be inserted through
the opening in the mixing beaker lid, it may be caught by the knife and
inflict injuries in the user.
EN
Use the enclosed pusher only.
Risk of scalding with escaping vapour and spatters!
Hot liquids should be mixed only with low speeds and with the lid plug
tightly fitted.
Do not use the mixing beaker to process liquids or food products of
temperature above 80°C.
Before First Use
1. Make sure that all components of the appliance and accessories are available
and in sound condition.
2. Prior to first use, thoroughly clean the appliance and equipment, following
instructions in section 6 'Cleaning'.
3. All washed parts should be dried thoroughly.
14 / 22
150159
Installation and operation
Appliance Start-Up
1. Place the motor block on an even, stable, and dry surface.
2. Prepare food products for processing.
3. Put them in the mixing beaker. Do not overfill the mixing beaker. Pay attention to
the filling marks placed on the mixing beaker.
The operational volume of the mixing beaker up to 'MAX' mark is 2,000 ml.
During processing of hot or foaming products and during work at high speed, fill the
mixing beaker only up to 2/3 of the maximum operational volume of 2,000 ml.
ATTENTION!
There is a risk of damaging the appliance if the mixing beaker is inserted
onto the motor block when the appliance is on.
Disconnect the plug from mains power supply. Always start with inserting the
mixing beaker onto the motor block, and them proceed with connecting the
appliance to the power supply.
•
Insert lid onto the mixing beaker, so that it the magnet and the proximity sensor
come in contact with each other (Fig. above).
The appliance must be started only with the correctly inserted lid and correctly
inserted mixing beaker.
4. Close the lid with the transparent lid plug.
Fig. 4
150159
15 / 22
EN
Installation and operation
Mixing Process
1. Plug the appliance into a suitable single socket.
2. Switch the appliance on by setting the ON/OFF switch in 'I' (ON) position.
WARNING!
Hold the mixing beaker firmly by the handle during mixing.
3. Use the RPM controller to select the right speed in the range of 'MIN' to 'MAX'.
Rotate the controller clockwise to increase speed or anti-clockwise to reduce it.
The appliance processes the ingredients very quickly.
EN
4. Observe the mixing process.
5. After mixing, switch the appliance off and check the consistence of the mixed
ingredient.
6. If needed, switch the appliance back on after cooling off.
7. After each mixing wait for the appliance to cool down in order to prevent
overheating due to too long an operation.
8. When ingredients are supposed to be mixed shortly, use the PULSE function
with the appropriate pulse operation switch.
This function makes the motor operating at the maximum speed when the switch is
on.
9. If needed, you may use the opening in the lid to add subsequent ingredients
during operation; to this end, remove the transparent lid plug.
10. If needed, use the enclosed pusher to move the added ingredients towards the
knife.
The pusher is designed in such way that it does not touch the knife at the beaker
bottom.
11. Close the lid again with the plug.
12. Do not process too much of solid or hard products in one batch. For better
results process them in smaller amounts.
13. If the knife is blocked, and the motor starts to seize, proceed in the following
way:
– switch the appliance off immediately,
– disconnect the plug from the socket,
– remove some of the ingredients from the mixing beaker,
– mix the ingredients manually in the mixing beaker,
– continue with mixing by pressing the ON/OFF switch.
16 / 22
150159
Cleaning
14. When ingredients reach the required consistence, switch the appliance OFF
(ON/OFF switch in 'O' position).
15. Wait for the motor to stop.
16. Only then may you remove the mixing beaker from the motor block.
17. Empty the mixing beaker.
18. After use, disconnect the appliance from the socket (pull the plug out).
6
Cleaning
6.1
•
•
•
•
•
Safety Instructions for Cleaning
Before cleaning, disconnect the appliance from the power supply.
Leave the appliance to cool down completely.
Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
150159
17 / 22
EN
Cleaning
6.2
Cleaning
DANGER!
Electric shock hazard!
If water or humidity penetrates the appliance, leakage currents may lead
to injuries due to electric shock when the appliance is started.
Never immerse the motor block in water or other liquids, do not wash it in
under running water or in a dishwasher.
WARNING
Injury hazard!
The knife at the bottom of the mixing beaker is very sharp!
Never put hands into the mixing beaker during cleaning.
EN
1. Remove the mixing beaker with the lid from the motor block.
2. If needed, empty the mixing beaker.
3. Wash the plug, lid, and mixing beaker under running water with a gentle
washing agent and a plastic brush.
4. Rinse the cleaned elements in fresh water.
5. Then dry all parts with a soft, lint-free cloth or allow leave them to dry in open air
before re-assembling the appliance.
6. Wipe the motor block and connection cable only with a slightly damp cloth.
7. Dry the motor block and power cord thoroughly.
18 / 22
150159
Possible Malfunctions
7
Possible Malfunctions
Mögliche
The table below contains descriptions of possible causes and solutions to
malfunctions or errors during operation of the appliance. When malfunction cannot
be removed, contact the technical service.
In such a case, provide article number, model name and serial number. These data
may be found in the rating plate.
Error
Possible Cause
Appliance is
Incorrectly connected plug
connected to the
power supply, but it Lid is not inserted on the
does not work
mixing beaker or is
inserted incorrectly
150159
Solution
Remove the plug and insert it
properly into a socket
Place the lid correctly on the
beaker in order to assure
contact between the magnet
in the lid and the proximity
sensor on the tube
ON/OFF switch has not
been operated
Switch the appliance on with
the ON/OFF switch.
Thermal/overload switch
tripped due to the too long
an operation / overload.
Pull the plug out
Wait for the appliance to cool
down
Press the RESET button at
the bottom of the appliance
(read the section
"Overload/Overheating
Protection")
If the malfunction persists,
contact the service company
19 / 22
EN
Disposal
8
Disposal
Electrical Appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
EN
20 / 22
150159

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
