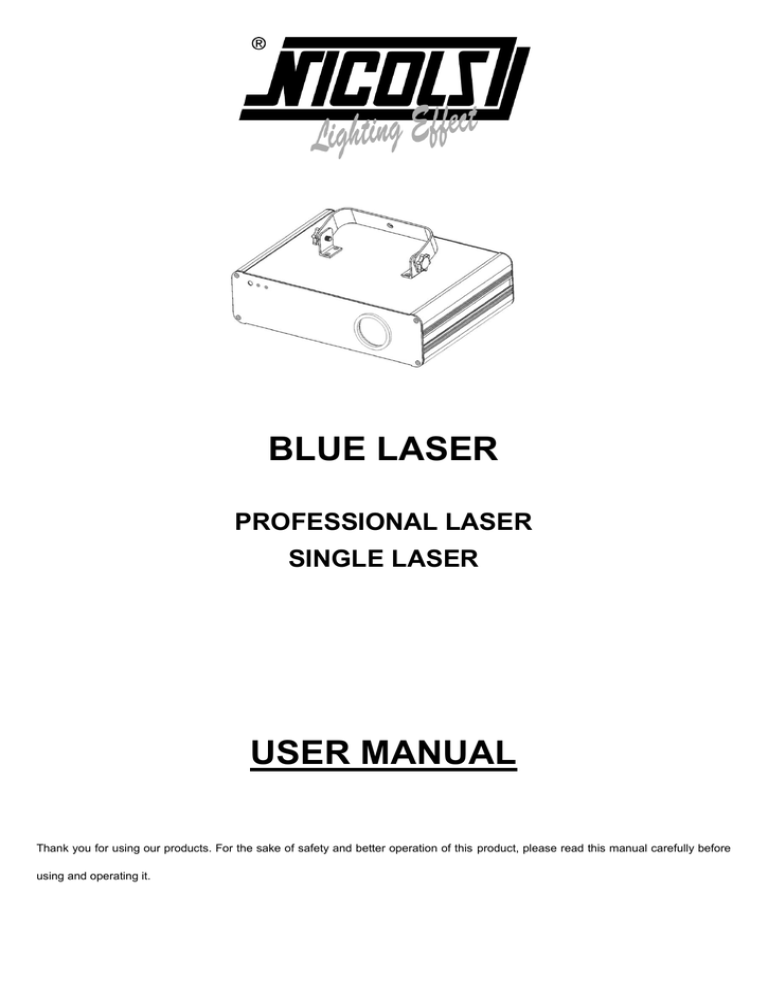

BLUE LASER
PROFESSIONAL LASER
SINGLE LASER
USER MANUAL
Thank you for using our products. For the sake of safety and better operation of this product, please read this manual carefully before
using and operating it.
1.
GENERAL INSTRUCTIONS
a.
UNPACKING
Thank you for purchasing this product. Please read the user guide for safety and operations information before using the
product. They contain important information about the security of the facility and on the use and maintenance of equipment.
Keep this manual for future reference. In case of sale of equipment to another user, it is important that this manual is attached to the
equipment to the new user has the necessary information to use and can read the warnings on safety.
It is essential that the user duly follows the safety instructions and warnings mentioned in that user manual. The dealer won’t
be able be responsible for the defaults or any other problems due to the mishandling from the user and the non following of
the instructions included in that user manual.
This product is suitable for creating perfect laser programs and high-quality laser effects.
This unit is designed to produce decorative effect lighting and is used in light show systems.
This product is a so-called show laser emitting radiation with a wavelength spectrum and producing lasers for shows. Please refer to the
safety instructions specific for lasers.
Before any first use, unpack the set and make sure there was no damage during transport. Check for missing any part supplied with the
laser:
-
1 x BLUE LASER
-
1 x POWER CABLE
-
1 x USER MANUAL
b.
GENERAL SAFETY INSTRUCTIONS
This fixture must be earthed to in order to comply with the safety regulations and to avoid any electrical shock.
Before using, please be assure that the voltage is appropriate with the information mentioned at the rear panel of the unit. Ot
avoid any shock hazard, do not open or remove the cover.
This unit is designed for indoors use. Do not expose the unit to rain or moisture.
The working temperature of the unit is from 18 to 30°C. Do not use it at higher temperature.
Do not switch on and off many times to avoid reducing the life duration of the fixture.
Do not use the unit for more than 4 hours in order not to decrease the life duration of your fixture.
Always unplug the unit when we do not use it for a long time or before servicing.
Do not place metal objects or spill liquids in/over the unit. If it occurs, please disconnect the unit from the mains at once.
Keep the device away from flammable or hot sources.
The fixture should be placed in a ventilated area and fixed at 50 cm at least from the walls.
Do not cover the ventilation openings as it may result in overheating.
Do not use the unit id dusty environment. Please use soft cloth to remove dust that would be place in the external lens. Clean the unit
regularly.
Keep away from children or any non qualified persons.
During the installation of the units, do not let the inexperienced people come around and operate the device.
Make sure that the area below the installation is free from unwanted persons.
The installation should be carried out qualified persons only according to the regulations for safety rules.
Do not remove the stickers placed on the unit. It is forbidden to make any unauthorized modifications to the unit due to safety reasons.
If some parts are visibly damaged (power cord, lens, plug, casing brackets), please do not use the unit and contact your dealer
The unit does not have user serviceable parts inside. Refer to qualified persons or contact your dealer.
Always use parts of same type.
Never repair a fuse or bypass the fuse holder.
Please use the original packaging for transporting the device.
In the event of serious problems, stop using the device contact your dealer. Do not open the cover.
Never look at the light source directly! Do not use the unit effects in the presence of persons suffering from epilepsy.
c.
SAFETY INTRUCTIONS FOR LASERS
According to EN/IEC 60825-1 regulations, this laser is classified under 3B class. Direct eye exposure can be dangerous
DANGER: LASER RADIATION!
UNIT UNDER 3 B CLASS
AVOID DIRECT EYE EXPOSURE. LASER RADAITION CAN CAUSE EYE DAMAGE AND/OR SKIN DAMAGE
AVOID EXPOSTION TO LASER RADIATION
ALL PROTECTIVE MEASURES MUST BE APPLIED FOR MAKING THE USE OF LASERS SAFE
This product is a so-called show laser emitting radiation with a wavelength spectrum and producing lasers for shows.
A laser (Light Amplification by Stimulated Emission of Radiation) is a device that emits light trough a process of optical amplification and
produce electromagnetic radiation of different wavelengths due to the controlled stimulated emissions process.
In addition to the secondary effects due to the operating laser conditions, fire risks or burning hazards, the most important danger comes
from the light source. The damages on eyes depend on the laser wavelengths specifications, the eye distance and the elements linked
to the eye specifications. This danger is amplifies if the laser beams are focused to tiny spots; that is why the effects on eyes are even
more important while using lasers.
3B class can be dangerous under specific conditions
4 class should be ruled under strict safety warnings.
INSTALLATION OF THE UNIT
The units from 3B class and 4 class, exclusively used in open air, should be installed by experienced and qualified professionals, trained
to the specific risks of lasers and should handle a user manual.
The area reserved for the public should be limited up to 3 meters above the ground and to 2.5 meters from the public. This zone should
be indicated and marked on the ground. In this area, it is not possible to make “pencil beams” (through the output being a narrow beam
which is diffraction-limited) in the direction of people, whatever the laser class is, except if a determined area has been defined of 4
meters radius from the public and visibly marked on the ground.
Only laser beams of wavelengths divergence concentrated their power at a large distance are authorized.
OPERATION OF THE UNIT
The use of lasers is out of the reach of people when considering:
-
That the unit is situated at 3 meters above the floor at least
-
That a safety area is defined within 5 meters radius
-
The user takes the responsibility that the units under 3B class or 4 class are mounted by a qualified technician and experienced
to the risks of lasers. This technician must stay around during all the time the lasers work and he must be able to stop the units
in case some technical problems would occur. While the installation is on, the technician should wear protective glasses.
Please remind the following remarks:
-
Laser light is different from any other light source with which you may be familiar. The light from this product can potentially
cause eye injury if not set up and used properly.
-
Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration can cause
instant eye injuries, by burning the retina. Even if you can not feel heat from a laser beam, it can still injure or blind you or the
audience.
-
Never look at the laser aperture or laser beams.
-
Do not direct the laser beam to people.
-
Do not leave the device running without the presence of qualified professionals.
EXPELEC can not liable for damages caused by incorrect installations and unskilled operation.
2.
SPECIFICATIONS
Voltage : 230V/50Hz
Fuse : 2A/250V
Rated Power : 50W
Laser : Blue 450 nm / 350 mW
DMX Control channels: 7 channels
Working modes : DMX, Sound activation, Auto, Master/Slave
Effects : more than 100 patterns, over 400 effects
Interface 3 pin XLR jack for DMX or Master/Slave linking
Dimensions : 260x 360 x 140 mm
Weight : 4.25 kg
3.
FEATURES
Various operating modes: 4 modes with DMX, Sound activation, Auto, Master/Slave
Different programs: more than 50 patterns, over 400 laser effects.
DMX Control: The unit has 7 DMX channels + BLACK OUT. The unit will shut off if no DMX 512 signal.
Master/Slave function: several units can be interconnected, doing synchro job, in sound activation and auto mode.
LED indicating: In sound active mode, the unit’s panel has LED indicating for sound activation. The unit will shut off after 8 seconds
when the music stops.
LASER : Blue
 FRONT PANEL
1.
Laser aperture
2.
Sound active microphone
3.
Sound active Indicated : Blue LED
4.
Power indicator : Red LED
REAR PANEL
1.
4.
Power Jack
2.
Cooling Fan
3.
Audio sensitivity knob
4.
DMX signal indicator : Green
5.
Dipswitch : Setting functions
6.
DMX or linking jack
FUNCTIONS AND SETTINGS
a.
FUNCTIONS
i.
MUSIC MODE
The change in the shape of the laser is controlled by the music. So, the rhythm of the music controls the effect of changing program of
the laser. By turning the sensitivity knob in the direction of clockwise, you increase the sensitivity of the device. Instead, turning the same
knob anticlockwise, you reduce the sensitivity. The laser turns off automatically after 8 seconds if the music fades.
ii.
AUTO MODE
Auto cycles the built-in programs without being controlled by external sources. It has no laser OFF.
iii. DMX CONTROL
The system only accepts the DMX 512 signal to control the system mode: the laser pattern ON/OFF, the size, the position and the
speed.
DMX Control Parameters Chart
CHANNELS
FUNCTION
CHANNEL 1
MODE
VALUE
DESCRIPTION
0~49
Closed, beam OFF
50~99
DMX MODE: static patterns
100~149
DMX MODE: dynamic patterns
150~199
Sound active mode
200~255
AUTO MODE
CHANNEL 2
Pattern selection
0~255
52 static/dynamic mode
CHANNEL 3
Position-X
0~255
Adjust position -X
CHANNEL 4
Position-Y
0~255
Adjust position-Y
CHANNEL 5
Scanning speed
0~255
0 : quick, 255 :slow
CHANNEL 6
Dynamic patterns speed
0~255
0 : quick, 255 : slow, 10 levels
CHANNEL 7
Static pattern size
0~255
0 : small ; 255 : big
Parameter Chart for Patterns selection
There are 52 static patterns. The sizes of the pattern that DMX value is 140 previous are adjustable, the following irregular patterns are
not adjustable. There are 52 dynamic patterns programs whose size can not be changed.
DMX value
Static patterns
Dynamic patterns
DMX value
Static patterns
Dynamic patterns
0~4
one circle
circle to big
130~134
triangle 2
two hori dot line move
5~9
empty circle
empty circle to big
135~139
dot triangle 2
vertical line move
10~14
dot circle
dot circle to big
140~144
chiasma line
vert-dot line move
15~19
scan circle
scan circle to big
145~149
chia-dot line
two vertical line move
20~24
two circle
circle roll
150~154
square
two vert-dot line move
25~29
three circle
empty circle roll
155~159
dot square
square extend
30~34
four circle
dot circle roll
160~164
rectangle
dot square extend
35~39
two emp-circle
circle turn
165~169
dot rectangle
pentagon extend
40~44
two dot circle
dot circle to add
170~174
many hori-line
square turn
45~49
hor-extend line
circle jump
175~179
many vert-line
pentagon turn
50~54
hori-shrink line
scan circle extend
180~184
tetragon 1
line scan
55~59
hori-flex line
circle flash
185~189
tetragon 2
dot line scan
60~64
horizontal line
empty circle roll
190~194
pentagon 1
wave turn
Dynamic patterns
DMX value
DMX value
Static patterns
Static patterns
Dynamic patterns
65~69
hori-dot line
two circle turn
195~199
pentagon 2
dot wave turn
70~74
vertical line
four circle turn
200~204
pentagon 3
wave flowing
75~79
hori-dot line
diagonal jump
205~209
wave line 1
dot wave flowing
80~84
45° diagonal
sector to big
210~214
wave line 2
sine wave
85~89
dot diagonal
dot sector to big
215~219
wave line 3
dot sine wave
90~94
two hori-line
diagonal move
220~224
wave dot line
tetragon turn
95~99
two hori-dot line
dot diagonal move
225~229
spirality line
pentagon star 1 turn
100~104
two vert-line
long sector round
230~234
welcome
pentagon star 2 turn
105~109
two vert-dot line
short sector round
235~239
horizontal dot
square dot jump
110~114
V line
three line round
240~244
vertical dot
bird fly
115~119
V dot line
hori line move
245~249
many dot 1
many dot jump 1
120~124
triangle 1
hori dot line move
250~254
square dot
V pattern move
125~129
dot triangle 1
two hori line move
255
many dot 2
many dot jump 2
FUNCTION SETTINGS
Use DIP switches to assign a unit’s function : DMX, Master / Slave, sound active or auto mode. For the unit is DMX mode, set the DMX
address using dipswitch. Each dipswitch represents a binary value. Please refer to the chart below.
Dipswitch #10 is used to set master or slave mode. Master modes have sound active and AUTO mode. Slave modes have DMX and
Slave mode. The units automatically identify DMX or SLAVE mode by data received. Dipswitch #9 is used to set sound active or AUTO
mode in master mode.
DMX ADDRESS CALCULATION
In DMX mode, the DIP switch from # 1 to # 9 should be set to record a DMX address. The address ranges from 1-511. Each dipswitch
represents a binary value. Please refer to table below.
Dipswitch
VALUE
Dipswitch
VALUE
#1
1
#6
32
#2
2
#7
64
#3
4
#8
128
#4
8
#9
256
#5
16
#10
DMX, on "0"
Each unit has 7 channels. So each product may be receiving a 7-channel DMX address at least. If you assign an address on 8 channels,
the DMX address is: 8*N +1, N=0, 1, 2, 3….
LOOP
ADDRESS
CODE
1
1
100000000
#1
Address 2 loop = 9
2
9
100100000
#1+#4
Address 3 loop = 17
3
17
100010000
#1+#5
Address 4 loop = 25
4
25
100110000
#1+#4+#5
Example: Address 1 loop =1
DIPSWITCH
Please refer to the chart on the last page to set the DIP switch according to the DMX address assignment.
5.
OPERATION
a.
STAND ALONE OPERATION : Sound activation and AUTO
This mode allows a single device to react to the sound of music.
1.
Place the device in a suitable and stable position.
2.
Set the dipswitch to select AUTO or Sound active mode.
3.
Turn on the unit. The unit resets then it begins to work.
4.
The unit will react to low frequencies through the internal microphone. Adjust the sound sensitivity with the appropriate knob
located at the rear of the unit. The LED indicates whether the music mode is activated.
b.
MODE MASTER / SLAVE
This mode allows you to connect up to 32 units together without controller.
1.
Install the unit in a suitable and stable position.
2.
Choose a unit to function as master mode, set dipswitch to select AUTO or Sound active mode. The others must be set in slave
mode. Set the DIP switch to slave mode.
3.
Use an XLR cable to connect devices together. Taken at the rear of the unit.
4.
Turn on all units. The devices reset and then begin to work. The slave units will react the same as the master unit.
5.
The units respond to low frequencies through the internal microphone. Adjust the sound sensitivity with the appropriate knob
located at the rear of the unit. The LED indicates whether the music mode is activated.
c.
DMX MODE
This mode allows you to use the DMX 512 console to operate your devices.
1.
Install the unit in a suitable and stable position.
2.
Use an XLR cable to connect devices together. Taken at the rear of the unit
3.
Assign a DMX address for each device using the DIP switch. Please refer to the chart on the last page.
4.
Turn on all devices. The units reset, then begin to start working.
5.
Use a DMX console to control your devices.
NOTE:
1.
DMX console can not be operated in Master / Slave (AUTO / SOUND ACTIVE mode)
2.
There must be only 1 single master unit in Master / Slave mode
6.
1.
TROUBLESHOOTING
If the power indicator does not lit up and the device does not work, please check the power cable is properly connected and if the
input voltage is compatible with that of the device.
2.
In Stand alone operation, if the power indicator lights up and sound active indicator does not lit up and the light beam does not
work.
3.
4.
5.
a.
The sound is too low. Increase the volume of music or sound sensitivity.
b.
Check if the device is in slave mode then set up in master mode.
In Master / Slave mode, the slave units does not work
a.
Make sure there is only 1 single unit in the master channel and the other units are set as a slave.
b.
Make sure you are not using a DMX console
c.
Make sure the cables are of good quality and the connections are properly made.
In DMX mode, the beam does not work and the DMX signal is off.
a.
Make sure the DMX mode is activated.
b.
Make sure the cables are of good quality and the connections are properly made.
In DMX mode, the laser is not controlled by the DMX console, DMX signal indicator flashes. Make sure the console and the units
have the same channel.
6.
If the direction of the beam is not correct, restart the machine.
7.
If the unit does not work properly, turn the unit off then back on.
If the unit meets other operational problems, we recommend that you contact your dealer.
TABLE SET DMX ADDRESS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
