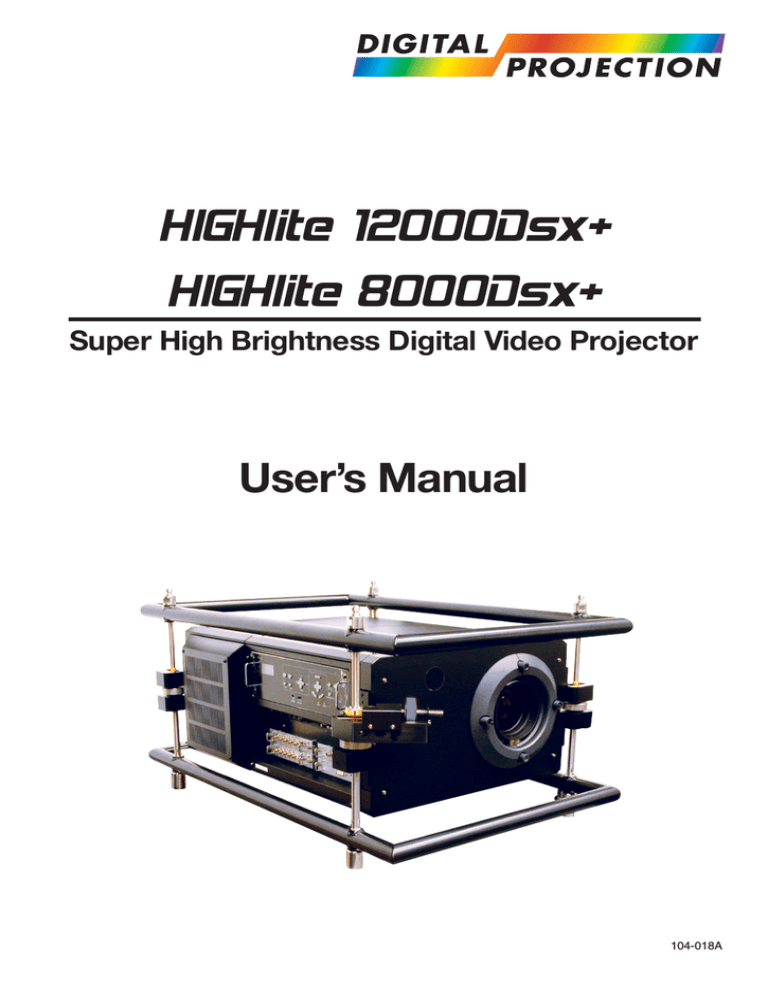

HIGHlite 12000Dsx+
HIGHlite 8000Dsx+
Super High Brightness Digital Video Projector
User’s Manual
104-018A
E-1
Declaration of Conformity
Directives covered by this Declaration
89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC.
73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC.
Products covered by this Directive
Large Screen Projector type
HIGHlite 12000Dsx+
HIGHlite 8000Dsx+
Basis on which Conformity is being declared
The products identified above comply with the protection requirements of the above EU
directives, and the manufacturer has applied the following standards:EN55022:1998 - Limits and Methods of Measurements of Radio Disturbance Characteristics of
Information Technology Equipment.
EN 55024:1998 - Limits and Methods of Immunity Characteristics of Information
Technology Equipment.
EN 61000-3-2:2000 - Harmonic Current Emissions.
EN 61000-3-3:1995 - Immunity to Voltage Fluctuations and Flicker.
The technical documentation required to demonstrate that the products meet the requirements
of the Low Voltage directive has been compiled by the signatory below and is available for
inspection by the relevant enforcement authorities. The CE mark was first applied in July 2004.
Signed:
Authority: D.J. Quinn, Director - Product Development
Date:
26 July 2004
Attention!
The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations
to use which must be observed when these products are taken into service to maintain compliance
with the above directives. Details of these special measures are available on request, and are also
contained in the product manuals.
E-2
Important Information
Precautions: Please read this manual carefully before using your HIGHlite 12000Dsx+ HIGHlite 8000Dsx+ Projector
and keep the manual handy for future reference.
CAUTION: To turn off the main power, be sure to remove the
plug from power outlet. The power outlet socket should be
installed as near to the equipment as possible, and should be
easily accessible.
3. GSGV Acoustic Noise Information Ordinance:
WARNING
The sound pressure level is less than 70 dB(A) according to ISO
3744 or ISO 7779.
This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.
WARNING
AVERTISSEMENT
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION
CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE
PRONGS CAN BE FULLY INSERTED. REFRAIN FROM
OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
POUR EVITER UN FEU OU UN RISQUE
D’ELECTROCUTION NE PAS EXPOSER CET ENSEMBLE
A LA PLUIE OU A L’HUMIDITE; DE MEME, NE PAS
BRANCHER LA PRISE POLAIRE AVEC UNE RALLONGE A
MOINS QUE LES DENTS DE LA PREMIERE NE S’Y
INSERENT PLEINEMENT. EVITER D’OUVRIR LE COFFRET
CAR IL Y A, A L’INTERIEUR, DES COMPOSANTS SOUMIS
A UNE HAUTE-TENSION; POUR LES REPARATIONS,
S’ADRESSER A UN PERSONNEL QUALIFIE.
CAUTION
ATTENTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE D’ELECTROCUTION
NE PAS OUVRIR
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT OPEN COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ATTENTION: POUR
EVITER
LES
RISQUES
D’ELECTROCUTION, NE PAS OUVRIR LE
COUVERCLE. AUCUN DES ELEMENTS INTERNES NE DOIT ETRE REPARE PAR
L’UTILISATEUR. NE CONFIER L’ENTRETIEN
QU’A UN PERSONNEL QUALIFIE.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part
inside of this unit.
L’éclair fléché dans un triangle équilatéral est
destiné à avertir l’utilisateur de la présence, dans
l’appareil, d’une zone non-isolée soumise à une
haute-tension dont l’intensité est suffisante pour
constituer un risque d’electrocution.
This symbol alerts the user that important literature concerning the operation and maintenance
of this unit has been included. Therefore, it should
be read carefully in order to avoid any problems.
Le point d’exclamation dans un triangle
équilatéral est destiné à attirer l’attention de
l’utilisateur sur la présence d’informations de
fonctionnement et d’entretien importantes dans
la brochure dccompagnant l’appareil.
DOC compliance Notice
DOC avis de conformation
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les
exigences du Réglement sur le Matériel D’interférence du
Canada.
CAUTION
* In order to reduce any interference with radio and television reception use a signal cable with ferrite core attached.Use of signal
cables without a ferrite core attached may cause interference with radio and television reception.
* This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the installation manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
E-3
Important Information
Important Safeguards
Fire and Shock Precautions
These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully
and heed all warnings.
1. Ensure that there is sufficient ventilation and that vents are unobstructed
to prevent potentially dangerous concentrations of ozone and the buildup of heat inside your projector. Allow at least 8 inches (20cm) of space
between your projector and a wall. Allow at least 20 inches (50 cm) of
space between the ventilation outlet and object.
Installation
1. Place the projector on a flat, level surface in a dry area away from dust
and moisture. Tilting the front of the projector up or down from level
could reduce lamp life. Do not put the projector on its side when the
lamp is on.
Doing so may cause damage to the projector.
2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might
fall into your projector. Do not insert any metal objects such as a wire or
screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a
qualified your service person.
2. Do not place the projector in direct sunlight, near heaters or heat radiating appliances.
3. Do not place any liquids on top of your projector.
3. Exposure to direct sunlight, smoke or steam could harm internal components.
4. When using a LAN cable:
For safety, do not connect to the connector for peripheral device wiring
that might have excessive Voltage.
4. Handle your projector carefully. Dropping or jarring your projector could
damage internal components.
5. Do not place heavy objects on top of the projector.
CAUTION: High Pressure Lamp May Explode if Improperly
Handled. Refer Servicing to Qualified Service Personnel.
6. If you wish to have the projector installed on the ceiling:
a Do not attempt to install the projector yourself.
b The projector must be installed by qualified technicians in order to
ensure proper operation and reduce the risk of bodily injury.
c In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.
d Please consult your dealer for more information.
e Do not attempt to stack projectors on the ceiling.
To Dealer or Installer:
To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined
weight (94 kg/ 207.3 lb) of the projector (84 kg/185.3 lb) and the
lens (10 kg/22 lb) for an extended period of time as well as to
withstand earthquakes.
Power Supply
1. The projector is designed to operate on a power supply of 2.6 KW
AC200-240V 50/60Hz. Ensure that your power supply fits this requirement before attempting to use your projector.
2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.
3. If the projector will not be used for an extended period of time, disconnect the plug from the power outlet.
4. Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.
5. Do not touch the power plug during a thunder storm. Doing so can
cause electrical shock or fire.
Cleaning
1. Unplug the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a
mild detergent. Never use strong detergents or solvents such as alcohol or thinner.
3. Use a blower or lens paper to clean the lens, and be careful not to
scratch or mar the lens.
E-4
Lamp Caution: Please read before operation
Due to the lamp being sealed in a pressurized environment,
there is a small risk of explosion, if not operated correctly.
There is minimal risk involved, if the unit is in proper working
order, but if damaged or operated beyond the recommended
1000 hours, the risk of explosion increases.
Please note that there is a warning system built in, that displays the following message when you reach 1000 hours of
operation “The lamp has reached the end of its usable
life. Please replace the lamp” When you see this message
please contact your Dealer for a replacement.
If the lamp does explode, smoke will be discharged from the
vents located on the side of the unit. This smoke is comprised
of glass in particulate form and Xenon gas, and will not cause
harm if kept out of your eyes. If your eyes have been exposed to this gas, please flush your eyes out with water immediately and seek immediate medical attention. Do not rub
your eyes! This could cause serious injury.
WARNING:
• Do not look into the lens while the projector is on. Serious
damage to your eyes could result.
• When main body is damaged, cooling fluids may come out
of internal part.
Please do not touch and drink the cooling fluid.
When the cooling fluids are swallowed or contacted with
your eyes, please consult with doctors immediately.
CAUTION
Do not unplug the power cable from the wall outlet under any
one of the following circumstances. Doing so can cause damage to the projector:
• While the message “Please wait a moment” appears. This
message will be displayed after the projector is turned off.
• Immediately after the power cable is plugged into the wall
outlet (the POWER indicator has not changed to a steady
orange glow).
• Immediately after the cooling fan stops working (After the
projector is turned off with the POWER OFF button the cooling fan continues to work for 3 minutes while the Two Digit
INDICATOR “—” flashes).
Important Information
projecteur. Laisser au moins 20 cm d’espace entre le projecteur et un
mur. Veuillez laisser un espace libre d’au moins 50 cm (20 pouces)
entre les orifices de ventilation et l’objet.
Recommandations importantes
Ces instructions de sécurité ont pour but d’assurer une longue
vie à votre projecteur et d’éviter un incendie ou une décharge
électrique. Prière de les lire avec attention et de tenir compte de
tous les avertissements.
Installation
1. Placer le projecteur sur une surface plane et de niveau dans un endroit
sec et à l’abri de la poussière et des moisissures. Le fait d’incliner l’avant
du projecteur vers le haut ou le bas peut réduire la durée de vie de la
lampe. Ne pas placer le projecteur sur le côté lorsque la lampe est
allumée.
Cela pourrait endommager le projecteur.
2. Empêcher tous objets étrangers tels que des attaches trombones ou
des morceaux de papier de tomber à l’intérieur du projecteur. Ne pas
essayer de récupérer des objets qui seraient tombés dans le projecteur.
Ne pas introduire d’objets métalliques tels qu’un fil ou un tournevis dans
le projecteur. Si quelque-chose doit tomber dans le projecteur, le
débrancher immédiatement et faire enlever l’objet par un technicien
agréé.
3. Ne pas poser de liquides sur le dessus du projecteur.
4. Lors de l’utilisation d’un câble LAN:
Pour votre sécurité, ne raccordez pas au connecteur pour périphérique
externe de câble pouvant avoir une tension excessive.
2. Ne pas exposer le projecteur aux rayons directs du soleil, ni le placer
près d’un chauffage ou de dispositifs de radiation de chaleur.
3. L’exposition aux rayons directs du soleil, à la fumée ou à la vapeur
pourrait endommager des composants internes.
4. Manipuler le projecteur avec précautions. Laisser tomber le projecteur
ou lui donner des chocs pourrait endommager des composants internes.
5. Ne pas poser d’objets lourds sur le dessus du projecteur.
6. Si vous voulez installer le projecteur au plafond:
a. N’essayez pas d’installer le projecteur vous-même.
b. Le projecteur doit être installé par un technicien qualifié pour garantir
une installation réussie et réduire le risque d’éventuelles blessures
corporelles.
c. De plus le plafond doit être suffisamment solide pour supporter le
projecteur et l’installation doit être conforme aux réglementations
locales de construction.
d. Veuillez consulter votre revendeur pour de plus amples informations.
e. Ne pas superposer les projecteurs accrochés au plafond.
A l’attention du revendeur ou de l’installateur:
Afin d’empêcher une chute éventuelle du projecteur, veuillez prendre en compte lors de son placement et de sa fixation de la force
nécessaire pour supporter le poids total (94 kg), celui du projecteur
(84 kg) et de l’objectif (10 kg), pour de longues périodes et de
façon à lui permettre de résister aux tremblements de terre.
Alimentation
1. Le projecteur est conçu pour fonctionner sous une tension d’alimentation
de 2,6 KW CA 200-240 V 50/60 Hz. S’assurer que la tension du secteur
soit conforme à ces caractéristiques avant d’utiliser le projecteur.
2. Manipuler le cordon d’alimentation avec précautions et éviter des flexions excessives. Un cordon endommagé peut occasionner une
décharge électrique ou un incendie.
3. Si le projecteur ne doit pas être utilisé pendant une longue période,
débrancher la fiche de la prise de courant.
4. Ne touchez pas la prise d’alimentation avec les mains mouillées. Ceci
peut causer une électrocution ou un incendie.
5. Ne touchez pas la prise d’alimentation pendant les orages. Ceci peut
causer une électrocution ou un incendie.
Nettoyage
1. Débrancher le projecteur avant de le nettoyer.
2. Nettoyer régulièrement le boîtier extérieur avec un chiffon humide. S’il
est très sale, utiliser un détergent doux. Ne jamais utiliser de détergent
forts ou de solvants tels que de l’alcool ou du diluant.
3. Utiliser un souffleur ou du papier pour objectif pour nettoyer l’objectif,
et faire attention de ne pas griffer ou endommager l’objectif.
Précautions contre l’incendie ou la décharge
1. S’assurer qu’il y ait une ventilation suffisante et que les ouvertures ne
soient pas obstruées afin d’éviter des concentrations potentiellement
dangereuses d’ozone et l’accumulation de chaleur à l’intérieur du
E-5
ATTENTION: La lampe à haute pression peut exploser si
elle est manipulée incorrectement. Confier l’entretien à du personnel d’entretien qualifié.
Précautions avec la lampe : lire avant l’utilisation
La lampe a été scellée dans un environnement sous pression,
et il y a donc un petit risque d’explosion, si elle n’est pas utilisée
correctement. Le risque est minime si l’appareil est en bon
ordre de marche, mais s’il est endommagé ou utilisé au-delà
des 1000 heures recommandées, le risque d’explosion
augmente alors.
Il est à noter l’existence d’un système d’avertissement intégré,
lequel affiche le message “La lampe a atteint sa durée de
vie maximum, prière de la remplacer.” lorsque les 1000
heures de fonctionnement sont atteintes. Lorsque ce message apparaît, prière de contacter son revendeur pour un
remplacement.
Si la lampe explose, de la fumée peut être produite par les
fentes d’aération situées sur le côté de l’appareil. Cette fumée
est composée de verre sous forme de particules et de gaz de
Xenon, et n’est pas nuisible si elle est maintenue à distance
des yeux. Si les yeux sont exposés à ce gaz, les rincer
immédiatement à l’eau courante et consulter tout de suite un
médecin. Ne pas frotter les yeux ! Cela pourrait provoquer
une grave blessure.
AVERTISSEMENT:
• Ne pas regarder dans l’objectif lorsque le projecteur est
allumé. De sérieux dommages aux yeux pourraient en
résulter.
• Lorsque le corps principal est endommagé, du liquide de
refroidissement peut s’échapper des pièces internes.
Veuillez ne pas toucher ni boire le liquide de refroidissement.
Si le liquide de refroidissement est ingéré ou qu’il rentre en
contact avec vos yeux, consultez immédiatement un
médecin.
ATTENTION
Ne pas débrancher le câble d’alimentation de la prise du
secteur dans les circonstances suivantes car cela risque
d’endommager le projecteur:
• Lorsque le message “Veuillez patientez un instant“ apparaît.
Ce message sera affiché après que le projecteur soit éteint.
• Immédiatement après que le cordon d’alimentation électrique
ait été branché sur la prise du mur (l’indicateur POWER
n’est pas encore devenu orange).
• Immédiatement après que le ventilateur de refroidissement
de soit arrêté de fonctionner. (Après que le projecteur ait
été mis hors tension à l’aide du bouton POWER OFF, le
ventilateur d’aération continue à tourner durant 3 minutes
tandis que le INDICATOR à deux chiffres “—” clignote).
Important Information
Achtung: Um die Netzspannung komplett abzuschalten,
stellen Sie sicher, daß der Netzstecker aus der Netzsteckdose
gezogen wurde. Die Netzsteckdose sollte so nahe als möglich
vom Gerät entfernt und leicht zugänglich sein.
Wichtige Sicherheitshinweise
Diese Sicherheitshinweise sollen eine lange Lebensdauer Ihres
Projektors sicherstellen und vor Feuer und elektrischen Schlägen
schützen. Lesen Sie diese Hinweise sorgfältig durch und
beachten Sie alle Warnungen.
3. GSGV Bestimmungen bzgl. der Geräuschabgabe
Installation
Der Schalldruckpegel entsprechend den Normen ISO 3744 oder
ISO 7779 beträgt weniger als 70 dB (A).
1. Stellen Sie den Projektor auf eine flache, waagerechte Oberfläche in
einer trockenen Umgebung, frei von Staub und Feuchtigkeit. Das
Ankippen des vorderen Teils des Projektors kann die Lebensdauer der
Lampe verkürzen. Den Projektor bei eingeschalteter Lampe nicht auf
die Seite legen.
Dies könnte den Projektor beschädigen.
WARNUNG
ZUR VERMEIDUNG VON FEUER UND ELEKTRISCHEN
SCHLÄGEN DARF DAS GERÄT WEDER REGEN NOCH
FEUCHTIGKEIT AUSGESETZT WERDEN. DER
POLARISIERTE STECKER DIESES GERÄTES DARF NUR
DANN IN EIN VERLÄNGERUNGSKABEL ODER IN EINE
STECKDOSE EINGESTECKT WERDEN, WENN DIE
STECKKONTAKTE VOLLSTÄNDIG EINGESTECKT
WERDEN KÖNNEN. UNTERLASSEN SIE, DAS GERÄT ZU
ÖFFNEN, DA DADURCH IM GERÄT FREILIEGENDE
HOCHSPANNUNGSFÜHRENDE TEILE BERÜHRT
WERDEN KÖNNEN. LASSEN SIE DEN KUNDENDIENST
NUR VON HIERFÜR QUALIFIZIERTEN PERSONEN
DURCHFÜHREN.
2. Stellen Sie den Projektor weder in direktes Sonnenlicht noch in die
Nähe einer Heizung oder sonstiger Hitze abstrahlender Einrichtungen.
3. Wenn das Gerät direktem Sonnenlicht, Rauch oder Dampf ausgesetzt
wird, können interne Komponenten beschädigt werden.
4. Behandeln Sie Ihren Projektor vorsichtig. Fallenlassen oder starkes
Schütteln kann interne Komponenten beschädigen.
5. Legen Sie keine schweren Gegenstände auf den Projektor.
6. Wenn der Projektor an der Decke installiert werden soll:
a Versuchen Sie nicht, den Projektor selbst zu installieren.
b Der Projektor muss von qualifizierten Technikern installiert werden,
um einen ordnungsgemäßen Betrieb sicherzustellen und die
Verletzungsgefahr zu reduzieren.
c Die Decke muss für das Gewicht des Projektors ausreichende
Festigkeit aufweisen, und die Installation muss entsprechend den
örtlichen Bauvorschriften ausgeführt werden.
ACHTUNG
d Weitere Informationen erhalten Sie von Ihrem Fachhändler.
e Versuchen Sie nicht, mehrere Projektoren an der Decke
übereinander zu stapeln.
GEFAHR DURCH ELEKTRISCHEN
SCHLAG NICHT ÖFFNEN
Für den Händler oder Techniker:
ACHTUNG:
ZUR VERMEIDUNG EINES ELEKTRISCHEN
SCHLAGES ÖFFNEN SIE NICHT DAS
GEHÄUSE. INNERHALB DES GEHÄUSES
BEFINDEN SICH KEINE FÜR DIE BEDIENUNG
DES GERÄTES ERFORDERLICHEN TEILE.
LASSEN SIE DEN KUNDENDIENST NUR VON
HIERFÜR QUALIFIZIERTEN PERSONEN
DURCHFÜHREN.
DIESES SYMBOL WARNT DEN BEDIENER,
DASS INNERHALB DES GERÄTES
UNISOLIERTE TEILE VORHANDEN SIND, DIE
HOCHSPANNUNG FÜHREN UND DEREN
BERÜHRUNG EINEN ELEKTRISCHEN
SCHLAG VERURSACHEN KANN.
DIESES SYMBOL MACHT DEN BEDIENER
DARAUF AUFMERKSAM, DASS WICHTIGE,
DEN BETRIEB UND DIE WARTUNG DES
GERÄTES BETREFFENDE SCHRIFTEN
BEIGEFÜGT SIND. UM IRGENDWELCHE
PROBLEME ZU VERMEIDEN, SOLLTEN
DIESE BESCHREIBUNGEN SORGFÄLTIG
GELESEN WERDEN.
WARNUNG!
Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann
im Wohnbereich Funkstörungen verursachen: in diesem Fall kann
vom Betreiber veriangt werden, angemessene Maßnahmen
durchzuführen und dafür aufzukommen.
Um ein Fallen des Projektors zu verhindern, installieren Sie den
Projektor an einem sicheren Ort und befestigen Sie ihn auf eine
geeignete Weise, damit das Gesamtgewicht (94kg) des Projektors
(84kg), der Linse (10 kg) für einen langen Zeitraum sowie im
Falle eines Erdbebens getragen werden kann.
Spannungsversorgung
1. Der Projektor wurde für eine Netzspannung von 2,6KW 200-240 V
Wechselstrom/50/60 Hz konzipiert. Stellen Sie sicher, dass die
vorhandene Spannungsversorgung diesen Vorgaben entspricht, bevor
Sie versuchen, Ihren Projektor zu betreiben.
2. Behandeln Sie das Netzkabel vorsichtig und vermeiden Sie Knicke.
Ein beschädigtes Netzkabel kann elektrische Schläge oder einen Brand
verursachen.
3. Wenn der Projektor über eine längere Zeit nicht benutzt wird, ziehen
Sie den Stecker aus der Netzsteckdose.
4. Berühren Sie nicht den Netzstecker mit feuchten Händen. Die
Nichtbeachtung dessen könnte einen Stromschlag oder einen Brand
zur Folge haben.
5. Berühren Sie den Netzstecker nicht während eines Gewitters. Die
Nichtbeachtung dessen könnte einen Stromschlag oder einen Brend
zur Folge haben.
Reinigung
1. Trennen Sie den Projektor vor der Reinigung von der Netzsteckdose
ab.
2. Reinigen Sie das Gehäuse regelmäßig mit einem feuchten Tuch. Bei
starker Verschmutzung verwenden Sie ein mildes Reinigungsmittel.
Reinigen Sie das Gerät niemals mit starken Reinigungs- oder Lösungsmitteln wie z.B. Alkohol oder Verdünner.
3. Reinigen Sie die Linse mit einer Blaseinrichtung oder einem Linsentuch.
Beachten Sie dabei, dass die Linsenoberfläche weder zerkratzt noch
auf andere Weise beschädigt wird.
E-6
Important Information
Vorsichtsmaßnahmen zur Vermeidung von Bränden und
elektrischen Schlägen
1. Sorgen Sie für ausreichende Belüftung und stellen Sie außerdem sicher,
dass die Lüftungsschlitze frei bleiben, damit sich innerhalb des
Projektors kein Hitzestau bilden kann. Lassen Sie mindestens 20 cm
Abstand zwischen Ihrem Projektor und der Wand. Der Abstand zwischen
den Belüftung und anderen Gegenständen sollte mindestens 50 cm
betragen.
2. Vermeiden Sie, dass Fremdgegenstände wie Büroklammern und
Papierschnipsel in den Projektor fallen. Versuchen Sie nicht, in den
Projektor gefallene Gegenstände selbst zu entfernen. Stecken Sie keine
Metallgegenstände wie einen Draht oder Schraubendreher in Ihren
Projektor. Wenn etwas in den Projektor gefallen ist, müssen Sie sofort
den Netzstecker ziehen und den Gegenstand von qualifiziertem
Servicepersonal entfernen lassen.
3. Stellen Sie keine mit Flüssigkeit gefüllten Gefäße auf Ihren Projektor.
4. Wenn ein LAN-Kabel verwendet wird:
Schließen Sie es aus Sicherheitsgründen nicht an den Anschluss der
Peripheriegeräte-Verbindung an, das sie eine zu hohe Spannung führen
könnte.
VORSICHT: Bei unsachgemäßer Handhabung kann die
Hochdrucklampe explodieren. Überlassen Sie die Reparatur
ausschließlich qualifiziertem Servicepersonal.
Vorsichtsmaßnahmen bezüglich der Lampe: Bitte vor
dem Betrieb durchlesen
Aufgrund der unter Druck luftdicht verschlossenen Lampe
besteht bei falscher Handhabung eine geringe
Explosionsgefahr. Wenn sich das Gerät in einwandfreiem
Zustand befindet, ist dieses Risiko minimal; es erhöht sich
jedoch im Falle einer Beschädigung oder bei einer Benutzung
über die empfohlenen 1000 Betriebsstunden hinaus. Beachten
Sie bitte, dass im Gerät ein Warnsystem integriert ist, das bei
Erreichen der 1000 Betriebsstunden die nachfolgende
Meldung anzeigt: “Das Ende der Lampenlebensdauer ist
erreicht. Bitte ersetzen Sie die Lampe”. Beauftragen Sie
Ihren Händler, sofern diese Meldung auf dem Display
erscheint.
Im Falle einer Lampenexplosion tritt aus den seitlichen
Lüftungsschlitzen des Gerätes Rauch aus. Dieser Rauch
besteht aus einer ganz besonderen Form von Glas und aus
Xenon-Gas. Solange dieser Rauch nicht in die Augen gelangt,
bestehen keinerlei gesundheitliche Risiken.
Wenn Ihre Augen dem Gas ausgesetzt worden sind, spülen
Sie die Augen bitte sofort mit Wasser aus und konsultieren
Sie einen Arzt.
Reiben Sie die Augen nicht!
Dies könnte ernsthafte Verletzungen zur Folge haben.
WARNUNG:
• Schauen Sie nicht in die Linse, wenn der Projektor
eingeschaltet ist. Dies könnte schwere Augenverletzungen
zur Folge haben.
• Wenn die Haupteinheit beschädigt ist, kann Kühlflüssigkeit
aus internen Komponenten austreten.
Die Kühlflüssigkeit nicht berühren oder trinken.
Wenn Kühlflüssigkeit geschluckt wird oder in Kontakt mit
Ihren Augen kommt, konsultieren Sie bitte umgehend einen
Arzt.
E-7
VORSICHT
Unter den nachfolgend aufgeführten Umständen darf das
Netzkabel nicht von der Netzsteckdose abgetrennt werden,
da dies Beschädigungen des Projektors verursachen könnte:
• Während die Meldung “Bitte warten Sie einen Augenblick”
erscheint. Diese Meldung erscheint nach dem Ausschalten
des Projektors.
• Direkt nach dem Anschließen des Netzkabels an eine
Netzsteckdose (die POWER-Anzeige leuchtet nicht ständig
orange).
• Direkt nach dem Anhalten des Lüfters. (Nach dem
Ausschalten des Projektors mit der POWER OFF-Taste läuft
der Lüfter noch ca. 3 Minuten weiter, während die zweistellige
Anzeige INDICATOR”—” blinkt).
Table of Contents
1. Introduction ............................................ E-9
Ref. Adjust ................................................................................ E-55
3D Reform ......................................................................... E-55
Screen ............................................................................... E-56
Ref. Lens Memory ............................................................. E-56
Edge Blending ................................................................... E-57
Lamp Mode ....................................................................... E-58
Factory Default ......................................................................... E-58
Projector Options ...................................................................... E-58
Menu ................................................................................. E-58
Setup ................................................................................. E-59
LAN Mode ......................................................................... E-62
Image Mode ...................................................................... E-65
Setting a Password ........................................................... E-65
Security ............................................................................. E-65
Tools ......................................................................................... E-67
Timer ................................................................................. E-67
PC Card Files .................................................................... E-69
Help .......................................................................................... E-69
Contents ............................................................................ E-69
Source Information ............................................................ E-69
Projector Information ......................................................... E-70
Test Pattern ............................................................................... E-71
1 What's in the Box? ................................................................. E-10
2 Features .................................................................................. E-11
3 Getting to Know Your Projector ............................................ E-12
Control Panel ............................................................................ E-13
Control Terminals ...................................................................... E-14
Input Terminals ......................................................................... E-15
Option Boards ........................................................................... E-16
4 Remote Control Features ...................................................... E-17
Remote Control Precautions .................................................... E-19
Remote Control Battery Installation .......................................... E-19
Operating Range for Wireless Remote Control ........................ E-19
Using the Remote Control in Wired Operation ......................... E-20
2. Installation ............................................ E-21
1 Setting Up Your Projector ...................................................... E-22
Screen Size and Projection Distance ....................................... E-22
Table of Throw Distances and Image Sizes for Optional Lenses ....... E-22
2 Lens Shift Adjus table Range ................................................ E-23
Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z .... E-23
3 Making Connections .............................................................. E-24
Connecting to the Image Input Terminals ................................. E-24
Install the Option Boards and Expand the Image Input Terminals ....... E-25
Connecting to a Network .......................................................... E-26
Connecting the Power Cable .................................................... E-27
Inserting and Removing a PC Card .......................................... E-28
4 USB Memory Device or USB Memory Card Reader Support ....... E-28
7. Maintenance ......................................... E-73
1 Cleaning the Cabinet and the Lens ...................................... E-74
8. Appendix ............................................... E-75
1 Troubleshooting ..................................................................... E-76
2 Specifications ......................................................................... E-78
3 Cabinet Dimensions ............................................................... E-80
4 Compatible Input Signal List ................................................. E-82
5 Pin Assignment of PC CONTROL IN Connector (D-Sub 9 Pin) ..... E-83
6 Pin Assignment of REMOTE IN 3 Connector (XLR connector) ..... E-83
7 Pin Assignment of EXT. I/O Connector (Mini D-Sub 15 Pin) ... E-83
8 Using Software Keyboard ...................................................... E-84
9 Operation Using an HTTP Browser ....................................... E-84
3. Projecting an Image (Basic Operation) .. E-29
1 Turning on the Projector ........................................................ E-30
2 Selecting a Source ................................................................. E-31
3 Adjusting the Picture Size and Potition ............................... E-31
4 Optimizing RGB Picture Automatically ................................ E-33
5 Turning off the Projector ........................................................ E-33
4. Convenient Features ............................. E-35
1 Turning Off the Image ............................................................ E-36
2 Getting the On-Line Help and Information ........................... E-36
3 Lens Memory .......................................................................... E-36
INDEX ....................................................... E-86
5. Setting Up for ouble Stacking ............... E-37
1 Stacking and Connecting the Projectors ............................. E-38
2 Adjusting and Registering Signals to Be Projected ............ E-41
3 Adjusting the Lens Shift, Zoom and Focus
to Clearly Display all projected patterns .............................. E-41
6. Using On-Screen Menu ......................... E-43
1 Basic Menu Operation ........................................................... E-44
2 List of Direct Button Combinations ...................................... E-45
3 Using the USB Mouse ............................................................ E-45
4 Menu Tree ................................................................................ E-46
5 Menu Descriptions & Functions ........................................... E-50
Source Select ........................................................................... E-50
Adjust (Source) ......................................................................... E-51
Picture ............................................................................... E-51
Video Adjust ...................................................................... E-51
Colour Management .......................................................... E-52
Gamma Correction ............................................................ E-52
Image Options ................................................................... E-53
Option Adjust ..................................................................... E-54
Lens Memory ..................................................................... E-54
Signal Type ........................................................................ E-55
E-8
1
Introduction
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 What's in the Box? ................................................. E-10
2 Features .................................................................E-11
3 Getting to Know Your Projector ............................. E-12
Control Panel ....................................................................................................
Control Terminals .............................................................................................
Input Terminals .................................................................................................
Option Boards ..................................................................................................
E-13
E-14
E-15
E-16
4 Remote Control Features ...................................... E-17
Remote Control Precautions ............................................................................
Remote Control Battery Installation ..................................................................
Operating Range for Wireless Remote Control ................................................
Using the Remote Control in Wired Operation .................................................
E-9
E-19
E-19
E-19
E-20
1. Introduction
1 What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your Projector.
HIGHlite 12000Dsx+ Projector
(USA model 103-487, ROW model 103-488)
HIGHlite 8000Dsx+ Projector
(USA model 103-757, ROW model 103-758)
NOTE: The frame is not included on HIGHlite 8000Dsx+.
Note: USA model is fitted with Hubbel type power cable ROW model is fitted with
a CEE-Form cable.
Remote control (102-161) and
batteries (AA⳯2)
Remote cable
102-162
DVI-D signal cable
(102-166)
Us
er
's
M
an
ua
l
Ferrite clamp core with Band⳯6
User’s Manual CD
(104-018)
Important Information
printed
(104-019)
E-10
TL Series Lens Spacer
(including screws)
(104-020)
1. Introduction
2 Features
• HDTV support, suited to 3D movement and telecine, with
I/P conversion
I/P conversion processing using an interpolation circuit suited
to 3D movement that supports HDTV and SDTV signal input
as well as telecine signals permits reproduction of images having impressive definition.
• Full 10 bit image processing circuit
The image processing circuit features 10 bits for each color.
As a result, there is complete 10 bit processing when the signal is input from the optional SDI interface slot which will provide image quality having a high tonal quality.
• Equipped with 4 slots which can accommodate 4 types of
interface boards
This Projector is equipped with 4 slots which permit the insertion of the following 4 types of optional interface boards. Multiple interface boards of the same type can also be inserted.
Connectors of the Various Boards
MM-VIDEO* .... CVBS input connector (BNC), S-Video input connector (BNC 2 conductors), Component video input connector (BNC 3 conductors)
• DigiWarp - Geometric Warp Correction Function
In the case pictures are projected on particular shaped screens
(cylindrical or spherical), geometric warp can be corrected by
implementing MM-WARP (optional).
• Dust Control of DMD
Contamination of the DMD is prevented using a dust control
system to stop the ingress of dust, oil and smoke particles in
the air getting onto the DMD surface which can affect the quality of the projected image.
• Fluid Cooled DMD
The DMD temperature is controlled more efficiently by the use
of fluid a cooling system.
• Tilt and PAN Function with Stacking frame
Projectors can be stacked vertically upto two high by built-in
frame interface connectors.
When projectors are stacked, image alignment can be adjusted for up/down tilt, left/right tilt and fine adjustment of PAN
(left to right rotation).
NOTE: The frame is not included on HIGHlite 8000Dsx+.
MM-RGB* ....... RGB input connector (BNC 5 conductors)
MM-DVI ........... DVI-D input connector (DVI-D 24 pin)
MM-SDI ........... SDI input connector (BNC)⳯2, monitor output connector (BNC)
* When shipped from the factory this Projector is loaded with
one MM-VIDEO board and one MM-RGB board.
• High contrast images with DigiView - SweetVisionTM function
This Projector is equipped with the DigiView - SweetVisionTM
function which utilizes the characteristics of the human eye to
provide an image quality with a sense of contrast.
• LAN port is standard equipment and wireless LAN is supported
Connection of a commercially available LAN cable (Ethernet
cable) to the LAN port (RJ-45) permits control of this Projector
from the personal computer via the LAN.
• Seamless Switching Function
Mounting of the MM-IMGPRO and MM-SCALING options permits the switching of signals between two input interface
boards.
Alpha Blending, Wipe, and Box In/Out image effects can be
selected at the time of switching.
• DigiBlend - Edge Blending Function
When two or more projectors are used to project images lined
up horizontally or vertically, a blending adjustment can be performed to make the borders of the adjacent images less conspicuous.
The gamma curve that is adjusted to the input source can be
set between 1.0 and 3.0, and 256 gradations can be expressed.
E-11
1. Introduction
3 Getting to Know Your Projector
Frame
Control panel
(See page E-13)
Tilt Adjustment Knob
Remote sensor
Lens (optional)
Control terminals
(See page E-14)
Input terminals
(See page E-15)
Roll Adjustment Knob
PAN Adjustment Knob
NOTE: The frame is not included on HIGHlite 8000Dsx+.
Remote sensor
Main power switch
(See page E-30)
Ventilation (inlet)
Power cable
Ventilation (outlet)
E-12
1. Introduction
Control Panel
1
2
3
4
15
14
1. LCD Screen
5
6
9
10
7 8 13 12
11
9. SHUTTER Button
The liquid crystal display screen shows the condition or the
error message of the Projector.
2. FOCUS (+/-) Button
While pressing and holding CTL Button, pressing this button
shuts off the light completely.
10. CTL Button
While pressing and holding CTL Button, pressing this button
allows you to adjust the lens focus.
Press the CTL Button together with the FOCUS (+/-) Button,
ZOOM (+/-) Button, LENS SHIFT GHFE and SHUTTER Button.
3. ZOOM (+/-) Button
While pressing and holding CTL Button, pressing this button
allows you to zoom the lens in and out.
4. LENS SHIFT GHFE
While pressing and holding CTL Button, pressing this button
allows you to adjust the lens offset by shifting the projected
image position horizontally and / or vertically.
The FOCUS (+/-), ZOOM (+/-), LENS SHIFT GHFE and
SHUTTER Buttons do not function when pressed alone.
11. POWER Button (ON / STAND BY)(
NOTE: To turn on or off the Projector, press and hold this button for a minimum
of 1 second.
5. MENU Button
Displays the menu.
)
Use this button to turn the power on and off when the main
power is supplied and the Projector is in standby mode.
12. POWER Indicator
When this indicator is green, the Projector is on; when this
indicator is orange, it is in standby mode.
6. SELECT GHFE (+) (–)
GH : Use these buttons to select the menu of the item you
wish to adjust.
FE : Use these buttons to change the level of a selected menu
item. A press of the E button executes the selection.
13. STATUS Indicator
This indicates the status of the Projector during standby.
The indicator will be lit in green at time of normal operation.
When there is a fault, the indicator will be a flashing or steadily
lit red.
Please check the display information of the LCD screen when
there is a fault.
7. ENTER Button
Executes your menu selection and activates items selected
from the menu.
8. CANCEL Button
Press this button to exit "Menus". Press this button to return
the adjustments to the last condition while you are in the adjustment or setting menu.
14. BACK LIGHT Switch
Use this switch to turn on the back light of the LCD screen.
15. LCD CONTRAST Adjustment Dial
Use this dial to adjust the contrast of the LCD screen.
E-13
1. Introduction
Control Terminals
3
1
2
4
10
5
6
7
1. USB Port (USB B)(Type B)
Connect this port to the USB port (type A) of your PC using a
USB cable.
When USB cable is connected to this port, ferrite core, which
attached to this equipment, is assembled to USB cable (near
side of this equipment).
2. USB Port (USB A)(Type A)
When working on “menu”, commercially available USB mouse
is connected and used. See page E-45.
8
9
6. PC CARD Slot
Insert a PC card, commercially available flash memory card or
optional wireless LAN card here.
7. PC CONTROL IN (D-Sub 9 Pin)
Connect to the external equipment such as a PC or control
system.
See page E-83 for information about the pin assignment of
this connector.
8. PC CONTROL OUT (D-Sub 9 Pin)
This connector is for future extension.
3. REMOTE IN 1 (Mini Jack)
Wired remote control input.
4. REMOTE OUT (Mini Jack)
For Daisy-chaining multiple projectors and operating them with
the same remote control. To do so, connect to a second
projector’s IN terminal to relay the input at the IN terminal of
the first projector until all the projectors are connected.
When Remote Control Cable is connected to this port, ferrite
core, which attached to this equipment, is assembled to Remote Control Cable (near side of this equipment).
5. LAN Port (RJ-45)
This port is typically used for UTP Ethernet/Fast Ethernet. Use
this connector to control the Projector on a LAN. See page E26.
9. EXT. I/O (Mini D-Sub 15 Pin)
It is used when controlling the Projector from the external device equipped with a parallel interface.
See Page E-83 for information about the functions and logic
table of the various pins.
10. REMOTE IN 2 (XLR connector)
Using an extension cable such as an audio cable, permits remote control input.
See page E-83 for information about the pin assignment of
this connector.
E-14
1. Introduction
Input Terminals
1
3
2
4
1. SLOT 1 (MM-VIDEO)
MM-VIDEO interface board is standard equipment.
(1)
(2)
(3)
2. SLOT 2 (MM-RGB)
MM-RGB interface board is standard equipment.
(4)
(1)
(1) CVBS Input Connector (BNC Type)
Use a 75 Ω coaxial cable and connect it to the Composite
Video output connector of a DVD player, or to other equipment.
(2) S-VIDEO Input Connectors (2 BNC Type)
Use a 75 Ω coaxial cable (2-conductor type) and connect it to
the S-Video output connector of a DVD player, or to other equipment.
(3) COMPONENT Input Connectors (3 BNC Type)
Use a 75 Ω coaxial cable (3-conductor type) and connect it to
the Component output connector of a DVD player, or to other
equipment. Standard definition only (525/60i, 625/50i).
(4) ACT Indicator
Steady green light ..... Shows that this board is selected.
(2) (3)
(1) RGB Input Connectors (5 BNC Type)
Use a 75 Ω coaxial cable (5-conductor type) and connect it to
the display output connector of a personal computer, the colour
difference output connector of a Analog HDTV player, or to
other equipment.
When cable is connected to this port, ferrite core, which attached to this equipment, is assembled to the both sides of
cable.
(2) Audio Input Jacks (RCA-Phono)
These Jacks have no function with the Switcher.
(3) ACT Indicator
Steady green light ..... Shows that this board is selected.
3. SLOT 3
Use to extend the input terminal. See page E-25.
4. SLOT 4
Use to extend the input terminal. See page E-25.
NOTE: MM-VIDEO interface board and MM-RGB interface board are also available as an option.
E-15
1. Introduction
Option Boards
MM-DVI Interface Board (Option)
The DVI digital signal input board is available as an option.
(1)
MM-SDI Interface Board (Option)
The SDI signal input board is available as an option.
(2) (3)
(1)
(1) DVI-D Input Connector (DVI-D 24 Pin)
Use a DVI-D Signal cable and connect it to the DVI output
connector of a computer.
When cable is connected to this port, ferrite core, which attached to this equipment is assembled to the cable (the side
ferrite core is not attached).
(2) AUDIO Input Connector (Stereo Mini Jack)
This jack has no function with the Projector.
(3) ACT Indicator
Steady green light ..... Shows that this board is selected.
When Viewing a DVI Digital Signal:
To project a DVI digital signal, be sure to connect the PC and
the Projector using a DVI-D signal cable before turning on your
PC or Projector. Turn on the Projector first and select DVI (DIGITAL) from the source menu before turning on your PC.
Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this
happen, restart your PC.
Do not disconnect the DVI-D signal cable while the Projector
is running. If the signal cable has been disconnected and then
re-connected, an image may not be correctly displayed. Should
this happen, restart your PC.
(2)
(3)
(4)
(1) STATUS Indicator
Steady green light ... Shows that a signal is present.
Steady red light ....... Shows that there is no signal or an error
occurs.
(2) SDI 1 and SDI 2 Input Connectors (BNC type)
Use a 75 Ω coaxial cable and connect it to a video server or
video equipment.
(3) MONITOR OUT Connector (BNC type)
Outputs the signal from the SDI 1 or SDI 2 input you currently
select.
Connect this with a dedicated monitor and use it for checking
the input signal.
Use a 75 Ω coaxial cable.
(4) ACT Indicator
Steady green light ..... Shows that this board is selected.
NOTE:
• Use the DVI-D signal cable compliant with DDWG (Digital Display Working
Group) DVI (Digital Visual Interface) revision 1.0 standard. The DVI-D cable
should be within 5 m (196") long.
• For details about the compatible input signals, see page E-82.
E-16
NOTE:
• Use the 75 Ω coaxial (5C-2V) cable or equivalent. Higher quality recommended.
Using a thinner cable than the above can degrade image quality or cause no
image.
• For details about the compatible input signals, see page E-82.
1. Introduction
4 Remote Control Features
2
1
4
5
6
7
8
10
9
14
15
19
POWER
OFF
3 GHI
JKL
5 MNO
6 PQR
7 STU
8 VWX
9
4
TEST
ON
INPUT
2 DEF
1 ABC
OFF
ON
IMAGE/ PROJECTOR
1. POWER ON
Press and hold this button for a minimum of 1 second to turn
on the Projector when the main power is supplied and the Projector is in standby mode.
2. POWER OFF
Press and hold this button for a minimum of 1 second to turn
off the Projector.
3
YZ/
3. Source / Input
Press to select input or to name a signal.
1
0
PICTURE WHITE BAL.
11
12
13
ADJUST
KEY ST./ R AMP/ G E-LIST/ B
INFO
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
MENU/ ADDRESS
20
ENTER
UNDO
3
OSD
MUTE
AUTO
2
18
17
16
4
21
*
*
24
CANCEL
22
23
+
FOCUS
MAGNIFY/ ZOOM
-
CTL
26
-
AM
R
0
./
ST
W
CT
PI
F
OF
E
AG
ON
IM
T
S
TE
6. IMAGE/PROJECTOR
Press to display the Image Option screen. Pressing this button sequentially selects Image Options screens.
While pressing and holding CTL, pressing this button rotates
Projector Options screens.
KE
ST
JU
E
UR
OR
CT
JE
RO
/P
4
N
O
5. Backlight Switch
When using the remote control wirelessly:
Tums the backlight on and off. If no button operation is made
within 30 seconds with the Backlight ON, the Backlight will
turn off to conserve battery life.
When using as the wired remote control:
The light stays on in standby and power-on.
AD
L.
BA
TE
HI
W
L
JK
A
1
R
E FF
W O
O
P
4. TEST
Press to display the test pattern. Pressing this button sequentially selects test patterns.
Y
V
8
TU
5
7
M
S
N
D
2
C
B
29
L
XE
G
P/
/
Z
Y
9
X
R
Q
P
6
O
I
H
G
3
F
E
T
U
P
IN
28
PO
E-
SI
LI
/
/
ST
N
LE
B
S
PI
H
CT
/
E
LP
SH
25
The aforementioned operation is for the Projector in the factory
shipping condition. The operation will differ depending on the insertion of interface boards.
When multiple input connectors are available for a single slot, pressing the number buttons that correspond to that slot will switch the
input connectors within that board.
NOTE: While pressing and holding CTL, pressing this button switches to the
selected signal found in the Entry List.
+
27
Selects the input connector of Slot 1 (MM-VIDEO at time of factory
shipping).
Each press of “1” button switches the input connector one step in
the sequence of CVBS → S-Video → Component → CVBS → ...
Selects the input connector of Slot 2 (MM-RGB at time of factory
shipping).
Selects the input connector of Slot 3. Becomes valid when an option board has been inserted.
Selects the input connector of Slot 4. Becomes valid when an option board has been inserted.
7. ADJUST PICTURE
Press to display the Picture adjustment screen. Pressing this
button sequentially selects adjustment screens.
8. ADJUST WHITE BAL.
Press to display the Color Management screen.
9. KEYSTONE
• 3D Reform adjustment screen is shown. See page E-xx
• When optional MM-WARP is used, KEYSTONE screen and
Cornerstone screen will be switched one another each time
KEYSTONE button is pressed.
• When KEYSTONE button is pressed for more than 2 seconds, 3D Reform’s adjustment value will be bach to factory
default setting.
10. AMPLITUDE
Service personnel only.
E-17
1. Introduction
11. ENTRY LIST
Press to display the Entry List screen.
Pressing and holding CTL and then ENTRY LIST buttons simultaneously, enters a signal in the Entry List.
12. HELP
Provides online help.
13. INFO
Displays the "Source Information" or "Projector Information"
window. This button toggles between these two windows.
14. PIXEL
Displays the Position/Clock screen to adjust the clock and
phase.
15. POSITION
Press to display the Position screen; press again to display
the Blanking screen.
22. ENTER
Executes the menu selection and activates items selected from
the menu. When the slider or dialog box is displayed:
Pressing this button confirms adjustments/setting and returns
to the previous menu display.
In seamless switching functions in which an option board has
been mounted, press the ENTER button after the input signal
switching preparation has been completed to finalize the switching.
See Page E-65 for information about the seamless switching
function.
23. CANCEL
Press to exit the menu.
Press this button with CTL to return to the previous menu without closing adjustment/setting screen while the menus appear.
This feature allows you to adjust or set several items concurrently.
17. MUTE SOUND
This button has no function with the Projector.
24. UNDO
Press to return the adjustments and settings to the previous
condition. While pressing and holding CTL, pressing this button clears the entire menus or adjustment/setting screen. At
this time the adjustments/settings are stored in memory except the items on the setting screen with "OK" and "Cancel"
buttons such as the Menu and the Setup screen.
18. MUTE OSD
Press to turn off the on-screen display. Press again to restore
the on-screen display.
25. FOCUS (+/–)
While pressing and holding CTL, pressing this button allows
you to adjust the lens focus.
NOTE: You can also turn off the on-screen display forcibly by pressing and
holding CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ;
doing this again restores it. In this case any adjustment will still change the
Projector's memory settings. This mode is available even when input is switched
to another or the power is turned off the main power.
26. MAGNIFY/ZOOM (+/–)
While pressing and holding CTL, pressing this button allows
you to zoom the lens in and out.
16. MUTE PICTURE
Press to turn off the picture for a short period of time. Press
again to restore the picture.
19. AUTO (RGB only)
Press to adjust Position-H/V and Pixel Clock for an optimal
picture.
20. MENU
Press to display the main menu.
While pressing and holding CTL, press this button to display
the Remote Control ID dialog box to specify the remote control ID. See page E-61.
27. CTL
Used in conjunction with other buttons, similar to a shift key on
a computer.
28. Infrared Transmitter
Direct the remote control toward the remote sensor on the Projector cabinet.
29. Remote Jack
Connect your remote cable here for wired operation.
21. Select (Up/Down/Left/Right)
GH: Use these buttons to select the menu of the item you
wish to adjust.
FE: Use these buttons to change the level of a selected menu
item.
A press of the E button executes the selection.
Pressing and holding CTL, then pressing F button works as a
Back Space key in the entry screen.
Pressing and holding CTL, then pressing this button moves
the menu or dialog box.
E-18
1. Introduction
Remote Control Precautions
Operating Range for Wireless Remote Control
• The remote control system may not function when direct sunlight or
strong illumination strikes the remote control sensor of the main unit, or
when there is an obstacle in the path.
The infrared signal operates by line-of-sight up to a distance of
approximately 7m (20 feet) and a 60 degree angle of the remote
sensor.
The Projector will not function if there are objects between the
remote sensor and the remote control or if strong light falls on
the remote sensor. Weak batteries will also prevent the Projector
from operating properly.
• When remote control buttons are pressed and held, Projector’s function keys may not operate.
• Do not subject to strong shock.
• Do not allow water or other liquid to splash on the remote control. If the
remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Remove the batteries from the remote control when the remote control
is not going to be used for a long period.
Remote sensor on the
Projector cabinet
Remote contorol
Remote control
Remote Control Battery Installation
7m
Installing the Remote Control Batteries
When it comes time to replace the batteries, two "AA" type will
be required.
30˚
30˚
30˚
30˚
7m
1. Press and open the cover.
Remote sensor on the
Projector cabinet
7m
Remote control
2. Align and insert the batteries according to the (+) and (-) indications
inside the case.
30˚
30˚
30˚
30˚
7m
Remote control
NOTE: You cannot operate the Projector using the remote control if:
• The remote control ID is not set to “None”.
• The remote control ID is not the same as the Projector ID.
See page E-61 for setting remote control ID and Projector ID.
3. Replace the cover.
E-19
1. Introduction
Using the Remote Control in Wired Operation
Connect one end of the supplied remote cable to the REMOTE IN 1
mini jack and the other end to the remote jack on the remote control.
NOTE: Do not use this jack for anything other than intended use.
REMOTE
IN 1
Remote cable (supplied)
E-20
2
Installation
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Setting Up Your Projector ...................................... E-21
Screen Size and Projection Distance ............................................................... E-22
Table of Throw Distances and Image Sizes for Optional Lenses ..................... E-22
2 Lens Shift Adjustable Range ................................. E-23
Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z ................. E-23
3 Making Connections .............................................. E-24
Connecting to the Image Input Terminals .........................................................
Install the Option Boards and Expand the Image Input Terminals ...................
Connecting to a Network ..................................................................................
Connecting the Power Cable ............................................................................
Inserting and Removing a PC Card ..................................................................
E-24
E-25
E-26
E-27
E-28
4 USB Memory Device or USB Memory Card Reader Support .. E-28
E-21
2. Installation
This section describes how to set up your projector and how to
connect video and audio sources.
Screen Size and Projection Distance
Applicable lens and throw distance/ List of screen sizes
1 Setting Up Your Projector
Your Projector is simple to set up and use. But before you get
started, you must first:
1. Determine the image size
Height
(V)
2. Set up a screen or select a non-glossy white wall onto which you can
project your image.
Screen size (Diagonal)
3. Install the optional lens to the projector.
NOTE: The lens must be installed by service personnel only.
4. Connect a PC, VCR, DVD player, or other equipment.
5. Connect the supplied power cable.
Width (H)
6. Set up the projector.
7. Make settings or adjustments on the projector.
Formulas: Screen Width H (5:4) (m) = Screen Height V x 5/4 x 0.0254
Screen Height V (5:4) (m) = Screen Width H x 4/5 x 0.0254
Screen Diagonal (5:4) (m) = Screen Height V x 6.4/4 x 0.0254
Screen Width H (5:4) (inch) = Screen Height V x 5/4
Screen Height V (5:4) (inch) = Screen Width H x 4/5
Screen Diagonal (5:4) (inch) = Screen Height V x 6.4/4
Separately sold Lenses and their projection distance (reference)
Lens Unit which can be used on this equipment as standard condition.
Model
Number
Product
Code
Magnifications
WIDE TELE
Fixing
SL-14Z
SL-18Z
SL-25Z
SL-45Z
SL-07F
103-490
103-491
103-492
103-493
103-489
1.45
1.8
2.5
4.5
–
1.8
2.5
4.5
7.3
–
–
–
–
–
0.73
When SL-14Z Lens (Magnification ratio 1.45-1.8 : 1) is used to
project on the 300” screen which diagonal length aspect ratio is
4:3, the projection distance will be the following.
H (the screen width (m)) = Screen Size (model) ⳯ 4/5 ⳯ 0.0254 = 6.096m
Remarks
Zoom Lens
Zoom Lens
Zoom Lens
Zoom Lens
Fixed Focus Lens
Because SL-14Z Lens (Magnification ratio 1.45-1.8 : 1) is zoom
lens, there are WIDE and TELE.
Projection Distance of WIDE = 6.096 ⳯ 1.45 = 8.839m
Projection Distance of TELE = 6.096 ⳯ 1.8 = 10.967m
Therefore, 300” screen can be projected around the projection
distance of 8.84m-10.97m with SL-14Z Lens.
Calculation Method for Projection Distance & Screen Size
Projection Distance is calculated by the following method.
Projection Distance (m) = Screen Width H (m) ⳯ Lens Magnification
When zoom lens is used, the magnification differs according to
the zoom condition.
Projection Distance for Screen Size and Each Lens
Screen
Size
80”
100”
2.36~2.93
(92.9~115.4)
2.93~4.06
(115.4~159.8)
4.06~7.32
(159.8~288.2)
7.32~11.87
(288.1~467.3)
1.19
(46.9)
2.95~3.66
(116.1~144.1)
3.66~5.08
(144.1~200.0)
5.08~9.14
(200.0~359.8)
9.14~14.83
(359.8~583.9)
1.48
(58.3)
150”
200”
250”
Unit : m (inch)
300”
400”
500”
11.79~14.63
(464.2~576.0)
14.63~20.32
(576.0~800.0)
20.32~36.58
(800.0~1440.2)
36.58~59.33
(1440.2~2335.8)
5.93
(233.5)
14.73~18.29
(579.9~720.1)
18.29~25.40
(720.1~1000.0)
25.40~45.72
(1000.0~1800.0)
45.72~74.17
(1800.0~2920.1)
7.42
(292.1)
Lens
SL-14Z
SL-18Z
SL-25Z
SL-45Z
SL-07F
4.42~5.49
5.89~7.32
7.37~9.14
8.84~10.97
(174.0~216.1) (231.9~288.2) (290.2~359.8) (348.0~431.9)
5.49~7.62
7.32~10.16 9.14~12.70 10.97~15.24
(216.1~300.0) (288.2~400.0) (359.8~500.0) (431.9~600.0)
7.62~13.72 10.16~18.29 12.70~22.86 15.24~27.43
(300.0~540.2) (400.0~720.1) (500.0~900.0) (600.0~1079.9)
13.72~22.25 18.29~29.67 22.86~37.08 27.43~44.50
(540.2~876.0) (720.1~1168.1) (900.0~1459.8) (1079.9~1752.0)
2.23
2.97
3.71
4.45
(87.8)
(116.9)
(146.1)
(175.2)
CAUTION: Distance tolerance ±5%.
In addition the following Lenses can be used (However, the TL
Lens spacer included is required to attach these lenses is necessary. Please contact your dealer about how to mount the spacer.).
Please refer to magnification ratio on the following chart to calculate the projection distance.
CAUTION: Distance tolerance ±5% .
E-22
Model
Number
Product
Code
Magnifications
WIDE TELE
Fixing
TL-1ZH
TL-2Z
TL-4Z
TL-08SF
LA00263
LA00108
LA00109
LA00111
1.36
2.27
4.09
–
2.27
4.09
6.36
–
Remarks
–
Zoom Lens
–
Zoom Lens
–
Zoom Lens
0.764 Fixed Focus Lens
2. Installation
2 Lens Shift Adjustable Range
Lens Shift Adjustable Range for Desktop and Ceiling Mount Application The diagram below shows the location of the image position
in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.
Maximum Possible Range for SL-14Z / SL-18Z / SL-25Z / SL-45Z
Parenthesized values for the ceiling mount application
Up: 0.45 V (0.14 V)
Right: 0.28 H (0.17 H)
Down: 0.14 V (0.45 V)
Left: 0.17 H (0.28 H)
(H: width of projected image, V: height of projected image)
For SL-07F
No shift available.
Maximum Possible Range for TL-1ZH / TL-2Z / TL-4Z / TL-08SF
Parenthesized values for the ceiling mount application
For TL-08SF
No shift available.
For TL-1ZH,TL-2Z, 4Z
Up: 0.37 V (0.14 V)
Right: 0.23 H (0.17 H)
Down: 0.14 V (0.37 V)
Left: 0.17 H (0.23 H)
(H: width of projected image, V: height of projected image)
Desktop / Front Vertical
0.17H
0.28H
0.45V
Max. 0.45V
(V)
1V
Normal position
0.1V
Normal Projection
position
(H)
Ceiling / Front Vertical
Normal Projection
position
(H)
0.1V
Normal position
1V
Max. 0.45V
0.45V
(V)
0.28H
0.17H
Example for Stack
Note: Shift limit diagrams above show maximum limits of lens mount not the
specific cababilities of lenses.
Note: For TL lenses there is a reduced shift. See ranges above.
Screen center
E-23
2. Installation
3 Making Connections
Connecting to the Image Input Terminals
This Projector has two interface boards, MM-VIDEO and MM-RGB as standard equipment. See page E-11. Connect required video
signals.
Four interface boards can be inserted in the Projector at the same time. See Page E-25.
COMPONENT
HIGHlite 12000Dsx+
RCA(female)-to-BNC(male)
adapter (not supplied)
Ferrite clamp core (supplied)
Component video RCA⳯3 cable
(not supplied)
BNC⳯5 cable
(not supplied)
AUDIO OUT
L
PC
R
Component
Y
Cb
Cr
DVD player
Information for Reducing Radiation of Electromagnetic
Waves
To reduce unnecessary radiation of electromagnetic waves, use
the supplied ferrite clamp core.
• When cable is for RGB signal, ferrite core is assembled to the
both side of the cable.
• When cable is for DVI-D signal, ferrite core is assembled to
the side where ferrite core is not attached.
• When cable is for USB or Remote Control, ferrite core is assembled to the near side of this equipment.
2. Close the ferrite clamp core tightly.
Installation Instructions
1. Opne the attach the ferrite clamp core to the cable as close as possible
to end that goes to the Projector.
* Push the catch to open the ferrite clamp core.
* Loop the cable once around the ferrite clamp core.
3. Fix the supplied band to the Ethernet cable as a stopper.
* Pull the end of the band to tighten it. Cut off the surplus of the band.
NOTE: When cable is thick, ferrite core is assembled without making a ring.
band
E-24
2. Installation
4. Tighten the 2 screws located at right and left of the board and fasten
securely.
Installing Additional Option Boards
Four types of option boards are available for the Projector.
Please purchase as required.
Warning
Ensure main power is disconnected or by turning
off the main power switch before installing or removing the board from the Projector. Failing to do
so could result in electrical shock.
NOTE: The following 4 types of option boards can be inserted in the Projector.
Multiple option boards of the same model can also be inserted.
* MM-VIDEO(See page E-15)
* MM-RGB(See page E-15)
* MM-DVI(See page E-16)
* MM-SDI(See page E-16)
1. Turn off the main power switch of the Projector.
2. Use a flat-bladed screwdriver to loosen the 2 screws of the slot panel
located at the input terminals portion of the Projector, then remove the
screws and panel.
NOTE:
• Keep the removed screws and panel in a safe place.
• Please do not use the Projector while the panel is disengaged. Foreign matter
could enter the interior and cause breakdown.
3. Insert the board into the slot.
rail
The example shown in the drawing is the MM-SDI board.
NOTE: When inserting the board into the slot, insert it so that it moves along the
rails located at the right and left of the slot. If the board is not positioned between the rails the connector will not be engaged and the board will not be
operational.
E-25
2. Installation
Connecting to a Network
With the LAN connection, you can control the Projector over the network using a computer to turn the Projector on/off, select the
input and others.
Server
Example of LAN connection
Hub
Ethernet cable (not supplied)
PC
LAN
PC
PC
HIGHlite 12000Dsx+
Using the HTTP Server function
1. Configure your LAN settings such as IP address on the Projector. (See
“LAN Mode” on page E-62)
2. Start the Web browser on the computer connected to the network and
execute HTTP server functions. (See “Operation Using an HTTP
Browser” on page E-84)
E-26
2. Installation
Connnecting the Power Cable
After making certain that the main power switch of your projector is OFF, connect the power cable to a 200 to 240 VAC three-prong
outlet (grounded).
Two versions of the projector are available: USA models are supplied with a Hubbel type connector, for Rest of World a CEE-Form
connector is supplied.
CAUTION
• Please contact your dealer / distributor to perform the wiring for connection of the power cable to your projector.
• Be sure to ground the equipment to ensure safety.
200-240 VAC
three-prong outlet
To avoid electric shocks, request a professional to carry out the grounding.
Be sure to perform earth connection before inserting the power plug into the wall outlet.
NOTE:
• When disconnecting the power plug, first set the projector to the standby mode, and then turn off the main power switch before disconnecting the power plug.
Disconnecting the power plug or turning off the main power switch without first setting the projector to the standby mode may result in the values that were set with the
on-screen menu and other settings not being stored within the projector.
• Do not disconnect the power plug from the outlet in circumstances such as the following:
* While the hourglass icon is displayed.
* While a message to the effect of “Please wait a while” is displayed. (This message will be displayed if the power has been switched off.)
* Immediately after the main power switch has been turned ON. (When the POWER indicator is not lit in orange, and before “Stand by” is displayed on the liquid crystal
display screen.)
* Immediately after the end of the cooling down period (during which the fan is running for 3 minutes after the POWER button has been switched OFF, and before “Stand
by” is displayed on the liquid crystal display screen).
E-27
2. Installation
PC Card Type
The PC Card slot accepts PCMCIA Type II only.
Inserting and Removing a PC Card
NOTE:
• Do not try to force the PC card into the slot.
NOTE: The projector does not support FAT32 or NTFS formatted flash memory
card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the
FAT16 or FAT file system.
To format your flash memory card or USB memory device in your comouter, refer
to the document or help file that comes with your Windows.
PC CARD eject button
Inserting the PC Card
•
Hold the PC card horizontally and insert it slowly into PC card slot
with its top facing up.
4 USB Memory Device or USB Memory Card
Reader Support
The projector is compatible with either a USB memory device or
USB memory card reader which supports the security features.
• To use a USB memory device or USB memory card reader,
connect the device to the USB port (type A).
• To use a USB memory device as a Protect key for Security
function, select one from the Drive icons in the Security setting screen.
Removing the PC Card
Press the eject button slowly. The eject button card pops out a
little. Press the eject button slowly again. Grasp the edges of
the PC card and pull it out. Push and insert the eject button
fully until it stops.
NOTE:
NOTE: Do not eject the PC card while its data is being accessed.
CAUTION: Make sure that the PC card or wireless LAN card is
removed during Standby mode or with the main power off.Failure
to do so may cause damage to the data on your PC card or
wireless LAN card, or may cause the projector to
malfunction.Should a malfunction occur, turn off the main power
and turn it back on.
Direction for Inserting the PC Card
The PC card has a top and bottom and must be inserted into the
PC card slot in a specific direction. It cannot be inserted backwards or upside-down. Attempting to force it into the slot in the
wrong direction may break the internal pin and damage the card
slot. Refer to the PC card's operating instructions for the proper
direction of insertion.
• Some USB memory devices (brands) or USB memory card readers
may not work.
• You cannot use USB memory device and a USB memory card reader
when connecting a USB mouse to the projector. Using a USB HUB
that allows multiple USB memory devices or card readers is not supported either.
• Do not do the following while the USB memory device or USB memory
card reader’s access indicator is lit or flashing (while data is being
accessed.) Doing so can damage your USB memory device or USB
memory card in the reader. Back up your data in case it will need to be
restored.
* Pulling out the USB memory device or USB memory card reader
from the USB port of the projector.
* Pulling out the memory card from the USB memory card reader.
* Turning off the main power switch or unplugging the power cable.
• The drive for ”USB 1-4” is displayed only when the USB memory device or USB memory card reader is connected to the projector. The
drive for “USB 1-4” may be displayed differently from the one in the
USB memory card reader.
• Some USB memory devices (brands) or USB memory cards cannot
be used as Protect key for the projector’s Security function.
E-28
3
Projecting an Image
(Basic Operation)
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Turning on the Projector ........................................ E-30
2 Selecting a Source ................................................ E-31
3 Adjusting the Picture Size and Position ................. E-31
4 Optimizing RGB Picture Automatically .................. E-33
5 Turning off the Projector ........................................ E-33
E-29
3. Projecting an Image
This chapter describes how to turn on the Projector and to project
a picture onto the screen.
1 Turning on the Projector
NOTE:
• When plugging in or unplugging the supplied power cable, make sure that the
main power switch is pushed to the off[O] position. Failure to do so may cause
damage to the Projector.
• The Projector has two power switches: main power switch and POWER button
(POWER ON and OFF on the remote control)
To turn on the main power to the Projector, press the Main Power switch to the
ON position ( I ).
Standby
2. Press the ENTER button to execute the selection.
Power ON
3. The Basic menu will be displayed in the language you have selected.
ON/STAND BY
POWER
POWER
Steady orange
light
Steady green
light
Before you turn on your Projector, ensure that the computer or
video source is turned on.
Only after you press the ON/STAND BY button on the Projector
cabinet or POWER ON button on the remote control for a minimum of 1 second will the power indicator turn to green and the
Projector become ready to use.
To close the menu, press the CANCEL button.
Note on Startup screen (Menu Language Select screen)
When you first turn on the Projector, you will get the Startup
screen. This screen gives you the opportunity to select one of
the seven menu languages: English, German, French, Italian,
Spanish, Swedish and Japanese.
To select a menu language, follow these steps:
1. Use the SELECT G or H button to select one of the seven languages
for the menu.
After this has been done, you can proceed to the advanced menu
operation.
If you want, you can select the menu language later. See "Language" on page E-58.
NOTE: To turn the Projector on by plugging in the power cable, first turn on the
Main Power switch to ON and use the menu and enable the "Auto Start" feature.
(See page E-60.)
E-30
3. Projecting an Image
2 Selecting a Source
3 Adjusting the Picture Size and Position
Selecting the computer or video source
1. Turn on the projector
2. Select your type of projector orientation.
Desktop front, ceiling rear, desktop rear, and ceiling front.
Using the Remote Control
POWER
ON
OFF
INPUT
2 DEF
3 GHI
JKL
5 MNO
6 PQR
7 STU
8 VWX
9
1 ABC
4
TEST
Press the Source/Input button
(1-4) to select input.
1 ...... Slot 1
ON
OFF
IMAGE/ PROJECTOR
YZ/
2 ...... Slot 2
3 ...... Slot 3
0
PICTURE WHITE BAL.
4 ...... Slot 4
ADJUST
KEY ST./ R AMP/ G E-LIST/ B
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
INFO
OSD
3. Display the test pattern by pressing the TEST button on the remote
control or using the menu.
MUTE
AUTO
MENU/ ADDRESS
ENTER
UNDO
POWER
ON
OFF
1 ABC
INPUT
2 DEF
3 GHI
4 JKL
5 MNO
6 PQR
7 STU
8 VWX
9
CANCEL
FOCUS
CTL
+
-
MAGNIFY/ ZOOM
TEST
+
ON
-
OFF
IMAGE/ PROJECTOR
YZ/
0
PICTURE WHITE BAL.
ADJUST
4. Adjust the image position and the image size.
(1) Press and hold the CTL button and press the POSITION button to
display the Lens Shift adjustment screen.
NOTE: If no input signal is available, the Projector will display a blue background
(factory preset).
Use the SELECT button on the remote control or the LENS SHIFT
button on the projector cabinet to move the image horizontally and
vertically.
To close the Lens Shift adjustment screen, press the CANCEL
button. See page E-23 for “Lens Shift Adjustable Range”.
Using the menu
You can also select the computer or video source using the menu.
KEY ST./ R AMP/ G E-LIST/ B
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
INFO
OSD
MUTE
AUTO
MUTE
AUTO
MENU/ ADDRESS
MENU/ ADDRESS
ENTER
UNDO
-
CTL
-
CANCEL
FOCUS
+
MAGNIFY/ ZOOM
+
MENU/ ADDRESS
ENTER
UNDO
CANCEL
FOCUS
E-31
+
MAGNIFY/ ZOOM
+
3. Projecting an Image
(2) Press and hold the CTL and press the ZOOM + or - button to adjust
the image size. You can also adjust the image size by using the
CTR button and the ZOOM + or - button on the projector cabinet.
CANCEL
FOCUS
+
MAGNIFY/ ZOOM
-
CTL
+
-
(3) Press and hold the CTL button and press the FOCUS + or - button
to obtain the best focus. You can also adjust the focus by using the
CTR button and the FOCUS + or - button on the projector cabinet.
CANCEL
FOCUS
CTL
+
-
MAGNIFY/ ZOOM
+
-
Geometric Correction Tool
If you use a special shaped screen such as a cylindrical or
spherical screen, a downloadable program, Geometric Correction Tool is available. This program (Geometric Correction Tool) enables the geometrical distortion correction of
an image when projected onto a special shaped screen with
the projector. Additionally, this program allows control of the
projector via a computer.
For additional information contact your dealer or Digital Projection:
US : [email protected]
Europe : [email protected]
Global : [email protected]
E-32
3. Projecting an Image
4 Optimizing RGB Picture Automatically
5 Turning off the Projector
Adjusting the Image Using Auto Adjust
Optimizing RGB image automatically
To turn off the Projector:
1. Press the AUTO button on the remote control to optimize an RGB image automatically.
KEY ST./ R AMP/ G E-LIST/ B
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
Second, turn off the Main Power switch. The power indicator will
go out.
INFO
OSD
Last unplug the power cable.
MUTE
AUTO
First press the POWER (ON/STAND BY) button on the Projector
cabinet or the POWER OFF button on the remote control for a
minimum of 1 second. The POWER indicator will glow orange.
MENU/ ADDRESS
ENTER
UNDO
POWER
ON
OFF
1 ABC
INPUT
2 DEF
3 GHI
4 JKL
5 MNO
6 PQR
7 STU
8 VWX
9
CANCEL
FOCUS
+
MAGNIFY/ ZOOM
TEST
+
ON
The Auto Adjust menu is displayed.
OFF
2. Select “Input Resolution” and change the “Horizontal” number of pixels
and number of “Vertical” lines as required.
IMAGE/ PROJECTOR
PICTURE WHITE BAL.
YZ/
0
ADJUST
Power on
Standby
ON/STAND BY
POWER
Steady green
light
CAUTION
• When switching off the Main Power switch, set the Projector to the standby mode beforehand. Values that have
been set with the on-screen menu or by other means might
not be stored in the main unit if the Projector power supply is on when the Main Power switch is switched off.
• Do not unplug the power cable from the wall outlet or do
not turn off the main power under any one of the following circumstances. Doing so can cause damage to the
Projector:
3. Align the cursor with “OK” and press the ENTER button.
[Poor picture]
POWER
Steady orange
light
[Normal picture]
* While the Hour Glass icon appears.
* While the message "Please wait a moment." appears. This message will be displayed after the Projector is turned off.
Press the AUTO button to fine-tune the computer image or to
remove any vertical banding that might appear and to reduce
video noise, dot interference or cross talk (this is evident when
part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding
in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident
when part of your image appears to be shimmering.)
This adjustment may be necessary when you connect your computer for the first time.
NOTE:
• Some signals may not be displayed correctly or take time.
• The Auto Adjust function does not work for component and video signal.
• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock
and Phase manually. See page E-53.
E-33
* Immediately after the main power switch has been turned ON.
(When the POWER indicator is not lit in orange, and before
“Stand by” is displayed on the liquid crystal display screen.)
* Immediately after the end of the cooling down period (during
which the fan is running for 3 minutes after the POWER button
has been switched OFF, and before “Stand by” is displayed on
the liquid crystal display screen).
E-34
4
Convenient Features
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Turning Off the Image ............................................ E-36
2 Getting the On-line Help and Information .............. E-36
3 Lens Memory ......................................................... E-36
E-35
4. Convenient Features
1 Turning Off the Image
3 Lens Memory
Press the MUTE PICTURE button to turn off the image for a
short period of time. Press again to restore the image.
Press the MUTE OSD button to turn off the on-screen display.
Press again to restore the on-screen display.
NOTE: You can also turn off the on-screen display forcibly by pressing and holding
CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ; doing this
again restores it. In this case any adjustment will still change the projector's memory
settings. This mode is available even when input is switched to another or the main
power is turned off.
2 Getting the On-line Help and Information
You get the contents about Help.
KEY ST./ R AMP/ G E-LIST/ B
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
Reference memory:
Reference Point ...... Adjusted settings are stored in memory
as a reference common to all the input
sources. If no setting is stored in Custom Point, the adjusted settings in Reference Point will be applied.
INFO
OSD
MUTE
AUTO
Display Help
Custom memory:
Custom Point ........... Adjusted settings are stored in memory
for each input signal.
You get the source and projector information.
KEY ST./ R AMP/ G E-LIST/ B
HELP
PIXEL POSI/ LENS PICT/ SHUT SOUND
AUTO
This function serves to store the adjusted value when using the
Shift, Focus, and Zoom buttons of the projector or the remote
control.
Usage Example
When you wish to display on a screen having a 4:3 aspect ratio
an NTSC or other 4:3 aspect ratio signal and an SXGA or other
5:4 aspect ratio signal:
INFO
OSD
MUTE
Press this button once to display “Source Information” and press
twice to display “Projector Information”.
Press third time to close it.
Perform shift, focus, and zoom adjustments to set the vertical
screen size of the vertically tall 5:4 aspect ratio signal to standard.
Both 4:3 apsect ratio signals and 5:4 aspect ratio signals can
now be displayed.
Note that with these shift, focus, and zoom adjustments, the 4:3
aspect ratio signal will become smaller on the screen.
To eliminate this size reduction, adjust the shift, focus and zoom
to the optimum condition for each of the 4:3 aspect ratio signal
and the 5:4 aspect ratio signal. Memory (storage) of each of these
values will permit projection at an optimum condition upon signal
switching.
1. Perform Zoom, Focus and Lens Shift adjustments and store
them in memory using “Set Custom Point”.
Another way to store your adjustments is to use the CTL and
INFO buttons on the remote control.
2. When “Yes” is selected for “Use Point on Signal Change”, the
adjustment is applied to the signal you switched.
3. Select “OK” and press the ENTER button for the change to
take effect.
Picture Mute during Lens Shift?
To turn off the image during lens shift, select "Yes".
NOTE: This option is only available when "Yes" is selected for "Use Point on Signal
Change?".
E-36
5
Setting Up for Double Stacking
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Stacking and Connecting the Projectors ............... E-38
2 Adjusting and Registering Signals to Be Projected ....... E-41
3 Adjusting the Lens Shift, Zoom and Focus
to Clearly Display all projected patterns ................ E-41
E-37
5. Setting Up for Double Stacking in Link Mode
1 Stacking and Connecting the Projectors
NOTE: Up to two units can be gravity stacked without external support. In some
cases, however, two images will not align on the screen correctly. This will become
more apparent when displaying small text and detailed graphics.
NOTE: The frame is not supplied on HIGHlite 8000Dsx+.
Master projector
Slave projector
CAUTION: To prevent the projectors from falling, install them in a place and fasten them in a
way with sufficient strength to support the two projectors.
1-1. Frame Connection (HIGHlite12000Dsx+)
Remove feet from projector to be mounted on top of stack.
Master Projector
2. Lift the projector of feet.
Slave Projector
Button
Ball-lock Pin
1. Press Button to
remove Ball-Lock Pin
E-38
5. Setting Up for Double Stacking in Link Mode
Connect projectors using Ball-lock Pins.
Place projectors together.
4. Insert all four Ball-lock Pins back into
stacking connectors
Master Projector
Master Projector
Join using stacking
connectors
3. Stack projectors
Slave Projector
Slave Projector
1-2. Frame Adjustment (HIGHlite12000Dsx+)
• Tilt Angle Adjustment
Knurled knobs (A, B on the
picture at the left) are turned
to the same direction. (note 1)
• Roll Angle Adjustment
Knurled knobs (B, C on the
picture at the left) are turned
to the same direction. (note 1)
Knurled knob
• PAN Angle Adjustment
Knurled knob (S) (Enlarged
picture at the left) is turned.
Screen
Screen
Screen
note 1: when Knurled knobs at two locations are turned, the same charge should
be turned.
Knurled knob(S)
Enlarged
1-3. Assigning Projector IDs
You can operate multiple projectors with the same remote control.
To do so:
E-39
5. Setting Up for Double Stacking in Link Mode
13-1. Select “Projector Options” → “Setup” → “Page4” → “Projector ID” and assign an ID number to each projector. See also
page 8-18.
1-3-3. On the remote control specify the ID number of the projector to be adjusted. Press and hold the CTL and press
MENU (ADDRESS) button to enter the ID number.
You can operate the projector assigned the same ID number
as the remote control.
NOTE: Specifying "None" for projector ID allows you to operate multiple projectors
concurrently. However, some projectors may not synchronize to the other projectors.
1-4. Stacking the Projectors
Place the projectors at the proper height for best screen to projector relationship. Make sure that all projectors have the same
display orientation.
1-3-2. Select the same communication speed for both the projector.
NOTE: Do not turn on [Master] or [Slave] at this time.
1-5. Cable Connection
Example on Video Signal
Picture signal is divided by commercial signal divider, and connected to both master projector’s and slave projector’s input ports.
Signal Divider
According to signal dividers, the port
name, location and aspect are different.
Please check the signal dividers'
instruction manuals.
Master projector
S-Video cable (not supplied)
S-VIDEO
S-VIDEO
INPUT
S-VIDEO
OUTPUT
1
2
S-Video cable
(not supplied)
L
R
AUDIO OUT
S-VIDEO
VIDEO
VIDEO OUT
S-VIDEO
Picture Device
According to picture devices, the port
name, location and aspect are different.
Please check the picture devices'
instruction manuals.
Slave projector
E-40
5. Setting Up for Double Stacking in Link Mode
1-6. Control Cable Connection
Example of Remote Controllers Control
Remote controller and master projector’s remote controller input 1 port (REMOTE1 IN 1 )are connected by remote cable. Master
projector’s remote output port (REMOTE OUT) and slave projector’s remote controller input 1 port (REMOTE IN 1) are connected by
remote cable.
NOTE:
• When ID is not setup for the projector and remote controller, two projectors are controlled at the same time with one remote controllers. To control two projectors
indivisually, setup IDs for each projector and each remote controller.
Remote cable
(supplied)
Remote control
REMOTE
IN 1
REMOTE
OUT
Master projector
Ferrite clamp core(supplied)
Remote cable(supplied)
REMOTE
IN 1
Slave projector
Example of RS-232C Control
The controller with RS-232C interface and each projector’s PC control-in port (PC CONTROL IN) are connected by cross cable and
the individuals are controlled by serial-control-command.
Please ask delivery outlets for serial-control-command.
Master projector
PC CONTROL
IN
RS-232C Cross cable
(not supplied)
PC
or
Controller
PC CONTROL
IN
Slave projector
E-41
5. Setting Up for Double Stacking in Link Mode
2 Adjusting and Registering Signals to Be
Projected
2-1. Making Adjustments to the Master Projector
2-1-1. Display a desired input signal on the master projector.
2-1-2. Make adjustment to the signal, then save (register) adjustments on the master projector by pressing and holding
CTL and pressing ENTRY LIST button on the remote control.
2-1-3. Repeat steps 2-1-1 and 2-1-2 for all signals you want
to project.
Display all the signals you registered and check. To check,
select “Source Select” → “Entry List”.
2-2. Making Adjustments to the Slave Projector
2-2-1. Display a desired input signal on the slave projector.
2-2-2. Make adjustment to the signal, then save (register) adjustments on the slave projector by pressing and holding
CTL and pressing ENTRY LIST button on the remote control.
2-2-3. Repeat steps 2-1-2 and 2-1-2 for all signals you want
to project.
Display all the signals you registered and check. To check,
select “Source Select” → “Entry List”.
3 Adjusting the Lens Shift, Zoom and Focus to Clearly Display all projected patterns
3-1. Display the internal crosshatch test pattern.
NOTE: Use a different single colour for each projector. Example: Turn on Green of
master projctor, then Red of the slave projector.
3-2. Adjust the Lens Shift by pressing and holding CTL and pressing the POSITION button on the remote control.
For lens shift adjustable range, see page E-23. Lens Shift Adjustable Range.
3-3. Zoom the lens in and out by pressing and holding CTL and
pressing the MAGNIFY(ZOOM)+/- button on the remote control.
3-4. Adjust the lens focus by pressing and holding CTL and pressing the FOCUS +/- button on the remote control.
NOTE: If the physical (vertical) alignment of the projector is not correct, adjust the
height of the feet. If there is any keystone distortion, use 3D-Reform (Keystone)
adjustment to correct and save the settings on each projector. See page E-55 for
3D-Reform.
E-42
6
Using On-Screen Menu
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Basic Menu Operation ............................. E-44
Edge Blending .................................... E-57
2 List of Direct Button Combinations .......... E-45
Lamp Mode ........................................ E-58
3 Using the USB Mouse ............................. E-45
Factory Default ........................................ E-58
4 Menu Tree ............................................... E-46
Projector Options .................................... E-58
5 Menu Descriptions & Functions ............... E-50
Menu .................................................. E-58
Source Select .......................................... E-50
Setup .................................................. E-59
Adjust (Source) ....................................... E-51
LAN Mode .......................................... E-62
Picture ................................................ E-51
Image Mode ....................................... E-65
Video Adjust ....................................... E-51
Setting a Password ............................ E-65
Colour Management .......................... E-52
Security .............................................. E-65
Gamma Correction ............................. E-52
Tools ........................................................ E-67
Image Options .................................... E-53
Timer .................................................. E-67
Option Adjust ...................................... E-54
PC Card Files ..................................... E-69
Lens Memory ..................................... E-54
Help ......................................................... E-69
Signal Type ........................................ E-55
Contents ............................................. E-69
Ref. Adjust ............................................... E-55
Source Information ............................. E-69
3D Reform .......................................... E-55
Projector Information .......................... E-70
Screen ................................................ E-56
Test Pattern ............................................. E-71
Ref. Lens Memory .............................. E-56
E-43
6. Using On-Screen Menu
1 Basic Menu Operation
Customizing the Menu
Using the Menus
The Custom menu can be customized to meet your requirements.
Selecting a menu item from the "Custom Menu Edit" list, allows
you to custom tailor the menu items to your needs.
1. Press the MENU button on the remote control or the Projector cabinet
to display the Basic, Advanced or Custom Menu.
1. Select "Custom Menu Edit" to display the "Custom Menu Edit" screen.
2. Use the SELECT G or H buttons to highlight your selection and press
the ENTER button to place a check mark next to an option.
MENU/ ADDRESS
This action enables that feature. Press the ENTER button again to clear
the check box.
2. Press the SELECT GH buttons on the remote control or the Projector
cabinet to highlight the menu for the item you want to adjust or set.
ENTER
If you select an item with a solid triangle E and press the ENTER button on the remote control or the Switcher cabinet, you can enable all
the items within that submenu. Also you can turn on an item within the
submenu without placing a check mark on the main menu item.
NOTE: Up to 12 main menu items (within Custom Menu Edit, not including
submenu items) can be selected.
3. In order for the changes to take effect, use the SELECT F or E button
on the remote control or the Switcher cabinet to highlight "OK", then
press the ENTER button. To cancel the changes, use the SELECT G
or H buttons to highlight "Cancel" and press the ENTER button.
To return to the factory default, select "Reset" then press the ENTER
button.
NOTE: Once you have selected OK on the Custom Menu Edit screen, you cannot
cancel the changes on the Menu screen. However, you can reedit the menu items
over again as described in the steps above.
3. Press the SELECT E button or the ENTER button on the remote control or the Projector cabinet to select a submenu or item.
ENTER
4. Adjust the level or turn the selected item on or off by using SELECT F
or E buttons on the remote control or the Projector cabinet.
NOTE: If the "Advanced Menu" item has been selected on the Menu mode, you get
the "Change Custom menu now?" upon completion of "Custom Menu" editing. In
this case, selecting "Yes" then "ENTER" will close all the menus and apply the changes
from the Advanced menu to the Custom Menu. If you select "No" then "ENTER"
functions, then all menu items will return to the Advanced menu, but your changes
will still be available within the "Custom Menu" selection. To display the previously
tailored Custom Menu, select "Custom Menu" from the "Menu Mode".
An item "To Advanced Menu" will be added to the bottom of the
Custom Menu.
Selecting this item and pressing the ENTER button will display
the "Advanced Menu" features.
The on-screen slide bar will show you the amount of increase or decrease.
ENTER
5. Changes are stored until you adjust it again.
ENTER
CANCEL
ENTER ........ Stores the setting or adjustments.
CANCEL ...... Return to the previous screen without storing settings or adjustments.
6. Repeat steps 2-5 to adjust an additional item, or press the CANCEL
button on the Projector cabinet or the remote control to quit the menu
display.
E-44
6. Using On-Screen Menu
2 List of Direct Button Combinations
CTL+ Input (1-10)
Switches to any selected signal found in the Entry List.
To enable this combination, you must first assign specific remote buttons
for direct input selection in the Entry Edit window.
CTL+ ENTER (While displaying Entry list)
Displays the selected signal.
CTL+ CANCEL
Returns to the previous menu without closing the slidebar or dialog.
CTL+ UNDO
Clears all menus or adjustment/setting screens. All adjustments are saved
automatically.
CTL+ GHFE
Moves the slidebar or dialog box horizontally or vertically.
CTL+ F (BS)
Deletes one letter or numeral in the entry screen.
CTL+ MUTE OSD
Turns off the on-screen display forcibly.
CTL+ MENU (ADDRESS)
Displays the remote ID entry window.
CTL+ IMAGE (PROJECTOR)
Sequentially selects the Projector Options sub menu.
CTL+ KEYSTONE
This button has no function with the Projector.
CTL+ AMPLITUDE
Service personnel only.
CTL+ ENTRY LIST
Stores a signal in the Entry List.
3 Using the USB Mouse
Operate the Menus using the USB mouse
Using a commercially available USB mouse gives you smooth
operation.
USB A
Mouse Cursor
When connecting a USB mouse to the projector, you get a
mouse cursor on the screen.
Unless you use your USB mouse within 10 seconds, the mouse
cursor disappears.
Menu Display
Clicking with a mouse button displays the menu.
Clicking E displays the pull-down menu. To close the menu,
click anywhere in the background.
Adjusting and Setting Display
You can select a menu item and click with a mouse button to
make adjustments and setting.
HIGHlite 12000Dsx+
Examples
Click (or press and hold) the mouse button F or E to adjust
the brightness. Or click and drag the mouse button on the slide
bar horizontally to adjust it.
NOTE: There may be some brands of USB mouse that the projector does not support.
To save the adjustments, click
. This closes the menu. If
you click anywhere in the background while displaying an adjustment and setting menu or dialog box, you will go to the
main menu after clicking with the mouse.
Clicking
E-45
displays help.
6. Using On-Screen Menu
4 Menu Tree
NOTE: The shaded item indicates the default setting.
Advanced Menu
Source Select
Adjust (Source)
Ref. Adjust
Factory Default
S1: Video
S1: S-Video
S1: Component
S2: RGB
S3: None
S4: None
Entry List
* When the interface boards are installed at the factory.
Load / Store / Cut / Copy / Paste / Edit / All Delete
Projector Options
Tools
Video Adjust
Help
Test Pattern
Colour Management
Gamma Correction
Image Options
Option Adjust
Lens Memory
Signal Type
Brightness / Contrast / Saturation / Colour / Hue /Sharpness /Setup Level
Noise Reduction
Off / Low / Medium / High
Colour Matrix
Select Colour Matrix
HDTV / SDTV
Select Colour Matrix Type B-Y/R-Y / U/V / Cb/Cr /
Pb/Pr / IVX
Y/C Delay
-15 to 15
YTR Adjustment
0 to 31
CTR Adjustment
0 to 31
SweetVision
0 to 63
Telecine
Auto / 2:2 Off / Off
3D Y/C Separation Off / On
Vertical Detail
Colour Correction
Red / Green / Blue / Yellow / Magenta / Cyan / Colour Gain
Colour Temperature Low ←→ High
White Balance
Brightness R / Brightness G / Brightness B /
Contrast R / Contrast G / Contrast B
Return to Reference Ok / Cancel
Set Custom / Set Reference / Cancel
Graphics Enhanced / Graphics / NTSC / NTSC Enhanced / PAL /
SECAM2.8 / PAL / SECAM Enhanced / Gamma1.0-3.0
Pixel Adjust
Clock / Phase
Position
Horizontal / Vertical
Aspect Ratio
1.25:1(5:4) / 1.33:1(4:3) / 1.78:1(16:9) / 1.85:1 /
2.35:1
Resolution
Auto / Native
Overscan
0% / 5% / 8% / 10%
Synchronize
Off / On / Adjust
Video Filter
Off / Less / More
Blanking
On / Off / Top / Bottom / Left / Right
Input Resolution
Horizontal / Vertical
Input Position
Horizontal / Vertical
Clamp Timing
Mode 0-4 / Adjust
Sync Protection
Upper / Lower
VD Delay
Adjustment / Field Invert (On/Off)
Signal Level
Red / Green / Blue
Set Custom Point / Use Custom Point
RGB / Component
E-46
6. Using On-Screen Menu
NOTE: The shaded item indicates the default setting.
Advanced Menu
Source Select
Adjust (Source)
Ref. Adjust
Factory Default
Projector Options
Tools
Help
3D Reform
Cornerstone
Keystone
8 direction / close
decrease ←→ increase
(When MM-WARP (optional) is inserted, horizontal / vertical)
Screen
Screen Type
1.25:1(5:4) / 1.33:1(4:3) / 1.78:1(16:9) / 1.85:1 / 2.35:1
Position
-64 to 64
Ref. Lens Memory Set Reference Point / Use Reference Point / Return to Factory Default
Edge Blending On / Off
Gamma
1.0 to 3.0
Input Resolution
Horizontal / Vertical
Input Position
Horizontal / Vertical
Lamp Mode
Adjust 65%~100% / Auto Off / On
Test Pattern
All Data (Including Entry List) / Current Signal
Menu
Page 1 Language
Menu Mode
Custom Menu Edit
Menu Display Time
Date Format
Page 2
Page 3
Setup Page 1
Page 2
Page 3
Page 4
English / Deutsch / Français / Italiano / Español / Svenska /
Basic / Custom Menu / Advanced Menu / Service Menu
Manual / Auto 5 sec / Auto 15 sec / Auto 45 sec
MM/DD/YYYY / MM/DD/YYYY ddd / DD/MM/YYYY /
DD/MM/YYYY ddd / YYYY/MM/DD / YYYY/MM/DD ddd /
Month DD, YYYY / Month DD, YYYY ddd
Date, Time Preset
Date (MM/DD/YYYY (ddd) ) / Time (HH:MM)
Display Select
Date / Time / Input Terminal / Source Name / Projector ID / Message
Menu Colour
Colour / Monochrome
Orientation
Desktop Front / Ceiling Rear / Desktop Rear / Ceiling Front
Background
Blue / Black / Logo
Sync Termination (RGB) Hi-Z / 75 [Ω]
Signal Select
RGB (RGB/Component / RGB / Component)
Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
S-Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Auto Adjust
On / Off
Auto Start
On / Off
Power Off Confirmation On / Off
WARP Correction
On / Off (When optional MM-WARP is used, it can choose.)
Last Memory
On / Off
Lens shutter on during On / Off
signal switching
3D Sequence Set Select On / Off
Communication Speed 4800 / 9600 / 19200 / 38400
Projector ID
Enable (1 to 64) / Disable
Default Source Select Last / Auto / Select
Select: Slot1-1(Video) / Slot1-2(S-Video) /
Slot1-3(Component) / Slot2-1(RGB) /
Slot3-1(None) / Slot4-1(None)
* When the interface boards are installed at the factory.
Control Panel Key Lock Enable / Disable
E-47
6. Using On-Screen Menu
NOTE: The shaded item indicates the default setting.
Advanced Menu
LAN Mode
Status
Source Select
Adjust (Source)
Ref. Adjust
Factory Default
LAN Card
Projector Name
IP Address
Subnet Mask
Gateway
MAC Address
Advanced
IP Address
Projector Options
Tools
Help
Test Pattern
Network Type
WEP
DHCP
Mail
Image Mode
Password
Security
Timer
PC Card Files
Recconect
Alert Mail
Sender’s Address
SMTP Server Name
Recipient’s Adderss 1 to 3
Test Mail
Seamless / Off
Effect
Build-in / PC Card
Automatic / Manual
IP Address
Subnet Mask
Gateway
DNS Configuration
Domain Name
Mode
Infrastructure /
802.11 Ad Hoc /
Ad Hoc
SSID
Channel
1 to 14
TX Rate
Automatic / 11M /
5.5M / 2M / 1M /
1M-2M-Automatic
WEP
Disable / 64 bit /
128 bit
Key Select
Key 1 to 4
Key 1 to 4
Host Name option None / Request /
Discover/Request
Host Name
Client-Identifer option None / Request /
Discover/Request
Use Mac Address On / Off
Client-Identifer
On/Off
None / Wipe Down / Wipe Left /
Wipe Up / Wipe Right / Box In /
Box Out / Alpha Blending
Fast / Medium / Slow
Entry / Delete
Entry / Delete
Speed
Menu
Logo
Enable / Disable
Keyword
Use Protect key / Read / Register / Delete
On / Off Timer
Sleep Timer
Execute / Exit / Logo
E-48
Active / Inactive / Edit / Delete
Remaining Time / Preset Time
6. Using On-Screen Menu
Advanced Menu
Source Select
Adjust (Source)
Ref. Adjust
Factory Default
Projector Options
Tools
Help
Test Pattern
Contents
Source Information
Page 1 Source Name / Input Terminal / Entry No. /
Horizontal Frequency / Vertical Frequency / Sync Polarity
Page 2 Signal Type / Video Type / Sync Type / Interlace / Direct Key
Projector Information Page 1 Serial Number / Remaining Lamp Time / Lamp Hour Meter /
Projector Usage / Projector ID
Page 2 Version (BIOS / Firmware / Data / FPGA)
Page 3 Version (Formatter Red)
(Boot App / Config / Degamma / Main App / Sequences)
Page 4 Version (Formatter Green)
(Boot App / Config / Degamma / Main App / Sequences)
Page 5 Version (Formatter Blue)
(Boot App / Config / Degamma / Main App / Sequences)
Cross Hatch / Cross Hatch(Inv) / Alignment / Alignment(Inv) / Horizontal Gray Scale / Horizontal Gray Scale(Inv) /
Vertical Gray Scale / Vertical Gray Scale(Inv) / Horizontal RAMP / Horizontal RAMP(Inv) / Vertical RAMP /
Vertical RAMP(Inv) / Raster(0%) / Raster(25%) / Raster(50%) / Raster(75%) / Raster(100%)
Red
On / Off
Green
On / Off
Blue
On / Off
E-49
6. Using On-Screen Menu
Entering Alphanumeric Characters by Using the Menu
5 Menu Descriptions & Functions
Alphabet or numeric characters are used for your IP address or
Projector name. To enter IP Address or Projector name, use the
software keyboard.
For using the software keyboard, see page E-84.
Source Select
Entering Alphanumeric Characters by Using the Remote
Control Numeric Buttons
Input alphanumeric characters by selecting one character at a
time with the numeric (Source/Input) buttons 1through 10(0) and
by moving the cursor with the SELECT E button. After finishing
the selection of the characters, press the ENTER button.
Whenever one of the Source/Input buttons on the remote control
is pressed, characters will be rotated.
Enables you to select a video source such as a VCR, DVD player
or PC, etc. depending on what is connected to your inputs.
Press the SELECT GH buttons on your remote control or the
Projector cabinet to highlight the menu for the item you want to
project.
NOTE: When switching the signal with the “Seamless Switch” set to “On” and the
option board mounted, a little while after the signal has been switched “Transition
Ready” will be displayed on the LCD screen of the Projector. Please press the ENTER button at this time. The seamless switching function will be activated.
Please see Page E-65 for information about the image mode function.
Entry List
For example: A → B → C → 1 → A → ...
NOTE: When holding and pressing the CTL button and pressing one of the Source/
Input buttons, another group of characters will be rotated.
For example: a → b → c → ! → a → ...
The alphanumeric characters corresponding to these Source/Input buttons are as follows:
Numeric buttons
1
2
3
4
5
6
7
8
9
0
Press
A→B→C→1
D→E→F→2
G→H→I→3
J→K→L→4
M→N→O→5
P→Q→R→6
S→T→U→7
V→W→X→8
Y→Z→/→9
*→,→ .→0
Press with CTL
a→b→c→!
d→e→f→”
g→h→i→#
j→k→l→$
m→n→o→%
p→q→r→&
s→t→u→'
v→w→x→(
y→z→?→)
;→:→+→-
Displays the list of the entry signals. Use the SELECT GH buttons on your remote control or the Projector cabinet to select the
signal and press the ENTER button on the remote control or the
Projector cabinet to display the Entry Edit Command screen.
Using the Entry List
Making any adjustments to the current picture will automatically
register its adjustments to the Entry List. The registered signal
can be loaded any time from the Entry List.
NOTE: Up to 100 presets can be registered.
Entry Edit Command
* If you have made an error in the input of a character, use the
SELECT F button and enter the correct letter or number.
NOTE: Only numbers can be entered when you use the remote control Source/
Input buttons while displaying the Software Keyboard.
You can edit signals on the Entry List.
Load ............ Enables you to select a signal from the list.
NOTE: This can be done by pressing CTL and ENTER buttons.
E-50
6. Using On-Screen Menu
Store ............ Enables you to store the currently projected signal.
NOTE: This can be done by pressing CTL and ENTRY LIST buttons.
Cut ............... Enables you to remove a selected signal from
the list and place it on the "clipboard" in the Projector.
Copy ............ Enables you to copy a selected signal from the
list and place it on the "clipboard" in the Projector.
Paste ........... Enables you to paste the signal placed on the
"clipboard" to any other line of the list. To do this,
select "Paste" and then select the line number
you want to paste to. Last press ENTER.
Edit .............. Enables you to change source names or assign
the direct key.
Colour
Increases or decreases the colour saturation level (not available for RGB).
Hue
Varies the colour level from +/- green to +/-blue. The red level
is used as reference. This adjustment is only valid for Video
and Component inputs (not available for RGB).
Sharpness
Controls the detail of the image for Video (not available for
RGB).
Setup Level
“7.5 IRE” must be chosen to project products manufactured in
USA.
Video Adjust (not available for RGB)
Source Name
Enter a signal name. Up to 18 alphanumeric characters can be used.
Noise Reduction
Input Terminal
Change the input terminal.
Select one of the three levels for reducing video noise: Low, Medium or High.
Direct key
You can assign specific remote keys for direct
signal input selection.
NOTE: The lower the Noise Reduction level, the better the image quality by way of
higher video bandwidth.
Lock
Set so that the selected signal cannot be deleted
when "All Delete" is executed. The changes cannot be saved.
Colour Matrix
Skip
Set so that the selected signal will be skipped
during auto search.
When complete, select OK and press ENTER.
To exit without storing setting, select Cancel.
Select "Source Name" and press ENTER to display the Source Name Edit window. You can
change source name on this window. Press [H]
to display the software keyboard, which you can
enter alphanumeric characters. See page E-84
for the key function of the software keyboard.
Select an appropriate colour matrix for your input signal, either
HDTV or SDTV.
Y/C Delay
All Delete ..... This feature enables you to delete all the registered signals in the Entry List.
Adjusts Y/C delay level.
The following buttons are not available for the currently projecting signals:
YTR Adjustment
1) The Cut and Paste buttons on the Entry Edit Command screen
2) The Input Terminal button on the Entry Edit screen
Adjusts luminance transient time.
Adjust (Source)
CTR Adjustment
Brightness
Adjusts the brightness level or the back raster intensity.
Adjusts chroma transient time.
Contrast
Adjusts the intensity of the image according to the incoming
signal.
Saturation
Adjust saturation at the white peak.
E-51
6. Using On-Screen Menu
DigiView - SweetVision
Setup relating to picture colour will be done.
Vivid palette, pastel vision, colour temprature and white balance
can be adjusted as your choice.
Each set value is saved as exclusive use of projected signal set
value, and also those can be saved as default value for this equipment.
The SweetVision feature provides improvement of contrast using a proprietary detail enhancement technology.
This is valid when there is signal input to MM-VIDEO and to the
MM-SDI (option).
Colour Correction (Item relating to colour adjustment)
Adjusts red, green, blue, yellow, magenta, cyan and colour gain
each independently to correct the tint on whole screen.
NOTE: This feature is not available for 480p, 576p and HDTV signals.
Colour Temperature (Item relating to colour adjustment)
This feature adjusts the colour temperature using the slide bar.
Checking "Colour Temperature" enables the colour temperature
slide bar.
Telecine
Use 3:2 pull down correction to eliminate jitter and artifacts in
video.
Auto ............. For film source such as a DVD player
2:2 Off ......... The telecine signal detection and compensation
will be performed automatically only when the
2:3 pull-down signal is input. Select this when
entrance is not desired to the 2:2 pull-down signal detection mode.
Off ............... For signals other than film sources
White Balance (Item relating to colour adjustment)
Press the White Balance button to access the Contrast/Brightness adjustment for each R, G, and B.
Return to Reference (Item relating to colour adjustment)
• Each set value of colour correction, colour temperature and
white balance is reset. (Set back to this equipment’s default
value)
• Point the cursor to “Reset” and ENTER button is pressed, confirmation screen shows up. Point the cursor to “Confirm” and
ENTER button is pressed, the set value is set back.
NOTE:
• Once the RESET is excuted, undo can’t be done even CANCEL on colour management screen is excuted.
NOTE: This feature is not available for 480p and 576p signals.
3D Y/C Separation
Set Custom (Item relating to set value memory)
Each set value for colour correction, colour temperature and white
balance can be saved to memory as exclusive use of currently
projected signal set value. The screen is shut down after saving.
This option turns on or off the 3 dimension separation feature.
Set Reference (Item relating to set value memory)
Each set value for colour correction, colour temperature and white
balance can be saved to memory as this equipment’s default
value (the value set when reset). The screen is shut down after
saving.
NOTE: This feature is available for NTSC3.58 of Video signal only.
Vertical Detail Correction
Horizontal line on picture signal can be sharpened by increasing
setting value.
NOTE: This feature is not available for RGB signal.
Colour Management
Cancel (Item relating to set value memory)
Each set value for colour correction, colour temperature and white
balance screen is shut down without saving set value to memory.
Each set up is set back to status before colour management
screen is opened.
Gamma Correction
Colour Management
Gradation of picture is selected. By doing this, dark parts can be
expressed clearly.
Graphics Enhanced ............. Correction fit to graphic signals
is done.
Graphics/NTSC ................... Corrections fit to graphic signals
and NTSC signals are done.
NTSC Enhanced ................. Correction fit to NTSC signals is
done.
E-52
PAL/SECAM2.8 ................... Gamma correction value 2.8 is
corrected.
6. Using On-Screen Menu
PAL/SECAM Enhanced ....... Correction fit to PAL signals and
SECAM signals are done.
Synchronize
Gamma 1.0 - 3.0 ................. Gamma value is set by 0.1 step.
Image Options
Pixel Adjust
Displays the Clock and Phase adjustments.
Sets display vertical frequency to be synchronized with input signal. RGB signals only.
Clock ........... Use this item to fine tune the computer image or
to remove any vertical banding that might appear.
OFF ............. Display vertical frequency - is independent of input signal - displayed picture is fixed at 75Hz.
Phase .......... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk.
(This is evident when part of your image appears
to be shimmering.) Use the SELECT F and E
buttons to adjust the image.
ON ............... Display vertical frequency - is synchronized with
input signal. Frequency range of synchronization is from 24Hz to 96Hz.
For optimum image quality - 3D Sequence Set
Select should be set according to the following
input types:
Use "Phase" only after the "Clock" is complete.
(3D Sequence Set Select may be found in - “Projector Options” → “Setup” → “Page 3” → “3D Sequence Set Select” set up should be changed.
See page E-61.)
Position
Adjusts the image location horizontally and vertically using the
SELECT F and E buttons.
Vertical frequency of 24Hz to 75Hz, - remove the
check mark “3D Sequence Set Select”.
Vertical frequency of 75Hz to 96Hz, set the check
mark “3D Sequence Set Select”.
Aspect Ratio
You can select the aspect ratio for input signal.
Select the appropriate aspect ratio using the SELECT F or E
button.
NOTE:
• When "Resolution" is set to "Native", this feature is not available, and the aspect
ratio is set to “1.33:1 (4:3)”.
ADJUST ...... When a horizontal line (the edge of picture) is
displayed on the screen while Synchronize is
“ON” it can be removed using SELECT F E
button on the remote controller.
Note: Default is Synchronize ON for SDTV, HDTV, RGB 50Hz, 60Hz signals.
Video Filter
This function reduces video noise.
Off ............... The filter is removed.
Resolution
Less ............. The low-pass filter is applied partially.
More ............ The low-pass filter is applied fully.
This allows you to activate or deactivate the Advanced AccuBlend
feature.
Auto ............. Turns on the Advanced AccuBlend feature. The
projector automatically reduces or enlarges the
current image to fit the full screen.
Blanking
This feature allows you to mask any unwanted area of the screen
image.
Adjust the Top, Bottom, Left or Right blanking with the SELECT
F or E button.
Input Resolution
Native .......... Turns off the Advanced AccuBlend feature. The
projector displays the current image in its true
resolution.
NOTE:
* When "Resolution" is set to "Native", "Aspect Ratio", "Screen" and "Overscan" are
not available.
Overscan
Select overscan percentage (0%, 5%, 8% and 10%) for signal.
NOTE: When "Resolution" is set to "Native", this feature is not available, and the
stored settings and adjustments are invalid.
This adjusts the resolution of the video area of the signal that is
input to the resolution conversion processing section. When the
resolution of the input signal cannot be detected properly with
Auto Adjust, this function can be used to manually set the correct
resolution.
E-53
6. Using On-Screen Menu
Input Position
NOTE: When connecting with a scan converter:
If an image from the scan converter is not correctly displayed, adjust to select the
best level point so that the image is displayed correctly.
Field Invert: (Upgrade support scheduled)
This feature is used to correct diagonal lines of a non-standard
interlaced signal when they appear jaggy.
Invert the odd or even field of a video signal.
This adjusts the position of the video that is input to the resolution conversion processing section.
It is the same function as “Input Position” within the “Edge Blending” screen.
Signal Level
Option Adjust
Clamp Timing
According to the signal, this function sets the detection position
(i.e., clamp position) of the black level reproduction of the analog
input signal. Normally this is not used.
Mode 0-4 ..... Select the appropriate one.
Adjust .......... This permits the video clamp position for each
signal to be set. Use "Adjust" when a clamp timing error occurs at the time of special analog signal reception such as 1080P. Note that "Adjust"
is not valid for doubler signals such as NTSC
and PAL.
To delete the "Clamp Timing" setting screen, select the SELECT
H button and press the ENTER button, or press the remote control CANCEL button.
R/G/B, Y/Cb/Cr or Y/Pb/Pr Gain:
Adjust RGB, Component or HDTV Gain to match multiple projector colour uniformity.
Lens Memory
Sync Protection
When a VCR, DVD, or some other equipment that supports
Copyguard (a copy prevention system) is played back, the screen
may be displayed in a curved manner. Adjustments are made in
such circumstances. Use the SELECT F or E button to adjust
the VD level.
This function serves to store or apply the adjusted value when
using the Shift, Focus and Zoom buttons on the projector or the
remote control.
Set Custom Point ........... Store the current adjusted values in
memory.
Use Custom Point .......... Apply the adjusted values to the current signal.
VD Delay
NOTE:
• To enable the Lens Memory feature, select [Ref. Adjust] → [Ref. Lens Memory]
and place a check mark next to “Yes” for [Use Point on Signal Change?].
• To store adjusted values common to all the input sources, use the Ref. Lens
Memory. See page E-56.
Adjustment:
This feature is used to correct vertical jitter of a signal.
E-54
6. Using On-Screen Menu
Keystone Correction
Signal Type
Select either the RGB signal type or the Component signal type.
RGB ............ RGB signal
Component .. Component signals such as Y/Cb/Cr, Y/Pb/Pr
NOTE: This feature is available on RGB only. If you do not get a better picture even
when you set "Signal Select" to "Component" in Setup, set this to "Component".
Ref. Adjust
3D Reform
This feature corrects trapezoidal distortion so that the projected
image is rectangular.
Operation of 3D Reform is available whether MM-WARP (optional)
is used or not.
MM-WARP- not installed or not active
When MM-WARP is not installed (optional) or installed but not
active only vertical adjustment in Keystone Correction is possible.
(For de-activation set no check mark on “Projector Options” →
“Setup” → “page 3” → “WARP Correction”.)
1.
2.
3.
4.
Press SELECT Button - Adjust screen size in horizontal direction.
Press SELECT Button - Choose “Vertical”.
Press SELECT Button - Adjust screen size in vertical direction.
Press ENTER after adjusting screen size. - Return to the menu.
Cornerstone
Keystone Correction
1. Project an image so that the screen is smaller than the area of the
raster.
2. Pick up any one of the corners and align the corner of the screen with
the one of the image.
Projected image
1. Press SELECT Button - Adjust screen size in vertial direction.
2. Press ENTER Button after adjusting screen size - Return to the menu.
Screen
MM-WARP - active
When MM-WARP (optional) is installed and active both vertical
and horizontal adjustment in Keystone Correction is possible.
(To activate set check mark on “Projector Options” → “Setup” →
“page 3” → “WARP Correction”.)
(The drawing shows the upper right corner.)
3. Use the SELECT GHFE button to select one icon which points in the
direction you wish to move the projected image frame.
Screen
E-55
6. Using On-Screen Menu
4. Press the ENTER button.
5. Use the SELECT GHFE button to move the projected image frame as
shown on the example.
6. Press the ENTER button.
Screen
• The indicated adjustment ranges are following;
Horizontal direction .... ± 30 degrees (maximum)
Vertical direction ........ ± 40 degrees (maximum)
• When horizontal and vertical adjustment is occured at a time, the adjustment
range will be narrower.
• Curved Line Warp Correction
Only linear screen warp is adjusted by Cornerstone Correction. Curved screen
adjustment to correct for lenses or screens (cylindical or spherical) can be adjusted by an application software, Geometric Correction Tool.
The Geometric Correction Tool is available from Digital Projection please contact
your dealer. Geometric Correction Tool version 2.0.3 or higher is recommended.
Screen
7. Use the SELECT GHFE button to select another icon which points in
the direction.
Screen
Screen Type
Select the correct aspect ratio for the screen to be used.
See also "Aspect Ratio" on page E-53.
NOTE:
• When "Resolution" is set to "Native", this selection is inactive.
8. Repeat 4-7.
9. On the Cornerstone adjustment screen, select “Exit” and then press
the ENTER button.
The confirmation screen is displayed.
Position
This feature adjusts the vertical position of the image when viewing video with an aspect ratio selected.
When some aspect ratios are selected in Image Options, the
image is displayed with black borders on the top and bottom.
You can adjust the vertical position between top and bottom.
NOTE: This option is available only when "1.78:1 (16:9)", "1.85:1" and "2.35:1 " are
selected in Screen Type and Aspect Ratio.
10.Press the SELECT F or E button to highlight the [OK] and press the
ENTER button.
This completes the keystone correction.
Selecting “Cancel” will return to the adjustment screen without saving
changes (Step 3).
Selecting "Reset" will return to the factory default.
Selecting "Undo" will exit without saving changes.
NOTE:
• In the case “Resolution” is set as “Real”, “3D Reform” can’t be chosen.
• In the case keystone warp is adjusted by “3D Reform”, “Aspect” or “Screen Setup”
can’t be changed in some case. In such a situation, “3D Reform” adjusting value
must be reset first and each setup must be changed. After that keystone warp
should be changed again.
• In the case using MM-WARP (optional), some internal part of picture signal will
be 8 bit process.
• Ask the shop this equipment was purchased when MM-WARP (optional) implementation is necessary.
• In the case Keystone Correction’s vertical setup value is adjusted when MMWARP is not in use, the data will be reflected when MM-WARP is used, however,
adjustment content will be different. Re-adjust setup value as circumstance demand.
• When 3D Reform is done, picture quality is degradated comparing to no
adjustment done.
Also, when screen is warped in a large scale, the noises occasionaly show up
on the screen.
Ref. Lens Memory
This function serves to store the adjusted value common to all
input sources when using the Shift, Focus, and Zoom buttons of
the main unit or the remote control.
NOTE:
• “3D Reform”’s adjustment value is saved even this equipment is OFF. To restore
the adjustment value to factory default setting, press “Keystone Button” on the
remote controller for more than 2 seconds.
• Press the remote controller’s “Keyston Button” while “3D Reform” screen is activated. Each time the button is pressed, [Cornerstone] screen and [Keystone]
screen are shown one after another.
E-56
Set Reference Point ............. Stores the current adjusted values in memory as a reference.
Use Reference Point ............ Applies the adjusted values
stored in Set Reference Point to
the current signal.
Return to Factory Default ..... Returns the adjusted values to
the factory default setting.
Use Point on Signal Change? .... For change to take effect at the
time of source selection, select
“Yes”.
Picture Mute during Lens Shift? ... To turn off the image and sound
during lens shift, select "Yes".
6. Using On-Screen Menu
NOTE: This option is only available when
"Yes" is selected for "Use Point on Signal
Change?".
1. Using the test pattern “Cross Hatch” of the Projector, superimpose the
screens so that the height of the 2 projected screens is the same and
the distortion disappears.
Overlapped cells
Even if “CANCEL” is executed, changes to “Set Reference Point”,
“Use Reference Point” and “Return to Factory Default” will not be
canceled.
* See "Tips on Adjusting Focus" on page E-31 for more information.
NOTE:
• Adjusted values in Ref. Lens Memory will not be returned to default by using the
Factory Default.
• To store adjusted values for each input source, use the Lens Memory.
NOTE: In the Link mode the Lens Memory feature is not available.
Edge Blending
When two or more projectors are used to project images lined up
horizontally or vertically, a blending adjustment can be performed
to make the borders of the adjacent images less conspicuous.
This description is of an adjustment example in which 2 Projectors are used to project images side-by-side.
Overlapping area
Projected area
Projected area
2. Select “On” in the “Edge Blending” screen.
• The gamma curve that is adjusted to the input screen can be adjusted between 1.0 and 3.0 in steps of 0.1. The gradation expression
of this curve is 8 bits (256 gradations).
• Use the Projector’s test pattern “Horizontal Gray Scale” allows for an
easy adjustment of the gamma curve.
Adjust until the boundary area looks seamless and smooth
3. From among the 4 locations of “G” marks on the “Edge Blending” screen,
move the cursor to the “G” mark that is in the same direction as the side
on which you would like to place the blending curve of the projector’s
projection screen.
• Facing the screen, select the “E” mark at the left side screen, and
select the “F“ mark at the right side screen, then press the ENTER
button.
4. Press the SELECT G button of the projector for the left side and move
the adjustment bar so that the adjustment bar fits the left edge of the
right screen which is superimposed on the left side screen.
Determine the blending start position of the left side screen.
• Likewise, operate the Projector of the right side and determine the
blending starting position of the right side screen.
5. Press the “G” mark when the adjustment of the blending starting position has been completed.
This will exit the adjustment mode.
6. Adjust “Input Resolution” and “Input Position” as required while viewing
the input source and adjust so that the image is superimposed neatly.
Preparation:
Set the lens position of each projector as close to center as possible.
Making the picture quality of each projector as uniform as possible will allow the screen edges (boundaries) to be less conspicuous.
For good results the Overlapping area should normally be between 15% and 25% of the image width projectors for landscape
or between 15% to 25% of image height for portrait edge blends.
This may vary depending upon screen size, lens distortion, and
setting of Gamma.
7. Select “Adjust (Source)” → “Image Options” → “Blanking” of the Advanced Menu and delete the left and right unneeded portions of the
screen as required.
NOTE:
• Edge blending is when SXGA+(1400x1050dots) is displayed in full size, the four
edge lines of screen are the standard (correction range value is 0) position to fix
the blending correction range.
Blending correction can’t be done when projected screen is smaller than full size
screen according to setting of Screen Setup (Page E-56) and Aspect Setup (Page
E-53)
E-57
6. Using On-Screen Menu
Lamp Mode
Projector Options
Menu
[Page 1]
Lamp brightness can be adjusted to 8 levels or automatically
adjusted.
Adjust .......... Choices of levels: 65%, 70%, 80%, 85%, 90%,
95%, 100%
Auto ............. Automatic adjustment is made when “ON” is selected.
Auto maintains same power after a power cycle.
Factory Default
Selecting Menu Language [Language]
You can choose one of seven languages for on-screen instructions. The options are: English, German, French, Italian, Spanish, Swedish and Japanese.
All Data /Current Signal
The Factory Default feature allows you to change adjustments
and setting to the factory preset for source.
All Data ........ Reset all the adjustments and settings for all the
signals to the factory preset except Language,
Background, Communication Speed, Projector
ID, LAN Mode, Password and Security.
Selecting Menu Mode [Menu Mode]
This feature allows you to select 4 menu modes: Advanced,
Custom, Basic and Service Menu.
Advanced Menu ...... This is the menu that contains all the
available menus and commands.
Basic Menu ............. This is the basic menu that contains minimum essentials of menus and commands.
Including Entry List:
Also deletes all the signals in the Entry List and
returns to the factory preset.
Custom Menu .......... This is the menu that you can customize
using the Custom Menu Edit to fit your
needs.
NOTE: Locked signals in Entry List cannot be deleted.
Current Signal
Service Menu .......... For service personnel only.
.................... Resets the adjustments for the current signal to
the factory preset levels.
All the items in "Adjust (Source)" can be reset.
NOTE: Locked signals in Entry List cannot be reset.
Customizing the Menu [Custom Menu Edit]
See page E-44 for instructions about how to customize the
Menu.
Selecting Menu Display Time
This option allows you to select how long the Projector waits
after the last touch of a button to turn off the menu.
The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec",
and "Auto 45 sec". The "Auto 45 sec" is the factory preset.
Manual ........ The menu can be turned off manually.
Auto 5 sec ... The menu will automatically be turned off in 5
seconds if no buttons are pressed within 5 seconds.
Auto 15 sec . The menu will automatically be turned off in 15
seconds if no buttons are pressed within 15 seconds.
Auto 45 sec . The menu will automatically be turned off in 45
seconds if no buttons are pressed within 45 seconds.
E-58
6. Using On-Screen Menu
Selecting Date Format
Eight display formats can be selected. This date format sets
the current date that appears on the upper left corner of the
screen.
Setting the Current Date and Time [Date, Time Preset]
You can set the current time, month, date, and year.
1. Type in date.
Enter month, date and year in this order using Source/Input buttons on
the remote control.
Month and date must be entered in two digits. For example, to display
"February", press "0" and "2".
2. Type in time.
Time is expressed in the 24-hour format. For example, 6:00 p.m. is entered as 18:00.
3. Select "OK" and press ENTER.
Closing the window allows the clock to start.
The current year, month, date and time are displayed on the top of the
screen.
NOTE: The Projector has a built-in clock. The clock will keep working for about 3
days after the main power is turned off. If the main power is off for 3 days or more,
the built-in clock will cease. If the built-in clock ceases, set the date and time again.
The built-in clock will not cease while in the standby condition.
Setup
[Page 1]
[Page 2]
Display Select
You can choose the desired status information to be displayed
on the screen.
The information selections are:
Date, Time, Input Terminal, Source Name, Projector ID and
Message.
The Message selections are:
“Wait a moment”.
[Page 3]
Selecting Menu Colour [Menu Colour]
You can choose between two colour modes for menu colour:
colour and monochrome.
Selecting Projector Orientation [Orientation]
This reorients your image for your type of projection.
The options are : desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.
Selecting a Colour or Logo for Background [Background]
Use this feature to display a blue/ black screen or logo when
no signal is available. The default background is "Blue".
NOTE:
• When “Logo” is selected, the “DIGITAL PROJECTION” logo is displayed.
• The background will not change when the Factory Default is performed.
Sync Termination (RGB)
This function is used to select the impedance of the sync signal.
Select "75Ω" or "Hi-Z".
NOTE: This should be "75Ω" for normal use. Select the "Hi-Z" when inputting a TTL
signal.
E-59
6. Using On-Screen Menu
[Page 2]
[Page 3]
Selecting Signal Format [Signal Select]
RGB
Allows you to choose "RGB" for an RGB source such as a
computer, or "Component" for a component video source such
as a DVD player.
Normally select "RGB/Component" and the Projector automatically detects an either incoming signal. However there may be
some component signals that the Projector is unable to detect. If this is the case, select "Component".
Enabling Auto Adjust [Auto Adjust]
When "Auto Adjust" is set to "On", the Projector automatically
determines the best resolution for the current RGB input signal to project an image.
The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock", "Phase"
and "Resolution".
Video, S-Video
This feature enables you to select composite video standards
manually.
Normally select "Auto". Select the video standard from the
pulldown menu.
Composite video standards are as follows:
NTSC .......... U.S. TV standard for video in U.S. and Canada.
NTSC4.43 ... TV standard used in Middle East countries.
PAL .............. TV standard used in Western Europe.
PAL-M ......... TV standard used in Brazil.
PAL-N .......... TV standard used in Argentine, Paraguay and
Uruguay.
PAL60 .......... TV standard used for NTSC playback on PAL
TVs.
SECAM ....... TV standard used in France and Eastern Europe.
On ............... Automatically adjusts image "Horizontal Position", "Vertical Position", "Clock", "Phase" and
"Resolution".
Off ............... User can adjust the image display functions
("Horizontal Position", "Vertical Position", "Clock",
"Phase" and "Resolution") manually.
Enabling Auto Start [Auto Start]
Turns the Projector on automatically when the power cable is
inserted into an active power outlet and the main power switch
is turned on.
This eliminates the need to always use the "Power" button on
the remote control or the Projector cabinet.
Enabling Power Off Confirmation [Power Off Confirmation]
This option determines whether a confirmation dialog for turning off the Projector will appear or not.
WARP Correction
This check box is valid when MM-WARP (optional) is installed.
When check box is checked, more “3D Reform” functions will
be able to be used as following.
• Cornerstone Correction
• Keystone Correction adjustment in horizontal direction
• Curved Warp Correction by Geometric Correction Tool
Enabling Last Memory [Last Memory]
The Projector stores the last signal data in memory for each
input (Slot 1, Slot 2, Slot 3, Slot 4).
This feature will reduce switching time between sources. If a
commercially available switcher is connected, turning on this
feature may cause the image to appear incorrectly.
Should this happen, turn this feature off to mute the screen
during switching.
E-60
6. Using On-Screen Menu
Lens Shutter on During Signal Switching
While switching the signals (screen image is muted), the light
can be absolutely shut out from the lens simultaneously with
shutter.
[Page 4]
With Check Mark ................. While switching the signals and
muting the images, shutter is
simultaneously activated.
Without Check Mark ............ While switching the signals and
muting the images, shutter is
deactivated.
3D Sequence Set Select
Use when displaying 3D images using a single projector OR
signals with a high refresh rate with motion video content.
This function optimizes the appearance of greyscale tones for
3D sources and signals which have high vertical frequencies.
Turn-on 3D Sequence Set Select for signals with a vertical
frequency between 75 Hz and 96 Hz AND when Synchronise
function is On.
Turn-off 3D Sequence Set Select for all other input frequencies OR when Synchronise function is Off.
- Also set Synchronize ON.
(To set Synchronise ON see page E53.)
CAUTION
• Relationship between [Synchronize], [Input signal vertical frequency] and [3D Sequence]
Selecting Communication Speed [Communication Speed]
This feature sets the baud rate of the PC CONTROL port (DSub 9 Pin). It supports data rates from 4800 to 38400 bps.
The default is 38400 bps. Select the appropriate baud rate for
your equipment to be connected (depending on the equipment,
a lower baud rate may be recommended for long cable runs).
Enabling and Disabling Projector ID
Each Projector needs its own unique addresses when used in
serial communication mode. You can choose one of 64 unique
address using the spin box. First select Enable. Keep pressing E button increases the number. To make your setting available, select OK.
ON
Input Signals of Vertical Frequency Vf (Hz)
24 <= Vf <= 75
75 < Vf <= 96
98 < Vf <= 120
Turn-off 3D Se- Turn-ON 3D Se- Turn-off 3D Sequence setting quence setting quence setting
Assigning Projector IDs
You can operate multiple projectors with the same remote control.
To do so:
OFF
Turn-off 3D Se- Turn-off 3D Se- Turn-off 3D Sequence setting quence setting quence setting
1. Select “Projector ID” and assign an ID number to each projector.
Synchronize
2. Select the same communication speed for both the projector.
• When [3D Sequence] setting does not fit the setting above,
greyscale tones will not be smooth.
• When operating within shaded box conditions and using
the optional MM-WARP, signals cannot be displayed in their
native resolution, they must be resized.
3. On the remote control specify the ID number of the projector to be adjusted. Press and hold the CTL and press MENU
(ADDRESS) button to enter the ID number.
You can operate the switcher assigned the same ID number
as the remote control.
NOTE: Specifying "None" for Projector ID allows you to operate multiple projectors
concurrently. However, some projectors may not synchronize to the other projectors.
Selecting Default Source [Default Source Select]
You can set the Projector to default to any one of its inputs
each time the Projector is turned on.
Last ............. Sets the Projector to default to the previous or
last active input each time the Projector is turned
on.
E-61
6. Using On-Screen Menu
Auto ............. Searches for an active source in order of Slot 1
→ Slot 2 → Slot 3 → Slot 4 → Slot 1 and displays the first found source.
Select .......... Displays the selected source input every time the
Projector is started up. Select an input from the
pull-down menu.
Projector Name
Specify a unique Projector name. Press H to display the software keyboard and type in. Up to 16 alphanumeric characters
can be used.
IP Address ............... Indicates the IP address of the Projector.
Subnet Mask ........... Indicates the subnet mask of the Projector.
Disabling the Cabinet Buttons [Control Panel Key Lock]
This option turns on or off the Control Panel Key Lock function.
Gateway .................. Indicates the gateway of network connected to the Projector.
NOTE:
• This Control Panel Key Lock does not affect the remote control functions.
• When the cabinet buttons are disabled, pressing and holding the CANCEL button
for about 10 seconds will change the setting to enable.
MAC Address .......... Indicates the MAC address of the LAN
card.
Advanced ................ Displays the IP Address setting window.
LAN Mode
This feature allows you to set various setting items when the
Projector is used on your network.
Consult with your network administrator about these settings.
NOTE:
• Connect an Ethernet LAN cable to the LAN port (RJ-45) of the Projector for network connection.
Optional wireless LAN card is available.
• The standard built-in LAN feature and a commercially LAN card are available for
network connection, but only one can be used at a time (mutual exclusion).
Reconnect ............... Use this button to connect the Projector
to a network.
NOTE: Once you have selected "OK" on the Advanced screen, you cannot cancel the
changes using "Cancel" on the LAN Mode screen.
Advanced
CAUTION: Make sure that the LAN card is removed with the
main power off. Failure to do so may cause damage to the LAN
card, or may cause the Projector to malfunction. Should a malfunction occur, turn off the main power and turn it back on.
Status
IP Address
An IP address can be automatically assigned to this Projector
by your DHCP server. If your network does not automatically
assign IP address, ask your network administrator for an address, and then register it manually.
Automatic .... Automatically assigns an IP address to the Projector from a DHCP server.
LAN Card
This option selects to use either LAN feature between the standard LAN port (RJ-45) and an optional LAN card inserted in
the PC CARD slot.
Manual ........ Provides a space for you to register the IP address or subnet mask number obtained from your
network administrator.
IP Address ... Set your IP address. Press H to display the software keyboard and type in 12 numeric characters.
Subnet Mask Set your subnet mask number. Press H to display the software keyboard and type in 12 numeric characters.
E-62
6. Using On-Screen Menu
Gateway ...... Set the default gateway of the network connected
to the Projector. Press H to display the software
keyboard and type in 12 numeric characters.
Checking this box will make the set default route
valid.
When data is sent from the LAN card, the transfer location will be searched according to the previously set routing information; however, when
the transfer location has not been found as a
result of the search, the data will be sent to the
device that holds the IP address set here. The
IP address that is set here must be one that can
be identified by a search of the routing information.
DNS Configuration
.................... Type in the IP address of DNS server on the network connected to the Projector.
12 numeric characters are used.
Domain Name
.................... Type in domain name of the network connected
to the Projector. Up to 60 alphanumeric characters can be used.
SSID (Network name):
Enter an identifier (SSID) for wireless LAN. Communication
can be done only with equipment whose SSID matches SSID
for your wireless LAN. Up to 32 alphanumeric characters can
be used (Case sensitive).
NOTE: To disable SSID, select a space (null) or "ANY"(All caps).
Channel:
Set this option when selecting [802.11 Ad Hoc] or [Ad Hoc] in
[Mode].
Select a channel number from the pull-down list. The channel
must match for all wireless devices communicating on your
wireless LAN.
NOTE: Channels in the pull-down list are different depending on which country you
live in.
TX rate:
Select a wireless transmission speed. Normally leave it as Automatic.
Try another transmission speed when the connection fails.
WEP (required for Wireless only)
Network Type (required for wireless only)
Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP
key.
Disable ........ Will not turn on the encryption feature. Your communications may be monitored by someone.
Mode:
Select communication method when using wireless LAN.
64bit ............ Uses 64-bit datalength for secure transmission.
Infrastructure
128bit .......... Uses 128-bit datalength for secure transmission.
This option will increase privacy and security
when compared to use of 64bit datalength encryption.
.................... Select this option when communicating with one
or more equipment connected to the wireless or
wired LAN network via an access point.
802.11 Ad Hoc
.................... Select this option when using the wireless LAN
to communicate with a computer in a one-to-one
correspondence. This is a method that meets the
IEEE802.11 wireless standard.
Ad Hoc ........ Select this option when using the wireless LAN
to communicate with a computer in a one-to-one
correspondence.
NOTE: The WEP settings must be the same as communication devices such as PC
or access point in your wireless network. When you use WEP, your image transmission speed will slow down.
Key Select:
Selects one key from the four keys below when selecting [64bit]
or [128bit] in [WEP].
E-63
6. Using On-Screen Menu
Key1-4:
Enter encryption key when selecting [64bit] or [128bit] in [WEP].
Up to 5 characters can be set in 64 bit and up to 13 characters
in 128 bit. Press the “HEX” button to change to “ASCII” to set
the key in ASCII digit. You can toggle this button between
“ASCII” and “HEX”.
Mail
The key can also be set in hexadecimal digit.
* Hexadecimal uses 0 to 9 and A to F.
* Up to 10 characters can be set in 64 bit and up to 26
characters in 128 bit.
NOTE: Only numbers can be entered when you use the remote control Source/
Input buttons.
DHCP
NOTE: To the Alert Mail feature on wireless LAN connection, select "Infrastructure"
for "Mode" in "Network Type".
Alert Mail:
Checking this box enables Alert Mail feature.
This option notifies your computer of an error message via email when using wireless or wired LAN.
Sender's Address:
Specify the senders address. Use the Software keyboard. Up
to 60 alphanumeric and symbols characters can be used. See
"Using Software Keyboard" in Appendix for more details.
Depending on your network environment, acquiring an IP address from a DHCP server may not be possible.
Should this happen, consult your network administrator to make
changes to the following settings.
Host Name option
Select whether or not to add option hostname for DHCP.
None ........................ Not add
SMTP Server Name:
Type in the SMTP server name to be connected to the Switcher.
Up to 60 alphanumeric characters can be used.
Recipient's Address 1 to 3:
Type in your recipient's address. Up to 60 alphanumeric and
symbols characters can be used.
Test Mail:
Send a test mail to check if your settings are correct.
Request ................... Add at the time of DHCP_REQUEST.
Discover/Request .... Add at the time of DHCP_DISCOVER
and DHCP_REQUEST.
NOTE: If you entered an incorrect address in a test, you may not receive an Alert
mail. Should this happen, check if the Recipient's Address is correctly set.
Host Name
Type in a hostname. This field is available only when “Request”
or “Discover/Request.”
NOTE: Unless any one of the "Sender's Address", "SMTP Server Name" or "Recipient's
Address 1-3" is selected, "Test Mail" is not available.
Client-identifier option
Select whether or not to add option client identifier for DHCP.
None ........................ Not add
NOTE: Be sure to highlight “OK” and press the ENTER button before executing
“Test Mail”.
Request ................... Add at the time of DHCP_REQUEST.
Discover/Request .... Add at the time of DHCP_DISCOVER
and DHCP_REQUEST.
Use MAC address
Turn on to use MAC address for Client-identifier.
Client-identifier
Type in a client identifier.
E-64
6. Using On-Screen Menu
Entry
Image Mode
To assign your password:
NOTE:
• Up to 15 alphanumeric characters can be assigned.
• Only numbers can be entered when you use the remote control Source/Input
buttons.
Installation of the MM-IMGPRO and MM-SCALING options permits the instantaneous switching of signals between two input
interface boards when “Seamless” of the “Image Mode” is selected.
• Seamless Mode - active
- Select an input
- Wait for “Transition Ready” to be displayed on the LCD screen
- Press the ENTER button to display the input.
- Next input appears immediately.
• Seamless operates between left and right input slots. The solid
lines in the following diagram are seamless switching and the
dotted lines are regular switching.
• Switching between slots on the same side is the same as Image Mode set to off.
SLOT1
1. Type a password.
Highlight “Entry” and press the ENTER button.
The “Enter the Password” screen will be displayed.
Make sure that "H" is highlighted and then press the ENTER button.
The Software keyboard appears. Use the Software keyboard to type a
password and then highlight “OK” on the “Enter the Password” screen
and press the ENTER button.
The “Confirm Password” screen will be displayed.
SLOT3
2. Type the same password again. Highlight “OK” on the “Confirm Password” screen and press the ENTER button.
Your password will be assigned.
SLOT2
SLOT4
• Alpha Blending, Wipe, and Box In/Out image effects can be
selected at the time of switching. When an effect is selected it
is initiated on pressing ENTER as above.
[Before switching]
[During switching]
Delete
To delete your password:
1. Highlight “Delete” and press the ENTER button.
The “Current Password” screen will be displayed.
[After switching]
• The drawings show an example of how “Effect-Wipe Right” works.
NOTE: Please request installation of the MM-IMGPRO and MM-SCALING options
from your dealer or service person. The customer should never open the cabinet
under any circumstances.
2. Use the Software keyboard to type your password. Highlight “OK” on
the “Current Password” screen and then press the ENTER button.
Setting a Password
Your password will be deleted.
A password can be set for your Projector to avoid operation by
an unauthorized person.
There are two password options: one for menu and the other for
logo.
When a password is set, doing any one of the following operations will display the Password input screen.
For Menu:
*
Changing the menu to Advanced
*
Editing the custom menu
For Logo:
*
Changing the background
Procedures for Password setting apply to both Menu and Logo.
In case you forget your password, follow the steps below to delete it.
1. Select the Advanced menu from the Basic menu.
The “Password” entry screen will be displayed.
2. Use the Software keyboard to type “1111”.
Highlight “OK” on the “Password” entry screen and then press the ENTER button.
The “Password Warning!!” message will be displayed.
3. Use the Software keyboard to type “3333”.
Highlight “OK” on the “Password” entry screen and then press the ENTER button.
The “Password Warning!!” message will be displayed.
E-65
6. Using On-Screen Menu
4. Use the Software keyboard to type “5555”.
Highlight “OK” on the “Password” entry screen and then press the ENTER button.
The “Delete Password. Are you sure? Yes/No” dialog box will be displayed.
5. Use the SELECT F or E button to highlight “Yes” and press the ENTER button.
Your password will be deleted.
1. Use the SELECT GH button to select “Keyword” and use the software
keyboard to enter a keyword.
NOTE: Please make a note of your keyword.
2. Use the SELECT GH button to select “Enable” and use the SELECT
GH button to select “OK”, then the Security function will be enabled. An
“Are you sure?” message will appear. Use the SELECT FE button and
press the ENTER button.
The Security function takes effect.
To register a PC card as a protect key.
Security
The Security function enables you to protect your projector so
that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a
registered PC card as a protect key. Once you have registered
your PC card as a protect key, you are required to insert the
registered PC card into the PC card slot of the projector each
time you turn on the projector. You can enable the Security function by using a keyword only.
1. Insert a PC card into the PC card slot of the projector.
2. Use the SELECT GH button to select “Use Protect key” and press the
ENTER button. A check mark will be placed.
3. Use the SELECT GH button to select "Read" and press the ENTER
button.
Data of the PC card will be read into the projector.
4. Use the SELECT GH button to select "Register" and press the ENTER
button.
Downloaded data will be registered and be displayed in the list window.
5. Use the SELECT GH button to select "Keyword" and use the software
keyboard to enter a keyword.
NOTE: To use a PC card as a protect key, you must also set up a keyword. Please
make a note of your keyword.
This completes registration of your PC card.
To enable Security, use the SELECT GH button to select "Enable" and use the SELECT GH button to select "OK" and "Security function will be enabled. An “Are you sure?" message will
appear. Use the SELECT FE button and press the ENTER button.
The Security function takes effect.
Enable/Disable ........ This turns the Security function on or off.
Keyword .................. Enter an appropriate keyword when you
use the Security function.
To turn on the projector when Security is enabled (when
using your keyword only).
(Up to 10 characters can be used.)
NOTE: Only numbers can be entered when you use the remote control Source/
Input buttons.
The Security function is available only
when your keyword is entered.
1. Press and hold the POWER button for a minimum of two seconds.
Use Protect key ....... Check this box to lock your projector
when using a PC card. To use a keyword without a PC card, do not check
this box.
Drive ........................ Switches between PC Card slots.
The projector will be turned on and display a message to the effect that
the projector is security-protected.
2. Select [Projector Options] → [Security] from the menu and press the
ENTER button.
The Release Code input screen will be displayed.
3. Enter your keyword in the Release Code input screen.
You can view the projected image.
Read ........................ Reads data of a PC card.
NOTE: Do not forget your keyword. However, if you forget your keyword, your
dealer will provide you with your Release Code. See more information at the end
of this section.
Register ................... Registers data of the PC card.
The Security function is not available unless at least one PC card is registered.
(if the “Use Protect key” check box is selected)
Up to 5 PC cards can be registered.
Delete ...................... Deletes data of a registered PC card.
To set up a keyword to enable the Security function without
using a registered PC card.
NOTE: Only numbers can be entered when you use the remote control Source/
Input buttons.
To turn on the projector when Security is enabled (when
using a PC card as a protect key).
NOTE: The projector does not support FAT32 or NTFS formatted flash memory
card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the
FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer
to the document or help file that comes with your Windows.
1. Insert your registered PC card into the PC card slot.
2. Press and hold the POWER button for a minimum of two seconds.
The projector will turn on and then recognize the PC card. Once the
image has been projected, it will stay on without the PC card.
E-66
6. Using On-Screen Menu
• The security disable mode is maintained until the main power is turned
off (by setting the main power switch to "O" or unplugging the power
cable).
In the following cases you will be asked to check the protect key or
input the keyword:
(1) When "OK" is selected at an image for which security is set and
the power is turned off then back on
(2) When the main power is turned off then back on while the security
function is enabled
(3) When you attempt to display an image for which security is set
while the security function is enabled
Tools
Provides tools for setting On/Off timer, sleep timer, capturing images, displaying files or changing your background logo in a PC
Card and drawing.
Timer
Enables you to turn on or off your projector automatically at a
specified time. Two timer functions are available: On/Off Timer
and Sleep Timer.
• Blanks (spaces) cannot be used in the Keyword section.
NOTE: The projector has a built-in clock. The clock will keep working for about
three days after the main power is turned off. If the main power is not supplied to
the projector for three days or more, the built-in clock stops working.
To delete PC card data you registered.
On/Off Timer
1. Use the SELECT GH button to select "Delete" and use the SELECT F
button to select the list window.
2. Use the SELECT GH button to select the PC card data you wish to
delete.
3. Press the SELECT E button to select "Delete" and press the ENTER
button.
The PC card data will be deleted.
If you've lost your registered PC card, proceed as follows:
NOTE: your dealer will provide you with your Release Code in exchange for your
registered keyword and Request Code. See URLs at the end of this section.
1. Press and hold the POWER button for a minimum of two seconds.
The projector will be turned on and display a message to the effect that
the projector is security-protected.
Up to 10 settings can be programmed.
2. Select [Projector Options] → [Security] from the menu and press hte
ENTER button.
• Before setting On/Off Timer, make sure that Date, Time Preset feature
is set.
The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric characters).
• Even after setting On/Off Timer, turning the projector on or off with the
remote control is possible.
3. Enter your Release Code in the Release Code Input screen.
Setting the On or Off Timer
* If the projector is turned on by entering the Release Code, your Security will be disabled.
1. Open the On/Off Timer window.
NOTE:
* Some types of PC cards cannot be registered as your protect key.
* It is recommended that you register two or more PC cards in case you lose or
damage your registered PC card.
* Formatting your registered PC card will disable your protect key function.
NOTE:
For additional information contact your dealer or Digital Projection
2. Select a program number (No. 1 to 10) by using the SELECT G or H
button.
E-67
6. Using On-Screen Menu
3. Select “Edit” and press the ENTER button to open the Edit window.
Enabling the On or Off Timer
1. To execute the setting, select “Active” .
4. Set the Day, Time (24 hours format), On-Time and Off-Time using the
SELECT buttons and the Software keyboard (1 thru 10).
2. Select “OK” and press the ENTER button.
NOTE: When one program or more are specified, all the settings are active.
NOTE: The settings will be executed in numerical order. Finished settings will be
automatically deleted.
NOTE: The On/Off Timer will not work while the cooling fans are running or an error
message appears. Do not turn off the main power switch in this condition.
Disabling the On or Off Timer
To disable the setting, select “Inactive”. Select “OK” and press
the ENTER button.
5. Select On Timer or Off Timer
Deleting the On or Off Timer settings
1. Select the setting you want to delete.
6. Repeat the Timer
To repeat the On Timer or Off Timer program every week, place a check
mark in “Repeat”.
7. Select “OK” and press the ENTER button on the remote control to complete the setting. To cancel this and return to its previous screen, select
“Cancel”.
2. Select “Delete” and press the ENTER button.
NOTE: If there is no operation for 4 hours or more after the projector is turned on
with On-Timer function, the projector will enter the standby or idle mode.
3. Select “OK” and press the ENTER button to complete the deletion.
4. Select “Delete” again and press the ENTER button to return to the previous screen.
E-68
6. Using On-Screen Menu
Enabling Sleep Timer
Help
Contents
1. Select your desired time between 30 minutes and 16 hours: Off, 0:30,
1:00, 2:00, 4:00, 8:00, 12:00, 16:00.
2. Select “Set” and press the ENTER button on the remote control.
3. The remaining time starts counting down.
4. The projector will turn off after the countdown is complete.
NOTE:
• To cancel the preset time, set "Off" for the preset time or turn off the power.
• When the remaining time reaches 3 minutes before the projector is turned off,
the "Projector will turn off in 3 minutes" message will be displayed on the bottom
of the screen.
PC Card Files
Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly.
Selecting the underlined link and pressing ENTER button moves
to the corresponding adjustment item.
NOTE: The Help menu may not be displayed correctly when an image is overscanned.
Source Information
Information
Displays the status of the current signal. This dialog box has
two pages.
Page 1
The PC Card Files feature allows you to display a list of all the
files stored in the PC card so that you can select a file you want
to display. You can also sort files by file name or date, or display
the file. See page E-28.
Changing Background Logo:
You can change the default background logo using the PC Card
Files feature. See page E-28.
NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are
not available. See page E-28.
Source Name, Input Terminal, Entry No., Horizontal Frequency,
Vertical Frequency, Sync Polarity
E-69
6. Using On-Screen Menu
Page 2
Page 3
Signal Type, Video Type, Sync Type, Interlace, Direct Key
Version (Formatter Red)
(Boot App / Config / Degamma / Main App / Sequences)
Projector Information
Displays the information for your Projector such as Remaining
Lamp Time, Lamp Hour Meter, Projector Usage, Projector ID,
version number and others. This dialog box has five pages.
Page 4
Page 1
Version (Formatter Green)
(Boot App / Config / Degamma / Main App / Sequences)
Page 5
Remaining Lamp Time, Lamp Hour Meter, Projector Usage, Projector ID
NOTE: Nothing is displayed on the item, “Serial Number”. Please confirm the serial
number on label attached on the projector itself.
Page 2
Version (Formatter Blue)
(Boot App / Config / Degamma / Main App / Sequences)
Version (BIOS/Firmware/Data/FPGA)
E-70
6. Using On-Screen Menu
Test Pattern
Press to display the test pattern. Pressing this button sequentially selects 17 test patterns for each red, green and blue.
E-71
E-72
7
Maintenance
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Cleaning the Cabinet and the Lens ......................... E-74
E-73
7. Maintenance
1 Cleaning the Cabinet and the Lens
1. Turn off the Projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol
or thinner.
3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mark the lens.
E-74
8
Appendix
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
1 Troubleshooting ...................................................... E-76
2 Specifications .......................................................... E-78
3 Cabinet Dimensions ................................................ E-80
4 Compatible Input Signal List ................................... E-82
5 Pin Assignment of PC CONTROL IN Connector (D-Sub 9 Pin) ...... E-83
6 Pin Assignment of REMOTE IN 3 Connector (XLR connector) ....... E-83
7 Pin Assignment of EXT. I/O Connector (Mini D-Sub 15 Pin) ..... E-83
8 Using Software Keyboard ....................................... E-84
9 Operation Using an HTTP Browser......................... E-84
INDEX ........................................................................ E-86
E-75
8. Appendix
1 Troubleshooting
This section helps you resolve problems you may encounter while setting up or using the projector.
Power Indicator
Indicator Condition
Blinking light
Off
Green blinking
Orange blinking
Steady light
Green
Orange
Projector Condition
0.5 sec ON,
0.5 sec OFF
2.5 sec ON,
0.5 sec OFF
0.5 sec ON,
0.5 sec OFF
2.5 sec ON,
0.5 sec OFF
Note
The main power is off
–
The projector is getting ready to turn on. Wait for a moment.
The lens shutter is closed.
Off Timer or Sleep Timer is active.
–
The projector is cooling down.
Wait for a moment.
On Timer is active.
–
The projector is turned on.
The projector is in Standby.
–
–
Status Indicator
Indicator Condition
Blinking light
Steady light
Off
Red blinking
Projector Condition
Note
Normal
1 cycle (0.5 sec ON, Lens hood or lamp cover error
2.5 sec OFF)
2 cycle (0.5 sec ON, Temperature error
0.5 sec OFF)
3 cycle (0.5 sec ON, Power error
0.5 sec OFF)
4 cycle (0.5 sec ON, Fan error
0.5 sec OFF)
6 cycle (0.5 sec ON, Lamp error
0.5 sec OFF)
Red
Circuit error
Orange
Control key locked
Green
Idle condition
–
Replace the lens hood or the lamp cover
correctly.
The projector is overheated. Move the
projector to a cooler location.
Power unit will not work correctly.
Cooling fan has stopped. Contact your
dealer.
Lamp fails to light. Wait 3 minutes and
then turn on again.
An error occurs in the circuit. Consult
your dealer.
You have pressed control panel key when
Control Key Lock is enabled.
–
Please ask your delivery outlets to handle the error codes.
Error No.
0001
0002
0003
0004
Error Messages
Cover Open
Lamp Data
Lamp Time Over
FPGA JOE2P
FPGA JOE2S
FPGA DVIOUT
FPGA WARPSEL
FPGA WARP
FPGA DVI1
FPGA DVI2
FPGA DVI3
FPGA DVI4
FPGA SDI1
FPGA SDI2
FPGA SDI3
FPGA SDI4
FPGA SLOTSEL
FPGA OSD
Description
Error No.
Cover open
Malfunction on lamp data
Lamp time over (power-off)
FPGA configuration error
0005
Set Temp.
0006
0007
Fan Stop
Lamp PS Temp.
0008
Lamp Temp.
0009
0010
0011
Lamp Off
DMD Status
DMD Temp.
0012
0013
0014
0015
Lamp Fan Stop
Pump Stop
Power Supply
Lamp Time Warn
E-76
Error Messages
Description
Temprature malfunction
in internal set
Fan stop
Temprature malfunction
on Lamp PS
Temprature malfunction
on Lamp
No lamp lighting
DMD malfunction
DMD temprature malfunction
Lamp fan stop
Pump stop malfunction
Power supply mulfunction
Lamp time over (warning)
8. Appendix
Common Problems & Solutions
Problem
Check These Items
Does not turn on
• Check that the power cable is plugged in and that the main power switch on the projector is on. See pages E27 and E-30.
• Ensure that the lamp cover is installed correctly.
• Check to see if the projector has overheated or the lamp has reached the end of its usable life. If there is
insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move
the projector to a cooler location.
• The lamp may fail to light. Wait a full minute and then turn on the power again.
• The lamp has reached the end of its usable life. Replace the lamp.
Will turn off
• Ensure that the off Timer is off. See page E-67.
No picture
•
•
•
•
•
•
•
•
•
•
•
•
*
Use the menu or Source/Input button to select your source. See page E-31 or E-50.
Ensure your cables are connected properly.
Use menus to adjust the brightness and contrast. See page E-51.
Select correct option in the Signal Select for current signal. See page E-60.
Select RGB/Component when connecting DVD player to RGB connector of the projector. See page E-60.
Apply a standard RGB signal when using RGB connector.
Adjust picture for RGB signal.
Make sure each setting is correct.
If the problem still persists, reset the settings or adjustments to factory preset levels using the Factory Default
in the Adjustment Menu. See page E-58.
If Security is enabled, a keyword or PC card as a protect key is required.
Remove the lens cap.
When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning
on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook
PC is turned on after connecting with the projector.
If the screen goes blank while using your remote control, it may be the result of the computer’s screen-saver
or power management software.
Image isn’t square to the
screen
• Reposition the projector to improve its angle to the screen. See page E-31.
• Use the 3DReform function to correct the trapezoid distortion. See page E-55.
Picture is blurred
• Adjust the focus. See page E-32.
• Reposition the projector to improve its angle to the screen. See page E-31.
• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page
E-22.
• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on.
Should this happen, let the projector stand until there is no condensation on the lens.
Image is scrolling vertically, horizontally or
both
• Use the menus or Source/Input button on the remote control or the cabinet to select the source you want to
input. See page E-31 or E-50.
Remote control does
not work
•
•
•
•
Indicator is lit or blinking
• See the Power/Status Indicator on page E-76.
Cross color in RGB
mode
• If Auto Adjust is off, turn it on or adjust the image manually with the Position/Clock in the Image Options. See
page E-53.
USB mouse does not
work
• Make sure that your USB mouse is properly connected to the projector.
The projector may not support some brands of a USB mouse.
No on-screen menu
• Press MUTE OSD if the image is muted. Or press and hold CTL and press MUTE OSD button. See page E-36.
Install new batteries. See page E-19.
Make sure there are no obstacles between you and the projector. See page E-19.
Stand within 22 feet (7 m) of the projector. See page E-19.
If the remote control cable plug is inserted into the REMOTE 1 IN jack, the remote control does not function
wirelessly. See page E-20.
• Make sure that the remote control’s ID corresponds with the projector’s ID. See page E-61.
E-77
8. Appendix
2 Specifications
Model Number
HIGHlite 12000Dsx+ / HIGHlite 8000Dsx+
Panel*1
DMDTM 0.95”3
Output Resolution
14001050 native resolution
Compatible with input resolution up to 16001200 with DigiScale
Lamp
2.0kW Bulb Type Short Arc Xenon
Built in: Overheat Protection
Lamp Over-Usage Protection
11,000 Lumens (HIGHlite 12000Dsx+)
8000 Lumens (HIGHlite 8000Dsx+)
Full Light Output at 200 - 240V
>80% corner to center
1600 : 1 Full On / Off (HIGHlite 12000Dsx+)
2000 : 1 Full On / Off (HIGHlite 8000Dsx+)
Light Output
Brightness Uniformity
Contrast Ratio
Lens Movement
Motorized Horizontal and Vertical Lens Shift
Motorized Zoom and Focus
Built in Lens Shutter
Lens Options*2
SL-14Z
SL-18Z
SL-25Z
SL-45Z
SL-07SF
Image Size
80 - 500” diagonal at 4:3
Installation
Orientation: Desktop / Front, Desktop / Rear, Ceiling / Front, Ceiling / Rear
Stacking: Up to 3 projectors can be gravity stacked
Scan Rate
Horizontal:
Vertical:
15 – 107kHz (RGB: 31kHz or over)
24 – 120Hz (Synchronous Input / Output mode : 24 – 96Hz)
Composite Video
S-Video
75ohms 1.0Vp-p (with Sync)
Y
: 75ohms 1.0Vp-p (with Sync)
C
: 75ohms 286 – 300mVp-p
Y
: 75ohms 1.0Vp-p (with Sync)
Cr,Cb
: 75ohms +/-0.35Vp-p
Input Signal
MM-VIDEO
(Built-in)
103-490
103-491
103-492
103-493
103-489
Component Video
1.45 – 1.8 : 1 (Zoom lens)
1.8 – 2.5 : 1 (Zoom lens)
2.5 – 4.5 : 1 (Zoom lens)
4.5 – 7.3 : 1 (Zoom lens)
0.73 : 1 (Fixed lens)
(Standard Definition (15kHz) only)
MM-RGB
(Built-in)
R,G,B,H,V
R,G,B
Y
Cr,Cb
: 75chms 0.7Vp-p positive polarity
: 75ohms 1.0Vp-p positive polarity (with Sync)
: 75ohms +/-0.35Vp-p positive polarity
(Component accepts HDTV and >31kHz interlaced and progressive
inc 1080i/60, 1080i50, 24sF, 25p, 24p 23.98p/sF, 720p/60 but not 60p,
RGsB, RGBS, RGBHV accepts HD progressive and progressive computer)
H/V Sync
: 1k ohms / 75ohms (Selectable)
0.7 – 4.0Vp-p / TTL positive / negative polarity
Duty N/A
Composite Sync : 1kohms / 75ohms (Selectable)
0.7 - 4.0Vp-p / TTL Positive / negative polarity
Duty N/A
Sync on Green : 75ohms 1.0Vp-p (including sync signal component of 0.3Vp-p)
MM-DVI
(Optional Board)
Digital RGB
Single Link : Pixel Clock Frequency 165MHz Max
Dual Link : Pixel Clock Frequency 202.5MHz Max
E-78
8. Appendix
MM-SDI
(Optional Board)
Input / Output Terminal
Input Slot
SDI
SDTV
: SMPTE 259M Level-C
HDTV
: SMPTE 292M (include 24sF,24p)
(includes 1080i/60, 1080i50, 24sF, 25p, 24p 23.98p/sF, 720p/60 but not 60p)
4 slots (One board each for the VIDEO board and analog RGB input board are standard equipment;
2 slots are for expansion.)
MM-VIDEO
(Built in)
Video
Input
Input
Input
BNC1 (Composite Video)
BNC2 (S-Video)
BNC3 (DVD Component)
MM-RGB
(Built in)
Analog RGB
Audio
Input
Input
BNC5 (shared with the component input connectors)
RCA (L/MONO,R)1 (No Function)
MM-DVI
(Optional Board)
Digital RGB
Audio
Input
Input
DVI-D1
Stereo Mini Jack1 (No Function)
MM-SDI
(Optional Board)
SDI
SDI
Input
Output
BNC2
BNC1
USB Port
LAN Port
Remote Control
PC Card
Ex. Control
A Type1, B Type1
RJ-451
In
Stereo Mini Jack1, XLR Connector1
Out
Stereo Mini Jack1
In
D-Sub 9pin1
Out
D-Sub 9pin*31
TypeII1
Mini D-Sub15pin1
Power Requirement
Power Consumption
Input Current
200 - 240VAC, 50 / 60Hz
2.8KW
14A
Dimensions
HIGHlite 12000Dsx+: 27.2” (W)40.1” (D)20.4” (H)
690mm (W)1018mm (D)532mm (H)
HIGHlite 8000Dsx+ : 26.4” (W)36.5” (D)16.8” (H)
670mm (W)926mm (D)425mm (H)
HIGHlite 12000Dsx+: 185.2lbs (84kg) (without lens)
HIGHlite 8000Dsx+ : 150lbs (68kg) (without lens)
PC Control
Net Weight
Environment
Operational Temperature: 50° - 95°F (10° - 35°C)
Humidity: 20 – 80% non-condensing
Storage Temperature: 14° - 122°F (-10° - 50°C)
Humidity: 20 – 80% non-condensing
Regulations
USA
Canada
Europe
UL60950
CSA60950
EN60950
Oceania
Japan
Asia
EN60950
J60950
EN60950
FCC Class A
ICES-003 Class A
EN55022 Class A
EN55024
EN61000-3-2
EN61000-3-3
AS/NZS CISPR.22 Class A
VCCI Class A
CISPR.22 Class A
*1 : Permissible deviation for RGB convergence (Pixel deviation) is 1/2 pixel or less at center; 1 pixel or less around the perimeter
(when projection upward angle is 0°).
*2 : When using the zoom lens, it must be keep that the projector is positioned at an angle of from -15 to +15 degrees from the
horizontal.
*3 : These connectors are for future extension.
Specifications are subject to change without notice.
Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments.
E-79
8. Appendix
3 Cabinet Dimensions
HIGHlite 12000Dsx+
410(16.1 )
134(5.3)
532(20.9)
80(3.2)
42(1.7)
668(26.3)
752(29.6)
134(5.3)
135
(5.3)
150
(5.9)
1018(40.1)
748(29.5)
711(28.0)
135
(5.3)
690(27.2)
636(25.1)
108(4.3)
115
(4.5 )
296(11.7)
60(2.4)
Lens Center
486(19.2)
Unit = mm (inch)
E-80
8. Appendix
HIGHlite 8000Dsx+
425(16.7)
926(36.5)
400(15.8)
670(26.4)
108
(4.3)
Lens Center
242(9.5)
Unit = mm (inch)
E-81
8. Appendix
4 Compatible Input Signal List
Signal
Resolution
Frequency H.
Refresh Rate MMMM-RGB
( Dots )
( kHz )
( Hz )
VIDEO RGsB RGBS RGBHV
VIDEO
NTSC
–
15.7
60.0
A
(Composite PAL/SECAM
–
15.6
50.0
A
S-Video)
PAL60
–
15.7
60.0
A
SDTV
480i
720 483
15.7
60.0
A
(Colour2)
575i
720 575
15.6
50.0
A
480p
720 483
31.5
60.0
A
F
U
U
575p
–
31.3
50.0
A
F
U
U
HDTV
1080i60
1920 1080
33.8
60.0
F
Analogue
1080i50
1920 1080
28.1
50.0
F
or
1080sF24
1920 1080
27.0
48.0
F
via DVI
720p60
1280 720
45.0
60.0
F
U
U
1080p30
1920 1080
33.8
30.0
F
U
U
(Colour2)
1080p25
1920 1080
28.1
25.0
F
U
U
1080p24
1920 1080
27.0
25.0
F
U
U
SD-SDI *
480i
720 483
15.7
60.0
575i
720 575
15.6
50.0
HD-SDI *
1080i60
1920 1080
33.8
60.0
1080i50
1920 1080
28.1
50.0
1080sF24
1920 1080
27.0
48.0
720p60
1280 720
45.0
60.0
1080p30
1920 1080
33.8
30.0
1080p25
1920 1080
28.1
25.0
1080p24
1920 1080
27.0
24.0
RGB
640 480
31.5
60.0
A
A
A
(Analogue and DVI)
640 480
37.9
72.8
A
A
A
640 480
37.5
75.0
A
A
A
640 480
43.3
85.0
A
A
A
800 600
35.2
56.3
A
A
A
800 600
37.9
60.3
A
A
A
800 600
48.1
72.2
A
A
A
800 600
46.9
75.0
A
A
A
800 600
53.7
85.1
A
A
A
1024 768
48.4
60.0
A
A
A
1024 768
56.5
70.1
A
A
A
1024 768
60.0
75.0
A
A
A
1024 768
68.7
85.0
A
A
A
1152 864
67.5
75.0
A
A
A
1280 960
60.0
60.0
A
A
A
1280 960
85.9
85.0
A
A
A
1280 1024
64.0
60.0
A
A
A
1280 1024
80.0
75.0
A
A
A
1280 1024
91.1
85.0
A
A
A
1400 1050
65.2
60.0
A
A
A
1400 1050
64.0
60.0
A
A
A
1400 1050
82.2
75.0
A
A
A
1400 1050
93.6
85.0
A
A
A
1600 1200
75.0
60.0
A
A
A
Code:
A - Auto, projector detects and dsiplays correctly
F - Format change required see Projector Options/Setup/Page2/Signal Select (page E60)
U - User setup required see Optimising RGB picture Automatically (Page E33), (U1 also requires separate syncs)
- Not Supported
YCrCb
MMSDI
MMDVI
A
A
A
A
A
A
A
A
A
U1
U1
U1
U1
U1
U1
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
2
Colour space for SDTV and HDTV via DVI will be RGB colour space - can be changed using Colour Matrix function.
* SD-SDI and HD-SDI signals can be input when the optional MM-SDI has been installed.
• At the time of shipping, adjustment is made to the standard signal of the display resolution/frequency; however, adjustment may be required depending on the type of personal computer.
• SDTV and HDTV signals also support a vertical frequency of fV/1.001.
• RGB signals support analog and DVI.
• Please contact your dealer about details concerning the connection of signals other than the aforementioned.
• Composite sync and other signals might not be displayed properly.
• When the resolution has been converted for the display (and is not the real resolution of the display), the thickness and
other aspects of the characters and ruled lines might not be uniform.
E-82
8. Appendix
5 Pin Assignment of PC CONTROL IN Connector (D-Sub 9 Pin)
7 Pin Assignment of EXT. I/O Connector
(Mini D-Sub 15 Pin)
The various control and switching operations are enabled by either opening (OPEN) or short circuiting (SHORT) the pin number
15 (GND) of the external control connector (EXT. I/O) with the
various pins listed in the table below.
5
4 3 2 1
10 9 8 7 6
15 14 13 12 11
Using RS-232C
Pin #
1
2
3
4
5
6
7
8
9
Signal Name
NC
RxD
TxD
NC
GND
NC
RTS
CTS
NC
Function
Not used
Reception data
Transmission data
Not used
Ground potential
Not used
Transmission request
Transmission permission
Not used
I/O
–
Input
Output
–
GND
–
Output
Input
–
• Control Functions
Pin #
14
5
10
Signal Name
NC
RxDTxD+
NC
GND
NC
RxD+
TxDNC
Function
Not used
Reception data Transmission data +
Not used
Ground potential
Not used
Reception data +
Transmission data Not used
SHORT
EXT CTL ON
POWER ON
PICTURE MUTE ON
• Input Switching (0 = SHORT, 1 = OPEN)
Using RS-422
Pin #
1
2
3
4
5
6
7
8
9
OPEN
EXT CTL OFF
POWER OFF
PICTURE MUTE OFF
I/O
–
Input
Output
–
GND
–
Input
Output
–
6 Pin Assignment of REMOTE IN 3 Connector (XLR connector)
Pin #
(Bit)
SLOT
Factory Default
11 (b3) 12 (b2) 8 (b1) 4 (b0)
0
0
0
0
1-1
VIDEO1 (CV)
0
0
0
1
1-2
VIDEO2 (S-Vid)
0
0
1
0
1-3
VIDEO3 (CMP)
0
1
0
0
2-1
RGB
0
1
0
1
2-2
None
0
1
1
0
2-3
None
1
0
0
0
3-1
None
1
0
0
1
3-2
None
1
0
1
0
3-3
None
1
1
0
0
4-1
None
1
1
0
1
4-2
None
1
1
1
0
4-3
None
* When there is no supported input channel, “None” is displayed
on the LCD screen of the projector.
NOTE: When using the external control connector (EXT. I/O) to control the Projector, short circuit pin number 14 (EXT CTL ON/OFF) and pin number 15 (GND), and
operate according to the above table with the external control (EXT CTL) set to ON.
Pin #
1
2
3
Function
Ground potentiul
DC+3.3V
Remote Control Input
I/O
GND
PWR
I
E-83
8. Appendix
8 Using Software Keyboard
9 Operation Using an HTTP Browser
Overview
The use of HTTP server functions will allow control of the Projector from a web browser without the installation of special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a
higher version for the web browser. (This device uses “JavaScript”
and “Cookies” and the browser should be set to accept these
functions. The setting method will vary depending on the version
of browser. Please refer to the help files and the other information provided in your software.)
1 to 0 and Characters
........................ Use to type in IP address or projector name
MODE ............. Selects one of three modes for alphabet and special characters.
NOTE:
* The use of HTTP server functions is not available during Standby mode.
* The display’s or button’s response can be slowed down or operation may not be
accepted depending the settings of your network. Should this happen, consult
your network administrator.
* The Projector may not respond if its buttons are repeatedly pressed in rapid
intervals. Should this happen, wait a moment and repeat. If you still can’t get any
response, pull out and then re-insert the LAN card.
Access is gained to the HTTP server functions by specifying
http:// <the Projector’s IP address> /index.html
in the entry column of the URL.
SP ................... Inserts a space
Preparation Before Use
BS ................... Deletes one character backward
Make network connections and set up the Projector and confirm
that it is complete before engaging in browser operations. (See
“LAN Mode” on page E-62.)
Operation with a browser that uses a proxy server may not be
possible depending on the type of proxy server and the setting
method. Although the type of proxy server will be a factor, it is
possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is
recommended that a proxy server not be used unless it is unavoidable.
F ..................... Returns to the previous
E ..................... Advances to the next
OK ................... Executes the selection
Cancel ............. Cancels the selection
Handling of the Address for Operation via a Browser
Regarding the actual address that is entered for the address or
entered to the URL column when operation of the Projector is via
a browser, the host name can be used as it is when the host
name corresponding to the IP address of the Projector has been
registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the Projector has been set in the “HOSTS” file of the computer being
used.
Example: When the IP address of the Projector is “192.168.73.1”,
access is gained to the HTTP server functions by specifying
http://192.168.73.1/index.html for the address or the entry
column of the URL.
E-84
8. Appendix
Picture: Controls the video adjustment of the Projector.
Brightness G Increments the brightness adjustment value.
Structure of the HTTP Server
Brightness H Decrements the brightness adjustment value.
Contrast G ... Increments the contrast adjustment value.
Contrast H ... Decrements the contrast adjustment value.
Saturation G Increments the saturation adjustment value.
Saturation H Decrements the saturation adjustment value.
Color G ........ Increments the color adjustment value.
Color H ........ Decrements the color adjustment value.
Hue G .......... Increments the hue adjustment value.
Hue H .......... Decrements the hue adjustment value.
Sharpness G Increments the sharpness adjustment value.
Sharpness H Decrements the sharpness adjustment value.
* The functions that can be controlled will vary depending on the signal
being input to the Projector.
Source Select: This switches the input connector of the Projector.
Note: The operations that follow represent the Projector in the factory shipping
condition. The operation will change depending on the insertion of interface
boards.
Power: This controls the power of the Projector.
On ............... Power is switched on.
Off ............... Power is switched off.
Mute: This controls the mute function of the Projector.
All On .......... Mutes each of the video and on-screen display
functions.
All Off .......... Cancels the muting of each of the video and onscreen display functions.
S1
S1
S1
Video
S-Video
Component
S2
S2
S2
S3
S3
S3
S4
S4
S4
RGB
None
None
None
None
None
None
None
None
Selects the CVBS input connector of Slot 1.
Selects the S-Video input connector of Slot 1.
Selects the Component video input connector of Slot 1.
Selects the RGB input connector of Slot 2.
No operation.
No operation.
No operation.
No operation.
No operation.
No operation.
No operation.
No operation.
Switcher Status: This displays the condition of the Projector.
Error Status ............. Displays the status of errors occurring
within the Projector.
Picture On ... Mutes the video.
Picture Off ... Cancels the video muting.
OSD On ....... Mutes the on-screen display.
OSD Off ....... Cancels the muting of the on-screen display.
E-85
Refresh .................... Updates the display of the following conditions.
INDEX
NUMBER
F
3D Reform .......................................................................... E-55
3D Sequence Set Select .................................................... E-61
3D Y/C Separation ............................................................. E-52
Factory Default ................................................................... E-58
Ferrite clamp core ..................................................... E-10,E-24
Frame ................................................................................. E-12
A
G
Adjust (Source) .................................................................. E-51
Advanced ........................................................................... E-62
Advanced Menu ................................................................. E-44
Alert Mail ............................................................................ E-64
Aspect Ratio ....................................................................... E-53
Auto Adjust ......................................................................... E-60
Auto Start ........................................................................... E-60
Gamma Correction ............................................................. E-52
Gateway ............................................................................. E-62
H
Help .................................................................................... E-69
HTTP Server ...................................................................... E-85
Hue .................................................................................... E-51
B
BACK LIGHT Switch .......................................................... E-13
Background ........................................................................ E-59
Band .......................................................................... E-10,E-24
Battery ....................................................................... E-10,E-19
Blanking ............................................................................. E-53
Brightness .......................................................................... E-51
I
Image Mode ....................................................................... E-65
Image Options .................................................................... E-53
Input Position ..................................................................... E-54
Input Resolution ................................................................. E-53
Input terminals .......................................................... E-12,E-15
IP Address .......................................................................... E-62
C
Channel .............................................................................. E-63
Clamp Timing ..................................................................... E-54
Color .................................................................................. E-51
Color Correction ................................................................. E-52
Color Management ............................................................ E-52
Color Matrix ........................................................................ E-51
Color Temperature ............................................................. E-52
Communication Speed ....................................................... E-61
Contrast ............................................................................. E-51
CONTRAST Adjustment Dial ............................................. E-13
Control panel ............................................................. E-12,E-13
Control Panel Key Lock ..................................................... E-62
Control terminals ....................................................... E-12,E-14
Cornerstone ....................................................................... E-55
CTR Adjustment ................................................................. E-51
Custom menu ..................................................................... E-44
Custom Menu Edit .................................................... E-44,E-58
D
Date Format ....................................................................... E-59
Date, Time Preset .............................................................. E-59
Default Source Select ........................................................ E-61
DHCP ................................................................................. E-64
Display Select .................................................................... E-59
DNS Configuration ............................................................. E-63
Domain Name .................................................................... E-63
DVI-D signal cable ............................................................. E-10
K
Key Select .......................................................................... E-63
Keystone ............................................................................ E-55
L
Lamp Mode ........................................................................ E-58
LAN Card ........................................................................... E-62
LAN Mode .......................................................................... E-62
Language ........................................................................... E-58
Last Memory ...................................................................... E-60
LCD Screen ....................................................................... E-13
Lens Memory ..................................................................... E-54
Lens shutter on during signal swiching .............................. E-61
M
MAC Address ..................................................................... E-62
Mail .................................................................................... E-64
Main power switch .................................................... E-12,E-30
Menu .................................................................................. E-58
Menu Color ........................................................................ E-59
Menu Display Time ............................................................ E-58
Menu Mode ........................................................................ E-58
MM-DVI .............................................................................. E-16
MM-RGB ............................................................................ E-15
MM-SDI .............................................................................. E-16
MM-VIDEO ......................................................................... E-15
Mode .................................................................................. E-63
E
Edge Blending .................................................................... E-57
Entry Edit Command .......................................................... E-50
Entry List ............................................................................ E-56
N
Network Type ..................................................................... E-63
Noise Reduction ................................................................. E-51
E-86
INDEX
O
T
On / Off Timer ..................................................................... E-67
Option Adjust ...................................................................... E-54
Option Boards .................................................................... E-16
Orientation ......................................................................... E-59
Overscan ............................................................................ E-53
Telecine .............................................................................. E-52
Test Mail ............................................................................. E-64
Test Pattern ........................................................................ E-71
Timer .................................................................................. E-67
Tools ................................................................................... E-67
TX rate ............................................................................... E-63
P
Password ........................................................................... E-65
PC Card Files ..................................................................... E-69
PC CARD Slot .................................................................... E-14
Picture ................................................................................ E-51
Pixel Adjust ........................................................................ E-53
Position ..................................................................... E-53,E-56
Power cable .............................................................. E-12,E-27
POWER Indicator ............................................................... E-13
Power Off Confirmation ...................................................... E-60
Projector ID ........................................................................ E-61
Projector Information .......................................................... E-70
Projector Name .................................................................. E-62
Projector Options ............................................................... E-58
U
USB mouse ........................................................................ E-45
User’s Manual .................................................................... E-10
V
VD Delay ............................................................................ E-54
Ventilation (inlet) ................................................................ E-12
Ventilation (outlet) .............................................................. E-12
Vertical Detail Correction ................................................... E-52
Video Adjust ....................................................................... E-51
Video Filter ......................................................................... E-53
W
R
Recipient’s Address ............................................................ E-64
Reconnect .......................................................................... E-62
Ref. Adjust .......................................................................... E-55
Ref. Lens Memory .............................................................. E-56
Remote cable ............................................................ E-10,E-20
Remote control .......................................................... E-10,E-17
Remote Sensor ......................................................... E-12,E-19
Resolution .......................................................................... E-53
WARP Correction ............................................................... E-60
WEP ................................................................................... E-63
White Balance .................................................................... E-52
Y
Y/C Delay ........................................................................... E-51
YTR Adjustment ................................................................. E-51
S
Saturation ........................................................................... E-51
Screen ................................................................................ E-56
Screen Type ....................................................................... E-56
Seamless ........................................................................... E-65
Security .............................................................................. E-66
Sender’s Address ............................................................... E-64
Setup .................................................................................. E-59
Setup Level ........................................................................ E-51
Sharpness .......................................................................... E-51
Signal Level ....................................................................... E-54
Signal Select ...................................................................... E-60
Signal Type ........................................................................ E-55
Sleep Timer ........................................................................ E-69
SMTP Server Name ........................................................... E-64
Source Information ............................................................. E-69
Source Select ..................................................................... E-56
SSID ................................................................................... E-63
Status ................................................................................. E-62
STATUS Indicator ............................................................... E-13
Subnet Mask ...................................................................... E-62
SweetVision ....................................................................... E-52
Sync Protection .................................................................. E-54
Sync Termination (RGB) .................................................... E-59
Synchronize ....................................................................... E-53
E-87
