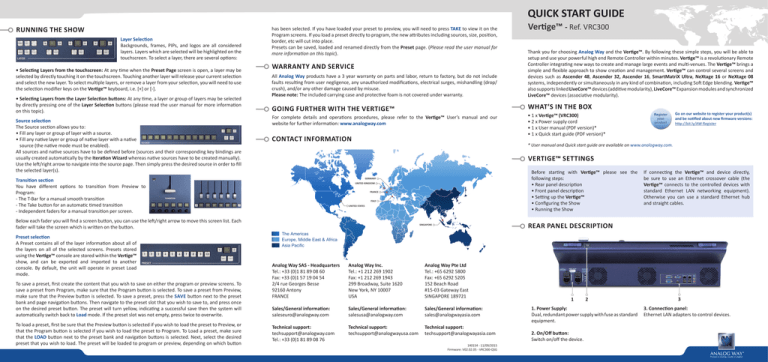

QUICK START GUIDE
QUICK START GUIDE
RUNNING THE SHOW
has been selected. If you have loaded your preset to preview, you will need to press TAKE to view it on the
Program screens. If you load a preset directly to program, the new attributes including sources, size, position,
border, etc will cut into place.
Presets can be saved, loaded and renamed directly from the Preset page. (Please read the user manual for
more information on this topic).
Layer Selection
Backgrounds, frames, PIPs, and logos are all considered
layers. Layers which are selected will be highlighted on the
touchscreen. To select a layer, there are several options:
• Selecting Layers from the Layer Selection buttons: At any time, a layer or group of layers may be selected
by directly pressing one of the Layer Selection buttons (please read the user manual for more information
on this topic).
Source selection
The Source section allows you to:
• Fill any layer or group of layer with a source.
• F ill any native layer or group of native layer with a native
source (the native mode must be enabled).
All sources and native sources have to be defined before (sources and their corresponding key bindings are
usually created automatically by the Iteration Wizard whereas native sources have to be created manually).
Use the left/right arrow to navigate into the source page. Then simply press the desired source in order to fill
the selected layer(s).
GERMANY
GOING FURTHER WITH THE VERTIGE™
WHAT’S IN THE BOX
For complete details and operations procedures, please refer to the Vertige™ User’s manual and our
website for further information: www.analogway.com
GERMANY
GERMANY
UNITED KINGDOM
UNITED KINGDOM
FRANCE
FRANCE
ITALY
All Analog Way products have a 3 year warranty on parts and labor, return to factory, but do not include
faults resulting from user negligence, any unauthorized modifications, electrical surges, mishandling (drop/
crush), and/or any other damage caused by misuse.
Please note: The included carrying case and protective foam is not covered under warranty.
Thank you for choosing Analog Way and the Vertige™. By following these simple steps, you will be able to
setup and use your powerful high end Remote Controller within minutes. Vertige™ is a revolutionary Remote
Controller integrating new ways to create and manage large events and multi-venues. The Vertige™ brings a
simple and flexible approach to show creation and management. Vertige™ can control several screens and
devices such as Ascender 48, Ascender 32, Ascender 16, SmartMatriX Ultra, NeXtage 16 or NeXtage 08
systems, independently or simultaneously in any kind of combination, including Soft Edge blending. Vertige™
also supports linked LiveCore™ devices (additive modularity), LiveCore™ Expansion modules and synchronized
LiveCore™ devices (associative modularity).
WARRANTY AND SERVICE
• Selecting Layers from the touchscreen: At any time when the Preset Page screen is open, a layer may be
selected by directly touching it on the touchscreen. Touching another layer will release your current selection
and select the new layer. To select multiple layers, or remove a layer from your selection, you will need to use
the selection modifier keys on the Vertige™ keyboard, i.e. [+] or [-].
ITALY
UNITED KINGDOM
FRANCE
CONTACT INFORMATION
ITALY
UNITED STATES
VERTIGE™ SETTINGS
SINGAPORE
SINGAPORE
GERMANY
UNITED KINGDOM
FRANCE
ITALY
UNITED STATES
Below each fader you will find a screen button, you can use the left/right arrow to move this screen list. Each
fader will take the screen which is written on the button.
To save a preset, first create the content that you wish to save on either the program or preview screens. To
save a preset from Program, make sure that the Program button is selected. To save a preset from Preview,
make sure that the Preview button is selected. To save a preset, press the SAVE button next to the preset
bank and page navigation buttons. Then navigate to the preset slot that you wish to save to, and press once
on the desired preset button. The preset will turn yellow, indicating a successful save then the system will
automatically switch back to Load mode. If the preset slot was not empty, press twice to overwrite.
To load a preset, first be sure that the Preview button is selected if you wish to load the preset to Preview, or
that the Program button is selected if you wish to load the preset to Program. To Load a preset, make sure
that the LOAD button next to the preset bank and navigation buttons is selected. Next, select the desired
preset that you wish to load. The preset will be loaded to program or preview, depending on which button
Before starting with Vertige™ please see the
following steps:
• Rear panel description
• Front panel description
• Setting up the Vertige™
• Configuring the Show
• Running the Show
SINGAPORE
Transition section
You have different options to transition from Preview to
Program:
- The T-Bar for a manual smooth transition
- The Take button for an automatic timed transition
- Independent faders for a manual transition per screen.
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
• 1 x Vertige™ (VRC300)
• 2 x Power supply cord
• 1 x User manual (PDF version)*
• 1 x Quick start guide (PDF version)*
* User manual and Quick start guide are available on www.analogway.com.
UNITED STATES
UNITED STATES
Preset selection
A Preset contains all of the layer information about all of
the layers on all of the selected screens. Presets stored
using the Vertige™ console are stored within the Vertige™
show, and can be exported and imported to another
console. By default, the unit will operate in preset Load
mode.
Vertige™ - Ref. VRC300
If connecting the Vertige™ and device directly,
be sure to use an Ethernet crossover cable (the
Vertige™ connects to the controlled devices with
standard Ethernet LAN networking equipment).
Otherwise you can use a standard Ethernet hub
and straight cables.
REAR PANEL DESCRIPTION
SINGAPORE
The Americas
Europe, Middle East & Africa
Asia Pacific
Analog Way SAS - Headquarters
Tel.: +33 (0)1 81 89 08 60
Fax: +33 (0)1 57 19 04 54
2/4 rue Georges Besse
92160 Antony
FRANCE
Analog Way Inc.
Tel.: +1 212 269 1902
Fax: +1 212 269 1943
299 Broadway, Suite 1620
New York, NY 10007
USA
Sales/General information:
[email protected]
Sales/General information:
[email protected]
Analog Way Pte Ltd
Tel.: +65 6292 5800
Fax: +65 6292 5205
152 Beach Road
#15-03 Gateway East
SINGAPORE 189721
Sales/General information:
[email protected]
Technical support:
[email protected]
Tel.: +33 (0)1 81 89 08 76
Technical support:
[email protected]
Technical support:
[email protected]
140154 - 11/09/2015
Firmware: V02.02.05 - VRC300-QSG
1
2
1. Power Supply:
Dual, redundant power supply with fuse as standard
equipment.
2. On/Off button:
Switch on/off the device.
3
3. Connection panel:
Ethernet LAN adapters to control devices.
FRONT PANEL DESCRIPTION
SETTING UP THE VERTIGE™ & CONFIGURING THE SHOW
5
6
7
1
1
Starting the Vertige™
Press Start
2
3
4
1- Touch screen
The touch screen 15’’6 Wide displays comfortably on
the same page, the representation of the Program
& Preview but also of a typical scene (Blend + 2
satellites). It is important to have the whole scene
represented to work on multiple layers from
different screens at the same time (change of source
of background, for example). It is useful to have both
states Program/Preview shown at the same time as
the LiveCore™ series allows you to change one or the
other at any time (even during an effect).
2- Preset section
This section allows the operator to save/load its
scene presets (10 direct access presets and a page
mechanism to organize them).
3- Layer section
This section enables the operator to select a set of
layers which belong to different screens in order to
edit them simultaneously. Various criteria are used to
perform advanced combinations. It will be possible
to save those combinations for later use.
4- Source section
This section allows assigning sources to the selected
layers in Program or Preview. Twelve contextual
buttons display the name of source. The capability
to change a page allows benefiting from numerous
sources.
8
5- Control section
This section enables the operator to select which
preset to work with, and have direct access to basic
functions applied to all selected layers (Freeze, Clear,
Unify...).
6- Edit section
This section allows the operator to edit the selected
layers in three different ways: roughly by the joystick,
finely by coders or directly by numpad. The block
displaying the numpad is contextual: it also provides
access to pages of shortcuts, tools, layer presets
(Position, Size, Border, Effect …).
7- Transition section
This section enables to use the T-Bar for transitions.
Sliders can be used like T-Bar (Effects) or like Faders
(Alpha). Sliders are motorized in order to see the
current state of the selection.
8- Control Transition
The ALPHA button is used to give a specific role to
the sliders:
• If the ALPHA mode is disabled (key backlight turned
off), sliders allow to individually mix each screen
• If the ALPHA mode is enabled (key illuminates in
RED), different layers of different screens can be
assigned to a slider, they will allow to control the
layer opacity (transparency).
The CUE SEQUENCE mode allows buttons to be used
for controlling cue sequence playback.
2
Configuring the Vertige™
Network
Press the SETTINGS button in
the upper-right corner
Select the Network tab
Select the Ethernet port you
want to use
Enter the desired IP address,
subnet mask and gateway
Press Apply
3
Creating a User
Select the CREATE option.
Enter a name and
a password (optional)
Press Create
Logging in
Select the LOGIN option
Select a user
Press Login
Wizard Step 3 (Scene)
Select the total number
of screens wired to your
devices.
Wizard Step 2 (Devices)
Enter the IP address of the Master device. If
you have selected the Synchronized option,
then check the Slave #X boxes to enable
up to three additional devices that will be
synchronized with the Master device. Then
adjust each device IP address to match
your network configuration. Press the Next
button to continue.
Wizard Step 4 (Screens)
Rename each screen if necessary. If some of the screens will be
used for a blend, adjust their size accordingly. Press Create.
Note 1: The wizard will automatically create an assembly with its devices
and streams, the screens, the sources and the front panel key bindings.
Note 2: If your event requires creating other devices and screens, use
the wizard as many times as necessary.
Note 3: After using the wizard, you may have to adjust some default
settings in the assemblies/ screens/sources.
Configuring a Source
Select the SOURCE tab
Select a source
Renaming the Source
Select the EDIT option
Enter a name / Press Apply
Note: Use a short name with a maximum of two
words to ensure readability on LCD buttons.
Note: Creating a show
will automatically create a
default iteration
Configuring an Assembly
Select the ASSEMBLY tab
Select an assembly
Configuring the Inputs
Select the IN/OUT/INPUT
option.
Press All Inputs to set up
automatically all the inputs
of the devices.
8
Configuring the Source key
binding
Select the EDIT option
Navigate to an empty key
Press the corresponding button
on the touch screen.
Press Apply
Configuring a Native Source
Select the NATIVE tab then select the
CREATE option
Enter a name. Navigate to an empty key.
Press the corresponding button on the
touch screen.
Press Create
Loading an Iteration
Select the LOAD option
Select an iteration
Press Load
Loading a Show
Select the LOAD option
Select a show
Press Load
6
5
Wizard Step 1 (Assembly)
In the Device Type field, select the type of
device that will be handled by this assembly.
In the Device Extension field, select the option
that matches you assembly configuration
(Single, Linked with Slave, Linked with LOE
or Synchronized). If your device(s) have an
option (4K or 4K - PL), then make sure to
select it in the Device Option field.
Creating a Show
Select the CREATE option
Enter a name
Press Create
4
7
Configuring the Internal
Rate
Select the PRECONFIG/RATE
option.
Choose
the
desired
mode (Internal, Follow or
Framelock).
Adjust the settings.
Configuring the Streams
Select the STREAM/ LIVE
option.
Make sure each "Live"
stream matches the correct
input plug. Select the
STREAM/NATIVE option to
create native streams.
Configuring a Screen
Select the SCREEN tab
Select a screen
Configuring the Scene
Select the SCENE option.
Press Move left or Move right to move your
screen in the scene.
Configuring the Screen Mapping
Select the MAP option
Make sure each screen area is mapped
to the correct device output.
Note: If some mappings don’t match
your wiring, remove them and create
new ones.
Configuring the Native Source key binding
Select the EDIT option. Navigate to an empty key
Press the corresponding button
Configuring the streams mapping
Select the MAP / QUICK option.
Select the native stream that will get displayed on the selected native
layers when the corresponding source key is pressed in the front panel.
Configuring the Soft Edge blending
Select the BLENDING option.
Adjust the covering
Adjust the black levels
Adjust the blending curves
9
Running the Show
Select the PRESET tab
Enjoy!
QUICK START GUIDE
RUNNING THE SHOW
has been selected. If you have loaded your preset to preview, you will need to press TAKE to view it on the
Program screens. If you load a preset directly to program, the new attributes including sources, size, position,
border, etc will cut into place.
Presets can be saved, loaded and renamed directly from the Preset page. (Please read the user manual for
more information on this topic).
Layer Selection
Backgrounds, frames, PIPs, and logos are all considered
layers. Layers which are selected will be highlighted on the
touchscreen. To select a layer, there are several options:
• Selecting Layers from the Layer Selection buttons: At any time, a layer or group of layers may be selected
by directly pressing one of the Layer Selection buttons (please read the user manual for more information
on this topic).
Source selection
The Source section allows you to:
• Fill any layer or group of layer with a source.
• F ill any native layer or group of native layer with a native
source (the native mode must be enabled).
All sources and native sources have to be defined before (sources and their corresponding key bindings are
usually created automatically by the Iteration Wizard whereas native sources have to be created manually).
Use the left/right arrow to navigate into the source page. Then simply press the desired source in order to fill
the selected layer(s).
GERMANY
GOING FURTHER WITH THE VERTIGE™
WHAT’S IN THE BOX
For complete details and operations procedures, please refer to the Vertige™ User’s manual and our
website for further information: www.analogway.com
GERMANY
GERMANY
UNITED KINGDOM
UNITED KINGDOM
FRANCE
FRANCE
ITALY
All Analog Way products have a 3 year warranty on parts and labor, return to factory, but do not include
faults resulting from user negligence, any unauthorized modifications, electrical surges, mishandling (drop/
crush), and/or any other damage caused by misuse.
Please note: The included carrying case and protective foam is not covered under warranty.
Thank you for choosing Analog Way and the Vertige™. By following these simple steps, you will be able to
setup and use your powerful high end Remote Controller within minutes. Vertige™ is a revolutionary Remote
Controller integrating new ways to create and manage large events and multi-venues. The Vertige™ brings a
simple and flexible approach to show creation and management. Vertige™ can control several screens and
devices such as Ascender 48, Ascender 32, Ascender 16, SmartMatriX Ultra, NeXtage 16 or NeXtage 08
systems, independently or simultaneously in any kind of combination, including Soft Edge blending. Vertige™
also supports linked LiveCore™ devices (additive modularity), LiveCore™ Expansion modules and synchronized
LiveCore™ devices (associative modularity).
WARRANTY AND SERVICE
• Selecting Layers from the touchscreen: At any time when the Preset Page screen is open, a layer may be
selected by directly touching it on the touchscreen. Touching another layer will release your current selection
and select the new layer. To select multiple layers, or remove a layer from your selection, you will need to use
the selection modifier keys on the Vertige™ keyboard, i.e. [+] or [-].
ITALY
UNITED KINGDOM
FRANCE
CONTACT INFORMATION
ITALY
UNITED STATES
VERTIGE™ SETTINGS
SINGAPORE
SINGAPORE
GERMANY
UNITED KINGDOM
FRANCE
ITALY
UNITED STATES
Below each fader you will find a screen button, you can use the left/right arrow to move this screen list. Each
fader will take the screen which is written on the button.
To save a preset, first create the content that you wish to save on either the program or preview screens. To
save a preset from Program, make sure that the Program button is selected. To save a preset from Preview,
make sure that the Preview button is selected. To save a preset, press the SAVE button next to the preset
bank and page navigation buttons. Then navigate to the preset slot that you wish to save to, and press once
on the desired preset button. The preset will turn yellow, indicating a successful save then the system will
automatically switch back to Load mode. If the preset slot was not empty, press twice to overwrite.
To load a preset, first be sure that the Preview button is selected if you wish to load the preset to Preview, or
that the Program button is selected if you wish to load the preset to Program. To Load a preset, make sure
that the LOAD button next to the preset bank and navigation buttons is selected. Next, select the desired
preset that you wish to load. The preset will be loaded to program or preview, depending on which button
Before starting with Vertige™ please see the
following steps:
• Rear panel description
• Front panel description
• Setting up the Vertige™
• Configuring the Show
• Running the Show
SINGAPORE
Transition section
You have different options to transition from Preview to
Program:
- The T-Bar for a manual smooth transition
- The Take button for an automatic timed transition
- Independent faders for a manual transition per screen.
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
• 1 x Vertige™ (VRC300)
• 2 x Power supply cord
• 1 x User manual (PDF version)*
• 1 x Quick start guide (PDF version)*
* User manual and Quick start guide are available on www.analogway.com.
UNITED STATES
UNITED STATES
Preset selection
A Preset contains all of the layer information about all of
the layers on all of the selected screens. Presets stored
using the Vertige™ console are stored within the Vertige™
show, and can be exported and imported to another
console. By default, the unit will operate in preset Load
mode.
Vertige™ - Ref. VRC300
If connecting the Vertige™ and device directly,
be sure to use an Ethernet crossover cable (the
Vertige™ connects to the controlled devices with
standard Ethernet LAN networking equipment).
Otherwise you can use a standard Ethernet hub
and straight cables.
REAR PANEL DESCRIPTION
SINGAPORE
The Americas
Europe, Middle East & Africa
Asia Pacific
Analog Way SAS - Headquarters
Tel.: +33 (0)1 81 89 08 60
Fax: +33 (0)1 57 19 04 54
2/4 rue Georges Besse
92160 Antony
FRANCE
Analog Way Inc.
Tel.: +1 212 269 1902
Fax: +1 212 269 1943
299 Broadway, Suite 1620
New York, NY 10007
USA
Sales/General information:
[email protected]
Sales/General information:
[email protected]
Analog Way Pte Ltd
Tel.: +65 6292 5800
Fax: +65 6292 5205
152 Beach Road
#15-03 Gateway East
SINGAPORE 189721
Sales/General information:
[email protected]
Technical support:
[email protected]
Tel.: +33 (0)1 81 89 08 76
Technical support:
[email protected]
Technical support:
[email protected]
140154 - 11/09/2015
Firmware: V02.02.05 - VRC300-QSG
1
2
1. Power Supply:
Dual, redundant power supply with fuse as standard
equipment.
2. On/Off button:
Switch on/off the device.
3
3. Connection panel:
Ethernet LAN adapters to control devices.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
