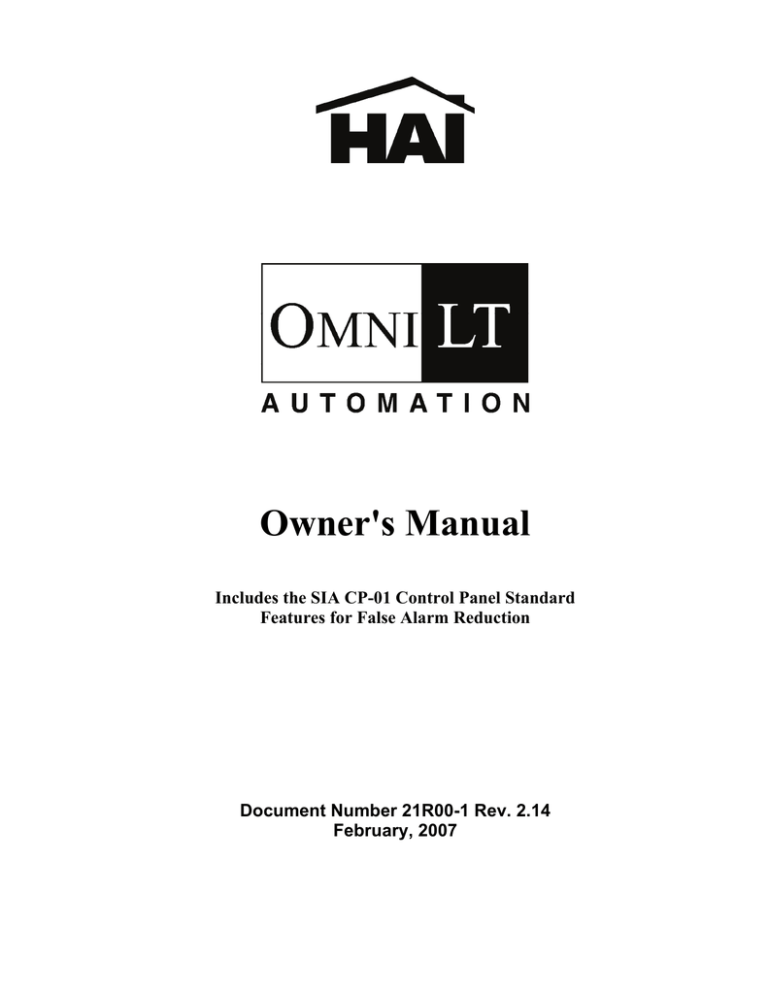

Owner's Manual
Includes the SIA CP-01 Control Panel Standard
Features for False Alarm Reduction
Document Number 21R00-1 Rev. 2.14
February, 2007
Document Number 21R00-1 Rev. 2.14
February, 2007
Copyright © 2000-2007 HAI
All Rights Reserved
www.homeauto.com
Contents
INTRODUCTION........................................................................................................................................... 1
Underwriter's Laboratories (UL) Listing .........................................................................................................................................1
OVERALL DESCRIPTION .......................................................................................................................... 2
Console Operation ...........................................................................................................................................................................2
Normal Top-Level Display ..............................................................................................................................................................3
Display Menus .................................................................................................................................................................................3
Main Menu..................................................................................................................................................................................4
Error Beeps .................................................................................................................................................................................4
Trouble Beeps.............................................................................................................................................................................4
Confirmation Beep......................................................................................................................................................................5
Cancel .........................................................................................................................................................................................5
Time Out.....................................................................................................................................................................................5
OmniLT Maintenance......................................................................................................................................................................5
SECURITY SYSTEM OPERATION ........................................................................................................... 6
Disarming the Security System and Silencing Alarms ....................................................................................................................6
Arming the Security System ............................................................................................................................................................6
Using Shortcut Keys ........................................................................................................................................................................7
Quick Arm .......................................................................................................................................................................................7
What Happens When You Arm the Security System ......................................................................................................................8
Exit Error .........................................................................................................................................................................................8
Bypassing Zones ..............................................................................................................................................................................9
Auto-Bypass ...............................................................................................................................................................................9
Restoring Zones ...............................................................................................................................................................................9
What To Do When You Come Home ............................................................................................................................................10
What Happens When the Alarm is Activated ................................................................................................................................10
Burglar Alarm Activated ..........................................................................................................................................................10
Fire Alarm Activated ................................................................................................................................................................11
Gas Alarm Activated ................................................................................................................................................................11
Emergency Keys ............................................................................................................................................................................11
Police Emergency .....................................................................................................................................................................12
Fire Emergency.........................................................................................................................................................................12
Auxiliary Emergency................................................................................................................................................................12
Duress Code Entered or Duress Alarm Activated..........................................................................................................................12
Alarm Reset ...................................................................................................................................................................................12
Alarm Cancel .................................................................................................................................................................................12
Trouble Indications ........................................................................................................................................................................13
Codes .............................................................................................................................................................................................13
Master Code..............................................................................................................................................................................13
Manager Code...........................................................................................................................................................................14
User Code .................................................................................................................................................................................14
Duress Code..............................................................................................................................................................................14
Panic Switches ...............................................................................................................................................................................14
Testing Your System......................................................................................................................................................................14
i
CONTROL .................................................................................................................................................... 15
About UPB.....................................................................................................................................................................................15
HAI Lighting Control (HLC) Format.............................................................................................................................................16
About Rooms ............................................................................................................................................................................16
About Room Controllers...........................................................................................................................................................16
Room Controller LED Indicators..............................................................................................................................................16
About House Controllers ..........................................................................................................................................................17
About Vizia RF Z-Wave ................................................................................................................................................................17
Vizia RF Z-Wave Format .........................................................................................................................................................17
About CentraLite ...........................................................................................................................................................................18
About Lutron RadioRA..................................................................................................................................................................18
About ALC.....................................................................................................................................................................................18
ALC Module Types ..................................................................................................................................................................18
About X-10 ....................................................................................................................................................................................19
House Code....................................................................................................................................................................................19
Unit Numbers.................................................................................................................................................................................19
Scrolling Through Names ..............................................................................................................................................................19
Controlling Units ...........................................................................................................................................................................20
Controlling a Room of HLC Lighting.......................................................................................................................................20
Configuring Lighting Scenes in an HLC Room....................................................................................................................20
Controlling Individual Lighting Loads in an HLC Room or UPB Units ..............................................................................21
Controlling Vizia RF Z-Wave...................................................................................................................................................21
Controlling a Room of Vizia RF Z-Wave Lighting ..............................................................................................................21
Controlling Individual Lighting Loads in an Vizia RF Z-Wave Room ................................................................................22
Controlling CentraLite Units ....................................................................................................................................................22
Controlling RadioRA Units ......................................................................................................................................................23
Controlling ALC or X-10 Units ................................................................................................................................................23
Ramp Command (ALC)........................................................................................................................................................23
Controlling Compose Units ......................................................................................................................................................24
Scene Command (Compose).................................................................................................................................................24
Timed Commands ..........................................................................................................................................................................24
Status of a Unit...............................................................................................................................................................................25
Internal Flags .................................................................................................................................................................................25
Controlling Outputs........................................................................................................................................................................25
All On / Off....................................................................................................................................................................................26
All Lights On ............................................................................................................................................................................26
All Off.......................................................................................................................................................................................26
Leviton Scene Control ...................................................................................................................................................................27
Scene.........................................................................................................................................................................................27
Scene Commands..................................................................................................................................................................27
Scene Set Command .............................................................................................................................................................27
Scene On Command .............................................................................................................................................................27
Scene Off Command.............................................................................................................................................................28
UPB Links.................................................................................................................................................................................28
Activating and Deactivating Links........................................................................................................................................28
Setting a Link (Lighting Scenes)...........................................................................................................................................28
Executing Phantom Buttons......................................................................................................................................................29
Executing CentraLite Scenes ....................................................................................................................................................29
Buttons ...........................................................................................................................................................................................29
Temperature Control ......................................................................................................................................................................30
HAI RC-Series Thermostats ..........................................................................................................................................................30
ii
Programmable Energy Saver Modules (PESMs) ...........................................................................................................................32
Freeze Alarms ...........................................................................................................................................................................34
Indoor and Outdoor Temperature .............................................................................................................................................34
Temperature Control of Appliances..........................................................................................................................................35
Temperature Alarms ......................................................................................................................................................................35
Humidity ........................................................................................................................................................................................35
Status..............................................................................................................................................................................................35
Configuring HLC Devices ........................................................................................................................................................36
Configuring HLC Devices using an Omni Console..............................................................................................................36
Configuring HLC Devices using an OmniTouch Touchscreen ............................................................................................37
Setup Mode for HLC Devices...................................................................................................................................................37
Event Log.......................................................................................................................................................................................39
Show Events .............................................................................................................................................................................39
Messages........................................................................................................................................................................................40
Show Message ..........................................................................................................................................................................40
Log Message.............................................................................................................................................................................40
Clear Message...........................................................................................................................................................................41
Say Message .............................................................................................................................................................................41
Phone Message .........................................................................................................................................................................41
Send Message (Pro-Link) .........................................................................................................................................................41
TELEPHONE CONTROL .......................................................................................................................... 43
Telephone Interface .......................................................................................................................................................................43
In-House Phones ............................................................................................................................................................................43
Remote Phones ..............................................................................................................................................................................43
Phone Access Denied - Remote Lockout.......................................................................................................................................44
Alternate Method ...........................................................................................................................................................................44
Main Menu.....................................................................................................................................................................................44
Recording Your Address ..........................................................................................................................................................45
Panic Button over the Phone (# # # # # #) .....................................................................................................................................45
PC Access ......................................................................................................................................................................................45
Emergency Dial-Out ......................................................................................................................................................................46
Digital Dialer .................................................................................................................................................................................46
Voice Dialer...................................................................................................................................................................................46
How the OmniLT Voice Dialer Works.....................................................................................................................................46
What the OmniLT Voice Dialer Does ......................................................................................................................................46
What You Hear - If Your OmniLT Calls You ..........................................................................................................................47
Entering the Code .....................................................................................................................................................................47
SETUP............................................................................................................................................................ 48
Set Up Codes .................................................................................................................................................................................48
1 = Master .................................................................................................................................................................................48
2 = Manager..............................................................................................................................................................................48
3 = User ....................................................................................................................................................................................48
Duress Code..............................................................................................................................................................................49
Set Up Time ...................................................................................................................................................................................49
Advanced Control Programming (ACP)........................................................................................................................................50
1 = Add Programs .....................................................................................................................................................................50
2 = Show Programs...................................................................................................................................................................50
3 = Delete All Programs ...........................................................................................................................................................52
Edit Programs ................................................................................................................................................................................52
Edit Programs When ......................................................................................................................................................................52
Times Programs ........................................................................................................................................................................52
iii
Button and Event Programs ...........................................................................................................................................................53
Control Unit / Switch Press Event Buttons ..............................................................................................................................54
Security Mode Event Buttons ...................................................................................................................................................54
Zone Event Buttons...............................................................................................................................................................55
All On/Off Event Buttons .........................................................................................................................................................55
UPB Link Triggers................................................................................................................................................................56
Alarm Event Buttons.................................................................................................................................................................56
X-10 Event Buttons...................................................................................................................................................................56
Miscellaneous Event Buttons....................................................................................................................................................57
Message Event Buttons (Pro-Link)...........................................................................................................................................57
Switch Press Event Buttons (CentraLite)..................................................................................................................................58
Edit Program Command.................................................................................................................................................................58
Program Control Commands ....................................................................................................................................................58
Unit Toggle Command..........................................................................................................................................................59
Program Security Commands ...................................................................................................................................................59
Program Button Commands......................................................................................................................................................59
Program All On / All Off Commands .......................................................................................................................................60
Program Video Commands*.....................................................................................................................................................60
Program Temperature Commands ............................................................................................................................................60
Program Energy Cost................................................................................................................................................................60
Program Message Commands...................................................................................................................................................60
Edit Program Condition .................................................................................................................................................................60
Program Control Conditions .....................................................................................................................................................61
Program Security Mode Conditions..........................................................................................................................................61
Program Zone Conditions .........................................................................................................................................................61
Program Time Clock Conditions ..............................................................................................................................................61
Program Other Conditions ........................................................................................................................................................62
Set Up Dial.....................................................................................................................................................................................62
Telephone Access .....................................................................................................................................................................62
Answer Outside Call .............................................................................................................................................................62
Remote Commands...............................................................................................................................................................63
Rings Before Answer................................................................................................................................................................63
Dial Type ..................................................................................................................................................................................63
My Phone Number....................................................................................................................................................................63
Dial Out Number 1....................................................................................................................................................................63
Dial Out Numbers 2-8...............................................................................................................................................................64
Dial Order .................................................................................................................................................................................64
Set Up Arming ...............................................................................................................................................................................64
Entry Delay ...............................................................................................................................................................................64
Exit Delay .................................................................................................................................................................................65
Exit Time Restart ..................................................................................................................................................................65
Unvacated Premises ..............................................................................................................................................................65
Entry/Exit Chime ......................................................................................................................................................................65
Perimeter Chime .......................................................................................................................................................................65
Enable Quick Arm ....................................................................................................................................................................65
Enable Auto Bypass..................................................................................................................................................................66
All On For Alarm......................................................................................................................................................................66
Beep On Trouble.......................................................................................................................................................................66
Set up Miscellaneous .....................................................................................................................................................................66
High Security Mode..................................................................................................................................................................66
Announce Alarms .....................................................................................................................................................................66
Enable Freeze Alarm.................................................................................................................................................................66
Flash For Alarm ........................................................................................................................................................................67
Console 1-4 Audible Exit Delay ...............................................................................................................................................67
House Code Format ..................................................................................................................................................................67
House Code All Off ..................................................................................................................................................................67
Time Clocks..............................................................................................................................................................................68
Latitude, Longitude, and Time Zone.........................................................................................................................................69
Daylight Savings.......................................................................................................................................................................70
iv
Set Up Names ................................................................................................................................................................................71
Set Up Voice..................................................................................................................................................................................71
Set Up Address ..............................................................................................................................................................................72
AUDIO CONTROL ...................................................................................................................................... 73
Changing Audio Source.................................................................................................................................................................73
Changing Audio Zone....................................................................................................................................................................73
Configuring Source and Zone Names ............................................................................................................................................73
Programming Audio Commands ...................................................................................................................................................74
HAI Hi-Fi Key Press Commands .............................................................................................................................................74
Example Programming of Audio Commands ................................................................................................................................74
UNDERWRITER'S LABORATORIES REQUIREMENTS ................................................................... 75
FEDERAL COMMUNICATION COMMISSION NOTICE: ................................................................. 76
CANADIAN INDUSTRY CANADA NOTICE.......................................................................................... 77
APPENDIX A - SPECIFICATIONS........................................................................................................... 78
APPENDIX B - CHARACTER CODES .................................................................................................... 79
APPENDIX C - VOICE DESCRIPTIONS................................................................................................. 80
v
INTRODUCTION
Thank you for purchasing your new OmniLT automation system. You are about to experience a new feeling of comfort,
convenience, and control.
Please take a few moments to become familiar with all of the features of this fine product by reviewing this manual. Please keep
this manual on file for future reference.
It is recommended that you also review the installation and operating instructions provided with your smoke and gas detectors (if
used in your system). If you do not have a copy of these documents, ask your installer - See Underwriter's Laboratories
Requirements.
In the event that there are any questions, please call your installer first. If you need assistance directly from the manufacturer, call
us at (504) 736-9810, between the hours of 9:00 AM and 5:00 PM Central Time, Monday-Friday. We will be happy to assist you.
When calling, please have the model and serial number of your unit, which can be found on the inside of the controller.
Underwriter's Laboratories (UL) Listing
The 21A00-1 OmniLT controller has been tested and Listed by UL for the following applications:
•
UL 985 - Household Fire Warning System Units
•
UL 1023 - Household Burglar Alarm System Units
In a UL Listed Installation, failure to operate and program the system as described in this manual is a violation of the Listing
Mark.
See Underwriter's Laboratories Requirements for more information.
1
OVERALL DESCRIPTION
Console Operation
The console is designed with everything that is necessary for you to program and operate your OmniLT control and security
system. Because we feel that it is very important for you to feel comfortable with the operation of your OmniLT, we recommend
that you start by becoming familiar with your console.
The OFF (1), DAY (2), NIGHT (3), and AWAY (4) keys are called shortcut keys. This means that you may press these keys to
go directly to that function without using the menu key.
OMNI
CONTROL
SECURITY
BUTTONS
ALL
TEMP
STATUS
EVENTS
MESSAGE
SETUP
POL
FIRE
L
CANCEL
AUX
MENU
1- ' OFF '
The ' OFF ' key is used to disarm (deactivate) the security system, reset emergency alarms, and silence all sirens and sounders.
2- ' DAY '
The ' DAY ' key is used to arm the security system in the Day mode. In the Day mode, the perimeter zones (doors and windows)
are protected, however, the interior zones are not armed so that you may move about freely inside. In this mode, there is an entry
delay on entry-exit zones.
3- ' NIGHT '
The ' NIGHT ' key is used to arm the security system in the Night mode. In the Night mode, the doors, windows, and nonsleeping area motion detectors are armed. In this mode, there is no entry delay so the alarm will be activated immediately if any
zone is violated.
4- ' AWAY '
The ' AWAY ' key is used to arm the security system in the Away mode. In the Away mode, all zones (doors, windows, motions,
etc.) are armed. There is an entry delay on entry-exit zones, so that you can disarm the system when you return through the door.
5- Down Arrow
The Down Arrow key is used to scroll through menus and lists. The down arrow is used to scroll down the list from first to last
(for example, when the first program is being displayed, pressing the down arrow will cause the next program to be displayed).
2
6- UP ARROW
The Up Arrow key is used to scroll through menus and lists. The Up Arrow is used to scroll back through a list (for example, if
you have already used the down arrow to scroll to an item, the Up Arrow will bring you back to a previous item).
7- CONSOLE LED
The Console LED is used to indicate whether the security system is currently armed or disarmed. If armed in any of the security
modes, the LED will be set to red. If the system is disarmed, the LED will be set to green. The LED will flash when a Message
is displayed.
8- CONSOLE DISPLAY
The Console Display is used to show the current security mode and to give useful information that will guide you through normal
operations of your OmniLT control and security system.
9- CONSOLE KEYPAD
The Console Keypad is used to enter user codes for arming, disarming, bypassing, and restoring zones. In some cases, the keys
(0-9) are assigned to different functions. From the top-level display, each key functions as a menu choice.
10- CONSOLE BEEPER
The Console Beeper is used to confirm a keystroke, alert user of errors and troubles, and sound upon entry and exit delays.
11- ' * ' KEY
The ' * ' Key is used to cancel and return the display to the previous menu. When you are entering a number, ' * ' will cancel the
previously entered digits and will prompt you to reenter the number.
12- ' # ' KEY
The ' # ' Key is used to enter or confirm a selection. It may also be used to display a menu or to offer you additional choices.
Normal Top-Level Display
In its normal state, the console display will show the day, date, and time on the top line, and the system status on the bottom line.
If all doors, windows, sensors, etc. are closed, no zones are bypassed, and if there are no troubles, the bottom line will show
"SYSTEM OK" as seen below:
Mon Feb 20, 06
4:00 PM
SYSTEM OK
If one of the doors, windows, motion, or other detector connected to the OmniLT is open, or has detected motion, the bottom line
of the display will say, "ZONE NAME NOT RDY".
For example, the display will say, "FRONT DOOR NOT RDY".
If the zone name has not been entered during set up, the display will give the zone number and zone type. This display will
remain for 2 seconds, then the next zone not ready, in trouble, or bypassed will be displayed.
Display Menus
The system has been designed to be easy to operate. Whenever you press a key on the console, the top line of the display will
indicate what you are doing. To the right of that is your selection or current setting. The bottom line will show a menu of your
next options. To the lower right corner of the display is the direction arrow(s). Where possible, the up (↑), down (↓), and twoheaded ( ) arrow characters are shown on the console display to indicate which arrow keys may be pressed at that time.
3
When using the arrow keys to scroll through lists of units, zones, buttons, codes, and temperature zones, only the named items are
displayed. If no text description has been given to an item, it will be skipped over when scrolling through that list. You can still
enter any item number to access it directly, and then scroll up and down among the named items. To look at another specific
item, simply enter the item number followed by the Down Arrow key.
In some cases, the keypad keys (0-9, *, #) are assigned to different functions or menus. A key assignment is indicated by the
character key directly in front of the new function on the bottom line of the display. For example, if the bottom line says,
"2=DELETE", you may press the 2 key to delete. From the top-level display, each key functions as a menu choice. Simply press
the appropriate key and you will enter that menu.
Main Menu
The main menu is entered from the top-level display by pressing the ' # ' key. This menu displays all of the functions that you can
perform from the console. It is not necessary to display the main menu before selecting a function if the number for the desired
menu item is known. The following menu choices are available:
1=CONTROL
3=BUTTON
2=SECURITY
↓
4=ALL
5=TEMP
7=EVENTS
6=STATUS
8=MESSAGE
9=SETUP
↑
Menu 1 - Selects Control functions for controlling lights and appliances.
Menu 2 - Selects Security functions (arming, disarming, bypassing, and restoring).
Menu 3 - Allows a Button (macro) to be activated.
Menu 4 - Selects All Lights On / All Units Off commands and Leviton Scene Control commands.
Menu 5 - Allows Temperature control for Thermostats and Energy Saver Modules.
Menu 6 - Allows various status items to be displayed.
Menu 7 - Allows you to view an event log of security "happenings".
Menu 8 - Allows you to show, log, clear, say, phone, or send a message.
Menu 9 - Allows you to enter setup mode for different operating configurations.
Error Beeps
If you press a key that is invalid for the function that you are doing, the console will beep 3 times, indicating that it is not a valid
option. Look at the bottom line of the display to see what keys you can press next.
Trouble Beeps
The OmniLT constantly checks the entire system for proper operation. If trouble is found, the trouble is displayed on the bottom
line and the console will beep at the rate of two beeps per second to alert you to the trouble. This feature can be turned off if
desired - See Set Up Arming, Beep On Trouble.
To silence the beeper, press the ' * ' key.
For more information, see Trouble Indications.
4
Confirmation Beep
When you have successfully completed a function, such as entering a program or changing a setup item, the console will beep
once.
Cancel
If you are ever unsure and wish to return to the top-level display, press the ' * ' key. You may have to press it more than once,
depending on how far into the function (menu) you are. Each time you cancel out of an operation, the console will beep once to
indicate that you have canceled.
The ' * ' key can also be used if you make a mistake while entering a number. For example, if you enter a 2 when you meant to
enter a 3, press the ' * ' key to start over.
Time Out
If you are called away from the console for any reason (to take a phone call, for instance) while you are engaged in an operation,
the console will "time out" and cancel it for you after 3 minutes. The display will return to the normal top-level display.
OmniLT Maintenance
Your OmniLT controller and the consoles are designed to require very little maintenance.
For smoke detectors, motion detectors, and other components not manufactured by HAI and follow maintenance procedures
outlined by the manufacturer.
Consoles can be cleaned using a mild detergent and a soft cloth.
Every three years, or if the "BATTERY LOW TROUBLE NOW" indication comes on and stays on for an extended period
without reason, the rechargeable battery in the controller should be replaced. The recommended battery type is a 12-volt, 7 amphour sealed lead-acid battery.
To replace the battery, disconnect the red battery wire from the battery (+) terminal. Cover the connector at the end of the wire
with electrical tape to avoid its touching anything in the enclosure. Disconnect the black wire from the battery (-) terminal and
cover the connector at the end of the black wire with tape. Remove the old battery. Install the new battery by reversing the
removal procedure. Be very careful to connect the Black wire to the (-) terminal on the battery; Red wire to the (+) terminal.
5
SECURITY SYSTEM OPERATION
Disarming the Security System and Silencing Alarms
Before going any further, you should know how to disarm your security system in the event that the alarm sounds. Turning the
system OFF disarms the burglar alarm, resets emergency alarms, and silences all sirens and sounders.
Press the OFF key.
OFF
Watch the display.
The top line will read "DISARM" - The bottom line will read "ENTER CODE", indicating that you must enter your code number
to disarm the system. For each digit that you press, an "X" will appear indicating that the key has been pressed.
Now enter your four-digit code.
1
1
1
1
That's all there is to it!
After the four-digit code has been successfully entered, the console will beep once to indicate that you have correctly disarmed
the system. The console LED will be set to green and the display will return to the normal top-level system display.
If an incorrect code is entered, the console will beep three times and display
*** INVALID CODE ***
Re-enter your code.
In the event that you make a mistake, press the OFF key again, and then enter your four-digit again.
Practice disarming your system until you are comfortable with this procedure.
NOTES:
¾
Panic, Tamper, and Fire zones are always armed, as are the Emergency buttons on the console.
¾
In the event that the alarm has been activated, the menu keys and the arrow keys are locked out. You must silence the alarm
using the OFF, DAY, NIGHT, or AWAY keys.
Arming the Security System
Now that you know how to disarm the system, here's how to arm the security system. The security menu is used to arm and
disarm the security system. To enter the security menu, from the top-level display, press the 2 key on the console keypad. The
console should display:
0=OFF
3=AWAY
1=DAY
2=NIGHT
↓
4=VACATION
5=DAY INST
8=BYPASS
6=NIGHT DLY
9=RESTORE ↑
0 = OFF
The OFF key disarms the security system, resets the fire and emergency alarms, and silences all sirens and sounders.
1 = DAY
The DAY mode is intended for use when someone will occupy the house or business that is being protected. In the Day mode,
the perimeter zones (doors and windows) are armed; however, interior motion detectors and interior traps are not armed so that
you may move about freely inside. In the Day mode, there will be an Entry Delay on the Entry-Exit zone, so that someone
arriving can turn off the alarm before it sounds.
6
2 = NIGHT
The NIGHT mode is used when you are asleep and everyone in your household is at home. In the Night mode, your doors,
windows, and non-sleeping area (i.e. downstairs) motion detectors are armed. In the Night mode, there is no entry delay. The
alarm system sounder will be activated immediately if any door, window, or non-sleeping area (motion detector) is tripped.
3 = AWAY
Use the AWAY mode when you leave your house and no one is home. All doors, windows, and motion detectors are armed. All
zones have an Exit Delay so that you will have time to leave and close the door after you arm the system. The system will be
fully armed after the Exit Delay. There is an Entry Delay on the Entry-Exit zones in the Away mode, so that you will have time
to turn the system off when you return through your door.
Note that the Entry Delay only applies if you come in through an Entry-Exit zone. If someone attempts to climb into a window,
or if an interior zone is tripped before the Entry-Exit zone, the alarm will be activated immediately. If you do enter through an
Entry-Exit zone first, then the other zones are disabled during the Entry Delay, in case you have to cross through another zone to
get to your console (an interior motion detector, for example).
4 = VACATION
This mode arms all doors, windows, and interior motion detectors (same as Away mode). There is an Entry Delay on the EntryExit zones. Use this mode when you are leaving for a period of days.
5 = DAY INST (DAY INSTANT)
Functions same as Day mode, however, there is no Entry Delay on any of the security zones. There will be an instant alarm if any
of the zones are violated while in this mode.
6 = NIGHT DLY (NIGHT DELAY)
Functions same as Night mode, however, there is an Entry Delay on the Entry-Exit zones. Use this mode if you are going to sleep
but a family member is expected home at a later time.
Using Shortcut Keys
There are three shortcut keys on the console to arm the system in the Day, Night, and Away security modes, and Off to disarm,
without having to go into the security menu.
From the top-level display, press one of the shortcut security keys. Enter your code number on the console keypad.
The console will beep once and the console LED will be set to red. The top line will display the security mode to indicate that
you have correctly armed the system. The system will be fully armed after the Exit Delay expires.
The programmed Entry Delay is __________ seconds.
The programmed Exit Delay is __________ seconds.
Quick Arm
For extra convenience, the OmniLT can be armed by simply pressing the DAY, NIGHT, or AWAY button twice, eliminating the
need to enter the code.
To quick arm the system in the Away mode, from the top-level display, press:
AWAY
AWAY
The quick arm feature only works if the alarm system is in the Off mode, and if no alarms are sounding. This feature is disabled
when the system is shipped. If desired, it can be enabled or disabled at any time - See Set Up Arming, Enable Quick Arm.
7
What Happens When You Arm the Security System
To arm the system into one of the 6 security modes, from the security menu, choose the security mode and press the appropriate
key (1 - 6), and then enter your user code number on the console keypad or use one of the Shortcut Keys as described.
¾
The console will beep once and the console LED will be set to red
¾
The controller will cycle power to reset smoke detectors
¾
The top line will display the security mode.
¾
The bottom line will display, " *** ARMING SYSTEM *** " to indicate that the system is being armed.
The system will be fully armed after the Exit Delay expires.
If arming in Away or Vacation mode:
¾
Consoles configured with Audible Exit Delay enabled, will beep until the Exit Delay has expired. During the last 10
second of the Exit Delay, the console will beep twice as fast; so leave and close the door promptly.
¾
If enabled, “Exit Time Restart” will restart the exit delay if the same zone is violated twice within the original exit delay.
For example, after arming the system if you open the front door to leave, close the front door behind you, and then
reenter through the front door while the exit delay is still in effect, the exit delay will be restarted. This is designed to
give you additional time to exit without causing an alarm. The exit time will only be restarted once within a given
arming period.
¾
If “Unvacated Premises” is enabled, if no exit zone is violated during the exit delay (i.e. the premises was not vacated),
the system will automatically arm to Day mode at the expiration of the exit delay.
NOTE: In Commercial Burglar Alarm Applications for UL Certified Systems, a Ring-back indication and Bell-test should be
heard after arming (closing). If not heard, call for service.
Exit Error
The Exit Error feature is designed to prevent accidental alarms caused by an error while arming. If an entry-exit zone is
“Not Ready” (unsecured) when the exit delay expires, the Exit Error sequence is initiated as follows:
¾
The sounder(s) are activated
¾
Console Entry Chime comes on
¾
The console display indicates: " *** DISARM SYSTEM *** - PRESS OFF THEN CODE"
¾
The system will wait the Entry Delay time
If the security system is not turned off during the Entry Delay:
¾
The display shows the type of alarm and the violated zone: "BURGLAR ALARM! - ZONE NAME TRIPPED"
¾
The system waits the Dial Out Delay, then if configured, begins to dial out
¾
The central station will be sent a code representing the type of alarm, zone violated, and an Exit Error code
¾
The When Alarm macro is activated (any associated programs will be executed)
¾
The Flash For Alarm Unit Number begins to flash on and off.
Note: The Exit Error feature is incompatible with “Auto Bypass”. If enabled, Auto Bypass will override this feature.
8
Bypassing Zones
8 = BYPASS
You can Bypass a zone that you do not want protected while the system is armed. Bypassing is also the only way that a tamper or
panic zone can be disarmed. For example, if there is a liquor closet or gun case on a tamper zone, then you must bypass that zone
to gain access to it.
Another reason to Bypass a zone is if the zone is having trouble. If a zone is causing a trouble indication, you can bypass that
zone to "cut it out" of the system until repairs are made.
When a zone is bypassed, it is no longer checked for alarms. When you bypass a zone using the console (or over the phone) it
will Stay bypassed until you Restore it. The console status display will show that the zone is bypassed only when the security
system is disarmed. When the system is armed, it does not display bypassed zones.
To bypass a zone, from the main menu or from the top-level display, press 2 on the console keypad, then 8 for bypass. Enter the
zone number followed by the ' # ' key, or use the arrow keys to select the zone. After the zone is entered, you will be prompted to
enter your security code. The bottom line will now read "ZONE NAME BYPASSED" to remind you that the zone is bypassed.
If a fire zone is bypassed, the console will continue to beep until that zone is restored - See Restoring Zones.
Auto-Bypass
In order to prevent the alarm from sounding unexpectedly if a window or door is open when the system is armed, the OmniLT
will automatically bypass the zone if it is opened when the system is armed.
Note that there is an exit delay before the system is armed in any mode. The bypass will only take place if the zone is not ready
(i.e. open) when the exit delay is over and the system is actually armed.
When a zone is Auto-Bypassed, it will be automatically restored once it is secure (i.e. closed), or the next time you arm or disarm
the system. The auto-bypass is recorded in the event log as "ZONE NAME BYPASSED". To prevent any zone from being
bypassed unintentionally, you should always look for "SYSTEM OK" on the display before arming and leaving the premises.
The Auto-Bypass feature can be disabled if you do not want the system to automatically bypass open zones. If the auto-bypass
feature is disabled, the alarm will sound if a zone not ready (i.e. open) when the system is armed.
NOTE: The Auto-Bypass feature is disabled on UL Listed Installations.
Restoring Zones
9 = RESTORE
Restoring a zone puts it back on active duty in the system. When restored, the Bypassed indication will no longer be displayed on
the status line and the zone will be checked for alarms.
To restore a zone, from the top-level display, press 2 on the console keypad, then 9 for restore.
Enter the zone number followed by the ' # ' key, or use the arrow keys to select the zone. Press ' 0 ' as the first key to restore all
zones. The 0 = ALL choice is removed once a digit key or the down arrow is pressed. After the zone or all zones is entered, you
will be prompted to enter your code.
9
What To Do When You Come Home
If you enter your home while the system is armed in the Day, Night Delay, Away, or Vacation mode using an entry door:
•
The console beeper comes on and beeps 4 times per second.
•
The console display indicates: " *** DISARM SYSTEM *** - PRESS OFF THEN CODE"
•
Any lights or control modules programmed to come on for the door that you used will do so.
•
The system will wait the Entry Delay time.
You should go to your console and immediately disarm the security system. Upon entering the first digit of the user code, the
console beeper is silenced. If canceled, or an incorrect code is entered, the beeper is restarted. If you wish, you may go directly
to a different security mode, rather than disarming the system.
If you return home and hear the alarm sounding, DO NOT ENTER. Use a wireless phone or neighbor's phone to call for help.
What Happens When the Alarm is Activated
Burglar Alarm Activated
If someone enters through any zone other than an Entry-Exit zone, if the security system is in the Night or Day Instant mode, or
if the security system is not turned off during the Entry Delay:
•
The sounder is activated, which makes a loud, continuous sound.
•
The display shows the type of alarm and the zones that have been tripped:
"BURGLAR ALARM! - ZONE NAME TRIPPED".
If more than one zone is tripped, then the bottom line will show each zone tripped for two seconds.
•
The When Alarm macro is activated. Any units programmed to come on will do so.
•
The Flash For Alarm Unit Number begins to flash on and off.
•
The system waits the Outside Siren Delay (0 - 60 seconds), then activates the sounder.
•
If enabled, the system waits the Dial Out Delay (15-45 seconds), and then if programmed, the in-house phones are
seized (disconnected) and the OmniLT begins to dial out.
If you are having your system monitored by a central station, the central station will be sent a code representing the type of alarm
(burglary) and zone involved. In most cases, the central station will call back, requesting your password or passcode.
If you are not using central station monitoring but are using the voice dial out capability, the system looks at the Dial Order to
determine which number to call first, and calls that number.
If you are using both central station monitoring and voice dial out, then the voice dial out is delayed by five minutes to give the
central station time to call you back.
For more information on the digital and voice dialer - See Digital Dialer and Voice Dialer.
•
The system continues to sound all alarms and sirens, and flash the light(s) for the 6-30 minute Alarm Reset window.
•
After Alarm Reset window has expired, the sounders are turned off, and the alarm system is reset. The console beeper
stays on. If a zone is tripped after a reset, the alarm will again be activated, and the dialer will again dial out.
At any time, the alarm system can be turned off at the console.
10
Fire Alarm Activated
When the fire alarm is activated by the smoke/fire detector(s), the alarm responds exactly as described under Burglar Alarm
Activated, except:
•
The console display reads, "FIRE ALARM! ZONE NAME TRIPPED".
•
The sounder will activate in a 3 pulse temporal pattern to distinguish the fire alarm from the burglar alarm.
The fire alarm takes priority over the burglar alarm, however, if a gas alarm is already active, it will not override the gas alarm.
NOTES:
¾
If multiple alarm types occur, such as both Fire and Police, the display will alternate between the alarm types.
¾
To reset smoke detectors, arm the system. When armed, the controller will cycle power to reset smoke detectors.
Gas Alarm Activated
When the gas alarm is activated, the alarm responds exactly as described under Burglar Alarm Activated, except:
•
The console display reads, "GAS ALARM! ZONE NAME TRIPPED".
•
The sounder will pulse on - off - on, then an extended off period to distinguish it from the burglar or fire alarm.
The gas alarm takes priority over the burglar alarm, however, if a fire alarm is already active, it will not override the fire alarm.
NOTE:
¾
To reset gas detectors, arm the system. When armed, the controller will cycle power to reset gas detectors.
Emergency Keys
Emergency alarm conditions can be activated through the console. These conditions (Fire, Police, and Auxiliary) are initiated
with the simultaneous depression of two keys for approximately 1 second.
OMNI
POL
FIRE
AUX
NOTE: The Emergency keys are always armed. The Fire and Auxiliary emergency alarms are silenced by pressing the ' * ' key.
To cancel a Police emergency alarm you must press the Off key and enter your code.
11
Police Emergency
When the 1 key and the 3 key is pressed simultaneously, the Police Emergency alarm is activated. This alarm operates exactly
the same as described for Burglar Alarm Activated except:
•
The console display indicates: "BURGLARY! - POLICE EMERG TRIPPED".
Fire Emergency
When the 4 key and the 6 key is pressed simultaneously, the Fire Emergency alarm is activated. This alarm operates exactly the
same as described for Police Emergency Button except:
•
The sounder activates in a 3 pulse temporal pattern distinguish the fire alarm from the burglar alarm.
•
The console display will read: "FIRE ALM - FIRE EMERG TRIPPED".
The Fire Emergency alarm can be turned off at any time by pressing the ' * ' key.
Auxiliary Emergency
When the 7 key and the 9 key is pressed simultaneously, the Auxiliary Emergency alarm is activated.
•
The console beeper comes on - display indicates:
"AUX ALARM! AUX EMG BTN TRIPPED".
¾
The console beeper continues to sound until the alarm is disarmed.
Duress Code Entered or Duress Alarm Activated
(See Duress Code for a description of when to use)
In the event that you enter your duress code or a Duress zone is tripped, the system performs a silent dial out as follows:
•
No alarms, lights or console beepers are activated. The system does not display the duress alarm.
•
The system waits the Dial Out Delay, and then begins to dial out.
Alarm Reset
The alarm system will reset itself and turn off the sirens after the system has been in alarm for the configured Alarm Reset time
window between 6-30 minutes. When the alarm system resets, any zone that is ready is reactivated, so the alarm system will be
activated again if the zone is tripped. If a zone remains not ready (i.e. a door has been left open) it will be automatically
bypassed when the alarm resets.
Alarm Cancel
At any time, you can disarm and silence an alarm by pressing the Off key and entering your code. If the alarm is disarmed after
the Dial Out Delay but within the Alarm Reset window, the communicator will send the alarm code followed by a code indicating
that the user has canceled the alarm and the console will display " *** ALARM CANCEL *** ".
If an alarm is disarmed before the Dial Out Delay has expired, the system will not report anything to the central station and the
console will display " *** ALARM ABORTED *** ".
If an alarm is canceled during a Voice Dial Out, the system hangs up immediately.
12
Trouble Indications
The OmniLT constantly monitors the alarm zones and several internal matters and will alert you if it detects trouble. The
particular trouble is indicated on the bottom line of the display and a trouble signal is given by beeping the console beeper
continuously, 2 beeps per second.
When any trouble condition occurs, the console will beep twice per second and continue to beep until the ' * ' key (cancel) is
pressed to acknowledge the trouble. The console will say "TRBL NOW" (trouble now) if the trouble condition actually exists
while you are looking at the console. It will say "HAD TRBL" (had trouble) if the trouble occurred and then corrected itself.
The following are trouble indications and their meanings:
¾
ZONE NAME TRBL NOW or HAD TRBL: If the reading for a zone becomes abnormal, trouble will be indicated on that
zone -See Status \ Test. Excessive resistance in the contact and wiring usually causes trouble on security zones. If the cause
is not obvious, call your installer for service.
¾
AC POWER OFF TRBL NOW or HAD TRBL: Indicated if the normal house current powering the OmniLT controller is
interrupted for more than 3 minutes. If this happens without good cause, check the wall mounted transformer to ensure that it
hasn't come out of the wall socket; check to see that the socket has power; check the MAIN fuse (F3) on the OmniLT
controller to be sure that it is good.
¾
BATTERY LOW TRBL NOW or HAD TRBL: Every hour, the OmniLT takes a dynamic test of the battery. If the battery
voltage is too low, then the console will indicate "BATTERY LOW". If this happens, make sure that the battery is
connected. The "BATTERY LOW" indication will remain until the next battery test is executed, 1 hour later, or when a
Status | Test command is given.
¾
COMMUNICATOR TRBL NOW or HAD TRBL: Indicated if the digital communicator (not the voice dialer) was unable
to make contact with the Central Station after trying both numbers multiple times. If this happens, there could be a problem
with the system, central station, or the phone line. Call your installer for service.
¾
FUSE TRBL NOW or HAD TRBL: Indicated when the solid state fuse that protects the "Auxiliary" power supply opens.
The fuse will automatically reset when the fault condition is cleared.
¾
PHONE LINE DEAD TRBL NOW or HAD TRBL: Indicated if the phone line is dead for more than 1 minute.
To silence the trouble beeps on the console, press the ' * ' key. If more than one type of trouble has occurred, the display will
show each one for two seconds. Pressing the ' * ' key will acknowledge all trouble indications.
If the trouble condition occurs again, the console beeper will beep again - See Set Up Arming, Beep On Trouble if you wish to
disable the beeper.
¾
NO CONTROLLER DATA: Indicated in the event that the console's alarm functions are no longer operational. This may
indicate a wiring problem to the console or a more serious problem. Call your installer for service.
Codes
There are 8 user codes that you may assign to users of the system. All OmniLT codes are 4 digits in length. A code can be any
number from 0001 to 9999. Each user should be assigned a security code with an authority level and times in which the code will
be valid. Memorize your codes! Don't give them to anyone who doesn't need to know them.
The levels of authority that you can assign to a user code are Master, Manager, and User.
Master Code
The Master code allows complete access to the entire system. Only the owner(s) or the one(s) who will govern the system should
have and use the Master code. A Master code is allowed access to all areas, all the time.
User code 1 is always set to a Master code - See Set Up Codes.
13
Manager Code
The Manager codes can arm/disarm the security system during assigned times. The Manager code can access functions that are
code protected in High Security mode. Managers may also access the system from an outside telephone line.
User Code
User codes can only be used to arm and disarm the security system during assigned times.
Duress Code
If you are forced to disarm the system against your will by an intruder, disarm it as you normally would, but use the Duress Code
instead of your normal code. The system will disarm normally. No sirens will sound, no lights will flash, but the OmniLT will
perform a silent dial out and say that this is a silent alarm.
To stop a silent dial out, turn your security system off the usual way, pressing Off key, then your code.
Panic Switches
If you have had panic switches installed, they are always armed. Pressing a panic switch will cause the alarm to activate. This
alarm can only be silenced by pressing the Off key and a valid code on the console.
Testing Your System
HAI recommends testing your system on a weekly basis to ensure that you are fully protected.
1.
Notify your Central Station that you intend to test the system. To test the siren, press the 1 and 3 keys simultaneously.
Press OFF and enter your Code to cancel the alarm and silence the siren.
2.
To test the security zones, you will need a partner to walk around your home and open and close all doors, windows, etc.
that are connected to the system while you watch the console. Have a partner open each door and window, then close it.
The display should show the zone name as being "NOT RDY" and then return to "SYSTEM OK" when closed.
3.
Have your partner walk in front of all motion detectors (if installed) and verify that the console responds in a similar fashion.
4.
Test your smoke detectors as recommended by the manufacturer. Be ready to silence the alarm system as soon as it sounds.
5.
From the top-level display or from the main menu, press the 6 key then the 4 key.
-
The Battery reading should be over 200 - See Status \ Test.
6.
Pick up an inside phone and press the # key. When the menu is spoken, press 8, Then 3. The OmniLT should say
"ADDRESS IS: "and play your name and address. If it does, the telephone dialer, telephone access and telephone control
systems are all working correctly.
7.
If you wish to test your system's link to your Central Station monitoring service, call them first and inform them that you
will be testing your alarm system. Set off the alarm, allowing sufficient time for the Dial Out Delay (if enabled), and then
turn the alarm system Off. The Central Station should receive the alarm code and cancel signal.
8.
Remember to inform your Central Station when the test is complete.
9.
To see a complete list of alarm system activities, view the system event log – See Event Log.
14
CONTROL
The control features of the OmniLT make it easy and convenient to control almost any light or appliance from the console or over
the telephone. You may also have your heating and air conditioning (HVAC) under control of the system, which will allow you
to save energy dollars by setting the temperature appropriately when you are home, asleep, or away.
Furthermore, the OmniLT can be used to program lights to make your home look occupied as a deterrent to potential thieves.
The methods that the OmniLT uses to control different things are:
•
UPB switches, modules, and keypads for lights and appliances
•
Z-Wave lighting devices (such as Leviton's ViziaRF series of lighting control devices)
•
CentraLite loads and relays on a LiteJet and Elegance lighting system
•
RadioRA switches and dimmers on a Lutron RadioRA lighting system
•
ALC switch modules for lights and appliances
•
X-10, X-10 Pro, Leviton, PCS, ACT, Lightolier, and compatible modules for lights and small appliances.
•
HAI Communicating Thermostats for controlling Heating, Ventilation, and Air Conditioning Systems.
•
Programmable Energy Saver Modules (PESM) for central heating and air conditioning systems.
•
Direct Relay Control for sprinklers, lighting, electric heating, etc.
An OmniLT will control:
¾
16 UPB switches, modules, and keypads (2 rooms of HLC Lighting)
¾
16 Z-Wave lighting devices
¾
16 CentraLite loads and relays
¾
16 RadioRA switches and dimmers
¾
16 ALC switch modules
¾
16 X-10 modules (one house code)
¾
2 PESMs or Voltage Outputs (expandable to 10)
¾
2 HAI Communicating Thermostats
OmniLT also has 8 internal "flags" that are used for programming conditionals and running buttons.
About UPB
UPB is a powerline communications standard for lighting and home control. UPB is a robust, two-way digital powerline carrier
communications protocol which transmits signals over the existing wires in a home. UPB can coexist peacefully with X-10
systems, intercoms, baby monitors, speakers, etc. that communicate over the powerline.
Using a Powerline Interface Module (PIM), OmniLT sends UPB commands over the existing electrical wiring to special switches,
modules, and keypad controllers (UPB devices) that are designed with UPB technology. UPB switches are two-way devices, so
OmniLT knows the actual status of the switch when it is controlled locally. In addition, UPB switches, modules, and keypads can
be used to trigger macros in the OmniLT controller.
15
When set to UPB, the OmniLT controller can:
¾
¾
¾
¾
¾
¾
¾
¾
Send commands (on, off, bright, dim and level) to individual switches and modules
Receive commands and status from individual switches and modules
Send commands to keypad controllers to change scenes and control LED backlight behind the keys
Receive commands when buttons are pressed on keypad controllers to activate controller macros
Send Link commands to switches, modules, and keypad controllers to activate scenes
Receive Link commands when a button is pressed on a switch or on a keypad controller to activate controller macros
Send “Status Request” messages to switches to update their status in the controller
Receive the UPB Acknowledgement pulse that indicates that a switch has properly executed a command
HAI Lighting Control (HLC) Format
HAI Lighting Control (HLC) combines HAI UPB™ Wall Switches, Dimmers, and Modules, HAI UPB™ Room Controllers, and
HAI UPB™ House Controllers to create lighting scenes that set the proper mood and ambiance for various activities.
HLC format is a defined structure for configuring, programming, and operating all the HLC lighting devices in your home. HLC
format consists of 2 rooms with up to 8 HLC devices in each room. OmniLT supports 2 rooms of HLC lighting. OmniLT can
control up to 16 HLC devices.
HAI manufactured UPB™ devices (collectively referred to as HLC devices) can be configured using an Omni console or
OmniTouch touchscreen connected to the OmniLT controller. Other UPB™ devices may be used in the HLC structure, but
cannot be configured using the OmniLT controller; they must be configured using a PC running the UPB™ UPStart configuration
software – see Configuring HLC Devices.
About Rooms
A room of HLC lighting consists of 8 consecutive unit numbers, starting at Unit 1 (i.e. Room 1 = Units 1-8 and Room 2 = Units
9-16). Each room can consist of a maximum of 8 HLC devices, configured as follows:
¾
¾
¾
¾
Up to 7 HAI UPB™ Wall Switches, Dimmers, and/or Modules (for controlling up to 7 lighting loads in a room or area)
1 or more Room Controllers (set a scene in a room, turn the room on and off, and dim and brighten the room)
1 House Controller (for controlling up to 8 rooms of HLC lighting)
1 or more House Controllers (used as a general purpose 8 button keypad controllers)
The first unit number in each room (i.e. 1 and 9) is reserved for controlling the room. The name for this unit should reflect the
room name (e.g. Kitchen, Great Room, Theater, etc.) HLC Wall Switches, Dimmers, or Modules cannot be programmed to these
unit numbers. If one or more Room Controllers are used, the first Room Controller should be set to the first unit number in the
group (i.e. Unit 1); additional Room Controllers can be used by setting each to any other unused unit number in the group
(i.e. Units 2-8).
About Room Controllers
The HAI UPB™ 6-Button Room Controller allows for lighting control of a room where HAI UPB™ Wall Switches, Dimmers,
and Modules have been installed. From a Room Controller the room can be turned off (all loads in the group are turned off),
turned on (all loads in the group are turned on), brightened (all loads are brightened from their current level), dimmed (all loads
are dimmed from their current level), or set to one of 4 lighting scenes (A-D).
Room Controller LED Indicators
When the room is turned on, the LED indicator behind the “On” button is illuminated and all others are turned off. When the
room is turned off, the LED indicator behind the “Off” button is illuminated and all others are turned off. When the room is
brightened, the LED indicator behind the “On” is illuminated and all others are turned off. When the room is dimmed, the LED
indicator that is currently illuminated stays on. When the room is set to a lighting scene (A-D), the LED indicator behind the
respective scene letter is illuminated and all others are turned off.
16
When “Status Tracking” is enabled (this is the default setting), OmniLT keeps track of the exact status of each unit even when a
lighting scene is initiated by the Room Controller. Room Controllers also keep track of when individual switches in a room are
turned on and off. When all of the lighting loads in a room are turned off, the “Off” indicator is illuminated. If any of the lighting
loads in a room are turned on at an HAI UPB™ Wall Switch or Dimmer, the “On” indicator will illuminate and the “Off”
indicator is turned off. Likewise, if the “On” indicator or one of the scene indicators is illuminated, and then all of the lighting
loads are turned off at HAI UPB™ Wall Switch Dimmers, the “Off” indicator will illuminate and any others are turned off.
About House Controllers
The HAI UPB™ 8-Button House Controller allows for controlling both rooms of lighting where HAI UPB™ Wall Switches,
Dimmers, and Modules have been installed. It can also be configured as a general purpose 8 button keypad controller used to
trigger 8 different macro programs in the OmniLT controller or to toggle between two different actions (i.e. turn lighting load
on...turn lighting load off) each time a pushbutton is pressed.
When used to control rooms of lighting in the HLC structure, each button on the House Controller is used to toggle all of the
lights in the respective room on and off. When the room is turned on, the LED indicator behind the respective button is
illuminated and all of the lights in the room are turned on. When the room is turned off, the LED indicator behind the respective
button is turned off and all of the lights in the room are turned off. If a lighting load in the respective room is turned on, the LED
indicator behind the button is illuminated. When all lighting loads in the respective room are turned off, the LED indicator behind
the button is turned off.
When used to control rooms of lighting in the HLC structure, each House Controller controls both rooms (i.e. Room 1-2). To
configure a House Controller to control both rooms, it must be set to the last unit number in one of the respective rooms. For
example, set the House Controller to Unit 8 or 16 to control rooms 1-2. This allows you to have up to 2 House Controllers that
control rooms 1-2.
Within the HLC structure, House Controllers can also be configured as a general purpose 8 button keypad controller that is used
to trigger 8 different macro programs in the OmniLT. When configuring a House Controller as a general purpose 8 button keypad
controller, it must be set to a unit number between the first and last unit number in a room (i.e. 2-7 or 10-15). When configured as
a general purpose 8 button keypad controller, programs must be created in the OmniLT controller for the LED indicator behind
each button to function.
About Vizia RF Z-Wave
Z-Wave is a wireless network protocol used in a wide variety of home automation devices made by numerous manufacturers. In
addition to supporting standard Z-Wave lighting devices and communicating thermostats, HAI has worked in partnership with
Leviton to support the advanced features of Leviton's ViziaRF series of lighting control devices, including lighting scenes and two
way communications.
Vizia RF Z-Wave Format
Vizia RF Z-Wave format is a defined structure for associating, programming, and operating all the Vizia RF and Z-Wave lighting
devices in your home.
When configured to use the Vizia RF Z-Wave format, OmniLT consists of 2 rooms with up to 8 Vizia RF and/or Z-Wave devices
in each room. OmniLT supports up to 2 rooms (total of 16 Vizia RF Z-Wave lighting devices). Each Vizia RF Z-Wave device
has its own Node ID (1-232).
About Rooms
Each “room” of Vizia RF Z-Wave lighting consists of 8 consecutive unit numbers, starting at Unit 1 (i.e. Room 1 = Units 1-8 and
Room 2 = Units 9-16). Each room can consist of a maximum of 8 Vizia RF and/or Z-Wave devices, configured as follows:
¾
¾
Up to 7 Vizia RF or Z-Wave lighting devices (for controlling up to 7 lighting loads in a room or area)
1 or more pushbutton controllers
17
The first unit number in each room (i.e. 1 and 9) is reserved for controlling the room. The name for this unit should reflect the
room name (e.g. Kitchen, Great Room, Theater, etc.). Vizia RF or Z-Wave lighting devices cannot be associated with these unit
numbers.
If one or more pushbutton controllers are used, the first pushbutton controller should be set to the first unit number in the group
(i.e. Unit 1); additional pushbutton controllers can be used by setting each to any other unused unit number in the group
(i.e. Units 2-8).
Using a console, touchscreen, or other interface to OmniLT, the room can be turned off (all loads in the group are turned off),
turned on (all loads in the group are turned on), or set to one of 4 lighting scenes (A-D).
About CentraLite
CentraLite is a centralized lighting control system that uses hardwired lighting control technology to control lighting loads, fans,
and mechanical low voltage relays.
CentraLite lighting scenes are used to control groups of lights which are preset to turn on to various levels of dimming.
When set to CentraLite, the OmniLT controller can:
¾
¾
¾
¾
Send commands (on, off, and level) to individual loads and relays
Receive status (on and off) from individual loads and relays
Execute scene commands (on and off) to control of up to 255 CentraLite lighting scenes
Receive commands when buttons are pressed on a CentraLite keypad (up to 127)
About Lutron RadioRA
Lutron RadioRA uses wireless communication technology to control lighting. Each Switch or Dimmer controls one Zone, or area,
of lighting in a RadioRA system. Accessory Switches and Dimmers are used to control the lights locally from up to 9 additional
locations. Master controls provide control and monitoring for all the lights in a RadioRA system.
Phantom Buttons are “virtual” buttons in the RS232 Interface. Though there are no physical buttons that represent these Phantom
Buttons, they work very similarly to buttons on RadioRA Master Controls. Phantom Buttons are intended to give the RS232
Interface control over multiple RadioRA Switches and Dimmers with one command. To control more than one device at one time,
Phantom Buttons are recommended.
A Zone is any individual RadioRA Switch or Dimmer.
When set to RadioRA, the OmniLT controller can:
¾
¾
¾
¾
Send commands (on, off, and level) to individual Switches and Dimmers
Receive status (on and off) from individual Switches and Dimmers
Receive commands when buttons are pressed on Master Controls
Execute Phantom Button commands
About ALC
ALC is intended for installation in homes, which have been pre-wired for installation of ALC system products. OmniLT controls
lights and appliances by sending commands over the ALC signal wiring to ALC Switch Modules. ALC Switches communicate
with the OmniLT over low voltage signal wire. They are two-way devices, so the controller always knows the actual status of the
switch. In addition, ALC switches can be used to set scenes by triggering macros in OmniLT.
When ALC Lighting Control Modules are being used, it is also possible to "ramp" the lighting level of an ALC Dimmer Switch to
a new level at a controllable ramp rate.
ALC Module Types
The ALC modules types are: Dimmer Switch, Relay Switch, Slave Switch, Program Switch, and 4-Button Scene Switch Modules.
18
About X-10
The OmniLT controls lights and appliances by sending commands over your existing electrical wiring to special switches, outlets,
receptacles, and modules, collectively referred to as X-10. Each module (or group of modules) is assigned a House Code and a
Unit Number so that the OmniLT can control the modules individually. When a module hears a command from the OmniLT for
its house code and unit number, it executes the command.
There are 3 different X-10 formats: Standard X-10 (Preset Dim), Extended X-10 (Extended Level), and Compose.
Any module that is "X-10 Compatible" will work with the OmniLT. The modules come in various types.
House Code
OmniLT can control up to 16 lighting and appliance devices. Each device (switches, modules, and keypad) has its own Unit
Number (1-16). The “House Code” is used to configure the lighting protocol format such as: Standard X-10, Extended X-10,
Lightolier Compose, UPB (open UPB format where you can use the programming capability in the OmniLT controller to
communicate with the UPB network), Lutron RadioRA, CentraLite, or HAI Lighting Control (HLC). Only one House Code can
be configured on OmniLT.
Unit Numbers
OmniLT systems have 36 total Unit Numbers. They consist of HLC, UPB, Z-Wave, CentraLite, RadioRA, ALC, Compose, and
X-10 module unit numbers, hardwire voltage output unit numbers, and internal flag unit numbers as follows:
OmniLT Unit Numbers
1 - 16
17 - 24
25
26
27 - 28
29 – 36
Module / Output Unit Numbers
HLC or Z-Wave Room 1 and 2, UPB Unit ID 1-16, Z-Wave Node ID 1-16, CentraLite loads 1-16,
RadioRA Lighting Zones and Master Controls 1-16, or X-10 modules 1 – 16 (House Code X)
Voltage Outputs (1-16), Fully Configurable on Model 22A00-1 OmniLT Expansion Module*
Thermostat Output (Fully Configurable)
Bell Output
Hardwire Outputs 1 and 2 (Fully Configurable)
Internal Flags
“X” Represents the House Code setting on the OmniLT Controller
“*” If used
Scrolling Through Names
The OmniLT stores names for Units, Zones, Buttons, Codes, Temperatures, and Messages so that you don't have to remember
that "UNIT 5" is the "DEN LIGHT" and "ZONE 1" is the "FRONT DOOR". In general, any time you enter a unit, zone, button,
code, temperature, or message number, you can press the down arrow key to display its name, then use the up and down arrow
keys to scroll through the list of other names. This is true when entering commands and programming on the console. Only
named items are displayed on an OmniTouch touchscreen.
19
Controlling Units
The control menu is used when controlling lights and appliances. To enter the control menu, from the top-level display or from
the main menu, press the 1 (CTRL) key on the console keypad. OmniLT will automatically display the first named item in that
list. The down arrow key can then be used to scroll through the list, and the ' # ' key is used to select the item. If the specific item
number is known, enter the item number followed be the ' # ' key, or scroll up and down among the named items.
After the unit has been selected, press the ' # ' key. The console will display:
Controlling a Room of HLC Lighting
Living Room
0=OFF 1=ON 2-5=A-D
Living Room
6=SET
↓
#=STA↑
¾
Press 0 (OFF) to turn the selected room off (all lighting loads in the room are turned off).
¾
Press 1 (ON) to turn the selected room on (all lighting loads in the room are turned on).
¾
Press 2 (A) to set all of the lighting loads in the selected room to their preset levels for Scene A.
¾
Press 3 (B) to set all of the lighting loads in the selected room to their preset levels for Scene B.
¾
Press 4 (C) to set all of the lighting loads in the selected room to their preset levels for Scene C.
¾
Press 5 (D) to set all of the lighting loads in the selected room to their preset levels for Scene D.
¾
Press 6 (SET) to set up a lighting scene for the all of the lighting loads in the selected room (On, A-D).
¾
Press # (STA) to view the current status of the room.
Configuring Lighting Scenes in an HLC Room
Lighting scenes are created by configuring light levels for HLC lighting devices in a room. Each HLC device in a room can store
up to four different preset lighting scenes (Scenes A-D) and one “On” Scene (preset lighting levels for each device when the room
is turned on). To set a lighting scene using the Omni console, adjust all of the HLC devices in the room to the desired lighting
levels. The desired lighting levels (0% - 100%) may be set manually at the switch, or by issuing commands from the OmniLT
controller. After the desired lighting levels are set, use the 6 (SET) command to save the new “light levels” for each device in the
selected room.
Living Room SET
1=ON 2-5=A-D
When the scene command is transmitted (either using a Room Controller or by the OmniLT controller), each HLC device in the
specified room will brighten or fade to its preset level for the selected scene.
Each lighting scene can also be set or easily changed using the pushbuttons on the HAI UPB™ 6-Button Room Controller, as
follows:
Step
1
2
3
4
Operation
Press the desired pushbutton on the HAI UPB™ 6-Button Room Controller to activate the current scene (preset lighting
level) in each of the HLC devices.
Use the local Decora-style rocker switch on each UPB™ Wall Switch Dimmer(s) to set the desired lighting level(s) or
issue commands from the OmniLT controller.
Press the pushbutton on the HAI UPB™ 6-Button Room Controller five (5) times quickly.
Each UPB™ Wall Switch Dimmer will flash its lighting load one time to indicate that the new level has been
configured.
20
Controlling Individual Lighting Loads in an HLC Room or UPB Units
To control individual lighting loads in a room, use the down arrow key to scroll through the list of units. When the unit is
displayed, press the ' # ' key. For HLC/UPB lighting loads, the console will display:
LR Sconce
0=OFF 1=ON 2=DIM 3=BRT
↓
LR Sconce
4=LVL 6=LED 9=TIM #=STA↑
¾
Press 0 (OFF) to turn the selected lighting load off .
¾
Press 1 (ON) to turn the selected lighting load on.
¾
Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 4 (LVL) to set the desired lighting level of the selected unit (0%-100%).
¾
Press 6 (LED) to turn on or off the LED behind the specified button on a general purpose 8-Button or 6-Button Keypad.
• Specify 1-8 to control the LED behind buttons 1-8 respectively, and then select 0 (OFF) or 1 (ON).
¾ Press 9 (TIM) to time the selected unit (On, Off, Dim, Brighten).
• Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18 hours.
¾ Press # (STA) to see the exact status of a UPB device. When the ' # ' key is pressed, OmniLT sends a “Status Request”
message to the selected device for its current state. The exact state is then displayed.
LR Sconce
STATUS 67%
Note: When a UPB signal is received over the powerline, OmniLT will automatically update the status of the device.
Controlling Vizia RF Z-Wave
It is imperative that each unit be named. If a unit is not named, it will not show up in the list of rooms and loads that are able to
be controlled. The only exception is for additional push button controllers. If you have assigned a Node ID to a Unit, but do not
name it, the OmniLT will interpret that as a push button controller, so Z-Wave messages from that push button controller will not
be ignored.
Controlling a Room of Vizia RF Z-Wave Lighting
Living Room
0=OFF 1=ON 2-5=A-D
Living Room
6=SET
↓
#=STA↑
¾
Press 0 (OFF) to turn the selected room off (all lighting loads in the room are turned off).
¾
Press 1 (ON) to turn the selected room on (all lighting loads in the room are turned on).
¾
Press 2 (A) to set all of the lighting loads in the selected room to their preset levels for Scene A.
¾
Press 3 (B) to set all of the lighting loads in the selected room to their preset levels for Scene B.
¾
Press 4 (C) to set all of the lighting loads in the selected room to their preset levels for Scene C.
¾
Press 5 (D) to set all of the lighting loads in the selected room to their preset levels for Scene D.
¾
6 (SET) is not used with Vizia RF Z-Wave lighting.
¾
Press # (STA) to view the current status of the room.
21
Controlling Individual Lighting Loads in an Vizia RF Z-Wave Room
To control individual lighting loads in a room, use the down arrow key to scroll through the list of units. When the unit is
displayed, press the ' # ' key. For Vizia RF Z-Wave lighting loads, the console will display:
LR Sconce
0=OFF 1=ON 2=DIM 3=BRT
↓
LR Sconce
4=LVL 5=RMP 9=TIM #=STA↑
¾
Press 0 (OFF) to turn the selected lighting load off.
¾
Press 1 (ON) to turn the selected lighting load on.
¾
Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 4 (LVL) to set the desired lighting level of the selected unit (0%-100%).
¾
5 (RMP) is not used with Vizia RF Z-Wave lighting.
¾ Press 9 (TIM) to time the selected unit (On, Off, Dim, Brighten).
• Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18 hours.
¾ Press # (STA) to see the status of the device.
Note: When a Z-Wave signal is received over the network, OmniLT will automatically update the status of the device.
Controlling CentraLite Units
Entry Lights
0=OFF 1=ON 2=DIM 3=BRT
↓
Entry Lights
4=LVL 5=RMP 9=TIM #=STA↑
¾
Press 0 (OFF) to turn the selected unit off.
¾
Press 1 (ON) to turn the selected unit on.
¾
2 (DIM) does not affect CentraLite units.
¾
3 (BRT) does not affect CentraLite units.
¾
Press 4 (LVL) to set the desired lighting level of the selected unit (0%-100%).
¾
5 (RMP) does not affect CentraLite units.
¾
Press 9 (TIM) to time the selected unit (On or Off). Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18
hours.
¾
Press # (STA) to see the status (On or Off) of a CentraLite device.
22
Controlling RadioRA Units
Entry Lights
0=OFF 1=ON 2=DIM 3=BRT
↓
Entry Lights
4=LVL 5=RMP 9=TIM #=STA↑
¾
Press 0 (OFF) to turn the selected unit off
¾
Press 1 (ON) to turn the selected unit on.
¾
2 (DIM) does not affect RadioRA units.
¾
3 (BRT) does not affect RadioRA units.
¾
Press 4 (LVL) to set the desired lighting level of the selected unit (0%-100%).
¾
5 (RMP) does not affect RadioRA units.
¾
Press 9 (TIM) to time the selected unit (On or Off). Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18
hours.
¾
Press # (STA) to see the status (On or Off) of a RadioRA device.
Note: When a RadioRA device transmits a signal (i.e. Switch or Dimmer is turned on or off locally, Mater Control button is
pressed, or Phantom Button is executed), OmniLT will automatically update the status of each affected device.
Controlling ALC or X-10 Units
Entry Lights
0=OFF 1=ON 2=DIM 3=BRT
↓
Entry Lights
4=LVL 5=RMP 9=TIM #=STA↑
¾
Press 0 (OFF) to turn the selected unit off.
¾
Press 1 (ON) to turn the selected unit on.
¾
Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 4 (LVL) to set the desired lighting level of the selected unit (0%-100%).
¾
Press 5 (RMP) to ramp the lighting level of an ALC Dimmer Switch to a new level at a selectable ramp rate.
•
5 (RMP) does not affect X-10 units.
¾
Press 9 (TIM) to time the selected unit (On or Off). Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18
hours.
¾
Press # (STA) to view the current status of the unit.
Ramp Command (ALC)
When ALC Switch Modules are being used, it is possible to ramp the lighting level of an ALC Dimmer Switch to a new level at a
selectable ramp rate. Only ALC Dimmer Switches respond to the Ramp command.
Press the 5 (RAMP) key to select the ramp command. The keypad will then prompt you for the desired ramp rate:
ENTER RATE:
MINUTES (1-99)
#=H/M/S
The rate specifies the time it takes the switch to go from full off to full on, or from full on to full off. Thus a level change from
full off to 50% on will take half the time specified.
23
Before any digits are entered, the ' # ' key may be used to switch between specifying the rate in minutes, seconds, and hours.
After you choose between minutes, seconds, and hours, enter the rate (2-99 seconds, 1-99 minutes, or 1-10 hours).
Next, enter a number (0-100) to indicate the final lighting level (intensity) desired.
LIGHTING LEVEL:
0-100%:
The keypad will beep and the lighting level will be adjusted. The keypad display top line will read:
Entry Lights 40% AT 1H
Controlling Compose Units
Entry Lights
0=OFF 1=ON 2=DIM 3=BRT
Entry Lights
4=SCN 9=TIM
↓
#=STA↑
¾
Press 0 (OFF) to turn the selected unit off.
¾
Press 1 (ON) to turn the selected unit on.
¾
Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).
¾
Press 4 (SCN) to set a group of lights to their predefined lighting levels.
¾
Press 9 (TIM) to time the selected unit (On or Off). Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18
hours.
¾
Press # (STA) to view the current status of the unit.
Scene Command (Compose)
If Compose lighting switches are part of your installation, the Scene (SCN) command is used to set a group of lights to predefined
lighting levels. There is an Off command, an On command, and 12 lighting scenes for each group of Compose lighting switches.
SCENE:
0=OFF 1=ON
2-13=A-L
Enter 0, followed by the ' # ' key, to turn the lights that are part of the selected group off. Enter 1, followed by the ' # ' key, to set
the lights that are part of the selected group to predefined lighting levels.
To set the lights in the selected group to a predefined scene, enter the Scene number 2-13 (which corresponds to Scene A-L,
respectively), followed by the ' # ' key. All lights that are part of the selected group are set to the predefined lighting levels for the
selected Scene.
Timed Commands
The timed commands allow a units to be turned on or off for a specified period of time. The unit may be turned On for 1-99
(minutes or seconds), or 1-18 hours, then Off; or turned Off for 1-99 (minutes or seconds) or 1-18 hours, then On.
Lighting units (1-16) may also be dimmed or brightened for a specified period of time. The unit may be dimmed (1-9) steps for
1-99 (minutes or seconds), or 1-18 hours, then brightened back to its previous level; or brightened (1-9) steps for 1-99 (minutes or
seconds), or 1-18 hours, then dimmed back to its previous level.
To enter a timed command, you must first enter the unit that you want to control. From the control menu, enter the unit number
(or scroll to it using the arrow keys), then press the ' # ' key.
24
To enter a time, press the 9 (TIM) key. Before any digits are entered, the ' # ' key may be used to switch between minutes,
seconds, and hours. After you choose, enter a time (1-99 for seconds & minutes, and 1-18 for hours). Once the time is entered,
the control menu is redisplayed with the specified times shown.
For example:
Entry Lights
For 2H
0=OFF 1=ON 2=DIM 3=BRT↓
Status of a Unit
To see the status of a unit, from the control menu, press the ' # ' key. The last command along with any time (hh:mm:ss)
remaining on a timed command will be displayed.
Entry Lights
STATUS ON
1:22:10
At this point, one of the menu choices may be entered or the ' * ' or ' # ' key may be pressed to redisplay the menu.
Note: If an X-10 signal is received over the powerline, OmniLT will automatically update the status of the X-10 unit.
Internal Flags
The easiest way to define a flag it to refer to it as a "virtual relay". A flag can be in one of three separate states: On, Off, or set to
a value between 0 and 255. If a flag has a value of 1-255, it is considered "On". If a flag has a value of 0 it is considered "Off".
Flags are a powerful programming tool that can be used in several ways to accomplish advanced programming routines. Any
Flag can also be used as a counter. Counters can be incremented, decremented, or set to a specific value (0 to 255).
When a counter is decremented to zero, the "When Unit Off" macro is executed. A counter will not decrement below zero. The
counter will, however, roll over from 255 to 0 when incremented. The "When Unit Off" macro will be executed when the counter
rolls over. This allows two counters to be cascaded to form a larger counter.
When the counter is incremented from 0 to 1, the "When Unit On" macro will now execute. This will allow you to execute a
command when the Flag is incremented (counting up) from zero.
The Set command is used to set the counter to a value from 0 to 255. No macros are executed when the counter is set to zero or
when the counter is changed from zero using the set command. This allows a counter to be reset without executing macros or
programs associated with the counter counting to zero. Turn the Flag On or Off to have the associated macro execute. When the
Flag is turned Off, its value is set to zero (0). When the Flag is turned On, its value is set to one (1). The counter is considered
On for program conditions if it is nonzero (1-255).
Flags can be turned Off, On, Decremented (DEC), Incremented (INC), Set, and Timed ON/OFF.
Controlling Outputs
The OmniLT has 2 (expandable to 10) outputs that can be used to switch relays. Outputs 1 and 2 are controlled by unit numbers
27 and 28. These are hardwired outputs that are connected directly through the OmniLT and not through a module. If you have
something connected to these outputs, such as a sprinkler system, your dealer will explain its operation.
•
•
Outputs cannot be brightened or dimmed.
Outputs are not affected by All ON or All Off commands.
25
All On / Off
The All On/Off menu is used to turn all lighting unit numbers on and off.
Note: UPB, CentraLite, and RadioRA devices are not affected by the OmniLT “All On” or “All Off” command. To achieve this
functionality, we suggest the following:
UPB: Program a Link into each device that will respond to an OmniLT “All On” and “All Off” command program. For example:
In each UPB switch that will respond to “All Off” and “All On”, program a Link (in this example, Link 50 is used) that
will go to 100% when activated (turned on). Then write the following programs in the OmniLT controller:
WHEN ALL ON: LINK 50 ON
WHEN ALL OFF: LINK 50 OFF
CentraLite: Program the “All On” and “All Off” macro to execute an All On Scene and an All Off Scene on the
CentraLite.
RadioRA: Program the “All On” and “All Off” macro to execute Phantom Button 16 (All On) and Phantom button 17 (All Off).
For example:
WHEN ALL ON: PHANTOM BUTTON 16 ON
WHEN ALL OFF: PHANTOM BUTTON 17 ON
This All On/Off menu is also used to control Leviton Scenes, RadioRA Phantom Buttons, UPB Links, and CentraLite Scenes.
From the top-level display or from the main menu, press the 4 (ALL) key on the console keypad.
ALL
0=OFF 1=ON 2=SCN 3=LINK↓
ALL
4=PHANTOM 5=CENLIT
↓
All Lights On
At the ALL prompt, press the 1 (LIGHTS ON) key. The console will beep, and a command will be sent that turns on all specified
X-10 or ALC units or HLC Rooms. X-10 Appliance Modules do not respond when the All Lights On command is sent. By
factory default, all lighting units respond to the All-On command.
NOTE: The All On function can be changed, if desired - See Set Up Misc, All On And All Off.
All Off
At the ALL prompt, press the 0 (OFF) key. The console will beep, and a command will be sent that turns off all specified X-10
and ALC units and HLC Rooms. By factory default, all lighting units respond to the All-Off command.
NOTE: The All Off function can be changed, if desired - See Set Up Misc, All On And All Off.
26
Leviton Scene Control
OmniLT supports Leviton Scene Control (a feature found in certain Leviton Switches. There are 16 Scenes that can be set and
executed. The Leviton Switches are divided into "lighting groups" of four units each. Each of these lighting groups can be set to
four different Scenes. Once the Scenes have been set up, a command can be sent to the units in that Scene to simultaneously
return to the preprogrammed lighting level.
Scene
UNIT NUMBERS
There are 16 Scenes that can be set and executed. The X-10 units (unit numbers 1-16) are divided into "lighting groups" of four
units each. Each of these lighting groups can be set to four different Scenes. Scenes 1-4 apply to the first four unit numbers
(units 1-4), Scenes 5-8 to the next four unit numbers (units 5-8), and so on. Thus an easy correspondence is made between Scene
numbers and unit numbers.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SCENES
1
2
X
X
X
X
X
X
X
X
3
X
X
X
X
4
X
X
X
X
5
6
7
8
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
9
10
11
12
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
13
14
15
16
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X - Corresponds to the unit numbers in a Scene.
Scene Commands
Scene Commands are used to Set Scenes, issue a Scene On command, and issue a Scene Off command. To issue Scene
Commands, press the 2 (SCENE) key. You are prompted to enter a Scene number.
ENTER SCENE:
1-16
Enter the Scene number (1-16) followed be the ' # ' key.
SCENE 1
0=OFF
1=ON
2=SET
Scene Set Command
The Scene Set command is used to set up Scenes for a lighting group. Set the desired lighting level for each of the units in the
lighting group for the first Scene. The desired lighting level may be set manually at the switch, or by a command issued from the
controller. After the desired lighting levels are set, press the 2 (SET) key to save the first Scene for that group. Commands are
sent to each of the four units in that group to instruct each unit to save its current lighting level as the lighting level for the Scene.
Repeat these steps to set up each of the remaining three Scenes for that lighting group.
Scene On Command
Once the Scenes have been set up, press the 1 (ON) key to command the four units in that Scene to return to the lighting level set
by the Scene Set command for that Scene.
27
Scene Off Command
Once the Scenes have been sent, press the 0 (OFF) key to command the four units in that Scene to turn off.
Notes:
1.
When sending Scene Commands, the controller must be configured to allow Extended Code transmissions.
2.
The Scene Commands always apply to a group of four consecutive units, which are units 1-4, 5-8, 9-12, and 13-16. You
must address the units accordingly so that the desired units fall into the appropriate lighting groups.
3.
The actual Extended Code Scene commands use a "group reference" that matches that sent by a Leviton Wall-Mounted
Scene Controller set to the same address as the first unit in the lighting group. This allows wall-mounted controllers to be
easily used for manual Scene selection.
UPB Links
In a UPB network, all control operations are done using Links. OmniLT can transmit and receive up to 250 Links on the UPB
network. Links are used to logically “connect” events on one or more devices to actions on one or more other devices. When two
or more different devices share a common Link, they are said to be “linked” together. They can now communicate with each
other over the powerline using the Link as a common identifier in all of their communications.
The power of Links is that you can “link” more than two devices together. For example, one keypad controller pushbutton can be
linked to four UPB Wall Switches allowing the single press of that pushbutton to trigger all four lights to go to preset or absolute
levels. In addition UPB Wall Switches allow for a preset light level and fade rate to be associated with each Link.
Activating and Deactivating Links
A special UPB command called “Link On” (activate) is used to command all of the devices that have the same Link to go to their
preset light levels at their preset fade rates.
For instance, in our “All On” and “All Off” example, when “Link 50 On” is transmitted by OmniLT, each UPB Wall Switch with
Link 50 will go to 100% to achieve the “All On” effect. Other “Link On” (activate) commands may be transmitted that cause
Wall Switch ‘1’ to go to a desired level at a specified fade rate and Wall Switch ‘2’ to go to a different level at a different fade
rate. The ability to send more than one device to its preset level at a preset fade rate with a single command is known as
activating a Link. Likewise, pressing a pushbutton on a 6-Button or 8-Button Keypad can send the “Link On” (activate)
command.
A special UPB command called “Link Off” (deactivate) is used to command all of the devices that have the same Link to go to
0% at their preset fade rate. For instance, in our “All On” and “All Off” example, when “Link 50 Off” is transmitted by OmniLT,
each Wall Switch with Link 50 will go to 0% to achieve the “All Off” effect.
Setting a Link (Lighting Scenes)
Lighting scenes are created by pre-configuring light levels and fade rates in one or more UPB devices that get “activated” and
“deactivated” by a Link command or button press on a 6-Button or 8-Button Keypad.
Each UPB Wall Switch can hold up to sixteen different preset light levels (0% - 100%) that can be “linked” to the OmniLT
controller or to a pushbutton on a 6-Button or 8-Button Keypad.
OmniLT can “set” each of the 250 possible Links. The “Link Set” command is used to set up lighting scenes for a lighting group.
To set a “lighting scene” using OmniLT, adjust all of the UPB Wall Switches with the pre-configured Link to the desired lighting
levels. The desired lighting levels may be set manually at the switch, or by a command issued from OmniLT. After the desired
lighting levels are set, the “Link Set” command can be transmitted by OmniLT to save the new “light levels” for each of the
devices pre-configured with the specified Link.
28
Executing Phantom Buttons
OmniLT can turn on and turn off each of the 17 possible Phantom Buttons. Phantom Buttons must be pre-programmed into the
RS-232 interface or Chronos. Phantom Button 16 is always assigned to “All On” (if the Phantom button is turned on or off) and
Phantom Button 17 is always assigned to “All Off” (if the Phantom button is turned on or off).
To issue Phantom Button commands, from the top-level display or from the main menu, press the 4 (ALL) key on the console
keypad, and then press the 4 (PHANTOM) key. You are prompted to enter a Phantom Button (1-17).
ENTER BUTTON:
1-17
Enter the Phantom Button number (1-17) followed be the ' # ' key.
PHANTOM BUTTON 1
0=OFF 1=ON
When a Phantom Button is turned on, all of the devices that are pre-programmed with that Phantom Button will go to their preset
light levels. When a Phantom Button is turned off, all of the devices that are pre-programmed with that Phantom button will turn
off.
Executing CentraLite Scenes
OmniLT can turn on and turn off each of the 255 possible CentraLite Scenes. To issue CentraLite Scenes commands, from the top
level display or from the main menu, press the 4 (ALL) key on the console keypad, and then press the 5 (CENLIT) key. You are
prompted to enter a Scene (1-255).
ENTER SCENE:
1-255
Enter the CentraLite Scene number (1-255) followed be the ' # ' key.
CENLIT SCENE 1
0=OFF 1=ON
When a CentraLite Scene is turned on, all of the devices that are pre-programmed for that scene will go to their preset light levels.
When a CentraLite Scene is turned off, all of the devices that are pre-programmed for that scene will turn off.
Buttons
A powerful feature of the OmniLT is the ability to program Buttons. A Button (also known as macro) is a number on the keypad
that is programmed to run a series of commands when it is pressed. Buttons are used to program functions that are specific to
your home and lifestyle.
Using a button, you can activate several commands at once. You can personalize 16 buttons with descriptive names. Following
are some examples of programmed Buttons:
Leave for Work (Button 1):
turn off all lights
set thermostat to energy saving settings
arm the security system in the Away mode
Go to Bed (Button 2):
turn off all lights
dim outdoor lights 20% to extend bulb life and reduce consumption
arm security in Night mode
29
Dinner for Two (Button 3):
dim the dining and living room lights
turn on the porch light
turn off all the bedroom lights
dim the den light
turn on the stereo
To activate a preprogrammed button, from the top-level display or from the main menu, press the 3 (BTTN) key on the console
keypad. Select the button (macro) to be activated by using the arrow keys to scroll through a list of buttons, followed by ' # '.
For extra convenience, event buttons are automatically activated when you change security modes, or when security zones open
and close. This powerful feature allows you to set your system up so that control functions are performed when you arm your
security system (such as turning off all lights and setting back the HVAC system). Door contacts and motion detectors can be
used to turn on lighting automatically, then turn it off a few minutes after the person has left, and then only if it's dark.
Temperature Control
Your OmniLT can control temperatures of your heating and cooling system, monitor the outside temperature, and detect high and
low temperatures in special situations. Other appliances can be controlled by temperature as well - such as a bathroom heater or a
ceiling fan.
The temperature menu is used to control HAI Communicating Thermostats, Programmable Energy Saver Modules, and
Temperature Sensors. The status of each of these may also be displayed on the console.
HAI Communicating Thermostats and the Programmable Energy Saver Module (PESM) provides energy savings, comfort, and
convenience by setting the HVAC system(s) to the proper temperature based on whether you are home, asleep, away, or vacation.
The temperature can be reported as well as controlled over any telephone. A freeze alarm feature will cause a dial out if the
temperature falls below a preset level.
The HAI Communicating Thermostats are digital heating and cooling thermostats that can be controlled be the user and by remote
control. There are models for conventional single stage (gas or electric), heat pumps, and multi stage heating and cooling
systems. All models offer programmability, stand-alone operation, and robust communication to the OmniLT system.
HAI RC-Series Thermostats
The following control actions are allowed for HAI Communicating Thermostats:
•
•
•
•
•
Set heating setpoints
Set cooling setpoints
Set system mode (Off / Heat / Cool / Auto)
Set fan (On / Auto)
Turn hold On and Off
NOTE: Not all actions are applicable to every type of thermostat.
To enter the temperature menu, from the top-level display or from the main menu, press the 5 (TEMP) key on the console keypad.
You will be prompted with the first named temperature zone (i.e. Upstairs). The temperature zone can be specified by entering
the temperature zone number followed by the ' # ' key, or by pressing the arrow keys to scroll through the list of temperature
zones. Press the ' # ' key when the desired temperature zone is shown.
Press the ' 0 ' key to select all HAI Thermostats. This is a simple way to broadcast the new Heat or Cool setting or change the
system mode, fan mode, or hold mode of all HAI thermostats in your system. Temperature zones 1 & 2 are for HAI termostats.
TEMPERATURE:
ENTER TEMP ZONE
0=ALL ↓
30
After the ' # ' key is pressed, a menu appropriate for the type of temperature zone is shown. For Celsius temperatures, press the ' #
' key prior to entering the temperature to make the number negative. The Celsius temperature may also be specified in 0.5 degree
steps, if three numeric digits are entered. The third digit adds a .5 to the first two digits, if it is anything other than zero. Enter a
leading zero, if necessary.
For HAI heat/cool thermostats:
Upstairs
1=MODE 2=HEAT
3=COOL ↓
Upstairs
4=FAN
5=HOLD
#=STAT ↑
To change the system mode on a thermostat, press 1 (MODE). A menu presenting options appropriate for that type of thermostat
is then displayed.
For heat/cool thermostats with auto changeover:
Upstairs MODE
0=OFF
1=HEAT
2=COOL ↓
Upstairs MODE
3=AUTO
↑
To change a temperature setting, press 2 (HEAT), 3 (COOL), or 2 (TEMP) as appropriate:
Upstairs HEAT
ENTER TEMPERATURE:
Upstairs COOL
ENTER TEMPERATURE:
Upstairs TEMP
ENTER TEMPERATURE:
Enter the desired temperature then press the ' # ' key.
The fan control on a thermostat may be switched between on and auto by selecting 4 (FAN) from the temperature menu:
Upstairs FAN
0=AUTO 1=ON
Thermostats may be switched between hold mode and the normal run mode. While in hold mode, the thermostat does not
respond to scheduled temperature changes but instead maintains the temperature at its current setting. The thermostat will then
return to its scheduled operation setting once hold mode is removed.
The hold menu is used to control hold status of a thermostat. The hold menu is entered by selecting 5 (HOLD) at the temperature
menu. Through this menu you may turn hold mode on and off.
For a heat/cool thermostat, the menu displayed is:
Upstairs HOLD
0=OFF
1=ON
Turn hold mode Off or On by selecting 0 (OFF) or 1 (ON), respectively.
31
For a heat/cool thermostat, the status shows the current temperature, the heating and cooling temperature setpoints, whether hold
mode is on, the system mode, and the fan On/Auto selection.
Upstairs
HEAT: 70
TEMP: 78
COOL: 78
Upstairs
MODE: AUTO
FAN: AUTO ↑
↓
If hold mode is On, "HOLD" is shown:
Upstairs
MODE: AUTO
HOLD
FAN: AUTO ↑
For a heat or cool thermostat, the status shows the current temperature, the temperature setpoint, whether hold mode is on, the
system mode, and the fan on/auto selection.
Upstairs
HEAT: 70
Upstairs
MODE: HEAT
TEMP: 71
↓
FAN: AUTO ↑
Programmable Energy Saver Modules (PESMs)
The PESM is used when you are have any thermostat, other than a HAI Communicating Thermostat, and would like to control
your heating and cooling system with the OmniLT system. The PESM is a temperature sensor and control relay in a small
enclosure that mounts near your central heating, ventilation, and air conditioning (HVAC) system thermostat. The PESM allows
the OmniLT to read the temperature of the area that the HVAC system controls. When you are away or asleep, the PESM can be
set to allow the temperature to drift higher or lower to reduce the operating time, hence saving energy dollars.
The PESM provides an energy saver function. When the energy saver is on, the HVAC system is set back, meaning that the
temperature is allowed to rise or fall to an energy saving level. When the energy saver is off, your thermostat operates normally.
Your thermostat should be set to the desired comfort temperature. Only when the energy saver is on will the temperature be
allowed to deviate from your normal thermostat setting.
There are three temperatures associated with each PESM:
Temperature - this is the air temperature read by the PESM.
Heat temperature - the air temperature will be allowed to fall to this temperature when the energy saver is on.
Cool temperature - the air temperature will be allowed to rise to this temperature when the energy saver is on.
The following control actions are allowed on PESMs:
•
•
•
•
Turn Energy Saver On and Off
Turn Energy Saver On and Off for a specified time
Set heating setpoint
Set cooling setpoint
You can turn the energy saver on, off, use a timed on/off, and change the Heat and Cool temperatures from the console or by
telephone. Commands can also be programmed so that they occur by time schedule or by event, such as security mode change.
For example, the system can be set up to turn the energy saver(s) On and make the Heat setback temperature 65 degrees and the
Cool setback temperature 80 degrees when the alarm system is put in the Away mode. Another program can turn the energy
saver(s) off (to resume normal operation of the HVAC system) at 4:30 P.M. on weekdays to make the house comfortable before
arriving home. Different setback temperatures could be set for the Night mode.
32
To set up your thermostat for use with the energy saver, set it in the appropriate mode and set the temperature to your preference.
NOTE: Your heating and cooling system will always be off if you set your thermostat to Off mode. The PESM cannot turn it
back on. The PESM cannot make your system cool below the thermostat's cool setting, or heat above the thermostat's heat
setting.
Control actions for temperature sensors:
•
•
Set low setpoint
Set high setpoint
To enter the temperature menu, from the top-level display or from the main menu, press the 5 (TEMP) key on the console keypad.
You will be prompted with the first named temperature zone (i.e. Upstairs). The temperature zone can be specified by entering
the temperature zone number followed by the ' # ' key, or by pressing the arrow keys to scroll through the list of temperature
zones. Press the ' # ' key when the desired temperature zone is shown.
TEMPERATURE ZONE:
ENTER TEMPERATURE ZONE ↓
After the ' # ' key is pressed, a menu appropriate for the type of temperature zone is shown.
For Programmable Energy Saver Modules:
Upstairs
0=OFF
1=ON
2=HEAT ↓
Upstairs
3=COOL 4=TIME
#=STAT ↑
Upstairs
2=LOW
3=HIGH
#=STAT
For temperature sensors:
To set a temperature setpoint, press 2 (HEAT) or 3 (COOL).
For Celsius temperatures, press the ' # ' key prior to entering the temperature to make the number negative. The Celsius
temperature may also be specified in 0.5 degree steps if three numeric digits are entered. The third digit adds a .5 to the first two
digits if it is any- thing other than zero. Enter a leading zero if necessary.
In additions to setpoint changes, an energy saver may be turned On or Off. It may also be turned On or Off for a specific
duration.
To turn the energy saver Off, select 0 (OFF). To turn the energy saver On, select 1 (ON). To turn the energy saver On or Off for
a specific duration, select 9 (TIME) prior to selecting On or Off. Enter the time as described under Control - Unit Commands.
Downstairs
0=OFF
1=ON
2=HEAT ↓
Downstairs
3=COOL 9=TIME
#=STAT ↑
ENTER TIME
MINUTES (1-99)
#=H/M/S
Downstairs
0=OFF
1=ON
FOR 15M
↓
The current status of a temperature zone may be displayed by selecting ' # ' (STAT) key from the main temperature menu. The
status display differs depending on the temperature zone type.
When you are finished, press the ' * ' key twice to return to the top-level display.
33
IMPORTANT NOTES:
¾
There is a 3-minute minimum on and off time for PESMs designed to prevent short cycling your HVAC compressor. If
the PESM has just turned the HVAC system on or off, it will wait 3 minutes before changing it, even though the display
does change.
¾
If you change the Heat or Cool setback temperature on the PESM, the system will insure that there is always at least four
degrees Fahrenheit difference between the Heat and Cool temperatures by altering the other setback temperature as
necessary.
¾
PESMs are NOT affected by All On or All Off commands.
Freeze Alarms
Thermostats and PESMs can also be used to report potential freeze conditions before damage to pipes and appliances can occur.
An alarm will be generated if a temperature below 40 degrees is detected by any Thermostat or PESM in the system. The alarm
will not clear until the temperature exceeds 45 degrees.
When the alarm is initiated, the console beeper will be turned on and an alarm dial-out sequence will be initiated after the normal
dial-out delay. Both voice and digital communicator dial-outs may be used. The voice dial-out will follow the Dial Order as
specified in Set Up Dial. The digital communicator will report the Freeze Alarm Code to the Central Station.
The sounder is not activated for freeze alarms (this feature must be activated by your installer).
Indoor and Outdoor Temperature
The Model 31A00-1 Temperature Sensor is used for sensing temperatures from 0º F - 120º F and 31A00-7 Extended Range
Temperature Sensor is used for sensing temperatures from -40º F - 120º F. It features a new, high accuracy temperature sensor
that doesn’t need calibration.
The temperature can be used to activate programs for controlling temperatures indoors and in attics, garages, greenhouses,
basements, wine cellars, coolers, and freezers. The temperature can be displayed on the console or spoken over the telephone. It
can also report, log, alert, or generate an alarm if the temperature reaches freeze conditions or if the temperature goes above the
high setpoint or drops below the low setpoint programmed in the system.
Outdoor temperature zones have a High and Low temperature associated with them that can be used for control purposes. An
example of this is to program the system to turn on the bathroom heat if the outdoor temp goes below 45 degrees. High and Low
temperatures are changed the same way as a PESM.
When a temperature sensor is selected from the list of temperature devices, you may set a “Low” and “High” setpoint for
activating programs or alarms. Enter the desired temperature then press the ' # ' key.
Upstairs
2=LOW
3=HIGH
#=STAT
For negative temperatures (-1o to -40o), press the ' # ' key prior to entering the temperature to make the number negative. A
Celsius temperature may also be specified in 0.5 degree steps if three numeric digits are entered. The third digit adds a .5 to the
first two digits if it is any- thing other than zero. Enter a leading zero if necessary.
34
Temperature Control of Appliances
You can control appliances connected to X-10 and ALC modules (such as a ceiling fan) using the Button feature of the OmniLT.
For example, the ceiling fan can be programmed to come on if the temperature goes above the High temperature (a programming
example to set this up is shown in the Programming section).
High and Low setpoints for temperature zones are changed the same way as the PESM. However, on/off control of the ceiling
fan is done from the 1 (CONTROL) menu. Use the ceiling fan's unit number to turn it On or Off. The PESM and the ceiling fan
are linked together by a button program.
Temperature Alarms
Temperature sensors can be used to signal that a temperature (in a special room, like a greenhouse or wine cooler) has gotten too
high or too low. If the temperature in this zone goes above the High setpoint or below the Low setpoint, the console beeper is
activated (inside and outside sirens are not activated) and the central station and/or voice dialer is called.
The High and Low setpoints are changed as described for the PESM. Use the zone number that the temperature sensor is
connected to in place of the unit number.
NOTE: Setting a High or Low temperature to 0 takes it out of service.
Humidity
The Model 31A00-2 Indoor/Outdoor Temperature and Humidity Sensor is used for sensing indoors temperature and/or reporting
the relative humidity from 0 to 100 percent or for sensing the outdoor temperature and/or reporting the outdoor relative humidity.
High and low humidity limits can be set for taking action (i.e. turning on the bathroom vent fan, running a/c in de-humidification
mode, turning on humidifier in heating mode, etc.) or reporting high or low humidity conditions in homes, greenhouses, wine
cellars, coolers, humidors, etc. Controlling humidity is particularly helpful in combating the growth of mold in vulnerable areas
of the home, such as bathrooms, basements, attics, etc.
The humidity level (0-100%), the low humidity setting, and high humidity setting can be viewed and modified using the
temperature menu. To enter the temperature menu, from the top-level display or from the main menu, press the 5 (TEMP) key.
The humidity zone can be specified by entering the zone number followed by the ' # ' key, or by pressing the arrow keys to scroll
through the list of temperature and humidity zones. Press the ' # ' key when the desired temperature zone is shown.
INDOOR:
LOW: 10
HUMI: 75
HIGH: 90
Status
The Status function is used to display the status of various items in the system. To enter the status menu, from the top-level
display or the main menu, press the 6 (STATUS) key on the console keypad.
STATUS
1=CTRL
4=TEST
2=ZONE 3=SUN
↓
5=TEMP 6=ENERGY
↑
1 = CTRL (CONTROL UNITS)
The Control Status menu allows you to view and scroll through the status of each control unit and to configure HLC and UPB
devices. To enter the Unit menu, from the Status menu, press the 1 (CTRL) key in the console keypad. The system will display:
DEN LAMP
STATUS OFF
↓
35
You may enter a unit number to start displaying the status of that unit, or simply press the down arrow key to scroll through the
list of units. The status display is as shown under Control, except that now the arrow keys may be used to continue scrolling
between units.
Porch Light
LAST COMMANDED
00:24:19
↓
ON
You can also check the state and (if any) the remaining time duration of any Unit.
At this point, you may press the ' # ' key to control the unit as specified under Controlling Units or press ' # # ' to configure and
HLC or UPB device.
Note: Only HAI manufactured UPB™ devices (collectively referred to as HLC devices) can be configured using an OmniLT
controller. Other UPB™ devices may be used, but cannot be configured using the OmniLT controller; they must be configured
using a PC running the UPB™ UPStart configuration software.
Configuring HLC Devices
HLC devices can be configured using an Omni console or OmniTouch touchscreen connected to the OmniLT controller. When
configuring HLC devices, the following information is programmed into the HLC device:
¾
¾
¾
¾
¾
¾
¾
Network ID (UPB Network ID configured in OmniLT controller)
Network Name (HAI Lighting)
Unit ID (Unit Number of respective unit)
Unit Name (which is the name description given to the respective unit in the OmniLT controller)
Room Name (using HLC, the name of the first unit in the respective group is used; otherwise the room number is used)
Links (every device in each room is programmed with 6 consecutive Links, starting with Link 1; for example, every device
in Room 1 is programmed with Links 1-6, Room 2 is programmed with links 7-12, etc.)
Other configuration information
When configuring HLC devices using an Omni console or OmniTouch touchscreen, each device (unit number) must first be
assigned a name in the OmniLT controller. HAI recommends that you first configure your OmniLT controller (naming all of the
HLC units) using the HAI PC Access Software, and then download the information to the OmniLT controller.
Configuring HLC Devices using an Omni Console
To configure HLC devices from an Omni console, use the Status menu. To enter the Status menu, from the top-level display or
the main menu, press the 6 (STATUS) key on the console keypad.
STATUS
1=CTRL
2=ZONE 3=SUN
↓
Press 1 (CTRL) to view the current status of each unit and to configure the HLC device that is assigned for each unit. The
console will display:
Porch Light
STATUS OFF
↓
You may enter a unit number to display the selected unit, or simply press the down arrow key to scroll through the list of named
units.
When the desired unit is displayed, put the selected HLC device into Setup Mode (See - Setup Mode for HLC Devices), and then
press the ' # ' key twice (i.e. # #). The display will provide you with step-by-step configuration status. When complete, the
display shows:
CONFIGURE Porch Light
COMPLETED
Once completed, press the ' # ' key to return to the Status display and select your next unit (device). Put the next selected HLC
device into Setup Mode (See - Setup Mode for HLC Devices) and then press the ' # ' key twice to configure the selected device.
36
Configuring HLC Devices using an OmniTouch Touchscreen
To configure HLC devices from an OmniTouch touchscreen, press the “Control” icon on the Home page. Select the desired unit
from the Control list box to display the unit dialog. Put the selected HLC device into Setup Mode (See - Setup Mode for HLC
Devices), and then press the “Config” button.
The display will provide you with step-by-step configuration status. Once completed, press the Exit icon.
Setup Mode for HLC Devices
To configure HAI UPB™ Wall Switches and Dimmers, put the device in Setup mode as follows:
Step
1
2
Operation
Tap the rocker switch quickly 5 times.
The HAI UPB™ Wall Switch or Dimmer will flash the lighting load one time and blink its LED blue to indicate that it is
in Setup Mode.
Note: The switch will automatically exit Setup mode after 5 minutes. To manually exit Setup mode, tap the switch
quickly 2 times.
To configure the HAI UPB™ 6-Button Room Controller, put the device in Setup mode as follows:
Step
1
2
Operation
Press and hold the “ON” and “OFF” pushbuttons simultaneously for at least 3 seconds.
All of the LED indicators will blink to indicate that the HAI UPB™ 6-Button Room Controller is in Setup Mode.
Note: The HAI 6-Button Room Controller will automatically exit Setup mode after 5 minutes. To manually exit Setup
mode, press and hold the “ON” and “OFF” pushbuttons simultaneously for at least 3 seconds.
To configure the HAI UPB™ 8-Button House Controller, put the device in Setup mode as follows:
Step
1
2
Operation
Press and hold the “1” and “8” pushbuttons simultaneously for at least 3 seconds.
All of the LED indicators will blink to indicate that the HAI UPB™ 8-Button House Controller is in Setup Mode.
Note: The HAI 8-Button House Controller will automatically exit Setup mode after 5 minutes. To manually exit Setup
mode, press and hold the “1” and “8” pushbuttons simultaneously for at least 3 seconds.
Note: When OmniLT finishes configuring the device, it will automatically exit Setup mode and return to normal operation.
2 = ZONE
The Zone Status menu allows you to view and scroll through the status of each zone input. To enter the Zone menu, from the
Status menu, press the 2 (ZONE) key on the console keypad. The system will display:
Front Door
ZONE 1
SECURE
↓
You may enter a zone number to start displaying the status with zone, or simply press the down arrow key to start with the first
zone. The arrow keys may be used to continue scrolling between zones. For each zone, the display will show the zone name, the
zone number, and the current status of the zone:
37
3 = SUN (SUNRISE / SUNSET AUTOMATIC CALCULATION)
The system automatically calculates the time of sunrise and sunset each day. From the status menu, press the 3 (SUN) key on the
console keypad to display the calculated time of sunrise, sunset, and the outdoor temperature (if outdoor temp sensor installed):
Sunrise: 6:00 AM
Sunset: 5:58 PM
Temp
85
4 = TEST (SYSTEM DIAGNOSTIC TEST)
The diagnostic test performed by the OmniLT allows you to check the status of the battery, telephone, bell circuit, auxiliary fuse,
and security zone loop readings. The display is updated 3 times per second, although the actual readings are taken 10 times per
second. To enter the Test menu, from the Status menu, press the 4 (TEST) key on the console keypad.
The first display shows the current battery reading and the phone line status. A battery test is initiated when the status mode is
first entered. The new battery reading is updated ten seconds later. The low battery limit is also displayed.
The phone status consists of two parts, separated by a "/". The first part shows the current phone line state:
ONHK - ON HOOK
RING - RINGING
OFFHK - OFF HOOK
DEAD - DEAD PHONE LINE
The second part shows how the OmniLT is currently using the phone line:
IDLE
LOCAL
REMOTE
VOICE
EMGACC
DCM
-
NOT USING THE PHONE LINE
LOCAL ACCESS
REMOTE ACCESS
IN VOICE DIAL OUT MODE
ACCESS AFTER VOICE DIAL OUT
IN DIGITAL COMMUNICATOR MODE
BATTERY: 230 (LIMIT 200)
↓
PHONE:
ONHK/IDLE
Next, the display shows the A/D reading for the battery voltage, phone line voltage, AC power on, bell, and fuse:
BAT: 225
ACON: 82
PHONE: 140
BELL: 215
FUSE: 222
The next series of displays shows the current analog reading for each security zone input. The displays show the readings for
zones 1-32.
1= 46
4= 45
2= 47
5= 46
3= 46
6= 47
19= 47
22= 46
20= 48
23= 46
21= 47
24= 47 ↑
THROUGH
The normal loop reading for a zone is between 36 - 59 when the zone is secure. Each reading should be changing only by two or
three counts from its average steady reading. When a door or window is opened, the reading will go to a value that represents that
zone being open. If Zone 8 is a Supervised Fire Zone, the normal reading is between 26 – 43 when the zone is secure.
This feature can be used to monitor the quality of the zone wiring and contacts. If the numbers begin to deviate from their
original values when the system was new, wiring problems that will eventually lead to trouble or false alarms may be developing.
You may wish to record the Status | Test values for future reference.
38
5 = TEMP (TEMPERATURE)
The Temperature Status menu allows you to view and scroll through the status of each Thermostat, PESM, and Temperature
Sensor. To enter the Temperature menu, from the Status menu, press the 5 key on the console keypad. The system will display:
TSTAT 1
HEAT:60
TEMP:80
COOL:82
↓
You may enter a unit number to start displaying the status with that unit, or simply press the down arrow key to scroll through the
list of temperature zones. The status display is as shown under Temperature Control, except that now the arrow keys may be used
to continue scrolling.
TSTAT 1
MODE: AUTO
FAN: AUTO
At this point, you may press the ' # ' key to control the temperature zone as specified under Temperature Control.
6= ENERGY (ENERGY COST)
The Energy Cost Status menu allows you to view the current energy rate in use.
ENERGY COST: MID
The Energy Cost will display Lo, Mid, Hi or Crit (for critical) energy rates.
Event Log
The Event Log records the 50 most recent significant security system Events (happenings) and trouble conditions in the system.
When a new event occurs, the oldest one is lost.
The following Events, along with the time and date of their occurrence are recorded in the Event Log when they occur:
•
•
•
•
•
•
•
•
All Security system arming and disarming events (Off, Day, Night, Away, and Vacation), and user name.
All zones bypassed or restored by the user, and user name.
Any zone automatically bypassed by the system.
Any zone shutdown by the system (Swinger Shutdown).
Any zone tripped while the security system is armed.
Any trouble condition (zone, battery, fuse, AC power, or phone).
The restoration of any trouble condition (the trouble condition ceased to occur).
Any Remote Telephone Access, Remote Access Denied, or Remote PC Access.
Show Events
To view your event log, from the top-level display or from the main menu, press the 7 key, then enter your code. The arrow keys
may be used to scroll through the event log, starting with the most recent event.
Each event log entry displays the time and date on the top line and a description of the event on the bottom line:
7:15 PM 5/8
USER NAME
AWAY
For trouble conditions, the event log will show the zone name or specific trouble condition and "TROUBLE":
10:59 AM
BATTERY
5/8
TROUBLE
39
For trouble restorations, the event log will show the zone name or specific trouble condition and "TRBL RST":
11:57 AM
BATTERY
5/8
TRBL RST
The system records each remote access. A remote phone access is when someone calls into the system from an outside phone
line. Remote phone access is also recorded if the system phones out in response to an alarm and the called party enters a code.
The event log displays the code used to access the system and "REM ACCESS":
12:05 PM 5/8
USER NAME
REM ACCESS
An event is logged after three unsuccessful attempts are made to log into the system from a remote phone, the OmniLT will lock
out remote telephone access for 1 hour to discourage any further attempts to access the system - See Telephone Control.
Local access of the system using an in-house telephone is not recorded.
The event log will also record each time the PC Access software is used to access the system. The event log displays the code
used to access the system and "PC ACCESS".
Messages
The Message menu is used to show, log, clear, and send text messages and say and phone voice messages.
To enter the Message menu, from the top-level display or from the main menu, press the 8 (MESSAGE) key on the console.
MESSAGE
1=SHOW 2=LOG
4=SAY
3=CLEAR↓
5=PHONE 6=SEND
↑
Show Message
The 1 (SHOW) key allows you to display the selected text message(s) on the console's top-level display. This can be a helpful
reminder of special events and occasions.
TRASH NIGHT
ENTER MESSAGE
↓
You may enter the message number followed by the ' # ' key to display that message, or simply press the down arrow key to scroll
through a list of messages. Press the ' # ' key to display the selected message:
Mon Feb 21, 00
TRASH NIGHT
4:01 PM
When the message is displayed, the console will beep 4 times and the console LED will flash continuously. You may press the
' * ' key to acknowledge seeing the message. This will cause the LED to stop flashing, however, the message will remain on the
display until it is manually cleared, or cleared by a program.
Log Message
The 2 (LOG) key allows you to store the selected text message(s) in the Event Log. This can be a helpful to keep track of the
times and dates of events and occurrences.
You may enter the message number followed by the ' # ' key to log that message, or simply press the down arrow key to scroll
through a list of messages. Press the ' # ' key to log the selected message.
40
Clear Message
The 3 (CLEAR) key allows you to clear the selected text message, or all text messages from the console's display.
TRASH NIGHT
ENTER MESSAGE
0=ALL ↓
You may enter the message number followed by the ' # ' key to clear that message, or simply press the down arrow key to scroll
through a list of messages. Press the ' # ' key to clear the selected message, or press 0, then ' # ' to clear all messages.
Say Message
The 4 (SAY) key allows the controller to say the selected voice message over a speaker. This voice message can be an audible
reminder of special events and occasions.
You may enter the message number followed by the ' # ' key to say that message, or simply press the down arrow key to scroll
through a list of messages. Press the ' # ' key to say the selected message.
Phone Message
The 5 (PHONE) key allows the controller to call the selected phone number and say the selected voice message.
PHONE NUMBER:
1-8
Select a phone number (1-8) from the dial menu, then press ' # ':
TRASH NIGHT
ENTER MESSAGE
↓
You may enter the message number followed by the ' # ' key, or simply press the down arrow key to scroll through a list of
messages. Press the ' # ' key to dial the number and say the selected voice message.
Send Message (Pro-Link)
The 6 (SEND) key allows you to send any of the text messages through the Pro-Link serial port. You are first prompted to
specify the desired serial port.
SERIAL PORT:
1-2
The built-in serial port (J5) on the controller is assigned to Serial Port 1. Serial port 2 is a Serial Interface Module connected to
the Expansion port on the controller.
Next, select the message to be sent. You may enter the message number followed by the ' # ' key to send that message, or simply
press the down arrow key to scroll through a list of messages. Press the ' # ' key to send the selected message:
MSGNAME
ENTER MESSAGE:
↓
The message is sent out through the specified Pro-Link port exactly as the message was entered in Setup | Names | Message.
Carriage returns and line feed characters are not automatically appended to the end. To send ASCII control as part of the
message, use the caret "^" character in the message. This character specifics that the next character is to be interpreted as an
ASCII control character, such as "^M" to represent a carriage return.
Other useful sequences would be "^J" for a line feed character and "^G" for a bell character. To include an actual "^" character in
the message, enter it twice as in "^^".
Each message can be up to 15 characters long. To send a longer message, simply program two messages to be sent one after the
other.
41
Pro-Link also has the capability to monitor the serial port for incoming text messages. When a text message is received, Pro-Link
searches through all 16 messages for a matching message. If one is found, the Program Command (macro) corresponding to the
matching message is activated.
When receiving an ASCII message that is over 15 characters, OmniLT only processes the last 15 characters of the message.
Pro-Link determines that a message has been received when:
•
•
•
One or more characters have been received followed by 100 ms of silence
One or more characters followed by a carriage return character are received
One or more characters followed by a line feed character are received
It is not necessary to enter the terminating carriage return or line feed character as part of the message name.
42
TELEPHONE CONTROL
Telephone Interface
Your OmniLT is equipped with a built-in telephone response feature that allows you to control and access the status of your
system from any Touch-Tone phone.
The OmniLT actually talks to you using a digital recording of an actual human voice, so the sound is incredibly life like. You
send commands to the OmniLT using the keys of your Touch-Tone telephone. There are no tapes, discs, or other moving parts
associated with the speech and control features, so there is no maintenance or parts to wear out.
Only Touch-Tone phones will work with the OmniLT. Some phones have switches that allow you to select Pulse or Tone. Set
them to Tone to work with the OmniLT.
NOTE: There are two keys on your Touch-Tone telephone that are special. The ' # ' key (pound key, to the right of the zero),
and the ' * ' key (star key, to the left of the zero). You will be using these keys.
In-House Phones
Each time you pick up your telephone at home, the OmniLT will also pick up the line and listen for a # (pound) key. If OmniLT
does not hear the # key within 3 seconds, it hangs up and does not listen in again until the next time you pick up your phone. If
the OmniLT hears any key other than the # key while it is listening in, it disconnects itself immediately.
If the OmniLT does hear the # key within 3 seconds of your picking up the receiver, it disconnects your phones from the phone
company lines and connects your phones to itself, and begins talking to you. When you hang up, your phones are immediately
reconnected to the phone company.
You will hear a slight click on your phone when the OmniLT picks up or hangs up. This is normal. To access your OmniLT
from an in-house phone: Pick up the receiver of any Touch-Tone phone in your house. Pause for just a moment (about a second),
then press the # key on the phone.
You will hear the voice read the menu, which tells you what commands are available over the telephone.
NOTE: If your system is in High Security Mode, you must also enter your code following the # key - See High Security Mode.
In UL Listed Installations, High Security Mode is enabled.
If the alarm system is tripped, the in-house phones will be disconnected when the OmniLT begins to dial out, to preclude a
burglar from jamming the line by shorting out an in-house phone. In this case, you will have to turn the system off at the console.
Remote Phones
You may call your system from any Touch Tone phone and "talk" to your OmniLT, exactly as if you were at home, except that
you must enter your code (Master or Manager) to gain access to the OmniLT.
To call your system from any touch tone phone, call your number. After 8 rings (or whatever you have Rings Before Answer set
to) your OmniLT will answer and "beep" - See Set Up Dial. Press the digits of your code on the phone. The first digit must be
pressed within 3 seconds of the beep. You will hear the menu.
If you hear three beeps after entering the code, you have entered the wrong code. Try again. If you make a mistake while
entering the code, press the # key and then enter the code again. You only have three tries to enter a valid code.
A successful remote access is logged in the event log as a Remote Phone Access, along with the time, date of its occurrence, and
the code number used.
There are a number of setup items that control what you can do from a remote phone when you or anyone else calls into your
home - See Set Up, Dial.
43
Phone Access Denied - Remote Lockout
The OmniLT has a remote lockout feature to discourage youngsters (and adults who act that way) from trying to access your
system. If four invalid codes are entered, the system will hang up and a one-hour lockout period will begin. During the lockout
period, the OmniLT will not answer a call after any number of rings, which should discourage the caller.
If a lockout occurs, the event Phone Access Denied is entered into the event log, along with the time and date of its occurrence.
The one-hour lockout does not apply to in-house phones. The lockout is cleared immediately if the OmniLT is accessed using an
in-house phone.
Alternate Method
The OmniLT has an alternate access method that may be more effective, especially when calling long distance.
1.
Call the system and allow the phone to ring once or twice.
2.
Hang up.
3.
Wait about 10 seconds, but within 60 seconds, call the system again. It will answer on the first ring and beep.
4.
Enter your code.
Main Menu
Once you have successfully logged into your OmniLT, it will read you a menu of commands, as follows:
WELCOME TO OMNI, PLEASE CHOOSE:
1:
2:
3:
4:
5:
6:
7:
8:
9:
*:
0:
CONTROL
SECURITY
BUTTON
ALL
TEMPERATURE
STATUS
EVENT
PHONE
GOOD-BYE
CANCEL
REPEAT
This means that you press '1' for Control functions, '2' for Security, '3' for Button, etc. Pressing one of the keys on the phone will
move you to another menu. These menus are the same as the menus on the console. Words in brackets [ ] are only spoken if that
feature is in use.
You do not have to wait for the OmniLT to finish talking. Once you are familiar with the menus, you can simply punch the
numbers on the phone without waiting. Whenever you press a number, the OmniLT stops talking and goes on to the function that
you have selected.
If you press a key that is not on the current menu, you will hear 3 beeps and the menu will be repeated.
So that the OmniLT does not tie up your phone, there is a 10 to 15 second time-out that starts after the OmniLT stops talking. If it
does not hear any numbers from your phone in 10 to 15 seconds after it stops talking, the OmniLT will hang up. If you are on a
remote phone and the OmniLT hangs up, you must call the OmniLT again. If you are on an in-house phone, hang up, wait a few
seconds, then pick up and press the # key.
To hear the main menu again, press 0 on your phone. To cancel an operation, press ' * ' for Cancel. You will hear "CANCEL"
and one beep for a cancel operation. If you make a mistake, you will hear 3 beeps, then the OmniLT will re-read whichever menu
you are in.
44
When you are finished with the voice menu, press the 9 (Good-Bye) key. The OmniLT will say, "GOOD-BYE" and hang up.
From an in-house phone, the dial tone will return. From a remote phone, you will hear a click as the OmniLT hangs up. It is
recommended that you press 9 to terminate a remote call. If you don't, the OmniLT will hang up anyway after about 15 seconds.
Recording Your Address
The "Phone" menu allows you to record and verify your address. The address is used only for the VOICE dial out feature.
Press 8 from the MAIN MENU to get to the PHONE menu.
"PHONE - PLEASE CHOOSE: [3 INTERIOR]
8 PLAY ADDRESS, 9 RECORD ADDRESS *: CANCEL."
To play the current address, press the 8 key.
To record the address, press the 9 key and enter the Master code.
"RECORD ADDRESS - [BEEP]
At the [BEEP], record your name and address.
"ADDRESS IS: (ADDRESS IS PLAYED)."
When a Two-Way Audio Module is being used:
If an optional Two-Way Audio Module is being used, this command also allows paging and listening to premises.
To talk or listen to the premises, press the 3 key.
"PLEASE CHOOSE: 2 TALK, 8 LISTEN, *: CANCEL."
-
If no key is pressed, OmniLT will automatically switch to listen mode.
To talk to someone at the premises, press the 2 key.
To listen to the premises, press the 8 key.
-
You cannot talk to anyone on premises in listen mode and you cannot listen to the premises while in the talk mode.
Panic Button over the Phone (# # # # # #)
On an in-house phone only, you can activate the Police Emergency keys by picking up the phone and pressing the # key 6 times.
This activates the sounder immediately.
The first # that you press logs you in, as usual, then the next 5 presses of the # key activate the alarm. If you are already logged
into your system, then it takes only 5 presses of the # key to activate the emergency alarm. To prevent accidental activation of the
panic feature over the phone, you must press the # key 5 times, all at once. If you pause for more than 2 seconds, or press any
other key, the panic activation is canceled. The OmniLT will say "CANCEL".
Note that the Panic Button Over the Phone feature only works if you are logged into the system. In an emergency, if you wish to
set off the alarm, simply pick up the phone and repeatedly press the # key until the alarm sounds. Be aware that, under some
circumstances, it may be smarter to dial 911 or your police department directly. Also be aware that your telephone will be
unusable while the OmniLT dials out.
PC Access
OmniLT is capable of communicating with an IBM compatible personal computer (PC). The PC can be local (in-house) or
remote. The PC must be equipped with a modem or serial port and running PC Access software. The OmniLT has a built-in
modem and can be accessed over the telephone or over a direct serial connection (RS-232/RS-485 through an optional serial
interface module). If you wish to use your PC to configure, program, and check the status of your OmniLT, contact your dealer
for the appropriate software for your PC.
45
Emergency Dial-Out
Emergency dial out consists of two distinct parts: the "digital dialer" and the "voice dialer".
Digital Dialer
The digital dialer (also called a "digital communicator") reports alarm events to a central station monitoring center. The digital
dialer sends a digitally coded message to the central station's receiver and computer. The computer in the central station presents
your name, address, and other information to a human operator who notifies the appropriate authorities.
Digital communications to a central station are generally superior to voice communications because the central station is always
staffed with trained professionals and there is virtually no chance for misinterpretation.
The digital communicator will not dial out until the Dial Out Delay has expired. By default, there is a communicator delay of 30
seconds. The delay can be removed or increased up to 45 seconds. Please consult your installer about the Dial Out Delay.
When enabled, if the alarm is canceled prior to the expiration of the Dial Out Delay, no transmission will take place. If the alarm
is canceled after the Dial Out Delay has expired, all alarm trips will be transmitted followed by a Cancel code.
The communicator may be set up to automatically send a test code to the central station on a daily or weekly basis. This verifies
proper operation of the entire monitoring system on a periodic basis.
When the digital communicator is used, all voice dial outs will be delayed for five minutes after the expiration of the Dial Out
Delay to allow time for the central station to call the premises.
If the HAI Two-Way Audio Module is being used, after the transmission of the alarm to the central station, the operator can talk
and listen to people and sounds at the premises.
If the digital communicator is unable to successfully communicate with the central station, the console will display a
Communicator Trouble condition.
Voice Dialer
In UL Listed Installations, the Voice Dialer is supplementary to the Digital Dialer described above.
The voice dial-out feature of the OmniLT is a sophisticated system that can notify you at the office, on vacation, on a pocket
pager, or notify your neighbor, a relative, and in some cases, local authorities.
See What Happens When the Alarm is Activated, also Set Up Dial.
How the OmniLT Voice Dialer Works
When a Burglar Alarm, fire alarm, police emergency keys, fire emergency keys, auxiliary emergency keys, gas alarm, water
alarm, Temperature alarm, or duress alarm is activated, the voice dialer looks at the Dial Order to determine which numbers to
dial and in what order. A Dial Order can have up to 8 entries, allowing the dialer to make up to 8 calls. If you want it to try a
number twice, it can be entered twice in the dial order.
The dial order numbers can be chosen from Dial Out Numbers 1 - 8.
What the OmniLT Voice Dialer Does
When an alarm is activated, the OmniLT will wait the Dial Out Delay. If your system is monitored by a central station, it will be
notified first. Then the voice dialer will dial out to the numbers as described above.
If the alarm is turned off at the console while a voice dial-out is in progress, the dial-out will be canceled immediately and the
voice dialer will hang up. If the number dialed is busy, or if all lines are busy, the dialer will immediately hang up and go to the
next number in the Dial Order. The dialer will wait up to 45 seconds after it finishes dialing for a voice to answer the call. If it
doesn't hear a voice in that time, it goes on to the next number. The voice dialer will respond to answering machines.
After it has dialed the last number in the dial order, the OmniLT stops dialing and reconnects the in-house phones.
46
What You Hear - If Your OmniLT Calls You
When you pick up the phone and say something, the OmniLT will say:
(One of the following, depending on type of alarm)
-
BURGLAR ALARM
FIRE ALARM
AUXILIARY ALARM
TEMPERATURE ALARM
WATER ALARM
GAS ALARM
SILENT ALARM
AND
-
ADDRESS: (Your address here)
PHONE NUMBER (your phone number here)
The OmniLT will repeat this message twice.
Entering the Code
At any time during the message you can enter the Master or Manager code, simply by pressing the digits on the keypad of a
Touch-Tone phone. The OmniLT will stop talking when it hears any digit from a touch tone phone. (When it is saying the
address, the OmniLT completes the entire address before it stops talking.)
If you enter the correct Master or Manager code, you will then be logged in (a remote phone access is logged in the event log) and
further dial outs are canceled.
You will hear the status of the system, which will describe the type of alarm and the zones tripped, for example:
BURGLAR ALARM ACTIVATED: ZONE 1 - ENTRY EXIT - TRIPPED; ZONE 3 - DAY INTERIOR - TRIPPED:
Then the OmniLT will read the Main Menu as described in Telephone Control. You can press 0 to hear the menu. At this point,
you are in control, just as if you had called your system.
A strategy to follow if you are called by your system is to check the Status (6 on the telephone) to see what mode the system is in,
and which zones were tripped. Press * to cancel out of the status mode. You may wish to check the Event Log (7) to see when
each event happened. Then, press * to exit the event log.
Now press 9 (good-bye) to make the OmniLT hang up. Hang up your phone and call your premises to be sure that it wasn't
someone who has forgotten their code. If not, call the police.
If someone properly disarms the system while the called party is logged in, then the status message will go back to "SECURITY
MODE IS OFF - SYSTEM OK" as described in Telephone Control.
If a reportable event (an alarm, cancel, etc.) occurs while you are talking to your OmniLT, it will hang up on you to communicate
the event to the central station.
47
SETUP
The Setup menu is used to configure operating parameters, program your system to do its automated control and security
functions, and give descriptions (names) for all of your zones, units, buttons, codes, temperatures, and messages. To enter the
Setup menu, from the top-level display or from the main menu, press the 9 (SETUP) key on the console keypad.
Upon entry to the Setup mode, you will first be prompted to enter a security code:
SET UP
ENTER CODE:
A Master code is required to enter the Setup mode.
SET UP
1=CODES 2=TIME
3=PROG ↓
4=DIAL 5=ARM
6=MISC
↑
7=NAMES 8=VOICE
Set Up Codes
OmniLT has 8 user codes that you may assign to users of the system. All OmniLT security codes are 4 digits in length (0001 to
9999) and must be unique. The controller will not allow the duplication of any user code including the Duress Code. You may,
however, enter “0000” to disable a code.
User Code 1 is always set to a Master code. All other user should be assigned a security code with an authority level and times in
which the code is valid.
To set up a code, from the Setup menu, press the 1 (CODES) key. Use the arrow keys to scroll through the codes.
CODE 2:
0000-9999
0000=DISABLE
The existing code number is not shown on the display. To change the code, enter a four-digit number, and then press the ' # ' key.
Remember the code number. It will not be redisplayed.
When entering a new code, if the code that you enter already exists, the console will beep three times and display:
"*** INVALID CODE *** ". Enter a different code.
CODE X:
0000-9999
0000=DISABLE
Press the (↓) key. You will then be prompted for an authority level for that code:
CODE X AUTHORITY:
1=MSTR 2=MGR 3=USER
3
1 = Master
Master codes have complete access to the entire system.
2 = Manager
Manager codes can arm and disarm the security system during assigned times. Managers can access the Main Menu if the system
is in High Security Mode, and have telephone access privilege.
3 = User
User codes can only be used to arm and disarm the security system during assigned times. Telephone access is not a User
privilege.
48
You can specify the access (on/off) times for the code, this is, the time periods during which the code is valid.
CODE X ON TIME:
8:00 AM MTWTF-- #=CHNG
CODE X OFF TIME
5:00 PM MTWTF-- #=CHNG
The times and days are changed by pressing the ' # ' KEY. Choose the 1 (TIME) key to change the On or Off times. You will be
prompted to enter the new time. AM/PM must be specified for the time if the AM/PM format is being used, otherwise the entered
time should be 13:00-23:59. Each item defaults to its current value. Press the up arrow key to select Sunrise and press the down
arrow key to select Sunset.
CODE X(ON/OFF)TIME:
1=TIME 2=DAYS
TIME: 8:00 AM
HHMM ↑=RISE/AM ↓=SET/PM
To change days, press the ' # ' key, then press the 2 (DAYS) key. You will be prompted to enter the day(s) that the code will be
valid. Press 1-7 for Monday - Sunday, 0 for Never, 8 for Weekdays, and 9 for Weekends.
DAY(S): MTWTFSS
1-7=MON-SUN 0=NEVER
Duress Code
If you are forced to disarm the system against your will by an intruder, disarm it as you normally would, but use the Duress Code
instead of your normal code. The system will disarm normally. No sirens will sound, no lights will flash, but the OmniLT will
perform a silent dial out and say that this is a silent alarm.
To stop a silent dial out, turn your security system off by pressing OFF, then your code.
DURESS CODE:
0000-9999 0000=DISABLE↑
Set Up Time
To set up time and date, from the Setup menu, press the 2 (TIME) key.
TIME:
HHMM ↑=AM ↓=PM
You will be prompted to enter the new time and date. AM/PM must be specified for the time if that format is being used,
otherwise the entered time should be 13:00-23:59.
Next, you are then prompted with a question that asks if Daylight Savings Time is currently being observed:
DAYLIGHT SAVINGS TIME?
0=NO 1=YES
If Daylight Savings Time is currently being observed (between spring and fall), set this item to "Yes". If Daylight Savings Time
is not currently being observed (between fall and spring) or is not observed in your geographic location, set this item to "No".
This item is used to correctly calculate the times for sunrise and sunset.
You are only asked this question when you set the time. Once the time is set, OmniLT will automatically adjust the "time of day"
each time daylight savings time begins and ends.
49
Finally, you are prompted to enter the current date:
ENTER DATE:
MMDDYY
Enter the current date. If the current date is February 8, 2006, enter it as “0 2 0 8 0 6”.
Advanced Control Programming (ACP)
Your OmniLT can be programmed to do automated control and security functions on a time schedule or in response to an event
occurring in the system.
The OmniLT executes programs:
•
•
•
•
Once at a certain time on a certain date (One-Time Program)
On a certain date every year (Yearly Program)
Repeatedly (Repeating Programs)
In response to an event (Event Button Programs)
You can also conditionalize programs so that they only run under certain circumstances.
Each automation "program" is a single step in programming automation in an OmniLT system. Each program must specify when
that program should execute and an action to be taken. The program may also specify a condition that must be true for the
program to execute.
Each program can be set up to execute at a certain time of day or on the occurrence of a particular event in the system. When this
time or event occurs, the programmed action will be taken if, and only if, the specified condition is also true at that time.
The Program menu allows you to add, review, change, and delete automation programs. To enter the Program menu, from the
Setup menu, press the 3 (PROG) key.
SET UP PROGRAMS
1=ADD
2=SHOW 3=DELETE
1 = Add Programs
The 1 (ADD) key is used to add new automation programs to the system. When you press the 1 (ADD) key, the Edit Program
menu is displayed which allows the various parts of a program to be specified - See Edit Program. You may edit each part of the
program as specified under Edit Program. Press the ' # ' key at the Edit Program menu to show the newly entered program.
Press the ' # ' key again to save the program, or press the ' * ' key to return to the Edit Program menu to cancel entry of the new
program and return to the Set Up Programs menu.
Once the new program is entered, the display will return to the Set Up Programs menu.
2 = Show Programs
The 2 (SHOW) key is used to review, edit, and delete existing programs. From the Set Up Program menu, press the 2 (SHOW)
key. The display prompts you to specify which program to be reviewed.
1=CTRL
4=ALL
Menu 1 Menu 2 Menu 3 Menu 4 Menu 5 Menu # -
2=SEC
5=TEMP
3=BTTN
#=EVERY
Programs for a particular control unit number
All Security related programs
Programs for a particular macro or event button
Programs for All On/Off functions
Programs for a particular Temperature zone
Displays every program
50
Selecting the 1 (CTRL) or 5 (TEMP) key will prompt you to specify the desired unit or temperature zone. These can be specified
by entering the number, followed by the ' # ' key or by using the arrow keys to scroll through a list of items.
UNIT:
ENTER UNIT
↓
TEMPERATURE ZONE
ENTER TEMPERATURE ZONE ↓
Selecting the 3 (BTTN) key will prompt you to specify the desired button number. These can be specified by entering the
number, followed by the ' # ' key or by using the arrow keys to scroll through a list of items.
BUTTON:
ENTER BUTTON
#=MENU ↓
Pressing the ' # ' key first will bring up a menu of event button types to select from:
BUTTON TYPE
1=CTRL 2=SEC
4=ALL
7=MISC
3=ZONE ↓
5=ALARM 6=X-10
↑
If there are no programs for the specified item, the console will beep three times and will display:
*** NO PROGRAMS ***
Otherwise, a help screen is displayed:
Press # to delete or
edit displayed program.↓
The first program is displayed once the down arrow is pressed. The top line displays the time or button/event that activates the
program and any condition that must be true for the program to activate. The bottom line shows the command to execute when
the program is activated.
10:00 PM MTWTFSS
Living Rm Lt ON
6:00 AM 10/10
PROGRAM DAY
&AWAY
&NIGHT
WHEN AWAY:
ALL OFF
The arrow keys are used to scroll through the programs. Pressing the ' # ' key while a particular program is displayed will allow
that program to be edited or deleted. The display shows:
SHOW PROGRAM
1=EDIT 2=DELETE
¾
Press the 1 (EDIT) key to edit the selected program. The Edit Program menu is displayed which allows the various
parts of the program to be changed - See Edit Program. Edit each part of the program as specified under Edit Program.
Press the ' # ' key at the Edit Program menu to show the newly edited program. Press the ' # ' key again to save the
program, or press the ' * ' key to cancel edit of this program and return to reviewing the programs.
¾
Press the 2 (DELETE) key to delete the selected program.
51
3 = Delete All Programs
To delete All automation programs, from the Set Up Program menu, press the 3 (DELETE) key. The display will prompt you to
confirm the deletion.
DELETE ALL PROGRAMS?
0=NO 1=YES
Select 1 (YES) to delete all automation control programs in the system. Select 0 (NO) or press the ' * ' key to return to the Set Up
Program menu.
NOTE:
IF YOU CHOOSE THIS OPTION, ALL OF YOUR PROGRAMS WILL BE LOST PERMANENTLY.
Edit Programs
The Edit Program menu is used to create an automation program.
EDIT PROGRAM
1=WHEN 2=CMD
3=&COND
•
Selecting 1 (WHEN) is used to specify the time that the program is activated or the macro button (event) that activates
the program.
•
Selecting 2 (CMD) allows you to specify the action to be taken when the program is executed.
•
Selecting 3 (&COND) allows a condition to be specified that must be true for the program to be executed at the
specified time.
Each of these items defaults to its current setting for an existing program that is being edited, or to a default value for a new
program.
For each program, it is only necessary to specify the time or event and the action to be taken. It is not necessary to specify a
condition on the program if the action should be taken whenever the specified time or event occurs.
Edit Programs When
Selecting the 1 (WHEN) key, from the Edit Program menu, allows the time or button/event that activates the program to be
changed. The display shows:
EDIT WHEN
1=TIMED 2=BUTTON
Times Programs
Selecting 1 (TIMED) sets the program to be activated at a specific time of day. You are prompted to enter the time and date or
days of week. The current default value is shown for each item. Press ' # ' to accept the default.
12:00 AM
5/17
1=TIME 2=DATE/DAY
Select 1 (TIME) to enter the new time. If the desired time is the time in which sunrise or sunset will occur, press the up arrow key
for sunrise, or the down arrow key for sunset before entering a time.
TIME: 12:00 AM
HHMM ↑=RISE/AM ↓=SET/PM
52
You may also choose to have the program execute up to 120 minutes before or after the time of sunrise or sunset.
SUNSET
1=BEFORE
2=AFTER
#=AT
If the 1(BEFORE) or 2(AFTER) key is selected, you will be prompted to select the amount of minutes:
ENTER OFFSET:
0-120 MINUTES
When entering a time of day, AM/PM must be specified for the time if the AM/PM format is being used. Otherwise the entered
time should be 13:00-23:59.
TIME: 8:00 AM
HHMM ↑=RISE/AM ↓=SET/PM
Select 2 (DATE/DAY) to enter a new date or days of week.
DATE: 10/15
MMDD ↓=DAY
Next, specify if the program will run once (on the specified date and then be deleted) or if the program will run every year on the
specified date (yearly).
RUN PROGRAM
1=ONCE
2=YEARLY
To change days, press the down arrow (DAY) key. You will be prompted to enter the day(s) that the program will be activated.
Press 1-7 for Monday - Sunday, 0 for Once, 8 for Weekdays, and 9 for Weekends, then ' # '.
DAY(S): M-W-F-1-7=MON-SUN 0=ONCE
Press the ' # ' key and the display will then return to the Edit Program menu:
EDIT PROGRAM
1=WHEN 2=CMD
3=&COND
Button and Event Programs
Selecting 2 (BUTTON) from the Edit When menu sets up a program to be activated when a particular button is run or a particular
event occurs. The user is prompted to specify the button/event that activates the program:
BUTTON:
ENTER BUTTON
#=MENU ↓
A specific macro button may be activated by entering the button number followed by the ' # ' key, or by using the arrow keys to
scroll through a list of buttons.
Pressing the ' # ' key first will bring up a menu of event button types:
BUTTON TYPE
1=CTRL 2=SEC
4=ALL
7=MISC
3=ZONE ↓
5=ALARM 6=X-10
8=MSG 9=SWITCH ↑
After the event button is specified, the display returns to the Edit Program menu.
53
Control Unit / Switch Press Event Buttons
This Event Button is activated upon the following:
•
•
•
•
•
When the specified Unit is turned on or off
When the top-rocker or bottom-rocker is pressed on a UPB, RadioRA, or ALC switch
When a button is pressed on a UPB 6-Button or 8-Button Keypad
When a button is pressed on a RadioRA Master Control
When a button is pressed on a ALC 4-Button Scene Switch Module
Press the 1 (CTRL) key to select the "When Command" for a control unit event.
UNIT:
ENTER UNIT
↓
The unit may be selected by entering the unit number followed by the ' # ' key or by using the arrow keys to scroll through a list of
unit names. Select the desired unit. Next, you are prompted to specify the event that activates the program:
WHEN Porch Light:
0=OFF 1=ON 2=SWITCH
Press the 0 (OFF) key to select when the unit turns off or press the 1 (ON) key to select when the unit turns on (this program is
executed whenever the unit is turned off or on).
Press the 2 (SWITCH) key to select only when the top-rocker or bottom-rocker is pressed at a UPB, RadioRA, or ALC Switch
(locally at the Switch) or when a button is pressed on a keypad.
SWITCH:
0=OFF 1=ON 2-11=SW1-SW10
Press "0" to select only when the bottom-rocker (off) is pressed on the Switch. Press "1" to select only when the top-rocker (on)
is pressed on the Switch. Press "2-9" (see the Corresponding Switch Table) to select when that button is pressed on a keypad.
Press the ' # ' key to enter your selection.
Corresponding Switch Table
Switch
1
2
3
4
5
6
7
8
9
10
OmniLT
2
3
4
5
6
7
8
9
10
11
UPB 6-Button Keypad
On Button
Off Button
A
B
C
D
UPB 8-Button Keypad
1 or E
2 or F
3 or G
4 or H
5 or I
6 or J
7 or K
8 or L
RadioRA Master Control
1
2
3
4
5
6
7
8
9
10
ALC 4-Button
1
2
3
4
Security Mode Event Buttons
Pressing the 2 (SEC) key allows you to select the event button that will be activated when a security mode changes:
0=OFF
3=AWAY
1=DAY
2=NIGHT
4=VACATION
54
After the security mode is selected, an additional menu appears which allows you to further specify the button. For example, you
would like to activate a button when you arm the system into the 3 (AWAY) mode:
WHEN AWAY:
1=DELAY 2=CODE
Any of these may be selected alone or in combination. As each item is specified, the menu is redisplayed with the updated event
button description. Press the ' # ' key when done.
-
Selecting 1 (DLY) allows the user to specify whether the event button is activated at the start or end of the exit delay:
WHEN ACTIVATED?
1=START EXIT 2=END EXIT
When you specify that the event button is activated at the start of the delay by pressing the 1 (START EXIT) key, the mode is
prefixed by "A-" for "arming into".
WHEN AWAY:
WHEN A-AWY:
(END OF DELAY)
(START OF DELAY)
When the system is armed in the Day (instant) or Night (delay) mode, buttons for the Day and Night modes are executed,
respectively.
-
Selecting 2 (CODE) allows you to specify that the event button is activated only when a particular code is used. You will be
prompted to enter the code:
ENTER USER CODE:
1-16
0=ALL ↓
You should enter the user code by entering the code number followed by the ' # ' key or by using the arrow keys to scroll through
a list of code names.
WHEN C1 AWAY:
1=DELAY 2=CODE
WHEN C1 A1 AWAY:
1=START EXIT 2=END EXIT
Zone Event Buttons
Pressing the 3 (ZONE) key allows you to select the event button for a zone activation event. You are first prompted to enter the
desired zone number:
ZONE:
ENTER ZONE
↓
The zone number should be entered followed by the ' # ' key, or the arrow keys may be used to scroll through a list of zones. The
desired zone is then displayed and you are prompted to specify the state that activates the event button:
WHEN Front Door:
0=SECURE
1=NOT RDY
All On/Off Event Buttons
Pressing the 4 (ALL) key allows you to specify an event button activated by issuing an All On or an All Off command, issuing a
Leviton Scene command, or issuing a UPB Link command. You are first prompted to specify whether the event button is for All
Lights On, All Off, Leviton Scene, or UPB Link:
ALL
0=OFF 1=ON 2=SCN 3=LINK↓
55
If Leviton Scene is selected, you must first specify the scene number:
ENTER SCENE:
1-64
Then select the specified command Off, On, or Set.
If UPB Link is selected, you must first specify the link number:
ENTER LINK:
1-250
Then select the specified command Off, On, or Set.
UPB Link Triggers
When a program is created that uses “When Link On” as the trigger, the program will execute when a “Link Activate”, “Link
Goto” (as long as the result of the Goto command is not “0”), or “Link Fade Start” (as long as the result to the Fade command is
not “0”) message is received.
When a program is created that uses “When Link Off” as the trigger, the program will execute when a “Link Deactivate” or “Link
Goto” (where the result of the Goto command is “0”) message is received.
Using HAI PC Access Software, you can create a program that uses “When Link Fade Stop” as the trigger. When this trigger is
used, the program will execute when the “Link Fade Stop” message is received.
Alarm Event Buttons
Pressing the 5 (ALARM) key allows you to specify a event button activated upon the occurrence of an alarm. You are first
prompted to select the type of alarm:
SELECT ALARM TYPE
ANY TYPE
↓
The arrow keys are used to select from a list of alarm types:
•
•
•
•
•
•
•
•
•
ANY ALARM
BURGLARY ALARM
FIRE ALARM
GAS ALARM
AUXILIARY ALARM
FREEZE ALARM
WATER ALARM
DURESS ALARM
TEMPERATURE ALARM
Press the ' # ' key when the desired alarm type is shown.
X-10 Event Buttons
Pressing the 6 (X-10) key allows you to specify an event button activation upon receipt of an X-10 command from a source
external to OmniLT. OmniLT can also respond to scene changes initiated at Compose keypads and dimmers. When a scene
change is initiated, OmniLT can activate an event button program. You are first prompted to enter the X-10 house code:
X-10 HOUSE CODE:
1-16=A-P
56
You are then prompted to enter the X-10 unit code:
X-10 UNIT CODE:
1-16
0=ALL
Finally, you are prompted to specify the command that activates the event button:
WHEN X-10 A1:
0=OFF 1=ON 2=SCENE
After specifying the X-10 House Code and X-10 Unit Code, select 0 for Off, 1 for On, or 2 for Scene.
"Off" events will be activated whenever the selected device is turned off. "On" events will be activated whenever the selected
device is turned on. "Scene" events will be activated whenever the selected device is set to the specified scene. "On" events will
also be activated whenever the selected device is set to a scene other than off.
Miscellaneous Event Buttons
Pressing the 7 (MISC) key allows you to select a event button from a list of other event buttons. You are first prompted to select
the event button:
SELECT BUTTON:
WHEN PHONE DEAD
↓
The arrow keys are used to select from a list of event buttons:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
WHEN
ENERGY LO
ENERGY MID
ENERGY HI
ENERGY CRIT
PHONE DEAD
PHONE RING
PHONE OFFHK
PHONE ONHOOK
AC PWR OFF
AC PWR ON
BATTERY LOW
BATTERY OK
DCM FAIL
DCM OK
CAMERA (1-6)*
*When a camera input (1-6) is pressed on an OmniTouch with Video.
Message Event Buttons (Pro-Link)
Pressing the 8 (MSG) key allows you to select an event button from a list of the 16 text messages. You are first prompted to
select the message:
MESSAGE:
ENTER MESSAGE
↓
The message may be entered by entering the message number followed by the ' # ' key or by using the arrow keys to scroll
through the list of messages.
Pro-Link also has the capability to monitor the serial port for incoming text messages. When a text message is received, Pro-Link
searches through all 16 text messages for a matching message. If one is found, the When Message Received event button
corresponding to the matching message is activated.
57
Pro-Link determines that a message has been received when:
•
•
•
One or more characters have been received followed by 100 ms of silence
One or more characters followed by a carriage return character are received
One or more characters followed by a line feed character are received
It is not necessary to enter the terminating carriage return or line feed character as part of the message name.
Switch Press Event Buttons (CentraLite)
When a button is pressed on a CentraLite keypad, the "When Switch" program is activated.
Pressing the 9 (SWITCH) key allows you to select the "When Command" for a switch pressed activated event.
You are first prompted to enter the switch number:
SWITCH NUMBER:
1-127
↓
Enter the switch number followed by the ' # ' key.
Edit Program Command
Selecting 2 (CMD), from the Edit Program menu, allows the commanded action for the program to be specified. The following
menu is displayed:
1=CONTROL
3=BUTTON
2=SECURITY
↓
4=ALL
5=TEMP
8=MESSAGE
6=ENERGY
↑
After the command is specified, the display returns to the Edit Program menu:
Program Control Commands
Press the 1 (CONTROL) key to command lights and appliances. Specify the desired command - See Control.
Porch Light (Unit Name)
0=OFF 1=ON 2=DIM 3=BRT ↓
Porch Light (Unit Name)
4=LVL 5=RMP 9=TIM #=STA↑
If the selected unit is is configured to use the Compose Format, the second page of the menu is modified to allow Scene
commands. Consequentially, the Level and Ramp Commands are removed from the menu.
Entry Lights (Unit Name)
4=SCN 9=TIM
#=STA↑
If the selected unit is not capable of dim and bright commands, only a single menu is shown.
Porch Light (Unit Name)
0=OFF 1=ON 9=TIM #=STA
If the selected unit is UPB, press 6 (LED) to control an LED on a UPB Keypad.
58
On the 6-Button Keypad: LED 1 is behind the “On” button, LED 2 is behind the “Off” button, and LED 3-6 is behind the A-D
buttons, respectively. On the 8-button Keypad: LED 1-8 is behind the 1-8 buttons, respectively. For example:
WHEN U1 SW 3:
UNIT 1 LED 3 ON
This program illuminates the “A” button (on a 6-Button Keypad) when the “A” button on that keypad controller is pressed. This
program can also be used to illuminate the “3” button (on an 8-Button Keypad) when the “3” button is pressed.
If the selected unit is UPB, the # (STA) key is used to request the status form the specified UPB device.
WHEN LINK 1 ON:
Porch Light STATUS
When “Link 1 On” is received on the UPB network, OmniLT sends a status request message to the UPB Wall Switch (named
Porch Light) to acquire its current status.
This “Status Request” program is particularly beneficial to keep the current state of UPB devices that are altered by a “lighting
scene” (Link On or Link Off) command. When the Link On or Link Off command is transmitted by a 6-Button or 8-Button
Keypad Controller, each device that has that Link pre-configured will respond to its preset levels. At this point, OmniLT no
longer knows the exact state of the units that responded to the specified Link command until the switch is pressed locally, the
controller sends a command message to the device, or a Status Request message is issued to the device.
Unit Toggle Command
Using HAI PC Access Software, you can create programs to toggle any unit (1-36) from its current state to the opposite state.
When the program is executed, the unit will toggle to Off if the unit is currently in a non-off state (On, On for time, Level 1-100,
Scene A-L, Dimmed Steps, Dimmed for time, Brightened Steps, or Brightened for time).
When the program is executed, the unit will toggle to On if the unit is currently Off.
Note: If a unit is currently timed (On for time, Dimmed for time, Brightened for time, or Off for time), when the toggle program
is executed, the unit will toggle to the opposite state and will defeat the timer.
This programming feature will simplify programming when using a button on a UPB, Compose, ALC, or RadioRA keypad to
toggle a light on and off with the push of a single button. For example:
WHEN FRONT FOYER SW1 PRESSED: FRONT FOYER TOGGLE
Program Security Commands
Press the 2 (SECURITY) key to arm and disarm the security system, or to bypass and restore an individual zone. The following
menu is displayed:
0=OFF
3=AWAY
1=DAY
2=NIGHT
↓
4=VACATION
5=DAY INST
8=BYPASS
6=NIGHT DLY
9=RESTORE ↑
Select (0-6) to arm the system into the desired mode or select the 8 key to Bypass and the 9 key to Restore a security zone.
Program Button Commands
Select the 3 (BUTTON) key to program a button to automatically execute. Specify the button to be executed - See Button
Programs.
59
Program All On / All Off Commands
Select the 4 (ALL) key to program All Lights On and All Units Off commands. It is also used to program Leviton Scenes, UPB
Link, RadioRA Phantom Button, or CentraLite Scene.
ALL
0=OFF 1=ON 2=SCN 3=LINK↓
ALL
4=PHANTOM 5=CENLIT
↑
Program Video Commands*
This program command is used to display video automatically on an OmniTouch with Video touchscreen when an event occurs.
You can specify which camera and which touchscreen(s) will display the video when the event takes place. When the event takes
place, it switches each of the specified touchscreens to full screen video.
* This item can only be programmed via PC Access.
Program Temperature Commands
Select the 5 (TEMP) key to command thermostats, energy saver modules, and temperature sensors.
temperature command - See Temperature.
Specify the desired
Program Energy Cost
Select the 6 (ENERGY) key to command the energy cost rate. Specify the desired energy cost rate:
ENERGY COST:
0=LO 1=MID 2=HI 3=CRIT
Program Message Commands
Select the 8 (MESSAGE) key to show, log, clear, and send text messages or say and dial voice messages. Specify the desired
message command - See Message.
Edit Program Condition
Selecting the 3 (&COND) key, from the Edit Program menu, allows the condition for the program to be specified. This condition
must be true when the program time or event occurs for the program to be executed.
The following menu is displayed:
SELECT CONDITION
1=CTRL 2=SEC
3=ZONE ↓
9=TIME
#=MISC
↑
After the condition is specified, the display returns to the Edit Program menu.
60
Program Control Conditions
Press the 1 (CTRL) key to specify that the program should only execute if a specified control unit is either On or Off.
The display prompts for the unit number:
UNIT:
ENTER UNIT
↓
Enter the unit number followed by the ' # ' key, or use the arrow keys to select the unit.
The unit is displayed and the display prompts for the state of the unit:
IF Porch Light:
0=OFF 1=ON
Program Security Mode Conditions
Press the 2 (SEC) key to specify that the program should only execute if the security system is armed in a particular mode. Select
the security mode from the following menu:
0=OFF 1=DAY 2=NIT 3=AWY
4=VAC 5=DYI 6=NTD
Next, select whether the system is considered in the specified mode during the exit delay:
INCLUDE EXIT DELAY?
0=NO 1=YES
Program Zone Conditions
Select the 3 (ZONE) key to specify that the program should only execute if a specified security zone is either Secure or Not
Ready. The display prompts you for the zone number:
ZONE:
ENTER ZONE
↓
Enter the zone number followed by the ' # ' key, or use the arrow keys to select the zone.
The zone will be displayed and you will be prompted for the state of the zone:
IF Front Door:
0=SECURE
1=NOT RDY
Program Time Clock Conditions
Select the 9 (TIME) key to specify that the program should only execute if a specified Time Clock is either On or Off. The
display prompts you for the Time Clock number:
ENTER TIME CLOCK:
1-3
Enter the Time Clock number followed by the ' # ' key.
Next, specify the state of the time clock:
IF TIME CLOCK 1:
0=OFF 1=ON
61
Program Other Conditions
Select the # (OTHER) key to select a condition from a list of other conditions.
SELECT CONDITION:
NONE
↓
Choose "NONE" when editing a program and choose not to conditionalize the program.
SELECT CONDITION:
NEVER
Choose "NEVER" if you wish to temporarily deactivate a program without deleting it.
Other conditions include:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
IF
IF
IF
IF
IF
IF
IF
IF
IF
IF
IF
IF
IF
IF
LIGHT
DARK
ENERGY LO
ENERGY MID
ENERGY HI
ENERGY CRIT
PHONE DEAD
PHONE RING
PHONE OFFHK
PHONE ONHOOK
AC PWR OFF
AC PWR ON
BATTERY LOW
BATTERY OK
Set Up Dial
The Set Up Dial menu is used to configure all of the telephone related items for the OmniLT. To enter the Set Up Dial menu,
from the Setup menu, press the 4 (DIAL) key. Use the arrows to scroll through the items. For each item, the top line displays a
description of the item and its current setting. The bottom line shows the available ranges for your selections.
Phone numbers can be up to 24 characters long. The number is shown on the bottom line of the display. Press the OFF key to
enter a ' - ' into the number. Press the DAY key to specify a pause of 2 seconds (shown as a "T" on the display). Press the
NIGHT key to enter a ' # ' into the number. Enter a single ' - ' for no number.
Telephone Access
The Telephone Access item allows you to turn the local (in-house) and remote telephone control feature on and off.
If set to On, the OmniLT will allow local and remote telephone access as described in Telephone Control. If set to Off, the
OmniLT will not answer incoming calls ever, and will not work on the in house phones. Dial outs will still occur, and the system
will operate normally when the OmniLT dials out.
If you do not have your OmniLT connected to a phone line, set Telephone Access to Off to keep the system from displaying
"PHONE LINE DEAD". The default setting for Telephone Access is On.
Answer Outside Call
If you do not want your system to answer outside calls, set this item to No. The local (in-house) telephone control features will
still work, but the system will never answer an incoming call.
The default setting for Answer Outside Call is Yes.
62
Remote Commands
The Remote Commands Ok item allows you to prevent any commands from being issued from a remote telephone.
If Remote Commands Ok is set to Yes, the OmniLT will allow all commands to be executed when called from a remote
telephone. If Remote Commands Ok is set to No, then lights, appliances, and the security system cannot be controlled from a
remote telephone that dials into your home.
You can issue commands from a local (in-house) phone with Remote Commands Ok set to Yes or No. The default for Remote
Commands Ok is Yes.
Rings Before Answer
Your phone must ring this number of times before the OmniLT will answer an incoming call to your phone.
To change Rings Before Answer, enter the new number from 1 to 15, then press the ' # ' key.
The factory default for Rings Before Answer is 8.
Dial Type
The Dial Type specifies the type of dialing used when the OmniLT dials out. If you do not have Touch-Tone service, then Dial
Type must be set to Pulse.
The default dial type is Tone.
My Phone Number
My Phone Number is the phone number that will be announced when the OmniLT dials out in the event of an alarm. It should be
set to the phone number of the premises where your system is installed.
To enter phone numbers, press the keypad keys 0 - 9. You can put in a dash (-) for legibility by pressing the Off key. Press the ' #
' key after you have pressed all of the digits in the phone number.
For example, to enter the number 555-1234, press 555 'OFF' 1234 #.
Dial Out Number 1
Dial Out Number 1 is one of the 8 numbers that are stored in the system. In the event of an alarm, these numbers are dialed in the
order that is set up in the Dial Out Order for the particular type of alarm. Dial out numbers 1 - 8 have On and Off times and days,
so that no time is wasted calling you at the office at night or on a Sunday if the alarm is activated.
For dial out number 1, you should enter your office number where you can be reached during working hours.
Enter the phone number the same way as described for My Phone Number.
You can cause the system to pause for two seconds between digits of the number by pressing the DAY key, which puts a T in the
number. Multiple Ts for longer pauses are allowed. You can also press the NIGHT key (*) and the AWAY key (#) for symbols
to get through some types of telephone or pocket beeper/pager systems.
To prevent a call waiting line from interfering with the dial out, you may use the call waiting cancel sequence at the beginning of
the number. The call waiting sequence is typically ' * 7 0 T ' (T = pause); however this may vary depending on your region.
If you wish to remove a phone number for a particular dial out number, press OFF then ' # ' (with the display showing a Dial Out
Number) to enter a single dash (-).
Phone numbers can be up to 24 digits.
DIAL OUT 1 ON
DIAL OUT 1 OFF
63
Dial out number 1 has two times associated with it, an On and Off time. The OmniLT will only call this number if the time and
days are between the Dial Out 1 On and Dial Out 1 Off times and dates.
Press # to change the On and Off times - See Set Up Codes.
DIAL OUT 1 ON:
12:00 AM MTWTFSS #=CHNG
DIAL OUT 1 OFF:
NEVER
#=CHNG
For example, if your normal work hours are 8 to 5 Monday through Friday, then set Dial Out 1 On to 8:00 AM MTWTF and Dial
Out 1 OFF to 5:00 PM MTWTF. With these settings, the system will call Dial Out Number 1 only if the alarm is activated on
weekdays between the hours of 8:00 AM to 5:00 PM.
The default for Dial Out 1 On is 12:00 AM MTWTFSS, and the default for Dial Out 1 Off is Never, so that Dial Out Number 1 is
always active.
The Time that was entered before setting an On or Off time to Never is saved, and will be redisplayed when a day is set in place
of Never. Setting both the Dial Out 1 On and the Dial Out 1 OFF times to Never will make Dial Out Number 1 never active.
Dial Out Numbers 2-8
The default Dial Out On and Off times are the same as Dial Out Number 1.
Dial Order
The dial order is the order in which call all will be placed if an Alarm is activated.
You can have the system make up to 8 calls in the event of an alarm. You may chose from Dial Out Numbers 1 - 8. You can
have the system dial a number twice (or more) which is suggested if you don't have a direct dial number at work, so that your
company operator can find you, if you aren't at your desk, and have you alerted for the next call.
Up to eight numbers may be entered. Enter the Dial Out Order by pressing the keypad digits 1, 2, 3, 4, 5, 6, 7, or 8 for Dial Out
Numbers 1, 2, 3, 4, 5, 6, 7, or 8, respectively. When you have entered the dial order of your choice, press ' # '. Enter a single ' 0 '
if no dial out is desired. The default Dial Order is 1 2 3 4 5 6 7 8.
Set Up Arming
To configure different arming and disarming options, from the Setup menu, press the 5 (ARM) key.
Entry Delay
The Entry Delay is the time, in seconds, that you have to disarm the alarm system after entering your home. The Entry Delay
only applies to the entry/exit zone (e.g. your entry doors). If you (or someone else) come in through a window, there will be no
entry delay and the alarm will sound immediately.
When you come in through a door on an entry/exit zone, the other zones are delayed too. This allows you to get to your phone or
console to turn off the security system, even if you have to go through a room protected by a motion detector.
Some doors (a back door or garage door) may be configured as a Double or Quadruple Entry Delay. If so, that door has two
times or four times the entry delay shown on the display.
ENTRY DELAY:
30-60 SECONDS
30
↓
The default Entry Delay is 30 seconds. You may change it from 30 to 60 seconds.
64
Exit Delay
The Exit Delay is the time, in seconds, that you have to leave your house when you turn on the system. When arming the system
in Day, Night, Away, or Vacation modes, the system will wait this amount of time before arming.
EXIT DELAY:
45-180 SECONDS
60
The default Exit Delay is 60 seconds. You may change it from 45 to 180 seconds.
Exit Time Restart
When Exit Time Restart is set to Yes, the Exit Delay will restart if the same exit zone is violated twice within the original exit
delay. For example, after arming the system if you open the front door to leave, close the front door behind you, and then reenter
through the front door while the exit delay is still in effect, the exit delay will be restarted. This is designed to give you additional
time to exit without causing an alarm. The exit time will only be restarted once within a given arming period.
To configure Exit Time Restart, from the Set Up menu, press the 5 (ARM) key.
EXIT TIME RESTART:
0=NO 1=YES
1
The default setting for Exit Time Restart is “Yes”.
Unvacated Premises
When Unvacated Premises is set to Yes, if the alarm is armed in Away or Vacation mode and no exit zone is violated during the
exit delay (i.e. the premises was not vacated), the system will automatically arm to Day mode at the expiration of the exit delay.
To configure Unvacated Premises, from the Set Up menu, press the 5 (ARM) key.
UNVACATED PREM:
0=NO 1=YES
1
The default setting for Unvacated Premises is “Yes”.
Entry/Exit Chime
When Entry/Exit Chime is set to Yes, the console(s) will beep once when a door on an entry/exit zone is opened, even if the alarm
system is off. This lets you know when someone enters and leaves.
The default setting for Entry/Exit Chime is Yes.
Perimeter Chime
When Perimeter Chime is set to Yes, the console(s) will beep once when a window or any other perimeter zone is opened, even if
the alarm system is off.
The default setting for Perimeter Chime is Yes.
Enable Quick Arm
The Quick Arm feature allows the security system to be armed by pressing the desired mode key twice instead of having to enter
your code.
The default setting for Enable Quick Arm is No.
65
Enable Auto Bypass
With Auto-Bypass set to “No”, all zones to be armed must be secure when the system is armed. Otherwise, the console will beep
three times and display "ZONE NOT RDY". If the system is armed and a zone is open when the Exit Delay expires, the alarm
will sound.
The default for Enable Auto Bypass is No.
All On For Alarm
This option will instruct OmniLT to execute an X-10 All On command in the event that any type of alarm occurs.
Beep On Trouble
If the OmniLT detects any troubles with itself or one of the zones connected to it, it will display a message on the screen and beep
the console twice per second, continuously (i.e. beep beep...beep beep...). You can silence this sound by pressing the ' * ' key.
However, if the trouble occurs again, the beeper will start beeping again.
If you do not wish to hear the beeping sound when trouble occurs, set Beep On Trouble to No.
The default setting for Beep On Trouble is Yes.
Set up Miscellaneous
To configure Miscellaneous items in the system, from the Set Up menu, press the 6 (MISC) key.
High Security Mode
In High Security Mode, the Master or Manager code is always required to do the following functions:
•
•
•
•
Any Control functions
Any Temperature Control
View the Event Log
Access the system from a local phone
With High Security Mode Off, no code is required to access a local telephone.
If your system is set up with High Security On, the display will request the Master or Manager code whenever you select one of
these functions, even if the security system is Off. Simply enter your Master or Manager code.
Your system was shipped from the factory with High Security Off, which allows you to view the event log and access the local
phones without having to enter a code. In most residential applications, this is appropriate. If you have a commercial installation,
or would like added protection from unauthorized access to the system, you may wish to turn on High Security Mode.
Announce Alarms
If a Two-Way Audio Module is being used in a system, this item enables the system to speak the type of alarm and zone over a
speaker on premises. When an alarm first occurs, the siren is activated. After a few seconds, the siren is turned off and the type
of alarm is announced. The siren is then reactivated.
The default for Announce Alarms is No.
Enable Freeze Alarm
If there are one or more Thermostat or PESM in a system, they can also be used to detect a freeze condition - See Freeze Alarm.
The default for Enabled Freeze Alarm is No.
66
Flash For Alarm
You may enter one unit number that will flash On and Off continuously when the alarm is activated. This should be an outside
light to alert neighbors and police to your property if the alarm is activated.
The default Flash For Alarm is Unit 2. You may enter one number for the unit number you wish to have flash, or ' 0 ' for none.
Console 1-4 Audible Exit Delay
Consoles (and touchscreens) 1-4 can be configured to beep while the exit delay is in effect. During the last 10 seconds of the exit
delay, the audible indication will beep twice as fast to let you know that you must leave at once.
Press the 0 key to select “No” (this console will not beep during the exit delay) or the 1 key to select “Yes” (this console will beep
during the exit delay). After selecting, press the down-arrow key to change this option for the next console.
CONSOLE 1 AUD EXT:
0=NO 1=YES
1
The default setting for Console 1-4 Audible Exit Delay is Yes.
House Code Format
The House Code can be configured to use the Standard (Preset Dim Command), Extended Code (Level Command), Lightolier's
Compose Mode, UPB (open transmission format), Lutron’s RadioRA transmission format, HAI Lighting (HLC), or CentraLite
transmission format.
HC 1 FORMAT:
HAI LIGHTING
5
#=CHNG
To change format for the House Code, press the ' # ' key, and then use the arrow keys to scroll through the list of formats. Press
the ' # ' key to select the desired format.
FORMAT
NUMBER
STANDARD
EXTENDED
COMPOSE
UPB
RADIO RA
HAI LIGHTING
CENTRALITE
VIZIA RF Z-WAVE
0
1
2
3
4
5
6
7
DESCRIPTION
Preset Dim Command (X-10, X-10 Pro, Leviton, PCS, etc.)
Extended Code Level Command (Leviton)
Compose Mode (Lightolier's Compose)
Universal Powerline Bus (open format)
Lutron RadioRA
HAI Lighting Control (HLC)
CentraLite Lighting
Vizia RF Z-Wave
The default setting for HC 1 Format is 5 (HLC).
House Code All Off
This feature allows you to choose if the House Code will respond to the “All Off” command. Press the 0 key to select No and the
1 key to select Yes.
HC 1 ALL OFF:
0=NO 1=YES
1
The default setting for HC 1 All Off is Yes.
67
Notes:
1.
When configured, the House Code will affect 2 rooms of HLC or Vizia RF Z-Wave lighting (i.e. HC 1 ALL OFF affects
Room 1 and 2).
2.
When the House Code is configured as UPB, RadioRA, or CentraLite, “House Code All Off” does not affect the state of the
installed devices; however, if this setup item is set to “Yes”, OmniLT will change the status of all units on that House Code
to “Off” (even though it doesn’t explicitly send an All Off command to those units). If the “House Code All Off” setup item
is set to “No”, OmniLT will not change the status of units on that House Code.
House Codes All On
This feature allows you to choose if the House Code will respond to the “All On” command. Press the 0 key to select No and the
1 key to select Yes.
HC 1 ALL ON:
0=NO 1=YES
1
The default setting for HC 1 All On is Yes.
Notes:
1.
When configured, the House Code will affect 2 rooms of HLC or Vizia RF Z-Wave lighting (i.e. HC 1 ALL ON affects
Room 1 and 2).
2.
When the House Code is configured as UPB, RadioRA, or CentraLite, “House Code All On” does not affect the state of the
installed devices; however, if this setup item is set to “Yes”, OmniLT will change the status of all units on that House Code
to “On” (even though it doesn’t explicitly send an All On command to those units). If the “House Code All On” setup item is
set to “No”, OmniLT will not change the status of units on that House Code.
Time Clocks
There are three time clocks in the system are used to conditionalize programs. They are used solely to define time periods during
the week when certain programs should be enabled or disabled to execute.
TIME CLOCK 1 ON
TIME CLOCK 1 OFF
Specify the On and Off times for each Time Clock - See Set Up Codes.
TIME CLOCK 1 ON TIME:
12:00 AM MTWTFSS #=CHNG
TIME CLOCK 1 OFF TIME
-NEVER #=CHNG
For example, it may be desirable to conditionalize certain programs to execute only during a normal Monday - Friday 9:00 AM 5:00 PM work week.
The default for Time Clock 1 ON is 12:00 AM MTWTFSS, and the default for Time Clock 1 OFF is Never, so that Time Clock 1
is always Enabled.
TIME CLOCK 2 ON
TIME CLOCK 2 OFF
TIME CLOCK 3 ON
TIME CLOCK 3 OFF
Time Clocks 2 and 3 is entered into the system and set for time and dates exactly like the settings for Time Clock 1.
68
Latitude, Longitude, and Time Zone
The system automatically calculates the time of sunrise and sunset each day. Sunrise/sunset can be specified as the time a
scheduling command is executed, as an enable/disable time, or as a darkness condition on a scheduling command or event button.
To enable the system to properly calculate sunrise and sunset times, you must enter your latitude, location north or south of the
equator, longitude, location east or west of the Prime Meridian, and time zone.
These items should be set to the proper values for the location where the OmniLT is installed. The latitude and longitude for a
particular location may be obtained from an almanac or map of the area. These values should be entered to the nearest degree.
The value entered for the time zone is the number of hours difference between local standard time at the OmniLT location and
Greenwich Mean Time. The following values should be used for the standard time zones in North America:
ZONE
4
5
6
7
8
9
10
11
NAME
ATLANTIC
EASTERN
CENTRAL
MOUNTAIN
PACIFIC
YUKON
ALASKA-HAWAII
BERING
The value specified for longitude may be adjusted to correct for areas, such as Nova Scotia, where the local time differs from
Greenwich Mean Time by a non-hourly amount. The calculated time of sunrise/sunset will change by four minutes for every
degree change in longitude. To cause the calculated sunrise/sunset to occur later, enter a larger value for longitude. Enter a
smaller value for longitude to cause the time to occur earlier.
It is not necessary to alter the time zone to compensate for daylight savings time, OmniLT will automatically adjust its
calculations for sunrise and sunset, and time when daylight savings time begins and ends.
LATITUDE:
0-60
LATITUDE N/S:
1=NORTH 2=SOUTH
LONGITUDE:
0-180
30
1
90
LONGITUDE E/W:
1=EAST 2=WEST
2
TIME ZONE:
0-12
6
TIME ZONE E/W:
1=EAST 2=WEST
2
69
Daylight Savings
OmniLT automatically calculates the day of daylight savings time each year. It also adjusts the "time of day" each time daylight
savings time begins and ends.
To enable the system to properly calculate daylight savings time, a start month, start weekend, end month, and end weekend is
set-up at the factory. You may change or disable this function if desired.
DST START MONTH:
1-12 0=DISABLE
3
DST START WEEKEND:
SECOND SUNDAY
#=CHNG
DST END MONTH:
1-12 0=DISABLE
11
DST END WEEKEND:
FIRST SUNDAY
#=CHNG ↑
Set the value for DST Start and End Months to "0" if Daylight Savings Time does not apply to your region, or to disable this
automatic time update feature.
The DST Start and End Weekend takes place on the specified Sunday (1-7) at 2:00 AM.
To change the DST Start or End Weekend, press the ' # ' key, then use the arrow keys to scroll through the list. Press the ' # ' key
to make the new selection.
NUMBER
1
2
3
4
5
6
7
DESCRIPTION
First Sunday
Second Sunday
Third Sunday
Fourth Sunday
Last Sunday
Next to Last Sunday
Third from Last Sunday
70
Set Up Names
The system can be set up to display descriptive names such as "FRONT DOOR", "JOHN'S BEDROOM", or "PORCH LIGHT"
for zones, units, buttons, codes, temperatures, and messages. These names are displayed instead of the zone, unit, button, code,
temperature, or message number that is normally displayed. Zone and Message names may be up to 15 characters long. Each of
the other names may be up to 12 characters long.
To enter the Set Up Names menu, from the Setup menu, press the 7 (NAME) key.
SET UP NAME
1=CTRL 2=ZONE
3=BTTN ↓
4=CODE
8=MSG
5=TEMP
↑
Select the item that you would like to name by pressing one of the keys. The current name for the first item (unit, zone, button,
code, temperature, or message) is then displayed. Use the arrow keys to scroll through the list of names.
To enter a name, enter the two digit code shown in Table 2 in the Appendix for each character in the name, then press the ' # ' key.
Use the up arrow key to delete the most recently entered character.
ZONE 1:
00-95
↓
ZONE 1:
00-95
FRONT DOOR-----↑=DEL
ZONE 1:
00-95
FRONT DOOR
↓
User buttons (Buttons 1-16) may be named. The names of the event buttons are fixed to a description of the event that activates
the button, such as "WHEN Z1 SEC" or "WHEN AWAY".
Set Up Voice
The OmniLT can be set up to speak descriptive names such as "FRONT DOOR" for control units, zones, buttons, codes,
temperatures, and messages. These names will be spoken over the telephone along with the item number that is normally spoken.
To enter the Set Up Voice menu, from the Setup menu, press the 8 (VOICE) key.
SET UP VOICE
1=CTRL 2=ZONE
3=BTTN ↓
4=CODE
8=MSG
5=TEMP
↑
Select the item that you would like to name with a voice description by pressing a key. The number for the first item (unit, zone,
button, code, temperature, or message) is then displayed. Use the arrow keys to scroll through the list of voice descriptions.
To enter a voice description, enter the one, two, or three digit code shown in Table 2 in the Appendix C for each description
(word or group of words), then press the ' # ' key. After you have entered the complete description for each item (unit, zone,
button, code, temperature, and message), press the ' # ' key twice. You may enter up to four descriptions (word or group of
words) for each unit, zone, button, and code.
UNIT 1 VOICE:
↓
UNIT 1 VOICE:
144 109
↓
When Unit 1 is spoken over the phone, the OmniLT will say, "UNIT 1 - PORCH LIGHT".
71
Set Up Address
The final setup item is accomplished over the telephone. This is the address that the system says when it dials out in an
emergency. Your voice will be recorded on computer chips in the OmniLT controller and saved to be played back in the
emergency message when the system dials out for an alarm.
Pick up an inside phone and press the ' # ' key on the telephone within 3 seconds of picking up the phone. The OmniLT will
respond with a menu. Press 8 on the telephone keypad, then 8. The unit will say "ADDRESS IS:" then the OmniLT will play
back the message stored in the Address memory if one has been entered by your installer.
To record your address, Press 9, then enter the Master code. The OmniLT will say "RECORD ADDRESS", then BEEP. In a
normal tone of voice, say your name and address and any helpful information for locating your house.
"THE JONES RESIDENCE, 1234 JOHNSON STREET, CORNER OF JOHNSON AND THIRD STREET"
The unit will beep after 8 seconds, then play the address back to you. If you are not happy with the sound, re-record by pressing 9
and the Master code. If you would like to hear the address again, press 8 for Play Address.
If you accidentally press 9 but have not entered your Master code and do not wish to record a new address, simply hang up the
phone. The address can be recorded from a local (in house) phone or a remote phone. We suggest using a local phone for higher
sound quality.
¾
When the OmniLT says "record address - beep" any previous address recorded on your system is erased. Always verify
that you have your name and address in your system if you have entered this function.
¾
When recording the address, do not press any touch-tone keys on your phone until the second beep, indicating that
recording is complete. This will cause improper operation when the system dials out. The OmniLT will think that the
tone is a code being entered by the called party and it will stop talking.
72
AUDIO CONTROL
Once configured by your installer, from any OmniTouch touchscreen, you can control on/off, volume, and muting of any Audio
Zone on the HAI Hi-Fi system. Furthermore, you can select the Audio Source (up to 6 Audio Sources) and Audio Zones (up to 8
Audio Zones) on the HAI Hi-Fi audio distribution system.
To control the HAI Hi-Fi system from an OmniTouch touchscreen, press the “Audio” icon on the Home page. By default, the
interface control Audio Zone 1 on the HAI Hi-Fi system. The Audio Zone can be changed using the “Zone” button on the
touchscreen interface. Once the Audio Zone has been changed, it becomes the new default Audio Zone for that OmniTouch
touchscreen. If desired, each OmniTouch touchscreen can be configured to default to a different Audio Zone.
The top line on the display will show the Audio Zone name (e.g. Living Room), followed by: ON (the Audio Zone is currently
on), OFF (the Audio Zone is currently off), or MUTE (the Audio System is currently muted). Justified to the right of the display
on the top line is the current volume level for the Audio Zone, displayed as a percentage (0%-100%).
The second line on the display will show the Audio Source name (e.g. AM/FM TUNER, CD PLAYER, MP3 PLAYER, etc.).
Once completed, press the Exit icon to return to OmniTouch Home page.
Changing Audio Source
To select a new Audio Source for the current Audio Zone, press the “Source” button on the touchscreen interface. Select the
desired Audio Source from the Source list box.
Changing Audio Zone
To select a new Audio Zone, press the “Zone” button on the touchscreen interface. Select the desired Audio Zone from the Zone
list box. Once selected, you will be able to control that Audio Zone from the touchscreen interface. The selected Audio Zone
will be the default for that OmniTouch touchscreen until a different Audio Zone is selected.
Configuring Source and Zone Names
The names that are displayed on the OmniTouch touchscreen interface for Audio Source and Audio Zone must be configured in
the OmniLT controller. A name must be given to each Audio Source and Audio Zone to make it available in the respective list
box when changing the Audio Source or Audio Zone.
When your OmniLT is configured to control HAI Hi-Fi, certain unit numbers are allocated for Audio Source or Audio Zone
names. This means that the allocated unit numbers will no longer be displayed in the unit list.
Unit numbers 29-34 are allocated for the Audio Source names. These names should match the names of each Audio Source in
your audio distribution system. For example:
Audio Distribution System
Source 1
Source 2
Source 3
Source 4
Source 5
AM/FM Tuner
XM Tuner
Home Theater
CD Player
Satellite
HAI OmniLT
Unit 29
Unit 30
Unit 31
Unit 32
Unit 33
73
AM/FM Tuner
XM Tuner
Home Theater
CD Player
Satellite
Unit numbers 17-24 are allocated for the Audio Zone names. These names should match the names of each Audio Zone in your
audio distribution system. For example:
Audio Distribution System
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Living Room
Den
Kitchen
Patio
Master Bedroom
Master Bathroom
HAI OmniLT
Unit 17
Unit 18
Unit 19
Unit 20
Unit 21
Unit 22
Living Room
Den
Kitchen
Patio
Master BedRM
Master Bath
Programming Audio Commands
Using HAI PC Access Software, you can create programs to control Audio Zones, Volume, Audio Sources, and simulate Key
Presses on the audio system keypad or remote control.
¾
The Audio Zone Command allows you to create programs to select Off, On, Mute Off, and Mute On for individual
Audio Zones or for All Audio Zones.
¾
The Volume Command allows you to create programs to set the volume from 0% to 100% for the specified Audio
Zone.
¾
The Audio Source Command allows you to create programs to select an Audio Source for the specified Audio Zone.
¾
The Key Press Command allows you to create programs to simulate key presses as shown.
HAI Hi-Fi Key Press Commands
HAI Hi-Fi Key Presses
Power
Volume up
Volume down
Mute
Source Step
Note: The Volume up and Volume down will raise and lower the volume in the specified Audio Zone by 5%.
Example Programming of Audio Commands
You can create programs in your OmniLT to customize your music experience. For example, you can create programs to play
your favorite music when you return home and disarm your system.
When the security system is disarmed by Bob, execute the “Bob Is Home” macro:
WHEN Bob OFF: RUN Bob Is Home
When the “Bob Is Home” macro is executed, turn the Living Room Audio Zone on, set the volume of the Living Room
Audio Zone to 50 and set the Living Room Audio Source to “Media Player”:
WHEN Bob Is Home: Living Room AUDIO ON (Audio Zone Command)
WHEN Bob Is Home: Living Room AUDIO VOLUME 50% (Volume Command)
WHEN Bob Is Home: Living Room AUDIO SOURCE Media Player (Audio Source Command)
74
UNDERWRITER'S LABORATORIES REQUIREMENTS
For a complete list of requirements and restrictions when installing the OmniLT panel in a UL Listed system, refer to the Underwriter's
Laboratories Requirements section of the Installation Manual (21I00-1).
When used in UL Listed Installations, the following items apply:
1.
2.
3.
4.
5.
6.
The “High Security Mode” must be ON.
The “Enable Auto Bypass” feature must be OFF.
The “Entry Delay” shall not exceed 45 seconds for residential applications; 60 seconds for commercial applications.
The “Exit Delay” shall not exceed 60 seconds.
Double Delay and Quad Delay zone types shall not be used.
For residential applications the sounding device may be mounted indoors. If, however, the sounding device is connected to
the "EXT HORN" terminals of the OmniLT, then the “Outside Siren Delay” shall be set to 0.
7. The “Dial Out Delay” shall not exceed 30 seconds.
8. The “Beep On Trouble” feature must be ON, and CONSOLE SOUNDER must be ON.
9. The “Swinger Shutdown” feature for each zone must be NO.
10. The “Cross Zoning” feature for each zone must be NO.
11. The “Exit Time Restart” feature must be NO.
Installer:
NAME: __________________________________
NUMBER: _______________________________
FIRE ESCAPE PLANNING
Your fire protection system is designed to provide warning in the event of a fire. It is your responsibility to plan your escape routes in the event
of a fire alarm. Your family should practice "fire drills" periodically to ensure that everyone is familiar with the plan.
1.
2.
3.
4.
5.
6.
7.
8.
Draw a floor plan of your home, showing location of fire and smoke detectors. Show two exit routes from each room: The
primary exit and an alternate escape route.
Be sure that your family knows what the fire alarm signal sounds like.
In the event of a fire alarm, DO NOT open a closed door. First, touch the door. If it is hot to the touch, use the alternative
escape route.
Since smoke tends to rise, keep low to the floor during your escape, crawling if necessary. If you encounter any smoke,
hold your breath.
During a fire alarm, do not stop to pack or gather belongings. Exit immediately and meet at a designated spot outside the
house.
DO NOT return to a burning house.
Notify the fire department using a neighbor's telephone.
Review your escape plan and rehearse a fire alarm periodically with your family.
75
FEDERAL COMMUNICATION COMMISSION NOTICE:
1.
This equipment complies with Part 68 of FCC Rules. On the door, inside of the OmniLT enclosure, is a label that contains, among other
information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this
information to your telephone company.
2.
An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the
telephone network or premises wiring using a compliant modular jack which is Part 68 compliant. See installation instructions for details.
3.
The REN is useful to determine the quantity of devices you may connect to your telephone line and still have those devices ring when
your number is called. In most, but not all areas, the sum of RENs of all devices should not exceed five (5). To be certain of the number
of devices you may connect to your line, as determined by the REN, you should call your telephone company to determine the maximum
REN for your calling area.
4.
If your OmniLT system causes harm to the telephone network, the telephone company may disconnect you service temporarily. If
possible, they will notify you in advance. You will be advised of your right to file a complaint with the FCC.
5.
Your telephone company may make changes in it's technical operations, facilities, equipment, or procedures; if such changes affect the
compatibility or use of this device, the telephone company is required to give adequate notice of changes so as to give you an opportunity
to maintain uninterrupted service.
6.
In the event of equipment malfunction, all repairs should be made by our company or an authorized agent. It is the responsibility of users
requiring service to report the need for service to our Company or to one of our authorized agents.
Service can be obtained at:
HAI
4330 Michoud Blvd.
New Orleans, LA 70129
7.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.
(Contact your state public utility commission or CORPORATION commission for information.)
8.
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the
manufacturer's instructions, may cause interference to radio and television reception. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1.
This device may not cause harmful interference, and
2.
This device must accept any interference, including interference that may cause undesired operation.
Part 15 of FCC Rules are designed to provide reasonable protection against such interference in a residential installation. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception,
the user is encouraged to try to correct the interference by one or more of the following measures:
1.
Reorient the receiving antenna.
2.
Plug the receiver into a different outlet. If necessary, the user should consult the dealer or an experienced radio/television
technician for additional suggestions.
76
CANADIAN INDUSTRY CANADA NOTICE
Notice: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain
telecommunications network protective, operational and safety requirements. The Industry Canada does not guarantee the equipment
will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the
company's inside wiring associated with a single line individual service may be extended by means of a certified connector assembly
(telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent degradation of
service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request
the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal
metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or
electrician, as appropriate.
Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals
allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la class B
prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.
IF YOU HAVE TROUBLE WITH YOUR PHONES
...and you suspect that your OmniLT is causing the trouble, disconnect the Controller from the phone lines by removing the PHONE LINE cable
from BOTH THE PROCESSOR BOARD AND THE RJ31X JACK INSIDE THE CONTROLLER ENCLOSURE.
77
APPENDIX A - SPECIFICATIONS
Size:
Controller: 9.1W x 12.1H x 3.5D
Console:
4.6W x 4.5H x 1.2D
Weight:
Controller:
Console:
approx. 4.5 lb.
approx. 0.5 lb.
Operating
Ranges:
32 - 122 degrees F (0 - 50 degrees C)
10 - 95 % relative humidity, non-condensing
Power:
120 VAC, 60 Hz, 60 watts
Transformer:
16.5 VAC, 40 VA, 50/60 Hz
Battery:
Sealed Rechargeable Lead-Acid, 12 volts
Bell Fuse:
Polyfuse: 1.35 A
Device Fuse:
Polyfuse: .9 A
Output Fuse:
Polyfuse: .3 A
Battery Fuse:
Polyfuse: 2.5 A
Polyfuses are permanent fuses that do not need replacement.
Nominal Output Voltage: 10-13.8 VDC
Low Voltage Cut Out:
approx. 9 VDC
Typical Current Consumption at Nominal Voltage:
Controller:
105 mA
Console:
backlight off, 35 mA
backlight on, 100 mA
CONTROLLER OUTPUTS
UL RATINGS
MAXIMUM
Devices: AUX 12 VDC, CONSOLE, and OUTPUTS 1 and 2:
200 mA
500 mA
Bell:
BELL
350 mA
1A
Outputs:
OUTPUTS 1 and 2, each, maximum:
100 mA
100 mA
Backup:
Required battery backup hours:
24 hours
Battery:
Recommended Battery:
7 Ah
78
14 Ah
APPENDIX B - CHARACTER CODES
CODE CHAR
CODE CHAR
CODE CHAR
CODE CHAR
00
SPACE
24
8
48
P
72
h
01
!
25
9
49
Q
73
i
02
"
26
:
50
R
74
j
03
#
27
;
51
S
75
k
04
$
28
<
52
T
76
l
05
%
29
=
53
U
77
m
06
&
30
>
54
V
78
n
07
'
31
?
55
W
79
o
08
(
32
@
56
X
80
p
09
)
33
A
57
Y
81
q
10
*
34
B
58
Z
82
r
11
+
35
C
59
[
83
s
12
,
36
D
60
¥
84
t
13
-
37
E
61
]
85
u
14
.
38
F
62
^
86
v
15
/
39
G
63
_
87
w
16
0
40
H
64
`
88
x
17
1
41
I
65
a
89
y
18
2
42
J
66
b
90
z
19
3
43
K
67
c
91
-
20
4
44
L
68
d
92
×
21
5
45
M
69
e
93
¯
22
6
46
N
70
f
94
à
23
7
47
O
71
g
95
ß
79
APPENDIX C - VOICE DESCRIPTIONS
CODE
DESCRIPTION
CODE
DESCRIPTION
1
ELEVEN
36
APPLIANCE
2
TWELVE
37
AREA
3
THIRTEEN
38
ATTIC
4
FOURTEEN
39
AUTO
5
FIFTEEN
40
AUXILIARY
6
SIXTEEN
41
AWAY
7
SEVENTEEN
42
BACK
8
EIGHTEEN
43
BASEMENT
9
NINETEEN
44
BATH
10
TWO
45
BATTERY
11
TWENTY
46
BED
12
THREE
47
BOY'S
13
THIRTY
48
BRIGHTER
14
FOUR
49
BUILDING
15
FORTY
50
BURGLAR
16
FIVE
51
BUTTON
17
FIFTY
52
BYPASS
18
SIX
53
CANCEL
19
SIXTY
54
CENTER
20
SEVEN
55
CLOSET
21
SEVENTY
56
CODE
22
EIGHT
57
CONTINUE
23
EIGHTY
58
(BEEP)
24
NINE
59
CONTROL
25
NINETY
60
COOL
26
A. M.
61
DATE
27
P. M.
62
DAY
28
WELCOME TO OMNI
63
DEGREES
29
(PAUSE)
64
DELAYED
30
(SHORT PAUSE)
65
DEN
31
AC POWER
66
DENIED
32
ACCESS
67
DIMMER
33
ADDRESS
68
DINING
34
ALARM
69
DOOR
35
ALL
70
DOWN
80
CODE
DESCRIPTION
CODE
DESCRIPTION
71
DRIVEWAY
109
LIGHT
72
DURESS
110
LISTEN
73
EAST
111
LIVING
74
EMERGENCY
112
LOW
75
ENERGY
113
MAIN
76
ENTER
114
MASTER
77
ENTRY
115
MEDICAL
78
EVENTS
116
MINUS
79
EXIT
117
MINUTES
80
FAMILY
118
MODE
81
FAN
119
MOTION
82
FIRE
120
NIGHT
83
FOYER
121
NORTH
84
FREEZE
122
NOT
85
FRONT
123
NOW
86
FUSE
124
NUMBER
87
GARAGE
125
NURSERY
88
GAS
126
OFF
89
GIRL'S
127
OFFICE
90
GLASS
128
OH
91
GOOD-BYE
129
ON
92
GOTO
130
ONE
93
GUEST
131
OR
94
GUN
132
OUTDOOR
95
HAD
133
OUTLET
96
HALL
134
PANIC
97
HEAT
135
PATIO
98
HIGH
136
PC
99
HOLD
137
PERIMETER
100
HOURS
138
PHONE
101
HUNDRED
139
PLAY
102
INSTANT
140
PLEASE CHOOSE
103
INTERIOR
141
POINT
104
INVALID
142
POLICE
105
IS
143
POOL
106
KITCHEN
144
PORCH
107
LEFT
145
POUND
108
LEVEL
146
PRESS
81
CODE
DESCRIPTION
CODE
DESCRIPTION
147
PUMP
178
THERMOSTAT
148
READY
179
TIME
149
RECORD
180
TIMED
150
REMOTE
181
TO
151
REPEAT
182
TROUBLE
152
RESTORE
183
TRIPPED
153
RIGHT
184
UNIT
154
RISE
185
UP
155
ROOM
186
VACATION
156
SAVER
187
WATER
157
SECONDS
188
WEST
158
SECURE
189
WINDOW
159
SECURITY
190
ZONE
160
SETTING
191
STOCK
161
SHOP
192
UTILITY
162
SIDE
193
EQUIPMENT
163
SILENT
194
COMPUTER
164
SOUTH
195
APARTMENT
165
SPA
166
STAIRS
167
STAR
168
STATUS
169
STEPS
170
STORAGE
171
SUN
172
SYSTEM OK
173
TALK
174
TAMPER
175
TEMPERATURE
176
TEN
177
THEN
82
NOTE TO INSTALLER
Following installation, this manual shall be left for the homeowner's use.
HAI • New Orleans, LA •
USA
