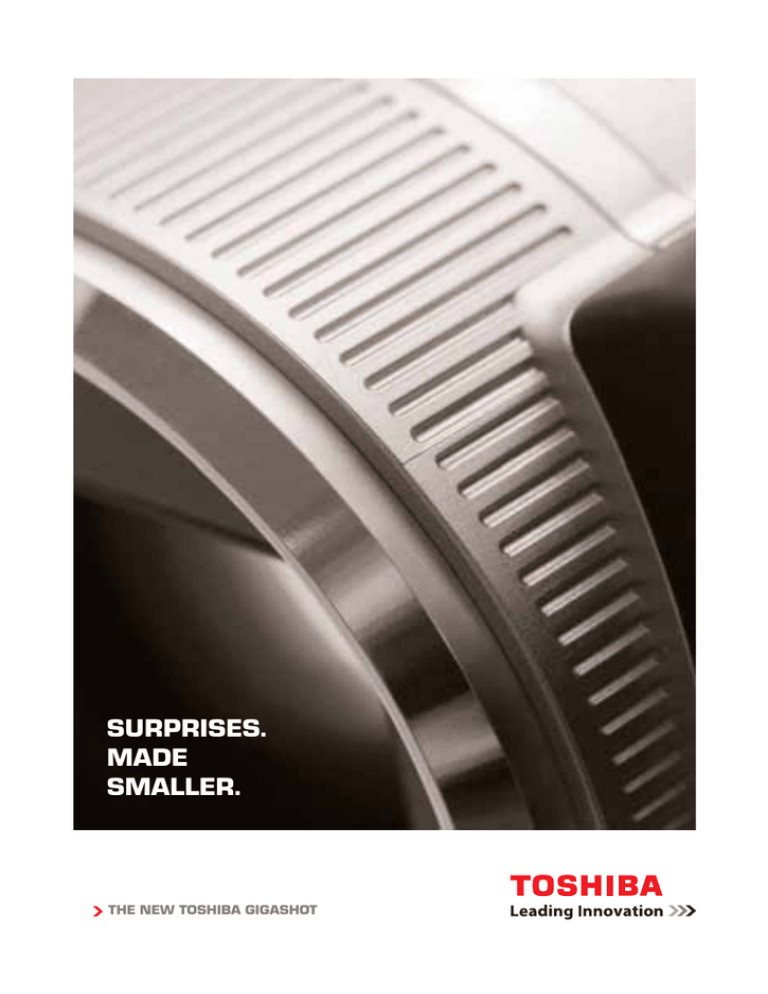

SURPRISES. MADE SMALLER.

SURPRISES. MADE SMALLER.

SURPRISES.

MADE

SMALLER.

THE NEW TOSHIBA GIGASHOT

INNOVATION

WITH FOCUS

PICTURE THIS

Small made smaller. Light made lighter and bright made brighter.

Now picture them all in high defi nition, helping you capture memories in the palm of your hand.

Introducing two of the smallest, lightest and most versatile HD digital camcorders in the world.

The Toshiba Gigashot Series.

THE DEFINITION OF

HIGH DEFINITION

Imagine photo and video memories, so accurately defi ned by full-HD colour and clarity that they transport you right back to the time and place they were taken. With the Toshiba Gigashot range, you’ll experience video and picture quality with a resolution of up to 1080i HD.

INNOVATION

FOR YOU

A

-

SERIES

FULL HD FROM OUR LIGHTEST AND SMALLEST

CAMCORDERS – THE GIGASHOT A SERIES

• Extraordinary video and picture quality at full 1080i

HD resolution

• Size revolution – measuring a miniature W 78.1mm x

D 135.4mm x H 79.0mm and weighing just 495g

(excluding battery), it’s the smallest HD digital camcorder in the world

• Crystal-clear close ups and electronic image stabilisation – delivered by the Fujinon 10x optical/80x digital zoom lens

• 100GB of inbuilt hard-drive capacity (HDD) – captures up to 12 hours of full-HD fun

• 1/3” CMOS image sensor – allowing you to see every delicate detail

• 3” widescreen TFT LCD display – for crystal-clear instant playback

• Seamless and versatile operation – capture great photos while you’re fi lming

• Superb sound generated by Dolby Digital at 384kbps

– creating videos with intense audio

• Extreme ease of use – complete with ergonomic shape, handy grip, jog dial, easy-to-operate buttons and a bright light for dark conditions

• Effortless uploading – instantly transfer videos and pictures to your computer, DVD player and even your HD or HD-ready

TV with inbuilt HDMI, USB and

AV ports

YOU’LL BE

SURPRISED

AT WHAT

YOU CAN

CAPTURE

K

-

SERIES

THE GIGASHOT K SERIES BRINGS YOUR MOVIES

TO LIFE IN HD RESOLUTION, COMPLEMENTED

BY HIGH-PERFORMANCE FEATURES

• Video and pictures in HD resolution (1280 x 720 pixels) – making memories real again

• 40GB or 80GB of inbuilt hard drive capacity

(HDD) – captures hours of

HD video fun

• The Fujinon 10x optical/30x digital zoom lens – with electronic image stabilisation, bringing out the best in the

Toshiba Gigashot’s HD

• 3” widescreen TFT LCD display – for crystal-clear instant playback

• 1/3” CMOS image sensor – allowing you to see each intricate detail

• Seamless and versatile operation – capture great photos while you’re fi lming

• Miniature size and weight – measuring W 86.8mm x

D 135.5mm x H 80mm, and weighing a tiny 515g

(excluding battery)

• Sound generated through AAC,

48kHz, 16bit stereo, 128kbps – creating videos with quality audio

• Extreme ease of use – complete with ergonomic shape, handy grip, jog dial, easy-to-operate buttons and a bright light for dark conditions

• Effortless uploading – instantly transfer videos and pictures to your computer, DVD player and even your HD or HD-ready

TV with inbuilt HDMI, USB and

AV ports

FILM-MAKING

FOR

EVERYONE

COMPLETING THE TOSHIBA RANGE, THE CAMILEO

SERIES OFFERS A CHOICE OF THREE DIGITAL

CAMCORDERS FOR EVERY NEED AND BUDGET

CAMILEO H10

• 64MB Nand Flash Memory

• 10.48MP CCD Sensor

• 4x digital zoom

• 2.7” TFT LCD (16:9)

• Resolution: 1280 x 720 / 30fps

• 5x zoom lens

• HDMI digital AV output

• Special effect for video/still

• Motion detection

• Mass storage device

CAMILEO HD

• 64MB Nand Flash Memory

• 5MP CMOS Sensor

• 8 x digital zoom

• 2.5” LCD

• 1280 x 720 / 30fps

• Voice recorder

• HDMI digital AV output

• MP3 player

• Web camera

• Card reader

• YouTube – Link software

CAMILEO PRO HD

• 128MB built-in memory,

SD expandable

• HD quality (1280 x 720)

• 3x optical zoom with auto focus

• 2.4” TFT LCD display

• Supports HDTV and standard TV

• Voice recorder

• 16:9 video mode

• Motion detection

• Mass storage device

• YouTube – Link software

GIGASHOT TECHNICAL SPECIFICATIONS

KEY COMPONENTS

A SERIES

A40FE/A100FE

K SERIES

K40HE/K80HE

Effective pixels

Lens

Image sensor

Total pixels

Video

Still image

Optical zoom

Digital zoom

Focal length

35mm conversion

Max. f/Stop

Filter diameter

LCD monitor

Shooting range

Image stabilisation

Focus control method

Exposure control mode

Metering mode

Brightness

Still photography sensitivity

White balance

Operating environment

Shutter speed

Temperature

Humidity

Video

Still image

1/3” CMOS sensor

Approx. 2360K

Approx. 1490K pixels

Approx. 1490K pixels

10x optical zoom

20x, 80x digital zoom f = 4.5-45mm

1/3” CMOS sensor

Approx. 1350K

Approx. 920K pixels

Approx. 920K pixels

10x optical zoom

30x digital zoom f = 6.0-60.0mm

f = 35.9-431mm f = 1.8-2.8mm

f = 46.2-503.6mm

f = 3.5mm

43mm 43mm

3.0” 16:9 TFT colour LCD Approx. A Series 236K, K Series 230K pixels (959 x 240)

WIDE: 0.01m to infi nity TELE: 1.0m to infi nity

Electronic stabilisation

Total contrast-detection AF

Programmed AE

TTL zoned metering, metering modes: spot

WIDE: 0.1m to infi nity TELE: 1.0m to itfi nity

Electronic stabilisation

Total contrast-detection AF

Programmed AE

TTL zoned metering, metering modes: centre-weighted, spot

-2EV to +2EV (1/3EV step)

Auto: ISO 50 - 400 equivalents

-2EV to +2EV (1/3EV step)

Auto: ISO 100 - 200 equivalents

Auto, sunlight, cloud, fl uorescent light H, fl uorescent light L, incandescent lamp, preset

+41°F (+5°C) to +104°F (+40°C) (running) / -4°F (-20°C) to +140°F (+60°C) (stored)

30% to 80% RH (running no condensation)

1/8 to 1/500 sec.

1/2 to 1/500 sec. (combination electronic and mechanical shutter)

1/15 to 1/4800 sec.

1 to 1/1000 sec. (combination electronic and mechanical shutter)

I/O terminals

Battery

AC adapter

DC IN 10V terminal

USB terminal

A/V out terminal

Component terminal

HDMI terminal (type C)

Yes

Yes

Yes

Yes

Yes

Rechargeable lithium-ion battery (GSC-BT6)

Yes (SQPH20W10P-02)

A100FE: 100GB A40FE: 40GB

Yes

Yes

Yes

Yes

Yes

Rechargeable lithium-ion battery (GSC-BT6)

Yes (SQPH20W10P-02)

K80HE: 80GB K40HE: 40GB

Recording media

Video

Audio

Hard disk drive 1

SD memory card

Recording format

Recording pixels

Recording format

Up to 8GB SDHC/SD supported

MPEG-4 AVC/H.264 (60fps)

1920 x 1080i, 1440 x 1080i

Dolby Digital, 48kHz, 16bit, stereo, 384kbps

JPEG (Exif 2.21, DCF2.0-compliant)

Up to 8GB SDHC/SD supported

MPEG-4 AVC/H.264 (60fps)

1280 x 720p

AAC, 48kHz, 16bit, stereo, 128kbps

JPEG (Exif 2.21, DCF2.0-compliant)

Still image

Video recording time 2 in HDD

(MAX BITRATE)

Recording pixels

Still image recording 3 in HDD

Continuous recording time

2070K pixels (1920 x 1080i)

1560K pixels (1440 x 1080)

XQ: A100FE: 12h 00m A40FE: 4h 40m

HQ: A100FE: 17h 40m A40FE: 7h 00m

920K pixels (1280 x 720)

SHQ: K80HE: 11h 30m K40HE: 5h 40m

HQ: K80HE: 14h 20m K40HE: 7h 10m

SP: A100FE: 23h 20m A40FE: 9h 20m SP: K80HE: 19h 10m K40HE: 9h 30m

A100FE: 9,999 images A40FE: 9,999 images K80HE: 9,999 images K40HE: 9,999 images

Over 95 minutes Over 120 minutes

Still image recording in SD card or SDHC card

Dimension excluding battery (W x D x H)

Excluding battery & SD card A100FE: approx. 495g A40FE: approx. 485g K80HE: approx. 515g K40HE: approx. 500g

Weight

8GB 4GB 2GB 1GB 512MB

7,600 3,700 1,920 980 490

78.1mm x 135.4mm x 79.0mm

8GB 4GB 2GB 1GB 512MB

9,999 6,400 3,200 1,600 800

86.8mm x 135.5mm x 80.0mm

Including battery & SD card A100FE: approx. 555g A40FE: approx. 545g K80HE: approx. 585g K40HE: approx. 570g

System requirements

Accessories

OS: Windows ® XP Home Edition, Windows ® XP Professional, Windows ® XP Media Center Edition, Windows Vista ™ Home Basic,

Windows Vista ™ Home Premium, Windows Vista ™

CPU: Pentium ® 4 3.6GHz or better; Pentium ®

Ultimate, Windows Vista ™ Business, Windows Vista

D 3.2GHz (A series), 2.8GHz (K series) or better; Core

Enterprise (not support 64bit OS).

Duo 2.0GHz (A series), 1.66GHz

(K series) or better; Core

2 Duo 1.66GHz or better. RAM: 1GB or better. Hard disk drive capacity: Minimum 30GB required for HD

DVD writing. Display: Display adapter with 1024 x 768 or better (NVIDIA GeForce 7600GT or better, AMD (ATI) Radeon X1600 or better recommended). Interfaces: USB 1.1 or USB 2.0 installed in the PC (USB 2.0 recommended). Supported media: Depending on the drive used for authoring; DVD-Video: DVD-R/-RW/-R DL, DVD+R/+RW/+R DL. HD DVD-Video: HD DVD-R. Supported drives: HD DVD-R drive

(required for writing HD image on HD DVD disc) DVD-R drive (required for writing on DVD disc. HD image will be converted to SD image).

Remote controller, USB cable, AV cable, component cable, software CD-ROM, owner’s manual CD-ROM, Quick Help Guide, Quick Start

Guide, lens cover (built-in on A Series), dedicated rechargeable Li-Ion Battery, AC adaptor.

1 1GB = 1 billion bytes. Actual formatted capacity may be less.

2

3

The recording time in HDD and SD card. The available recording time actually displayed will vary depending on the image quality and the amount of space available on the drive.

The recording time in HDD, SD card or SDHC card. The available recording time actually displayed will vary depending on the image quality and the amount of space available on the memory.

CAMILEO TECHNICAL SPECIFICATIONS

KEY

COMPONENTS

Image sensor

Lens (focusing)

Zoom

Lens

Focal length

Aperture

LCD monitor

Exposure control

White balance

Sensor resolution

Features

Motion detection

Shutter type

Frame rate

Flash light control

Video compression format

File format

Memory

Continuous recording time

Audio input

AV out/earphone phone jack

Speaker

Digital voice recorder

MP3 player

TV playback

Self timer

Auto power off

OSD language support

PC interface

Power adaptor

Tripod stand

Dimensions (W x D x H)

Weight w/o battery

CAMILEO

H10

10.48MP CCD Sensor

FF lens

4x digital zoom

1cm infi nite (Wide)

80cm infi nite (Tele) f=6.8 ~ 34mm; F3.5 ~ 3.7

2.7” TFT LCD

Auto or +/- 1EV stepping with 0.3

Auto/Daylight/

Tungsten/Fluorescent

10.48 megapixel

Video Stabilization, Night mode for

Movie/Picture, Motion Detection,

Special Effect for Video/Still, Photo

Frame for Picture, Red Eye

Reduction, Intelligent Lighting

Yes

Mechanical shutter

30 fps

Flash (for still) Auto, On, Off,

Red-Eye Reduction

AVI (video)

JPEG (still)

64 MB Nand Flash Memory

(for both Firmware and data)

80 minutes

Microphone

HDMI/mini USB2.0/TV Out

Yes

No

No

Yes

10 sec.

3 minutes

English/German/French/Italian/

Spanish/Portuguese/Dutch/Turkish/

Polish/Czech/Russian/Greek/Hungarian

Mini USB2.0

Yes

N/A

56mm x 65mm x 117mm

340g

CAMILEO

HD

5MP CMOS Sensor

CAMILEO

Pro HD

Sensor Type 5 megapixel CMOS

(2592x1944)

Optical auto focus zoom

3x optical zoom

FF Lens

8x digital zoom

20cm (Macro mode); 90cm~200cm

(Portrait mode); 200cm~infi nite

(Normal mode) f=7.2mm; F3.2

2.5” LCD

±EV stepping with 0.3

Auto, Daylight, Fluorescent, Tungsten

Capture 5cm close-up image

F3.6-F6.7 (f = 7.5-21.5mm)

2.4” TFT LCD

Auto

5 modes (Auto/Sunny/Cloudy/

Fluorescent/Tungsten)

High: 3744 x 2808/ Standard:

2592x1944/ Low: 1600x1200

Digital H.264 HD Video, Camcorder,

Digital Still Camera, HDMI Digital AV output, MP3 Player, Voice Recorder,

Web Camera, Card Reader

,

YouTube – Link software

Yes

Mechanical shutter

30 fps

Flash (for still) Auto, Red-Eye

Reduction, Off

AVI (video)

5 megapixel

Video camcorder/Still camera/Voice recorder/eBook (.txt)/Mass storage,

YouTube – Link software

Yes

Electronic

30 fps

Flash for still picture (Auto/On/Off), LED light for video recording (Auto/On/Off)

H.264/MPEG4 AVC, JPEG, WAV

JPEG (still)

64 MB Nand Flash Memory

(usable storage: around 38MB)

105 minutes

Microphone

HDMI/mini USB2.0/TV Out

Yes

Yes

Yes

Yes

10 sec.

3 minutes

JPEG

128MB built-in memory expandable up to 32GB with SD card

120 minutes in high defi nition

Microphone

HDTV component-out and normal

AV out + earphone-out

Yes (mono)

Yes

No

Yes

10 sec.

3 minutes

English/German/French/Italian/

Spanish/Portuguese/Dutch/Turkish/

Polish/Czech/Russian/Greek/Hungarian

Mini USB2.0

Yes

Yes

71mm x 34mm x 108mm

150g

English/French/German/Spanish/

Italian/Portuguese/Dutch/Turkish

Mini USB

Yes

No

70mm x 33mm x 113mm

177g

System requirements

OS: Microsoft® Windows® 2000/XP/

Vista, Mac 0S9.0 or above CPU: Intel

Pentium III 800MHz or above RAM:

128MB system memory and free

700MB system hard disk space /

4X CD-ROM / 1 available USB port

OS: Microsoft® Windows® 2000/

OS: Microsoft® Windows® 2000/XP/

XP/Vista® or above CPU: Pentium

Vista, Mac 0S9.0 or above CPU: Intel

Pentium III 800MHz or above RAM:

256MB system memory and free 1GB system hard disk space / 4X CD-ROM / mended) RAM: 512MB or above (1GB recommended) / Video card: 128MB or above (256MB is recommended).

1 available USB port

4, 2.8GHz or above (3.0GHz recom-

QuickTime 7.0 or above

Others

HDMI cable (1.2m), AV cable (1.2m),

USB cable (0.9m), CD

Color Box, HDMI cable (1.2m), AV cable (1.2m), USB-cable (0.9m), Stereo earphones, NP60 Li-ion rechargeable battery, Strap, Pouch, CD (w/ driver,

AP and user’s manual)

Quick Guide, CD, pouch, strap

From the Gigashot A Series to the Camileo,

Toshiba brings you the latest and most innovative technology. Whether you’re an amateur fi lm-maker, professional or simply looking to bring your ideas to life, this exciting range of digital camcorders will take you on a journey of discovery and innovation.

Start your journey with Toshiba. Visit toshiba-europe.com/smallandsurprising

Copyright © 2008 TOSHIBA Corporation. All Rights Reserved. Product specifi cations, confi gurations, prices and component/options availability are all subject to change without notice. Product design specifi cations and colours are subject to change without notice and may vary from those shown. Error and omissions excepted.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
