WEST SYSTEM User Manual

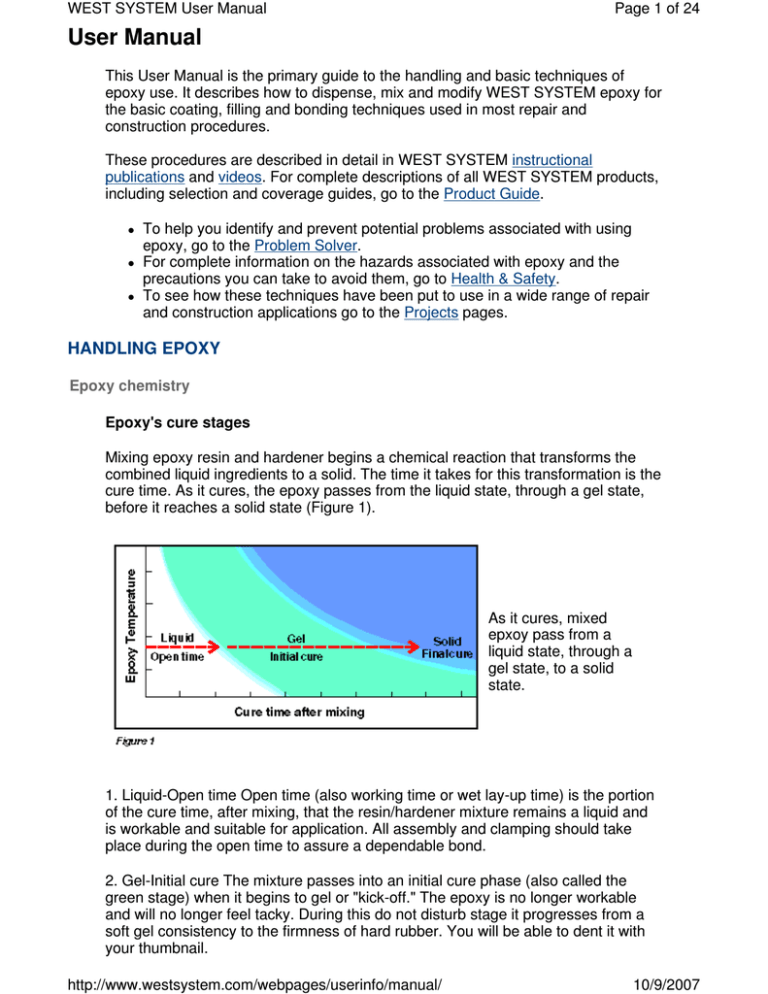

Page 1 of 24
User Manual
This User Manual is the primary guide to the handling and basic techniques of
epoxy use. It describes how to dispense, mix and modify WEST SYSTEM epoxy for
the basic coating, filling and bonding techniques used in most repair and
construction procedures.
These procedures are described in detail in WEST SYSTEM instructional
publications and videos. For complete descriptions of all WEST SYSTEM products,
including selection and coverage guides, go to the Product Guide.
To help you identify and prevent potential problems associated with using
epoxy, go to the Problem Solver.
For complete information on the hazards associated with epoxy and the
precautions you can take to avoid them, go to Health & Safety.
To see how these techniques have been put to use in a wide range of repair
and construction applications go to the Projects pages.
HANDLING EPOXY
Epoxy chemistry
Epoxy's cure stages
Mixing epoxy resin and hardener begins a chemical reaction that transforms the
combined liquid ingredients to a solid. The time it takes for this transformation is the
cure time. As it cures, the epoxy passes from the liquid state, through a gel state,
before it reaches a solid state (Figure 1).
As it cures, mixed
epxoy pass from a
liquid state, through a
gel state, to a solid
state.
1. Liquid-Open time Open time (also working time or wet lay-up time) is the portion
of the cure time, after mixing, that the resin/hardener mixture remains a liquid and
is workable and suitable for application. All assembly and clamping should take
place during the open time to assure a dependable bond.
2. Gel-Initial cure The mixture passes into an initial cure phase (also called the
green stage) when it begins to gel or "kick-off." The epoxy is no longer workable
and will no longer feel tacky. During this do not disturb stage it progresses from a
soft gel consistency to the firmness of hard rubber. You will be able to dent it with
your thumbnail.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 2 of 24
Because the mixture is only partially cured, a new application of epoxy will still
chemically link with it, so the surface may still be bonded to or recoated without
special preparation. However, this ability diminishes as the mixture approaches
final cure.
3. Solid-Final cure The epoxy mixture has cured to a solid state and can be dry
sanded and shaped. You should not be able to dent it with your thumbnail. At this
point the epoxy has reached about 90% of its ultimate strength, so clamps can be
removed. It will continue to cure over the next several days at room temperature.
A new application of epoxy will no longer chemically link to it, so the surface of the
epoxy must be properly prepared and sanded before recoating to achieve a good
mechanical, secondary bond. See Surface Preparation
Understanding cure time
Open time and cure time govern much of the activity of building and repairing with
epoxy. Open time dictates the time available for mixing, application, smoothing,
shaping, assembly and clamping. Cure time dictates how long you must wait before
removing clamps, or before you can sand or go on to the next step in the project.
Two factors determine an epoxy mixture's open time and overall cure timehardener cure speed and epoxy temperature.
Hardener speed
Each hardener has an ideal temperature cure range. At any given temperature,
each resin/hardener combination will go through the same cure stages, but at
different rates. Select the hardener that gives you adequate working time for the job
you are doing at the temperature and conditions you are working under. The
product guide and container labels describe hardener pot lives and cure times.
Pot life is a term used to compare the cure speeds of different hardeners. It is the
amount of time a specific mass of mixed resin and hardener remains a liquid at a
specific temperature. (A 100g-mass mixture in a standard container, at 72°F).
Because pot life is a measure of the cure speed of a specific contained mass
(volume) of epoxy rather than a thin film, a hardener's pot life is much shorter than
its open time.
Epoxy temperature
The warmer the temperature of curing epoxy, the faster it cures (Figure 1). The
temperature of curing epoxy is determined by the ambient temperature plus the
exothermic heat generated by its cure.
Ambient temperature is the temperature of the air or material in contact with the
epoxy. Air temperature is most often the ambient temperature unless the epoxy is
applied to a surface with a different temperature. Generally, epoxy cures faster
when the air temperature is warmer.
Exothermic heat is produced by the chemical reaction that cures epoxy. The
amount of heat produced depends on the thickness or exposed surface area of
mixed epoxy. In a thicker mass, more heat is retained, causing a faster reaction
and more heat. The mixing container's shape and the mixed quantity have a great
affect on this exothermic reaction. A contained mass of curing epoxy (8 fl. oz. or
more) in a plastic mixing cup can quickly generate enough heat to melt the cup and
burn your skin. However, if the same quantity is spread into a thin layer, exothermic
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 3 of 24
heat is dissipated, and the epoxy's cure time is determined by the ambient
temperature. The thinner the layer of curing epoxy, the less it is affected by
exothermic heat, and the slower it cures.
Controlling cure time
In warm conditions use a slower hardener, if possible. Mix smaller batches that
can be used up quickly, or pour the epoxy mixture into a container with greater
surface area (a roller pan, for example), thereby allowing exothermic heat to
dissipate and extending open time. The sooner the mixture is transferred or applied
(after thorough mixing), the more of the mixture's useful open time will be available
for coating, lay-up or assembly.
In cool conditions use a faster hardener, or use supplemental heat to raise the
epoxy temperature above the hardener's minimum recommended application
temperature. Use a hot air gun, heat lamp or other heat source to warm the resin
and hardener before mixing or after the epoxy is applied. At room temperature,
supplemental heat is useful when a quicker cure is desired.
For detailed information on working with epoxy at low temperatures, refer to 002915 Cold Temperature Bonding and Coating with Epoxy.
CAUTION! Heating epoxy that has not gelled will lower its viscosity, allowing the
epoxy to run or sag more easily on vertical surfaces. In addition, heating epoxy
applied to a porous substrate (softwood or low-density core material) may cause
the substrate to "out-gas" and form bubbles in the epoxy coating. To avoid outgassing, wait until the epoxy coating has gelled before warming it. Never heat
mixed epoxy in a liquid state over 120°F (49°C).
Regardless of what steps are taken to control the cure time, thorough planning of
the application and assembly will allow you to make maximum use of epoxy's open
time and cure time.
Dispensing and mixing
Careful measuring of epoxy resin and hardener and thorough mixing are essential
for a proper cure. Whether the resin/hardener mixture is applied as a coating or
modified with fillers or additives, observing the following procedures will assure a
controlled and thorough chemical transition to a high-strength epoxy solid.
Dispensing
Dispense the proper proportions of resin and hardener into a clean plastic, metal or
wax-free paper container (Figure 2). Don't use glass or foam containers because of
the potential danger from exothermic heat build-up.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 4 of 24
DO NOT attempt to adjust the epoxy cure time by altering the mix ratio. An
accurate ratio is essential for a proper cure and full development of physical
properties.
Dispensing with Mini pumps - Most problems related to curing of the epoxy
can be traced to the wrong ratio of resin and hardener. To simplify metering,
we recommend using calibrated WEST SYSTEM Mini Pumps to dispense the
resin and hardener. Mini Pumps are calibrated to deliver the proper working
ratio of resin to hardener.
Pump one full pump stroke of resin for each one full
pump stroke of hardener. Depress each pump head
fully and allow the head to come completely back to
the top before beginning the next stroke. Partial
strokes will give the wrong ratio. Read the pump
instructions before using pumps.
Before you use the first mixture on a project, verify the proper ratio according
to the instructions that come with the pumps. Re-check the ratio anytime you
experience problems with curing.
Dispensing without Mini Pumps (Weight/volume measure) - To measure
105 Resin and 205 or 206 Hardener by weight or volume, combine five parts
resin with one part hardener. To measure 105 Resin and 207 or 209
Hardener by volume, combine three parts resin with one part hardener (by
weight, 3.5 parts resin-1 part hardener).
First time users
If this is the first time you have used WEST SYSTEM epoxy, begin with a small test
batch to get the feel for the mixing and curing process, before applying the mixture
to your project. This will demonstrate the hardener's open time for the temperature
you are working in and assure you that the resin/hardener ratio is metered properly.
Mix small batches until you are confident of the mixture's handling characteristics.
Mixing
Stir the two ingredients together thoroughly-at least 1 minute-longer in cooler
temperatures (Figure 3). To assure thorough mixing, scrape the sides and bottom
of the pot as you mix. Use the flat end of the mixing stick to reach the inside corner
of the pot. If you are using a power mixer, occasionally scrape the sides and
corners of the mixing pot while mixing.
If you are going to be using the mixture for coating, quickly pour it into a roller pan
to extend the open time.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 5 of 24
WARNING! Curing epoxy generates heat. When contained, a large mass of curing
epoxy has a very short pot life, and can generate enough heat to melt plastic and
foam, burn your skin and ignite combustible materials. For this reason do not use
foam or glass mixing containers. If a pot of mixed epoxy begins to exotherm (heat
up), quickly move it outdoors. Avoid breathing the fumes. Do not dispose of the
mixture until the reaction is complete and has cooled. Do not fill or cast layers of
epoxy thicker than 1/2"-thinner if enclosed by foam or other insulating material. Do
not pour into confined spaces.
Adding fillers and additives
Fillers
Throughout this and other WEST SYSTEM manuals, we refer to epoxy, neat epoxy
or resin/hardener mixture, meaning mixed resin and hardener without fillers added;
and thickened mixture or thickened epoxy, meaning mixed resin and hardener with
fillers added. Fillers are used to thicken epoxy for specific applications such as
bonding or fairing.
After selecting an appropriate filler for your job (see Filler Selection Guide), use it to
thicken the epoxy mixture to the desired consistency. The thickness of a mixture
required for a particular job is controlled by the amount of filler added. There is no
strict formula or measuring involved-use your eye to judge what consistency will
work best. Figure 5 gives you a general guide to the differences between neat
(unthickened) epoxy and the three consistencies referred to in this manual.
Always add fillers in a two-step process:
1. Mix the desired quantity of resin and hardener thoroughly before adding fillers.
Begin with a small batch-allow room for the filler.
2. Blend in small handfuls or scoops of the appropriate filler until the desired
consistency is reached (Figure 4).
For maximum strength, add only enough filler to completely bridge gaps between
surface without sagging or running out of the joint or gap. A small amount should
squeeze out of joints when clamped. For thick mixtures, don't fill the mixing cup
more than 1/3 full of epoxy before adding filler. When making fairing compounds,
stir in as much 407 or 410 as you can blend in smoothly-for easy sanding, the
thicker the better. Be sure all of the filler is thoroughly blended before the mixture is
applied. Spread the mixture into a thinner layer, either around the inside of the
mixing cup or onto a flat non-porous surface or palette, to extend its working life.
Epoxy can be thickened to the ideal consistency needed for a particular job.
The procedures in this manual refer to four common consistencies: syrup,
catsup, mayonnaise and peanut butter.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 6 of 24
SYRUP
CONSISTENCY: Unthickened mixture
CHARACTERISTICS: Drips off vertical surfaces
USES: Coating; wetting-out before
bonding; applying
fiberglass, graphite and
other fabrics
CATSUP
CONSISTENCY: Slightly thickened
CHARACTERISTICS: Sags down vertical
surfaces
USES: Laminating/bonding flat
panels with large surface
areas, injecting with a
syringe
MAYONNAISE
CONSISTENCY: Moderately thickened
CHARACTERISTICS: Clings to vertical surfaces;
peaks fall over
USES: General bonding, filleting,
hardware bonding
PEANUT BUTTER
CONSISTENCY: Maximum thickness
CHARACTERISTICS: Clings to vertical surfaces;
peaks stand up
USES: Gap filling, filleting, fairing,
bonding uneven surfaces
Additives
Additives are used to give epoxy additional physical properties when used as a
coating. Although additives are blended with mixed epoxy in the same two-step
process as fillers, they are not designed to thicken the epoxy. (Refer to Additive
descriptions) Follow the mixing instructions on the individual additive containers.
Clean up
Contain large spills with sand, clay or other inert absorbent material. Use a scraper
to contain small spills and collect as much material as possible. Follow up with
absorbent towels. Uncontaminated resin or hardener may be reclaimed for use.
DO NOT use sawdust or other fine cellulose materials to absorb hardeners.
DO NOT dispose of hardener in trash containing sawdust or other fine cellulose
materials-spontaneous combustion can occur.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 7 of 24
Clean resin or mixed epoxy residue with lacquer thinner, acetone or alcohol. Follow
all safety warnings on solvent containers. Clean hardener residue with warm soapy
water.
Dispose of resin, hardener and empty containers safely. Puncture a corner of the
can and drain residue into the appropriate new container of resin or hardener.
DO NOT dispose of resin or hardener in a liquid state. Waste resin and hardener
can be mixed and cured (in small quantities) to a non-hazardous inert solid.
CAUTION! Large pots of curing epoxy can get hot enough to ignite surrounding
combustible materials and give off hazardous fumes. Place pots of mixed epoxy in
a safe and ventilated area, away from workers and combustible materials. Dispose
of the solid mass only if cure is complete and the mass has cooled. Follow federal,
state or local disposal regulations.
Thinning Epoxy
There are epoxy-based products specifically designed to penetrate and reinforce
rotted wood. These products, basically an epoxy thinned with solvents, do a good
job of penetrating wood. But the solvents compromise the strength and moisture
barrier properties of the epoxy. WEST SYSTEM epoxy can be thinned with solvents
for greater penetration, but not without the same compromises in strength and
moisture resistance. Acetone, toluene or MEK have been used to thin WEST
SYSTEM epoxy and duplicate these penetrating epoxies with about the same
effectiveness. If you chose to thin the epoxy, keep in mind that the strength and
moisture protection of the epoxy are lost in proportion to the amount of solvent
added.
There is a better solution to get good penetration without losing strength or
moisture resistance. We recommend moderate heating of the repair area and the
epoxy with a heat gun or heat lamp. The epoxy will have a lower viscosity and
penetrate more deeply when it is warmed and contacts the warmed wood cavities
and pores. Although the working life of the epoxy will be considerable shortened,
slower hardeners (206, 207, 209) will have a longer working life and should
penetrate more than 205 Hardener before they begin to gel. When the epoxy cures
it will retain all of its strength and effectiveness as a moisture barrier, which we feel
more than offsets any advantages gained by adding solvents to the epoxy.
Removing Epoxy
Removing uncured or non-curing epoxy. Uncured epoxy is removed as you would
spilled resin. Scrape as much material as you can from the surface using a stiff
metal or plastic scraper-warm the epoxy to lower its viscosity. Clean the residue
with lacquer thinner, acetone, or alcohol. Follow safety warnings on solvents, and
provide adequate ventilation. After recoating wood surfaces with epoxy, it's a good
idea to brush the wet epoxy (in the direction of the grain) with a wire brush to
improve adhesion. Allow solvents to dry before recoating.
Removing fiberglass cloth applied with epoxy.
Use a heat gun to heat and soften the epoxy. Start in a small area a near a corner
or edge. Apply heat until you can slip a putty knife or chisel under the cloth (about
200°F). Grab the edge with a pair of pliers and pull up on the cloth while heating
just ahead of the separation. On large areas, use a utility knife to score the glass
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 8 of 24
and remove in narrower strips. Resulting surface texture may be coated or
remaining epoxy may be removed as follows.
Removing cured epoxy coating.
Use a heat gun to soften the epoxy (200°F). Heat a small area and use a paint or
cabinet scraper to remove the bulk of the coating. Sand the surface to remove the
remaining material. Provide ventilation when heating epoxy.
BASIC TECHNIQUES
The following basic techniques are common to most repair or building projects,
regardless of the type of structure or material you are working with.
Surface preparation
Whether you are bonding, fairing or applying fabrics, the success of the application
depends not only on the strength of the epoxy, but also on how well the epoxy
adheres to the surface to which it is being applied. Unless you are bonding to
partially cured epoxy, the strength of the bond relies on the epoxy's ability to
mechanically "key" into the surface. That is why the following three steps of surface
preparation are a critical part of any secondary bonding operation.
For good adhesion, bonding surfaces should be:
1. Clean Bonding surfaces must be free of any contaminants such as grease, oil,
wax or mold release. Clean contaminated surfaces with lacquer thinner, acetone or
other appropriate solvent. Wipe the surface with paper towels before the solvent
dries. Clean surfaces before sanding to avoid sanding the contaminant into the
surface. Follow all safety precautions when working with solvents. (Figure 6)
2. Dry All bonding surfaces must be as dry as possible for good adhesion. If
necessary, accelerate drying by warming the bonding surface with a hot air gun,
hair dryer or heat lamp. Use fans to move the air in confined or enclosed spaces.
Watch for condensation when working outdoors or whenever the temperature of the
work environment changes. (Figure 7)
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 9 of 24
3. Sanded Sand smooth non-porous surfaces—thoroughly abrade the surface. 80grit aluminum oxide paper will provide a good texture for the epoxy to "key" into. Be
sure the surface to be bonded is solid. Remove any flaking, chalking, blistering, or
old coating before sanding. Remove all dust after sanding. (Figure 8)
Special preparation for various materials
Cured epoxy-Amine blush can appear as a wax-like film on cured epoxy surfaces.
It is a by-product of the curing process and may be more noticeable in cool, moist
conditions. Amine blush can clog sandpaper and inhibit subsequent bonding, but it
can easily be removed. It's a good idea to assume it has formed on any cured
epoxy surface.
To remove the blush, wash the surface with clean water (not solvent) and an
abrasive pad, such as Scotch-brite(TM) 7447 General Purpose Hand Pads. Dry the
surface with paper towels to remove the dissolved blush before it dries on the
surface. Sand any remaining glossy areas with 80-grit sandpaper. Wet-sanding will
also remove the amine blush. If a release fabric is applied over the surface of fresh
epoxy, amine blush will be removed when the release fabric is peeled from the
cured epoxy and no additional sanding is required.
Epoxy surfaces that have not fully cured may be bonded to or coated with epoxy
without washing or sanding. Before applying coatings other than epoxy (paints,
bottom paints, varnishes, gelcoats, etc.), allow epoxy surfaces to cure fully, then
wash and sand.
Hardwoods-Sand with 80-grit paper.
Teak/oily woods-Wipe with acetone 15 minutes before coating. Solvent removes
the oil at the surface and allows epoxy to penetrate. Be sure solvent has
evaporated before coating.
Porous woods-No special preparation needed. If surface is burnished, possibly by
dull planer or saw blades, sand with 80-grit paper to open pores. Remove dust.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 10 of 24
Steel, lead-Remove contamination, sand or grind to bright metal, coat with epoxy
then sand fresh epoxy into surface. Re-coat or bond after first coat gels.
Aluminum-Sand and prepare with 860 Aluminum Etch Kit.
Polyester (fiberglass)-Clean contamination with a silicone and wax remover such
as DuPont Prep-Sol(TM) 3919S. Sand with 80-grit paper to a dull finish.
Plastic-Adhesion varies. If a plastic is impervious to solvents such as acetone,
epoxy generally will not bond to it. Soft, flexible plastics such as polyethylene,
polypropylene, nylon, Plexiglas and polycarbonate fall into this category.
Hard, rigid plastics such as PVC, ABS and styrene provide better adhesion with
good surface preparation and adequate bonding area. After sanding, flame
oxidizing (by quickly passing propane torch over the surface without melting the
plastic) can improve bonding in some plastics. It's a good idea to conduct an
adhesion test on a plastic that you are uncertain about.
Bonding (gluing)
This section refers to two types of bonding. Two-step bonding is the preferred
method for most situations because it promotes maximum epoxy penetration into
the bonding surface and prevents resin-starved joints. Single-step bonding can be
used when joints have minimal loads and excess absorption into porous surfaces is
not a problem. In both cases, epoxy bonds best when it is worked into the surface
with a roller or brush.
Before mixing epoxy, check all parts to be bonded for proper fit and surface
preparation, gather all the clamps and tools necessary for the operation, and cover
any areas that need protection from spills.
Note: The term bonding as used here and other WEST SYSTEM literature refers to
structural adhesion or gluing of components, not the electrical bonding
Two-step bonding
1. Wet-out bonding surfaces-Apply a neat resin/hardener mixture (without fillers) to
the surfaces to be joined (Figure 9). Wet out small or tight areas with a disposable
brush. Wet out larger areas with a foam roller or by spreading the resin/hardener
mixture evenly over the surface with a plastic spreader. You may proceed with step
two immediately or any time before the wet-out coat reaches the final cure stage.
2. Apply thickened epoxy to one bonding surface. Modify the resin/hardener
mixture by stirring in the appropriate filler until it becomes thick enough to bridge
any gaps between the mating surfaces and to prevent "resin-starved" joints. Apply
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 11 of 24
enough of the mixture to one of the surfaces, so that a small amount will squeeze
out when the surfaces are joined together with a force equivalent to a firm hand grip
(Figure 10).
Thickened epoxy can be applied immediately over the wet-out surface or any time
before the wet-out reaches its final cure. For most small bonding operations, add
the filler to the resin/hardener mixture remaining in the batch that was used for the
wet-out. Mix enough resin/hardener for both steps. Add the filler quickly after the
surface is wet out and allow for a shorter working life of the mixture.
3. Clamp components. Attach clamps as necessary to hold the components in
place. Use just enough clamping pressure to squeeze a small amount of the epoxy
mixture from the joint, indicating that the epoxy is making good contact with both
mating surfaces (Figure 11). Avoid using too much clamping pressure, which can
squeeze all of the epoxy mixture out of the joint.
4. Remove or shape excess adhesive that squeezes out of the joint as soon as the
joint is secured with clamps. A wooden mixing stick with one end sanded to a chisel
edge is an ideal tool for removing the excess (Figure 12).
Single-step bonding
Single-step bonding is applying the thickened epoxy directly to both bonding
surfaces without first wetting out the surfaces with neat resin/hardener. We
recommend that you thicken the epoxy no more than is necessary to bridge gaps in
the joint (the thinner the mixture, the more it can penetrate the surface) and that
you do not use this method for highly-loaded joints or for bonding end grain or other
porous surfaces.
Laminating
The term "laminating" refers to the process of bonding numbers of relatively thin
layers, like plywood, veneers, fabrics or core material to create a composite. A
composite may be any number of layers of the same material or combinations of
different materials. Methods of epoxy application and clamping will differ depending
on what you are laminating.
Because of large surface areas and limitations of wet lay-up time, roller application
is the most common method for applying epoxy. A faster method for large surfaces
is to simply pour the resin/hardener mixture onto the middle of the panel and
spread the mixture evenly over the surface with a plastic spreader. Apply thickened
mixtures with an 809 Notched Spreader.
Using staples or screws is the most common method of clamping when you
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 12 of 24
laminate a solid material to a solid substrate. An even distribution of weights will
work when you are laminating a solid material to a base that will not hold staples or
screws, such as a foam or honeycomb core material.
Vacuum bagging is the ideal clamping method for laminating a wide range of
materials. Through the use of a vacuum pump and plastic sheeting, the
atmosphere is used to apply perfectly even clamping pressure over all areas of a
panel regardless of the size, shape or number of layers.
NOTES:
Primary/Secondary Bonding
Primary bonding relies on the chemical linking of adhesive layers such as the wet
lay-up of fiberglass laminate in a mold. All the layers of adhesive cure together in a
single fused layer. Epoxy applied over partially cured epoxy will chemically link with
it and is a primary bond. The ability to chemically link diminishes as the epoxy
cures and it becomes a secondary bond.
Secondary bonding relies on the mechanical linking of an adhesive to a material or
cured epoxy surface. The adhesive must "key" into pores or scratches in the
surface-a microscopic version of a dovetail joint. Proper surface preparation
provides a texture that will help lock the cured epoxy to the surface.
Clamping
Any method of clamping is suitable as long as the parts to be joined are held so
that movement will not occur. Common methods include spring clamps, "C" clamps
and adjustable bar clamps, heavy rubber bands cut from inner tubes, nylonreinforced packaging tape, applying weights, and vacuum bagging. When placing
clamps near epoxy-covered areas, cover clamp pads with duct tape, or use
polyethylene sheeting or release fabric under the clamps so they don't inadvertently
bond to the surface. Staples, nails or drywall screws are often used where
conventional clamps will not work. Any fasteners left in should be of a noncorroding alloy such as bronze. In some cases the thickened epoxy or gravity will
hold parts in position without clamps.
Bonding with fillets
A fillet (fil'it) is a cove-shaped application of thickened epoxy that bridges an inside
corner joint. It is excellent for bonding parts because it increases the surface area
of the bond and serves as a structural brace. All joints that will be covered with
fiberglass cloth will require a fillet to support the cloth at the inside corner of the
joint.
The procedure for bonding with fillets is the same as normal bonding except that
instead of removing the squeezed-out thickened epoxy after the components are
clamped in position, you shape it into a fillet. For larger fillets, add thickened
mixture to the joint as soon as the bonding operation is complete, before the
bonding mixture is fully cured, or any time after the final cure and sanding of
exposed epoxy in the fillet area.
1. Bond parts as described in Bonding.
2. Shape and smooth the squeezed-out thick epoxy into a fillet by drawing a
rounded filleting tool (mixing stick) along the joint, dragging excess material ahead
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 13 of 24
of the tool and leaving a smooth cove-shaped fillet bordered on each side by a
clean margin. Some excess filleting material will remain outside of the margin
(Figure 13). Use the excess material to re-fill any voids. Smooth the fillet until you
are satisfied with its appearance. A mixing stick will leave a fillet with about a 3/8"
radius. For larger fillets, an 808 Plastic Squeegee, cut to shape or bent to the
desired radius, works well.
Apply additional thickened epoxy to fill voids or make larger fillets. Apply the
mixture along the joint line with the rounded mixing stick, using enough mixture to
create the desired size of fillet. For longer or multiple fillets, empty caulking gun
cartridges or disposable cake decorating bags can be used. Cut the plastic tip to
lay a bead of thickened epoxy large enough for the desired fillet size. Heavy duty,
sealable food storage bags with one corner cut off may also be used.
3. Clean up the remaining excess material outside of the margin by using a
sharpened mixing stick or a putty knife (Figure 14). Fiberglass cloth or tape may be
applied over the fillet area before the fillet has cured (or after the fillet is cured and
sanded).
4. Sand smooth with 80-grit sandpaper after the fillet has fully cured. Wipe the
surface clean of any dust and apply several coats of resin/hardener over the entire
fillet area before final finishing.
Bonding fasteners and hardware
Installing screws and other threaded fasteners with WEST SYSTEM epoxy
dramatically improves load carrying capacity by spreading the fastener's load into a
greater area of the substrate. There are several methods or levels of hardware
bonding depending on the loads on the hardware.
Basic fastener bonding
For improved pullout strength and waterproof connections, the easiest method is to
simply wet out stripped fastener holes and new pilot holes before installing the
screws. Epoxy penetrates the fiber around the hole, effectively increasing the
fastener diameter. Epoxy also provides a stronger interface with the fastener
threads than wood fiber and keeps out water.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 14 of 24
1. Wet out a standard-size pilot hole. Work the mixture well into the hole with a pipe
cleaner or syringe (Figure 15). Thicken a second coat of epoxy as necessary for
stripped or oversized holes.
2. Insert the fastener in the hole and allow the epoxy to cure.
Advanced fastener bonding
For greater strength and stability, drill oversized holes to increase the exposed
substrate area and the amount of epoxy around the fastener. If the
fastener/hardware can be clamped by other means, the oversized hole can be
extended to the end of the fastener.
1. Drill oversized holes 2/3-3/4 the depth of the fastener. The diameter may be up
to twice the fastener diameter (Figure 16a).
2. Drill a normal sized pilot hole at the bottom of the oversized hole to the full length
of the fastener. The normal sized pilot hole serves to hold or clamp the hardware in
position until the epoxy cures.
3. Wet out the holes and the fastener with epoxy. Allow the epoxy to thoroughly
soak into the exposed end grain of the wood.
4. Fill the hole with thickened epoxy/adhesive filler. Use 404 High-density
(preferred) or 406 Colloidal Silica.
5. Install the fasteners with just enough force to hold the hardware in place. Allow
the epoxy to cure thoroughly before applying load to the hardware (Figure 16b).
Bonding hardware
Bonding hardware goes a step beyond bonding the fasteners only. By bonding the
hardware base directly to the surface you further increase hardware load capacity
and provide a solid bearing surface for the hardware. It also seals the wood
underneath, and is a stronger, longer lasting attachment than bonding the fasteners
only. It is especially useful to mount hardware on curved, uneven or unlevel
surfaces.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 15 of 24
1. Prepare the mounting surface and the hardware base for good adhesion.
2. Wet out the oversized hole with epoxy. Allow the epoxy to soak into the exposed
end grain of the wood (as with faster bonding).
3. Coat the bottom contact surface of the hardware with unthickened epoxy. Wire
brush or sand the wet epoxy into the surface with 50-grit sandpaper.
4. Inject a non-sagging epoxy/404 or 406 mixture into the hole. Use enough mixture
so there are no voids in the hole after inserting the fastener. Coat the bottom of the
hardware and the fastener threads with thickened epoxy (Figure 17).
5. Place the hardware in position. Insert and tighten fasteners until a small amount
of the mixture squeezes out of the joint (Figure 18).
6. Remove excess epoxy or shape into a fillet. Allow the epoxy to cure at least 24
hours before applying load to the hardware. Allow more time in cool weather.
Casting a base
Use the thickened epoxy to cast a base under the hardware when mounting
hardware to a curved or uneven surface, or mounting hardware at an angle to the
surface.
1. Prepare the fasteners, holes, substrate and base as described above.
2. Bond small blocks to the substrate to support the base at the desired height and
position (e.g. winch base, Figure 19a)
3. Apply enough thickened epoxy to cover the blocks. If the gap between the base
and the surface is over 1/2", fill the gap in two separate layers to avoid exotherm.
4. Place the hardware in position, resting on the blocks (Figure 19b) and install the
fasteners.
5. Smooth the excess epoxy into the desired fillet shape around the base (Figure
19c). Allow the epoxy to cure fully before loading. Protect exposed epoxy from UV.
Bonding studs
Bond threaded rods or studs into the substrate (instead of bolts or screws) and
attach the hardware with nuts. This variation is appropriate for many engine, motor
or machine installations. Coat the base with wax /mold release to make the
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 16 of 24
hardware removable. Although the hardware is not "bonded" to the substrate, the
epoxy still provides a bearing surface that perfectly matches and supports the base
of the hardware.
1. Prepare the studs/threaded rods by waxing the upper ends (above the surface)
and cleaning the lower ends (below the surface).
2. Place a nut and washer on the studs, wet out the lower ends and push them into
the epoxy filled holes. Allow the epoxy to cure thoroughly before tightening the nuts
(Figure 20).
Removing fasteners
If you know that you will want to remove the fastener, you can coat the threads with
wax or mold release (contaminating the surface enough to prevent a good bond).
Remove a permanently bonded fastener by applying heat to the head of the
fastener with a soldering iron or propane torch. Use a heat shield to protect the
surrounding area. Heat will travel down the fastener, softening the epoxy in contact
with it. At about 120°F the epoxy should soften enough to allow the fastener to be
backed out. Allow more time for heat to travel down longer or larger diameter
fasteners.
Fairing
Fairing refers to the filling and shaping of low areas so they blend with the
surrounding surfaces and appear "fair" to the eye and touch. After major structural
assembly has been completed, final fairing can be easily accomplished with WEST
SYSTEM epoxy and low-density fillers.
1. Prepare the surface as you would for bonding. Sand smooth any bumps or
ridges on the surface and remove all dust from the area to be faired.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 17 of 24
2. Wet out porous surfaces with unthickened epoxy (Figure 21).
3. Mix resin/hardener and 407 Low-Density or 410 Microlight(TM) filler to a peanut
butter consistency. The thicker the mixture, the easier it will be to sand when cured.
4. Trowel on the thickened epoxy mixture with a plastic squeegee, working it into all
voids and depressions. Smooth the mixture to the desired shape, leaving the
mixture slightly higher than the surrounding area (Figure 22). Remove any excess
thickened epoxy before it cures. If the voids you are filling are over 1/2" deep, apply
the mixture in several applications or use 206 Slow Hardener or 209 Tropical
Hardener, depending on ambient temperature.
Note: On vertical and overhead surfaces, allow the wet-out coat to gel before
applying fairing compound. The fairing compound may sag or slide off the fresh
wet-out coat. Apply the fairing compound while the wet-out is still in the gel stage.
5. Allow the final thickened epoxy application to cure thoroughly.
6. Sand the fairing material to blend with the surrounding contour (Figure 23). Begin
with 50-grit sandpaper if you have a lot of fairing material to remove. Use 80-grit
paper on the appropriate sanding block when you are close to the final contour.
CAUTION! Don't forget your dust mask. Remove the sanding dust and fill any
remaining voids following the same procedure.
7. Apply several coats of resin/hardener to the area with a disposable brush or
roller after you are satisfied with the fairness. Allow the final coat to cure thoroughly
before final sanding and finishing.
Applying woven cloth & tape
Fiberglass cloth is applied to surfaces to provide reinforcement and/or abrasion
resistance, or in the case of Douglas Fir plywood, to prevent grain checking. It is
usually applied after fairing and shaping are completed, and before the final coating
operation. It is also applied in multiple layers (laminated) and in combination with
other materials to build composite parts.
Fiberglass cloth may be applied to surfaces by either of two methods. The "dry"
method refers to applying the cloth over a dry surface. The "wet" method refers to
applying the cloth to an epoxy-coated surface often after the wet-out coat becomes
tacky, which helps it cling to vertical or overhead surfaces. Since this method
makes it more difficult to position the cloth, the dry method is the preferred method
especially with thinner cloth.
Dry method
1. Prepare the surface as you would for bonding.
2. Position the cloth over the surface and cut it several inches larger on all sides. If
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 18 of 24
the surface area you are covering is larger than the cloth size, allow multiple pieces
to overlap by approximately two inches. On sloped or vertical surfaces, hold the
cloth in place with masking or duct tape, or with staples.
3. Mix a small quantity of epoxy (three or four pumps each of resin and hardener).
4. Pour a small pool of resin/hardener near the center of the cloth.
5. Spread the epoxy over the cloth surface with a plastic spreader, working the
epoxy gently from the pool into the dry areas (Figure 24). Use a foam roller or
brush to wet out fabric on vertical surfaces. Properly wet out fabric is transparent.
White areas indicate dry fabric. If you are applying the cloth over a porous surface,
be sure to leave enough epoxy to be absorbed by both the cloth and the surface
below it. Try to limit the amount of squeegeeing you do. The more you "work" the
wet surface, the more minute air bubbles are placed in suspension in the epoxy.
This is especially important if you plan to use a clear finish. You may use a roller or
brush to apply epoxy to horizontal as well as vertical surfaces.
Smooth wrinkles and position the cloth as you work your way to the edges. Check
for dry areas (especially over porous surfaces) and re-wet them as necessary
before proceeding to the next step. If you have to cut a pleat or notch in the cloth to
lay it flat on a compound curve or corner, make the cut with a pair of sharp scissors
and overlap the edges for now.
6. Squeegee away excess epoxy before the first batch begins to gel (Figure 25).
Slowly drag the squeegee over the fabric at a low, almost flat, angle, using evenpressured, overlapping strokes. Use enough pressure to remove excess epoxy that
would allow the cloth to float off the surface, but not enough pressure to create dry
spots. Excess epoxy appears as a shiny area, while a properly wet-out surface
appears evenly transparent, with a smooth, cloth texture. Later coats of epoxy will
fill the weave of the cloth.
7. Trim the excess (Figure 26) and overlapped cloth (Figure 27) after the epoxy has
reached its initial cure. The cloth will cut easily with a sharp utility knife. Trim
overlapped cloth, if desired, as follows:
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 19 of 24
Place a metal straightedge on top of and midway between the two overlapped
edges. b) Cut through both layers of cloth with a sharp utility knife. c) Remove the
top-most trimming and then lift the opposite cut edge to remove the overlapped
trimming (Figure 28). d) Re-wet the underside of the raised edge with epoxy and
smooth into place.
The result should be a near perfect butt joint, eliminating double cloth thickness. A
lapped joint is stronger than a butt joint, so if appearance is not important, you may
want to leave the overlap and fair in the unevenness after coating.
8. Coat the surface to fill the weave before the wet-out reaches its final cure stage
(Figure 29).
Follow the procedures for final coating in the next section. It will take two or three
coats to completely fill the weave of the cloth and to allow for a final sanding that
will not affect the cloth.
Wet method
An alternative is to apply the fabric or tape to a surface coated with wet epoxy. As
mentioned, this is not the preferred method, especially with large pieces of cloth,
because of the difficulty removing wrinkles or adjusting the position of the cloth as it
is being wet out. However, you may come across situations when this method may
be useful or necessary.
1. Prepare the surface for bonding. Pre-fit and trim the cloth to size. Roll the cloth
neatly so that it may be conveniently rolled back into position later.
2. Roll a heavy coat of epoxy on the surface.
3. Unroll the glass cloth over the wet epoxy and position it. Surface tension will hold
most cloth in position. If you are applying the cloth vertically or overhead, you may
want to thicken the epoxy slightly with filler, then wait until it becomes sticky. Work
out wrinkles by lifting the edge of the cloth and smoothing from the center with your
gloved hand or a squeegee.
4. Apply a second coat of epoxy with a foam roller. Apply enough epoxy to
thoroughly wet out the cloth.
5. Remove the excess epoxy with a squeegee, using long overlapping strokes. The
cloth should appear consistently transparent with a smooth cloth texture.
6. Follow steps 7, 8 and 9 under the dry method to finish the procedure.
Any remaining irregularities or transitions between cloth and substrate can be faired
by using an epoxy/filler fairing compound if the surface is to be painted. Any
additional fairing done after the final coating should receive several additional coats
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 20 of 24
over the faired area.
Note: A third alternative for more experienced users is a variation of both methods.
Apply the fabric after a wet out coat has reached an initial cure. Follow the first
three steps of the Wet Method, but wait until the epoxy cures dry to the touch
before positioning the fabric and continuing with Step 3 of the Dry Method. Apply
the fabric before the first coat reaches its final cure phase.
NOTE: Clear Wood Finishes
(stripper canoes, etc.) An alternative wet out method is to lay the epoxy onto the
fabric with a short-bristled bush. Dip the brush in the epoxy and lay the epoxy on
the surface with a light even stroke. Don't force the epoxy into the cloth, which may
trap air in the fabric and show through the clear finish. Apply enough epoxy to
saturate the fabric and the wood below. After several minutes, lay on additional
epoxy to dry (white) areas. If epoxy appears milky due to high humidity or overworking, warm the surface by passing a heat gun or hair dryer over the surface.
Use low heat to avoid out-gassing. Be sure to use 207 Hardener for clear finishes.
Epoxy barrier coating
The object of barrier coating is to build up an epoxy coating that provides an
effective moisture barrier and a smooth base for final finishing.
Apply a minimum of two coats of WEST SYSTEM epoxy for an effective moisture
barrier. Apply three coats if sanding is to be done. Moisture protection will increase
with additional coats, up to six coats or about a 20-mil thickness. Additives or
pigments should not be added to the first coat. Mixing thinners with WEST
SYSTEM epoxy is not recommended.
Disposable, thin urethane foam rollers, such as WEST SYSTEM 800 Roller Covers,
allow you greater control over film thickness, are less likely to cause the epoxy to
exotherm and leave less stipple than thicker roller covers. Cut the covers into
narrower widths to reach difficult areas or for long narrow surfaces like stringers.
Complete all fairing and cloth application before beginning the final coating. Allow
the temperature of porous surfaces to stabilize before coating. Otherwise, as the
material warms up, air within the porous material may expand and pass from the
material (out-gassing) through the coating and leave bubbles in the cured coating.
1. Prepare the surface for.
2. Mix only as much resin/hardener as you can apply during the open time of the
mixture. Pour the mixture into a roller pan as soon as it is mixed thoroughly.
3. Load the roller with a moderate amount of the epoxy mixture. Roll the excess out
on the ramp part of the roller pan to get a uniform coating on the roller.
4. Roll lightly and randomly over an area approximately 2 ft x 2 ft to transfer the
epoxy evenly over the area (Figure 30).
5. As the roller dries out, increase pressure enough to spread the epoxy into a thin
even film. Increase the coverage area if necessary to spread the film more thinly
and evenly. The thinner the film, the easier it is to keep it even and avoid runs or
sags in each coat.
6. Finish the area with long, light, even strokes to reduce roller marks. Overlap the
previously coated area to blend both areas together.
7. Coat as many of these small working areas as you can with each batch. If a
batch begins to thicken before it can be applied, discard it and mix a fresh, smaller
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 21 of 24
batch.
8. Tip off the coating by dragging a foam roller brush lightly over the fresh epoxy in
long, even, overlapping strokes after each batch is applied. Use enough pressure
to smooth the stipple, but not enough to remove any of the coating (Figure 31).
Alternate the direction in which each coat is tipped off, 1st coat vertical, 2nd coat
horizontal, 3rd coat vertical, etc. A WEST SYSTEM 800 Roller Cover can be cut
into segments to make a tipping brush.
Recoating
Apply second and subsequent coats of epoxy following the same procedures. Make
sure the previous coat has cured firmly enough to support the weight of the next
coat. To avoid sanding between coats, apply all of the coats in the same day. See
Special preparation-Cured epoxy. After the final coat has cured overnight, wash
and sand it to prepare for the final finish.
Final surface preparation
Proper finishing techniques will not only add beauty to your efforts, but will also
protect your work from ultraviolet light, which will break down epoxy over time. The
most common methods of finishing are painting or varnishing. These coating
systems protect the epoxy from ultraviolet light and require proper preparation of
the surface before application.
Preparation for the final finish is just as important as it is for recoating with epoxy.
The surface must first be clean, dry and sanded.
1. Allow the final epoxy coat to cure thoroughly.
2. Wash the surface with a Scotch-brite(TM) pad and water to remove amine blush.
Dry with paper towels.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 22 of 24
3. Sand to a smooth finish (Figure 32). If there are runs or sags, begin sanding with
80-grit paper to remove the highest areas. Sand until the surface feels and looks
fair. Complete sanding with the appropriate grit for the type of coating to be appliedcheck coating instructions. Paint adhesion relies on the mechanical grip of the paint
keying into the sanding scratches in the epoxy's surface. If a high-build or filling
primer is to be applied, 80-100 grit is usually sufficient. 120-180 grit may be
adequate for primers and high-solids coatings. Finishing with 220-400 grit paper will
result in a high-gloss finish for most paints or varnishes. Grits finer than this may
not provide enough tooth for good adhesion. Many people prefer wet sanding
because it reduces sanding dust and it will allow you to skip Step 2.
4. After you are satisfied with the texture and fairness of the surface, rinse the
surface with fresh water. Rinse water should sheet evenly without beading or
fisheyeing. If rinse water beads up (a sign of contamination), wipe the area with
solvent and dry with a paper towel, then wet sand again until beading is eliminated.
Proceed with your final coating after the surface has dried thoroughly. To reduce
the possibility of contamination, it is a good idea to begin coating within 24 hours of
the final sanding. Follow all of the instructions from the coating system's
manufacturer. A good trick used by professionals, is to make a test panel to
evaluate the degree of surface preparation required and the compatibility of the
finish system.
Finish coatings
The function of a finish coating like paint or varnish over an epoxy barrier coat, is to
decorate the surface and protect the epoxy from sunlight. In doing so, the finish
coating extends the life of the epoxy moisture barrier, which, in turn provides a
stable base that extends the life of the finish coating. Together the two form a
protective system far more durable than either coating by itself.
Protection from sunlight is a primary consideration in the selection of a finish
coating. Long term UV (ultraviolet) protection of the barrier coat depends on how
well the finish coating itself resists UV and keeps its pigments, or its shield of UV
filters on the surface of the epoxy barrier coat. A high gloss finish reflects a higher
proportion of the light hitting the surface than a dull surface. All other thing being
equal, a white (especially a glossy white) coating will last the longest.
Most types of coatings are compatible with epoxy. Thoroughly cured epoxy is an
almost completely inert hard plastic. This means most paint solvents will not soften,
swell or react with it. However, it is still a good idea to build a test panel to assure
coating compatibility.
Coating types
Latex paints are compatible with epoxy and they do an adequate job of protecting
the epoxy barrier from UV radiation. In many architectural applications latex paint
may be the most suitable coating to use. Their durability is limited.
Alkyd finishes-enamel, alkyd enamel, marine enamel, acrylic enamel, alkyd
modified epoxy, traditional varnish and spar varnish-offer ease of application, low
cost, low toxicity, and easy availability. Their disadvantages are low UV resistance
and low abrasion resistance.
One-part polyurethanes offer easy application, cleanup and better properties than
alkyds. They are also more expensive and some may be incompatible with amine
cure epoxy systems such as WEST SYSTEM epoxy, although 207 Hardener may
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 23 of 24
offer better compatibility. Test first.
Epoxy paints are available in one-part and two-part versions. Two-part epoxies
offer many characteristics similar to the higher performance polyurethanes. They
are durable and chemical resistant, but offer limited UV protection compared to the
linear polyurethanes.
Two-part linear polyurethane (LP) paints offer the most durable protection
available. LP's are available as pigmented or clear coatings and offer excellent UV
protection, gloss retention, abrasion resistance, plus compatibility with epoxy.
However, compared to other types of coatings, they are expensive, require more
skill to apply and present a greater health hazard, especially when sprayed.
Bottom paints are available in a variety of formulations. Most bottom paint
systems are compatible with epoxy and can be applied directly over a prepared
epoxy barrier coat. If you are unsure of compatibility or have curing or adhesion
problems with a specific bottom paint, use only a primer recommended for that
bottom paint over the barrier coat. Follow the recommendations given for
preparation of fiberglass surfaces. Other paints, including marine LP's and primers,
are not recommended for use below the waterline.
Primers are usually not needed to help a paint film bond to epoxy, although
interfacing primers may be required with some specialized bottom paints and highbuild primers are useful for hiding scratches or flaws in the substrate. If the
instructions on your paint or varnish recommend a specially primed surface, follow
the recommendations given for fiberglass preparation. Self-etching primers do not
work well on an epoxy coating because of epoxy's chemical resistance.
Polyester gelcoat is a pigmented version of the resin used to build fiberglass
boats and other products. Gelcoat is sprayed into a mold before the glass fabric
and resin are applied to provide a smooth pre-finished surface when the part is
removed from the mold. It is not often used as a post-production finish coating, but
it can be applied over epoxy and is useful in some repair situations. Refer to 002550 Fiberglass Boat Repair and Maintenance, published by Gougeon Brothers, for
detailed information on patching gelcoat over an epoxy repair.
Follow all instructions from the coating systems manufacturer. It is a good idea to
make a test panel to evaluate the degree of surface preparation required, and the
compatibility and handling characteristics of the finish system.
For detailed instruction on the application of these techniques in repair and
construction, refer to specific WEST SYSTEM instructional publications and videos.
For complete descriptions of all WEST SYSTEM products, including selection and
coverage guides, go to the Product Guide.
To help you identify and prevent potential problems associated with using epoxy,
go to the Problem Solver.
For complete information on the hazards associated with epoxy and the
precautions you can take to avoid them, go to Health & Safety.
To see how these techniques have been put to use in a wide range of repair and
construction applications go to the Projects pages.
Tips
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
WEST SYSTEM User Manual
Page 24 of 24
Thinning epoxy
There are epoxy-based products specifically designed to penetrate and reinforce
rotted wood. These products, basically an epoxy thinned with solvents, do a good
job of penetrating wood. But the solvents compromise the strength and moisture
barrier properties of the epoxy. WEST SYSTEM epoxy can be thinned with solvents
for greater penetration, but not without the same compromise in strength and
moisture resistance. Acetone, toluene or MEK have been used to thin WEST
SYSTEM epoxy and duplicate these penetrating epoxies with about the same
effectiveness. If you chose to thin the epoxy, keep in mind that the strength and
moisture protection of the epoxy are lost in proportion to the amount of solvent
added.
There is a better solution to get good penetration without losing strength or
moisture resistance. We recommend moderate heating of the repair area and the
epoxy with a heat gun or heat lamp. The epoxy will have a lower viscosity and
penetrate more deeply when it is warmed and contacts the warmed wood cavities
and pores. Although the working life of the epoxy will be considerable shortened,
slower hardeners (206, 207, 209) will have a longer working life and should
penetrate more than 205 Hardener before they begin to gel. When the epoxy cures
it will retain all of its strength and effectiveness as a moisture barrier, which we feel
more than offsets any advantages gained by adding solvents to the epoxy.
Removing epoxy
Removing uncured or non-curing epoxy. Uncured epoxy is removed as you would
spilled resin. Scrape as much material as you can from the surface using a stiff
metal or plastic scraper—warm the epoxy to lower its viscosity. Clean the residue
with lacquer thinner, acetone, or alcohol. Follow safety warnings on solvents, and
provide adequate ventilation. After recoating wood surfaces with epoxy, it's a good
idea to brush the wet epoxy (in the direction of the grain) with a wire brush to
improve adhesion. Allow solvents to dry before recoating.
Removing fiberglass cloth applied with epoxy.
Use a heat gun to heat and soften the epoxy. Start in a small area a near a corner
or edge. Apply heat until you can slip a putty knife or chisel under the cloth (about
200°F). Grab the edge with a pair of pliers and pull up on the cloth while heating
just ahead of the separation. On large areas, use a utility knife to score the glass
and remove in narrower strips. Resulting surface texture may be coated or
remaining epoxy may be removed as follows.
Removing cured epoxy coating.
Use a heat gun to soften the epoxy (200°F). Heat a small area and use a paint or
cabinet scraper to remove the bulk of the coating. Sand the surface to remove the
remaining material. Provide ventilation when heating epoxy.
Copyright © 2005, West System Inc. All rights reserved.
This page is maintained by West System Inc. Last Modified on October 31, 2005.
WEST SYSTEM and EPOXYWORKS are registered trademarks of West System Inc., Bay City, Michigan, USA.
http://www.westsystem.com/webpages/userinfo/manual/
10/9/2007
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
