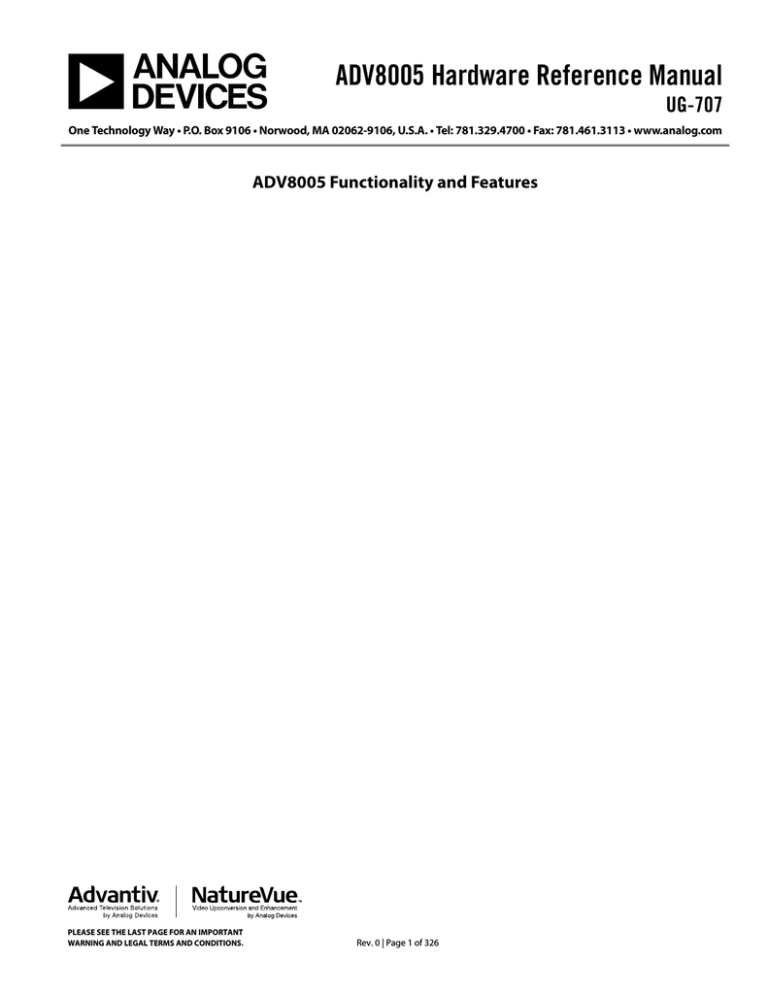

ADV8005 Hardware Reference Manual (Rev. 0)

ADV8005 Hardware Reference Manual (Rev. 0)
ADV8005 Hardware Reference Manual
UG-707
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
ADV8005 Functionality and Features
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 326
UG-707
ADV8005 Hardware Reference Manual
TABLE OF CONTENTS
Understanding the ADV8005 Hardware Manual ............................................................................................................ 9
Description of the Hardware Manual ..........................................................................................................................................9
Disclaimer .......................................................................................................................................................................................9
Trademark and Service Mark Notice ...........................................................................................................................................9
Number Notations..........................................................................................................................................................................9
Register Access Conventions ........................................................................................................................................................9
Acronyms and Abbreviations .......................................................................................................................................................9
Field Function Description ...........................................................................................................................................................12
References........................................................................................................................................................................................13
1.
Introduction to the ADV8005 ................................................................................................................................ 14
1.1.
Overview..........................................................................................................................................................................14
1.1.1.
Digital Video Input ............................................................................................................................................................. 15
1.1.2.
Flexible Digital Core ........................................................................................................................................................... 16
1.1.3.
Video Signal Processor ....................................................................................................................................................... 16
1.1.4.
Bitmap On Screen Display................................................................................................................................................. 17
1.1.5.
External DDR2 Memory .................................................................................................................................................... 18
1.1.6.
HDMI Transmitter ............................................................................................................................................................. 18
1.1.7.
Video Encoder ..................................................................................................................................................................... 18
1.1.8.
Digital Video Output .......................................................................................................................................................... 18
1.2.
Main Features of the ADV8005 ....................................................................................................................................19
1.2.1.
Video Signal Processor ....................................................................................................................................................... 19
1.2.1.1.
Primary VSP .......................................................................................................................................................................................... 19
1.2.1.2.
Horizontal Pre-Scaler ........................................................................................................................................................................... 19
1.2.1.3.
Secondary VSP ...................................................................................................................................................................................... 19
1.2.2.
1.2.3.
1.2.4.
1.2.5.
OSD....................................................................................................................................................................................... 19
Video Encoder ..................................................................................................................................................................... 20
HDMI 1.4 Transmitter ....................................................................................................................................................... 20
Additional Features............................................................................................................................................................. 20
1.3.
Protocol for Main I2C Port ............................................................................................................................................22
1.4.
Configuring the ADV8005 ............................................................................................................................................23
2.
ADV8005 Top Level Control .................................................................................................................................. 24
2.1.
ADV8005 Modes of Operation.....................................................................................................................................25
2.1.1.
Selecting a Mode ................................................................................................................................................................. 26
2.1.2.
Mode 1 .................................................................................................................................................................................. 26
2.1.3.
Mode 2 .................................................................................................................................................................................. 28
2.1.4.
Mode 3 .................................................................................................................................................................................. 29
2.1.5.
Mode 4 .................................................................................................................................................................................. 30
2.1.6.
Mode 5 .................................................................................................................................................................................. 31
2.1.7.
Mode 6 .................................................................................................................................................................................. 32
2.1.8.
Mode 7 .................................................................................................................................................................................. 33
2.1.9.
Mode 8 .................................................................................................................................................................................. 34
2.1.10. Mode 9 - Bypass .................................................................................................................................................................. 35
2.1.11. Mode 10 – Picture in Picture (PiP) (External OSD Less Than 720p) ......................................................................... 36
2.1.12. Mode 11 – PIP (External OSD Greater Than or Equal To 720p) ................................................................................. 37
2.1.13. Mode 12 – Dual Zone OSD ............................................................................................................................................... 38
Rev. 0 | Page 2 of 326
ADV8005 Hardware Reference Manual
2.1.14.
2.1.15.
UG-707
Mode 13 – OSD from HDMI RX ..................................................................................................................................... 39
Mode 14 – Handling Triple Inputs ................................................................................................................................... 40
2.2.
ADV8005 Top Level Overview .....................................................................................................................................40
2.2.1.
Video Muxing ...................................................................................................................................................................... 40
2.2.2.
Digital Video Input ............................................................................................................................................................. 44
2.2.2.1.
Video TTL Input ................................................................................................................................................................................... 44
2.2.2.2.
EXOSD TTL Input ................................................................................................................................................................................ 45
2.2.2.3.
TTL Output ........................................................................................................................................................................................... 45
2.2.2.4.
Treatment o f Unused TTL Inputs ..................................................................................................................................................... 47
2.2.2.5.
Serial Video Rx ...................................................................................................................................................................................... 51
2.2.2.6.
Primary Input Channel ........................................................................................................................................................................ 51
2.2.2.7.
Secondary Input Channel .................................................................................................................................................................... 56
2.2.2.8.
RX Input Channel ................................................................................................................................................................................. 60
2.2.3.
2.2.4.
2.2.4.1.
PVSP Output Timing ........................................................................................................................................................................... 65
2.2.4.2.
SVSP Output Timing............................................................................................................................................................................ 66
2.2.4.3.
Frame Tracking ..................................................................................................................................................................................... 66
2.2.5.
DDR2 Interface ................................................................................................................................................................... 68
2.2.5.1.
DDR2 Configuration ............................................................................................................................................................................ 68
2.2.5.2.
DDR2 Bandwidth and Memory Selection ........................................................................................................................................ 69
2.2.5.3.
Single DDR2 Memory Configuration................................................................................................................................................ 71
2.2.5.4.
DDR2 Loopback Test ........................................................................................................................................................................... 72
2.2.6.
2.2.7.
2.2.8.
I2C Auto Increment............................................................................................................................................................. 73
SPI Loop Through .............................................................................................................................................................. 73
VBI Data Insertion ............................................................................................................................................................. 74
2.2.8.1.
Extraction Overview ............................................................................................................................................................................ 74
2.2.8.2.
Ancillary Data Extraction .................................................................................................................................................................... 74
2.2.8.3.
SPI Data Extraction .............................................................................................................................................................................. 75
2.2.8.4.
VBI Data Delay ..................................................................................................................................................................................... 75
2.2.9.
2.2.10.
2.2.11.
2.2.12.
Resets .................................................................................................................................................................................... 76
Image Processing Colorimetry Breakdown .................................................................................................................... 78
AV-Codes ............................................................................................................................................................................. 79
Color Space Conversion ..................................................................................................................................................... 83
2.2.12.1.
Primary Input Channel CSC......................................................................................................................................................... 83
2.2.12.2.
Secondary Input Channel CSC ..................................................................................................................................................... 86
2.2.12.3.
RX Input Channel CSC.................................................................................................................................................................. 89
2.2.12.4.
TTL Output CSC ............................................................................................................................................................................ 92
2.2.12.5.
HDMI Transmitter CSCs............................................................................................................................................................... 95
2.2.13.
2.2.14.
2.2.15.
3.
Updither Configuration ..................................................................................................................................................... 60
Clock Configuration ........................................................................................................................................................... 61
VGA Position and Phase Information ............................................................................................................................. 98
ADV8005 Silicon Revision ................................................................................................................................................ 103
System Configuration......................................................................................................................................................... 103
Video Signal Processing .......................................................................................................................................... 105
3.1.
Introduction ....................................................................................................................................................................105
3.2.
Primary VSP ....................................................................................................................................................................105
3.2.1.
Introduction to PVSP ......................................................................................................................................................... 105
3.2.1.1.
Autoconfiguration ................................................................................................................................................................................ 106
3.2.1.2.
Customized Input/Output Video Format Configuration ............................................................................................................... 108
3.2.1.3.
Field/Frame Buffer Number................................................................................................................................................................ 109
Rev. 0 | Page 3 of 326
UG-707
ADV8005 Hardware Reference Manual
3.2.1.4.
Field/Frame Buffer Address and Size................................................................................................................................................. 109
3.2.1.5.
Frame Latency ....................................................................................................................................................................................... 111
3.2.1.6.
Game Mode ........................................................................................................................................................................................... 112
3.2.1.7.
Low Latency Mode ............................................................................................................................................................................... 113
3.2.1.8.
Freezing Output Video ......................................................................................................................................................................... 114
3.2.1.9.
Progressive Cadence Detection .......................................................................................................................................................... 114
3.2.2.
PVSP Video Input Module ................................................................................................................................................ 116
3.2.2.1.
VIM Cropper ......................................................................................................................................................................................... 116
3.2.2.2.
Horizontal Down Scaler ...................................................................................................................................................................... 118
3.2.2.3.
Scaler Interpolation Mode ................................................................................................................................................................... 118
3.2.2.4.
Scaler Controls ...................................................................................................................................................................................... 119
3.2.2.5.
Pixel Packer ............................................................................................................................................................................................ 119
3.2.3.
PVSP Video Output Module ............................................................................................................................................. 120
3.2.3.1.
Pixel Unpacker ...................................................................................................................................................................................... 121
3.2.3.2.
VOM Cropper ....................................................................................................................................................................................... 121
3.2.3.3.
Motion Detection .................................................................................................................................................................................. 122
3.2.3.4.
Low Angle De-interlacing ................................................................................................................................................................... 123
3.2.3.5.
Cadence Detection................................................................................................................................................................................ 123
3.2.3.6.
CUE Correction .................................................................................................................................................................................... 125
3.2.3.7.
Random Noise Reduction ................................................................................................................................................................... 125
3.2.3.8.
Mosquito Noise Reduction .................................................................................................................................................................. 126
3.2.3.9.
Block Noise Reduction ......................................................................................................................................................................... 126
3.2.3.10.
Sharpness Enhancement ................................................................................................................................................................ 128
3.2.3.11.
Scaler ................................................................................................................................................................................................ 128
3.2.3.12.
Panorama Mode .............................................................................................................................................................................. 130
3.2.3.13.
Output Port...................................................................................................................................................................................... 131
3.2.3.14.
Demo Function ............................................................................................................................................................................... 134
3.2.3.15.
Progressive to Interlaced Converter............................................................................................................................................. 135
3.2.3.16.
Automatic Contrast Enhancement .............................................................................................................................................. 136
3.3.
Secondary VSP ................................................................................................................................................................136
3.3.1.
Introduction to SVSP ......................................................................................................................................................... 136
3.3.1.1.
Autoconfiguration ................................................................................................................................................................................ 138
3.3.1.2.
Customized Input/Output Video Format Configuration ............................................................................................................... 140
3.3.1.3.
Frame Buffer Number .......................................................................................................................................................................... 141
3.3.1.4.
Frame Buffer Address and Size ........................................................................................................................................................... 141
3.3.1.5.
Frame Latency ....................................................................................................................................................................................... 142
3.3.1.6.
Freezing Output Video ......................................................................................................................................................................... 144
3.3.2.
VIM Cropper ......................................................................................................................................................................................... 144
3.3.2.2.
Scaler....................................................................................................................................................................................................... 146
3.3.2.3.
Scaler Interpolation Mode ................................................................................................................................................................... 146
3.3.2.4.
VIM Miscellaneous Control ................................................................................................................................................................ 147
3.3.2.5.
Panorama Mode .................................................................................................................................................................................... 147
3.3.2.6.
Pixel Packer ............................................................................................................................................................................................ 148
3.3.3.
3.4.
SVSP Video Input Module (VIM) .................................................................................................................................... 144
3.3.2.1.
SVSP Video Output Module.............................................................................................................................................. 149
3.3.3.1.
Pixel Unpacker ...................................................................................................................................................................................... 149
3.3.3.2.
VOM Cropper ....................................................................................................................................................................................... 150
3.3.3.3.
Output Port ............................................................................................................................................................................................ 151
3.3.3.4.
DDR Bypass Mode ................................................................................................................................................................................ 154
3.3.3.5.
Progressive to Interlaced Converter in SVSP.................................................................................................................................... 154
VSP Register Access Protocols ......................................................................................................................................155
Rev. 0 | Page 4 of 326
ADV8005 Hardware Reference Manual
3.4.1.
3.4.2.
3.4.3.
3.4.4.
3.4.5.
UG-707
Bootup Protocol .................................................................................................................................................................. 155
Reboot Protocol .................................................................................................................................................................. 156
Gentle Reboot Protocol ...................................................................................................................................................... 158
VOM Set Protocol ............................................................................................................................................................... 159
Free Access Protocol ........................................................................................................................................................... 159
3.5.
Horizontal Pre-scaler .....................................................................................................................................................160
3.5.1.
HPS Downscaling ............................................................................................................................................................... 162
3.5.2.
HPS Upscaling..................................................................................................................................................................... 163
3.5.3.
Using the HPS for converting between 3D to 2D Video formats................................................................................. 163
3.5.4.
3D Side by Side Full ............................................................................................................................................................ 165
3.5.5.
3D Side by Side Full ............................................................................................................................................................ 166
3.6.
External Sync Mode .......................................................................................................................................................166
3.6.1.
Functional Description ...................................................................................................................................................... 167
3.7.
Progressive to Interlaced Conversion ..........................................................................................................................169
4.
On Screen Display ................................................................................................................................................... 170
4.1.
Introduction ....................................................................................................................................................................170
4.1.1.
Features ................................................................................................................................................................................ 170
4.1.2.
OSD System Application Diagram ................................................................................................................................... 170
4.1.3.
Typical OSD Component Sizes ......................................................................................................................................... 171
4.2.
Architecture Overview...................................................................................................................................................171
4.2.1.
Introduction ........................................................................................................................................................................ 171
4.2.2.
Top Level Diagram ............................................................................................................................................................. 171
4.2.3.
OSD Blending ...................................................................................................................................................................... 172
4.2.4.
External Alpha Blending .................................................................................................................................................... 173
4.2.5.
OSD Core ............................................................................................................................................................................. 173
4.2.5.1.
OSD Core Region Definition .............................................................................................................................................................. 173
4.2.5.2.
OSD Color Space .................................................................................................................................................................................. 175
4.2.6.
4.2.7.
4.2.8.
4.2.8.1.
Overview ................................................................................................................................................................................................ 179
4.2.8.2.
SPI Slave Interface................................................................................................................................................................................. 183
4.2.8.3.
SPI Master Interface ............................................................................................................................................................................. 185
4.2.9.
5.
OSD Timers ......................................................................................................................................................................... 175
OSD Scaler ........................................................................................................................................................................... 178
OSD Master/Slave SPI Interface ....................................................................................................................................... 178
OSD Initialization ............................................................................................................................................................... 186
Serial Video Receiver .............................................................................................................................................. 187
5.1.
+ 5 V Detect ....................................................................................................................................................................187
5.2.
TMDS Clock Activity Detection ..................................................................................................................................188
5.3.
Clock and Data Termination Control ..........................................................................................................................188
5.4.
AV Mute Status ...............................................................................................................................................................189
5.5.
Deep Color Mode Support ............................................................................................................................................189
5.6.
Video FIFO ......................................................................................................................................................................190
5.7.
Pixel Repetition ...............................................................................................................................................................191
5.8.
Sync Signal Polarity Readbacks ....................................................................................................................................192
5.9.
InfoFrame Registers .......................................................................................................................................................193
5.9.1.
InfoFrame Collection Mode .............................................................................................................................................. 193
5.9.2.
InfoFrame Checksum Error Flags .................................................................................................................................... 193
5.9.3.
AVI InfoFrame Registers ................................................................................................................................................... 195
Rev. 0 | Page 5 of 326
UG-707
5.9.4.
5.9.5.
5.9.6.
ADV8005 Hardware Reference Manual
SPD InfoFrame Registers ................................................................................................................................................... 196
MPEG Source InfoFrame Registers.................................................................................................................................. 197
Vendor Specific InfoFrame Registers ............................................................................................................................... 197
5.10.
Packet Registers ..............................................................................................................................................................198
5.10.1. ISRC Packet Registers......................................................................................................................................................... 198
5.10.2. Gamut Metadata Packets ................................................................................................................................................... 200
5.11.
Customizing Packet/InfoFrame Storage Registers .....................................................................................................201
5.12.
HDMI Section Reset Strategy .......................................................................................................................................202
6.
HDMI Transmitter .................................................................................................................................................. 203
6.1.
General Controls ............................................................................................................................................................203
6.2.
Reset Strategy ..................................................................................................................................................................205
6.3.
HDMI DVI Selection .....................................................................................................................................................205
6.4.
AV Mute ...........................................................................................................................................................................205
6.5.
Source Product Description InfoFrame ......................................................................................................................206
6.6.
Spare Packets and VSI Support .....................................................................................................................................207
6.7.
System Monitoring .........................................................................................................................................................210
6.7.1.
General Status and Interrupts ........................................................................................................................................... 210
6.8.
EDID/HDCP Controller Status ....................................................................................................................................211
6.9.
EDID/HDCP Controller Error Codes .........................................................................................................................211
6.10.
Video Setup .....................................................................................................................................................................212
6.10.1. Input Format........................................................................................................................................................................ 212
6.10.2. Video Mode Detection ....................................................................................................................................................... 212
6.10.3. Pixel Repetition ................................................................................................................................................................... 213
6.10.4. Video Related Packets and InfoFrames............................................................................................................................ 214
6.10.5. AVI InfoFrame .................................................................................................................................................................... 214
6.10.6. MPEG InfoFrame................................................................................................................................................................ 215
6.10.7. Gamut Metadata ................................................................................................................................................................. 216
6.11.
Audio Setup .....................................................................................................................................................................218
6.11.1. Audio Architecture ............................................................................................................................................................. 218
6.11.2. Audio from Serial Video Rx .............................................................................................................................................. 218
6.11.3. Audio Configuration .......................................................................................................................................................... 219
6.11.3.1.
I2S Audio ......................................................................................................................................................................................... 221
6.11.3.2.
SPDIF Audio ................................................................................................................................................................................... 227
6.11.3.3.
DSD Audio ...................................................................................................................................................................................... 228
6.11.3.4.
HBR Audio ...................................................................................................................................................................................... 228
6.11.4.
N and CTS Parameters ....................................................................................................................................................... 229
6.11.4.1.
N Parameter..................................................................................................................................................................................... 230
6.11.4.2.
CTS Parameter ................................................................................................................................................................................ 230
6.11.4.3.
Recommended N and Expected CTS Values.............................................................................................................................. 230
6.11.5.
6.11.6.
6.11.7.
6.11.8.
Audio Sample Packets ........................................................................................................................................................ 232
Audio InfoFrame................................................................................................................................................................. 236
ACP Packet .......................................................................................................................................................................... 237
ISRC Packet ......................................................................................................................................................................... 238
6.12.
EDID Handling ...............................................................................................................................................................240
6.12.1. Reading the EDID............................................................................................................................................................... 240
6.12.2. EDID Definitions ................................................................................................................................................................ 240
6.12.3. Additional Segments .......................................................................................................................................................... 240
Rev. 0 | Page 6 of 326
ADV8005 Hardware Reference Manual
6.12.4.
6.12.5.
UG-707
edid_tries Control ............................................................................................................................................................... 241
EDID Reread Control......................................................................................................................................................... 241
6.13.
HDCP Handling .............................................................................................................................................................242
6.13.1. One Sink and No Upstream Devices ................................................................................................................................ 242
6.13.2. Multiple Sinks and No Upstream Devices ....................................................................................................................... 243
6.13.3. Software Implementation .................................................................................................................................................. 244
6.13.4. AV Mute ............................................................................................................................................................................... 246
6.14.
Audio Return Channel ...................................................................................................................................................246
6.15.
Charge Injection Settings ..............................................................................................................................................247
6.16.
Enabling and Disabling the HDMI TMDS Otuputs ..................................................................................................247
6.17.
HDMI TX Source Termination ....................................................................................................................................248
6.18.
HDMI ACR Packet Transmission ................................................................................................................................249
7.
Video Encoder Introduction to the ADV8005 ....................................................................................................... 250
7.1.
Introduction ....................................................................................................................................................................250
7.2.
Input Configuration .......................................................................................................................................................250
7.3.
Output Configuration ....................................................................................................................................................253
7.4.
Additional Design Features ...........................................................................................................................................254
7.4.1.
Output Oversampling ........................................................................................................................................................ 254
7.4.2.
Subcarrier Frequency Lock (SFL) Mode......................................................................................................................... 255
7.4.3.
SD VCR FF/RW Synchronization..................................................................................................................................... 256
7.4.4.
Vertical Blanking Interval .................................................................................................................................................. 256
7.4.5.
SD Subcarrier Frequency Control .................................................................................................................................... 256
7.4.5.1.
7.4.6.
7.4.7.
Programming the FSC ......................................................................................................................................................................... 257
SD Non Interlaced Mode (240p/288p) ............................................................................................................................ 257
Filters .................................................................................................................................................................................... 257
7.4.7.1.
SD Filters ................................................................................................................................................................................................ 257
7.4.7.2.
ED/HD Filters ....................................................................................................................................................................................... 260
7.4.8.
7.4.9.
7.4.10.
ED/HD Test Pattern Generator......................................................................................................................................... 261
Color Space Conversion Matrix ........................................................................................................................................ 262
ED/HD Manual CSC Matrix Adjust Feature .................................................................................................................. 262
7.4.10.1.
7.4.11.
7.4.12.
7.4.13.
7.4.14.
7.4.15.
Programming the CSC Matrix...................................................................................................................................................... 264
SD Luma and Color Scale Control ................................................................................................................................... 264
SD Hue Adjust Control ...................................................................................................................................................... 265
SD Brightness Detect .......................................................................................................................................................... 266
SD Brightness Control ....................................................................................................................................................... 266
Double Buffering................................................................................................................................................................. 267
7.4.15.1.
ED/HD Doubling Buffering.......................................................................................................................................................... 267
7.4.15.2.
SD Doubling Buffering .................................................................................................................................................................. 267
7.4.16.
7.4.17.
Programmable DAC Gain Control ................................................................................................................................... 268
Gamma Correction............................................................................................................................................................. 269
7.4.17.1.
ED/HD Gamma Correction ......................................................................................................................................................... 271
7.4.17.2.
SD Gamma Correction .................................................................................................................................................................. 272
7.4.18.
ED/HD Sharpness Filter and Adaptive Filter Controls ................................................................................................. 273
7.4.18.1.
ED/HD Sharpness Filter Mode..................................................................................................................................................... 273
7.4.18.2.
ED/HD Adaptive Filters ................................................................................................................................................................ 274
7.4.18.3.
ED/HD Adaptive Filter Modes ..................................................................................................................................................... 276
7.4.18.4.
ED/HD Sharpness Filter and Adaptive Filter Application Examples ..................................................................................... 276
7.4.19.
SD Digital Noise Reduction .............................................................................................................................................. 278
Rev. 0 | Page 7 of 326
UG-707
7.4.19.1. Coring Gain Border .......................................................................................................................................................................279 7.4.19.2. Coring Gain Data ...........................................................................................................................................................................280 7.4.19.3. DNR Threshold...............................................................................................................................................................................280 7.4.19.4. Border Area .....................................................................................................................................................................................281 7.4.19.5. Block Size Control ..........................................................................................................................................................................281 7.4.19.6. DNR Input Select Control .............................................................................................................................................................281 7.4.19.7. DNR Mode Control........................................................................................................................................................................282 7.4.19.8. DNR Block Offset Control ............................................................................................................................................................282 7.4.19.9. SD Active Video Edge Control .....................................................................................................................................................283 7.5. 7.6. Vertical Blanking Interval..............................................................................................................................................284 DAC Configurations ......................................................................................................................................................285 7.6.1. 7.6.2. 8. ADV8005 Hardware Reference Manual
Voltage Reference ................................................................................................................................................................ 285 Video Output Buffer and Optional Output Filter .......................................................................................................... 285 Interrupts................................................................................................................................................................. 288 8.1. Interrupt Pins ..................................................................................................................................................................288 8.1.1. 8.1.2. 8.2. Interrupt Duration .............................................................................................................................................................. 288 Storing Masked Interrupts ................................................................................................................................................. 289 Serial Video Rx Interrupts .............................................................................................................................................289 8.2.1. 8.2.2. Introduction ........................................................................................................................................................................ 289 Interrupt Architecture Overview ...................................................................................................................................... 292 8.2.2.1. 8.2.3. 8.3. 8.3.1. 8.4. 8.4.1. 8.4.2. 8.4.3. Multiple Interrupt Events ....................................................................................................................................................................293 Serial Video Interrupts Validity Checking Process ........................................................................................................ 293 VSP and OSD Section ....................................................................................................................................................293 Interrupt Architecture Overview ...................................................................................................................................... 294 HDMI Tx core.................................................................................................................................................................294 Introduction ........................................................................................................................................................................ 294 Interrupt Architecture Overview ...................................................................................................................................... 294 HDMI Tx Interrupt Polarity ............................................................................................................................................. 295 Appendix A ....................................................................................................................................................................... 296 PCB Layout Recommendations....................................................................................................................................................296 Analogue/Digital Video Interface Outputs ...................................................................................................................................... 296 External DDR2 Memory Requirements ........................................................................................................................................... 296 Power Supply Bypassing ..................................................................................................................................................................... 297 General Digital Inputs and Outputs ................................................................................................................................................. 297 XTAL and Load Cap Value Selection................................................................................................................................................ 297 Encoder Component Placement ....................................................................................................................................................... 298 HDMI Transmitter Component Placement..................................................................................................................................... 298 Power Supply Design and Sequencing.............................................................................................................................................. 298 Appendix B........................................................................................................................................................................ 301 Unused Pin List ..............................................................................................................................................................................301 Appendix C ....................................................................................................................................................................... 313 Pixel Input and Output Formats...................................................................................................................................................313
Revision History
6/14—Revision 0: Initial Version
Rev. 0 | Page 8 of 326
ADV8005 Hardware Reference Manual
UG-707
UNDERSTANDING THE ADV8005 HARDWARE MANUAL
DESCRIPTION OF THE HARDWARE MANUAL
This manual provides a detailed description of the functionality and features supported by the ADV8005.
DISCLAIMER
The information contained in this document is proprietary of Analog Devices Inc. (ADI). This document must not be made available to
anybody other than the intended recipient without the written permission of ADI.
The content of this document is believed to be correct. If any errors are found within this document or, if clarification is needed, contact the
authors at [email protected]
TRADEMARK AND SERVICE MARK NOTICE
The Analog Devices logo is a registered trademark of Analog Devices, Inc. All other brand and product names are trademarks or service
marks of their respective owners.
NUMBER NOTATIONS
Notation
bit N
V[X:Y]
0xNN
0bNN
NN
Description
Bits are numbered in little endian format, that is, the least
significant bit of a number is referred to as Bit 0
Bit field representation covering bit X to Y of a value or a field V
Hexadecimal (base-16) numbers are preceded by the prefix ‘0x’
Binary (base-2) numbers are preceded by the prefix ‘0b’
Decimal (base-10) are represented using no additional prefixes
or suffixes
REGISTER ACCESS CONVENTIONS
Mode
R/W
R
W
Description
Memory location has read and write access.
Memory location has read access only. A read always returns 0
unless specified otherwise.
Memory location has write access only.
ACRONYMS AND ABBREVIATIONS
This is a list of common acronyms and abbreviations found in Analog Devices Hardware Manuals.
Acronym/Abbreviation
ACP
ACR
ADC
AFE
AGC
Ainfo
AKSV
An
ARC
AUD_IN
AVI
Aux
Bcaps
Description
Audio Content Protection
Audio Clock Regeneration
Analog to Digital Converter
Analog Front End
Automatic Gain Control
HDCP register. Refer to HDCP documentation.
HDCP Transmitter Key Selection Vector. Refer to HDCP documentation.
64-bit pseudo-random value generated by HDCP cipher function of device A
Audio Return Channel
Audio Input Pin
Auxiliary Video Information
Auxiliary
HDCP register. Refer to HDCP documentation.
Rev. 0 | Page 9 of 326
UG-707
Acronym/Abbreviation
BGA
BKSV
BNR
CEC
CP
CSC
CSync
CTS
CUE
CVBS
DCM
DDR
DDFS
DE
DID
DLL
DMA
DNR
DPP
DSD
DST
DUT
DVD
DVI
EAV
ED
ENC
EQ
FFS
FRC
HBR
HD
HDCP
HDMI
HDTV
HEAC
HEC
HPA
HPD
HSync/HS
IC
ISRC
I2 S
I2 C
KSV
LLC
LQFP
LSB
L-PCM
Mbps
MNR
ADV8005 Hardware Reference Manual
Description
Ball Grid Array
HDCP Receiver Key Selection Vector. Refer to HDCP documentation.
Block Noise Reduction
Consumer Electronics Control
Component Processor
Color Space Converter/Conversion
Composite Synchronization
Cycle Time Stamp
Color Upsampling Error
Composite Video
Decimation
Double Data Rate
Direct Digital Frequency Synthesizer
Data Enable
Data Identification Word
Delay Locked Loop
Direct Memory Access
Digital Noise Reduction
Data Preprocessor
Direct Stream Digital
Direct Stream Transfer
Device Under Test (designate the ADV8005 unless stated otherwise)
Digital Video Disc
Digital Visual Interface
End of Active Video
Enhanced Definition
Encoder
Equalizer
Field Frame Scheduler
Frame Rate Conversion/Converter
High Bit Rate
High Definition
High Bandwidth Digital Content Protection
High Definition Multimedia Interface
High Definition Television
HDMI Ethernet and Audio Channels
HDMI Ethernet Channel
Hot Plug Assert
Hot Plug Detect
Horizontal Synchronization
Integrated Circuit
International Standard Recording Code
Inter IC Sound
Inter Integrated Circuit
Key Selection Vector
Line Locked Clock
Low-profile Quad Flat Package
Least Significant Bit
Linear Pulse Code Modulation
Megabit per Second
Mosquito Noise Reduction
Rev. 0 | Page 10 of 326
ADV8005 Hardware Reference Manual
Acronym/Abbreviation
MPEG
ms
MSB
NC
NSV
OSD
OTP
PtoI
Pj’
PVSP
Ri’
RNR
Rx
SA
SAV
SD
SDP
SDR
SMPTE
SNR
SOG
SOY
SPA
SPD
SPDIF
SPI
SRM
SSPD
STDI
SVSP
TBC
TMDS
Tx
ULAI
US
VBI
VDP
VIC
VIM
VOM
VSDP
VSP
VSync/VS
XTAL
UG-707
Description
Moving Picture Expert Group
Millisecond
Most Significant Bit
No Connect
Noise Shaped Video
On Screen Display
One Time Programmable
Progressive to Interlaced
HDCP Enhanced Link Verification Response. Refer to HDCP documentation.
Primary VSP
HDCP Link verification response. Refer to HDCP documentation.
Random Noise Reduction
Receiver
Slave Address
Start of Active Video
Standard Definition
Standard Definition Processor
Single Data Rate
Society of Motion Picture and Television Engineers
Signal to Noise Ratio
Sync on Green
Sync on Y
Source Physical Address
Source Production/Product Descriptor
Sony/Philips Digital Interface
Serial Peripheral Interface
System Renewability Message
Synchronization Source Polarity Detector
Standard Identification
Secondary VSP
Timebase Correction
Transition Minimized Differential Signaling
Transmitter
Ultra Low Angle Interpolation
Up Sampling
Video Blanking Interval
VBI Data Processor
Video Identification Code
Video Input Module
Video Output Module
Vendor Specific Data Block
Video Signal Processor/Processing
Vertical Synchronization
Crystal Oscillator
Rev. 0 | Page 11 of 326
UG-707
ADV8005 Hardware Reference Manual
FIELD FUNCTION DESCRIPTION
The function of a field is described in a table preceded by the bit name, a short function description, the I2C map, the register location within
the I2C map, and a detailed description of the field. Refer to Error! Reference source not found. for more details.
The detailed description consists of:
• For a readable field, the values the field can take
• For a writable field, the values the field can be set to
I2C location of the field
in big endian format
(MSB first, LSB last)
The name of the field. In this example the field is called
deep_color_mode and is 2 bits long.
deep_color_mode[1:0], HDMI RX Map, Address 0xE20B[7:6] (Read Only)
A readback of the deep color mode information extracted from the general control packet.
Function
deep_color_mode[1:0]
00 
01
10
11
Values the field can be set to or
take. These values are in binary
format if not preceded by ‘0x’ and in
hexadecimal format if preceded by
‘0x’.
Description
8-bits per channel
10-bits per channel
12-bits per channel
16-bits per channel (not supported)
Default value
indicated by 
Figure 1. Field Description Format
Rev. 0 | Page 12 of 326
Read/Write
Access for field
Detailed
description
of the field
ADV8005 Hardware Reference Manual
UG-707
REFERENCES
HDMI Licensing and LLC, High-Definition Multimedia Interface, Revision 1.4a, March 4, 2010
Digital Content Protection (DCP) LLC, High-bandwidth Digital Content Protection System, Revision 1.3, December 21, 2006
CEA, CEA-861-E, A DTV Profile for Uncompressed High Speed Digital Interfaces, Revision E, September 11, 2007
ITU, ITU-R BT.656-4, Interface for Digital Component Video Signals in 525-Line and 625-Line Television Systems Operating at the 4:2:2
Level of Recommendation ITU-R BT.601, February 1998
ITU, ITU-R BT.601-5 Studio encoding parameters of digital television for standard 4:3 and widescreen 16:9 aspect ratios, December 1995
ITU, ITU-R BT.709-5 Parameter values for the HDTV standards for production and international programme exchange, April 2002
CENELEC, EN 50157, Part 1, Domestic and similar electronic equipment interconnection requirements: AV.link
CENELEC, EN 50157, Part 2-1, Domestic and similar electronic equipment interconnection requirements: AV.link
CENELEC, EN 50157, Part 2-2, Domestic and similar electronic equipment interconnection requirements: AV.link
CENELEC, EN 50157, Part 2-3, Domestic and similar electronic equipment interconnection requirements: AV.link
Rev. 0 | Page 13 of 326
UG-707
ADV8005 Hardware Reference Manual
1. INTRODUCTION TO THE ADV8005
1.1. OVERVIEW
The ADV8005 is a video signal processor (VSP) with TTL and Serial Video inputs that can de-interlace and scale input video, generate and
blend a bitmap based on-screen display (OSD) and output the blended video using one or more of the part’s outputs; dual HDMI transmitters
and a 6-DAC encoder with SD and HD support.
The ADV8005 has three video inputs – the video TTL input, the EXOSD TTL input and the Serial Video receiver (Rx). The combined video
TTL input and EXOSD TTL input constitute the flexible 60-bit TTL input port. The 60-bit TTL input port can be arranged in a variety of
fashions to accept one input video stream (for example, a 48-bit 3 GHz input video stream from ADV7619) or two input video streams (for
example, a 36-bit input video stream from ADV7844 and a 24-bit input video stream from an external OSD generator). Once the data is
received, the video TTL and EXOSD TTL inputs can be connected to either the primary input channel or the secondary input channel. From
these input channels, the video data can be sent to the internal video processing blocks (for example, primary VSP or secondary VSP).
The Serial Video Rx is connected to the RX input channel. The Serial Video Rx accommodates inter-chip transfer of data over an HDMI
compatible interface (for example, from an HDMI (Rx) such as ADV7850 or transceiver such as ADV7623). The ADV8005 does not support
EDID or DDC activity on this port.
The motion adaptive de-interlacer in the ADV8005 provides excellent edge detection and excellent ultra-low angle performance. Per-pixel
motion-adaptive de-interlacing is used for natively interlaced input video (for example, a live sport broadcast) where still parts of the image are
reconstructed from information on both the odd and even fields, and moving parts of the image are interpolated by an advanced interpolation
algorithm. The de-interlacer can also recognize when interlaced input video originally came from progressive content (for example, 24 Hz
movie content or 30 Hz documentary content) and reconstructs the original frames.
Dual video scalers allow the ADV8005 to support two different output resolutions on its outputs, for example, 1080p60 on HDMI Tx1 and
720p on HDMI Tx2 and the HD encoder. The primary VSP (PVSP) in the ADV8005 is capable of upscaling from 480i to 4k x 2k formats. The
secondary VSP (SVSP) in the ADV8005 is used to provide a second output resolution to accommodate dual zone systems. The ADV8005 is
also capable of downscaling a single 4Kx2K input to 1080p or lower using a combination of a Horizontal Pre-Scaler (HPS) and the SVSP. Also
available in the ADV8005 are image enhancing features such as random noise reduction (RNR), mosquito noise reduction (MNR) and block
noise reduction (BNR), detail enhancement and automatic contrast enhancement (ACE).
The ADV8005 features an internal bitmap based OSD generator capable of generating OSDs of up to 4k x 2k. External solutions can also be
implemented and fed into the ADV8005 for blending with the main video. A bitmap based OSD is an advanced form of OSD display, which
can add effects such as scrolling, animation and 3D depth to OSD displays. This allows customers to create advanced OSD designs to
differentiate their products. Once created, OSD designs are stored in an external SPI flash memory connected to the ADV8005. The control of
the OSD must be performed from the system microcontroller via SPI. OSD designs can be created using ADI’s software development tool,
Blimp OSD.
The ADV8005 offers flexible configuration of its internal circuitry allowing the output of one, two or three input channels simultaneously. The
output of multiple ADV8005s can be synchronized using the master clock, horizontal sync and vertical sync inputs. This facilitates, with the
incorporation of a simple FPGA, seamless per pixel switching of multiple synchronized ADV8005 inputs. The ADV8005 can also measure the
picture position and sample quality of the video being processed; this assists in identifying the exact video format and the optimum sampling
phase of the video front end’s ADC.
Video can be output from the ADV8005 via one or both of the HDMI transmitters, the 6-DAC SD/HD video encoder or using the TTL
interface. Both HDMI transmitters support the HDMI v1.4b specifications of increased resolutions, 3D video and audio return channel
(ARC). The ADV8005 supports both S/PDIF and 8-channel I2S audio. . The audio can be sourced from either the external audio interface or
using the audio pass through feature of the Serial Video Rx.
The ADV8005 includes a high-speed digital-to-analog video encoder available with and without Rovi content protection. Six high speed,
Noise Shaped Video (NSV), 12-bit video DACs provide support for composite (CVBS), S-video (Y/C), and component (YPrPb/RGB) analog
outputs in either SD, ED, or HD video formats up to 1080p. In addition, simultaneous SD and ED/HD formats are supported. 216 MHz (SD
Rev. 0 | Page 14 of 326
ADV8005 Hardware Reference Manual
UG-707
and ED) and 297 MHz (HD) oversampling ensures that external output filtering is not required. The final option to output video from the
ADV8005 is the TTL interface which allows up to 36 of the pins to be reconfigured as outputs. This facilitates the output of up to 1080p 12-bit
deep color from the ADV8005 to an FPGA without the requirement of an expensive FPGA-based HDMI phy.
The ADV8005 supports all common consumer formats as outlined in the EIA-861 specification and many common professional output
formats as outlined in the VESA specification.
The part supports the I2C® and SPI protocols for communication with the system microcontroller.
Note: There are four options within the ADV8005 family of parts, each with different capabilities but all in the same CSPBGA-425 package.
These are described in Table 1.
Part Number
ADV8005KBCZ8A
ADV8005KBCZ8N
ADV8005KBCZ-8B
Max Speed
3 Gbps
ADV8005KBCZ-8C
3 Gbps
3 Gbps
3 Gbps
Table 1: Available Features Within ADV8005 Family of ICs
HDMI Tx
Maximum
Analog
Resolution
Outputs
Outputs
4k × 2k at 30 Hz (82
Six 12-bit DACs
bit)
4k × 2k at 30 Hz (82
Six 12-bit DACs
bit)
4k × 2k at 30 Hz (81
No
bit)
4k × 2k at 30 Hz (82
No
bit)
Rovi
Yes
VSP
2
OSD
Yes
TTL
Out
Yes
No
2
Yes
Yes
N/A
1
Yes
No
N/A
2
Yes
No
Note that ADV8005KBCZ-8A and ADV8005KBCZ-8N functionality is described throughout this manual (figures, functional blocks, and so
on). Some sections of this manual are not relevant to the ADV8005KBCZ-8B and ADV8005KBCZ-8C as they do not include those blocks. If a
section is not relevant to a particular generic, this is indicated in the introduction to that section.
1.1.1.
Digital Video Input
Video data can be input into the ADV8005 in a number of ways. The flexible 60-bit TTL input port can be configured for dual video inputs
(video TTL input and EXOSD TTL input), for a single video input (interleaved TTL data from an ADV7619) or for a single video input and an
external alpha channel. The 60-bit TTL input port is extremely flexible and can be configured into a number of different arrangements; for
more information, refer to Table 87 and Table 88. Video can also be input into the ADV8005 via the Serial Video Rx which can be used for
device to device interconnect, for example, a serial video link between the ADV7850 and the ADV8005 or a serial video link between the
ADV7623 and the ADV8005. Using such front end devices located before the ADV8005 allows the audio to be extracted and processed in a
DSP before being reinserted into the ADV8005.
A mux after the TTL inputs allows the video TTL input pins and the EXOSD TTL input pins to be connected to either the primary or the
secondary input channel. The primary input channel features an input formatter, manually programmable CSC, updither function, ACE,
contrast, brightness and saturation controls. The secondary input channel features an input formatter, manually programmable CSC and
updither function. The Serial Video Rx is connected directly to the Rx input channel and features an input formatter, manually programmable
CSC and updither function.
Rev. 0 | Page 15 of 326
UG-707
ADV8005 Hardware Reference Manual
ADV8005
EXOSD
OS2D4-b
2i4t -bit
In
Inppuut t
60-bi t
TTL
Input
Vid eo
Vid eo 36/48
36-bi t
-bit Input
Input
Secondary
Input
Channel
IN P U T
F MT
D IT HER
+C S C
H igh Sp eed eed
O
Primary
Input
Channel
148.5MHz to
300MHz
Conversion
E
D IT H E R
+C SC
+ ACE
IN P U T
F MT
H igh Spee d
I Rx
Serial Video RX
eo
RX
Input
Channel
IN P U T
F MT
D IT H E R
+CS C
Figure 2: ADV8005 Digital Video Interface
1.1.2.
Flexible Digital Core
The ADV8005 has a flexible digital core, allowing multiple options for the routing of video data. This allows the user to place the OSD in front
of the video processing so the OSD will be overlaid on one or more outputs. Alternatively, video processing can be placed before the OSD
ensuring all outputs are processed to the highest quality. The digital core can also be configured so that the ADV8005 can output one or all of
the inputs in various arrangements, for example, picture in picture with one input appearing as a window within another or two inputs routed
to two outputs.
Several common modes of operation are defined to assist the user to quickly integrate the ADV8005 into a system. Refer to Section 2 for more
details.
1.1.3.
Video Signal Processor
The motion adaptive de-interlacer in the ADV8005 offers excellent edge detection and ultra low angle performance. The per-pixel deinterlacing algorithm used delivers excellent performance which can be seen with specialist test patterns, on facial features like eyebrows or on
shirt collars. This algorithm decides on whether an area of an image is moving or not and then applies the appropriate de-interlacing approach
accordingly. The de-interlacer can also determine when interlaced video originated as progressive and can reconstruct the original frames.
Low Angle
Processing
Cadence
Detection
Motion
Detection
CUE
Correction
De-interlacer
Detail
Enhance
Colour
Enhance
Dual
and
l Scaler
DuaScaler
OSD
Blend
and FRC
Noise
Reduction
Enhance
Figure 3: ADV8005 Video Processing
The ADV80038005 features dual scalers referred to as Primary Video Signal Processor (PVSP) and the Secondary Video Signal Processor
(SVSP). The PVSP uses a contour-based interpolation scaler which can upscale from 480i to 4k x 2k. The PVSP can arbitrarily upscale between
480p and 4k x 2k and down scale between 1080p and 480p. The advanced scaling algorithm used in the ADV8005 eradicates many common
problems associated with scaling video such as ringing and jagged or blurred edges. Using a combination of the Horizontal Pre Scaler (HPS)
Rev. 0 | Page 16 of 326
ADV8005 Hardware Reference Manual
UG-707
and the SVSP, the ADV8005 can downscale from 4k x 2k to 1080p. The PVSP can be employed to further scale the downscaled 4k x 2k
content. When using the PVSP as the primary scaler, the SVSP can also be used to provide a second lower resolution output format. The PVSP
and SVSP can be connected in parallel or in series.
The ADV8005 features a number of video enhancement controls such as detail enhancement, block noise reduction, mosquito noise reduction
and random noise reduction. Block and mosquito noise are related to the compression of video for transmission or encoding onto a DVD or
BD disc. Random noise is related to noise picked up during the transmission of video. The automatic contrast enhancement feature offered by
the ADV8005 intelligently stretches the brightness of an image to enhance the dark areas without saturating the dark areas.
Note that the dual scaler variants of the ADV8005 are the following:
• ADV8005KBCZ-8A/8N
• ADV8005KBCZ-8C
The single scaler variants of the ADV8005 are the following:
• ADV8005KBCZ-8B
1.1.4.
Bitmap On Screen Display
The ADV8005 incorporates an OSD core capable of generating an internal bitmap based OSD. Customers can generate elaborate OSD designs
that can include bitmap images, 3D overlay and animation. Up to 256 regions in total can be created and displayed. These 256 regions are
bitmap images defined during the design stage and can be characters, pictures, buttons, and so on. Individual regions can be alpha blended
and prioritized versus other regions.
SPI
DDR2
Internal
OSD Generator
OSD Build OSD Scaler
External OSD
Video 1
OSD Blend
Video 2
Figure 4: ADV8005 Bitmap OSD
The OSD is controlled by the host microcontroller via the ADV8005 SPI slave (serial port 1). In response to commands, the ADV8005 loads
the data from the external SPI flash memory via the SPI master (serial port 2). The ADV8005 uses DDR2 memory when rendering and
blending the OSD. In order to lower the load of the DDR2 memory, there is a block in the ADV8005 OSD hardware called the OSD coprocessor. The OSD co-processor is responsible for handling upper level commands from the microcontroller and translating them into lower
level operations for the OSD and DMA which retrieves data from the external DDR2 memories.
The OSD blend can be switched between either of the two video streams routed through the OSD blend block without disturbing the output
video. This enables seamless OSD blending in dual zone systems.
Bitmap OSDs can be created and compiled using ADI’s software development tool, Blimp OSD. This allows users to create their custom OSDs
and emulate them before integrating them into their system, abstracting the design task from the underlying OSD hardware. For more details
on the operation of the external OSD, design and system techniques, refer to the Blimp OSD documentation.
Rev. 0 | Page 17 of 326
UG-707
1.1.5.
ADV8005 Hardware Reference Manual
External DDR2 Memory
DDR2 Interface
Motion
Adaptive
De-interlacer
Frame Rate
Conversion
Bitmap OSD
Data
Figure 5: External DDR2 Memory Interface
External DDR2 memory is required for motion adaptive de-interlacing, Frame Rate Conversion (FRC), and OSD bitmap overlay. ADV8005
supports various memory options using one or two DDR2 memories of various sizes (1 Gb maximum). For full processing capabilities, two
DDR2 memories are required which use data transfers up to 250 MHz. Refer to Section 3 for more details on the operations using the external
DDR2 memory.
1.1.6.
HDMI Transmitter
The ADV8005 features two HDMI v1.4b transmitters. The transmitters feature an audio return channel (ARC), which allows a Sony/Philips
Digital Interface (SPDIF) audio connection between the source and sink. Each transmitter features an on-chip MPU with an I2C master to
perform HDCP operations and EDID operations.
Note: The dual transmitter variants of the ADV8005 are ADV8005KBCZ-8A, ADV8005KBCZ-8N and ADV8005KBCZ-8C. The single
transmitter variant of the ADV8005 is the ADV8005KBCZ-8B.
1.1.7.
Video Encoder
The ADV8005 features a high speed digital to analog video encoder. Six high speed, NSV, 3.3 V, 12-bit video DACs provide support for
worldwide composite (CVBS), S-Video (Y-C), and component (YPrPb/RGB) analog outputs in standard definition (SD), enhanced definition
(ED), or high definition (HD) video formats. It is also possible to enable the ADV8005 video encoder to work in simultaneous mode where
both an SD and ED/HD format are being output.
Note: The video encoder variants of the ADV8005 are the ADV8005KBCZ-8A and the ADV8005KBCZ-8N. The variants of ADV8005 with
no encoder are the ADV8005KBCZ-8B and the ADV8005KBCZ-8B.
1.1.8.
Digital Video Output
Video can be output from the ADV8005 via the flexible TTL port. Reusing up to 36 of the flexible TTL port pins means that video can be
routed in and out of the ADV8005 without using HDMI, a useful cost reduction in systems which utilize FPGA interconnects (e.g. 30-bit TTL
input and 30-bit TTL output allowing 1080p 10-bit input and output). The possible configurations of the TTL output port are captured in
Table 90 and Table 91. The video TTL output port has a manually programmable CSC.
Rev. 0 | Page 18 of 326
ADV8005 Hardware Reference Manual
UG-707
1.2. MAIN FEATURES OF THE ADV8005
1.2.1.
Video Signal Processor
1.2.1.1.
Primary VSP
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1.2.1.2.
12-bit internal processing
Fixed frame latency capability
Input timing up to 1080p
Output timing up to 4k x 2k
Input/output format YCbCr at 4:4:4
Motion adaptive de-interlacing with motion detection
Ultra low angle interpolation on edge regions of interlaced video
Cadence detection (any cadence detection possible)
Progressive cadence supported
Super resolution video scaler
Aspect ratio conversion/panorama scaling
Arbitrary upscaling and downscaling for both horizontal and vertical direction
Sharpness detail and edge enhancement
Noise reduction for random, mosquito, and block noise
Frame Rate Conversion
Color Upsampling Error (CUE) correction
Progressive to interlaced (PtoI) converter
Game mode supported
Album mode supported
Demo window
Horizontal Pre-Scaler
•
8-bit internal processing
•
Downscales video standards of greater than 162MHz and/or more than 2048 pixels/line
1.2.1.3.
•
•
•
•
•
•
•
1.2.2.
•
•
•
•
•
•
•
•
Secondary VSP
8-bit internal processing
Input and output timing up to 1080p
Input and output format YCbCr at 4:4:4
Up-scaling and down-scaling for both horizontal and vertical direction
Aspect ratio conversion and panorama scaling
Frame Rate Conversion
Progressive to interlaced (PtoI) converter
OSD
Internally generated bitmap based OSD allowing overlay of bitmap images on one or more video outputs
Dual video paths through the OSD blend block to support dual zone OSD
Dedicated OSD scaler – allows OSDs to be rendered at a single resolution reducing external memory bandwidth
Blending onto 3 GHz video formats
Pixel-by-pixel alpha blending of OSD data on video data
Option of externally generated OSD
OSD can be overlaid in the main 3D video format timings
Blimp OSD software tool and provided ANSI-C libraries cover the full design flow of any OSD
Rev. 0 | Page 19 of 326
UG-707
1.2.3.
•
•
•
•
•
1.2.4.
ADV8005 Hardware Reference Manual
Video Encoder
Six NSV 12-bit video DACs
Compliant with all common SMPTE formats
Multiformat video output support
o NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support
o Composite (CVBS) and S-Video (Y/C) component/YPrPb/RGB (SD, ED and HD)
Macrovision® Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant
Simultaneous SD and ED/HD operation
HDMI 1.4 Transmitter
•
•
3 GHz video output (ADV8005KBCZ-8A/8N models only)
Incorporates HDMI™ (v.1.4 with Deep Color, x.v.Color™)
o Content Type Bits
o ARC (Audio Return Channel) Support
o 3D support
•
•
•
Supports standard S/PDIF for stereo LPCM compressed audio up to 192 kHz
Six-channel uncompressed LPCM I2S audio up to 192 kHz
Six-channel DSD audio inputs
1.2.5.
•
•
Additional Features
Auto-phase and position detection
External Sync Timing mode employing Master clock, horizontal sync and vertical sync inputs
Rev. 0 | Page 20 of 326
ADV8005 Hardware Reference Manual
UG-707
OSD_IN[23:16]/
EXT_DIN[7:0],
OSD_IN[11:0]
OSD_IN[15:13]/
VBI_x
XTALN
XTALP
INT0
INT1
INT2
SPI SLAVE
CLOCK
GENERATION
TO VBI
INSERTION
IN ENCODER
BLOCK
MOSQUITO
NOISE
REDUCTION
SCALER 2
CADENCE
DETECTION
BLOCK
NOISE
REDUCTION
FRAME
RATE
CONVERTER
CUE
CORRECTION
DETAIL
ENHANCEMENT
HDMI Tx
VIDEO DATA
CAPTURE
OSD
SCALER
VIDEO PROCESSING AND OSD BLENDING
HEAC
TOP LEVEL
CONTROL
MASTER
TIMING
BLOCK
POWER
SUPPLY
RESET
GENERATION
AND POWER
MANAGEMENT
BITMAP OSD
CONTROLLER
SCALER 1
LOW ANGLE
PROCESSING
HDCP
ENCRYPTION
I/O, OSD, ENCODER
VSP, HDMI Tx
REGISTER MAPS
CONTROL
ARC PORT
SPI
SLAVE
SPI
MASTER
I2C SLAVE
TX2_0+
TX2_0–
TX2_1+
TX2_1–
TX2_2+
TX2_2–
TX2_C+
TX2_C–
ENCODER
PROGRAMMABLE
HDTV FILTERS
PROGRAMMABLE
LUMINANCE
FILTERS
SYNC
INSERTION
PROGRAMMABLE
CHROMINANCE
FILTERS
SIN/COS
MODULATION/COS
SHARPNESS AND
ADAPTIVE FILTER
CONTROL
VBI DATA SERVICE
INSERTION
TX1_0+
TX1_0–
TX1_1+
TX1_1–
TX1_2+
TX1_2–
TX1_C+
TX1_C–
HDCP
KEYS
TMDS
OUTPUTS
SUBCARRIER
FREQ LOCK
12-BIT
DAC1
DAC1
12-BIT
DAC2
DAC2
12-BIT
DAC3
DAC3
12-BIT
DAC4
DAC4
12-BIT
DAC5
DAC5
12-BIT
DAC6
DAC6
REFERENCE
AND CABLE
DETECTION
COMPx
RSETx
VREF
ELPFx
SFL
ALSB
Rev. 0 | Page 21 of 326
SCL
SDA
CS2
SCK2
MISO2
MOSI2
CS1
SCK1
MISO1
MOSI1
HEAC_1–
HEAC_1+
HEAC_2–
HEAC_2+
ARC1_OUT
ARC2_OUT
REF_CLK
REF_HS
REF_VS
DVDD_IO
PVDD_DDR
AVDDx
DVDD_DDR
CVDD1
PVDDx
DVDD
PDN
RESET
Figure 6. ADV8005 Functional Block Diagram
4:2:2
4:4:4
AND
COLOR SPACE
CONVERTER
MULTIPLEXER
OSD VIDEO
CAPTURE
AND
FORMATTING
COLOR SPACE
CONVERSION
OSD_DE
OSD_CLK
OSD_IN[12]
MOTION
DETECTION
OSD
GENERATION
16×/4× OVERSAMPLING FILTERS
OSD_VS
RANDOM
NOISE
REDUCTION
TMDS
OUTPUTS
12074-003
MUXING
COLOR SPACE
CONVERSION
UPDITHER
OSD_HS
SCALING AND
FRAME RATE
CONVERSION
4:4:4
AND
COLOR SPACE
CONVERTER
HDCP
KEYS
4:2:2
2 × PLLs
PCLK
VIDEO
ENHANCEMENT
DE-INTERLACER
AND CADENCE
DETECTION
HPD_TX1
HPD_TX2
ED/HD
PROCESSOR
DE
DIGITAL
VIDEO
CAPTURE
AND
FORMATTING
DDC1_SC L
DDC1_SD A
DDC2_SC L
DDC2_SD A
I 2C
MASTER
HDCP
ENCRYPTION
SD
PROCESSOR
VS
HDMI Tx
VIDEO DATA
CAPTURE
VIDEO MUXING
HS
OSD VIDEO
BLEND
COLOR SPACE
CONVERSION
UPDITHER
P[35:0]
HDCP AND EDID
MICROCONTROLLER
AUTOPOSITION
AUTO-PHASE
COLOR SPACE
CONVERSION
UPDITHER
RECEIVER
DSD_CLK
DDR2 INTERFACE
RX_0 P
RX_0N
RX_1 P
RX_1N
RX_2 P
RX_2N
RX_C P
RX_CN
RX_HPD
RX_5V
AUD_IN[5:0]
SCLK
MCLK
DDR_VREF
DDR_CK
DDR_CK
DDR_CS
DDR_WE
DDR_RAS
DDR_CAS
DDR_A[13:0]
DDR_BA[2:0]
DDR_DM[3:0]
DDR_DQS[3:0]
DDR_DQS[3:0]
DDR_DQ[31:0]
AUDIO DATA CAPTURE
DDR2 CONTROLLER INTERF ACE
UG-707
ADV8005 Hardware Reference Manual
1.3. PROTOCOL FOR MAIN I2C PORT
The system controller initiates a data transfer by establishing a start condition, defined by a high to low transition on SDA while SCL remains
high. This transition indicates that an address/data stream will follow. All peripherals respond to the start condition and shift the next eight
bits (7-bit address and R/W bit). The bits are transferred from MSB down to LSB. The peripheral that recognizes the transmitted address
responds by pulling the data line low during the ninth clock pulse. This is known as an acknowledge bit. All other devices withdraw from the
bus at this point and maintain an idle condition.
In the idle condition, the device monitors the SDA and SCL lines for the start condition and the correct transmitted address. The R/W bit
determines the direction of the data. A logic 0 on the LSB of the first byte means that the master will write information to the peripheral. A
logic 1 on the LSB of the first byte means that the master will read information from the peripheral.
The ADV8005 has a single 8-bit I2C slave address. All register maps within the ADV8005 can be accessed through this I2C address through 16bit addressing and 8-bit data registers. The ADV8005 acts as a standard slave device on the I2C bus. It interprets the first byte as the I2C address
and the second byte and third bytes as the appropriate subaddress. The fourth byte is then considered the data for this subaddress register. This
means that I2C writes to the part will be in the form <I2C Address>, <Address MSBs>, <Address LSBs>, <Data>.
For example, to write 0xFF to the encoder register map, register 0x59AF, the I2C writes needed are 0x1A, 0x59, 0xAF, 0xFF. The addresses are
outlined in Table 2. Figure 7 shows the register map architecture for the ADV8005.
Table 2: ADV8005 I2C Address and Register Address Range for Different HW Blocks
Register Map Name
IO Map
Primary VSP Map
Primary VSP Map 2
Secondary VSP Map
Rx Main Map
Rx InfoFrame Map
Tx1 Main Map
Tx1 EDID Map
Tx1 UDP Map
Tx1 Test Map
Tx2 Main Map
Tx2 EDID Map
Tx2 UDP Map
Tx2 Test Map
Encoder Map
DPLL Map
I2C
ADDRESS
0x18/0x1A
I2C Address
0x1A (0x18 with LSB low)
Register Address
0x1A00 to 0x1BFF
0xE800 to 0xE8FF
0xE900 to 0xE9FF
0xE600 to 0xE6FF
0xE200 to 0xE2FF
0xE300 to 0xE3FF
0xEC00 to 0xECFF
0xEE00 to 0xEEFF
0xF200 to 0xF2FF
0xF300 to 0xF3FF
0xF400 to 0xF4FF
0xF600 to 0xF6FF
0xFA00 to 0xFAFF
0xFB00 to 0xFBFF
0xE400 to 0xE4FF
0xE000 to 0xE0FF
IO
MAP
PRIMARY VSP
MAP
PRIMARY VSP
MAP 2
SECONDARY
VSP MAP
DPLL
MAP
Rx MAIN
MAP
Rx INFOFRAME
MAP
ENCODER
MAP
Tx1 TEST
MAP
0x1A00 TO
0x1BFF
0xE800 TO
0xE8FF
0xE900 TO
0xE9FF
0xE600 TO
0xE6FF
0xE000 TO
0xE0FF
0xE200 TO
0xE2FF
0xE300 TO
0xE3FF
0xE400 TO
0xE4FF
0xF300 TO
0xF3FF
0xEC00 TO
0xECFF
0xEE00 TO
0xEEFF
0xF000 TO
0xF0FF
0xF200 TO
0xF2FF
0xF400 TO
0xF4FF
0xF600 TO
0xF6FF
0xF800 TO
0xF8FF
0xFA00 TO
0xFAFF
0xFB00 TO
0xFBFF
Tx1 MAIN
MAP
Tx1 EDID
MAP
Tx1 CEC
MAP
Tx1 UDP
MAP
Tx2 MAIN
MAP
Tx2 EDID
MAP
Tx2 CEC
MAP
Tx2 UDP
MAP
Tx2 TEST
MAP
09803-021
SCL
SDA
Figure 7: Register Map Architecture
It is possible to use the subaddresses auto-increment feature, which allows data to be accessed from the starting subaddress. A data transfer is
always terminated by a stop condition. The user can also access any unique subaddress register on a one-by-one basis without having to update
Rev. 0 | Page 22 of 326
ADV8005 Hardware Reference Manual
UG-707
all the registers.
Stop and start conditions can be detected at any stage during the data transfer. If these conditions are asserted out of sequence with normal
read and write operations, these cause an immediate jump to the idle condition. During a given SCLK high period, the user should issue only
one start condition, one stop condition, or a single stop condition followed by a single start condition. If an invalid subaddress is issued by the
user, the ADV8005 does not issue an acknowledge and returns to the idle condition.
If the user exceeds the highest subaddress in auto increment mode, the following actions are taken:
•
•
In read mode, the highest subaddress register contents continue to be output until the master device issues a no acknowledge. This
indicates the end of a read. A no acknowledge condition is where the SDA line is not pulled low on the ninth pulse.
In write mode, the data for the invalid byte is not loaded into any subaddress register. A no acknowledge is issued by the ADV8005
and the part returns to the idle condition.
Device
Address
SDA
SCL
S
Register
Address (MSBs)
1-7
8
9
R/W
ACK
Register
Address (LSBs)
1-8
9
Data
1-8
9
ACK
1-8
ACK
9
P
ACK
Figure 8: Bus Data Transfer
S
Device
Address
A/(S)
Register
Register
A/(S)
Address [LSBs]
Address [MSBs]
S
Device
Address
A/(S)
Register
Register
A/(S)
A/(S)
Address [LSBs]
Address [MSBs]
S = Start Bit
P = Stop Bit
A(S) = Acknowledge by Slave
A(M) = Acknowledge by Master
A/(S) Data
S
Data
A/(S)
Device
Address
Data
A/(M)
A/(S)
P
Data
A/(M) P
A(S) = Acknowledge by Slave
A(M) = Acknowledge by Master
Figure 9: Read and Write Sequence
1.4. CONFIGURING THE ADV8005
The ADV8005 requires a number of configuration settings for each mode of operation. To ensure the part is correctly configured, refer to
either the recommended settings configuration script (supplied with the ADV8005 evaluation software) or the reference software driver.
Failure to follow these recommended settings will result in the part not operating to its optimum performance.
Rev. 0 | Page 23 of 326
UG-707
ADV8005 Hardware Reference Manual
2. ADV8005 TOP LEVEL CONTROL
A D V 800 5
DDR2 Memory
Interface
Output
Muxing
24-bit
Input
Port
36/48b3i6t -bit
Viiddeeoo
V
PPoortrt
Serial
Video_
RX
VSP - YCbCr 4:4:4 Input and Output
P
Prriim
marryy
V
VS
SP
P
- Deinterlacer
- Scaler
- Video enhance
OSD Core
- OSD scaler
- External OSD
- Internal OSD
Secondary
VSP
-Scaler
Progressive to
Interlaced
HDMI
Tx1
HDMI
Tx2
HD
Encoder
SD
Encoder
Figure 10: ADV8005 Simplified Block Diagram
A simplified block diagram of the ADV8005 can be seen in Figure 10. Video can be routed through the ADV8005 in a number of ways, for
example, the OSD can be blended before the PVSP to display the OSD on all outputs, the OSD can be blended before the output to display the
OSD on a single output. This has been divided into several modes of operation which are recommended by Analog Devices. These modes of
operation are documented in Section 2.1 and outline the most practical modes in which to configure the ADV8005.
The four main processing blocks of the ADV8005 are described as follows.
PVSP: This is the main scaler of the ADV8005 and contains many of the signal processing functions. This block performs motion adaptive deinterlacing as well as scaling, ACE, FRC, cadence detection, CUE correction, RNR, BNR and MNR. PVSP utilizes the external DDR2 memory
for such processes as FRC, de-interlacing and RNR. (Refer to Section 3.2 for more details on the PVSP.)
SVSP: This is the secondary scaler in the ADV8005 and is useful when providing an additional output resolution. The input to this block can
only be progressive. This means an input format can only be connected to the SVSP if it is progressive or if it has been de-interlaced by the
PVSP block. (Refer to Section 3.3 for more details on the SVSP.)
OSD Blend: This block overlays the generated OSD on the incoming video signal, from the Serial Video input lines or from the video TTL
port. This is determined by an alpha factor as to how transparent the OSD will be. Depending on the source of the OSD data (from an external
OSD solution or DDR2 memory), this is then synchronized with the incoming video signal. If the generated resolution is the same as the
video, the OSD is simply overlaid on the video. If both are at different resolutions, the OSD scaler will first scale the OSD data to match the
incoming video. (Refer to Section 3 for more details on the OSD.)
Progressive to Interlaced: The ADV8005 has two progressive to interlaced (PtoI) blocks, one of these is included as part of the SVSP. The
second is a standalone block. The function of this block is exactly as named and can be used, for example, if the user was to convert an ED
format such as 480p to a HD format such as 1080i. The PtoI block would be required as part of this conversion. (Refer to Section 3.2.3 and
Section 3.3.3 for more details on the PtoI hardware blocks.)
Rev. 0 | Page 24 of 326
ADV8005 Hardware Reference Manual
UG-707
2.1. ADV8005 MODES OF OPERATION
This section outlines the most practical modes in which the ADV8005 can be configured, as recommended by ADI. These modes describe the
various ways to configure the VSP block, depending on the input formats as well as the outputs required. Table 3 outlines the various options
afforded to the user in each mode. Depending on the desired output options, the appropriate mode should be chosen.
Table 3: ADV8005 Modes of Operation
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 6
Mode 7
Mode 8
Mode 9 - Bypass
Mode 10 (PiP)
Mode 11 (PiP)
Mode 12 (Dual OSD)
Mode 13 (RX OSD)
Mode 14 (3 Inputs)
No. of Different
Output Formats 12
Interlaced Input
Format Allowed
No. of Output
Formats with
OSD2
Input Video
Copy-Protected
3
3
2
2
3
2
1-2
1-2
1
2
1
1
2
3
Yes
Yes
No (if using SVSP)
Yes
No (if using SVSP)
No (if using SVSP)
Yes
Yes
Yes
No (if using SVSP)
No (if using SVSP)
Yes
Yes
Yes
1
3
1
2
3
1
1-2
1-2
0
2
2
2
2
2
No
No
No
No
No
No
Yes
Yes
Yes
No
No
Yes
Yes
Yes
1
For modes that offer four possible output formats, this means without reconfiguring the digital core. Only three possible output formats are supported at a single time:
the input format and the two converted formats.
2
The number of different output formats will be limited when using the ADV8005KBCZ-8B/8C.
Rev. 0 | Page 25 of 326
UG-707
ADV8005 Hardware Reference Manual
Note: Table 3 does not list the definitive operation of the device in each mode. For example, in mode 3, it is listed as possible to have two
different output resolutions and just have OSD on a single output. However, using the output muxing, it would also be possible to have a single
output format (1080p in this case) with OSD going to several outputs. Table 3 provides only a guideline for the ADV8005 and should be used
as such. Depending on user requirements, many of these modes could be tailored to a specific solution. Section 2.1.2 to Section 2.1.9 describe
the usable modes of operation as recommended by ADI. These modes should be studied and the appropriate one selected for a given
application.
2.1.1.
Selecting a Mode
General guidelines for selecting a mode of operation involve selecting the location of certain blocks in the VSP section. For example, mode 5
and mode 6 both use the PVSP and SVSP in parallel. However, as the SVSP can only accept progressive formats, input video to the ADV8005
must be progressive. If interlaced, only the PVSP can be used. Therefore, a note should be kept of the input formats if selecting these in parallel
mode.
The location of the OSD blend core must then be selected. This can be placed before the PVSP and both the input video and OSD can be
scaled at the same time. However, depending on the application, the optimal solution may be to have both the input video and OSD scaled
separately and then blended.
If blending the OSD after the PVSP, the OSD may need to be scaled to different resolutions. This can be done in two ways:
1.
2.
The OSD bitmap images are created at higher resolutions.
The OSD can be rendered at a single resolution and scaled internally in the ADV8005 using the OSD scaler.
There are limitations to both of these methods. Rendering OSDs at larger resolutions increases the system resources required to store these
bitmaps. Alternatively, scaling the OSD internally in the part increases power consumption on the ADV8005.
The optimum solution to this depends on customer requirements and system capabilities. It should be chosen taking these considerations into
account.
Note: For the following modes of operation, red indicates an active video path and black indicates a path is not used. If, for example, there are
two red dashed lines, video may be available on one or the other but not on both.
2.1.2.
Mode 1
Mode 1 should be used if:
• Three separate output formats are required
• Additional processing (BNR, RNR, and so on) is required on the new output formats
• OSD is required on a single output format (most likely the lowest quality of the converted formats)
Rev. 0 | Page 26 of 326
ADV8005 Hardware Reference Manual
UG-707
Mode 1
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
OSD
(720p)
Primary
VSP
Video
Muxing
(1080p)
Exosd
24-bit
Input
Port
480i Video
from
Decoder
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
Secondary:
Data
Formatting
& CSC
Primary:
Data
Formatting,
CSC & ACE
(720p)
Secondary
VSP
OSD
(720p) Blend
Output
Muxing
HDMI
Tx1
1080p
(720p)
HDMI
Tx2
1080i
Progressive to
Interlaced
(1080i)
HD
Encoder
(480i)
(1080p)
RX:
Data
Formatting
& CSC
(480i)
720p(OSD)
SD
Encoder
480i
Figure 11: ADV8005 Mode 1 Configuration
Mode 1 places the PVSP after the input block. The output from this block is then sent to the SVSP or the PtoI converter. The OSD blend block
can then be placed after the SVSP block.
In the example in Figure 11, the input resolution is taken to be 480i. This is then passed through the PVSP where it is converted to 1080p using
motion adaptive de-interlacing. This can then be passed straight to the output, to the PtoI converter or, alternatively, to the SVSP and OSD
blend. The example output formats generated using this mode are 720p (with OSD), 1080p and 1080i. The input SD format of 480i can also be
passed to the SD encoder.
Rev. 0 | Page 27 of 326
UG-707
2.1.3.
ADV8005 Hardware Reference Manual
Mode 2
Mode 2 should be used if:
• Three separate output formats are required
• Additional processing (BNR, RNR, and so on) is required on the new output formats
• OSD is required on multiple outputs
• OSD and video scaling are to be kept separate
Mode 2
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
(1080p)
Primary
VSP
Video
Muxing
(1080p)
Exosd
24-bit
Input
Port
480i Video
from
Decoder
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
OSD
Blend
Secondary:
Data
Formatting
& CSC
Primary:
Data
Formatting,
CSC & ACE
Secondary
VSP
Output
Muxing
HDMI
Tx1
1080p(OSD)
(720p)
HDMI
Tx2
1080i(OSD)
Progressive to (1080i)
Interlaced
HD
Encoder
(480i)
(1080p)
RX:
Data
Formatting
& CSC
(480i)
720p(OSD)
SD
Encoder
480i
Figure 12: ADV8005 Mode 2 Configuration
Mode 2 places the PVSP after the input block. The output from this is sent to the OSD which is in turn sent to the SVSP or PtoI converter. This
mode is very similar to mode 4, except that the OSD position has swapped with the PVSP. The primary reason is that, in this case, the OSD
data is not overlaid on the incoming video data and then scaled, but rather scaled and then overlaid. Scaling the video and OSD separately may
improve the quality of the video input to the SVSP. If it is possible, it is better to scale video and OSD separately and then blend rather than
scaling both together.
The example in Figure 12 takes a 480i video signal and scales this to 1080p. This is then overlaid with OSD data scaled to 1080p. This example
can generate three different output formats (720p, 1080i, and 1080p) as well as outputting the input SD standard of 480i.
Rev. 0 | Page 28 of 326
ADV8005 Hardware Reference Manual
2.1.4.
UG-707
Mode 3
Mode 3 should be used if:
• Two separate upscaled resolutions are required
• De-interlacing is not required
• OSD is required on one resolution only (preferably the higher resolution output)
Mode 3
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
Primary
VSP
Video
Muxing
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
480p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
(1080p)
OSD
(1080p) Blend
Output
Muxing
1080p(OSD)
(1080p)
HDMI
Tx2
Secondary:
Data
Formatting
& CSC
720p
Secondary
VSP
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
(720p)
(720p)
HD
Encoder
1080p(OSD)
SD
Encoder
(480p)
Figure 13: ADV8005 Mode 3 Configuration
Both the PVSP and SVSP work in parallel in this mode. As the OSD is only on one data path, it will only be displayed at a single resolution. As
shown in the example in Figure 13, the input to the SVSP must be a progressive format. Therefore, this mode can only be used when the input
is progressive. This mode allows the user to overlay the OSD on the higher resolution output(s).
It can be seen in Figure 13 that the same output formats can be generated in this mode. However, the OSD is now only generated on the higher
resolution outputs. This mode allows the user to generate two different outputs resolutions and only display OSD on one output.
Note: De-interlaced inputs can be input to the device in this mode; however the SVSP can only accept progressive input formats. Therefore,
the SVSP would be excluded from the processing in this case.
Rev. 0 | Page 29 of 326
UG-707
2.1.5.
ADV8005 Hardware Reference Manual
Mode 4
Mode 4 should be used if:
• Three possible separate output formats are required
• Additional processing is required on the new output formats
• OSD is required on multiple output formats
Mode 4
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
Primary
VSP
Video
Muxing
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
480p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
(1080p)
OSD
(1080p) Blend
Output
Muxing
1080p(OSD)
(1080p)
HDMI
Tx2
Secondary:
Data
Formatting
& CSC
720p
Secondary
VSP
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
(720p)
(720p)
HD
Encoder
1080p(OSD)
SD
Encoder
(480p)
Figure 14: ADV8005 Mode 4 Configuration
Mode 4 places the OSD blend block before the PVSP. The output of the PVSP is then input to both the SVSP and the PtoI converter. The OSD
is overlaid on all output formats. In addition, high performance PVSP processing is performed on all outputs which can improve video quality
at all resolutions. While blending the OSD on the incoming video, the OSD can be scaled to the necessary resolution of the incoming video
using the OSD scaler.
In the example in Figure 14, the input resolution is taken to be 480p. The OSD is downscaled, blended, and passed to the PVSP which scales to
1080p. The advantage of configuring the ADV8005 core in this way is that by including the PVSP on multiple data path, additional processing
can be included on other outputs also. In Figure 14, three different formats (1080p, 1080i, and 720p) can be generated.
Rev. 0 | Page 30 of 326
ADV8005 Hardware Reference Manual
2.1.6.
UG-707
Mode 5
Mode 5 should be used if:
• Two separate upscaled resolutions are required
• De-interlacing is not required
• OSD is required on both output formats
Mode 5
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
(480p)
Primary
VSP
Output
Muxing
480p Video
from
Decoder
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
HDMI
Tx2
OSD
Blend
Secondary:
Data
Formatting
& CSC
(480p)
Secondary
VSP
720p(OSD)
(720p)
HD
Encoder
Primary:
Data
Formatting,
CSC & ACE
1080p(OSD)
(1080p)
Video
Muxing
Exosd
24-bit
Input
Port
HDMI
Tx1
480p(OSD)
(480p)
SD
Encoder
RX:
Data
Formatting
& CSC
Figure 15: ADV8005 Mode 5 Configuration
Mode 5 places the OSD blend block before both the PVSP block and the SVSP block. Both the PVSP block and the SVSP work in parallel in
this mode. As the OSD is before both scalers, the OSD will be available on all the outputs. As mentioned in Section 2.1.4, the input to the SVSP
must be progressive, therefore, this mode can only be used when the input is progressive.
As can be seen in the example in Figure 15, the output formats required are 1080p and 720p. The 1080p format is converted through the PVSP
block with the SVSP upscaling to 720p. It should be noted from Figure 15, that when large video scalings are required, these should be
processed by the PVSP block for optimal performance.
Note: De-interlaced inputs can be input to the device in this mode; however the SVSP can only accept progressive input formats. Therefore,
the SVSP would be excluded from the processing in this case.
Rev. 0 | Page 31 of 326
UG-707
2.1.7.
ADV8005 Hardware Reference Manual
Mode 6
Mode 6 should be used if:
• Two separate upscaled resolutions are required
• De-interlacing is not required
• OSD is required on one resolution only (preferably the lower upscaled resolution output)
Mode 6
DDR2 Memory
Interface
Build
OSD
Video
Muxing
720p OSD
from
External FPGA
480p Video
from
Decoder
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
Scale
(720p) OSD
(720p)
(720p)
Primary
VSP
Output
Muxing
1080p
(1080p)
HDMI
Tx2
Secondary:
Data
Formatting
& CSC
1080p
Secondary
VSP
Primary:
Data
Formatting,
CSC & ACE
HDMI
Tx1
OSD
(720p) Blend
(720p)
HD
Encoder
720p(OSD)
(480p)
SD
Encoder
RX:
Data
Formatting
& CSC
Figure 16: ADV8005 Mode 6 Configuration
Mode 6 places the OSD blend block after the SVSP. Both the PVSP block and SVSP work in parallel in this mode. As the OSD is only on one
data path, it will only be displayed at a single resolution. As shown in the example in Figure 16, the input to the SVSP must be a progressive
format. Therefore, this mode can only be used when the input is progressive.
It can be seen from Figure 16 that the same output formats can be generated in this mode. However, due to the change in location of the OSD
blend block, the OSD can only be generated on a single output resolution.
Note: De-interlaced inputs can be input to the device in this mode. However, the SVSP can only accept progressive input formats. Therefore,
the SVSP would be excluded from the processing in this case as would the OSD blend.
Rev. 0 | Page 32 of 326
ADV8005 Hardware Reference Manual
2.1.8.
UG-707
Mode 7
Mode 7 should be used if:
• HDMI input video is copy protected
• Additional processing is required on the new output formats
• OSD is required on multiple outputs
• OSD and video scaling are to be kept separate
Mode 7
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
(1080p)
Video
Muxing
Primary
VSP
(1080p)
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
720p Video
from
Transceiver
Serial
Video
Rx
Input
Muxing
Output
Muxing
OSD
Blend
1080p(OSD)
(1080p)
Secondary:
Data
Formatting
& CSC
HDMI
Tx2
1080p(OSD)
OSD
Data
Only
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
Secondary
VSP
(480p)
HD
Encoder
480p(OSD only)
SD
Encoder
(720p)
Figure 17: ADV8005 Mode 7 Configuration
Mode 7 is different to other modes in that OSD is not overlaid on video data on certain outputs but rather just output on its own. In certain
cases where HDMI video from an upstream IC is copy protected, video data can be output on HDMI outputs but not analog outputs. However,
OSD data can still be displayed on analog output, for example, to indicate system status or to recover the system from an error-like state.
In this mode, the input format is 720p from an external video transceiver (this could also come from the Video TTL input if video is from an
upstream HDMI IC) and is passed to the PVSP. This is upscaled, blended with the 1080p OSD data and sent to both HDMI transmitters.
Because this may be copy protected, this cannot be passed to the analog outputs. The OSD on its own, however, can be passed directly to these
outputs. In the example in Figure 17, the OSD is scaled down to 480p and passed to the HD encoder.
Rev. 0 | Page 33 of 326
UG-707
2.1.9.
ADV8005 Hardware Reference Manual
Mode 8
Mode 8 should be used if:
• HDMI input video is copy protected
• Additional processing is required on the new output formats
• OSD is required on multiple outputs
• OSD and video scaling are to be kept separate
Mode 8
OSD rendered at a single set resolution: 720p
DDR2 Memory
Interface
Build
OSD
Scale
(720p) OSD
Video
Muxing
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
720p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
OSD
Blend
Secondary:
Data
Formatting
& CSC
HDMI
Tx1
1080p(OSD)
(1080p)
HDMI
Tx2
1080p(OSD)
OSD
Data
Only
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
(720p)
Output
Muxing
Primary
VSP
Secondary
VSP
(480p) Progressive to (480i)
Interlaced
HD
Encoder
SD
Encoder
(720p)
480i(OSD Only)
Figure 18: ADV8005 Mode 8 Configuration
Mode 8 is similar to mode 7 in that OSD is not overlaid on the input video but rather output as the OSD video on its own. This may be
required when HDMI video from an upstream IC is copy protected (as in Figure 18), but the OSD is still required on the analog outputs.
In this mode, the input format is 720p from an external video transceiver and passed to the OSD blend. As the OSD is generated at the same
resolution as the input video, they are just blended. This is then passed to the PVSP where it is upscaled and sent to both HDMI transmitters.
If this data is copy protected, this cannot be passed to the analog outputs. The OSD on its own, however, can be passed directly to these
outputs. In the example in Figure 18, the OSD is scaled down to 480p and passed through the PtoI block and sent out on the SD encoder. The
difference between mode 7 and mode 8 is very similar to the difference between modes 2 and 4. Ideally the video and OSD should be scaled
separately and then blended.
Rev. 0 | Page 34 of 326
ADV8005 Hardware Reference Manual
2.1.10.
UG-707
Mode 9 - Bypass
Mode 9 should be used if input video is to be passed straight to the output with no video processing.
Mode 9 - Bypass
DDR2 Memory
Interface
Build
OSD
Scale
OSD
Video
Muxing
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
720p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
OSD
Blend
Output
Muxing
Primary
VSP
Secondary:
Data
Formatting
& CSC
720p
HDMI
Tx2
720p
Secondary
VSP
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
Progressive to
Interlaced
HD
Encoder
720p
SD
Encoder
(720p)
Figure 19: ADV8005 Mode 9 Configuration
Mode 9 is used in cases where no processing is required on the input video. This can be passed directly to the output. No access to external
DDR2 memory is required in this case.
Rev. 0 | Page 35 of 326
UG-707
2.1.11.
ADV8005 Hardware Reference Manual
Mode 10 – Picture in Picture (PiP) (External OSD Less Than 720p)
Mode 10 should be used if:
• OSD data is input via the EXOSD TTL 24-bit input port
• OSD data input via the EXOSD TTL 24-bit input port is less than 720p
Mode 10 - PiP (External OSD < 720p)
OSD rendered at a single set resolution: 480p
DDR2 Memory
Interface
Build
OSD
Scale
(480p) OSD
(1080p)
Video
Muxing
(480p)
Primary
VSP
(1080p)
480p Video
from
Decoder
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
720p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
Output
Muxing
OSD
Blend
1080p(PiP)
(1080p)
Secondary:
Data
Formatting
& CSC
HDMI
Tx2
1080p(PiP)
OSD
Data
Only
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
Secondary
VSP
(480p)
HD
Encoder
480p(OSD only)
SD
Encoder
(720p)
Figure 20: ADV8005 Mode 10 Configuration
Mode 10 is used to support the external input of either part of or the complete OSD from another device, for example, an MCU. With support
for HS, VS, DE and CLK, the external OSD input can also be used to input video data. Using mode 10, the external OSD bus can be used to
support picture in picture (PiP) with two video streams.
In this mode, the input from the EXOSD TTL 24-bit input port is written into DDR2 memory and read back by the OSD core as a region of
the OSD. This region is then blended with input video.
Rev. 0 | Page 36 of 326
ADV8005 Hardware Reference Manual
2.1.12.
UG-707
Mode 11 – PIP (External OSD Greater Than or Equal To 720p)
Mode 11 should be used if:
• OSD data is input via the EXOSD TTL 24-bit input port
• OSD data input via the EXOSD TTL 24-bit input port is greater than or equal to 720p
Mode 11 is used to support the external input of either part of or the complete OSD from another device, for example, an MCU. With support
for HS, VS, DE and CLK, the external OSD input can also be used to input video data. Using mode 10, the external OSD bus can be used to
support picture in picture (PiP) with two video streams. The difference between mode 10 and mode 11 is the resolution of the incoming video
– mode 11 can support incoming video of 720p or greater.
In this mode, the input from EXOSD TTL 24-bit input port is routed to the SVSP where it is scaled before being written into DDR2 memory.
The OSD core then reads back the data as one OSD region and blends this region with input video.
Mode 11 - PiP (External OSD ≥ 720p)
OSD rendered at a single set resolution: 480p
(480p)
Secondary
VSP
DDR2 Memory
Interface
Build
OSD
Scale
(480p) OSD
(1080p)
Video
Muxing
(720p)
Primary
VSP
(1080p)
720p Video
from
Decoder
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
720p Video
from
Transceiver
Serial
Video
RX
Input
Muxing
OSD
Blend
Secondary:
Data
Formatting
& CSC
HDMI
Tx1
1080p(PiP)
(1080p)
HDMI
Tx2
1080p(PiP)
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
Output
Muxing
HD
Encoder
1080p(PiP)
SD
Encoder
(720p)
Figure 21: ADV8005 Mode 11 Configuration
Rev. 0 | Page 37 of 326
UG-707
2.1.13.
ADV8005 Hardware Reference Manual
Mode 12 – Dual Zone OSD
Mode 12 should be used if OSD output is required in dual zones.
Mode 12 - PiP (External OSD < 720p)
OSD rendered at a single set resolution: 480p
DDR2 Memory
Interface
Build
OSD
Scale
(480p) OSD
(Configurable)
Primary
VSP
Video
Muxing
(1080p)
Exosd
24-bit
Input
Port
480p Video
from
Decoder
720p Video
from
Transceiver
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
OSD
Blend
RX:
Data
Formatting
& CSC
HDMI
Tx1
1080p
(720p)
Secondary:
Data
Formatting
& CSC
Primary:
Data
Formatting,
CSC & ACE
(1080p)
Output
Muxing
HDMI
Tx2
720p
HD
Encoder
(480p)
(720p)
SD
Encoder
Figure 22: ADV8005 Mode 12 Configuration
Mode 12 is used to support dual zone OSD output without disturbing either video stream. Using this mode, two inputs (for example, 480p
from the video TTL input port and 720p from the Serial Video Rx) can be applied to the part, processed and connected to the OSD core. The
OSD can be blended onto one or other of the two video streams and switched between the two video streams without causing any disturbance
to either.
Rev. 0 | Page 38 of 326
ADV8005 Hardware Reference Manual
2.1.14.
UG-707
Mode 13 – OSD from HDMI RX
Mode 13 should be used if the ADV8005 is being used in conjunction with a legacy standalone OSD generator with an HDMI interface.
Mode 13
DDR2 Memory
Interface
Build
OSD
(720p)
Scale
OSD
(1080p)
Video
Muxing
(1080p)
Exosd
24-bit
Input
Port
1080p
Video from
Decoder
720p
OSD from
generator
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
Output
Muxing
OSD
Blend
1080p(OSD)
(1080p)
Secondary:
Data
Formatting
& CSC
HDMI
Tx2
1080p(OSD)
OSD
Data
Only
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
Secondary
VSP
(1080p)
(480p)
HD
Encoder
480p(OSD only)
(720p)
SD
Encoder
Figure 23: ADV8005 Mode 13 Configuration
Mode 13 is used to support OSD input from an OSD generator with an HDMI interface. Using this mode, the Serial Video Rx video is loaded
into memory before being called out by the OSD core. This video can then be scaled and blended with the video on the primary video
channel. It is possible to output the unblended video, the blended video or the raw OSD.
Rev. 0 | Page 39 of 326
UG-707
2.1.15.
ADV8005 Hardware Reference Manual
Mode 14 – Handling Triple Inputs
Mode 14 should be used if three independent video streams are required on the output of the ADV8005.
Mode 14
DDR2 Memory
Interface
Video
Muxing
Primary
VSP
(480i)
480i
Video from
Decoder
720i
Video from
Decoder
1080p
Video from
Transceiver
Exosd
24-bit
Input
Port
Video
36-bit
Input
Port
Serial
Video
RX
Input
Muxing
Output
Muxing
(1080p)
1080p
(1080p)
Secondary:
Data
Formatting
& CSC
HDMI
Tx2
1080i
Primary:
Data
Formatting,
CSC & ACE
RX:
Data
Formatting
& CSC
HDMI
Tx1
(720p)
HD
Encoder
720p
(1080p)
Progressive to
Interlaced
(1080i)
(1080i)
SD
Encoder
Figure 24: ADV8005 Mode 14 Configuration
Mode 14 is used to support three independent video streams. The independent video streams are input on the video TTL and EXOSD TTL
inputs and the Serial Video Rx. These video streams can then be routed through internal processing blocks (for example, PVSP or progressive
to interlaced converter) or connected directly to the backend transmission blocks, for example, HDMI transmitters and encoder.
2.2. ADV8005 TOP LEVEL OVERVIEW
This section documents the ADV8005 top level register descriptions, explaining some of the registers required to configure the part which are
not section or hardware block specific. For more details on block specific settings, refer to their appropriate sections.
Note: This section details the ADV8005KBCZ-8A/8N. Other versions of the ADV8005 do not offer the same functionality, for example, single
Tx or no encoder.
2.2.1.
Video Muxing
There are several blocks which make up the ADV8005 VSP, as described in Section 2. The digital core of the ADV8005 offers flexible routing
of video data, as shown in Figure 25.
Rev. 0 | Page 40 of 326
ADV8005 Hardware Reference Manual
Digital Video Input
Video TTL Input
EXOSD TTL Input
Primary
Input
Channel
Secondary
Input
Channel
s_inp_chan_sel[0]
Serial Video RX
Primary Input Channel
P r im a r y V S P
S e c o nd a ry V S P
Secondary Input Channel
RX Input Channel
O SD
B le n d 1
os d_ ble nd_i np_ sel [3 :0 ]
p_inp_chan_sel
EXOSD TTL Input
Video Output
Video Signal Processing
48-bit TTL Input
Video TTL Input
UG-707
RX Input
Channel
Primary Input Channel
P r im a r y V S P
S e c on d ar y V S P
Secondary Input Channel
RX Input Channel
o s d _ b l e n d _ i n p_ 2 _ s e l [3 :0 ]
Primary Input Channel
P r im a r y V S P
OSD Blend 1
Secondary Input Channel
RX Input Channel
O SD
B le n d 2
Pt o I
( P r o g r e s s iv e t o
I n t e r la c e d )
p 2i_ in p _s el[ 3:0 ]
Primary Input Channel
OSD Blend 1
Secondary Input Channel
RX Input Channel
P r im a r y
VSP
S e c on da r y
VS P
svsp_ inp_s e l[3 :0]
t x1 _in p _ se l[3 :0]
Primary Input Channel
P r im a r y V S P
Pt o I
OSD Blend 1
S e c o n da ry V S P
Secondary Input Channel
RX Input Channel
OSD Blend 2
HDMI
T x2
tx 2_ in p _s el[3 :0]
Primary Input Channel
P r im a r y V S P
P t oI
OSD Blend 1
S e c on da ry V S P
Secondary Input Channel
RX Input Channel
OSD Blend 2
Primary Input Channel
P r im a r y V S P
P t oI
OSD Blend 1
S e c on da ry V S P
Secondary Input Channel
RX Input Channel
OSD Blend 2
s d_ enc _ inp_ s el[3 :0 ]
Secondary Input Channel
RX Input Channel
HD M I
Tx 1
HD
E n c od er
h d _ e n c _ i n p_ s e l [ 3 :0 ]
pvs p_i np_ s el[3 :0]
Primary Input Channel
OSD Blend 1
P ri m a ry V S P
Raw OSD
Secondary Input Channel
RX Input Channel
Primary Input Channel
P r im a r y V S P
P t oI
OSD Blend 1
S e c o nd ar y V S P
Secondary Input Channel
RX Input Channel
OSD Blend 2
External
OSD
s_inp_chan_sel[1]
ADV8005
Figure 25: ADV8005 Digital Core Muxing
The following registers are used to configure the video routed through the ADV8005.
Rev. 0 | Page 41 of 326
SD
E n c od e r
UG-707
ADV8005 Hardware Reference Manual
tx1_inp_sel[3:0], IO Map, Address 0x1A03[7:4]
This signal is used to select the video source for the HDMI Tx1.
Function
tx1_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
0x07
Description
From Primary Input Channel
From Primary VSP
From PtoI Converter
From Internal OSD Blend 1
From Secondary VSP/PtoI Converter
From Secondary Input Channel
From RX Input
From Internal OSD Blend 2
tx2_inp_sel[3:0], IO Map, Address 0x1A03[3:0]
This signal is used to select the video source for the HDMI Tx2.
Function
tx2_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
0x07
Description
From Primary Input Channel
From Primary VSP
From PtoI Converter
From Internal OSD Blend 1
From Secondary VSP/PtoI Converter
From Secondary Input Channel
From RX Input
From Internal OSD Blend 2
hd_enc_inp_sel[3:0], IO Map, Address 0x1A04[7:4]
This signal is used to select the video source for the HD encoder. When using the encoder in SD only mode, this signal must be set to the
same value as sd_enc_inp_sel.
Function
hd_enc_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
0x07
Description
From Primary Input Channel
From Primary VSP
From PtoI Converter
From Internal OSD Blend 1
From Secondary VSP/PtoI Converter
From Secondary Input Channel
From RX Input
From Internal OSD Blend 2
sd_enc_inp_sel[3:0], IO Map, Address 0x1A04[3:0]
This signal is used to select the video source for the SD encoder. When using the encoder in SD only mode, hd_enc_inp_sel must be set to
the same value as this signal.
Function
sd_enc_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
0x07
Description
From Primary Input Channel
From Primary VSP
From PtoI Converter
From Internal OSD Blend 1
From Secondary VSP/PtoI Converter
From Secondary Input Channel
From RX Input
From Internal OSD Blend 2
svsp_inp_sel[3:0], IO Map, Address 0x1A05[7:4]
This signal is used to select the video source for the Secondary VSP.
Rev. 0 | Page 42 of 326
ADV8005 Hardware Reference Manual
Function
svsp_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
UG-707
Description
From Primary Input Channel
From Internal OSD Blend 1
From Primary VSP
From Internal OSD (OSD only, no blend)
From Secondary Input Channel
From RX Input
From Horizontal Prescaler
pvsp_inp_sel[3:0], IO Map, Address 0x1A05[3:0]
This signal is used to select the video source for the Primary VSP.
Function
pvsp_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
Description
From Primary Input Channel
From Internal OSD Blend 1
From Secondary Input Channel
From RX Input
From Secondary VSP
From Horizontal Pre-scaler
p2i_inp_sel[3:0], IO Map, Address 0x1A06[7:4]
This signal is used to select the video source for the Progressive to Interlaced converter.
Function
p2i_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
Description
From Primary VSP
From Internal OSD Blend 1
From Secondary Input Channel
From RX Input
From Primary Input Channel
osd_blend_inp_sel[3:0], IO Map, Address 0x1A06[3:0]
This signal is used to select the video source to the OSD Blend block.
Function
osd_blend_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
Description
From Primary Input Channel
From Secondary VSP/PtoI Converter
From Primary VSP
From Secondary Input Channel
From RX Input
osd_blend_inp_2_sel[3:0], IO Map, Address 0x1A08[3:0]
This signal is used to select the video to be blended on OSD channel 2.
Function
osd_blend_inp_2_sel[3:0]
0x00 (default)
0x01
0x02
0x03
0x04
Description
From Primary Input Channel
From Secondary VSP/PtoI Converter
From Primary VSP
From Secondary Input Channel
From RX Input
For example, when using the ADV8005 in mode 3 (described in Section 2.1.4), the following register settings are needed to configure the
video data path:
1A 1A03 34; Output of OSD blend to HDMI Tx1, Output of Secondary VSP to HDMI Tx2
1A 1A04 30; Output of OSD blend to HD encoder, SD encoder not used.
1A 1A05 00; Input to ADV8005 to both Primary and Secondary VSP.
1A 1A06 02; Progressive to Interlaced converter not used, output from Primary VSP to OSD blend.
Rev. 0 | Page 43 of 326
UG-707
ADV8005 Hardware Reference Manual
These four register writes configure the hardware blocks in the ADV8005 in mode 3. More registers will need to be configured depending on
the input and desired video standards.
2.2.2.
Digital Video Input
The ADV8005 has three means of receiving video: the video TTL input and the EXOSD TTL input which constitute the flexible 60-bit TTL
input port, and the Serial Video Rx. Each of the TTL inputs can be connected to one of the input channels – the primary input channel or the
secondary input channel. The Serial Video Rx is always connected to the RX input channel. Each channel features a dedicated input formatter,
color space converter (CSC) and dither block. The primary input channel also features an automatic contrast enhancement (ACE) control. The
ADV8005 input channels are illustrated in Figure 26, Figure 27 and Figure 28.
Primary Input Channel
Video TTL Input
Data
Rotate
AV-Code
Detect
Up-dither
CSC
EXOSD TTL Input
Contrast
Brightness
Saturation
ACE
Primary Input
Channel Output
Video TTL Input +
EXOSD TTL Input
(OSD_IN[11:0] + P[35:0])
48-bit to
24-bit
Conversion
Figure 26: Video TTL Input Channel
Secondary Input Channel
Video TTL Input
Data
Rotate
AV-Code
Detect
Up-dither
Secondary Input
Channel Video Output
CSC
EXOSD TTL Input
Data
Formatter
External OSD
Alpha Output
Figure 27: EXOSD TTL Input Channel
RX Input Channel
>1080p 12-bit data
Serial
Video
RX
Data
Rotate
RX Input
Channel
Output
Up-dither
CSC
Data
Formatter
Figure 28: RX Input Channel
2.2.2.1.
Video TTL Input
Rev. 0 | Page 44 of 326
(Receiver)
External OSD
Alpha Output
ADV8005 Hardware Reference Manual
UG-707
The video TTL input pins are defined as follows:
• P[47:0]
• HS
• VS
• DE
• PCLK
The video TTL input pins can be connected to either the primary input channel (refer to Section 2.2.2.6) or the secondary input channel (refer
to Section 2.2.2.7).
2.2.2.2.
EXOSD TTL Input
The EXOSD TTL input pins are defined as follows:
• OSD_IN[23:16]
• OSD_IN[15]/VBI_SCK
• OSD_IN[14]/VBI_MOSI
• OSD_IN[13]/VBI_SCK
• OSD_IN[12:0]
• OSD_HS
• OSD_VS
• OSD_DE
• OSD_CLK
The EXOSD TTL input pins can be connected to either the primary input channel (refer to Section 2.2.2.6) or the secondary input channel
(refer to Section 2.2.2.7).
2.2.2.3.
TTL Output
The ADV8005 includes a TTL output port, The external OSD TTL input pins (OSD_IN[23:0]) and 12 of the TTL input pins (P35:24) can
function as TTL output pins (refer to Table 90 and Table 91. If all 36 TTL pins are used as outputs, this leaves only 24 pins for TTL inputs.
Appendix C describes the different pinout options available for the TTL input and output buses. HS, VS, DE and the TTL clock are output on
the following pins:
• OSD_IN[23:0]
• P[35:24]
• OSD_HS
• OSD_VS
• OSD_DE
• OSD_CLK
The video data can be output at pixel frequencies up to 162 MHz. Only single data rate video is supported on the TTL output bus – it is not
possible to clock video out on the rising and falling edge of the TTL output clock.
Rev. 0 | Page 45 of 326
UG-707
ADV8005 Hardware Reference Manual
Figure 29: TTL Output Block Diagram
The following registers are used to control the TTL outputs.
ttl_ps444_in, IO Map, Address 0x1A01[0]
This bit is used to select the video type sent to the TTL output format block.
Function
ttl_ps444_in
0 (default)
1
Description
Input to TTL output block is real 4:4:4
Input to TTL output block is pseudo 4:4:4
ttl_op_format[3:0], IO Map, Address 0x1A02[7:4]
This signal is used to specify the TTL output format.
Function
ttl_op_format[3:0]
0011
0100
0101
0110
0111 (default)
1000
Description
2 x 8-bit buses, SDR 4:2:2
2 x 10-bit buses, SDR 4:2:2
2 x 12-bit buses, SDR 4:2:2
3 x 8-bit buses, SDR 4:4:4
3 x 10-bit buses, SDR 4:4:4
3 x 12-bit buses, SDR 4:4:4
ttl_vid_out_en, IO Map, Address 0x1A02[3]
This bit is used to enable the TTL video output.
Function
ttl_vid_out_en
0 (default)
1
Description
Disable TTL output
Enable TTL output
ttl_out_sel[2:0], IO Map, Address 0x1A02[2:0]
This signal is used to select the video source for the TTL video output.
Rev. 0 | Page 46 of 326
ADV8005 Hardware Reference Manual
Function
ttl_out_sel[2:0]
0x00 (default)
0x01
0x02
0x03
0x04
0x05
0x06
0x07
UG-707
Description
From Primary Input Channel
From Primary VSP
From PtoI Converter
From Internal OSD Blend 1
From Secondary VSP/PtoI Converter
From Secondary Input Channel
From RX Input
From Internal OSD Blend 2
osd_clk_drv_str[1:0], IO Map, Address 0x1BA7[1:0]
This signal is used to control the drive strength for the video output clock signal.
Function
osd_clk_drv_str[1:0]
00 (default)
01
10
11
Description
Minimum
Medium low (x2)
Medium high (x3)
Maximum (x4)
osd_dout_drv_str[1:0], IO Map, Address 0x1BA3[1:0]
This signal is used to control the drive strength for the video output data and sync signals.
Function
osd_dout_drv_str[1:0]
00 (default)
01
10
11
2.2.2.4.
Description
Minimum
Medium low (x2)
Medium high (x3)
Maximum (x4)
Treatment o f Unused TTL Inputs
ADV8005 allows the TTL pins to be powered down when unused, removing the need for external pulldowns on many unused I/O pins.
Note: The TTL pins are powered down by default, each of these pins must be powered up to use them. Unused pins should be left powered
down.
vid_clk_ie, IO Map, Address 0x1BC8[5]
This bit is used to control the input path enable for the VID CLK pin.
Function
vid_clk_ie
0 (default)
1
Description
input path disable
input path enable
clk_osd_ie, IO Map, Address 0x1BC8[4]
This bit is used to control the input path enable for the osd clk pin.
Function
clk_osd_ie
0 (default)
1
Description
input path disable
input path enable
pix_pins_ie[31:0], IO Map, Address 0x1BC9[7:0]; Address 0x1BCA[7:0]; Address 0x1BCB[7:0]; Address 0x1BCC[7:0]
This bit is used to control the input path enable for the pixel pins.
Function
pix_pins_ie[31:0]
0 (default)
1
Description
input path disable
input path enable
osd_pins_ie[23:0], IO Map, Address 0x1BCD[7:0]; Address 0x1BCE[7:0]; Address 0x1BCF[7:0]
This bit is used to control the input path enable for the osd pins.
Rev. 0 | Page 47 of 326
UG-707
Function
osd_pins_ie[23:0]
0 (default)
1
ADV8005 Hardware Reference Manual
Description
input path disable
input path enable
hs_ie, IO Map, Address 0x1BD0[7]
This bit is used to control the input path enable for the HS pin.
Function
hs_ie
0 (default)
1
Description
input path disable
input path enable
vs_ie, IO Map, Address 0x1BD0[6]
This bit is used to control the input path enable for the VS pin.
Function
vs_ie
0 (default)
1
Description
input path disable
input path enable
de_ie, IO Map, Address 0x1BD0[5]
This bit is used to control the input path enable for the DE pin.
Function
de_ie
0 (default)
1
Description
input path disable
input path enable
sfl_ie, IO Map, Address 0x1BD0[4]
This bit is used to control the input path enable for the SFL pin.
Function
sfl_ie
0 (default)
1
Description
input path disable
input path enable
hs_osd_ie, IO Map, Address 0x1BD0[2]
This bit is used to control the input path enable for the osd HS pin.
Function
hs_osd_ie
0 (default)
1
Description
input path disable
input path enable
de_osd_ie, IO Map, Address 0x1BD0[0]
This bit is used to control the input path enable for the osd DE pin.
Function
de_osd_ie
0 (default)
1
Description
input path disable
input path enable
audio_pins_ie[6:0], IO Map, Address 0x1BD1[6:0]
This bit is used to control the input path enable for the audio pins.
Function
audio_pins_ie[6:0]
0 (default)
1
Description
input path disable
input path enable
arc1_pin_ie, IO Map, Address 0x1BD2[7]
This bit is used to control the input path enable for the ARC 1 pin.
Rev. 0 | Page 48 of 326
ADV8005 Hardware Reference Manual
Function
arc1_pin_ie
0 (default)
1
UG-707
Description
input path disable
input path enable
arc2_pin_ie, IO Map, Address 0x1BD2[6]
This bit is used to control the input path enable for the ARC 2 pin.
Function
arc2_pin_ie
0 (default)
1
Description
input path disable
input path enable
int_pin_ie[2:0], IO Map, Address 0x1BD2[5:3]
This bit is used to control the input path enable for the INT pins.
Function
int_pin_ie[2:0]
0 (default)
1
Description
input path disable
input path enable
sclk_ie, IO Map, Address 0x1BD2[2]
This bit is used to control the input path enable for the audio SCLK pin.
Function
sclk_ie
0 (default)
1
Description
input path disable
input path enable
mclk_ie, IO Map, Address 0x1BD2[1]
This bit is used to control the input path enable for the audio MCLK pin.
Function
mclk_ie
0 (default)
1
Description
input path disable
input path enable
dsd_clk_ie, IO Map, Address 0x1BD2[0]
This bit is used to control the input path enable for the audio DSD CLK pin.
Function
dsd_clk_ie
0 (default)
1
Description
input path disable
input path enable
spi1_cs_ie, IO Map, Address 0x1BD3[7]
This bit is used to control the input path enable for the spi1 CS pin.
Function
spi1_cs_ie
0 (default)
1
Description
input path disable
input path enable
spi1_miso_ie, IO Map, Address 0x1BD3[6]
This bit is used to control the input path enable for the spi1 MISO pin.
Function
spi1_miso_ie
0 (default)
1
Description
input path disable
input path enable
spi1_mosi_ie, IO Map, Address 0x1BD3[5]
This bit is used to control the input path enable for the spi1 MOSI pin.
Rev. 0 | Page 49 of 326
UG-707
Function
spi1_mosi_ie
0 (default)
1
ADV8005 Hardware Reference Manual
Description
input path disable
input path enable
spi1_sclk_ie, IO Map, Address 0x1BD3[4]
This bit is used to control the input path enable for the spi1 SCLK pin.
Function
spi1_sclk_ie
0 (default)
1
Description
input path disable
input path enable
spi2_cs_ie, IO Map, Address 0x1BD3[3]
This bit is used to control the input path enable for the spi1 CS pin.
Function
spi2_cs_ie
0 (default)
1
Description
input path disable
input path enable
spi2_miso_ie, IO Map, Address 0x1BD3[2]
This bit is used to control the input path enable for the spi2 ,OSP pin.
Function
spi2_miso_ie
0 (default)
1
Description
input path disable
input path enable
spi2_mosi_ie, IO Map, Address 0x1BD3[1]
This bit is used to control the input path enable for the spi2 MOSI pin.
Function
spi2_mosi_ie
0 (default)
1
Description
input path disable
input path enable
spi2_sclk_ie, IO Map, Address 0x1BD3[0]
This bit is used to control the input path enable for the spi2 SCLK pin.
Function
spi2_sclk_ie
0 (default)
1
Description
input path disable
input path enable
mas_clk_ie, IO Map, Address 0x1BD4[2]
This bit is used to control the input path enable for the master CLK pin.
Function
mas_clk_ie
0 (default)
1
Description
input path disable
input path enable
mas_hs_ie, IO Map, Address 0x1BD4[1]
This bit is used to control the input path enable for the master HS pin.
Function
mas_hs_ie
0 (default)
1
Description
input path disable
input path enable
mas_vs_ie, IO Map, Address 0x1BD4[0]
This bit is used to control the input path enable for the master VS pin.
Rev. 0 | Page 50 of 326
ADV8005 Hardware Reference Manual
Function
mas_vs_ie
0 (default)
1
2.2.2.5.
UG-707
Description
input path disable
input path enable
Serial Video Rx
The Serial Video Rx can only be connected to the RX input channel (see Section 2.2.2.8).
2.2.2.6.
Primary Input Channel
The ADV8005 primary input channel incorporates an input formatter, CSC, updither block and ACE control.
The input formatter provides a number of controls to configure what data the video TTL input channel is configured for. The video TTL input
channel must be connected to either the video TTL input pins, the EXOSD TTL input pins or the high speed TTL input pins using
p_inp_chan_sel[1:0]. If the primary input channel is connected to the video TTL input pins, the format and bit width of the data, for example,
2 x 8 bit buses of 4:2:2 data, must be specified using vid_format_sel[4:0]. vid_swap_bus_ctrl[2:0] can be used to indicate which input pins are
used to carry the upper, middle and lower ranges of bits (for example, upper = D[35:25], middle = D[24:12], lower = D[11:0] or upper =
D[11:0], middle = D[35:25], lower = D[24:12]).
p_inp_chan_sel[1:0], IO Map, Address 0x1A07[1:0]
This signal is used to select the input for the Primary Input Channel.
Function
p_inp_chan_sel[1:0]
00 (default)
01
10
11
Description
Video TTL input (P[35:0])
EXOSD TTL Input (OSD_IN[23:0])
48-bit TTL input (OSD_IN[11:0] and P[35:0]) for 3GHz interleaved TTL
Reserved
vid_format_sel[4:0], IO Map, Address 0x1B48[4:0]
This signal is used to select the input format for the video data.
Function
vid_format_sel[4:0]
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08 (default)
0x09
0x0A
0x0B
0x0C
0x0D
0x0E
0x0F
0x10
0x11
0x12
0x13
Description
1 x 8-bit bus, SDR 4:2:2
1 x 10-bit bus, SDR 4:2:2
1 x 12-bit bus, SDR 4:2:2
2 x 8-bit buses, SDR 4:2:2
2 x 10-bit buses, SDR 4:2:2
2 x 12-bit buses, SDR 4:2:2
3 x 8-bit buses, SDR 4:4:4 (P[35:28], P[23:16], P[11:4])
3 x 10-bit buses, SDR 4:4:4 (P[35:26], P[23:14], P[11:2])
3 x 12-bit buses, SDR 4:4:4
1 x 8-bit bus, DDR 4:2:2
1 x 10-bit bus DDR 4:2:2
1 x 12 bit bus, DDR 4:2:2
3 x 8 bit buses, SDR 4:4:4 (P[23:0])
2 x 3 x 8-bit interleaved buses, SDR 4:4:4
2 x 2 x 8-bit interleaved buses, SDR 4:2:2
2 x 2 x 10-bit interleaved buses, SDR 4:2:2
2 x 2 x 12-bit interleaved buses, SDR 4:2:2
3 x 10-bit buses, SDR 4:4:4 (P[29:0])
3 x 7-bit buses, SDR 4:4:4 (for external alpha blend)
3 x 10-bit buses, SDR 4:4:4 (OSD_IN[23:0] and P[35:30])
vid_swap_bus_ctrl[2:0], IO Map, Address 0x1B48[7:5]
This signal is used to control the video input pixel bus. The input pixel bus is 36 bits wide and is divided into three data channels: Top =
D[35:24], Middle = D[23:12] and Bottom = D[11:0]. This register allows the user to swap the order of these three data channels.
Rev. 0 | Page 51 of 326
UG-707
Function
vid_swap_bus_ctrl[2:0]
000 (default)
001
010
011
100
101
110
111
ADV8005 Hardware Reference Manual
Description
D[35:24] D[23:12] D[11:0]
D[35:24] D[11:0] D[23:12]
D[35:24] D[23:12] D[11:0]
D[23:12] D[35:24] D[11:0]
D[11:0] D[35:24] D[23:12]
D[11:0] D[23:12] D[35:24]
D[23:12] D[11:0] D[35:24]
D[35:24] D[23:12] D[11:0]
The input formatter also has a number of controls which can be used to provide extra flexibility in terms of data processing.
Once a DDR mode is selected using vid_format_sel[4:0], the order of the luma and chroma data can be configured using vid_ddr_yc_swap. In
DDR modes, the luma is expected on the rising edge of the pixel clock. Setting this bit to 1 swaps the luma and chroma samples and places the
chroma sample (C) on the rising edge and the luma sample (Y) on the falling edge. Refer to Figure 30 for more information. The edge on
which each sample of DDR data is latched into the part can be specified using vid_ddr_edge_sel.
Y
C
Y
C
Y
C
Y
C
ddr_yc_swap = 0
C
Y
C
Y
C
Y
C
Y
ddr_yc_swap = 1
Figure 30: DDR Mode, Luma and Chroma Swap
vid_ddr_yc_swap, IO Map, Address 0x1B4A[0]
This bit is used to swap the Luma (Y) and Chroma (C) data in DDR modes. By default, Y is expected on the rising edge of the clock.
Function
vid_ddr_yc_swap
0 (default)
1
Description
Y on rising edge of clock
C on rising edge of clock
vid_ddr_edge_sel, IO Map, Address 0x1B4A[3]
This bit is used to select which edge the first sample of DDR data is latched on.
Function
vid_ddr_edge_sel
0 (default)
1
Description
Posedge data first
Negedge data first
Using the pixel clock as a reference, ADV8005 expects the Y sample on a rising edge and then a chroma sample on the falling edge. When
vid_ddr_yc_swap is set, ADV8005 expects a chroma sample on the rising edge and the Y sample on the falling edge. vid_swap_cb_cr_422 can
be used to swap the order of the chroma data. By default, ADV8005 expects a sequence of Cb, Cr, Cb, Cr… When vid_swap_cb_cr_422 is set,
ADV8005 expects a sequence of Cr, Cb, Cr, Cb....
vid_swap_cb_cr_422, IO Map, Address 0x1B49[7]
This bit is used to swap the order of the C data when decoding 4:2:2 data.
Function
vid_swap_cb_cr_422
0 (default)
1
Description
Cb/Cr decoding
Cr/Cb decoding
vid_ps444_r444_conv is used to convert from pseudo 444 video data to real 444. All processing occurs in the ADV8005 in 4:4:4 mode.
Therefore, if video input to the device is not in this format, this must be first converted to 4:4:4. Setting this bit to 1 converts video data to
4:4:4.
Rev. 0 | Page 52 of 326
ADV8005 Hardware Reference Manual
UG-707
vid_ps444_r444_conv, IO Map, Address 0x1B49[6]
This bit is used to convert 4:2:2 data to pseudo 444 or to real 444.
Function
vid_ps444_r444_conv
0 (default)
1
Description
Nothing done
Pseudo 444 to Real 444 conversion
vid_hs_pol, vid_vs_pol, vid_de_pol and vid_fld_pol configure the polarity of the input video timing signals. These must be set depending on
the polarity of the upstream IC. If active low, these register can be left at their default. If these signals from the upstream IC are active high,
their polarity can be inverted.
vid_hs_pol, IO Map, Address 0x1B49[3]
This bit is used to set the polarity of the input HS timing signal.
Function
vid_hs_pol
0 (default)
1
Description
Input HS polarity does not change
Input HS polarity gets inverted
vid_vs_pol, IO Map, Address 0x1B49[2]
This bit is used to set the polarity of the input VS timing signal.
Function
vid_vs_pol
0 (default)
1
Description
Input VS polarity does not change
Input VS polarity gets inverted
vid_de_pol, IO Map, Address 0x1B49[1]
This bit is used to set the polarity of the input DE enable signal.
Function
vid_de_pol
0 (default)
1
Description
Input DE polarity does not change
Input DE polarity gets inverted
vid_fld_pol, IO Map, Address 0x1B49[0]
This bit is used to set the polarity of the input Field (FLD) timing signal.
Function
vid_fld_pol
0 (default)
1
Description
Input FLD polarity does not change
Input FLD polarity gets inverted
vid_hs_vs_mode is used to select the method by which the input video will be synchronized. This may be required when the ADV8005 is used
in conjunction with an MPEG decoder. MPEG decoders use embedded timing codes rather than using external HS and VS signals. Similarly,
other ADI decoders/HDMI Rxs can output video using embedded timing codes. This register should be programmed depending on the
timing method of the upstream IC.
Refer to Section 2.2.11 for more information on AV-codes.
vid_hs_vs_mode, IO Map, Address 0x1B4B[7]
This bit is used to select the method of input timing.
Function
vid_hs_vs_mode
0
1 (default)
Description
Use embedded SAV/EAV codes
Use external HS/VS synchronization signals
vid_av_pos_sel, IO Map, Address 0x1B4B[3]
This bit is used to select if the HS generated is consistent with EIA 861 timing or dependant on the embedded timing codes.
Rev. 0 | Page 53 of 326
UG-707
Function
vid_av_pos_sel
0 (default)
1
ADV8005 Hardware Reference Manual
Description
Generate HS coincident with EAV code
Generate HS/VS based on 861 timing
vid_av_split_code, IO Map, Address 0x1B4B[2]
This bit is used to control how AV codes are decoded - replicated on or split across all channels.
Function
vid_av_split_code
0 (default)
1
Description
Decodes AV codes which are replicated on all channels
Decodes AV codes which are split across all channels
vid_av_codes_rep_man_en, IO Map, Address 0x1B4B[1]
This bit is used to control the enable for AV source codes. AV_codes_rep_man is used instead of the auto based on the input video format.
Function
vid_av_codes_rep_man_en
0 (default)
1
Description
AV codes replicated based on internal flag
Use i2c bit
vid_av_codes_rep_man, IO Map, Address 0x1B4B[0]
This bit is used to specify if the AV_codes are replicated or not.
Codes replicated (4:4:4) = FF,FF,FF,00,00,00,00,00, 00,AV,AV,AV.
Codes not replicated = FF,00,00,AV.
Function
vid_av_codes_rep_man
1
0 (default)
Description
AV codes are replicated.
AV codes are not replicated.
The updither feature in the ADV8005 can be used to randomize quantization errors, preventing large scale patterns such as color banding in
images. Refer to Section 2.2.3 for more information on the updither block.
The updither block on the video TTL input channel can be controlled via the vid_ud_bypass_man_en and vid_ud_bypass_man bits. By
default, the manual bypass is disabled which means that the updither block cannot be bypassed. The updither block configuration is outlined
in Section 2.2.3. The updither settings are shared for all channels (primary, secondary and RX).
vid_ud_bypass_man_en, IO Map, Address 0x1B4A[2]
This bit is used to enable the manual bypass for the up dither. Setting this bit enables the bypass to be used.
Function
vid_ud_bypass_man_en
0 (default)
1
Description
Manual bypass disable
Manual bypass enable
vid_ud_bypass_man, IO Map, Address 0x1B4A[1]
This bit is used to bypass the up dither block.
Function
vid_ud_bypass_man
0 (default)
1
Description
Disable bypass
Enable bypass
The primary input path features contrast, brightness and saturation controls. All contrast, brightness and saturation controls (contrast[9:0],
brightness[7:0], saturation[7:0], blank_level_y[11:0], blank_level_u[11:0] and blank_level_v[11:0]) are doubled buffered on VSync.
The contrast[9:0] value has a range of 0 to 1.992. Refer to Figure 31 for more information on how the contrast controls influence the video
signal.
The brightness[7:0] value has a range of -1024 to 1016. Refer to Figure 32 for more information on how the brightness controls influence the
video signal.
Rev. 0 | Page 54 of 326
ADV8005 Hardware Reference Manual
UG-707
The saturation[7:0] value has a range 0 to 1.992. Refer to Figure 33 for more information on how the saturation controls influence the video
signal.
contrast[9:0], Encoder Map, Address 0xE49D[7:0]; Address 0xE49C[1:0]
This signal is used to set the SD Y scale value.
blank_level_y[11:0], IO Map, Address 0x1A24[3:0]; Address 0x1A25[7:0]
This signal is used to adjust the blank level of y input to the vid adjust block.
Function
blank_level_y[11:0]
0x000
0x100 (default)
Description
y blank level sits at code 0
y blank level sits at code 256 decimal
y_in
blank_level_y
*
+
contrast
blank_level_y
Figure 31: Contrast Processing
brightness[7:0], IO Map, Address 0x1A2A[7:0]
This register is used to adjust the brightness value for Y channel. The register uses s1.6 notation.
Function
brightness[7:0]
0x7F
0x00 (default)
0xFF
Description
(+127) * 8
(No adjustment) * 8
(-1) * 8
y_in
+
y_out
brightness * 8
Figure 32: Brightness Processing
saturation[7:0], IO Map, Address 0x1A29[7:0]
This register is used to adjust the saturation value for U/V channels. The register uses 1.7 notation.
Function
saturation[7:0]
0x00
0x80 (default)
0xFF
Description
Gain of 0
Unity Gain
Gain of 2
blank_level_u[11:0], IO Map, Address 0x1A26[7:0]; Address 0x1A27[7:4]
This signal is used to adjust the blank level of u input to the vid adjust block.
Rev. 0 | Page 55 of 326
y_out
UG-707
ADV8005 Hardware Reference Manual
Function
blank_level_u[11:0]
0x000
0x800 (default)
Description
u blank level sits at code 0
u blank level sits at code 2048 decimal
blank_level_v[11:0], IO Map, Address 0x1A27[3:0]; Address 0x1A28[7:0]
This signal is used to adjust the blank level of v input to the vid adjust block
Function
blank_level_v[11:0]
0x000
0x800 (default)
Description
v blank level sits at code 0
v blank level sits at code 2048 decimal
-
u/v_in
+
*
blank_level_u/v
saturation
u/v_out
blank_level_u/v
Figure 33: Saturation Processing
Refer to Section 2.2.12.1 for more information on the CSC controls for the primary input channel.
Refer to Section 3.2.3.16 for more information on the ACE controls for the primary input channel.
2.2.2.7.
Secondary Input Channel
The ADV8005 secondary input channel incorporates an input formatter, CSC and updither block.
The input formatter provides a number of controls to configure what data the secondary input channel is configured for. The secondary input
channel must be connected to either the video TTL input pins or the EXOSD TTL input pins using s_inp_chan_sel[1:0]. If the secondary input
channel is connected to the video TTL input pins, the format and bit width of the data, for example, 2 x 8 bit buses of 4:2:2 data, must be
specified using exosd_format_sel[4:0]. exosd_swap_bus_ctrl[2:0] can be used to indicate which input pins are used to carry the upper, middle
and lower ranges of bits (for example, upper = D[35:25], middle = D[24:12], lower = D[11:0]; or upper = D[11:0], middle = D[35:25], lower =
D[24:12]).
s_inp_chan_sel[1:0], IO Map, Address 0x1A07[3:2]
This signal is used to select the input for the Secondary Input Channel.
Function
s_inp_chan_sel[1:0]
00
01 (default)
10
11
Description
Video TTL input (P[35:0])
EXOSD TTL Input (OSD_IN[23:0])
RX video
N/A
exosd_format_sel[4:0], IO Map, Address 0x1B68[4:0]
This signal is used to select the input format for the video data.
Rev. 0 | Page 56 of 326
ADV8005 Hardware Reference Manual
Function
exosd_format_sel[4:0]
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08
0x09
0x0A
0x0B
0x0C (default)
UG-707
Description
1 x 8 bit bus 4:2:2
1 x 10 bit bus 4:2:2
1 x 12 bit bus 4:2:2
2 x 8 bit buses 4:2:2
2 x 10 bit buses 4:2:2
2 x 12 bit buses 4:2:2
3 x 8-bit buses, SDR 4:4:4
3 x 10-bit buses, SDR 4:4:4
3 x 12-bit buses, SDR 4:4:4
1 x 8 bit DDR bus 4:2:2
1 x 10 bit DDR bus 4:2:2
1 x 12 bit DDR bus 4:2:2
3 x 8 bit buses 4:4:4
exosd_swap_bus_ctrl[2:0], IO Map, Address 0x1B68[7:5]
This signal is used to control the external OSD input pixel bus. The input pixel bus is 24 bits wide and is divided into three data channels:
Top = D[23:16], Middle = D[15:8] and Bottom = D[7:0]. This register allows the user to swap the order of these three data channels.
Function
exosd_swap_bus_ctrl[2:0]
000 (default)
001
010
011
100
101
110
111
Description
D[23:16] D[15:8] D[7:0]
D[23:16] D[7:0] D[15:8]
D[23:16] D[15:8] D[7:0]
D[15:8] D[23:16] D[7:0]
D[7:0] D[23:16] D[15:8]
D[7:0] D[15:8] D[23:16]
D[15:8] D[7:0] D[23:16]
D[23:16] D[15:8] D[7:0]
The input formatter also has a number of controls which can be used to provide extra flexibility in terms of data processing.
Once a DDR mode is selected using exosd_format_sel[4:0], the order of the luma and chroma data can be configured using
exosd_ddr_yc_swap. In DDR modes, the luma is expected on the rising edge of the pixel clock. Setting this bit to 1 swaps the luma and chroma
samples and places the chroma sample (C) on the rising edge and the luma sample (Y) on the falling edge. Refer to Figure 30 for more
information. The edge on which each sample of DDR data is latched into the part can be specified using exosd_ddr_edge_sel.
Y
C
Y
C
Y
C
Y
C
ddr_yc_swap = 0
C
Y
C
Y
C
Y
C
Y
ddr_yc_swap = 1
Figure 34: DDR Mode, Luma and Chroma Swap
exosd_ddr_yc_swap, IO Map, Address 0x1B6A[0]
This bit is used to swap the Luma (Y) and Chroma (C) data in DDR modes. By default, Y is expected on the rising edge of the clock.
Function
exosd_ddr_yc_swap
0 (default)
1
Description
Y on rising edge of clock
C on rising edge of clock
exosd_ddr_edge_sel, IO Map, Address 0x1B6A[3]
This bit is used to select which edge the first sample of DDR data is latched on.
Rev. 0 | Page 57 of 326
UG-707
Function
exosd_ddr_edge_sel
0 (default)
1
ADV8005 Hardware Reference Manual
Description
Posedge data first
Negedge data first
Using the pixel clock as a reference, ADV8005 expects the Y sample on a rising edge and then a chroma sample on the falling edge. When
exosd_ddr_yc_swap is set, ADV8005 expects a chroma sample on the rising edge and the Y sample on the falling edge.
exosd_swap_cb_cr_422 can be used to swap the order of the chroma data. By default, ADV8005 expects a sequence of Cb, Cr, Cb, Cr… When
exosd_swap_cb_cr_422 is set, ADV8005 expects a sequence of Cr, Cb, Cr, Cb....
exosd_swap_cb_cr_422, IO Map, Address 0x1B69[7]
This bit is used to swap the order of the C data when decoding 4:2:2 data.
Function
exosd_swap_cb_cr_422
0 (default)
1
Description
Cb/Cr decoding
Cr/Cb decoding
exosd_ps444_r444_conv is used to convert from pseudo 444 video data to real 444. All processing occurs in the ADV8005 in 4:4:4 mode.
Therefore, if video input to the device is not in this format, it must be first converted to 4:4:4. Setting this bit to 1 converts video data to 4:4:4.
exosd_ps444_r444_conv, IO Map, Address 0x1B69[6]
This bit is used to convert 4:2:2 data to pseudo 444 or to real 444.
Function
exosd_ps444_r444_conv
0 (default)
1
Description
Nothing done.
Pseudo444 to Real 444 conversion.
exosd_rev_bus is used to reverse the order of the video TTL input. By default, this is set to non reversed.
exosd_rev_bus, IO Map, Address 0x1B6B[4]
This bit is used to reverse the input video bus, i.e. D[23:0] -> D[0:23].
Function
exosd_rev_bus
0 (default)
1
Description
Reverse the pin mapping on the OSD bus
Use the OSD bus as it comes from the pins
exosd_hs_pol, exosd_vs_pol and exosd_de_pol configure the polarity of the input video timing signals. These must be set depending on the
polarity of the upstream IC. If active low, these register can be left at their default. If these signals from the upstream IC are active high, their
polarity can be inverted.
exosd_hs_pol, IO Map, Address 0x1B69[0]
This bit is used to set the polarity of the input External OSD HS timing signal.
Function
exosd_hs_pol
0 (default)
1
Description
Input HS polarity doesn’t change.
Input HS polarity gets inverted.
exosd_vs_pol, IO Map, Address 0x1B69[1]
This bit is used to set the polarity of the input External OSD VS timing signal.
Function
exosd_vs_pol
0 (default)
1
Description
Input VS polarity doesn’t change.
Input VS polarity gets inverted.
exosd_de_pol, IO Map, Address 0x1B69[2]
This bit is used to set the polarity of the input External OSD DE timing signal.
Rev. 0 | Page 58 of 326
ADV8005 Hardware Reference Manual
Function
exosd_de_pol
0 (default)
1
UG-707
Description
Input DE polarity doesn’t change.
Input DE polarity gets inverted.
exosd_hs_vs_mode is used to select the method by which the input video will be synchronized. This may be required when the ADV8005 is
used in conjunction with an MPEG decoder. MPEG decoders use embedded timing codes rather than using external HS and VS signals.
Similarly, other ADI decoders/HDMI Rxs can output video using embedded timing codes. This register should be programmed depending on
the timing method of the upstream IC.
Refer to Section 2.2.11 for more information on AV-codes.
exosd_hs_vs_mode, IO Map, Address 0x1B6B[7]
This bit is used to select the method of input timing.
Function
exosd_hs_vs_mode
0
1 (default)
Description
Embedded timing codes
VS/DE mode
exosd_av_pos_sel, IO Map, Address 0x1B6B[3]
This bit is used to select if the HS generated is consistent with EIA 861 timing or dependant on the embedded timing codes.
Function
exosd_av_pos_sel
0 (default)
1
Description
Generate hs coincident with eav code
Generate hs/vs based on 861 timing
exosd_av_split_code, IO Map, Address 0x1B6B[2]
This bit is used to control how AV codes are decoded - replicated on or split across all channels.
Function
exosd_av_split_code
0 (default)
1
Description
Replicated av codes on all channels
AV codes split across all buses
exosd_av_codes_rep_man_en, IO Map, Address 0x1B6B[1]
This bit is used to control the enable for AV source codes. AV_codes_rep_man is used instead of the auto based on the input video format.
Function
exosd_av_codes_rep_man_en
0 (default)
1
Description
AV codes replicated based on internal flag
Use i2c bit
exosd_av_codes_rep_man, IO Map, Address 0x1B6B[0]
This bit is used to specify if the AV_codes are replicated or not.
Codes replicated (4:4:4) = FF,FF,FF,00,00,00,00,00, 00,AV,AV,AV.
Codes not replicated = FF,00,00,AV.
Function
exosd_av_codes_rep_man
1
0 (default)
Description
AV codes are replicated.
AV codes are not replicated.
The updither feature in the ADV8005 can be used to randomize quantization error preventing large scale patterns such as color banding in
images. Refer to Section 2.2.3 for more information on the updither block.
The updither block on the secondary input channel can be controlled via the exosd_ud_bypass_man and exosd_ud_bypass_man_en bits. By
default, the manual bypass is disabled which means that the updither block cannot be bypassed. The updither block configuration is outlined
in Section 2.2.3. The updither settings are shared for all channels (primary, secondary and RX).
Rev. 0 | Page 59 of 326
UG-707
ADV8005 Hardware Reference Manual
exosd_ud_bypass_man_en, IO Map, Address 0x1B6A[2]
This bit is used to enable the manual bypass for the up dither. Setting this bit enables the bypass to be used.
Function
exosd_ud_bypass_man_en
0 (default)
1
Description
Manual bypass disable
Manual bypass enable
exosd_ud_bypass_man, IO Map, Address 0x1B6A[1]
This bit is used to bypass the up dither block.
Function
exosd_ud_bypass_man
0 (default)
1
Description
Disable bypass
Enable bypass
Refer to Section 2.2.12.2 for more information on the CSC controls for the secondary input channel.
2.2.2.8.
RX Input Channel
The ADV8005 RX input channel incorporates an input formatter, CSC and updither block.
The updither feature in the ADV8005 can be used to randomize quantization error preventing large scale patterns such as color banding in
images. Refer to Section 2.2.3 for more information on the updither block.
The updither block on the RX input channel can be controlled via the rx_ud_bypass_man_en and rx_ud_bypass_man bits. By default, the
manual bypass is disabled which means that the updither block cannot be bypassed. The updither block configuration is outlined in
Section 2.2.3. The updither settings are shared for all channels (primary, secondary and RX).
rx_ud_bypass_man_en, IO Map, Address 0x1B8A[2]
This bit is used to enable the manual bypass for the up dither. Setting this bit enables the bypass to be used.
Function
rx_ud_bypass_man_en
0 (default)
1
Description
Manual bypass disable
Manual bypass enable
rx_ud_bypass_man, IO Map, Address 0x1B8A[1]
This bit is used to bypass the up dither block.
Function
rx_ud_bypass_man
0 (default)
1
Description
Disable bypass
Enable bypass
rx_swap_bus_ctrl[2:0], IO Map, Address 0x1B88[7:5]
This signal is used to configure the order of the input video bus.
Function
rx_swap_bus_ctrl[2:0]
000 (default)
001
010
011
100
101
110
111
Description
D[35:24] D[23:12] D[11:0]
D[35:24] D[11:0] D[23:12]
D[35:24] D[23:12] D[11:0]
D[23:12] D[35:24] D[11:0]
D[11:0] D[35:24] D[23:12]
D[11:0] D[23:12] D[35:24]
D[23:12] D[11:0] D[35:24]
D[35:24] D[23:12] D[11:0]
Refer to Section 2.2.12.3 for more information on the CSC controls for the RX input channel.
2.2.3.
Updither Configuration
Rev. 0 | Page 60 of 326
ADV8005 Hardware Reference Manual
UG-707
The updither block on each of the input channels can be used to increase the bit width of the incoming video. This is useful if the output video
must be a certain bit depth and the input video is below this level. Updither can increase color richness and reduce the effects of quantization,
rounding and truncation which may have been induced on the video data. The updither block can be used in a situation where the video
input to the ADV8005 is in 8-bit form and must be converted to 10-bit or 12-bit for output.
The operation of the updither block can be seen in Figure 35. When converting to a higher bit width, the ADV8005 updither block first
converts to a bit width of 14 and then down converts to 12- and 10-bit width.
8-bit video source
8 to 14 bit
up dithering
14 to 12 bit
down dithering
12 to 10 bit
down dithering
12-bit video output
10-bit video output
Figure 35: Updither Operation
updither_level[1:0] is used to configure the updither algorithm level. This should be configured depending on the input and output from the
block. For example, if the input video is 8-bit data and the output is 12-bit data, this should be set to the highest level.
updither_level[1:0], IO Map, Address 0x1A0D[5:4]
This signal is used to set the sharpness of the updither block's HPF processing of the video data. When this signal is set to low the
characteristic of the dither block's HPF gives smoother output video. When this signal is set to high, the characteristic of the dither block's
HPF gives sharper output video.
Function
updither_level[1:0]
00
11
2.2.4.
Description
Low updither
High updither
Clock Configuration
This section describes the method of configuring the various clocks of the ADV8005 using the automatic controls video_in_id[7:0],
exosd_in_id[7:0] and rx_in_id[7:0]. These controls can be employed to automatically configure the internal clocks for the following:
•
•
•
•
Pixel de-repetition/front-end formatter clock configuration (main and secondary TTL channels and Serial Video Rx channel)
Timing generation for inputs with AV-codes (main and secondary TTL channels only)
ACE configuration (main TTL channel only)
VBI ancillary data (main TTL channel only)
In any of these modes, the video_in_id[7:0], exosd_in_id[7:0] and rx_in_id[7:0] controls must be configured.
Rev. 0 | Page 61 of 326
UG-707
ADV8005 Hardware Reference Manual
OSD_IN[35]
Secondary
TTL
Inputs
Y
Cb
Cr
OSD_IN[0]
HS
VS
CK
OSD_VS
OSD_HS
OSD_DE
Set by exosd_in_id
P[35]
Main
TTL
Inputs
Y
Cb
Cr
P[0]
VS
HS
DE
HS
VS
CK
Set by vid_in_id
Serial
Video
RX
Rx2+
Rx2Rx1+
Rx1Rx0+
Rx0RxC+
RxC-
Y
Cb
Cr
HS
VS
CK
Set by rx_in_id
Figure 36: Configuring Input Port Clock
Rev. 0 | Page 62 of 326
ADV8005 Hardware Reference Manual
UG-707
video_in_id[7:0], IO Map, Address 0x1A00[7:0]
This register is used to set the output clock frequencies from the input video formatting block used by both the Serial Video RX and Video
TTL input ports.
Function
video_in_id[7:0]
0x01
0x03
0x04
0x05
0x07
0x09
0x0B
0x0D
0x0F
0x10
0x12
0x13
0x14
0x16
0x18
0x1A
0x1C
0x1E
0x1F
0x20
0x21
0x22
0x24
0x26
0x80
0x81
0x82
0x83
0x84
0x85
0x86
0x87
0x88
0x89
0x8A
0x8B
0x8D
0x8E
0x8F
0x90
0xFC
0xFD
0xFE (default)
0xFF
Description
[email protected]
[email protected]
[email protected]
[email protected]
720(1440)[email protected]
720(1440)[email protected]
(2880)[email protected]
(2880)[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
720(1440)[email protected]
720(1440)[email protected]
(2880)[email protected]
(2880)[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
Rev. 0 | Page 63 of 326
UG-707
ADV8005 Hardware Reference Manual
exosd_in_id[7:0], IO Map, Address 0x1B6C[7:0]
This register is used to specify the video_id relative to CEA 861.
Function
exosd_in_id[7:0]
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08
0x09
0x10
0x11
0x12
0x13
0x14
0x15
0x16
0x17
0x18
0x1F
0xFC
0xFD
0xFE (default)
0xFF
Description
CEA 861 VIC 1 (480p_60 640)
CEA 861 VIC 2 (480p_60)
CEA 861 VIC 3 (480p_60)
CEA 861 VIC 4 (720p_60)
CEA 861 VIC 5 (1080i_60)
CEA 861 VIC 6 (480i_60)
CEA 861 VIC 7 (480i_60)
CEA 861 VIC 8 (240p_60)
CEA 861 VIC 9 (240p_60)
CEA 861 VIC 16 (1080p_60)
CEA 861 VIC 17 (576p_50)
CEA 861 VIC 18 (576p_50)
CEA 861 VIC 19 (720p_50)
CEA 861 VIC 20 (1080i_50)
CEA 861 VIC 21 (576i_50)
CEA 861 VIC 22 (576i_50)
CEA 861 VIC 23 (288p_50)
CEA 861 VIC 24 (288p_50)
CEA 861 VIC 31 (1080p_50)
CEA 861 VIC 252 (288p_50)
CEA 861 VIC 253 (240p_60)
CEA 861 VIC 254 (480i_60)
CEA 861 VIC 255 (576i_50)
rx_in_id[7:0], IO Map, Address 0x1B96[7:0]
This register is used to specify the VIC relative to CEA 861.
Function
rx_in_id[7:0]
0x06
0x07
0x08
0x09
0x15
0x16
0x17
0x18
Description
CEA861 VIC 6 (480i60 2x)
CEA861 VIC 7 (480i60 2x)
CEA861 VIC 8 (240p60 2x)
CEA861 VIC 9 (240p60 2x)
CEA861 VIC 21 (576i50 2x)
CEA861 VIC 22 (576i50 2x)
CEA861 VIC 23 (288p50 2x)
CEA861 VIC 24 (288p50 2x)
The ADV8005 can output a large number of video formats including many common graphics resolutions. To enable the PVSP and SVSP cores
to output these frequencies, the output timing clocks must first be programmed. The output clocks for both the PVSP and SVSP are shown in
Figure 37.
Primary
VSP
Primary VSP
dpll clock
Secondary
VSP
Secondary VSP
dpll clock
Rev. 0 | Page 64 of 326
ADV8005 Hardware Reference Manual
UG-707
Figure 37: PVSP/SVSP Output Clock Configure
For the PVSP and SVSP, the correct clocks must be configured manually. This can be done using the DPLL period registers, which allows the
user to program the sampling rate for the appropriate output format by I2C. The equation for calculating this I2C value is provided in Equation
1.
dpll _ phase _ period ≡
1
64 × 12 × 27 MHz
Equation 1: Calculating DPLL Phase Period
Once the dpll_phase_period is calculated, Equation 2 is used to calculate the dpll_clock_period.
dpll _ clock _ period ≡
output _ clock _ period × 2 22
dpll _ phase _ period
Equation 2: Calculating DPLL Clock Period
where output_clock_period is the period of the desired output sampling frequency.
For example, for HD video, the output clock sampling frequency would be 148.5 MHz. This equation returns a decimal value. Once calculated,
this should be converted to hex and written to pvsp_vid_clk_period[33:0] and svsp_vid_clk_period[33:0]. Table 4 outlines some common
resolutions and their associated dpll_clock_period values.
Active Resolution
720 x 480i
720 x 480p
720 x 576i
720 x 576p
960 x 480i
960 x 576i
1280 x 720p
1280 x 720p
1920 x 1080i
1920 x 1080i
1920 x 1080p
1920 x 1080p
1920 x 1080i
1920 x 1080p
Table 4: Example Values for dpll_clock_period
Frame Rate (Hz)
Sampling
Frequency (MHz)
29.97
13.5
59.94
27
25
13.5
50
27
29.97
18
25
18
59.94
74.175
60
74.25
29.97
74.175
30
74.25
59.94
148.35
60
148.5
25
74.25
50
148.5
dpll_clock_period
(Hex)
0x180000000
0x0C0000000
0x180000000
0x0C0000000
0x120000000
0x120000000
0x045E386DC
0x045D1745D
0x045E386DC
0x045D1745D
0x022F1C36E
0x022E8BA2F
0x045D1745D
0x022E8BA2F
Depending on the sampling frequency required, the following registers need to be programmed with this DPLL clock period.
Note: To enable the DPLL to configure the correct clocks for the ADV8005, register 0x0039 must be set to 0x0A. This register must always be
configured before the following registers are set. This configures the ADV8005 clock generators to generate the clocks for the ADV8005.
2.2.4.1.
PVSP Output Timing
The following registers are programmed for the PVSP.
Rev. 0 | Page 65 of 326
UG-707
ADV8005 Hardware Reference Manual
pvsp_vid_clk_period[33:0], IO Map, Address 0x1A3A[1:0]; Address 0x1A3B[7:0]; Address 0x1A3C[7:0]; Address 0x1A3D[7:0]; Address
0x1A3E[7:0]
This register is used to set the open_loop_period of the DPLL section. This should be programmed based on the value calculated from the
given equations.
pvsp_vid_clk_update, IO Map, Address 0x1A3A[4]
This bit is used to trigger the open loop period to be captured in the DPLL. A low to high transition triggers the action.
Function
pvsp_vid_clk_update
0 (default)
1
Description
Do not update open_loop_period in DPLL
Update open_loop_period in DPLL
For example, the following procedure updates the PVSP DPLL clock period:
1A 1A39 0A – Put the DPLL into ADV8005 (scaler) mode
1A 1A3B XX – Configure DPLL clock period setting
1A 1A3C XX – Configure DPLL clock period setting
1A 1A3D XX – Configure DPLL clock period setting
1A 1A3E XX – Configure DPLL clock period setting
1A 1A3A 80 – Recommended setting
1A 1A3A 90 – Recommended setting
Once configured, the clock in Figure 37 is programmed for operation.
2.2.4.2.
SVSP Output Timing
The following registers are programmed for the SVSP.
svsp_vid_clk_period[33:0], IO Map, Address 0x1A3F[1:0]; Address 0x1A40[7:0]; Address 0x1A41[7:0]; Address 0x1A42[7:0]; Address
0x1A43[7:0]
This signal is used to set the open_loop_period of the DPLL section. This should be programmed based on the value calculated from the
given equations.
svsp_vid_clk_update, IO Map, Address 0x1A3F[4]
This bit is used to trigger the open loop period to be captured in the DPLL. A low to high transition triggers the action.
Function
svsp_vid_clk_update
0 (default)
1
Description
Do not update open_loop_period in DPLL
Update open_loop_period in DPLL
For example, the following procedure for updating the SVSP DPLL clock period is very similar to that of the PVSP:
1A 1A39 0A – Put the DPLL into ADV8005 mode
1A 1A40 XX – Configure DPLL clock period setting
1A 1A41 XX – Configure DPLL clock period setting
1A 1A42 XX – Configure DPLL clock period setting
1A 1A43 XX – Configure DPLL clock period setting
1A 1A3F 80 – Recommended setting
1A 1A3F 90 – Recommended setting
Once configured, the clock in Figure 37 is programmed for operation.
2.2.4.3.
Frame Tracking
The ADV8005 employs frame tracking on its scaler outputs. There will always be some error in the input frame rate versus the ideal frame
Rev. 0 | Page 66 of 326
ADV8005 Hardware Reference Manual
UG-707
rate. This could cause frame drops or repeats at the output. Frame tracking allows the output timing to track the input timing in such a way
that eliminates frame drops and repeats while also remaining immune to discontinuities in the input. The system can be fully frequency and
phase locked using . If phase locked is selected, there will be an integer frame latency from input to output. If frequency locked is selected,
there could be a non integer frame latency number from input to the output. Selecting phase error latency is the recommended setting.
Frame tracking results in an integer ratio relationship between the input and output frame rates of 1:1, 2:1, 1:2, 5:2 or 2:5. For example, if
scaling from 1080p30 to 720p59.94 with frame tracking enabled, the resulting output may be 720p60 due to the 1:2 relationship.
Input Frame Rate
Frame rate tracking is primarily intended for cases where the input frame rate and output frame rate have a 1:1 relationship or are close to this
target, that is, 59.94 Hz to 60 Hz. However, it can also be used for some standard frame rate conversion modes such as 24 Hz to 60 Hz, 25 Hz
to 50 Hz, and 30 Hz to 60 Hz. The list of scaling conversions where frame tracking can be enabled is covered in Table 5.
23.97 Hz
24 Hz
25 Hz
29.97 Hz
30 Hz
50 Hz
59.94 Hz
60 Hz
23.97 Hz
Yes
Yes
No
No
No
No
Yes
Yes
24 Hz
Yes
Yes
No
No
No
No
Yes
Yes
Table 5: Frame Tracking
Output Frame Rate
25 Hz
29.97 Hz
30 Hz
No
No
No
No
No
No
Yes
No
No
No
Yes
Yes
No
Yes
Yes
Yes
No
No
No
Yes
Yes
No
Yes
Yes
50 Hz
No
No
Yes
No
No
Yes
No
No
59.94 Hz
Yes
Yes
No
Yes
Yes
No
Yes
Yes
60 Hz
Yes
Yes
No
Yes
Yes
No
Yes
Yes
pvsp_track_en is set to enable frame tracking for the PVSP. svsp_track_en is set to enable frame tracking for the SVSP. If tracking is to be used
in frame rate conversion mode, video_in_id[7:0], pvsp_autocfg_output_vid[7:0] (PVSP) and svsp_autocfg_output_vid[7:0] (SVSP) should
also be set.
pvsp_track_en, IO Map, Address 0x1A44[6]
This bit is used to enable tracking of the frequency error to reduce the number of dropped/repeated frames for the Primary VSP.
Function
pvsp_track_en
0 (default)
1
Description
Do not adjust for frequency difference between input and output vertical sync
Adjust for frequency difference between input and output vertical sync
svsp_track_en, IO Map, Address 0x1A44[2]
This bit is used to enable tracking of the frequency error to reduce the number of dropped/repeated frames for the Secondary VSP.
Function
svsp_track_en
0 (default)
1
Description
Do not adjust for frequency difference between input and output vertical sync
Adjust for frequency difference between input and output vertical sync
pvsp_err_sel, IO Map, Address 0x1A4E[3]
This bit is used to choose between phase locked loop and frequency locked loop for the Primary VSP frame tracking mode.
Function
pvsp_err_sel
0 (default)
1
Description
Phase error
Frequency error
svsp_err_sel, IO Map, Address 0x1A4F[3]
This bit is used to choose between phase locked loop and frequency locked loop for the Secondary VSP frame tracking mode.
Rev. 0 | Page 67 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
svsp_err_sel
0 (default)
1
2.2.5.
Description
Phase error
Frequency error
DDR2 Interface
The ADV8005 uses DDR2 memory to enable the de-interlacer, scaler and OSD features. The DDR2 interface on ADV8005 is designed to meet
the JESD79-2F standard.
2.2.5.1.
DDR2 Configuration
The controls described in this section are used to configure the ADV8005 DDR2 memory interface.
The first three bits configure the DDR2 memory interface for the external memory configuration. The sdram_size[3:0] sets the memory size
of the attached memory or memories. For example, if using 256 Mb memory, sdram_size[3:0] should be set to 0001. If using 2 Gb memory,
sdram_size[3:0] should be set to 0100.
The word_size[3:0] and burst_length[2:0] fields must also be configured depending on whether there are single or multiple memories
connected to the ADV8005. If there is a single DDR2 memory, word_size[3:0] and burst_length[2:0] should be set for a 32-bit word size and
bursts of 8. If there are dual DDR2 memories, word_size[3:0] and burst_length[2:0] should be set for a 64-bit word size and bursts of 4.
ADV8005 is configured for dual 512 Mb memories with a 64-bit word size and bursts of 4.
sdram_size[3:0], IO Map, Address 0x1A5B[7:4]
This signal is used to specify the SDRAM size. All values other than those specified here are reserved.
Function
sdram_size[3:0]
0001
0010 (default)
0011
0100
Description
individual SDRAM is 256Mbit
individual SDRAM is 512Mbit
individual SDRAM is 1Gbit
individual SDRAM is 2Gbit
word_size[3:0], IO Map, Address 0x1A5C[7:4]
This signal is used to specify the word size on the user interface. The data width to the SDRAM is half of this value. All other values are
reserved
Function
word_size[3:0]
0010
0011 (default)
Description
32 bits
64 bits
burst_length[2:0], IO Map, Address 0x1A5D[1:0]; Address 0x1A5E[7]
This signal is used to indicate the burst length of the read/write transaction.
Function
burst_length[2:0]
010 (default)
011
Description
Burst of 4
Burst of 8.
rw_ctrl_oe sets the direction for several of the pins on the DDR2 memory interface. By default, these pins are set to input. However, when set
to 1, this bit enables these pins to be outputs. Likewise, when ddr2_ck_oe is set to 1, the DDR2 clock pin becomes an output.
rw_ctrl_oe, IO Map, Address 0x1AA8[7]
This bit is used to control the output enable for external memory read/write signals (ras, cas, clock, address…).
Rev. 0 | Page 68 of 326
ADV8005 Hardware Reference Manual
Function
rw_ctrl_oe
0 (default)
1
UG-707
Description
Input
Output
ddr2_ck_oe, IO Map, Address 0x1AA8[6]
This bit is used to control the output enable for external memory clock signal.
Function
ddr2_ck_oe
0 (default)
1
Description
Input
Output
The PLL clock generator for the DDR2 memory interface can be set to a user defined frequency over the range of 200 to 250MHz by setting
the plldll_sel_div[5:0] and the plldll_pre_div[1:0] I2C controls.
Figure 38: DDR2 PLL Architecture
Figure 38 shows the block diagram of the PLL with the relevant I2C controls. The formula used to determine the frequency of the DDR2
memory interface clock is given in Equation 3.
Fddr 2 _ clk ≡
( Fxtal_clk )( plldll _ sel _ div)
plldll _ pre _ div + 1
Equation 3: DDR2 Memory Interface Clock Frequency
The DDR2 clock frequency must not be changed during operation and should only be set prior to initialization of the memory interface.
plldll_sel_div[5:0], IO Map, Address 0x1AA2[5:0]
This signal is used to control the DDR2 PLL loop divider. The DDR2 clock frequency is given by: fxtal * i2c_plldll_sel_div /
i2c_plldll_pre_div.
plldll_pre_div[1:0], IO Map, Address 0x1AA3[3:2]
This signal is used to control the DDR2 PLL pre divider.
2.2.5.2.
DDR2 Bandwidth and Memory Selection
The DDR2 interface on ADV8005 can be configured to work with one or two (default) DDR2 memories. Using a single DDR2 memory limits
the amount of functionality. Different capabilities are possible with different memory sizes. An outline of expected limitations are outlined in
Table 7, Table 6 and
Table 8.
Features
FRC
Table 6: Indication of ADV8005 Capabilities with One DDR2 Memory
Motion
Random Noise
OSD
Dual Output (ADV8005-8A/8N/8C
Adaptive De- Reduction
only)
Rev. 0 | Page 69 of 326
UG-707
ADV8005 Hardware Reference Manual
SD input
HD input
(720p)
HD input
(1080i)
Supported
Supported
HD input
(1080p)
Not supported
- VSP_3D works
in bypass
mode
Features
FRC
SD input
HD input
(720p)
HD input
(1080i)
HD input
(1080p)
Supported
Supported
Supported
Supported
Supported
interlacing
Supported
N/A
Intra-field
interpolation
not supported
N/A
Supported
Not supported
Not supported
Not supported
Total area of all OSD
regions (on screen at
same time) must be <
2 * 720 * 480 pixels.
(Entire OSD can be upscaled to desired
output resolution)
Supported
Supported
Supported
Support only for:
TX1 ->1080p; TX2 ->
480p/720p/1080p, as VSP_3D
works in bypass mode
Table 7: Indication of ADV8005 Capabilities with Two DDR2 Memories
Motion
Random Noise
OSD
Adaptive De- Reduction
interlacing
Supported
Supported
Total area of all OSD
regions (on screen at same
N/A
Supported
time) must be < 3 * 720 *
480 pixels.
Supported
Supported
N/A
Only supported for
8- bit processing.
Cannot be
supported when
OSD enabled.
Rev. 0 | Page 70 of 326
(Entire OSD can be upscaled to desired output
resolution)
Dual Output (ADV80058A/8N/8C only)
Supported
Supported
Supported
Supported
ADV8005 Hardware Reference Manual
UG-707
Table 8: Indication of ADV8005 Capabilities with Different Memory Sizes
1Gbx2
512 Mbx2
1Gbx1
512 Mbx1
FRC
SD/ED input
Supported
Supported
Supported
Supported
720P60/50
Supported
Supported
Supported
Supported
1080P60/50->1080P50/[email protected]/24/16bit
Supported
Supported
Not Supported
Not Supported
1080P60->[email protected]/24bit
Supported
Supported
Not Supported
Not Supported
1080P60->[email protected]
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
1080i60/[email protected]/24bit
Supported
Supported
Not Supported
Not Supported
1080i60/[email protected]*
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
1080i60/[email protected]
Supported
Supported
Not Supported
Not Supported
1080i60/[email protected]/16bit
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
720P60/[email protected]/24bit
Supported
Supported
Not Supported
Not Supported
720P60/[email protected]
Supported
Supported
Supported
Supported
1080i60/[email protected]/24/16bit
Supported
Supported
Not Supported
Not Supported
1080P60/[email protected]/24bit
Not Supported
Not Supported
Not Supported
Not Supported
1080P60/[email protected]
Supported
Supported
Not Supported
Not Supported
SD/ED input
Supported
Supported
Supported
Supported
HD input
Supported
Supported
Supported
Supported
Memory left for OSD (Mbytes)
198.25
70.25
70.25
6.25
HD input
Motion Adaptive De-interlacing
SD/ED input
HD input
Intra-field De-interlacing
SD/ED input
HD input
RNR
SD/ED input
HD input
Game Mode
2.2.5.3.
Single DDR2 Memory Configuration
If using a single DDR2 memory, the number of field buffers must be reduced from seven (default) to four when performing de-interlacing and
scaling on 720p, 1080i and 1080p inputs. This is achieved by enabling intra field interpolation and setting (pvsp_ex_mem_data_format[1:0])
to indicate 16-bit 4:2:2. Next pvsp_frc_low_latency_mode must be enabled. Finally, the field buffers addresses in DDR2 must be reassigned as
follows:
0xE800[31:0] (pvsp_fieldbuffer0_addr[31:0]) = 5184000
0xE804[31:0] (pvsp_fieldbuffer1_addr[31:0]) = 9331200
0xE808[31:0] (pvsp_fieldbuffer2_addr[31:0]) = 13478400
0xE80C[31:0] (pvsp_fieldbuffer3_addr[31:0]) = 17625600
0xE810[31:0] (pvsp_fieldbuffer4_addr[31:0]) = 21772800
0xE814[31:0] (pvsp_fieldbuffer5_addr[31:0]) = 25920000
0xE889[31:0] (pvsp_fieldbuffer6_addr[31:0]) = 27578880
Rev. 0 | Page 71 of 326
UG-707
2.2.5.4.
ADV8005 Hardware Reference Manual
DDR2 Loopback Test
The ADV8005 features a DDR2 loopback test block to allow testing of the ADV8005 DDR2 interface. When the loopback test block is enabled,
it controls the commands sent to the DDR2 controller of the ADV8005 and generates pseudo random data and addresses using a defined
protocol.
The controller first writes a programmable number of random 32-bit words to the external memory. The same number of reads are then
performed from the written addresses. The readback is compared with the pseudo random data generated to check if there are any errors.
The results are available via I2C readback.
32-bit data
DDR2
Controller
16-bit data
address
address
Phy
control
Loopback
Test Logic
512Mb x16
External
DDR2 Mem
32-bit data
control
16-bit data
512M x16
External
DDR2 Mem
Figure 39: DDR2 Loopback Test Architecture
A two memory DDR2 loopback test is initialized and started via the following writes:
1A 1A5B 22 ; Recommended Write
1A 1A5F 00 ; Recommended Write
1A 1A61 06 ; Recommended Write
1A 1AA0 13 ; Recommended Write
1A 1AA1 01 ; Recommended Write
1A 1AA2 25 ; Recommended Write
1A 1AA3 1D ; Recommended Write
1A 1AA4 81 ; Recommended Write
1A 1AA5 81 ; Recommended Write
1A 1AA7 53 ; Recommended Write
1A 1AA8 B4 ; Recommended Write
1A 1AFE 08 ; Recommended Write
1A 1A0B 10 ; Recommended Write
1A E649 40 ; Recommended Write
A single memory DD2 loopback test is initialized and started via the following writes:
1A 1A5B 22 ; Recommended Write
1A 1A5C 20 ; Recommended Write
1A 1A5E 80 ; Recommended Write
1A 1A5F 00 ; Recommended Write
1A 1A61 06 ; Recommended Write
1A 1AA0 13 ; Recommended Write
1A 1AA1 01 ; Recommended Write
Rev. 0 | Page 72 of 326
ADV8005 Hardware Reference Manual
UG-707
1A 1AA2 25 ; Recommended Write
1A 1AA3 1D ; Recommended Write
1A 1AA4 81 ; Recommended Write
1A 1AA5 81 ; Recommended Write
1A 1AA7 53 ; Recommended Write
1A 1AA8 B4 ; Recommended Write
1A 1AB2 02 ; Recommended Write
1A 1AFE 08 ; Recommended Write
The result of the DDR2 loopback test is given by the lbk_test_done and lbk_test_result bits.
lbk_test_done, IO Map, Address 0x1AE1[0] (Read Only)
This bit is used to readback the DDR2 loopback test has completed.
Function
lbk_test_done
0 (default)
1
Description
Test not complete
Loopback test finished
lbk_test_result, IO Map, Address 0x1AE1[1] (Read Only)
This bit is used to readback the DDR2 loopback test error result.
Function
lbk_test_result
0 (default)
1
Description
No error detected
Errors detected
The following are possible failures that could cause the DDR2 loopback test to fail:
•
•
•
•
•
2.2.6.
Address or control or clock open or short: all bit lines failing
Single DQ open or short to ground or supply: single bit line failing on both positive and negative edges
Short between DQ lines: two bit lines failing, routing in adjacent resistors of resistor pack
DQS or DM open or short: eight DQ lines failing
Timing transfer problem: one or more bit lines failing
I2C Auto Increment
read_auto_inc_en is used to auto increment register addresses to allow the user to do consecutive reads from the registers on the ADV8005.
By default, this is set to 1 which means that a read from a particular address in the ADV8005 increments the read pointer to the next register
map address.
read_auto_inc_en, IO Map, Address 0x1AFC[0]
This register is used to auto increment I2C addresses in the device for consecutive reads.
Function
read_auto_inc_en
0
1 (default)
2.2.7.
Description
No auto increment of I2C address for consecutive reads
Auto increment of I2C address for consecutive reads
SPI Loop Through
The ADV8005 SPI ports can be put in loop through mode for programming the external SPI flash that may be connected to the ADV8005
master SPI port (if an OSD design is to be used). Refer to Section 4.2.8 for more information.
spi_loop_through, IO Map, Address 0x1AB6[5]
This bit is used to enable SPI loop through mode. In loop through mode, Serial Port 1 (SCK1, MOSI1, MISO1 and CS1) is connected to the
Serial Port 2 (SCK2, MOSI2, MISO2, CS2).
Rev. 0 | Page 73 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
spi_loop_through
0 (default)
1
2.2.8.
Description
Regular SPI mode
SPI slave clock routed to SPI master clock output
VBI Data Insertion
ADV8005 supports VBI data (such as CGMS, WSS, and CCAP) insertion into the video stream through either the ancillary data input (Y
channel input of 36-bit data bus) or the SPI-compatible slave input (VBI_SCK, VBI_MOSI and VBI_CS). When using the SPI-compatible
slave input for VBI insertion, a reduced set of video input formats are supported on the EXOSD TTL input due to the shared pins. The VBI
data is decoded and supplied to the encoder for output in the video data stream.
The supported VBI standards are the following:
• WSS (625i)
• CCAP (525i and 625i)
• CGMS (525i)
• CGMS (525p)
• CGMS (625p)
2.2.8.1.
Extraction Overview
VBI data can be supplied to the ADV8005 through two separate interfaces. If there is a pixel bus input from the front end decoder then the
VBI data may be provided via an ancillary data stream encoded into the video data. If a pixel bus is not available, the VBI data can be sent via
the dedicated SPI interface. Refer to Figure 40 for an overview of this architecture.
vbi_src (1 = SPI, 0 = ANC)
External
SPI
Master
sclk
ss
mosi
SPI
Slave
spi_rx_dv
Sync
1
ccap_even_data
0
ccap_even_dv
ccap_out
ccap_ext_out
1’b1
Ancillary
Data
Extractor
ccap_odd_data
ccap_odd_dv
Ancillary
Data
Delay
To Encoder
cgms_wss_out_sd
cgms_wss_data
hdmi_rx_clk
1
vid_rx_clk
0
spi_rx_dv[7:0]
1
muxed_vid_in
cgms_wss_out_hd
cgms_wss_dv
0
clk_out_sd
clk_out_hd
y_data_in[11:4]
Figure 40: VBI Data Extraction Block Diagram
2.2.8.2.
Ancillary Data Extraction
The ancillary data which is encoded in either nibble mode or byte mode is extracted from the input data stream on the Y channel and the VBI
data is retrieved. The DID and SDID from the sending device must match the value programmed in 1A 1A4A[7:0] and 1A 1A4B[7:0]. The
format of the ancillary data packet is shown in Table 9.
Rev. 0 | Page 74 of 326
ADV8005 Hardware Reference Manual
Table 9: Output Mode Outline
B4
B3
B2
B1
B0
Byte
B9
B8
B7
B6
B5
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
3
EP
EP
0
0
DID Data Identification Word
4
EP
EP
0
0
5
EP
EP
0
0
0
SDID Secondary Data Identification
Word
ID1 User Data Word 1
6
EP
EP
Padding[1:0]
0
0
ID2 User Data Word 2
7
EP
EP
LCOUNT[11:6]
0
0
ID3 User Data Word 3
8
EP
EP
LCOUNT[5:0]
0
0
ID4 User Data Word 4
9
EP
EP
0
0
0
0
ID5 User Data Word 5
10
EP
EP
0
0
VBI_WORD_1[7:4]
0
0
ID6 User Data Word 6
11
EP
EP
0
0
VBI_WORD_1[3:0]
0
0
ID7 User Data Word 7
12
EP
EP
0
0
VBI_WORD_2[7:4]
0
0
ID8 User Data Word 8
13
EP
EP
0
0
VBI_WORD_2[3:0]
0
0
ID9 User Data Word 9
1
0
0
0
0
0
Pad, May or may not be present
B8
Checksum
0
0
N-1
2.2.8.3.
UG-707
I2C_DID6[4:0]
I2C_SDID7_2[5:0]
DC[4:0]
VBI_DATA_STD[3:0]
0
0
EF
VDP_TTXT
TYPE[1:0]
0
0
0
Description
Ancillary Data Preamble
SPI Data Extraction
If there is not an input video data bus which can provide the ancillary data, it may be serialized and sent to the part via a SPI master. The
ADV8005 contains a dedicated SPI slave for receiving VBI data. The SPI interface receives serialized ancillary data bytes. All of the ancillary
data packets must be encoded, including the preamble. A high to low transition on the VBI_CS line indicates the start of a new byte. As the
bytes are directly encoded ancillary data, the same decoder described in Section 2.2.8.2 for ancillary data can be used to extract the VBI data.
Only modes 0 and 3 are supported by the SPI slave and, therefore, the SPI master must use one of these modes.
2.2.8.4.
VBI Data Delay
Once the VBI data has been decoded for each of the supported standards, it is latched and delayed by the desired amount. The delay on the
VBI data is measured in frames and is controllable in the range 0 ≤ delay ≤ 3 frames. The data can be delayed on either the rising or falling
edge of the input VSync. The output VBI data is muxed directly with the VBI data from the encoder register map before being output by the
encoder.
vbi_src, IO Map, Address 0x1A4C[7]
This bit is used to choose the source of the VBI data.
Function
vbi_src
0 (default)
1
Description
VBI data from ancillary input
VBI data from SPI input
ccap_odd_en, IO Map, Address 0x1A4C[3]
This bit is used to enable/disable closed caption data extraction on the odd field.
Rev. 0 | Page 75 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
ccap_odd_en
0 (default)
1
Description
Disable closed caption data extraction on odd field
Enable closed caption data extraction on odd field
ccap_even_en, IO Map, Address 0x1A4C[2]
This bit is used to enable/disable closed caption data extraction on the even field.
Function
ccap_even_en
0 (default)
1
Description
Disable closed caption data extraction on even field
Enable closed caption data extraction on even field
cgms_anc_en, IO Map, Address 0x1A4C[1]
This bit is used to enable/disable CGMS data extraction on the even field.
Function
cgms_anc_en
0 (default)
1
Description
Disable CGMS data extraction on even field
Enable CGMS data extraction on even field
wss_anc_en, IO Map, Address 0x1A4C[0]
This bit is used to enable/disable WSS data extraction on the even field.
Function
wss_anc_en
0 (default)
1
Description
Disable WSS data extraction on even field
Enable WSS data extraction on even field
anc_delay[1:0], IO Map, Address 0x1A4D[1:0]
This bit is used to set the delay on ancillary data in vsyncs. The interlaced input delay will be in fields and the progressive delay will be in
frames. Decoded data is firstly transferred onto input vsync and then output vsync, this will be the base delay with a setting of 0. Every
increment above this adds one input vsync delay.
did_a[7:0], IO Map, Address 0x1A4A[7:0]
This register is used to specify the value of the DID sent in the ancillary stream with VBI decoded data.
sdid_a[7:0], IO Map, Address 0x1A4B[7:0]
This register is used to specify the value of the SDID sent in the ancillary stream with VBI decoded data.
2.2.9.
Resets
This section documents the register bits used for resetting various sections of the ADV8005. These resets can be used by the system controller
to reset individual sections of the device without having to reset the whole part. If the whole device needs to be reset, this can be implemented
by setting the global reset, main_reset. All these register bits are self clearing, which means that when set to 1, they are set back to 0 after the
appropriate section has been reset.
Refer to Section 6.2 for more information on the reset strategy for the HDMI Tx.
svsp_reset, IO Map, Address 0x1AFD[7] (Self-Clearing)
This bit is used to reset the Secondary VSP.
Function
svsp_reset
0 (default)
1
Description
Default
Reset
Rev. 0 | Page 76 of 326
ADV8005 Hardware Reference Manual
UG-707
pvsp_reset, IO Map, Address 0x1AFD[6] (Self-Clearing)
This bit is used to reset the Primary VSP.
Function
pvsp_reset
0 (default)
1
Description
Default
Reset
p2i_reset, IO Map, Address 0x1AFD[5] (Self-Clearing)
This bit is used to reset the Progressive to Interlaced core.
Function
p2i_reset
0 (default)
1
Description
Default
Reset
ddr2_intf_reset, IO Map, Address 0x1AFD[4] (Self-Clearing)
This bit is used to reset the external DDR memory interface core.
Function
ddr2_intf_reset
0 (default)
1
Description
Default
Reset
spi_reset, IO Map, Address 0x1AFD[3] (Self-Clearing)
This bit is used to reset the SPI hardware, both master and slave.
Function
spi_reset
0 (default)
1
Description
Default
Reset
sys_clk_reset, IO Map, Address 0x1AFD[2] (Self-Clearing)
This register bit resets the clock for the digital core.
Function
sys_clk_reset
0
1
Description
Default
Reset
osd_reset, IO Map, Address 0x1AFD[1] (Self-Clearing)
This bit is used to reset the OSD core and the secondary input channel.
Function
osd_reset
0 (default)
1
Description
Default
Reset
inp_sdr_reset, IO Map, Address 0x1AFD[0] (Self-Clearing)
This bit is used to reset the input capture and formatting logic for the primary input channel.
Function
inp_sdr_reset
0 (default)
1
Description
Default
Reset
rx_reset, IO Map, Address 0x1AFE[7] (Self-Clearing)
This bit is used to reset the Serial Video RX core and the RX input channel.
Rev. 0 | Page 77 of 326
UG-707
Function
rx_reset
0 (default)
1
ADV8005 Hardware Reference Manual
Description
Default
Reset
enc_reset, IO Map, Address 0x1AFE[6] (Self-Clearing)
This bit is used to reset the HD and SD encoders.
Function
enc_reset
0 (default)
1
Description
Default
Reset
tx2_reset, IO Map, Address 0x1AFE[5] (Self-Clearing)
This bit is used to reset the HDMI TX2.
Function
tx2_reset
0 (default)
1
Description
Default
Reset
tx1_reset, IO Map, Address 0x1AFE[4] (Self-Clearing)
This bit is used to reset the HDMI TX1.
Function
tx1_reset
0 (default)
1
Description
Default
Reset
dpll_reset, IO Map, Address 0x1AFE[2] (Self-Clearing)
This bit is used to reset the DPLL clock generator.
Function
dpll_reset
0 (default)
1
Description
Default
Reset
xtal_reset, IO Map, Address 0x1AFE[0] (Self-Clearing)
This bit is used to reset all the clocks in the device and peripheral logic in the core including the interrupt generator and the automatic clock
selection.
Function
xtal_reset
0 (default)
1
Description
Default
Reset
main_reset, IO Map, Address 0x1BFF[7] (Self-Clearing)
This bit is used to initiate a global reset for the device.
Function
main_reset
0 (default)
1
2.2.10.
Description
Default
Reset
Image Processing Colorimetry Breakdown
The ADV8005 performs its image processing in the YUV format except for the internal OSD which is generated in RGB. The internally
generated OSD is muxed with the external OSD (which can be in either YUV or RGB) before being input into a CSC. The CSC converts all
input signals into YUV format for input into the OSD video blend block.
Rev. 0 | Page 78 of 326
ADV8005 Hardware Reference Manual
UG-707
External OSD In
(YUV/RGB)
De-interlacer
and Cadence
Detection
(YUV)
Video
Enhancement
(YUV)
Motion
Detection
Random Noise
Reduction
Low Angle
Processing
Mosquito Noise
Reduction
Cadence
Detection
Block Noise
Reduction
Cue
Correction
Detail
Enhancement
C
S
C
OSD Video
Blend
(YUV)
Scaling and
Frame Rate
Conversion
(YUV)
OSD
Generation
(RGB)
Scaler 1
Bitmap OSD
Controller
OSD Scaler
Scaler 2
Frame Rate
Converter
Figure 41: ADV8005 Image Processing Colorimetry Breakdown
2.2.11.
AV-Codes
Embedded end of active video (EAV) and start of active video (SAV) timing codes are supported on the TTL inputs of the ADV8005. AV-code
information is embedded into the pixel data and is transmitted using a standard 4-byte synchronization pattern. A synchronization pattern is
sent immediately before and after each line during active picture and retrace.
The following video formats are supported automatically for AV-code insertion.
• 480i60
• 576i50
• 240p60
• 288p50
• 480p60
• 576p50
• 720p60
• 720p50
• 1080i60
• 1080i50
• 1080p60
• 1080p50
• VGA (640x480)
• SVGA (800x600)
• XGA (1027x768
• WXGA (1280x768)
• SXGA (1280x1024)
• WXGA (1360x768)
• UXGA (1600x1200)
• WXGA(1366x768
• WUXGA (1900x1200)
Rev. 0 | Page 79 of 326
UG-707
ADV8005 Hardware Reference Manual
A number of CEA formats are not supported automatically for AV-codes
1. 1920x1080p @ 23.97/24 Hz (CEA VIC 32)
2. 1920x1080p @ 25 Hz (CEA VIC 33)
3. 1920x1080p @ 29.97/30 Hz (CEA VIC 34)
4. 1280x720p @ 23.97/24 Hz (CEA VIC 60)
5. 1280x720p @ 25 Hz (CEA VIC 61)
6. 1280x720p @ 29.97/30 Hz (CEA VIC 62)
These formats can be supported following the manual configuration mode outlined in this section.
de_v_beg_e_pos[6:0], IO Map, Address 0x1B8C[7:1]
This signal is used to specify the DE vertical beginning position for even fields, if CEA 861 timing generation is enable and manual values
selected.
Function
de_v_beg_e_pos[6:0]
0xXX
Description
assert de when lcount reaches 0xXX on even fields
de_v_beg_o_pos[6:0], IO Map, Address 0x1B8C[0]; Address 0x1B8D[7:2]
This signal is used to specify the DE vertical beginning position for odd fields, if CEA 861 timing generation is enable and manual values
selected.
Function
de_v_beg_o_pos[6:0]
0xXX
Description
assert de when lcount reaches 0xXX on even fields
de_h_beg_pos[9:0], IO Map, Address 0x1B8D[1:0]; Address 0x1B8E[7:0]
This signal is used to specify the DE horizontal beginning position, counting from the EAV, if CEA 861 timing generation is enable and
manual values selected.
Function
de_h_beg_pos[9:0]
0xXX
Description
assert de when hcount reaches 0xXX
hs_beg_pos[9:0], IO Map, Address 0x1B8F[7:0]; Address 0x1B90[7:6]
This signal is used to specify the HS beginning position, counting from the EAV, if CEA 861 timing generation is enable and manual values
selected.
Function
hs_beg_pos[9:0]
0xXX
Description
assert hs when hcount reaches 0xXX
hs_end_pos[9:0], IO Map, Address 0x1B90[5:0]; Address 0x1B91[7:4]
This signal is used to specify the HS ending position, counting from the EAV, if CEA 861 timing generation is enable and manual values
selected.
Function
hs_end_pos[9:0]
0xXX
Description
release hs when hcount reaches 0xXX
vs_h_beg_o_pos[10:0], IO Map, Address 0x1B91[2:0]; Address 0x1B92[7:0]
This signal is used to specify the horizontal beginning position of VS for odd fields (counting from the EAV), if CEA 861 timing generation
is enable and manual values selected.
Function
vs_h_beg_o_pos[10:0]
0xXX
Description
assert vs when hcount reaches 0xXX on odd fields
vs_h_beg_e_pos[10:0], IO Map, Address 0x1B93[7:0]; Address 0x1B94[7:5]
This signal is used to specify the horizontal beginning position of VS for even fields (counting from the EAV), if CEA 861 timing generation
is enable and manual values selected.
Rev. 0 | Page 80 of 326
ADV8005 Hardware Reference Manual
Function
vs_h_beg_e_pos[10:0]
0xXX
UG-707
Description
assert vs when hcount reaches 0xXX on even fields
vs_v_beg_pos[5:0], IO Map, Address 0x1B94[3:0]; Address 0x1B95[7:6]
This signal is used to specify the vertical beginning position of VS, if CEA 861 timing generation is enable and manual values selected.
Function
vs_v_beg_pos[5:0]
0xXX
Description
assert vs when lcount reaches 0xXX
vs_v_end_pos[5:0], IO Map, Address 0x1B95[5:0]
This signal is used to specify the vertical ending position of VS, if CEA 861 timing generation is enable and manual values selected.
Function
vs_v_end_pos[5:0]
0xXX
Description
release vs when lcount reaches 0xXX
For the secondary input channel, the controls are as follows:
de_v_beg_e_pos[6:0], IO Map, Address 0x1B8C[7:1]
This signal is used to specify the DE vertical beginning position for even fields, if CEA 861 timing generation is enable and manual values
selected.
Function
de_v_beg_e_pos[6:0]
0xXX
Description
assert de when lcount reaches 0xXX on even fields
de_v_beg_o_pos[6:0], IO Map, Address 0x1B8C[0]; Address 0x1B8D[7:2]
This signal is used to specify the DE vertical beginning position for odd fields, if CEA 861 timing generation is enable and manual values
selected.
Function
de_v_beg_o_pos[6:0]
0xXX
Description
assert de when lcount reaches 0xXX on even fields
de_h_beg_pos[9:0], IO Map, Address 0x1B8D[1:0]; Address 0x1B8E[7:0]
This signal is used to specify the DE horizontal beginning position, counting from the EAV, if CEA 861 timing generation is enable and
manual values selected.
Function
de_h_beg_pos[9:0]
0xXX
Description
assert de when hcount reaches 0xXX
hs_beg_pos[9:0], IO Map, Address 0x1B8F[7:0]; Address 0x1B90[7:6]
This signal is used to specify the HS beginning position, counting from the EAV, if CEA 861 timing generation is enable and manual values
selected.
Function
hs_beg_pos[9:0]
0xXX
Description
assert hs when hcount reaches 0xXX
hs_end_pos[9:0], IO Map, Address 0x1B90[5:0]; Address 0x1B91[7:4]
This signal is used to specify the HS ending position, counting from the EAV, if CEA 861 timing generation is enable and manual values
selected.
Rev. 0 | Page 81 of 326
UG-707
Function
hs_end_pos[9:0]
0xXX
ADV8005 Hardware Reference Manual
Description
release hs when hcount reaches 0xXX
vs_h_beg_o_pos[10:0], IO Map, Address 0x1B91[2:0]; Address 0x1B92[7:0]
This signal is used to specify the horizontal beginning position of VS for odd fields (counting from the EAV), if CEA 861 timing generation
is enable and manual values selected.
Function
vs_h_beg_o_pos[10:0]
0xXX
Description
assert vs when hcount reaches 0xXX on odd fields
vs_h_beg_e_pos[10:0], IO Map, Address 0x1B93[7:0]; Address 0x1B94[7:5]
This signal is used to specify the horizontal beginning position of VS for even fields (counting from the EAV), if CEA 861 timing generation
is enable and manual values selected.
Function
vs_h_beg_e_pos[10:0]
0xXX
Description
assert vs when hcount reaches 0xXX on even fields
vs_v_beg_pos[5:0], IO Map, Address 0x1B94[3:0]; Address 0x1B95[7:6]
This signal is used to specify the vertical beginning position of VS, if CEA 861 timing generation is enable and manual values selected.
Function
vs_v_beg_pos[5:0]
0xXX
Description
assert vs when lcount reaches 0xXX
vs_v_end_pos[5:0], IO Map, Address 0x1B95[5:0]
This signal is used to specify the vertical ending position of VS, if CEA 861 timing generation is enable and manual values selected.
Function
vs_v_end_pos[5:0]
0xXX
Description
release vs when lcount reaches 0xXX
A worked example showing how 720 (1440) x 240p can be supported using manual AV-code configuration is shown in Figure 42. The
horizontal measurements must be the following:
de_h_beg_pos[9:0] = 276/2 = 138 = 0010001010
de_v_beg_o_pos[6:0] = 22 = 0010110
de_v_beg_e_pos[6:0] = 22 = 0010110
hs_beg_pos[9:0] = 38/2 = 19 = 0000010011
hs_end_pos[9:0] = 162/2 = 81 = 0001010001
vs_v_beg_pos[5:0] = 4 = 000100
vs_h_beg_o_pos[10:0] = 38/2 = 19 = 00000010011
vs_h_beg_e_pos[10:0] = 38/2 = 19 = 00000010011
vs_v_end_pos[5:0] = 7 = 000111
Rev. 0 | Page 82 of 326
ADV8005 Hardware Reference Manual
UG-707
de_h_beg_pos (276)
hs_end_pos (38 + 124 = 162)
hs_beg_pos (38)
vs_h_beg_o_pos (38)
vs_h_beg_e_pos (38)
de_v_beg_e_pos (22)
vs_v_beg_pos (4)
vs_v_end_pos (7)
de_v_beg_o_pos (22)
vs_v_beg_pos (4)
vs_v_end_pos (7)
Figure 42: 720(1440) x 240p @ 59.94/60Hz, CEA Formats 8 and 9
2.2.12.
Color Space Conversion
Although all processing in the ADV8005 is performed in the YCbCr color space, the part is capable of receiving video in the RGB, YUV and
YCbCr color spaces. The ADV8005 provides any-to-any CSC on each of the inputs and on both of the outputs (five color space converters in
all). All CSCs support formats such as RGB, YUV and YCbCr. The front end CSCs on the primary input channel, secondary input channel and
RX input channel run at a maximum clock rate of 162 MHz. The back end CSCs in HDMI Tx1 and HDMI Tx2 operate at a maximum input
clock rate of 300 MHz.
2.2.12.1.
Primary Input Channel CSC
The CSC must be manually configured for each color space conversion. The CSC on the primary input channel can be enabled using the
vid_csc_enable control. This CSC can run at 297 MHz and provides color space conversion for UHD video formats. The CSC mode on the
primary input channel can be configured using vid_csc_mode[1:0]. The CSC mode is used to define the fixed point position of the CSC
coefficients which are located after vid_csc_mode[1:0] in the IO Map for the primary input channel.
Rev. 0 | Page 83 of 326
UG-707
ADV8005 Hardware Reference Manual
Reference configuration scripts to configure the primary input channel CSC are provided with the evaluation software.
vid_csc_enable, IO Map, Address 0x1B30[7]
This bit is used to control the Primary Input Channel CSC.
Function
vid_csc_enable
0 (default)
1
Description
CSC disable
CSC enable
vid_csc_mode[1:0], IO Map, Address 0x1B30[6:5]
This signal is used to specify the CSC mode for the Primary Input Channel CSC. The CSC mode sets the fixed point position of the CSC
coefficients, including a4, b4, c4 and offsets.
Function
vid_csc_mode[1:0]
00 (default)
01
10
11
Description
+/- 1.0, -4096 to 4095
+/-2.0, -8192 to 8190
+/- 4.0, -16384 to 16380
+/- 4.0, -16384 to 16380
The characteristic equations for the primary input CSC are provided in Equation 4, Equation 5 and Equation 6.
A1[12 : 0]
A2[12 : 0]
A3[12 : 0]


Out _ A =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ A4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Equation 4: Primary Input CSC Channel A Output
B1[12 : 0]
B 2[12 : 0]
B3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ B 4[12 : 0] ∗ 2 CSC _ scale
Out _ B =  In _ A ∗
4096
4096
4096


Equation 5: Primary Input CSC Channel B Output
C1[12 : 0]
C 2[12 : 0]
C 3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ C 4[12 : 0] ∗ 2 CSC _ scale
Out _ C =  In _ A ∗
4096
4096
4096


Equation 6: Primary Input CSC Channel C Output
The CSC on the primary input channel is illustrated in Figure 43.
vid_csc_mode
4096 vid_a4
vid_a1
In_A
x
+
+
÷
+
vid_a2
In_B
4x
2
2x
1
Out_A
0
x
vid_a3
In_C
x
Figure 43: Primary Input Channel CSC
The video inputs In_A, In_B and In_C are connected by default to R, G and B. Refer to Table 10 for more information. The default routing can
be changed by adjusting the value of vid_swap_bus_ctrl[2:0].
Rev. 0 | Page 84 of 326
ADV8005 Hardware Reference Manual
UG-707
Table 10: Default Primary Input Channel CSC Signal Routing
Input Channel
Default RGB Routing
Default YCbCr Routing
In_A
R
Cr
In_B
G
Y
In_C
B
Cb
The A1 to A3, B1 to B3, and C1 to C3 coefficients are used to scale the primary inputs. A4, B4 and C4 are added as offsets. Floating point
coefficients must be converted into 120-bit fixed decimal format then converted into binary format using twos complement for negative values
and can only be programmed in the range [-1….+1] or [-4096….+4095].
The dynamic range of the CSC is [0…..1] for unipolar signals (Y, R, G, B) or [-0.5…….+0.5] for bipolar signals. Bipolar signals (Pr/Pb) must
be offset to mid range. Equations with a dynamic range larger than 1 need to be scaled appropriately using the vid_csc_mode[1:0] control. To
achieve a coefficient value of 1.0 for any given coefficient, vid_csc_mode[1:0] should be set high and the coefficient should be programmed to
a value of 0.5. Otherwise, the largest value would be 4095/4096 = 0.9997. While this value could be interpreted as 1, it is recommended to use
the value of 0.5 and set the vid_csc_mode[1:0] bits for maximum accuracy.
The CSC configurations for common modes are provided in Table 11.
HDTV YCbCr
(limited) to
RGB (limited)
HDTV YCbCr
(limited) to
RGB (full)
HDTV YCbCr
(limited) to
SDTV YCbCr
(limited)
HDTV YCbCr
(limited) to
SDTV YCbCr
(full)
HDTV YCbCr
(full) to SDTV
YCbCr
(limited)
SDTV YCbCr
(limited) to
RGB (limited)
SDTV YCbCr
(limited) to
RGB (full)
SDTV YCbCr
(limited) to
HDTV YCbCr
(limited)
SDTV YCbCr
(limited) to
SDTV YCbCr
(full)
SDTV YCbCr
(full) to HDTV
A1
Table 11: Primary Input Channel CSC Common Configuration Coefficients
A2
A3
A4
B1
B2
B3
B4
C1
C2
0x1
0x0C53
0x0800 0x0000 0x19D6 0x1C56 0x0800 0x1E88 0x0291 0x1FFF
0x0800 0x0E85 0x18BE
0x2
0x0734
0x04AD 0x0000 0x1C1B 0x1DDC 0x04AD 0x1F24
0x1
0x07DD 0x0000 0x1F6C 0x005B 0x0188
0x1
0x08EB
0x0
0x0E0D 0x0000 0x0000 0x0100 0x0000
0x1
0x0AF8
0x0800 0x0000 0x1A84 0x1A6A 0x0800 0x1D50 0x0423 0x1FFC 0x0800 0x0DDE 0x1913
0x2
0x0669
0x04AC 0x0000 0x1C81 0x1CBC 0x04AD 0x1E6E
0x0220 0x1FFE
0x1
0x0833
0x0000 0x0099 0x1F99 0x1E56
0x0800 0x1F13
0x014B 0x00EA 0x0000 0x0826 0x1F78
0x1
0x091B
0x0000 0x0000 0x1F6E
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x091B 0x1F6E
0x2
0x039D 0x0000 0x0043 0x0F26 0x1F44
csc_mode[1:0]
Color Space
Conversion
C4
0x0135 0x0000 0x04AD 0x087C 0x1B77
0x0800 0x00CB 0x1ED6 0x1F1D 0x0000 0x07EB 0x007B
0x0000 0x1F58 0x1FDE 0x01C9 0x0950 0x00EC 0x1F25
0x0000
C3
0x1EFF
0x0000 0x08FA 0x031F
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0E0D 0x0100
0x036F 0x1F97
Rev. 0 | Page 85 of 326
0x04AD 0x081A 0x1BA9
0x00D2 0x0067 0x0000 0x0397 0x004D
UG-707
ADV8005 Hardware Reference Manual
YCbCr
(limited)
RGB (limited)
to HDTV
YCbCr
(limited)
RGB (limited)
to SDTV YCbCr
(limited)
RGB (limited)
to RGB (full)
RGB (full) to
HDTV YCbCr
(limited)
RGB (Full) to
SDTV YCbCr
(limited)
RGB (Full) to
RGB (limited)
Identity matrix
(output =
input)
2.2.12.2.
A1
A2
0x0
0x082E
0x1893 0x1F3F 0x0800 0x0367
0x0
0x082E
0x1926 0x1EAC 0x0800 0x04C9 0x0965 0x01D2 0x0000 0x1D3F 0x1A93 0x082E
0x0
0x0DBC 0x0000 0x0000 0x0100 0x0000
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0DBC 0x0100
0x0
0x06FF
0x19A6 0x1F5B 0x0800 0x02E9
0x09CB 0x00FD 0x0100 0x1E66 0x1A9B 0x06FF
0x0800
0x0
0x06FF
0x1A24 0x1EDD 0x0800 0x0418
0x080A 0x018F
0x0800
0x1
0x0950
0x0000 0x0000 0x1F6B 0x0000
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x0950 0x1F6B
0x1
0x0800
0x0000 0x0000 0x0000 0x0000
0x0800 0x0000 0x0000 0x0000 0x0000 0x0800 0x0000
csc_mode[1:0]
Color Space
Conversion
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
0x0B71 0x0128 0x0000 0x1E21 0x19B2 0x082D 0x0800
0x0100 0x1DA5 0x1B5C 0x06FF
0x0800
Secondary Input Channel CSC
The CSC must be manually configured for each color space conversion. The CSC on the secondary input channel can be enabled using the
exosd_csc_enable control. This CSC can run at pixel clock frequencies up to 162MHz. The CSC mode on the secondary input channel can be
configured using exosd_csc_mode[1:0]. The CSC mode is used to define the fixed point position of the CSC coefficients which are located
after exosd_csc_mode[1:0] in the IO Map for the secondary input channel.
Reference configuration scripts to configure the secondary input channel CSC are provided with the evaluation software.
exosd_csc_enable, IO Map, Address 0x1B50[7]
This bit is used to enable the Secondary Input Channel CSC.
Function
exosd_csc_enable
0 (default)
1
Description
CSC disable
CSC enable
exosd_csc_mode[1:0], IO Map, Address 0x1B50[6:5]
This signal is used to specify the CSC mode for the Secondary Input Channel CSC. The CSC mode sets the fixed point position of the CSC
coefficients, including a4, b4, c4 and offsets.
Function
exosd_csc_mode[1:0]
00 (default)
01
10
11
Description
+/- 1.0, -4096 to 4095
+/-2.0, -8192 to 8190
+/- 4.0, -16384 to 16380
+/- 4.0, -16384 to 16380
The characteristic equations for the secondary input CSC are provided in Equation 7, Equation 8 and Equation 9.
A1[12 : 0]
A2[12 : 0]
A3[12 : 0]


Out _ A =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ A4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Rev. 0 | Page 86 of 326
ADV8005 Hardware Reference Manual
UG-707
Equation 7: Secondary Input CSC Channel A Output
B1[12 : 0]
B 2[12 : 0]
B3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ B 4[12 : 0] ∗ 2 CSC _ scale
Out _ B =  In _ A ∗
4096
4096
4096


Equation 8: Secondary Input CSC Channel B Output
C1[12 : 0]
C 2[12 : 0]
C 3[12 : 0]


Out _ C =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ C 4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Equation 9: Secondary Input CSC Channel C Output
The CSC on the secondary input channel is illustrated in Figure 44.
exosd_csc_mode
4096
exosd_a4
exosd_a1
In_A
x
+
+
÷
+
4x
2
2x
1
exosd_a2
In_B
Out_A
0
x
exosd_a3
In_C
x
Figure 44: Secondary Input Channel CSC
The video inputs In_A, In_B and In_C are connected by default to R, G and B. Refer to Table 12 for more information. The default routing can
be changed by adjusting the value of exosd_swap_bus_ctrl[2:0].
Table 12: Default Secondary Input Channel CSC Signal Routing
Input Channel
Default RGB Routing
Default YCbCr Routing
In_A
R
Cr
In_B
G
Y
In_C
B
Cb
The A1 to A3, B1 to B3, and C1 to C3 coefficients are used to scale the primary inputs. A4, B4 and C4 are added as offsets. Floating point
coefficients must be converted into 120-bit fixed decimal format then converted into binary format using twos complement for negative values
and can only be programmed in the range [-1….+1] or [-4096….+4095].
The dynamic range of the CSC is [0…..1] for unipolar signals (Y, R, G, B) or [-0.5…….+0.5] for bipolar signals. Bipolar signals (Pr/Pb) must
be offset to mid range. Equations with a dynamic range larger than 1 need to be scaled appropriately using the exosd_csc_mode[1:0] control.
To achieve a coefficient value of 1.0 for any given coefficient, exosd_csc_mode[1:0] should be set high and the coefficient should be
programmed to a value of 0.5. Otherwise, the largest value would be 4095/4096 = 0.9997. While this value could be interpreted as 1, it is
recommended to use the value of 0.5 and set the exosd_csc_mode[1:0] bits for maximum accuracy.
The CSC configurations for common modes are provided in Table 13.
Rev. 0 | Page 87 of 326
UG-707
HDTV YCbCr
(limited) to
RGB (limited)
HDTV YCbCr
(limited) to
RGB (full)
HDTV YCbCr
(limited) to
SDTV YCbCr
(limited)
HDTV YCbCr
(limited) to
SDTV YCbCr
(full)
HDTV YCbCr
(full) to SDTV
YCbCr
(limited)
SDTV YCbCr
(limited) to
RGB (limited)
SDTV YCbCr
(limited) to
RGB (full)
SDTV YCbCr
(limited) to
HDTV YCbCr
(limited)
SDTV YCbCr
(limited) to
SDTV YCbCr
(full)
SDTV YCbCr
(full) to HDTV
YCbCr
(limited)
RGB (limited)
to HDTV
YCbCr
(limited)
RGB (limited)
to SDTV YCbCr
(limited)
RGB (limited)
to RGB (full)
RGB (full) to
HDTV YCbCr
(limited)
RGB (full) to
SDTV YCbCr
(limited)
RGB (full) to
A1
Table 13: Secondary Input Channel CSC Common Configuration Coefficients
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
csc_mode[1:0]
Color Space
Conversion
ADV8005 Hardware Reference Manual
0x1
0x0C53
0x0800 0x0000 0x19D6 0x1C56 0x0800 0x1E88 0x0291 0x1FFF
0x2
0x0734
0x04AD 0x0000 0x1C1B 0x1DDC 0x04AD 0x1F24
0x1
0x07DD 0x0000 0x1F6C 0x005B 0x0188
0x1
0x08EB
0x0
0x0E0D 0x0000 0x0000 0x0100 0x0000
0x1
0x0AF8
0x0800 0x0000 0x1A84 0x1A6A 0x0800 0x1D50 0x0423 0x1FFC 0x0800 0x0DDE 0x1913
0x2
0x0669
0x04AC 0x0000 0x1C81 0x1CBC 0x04AD 0x1E6E
0x0220 0x1FFE
0x1
0x0833
0x0000 0x0099 0x1F99 0x1E56
0x0800 0x1F13
0x014B 0x00EA 0x0000 0x0826 0x1F78
0x1
0x091B
0x0000 0x0000 0x1F6E
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x091B 0x1F6E
0x2
0x039D 0x0000 0x0043 0x0F26 0x1F44
0x036F 0x1F97
0x0
0x082E
0x1893 0x1F3F 0x0800 0x0367
0x0B71 0x0128 0x0000 0x1E21 0x19B2 0x082D 0x0800
0x0
0x082E
0x1926 0x1EAC 0x0800 0x04C9 0x0965 0x01D2 0x0000 0x1D3F 0x1A93 0x082E
0x0
0x0DBC 0x0000 0x0000 0x0100 0x0000
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0DBC 0x0100
0x0
0x06FF
0x19A6 0x1F5B 0x0800 0x02E9
0x09CB 0x00FD 0x0100 0x1E66 0x1A9B 0x06FF
0x0800
0x0
0x06FF
0x1A24 0x1EDD 0x0800 0x0418
0x080A 0x018F
0x0800
0x1
0x0950
0x0000 0x0000 0x1F6B 0x0000
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x0950 0x1F6B
0x0135 0x0000 0x04AD 0x087C 0x1B77
0x0800 0x00CB 0x1ED6 0x1F1D 0x0000 0x07EB 0x007B
0x0000 0x1F58 0x1FDE 0x01C9 0x0950 0x00EC 0x1F25
0x0000
0x0800 0x0E85 0x18BE
0x1EFF
0x0000 0x08FA 0x031F
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0E0D 0x0100
Rev. 0 | Page 88 of 326
0x04AD 0x081A 0x1BA9
0x00D2 0x0067 0x0000 0x0397 0x004D
0x0100 0x1DA5 0x1B5C 0x06FF
0x0800
ADV8005 Hardware Reference Manual
RGB (limited)
Identity Matrix 0x1
(Output =
Input)
2.2.12.3.
A1
A2
A3
A4
B1
0x0800
0x0000 0x0000 0x0000 0x0000
B2
B3
B4
C1
C2
C3
C4
csc_mode[1:0]
Color Space
Conversion
UG-707
0x0800 0x0000 0x0000 0x0000 0x0000 0x0800 0x0000
RX Input Channel CSC
The CSC must be manually configured for each color space conversion. The CSC on the RX input channel can be enabled using the
rx_csc_enable control. This CSC can run at 297MHz and provides color space conversion for UHD video formats. The CSC mode on the RX
input channel can be configured using rx_csc_mode[1:0]. The CSC mode is used to define the fixed point position of the CSC coefficients
which are located after rx_csc_mode[1:0] in the IO Map for the RX input channel.
Reference configuration scripts to configure the RX input channel CSC are provided with the evaluation software.
rx_csc_enable, IO Map, Address 0x1B70[7]
This bit is used to enable the RX input channel CSC.
Function
rx_csc_enable
0 (default)
1
Description
CSC disable
CSC enable
rx_csc_mode[1:0], IO Map, Address 0x1B70[6:5]
This signal is used to specify the CSC mode for the RX input channel CSC. The CSC mode sets the fixed point position of the CSC
coefficients, including a4, b4, c4 and offsets.
Function
rx_csc_mode[1:0]
00 (default)
01
10
11
Description
+/- 1.0, -4096 to 4095
+/-2.0, -8192 to 8190
+/- 4.0, -16384 to 16380
+/- 4.0, -16384 to 16380
The characteristic equations for the secondary input CSC are provided in Equation 10, Equation 11 and Equation 12.
A1[12 : 0]
A2[12 : 0]
A3[12 : 0]


Out _ A =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ A4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Equation 10: RX Input CSC Channel A Output
B1[12 : 0]
B 2[12 : 0]
B3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ B 4[12 : 0] ∗ 2 CSC _ scale
Out _ B =  In _ A ∗
4096
4096
4096


Equation 11: RX Input CSC Channel B Output
C1[12 : 0]
C 2[12 : 0]
C 3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ C 4[12 : 0] ∗ 2 CSC _ scale
Out _ C =  In _ A ∗
4096
4096
4096


Equation 12: RX Input CSC Channel C Output
The CSC on the RX input channel is illustrated in Figure 44.
Rev. 0 | Page 89 of 326
UG-707
ADV8005 Hardware Reference Manual
rx_csc_mode
4096
rx_a1
In_A
+
x
+
rx_a4
4x
2
+
2x
1
÷
rx_a2
In_B
Out_A
0
x
rx_a3
In_C
x
Figure 45: RX Input Channel CSC
The video inputs In_A, In_B and In_C are connected by default to R, G and B. For more information, please see Table 14. The default routing
can be changed by adjusting the value of rx_swap_bus_ctrl[2:0].
Table 14: Default RX Input Channel CSC Signal Routing
Input Channel
Default RGB Routing
Default YCbCr Routing
In_A
R
Cr
In_B
G
Y
In_C
B
Cb
The A1 to A3, B1 to B3, and C1 to C3 coefficients are used to scale the primary inputs. A4, B4 and C4 are added as offsets. Floating point
coefficients must be converted into 120-bit fixed decimal format then converted into binary format using twos complement for negative values
and can only be programmed in the range [-1….+1] or [-4096….+4095].
The dynamic range of the CSC is [0…..1] for unipolar signals (Y, R, G, B) or [-0.5…….+0.5] for bipolar signals. Bipolar signals (Pr/Pb) must
be offset to mid range. Equations with a dynamic range larger than 1 need to be scaled appropriately using the rx_csc_mode[1:0] control. To
achieve a coefficient value of 1.0 for any given coefficient, rx_csc_mode[1:0] should be set high and the coefficient should be programmed to a
value of 0.5. Otherwise, the largest value would be 4095/4096 = 0.9997. While this value could be interpreted as 1, it is recommended to use
the value of 0.5 and set the rx_csc_mode[1:0] bits for maximum accuracy.
The CSC configurations for common modes are provided in Table 15.
Table 15: RX Input Channel CSC Common Configuration Coefficients
Rev. 0 | Page 90 of 326
ADV8005 Hardware Reference Manual
HDTV YCbCr
(limited) to
RGB (limited)
HDTV YCbCr
(limited) to
RGB (full)
HDTV YCbCr
(limited) to
SDTV YCbCr
(limited)
HDTV YCbCr
(limited) to
SDTV YCbCr
(full)
HDTV YCbCr
(full) to SDTV
YCbCr
(limited)
SDTV YCbCr
(limited) to
RGB (limited)
SDTV YCbCr
(limited) to
RGB (full)
SDTV YCbCr
(limited) to
HDTV YCbCr
(limited)
SDTV YCbCr
(limited) to
SDTV YCbCr
(full)
SDTV YCbCr
(full) to HDTV
YCbCr
(limited)
RGB (limited)
to HDTV
YCbCr
(limited)
RGB (limited)
to SDTV YCbCr
(limited)
RGB (limited)
to RGB (full)
RGB (full) to
HDTV YCbCr
(limited)
RGB (full) to
SDTV YCbCr
(limited)
RGB (full) to
RGB (limited)
Identity matrix
(output =
input)
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
0x1
0x0C53
0x0800 0x0000 0x19D6 0x1C56 0x0800 0x1E88 0x0291 0x1FFF
0x2
0x0734
0x04AD 0x0000 0x1C1B 0x1DDC 0x04AD 0x1F24
0x1
0x07DD 0x0000 0x1F6C 0x005B 0x0188
0x1
0x08EB
0x0
0x0E0D 0x0000 0x0000 0x0100 0x0000
0x1
0x0AF8
0x0800 0x0000 0x1A84 0x1A6A 0x0800 0x1D50 0x0423 0x1FFC 0x0800 0x0DDE 0x1913
0x2
0x0669
0x04AC 0x0000 0x1C81 0x1CBC 0x04AD 0x1E6E
0x0220 0x1FFE
0x1
0x0833
0x0000 0x0099 0x1F99 0x1E56
0x0800 0x1F13
0x014B 0x00EA 0x0000 0x0826 0x1F78
0x1
0x091B
0x0000 0x0000 0x1F6E
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x091B 0x1F6E
0x2
0x039D 0x0000 0x0043 0x0F26 0x1F44
0x036F 0x1F97
0x0
0x082E
0x1893 0x1F3F 0x0800 0x0367
0x0B71 0x0128 0x0000 0x1E21 0x19B2 0x082D 0x0800
0x0
0x082E
0x1926 0x1EAC 0x0800 0x04C9 0x0965 0x01D2 0x0000 0x1D3F 0x1A93 0x082E
0x0
0x0DBC 0x0000 0x0000 0x0100 0x0000
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0DBC 0x0100
0x0
0x06FF
0x19A6 0x1F5B 0x0800 0x02E9
0x09CB 0x00FD 0x0100 0x1E66 0x1A9B 0x06FF
0x0800
0x0
0x06FF
0x1A24 0x1EDD 0x0800 0x0418
0x080A 0x018F
0x0800
0x1
0x0950
0x0000 0x0000 0x1F6B 0x0000
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x0950 0x1F6B
0x1
0x0800
0x0000 0x0000 0x0000 0x0000
0x0800 0x0000 0x0000 0x0000 0x0000 0x0800 0x0000
csc_mode[1:0]
Color Space
Conversion
UG-707
0x0135 0x0000 0x04AD 0x087C 0x1B77
0x0800 0x00CB 0x1ED6 0x1F1D 0x0000 0x07EB 0x007B
0x0000 0x1F58 0x1FDE 0x01C9 0x0950 0x00EC 0x1F25
0x0000
0x0800 0x0E85 0x18BE
0x1EFF
0x0000 0x08FA 0x031F
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0E0D 0x0100
Rev. 0 | Page 91 of 326
0x04AD 0x081A 0x1BA9
0x00D2 0x0067 0x0000 0x0397 0x004D
0x0100 0x1DA5 0x1B5C 0x06FF
0x0800
UG-707
2.2.12.4.
ADV8005 Hardware Reference Manual
TTL Output CSC
Models of ADV8005 which provide TTL output now have a CSC in that path, allowing, for example, theTTL output video to be converted to
RGB. The TTL output CSC has the same structure as the primary input CSC but it is limited to a maximum pixel clock frequency of 162MHz.
For higher pixels rates the HDMI TX should be used. The CSC must be manually configured for each color space conversion. The CSC on the
TTL output channel can be enabled using the ttl_out_csc_enable control. The CSC mode on the TTL output channel can be configured using
ttl_out_csc_mode[1:0]. The CSC mode is used to define the fixed point position of the CSC coefficients which are located after
ttl_out_csc_mode[1:0] in the IO Map for the TTL output channel.
ttl_out_csc_mode
4096
ttl_out_a1
x
In_A
+
+
ttl_out_a4
4x
2
+
2x
1
÷
ttl_out_a2
In_B
Out_A
0
x
ttl_out_a3
In_C
x
Figure 46 TTL Output Channel CSC
ttl_out_csc_enable, IO Map, Address 0x1BB0[7]
This bit is used to enable the ttl output channel CSC.
Function
ttl_out_csc_enable
0 (default)
1
Description
CSC disable
CSC enable
ttl_out_csc_mode[1:0], IO Map, Address 0x1BB0[6:5]
This signal is used to specify the CSC mode for the ttl output channel CSC. The CSC mode sets the fixed point position of the CSC
coefficients, including a4, b4, c4 and offsets.
Function
ttl_out_csc_mode[1:0]
00 (default)
01
10
11
Description
+/- 1.0, -4096 to 4095
+/-2.0, -8192 to 8190
+/- 4.0, -16384 to 16380
+/- 4.0, -16384 to 16380
ttl_out_a1[12:0], IO Map, Address 0x1BB0[4:0]; Address 0x1BB1[7:0]
This signal is used to specify the ttl out channel CSC coefficient A1.
ttl_out_a2[12:0], IO Map, Address 0x1BB2[4:0]; Address 0x1BB3[7:0]
This signal is used to specify the ttl out channel CSC coefficient A2.
Rev. 0 | Page 92 of 326
ADV8005 Hardware Reference Manual
UG-707
ttl_out_a3[12:0], IO Map, Address 0x1BB4[4:0]; Address 0x1BB5[7:0]
This signal is used to specify the ttl out channel CSC coefficient A3.
ttl_out_a4[12:0], IO Map, Address 0x1BB6[4:0]; Address 0x1BB7[7:0]
This signal is used to specify the ttl out channel CSC coefficient A4.
ttl_out_b1[12:0], IO Map, Address 0x1BB8[4:0]; Address 0x1BB9[7:0]
This signal is used to specify the ttl out channel CSC coefficient B1.
ttl_out_b2[12:0], IO Map, Address 0x1BBA[4:0]; Address 0x1BBB[7:0]
This signal is used to specify the ttl out channel CSC coefficient B2.
ttl_out_b3[12:0], IO Map, Address 0x1BBC[4:0]; Address 0x1BBD[7:0]
This signal is used to specify the ttl out channel CSC coefficient B3.
ttl_out_b4[12:0], IO Map, Address 0x1BBE[4:0]; Address 0x1BBF[7:0]
This signal is used to specify the ttl out channel CSC coefficient B4.
ttl_out_c1[12:0], IO Map, Address 0x1BC0[4:0]; Address 0x1BC1[7:0]
This signal is used to specify the ttl out channel CSC coefficient C1.
ttl_out_c2[12:0], IO Map, Address 0x1BC2[4:0]; Address 0x1BC3[7:0]
This signal is used to specify the ttl out channel CSC coefficient C2.
ttl_out_c3[12:0], IO Map, Address 0x1BC4[4:0]; Address 0x1BC5[7:0]
This signal is used to specify the ttl out channel CSC coefficient C3.
ttl_out_c4[12:0], IO Map, Address 0x1BC6[4:0]; Address 0x1BC7[7:0]
This signal is used to specify the ttl out channel CSC coefficient C4.
The characteristic equations for the secondary input CSC are provided in Equation 10, Equation 11 and Equation 12.
A1[12 : 0]
A2[12 : 0]
A3[12 : 0]


Out _ A =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ A4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Equation 13: TTL Output CSC Channel A Output
B1[12 : 0]
B 2[12 : 0]
B3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ B 4[12 : 0] ∗ 2 CSC _ scale
Out _ B =  In _ A ∗
4096
4096
4096


Equation 14: TTL Output CSC Channel B Output
Rev. 0 | Page 93 of 326
UG-707
ADV8005 Hardware Reference Manual
C1[12 : 0]
C 2[12 : 0]
C 3[12 : 0]


Out _ C =  In _ A ∗
+ In _ B ∗
+ In _ C ∗
+ C 4[12 : 0] ∗ 2 CSC _ scale
4096
4096
4096


Equation 15: TTL Output CSC Channel C Output
HDTV YCbCr
(limited) to
RGB (limited)
HDTV YCbCr
(limited) to
RGB (full)
HDTV YCbCr
(limited) to
SDTV YCbCr
(limited)
HDTV YCbCr
(limited) to
SDTV YCbCr
(full)
HDTV YCbCr
(full) to SDTV
YCbCr
(limited)
SDTV YCbCr
(limited) to
RGB (limited)
SDTV YCbCr
(limited) to
RGB (full)
SDTV YCbCr
(limited) to
HDTV YCbCr
(limited)
SDTV YCbCr
(limited) to
SDTV YCbCr
(full)
SDTV YCbCr
(full) to HDTV
YCbCr
(limited)
RGB (limited)
to HDTV
YCbCr
(limited)
RGB (limited)
to SDTV YCbCr
(limited)
RGB (limited)
to RGB (full)
A1
Table 16 TTL Output Channel CSC Common Configuration Coefficients
A2
A3
A4
B1
B2
B3
B4
C1
C2
0x1
0x0C53
0x0800 0x0000 0x19D6 0x1C56 0x0800 0x1E88 0x0291 0x1FFF
0x0800 0x0E85 0x18BE
0x2
0x0734
0x04AD 0x0000 0x1C1B 0x1DDC 0x04AD 0x1F24
0x1
0x07DD 0x0000 0x1F6C 0x005B 0x0188
0x1
0x08EB
0x0
0x0E0D 0x0000 0x0000 0x0100 0x0000
0x1
0x0AF8
0x0800 0x0000 0x1A84 0x1A6A 0x0800 0x1D50 0x0423 0x1FFC 0x0800 0x0DDE 0x1913
0x2
0x0669
0x04AC 0x0000 0x1C81 0x1CBC 0x04AD 0x1E6E
0x0220 0x1FFE
0x1
0x0833
0x0000 0x0099 0x1F99 0x1E56
0x0800 0x1F13
0x014B 0x00EA 0x0000 0x0826 0x1F78
0x1
0x091B
0x0000 0x0000 0x1F6E
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x091B 0x1F6E
0x2
0x039D 0x0000 0x0043 0x0F26 0x1F44
0x036F 0x1F97
0x0
0x082E
0x1893 0x1F3F 0x0800 0x0367
0x0B71 0x0128 0x0000 0x1E21 0x19B2 0x082D 0x0800
0x0
0x082E
0x1926 0x1EAC 0x0800 0x04C9 0x0965 0x01D2 0x0000 0x1D3F 0x1A93 0x082E
0x0
0x0DBC 0x0000 0x0000 0x0100 0x0000
C3
C4
csc_mode[1:0]
Color Space
Conversion
0x0135 0x0000 0x04AD 0x087C 0x1B77
0x0800 0x00CB 0x1ED6 0x1F1D 0x0000 0x07EB 0x007B
0x0000 0x1F58 0x1FDE 0x01C9 0x0950 0x00EC 0x1F25
0x0000
0x1EFF
0x0000 0x08FA 0x031F
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0E0D 0x0100
0x04AD 0x081A 0x1BA9
0x00D2 0x0067 0x0000 0x0397 0x004D
0x0800
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0DBC 0x0100
Rev. 0 | Page 94 of 326
ADV8005 Hardware Reference Manual
RGB (full) to
HDTV YCbCr
(limited)
RGB (full) to
SDTV YCbCr
(limited)
RGB (full) to
RGB (limited)
Identity Matrix
(Output =
Input)
2.2.12.5.
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
0x0
0x06FF
0x19A6 0x1F5B 0x0800 0x02E9
0x09CB 0x00FD 0x0100 0x1E66 0x1A9B 0x06FF
0x0800
0x0
0x06FF
0x1A24 0x1EDD 0x0800 0x0418
0x080A 0x018F
0x0800
0x1
0x0950
0x0000 0x0000 0x1F6B 0x0000
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x0950 0x1F6B
0x1
0x0800
0x0000 0x0000 0x0000 0x0000
0x0800 0x0000 0x0000 0x0000 0x0000 0x0800 0x0000
csc_mode[1:0]
Color Space
Conversion
UG-707
0x0100 0x1DA5 0x1B5C 0x06FF
HDMI Transmitter CSCs
Both of the HDMI transmitters feature an any-to-any CSC. The CSC register controls for HDMI Tx1 are described here; the same controls coexist in the HDMI Tx2 Main Map for the HDMI Tx2 CSC.
The CSC must be manually configured for each color space conversion. The HDMI Tx CSC output can be enabled using the csc_en control.
The HDMI Tx CSC mode can be configured using csc_scaling_factor[1:0]. The CSC mode is used to define the fixed point position of the
CSC coefficients which are located after csc_scaling_factor[1:0] in the TX Main Map.
Reference configuration scripts to configure the HDMI Tx CSCs are provided with the evaluation software.
csc_en, TX2 Main Map, Address 0xF418[7]
This bit is used to enable the colour space converter.
Function
csc_en
0 (default)
1
Description
CSC Disabled
CSC Enabled
csc_scaling_factor[1:0], TX2 Main Map, Address 0xF418[6:5]
This signal is used to specify the CSC scaling factor. The CSC scaling factor sets the fixed point position of the CSC coefficients, including
a4, b4, c4 and offsets.
Function
csc_scaling_factor[1:0]
00
01
10 (default)
11
Description
+/- 1.0, -4096 to 4095
+/-2.0, -8192 to 8190
+/- 4.0, -16384 to 16380
+/- 4.0, -16384 to 16380
The characteristic equations for the HDMI Tx CSCs are captured in Equation 16, Equation 17 and Equation 18.
A1[12 : 0]
A2[12 : 0]
A3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ A4[12 : 0] ∗ 2 CSC _ scale
Out _ A =  In _ A ∗
4096
4096
4096


Equation 16: HDMI Tx CSC Channel A Output
B1[12 : 0]
B 2[12 : 0]
B3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ B 4[12 : 0] ∗ 2 CSC _ scale
Out _ B =  In _ A ∗
4096
4096
4096


Equation 17: HDMI Tx CSC Channel B Output
Rev. 0 | Page 95 of 326
UG-707
ADV8005 Hardware Reference Manual
C1[12 : 0]
C 2[12 : 0]
C 3[12 : 0]


+ In _ B ∗
+ In _ C ∗
+ C 4[12 : 0] ∗ 2 CSC _ scale
Out _ C =  In _ A ∗
4096
4096
4096


Equation 18: HDMI Tx CSC Channel C Output
The CSC in each of the HDMI Txs is illustrated in Figure 44.
csc_scaling_factor
4096
csc_a1
In_A
+
x
+
csc_a4
4x
2
+
2x
1
÷
csc_a2
In_B
Out_A
0
x
csc_a3
In_C
x
Figure 47: HDMI Tx CSC
The video inputs In_A, In_B and In_C are connected by default to R, G and B. Refer to Table 17 for more information. The default routing
cannot be changed for the HDMI Tx CSCs.
Input Channel
In_A
In_B
In_C
Table 17: Default HDMI Tx Channel CSC Signal Routing
Default RGB Routing
Default YCbCr Routing
R
Cr
G
Y
B
Cb
The A1 to A3, B1 to B3, and C1 to C3 coefficients are used to scale the primary inputs. A4, B4 and C4 are added as offsets. Floating point
coefficients must be converted into 120-bit fixed decimal format then converted into binary format using twos complement for negative values
and can only be programmed in the range [-1….+1] or [-4096….+4095].
The dynamic range of the CSC is [0…..1] for unipolar signals (Y, R, G, B) or [-0.5…….+0.5] for bipolar signals. Bipolar signals (Pr/Pb) must
be offset to mid-range. Equations with a dynamic range larger than 1 need to be scaled appropriately using the csc_scaling_factor[1:0] control.
To achieve a coefficient value of 1.0 for any given coefficient, csc_scaling_factor[1:0] should be set high and the coefficient should be
programmed to a value of 0.5. Otherwise, the largest value would be 4095/4096 = 0.9997. While this value could be interpreted as 1, it is
recommended to use the value of 0.5 and set the csc_scaling_factor[1:0] bits for maximum accuracy.
The CSC configurations for common modes are provided in Table 18.
Table 18: HDMI Tx CSC Common Configuration Coefficients
Rev. 0 | Page 96 of 326
ADV8005 Hardware Reference Manual
HDTV YCbCr
(limited) to
RGB (limited)
HDTV YCbCr
(limited) to
RGB (full)
HDTV YCbCr
(limited) to
SDTV YCbCr
(limited)
HDTV YCbCr
(limited) to
SDTV YCbCr
(full)
HDTV YCbCr
(full) to SDTV
YCbCr
(limited)
SDTV YCbCr
(limited) to
RGB (limited)
SDTV YCbCr
(limited) to
RGB (Full)
SDTV YCbCr
(limited) to
HDTV YCbCr
(limited)
SDTV YCbCr
(limited) to
SDTV YCbCr
(full)
SDTV YCbCr
(full) to HDTV
YCbCr
(limited)
RGB (limited)
to HDTV
YCbCr
(limited)
RGB (limited)
to SDTV YCbCr
(limited)
RGB (limited)
to RGB (full)
RGB (full) to
HDTV YCbCr
(limited)
RGB (full) to
SDTV YCbCr
(limited)
RGB (full) to
RGB (limited)
Identity Matrix
(Output =
Input)
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
0x1
0x0C53
0x0800 0x0000 0x19D6 0x1C56 0x0800 0x1E88 0x0291 0x1FFF
0x2
0x0734
0x04AD 0x0000 0x1C1B 0x1DDC 0x04AD 0x1F24
0x1
0x07DD 0x0000 0x1F6C 0x005B 0x0188
0x1
0x08EB
0x0
0x0E0D 0x0000 0x0000 0x0100 0x0000
0x1
0x0AF8
0x0800 0x0000 0x1A84 0x1A6A 0x0800 0x1D50 0x0423 0x1FFC 0x0800 0x0DDE 0x1913
0x2
0x0669
0x04AC 0x0000 0x1C81 0x1CBC 0x04AD 0x1E6E
0x0220 0x1FFE
0x1
0x0833
0x0000 0x0099 0x1F99 0x1E56
0x0800 0x1F13
0x014B 0x00EA 0x0000 0x0826 0x1F78
0x1
0x091B
0x0000 0x0000 0x1F6E
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x091B 0x1F6E
0x2
0x039D 0x0000 0x0043 0x0F26 0x1F44
0x036F 0x1F97
0x0
0x082E
0x1893 0x1F3F 0x0800 0x0367
0x0B71 0x0128 0x0000 0x1E21 0x19B2 0x082D 0x0800
0x0
0x082E
0x1926 0x1EAC 0x0800 0x04C9 0x0965 0x01D2 0x0000 0x1D3F 0x1A93 0x082E
0x0
0x0DBC 0x0000 0x0000 0x0100 0x0000
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0DBC 0x0100
0x0
0x06FF
0x19A6 0x1F5B 0x0800 0x02E9
0x09CB 0x00FD 0x0100 0x1E66 0x1A9B 0x06FF
0x0800
0x0
0x06FF
0x1A24 0x1EDD 0x0800 0x0418
0x080A 0x018F
0x0800
0x1
0x0950
0x0000 0x0000 0x1F6B 0x0000
0x0950 0x0000 0x1F6B 0x0000 0x0000 0x0950 0x1F6B
0x1
0x0800
0x0000 0x0000 0x0000 0x0000
0x0800 0x0000 0x0000 0x0000 0x0000 0x0800 0x0000
csc_mode[1:0]
Color Space
Conversion
UG-707
0x0135 0x0000 0x04AD 0x087C 0x1B77
0x0800 0x00CB 0x1ED6 0x1F1D 0x0000 0x07EB 0x007B
0x0000 0x1F58 0x1FDE 0x01C9 0x0950 0x00EC 0x1F25
0x0000
0x0800 0x0E85 0x18BE
0x1EFF
0x0000 0x08FA 0x031F
0x0DBC 0x0000 0x0100 0x0000 0x0000 0x0E0D 0x0100
Rev. 0 | Page 97 of 326
0x04AD 0x081A 0x1BA9
0x00D2 0x0067 0x0000 0x0397 0x004D
0x0100 0x1DA5 0x1B5C 0x06FF
0x0800
UG-707
2.2.13.
ADV8005 Hardware Reference Manual
VGA Position and Phase Information
The ADV8005 can measure picture position and sample quality information and record these in on-chip registers. This information can be
read and used by the software on an external MCU to program the optimum sampling clock frequency and phase for an external Video AFE
when it is sampling a VGA-type input signal.
Figure 48: Autoposition and Phase Block Diagram
Figure 49: Autoposition and Phase Implementation Using System Firmware
The autophase block within the ADV8005 is designed to tune the ADC sampling phase in a device with an analog front end such as the
ADV7850, ADV7844, or ADV7842. Figure 48 shows a system view of how the ADV8005 implements autoposition and phase. Figure 49
shows a block diagram of how the ADV8005 interfaces with the system software to tune the analog front end device, the ADV7850. For the
autophase the software driver cycles through each of the ADV7850 ADC sampling phases. The ADV8005 analyzes the input video timing and
then rb_auto_ph_right_phase[5:0] indicates the best sampling phase to use. The software routine required to implement this routing is
decribed in Figure 50.
Rev. 0 | Page 98 of 326
ADV8005 Hardware Reference Manual
UG-707
CSC input used for
auto phase
Select TTL/RX input
Set the number
of phases
IO map - 0x1BE0[5]
IO map - 0x1BE0[7:6]
IO map - 0x1BE1 [6:0]
IO map - 0x1BFE[0]
yes
no
Read Best Phase
Write Best Phase to CP
DLL_PHASE
ADV7850
AFE map
- 0xC8
IO map - 0x1BE1[7]
Reset auto phase
Scan current phase
Phase ++
More
phases to
scan?
Enable auto
phase
Write current Phase to
CP DLL_PHASE
yes
Read Statistical
result for phase
IO map 0x1BE4, 0x1BE5, 0x1BE6
Lock?
Write current Phase to
AUTO_PH_SCAN
ADV7850
AFE map
- 0xC8
IO map
- 0x1BE2[5:0]
IO map - 0x1BE3[7]
IO map 0x1BE3[5:0]
Write Best Phase to
AUTO_PH_SCAN
END
IO map - 0x1BE2
Front End write
ADV8005 write
Figure 50 ADV8005 Auto-Phase Software Flow Chart
Rev. 0 | Page 99 of 326
UG-707
ADV8005 Hardware Reference Manual
Figure 51: Graphics Video Timing Parameters
Similar to the autophase, the auto position block is designed to tune the ADC sampling clock frequency in a device with an analog front end.
To carry it out, the block will analyse the graphics input and return the top, bottom, left and right pixel vacancy numbers. This information,
along with the input standard format, can then be used to adjust the ADC sampling clock frequency.
Figure 51 shows the timing parameters for graphics inputs.
It returns the number of pixels from:
• End of HSync to the start of active video
• End of Active video to start of HSync
The autoposition also returns the number of lines from:
• End of VSync to start of active video
• End of active video to start of VSync
The readbacks are updated with every VSync period. It is required that the input to the autoposition and autophase blocks is in RGB format. If
the input is in YCrCb format, the auto_phpo_byp_csc must be cleared, enabling the ADV8005 to perform the color space conversion to RGB.
If the input is RGB, then the CSC should be bypassed.
Before running the auto-position software routine, ensure a bright test pattern is used. For example a white RGB flat field which will have valid
video on the first and last pixel in each line. The bright color makes it easier for the algorithm to detect the blank area.
Rev. 0 | Page 100 of 326
ADV8005 Hardware Reference Manual
UG-707
ADV7850
VFE map - 0x16,0x17
Detect video standard
Set front end pll ratio
first,
then enable manual pll
Set ADV8005 datapath
to RGB (no CSC)
IO map - 0x1BE0[5]
ADV7850
CP map -0x8C,0x8D
Increase fend horizontal
blanking area
Ignore blanking area
IO 0x1B49[5],0x1B89[7]
Select TTL/RX input
IO map - 0x1BE0[7:6]
Initialize
noise threshold (0x80)
IO map - 0x1BE7[1:0], 0x1BE8[7:0]
Increase noise
threshold
Enable auto position
IO Map, 1BE7[7]
no
Reset auto position
IO map - 0x1BFE[0]
Lock?
IO map - 0x1BE9[1:0]
Adjust front end
sampling clock
frequency
no
Correct
timing?
yes
ADV7850
VFE map -0x16,0x17
Time
out?
no
yes
yes
Read measurement
IO map - 0x1BEA to 0x1BF1
Based on video
standard detected
END
auto_phpo_inp_sel[1:0], IO Map, Address 0x1BE0[7:6]
This control signal is used to select which input is routed to the auto position and auto phase blocks
Description
VID TTL
OSD TTL
RX
N/A
auto_phpo_byp_csc, IO Map, Address 0x1BE0[5]
This bit is used to bypass the CSC or not before routing to the auto Phase and auto Position detection blocks
Function
auto_phpo_byp_csc
0
1 (default)
Reset auto position
IO map - 0x1BFE[0]
Figure 52 ADV8005 Auto-Position Software Flow Chart
Function
auto_phpo_inp_sel[1:0]
00 (default)
01
10
11
Set fend datapath and
AVI to RGB
Description
CSC output used for auto PHPO
CSC input used for auto PHPO
auto_ph_en, IO Map, Address 0x1BE1[7]
This bit is used to enable auto phase detection block
Rev. 0 | Page 101 of 326
Front End write
ADV8005 write
UG-707
Function
auto_ph_en
0 (default)
1
ADV8005 Hardware Reference Manual
Description
Disabled
Enabled
auto_ph_num[6:0], IO Map, Address 0x1BE1[6:0]
This control signal sets the total number of phases available on the front end part, e.g. 8, 16, 32, etc
auto_ph_scan[5:0], IO Map, Address 0x1BE2[5:0]
This control signal sets the scan phase number being tested. When the scan value changes, a new scan is triggered to start.
rb_auto_ph_read_ready, IO Map, Address 0x1BE3[7] (Read Only)
This bit is used to indicate rb_auto_ph_diff_sum_lock is valid, a HIGH means it is valid to read the value in auto_ph_diff_sum_lock.
rb_auto_ph_right_phase[5:0], IO Map, Address 0x1BE3[5:0] (Read Only)
This signal is used to indicate the correct phase after i2c_auto_ph_scan has been indexed through all of the phases.
rb_auto_ph_diff_sum_lock[23:0], IO Map, Address 0x1BE4[7:0]; Address 0x1BE5[7:0]; Address 0x1BE6[7:0] (Read Only)
This signal is used to indicate the statistical result for the phase in AUTO_PH_SCAN (Auto Phase Scan Number). This signal is valid when
AUTO_PH_READ_READY is HIGH.
auto_po_en, IO Map, Address 0x1BE7[7]
This bit is used to enable the auto position detection block
Function
auto_po_en
0 (default)
1
Description
Disabled
Enabled
vid_blank_blanking_area, IO Map, Address 0x1B49[5]
This bit is used to specify the blanking area that is blanked to avoid the filters mistakenly interpreting data in the blanking area.
Function
vid_blank_blanking_area
1 (default)
0
Description
Blanking area is blanked.
Blanking area data passes through.
rx_blank_blanking_area, IO Map, Address 0x1B89[7]
This bit is used to specify the blanking area that is blanked to avoid the filters mistakenly interpreting data in the blanking area.
Function
rx_blank_blanking_area
1
0 (default)
Description
Blanking area is blanked.
Blanking area data passes through.
auto_po_noise_thr[9:0], IO Map, Address 0x1BE7[1:0]; Address 0x1BE8[7:0]
This signal sets the noise threshold (minimum value) for the sum of the three channels R, G and B to differentiate the active pixels from the
blank pixels. For example, if blank value for RGB is 16, the noise threshold should be larger than 48.
rb_auto_po_l_edg_lock_flag, IO Map, Address 0x1BE9[1] (Read Only)
This bit indicates if the algorithm has locked to the left edge of the input video. If this bit is high, it has locked to the left edge, a low indicates
it has not locked to it.
Rev. 0 | Page 102 of 326
ADV8005 Hardware Reference Manual
UG-707
rb_auto_po_r_edg_lock_flag, IO Map, Address 0x1BE9[0] (Read Only)
This bit indicates if the algorithm has locked to the right edge of the input video. If this bit is high, it has locked to the right edge, a low
indicates it has not locked to it.
rb_auto_po_t_offset[15:0], IO Map, Address 0x1BEA[7:0]; Address 0x1BEB[7:0] (Read Only)
This readback signal returns the top offset, the number of blank lines before the start of active video. This offset excludes the vertical
blanking area.
rb_auto_po_b_offset[15:0], IO Map, Address 0x1BEC[7:0]; Address 0x1BED[7:0] (Read Only)
This readback signal returns the bottom offset, the number of blank lines after active video. This offset excludes the vertical blanking area.
rb_auto_po_l_offset[15:0], IO Map, Address 0x1BEE[7:0]; Address 0x1BEF[7:0] (Read Only)
This readback signal returns the left offset, the number of blank Pixels before the start of active video. This offset excludes the horizontal
blanking area.
rb_auto_po_r_offset[15:0], IO Map, Address 0x1BF0[7:0]; Address 0x1BF1[7:0] (Read Only)
This readback signal returns the right offset, the number of blank Pixels after active video. This offset excludes the horizontal blanking area.
2.2.14.
ADV8005 Silicon Revision
The ADV8005 silicon revision can be determined using rb_chip_id[16].
rb_chip_id[16], IO Map, Address 0x1AD3[0] (Read Only)
Readback of Macrovision enabled / disabled
Function
rb_chip_id[16]
0 (default)
1
2.2.15.
Description
Rovi Enabled
Rovi Disabled
System Configuration
When configuring a system featuring an HDMI Rx and ADV8005, the following sequences for HDMI Tx and encoder are recommended.
For HDMI Tx:
1. Configure the HDMI Rx (ADV7850).
2. Wait until the ADV8005 Serial Video Rx achieves lock.
3. Wait 100 ms.
4. Configure the VSP.
5. Wait 1 field/frame.
6. Configure the HDMI Tx.
For the encoder:
1. Configure the HDMI Rx (ADV7850).
2. Wait until the ADV8005 Serial Video Rx achieves lock.
3. Wait 100 ms.
4. Configure the VSP.
5. Wait 250 ms.
6. Configure the encoder.
Rev. 0 | Page 103 of 326
UG-707
ADV8005 Hardware Reference Manual
Rev. 0 | Page 104 of 326
ADV8005 Hardware Reference Manual
UG-707
3. VIDEO SIGNAL PROCESSING
3.1. INTRODUCTION
The primary function of the ADV8005 is high performance video processing, such as motion adaptive de-interlacing, flexible scaling and
frame rate conversion, as well as additional video processing such as noise reduction, CUE correction, and aspect ratio/panorama scaling.
This section details the registers used to control the Video Signal Processing (VSP) hardware.
The three constituent sections of the ADV8005 video processor are the PVSP, SVSP, and the PtoI converter. These hardware blocks are
completely independent of each other and can be placed in various configurations within the ADV8005.
Access to an external DDR2 memory can be required for the PVSP and SVSP to operate correctly. The PVSP needs access to external DDR2
memory in every mode except game mode. While the SVSP uses external DDR2 memory for the majority of operations, in the case of down
converting from 1080p to 720p (with the same frame rate), no external memory is required and all conversions can take place in internal line
memories. The PtoI converter does not need access to external DDR2 memory.
3.2. PRIMARY VSP
3.2.1.
Introduction to PVSP
Figure 53: ADV8005 PVSP
Figure 53 shows the structure of the PVSP which comprises three sections: the Video Input Module (VIM), the Video Output Module (VOM),
and a controller referred to as the Field Frame Scheduler (FFS).
The VIM is used to capture input video data which it then writes to external DDR2 memory. The VIM is also capable of cropping input video
data and performing horizontal downscaling. Before the VIM writes video data to external memory, it first packs the video into the
appropriate data formats. In game mode, VIM will send packed 128-bit words to VOM directly instead of writing them into external memory.
The VOM is used to read data from external memory, format this data into 12-bit pixels, perform various functions on this data (scaling, deinterlacing, and so on), and then output this video from the PVSP. Many of the PVSP video processing functions are implemented in the
VOM. In game mode, the VOM will use data from the VIM instead of reading data from external memory.
The FFS is used to schedule and control the interaction between the VIM, external DDR2 memory, and the VOM. Field/frame buffer
scheduling, field polarity management, and FRC management are all implemented in the FFS.
The PVSP can be bypassed by setting pvsp_bypass.
pvsp_bypass, Primary VSP Map, Address 0xE829[7]
This bit is used to bypass the Primary VSP. If this bit is set to 1, the input video to the Primary VSP will be directly bypassed to the output
port.
Rev. 0 | Page 105 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
pvsp_bypass
0 (default)
1
Description
Not bypass Primary VSP
Bypass Primary VSP
The VIM and VOM must be enabled if using the PVSP. This can be done by enabling the pvsp_enable_vim and pvsp_enable_vom bits. This
must be done regardless of the video conversions being performed.
pvsp_enable_vim, Primary VSP Map, Address 0xE828[1]
This bit is used to control the Video Input Module (VIM). If this bit is set to 1, the VIM is enabled to write packed input video data into a
defined external field/frame buffer. While the Primary VSP is running, if this bit is set to 0, the output video stream will be frozen.
Function
pvsp_enable_vim
0 (default)
1
Description
Disable VIM
Enable VIM
pvsp_enable_vom, Primary VSP Map, Address 0xE828[2]
This bit is used to control the Video Output Module (VOM). If this bit is set to 1, the VOM is enabled to read video data from external
memory, process it and then output it.
Function
pvsp_enable_vom
0 (default)
1
Description
Disable VOM
Enable VOM
Also, if using the PVSP, the FFS must be enabled using pvsp_enable_ffs. This informs the hardware of the various conversions that must be
performed. Field/frame buffers in external memory are managed by the FFS which decides which field/frame buffer should be used by the
VIM to store input video data. The FFS also decides which field/frame buffer should be read back by VOM to process. In the case of interlaced
video, the FFS informs the VOM if the input video is the even field or the odd field. The PVSP utilizes a frame repeat/drop mechanism to
implement FRC, which is also managed by the FFS.
pvsp_enable_ffs, Primary VSP Map, Address 0xE828[0]
This bit is used to control the Field Frame Scheduler (FFS). If this bit is set to 1, the FFS is enabled and the VIM and VOM are scheduled by
the FFS, which means the Primary VSP is in operating mode. If this bit is set to 0, the Primary VSP is in idle mode.
Function
pvsp_enable_ffs
0 (default)
1
3.2.1.1.
Description
Disable FFS/FRC
Enable FFS/FRC
Autoconfiguration
Each block inside VIM and VOM can be automatically configured to reduce the configuration complexity. Two registers,
pvsp_autocfg_input_vid[7:0] and pvsp_autocfg_output_vid[7:0] should be set to make the auto configuration work.
The 59.94/23.97 Hz timings have the same VID as the corresponding 60/24Hz timing in Figure 20.
pvsp_autocfg_input_vid[7:0], Primary VSP Map, Address 0xE881[7:0]
This register is used to set the input timing VIC. If this register is 0, PVSP will use values in registers of pvsp_vin_h, pvsp_vin_v,
pvsp_is_i_to_p and pvsp_vin_fr to set input video.
Function
pvsp_autocfg_input_vid[7:0]
0x06 (default)
0xXX
Description
Default: [email protected]
Input timing VID
CEA
Table 19: PVSP Supported Input Video Timing and VID
Video Timing
VID
640x480p60
1
Rev. 0 | Page 106 of 326
ADV8005 Hardware Reference Manual
UG-707
Video Timing
720x480p60
720x240p60
1280x720p60
1920x1080i60
720x480i60
1920x1080p
720x576p50
1280x720p50
1920x1080i50
720x576i50
720x288p50
1920x1080p50
1920x1080p24
1920x1080p25
1920x1080p30
1080i50-even
1080i100
720p100
576p100
576i100
1080i120
720p120
480p120
480i120
576p200
576i200
480p240
480i240
VESA timing
VGA
SVGA
XGA
WXGA
SXGA
WXGA-2
UXGA
WXGA-3
WUXGA
VID
2 or 3 or 14 or 15 or 35 or 36
8 or 9 or 12 or 13
4
5
6 or 7 or 10 or 11
16
17 or 18 or 29 or 30 or 37 or 38
19
20
21 or 22 or 25 or 26
23 or 24 or 27 or 28
31
32
33
34
39
40
41
42 or 43
44 or 45
46
47
48 or 49
50 or 51
52 or 53
54 or 55
56 or 57
58 or 59
200
201
202
203
204
205
206
207
208
pvsp_autocfg_output_vid[7:0], Primary VSP Map, Address 0xE882[7:0]
This register is used to set the output timing VIC. If this register is 0, PVSP will use values in registers of pvsp_dp_decount,
pvsp_dp_hfrontporch, pvsp_dp_hsynctime, pvsp_dp_hbackporch, pvsp_dp_activeline, pvsp_dp_vfrontporch, pvsp_dp_vsynctime,
pvsp_dp_vbackporch, pvsp_dp_hpolarity, pvsp_dp_vpolarity, pvsp_vout_fr and pvsp_dp_4kx2k_mode_en to set output video.
Function
pvsp_autocfg_output_vid[7:0
]
0x10 (default)
0xXX
Description
Default: [email protected]
Output timing VID
Rev. 0 | Page 107 of 326
UG-707
ADV8005 Hardware Reference Manual
Table 20 lists the supported output video timings and the corresponding VID. 59.94/23.97 Hz timings have the same VID as the corresponding
60/24 Hz timing in the table.
Table 20: PVSP Supported Output Video Timing and VID
Video Timing
VID
640x480p60
1
720x480p60
2 or 3 or 14 or 15 or 35 or 36
720(1440)x240p60
8 or 9
720(2880)x240p60
12 or 13
1280x720p60
4
1920x1080p
16
720x576p50
17 or 18 or 29 or 30 or 37 or 38
1280x720p50
19
720x288p50
23 or 24 or 27 or 28
1920x1080p50
31
1920x1080p24
32
CEA
1920x1080p25
33
1920x1080p30
34
720p100
41
576p100
42 or 43
720p120
47
480p120
48 or 49
576p200
52 or 53
480p240
56 or 57
4kx2k 30 Hz
112
4kx2k 25 Hz
113
4kx2k 24 Hz
114
4kx2k 24 Hz SMPTE
115
VESA
timing
VGA
SVGA
XGA
WXGA
SXGA
WXGA-2
UXGA
WXGA-3
WUXGA
200
201
202
203
204
205
206
207
208
If overscan, crop or album mode is being used, the required blocks must be configured manually by enabling the corresponding enable bits,
such as pvsp_vim_crop_enable, to enable the VIM crop block.
3.2.1.2.
Customized Input/Output Video Format Configuration
If the input timing is not in the PVSP input format table, customized input format needs to be set manually.
If the input resolution has a variation with regard to standard timing (for example, if pvsp_autocfg_input_vid[7:0] is set to 2, which indicates
the input resolution is 720x480, but the actual resolution is 718x478), the user can manually set pvsp_autocfg_input_vid[7:0] to 0 and set the
input resolution through the following three registers.
pvsp_man_input_res, Primary VSP Map, Address 0xE884[5]
This bit is used to enable the manual configuration of the input resolution.
Rev. 0 | Page 108 of 326
ADV8005 Hardware Reference Manual
Function
pvsp_man_input_res
0 (default)
1
UG-707
Description
Disable manual configuration of input resolution
Enable manual configuration of input resolution
pvsp_vin_h[10:0], Primary VSP Map, Address 0xE82E[2:0]; Address 0xE82F[7:0]
This signal is used to set the horizontal resolution of the input video. This register's value will be used while pvsp_man_input_res is 1 or
pvsp_autocfg_input_vid is 0.
Function
pvsp_vin_h[10:0]
0x000 (default)
0xXXX
Description
Default
Horizontal resolution of input video
pvsp_vin_v[10:0], Primary VSP Map, Address 0xE830[2:0]; Address 0xE831[7:0]
This signal is used to set the vertical resolution of the input video. This register's value will be used while pvsp_man_input_res is 1 or
pvsp_autocfg_input_vid is 0.
Function
pvsp_vin_v[10:0]
0x000 (default)
0xXXX
Description
Default
Vertical resolution of input video
Similarly, if the output timing is not in the PVSP output format table, customized output format needs to be set manually. The detailed
configuration instructions are given in the PVSP VOM output port description.
3.2.1.3.
Field/Frame Buffer Number
Depending on the type of conversion that is to take place, a number of buffers must be allocated for the input/output video data. Depending
on the conversion required, this should be set in the pvsp_fieldbuf_num register. pvsp_fieldbuf_num can be automatically set by
pvsp_autocfg_input_vid[7:0] and pvsp_autocfg_output_vid[7:0]. The pvsp_fieldbuf_num register does not change when crop or album mode
is enabled.
pvsp_fieldbuf_num[2:0], Primary VSP Map, Address 0xE829[2:0]
Sets the number of field/frame buffers.
Function
pvsp_fieldbuf_num[2:0]
000 
XXX
3.2.1.4.
Description
Default
Number of field/frame buffers
Field/Frame Buffer Address and Size
In order to store video data in external memory in the correct size fields, the buffer size of the external DDR2 memory must be programmed
by the user. Configuring this manually allows the user to have very flexible control over the external DDR memory.
These programmed field buffers or frame buffers are allocated by setting the following registers: pvsp_fieldbuffer0_addr[31:0],
pvsp_fieldbuffer1_addr[31:0], pvsp_fieldbuffer2_addr[31:0], pvsp_fieldbuffer3_addr[31:0], pvsp_fieldbuffer4_addr[31:0],
pvsp_fieldbuffer5_addr[31:0] and pvsp_fieldbuffer6_addr[31:0].
The value programmed into each of these registers is determined by Equation 19.
field _ size ≡
(active _ video _ width × active _ video _ height )
xbytes _ per _ pixel
1 + PVSP_IS_I_TO_P
Equation 19: Calculating External Memory Field Buffers
where:
Rev. 0 | Page 109 of 326
UG-707
•
•
ADV8005 Hardware Reference Manual
PVSP_IS_I_TO_P indicates whether the input timing is interlaced or progressive (interlaced = 1, progressive = 0)
bytes_per_pixel indicates the number of bytes required to store each pixel (refer to Table 23 for more details on the number of bytes
required per pixel)
For example, for an input video resolution of 720p, Equation 19 would yield the following field size:
Field_size = ((720)x(1280))x4 = 3686400
The following values would then need to be programmed to the above registers:
pvsp_fieldbuffer0_addr[31:0] = 0
pvsp_fieldbuffer1_addr[31:0] = 38400 (3686400 in hex)
pvsp_fieldbuffer2_addr[31:0] = 70800 (7372800 in hex)
Note: The default value of the field/frame buffer is set for a 1080p input. If the maximum supported video is 1080p, there is no need to change
the setting of the field/frame buffer. It is recommended to leave the setting of the buffer number and the buffer size unchanged.
pvsp_fieldbuffer0_addr[31:0], Primary VSP Map, Address 0xE800[7:0]; Address 0xE801[7:0]; Address 0xE802[7:0]; Address 0xE803[7:0]
This signal is used to set the start address of field/frame buffer 0. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer0_addr[31:0]
0x004F1A00
0xXXXXXXXX
Description
Default
Start address of field/frame buffer 0
pvsp_fieldbuffer1_addr[31:0], Primary VSP Map, Address 0xE804[7:0]; Address 0xE805[7:0]; Address 0xE806[7:0]; Address 0xE807[7:0]
This signal is used to set the start address of field/frame buffer 1. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer1_addr[31:0]
0x00CDAA00
0xXXXXXXXX
Description
Default
Start address of field/frame buffer 1
pvsp_fieldbuffer2_addr[31:0], Primary VSP Map, Address 0xE808[7:0]; Address 0xE809[7:0]; Address 0xE80A[7:0]; Address 0xE80B[7:0]
This signal is used to set the start address of field/frame buffer 2. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer2_addr[31:0]
0x014C3A00
0xXXXXXXXX
Description
Default
Start address of field/frame buffer 2
pvsp_fieldbuffer3_addr[31:0], Primary VSP Map, Address 0xE80C[7:0]; Address 0xE80D[7:0]; Address 0xE80E[7:0]; Address 0xE80F[7:0]
This signal is used to set the start address of field/frame buffer 3. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer3_addr[31:0]
0x01CACA00
0xXXXXXXXX
Description
Default
Start address of field/frame buffer 3
pvsp_fieldbuffer4_addr[31:0], Primary VSP Map, Address 0xE810[7:0]; Address 0xE811[7:0]; Address 0xE812[7:0]; Address 0xE813[7:0]
This signal is used to set the start address of field/frame buffer 4. Software should arrange memory space properly, avoiding conflict between
different buffers.
Rev. 0 | Page 110 of 326
ADV8005 Hardware Reference Manual
Function
pvsp_fieldbuffer4_addr[31:0]
0x02495A00
0xXXXXXXXX
UG-707
Description
Default
Start address of field/frame buffer 4
pvsp_fieldbuffer5_addr[31:0], Primary VSP Map, Address 0xE814[7:0]; Address 0xE815[7:0]; Address 0xE816[7:0]; Address 0xE817[7:0]
This signal is used to set the start address of field/frame buffer 5. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer5_addr[31:0]
0x02C7EA00
0xXXXXXXXX
Description
Default
Start address of field/frame buffer 5
pvsp_fieldbuffer6_addr[31:0], Primary VSP Map, Address 0xE889[7:0]; Address 0xE88A[7:0]; Address 0xE88B[7:0]; Address 0xE88C[7:0]
This signal is used to set the start address of field/frame buffer 6. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
pvsp_fieldbuffer6_addr[31:0]
0x03073200
0xXXXXXXXX
3.2.1.5.
Description
Default
Start address of field/frame buffer 6
Frame Latency
Different resolutions have different frame latencies, depending on the timing combination to and from the PVSP. This is due to the increased
processing required in converting and scaling video data. Table 21 lists the frame latencies in normal mode for various resolutions.
Table 21: Frame Latency in Normal Mode
Output Frame Rate 50 Hz
59.94/60 Hz
23.97/24 Hz 25/30 Hz
Input
Frame rate
Timing
50 Hz
576i
1080i
59.94/60 Hz
23.97/24/25/30
Hz
1.
2.
3.
4.
576p/720p/1080 480p/720p/1080p 720p/1080p 720p/1080p
p
/4kx2k
/4kx2k
1, 2
1.1~2.3
1.1~2.3
1.1~2.4
1.1~2.4
576p
720p
1080p
0.1~1.3
0.1~1.3
0.1~1.4
0.1~1.4
480i
1080i
1.1~2.3
1.1~2.3
0.1~3.43
0.1~1.4
480p
720p
1080p
0.1~1.3
0.1~1.3
0.1~3.44
0.1~1.4
720/1080p
0.1~0.8
0.1~0.8
0.1~1.3
0.1~1.3
x.x means x.x times the input video field/frame
A~B means frame latency is not a fixed value, it varies between A and B
If cadence detection is disabled, this value should be 0.3~1.4 with setting pvsp_frc_change_phase_en to 0, otherwise is 0.3~3.4
If progressive cadence detection is disabled, this value should be 0.3~1.4 with setting pvsp_frc_change_phase_en to 0, otherwise, it is 0.3~3.4
When crop or album mode is enabled, frame latency will be different from what is listed in Table 21. In this case, the user can use the
following methods to measure frame latency:
Rev. 0 | Page 111 of 326
UG-707
ADV8005 Hardware Reference Manual
pvsp_rb_frame_latency[2:0] and pvsp_rb_hsync_latency[11:0] are read only registers. Their values are real-time frame and HSync latency
between input and output video.
Frame latency may vary within a range; the pvsp_rb_max_latency[14:0] readback register indicates the maximum frame latency, while
pvsp_rb_min_latency[14:0] indicates the minimum frame latency. If pvsp_frc_latency_measure_en is set to 0, pvsp_rb_max_latency[14:0]
and pvsp_rb_min_latency[14:0] are cleared.
If asserting pvsp_frc_latency_measure_en, the PVSP will monitor the values in pvsp_rb_frame_latency[2:0] and
pvsp_rb_hsync_latency[11:0], then record their maximum and minimum values in pvsp_rb_max_latency[14:0] and
pvsp_rb_min_latency[14:0]. Both of these signals are 15 bits wide – the highest 3 bits are the frame latency and the lowest 12 bits are the
HSync latency. Note that it will take several seconds for PVSP to find the maximum and minimum frame/HSync latency.
In a normal case (not game mode), the PVSP’s input video and output video latency are consistent.
pvsp_frc_latency_measure_en, Primary VSP Map, Address 0xE8F0[6]
This bit is used to enable frame latency measuring. The results are recorded in pvsp_rb_max_latency and pvsp_rb_min_latency.
Function
pvsp_frc_latency_measure_e
n
0 (default)
1
Description
Disable frame latency measuring
Enable frame latency measuring
pvsp_rb_frame_latency[2:0], Primary VSP Map, Address 0xE870[6:4] (Read Only)
This signal is used to indicate the real time vsync latency.
Function
pvsp_rb_frame_latency[2:0]
0xXXX
Description
number of frame latency
pvsp_rb_hsync_latency[11:0], Primary VSP Map, Address 0xE875[7:0]; Address 0xE876[7:4] (Read Only)
This signal is used to indicate the real time Hsync latency.
Function
pvsp_rb_hsync_latency[11:0]
0xXXX
Description
number of hsync latency
pvsp_rb_max_latency[14:0], Primary VSP Map, Address 0xE8F2[7:0]; Address 0xE8F3[7:1] (Read Only)
This signal is used to record the maximum frame latency.
Function
pvsp_rb_max_latency[14:0]
0xXXX
Description
Maximum of frame latency
pvsp_rb_min_latency[14:0], Primary VSP Map, Address 0xE8F4[7:0]; Address 0xE8F5[7:1] (Read Only)
This is signal is used to record the minimum frame latency.
Function
pvsp_rb_min_latency[14:0]
0xXXX
3.2.1.6.
Description
Minimum of frame latency
Game Mode
Frame latency should be as small as possible for gaming applications. PVSP supports a game mode, which has nearly zero frame latency
(latency less than 5 lines).
To enable the game mode of PVSP, pvsp_bypass_ddr_mode should be asserted.
pvsp_bypass_ddr_mode, Primary VSP Map, Address 0xE84D[5]
This bit is used to enable game mode for the Primary VSP.
Rev. 0 | Page 112 of 326
ADV8005 Hardware Reference Manual
Function
pvsp_bypass_ddr_mode
0 (default)
1
UG-707
Description
Normal mode
Game mode
External memory is not used in game mode. Intra-field interpolation is used for interlaced input. Mosquito/block noise reduction and
sharpness are supported in game mode, both for interlaced input and progressive input.
In game mode, the following functions are not supported:
• Frame rate change
• Motion adaptive de-interlacing (autodisabled)
• Cadence detection (autodisabled)
• Random noise reduction (autodisabled)
• CUE correction (autodisabled)
• Crop
• Album mode
The functions listed as autodisabled do not need to be manually disabled in game mode – ADV8005 will automatically disable them when
game mode is enabled. Functions which are not listed as autodisabled must be manually disabled before game mode is enabled.
3.2.1.7.
Low Latency Mode
Game mode has a very small frame latency but some processing functions cannot be supported in this mode. ADV8005 provides another
mode, low latency mode, which can support frame rate change, scaling, crop and album mode.
To enable low latency mode, pvsp_frc_low_latency_mode should be set to 1.
Frame latency in low latency mode is listed in Table 22, which shows the maximum frame latency is 1.4 x frame.
Table 22: Frame Latency in Low Latency Mode
59.94/60 Hz
23.97/24 Hz 25/30 Hz
Output Frame Rate 50 Hz
Input
Frame rate
Timing
50 Hz
576i
1080i
59.94/60 Hz
23.97/24/25/30
Hz
576p/720p/1080 480p/720p/1080p 720p/1080p 720p/1080p
p
/4kx2k
/4kx2k
0.3~1.3
0.3~1.3
0.3~1.4
0.3~1.4
576p
720p
1080p
0.3~1.3
0.3~1.3
0.3~1.4
0.3~1.4
480i
1080i
0.3~1.3
0.3~1.3
0.3~1.4
0.3~1.4
480p
720p
1080p
0.3~1.3
0.3~1.3
0.3~1.4
0.3~1.4
720/1080p
0.3~0.8
0.3~0.8
0.3~1.3
0.3~1.3
The following functions are not supported In low latency mode:
Rev. 0 | Page 113 of 326
UG-707
•
•
•
•
ADV8005 Hardware Reference Manual
Motion adaptive de-interlacing (autodisabled)
Cadence detection (autodisabled)
Random noise reduction (autodisabled)
CUE correction (autodisabled)
pvsp_frc_low_latency_mode, Primary VSP Map, Address 0xE84D[2]
This bit is used to enable low latency mode.
Function
pvsp_frc_low_latency_mode
0 (default)
1
3.2.1.8.
Description
Disable low latency mode
Enable low latency mode
Freezing Output Video
It is possible to freeze the output video from the PVSP by disabling the VIM. This can be achieved by setting pvsp_enable_vim to 0.
3.2.1.9.
Progressive Cadence Detection
The ADV8005 PVSP supports multiple different types of cadence detection. Progressive cadence detection is another feature supported by
ADV8005 when the input video is 60 Hz and the output video is 24 Hz. An example of progressive cadence detection would involve the
ADV8005 detecting a pull-down ratio of 3:2 for 60 Hz video and reconverting this to its original film content at 24 Hz. This would allow the
video to be output at 24 Hz and, therefore, be displayed at the highest image quality possible.
Conversions from slower to higher frame rates are achieved by repeating certain frames. Similarly, conversions from higher to lower frame
rates are achieved by dropping some frames. Care has to be taken with repeating and dropping frames so that the quality of the video is not
impacted. A simple example of frame rate conversion is outlined in Figure 54. This example involves converting the input video at a rate of 24
fps to 30 fps. These two frame rates have a ratio of 4:5; for every 4 frames of input video, there must be 5 frames of output video. This example
uses a cadence detection of 3:2 pull-down which means that for every second frame of video data, an extra field of video information will be
displayed.
24fps
F1
F2
F3
F4
A
B
C
D
F1
30fps
A
F2
A
2
F3
B
B
:
3
B
F4
C
C
2
F5
D
:
Figure 54: 2:3 Frame Rate Conversion
Progressive cadence detection can be enabled by setting register pcadence_enable to 1.
pcadence_enable, Primary VSP Map, Address 0xE84D[1]
This bit is used to enable progressive cadence detection.
Rev. 0 | Page 114 of 326
D
3
D
ADV8005 Hardware Reference Manual
Function
pcadence_enable
0
1 (default)
UG-707
Description
Disable progressive cadence detection
Enable progressive cadence detection
Rev. 0 | Page 115 of 326
UG-707
3.2.2.
ADV8005 Hardware Reference Manual
PVSP Video Input Module
Video Input Module (VIM)
Input
Video
Horizontal
Down Scaler
VIM
Cropper
Pixel
Packer
FFS
Write to
DDR2
Figure 55: PVSP Video Input Module
3.2.2.1.
VIM Cropper
The VIM cropper block is used to define a sub window within the given input resolution. This cropped image becomes the video which is
processed by the PVSP. The following registers are used to define this sub window:
• pvsp_vim_crop_enable
•
pvsp_vim_crop_h_start[10:0]
•
pvsp_vim_crop_v_start[10:0]
•
pvsp_vim_crop_width[10:0]
•
pvsp_vim_crop_height[10:0]
To enable cropper block in VIM, pvsp_vim_crop_enable should be asserted.
pvsp_vim_crop_enable, Primary VSP Map, Address 0xE883[6]
This bit is used to enable the VIM crop.
Function
pvsp_vim_crop_enable
0 (default)
1
Description
Disable VIM Crop
Enable VIM Crop
Figure 56 shows the correlation between this cropped image and the input video.
Input Video
VSP3D_VIM_CROP_V_START
VSP3D_VIM_CROP_H_START
Cropped Image
VSP3D_VIM_CROP_HEIGHT
VSP3D_VIM_CROP_WIDTH
Rev. 0 | Page 116 of 326
ADV8005 Hardware Reference Manual
UG-707
Figure 56: VIM Crop Dimensions
pvsp_vim_crop_h_start[10:0], Primary VSP Map, Address 0xE832[2:0]; Address 0xE833[7:0]
This signal is used to set the horizontal start position of the VIM cropper.
Function
pvsp_vim_crop_h_start[10:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of VIM cropper input
pvsp_vim_crop_v_start[10:0], Primary VSP Map, Address 0xE834[2:0]; Address 0xE835[7:0]
This signal is used to set the vertical start position of the VIM cropper.
Function
pvsp_vim_crop_v_start[10:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of VIM cropper input
pvsp_vim_crop_width[10:0], Primary VSP Map, Address 0xE836[2:0]; Address 0xE837[7:0]
This signal is used to set the input width of the VIM cropper.
Function
pvsp_vim_crop_width[10:0]
0x000 (default)
0xXXX
Description
Default
Width of VIM cropper input
pvsp_vim_crop_height[10:0], Primary VSP Map, Address 0xE838[2:0]; Address 0xE839[7:0]
This signal is used to set the input height of the VIM cropper.
Function
pvsp_vim_crop_height[10:0]
0x000 (default)
0xXXX
Description
Default
Height of VIM cropper input
Note: The following limitations apply to the values that can be programmed in these registers:
• 0 <= pvsp_vim_crop_h_start[10:0] <= (INPUT VIDEO HORIZONTAL RESOLUTION – 1)
• 0 <= pvsp_vim_crop_v_start[10:0] <= (INPUT VIDEO VERTICAL RESOLUTION – 1)
• (pvsp_vim_crop_h_start[10:0] + pvsp_vim_crop_width[10:0]) <= INPUT VIDEO HORIZONTAL ACTIVE PIXELS
• (pvsp_vim_crop_v_start[10:0] + pvsp_vim_crop_height[10:0]) <= INPUT VIDEO VERTICAL ACTIVE PIXELS
Rev. 0 | Page 117 of 326
UG-707
3.2.2.2.
ADV8005 Hardware Reference Manual
Horizontal Down Scaler
Although the VOM has both horizontal and vertical scalers, there is also a horizontal down scaler in the VIM. The purpose of the VIM down
scaler is to save external memory bandwidth by doing horizontal downscaling before writing video data into the external memory to save
memory bandwidth.
The down scaler in the VIM should only be enabled when horizontal downscaling is needed, which means that the number of horizontal
output active pixels should be less than the number of horizontal input active pixels. When album mode is enabled, the specified active output
video width should be the album width.
If the horizontal resolution of the PVSP output timing is less than the input timing, the horizontal down scaler can be enabled to reduce the
load on the external DDR2 memory. This horizontal down scaler input resolution is defined by the pvsp_vim_crop_width[10:0] register and
the output resolution is defined by the pvsp_vim_d_scal_out_width[10:0] register. To enable the horizontal down scaler,
pvsp_vim_d_scal_enable should be set to 1.
pvsp_vim_d_scal_enable, Primary VSP Map, Address 0xE883[5]
This bit is used to enable the VIM down scaler.
Function
pvsp_vim_d_scal_enable
0 (default)
1
Description
Disable VIM down scaler
Enable VIM down scaler
pvsp_vim_d_scal_out_width[10:0], Primary VSP Map, Address 0xE83A[2:0]; Address 0xE83B[7:0]
This signal is used to set the output video width of the down-scaling scaler in the VIM. The input video width is set by register
pvsp_vim_crop_width. If VIM crop is not enabled, pvsp_vim_crop_width is auto configured by pvsp_autocfg_input_vid, which is the same
with input video's horizontal resolution.
Function
pvsp_vim_d_scal_out_width[
10:0]
0x000 (default)
0xXXX
3.2.2.3.
Description
Default
Output width of VIM scalar
Scaler Interpolation Mode
This section describes the method for scaling the input video data. The purpose of the scaler is to allow different input formats to be displayed
on a screen with a fixed resolution. The VIM scaler is usually used for downscaling, for example, 1080p to be downscaled to a lower definition
format such as 480p. Different scaling interpolation modes will affect scaler performance. The options for video scaling modes are described
below and are chosen using pvsp_vim_scal_type[1:0].
Proprietary ADI Algorithm
This is a custom algorithm developed by ADI which allows improved performance in the scaling of the input video. This can reduce many
common artifacts when scaling video data such as:
• Saw tooth – otherwise known as ‘jaggies’, this is an artifact that occurs when an image is zoomed in and is one of the most important
criteria when evaluating scaling performance.
• Edge blurring – when zooming in, most high frequency information is lost, resulting in edges becoming blurred. The proprietary
ADI algorithm keeps the edge region sharp by retaining the high frequency information.
• Ringing – also known as the Gibbs phenomenon, can be found on video due to a reduction in high frequency information. The
proprietary ADI algorithm helps with the reduction of such artifacts.
Sharp/Smooth
Both the sharp/smooth options for scaler interpolation are versions of the proprietary ADI algorithm. The sharp and smooth versions allow
for limited customization of the scaler function. This function can be set depending on the user preference.
Bilinear
The bilinear option uses an averaging method within a 2x2 pixel array to increase the size of the input frame. This is a cruder method of
Rev. 0 | Page 118 of 326
ADV8005 Hardware Reference Manual
UG-707
scaling than the default proprietary ADI Algorithm. In most cases, the scaler should be left at the default setting.
pvsp_vim_scal_type[1:0], Primary VSP Map, Address 0xE8E5[7:6]
This signal is used to set the VIM scaling algorithm. For up-scaling, the proprietary ADI algorithm is recommended; whereas for downscaling, the sharp setting is recommended.
Function
pvsp_vim_scal_type[1:0]
00
01
10
11 (default)
3.2.2.4.
Description
Proprietary ADI Algorithm
Sharp
Smooth
Bilinear
Scaler Controls
The following register is used in the control of the VIM scaling function and should be tailored according to user requirements.
pvsp_vim_scal_overshoot_ctrl[11:0], Primary VSP Map, Address 0xE8E9[7:0]; Address 0xE8EA[7:4]
This bit is used to control the overshoot in the scaling of input video. If set to a value larger than the default setting, more overshoot is
allowed.
Function
pvsp_vim_scal_overshoot_ctr
l[11:0]
0x080 (default)
3.2.2.5.
Description
Default
Pixel Packer
At the back end of the VIM, the pixel packer converts input video to word packets suitable for writing to external memory. Refer to Figure 55
for more details on where the pixel packer is located in the hardware. Depending on the format of the input video, there are four different
packing formats:
• 12-bit 4:4:4 YCbCr
• 10-bit 4:4:4 YCbCr
• 12-bit 4:2:2 YCbCr
• 8-bit 4:2:2 YCbCr
There is a trade off in the number of bits that can be stored. A higher number of bits means the video stored will be stored at a higher quality,
however, this will reduce the available DDR2 memory bandwidth for other functions such as OSD read/write.
The data format can be set by the pvsp_ex_mem_data_format[1:0] register. This register can be set at any time, but it may take some time (not
more than 300 ms) to become valid. This delay is related to the ADV8005 taking control of the memory format change to avoid the display of
garbage information. This information is important when calculating the field/frame buffer sizes, as explained in Section 3.2.1.
pvsp_ex_mem_data_format[1:0], Primary VSP Map, Address 0xE829[4:3]
This signal is used to set the data format in external memory.
Function
pvsp_ex_mem_data_format[1
:0]
00 (default)
01
10
11
Description
YCbCr-12b-10b-10b
YCbCr-8b-8b-8b
YCbCr-4:2:4-12b
YCbCr-4:2:2-8b
Table 23 indicates the number of bytes required when storing a particular type of video data.
Table 23: Bytes per Pixel
pvsp_ex_mem_data_format Format in Memory
Rev. 0 | Page 119 of 326
Bytes per Pixel
UG-707
ADV8005 Hardware Reference Manual
0
1
2
3
3.2.3.
12 bit 4:4:4 YCbCr
8 bit 4:4:4 YCbCr
12 bit 4:2:2 YCbCr
8 bit 4:2:2 YCbCr
4
3
4
2
PVSP Video Output Module
Figure 57 shows the structure of the PVSP VOM. The direction arrow inside Figure 57 does not capture the real processing order inside the
VOM but gives a clear overview of each processing block.
Video Output Module (VOM)
Noise
Reduction
(Block/Mosquito/Random)
CUE
Correction
Sharpness
De-interlacer
Scaler
VOM
Cropper
Output Port
Output
Video
Pixel
UnPacker
Read from
DDR2
Figure 57: PVSP Video Output Module
The VOM has the following main features:
• Pixel unpacker: this module reads the field/frame from external memory and unpacks memory words to video pixel information
• VOM cropper: crops the image read from external memory
• De-interlacer: converts interlaced video to progressive video
• CUE correction: filtering for Color Upsampling Error
• Noise reduction: removes random, mosquito, and block noise
• Detail and edge sharpness enhancement
• Scaler: scales video to target resolution
• Output port: generates output timing and output video
Register update protection is provided in the ADV8005. Refer to Section 3.4 for more details regarding how to update the various VSP
registers.
pvsp_lock_vom, Primary VSP Map, Address 0xE828[3]
This bit is used to lock the Video Output Module (VOM). If the Primary VSP is running and this bit is set to 1, the VOM will be locked to a
current register setting to display the last frame. The Primary VSP registers can be configured safely in this state. All new register settings
will be updated after this bit is set back to 0.
Function
pvsp_lock_vom
0 (default)
1
Description
Unlock VOM
Lock VOM
Rev. 0 | Page 120 of 326
ADV8005 Hardware Reference Manual
UG-707
Note: This register should be used only as part of the gentle reboot protocol. Refer to Section 3.4.3 for more details.
pvsp_update_vom, Primary VSP Map, Address 0xE828[4]
This bit is used to control the updating of the VOM. Registers in the VOM can be updated only when pvsp_update_vom is asserted. To
modify registers in the VOM, pvsp_update_vom should be de-asserted. The registers can then be modified. pvsp_update_vom should then
be asserted to let the VOM use the updated register value in the next frame. This procedure will guarantee the correctness of the VOM
configuration.
Function
pvsp_update_vom
0
1 (default)
Description
Do not update VOM
Update VOM
Note: Refer to Section 3.4 for more details on configuring the PVSP registers.
3.2.3.1.
Pixel Unpacker
The pixel unpacker in the VOM is very similar to that in the VIM. It is used to convert external memory words into video pixel (YCbCr) data.
Pixels in external memory have the following four different data formats (the same as those set by the VIM). The VOM pixel unpacker is
configured in the same way as the VIM pixel unpacker.
• 12-bit 4:4:4 YCbCr
• 10-bit 4:4:4 YCbCr
• 12-bit 4:2:2 YCbCr
• 8-bit 4:2:2 YCbCr
Data format details are described in pvsp_ex_mem_data_format[1:0].
3.2.3.2.
VOM Cropper
The VOM cropper is similar to the VIM cropper with the exception that it uses the VOM set protocol while the VIM cropper uses the gentle
reboot protocol (refer to Section 3.4). Using the VIM cropper can reduce the external memory bandwidth required for scaling in cases where
bandwidth is a concern. If not, the VOM cropper should be used. The following registers are used to configure the VOM cropper:
• pvsp_di_crop_enable
• pvsp_di_crop_h_start[10:0]
• pvsp_di_crop_v_start[10:0]
• pvsp_di_crop_width[10:0]
• pvsp_di_crop_height[10:0]
To enable cropper in VOM, pvsp_di_crop_enable should be asserted.
pvsp_di_crop_enable, Primary VSP Map, Address 0xE883[4]
This bit is used to enable the VOM crop.
Function
pvsp_di_crop_enable
0 (default)
1
Description
Disable VOM Crop
Enable VOM Crop
Figure 58 shows the function of the VOM cropper.
Rev. 0 | Page 121 of 326
UG-707
ADV8005 Hardware Reference Manual
Video Image in External Memory
VSP3D_DI_CROP_V_START
VSP3D_DI_CROP_H_START
Cropped Image
VSP3D_DI_CROP_HEIGHT
VSP3D_DI_CROP_WIDTH
Figure 58: VOM Crop Dimensions
pvsp_di_crop_h_start[10:0], Primary VSP Map, Address 0xE83C[2:0]; Address 0xE83D[7:0]
This signal is used to set the horizontal start position of the VOM cropper.
Function
pvsp_di_crop_h_start[10:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of VOM cropper input
pvsp_di_crop_v_start[10:0], Primary VSP Map, Address 0xE83E[2:0]; Address 0xE83F[7:0]
This signal is used to set the vertical start position of the VOM cropper.
Function
pvsp_di_crop_v_start[10:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of VOM cropper input
pvsp_di_crop_width[10:0], Primary VSP Map, Address 0xE840[2:0]; Address 0xE841[7:0]
This signal is used to set the width of the VOM cropper.
Function
pvsp_di_crop_width[10:0]
0x000 (default)
0xXXX
Description
Default
Width of VOM cropper input
pvsp_di_crop_height[10:0], Primary VSP Map, Address 0xE842[2:0]; Address 0xE843[7:0]
This signal is used to set the height of the VOM cropper.
Function
pvsp_di_crop_height[10:0]
0x000 (default)
0xXXX
Description
Default
Height of VOM cropper input
Note: The following restrictions apply to the values to which these registers can be set:
0 <= pvsp_di_crop_h_start[10:0] <= (HORIZONTAL RESOLUTION OUTPUT BY VIM – 1)
0 <= pvsp_di_crop_v_start[10:0] <= (VERTICAL RESOLUTION OUTPUT BY VIM – 1)
(pvsp_di_crop_h_start[10:0] + pvsp_di_crop_width[10:0]) <= HORIZONTAL RESOLUTION OUTPUT BY VIM
(pvsp_di_crop_v_start[10:0] + pvsp_di_crop_height[10:0]) <= VERTICAL RESOLUTION OUTPUT BY VIM
3.2.3.3.
Motion Detection
The ADV8005 de-interlacer is used to convert interlaced video to progressive video. The PVSP has an extremely high quality de-interlacer
algorithm which achieves excellent quality interlaced to progressive conversion. The algorithm uses motion adaptive de-interlacing technology,
which includes motion detection, cadence detection, low angle detection and interpolation.
Motion detection extracts the motion information of each pixel. Based on this information, the ADV8005 chooses the most suitable form of
Rev. 0 | Page 122 of 326
ADV8005 Hardware Reference Manual
UG-707
de-interlacing. For static pixels (that is, pixels where no motion is deemed to have occurred), inter field interpolation is performed. For pixels
where motion is detected, intra-field interpolation is performed. Motion detection technology is the essence of de-interlacing, so if a static
pixel is detected as motion by mistake, vertical detail is lost. In contrast, if motion is detected as static by mistake, combing artifact occurs.
In order to support motion detection for interlaced inputs, two buffers in external memory are needed to store motion information. Their
addresses are defined in the pvsp_motionbuf0_addr[31:0] and pvsp_motionbuf1_addr[31:0] registers. The size of each buffer should be equal
to the MOTION_BUF_SIZE, which can be calculated from Equation 20.
MOTION _ BUF _ SIZE (byte) ≡
(active _ input _ video _ width × active _ input _ video _ height )
4
Equation 20: Calculating Interlaced Buffers
pvsp_motionbuf0_addr[31:0], Primary VSP Map, Address 0xE818[7:0]; Address 0xE819[7:0]; Address 0xE81A[7:0]; Address 0xE81B[7:0]
This signal is used to set the start address of motion information buffer 0. Motion buffers are needed only when motion adaptive
deinterlacing is enabled for interlaced input.
Function
pvsp_motionbuf0_addr[31:0]
0x00000000 (default)
0xXXXXXXXX
Description
Default
Start address of motion buffer 0
pvsp_motionbuf1_addr[31:0], Primary VSP Map, Address 0xE81C[7:0]; Address 0xE81D[7:0]; Address 0xE81E[7:0]; Address 0xE81F[7:0]
This signal is used to set the start address of motion information buffer 1. Motion buffers are needed only when motion adaptive
deinterlacing is enabled for interlaced input.
Function
pvsp_motionbuf1_addr[31:0]
0x0007E900 (default)
0xXXXXXXXX
3.2.3.4.
Description
Default
Start address of motion buffer 1
Low Angle De-interlacing
The ultra low angle de-interlacing interpolation algorithm (ULAI) developed by ADI performs intra field interpolation for the de-interlacing
function. It is capable of determining the correct direction by examining several different directions and interpolating missing pixels based on
this information. This results in higher quality low angle interpolation and reduces the effect of jaggies.
The ultra low angle interpolation function is only used for converting from interlaced to progressive formats. It can be enabled or disabled by
asserting or de-asserting register di_ulai_enable.
di_ulai_enable, Primary VSP Map, Address 0xE84C[3]
This bit is used to enable the ultra low angle de-interlacing algorithm (ULAI).
Function
di_ulai_enable
0
1 (default)
3.2.3.5.
Description
Disable ULAI
Enable ULAI
Cadence Detection
The ADV8005 cadence detection can handle multiple different types of cadences, typically introduced when content originated as film format
but was converted into interlaced format for broadcast. Examples of such conversion can be seen in Figure 54. The PVSP is able to detect
arbitrary cadences and even unknown cadence modes, with per pixel correction for combing artifacts.
There are several features of cadence detection, including the reliable detection of 2:2 cadences for PAL video and the detection of poor editing
techniques often found in films converted to video standards (this may introduce artifacts). These artifacts are caused by multiple cadences in
the same source as well as fast switching from film to video or between different cadences.
For an interlaced video input, cadence detection can be enabled or disabled by asserting or de-asserting di_cadence_enable. For progressive
Rev. 0 | Page 123 of 326
UG-707
ADV8005 Hardware Reference Manual
video input, cadence detection can be enabled or disabled by asserting or de-asserting pcadence_enable.
di_cadence_enable, Primary VSP Map, Address 0xE84C[2]
This bit is used to enable cadence detection.
Function
di_cadence_enable
Description
0
Disable cadence detection
1 (default)
Enable cadence detection
The PVSP supports the following cadence types:
• 2:2
• 2:2:2:4
• 3:2
• 2:3:3:2:2
• 2:3:3:2
• 3:2:3:2:2
• 3:3
• 4:4
• 5:5
• 6:4
• 8:7
Each of these cadence types can be disabled by setting the corresponding bit in di_fd_disabled_cadence[10:0] to 1.
For conversion of 60 Hz interlaced and progressive input timing to 24 Hz progressive timing, pvsp_frc_change_phase_en should be asserted.
For all other cases, pvsp_frc_change_phase_en should be disabled when using 1 external DDR2 memory.
pvsp_frc_change_phase_en, Primary VSP Map, Address 0xE84E[4]
This bit is used to lock the phase change for cadence detection.
Function
pvsp_frc_change_phase_en
0
1 (default)
Description
Disable
Enable
di_fd_disabled_cadence[10:0], Primary VSP Map, Address 0xE8FA[7:0]; Address 0xE8FB[7:5]
This signal is used to disable corresponding cadence detection.
Function
di_fd_disabled_cadence[10:0]
Description
0x000 (default)
Default
Table 24: Corresponding Bit for Each Cadence Type
Bit
Disabled Cadence
0xE8FB[5]
2:2
0xE8FB[6]
2:2:2:4
0xE8FB[7]
3:2
0xE8FA[0]
2:3:3:2:2
0xE8FA[1]
2:3:3:2
0xE8FA[2]
3:2:3:2:2
0xE8FA[3]
3:3
0xE8FA[4]
4:4
0xE8FA[5]
5:5
0xE8FA[6]
6:4
0xE8FA[7]
8:7
Rev. 0 | Page 124 of 326
ADV8005 Hardware Reference Manual
3.2.3.6.
UG-707
CUE Correction
Color Upsampling Error (CUE) correction is implemented using a filter which removes the jagged edges caused by the artifacts introduced by
the incorrect upsampling of MPEG 2 video data in 4:2:0 format to the 4:2:2/4:4:4 formats supported by DVD players.
The CUE correction function can be enabled or disabled by di_cue_enable.
di_cue_enable, Primary VSP Map, Address 0xE84D[0]
This bit is used to enable CUE correction.
Function
di_cue_enable
Description
0
Disable CUE correction
1 (default)
Enable CUE correction
3.2.3.7.
Random Noise Reduction
There are several noise reduction algorithms in the ADV8005 that help with the reduction of common sources of video noise. The random
noise reduction (RNR) block reduces the random noise which may be introduced in analog broadcasting or capturing. It employs a temporal
recursive algorithm to stabilize the static regions while just processing the luma channel. Users can configure the register parameters to adjust
the algorithm according to their preference. The amount level of RNR can be configured using di_rnr_level[1:0].
RNR supports both interlaced and progressive input. It can be enabled or disabled using di_rnr_enable.
di_rnr_enable, Primary VSP Map, Address 0xE84C[4]
This bit is used to enable random noise reduction (RNR).
Function
di_rnr_enable
0 (default)
1
Description
Disable RNR
Enable RNR
di_rnr_level[1:0], Primary VSP Map, Address 0xE84F[1:0]
This signal sets the RNR level.
Function
di_rnr_level[1:0]
00
01
10 (default)
11
Description
N/A
Low
Middle
High
For the RNR feature to operate, two buffers in external memory must be allocated to store video information which will be used for noise
reduction purposes. The addresses of these two buffers can be set in the pvsp_rnrbuf0_addr[31:0] and pvsp_rnrbuf1_addr[31:0] registers. The
size of each buffer should be larger than RNR_BUF_SIZE, which can be calculated as shown in Equation 21.
RNR _ BUF _ SIZE (byte) ≡ active _ input _ video _ width × active _ input _ video _ height
Equation 21: Calculating RNR Buffers
Note: Using RNR will use external memory bandwidth which may impact on other features such as OSD image storage as well as deinterlacing.
pvsp_rnrbuf0_addr[31:0], Primary VSP Map, Address 0xE820[7:0]; Address 0xE821[7:0]; Address 0xE822[7:0]; Address 0xE823[7:0]
Sets the start address of random noise reduction information buffer 0. RNR buffers are needed only when random noise reduction is
enabled.
Rev. 0 | Page 125 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
pvsp_rnrbuf0_addr[31:
0]
0x000FD200 
0xXXXXXXXX
Description
Default
Start address of RNR buffer 0
pvsp_rnrbuf1_addr[31:0], Primary VSP Map, Address 0xE824[7:0]; Address 0xE825[7:0]; Address 0xE826[7:0]; Address 0xE827[7:0]
Sets the start address of random noise reduction information buffer 1. RNR buffers are needed only when random noise reduction is
enabled.
Function
pvsp_rnrbuf1_addr[31:
0]
0x002F7600 
0xXXXXXXXX
3.2.3.8.
Description
Default
Start address of RNR buffer 1
Mosquito Noise Reduction
The second type of noise reduction algorithm implemented in the ADV8005 is the mosquito noise reduction (MNR). The MNR block
selectively removes ringing artifacts introduced into highly compressed (MPEG) video data. For the best results, this block should be enabled
when the input video is not being scaled, due to the fact that it is easier to identify and remove compressed artifacts at lower resolutions.
MNR can support both interlaced and progressive input video. It can be enabled or disabled by di_mnr_enable. As with the RNR block, a
certain amount of control is provided to the user. This can be controlled using di_mnr_level[1:0].
di_mnr_enable, Primary VSP Map, Address 0xE84C[5]
This bit is used to enable mosquito noise reduction (MNR).
Function
di_mnr_enable
Description
0 (default)
Disable MNR
1
Enable MNR
di_mnr_level[1:0], Primary VSP Map, Address 0xE84F[3:2]
This signal sets the MNR level.
Function
di_mnr_level[1:0]
00
01
10 (default)
11
Description
N/A
Low
Middle
High
To get better image performance, register di_mnr_th_min[3:0] can be used to set the MNR level.
di_mnr_th_min[3:0], Primary VSP 2 Map, Address 0xE917[7:4]
This signal is used to set the strength of the mosquito noise reduction (MNR). The larger the value, the stronger the MNR noise reduction.
Function
di_mnr_th_min[3:0]
0010 (default)
0110
3.2.3.9.
Description
Normal strength MNR
High strength MNR
Block Noise Reduction
Rev. 0 | Page 126 of 326
ADV8005 Hardware Reference Manual
UG-707
The block noise reduction (BNR) algorithm removes ‘blocky’ artifacts introduced into highly compressed video such as MPEG2 encoded
video. For the best results, this function should be enabled when the input video is not scaled. The BNR has excellent performance for high
level block artifact patterns, and it has smart block position detection.
BNR supports both interlaced and progressive input. It can be enabled or disabled using di_bnr_enable. The BNR level can be controlled by
setting di_bnr_detect_scale_line[3:0], di_bnr_disable_local_detect, di_bnr_edge_offset[7:0], di_bnr_global_strength_gain[3:0],
di_bnr_scale_global_hori[2:0] and di_bnr_scale_global_vert[2:0]. The corresponding value for different reduction level is given in
Table 25.
Table 25: Corresponding Value for Block Noise Reduction Level
Register Name
High
Middle
Low
di_bnr_detect_scale_line[3:0]
9
7
7
di_bnr_disable_local_detect
0
1
1
di_bnr_edge_offset[7:0]
96
64
32
di_bnr_global_strength_gain[3:0] 12
8
7
di_bnr_scale_global_hori[2:0]
6
5
5
di_bnr_scale_global_vert[2:0]
6
5
5
di_bnr_enable, Primary VSP Map, Address 0xE84C[6]
This bit is used to enable block noise reduction (BNR).
Function
di_bnr_enable
0 (default)
1
Description
Disable BNR
Enable BNR
di_bnr_edge_offset[7:0], Primary VSP 2 Map, Address 0xE98D[7:0]
This signal is used to configure the BNR processing ability.
Function
di_bnr_edge_offset[7:0]
0x32
0x64
0x96
Description
Recommended setting for low level BNR
Recommended value for mid level BNR
Recommended value for high level BNR
di_bnr_disable_local_detect, Primary VSP 2 Map, Address 0xE987[3]
This signal is used to configure the BNR processing ability.
Function
di_bnr_disable_local_detect
0
1 (default)
Description
Recommended setting for high level BNR
Recommended setting for low/mid level BNR
di_bnr_scale_global_vert[2:0], Primary VSP 2 Map, Address 0xE98B[7:5]
This signal is used to configure the BNR processing ability.
Function
di_bnr_scale_global_vert[2:0]
0101 (default)
0110
Description
Recommended setting for low/mid level BNR
Recommended setting for high level BNR
di_bnr_scale_global_hori[2:0], Primary VSP 2 Map, Address 0xE98B[4:2]
This signal is used to configure the BNR processing ability.
Rev. 0 | Page 127 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
di_bnr_scale_global_hori[2:0]
0101 (default)
0110
Description
Recommended setting for low/mid level BNR
Recommended setting for high level BNR
di_bnr_global_strength_gain[3:0], Primary VSP 2 Map, Address 0xE988[7:4]
This signal is used to configure the BNR processing ability.
Function
di_bnr_global_strength_gain[
3:0]
1000 (default)
1100
Description
Recommended setting for low/mid level BNR
Recommended setting for high level BNR
di_bnr_detect_scale_line[3:0], Primary VSP 2 Map, Address 0xE987[7:4]
This signal is used to configure the BNR processing ability.
Function
di_bnr_detect_scale_line[3:0]
0111 (default)
1001
3.2.3.10.
Description
Recommended setting for low/mid level BNR
Recommended setting for high level BNR
Sharpness Enhancement
The sharpness enhancement block extracts high frequency data from the de-interlaced and de-noised video frame to help simultaneously
sharpen the appearance of edges and other video details, recover high frequency components and provide pictures with a natural look without
adding a halo or ringing artifact. Since the sharpness works on a two dimensional pixel array before the scaler, noise will not be scaled during
the scaling operation.
Detail and edge sharpness enhancement supports both interlaced and progressive inputs. It can be enabled or disabled using
di_sharpness_enable. The sharpness level can be adjusted using the signed, twos complement value in pvsp_srscal_scale_gain[11:0]. To
increase the sharpness setting, the value in pvsp_srscal_scale_gain[11:0] should be increased. To decrease the sharpness setting, the value in
pvsp_srscal_scale_gain[11:0] should be decreased.
di_sharpness_enable, Primary VSP Map, Address 0xE84C[7]
This bit is used to enable sharpness control.
Function
di_sharpness_enable
0 (default)
1
Description
Disable sharpness
Enable sharpness
pvsp_srscal_scale_gain[11:0], Primary VSP Map, Address 0xE891[7:0]; Address 0xE892[7:4]
This signal is used to control the sharpness level.
Function
pvsp_srscal_scale_gain[11:0]
0x000 (default)
3.2.3.11.
Description
Sharpness level
Scaler
The last block before the VOM output is the scaler which is used to scale the input video to the desired resolution. This is very flexible and can
support arbitrary resolution conversion and independently scale the input video horizontally and vertically. The ADI proprietary scaler
algorithms also allow improved performance in the scaling of the input video which improves many common issues associated with scaling
video data such as saw tooth, edge blurring, and ringing.
The ADV8005 scaler employs contour-based interpolation techniques to provide sharp edges and crisp details on high resolution content. The
embedded compression noise reduction will eliminate mosquito noise and block artifacts. The contour-based interpolation scaler is capable of
upscaling input video formats from 480i to 4k x 2k formats (these include 4k x 2k 30 Hz/4k x 2k 25 Hz/4k x 2k 24 Hz and 4k x 2k 24 Hz
Rev. 0 | Page 128 of 326
ADV8005 Hardware Reference Manual
UG-707
SMPTE).
When the automatic scaler algorithm selection is enabled, the contour-based interpolation scaler is used for upscaling and downscaling is
performed using the frequency-adaptive scaler which implements the same algorithm as the VIM down scaler. A manual selection between
the contour-based interpolation scaler and the frequency-adaptive scaler is provided by pvsp_srscal_interp_mode[1:0].
Also, because ADV8005 provides 4kx2k timing in 8-bit precision, pvsp_srscal_8bit_en is provided to make the entire scaler operate in 8-bit
mode. This lowers the power consumed by the scaler.
pvsp_srscal_interp_mode[1:0], Primary VSP Map, Address 0xE894[7:6]
This signal is used to select the scaler algorithm employed.
Function
pvsp_srscal_interp_mode[1:0]
00 (default)
01
10
11
Description
Automatic scaler algorithm selection
Contour-based interpolation scaler (2nd gen scaling algorithm with 4k x 2k support)
Frequency-adaptive scaler (1st gen scaling algorithm)
Bilinear scaler
pvsp_srscal_8bit_en, Primary VSP Map, Address 0xE890[3]
This bit is used to set the scaler into 8-bit mode. This bit should be set when output 4K x 2K timing.
Function
pvsp_srscal_8bit_en
0 (default)
1
Description
Scaler not in 8 bit mode
Scaler in 8 bit mode
The size of the active image sent to the scaler is set by pvsp_di_crop_height[10:0] and pvsp_di_crop_width[10:0]. The scaler output can then
be set using pvsp_scal_out_height[12:0] and pvsp_scal_out_width[12:0] by setting pvsp_man_scal_out_enable to 1, or it can set automatically
using pvsp_autocfg_input_vid[7:0]. These registers should be set to the resolution of the output video. Refer to Figure 59 for more details.
pvsp_man_scal_out_enable, Primary VSP Map, Address 0xE883[3]
This bit is used to enable the manual setting of pvsp_scal_out_width and pvsp_scal_out_height.
Function
pvsp_man_scal_out_enable
0 (default)
1
Description
Disable manually setting M_Scaler output resolution
Enable manually setting M_Scaler output resolution
pvsp_scal_out_height[12:0], Primary VSP Map, Address 0xE846[4:0]; Address 0xE847[7:0]
This signal is used to set the output vertical resolution of scaler in the VOM.
Function
pvsp_scal_out_height[12:0]
0x000 (default)
0xXXX
Description
Default
Output height of VOM scaler
pvsp_scal_out_width[12:0], Primary VSP Map, Address 0xE844[4:0]; Address 0xE845[7:0]
This signal is used to set the output horizontal resolution of scaler in the VOM.
Function
pvsp_scal_out_width[12:0]
0x000 (default)
0xXXX
Description
Default
Output width of VOM scaler
Rev. 0 | Page 129 of 326
UG-707
ADV8005 Hardware Reference Manual
Image before
Scaler
Scaler in
VOM
Scaled Image
VSP3D_SCAL_OUT_HEIGHT
PVSP_SCAL_OUT_HEIGHT
VSP3D_DI_CROP_HEIGHT
PVSP_DI_CROP_HEIGHT
PVSP_DI_CROP_WIDTH
PVSP_SCAL_OUT_WIDTH
Figure 59: VOM Scaler Dimensions
3.2.3.12.
Panorama Mode
If the scaled video has a different aspect ratio to the original and the horizontal scaling factor is larger than the vertical, the panorama function
can be enabled using m_scaler_panorama_en. In effect, this stretches the left- and right-most sides of the input video to fill the output
resolution. This method keeps the original ratio in the centre of the screen. Figure 60 explains the panorama mode scaling feature.
1920
720
480
1080
Input video
stretched
Input video
scaled normally
Panorama position
Figure 60: Panorama Scaling Feature
m_scaler_panorama_en, Primary VSP Map, Address 0xE850[0]
This bit enables panorama scaling for the VOM scaler.
Function
m_scaler_panorama_en
0 (default)
1
Description
Disable VOM panorama
Enable VOM panorama
The position from which the output video becomes stretched is controlled using m_scaler_panorama_pos[11:0]. This allows the user to
control the width of the sides of the output image. Refer to Figure 60 for more details.
m_scaler_panorama_pos[11:0], Primary VSP Map, Address 0xE851[3:0]; Address 0xE852[7:0]
This signal is used to define the width of the output video frame which is not stretched when panorama mode is enabled but, rather, is scaled
properly. The maximum value of this register is set by: pvsp_di_crop_width * (pvsp_scal_out_width/pvsp_di_crop_height) pvsp_scal_out_width/2.
This register sets half the width of the output frame which is to be scaled normally. By default, this register is set to 0 which means that all
the input frame will be stretched. It is, therefore, recommended that this register is set by the user before enabling the panorama function.
Rev. 0 | Page 130 of 326
ADV8005 Hardware Reference Manual
Function
m_scaler_panorama_pos[11:0
]
0x000 (default)
0xXXX
3.2.3.13.
UG-707
Description
Default
Width of not-stretched image
Output Port
This section details the configuration registers for the final block of the PVSP VOM. The primary purpose of the output port is to generate the
output video timing and output the video data. Refer to Table 26 for the register settings for the common CEA video formats that are
supported by the ADV8005. The output setting can be automatically configured using the setting of pvsp_autocfg_output_vid[7:0]. If the
output configuration needs to be set manually, pvsp_man_dp_timing_enable must be set to 1 and pvsp_autocfg_output_vid[7:0] must be set
to 0. Refer to Figure 61 for more information.
When using manual configuration of the output timing format, pvsp_dp_4kx2k_mode_en needs to be manually enabled when outputting 4k x
2k series timings and should be disabled for other timing formats.
If a limited range of output must be provided, pvsp_data_clipping_en should be enabled. Otherwise, this register should be disabled. A limited
range indicates the output is clipped to 16-235 range for each data channel of pixel.
pvsp_dp_4kx2k_mode_en, Primary VSP Map, Address 0xE869[4]
This bit is used to make the VOM display module work in 4K x 2K mode. This register's value will be used while pvsp_autocfg_output_vid is
0.
Function
pvsp_dp_4kx2k_mode_en
0 (default)
1
Description
Not in 4K x 2K mode
In 4K x 2K mode
pvsp_data_clipping_en, Primary VSP Map, Address 0xE84E[3]
This bit is used to limit the output data within range of 16~235.
Function
pvsp_data_clipping_en
0 (default)
1
Description
Not limit output data.
Limit output data
pvsp_man_dp_timing_enable, Primary VSP Map, Address 0xE883[0]
This bit is used to enable the manual setting of the display port's timing.
Function
pvsp_man_dp_timing_enable
0 (default)
1
Description
Disable manually setting output timing
Enable manually setting output timing
pvsp_dp_decount[12:0], Primary VSP Map, Address 0xE856[4:0]; Address 0xE857[7:0]
This signal is used to set the DE duration of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_decount[12:0]
0x000 (default)
0xXXX
Description
Default
Data enable count of output timing
pvsp_dp_hfrontporch[11:0], Primary VSP Map, Address 0xE858[3:0]; Address 0xE859[7:0]
This signal is used to set the horizontal front porch duration of output timing. This register's value will be used while
pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hfrontporch[11:0]
0x000 (default)
0xXXX
Description
Default
Horizontal front porch of output timing
Rev. 0 | Page 131 of 326
UG-707
ADV8005 Hardware Reference Manual
pvsp_dp_hsynctime[11:0], Primary VSP Map, Address 0xE85A[3:0]; Address 0xE85B[7:0]
This signal sets the Hsync duration of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hsynctime[11:0]
0x000 (default)
0xXXX
Description
Default
Hsync width of output timing
pvsp_dp_hbackporch[11:0], Primary VSP Map, Address 0xE85C[3:0]; Address 0xE85D[7:0]
This signal is used to set the horizontal back porch duration of output timing. This register's value will be used while
pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_hbackporch[11:0]
0x000 (default)
0xXXX
Description
Default
Horizontal back porch of output timing
pvsp_dp_activeline[11:0], Primary VSP Map, Address 0xE85E[3:0]; Address 0xE85F[7:0]
This signal is used to set the active line number of output timing. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_activeline[11:0]
0x000 (default)
0xXXX
Description
Default
Active lines of output timing
pvsp_dp_vfrontporch[9:0], Primary VSP Map, Address 0xE860[1:0]; Address 0xE861[7:0]
This signal is used to set the vertical front porch duration of output timing. This register's value will be used while pvsp_autocfg_output_vid
is 0.
Function
pvsp_dp_vfrontporch[9:0]
0x000 (default)
0xXXX
Description
Default
Vertical front porch of output timing
pvsp_dp_vsynctime[9:0], Primary VSP Map, Address 0xE862[1:0]; Address 0xE863[7:0]
This signal is used to set the vertical synchronous time duration of output timing. This register's value will be used while
pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_vsynctime[9:0]
0x000 (default)
0xXXX
Description
Default
Vsync width of output timing
pvsp_dp_vbackporch[9:0], Primary VSP Map, Address 0xE864[1:0]; Address 0xE865[7:0]
This signal is used to set the vertical back porch duration of output timing. This register's value will be used while pvsp_autocfg_output_vid
is 0.
Function
pvsp_dp_vbackporch[9:0]
0x000 (default)
0xXXX
Description
Default
Vertical back porch of output timing
pvsp_dp_vpolarity, Primary VSP Map, Address 0xE869[0]
This bit is used to set the polarity of output Vsync. This register's value will be used while pvsp_autocfg_output_vid is 0.
Function
pvsp_dp_vpolarity
0 (default)
1
Description
Low
High
pvsp_dp_hpolarity, Primary VSP Map, Address 0xE869[1]
This bit is used to set the polarity of output Hsync. This register's value will be used while pvsp_autocfg_output_vid is 0.
Rev. 0 | Page 132 of 326
ADV8005 Hardware Reference Manual
Function
pvsp_dp_hpolarity
0 (default)
1
UG-707
Description
Low
High
Table 26: Output Port Configuration Settings for Example Output Resolutions
Output Timing
576p
720p50
1080p50
vga
480p
720p60
1080p60
1080p24
0xE8
56
0x02
0x05
0x07
0x02
0x02
0x05
0x07
0x07
decount
0xE8
57
0xD0
0x00
0x80
0x80
0xD0
0x00
0x80
0x80
hfrontporch
0xE8
0xE8
58
59
0x00
0x0C
0x01
0xB8
0x02
0x10
0x00
0x10
0x00
0x10
0x00
0x6E
0x00
0x58
0x02
0x7E
HSync
0xE8 0xE8
5A
5B
0x00 0x40
0x00 0x28
0x00 0x2C
0x00 0x60
0x00 0x3E
0x00 0x28
0x00 0x2C
0x00 0x2C
hbackporch
0xE8 0xE8
5C
5D
0x00 0x44
0x00 0xDC
0x00 0x94
0x00 0x30
0x00 0x3C
0x00 0xDC
0x00 0x94
0x00 0x94
activeline
0xE8 0xE8
5E
5F
0x02 0x40
0x02 0xD0
0x04 0x38
0x01 0xE0
0x01 0xE0
0x02 0xD0
0x04 0x38
0x04 0x38
Vfrontporch
VSync
0xE8 0xE8 0xE8 0xE8
60
61
62
63
0x00 0x05 0x00 0x05
0x00 0x05 0x00 0x05
0x00 0x04 0x00 0x05
0x00 0x0A 0x00 0x02
0x00 0x09 0x00 0x06
0x00 0x05 0x00 0x05
0x00 0x04 0x00 0x05
0x00 0x04 0x00 0x05
vbackporch
0xE8 0xE8
64
65
0x00 0x27
0x00 0x14
0x00 0x24
0x00 0x21
0x00 0x1E
0x00 0x14
0x00 0x24
0x00 0x24
hpol
0xE8
69[1]
0
1
1
0
0
1
1
1
vpol
0xE8
69[0]
0
1
1
0
0
1
1
1
The size of output images of the VOM scaler can be smaller than that defined by the parameters of the output port (that is, album mode). The
starting position for the PVSP output video can be set using pvsp_dp_video_h_start[12:0] and pvsp_dp_video_v_start[12:0]. Figure 61 shows
the relationship of the VOM scaler image and the output video. In this case, the blank area around the output image is filled with color defined
by pvsp_dp_margin_color[23:0] in the YCbCr color space.
Output video from Primary VSP
PVSP_DP_VIDEO_V_START
VSP3D_DP_VIDEO_H_START
PVSP_DP_VIDEO_H_START
Output video from
VOM Output
VSP3D_SCAL_OUT_HEIGHT
PVSP_SCAL_OUT_HEIGHT
VSP3D_DP_ACTIVELINE
PVSP_DP_ACTIVELINE
PVSP_SCAL_OUT_WIDTH
PVSP_DP_DECOUNT
Figure 61: VOM Output Dimensions
pvsp_dp_video_h_start[12:0], Primary VSP Map, Address 0xE848[4:0]; Address 0xE849[7:0]
This signal is used to set the horizontal start position where the output video of the scaler is placed.
Function
pvsp_dp_video_h_start[12:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of VOM output
pvsp_dp_video_v_start[12:0], Primary VSP Map, Address 0xE84A[4:0]; Address 0xE84B[7:0]
This signal is used to set the vertical start position where the output video of scaler is placed.
Function
pvsp_dp_video_v_start[12:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of VOM output
pvsp_dp_margin_color[23:0], Primary VSP Map, Address 0xE866[7:0]; Address 0xE867[7:0]; Address 0xE868[7:0]
This signal is used to set the default color in output video in YUV colorspace.
Rev. 0 | Page 133 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
pvsp_dp_margin_color[23:0]
0x000000
0xXXXXXX
Description
Default
Default color in YUV colorspace
pvsp_dp_output_blank, Primary VSP Map, Address 0xE869[2]
This bit is used to force the colour output of the Primary VSP. This If this bit is set to 1, the output of Primary VSP is forced to the user
defined color in pvsp_dp_margin_color.
Function
pvsp_dp_output_blank
0 (default)
1
3.2.3.14.
Description
Not output default color
Output default Color
Demo Function
ADV8005 supports automatically splitting the display window
pvsp_demo_window_enable can be used to enable the demo function.
to
demo
several
processing
functions
of
ADV8005.
pvsp_demo_window_enable, Primary VSP Map, Address 0xE87E[7]
Enables demo window.
Function
pvsp_demo_window_enable
0 (default)
1
Description
Disable demo window
Enable demo window
pvsp_demo_window_use_lower_screen can be used to set the position of the demo window. If this bit is set to 1, the lower half display
window is used for certain processing function, otherwise the upper half display window is used.
pvsp_demo_window_use_lower_screen, Primary VSP Map, Address 0xE87E[6]
This bit is used to enable a demo mode on the lower half of the screen. If this bit is set to 1, the lower half display window will be used for
certain processing functions, otherwise the upper half display window will be used.
Function
pvsp_demo_window_use_low
er_screen
0 (default)
1
Description
Use upper half screen as demo window
Use lower half screen as demo window
The following registers can be used to enable each corresponding demo function.
pvsp_demo_window_rnr_enable, Primary VSP Map, Address 0xE87E[4]
This bit is used to enable the RNR in the demo window.
Function
pvsp_demo_window_rnr_ena
ble
0 (default)
1
Description
Disable RNR in demo window
Enable RNR in demo window
pvsp_demo_window_mnr_enable, Primary VSP Map, Address 0xE87E[3]
This bit is used to enable the MNR in the demo window.
Function
pvsp_demo_window_mnr_en
able
0 (default)
1
Description
Disable MNR in demo window
Enable MNR in demo window
pvsp_demo_window_bnr_enable, Primary VSP Map, Address 0xE87E[2]
This bit is used to enable the BNR in the demo window.
Rev. 0 | Page 134 of 326
ADV8005 Hardware Reference Manual
Function
pvsp_demo_window_bnr_ena
ble
0 (default)
1
UG-707
Description
Disable BNR in demo window
Enable BNR in demo window
pvsp_demo_window_cadence_enable, Primary VSP Map, Address 0xE87E[1]
This bit is used to enable the cadence detection in the demo window.
Function
pvsp_demo_window_cadence
_enable
0 (default)
1
Description
Disable Cadence detection in demo window
Enable Cadence detection in demo window
pvsp_demo_window_ulai_enable, Primary VSP Map, Address 0xE87E[0]
This bit is used to enable the ULAI in the demo window.
Function
pvsp_demo_window_ulai_en
able
0 (default)
1
Description
Disable ULAI in demo window
Enable ULAI in demo window
pvsp_demo_window_cue_enable, Primary VSP Map, Address 0xE87F[5]
This bit is used to enable CUE correction in the demo window.
Function
pvsp_demo_window_cue_ena
ble
0 (default)
1
Description
Disable CUE in demo window
Enable CUE in demo window'
pvsp_demo_window_intra_field_enable, Primary VSP Map, Address 0xE87F[4]
This bit is used to enable the intra field interpolation in the demo window.
Function
pvsp_demo_window_intra_fi
eld_enable
0 (default)
1
Description
Disable intra field interpolation in demo window
Enable intra field interpolation in demo window
The contour-based interpolation scaler (2nd generation with 4k x 2k support) demo can be enabled by setting pvsp_srscal_demo_mode_en to
compare the contour-based interpolation scaler and the frequency-adaptive scaler (1st generation) performance side by side.
pvsp_srscal_demo_mode_en, Primary VSP Map, Address 0xE890[4]
This bit is used to enable scaler demo mode.
Function
pvsp_srscal_demo_mode_en
0 (default)
1
3.2.3.15.
Description
Scaler not in demo mode
Scaler in demo mode
Progressive to Interlaced Converter
The main progressive to interlaced (PtoI) converter can be connected to many blocks, for example, Video TTL input channel, EXOSD TTL
input channel, PVSP, and so on. The block can be used for video conversion, for example, conversion of 1080p to 1080i. It drops the
progressive video odd or even lines based on the field signal of the output interlaced video. It can only support 480p, 576p, and 1080p input.
The associated interlaced timing signals can be generated in the independent PtoI hardware block.
By enabling m_p2i_drop_line_as_pvsp_flag, the PtoI module can drop interpolated lines to get optimal output performance.
Rev. 0 | Page 135 of 326
UG-707
ADV8005 Hardware Reference Manual
The PtoI hardware can be enabled using m_p2i_enable.
m_p2i_enable, Secondary VSP Map, Address 0xE649[4]
This bit is used to enable the PtoI In VSP_top.
Function
m_p2i_enable
0 (default)
1
Description
Disable
Enable
m_p2i_drop_line_as_pvsp_flag, Secondary VSP Map, Address 0xE65B[7]
In Game Mode, this bit is used to select an interlaced mode. If the PVSP works in game mode and the PVSP's input is interlaced, this bit
should be set to 1 for the P2I block to drop interpolated lines. Otherwise, this bit should be set to 0.
In external sync mode, this bit enables field tracking. When this bit is set low, it uses the internally generated field instead of the master one
provided.
The input video to the PtoI block is defined using m_p2i_vid[7:0]. Refer to Table 27 for more details on the value of this register.
m_p2i_vid[7:0], Secondary VSP Map, Address 0xE64B[7:0]
'This register is used to set the VIC of the PtoI in VSP_top.
Function
m_p2i_vid[7:0]
0x00 (default)
Description
Default
Input Timing Format to
P2I
svsp_m_p2i_vid
Table 27: VID Set to PtoI
576p
1080p50
17
31
480p
1080p60
2
16
The PVSP PtoI does not have direct access to the data from the input pins but it can be utilized to convert a progressive input format to
interlaced using the PVSP core bypass path by setting the pvsp_bypass bit.
3.2.3.16.
Automatic Contrast Enhancement
The Automatic Contrast Enhancement (ACE) block is used to intelligently enhance the contrast of the whole picture by making dark regions
darker and bright regions brighter. It is stable under scene changes as well as being robust in the presence of noise. ACE
supports both interlaced and progressive inputs and can be enabled/disabled using ace_enable.
ace_enable, IO Map, Address 0x1A30[7]
This bit is used to enable the automatic contrast enhancement (ACE) block.
Function
ace_enable
0 (default)
1
Description
Bypass A.C.E.
Enable A.C.E.
3.3. SECONDARY VSP
3.3.1.
Introduction to SVSP
Rev. 0 | Page 136 of 326
ADV8005 Hardware Reference Manual
UG-707
Secondary VSP
FFS
Input
Video
VIM
VOM
Output
Progressive Video
to Interlaced
Read from
DDR2
Write to
DDR2
Figure 62: ADV8005 SVSP
Figure 62 shows the structure of the SVSP. The SVSP comprises of four sections; the VIM, the VOM, a controller which is the FFS, and a PtoI
converter.
The SVSP can be used to offer the option of a second output resolution to the user. The structure of the SVSP is similar to the PVSP but it is
much simpler in design and does not contain all the processing elements of the PVSP. The structure of the SVSP comprises FFS, VIM, and
VOM blocks.
Input to the SVSP can only be in progressive format.
The SVSP has the following features:
• Image cropping
• Scaling
• FRC
• PtoI conversion
The image cropping function is the same as that provided in the PVSP and, like the PVSP, there is an image cropper in both the VIM and the
VOM of the SVSP. In the SVSP only, the VIM is capable of scaling video data. This means that the VIM of the SVSP can support vertical
resolution scaling as well as horizontal resolution scaling.
The SVSP is also capable of performing FRC, which is controlled by the FFS of the SVSP. The FFS in the SVSP provides the same functionality
as the FFS in the PVSP. A PtoI converter which can be used to convert the incoming video standard from progressive to interlaced is also
included as part of the SVSP.
Like game mode in PVSP, SVSP can also support bypass DDR mode. Using this mode, the SVSP can convert between 1080p and 720p without
using external memory. This allows the user to perform a simple conversion which does not use external memory bandwidth. However, FRC
is not supported in this case.
The SVSP can be simply bypassed by setting svsp_bypass to 1.
Note: The input to the SVSP can only be progressive video. Therefore, interlaced video must be routed through the de-interlacer in the PVSP
before being routed to the SVSP. The PVSP output can also be sent to the SVSP as a progressive input.
svsp_bypass, Secondary VSP Map, Address 0xE649[6]
This bit is used to bypass the Secondary VSP.
Function
svsp_bypass
0 (default)
1
Description
Not bypass Secondary VSP
Bypass Secondary VSP
Similarly, if using the SVSP, the VIM and VOM must be enabled. This can be done by enabling svsp_enable_vim and svsp_enable_vom.
Rev. 0 | Page 137 of 326
UG-707
ADV8005 Hardware Reference Manual
svsp_enable_vim, Secondary VSP Map, Address 0xE610[6]
This bit is used to control the Video Input Module (VIM). If this bit is set to 1, the VIM is enabled to write packed input video data into the
defined external frame buffer. While the Secondary VSP is running, if this bit is set to 0, the output video stream will be frozen.
Function
svsp_enable_vim
0 (default)
1
Description
Disable VIM
Enable VIM
svsp_enable_vom, Secondary VSP Map, Address 0xE610[5]
This bit is used to control the Video Output Module (VOM). If this bit is set to 1, the VOM is enabled to read video data from external
memory, process it and then output it.
Function
svsp_enable_vom
0 (default)
1
Description
Disable VOM
Enable VOM
If using the SVSP, the FFS must be enabled (using svsp_enable_ffs) so that the hardware knows the various conversions that must be
performed. The use of field/frame buffers in external memory is managed by the FFS which decides which frame buffer should be used by the
VIM to store input video data. The FFS also decides which frame buffer should be read back by the VOM. The SVSP utilizes a frame
repeat/drop mechanism to implement FRC, which is also managed by the FFS.
svsp_enable_ffs, Secondary VSP Map, Address 0xE610[7]
This bit is used to control the Field Frame Scheduler (FFS). If this bit is set to 1, the FFS is enabled and the VIM and VOM are scheduled by
the FFS, which means the Secondary VSP is in work mode. If this bit is set to 0, the Secondary VSP is in idle mode.
Function
svsp_enable_ffs
0 (default)
1
3.3.1.1.
Description
Disable FFS/FRC
Enable FFS/FRC
Autoconfiguration
Each block inside the VIM and the VOM can be automatically configured to decrease the configuration complexity. The
svsp_autocfg_input_vid[7:0] and svsp_autocfg_output_vid[7:0] registers should be set to make the autoconfiguration work. The 59.94/23.97
Hz timings have the same VID as the corresponding 60/24 Hz timing in Table 28.
svsp_autocfg_input_vid[7:0], Secondary VSP Map, Address 0xE660[7:0]
This register is used to set the input timing VIC. If this register is 0, SVSP will use values in registers of svsp_vin_h, svsp_vin_v and
svsp_vin_fr to set input video.
Function
svsp_autocfg_input_vid[7:0]
0x00 (default)
0xXX
Description
Custom input video;
Input timing VIC
CEA
Table 28: SVSP Supported Input Video Timing and VID
Video Timing
VID
640x480p60
1
720x480p60
2 or 3 or 14 or 15 or 35 or 36
720x240p60
8 or 9 or 12 or 13
1280x720p60
4
1920x1080p
16
720x576p50
17 or 18 or 29 or 30 or 37 or 38
1280x720p50
19
720x288p50
23 or 24 or 27 or 28
1920x1080p50
31
1920x1080p24
32
Rev. 0 | Page 138 of 326
ADV8005 Hardware Reference Manual
UG-707
Video Timing
1920x1080p25
1920x1080p30
720p100
576p100
720p120
480p120
576p200
480p240
VGA
SVGA
XGA
WXGA
VESA timing
SXGA
WXGA-2
UXGA
WXGA-3
WUXGA
VID
33
34
41
42 or 43
47
48 or 49
52 or 53
56 or 57
200
201
202
203
204
205
206
207
208
Note: The SVSP does not support the following formats:
7. 1280x720p @ 23.97/24 Hz (CEA VIC 60)
8. 1280x720p @ 25 Hz (CEA VIC 61)
9. 1280x720p @ 29.97/30 Hz (CEA VIC 62)
svsp_autocfg_output_vid[7:0], Secondary VSP Map, Address 0xE661[7:0]
This register is used to set the output timing VIC. If this register is 0, SVSP will use values in registers of svsp_dp_decount,
svsp_dp_hfrontporch, svsp_dp_hsynctime, svsp_dp_hbackporch, svsp_dp_activeline, svsp_dp_vfrontporch, svsp_dp_vsynctime,
svsp_dp_vbackporch, svsp_dp_hpolarity, svsp_dp_vpolarity and svsp_vout_fr to set output video.
Function
svsp_autocfg_output_vid[7:0]
0x00 (default)
0xXX
Description
Custom output video;
Output timing VIC
Table 29 lists all the supported video timings and their VID. The 59.94/23.97 Hz timings have the same VID as the corresponding 60/24 Hz
timing in the table.
CEA
Table 29: SVSP Supported Output Video Timing and VID
Video Timing
VID
640x480p60
1
720x480p60
2 or 3 or 14 or 15 or 35 or 36
720(1440)x240p60
8 or 9
720(2880)x240p60
12 or 13
1280x720p60
4
1920x1080i60
5
720x480i60
6 or 7 or 10 or 11
1920x1080p
16
720x576p50
17 or 18 or 29 or 30 or 37 or 38
1280x720p50
19
1920x1080i50
20
720x576i50
21 or 22 or 25 or 26
720x288p50
23 or 24 or 27 or 28
1920x1080p50
31
1920x1080p24
32
Rev. 0 | Page 139 of 326
UG-707
ADV8005 Hardware Reference Manual
Video Timing
1920x1080p25
1920x1080p30
720p100
576p100
720p120
480p120
576p200
480p240
VGA
SVGA
XGA
WXGA
VESA timing SXGA
WXGA-2
UXGA
WXGA-3
WUXGA
VID
33
34
41
42 or 43
47
48 or 49
52 or 53
56 or 57
200
201
202
203
204
205
206
207
208
Note: The SVSP does not support the following formats;
10. 1280x720p @ 23.97/24 Hz (CEA VIC 60)
11. 1280x720p @ 25 Hz (CEA VIC 61)
12. 1280x720p @ 29.97/30 Hz (CEA VIC 62)
If overscan, crop or album mode is employed, the required blocks should be configured manually by enabling the corresponding enable bits,
such as svsp_vim_crop_enable, to enable the VIM crop block.
3.3.1.2.
Customized Input/Output Video Format Configuration
If the input timing is not in the SVSP input format table, the input format needs to be set manually. If the input resolution has a variation in
regard to standard timing (for example, if svsp_autocfg_input_vid[7:0] is set to 2, which indicates the input resolution is 720x480, but the
actual resolution is 718x478), the user can manually set svsp_autocfg_input_vid[7:0] to be 0 and set the input resolution through the following
three registers.
svsp_man_input_res, Secondary VSP Map, Address 0xE663[4]
This bit is used to enable manual configuration of input resolution.
Function
svsp_man_input_res
0 (default)
1
Description
Disable manual configuration of input resolution
Enable manual configuration of input resolution
svsp_vin_h[12:0], Secondary VSP Map, Address 0xE616[7:0]; Address 0xE617[7:3]
This signal is used to set the horizontal resolution of the input video. This register's value will be used while svsp_man_input_res is 1 or
svsp_autocfg_input_vid is 1.
Function
svsp_vin_h[12:0]
0x000 (default)
0xXXX
Description
Default
Horizontal resolution of input video
svsp_vin_v[12:0], Secondary VSP Map, Address 0xE618[7:0]; Address 0xE619[7:3]
This signal is used to set the vertical resolution of the input video. This register's value will be used while svsp_man_input_res is 1 or
svsp_autocfg_input_vid is 1.
Rev. 0 | Page 140 of 326
ADV8005 Hardware Reference Manual
Function
svsp_vin_v[12:0]
0x000 (default)
0xXXX
UG-707
Description
Default
Vertical resolution of input video
Similarly, if the output timing is not in the SVSP output format table, the output format needs to be set manually. The detailed configuration
instruction is given in the SVSP VOM output port description.
3.3.1.3.
Frame Buffer Number
Depending on the type of conversion that is to take place, a certain number of buffers must be allocated for the input/output video data.
Depending on the conversion required, this should be set in the svsp_fieldbuf_num[2:0] register. svsp_fieldbuf_num[2:0] can be automatically
set per svsp_autocfg_input_vid[7:0] and svsp_autocfg_output_vid[7:0]. The svsp_fieldbuf_num[2:0] register will not change when crop or
album mode is enabled.
svsp_fieldbuf_num[2:0], Secondary VSP Map, Address 0xE610[2:0]
This signal is used to set the number of field/frame buffers. This signal needs to be configured while svsp_osd_mode_en is 1.
Function
svsp_fieldbuf_num[2:0]
000 (default)
XXX
3.3.1.4.
Description
Default
Number of field/frame buffers
Frame Buffer Address and Size
In order to store video data in external memory in the correct size frames, the buffer size of the external DDR2 memory must be programmed
by the user. These programmed field buffers or frame buffers are allocated by setting the svsp_fieldbuffer0_addr[31:0],
svsp_fieldbuffer1_addr[31:0], svsp_fieldbuffer2_addr[31:0] and svsp_fieldbuffer3_addr[31:0] registers.
The value programmed into each of these registers is determined in Equation 22.
frame _ size = active _ video _ width × active _ video _ height × no _ bytes _ per _ pixel
Equation 22: Calculating External Memory Field Buffers
For example, for an output video resolution of 720p, Equation 22 would yield the following field size:
Field_size = ((1280)x(720))x2 = 1843200
where no_bytes_per_pixel indicates the number of bytes required to store each pixel. Refer to Table 23 for more details of the number of bytes
required to store each pixel of data.
svsp_fieldbuffer0_addr[31:0], Secondary VSP Map, Address 0xE600[7:0]; Address 0xE601[7:0]; Address 0xE602[7:0]; Address 0xE603[7:0]
This signal is used to set the start address of frame buffer 0. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
svsp_fieldbuffer0_addr[31:0]
0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 0
svsp_fieldbuffer1_addr[31:0], Secondary VSP Map, Address 0xE604[7:0]; Address 0xE605[7:0]; Address 0xE606[7:0]; Address 0xE607[7:0]
This signal is used to set the start address of frame buffer 1. Software should arrange memory space properly, avoiding conflict between
different buffers.
Rev. 0 | Page 141 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
svsp_fieldbuffer1_addr[31:0]
0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 1
svsp_fieldbuffer2_addr[31:0], Secondary VSP Map, Address 0xE608[7:0]; Address 0xE609[7:0]; Address 0xE60A[7:0]; Address 0xE60B[7:0]
This signal is used to set the start address of frame buffer 2. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
svsp_fieldbuffer2_addr[31:0]
0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 2
svsp_fieldbuffer3_addr[31:0], Secondary VSP Map, Address 0xE60C[7:0]; Address 0xE60D[7:0]; Address 0xE60E[7:0]; Address 0xE60F[7:0]
This signal is used to set the start address of frame buffer 3. Software should arrange memory space properly, avoiding conflict between
different buffers.
Function
svsp_fieldbuffer3_addr[31:0]
0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 3
svsp_fieldbuffer4_addr[31:0], Secondary VSP Map, Address 0xE664[7:0]; Address 0xE665[7:0]; Address 0xE666[7:0]; Address 0xE667[7:0]
This signal is used to set the start address of field/frame buffer 4. Software should arrange memory space properly, avoiding conflict between
different buffers.'
Function
svsp_fieldbuffer4_addr[31:0]
0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 4
svsp_fieldbuffer5_addr[31:0], Secondary VSP Map, Address 0xE668[7:0]; Address 0xE669[7:0]; Address 0xE66A[7:0]; Address 0xE66B[7:0]
This signal is used to set the start address of field/frame buffer 5. Software should arrange memory space properly, avoiding conflict between
different buffers.'
Function
svsp_fieldbuffer5_addr[31:0]
'0x00000000
0xXXXXXXXX
Description
Default
Start address of frame buffer 5
svsp_fieldbuffer6_addr[31:0], Secondary VSP Map, Address 0xE66C[7:0]; Address 0xE66D[7:0]; Address 0xE66E[7:0]; Address 0xE66F[7:0]
This signal is used to set the start address of field/frame buffer 6. Software should arrange memory space properly, avoiding conflict between
different buffers.'
Function
svsp_fieldbuffer6_addr[31:0]
0x00000000
0xXXXXXXXX
3.3.1.5.
Description
Default
Start address of frame buffer 6
Frame Latency
Depending on the format being input to the ADV8005 and the output required from the SVSP, different resolutions will have different frame
latencies. This is due to the increased processing required on scaling different types of video data. This has a certain impact in that the audio
will have to be delayed by the same amount. Table 30 lists frame latencies in different cases for various resolutions.
Rev. 0 | Page 142 of 326
ADV8005 Hardware Reference Manual
UG-707
Table 30: Frame Latency in Normal Mode
59.94/60 Hz
Output Frame Rate 50 Hz
23.97/24 Hz 25/30 Hz
Input
Frame Rate
Timing
50 Hz
576p
720p
1080p
59.94/60 Hz
480p
720p
1080p
23.97/24/25/30Hz 720/1080p
576p/720p/1080 480p/720p/1080p 720p/1080p 720p/1080p
p
0.1~1.31, 2
0.1~1.3
0.1~1.4
0.1~1.4
0.1~1.3
0.1~1.3
0.1~1.4
0.1~1.4
0.1~0.8
0.1~0.8
0.1~1.3
0.1~1.3
1. x.x means x.x times the input video frame
2. A~B means frame latency is not a fixed value, it varies between A and B
When crop or album mode is enabled, frame latency will be different from that listed in Table 30. In this case, the user can use the following
controls to measure frame latency: svsp_rb_frame_latency[2:0] and svsp_rb_hsync_latency[11:0] are read only registers. Their values are realtime frame and HSync latency between input and output video.
Frame latency may vary within a range; the svsp_rb_max_latency[14:0] readback register indicates the maximum frame latency, while
svsp_rb_min_latency[14:0] indicates the minimum frame latency. If svsp_frc_latency_measure_en is set to 0, svsp_rb_max_latency[14:0] and
svsp_rb_min_latency[14:0] are cleared. If asserting svsp_frc_latency_measure_en, SVSP monitors values in svsp_rb_max_latency[14:0] and
svsp_rb_min_latency[14:0] and then records the maximum and minimum values of them in the svsp_rb_max_latency[14:0] and
svsp_rb_min_latency[14:0] registers which are both 15 bits wide. The highest three bits are the frame latency and the lower 12 bits are the
HSync latency. Users should note that it will take several seconds for the SVSP to find the maximum and minimum frame/HSync latency.
In a normal case (not game mode), the SVSP’s input video and output video latency is consistent.
svsp_frc_latency_measure_en, Secondary VSP Map, Address 0xE662[2]
This bit is used to enable measuring frame/Hsync latency.
Function
svsp_frc_latency_measure_en
0 (default)
1
Description
Disable
Enable
svsp_rb_frame_latency[2:0], Secondary VSP Map, Address 0xE6F2[7:5] (Read Only)
This signal is used to readback the realtime frame latency.
Function
svsp_rb_frame_latency[2:0]
0xXXX
Description
Frame latency
svsp_rb_hsync_latency[11:0], Secondary VSP Map, Address 0xE6F3[7:0]; Address 0xE6F4[7:4] (Read Only)
This signal is used to readback the realtime Hsync latency.
Function
svsp_rb_hsync_latency[11:0]
0xXXX
Description
HSync latency
svsp_rb_max_latency[14:0], Secondary VSP Map, Address 0xE6F5[7:0]; Address 0xE6F6[7:1] (Read Only)
This signal is used to readback the maximum frame/Hsync latency. Upper 3 bit is VS latency, Lower 12 bit HS latency.
Rev. 0 | Page 143 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
svsp_rb_max_latency[14:0]
0xXXX
Description
Maximum of frame latency
svsp_rb_min_latency[14:0], Secondary VSP Map, Address 0xE6F7[7:0]; Address 0xE6F8[7:1] (Read Only)
This signal is used to readback the minimum frame/Hsync latency. Upper 3 bit is VS latency, Lower 12 bit HS latency.
Function
svsp_rb_min_latency[14:0]
0xXXX
3.3.1.6.
Description
Minimum of frame latency
Freezing Output Video
Output video can be frozen by disabling the VIM by setting svsp_enable_vim to 0.
3.3.2.
SVSP Video Input Module (VIM)
Video Input Module (VIM)
Input
Video
VIM
Cropper
Horizontal/Vertical
Scaler
Pixel
Packer
FFS
Write to
DDR2
Figure 63: SVSP Video Input Module
Figure 63 shows the structure of the SVSP VIM. This can be broken up into three hardware blocks. The VIM cropper can be used to crop an
input video image to a given image size. The scaler can be used to scale a video resolution to any target resolution. The pixel packer is used to
pack pixels data into memory words and write them into external memory. The starting address in external memory is provided by FFS and is
configured by the user using the frame buffer registers. As indicated at the start of Section 3.3, in order for the VIM module to operate, it must
first be enabled. This can be done using the svsp_enable_vim bit. If the VIM is disabled by setting this register to 0, the output video will be
frozen.
3.3.2.1.
VIM Cropper
The VIM cropper block is used to define a sub window within the given input resolution. This cropped image will then become the video
which will be processed by the SVSP. The following registers are used to define this sub window.
•
svsp_vim_crop_enable
•
svsp_vim_crop_h_start[12:0]
•
svsp_vim_crop_v_start[12:0]
•
svsp_vim_crop_width[12:0]
•
svsp_vim_crop_height[12:0]
To enable cropper block in VIM, svsp_vim_crop_enable must be set to 1.
svsp_vim_crop_enable, Secondary VSP Map, Address 0xE662[6]
This bit is used to enables the VIM crop.
Rev. 0 | Page 144 of 326
ADV8005 Hardware Reference Manual
Function
svsp_vim_crop_enable
0 (default)
1
UG-707
Description
Disable
Enable
Figure 64 shows the correlation between the cropped image and the input video resolution.
Input Video
SVSP_VIM_CROP_V_START
VSP2D_VIM_CROP_H_START
SVSP_VIM_CROP_H_START
Cropped Image
VSP2D_VIM_CROP_HEIGHT
SVSP_VIM_CROP_HEIGHT
SVSP_VIM_CROP_WIDTH
Figure 64: VIM Crop Dimensions
svsp_vim_crop_h_start[12:0], Secondary VSP Map, Address 0xE61A[7:0]; Address 0xE61B[7:3]
Sets the horizontal start position of the VIM cropper.
Function
svsp_vim_crop_h_start[12:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of VIM cropper input
svsp_vim_crop_v_start[12:0], Secondary VSP Map, Address 0xE61C[7:0]; Address 0xE61D[7:3]
This signal is used to set the horizontal start position of the VIM cropper.
Function
svsp_vim_crop_v_start[12:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of VIM cropper input
svsp_vim_crop_width[12:0], Secondary VSP Map, Address 0xE61E[7:0]; Address 0xE61F[7:3]
This signal is used to set the input width of the VIM cropper.
Function
svsp_vim_crop_width[12:0]
0x000 (default)
0xXXX
Description
Default
Width of VIM cropper input
svsp_vim_crop_height[12:0], Secondary VSP Map, Address 0xE620[7:0]; Address 0xE621[7:3]
This signal is used to set the input height of the VIM cropper.
Function
svsp_vim_crop_height[12:0]
0x000 (default)
0xXXX
Description
Default
Height of VIM cropper input
Note: The following limitations apply to the values that can be programmed in these registers:
• Register values programmed must be even numbers
•
0 <= svsp_vim_crop_h_start[12:0] <= (INPUT VIDEO HORIZONTAL RESOLUTION – 1)
•
0 <= svsp_vim_crop_v_start[12:0] <= (INPUT VIDEO VERTICAL RESOLUTION – 1)
•
(svsp_vim_crop_h_start[12:0] + svsp_vim_crop_width[12:0]) <= INPUT VIDEO HORIZONTAL ACTIVE PIXELS
Rev. 0 | Page 145 of 326
UG-707
•
3.3.2.2.
ADV8005 Hardware Reference Manual
(svsp_vim_crop_v_start[12:0] + svsp_vim_crop_height[12:0]) <= INPUT VIDEO VERTICAL ACTIVE PIXELS
Scaler
The size of the active image being sent to the SVSP is configured using svsp_vim_crop_height[12:0] and svsp_vim_crop_width[12:0] as
mentioned in Section 3.3.2. The output of the SVSP scaler can be set using svsp_vim_scal_out_height[10:0] and
svsp_vim_scal_out_width[10:0], or it can be automatically set per svsp_autocfg_output_vid[7:0]. These registers should be set to the
resolution of the output video.
svsp_man_scal_out_enable, Secondary VSP Map, Address 0xE662[5]
This bit is used to enable manually setting scaler output resolution.
Function
svsp_man_scal_out_enable
0 (default)
1
Description
Disable
Enable
svsp_vim_scal_out_height[10:0], Secondary VSP Map, Address 0xE624[7:0]; Address 0xE625[7:5]
This signal is used to set the output vertical resolution of scaler in the VIM.
Function
svsp_vim_scal_out_height[10:
0]
0x000 (default)
0xXXX
Description
Default
Output height of VIM scaler
svsp_vim_scal_out_width[10:0], Secondary VSP Map, Address 0xE622[7:0]; Address 0xE623[7:5]
This signal is used to set the output horizontal resolution of scaler in the VIM.
Function
svsp_vim_scal_out_width[10:
0]
0x000 (default)
0xXXX
Description
Default
Output width of VIM scaler
Image before
Scaler
Scaler in
VIM
Scaled Image
VSP2D_VIM_SCAL_OUT_HEIGHT
SVSP_VIM_SCAL_OUT_HEIGHT
VSP2D_VIM_CROP_HEIGHT
SVSP_VIM_CROP_HEIGHT
SVSP_VIM_CROP_WIDTH
SVSP_VIM_SCAL_OUT_WIDTH
Figure 65: VIM Scaler Dimensions
3.3.2.3.
Scaler Interpolation Mode
This section describes the method for scaling the input video data. The purpose of the scaler is to allow different input formats to be displayed
on a screen with a fixed resolution. This can allow lower resolution video, for example, 480p, to be upscaled to a high definition format such as
1080p. This can improve the overall quality of a video signal when displayed on a high definition television. The four options of video scaling
are listed below and are chosen using svsp_vim_scal_type[1:0].
Refer to Section 3 for more information on the types of scaler algorithm.
svsp_vim_scal_type[1:0], Secondary VSP Map, Address 0xE646[7:6]
This signal is used to set the VIM scaling algorithm. In most cases, the scaler type should be left at the default setting.
Rev. 0 | Page 146 of 326
ADV8005 Hardware Reference Manual
Function
svsp_vim_scal_type[1:0]
00 (default)
01
10
11
3.3.2.4.
UG-707
Description
Proprietary ADI Algorithm
Sharp
Smooth
Bilinear
VIM Miscellaneous Control
The following registers are used in the control of the VIM scaling function and should be tailored according to user requirements.
Anti-alias filters are provided to improve the performance of the SVSP downscaling and can be enabled using svsp_vim_scal_anti_alias_h_en
and svsp_vim_scal_anti_alias_v_en.
svsp_vim_scal_anti_alias_h_en, Secondary VSP Map, Address 0xE650[5]
This bit is used to enable the anti-aliasing filter for horizontal direction.
Function
svsp_vim_scal_anti_alias_h_e
n
0
1 (default)
Description
Disable
Enable
svsp_vim_scal_anti_alias_v_en, Secondary VSP Map, Address 0xE650[6]
This bit is used to enable anti-aliasing filter for vertical direction.
Function
svsp_vim_scal_anti_alias_v_e
n
0
1 (default)
Description
Disable
Enable
svsp_vim_scal_type[1:0], svsp_vim_scal_anti_alias_h_en and svsp_vim_scal_anti_alias_v_en can be manually set. These settings take effect
only when svsp_man_scaler_para_enable is set to 1, otherwise they can be automatically configured by the SVSP using
svsp_autocfg_input_vid[7:0] and svsp_autocfg_output_vid[7:0].
svsp_man_scaler_para_enable, Secondary VSP Map, Address 0xE662[4]
This bit is used to enable manually setting scaler parameters.
Function
svsp_man_scaler_para_enabl
e
0 (default)
1
Description
Disable
Enable
When a picture is zoomed in, it is possible to maintain the original high frequency content. However, maintaining this content can sometimes
introduce ringing artifacts. This overshoot can be controlled by adjusting svsp_vim_scal_overshoot_ctrl[11:0] according to user preference.
svsp_vim_scal_overshoot_ctrl[11:0], Secondary VSP Map, Address 0xE647[7:0]; Address 0xE648[7:4]
This signal is used to control the overshoot in the scaling of input video. If set to a value larger than the default setting, more overshoot is
allowed.
Function
svsp_vim_scal_overshoot_ctrl
[11:0]
0x080 (default)
3.3.2.5.
Description
Default
Panorama Mode
This feature is the same as for the PVSP. If the scaled video has a different aspect ratio to the original and the horizontal scaling factor is larger
than the vertical one, the panorama function can be enabled using svsp_vim_scal_pano_en. In effect, this stretches the left- and right-most
Rev. 0 | Page 147 of 326
UG-707
ADV8005 Hardware Reference Manual
sides of the input video to fill the output resolution. This method keeps the original ratio in the centre of the screen. Figure 60 explains the
panorama mode scaling feature.
svsp_vim_scal_pano_en, Secondary VSP Map, Address 0xE650[7]
This bit is used to enable panorama scaling for the Secondary VSP.
Function
svsp_vim_scal_pano_en
0 (default)
1
Description
Disable panorama
Enable panorama
The position from which the output video becomes stretched is controlled using svsp_vim_scal_pano_pos[10:0]. This allows the user to
control the width of the sides of the output image. Refer to Figure 60 for more details.
svsp_vim_scal_pano_pos[10:0], Secondary VSP Map, Address 0xE651[7:0]; Address 0xE652[7:5]
This signal is used to define the width of the output video frame which is not stretched when panorama mode is enabled but rather scaled
properly. The maximum value of this register is set by: svsp_vim_crop_width * (svsp_vim_scal_out_height/svsp_vim_crop_height) svsp_vim_scal_out_width/2.
This register sets half the width of the output frame which is to be scaled normally. By default, this register is set to 0 which means that all
the input frame will be stretched. It is, therefore, recommended that this register is set by the user before enabling the panorama function.
Function
svsp_vim_scal_pano_pos[10:0
]
0x000 (default)
0xXXX
3.3.2.6.
Description
Default
Width of not-stretched image
Pixel Packer
At the back end of the VIM, the pixel packer converts input video to word packets suitable for writing to external memory. The operation of
this hardware block is similar to the pixel packer in the PVSP. The SVSP manages pixels in 8-bit precision. Pixels in external memory have two
different data formats which can be selected using svsp_ex_mem_data_format[1:0]:
• 24-bit YCbCr
• 16-bit YCbCr-4:2:2
svsp_ex_mem_data_format[1:0], Secondary VSP Map, Address 0xE611[7:6]
This signal is used to set the data format in external memory.
Function
svsp_ex_mem_data_format[1
:0]
01
11
Description
YCbCr-8b-8b-8b
YCbCr-4:2:2-8b
Rev. 0 | Page 148 of 326
ADV8005 Hardware Reference Manual
3.3.3.
UG-707
SVSP Video Output Module
Video Output Module (VOM)
VOM
Cropper
FFS
Output
Port
Output
Video
Pixel
Unpacker
Write to
DDR2
Figure 66: SVSP Video Output Module (VOM)
Figure 66 shows the structure of the VOM in the SVSP. This is a much simpler structure than that of the VOM in the PVSP.
The SVSP VOM offers the following functions:
• Pixel unpacker: reads field/frame from external memory and unpacks memory word to video pixel information
• VOM cropper: reads cropped images from external memory
• Output port: generates output timing and output video
Register update protection is provided in the ADV8005. Refer to Section 3.4 for more details regarding the update of the various VSP registers.
svsp_lock_vom, Secondary VSP Map, Address 0xE610[4]
'This bit is used to lock the Video Output Module (VOM). If the Secondary VSP is running and this bit is set to 1, the VOM will be locked to
the current register setting to display the last frame. The Secondary VSP registers can be configured safely in this state. All new register
settings will be updated after this bit is set back to 0.
Function
svsp_lock_vom
0 (default)
1
Description
Unlock VOM
Lock VOM
Note: This register should be used only as part of the gentle reboot protocol. Refer to Section 3.4.3 for more details.
svsp_update_vom, Secondary VSP Map, Address 0xE610[3]
Registers related to the VOM can be updated only when this bit is set to 0. All new register settings will be updated by VOM in next frame
after this bit is set back to 1.
Function
svsp_update_vom
0 (default)
1
3.3.3.1.
Description
Do not update VOM
Update VOM
Pixel Unpacker
The pixel unpacker in the VOM of the SVSP is similar to that in the VOM of the PVSP. The pixel unpacker is used to convert external memory
words (128 bits) into video pixel (YCbCr-8-8-8-bit) data. Pixels in external memory can have the following two different data formats which
are the same as those set by the VIM. This is configured in the same way as the VIM.
• 24-bit YCbCr
• 16-bit YCbCr 4:2:2
Data format details are described in svsp_ex_mem_data_format[1:0].
Rev. 0 | Page 149 of 326
UG-707
3.3.3.2.
ADV8005 Hardware Reference Manual
VOM Cropper
The VOM cropper is also very similar to the cropper in the VOM of the PVSP. The following registers are used to configure the VOM cropper.
• svsp_vom_crop_enable
•
svsp_vom_crop_h_start[10:0]
•
svsp_vom_crop_v_start[10:0]
•
svsp_vom_crop_width[10:0]
•
svsp_vom_crop_height[10:0]
The function of the VOM cropper can be seen in Figure 67. To enable the cropper in the SVSP VOM, svsp_vom_crop_enable should be
asserted.
svsp_vom_crop_enable, Secondary VSP Map, Address 0xE662[1]
This bit is used to enable the VOM crop.
Function
svsp_vom_crop_enable
0 (default)
1
Description
Disable
Enable
Video Image in External Memory
SVSP_VOM_CROP_V_START
VSP2D_VOM_CROP_H_START
SVSP_VOM_CROP_H_START
Cropped Image
VSP2D_VOM_CROP_HEIGHT
SVSP_VOM_CROP_HEIGHT
SVSP_VOM_CROP_WIDTH
Figure 67: VOM Crop Dimensions
svsp_vom_crop_h_start[10:0], Secondary VSP Map, Address 0xE626[7:0]; Address 0xE627[7:5]
This signal is used to set the horizontal start position of the VOM cropper.
Function
svsp_vom_crop_h_start[10:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of VOM cropper
svsp_vom_crop_v_start[10:0], Secondary VSP Map, Address 0xE628[7:0]; Address 0xE629[7:5]
This signal is used to set the vertical start position of the VOM cropper.
Function
svsp_vom_crop_v_start[10:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of VOM cropper
svsp_vom_crop_width[10:0], Secondary VSP Map, Address 0xE62A[7:0]; Address 0xE62B[7:5]
This signal is used to set the width of the VOM cropper.
Rev. 0 | Page 150 of 326
ADV8005 Hardware Reference Manual
Function
svsp_vom_crop_width[10:0]
0x000 (default)
0xXXX
UG-707
Description
Default
Width of VOM cropper input
svsp_vom_crop_height[10:0], Secondary VSP Map, Address 0xE62C[7:0]; Address 0xE62D[7:5]
This signal is used to set the height of the VOM cropper.
Function
svsp_vom_crop_height[10:0]
0x000 (default)
0xXXX
Description
Default
Height of VOM cropper input
Note: The following restrictions apply to the values at which these registers can be set:
• All registers should contain even values
•
0 <= svsp_vom_crop_h_start[10:0] <= (HORIZONTAL RESOLUTION OUTPUT BY VIM – 1)
•
0 <= svsp_vom_crop_v_start[10:0] <= (RESOLUTION OUTPUT BY VIM – 1)
•
(svsp_vom_crop_h_start[10:0] + svsp_vom_crop_width[10:0]) <= HORIZONTAL RESOLUTION OUTPUT BY VIM
•
(svsp_vom_crop_v_start[10:0] + svsp_vom_crop_height[10:0]) <= VERTICAL RESOLUTION OUTPUT BY VIM
3.3.3.3.
Output Port
This section describes the configuration registers for the final block of the VOM of the SVSP. The main purpose of the output port is to
generate the output video timing and output the video data. For more details regarding the various register settings for the output port for
various common video formats, refer to Table 31. The output setting can be automatically configured using svsp_autocfg_output_vid[7:0]. If
the output configuration is to be set manually, svsp_man_dp_timing_enable should be set to 1. Refer to Figure 68 for more information.
svsp_man_dp_timing_enable, Secondary VSP Map, Address 0xE663[7]
This bit is used to enable manually setting output timing.
Function
svsp_man_dp_timing_enable
0 (default)
1
Description
Disable
Enable
svsp_dp_decount[10:0], Secondary VSP Map, Address 0xE632[7:0]; Address 0xE633[7:5]
This signal is used to set the DE duration of output timing. This register's value will be used while svsp_autocfg_output_vid is 0.
Function
svsp_dp_decount[10:0]
0x000 (default)
0xXXX
Description
Default
Data enable count of output timing
svsp_dp_hfrontporch[11:0], Secondary VSP Map, Address 0xE634[7:0]; Address 0xE635[7:4]
This signal is used to set the horizontal front porch duration of output timing. This register's value will be used while
svsp_autocfg_output_vid is 0.
Function
svsp_dp_hfrontporch[11:0]
0x000 (default)
0xXXX
Description
Default
Horizontal front porch of output timing
svsp_dp_hsynctime[9:0], Secondary VSP Map, Address 0xE636[7:0]; Address 0xE637[7:6]
This signal is used to set the Hsync duration of output timing. This register's value will be used while svsp_autocfg_output_vid is 0.
Function
svsp_dp_hsynctime[9:0]
0x000 (default)
0xXXX
Description
Default
Hsync width of output timing
Rev. 0 | Page 151 of 326
UG-707
ADV8005 Hardware Reference Manual
svsp_dp_hbackporch[9:0], Secondary VSP Map, Address 0xE638[7:0]; Address 0xE639[7:6]
This signal is used to set the horizontal back porch duration of output timing. This register's value will be used while
svsp_autocfg_output_vid is 0.
Function
svsp_dp_hbackporch[9:0]
0x000 (default)
0xXXX
Description
Default
Horizontal back porch of output timing
svsp_dp_activeline[10:0], Secondary VSP Map, Address 0xE63A[7:0]; Address 0xE63B[7:5]
This signal is used to set the active line number of output timing. This register's value will be used while svsp_autocfg_output_vid is 0.
Function
svsp_dp_activeline[10:0]
0x000 (default)
0xXXX
Description
Default
Active lines of output timing
svsp_dp_vfrontporch[9:0], Secondary VSP Map, Address 0xE63C[7:0]; Address 0xE63D[7:6]
This signal is used to set the vertical front porch duration of output timing. This register's value will be used while svsp_autocfg_output_vid
is 0.
Function
svsp_dp_vfrontporch[9:0]
0x000 (default)
0xXXX
Description
Default
Vertical front porch of output timing
svsp_dp_vsynctime[9:0], Secondary VSP Map, Address 0xE63E[7:0]; Address 0xE63F[7:6]
This signal is used to set the vertical synchronous time of output timing. This register's value will be used while svsp_autocfg_output_vid is
0.
Function
svsp_dp_vsynctime[9:0]
0x000 (default)
0xXXX
Description
Default
Vsync width of output timing
svsp_dp_vbackporch[9:0], Secondary VSP Map, Address 0xE640[7:0]; Address 0xE641[7:6]
This signal is used to set the vertical back porch duration of output timing. This register's value will be used while svsp_autocfg_output_vid
is 0.
Function
svsp_dp_vbackporch[9:0]
0x000 (default)
0xXXX
Description
Default
Vertical back porch of output timing
svsp_dp_vpolarity, Secondary VSP Map, Address 0xE642[7]
This signal is used to set the polarity of output Vsync. This register's value will be used while svsp_autocfg_output_vid is 0.
Function
svsp_dp_vpolarity
0 (default)
1
Description
Low
High
svsp_dp_hpolarity, Secondary VSP Map, Address 0xE642[6]
This signal is used to set the polarity of output Hsync. This register's value will be used while svsp_autocfg_output_vid is 0.
Function
svsp_dp_hpolarity
0 (default)
1
Description
Low
High
Table 31: Output Port Configuration Settings for Example Output Formats
Output Timing
decount
0xE
0xE
632
633
hfrontporch
HSync
0xE
0xE 0xE
0xE
634
635 636
637
hbackporch
activeline Vfrontporch
VSync
0xE
0xE
0xE 0xE
0xE 0xE
0xE
0xE
638
639
63A 63B 63C 63D 63E
63F
Rev. 0 | Page 152 of 326
vbackporch
0xE
0xE
640
641
vpol
0xE6
42[7]
hpol
0xE6
42[6]
ADV8005 Hardware Reference Manual
UG-707
Output Timing
decount
0xE
0xE
632
633
hfrontporch
HSync
0xE
0xE 0xE
0xE
634
635 636
637
hbackporch
activeline Vfrontporch
VSync
0xE
0xE
0xE 0xE
0xE 0xE
0xE
0xE
638
639
63A 63B 63C 63D 63E
63F
vbackporch
0xE
0xE
640
641
vpol
0xE6
42[7]
hpol
0xE6
576i
576p
720p50
1080i50
1080p50
vga
480i
480p
720p60
1080i60
1080p60
1080p24
0x5A
0x5A
0xA0
0xF0
0xF0
0x50
0x5A
0x5A
0xA0
0xF0
0xF0
0xF0
0x03
0x03
0x6E
0x84
0x84
0x04
0x04
0x04
0x1B
0x16
0x16
0x9F
0x11
0x11
0x37
0x25
0x25
0x0C
0x0F
0x0F
0x37
0x25
0x25
0x25
0x09
0x09
0x05
0x09
0x09
0x08
0x07
0x07
0x05
0x09
0x09
0x09
0
0
1
1
1
0
0
0
1
1
1
1
0
0
1
1
1
0
0
0
1
1
1
1
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x80
0x00
0x00
0x80
0x10
0x10
0x0A
0x0B
0x0B
0x18
0x0F
0x0F
0x0A
0x0B
0x0B
0x0B
0x00
0x00
0x00
0x00
0x00
0x00
0x80
0x80
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x48
0x48
0x5A
0x87
0x87
0x3C
0x3C
0x3C
0x5A
0x87
0x87
0x87
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x00
0x01
0x01
0x01
0x01
0x01
0x02
0x02
0x02
0x01
0x01
0x01
0x01
0x40
0x40
0x40
0x00
0x00
0x80
0x40
0x40
0x40
0x00
0x00
0x00
0x01
0x01
0x01
0x01
0x01
0x00
0x01
0x01
0x01
0x01
0x01
0x01
0x40
0x40
0x40
0x40
0x40
0x80
0x80
0x80
0x40
0x40
0x40
0x40
0xC0
0xC0
0x00
0x00
0x00
0x40
0x80
0x80
0x00
0x00
0x00
0x00
42[6]
The size of the output images of the VOM scaler can be smaller than that defined by the parameters of the output port. The starting position
for the SVSP output video can be set using svsp_dp_video_h_start[10:0] and svsp_dp_video_v_start[10:0]. Figure 68 shows the relationship of
the VOM scaler image and output video. In this case, the blank area around the output image is filled with color defined by the
svsp_dp_margin_color[23:0] register in the YUV color space. This feature can be enabled using svsp_dp_output_blank.
Output video from Primary VSP
SVSP_DP_VIDEO_V_START
VSP2D_DP_VIDEO_H_START
SVSP_DP_VIDEO_H_START
Output video from
VOM Output
VSP2D_DI_CROP_HEIGHT
SVSP_DI_CROP_HEIGHT
VSP2D_DP_ACTIVELINE
SVSP_DP_ACTIVELINE
SVSP_SCAL_OUT_WIDTH
SVSP_DP_DECOUNT
Figure 68: VOM Output Dimensions
svsp_dp_video_h_start[10:0], Secondary VSP Map, Address 0xE62E[7:0]; Address 0xE62F[7:5]
This signal is used to set the horizontal start position where the output video of scaler is placed.
Function
svsp_dp_video_h_start[10:0]
0x000 (default)
0xXXX
Description
Default
Horizontal start position of output port
svsp_dp_video_v_start[10:0], Secondary VSP Map, Address 0xE630[7:0]; Address 0xE631[7:5]
This signal is used to set the vertical start position where the output video of scaler is placed.
Function
svsp_dp_video_v_start[10:0]
0x000 (default)
0xXXX
Description
Default
Vertical start position of output port
svsp_dp_margin_color[23:0], Secondary VSP Map, Address 0xE643[7:0]; Address 0xE644[7:0]; Address 0xE645[7:0]
This signal is used to set the default color in output video in YUV colorspace.
Rev. 0 | Page 153 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
svsp_dp_margin_color[23:0]
0x000000
0xXXXXXX
Description
Default
Default color in YUV colorspace
svsp_dp_output_blank, Secondary VSP Map, Address 0xE642[5]
'This bit is used to force the colour output of the Secondary VSP. If this register is set to 1, the output of the Secondary VSP is forced to the
used defined color in svsp_dp_margin_color.
Function
svsp_dp_output_blank
0 (default)
1
3.3.3.4.
Description
Not Output default Color
Output default Color
DDR Bypass Mode
In the case where the SVSP is being used to upscale or downscale between 1080p and 720p, external DDR2 memory is not required. Internal
line buffers allow the user to convert between these two resolutions while maintaining the full external memory bandwidth for both the PVSP
and OSD. The DDR bypass mode provided in the SVSP can be manually enabled/disabled using svsp_ddr_bypass. DDR2 bypass mode can be
automatically configured using svsp_autocfg_input_vid[7:0] and svsp_autocfg_output_vid[7:0]. If the DDR bypass mode is to be set manually,
svsp_man_set_ddr_bypass must be set to 1.
Note: This option is only available to the user when scaling between two resolutions which have the same frame rate.
svsp_man_set_ddr_bypass, Secondary VSP Map, Address 0xE662[0]
This bit is used to enable manually setting DDR bypass. If this bit is set to 1, SVSP will bypass DDR while svsp_ddr_bypass is 1, or not
bypass DDR while svsp_ddr_bypass is 0.
Function
svsp_man_set_ddr_bypass
0 (default)
1
Description
Disable
Enable
svsp_ddr_bypass, Secondary VSP Map, Address 0xE649[7]
This bit is used to bypass external memory. This register's value will be used while svsp_man_set_ddr_bypass is 1.
Function
svsp_ddr_bypass
0 (default)
1
3.3.3.5.
Description
Not bypass external memory
Bypass external memory
Progressive to Interlaced Converter in SVSP
The PtoI converter block in the SVSP is used to convert progressive video to interlaced video. It drops odd or even lines of the progressive
video based on the output interlaced video field signal. Support is limited to 480p and 576p. The associated interlaced timing signals can be
generated in the PtoI hardware block.
The PtoI converter in the SVSP cannot operate in standalone mode – it must be connected to the SVSP.
The PtoI hardware can be enabled using svsp_p2i_enable.
svsp_p2i_enable, Secondary VSP Map, Address 0xE649[5]
This bit is used to enable the PtoI in Secondary VSP.
Function
svsp_p2i_enable
0 (default)
1
Description
Disable
Enable
The input video to the PtoI block is defined using svsp_p2i_vid[7:0]. For more details on the values which must be programmed into this
register, refer to Table 32.
Rev. 0 | Page 154 of 326
ADV8005 Hardware Reference Manual
UG-707
svsp_p2i_vid[7:0], Secondary VSP Map, Address 0xE64A[7:0]
'This register is used to set the VIC of the PtoI in Secondary VSP.
Function
svsp_p2i_vid[7:0]
0x00 (default)
Description
Default
Table 32: VID for PtoI
Input Timing Format to
576p
P2I
svsp_s_p2i_vid
17
480p
2
3.4. VSP REGISTER ACCESS PROTOCOLS
This section is used to describe the methods available to the user to update the VSP registers. The following types of register access protocols
are available:
• Bootup protocol
• Reboot protocol
• Gentle reboot protocol
• VOM set protocol
• Free access protocol
These protocols are recommended to the user as best practice for updating VSP registers. The appropriate protocol should be used depending
on the current status of the device. The seamless transfer of the VSP between standards can be achieved by using the bootup protocol, reboot
protocol, gentle reboot protocol and VOM set protocols. If not changing VSP registers in real time, the free access protocol can be used.
3.4.1.
Bootup Protocol
The bootup protocol is used to configure the PVSP or SVSP from a reset state. All registers can be accessed using this protocol.
Rev. 0 | Page 155 of 326
UG-707
ADV8005 Hardware Reference Manual
Figure 69: Bootup Protocol Flowchart
Figure 69 shows the process for the bootup protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers replaced.
3.4.2.
Reboot Protocol
The reboot protocol is used to reset the PVSP and configure it again using different settings, especially different input timing or output timing.
All registers can be accessed using this protocol. It should be noted that the output video will be interrupted using this protocol.
Rev. 0 | Page 156 of 326
ADV8005 Hardware Reference Manual
UG-707
Figure 70: Reboot Protocol Flowchart
Figure 70 shows the process for the reboot protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers replaced.
Rev. 0 | Page 157 of 326
UG-707
3.4.3.
ADV8005 Hardware Reference Manual
Gentle Reboot Protocol
The gentle reboot is used to reboot the PVSP with different configuration settings but does not interrupt the output timing. The output video
is frozen during this protocol. All registers except output video timing registers can be accessed.
Figure 71: Gentle Reboot Protocol Flowchart
Figure 71 shows the process for the gentle reboot protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers
replaced.
Rev. 0 | Page 158 of 326
ADV8005 Hardware Reference Manual
3.4.4.
UG-707
VOM Set Protocol
The VOM set protocol is used to configure the VOM. The registers in the VOM can be accessed without affecting the output video timing.
Figure 72: VOM Set Protocol Flowchart
Figure 72 shows the process for the VOM set protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers
replaced.
3.4.5.
Free Access Protocol
The free access protocol allows the user to configure all VSP registers regardless of the current configuration of the device. This can be seen in
Figure 73.
Start
Configure
register
End
Rev. 0 | Page 159 of 326
UG-707
ADV8005 Hardware Reference Manual
Figure 73: Free Access Protocol
3.5. HORIZONTAL PRE-SCALER
A Horizontal Pre-Scaler (HPS) has been implemented on the ADV8005 to extend the scaling functions of the ADV8005. The PVSP and SVSP
are limited in the pixel clock frequencies and line lengths which they can handle. The HPS block has been designed for scaling between
determined video formats as follows:
1. Down-conversion of video standards with pixel clocks greater than 162MHz and/or more than 2048 pixels/line. Typical use would be
downscaling to video modes with pixel clocks of less than 162MHz, e.g. [email protected] to [email protected]
2.
Up-conversion of video standards with pixel clocks greater than 162MHz and/or more than 1920 pixels/line (but less than 3840) to
video modes with pixel clocks greater than 162MHz, e.g. VESA 2048x1152 (162MHz) to 4K, VESA 1920x1440 (234MHz) to 4K.
3.
Conversion of video standards with pixel clocks greater than 162MHz and more than 3840 pixels/lines. Typical use would be
converting between different 4K timings, e.g. [email protected] to [email protected] SMPTE.
4.
3D to 2D conversion of some video modes.
5.
Bypassing the downsampling block within the HPS, can be used just as an additional high-frequency filter to the one provided by the
P/SVSP.
Video may be routed in to the HPS from any of the ADV8005 inputs using hps_inp_sel. The output from the HPS can be routed to either the
PVSP or to the SVSP using pvsp_inp_sel[3:0] and svsp_inp_sel[3:0].
hps_inp_sel[3:0], IO Map, Address 0x1A09[7:4]
This signal is used to select the video source for the Horizontal pre-scaler (HPS) block
Rev. 0 | Page 160 of 326
ADV8005 Hardware Reference Manual
Function
hps_inp_sel[3:0]
0x00 (default)
0x01
0x02
0x03
UG-707
Description
From Primary Input Channel
From Secondary Input Channel
From RX Input
From Internal OSD Blend 1
Figure 74 HPS Block Diagram
The HPS block provides two separate low pass filters which can be selected using hps_filt_bypass. The HPS filter can be powered down using
hps_power_down.
hps_power_down, IO Map, Address 0x1A85[7]
Powers down the horizontal pre-scaler block (HPS). Powered down by default to save power
Function
hps_power_down
0
1 (default)
Description
HPS is active
HPS Block is powered down
hps_filt_bypass, IO Map, Address 0x1A85[4]
This bit bypasses filtering done before downsampling. Aliasing may occur if this filtering is not done
Function
hps_filt_bypass
0 (default)
1
Description
Do not bypass
Bypass
hps_bypass_downsample, IO Map, Address 0x1A85[3]
This bit bypasses data downsampling. Use this control to just filter but not downsample video data
Rev. 0 | Page 161 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
hps_bypass_downsample
0 (default)
1
Description
Do not bypass
Bypass
hps_phase_sel_downsample, IO Map, Address 0x1A85[2]
This bit selects whether the downsampling should start by keeping or dropping the first pixel when in a 2 - 1 downsampling. '
Function
hps_phase_sel_downsample
0
1 (default)
Description
Start by keeping the first Pixel
Start by dropping the first Pixel
hps_filt_mode[1:0], IO Map, Address 0x1A85[1:0]
The filter has 2 operating modes. Mode 0 has higher bandpass but less aliasing rejection.
Function
hps_filt_mode[1:0]
0
1 (default)
2
3
3.5.1.
Description
Filter mode 0
Filer mode 1
Unused
Unused
HPS Downscaling
The video downsampling block provides a 2:1 reduction on the horizontal resolution of the video stream, required to route high-resolution,
high-speed data to the PVSP/SVSP. If only the filter of the HPS is to be used, this downsampling block can be disabled with
hps_bypass_downsample.
It is possible to select whether to keep/drop the first pixel of the line when downsampling. This is done through hps_phase_sel_downsample.
Below image illustrates how this control affects a one pixel wide, black-white column, video pattern, sent through the HPS. Note that the
filtering has been disabled in order to preserve the one pixel wide pure black/white pattern. Changing the phase of the downsampling results
in a completely white or black pattern at the output of the HPS block.
Figure 75 HPS effect of hps_phase_sel_downsample
Rev. 0 | Page 162 of 326
ADV8005 Hardware Reference Manual
UG-707
In order to perform downscaling of video standards with pixel clocks greater than 162MHz, it will be necessary to go through the HPS before
routing the video to either the PVSP or SVSP.
For video standards in which after the HPS block the horizontal resolution is bigger than 1920 pixels/line, it is mandatory to go through the
SVSP.
Figure 76 Using the HPS to Downscale the 4K2K video
If the horizontal resolution of the video stream after the HPS is 1920 or less pixels, it is also possible to route the video through the PVSP.
Figure 77 Using the HPS to downscale to downscale to less than 1920 horizontal pixels
3.5.2.
HPS Upscaling
When upscaling video streams with pixel clocks greater than 162MHz or with horizontal resolutions larger than 1920 pixels (but smaller than
3840) to video modes with pixel clocks greater than 162MHz, the input video has to be routed to the HPS followed by the PVSP. E.g. VESA
2048x1152 (162MHz) to 4K, VESA 2560x1600 (Reduced Blanking, 268MHz) to 4K.
Figure 78 HPS Upscaling
When processing video standards with pixel clocks greater than 162MHz and more than 3840 pixels/lines, a combination of HPS, SVSP and
PVSP is required. Typical use would be converting between different 4K timings, e.g. [email protected] to [email protected] SMPTE. It is not possible however to
do frame rate conversions between 4K modes.
Figure 79 HPS scaling for inputs with more than 3840 pixels per line.
3.5.3.
Using the HPS for converting between 3D to 2D Video formats
Other usage scenario of the HPS is the conversion from certain 3D modes to its 2D equivalent. The 3D modes which require making use of
the HPS are the ones with pixels clocks greater than 162MHz and/or horizontal resolutions larger than 1920 pixels/line.
Rev. 0 | Page 163 of 326
UG-707
VIC
16
31
35
36
37
Format
1920x10
80p
1920x10
80p
2880x48
0p
2880x48
0p
2880x57
6p
ADV8005 Hardware Reference Manual
Int/Pr
og
Pro
g
Pro
g
Pro
g
Pro
g
Pro
g
Field
Rate
[Hz]
Pixel
Freq
[MHz]
59.94/6
0
50
297
59.94/6
0
59.94/6
0
50
216
297
216
216
H Freq
[kHz]
V
Freq
[Hz]
134.8
66
112.5
59.9
4
50
62.93
8
62.93
8
62.5
59.9
4
59.9
4
50
H
tota
l
[dot
s]
H
acti
ve
[dot
s]
H
bla
nk
[dot
s]
H
Fro
nt
Por
ch
[dot
s]
Hsy
nc
[dot
s]
H
Bac
k
Por
ch
[dot
s]
V
tota
l
[line
s]
V
acti
ve
[line
s]
V
blan
k
[line
s]
V
Fro
nt
Por
ch
[line
s]
Vsy
nc
[line
s]
V
Bac
k
Por
ch
[line
s]
22
00
26
40
34
32
34
32
34
56
19
20
19
20
28
80
28
80
28
80
28
0
72
0
55
2
55
2
57
6
88
44
22
05
22
05
10
05
10
05
12
01
4
5
36
44
22
50
22
50
10
50
10
50
12
50
45
52
8
64
14
8
14
8
24
0
24
0
27
2
45
4
5
36
45
9
6
30
45
9
6
30
49
5
5
39
64
48
24
8
24
8
25
6
The 3D->2D conversions for Frame Packing, Side-by-Side Full and Side-by-Side Half packing modes which need to make use of the HPS are
shown on the following tables.
Rev. 0 | Page 164 of 326
ADV8005 Hardware Reference Manual
38
2880x57
6p
1920x10
80i
1280x72
0p
1920x10
80i
1280x72
0p
720x576
p
720x576
p
720(1440
)x576i
720(1440
)x576i
720x480
p
720x480
p
720(1440
)x480i
720(1440
)x480i
40
41
46
47
52
53
54
55
56
57
58
59
Pro
g
Int
UG-707
50
216
62.5
50
100
297
112.5
50
100
297
150
100
119.88/
120
119.88/
120
200
296.7
04
296.7
04
216
134.8
64
179.8
18
250
59.9
4
119.
88
200
200
216
250
200
200
216
125
100
Int
200
216
125
100
Pro
g
Pro
g
Int
239.76/
240
239.76/
240
239.76/
240
239.76/
240
216
251.7
48
251.7
48
125.8
74
125.8
74
239.
76
239.
76
119.
88
119.
88
Pro
g
Int
Pro
g
Pro
g
Pro
g
Int
Int
216
216
216
34
56
26
40
19
80
22
00
16
50
86
4
86
4
17
28
17
28
85
8
85
8
17
16
17
16
28
80
19
20
12
80
19
20
12
80
72
0
72
0
14
40
14
40
72
0
72
0
14
40
14
40
57
6
72
0
70
0
28
0
37
0
14
4
14
4
28
8
28
8
13
8
13
8
27
6
27
6
48
25
6
44
11
0
12
40
64
27
2
14
8
22
0
14
8
22
0
68
12
64
68
24
16
12
6
12
6
62
13
8
13
8
60
16
62
60
38
12
4
12
4
11
4
11
4
Hsy
nc
[dot
s]
44
H
Bac
k
Por
ch
[dot
s]
148
44
148
52
8
44
0
88
40
44
24
38
12
50
22
50
15
00
22
50
15
00
12
50
12
50
12
50
12
50
10
50
10
50
10
50
10
50
12
01
22
28
14
70
12
26
14
70
12
01
12
01
12
26
12
26
10
05
10
05
10
28
10
28
49
5
5
39
22
2
5
15
30
5
5
20
22
2
5
15
30
5
5
20
49
5
5
39
49
5
5
39
24
2
3
19
24
2
3
19
45
9
6
30
45
9
6
30
22
4
3
15
22
4
3
15
The following formats are not supported
VI
C
Format
63
1920x10
80p
1920x10
80p
64
3.5.4.
Int/Pr
og
Prog
Prog
Field
Rate
[Hz]
Pix
el
Fre
q
[MH
z]
H
Fre
q
[kH
z]
V
Fre
q
[Hz
]
H
tota
l
[dot
s]
H
acti
ve
[dot
s]
H
blan
k
[dot
s]
119,88/
120
100
594
270
225
220
0
264
0
192
0
192
0
280
594
12
0
10
0
H
Fro
nt
Por
ch
[dot
s]
88
720
528
V
total
[line
s]
V
acti
ve
[line
s]
V
blan
k
[line
s]
Vsy
nc
[line
s]
45
V
Fro
nt
Por
ch
[line
s]
4
5
V
Bac
k
Por
ch
[line
s]
36
225
0
225
0
220
5
220
5
45
4
5
36
V
tota
l
[lin
es]
V
acti
ve
[lin
es]
V
bla
nk
[lin
es]
Vsy
nc
[lin
es]
108
0
108
0
480
45
V
Fro
nt
Por
ch
[lin
es]
4
5
V
Bac
k
Porc
h
[line
s]
36
45
4
5
36
45
9
6
30
3D Side by Side Full
The following 3D standards need to go through the HPS before being converted to a 2D mode.
VI
C
Format
Int/Pr
og
Field
Rate
[Hz]
16
1920x108
0p
1920x108
0p
2880x480
p
2880x480
p
2880x576
p
2880x576
Prog
31
35
36
37
38
Pixel
Freq
[MHz
]
H
Freq
[kHz]
V
Fre
q
[Hz]
H
tota
l
[dot
s]
H
acti
ve
[dot
s]
H
bla
nk
[dot
s]
59,94/6
0
50
297
59.9
4
50
216
Prog
Prog
50
216
440
0
528
0
686
4
686
4
691
2
691
384
0
384
0
576
0
576
0
576
0
576
560
59,94/6
0
59,94/6
0
50
67.4
33
56.2
5
31.4
69
31.4
69
31.2
5
31.2
Prog
Prog
Prog
297
216
216
59.9
4
59.9
4
50
50
144
0
110
4
110
4
115
2
115
Rev. 0 | Page 165 of 326
H
Fro
nt
Por
ch
[dot
s]
176
Hsy
nc
[dot
s]
88
H
Bac
k
Por
ch
[dot
s]
296
105
6
128
88
296
496
480
112
5
112
5
525
128
496
480
525
480
45
9
6
30
96
512
544
625
576
49
5
5
39
96
512
544
625
576
49
5
5
39
UG-707
ADV8005 Hardware Reference Manual
p
40
5
52
1920x108
0i
1280x720
p
1920x108
0i
1280x720
p
720x576p
53
720x576p
Prog
200
216
125
200
54
Int
200
216
62.5
200
Int
200
216
62.5
200
56
720(1440)
x576i
720(1440)
x576i
720x480p
Prog
216
57
720x480p
Prog
58
720(1440)
x480i
720(1440)
x480i
Int
239,76/
240
239,76/
240
239,76/
240
239,76/
240
125.
874
125.
874
62.9
37
62.9
37
239.
76
239.
76
239.
76
239.
76
41
46
47
55
59
Int
100
297
100
297
56.2
5
75
Prog
100
Int
Prog
119,88/
120
119,88/
120
200
296.
704
296.
704
216
67.4
32
89.9
09
125
119.
88
119.
88
200
Prog
Int
216
216
216
100
2
0
2
528
0
396
0
440
0
330
0
172
8
172
8
345
6
345
6
171
6
171
6
343
2
343
2
384
0
256
0
384
0
256
0
144
0
144
0
288
0
288
0
144
0
144
0
288
0
288
0
144
0
140
0
560
105
6
880
88
296
80
440
176
88
296
740
220
80
288
24
288
112
5
750
108
0
720
22/2
3
30
2/2,
5
5
5
108
0
720
22/2
3
30
2/2,
5
5
5
440
112
5
750
5
15/1
5,5
20
128
136
625
576
49
5
5
39
24
128
136
625
576
49
5
5
39
576
48
252
276
625
576
48
252
276
625
576
276
32
124
120
525
480
2/2,
5
2/2,
5
9
3
576
24/2
5
24/2
5
45
6
19/1
9,5
19/1
9,5
30
276
32
124
120
525
480
45
9
6
30
552
76
248
228
525
480
76
248
228
525
480
4/4,
5
4/4,
5
3
552
22/2
3
22/2
3
15/1
5,5
15/1
5,5
Vsy
nc
[line
s]
5
V
Bac
k
Por
ch
[line
s]
36
5
3
3
15/1
5,5
20
The following standards are NOT supported.
VI
C
Format
63
1920x10
80p
1920x10
80p
64
3.5.5.
Int/Pr
og
Prog
Prog
Field
Rate
[Hz]
Pix
el
Fre
q
[MH
z]
H
Fre
q
[kH
z]
V
Fre
q
[Hz
]
H
tota
l
[dot
s]
H
acti
ve
[dot
s]
H
blan
k
[dot
s]
Hsy
nc
[dot
s]
280
H
Fro
nt
Por
ch
[dot
s]
88
44
H
Bac
k
Por
ch
[dot
s]
148
119,88/
120
100
594
270
594
225
12
0
10
0
220
0
264
0
192
0
192
0
720
528
44
148
V
total
[line
s]
V
acti
ve
[line
s]
V
blan
k
[line
s]
225
0
225
0
220
5
220
5
45
V
Fro
nt
Por
ch
[line
s]
4
45
4
5
36
V
total
[line
s]
V
acti
ve
[line
s]
V
blan
k
[line
s]
Vsy
nc
[line
s]
1125
45
5
V
Bac
k
Por
ch
[line
s]
36
1125
108
0
108
0
V
Fro
nt
Por
ch
[line
s]
4
45
4
5
36
3D Side by Side Full
The following 3D standards need to go through the HPS before being converted to a 2D mode.
VI
C
Format
63
1920x10
80p
1920x10
80p
64
Int/Pr
og
Prog
Prog
Field
Rate
[Hz]
Pix
el
Fre
q
[MH
z]
H
Fre
q
[kH
z]
V
Fre
q
[Hz
]
H
tota
l
[dot
s]
H
acti
ve
[dot
s]
H
blan
k
[dot
s]
Hsy
nc
[dot
s]
280
H
Fro
nt
Por
ch
[dot
s]
88
44
H
Bac
k
Por
ch
[dot
s]
148
119,88/
120
100
297
135
297
112
.5
12
0
10
0
220
0
264
0
192
0
192
0
720
528
44
148
3.6. EXTERNAL SYNC MODE
Using the ADV8005 external sync mode, it is possible to resynchronise multiple ADV8005 output video streams to an external sync input. The
outputs from multiple ADV8005 devices will be locked to +/- 3 Xtal clock cycles, where the Xtal clock will be 27 MHz.
When the ADV8005 is in external sync mode, the output video timing will be locked to an externally provided master sync signal (MAS_VS).
Rev. 0 | Page 166 of 326
ADV8005 Hardware Reference Manual
UG-707
This master signal must be provided to the MAS_VS ball. The polarity of this sync signal is assumed to be active high and will default to this
operation. mas_vs_ie, mas_hs_ie, and mas_clk_ie are used to enable the respective external sync pins.
Assumptions for operating in this mode:
• The external sync provided to the ADV8005 will be a CEA-861 or VESA compliant VSync. Non standard timing will NOT be
supported, that is, extra or fewer pixels, lines or frames than specified in the standard. Note that the VS and HS are assumed to be
active high.
• The sync signals supported will be VS and HS. Note that HS is optional and only required if interlaced output is required. In this case
the HS position with respect to the VS will be used to determine the output field required. If only progressive outputs are required
then the HS may be omitted and VS alone will suffice to lock the output.
• The external timing provided should match the output video standard programmed. For example if 1080i60Hz is to be output from
the ADV8005 PVSP and locked to external timing then a 60 Hz Vsync signal should be provided on the MAS_VS pin and a
33.750 kHz HSync should be provided on the MAS_HS pin. In this case the pvsp_autocfg_output_vid[7:0] should be set to 5.
O_EXT_ODD_FLD
FIELD_DETECT
M_P2I
TTL OUTPUT
TX1 OUTPUT
DATA_PVSP[36:0]
PVSP
DE_PVSP
TX2 OUTPUT
HS_PVSP
VS_PVSP
HS_MAS
PVSP_CLK
FRAME TRACK
VS_MAS
CLK_GEN
PVSP_CLK_PERIOD
XTAL_REF
Figure 80: ADV8005 External Sync Mode Block Diagram
3.6.1.
Functional Description
The ADV8005 compares the phase difference between the MAS_VS and the internally generated VS out as shown in Figure 80. The phase
difference is measured using a fixed crystal clock running at 27MHz. The phase difference between the input and output VS signals constitutes
an error which must be reduced to zero in order for the outputs to be locked together. This is achieved by varying the output clock in order to
change the period of the output VS. Once the error is reduced to 0 the output video and timing will be locked to the external master. This
locking process can take from 0 – 5 seconds. As the external master sync will always be present and stable this will constitute a start-up
condition and once locked will remain locked. If the input video source is changed at a future time this will not disrupt the relationship
between the external master sync and output timing.
The video output will be locked to within +/-2 Xtal clock cycles of the externally provided master sync. In the worst case scenario where 4k2k
is being output on a 297MHz clock the potential pixel difference is +/-22pixels. For 1080p outputs this variation drops to +/-11 pixels. This
difference between outputs can be eliminated using a small FIFO. Note that this resynchronisation block will also eliminate any cable delay
differences between different ADV8005 systems.
It is important to note that if the output timing is being locked to the external MAS_VS reference it cannot be locked to the input timing at the
same time. This means that if there are frequency differences between the external timing and input timing provided to the ADV8005, input
frames of video will be either dropped or repeated to account for these differences and keep the output timing locked to the external master
Rev. 0 | Page 167 of 326
UG-707
ADV8005 Hardware Reference Manual
reference (MAS_VS).
It is also possible to add a track_offset via pvsp_track_offset[20:0] to the phase error that is eliminated. This allows the ADV8005 to either
advance or delay the output timing versus the reference timing, which is externally provided on the MAS_VS ball in this case. If there is not
the possibility of providing an advanced external sync versus the desired output timing then an advance can be programmed to individual
ADV8005 parts in order to achieve the same effect.
pvsp_track_offset[20:0], IO Map, Address 0x1A94[4:0]; Address 0x1A95[7:0]; Address 0x1A96[7:0]
This signal is used to program the delay on the output timing of VSyncs from the Primary VSP.
Function
pvsp_track_offset[20:0]
0
1
Description
input and output VSync coincident
1 Xtal clk between input and output VSync
MAS sync mode using frame track can be enabled using pvsp_frtrk_mas_mode_en.
pvsp_frtrk_mas_mode_en, IO Map, Address 0x1B97[0]
This bit enables the use of external master hs and vs for frame tracking
Function
pvsp_frtrk_mas_mode_en
0 (default)
1
Description
Frame track input
Frame track external master hs/vs
External Sync Mode Summary
External sync locking mode is only needed for applications where the ADV8005 is required to lock its output timing to an externally provided
source. Applications where the ADV8005/ADV8003 output is required to be locked to the input timing do not require this functionality. These
applications (e.g. video wall) can use ‘phase locked frame track mode’ to achieve this functionality. The output will be locked within +/- 2xtal
clocks after an initial lock time of 0 – 5 seconds.
svsp_frtrk_mas_mode_en, IO Map, Address 0x1B99[0]
This bit enables the use of external master hs and vs for frame tracking
Function
svsp_frtrk_mas_mode_en
0 (default)
1
Description
Frame track input
Frame track external master hs/vs
mp2i_frtrk_mas_fld, IO Map, Address 0x1B97[1]
This bit select whether the input field information from the mas_vs and mas_hs is tracked by the mp2i block or not. The control signal
pvsp_frtrk_mas_mode_en, must also be enabled for this bit to take effect.
Function
mp2i_frtrk_mas_fld
0 (default)
1
Description
Disable tracking of input master field
Enable tracking of input master field
sp2i_frtrk_mas_fld, IO Map, Address 0x1B99[1]
This bit selects whether the input field information from the mas_vs and mas_hs is tracked by the mp2i block or not. The control signal
svsp_frtrk_mas_mode_en, must also be enabled for this bit to take effect.
Function
sp2i_frtrk_mas_fld
0 (default)
1
Description
Disable tracking of input master field
Enable tracking of input master field
s_p2i_invert_vsp2d_flag, Secondary VSP Map, Address 0xE65E[7]
This bit is used to invert the field information being sent to the secondary P2I block.
Rev. 0 | Page 168 of 326
ADV8005 Hardware Reference Manual
UG-707
The following I2C controls are used for external sync mode 3 only.
pvsp_mas_resync_en, Primary VSP Map, Address 0xE8A1[7]
This bit enables direct timing generation reset via external sync for the PVSP. This is for modes 2 and 3 only.
pvsp_freq_sel, IO Map, Address 0x1A44[7]
This bit is used to manually configure the vertical frequency for the Primary VSP.
Function
pvsp_freq_sel
0 (default)
1
Description
59.94Hz or 23.9Hz
60Hz or 24Hz
pvsp_track_offset[20:0], IO Map, Address 0x1A94[4:0]; Address 0x1A95[7:0]; Address 0x1A96[7:0]
This signal is used to program the delay on the output timing of vsyncs from the Primary VSP.
Function
pvsp_track_offset[20:0]
0 (default)
1
Description
input and output vsyncs are coincident
1 xltal clk between input and output vsync
svsp_track_offset[20:0], IO Map, Address 0x1A97[4:0]; Address 0x1A98[7:0]; Address 0x1A99[7:0]
This signal is used to program the delay on the output timing of vsyncs from the Secondary VSP.
Function
svsp_track_offset[20:0]
0 (default)
1
Description
input and output vsync coincident
1 xltal clk between input nad output vsync
3.7. PROGRESSIVE TO INTERLACED CONVERSION
ADV8005 has two progressive to interlaced converters (P2I).
The primary P2I converter is an independent block to which the PVSP, OSD and inputs can be connected. The primary P2I converter can
convert from any progressive format to its interlaced equivalent. The input to the primary P2I converter is selected by p2i_inp_sel[3:0].
The secondary P2I converter is connected directly to the SVSP. The secondary P2I converter cannot convert from 1080p to 1080i but can
handle all other progressive to interlaced conversions.
p2i_inp_sel[3:0], IO Map, Address 0x1A06[7:4]
This signal is used to select the video source for the Progressive to Interlaced converter.
Function
p2i_inp_sel[3:0]
0x00 
0x01
0x02
0x03
0x04
Description
From Primary VSP
From Internal OSD Blend 1
From EXOSD TTL Input
From RX Input
From Video TTL Input
Rev. 0 | Page 169 of 326
UG-707
ADV8005 Hardware Reference Manual
4. ON SCREEN DISPLAY
4.1. INTRODUCTION
The On Screen Display (OSD) core in the ADV8005 allows the user to overlay a bitmap-based OSD onto one of the input video streams. The
OSD blend is capable of being performed at data rates up to 3 GHz. The OSD can be designed using the ADI Blimp software tool. This code
generating tool may be used to design, simulate and compile the OSD which will be used in the end system application.
The Blimp OSD software tool covers the full design flow involved in delivering a complex bitmap-based OSD – from initial graphics design
through to outputting the files required for integration into the system application. Blimp OSD abstracts the user from the OSD hardware so a
detailed description of the OSD hardware is not provided. For more information on the OSD design flow and Blimp OSD software, refer to the
Blimp OSD software tool user manual.
4.1.1.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4.1.2.
Features
Full design-flow covered by Blimp OSD software, user does not need to worry about the OSD hardware
OSD maximum resolution of 4096 x 3840
Pixel-by-pixel alpha blending
Dual video paths through the OSD blend block to support dual zone OSD display
Eight hardware timers which provide added functionality for OSD or system tasks
Programmable blending effect of OSD and background video
Programmable priority of regions
Uniform programmable transparent color in the OSD
OSD video input and output format: 36-bit RGB
Support for main 3D video format timings
High-performance scaling quality with 8-bit horizontal and vertical video scaler
Arbitrary resolution conversion
Support vertical/horizontal scaling order change
Support progressive to interlaced conversion
Anti-alias mode for downscaling
OSD data range control
OSD System Application Diagram
Figure 81 provides a typical application diagram for using the bitmap OSD. The external MCU uses the ADV8005 SPI slave (serial port 1)
interface to configure the registers in the bitmap OSD module. The ADV8005 uses its SPI master (serial port 2) interface to obtain the OSD
data (fonts, icons, and images) from an external flash memory and store it into the DDR2 memory. The OSD can then be blended onto either
of the video paths through the OSD core.
Rev. 0 | Page 170 of 326
ADV8005 Hardware Reference Manual
Microcontroller
UG-707
DDR2
Memory
SPI
SPI
Slave
Slave
Video Input 1
Video Input 2
Blend
Input 1
Blend
Input 2
SPI Flash
SPI
SPI
Master
Master
Blend Blended Output 1
ADV8002Output 1
ADV8003
OSD
OSD
Blend Blended Output 2
Output 2
Figure 81: Typical Application Diagram
4.1.3.
Typical OSD Component Sizes
An indication of typical OSD component sizes in provided in Table 33. This can be used to gain an approximation of the size of an OSD.
Table 33: Output Port Configuration Settings for Example Output Formats
Component
Color Mode
DDR2 Size
(per pixel)
(bytes, W – width, H – height)
Label
8 bits
W*H*2
8 bits/16 bits/32 bits
W*H*2/4/8
Listbox
32 bits
W*H*8
Textbox
16 bits
W*H*4
Iptextbox
16 bits
W*H*4
Histogram
32 bits
W*H*8
Menubar
32 bits
W*H*8
Keyboard
32 bits
W*H*8
Progressbar
32 bits
W*H*8
Timer
0
0
4.2. ARCHITECTURE OVERVIEW
4.2.1.
Introduction
As outlined in Section 4.1.2, the OSD core in the ADV8005 is controlled mainly via a SPI slave interface and loads images and OSD data into
the part via a SPI master interface. Consequently, a number of the configuration registers for the OSD core are SPI registers and the code
required to control these registers is automatically generated by the Blimp OSD software tool – abstracting the user away from having to
understand them. For this reason, many of the SPI registers are not described in this section. For more information, refer to the Blimp OSD
software tool user manual.
4.2.2.
Top Level Diagram
Figure 82 provides a diagram of the ADV8005 OSD top level.
Rev. 0 | Page 171 of 326
UG-707
ADV8005 Hardware Reference Manual
DDR2
Memory
OSD TTL Input
External
OSD
Core
OSD
Microcontroller/
Flash
SPI Master/
Slave
OSD
Core
Internally
OSD
Generated
Core
OSD
CSC
OSD
Scaler
Video Input 1
Video Input 2
Blended Output 1
OSD
Blend
Blended Output 2
Figure 82: Bitmap OSD Top Level Diagram
OSD Blend: Used to overlay the OSD data with the input video.
OSD Scaler: Used to scale the OSD to the target resolution.
CSC: Used to convert the OSD core data color to the same color space as that of the input video.
OSD Core: Used to generate internal OSD data. Reads data from DDR2 memory and outputs data to FIFO.
SPI Master and SPI Slave: SPI master used to copy flash data into DDR2 memory. SPI slave used as the only means to control OSD
configuration registers and memories.
4.2.3.
OSD Blending
The OSD core in the ADV8005 has two video inputs and two video outputs and is capable of blending at data rates of up to 3 GHz.
The two video inputs allow two different video streams to be connected to the OSD core, for example, video TTL input channel and SVSP
output. The inputs connected to the OSD core can be selected using osd_blend_inp_sel[3:0] and osd_blend_inp_2_sel[3:0]. Refer to Figure 25
for further details. The video stream connected to OSD input 1 is output to the OSD blend 1 output and the video stream connected to OSD
input 2 is output to the OSD blend 2 output. It is only possible to blend video on OSD blend 1 output or on OSD blend 2 output. It is not
possible to OSD blend on both at the same time.
The OSD can be blended onto either one of the two video streams connected to the OSD core, that is, there is only one source of OSD data and
it must be configured to match one video stream’s format and timing at a time. The OSD can be switched between the two video streams
without causing any disturbance on either output video stream. The OSD core outputs can be connected to one or more of the output blocks,
for example, HDMI TX1, HDMI TX2, SD encoder and HD encoder.
The OSD is blended with the selected video stream using alpha blending. This means that each pixel of OSD has its own blending parameter
which is used to blend this pixel with its corresponding background video. If the OSD data is transparent, the background video will be passed
through and unadjusted.
As shown in Figure 82, the OSD data needs to be scaled to the target resolution before getting into the blending block (refer to Section 4.2.7).
The clock and DE of the selected video stream are used to read the scaler output data. Delay is added to DATA, DE, HS and VS for matching
the delay of the OSD processing, so the OSD scaler can ensure the correct synchronization of OSD data and input video data.
Rev. 0 | Page 172 of 326
ADV8005 Hardware Reference Manual
UG-707
OSD
Core
CSC
DE
OSD
Scaler
DE
Input
Video 1
Output Video 1
Alpha
Blending
Input
Video 2
Output Video 2
Figure 83: OSD Scaler and Blending Top Level Diagram
4.2.4.
External Alpha Blending
The ADV8005 features an external alpha blend input which is shared with the input pixel port. The external alpha blend can only be used in
conjunction with the EXOSD TTL input. This allows the option to specify an external alpha blend value for the EXOSD TTL input channel.
The options for routing the external alpha blend value are outlined in Table 89. The external alpha blend function is enabled via SPI.
4.2.5.
OSD Core
The OSD core generates the internal data for the OSD display. It accesses the DDR2 memory (through a DMA controller) to load the required
resources.
reg_osd_enable is used to enable the OSD core on the ADV8005.
reg_osd_enable, OSD, Address 0xEE00[0]
The enable bit of OSD core.
Function
reg_osd_enable
0
1
Description
Disables OSD core
Enables OSD core
osd_reset is used to reset the whole OSD core.
osd_reset, IO, Address 0x1AFD[1]
This register bit resets the OSD core.
Function
osd_reset
0
1
4.2.5.1.
Description
Default
Resets OSD core
OSD Core Region Definition
Rev. 0 | Page 173 of 326
UG-707
ADV8005 Hardware Reference Manual
A region defines an area on the plane, as shown in Figure 84. The regions are derived from the OSD components defined in the Blimp OSD
software and, therefore, contain the different elements of the OSD, for example, the text, images, icons, and so on. In other words, the regions
define how the OSD pixels to be displayed are stored in DDR2 memory. The equivalence between OSD components and regions can be found
in Table 34. A maximum of 256 regions can be displayed simultaneously on the screen.
Note: Only the regions being displayed at a given time count (and not the total on the whole OSD), so this number should be more than
enough for even the most complex OSD.
OSD region
OSD plane
Background Video
Figure 84: Definition of OSD Region
Table 34: Regions Used for OSD Components
Component
Number of Regions Needed in Hardware
OSDLabel
1
OSDImage
1
OSDHistogram
1
OSDKeyboard
2
OSDProgressbar 2
OSDTextbox
1
OSDMenubar
One region per item on each level
OSDListbox
One region per item
OSDTimer
0
OSDIptextbox
1
For example, if the designed OSD uses the OSD Menu bar component shown in Figure 85, and the user is moving through the icon menu,
there will be three regions in use at the time when the selected icon is Node1 (that is, the elements from the same level, Node1, Node5 and
Node6). When the selected icon is Node3, there will be three regions in use, that is, Node2, Node3, and Node4. When the selected icon is
Node7, there will be two regions in use, that is, Node7 and Node8.
Note how the efficient translation of components to regions means that it is almost impossible to run out of regions while designing even the
most complex OSD.
Figure 85: OSD Menu Bar Component
Rev. 0 | Page 174 of 326
ADV8005 Hardware Reference Manual
4.2.5.2.
UG-707
OSD Color Space
Bitmap images as well as external OSDs are passed to the OSD core in 8-bit RGB format. However, all video processing in the ADV8005 takes
place in YCbCr. The OSD core features a CSC to enable conversion of the OSD data from RGB to YCbCr. The OSD core CSC can convert into
either full of limited range YCbCr.
4.2.6.
OSD Timers
ADV8005 OSD supports up to eight hardware timers. One of these timers (user-selectable in the OSD firmware) is used by the OSDTimer
component of Blimp OSD, which can be inserted within any OSD design (consult the Blimp OSD manual for a detailed description of how to
do this). Blimp OSD will automatically handle a number of OSD timers and will map all of them to one hardware timer. If the OSD design flow
with the Blimp OSD tool is followed, the user does not need to know any low-level details about the timers. However, since they can also be
used as general purpose system timers, its low-level functionality will be described in this section. Note that the HW timer being used by
Blimp OSD (user-selectable as mentioned) will not be available to be used as general purpose timer.
Any of these eight timers can trigger an interrupt on the INT0 pin. This interrupt can then be handled by the MCU, and the timer which
generated it can be found out by polling the timer registers.
These timers can be configured through the Timer register map. This map is only accessible through the SPI slave interface (address 0x0B).
For more information on the SPI slave interface, refer to Section 4.2.8.2. The registers used to configure the timers are described below.
sys_clock_freq[23:0], SPI Device Address 0x0B (TIMER), Address 0x00[7:0]; Address 0x01[7:0]; Address 0x02[7:0]
System clock frequency, unit is KHz, the default value is 157.5 MHz.
Function
sys_clock_freq[23:0]
0x02673C 
0xXXXXXX
Description
Default
System Clock Frequency
This register is used to generate a 1 KHz pulse, which all eight timers are based on to measure a 1 ms interval. If the system clock frequency is
changed, this register can be changed to guarantee the 1 KHz accuracy. It is also possible to modify this register if a smaller time interval than
1ms needs to be measured.
For example:
The default value of sys_clock_freq is 0x0278D0, that is, 162000 (162 MHz).
If it is changed to 16200, the minimum interval will be 0.1 ms.
If it is changed to 1620, the minimum interval will be 0.01ms.
timer1_enable, SPI Device Address 0x0B (TIMER), Address 0x03[0]
Timer 1 Enable
Function
timer1_enable
0
1
Description
Disables
Enables
Once the timer is enabled, disabling this bit will stop the counting, and it will be resumed when enabling back this bit.
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (i.e. bit[1] controls
timer2, bit[2] controls timer3, etc.); they are not included here for readability reasons.
timer1_reset, SPI Device Address 0x0B (TIMER), Address 0x04[0]
Timer 1 Reset
Rev. 0 | Page 175 of 326
UG-707
Function
timer1_reset
0
1
ADV8005 Hardware Reference Manual
Description
Not reset
Reset
Enabling this reset will clear the timer_cnt and timer_irq_cnt registers.
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (that is, bit[1] controls
timer2, bit[2] controls timer3, and so on); they are not included here for readability reasons.
timer1_loop_mode, SPI Device Address 0x0B (TIMER), Address 0x05[0]
Timer 1 Mode Control
Function
timer1_loop_mode
0
1
Description
One time mode
Infinite mode
When working in one time mode, after the interval is reached, the timer will stop by itself, that is, there is no need to set timer_enable to
disabled).
When working in infinite mode, timer_keep_result should be set to 0.
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (that is, bit[1] controls
timer2, bit[2] controls timer3, and so on); they are not included here for readability reasons.
timer1_keep_result, SPI Device Address 0x0B (TIMER), Address 0x06[0]
Timer 1 result control.
Function
timer1_keep_result
0
1
Description
Does not keep timer counter value after timer done
Keep timer counter value after timer done
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (that is, bit[1] controls
timer2, bit[2] controls timer3, and so on); they are not included here for readability reasons.
timer1_irq_en, SPI Device Address 0x0B (TIMER), Address 0x07[0]
Timer 1 interrupt enable.
Function
timer1_irq_en
0
1
Description
Disable
Enable
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (that is, bit[1] controls
timer2, bit[2] controls timer3, and so on); they are not included here for readability reasons.
timer1_clr_irq, SPI Device Address 0x0B (TIMER), Address 0x08[0]
Clears the timer 1 interrupt after writing 1 to this bit. Note these are not self clearing bits, the user just needs to write 1 to this bit and it will
clear the timer_flag and timer_irq_cnt registers. Even if timer_clr_irq is already set at 1, it will not clear the timer interrupt and flag until the
user writes 1 to it.
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (i.e. bit[1] controls
timer2, bit[2] controls timer3, etc.); they are not included here for readability reasons.
Rev. 0 | Page 176 of 326
ADV8005 Hardware Reference Manual
UG-707
timer1_flag, SPI Device Address 0x0B (TIMER), Address 0x09[0] (Read Only)
Timer 1 flag.
Function
timer1_flag
0
1
Description
Timer 1 is running
Timer 1 is done
Note that the rest of the bits within this register perform the same operation as for timer1 but for the other seven timers (that is, bit[1] controls
timer2, bit[2] controls timer3, and so on); they are not included here for readability reasons.
timer1_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x0A[7:0]; Address 0x0B[7:0]; Address 0x0C[7:0]; Address 0x0D[7:0]
Timer 1 interval, unit is ms.
timer2_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x0E[7:0]; Address 0x0F[7:0]; Address 0x10[7:0]; Address 0x11[7:0]
Timer 2 interval, unit is ms.
timer3_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x12[7:0]; Address 0x13[7:0]; Address 0x14[7:0]; Address 0x15[7:0]
Timer 3 interval, unit is ms.
timer4_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x16[7:0]; Address 0x17[7:0]; Address 0x18[7:0]; Address 0x19[7:0]
Timer 4 interval, unit is ms.
timer5_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x1A[7:0]; Address 0x1B[7:0]; Address 0x1C[7:0]; Address 0x1D[7:0]
Timer 5 interval, unit is ms.
timer6_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x1E[7:0]; Address 0x1F[7:0]; Address 0x20[7:0]; Address 0x21[7:0]
Timer 6 interval, unit is ms.
timer7_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x22[7:0]; Address 0x23[7:0]; Address 0x24[7:0]; Address 0x25[7:0]
Timer 7 interval, unit is ms.
timer8_interval[31:0], SPI Device Address 0x0B (TIMER), Address 0x26[7:0]; Address 0x27[7:0]; Address 0x28[7:0]; Address 0x29[7:0]
Timer 8 interval, unit is ms.
timer1_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x2A[7:0]; Address 0x2B[7:0]; Address 0x2C[7:0]; Address 0x2D[7:0] (Read
Only)
Timer 1 value, unit is ms.
timer2_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x2E[7:0]; Address 0x2F[7:0]; Address 0x30[7:0]; Address 0x31[7:0] (Read Only)
Timer 2 value, unit is ms.
timer3_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x32[7:0]; Address 0x33[7:0]; Address 0x34[7:0]; Address 0x35[7:0] (Read Only)
Timer 3 value, unit is ms.
timer4_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x36[7:0]; Address 0x37[7:0]; Address 0x38[7:0]; Address 0x39[7:0] (Read Only)
Timer 4 value, unit is ms.
timer5_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x3A[7:0]; Address 0x3B[7:0]; Address 0x3C[7:0]; Address 0x3D[7:0] (Read
Only)
Timer 5 value, unit is ms.
timer6_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x3E[7:0]; Address 0x3F[7:0]; Address 0x40[7:0]; Address 0x41[7:0] (Read Only)
Timer 6 value, unit is ms.
Rev. 0 | Page 177 of 326
UG-707
ADV8005 Hardware Reference Manual
timer7_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x42[7:0]; Address 0x43[7:0]; Address 0x44[7:0]; Address 0x45[7:0] (Read Only)
Timer 7 value, unit is ms.
timer8_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x46[7:0]; Address 0x47[7:0]; Address 0x48[7:0]; Address 0x49[7:0] (Read Only)
Timer 8 value, unit is ms.
timer1_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x4A[7:0]; Address 0x4B[7:0]; Address 0x4C[7:0]; Address 0x4D[7:0] (Read
Only)
The number of times the timer 1 interrupt was generated.
timer2_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x4E[7:0]; Address 0x4F[7:0]; Address 0x50[7:0]; Address 0x51[7:0] (Read
Only)
The number of times the timer 2 interrupt was generated.
timer3_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x52[7:0]; Address 0x53[7:0]; Address 0x54[7:0]; Address 0x55[7:0] (Read
Only)
The number of times the timer 3 interrupt was generated.
timer4_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x56[7:0]; Address 0x57[7:0]; Address 0x58[7:0]; Address 0x59[7:0] (Read
Only)
The number of times the timer 4 interrupt was generated.
timer5_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x5A[7:0]; Address 0x5B[7:0]; Address 0x5C[7:0]; Address 0x5D[7:0] (Read
Only)
The number of times the timer 5 interrupt was generated.
timer6_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x5E[7:0]; Address 0x5F[7:0]; Address 0x60[7:0]; Address 0x61[7:0] (Read
Only)
The number of times the timer 6 interrupt was generated.
timer7_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x62[7:0]; Address 0x63[7:0]; Address 0x64[7:0]; Address 0x65[7:0] (Read
Only)
The number of times the timer 7 interrupt was generated.
timer8_irq_cnt[31:0], SPI Device Address 0x0B (TIMER), Address 0x66[7:0]; Address 0x67[7:0]; Address 0x68[7:0]; Address 0x69[7:0] (Read
Only)
The number of times the timer 8 interrupt was generated.
4.2.7.
OSD Scaler
The ADV8005 OSD core contains an arbitrary resolution conversion scaler. This scaler performs a scaling function if the OSD resolution
inside the DDR2 memory is different from the output video. If the output video is interlaced, the OSD scaler can change the progressive OSD
data to interlaced data for blending. As mentioned in Section 4.2.3, the OSD scaler also guarantees the correct synchronization of OSD data
and input video data.
4.2.8.
OSD Master/Slave SPI Interface
The ADV8005 OSD requires an external DDR2 memory and some configuration done to the OSD SPI registers in order to work. OSD data
can be written to the DDR2 memory on startup by the ADV8005. In addition, to dynamically configure the OSD, configuration registers need
to be controlled. Note that all this configuration is taken care of by Blimp OSD and the firmware, so a detailed explanation of the DDR2 SPI
interface is not provided. For this reason, this section covers only top level information (enable/disable, muxing configuration of the OSD
through the IO Map I2C registers). The SPI slave hardware interface is also described in this section.
Rev. 0 | Page 178 of 326
ADV8005 Hardware Reference Manual
4.2.8.1.
UG-707
Overview
It is possible to access the DDR2 and OSD SPI registers in one of two ways:
• The ADV8005 SPI master interface (serial port 2) can pull in resource data to DDR2 memory from an external SPI flash memory, as
shown in Figure 86.
• The system MCU (SPI master) can write OSD data into DDR2 memory using the ADV8005 SPI slave interface (serial port 1), as
shown in Figure 87.
Config
Register
OSD_CORE
SPI
Master
FLASH
MEM
DDR2 Memory
SPI
Slave
I2C
Slave
System
Controller(CPU)
Figure 86: Data Loaded from SPI Flash Through ADV8005 SPI Master Interface
Rev. 0 | Page 179 of 326
UG-707
ADV8005 Hardware Reference Manual
Config
Register
OSD_CORE
SPI
Master
FLASH
MEM
DDR2 Memory
SPI
Slave
I2C
Slave
System
Controller(CPU)
Figure 87: MCU as SPI Master Sending OSD Data Through ADV8005 SPI Slave Interface
Additionally, the system MCU (SPI master) can program the external flash by looping SPI commands through the SPI slave (serial port 1) and
the SPI master (serial port 2) interfaces connected in a chain. In this mode, the OSD core just passes through MOSI, SS and SCLK signals from
the MCU to the flash. Note that the system MCU is responsible for any error protection in this mode, as shown in Figure 88.
This option can be useful during the final debug stage of the OSD, in which the OSD design could be downloaded into the system SPI flash
memory through, for example, the USB or RSR232 port of the MCU.
This mode can be enabled using the spi_loop_through mode which controls the mux shown in Figure 88.
Rev. 0 | Page 180 of 326
ADV8005 Hardware Reference Manual
UG-707
Config
Register
OSD_CORE
SPI
Master
FLASH
MEM
DDR2 Memory
SPI
Slave
I2C
Slave
System
Controller(CPU)
Figure 88: SPI Loopback Enabled so MCU Can Program SPI Flash
By default, the SPI ports are set in manual mode for the SPI which means the SPI pins are tristated (input). To make the SPI ports operational,
the following register bits must be configured to automatic mode.
spi1_cs_oe_man_en, IO Map, Address 0x1ACE[7]
This bit is used to control the output enable manual override for spi1_cs.
Function
spi1_cs_oe_man_en
0
1 (default)
Description
Auto
manual override
spi1_miso_oe_man_en, IO Map, Address 0x1ACE[6]
This bit is used to control the output enable manual override for spi1_miso.
Function
spi1_miso_oe_man_en
0
1 (default)
Description
Auto
Manual override
spi1_mosi_oe_man_en, IO Map, Address 0x1ACE[5]
This bit is used to control the output enable manual override for spi1_mosi.
Function
spi1_mosi_oe_man_en
0
1 (default)
Description
Auto
Manual override
spi1_sclk_oe_man_en, IO Map, Address 0x1ACE[4]
This bit is used to control the output enable manual override for spi1_sclk.
Function
spi1_sclk_oe_man_en
0
1 (default)
Description
Auto
Manual override
Rev. 0 | Page 181 of 326
UG-707
ADV8005 Hardware Reference Manual
spi2_cs_oe_man_en, IO Map, Address 0x1ACE[3]
This bit is used to control the output enable manual override for spi2_cs.
Function
spi2_cs_oe_man_en
0
1 (default)
Description
Auto
Manual override
spi2_miso_oe_man_en, IO Map, Address 0x1ACE[2]
This bit is used to control the output enable manual override for spi2_miso.
Function
spi2_miso_oe_man_en
0
1 (default)
Description
Auto
Manual override
spi2_mosi_oe_man_en, IO Map, Address 0x1ACE[1]
This bit is used to control the output enable manual override for spi2_mosi.
Function
spi2_mosi_oe_man_en
0
1 (default)
Description
Auto
Manual override
spi2_sclk_oe_man_en, IO Map, Address 0x1ACE[0]
This bit is used to control the output enable manual override for spi2_sclk.
Function
spi2_sclk_oe_man_en
0
1 (default)
Description
Auto
Manual override
For the majority of functions, the SPI ports can be left in automatic mode. If using the SPI ports in manual mode, the direction of the various
pins can be configured using the following bits.
spi1_cs_oe_man, IO Map, Address 0x1ACD[7]
This bit is used to control the output enable for spi1 chip select.
Function
spi1_cs_oe_man
0 (default)
1
Description
Input
Output
spi1_miso_oe_man, IO Map, Address 0x1ACD[6]
This bit is used to control the output enable for spi1 'master in slave out'.
Function
spi1_miso_oe_man
0 (default)
1
Description
Input
Output
spi1_mosi_oe_man, IO Map, Address 0x1ACD[5]
This bit is used to control the output enable for spi1 'master out slave in'.
Function
spi1_mosi_oe_man
0 (default)
1
Description
Input
Output
spi1_sclk_oe_man, IO Map, Address 0x1ACD[4]
This bit is used to control the output enable for spi1 serial clock.
Rev. 0 | Page 182 of 326
ADV8005 Hardware Reference Manual
Function
spi1_sclk_oe_man
0 (default)
1
UG-707
Description
Input
Output
spi2_cs_oe_man, IO Map, Address 0x1ACD[3]
This bit is used to control the output enable for spi2 chip select.
Function
spi2_cs_oe_man
0 (default)
1
Description
Input
Output
spi2_miso_oe_man, IO Map, Address 0x1ACD[2]
This bit is used to control the output enable for spi2 'master in slave out'.
Function
spi2_miso_oe_man
0 (default)
1
Description
Input
Output
spi2_mosi_oe_man, IO Map, Address 0x1ACD[1]
This bit is used to control the output enable for spi2 'master out slave in'.
Function
spi2_mosi_oe_man
0 (default)
1
Description
Input
Output
spi2_sclk_oe_man, IO Map, Address 0x1ACD[0]
This bit is used to control the output enable for spi2 serial clock.
Function
spi2_sclk_oe_man
0 (default)
1
Description
Input
Output
The SPI interface can be reset using spi_reset.
4.2.8.2.
SPI Slave Interface
The ADV8005 SPI slave interface (serial port 1) is used by the MCU to send the OSD data to the DDR2 and to configure the OSD registers.
Note that the SPI functions provided within the ADI libraries will automatically take care of any SPI transfer between the MCU and ADV8005.
Hence, the information in this section is provided just so the user can configure the MCU SPI master to match the ADV8005 SPI slave
interface, and get both of them to communicate properly. Apart from this setup, the user should not try to access any other SPI register map
(with the exception of the timer SPI registers), since all the OSD SPI communication is handled through the provided ADI firmware.
The SPI slave can support the following modes:
• CPOL = 0, CPHA=0
• CPOL = 0, CPHA=1
• CPOL = 1, CPHA=0
• CPOL = 1, CPHA=1
Figure 89 shows the effect that these settings may have on the data.
Rev. 0 | Page 183 of 326
UG-707
ADV8005 Hardware Reference Manual
CS1
CPOL CPHA
0
0
SCK1
0
1
SCK1
1
0
SCK1
1
1
SCK1
Device Address
MOSI1
7
6
5
4
3
W/R
2 1
0
Data in 0
Sub Address
7
6
5
4
3
2
1 0
7
6
5
4
3
Data in 1
2
1
0
7 6
Dummy byte
5
4
3
2
1
0
2
1
0
2
1
0
Data out 0
Delay Mode
7 6
MISO1
Data out 0
5
4
3
Data out 1
No Delay Mode
MISO1
7
6
5
4
3
2
1
0
7 6
5
4
3
Figure 89: SPI Slave Interface Timing and Data Format
The CPOL/CPHA can be configured through the I2C registers described below.
spi_slave_cpol, IO Map, Address 0x1A14[3]
This bit is used to select the SPI slave clock polarity.
Function
spi_slave_cpol
0
1 (default)
Description
Idle state, clock is low
Idle state, clock is high
spi_slave_cpha, IO Map, Address 0x1A14[2]
This bit is used to select the SPI slave clock phase.
Function
spi_slave_cpha
0
1 (default)
Description
Negedge used
Posedge used
As can be seen from Figure 89, the LSB bit of the device address sets whether the access is read or write.
The SPI subaddress is an 8-bit field and the data is also 8 bits wide with MSB sent first and LSB last.
The SPI slave readback has both delay mode and no delay mode, and it is controlled by the following SPI register.
slave_delay_mode, SPI Device Address 0x0A, Address 0x85[0]
SPI slave read data MISO1 output delay mode.
Function
slave_delay_mode
0
1
Description
No delay
Delay 8 clocks (8 bits dummy data)
In no delay mode, counting from the last rising edge of SCK1 (send subaddress) to the first falling edge of SCK1 (send out MISO1), there are
about 10 system clock delays. Assuming the SCK1 is 50% duty cycle, only when SCK1 is slower than system clock/20 = 162 MHz/20 = 8.1
MHz, can no delay mode work normally.
If SCK1 is slower than 6 MHz, no delay mode can be set.
The ADV8005 features an analog antiglitch used to reject glitches on SCK1 (SPI slave). There are three modes of operation of this filter:
bypass, 2 ns glitch rejection, and 5ns glitch rejection. The 2 ns glitch rejection mode should be used for clock frequencies between 10MHz and
Rev. 0 | Page 184 of 326
ADV8005 Hardware Reference Manual
UG-707
40 MHz. The 5 ns glitch rejection mode should be used for clock frequencies of less than 10 MHz.
spi_filter_en, IO Map, Address 0x1A2C[7]
This bit is used to enable the SPI anti glitch filter.
Function
spi_filter_en
0 (default)
1
Description
Anti glitch filter disable
Anti glitch filter enable
spi_filter_sel, IO Map, Address 0x1A2C[6]
This bit is used to select the response of the SPI anti glitch filter.
Function
spi_filter_sel
0 (default)
1
Description
2ns glitch rejection
5ns glitch rejection
4.2.8.3.
SPI Master Interface
The ADV8005 SPI master interface (serial port 2) is used by the ADV8005 to read the OSD binary file (output by Blimp OSD) from an
external SPI flash memory, and to copy it to the DDR2 memory. Note that the library of functions provided by ADI will take care of this
process; the information in this section is just provided so the user can find a suitable SPI flash memory which can be interfaced to the
ADV8005 SPI master interface.
The SPI master is designed to be compatible with the M25P16 and supports the FAST_READ command. The SPI master clock can be
configured to support up to 80 MHz. The SPI master, similar to the slave, can support the following modes:
• CPOL = 0, CPHA=0
• CPOL = 0, CPHA=1
• CPOL = 1, CPHA=0
• CPOL = 1, CPHA=1
Figure 90 shows the effect that these settings may have on the data.
CS2
CPOL CPHA
0
0
SCK2
0
1
SCK2
1
0
SCK2
1
1
SCK2
Instruction(0x0B)
MOSI2
Dummy Byte
24-bit Address
23 22 21 ... 3
2
1
0
7
6
5
4
3
2 1
0
Data out 1
7
MISO2
6
5
4
Figure 90: SPI Master Interface Timing and Data Format
The CPOL/CPHA can be configured through the following I2C registers.
spi_master_cpol, IO Map, Address 0x1A14[1]
This bit is used to select the SPI master clock polarity.
Rev. 0 | Page 185 of 326
3
2
Data out 2
1
0 7
6
5
4
3
2
1
0
UG-707
ADV8005 Hardware Reference Manual
Function
spi_master_cpol
0 (default)
1
Description
Idle state, clock is low
Idle state, clock is high
spi_master_cpha, IO Map, Address 0x1A14[0]
This bit is used to select the SPI master clock phase.
Function
spi_master_cpha
0 (default)
1
4.2.9.
Description
Negedge used
Posedge used
OSD Initialization
To configure ADV8005 to use the OSD, the following I2C writes are required:
0x1A14=0x0C: SPI mode select
0x1ACE=0x00: SPI bus enable
0x1ACC=0x10: Configure OSD HW int
Further SPI writes are required but these are controlled through the OSD.
Rev. 0 | Page 186 of 326
ADV8005 Hardware Reference Manual
UG-707
5. SERIAL VIDEO RECEIVER
The Serial Video Rx on the ADV8005 can receive video data at rates of up to 3 GHz. This allows support for video formats ranging from SD to
4k x 2k @ 24Hz, 1080p120Hz and 1080p60 3D. The Serial Video Rx on the ADV8005 can receive video data at rates of up to 2.25 GHz. This
allows support for video formats ranging from SD to 1080p @ 60Hz 12-bit. It is designed for chip-to-chip connection only and, as such, does
not offer any DDC lines to facilitate HDCP or EDID operations.
RX_C“
RX_0“
RX_1“
RX_2“
PLL
Sampler
Deep Colour
Conversion
To ADV8005
Digital Core
Packet
Processor
Packet/
InfoFrame
Memory
Figure 91: Functional Block Diagram of ADV8005 Serial Video Rx
This section outlines the various registers available to the user in the register map which is used to control the Serial Video Rx. These registers
are used to configure the ADV8005 to accept input video from a device such as an HDMI transceiver (for example, ADV7623) or a front end
device with HDMI output (for example, ADV7850).
5.1. + 5 V DETECT
The Serial Video Rx on the ADV8005 can monitor the level on the +5 V power signal pin. This +5 V signal can be used to reset the Rx section
if requested. If +5 V detection is not being used, this pin should be connected to a +5 V supply. The controls for +5 V detection can be found
in the following I2C registers. These registers are valid even when the part is not processing TMDS information.
filt_5v_det_dis, HDMI RX Map, Address 0xE256[7]
This bit is used to disable the digital glitch filter on the HDMI 5V detect signals. The filtered signals are used as interrupt flags, and also used
to reset the HDMI section. The filter works from an internal ring oscillator clock and is therefore available in power-down mode. The clock
frequency of the ring oscillator is 42MHz +/-10%.
Note: If the 5 V pins are not used and left unconnected, the 5 V detect circuitry should be disconnected from the HDMI reset signal by
setting dis_cable_det_rst to 1. This avoids holding the HDMI section in reset.
Function
filt_5v_det_dis
0 (default)
1
Description
Enabled
Disabled
Note: If the +5 V pins are not used and left unconnected, the +5 V detect circuitry should be disconnected from the Rx reset circuitry by
setting dis_cable_det_rst to 1. This avoids holding the Rx section in reset.
filt_5v_det_timer[6:0], HDMI RX Map, Address 0xE256[6:0]
This bit is used to set the timer for the digital glitch filter on the HDMI +5 V detect inputs. The unit of this parameter is 2 clock cycles of the
ring oscillator (~ 47ns). The input must be constantly high for the duration of the timer, otherwise the filter output remains low. The output
of the filter returns low as soon as any change in the +5 V power signal is detected.
Rev. 0 | Page 187 of 326
UG-707
Function
filt_5v_det_timer[6:0]
1011000 (default)
xxxxxxx
ADV8005 Hardware Reference Manual
Description
Approximately 4.2us
Time duration of +5 V deglitch filter. The unit of this parameter is 2 clock cycles of the ring oscillator (~
47ns)
dis_cable_det_rst, HDMI RX Map, Address 0xE248[6]
This bit is used to disable the reset effects of cable detection. It should be set to 1 if the +5 V pins are unused and left unconnected.
Function
dis_cable_det_rst
0 (default)
1
Description
Resets the HDMI section if the 5 V input pin is inactive
Do not use the 5 V input pins as reset signal for the HDMI section
5.2. TMDS CLOCK ACTIVITY DETECTION
The ADV8005 Serial Video Rx provides circuitry to monitor TMDS clock activity and also the type of data on the Rx input lines. System
software can poll these registers and configure the ADV8005 as required. rb_rx_tmds_clk_det and tmds_pll_locked can be used to determine
if there is a valid clock on the TMDS clock input and if the Serial Video Rx has locked to this. If both of these are true, rx_hdmi_mode can be
used to indicate the video data that is available on the Serial Video Rx, either DVI data or HDMI data.
rx_hdmi_mode, HDMI RX Map, Address 0xE205[7] (Read Only)
This bit is a readback to indicate whether the stream processed by the HDMI core is a DVI or an HDMI stream.
Function
rx_hdmi_mode
0 (default)
1
Description
DVI Mode Detected
HDMI Mode Detected
rb_rx_tmds_clk_det, IO Map, Address 0x1ADF[3] (Read Only)
This bit is used to indicate if there is a clock on the Serial Video RX input lines.
Function
rb_rx_tmds_clk_det
0 (default)
1
Description
No TMDS clock detected on the Serial Video RX input lines
TMDS clock detected on Serial Video RX input lines
tmds_pll_locked, HDMI RX Map, Address 0xE204[1] (Read Only)
This bit is a readback to indicate if the TMDS PLL is locked to the TMDS clock input of the selected HDMI port.
Function
tmds_pll_locked
0 (default)
1
Description
The TMDS PLL is not locked
The TMDS PLL is locked to the TMDS clock input of the selected HDMI port.
Note: The tmds_pll_locked flag should be considered valid if a TMDS clock is input on the Serial Video Rx.
freqtolerance[3:0], HDMI RX Map, Address 0xE20D[3:0]
Sets the tolerance in MHz for new TMDS frequency detection. This tolerance is used for the audio mute mask mt_msk_vclk_chng and the
HDMI status bit new_tmds_frq_raw.
Function
freqtolerance[3:0]
0100 
xxxx
Description
Default tolerance in MHz for new TMDS frequency detection
Tolerance in MHz for new TMDS frequency detection
5.3. CLOCK AND DATA TERMINATION CONTROL
The ADV8005 provides the clock_terma_disable control for TMDS clock and data termination on all Serial Video Rx input pins.
Rev. 0 | Page 188 of 326
ADV8005 Hardware Reference Manual
UG-707
clock_terma_disable, HDMI RX Map, Address 0xE283[0]
This control is used to disable clock termination on port A. It can be used when term_auto is set to 0.
Function
clock_terma_disable
0
1 (default)
Description
Enable Termination port A
Disable Termination port A
5.4. AV MUTE STATUS
av_mute is used to indicate the status of the avmute bit in the general control packet. As with the TMDS clock detection bits, this register bit
can be polled by the system software and the appropriate configuration done.
av_mute, HDMI RX Map, Address 0xE204[6] (Read Only)
This bit is a readback of AVMUTE status received in the last General Control packet received.
Function
av_mute
0 (default)
1
Description
AVMUTE not set
AVMUTE set
5.5. DEEP COLOR MODE SUPPORT
The ADV8005 supports HDMI streams with 24-bits per sample and deep color modes. The addition of a video FIFO (refer to Section 5.6 for
more details) allows for the robust support of these modes.
The deep color mode information that the ADV8005 extracts from the general control packet can be read back from deep_color_mode[1:0]. It
is possible to override the deep color mode that the ADV8005 unpacks from the video data encapsulated in the processed HDMI stream. This
is achieved by configuring the override_deep_color_mode and deep_color_mode_user[1:0] controls.
deep_color_mode[1:0], HDMI RX Map, Address 0xE20B[7:6] (Read Only)
This control is a readback indicating the deep color mode information extracted from the general control packet.
Function
deep_color_mode[1:0]
00 (default)
01
10
11
Description
8-bits per channel
10-bits per channel
12-bits per channel
16-bits per channel (not supported)
override_deep_color_mode, HDMI RX Map, Address 0xE240[6]
This bit is used to override the Deep Color mode.
Function
override_deep_color_mode
0 (default)
1
Description
The HDMI section unpacks the video data according to the deep-color information extracted from the
General Control packets. (Normal operation)
Override the deep color mode extracted from the General Control Packet. The HDMI section unpacks the
video data according to the Deep Color mode set in DEEP_COLOR_MODE_USER[1:0].
deep_color_mode_user[1:0], HDMI RX Map, Address 0xE240[5:4]
This control is used to manually set the Deep Color mode. The value set in this register is effective when override_deep_color_mode is set to
1.
Function
deep_color_mode_user[1:0]
00 (default)
01
10
11
Description
8 bits per channel
10 bits per channel
12 bits per channel
16 bits per channel (not supported)
Notes:
Rev. 0 | Page 189 of 326
UG-707
ADV8005 Hardware Reference Manual
•
Deep color mode can be monitored via the deepcolor_mode_chng edge sensitive interrupt in the IO Map, which indicates if the
color depth of the processed stream has changed.
•
The ADV8005 can be configured to trigger an interrupt when the deepcolor_mode_chng edge sensitive interrupt in the IO Map
changes from 0 to 1.
5.6. VIDEO FIFO
The ADV8005 contains a FIFO located after the TMDS decoding block (refer to Figure 92). Data arriving into the Serial Video Rx will be at
1X rate for non deep color modes (8-bits per channel), and 1.25X, 1.5X, or 2X for deep color modes (30, 36 and 48 bits respectively). Data
unpacking and data rate reduction must be performed on the incoming data to provide the ADV8005 digital core with the correct data rate
and data bit width. The video FIFO is used to pass data safely across the clock domains.
TM DS
C lo c k
+
-
TM DS
PLL
D iv id e r
TM DS
C hannel 0
+
-
TM DS
C hannel 1
+
-
TM DS
C hannel 2
+
-
R
TM DS Ch0
TM DS
S a m p l in g
and
D a ta
R e c o v e ry
G
10
TM DS Ch1
10
DPLL
R
12
12
TM DS
B
D e c o d in g 1 2
TM DS Ch2
10
G
HS
F IF O
B
12
12
12
HS
VS
VS
DE
DE
Figure 92: HDMI Video FIFO
The video FIFO is designed to operate completely autonomously. It automatically resynchronizes the read and write pointers if they are about
to point to the same location. However, it is also possible for the user to observe and control the FIFO operation with a number of FIFO
control and status registers described below.
dcfifo_level[2:0], HDMI RX Map, Address 0xE21C[2:0] (Read Only)
This signal is a readback to indicate the distance between the read and write pointers. Overflow and underflow will read as level 0. The ideal
centered functionality will read as 0b100.
Function
dcfifo_level[2:0]
000 (default)
001
010
011
100
101
110
111
Description
FIFO has underflowed or overflowed
FIFO is about to overflow
FIFO has some margin
FIFO has some margin
FIFO perfectly balanced
FIFO has some margin.
FIFO has some margin.
FIFO is about to underflow
dcfifo_locked, HDMI RX Map, Address 0xE21C[3] (Read Only)
This bit is a readback to indicate if the Video FIFO is locked.
Function
dcfifo_locked
0 (default)
1
Description
Video FIFO is not locked. Video FIFO had to resynchronize between previous two Vsyncs
Video FIFO is locked. Video FIFO did not have to resynchronize between previous two Vsyncs
dcfifo_recenter, HDMI RX Map, Address 0xE25A[2] (Self-Clearing)
This bit is used as a reset to recenter the Video FIFO. This is a self clearing bit.
Rev. 0 | Page 190 of 326
ADV8005 Hardware Reference Manual
Function
dcfifo_recenter
0 (default)
1
UG-707
Description
Video FIFO normal operation.
Video FIFO to re-centre.
dcfifo_kill_dis, HDMI RX Map, Address 0xE21B[2]
This bit is used to control whether or not the Video FIFO output is zeroed if there is more than one resynchronization of the pointers within
2 FIFO cycles. This behavior can be disabled with this bit.
Function
dcfifo_kill_dis
0 (default)
1
Description
FIFO output set to zero if more than one resynchronization is necessary during two FIFO cycles
FIFO output never set to zero regardless of how many resynchronizations occur
dcfifo_kill_not_locked, HDMI RX Map, Address 0xE21B[3]
This bit control is used to control whether or not the output of the Video FIFO is set to zero when the video PLL is unlocked.
Function
dcfifo_kill_not_locked
0
1 (default)
Description
FIFO data is output regardless of video PLL lock status
FIFO output is zeroed if video PLL is unlocked
The DCFIFO is programmed to reset itself automatically when the video PLL transitions from unlocked to locked. Note that the video PLL
transition does not necessarily indicate that the overall system is stable.
dcfifo_reset_on_lock, HDMI RX Map, Address 0xE21B[4]
This bit is used to enable the reset/re-centering of video FIFO on video PLL unlock
Function
dcfifo_reset_on_lock
0
1 (default)
Description
Do not reset on video PLL lock
Reset FIFO on video PLL lock
5.7. PIXEL REPETITION
In HDMI mode, video formats with TMDS rates below 25 Mpixels/s require pixel repetition in order to be transmitted over the serial video
link. When the ADV8005 receives this type of video format, it discards repeated pixel data automatically, based on the pixel repetition field
available in the AVI InfoFrame.
When hdmi_pixel_repetition[3:0] is non zero, video pixel data is discarded and the pixel clock frequency is divided by hdmi_pixel_repetition
+ 1.
hdmi_pixel_repetition[3:0], HDMI RX Map, Address 0xE205[3:0] (Read Only)
This signal is a readback to provide the current HDMI pixel repetition value decoded from the AVI Infoframe received. The HDMI receiver
automatically discards repeated pixel data and divides the pixel clock frequency appropriately as per the pixel repetition value.
Function
hdmi_pixel_repetition[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010 - 1111
Description
1x
2x
3x
4x
5x
6x
7x
8x
9x
10x
Reserved
Rev. 0 | Page 191 of 326
UG-707
ADV8005 Hardware Reference Manual
derep_n_override, HDMI RX Map, Address 0xE241[4]
This bit is used to allow the user to override the pixel repetition factor. derep_n is then used instead of hdmi_pixel_repetition[3:0] to discard
video pixel data from the incoming HDMI stream.
Function
derep_n_override
0 (default)
1
Description
Automatic detection and processing of pixel repeated modes using the AVI infoframe information.
Enables manual setting of the pixel repetition factor as per DEREP_N[3:0].
derep_n[3:0], HDMI RX Map, Address 0xE241[3:0]
This signal is used to set the derepetition value if derep_n_override is set to 1.
Function
derep_n[3:0]
0000 (default)
xxxx
Description
DEREP_N+1 indicates the pixel and clock discard factor
DEREP_N+1 indicates the pixel and clock discard factor
5.8. SYNC SIGNAL POLARITY READBACKS
These signals are used to indicate the polarity of the synchronization signals input to the Serial Video Rx input.
dvi_hsync_polarity, HDMI RX Map, Address 0xE205[5] (Read Only)
This bit is a readback to indicate the polarity of the HSync encoded in the input stream
Function
dvi_hsync_polarity
0 (default)
1
Description
The HSync is active low
The HSync is active high
a
Data
Enable
b
c
d
e
HSYNC
a
b
c
Total number of pixels per line
Active number of pixels per line
HSync front porch width in pixel unit
d
e
HSync width in pixel unit
HSync back porch width in pixel unit
Figure 93: Horizontal Timing Parameters
dvi_vsync_polarity, HDMI RX Map, Address 0xE205[4] (Read Only)
This bit is a readback to indicate the polarity of the VSync encoded in the input stream
Rev. 0 | Page 192 of 326
ADV8005 Hardware Reference Manual
Function
dvi_vsync_polarity
0 (default)
1
UG-707
Description
The VSync is active low
The VSync is active high
a
~
~
~
~
b
~
~
~
~
~
~
~
~
~
~
~
~
Data
Enable
HSYNC
c
d
e
VSYNC
a
b
c
d
e
Total number of lines in field 0. Unit is in half lines.
Actives number of lines in field 0. Unit is in lines.
VSync front porch width in field 0. Unit is in half lines.
VSync pulse width in field 0. Unit is in half lines.
VSync back porch width in field 0. Unit is in half lines.
Figure 94: Vertical Parameters for Field 0
Note: Field 1 measurements should not be used for progressive video modes.
5.9. INFOFRAME REGISTERS
In HDMI, the auxiliary data is carried across the digital link using a series of packets. The ADV8005 Serial Video Rx can automatically detect
and store the following HDMI packets:
• InfoFrames
• Audio content protection
• International Standard Recording Code (ISRC)
• Gamut metadata
Section 5.9.1 explains the method through which the ADV8005 can extract and store these InfoFrames.
5.9.1.
InfoFrame Collection Mode
The ADV8005 has two modes for storing the InfoFrame packets sent from the source into the internal memory. By default, the ADV8005 only
stores the InfoFrame packets received if the checksum is correct for each InfoFrame.
The ADV8005 also provides a mode to store every InfoFrame sent from the source, regardless of an InfoFrame packet checksum error. This
can be configured by setting always_store_inf to 1.
always_store_inf, HDMI RX Map, Address 0xE247[0]
This bit is used to force InfoFrames with checksum errors to be stored.
Function
always_store_inf
0 (default)
1
5.9.2.
Description
Stores data from received InfoFrames only if their checksum is correct
Always store the data from received InfoFrame regardless of their checksum
InfoFrame Checksum Error Flags
Rev. 0 | Page 193 of 326
UG-707
ADV8005 Hardware Reference Manual
To determine if a checksum error has occurred with the InfoFrame packets, the user can poll the various status bits in the IO Map. There are
several interrupt flags in the IO Map which indicate the status of the various InfoFrames. Refer to Section 8.2.2 for more details on the Serial
Video Rx interrupts.
Rev. 0 | Page 194 of 326
ADV8005 Hardware Reference Manual
5.9.3.
UG-707
AVI InfoFrame Registers
Table 35 provides a list of readback registers for the AVI InfoFrame data. Refer to the EIA/CEA-861 specifications for a detailed explanation of
the AVI InfoFrame fields.
InfoFrame
Map Address
0xE3E0
0xE3E1
0xE3E2
0xE300
0xE301
0xE302
0xE303
0xE304
0xE305
0xE306
0xE307
0xE308
0xE309
0xE30A
0xE30B
0xE30C
0xE30D
0xE30E
0xE30F
0xE310
0xE311
0xE312
0xE313
0xE314
0xE315
0xE316
0xE317
0xE318
0xE319
0xE31A
0xE31B
Table 35: AVI InfoFrame Registers
Access Type
Register Name
Byte Name 1
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
avi_packet_id[7:0]
avi_inf_ver
avi_inf_len
avi_inf_pb_0_1
avi_inf_pb_0_2
avi_inf_pb_0_3
avi_inf_pb_0_4
avi_inf_pb_0_5
avi_inf_pb_0_6
avi_inf_pb_0_7
avi_inf_pb_0_8
avi_inf_pb_0_9
avi_inf_pb_0_10
avi_inf_pb_0_11
avi_inf_pb_0_12
avi_inf_pb_0_13
avi_inf_pb_0_14
avi_inf_pb_0_15
avi_inf_pb_0_16
avi_inf_pb_0_17
avi_inf_pb_0_18
avi_inf_pb_0_19
avi_inf_pb_0_20
avi_inf_pb_0_21
avi_inf_pb_0_22
avi_inf_pb_0_23
avi_inf_pb_0_24
avi_inf_pb_0_25
avi_inf_pb_0_26
avi_inf_pb_0_27
avi_inf_pb_0_28
Packet Type Value
InfoFrame version number
InfoFrame length
Checksum
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
1
As defined by the EIA/CEA-861 specifications
The AVI InfoFrame registers are considered valid if the following two conditions are met:
• avi_infoframe_det is 1.
•
avi_inf_cksum_err is 0. This condition applies only if always_store_inf is set to 1.
Rev. 0 | Page 195 of 326
UG-707
5.9.4.
ADV8005 Hardware Reference Manual
SPD InfoFrame Registers
Table 36 provides a list of readback registers available for the SPD InfoFrame. Refer to the EIA/CEA-861 specifications for a detailed
explanation of the SPD InfoFrame fields.
InfoFrame
Map Address
0xE3E6
0xE3E7
0xE3E8
0xE32A
0xE32B
0xE32C
0xE32D
0xE32E
0xE32F
0xE330
0xE331
0xE332
0xE333
0xE334
0xE335
0xE336
0xE337
0xE338
0xE339
0xE33A
0xE33B
0xE33C
0xE33D
0xE33E
0xE33F
0xE340
0xE341
0xE342
0xE343
0xE344
0xE345
Access
Type
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
Table 36: SPD InfoFrame Registers
Register Name
Byte Name1
spd_packet_id[7:0]
spd_inf_ver
spd_inf_len
spd_inf_pb_0_1
spd_inf_pb_0_2
spd_inf_pb_0_3
spd_inf_pb_0_4
spd_inf_pb_0_5
spd_inf_pb_0_6
spd_inf_pb_0_7
spd_inf_pb_0_8
spd_inf_pb_0_9
spd_inf_pb_0_10
spd_inf_pb_0_11
spd_inf_pb_0_12
spd_inf_pb_0_13
spd_inf_pb_0_14
spd_inf_pb_0_15
spd_inf_pb_0_16
spd_inf_pb_0_17
spd_inf_pb_0_18
spd_inf_pb_0_19
spd_inf_pb_0_20
spd_inf_pb_0_21
spd_inf_pb_0_22
spd_inf_pb_0_23
spd_inf_pb_0_24
spd_inf_pb_0_25
spd_inf_pb_0_26
spd_inf_pb_0_27
spd_inf_pb_0_28
Packet Type Value
InfoFrame version number
InfoFrame length
Checksum
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
1
As defined by the EIA/CEA-861 specifications
The Source Product Descriptor (SPD) InfoFrame registers are considered valid if the following two conditions are met:
•
spd_infoframe_det is 1.
•
spd_inf_cksum_err is 0. This condition only applies if always_store_inf is set to 1.
Rev. 0 | Page 196 of 326
ADV8005 Hardware Reference Manual
5.9.5.
UG-707
MPEG Source InfoFrame Registers
Table 37 provides a list of readback registers available for the MPEG InfoFrame. Refer to the EIA/CEA-861 specifications for a detailed
explanation of the MPEG InfoFrame fields.
InfoFrame
Map Address
0xE3E9
0xE3EA
0xE3EB
0xE346
0xE347
0xE348
0xE349
0xE34A
0xE34B
0xE34C
0xE34D
0xE34E
0xE34F
0xE350
0xE351
0xE352
0xE353
Access
Type
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
Table 37: MPEG InfoFrame Registers
Register Name
Byte Name1
ms_packet_id[7:0]
ms_inf_vers
ms_inf_len
ms_inf_pb_0_1
ms_inf_pb_0_2
ms_inf_pb_0_3
ms_inf_pb_0_4
ms_inf_pb_0_5
ms_inf_pb_0_6
ms_inf_pb_0_7
ms_inf_pb_0_8
ms_inf_pb_0_9
ms_inf_pb_0_10
ms_inf_pb_0_11
ms_inf_pb_0_12
ms_inf_pb_0_13
ms_inf_pb_0_14
Packet Type Value
InfoFrame version number
InfoFrame length
Checksum
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
1
As defined by the EIA/CEA-861 specifications
•
•
5.9.6.
The MPEG InfoFrame registers are considered valid if the following two conditions are met:
ms_infoframe_det is 1.
ms_inf_cksum_err is 0. This condition applies only if always_store_inf is set to 1.
Vendor Specific InfoFrame Registers
Table 38 provides a list of readback registers available for the Vendor Specific InfoFrame.
InfoFrame
Map Address
0xE3EC
0xE3ED
0xE3EE
0xE354
0xE355
0xE356
0xE357
0xE358
0xE359
0xE35A
0xE35B
0xE35C
0xE35D
0xE35E
0xE35F
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
Table 38: VS InfoFrame Registers
Register Name
Byte Name
vs_packet_id[7:0]
vs_inf_vers
vs_inf_len
vs_inf_pb_0_1
vs_inf_pb_0_2
vs_inf_pb_0_3
vs_inf_pb_0_4
vs_inf_pb_0_5
vs_inf_pb_0_6
vs_inf_pb_0_7
vs_inf_pb_0_8
vs_inf_pb_0_9
vs_inf_pb_0_10
vs_inf_pb_0_11
vs_inf_pb_0_12
Rev. 0 | Page 197 of 326
Packet Type Value
InfoFrame version number
InfoFrame length
Checksum
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
UG-707
ADV8005 Hardware Reference Manual
InfoFrame
Map Address
0xE360
0xE361
0xE362
0xE363
0xE364
0xE365
0xE366
0xE367
0xE368
0xE369
0xE36A
0xE36B
0xE36C
0xE36D
0xE36E
0xE36F
R/W
Register Name
Byte Name
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
vs_inf_pb_0_13
vs_inf_pb_0_14
vs_inf_pb_0_15
vs_inf_pb_0_16
vs_inf_pb_0_17
vs_inf_pb_0_18
vs_inf_pb_0_19
vs_inf_pb_0_20
vs_inf_pb_0_21
vs_inf_pb_0_22
vs_inf_pb_0_23
vs_inf_pb_0_24
vs_inf_pb_0_25
vs_inf_pb_0_26
vs_inf_pb_0_27
vs_inf_pb_0_28
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
The Vendor Specific InfoFrame registers are considered valid if the following two conditions are met:
• vs_infoframe_det is 1.
• vs_inf_cksum_err is 0. This condition applies only if always_store_inf is set to 1.
5.10. PACKET REGISTERS
5.10.1.
ISRC Packet Registers
Table 39 and Table 40 provide lists of the readback registers available for the ISRC packets. Refer to the HDMI 1.4 specifications for a detailed
explanation of the ISRC packet fields.
InfoFrame
Map Address
0xF2
0xF3
0xF4
0x8C
0x8D
0x8E
0x8F
0x90
0x91
0x92
0x93
0x94
0x95
0x96
0x97
0x98
0x99
0x9A
0x9B
0x9C
R/W
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
Table 39: ISRC1 Packet Registers
Register Name
Packet Byte No.1
isrc1_packet_id[7:0]
isrc1_header1
isrc1_header2
isrc1_pb_0_1
isrc1_pb_0_2
isrc1_pb_0_3
isrc1_pb_0_4
isrc1_pb_0_5
isrc1_pb_0_6
isrc1_pb_0_7
isrc1_pb_0_8
isrc1_pb_0_9
isrc1_pb_0_10
isrc1_pb_0_11
isrc1_pb_0_12
isrc1_pb_0_13
isrc1_pb_0_14
isrc1_pb_0_15
isrc1_pb_0_16
isrc1_pb_0_17
Rev. 0 | Page 198 of 326
Packet Type Value
HB1
HB2
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PB10
PB11
PB12
PB13
PB14
PB15
PB16
ADV8005 Hardware Reference Manual
InfoFrame
Map Address
0x9D
0x9E
0x9F
0xA0
0xA1
0xA2
0xA3
0xA4
0xA5
0xA6
0xA7
UG-707
R/W
Register Name
Packet Byte No.1
R
R
R
R
R
R
R
R
R
R
R
isrc1_pb_0_18
isrc1_pb_0_19
isrc1_pb_0_20
isrc1_pb_0_21
isrc1_pb_0_22
isrc1_pb_0_23
isrc1_pb_0_24
isrc1_pb_0_25
isrc1_pb_0_26
isrc1_pb_0_27
isrc1_pb_0_28
PB17
PB18
PB19
PB20
PB21
PB22
PB23
PB24
PB25
PB26
PB27
1
As defined by the HDMI 1.4 specifications
The ISRC1 packet registers are considered valid if the ISRC1 packet edge RAW interrupt is set to 1.
rx_isrc1_pckt_edge_raw, IO Map, Address 0x1AFB[4] (Read Only)
This readback indicates the raw status of the ISRC1 packet received signal. Once set this bit remains high until cleared via the corresponding
clear bit.
Function
rx_isrc1_pckt_edge_raw
0 (default)
1
Description
No new ISRC1 packet received
ISRC1 packet with new content received
Table 40: ISRC2 Packet Registers
Register Name
InfoFrame
Map Address
0xE3F5
R/W
R/W
isrc2_packet_id[7:0]
Packet Type Value
0x E3F6
0x E3F7
0x E3A8
0x E3A9
0x E3AA
0x E3AB
0x E3AC
0x E3AD
0x E3AE
0x E3AF
0x E3B0
0x E3B1
0x E3B2
0x E3B3
0x E3B4
0x E3B5
0x E3B6
0x E3B7
0x E3B8
0x E3B9
0x E3BA
0x E3BB
0x E3BC
0x E3BD
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
isrc2_header1
isrc2_header2
isrc2_pb_0_1
isrc2_pb_0_2
isrc2_pb_0_3
isrc2_pb_0_4
isrc2_pb_0_5
isrc2_pb_0_6
isrc2_pb_0_7
isrc2_pb_0_8
isrc2_pb_0_9
isrc2_pb_0_10
isrc2_pb_0_11
isrc2_pb_0_12
isrc2_pb_0_13
isrc2_pb_0_14
isrc2_pb_0_15
isrc2_pb_0_16
isrc2_pb_0_17
isrc2_pb_0_18
isrc2_pb_0_19
isrc2_pb_0_20
isrc2_pb_0_21
isrc2_pb_0_22
HB1
HB2
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PB10
PB11
PB12
PB13
PB14
PB15
PB16
PB17
PB18
PB19
PB20
PB21
Rev. 0 | Page 199 of 326
Packet Byte No.1
UG-707
ADV8005 Hardware Reference Manual
InfoFrame
Map Address
0x E3BE
0x E3BF
0x E3C0
0x E3C1
0x E3C2
0x E3C3
R/W
Register Name
Packet Byte No.1
R
R
R
R
R
R
isrc2_pb_0_23
isrc2_pb_0_24
isrc2_pb_0_25
isrc2_pb_0_26
isrc2_pb_0_27
isrc2_pb_0_28
PB22
PB23
PB24
PB25
PB26
PB27
1
As defined by the HDMI 1.4 specifications
The ISRC2 packet registers are considered valid if, and only if rx_isrc2_pckt_edge_raw is set to 1.
rx_isrc2_pckt_edge_raw, IO Map, Address 0x1AFB[5] (Read Only)
This readback indicates the raw status of the ISRC2 packet received signal. Once set this bit remains high until cleared via the corresponding
clear bit.
Function
rx_isrc2_pckt_edge_raw
0 (default)
1
5.10.2.
Description
No new ISRC2 packet received
ISRC2 packet with new content received
Gamut Metadata Packets
Refer to the HDMI 1.3/1.4 specifications for a detailed explanation of the Gamut Metadata packet fields.
HDMI
Map Address
0xE3F8
0xE3F9
0xE3FA
0xE3C4
0xE3C5
0xE3C6
0xE3C7
0xE3C8
0xE3C9
0xE3CA
0xE3CB
0xE3CC
0xE3CD
0xE3CE
0xE3CF
0xE3D0
0xE3D1
0xE3D2
0xE3D3
0xE3D4
0xE3D5
0xE3D6
0xE3D7
0xE3D8
0xE3D9
0xE3DA
0xE3DB
R/W
R/W
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
Table 41: Gamut Metadata Packet Registers
Register Name
Packet Byte No.1
gamut_packet_id[7:0]
gamut_header1
gamut_header2
gamut_mdata_pb_0_1
gamut_mdata_pb_0_2
gamut_mdata_pb_0_3
gamut_mdata_pb_0_4
gamut_mdata_pb_0_5
gamut_mdata_pb_0_6
gamut_mdata_pb_0_7
gamut_mdata_pb_0_8
gamut_mdata_pb_0_9
gamut_mdata_pb_0_10
gamut_mdata_pb_0_11
gamut_mdata_pb_0_12
gamut_mdata_pb_0_13
gamut_mdata_pb_0_14
gamut_mdata_pb_0_15
gamut_mdata_pb_0_16
gamut_mdata_pb_0_17
gamut_mdata_pb_0_18
gamut_mdata_pb_0_19
gamut_mdata_pb_0_20
gamut_mdata_pb_0_21
gamut_mdata_pb_0_22
gamut_mdata_pb_0_23
gamut_mdata_pb_0_24
Rev. 0 | Page 200 of 326
Packet Type Value
HB1
HB2
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PB10
PB11
PB12
PB13
PB14
PB15
PB16
PB17
PB18
PB19
PB20
PB21
PB22
PB23
ADV8005 Hardware Reference Manual
HDMI
Map Address
0xE3DC
0xE3DD
0xE3DE
0xE3DF
UG-707
R/W
Register Name
Packet Byte No.1
R
R
R
R
gamut_mdata_pb_0_25
gamut_mdata_pb_0_26
gamut_mdata_pb_0_27
gamut_mdata_pb_0_28
PB24
PB25
PB26
PB27
1
As defined by the HDMI 1.3 specifications
The Gamut Metadata packet registers are considered valid if pkt_det_gamut is set to 1 (refer to Section 8.2.2 for more details).
gamut_irq_next_field, HDMI RX Map, Address 0xE250[4]
This bit is used to set the NEW_GAMUT_MDATA_RAW interrupt to detect when the new contents are applicable to next field or to
indicate that the Gamut packet is new. This is done using header information of the gamut packet.
Function
gamut_irq_next_field
0 (default)
1
Description
Interrupt flag indicates that Gamut packet is new
Interrupt flag indicates that Gamut packet is to be applied next field
5.11. CUSTOMIZING PACKET/INFOFRAME STORAGE REGISTERS
The packet type value of each set of packet and InfoFrame registers in the Serial Video Rx InfoFrame Map is programmable. This allows the
user to configure the ADV8005 to store the payload data of any packet and InfoFrames sent by the transmitter connected on the Serial Video
Rx port.
Note: Writing to any of the following packet ID registers also clears the corresponding InfoFrame/packet detection bit.
avi_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3E0[7:0]
This control is used to set the AVI InfoFrame ID
Function
avi_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x00 to 0x1B
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x00 to 0x1B
spd_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3E6[7:0]
This control is used to set the Source Product Descriptor InfoFrame ID
Function
spd_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x2A to 0x45
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x2A to 0x45
aud_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3E3[7:0]
This control is used to set the Audio InfoFrame ID
Function
aud_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x1C to 0x29
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x1C to 0x29
ms_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3E9[7:0]
This control is used to set the MPEG Source InfoFrame ID
Function
ms_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x46 to 0x53
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x46 to 0x53
vs_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3EC[7:0]
This control is used to set the Vendor Specific InfoFrame ID
Rev. 0 | Page 201 of 326
UG-707
Function
vs_packet_id[7:0]
0xxxxxxx
1xxxxxxx
ADV8005 Hardware Reference Manual
Description
Packet type value of packet stored in InfoFrame Map, Address 0x54 to 0x6F
Packet type value of packet stored in InfoFrame Map, Address 0x54 to 0x6F
acp_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3EF[7:0]
This control is used to set the ACP Packet ID
Function
acp_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x70 to 0x8B
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x70 to 0x8B
isrc1_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3F2[7:0]
This control is used to set the ISRC1 Packet ID
Function
isrc1_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0x8C to 0xA7
Packet type value of InfoFrame stored in InfoFrame Map, Address 0x8C to 0xA7
isrc2_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3F5[7:0]
This control is used to set the ISRC2 Packet ID
Function
isrc2_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0xA8 to 0xC3
Packet type value of InfoFrame stored in InfoFrame Map, Address 0xA8 to 0xC3
gamut_packet_id[7:0], HDMI RX Infoframe Map, Address 0xE3F8[7:0]
This control is used to set the Gamut Metadata Packet ID
Function
gamut_packet_id[7:0]
0xxxxxxx
1xxxxxxx
Description
Packet type value of packet stored in InfoFrame Map, Address 0xC4 to 0xDF
Packet type value of InfoFrame stored in InfoFrame Map, Address 0xC4 to 0xDF
Note: The packet type values and corresponding packets should not be programmed in the packet type values registers. The general control
packet (0x03) is always processed internally and cannot be stored in the packet/InfoFrame registers in the InfoFrame Map.
5.12. HDMI SECTION RESET STRATEGY
The following reset strategy is implemented for the HDMI section:
•
Global chip reset – This means the ADV8005 Serial Video Rx core can be reset using the rx_reset or main_reset. A global chip reset
is triggered by asserting the RESET pin to a low level. The HDMI section is reset when a global reset is triggered.
•
Loss of TMDS clock or 5 V signal reset – A loss of TMDS clock or 5 V signal to the Serial Video Rx resets the entire Serial Video Rx
section. The loss of a 5 V signal condition is discarded if dis_cable_det_rst is set high.
•
DVI mode reset – The packet processing block, including InfoFrame memory, is held in reset when the Serial Video Rx processes a
DVI stream.
Rev. 0 | Page 202 of 326
ADV8005 Hardware Reference Manual
UG-707
6. HDMI TRANSMITTER
The HDMI transmitters on the ADV8005 are capable of outputting video data at up to 3 GHz and support 3D video output, ARC (common
mode only), and audio output.
The dual transmitter variants of ADV8005 are the following:
• ADV8005KBCZ-8A
• ADV8005KBCZ-8N
• ADV8005KBCZ-8C
The single transmitter variant of the ADV8005 is the ADV8005KBCZ-8B.
Tx
HDCP
Keys
Tx Video Path
Video_data [23:0]
HS
DEEP
COLOR
CONV
Black
level
enable
Simplified
444 -> 422
VS
HS
VS
DE
Tx
HDCP
Encryption
TX
Packet Builder
Audio_data
[8:0]
VS
Format
Detect
VIC code
Pixel
repitition
Audio_data [8:0]
Ch1 [9:0]
Serializer and
Drivers
Ch2 [9:0]
TX_C
TX_0
TX_1
TX_2
Audio_data [8:0]
c lk_out
AVI _vid
HS
Ch0 [9:0]
Tx
HDMI Encode
clk_data
DE
Video _data
[23:0]
Video_data
[23:0]
Data [35:0]
Tx
TMDS PLL
Tx
Audio Receiver
PLL m
PLL n
I2C
AUD_IN [5:0]
SCLK
MCLKIN
Figure 95: Functional Block Diagram of HDMI Tx Core
As the two ADV8005 HDMI transmitters can be configured independently, there are separate register maps for both the HDMI Tx1 and
HDMI Tx2. The addresses for these register maps are listed in Table 42.
Table 42: HDMI Transmitter Memory Addresses
Register Map
Register Map Address
HDMI Tx1 Main Map
0xEC00 – 0xECFF
HDMI Tx1 EDID Map
0xEE00 – 0xEEFF
HDMI Tx1 UDP Map
0xF200 – 0xF2FF
HDMI Tx1 Test Map
0xF300 – 0xF3FF
HDMI Tx2 Main Map
0xF400 – 0xF4FF
HDMI Tx2 EDID Map
0xF600 – 0xF6FF
HDMI Tx2 UDP Map
0xFA00 – 0xFAFF
HDMI Tx2 Test Map
0xFB00 – 0xFBFF
While this chapter only references one instance of each HDMI Tx Map, the controls referenced are valid for both HDMI Tx1 and HDMI Tx2
register maps. The same register bits and controls as per Table 42 apply for both transmitters.
6.1. GENERAL CONTROLS
To operate the HDMI Tx core, it is necessary to monitor the Hot Plug Detect (HPD) signal from the downstream sink and power up the Tx
Rev. 0 | Page 203 of 326
UG-707
ADV8005 Hardware Reference Manual
core after the appropriate HPD becomes high. To power up the Tx core, system_pd must be programmed to 0 when the HPD_TX1 pin is high.
The status of the HPD_TX1 pin is provided via hpd_state.
Some registers cannot be written to when the signal on the HPD_TXx input pin is low. When the level on the HPD_TX1 pin goes from high
to low, some registers will be reset to their default value.
The best method to determine when the level of the signal on the HPD_TXx pin is high is to use the interrupt system. An interrupt can be
enabled to notify level change on the HPD_TXx pin (refer to section 8 for more details regarding the ADV8005 interrupts).
The ADV8005 also features a rx_sense_state status bit which can be used to detect the presence of TMDS clock terminations from the sink. If
the ADV8005 detects a voltage level higher than 1.8 V on the clock lines of its TMDS output port, rx_sense_int is triggered and rx_sense_state
is set to 1.
The detection of TMDS clock terminations from downstream sink devices is useful to delay powering up the transmitter sections until the
downstream sink devices are actually ready to receive signals. A typical implementation for a sink is to tie the transmitter 5 V power signal to
HPD through a series resistor. In this case, the ADV8005 will detect a high level on HPD_TX1 (HPD_TX2 for HDMI Tx 2) regardless of
whether or not the downstream sink is powered on and ready to receive a TMDS stream. For this reason, it is best to wait for both the
rx_sense_state and hpd_state to be high before powering up the Tx core when trying to achieve minimum power consumption.
system_pd, TX2 Main Map, Address 0xF441[6]
This bit is used to power down the TX.
Function
system_pd
0
1 (default)
Description
Normal operation
Power down TX
hpd_state, TX2 Main Map, Address 0xF442[6] (Read Only)
This bit is used to readback the state of the hot plug detect.
Function
hpd_state
0 (default)
1
Description
Hot Plug Detect inactive (low)
Hot Plug active (high)
hpd_override[1:0], TX2 Main Map, Address 0xF49F[5:4]
This signal is used to select the source of the internal HPD signal.
Function
hpd_override[1:0]
00 (default)
01
10
11
Description
HPD from HPD pin and CDC HPD
HPD from CDC HPD
HPD from HPD pin
HPD set to 1
rx_sense_state, TX2 Main Map, Address 0xF442[5] (Read Only)
This bit is used to readback the state of the Rx sense.
Function
rx_sense_state
0 (default)
1
Description
HDMI clock termination not detected
HDMI clock termination detected
rx_sense_pd, TX2 Main Map, Address 0xF4E6[5]
This bit is used to enable the termination sense power down.
Function
rx_sense_pd
0 (default)
1
Description
Termination Sense Monitoring Enabled
Termination Sense Monitoring Disabled
Note: rx_sense_pd should not be applied during the configuration of the HDMI Tx as it disables an oscillator required to complete the
Rev. 0 | Page 204 of 326
ADV8005 Hardware Reference Manual
UG-707
configuration of the TMDS output clock channel. It is recommended to use rx_sense_pd when the HDMI Tx has been completely configured.
6.2. RESET STRATEGY
The HDMI Tx, and subsections of it, can be reset in a number of ways. Table 43, Error! Reference source not found. and Table 44 describe
how each of the HDMI Tx maps are reset in response to a number of different events.
0x00 – 0x91
0x92 – 0x97
0x98 – 0xAE
0xAF – 0xBD
0xBE – 0xCF
0xD0 – 0xFE
IO Map
tx1_reset
0x1AFC[7]
main_reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Reset
IO Map
tx1_reset
0x00 – 0xFF
Table 43: HDMI Tx Main Map Reset Strategy
IO Map
Tx Main Map Tx Main Map
IO Map
Reset
system_pd
0xEC98[4]
0xF498[4]
Event
Event
Tx Hot Plug
Reset Pin
Reset
Reset
Reset
Reset
Reset
Reset
Reset
Event
Tx Hot Plug
Event
Reset Pin
Reset
Reset
Reset
Reset
Table 44: HDMI Tx Packet Map Reset Strategy
IO Map
IO Map
Tx Main Map Tx Main Map
0x1AFC[7]
0xEC98[4]
main_reset
system_pd
0xF498[4]
Reset
Reset
6.3. HDMI DVI SELECTION
The HDMI Tx core supports the transmission of both HDMI and DVI streams. The type of stream the ADV8005 transmits is set via
hdmi_dvi_sel_en. In DVI transmission mode, no packets will be sent and all registers relating to packets and InfoFrames will be disregarded.
The current transmission mode can be confirmed by reading hdmi_dvi_sel.
hdmi_dvi_sel_en, TX2 Main Map, Address 0xF4AF[2]
This bit is used to enable the output mode control.
Function
hdmi_dvi_sel_en
0
1 (default)
Description
Automatic
Output mode set by hdmi_dvi_sel
hdmi_dvi_sel, TX2 Main Map, Address 0xF4AF[1]
This bit is used to control the output mode - DVI or HDMI.
Function
hdmi_dvi_sel
0 (default)
1
Description
DVI
HDMI
6.4. AV MUTE
The AV mute status is sent to the downstream sink through the general control packet. One purpose of the AV mute is to alert the sink of a
change in the TMDS clock so the sink can mute audio and video while the TMDS clock it receives is unstable. Setting AV mute also pauses
HDCP encryption, so the HDCP link between the HDMI Tx and the sink is maintained while the TMDS clock is not stable. Note that AV
mute is not sufficient as a means to hide protected content because the content is still sent even when AV mute is enabled.
To use AV mute:
• Enable the GCP by setting gc_pkt_en to 1
Rev. 0 | Page 205 of 326
UG-707
•
•
ADV8005 Hardware Reference Manual
To set AV mute, clear clear_avmute (that is, clear_avmute = 0) and set set_avmute (that is, set_avmute = 1)
To clear AV mute, clear set_avmute (that is, set_avmute = 0) and set clear_avmute (clear_avmute = 1)
Note that setting both set_avmute and clear_avmute is not a valid configuration.
set_avmute, TX2 Main Map, Address 0xF44B[6]
This bit is used to control the SET_AVMUTE signal.
Function
set_avmute
0 (default)
1
Description
Set SET_AVMUTE to 0
Set SET_AVMUTE to 1
clear_avmute, TX2 Main Map, Address 0xF44B[7]
This bit is used to control the CLEAR_AVMUTE signal.
Function
clear_avmute
0 (default)
1
Description
Set CLEAR_AVMUTE to 0
Set CLEAR_AVMUTE to 1
6.5. SOURCE PRODUCT DESCRIPTION INFOFRAME
The Source Product Description (SPD) InfoFrame contains the vendor name and product description. The transmission of SPD InfoFrames is
enabled by setting spd_pkt_en to 1. When this bit is set, the HDMI Tx1 section transmits one SPD packet once every two video fields.
An application of this packet is to allow the sink to display the source information using an OSD. This information is in a 7-bit ASCII format.
Refer to CEA 861 specification for more detail.
spd_pkt_en, TX2 Main Map, Address 0xF440[6]
This bit is used to enable the Source Product Descriptor InfoFrame.
Function
spd_pkt_en
0 (default)
1
Description
Disabled
Enabled
Packet Map
Address
0xF200
0xF201
0xF202
0xF203
0xF204
0xF205
0xF206
0xF207
0xF208
0xF209
0xF20A
0xF20B
0xF20C
0xF20D
0xF20E
0xF20F
0xF210
Table 45: SPD InfoFrame Configuration Register
Access Type
Register Name
Default Value
Byte Name
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
spd_hb0[7:0]
spd_hb1[7:0]
spd_hb2[7:0]
spd_pb0[7:0]
spd_pb1[7:0]
spd_pb2[7:0]
spd_pb3[7:0]
spd_pb4[7:0]
spd_pb5[7:0]
spd_pb6[7:0]
spd_pb7[7:0]
spd_pb8[7:0]
spd_pb9[7:0]
spd_pb10[7:0]
spd_pb11[7:0]
spd_pb12[7:0]
spd_pb13[7:0]
Rev. 0 | Page 206 of 326
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF211
0xF212
0xF213
0xF214
0xF215
0xF216
0xF217
0xF218
0xF219
0xF21A
0xF21B
0xF21C
0xF21D
0xF21E
UG-707
Access Type
Register Name
Default Value
Byte Name
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
spd_pb14[7:0]
spd_pb15[7:0]
spd_pb16[7:0]
spd_pb17[7:0]
spd_pb18[7:0]
spd_pb19[7:0]
spd_pb20[7:0]
spd_pb21[7:0]
spd_pb22[7:0]
spd_pb23[7:0]
spd_pb24[7:0]
spd_pb25[7:0]
spd_pb26[7:0]
spd_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
6.6. SPARE PACKETS AND VSI SUPPORT
The user may configure the ADV8005 to send any type of packets or InfoFrames via the spare packets controls and associated configuration
registers. The ADV8005 features four such spare packets that can be enabled via the spare_pkt0_en, spare_pkt1_en, spare_pkt3_en and
spare_pkt4_en controls bits. When a spare packet is enabled, the Tx transmits one of these enabled spare packets once every two video fields.
These spare packets allow the ADV8005 to support the transmission of three Vendor Specific InfoFrames (VSI) as follows: VSI-Video, VSIAUDIO and VSI-HDMI.
spare_pkt0_en, TX2 Main Map, Address 0xF440[0]
This bit is used to enable the Spare Packet 1.
Function
spare_pkt0_en
0 (default)
1
Description
Disabled
Enabled
spare_pkt1_en, TX2 Main Map, Address 0xF440[1]
This bit is used to enable the Spare Packet 2.
Function
spare_pkt1_en
0 (default)
1
Description
Disabled
Enabled
spare_pkt3_en, TX2 Test Map, Address 0xFBBF[2]
This bit is used to enable the Spare Packet 3.
Function
spare_pkt3_en
0 (default)
1
Description
Disabled
Enabled
spare_pkt4_en, TX2 Test Map, Address 0xFBBF[1]
This bit is used to enable the Spare Packet 4.
Function
spare_pkt4_en
0 (default)
1
Description
Disabled
Enabled
Rev. 0 | Page 207 of 326
UG-707
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF2C0
0xF2C1
0xF202
0xF2C3
0xF2C4
0xF2C5
0xF2C6
0xF2C7
0xF2C8
0xF2C9
0xF2CA
0xF2CB
0xF2CC
0xF2CD
0xF2CE
0xF2CF
0xF2D0
0xF2D1
0xF2D2
0xF2D3
0xF2D4
0xF2D5
0xF2D6
0xF2D7
0xF2D8
0xF2D9
0xF2DA
0xF2DB
0xF2DC
0xF2DD
0xF2DE
Packet Map
Address
0xF2E0
0xF2E1
0xF2E2
0xF2E3
0xF2E4
0xF2E5
0xF2E6
0xF2E7
0xF2E8
0xF2E9
0xF2EA
0xF2EB
0xF2EC
0xF2ED
Table 46: Spare Packet 1 Configuration Register
Access Type
Register Name
Default Value
Byte Name
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
spare1_hb0[7:0]
spare1_hb1[7:0]
spare1_hb2[7:0]
spare1_pb0[7:0]
spare1_pb1[7:0]
spare1_pb2[7:0]
spare1_pb3[7:0]
spare1_pb4[7:0]
spare1_pb5[7:0]
spare1_pb6[7:0]
spare1_pb7[7:0]
spare1_pb8[7:0]
spare1_pb9[7:0]
spare1_pb10[7:0]
spare1_pb11[7:0]
spare1_pb12[7:0]
spare1_pb13[7:0]
spare1_pb14[7:0]
spare1_pb15[7:0]
spare1_pb16[7:0]
spare1_pb17[7:0]
spare1_pb18[7:0]
spare1_pb19[7:0]
spare1_pb20[7:0]
spare1_pb21[7:0]
spare1_pb22[7:0]
spare1_pb23[7:0]
spare1_pb24[7:0]
spare1_pb25[7:0]
spare1_pb26[7:0]
spare1_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Table 47: Spare Packet 2 Configuration Register
Access Type
Register Name
Default Value
Byte Name
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
spare2_hb0[7:0]
spare2_hb1[7:0]
spare2_hb2[7:0]
spare2_pb0[7:0]
spare2_pb1[7:0]
spare2_pb2[7:0]
spare2_pb3[7:0]
spare2_pb4[7:0]
spare2_pb5[7:0]
spare2_pb6[7:0]
spare2_pb7[7:0]
spare2_pb8[7:0]
spare2_pb9[7:0]
spare2_pb10[7:0]
Rev. 0 | Page 208 of 326
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF2EE
0xF2FF
0xF2F0
0xF2F1
0xF2F2
0xF2F3
0xF2F4
0xF2F5
0xF2F6
0xF2F7
0xF2F8
0xF2F9
0xF2FA
0xF2FB
0xF2FC
0xF2FD
0xF2FE
Test Map Address
0xF3C0
0xF3C1
0xF3C2
0xF3C3
0xF3C4
0xF3C5
0xF3C6
0xF3C7
0xF3C8
0xF3C9
0xF3CA
0xF3CB
0xF3CC
0xF3CD
0xF3CE
0xF3CF
0xF3D0
0xF3D1
0xF3D2
0xF3D3
0xF3D4
0xF3D5
0xF3D6
0xF3D7
0xF3D8
0xF3D9
0xF3DA
0xF3DB
0xF3DC
0xF3DD
UG-707
Access Type
Register Name
Default Value
Byte Name
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
spare2_pb11[7:0]
spare2_pb12[7:0]
spare2_pb13[7:0]
spare2_pb14[7:0]
spare2_pb15[7:0]
spare2_pb16[7:0]
spare2_pb17[7:0]
spare2_pb18[7:0]
spare2_pb19[7:0]
spare2_pb20[7:0]
spare2_pb21[7:0]
spare2_pb22[7:0]
spare2_pb23[7:0]
spare2_pb24[7:0]
spare2_pb25[7:0]
spare2_pb26[7:0]
spare2_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
Table 48: Spare Packet 3 Configuration Register
Access Type
Register Name
Default Value
R/W
spare3_header0[7:0] 0b00000000
R/W
spare3_header1[7:0] 0b00000000
R/W
spare3_header2[7:0] 0b00000000
R/W
spare3_byte0[7:0]
0b00000000
R/W
spare3_byte1[7:0]
0b00000000
R/W
spare3_byte2[7:0]
0b00000000
R/W
spare3_byte3[7:0]
0b00000000
R/W
spare3_byte4[7:0]
0b00000000
R/W
spare3_byte5[7:0]
0b00000000
R/W
spare3_byte6[7:0]
0b00000000
R/W
spare3_byte7[7:0]
0b00000000
R/W
spare3_byte8[7:0]
0b00000000
R/W
spare3_byte9[7:0]
0b00000000
R/W
spare3_byte10[7:0]
0b00000000
R/W
spare3_byte11[7:0]
0b00000000
R/W
spare3_byte12[7:0]
0b00000000
R/W
spare3_byte13[7:0]
0b00000000
R/W
spare3_byte14[7:0]
0b00000000
R/W
spare3_byte15[7:0]
0b00000000
R/W
spare3_byte16[7:0]
0b00000000
R/W
spare3_byte17[7:0]
0b00000000
R/W
spare3_byte18[7:0]
0b00000000
R/W
spare3_byte19[7:0]
0b00000000
R/W
spare3_byte20[7:0]
0b00000000
R/W
spare3_byte21[7:0]
0b00000000
R/W
spare3_byte22[7:0]
0b00000000
R/W
spare3_byte23[7:0]
0b00000000
R/W
spare3_byte24[7:0]
0b00000000
R/W
spare3_byte25[7:0]
0b00000000
R/W
spare3_byte26[7:0]
0b00000000
Rev. 0 | Page 209 of 326
Byte Name
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
UG-707
ADV8005 Hardware Reference Manual
Test Map Address
0xF3DE
Packet Map Address
0xF3E0
0xF3E1
0xF3E2
0xF3E3
0xF3E4
0xF3E5
0xF3E6
0xF3E7
0xF3E8
0xF3E9
0xF3EA
0xF3EB
0xF3EC
0xF3ED
0xF3EE
0xF3EF
0xF3F0
0xF3F1
0xF3F2
0xF3F3
0xF3F4
0xF3F5
0xF3F6
0xF3F7
0xF3F8
0xF3F9
0xF3FA
0xF3FB
0xF3FC
0xF3FD
0xF3FE
Access Type
R/W
Register Name
spare3_byte27[7:0]
Default Value
0b00000000
Table 49: Spare Packet 4 Configuration Register
Access Type
Register Name
Default Value
R/W
spare4_header0[7:0] 0b00000000
R/W
spare4_header1[7:0] 0b00000000
R/W
spare4_header2[7:0] 0b00000000
R/W
spare4_pb0[7:0]
0b00000000
R/W
spare4_pb1[7:0]
0b00000000
R/W
spare4_pb2[7:0]
0b00000000
R/W
spare4_pb3[7:0]
0b00000000
R/W
spare4_pb4[7:0]
0b00000000
R/W
spare4_pb5[7:0]
0b00000000
R/W
spare4_pb6[7:0]
0b00000000
R/W
spare4_pb7[7:0]
0b00000000
R/W
spare4_pb8[7:0]
0b00000000
R/W
spare4_pb9[7:0]
0b00000000
R/W
spare4_pb10[7:0]
0b00000000
R/W
spare4_pb11[7:0]
0b00000000
R/W
spare4_pb12[7:0]
0b00000000
R/W
spare4_pb13[7:0]
0b00000000
R/W
spare4_pb14[7:0]
0b00000000
R/W
spare4_pb15[7:0]
0b00000000
R/W
spare4_pb16[7:0]
0b00000000
R/W
spare4_pb17[7:0]
0b00000000
R/W
spare4_pb18[7:0]
0b00000000
R/W
spare4_pb19[7:0]
0b00000000
R/W
spare4_pb20[7:0]
0b00000000
R/W
spare4_pb21[7:0]
0b00000000
R/W
spare4_pb22[7:0]
0b00000000
R/W
spare4_pb23[7:0]
0b00000000
R/W
spare4_pb24[7:0]
0b00000000
R/W
spare4_pb25[7:0]
0b00000000
R/W
spare4_pb26[7:0]
0b00000000
R/W
spare4_pb27[7:0]
0b00000000
Byte Name
Data Byte 27
Byte Name
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
6.7. SYSTEM MONITORING
6.7.1.
General Status and Interrupts
The ADV8005 utilizes both interrupts and status bits to indicate the status of internal operations and errors in the Tx core. These interrupt
and status are listed in Table 50, Table 51, and Table 52. Refer to Section 8.4 for details on the use of Tx interrupts.
Bit Name
hdcp_authenticated_int
edid_ready_int
vsync_int
rx_sense_int
Table 50: HDMI Tx Interrupt Bits in HDMI Tx Main Map Register 0xEC96
Bit Position
Description
1 (Second LSB)
When set to 1 it indicates that HDCP/EDID state machine transitioned from state 3 to state 4.
Once set, it remains high until it is cleared by setting it to 1.
2
When set to 1 it indicates that EDID has been read from Rx and is available in Packet Map.
Once set, it remains high until it is cleared by setting it to 1.
5
When set to 1 it indicates that leading edge detected on VSync input to Tx core. Once set, it
remains high until it is cleared by setting it to 1.
6
When set to 1 it indicates that TMDS clock lines voltage has crossed 1.8 V from high to low or
Rev. 0 | Page 210 of 326
ADV8005 Hardware Reference Manual
Bit Name
Bit Position
hpd_int
7
Bit Name
bksv_flag_int
Bit Position
6
hdcp_error_int
7
UG-707
Description
low to high. Once set, it remains high until it is cleared by setting it to 1.
When set to 1 it indicates that transition for high to low or low to high was detected on
input HPD signal. Once set, it remains high until it is cleared by setting it to 1.
Table 51: HDMI Tx Interrupt Bits in Main Map Register 0xEC97
Description
When set to 1 it indicates that the KSVs from the downstream sink have been read and available in the
Memory Map. Once set, it remains high until it is cleared by setting it to 1.
When set to 1 it indicates that the HDCP/EDID controller has reported an error. This error is available in
HDCP_CONTROLLER_ERROR. Once set, it remains high until it is cleared by setting it to 1.
Bit Name
hpd_state
Table 52: Status Bits in Main Map Register 0xEC42
Bit Position
Description
6
See description for hpd_state on page 204
rx_sense_state
5
See description for rx_sense_state on page 204
6.8. EDID/HDCP CONTROLLER STATUS
The Tx core features an EDID/HDCP controller which handles EDID extraction from the downstream sink. This EDID/HDCP controller also
handles HDCP authentication with downstream sink. The tasks that the Tx EDID/HDCP controller performs are described in Section 6.12
and Section 6.13.
The current state of the Tx EDID/HDCP controller can be read from the hdcp_controller_state[3:0] status field.
hdcp_controller_state[3:0], TX2 Main Map, Address 0xF4C8[3:0] (Read Only)
This signal is used to readback the state of the EDID/HDCP controller.
Function
hdcp_controller_state[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110 - 1111
Description
In Reset (No Hot Plug Detected)
Reading EDID
In Idle state (Waiting for HDCP Request)
Initializing HDCP
HDCP enabled
Initializing HDCP Repeater
Reserved
6.9. EDID/HDCP CONTROLLER ERROR CODES
If an HDCP authentication occurs between the ADV8005 and the downstream sink, the ADV8005 can trigger an interrupt to notify this error
to the user or the controlling CPU. The EDID/HDCP controller will then report the HDCP error code via the status field
hdcp_controller_error[3:0]. The error code is only valid when the hdcp_error_int interrupt bit is set to 1. The last error code will remain in
the HDCP/EDID controller error field even when the interrupt is cleared.
hdcp_controller_error[3:0], TX2 Main Map, Address 0xF4C8[7:4] (Read Only)
This signal is used to readback the error code when the HDCP controller error interrupt HDCP_ERROR_INT is 1.
Rev. 0 | Page 211 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
hdcp_controller_error[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
Description
No error
Bad receiver BKSV
Ri Mismatch
Pj Mismatch
I2C error (usually no acknowledge)
Timed out waiting for downstream repeater
Maximum cascade of repeaters exceeded
SHA-1 Hash check of KSV list fail
6.10. VIDEO SETUP
6.10.1.
Input Format
The HDMI Tx core of the ADV8005 receives video data from the ADV8005 digital core via a 36-bit wide bus and four synchronization signals:
the pixel clock, the data enable, and the horizontal and vertical synchronization signals. The HDMI Tx core always receives the video data in a
4:4:4 and SDR format from the VSP core.
It is possible to send YCrCb 4:2:2 data from the TMDS RX directly to the HDMI Tx. In which case register 0xEC15 must be set appropriately
in the Tx main map.
vfe_input_id[3:0], TX1 Main Map, Address 0xEC15[3:0]
This signal is used to specify the video input format.
Function
vfe_input_id[3:0]
0000 
0001
0101
Description
RGB 444 or YCbCr 444
YCbCr 422
Pseudo 422 YCbCr
Pixel0
Pixel1
Pixel2
Pixel3
Pixel4
...
Component
Channel
Y
Bit 12-0
G/Y0
G/Y1
G/Y2
G/Y3
G/Y4
...
Cb
Bit 12-0
B/Cb0
B/Cb1
B/Cb2
B/Cb3
B/Cb4
...
Cr
Bit 12-0
R/Cr0
R/Cr1
R/Cr2
R/Cr3
R/Cr4
...
Figure 96: Format of Video Data Input into HDMI Tx Core
6.10.2.
Video Mode Detection
The video mode detection feature can inform the user of the CEA-861 defined Video Identification Code (VIC) of the video being input to the
Tx core, as well as some additional formats. If a CEA 861 format is detected, the VIC is contained in vic_detected[5:0]. Some additional non
CEA 861 formats are contained in aux_vic_detected[2:0].
For some standards for which the VIC cannot be detected, the user needs to configure the following registers:
• The aspect ratio (set via the aspect_ratio bit) is used to distinguish between CEA-861 video timing codes where the aspect ratio is the
only difference
Rev. 0 | Page 212 of 326
ADV8005 Hardware Reference Manual
•
•
UG-707
For 240p and 288p modes, the number of total lines can be selected in the progressive_mode_info[1:0] field
The VIC detected is also affected by the pixel repetition (see Section 5.7 for more details)
The detected VIC is sent in the AVI InfoFrames unless pixel repetition is applied to the video stream transmitted by the ADV8005. When pixel
repetition is applied to the video data, the VIC sent in the AVI InfoFrame may be different as the VIC is automatically determined by the
ADV8005. To override the VIC detection, the pixel repetition mode must be set to manual by setting pr_value_manual[1:0] to 0b10 or 0b11.
The desired VIC is then set. The Tx core can support non CEA 861 formats, but the VIC will not be automatically detected for these formats.
In this case, the VIC should manually be set to the value 0.
vic_detected[5:0], TX2 Main Map, Address 0xF43E[7:2] (Read Only)
This signal is used to readback the input video code (VIC) detected (refer to the CEA-861 specification).
aux_vic_detected[2:0], TX2 Main Map, Address 0xF43F[7:5] (Read Only)
This register returns the format of video inputs that have a resolution not defined in the CEA 861 specification.
Function
aux_vic_detected[2:0]
000 (default)
001
010
011
100
101
110
111
Description
Set by Register 3E
240p Not Active
576i not active
288p not active
480i active
240p active
576i active
288p active
aspect_ratio, TX2 Main Map, Address 0xF417[1]
This bit is used to set the aspect ratio of input video. This bit is used to distinguish between CEA-861D video timing codes where aspect
ratio is the only difference.
Function
aspect_ratio
0 (default)
1
Description
4:3
16:9
progressive_mode_info[1:0], TX2 Main Map, Address 0xF43F[4:3] (Read Only)
This bit is used to specify additional information for 240p or 288p input formats.
Function
progressive_mode_info[1:0]
00 (default)
01
10
11
6.10.3.
Description
Reserved
262 total lines per frame for 240p and 312 total lines per frame for 288p
263 total lines per frame for 240p and 313 total lines per frame for 288p
Reserved for 240p and 314 total lines per frame for 288p
Pixel Repetition
Pixel repetition is used in HDMI to increase the amount of blanking period available to send packets or to increase the pixel clock to meet the
minimum TMDS clock rate of 25 MHz. The ADV8005 offers three choices for the user to implement pixel repetition in the Tx core. These
choices or modes are described below and can be set via pr_mode[1:0]:
Automatic mode: In automatic mode, the ADV8005 uses the audio sampling rate and the detected VIC information as parameters to decide if
pixel repetition is needed to obtain sufficient blanking periods to send the audio. For an I2S input stream, the sampling rate is always set by the
user via the i2s_sf[3:0] field. In the case of an SPDIF stream, the source of the audio sampling rate information is set via the
audio_sampling_freq_sel bit. If the pixel repetition factor is adjusted to meet bandwidth requirements, the detected input VIC may be
different from the VIC sent to the downstream sink. The VIC of the actual video sent across the HDMI link to the downstream sink, and
which is included in the AVI InfoFrame, can be read from the vic_to_rx[5:0] field.
Manual mode: In the manual pixel repetition mode, the VIC sent in the AVI InfoFrame needs to be set. The factor between the pixel clock
Rev. 0 | Page 213 of 326
UG-707
ADV8005 Hardware Reference Manual
input to the Tx core and the output TMDS clock frequency must be programmed in the pr_pll_manual[1:0] field. The pixel repetition value
sent to the HDMI sink must be programmed in pr_value_manual[1:0]. Refer to the latest HDMI specification for more details on valid pixel
repetition formats.
Max mode: The max mode works in the same way as the automatic mode, except that it always selects the highest pixel repetition factor the
Tx core is capable of. This makes the video timing independent of the audio sampling rate. This mode is not typically used.
pr_mode[1:0], TX2 Main Map, Address 0xF43B[6:5]
This signal is used to specify the pixel repetition mode selection. This should be set to 00 unless a non CEA-861 standard video resolution
must be supported.
Function
pr_mode[1:0]
00 (default)
01
10
11
Description
auto mode
max mode
manual mode
manual mode
pr_pll_manual[1:0], TX2 Main Map, Address 0xF43B[4:3]
This signal is used to specify the ratio between the input pixel clock and the TMDS output clock when manual pixel repetition is enabled.
Function
pr_pll_manual[1:0]
00 (default)
01
10
11
Description
x1
x2
x4
x4
pr_value_manual[1:0], TX2 Main Map, Address 0xF43B[2:1]
This signal is used to specify the user programmed pixel repetition sent to the downstream sink. This field is used in manual pixel repetition.
Function
pr_value_manual[1:0]
00 (default)
01
10
11
Description
x1
x2
x4
x4
vic_to_rx[5:0], TX2 Main Map, Address 0xF43D[5:0] (Read Only)
This signal is used to set the AVI InfoFrame video code (VIC) to send to the downstream sink.
Function
vic_to_rx[5:0]
xxxxxx
6.10.4.
Description
VIC sent to the downstream sink
Video Related Packets and InfoFrames
Video related packets and InfoFrames which include the AVI InfoFrame, MPEG InfoFrame and Gamut Metadata packet (GMP) are described
in Section 6.10.5, Section 6.10.6, and Section 6.10.7.
6.10.5.
AVI InfoFrame
The AVI InfoFrame is defined in the latest CEA 861 specification. The user can enable the transmission of AVI InfoFrames to the downstream
sink by setting the aviif_pkt_en bit. When the transmission of AVI InfoFrames is enabled, the Tx transmits an AVI InfoFrame once every two
video fields. Table 53 provides the list of registers that can be used to configure AVI InfoFrames.
aviif_pkt_en, TX2 Main Map, Address 0xF444[4]
This bit is used to enable the AVI InfoFrame Packet.
Rev. 0 | Page 214 of 326
ADV8005 Hardware Reference Manual
Function
aviif_pkt_en
0
1 (default)
UG-707
Description
Disable AVI InfoFrame
Enable AVI InfoFrame
HDMI Tx Main
Map Address
0xEC52
0xEC53
0xEC54
0xEC55
0xEC56
0xEC57
0xEC58
0xEC59
0xEC5A
0xEC5B
0xEC5C
0xEC5D
0xEC5E
0xEC5F
0xEC60
0xEC61
0xEC62
0xEC63
0xEC64
0xEC65
0xEC66
0xEC67
0xEC68
0xEC69
0xEC6A
0xEC6B
0xEC6C
0xEC6D
0xEC6E
0xEC6F
Table 53: AVI InfoFrame Configuration Registers
Bit Location
Access Type
Default Value
Field or Byte Name1
[2:0]
[4:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7]
[7:4]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
0b0100
0b01101
0b00000000
0b00000000
0b00000000
0b00000000
0b0
0b0000
0b00000000
0b00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000
InfoFrame version number
InfoFrame length
Checksum2
Data Byte 1
Data Byte 2
Data Byte 3
Bit 7 of Data Byte 4
Bits [7:4] of Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
1 As defined in the latest CEA 861 specification
2. Only used when auto_checksum_en = 0
6.10.6.
MPEG InfoFrame
The MPEG InfoFrame is defined in the latest CEA 861 specification. Currently, the specification does not recommend using this InfoFrame.
The transmission of MPEG InfoFrames can be enabled by setting the mpeg_pkt_en bit. When the transmission of MPEG InfoFrames is
enabled, the ADV8005 transmits an MPEG InfoFrame once every two video fields. Table 54 provides a list of registers that can be used to
configure MPEG InfoFrames.
mpeg_pkt_en, TX2 Main Map, Address 0xF440[5]
This bit is used to enable the MPEG Packet.
Rev. 0 | Page 215 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
mpeg_pkt_en
0 (default)
1
Description
Disabled
Enabled
Packet Map
Address
0xF220
0xF221
0xF222
0xF223
0xF224
0xF225
0xF226
0xF227
0xF228
0xF229
0xF22A
0xF22B
0xF22C
0xF22D
0xF22E
0xF22F
0xF230
0xF231
0xF232
0xF233
0xF234
0xF235
0xF236
0xF237
0xF238
0xF239
0xF23A
0xF23B
0xF23C
0xF23D
0xF23E
Table 54: MPEG InfoFrame Configuration Registers
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
mpeg_hb0[7:0]
mpeg_hb1[7:0]
mpeg_hb2[7:0]
mpeg_pb0[7:0]
mpeg_pb1[7:0]
mpeg_pb2[7:0]
mpeg_pb3[7:0]
mpeg_pb4[7:0]
mpeg_pb5[7:0]
mpeg_pb6[7:0]
mpeg_pb7[7:0]
mpeg_pb8[7:0]
mpeg_pb9[7:0]
mpeg_pb10[7:0]
mpeg_pb11[7:0]
mpeg_pb12[7:0]
mpeg_pb13[7:0]
mpeg_pb14[7:0]
mpeg_pb15[7:0]
mpeg_pb16[7:0]
mpeg_pb17[7:0]
mpeg_pb18[7:0]
mpeg_pb19[7:0]
mpeg_pb20[7:0]
mpeg_pb21[7:0]
mpeg_pb22[7:0]
mpeg_pb23[7:0]
mpeg_pb24[7:0]
mpeg_pb25[7:0]
mpeg_pb26[7:0]
mpeg_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
1 As defined in the latest CEA 861 specification
6.10.7.
Gamut Metadata
The Gamut metadata packet (GMP) contains the sources Gamut boundary description. It is defined in the latest HDMI specification.
The contents of the GMP can be set via the Packet Map registers listed in Table 55. The user can enable the transmission of GMP to the
downstream sink by setting the gm_pkt_en bit. When the transmission of GMP is enabled, the ADV8005 transmits a GMP once every two
video fields.
The ADV8005 transmits the GMP data starting 400 pixel clock cycles after the leading edge of VSync. In order to avoid corrupting the GMP
data during transmission, it is recommended that the user synchronizes all I2C writes to the GMP registers so that the write begins 512 pixel
clock cycles after the VSync leading edge. The VSync interrupt of the ADV8005 should be used to synchronize this timing. Figure 97 illustrates
this timing requirement.
Rev. 0 | Page 216 of 326
ADV8005 Hardware Reference Manual
UG-707
gm_pkt_en, TX2 Main Map, Address 0xF440[2]
This bit is used to enable the Gamut Metadata Packet.
Function
gm_pkt_en
0 (default)
1
Description
Disabled
Enabled
Falling edge of last DE of
last field
Rising edge of first DE of
next field
VSync
GMP sending
window
400 pixel
clocks
112 pixel
clocks
Initiate I2C
change after 512
clocks
Figure 97: I2C Write Timing if GMP Data
Packet Map
Address
0xF2A0
0xF2A1
0xF2A2
0xF2A3
0xF2A4
0xF2A5
0xF2A6
0xF2A7
0xF2A8
0xF2A9
0xF2AA
0xF2AB
0xF2AC
0xF2AD
0xF2AE
0xF2AF
0xF2A0
0xF2A1
0xF2A2
0xF2A3
0xF2A4
0xF2A5
0xF2A6
Table 55: Gamut Metadata Packet Configuration Registers
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
gmp_hb0[7:0]
gmp_hb1[7:0]
gmp_hb2[7:0]
gmp_pb0[7:0]
gmp_pb1[7:0]
gmp_pb2[7:0]
gmp_pb3[7:0]
gmp_pb4[7:0]
gmp_pb5[7:0]
gmp_pb6[7:0]
gmp_pb7[7:0]
gmp_pb8[7:0]
gmp_pb9[7:0]
gmp_pb10[7:0]
gmp_pb11[7:0]
gmp_pb12[7:0]
gmp_pb13[7:0]
gmp_pb14[7:0]
gmp_pb15[7:0]
gmp_pb16[7:0]
gmp_pb17[7:0]
gmp_pb18[7:0]
gmp_pb19[7:0]
Rev. 0 | Page 217 of 326
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
UG-707
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF2A7
0xF2A8
0xF2A9
0xF2AA
0xF2AB
0xF2AC
0xF2AD
0xF2AE
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
gmp_pb20[7:0]
gmp_pb21[7:0]
gmp_pb22[7:0]
gmp_pb23[7:0]
gmp_pb24[7:0]
gmp_pb25[7:0]
gmp_pb26[7:0]
gmp_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
1 As defined in the latest HDMI specification
6.11. AUDIO SETUP
6.11.1.
Audio Architecture
The ADV8005 is capable of receiving audio data in I2S, SPDIF, DSD or High Bit Rate (HBR) formats. When the input audio is captured from
the audio input pins, it is then converted into audio packets for transmission over the HDMI output interface.
The ADV8005 HDMI TX1 and TX2 process audio input streams independently, the following bits select which audio format is expected on
the audio pins.
aud_input_mode[1:0], IO Map, Address 0x1A08[7:6]
This signal is used to select the audio input mode.
Function
aud_input_mode[1:0]
00 (default)
01
10
11
Description
Single mode.
Dual mode; TX1 with I2S stream, TX2 with SPDIF stream.
Dual mode; TX1 with SPDIF stream, TX2 with I2S stream.
Dual mode; TX1 with SPDIF stream 1, TX2 with SPDIF stream 2.
Pin\aud_input_mode[1:0]
Table 56: HDMI Tx Supported Audio Input Modes from Audio Input Pins
0
1
2
Single Mode
Tx1
Tx2
DSD_CLK
MCLK
SCLK
AUD_IN[0]
AUD_IN[1]
AUD_IN[2]
AUD_IN[3]
AUD_IN[4]
AUD_IN[5]
6.11.2.
DSD_CLK
MCLK
SCLK
DSD.0/SPDIF
DSD.1/I2S.0
DSD.2/I2S.1
DSD.3/I2S.2
DSD.4/I2S.3
DSD.5/LRCLK
DSD_CLK
MCLK
SCLK
DSD.0/SPDIF
DSD.1/I2S.0
DSD.2/I2S.1
DSD.3/I2S.2
DSD.4/I2S.3
DSD.5/LRCLK
Dual Mode 1
Tx1
Tx2
Dual Mode 2
Tx1
Tx2
MCLK
3
Dual Mode 3
Tx1
Tx2
MCLK
MCLK
MCLK
SCLK
MCLK
MCLK
SCLK
SPDIF
SPDIF
I2S0
I2S1
I2S2
I2S3
LRCLK
SPDIF
I2S0
I2S1
I2S2
I2S3
LRCLK
SPDIF
Audio from Serial Video Rx
On the ADV8003, it is possible to route audio packets directly from the Serial Video Rx to the HDMI Tx. To achieve passthrough of audio
from the Serial Video Rx to the HDMI Tx, the following bit in the HDMI Tx must be configured.
rx_aud_packet_sel, TX2 Main Map, Address 0xF40B[0]
This bit is used to select the source of audio packet data routed into the HDMI transmitter.
Rev. 0 | Page 218 of 326
ADV8005 Hardware Reference Manual
Function
rx_aud_packet_sel
0 (default)
1
UG-707
Description
Get audio packet from external audio pins
Get audio packet from internal audio receiver
The datapath can be enabled per Tx so that one Tx can receive audio from I2S lines and one from the Serial Video Rx. Alternatively, both Txs
can receive audio from the Serial Video Rx or from the audio input pins. Along with setting rx_aud_packet_sel, the mclk_ratio[1:0] must be
set to 00 and mclk_en must be set to 1.
The audio InfoFrame is not transferred internally from the serial video Rx to the HDMI Tx. This needs to be done by software.
6.11.3.
Audio Configuration
The audio_input_sel[2:0], audio_mode[1:0], and i2s_format[1:0] fields must be used to configure the Tx core according to the incoming audio
input. Refer to Figure 98 to Figure 104 for more information on the audio timing formats. There is a manual control to set the audio sample
packet layout to be 0 or 1 using the ext_layoutand layout_sel controls.
ext_layout, TX2 Main Map, Address 0xF44A[3]
This bit is used to set the external audio layout value.
Function
ext_layout
0 (default)
1
Description
Dual channel
Multi channel
layout_sel, TX2 Main Map, Address 0xF44A[2]
This bit is used to select the audio layout value.
Function
layout_sel
0 (default)
1
Description
Internal layout
External layout
audio_input_sel[2:0], TX2 Main Map, Address 0xF40A[6:4]
This signal is used to specify the audio mode when the input format of the audio is specified.
Function
audio_input_sel[2:0]
000 (default)
001
010
011
100
Description
I2S
SPDIF
One Bit Audio (DSD)
High Bit Rate (HBR) Audio
Reserved
i2s_format[1:0], TX2 Main Map, Address 0xF40C[1:0]
This signal is used to set the format of the I2S audio stream input to the part.
Function
i2s_format[1:0]
00 (default)
01
10
11
Description
I2S
Right justified
Left justified
AES3 direct mode
audio_mode[1:0], TX2 Main Map, Address 0xF40A[3:2]
This signal is used to specify the exact audio mode when the input format of the audio is specified.
Case 1: DSD (audio_input_select = 0b010): 0x = DSD raw mode; 1x = SDIF-3 mode
Case 2: HBR (audio_input_select = 0b011): 00 = 4 stream, with Bi-Phase Mark (BPM) encoding; 01 = 4 stream, without BPM encoding; 10 =
1 stream, with BPM encoding; 11 = 1 stream, without BPM encoding
Case 3: DST (audio_input_select = 0b100): x0 = normal mode; 01 = DST 2x clock; 10 = DST 1x clock (DDR)
Rev. 0 | Page 219 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
audio_mode[1:0]
Case 1
0x
1x
Case 2
00 (default)
01
10
11
Description
DSD (AUDIO_INPUT_SELECT = 0b010)
DSD raw mode
SDIF-3 mode
HBR (AUDIO_INPUT_SELECT = 0b011)
4 stream, with Bi-Phase Mark (BPM) encoding
4 stream, without BPM encoding
1 stream, with BPM encoding
1 stream, without BPM encoding
mclk_ratio[1:0], TX2 Main Map, Address 0xF40A[1:0]
This signal is used to specify the ratio between the audio sampling frequency and the clock described using the N and CTS values.
Function
mclk_ratio[1:0]
00
01 (default)
10
11
Description
128*fs
256*fs
384*fs
512*fs
mclk_en, TX2 Main Map, Address 0xF40B[5]
This bit is used to select the audio master clock that is used by the audio block.
Function
mclk_en
0 (default)
1
Description
Use internally generated MCLK
Use external MCLK
audio_input_sel Value
0b010
0b011
Table 57: Valid Configuration for audio_mode[1:0]
audio_mode Value
Corresponding Configuration
Options
0b0x
DSD in raw mode
0b1x
DSD in SDIF-3 mode
0b00
HBR input as 4 streams, with Bi-Phase Mark (BPM) encoding
0b01
HBR input as 4 stream, without BPM encoding
0b10
HBR input as 4 stream, without BPM encoding
0b11
HBR input as 1 stream, without BPM encoding
Table 58: Audio Input Format Summary
Input
Audio
Clock Pins
Encoding
Input
Signal
Normal
I2S[3:0]
SCLK,
LRCLK,
MCLK1
audio_input
_sel Value
audio_mode
Value
I2s_format
Value
0b000
0bXX
0b00
0b000
0bXX
0b01
I2S[3:0]
SCLK,
LRCLK,
MCLK1
Normal
0b000
0bXX
0b10
I2S[3:0]
SCLK,
LRCLK,
MCLK1
Normal
0b000
0bXX
0b11
I2S[3:0]
SCLK,
LRCLK,
MCLK1
Normal
Rev. 0 | Page 220 of 326
ADV8005
Input Pin
Mapping
AUD_IN[4:0]
AUD_IN[5]
SCLK
MCLK
AUD_IN[4:0]
AUD_IN[5]
SCLK
MCLK
AUD_IN[4:0]
AUD_IN[5]
SCLK
MCLK
AUD_IN[4:0]
AUD_IN[5]
SCLK
MCLK
Format
Output
Packet Type
Standard
I2S
Audio
Sample
Packet
Right
justified
Audio
Sample
Packet
Left justified
Audio
Sample
Packet
AES3 direct
Audio
Sample
Packet
ADV8005 Hardware Reference Manual
1
UG-707
Clock Pins
Encoding
0bXX
Input
Audio
Input
Signal
SPDIF
MCLK1
Biphase
Mark
0b1X
0bXX
DSD[5:0]
SCLK
Normal
0b010
0b1X
0bXX
DSD[5:0]]
SCLK
SDIF-3
0b011
0b00
0bXX
I2S[3:0]
MCLK
Biphase
Mark
0b011
0b01
0b00
I2S[3:0]
SCLK,
MCLK1
Normal
0b011
0b01
0b01
I2S[3:0]
SCLK, MCLK
Normal
0b011
0b01
0b10
I2S[3:0]
SCLK,
MCLK1
Normal
0b011
0b01
0b11
I2S[3:0]
SCLK,
MCLK1
Normal
0b011
0b10
0bXX
SPDIF
MCLK
Biphase
Mark
0b011
0b11
0b00
SPDIF
SCLK,
MCLK1
Normal
0b011
0b11
0b01
I2S[3:0]
SCLK,
MCLK1
Normal
0b011
0b11
0b10
I2S[3:0]
SCLK,
MCLK1
Normal
0b011
0b11
0b11
I2S[3:0]
MCLK
Normal
audio_input
_sel Value
audio_mode
Value
I2s_format
Value
0b001
0b00
0b010
ADV8005
Input Pin
Mapping
AUD_IN[0]
MCLK
AUD_IN[5:0]
SCLK
AUD_IN[5:0]
SCLK
AUD_IN[4:0]
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[0]
MCLK
AUD_IN[0]
SCLK
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[4:0]
SCLK
MCLK
AUD_IN[4:0]
MCLK
Format
Output
Packet Type
IEC60958 or
IEC61937
DSD
Audio
Sample
Packet
DSD Packet
DSD
DSD Packet
IEC61937
HBR Packet
Standard
I2S
HBR Packet
Right
justified
HBR Packet
Left justified
HBR Packet
AES3 Direct
HBR Packet
IEC61937
HBR Packet
Standard
I2S
HBR Packet
Right
Justified
HBR Packet
Left
Justified
HBR Packet
IEC61937
HBR Packet
Optional signal
6.11.3.1.
I2S Audio
The ADV8005 can receive up to four stereo channels of I2S audio at up to a 192 kHz sampling rate. The number of I2S channels the Tx
processes can be selected with audioif_cc[2:0]. The selection of the active I2S channels is done via the i2s_en[3:0] field. The audio sampling
frequency of the input stream must be set appropriately via the i2s_sf[3:0] field. This value is used along with the VIC to determine the pixel
repetition factor that the Tx core applies to the video data (refer to Section 6.10.3). The value programmed in i2s_sf[3:0] is also used to be sent
across the TMDS output link in the channel status data information contained in the Audio Sample packets.
The placement of I2S channels into the Audio Sample subpackets defined in the HDMI specification can be specified in the following fields:
• subpkt0_l_src
• subpkt0_r_src
• subpkt1_l_src
• subpkt1_r_src
• subpkt2_l_src
• subpkt2_r_src
• subpkt3_l_src
Rev. 0 | Page 221 of 326
UG-707
•
ADV8005 Hardware Reference Manual
subpkt3_r_src
When these fields are set to their default values, all I2S channels are placed in their respective position (for example, I2S0 left channel in
channel 0 left position, I2S3 right channel in channel 3 right position, and so on) but this mapping is completely programmable if desired.
The ADV8005 can receive standard I2S, left-justified, right-justified, and direct AES3 stream formats with a sample word width between 16
bits and 24 bits. The format of the input I2S stream is set via i2s_format[1:0] while the audio sample word width is set via the word_length[3:0]
field. The ADV8005 can also receive an I2S stream in both 64-bit and 32-bit modes, so either 32- or 16-bit clock (that is, the signal input
through SCLK pin) edges or cycles per channel are valid. The ADV8005 will adapt to 32- or 64-bit modes automatically, and the current mode
can be read in the i2s_32bit_mode field. Refer to Figure 100 to Figure 104 for timing diagrams on I2S streams input to the ADV8005.
When the ADV8005 is configured to receive a direct AES3 stream, the stream it receives should have IEC60958-like subframes (refer to Figure
98) with the stream formatted as follows:
• Data should be aligned as shown in Figure 98.
• Preamble left out as shown in Figure 99.
• Parity bit is replaced by the block start flag. The ADV8005 automatically computes the parity bit.
The channel status data collected from the audio stream input to the AUD_IN[0] pin is used in the Audio Sample packets sent by the
ADV8005 to the downstream sink. The channel status data can alternately be programmed by setting the cs_bit_override bit. When
cs_bit_override is set to 1, setting audio_sampling_freq_sel allows the programming of the audio sampling frequency used for the channel
status bits while all other channel status data is extracted from the audio stream input to I2S0. The sampling frequency is set via the i2s_sf[3:0]
field.
Note: All four stereo channels (AUD_IN[3:0]) are enabled by setting i2s_en[3:0] to 0xF and audioif_cc[2:0] to 0x7. If one stereo channel only
is needed, the I2S audio stream data must be input to AUD_IN[0]. The i2s_en[3:0] and audioif_cc[2:0] control fields must be set to 1.
When audio_sampling_freq_sel is set to 1, the audio sampling frequency programmed via I2S_SF is used for the determination of the pixel
repetition factor (refer to Section 5.7 for more details).
audioif_sf[2:0], TX2 Main Map, Address 0xF474[4:2]
This signal is used to specify the Audio Sampling Frequency in the Audio InfoFrame.
Function
audioif_sf[2:0]
000 (default)
001
010
011
100
101
110
111
Description
Case 1: Not DSD audio or Case 2: DSD audio (AUDIO_INPUT_SEL = 0b010)
64 x 32 kHz
64 x 44.1 kHz
64 x 48 kHz
64 x 88.2 kHz
64 x 96 kHz
64 x 176.4 kHz
64 x 192 kHz
audioif_cc[2:0], TX2 Main Map, Address 0xF473[2:0]
This signal is used to set the Audio Channel Count (Audio InfoFrame).
Function
audioif_cc[2:0]
000 (default)
001
010
011
100
101
110
111
Description
Refer to Stream Header
2 channels
3 channels
4 channels
5 channels
6 channels
7 channels
8 channels
i2s_en[3:0], TX2 Main Map, Address 0xF40C[5:2]
This signal is used to enable the I2S pins.
Rev. 0 | Page 222 of 326
ADV8005 Hardware Reference Manual
Function
i2s_en[3:0]
0000
1111 (default)
UG-707
Description
All I2S disabled
All I2S enabled
i2s_sf[3:0], TX2 Main Map, Address 0xF415[7:4]
This signal is used to set the Sampling frequency for I2S audio. This information is used both by the audio Rx and the pixel rep. Other values
reserved.
Function
i2s_sf[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Description
44.1kHz
Do not use
48kHz
32kHz
Do not use
Do not use
Do not use
Do not use
88.2kHz
Do not use
96kHz
Do not use
176.4kHz
Do not use
192kHz
Do not use
subpkt0_l_src[2:0], TX2 Main Map, Address 0xF40E[5:3]
This signal is used to specify the source of sub packet 0, left channel.
Function
subpkt0_l_src[2:0]
000 (default)
001
010
011
100
101
110
111
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt0_r_src[2:0], TX2 Main Map, Address 0xF40E[2:0]
This signal is used to specify the source of sub packet 0, right channel.
Function
subpkt0_r_src[2:0]
000
001 (default)
010
011
100
101
110
111
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt1_l_src[2:0], TX2 Main Map, Address 0xF40F[5:3]
This signal is used to specify the source of sub packet 1, left channel.
Rev. 0 | Page 223 of 326
UG-707
Function
subpkt1_l_src[2:0]
000
001
010 (default)
011
100
101
110
111
ADV8005 Hardware Reference Manual
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt1_r_src[2:0], TX2 Main Map, Address 0xF40F[2:0]
This signal is used to specify the source of sub packet 1, right channel.
Function
subpkt1_r_src[2:0]
000
001
010
011 (default)
100
101
110
111
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt2_l_src[2:0], TX2 Main Map, Address 0xF410[5:3]
This signal is used to specify the source of sub packet 2, left channel.
Function
subpkt2_l_src[2:0]
000
001
010
011
100 (default)
101
110
111
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt2_r_src[2:0], TX2 Main Map, Address 0xF410[2:0]
This signal is used to specify the source of sub packet 2, right channel.
Function
subpkt2_r_src[2:0]
000
001
010
011
100
101 (default)
110
111
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt3_l_src[2:0], TX2 Main Map, Address 0xF411[5:3]
This signal is used to specify the source of sub packet 3, left channel.
Rev. 0 | Page 224 of 326
ADV8005 Hardware Reference Manual
Function
subpkt3_l_src[2:0]
000
001
010
011
100
101
110 (default)
111
UG-707
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
subpkt3_r_src[2:0], TX2 Main Map, Address 0xF411[2:0]
This signal is used to specify the source of sub packet 3, right channel.
Function
subpkt3_r_src[2:0]
000
001
010
011
100
101
110
111 (default)
Description
I2S[0], left channel
I2S[0], right channel
I2S[1], left channel
I2S[1], right channel
I2S[2], left channel
I2S[2], right channel
I2S[3], left channel
I2S[3], right channel
i2s_32bit_mode, TX2 Main Map, Address 0xF442[3] (Read Only)
This bit is used to readback the I2S mode detection. It shows the number of SCLK periods per LRCLK period.
Function
i2s_32bit_mode
0 (default)
1
Description
I2S 32 bit mode detected
I2S 64 bit mode detected
cs_bit_override, TX2 Main Map, Address 0xF40C[6]
This bit is used to select the source of channel status bits when using I2S Mode 4.
Function
cs_bit_override
0 (default)
1
Description
Use channel status bits from I2S stream
Use channel status bits programmed in I2C registers
audio_sampling_freq_sel, TX2 Main Map, Address 0xF40C[7]
This bit is used to select whether the audio sampling frequency is set automatically or manually (via I2C).
Function
audio_sampling_freq_sel
0
1 (default)
Description
Use sampling frequency from I2S stream, for SPDIF stream
Use sampling frequency from I2C registers
Figure 98: IEC60958 Sub Stream
Rev. 0 | Page 225 of 326
UG-707
ADV8005 Hardware Reference Manual
L
S
B
23
M
S
B
Data
24
V
27
U
C
B
31
0
0
0
Validity Flag
User Data
31
Channel Status
0
Block Start Flag
Figure 99: AES3 Stream Format Input to ADV8005
LRCLK
LEFT
RIGHT
SCLK
DATA
LSB
MSB
MSB
32 Clock Slots
LSB
32 Clock Slots
Figure 100: Timing of Standard I2S Stream Input to ADV8005
LRCLK
LEFT
RIGHT
SCLK
DATA
MSB
MSB
MSB
MSB
MSB-1
LSB
MSB
MSB extended
MSB
MSB
MSB
MSB-1
MSB extended
32 Clock Slots
32 Clock Slots
Figure 101: Timing for Right-Justified I2S Stream Input to ADV8005
LRCLK
LEFT
RIGHT
SCLK
DATA
LSB
MSB
MSB
32 Clock Slots
LSB
32 Clock Slots
Rev. 0 | Page 226 of 326
LSB
0
ADV8005 Hardware Reference Manual
UG-707
Figure 102: Timing for Left-Justified I2S Stream Input to ADV8005
LRCLK
LEFT
RIGHT
SCLK
DATA
LSBright
LSBleft
MSBleft
MSBright
16 Clock Slots
LSBleft
16 Clock Slots
Figure 103: Timing for I2S Stream in 32-bit Mode
LRCLK
LEFT
RIGHT
SCLK
DATA
LSB
MSB
MSB
16 Clock Slots
LSB
16 Clock Slots
Figure 104: Timing for I2S Stream in Left or Right-Justified and 32-bit Modes
6.11.3.2.
SPDIF Audio
The ADV8005 can receive two channel LPCM or encoded multichannel audio up to a 192 kHz sampling rate via the SPDIF input interface.
The detected sampling frequency for the SPDIF input stream can be read via the spdif_sf[3:0] field.
It is possible to set the sampling audio sampling frequency of the input SPDIF stream. This is done by setting audio_sampling_freq_sel to 1.
When audio_sampling_freq_sel is set to 1, the sampling frequency used to determine the pixel repetition factor (refer to Section 6.11.1) is not
extracted from the input SPDIF stream and must be programmed in the i2s_sf[3:0] field. Note that the sampling frequency that is used in the
Audio Sample packets sent to the downstream sink can be read from the spdif_sf[3:0] field.
The ADV8005 is capable of accepting SPDIF with or without an audio master clock input to through the input pin MCLK. When the
ADV8005 does not receive an audio master clock, the ADV8005 uses the bit clock input via the SCLK pin to internally generate an audio
master clock and determine the CTS value.
spdif_sf[3:0], TX2 Main Map, Address 0xF404[7:4] (Read Only)
This signal is used to readback the audio sampling frequency from the SPDIF channel.
Rev. 0 | Page 227 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
spdif_sf[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
6.11.3.3.
Description
44.1kHz
NA
48 kHz
32kHz
NA
NA
NA
NA
88.2kHz
NA
96kHz
NA
176.4kHz
NA
192kHz
NA
DSD Audio
The ADV8005 uses 1-bit Audio Sample packets to transmit DSD audio data across the HDMI link to the downstream sink. The ADV8005
supports up to six channels of DSD data which can be input onto six data lines clocked by the signal input to DSD_CLK.
The ADV8005 can be configured to receive a DSD stream by setting audio_input_sel[2:0] to 0b010. The mode of the DSD stream input to the
ADV8005 can be set via the audio_mode[1:0] field. The audio sampling frequency must be set via the audioif_sf[2:0] field. Note the DSD
clock input to SCLK has a frequency that is 64 times the audio sampling frequency programmed in the audioif_sf[2:0] field.
Refer to Table 58 for additional details on the DSD modes supported by the ADV8005.
Table 59: Valid Configuration for audioif_sf[2:0] Address B8 (Main), Address 0x74[4:2]
audio_input_sel Value
audioif_sf Value Options
Corresponding Configuration
≠0b010
0b000
Not DSD Audio
0b010
6.11.3.4.
0b001
0b010
0b011
0b100
0b101
0b110
0b111
DSD Audio, 64x32 kHz
DSD Audio, 64x44.1 kHz
DSD Audio, 64x48 kHz
DSD Audio, 64x88.2 kHz
DSD Audio, 64x96 kHz
DSD Audio, 64x176.4 kHz
DSD Audio, 64x192 kHz
HBR Audio
The ADV8005 uses an HBR audio packet to transmit across the TMDS link compressed audio streams conforming to IEC 61937 and with
high bit rate (that is, bit rate higher than 6.144 Mbps).
The ADV8005 can be configured to receive an HBR stream by setting audio_input_sel[2:0] to 0b011. The use of one or four input stream(s)
with or without biphase mark (BPM) encoding can be selected via the audio_mode[1:0] field. Note that an audio master clock input through
the pin MCLK_IN is always required for the BPM encoding modes. For HBR mode, the audio sampling frequency must be set via the
audioif_sf[2:0] field.
papb_sync can be toggled from 0 to 1 to synchronize the Pa and Pb syncword, which marks the beginning of a stream repetition with the
subpacket 0. For data bursts with a repetition period, which is a multiple of four frames, the synchronization will persist. If the data burst does
not have a repetition period of four frames, setting papb_sync is not needed but will not have any negative effects. The transition of the bit
from 0 to 1 causes the one time synchronization, so setting the bit from 1 to 0 will have no effect.
Rev. 0 | Page 228 of 326
ADV8005 Hardware Reference Manual
UG-707
The mapping between the I2S input signals to the Tx core and the HBR subpackets can be via the following controls:
• subpkt0_l_src
• subpkt0_r_src
• subpkt1_l_src
• subpkt1_r_src
• subpkt2_l_src
• subpkt2_r_src
• subpkt3_l_src
• subpkt3_r_src
Note: When the HBR input stream is coming from an ADI HDMI Rx device or from the Rx section of the ADV8005, the fields listed above
are set to the respective default values. Since there is no standard for chip to chip HBR transfer, different settings may be required to map the
HBR stream input to the Tx core and a non ADI HDMI Rx device.
Refer to Table 58 for additional details on the HBR modes supported by the ADV8005.
papb_sync, TX2 Main Map, Address 0xF447[6]
This bit is used to synchronize the Pa and Pb syncwords with subpacket 0 for HBR audio.
Function
papb_sync
0 (default)
1
Description
No function
Synchronize Pa and Pb syncwords with subpacket 0
6.11.4.
N and CTS Parameters
The audio data carried across the HDMI link to the downstream sink, which is driven by a TMDS clock only, does not retain the original
audio sample clock. The task of recreating this clock at the sink is called Audio Clock Regeneration (ACR). There are varieties of ACR
methods that can be implemented in an HDMI sink, each with a different set of performance characteristics. The HDMI specification does
not attempt to define exactly how these mechanisms operate. It does, however, present a possible configuration and defines the data items that
the HDMI source shall supply to the HDMI sink in order to allow the HDMI sink to adequately regenerate the audio clock.
The HDMI specification also defines how that data shall be generated. In many video source devices, the audio and video clocks are generated
from a common clock (coherent clocks). In that situation, there exists a rational (integer divided by integer) relationship between these two
clocks. The ACR architecture can take advantage of this rational relationship and can also work in an environment where there is no such
relationship between these two clocks, that is, where the two clocks are truly asynchronous or where their relationship is unknown.
SOURCE DEVICE
CYCLE
TIME
COUNTER
CTS1
TMDS
VIDEO CLOCK
CLOCK
REGISTER
N
N
DIVIDE
BY
CTS
MULTIPLY
BY
N
128 × fS
N1
1N
AND CTS VALUES ARE TRANSMITTED USING THE “AUDIO CLOCK REGENERATION”
PACKET. VIDEO CLOCK IS TRANSMITTED ON TMDS CLOCK CHANNEL.
06076-008
DIVIDE
BY
N
128 × fS
SINK DEVICE
Figure 105: Audio Clock Regeneration
Figure 105 illustrates the overall system architecture model used by HDMI Rxs for audio clock regeneration. The HDMI source determines the
Rev. 0 | Page 229 of 326
UG-707
ADV8005 Hardware Reference Manual
fractional relationship between the video clock and an audio reference clock (128*fs) and passes the numerator and denominator for that
fraction to the sink across the HDMI link. The sink may then recreate the audio clock from the TMDS clock by using a clock divider and a
clock multiplier. The relationship between the two clocks is shown in Equation 23.
128 f s = f TMDS _ CLK
N
CTS
Equation 23: Relationship Between Audio Reference and TMDS Clocks
The source determines the value of the numerator N as specified in the HDMI specification. Typically, this value N is used in a clock divider to
generate an intermediate clock that is slower than the 128*fs clock by the factor N. The source typically determines the value of the
denominator Cycle Time Stamp (CTS) by counting the number of TMDS clocks in each of the 128*fs/N clocks.
6.11.4.1.
N Parameter
N is an integer number and is calculated using Equation 24 with the recommended optimal value shown in Equation 25 which approximately
equals N for coherent audio and video clock sources. Table 60 to Table 62 can be used to determine the value of N. For non coherent sources
or sources where coherency is not known, Equation 24, Equation 25, and Equation 26 should be used.
128*fS/1500Hz ≤N ≤128*fS/300Hz
Equation 24: Restriction for N Value
128*fs/1000Hz
Equation 25: Optimal N Value
6.11.4.2.
CTS Parameter
The CTS value is an integer number that satisfies Equation 26.
CTS Average =
f TMDS _ CLK N
128 f s
Equation 26: Relationship Between N and CTS
6.11.4.3.
Recommended N and Expected CTS Values
The recommended values of N for several standard pixel clocks are given in Table 60 to Table 62.
The ADV8005 has two modes for CTS generation.
Manual mode: Manual mode is selected by setting cts_sel to 1. In manual mode, the user can program the CTS number directly into the chip
via the cts_manual[19:0] field. Manual mode is good for coherent audio and video, where the audio and video clocks are generated from the
same crystal; thus CTS should be a fixed number.
Automatic mode: Automatic mode is selected by setting cts_sel to 0. In automatic mode, the chip computes the CTS based on the actual audio
and video rates. The result can be read from the cts_internal[19:0] field. Automatic mode is good for incoherent audio or video, where there is
no simple integer ratio between the audio and video clock.
The 20-bit n value used by the Tx core of the ADV8005 can be programmed in the n[19:0] field.
cts_sel, TX2 Main Map, Address 0xF40A[7]
This bit is used to specify whether CTS is automatically or manually set.
Function
cts_sel
0 (default)
1
Description
Automatic CTS. Use the internally generated CTS value
Manual CTS. Use the CTS programmed via CTS_MANUAL[19:0]
Rev. 0 | Page 230 of 326
ADV8005 Hardware Reference Manual
UG-707
cts_manual[19:0], TX2 Main Map, Address 0xF407[3:0]; Address 0xF408[7:0]; Address 0xF409[7:0]
This signal is used to manually set the Cycle Time Stamp (CTS). This parameter is used with the N parameter to regenerate the audio clock
in the receiver.
cts_internal[19:0], TX2 Main Map, Address 0xF404[3:0]; Address 0xF405[7:0]; Address 0xF406[7:0] (Read Only)
This signal is used to readback the automatically generated Cycle Time Stamp (CTS) parameter. This parameter is used with the N
parameter to regenerate the audio clock in the receiver.
n[19:0], TX2 Main Map, Address 0xF401[3:0]; Address 0xF402[7:0]; Address 0xF403[7:0]
This signal is used to specifies the audio clock regeneration parameter N. This parameter is used with CTS to regenerate the audio clock in
the receiver.
Table 60: Recommended N and Expected CTS Values for 32 kHz Audio
32 kHz
Pixel Clock (MHz)
N
CTS
25.2/1.001
4576
28125
25.2
4096
25200
27
4096
27000
27 * 1.001
4096
27027
54
4096
54000
54 * 1.001
4096
54054
74.25/1.001
11648
210937 – 210938
74.25
4096
74250
148.5/1.001
11648
421875
148.5
4096
148500
Other
4096
Measured
Pixel Clock (MHz)
25.2 / 1.001
25.2
27
27 * 1.001
54
54 * 1.001
74.25 / 1.001
74.25
148.5 / 1.001
148.5
Other
Table 61: Recommended N and Expected CTS Values for 44.1 kHz and Multiples
44.1kHz
88.2 kHz
N
CTS
N
CTS
N
7007
31250
14014
31250
28028
6272
28000
12544
28000
25088
6272
30000
12544
30000
25088
6272
30030
12544
30030
25088
6272
60000
12544
60000
25088
6272
60060
12544
60060
25088
17836
234375
35672
234375
71344
6272
82500
12544
82500
25088
8918
234375
17836
234375
35672
6272
16500
12544
16500
25088
6272
Measured
12544
Measured
25088
Pixel Clock (MHz)
25.2 / 1.001
25.2
27
27 * 1.001
54
Table 62: Recommended N and Expected CTS Values for 48 kHz and Multiples
48 kHz
96 kHz
N
CTS
N
CTS
N
6864
28125
13728
28125
27456
6144
25200
12288
25200
24576
6144
27000
12288
27000
24576
6144
27027
12288
27027
24576
6144
54000
12288
54000
24576
Rev. 0 | Page 231 of 326
176.4 kHz
CTS
31250
28000
30000
30030
60000
60060
234375
82500
234375
16500
Measured
192 kHz
CTS
28125
25200
27000
27027
54000
UG-707
54 * 1.001
74.25 / 1.001
74.25
148.5 / 1.001
148.5
Other
6.11.5.
ADV8005 Hardware Reference Manual
6144
11648
6144
5824
6144
6144
54054
140625
74250
140625
148500
Measured
12288
35672
12288
17836
12288
12288
54054
140625
74250
140625
148500
Measured
24576
46592
24576
23296
24576
24576
54054
140625
74250
140625
148500
Measured
Audio Sample Packets
By setting audioif_cc[2:0] to a value greater then 2 (that is, 3 channel or more), the eight channel audio packet format will be used. The I2S can
be routed to different subpackets using the following fields:
• subpkt0_l_src
• subpkt0_r_src
• subpkt1_l_src
• subpkt1_r_src
• subpkt2_l_src
• subpkt2_r_src
• subpkt3_l_src
• subpkt3_r_src
The audioif_ca[7:0] must be set to a speaker mapping that corresponds to the I2S input stream to subpacket routing. Using SPDIF has a
default setting of two channels.
The audio packets use the channel status format conforming to the IEC 60958 specification. When the part is configured to receive an I2S
stream, the information sent in the channel status fields is provided by the following fields:
• cr_bit
• a_info
• clk_acc
• category_code
• source_number
• word_length
• channel_status
• i2s_sf
Table 63 provides a mapping between the channel status bit encapsulated in the Audio Sample packets sent across the HDMI link to the
downstream sink and corresponding ADV8005 fields located in the Tx Main register map. Note that the mapping shown in Table 63 is the
only application for I2S modes 0, 1, 2 and 3 set via the i2s_format[1:0] field.
When the part is configured to receive an SPDIF stream, the channel status information is taken from the input SPDIF stream.
audioif_ca[7:0], TX2 Main Map, Address 0xF476[7:0]
This register is used to set the Speaker Mapping or placement (Audio InfoFrame).
Function
audioif_ca[7:0]
00000000 (default)
xxxxxxxx
Description
Default value
Speaker mapping
cr_bit, TX2 Main Map, Address 0xF412[5]
This bit is used to set the Channel Status Copyright Information. Refer to the IEC 60958-3 specification.
Rev. 0 | Page 232 of 326
ADV8005 Hardware Reference Manual
Function
cr_bit
0 (default)
1
UG-707
Description
Copyright asserted
Copyright not asserted
a_info[2:0], TX2 Main Map, Address 0xF412[4:2]
This signal is used to set the Channel Status Emphasis information. Refer to the IEC 60958-3 specification.
Function
a_info[2:0]
000 (default)
001
010
011
100-111
Description
2 audio channels without pre-emphasis
2 audio channels with 50/15uS pre-emphasis
Reserved (for 2 audio channels with pre-emphasis)
Reserved (for 2 audio channels with pre-emphasis)
Reserved
clk_acc[1:0], TX2 Main Map, Address 0xF412[1:0]
This signal is used to set the Channel Status Clock Accuracy information. Refer to the IEC 60958-3 specification.
Function
clk_acc[1:0]
00 (default)
01
10
11
Description
level II - normal accuracy +/-1000 x 10^-6
level I - high accuracy +/- 50 x 10^-6
level III - variable pitch shifted clock
Reserved
category_code[7:0], TX2 Main Map, Address 0xF413[7:0]
This register is used to set the Channel Status Category Code. Refer to the IEC 60958-3 specification.
Function
category_code[7:0]
00000000 (default)
xxxxxxxx
Description
Default value
Channel Status category code
source_number[3:0], TX2 Main Map, Address 0xF414[7:4]
This signal is used to set the Channel Status source number.
Function
source_number[3:0]
0000 (default)
xxxx
Description
Default value
Channel Status source number
word_length[3:0], TX2 Main Map, Address 0xF414[3:0]
This signal is used to set the Channel Status Audio Word Length. Refer to the IEC 60958-3 specification.
Function
word_length[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
Description
Not specified
Not specified
16 bits
20 bits
18 bits
22 bits
Reserved
Reserved
19 bits
23 bits
20 bits
24 bits
17 bits
21 bits
Reserved
Reserved
Rev. 0 | Page 233 of 326
UG-707
ADV8005 Hardware Reference Manual
channel_status[1:0], TX2 Main Map, Address 0xF412[7:6]
This signal is used to set the Channel Status bits [1:0]. Set to 0b00 as specified in IEC60958-3. Refer to IEC60958-3 specification.
Function
channel_status[1:0]
xx
Channel Status
Bit
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42-191
Description
Channel status bits 0 and 1
Table 63: I2S Channel Status ADV8005 Register Map Location of Fixed Value
Channel Status Bit Name
Main Map Bit Location or Fixed
Main Map Bit Name or Fixed
Value
Value
Consumer use
0xEC12[6]
channel_status[0]
Audio sample word
0xEC12[7]
channel_status[1]
Copyright
0xEC12[5]
cr_bit
Emphasis
0xEC12[2]
a_info[0]
Emphasis
0xEC12[3]
a_info[1]
Emphasis
0xEC12[4]
a_info[2]
Mode
0
0
Mode
0
0
Category code
0xEC13[0]
category_code[0]
Category code
0xEC13[1]
category_code[1]
Category code
0xEC13[2]
category_code[2]
Category code
0xEC13[3]
category_code[3]
Category code
0xEC13[4]
category_code[4]
Category code
0xEC13[5]
category_code[5]
Category code
0xEC13[6]
category_code[6]
Category code
0xEC13[7]
category_code[7]
Source number
0xEC14[4]
source_number[0]
Source number
0xEC14[5]
source_number[1]
Source number
0xEC14[6]
source_number[2]
Source number
0xEC14[7]
source_number[3]
Channel number
See Figure 106
See Figure 106
Channel number
See Figure 106
See Figure 106
Channel number
See Figure 106
See Figure 106
Channel number
See Figure 106
See Figure 106
Sampling frequency
0xEC15[4]
i2s_sf[0]
Sampling frequency
0xEC15[5]
i2s_sf[1]
Sampling frequency
0xEC15[6]
i2s_sf[2]
Sampling frequency
0xEC15[7]
i2s_sf[3]
Clock accuracy
0xEC12[0]
clk_acc[0]
Clock accuracy
0xEC12[1]
clk_acc[1]
Not defined
0
0
Not defined
0
0
Word length
0xEC14[0]
word_length[0]
Word length
0xEC14[1]
word_length[1]
Word length
0xEC14[2]
word_length[2]
Word length
0xEC14[3]
word_length[3]
Original sampling frequency
0
0
Original sampling frequency
0
0
Original sampling frequency
0
0
Original sampling frequency
0
0
CGMS-A
0
0
CGMS-A
0
0
Not defined
0
0
Rev. 0 | Page 234 of 326
ADV8005 Hardware Reference Manual
UG-707
Figure 106 shows how the channel number bits 20 to 23 are set, based on the layout bit and bit sample_present.spX which indicates if
subpacket X contains audio samples(s). The layout bit in the Audio Sample packet header and the sample_present.spX bit are determined
based on the values programmed in the audioif_cc[2:0] field.
For example, if audioif_cc[2:0] is set to 0b001 which indicates stereo audio, the layout bit will be zero and all Audio Sample subpackets will
contain information for channels 1 and 2. If audioif_cc[2:0] is set to 0b011, indicating four channels, the layout bit will be 1;
sample_present.sp0 will be 1, sample_present.sp1 will be 1, sample_present.sp2 will be 0, and sample_present.sp2 will be 0.
Rev. 0 | Page 235 of 326
UG-707
ADV8005 Hardware Reference Manual
Start
Audio Sample Packet Header
Layout bit
0
1
Audio Sample Packet Header
sample_present.spX bit
Audio Sample Packet Header
sample_present.spX bit
1
1
0
Audio Sample Subpacket X
Cl[23:20] = 2(X) + 1
Cr[23:20] = 2(X) + 2
Audio Sample Subpacket X
Cl[23:20] = 1
Cr[23:20] = 2
Audio Sample Subpacket X
Not Present
Figure 106: Definition of Channel Status Bits 20 to 23
6.11.6.
Audio InfoFrame
The audio InfoFrame allows the sink to identify the characteristics of an audio stream before the channel status information is available.
The ADV8005 can be configured to transmit audio InfoFrame by setting audioif_pkt_en to 1. When the transmission of audio InfoFrame is
Rev. 0 | Page 236 of 326
ADV8005 Hardware Reference Manual
UG-707
enabled, the ADV8005 transmits an audio InfoFrame once every two video fields. Table 64 provides the list of registers that can be used to
configure audio InfoFrames.
audioif_pkt_en, TX2 Main Map, Address 0xF444[3]
This bit is used to enable the Audio InfoFrame.
Function
audioif_pkt_en
0
1 (default)
Description
Disable audio InfoFrame
Enable audio InfoFrame
HDMI Tx Main
Map Address
0xEC70
0xEC71
0xEC72
0xEC73
0xEC74
0xEC75
0xEC76
0xEC77
0xEC78
0xEC79
0xEC7A
0xEC7B
0xEC7C
1
2
Bit Location
Table 64: Audio InfoFrame Configuration Registers
Access Type
Default Value
Field or Byte Name1
[2:0]
[4:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
[7:0]
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
0b001
0b01010
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
00000000
00000000
00000000
InfoFrame version number
InfoFrame length
Checksum2
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
As defined in the latest CEA 861 specification
Only used when auto_checksum_en = 0
6.11.7.
ACP Packet
The Audio Content Protection (ACP) packet is used for transmitting content related information about the active audio stream. Using the
ACP packet will be defined in the license agreement of the protected audio stream.
The contents of the ACP packet can be set via the set of Packet Map registers listed in Table 65. The user can enable the transmission of an
ACP packet to the downstream sink by setting the acp_pkt_en bit. When the transmission of ACP packets is enabled, the ADV8005 transmits
an APC packets once every two video fields.
acp_pkt_en, TX2 Main Map, Address 0xF440[4]
This bit is used to enable the ACP Packet.
Function
acp_pkt_en
0 (default)
1
Description
Disabled
Enabled
Packet Map
Address
0x40
0x41
0x42
0x43
0x44
0x45
Table 65: ACP Packet Configuration Registers
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
acp_hb0[7:0]
acp_hb1[7:0]
acp_hb2[7:0]
acp_pb0[7:0]
acp_pb1[7:0]
acp_pb2[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Rev. 0 | Page 237 of 326
UG-707
ADV8005 Hardware Reference Manual
Packet Map
Address
0x46
0x47
0x48
0x49
0x4A
0x4B
0x4C
0x4D
0x4E
0x4F
0x50
0x51
0x52
0x53
0x54
0x55
0x56
0x57
0x58
0x59
0x5A
0x5B
0x5C
0x5D
0x5E
1
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
acp_pb3[7:0]
acp_pb4[7:0]
acp_pb5[7:0]
acp_pb6[7:0]
acp_pb7[7:0]
acp_pb8[7:0]
acp_pb9[7:0]
acp_pb10[7:0]
acp_pb11[7:0]
acp_pb12[7:0]
acp_pb13[7:0]
acp_pb14[7:0]
acp_pb15[7:0]
acp_pb16[7:0]
acp_pb17[7:0]
acp_pb18[7:0]
acp_pb19[7:0]
acp_pb20[7:0]
acp_pb21[7:0]
acp_pb22[7:0]
acp_pb23[7:0]
acp_pb24[7:0]
acp_pb25[7:0]
acp_pb26[7:0]
acp_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
As defined in the latest CEA 861 specification
6.11.8.
ISRC Packet
If the Supports_AI bit in the Vendor Specific Data Block (VSDB) of the sink EDID is set at 1, the International Standard Recording Code
(ISRC) packets 1 and 2 can be transmitted.
The ADV8005 can be configured to transmit ISRC packet by setting isrc_pkt_en to 1. When the transmission of an ISRC packet is enabled, the
ADV8005 transmits an ISRC packet once every two video fields. Table 66 and Table 67 provide the list of registers that can be used to
configure ISRC packets.
isrc_pkt_en, TX2 Main Map, Address 0xF440[3]
This bit is used to enable the ISRC Packet.
Function
isrc_pkt_en
0 (default)
1
Description
Disabled
Enabled
Packet Map
Address
0xF260
0xF261
0xF262
0xF263
0xF264
Table 66: ISRC1 Packet Configuration Registers
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
isrc1_hb0[7:0]
isrc1_hb1[7:0]
isrc1_hb2[7:0]
isrc1_pb0[7:0]
isrc1_pb1[7:0]
Rev. 0 | Page 238 of 326
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF265
0xF266
0xF267
0xF268
0xF269
0xF26A
0xF26B
0xF26C
0xF26D
0xF26E
0xF26F
0xF270
0xF271
0xF272
0xF273
0xF274
0xF275
0xF276
0xF277
0xF278
0xF279
0xF27A
0xF27B
0xF27C
0xF27D
0xF27E
1
UG-707
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
isrc1_pb2[7:0]
isrc1_pb3[7:0]
isrc1_pb4[7:0]
isrc1_pb5[7:0]
isrc1_pb6[7:0]
isrc1_pb7[7:0]
isrc1_pb8[7:0]
isrc1_pb9[7:0]
isrc1_pb10[7:0]
isrc1_pb11[7:0]
isrc1_pb12[7:0]
isrc1_pb13[7:0]
isrc1_pb14[7:0]
isrc1_pb15[7:0]
isrc1_pb16[7:0]
isrc1_pb17[7:0]
isrc1_pb18[7:0]
isrc1_pb19[7:0]
isrc1_pb20[7:0]
isrc1_pb21[7:0]
isrc1_pb22[7:0]
isrc1_pb23[7:0]
isrc1_pb24[7:0]
isrc1_pb25[7:0]
isrc1_pb26[7:0]
isrc1_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
As defined in the latest CEA 861 specification
Packet Map
Address
0xF280
0xF281
0xF282
0xF283
0xF284
0xF285
0xF286
0xF287
0xF288
0xF289
0xF28A
0xF28B
0xF28C
0xF28D
0xF28E
0xF28F
0xF290
0xF291
0xF292
0xF293
Access Type
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Table 67: ISRC2 Packet Configuration Registers
Field Name
Default Value
isrc2_hb0[7:0]
isrc2_hb1[7:0]
isrc2_hb2[7:0]
isrc2_pb0[7:0]
isrc2_pb1[7:0]
isrc2_pb2[7:0]
isrc2_pb3[7:0]
isrc2_pb4[7:0]
isrc2_pb5[7:0]
isrc2_pb6[7:0]
isrc2_pb7[7:0]
isrc2_pb8[7:0]
isrc2_pb9[7:0]
isrc2_pb10[7:0]
isrc2_pb11[7:0]
isrc2_pb12[7:0]
isrc2_pb13[7:0]
isrc2_pb14[7:0]
isrc2_pb15[7:0]
isrc2_pb16[7:0]
Rev. 0 | Page 239 of 326
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Byte Name1
Header Byte 0
Header Byte 1
Header Byte 2
Data Byte 0
Data Byte 1
Data Byte 2
Data Byte 3
Data Byte 4
Data Byte 5
Data Byte 6
Data Byte 7
Data Byte 8
Data Byte 9
Data Byte 10
Data Byte 11
Data Byte 12
Data Byte 13
Data Byte 14
Data Byte 15
Data Byte 16
UG-707
ADV8005 Hardware Reference Manual
Packet Map
Address
0xF294
0xF295
0xF296
0xF297
0xF298
0xF299
0xF29A
0xF29B
0xF29C
0xF29D
0xF29E
1
Access Type
Field Name
Default Value
Byte Name1
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
isrc2_pb17[7:0]
isrc2_pb18[7:0]
isrc2_pb19[7:0]
isrc2_pb20[7:0]
isrc2_pb21[7:0]
isrc2_pb22[7:0]
isrc2_pb23[7:0]
isrc2_pb24[7:0]
isrc2_pb25[7:0]
isrc2_pb26[7:0]
isrc2_pb27[7:0]
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
0b00000000
Data Byte 17
Data Byte 18
Data Byte 19
Data Byte 20
Data Byte 21
Data Byte 22
Data Byte 23
Data Byte 24
Data Byte 25
Data Byte 26
Data Byte 27
As defined in the latest CEA 861 specification
6.12. EDID HANDLING
6.12.1.
Reading the EDID
The Tx core of the ADV8005 features an EDID/HDCP controller which can read the EDID content of the downstream sink through the DDC
lines, TXDDC_SCL and TXDDC_SDA. This EDID/HDCP controller begins buffering segment 0 of the downstream sink EDID once the sink
HPD is detected and the Tx core of the ADV8005 is powered up. The system can request additional segments by programming the EDID
segment pointer edid_segment[7:0]. edid_ready_int (refer to Section 6.8) indicates that a 256-byte EDID read has been completed, and the
EDID content can be read from the EDID Map.
edid_segment[7:0], TX2 Main Map, Address 0xF4C4[7:0]
This register is used to set the segment of the EDID read from the downstream receiver.
Function
edid_segment[7:0]
xxxxxxxx
6.12.2.
Description
User programmed EDID segment value
EDID Definitions
Extended EDID (E-EDID) supports up to 256 segments. A segment is a 256-byte segment of EDID data containing one or two 128-byte EDID
blocks. A typical HDMI sink will have only two EDID blocks and so will only use segment 0. The first EDID block is always a base EDID
structure defined in the VESA EDID specifications; the second EDID block is usually the CEA extension defined in the CEA-861
specification.
The ADV8005 has a single memory location used to store EDID and HDCP information read from the downstream sink. During HDCP
repeater initialization, the EDID data read from the sink is overwritten with HDCP information which is also read from the sink. The sink
EDID is not reread after HDCP initialization. The user can request the ADV8005 to rebuffer an EDID segment by using the edid_reread
control.
6.12.3.
Additional Segments
The EDID block 0 byte number 0x7E tells how many additional EDID blocks are available. If byte 0x7E is greater than 1, additional EDID
segments will need to be read. If there is more than one segment, the second block (that is, block 1) is required to be an EDID extension map.
This map should be parsed according to the VESA EDID specification to determine where additional EDID blocks are stored in the sink
EDID storage device such as EEPROM, RAM, and so on.
The ADV8005 is capable of accessing up to 256 segments from EDID of the sink as allowed by the EDID specification. By writing the desired
segment number to the edid_segment[7:0] field, the ADV8005 will automatically access the correct portion of the sink EDID over the Tx
DDC lines and load the 256 bytes into the EDID/HDCP memory. When the action is complete, the ADV8005 triggers the edid_ready_int
interrupt (refer to Section 6.8). The EDID data read from the sink can then be accessed from the Tx EDID Map. If the host controller needs
access to previously requested EDID information, then it can be stored in its own memory.
Rev. 0 | Page 240 of 326
ADV8005 Hardware Reference Manual
UG-707
Figure 107 shows how to implement software to read EDID from the downstream sink using the ADV8005.
START
Wait for HPD
interrupt HDP_INT
Power up Tx via
SYSTEM_PD
Wait for EDID
Ready Interrupt
EDID_READY_INT
Set
EDID_SEGMENT
desired Segment
YES
Read EDID data
from TX EDID
Map
Parse EDID
Data
Need
Additional
Blocks?
NO
Disable EDID
Interrupt
EDID_READY_INT
until next HPD
Setup Audio and
Video
Figure 107: Reading Sink EDID Through ADV8005
6.12.4.
edid_tries Control
edid_tries[3:0] can be used to set the number of times the Tx EDID/HDCP controller will try to read the sink EDID after a failure. Each time
an EDID read fails with an I2C Not Acknowledged (NACK), this value of edid_tries[3:0] is decremented. Once the edid_tries[3:0] reaches the
value 0, the Tx EDID/HDCP controller will not attempt to read the EDID until edid_tries[3:0] is set to a value other than 0. This could be
used if a sink asserts high its HPD signal before the DDC bus is ready, resulting in several NACKs as the ADV8005 attempts to read the EDID.
edid_tries[3:0], TX2 Main Map, Address 0xF4C9[3:0]
This signal is used to control the number of times that the EDID read will be attempted if unsuccessful.
Function
edid_tries[3:0]
xxxx
6.12.5.
Description
Number of time the EDID/HDCP controller attempts to read the EDID
EDID Reread Control
If the EDID data from the sink is read in and the host determines that the data needs to be reread, edid_reread can be set from 0 to 1, and the
current segment set via edid_segment[7:0] will be reread. Rereading the sink EDID may be useful, for example, if the host finds that one EDID
checksum read from the sink is invalid.
Note: It is also possible to reread the EDID from the sink by toggling the Tx core power down system_pd from 0 to 1.
Rev. 0 | Page 241 of 326
UG-707
ADV8005 Hardware Reference Manual
edid_reread, TX2 Main Map, Address 0xF4C9[4]
This bit is used to request a the EDID controller to reread the current segment if toggled from 0 to 1 for 10 times consecutively.
Function
edid_reread
0 (default)
1
Description
No action
Request the EDID/HDCP controller to read the EDID
6.13. HDCP HANDLING
6.13.1.
One Sink and No Upstream Devices
The ADV8005 has a built-in controller, the Tx EDID/HDCP controller which handles HDCP transmitter states, including handling
downstream HDCP repeaters. To activate HDCP from a system level, the host controller needs to set hdcp_desired to 1 and
frame_encryption_en to 1. This informs the ADV8005 that the video stream it outputs should be encrypted. The ADV8005 takes control from
there and implements all the remaining tasks defined by the HDCP 1.4 specification.
Before sending audio and video, the BKSV of the downstream sink should be compared with the revocation list which is compiled by
managing System Renewability Messages (SRMs) provided on the source content (for example. DVD, Blue-ray Disc), and the bksv_flag_int
interrupt bit should be cleared. After the HDCP link is established between the ADV8005 and the downstream sink, the system controller
should monitor the status of HDCP by reading enc_on every two seconds. The Tx EDID/HDCP controller error interrupt will activate and
hdcp_error_int will be set to 1 if there is an error relating to the controller. The meaning of the error can be determined by checking
hdcp_controller_error[3:0].
bksv_flag_int, TX2 Main Map, Address 0xF497[6]
This bit is used to readback and control the BKSV Flag interrupt.
Function
bksv_flag_int
0 (default)
1
Description
Interrupt not active
Interrupt active. The KSVs from the downstream sink have been read and available in the Memory Map
hdcp_desired, TX2 Main Map, Address 0xF4AF[7]
This bit is used to request HDCP encryption.
Function
hdcp_desired
0 (default)
1
Description
Input audio and video content not to be encrypted
The input audio and video content should be encrypted
frame_encryption_en, TX2 Main Map, Address 0xF4AF[4]
This bit is used to request HDCP frame encryption.
Function
frame_encryption_en
0
1
Description
Current video frame should not be encrypted
Current video frame should be encrypted
bksv[39:32], TX2 Main Map, Address 0xF4C3[7:0] (Read Only)
This register is used to readback the BKSV Byte 4 read from the downstream receiver by the HDCP controller.
enc_on, TX2 Main Map, Address 0xF4B8[6] (Read Only)
This bit is used to readback the HDCP encryption status.
Rev. 0 | Page 242 of 326
ADV8005 Hardware Reference Manual
Function
enc_on
0 (default)
1
6.13.2.
UG-707
Description
The audio and video content is not being encrypted
The audio and video content is being encrypted
Multiple Sinks and No Upstream Devices
When connecting the ADV8005 as a source to an HDMI input of a repeater, it is necessary to read all BKSVs from downstream devices. These
BKSVs must be checked against a revocation list, which will be provided on the source content.
bksv_count[6:0] will read 0 when the first BKSV interrupt occurs with bksv_flag_int set to 1. After the first BKSV interrupt is cleared, if the
sink connected to the ADV8005 is a repeater, a second BKSV interrupt will occur. The ADV8005 will automatically read up to 13 5-byte
BKSVs at a time and store these in the EDID memory. These BKSVs can be accessed from the EDID Map, as shown in Table 68. The number
of additional BKSVs available stored in the EDID Map can be obtained from bksv_count[6:0]. If there are more than 13 additional BKSVs to
be processed, the ADV8005 will collect the next up to 13 BKSVs from the sink, then generate another BKSV interrupt with bksv_flag_int set
to 1 when the next set is ready.
Table 68: KSV Fields Accessed From EDID Map
KSV Number
Field Name
Register Addresses
0
bksv0_byte_0[7:0]
0xEE00[7:0] byte 0
bksv0_byte_1[7:0]
0xEE01[7:0] byte 1
bksv0_byte_2[7:0]
0xEE02[7:0] byte 2
bksv0_byte_3[7:0]
0xEE03[7:0] byte 3
bksv0_byte_4[7:0]
0xEE04[7:0] byte 4
1
bksv1_byte_0[7:0]
0xEE05[7:0] byte 0
bksv1_byte_1[7:0]
0xEE06[7:0] byte 1
bksv1_byte_2[7:0]
0xEE07[7:0] byte 2
bksv1_byte_3[7:0]
0xEE08[7:0] byte 3
bksv1_byte_4[7:0]
0xEE09[7:0] byte 4
2
bksv2_byte_0[7:0]
0xEE0A[7:0] byte 0
bksv2_byte_1[7:0]
0xEE0B[7:0] byte 1
bksv2_byte_2[7:0]
0xEE0C[7:0] byte 2
bksv2_byte_3[7:0]
0xEE0D[7:0] byte 3
bksv2_byte_4[7:0]
0xEE0E [7:0] byte 4
3
bksv3_byte_0[7:0]
0xEE0F[7:0] byte 0
bksv3_byte_1[7:0]
0xEE10[7:0] byte 1
bksv3_byte_2[7:0]
0xEE11[7:0] byte 2
bksv3_byte_3[7:0]
0xEE12[7:0] byte 3
bksv3_byte_4[7:0]
0xEE13[7:0] byte 4
4
bksv4_byte_0[7:0]
0xEE14[7:0] byte 0
bksv4_byte_1[7:0]
0xEE15[7:0] byte 1
bksv4_byte_2[7:0]
0xEE16[7:0] byte 2
bksv4_byte_3[7:0]
0xEE17[7:0] byte 3
bksv4_byte_4[7:0]
0xEE18[7:0] byte 4
5
bksv5_byte_0[7:0]
0xEE19[7:0] byte 0
bksv5_byte_1[7:0]
0xEE1A[7:0] byte 1
bksv5_byte_2[7:0]
0xEE1B[7:0] byte 2
bksv5_byte_3[7:0]
0xEE1C[7:0] byte 3
bksv5_byte_4[7:0]
0xEE1D[7:0] byte 4
6
bksv6_byte_0[7:0]
0xEE1E[7:0] byte 0
bksv6_byte_1[7:0]
0xEE1F[7:0] byte 1
0xEE20[7:0] byte 2
bksv6_byte_2[7:0]
bksv6_byte_3[7:0]
0xEE21[7:0] byte 3
bksv6_byte_4[7:0]
0xEE22[7:0] byte 4
7
bksv7_byte_0[7:0]
0xEE23[7:0] byte 0
bksv7_byte_1[7:0]
0xEE24[7:0] byte 1
bksv7_byte_2[7:0]
0xEE25[7:0] byte 2
Rev. 0 | Page 243 of 326
UG-707
ADV8005 Hardware Reference Manual
KSV Number
8
9
10
11
12
Field Name
bksv7_byte_3[7:0]
bksv7_byte_4[7:0]
bksv8_byte_0[7:0]
bksv8_byte_1[7:0]
bksv8_byte_2[7:0]
bksv8_byte_3[7:0]
bksv8_byte_4[7:0]
bksv9_byte_0[7:0]
bksv9_byte_1[7:0]
bksv9_byte_2[7:0]
bksv9_byte_3[7:0]
bksv9_byte_4[7:0]
bksv10_byte_0[7:0]
bksv10_byte_1[7:0]
bksv10_byte_2[7:0]
bksv10_byte_3[7:0]
bksv10_byte_4[7:0]
bksv11_byte_0[7:0]
bksv11_byte_1[7:0]
bksv11_byte_2[7:0]
bksv11_byte_3[7:0]
bksv11_byte_4[7:0]
bksv12_byte_0[7:0]
bksv12_byte_1[7:0]
bksv12_byte_2[7:0]
bksv12_byte_3[7:0]
bksv12_byte_4[7:0]
Register Addresses
0xEE26[7:0] byte 3
0xEE27[7:0] byte 4
0xEE28[7:0] byte 0
0xEE29[7:0] byte 1
0xEE2A[7:0] byte 2
0xEE2B[7:0] byte 3
0xEE2C[7:0] byte 4
0xEE2D[7:0] byte 0
0xEE2E[7:0] byte 1
0xEE2F[7:0] byte 2
0xEE30[7:0] byte 3
0xEE31[7:0] byte 4
0xEE32[7:0] byte 0
0xEE33[7:0] byte 1
0xEE34[7:0] byte 2
0xEE35[7:0] byte 3
0xEE36[7:0] byte 4
0xEE37[7:0] byte 0
0xEE38[7:0] byte 1
0xEE39[7:0] byte 2
0xEE3A[7:0] byte 3
0xEE3B[7:0] byte 4
0xEE3C[7:0] byte 0
0xEE3D[7:0] byte 1
0xEE3E[7:0] byte 2
0xEE3F[7:0] byte 3
0xEE40[7:0] byte 4
The BKVS interrupt bit bksv_flag_int set to 1 should be cleared by setting bksv_flag_int to 1 after each set of BKSVs is read. To check when
authentication is complete, the system should monitor hdcp_controller_state[3:0] and wait until this field reaches the value or state 4. At this
time, the last host controller should be used to compare the BKSV list read from the sink with the revocation list. Once the host controller has
verified none of the BKSVs read from the sink are revoked, the ADV8005 can be configured to send content down to the sink.
bksv_count[6:0], TX2 Main Map, Address 0xF4C7[6:0] (Read Only)
This signal is used to specify the total number of downstream HDCP devices.
Function
bksv_count[6:0]
xxxxxxx
6.13.3.
Description
Total number of downstream HDCP devices
Software Implementation
Figure 108 shows a block diagram of HDCP software implementation for all cases using the ADV8005 Tx HDCP/EDID controller state
machine. The necessary interactions with the ADV8005 registers and EDID memory, as well as when these interactions should take place, are
illustrated in the diagram. Note that there is no need to interact with the DDC bus directly because all of the DDC functionality is controlled
by the Tx HDCP/EDID controller and follows the HDCP specification 1.4.
Rev. 0 | Page 244 of 326
ADV8005 Hardware Reference Manual
UG-707
START
Set HDCP
Request Bit
HDCP_DESIRED
to 1
Wait For BKSV
ready interrupt
Read BKSVs
From Registers
Tx EDID map
Clear BKSV Ready
Flag. Set
BKSV_FLAG_INT to
1
Is Sink
Repeater?
BCAPS[5]
==1
NO
Compare BKSVs
with Revocation
List
Wait for Controller
State == 4
HDCP_CONTROLL
ER_STATE
If HDMI Tx is part
of a repeater
send DEPTH and
DEVICE_COUNT
to receiver
Send Audio and
Video Across
HDMI Link
YES
Clear BKSV Ready
Flag. Set
BKSV_FLAG_INT to
1
Wait For BKSV
ready interrupt or
Controller State = 4
HDCP_CONTROLL
ER_STATE
Wait 2 Seconds
Read BKSVs
from EDID
memeroy
If HDMI Tx is part
of a repeater
store BSTATUS
info from EDID
memory 1st time
this state is
reached
Compare BKSVs
with Revocation
List
YES
YES
HDCP Link
OK?
ENCRYPTIO
N_ON == 1
Controller
State == 4?
NO
Clear HDCP
Request, return
to START
Check Number of
BKSVs available
BKSV_COUNT
Figure 108: HDCP Software Implementation
Rev. 0 | Page 245 of 326
UG-707
6.13.4.
ADV8005 Hardware Reference Manual
AV Mute
AV mute can be enabled once HDCP authentication is completed between the ADV8005 and the downstream sink. This can be used to
maintain HDCP synchronization while changing video resolutions. While the KSVs for the downstream devices are being collected, an active
HDCP link capable of sending encrypted video is established, but video should not be sent across the link until the KSVs have been compared
with the revocation list.
It is not recommended to rely on AV mute to avoid sending audio and video during HDCP authentication. This is because AV mute does not
actually mute audio or video in the Tx. It requests the function from the sink device. The best way to avoid sending unauthorized audio and
video is to not send data to the Tx core of the ADV8005 until authentication between the ADV8005 and the downstream sink is complete.
Another option is to black out the video data input to the Tx core and disable the audio inputs to mute the audio. Refer to Section 6.4 for an
explanation of how to enable AV mute. Refer to Section 6.11 for an explanation of how to disable the various audio inputs.
6.14. AUDIO RETURN CHANNEL
The ADV8005 features an Audio Return Channel (ARC) Rx in each HDMI Tx that supports the extraction of an SPDIF stream from the ARC
component of an HDMI Ethernet and Audio Channel (HEAC) signal output by a downstream sink. The ADV8005 can process the HEAC
signal output by the downstream sink in only common mode.
The ARC Rxs are powered up by default but can be powered down using the tx1_arc_powerdown and tx2_arc_powerdown bits. The ARC pins
are disabled by default and must be manually enabled to configure the ADV8005 to output ARC audio. The pins can be manually enabled by
setting both arc_pins_oe_man and arc_pins_oe_man_en to 1. The SPDIF signal extracted by the ARC Rx can be output on the ARC1_OUT
and ARC2_OUT pins.
tx1_arc_s_end_hpd and tx2_arc_s_end_hpd must both be left at the default value (1’b0) at all times – regardless of whether single-ended or
common-mode ARC is being received.
tx1_arc_powerdown, IO Map, Address 0x1A87[7]
This bit is used to powerdown the TX1 ARC block.
Function
tx1_arc_powerdown
0 (default)
1
Description
Power up ARC
Power down ARC
tx2_arc_powerdown, IO Map, Address 0x1A89[7]
This bit is used to powerdown the TX2 ARC block.
Function
tx2_arc_powerdown
0 (default)
1
Description
Power up ARC
Power down ARC
arc_pins_oe_man, IO Map, Address 0x1ACA[7]
This bit is used to control the output enable for ARC outputs.
Function
arc_pins_oe_man
0 (default)
1
Description
Input
Output
arc_pins_oe_man_en, IO Map, Address 0x1ACB[7]
This bit is used to control the manual override for ARC outputs.
Function
arc_pins_oe_man_en
0 (default)
1
Description
Auto
Manual override
To increase the noise immunity of the ADV8005 ARC Rxs, it is recommended to enable the input hysteresis block on both blocks via
Rev. 0 | Page 246 of 326
ADV8005 Hardware Reference Manual
UG-707
tx1_arc_bias_hyst_adj and tx2_arc_bias_hyst_adj.
tx1_arc_bias_hyst_adj, IO Map, Address 0x1A88[1]
This bit is used to control the addition of hysteresis to the TX1 ARC.
Function
tx1_arc_bias_hyst_adj
0 (default)
1
Description
Normal
ADD hysteresis
tx2_arc_bias_hyst_adj, IO Map, Address 0x1A8A[1]
This bit is used to control the addition of hysteresis to the TX2 ARC.
Function
tx2_arc_bias_hyst_adj
0 (default)
1
Description
Normal
ADD hysteresis
6.15. CHARGE INJECTION SETTINGS
The clock and data charge injection controls are used to tune the strength of an AC-coupled driver on the outputs from the ADV8005 Tx. This
driver is used to boost the ramp rate on the output waveform, helping to open the eye particularly at higher transmission speeds. The charge
injection settings used in the ADV8005 software driver are optimized for the evaluation board and may require
adjustment for end-user systems. The three data channels should be configured to the same value charge injection setting. The clock charge
injection value may require adjustment to a separate value to meet rise / fall time requirements.
chg_inj_ch0[3:0], TX2 Main Map, Address 0xF481[7:4]
Binary control of charge injection for data channel 0 with LSB cap value of 77fF
chg_inj_ch1[3:0], TX2 Main Map, Address 0xF481[3:0]
Binary control of charge injection for data channel 1 with LSB cap value of 77fF
chg_inj_ch2[3:0], TX2 Main Map, Address 0xF482[7:4]
Binary control of charge injection for data channel 2 with LSB cap value of 77fF
chg_inj_clk[3:0], TX2 Main Map, Address 0xF482[3:0]
Binary control of charge injection for clock channel with LSB cap value of 77fF
6.16. ENABLING AND DISABLING THE HDMI TMDS OTUPUTS
The clock and data predriver controls are used to enable or disable the current switching outputs from the ADV8005 HDMI Tx.
pre_en_ch0, TX2 Main Map, Address 0xF480[3]
Enable data channel 0
Function
pre_en_ch0
1 (default)
Description
Enabled
0 = Disabled
pre_en_ch1, TX2 Main Map, Address 0xF480[2]
Enable data channel 1
Function
pre_en_ch1
1 (default)
Description
Enabled
0 = Disabled
pre_en_ch2, TX2 Main Map, Address 0xF480[1]
Enable data channel 2
Rev. 0 | Page 247 of 326
UG-707
Function
pre_en_ch2
1 (default)
ADV8005 Hardware Reference Manual
Description
Enabled
0 = Disabled
pre_en_clk, TX2 Main Map, Address 0xF480[0]
Enable clock channel
Function
pre_en_clk
1 (default)
Description
Enabled
0 = Disabled
To disable a TMDS output, it is recommended to follow this sequence:
1. Disable the charge injection for the channel
2. Disable the predriver for the channel
To enable a TMDS output, the opposite sequence should be followed:
1. Enable the predriver for the channel
2. Enable the required charge injection for the channel
In summary, the charge injection should only be enabled while the predriver is also enabled.
6.17. HDMI TX SOURCE TERMINATION
When an ADV8005 HDMI Tx output is connected to a sink device, the capabilities of the sink device’s receiver must first be considered. If the
sink device is limited to receiving a maximum TMDS clock frequency less than or equal to 165 MHz, the source termination must be disabled
in the ADV8005 Tx connected to that sink device.
If the sink device can receive a TMDS clock frequency above 165 MHz, then the TMDS clock frequency of the ADV8005 HDMI Tx connected
to that sink will dictate what source termination settings are used. In this case, the Tx source termination settings must be configured as
follows :
• ADV8005 Tx source termination disabled if the ADV8005 Tx TMDS clock frequency is less than or equal to 165 MHz
• ADV8005 Tx source termination enabled if the ADV8005 Tx TMDS clock frequency is greater than 165 MHz
Therefore, for 4k x 2k, Tx source termination should be enabled on the ADV8005 HDMI Tx output. To disable the source termination, a
manual over-ride must be enabled. The manual over-ride value is an open-circuit if the control is set to 0.
Figure 109 provides an overview of the ADV8005 HDMI Tx source termination requirements.
Rev. 0 | Page 248 of 326
ADV8005 Hardware Reference Manual
UG-707
TX OUTPUT PORT
CONNECTED TO
SINK DEVICE
NO
CAN SINK DEVICE
RECEIVE TMDS CLK FREQUENCIES
GREATER THAN 165MHz ?
TX OUTPUT PORT
SOURCE TERMINATION
OFF
YES
NO
IS TX OUTPUT’S
TMDS CLK FREQUENCY
GREATER THAN 165MHz ?
YES
TX OUTPUT PORT
SOURCE TERMINATION
ON
Figure 109: ADV8005 Tx Source Termination Requirements
6.18. HDMI ACR PACKET TRANSMISSION
A mode has been added to the HDMI Tx to ensure more efficient transmission of audio samples in 176.4 kHz and 192 kHz modes. This
ensures ACR packets can get sent more frequently on the ADV8005 for these modes than is the case for the equivalent modes on the
ADV8003.
arc_eff_tran_en, TX2 Main Map, Address 0xF447[0]
When enable it ensures more efficient transmission of ARC packets and audio samples in 176.4kHz and 192kHz modes. This ensures ACR
packets can get sent at the right rate (~1ms).
Function
arc_eff_tran_en
0
1 (default)
Description
ARC packet efficient transmision disable.
ARC packet efficient transmition enable.
Rev. 0 | Page 249 of 326
UG-707
ADV8005 Hardware Reference Manual
7. VIDEO ENCODER INTRODUCTION TO THE ADV8005
7.1. INTRODUCTION
The ADV8005 encoder core consists of six high speed, Noise Shaped Video (NSV), 12-bit video DACs which provide support for composite
(CVBS), S-Video (Y-C), and component (YPrPb/RGB) analog outputs in standard definition (SD), enhanced definition (ED), or high
definition (HD) video formats.
Simultaneous SD and ED/HD input and output modes are supported. The ADV8005 encoder processor provides two independent signal
paths for SD and ED/HD, so different video processing (filtering, color conversion, and so on) can be individually and simultaneously applied
to each of the streams.
The input to the SD encoder block is always a 16/20/24-bit 4:2:2 YCbCr stream, and a 24/30/36-bit 4:4:4 YCbCr stream for ED/HD modes.
Although the encoder cannot take an RGB input stream in, it features a CSC matrix which enables the generation of RGB video signals at the
component output.
The oversampling at 216 MHz (SD and ED) and 297 MHz (HD) ensures that external output filtering is not required. The block diagram for
the ADV8005 encoder core is shown in Figure 110.
ENCODER PROCESSOR
SD VIDEO
STREAM
YCbCr
SD TEST
PATTERN
GENERATOR
YCbCr
36-BIT
4:4:4 YCbCr
EH/HD VIDEO
STREAM
ADD
SYNC
PROGRAMMABLE
LUMINANCE
FILTER
ADD
BURST
PROGRAMMABLE
CHROMINANCE
FILTER
PROGRAMMABLE
HDTV FILTERS
HD TEST
PATTERN
GENERATOR
SUBCARRIER FREQUENCY
LOCK (SFL)
YCrCb
TO
RGB
SIN/COS DDS
BLOCK
YCbCr
TO
RGB MATRIX
16×
FILTER
4×
FILTER
SHARPNESS AND
ADAPTIVE FILTER
CONTROL
VIDEO TIMING GENERATOR
16×
FILTER
14-BIT
DAC 1
DAC 1
14-BIT
DAC 2
DAC 2
14-BIT
DAC 3
DAC 3
14-BIT
DAC 4
DAC 4
14-BIT
DAC 5
DAC 5
14-BIT
DAC 6
DAC 6
DACs OUTPUT
24-BIT
4:2:2 YCbCr
I2C PORT
MULTIPLEXER
FROM INTERNAL DATA PATH
VBI DATA SERVICE
INSERTION
16x/4x OVERSAMPLING
DAC PLL
Figure 110: ADV8005 Encoder Block Diagram
Note: The video encoder variants of the ADV8005 are ADV8005KBCZ-8A/8N. The variants of ADV8005 with no encoder are
ADV8005KBCZ-8B/8C.
7.2. INPUT CONFIGURATION
The ADV8005 encoder core is capable of supporting independent SD and ED/HD video outputs, and also both SD and ED/HD video in
simultaneous mode.
The data coming either from the VSP section or directly from the ADV8005 front-end input, is input to the SD encoder through two 8/10/12bit SDR buses; the ED/HD encoder is accessed through three 8/10/12-bit SDR buses.
Rev. 0 | Page 250 of 326
ADV8005 Hardware Reference Manual
UG-707
ADV8005 ENCODERPROCESSOR
MUX
VIDEO F R O M
IN TER N A L
A DV8002
DA TA PA TH
VIDEO F R O M
IN TER N A L
A DV8002
DA TA PA TH
16/20/24-BI T
YCb Cr 4:4:4
4:4:4 to 4:2:2
Conversion
24/30/36-BI T
YCb Cr 4:4:4
SD ENCODER
HD ENCODER
14-BIT
D AC 1
DAC 1
14-BIT
D AC 2
DAC 2
14-BIT
D AC 3
DAC 3
14-BIT
D AC 4
DAC 4
14-BIT
D AC 5
DAC 5
14-BIT
D AC 6
DAC 6
Figure 111: Simplified View of ADV8005 Encoder Block
The video being routed to the SD and ED/HD encoders can be selected through the 0x0004[7:4] register (ED/HD encoder) and 0x0004[3:0]
(SD encoder). Refer Section 2.2.1 for more information.
Once the desired video has been routed to the encoder, the mode of the incoming video data needs to be set using func_mode[2:0].
func_mode[2:0], Encoder Map, Address 0xE401[6:4]
This signal is used to select the input mode to the encoder.
Function
func_mode[2:0]
000 (default)
001
010
011
100
101
110
111
Description
SD Input Only
ED/HD-SDR input only
Reserved
Simultaneous SD and ED/HD-SDR
Reserved
Reserved
Reserved
Reserved
Once the input configuration to the encoder section is configured, the input standard to the SD and/or HD encoder must be selected. Table 69
lists the possible input standards supported by the ADV8005 encoder core. Note that if using the ADV8005 de-interlacer and/or scaler, the
input standard of the encoder must be set to that of the output of the VSP section. If bypassing the VSP section, the user should set this to the
standard of the external input video.
If configuring the HD encoder, the input standard must be set using hd_enc_ip_mode[4:0].
hd_enc_ip_mode[4:0], Encoder Map, Address 0xE430[7:3]
This signal is used to select the ED/HD output standard.
Rev. 0 | Page 251 of 326
UG-707
Function
hd_enc_ip_mode[4:0]
00000 (default)
00010
00011
00100
00101
00110
00111
01000
01001
01010
01011
01100
01101
01110
01111
10000
10001
10011
10100
10110
ADV8005 Hardware Reference Manual
Description
SMPTE293M-1996 483P 60/1.001 OR ITU-R BT.1358 483P 60/1.001
BTA T-1004 EDTV2 483P 60/1.001 OR ITU-R BT.1362 483P 60/1.001
ITU-R BT.1358 576P 50
ITU-R BT.1362 576P 50
SMPTE296M-2001(1) 720P 60 OR SMPTE296M-2001(2) 720P 60/1.001
SMPTE296M-2001(3) 720P 50
SMPTE296M-2001(4) 720P 30 OR SMPTE296M-2001(5) 720P 30/1.001
SMPTE296M-2001(6) 720P 25 OR
SMPTE296M-2001(7) 720P 24 OR SMPTE296M-2001(8) 720P 24/1.001
SMPTE240M-1999 1035I 30 OR SMPTE240M-1999 1035I 30/1.001
SMPTE274-1998(1) 1080P 60 OR SMPTE274-1998(2) 1080P 60/1.001
SMPTE274-1998(3) 1080P 50
SMPTE274-1998(4) 1080I 30 OR SMPTE274-1998(5) 1080I 30/1.001
SMPTE274-1998(6) 1080I 25
SMPTE274-1998(7) 1080P 30 OR SMPTE274-1998(8) 1080P 30/1.001
SMPTE274-1998(9) 1080P 25
SMPTE274-1998(10) 1080P 24 OR SMPTE274-1998(11) 1080P 24/1.001
SMPTE295-1997 1080I 25
SMPTE295-1997 1080P 50
ITU-R BT.709-5 1152I 50
For the SD encoder, the input standard can be configured using sd_enc_ip_mode[1:0]. If using the SD encoder, the SD standard can also be set
using the automatic mode which is configured using sd_autodetect_en. If manually setting this SD standard, the automatic mode must be
disabled.
When using the encoder in an SD-only mode, it is required that sd_enc_inp_sel[3:0] and hd_enc_inp_sel[3:0] are set to the same format.
sd_enc_ip_mode[1:0], Encoder Map, Address 0xE480[1:0]
This signal is used to select the SD standard.
Function
sd_enc_ip_mode[1:0]
00 (default)
01
10
11
Description
NTSC
PAL B/D/G/H/I
PAL M
PAL N
sd_autodetect_en, Encoder Map, Address 0xE487[5]
This bit is used to enable the encoder section to auto-detect the input standard.
Function
sd_autodetect_en
1
0 (default)
Description
Enabled
Disabled
When enabled (sd_autodetect_en set to 1), the ADV8005 encoder core can automatically identify an NTSC or a PAL B/D/G/H/I input stream.
The ADV8005 encoder core is also configured to correctly encode the identified standard. The SD standard bits (sd_enc_ip_mode[1:0]) and
the subcarrier frequency registers are not updated to reflect the identified standard; all registers retain their default or user defined values.
These registers should, therefore, not be used as a way of determining the decoded standard.
Table 69: Standards Directly Supported by ADV8005 Encoder Processor
Active
I/P
Frame
Standard
Resolution
Rate (Hz)
720 × 240
P
59.94
720 × 288
P
50
720 × 480
I
29.97
ITU-R BT.601/656
720 × 576
I
25
ITU-R BT.601/656
Rev. 0 | Page 252 of 326
ADV8005 Hardware Reference Manual
UG-707
Active
Resolution
720 × 483
720 × 483
720 × 483
720 × 576
720 × 483
720 × 576
1920 × 1035
1920 × 1035
1280 × 720
I/P
1280 × 720
P
1920 × 1080
1920 × 1080
1920 × 1080
1920 × 1080
1920 × 1080
1920 × 1080
I
I
I
I
P
P
1920 × 1080
1920 × 1080
1920 × 1080
P
P
P
P
P
P
P
P
P
I
I
P
Frame
Rate (Hz)
59.94
59.94
59.94
50
59.94
50
30
29.97
60, 50, 30,
25, 24
23.97,
59.94,
29.97
30, 25
29.97
25
50
30, 25, 24
23.98,
29.97
24
50
50, 59.94,
60
Standard
SMPTE 293M
BTA T-1004
ITU-R BT.1358
ITU-R BT.1358
ITU-R BT.1362
ITU-R BT.1362
SMPTE 240M
SMPTE 240M
SMPTE 296M
SMPTE 296M
SMPTE 274M
SMPTE 274M
SMPTE 295
ITU-R BT.709-5
SMPTE 274M
SMPTE 274M
ITU-R BT.709-5
SMPTE 295
SMPTE 274M
I = interlaced, P = progressive.
7.3. OUTPUT CONFIGURATION
Once the input to the encoder section has been configured, the user can configure the output of the encoder DACs. Depending on the input
mode specified by the func_mode[2:0] register, the DAC outputs can be configured accordingly using dac1_sel[2:0] to dac6_sel[2:0].
It is important to note that if the func_mode[2:0] signal is set to simultaneous mode; then DACs 1-3 can only output the ED/HD signals of
YPbPr or RGB, and DACs 4-6 can only output the SD signals of CVBS or black burst or luma or chroma. It is possible to multiplex any of the
ED/HD signals out on any of the DACs 1 to 3 in simultaneous mode. Similarly, it is possible to multiplex any of the SD signals out on any of
the DACs 4 to 6.
It should also be noted that to enable the DAC outputs from the NON-ROVI ADV8005 part (ADV8005KBCZ-8N) 00h must be written to
Encoder map, register 0xE4E0.
dac1_sel[2:0], Encoder Map, Address 0xE429[6:4]
This signal selects the data that is supplied to DAC 1.
Function
dac1_sel[2:0]
0 (default)
1
2
3
4
5
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
dac2_sel[2:0], Encoder Map, Address 0xE429[2:0]
This signal selects the data that is supplied to DAC 2.
Rev. 0 | Page 253 of 326
UG-707
Function
dac2_sel[2:0]
0
1 (default)
2
3
4
5
ADV8005 Hardware Reference Manual
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
dac3_sel[2:0], Encoder Map, Address 0xE42A[6:4]
This signal selects the data that is supplied to DAC 3.
Function
dac3_sel[2:0]
0
1
2 (default)
3
4
5
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
dac4_sel[2:0], Encoder Map, Address 0xE42A[2:0]
This signal selects the data that is supplied to DAC 4.
Function
dac4_sel[2:0]
0
1
2
3 (default)
4
5
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
dac5_sel[2:0], Encoder Map, Address 0xE42B[6:4]
This signal selects the data that is supplied to DAC 5.
Function
dac5_sel[2:0]
0
1
2
3
4 (default)
5
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
dac6_sel[2:0], Encoder Map, Address 0xE42B[2:0]
This signal selects the data that is supplied to DAC 6.
Function
dac6_sel[2:0]
0
1
2
3
4
5 (default)
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
7.4. ADDITIONAL DESIGN FEATURES
This section outlines the various design features of the encoder which can be used to improve the overall video quality and the ADV8005
performance in a system. Many of these functions are optional and should be set depending on a user’s application.
7.4.1.
Output Oversampling
Rev. 0 | Page 254 of 326
ADV8005 Hardware Reference Manual
UG-707
The ADV8005 encoder core includes two on-chip phase-locked loops (PLLs) that allow for oversampling of SD, ED, and HD video data.
Oversampling effectively increases the bandwidth of the output video data, which means that expensive analog filters are not needed at the
DAC outputs, thus resulting in reduced BOM costs. Table 70 shows the various oversampling rates supported in the ADV8005 encoder core.
Two PLLs are used for oversampling the analog output video, depending on the mode. When SD modes only are being output, PLL1 is used
for output oversampling. When HD modes only are being output, PLL2 is used for output oversampling. In dual modes where both SD and
HD formats are being output, PLL1 and PLL2 are both used for SD and HD video respectively.
pll_pdn, Encoder Map, Address 0xE400[1]
This bit is used to control the PLL and oversampling. This control allows the internal PLL 1 circuit to be powered down and the
oversampling feature to be switched off. By default this is disabled, setting this bit to 0 enables this feature.
Function
pll_pdn
0
1 (default)
Description
PLL On
PLL Off
Input Mode
Register 0xE401,
Bits[6:4]
SD only
SD only
ED only
ED only
HD only
HD only
SD and ED
SD and ED
SD and HD
SD and HD
ED only (at 54 MHz)
ED only (at 54 MHz)
7.4.2.
Table 70: Output Oversampling Modes and Rates
PLL and Oversampling Control
Oversampling Mode and Rate
Register 0xE400, Bit 1
1
0
1
0
1
0
1
0
1
0
1
0
SD (2×)
SD (16×)
ED (1×)
ED (8×)
HD (1×)
HD (4×)
SD (2×) and ED (8×)
SD (16×) and ED (8×)
SD (2×) and HD (4×)
SD (16×) and HD (4×)
ED only (at 54 MHz) (1×)
ED only (at 54 MHz) (8×)
Subcarrier Frequency Lock (SFL) Mode
The ADV8005 encoder core can be used in Subcarrier Frequency Lock (SFL) mode (rtcen = 11). When SFL mode is enabled, the SFL pin can
receive a serial digital stream from an ADI decoder (for example, ADV784x) which is used to lock the subcarrier frequency. This enables the
ADV8005 encoder to stay locked to a video pixel clock which drifts over the time (this happens with poor video sources like VCRs). Since the
color subcarrier in SD modes is generated from the input pixel clock to the ADV8005, these variations on its frequency may alter the final
color on the CBVS or Y/C output.
Hence, the SFL mode allows the ADV8005 encoder core to automatically alter the subcarrier frequency to compensate for these line length
variations. When the part is connected to a device such as an ADV784x video decoder that outputs a digital data stream in the SFL format, the
part automatically changes to the compensated subcarrier frequency on a line-by-line basis. This digital data stream is 67-bits wide, and the
subcarrier is contained in Bit 0 to Bit 21. Each bit is two clock cycles long.
rtcen[1:0], Encoder Map, Address 0xE484[2:1]
This signal is used to select the Sub-carrier Frequency Lock mode. The value of these register bits along with the status of the SFL pin
determine the operation.
Function
rtcen[1:0]
00 (default)
11
Description
Disabled.
SFL mode enabled.
Rev. 0 | Page 255 of 326
UG-707
7.4.3.
ADV8005 Hardware Reference Manual
SD VCR FF/RW Synchronization
In DVD record applications where the encoder is used with a decoder, the VCR FF/RW synchronization control bit can be used for
nonstandard input video. This is in fast forward or rewind modes.
In fast forward mode, the sync information at the start of a new field in the incoming video usually occurs before the correct number of
lines/fields is reached. In rewind mode, this sync signal usually occurs after the total number of lines/fields is reached. Conventionally, this
means that the output video has corrupted field signals because one signal is generated by the incoming video and another is generated when
the internal line/field counters reach the end of a field.
When the VCR FF/RW sync control is enabled (dvd_r = 1), the line/field counters are updated according to the incoming VSync signal and
when the analog output matches the incoming VSync signal. This control is available in all slave timing modes except slave mode 0.
dvd_r, Encoder Map, Address 0xE482[5]
This bit is used to enable the SD VCR FF/RW sync feature.
Function
dvd_r
1
0 (default)
7.4.4.
Description
Enabled
Disabled
Vertical Blanking Interval
The ADV8005 encoder core is able to accept input data that contains VBI data (such as CGMS, WSS, VITS) in SD, ED, and HD modes.
If VBI is disabled, VBI data is not present at the output and the entire VBI is blanked. These control bits are valid in all master and slave timing
modes. In order to enable this feature, vbi_data_en is set to 1.
For the SMPTE 293M (525p) standard, VBI data can be inserted on Line 13 to Line 42 of each frame or on Line 6 to Line 43 for the ITU-R
BT.1358 (625p) standard. VBI data can be present on Line 10 to Line 20 for NTSC and on Line 7 to Line 22 for PAL. If CGMS is enabled and
VBI is disabled, the CGMS data is, nevertheless, available at the output.
7.4.5.
SD Subcarrier Frequency Control
The ADV8005 encoder core is able to generate the color subcarrier used in CVBS and S-Video (Y-C) outputs from the input pixel clock. Four 8bit registers are used to set up the subcarrier frequency. The value of these registers is calculated using Equation 27 and Equation 28.
Subcarrier Frequency Register =
Number of subcarrier periods in one video line
Number of 27 MHz clk cycles in one video line
× 2 32
Equation 27: SD Subcarrier Frequency Calculation
where the sum is rounded to the nearest integer. For example, in NTSC mode:
227.5  32
Subcarrier Register Value = 
 × 2 = 569408543
 1716 
Equation 28: SD Subcarrier Frequency Calculation
where:
Subcarrier Register Value = 569408543d = 0×21F07C1F
SD FSC Register 0: 0x1F
SD FSC Register 1: 0x7C
SD FSC Register 2: 0xF0
SD FSC Register 3: 0x21
Rev. 0 | Page 256 of 326
ADV8005 Hardware Reference Manual
7.4.5.1.
UG-707
Programming the FSC
The subcarrier frequency register value is divided into four FSC registers, as shown in Equation 28. The subcarrier frequency registers
(fsc[31:0]) must be updated sequentially, starting with Subcarrier Frequency Register 0 and ending with Subcarrier Frequency Register 3. The
reason for this is because the subcarrier frequency only updates when Subcarrier Frequency Register 3 has been updated. The SD input
standard autodetection feature (sd_autodetect_en) must be disabled. The registers to be programmed are described below.
fsc[31:0], Encoder Map, Address 0xE48F[7:0]; Address 0xE48E[7:0]; Address 0xE48D[7:0]; Address 0xE48C[7:0]
This register is used to set the subcarrier frequency value.
Table 71 outlines the values that should be written to the subcarrier frequency registers for NTSC and PAL B/D/G/H/I.
Register
0xE48C
0xE48D
0xE48E
0xE48F
7.4.6.
Table 71: Typical FSC Values
Description
NTSC
PAL B/D/G/H/I
FSC0
0x1F
0xCB
FSC1
0x7C
0x8A
FSC2
0xF0
0x09
FSC3
0x21
0x2A
SD Non Interlaced Mode (240p/288p)
The ADV8005 encoder core supports an SD non interlaced mode. Using this mode, progressive inputs at twice the frame rate of NTSC and
PAL (240p/59.94 Hz and 288p/50 Hz respectively) can be input into the ADV8005 encoder. If the user selects the input to be 240p or 288p,
sd_non_interlaced must be set correspondingly. Refer to Section 7.2 for more details on setting the input format.
sd_non_interlaced, Encoder Map, Address 0xE488[1]
This bit is used to enable the support of SD non-interlaced modes.
Function
sd_non_interlaced
1
0 (default)
Description
Enabled
Disabled
Note: All input configurations, output configurations, and features available in NTSC and PAL modes are available in SD non interlaced mode.
For 240p/59.94 Hz input, the ADV8005 encoder core should be configured for NTSC operation. For 288p/50 Hz input, the ADV8005 encoder
core should be configured for PAL operation.
7.4.7.
Filters
The ADV8005 encoder core offers numerous filtering options for both SD and ED/HD as well as for both luma and chroma data.
7.4.7.1.
SD Filters
Table 72 provides details on the numerous available SD filters.
Filter
Luma LPF NTSC
Luma LPF PAL
Luma Notch NTSC
Luma Notch PAL
Luma SSAF
Luma CIF
Luma QCIF
Chroma 0.65 MHz
Table 72: Internal Filter Specifications
3 dB Bandwidth (MHz)2
Pass-Band Ripple (dB)1
0.16
4.24
0.1
4.81
0.09
2.3/4.9/6.6
0.1
3.1/5.6/6.4
0.04
6.45
0.127
3.02
Monotonic
1.5
Monotonic
0.65
Rev. 0 | Page 257 of 326
UG-707
ADV8005 Hardware Reference Manual
Filter
Chroma 1.0 MHz
Chroma 1.3 MHz
Chroma 2.0 MHz
Chroma 3.0 MHz
Chroma CIF
Chroma QCIF
Pass-Band Ripple (dB)1
Monotonic
0.09
0.048
Monotonic
Monotonic
Monotonic
3 dB Bandwidth (MHz)2
1
1.395
2.2
3.2
0.65
0.5
1
Pass-band ripple is the maximum fluctuation from the 0 dB response in the pass band, measured in decibels. The pass band is defined to have 0 Hz to fc (Hz) frequency
limits for a low-pass filter and 0 Hz to f1 (Hz), and f2 (Hz) to infinity for a notch filter, where fc, f1, and f2 are the −3 dB points.
2
3 dB bandwidth refers to the −3 dB cutoff frequency.
The luma filter supports several different frequency responses, including two low-pass responses, two notch responses, an extended (SSAF)
response with or without gain boost attenuation, a CIF response, and a QCIF response. These can be configured using luma_filter_sel[2:0].
luma_filter_sel[2:0], Encoder Map, Address 0xE480[4:2]
This signal is used to configure the luma filters for SD data.
Function
luma_filter_sel[2:0]
000
001
010
011
100 (default)
101
110
111
Description
LPF NTSC
LPF PAL
Notch NTSC
Notch PAL
SSAF Luma
Luma CIF
Luma QCIF
Reserved
If SD SSAF gain is enabled, there are 13 response options in the −4 dB to +4 dB range. The desired response can be programmed using register
0xA2. The variation in frequency responses is shown in Figure 112, Figure 113, and Figure 114. The registers required for enabling and
controlling the SSAF filter gain are described below.
4
2
MAGNITUDE (dB)
0
–2
–4
–6
–8
–12
0
1
2
3
4
FREQUENCY (MHz)
5
6
7
06398-036
–10
Figure 112: SD Luma SSAF Filter, Programmable Responses
Rev. 0 | Page 258 of 326
ADV8005 Hardware Reference Manual
UG-707
5
MAGNITUDE (dB)
4
3
2
1
–1
0
2
1
3
4
FREQUENCY (MHz)
5
6
7
06398-037
0
Figure 113: SD Luma SSAF Filter, Programmable Gains
1
MAGNITUDE (dB)
0
–1
–2
–3
–5
0
2
1
3
4
FREQUENCY (MHz)
5
6
7
06398-038
–4
Figure 114: SD Luma SSAF Filter, Programmable Attenuation
peak_en, Encoder Map, Address 0xE487[4]
This bit is used to enable the SD SSAF filter gain.
Function
peak_en
1
0 (default)
Description
Enabled
Disabled
peak[3:0], Encoder Map, Address 0xE4A2[3:0]
This signal is used to configure the SD luma SSAF gain/attenuation (only applicable if subaddress 0x87, Bit 4 = 1).
Function
peak[3:0]
0000 (default)
0100
1000
Description
-4dB
...
0dB
...
+4dB
The chroma filters support several different frequency responses, including six low-pass responses, a CIF response, and a QCIF response.
These can be configured using chroma_filter_sel[2:0].
chroma_filter_sel[2:0], Encoder Map, Address 0xE480[7:5]
This signal is used to configure the chroma filters for SD data.
Rev. 0 | Page 259 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
chroma_filter_sel[2:0]
000 (default)
001
010
011
100
101
110
111
Description
1.3MHz
0.65MHz
1MHz
2MHz
Reserved
Chroma CIF
Chroma QCIF
3MHz
In addition to the chroma filters listed with chroma_filter_sel[2:0], there is an SSAF filter that is specifically designed for the color difference
component outputs, Pr and Pb. This filter has a cutoff frequency of ~2.7 MHz and a gain of –40 dB at 3.8 MHz. Refer to Figure 115 for more
details. To enable this filter, wide_uv_filt should be set to 1.
EXTENDED (SSAF) PrPb FILTER MODE
0
GAIN (dB)
–10
–20
–30
–40
–60
0
1
2
3
4
FREQUENCY (MHz)
5
6
06398-066
–50
Figure 115: PrPb SSAF Filter
wide_uv_filt, Encoder Map, Address 0xE482[0]
This bit is used to enable the SSAF filter for PrPb SD data.
Function
wide_uv_filt
1 (default)
0
Description
Enabled
Disabled
If this filter is disabled, one of the chroma filters shown in Table 72 can be selected and used for the CVBS or luma/chroma signal.
7.4.7.2.
ED/HD Filters
The ADV8005 encoder core also includes a sinc compensation filter designed to counter the effect of sinc roll-off in DAC 1, DAC 2, and DAC
3 while operating in ED/HD mode. The benefit of the filter is illustrated in Figure 116 and Figure 117 which show the effect of the filter when
enabled and disabled. This filter is enabled by default but can be disabled using sinc_filt_df_en.
Rev. 0 | Page 260 of 326
ADV8005 Hardware Reference Manual
UG-707
0.5
0.4
0.3
GAIN (dB)
0.2
0.1
0
–0.1
–0.2
–0.3
0
5
10
15
20
FREQUENCY (MHz)
25
30
06398-067
–0.4
–0.5
Figure 116: ED/HD Sinc Compensation Filter Enabled
0.5
0.4
0.3
GAIN (dB)
0.2
0.1
0
–0.1
–0.2
–0.3
–0.5
0
5
10
15
20
FREQUENCY (MHz)
25
30
06398-068
–0.4
Figure 117: ED/HD Sinc Compensation Filter Disabled
sinc_filt_df_en, Encoder Map, Address 0xE433[3]
This bit is used to disable the sinc compensation filter on DAC1, DAC2 and DAC3.
Function
sinc_filt_df_en
0
1
7.4.8.
Description
Disabled
Enabled
ED/HD Test Pattern Generator
ADV8005 is able to internally generate ED/HD black bar, uniform background color or hatch test patterns. It is not possible to output a color
bar test pattern while EH/HD video is being routed through the encoder. This test pattern can be enabled using hdtv_tp_en and the test
pattern used can be determined using hdtv_flat_tp.
y_colour[7:0], cr_colour[7:0], and cb_colour[7:0] are used to program the output color of the internal ED/HD test pattern generator, whether
it is the lines of the crosshatch pattern or the uniform field test pattern. They are not functional as color controls for external pixel data input.
hdtv_tp_en, Encoder Map, Address 0xE431[2]
This bit is used to enable the ED/HD test pattern generator.
Rev. 0 | Page 261 of 326
UG-707
Function
hdtv_tp_en
0 (default)
1
ADV8005 Hardware Reference Manual
Description
ED/HD test pattern off
ED/HD test pattern on.
The values for the luma (Y) and the color difference (Cr and Cb) signals used to obtain white, black, and saturated primary and
complementary colors conform to the ITU-R BT.601-4 standard.
Table 73 shows sample color values that can be programmed into the color registers when the output standard selection is set to EIA
770.2/EIA770.3 (Reg 0x30, Bits[1:0] = 00).
hdtv_flat_tp, Encoder Map, Address 0xE431[3]
This bit is used to select the pattern used by the internal test pattern generator.
Function
hdtv_flat_tp
0 (default)
1
Description
Hatch
Field/frame
y_colour[7:0], Encoder Map, Address 0xE436[7:0]
This register is used to control the ED/HD test pattern, Y level.
cr_colour[7:0], Encoder Map, Address 0xE437[7:0]
This register is used to control the ED/HD test pattern, Cr level.
cb_colour[7:0], Encoder Map, Address 0xE438[7:0]
This register is used to control the ED/HD test pattern, Cb level.
Table 73: Sample Color Values for EIA 770.2/EIA770.3 ED/HD Output Standard Selection
Sample Color
Y Value
Cr Value
Cb Value
White
235
(0xEB)
128
(0x80)
128
(0x80)
Black
16
(0x10)
128
(0x80)
128
(0x80)
Red
81
(0x51)
240
(0xF0)
90
(0x5A)
Green
145
(0x91)
34
(0x22)
54
(0x36)
Blue
41
(0x29)
110
(0x6E)
240
(0xF0)
Yellow
210
(0xD2)
146
(0x92)
16
(0x10)
Cyan
170
(0xAA)
16
(0x10)
166
(0xA6)
Magenta
106
(0x6A)
222
(0xDE)
202
(0xCA)
7.4.9.
Color Space Conversion Matrix
The input to the encoder block on the ADV8005 should always be in a YCbCr color space. If an RGB color space is present at the input pins,
the CSC on the I/O block of the ADV8005 can be used to convert it to YCbCr. It is possible, however, to convert from YCbCr to an RGB
stream in the encoder. The encoder output color space can be programmed using yuv_out.
yuv_out, Encoder Map, Address 0xE402[5]
This bit is used to select the output colour space for the encoder.
Function
yuv_out
0
1 (default)
7.4.10.
Description
RGB component outputs.
YPrPb component outputs.
ED/HD Manual CSC Matrix Adjust Feature
Rev. 0 | Page 262 of 326
ADV8005 Hardware Reference Manual
UG-707
The ED/HD manual CSC matrix adjust feature provides custom coefficient manipulation for the YPbPr to RGB CSC and is used in ED and HD
modes only. matrix_prog_en can be used to enable this feature.
matrix_prog_en, Encoder Map, Address 0xE402[3]
This bit is used to enable the manual mode for the ED/HD colour space converter.
Function
matrix_prog_en
0 (default)
1
Description
Automatic Mode
Manual Mode
Normally, there is no need to enable this feature because the CSC matrix automatically performs the CSC based on the input mode chosen (ED
or HD) and the output color space selected using yuv_out. If the user needs to automatically update the CSC coefficients, the following
procedure is followed.
If the user selects the RGB output color space, the ED/HD CSC matrix scaler uses the following equations:
R = GY × Y + RV × Pr
G = GY × Y − (GU × Pb) − (GV × Pr)
B = GY × Y + BU × Pb
Note: Subtractions in these equations are implemented in the hardware.
The following registers need to be programmed with these values:
•
•
•
•
•
gy [9:0] – Reg 0xE405 [7:0], Reg 0xE403 [1:0]
gu [9:0] – Reg 0xE406 [7:0], Reg 0xE404 [7:6]
gv [9:0] – Reg 0xE407 [7:0], Reg 0xE404 [5:4]
bu [9:0] – Reg 0xE408 [7:0], Reg 0xE404 [3:2]
rv [9:0] – Reg 0xE409 [7:0], Reg 0xE404 [1:0]
On powerup, the CSC matrix is programmed with the default values shown in Table 74.
Table 74: ED/HD Manual CSC Matrix Default Values
Register
Default
0x03
0x03
0x04
0xF0
0x05
0x4E
0x06
0x0E
0x07
0x24
0x08
0x92
0x09
0x7C
When the ED/HD manual CSC matrix adjust feature is enabled, the default coefficient values in Reg 0xE403 to Reg 0xE409 are correct for the
HD color space only. The color components are converted according to the following 1080i and 720p standards (SMPTE 274M, SMPTE
296M):
R = Y + 1.575Pr
G = Y − 0.468Pr − 0.187Pb
B = Y + 1.855Pb
The conversion coefficients should be multiplied by 315 before being written to the ED/HD CSC matrix registers. This is reflected in the
default values for gy = 0x13B, gu = 0x03B, gv = 0x093, bu = 0x248, and rv = 0x1F0.
Rev. 0 | Page 263 of 326
UG-707
ADV8005 Hardware Reference Manual
If the ED/HD manual CSC matrix adjust feature is enabled and another input standard (such as ED) is used, the scale values for gy, gu, gv, bu,
and rv must be adjusted according to this input standard color space. The user should consider that the color component conversion may use
different scale values.
For example, SMPTE 293M uses the following conversion:
R = Y + 1.402Pr
G = Y – 0.714Pr – 0.344Pb
B = Y + 1.773Pb
The programmable CSC matrix is used for external ED/HD pixel data and is not functional when internal test patterns are enabled.
7.4.10.1.
Programming the CSC Matrix
If the user needs to manually provide the coefficients for the CSC matrix for ED/HD, this procedure is followed:
1.
2.
3.
4.
Enable the ED/HD manual CSC matrix adjust feature (matrix_prog_en).
Set the output to RGB (yuv_out).
Disable sync on YPrPb (Reg 0xE435, Bit 2).
Enable sync on RGB (optional) (Reg 0xE402, Bit 4).
The gy value controls the green signal output level, the bu value controls the blue signal output level, and the rv value controls the red signal
output level.
7.4.11.
SD Luma and Color Scale Control
When enabled, the SD luma and color scale control feature can be used to scale the SD Y, Cb, and Cr output levels. This feature can be enabled
using scale_ycbcr_en. This feature affects all SD output signals, regardless of the encoder output, that is, CVBS, Y-C, YPrPb, and RGB.
scale_ycbcr_en, Encoder Map, Address 0xE487[0]
This bit is used to enable the SD luma and colour scale control feature.
Function
scale_ycbcr_en
1
0 (default)
Description
Enabled
Disabled
When enabled, three 10-bit registers (SD Y scale, SD Cb scale, and SD Cr scale) control the scaling of the SD Y, Cb, and Cr output levels. The
SD Y scale register contains the scaling factor used to scale the Y level from 0.0 to 1.5 times its initial level. The SD Cb scale and SD Cr scale
registers contain the scaling factors used to scale the Cb and Cr levels from 0.0 to 2.0 times their initial levels, respectively.
The registers needed to scale the outputs are contrast[9:0], cb_scale[9:0] and cr_scale[9:0].
contrast[7:0], IO Map, Address 0x1A2B[7:0]
This register is used to adjust the contrast value for Y channel. This register uses 1.7 notation.
Function
contrast[7:0]
0x00
0x80 
0xFF
Description
Gain of 0
Unity gain
Gain of 2
cb_scale[9:0], Encoder Map, Address 0xE49E[7:0]; Address 0xE49C[3:2]
This signal is used to set the SD Cb scale value.
Rev. 0 | Page 264 of 326
ADV8005 Hardware Reference Manual
UG-707
cr_scale[9:0], Encoder Map, Address 0xE49F[7:0]; Address 0xE49C[5:4]
This signal is used to set the SD Cr scale value.
To use this function, the values to be written to these 10-bit registers are calculated using the following equation:
Y, Cb, or Cr Scale Value = Scale Factor × 512
For example, if Scale Factor = 1.3
Y, Cb, or Cr Scale Value = 1.3 × 512 = 665.6
Y, Cb, or Cr Scale Value = 666 (rounded to the nearest integer)
Y, Cb, or Cr Scale Value = 1010 0110 10b
Reg 0xE49C, SD scale LSB register = 0x2A
Reg 0xE49D, SD Y scale register = 0xA6
Reg 0xE49E, SD Cb scale register = 0xA6
Reg 0xE49F, SD Cr scale register = 0xA6
Note: It is recommended that the SD luma scale saturation feature, saturate_luma, be enabled when scaling the Y output level to avoid
excessive Y output levels.
saturate_luma, Encoder Map, Address 0xE487[1]
This bit is used to enable the SD luma scale saturation.
Function
saturate_luma
1
0 (default)
7.4.12.
Description
Enabled
Disabled
SD Hue Adjust Control
When enabled, the SD hue adjust control register is used to adjust the hue on the SD composite and chroma outputs. To enable this feature,
hue_en must be programmed to 1.
hue_en, Encoder Map, Address 0xE487[2]
This bit is used to enable the hue adjust function.
Function
hue_en
1
0 (default)
Description
Enabled
Disabled
Register 0xE4A0 contains the bits required to vary the hue of the video data, that is, the variance in phase of the subcarrier during active video
with respect to the phase of the subcarrier during the color burst. The ADV8005 encoder provides a range of ±22.5° in increments of
0.17578125°. For normal operation (zero adjustment), this register is set to 0x80. Value 0xFF and value 0x00 represent the upper and lower
limits, respectively, of the attainable adjustment in NTSC mode. Value 0xFF and value 0x01 represent the upper and lower limits, respectively,
of the attainable adjustment in PAL mode.
The hue adjust value is calculated using the following equation:
Hue Adjust (°) = 0.17578125° (HCRd − 128)
where HCRd is the hue adjust control register (decimal).
For example, to adjust the hue by +4°, write 0x97 to hue[7:0].
4

 + 128 ≈ 151d = 0 x97


 0.17578125 
Rev. 0 | Page 265 of 326
UG-707
ADV8005 Hardware Reference Manual
where the sum is rounded to the nearest integer.
To adjust the hue by −4°, write 0x69 to hue[7:0].
−4

 + 128 ≈ 105d = 0 x 69


 0.17578125 
where the sum is rounded to the nearest integer.
hue[7:0], Encoder Map, Address 0xE4A0[7:0]
This register is used to set the SD hue adjust value.
Function
hue[7:0]
0x00 (default)
7.4.13.
Description
SD Hue Value
SD Brightness Detect
The ADV8005 encoder core allows the user to monitor the brightness level of the incoming video data. This feature is used to monitor the
average brightness of the incoming Y signal on a field-by-field basis. The information is read from the I2C and, based on this information, the
color saturation, contrast, and brightness controls can be adjusted, for example, to compensate for very dark pictures.
The luma data is monitored in the active video area only. The average brightness I2C register is updated on the falling edge of every VSYNC
signal. This can be monitored using bright_detect_val[7:0].
bright_detect_val[7:0], Encoder Map, Address 0xE4BA[7:0] (Read Only)
This register is used to adjust the SD brightness value.
Function
bright_detect_val[7:0]
0xXX
7.4.14.
Description
(Larger settings results in a brighter output)
SD Brightness Control
When this feature is enabled, the SD brightness/WSS control register, setup[6:0], is used to control brightness by adding a programmable setup
level onto the scaled Y data. To enable this feature, setup_en must be configured.
setup_en, Encoder Map, Address 0xE487[3]
This bit is used to enable the SD brightness control feature.
Function
setup_en
1
0 (default)
Description
Enabled
Disabled
For NTSC with pedestal, the setup can vary from 0 IRE to 22.5 IRE. For NTSC without pedestal and for PAL, the setup can vary from −7.5 IRE to
+15 IRE. Refer to Figure 118 for more details.
The SD brightness control register is an 8-bit register. The seven LSBs of this 8-bit register are used to control the brightness level, which can
be a positive or negative value.
For example, to add a +20 IRE brightness level to an NTSC signal with pedestal, the procedure is as follows:
0 × (SD Brightness Value) =
0 × (IRE Value × 2.015631) =
0 × (20 × 2.015631) = 0 × (40.31262) ≈ 0x28
To add a –7 IRE brightness level to a PAL signal, write 0x72 to setup[6:0].
0 × (SD Brightness Value) =
Rev. 0 | Page 266 of 326
ADV8005 Hardware Reference Manual
UG-707
0 × (IRE Value × 2.075631) =
0 × (7 × 2.015631) = 0x(14.109417) ≈ 0001110b
0001110b into twos complement = 1110010b = 0x72
setup[6:0], Encoder Map, Address 0xE4A1[6:0]
This signal is used to specify the SD brightness value.
1
Setup Level (NTSC) with Pedestal
Table 75: Sample Brightness Control Values1
Setup Level (NTSC) Without Pedestal
Setup Level (PAL)
22.5 IRE
15 IRE
7.5 IRE
0 IRE
15 IRE
7.5 IRE
0 IRE
−7.5 IRE
Brightness Control Value
(setup[6:0])
15 IRE
7.5 IRE
0 IRE
−7.5 IRE
0x1E
0x0F
0x00
0x71
Values in the range of 0x3F to 0x44 may result in an invalid output signal.
NTSC WITHOUT PEDESTAL
+7.5 IRE
100 IRE
0 IRE
POSITIVE SETUP
VALUE ADDED
NEGATIVE SETUP
VALUE ADDED
06398-069
–7.5 IRE
NO SETUP
VALUE ADDED
Figure 118: Examples of Brightness Control Values
7.4.15.
Double Buffering
Double buffered registers are updated once per field. Double buffering improves overall performance because modifications to register settings
are not made during active video but take effect prior to the start of the active video on the next field. This can be enabled for both SD and
ED/HD using db_en and db_en_hdtv respectively.
7.4.15.1.
ED/HD Doubling Buffering
db_en_hdtv, Encoder Map, Address 0xE433[7]
This bit is used to enable the double buffering on the appropriate ED/HD registers.
Function
db_en_hdtv
0 (default)
1
Description
Cb after falling edge of HSYNC
Cr after falling edge of HSYNC
Double buffering can be activated on the following ED/HD functions: the ED/HD gamma A and gamma B curves and the ED/HD CGMS
registers.
7.4.15.2.
SD Doubling Buffering
db_en, Encoder Map, Address 0xE488[2]
This bit is used to enable double buffering on the appropriate SD registers.
Function
db_en
1
0 (default)
Description
Enabled
Disabled
Double buffering can be activated on the following SD functions: the SD gamma A and gamma B curves, SD Y scale, SD Cr scale, SD Cb scale,
SD brightness, SD closed captioning, and SD Macrovision bits (Reg 0xE4E0, Bits [5:0]).
Rev. 0 | Page 267 of 326
UG-707
7.4.16.
ADV8005 Hardware Reference Manual
Programmable DAC Gain Control
It is possible to adjust the DAC output signal gain up or down from its absolute level. This is illustrated in Figure 119.
CASE A
GAIN PROGRAMMED IN DAC OUTPUT LEVEL
REGISTERS, SUBADDRESS 0x0A, 0x0B
700mV
300mV
NEGATIVE GAIN PROGRAMMED IN
DAC OUTPUT LEVEL REGISTERS,
SUBADDRESS 0x0A, 0x0B
CASE B
700mV
06398-070
300mV
Figure 119: Programmable DAC Gain – Positive and Negative Gain
In Case A of Figure 119, the video output signal is gained. The absolute level of the sync tip and the blanking level increase with respect to the
reference video output signal. The overall gain of the signal is increased from the reference signal.
In Case B of Figure 119, the video output signal is reduced. The absolute level of the sync tip and the blanking level decrease with respect to
the reference video output signal. The overall gain of the signal is reduced from the reference signal.
The range of this feature is specified for ±7.5% of the nominal output from the DACs. For example, if the output current of the DAC is 4.33
mA, the DAC gain control feature can change this output current from 4.008 mA (−7.5%) to 4.658 mA (+7.5%). To enable the gain for the
relevant set of DACs, dac4to6_tuning[7:0] and dac1to3_tuning[7:0] must be configured.
dac4to6_tuning[7:0], Encoder Map, Address 0xE40A[7:0]
This register is used to set the gain for DACs 4-6 output voltage.
Function
dac4to6_tuning[7:0]
11000000
11000001
11000010
11111111
00000000 (default)
00000001
00000010
00111111
01000000
Description
-7.5%
-7.382%
-7.364%
...
-0.018%
0%
0.018%
0.036%
...
+7.382%
+7.5%
dac1to3_tuning[7:0], Encoder Map, Address 0xE40B[7:0]
This register is used to set the gain for DACs 1-3 output voltage.
Rev. 0 | Page 268 of 326
ADV8005 Hardware Reference Manual
Function
dac1to3_tuning[7:0]
11000000
11000001
11000010
11111111
00000000 (default)
00000001
00000010
00111111
01000000
UG-707
Description
-7.5%
-7.382%
-7.364%
...
-0.018%
0%
0.018%
0.036%
...
+7.382%
+7.5%
The reset value of the control registers is 0x00; that is, nominal DAC current is output. Table 76 shows how the output current of the DACs
varies for a nominal 4.33 mA output current.
DAC Gain Register Value
0100 0000 (0x40)
0011 1111 (0x3F)
0011 1110 (0x3E)
…
…
0000 0010 (0x02)
0000 0001 (0x01)
0000 0000 (0x00)
1111 1111 (0xFF)
1111 1110 (0xFE)
…
…
1100 0010 (0xC2)
1100 0001 (0xC1)
1100 0000 (0xC0)
7.4.17.
Table 76: DAC Gain Control
DAC Current (mA)
% Gain
4.658
7.5000%
4.653
7.3820%
4.648
7.3640%
…
…
…
…
4.43
0.0360%
4.38
0.0180%
4.33
0.0000%
4.25
−0.0180%
4.23
−0.0360%
…
…
…
…
4.018
−7.3640%
4.013
−7.3820%
4.008
−7.5000%
Note
Reset value, nominal
Gamma Correction
Generally, gamma correction is applied to compensate for the nonlinear relationship between the signal input and the output brightness level (as
perceived on a CRT). It can also be applied wherever nonlinear processing is used.
Gamma correction uses the function:
SignalOUT = (SignalIN)γ
where γ is the gamma correction factor.
Gamma correction is available for SD and ED/HD video. For both variations, there are twenty 8-bit registers, used to program the Gamma
Correction Curve A and Gamma Correction Curve B.
Gamma correction is performed on the luma data only. The user can choose one of two correction curves, Curve A or Curve B. Only one of
these curves can be used at a time.
The shape of the gamma correction curve is controlled by defining the curve response at 10 different locations along the curve. By altering the
response at these locations, the shape of the gamma correction curve can be modified. Between these points, linear interpolation is used to
generate intermediate values. Considering that the curve has a total length of 256 points, the 10 programmable locations are at the following
points: 24, 32, 48, 64, 80, 96, 128, 160, 192, and 224. The following locations are fixed and cannot be changed: 0, 16, 240, and 255.
Rev. 0 | Page 269 of 326
UG-707
ADV8005 Hardware Reference Manual
From the curve locations, 16 to 240, the values at the programmable locations and, therefore, the response of the gamma correction curve,
should be calculated to produce the following result:
xDESIRED = (xINPUT)γ
where:
xDESIRED is the desired gamma corrected output.
xINPUT is the linear input signal.
γ is the gamma correction factor.
To program the gamma correction registers, the 10 programmable curve values are calculated using Equation 29.
 n − 16  γ

γ n =  
 × (240 − 16)  + 16
  240 − 16 

Equation 29: Gamma Correction Calculation
where:
γn is the value to be written into the gamma correction register for point n on the gamma correction curve.
n = 24, 32, 48, 64, 80, 96, 128, 160, 192, or 224.
γ is the gamma correction factor.
For example, setting γ = 0.5 for all programmable curve data points results in the following yn values:
y24 = [(8/224)0.5 × 224] + 16 = 58
y32 = [(16/224)0.5 × 224] + 16 = 76
y48 = [(32/224)0.5 × 224] + 16 = 101
y64 = [(48/224)0.5 × 224] + 16 = 120
y80 = [(64/224)0.5 × 224] + 16 = 136
y96 = [(80/224)0.5 × 224] + 16 = 150
y128 = [(112/224)0.5 × 224] + 16 = 174
y160 = [(144/224)0.5 × 224] + 16 = 195
y192 = [(176/224)0.5 × 224] + 16 = 214
y224 = [(208/224)0.5 × 224] + 16 = 232
Where the sum of each equation is rounded to the nearest integer, these must then all be converted to hex.
The gamma curves in Figure 120 and Figure 121 are examples only; any user defined curve in the range from 16 to 240 is acceptable.
GAMMA CORRECTION BLOCK OUTPUT TO A RAMP INPUT
250
SIGNAL OUTPUT
200
0.5
150
100
SIGNAL INPUT
50
0
0
50
100
150
LOCATION
200
250
06398-071
GAMMA CORRECTED AMPLITUDE
300
Figure 120: Signal Input (Ramp) and Signal Output for Gamma 0.5
Rev. 0 | Page 270 of 326
ADV8005 Hardware Reference Manual
GAMMA CORRECTION BLOCK TO A RAMP INPUT FOR
VARIOUS GAMMA VALUES
300
250
0.3
200
0.5
150
100
SI
AL
GN
T
PU
IN
1.5
1.8
50
0
0
50
100
150
LOCATION
200
250
06398-072
GAMMA CORRECTED AMPLITUDE
UG-707
Figure 121: Signal Input (Ramp) and Selectable Output Curves
7.4.17.1.
ED/HD Gamma Correction
To enable the gamma correction curves for ED/HD standards, gamma_en_hdtv must be programmed.
gamma_en_hdtv, Encoder Map, Address 0xE435[5]
This bit is used to enable the gamma correction curves for ED/HD video data.
Function
gamma_en_hdtv
0 (default)
1
Description
Disabled
Enabled
The ED/HD gamma correction curves are provided in Table 77 and Table 78.
Curve Type
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
ED/HD Gamma Curve A
Table 77: ED/HD Gamma Curve A
Point
Register Address
(A0 – Point 24)
0xE444
(A1 – Point 32)
0xE445
(A2 – Point 48)
0xE446
(A3 – Point 64)
0xE447
(A4 – Point 80)
0xE448
(A5 – Point 96)
0xE449
(A6 – Point 128)
0xE44A
(A7 – Point 160)
0xE44B
(A8 – Point 192)
0xE44C
(A9 – Point 224)
0xE44D
Table 78: ED/HD Gamma Curve B
Curve Type
Point
ED/HD Gamma Curve B
(B0 – Point 24)
ED/HD Gamma Curve B
(B1 – Point 32)
ED/HD Gamma Curve B
(B2 – Point 48)
ED/HD Gamma Curve B
(B3 – Point 64)
ED/HD Gamma Curve B
(B4 – Point 80)
ED/HD Gamma Curve B
(B5 – Point 96)
ED/HD Gamma Curve B
(B6 – Point 128)
ED/HD Gamma Curve B
(B7 – Point 160)
ED/HD Gamma Curve B
(B8 – Point 192)
ED/HD Gamma Curve B
(B9 – Point 224)
Rev. 0 | Page 271 of 326
Register Address
0xE44E
0xE44F
0xE450
0xE451
0xE452
0xE453
0xE454
0xE455
0xE456
0xE457
UG-707
ADV8005 Hardware Reference Manual
To select between both the A and B curves for the ED/HD gamma correction, the gamma_curve_b_hdtv must be programmed.
gamma_curve_b_hdtv, Encoder Map, Address 0xE435[4]
This bit is used to select the gamma correction curves for ED/HD video data.
Function
gamma_curve_b_hdtv
0 (default)
1
7.4.17.2.
Description
Gamma Correction Curve A
Gamma Correction Curve B
SD Gamma Correction
To enable the gamma correction curves for SD standards, gamma_en must be programmed.
gamma_en, Encoder Map, Address 0xE488[6]
This bit is used to enable the gamma correction curves for SD video data.
Function
gamma_en
1
0 (default)
Description
Enabled
Disabled
The SD gamma correction curves are provided in Table 79.
Table 79: SD Gamma Curve A
Curve Type
Point
Register Address
SD Gamma Curve A
(A0 – Point 24)
0xA6
SD Gamma Curve A
(A1 – Point 32)
0xA7
SD Gamma Curve A
(A2 – Point 48)
0xA8
SD Gamma Curve A
(A3 – Point 64)
0xA9
SD Gamma Curve A
(A4 – Point 80)
0xAA
SD Gamma Curve A
(A5 – Point 96)
0xAB
SD Gamma Curve A
(A6 – Point 128)
0xAC
SD Gamma Curve A
(A7 – Point 160)
0xAD
SD Gamma Curve A
(A8 – Point 192)
0xAE
SD Gamma Curve A
(A9 – Point 224)
0xAF
SD Gamma Curve B
(B0 – Point 24)
0xB0
SD Gamma Curve B
(B1 – Point 32)
0xB1
SD Gamma Curve B
(B2 – Point 48)
0xB2
SD Gamma Curve B
(B3 – Point 64)
0xB3
SD Gamma Curve B
(B4 – Point 80)
0xB4
SD Gamma Curve B
(B5 – Point 96)
0xB5
SD Gamma Curve B
(B6 – Point 128)
0xB6
SD Gamma Curve B
(B7 – Point 160)
0xB7
SD Gamma Curve B
(B8 – Point 192)
0xB8
SD Gamma Curve B
(B9 – Point 224)
0xB9
To select between both the A and B curves, gamma_curve_b must be programmed.
gamma_curve_b, Encoder Map, Address 0xE488[7]
This bit is used to select the gamma correction curves for SD video data.
Rev. 0 | Page 272 of 326
ADV8005 Hardware Reference Manual
Function
gamma_curve_b
0 (default)
1
7.4.18.
UG-707
Description
Gamma Correction Curve A
Gamma Correction Curve B
ED/HD Sharpness Filter and Adaptive Filter Controls
There are three filter modes available on the ADV8005 encoder block: a sharpness filter mode and two adaptive filter modes.
7.4.18.1.
ED/HD Sharpness Filter Mode
1.4
1.4
1.3
1.3
1.2
1.2
1.1
1.0
0.9
1.1
1.0
0.9
0.8
0.8
0.7
0.7
0.6
0.6
0.5
0.5
FREQUENCY (MHz)
FILTER A RESPONSE (Gain Ka)
FREQUENCY (MHz)
FILTER B RESPONSE (Gain Kb)
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0
2
6
8
4
10
FREQUENCY (MHz)
12
FREQUENCY RESPONSE IN SHARPNESS
FILTER MODE WITH Ka = 3 AND Kb = 7
06398-073
SHARPNESS AND ADAPTIVE FILTER CONTROL BLOCK
1.5
MAGNITUDE
INPUT SIGNAL
STEP
MAGNITUDE
1.5
MAGNITUDE RESPONSE (Linear Scale)
To enhance or attenuate the Y signal in the frequency ranges shown in Figure 122, the ED/HD sharpness filter must be enabled (sharp_en set
to 1) and the ED/HD adaptive filter must be disabled (adapt_en set to 0).
Figure 122: ED/HD Sharpness and Adaptive Filter Control Block
To enable the ED/HD sharpness filter, the following bit must be written to.
sharp_en, Encoder Map, Address 0xE431[7]
This bit is used to enable the ED/HD sharpness filter on the luma data. By default this is set to 0 which means the filter is disabled.
Function
sharp_en
0 (default)
1
Description
Disabled
Enabled
Likewise, the adaptive filter must be disabled by writing to the following bit.
adapt_en, Encoder Map, Address 0xE435[7]
This bit is used to enable the ED/HD adaptive filter.
Function
adapt_en
0 (default)
1
Description
Disabled
Enabled
To select one of the 256 individual responses, the corresponding gain values, ranging from –8 to +7 for each filter, must be programmed into
the ED/HD sharpness filter gain register. These are programmed using kb[3:0] and ka[3:0].
kb[3:0], Encoder Map, Address 0xE440[7:4]
This signal is used to configure the ED/HD sharpness filter gain, value B.
Rev. 0 | Page 273 of 326
UG-707
Function
kb[3:0]
0000 (default)
0001
0111
1000
1110
1111
ADV8005 Hardware Reference Manual
Description
Gain B 0
Gain B +1
...
Gain B +7
Gain B -8
...
Gain B -2
Gain B -1
ka[3:0], Encoder Map, Address 0xE440[3:0]
This signal is used to configure the ED/HD sharpness filter gain, value A.
Function
ka[3:0]
0000 (default)
0001
0111
1000
1110
1111
7.4.18.2.
Description
Gain A 0
Gain A +1
...
Gain A +7
Gain A -8
...
Gain A -2
Gain A -1
ED/HD Adaptive Filters
The ED/HD adaptive filter (Threshold A, Threshold B, and Threshold C) registers, the ED/HD adaptive filter (Gain 1, Gain 2, and Gain 3)
registers, and the ED/HD sharpness filter gain register are used in adaptive filter mode. To activate the adaptive filter control, the ED/HD
sharpness filter and the ED/HD adaptive filter must be enabled. Refer to the register tables above for enabling and disabling the sharpness and
adaptive filter.
The derivative of the incoming signal is compared to the three programmable threshold values; that is the ED/HD adaptive filter (Threshold
A, Threshold B, and Threshold C) registers. These registers (thold_a[7:0], thold_b[7:0] and thold_c[7:0]) are described below. The
recommended threshold range is 16 to 235, although any value in the range of 0 to 255 can be used.
thold_a[7:0], Encoder Map, Address 0xE45B[7:0]
This register is used to set the ED/HD adaptive filter threshold A.
thold_b[7:0], Encoder Map, Address 0xE45C[7:0]
This register is used to set the ED/HD adaptive filter threshold B.
thold_c[7:0], Encoder Map, Address 0xE45D[7:0]
This register is used to set the ED/HD adaptive filter threshold C.
The edges can then be attenuated with the settings in the ED/HD adaptive filter (Gain 1, Gain 2, and Gain 3) registers. Refer to the registers
fil_resp_aa[3:0], fil_resp_ab[3:0], fil_resp_bb[3:0], fil_resp_ca[3:0] and fil_resp_cb[3:0] for details on setting the adaptive filter gains.
fil_resp_ab[3:0], Encoder Map, Address 0xE458[7:4]
This signal is used to set the adaptive filter gain 1 for the ED/HD standard. This is value B.
Rev. 0 | Page 274 of 326
ADV8005 Hardware Reference Manual
Function
fil_resp_ab[3:0]
0000 (default)
0001
0111
1000
1110
1111
UG-707
Description
Gain B 0
Gain B +1
...
Gain B +7
Gain B -8
...
Gain B -2
Gain B -1
fil_resp_aa[3:0], Encoder Map, Address 0xE458[3:0]
This signal is used to set the adaptive filter gain 1 for the ED/HD standard. This is value A.
Function
fil_resp_aa[3:0]
0000 (default)
0001
0111
1000
1110
1111
Description
Gain A 0
Gain A +1
...
Gain A +7
Gain A -8
...
Gain A -2
Gain A -1
fil_resp_bb[3:0], Encoder Map, Address 0xE459[7:4]
This signal is used to set the adaptive filter gain 2 for the ED/HD standard. This is value B.
Function
fil_resp_bb[3:0]
0000 (default)
0001
0111
1000
1110
1111
Description
Gain B 0
Gain B +1
...
Gain B +7
Gain B -8
...
Gain B -2
Gain B -1
fil_resp_cb[3:0], Encoder Map, Address 0xE45A[7:4]
This signal is used to set the adaptive filter gain 3 for the ED/HD standard. This is value B.
Function
fil_resp_cb[3:0]
0000 (default)
0001
0111
1000
1110
1111
Description
Gain B 0
Gain B +1
...
Gain B +7
Gain B -8
...
Gain B -2
Gain B -1
fil_resp_ca[3:0], Encoder Map, Address 0xE45A[3:0]
This signal is used to set the adaptive filter gain 3 for the ED/HD standard. This is value A.
Rev. 0 | Page 275 of 326
UG-707
ADV8005 Hardware Reference Manual
Function
fil_resp_ca[3:0]
0000 (default)
0001
0111
1000
1110
1111
7.4.18.3.
Description
Gain A 0
Gain A +1
...
Gain A +7
Gain A -8
...
Gain A -2
Gain A -1
ED/HD Adaptive Filter Modes
Two adaptive filter modes are available: mode A and mode B.
Mode A is used when the ED/HD adaptive filter mode control is set to 0. In this case, filter B (LPF) is used in the adaptive filter block. In
addition, only the programmed values for Gain B in the ED/HD sharpness filter gain register and ED/HD adaptive filter (Gain 1, Gain 2, and
Gain 3) registers are applied when needed. The Gain A values are fixed and cannot be changed.
Mode B is used when ED/HD adaptive filter mode control is set to 1. In this mode, a cascade of filter A and filter B is used. Both settings for
Gain A and Gain B in the ED/HD sharpness filter gain register and ED/HD adaptive filter (Gain 1, Gain 2, and Gain 3) registers become active
when needed. The mode is selected using adapt_bc.
adapt_bc, Encoder Map, Address 0xE435[6]
This bit is used to select the adaptive filter mode.
Function
adapt_bc
0 (default)
1
7.4.18.4.
Description
Mode A
Mode B
ED/HD Sharpness Filter and Adaptive Filter Application Examples
Sharpness Filter Application
The ED/HD sharpness filter can be used to enhance or attenuate the Y video output signal. The register settings in Table 80 are used to achieve
the results shown in Figure 123. Input data is generated by an external signal source. The reference in the table can be matched with the
appropriate scope plot.
Table 80: ED/HD Sharpness Control Settings for Figure 123
Register
Register Setting
Reference1
0xE400
0xFC
0xE401
0x10
0xE402
0x20
0xE430
0x00
0xE431
0x81
0xE440
0x00
a
0xE440
0x08
b
0xE440
0x04
c
0xE440
0x40
d
0xE440
0x80
e
0xE440
0x22
f
1
See Figure 123.
Rev. 0 | Page 276 of 326
ADV8005 Hardware Reference Manual
UG-707
d
a
R2
1
e
b
R4
R1
f
c
1
CH1 500mV
REF A
500mV 4.00µs
1
M 4.00µs
9.99978ms
CH1
ALL FIELDS
CH1 500mV
REF A
500mV 4.00µs
1
M 4.00µs
9.99978ms
CH1
ALL FIELDS
06398-074
R2
Figure 123: ED/ HD Sharpness Filter Control with Different Gain Settings for ED/HD Sharpness Filter Gain Values
Adaptive Filter Control Application
The register settings in Table 81 are used to obtain the results shown in Figure 125, that is, to remove the ringing on the input Y signal, as
shown in Figure 124. Input data is generated by an external signal source.
06398-075
Table 81: Register Settings for Figure 125
Register
Register Setting
0xE400
0xFC
0xE401
0x38
0xE402
0x20
0xE430
0x00
0xE431
0x81
0xE435
0x80
0xE440
0x00
0xE458
0xAC
0xE459
0x9A
0xE45A
0x88
0xE45B
0x28
0xE45C
0x3F
0xE45D
0x64
Figure 124: Input Signal to ED/HD Adaptive Filter
The effects of selecting between the two adaptive filter modes (using adapt_bc) can be seen in Figure 125 and Figure 126.
Rev. 0 | Page 277 of 326
ADV8005 Hardware Reference Manual
06398-076
UG-707
06398-077
Figure 125: Output Signal from ED/HD Adaptive Filter (Mode A)
Figure 126: Output Signal from ED/HD Adaptive Filter (Mode B)
7.4.19.
SD Digital Noise Reduction
The ADV8005 encoder block offers a feature for digital noise reduction (DNR). DNR is applied to the Y data only. A filter block selects the
high frequency, low amplitude components of the incoming signal (DNR input select). The absolute value of the filter output is compared to a
programmable threshold value (DNR threshold control). Two DNR modes are available: DNR mode and DNR sharpness mode. Refer to
Figure 127.
Rev. 0 | Page 278 of 326
ADV8005 Hardware Reference Manual
UG-707
DNR MODE
DNR CONTROL
BLOCK SIZE CONTROL
BORDER AREA
BLOCK OFFSET
GAIN
CORING GAIN DATA
CORING GAIN BORDER
NOISE
SIGNAL PATH
INPUT FILTER
BLOCK
FILTER
OUTPUT
< THRESHOLD?
Y DATA
INPUT
FILTER OUTPUT
> THRESHOLD
–
SUBTRACT
SIGNAL IN
THRESHOLD
RANGE FROM
ORIGINAL SIGNAL
+
DNR OUT
MAIN SIGNAL PATH
DNR
SHARPNESS
MODE
DNR CONTROL
BLOCK SIZE CONTROL
BORDER AREA
BLOCK OFFSET
GAIN
NOISE
SIGNAL PATH
CORING GAIN DATA
CORING GAIN BORDER
INPUT FILTER
BLOCK
ADD SIGNAL
ABOVE
THRESHOLD
RANGE FROM
ORIGINAL SIGNAL
FILTER
OUTPUT
> THRESHOLD?
FILTER OUTPUT
< THRESHOLD
+
+
DNR OUT
MAIN SIGNAL PATH
06398-078
Y DATA
INPUT
Figure 127: SD DNR Block Diagram
In DNR mode, if the absolute value of the filter output is smaller than the threshold, it is assumed to be noise. A programmable amount
(coring gain border, coring gain data) of this noise signal is subtracted from the original signal. In DNR sharpness mode, if the absolute value
of the filter output is less than the programmed threshold, it is assumed to be noise. Otherwise, if the level exceeds the threshold, now
identified as a valid signal, a fraction of the signal (coring gain border, coring gain data) is added to the original signal to boost high frequency
components and sharpen the video image.
In MPEG systems, it is common to process the video information in blocks of 8 pixels × 8 pixels for MPEG2 systems or 16 pixels × 16 pixels
for MPEG1 systems (block size control). DNR can be applied to the resulting block transition areas that are known to contain noise. Generally,
the block transition area contains two pixels. It is possible to define this area to contain four pixels (border area).
It is also possible to compensate for variable block positioning or differences in YCrCb pixel timing with the use of the DNR block offset.
The digital noise reduction registers are three 8-bit registers. They are used to control the DNR processing.
To enable the SD DNR feature, dnr_en must be programmed.
dnr_en, Encoder Map, Address 0xE481[7]
This bit is used to enable the SD Digital Noise Reduction (DNR) function.
Function
dnr_en
1
0 (default)
7.4.19.1.
Description
Enabled
Disabled
Coring Gain Border
dnr_coring_gain_a[3:0] is the gain factor applied to border areas (refer to Figure 133 for more information on border areas). In DNR mode,
the range of gain values is 0 to -1 in decrements of 1/8. This factor is applied to the DNR filter output that lies below the set threshold range.
Rev. 0 | Page 279 of 326
UG-707
ADV8005 Hardware Reference Manual
The result is then subtracted from the original signal.
In DNR sharpness mode, the range of gain values is 0 to 0.5 in increments of 1/16. This factor is applied to the DNR filter output that lies
above the threshold range. The result is added to the original signal.
dnr_coring_gain_a[3:0], Encoder Map, Address 0xE4A3[7:4]
This signal is used to configure the coring gain border (in Digital Noise Reduction (DNR) mode, the values in brackets apply).
Function
dnr_coring_gain_a[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
7.4.19.2.
Description
No gain
+1/16 [−1/8]
+2/16 [−2/8]
+3/16 [−3/8]
+4/16 [−4/8]
+5/16 [−5/8]
+6/16 [−6/8]
+7/16 [−7/8]
+8/16 [−1]
Coring Gain Data
dnr_coring_gain_b[3:0] is the gain factor applied to the luma data inside the MPEG pixel block. In DNR mode, the range of gain values is 0 to
-1 in decrements of 1/8. This factor is applied to the DNR filter output that lies below the set threshold range. The result is then subtracted
from the original signal.
In DNR sharpness mode, the range of gain values is 0 to 0.5 in increments of 1/16. This factor is applied to the DNR filter output that lies
above the threshold range. The result is added to the original signal. Figure 128 explains the difference between SD DNR border gain and data
gain.
APPLY DATA
CORING GAIN
APPLY BORDER
CORING GAIN
OXXXXXXOOXXXXXXO
DNR27 TO DNR24 = 0x01
OFFSET CAUSED
BY VARIATIONS IN
INPUT TIMING
OXXXXXXOOXXXXXXO
06398-079
OXXXXXXOOXXXXXXO
Figure 128: SD DNR Offset Control
dnr_coring_gain_b[3:0], Encoder Map, Address 0xE4A3[3:0]
This signal is used to configure the coring gain data (in Digital Noise Reduction (DNR) mode, the values in brackets apply).
Function
dnr_coring_gain_b[3:0]
0000 (default)
0001
0010
0011
0100
0101
0110
0111
1000
7.4.19.3.
Description
No gain
+1/16 [−1/8]
+2/16 [−2/8]
+3/16 [−3/8]
+4/16 [−4/8]
+5/16 [−5/8]
+6/16 [−6/8]
+7/16 [−7/8]
+8/16 [−1]
DNR Threshold
dnr_threshold[5:0] is used to define the threshold value in the range of 0 to 63. The range is an absolute value.
Rev. 0 | Page 280 of 326
ADV8005 Hardware Reference Manual
UG-707
dnr_threshold[5:0], Encoder Map, Address 0xE4A4[5:0]
This signal is used to configure the Digital Noise Reduction (DNR) threshold.
Function
dnr_threshold[5:0]
000000 (default)
000001
111110
111111
7.4.19.4.
Description
0
1
...
62
63
Border Area
When blk_border_2 is set to 1, the block transition area can be defined to consist of four pixels. If this bit is set to logic 0, the border transition
area consists of two pixels, where one pixel refers to two clock cycles at 27 MHz.
720 × 485 PIXELS
(NTSC)
8 × 8 PIXEL BLOCK
8 × 8 PIXEL BLOCK
06398-080
TWO-PIXEL
BORDER DATA
Figure 129: SD DNR Border Area
blk_border_2, Encoder Map, Address 0xE4A4[6]
This bit is used to select the Digital Noise Reduction (DNR) border area.
Function
blk_border_2
0 (default)
1
7.4.19.5.
Description
2 pixels
4 pixels
Block Size Control
dnr_mpeg_1 is used to select the size of the data blocks to be processed. Setting the block size control function to 1 defines a 16 pixel × 16
pixel data block, and 0 defines an 8 pixel × 8 pixel data block, where one pixel refers to two clock cycles at 27 MHz.
dnr_mpeg_1, Encoder Map, Address 0xE4A4[7]
This bit is used to select the Digital Noise Reduction (DNR) block size.
Function
dnr_mpeg_1
1
0 (default)
7.4.19.6.
Description
16 pixels
8 pixels
DNR Input Select Control
dnr_fmode_control[2:0] is used to select the filter which is applied to the incoming Y data. The signal that lies in the pass band of the selected
filter is the signal that is DNR processed. Figure 130 shows the filter responses selectable with this control.
Rev. 0 | Page 281 of 326
UG-707
ADV8005 Hardware Reference Manual
1.0
FILTER D
MAGNITUDE
0.8
FILTER C
0.6
0.4
FILTER B
0.2
0
0
1
2
3
4
FREQUENCY (MHz)
5
6
06398-081
FILTER A
Figure 130: SD DNR Input Filter Select
dnr_fmode_control[2:0], Encoder Map, Address 0xE4A5[2:0]
This signal is used to configure the Digital Noise Reduction (DNR) input filter.
Function
dnr_fmode_control[2:0]
001
010
011
100
7.4.19.7.
Description
Filter A
Filter B
Filter C
Filter D
DNR Mode Control
DNR works on the principle of defining low amplitude, high frequency signals as probable noise and subtracting this noise from the original
signal.
In DNR mode, it is possible to subtract a fraction of the signal that lies below the set threshold, assumed to be noise, from the original signal.
The threshold is set using dnr_threshold[5:0].
When dnr_enable_sharpness is enabled, it is possible to add a fraction of the signal that lies above the set threshold to the original signal
because this data is assumed to be valid data and not noise. The overall effect is that the signal is boosted (similar to using the extended SSAF
filter).
dnr_enable_sharpness, Encoder Map, Address 0xE4A5[3]
This bit is used to select the Digital Noise Reduction (DNR) mode.
Function
dnr_enable_sharpness
0 (default)
1
7.4.19.8.
Description
DNR mode
DNR sharpness mode
DNR Block Offset Control
blk_offset[3:0] allows a shift of the data block of 15 pixels maximum. The coring gain positions are fixed. The block offset shifts the data in
steps of one pixel so that the border coring gain factors can be applied at the same position regardless of variations in input timing of the data.
blk_offset[3:0], Encoder Map, Address 0xE4A5[7:4]
This signal is used to configure the Digital Noise Reduction (DNR) block offset.
Rev. 0 | Page 282 of 326
ADV8005 Hardware Reference Manual
Function
blk_offset[3:0]
0000 (default)
0001
Description
0 pixel offset
One pixel offset
...
14 pixel offset
15 pixel offset
1110
1111
7.4.19.9.
UG-707
SD Active Video Edge Control
The ADV8005 encoder core is able to control fast rising and falling signals at the start and end of active video in order to minimize ringing
artifacts.
When the active video edge control feature is enabled, the first three pixels and the last three pixels of the active video on the luma channel are
scaled so that maximum transitions on these pixels are not possible. This feature is highlighted in Figure 131.
At the start of active video, the first three pixels are multiplied by 1/8, 1/2, and 7/8, respectively. Approaching the end of active video, the last
three pixels are multiplied by 7/8, 1/2, and 1/8, respectively. All other active video pixels pass through unprocessed. Figure 132 and Figure 133
show the difference between having this feature enabled and disabled. This feature can be enabled using slope_en.
LUMA CHANNEL WITH
ACTIVE VIDEO EDGE
DISABLED
LUMA CHANNEL WITH
ACTIVE VIDEO EDGE
ENABLED
100 IRE
100 IRE
87.5 IRE
50 IRE
0 IRE
06398-082
12.5 IRE
0 IRE
Figure 131: Example of Active Video Edge Functionality
VOLTS
IRE:FLT
100
0.5
50
0
F2
L135
–50
0
2
4
6
8
10
12
Figure 132: Example of Video Output with SD Active Video Edge Control Disabled
Rev. 0 | Page 283 of 326
06398-083
0
UG-707
ADV8005 Hardware Reference Manual
VOLTS
IRE:FLT
100
0.5
50
0
F2
L135
–50
–2
0
2
4
6
8
10
12
06398-084
0
Figure 133: Example of Video Output with SD Active Video Edge Control Enabled
slope_en, Encoder Map, Address 0xE482[7]
This bit is used to enable the SD active video edge control.
Function
slope_en
1
0 (default)
Description
Enabled
Disabled
If a pattern with sharp transitions is being output through the encoder and the user does not want slope_en to have an effect because it softens
the edges, it is possible to use sd_under_limiter[1:0] and sd_y_min_value to control possible ringing artifacts on the output of the encoder.
sd_under_limiter[1:0], Encoder Map, Address 0xE489[1:0]
This signal is used to configure the SD undershoot limiter.
Function
sd_under_limiter[1:0]
00 (default)
01
10
11
Description
Disabled
-11IRE
-6IRE
-1.5IRE
sd_y_min_value, Encoder Map, Address 0xE48A[6]
This bit is used to configure the SD minimum luma value.
Function
sd_y_min_value
0 (default)
1
Description
-40IRE
-7.5IRE
7.5. VERTICAL BLANKING INTERVAL
The ADV8005 is capable of accepting input VBI data (for example, CGMS, WSS, and CCAP) in SD, ED and HD modes. If VBI is disabled, for
SD mode, see vbi_open, for HD mode, see vbi_data_en. VBI data is not present at the encoder output and the entire VBI is blanked. These
control bits are valid in all modes.
For SMPTE 293M (525p), VBI data can be inserted on Lines 13 to 42 of each frame. For ITU-R BT.1358 (625p), VBI data can be inserted on
Lines 6 to 43 For NTSC, VBI data can be inserted on Lines 10 to 20. For PAL, VBI data can be inserted on Lines 7 to 22.
If CGMS is enabled and VBI is disabled, the CGMS data is available at the output.
vbi_open, Encoder Map, Address 0xE483[4]
This bit is used to enable data on the Vertical Blanking Interval (VBI) to be accepted as valid data. This is valid for SD video data only.
Rev. 0 | Page 284 of 326
ADV8005 Hardware Reference Manual
Function
vbi_open
1
0
UG-707
Description
Enabled
Disabled
vbi_data_en, Encoder Map, Address 0xE483[4]
This bit is used to enable data on the Vertical Blanking Interval (VBI) to be accepted as valid data. This is valid for SD video data only.
Function
vbi_data_en
1
0 (default)
Description
Enabled
Disabled
7.6. DAC CONFIGURATIONS
The ADV8005 encoder features six DACs which all operate in low-drive mode. Low-drive mode is defined as 4.33 mA full-scale current into a
300 Ω load, RL.
The ADV8005 encoder has two RSET pins which are used to control the full-scale DAC output current and, therefore, the DAC output voltage
levels; this is achieved through a resistor connected between the RSET pin and GND. For low-drive operation, both RSET1 and RSET2 must have a
value of 4.12 kΩ, and RL must have a value of 300 Ω. The resistors connected to the RSET1 and RSET2 pins should have a 1% tolerance.
The ADV8005 encoder uses two pins for compensating the DAC reference buffer, COMP1 and COMP2. A 2.2 nF capacitor should be
connected from each of these pins to AVDD2.
7.6.1.
Voltage Reference
The ADV8005 contains an on-chip voltage reference that can be used as a board level voltage reference via the VREF pin. Alternatively, the
ADV8005 can be used with an external voltage reference by connecting the reference source to the VREF pin. For optimal performance, an
external voltage reference such as the AD1580 is used with the ADV8005 encoder reference voltage. If an external voltage reference is not used,
a 0.1 µF capacitor should be connected from the VREF pin to AVDD2.
7.6.2.
Video Output Buffer and Optional Output Filter
A video buffer is necessary on the DAC outputs to match the 300Ω output impedance of the ADV8005 encoder output to the 75Ω input
impedance of the sink device. ADI produces a range of op amps suitable for this application, for example, the AD8061. For more information
about line driver buffering circuits, refer to the relevant op amp datasheet.
An optional reconstruction (anti-imaging) low-pass filter (LPF) may be required on the ADV8005 encoder processor DAC outputs if the part is
connected to a device that requires this filtering.
The filter specifications vary with the application. The use of 16× (SD), 8× (ED), or 4× (HD) oversampling can remove the requirement for a
reconstruction filter altogether. Refer to Section 7.4.1 for more details on output oversampling.
For applications requiring an output buffer and reconstruction filter, the ADA4430-1, ADA4411-3, and ADA4410-6 integrated video filter
buffers should be considered.
Application
Table 82: Output Filter Requirements
Oversampling
Cutoff Frequency (MHz)
SD
SD
ED
ED
HD
2×
16×
1×
8×
1×
>6.5
>6.5
>12.5
>12.5
>30
Rev. 0 | Page 285 of 326
Attenuation
–50 dB at
(MHz)
20.5
209.5
14.5
203.5
44.25
UG-707
ADV8005 Hardware Reference Manual
HD
4×
>30
267
10µH
DAC
OUTPUT
3
600Ω
22pF
75Ω
600Ω
BNC
OUTPUT
1
4
06398-085
560Ω
560Ω
Figure 134: Example of Output Filter for SD, 16× Oversampling
4.7µH
DAC
OUTPUT
3
600Ω
6.8pF
6.8pF
75Ω
1
BNC
OUTPUT
4
560Ω
560Ω
06398-086
600Ω
Figure 135: Example of Output Filter for ED, 8× Oversampling
DAC
OUTPUT
3
300Ω
1
4
75Ω
390nH
BNC
OUTPUT
3
33pF
33pF
75Ω
1
4
500Ω
06398-087
500Ω
Figure 136: Example of Output Filter for HD, 4× Oversampling
CIRCUIT FREQUENCY RESPONSE
0
24n
–30
–10
MAGNITUDE (dB)
–20
21n
–60
18n
–90
–30
PHASE (Degrees)
–40
15n
–120
12n
–150
–50
GROUP DELAY (Seconds)
–60
6n
–210
–70
–80
1M
9n
–180
10M
100M
FREQUENCY (Hz)
3n
–240
0
1G
Figure 137: Output Filter Plot for SD, 16× Oversampling
Rev. 0 | Page 286 of 326
06398-088
GAIN (dB)
0
ADV8005 Hardware Reference Manual
UG-707
CIRCUIT FREQUENCY RESPONSE
0
480
18n
400
–10
MAGNITUDE (dB)
16n
320
–20
14n
240
GAIN (dB)
–30
PHASE
(Degrees)
GROUP DELAY (Seconds)
–40
12n
160
10n
–50
80
–60
0
–70
–80
–80
–160
8n
6n
–90
1M
10M
2n
–240
0
1G
100M
FREQUENCY (Hz)
06398-089
4n
Figure 138: Output Filter Plot for ED, 8× Oversampling
CIRCUIT FREQUENCY RESPONSE
0
PHASE
(Degrees)
200
MAGNITUDE (dB)
–10
120
PHASE (Degree)
40
–30
–40
–40
–120
–200
–50
1
10
100
FREQUENCY (MHz)
Figure 139: Output Filter Plot for HD, 4× Oversampling
Rev. 0 | Page 287 of 326
06398-090
GAIN (dB)
GROUP DELAY (Seconds)
–20
UG-707
ADV8005 Hardware Reference Manual
8. INTERRUPTS
The ADV8005 has a comprehensive set of interrupt registers located in the IO Map and HDMI Main Maps of both the Serial Video Rx and
HDMI transmitters. These interrupts can be used to indicate certain events in the Serial Video Rx section, OSD, and VSP, and also the HDMI
Tx.
The ADV8005 features several interrupt controllers which handle three separate interrupt signals. These three interrupt signals are available
on the interrupt pins INT0, INT1, and INT2. There is one interrupt available for the Serial Video Rx inputs, which is available for use on the
interrupt INT2 pin. There is a shared interrupt available for both HDMI transmitters on INT1. There is also an interrupt pin made available to
be used for a number of interrupts in the OSD core. These are available on INT0.
Note: The dual transmitter variants of ADV8005 are ADV8005KBCZ-8A, ADV8005KBCZ-8N and ADV8005KBCZ-8C. The single
transmitter variant of ADV8005 is ADV8005KBCZ-8B. Any references to interrupts relating to HDMI Tx2 are not applicable to these parts.
8.1. INTERRUPT PINS
The ADV8005 features three dedicated interrupt pins, INT0, INT1, and INT2. These pins can be configured as open drain or standard IO
pads and can be configured as outputs or inputs. By default, they are set to standard TTL inputs. The following registers are used for setting
these pins.
int_pin_od_en[2:0], IO Map, Address 0x1ACC[2:0]
This signal is used to select whether the interrupt pins are configured as TTL or as open drain. INT0 is linked to the OSD interrupts, INT1 is
linked to the HDMI TX interrupts and INT2 is linked to the Serial Video RX interrupts.
Function
int_pin_od_en[2:0]
000 (default)
001
010
100
111
Description
All interrupts TTL
INT0 open drain
INT1 open drain
INT2 open drain
All interrupts open drain
int_pin_oe[2:0], IO Map, Address 0x1ACC[6:4]
This signal is used to enable the INT0, INT1 and INT2 interrupt pins. INT0 is linked to the OSD interrupts, INT1 is linked to the HDMI TX
interrupts and INT2 is linked to the Serial Video RX interrupts.
Function
int_pin_oe[2:0]
000 (default)
001
010
100
111
8.1.1.
Description
All interrupts tristated
INT0 interrupt enabled
INT1 interrupt enabled
INT2 interrupt enabled
All interrupts enabled
Interrupt Duration
The interrupt duration can be programmed independently for interrupt pin INT2. When an interrupt event occurs, the interrupt pin INT2
becomes active with a programmable duration as described in this section.
intrq_dur_sel[1:0], IO Map, Address 0x1A69[3:2]
This signal is used to set the interrupt signal duration for the Serial Video RX interrupts output on pin INT2.
Function
intrq_dur_sel[1:0]
00 (default)
01
10
11
Description
4 Xtal periods
16 Xtal periods
64 Xtal periods
Active until cleared
Rev. 0 | Page 288 of 326
ADV8005 Hardware Reference Manual
UG-707
Note: When the active until cleared interrupt duration is selected and the event that caused an interrupt ends, the interrupt persists until it is
cleared or masked.
8.1.2.
Storing Masked Interrupts
store_unmasked_irqs, IO Map, Address 0x1A69[7]
This bit is used to specify whether the HDMI status flags for any HDMI interrupt should be triggered regardless of whether the mask bits are
set. This bit allows an HDMI interrupt to trigger and allows this interrupt to be read back through the corresponding status bit without
triggering an interrupt on the interrupt pin. The status is stored until the clear bit is used to clear the status register and allows another
interrupt to occur.
Function
store_unmasked_irqs
0 (default)
1
Description
Do not store triggered interrupts
Store triggered interrupts
8.2. SERIAL VIDEO RX INTERRUPTS
8.2.1.
Introduction
This section describes the interrupt support provided for the Serial Video Rx on the ADV8005. The Serial Video Rx interrupts are OR’d
together and connected to the ADV8005 INT2 pin.
The ADV8005 Serial Video Rx interrupt architecture provides the following types of bits:
• Raw bits
• Status bits
• Interrupt mask bits
• Clear bits
Raw bits are defined as being either edge-sensitive or level-sensitive. The following compares an edge-sensitive interrupt and a level-sensitive
interrupt to demonstrate the difference.
level_sensitive_int_raw, IO, Address 0xXX (Read Only)
This readback indicates the raw status of the level sensitive interrupt. This bit is set to one when a condition occurs and is reset to 0 when the
condition is no longer apparent.
Function
level_sensitive_int_raw
0
1
Description
Event/condition not currently occurring
Event/condition currently occurring
edge_sensitive_int_raw, IO, Address 0xXX (Read Only)
This readback indicates the status of the edge sensitive interrupt. When set to 1, it indicates that an event has occurred. Once set, this bit
remains high until the interrupt is cleared via edge_sensitive_int_clr.
Function
edge_sensitive_int_raw
0
1
Description
No event/condition occurred
Event/condition occurred
Level-sensitive bit, level_sensitive_int_raw, always represents the current status of whether or not a particular event or condition is occurring
e.g. if the part is receiving AVI InfoFrames. It is not a latched bit and never requires to be cleared.
Edge-sensitive bit, edge_sensitive_int_raw, indicates that a transient event or condition has occurred; it is latched and it needs to be cleared.
This approach is adopted for important events which have a transient nature e.g. if the part has received a new AVI InfoFrame. If
edge_sensitive_int_raw did not latch and returned to 0 sometime after the event occurred, the user could miss the fact that the event or
Rev. 0 | Page 289 of 326
UG-707
ADV8005 Hardware Reference Manual
condition occurred. Therefore, edge-sensitive raw bits do not truly represent the current status; instead, they represent the status of an edge
event that happened in the past. To clear a latched bit, the user must set the corresponding clear bit to 1.
Figure 140, Figure 141 and Figure 142 provide a graphical example of what how edge and level sensitive interrupts operate.
xxx_RAW
xxx_ST
Interrupt path for level
sensitive Interrupts
Internal
Status Flag
SAMPLING
CHANGE
DETECTION
(Rising and
Falling edge)
HOLD UNTIL
CLEARED
APPLY
MASK
xxx_CLR
xxx_MB1
OR
Internal
Pulse Flag
SAMPLING
CHANGE
DETECTION
(Rising edge)
yyy_CLR
yyy_MB1
HOLD UNTIL
CLEARED
APPLY
MASK
yyy_RAW
Interrupt path for edge
sensitive Interrupts
yyy_ST
Figure 140: Level and Edge-Sensitive Raw, Status and Interrupt Generation
AVI infoFrame
Detection
Internal Flag
No AVI
InfoFrame
Detected
AVI InfoFrame
Detected
AVI_INFO_RAW
AVI_INFO_ST
AVI_INFO_CLR
set to 1
Time taken by
the CPU to clear
AVI_INFO_ST
AVI_INFO_CLR
set to 1
Time taken by
the CPU to clear
AVI_INFO_ST
Figure 141: AVI_INFO_RAW and AVI_INFO_ST Timing
Rev. 0 | Page 290 of 326
INT
Output
ADV8005 Hardware Reference Manual
UG-707
New AVI InfoFrame
Detection Internal
Pulse Flag
AVI InfoFrame with
new content detected
Time > 2 xtal
periods
NEW_AVI_INFO_RAW
NEW_AVI_INFO_ST
NEW_AVI_INFO_CLR
set to 1
Time taken by the
CPU to clear
NEW_AVI_INFO_ST
Figure 142: NEW_AVI_INFO_RAW and NEW_AVI_INFO_ST Timing
All raw bits have corresponding status bits. The status bits always work in the same manner whether the raw bit is edge or level-sensitive.
Status bits have the following characteristics:
• Enabled by setting the corresponding interrupt mask bit
• Always latched and must be cleared by the corresponding clear bit
For a given interrupt; when the interrupt mask bit is set, the interrupt status bit goes high and an interrupt is generated on the INT2 pin if the
interrupt raw bit changes state. To return the interrupt status bit to low, the interrupt clear bit must be set. The status bits, interrupt mask bit
and clear bits for level_sensitive_int and edge_sensitive_int are described here for completeness.
level_sensitive_int_st, IO, Address 0xXX (Read Only)
This readback indicates the latched status of the level_sensitive_int_raw signal. This bit is only valid if enabled via the corresponding INT1
interrupt mask bit. Once set, this bit remains high until the interrupt is cleared level_sensitive_int_clr.
Function
level_sensitive_int_st
0
1
Description
level_sensitive_int_raw did not change state
level_sensitive_int_raw changed state
edge_sensitive_int _st, IO, Address 0xXX (Read Only)
This readback indicates the latched status for edge_sensitive_int_raw. This bit is only valid if enabled via the corresponding INT1 interrupt
mask bit. Once set, this bit remains high until the interrupt is cleared via edge_sensitive_int_clr.
Function
edge_sensitive_int_st
0
1
Description
edge_sensitive_int_raw not changed state
edge_sensitive_int_raw changed state
level_sensitive_int_clr, IO, Address 0xXX (Self-Clearing)
This control is used to clear the level_sensitive_int_st bits. This is a self clearing bit.
Function
level_sensitive_int_clr
0
1
Description
No function
Clear level_sensitive_int_st
Rev. 0 | Page 291 of 326
UG-707
ADV8005 Hardware Reference Manual
edge_sensitive_int _clr, IO, Address 0xXX (Self-Clearing)
This control is used to clear the edge_sensitive_int_raw and edge_sensitive_int_st bits. This is a self clearing bit.
Function
edge_sensitive_int_clr
0
1
Description
No function
Clear edge_sensitive_int_raw and edge_sensitive_int_st
level_sensitive_int_mb2, IO, Address 0xXX[0]
This control is used to set the INT2 interrupt mask for the level_sensitive_int interrupt. When set, when the level sensitive interrupt event
triggers and an interrupt is generated on INT2.
Function
level_sensitive_int_mb2
0
1
Description
Disable level_sensitive_int detection interrupt for INT2
Enable level_sensitive_int detection interrupt for INT2
edge_sensitive_int _mb2, IO, Address 0xXX
This control is used to set the INT2 interrupt mask for the edge_sensitive_int interrupt. When set, a new edge sensitive interrupt event will
cause edge_sensitive_int_st to be set and an interrupt will be generated on INT2.
Function
edge_sensitive_int_mb2
0
1
Description
Disable edge_sensitive_int detection interrupt for INT2
Enable edge_sensitive_int detection interrupt for INT2
In this section, all raw bits are classified as being triggered by either level-sensitive or edge-sensitive events, with the following understanding
of the terminology.
Level-sensitive events are events that are generally either high or low and which are not expected to change rapidly. The raw bit for levelsensitive events is not latched and, therefore, always represents the true real-time status of the event in question.
Edge-sensitive events are events that only exist for an instant. The raw bits for edge-sensitive events are latched and, therefore, represent the
occurrence of an edge-sensitive event that happened in the past. Raw bits for edge-sensitive events must be cleared by the corresponding clear
bit.
8.2.2.
Interrupt Architecture Overview
The following is a complete list of Serial Video Rx interrupts, their mode of operation (edge or level sensitive) and a description of each
interrupt.
Interrupt
rx_cable_det_raw/st/mb1/clr
rx_tmdspll_lck_raw/st/mbx/clr
rx_tmds_clk_det_raw/st/mbx/clr
rx_video_3d_raw/st/mbx/clr
rx_av_mute_raw/st/mbx/clr
rx_hdmi_mode_raw/st/mbx/clr
rx_gen_ctl_pckt_raw/st/mbx/clr
rx_gamut_mdata_
pckt_raw/st/mbx/clr
rx_isrc2_pckt_raw/st/mbx/clr
rx_isrc1_pckt_raw/st/mbx/clr
rx_vs_info_frm_raw/st/mbx/clr
rx_ms_info_frm_raw/st/mbx/clr
rx_spd_info_frm_ raw/st/mbx/clr
rx_avi_info_frm_raw/st/mbx/clr
Table 83: Serial Video Rx Level Sensitive Interrupts
Mode of Operation
Description
Level sensitive
Used to detect if the Serial Video inputs are connected to an upstream IC
Level sensitive
Used to indicate if the TMDS PLL has locked to the incoming TMDS clock
Level sensitive
Used to indicate activity on the TMDS clock line
Level sensitive
Used to indicate if the incoming video is 3D format
Level sensitive
Used to indicate the AVMUTE value from the general control packet
Level sensitive
Used to indicate if the incoming video is HDMI mode or DVI mode
Level sensitive
Used to indicate if a general control packet has been detected
Level sensitive
Used to indicate if a gamut metadata packet has been detected
Level sensitive
Level sensitive
Level sensitive
Level sensitive
Level sensitive
Level sensitive
Used to indicate if an ISRC2 packet has been detected
Used to indicate if an ISRC1 packet has been detected
Used to indicate if a vendor specific InfoFrame has been detected
Used to indicate if an MPEG source InfoFrame has been detected
Used to indicate if an SPD InfoFrame has been detected
Used to indicate if an AVI InfoFrame has been detected
Rev. 0 | Page 292 of 326
ADV8005 Hardware Reference Manual
Interrupt
rx_vs_inf_cks_err_
edge_raw/st/mb2/clr
rx_ms_inf_cks_err
_edge_ raw/st/mb2/clr
rx_spd_inf_cks_er
r_edge_raw/st/mb2/clr
rx_avi_inf_cks_err
_edge_raw/st/mb2/clr
rx_deepcolor_chn
g_edge_raw/st/mb2/clr
rx_tmds_clk_chng
_edge_raw/st/mb2/clr
rx_pkt_err_edge_ raw/st/mb2/clr
rx_gamut_mdata_
pckt_edge_raw/st/mb2/clr
rx_isrc2_pckt_edg
eraw/st/mb2/clr
rx_isrc1_pckt_edg
eraw/st/mb2/clr
rx_vs_info_frm_e
dge_raw/st/mb2/clr
rx_ms_info_frm_e
dge_raw/st/mb2/clr
rx_spd_info_frm_
edge_raw/st/mb2/clr
rx_avi_info_frm_e
dge_raw/st/mb2/clr
8.2.2.1.
UG-707
Table 84: Serial Video Rx Edge Sensitive Interrupts
Mode of Operation
Description
Edge sensitive
Used to indicate if there was an error with the vendor specific InfoFrame
Edge sensitive
Used to indicate if there was an error with the MPEG source InfoFrame
Edge sensitive
Used to indicate if there was an error with a SPD InfoFrame
Edge sensitive
Used to indicate if there was an error with the AVI InfoFrame
Edge sensitive
Used to indicate if the incoming video is deep color. The exact mode
can be determined by reading the DEEP_COLOR_MODE register
Edge sensitive
Used to indicate if the incoming TMDS clock has changed frequency
Edge sensitive
Used to indicate if there was an error with any HDMI packet
Edge sensitive
Used to indicate if a gamut metadata packet was detected
Edge sensitive
Used to indicate if an ISRC2 packet was detected
Edge sensitive
Used to indicate if an ISRC1 packet was detected
Edge sensitive
Used to indicate if a vendor specific InfoFrame was detected
Edge sensitive
Used to indicate if an MPEG source InfoFrame was detected
Edge sensitive
Used to indicate if a source product descriptor InfoFrame was detected
Edge sensitive
Used to indicate if an AVI InfoFrame was detected
Multiple Interrupt Events
If an interrupt event occurs, and then a second interrupt event occurs before the system controller has cleared or masked the first interrupt
event, the ADV8005 does not generate a second interrupt signal. The system controller should check all unmasked interrupt status bits as
more than one may be active.
8.2.3.
Serial Video Interrupts Validity Checking Process
All Serial Video interrupts have a set of conditions that must be taken into account for validation in the system firmware. When the ADV8005
alerts the system controller with a Serial Video interrupt, the host must check that the following validity conditions for that interrupt are met
before processing that interrupt. This is valid for all the interrupts described above.
•
ADV8005 is configured in HMDI mode
•
rx_tmds_clk_det_raw is set to 1 if the Serial Video Rx input is being used
•
rx_tmdspll_lck_raw bit is set to 1
8.3. VSP AND OSD SECTION
This section describes the interrupts provided by the ADV8005 OSD and VSP section. These interrupts are not accessed through the I2C
interface as the interrupts for the Serial Video Rx and HDMI Tx are; these interrupts are accessed through the SPI interface. These interrupts
are not documented in detail as they are handled transparently to the user by the Blimp OSD software tool. Interrupts from this section are
output on the INT0 pin for use by the system microcontroller.
Rev. 0 | Page 293 of 326
UG-707
8.3.1.
ADV8005 Hardware Reference Manual
Interrupt Architecture Overview
The following three interrupts are required by the VSP and OSD section:
Table 85: VSP and OSD Interrupts
Description
Used to indicate to the system controller that the configuration within
the ADV8005 RAM memories has completed
Interrupt
OSD_CFG_DONE
DMA_IRQ
Used to indicate to the system controller that the current DMA
operation has taken place
DMA_RAM_IRQ
Used to indicate to the system controller that the DMA hardware block
can be read from/written to by SPI
TIMER_IRQ
ANIM_DONE_IRQ
Used to indicate to the system controller that a timer has expired
Used to indicate to the system controller that an animation has
completed
The following controls are available to the user for indicating interrupts on the VSP and OSD interrupts.
vsp_int_pol[1:0], IO Map, Address 0x1A76[3:2]
This signal is used to control the VSP interrupt polarity.
Function
vsp_int_pol[1:0]
00 (default)
01
10
11
Description
VSP interrupt is logical AND of VSP/OSD interrupts
VSP interrupt is inverted logical AND of VSP/OSD interrupts
VSP interrupt is logical OR of VSP/OSD interrupts
VSP interrupt is inverted logical OR of VSP/OSD interrupts
8.4. HDMI TX CORE
8.4.1.
Introduction
This section describes the interrupt support provided for the HDMI Tx cores of the ADV8005. The HDMI Tx interrupts are OR’d together and
connected to the ADV8005 INT1 pin.
The ADV8005 HDMI Tx interrupt architecture provides the following types of bits:
• Interrupt status/clear bits
• Interrupt mask bits
The interrupt status/clear bits are dual purpose; when an interrupt event or condition occurs, if the interrupt mask bit is set, the status bit gets
latched to 1. The interrupt can only be cleared by writing a value of 1 to the status/clear bit.
The interrupts mask bits are used to selectively activate an interrupt bit on the interrupt out pin INT1. The interrupt output pin is active when
one or more interrupts bits are set and their corresponding interrupt mask bit is also set. Note that any given mask bit does not affect its
corresponding interrupt bit but only affects the level on the interrupt output pin INT1. The enables for all the HDMI transmitter interrupts are
described below.
8.4.2.
Interrupt Architecture Overview
The following is a complete list of HDMI Tx interrupts and their descriptions:
Interrupt
hpd_int/ hpd_int_en
rx_sense_int/ rx_sense_int_en
vsync_int/ vsync_int_en
Table 86: HDMI Tx Interrupts
Description
Used to indicate the HDMI transmitter is connected to an HDMI Rx
Used to detect if an HDMI Rx is connected to the HDMI transmitter
Used to flag the falling edge on a VSync signal
Rev. 0 | Page 294 of 326
ADV8005 Hardware Reference Manual
Interrupt
edid_ready_int/ edid_ready_int_en
hdcp_authenticated_int/ hdcp_authenticated_int_en
ri_ready_int/ ri_ready_int_en
hdcp_error_int/hdcp_error_int_en
bksv_flag_int/ bksv_flag_int_en
8.4.3.
UG-707
Description
Used to indicate if the HDMI Rx EDID is ready for reading
Used to indicate if the HDCP protocol has been authenticated
Used to indicate if the HDCP Ri is ready
Used to indicate if a HDCP error has occurred
Used to indicate if the BKSV flag is set
HDMI Tx Interrupt Polarity
This register is used to configure various logical operations which are available to the user when using the HDMI Tx interrupts.
tx_int_pol[1:0], IO Map, Address 0x1A76[1:0]
This signal is used to control the TX interrupt polarity.
Function
tx_int_pol[1:0]
00 (default)
01
10
11
Description
Tx interrupt is logical AND of Tx1/Tx2 interrupts
Tx interrupt is inverted logical AND of Tx1/Tx2 interrupts
Tx interrupt is logical OR of Tx1/Tx2 interrupts
Tx interrupt is inverted logical OR of Tx1/Tx2 interrupts
Rev. 0 | Page 295 of 326
UG-707
ADV8005 Hardware Reference Manual
APPENDIX A
PCB LAYOUT RECOMMENDATIONS
The ADV8005 is a high precision, high speed, mixed signal device. It is important to have a well laid out PCB board in order to achieve the
maximum performance from the part. The following sections are a guide for designing a board using the ADV8005.
Analogue/Digital Video Interface Outputs
The HDMI TMDS trace pairs must have a 100Ω differential impedance and should be routed in the shortest trace length possible to minimize
the possibility of cross talk with other signals. The HDMI TMDS trace pairs must be routed on the same side of the PCB as the ADV8005 and
should not be routed through vias to any other layers. A solid plane must be maintained underneath the HDMI TMDS trace pairs for their full
trace length. Any external ESD suppressors should be placed as close as possible to the HDMI connector to reduce the impact on impedance
TDR measurements.
If the ADV8005 is to support 3 GHz signals from the HDMI Txs, it is recommended the TMDS trace widths are set to 0.2 mm. The spacing of
the traces, the height of the copper and the trace’s height above the ground plan should all be controlled to maintain the trace impedance with
this trace width.
The encoder analog outputs must have a 75Ω characteristic impedance and should be routed in the shortest trace length possible to minimize
the possibility of cross talk with other signals. To assist in reducing cross talk, ground traces can be added between adjacent encoder analog
outputs. The encoder analog outputs must be routed on the same side of the PCB as the ADV8005 and should not be routed through vias to
any other layers. A solid plane must be maintained underneath the encoder analog outputs for their full trace length. The termination resistors
on the encoder analog outputs should be kept as close as possible to the ADV8005. Any external filtering on the encoder outputs should be
placed as close as possible to the analog connectors.
External DDR2 Memory Requirements
The ADV8005 must be placed as close to and on the same side of the PCB as the external DDR2 memories. Balanced T-routing should be used
for all shared connections between the ADV8005 and the external DDR2 memories. All traces should be 75Ω and impedance controlled to
ensure robust timing. Traces should be routed on the same side of the PCB as the devices where possible. If this is not possible, all traces
should be kept on the outer layers.
All differential signals (for example, DDR_CK and DDR_CKB) should be treated as described above. These signals should be routed in
parallel and on the same side of the PCB. Match the DDR_CK trace length to DDR_CKB trace length to 20 mils (0.5 mm). Any stubs on the
clock lines should be kept as short as possible to avoid signal reflections.
The following 4-byte wide data lanes should be matched to within 50 mils on the PCB layout. The precise matching of these signals is critical.
•
•
•
•
DDR3_DM3, DDR_DQS3, DDR_DQSB3, DDR_DQ31 – DDR_DQ24
DDR2_DM2, DDR_DQS2, DDR_DQSB2, DDR_DQ23 – DDR_DQ16
DDR1_DM1, DDR_DQS1, DDR_DQSB1, DDR_DQ15 – DDR_DQ8
DDR0_DM0, DDR_DQS0, DDR_DQSB0, DDR_DQ7 – DDR_DQ0
Different byte lanes are to be matched to 200 mils (5.08 mm) of each other. 47Ω series termination resistors should be placed as close to the
source (ADV8005) as possible on the following signals:
•
•
•
•
Address signals – DDR_A12-DDR_A0 and DDR_BA0-DDR_BA2
Clock differential signals – DDR_CK and DDR_CKB (use discrete resistors for these two signals)
Control signal – DDR_CKE and command signals – DDR_CSB, DDR_RASB, DDR_CASB, and DDR_WEB
Data mask signals – DDR_DM3-DDR_DM0
Rev. 0 | Page 296 of 326
ADV8005 Hardware Reference Manual
UG-707
47Ω series termination resistors should be placed in the middle of the trace on the following signals:
•
•
Data bus signals – DDR_DQ31-DDR_DQ0
Data strobe signals – DDR_DQS3 DDR_DQS3B-DDR_DQS0 DDR_DQS0B
The DDR2 reference voltage (DDR_VREF) should be routed as far away as possible from other signals to avoid any variations on the voltage.
This trace should be wide. There should be a 100 nF decoupling cap close to the DDR2 reference voltage pins as well as the ADV8005
reference pin.
Power Supply Bypassing
It is recommended to bypass each power supply pin with a 0.1 uF and a 10 nF capacitor where possible. The fundamental idea is to have a
bypass capacitor within 0.5 cm of each power pin.
Current should flow from the power plane to the capacitor to the power pin. The power connection should not be made between the capacitor
and the power pin. Generally, the best approach is to place a via underneath the 10 nF capacitor pads down to the power plane (refer to Figure
143).
via to GND layer
and GND pin
10nF
via to VDD pin
0.1uF
VDD supply
Figure 143: Recommended Power Supply Decoupling
It is recommended to individually filter all supplies to prevent switching noise on some supplies coupling onto other more sensitive supplies.
For example, DVDD consumes a significant amount of current and will also suffer significant switching noise. DVDD must be isolated from
more sensitive supplies such as PVDD3, PVDD5 and PVDD6.
The DVDD and DVDD_DDR supplies should be connected to the same supply – PVDD_DDR should be filtered from DVDD to provide a
noise free power supply.
It is recommended to use a single ground plane for the ADV8005. Careful attention must be paid to the layout of any internal power supply
planes when traces run on adjacent layers – traces on a layer directly above or below a power supply layer must not cross between two power
supply planes as this will impact the return current paths.
General Digital Inputs and Outputs
The trace length that the digital inputs/outputs have to sink/source should be minimized. Longer traces have higher capacitance, which
requires more current that can cause more internal digital noise. Shorter traces reduce the possibility of reflections. It is recommended to route
traces in the shortest trace length possible and keep the number of layer transitions to a minimum.
If possible, the digital output driver capacitance loading should be limited to less than 15 pF. This can be accomplished easily by keeping traces
short and by connecting the outputs to only one device. Loading the outputs with excessive capacitance increases the current transients inside
the ADV8005, creating more digital noise on its power supplies.
Particular attention must be paid to the routing of clock and sync signals, for example, PCLK, OSD_CLK, HS, OSD_HS, VS, OSD_VS, DE,
OSD_DE, XTALN, and XTALP. Any noise that gets onto these signals can add jitter to the system. Therefore, the trace length should be
minimized, and digital or other high frequency traces should not be run near it.
XTAL and Load Cap Value Selection
The ADV8005 requires a 27 MHz crystal. Figure 144 shows an example of a reference clock circuit for the ADV8005. Special care must be
taken when using a crystal circuit to generate the reference clock for the ADV8005. Small variations in reference clock frequency can impair
the performance of the ADV8005.
Rev. 0 | Page 297 of 326
UG-707
ADV8005 Hardware Reference Manual
XTAL
27MHz
C1
47pF
C2
47pF
Figure 144: Crystal Circuit
These guidelines are followed to ensure correct operation:
• Use the correct frequency crystal (27 MHz recommended). Tolerance should be 50 ppm or better.
•
Know the Cload for the crystal part number selected. The value of capacitors C1 and C2 must be matched to the Cload for the specific
crystal part number in the user’s system.
To find C1 and C2, use the following formula:
C1 = C2 = 2(Cload – Cstray)- Cpg
where Cstray is usually 2 to 3 pF, depending on board traces and Cpg (pin-to-ground-capacitance) is 4 pF for the ADV8005.
Example:
Cload = 30 pF, C1 = 50 pF, C2 = 50 pF (in this case, 47 pF is the nearest real-life cap value to 50 pF)
Encoder Component Placement
External component placement must be carefully considered – they should be kept as far away from noisy circuits as possible, as close to the
ADV8005 as possible and preferably on the same layer as the ADV8005. The external loop filter (connected to PVDD3), COMP, termination
resistors, VREF, and RSETx circuits must all be laid out carefully otherwise noise may couple onto the SD or HD encoder outputs.
Any external filter and buffer components connected to the encoder analog outputs should be placed close to the ADV8005 to minimize the
possibility of noise cross talk between neighboring circuitry. The encoder analog output traces should be kept as short as possible to reduce the
possibility of any signal integrity issues and to minimize the effect of trace capacitance on output bandwidth.
HDMI Transmitter Component Placement
External component placement must be carefully considered – they should be kept as far away as possible from noisy circuits, as close to the
ADV8005 as possible and preferably on the same layer as the ADV8005. The R_TX1 and R_TX2 resistors and PVDD5 and PVDD6 power
supplies must all be carefully laid out otherwise the HDMI transmitter performance, for example, HDMI compliance testing, may be reduced.
Power Supply Design and Sequencing
The ADV8005 requires only two regulators, one 3.3 V and one 1.8 V. The recommended power supply design is illustrated in Figure 145.
If using more than one 1.8 V regulator to supply ADV8005, it must be ensured that DVDD_DDR, PVDD_DDR and DVDD are supplied by
the same regulator.
The power-up sequence of the ADV8005 is as follows:
Rev. 0 | Page 298 of 326
ADV8005 Hardware Reference Manual
1.
2.
3.
4.
5.
6.
UG-707
Hold RESET and PDN pins low.
Bring up the 3.3 V supplies (DVDD_IO, AVDD1, and AVDD2).
A delay of a minimum of 20 ms is required from the point in which the 3.3 V reaches its minimum recommended value (that is, 3.14
V) before powering up the 1.8 V supplies.
Bring up the 1.8 V supplies (DVDD, CVDD1, PVDD1, PVDD2, PVDD3, AVDD3, DVDD_DDR, and PVDD_DDR). These should
be powered up together, that is, there should be a difference of less than 0.3 V between them.
RESET may be pulled high after supplies have been powered up.
A complete RESET is recommended after power up. This can be performed by the system microcontroller.
3.3V
R e g u la t o r
F ilt e r
AVDD1
F ilt e r
AVDD2
F ilt e r
D V D D IO
R/ C D e la y
E n a b le
A D V 8005
1.8V
R e g u la t o r
F ilt e r
AVDD3
F ilt e r
CVDD1
F ilt e r
DVDD
F ilt e r
DVDD_DDR
F ilt e r
PVDD1
F ilt e r
PVDD2
F ilt e r
PVDD3
F ilt e r
PVDD5
F ilt e r
PVDD_DDR
Figure 145: Power Supply Design
Rev. 0 | Page 299 of 326
UG-707
ADV8005 Hardware Reference Manual
Figure 146: Power Supply Sequence
Rev. 0 | Page 300 of 326
ADV8005 Hardware Reference Manual
UG-707
APPENDIX B
UNUSED PIN LIST
Location
A1
Mnemonic
OSD_IN[23]/EXT_DIN[7]
A2
OSD_DE
A3
OSD_CLK/EXT_CLK
A4
A5
A6
A7
AUD_IN[1]
AUD_IN[2]
AUD_IN[5]
ARC2_OUT
A8
MOSI1
A9
SCK2
A10
CS2
A11
RESET
A12
XTALN
A13
PVDD2
A14
A15
A16
A17
A18
A19
A20
A21
A22
NC
NC
CVDD1
RX_CN
RX_0N
RX_1N
RX_2N
CVDD1
RSET1
A23
VREF
B1
OSD_IN[21]/EXT_DIN[5]
B2
OSD_IN[22]/EXT_DIN[6]
B3
OSD_VS
B4
B5
B6
B7
AUD_IN[0]
AUD_IN[3]
SFL
ARC1_OUT
Type
OSD video
input/
miscellaneous
digital
OSD video
sync
OSD video
sync
Audio input
Audio input
Audio input
Audio output
Serial port
control
Serial port
control
Serial port
control
Miscellaneous
digital
Miscellaneous
digital
Power
No connect
No connect
Power
Rx input
Rx input
Rx input
Rx input
Power
Miscellaneous
analog 1
Miscellaneous
analog
OSD video
input/
miscellaneous
digital
OSD video
input/
miscellaneous
digital
OSD video
sync
Audio input
Audio input
SFL
Audio output
Description if Unused
Float this pin as it is disabled by default.
Pin Type
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin as it is disabled by default.
Digital input
Digital input
Digital input
Digital output
Digital output
Float this pin as it is disabled by default.
Digital output
Float this pin as it is disabled by default.
Digital output
This pin must be connected.
N/A
This pin must be connected.
N/A
PLL Digital Supply Voltage (1.8 V).
N/A
Float this pin.
Float this pin.
Comparator Supply Voltage (1.8 V).
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Comparator Supply Voltage (1.8 V).
Float this pin.
Digital output
Digital output
N/A
Digital input
Digital input
Digital input
Digital input
N/A
Analog input
Float this pin.
Analog input
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
Connect this pin to ground through a
Digital input
Digital input
Digital input
Digital output
Rev. 0 | Page 301 of 326
UG-707
ADV8005 Hardware Reference Manual
Location
Mnemonic
Type
Description if Unused
4.7kΩ resistor.
Pin Type
B8
MISO1
Float this pin as it is disabled by default.
Digital output
B9
MOSI2
Float this pin as it is disabled by default.
Digital output
B10
MISO2
Float this pin as it is disabled by default.
Digital Input
B11
ALSB
Serial port
control
Serial port
control
Serial port
control
I2C control
Digital Input
B12
XTALP
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
PVDD1
NC
NC
GND
RX_CP
RX_0P
RX_1P
RX_2P
GND
COMP1
B23
DAC4
C1
OSD_IN[19]/EXT_DIN[3]
C2
OSD_IN[20]/EXT_DIN[4]
C3
C4
C5
C6
C7
C8
GND
AUD_IN[4]
DSD_CLK
SCLK
SCL
SCK1
C9
C10
GND
INT0
C11
PDN
C12
C13
C14
C15
C16
C17
GND
GND
NC
NC
RX_HPD
AVDD1
Miscellaneous
digital
Power
No connect
No connect
GND
Rx input
Rx input
Rx input
Rx input
GND
Miscellaneous
analog1
Analog video
output
OSD video
input/
miscellaneous
digital
OSD video
input/
miscellaneous
digital
GND
Audio input
Audio input
Audio input
I2C control
Serial port
control
GND
Miscellaneous
digital
Miscellaneous
digital
GND
GND
No connect
No connect
Rx input
Power
Connect this pin to ground through a
4.7kΩ resistor.
This pin must be connected.
C18
C19
GND
GND
GND
GND
N/A
PLL Analog Supply Voltage (1.8 V).
Float this pin.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin.
N/A
Digital output
Digital output
N/A
Digital input
Digital input
Digital input
Digital input
N/A
Analog input
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Ground.
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
Float this pin as it is disabled by default.
This pin must be connected.
Connect this pin to ground through a
4.7kΩ resistor.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
This pin must be connected.
N/A
Digital input
Digital input
Digital input
N/A
Digital input
Ground.
Ground.
Float this pin.
Float this pin.
Float this pin.
Serial Video Rx Inputs Analog Supply (3.3
V).
Ground.
Ground.
N/A
N/A
Digital output
Digital output
Digital output
N/A
Rev. 0 | Page 302 of 326
Analog output
N/A
Digital output
N/A
N/A
N/A
ADV8005 Hardware Reference Manual
Location
C20
Mnemonic
AVDD1
Type
Power
C21
AVDD1
Power
C22
DAC5
C23
DAC6
D1
OSD_IN[16]/EXT_DIN[0]
D2
OSD_IN[17]/EXT_DIN[1]
D3
OSD_IN[18]/EXT_DIN[2]
D4
D5
D6
D7
D8
GND
DVDD_IO
MCLK
SDA
CS1
D9
D10
GND
INT1
D11
INT2
D12
D13
DVDD_IO
TEST1
D14
D15
D16
D17
D18
D19
NC
NC
RX_5V
NC
NC
RTERM
D20
D21
D22
AVDD2
AVDD2
DAC1
D23
DAC2
E1
OSD_IN[13]/VBI_SCK
E2
OSD_IN[14]/VBI_MOSI
Analog video
output
Analog video
output
OSD video
input/
miscellaneous
digital
OSD video
input/
miscellaneous
digital
OSD video
input/
miscellaneous
digital
GND
Power
Audio input
I2C control
Serial port
control
GND
Miscellaneous
digital
Miscellaneous
digital
Power
Miscellaneous
digital
No connect
No connect
Rx input
No connect
No connect
Serial Video Rx
input
Power
Power
Analog video
output
Analog video
output
OSD video
input/
miscellaneous
digital
OSD video
input/
miscellaneous
digital
UG-707
Description if Unused
Serial Video Rx Inputs Analog Supply (3.3
V).
Serial Video Rx Inputs Analog Supply (3.3
V).
Float this pin.
Pin Type
N/A
Float this pin.
Analog output
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Ground.
Digital Interface Supply (3.3 V).
Float this pin as it is disabled by default.
This pin must be connected.
Float this pin as it is disabled by default.
N/A
N/A
Digital input
N/A
Digital input
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Digital Interface Supply (3.3 V).
Float this pin.
N/A
Digital output
Float this pin.
Float this pin.
Connect this pin to +5V.
Float this pin.
Float this pin.
Float this pin.
Digital output
Digital output
Digital input
Digital input
Digital input
Analog input
Encoder Analog Power Supply (3.3 V).
Encoder Analog Power Supply (3.3 V).
Float this pin.
N/A
N/A
Analog output
Float this pin.
Analog output
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Rev. 0 | Page 303 of 326
N/A
Analog output
Digital output
N/A
Digital output
UG-707
ADV8005 Hardware Reference Manual
Location
E3
Mnemonic
OSD_IN[15]/VBI_CS
E4
E20
DVDD_IO
TEST2
E21
E22
GND
COMP2
E23
DAC3
F1
OSD_IN[9]
F2
OSD_IN[10]
F3
OSD_IN[11]
F4
OSD_IN[12]
F20
RSET2
F21
F22
F23
PVDD3
GND
DNC
G1
OSD_IN[5]
G2
OSD_IN[6]
G3
OSD_IN[7]
G4
OSD_IN[8]
G7
G8
G9
G10
G11
G12
G13
G14
G15
G16
G17
G20
GND
GND
GND
DVDD
GND
GND
DVDD
GND
GND
GND
GND
ELPF1
G21
ELPF2
G22
G23
H1
GND
AVDD3
OSD_IN[1]
Type
OSD video
input/
miscellaneous
digital
Power
Miscellaneous
analog
GND
Miscellaneous
analog1
Analog video
output
OSD video
input
OSD video
input
OSD video
input
OSD video
input/
miscellaneous
digital
Miscellaneous
analog1
Power
GND
Do Not
Connect
OSD video
input
OSD video
input
OSD video
input
OSD video
input
GND
GND
GND
Power
GND
GND
Power
GND
GND
GND
GND
Miscellaneous
analog1
Miscellaneous
analog1
GND
Power
OSD video
Description if Unused
Float this pin as it is disabled by default.
Pin Type
Bi-directional digital IO
Digital Interface Supply (3.3 V).
Float this pin.
N/A
Digital output
Ground.
Float this pin.
N/A
Analog input
Float this pin.
Analog output
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin.
Analog input
Encoder PLL Supply (1.8 V).
Ground.
Float this pin.
N/A
N/A
Digital output
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Ground.
Ground.
Ground.
Digital Power Supply (1.8 V).
Ground.
Ground.
Digital Power Supply (1.8 V).
Ground.
Ground.
Ground.
Ground.
This pin must be connected.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
This pin must be connected.
N/A
Ground.
HDMI Analog Power Supply (1.8 V).
Float this pin as it is disabled by default.
N/A
N/A
Bi-directional digital IO
Rev. 0 | Page 304 of 326
ADV8005 Hardware Reference Manual
UG-707
Location
Mnemonic
Type
input
Description if Unused
Pin Type
H2
OSD_IN[2]
Float this pin as it is disabled by default.
Bi-directional digital IO
H3
OSD_IN[3]
Float this pin as it is disabled by default.
Bi-directional digital IO
H4
OSD_IN[4]
Float this pin as it is disabled by default.
Bi-directional digital IO
H7
H8
H9
H10
H11
H12
H13
H14
H15
H16
H17
H20
H21
H22
H23
J1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
TX1_2+
TX1_2−
DE
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
Digital output
Digital input
J2
HS
Float this pin as it is disabled by default.
Digital input
J3
OSD_HS
Float this pin as it is disabled by default.
Bi-directional digital IO
J4
OSD_IN[0]
Float this pin as it is disabled by default.
Bi-directional digital IO
J7
J8
J9
J10
J11
J12
J13
J14
J15
J16
J17
J20
J21
J22
J23
K1
DVDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
DVDD
DDC1_SDA
GND
TX1_1+
TX1_1−
VS
Digital Power Supply (1.8 V).
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Digital Power Supply (1.8 V).
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Digital output
Digital output
Digital input
K2
PCLK
Float this pin as it is disabled by default.
Digital input
K3
DVDD_IO
OSD video
input
OSD video
input
OSD video
input
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HDMI Tx1
HDMI Tx1
Digital video
sync
Digital video
sync
Digital video
sync
OSD video
input
Power
GND
GND
GND
GND
GND
GND
GND
GND
GND
Power
HDMI Tx1
GND
HDMI Tx1
HDMI Tx1
Digital video
sync
Digital Video
Sync
Power
Digital Interface Supply (3.3 V).
N/A
Rev. 0 | Page 305 of 326
UG-707
ADV8005 Hardware Reference Manual
Location
K4
K7
K8
K9
K10
K11
K12
K13
K14
K15
K16
K17
K20
K21
K22
K23
L1
Mnemonic
DVDD_IO
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DDC1_SCL
GND
TX1_0+
TX1_0−
P[32]
L2
P[33]
L3
P[34]
L4
P[35]
L7
L8
L9
L10
L11
L12
L13
L14
L15
L16
L17
L20
L21
L22
L23
M1
DVDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HPD_TX1
GND
TX1_C+
TX1_C−
P[28]
M2
P[29]
M3
P[30]
M4
P[31]
M7
M8
M9
M10
GND
GND
GND
GND
Type
Power
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HDMI Tx1
GND
HDMI Tx1
HDMI Tx1
Digital video
input
Digital video
input
Digital video
input
Digital video
input
Power
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HDMI Tx1
GND
HDMI Tx1
HDMI Tx1
Digital video
input
Digital video
input
Digital video
input
Digital video
input
GND
GND
GND
GND
Description if Unused
Digital Interface Supply (3.3 V).
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
Pin Type
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Digital output
Digital output
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Digital Power Supply (1.8 V).
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Analog input (5V Tol)
N/A
Digital output
Digital output
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Ground.
Ground.
Ground.
Ground.
N/A
N/A
N/A
N/A
Rev. 0 | Page 306 of 326
ADV8005 Hardware Reference Manual
Location
M11
M12
M13
M14
M15
M16
M17
M20
M21
Mnemonic
GND
GND
GND
GND
GND
GND
GND
R_TX1
PVDD5
Type
GND
GND
GND
GND
GND
GND
GND
HDMI Tx11
Power
M22
HEAC_1+
HDMI Tx1
M23
HEAC_1−
HDMI Tx1
N1
P[24]
N2
P[25]
N3
P[26]
N4
P[27]
N7
N8
N9
N10
N11
N12
N13
N14
N15
N16
N17
N20
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DNC
N21
PVDD5
Digital video
input
Digital video
input
Digital video
input
Digital video
input
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Do Not
Connect
Power
N22
N23
P1
AVDD3
NC
P[20]
P2
P[21]
P3
P[22]
P4
P[23]
P7
P8
DVDD
GND
Power
No connect
Digital video
input
Digital video
input
Digital video
input
Digital video
input
Power
GND
UG-707
Description if Unused
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
HDMI Tx PLL Power Supply (1.8 V). This
pin is a voltage regulator output. Connect
a decoupling capacitor between this pin
and ground.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin as it is disabled by default.
Pin Type
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Float this pin as it is disabled by default.
Bi-directional digital IO
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
HDMI Tx PLL Power Supply (1.8 V). This
pin is a voltage regulator output. Connect
a decoupling capacitor between this pin
and ground.
HDMI Analog Power Supply (1.8 V).
Connect this pin to ground.
Float this pin as it is disabled by default.
N/A
N/A
Digital input
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Digital Power Supply (1.8 V).
Ground.
N/A
N/A
Rev. 0 | Page 307 of 326
UG-707
ADV8005 Hardware Reference Manual
Location
P9
P10
P11
P12
P13
P14
P15
P16
P17
P20
P21
P22
P23
R1
Mnemonic
GND
GND
GND
GND
GND
GND
GND
GND
DVDD
DDC2_SCL
GND
TX2_2+
TX2_2−
P[16]
R2
P[17]
R3
P[18]
R4
P[19]
R7
R8
R9
R10
R11
R12
R13
R14
R15
R16
R17
R20
R21
R22
R23
T1
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
DDC2_SDA
GND
TX2_1+
TX2_1−
P[14]
T2
P[15]
T3
T4
T7
T8
T9
T10
T11
T12
T13
T14
T15
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Type
GND
GND
GND
GND
GND
GND
GND
GND
Power
HDMI Tx2
GND
HDMI Tx2
HDMI Tx2
Digital video
input
Digital video
input
Digital video
input
Digital video
input
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HDMI Tx2
GND
HDMI Tx2
HDMI Tx2
Digital video
input
Digital video
input
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Description if Unused
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Digital Power Supply (1.8 V).
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
Pin Type
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Digital output
Digital output
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Digital output
Digital output
Digital input
Float this pin as it is disabled by default.
Digital input
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
Ground.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Rev. 0 | Page 308 of 326
ADV8005 Hardware Reference Manual
Location
T16
T17
T20
T21
T22
T23
U1
Mnemonic
GND
GND
HPD_TX2
GND
TX2_0+
TX2_0−
P[10]
U2
P[11]
U3
P[12]
U4
P[13]
U7
U8
U9
U10
U11
U12
U13
U14
U15
U16
U17
U20
U21
U22
U23
V1
GND
GND
DVDD
GND
GND
DVDD
GND
GND
DVDD
GND
GND
R_TX2
GND
TX2_C+
TX2_C−
P[6]
V2
P[7]
V3
P[8]
V4
P[9]
V20
V21
GND
PVDD6
Type
GND
GND
HDMI Tx2
GND
HDMI Tx2
HDMI Tx2
Digital video
input
Digital video
input
Digital video
input
Digital video
input
GND
GND
Power
GND
GND
Power
GND
GND
Power
GND
GND
HDMI Tx2
GND
HDMI Tx2
HDMI Tx2
Digital video
input
Digital video
input
Digital video
input
Digital video
input
GND
Power
V22
HEAC_2+
HDMI Tx2
V23
HEAC_2−
HDMI Tx2
W1
P[2]
W2
P[3]
W3
P[4]
W4
P[5]
Digital video
input
Digital video
input
Digital video
input
Digital video
UG-707
Description if Unused
Ground.
Ground.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
Pin Type
N/A
N/A
Analog input
N/A
Digital output
Digital output
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Ground.
Ground.
Digital Power Supply (1.8 V).
Ground.
Ground.
Digital Power Supply (1.8 V).
Ground.
Ground.
Digital Power Supply (1.8 V).
Ground.
Ground.
Float this pin.
Ground.
Float this pin.
Float this pin.
Float this pin as it is disabled by default.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Digital output
N/A
Digital output
Digital output
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Ground.
HDMI Tx PLL Power Supply (1.8 V). This
pin is a voltage regulator output. Connect
a decoupling capacitor between this pin
and ground.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin as it is disabled by default.
N/A
N/A
Bi-directional digital IO
Bi-directional digital IO
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Float this pin as it is disabled by default.
Digital input
Rev. 0 | Page 309 of 326
UG-707
ADV8005 Hardware Reference Manual
Location
Mnemonic
Type
input
Description if Unused
Pin Type
W20
TEST3
Float this pin.
Digital output
W21
PVDD6
Miscellaneous
digital
Power
N/A
W22
W23
Y1
AVDD3
NC
P[0]
N/A
Digital output
Digital input
Y2
P[1]
Float this pin as it is disabled by default.
Digital input
Y3
DDR_DQS[2]
Power
No connect
Digital video
input
Digital video
input
DDR interface
HDMI Tx PLL Power Supply (1.8 V). This
pin is a voltage regulator output. Connect
a decoupling capacitor between this pin
and ground.
HDMI Analog Power Supply (1.8 V).
Float this pin.
Float this pin as it is disabled by default.
Bi-directional digital IO
Y4
Y5
GND
DDR_DQ[23]
GND
DDR interface
Y6
Y7
DVDD_DDR
DDR_DQS[3]
Power
DDR interface
Y8
Y9
Y10
Y11
Y12
Y13
GND
DDR_A[11]
DVDD_DDR
DDR_A[4]
GND
DDR_CAS
GND
DDR interface
Power
DDR interface
GND
DDR interface
Connect this pin to ground through a
4.7kΩ resistor.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
DDR Interface Supply (1.8 V).
Connect this pin to ground through a
4.7kΩ resistor.
Ground.
Float this pin.
DDR Interface Supply (1.8 V).
Float this pin.
Ground.
Float this pin.
N/A
Digital output
N/A
Digital output
N/A
Digital output
Y14
Y15
DVDD_DDR
DDR_CK
Power
DDR interface
DDR Interface Supply (1.8 V).
Float this pin.
N/A
Digital output
Y16
Y17
GND
DDR_DQ[9]
GND
DDR Interface
N/A
Bi-directional digital IO
Y18
Y19
DVDD_DDR
DDR_DQ[14]
Power
DDR interface
Y20
Y21
GND
DDR_DQ[6]
GND
DDR interface
Y22
Y23
AA1
PVDD_DDR
GND
DDR_DQ[18]
Power
GND
DDR interface
AA2
AA3
AA4
GND
GND
DDR_DQS[2]
GND
GND
DDR interface
AA5
DDR_DQ[26]
DDR interface
AA6
AA7
DVDD_DDR
DDR_DQS[3]
Power
DDR interface
AA8
NC/GND
No
connect/GND
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
DDR Interface Supply (1.8 V).
Connect this pin to ground through a
4.7kΩ resistor.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
DDR Interface PLL Supply (1.8 V).
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
Ground.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
DDR Interface Supply (1.8 V).
Connect this pin to ground through a
4.7kΩ resistor.
For New ADV8005 Designs, Float this pin.
For Designs That Must Maintain
Rev. 0 | Page 310 of 326
N/A
Bi-directional digital IO
N/A
Bi-directional digital IO
N/A
Bi-directional digital IO
N/A
Bi-directional digital IO
N/A
N/A
Bi-directional digital IO
N/A
N/A
Bi-directional digital IO
Bi-directional digital IO
N/A
Bi-directional digital IO
N/A
ADV8005 Hardware Reference Manual
Location
Mnemonic
Type
AA9
AA10
AA11
AA12
AA13
DDR_A[8]
DVDD_DDR
DDR_A[2]
GND
DDR_CS
DDR interface
Power
DDR interface
GND
DDR interface
AA14
AA15
AA16
AA17
DVDD_DDR
DDR_CK
GND
DDR_DQ[11]
Power
DDR interface
GND
DDR interface
AA18
AA19
AA20
AA21
AA22
AA23
DVDD_DDR
DDR_DM[1]
DDR_DM[0]
GND
GND
DDR_DQ[3]
Power
DDR interface
DDR interface
GND
GND
DDR interface
AB1
DDR_DQ[21]
DDR interface
AB2
DDR_DQ[19]
DDR interface
AB3
DDR_DQ[17]
DDR interface
AB4
AB5
DDR_DM[2]
DDR_DQ[30]
DDR interface
DDR interface
AB6
AB7
DDR_DM[3]
DDR_DQ[31]
DDR interface
DDR interface
AB8
DDR_DQ[29]
DDR interface
AB9
AB10
AB11
AB12
AB13
AB14
DDR_A[12]
DDR_A[6]
DDR_A[3]
DDR_A[0]
DDR_BA[0]
DDR_RAS
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
AB15
AB16
DDR_CKE
DDR_DQ[12]
DDR interface
DDR interface
AB17
DDR_DQS[1]
DDR interface
AB18
DDR_DQ[8]
DDR interface
AB19
DDR_DQ[13]
DDR interface
AB20
DDR_DQ[0]
DDR interface
AB21
DDR_DQ[5]
DDR interface
AB22
DDR_DQS[0]
DDR interface
UG-707
Description if Unused
Consistency with ADV8005, this Pin can
be Grounded.
Float this pin.
DDR Interface Supply (1.8 V).
Float this pin.
Ground.
Float this pin.
DDR Interface Supply (1.8 V).
Float this pin.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
DDR Interface Supply (1.8 V).
Float this pin.
Float this pin.
Ground.
Ground.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
Rev. 0 | Page 311 of 326
Pin Type
Digital output
N/A
Digital output
N/A
Digital output
Digital output
N/A
Bi-directional digital IO
N/A
Digital output
Digital output
N/A
N/A
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Digital output
Bi-directional digital IO
Digital output
Bi-directional digital IO
Bi-directional digital IO
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
UG-707
ADV8005 Hardware Reference Manual
Location
Mnemonic
Type
Description if Unused
4.7kΩ resistor.
Pin Type
AB23
DDR_DQ[4]
DDR interface
Bi-directional digital IO
AC1
DDR_DQ[16]
DDR interface
AC2
DDR_DQ[20]
DDR interface
AC3
DDR_DQ[22]
DDR interface
AC4
DDR_DQ[25]
DDR interface
AC5
DDR_DQ[28]
DDR interface
AC6
DDR_DQ[27]
DDR interface
AC7
DDR_DQ[24]
DDR interface
AC8
AC9
AC10
AC11
AC12
AC13
AC14
AC15
DDR_A[9]
DDR_A[5]
DDR_A[7]
DDR_A[1]
DDR_A[10]
DDR_BA[1]
DDR_BA[2]
DDR_WE
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
DDR interface
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
Float this pin.
AC16
AC17
DDR_VREF
DDR_DQ[10]
DDR interface
DDR interface
AC18
DDR_DQS[1]
DDR interface
AC19
DDR_DQ[15]
DDR interface
AC20
DDR_DQ[7]
DDR interface
AC21
DDR_DQ[2]
DDR interface
AC22
DDR_DQS[0]
DDR interface
AC23
DDR_DQ[1]
DDR interface
1
Connect to DVDD_DDR.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Connect this pin to ground through a
4.7kΩ resistor.
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital output
Digital input
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Bi-directional digital IO
Sensitive node. Careful layout is important. The associated circuitry should be kept as close as possible to the ADV8005.
Rev. 0 | Page 312 of 326
ADV8005 Hardware Reference Manual
UG-707
APPENDIX C
PIXEL INPUT AND OUTPUT FORMATS
Rev. 0 | Page 313 of 326
UG-707
ADV8005 Hardware Reference Manual
Table 87: RGB Input Formats
ADV8005
PIN
NAME
8BIT
SD
R
4:2:
2
10BIT
SD
R
4:2:
2
12BIT
SD
R
4:2:
2
16BIT
SD
R
4:2:
2
20BIT
SD
R
4:2:
2
24BIT
SD
R
4:2:
2
24BIT
SD
R
4:4:
4
30BIT
SD
R
4:4:
4
36BIT
SD
R
4:4:
4
8-BIT DDR
4:2:2
Cloc
k
Rise
Cloc
k
Fall
10-BIT DDR
4:2:2
12-BIT DDR
4:2:2
Cloc
k
Rise
Cloc
k
Rise
Cloc
k
Fall
Cloc
k
Fall
24BIT
SD
R
4:4:
4
(a)
8BIT
x2
SD
R
4:4:
4
8BIT
x2
SD
R
4:2:
2
10BIT
x2
SD
R
4:2:
2
12BIT
x2
SD
R
4:2:
2
30BIT
SD
R
4:4:
4
21BIT
SD
R
4:4:
4
30BIT
SD
R
4:4:
4
RGB Colourspace
5
9
5
8
5
7
5
6
5
5
5
4
5
3
5
2
5
1
5
0
4
9
4
8
4
7
4
6
4
5
4
4
4
3
4
2
4
1
Sub
TTL
Inpu
t
OSD_IN.2
3
OSD_IN.2
2
OSD_IN.2
1
OSD_IN.2
0
OSD_IN.1
9
OSD_IN.1
8
OSD_IN.1
7
OSD_IN.1
6
OSD_IN.1
5
OSD_IN.1
4
OSD_IN.1
3
OSD_IN.1
2
OSD_IN.1
1
OSD_IN.1
0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R7
Z
Z
Z
Z
Z
G6
R9
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R6
Z
Z
Z
Z
Z
G5
R8
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R5
Z
Z
Z
Z
Z
G4
R7
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R4
Z
Z
Z
Z
Z
G3
R6
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R3
Z
Z
Z
Z
Z
G2
R5
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R2
Z
Z
Z
Z
Z
G1
R4
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R1
Z
Z
Z
Z
Z
G0
R3
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
R0
Z
Z
Z
Z
Z
Z
R2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G7
Z
Z
Z
Z
Z
R6
R1
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G6
Z
Z
Z
Z
Z
R5
R0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G5
Z
Z
Z
Z
Z
R4
G9
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G4
Z
Z
Z
Z
R3
G8
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G3
Z
Z
Z
Z
R2
G7
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G2
Z
Z
Z
Z
R1
G6
OSD_IN.9
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G1
Z
Z
Z
Z
R0
G5
OSD_IN.8
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
G0
Z
Z
Z
Z
Z
G4
OSD_IN.7
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B7
Z
Z
Z
Z
B6
G3
OSD_IN.6
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B6
Z
Z
Z
Z
B5
G2
OSD_IN.5
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B5
Z
G1.
7
G1.
6
G1.
5
G1.
4
G1.
3
G1.
2
G1.
1
Z
Z
Z
Z
B4
G1
Rev. 0 | Page 314 of 326
ADV8005 Hardware Reference Manual
4
0
3
9
3
8
3
7
3
6
3
5
3
4
3
3
3
2
3
1
3
0
2
9
2
8
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
1
9
1
8
1
7
1
6
Mai
n
TTL
Inpu
t
UG-707
OSD_IN.4
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B4
OSD_IN.3
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B3
OSD_IN.2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B2
OSD_IN.1
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B1
OSD_IN.0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
B0
P.35
Z
Z
Z
Z
Z
Z
R7
R9
R11
Z
Z
Z
Z
Z
Z
Z
P.34
Z
Z
Z
Z
Z
Z
R6
R8
R10
Z
Z
Z
Z
Z
Z
Z
P.33
Z
Z
Z
Z
Z
Z
R5
R7
R9
Z
Z
Z
Z
Z
Z
Z
P.32
Z
Z
Z
Z
Z
Z
R4
R6
R8
Z
Z
Z
Z
Z
Z
Z
P.31
Z
Z
Z
Z
Z
Z
R3
R5
R7
Z
Z
Z
Z
Z
Z
Z
P.30
Z
Z
Z
Z
Z
Z
R2
R4
R6
Z
Z
Z
Z
Z
Z
Z
P.29
Z
Z
Z
Z
Z
Z
R1
R3
R5
Z
Z
Z
Z
Z
Z
Z
P.28
Z
Z
Z
Z
Z
Z
R0
R2
R4
Z
Z
Z
Z
Z
Z
Z
P.27
Z
Z
Z
Z
Z
Z
Z
R1
R3
Z
Z
Z
Z
Z
Z
Z
P.26
Z
Z
Z
Z
Z
Z
Z
R0
R2
Z
Z
Z
Z
Z
Z
Z
P.25
Z
Z
Z
Z
Z
Z
Z
Z
R1
Z
Z
Z
Z
Z
Z
Z
P.24
Z
Z
Z
Z
Z
Z
Z
Z
R0
Z
Z
Z
Z
Z
Z
Z
P.23
Z
Z
Z
Z
Z
Z
G7
G9
G11
Z
Z
Z
Z
Z
Z
R7
P.22
Z
Z
Z
Z
Z
Z
G6
G8
G10
Z
Z
Z
Z
Z
Z
R6
P.21
Z
Z
Z
Z
Z
Z
G5
G7
G9
Z
Z
Z
Z
Z
Z
R5
P.20
Z
Z
Z
Z
Z
Z
G4
G6
G8
Z
Z
Z
Z
Z
Z
R4
P.19
Z
Z
Z
Z
Z
Z
G3
G5
G7
Z
Z
Z
Z
Z
Z
R3
P.18
Z
Z
Z
Z
Z
Z
G2
G4
G6
Z
Z
Z
Z
Z
Z
R2
P.17
Z
Z
Z
Z
Z
Z
G1
G3
G5
Z
Z
Z
Z
Z
Z
R1
P.16
Z
Z
Z
Z
Z
Z
G0
G2
G4
Z
Z
Z
Z
Z
Z
R0
Rev. 0 | Page 315 of 326
G1.
0
B1.
7
B1.
6
B1.
5
B1.
4
B1.
3
B1.
2
B1.
1
B1.
0
R1.
7
R1.
6
R1.
5
R1.
4
R1.
3
R1.
2
R1.
1
R1.
0
G2.
7
G2.
6
G2.
5
G2.
4
G2.
3
G2.
2
G2.
1
G2.
0
Z
Z
Z
Z
B3
G0
Z
Z
Z
Z
B2
B9
Z
Z
Z
Z
B1
B8
Z
Z
Z
Z
B0
B7
Z
Z
Z
Z
Z
B6
Z
Z
Z
Z
Z
B5
Z
Z
Z
Z
Z
B4
Z
Z
Z
Z
Z
B3
Z
Z
Z
Z
Z
B2
Z
Z
Z
Z
Z
B1
Z
Z
Z
Z
Z
B0
Z
Z
Z
R9
Z
Z
Z
Z
Z
R8
Z
Z
Z
Z
Z
R7
Z
Z
Z
Z
Z
R6
Z
Z
Z
Z
Z
R5
Z
Z
Z
Z
Z
R4
Z
Z
Z
Z
Z
R3
R6
Z
Z
Z
Z
R2
R5
Z
Z
Z
Z
R1
R4
Z
Z
Z
Z
R0
R3
Z
Z
Z
Z
G9
R2
Z
Z
Z
Z
G8
R1
Z
Z
Z
Z
G7
R0
Z
Z
Z
Z
G6
Z
Z
UG-707
1
5
1
4
1
3
1
2
1
1
1
0
ADV8005 Hardware Reference Manual
P.15
Z
Z
Z
Z
Z
Z
Z
G1
G3
Z
Z
Z
Z
Z
Z
G7
P.14
Z
Z
Z
Z
Z
Z
Z
G0
G2
Z
Z
Z
Z
Z
Z
G6
P.13
Z
Z
Z
Z
Z
Z
Z
Z
G1
Z
Z
Z
Z
Z
Z
G5
P.12
Z
Z
Z
Z
Z
Z
Z
Z
G0
Z
Z
Z
Z
Z
Z
G4
P.11
Z
Z
Z
Z
Z
Z
B7
B9
B11
Z
Z
Z
Z
Z
Z
G3
P.10
Z
Z
Z
Z
Z
Z
B6
B8
B10
Z
Z
Z
Z
Z
Z
G2
9
P.9
Z
Z
Z
Z
Z
Z
B5
B7
B9
Z
Z
Z
Z
Z
Z
G1
8
P.8
Z
Z
Z
Z
Z
Z
B4
B6
B8
Z
Z
Z
Z
Z
Z
G0
7
P.7
Z
Z
Z
Z
Z
Z
B3
B5
B7
Z
Z
Z
Z
Z
Z
B7
6
P.6
Z
Z
Z
Z
Z
Z
B2
B4
B6
Z
Z
Z
Z
Z
Z
B6
5
P.5
Z
Z
Z
Z
Z
Z
B1
B3
B5
Z
Z
Z
Z
Z
Z
B5
4
P.4
Z
Z
Z
Z
Z
Z
B0
B2
B4
Z
Z
Z
Z
Z
Z
B4
3
P.3
Z
Z
Z
Z
Z
Z
Z
B1
B3
Z
Z
Z
Z
Z
Z
B3
2
P.2
Z
Z
Z
Z
Z
Z
Z
B0
B2
Z
Z
Z
Z
Z
Z
B2
1
P.1
Z
Z
Z
Z
Z
Z
Z
Z
B1
Z
Z
Z
Z
Z
Z
B1
0
P.0
Z
Z
Z
Z
Z
Z
Z
Z
B0
Z
Z
Z
Z
Z
Z
B0
Rev. 0 | Page 316 of 326
B2.
7
B2.
6
B2.
5
B2.
4
B2.
3
B2.
2
B2.
1
B2.
0
R2.
7
R2.
6
R2.
5
R2.
4
R2.
3
R2.
2
R2.
1
R2.
0
Z
Z
Z
G5
G6
Z
Z
Z
Z
G4
G5
Z
Z
Z
Z
G3
G4
Z
Z
Z
Z
G2
G3
Z
Z
Z
Z
G1
G2
Z
Z
Z
Z
G0
G1
Z
Z
Z
Z
B9
G0
Z
Z
Z
Z
B8
Z
Z
Z
Z
Z
B7
B6
Z
Z
Z
Z
B6
B5
Z
Z
Z
Z
B5
B4
Z
Z
Z
Z
B4
B3
Z
Z
Z
Z
B3
B2
Z
Z
Z
Z
B2
B1
Z
Z
Z
Z
B1
B0
Z
Z
Z
Z
B0
Z
Z
ADV8005 Hardware Reference Manual
UG-707
Table 88: YCbCr Input Formats
ADV
8005
PIN
NAM
E
8-BIT
SDR
4:2:2
10BIT
SDR
4:2:2
12-BIT
SDR
4:2:2
16BIT
SDR
4:2:2
20BIT
SDR
4:2:2
24BIT
SDR
4:2:2
24BIT
SD
R
4:4:
4
30BIT
SD
R
4:4:
4
36BIT
SD
R
4:4:
4
8-BIT DDR
4:2:2
Cloc
k
Rise
5
0
OSD
_DE
OSD
_VS
OSD
_CL
K
OSD
_IN.2
3
OSD
_IN.2
2
OSD
_IN.2
1
OSD
_IN.2
0
OSD
_IN.1
9
OSD
_IN.1
8
OSD
_IN.1
7
OSD
_IN.1
6
OSD
_IN.1
5
OSD
_IN.1
4
4
OSD
5
9
5
8
5
7
5
6
5
5
5
4
5
3
5
2
5
1
S
u
b
T
T
L
In
p
ut
OSD
_DE
OSD
_VS
OSD
_DE
OSD
_VS
OSD_
DE
OSD_
VS
OSD
_CLK
Cb7/
Cr7,
Y7
Cb6/
Cr6,
Y6
Cb5/
Cr5,
Y5
Cb4/
Cr4,
Y4
Cb3/
Cr3,
Y3
Cb2/
Cr2,
Y2
Cb1/
Cr1,
Y1
Cb0/
Cr0,
Y0
OSD_
CLK
Cb11/
Cr11,Y
11
Cb10/
Cr10,Y
10
Z
OSD
_CLK
Cb9/
Cr9,
Y9
Cb8/
Cr8,
Y8
Cb7/
Cr7,
Y7
Cb6/
Cr6,
Y6
Cb5/
Cr5,
Y5
Cb4/
Cr4,
Y4
Cb3/
Cr3,
Y3
Cb2/
Cr2,
Y2
Cb1/
Cr1,
Y1
Cb0/
Cr0,
Y0
Z
Z
Z
OSD
_DE
OSD
_VS
OSD
_CL
K
OSD
_DE
OSD
_VS
OSD
_CL
K
OSD
_DE
OSD
_VS
OSD
_CL
K
Y7
Y9
Y6
Cb9/Cr
9,Y9
10-BIT DDR
4:2:2
12-BIT DDR
4:2:2
Cloc
k
Rise
Cloc
k
Fall
Cloc
k
Rise
Cloc
k
Fall
YCbCr Colourspace
OSD OSD OSD
_DE
_DE
_DE
OSD OSD OSD
_VS
_VS
_VS
OSD OSD OSD
_CL
_CL
_CL
K
K
K
OSD
_DE
OSD
_VS
OSD
_CL
K
Cloc
k
Fall
8BIT
x2
SD
R
4:4:
4
8BIT
x2
SD
R
4:2:
2
10BIT
x2
SD
R
4:2:
2
12BIT
x2
SD
R
4:2:
2
30BIT
SD
R
4:4:
4
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cr7
Z
Z
Z
Cr6
Z
Z
24BIT
SDR
4:4:4
(a)
30BIT
SDR
4:4:4
Z
OSD
_DE
OSD
_VS
OSD
_CL
K
OSD
_DE
OSD
_VS
OSD
_CL
K
Z
Z
Cr6
Cr9
Z
Z
Z
Cr5
Cr8
Z
Z
Z
Z
Z
Z
Z
Z
Z
OSD
_DE
OSD
_VS
OSD
_CL
K
Y11
Z
Z
Z
Y7
Cb7,
Cr7
Y9
Cb9,
Cr9
Y11
Y8
Y10
Z
Z
Z
Y6
Cb6,
Cr6
Y8
Cb8,
Cr8
Y10
OSD
_DE
OSD
_VS
OSD
_CL
K
Cb1
1,Cr
11
Cb1
0,Cr
10
Y5
Y7
Y9
Z
Z
Z
Y5
Cb5,
Cr5
Y7
Cb7,
Cr7
Y9
Cb9,
Cr9
Cr5
Z
Z
Z
Z
Z
Cr4
Cr7
Cb8/Cr
8,Y8
Y4
Y6
Y8
Z
Z
Z
Y4
Cb4,
Cr4
Y6
Cb6,
Cr6
Y8
Cb8,
Cr8
Cr4
Z
Z
Z
Z
Z
Cr3
Cr6
Cb7/Cr
7,Y7
Y3
Y5
Y7
Z
Z
Z
Y3
Cb3,
Cr3
Y5
Cb5,
Cr5
Y7
Cb7,
Cr7
Cr3
Z
Z
Z
Z
Z
Cr2
Cr5
Cb6/Cr
6,Y6
Y2
Y4
Y6
Z
Z
Z
Y2
Cb2,
Cr2
Y4
Cb4,
Cr4
Y6
Cb6,
Cr6
Cr2
Z
Z
Z
Z
Z
Cr1
Cr4
Cb5/Cr
5,Y5
Y1
Y3
Y5
Z
Z
Z
Y1
Cb1,
Cr1
Y3
Cb3,
Cr3
Y5
Cb5,
Cr5
Cr1
Z
Z
Z
Z
Z
Cr0
Cr3
Cb4/Cr
4,Y4
Y0
Y2
Y4
Z
Z
Z
Y0
Cb0,
Cr0
Y2
Cb2,
Cr2
Y4
Cb4,
Cr4
Cr0
Z
Z
Z
Z
Z
Z
Cr2
Cb3/Cr
3,Y3
Z
Y1
Y3
Z
Z
Z
Z
Z
Y1
Cb1,
Cr1
Y3
Cb3,
Cr3
Y7
Z
Z
Z
Z
Z
Y6
Cr1
Cb2/Cr
2,Y2
Z
Y0
Y2
Z
Z
Z
Z
Z
Y0
Cb0,
Cr0
Y2
Cb2,
Cr2
Y6
Z
Z
Z
Z
Z
Y5
Cr0
Cb1/Cr
Z
Z
Y1
Z
Z
Z
Z
Z
Z
Z
Y1
Cb1,
Y5
Z
Z
Z
Z
Z
Y4
Y9
Rev. 0 | Page 317 of 326
OSD
_DE
OSD
_VS
OSD
_CL
K
21BIT
SDR
4:4:4
UG-707
9
_IN.1
3
OSD
_IN.1
2
OSD
_IN.1
1
OSD
_IN.1
0
OSD
_IN.9
OSD
_IN.8
OSD
_IN.7
OSD
_IN.6
OSD
_IN.5
OSD
_IN.4
OSD
_IN.3
OSD
_IN.2
OSD
_IN.1
OSD
_IN.0
4
8
4
7
4
6
4
5
4
4
4
3
4
2
4
1
4
0
3
9
3
8
3
7
3
6
3
5
3
4
3
3
3
2
3
1
3
0
2
9
2
8
2
7
M
ai
n
T
T
L
In
p
ut
ADV8005 Hardware Reference Manual
1,Y1
Z
Z
Cb0/Cr
0,Y0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cr1
Z
Z
Cb7,
Cr7
Cb9,
Cr9
Cb6,
Cr6
Cb5,
Cr5
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
Z
Z
Z
Z
Z
Z
Z
Z
Cb8,
Cr8
Cb7,
Cr7
Cb6,
Cr6
Cb5,
Cr5
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Y0
Cb1
1,Cr
11
Cb1
0,Cr
10
Cb9,
Cr9
Cb8,
Cr8
Cb7,
Cr7
Cb6,
Cr6
Cb5,
Cr5
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
Z
Z
Z
Z
Z
Z
Z
Y0
Cb0,
Cr0
Y4
Z
Y1.7
Y1
Y6
Z
Z
Z
Z
Z
Z
Z
Z
Y2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Y1
Y1.5
Y1.5
Y1.7
Y1.9
Z
Y0
Y5
Z
Z
Z
Z
Z
Z
Z
Z
Z
Y0
Y1.4
Y1.4
Y1.6
Y1.8
Z
Z
Y4
Cb7
Y1.3
Y1.3
Y1.5
Y1.7
Z
Cb6
Y3
Cb6
Y1.2
Y1.2
Y1.4
Y1.6
Z
Cb5
Y2
Y1.1
Y1.3
Y1.5
Z
Cb4
Y1
Y1.0
Y1.2
Y1.4
Z
Cb3
Y0
Y1.1
Y1.3
Z
Cb2
Cb9
Y1.0
Y1.2
Z
Cb1
Cb8
Z
Cb0
Cb7
Z
Z
Cb6
Z
Z
Cb5
Z
Z
Cb4
Z
Z
Cb3
Z
Z
Cb2
Z
Z
Cb1
Z
Z
Cb0
Cr9
Z
Z
Cr8
Z
Z
Cr7
Z
Z
Y1.6
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb5
Y1.1
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb4
Y1.0
Z
Z
Z
Cr1
Cr3
Cr5
Z
Z
Z
Z
Z
Z
Z
P.28
Z
Z
Z
Z
Z
Z
Cr0
Cr2
Cr4
Z
Z
Z
Z
Z
Z
Z
Z
Cr1.
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb3
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb1
Z
Z
Cr7
Cr9
P.34
Z
Z
Z
Z
Z
Z
Cr6
Cr8
P.33
Z
Z
Z
Z
Z
Z
Cr5
Cr7
P.32
Z
Z
Z
Z
Z
Z
Cr4
P.31
Z
Z
Z
Z
Z
Z
P.30
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Y1.1
0
Y3
Z
Z
Y7
Z
Z
Z
Y2
Z
Z
Z
Z
Z
P.35
Z
Y1.9
Z
Z
Cr1
1
Cr1
0
P.27
Y8
Z
Z
Z
Y3
Z
Z
Z
Z
Z
Z
Z
Z
Y1.1
1
Z
P.29
Z
Y1.7
Z
Z
Cb1.
7
Cb1.
6
Cb1.
5
Cb1.
4
Cb1.
3
Cb1.
2
Cb1.
1
Cb1.
0
Cr1.
7
Cr1.
6
Cr1.
5
Cr1.
4
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cr9
Z
Z
Z
Z
Z
Z
Z
Cr6
Cr8
Z
Z
Z
Z
Z
Z
Z
Cr3
Cr5
Cr7
Z
Z
Z
Z
Z
Z
Z
Cr2
Cr4
Cr6
Z
Z
Z
Z
Z
Z
Z
Z
Cr1
Cr3
Z
Z
Rev. 0 | Page 318 of 326
Z
Z
Z
Z
Y1.6
Z
Z
Z
Z
Y1.8
Z
Z
Y1.1
Y1.0
Cb.1
1
Cb.1
0
Cb.7
Cb.9
Cb.6
Cb.8
Cb.5
Cb.7
Cb.9
Cb.4
Cb.6
Cb.8
Cb.3
Cb.5
Cb.7
Cb.2
Cb.4
Cb.6
Cb.1
Cb.3
Cb.5
Cb.0
Cb.2
Cb.4
Z
Cb.1
Cb.3
ADV8005 Hardware Reference Manual
UG-707
3
2
6
2
5
2
4
2
3
2
2
P.26
Z
Z
Z
Z
Z
Z
Z
Cr0
Cr2
Z
Z
Z
Z
Z
Z
Z
P.25
Z
Z
Z
Z
Z
Z
Z
Z
Cr1
Z
Z
Z
Z
Z
Z
Z
P.24
Z
Cb7/
Cr7,
Y7
Cb6/
Cr6,
Y6
Cb5/
Cr5,
Y5
Cb4/
Cr4,
Y4
Cb3/
Cr3,
Y3
Cb2/
Cr2,
Y2
Cb1/
Cr1,
Y1
Cb0/
Cr0,
Y0
Z
Cb9/
Cr9,
Y9
Cb8/
Cr8,
Y8
Cb7/
Cr7,
Y7
Cb6/
Cr6,
Y6
Cb5/
Cr5,
Y5
Cb4/
Cr4,
Y4
Cb3/
Cr3,
Y3
Cb2/
Cr2,
Y2
Cb1/
Cr1,
Y1
Cb0/
Cr0,
Y0
Z
Cb11/
Cr11,Y
11
Cb10/
Cr10,Y
10
Z
Z
Z
Z
Z
Cr0
Z
Z
Z
Z
Z
Z
Y7
Cb7,
Cr7
Y9
Cb9,
Cr9
Z
Cb1
1,Cr
11
Cb1
0,Cr
10
P.23
P.22
2
1
P.21
2
0
P.20
1
9
P.19
1
8
P.18
1
7
P.17
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
P.16
P.15
P.14
Z
Z
P.13
Z
Z
P.12
Z
Z
P.11
P.10
P.9
Z
Z
Z
Z
Z
Z
Y7
Y6
Y9
Y8
Y11
Y10
Y7
Y6
Y9
Y8
Y11
Y10
Y6
Cb6,
Cr6
Y8
Cb8,
Cr8
Y11
Y10
Cr7
Cr6
Cb9/Cr
9,Y9
Y5
Y7
Y9
Y5
Y7
Y9
Y5
Cb5,
Cr5
Y7
Cb7,
Cr7
Y9
Cb9,
Cr9
Cr5
Cb8/Cr
8,Y8
Y4
Y6
Y8
Y4
Y6
Y8
Y4
Cb4,
Cr4
Y6
Cb6,
Cr6
Y8
Cb8,
Cr8
Cr4
Cb7/Cr
7,Y7
Y3
Y5
Y7
Y3
Y5
Y7
Y3
Cb3,
Cr3
Y5
Cb5,
Cr5
Y7
Cb7,
Cr7
Cr3
Cb6/Cr
6,Y6
Y2
Y4
Y6
Y2
Y4
Y6
Y2
Cb2,
Cr2
Y4
Cb4,
Cr4
Y6
Cb6,
Cr6
Cr2
Cb5/Cr
5,Y5
Y1
Y3
Y5
Y1
Y3
Y5
Y1
Cb1,
Cr1
Y3
Cb3,
Cr3
Y5
Cb5,
Cr5
Cr1
Y0
Cb0,
Cr0
Y2
Cb2,
Cr2
Y4
Cb4,
Cr4
Cb4/Cr
4,Y4
Cb3/Cr
3,Y3
Cb2/Cr
2,Y2
Cb1/Cr
1,Y1
Cb0/Cr
0,Y0
Z
Z
Z
Y0
Z
Z
Y2
Y1
Y0
Y4
Y3
Y2
Y0
Z
Z
Y2
Y1
Y0
Y4
Y3
Z
Y2
Z
Z
Z
Y1
Y0
Cb1,
Cr1
Cb0,
Cr0
Y3
Y2
Z
Z
Y1
Z
Z
Y1
Z
Z
Z
Z
Y1
Z
Z
Y0
Cb1
1,Cr
11
Cb1
0,Cr
10
Cb9,
Cr9
Z
Z
Y0
Z
Z
Z
Z
Y0
Cb7,
Cr7
Cb6,
Cr6
Cb5,
Cr5
Cb9,
Cr9
Cb8,
Cr8
Cb7,
Cr7
Cb7
Cb6
Cb5
Cb9
Cb8
Cb7
Cb1
1
Cb1
0
Cb9
Z
Z
Z
Z
Z
Z
Rev. 0 | Page 319 of 326
Z
Z
Z
Z
Z
Z
Z
Z
Z
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
Z
Z
Z
Cr0
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Cr1.
2
Cr1.
1
Cr1.
0
Z
Cb.0
Cb.2
Cb.1
Z
Z
Z
Z
Y2.
7
Y2.
7
Y2.
9
Y2.
11
Y2.
6
Y2.
6
Y2.
8
Y2.
10
Y2.
5
Y2.
5
Y2.
7
Y2.
9
Y2.
4
Y2.
4
Y2.
6
Y2.
8
Y2.
3
Y2.
3
Y2.
5
Y2.
7
Y2.
2
Y2.
2
Y2.
4
Y2.
6
Y2.
1
Y2.
1
Y2.
3
Y2.
5
Y2.
0
Y2.
0
Y2.
2
Y2.
4
Y2.
1
Y2.
3
Y2.
0
Y2.
2
Cb2
.7
Cb2
.6
Cb2
.5
Cb2
.4
Cb2
.3
Z
Z
Z
Z
Z
Z
Cr.7
Cb2
.2
Cr.6
Cb2
.1
Cr.5
Cb.0
Y2.
1
Y2.
0
Cr.9
Cr.1
1
Cr.8
Cr.1
0
Cr.7
Cr.9
Cr6
Z
Z
Cr5
Z
Z
Cr4
Z
Z
Cr3
Cr6
Z
Cr2
Cr5
Z
Cr1
Cr4
Z
Cr0
Cr3
Z
Y9
Cr2
Z
Y8
Cr1
Z
Y7
Cr0
Z
Y6
Z
Z
Y5
Y6
Z
Y4
Y5
Z
Y3
Y4
Z
Y2
Y3
Z
Y1
Y2
Z
Y0
Y1
Z
Cb9
Y0
Z
UG-707
ADV8005 Hardware Reference Manual
8
P.8
Z
Z
Z
7
P.7
Z
Z
Z
6
P.6
Z
Z
Z
5
P.5
Z
Z
Z
4
P.4
Z
Z
Z
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
3
P.3
Z
Z
Z
Z
1
P.1
Z
Z
Z
Z
Z
0
P.0
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_D
E
VID_H
S
VID_V
S
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Cb8,
Cr8
Cb7,
Cr7
Cb6,
Cr6
Cb5,
Cr5
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
VID_
DE
VID_
HS
VID_
VS
VID_
CLK
VID_
CLK
VID_
CLK
VID_C
LK
VID_
CLK
VID_
CLK
VID_
CLK
2
P.2
Z
Z
Z
Z
Cb6,
Cr6
Cb5,
Cr5
Cb4,
Cr4
Cb3,
Cr3
Cb2,
Cr2
Cb1,
Cr1
Cb0,
Cr0
Cb4
Cb6
Cb8
Z
Z
Z
Z
Z
Z
Y0
Cb3
Cb5
Cb7
Z
Z
Z
Z
Z
Z
Cb7
Cb2
Cb4
Cb6
Z
Z
Z
Z
Z
Z
Cb6
Cb1
Cb3
Cb5
Z
Z
Z
Z
Z
Z
Cb5
Cb0
Cb2
Cb4
Z
Z
Z
Z
Z
Z
Cb4
Z
Cb1
Cb3
Z
Z
Z
Z
Z
Z
Cb3
Z
Cb0
Cb2
Z
Z
Z
Z
Z
Z
Cb2
Z
Z
Cb1
Z
Z
Z
Z
Z
Z
Cb1
Z
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Z
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Cb0
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
DE
VID_
HS
VID_
VS
Cb0
VID_
DE
VID_
HS
VID_
VS
VID_
CLK
VID_
CLK
VID_
CLK
VID_
CLK
VID_
CLK
VID_
CLK
VID_
CLK
Cb2
.0
Cr2.
7
Cr2.
6
Cr2.
5
Cr2.
4
Cr2.
3
Cr2.
2
Cr2.
1
Cr2.
0
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Cr.4
Cr.6
Cr.8
Cr.3
Cr.5
Cr.7
Cr.2
Cr.4
Cr.6
Cr.1
Cr.3
Cr.5
Cr.0
Cr.2
Cr.4
Cr.1
Cr.3
Cr.0
Cr.2
Z
Z
Z
Z
Z
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Z
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Cr.1
Cr.0
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Cb8
Z
Z
Cb7
Cb6
Z
Cb6
Cb5
Z
Cb5
Cb4
Z
Cb4
Cb3
Z
Cb3
Cb2
Z
Cb2
Cb1
Z
Cb1
Cb0
Z
Cb0
VID
_DE
VID
_HS
VID
_VS
VID
_CL
K
Z
VID_
DE
VID_
HS
VID_
VS
Z
VID_
CLK
Z
Z
Z
Z
Table 89: Alpha Blending Input Formats
Alpha Format
0x0
0x1
0x2
0x3
0x4
0x5
0x6
0x7
0x8
0x9
0xA
0xB
0xC
0xD
0xE
OSD_DE
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
OSD_VS
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
OSD_CLK
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
OSD_IN.23
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A7
Z
Z
OSD_IN.22
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A6
Z
Z
OSD_IN.21
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A5
Z
Z
OSD_IN.20
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A4
Z
Z
OSD_IN.19
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A3
Z
Z
OSD_IN.18
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A2
Z
Z
Rev. 0 | Page 320 of 326
ADV8005 Hardware Reference Manual
UG-707
OSD_IN.17
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A1
Z
Z
OSD_IN.16
Z
Z
Z
Z
Z
Z
Z
Z
Z
A7
Z
Z
A0
Z
Z
OSD_IN.15
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A7
Z
A7
Z
OSD_IN.14
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A6
Z
A6
Z
OSD_IN.13
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A7
A5
Z
A5
Z
OSD_IN.12
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A6
A4
Z
A4
Z
OSD_IN.11
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A3
Z
OSD_IN.10
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A2
Z
OSD_IN.9
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A1
Z
OSD_IN.8
Z
Z
Z
Z
Z
Z
Z
Z
Z
A6
Z
Z
Z
A0
Z
OSD_IN.7
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A7
OSD_IN.6
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A6
OSD_IN.5
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A5
OSD_IN.4
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A4
OSD_IN.3
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A3
Z
Z
A3
OSD_IN.2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A2
Z
Z
A2
OSD_IN.1
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
A5
A1
Z
Z
A1
OSD_IN.0
Z
Z
Z
Z
Z
Z
Z
Z
Z
A5
A4
A0
Z
Z
A0
P.35
Z
Z
Z
Z
Z
Z
A7
Z
Z
Z
Z
Z
Z
Z
Z
P.34
Z
Z
Z
Z
Z
Z
A6
Z
Z
Z
Z
Z
Z
Z
Z
P.33
Z
Z
Z
Z
Z
Z
A5
Z
Z
Z
Z
Z
Z
Z
Z
P.32
Z
Z
Z
Z
Z
Z
A4
Z
Z
Z
Z
Z
Z
Z
Z
P.31
Z
Z
Z
Z
Z
Z
A3
Z
Z
Z
Z
Z
Z
Z
Z
P.30
Z
Z
Z
Z
Z
Z
A2
Z
Z
Z
Z
Z
Z
Z
Z
P.29
Z
Z
Z
Z
Z
Z
A1
Z
Z
Z
Z
Z
Z
Z
Z
P.28
Z
Z
Z
Z
Z
Z
A0
Z
Z
Z
Z
Z
Z
Z
Z
P.27
Z
A3
Z
A3
A7
A7
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.26
Z
A2
Z
A2
A6
A6
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.25
Z
A1
Z
A1
A5
A5
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.24
Z
A0
Z
A0
A4
A4
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.23
Z
Z
Z
Z
Z
Z
Z
A7
Z
Z
Z
Z
Z
Z
Z
P.22
Z
Z
Z
Z
Z
Z
Z
A6
Z
Z
Z
Z
Z
Z
Z
P.21
Z
Z
Z
Z
Z
Z
Z
A5
Z
Z
Z
Z
Z
Z
Z
P.20
Z
Z
Z
Z
Z
Z
Z
A4
Z
Z
Z
Z
Z
Z
Z
P.19
Z
Z
Z
Z
Z
Z
Z
A3
Z
Z
Z
Z
Z
Z
Z
P.18
Z
Z
Z
Z
Z
Z
Z
A2
Z
Z
Z
Z
Z
Z
Z
Rev. 0 | Page 321 of 326
UG-707
ADV8005 Hardware Reference Manual
P.17
Z
Z
Z
Z
Z
Z
Z
A1
Z
Z
Z
Z
Z
Z
P.16
Z
Z
Z
Z
Z
Z
Z
A0
Z
Z
Z
Z
Z
Z
Z
P.15
A3
Z
A7
A7
Z
A3
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.14
A2
Z
A6
A6
Z
A2
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.13
A1
Z
A5
A5
Z
A1
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.12
A0
Z
A4
A4
Z
A0
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.11
Z
Z
Z
Z
Z
Z
Z
Z
A7
Z
Z
Z
Z
Z
Z
P.10
Z
Z
Z
Z
Z
Z
Z
Z
A6
Z
Z
Z
Z
Z
Z
P.9
Z
Z
Z
Z
Z
Z
Z
Z
A5
Z
Z
Z
Z
Z
Z
P.8
Z
Z
Z
Z
Z
Z
Z
Z
A4
Z
Z
Z
Z
Z
Z
P.7
Z
Z
Z
Z
Z
Z
Z
Z
A3
Z
Z
Z
Z
Z
Z
P.6
Z
Z
Z
Z
Z
Z
Z
Z
A2
Z
Z
Z
Z
Z
Z
P.5
Z
Z
Z
Z
Z
Z
Z
Z
A1
Z
Z
Z
Z
Z
Z
P.4
Z
Z
Z
Z
Z
Z
Z
Z
A0
Z
Z
Z
Z
Z
Z
P.3
A7
A7
A3
Z
A3
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.2
A6
A6
A2
Z
A2
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.1
A5
A5
A1
Z
A1
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.0
A4
A4
A0
Z
A0
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
VID_DE
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
VID_HS
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
VID_VS
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
VID_CLK
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Rev. 0 | Page 322 of 326
Z
ADV8005 Hardware Reference Manual
UG-707
Table 90: RGB TTL Output Formats
ADV8005 PIN
NAME
24-BIT SDR 4:4:4
30-BIT SDR 4:4:4
36-BIT SDR 4:4:4
OSD_DE
DE_OUT
DE_OUT
DE_OUT
OSD_VS
VS_OUT
VS_OUT
VS_OUT
OSD_HS
HS_OUT
HS_OUT
HS_OUT
OSD_CLK
CLK_OUT
CLK_OUT
CLK_OUT
OSD_IN.23
R7
R9
R11
OSD_IN.23
R6
R8
R10
OSD_IN.21
R5
R7
R9
OSD_IN.20
R4
R6
R8
OSD_IN.19
R3
R5
R7
OSD_IN.18
R2
R4
R6
OSD_IN.17
R1
R3
R5
OSD_IN.16
R0
R2
R4
OSD_IN.15
G7
R1
R3
OSD_IN.14
G6
R0
R2
OSD_IN.13
G5
G9
R1
OSD_IN.12
G4
G8
R0
OSD_IN.11
G3
G7
G11
OSD_IN.10
G2
G6
G10
OSD_IN.9
G1
G5
G9
OSD_IN.8
G0
G4
G8
OSD_IN.7
B7
G3
G7
OSD_IN.6
B6
G2
G6
OSD_IN.5
B5
G1
G5
OSD_IN.4
B4
G0
G4
OSD_IN.3
B3
B9
G3
OSD_IN.2
B2
B8
G2
OSD_IN.1
B1
B7
G1
OSD_IN.0
B0
B6
G0
P.35
Z
B5
B11
P.34
Z
B4
B10
P.33
Z
B3
B9
P.32
Z
B2
B8
P.31
Z
B1
B7
P.30
Z
B0
B6
P.29
Z
Z
B5
P.28
Z
Z
B4
P.27
Z
Z
B3
P.26
Z
Z
B2
P.25
Z
Z
B1
P.24
Z
Z
B0
P.23
Z
Z
Z
P.22
Z
Z
Z
P.21
Z
Z
Z
P.20
Z
Z
Z
P.19
Z
Z
Z
P.18
Z
Z
Z
Rev. 0 | Page 323 of 326
UG-707
ADV8005 Hardware Reference Manual
P.17
Z
Z
Z
P.16
Z
Z
Z
P.15
Z
Z
Z
P.14
Z
Z
Z
P.13
Z
Z
Z
P.12
Z
Z
Z
P.11
Z
Z
Z
P.10
Z
Z
Z
P.9
Z
Z
Z
P.8
Z
Z
Z
P.7
Z
Z
Z
P.6
Z
Z
Z
P.5
Z
Z
Z
P.4
Z
Z
Z
P.3
Z
Z
Z
P.2
Z
Z
Z
P.1
Z
Z
Z
P.0
Z
Z
Z
Table 91: YCrCb TTL Output Formats
ADV8005 PIN
NAME
16-BIT SDR 4:2:2
20-BIT SDR 4:2:2
24-BIT SDR 4:2:2
OSD_DE
DE_OUT
DE_OUT
DE_OUT
24-BIT SDR 4:4:4
30-BIT SDR 4:4:4
36-BIT SDR 4:4:4
DE_OUT
DE_OUT
YCbCr Colorspace
DE_OUT
OSD_VS
VS_OUT
VS_OUT
VS_OUT
VS_OUT
VS_OUT
VS_OUT
OSD_HS
HS_OUT
HS_OUT
HS_OUT
HS_OUT
HS_OUT
HS_OUT
OSD_CLK
CLK_OUT
CLK_OUT
CLK_OUT
CLK_OUT
CLK_OUT
CLK_OUT
OSD_IN.23
Y7
Y9
Y11
Cr7
Cr9
Cr11
OSD_IN.22
Y6
Y8
Y10
Cr6
Cr8
Cr10
OSD_IN.21
Y5
Y7
Y9
Cr5
Cr7
Cr9
OSD_IN.20
Y4
Y6
Y8
Cr4
Cr6
Cr8
OSD_IN.19
Y3
Y5
Y7
Cr3
Cr5
Cr7
OSD_IN.18
Y2
Y4
Y6
Cr2
Cr4
Cr6
OSD_IN.17
Y1
Y3
Y5
Cr1
Cr3
Cr5
OSD_IN.16
Y0
Y2
Y4
Cr0
Cr2
Cr4
OSD_IN.15
Z
Y1
Y3
Y7
Cr1
Cr3
OSD_IN.14
Z
Y0
Y2
Y6
Cr0
Cr2
OSD_IN.13
Z
Z
Y1
Y5
Y9
Cr1
OSD_IN.12
Z
Z
Y0
Y4
Y8
Cr0
OSD_IN.11
Cb7,Cr7
Cb9,Cr9
Cb11,Cr11
Y3
Y7
Y11
OSD_IN.10
Cb6,Cr6
Cb8,Cr8
Cb10,Cr10
Y2
Y6
Y10
OSD_IN.9
Cb5,Cr5
Cb7,Cr7
Cb9,Cr9
Y1
Y5
Y9
OSD_IN.8
Cb4,Cr4
Cb6,Cr6
Cb8,Cr8
Y0
Y4
Y8
OSD_IN.7
Cb3,Cr3
Cb5,Cr5
Cb7,Cr7
Cb7
Y3
Y7
OSD_IN.6
Cb2,Cr2
Cb4,Cr4
Cb6,Cr6
Cb6
Y2
Y6
OSD_IN.5
Cb1,Cr1
Cb3,Cr3
Cb5,Cr5
Cb5
Y1
Y5
OSD_IN.4
Cb0,Cr0
Cb2,Cr2
Cb4,Cr4
Cb4
Y0
Y4
OSD_IN.3
Z
Cb1,Cr1
Cb3,Cr3
Cb3
Cb9
Y3
OSD_IN.2
Z
Cb0,Cr0
Cb2,Cr2
Cb2
Cb8
Y2
Rev. 0 | Page 324 of 326
ADV8005 Hardware Reference Manual
UG-707
OSD_IN.1
Z
Z
Cb1,Cr1
Cb1
Cb7
Y1
OSD_IN.0
Z
Z
Cb0,Cr0
Cb0
Cb6
Y0
P.35
Z
Z
Z
Z
Cb5
Cb11
P.34
Z
Z
Z
Z
Cb4
Cb10
P.33
Z
Z
Z
Z
Cb3
Cb9
P.32
Z
Z
Z
Z
Cb2
Cb8
P.31
Z
Z
Z
Z
Cb1
Cb7
P.30
Z
Z
Z
Z
Cb0
Cb6
P.29
Z
Z
Z
Z
Z
Cb5
P.28
Z
Z
Z
Z
Z
Cb4
P.27
Z
Z
Z
Z
Z
Cb3
P.26
Z
Z
Z
Z
Z
Cb2
P.25
Z
Z
Z
Z
Z
Cb1
P.24
Z
Z
Z
Z
Z
Cb0
P.23
Z
Z
Z
Z
Z
Z
P.22
Z
Z
Z
Z
Z
Z
P.21
Z
Z
Z
Z
Z
Z
P.20
Z
Z
Z
Z
Z
Z
P.19
Z
Z
Z
Z
Z
Z
P.18
Z
Z
Z
Z
Z
Z
P.17
Z
Z
Z
Z
Z
Z
P.16
Z
Z
Z
Z
Z
Z
P.15
Z
Z
Z
Z
Z
Z
P.14
Z
Z
Z
Z
Z
Z
P.13
Z
Z
Z
Z
Z
Z
P.12
Z
Z
Z
Z
Z
Z
P.11
Z
Z
Z
Z
Z
Z
P.10
Z
Z
Z
Z
Z
Z
P.9
Z
Z
Z
Z
Z
Z
P.8
Z
Z
Z
Z
Z
Z
P.7
Z
Z
Z
Z
Z
Z
P.6
Z
Z
Z
Z
Z
Z
P.5
Z
Z
Z
Z
Z
Z
P.4
Z
Z
Z
Z
Z
Z
P.3
Z
Z
Z
Z
Z
Z
P.2
Z
Z
Z
Z
Z
Z
P.1
Z
Z
Z
Z
Z
Z
P.0
Z
Z
Z
Z
Z
Z
VID_DE
Z
Z
Z
Z
Z
Z
VID_HS
Z
Z
Z
Z
Z
Z
VID_VS
Z
Z
Z
Z
Z
Z
VID_CLK
Z
Z
Z
Z
Z
Z
Rev. 0 | Page 325 of 326
UG-707
ADV8005 Hardware Reference Manual
NOTES
I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors).
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
Legal Terms and Conditions
Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered
trademarks are the property of their respective owners. Information contained within this document is subject to change without notice. Software or hardware provided by Analog Devices may
not be disassembled, decompiled or reverse engineered. Analog Devices’ standard terms and conditions for products purchased from Analog Devices can be found at:
http://www.analog.com/en/content/analog_devices_terms_and_conditions/fca.html.
©2014 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
UG12383-0-6/14(0)
Rev. 0 | Page 326 of 326
