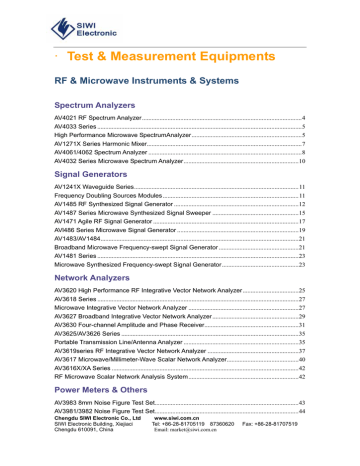

- SIWI Electronic
Test & Measurement Equipments
RF & Microwave Instruments & Systems
Spectrum Analyzers
AV4021 RF Spectrum Analyzer....................................................................................................4
AV4033 Series ................................................................................................................................5
High Performance Microwave SpectrumAnalyzer.....................................................................5
AV1271X Series Harmonic Mixer.................................................................................................7
AV4061/4062 Spectrum Analyzer ................................................................................................8
AV4032 Series Microwave Spectrum Analyzer........................................................................10
Signal Generators
AV1241X Waveguide Series.......................................................................................................11
Frequency Doubling Sources Modules .....................................................................................11
AV1485 RF Synthesized Signal Generator ..............................................................................12
AV1487 Series Microwave Synthesized Signal Sweeper ......................................................15
AV1471 Agile RF Signal Generator ...........................................................................................17
AVl486 Series Microwave Signal Generator ............................................................................19
AV1483/AV1484............................................................................................................................21
Broadband Microwave Frequency-swept Signal Generator ..................................................21
AV1481 Series ..............................................................................................................................23
Microwave Synthesized Frequency-swept Signal Generator................................................23
Network Analyzers
AV3620 High Performance RF Integrative Vector Network Analyzer ...................................25
AV3618 Series ..............................................................................................................................27
Microwave Integrative Vector Network Analyzer .....................................................................27
AV3627 Broadband Integrative Vector Network Analyzer......................................................29
AV3630 Four-channel Amplitude and Phase Receiver...........................................................31
AV3625/AV3626 Series ...............................................................................................................35
Portable Transmission Line/Antenna Analyzer ........................................................................35
AV3619series RF Integrative Vector Network Analyzer .........................................................37
AV3617 Microwave/Millimeter-Wave Scalar Network Analyzer.............................................40
AV3616X/XA Series .....................................................................................................................42
RF Microwave Scalar Network Analysis System.....................................................................42
Power Meters & Others
AV3983 8mm Noise Figure Test Set..........................................................................................43
AV3981/3982 Noise Figure Test Set..........................................................................................44
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5261 Vector Signal Analyzer..................................................................................................46
AV4942 Microwave Complex Measurement Instrument ........................................................49
AV2434 Microwave Power Meter...............................................................................................51
AV3941 Electromagnetic Radiation Detector...........................................................................56
AV2432/2433 Microwave Power Meter.....................................................................................58
AV3860/AV3861............................................................................................................................60
Series Broadband Microwave/Millimeter-wave Amplifier .......................................................60
AV4941 Digital Microwave Communication Complex Tester .................................................62
Optical Fiber Communication Instruments & Systems
Optical Time Domain Reflectometer
AV6413 High Performance Mini-OTDR ....................................................................................65
AV6411E Mini-OTDR ...................................................................................................................67
AV6411 Optical Time Domain Reflectometer ...........................................................................69
AV6411A Optical Time Domain Reflectometer.........................................................................70
Light Source
AV6313A Handheld Light Source...............................................................................................72
AV6316 ASE Light Source ..........................................................................................................73
AV Series High-stability Laser Source ......................................................................................74
Optical Power Meter
AV2495 Intellectual Luminous Power Meter ............................................................................76
AV6331 Optical Power Meter .....................................................................................................78
AV6333 Optical Power Meter .....................................................................................................79
Optical Multimeter
AV2498A Optical Fiber Multimeter.............................................................................................80
AV6372 Field Optical Multimeter................................................................................................81
Others
AV6362 Optical Spectrum Analyzer...........................................................................................82
AV6318 Visual Fiber Fault Locator ............................................................................................84
AV6482 Precision Light Chopper ...............................................................................................85
AV6491E Optical Fiber Fusion Splicer ......................................................................................87
AV87501 Temporary Fiber Aligner .............................................................................................89
AV6481 Programmable SM Optical Switch ..............................................................................90
AV6391X Fusion Biconical Taper System.................................................................................91
AV6381/6381B Programmable Optical Attenuator ..................................................................93
AV33011/AV33012 Optical Fiber Cleaver .................................................................................94
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6332 Echo Loss Measurement Instrument..........................................................................96
SMF Mode-Field-Diameter Test System...................................................................................97
Digital Communication Instruments & Systems
AV5232C Bit Error Ratio Tester..................................................................................................98
AV5221 xDSL Subscriber Loop Analyzer ...............................................................................100
AV5282 PCM Comprehensive Tester......................................................................................103
AV5242 Series SS7 Tester........................................................................................................105
AV5237 Telecom/Datacom Analyzer .......................................................................................107
AV5236 SDH/PDH Digital Transmission Analyzer.................................................................110
AV5232C Bit Error Ratio Tester................................................................................................ 111
The AV5232E Bit Error Ratio Tester ........................................................................................113
AV5233C 2M/8M/34M Bit Error Ratio Tester..........................................................................116
Basic & General Purpose Instruments
AV1761 Programmable Modular Power..................................................................................118
AV6681 VXI Oscilloscope .........................................................................................................121
AV2782 Precision LCR Meter...................................................................................................123
AV1792/AV1793 Progmmable DC Power Supply .................................................................126
AV2781A LCR Automatic Tester...............................................................................................128
AV1851 Digital Multimeter.........................................................................................................130
AV4451 Digital Oscilloscope.....................................................................................................132
AV4445 Digital Oscilloscope.....................................................................................................134
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4021 RF Spectrum Analyzer
The AV4021 RF Spectrum Analyzer is high performance and economic, and can measure
precise signal noise ratio, distortion, spurious. Its GPIB interface can realize the
construction of intellectual measure system and hard-copy the measurement results. The
built-in IBASIC is able to perform a second processing and judgment of the data with zero
bandwidth sweep and time-gated spectrum measurement. The analyzer is used in the
design, production and maintenance of communication equipments.
Specifications
Item
5
5
5
5
5
Specification
Frequency range:2Hz~2GHz
Resolution Bandwidth:
1Hz~3MHz(1,3,10 sequence)
Amplitude Accuracy:≤±1dB(10MHz ~
1.8GHz)
Receiver sensitivity:-145+3f(GHz)dBm
Residual Response:≤-100dBm
Noise Side Band
Frequency
Ranges
OFF set from carrier
>10kHz
2Hz~1GHz
<-105dBc/Hz
1GHz~1.8GHz
<-100dBc/Hz
1.8GHz~2GHz
<-95dBc/Hz
Option
1. IBASIC
2. 10MHz High-stability Time-base
Dimensions
D× W× H: 460× 363× 222(mm)
Weight
18kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4033 Series
High Performance Microwave SpectrumAnalyzer
The AV4033 Series High Performance Spectrum Analyzer, exploited introduced by the 41st
Institute, is a new intellectualized microwave instrument with wide bandwidth, high
resolution, high sensitivity, high dynamic range. It can be widely used in the fields of
electron rivalry, satellite communications, navigation, digital mobile communications,
spectrum detecting etc.
Main Features
3
3
3
3
3
3
3
3
3
3
3
3
3
3
TFT LCD: provides a friendly interface.
Millimeter Wave Frequency Expansion: satisfies millimeter wave frequency expansion
measurement.
Delay sweep: can flexibly adjust the location of signal.
100 dB display dynamic range: can measure the large and small signal at the same
time.
Entirely Chinese operation platform: can easily master the measurement and
technique of the Instrument.
Wideband tracking pre-select: avoids false spectrum appearance.
Phase-locked Frequency Synthesizer: improves the accuracy and stability of
sweeping LO, decreases phase noise.
Standard parallel interface: a printer can be linked to it directly.
Real time IF calibration: ensures the accuracy and coherence of measure results
when the environment is variable.
Narrow Band Digital Filter: provides 1Hz smallest RBW.
Frequency / Amplitude modulation Demodulation
Millimeter-wave Extended RF
Channel power measurement
Harmonic distortion measurement
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
3
3
3
3
3
3
3
3
TDMA measurement
Time filed
Delay Sweep Test
Time-gated spectrum analysis
Digital radio measurement
Phase noise Test
Signal identify function
Adjacent channel and occupied channel power
Specifications
Item
Frequency Range
Frequency Readout
Accuracy
Frequency Span Readout
Accuracy
Specification
AV4033: 30Hz~26.5GHz; AV4033A: 30Hz~18GHz;
AV4033B: 30Hz~13.2GHz; AV4033C: 30Hz~3GHz
Span>2MHz× N: ±(freq. readout × freq. ref. accuracy + 5%× span
+ 15% × RBW + 10Hz)
Span≤2MHz× N: ±(freq. readout × freq. ref. accuracy + 1% ×
span + 15% × RBW + 10Hz)
±5%
Span>2MHz× N
±1%
Span≤2MHz× N
<-139dBm 10MHz~2.9GHz
Displayed Average Noise
Level
<-140dBm 2.9GHz~6.46GHz
<-137dBm 6.46GHz~13.2GHz
<-132dBm 13.2GHz~26.5GHz
±1.8dB 9.0kHz~2.90GHz
Frequency Response
±2.4dB 2.9GHz~6.46GHz
±2.9dB 6.46GHz~13.2GHz
±4.0dB 13.2GHz~26.5GHz
1Hz~2MHz in 1,3,10 sequence
Range
1Hz~300kHz ±10%
RBW
3dB bandwidth accuracy
1MHz±25%
2MHz +50%, -25%
Noise Sidebands
<-90dBc/Hz Offset 1KHz
Dimensions
D× W× H:
Net Weight
Approx.19kg
Options
<-105dBc/Hz Offset 10kHz
480× 335× 165(mm)
AV4033-OP1
1. Fast time field sweep.
AV4033-OP2
2. Phase noise measurement (software).
AV4033-OP3
3. Modulate and demodulate
AV4033-OP4
4. Millimeter wave frequency expansion. ( Put out later )
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1271X Series Harmonic Mixer
The AV1271X series harmonic mixer is mainly designed for millimeter-wave frequency
extension of the microwave spectrum analyzer. Compared with its foreign counterparts, it
covers a wider local power range to ensure the accuracy of amplitude measurement. The
AV1271X series harmonic mixer can be used in frequency extension for AV4032, AV4033,
HP70000, HP8560, and HP8566 series microwave spectrum analyzers. Besides, it may
serve as the front end of the millimeter-wave signal receiver.
Specifications
Item
Specification
AV12711A
(8mm)
AV12713
(7mm)
AV12715
(6mm)
AV12717
(5mm)
AV12719
(3mm)
Frequency Range
(GHz)
26.5 40
33 50
40 60
50 75
75 110
Harmonic Number
8
10
10
14
18
Alternating
Frequency
Loss (dB)
28
28
28
40
46
Alternating
Flatness (dB)
±2.8
±2.1
±1.9
±2.1
±3.0
Noise Level
(RBW=1KHz)
-108
-104
-101
-92
-85
12 18
12 18
12 18
12 18
12 18
Model
Vibration Power
Range (dBm)
Dimensions
D× W×H: 260×100×100(mm)
Weight
2kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4061/4062 Spectrum Analyzer
AV4061/AV4062 Spectrum analyzer is a high-performance and low-cost RF signal analyzer.
With all-band digital sweep PLL local oscillator, digital detector and 6.4" TFT LCD display, It
provides accurate frequency and amplitude measurement, as well as multifunction
expansion capability. It can be widely used in the fields of digital mobile communications,
CATV test and spectrum detecting, etc.
Specifications
Item
Specification
Model
AV4061
AV4062
Frequency range
9kHz~2.2GHz
Frequency Span Width
1kHz~2.2GHz, 0Hz
Span Accuracy
±0.5% of the indicated Span Width
± (Frequency Standard Accuracy + Span Accuracy +50% of
RBW)
-80dBc/Hz @10kHz offset (Carrier 1200MHz)
Readout Accuracy
Noise Sidebands
9kHz~2.9GHz
500Hz~2.9GHz, 0Hz
≤-116dBm
(5MHz
~
1.6GHz) ≤-110dBm(1.6GHz~
2.2GHz) ≤-104dBm(2.2GHz~
2.9GHz)
Average Displayed Noise
Level
<-103dBm (1kHz RBW)
Frequency Response
±2dB
RF Attenuator
0~50dB, 10dB Step
Reference Level Accuracy
±1.5dB
Harmonic Distortion
≤-60dBc (-40dBm input, 0dB attenuation)
Intermodulation Distortion
(3rd order)
≤-70dBc (-30dBm input, 10dB attenuation)
Resolution Bandwidth
1kHz ~ 3MHz
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
(1,3,10
1kHz
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
~
3MHz(Standard);
Fax: +86-28-81707519
10Hz~1kHz(Option)
step)
Video Bandwidth
10Hz~1MHz (1,3,10 step)
Sweep time range
50ms~3000s (Span≥1kHz); 1ms~200s (Zero Span)
Sweep time Accuracy
Frequency Standard Accuracy ±0.5% of Sweep time
Interface
RS-232 (Standard);
GPIB (Option )
RS-232
Printer Driver
PCL3
Storage
3.5" Disk
Dimensions
D× W× H: 360× 360× 160mm
Weight
11kg
Power
AC 220V±10%, 50Hz±1
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
3.5" Disk (Standard)
USB(Option)
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4032 Series Microwave Spectrum Analyzer
The AV4032 series microwave spectrum analyzer have over 100 functions including
self-test, self-diagnosis, self-adaptation, automatic search, automatic tracing, maximum
uphold, digital storage/call, frequency scalar reading, AM Fourier transform, automated
computation, man-machine dialogue, picture and text display, automatic print/drawing
output, GPIB and etc.
It is widely used in areas like electronic confrontation, satellite communication, navigation,
frequency detection, component test, digital communication, EMC and etc.
Specifications
Model
Frequency
range
AV4032
9kHz~
26.5GHz
AV4032A
9kHz~18GHz
AV4032B
9kHz~
12.4GHz
AV4032C
9kHz~2.9GHz
Resoluti
on
bandwidt
h
30Hz~
3MHz
30Hz~
3MHz
30Hz~
3MHz
30Hz~
3MHz
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Optimize
d display
noise
level
-122dBm
-122dBm
-122dBm
-122dBm
Amplitud
e range
-122~
+30dBm
-122~
+30dBm
-122~
+30dBm
-122~
+30dBm
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Noise side band
(-100+20LgN) dBc/Hz
(-100+20LgN) dBc/Hz
(-100+20LgN) dBc/Hz
(-100+20LgN) dBc/Hz
Fax: +86-28-81707519
Deviation
from
carrier
20kHz
AV1241X Waveguide Series
Frequency Doubling Sources Modules
The Millimeter-wave system has the virtues of small body, narrow beam, big volume, high
resolution, powerful anti-disturbance performance and security. It is used in arms
equipments and electronic information systems. Millimeter-wave frequency multiplier signal
sources series module performs millimeter-wave frequency extension on the basis of
microwave synthesized sweep frequency signal source-from 10~20GHz microwave signal
to 26.5~110GHz millimeter-wave. It is applied in electronic surveillance, electronic
disturbance, millimeter-wave precision navigation, millimeter-wave communication, radar
test, astral satellite communication and technologies of hiding and anti-hiding.
Specifications
Item
Specification
Model
AV12411(8mm)
AV12412(3mm)
AV12413(5mm)
AV12414(6mm)
AV12415(7mm)
Frequency range (GHz)
26.5~40
75~110
50~75
40~60
33~50
+5
0
+2
+2
+2
-5
-5
-3
-5
-5
Power Precision (dB)
±2
±2.5
±2
±2
±2
Power Flatness (dB)
±1.5
±1.5
±1.5
±1.5
±1.5
Output Standing Wave
<2.0
<2.0
<2.0
<2.0
<2.0
Max. Constant
Amplitude Output
Power(dBm)
Min. Constant
Amplitude Output
Power(dBm)
Dimensions
D× W× H: 230× 100× 100(mm)
Weight
1.5Kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1485 RF Synthesized Signal Generator
The frequency range of the AV1485 RF synthesized signal generator is from 250 kHz to
4GHz, which has covered all of the common RF bands nowadays. With an extremely high
frequency resolution, power accuracy and excellent spectral purity, the economic generator
can be applied in areas like scientific research, production, test and etc. it boasts of
abundant modulation functions including amplitude modulation, frequency modulation,
phase modulation, pulse modulation and etc and is offered the option-internal modulation
signal generator. Step sweep and list sweep provide flexible digital sweep functions, which
can easily realize control over output frequency and power.
Main Features
3
Wide frequency coverage
3 Extremely high power accuracy
3
3
Built-in modulation signal generator
Excellent spectral purity
3 Sweep modes: step, list
3 GPIB remote control function
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Frequency range
250kHz~4GHz
time-base
aging rate
1×10-9/Day
10mHz
output power
range
+7dBm~-136dBm
Frequency
resolution
(>-20dBm)
Level accuracy
250k~2GHz: ±0.5dB 2GHz~4GHz: ±0.9dB
harmonics (source power output≤+4dBm): <-30dBc
Spectral purity
non-harmonics ( source power output≤+7dBm ,frequency deviation >3kHz):
<-53dBc
SSB phase noise:
20kHz ,typical)
Frequency
modulation
Amplitude
modulation
(carrier>500kHz)
<-116dBc/Hz(1GHz
Max. deviation:N×400kHz
3dB bandwidth:DC~100kHz
range: 0~100%
3dB bandwidth: DC~10kHz
carrier,
frequency
deviation
Phase
modulation
Max. deviation: N×4 radian
Pulse
modulation
on/off ratio: >60dB
3dB bandwidth: DC~100kHz
rise/fall time: <150ns typical
Operating
temperature
0℃ ~40℃
Dimensions
D×W×H: 500×440×133(mm)
Weight
Approx. 19.5kg
Interface GPIB
GPIB
Options
1. mechanical stepped attenuator *internal modulation signal generator
Main Features
3
Wide frequency coverage
3 Extremely high power accuracy
3
3
Built-in modulation signal generator
Excellent spectral purity
3 Sweep modes: step, list
3 GPIB remote control function
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Frequency range
250kHz~4GHz
time-base
aging rate
1×10-9/Day
10mHz
output power
range
+7dBm~-136dBm
Frequency
resolution
(>-20dBm)
Level accuracy
250k~2GHz: ±0.5dB 2GHz~4GHz: ±0.9dB
harmonics (source power output≤+4dBm): <-30dBc
Spectral purity
non-harmonics ( source power output≤+7dBm ,frequency deviation >3kHz):
<-53dBc
SSB phase noise:
20kHz ,typical)
Frequency
modulation
Amplitude
modulation
(carrier>500kHz)
<-116dBc/Hz(1GHz
Max. deviation:N×400kHz
3dB bandwidth:DC~100kHz
range: 0~100%
3dB bandwidth: DC~10kHz
carrier,
frequency
deviation
Phase
modulation
Max. deviation: N×4 radian
Pulse
modulation
on/off ratio: >60dB
3dB bandwidth: DC~100kHz
rise/fall time: <150ns typical
Operating
temperature
0℃ ~40℃
Dimensions
D×W×H: 500×440×133(mm)
Weight
Approx. 19.5kg
Interface GPIB
GPIB
Options
1. mechanical stepped attenuator *internal modulation signal generator
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1487 Series Microwave Synthesized Signal Sweeper
AV1487 Series sweepers, which were exploited by the 41st Institute of China Electronics
Technology Group Corporation based on combining and optimizing the market requirement
and direction of the international same products, is a new family of microwave signal
sources that provide high performances. The signal sources provided with the module
designed and the series configured can meet the demands of different users. The
completely new operation system with real time and multitask works very stable and
credible. The signal sources display by the large screen TFT-LCD with high lightness and
reality color and support the multi-language menus convenient for users operating, support
GPIB communication ,support the construction of automatic testing system.
In addition, AV1487 series microwave sweepers support the option mode which includes
the interior modulation sources and the exterior millimeter wave modules for frequency
expanding that above together with the friendly customization; intelligentized interface and
the perfect ratio of price/performance become the sources into the modern intelligentized
measurement instruments. So it can be broadly used in many fields such as aviation
aerospace, radar and electronic counterwork.
Main Features
3
3
3
3
3
3
3
3
Output high power and pure signal
1~10MHZ low frequency signal source option
Complex modulation simulation in pulse
Chinese/English operation interface
110GHZ frequency expanding module
Cw, ramp, step, list, power sweep modes
Supporting AV3617, constructing scalar network system
Software upgraded automatic by USB
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Model
Frequency Range
Time-base Aging Rate
Frequency Resolution
Ramp Sweep Mode
Accuracy
Harmonics
Sub-harmonic
Non-harmonically
Related
Single-sideband Phase
Noise
Power-level Range
Power
Flatness(Typical)
Power Accuracy
Modulation
Dimensions
Net Weight
Work Temperature
RF Output Por
Options
AV1487A
Specification
AV1487B
AV1487C
0.01GHz ~
8GHz
0.01GHz ~
20GHz
0.01GHz ~
26.5GHz
0.01GHz ~
40GHz
1*10-9/day
0.1Hz
1*10-9/day
0.1Hz
1*10-9/day
0.1Hz
1*10-9/day
0.1Hz
AV1487
<0.1‰ of span
10MHz~2.35GHz: <-30dBc; Big power option <-20dBc
2.35GHz~20GHz: <-50dBc; Big power option <-20dBc
20GHz~40GHz: <-40dBc
10MHz~20GHz: No 20GHz~40GHz: <-40dBc
10MHz~2.35GHz: <-50dBc
2.35GHz~20GHz: <-60dBc
20GHz~40GHz: <-55dBc
-80dBc/[email protected]
-95dBc/[email protected]
-100dBc/[email protected] (Typical 10GHz)
AV1487A:+13dBm~20dBm; With 001 option: +15dBm~110dBm
AV1487B:+10dBm~20dBm; With 001 option: +15dBm~110dBm
AV1487C:+10dBm~20dBm; With 001 option: +8dBm~110dBm
AV1487:+8dBm~20dBm; With 001 option: +5dBm~110dBm
10MHz~2.35GHz: ±0.5dB
2.35GHz~20GHz: ±0.6dB
20GHz~40GHz: ±0.8dB
10MHz~2.35GHz: ±0.6dB
2.35GHz~20GHz: ±0.7dB
20GHz~40GHz: ±0.9dB
Pulse on/off ratio: >80dB
Pulse rise/full times: <20ns
AM sensitivity: 100%/V,10dB/V AM rate: DC~100kHz
FM sensitivity: 1MHz/V
AM rate: DC~1MHz
PM sensitivity: 1r/V
PM rate: DC~1MHz
FM wave in pulse: sine-wave, saw-tooth-wave, triangle-wave
Pulse wide: 1µs~10s-1µs
Pulse period: 100µs~10s
Pulse resolution: 1µs
D×W×H: 580×440×146(mm)
Approx. 22.5kg
0℃~40℃
AV1487A: N(J)
AV1487B/AV1487C: 3.5mm(K)
AV1487: 2.4mm(K)
1) 90dB step attenuator
2) Internal modulation generator
3) low frequency signal generator
4) high power option
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1471 Agile RF Signal Generator
AV1471 agile RF signal generator combines high performance with frequency agility for
Modern military communication and Radio confront. It provides capability for both static
and agile test requirements, and has several flexible modulation types. These complex RF
signal can quantitatively exercise a receiver’s vulnerability to a jamming transmission. It
satisfies complex signal simulations in fast hop mode. These capabilities are important for
performance testing of such devices as frequency agile radios, surveillance receivers and
modern new system radars. It is indispensable instrument in the process of the research
manufacture and measure maintenance for the radio war devices. The AV1471 agile RF
signal generator offers flexible and comprehensive control of the frequency hopping output.
Parameters can be entered from the front panel, through the GPIB port or using TTL inputs
on the rear panel. Example, hop frequencies, amplitude, dwell times, hop rate, modulation
and extensive hopped-frequency simulations. For real-time control, it can utilize the
external triggering, dwell time and frequency selection. It convenient allow direct
connection with the hardware under test, or make up of the measure system with the other
devices.
Main Features
3
3
3
3
3
3
3
15ms Frequency switching time
±2ppm Frequency accuracy in Fast Hop mode
Low spurious and phase noise
Large amplitude dynamic range and Better amplitude accuracy
Internal Numeric Synthesis Modulation source
FM/AM/PM/Pulse modulation/Simultaneous modulation
Three types of frequency sweep: Digitally-stepped sweep, Fast-hop sweep, Phase-continuous
sweep
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
252kHz
2060MHz
Frequency range
~
Level range
+13~-110dBm
Hopping
frequency
accuracy
±2ppm
Frequency resolution
0.01Hz
SSB phase noise
-123dBc/Hz(1GHz,20kHz Offset)
Harmonics
<-30dBc (252kHz~1030MHz,output≤+8dBm)
<-25dBc (1030~2060MHz,output≤+8dBm)
Non-harmonics
<-80dBc (252kHz~1030MHz,>20kHz Offset )
<-74dBc (1030~2060MHz,>20kHz Offset)
Frequency switching time
85µs (8~1030MHz )
15µs (128~1030MHz )
20µs (1030~2060MHz)
0.1Hz~400kHz,Sine, White Gaussian noise;
0.1Hz~50kHz,Square, Saw tooth, Triangle
NSM source
Modulation
type
500µs(252kHz~1030MHz)
Static
Internal/External/Simultaneous modulation;
Simultaneous internal/external modulation: FM and phase
Agile
Internal or external AM, FM, Simultaneous AM and FM
Input port
AM, FM, PM, Pulse modulation, External 10MHz
Reference,
Voltage measure, HOP, SEQ Input: BNC 50O female
connector
Output port
RF Output: N 50O female connector
Audio Output: BNC 50O female connector
Reference Output: BNC 50O female connector
Interface character
GP-IB Interface, Accord with IEEE-488.2 interface
requirement
Fast Hop bus interface: DB-25 connector accepting TTL
levels
10MHz high stability
option and main
performance specifications
Aging: 1×10-9/day, 3×10-7/year
Power requirements
AC 220V±10%, 50Hz±5%,320W Maximum
Maximum
dimensions
Weight
shape
200H × 440W × 640D mm
35kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AVl486 Series Microwave Signal Generator
The AV1486 Series sweepers, a family of microwave signal sources, which were
exploited by the Institute based on combining and optimizing its existing ripe technologies,
can provide multi-functions with the perfect ratio of price /performance. Through option
mode, these sweepers can meet the demands of different levels from simple broadband
microwave oscillator intelligently driving to synthesized sweepers with excellent spectral
purity, multiple modulations and frequency expanding. All of above can decrease
purchasing cost as well as fully satisfy special needs of different consumers.
Main Features
3 Module designed, easy to upgraded
3
3
3
3
3
3
3
3
Support GPIB communication, instrument bus extending and ATE setting up
Effectively integrated functions as follows: frequency synthesizing, frequency sweep
and power sweep.
Convenient operation with Chinese or English interface, menu selection in large
screen
Hardware combined with software to provide perfect self testing and self adjusting
functions
Option mode for different users.
Built-in user manual, intelligent help on line and error auto testing with alarm
Include superior accuracy , excellent spectral purity and high frequency resolution
Through pulse, amplitude, frequency modulation and combination modulation, provide
output of internal modulation
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Frequency Range
AVl486:10MHz~20GHz
Internal Reference Oscillator
Frequency: 10MHz
Aging Rate standard:±1*10-6/year
Aging Rate of High Stability Option:±1*10-9/day
Frequency Resolution
1Hz
Analog Sweep Accuracy
≤+0.01% of span (Sweeping time>500ms)
SSB Phase Noise
-75dBc/Hz ([email protected] offset)
Harmonics
10MHz~2.35GHz:<-30dBc
Other:<-50dBc
High power Output option:<-20dBc
Sub-harmonics
none
Non-harmonics Spurious
<-50dBc(Offset From Carrier: >500kHz)
Output Power Range
Standard: -20dBm to +10dBm
High power Output option: -15dBm to +15dBm
Step attenuator option: 70dB, 90dB
Power Flatness
±0.7dB
Power Accuracy
±1.0dB
Modulation
AM FM PM
Dimensions
D×W×H: 500×440×133(mm)
Weight
Approx.18kg
Option
1. High-Stability Time base
2. High Power Output (+15dBm)
3. Programmable Step Attenuator (70dB or 90dB)
4. Internal Modulation Sweeper
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
AVl486A:2GHz~20GHz
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1483/AV1484
Broadband Microwave Frequency-swept Signal Generator
The AV1483/AV1484 series
sweepers, new types of
broadband coaxial synthesized
sweepers, are achieved by
frequency expanding based on
the AV1481 series. Their upper
limit of frequency respectively is
from 40 GHz to 26.5 GHz. They
can provide the same virtues as
the AV1481 series, such as high
frequency accuracy, excellent spectral purity, superior power accuracy, wide range of
output power, friendly interface, etc. In the meanwhile, they also have performances of
amplitude modulation, frequency modulation and Pulse modulation .As perfect broadband
microwave signal sources. They have been widely used in many fields as aviation,
aerospace, radar, electronic warfare, communication, and so on.
Specifications
Item
Specification
Models
Frequency Range
AV1483
AV1484
10MHz~40GHz
10MHz~26.5GHz
-9
Time-base Aging Rate
1×10 /day
Frequency Resolution
1Hz
Sweep
Accuracy
1‰
Frequency
10GHz~2.35GHz: <-25dBc
Harmonics
2.35GHz~40GHz: <-40dBc
10MHz~2.35GHz: <-30dBc
2.35GHz~20GHz: <-50dBc
20GHz~26.5GHz: <-40dBc
7~20GHz: <-50dBc
Sub-harmonics
<-40dBc
Non-harmonics
<-50dBc
SSB Phase Noise
<-80dBc/Hz (10GHz @10kHz Offset)
Maximum Leveled Power
>20GHz: <-40dBc
>+0dBm
>+10dBm
Power Accuracy
±2.0dB
±0.9dB
Power Flatness
±1.5dB
±0.8dB
Dimensions
D×W×H: 584×420×180mm
Net Weight
Approx. 28.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Options
Built-in function generator
Output from rear panel 90dB
remote control step attenuator
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Built-in function generator
Output from rear panel 90dB
vertebra control step
attenuator
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1481 Series
Microwave Synthesized Frequency-swept Signal Generator
The AV1481 series provide superior accuracy and stability. They make the excellent
frequency resolution and signal purity. The excellent performance combines high-output
power capabilities, high measurement dynamic range. Fully-synthesized CW, stepped, and
ramp sweep modes are available in operation. Excellent output-power flatness and
accuracy can be translated to the input port of the device-under-test with the power
flatness correction feature and remote control operation of frequency multiplier source
module interface and GPIB interface. With excellent modulation specifications, the series
supports pulse, linear, logarithmic and amplitude frequency modulation respectively and
simultaneously. They are used in communication, radar, electronic confrontation, aviation,
spaceflight, and are important microwave measurement instruments.
Specifications
Item
Specification
Model
Frequency range
Time
Rate
base
Aging
AV1481
AV1481B
AV1481C
2GHz~20GHz
10MHz~7GHz
10MHz~20GHz
1*10-9/day
1*10-9/day
1*10-9/day
1Hz
1Hz
1Hz
Frequency Resolution
Frequency Accuracy
1*10
SF Accuracy
-8
1‰
-8
1*10
1*10-8
1‰
1‰
SSB Phase Noise
10MHz~7GHz:-78dBc/[email protected];-86dBc/[email protected]
7GHz~13.5GHz:-72dBc/[email protected];-80dBc/[email protected]
13.5GHz~20GHz:-68dBc/[email protected];-76dBc/[email protected]
Harmonics
10MHz~2.35GHz:<-30dBc; Others:<-50dBc
Sub-harmonics
<-50dBc
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Non-harmonics
10MHz~2.35GHz:<-50dBc; Others:<-60dBc
Output Power Range
+10dBm~-20dBm; With Option-1:+8.5dBm~-110dBm
Power Flatness
±0.6dB
Power Accuracy
±0.7dB
Modulation
Pulse Modulation on/off ratio: >80dB
Pulse Modulation rise/fall time: <50ns
Amplitude modulation sensitivity: 100%/V,10dB/V
Modulation frequency: DC~100kHz
Frequency Modulation Sensitivity: 1MHz/V,10MHz/V
Modulation Frequency: DC~8MHz
Options
1: 90dB remote control step attenuator
2: Internal modulation signal generator
3: Rear panel output
Dimensions
D×W×H=584×420×180(mm)
Weight
Approx. 28.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3620 High Performance RF Integrative Vector Network
Analyzer
AV3620 high performance RF integrative vector network analyzer carries fast and
accurate measurement of amplitude, phase and group delay of RF networks, as well as
measurement of time domain and frequency conversion components. It has a vast
application in military and civionic technology areas such as S-parameter measurement of
RF passive/active networks, short wave communication, phase-control field radar,
electronic interference and surveillance and precision navigation. Abiding closely with the
requirements of production lines, the analyzer is one of the most used measurement
instruments on the production line of elements. Its high measurement precision qualifies it
as a measurement standard in the labs and on the production lines.
Main Features:
3
3
3
3
3
3
Fast measurement speed
High measurement precision
Simultaneous display of four channels ( Max. 8 testing curves)
Measurement upper and lower limits configurable
Highly intellectual
Highlight LCD display
Specifications
Primary technology specifications
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Frequency Range
30kHz ~ 6GHz
Frequency Resolution
1Hz
Frequency Accuracy
± 0.5ppm (25 ± 5 ℃ )
Output Power Range
-85dBm ~ +8dBm
Power Sweep Range
23dB
Test Port Output Power
Accuracy
±1.0dB
30kHz~
300kHz
300kHz~
1.3GHz
1.3GHz~
3GHz
3GHz~
6GHz
Directivity (dB)
50
50
47
40
Source Match (dB)
45
42
36
31
Load Match (dB)
50
50
47
40
Frequency Bands
Measurement
Characteristics
Port
Frequency Bands
30kHz ~ 16MHz
16MHz ~ 3GHz
3GHz ~ 6GHz
90
100
95
System Dynamic Range
(dB)
Display Mode
8.4 inch LCD
Display Channel
4 channels
Measurement Speed
77ms/201 points (30kHz~6GHz Frequency Range,3kHz IF Bandwidth)
Measurement Domains
Frequency and time domains
Descartes coordinates:
Logarithm amplitude, linear amplitude, phase, group delay, standing
wave ratio, real and minus parts of complex number
Measurement Formats
Smith circle graph:
logarithm amplitude, linear amplitude, impedance R+jX or admittance
G+jB
Polar coordinates:
logarithm amplitude, linear amplitude, phase, real and minus part
Display Amplitude
Resolution
0.001dB/div
Display Phase
Resolution
10m°/div
Display Group Delay
Resolution
0.01ps/div
Interface Forms
Standard parallel, serial, GPIB, VGA interfaces.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3618 Series
Microwave Integrative Vector Network Analyzer
AV3618 series microwave integrative vector network analyzer is a combination of
synthesized swept frequency signal source, multi-channel amplitude and phase receiver
and S parameter measurement device, with the compact structure, measurement
frequency broadband, fast measurement speed and convenience to carry about. In one
frequency sweep, you can acquire the information of amplitude, phase, and group delay of
the four S parameters of the subject network simultaneously. Thus AV3618 series
microwave integrative vector network analyzer is the primary equipment for the S
parameter measurement of microwave components, equipment and system.
Main Features
3
3
3
3
3
3
3
3
3
3
Built-in fast sweep frequency synthesized source; support power sweep
Phase-locked vector receiver; error calibration and time domain function
Built-in electron switch, S parameter test set
Wide dynamic range
Chinese and English menu selection
Non coaxial component measurement
Direct sampling channel
Built-in 3.5-inch floppy drive
Common print interface
Large screen LCD color display
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Frequency range
AV3618: 50MHz~20GHz
AV3618A: 50MHz~13.5GHz
Frequency Resolution
1Hz
Frequency accuracy
10ppm
Output Power Range
-70dBm~+5dBm
Power Accuracy of Test Port
±4.0dB
Frequency Range (GH z)
Specification
of Test Port
0.05~0.5
0.5~2
2~8
8~20
Effective Directivity (dB)
42
42
38
36
Effective Source Match (dB)
37
37
30
28
Effective Load Match (dB)
42
41
36
34
0.05~0.5
0.5~2
2~8
8~20
70
95
96
95
Frequency Range ( GHz )
System Dynamic Range (dB)
Measurement Format
Frequency domain, time domain
Measure Points
1~1601
Display Amplitude Resolution
0.001dB/div
Display Phase Resolution
10m ° /div
Group time-Relay Resolution
0.01 ps /div
Average Factor
1~999
Test port Connector Type
3.5mm (M)
Interface
Standard parallel interface、GPIB interface
Calibration Parts
Test option
AV31101: N type Coaxial Calibration Kit
AV31111: 7mm Coaxial Calibration Kit
AV31121: 3.5mm Coaxial Calibration Kit
Test cable
Agilent 85131F: 3.5-3.5 mm
Agilent 85132F: 3.5-7 mm
Dimension
L × W × H: 500mm × 440mm × 300mm
Net Weight
Approx. 35kg
Power Supply
50Hz ± 5%, 220V ± 10% Single-phase AC
Maximum of input power: 200W
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3627 Broadband Integrative Vector Network Analyzer
AV3627 broadband series vector network analyzer is developed by the 41st institute. It is a
new type of products of the microwave integrative vector network analyzer series. Its
frequency is up to 40GHz. And the whole instrument is combined with built-in sweep
frequency source, multi-channel amplitude and phase receiver and S-parameter test set. It
has the features such as compact structure, broad frequency band, and fast test and easy
to take and so on. It can obtain simultaneously amplitude, phase and group-delay
characteristics of the DUT's four forward and reverse S-parameters. It can take
comprehensive and accurate measurements of microwave network parameters. And it has
been used in the fields of the research, test and produce of devices, radar, spaceflight,
communication and interference, electronic counter measure and other military and civil.
The network analyzer is a core instrument of microwave devices, equipments and system
parameters measurement.
Main Features:
3
3
3
3
3
3
3
Built-in high speed sweep frequency synthesized source, power sweep
function
Phase-locked vector receiver, error correction and time domain function
Integrated S-parameter test system
Internal 3.5 inch floppy drive
English optional menu
10 inch color LCD display
Universal printer interface
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
0.05 ~ 40GHz
1Hz
Frequency Range
Frequency Resolution
Frequency Accuracy
(No High Stable Time-base)
10ppm
0.05~
2GHz
≥42
≥30
≥42
0.5
~
0.84GHz
≥40
≥30
≥40
0.84
~
8GHz
System Dynamic Range (dB)
≥70
≥90
Display Mode
10-inch high brightness color LCD
2 channels, every channel has 4 elementary
parameters: S11,S12,S21,S22
Frequency domain, time domain
A. Descartes coordinates: logarithm amplitude, linear
amplitude, phase, group-delay, and stationary
wave ratio, plural parameters' the real part and the
imaginary
B. Smith plot: logarithm amplitude, linear amplitude,
impedance R+jX or conductance G+jB
C. Pole coordinates: logarithm amplitude, linear
amplitude, phase, the real part and the imaginary.
1~1601
0.001dB/div
10m °/div
0.01ps/div
1~999
Coaxial 2.4mm
Standard parallel interface, GPIB interface
510mm × 460mm × 285mm
Approx.36kg
50Hz±5%, 220V±10%
Single-phase AC
Maximum of input power: 200W
Frequency Segment
Specifications
of Test Port
Effective Directivity (dB)
Effective Source Match (dB)
Effective Load Match (dB)
Frequency Segment
Display Channels
Measurement Domain
Measurement Format
Measurement Points
Display Amplitude Resolution
Display Phase Resolution
Group Time-delay Resolution
Average Factor
Test Port Connecter Type
Interface
Dimensions (l× b× h)
Net Weight
Electrical Source and Power
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
2~8GHz
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
8~
20GHz
≥34
≥28
≥34
8 ~
20GHz
≥90
Fax: +86-28-81707519
20~40GHz
≥26
≥23
≥26
20 ~ 40GHz
≥80
AV3630 Four-channel Amplitude and Phase Receiver
With the AV3630 Four-channel Amplitude and Phase Receiver as the host, the microwave
millimeter-wave vector network analyzer is new generational vector network analyzer
developed after AV3615 by the 41st Institute and is an organized combination of the
modern microwave millimeter-wave technology, modern circuit technology and modern
computer technology. It is entitled the king of microwave and millimeter-wave
measurement instrument for simultaneous acquirement of features of the microwave and
millimeter-wave device under test such as amplitude, phase and group-delay. Its excellent
performance and powerful measurement function are able to meet various microwave
millimeter-wave measurement measurements.
Main Features:
3
3
3
3
3
3
3
3
3
3
3
3
Wide frequency measurement
Compatible with general-purpose PC, & printers
12 items of error correction
Antenna and RCS test function
Powerful mathematical operation function
Pulse measurement function
Powerful time domain function
Powerful storage function
High fidelity LCD display
Real-time data processing
Compatible with Agilent product
Flexible operation
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
3
Host integration
System Configuration
Coaxial test system
Waveguide test system (AV3630
four-channel amplitude and phase
receiver + AV3640 millimeter-wave
controller + test modules
Flexible test
cable
AV3630 four-channel
amplitude and phase receiver
Frequency range: 45MHz~
110GHz
AV3641A 8mm S-Parameter test
module Frequency range:26.5GHz~
40GHz
Flexible test
cable
3.5mm-3.5mm
AV3631 S-Parameter test set
Frequency range: 45MHz~
26.5GHz
AV3642A 7mm S-Parameter test
module
Frequency range:33GHz~50GHz
Flexible test
cable
3.5mm-7mm
AV3632 S-Parameter test set
Frequency range: 45MHz~
40GHz
AV3643A 6mm S-Parameter test
module
Frequency range:40GHz~60GHz
Flexible test
cable
2.4mm-2.4mm
AV3633 Frequency convert
test set Frequency range:
45MHz~26.5GHz
AV3644A 5mm S-Parameter test
module: Frequency range:50GHz~
75GHz
Flexible test
cable
2.4mm-3.5mm
AV3635 Antenna test set
Frequency range: 100MHz~
20GHz
AV3645 3mm S-Parameter test module
Frequency range:75GHz~110GHz
Flexible test
cable
2.4mm-7mm
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Main Specifications
AV3640/
AV3645
3mm
S-parameter
Test set
AV3630 Four-channel amplitude and
phase receiver
Specifications
AV3631
S-parameter
set
Frequency range: 45MHz~110GHz
Frequency range
45MHz~
26.5GHz
45MHz~
40GHz
26.5GHz
~40GHz
Amplitude (dB): 0.001
Dynamic range
70dB~93dB
70dB~83dB
89dB
76dB
Phase degree: 0.01
Effective directivity
42dB~48dB
38dB~42dB
50dB
46dB
Group delay (ps): 10
Load match
42dB~48dB
38dB~42dB
50dB
46dB
Source match
31dB~40dB
31dB~40dB
40dB
(OFFSET CAL)
36dB
(OFFSET CAL)
Reflection tracing
±0.14dB
±0.14dB
±0.05dB
±0.04dB
Transmission tracing
±0.09dB
±0.14dB
±0.05dB
±0.07dB
508× 440× 222
508× 440× 131
508× 440× 131
295× 175× 175
508× 440× 131
295× 175× 175
26kg
19kg
12kg/12kg
12kg/12kg
Resolution
Accuracy
Dimensions
Calibration by the
calibration
Kit with NIST standard
data
(D× W× H: mm)
Weight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
test
Fax: +86-28-81707519
AV3632
S-parameter
set
AV3640/
AV3641A
8mm
S-parameter
Test set
test
75GHz~
110GHz
Specifications (AV3XXXX series coaxial/waveguide calibration Kit)
Model
AV31XXX series
coaxial/wave guide
calibration Kit
Return loss
AV31101 N
45MHz~18GHz
Connector
SWR≤1.083
AV31111 7mm
45MHz~18GHz
Connector
SWR≤1.083
AV31121 3.5mm
45MHz~26.5GHz
Connector
SWR≤1.106
AV31123 2.4mm
45MHz~40GHz
1.72GHz~2.61GHz
Coaxial to wave
guide adapter
SWR≤1.25
2.6GHz~3.95GHz
Coaxial to wave
guide adapter
SWR≤1.25
3.94GHz~5.99GHz
Coaxial to wave
guide adapter
SWR≤1.25
4.64GHz~7.05GHz
Coaxial to wave
guide adapter
SWR≤1.25
5.88GHz~8.17GHz
Coaxial to wave
guide adapter
SWR≤1.25
6.57GHz~10.0GHz
Coaxial to wave
guide adapter
SWR≤1.25
AV32117
8GHz~12.4GHz
Coaxial to wave
guide adapter
SWR≤1.25
AV32118
12GHz~18GHz
Coaxial to wave
guide adapter
SWR≤1.25
AV32119
18GHz~26.5GHz
Coaxial to wave
guide adapter
SWR≤1.25
AV32101
26.5GHz~40GHz
Load Return loss
SWR≤-30dB
AV32141
75GHz~110GHz
Load Return loss
SWR≤-30dB
AV32111
AV32112
AV32113
AV32114
AV32115
AV32XXX series
coaxial/wave guide
calibration Kit
Frequency range
AV32116
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]siwi.com.cn
Fax: +86-28-81707519
AV3625/AV3626 Series
Portable Transmission Line/Antenna Analyzer
The AV3625/AV3626 series portable vector network analyzer is a high speed and accurate
SWR/RL (standing wave ratio/return loss), absolute power and Distance-To-fault (DTF)
measure instrument that includes a build-in precise synthesized signal source, a high
sensitive receiver, a high performance CPU, a large LCD display. The AV3625/AV3626, are
designed for the electric system's installation debugging, maintenance and repair outdoor,
for RF & microwave components' test in laboratory. They are used in broadcast television,
CATV, GPS, GSM/PCS, microwave relay, satellite communication and radar.
Main Features:
3
3
3
3
3
3
Large LCD display, Chinese display
Operation simplicity and flexibility, easy to learn and use
Two types of power supplies: direct current, internal battery
High performance and economical
Light weight, easy to carry
Used in the wider field
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Models
AV3625
AV3626
AV3626A
AV3626B
25MHz~3.3GHz
3.3GHz~18GHz
9GHz~10GHz
4.5GHz~6GHz
Frequency Accuracy
75ppm
75ppm
75ppm
75ppm
Frequency Resolution
100kHz
1MHz
1MHz
1MHz
Frequency Range
Measurement Item
Return Loss
RL
RL
SWR
SWR
SWR
SWR
Insertion Loss (double ports)
DTF
DTF
Insertion Loss (double ports)
Cable Loss (single port)
Cable Loss (single port)
Absolute Power (option)
Absolute Power (option)
Directivity
>35dB
>32dB
>32dB
>32dB
Source Match
>20dB
>20dB
>20dB
>20dB
±2dBm
±2dBm
±2dBm
±2dBm
(0~-40dB)
(0~-40dB)
(0~-40dB)
(0~-40dB)
Load Match
--
--
>20dB
>20dB
Dynamic Range
--
--
>80dB
>80dB
Power Uncertainty
Option
OP-CC/WC
Coaxial Calibration Kit
Calibration (wave-guide or coaxial)
Calibration Kit (wave-guide or coaxial)
Calibration Kit (wave-guide or coaxial)
OP-TC
Test Cable
Test Cable
Test Cable
Test Cable
OP-PP
Power Probe
Power Probe
Power Probe
Power Probe
Dimensions
D×W×H: 260×180×70(mm)
Net Weight
Approx. 2.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3619series RF Integrative Vector Network Analyzer
The AV3619 series RF vector network analyzers combine RF synthesized signal source,
receiver, display and measurement controller. With impact structure, advanced
performance, fast measurement, and high reliability, the analyzers are used in research,
development, and production measurement of RF fields.
The AV3619B economic RF vector network analyzer supports narrow band measurement,
but no AM delay measurement and X, Y external detection. Except for the above features,
the analyzer is the same with the AV3619. With a high economic price, it is used in the
assembly of production lines.
Main Features:
3
3
3
3
3
3
3
3
3
3
3
Measurement Methods: support broadband and narrowband measurement
Measurement Functions: support transmission, reflection, AM delay measurement
(option)
Sweep Types: support frequency sweep and power sweep
Display Format: display measurement results in logarithm, Smith circle diagram, polar
coordinate, etc.
Display output: provide video signal output port for external display for the
convenience of remote monitoring and demonstration
Input from the keyboard. The host is compatible with DIN keyboard, you can program
in IBASIC directly on the host.
Storage Carriers: store measurement information on the built-in floppy disk,
nonvolatile memory, volatile memory and external disk drive
Output Ports: output measurement results by parallel port, serial port and GP-IB port
Trigger Modes: provide external trigger interface for functional extension of the
equipment
IBASIC Function: built-in IBASIC functions for programming capability of USER
BEGIN application software
FAIL/PASS Interface: set limits for measurement for the set-up of auto-test system in
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
batch test
Specifications
Model
Frequency
Range
Frequency
Accuracy
Power
Accuracy
Signal
Power Range
Source
Spectral
Purity
Phase Noise
Display
Features
Amplitude
Resolution
Phase
Resolution
Frequency
Resolution
Measurement
Features
Frequency
Range
Dynamic
Range
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
AV3619
AV3619A
AV3619B
300kHz~3GHz
300kHz~1.3GHz
300kHz~3GHz
±5ppm
±5ppm
±5ppm
±2.0dB
(With Remote
Control Attenuator)
-5dBm~+7dBm
(Standard)
-60dBm~+7dBm
(With Remote Control
Attenuator)
Harmonic
30dBc(≥10MHz)
Harmonic
-20dBc(<10MHz)
-67dBc/Hz
(Offset10kHz)
100KHz~1.3GHz
-65dBc/Hz
(Offset 10kHz)
1.3Hz~3GHz
±2.0dB
(With Remote
Control Attenuator )
-5dBm~+10dBm
(Standard)
-60dBm~+10dBm
(With Remote Control
Attenuator)
Harmonic less than
-30dBc(≥10MHz)
Harmonic Less than
-20dBc(<10MHz)
±2.0dB
(With Remote
Control Attenuator)
-5dBm~+7dBm
(Standard)
-60dBm~+7dBm
(With
Remote
Control Attenuator)
-67dBc/Hz
(Offset 10kHz)
-60dBc/Hz
(Offset 10kHz)
0.01dB/div
0.01dB/div
0.01dB/div
0.1°/div
0.1°/div
0.1°/div
1Hz
1Hz
1Hz
300kHz~3GHz
Narrowband
Measurement
10MHz~3GHz
Broadband
Measurement
100dB(300KHz
3GHz)
Narrowband
Measurement
300kHz~1.3GHz
Narrowband
Measurement
300kHz~3GHz
Narrowband
Measurement
-
10MHz~1.3GHz
~
100dB(300kHz
1.3GHz)
Narrowband
Measurement
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
~
100dB
(300kHz~3GHz)
Narrowband
Measurement
Fax: +86-28-81707519
Maximum
Input
Transmission
Tracing
Reflection
Tracing
Directivity
Source
Matching
Port Features
Load
Matching
Measuremen
t Port
60dB(10MHz~3GHz)
Broadband
Measurement
+10dBm
Narrowband
Measurement
+16dBm
Broadband
Measurement
60dB(10MHz ~ 1.3GHz)
Broadband
Measurement
+10dBm
Narrowband
Measurement
+16dBm
Broadband
Measurement
±0.1dB
±0.1dB
±0.1dB
±0.1dB
±0.1dB
±0.1dB
40dB
40dB
40dB
20dB
20dB
20dB
20dB
20dB
(Freq.<1.3GHz)
18dB
(Frequency≥1.3GH
z)
Type N
Type N
20dB
(Freq.<1.3GHz)
18dB
(Freq≥1.3GHz)
Type N
Dimensions
D × W × H=520 × 440 × 210mm
Weight
24kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
+10dBm
Narrowband
Measurement
Fax: +86-28-81707519
AV3617 Microwave/Millimeter-Wave Scalar Network Analyzer
The AV3617 is a high-performance, economical cost scalar network analyzer. It provides
the accuracy and high performance of a synthesized source, and can measure insertion
loss, gain, return loss, SWR quickly and accurately. With the series of high-performance
detectors, directional bridges, directional coupler, and a companion source and digital
plotter/printer, the AV3617 becomes the basis of a complete measure system with superb
performance.
Specifications
AV3617 SCALAR NETWORK ANALYZER
Frequency
range:10MHz ~ Frequency Resolution: depending on the source
110GHz
Measurement Points:101,201,401,801,1601
(Depending on the detector)
Perpendicular Resolution:0.01dB
Dimensions: D× W× H: 440× 440× 190(mm)
Weight: 22kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications of the Accessories of AV3617
AV10320 High-precision
AC/DC Detector
AVl0321
AC
AVl0321A AC Detector
Detector
Frequency
range
10MHz~18GHz
10MHz~18GHz
10MHz~26.5GHz
(K Connector)
Frequency
response
10MHz~40MHz:±0.35dB
40MHz~18GHz:±0.2dB
±0.6dB
10MHz~18GHz:±0.6dB
18GHz~26.5GHz:±1.5dB
Return loss
>20dB
10MHz~40MHz:>10dB
40MHz~18GHz:>15dB
10MHz~40MHz:>10dB
40MHz~18GHz:>15dB
18GHz~26.5GHz:>10dB
Power
accuracy
(50MHz)
+20dBm~+10dBm:±0.35dB
+10dBm~-30dBm:±0.15dB
-30dBm~-50dBm:±0.85dB
+16dBm~+10dBm:±0.6dB
+10dBm~-40dBm:±0.4dB
-40dBm~-55dBm:±1.2dB
Same as the AVl0321
AVl0615C
Directional Bridge
-
Internal Power Source
Degree of
Coupling
-
Frequency
50MHz
Frequency
Response
--
0dBm
Accuracy
±0.1dB
Directivity
36dB:10MHz~2GHz
34dB:2GHz
~
12.4GHz
32dB:12.4GHz
~
18GHz
Port SWR
1.2:10MHz~2GHz
1.5:2GHz~12.4GHz
1.8:12.4GHz~18GHz
Linearity
+20dBm~+10dBm:±0.12dB
+10dBm~-30dBm:±0.08dB/10dB
-30dBm~-55dBm:±0.12dB/10dB
-
Insertion
Loss
-
Frequency
10MHz~18GH
Maximum
Power
+27dBm
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3616X/XA Series
RF Microwave Scalar Network Analysis System
The AV3616X/XA series RF/microwave scalar network analysis system comprises high
resolution and low harmonics sweep frequency source and accurate scalar instruments. It
is matched with high sensitivity detector and high directivity SWR auto-tester. It can test
translation loss, reflection loss and absolute output power of RF/microwave bands
components. It is utilized in broadcast and television, CATV, microwave relay, satellite
communication, radar, and especially convenient to test amplifiers, mixers, receivers and
receivers.
Specifications of AV3616X
Scalar Network
Channel Dynamic Range:
71dB(-55dBm-+16dBm)
5
Channel Accuracy:
±0.4dB(-40dBm~16dBm)
±1.2dB(-55dBm~-40dBm)
5
Display Resolution:
Horizontal:51,101,201and
401(dot)
Vertical: 0.01dB
5
A, B, R Three channel
input,
A/R,
B/R
Test
Auto-scale, set limits testing,
save and recall etc.
5
Sweep Source
5
5
5
5
5
5
5
Frequency range:
10MHz~8.6GHz
Maximum Output Power:
+10dBm(10MHz~8GHz)
+7dBm(8GHz~8.6GHz)
Frequency resolution:
100kHz
Source SWR: <1.5
Swept
frequency
accuracy:
±500 kHz (typical)
Start/stop, Center/Width,
Alternating sweep functions.
Provide 8 frequency scalars
Model N tie-in (negative).
Accessories
1. Detector:
Frequency Response: ±0.5dB
Standing wave ratio:
<2.0(10MHz-50MHz)
<1.4(50MHz-8.6GHz)
2. SWR Test Device:
Port SWR: <1.25
Directivity: >36Db
Power Allowed: +27dBm
3. 70dB
Remote
Control
Step Attenuator
±0.4dB/10dB step
4. GP-IB interface
5. Printer and cable
Dimensions: L×W×H: 480×440×180(mm)
Weight: 18kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3983 8mm Noise Figure Test Set
One system, composed of this test set, the AV3981 or the HP8970B noise figure meter, the
AV1484/AV1481C synthesized signal source, 8mm noise source such as AV16601, R347B,
NC5128 and outer controlling computer, is able to test the noise figure of 8mm frequency
band.
By way of sweep test, graphics display, menu operation, the system simplifies the
operation of noise co-efficient. In addition, it accomplished 8mm noise configure single
band test, improved the test precision and intelligence. This system is used in control and
guide, radar, electronic countermeasures. It can test the noise figure of millimeter-wave
elements, parts, the whole instrument systems.
Specifications
Item
Specification
Frequency range
26.5GHz~40GHz
Noise Figure Measurement Range
0~30dB
Input Port Standing Wave Ratio
≤1.5
Gain Measurement Range
-6~30dB
Noise Figure
<14 dB
Gain
>20 dB
Noise Coefficient Measurement
Uncertainty
±0.3dB ± 0.03dB/℃
Gain Measurement Uncertainty
±0.3dB ± 0.03dB/℃
Mirror Frequency Reject
>20dB
Dimensions
D×W×H =430×424×133(mm)
Net Weight
17kg
Option
AV16601 8mm noise source
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3981/3982 Noise Figure Test Set
The AV3981 Noise Figure Meter is a tunable receiver with high sensitivity. It can
automatically measure the noise figure and gain of the linear network. The Noise Figure
Meter has more than two hundred functions including self-test, self-calibration, storage and
recalling, data input mode, digit indication. The Noise Figure Meter can output analog data
to an analog oscilloscope, the X-Y recorder, or a strip chart recorder through the X, Y,
Z-axis outputs; Digital data can also be output to the AV3617 Scalar Analyzer on the
System Interfaces Bus; The noise figure and gain can be printed out. Together with the
AV3982 Noise Test Set and the system local oscillator, the noise figure test system can
measure noise and gain in the frequency range of 10MHz to 26.5GHz. The AV3981 Noise
Figure Meter is used in aviation, spaceflight, communications and electronic confrontation.
This AV3982 Noise Figure Test Set combines with AV3981 or the HP8970B Noise Figure
Meter can extend the noise figure and gain test frequency range to 26.5GHz. The noise
figure test system can measure the noise figure and gain of the DUT (device under test). It
makes the SSB test to be true, and it improves the measurement accuracy.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Noise Figure
Measurement
Input
Input Connection Type: Type N female
FREQ Range:10MHz~1.6GHz
FREQ Tuning Accuracy: (1MHz+1% of frequency), ±6MHz Max.
Input SWR: <2.0(50Ω)
Input Power(Max): 20dBm
NF Range: 0~30FdB
RESOL: 0.01dB
Jitter: <0.02dB
(Smooth Factor set to 64)
<0.15dB
(Smooth Factor set to 1)
NF Accuracy: ±0.1dB
Dimensions:
D × W × H = 422 × 440 × 152mm
Net Weight:
Approx.16kg
Item
SPECIFICATION
Frequency Range
10MHz~26.5GHz
NF Measurement Range
0~30FdB
Input SWR
2.25(10MHz~18GHz); 2.7(18GHz~26.5GHz)
Dimensions
D × W × H = 520 × 465 × 125(mm3)
Net Weight
Approx.15kg
—
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Gain Measurement
Gain Range: -20dB~+40dB
Accuracy: ±0.15dB
Resolution: 0.01dB
AV5261 Vector Signal Analyzer
The AV5261 Vector Signal Analyzer is a high-performance signal analyzer designed for digitally modulated
RF signals measurement. The analyzer has several functions of spectrum analyzing, timing-sequence
measuring and modulation accuracy measuring. With the capabilities of high sensitivity, large dynamic
range and little demodulation residual error, it can meet users to measure various kinds of complicated
digital signals. The analyzer offers complete measurements solutions of digital wireless communication
equipment.
Main Features:
3
3
3
3
3
3
3
High resolution, high sensitivity, low phase-noise, broad dynamic range
Flexible digital demodulated parameters
Symbol rates demodulated up to 6.4MHz
Realize the third generation mobile communication standard signal analyzing
Display eye diagrams, polar vector, polar constellation symbol/error table
Build-in multi-digital communication standards and digital modulation parameters
8.4"high-brightness TFT LCD, Chinese &English display and Chinese operation.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Frequency range
Frequency Accuracy
Span Accuracy
Displayed Average Noise
Level
Freq Response
Flatness
Resolution Bandwidth
Demodulated IF
Bandwidth
Noise Sideband(f=1GHz)
Communication
Standards
Digital Modulation Formats
Symbol Range Rates
GSM Demodulation
Error
NADC, TETRA
Demodulation Error
IS-95CDMA
Demodulation Error
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Specification
100Hz~3.0GHz
span>2MHz×N:±(Freq ×REF deviation+5%span+15%RBW+10Hz)
span≤2MHz×N:±(Freq ×REF deviation+1%span+15%RBW+10Hz)
±5%span>2MHz×N
±1%span≤2MHz×N
<-138dBm nominal value:-150dBm 10MHz~3.0GHz
±1.5dB 1MHz~3.0GHz
1Hz~2MHz(1Hz~in 1/3/10 steps)
5MHz,10MHz
<-80dBc/Hz for carrier offset:100Hz
<-110dBc/Hz for carrier offset:10kHz
GSM, NADC, TETRA, IS-95CDMA, W-CDMA, Option:3GPP, CDMA2000, EDGE, PDC,
DECT, PHS, PWT, TFTS, ERMES, MODACOM, CDPD, CT2, APCO25
BPSK, QPSK, OQPSK, DQPSK,π/4-DQPSK, 8PSK, 3π/8-8PSK D8PSK, 16QAM, MSK, GMSK, 2FSK, 4FSK
320Hz~6.4MHz
Error vector magnitude
≤1.5% rms nominal value: 0.7% rms
Magnitude error
Freq error
≤1.5% rms
Phase error
≤1° rms
≤2Hz
I/Q offset
≤0.4%
Error vector magnitude
Magnitude
≤1% rms
error
Freq error
≤0.3Hz
Phase error
≤1°rms
I/Q offset
≤0.4%
Error vector magnitude
≤2.8% rms nominal value: 1.0% rms
Magnitude error
1.2% rms
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
≤1% rms nominal value: 0.5% rms
Phase error
Fax: +86-28-81707519
0.6°rms
Freq error
W-CDMA
Demodulation Error
FSK
Modulation error
Other Options
Dimensions
Weight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
≤9Hz
Error vector magnitude
I/Q offset
≤0.4%
≤2% rms nominal value: 1.3% rms
Magnitude error
≤2% rms
Phase error
≤2°rms
Freq error
≤22Hz
I/Q offset
≤0.4%
Magnitude error
≤3% rms nominal value: 0.8% rms
Freq deviation
±(1%×REF deviation+ REF freq error)
GP-IB, parallel print interface, local oscillator output
Dimensions: D x W x H = 560x440x220(mm)
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
32kg
Fax: +86-28-81707519
AV4942 Microwave Complex Measurement Instrument
The instrument is a combination of spectrum analyzer, synthesized generator, power meter, frequency
meter. Its compact structure, advanced features and high reliability eliminate the difficulties when multiple
test sets are transported and maintained. The set is used in the microwave communications, radar and
navigation test. And it is an essential test set in developing the scientific research, production and
maintenance of military electronic components, entire sets and systems. Also it services post,
communications, radio /TV.
Main Features:
3
3
3
3
3
3
3
3
3
3
Spectrum Analysis
Microwave Frequency Meter
Microwave Power Meter
Scalar Network Test
Synthesized Source (Synchronous Sweep, Pulse Modulation)
High integration, complete functions, measurement of various microwave parameters, easy to operate
High performance, economic cost
Modulation design, ease to install and maintain
Portable feature, suits for field and site operation
High-brightness TFT LCD, colored Chinese/English interface, easy to operate.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Spectrum
Analysis
Synthesized
Source
Power
Measurement
Frequency
Measurement
Specifications
Frequency range: 9kHz~18GHz
Residual Response: better than -90dBm
Resolution Bandwidth:1kHz~3MHz (step in 1,3,10)
Optimum Display Average Noise Level:107dBm (1kHz Resolution Bandwidth)
Noise Side Band:< -100dBc/Hz( Frequency 1GHz,Offset 20kHz)
Frequency range:10MHz~18GHz
Frequency Resolution: 1Hz
Phase Noise:-75dBc/Hz (10kHz Offset, typical)
Power Accuracy:±1.5dB (Without output attenuator)
Output Power:-20~+10dBm (output attenuator optional)
Frequency range:10MHz~18GHz
Frequency Range:+20dBm~-60dBm
Linearity:3%/10dB(0dBm as the standard)
Power Reference:1.00mW ±2% (+10℃~+35℃)
Power Probe SWR:1.18(10MHz~2GHz); 1.22(2GHz~12.4GHz); 1.30(12.4GHz~18GHz)
Frequency range: 10MHz~18GHz
Sensitivity: better than -40dBm
Frequency Measurement Accuracy:±(Frequency Readout ×frequency reference error +Counter Resolution+100Hz)
Resolution:5Hz,10Hz,100Hz,1kHz,10kHz
Dimensions
D×W×H:560×480×180(mm)
Weight
30kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2434 Microwave Power Meter
The AV2434 microwave power meter a high accurate measurement instrument used for measuring average power, peak power, peak-to-average
ratio of broad band microwave CW signals and complex modulated signals. By using following all-brand new design methods and technic as well as
data processing methods: wide dynamic range, broad band diode detective power sensor design and production technic as well as small signal
processing, digital compensation and calibration, high-speed sampling and DSP processing, broad band modulated signal's average power and peak
power measuring, multi-thread software designing; the measurement system is distinct in broad frequency band, wide dynamic range, high sensitivity,
fast measurement speed and functions. All characteristics are similar to advanced level of systems abroad.
The AV2434 microwave power meter with AV7172XX series video bandwidths average-peak sensors, can make accurate measurement of average
power, peak power, average-to-peak ratio in up to 8 predefined microwave communication signals such as GSM900, CDMAONE, CDMA2000,
W-CDMA, Bluetooth.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
The AV2434 microwave power meter is widely used in many fields such as microwave communication, radar, navigation, E-antagonizing, space
technic, satellite ground station, signal monitoring. It's also the required instrument for those departments in developing, producing, testing,
examination and measuring, microwave electro-elements or microwave electronic systems.
Specifications
Specification
Frequency range
9kHz~110GHz(Depending on the configured probe)
Power Range
-67dBm~+44dBm
Display Resolution
Logarithmic: 1~0.001dB, linear: 1-4
Video Bandwidth
5MHz
Instrumentation Precision
CW Average Power Mode :Absolute: ±0.02dB Relative: ±0.04dB
Peak/Modulation Average Power Mode: Absolute: ±0.04dB Relative: ±0.08dB
50MHz Power Calibration Source
Frequency Accuracy:±1%
Power Accuracy(1mW):±1.2%
Dimensions& Weight
D x W x H = 340x240x100(mm)
Source Standing Wave Ratio:1.06
5kg
Specifications of the AV7171X Series Average Power Sensors
Model
AV71710
Frequency range
Power Range
10MHz~18GHz
-67dBm~+20dBm
Max.
Power
+23dBm
Power Linearity
VSWR
Input
Connector
+10dBm~+20dBm: ±6%
-67dBm~+10dBm: ±5%
10MHz~50MHz: 1.35
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.27
N(m)
3.5mm(m)
2.4mm(m)
AV71711
50MHz~26.5GHz
-67dBm~+20dBm
+23dBm
+10dBm~+20dBm: ±6%
-67dBm~+10dBm: ±5%
10MHz~50MHz: 1.35
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.27
18GHz~26.5GHz: 1.61
AV71712
50MHz~40GHz
+23dBm
+10dBm~+20dBm: ±6%
10MHz~50MHz: 1.35
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
-67dBm~+20dBm
-67dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
26.5GHz~40GHz: 1.61
Specifications
Model
Frequency range
Power Range
Max. Bandwidth
Power Linearity
VSWR
Connector
AV71720
50MHz~6GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power Range:
-47dBm~+20dBm
300kHz
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
1.15
N(m)
AV71720A
50MHz~6GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power Range:
-42dBm~+20dBm
1.5MHz
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
1.15
N(m)
AV71720B
50MHz~6GHz
CW Average Power Range:
-57dBm~+20dBm
Modulation Average Power Range:
-37dBm~+20dBm
5MHz
+10dBm~+20dBm: ±6%
-57dBm~+10dBm: ±5%
1.15
N(m)
AV71721
50MHz~18GHz
CW Average Power Range:
-60dBm~+20dBm
300kHz
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz1.29
N(m)
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Modulation Average Power Range:
-47dBm~+20dBm
AV71721A
50MHz~18GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power Range:
-42dBm~+20dBm
AV71721B
50MHz~18GHz
CW Average Power Range:
-57dBm~+20dBm
Modulation Average Power Range:
-37dBm~+20dBm
AV71722
50MHz~26.5GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power
Range:-47dBm~+20dBm
AV71722A
50MHz~26.5GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power
Range:-42dBm~+20dBm
AV71722B
50MHz~26.5GHz
CW Average Power Range:
-57dBm~+20dBm
Modulation Average Power
Range:-37dBm~+20dBm
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
1.5MHz
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
N(m)
5MHz
+10dBm~+20dBm: ±6%
-57dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz:1.29
N(m)
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
3.5mm(m)
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
3.5mm(m)
+10dBm~+20dBm: ±6%
-57dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz:1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
3.5mm(m)
300kHz
1.5MHz
5MHz
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV71723
50MHz~40GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power Range:
-47dBm~+20dBm
AV71723A
50MHz~40GHz
CW Average Power Range:
-60dBm~+20dBm
Modulation Average Power Range:
-42dBm~+20dBm
AV71723B
50MHz~40GHz
CW Average Power Range:
-57dBm~+20dBm
Modulation Average Power Range:
-37dBm~+20dBm
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
300kHz
1.5MHz
5MHz
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz:1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
26.5~40GHz: 1.61
2.4mm(m)
+10dBm~+20dBm: ±6%
-60dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
26.5~40GHz: 1.61
2.4mm(m)
+10dBm~+20dBm: ±6%
-57dBm~+10dBm: ±5%
50MHz~2GHz: 1.12
2GHz~12.4GHz: 1.20
12.4GHz~18GHz: 1.29
18GHz~26.5GHz: 1.37
26.5~40GHz: 1.61
2.4mm(m)
Fax: +86-28-81707519
AV3941 Electromagnetic Radiation Detector
The AV3941 Electromagnetic Radiation Detector is consisted of the sensor, power density indicator, and
lengthening cable. The sensor provides isotropic response with the three mutually-crossed high sensitive
detectors. The innovative design and technology insures that the sensor provides almost constant effective
caliber for the radiation field in a spacious frequency range, thus realizing precise measurement of the
power density of near fields and far fields. The meter is widely used in the quantitative measurement of
electromagnetic radiation source in areas like radar, communication, electronic war system, microwave
applications (microwave oven, heater, etc.), medical apparatus, and etc, as well as the quantitative
detection of radiation leakage of electronic equipment in the EMC tests.
Main Features
3
3
3
Wide dynamic range
Broadband isotropic response
3-D display small, lightweight and portable
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Operating Frequency range
1MHz~18GHz
1mW/cm2~20mW/cm2
Power density measurement range
divided into three
classes:200mW/cm2;2mW/cm2;20mW/cm2
Frequency response
±2.5dB
Calibration precision
±1dB
Isotropic response
±1.5dB(except for the direction of the handle)
Response time
1.5s
Power density display
3.5 bit LCD digital display
Power
3*(AA 1.5V), consumed current<10mA
Dimensions
Power density indicator
D×W×H=80×200×40(mm)
Sensor
Length:335m, Max diameter:70mm
Cable
≥ 1m
Weight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
0.67kg
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2432/2433 Microwave Power Meter
AV2432
AV2433
The AV2432 power meter is a new generation diode detectors' universal power meter, which based on DSP
technology. With built-in 50MHz power sweep calibrator, it can trace standard of power and automatically
calibrate the amplitude response of a power Probe. The AV2432 universal power meter can achieve
accurate measurements of average power of continuous wave and the RF power lever of a pulse
modulated signal. Power Probes' calibrate and power lever's measurements of signal can be reached by
operated the front panel manually or controlled through GPIB interface of the rear panel. Its extraordinary
capability can meet the measurement requirements of RF and microwave-power in many fields, such as
radar, communication, and broadcast.
The AV2433 is a dual-channel (channels: A, B) universal power meter designed specifically for Automatic
Test Equipment (ATE) system. It can configure two AV23200 series power Probes, which can accurate
measure the power of continuous wave or pulse modulated inputted from the two channels, and the results
display on the LCD. It has A, B, A/B, B/A, A-B, B-A testing mode, and has functions of measuring the
microwave elements or components' Return Loss/SWR by configured specifically Directional Bridge, and
also has all functions of the AV2432 universal power meter. It is economical and high-performance.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Specifications for AV2432 and AV2433
Frequency range
10MHz~110GHz(depend on the kind of the configured probe)
Power Range
-70dBm~+50dBm
Zero Configuration
±100pW
Display Resolution
Logarithm Mode: 1~0.001dB
Linear Mode: 1-4 bits
Power Sweep
Calibration Source
Frequency Accuracy: ±1.5%
Power Accuracy: ±1.9% (when tracing back to power accuracy ±0.5% the
power accuracy of standard calibration can be better than ±1.2%)
Power Dynamic Range:-30dBm~+20dBm
Source Standing Wave Ratio: 1.08
Dimensions
D× W× H: 370× 220× 90(mm)
Weight
5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV3860/AV3861
Series Broadband Microwave/Millimeter-wave Amplifier
The AV3860/AV3861 Series Broadband Microwave/millimeter-wave Amplifier is small, portable, easy to
operate, and has wide frequency band. With source module interface circuit and broadband microwave
magnifier, it can be used as a separate power magnifier, and form a test system with other test equipments.
Now it is used in the test system of electronic equipment in electronic disturbance, electronic confrontation,
radar, microwave communication and satellite communication.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Models
SPECIFICATIONS
AV3860A
AV3860B
AV3860
AV3861
Frequency
Range(GHz)
2~20
0.1~4
Maximum
Output Power
(dBm)
≥17
≥17
≥17
≥15
≥15
Minimum
Unleveled
Output
Power(dBm)
≥18
≥18
≥18
≥16
≥17
Gain(dB)
(P(in)=-15dBm)
≥17
≥17
≥17
≥15
≥17
±2dB(17dBm)
P(out)=17dBm
±2dB(17dBm)
P(out)=17dBm
Input PSWR
≤2.8
≤2.8
Output PSWR
Second
Harmonic
wave
Third
Harmonic
Wave
Non-harmonic
Wave
Noise Figure
≤2.8
≤2.8
≤2.8(2~18GHz)
≤2.8
≤-20dBc
≤-20dBc
≤-20dBc
--
≤-30dBc
≤-30dBc
≤-30dBc
--
≤-50dBc
≤-50dBc
≤-40dBc
--
≤10dB
≤10dB
External
Stabilize
Amplitude
Flatness
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
2~20
20~26.5
26.5~ 40
±2dB(17dBm) ±2dB(17dBm) ±2dB(17dBm)
P(out)=17dBm P(out)=15dBm P(out)=15dBm
≤2.8
≤3.0
≤12dB
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
≤14dB
Fax: +86-28-81707519
≤3.0
--
AV4941 Digital Microwave Communication Complex Tester
The AV4941 Digital Microwave Communication Complex Tester combines multi-path fading simulator, link
measurement personality, power meter, frequency counter, scalar network analyzer and signal source into a
portable system. It is used in the measurement of multi-path fading specifications in mobile communications,
including dynamic, static M-curves measurement, delay M-curves measurement, dynamic S-curves
measurement, recovery time measurement and so on, as well as in the measurement of link group delay
time and amplitude flatness in mobile communication. It contains
all of the measurement functions of a spectrum analyzer, power
meter, frequency counter, and scalar network analyzer. It can
measure over 100 parameters in digital microwave
communication and radio in total. With its frequency range from
9 kHz to 26.5GHz, it can be applied in production, installation,
debugging, maintenance and other processes of digital
microwave communication equipment.
Main Features:
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Multi-path fading simulator
Microwave power meter
Microwave sweep generator
Low frequency oscilloscope
Spectrum analyzer
Microwave frequency counter
Triple audio sources
Link measurement personality
Flatness analyzer
Event counter
Modularization design, easy to install and maintenance
Light-weight, special design for out door operation
User-friendly color Chinese interface, easy to learn and use
Combine several popular instruments into one portable system, high performance, economical.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Spectrum
Analysis
Specification
Frequency range: 9kHz~26.5GHz
Frequency Response :better than ±2.0dB ~±5.0dB
Resolution Bandwidth: 1kHz~3MHz(1,3,10 steps)
Display Average Noise Level: better than -110dBm~-85dBm
Third-order Inter-modulation Distortion:< -70dBc(10MHz~22GHz)
Reference Level Accuracy: ±0.75dB
Resolution Bandwidth Switching Uncertainty : better than ±0.4dB
Residual Responses: better than -90dBm
Side-band Phase Noise: < -100dBc/Hz(frequency 1GHz, offset 20kHz)
Frequency Readout Accuracy:±(Frequency Readout×Frequency Reference Accuracy+1%Span+20%RBW+100Hz×N )
N is harmonics Number
Second Harmonic Distortion: < -70dBc 10MHz~2.9GHz (mixer level -40dBm)
< -100dBc 2.75GHz~22GHz (mixer level -10dBm)
IF Tracking
Generator
Frequency range: 300kHz~2.9GHz
Power Range: -66dBm~-1dBm
Flatness: ±2dB
Power Accuracy: ±0.7dB
Harmonics: < -20dBc
Non-harmonics: < -23dBc
Frequency Accuracy: ±(Frequency Readout ×Frequency Reference Accuracy+ Span Accuracy + 1% Span + 20% RBW + 2kHz )
Standing Wave Ratio: 2.0
RF Source
Multi-path
Fading
Simulator
Power
Meter
Frequency range: 3.75GHz~6.5GHz
Frequency Accuracy:±(1×10-6 × Frequency +1.5% Span + 2kHz )
Flatness: ±0.5dB
Power Accuracy: ±1dB
Output Level: +5dBm~-15dBm
Standing Wave Ratio: <2.0
Harmonics: < -30dBc
Non-harmonics: < -40dBc
Notch Frequency: 70MHz±30MHz(Standard Setting, 140MHz option)
Notch Frequency Resolution: 100kHz
Frequency Accuracy: ±400kHz
Notch Depth: 0~40dB
Attenuation Range :Gain 0~12dB, Attenuation 0~50dB
Accuracy:±1dB(20dB Depth~±3dB(40dB Depth)
Accuracy:±2.5dB (0~30dB Flat Attenuation)
Frequency range: 10MHz~18GHz
Power Range: -60dBm~+20dBm
Linearity: ±3%/10dB (by the standard of 0dBm)
Reference Power: 1.00mW ±1.2% (+10℃~+35℃)
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Power Sensor Standing Wave Ratio:1.18 (10MHz~2GHz); 1.22 (2GHz~12.4GHz); 1.30(12.4GHz~18GHz)
Three Tone
Source
Frequency range: 67MHz,70MHz,75MHz
Maximum Output Level: < -7dBm
Event Counter Maximum Pulse Rate: 100kHz
& Oscillator
Oscillator Bandwidth: DC~100kHz
Scope
Maximum Pulse Width:1us negative,5us positive
Trigger Time: 10ms~163s (10ms step)
Frequency range: 10MHz~22GHz
Frequency
Counter
Sensitivity: < -40dBm
Frequency Measurement Accuracy: ±(Frequency Readout × Frequency Reference Accuracy + Counter Resolution + 100Hz×N)
N is a harmonics number
Resolutions: 5Hz,10Hz,100Hz,1kHz,10kHz
Flatness
Analyzer
Group Time
Delay(option)
Frequency range: 3.75GHz~6.475GHz
Flatness: ≤ ±0.05dB (40MHz normalization)
Maximum Range: ±200ns
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Input Level: -30dBm~+20dBm
Maximum Sensitivity: 0.1ns/unit
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6413 High Performance Mini-OTDR
The AV6413 is a high performance mini-OTDR, which is small in size, light in weight and rugged in
configuration. It has a large color LCD and a USB interface. It also features a long battery operation life.
With the AV6413, you can measure unit/connection/transmission loss and locate faults or breaks on optical
fibers.
It is widely applied in the manufacture, construction and maintenance of optical fibers.
Main Features:
3
3
3
3
3
3
3
3
3
3
3
3
42/40dB high dynamic range
Rugged
1.6m short event dead zone
High quality touch screen
0.1m sample resolution with 16000 sampling points
Offer Chinese and English interface
Deep memory for data storage
Transmit data to PC by serial or parallel interfaces
Battery operation life over 8 hours
Intelligent battery capacity display
USB interface
Write/read file in Bell core GR196 file forma
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Pulse Width
10ns to 20480ns
Module
Central Wavelength
Applicable Fiber
Dynamic
(SNR=1)
Range
Event Dead Zone *1
3542
3537
3532
5636
8332
1310/1550
±20nm
1310/1550
±20nm
1310/1550
±20nm
1550/1625
±20nm
850/1300
±30nm
Signal-mode
Signal-mode
Signal-mode
Signal-mode
Multi-mode
42/40dB
37/35dB
32/30dB
36/36dB
24/32dB
≤1.6m
≤1.6m
≤2.5m
≤1.6m
≤3m
Distance Range
1.6km to 512km
Sampling Resolution
0.1m to 32m
Sampling points
16000
Distance Measurement
Accuracy
±(1m+sample space/2+measurement distance×0.01%)
Display
640×480, 7.7"color LCD (touch screen)
Interface
USB, RS232, Printer, Keyboard
Optical Connector
FC/UPC (universal connector, option)
Power Supply
DC: 17 to 22V (3A), (AC adapter 100 to 240V, 50/60Hz,1.5A)
Built-in Lithium battery:8 hours *2
Dimensions
L×W×H: 258×198×90(mm)
Weight
2.7kg
*1: Pulse width: 10 ns, terminal reflection loss: ≥40dB, typical.
*2: At back light low brightness, measurement not executed.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6411E Mini-OTDR
Missing picture
AV6411E mini-OTDR is a compact and rugged mini-OTDR with high performance, lightweight, large color
LCD and long battery operational life. It's easy to use.
It can measure unit loss, connection loss, transmission loss and locate faults or breaks of optical fiber.It can
be used in manufacture, examination, maintenance of optical fiber.
Main Features
3
3
3
3
3
3
3
3
3
3
High quality touch screen
Rugged
640x480 color LCD
Offer emulation software for windows 9x
Offer Chinese and English interface
Offer Auto test mode¡¢manual test mode
Offer great content for data storage inside OTDR
Transmit data to PC by serial or parallel
Battery operate over 4 hours
Intelligent battery, can show capacity of battery
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Pulse Width
Dynamic Range(dB)(SNR=1)
Specification
10ns~10000ns
module
3527
Wavelength (nm)
1310/1550
type
SMF
dynamic range
27/25dB
Dead Zone
≤10m
Loss display resolution
0.001dB
Distance accuracy
±(1m + sample spacing + measured distance x 10-4)
Display
640*480 8color LCD(with touch screen)
Interface
RS232, Printer,Keyboard, VGA display
Connector
FC-PC
Power supply
AC/DC adapter(AC:100~240V, 50/60Hz)
build-in NiMH battery (≥4 hours)
Dimensions
258*198*87mm
Weight
3kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6411 Optical Time Domain Reflectometer
AV6411 OTDR is notebook PC-based mini-OTDR, portable,lightweight,small and easy to use. The main
specifications of AV6411 OTDR are as the same as the AV3662A OTDR, but omits build-in printer and
GP-IB interface. AV6411 OTDR can be regard as high-class notebook PC to provide more extended
functions.
Specifications
Item
Specification
One-way
backscatt
er
dynamic
range(SN
R=1)
Module
AV6411Y1
AV6411 Y4
AV6411 Y6
AV6411 Y8
AV6411 Y0
Central
1300±20nm
Wavelength
1310±20nm
1550±20nm
1310/1550±20nm
1310/1550±20nm
Fiber Type
MMF
SMF
SMF
SMF
SMF
Dynamic
range
25dB
32dB
30dB
32/30dB
40/38dB
Distance
accuracy
±(1m + sample spacing + 3 * 10-4 * measured distance)(Excluding uncertainty caused by fiber
IOR ) , display resolution 0.0001km .
Dead
zone
<30m
Loss
measure
ment
Linearity: 0.06dB/dB; Display resolution: 0.001dB
Dimensio
ns
D * W * H = 306 * 232 * 90mm
Weight
Approx.4.8kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6411A Optical Time Domain Reflectometer
AV6411A OTDR is a compact and rugged mini-OTDR with high performance, lightweight, large color LCD
and long battery operational life. It's easy to use. It can measure unit loss, connection loss, transmission
loss and locate faults or breaks of optical fiber. It can be used in manufacture, examination, maintenance of
optical fiber.
Main Features:
3 High quality touch screen
3 640 * 480 color LCD
3 Offer Chinese and English interface
3 Offer great content for data storage inside OTDR
3 Battery operate over 4 hours
3 Rugged
3 Offer emulation software for windows 9x
3 Offer Auto test mode, manual test mode
3 Transmit data to PC by serial or parallel
3 Intelligent battery, showing capacity of battery
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Pulse
Width
Specification
10ns 10000ns
module
Dynamic
Range(dB)
(SNR=1)
0335
0533
0633
8324
3535
3540
Wavelength
1310±20 1550±20 1625±20 850/1300±20 1310/1550±20 1310/1550±20
(nm)
type
SMF
SMF
SMF
MMF
SMF
SMF
dynamic
range
35
33
33
18/24
35/33
40/38
Dead
Zone(m)
≤10
Loss
display
resolution
0.001 dB
Distance
accuracy
±(1m + sample spacing + measured distance 0.01% )
Display
640 * 480, 7.7" color LCD
Interface
RS232, Printer, Keyboard, VGA display
Connector
FC-PC
Power
supply
AC/DC adapter(AC: 100~240V, 50/60Hz) , build-in NiMH battery(≥4 hours)
Dimensions
W * H * D = 258 * 198 * 90 mm
Weight
Approx.3kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6313A Handheld Light Source
The AV6313A handheld light source is used to test opticcables in
telecommunications, CATV and LAN; loss measurement of optic passive
components; wavelength responsibility measurement ofdetectors and the
environment feature-tests of optical fiber, optic
cable and optical components.
Main Features
3
3
3
3
3
3
3
Double-wavelengths double-output port
NiMH battery of long operation time
Output continuous wave(CW) or modulation (MOD)
Built-in rechargeable manager
Choices of internal modulation: 270Hz, 1kHz
Low power indication
Optic power step attenuation
Specifications
Wavelength
1310±20nm,1550±20nm
Spectral width
≤4nm
Output power
≥-7dBm
Short-term stability
≤±O.02/15min
Long-term stability
≤±0.15/6h
Dimensions
180mm×83mm×32mm(D×W×H)
Weight
Approx.0.4kg
Power
Two AA NiMH batteries or external
9VAC/DC adapter
Operating temperature
0~50℃
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6316 ASE Light Source
The AV6316 ASE Light Source is a high stable, high output
optical power broadband light source. It is used for test of the
optical fiber components, such as fiber grating, DWDM,
CWDM, thin-film filter and fiber coupler. Its power spectral
density of the output is up to ten times greater than that of the
white light source and the tunable laser source; it is also
applied to the teaching and the study of the optical
communication in the school and the institute.
Main Features
3
3
3
3
3
3
Width RF
Excellent Reliability
Great output power
Easy Operation, perfect test precision
Low-cost
Out-Modulation(TTL electric, DC~300Hz)
Specifications
Item
Specification
Wavelength Range
1525~1565nm
Fiber Type
SMF, 9/125µm
Connector Type
FC/PC
Spectral Density
> -13dBm/nm(1530nm,1550nm,1560nm)
Output Optical Power
>5.5dBm
Short-term Stability(constant temperature, CW)
±0.02dB/15min
Long-term Stability(constant temperature, CW)
±0.05dB/6h
Operating Temperature
0℃~40℃
Store Temperature
-40℃~+60℃
Power Supply
AC220V±10%, 50Hz, 20W
Dimensions
D×W×H = 212×88×250(mm3)
Net Weight
Approx.2.2kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV Series High-stability Laser Source
The AV series high-stability laser source is based on automatic power and temperature control technology
and shows high output optical power stability. It is most useful in parameter measurement of
telecommunication, CATV and LAN optical fiber cables; plug loss, isolation degree and return loss of optical
passive parts; wavelength responsibility of detectors; environment features test of optical fiber, optical cable
and optical parts, as well as in scientific research, education and measurement. Therefore, the laser source
is a requisite for construction, maintenance and various measurement activities in optical fiber
communication.
Main Features
3
3
3
3
3
3
3
3
3
3
High output light-wave power
Excellent long and short term dependability
Varieties of modulation modes
Synchronized output of electric signal
Optional output wavelength
Modulation output power
AC/DC power supply (handheld mode optional)
Optional Platform-style or handheld mode
Simultaneous 12-path output
External modulation
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Model
AV38121A
AV38124A
Optical Type
AV38126A
SMF 9/125nm
Wavelength
1310±20nm
1550±20nm
Spectrum Width
1310/1550±20nm
≤4nm
Output Power
≥0dBm
≥-3dBm
Short-term
dependability
±0.003dB/15min
±0.003dB/15min
Long-term
dependability
±0.03dB/8h
±0.03dB/8h
270Hz,1kHz,2kHz
270Hz
Internal
modulation
frequency
Connector type
Optical
adjustment
FC/PC
Power
0~6.0dB,0.1dB step
Power supply
AC220V±10%,50Hz±5%
Dimensions, Weight
D * W * H = 212 * 250 * 88(mm) Weight:4kg
White light source, LED light source, DFB light source, E/O, O/E
convertor
Related products
Applications
spectrum loss test of optical fiber and optical passive parts; test and
detection of wave forms; basic belt feature test of optical communication
and optical control system; EDFA feature test
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2495 Intellectual Luminous Power Meter
With a wide range of measurable wavelengths, a broad dynamic range and high sensitivity, the AV2495
Power Meter can work with various intellectual light detectors. While measuring, the light wavelength is set,
then you can readout the measurement results, which are stored to make recalling and comparison easy at
any time. The light detector can be exchanged with the host meter with no adjustment during the process.
Combined with the modulation light source and other instruments produced by our Institute, the meter
makes an inexpensive and practical system for measuring the optical simulation field diameter and cut-off
wavelength (for further information refer to the introduction to the diameter measurement system for optical
fiber simulation field and the cut-off wavelength measurement system for optical fiber). It integrates a GP-IB
interface, through which it can construct an auto-test system. The meter is used in research, measurement
and applications in optical fiber communication and optical fiber cable production departments factories.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Model
AV2495
Detector Model
Wavelength Range
Light-sensitive
Element
Power Measurement
Range
Sensitivity
AV23122
AV23125
AV23126
0.75~1.75µm
0.4~1.1µm
0.75~1.75µm
InGaAs
Si
InGaAs
-90~0dBm
-70~+10dBm
-70~+3dBm
0.01pW
0.001nW
0.001nW
Uncertainty
±5%
Return Loss
Range:70dB(AV23122 Detector);Uncertainty:±1dB
Display Resolution
Linear display: 0.1%; Logarithm display: 0.01dBm;
Relative measurement:0.001dB.
Data Storage
capacity: 500 measurement results
Auto functions
Auto zero, auto-selection of measurement range, automatic wavelength
response compensation, data average, data storage
GP-IB
Dimensions
Weight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
SH1, AH1, L4, T5, SR0, RL1, PP0, DC0, DT0, C0.
D × W ×H = 255× 280 × 97(mm)
2.8kg
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6331 Optical Power Meter
The AV6331 is a dual-channel meter, which can carry out real-time dual-path measurement simultaneously,
and can solely measure between two paths as well as inter-channel data transmission and processing. It
can realize ratio auto-control of two channel light powers in production process, with flexible control
interface to manipulate external relay or produce high/low level to adapt to different kinds of fused biconical
taper system. The equipment is also able to perform self-calibration to insure the consistency of channel
measurement. With 3 wave calibration points (or changing to needs): 850nm, 1310nm, 1550nm, the
AV6331 is used in optical fiber communication, research, education, and production, especially in the
production of passive parts in optical coupler.
Main Features
3
3
3
3
3
3
3
Self-calibration
Real-time dual-path measurement(-70 -- +3dBm)
High resolution(0.001dB)
Ratio configurable with high resolution (0.1%)
Automatic ratio control
Weight:4kg
Dimensions: D× W×H = 240×28× 80(mm)
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6333 Optical Power Meter
AV6333 is a single-channel digital-display optical power meter. It ensures accuracy and linearity over a
wide wavelength range and greatly improves measurement reliability. It also has an improved basic
performance. For example, measurements can be made over wide level range from ¨C80 to +10 dBm
since internal reflection of the power sensors was suppressed. AV6333 also has many new functions that
make it easier to use than other power meters. It can be used for all optical power measurements such as
optical fiber loss measurement and optical device performance evaluation.
Specifications
Item
Specification
Element
InGaAs
Wavelength range
0.8~1.7µm
Measurement range
-80~10dBm
Measurement accuracy
±5%
Resolution
W: 0.1% dBm: 0.01dB dB(REL): 0.01/0.001dB
Optical connector
FC/SC/ST/UI
Dimensions
213*88*251(mm)
Weight
≤3.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2498A Optical Fiber Multimeter
The AV2498A optical multi-meter is intelligent and handheld. It composes multifunctional measure
instruments and light source and Light-wave Multi-meters, and it can
measure absolute and relative power, especially light loss of optical fiber,
optical cable and passive parts as an independent system. Therefore, the
meter is used in construction and maintenance in optical fiber
communication and cable TV system. Without light source, the AV2498A
can be used as a handheld light-wave multi-meter.
Main Features
3
3
3
3
3
3
3
3
3
Portable, easy to use.
Build-in rechargeable battery with automatic management of charging process and low voltage alarm
indication
Automatic Measurement Range Conversion or keep, auto zero.
Calibration wavelength 850,1310,1550nm
Measurement display modes include dB, dBm, mW, uW, nW
with 1300nm optional light source
Relative/absolute power measurement
Optional functions of optical output connect
Applied to SM and MM optical fiber
Specifications
Item
Specification
Calibration wavelength
Optical power
Light source(optional)
850,1310,1550nm
Uncertainty
5%(-10dBm, 1310nm)
Power range
-70~+3dBm
Resolution
linear mode:0.1%
logarithm
mode:0.01dBm/0.001dB
Wavelength
1300±30nm(LED)≥-33dBm
Stability
0.02dB/5min
Power
8.4V pile rechargeable battery;DCl2V
Dimensions
D×W × H = 180 ×83 ×32(mm),
Weight
Options
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
0.3kg
1. Optical power measurement range:-40 - +20dBm
2. FC,ST,SC,UI Exchangeable connector
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6372 Field Optical Multimeter
The AV6372 Field Optical Multimeter is a multi-function test
instrument gathers functions of optical fiber telephone, optical
source and optical power meter. Working as a kind of optical fiber
installation and service equipment, it is used for optical fiber line
communication and test, carrying out optical fiber working mode
judgment. It also has optical fiber identical function and it
measures easier. The advanced built in non-easy lost memory
can save up to 500 pieces of test data for convenient checking.
Because of the multiple function easy operation, small size and
easy carrying, it fits for optical line installation and service
companies to test optical line and keep the talking on optical line
Specifications
Item
Specification
Wavelength
Power Meter
Range
-50~+3dBm
Accuracy
±0.20dB
Resolution
0.01dB; (0.1~1)%
Wavelength
Source
Talk Set
850nm,1310nm,1550nm
1310nm, 1550nm
Modulate
CW, 270Hz, 1kHz, 2kHz
Output Power
≥-10dBm
Stability
±0.08dB/1h
Mode
Dynamic
Full duplex
≥35dB
Power
Dynamic
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
9V
Battery
6V, 2Ah
Interface
RS232C
Operating Temperature
-25~55℃
Storage Temperature
-50~70℃
Dimensions
226*100*57.5mm
Net Weight
≤1.3kg
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6362 Optical Spectrum Analyzer
The AV6362 Optical Spectrum Analyzer, a new high performance spectrum analyzer, is developed through
adopting the global advanced technologies Passive Component Test Application such as double-pass
grating monochromator, high resolution direct drive diffraction grating, optical cuneiform delay polarization
elimination and electronic digital filter. Having reached the advanced level of its global counterpart on the
whole, the analyzer is used in the test of basic components such as LED, LD, SLD, DFB-LD, EDFA, optical
fiber, optical fiber grating, optical filter, optical magnifier, WDM, and related systems.
Main Features:
3
3
3
3
3
3
3
3
70 Db Dynamic Range
-90 dBm Level measurement sensitivity
Built-in FDD (Windows)
Tracking tunable laser source
Modulated and pulsed light measurement
DWDM Measurement
PMD Measurement
NF OF EDFA Gain measurement
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Wavelength range
600~1700nm
Wavelength accuracy
±0.3nm:±0.05nm(1520-1600nm)
Level range
+10 ~ -90dBm(1250 ~ 1600nm);+10 ~
65dBm(600~1000nm)
+10 ~ -75dBm(1600 ~ 1700nm);+10 ~
85dBm(1000~1250nm)
Level linearity
±0.05dB(1550nm,-50~0dBm)
Dynamic range
≥70dB(1nm from peak wavelength)
Resolution bandwidth
0.05, 0.07, 0.1, 0.2, 0.5, lnm
Polarization Sensitivity
±0.05dB(1550nm):±0.1dB(1310nm)
Display
colour TFT-LCD
Memory
A/B(2 curve),3.5 inch FDD
Printer
built-in heat sensitive printer
Interfaces
GP-IB,RS232,VGA output
Operating Environment
operating temperature:10℃ ~ 40℃;Relative
humidity:≤90%RH
Dimensions ,Weight
DXWXH=350X320X177(mm);≤17kg
Power
220V±10%,50Hz
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6318 Visual Fiber Fault Locator
The AV6318 Fiber Fiber Fault Locator injects visual light (red light) into the optical fiber with 650nm laser
and observes visual light leakage in the fiber to locate the fiber fault point with convenience and accuracy.
The locator is used on naked optical fibers, and jumpers as well as other optic cables that leak red light.
Checking the fault points at the near end of the fiber and the high loss sections caused by inconspicuous
bend can make up for the defects in the near end dead zone of OTDR. The locator is utilized in core
alignment of multi-core optic cables.
Specifications
Item
Specification
Optical components
LD
Wavelength
650nm±20nm
Output power
≥0.5mw (SM optical fiber)
Output mode
1HZ/CW
Optical fiber identification distance
≥5km
Connector
FC/SC/ST
Battery
two AA batteries
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6482 Precision Light Chopper
The AV6482 precision light chopper features a host with separating a chopping head for remote operation,
which is used to transfer DC space light into modulated light. The faint optical signal could be measured for
making use of correlative detection technology. Usual frequency points are selected. The products are used
for Optical absorption, reflection and transmission measurements, and also for production and test of
optical devices, which are fit for use with AV2495 optical power meter or lock-in amplifier.
Main Features
3
3
3
3
3
Quartz crystal frequency accuracy and stability
Lock indication
Synchronous output phase continuously adjustable(-π to +π)
Enclosed housings for safety
Remote chopper heads
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Chopped Frequency
270Hz, 1000Hz
Display Mode
LED indication
Control Mode of Frequency
Frequency Stability
Shift by key-press
100ppm/℃(10℃~30℃)
Jitter
0.4°(RMS)
Synchronous Output
TTL square wave
Setting Time
<60s
-180°~+180°
Phase-shift Range
Condition
Operating temperature: 0℃~40℃
Storage temperature: -10℃~60℃; Humidity:
≤90%RH
Dimensions
Host: D×W×H=218×280×100(mm3)
Chopper head: D×W×H=62×55×68(mm3)
Net Weight
Power
Host Approx. 3kg;
AC220V±10%,50Hz±5%
Standard Configure
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Chopper head: 0.25kg
Power line
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6491E Optical Fiber Fusion Splicer
The AV6491E Fiber Fusion Splicer is a kind of advanced fusion splicer, which has Profile Alignment System
(PAS) and automatic fusion function. The main characteristic of PAS is that alignment does not depend on
remote-point. Much work and time are saved. At the same time, efficiency is raised. There is no more worry
about the bend fiber and no more limitation of fiber type also. The AV6491E can preset 30 different splicing
modes. It allows various types of fiber to be spliced.
There are two vertical optical beams, which pass through the optical fiber and the fiber image is magnified
by a microscope. Then the fiber image is detected by a CCD camera. By using high-speed digital image
processing method; gap; clear; align and fusion can be done, splice loss also can be estimated. The fiber
image and message are displayed on the LCD
Main Features
3
3
3
3
3
Lower fusion loss.
Fast fusion and automatic operation
Advanced Profile Alignment System(PAS)
High resolution LCD (5 inches)
Watch X and Y axis with one CCD camera
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Fiber types
According to ITU-T G.651~G.655 standard and method
Average loss
0.02dB(SM, typical), 0.01dB(MM, typical), 0.05dB(DS)
Operating mode
Automatic, Semiautomatic, Manual
Operating temperature
-10℃~50℃
Storage temperature
-20℃~60℃
Working humidity
95%RH (non-condensing)
Elevation
0~3500m
Power supply
AC: 198~242V, 50Hz, 40VA
Dimensions
210mm*200mm*230mm
Weight
6kg
DC: 11~14.5V
CONFIGURES
Number
Name
Quantity
1
AV6491E OPTICAL FIBER FUSION SPLICER
1
2
AC/DC adapter
1
Accessory
3
AC & DC power line
1
Accessory
4
User manual
1
Accessory
5
Pump bottle & air pump
1
Accessory
6
Storage battery
1
Optional
7
AV33012 Fiber Cleaver
1
Optional
8
Tool Box
1
Optional
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Remark
Fax: +86-28-81707519
AV87501 Temporary Fiber Aligner
AV87501 Temporary Fiber Aligner is a precise V-slot fiber aligner. It is used to loss in OTDR testing and the
temporary interface between fibers. It has a light source and power meter-based loss measurement and
bare fiber reel testing for confirming transmission capability.
Main feature
3
Typical loss of 0.5dB
3
Precision V-groove for easy cleaning
3
Light Weight and Small Dimensions
Specifications
Item
Specification
Single Fibers: 0.25 to 0.9mm coating diameter
0.125 clad diameter
Fiber Types
Average Loss
SM fiber:0.5dB
Applicable Fibers
SM, MM, DS, NZ-DS optical fibers
Cleave Length
Operating Environments
Dimensions
Net Weight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
10mm
Temperature
0℃ to 40℃/td>
Humidity:
90%RH(40℃, non-condensing)
Storage:
-20℃~60℃
Main Body:
D×W×H=80×50×30(mm3)
Carrying Case:
D×W×H=210×140×60(mm3)
Main Body:
Approx.0.26kg
Carrying case:
Approx.0.38kg
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6481 Programmable SM Optical Switch
The AV6481 Programmable SM Optical Switch is a functional set for fast switching between light paths. It is
used in multi-path optical monitoring in optical fiber transmission system, protection and transfer of optical
fiber network, test of multi-path/belt optical fibers and optical fiber components in optical fiber testing
systems and network tests. Combined with OTDR, the switch can make an automatic monitoring system for
multiple monitoring of optical fiber probes.
Main Features
3
3
3
3
3
3
Low Insertion Loss
High Repeatability
Low Crosstalk
With RS-232 and GP-IB interfaces
Fast Switching
Status Auto Storage
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6391X Fusion Biconical Taper System
The small and economic AV6391X fusion biconical taper system comprises light source, main body, optical
power probe, flux controller and the computer. You are able to manufacture passive optical fiber parts
including the standard optical fiber, WDM and broadband couplers. The whole manufacturing process
takes about ten minutes and is entirely under the control of microcomputers, featuring high automatization.
You can set spectroratio and use single component hydrogen. By adjusting parameters such as the flame
position and the stretching speed of optical fibers, you can produce various couplers easily.
Specifications
Item
Specification
Light Source Wavelength
1310nm and 1550nm
Light Source Stability
±0.05dB/15min
Detector Wavelength Range
1100~1700nm
Detector Power Range
-50~0dBm
Main Body Sweep Distant
<40mm
Main Body Sweep Speed
20~400µm/s
Fiber Location Distance
15~95mm
Fiber Fixed Means
Torch
Torch
Fixed 10mm, pure hydrogen
Torch Up-down Distant
<10mm
Torch Front-back Distant
<60mm
Gas Flux Control Resolution
1sccm
Package Set
Automatic, epoxy glue
Dimensions
450 × 320 ×190mm
Weight
18kg
Power Supply
AC220V,50Hz
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Devices
Coupler
WDM
Wavelength
1310nm/n1550nm
1310/1550nm
Typical Extra Loss
<0.15dB
<0.2dB
Spectroratio
99:1~50:50
Spectroratio Error
±1%
Bandwidth
±20nm or ±40nm
±20nm or ±40nm
Isolation Degree
-
>18dB
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6381/6381B Programmable Optical Attenuator
The AV6381/6381B Programmable Optical Attenuator is a
continual variable programmable optical attenuator, which is
developed on the neutral filter and photoelectric rotary coder
control technology and delivers extremely high repeatability,
stability and attenuation reliability. It can detect and adjust fast
communication systems and equipments in the research,
exploration and production stages (e.g. optical fiber line delivery,
error ratio measurement, system side band analysis, receiver sensitivity measurement, optical power
attenuation). The attenuator calibrates the entire 60dB attenuation range at 1310nm to 1550nm. In addition,
the wavelengths are solidified in an EEPROM to make auto-correction to every wavelength and
attenuation. You can match the attenuator exactly to the center wavelength of the light source to ensure
reliable measurement results.
Main Features
3
3
3
3
3
4 Digits display
Programmable GP-IB
0.01dB Resolution and 0.02dB repeatability
Correct attenuation between 1200nm to 1650nm
60dB Continuous attenuation range
Specifications
Item
Specification
AV6381B
AV6381
Wavelength range
1200nm~1650nm
Max. Attenuation
60dB(insertion loss not included)
Display Resolution
0.01dB
Repeatability
0.02dB
Insertion loss
≤3dB
Attenuation
Accuracy(Linearity)
±0.6dB(SM)
Return loss
≥45dB(SM)
Operating Environment
Temperature:0℃~45℃
Dimensions
248 * 98 * 378(mm); 5.5kg
Power
220V±10%,50Hz
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
±0.4dB(SM)
Humidity:≤90%RH
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV33011/AV33012 Optical Fiber Cleaver
The AV33011 Fiber Cleaver adopts electronic tuning ultrasonic to vibrate the blade to cut optical fiber. It
composes blade carrier, fiber clamping workbench, damper, tension-meter, operating grip, tension adjusting
set, blade adjusting set, electronic tuning circuit, operating indicator light and power source. It meets the
need for cutting SM or MM optical fiber.
AV33012 Fiber Cleaver is a mechanical optical cleaver with a precision circle blade. It is consisted of the
pedestal, the slider, the blade fixture, the optical fiber press and cutting block. With compactness,
lightweight and portability, the cleaver is used in cutting of SM or MM quartz optical fiber with 1-12 cores.
Both of cleavers are suitable for research and laboratory, also for outdoor construction. It can acquire
smooth end-face of fiber of less than 1¡ãangle, ensuring lowest splice loss.
Main Features
3
3
3
3
Easy to operate
High verticality, smoothness and economical price
AV33012 adopts the precision circle blade to cut optical fiber
AV33011 adopts electronic tuning ultrasonic to vibrate the blade to cut optical fiber
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Specifications
Model
AV33011
AV33012
Optical
Fiber Type
SM, MM quartz optical fiber, clad
diameter 80~200um
SM, MM quartz optical fiber, clad
diameter 80 ~ 125um; cores:1 ~
12cores
End face
Quality
end face angle≤1°
end face angle≤1° mirror face
Life of
Diamond
heads
20000 times (The blade can be divided
into 10 points, each of which cuts 2000
times.)
20000 times (The blade can be divided
into 16 points, each of which cuts 2000
times.)
Cleave length
-
10mm
Dimensions
D × W ×H = 150×150 × 70(mm)
D×W ×H = 70×57× 50(mm)
Weight
1.4kg
0.3kg
Power
high-volume 9v alkaline battery
-
Operating Temperature:-5℃~40℃
Operating Temperature:0℃~40℃
Storage
&
Temperature:-10℃~+50℃
Storage
&
Temperature:-10℃~+50℃
Operating
Environment
transport
Relative
humidity:≤95%RH(40℃
non-condensing)
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
transport
Relative
humidity:≤95%RH(40℃
non-condensing)
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV6332 Echo Loss Measurement Instrument
The AV6332 return loss Test set measures insertion loss and return loss simultaneously. With ease-of-use
and multiple applications, the instrument is suitable for measurement of insertion loss and return loss of
optical fiber, cable and parts. The calibration parameters can be stored so that the user does not have to
make calibration every day, which simplifies the measurement process. In addition, the set features good
measurement repetition junctions are easy to clean. It is used in research, education and production of
optical communication.
Specifications
Item
Operating Wavelength
Return loss
power
Specification
1310nm,1550nm
Range
0~70dB
Accuracy
±1.5dB
Range
-70~+3dBm
Accuracy
±0.25dB(-10dBm)
Connector Type
FC,SC,ST
Operating Temperature
0℃~+40℃
Power
AC220V,50Hz
Dimensions,
D ×W ×H = 280 × 280×85,
Weight
4kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
SMF Mode-Field-Diameter Test System
SMF Mode-Field-Diameter Test System is used to measure the diameter of SM optical fiber module field.
The system measures different SM optical fibers such as G652, G653 and G655 using the basic standard
method defined by CCITT-far-field sweep method. It can perform precise measurement over the numerical
aperture of SM, MM optical fiber. The measurement system comprises measurement swivel table, LD light
source, Power Meter, the digital display diagram and the computer.
Main Features
3
3
3
3
3
Different light sources for your choice to construct measurement system of simulation diameter or
numerical aperture
All light sources and power meters are general purpose equipment made by the Institute, which are
quite economical cost
High measurement precision to produce results according to the highest standard for national defense
Fast measuring speed, only 6-8 minutes per measurement.
Simple system structure to conveniently maintain, Chinese& English interface for measurement
software, easy to learn and use
Technology indexes
3
3
3
3
Measurement angle range:±60°
Measurement dynamic range:90dB
Measurement uncertainty:0.2mm
Measurement repetition: 0.01m
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5232C Bit Error Ratio Tester
The AV5232C Bit Error Rato Tester is used to measure bit errors and online code errors of a digital
telecommunication system at E1 level and accomplishes the error performance analysis. The measurement
and analysis conform to ITU-T G.703, O.151, G.821 recommendation. It is used in the development,
production, construction and maintenance of digital telecommunication and its accessories.
Main Features
3
3
3
3
3
3
3
With Hand-held structure, rechargeable internal batteries and external direct current power supply
Bit error and code error measurement
Error insert, beep alarm on errors, triggered print function
Print test results and test conditions
Device-monitor end measurement.
Detection of Loss of Signal (LOS), Pattern Synchronization Loss (PSL) and All 1's (AIS) alarm,
Easy to operate with keyboard lock, power protection
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
The
Transmission
Unit
The Receive
Unit
Other
Clock
2.048Mb/s±50ppm
Pattern
(PRBS):215-1; User-defined word: 16-bit word can be set as wish.
Output
Impedance :75(unbalanced); Level:±2.37V±10%; The pulse
waveform conforms to ITU-T Rec.G.703.
Error Addition
10-3,10-4,10-5,10-6,single, 0.
The
Receive Unit
The clock, pattern and line code are same as the transmission
unit; equalization is automatically applied to the input data
Error
Measurement
bit error, code error.
Error
Performance:
(1)Error Count (EC)
(2)Second Error Rate(SER)
(3)Error Rate (ER)
(4)Error Free Seconds(EFS)
(5)Error Seconds (ES)
(6)Severely Error Seconds(SES)
(7)Defected Minutes(DM) (8)Unavailable Seconds(US)
(9)ErrorSecondRate(ES%)(10)SeverelyErrorSecondRate(SES%)
(11)Defected Minutes Rate(DM%)(12)Unavailable Seconds
Rate(US%)
Alarm
Indication
:Loss of signal (Los), Pattern Synchronization Loss (PSL), All 1's
(AIS)
Test Period:
automatic, manual (the longest test period is 99 hours 59 minutes
59 seconds); Measurement can be made once or repeated
automatically
Electronic
Clock
display year, month, date, hour, minute and second
Print
Up to 11 above parameters except SER can be printed at the
time preset; The moment when signal is lost or got, when
synchronization is lost or got, when AIS alarm occurs or ends,
when power is turned up or turned off also can be printed
Print Period
programmable, the longest period is 99 hours 59 minutes
Power
Supply
internal rechargeable battery, the test set can work with it for 4
hours uninterruptedly; external 12V direct current power supply
AC-DC
Converter
input:
single
phase
12V±5%,1.25A±5%
Environment
operating temperature:0~40℃;store temperature:-40~70℃
Dimensions
:D×W×H=198×88×38(mm)
Weight:
Approx.0.5kg.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
220V±10%,
50Hz±5%;output:
Fax: +86-28-81707519
AV5221 xDSL Subscriber Loop Analyzer
AV5221 xDSL Subscriber loop analyer is a comprehensive test instrument. It can be used for test and line
faults locating of all kinds of cable such as POTS, xDSL etc. It also can qualify the capability of cable to
carry the xDSL technology. The test set is best choice for service opening, daily maintenance, and
troubleshooting .
AV5221 measures line cable Using the single-ended test method, It can test VAC/VDC of coper twisted pair
cable, and its Resistance, AC/DC Current, Capacitance, frequency response ,noise ,load coil, it also can
measure the achievable maximum bit rate that a local loop can support without the need of an xDSL
modem. and can locate bridge taps, short, opens, and any other impairments that may exist on the line.
Main Features
3
3
3
3
3
Manual or auto TDR test, graphic display for test results
Large LCD, easy to learn and easy to use
AC/DC or internal battery power supply, lightweight, easy to carry and test
DMT test, estimate the maximum bit rate for the whole cable with respective ADSL
Powerful test ability for twisted pair telecommunication cable, can measure frequency response, noise,
load coil, and DMM etc.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
TDR (Time Domain Reflectometry)
Test Type
Manual TDR, Auto TDR
Distance Range
9m~5000m (range will depend on cable type and condition)
Distance Accuracy
±1% of reading ±3m
Pulse Widths
28ns~10us(auto-selecting in Auto TDR test)
Test Signals
Sine, half-sine and square pulse
V.O.P
40% to 99% in increments of 1% of the speed of light
Frequency Response
Test Type
Single End Measured
Frequency Range
4.3125kHz~2MHz in increments of 4.3125kHz
Attenuation Range
0~-36dB
Measured Accuracy:
±2dB
Graph display, Moveable Cursor available
for detailed plot analysis
Noise Measurements
RMS Noise Arrange
from +24dBm to -50dBm
Accuracy:
±2dB(in -20dBm)
Power Spectral Density(PSD)
Display Range From -3.3 to -153.3dBm/Hz or +30
to ¨C120dBm, Spectrum analyzer with a resolution bandwidth
of 2.15625kHz and a range from2.16kHz to 2MHz.
DMT Test
Noise Margin
0 to 10.0dB in 0.1dB steps
Test Type
Single End Measured
ADSL Setups
15 bit test as per G.992.1; 8 bit test as per
G.992.2(g.lite)
Test Frequency Respone, PSD Noise, and Estimate the possible number of bits allocated for an
individual DMT subchannel, the maximum bit rate for the whole cable with respective ADSL
Load Coil Detection
Graph, and numerical result
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
DMM(Digital Multimeter)
DC Voltage
400 VDC max, Auto-ranging Accuracy: ±2% Full-Scale
AC Voltage
400 VAC peak max Auto-ranging
DC Current
max.200mA, Accuracy: ±1% Full-Scale
AC Current:
max.140mA, Accuracy: ±2% Full-Scale
Resistance
Range: 1kΩ, 10kΩ, 100kΩ, 1MΩ,10MΩ Auto-ranging
Accuracy: ±5% of range
Capacitance
1nF~10uF, Accuracy: ≤10nF, ±2nF >10nF, ±20%
Accuracy: ±2% Full-Scale
GENERAL
Wire Interface
3 pin Small CF, RJ-45, RJ-11
Impedance
75Ω,100Ω,120Ω,135Ω,150Ω & Automatic
Display
LCD 640*480 pixels
Power Supply
18VDC input via external AC Mains adapter
Dimensions
260×190×70mm (L×W×H)
Weight
Approx. 1.9kg
Operation Temperature
0℃~40℃, Up to 90% relative humidity
Storage Temperature
-20℃~60℃
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5282 PCM Comprehensive Tester
AV5282 PCM Comprehensive Tester can be used in the test of PCM
terminal, and other telecommunication system based on optical fiber,
microwave or cable media. It has profuse functions and the operation of
it is very easy. It is a mini-type test platform for various
telecommunication systems.
Main Features
3
3
3
3
3
3
3
2Mb/s framed or unframed signal error test, 64kb/s co-directional signal test
G.821, G.826 and M.2100 series analysis
Jitter test (optional)
E1 pulse mask measurement (optional)
Tone frequency test (optional)
Handhold test set, use internal battery as well as external AC power supply
Large LCD, Chinese/English display
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Specification
Item
Bit Rates
2.048Mb/s±50ppm, 64kb/s±50ppm, external clock
Line Code
AMI or HDB3
Test Patterns
PRBS: 29-1, 211-1, 215-1, 220-1, 223-1, 16-bit user word, all-ones, all-zeros,
1010, 1000
Errors Added
Single, fixed rate 10-N (N=3~7)
Signals
2Mb/s framed: PCM30, PCM31, PCM30+CRC, PCM31+CRC, 2M unframed,
64kb/s co-directional, as per ITU-T Rec G.703, G.704, G.706 and G.732
Error Test
bit, code, FAS, CRC, E-bit error count and error rate. Analysis can be
performed as per G.821, G.826 or M.2100 series. Analysis display: list or
histogram. Test can be made on n×64kb/s timeslots, or 2Mb/s unframed
signal or 64kb/s co-directional signal.
Channel Test
n×64kb/s timeslots insert/drop
Clock
Frequency
Offset
±100ppm, resolution:1ppm
Tone
Frequency Test
300Hz~3400Hz; level: -40~+3dB, the tester can generate DTMF signal
(optinal)
Frequency Test
Resolution 1Hz, accuracy ±5ppm
Jitter test
Range 1.0UI or 10UI (no filter),
Alarms can be
added
and
detected
LOS, AIS, LOF, TS AIS, RDI, RDI-MF
(optinal)
Pulse mask of E1 telecommunication signal (optional)
Tap on the channel selected
Hand-held Structure, large LCD, Chinese/English menu, RS232 port equipped
Co-directional interface error test
Power Supply
NiH battery, can last 4 hours. External 12V DC power supply
Dimensions
(D×W×H)
275×127×55 (mm)
Net Weight
Approx.1kg
Option
AV5282-OP1: Pulse mask of E1 telecommunication signal
AV5282-OP2: Jitter test: Range 1.6UI or 16UI
AV5282-OP3: Tone frequency test: 300Hz~3400Hz; level: -40~+3dB
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5242 Series SS7 Tester
The AV5242 Series SS7 Tester conforms to the ITU-T technological specifications and SS7 signal
technological specifications of telecommunication network of China. It has the ability of validity test and
compatibility test for telecommunication equipment. It is used for the development and production of
remote-controlled switchboard, the debugging, performance analysis, maintenance, fault shooting and
optimization of the SS7 signaling network.
Main Features
3
3
3
3
3
3
3
Monitor and emulator of SS7 & ISDN
GSM monitor
Line monitoring, protocol interpretation, statistics and analysis
Filter, trace and trigger functions
Five interfaces supported
4, 8, 16 links in one chassis are optional
Emulation mode or monitoring mode is optional
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Model
Monitoring
Simulation
Number
of links
Protocol
Interfaces
AV5242A
Monitoring
4
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
AV5242B
Monitoring/
simulation
4
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
AV5242C
Monitoring
8
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
AV5242D
Monitoring/
simulation
8
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
AV5242E
Monitoring
16
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
AV5242F
Monitoring/
simulation
16
SS7(all),ISDN,GSM
2Mb/s(75Ω/120Ω)
V.35,RS232,ISDN BRI
SPECIFICATIONS
4, 8, 16 Full-Duplex links; compatible for 14/24 bits signaling point compatible
Emulation test:
MTP, TUP, ISUP, SCCP, TCAP protocol, etc
User can perform his test use the script composed by himself.
Simple operations such as addition, modification, delay or deletion
of a message are enough; verbose program is not necessary
Monitor function:
SS7: MTP, TUP, ISUP, SCCP, TCAP; ISDN: ITU-T Q.921,
Q.931 GSM: BSSMAP, MAP, Abis protocol, etc
Line monitoring, protocol interpretation, statistics analysis,
trace and search, filter, trigger, re-display can be performed.
User can define the code of the signaling point being tested. Time label is
inserted before the message. User can define the field
to be displayed of a certain message. The interpretation of the
message is very clear. Record mode is various as you needed.
Local operation or remote operation can be applied.
Interface:
E1 (75Ω/120Ω), V.35, RS232, ISDN BRI/PRI
Processor:
Pentium 1.4GHz (or faster); RAM :256MB; HD: 40GB (or more)
Dimensions:
D*W*H= 420*260*250mm
Net Weight:
Approx. 10kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5237 Telecom/Datacom Analyzer
AV1471 agile RF signal generator combines high performance with frequency agility for Modern The
AV5237 Telecom/Datacom Analyzer combines telecom analyzer and Datacom analyzer together,used in
telecom and Datacom test at rates from 50b/s to 2Mb/s. It has multi-interface capability, can be configured
as a DCE or a DTE and has a wide range of rates, carrying out transmission capability test, function test,
electrical parameter test and CAS monitor. Measurement parameter: Error, Error Performance Analysis,
slips, alarms, interval monitoring, 64kb/s Channel frequency and level, circular delay, duplication,
duplication release and signal command. The AV5237 can carry out PCM transmission testing at
sub-64kb/s, 64kb/s, N*64kb/s, 2.048Mb/s.It also provides Datacom testing at rates from 50b/s up to 2Mb/s.
The test set is used in development and production of communication; installation, authentication, operation
and maintenance of telecommunication network.
Main Features
3
3
3
3
3
3
50b/s~2.048Mb/s PCM & Data Communication Test
V.24, V.35, RS449, V.11, X.21, G.703 Interfaces
In-or off-line error and alarm measurements
Multi-parameter test: Frequency, Frequency offset, Delay time, Channel level, Code word
measurements, Offset
Auto configure and Auto diagnosis
Large Chinese display, easy to operate.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
TELECOM TEST
Data Rates
2.048Mb/s, 64kb/s. internal clock, external clock and looped
timing
Frame Structure
2Mb/s unframed, PCM30, PCM30+CRC, PCM31, PCM31+CRC,
X.50 framed
Interfaces
75Ω unbalanced/120Ω balanced , Conforming to ITU-T G.703
and G.823
Modes Of Operation
Transmit, Receive, Direct channel
Test Patterns
PRBS : 2 9 -1, 2 11 -1, 2 15 -1, 223 -1 , Inverted Data .WORD: Fully
programmable 16-bit word, all ones, 1 in 2, Fully programmable
word 8 to 1024 bits in octet steps, octet aligned
Code
HDB3, AMI, NRZ, G.703 co-directional code
Error Add Rate
Can either be added singly or at preset rates of 10 N where N=-2
to -8 Frame Error: Burst, Continuous
Error Measurements
Bit errors, code errors, frame errors, CRC errors, REBEs (E bit)
Error Performance Analysis
G.821 analysis, M.2100 analysis
Alarm Detection
AIS, LOS, LOF, multi-frame loss, CRC4 multi-frame loss, Remote
frame loss, Remote multi-frame loss, Pattern sync loss, Octet
loss, Power loss
2M Frame Spare International(Si) Bits, Spare Application(Sa) Bits and Signaling Bits can be set
and monitored
Frequency, Slips, Round trip delay
Sub-64kb/s testing
Testing of sub-64kb/s data signals to ITU-T X.50 and X.58;
Timeslot Access
External drop/insert of 64kb/s timeslot to VF ports or
n*64kb/s(n=1 to 16) to X.21 DATACOM port: internal tone
generation/measurements and talk/listen
Measurements relative frequency offset and wander
Tone
generation
measurement
and
Generation: Into n 64kbit/s timeslot,(n=1~31)
Level: 0dBm to -55dBm in 5dB steps
Frequency: 100Hz to 3.9 kHz
Measurement: In selected 64kb/s timeslot
Code word , Channel frequency and level
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
DATACOM TEST
Interfaces
V.24, V.11/X.21-leased, V.35 (DTE or DCE)
Data Rates
50bit/s to 2Mbit/s (synchronous: built-in synthesizer), 50bit/s to
19.2kbit/s (asynchronous)
V.24 Breakout
TDR, RD, XTC, TC, RC, RTS, CTS, DTR, DSR, DCD; Patch
points, monitors, voltage sources, switches; V.11/V.35 : Activity
indicators on data, clock and control circuits
Error Add Rate
Errors can either be added singly or at preset rates of 10 N where
N=2 to 5
Test Patterns
PRBS : 26 -1, 29 -1, 2 11 -1, 215 -1, 220 -1; all 1s, all 0s, 1010, 3 to
16-bit user-definable word, FOX word
Measurements
Errors, BER, block-errors, clock slips
Error Performance Analysis
G.821 analysis
Alarm Measurements
Data loss, Power loss, Pattern loss, Clock slips
Frequency Measurements
0~2.048MHz (Synchronous Mode)
Control-Circuit Analysis
Transition Diagrams of RTS, CTS, DTR, DSR, DCD and MON
Control-Circuit Timing
Measures times between selectable start/stop events
COMMON CHARACTERISTICS
Remote control and Printing
Graphic display: error, alarm and status of control circuits Results and setting storage and recall.
Auto Configure and Self-test function
In-out tie-in
BNC, v.24, v.11/x.21, v.35
Accessory
V.24, V.11/X.21, V.35, RS232, DATACOM interface loop-back connecter apiece
1; Power cord 1; Operate manual 1; BNC cable 2; Fuse 2
Light-Weight, field-portable
Dimension
D×W×H=:340×195×220mm
Net Weight
Approx.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5236 SDH/PDH Digital Transmission Analyzer
The AV5236 SDH/PDH Digital Transmission Analyzer conforms to ITU-T technology standards and the
national technology system light synchronous transmission network. It can test network error code, jitter,
pointer, bolt, insertion/drop, and other parameters of SDH/PDH. The test set is versatile. It can be widely
used in the fields of development, production of SDH/PDH equipment and installation, authentication,
operation and maintenance of telecommunication network.
Main Features
3
3
3
3
3
3
PDH transmission characteristics test (error & jitter)
STM-1/STM-4 transmission test (error & jitter)
STM-1/STM-4 optical interface(1310nm & 1550nm)
SDH/PDH alarm analysis
Pointer adjustment and analysis
SDH/PDH transmission and reception, account opening and canceling setting, analysis and other
function test
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5232C Bit Error Ratio Tester
The AV5232C Bit Error Rato Tester is used to measure bit errors and online code errors of a digital
telecommunication system at E1 level and accomplishes the error performance analysis. The measurement
and analysis conform to ITU-T G.703, O.151, G.821 recommendation. It is used in the development,
production, construction and maintenance of digital telecommunication and its accessories.
Main Features
3
3
3
3
3
3
3
With Hand-held structure, rechargeable internal batteries and external direct current power supply
Bit error and code error measurement
Error insert, beep alarm on errors, triggered print function
Print test results and test conditions
Device-monitor end measurement.
Detection of Loss of Signal (LOS), Pattern Synchronization Loss (PSL) and All 1's (AIS) alarm,
Easy to operate with keyboard lock, power protection
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
The
Transmission
Unit
The Receive
Unit
Other
Clock
2.048Mb/s±50ppm
Pattern
(PRBS):215-1; User-defined word: 16-bit word can be set as wish.
Output
Impedance :75(unbalanced); Level:±2.37V±10%; The pulse
waveform conforms to ITU-T Rec.G.703.
Error Addition
10-3,10-4,10-5,10-6,single, 0.
The
Receive Unit
The clock, pattern and line code are same as the transmission
unit; equalization is automatically applied to the input data
Error
Measurement
bit error, code error.
Error
Performance:
(1)Error Count (EC)
(2)Second Error Rate(SER)
(3)Error Rate (ER)
(4)Error Free Seconds(EFS)
(5)Error Seconds (ES)
(6)Severely Error Seconds(SES)
(7)Defected Minutes(DM) (8)Unavailable Seconds(US)
(9)ErrorSecondRate(ES%)(10)SeverelyErrorSecondRate(SES%)
(11)Defected Minutes Rate(DM%)(12)Unavailable Seconds
Rate(US%)
Alarm
Indication
:Loss of signal (Los), Pattern Synchronization Loss (PSL), All 1's
(AIS)
Test Period:
automatic, manual (the longest test period is 99 hours 59 minutes
59 seconds); Measurement can be made once or repeated
automatically
Electronic
Clock
display year, month, date, hour, minute and second
Print
Up to 11 above parameters except SER can be printed at the
time preset; The moment when signal is lost or got, when
synchronization is lost or got, when AIS alarm occurs or ends,
when power is turned up or turned off also can be printed
Print Period
programmable, the longest period is 99 hours 59 minutes
Power
Supply
internal rechargeable battery, the test set can work with it for 4
hours uninterruptedly; external 12V direct current power supply
AC-DC
Converter
input:
single
phase
12V±5%,1.25A±5%
Environment
operating temperature:0~40℃;store temperature:-40~70℃
Dimensions
:D×W×H=198×88×38(mm)
Weight:
Approx.0.5kg.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
220V±10%,
50Hz±5%;output:
Fax: +86-28-81707519
The AV5232E Bit Error Ratio Tester
The AV5232E Bit Error Ratio Tester is used in the error measurement and error performance analysis for
50b/s~2Mb/s data communication and 2Mb/s, 8Mb/s telecommunication systems. The measurement and
analysis conforms to ITU-T G.703, O.151, G.821 recommendation. It is used in the digital/data
communication networks and the development, production, construction, maintenance of the
communication equipment.
Main Features
Aptotic Frequency 2Mb/s, 8Mb/s, continuous frequency 50b/s~2Mb/s
2Mb/s online test and 2Mb/s, 8Mb/s out-of-service error test and analysis
Line code include AMI, HDB3, NRZ, RZ
Large LCD Chinese display, power protection
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Aptotic
Frequency
The
Transmission
Unit
The Receive
Unit
SPECIFICATIONS
2.048MHz
8.448MHz±20ppm
Continuous
Frequency
50Hz~2.048MHz in 1Hz
steps
External
Frequency
1kHz~8MHz, Amplitude range form 1.5V
to 4.5V
Frequency
Offset
(fixed 2Mb/s,8Mb/s): ±100ppm
Pattern
PRBS: 2n -1(n=6, 9, 11, 15, 20, 23)
user word: programmable 16-bit word
Line Code:
AMI, HDB3, NRZ, RZ;
AMI/HDB3 (fixed 2Mb/s, 8Mb/s): ±2.37V
NRZ/RZ (TTL, 50b/s~2Mb/s): TTL
Error
Addition:
10-n(n=3,4,5,6),single,0
The signal rate, test pattern and line code are as same as the transmitter;
equalization for input data is applied automatically;
Input impedance: 75Ω(unbalanced);
High impedance:≥1.5kΩ(2Mb/s frame test);
The clock can be set to normal phase or inverse phase as wish
Error Type:
Error P
erformance:
according to
ITU-T Rec. G.
821
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
2Mb/s frame test:
code error, FAS error, CRC4 error
2Mb/s, 8Mb/s unframed test:
bit error, code error
50b/s~2Mb/s test: bit error
(1) Error Count (EC)
(2) Second Error Rate (SER)
(3) Error Rate (ER)
(4) Error Free Seconds (EFS)
(5) Error Seconds (ES)
(6) Severely Error Seconds (SES)
(7) Defected Minutes (DM)
(8) Unavailable Seconds (US)
www.siwi.com.cn (9) Error Second Rate (ES%)
Tel: +86-28-81705119 87360620
Fax: +86-28-81707519
(10) Severely Error Second Rate (SES%)
Email: [email protected]
(11) Defected Minutes Rate (DM%)
(12) Unavailable Seconds Rate (US%)
(13) Frame Align Signal Word (FASW)
(14) Frame Align Signal Word
Rate(FASW%)
(15) Cyclic Redundancy Check (CRC)
Alarm
Indication:
2Mb/s frame test:
Loss of signal (LOS)
All 1's (AIS)
Loss of Frame (LOF)
Loss of Multi-Frame (LOM)
R emote Defect Indication (RDI)
Remote Defect Indication of
Multi-Frame(RDI MF)
Unframed test: Loss of Signal (LOS)
Pattern Synchronization Loss (PSL)
All 1's (AIS)
Print: User-timed print or error-triggered print can be
performed.
All results including errors and alarms,
end-of-measurement time,
power-on time and power-off time can be printed out.
Print period is programmable;
the longest period is 99 hours and 59 minutes
Test Mode:
single, repeat
Electronic
Clock:
display year, month, date, hour, minute
and second, date
and time can be modified
Power S
upply:
220V±10%,50Hz±10%,power
consumption≤45W
Operating temperature: 0℃~40℃
Store temperature: -4 0℃~70℃
Input and
Output
Connector:
BNC, impedance 75Ω
Accessories:
power cable, user manual, BNC cable (2)
print paper (2), fuse (2)
Dimension s
D ×W ×H = 300×230×100 mm
Net Weight:
Approx. 3.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV5233C 2M/8M/34M Bit Error Ratio Tester
The AV5233C 2M/8M/34M Bit Error Ratio Tester can measure primary, quadratic, triple group digital
communication, data communication error and error specification analysis. It conform to
ITU-TG.703,O.151,G.821. It is used in the development, production, construction and maintenance of digital
telecommunications and its accessories.
Main Features
Fixed rate 2Mb/s,8Mb/s,34Mb/s
Continuous rate 50b/s~50Mb/s(option 1)
Error measurement and analysis offline, seven alarm detecting
Detecting code types include AMI,HDB3,NRZ,RZ
Support measurement at end monitor (2Mb/s frame testing)
Large LCD screen Chinese display, power protection
Two printing methods: print during configuration and when error appears
Specifications Sending
part
Continuous
rate
50b/s~2Mb/s,Resolution 1Hz;Fixed rate: 2.048Mb/s, 8.448Mb/s,
34.368mB/s±20ppm
External clock
1kHz~50MHz,Amplitude ≥ 1.5V
Frequency
deviation(2M
Fixed rate)
±100ppm.
Diagram
PRBS:2n-1(n=6,9,11,15,20,23):Artificial
programmable.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
code:16
Fax: +86-28-81707519
Bit
Code type
Error insertion
Receiving
part
Others
AMI,HDB3,RZ,NRZ;Level:±2.37V,±1V(34Mb/s);75Ω(Unbalanced);
Pulse waveforms comply with ITU-T Rec. G.703. At continuous
rate, the code types are NRZ,RZ. Clock can be set as anti-phase
or non-anti-phase for your choice
10-3,10-4,10-5,10-6,single,0.
Receiving
Setting
The rate, diagram and code type are the same as in the sending
part and the input values are the same with the output indexes in
the sending part. Automatic √f compensation for input data.
Impedance is 75Ω (unbalanced), high impedance >= 1,5kQ(2Mb/s
frame test). Clock can be set as normal phase or inverse phase.
Error type
bit error, coding error, FAS error, CRC4 error
Error and its
specifications
(1)EC(2)SER(3)ER(4)EFS(5)ES (6)SES (7)DM (8)US
(10)SES%
(11)DM% (12)US% (13)FASW(14)FASW% (15)CRC
Alarm display
at 2Mb/s frame test, no signal, synchronization loss, AIS alarm,
frame loss, multi-frame loss, remote frame alarm, remote
multi-frame alarm: at 50b/s~2Mb/s and 12Mb/s, 8Mb/s non-frame
test, only the former-three alarms appear.
Measurement
method
single, repetitive.
Print
Electronic
watch
Power
(9)
Print at configuration and when error appears, print error, warning,
measurement end time and power off/on time. Print cycle is
settable, with maximum 99 hours and 59 minutes.
displays year, month, day, hour, minute, second, revisable
220V±10%:50Hz±10%:Power
temperature:0~40℃
:Storage
temperature
-40~70℃
Dimensions
D*W*H=300*230*100(mm)
loss≤45W:Operating
Weight
3.5kg
Option1
:50b/s~50Mb/s Continuous error test
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1761 Programmable Modular Power
AV1761 Programmable Modular Power is ideal for automated testing platforms to supply power
stimulus and testing. It can be applied in automated testing areas including design research and
manufacture.
Main Features:
3
High density Mainframe (150 W ~ 2000W )
3
8-slot modular power system; you can select (or order customer-tailored modules) from
existing varieties of module types to optimize investment
Built-in serial link cable enables two mainframes to control up to 16 outputs with a GPIB
address.
Advanced programmable voltage and current control
Sequence voltage and current setting for outputs
Series and parallel operation to expand the range of output voltage and current
Output low ripple and noise
High-accuracy read-back of voltage and current
Store multiple settings
Optional isolation and polarity-reversal relays
Specially-designed connector assembly to simplify system integration
Standard interface (GPIB (IEEE 488.2))
3
3
3
3
3
3
3
3
3
3
Specifications:
DC 176101
Output
ratings
(0 ~ 40℃)
Programming
DC 176102
DC 176103
DC 176104
Output Voltage
0 ~ 8V
0 ~ 20V
0 ~ 40V
0 ~ 50V
Output Current
0 ~ 16A
0 ~ 7.5A
0 ~ 3.75A
0 ~ 3A
Output Power
128W
150W
150W
150W
Voltage .035% +
4mV
10mV
22mV
51mV
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
accuracy
(25℃±5℃)
Readback
accuracy
(25℃±5℃)
Ripple and
noise
(20Hz ~
20MHz)
Line
regulation
Load
regulation
Current .035% +
5mA
4mA
8mV
15mV
Current0.025% + 8mA
6mA
4mA
Constant voltage
(rms)
5mV
8mV
10mV
19mV
21mV
6mA
3.5mA
1.5mA
0.8mV
2.5mV
0.8mA
0.5mA
1.5mV
1.5mV
0.35mA
0.35mA
Voltage0.025% +
Peak to peak
8mA
3mV
3mV
8mV
Constant current
12mA
(rms)
Voltage (CV)
Current (CC)
Voltage (CV)
Current (CC)
0.8mV
1mA
1.5mV
0.5mA
1.9mA
28mV
1.5mA
15mV
3mV
0.2mA
3mV
0.2mA
Transient response time :less than 5ms for the output voltage to recover within 100mv of
its previous level following any step change in load current up to 10 percent of rated
current
Constant Voltage
100ppm +
Drift
Output
ratings
(0 ~ 40℃)
Programming
accuracy
(25℃±5℃)
Readback
accuracy
(25℃±5℃)
Ripple and
noise
(20Hz ~
20MHz)
Line
regulation
Load
Constant
Voltage
180ppm +
0.5mV
0.3mA
1mV
1.5mV
0.25mA
0.21mA
2mV
0.18mA
DC 176105
DC 176106
DC 176107
DC 176108
Output voltage
0 ~ 120V
0 ~ 160V
0 ~ 200V
0 ~ 320V
Output current
0 ~ 1.25A
0 ~ 1A
0 ~ 0.75A
0 ~ 0.5A
Output power
150W
160W
150W
160W
Voltage
0.035% +
71mV
Current
0.035% +
1mA
Voltage0.025% +
47mV
Current0.025% + 0.5mA
Constant Voltage
(rms)
19mV
72mV
0.8mA
48mV
0.5mA
19mV
100mV
0.8mA
60mV
0.4mA
40mV
144mV
0.5mA
98mV
0.3mA
40mV
Peak to peak
38mV
39mV
80mV
80mV
Constant
Current (rms)
1.5mA
1.5mA
1.5mA
1mA
Voltage (CV)
Current (CC)
Voltage (CV)
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
4.5mV
0.4mA
6mV
4.5mV
0.4mA
9.8mV
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
8mV
0.35mA
10mV
Fax: +86-28-81707519
8mV
0.2mA
20mV
regulation
Current (CC)
0.15mA
0.2mA
0.2mA
0.2mA
Transient response time : less than 5ms for the output voltage to recover within 100mv of its
previous level following any step change in load current up to 10 percent of rated current
Constant Voltage
100ppm +
Drift
Constant
Voltage
180ppm +
3.5mV
0.17mA
4mV
0.15mA
4.5mV
0.1mA
AC input of System Mainframe: AC 220V ± 15%, 50/60Hz
Input Power of System Mainframe :2200W (max.)
Net Weight: Mainframe : 22kg; Module: 3kg
Size: Mainframe (handle included) 480 (W) mm×190 (H) mm×750(D)mm;
Module: 48(W) mm×144 (H) mm×588(D) mm.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
5mV
0.1mA
AV6681 VXI Oscilloscope
The AV6681 digitizing oscilloscope is a C-size, 2-slot, message-based VXI module with a sampling rate of
100 MSa/s and a memory depth of 1MB. It has four channels of 500MHz bandwidth and conforms to Plug &
Play definitions. It provides waveform acquisition, parameter measurement and data acquisition capability,
meeting needs for broadband signals verification and real-time data acquisition. It can be widely applied in
diverse VXI automated testing systems.
Main Features
3
3
3
3
3
Real-time data acquisition: maximum 10ns sampling resolution over a time span of 10ms
Sequential single sampling: acquire 1024 consecutive waveform records, fit for capturing continuous
single events
Repetitive sampling capability: 200GSa/s equivalent sample rate, 12bit waveform effective amplitude
resolution in the average mode.
Standard pulse parameters measurements
512 shared memory, SCPI control command set, Window9x/NT/XP compatible driver and virtual pan
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
specification
Bandwidth(-3dB)
Vertical
system
Horizontal
system
Trigger
system
Acquisitio
n system
50Ω
DC ~ 500MHz(≥10mV/div); 300MHz(<10mV/div)
1MΩ
250MHz
Input coupling
DC, AC, GND
Input impedance
50Ω, 1MΩ/12pF
Max. input voltage
50Ω: ±5V; 1MΩ: ±250V
Vertical Sensitivity
2mV/div ~ 500mV/div(50Ω); 2mV/div ~ 5V/div(1MΩ)
Vertical Offset
±1V(≤100mV/div); ±10V(≤1V/div); ±100V(≤5V/div)
Time base range
200ps/div ~ 5s/div
Delay
Positive delay(post-trigger): 100s; Negative
delay(pre-trigger): 10div
Resolution
5ps
Equivalent sampling rate
200Ga/s
Triggering source
CH1
~
CH4,
TTL
external,
buses(ECLTRG0 ~ 1, TTLTRG0 ~ 7)
Triggering modes
Auto, normal; single, sequential single, continuous; Edge,
combination, state, glitch, width
Trigger hold off range
Time hold off: 200ns ~ 10s; Event hold off: 2 ~ 8192
Max. sample rate
100MSa/s
A/D resolution
8bit
Record length
1Mpts/channel
Data processing
Single-shot, recombination, averaging(2 ~ 8092), envelope
Channel
external
Output
port
Channel calibration, probe
compensation output
Standard BNC
VXI port
P1, P2 connector
Standard 96 PIN
Dimensions
D x W x H = 393 x 413 x 207 mm
Weight
App. 2.5kg
Typical operating current
+5V: 4.5A; -5.2V: 5.8A; -2V: 0.4A; +12V: 0.24A; -12V: 0.12A
Max. operating current
+5V: 5.5A; -5.2V: 7A; -2V: 1A; +12V: 0.5A; -12V: 0.5A
Operating temperature
10 ~ 40℃
Main body
1
~
4,
TTL
trigger
Input port
General
features
1
VXI
Standard BNC
Four 250MHz oscilloscope probes
Package
Accessories
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
One calibrated cable (50Ω)
Operation instructions book, programming manual and
CD-ROM, one for each.
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2782 Precision LCR Meter
The AV2782 Precision LCR Meter can measure the parameters such as L, C, R and their components. It is
used to check the components in and out of factory. And it is also used to evaluate the components
precisely in laboratory.
Main Features
3
3
3
3
3
3
3
Frequency range: 75kHz~30MHz
Basic accuracy: 0.1%
Broad measurement range
GP-IB Interface
Configurable DC bias current source
Configurable Various test fixtures
Sweep measurement
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Frequency range
75kHz~30MHz,Frequency resolution 100Hz.
Measurement Signal Level Range
5mV~2V
Basic accuracy in impedance measurement
0.1%
Effective measurement range
Impedance:0.01~10MΩ Capacitance:0.1pF~
100µF Inductance:0.1nH~100mH
Measurement Parameters
Able to display R(Resistance), C(Capacitance),
L(Inductance), Z(impedance),
GPIB Interface
The current range of the Configurable DC bias
current source is 0~10A.
Configurable various test fixtures such as
slot-type, alligator-type and SMD-type
Sweep measurement
Sweep test on 10 frequency points or levels.
Triggering modes
Internal, external and manual
Time delay measurement
Delay time 0~60S
Averaging
Average times 1~256
Automatic level control
Dimensions
Weight
D×W×H=530×369×190(mm)
Approx.13kg.
Power
AC220V±10%,50Hz±10%,
Max. power consumption:90W.
Operating temperature
0℃~40℃
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Item
Specification
Measurement Frequency
192 Points in 50Hz~100kHz,
there-into 15kHz~30kHz step distance is on 100Hz
Signal Amplitude
0.01~1.27V, step distance:0.01V
Offset Voltage
0~35V, Step distance:0.5V
External Offset Current
0~5A(option AV1791 power source)
Measurement Range
L
4µH~600H
C
10p~3000µF
R, |Z|, X
0.5Ω~400kΩ
θ
0~90°
Basic Accuracy
±0.1%(1kHz)
Minimum Accuracy
±1%
Measurement Speed
slow: 0.25; normal:1; fast: 2
Extension Measurement
support measurement beyond limit (except for Q, D, θ)
Power
220V±10%, 50Hz±10%, ≤50VA
Dimensions
D*W* H=280*270*100mm
Weight
2.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1792/AV1793 Progmmable DC Power Supply
The AV1792 Progmmable DC Power Supply has four independent isolated outputs, two 25Ws and two
50Ws. Each output can operate as a constant voltage (CV) or constant current (CC) source. The voltage
output range is 0∼50V, accuracy up to 0.016%+5mV. The current output range is 0∼2A, accuracy up to
0.04%+25µA. Max series connections voltage is 200V,Max parallel connections current is 4A. Suspended,
the positive and negative poles can be exchanged each other. The AV1792 has over voltage, over current
protection and GP-IB interface.
The AV1793 Progmmable DC Power Supply has three independent isolated outputs, one 30W and two
50Ws. The voltage range of 50W is 0 ∼ 25V,accuracy 0.05%+25mV; the range of current is 0 ∼
2A,accuracy 0.2%+10mA. The voltage range of 30W is 0∼6V,accuracy 0.05%+10mV;the range of current
is 0∼5A,accuracy 0.5%+10mA. AV1792 and AV1793 designed to meet the most exacting engineering
requirements. They can be used as constant voltage or constant current source in the lab and
auto-measurement system.
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Specifications
MODELS
Watts/Number
of Outputs
Output
Line,Load
Regulation
25W/2
AV1793
50W/2
High-range
50W/2
30W/1
--
--
0~25V
0~6V
0~2A
0~5A
Range
Low-range
High-range
Low-range
CV
0~7V
0~50V
0~16V
CC
0~15mA
0~500mA
0~200mA
CV
0.016~
+5mV
0.016~
+15mV
0.016%
+5mV
0.016%
+15mV
0.05%
+25mV
0.05%
+10mV
CC
0.04%
+25mA
0.04%
+200mA
0.04%
+300mA
0.04%
600mA
0.2%
+10mA
0.5%
+10mA
CV P-P
5mV
5mV
5mV
5mV
20mV
20mV
CC rms
0.2mA
0.2mA
0.2mA
0.2mA
5mA
10mA
CV
1mV
5mV
1mV
5mV
10mV
10mV
CC
0.1mA
0.2mA
0.2mA
0.2mA
10mA
20mA
Accuracy
Ripple
and
Noise
AV1792
0~16V
/0(50V)
0~
2A/0(1A)
Transient
Response Time
≤200ms
¾
Dimensions
D×W×H=500×440×133 mm
D×W×H= 400×
300×133 mm
Net Weight
Approx. 20kg
Approx.10kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV2781A LCR Automatic Tester
The AV2781A LCR Automatic Tester are improved on the AV2781. They can measures various parameters
like L, C, R, equivalent series resistance, G, Q, D, X, B, |Z|, θetc. A measurement point is set every 100Hz in
the range of 15kHz~30kHz. Support software calibration. The measurement clamps are convenient and
reliable. The device is suited for the production and test of components, entrance test of components, audio
frequency resistance test and laboratory test. Equipped with AV1791 DC offset power, it is able to measure
incremental inductance with additional error of ±0.5% (f≤20kHz).
Main Features
3
3
3
3
3
3
3
Measure parameters such as L,C,R,ESR,G,Q,D,X,B,|Z|
Measure incremental inductance (with offset power)
Basic accuracy 0.1%
50Hz~100kHz,with 192 frequency points
Large screen LCD display
Easy to operate
Small and lightweight
Specifications
Item
Specification
Measurement Frequency
192 Points in 50Hz~100kHz,
there-into 15kHz~30kHz step distance is on 100Hz
Signal Amplitude
0.01~1.27V, step distance:0.01V
Offset Voltage
0~35V, Step distance:0.5V
External Offset Current
0~5A(option AV1791 power source)
Measurement Range
Basic Accuracy
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
L
4µH~600H
C
10p~3000µF
R, |Z|, X
0.5Ω~400kΩ
θ
0~90°
±0.1%(1kHz)
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Minimum Accuracy
±1%
Measurement Speed
slow: 0.25; normal:1; fast: 2
Extension Measurement
support measurement beyond limit (except for Q, D, θ)
Power
220V±10%, 50Hz±10%, ≤50VA
Dimensions
D*W* H=280*270*100mm
Weight
2.5kg
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV1851 Digital Multimeter
With SCM providing control and processing functions and software calibration, the multimeter boasts of
high measurement accuracy. A lithium battery is used as a spare power supply for power failure to protect
calibration data from missing. Based on the multi-ramp integral principle, it has solved the conflict between
speed and accuracy measurement in dual-ramp integral. With the high-performance AC/DC virtual value
convertor, the multimeter is able to measure the virtual value of voltage, current of various waveforms
(including noise) between 20Hz and 100 KHz frequency band. There are two ways to measure DC
resistance double-wire method and four-wire method. The double-wire method is suited for measurement of
middle and high resistance, while the four-wire method for low resistance. The four-wire clamp can be as
convenient as in the double-wire method.
Main Features
3
3
3
3
3
Vac/Vdc/Aac/Adc Measurement and Ohm Measurement
Highly Accuracy VDC 0.007%
AC Frequency Range 20Hz~100KHz
Electronic calibration
Easy to operate, small and lightweight
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
specification
DC Voltage
DC Current
AC Voltage
AC Current
DC Resistance
Range
300mV, 3V, 30V, 300V
Accuracy
0.007%
Rang
3A
Accuracy
0.08%
Frequency Range
20Hz~100kHz
Rang
300mV, 3V, 30V, 300V(rms),
Expandable
Accuracy
0.3%
Frequency Range
20Hz~20kHz
Range
300mA, 3A(rms)
Accuracy
1%(50Hz~20kHz)
Range
300Ω, 3kΩ, 30kΩ, 300kΩ,
3MΩ, 30MΩ
Accuracy
0.01% Except rang in 30MΩ
Power
220V±10%, 50Hz±5%
Dimensions
D×W×H=260×250×90mm
Weight
2.2kg
Operating Temperature
0℃~40℃
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4451 Digital Oscilloscope
Main Features
3
3
3
3
3
3
3
3
Auto-scale
11 Automatic pulse parameter measurements
Dual voltage and dual time markers
GP-IB interface
16 Standard communication pulse mask
Various trigger and hold-off modes
Direct hardcopy to print or plot
Averaging, infinite and variable persistence displays
Specifications
Item
Vertical
System
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Specification
Bandwidth(-3dB)
500MHz(50W)(DC~350MHz
when 10mV/div and
20mV/div)300MHz(1mW)
Bandwidth in
Single Mode
8MHz(sine interpolation)
Rise Time
≤ 700ps(50W)
≤1.0ns(10mV/div, 20mV/div)
≤ 1.2ns(1mW)
Overshoot
≤ 5%(50W)
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
≤ 10%(1mW)
Fax: +86-28-81707519
Horizontal
System
Trigger
System
Acquisition
System
General
Features
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
Total Channel
Number
2
Vertical
Sensitivity
10mV/div~1V/div, 1, 2, 5 steps
∆V Accuracy
±1%*full scale ±2%∆V(10℃~
30℃)
±1%*full scale ±5%∆V(outside
10℃~30℃)
Offset Range
±1.5 * full scale
Vertical Zoom
* 1 ~ * 16
Over Voltage
Protect
50W input: >5Vrms 1mW inpu : >
±2V
Time-base
100ps/div~1s/div, 1, 2, 5 steps
Delay Range
Pre-trigger: -200ms or ¨C10div
Post-trigger: +1.6s or 600,000div
∆t Accuracy
100ps~500ns/div: ±(200ps+0.5%
* ∆t)
1us~1s/div: ±(200ps±0.03% * ∆t)
Time Resolution
20ps
Position of
Trigger Point
Left, Center, or Right
Trigger
Sensitivity
1div(DC-100MHz)
2div(100MHz
-300MHz)
Trigger Level
Range
±2 * full scale
Trigger Jitter
200ps(peak-peak)
Trigger
Condition
edge, pattern
Trigger
Hold-off
time: 70n~670ms , 10ns steps
event: 2~67,000,000, 80MHz max
Min Trigger
Pulse Width
1.5ns
Max
Sample Rate
20MSa/s
A/D
Resolution
8bit
Record Length
1k/ch
Dimension
D*W*H =390*430*175 mm
Net Weight
Approx.12.5kg
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
AV4445 Digital Oscilloscope
The AV4445 is an easy to use, DSO digitizing oscilloscope designed for generic using. It has two channels
with 100MHz bandwidth and 200MSa/sampiling rate, It is suited for most electronic testing applications. It
has an operating interface such as traditional analog oscilloscope. It uses a multi-CPU structure to achieve
high speed display rating. The 1MB memory per channel gives it more powerful functions than normal DSO.
This model is designed to replace 100MHz traditional analog oscilloscope.
Main Features
3
3
3
3
1MB/ch Record length
Keeps up max sample rate of 200µs/div at sweep speed down to
200µs/div , ensure not to miss details of the input signal.
Zoom in horizontal direction
In single or stop mode, you can catch waveform for long time at high
sample rate, and then zoom the waveform in horizontal to observe it detailedly . You can also observe
the waveform in splitting screen: observe the waveform in up screen, and observe or measure a part
of the waveform in underside screen.
Operating interface like traditional analog oscilloscope
A djust vertical, Horizontal , Trigger set
through corresponding RPG , easy to be used , avoid the trouble to browse menu.
With GP-IB interface card: buildup a auto test system.
3 With serial and parallel interface optional card:
You can print waveform or parameter, or connect
with a PC through serial port.
3 Expand storage and expand measurement
two interface cards can storage 100 waveforms; expand
measurement performance include: Differentiation, Integration, FFT, mask edit and mask testing
(go/no go).
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Specifications
Specification
Vertical
System
Horizontal
System
Trigger
System
Acquisition
System
Display
System
Auto
Bandwidth(-3dB)
DC~100MHz(≥10mV/div); DC~60MHz(<10mV/div)
Input Coupling
DC, AC, GND
Input Impedance
1MΩ
Input Capacitance
≤13pF
Max. Input Voltage
250V
Vertical Sensitivity
2mV/div~5V/div, 1, 2, 5 steps & Vernier
∆V Accuracy
±1.5% full scale±2% ∆V±1LSB(10℃~30℃);
at 0℃~9℃ or 30℃~40℃,
the error will increase±2%∆V
Offset Range
±2V(<200mV/div)±40V(≥200mV/div)
Bandwidth Limit
20MHz(-3dB) at upper limit
Probe Attenuation
1*, 10*, 20*, or 100*
Main Time Base
2ns/div~50s/div, 1, 2, 5 steps & Vernier
Delayed Time Base
2ns/div~1/2 Main Time Base
∆t Accuracy
±(40ps+0.01%* ∆ t+0.2% screen width)
Delay Range
Pos(Post-trigger): 500s;
Neg(Pre-trigger): screen range or 2.5ms
Time Resolution
40ps
Sweep Modes
Main, Delayed, Roll, XY, Single
Position of Trigger
Point
Left, Center, or Right
Trigger Source
CH1, CH2, External, Line
Trigger Mode
Auto, Auto-Level, Normal
Trigger Condition
Pos Edge, Neg Edge, Glitch, TV
Trigger Level Range
±6div
Trigger Jitter
≤800ps(Peak-Peak)
Coupling
AC, DC, HF Reject(about 50kHz),
LF Reject(about 50kHz), Noise Reject
Hold-off Time
200ns~25s
Max Sample Rate
200MSa/s
A/D Resolution
8bit
Record Length
1Mpts per Channel
Display Mode
normal, average, smoothing, vector
Display Resolution
512*320
CRT Size
7inch
Voltage
Vp-p, Varg, Vrms, Vtop, Vbase, Vmax, Vmin
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
Fax: +86-28-81707519
Measure
System
Functions
Output
Signal
General
Specifications
Time
Frequency, Period, Duty Cycle,
+Width, -Width, Rise Time, Fall Time
Auto-scale
Request: signal amplitude >100mV,
frequency 50Hz-100MHz, Duty Cycle>5%
Run/Stop
You can stop a catch, and change time-base to
bserve waveform detailedly
Single
After a single catch, you can change time-base
to observe signal
Store
Keep each waveform points on screen, so as to
olding the change of signal
Erase
Erase waveform from screen.
Save/Recall
Save/Recall ten front-panel setups in/from
non-volatile memory
Waveform Storage
Two Waveform Storage memory, each can store
all waveforms displayed on the screen
Square Waveform
Signal
Output mode: front panel signal pad Signal
haracteristic: > 0~5V, 1.2kHz square waveform
DC Calibration
Signal
Output mode: back panel BNC Signal characteristic
0.000V±1mV; 5.000V±20mV(controlled by program)
Dimension
D*W*H=380*400*185(mm3)(not include the handle)
Net Weight
<9kg
Voltage
AC: 220V±10%
Power Consumption
<90VA
Operating
Temperature
0℃~40℃
Chengdu SIWI Electronic Co., Ltd
SIWI Electronic Building, Xiejiaci
Chengdu 610091, China
P
www.siwi.com.cn
Tel: +86-28-81705119 87360620
Email: [email protected]
P
Fax: +86-28-81707519
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
