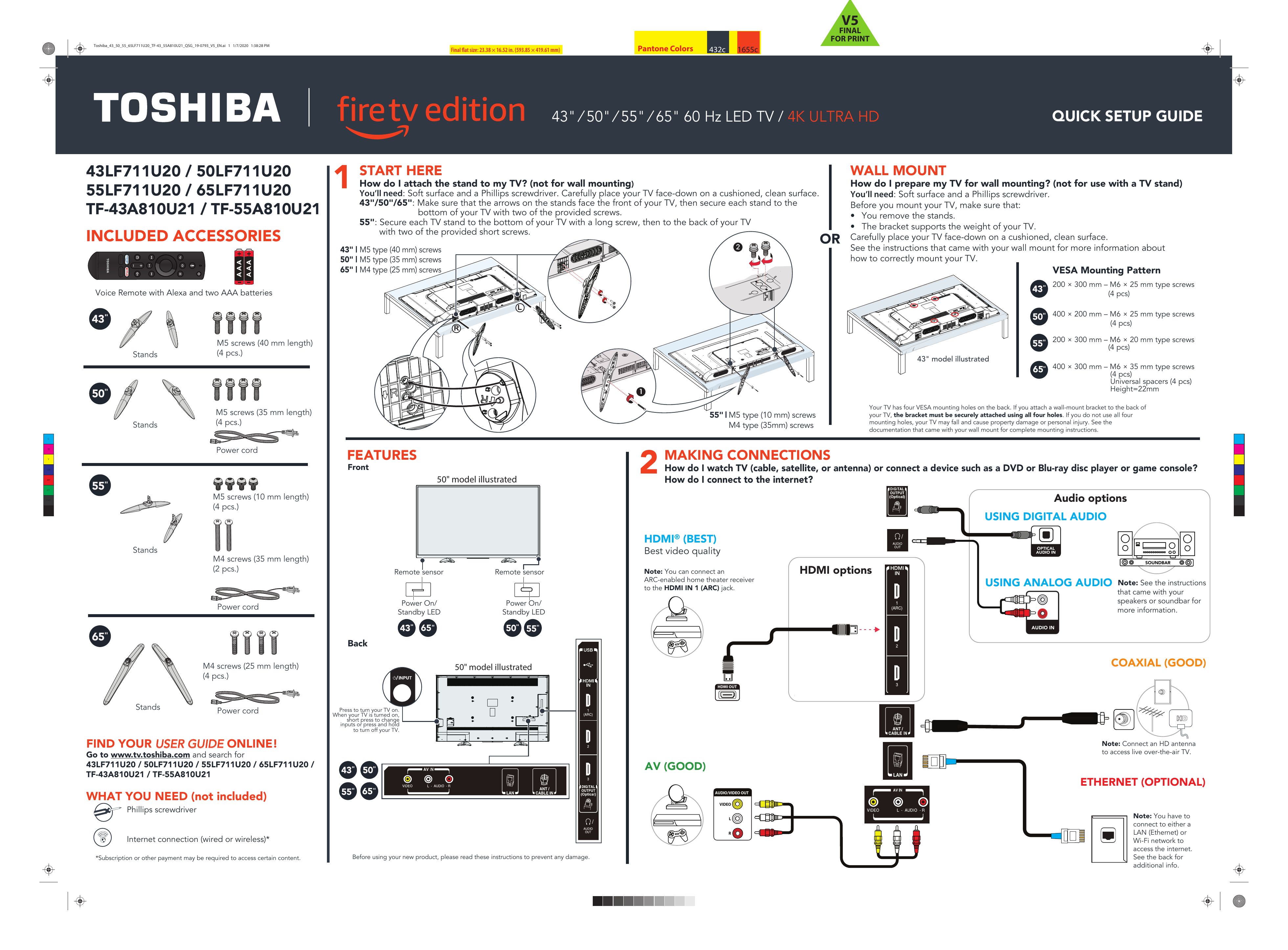

QUICK SETUP GUIDE
43" ⁄ 50" ⁄ 55" ⁄ 65" 60 Hz LED TV / 4K ULTRA HD
43LF711U20 / 50LF711U20
55LF711U20 / 65LF711U20
TF-43A810U21 / TF-55A810U21
INCLUDED ACCESSORIES
AAA
AAA
+ +
1
START HERE
WALL MOUNT
How do I attach the stand to my TV? (not for wall mounting)
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You’ll need: Soft surface and a Phillips screwdriver. Carefully place your TV face-down on a cushioned, clean surface.
43"/50"/65": Make sure that the arrows on the stands face the front of your TV, then secure each stand to the
bottom of your TV with two of the provided screws.
55": Secure each TV stand to the bottom of your TV with a long screw, then to the back of your TV
with two of the provided short screws.
You’ll need: Soft surface and a Phillips screwdriver.
Before you mount your TV, make sure that:
• You remove the stands.
• The bracket supports the weight of your TV.
Carefully place your TV face-down on a cushioned, clean surface.
See the instructions that came with your wall mount for more information about
how to correctly mount your TV.
2
43" | M5 type (40 mm) screws
50" | M5 type (35 mm) screws
65" | M4 type (25 mm) screws
OR
VESA Mounting Pattern
200 × 300 mm – M6 × 25 mm type screws
(4 pcs)
Voice Remote with Alexa and two AAA batteries
L
400 × 200 mm – M6 × 25 mm type screws
(4 pcs)
"
43
R
Stands
200 × 300 mm – M6 × 20 mm type screws
(4 pcs)
M5 screws (40 mm length)
(4 pcs.)
43" model illustrated
65
1
50"
Stands
M5 screws (35 mm length)
(4 pcs.)
55" | M5 type (10 mm) screws
M4 type (35mm) screws
400 × 300 mm – M6 × 35 mm type screws
(4 pcs)
Universal spacers (4 pcs)
Height=22mm
Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket to the back of
your TV, the bracket must be securely attached using all four holes. If you do not use all four
mounting holes, your TV may fall and cause property damage or personal injury. See the
documentation that came with your wall mount for complete mounting instructions.
C
Power cord
M
Y
Front
CM
MY
CY
FEATURES
50" model illustrated
55"
2
MAKING CONNECTIONS
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game console?
How do I connect to the internet?
M5 screws (10 mm length)
(4 pcs.)
CMY
K
Audio options
USING DIGITAL AUDIO
HDMI® (BEST)
Stands
OPTICAL
AUDIO IN
Best video quality
M4 screws (35 mm length)
(2 pcs.)
SOUNDBAR
Remote sensor
Power On/
Standby LED
Power cord
Remote sensor
Note: You can connect an
ARC-enabled home theater receiver
to the HDMI IN 1 (ARC) jack.
65
USING ANALOG AUDIO
Power On/
Standby LED
65
"
HDMI options
Note: See the instructions
that came with your
speakers or soundbar for
more information.
AUDIO IN
Back
M4 screws (25 mm length)
(4 pcs.)
COAXIAL (GOOD)
50" model illustrated
HDMI OUT
Stands
Power cord
Press to turn your TV on.
When your TV is turned on,
short press to change
inputs or press and hold
to turn off your TV.
FIND YOUR USER GUIDE ONLINE!
Note: Connect an HD antenna
to access live over-the-air TV.
Go to www.tv.toshiba.com and search for
43LF711U20 / 50LF711U20 / 55LF711U20 / 65LF711U20 /
TF-43A810U21 / TF-55A810U21
WHAT YOU NEED (not included)
AV (GOOD)
65
ETHERNET (OPTIONAL)
AUDIO/VIDEO OUT
VIDEO
Phillips screwdriver
L
R
Internet connection (wired or wireless)*
*Subscription or other payment may be required to access certain content.
Before using your new product, please read these instructions to prevent any damage.
Note: You have to
connect to either a
LAN (Ethernet) or
Wi-Fi network to
access the internet.
See the back for
additional info.
Toshiba_43_50_55_65LF711U20_TF-43_55A810U21_QSG_19-0793_V5_EN.ai 2 1/7/2020 1:38:39 PM
3
TURNING ON MY TV
When can I turn on my TV?
WHEN YOUR TV IS IN PLACE:
1 Plug the power cord into a power outlet.
Note: On the 50", 55", and 65" models, plug the power cord into
the AC IN jack on the back of your TV, then plug the other end
into a power outlet.
AAA
+
Remove the remote control cover and install the batteries.
+
2
AAA
3
Press
on your Voice Remote with Alexa.
4
Follow the on-screen instructions.
4
COMPLETE THE ON-SCREEN SETUP
Using your remote, follow the on-screen setup.
1 If you are using WiFi, your TV should automatically be paired to
your new Voice Remote with Alexa. If there are issues, you will
be prompted to pair your remote by pressing the
button. If
you continue to have issues, try re-inserting your batteries or
replacing them and repeat this step again.
2 Select your Wi-Fi network from the networks displayed on the
screen.
Note: If your Wi-Fi network is password protected, have your Wi-Fi
network password handy to connect your TV to the internet. If your
network is hidden, select the Join Other Network tile from the list. If
required, enter your network password using the on-screen keyboard.
5
OPTIONAL
(Watching live over-the-air TV)
If you connected your TV to an antenna or
cable wall jack, complete the following steps:
1 When setup is complete, run a channel scan
by going to Settings > Live TV > Channel Scan.
2 Follow the on-screen instructions to finish
scanning for channels.
3 To browse and watch live over-the-air TV, use
the On Now row or press the
Guide button
on your remote.
A Smarter TV Is Here
3 Select your experience: Full (Recommended) or Basic.
• Full: Get the most out of your experience with access to live
TV, over 500,000 movies and TV episodes, thousands
of apps, and Alexa skills. To get started, sign in to or sign up
for a free Amazon account.
• Basic: This experience is limited to live TV and only six
streaming apps. Alexa and the full Appstore are not included.
4K Picture Quality, Fire TV Experience Built-In, Voice Remote with Alexa
Access Your Favorite Content – All Through One Home Screen
Fire TV Edition seamlessly integrates live over-the-air TV and
streaming channels on a unified home screen
Endless Entertainment – Netflix, Prime Video, YouTube,
Hulu, HBO, and more
Watch over 500,000 streaming movies and TV episodes with
access to tens of thousands of channels, apps, and Alexa skills
Control It All With Your Voice – Voice Remote with Alexa
Use your voice to watch live TV, launch apps, search
for titles, play music, switch inputs, control smart home
devices, and more
USING YOUR VOICE REMOTE WITH ALEXA
Power
Turns TV power on or off. When the TV is off, the
LED indicator on the front of the TV lights red.
WARNING: To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
C
M
Y
CM
CAUTION
