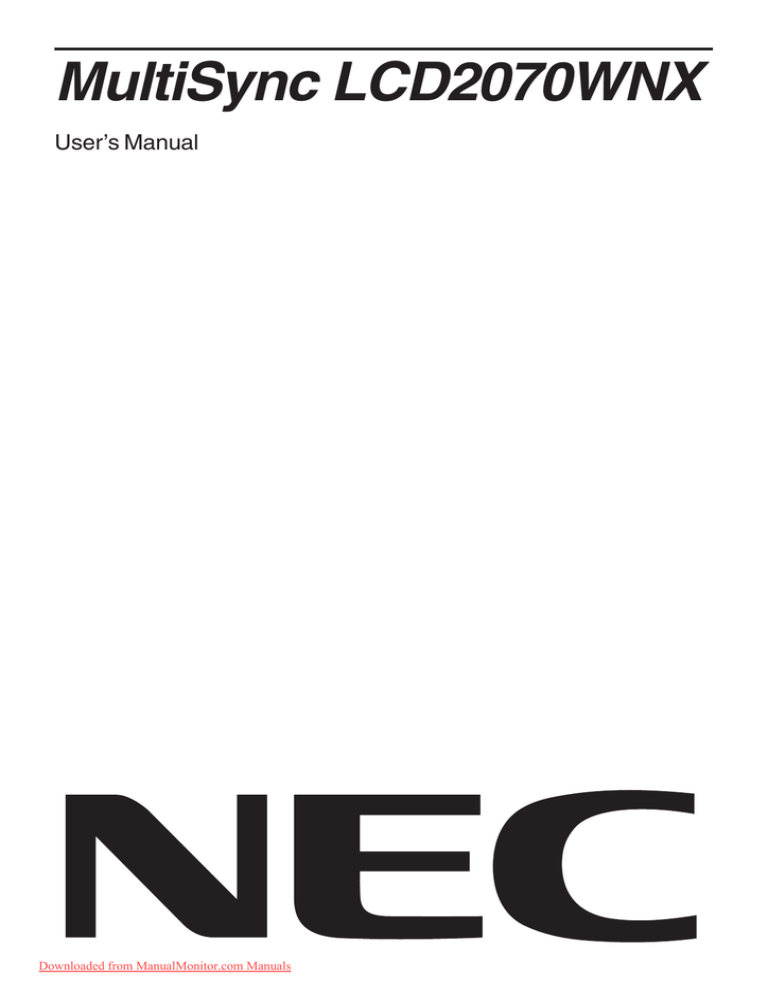

MultiSync LCD2070WNX

User’s Manual

Downloaded from ManualMonitor.com Manuals

Index

Warning, Caution ........................................................................................................................ English-1

Declaration .................................................................................................................................. English-1

Canadian Department of Communications Compliance Statement ........................................... English-2

Declaration of Conformity ........................................................................................................... English-2

Contents ...................................................................................................................................... English-3

Quick Start .................................................................................................................................. English-4

Controls ....................................................................................................................................... English-8

Recommended use ..................................................................................................................... English-11

Specifications .............................................................................................................................. English-13

Features ...................................................................................................................................... English-14

Troubleshooting ........................................................................................................................... English-15

Appendix ..................................................................................................................................... English-15

TCO’03 ........................................................................................................................................ English-16

Manufacturer’s Recycling and Energy Information ...................................................................... English-17

Downloaded from ManualMonitor.com Manuals

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT

USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS

THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE

POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD2070WNX with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.

If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD2070WNX with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

and marked with We hereby certify that the colour monitor

MultiSync LCD2070WNX (L205GX) is in compliance with

Council Directive 73/23/EEC:

– EN 60950-1

Council Directive 89/336/EEC:

– EN 55022

– EN 61000-3-2

– EN 61000-3-3

– EN 55024

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. E

NERGY

S

TAR

is a

U.S. registered trademark.

OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy, Norway,

Spain, Sweden, U.K.

NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland,

Sweden, Spain, Denmark, Germany, Norway and Finland.

All other brands and product names are trademarks or registered trademarks of their respective owners.

As an E

NERGY

S

TAR

® Partner, NEC Display Solutions of America, Inc. has determined that this product meets the E

NERGY

S

TAR

guidelines for energy efficiency. The E

NERGY

S

TAR

emblem does not represent EPA endorsement of any product or service.

English-1

Downloaded from ManualMonitor.com Manuals

Canadian Department of Communications Compliance

Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1.

Use the attached specified cables with the MultiSync LCD2070WNX (L205GX) colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord

Length

Plug shape

Non shield type, 3-conductor

2.0 m

2.

(2)

U.S.A

Please use the supplied shielded video signal cable and USB cable with ferrite cores. Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful:

“How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government

Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Blvd, Suite 1100

Tel. No.:

Itasca, Illinois 60143

(630) 467-3000

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD2070WNX (L205GX)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Downloaded from ManualMonitor.com Manuals

English-2

Contents

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD2070WNX monitor with tilt/swivel adjust stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)

• Video Signal Cable (DVI-D to DVI-D)

• USB Cable

• User’s Manual

• Cable Cover

• CD ROM (includes complete User’s Manual in PDF format).

To see the User’s Manual, Acrobat Reader 4.0 must be installed on your PC.

USB Cable

Power Cord

Cable Cover

CD-ROM

User’s Manual 15-pin mini D-SUB male to

15-pin mini D-SUB male

NOTE:

This monitor can be equipped with optional loudspeakers:

“MultiSync Sound bar”. Please ask your dealer or check our website http://www.nec-display-solutions.com

* Remember to save your original box and packing material to transport or ship the monitor.

DVI-D to DVI-D

Downloaded from ManualMonitor.com Manuals

English-3

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws.

For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure B.1). Tighten all screws.

DVI signal cable

Figure A.1

Figure A.2

NOTE:

Some Macintosh systems do not require a Macintosh cable adapter.

Macintosh

Cable Adapter

(not included)

Figure B.1

3. Remove the connector cover (Figure C.1).

4. Place hands on each side of the monitor to tilt the LCD panel 30 degrees angles and lift up to the highest position

(Figure C.2).

5. Connect all cables to the appropriate connectors (Figure C.2).

NOTE:

If connecting both DVI and D-Sub cables, the DVI cable must be connected along side the rib on the power cord side (Figure C.2).

6. Place the connector cover onto the back cabinet (Figure C.3).

Figure C.1

DVI Cable

Figure C.3

Figure C.2

7. For successful cable management, place the cables in this order into the cable management: Power cord and DVI cable

(Figure C.4).

8. Place DVI cable and power cord into the specific hooks indicated in Figure C.4.

9. Place the D-Sub and the USB cable into the specific hooks indicated in Figure C.4.

10. Make sure all cables are resting flat against the stand (Figure C.4).

Downloaded from ManualMonitor.com Manuals

English-4

DVI Cable

D-SUB Cable

Power Cord

Flat

USB Cable

Figure C.4

11. Hold all cables firmly and place the cable cover onto the stand (Figure C.5). To remove the cable cover, lift the cover off as shown in Figure C.6.

Figure C.5

Figure C.6

12. Connect the power cord to the power outlet (Figure D.1).

NOTE:

If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as shown in

Figure D.2.

NOTE:

Please refer to Caution section of this manual for proper selection of AC power cord.

13. The vacation switch on the back side of the monitor must be turned on (Figure D.1). Turn on the monitor with the front power button and the computer.

NOTE:

The vacation switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

14. No-Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.

For further adjustments, use the following OSM controls:

• Auto Adjust Contrast (Analog input only)

• Auto Adjust (Analog input only)

Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE:

If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

ON Position

Vacation Switch

Figure D.1

OFF Position

English-5

Downloaded from ManualMonitor.com Manuals

Figure D.2

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE:

Handle with care when raising or lowering the monitor screen.

Figure RL.1

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

NOTE:

Handle with care when tilting and swivelling the monitor screen.

Figure TS.1

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Place hands on each side of the monitor to lift up to the highest position.

Remove the cable cover (Figure M.1).

Remove the connector cover (Figure M.2).

NOTE:

If you have difficulty removing the cable cover, please push the lower opening upward to remove it, as shown in the figure beside.

2. Disconnect all cables.

Figure M.1

Downloaded from ManualMonitor.com Manuals

English-6

Figure M.2

3. Place monitor face down on a non-abrasive surface (Figure M.3).

NOTE:

Handle with care when monitor facing down, for avoiding the damage to the front buttons.

4. Remove the 4 screws connecting the stand to the monitor (Figure M.3).

5. Remove the stand (Figure M.4). The monitor is now ready for mounting in an alternate manner.

6. Connect the cables and place the connector cover on the back of the monitor.

7. Reverse this process to re-attach stand.

NOTE:

Use only VESA-compatible alternative mounting method.

Handle with care when removing stand.

Figure M.3

Figure M.4

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.

2. Use the 4 screws from the stand removal and attach the arm to the monitor (Figure F.1).

NOTE:

The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements, the monitor must be mounted to an arm, which guaranties the necessary stability under consideration of the weight of the monitor.

Thickness of Bracket (Arm)

2.0~3.2mm

4 Screws (M4)

(Max Depth: 18mm)

100mm

Weight of LCD assembly: 5.7kg (MAX)

100mm

Figure F.1

Downloaded from ManualMonitor.com Manuals

English-7

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up).

To change signal input, press the SELECT button.

To change DV MODE, press the RESET/DV MODE button.

NOTE:

OSM must be closed in order to change signal input.

Button Menu

MENU/EXIT

4-Direction-Key

Open OSM main menu.

Exits the OSM controls.

Exits to the OSM main menu.

Up

Left Right

Left/Right

Down/Up

Down

Moves the highlighted area left/right to select control menus.

Moves the bar left/right to increase or decrease the adjustment.

Direct adjust of brightness if HOT KEY is set to ON.

Enters the OSM menu if HOT KEY is set to OFF.

Moves the highlighted area down/up to select one of the controls.

Direct adjust of contrast if HOT KEY is set to ON.

Enters the OSM menu if HOT KEY is set to OFF.

SELECT/

1<->2RESET

Enter the OSM sub menu. Active the selected function.

Change the Input source.

RESET/DV MODE

Resets the highlighted control menu to the factory setting. Switches the DV Mode.

NOTE:

When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the

RESET function by pressing the MENU/EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed to optimal settings.

DV MODE

Dynamic Visual Mode allows you to select setting for Movie, Photo and etc.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position, H. Size and Fine settings.

Downloaded from ManualMonitor.com Manuals

English-8

Image Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Colour Control System

Colour Control System: Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed).

R,G,B: Increases or decreases Red, Green or Blue colour depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the bars.

NATIVE: Original colour presented by the LCD panel that is unadjustable.

sRGB: sRGB mode dramatically improves the colour fidelity in the desktop environment by a single standard RGB colour space. With this colour supported environment, the operator could easily and confidently communicate colour without further colour management overhead in the most common situations.

NOTE: When MOVIE, GAMING, or PHOTO is selected as the DV MODE, NATIVE is selected automatically as the six colour preset and cannot be changed.

Tools

SHARPNESS: Adjust the image to get distinct or as soft a picture as is preferred.

EXPANSION: Selects the zoom mode.

FULL: The image is expanded to 1680 x 1050, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

OFF TIMER: Monitor will automatically power-down when the end user has selected a predetermined amount of time.

LED BRIGHTNESS: You can adjust the Green LED brightness.

HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with left or right control and contrast with up or down control while the OSM menu is off.

INPUT RESOLUTION (Analog Input Only): Selects of resolution’s priority of input signal to one pair of the following:

1360 x 768, 1680 x 1050 or 1280 x 768, 1400 x 1050.

1360 x 768, 1680 x 1050: Determines the resolution to 1360 x 768 and 1680 x 1050.

1280 x 768, 1400 x 1050: Determines the resolution to 1280 x 768 and 1400 x 1050.

DDC/CI: This function allows the DDC/CI function ON or OFF.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Menu Tools

LANGUAGE: OSM control menus are available in eight languages.

OSM LEFT/RIGHT: You can choose where you would like the OSM control image to appear horizontally on your screen.

OSM DOWN/UP: You can choose where you would like the OSM control image to appear vertically on your screen.

OSM Turn Off: The OSM control menu will stay on as long as it is in use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu.

OSM Lock Out: This control completely locks out access to all OSM control functions without Brightness and

Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the

OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then right control button and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then left control button and hold down simultaneously while in the OSM menu.

RESOLUTION NOTIFIER: This optimal resolution is 1680 x 1050. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1680 x 1050.

English-9

Downloaded from ManualMonitor.com Manuals

Information

The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the

Resolution Notifier window will open. This function can be disabled in the Menu Tools.

OUT OF RANGE: When input signal is non-supported timing or the video signal doesn’t have proper timing, the Out of Range menu will appear.

For advanced user menu, see “Appendix”.

Downloaded from ManualMonitor.com Manuals

English-10

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC LCD COLOUR MONITOR:

DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If glass is broken, handle with care.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

Image Persistence: Please be aware that LCD Technology may experience a phenomenon known as Image Persistence.

Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Downloaded from ManualMonitor.com Manuals

English-11

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN

REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level.

Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals.

• Use the preset Colour Setting.

• Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.

• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

Cleaning the LCD Panel

Recommended cleaning of the LCD:

• To remove dust and dirt from the surface of the LCD panel, wipe gently with a soft cloth.

• Do not rub the LCD panel with rough material.

• Do not press on the surface of the LCD panel.

To avoid scratches

• Do not touch LCD panel with hard objects.

• Use only a soft cloth for cleaning the surface of the LCD panel.

To avoid stains

• Clean fingerprints, water drips, chemical spills and etc. from the LCD panel immediately or discoloration and spot will occur.

• If the LCD panel is rubbed with too much force, cracking may occur, which will lead to abnormalities in the display.

To avoid breakage or screen trouble

• Do not push hard on the LCD panel surface.

• Do not set heavy objects on the LCD panel surface.

• Do not leave the LCD panel under constant pressure.

Cleaning the Cabinet

• Unplug the power supply.

• Use a soft cloth.

• Dampen the cloth with a mild detergent mixed with water, wipe the cabinet and dry with a soft cloth.

NOTE:

Many plastics are used on the cabinet surface. DO NOT clean with benzene, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder or insecticide. Do not touch the cabinet with rubber or vinyl for a prolonged period. These types of fluids and fabrics can cause the paint to deteriorate, crack or peel.

Downloaded from ManualMonitor.com Manuals

English-12

Specifications

Monitor Specifications

LCD Module

Input Signal

MultiSync LCD2070WNX Monitor

Diagonal: 51.1 cm/20.1 inches

Viewable Image Size: 51.1 cm/20.1 inches

Native Resolution (Pixel Count): 1680 x 1050

Notes

Active matrix; thin film transistor (TFT) liquid crystal display (LCD); 0.258 mm dot pitch; 300 cd/m 2 white luminance; 800:1 contrast ratio, typical.

Video: ANALOG 0.7 Vp-p/75 Ohms

Sync: Separate sync.TTL Level Positive/Negative

Digital Input: DVI-D

Horizontal sync. Positive/Negative

Vertical sync. Positive/Negative

Composite sync. Positive/Negative* 2

Sync on Green (Video 0.7 Vp-p and Sync. Negative 0.3 Vp-p)* 2

Display Colours 16,777,216

Synchronization Range Horizontal: 31.5 kHz to 82.3 kHz

Vertical: 56.0 Hz to 75.0 Hz

Viewing Angle

Resolutions Supported

Depends on display card used.

Automatically

Automatically

Left/Right: 85°/85° (CR > 5)

Up/Down: 85°/85° (CR > 5)

720 x 400* 1 : VGA text

640 x 480*

1

at 60 Hz to 75 Hz

800 x 600* 1 at 56 Hz to 75 Hz

832 x 624*

1

at 75 Hz

1024 x 768* 1 at 60 Hz to 75 Hz

Some systems may not support all modes listed.

1152 x 864*

1

at 75 Hz

1152 x 870* 1 at 75 Hz

1280 x 960*

1

at 60 Hz to 75 Hz

1280 x 1024* 1 at 60 Hz to 75 Hz

1440 x 900*

1

at 60 Hz Recommended resolution is 60 Hz for

1680 x 1050 at 60 Hz.................................. optimal display performance.

Active Display Area

USB Hub

Horizontal: 433.0 mm/17.0 inches

Vertical: 271.0 mm/10.7 inches

I/P: USB Specification Revision 2.0

Port: Upstream 1

Downstream 4

Load Current: Maximum 0.5A per port

Power Supply

Power Consumption

(without optional Sound Bar)

Current Rating

Dimensions

AC 100-240V ~ 50/60Hz

74 W (typ)

1.3 - 0.7 A

471.4 mm (W) x 371.3 - 481.3 mm (H) x 220.0 mm (D)

18.6 inches (W) x 14.6 - 18.9 inches (H) x 8.7 inches (D)

Weight 8.5 kg (18.7 lbs)

Environmental Considerations

Operating Temperature: 5°C to 35°C/41°F to 95°F

Humidity: 30% to 80%

Altitude: 0 to 10,000 Feet

Storage Temperature: -10°C to 60°C/14°F to 140°F

Humidity: 10% to 85%

Altitude: 0 to 40,000 Feet

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

*2 If your display is not showing a picture of the SOG and Composite Sync. Signal, please contact our hotline for further assistance.

NOTE:

Technical specifications are subject to change without notice.

English-13

Downloaded from ManualMonitor.com Manuals

Features

Thin-frame design creates more desktop space for you to work and play, while the flat screen’s crisp, bright images and crystalclear text deliver a comfortable viewing experience.

No Touch Auto Adjust automatically adjusts your optimal image settings upon initial power-on.

Colour Control System allows you to change between six colour settings on your display to match your personal preference.

Redesigned OSM controls allow you to quickly and easily adjust all elements of your screen image.

NaViSet software offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM display settings via mouse and keyboard.

The flat screen’s crisp, bright images and crystal-clear text deliver a comfortable viewing experience.

ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft ® solution with the Windows ® operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

USB 2.0 hub ads excitement to your computing by connecting you to digital cameras, scanners and more.

Downloaded from ManualMonitor.com Manuals

English-14

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Check the Vacation Switch on the back side of the monitor.

Image Persistence

• Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image

Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC DISPLAY SOLUTIONS recommend displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no blue or amber colour can be seen)

• Power Switch should be in the ON position and power cord should be connected.

• Check the Vacation Switch should be in the ON position.

• Make sure the OSM LED Brightness Control is at the proper setting.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the H. SIZE.

• Check to make sure that a supported mode has been selected on the display card or system being used.

(Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the vacation switch off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

USB Hub does not operate

• Check to make sure the USB cord is properly connected. Refer to your USB device User’s manual.

Appendix

If you need detailed information about the controls, please use the advanced menu.

<How to use the advanced menu>

• Turn off your monitor.

• Turn on your monitor by pushing the “POWER” and “SELECT” button at the same time for at least one second simultaneously.

• You will see the Advanced menu.

<How to exit the advanced menu>

• Turn off and restart your monitor in the normal way.

Tag1 Auto Black Level (Analog input only) Automatically adjusts the black level.

Black Level (Analog input only) Manually adjusts the black level.

English-15

Downloaded from ManualMonitor.com Manuals

TCO’03

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic fields

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001.

• Restrictions on:

- chlorinated and brominated flame retardants and polymers

- heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

English-16

Downloaded from ManualMonitor.com Manuals

Manufacturer’s Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentallyfriendly products, and always strive to help define and comply with the latest independent standards from agencies such as

ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

For more information, and for help in recycling your old NEC monitors, please visit our website at http://www.nec-display-solutions.com (in Europe) or http://www.nec-display.com (in Japan) or http://www.necdisplay.com (in USA).

Country-specific recycling programmes can also be found at:

Sweden http://www.el-retur.se

Germany http://www.recyclingpartner.de/

Holland -

Japan http://www.mirec.nl/ http://www.diarcs.com/

Energy saving:

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS)

Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode

Normal Operation

Energy Saving Mode

Off Mode

Power consumption

Approx. 74W

Less than 2W

Less than 1W

LED colour

Green

Amber

Unlit

Disposing of your old NEC product

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member

States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

Downloaded from ManualMonitor.com Manuals

English-17

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
