Features and Benefits
+44 (0)1925 444446 for Customer Service

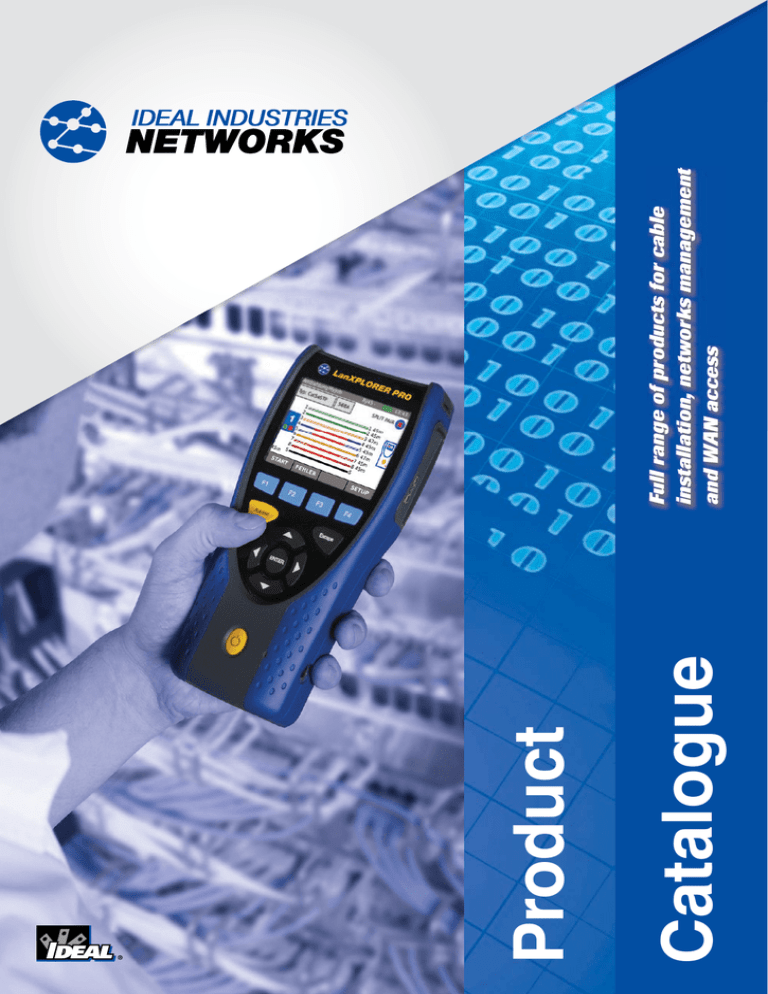

Catalogue
Product
Full range
ge of products for cable
installation,
tion, networks management
and WAN
N access
Copper Cable Testing and Certification
1
About Us
Background
Welcome to the IDEAL INDUSTRIES NETWORKS product catalogue. This is your
guide to the most comprehensive range of portable test equipment, installation
tools, accessories and consumables for all copper & fibre cable installation, network
maintenance & troubleshooting and access telecom testing.
IDEAL INDUSTRIES NETWORKS is a new name but comes with many years of
experience in network test and installation. Through the merger of IDEAL Datacomm
and Trend Communications, IDEAL INDUSTRIES NETWORKS has been born. It is the
only supplier of portable test equipment with true heritage and expertise in both Local
Area Network AND Wide Area Network installation and maintenance.
Focus on Network Installation and Troubleshooting
In this modern world, our dependency on network performance is becoming
more and more critical. At the same time, bandwidth demand is increasing at
a huge rate, overloading existing infrastructure and increasing the frequency of
breakdowns. This means that the quality of cable installation and maintaining
network performance is becoming increasingly important. Bad quality installation
or poor network performance costs businesses money in today’s world. There are
many options available to address this but they can be expensive, very complex or
too basic to meet the requirements. IDEAL INDUSTRIES NETWORKS provides a
range of solutions for WAN & LAN installation and maintenance which meets the
highest technical demands, whilst offering products which are flexible, easy to use
at an affordable cost.
High Quality Solutions
IDEAL INDUSTRIES NETWORKS provides test solutions for LAN cable installers,
network technicians, IT managers, Telecoms operators and service providers. The
range includes copper cable testers, Cat 5 to Cat7A cable certifiers, OTDRs, 1 GbE
testers, xDSL testers, network troubleshooting tools and more. There is a high quality
test solution to meet the needs of most users. Our focus is on delivering products
which test to the very latest standards and highest technical requirements but do not
require a professor to use them. Designed to ensure accuracy of results is achieved
with easy to use interfaces, they ensure the job is done faster and right first time
ultimately, saving money.
As well as testers, IDEAL INDUSTRIES NETWORKS also provides a comprehensive
range of installation products and materials. There is a large range of copper cable
and fibre preparation tools, connectors, fishtapes and lubricants to help make any
installation job easier and quicker. This catalogue is a one-stop-shop for all LAN/WAN
installers, maintenance technicians and network managers.
2
www.idealnwd.co.uk
Copper Cable Testing and Certification
Product Sections
COPPER CABLE AND FIBRE INSTALLATION
TEST AND CERTIFICATION
4-26
I.T. NETWORK TEST & ANALYSIS
27-34
WAN ACCESS
35-46
TOOLS, CONNECTORS AND ACCESSORIES
47-70
+44 (0)1925 444446 for Customer Service
3
COPPER CABLE AND
FIBRE INSTALLATION
TEST AND
CERTIFICATION
The IDEAL INDUSTRIES NETWORKS range of Installation, Test and Certification
products covers all of the requirements of the installer of both copper cable
and fibre optics. From pulling lubrication and rods, a full range of connectors,
tools for cable and fibre preparation, through to testers and certifiers to ensure
correct installation and warranty certification.
4
www.idealnwd.co.uk
Copper Cable and Fibre
Installation Test and Certification
Copper Cable Testing and Certification............................................................6
LanTEK® II Cable Certifier Series...........................................................................................................................................8
Superior performance, revolutionary fibre options and outstanding value makes LanTEK® II the ultimate cable certification platform.
Choose from three models that provide the test capabilities you need today with cost-effective upgrades should these change tomorrow.
SignalTEK TM Gigabit Ethernet Cable Qualifier...............................................................................................11
SignalTEK™ provides a technically innovative method to test and document performance of voice, data, video and VoIP applications for
cabling installers and network technicians.
VDV PRO Copper Cable Verifier ..........................................................................................................................................13
The VDV PRO Cable Tester is an easy-to-use cable testing and verification device that can quickly test all wiring requirements found throughout today’s
domestic and commercial environments.
IENet™ PRO Industrial Ethernet Tester.....................................................................................................................14
The IENet™ PRO tester makes it a snap to quickly verify wiring integrity and assure proper terminations for diverse types of industrial cabling.
SecuriTEST TM CCTV/Security Tester............................................................................................................................15
SecuriTEST™ PRO is the most versatile all-in-one installation and troubleshooting tool for the CCTV professional.
Other Testers ......................................................................................................................................................................................................16
Explore our range of tone generators, amplifier probes and other small testers.
Fibre Optic Installation Test and Troubleshooting.........18
Quad OTDR ..............................................................................................................................................................................................................20
Designed with installers in mind, 33-960 Series Micro OTDR offers excellent performance and ease of use in a truly handheld, lightweight and rugged
package.
FiberMASTER TM Fibre Optic Test Kit..............................................................................................................................24
Easily measure fibre optic power in milliwatts (mW) and decibel-milliwatts (dBm) to test and troubleshoot active LANs
Other Fibre Products ..............................................................................................................................................................................26
Explore our range of power meters, light sources and other fibre testers.
+44 (0)1925 444446 for Customer Service
5
COPPER CABLE TESTING
AND CERTIFICATION
IDEAL INDUSTRIES NETWORKS copper cable testers are essential tools
for any cable installer or network technician. In today’s LAN environment,
performance is crucial to the quality of service delivered to the customer.
Whether through poor installation, cable damage or a bad connection, the
majority of network issues come from one form of cabling fault or another.
Without the right test equipment, identifying and locating the problem can
be time consuming and expensive. The IDEAL INDUSTRIES NETWORKS
copper test range has solutions from basic wiremappers to qualifiers to test
correct cable installation through to bandwidth capability.
On top of this, more and more premises owners are requiring a
documented record that installations meet the latest cabling test
6
standards. Certain cable manufacturers also offer a warranty for
their cabling when installed and tested using an approved certifier.
The Lantek® II range is one of only a very few cable certifiers
available today approved by key cable manufacturers testing up to
1000 MHz and certifying cabling up to the highest Cat. 7A ISO Class
FA standard.
Through accuracy of testing, easy to use interface and features
designed to test the real application needs of the user, IDEAL
INDUSTRIES NETWORKS copper test products help to significantly
speed up cable installation and fault finding, reducing downtime and
saving money.
www.idealnwd.co.uk
Copper Cable Testing and Certification
Copper Cable Testing and Certification Range
Page 8
Page 11
Page 13
LanTEK ® II
SignalTEK TM
VDV PRO
Lorem IPSUM
Cable certification to
international standards
Page 16
Page 14
VDV MM
IENet™ PRO
Ethernet cable
qualification
Supported standards
350 MHz –
IEEE Ethernet
Class E/Cat
6, 500 MHz –
Class EA/Cat
6A, 1000MHz
–Class FA/
Cat 7A
Accuracy level
ISO/IEC
61935-1
Level III, IIIe,
IV
TIA 586
wiremap
TIA 586 wiremap TIA 586 wiremap
RJ-45, RJ-11,
coax (F)
RJ-45, RJ-11,
coax (F)
Fault finding and
continuity testing
Supported interfaces
RJ-45, TERA,
GG45, EC7,
BNC, 66
block, 110
block, M12
(adaptor)
RJ-45
Fibre testing option
MM/SM
attenuation
and length
MM/SM
Ethernet test
with SFP
RJ-45, M12,
coax (adaptor),
BNC (adaptor)
Industrial mode
Documented test results
+44 (0)1925 444446 for Customer Service
7
LanTEK ® II Cable Certifier Series
Superior performance, revolutionary fibre options and outstanding value makes LanTEK® II the ultimate cable certification platform. Choose from three models that
provide the test capabilities you need today with cost-effective upgrades should these change tomorrow; choose from 350 MHz - Class E/Cat 6, 500 MHz - Class
EA/Cat 6A or 1000 MHz - Class FA/Cat 7A all with accuracy verified by ETL. Productivity on the job is assured by 11-second Class D/Cat 5e and a 14-second
Class E/Cat 6 autotest times that include full graphical data storage. Certification costs and efficiency are further improved by a patented universal adaptor system
that lets you certify most cabling with off-the-shelf patch cords. This unique feature eliminates the need for proprietary permanent link adaptors.
The LanTEK® II series also offers ultimate versatility with options for Alien Crosstalk testing, certification of TERA, GG45 and EC7 Class F/FA / Category 7/7A, plus
M12 Industrial Ethernet, and coaxial test adaptors.
The optional FiberTEK® FDX modules provide the world’s only dual wavelength, bidirectional
ectional fibre certification for multimode, single mode and Gigab
Gigabit applications
that’s 3 times faster than existing testers.
More Ways to Save
Save time and money in more ways than ever with LanTEK® II.
Universal Link Testing
The patented testing process features universal test adaptors for ISO
Class D/Category 5e through Class EA/Category 6A certification.
Consequently, patch cords are typically the only item that needs to be
replaced when worn out or damaged. This eliminates the expense of
proprietary adaptors meaning more time is spent testing and less time
searching for replacement parts.
Channel and Permanent Link Testing with One Adaptor
Only LanTEK® allows permanent link and channel certification without
changing adaptors. The patented DualMODE function allows cabling to
be certified to two different standards with one press of the Autotest
button; less than half the time it would take with any other certifier.
Features and Benefits
• Best price/performance options - models ranging from 350 MHz to 1000
•
•
•
•
•
•
•
•
•
•
•
•
8
MHz for Category 6/ISO E through Category 7A/ISO FA certification
High speed
spe testing saves time and money
Most inte
internal memory available - store over 1700 Category 6/ISO E tests with
graphs
Patented testing method - eliminate expensive permanent link adaptors and
test with patch cords for most installation
Extraordinary fast fibre testing with FiberTEK® FDX - the first dual wavelength,
Extraord
bidirectional
bidirectio fibre certification tool
Large, uultra-bright display - 4.3 in. wide screen display with white LED
backlighting provides easy viewing of high-frequency data plots
backligh
350 MHz
MH & 500 MHz models are fully upgradable to 1000 MHz
Smart lit
lithium-ion battery technology - 18 hour battery life with self calibrating
“fuel gau
gauge” for accurate capacity readings
Most versatile
ver
test adaptor range for RJ-45, TERA, GG45, EC7, Coax, M12
Other inte
interfaces are realized through hybrid patch cords from RJ-45 to e.g. RS232
Level III, IIIe, IV accuracy according to ISO IEC 61935-1
DualMODE function - certify to two different standards with one press of the
DualMO
Autotest button
Maximum reporting power with the new IDEAL DataCENTER (IDC) software
www.idealnwd.co.uk
Cable Installation Test & Certification
FiberTEK® FDX Fibre Test Module
Time Saving Fibre Certification
The FiberTEK® FDX option allows users to add full Tier 1 standards compliant fibre certification
capability to the LanTEK® II certifiers. Tier 1 certification utilises a light source and power
meter to measure the power loss of optical cabling. FiberTEK® FDX modules incorporate dual
light sources and a wide range power meter to allow loss testing of fibre links as well as to
measure light levels emitted from active network equipment for troubleshooting.
Simplified Testing
Unlike other fibre certification “add-ons” that require up to four separate steps to test each
fibre at both wavelengths and in both directions, FiberTEK® FDX can accomplish this task in
one easy step. FiberTEK® FDX revolutionises the whole fibre certification process by utilising
a sophisticated full duplex optical module that allows each fibre to be certified in one go with
no reversing of patch cords or swapping of optical modules. Four attenuation measurements
plus length in one press of the Autotest button. The simplest way to certify fibre.
FiberTEK® FDX Key Advantages
The only solution that allows complete one-step certification of horizontal and backbone cabling without swapping fibres or modules. Extremely fast fibre certification
that complies with TIA/ISO/IEC certification standards. Available with both LED and VCSEL/laser multimode sources for 10/100Mbps or 1/10G certification.
Real-time power meter to aid in troubleshooting active equipment. Field changeable adaptors (SC, ST, FC) eliminate the need to carry multiple hybrid launch cords.
Description
Cat. No.
33-991
LanTEK® II-350: TIA/EIA Cat6, ISO Class E certifier w/ Cat6 adaptors
®
LanTEK II-500: TIA/EIA Cat6A, ISO Class Ea certifier w/ Cat6A adaptors
33-992
®
LanTEK II-1000: TIA/EIA Cat7A, ISO Class F/FA certifier w/ Cat6A adaptors
33-993
Contents: LanTEK® II display and remote handset, two smart lithium-ion batteries, two 110-240V power adaptors with US/EU/UK plugs, lockable
semi-rigid carrying case, Cat6A F/FTP patch cords, USB cable, DataCENTER data management and reporting software, two headsets, hanging
straps, and ETL accuracy certificate.
Ordering information
LanTEK® II
FiberTEK®FDX
Multimode (850/1300nm) kit with LED light sources for standard multimode fibre, 850nm LED, 1300nm LED
Multimode (850/1300nm) kit with VCSEL/laser light sources for laser optimised fibre, 850nm VCSEL, 1300nm FP laser
Single mode (1310/1550nm) kit with laser light sources for single mode fibre, 1310nm FP laser, 1550nm FP laser
Combination MM/SM kit with LED MM sources and laser SM sources (33-990-FA01 & 33-990-FA03)
Combination MM/SM kit with VCSEL/laser MM sources and laser SM sources (33-990-FA02 & 33-990-FA03)
33-990-FA01
33-990-FA02
33-990-FA03
33-990-FA04
33-990-FA05
Contents: Two FiberTEK® FDX modules, lockable semi-rigid carrying case, SC, FC, ST adaptors for modules (2 ea), SC-SC patch cords
(MM kits: 3x 62.5μm, 3x 50μm; SM kits: 3x 9um) compliant to ISO/IEC 14763-3 standard, quick reference guide, and electronic operation manual.
Accessories
Lithium-ion Battery
Category 6A/Class EA Universal Channel/Permanent Link Adaptor
Category 6/Class E Universal Channel/Permanent Link Adaptor
Replacement Category 6A F/FTP Patch Cord
Replacement Power Supply
Replacement Talk Set
USB Cable
Large Carrying Case
Cat7/7A ISO - F/FA EC7 testing kit
Coax Testing Kit
LANTEK 10 Gigabit Alien Crosstalk Testing Kit
33-990-BP01
0012-00-0656
0012-00-0629
6011-50-0001
33-990-PS01
33-990-TS01
33-990-DC01
33-990-CC01
0012-00-0653
1019-00-0343
LANTEK10GBKIT
Trade-in and upgrade options available. For more information please visit www.idealnwd.co.uk
+44 (0)1925 444446 for Customer Service
9
Handset Dimensions
Height/Width/Depth: 10in/5in/2.1in (25.4cm/12.7cm/5.3cm)
Handset weight w/ battery
Display: 2.4lbs/1.1kg; Remote: 2.3lbs/1.0kg
Battery
Lithium-ion, 7.4VDC, 6.6AH; Input: 12V/2A DC; Typical operating time: 18 hours (new battery running a Cat6 test every
2.5 minutes, full backlight); Charge time: 4 hours quick charge with battery removed from handset, 6 hours inside
handset.
Input power
Handset: DC 12-15V, 2A; Line/mains power: AC 110-240V
Display
4.3” wide screen TFT, 480 x 272 pixel, 95 x 54mm viewable area
Connectivity
Adaptor port: 168 pin ultra low crosstalk, mini-USB device port, USB host port (display handset only), four pin serial port
(service use only), 1/8” talkset jack, power/charging jack
Frequency range
LanTEK® II-350: 1-350MHz, LanTEK® II-500: 1-500MHz, LanTEK® II-1000: 1-1000 MHz
Memory
Non-volatile flash, storage capacity for 1700 TIA-Cat 6 tests with graphs. Tests can be copied to USB flash drive, up to
64GB.
Measurements
Wiremap, DC loop resistance length, capacitance, NEXT, insertion loss (formerly attenuation), ACR-N (formerly ACR),
return loss, average impedance, propagation delay, delay skew, power sum NEXT, power sum ACR-N (formerly power
sum ACR), ACR-F (formerly ELFEXT), power sum ACR-F (formerly power sum ELFEXT), alien crosstalk (with optional AXT
testing kit)
Length measurement
0-605m; +3% (+1), display resolution: 0.1m
Supported cable types
TIA/EIA Category 3, 4, 5, 5e, 6 and 6A: 100O
ISO/IEC Class C, D, E, EA, F, FA: 100O
Cat 6/6A Class E/Ea RJ-45 permanent link adaptors: shielded and un-shielded cable, universal adaptors provide channel, permanent link and basic link measurements.
Supported connectors
Additional adaptors: GG45, RJ-45, TERA, EC7 (MMCPRO3000), Coax 50-75O (BNC connector), M12 industrial
Tone generator
Integrated into display and remote handset, compatible with standard analogue inductive probes, selectable tone (high/
low/warble) 500/600 Hz, selectable pin output.
Input protection
100V @ 25mA
Operating temperature
0°C to 50°C, non-condensing
Storage temperature
-20°C to 70°C, non-condensing
Vibration/shock
MIL-PRF-28800 F, Class 3
Supported languages
Chinese, Czech, Danish, Dutch, English, French, German, Italian, Korean, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish
Accuracy
Baseline: Certified by ETL to meet IEC 61935 Level III/IIIe/IV; Channel/Permanent link: TIA 568-B.2-2 and IEC 61935
Level III/IIIe/IV
Warranty (LanTEK® II/
FiberTEK FDX)
One (1) Year from date of purchase
Batteries and accessories are warranted 90 days from date of purchase
PC Software
Requirements: Microsoft Windows® XP or Vista, 512MB RAM, 500MB hard disk + 1GB for every 1,500 Category 6 tests
®
FiberTEK FDX
10
Compatability
LanTEK® II (any model)
Connector
User changeable adaptor (SC, FC, ST), 2.5mm ferrule
Laser safety
Multimode 850 VCSEL: class 3, 5mW max; multimode 1300 laser: class 3, 5mW max; Single mode 1310 & 1550:
class: 3, 5mW max
Power meter accuracy
± .5dB from 0dBm to -40dBm 850-1550nm; system dynamic range 40dB
Length accuracy
±3%; maximum distance measurement 3000m
Display resolution
Power/attenuation: 0.1dB, length: 0.1m/0.1ft
www.idealnwd.co.uk
Specifications
LanTEK® II
Copper Cable Testing and Certification
SignalTEK ™ Gigabit Ethernet Qualifier
& SignalTEK ™ FO Multimedia Ethernet Qualifier
SignalTEK™ provides a technically innovative method to test and
document performance of voice, data, video and VoIP applications for
cabling installers and network technicians. It tests the link’s ability to
support applications by transmitting Ethernet packets on the wire and
measuring the link performance according to IEEE 802.3ab Gigabit
Ethernet standard. By monitoring transmitted and received data packets,
it can report the BERT (Bit Error Rate Test) for the link.
SignalTEK™ FO is the first active ethernet certifier that offers both copper
and fibre optic testing;
and SignalTEK™ FO does it for less than the price of an Optical Test Set alone.
Multi-colour LEDs indicate
link status, loopback mode,
10/100 and Gigabit device
detection, Autotest pass/fail,
and battery condition
Autotest key to
initiate tests from
the remote end
for one person
operation
Port status
function detects
10/100 or Gigabit
Ethernet devices
Single button
push for active
network testing
and monitoring
Compact design
and soft overmould
ssides fit well into
aany sized hand
Single button
cable testing
Features and Benefits
• Simulate real world network traffic with full-duplex gigabit performance •
testing
•
•
•
performance for all Ethernet devices. Decibel (dB) loss measurements of
optical lines.
Smart autotest function detects line condition and automatically
chooses appropriate test to run to allow testing cable that is terminated
with a SignalTEK remote, a network device or unterminated
Save time using the remote to perform 10/100 or gigabit service
detection AND initiate an Autotest when main unit is connected
Maximum flexibility with two USB ports. Connect to a computer to
Context sensitive
ssoftkeys
Quick navigation key returns
to Job Manager screen
EEasy-to-navigate
user interface
D
Displays result
fo
for last autotest
via red or green
LED indication
• User selectable 10/100/1000 Bit Error Rate Testing (BERT) to ensure
2.89 (7.1cm) 1⁄4 VGA Colour
Display with backlighting for
use in low light condition
•
•
•
•
•
upload test results, connect directly to a printer, or connect a USB
memory drive for unlimited storage
Configure multiple target IP addresses for pinging several network
devices to ensure communications with servers, printers, IP cameras,
home automation controls, etc.
Offers network interrogation tools such as link establishment, port LED
blink and ping
TDR to accurately measure length and locate shorts and opens
ARP test discovers active network devices
Exceeds 100m measurement distance required by IEE 802.3ab
Gigabit Ethernet
Dual Wavelength Capability – available in both 850nm and 1300nm
wavelengths to support virtually all LAN and campus fibre applications.
SignalTEK™ FO
Multimedia Qualification Tester Kit
•
•
•
•
•
•
•
•
•
•
SignalTEK™ FO Multimedia Qualification Tester Kit
1 SignalTEK™ fibre ready near-end and 1 remote-end handset
Carrying case
Copper cable accessory kit with interfaces to RJ-45, RJ-11, Coax F-Type
cables, and alligator clips
Fibre optic cable accessory kit: 2 duplex LC-SC 50/125μm (2m/7ft)
cables, 2 duplex LC-SC 62.5/125μm (2m/7ft) cables, 1 duplex SC-SC adaptor.
8 AA alkaline batteries
2 AC power adaptors with international plugs
USB interface cable
1 CD-ROM User Manual
1 Training DVD
+44 (0)1925 444446 for Customer Service
Interchangeable Small
Form-Factor Pluggable
pport with duplex LC
cconnector
ffor fibre-optic testing
Fibre activity LED’s.
Red LED lights when
ttransmitter is
aactive. Green LED
lights when signal
is detected.
RRJ-45 port for
copper testing
11
SignalTEK™ Standard Kit
Catalog No. 33-975
1x SignalTEK™ Display and Remote
1x Black Nylon carrying case
2x 12 inch (30.5cm) RJ-11 silver satin cables
2x 24 inch (61cm) RJ-45-to-F patchcords
2x 12 inch (30.5cm) RJ-45 shielded patchcords
2x 12 inch (30.5cm) RJ-45-twin crocodile clip cords
8x AA alkaline batteries
1x USB cable
1x Quickstart guide
1x CD-ROM User Manual
Cat. No.
SignalTEK™-FO w/850 Modules
33-984
SignalTEK™-FO w/13X0 Modules
33-985
SignalTEK™-FO w/850 & 13X0 Modules
33-986
SignalTEK™-FO w/o Modules (Fibre-Ready)
33-988
SignalTEK™ Kit - Copper Only
33-975
Universal 120-240V Power Adaptor
4010-00-0136
RJ-45 to 8 Head Crocodile Clip
K-7920
Pair of 850nm SFP Modules
SFP-850
Pair of 13X0nm SFP Modules
SFP-13X0
Pair of1550nm SFP Modules
SFP-1550
12
Physical Dimensions
Display Handset: 7.9"L × 3.62"W × 1.5"D (20.1cm × 9.1cm × 3.8cm), Remote Handset: 6.8"L × 3.5"W × 1.5"D (17.3cm
× 8.9cm × 3.8cm), Display: 12.5 oz. (354g) Weight without batteries, Remote: 9 oz. (255g) Weight without batteries
Cable Types
Voice/phone cable –USOC/RJ-11/RJ-12 interface, Data cable – (STP/UTP)RJ-45 for CAT 3/5e/6/6A/7cabling; Coax cable –
via RJ-45-to-F - patch cord, series 58, 59, 6 cabling (75 ohm)
Cable Length Measurement
Exceeds IEEE 802.3 specifications
Battery Life: Standard AA Alkaline Batteries
Cable testing: Up to 8 hours for the copper version and up to 5 hours for the fibre version
Ports/Connections
RJ-45 test interface port; Mini-USB “A” device port; Standard USB “B” host port; DC power input for longterm network
monitoring; Fibre Testing: Recommend use of AC adaptors when testing fibre
Tests Available
Standard, VoIP, IP Video and Web BERT selections; Link Speed (10/100/1000 Mbps); Link Status - Full/Half Duplex,straight/
cross-over; Length Measurement (copper only); Bit Error Rate Test (BERT) - per IEEE 802.3ab standard withdefault and user
selectable rates; Decibel Loss (fibre only); DHCP Service Test (fibre & copper); Ping Test with IP and URLentry (copper & fibre)
ARP Device Discovery (copper & fibre)
Ports/Connection
USB A/B, DC power input – Shielded RJ-45 Port :Supports 10/100/1000Mbps Ethernet connections;
Small Form-factor Pluggable (SFP): Supports SFP modules sourced through IDEAL INDUSTRIES in 850nm and 1300nm,
wavelengths, 1000Mbps Ethernet;
SFP-850 – 850nm Module
Class 1 Laser EN60825-1; Compatible fibre types: 50/125μm or 62.5/125μm graded index multimode fibre; Power Output
(dBm): -9.5min, -3max; Receiver Power Range (dBm): 0 to -20; Max Link Length: 550m (1800ft) on 50/125μmfibre; 300m
(985ft) on 62.5/125μm fibre; Operating Temperature: -10 to 85°C (14 to 185°F), 85%RH non condensing;
SFP-13X0 – 1300nm Module
Class 1 Laser EN60825-1; Compatible fibre types: 50/125μm or 62.5/125μm graded index multimode fibre and 9/125mm
step index single mode fibre; Power Output (dBm): -9min, -2.5max; Receiver Power Range (dBm): 0 to -22;
Max Link Length: 550m (1800ft) on 50/125μm fibre; 300m (985ft) on 62.5/125μm fibre; 10km (6.2mi) on 9/125μm fibre;
Operating Temperature: -10 to 85°C (14 to 185°F), 85%RH non-condensing;
Length Measurement
RJ-45 Port: TDR length measurement of 1-4 pair cables to 140m/460ft;
SFP Port: No length measurement of fibre optic cables;
Bit Error Rate Measurement
Copper: 10/100/1000Mbps. Error rates tested to IEEE 802.3ab standard;
Fibre: 1000Mbps. Error rates tested to IEEE 802.3ab standard;
Battery Life: Standard AA Alkaline Batterie
Copper Testing: Approx 15 hours @ 22 tests per hour (45s Autotest);
Fibre Testing: Recommend use of AC adaptors when testing fibre;
www.idealnwd.co.uk
Specifications
SignalTEK™ and SignalTEK™-FO
Ordering information
Description
Cable Installation Test & Certification
VDV PRO Copper Cable Verifier
The VDV PRO Cable Tester is an easy-to-use cable testing and verification device that can
quickly test all wiring requirements found throughout today’s residential and commercial
environments.
Voice – tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing
Data – tests wire map of shielded and unshielded cable to T568A/B standard
Video – tests coax cable for opens, shorts and length with F-Connector interface
Features and Benefits
• Larger backlit LCD screen for better test results
Interchangeable Small
Form-Factor Pluggable
port with duplex LC
connector
for fibre optic testing
Compact ergonomic
design puts fullfeatured VDV
functionality in the
palm of your hand
Simple four button
operation
Dockable remote
with RJ-11/12,
RJ-45, and Coax
(F-Connector)
interfaces.
Remote #1 stores
securely in the base
of the main unit for
ready availablity and
easy patch cable
testing
•
•
•
•
Remote ID
number on
display. UTP
indicated as “No
Shield” and STP
as “Shield.”
Large backlit
LCD displays
current test
mode, test
results and all
faults for the
various cable
types.
Display
automatically
warns of voltage
on lines and
shows a “PASS”
or “Miswire”
message after
each
test.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
readability
Selectable backlight
Network link LED blink for visual cable tracing
Voice testing capability detects RJ-11 (1, 2, or 3 pair)
Voice test also shows Normal or Reverse for pins 1
through 6
Length measurement is shown during initial test results
for convenience and time savings
Eight remotes have RJ-45, RJ-11 and Coax F-jacks for
increased testing capabilities
Tests for shield continuity, shorts, opens, miswires,
reversals and split pairs with remote connected
Full dot-matrix LCD display for user convenience to read
display results
One-ended testing for shorts, opens and split pairs
(no remote needed)
Test results displayed in wire map format with message
line for shorts and split pairs
Displays PASS and sounds beep (selectable) for T568A/B
Will display wiremap for 10Base-T and Token Ring with
remote connected
UTP, STP, and Coax length measurement in feet or metres
using cable capacitance method
Coax mapping with up to eight colour coded coax remotes
Tone generator mode sends four different tones on all
conductors, selected pair or selected pin
Auto-off in any mode and low power consumption for
long battery life
Low battery symbol indicates when to change battery
9V battery included and easy to change in the future as
needed
Identifies presence of voltage on cables
Cat. No.
VDV PRO w/one remote and terminator
33-770
VDV PRO w/eight remotes and terminators
33-771
VDV PRO Eight Remote Kit (ID 1-8)
33-774
Eight Coax Terminator Kit
33-775
VDV PRO w/one remote and amplifier probe
33-780
+44 (0)1925 444446 for Customer Service
Ordering information
Description
13
IENet™ PRO Industrial Ethernet Tester
The tester features a unique easy-to-use cable test for 2 pair and 4 pair Industrial Ethernet cabling. With shielded 2 pair, M12 and RJ-45 ports, the
IENet™ PRO is compatible with most Industrial Ethernet cabling. Test results are displayed in the PROFINET® Industrial Ethernet required format.
Features and Benefits
The IENet™ PRO tester makes it a snap to quickly verify wiring integrity
and assure proper terminations for diverse types of industrial cabling.
• Simple selection between Voice, 2 and 4 pair Data,
•
•
•
•
•
•
•
•
•
and Coax testing functions (Voice and Video/Security
tests via optional adaptors)
Tests for opens, shorts, miswires, reversals, split pair
(user selectable) and length
Indicates correct wiremap to T568A/B standards for
shielded and unshielded cabling
Easy-to-read LCD display with “PASS” or “Miswire”
indicator for each test
Identifies presence of voltages on cables
Tone generator supports four different tones making
fault isolation easier
Integrated remote unit to make storage and carrying
easier
Can support additional optional remotes making it
efficient for one person testing
Network LED blink for visual cable tracing
Numerical indication for UTP “No Shield” and STP “Shield” to comply with industrial ethernet PROFINET®
requirements
Integrated RJ-45 (UTP/STP)
and shielded M12 interfaces
on top of the unit
Large backlit LCD
displays user current
test mode, test results and all
faults for the various
cable types.
Display automatically warns
of voltage on lines and shows
a Pass or Miswire message
after each test.
Remote ID number indicated on
display, UTP indicated as “No
Shield” and STP as “Shield”
Compact ergonomic design puts
full-featured Industrial Ethernet
cable testing in the palm
of your hand.
A single button push immediately
selects between VOICE, 2 and 4 pair
DATA or VIDEO testing functions.
PROFINET® is a registered trademark of PROFIBUS International.
Detachable remote with
RJ-45 and shielded
M12 Coax interfaces.
Ordering information
14
Description
Cat. No.
IENet™ PRO w/single remote
33-772
IENet™ PRO w/eight remotes
33-773
Eight Coax Terminator Kit
33-775
IENet™ PRO Eight Remote Kit (ID 1-8)
33-776
RJ-45 to RJ-11 jack adaptor (2/card)
LA-4233
RJ-45 to F-Connector adaptor (2/card)
LA-4234
F to BNC Adaptor Kit
LA-4173
www.idealnwd.co.uk
Copper Cable Testing and Certification
SecuriTEST™ PRO CCTV/Security Tester
SecuriTEST™ PRO is the most versatile all-in-one installation and troubleshooting tool for the CCTV professional. CCTV installers often need to carry a
variety of testing tools to complete their work. SecuriTEST™ PRO combines the most-needed tools in one easy-to-carry package. Since all connections
(video/communications/DMM) attach to a single unit, SecuriTEST™ PRO eliminates the need to juggle several devices while on a ladder or lift, making
working conditions safer and increasing productivity.
Features and Benefits
•
•
•
•
•
•
•
•
•
IRE video level and sync tests
Sound level test through integrated speaker and on screen level indicator
High capacity lithium-ion battery
Support for additional PTZ protocols
Carrying case included
Seven Essential CCTV Tools - Combines a CCTV video tester, PTZ camera controller, Digital Multimeter, UTP cable tester, video test pattern
generator, PTZ protocol analyser and camera programmer in a single compact package.
Save Time & Money - Test, aim, focus and program cameras when working alone. Save time by not having to walk back to the control centre to
verify functionality of each camera.
Compact Design - Combines all the most needed security tools in a lightweight easy-to-carry unit. Sharp, bright 2.5 in. (6.3 cm) colour LCD
screen with on-screen displays for PTZ control/diagnostics and DMM readouts.
PTZ Protocol Analyser - Compatible with 20+ PTZ protocols to test and program cameras in the field. Decodes and identifies output from PTZ
console to aid in troubleshooting.
LLED Indicators
UTP Test Port
rt
Audio Input
ut
PPTZ Control Pad
IRE On/Off
TTest Lead Ports
Ordering information
Description
Cat. No.
SecuriTEST™ PRO CCTV/Security Tester only
33-892
+44 (0)1925 444446 for Customer Service
15
VDV MM - Multimedia Cable Tester
Voice — supports
Easy-to-use tester for installers working with voice, data and video applications.
One tester for all applications!
• Tests for opens, shorts, miswires, reversals and split pairs. Also indicates
correct wire map. Has automatic shut off (to prolong battery life) and low
battery indicator.
• Easy-to-read LCD display with “PASS or ERROR” indicator after each test
• Tone generator supports four different tones making fault isolation easier
• One remote wire map and testing unit is stored inside tester — easier to
keep all parts together
• Uniquely designed remote accommodates RJ-11, RJ-45 and F-style connectors
3-pair USOC and
6-position RJ-11/12
jacks for telephone
cable testing
Data — supports both
shielded and unshielded
cable testing to
T568A/B (RJ-45)
Video — tests coax cable
for opens and shorts with
F-connector interface
Description
Cat. No.
Kit with integrated remote and accessories
33-856
Test-Tone-Trace Kit
• Kit includes the VDV (33-856) and Amplifier Probe (62-164)
• Tests and traces coax, twisted pair and telephone cables
Description
Cat. No.
Test-Tone-Trace Kit
33-859
LinkMASTER ™ Tester
Tests wiring configurations on UTP/STP cables. Checks for shorts, miswires,
reversals and split pairs. Debug feature, automatic shut-off and low battery
LED indication.
Description
Cat. No.
LinkMASTER™ Tester and Remote
62-200
540DK Tone Generator & Amplifier Probe
•
•
•
•
•
•
•
16
Tracing and continuity checking of telecom and datacom cables
Ergonomic design aids grip and durability
Probe’s unique rubber tip won’t break or crack
LED lamp provides visual indication of correct wire
External terminals for butt-set connection
Volume adjustment knob
Batteries included
Description
Cat. No.
Tone Generator & Amplifier Probe
540DK
www.idealnwd.co.uk
Copper
Cable
Cable
Installation
Testing and
TestCertification
& Certification
PRO Amplifier Probe and Tone Generator
Tone Generator
•
•
•
•
Emits three different types of tones
Auto-off after three hours of non-use
F-Connector port for toning & tracing coaxial CATV cabling systems
Tone can be added in any status
Amplifier Probe
• Identifies and traces wire or cables within a group
• Battery low indicator
Description
Cat. No.
Amplifier Probe & Tone Generator Kit - includes:
62-164, 62-160, Lead Set, Cable Assembly
33-864
Amplifier Probe
62-164
Tone Generator
62-160
TRACETone™ Tone Generator & Amplifier Probe
•
•
•
•
•
Test continuity and locate signal of installed wire and cable
Two selectable tone styles
Tone Generator & Amplifier Probe fit together for easy storage
Adjustable volume control
RJ-11 Alligator Clip, RJ-11 Cable Assembly included
Description
Cat. No.
TRACETone™ Tester
62-140
Installation Tools, Connectors and Accessories
See page 47 for the full range of IDEAL INDUSTRIES NETWORKS installation tools, connectors and accessories
+44 (0
(0)19
(0)1925
)1925
25 444
444446
446 for
for Cus
Custom
Customer
tomer
er Ser
Servic
Service
vice
e
17
FIBRE OPTIC INSTALLATION,
TEST AND TROUBLESHOOTING
Fibre optics has revolutionised the bandwidth carrying capability of
modern networks and therefore the services which would otherwise be
impossible to provide. However, this capability is only as good as the quality
of installation. Installation is extremely sensitive and requires significant
attention to fibre preparation, quality of connection and cleanliness to
ensure maximum transmission of data.
end preparation ensuring the highest quality connection and minimum
loss of attenuation. The test range includes microscopes for connector
inspection, visual fault finders and a power meter light source for
troubleshooting and attenuation measurement. The OTDR range, suitable
for WAN and LAN, offers high accuracy results, reliable fault location and
excellent distinction between ‘real’ events and noise.
IDEAL INDUSTRIES NETWORKS provides an excellent range of products
for all LAN and WAN fibre installers to ensure quality fibre preparation,
testing and fault finding. The range of tools for preparation includes
strippers for outer jackets, serrated cutters, polishers & cleaning kits for
IDEAL INDUSTRIES NETWORKS fibre optic range is a comprehensive
installation kit and a must for all fibre installers ensuring high
quality installation with quick and easy test and troubleshooting
solutions.
18
www.idealnwd.co.uk
Fibre Optic Installation, Test and Troubleshooting
Fibre Optic Installation, Test and
Troubleshooting Range
Page 20
Page 9
Page 24
Page 26
Page 26
Lorem IPSUM
OTDR
FiberTEK FDX
FiberMASTER
Visual Fault
Finder
Fibre inspection
microscope
Visual
Visual
MM/SM
MM/SM
MM/SM
LED/Laser
LED/Laser
Certification to
international
standards
Fault location
Pass/Fail test results
Fibre modes
MM/SM
MM/SM
Bidirectional testing
via PC
Automatic
Light source type
Laser
LED/Laser
Tier 1 tests
Tier 2 tests
Documented test
results
Optical Power
measurement
Connector inspection
+44 (0)1925 444446 for
forCustomer
CustomerService
Service
19
Quad OTDR
33-960 Series
Designed with installers in mind, 33-960 Series Micro
OTDR offers excellent performance and ease of use
in a truly handheld, lightweight and rugged package.
Available as 850/1300/1310/1550 nm (multimode and
single mode) OTDR is ideally suited for the installation and
troubleshooting of LAN, campus and WAN fibre networks.
The models combine high measurement precision with
the user friendliness of one-button operation resulting in
accurate characterisation of connectors and splices in
addition to fast and reliable fault location.
With the 33-962-5 option, this OTDR provides clear
PASS/FAIL indication. Distance, loss and ORL for each
event is reported in a trace summary table making full
certification of the link possible. Each OTDR is shipped
in a kit containing everything you need to get started on
the job, including a ruggedised carry case, PC software,
rechargeable batteries and wall charger
Target Applications:
Tier-2 certification of premise and enterprise
networks that require OTDR testing. The
feature set of 33-960 Series Micro OTDRs is
perfectly matched to this application.
Increasing bandwidths in LAN and campus
fibre cabling demands more in-depth testing.
The 33-960 Series delivers all necessary
test functions in an extremely user-friendly
instrument.
Troubleshooting of fibre links requires an
accurate, easy to use OTDR. The high
specification and small form factor of the
33-960 series makes them perfect for
troubleshooting installations.
WAN and FTTH cabling requires an OTDR with
a high dynamic range. Offering a dynamic
range up to 29 dB, the 33-960 Series is more
than capable of the job.
20
www.idealnwd.co.uk
Fibre Optic Installation, Test and Troubleshooting
Features and Benefits:
• Short attenuation and event dead zones for accurate location and characterisation of events.
•
•
•
•
•
•
•
•
•
•
•
•
Suitable for even the shortest fibre links.
Two wavelength “autotest” function with automatic adjustment of test parameters
Manual mode allows users to define all test parameters
Real-time mode for troubleshooting. Useful when trying to identify intermittent problems.
Clear characaterisation of events
Fast data acquisition
Interchangeable fibre adaptors with a wide variety of available configurations
PC Software included. Reports in Bellcore™ format
Colour display
USB connection to thumbdrives or PCs.
Optional Certifying OTDR firmware
Optional macro bend detection on single mode fibres
Video inspection probe ready
Comprehensive PC Software
• Multilingual PC software is included as standard in all kits. This software is used to manage OTDR traces and test data. Downloads from the OTDR can be made
to a memory stick or directly through the USB interface to a PC.
• An AUTO mode makes interpretation of traces straightforward. The EXPERT mode allows more experienced users to evaluate test data using up to 4 markers
for attenuation in dB and dB/km, optical return loss and reflection.
• With adjustable PASS/FAIL limits, the software gives a clear indication of the quality of links being tested.
• The PC software allows export in Bellcore™ format, making test results compatible with world wide OTDR standards.
• The kit also includes a viewer for bi-directional tests, allowing the user to overlay A => B / B => A plots.
• Test results can also be printed or stored as PDF file
+44 (0)1925 444446 for
forCustomer
CustomerService
Service
21
33-962-5 Certifying OTDR and Macro Bend Detector Option
The Certifying OTDR option turns 33-960 Series OTDRs into full
certifying instruments with clear PASS/FAIL indication for every
link. A single summary screen delivers all key measurement
values. Installations that specify “Tier-2”certification will find this
option invaluable as it gives instant PASS/FAIL results for every
link without having to resort to cumbersome manual evaluation of
traces. It also benefits less experienced users by providing clear
decision points on whether a link is good or bad. The Macro Bend
Detector finds areas along the fibre where minimum bending
radii are undercut. Especially at splicing cassettes or patch
panels, macro bends can cause excessive attenuation.
Without this option macro bends are extremely hard to detect or
are often confused with splices.
Please note that this option cannot be
installed in the field.
It is a factory installed option only, so wherever possible should
be ordered at the same time as the main OTDR.
22
www.idealnwd.co.uk
Fibre Optic Installation, Test and Troubleshooting
33-960-2 Video Inspection Probe
Specifications
Poor cleanliness is the number one reason for failures in fibre optic
networks. The optional video probe helps users document and
troubleshoot fibre optic installations by providing visual inspection
of connectors. Unlike optical microscopes, video microscopes offer
100% eyesight protection plus the ability to store connector images
on the OTDR for later download and documentation.
Magnifications of 200x and 400x deliver crystal clear images of
connectors. In addition, a wide range of probe tips makes the video
probe a useful diagnostic tool in many different applications.
The 33-960-2 Video Inspection Probe is compatible with all 33-960
Series OTDRs which incorporate a video probe port as standard - no
upgrade is required to drive the probe.
Testing
Wavelength [nm]
850, 1300, 1310, 1550
Dynamic Range [dB]
24 / 25 / 29 / 28
Attenuation dead zone [m]
11 / 11 / 11 / 12
Pulse width [ns]
10, 30, 100, 275, 1000, 2500, 10000
Event dead zone [m]
2.5 worst case
Launch Conditions (MM)
Class CPR 1 or 2
Linearity [dB / dB]
± 0.03
Loss threshold [dB]
0.05
Loss resolution [dB]
0.01
Sampling resolution [m]
0.16 to 5
Sampling points
Up to 30000
Typical real time refresh [1/sec ] 4
Distance uncertainty [m]
± (0.75 + 0.0025% x distance + sampling resolution)
Distance range [km]
MM: 0.1 to 40 SM: 0.65 to 160
Stable source output power
[dBm]
MM: -1.5 SM -6.5
Laser Safety
21 CFR 1040.10 and IEC 60825-1:1993+A2:2001 /
Class 1M
Hardware
Ordering information
Quad OTDR Kit
Cat. No.
Memory capacity
500 traces
Data connectivity
USB A and USB B
Size (HxWxD) [mm]
250 x 125 x 75
Quad OTDR with 850/1300/1310/1550nm
Weight
1 kg
Ruggedised carrying case
Temperature
Operating: -18°C to 50°C, Storage: -40°C to 70°C
Batteries
2 x Li-Ion
PC-Software
CD with manual and Quick Reference Guide
33-960-3
Power supply (mains)
110 – 230 V AC
Wall charger
Power supply (unit)
9 - 24 V DC, 12 Watt
2x Li-Ion rechargeable batteries
Operating time
8 hours (per Bellcore™ TR-NWT-001138)
1x SC and 1 FC Adaptor
Warranty
1 year
Ordering information
Accessories
Cat. No.
200x and 400x video probe w. USB port
33-960-2
Certifying OTDR and Macrobend firmware (note: has to be ordered in advance or tester must be 33-962-5
returned to IDEAL service department)
Visual Fault Locator, red light laser source, 5 km reach
VFF5
Cleaning Kit
1219-00-1621
Rechargeable battery
4010-00-0001
Foldable USB Keyboard
33-960-4
Adaptor for FC connectors
33-961-1
Adaptor for SC connectors
33-961-2
Adaptor for ST connectors
33-961-3
Adaptor for E2000 connectors
33-961-4
Adaptor for DIN 47256 connectors
33-961-5
Adaptor for HMS-10/AG connectors
33-961-6
+44 (0)1925 444446 for
forCustomer
CustomerService
Service
23
FiberMASTER™ Fibre Optic Test Kit
Measure fibre optic power in milliwatts (mW) and decibel-milliwatts (dBm) to test and troubleshoot active LANs. Quickly measure cabling loss with the automatic
calibration feature that stores reference power from any light source for quick dB loss calculations. Plus, the 1490nm wavelength measurement mode is perfect
for troubleshooting emerging Fibre-To-The-Home cabling systems.
Features and Benefits:
FiberMASTER™ Kit Includes
• 33-926 Light source, 850nm LED with ST, SC and FC
adaptors (Basic Kit)
• 33-929 Light source, 850+1300nm, LED,
1310+1550nm, Laser Light source with ST, SC and FC
adaptors (Quad Kit)
• 33-927 Power Meter, 4 wavelength with universal
2.5mm and fixed FC adaptor
• 2x FC-SC 50 (1x SC-SC, 9μm single mode cable for
Quad Kit) multimode cables
• 1 SC calibration coupler
• Carrying case
• English, Spanish, German, French, Portuguese, Italian
and Chinese user manual
• Fibre Optic Power Meter & Light Source — Four wavelength power meter for
multimode and single mode testing, and 850nm multimode LED light source.
• Calibration Function — Stores reference power level for quick dB loss measurements
eliminating the need to manually calculate loss.
• Save Time and Money — Power meter features 2.5mm universal and FC adaptors,
light source includes ST, SC and FC adaptors to test the most common interfaces.
• Ready for FTTx — 1490nm measurement wavelength for use with nearly all single
mode Fibre-To-The Home applications.
• Designed for the Field — Unique “docking” light source and easy three-button
operation make this the perfect fibre tester for use in the field.
Cat. No.
850nm Fibre light source
33-926
Power Meter only
33-927
FiberBasic Fibre Optic Test Kit
33-928
Four wavelength MM/SM light source only
33-929
FiberMASTER™ Quad Optic Test Kit
33-931
Wavelength
850, 1300/1310, 1490, 1550nm
Detector
InGaAs -60 to +3dBm
Accuracy
±5%
Display Resolution
.01
Connector
Universal 2.5mm w/FC adaptor
Power Supply
AAA Alkaline Battery x 3
Operating Time
360 hours
Operating Temp
-10 to +60°C
Storage Temp
-25 to +70°C
Specifications
Power Meter
Ordering information
Description
Light Source
24
Wavelength
850, 1300, 1310, 1550nm laser diode
Output Power
-6 to -7 dBm Typical
Stability
.05dB after 15min, 0.1dB over 8 hrs
Connector
2.5mm w/ST®, SC, FC adaptors
Power Supply
AAA Alkaline Battery x 3
Operating Time
40 hours
Operating Temp
-10 to +60°C
Storage Temp
-25 to +70°C
www.idealnwd.co.uk
Fibre Optic Installation, Test and Troubleshooting
Optical Multimeter
Simple and Reliable Optical Loss Test Set
Description
Cat.No.
Optical Multimeter combining the functions of a 1310/1550 nm
Laser Source with a Power Meter. Includes Euro mains adaptor/
charger, rechargeable battery, SC/FC/ST connectors, RS232
cable, PC support software, user guide and carry case.
Specifications
Th Optical Multimeter combines the functions of a Laser
The
Source and a Power Meter into a single simple-to-use
Sou
instrument used to test fibre optic cables and equipment.
instru
The ppower meter is calibrated at a large number of
wavelengths to enable power measurements to be made
wavelen
on a wide range of Single Mode and Multimode fibre optic
cable systems.
cabl
Transmitter
Wavelengths
1310, 1550 nm
Output power
-7 dBm (typical)
Spectral width
< 10 nm
Output Stability
± 0.1 dB (long term, including warm-up time)
Warm-up time
10 min
Receiver
Wavelength range
800 nm to 1700 nm
Measurement range
+6 to -70 dB
Uncertainty
5%
General
RO2X0000
Dimensions
210 mm x 115 mm x 55 mm
Weight
540 g
Operating time
up to 28 hours
Optical Power Meter
For Quick and Easy Output Power Measurements
Specifications
I
IDEAL’S
Optical Power Meter features a robust design, wide
range of power measurement, high accuracy and long battery
ra
life. It is calibrated at a large number of wavelengths to enable
power measurements to be made on a wide range of Single
powe
Mode and Multimode fibre optic cable systems.
Basic Features
Wavelength range
800 to 1700 nm
Wavelength
calibration points: 850, 980, 1300, 1310, 1490, 1550 nm
Measurement range
+3 to -70 dBm
Resolution
0.01 dB
General
Description
Des
Cat.No.
Dimensions
175 mm x 82 mm x 33 mm
Optical Power Meter 850 to 1550 nm. Includes batteries,
SC/FC/ST connectors, user guide and carry case.
RO1X0000
Weight
325 g
Operating time
up to 45 hours
Optical Light Source
The Ideal Partner for Optical Equipment Installation and Troubleshooting
Th Optical Light Sources are simple to use transmitters that can be used in conjunction with other types of test equipment, such as power
The
meters and fibre identifiers, to test fibre optic cables. There are three types in the range to cater for up to four different wavelengths, on
me
Single Mode and Multimode fibre.
Singl
Cat.No.
Basic Features
Optical Laser Source with 850 and 1300nm wavelengths
primarily for testing Multimode fibres. Includes battery, SC/ST/FC
optical connectors, user guide and carry case.
RO6M0000
Wavelengths
850/1300, 1310/1550/1300/1310/1550 nm
Output power
-7 dBm (typical)
Optical Laser Source with 850, 1300, 1310 and 1550nm
wavelengths for testing Multimode and Single mode fibres.
Includes battery, SC/ST/FC optical connectors, user guide and
carry case.
RO6MS000
Spectral width
< 10 nm
Output Stability
± 0.1 dB (long term, including warm-up time)
Warm-up time
10 min
Optical Laser Source with 1310 and 1550nm wavelengths
primarily for testing Single mode fibres. Includes battery, SC/ST/
FC optical connectors, user guide and carry case.
RO6S0000
+44 (0)1925 444446 for
forCustomer
CustomerService
Service
Specifications
Description
General
Dimensions
175 mm x 82 mm x 33 mm
Weight
325 g
Operating time
up to 45 hours
25
Visual Fault Finder
Laser light source used to locate breaks, faulty splices and crimps
•
•
•
•
•
2.5mm Universal Adaptor for all ST, SC and FC connectors
Useful over a distance of 5km (3 miles)
Two AA batteries provide over 30 hours of continuous use
Slim, pocket-sized tool in rugged solid aluminum body
Nylon carrying case with belt loop included
Description
Cat. No.
Visual Fault Finder
VFF5
Fibre Inspection Microscope
• 100X magnification for viewing multimode connectors
• Includes 2.5mm connector “Universal Adaptor” for FC, ST
and SC style connectors
• Oblique illumination provides excellent view of ferrule
cleanliness and core condition
• Rugged, rubberised metal housing, precision glass optics
•
•
and a built-in laser safety filter
White LED illumination delivers 100,000 hours bulb life
Optional 200X Conversion Eyepiece threads on for viewing
finish/polish of single mode connectors
Description
Cat. No.
Fibre Inspection Microscope w/carrying case
45-332
1.25mm Connector Adaptor
45-334
MTRJ-Style Connector Adaptor
45-335
200X Conversion Eyepiece for Single mode Connectors
45-336
Optical Fibre Identifier
Non Intrusive Traffic Detector for Optical Fibre
The Fibre Identifier is an essential installation and maintenance
tool used to identify power and traffic direction in jacketed
or bare fibre without service interruption. The clamp design
allows the tester to detect light in the fibre without damage
or disconnection and with low bending loss. By inserting the
fibre into the adaptor head and closing the jaws of the identifier
around the fibre, the optical power inside the fibre can be
detected.
Description
Cat.No.
Optical Fibre Identifier. Includes battery, adaptors
for 3mm, 2mm, 0.9mm and 0.25mm fibres,
RO4X0000
user guide and carry case.
FIBRE TOOLS AND ACCESSORIES
See page 47 for the full range of IDEAL INDUSTRIES NETWORKS Fibre tools and accessories
26
www.idealnwd.co.uk
I.T. Network Test & Analysis
I.T. Network Test & Analysis
LanXPLORER PRO - In-Line Network Tester ........................................................ 30-33
Unsurpassed test capability for Local Area Network management with state-of-the-art touchscreen interface and large clear colour display.
+44 (0)1925 444446 for Customer Service
27
I.T. Network Test & Analysis
Today’s enterprise networks are a dynamic environment with ever increasing demands and changes. With multiple users, more services, security
issues, expanding infrastructure and new technologies, monitoring the
network through various media poses real challenges to the I.T. administrator, frontline technician or integrator. Networks are also expanding into
new environments such as industrial ethernet. The opportunities for problems are becoming increasingly frequent in a world where businesses are
becoming more reliant on their performance.
28
IDEAL INDUSTRIES NETWORKS range of hand held test devices offer a
comprehensive range of active and passive network test capability from
basic cabling faults through to network monitoring, PC diagnostics and
VoIP QoS amongst many others. This range delivers high performance
test and troubleshooting capability in LAN, WLAN and VLAN networks over
copper, fibre and WiFi. With easy to use menu navigation and complete
portability, problems are identified and located fast and effectively ensuring minimum downtime and saving money.
www.idealnwd.co.uk
I.T. Network Test & Analysis
I.T. Network Test & Analysis Range
Page 30
LanXPLORER
Page 34
Lorem IPSUM
SignalTEK
Page 34
Page 34
VDV PRO
IENet™ PRO
Continuity and length
measurement
Distance to fault
Ethernet speed
Cable qualification
Fibre option
PoE/PoE+ tests
Network discovery and
verification
Ethernet packet and data error
statistics, Top 10
VoIP Tests
EDP, CDP, LLDP, VLAN and
802.1.X support
Industrial mode
+44 (0)1925 444446 for Customer Service
29
LanXPLORER PRO
In-Line Network Tester
LanXPLORER PRO is an outstanding In-Line Active and Passive network tester
from IDEAL INDUSTRIES NETWORKS. It offers unsurpassed test capability for
Local Area Network management with state-of-the-art touchscreen interface and
large clear colour display.
LanXPLORER PRO is a high quality, powerful, convenient and easy to use
tester unrivalled by any other product available today.
With full In-Line and Endpoint test capabilities, LanXPLORER PRO tests not only
copper cables but also active LAN connections over copper and fibre links. In
addition, it liberates the user from cables by allowing most tests to be conducted
through a wireless connection offering unparalleled flexibility. With such
comprehensive test capability and ease of use, LanXPLORER PRO is the perfect
tool to meet the needs of professional IT installers and systems administrators in
any enterprise, campus or industrial Ethernet environment.
Features and benefits
Comprehensive Testing Capability
The LanXPLORER PRO is the most comprehensive network tester on the
market with extensive test capability in Copper and Fibre.
Network Tests over Copper & Fibre
• Identification of active devices with Network Discovery function
• Comparison of active network devices against historical data with
Network Verify
• DHCP client, Ping and Traceroute tests with VLAN support
• Full bandwidth Layer 1,2,and 3 Loopback device
• Diagnostic statistics including Top Ten talkers, protocols, error
generators and packet size distribution
Copper Features
• Best-in-class Wiremapper - tests cables by pin as well as by pair with
split pair detection and length measurement
• Wire tracing function in combination with an Amplifier Probe
• Detection of PoE and PoE+, with voltage, current and power
measurements in endpoint and In-Line modes
• Hub blink test with colour-switching on supported devices
• 10/100/1000 BASE-T support
• Network monitoring with In-Line tests and PC diagnosis function
• Monitoring of VoIP calls and quality, including RTP Jitter
Optical Fibre Features
• Single mode and Multimode SFP options
• 1000 BASE-SX, LX and ZX support
• Hub blink
WiFi Features
• Identification of active network devices with Network Discovery function
• Comparison of active network devices against historical data with
Network Verify
• DHCP client, Ping and Traceroute tests with VLAN support
• 802.11 b,g and n support
• Identification of access points, Service Set Identifiers (SSID), channels
in use, signal strength and security settings
• Detection of channel conflicts
• Optional - see back page for details
Two other products exist in the LanXPLORER family:
• LanXPLORER – Standard model
• LanXPLORER PLUS – Standard model plus WiFi
30
www.idealnwd.co.uk
I.T. Network Test & Analysis
LanXPLORER PRO
The LanXPLORER PRO redefines ‘Simplicity
of Use’. Through its state of the art QVGA
3 ½” Colour Touchscreen display, the
LanXPLORER PRO replaces the complex
menu navigation of existing products with a
revolutionary Touch ‘n’ Test system. Testing
with LanXPLORER is simple and fast.
Results are easy to interpret through its high
resolution graphic display.
Simplicity of Use
Touchscreen menu navigation allows tests
to be completed within three stepsa
Virtual Keyboard allows easier and much
faster data inputs
Crystal clear graphical interpretation of
results like Wiremap through large
3 ½” QVGA colour display
WiFi
USB Interface & Internal Memory
WiFi port provides wireless access
to LANs for testing
Internal memory for up to 100 tests in XML format.
Job manager for efficient organization of results.
Data exportable to PC via USB flash drive
SFP Fibre Slot
QVGA 3 ½” Colour Touch Screen
Fibre test capability
Large colour display makes easy
interpretation of graphical results plus
Touchscreen offers very easy
menu navigation
Multifunction Softkeys
For easy menu navigation
RJ-45 Connection
Autotest
For testing copper connections
Pre-programmable function
allows fast and easy testing of
common applications Preprogrammable function
allows fast and easy testing of
common applications
Exchangeable RJ-45 Inserts
Allows easy and cheap replacement
of RJ-45 sockets
In-Line Test
Full In-Line Test capability over Copper
Cursor Keys
Alternative navigation method
according to user preference
Mains Charger Input
Tester can operate from
replaceable dry cells,
mains supply or on board
rechargeable long runtime battery
Rubber Moulded Housings
Ergonomically designed rubber
housings offering both comfortable
feel and robust design
Functions
LanXPLORER
LanXPLORER PLUS
LanXPLORER PRO
Advanced Wiremap and Wire Trace
PoE / PoE+ testing
Network Discovery
Network Verify
DHCP, Ping, Traceroute, VLAN
Endpoint LAN Testing over Copper
Port discovery: LLDP, EDP, CD
LAN Testing over WiFi
Loopback Mode
LAN Testing over Optical Fibre
Touchscreen
+44 (0)1925 444446 for Customer Service
31
32
Cat. No.
150002
150003
150004
150005
150000
150001
www.idealnwd.co.uk
Ordering information
Description
LanXPLORER
1x LanXPLORER Test Unit, 1x Remote Unit #1, 6 x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables,
30cm, Cat. 5e STP, 1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case
LanXPLORER – PREMIUM Package
1x LanXPLORER Test Unit, 1x Remote Unit #1, 1x NiMH Battery Pack,
2x Patch Cables, 30cm, Cat. 5e STP, 1x Power Supply w EU/UK adaptor,
1x IDEAL Amplifier Probe 62-164, 1x Manual on CD,
1x Quick Reference Guide, 1x Carrying Case,
1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts
LanXPLORER PLUS
1x LanXPLORER PLUS Test Unit, 1x Remote Unit #1, Cat. 5e STP,
6x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables, 30cm,
1x External USB high sensitivity WiFi Antenna
1x Manual on CD, 1x Quick Reference Guide,
1x External USB high sensitivity WiFi Antenna
1x Carrying Case
LanXPLORER PLUS – PREMIUM Package
1x LanXPLORER PLUS Test Unit, 1x Remote Unit #1,
1x NiMH Battery Pack, 2x Patch Cables, 30cm, Cat. 5e STP,
1x Power Supply w EU/UK adaptor, 1x IDEAL Amplifier Probe 62-164,
1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case,
1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts
LanXPLORER PRO
1x LanXPLORER PRO Test Unit, 1x Remote Unit #1,
6x AA Dry Cell Batteries (non-rechargeable), 2x Patch Cables, 30cm, Cat. 5e STP,
1x Manual on CD, 1xQuick Reference Guide,
1x External USB high sensitivity WiFi Antenna
1x Carrying Case
LanXPLORER PRO – PREMIUM Package
1x LanXPLORER PRO Test Unit, 1x Remote Unit #1,
1x NiMH Battery Pack, 2x Patch Cables, 30cm, Cat. 5e STP,
1x Power Supply w EU/UK adaptor, 1x IDEAL Amplifier Probe 62-164,
1x External USB high sensitivity WiFi Antenna
1x Manual on CD, 1x Quick Reference Guide, 1x Carrying Case,
1x RJ-45 Insert Extraction Tool , 10 x Lifejack RJ-45 Inserts
I.T. Network Test & Analysis
Accessories
1x Active Remote # 1
Active Remote set #2 to #6
Active Remote set # 2 – 12
1x NiMH Battery Pack
2x Patch Cables, 30cm, Cat. 5e STP
1x Power Supply w EU/UK adaptor
1x Hanging Strap Set
1x RJ-45 Insert Extraction Tool, 10 x Lifejack RJ-45 Inserts
1 x External USB high sensitivity WiFi Antenna
1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex
multimode cables and SC/SC duplex adaptor
1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex
single mode cables and SC/SC duplex adaptor
1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex
single mode cables and SC/SC duplex adaptor
1x IDEAL Amplifier Probe
1x Fibre Tip Pen Cleaner for ST-, SC- and FC- Adaptor
1x Fibre Tip Pen Cleaner for LL/MU - Adaptor
Optical fibre multimode 2m duplex cable with LC-LC connectors
Optical fibre single mode 2m duplex cable with LC-LC connectors
+44 (0)1925 444446 for Customer Service
Cat. No.
150054
150059
150050
150053
150055
150052
3010-12-0097
150058
150061
MGKSX1
MGKLX2
MGKZX3
62-164
33-963-10
33-963-11
150056
150057
33
Other products for I.T. Network Test & Analysis
SignalTEK™ & SignalTEK™ FO
Gigabit and Multimedia Ethernet Qualifier
SignalTEK™ provides a technically innovative method to test and document performance of voice,
data, video and VoIP applications for cabling installers and network technicians. It tests the link’s
ability to support applications by transmitting Ethernet packets on the wire and measuring the link
performance according to IEEE 802.3ab Gigabit Ethernet standard. By monitoring transmitted and
received data packets, it can report the BERT (Bit Error Rate Test) for the link.
Full Details on Page 11
VDV PRO Copper Cable Verifier
The VDV PRO Cable Tester is an easy-to-use cable testing and verification device that can quickly test
all wiring requirements found throughout today’s residential and commercial environments.
Voice – tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing
Data – tests wire map of shielded and unshielded cable to T568A/B standard
Video – tests coax cable for opens, shorts and length with F-Connector interface
Full Details on Page 13
IENet™ PRO Industrial Ethernet Tester
The tester features a unique easy-to-use cable test for 2 pair and 4 pair Industrial Ethernet cabling. With
shielded 2 pair, M12 and RJ-45 ports, the IENet™ PRO is compatible with most Industrial Ethernet
cabling. Test results are displayed in the PROFINET™ PRO Industrial Ethernet required format.
Full Details on Page 14
34
www.idealnwd.co.uk
WAN Access
WAN Access
MultiPRO .................................................................................................................................... 38
The MultiPRO family of handheld modular tools provides a flexible solution for testing Triple Play,
Gigabit Ethernet, xDSL and SDH Copper and Optical-based Telecom systems.
UniPRO GbE .............................................................................................................................. 41
Low-cost, high-value tester designed for the roll-out and
maintenance of Access, Metro and Carrier Ethernet networks.
UniPRO VoIP ............................................................................................................................ 42
Rugged, light and compact tester for wired and wireless VoIP service verification.
MC2+............................................................................................................................................. 43
Cost-effective tester for the installation and maintenance of ADSL, ADSL2 and ADSL2+ networks
UniPRO Gbis ............................................................................................................................. 44
Our revolutionary tool for testing all types of G.SHDSL service. It combines a state-of-the-art DSL
engine with a range of useful copper layer fault checks into a compact, hand-held, battery-powered tester.
AuroraPRESTO........................................................................................................................ 45
Handheld tester used for verification of ADSL, ADSL2, ADSL2+, READSL and SHDSL services.
AuroraSONATA ...................................................................................................................... 45
All-purpose ISDN test tool for field technicians
WAN Access Testing
While Ethernet and IP are now the dominant technologies used within Local
Area Networks to deliver information services to end users, transport mechanisms to carry these technologies over Metro and Wide Area Networks are
more diverse. IDEAL INDUSTRIES NETWORKS offers a broad range of test
equipment for use in these telecom networks.
The telecom user’s fundamental needs are the same as in LAN – test equipment which can tell him if his system is working, how well and if not, why. But
the diversity of the transport technologies in the telecom access arena creates requirements for testers which can also solve a number of different problems. The Ethernet-based services are often carried over systems such as
DSL and SDH, and these systems require special techniques to analyse their
performance and diagnose faults. Even where Ethernet is itself the transport technology right across the WAN, new issues arise which can affect the
Quality of Service and hence require testing. All services demand a certain
bandwidth, and it is important to qualify the WAN transport system to confirm
36
that the required throughput is reliably available, and to pinpoint any potential bottlenecks. But certain services are also sensitive to other more subtle
characteristics of the end-to-end connections that the WAN provides to link
remote LANs together. Voice services, for example, are affected by excessive
latency, which causes disturbing delays in two-way conversations. And video
quality is degraded by jitter which results in picture break-up. Ensuring that
the demanded Quality of Service is delivered requires some quite complex
tests, but these need to be performed by test equipment that presents the
answers in a simple and meaningful way.
All of IDEAL INDUSTRIES NETWORKS’ telecom access test products are
based on this premise, letting the user know what is happening, from the
simplest of physical connection problems right up to complex high-layer performance faults, in a way which gives busy telecom engineers tools optimised
for the way they work, so that they can quickly get on with the job of maintaining their networks.
www.idealnwd.co.uk
WAN Access
WAN Access Range
Page 38
Page 41
MultiPRO
UniPRO
GbE
Page 42
Page 43
Page 44
UniPRO
MC2+
UniPRO Gbis
VoIP Lorem IPSUM
Page 45
Page 45
Aurora
Presto
Aurora
Sonata
ADSL
VDSL
G.SHDSL
GbE
SDH
Copper
Interface
Fibre Interface
WiFi Interface
Triple Play Data
Triple Play VoIP
Triple Play Video
Copper test
ISDN BRI
ISDN PRI
+44 (0)1925 444446 for Customer Service
37
MultiPRO
The MultiPRO family of handheld modular tools provides a flexible solution for testing Triple Play, Gigabit Ethernet, xDSL and SDH Copper and Optical-based
Telecom systems. Using plug and play interchangeable interface modules (PIMs) fitted to a base platform in seconds, the MultiPRO testers are designed with a wide
range of users in mind, for specific or multiple applications, from a quick check to in-depth analysis, in installation, maintenance and troubleshooting situations.
With their high definition graphical touchscreen controls, outstanding battery life and rugged design, the MultiPRO testers are always ready to solve the problems
of the busy Telecom engineer.
Features and Benefits
•
•
•
•
•
•
•
5.7” TFT LCD ¼ VGA Touchscreen
Graphical User Interface
On-screen context-sensitive help system
Powerful report generation and wide range of connectivity for exporting
Dimensions up to 320 x 150 x 120 mm (depending on PIM fitted)
Weight up to 2.5 kg (depending on PIM fitted)
Battery life 4 to 6 hours (depending on test conditions and PIM fitted)
MultiPRO Triple Play
The MultiPRO platform can be used to test Triple Play services over fast Ethernet without the need for any PIM, or over Gigabit Ethernet, xDSL or SDH with the
addition of the relevant PIM. It ensures correct end-to-end operation of services delivered over converged networks just as they are experienced by the customer.
Features and Benefits
•
•
•
•
Tests Voice, Video and Data services
Intuitive Quality of Experience (QoE) tests, including Mean Opinion Score and R-Factor
Tests at every layer of the protocol stack
SIP VoIP support, on-screen live Video (MPEG2) and Web Browser
Ordering information
Description
38
Cat. No.
MultiPRO TP/IP
MultiPRO Tester for
testing Data, VoIP
and Video services
via 10/100 Ethernet.
Includes compact carry
case, PSU, Ethernet
crossover and straight
cables and user guide.
RMZX0000
MultiPRO TP/
IP Plus
MultiPRO Tester for
testing Data, VoIP and
Video services, including
tests for Video MOS
and Advanced QoS,
via 10/100 Ethernet.
Includes compact carry
case, PSU, Ethernet
crossover and straight
cables and user guide.
RMZP0000
www.idealnwd.co.uk
WAN Access
MultiPRO Copper
MultiPRO Copper is a 30Mhz tester for qualifying and troubleshooting telephone-grade copper for carrying xDSL services. Its comprehensive set of spectrumbased tests enables an in-depth analysis of every servic
service-affecting parameter to be presented in a form understandable by expert and casual users alike.
Features and Benefits
•
•
•
•
•
•
200Hz to 30MHz qualification
Graphical results, displayed as plots against frequency
Results with pass/fail indications and customisable limit masks
Digital Multimeter and Time Domain Reflectometer built-in
Full range of transmission tests
Low-cost Transponder for double-ended tests
Cat. No.
MultiPRO Copper Plus
MultiPRO Tester with Copper PIM for testing up to 30MHz (and Advanced Triple Play via 10/100 Ethernet.)
Includes full size case, PSU, 4mm Plug/Clip line cables, Ethernet x-over and straight cables, Active Probe,
earth ref cable, C of C and user guide.
RMQ30P00
MultiPRO Copper Suite
MultiPRO Tester with Copper PIM up to 30MHz (+ Advanced TP via E‘net.) Includes Transponder with batts,
Pair Tracer Probe, full case, PSU, 4mm Plug/Clip cables, E‘net x-over and st cables, Active+Passive Probes,
earth ref cables, C of C and user guide.
RMQ30S00
MultiPRO Copper
MultiPRO Tester with Copper PIM for testing up to 6MHz (and Triple Play via 10/100 Ethernet.) Includes full
size case, PSU, Ethernet x-over and straight cables, Active Probe, 4mm Plug/Clip line cables, earth reference
cable, C of C and user guide.
RMQ60000
Copper PIM
Copper PIM for conversion of MultiPRO to MultiPRO Copper. Includes Active Probe, test & earth cables,
Certificate of Calibration & user guide. Requires a 405488 earthed PSU if upgrading a pre-2010 MultiPRO
equipped with a 2-pin PSU.
RMQUP000
MultiPRO Copper
Transponder
Far End Transponder for use with MultiPRO Copper for end-to-end Attenuation, SNR and FEXT tests. Includes 405049
carry bag, non-rechargeable batteries, 4mm Plug/Clip line cables and earth reference cable. Can be
powered from a MultiPRO or accessory PSU.
Ordering information
Description
MultiPRO xDSL
A range of PIMs is available to allow MultiPRO to interface to and test xDSL services
from the physical layer through to the Triple Play services in the application layer.
Features and Benefits
• ADSL (Annex A/B), ADSL2+ (AnnexA/B) and VDSL2 PIMs available
• Emulates CPE (ATU-R / VTU-R)
Cat. No.
MultiPRO ADSL
MultiPRO Tester with ADSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL(2+)
RMA00000
(Annex A and B). Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11, RJ-45 and
Plug/Clip DSL cables and user guide.
MultiPRO ADSL Plus
MultiPRO Tester with ADSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS, via RMAP0000
10/100 Ethernet and ADSL (2+) (Annex A and B). Includes full size case, PSU, Eth x-over and straight cables,
RJ-11 and RJ-45 DSL cables, user guide.
ADSL PIM
ADSL Pluggable Interface Module for conversion of any MultiPRO to MultiPRO ADSL or MultiPRO Plus to
Multipro ADSL Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.
RMAUP000
MultiPRO DSL (A)
MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL(2+)
(Annex A) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11 and
Plug/Clip DSL cables and user guide.
CMUA0000
MultiPRO DSL (A) Plus
MultiPRO Tester with DSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS, via
10/100 Ethernet and ADSL (2+) (Annex A) and VDSL. Includes full size case, PSU, Eth. x-over and straight
cables, RJ-11 + Plug/Clip DSL cables, user guide.
CMUAP000
+44 (0)1925 444446 for Customer Service
Ordering information
Description
39
MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL (2+)
(Annex B) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11, RJ-45
and Plug/Clip DSL cables and user guide.
RMUB0000
MultiPRO DSL (B) Plus
MultiPRO Tester with DSL PIM for testing Data, VoIP and Video, including Video MOS and Advanced QoS,
via 10/100 Ethernet and ADSL (2+) (Annex B) and VDSL. Includes full size case, PSU, Ethernet x-over and
straight cables, RJ-11 and RJ-45 DSL cables, user guide.
RMUBP000
DSL (A) PIM
VDSL (+ADSL Annex A) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (A) or
MultiPRO Plus to MultiPRO DSL (A) Plus. Includes RJ-11 and Plug/Clip DSL cables.
CMUAUP00
DSL (B) PIM
VDSL (+ADSL Annex B) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (B) or
MultiPRO Plus to MultiPRO DSL (B) Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.
RMUBUP00
MultiPRO DSL (A)
MultiPRO Tester with DSL Interface for testing Data, VoIP and Video via 10/100 Ethernet and ADSL (2+)
(Annex A) and VDSL. Includes full size carry case, PSU, Ethernet crossover and straight cables, RJ-11 and
Plug/Clip DSL cables and user guide.
CMUA0000
DSL (B) PIM
VDSL (+ADSL Annex B) Pluggable Interface Module for conversion of any MultiPRO to MultiPRO DSL (B) or
MultiPRO Plus to MultiPRO DSL (B) Plus. Includes RJ-11, RJ-45 and Plug/Clip DSL cables.
RMUBUP00
Ordering information
MultiPRO DSL (B)
MultiPRO SDH
MultiPRO SDH is a comprehensive
sive
tester for installation and
maintenance of SDH, PDH and
Ds-n networks up to 2.5Gb/s.
With its auto-configuration and
pass/fail results structure it allows
ws
non SDH experts to master the
complex world of SDH testing with
ease.
Features and Benefits
•
•
•
•
BERT, performance, traffic generation and physical layer tests
Optical and electrical interfaces
Graphical histogram display of results
Supports all parts of the hierarchy up to STM-16
MultiPRO SDH STM-16
Plus
MultiPRO SDH STM-1
MultiPRO Tester with SDH PIM for testing PDH/SDH services up to STM-1. (Can also test Triple Play services
via 10/100 Ethernet.) Includes full size carry case, PSU, Ethernet crossover and straight cables, BNC cable,
CofC and user guide. Not including SFP.
MultiPRO SDH STM-4
Plus
MultiPRO Tester with SDH PIM for Advanced testing of PDH/SDH services up to STM-4 (and Advanced Triple
Play, via 10/100 Ethernet.) Includes full size carry case, PSU, Ethernet x-over and straight cables, BNC cable,
CofC and user guide. Not including SFP.
SDH PIM
SDH Pluggable Interface Module for conversion of any MultiPRO to MultiPRO SDH. Includes BNC cable and
Certificate of Calibration. Does not include any SFP.
RM6UP000
Headset for use with MultiPRO and UniPRO VoIP function
022758
Copper Pair Tracer Probe
SDH Cable Kit
Non-contact cable tracing probe for use with MultiPRO Copper Transponder. Includes battery.
024241
M6CK00
SDH Fibre Kit
STM-1 Fibre Kit for use with MultiPRO SDH. Includes 1310 and 1550 nm SFP (Small Form factor Pluggable) transceivers,
15dB attenuator for Short Haul applications, and Duplex LC cable.
M6FK00
SDH Plus Fibre Kit
STM-16 Fibre Kit for use with MultiPRO SDH and MultiPRO SDH Plus. Supports all SDH/PDH rates up to STM-16. Includes
1310 and 1550 nm SFP (Small Form factor Pluggable) transceivers, 15dB attenuator for Short Haul applications, and
Duplex LC cable.
M6PFK0
GbE Fibre Kit LX
1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex
single mode cables and SC/SC duplex adaptor.
MGKLX2
GbE Fibre Kit SX
1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex
multimode cables and SC/SC duplex adaptor.
MGKSX1
GbE Fibre Kit ZX
1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex
single mode cables and SC/SC duplex adaptor.
MGKZX3
Accessories
VoIP Headset
40
Cat. No.
MultiPRO Tester with SDH PIM for Advanced testing of PDH/SDH services up to STM-16 (and Advanced Triple RM16P000
Play, via 10/100 Ethernet.) Includes full size case, PSU, Ethernet x-over and straight cables, BNC cable, CofC
and user guide. Does not include SFP.
SMB-BNC, 120ohm RJ-45 crossover and Plug/Clip cables for use with MultiPRO SDH and MultiPRO SDH Plus.
RM600000
RM640000
www.idealnwd.co.uk
Ordering information
Description
WAN Access
UniPRO GbE
Quick and Efficient Ethernet Service Testing
UniPRO GbE is a low-cost, high-value tester designed for the roll-out and maintenance of Access, Metro and
Carrier Ethernet networks. Thanks to its dual optical and electrical ports, the tester can be connected to any
point on the network. The complete set of features of UniPRO GbE enables you to thoroughly verify any Ethernet
rnet
service from the physical layer to the IP layer.
UniPRO GbE is an efficient field tester that combines simplicity with advanced features, supporting all the latest
test
Ethernet and IP standards.
UniPRO GbE has two electrical RJ-45 interfaces and two optical SFP GBICs which make bidirectional traffi
affic
monitoring really easy.
Specifications
Physical Interfaces
Dual Electrical
10/100/1000 Mbit/s RJ-45
Dual Optical
100/1000 Mbit/s SFPs
Loopback operation
Physical (L1), Ethernet (L2) and IP(L3)
Testing
Modes
End point, Through mode, Monitor Mode
Tests
Cable tests, optical power, PoE, autonegotiation RFC 2544, Traffic statistics, QoS statistics, BERT Ping and trace-route, User configurable
Error Insertion
UniPRO GbE Loopback only
Optional
Traffic Generation
Generation of custom MAC frames, VLAN frames, Q-in-Q frames, IPv4 and IPv6 over Ethernet Generation of Ethernet user priority bits, IP
ToS/DSCP bits
Custom bandwidth profiles
Constant, burst and ramp
Results
LED set for test status; Frame Stats, Error Counts, QoS Stats, PoE, Physical Link, Stats
General
Dimensions
120 (W) x 270 (H) x 60 (D)
Weight
Approximately 1 kg
Battery life
Minimum 4 hrs
Cat. No.
UniPRO GbE DE
UniPRO Gigabit Ethernet Tester with dual Electrical Ethernet test ports. Includes carry case, PSU, Ethernet cable,
Certificate of Calibration and user guide.
RPGDE000
UniPRO GbE DE Plus
UniPRO Gigabit Ethernet Tester with dual Electrical Ethernet test ports and Multistreaming, Asymmetrical RFC2544
and Top Errors. Includes carry case, PSU, Ethernet cable, Certificate of Calibration and user guide.
RPGDEP00
UniPRO GbE Duo
UniPRO Gigabit Ethernet Tester with dual Optical and Electrical Ethernet test ports. Includes carry case, PSU, Ethernet
cable, Certificate of Calibration and user guide.
RPGDOE00
UniPRO GbE Duo Plus
UniPRO Gigabit Ethernet Tester with dual Optical and Electrical Ethernet test ports and Multistreaming, Asymmetrical
RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certificate of Calibration and user guide.
RPGDOEP0
UniPRO GbE Loop
UniPRO Gigabit Ethernet Loopback Unit with single Optical and Electrical Ethernet ports. Includes carry case, PSU,
Ethernet cable, Certificate of Calibration and user guide.
RPGL0000
UniPRO GbE SE
UniPRO Gigabit Ethernet Tester with single Electrical Ethernet test port. Includes carry case, PSU, Ethernet cable,
Certificate of Calibration and user guide.
RPGSE000
UniPRO GbE SE Plus
UniPRO Gigabit Ethernet Tester with single Electrical Ethernet test port and Multistreaming, Asymmetrical RFC2544
and Top Errors. Includes carry case, PSU, Ethernet cable, Certificate of Calibration and user guide.
RPGSEP00
UniPRO GbE Solo
UniPRO Gigabit Ethernet Tester with single Optical and Electrical Ethernet test ports. Includes carry case, PSU,
Ethernet cable, Certificate of Calibration and user guide.
RPGSOE00
UniPRO GbE Solo Plus
UniPRO Gigabit Ethernet Tester with single Optical and Electrical Ethernet test ports and Multistreaming, Asymmetrical RPGSOEP0
RFC2544 and Top Errors. Includes carry case, PSU, Ethernet cable, Certificate of Calibration and user guide.
Ordering information
Description
Accessories
GbE Fibre Kit LX
1000BASE-LX Fibre Kit. Includes 1310nm SFP (Small Form factor Pluggable) LX transceiver, LC/LC and LC/SC duplex
single mode cables and SC/SC duplex adaptor.
MGKLX2
GbE Fibre Kit SX
1000BASE-SX Fibre Kit. Includes 850nm SFP (Small Form factor Pluggable) SX transceiver, LC/LC and LC/SC duplex
multimode cables and SC/SC duplex adaptor.
MGKSX1
GbE Fibre Kit ZX
1000BASE-ZX Fibre Kit. Includes 1550nm SFP (Small Form factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex MGKZX3
single mode cables and SC/SC duplex adaptor.
+44 (0)1925 444446 for Customer Service
41
UniPRO VoIP
Compact Testing Solution for VoIP and VoWLAN
UniPRO VoIP is a compact tester for wired and wireless VoIP service verification. Its rugged, light and bespoke design makes it suitable for field technicians working
for service providers and enterprises. UniPRO VoIP offers real-time MOS measurement rating of emulated VoIP calls, SIP Message traces and analysis of data
services.
Specifications
Physical Interfaces
2 x 10/100BASE-T Ethernet full duplex IEEE
802.11b/g WiFi
Tests
VoIP phone emulation
SIP message trace
Traffic statistics (IP, Ethernet, WiFi) and QoS
statistics (packet loss, delay and jitter)
MOS and R-Factor analysis; Ping and
Traceroute;FTP, HTTP tests
Additional Features
Support for DHCP and PPPoE with PAP and CHAP;
Support of WEP and WPA for wireless
Support of STUN for NAPT transversal
Features and Benefits
•
•
•
•
•
•
•
Quick boot up time and long battery life
Rugged design
Wired and wireless VoIP telephone emulation
Web Interface
MOS and R factor rating of VoIP Calls
SIP protocol trace
HTTP and FTP performance tests
Ordering information
Description
UniPRO VoIP
42
Cat. No.
UniPRO Tester for testing SIP Voice over IP services via 10/100 Ethernet and WiFi connections, with
Advanced QoS tests. Includes carry case, PSU, Ethernet cable and user guide.
RPPX0000
www.idealnwd.co.uk
WAN Access
MC 2+
Compact One Button ADSL/ADSL2/ADSL2+ testing solution
The MC2+ is a cost-effective tester for the installation and maintenance of ADSL, ADSL2 and ADSL2+ networks. Designed for both field applications and
telephone exchanges, this tester quickly checks all network layers, detecting any issue affecting them. Test results are presented by using a line identification ringer,
multicolour LEDs and an easy-to-read screen.
Features and Benefits
•
•
•
•
•
•
•
•
•
•
Small, robust and cost-effective
Quick and easy automatic testing
Endpoint and Through modes
Full ADSL, ADSL2, ADSL2+ and
RE-ADSL2 support
IP ping test
Impulse Noise Protection up to
level 5
Supports ITU-T G.dmt, G.lite and
ANSI T1.413
One-button result display
Connection rate, line attenuation
and noise margin
Remote control
Ordering information
Description
MC2+
Cat. No.
MC2+ ADSL (2+) (AnnexA and Annex M) Tester with Display. Includes batteries, PSU/Charger, vehicle power adaptor,
carry bag, user guide, RJ-11 DSL cable, 4mm Plug/Clip DSL Cable and Ethernet Cable
RMCD0000
Battery / Charger Kit
Set of batteries, charger unit with Euro mains plug and vehicle adaptor lead for MC2+
023597
MC2+ Rechargeable Batt Set
MC2+ Rechargeable Batteries Set
Accessories
121050
Specifications
Physical Interfaces
ADSL
ADSL2+, ADSL2, G.DMT, RE-ADSL, G.Lite, T1.413 (RJ-11)
10/100 Base- T(RJ-45)
For hosted mode
USB
For hosted mode
Main Functions
Modem emulation:
Endpoint, Routed mode, bridged mode
Support
PPPoE, PPPoA & IPoA;
PSTN
POTS/ISDN line voltage detect: POTS ringer
PING
IP Endpoint reach-ability test
Configurations
Recall/Save configuration, Pass/Fail threshold, Web based configuration
Test status LEDs:
Battery, Power, Line, ADSL, PPP/IP
Results
ADSL parameters including; Upto 16 results stored on the product (with Display option)
General
Weight
400 g (batteries included)
Dimensions
90 mm x 140 mm x 45 mm,
Operating temperature range
0 °C to +40 °C
Optional
2 line backlit monochrome LCD display (giving extra results)
+44 (0)1925 444446 for Customer Service
43
UniPRO Gbis
G.SHDSL Tester
UniPRO Gbis is a revolutionary tool for testing all types of G.SHDSL service. It
combines a state-of-the-art DSL engine with a range of useful copper layer
fault checks into a compact, hand-held, battery-powered tester.
Designed with the field engineer in mind, UniPRO Gbis provides the ultimate
in ease of use, pinpointing common network faults and checking service
performance directly from switch on with minimal setup. It supports the latest
G.SHDSL standard, G.SHDSL.bis, as well as legacy versions of the technology,
which are widely deployed for the provision of multi-pair DSL access to business
applications. Up to 4 copper pairs can be tested simultaneously and can
Features and Benefits
•
•
•
•
•
•
•
Network faults can be found in seconds,
saving valuable technician time
Copper fault finding
Gross cable faults can be eliminated without
the need for high levels of operator skill
Simultaneous testing of up to 4 pairs
•
Robust construction and long battery life
•
Highly visible user interface
•
Always ready for work
Effective in all field situations
Integral hanging/carrying Strap
Can be hooked on to plant or in frames
where working space is limited
No need to test cables individually. Bonded
aggregate performance of all pairs can
easily be checked
Physical Layer Tests
Main results on one screen
Line Voltage
All the important results are presented on
the home screen, direct from switch-on,
with no user intervention. Saves time and
operator skill requirement.
Up to 50 volts DC wetting current is allowed.
DC span powering is not supported
Automatic Fault Detection
(for each pair separately)
Up to 50 volts DC wetting current is allowed. DC span powering is not
supported. Open circuit. Short circuit. Excessive Voltage (eg ISDN or DC span
power). Alien xDSL service (eg ADSL orVDSL). Indication on display and LED
Detailed results for each pair
DSL Layer Tests
One button press reveals the detailed
performance of each pair
Emulation
CPE (Customer Premise modem / router – STU-R). CO (Central Office
DSLAM – STU-C) - Optional
Simple setup using Multifunction
Softkeys
DSL Support
G.SHDSL / G.SHDSL.bis / Auto. ATM / EFM Bonding.1 / 2 / 3 / 4 pairs
Very easy test and system setup. Negligible
training needed.
Automatic Synchronisation
(for each pair separately)
Seeking / Training / Data Mode
Indication on display and LED
Performance threshold target setting and
comparison
Results
(for each pair separately)
Data Rate. Attenuation. Noise Margin. Signal Quality (Noise Margin Stability).
Transmit Power. Uptime. Drops count.
Pass / Fail
(for each pair separately)
Comparison with user-settable targets
Indication on display and LED
Results (for bonded aggregate)
Data Rate. Comparison with user-settable target.
Indication on display and LED
Service level targets can be pre-set before
deployment, maximising productivity of the
user in the field
Result memory and USB export, with
timestamp and
tester identification
General
One-button result saving allows the
performance of multiple jobs to be
uploaded for later analysis and reporting.
Automatically records when the test was
performed and on which tester
Dimensions and Weight:
280 x 180 x 50 mm/1.8 kg
Display
3.5” Colour backlit LCD
Battery
Nickel Metal Hydride/, Autonomy: 4 hours typical
Note: This product is not suitable for testing SHDSL connections which are configured to transport TDM payloads with plesiochronous clocking.
Cat. No.
UniPRO Gbis
UniPRO Gbis 4-pair SHDSL / G.SHDSLbis tester with CPE emulation plus EFM/ATM Bonding. Includes
PSU, carry bag, carry strap, quick reference card, full user guide on CD, RJ-45 DSL cable and RJ-45
to 8 x 4mm Plug/Clip DSL cable.
RPB00000
UniPRO Gbis CO Plus
UniPRO Gbis 4-pair SHDSL / G.SHDSLbis tester with CPE and CO emulation plus EFM / ATM bonding.
Includes PSU, carry bag, carry strap, quick reference card, full user guide on CD, RJ-45 DSL cable and
RJ-45 to 8 x 4mm Plug/Clip DSL cable.
RPBCP000
RJ-45 TO 8-4mm PLUGS CROC CLIPS 2M LF
123300
Accessories
44
www.idealnwd.co.uk
Ordering information
Description
RJ-45 / 8-4mm PLG CRC CLP 2M LF
Specifications
•
Instant switch ON and test
be bonded together using ATM (Asynchronous Transfer Mode) or EFM (Ethernet
in First Mile) encapsulation to provide up to 22.784Mbps of symmetrical
bandwidth.
UniPRO Gbis can be programmed with acceptance targets for the main
G.SHDSL performance parameters, providing a simple Red/Green, Pass/
Fail test. Results can be stored in the tester and simply uploaded to a USB
memory stick for analysis and reporting in a PC environment. With its optional
CO (STU-C) emulation, UniPRO Gbis is equally useful in the Distribution Frame,
at the street cabinet or in the customer’s premises
WAN Access
AuroraPRESTO
Aurora Presto offers all the functionality needed for the installation,
maintenance and troubleshooting of Asymmetrical Digital Subscriber Line
(ADSL, ADSL2, ADSL2+) and Symmetrical High Speed Digital Subscriber
ber
Line (SHDSL) services, in both laboratory and field environments.
ments.
Physical Interfaces
ADSL
ADSL, ADSL2, ADSL2+, G.SHDSL
Including
ATM, PPP and IP layer support
Tests
Modes
DSL Termination Modes, Golden Modem mode
IP Tests
WAN Global Stats, LAN Global Stats, LAN/
WAN PING Trace Route, Internet download
O
Other tests
TDR (Time Domain Reflectometer) & DMM (Digital
Multi-meter) Automatic Test Mode
Specifications
The Complete Test Tool
for DSL Technology
Gen
General
Wei
Weight
1.1 kg
Dim
Dimensions
285mm(l) x 100mm(w) x 87mm(d)
Ope
Operating Temperature
0 °C to 45 °C
Disp
Display
Backlit 21 characters by 8
Batt
Battery
Rechargeable NiMH
Wat
Water resistance
IP22
Presto ADSL
Cat. No.
AuroraPRESTO ADSL(2+) tester with CPE (Annex A,B and M) emulation and TDR/DMM.
Includes PSU, standard carry bag, user guide, RJ-11 DSL cable, 4mm Plug/Clip DSL cable,
straight and crossover Ethernet and RS-232 PC cable
RACAX000
Battery Pack 5HR-4/3AU 3.8AH
Battery Pack 5HR-4/3AU 3.8AH for Sonata / Presto
427402
Short Line Adaptor Assy 20db
Short Line Adaptor for use when working on short cable lengths in close proximity to the
DSLAM (20db)
480152
Short Line Adaptor Assy 40dB
Short Line Adaptor for use when working on short cable lengths in close proximity to the
DSLAM (40dB)
480153
Accessories
ADSL Cbl RJ-11-2x4mm Plg/Clp
RJ-11 Line cables terminated with banana plugs and crocodile clips for ADSL.
480305
ADSL Test Cable RJ-11 - RJ-11
RJ-11 plug to RJ-11 plug 6 way straight wired line cable
480350
ADSL Tst Cable RJ-11/RJ-11 Xover
RJ-11 plug to RJ-11 plug, cross-over line cable (wired pins 2&5 to pins 3&4) for ADSL
480351
ATM25 Card Cbl RJ-45/RJ-45 Xover
RJ-45 plug to RJ-45 plug CAT5 ATMF 25.6 cable with cross-over wiring (length 2m).
480352
Physical Interfaces
The Most Versatile
ISDN Tester in the Market
S/T 192 kbps to ITU 1.430
RJ-45 connector
2.048Mbps to ITU G.703
75ohm unbalanced/120ohm balanced RJ-45
U Interfaces
Upo, 4B3T & 2B1Q
POTS Interface
RJ-11
The AuroraSONATA is an all-purpose ISDN test tool for field technicians.
Available as either a Basic or Primary Rate only configuration or as a
combined unit, it provides
rovides all the capability needed by technicians to
identify most problems.
ms.
Specifications
AuroraSONATA
Ordering information
Description
Tests
ISDN
ISDN G.703/G.704 statistics FAS/NFAS word
3.1KHz and ISDN voice call via selected B channel
Support for many supplementary services
General
+44 (0)1925 444446 for Customer Service
Weight
1.1 kg
Dimensions
285mm(l) x 100mm(w) x 87mm(d
Operating Temperature
-25oC - +70oC (ETSI 300 019 -1 class 1.2)
Display
Backlit 21 characters by 8
Battery
Rechargeable NiMH
Water resistance
IP22 Drop Test 2M
45
Cat. No.
Sonata PRI P
AuroraSONATA ISDN Primary Rate tester with POTS. Includes PSU, standard carry bag, User Guide, RJ-45 cable, 4mm Plug/
Clip POTS cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASEP000
Sonata PRI
AuroraSONATA ISDN Primary Rate tester. Includes PSU, standard carry bag, User Guide, RJ-45 cable, 4mm Plug/Clip PRI
cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASEX000
Sonata BRI S
AuroraSONATA ISDN Basic Rate tester with S Interface. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable, RJ45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASS0000
Sonata Combi S
AuroraSONATA ISDN PRI/BRI Rate tester with S Interface. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, 4mm
Plug/Clip PRI cable, RJ-45 T-Piece and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASSE000
Sonata Combi SP
AuroraSONATA ISDN PRI/BRI tester with S Interface and POTS. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable,
RJ-45 T-Piece, 4mm Plug/Clip POTS and PRI cables and RS-232 PC cable. Includes all available protocols and Aurora Expert
PC software.
RASSEP00
Sonata BRI SP
AuroraSONATA ISDN Basic Rate tester with S Interface and POTS. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable,
RJ-45 T-Piece, 4mm Plug/Clip POTS cable and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASSP000
Sonata BRI Q
AuroraSONATA ISDN Basic Rate tester with S and 2B1Q U Interfaces. Includes PSU, standard carry bag, User Guide, RJ-45 S i/f cable,
RJ-45 T-Piece, 4mm Plug/Clip U i/f cable and RS-232 PC cable. Includes all available protocols and Aurora Expert PC software.
RASSQ000
Sonata Combi Q
Sonata ISDN PRI/BRI tester with S and 2B1Q U interfaces. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, RJ-45
T-Piece, 4mm Plug/Clip PRI, U i/f and RS-232 PC cables. Includes all available protocols and Aurora Expert PC s/w.
RASSQE00
Sonata Combi QP
Sonata ISDN PRI/BRI tester with S and 2B1Q U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45 S/PRI i/f
cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables and RS-232 PC cable. Includes all available protocols and Aurora
Expert PC s/w.
RASSQEP0
Sonata BRI QP
AuroraSONATA ISDN Basic Rate tester with S and 2B1Q U Interfaces and POTS. Includes PSU, standard bag, User Guide, RJ45 S i/f cable, RJ-45 T-Piece, 4mm Plug/Clip POTS &U i/f and RS-232 PC cables. Includes all available protocols and Aurora
Expert PC software.
RASSQP00
Sonata Combi 2QP
Sonata ISDN PRI/BRI tester with S and Dual 2B1Q(Mon) U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45
S/PRI i/f cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables and RS-232 PC cable. Includes all protocols, Aurora
Expert PC s/w.
RASSQQEP
Sonata BRI T
AuroraSONATA ISDN Basic Rate tester with S and 4B3T U Interfaces. Includes PSU, standard carry bag, User Guide, RJ-45 S
i/f cable, RJ-45 T-Piece, 4mm Plug/Clip U i/f cable and RS-232 PC cable. Includes all available protocols and Aurora Expert
PC software.
RASST000
Sonata Combi T
Sonata ISDN PRI/BRI tester with S and 4B3T U interfaces. Includes PSU, large case, User Guide, RJ-45 S/PRI i/f cable, RJ-45
T-Piece, 4mm Plug/Clip PRI, U i/f and RS-232 PC cables. Includes all available protocols and Aurora Expert PC s/w.
RASSTE00
Sonata Combi TP
Sonata ISDN PRI/BRI tester with S and 4B3T U I/Fs and POTS. Includes PSU, large carry case, User Guide, RJ-45 S/PRI i/f
cable and T-Piece, 4mm Plug/Clip POTS, PRI & U i/f cables, and RS-232 PC cable. Includes all available protocols and Aurora
Expert PC s/w.
RASSTEP0
Sonata BRI TP
AuroraSONATA ISDN Basic Rate tester with S and 4B3T U Interfaces and POTS. Includes PSU, standard bag, User Guide, RJ45 S i/f cable, RJ-45 T-Piece, 4mm Plug/Clip POTS & U i/f and RS-232 PC cables. Includes all available protocols and Aurora
Expert PC software.
RASSTP00
U I/F Cbl(RJ-114mm Plgs+Clips)
‚U‘ Interface cable, complete with 4mm Banana plugs and crocodile clips.
420305
RJ-45 3 Way ‚T‘
Piece
RJ-45 3 way T-piece for PRI and BRI monitoring
421474
U2\4 Phantom
Power Feed Unit
U2\4 Phantom Power Feed Unit
427131
S Bus Phantom
Power Feed Unit
‚S‘ Bus Phantom Power Feed Unit
427150
Accy Cable RJ-45 75 OHM BNC
RJ-45 connector cable terminated with two BNC connectors (for E1 circuits)
427352
Sonata RJ-45 to
Type 43 Cbl PRI
75 Ohm connector cable terminated with two BT Type 43 jacks. For PRI option only.
427353
FCC68 4-4 Crc Clps
cbl - POTS
FCC68 4-4 to Crocodile Clips cable for POTS
427354
Battery Pack 5HR4/3AU 3.8AH
Battery Pack 5HR-4/3AU 3.8AH for Sonata / Presto
427402
Accessories
46
www.idealnwd.co.uk
Ordering information
Description
Tools, Connectors and
Accessories
As well as network testing, IDEAL INDUSTRIES NETWORKS
specialises in the whole installation process from start to
finish. From cable pulling, connectors and plugs to high precision
installation tools, everything needed by the installer is here.
We offer various modular plugs including RJ-11 and RJ-45’s as
well as compression connectors, F-Type connectors and splitters
etc. For added convenience and value, a range of tailored tool
and connector kits are also available in one tidy and tough case.
For data cable preparation and connector termination we have
all of the essential tools including strippers, crimpers and punch
down tools etc. In fibre where cleanliness and precision are
critical, top class stripping tools, serrated cutters, polishers &
cleaning kits are available to ensure the highest quality joints
are achieved.
And finally, our range includes the pulling rods and world
renowned Yellow 77 pulling lubricant in order to get that cable
through tight spots.
Copper Cable Installation Tools, Accessories and Lubricants ......... 48
Connectors Termination Products ......................................................................... 56
Fibre Tools and Accessories ..................................................................................... 69
+44 (0)1925 444446 for Customer Service
47
COPPER CABLE INSTALLATION TOOLS, ACCESSORIES
AND LUBRICANTS
Data T® - Cutter
Cuts round communication and structured wiring cables and maintains cable geometry for better cable performance. Data T®-Cutter cuts multi-pair
cable up to .500 in. (12.7 mm) and coaxial cable up to RG-9/U. Blade cutting capabilities suitable for soft cables (not ACSR).
• Steel reinforced centre conductors can be trimmed with bolt cutting holes
• Cushioned comfort grip handles
• Locking latch keeps tool closed in pouch
Description
Cat. No
Data T®-Cutter
45-074
Lever™ Snips Electrician’s Scissors with Stripping Notches
• Ergonomic design gives added leverage
• Spring-action, mechanical advantage increases stripping leverage and
reduces operator fatigue
• Double plated for added rust protection
• Extra-deep serrations grip wire better
Description
Cat. No.
Electrician’s Scissors with Stripping Notches
35-087
Electrician’s Scissors
•
•
•
•
Designed for use in telephone and electrical service applications
Cut up to 1.5mm2 solid and 4.0mm2 stranded wire
Serrated surface on back blade edge cleans wire
Electician‘s Scissors with stripping notches
Description
Cat. No.
Electrician’s Scissors w/stripping notches
35-088
Twin & Earth Cable Stripper
• Self-adjusting stripping blades automatically select proper position
• Neatly removes outer cable sheath and then inner wire sheathing to
desired lengths
• Strips Twin and Earth cable
• Open-throat construction allows unlimited strip length
Works great on Category 5 Cable!
48
Description
Cat. No
Underground Feeder Cable Stripper
45-235
Replacement blade set
45-234
www.idealnwd.co.uk
Copper Cable Installation Tools, Accessories and Lubricants
Coax/UTP Cab
Cable Stripper
Features a primaryy and second
secondary strip cartridge
• Strips UTP, RG-59 and RG-6 coax cable
• Rotates easily around finger
• Push-on ring for easy connector termination
Description
Cat. No
Coax/UTP Cable Stripper
45-603
Cyclops® Data Cable
ble S
Stripper
Fast, easy removal of outer sheath insulations (PVC and Plenum types) from all Unshielded Twisted Pair (UTP), Shielded Twisted Pair (STP) and multicore
cables up to .433 in./11 mm in diameter
• Strips UTP, RG-59 and RG-6 coax cable
• Rotates easily around finger
• Push-on ring for easy connector termination
Description
Cat. No
For Unshielded and Shielded Twisted Pair Cable
45-514
UTP/STP/Coaxial Cable Strippers
Adjustable blades can be set for any depth to help ensure nick-free strips
Description
Typical RG
Cat. No.
Cables
Coaxial Cable Stripper, up to 1/8 in. (3.2mm) O.D
RG-174, RG-187
45-162-341
(Gray)
Coaxial Cable Stripper, 1/8 in. (3.2mm) to 7/32 in.
RG-58, Mini
45-163-341
(5.556mm) O.D.
Coax
(Blue)
Coaxial Cable Stripper, 1/4 in. (6.4mm) to 9/16 in.
(14.3mm) O.D.
RG-11, RG-8
45-164-341
(Blue)
Cable Stripper, 3/16 in. (4.8mm) to 5/16 in. (8mm)
RG-59, UTP
45-165-341
O.D.
Cable
(Black)
Replacement Blade Set* for 45-162, 45-163, 45-165
-
L-9225
Replacement Blade Set* for 45-164
-
L-9226
*A set of blades consists of three straight blades and one round blade.
UTP Cable Stripper
Strips and cuts flat telephone cable easily. Cuts outer insulation without nicking inner conductors.
• Strips Cat 3, 5, 5e & 6 cables
• One-step stripping
+44 (0)1925 444446 for Customer Service
Description
Cat. No
UTP Cable Stripper
45-167
49
Round Cable Slitting and Ringing Tool
• Great for large diameter structured wiring cables
• Cuts around cable jacket as well as slits the length of jacket for easy
removal
• Use with single or multiple conductor cable up to 44.45 mm O.D.
• Blade adjusts for jacket thicknesses up to 3.175 mm
• Spare blade in handle base
Description
Cat. No
Round Cable Slitting and Ringing Tool
45-144
Replacement Blades for 45-144 (2/pkg.)
LB-1748
Cable Splicing
ng Kit
• Kit designed for use in telephone and electrical service applications
• High carbon steel blade in Splicing Knife remains sharp and cuts
easily through many insulation types
• Kit includes Scissors, Splicing Knife and Leather Holder
Description
Cat. No
Cable Splicing Kit (Scissors, Splicing Knife, Leather Holder)
35-093
Punch Down Tools
35-185
Economy Punch Down Tool
Impact Turn-Lock™ Punch Down Tools
Cat. No
Punchmaster™ II Punch Down Tool - body only
35-483
Punchmaster™ II Punch Down Tool w/110 blade 35-485
Punchmaster™ II Punch Down Tool w/66 blade
35-487
Punch Down Tool 110 66 Combo
Blade with Cutting Edges
Non-Impact Turn-Lock™ Punch Down Tools
Cat. No
Punch Down Tool w/110 blade
35-492
35-485
Punch Down Tool w/66 blade
35-493
Punchmaster™ II Punch Down
Tool with 110 Blade
Economy Punch Down Tool
Cat. No
35-407
35-492
Non-Impact Turn-Lock™ Style
Punch Down Tool with 110
Blade
35-495
Replacement Blade,
Punchmaster™ II Turn-Lock™
Style 110 Blade
*Not applicable for Economy Punch Down tool.
**35-185 is made in Taiwan.
Bix® is a registered trademark of Nortel. Krone® is a registered trademark of Krone, Inc.
50
Punch Down Tool (insertion tool for Krone Blocks) 35-482
Non-impact Tool w/permanent non-cut blade**
35-185
Removable Blades*
Cat. No
110 Turn-Lock™ blade
35-495
66 Turn-Lock blade
35-497
110/66 combo blade w/cutting edges
35-407
Krone® blade
35-478
®
Bix blade
35-495
Krone Style Punch Down Blade for 35-482
ND-3851
www.idealnwd.co.uk
Copper Cable Installation Tools, Accessories and Lubricants
Ratchet Telemaster™
• For paired conductors
• Ratchet version of popular Telemaster™ Tool for RJ-45 and RJ-11 modular plugs
• Repeatable crimp action for consistent, high quality connections
Description
Cat. No
Ratchet Telemaster™
30-696
Telemaster™ Telephone Tools
• For paired conductors
• Multi-function telephone tool cuts, strips and crimps
for easy one-tool application
• Steel frame for long-term durability. (Crimps primary modular plug strain relief only)
Description
Kit Cat. No. Tool Only
Cat. No.
Tool for RJ-11 (1, 2, 3 pair) and RJ-45 (4 pair)
Plugs
33-700*
30-496-001
Tool for RJ-45 (4 pair) & DECconnect MMJ
(RJ-11, 3 pair)
N/A
30-497
Tool for RJ-22 (handset) and RJ-11 (1, 2, 3 pair)
N/A
30-499
Replacement Cut and Strip Blade Set for
Telemaster™
N/A
LB-1747
* Kit includes 10 each, RJ-45 8P8C, RJ-11 6P6C and RJ-45 6P4C plugs.
Modular Plug Tool Kit
•
•
•
•
•
Multi-function telephone/network tool; cuts, strips and crimps
Steel frame construction for durability
Interchangeable dies allow for crimping RJ-45 and RJ-11 modular plugs
Tool-less die change for added convenience
Spring return handle for comfort
Description
Cat. No
Modular Plug Tool Kit - includes ten each
RJ-11, 6P4C Telephone Plugs & RJ-45,
CAT 5e Data Plugs, RJ-11 & RJ-45 Die Sets
33-296
Crimpmaster™ Crimp Tools & Die Sets
Description
Kit Cat. No. Tool Only
Cat. No.
Crimpmaster™ Crimp Tool Frame
30-506
--
RJ-45 Eight-position Crimp Tool for
AMP RJ-45 modular plugs
30-521
30-560
RJ-45 Eight-position Crimp Toolfor keyed or
non-keyed modular plugs
30-522
30-559
RJ-11 Crimp Tool for two, four or six-position
-modular plugs
+44 (0)1925 444446 for Customer Service
30-556
51
Modular Plug Replacement Die Sets For Crimpmaster™ 30-506 Frame
30-556
Crimpmaster™ RJ-11 die set for two, four or six-position modular plugs
30-559
Crimpmaster™ RJ-45 eight-position die set for keyed or non-keyed modular plugs (excluding AMP).
Tool w/die 30-522
30-560
Crimpmaster™ RJ-45 AMP die set for eight-position modular plugs. Primary strain relief crimp bar is located
further back on die/modular plugs. Tool w/die 30-521
Technician’s Service Kit
Kit 33-505 Includes:
udes:
Kit includes tools to install twiated pair cable on blocks and data jacks.
Punchmaster™ II Punch Down Tool w/110 Blade
Qty.
35-485
Punchmaster II 66 Blade only
1
35-497
Electrician’s Scissors w/stripping notches
1
35-088
™
UTP/STP Stripper
1
45-165
7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver
1
35-908
Probe Pick and Spudger
1
35-473
Nylon case
1
62-205
Description
Qty.
Cat. No.
Data T -Cutter
1
45-074
Twist-a-Nut™ 7-in-1 Screwdriver
1
35-908
UTP Stripper
1
45-165
1
45-526
Punchmaster II Punch Down Tool w/110 Blade
1
35-485
110/66 Blade Combo Punch Down Blade
1
35-407
Crimpmaster Crimp Tool for RJ-45 Modular
Plugs
1
30-522
OmniSeal™ Pro XL Compression Tool
1
30-793
Probe Pic and Spudger
1
35-473
Coax Connector Tool - F & BNC
1
35-046
VDV MultiMedia Cable Tester
1
33-856
Amplifier Probe
1
62-164
Electrician’s Scissors w/Stripping Notch
1
35-088
Large Mouth Bag - 33 cm
1
35-410
Data/Video Kit
®
Kit 33-917 Includes:
Coax Stripper w/Replaceable Cartridge
™
™
52
www.idealnwd.co.uk
Copper Cable Installation Tools, Accessories and Lubricants
Insulation Displacement Connectors (IDC)
IDC connectors create fast splice and tap connections on solid copper wires. Designed for low voltage telecommunication cables.
• Moisture-resistant sealant protects wires from corrosion
• Use with solid copper single-conductor wire
• Kinetic Super™ Wire Stripper/Crimper cuts and strips 0.2mm2 to
0.3mm2 solid wire
Description
Qty.
Cat. No.
UB-I, 2-Wire Tap Splice IDC
25
85-900
UR-I, 3-Wire Butt Splice IDC
25
85-925
UY-I, 2-Wire Butt Splice IDC
25
85-950
UR-I, 2-Wire Butt Splice IDC
100
86-925
UR-I, 3-Wire Butt Splice IDC
1000
87-925
UY-I, 2-Wire Butt Splice IDC
1000
87-950
IDC Combo Pack
25
85-960
1
45-719
™
Kinetic Super Wire Stripper/
Crimper
Blued-Steel Tuff-Grip™ Pro Fish Tapes
Industry’s Leading Fish Tape!
Features and Benefits
• Unique finish is non-oily and
resists rust
• Multiple options in width and
length for ease of use
• Industry’s straightest wire
• Stiffer for long runs
• Highest grade carbon steel
• Tensile strength 725kg
• High column strength for longer
runs
• Superior pull-out and rewind
characteristics
Length m/ft.
Width & Thickness
Case Diameter
End Type Tuff-Grip™
ProBlued Steel™
18.29 / 60
0.060 cm x 0.32 cm (1/8in. x .060 in.)
30.48 cm / 12 in.
Formed hook
31-055
36.58 / 120
0.060 cm x 0.32 cm 1/8 in.x .060 in.
30.48 cm / 12 in.
Formed hook
31-056
73.15 / 240
0.060 cm x 0.32 cm 1/8 in.x .060 in.
30.48 cm / 12 in.
Formed hook
31-057
Zoom Fish Tapes
Features and Benefits
• 19 strands of stainless steel
• Ultra hard nylon jacket adds slipperiness, protects cables and user’s
hands
• Excellent for corrugated plastic conduit
• Excellent for multiple bends or wet/corrosive work environment
• The only one in the industry
Length m/ft.
Width & Thickness
Case Diameter
End Type
Tuff-Grip™ Pro
Replacement Tapes
15.24 / 50
3/16 in. diameter
30.48 cm / 12 in.
Eyelet
31-090
31-091
30.48 / 100
3/16 in. diameter
30.48 cm / 12 in.
Eyelet
31-092
31-093
60.96 / 200
3/16 in. diameter
40.64 cm / 16 in.
Eyelet
31-096
31-097
+44 (0)1925 444446 for Customer Service
53
S-Class® Fish Tape
•
•
•
•
Non-conductive tape designed for use around live circuits
Strong S-Class® core for longer life and greater pushing power
Smooth nylon jacket provides great handling around bends
Omni-directional pushing
Tuff-Grip™ Pro
Rapid-Pak®
Replacement Tapes
30.48 cm / 12 in. Leader
31-060
31-187
31-150
3/16 in. diameter
30.48 cm / 12 in.
Leader
31-062
31-190
31-160
30.48 / 100
3/16 in. diameter
30.48 cm / 12 in.
Leader
31-061
31-186
31-152
30.48 / 100
3/16 in. diameter
30.48 cm / 12 in.
Leader
31-063
31-189
31-162
60.96/ 200
3/16 in. diameter
40.64 cm / 16 in.
Leader
31-064
31-207
31-155
60.96/ 200
3/16 in. diameter
40.64 cm / 16 in.
Leader
31-065
31-208
31-165
Length m/ft.
Width & Thickness
Case Diameter
15.24 / 50
3/16 in. diameter
15.24 / 50
End Type
Tuff-Rod™ Cable Pulling Rods
Designed to meet the needs of the electrical contractor and save valuable time during the installation of cable. Used to reach and push / pull wires &
cables over suspended ceilings, in cable trays and through wall cavities. Ideal’s Tuff-Rod™ fishing rods are extremely strong yet lightweight and flexible.
• Use to reach and pull wires over suspended ceilings, in cable trays or through
•
•
•
•
•
•
interior walls
Packaged in clear tubes for protection and longterm storage
Strong, lightweight & flexible fibreglass rods (6 mm/1/4 inch)
Extendable with additional rods & accessories
Ultra smooth gel coating helps protect hand from fibreglass
ADDITIONAL EXTRA FLEX GLOW Features
As Regular Flex but 5 mm (3/16 inch) luminescent fibreglass rods
Glow-in-the-dark material for use in attics, basements and other dim lit areas
Description - Regular Flex
Cat. No.
3.6m (12 ft.) kit with fixed bullet nose and threaded J hook (3 ea. 1.2m [4 ft.] sections)
31-611
7.32m (24 ft.) kit with fixed bullet nose and threaded bullet nose (4 ea. 1.83m [6 ft.]
sections)
31-612
12 pack of 0.64 cm [1/4 in.] x 1.2m [4 ft.] Replacement Rods
31-643
12 pack of 0.64 cm [1/4 in.] x 1.83m [6 ft.] Replacement Rods
31-644
Description - Extra Flex Glow
Cat. No.
3.6 m (12 ft.) kit with fixed bullet nose and threaded J hook (3 ea. 1.2m [4 ft.] sections)
31-631
9.14m (30 ft.) kit with fixed bullet nose and threaded bullet nose (5 ea. 1.83m [6 ft.]
sections)
31-633
12 pack of 0.48 cm (3/16 in.) x 1.2 m [4 ft.] Replacement Rods
31-647
12 pack of 0.48 cm (3/16 in.) x 1.83 m [6 ft.] Replacement Rods
31-648
Accessory Kits
Cat. No.
0.48 cm (3/16 in.)
31-651
0.64 cm (1/4 in.)
31-652
Repair Kits
Cat. No.
0.48 cm (3/16 in.)
31-641
0.64 cm (1/4 in.)
31-642
Wire Pulling Lubricants
Electricians have been known to use alternative solutions such as washing up liquid rather than products developed specifically as cable pulling lubricants. Independent lab tests have shown that detergents remain wet for longer periods within the conduit causing permanent damage to the cable insulation. This can lead
to fire and safety risks. IDEAL’s Yellow 77® is the number 1 brand of wire pulling lubricant since 1959 and is a perfect general purpose lubricant for pulling wire &
cable. ClearGlide™ wire & cable pulling lubricant is a clear and colourless lubricant designed for quick and easy clean-up.
54
www.idealnwd.co.uk
Copper Cable Installation Tools, Accessories and Lubricants
Yellow 77® Wire Pulling Lubricant
Features and Benefits
• Wax-based formula for superior lubricity
• Safe for use with most cable types except low-density polyethylene and semi-conducting
jackets
• Clings to cable throughout long pulls
• Won’t break down or separate after repeated exposure to freezing temperatures
• Dries to a thin, non-conductive film
• Easy to apply by hand or by brush
• Creamy texture applies easily and uniformly
• Homogeneous blend requires no mixing
• Won’t dry out - surface coat forms to control evaporation
• Environmentally safe - non-toxic, non-flammable and non-corrosive
Description
Cat. No.
0.95 l (1-qt.) Squeeze Bottle
31-358
3.79 l (1-gal.) Bucket
31-351
18.93 l (5-gal.) Bucket
31-355
ClearGlide™ Cable Pulling Lubricant
Features and Benefits
•
•
•
•
•
Exceptional lubricity for super-fast pulls
Polymer-based formula perfect for all electrical and datacomm applications
Safe to use with all cable types
Controlled evaporation rate is ideal for shorter runs
Remains stable over wide temperature range - usable from 30°F to 180°F (-1°C
to 82°C)
• Dries to a semi-fluid film that won’t clog conduit
• Easy to apply by hand, brush or pump
• Environmentally safe - non-toxic, non-flammable and non-corrosive
*Results from Falex Corporation,
an independent testing agency
specializing in tribology tests,
using the Falex-ISC On Disk Tribmeter System machine with the
ASTM G99 modified method.
Description Cat.
No.
0.95 l (1-qt.) Squeeze Bottle
31-388
3.79 l (1-gal.) Bucket
31-381
18.93 l (5-gal.) Bucket
31-385
Selection Guide
ClearGlide™ Wire Pulling Lubricant
Yellow 77® Wire Pulling Lubricant
Velocity™ Wire Pulling Lubricant
Colour
Clear
Yellow
Cream
Base
Polymer
Wax
Polymer
Average Coefficient of Friction* .
17 .
08 .
14
Safe Storage
32°F – 180°F(0°C – 82°C)
32°F – 130°F (0°C – 54°C)
40°F – 140°F (4°C – 82°C)
Application Temperature Range
40°F – 100°F (4°C – 38°C)
40°F – 100°F (4°C – 38°C)
25°F – 140°F (-3.9°C – 60°C)
COMPATIBILITY (Cable Types):
Rubber
•
•
•
Neoprene
•
•
•
Nylon
•
•
•
PVC
•
•
•
High-density or cross-linked
•
•
•
polyethylene
•
•
Low-density polyethylene
•
Semiconducting jacket
•
Hypalon
•
•
•
•
•
•
For more information on our full range of cable lubricants, please contact Customer Service or visit: www.idealindustries.co.uk/lubricants
+44 (0)1925 444446 for Customer Service
55
CONNECTORS AND TERMINATION PRODUCTS
Data T®-Cutter
Cuts round communication and structured wiring cables and maintains cable geometry for better cable performance. Data T®-Cutter cuts multi-pair cable up
to .500 in. (12.7 mm) and coaxial cable up to RG-9/U. Blade cutting capabilities suitable for soft cables (not ACSR).
•
•
•
•
Steel reinforced centre conductors can be trimmed with bolt cutting holes
Data T®-Cutter II designed for RG-58 and RG-6 coaxial cable
Cushioned comfort grip handles
Locking latch keeps tool closed in pouch
Description
®
Data T -Cutter
Cat. No
45-074
Economy Coax Cable Stripper
• For RG-6, RG-6 Quad and RG-59
• No adjustment required
• Strips centre conductor & cable jacket
Description
Cat. No
Coax Cable Stripper
45-320
Coax Connector Kit w/four RG-6 Push-On F-Connectors
33-320
RG-11 Coax Stripper
• For use with IDEAL RG-11 compression connectors (89-211, 89-1211),
provides 6.4mm x 6.4mm strip
Description
Cat. No
RG-11 Coax Stripper for Compression Connectors
45-111
Proper Coax Strip Procedure
• Proper strip length settings will leave 6.4mm of the centre conductor
exposed and 6.4mm of the braiding (shield) exposed.
6.4mm x 6.4mm standard strip.
6.4mm 6.4mm
• After stripping, make sure the tip of the centre conductor is straight and
not bent. Straighten the conductor if necessary.
• Fold back the outer layer of braiding (shield) against the cable jacket.
Keep the braid strands as straight and as close to the jacket as possible.
• Note: For Quad Shield cables (with four layers; outer braid, outer foil,
inner braid, inner foil), first fold back the outer braiding. Use the 45-074
to score and remove the exposed 6.4mm of outer foil. Remove outer foil
and fold back inner braiding.
56
www.idealnwd.co.uk
Connectors and Termination Products
Coax/UTP
P Cab
Cable Stripper
•
•
•
•
Features a primary and secondary active strip cartridge
Strips UTP, RG-59, RG-6 Quad and RG-6 coax cable
Rotates easily around finger
Push-on ring for easy connector termination
Description
Cat. No.
Coax/UTP Cable Stripper
45-603
RG-6/6Q/59 Replacement Cartridge
LB-2726
UTP Replacement Cartridge
LB-2727
Coax Stripmaster® Wire Strippers
• Speeds 2-step cable stripping
• Spring-action operation grips and strips in one motion
• Knife-type blades feature multiple hole diameters sized for two step
removal of outer jacket insulation and centre conductor
Description
Coax Cable Type
(RGU)
Repl. Blade
Cat. No.
Cat. No.
RG-6
LB-740
45-262
RG-59
LB-743
45-265
Coax Stripmaster for RG-6
Quad Shield
RG-6 Quad Shield
LA-3953
45-282
Coax Stripmaster® for RG-58
RG-58
45-264
-
MediaTwist
45-274
-
Coax Stripmaster® for RG-6
®
Coax Stripmaster for RG-59
®
®
Coax Stripmaster for
MediaTwist
Round Cable Slitting and Ringing Tool
•
•
•
•
•
Cuts around cable jacket as well as slits
the length of jacket for easy removal
Use with single or multiple conductor cable up to 1.75 in. O.D.
Blade adjusts for jacket thicknesses up to .125 in.
Spare blade in handle base
Description
Cat. No
Round Cable Slitting and Ringing Tool
45-144
Replacement Blades for 45-144 (2/pkg.)
LB-1748
Cable/Satellite/CCTV Coax Stripper
•
•
•
•
+44 (0)1925 444446 for Customer Service
Designed for fast and easy 1/4” x 1/4” strip lengths
Blades auto-adjust to different diameter coax cables
Spinner ring for fast stripping
Strips RG-6/6 Quad and RG-59 coax cable
Description
Cat. No
Video Coax Stripper
45-321
57
Coax Strippers
• Specific adjustments needed for each cable size
Description
Cat. No.
Cassette
Coax Stripper - 3 Step
45-522
(Black)
• For crimp BNC and TNC conn.
45-520
• Strips braid 0.240 in. or 6mm and Dielectric 0.240 in. or 6mm
Coax Stripper - 3 Step
• For dual crimp BNC/TNC and Thinnet BNC
conn.
45-521
• For 735A Belden® cable
• Strips braid 0.328 in. or 8.2mm and
dielectric 0.109 in. or 2.7mm
45-523
(Brown)
Coax Stripper - 2 Step
• For F-Type, many single crimp BNC/
TNC‘s, Twist-on BNC/TNC‘s, Twinax and
UHF conn.
• Strips 0.250 in. or 6.35mm
45-524
(Blue)
45-526
UTP/STP/Coaxial Cable Strippers
Specific adjustments needed for each cable size
•
•
•
•
Coax Strip and Crimp Tool
Designed for fast and easy 1/4” x 1/4” strip lengths
Blades auto-adjust to different diameter coax cables
Spinner ring for fast stripping
Strips RG-6/6 Quad and RG-59 coax cable
Description
RG Cables
Cat. No.
Coaxial Cable Stripper, up to 1/8 in.
(3.2mm) O.D
RG-174, RG187
45-162-341,
(Gray)
Coaxial Cable Stripper, 1/8 in. (3.2mm) to
7/32 in. (5.556mm) O.D.
RG-58, Mini
Coax
45-163-341,
(Blue)
Coaxial Cable Stripper, 1/4 in. (6.4mm) to
9/16 in. (14.3mm) O.D.
RG-11, RG-8
45-164-341
(Blue)
Cable Stripper, 3/16 in. (4.8mm) to 5/16 in.
(8mm) O.D.
RG-59, UTP
Cable
45-165-341,
(Black)
Replacement Blade Set* for 45-162, 45163, 45-165
-
L-9225
Replacement Blade Set* for 45-164
-
L-9226
• Precision, form-ground stripping holes remove outer jacket and
insulation from RG-59 and RG-6 coaxial cable
• Durable blades cut copper-coated steel conductors
• Three crimping nests for crimping F-connectors and ring terminals
• Cushioned, comfort-grip handles
58
Description
Cat. No.
Coax Strip & Crimp Tool
30-433
Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors
30-433F
www.idealnwd.co.uk
Connectors and Termination Products
4-Way Indent Crimp Tools
Specific adjustments needed for each cable size
• High-grade steel construction for outstanding performance
Description
Cat. No.
2
2
20-26 AWG (0.52 mm - 0.13 mm ) RS232 D-sub Round
Barrel Contacts, Pins or Sockets
35-465
16-22 AWG (1.31 mm2 - 0.33 mm2) Round Barrel Contacts, 35-466
Pins, Sockets and Deutsch 16 Pin Contacts
Trompeter BNC Connector Centre Pins
D-Sub/Double-D Service Tool
35-468
• Exact replacement of the AMP openbarrel service tool for stamped contacts
and D-Sub contacts
• Also crimps Double-D,high density, miniature contacts
• Includes openings for crimping insulated terminals and cutters for machine
screws
Economy
y Compress
Compression Tool
Description Qty.
Cat. No.
D-Sub/Double-D Service Tool
30-426
• Easily compresses series 6 and 59 coax compression F-connectors
• Permanent connection – never comes loose
• Works with most brands of compression connectors
Description
Cat. No.
Economy Compression Tool
30-633
Economy Compression Tool Kit - Includes four CMP RG-6
Connectors
33-633
Insulation Displacement
placement Connectors (IDC)
IDC connectors create fast splice andd tap co
connections on solid copper wires. Designed for low voltage telecommunication cables.
• Moisture-resistant sealant protects wires from corrosion
• Use with solid copper single-conductor wire
• Kinetic Super™ Wire Stripper/Crimper cuts and strips 0.2mm2 to 0.3mm2
solid wire
85-925
85-900
85-950
Description
Qty.
Cat. No.
UR-I, 3-Wire Butt Splice IDC
25
85-925
UR-I, 2-Wire Butt Splice IDC
100
86-925
UR-I, 3-Wire Butt Splice IDC
1,000
87-925
IDC Combo Pack
25
85-960
UY-I, 2-Wire Butt Splice IDC
25
85-950
UB-I, 2-Wire Tap Splice IDC
25
85-900
Strain Relief Boots for Modular Plugs
• Prevents broken connector tabs and snagging while extending connector life
• Minimizes cable bends that can reduce data speed and result in data loss
• Dampens cable movement and vibrations that can result in premature
connector failure
+44 (0)1925 444446 for Customer Service
Description
Qty.
Cat. No.
Strain Relief Boots for Modular Plugs
25
85-380
59
Modular Plugs
Description
• Plugs are capable of supporting the latest EIA/TIA cable system
•
performance categories when installed in compliance with
appropriate EIA/TIA standards and methods
All plugs work with 0.2mm2 solid or stranded conductors and
round or flat cables.
ables.
8-Position 8-Contact, RJ-45
6-Position 6-Contact, RJ-11
6-Position 4-Contact, RJ-11
CAT 6 RJ-45 Modular Plugs
•
•
•
•
Qty.
Cat. No.
25
85-346
50
85-396
100
86-396
250
85-1396
25
85-345
100
86-395
25
85-344
50
85-394
100
86-394
Unique three-piece design provides easy installation and optimal performance
Crimps with a standard RJ-45 crimp die
50 micron gold contacts, 8-position, 8-contact
Suitable for solid or stranded conductors – 0.26mm2 - 0.33mm2
Description
Qty.
Cat. No.
CAT 6 RJ-45 Modular Plugs
25
85-366
OmniSeal™ Pro Compression Tools
The IDEAL OmniSeal™ Compression Tools now offer additional features and increased connector compatibility in a smaller, more compact tool designed to meet
the demands of the professional installer. (OmniSeal™ requires no accessory attachment to terminate IDEAL branded compression connectors.) Most other
manufacturers compression connectors can be terminated with an easy plunger depth adjustment. The simple intuitive design combined with its size and universal
connector acceptance makes this the only compression tool needed by professional installers.
Spring loaded
handle
Convenient handle lock
for easy fit in pouch
For BNC connectors
(Model 30-793)
Textured Santoprene™
slip resistant comfort grip
C
Compresses
F-type, Mini
F-type, RCA,
and Mini RCA
connectors
High strength aluminum
body for durability,
lighter weight
UUniversal tip for all
connectors
h ld
Lock nut holds
adjustments in place
• Factory preset to work with IDEAL compression connectors
• Compresses F-type, RCA, BNC and Mini connectors
• Adjustable to fit other manufacturer’s connectors - no accessory
adaptors required
OmniSeal™ Pro XL
60
OmniSeal™ Pro
SSpin
i kknobb for fast depth
adjustment
Description Qty.
Cat. No.
OmniSeal™ Pro XL Compression Tool
30-793
OmniSeal™ Pro Compression Tool
30-603
BNC
F-Type
RG11
RCA
Mini Coax
OmniSeal™ Pro XL
30-793
yes
yes
yes
yes
yes
OmniSeal™ Pro
30-603
-
yes
yes
yes
yes
www.idealnwd.co.uk
Connectors and Termination Products
COMPRESSION CONNECTORS
RTQ™ Reg/Tri/Quad & Plenum F-Connectors
•
•
•
•
•
Fits 60% regular, tri-shield and quad shield cables
Nickel-plated, brass-construction for superior corrosion resistance
Designed for use by satellite and cable TV companies
Weatherproof for indoor and outdoor use
Use 30-603, 30-793 or 30-633 Compression Tools
RG-11 F-Connectors
•
•
•
•
•
•
Fits 60% regular RG-11 cable
Nickel-plated, brass-construction for superior corrosion resistance
Designed for use by satellite and cable TV companies
Weatherproof for indoor and outdoor use
Use 30-603 or 30-793 Compression Tools
Use 45-111, 6.35mm x 6.35mm RG-11 Coax Stripper
BNC Connectors
•
•
•
•
•
•
Nickel-plated, brass-construction for superior corrosion resistance
Moisture-inhibiting design
Use 30-793 Compression Tool
75 Ohm nominal impedance
Gold-plated pin contact area
Available in plenum versions
OmniCONN™ F-Connectors
• Non corrosive nickel plated brass body and polycarbonate bushing
• Delrin/Nylon adaptor sleeve and o-ring provide double protection for a
watertight seal
• Free spinning hex nut for ease of installation onto all 11.11mm ports
• 75 ohm nominal impedance
RCA Connectors
•
•
•
•
•
Constructed of nickel plated brass and gold plated head
75 ohm nominal impedance
Bandwidth up to 3 GHZ
Compatible with 30-603 and 30-793 Compression Tools
Two-piece pre-assembled connectors
+44 (0)1925 444446 for Customer Service
61
Connector
Type
F
RG-6
Reg/Tri/Quad
Qty.
Cat. No.
Card of 4
92-654
Card of 10
92-651
Jar of 50
92-650
Jar of 100
92-656
Box of 1,000 (20 bags of 50 ea.)
92-759
Box of 1,000 bulk
92-659
F
RG-6
Plenum
Jar of 50
92-660
Box of 1,000
92-669
F
RG-59
Reg/Tri/Quad
Jar of 50
92-610
Box of 1,000
92-619
F
RG-11
Card of 10
89-211
Box of 500
89-1211
Jar of 50
89-044
Box of 1,500
89-1544
Jar of 50
89-045
Box of 1,500
89-1545
Card of 4
92-705
Card of 15
89-048
Jar of 35
89-5048
Box of 1,000 (10 bags, 100 ea.)
89-1048
Card of 15
89-050
Jar of 35
89-5050
Box of 1,000 (10 bags, 100 ea.)
89-1050
Card of 4
92-704
Card of 15
89-047
Jar of 35
89-5047
Box of 1,000 (10 bags, 100 ea.)
89-1047
Card of 15
89-049
Jar of 35
89-5049
Box of 1,000 (10 bags, 100 ea.)
89-1049
Card of 4
92-582
Card of 10
89-582
Jar of 35
89-580
Card of 4
92-572
Card of 10
89-572
Jar of 35
89-570
F
RG-6
F
Quad
BNC
BNC
BNC
BNC
RCA
RCA
RCA
62
Cable Type
RG-6
RG-6 Plenum
RG-59
RG-59 Plenum
RG-6
RG-59
Mini (21 - 23 AWG) Card of 10
89-014SMRCA
www.idealnwd.co.uk
Connectors and Termination Products
Compression Port Seals - 1/2 in.
• Used with compression F-connectors to weatherproof connector by
placing onto the female port. Made from EPDM for superior sealing.
Description
Qty.
Cat. No.
Long Sleeve Compression F-Connector
Port Seals, 12.7mm
Bag of 100
33-633
Crimpmaster™ Crimp Tool Replacement Die Sets
• Used with compression F-connectors to weatherproof connector by placing onto the female port. Made from EPDM for superior sealing.
Crimpmaster™ Crimp Tool Frame
Cat.No. 35-185
Crimp release provides
operator safety.
Dies change quickly and easily
with a screwdriver.
Interchangeable
dies provide versatility
in a single tool.
Pressure adjustment
for actuation force.
Ratchet crimp action provides repeatable and reliable terminations.
Description
Tool Cat. No.
Replacement Die Set Cat. No.
22-10 AWG (0.5mm2 -6.0mm2) fully insulated slide-on connectors
-
30-594
Insulated Terminal Crimp Tool with built-in locator
30-479
-
2
2
22-12 AWG (0.5mm - 4.0mm ) Non-insulated open barrel crimp style connectors
-
30-586
RG-58, 59, 62 Non-plenum Cambridge BNC/TNC connectors
30-481
30-573
RG-8/11, RG-213, RG-216 Ethernet Thickwire, N-Series type plugs and jacks
30-482
30-577
RG-9, Belden® 8281® and RG-6 Cable, 50 & 75 Ohm
30-483
30-578
RG-58 and RG-174 cable for 50 and 75 Ohm cables
-
30-587
RG-174 Mini-59 Hex BNC/TNC coax connector
30-485
30-576
RG-58 and RG-59 Plenum cables, Thinwire PVC Hex
-
30-591
16-26 AWG (0.13mm - 1.3mm ) Miniature insulated rings and splices
-
30-572
22-10 AWG (0.5mm2 -6.0mm2) Insulated ring tongue terminals and splices
30-500
30-579
-
30-580
2
2
2
2
22-8 AWG (0.5mm - 8mm ) Non-insulated terminals and splices
RG-58 RG-59/62AU BNC/TNC3-Piece Hex type connectors
30-502
30-581
CATV RG-59 and RG-6 Captive Ring F-connectors
30-503
30-582
RG-6, RG-174, Belden-Type RG-8281 cables
-
30-570
Mini UHF and BNC/TNC 5 cavity
-
30-593
-
30-599
2
2
30-18 AWG (0.05mm - 1.0mm ), Open barrel pins and sockets
+44 (0)1925 444446 for Customer Service
63
30-556
RJ-11 Crimp Tool for two, four
or six-position modular plugs
Tool w/die N/A
30-559
RJ-45 Eight-position Crimp
Tool for keyed or non-keyed
modular plugs
Tool w/die 30-522
30-560
RJ-45 Eight-position Crimp
Tool for AMP RJ-45 modular
plugs
Tool w/die 30-521
30-570
RG-6, RG-174, Belden-Type
RG-8281 cables (Hex. 0.324
(8.23mm), 0.178 (4.52mm),
0.068 (1.73mm)
Tool w/die N/A
30-573
Cambridge CP-88, CP-89
BNC/TNC coax connectors
with RG-58, RG-59/RG-62
AU cables (Hex 0.305
(7.75mm), 0.068 (1.73mm),
0.228 (5.79mm)
Tool w/die 30-481
30-576
RG-174, Mini 59 BNC/TNC
Connectors (Hex, 0.178
(4.52mm), 0.128 (3.25mm),
0.068 (1.73mm)
Tool w/die 30-485
30-577
N-Series and RG-8/11
Connectors (Hex, 0.429
(10.90mm), 0.100
(2.54mm), 0.080 (2.03mm)
Tool w/die 30-482
64
30-578
RG-59, RG-6, and 8281 50
and 75 OHM cables (Hex,
0.324 (8.23mm), 0.255
(6.48mm), 0.068 (1.73mm),
0.042 (1.07mm)
Tool w/die 30-483
30-581
RG-58, RG-59/62, BNC/
TNC Coax Connectors (Hex,
0.255 (6.48mm), 0.213
(5.41mm), 0.068 (1.73mm)
Tool w/die 30-502
30-582
F-type CATV RG-59, RG-6
Connectors (Hex, 0.350
(8.89mm), 0.320 (8.13mm),
0.255 6.48mm)
Tool w/die 30-503
30-587
RG-58, RG-174 and
G-8218 for both 50 and
75 ohm cables (Hex 0.213
(5.41mm), 0.178 (4.52mm),
0.068 (1.73mm), 0.042
(1.07mm)
Tool w/die N/A
30-591
Plenum and Non-Plenum
Thinwire Cables RG-58 and
59 (Hex, 0.213 (5.41mm),
0.190 (4.83mm), 0.068
(1.73mm), 0.042 (1.07mm)
Tool w/die N/A
30-593
Mini UHF and BNC/TNC 5
cavity (Hex, 0.052 (1.32mm),
0.068 (1.73mm), 0.100
(2.54mm), 0.213 (5.41mm),
0.255 (6.48mm)
Tool w/die N/A
30-572
16-26 AWG (0.13mm2 - 1.3mm2)
miniature insulated rings, spade
and butt splices
Tool w/die N/A
30-579
22-10 AWG (0.5mm2 -6.0mm2)
insulated terminals/colour coded
nests
Tool w/die 30-500
30-580
22-8 AWG (0.5mm2 - 8.0mm2)
non-insulated terminals
Tool w/die N/A
30-586
22-12 AWG (0.5mm2 - 4.0mm2)
Non Insulated Open Barrel
Connectors, Commercial Type
Tool w/die N/A
30-594
Fully Insulated quick disconnect
terminals with thinner wire
barrels 22-10 AWG
(0.5mm2 -6.0mm2)
Tool w/die N/A
30-599
30-18 AWG (0.05mm2 - 1.0mm2)
Open Barrel Pins and Sockets
Tool w/die N/A
30-479 (Tool w/die)
For insulated terminals,
22-10 AWG (0.5mm2 -6.0mm2)
with built-in locator
www.idealnwd.co.uk
Connectors and Termination Products
Connector
Type
F-Type Coaxial Connectors
F-Series Connectors utilize threaded couplings and cable conductors as contacts for CATV and other UHF applications.
•
•
•
•
F
Available in the three most popular styles, RG-6/6Q/59
All brass design
One-piece body design
Crimp with the Crimpmaster™ 30-503 Crimp Tool
F
F
Push-On F-Connectors, RG-6 & RG-59
•
•
•
•
Connector Type
Cable Type Termination Type
RG-6
Crimp
RG-6
Quad
Crimp
RG-59
Crimp
Cat. No.
Card of 4
84-017
Card of 10
85-037
Card of 50
85-017
Box of 100
86-017
Card of 4
84-030
Card of 10
85-057
Card of 50
85-030
Box of 100
86-030
Card of 4
84-016
Card of 10
85-036
Card of 50
85-016
Qty.
Cat. No.
Card of 4
85-065
Jar of 50
89-165
Box of 1,500
85-1165
Card of 4
85-066
Jar of 50
85-166
Box of 1,500
85-1166
Card of 4
85-067
Jar of 50
85-167
Card of 10
89-500
Qty.
Cat. No.
Card of 10
85-053
Card of 50
85-039
Box of 100
86-039
Card of 4
84-018
Card of 10
85-035
Description
Qty.
Cat. No.
1GHz Female-to-Female F-Type Coaxial Adaptor
Card of 10
85-031
3GHz F-Splice Adaptor, high bandwith, OMHz to 3GHz for standard and high definition applications,
<0.25dB insertion loss, >25dB return loss
Card of 4
85-339
Card of 2
85-936
Card of 10
85-038
Card of 2
85-070
No terminator tool required
All brass nickel-plated construction
Knurled nut for superior grip
Designed for indoor use
F
F
Twist-On F-Connectors, RG-6 & RG-59
RG-6
RG-6 Quad
F
RG-59
RCA
RG-6
Connector Type
• After cable is stripped, simply twist on connector
• No termination tool required
• Available in two styles, RG-6 and 59
Cable Type
Qty.
F
F
Cable Type
RG-6
RG-59
F-Type Adaptors & Terminators
• Nickel-plated brass construction
• For 75Ω applications
Female to RCA Male Adaptor – converts female F-connectors to male RCA connectors
Coax Cable F-Terminators - for all open ports on coax wall plates and splitters
90° F-Adaptor - F-female to F-male coax adaptor
+44 (0)1925 444446 for Customer Service
65
BNC Connectors
•
•
•
•
•
Connector construction covers both plenum and non-plenum cable jackets
Captive gold centre contacts provide maximum conductivity and minimal resistance
Nickel plating resists corrosion, tarnish and ensures signal quality
Meets military specifications. MS39012 and MIL202 where applicable.
Available in both small and bulk quantities to suit a range of application requirements
Connector Type
Cable Type
Centre
Jacket
Connector Impedance
Insulation
BNC Plug
RG-59
20 AWG Solid
(0.5mm2)
Non-Plenum
75 Ohm
Delrin
BNC Plug
RG-6
18 AWG Solid
(1.0mm2)
Non-Plenum
BNC Adaptor
-
Jack to Jack
-
50 Ohm
Delrin
BNC Twist-on Plug
RG-59
22-23 AWG
Solid (0.250.32mm2)
Non-Plenum
50 Ohm
Delrin
75 Ohm
Delrin
Qty.
Cat. No.
Bag of 5
85-502
Box of 100
86-502
Bag of 5
85-512
Bag of 5
85-545
Bag of 5
85-590
Bag of 5
85-480
Description
Cat. No.
F to BNC Adaptor Kit
• 1x BNC Male to F-type Female
• 4x F-type Male to BNC Female
• 4x F-type Female to BNC Female
• 1x RJ-45 Male to F-type Female
LA-4173
T
Coax Connector Tool
- F & BNC
•
•
•
•
Works on compression and hex connectors
Makes attaching (and detaching) connector to equipment easier
Aids in installing CATV connectors on coax cable
New comfort grip handle
Description Qty.
Cat. No.
Coax Connector Tool - F & BNC — 20.32cm overall
35-046
(7.62mm. blade)
2.4 GHz Satellite and Digital TV Splitters
•
•
•
•
66
Designed for easy mounting over cable
All ports are F female connectors, 75Ω
Two grounding screws eliminate the need for grounding block
All ports power pass
Description
Cat. No.
2-Way, 5MHz - 2.4GHz
85-332
3-Way, 5MHz - 2.4GHz
85-333
4-Way, 5MHz - 2.4GHz
85-334
www.idealnwd.co.uk
Connectors and Termination Products
Cable TV Splitters
Description
High Performance Cable Splitter, 5MHz-1GHz 2-Way
High Performance Cable Splitter, 5MHz-1GHz 3-Way
High Performance Cable Splitter, 5MHz-1GHz 4-Way
Qty.
Cat. No.
Card of 1
85-132
Box of 10
86-132
Card of 1
85-133
Box of 10
86-133
Card of 1
85-134
Box of 10
86-134
8-Way Digital Cable Splitter
•
•
•
•
•
•
•
Nickel-plated housing
High-performance impedance balanced Printed Circuit Board design
Bandwidth: 5MHz - 1 GHz Impedance: 75 Ohm
Over 120 dB of RFI shielding
Low insertion loss
Splits signals up to 8 outlets
Terminators (85-038) needed for all unused ports for optimal performance
Description Qty.
Cat. No.
Digital Cable Splitter, 8-Way
85-138
Diplexer 5 MHz - 2.1 GHz
•
•
•
•
•
Combine or split cable/antenna signals with satellite signals
High quality PCB design
Corrosion-resistant sealed construction
Nickel-plated die-cast zinc housing
Grounding hole for up to 6 AWG wire
Description Qty.
Cat. No.
Diplexer, 2.1 GHz, SATV/TV Combiner Splitter - 2 Amp
85-323
Grounding Block
•
•
•
•
+44 (0)1925 444446 for Customer Service
Solid zinc alloy, nickel plated and chromate finished
High performance 360° beryllium copper contact
Excellent electrical performance 0 - 3,000 MHz
UL/CSA approved
Description Qty.
Cat. No.
2-Port Grounding Block for F-Connectors
85-311
67
Connectors and Termination Products
Compression
mpression Connector Installation Kit
Description
Qty.
Cat. No.
Compression Connector Installation Kit
1
33-623
1
45-074
®
Data T -Cutter
Coax Cable Stripper
1
45-320
Economy Compression Tool
1
30-633
Pouch w/belt clip
1
-
Description
Qty.
Cat. No.
RG-6 Push-on Connector Kit
RG-6 Push-On Connector Kit
1
33-320
RG-6 Push-On Connectors
4
85-065
2-Step 59 & 6 Series Stripper
1
45-320
BNC/TNC
TNC & F-Se
F-Series Connector
oval Tools
Removal
• BNC/TNC connector removal tools for easy access to
high density locations of connectors.
Description
Cat. No.
12 in. (30.5 cm) Overall Length, 8 in. (20.3 cm) Blade Length
35-042
16 in. (40.6 cm) Overall Length, 12 in. (30.4 cm) Blade Length
35-043
Coax Strip and Crimp Tool
• Precision, form-ground stripping holes remove outer jacket and insulation
from RG-59 and RG-6 coaxial cable
• Durable blades cut copper-coated steel conductors
• Three crimping nests for crimping F-connectors and ring terminals
• Cushioned, comfort-grip handles
Description
Cat. No.
Coax Strip & Crimp Tool
30-433
Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors 30-433F
(Kit includes ten connectors)
68
www.idealnwd.co.uk
Fibre Tools and Accessories
FIBRE TOOLS AND ACCESSORIES
Simplex/Duplex 3mm jacket Stripper
• Designed to remove the jacket from 3mm Simplex or Duplex (zip cord)
fibre optic cable
• Form-ground, knife-type blades for accurate easy stripping without
•
damaging the fibre or Kevlar® strength member
Contoured, comfort-grip handles to reduce operator fatigue
Description
Cat. No
Simplex/Duplex 3mm Jacket Stripper
45-349
Stripmaster® Ribbon Fibre Jacket Stripper
• Removes jacket from Ribbon Fibre without damage to the Kevlar®
strength member of the Ribbon Fibre
Note: Frame and blade-set sold separately.
Description
Cat. No
Stripmaster® Frame only
L-5620
Frame & Blade-set for use with Corning Plenum and Riser Ribbon
Fibre Cable
45-891
Frame &Blade-set for use with Corning “Fanout” Ribbon Cable
45-892
Serrated Cutter (for Kevlar®) with Breaker Notch
• Two-Step process significantly increases the life of this rugged tool
• Superior quality high-carbon stainless steel with molybdenum and vanadium
•
•
MiniLite-Strip™
p™ Optica
Optical Fibre Stripper
provides the super-hard edges needed to stand up to the demands of today’s
market
Textured cushioned-grip handles
Value-priced for contractors, cable assembly houses, fibre
installers/technicians and tool kits
Description
Cat. No
Serrated Cutter w/Breaker Notch
45-344
• Small strip notch engineered and precision-ground to strip 900 micron or
250 micron buffer coatings from
• 125 micron fibre
• Larger round strip notch machined to remove the 3mm outer jacket
• Strip notches pre-set and locked, no field adjustment necessary
Description
Cat. No
MiniLite-Strip™ Optical Fibre Stripper
45-352
Cable Strippers
This lightweight, compact stripper is inexpensive and simple to operate.
• Adjustable blades can be set for any depth to help ensure nick-free strips
• Use with twisted-pair wire, tightly wrapped stranded cables, CATV cable,
CB antenna cable, SO, SJ, SJT and other types of flexible power cords
• Includes three straight and one round blade
+44 (0)1925 444446 for Customer Service
Description
Cat. No
Cable Stripper, up to 1/8 in. (3.2 mm) O.D., Gray
45-162-341
Cable Stripper, 1/8 in. (3.2 mm) to 7/32 in. (5.556 mm) O.D., Blue
45-163-341
Replacement Blade Set for 45-162, 45-163, 45-165
L-9225
69
Fibre Tools and Accessories
Split-Tip Fibre Optic Swabs
• Split-tip design cleans fibre easier and more efficiently than other methods
• Tube/handle is pre-loaded with 99% isopropyl alcohol
• A single swab can be used for many cleanings or until the alcohol is gone
Description
Qty.
Cat. No.
Split-Tip Fibre Optic Swabs
Bag of 20
45-360
DualScribe™ Double-Ended Fibre Optic Scribes
• Three professional quality blade
•
•
•
Plastic Polishing
g Fixture
styles to choose from to meet
your specific needs – Ruby,
Sapphire, Carbide
Colour-coded handles for quick,
easy identification
Red – Ruby
Blue – Sapphire
• Black – Carbide
• 30° single bevel – DualScribe™
reversible blade doubles tool life
• Soft non-slip grip provides precise
control during scribing
• Clear safety cap protects the
blades from damage when not in
use
Description
Handle Colour
Cat. No.
Ruby Blade Fibre Optic Scribe
Red
45-357
Sapphire Blade Fibre Optic Scribe
Blue
45-358
Carbide Blade Fibre Optic Scribe
Black
45-359
• Universal fitting accepts all ST®, SC and FC connectors with
2.5mm ferrules
• Economically priced
• Grooved face for polishing efficiency
• Precision tool used by manufacturers, contractors and in tool kits
Description
Cat. No.
Plastic Polishing Fixture
45-342
Stainless Steel Polishing Fixture for Optical Fibre ST® and SC Type Connectors
F-Series Connectors utilize threaded couplings and cable conductors as contacts for CATV and other UHF applications.
• Precision-machined, stainless-steel disk provides accurate
polishing angle for desired end face finish
• Stainless-steel hardness maintains long life and resists uneven wear
• Stepped surface reduces drag and friction for easier polishing
Description
®
Polishing Fixture for Optical Fibre SC/ST
Type Connectors
Handle Colour
Cat. No.
1
45-341
Polishing
g Films for Fibre Optic
p Connectors
• For optimum connector polishing results, we recommend a three-step procedure using 0.5μm, 3μm and 12μm 3” x 6” aluminum oxide polishing films
• Lot-to-lot consistency in our films means repeatable connector finishes on
ceramic, stainless steel, plastic and composite ferrules
• A single sheet will typically yield 10 to 20 connectors when using the
recommended 3-step procedure
70
Description
Colour
Qty.
Cat. No.
0.5μm, 3” x 6”, Aluminum Oxide
Ivory
20 films/sleeve
45-337
3.0μm, 3” x 6”, Aluminum Oxide
Lt. Yellow 20 films/sleeve
45-338
12μm, 3” x 6”, Aluminum Oxide
Lt. Red
45-339
20 films/sleeve
www.idealnwd.co.uk
Also from IDEAL INDUSTRIES
ELECTRICAL
C
C
Domestic, commercial and industrial electricians have come to depend on
IDEAL for quality electrical products. Our electrical line contains just about
everything an electrician might need for an easier, more efficient job: industry
standard wire connectors, fish tapes, wire pulling lubricants, wire strippers,
hand tools, safety supplies and a comprehensive family of rugged, versatile
and easy-to-use test and measurement instruments.
For more information on our electrical range please visit
www.idealindustries.co.uk
Recommended product for data centres
HeatSeeker®Thermal Imagers
Troubleshoot and identify potential problems before they happen with the IDEAL HeatSeeker®Thermal Imagers. What makes HeatSeeker® so useful
are the dual cursors that instantly locate the hottest and coldest temperatures on a live screen, and the camera’s ability to blend a thermal image on
top of a digital image for easy on-the-job decision making. The HeatSeeker® Thermal Imager’s easy set-up and operation make it a cost-effective
tool for electrical service, industrial maintenance, building inspection and data centre evaluation
Features and Benefits
•
•
•
•
•
•
•
Troubleshoot potential problems quickly
Auto hot/cold tracker
Image blending of thermal and digital
Picture-in-picture
Large widescreen display
Mark images with text and voice annotation
Sequence image recording
Description
Cat.No
HeatSeeker
®
HeatSeeker 160
61-844EU
61-846EU
For more information about IDEAL INDUSTRIES NETWORKS in Europe:
IDEAL INDUSTRIES NETWORKS DIVISION
IDEAL INDUSTRIES GmbH
IDEAL INDUSTRIES SAS
Unit 3, Europa Court, Europa Boulevard,
Westbrook, Warrington, Cheshire, WA5 7TN,
United Kingdom
Tel: +44 (0)1925 444446
Fax: +44 (0)1925 445501
Email: uksales@idealnwd.com
www.idealnwd.co.uk
Gutenbergstrasse 10,
D - 85737 Ismaning, Germany
Tel: +49 (0) 89 99686 0
Fax: +49 (0) 89 99686 111
Email: germanysales@idealnwd.com
www.idealnwd.de
Route de Gisy, ZA Burospace - Bât 7, F - 91571
BIEVRES CEDEX, France
Tel: +33 (0)1 69 35 54 70
Fax: +33 (0)1 60 19 00 48
Email: francesales@idealnwd.com
www.idealnwd.fr
All specifications are subject to change without notice. No liability will be accepted for errors and omissions.
+44 (0)1925 444446 for Customer Service
71
IDEAL INDUSTRIES LIMITED
Unit 3, Europa Court, Europa Boulevard, Westbrook, Warrington,
Cheshire, WA5 7TN, United Kingdom
Tel: +44 (0)1925 444446, Fax: +44 (0)1925 445501, Email: uksales@idealnwd.com
International offices:
Australia • Brazil • Canada • China • France • Germany • Mexico • UK • USA
For complete sales office contact information, visit us at www.idealindustries.co.uk.
Publication No. 00630 Issue 1
Printed in UK
©2011 IDEAL INDUSTRIES, INC.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
