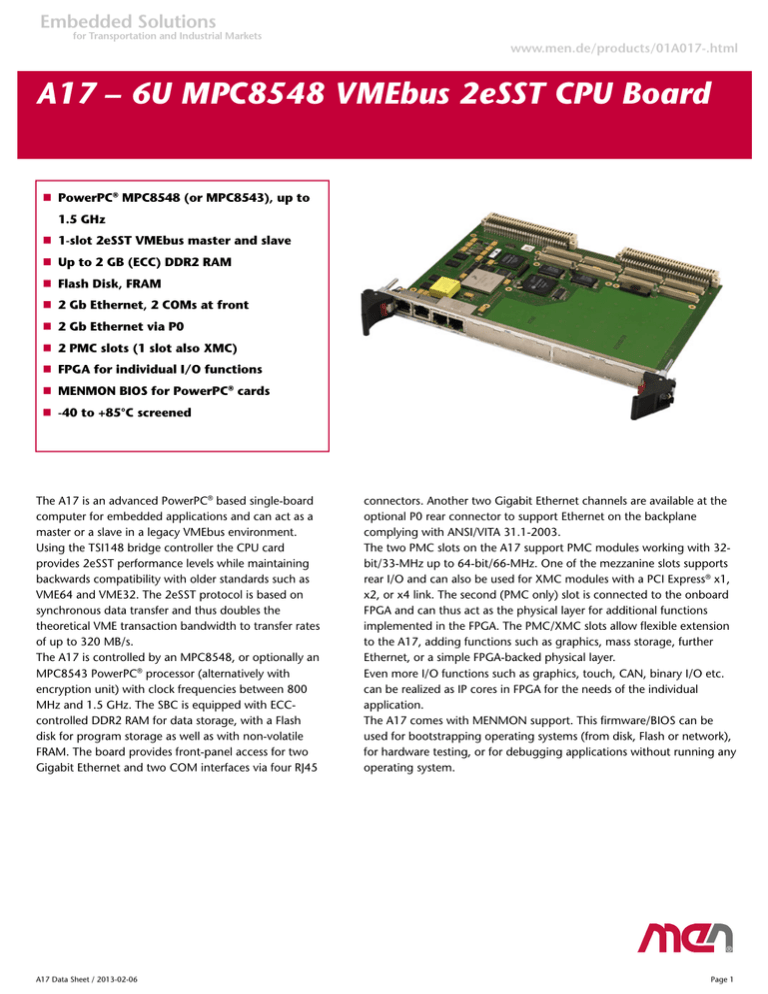

A17 – 6U MPC8548 VMEbus 2eSST CPU Board
n PowerPC® MPC8548 (or MPC8543), up to
1.5 GHz
n 1-slot 2eSST VMEbus master and slave
n Up to 2 GB (ECC) DDR2 RAM
n Flash Disk, FRAM
n 2 Gb Ethernet, 2 COMs at front
n 2 Gb Ethernet via P0
n 2 PMC slots (1 slot also XMC)
n FPGA for individual I/O functions
n MENMON BIOS for PowerPC® cards
n -40 to +85°C screened
The A17 is an advanced PowerPC® based single-board
computer for embedded applications and can act as a
master or a slave in a legacy VMEbus environment.
Using the TSI148 bridge controller the CPU card
provides 2eSST performance levels while maintaining
backwards compatibility with older standards such as
VME64 and VME32. The 2eSST protocol is based on
synchronous data transfer and thus doubles the
theoretical VME transaction bandwidth to transfer rates
of up to 320 MB/s.
The A17 is controlled by an MPC8548, or optionally an
MPC8543 PowerPC® processor (alternatively with
encryption unit) with clock frequencies between 800
MHz and 1.5 GHz. The SBC is equipped with ECCcontrolled DDR2 RAM for data storage, with a Flash
disk for program storage as well as with non-volatile
FRAM. The board provides front-panel access for two
Gigabit Ethernet and two COM interfaces via four RJ45
A17 Data Sheet / 2013-02-06
connectors. Another two Gigabit Ethernet channels are available at the
optional P0 rear connector to support Ethernet on the backplane
complying with ANSI/VITA 31.1-2003.
The two PMC slots on the A17 support PMC modules working with 32bit/33-MHz up to 64-bit/66-MHz. One of the mezzanine slots supports
rear I/O and can also be used for XMC modules with a PCI Express® x1,
x2, or x4 link. The second (PMC only) slot is connected to the onboard
FPGA and can thus act as the physical layer for additional functions
implemented in the FPGA. The PMC/XMC slots allow flexible extension
to the A17, adding functions such as graphics, mass storage, further
Ethernet, or a simple FPGA-backed physical layer.
Even more I/O functions such as graphics, touch, CAN, binary I/O etc.
can be realized as IP cores in FPGA for the needs of the individual
application.
The A17 comes with MENMON support. This firmware/BIOS can be
used for bootstrapping operating systems (from disk, Flash or network),
for hardware testing, or for debugging applications without running any
operating system.
Page 1
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Diagram
System
SDRAM
DDR2
EEPROM
RTC
Boot Flash
FRAM
Watchdog
Ethernet
1000Base-T
Ethernet
1000Base-T
PowerPC®
MPC8548 or
MPC8543
F
F
Ethernet
1000Base-T
Ethernet
1000Base-T
VME P0
RS232 COM1
F
RS232 COM2
F
32-bit
R
F
Front connector
R
Rear I/O connector
Options
FPGA
Flash Disk
SSD
Option: User I/O
I/O
PCI
e
J4
PCI
64-bit
64-bit
x8
64-bit
A17 Data Sheet / 2013-02-06
PMC 1
F
Shared slot
PMC0 or
XMC
PCI-toVMEbus
Bridge
VME P2
F
R
VME P1
Page 2
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Technical Data
CPU
n
PowerPC® PowerQUICC™ III MPC8548, MPC8548E, MPC8543 or MPC8543E
o 800 MHz up to 1.5 GHz
o Please see Standard Configurations for available standard versions.
®
o e500 PowerPC core with MMU and double-precision embedded scalar and vector floating-point APU
o Integrated Northbridge and Southbridge
Memory
n
2x32 KB L1 data and instruction cache, 512 KB/256 KB L2 cache integrated in MPC8548/MPC8543
Up to 2 GB SDRAM system memory
o Soldered
o DDR2 with or without ECC
o Up to 300 MHz memory bus frequency, depending on CPU
Up to 4 GB soldered Flash disk (SSD solid state disk)
o Higher capacity possible if components are available
o FPGA-controlled
16 MB boot Flash
128 KB non-volatile FRAM
Serial EEPROM 8 kbits for factory settings
n
n
n
n
n
Mass Storage
n
Up to 4 GB soldered ATA Flash disk (SSD solid state disk)
o Higher capacity possible when components are available
o FPGA-controlled
I/O
n
Ethernet
o Up to four 10/100/1000Base-T Ethernet channels
o Two RJ45 connectors at front panel
o Two front LEDs per channel to signal LAN Link and Activity
o Two channels accessible via rear I/O on connector P0 complying with ANSI/VITA 31.1-2003 (option)
Two RS232 UARTs (COM1/2)
o Two RJ45 connectors at front panel
o Data rates up to 115.2 kbit/s
o 16-byte transmit/receive buffer
o Handshake lines: CTS, RTS
GPIO
o 31 GPIO lines
o FPGA-controlled
o Connection via PMC1 board-to-board connector J4
n
n
Front Connections
n
n
n
Rear I/O
n
n
Mezzanine Slots
n
n
n
Miscellaneous
n
n
n
n
Local PCI Bus
n
n
A17 Data Sheet / 2013-02-06
Two Ethernet (RJ45)
COM1/COM2 (RJ45)
XMC/PMC 0 and PMC 1
Two 10/100/1000Base-T Ethernet on P0 (option)
Mezzanine rear I/O: PMC 0 on P2
Two slots total, one slot usable for PMC or XMC
One XMC slot
o Compliant with XMC standard VITA 42.3-2006
®
o PCI Express links: one x1 or one x2 or one x4
Two PMC slots
o Compliant with PMC standard IEEE 1386.1
o Up to 64-bit/64-MHz, 3.3 V V(I/O)
o PMC I/O module (PIM) support through J4 complying with VITA 35 (PMC 0)
Real-time clock with battery backup
Temperature sensor, power supervision and watchdog
Reset button in ejector handle
One power good LED, three user-configurable LEDs at front
64-bit/66-MHz, 3.3 V V(I/O)
Compliant with PCI Specification 2.2
Page 3
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Technical Data
VMEbus
n
n
n
n
n
n
n
n
n
n
n
n
n
n
TSI148 controller
Compliant with VME64 Specification
Supports VME32, VME64, 2eVME and 2eSST (VITA 1.5)
o Optional single 5V supply for operation in VME32 systems
Slot-1 function with auto-detection
Master
o D08:D16:D32:D64:A16:A24:A32:A64:BLT:MBLT:RMW
Slave
o D08:D16:D32:D64:A16:A24:A32:A64:BLT:MBLT
DMA
Mailbox functionality
Bus timer
Location Monitor
Interrupter D08(O):I(7-1):ROAK
Interrupt handler D08(O):IH(7-1)
Single level 3 fair requester
Single level 3 arbiter
Electrical Specifications
n
Supply voltage/power consumption:
o +5 V (-3%/+5%), approx. 2.2 A
o +3.3 V (-3%/+5%), approx. 1.1 A
o +12 V (-5%/+5%), only provided for PMCs that need 12 V
o -12 V (-5%/+5%), only provided for PMCs that need 12 V
Mechanical Specifications
n
Dimensions: standard double Eurocard, 233.3 mm x 160 mm
Weight: 490 g (incl. heat sink, without XMC/PMC modules)
n
Environmental Specifications
n
Temperature range (operation):
o -40..+85°C (screened)
o Airflow: min. 10 m³/h
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to +3,000 m
Shock: 15 g, 11 ms
Bump: 10 g, 16 ms
Vibration (sinusoidal): 1 g, 10..150 Hz
Conformal coating on request
MTBF
n
220,017 h @ 40°C according to IEC/TR 62380 (RDF 2000)
Safety
n
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
n
Conforming to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)
BIOS
n
MENMON
Software Support
n
Linux
VxWorks®
QNX® (on request; support of the FPU is currently not provided by QNX®)
OS-9® (on request)
For more information on supported operating system versions and drivers see Downloads.
n
n
n
n
n
n
n
n
n
n
n
n
A17 Data Sheet / 2013-02-06
Page 4
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Configuration & Options
Standard Configurations
Article No.
CPU Type
Clock
System RAM
Flash Disk
FRAM
P0 Ethernet
Operation
Temperature
01A017-00
MPC8548
1.33 GHz
1 GB ECC
2 GB
128 KB
No
-40..+85°C
Options
CPU
n
n
n
Memory
n
n
n
I/O
n
n
FPGA
System RAM
o 512 MB, 1 GB or 2 GB
o With or without ECC
Flash Disk
o 0 GB up to 4 GB (and more, if components are available)
FRAM
o 0 KB or 128 KB
Ethernet
o Two additional Gigabit Ethernet channels on VMEbus P0 rear connector for ANSI/VITA 31.1-2003
support (only with MPC8548)
o Only two channels (at front) instead of four with MPC8543
PCI Express® links: one x8 link
o Reduces operation temperature range because of higher DDR SDRAM clock
n
The onboard FPGA offers the possibility to add customized I/O functionality.
FPGA Altera® Cyclone® II EP2C35
o 33,216 logic elements
o 483,840 total RAM bits
Connection
o Total available pin count: 31 pins
o Functions available via PMC slot 1 connector Pn4
You can find more information on our web page "User I/O in FPGA"
n
Single 5V supply for operation in VME32 systems
n
n
n
VMEbus
Several PowerQUICC™ III types with different clock frequencies
MPC8548 or MPC8548E
o 1 GHz, 1.2 GHz, 1.33 GHz or 1.5 GHz
MPC8543 or MPC8543E
o 800 MHz or 1 GHz
Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information.
A17 Data Sheet / 2013-02-06
Page 5
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Ordering Information
Standard A17 Models
01A017-00
Systems & Card Cages
MEN delivers turn-key systems completely installed (hardware, operating system, accessories), wired and
tested. Different rack sizes, power supplies and backplanes on request.
For details please contact your local sales representative.
Miscellaneous Accessories
05F006-00
RS232 interface cable RJ45 to 9-pin D-Sub (1 COM to 1 COM), 2m
05P000-01
25 mounting screw sets to fix PMC/XMC modules on carrier boards
Software: Linux
Software: VxWorks®
Software: Firmware/BIOS
MPC8548 / 1.33 GHz, 1 GB DDR2 DRAM, 2 GB Flash disk, 128 KB FRAM, P0 not
mounted, -40..+85°C screened
This product is designed to work under Linux. See below for all available separate software packages.
10EM09-91
General Linux BSP for A17, EM9, EM9A, EK9, F50C, F50P and XM50
13MD05-90
MDIS5 System (and Device Driver) Package (MEN) for Linux. This software package
includes most standard device drivers available from MEN.
13Z014-90
Linux device driver (MEN) for PCI-to-VME bridge on A12, A13, A14, A15, A17, A19, A20,
A21B/A21C and B11
This product is designed to work under VxWorks®. For details regarding supported/unsupported board
functions please refer to the corresponding software data sheets.
10EM09-60
VxWorks® 6.4/6.5 BSP (MEN) for A17, EK9, EM9, EM9A, F50C, F50P and XM50
10EM09-61
VxWorks® 6.9 BSP (MEN) for A17, EK9, EM9, EM9A, F50C, F50P and XM50
13Z017-06
MDIS5 low-level driver sources (MEN) for 16Z034_GPIO, 16Z037_GPIO and
16Z127_GPIO
MENMON is MEN's firmware/BIOS for PowerPC® platforms.
14A017-00
MENMON (Firmware) (MEN) for A17 (object code)
For operating systems not mentioned here contact MEN sales.
Documentation
A17 Data Sheet / 2013-02-06
Compare Chart 6U VMEbus CPU and I/O cards » Download
20A017-00
A17 User Manual
20A017-ER
A17 Errata
Page 6
Embedded Solutions
for Transportation and Industrial Markets
www.men.de/products/01A017-.html
Contact Information
Germany
France
USA
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone +49-911-99 33 5-0
Fax +49-911-99 33 5-901
MEN Mikro Elektronik SAS
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone +33 (0) 450-955-312
Fax +33 (0) 450-955-211
MEN Micro Inc.
860 Penllyn Blue Bell Pike
Blue Bell, PA 19422
Phone (215) 542-9575
Fax (215) 542-9577
[email protected]
www.men.de
[email protected]
www.men-france.fr
[email protected]
www.menmicro.com
The date of issue stated in this data sheet refers to the Technical Data only. Changes in ordering information given herein do not affect the date of issue. All brand or product names are
trademarks or registered trademarks of their respective holders.
MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in or omission from the publication.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in respect of anything, and of the consequences of anything,
done or omitted to be done by any such person in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental specification given for each product in the technical user manual.The
correct function of MEN products under extended environmental conditions is limited to the individual requirement specification and subsequent validation documents for each product
for the applicable use case and has to be agreed upon in writing by MEN and the customer.Should the customer purchase or use MEN products for any unintended or unauthorized
application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses,
and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated with such unintended or unauthorized use, even if such claim alleges
that MEN was negligent regarding the design or manufacture of the part.
In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
Copyright © 2015 MEN Mikro Elektronik GmbH. All rights reserved.
A17 Data Sheet / 2013-02-06
Page 7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
