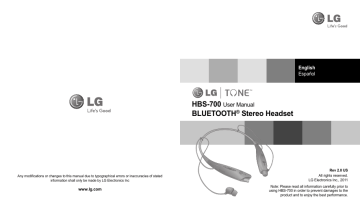

HBS-700

User Manual

BLUETOOTH

®

Stereo Headset

English

Español

Rev 2.0 US

All rights reserved.

LG Electronics Inc., 2011

Note: Please read all information carefully prior to using HBS-700 in order to prevent damages to the product and to enjoy the best performance.

2

Table of Contents

Introduction

- Included in the package

Description of parts

How to use

- Wearing

- Charging

- Low battery

- Battery status check

- Power on / Power off

- Pairing

- Multi-connection

- Auto reconnect

- Audio streaming

-Bass Boost

- Volume control

- Calling

• Answering a call

• Transferring a call

• Voice dialing

• Last number redial

• Ending a call

• Call waiting

• Rejecting a call

- SMS reader

Summary of button functions

LED indication

10

11

Troubleshooting 11

Specification 12

Precautions 12

Declaration of confirmation

Additional information

Limited warranty

Important safety information

13

13

16

16

4

8

8

8

8

8

8

7

7

9

9

9

9

9

5

6

5

5

5

5

4

4

3

3

Introduction

The LG Tone (HBS-700) is a light weight wireless headset that uses Bluetooth ® technology.

This product can be used as an audio accessory for devices supporting either the

A2DP or Hands-Free Bluetooth ® Profi le.

Included in the package

HBS-700

Charger

Charger User manual Warranty Card

3

4

Description of parts

Headset

Memory fl ex neck strap

Charging port

REW Button

FF Button

PLAY / PAUSE /

STOP Button

Earphone (R)

How to use

Wearing

Power Switch

VOLUME UP Button

VOLUME DOWN Button

CALL Button,

LED indicator

Microphone

Earphone (L)

How to use

Charging

- When the charger is connected, with the power on or off, the headset will turn off.

- While charging, the LED indicator will show a solid red light.

- When charging is complete, the LED indicator will turn off.

Low battery

- A low battery tone will play once every 30 seconds.

- If the battery is not charged, the headset will turn off.

Battery status check

- Press and hold the VOLUME DOWN button for 3 seconds.

- There are 3 levels of battery status.

Battery status

LED display

High

Solid blue for 1 second

Medium

Solid violet for 1 second

Low

Solid red for 1 second

Power on / Power off

- Move the power switch to the ‘ON’ or ‘OFF’ position.

Pairing

- Before using the headset for the fi rst time, you must pair it with a Bluetooth-enabled

Device.

- There are 2 Pairing Mode Methods with the HBS-700.

1) Easy Pairing

a) Move the Power Switch to the “ON” position.

b) If it is your fi rst time paring the device it will automatically enter pairing mode.

If it has been paired but no paired device is in range it will enter Pairing mode after 10 seconds.

5

6

How to use

• The LED indicator will be Solid Blue c) On the device you wish to pair, fi nd the bluetooth menu and “serch for” or

“add” new devices d) Select “LG HBS-700” From the list of devices e) If asked for a Pass/Pin Code enter 0000 (4 Zero’s) f) Once pairing is complete you will hear a beep

• The HBS-700 will automatically turn off if not paired within 3 minutes.

2) Manual Pairing (Pairing with another phone or re-pairing)

a) With the Power off, press the CALL button and move the power switch to the

‘ON’ position at the same time for 4 seconds.

b) When the headset enters Pairing Mode, the LED indicator will show a solid blue light. After the procedure repeat Easy Pairing steps c through f.

Multi-connection

- In Multi-Connection mode, only one device can be used to make/receive calls, and the other connected device can only be used for streaming Audio.

- To enter Multi-Connection mode:

1. Connect your HBS-700 to the device you wish to use for making calls.

2. Power off the HBS-700

3. Place your HBS-700 into pairing mode and pair/connect to a Bluetooth Stereo enabled audio device (not your handset). (This Bluetooth Stereo enabled audio device must only support the A2DP/AVRCP profi les, not the headset/handsfree profi les)

4. Once the Bluetooth Stereo enabled device is paired and connected, press the

CALL button once briefl y on the HBS-700 to reconnect with the handset (only the headset/hands-free profi le will connect).

5. The handset is now paired with the headset/hands-free profi le of the HBS-700.

The Bluetooth Stereo enabled audio device is paired with A2DP/AVRCP stereo profi les.

How to use

* NOTE: In order to access Multi-Connection mode, at least one of the two devices you are trying to connect to the HBS-700 must be able to select a profi le, OR one of the two devices must only support one profi le (Either

Headset/Hands-Free or A2DP/AVRCP). For example: Two handsets which support both the Headset/Hands-Free and A2DP/AVRCP profi les cannot be connected to the HBS-700 simultaneously. But, one handset supporting

Headset/Hands-Free/A2DP/AVRCP and a Bluetooth Stereo Dongle supporting only A2DP/AVRCP is OK.

Auto reconnect

- If the HBS-700 is turned off (either accidentally or intentionally) while connected to a handset, the headset and handset will disconnect. The headset and handset will automatically reconnect when the HBS-700 is turned back on while in range.

Out of range

- If the paired Devices are separated by a range of 33 feet (10 meters) or more, the headset and handset will disconnect.

- If the headset and handset do not automatically reconnect when they are back within the required range, briefl y press the CALL button on the HBS-700 to reconnect manually.

Audio streaming

Play

- Briefl y press the PLAY/PAUSE/STOP Button.

Pause

- While playing music, briefl y press the PLAY/PAUSE/STOP button.

Stop

- While playing music, press and hold the PLAY/PAUSE/STOP button for 1 second.

Next Song

- Briefl y press the FF button.

Previous song

- Briefl y press the REW button.

7

8

How to use

Fast forward

- Press and hold the FF button.

Rewind

- Press and hold the REW button.

Bass Boost

- While playing music, press and hold VOLUME UP and VOLUME DOWN buttons simultaneously for 1 second to switch between EQ’s (Normal or Bass Boost).

The headset will beep.

Volume control

- Press the VOLUME UP or VOLUME DOWN button to adjust the speaker volume.

- There are eight levels of speaker volume in hands-free mode.

- There are sixteen levels of speaker volume in audio streaming mode.

Calling

Answering a call

- When there is an incoming call, the headset will ring.

- Briefl y press the CALL button to answer the incoming call.

Transferring a call

- If you make a call from the handset, the call will (depending on the phone settings) automatically transfer to the headset. If the call is not automatically transferred, you can manually transfer the call to, or from, the headset by pressing and holding

VOLUME UP button for 3 seconds on the HBS-700 (handset and headset must be paired).

Voice dialing

- Briefl y press the CALL button to activate “Voice Command”. For best results, record the Voice dialing tag through your headset.

NOTE: If your handset does not support Voice dialing, this action may activate

Last Number Redial.

How to use

Last number redial

- Press and hold the CALL button for 1 second to activate “Last number redial”.

The headset will beep and then call the last number dialled.

Ending a call

- Briefl y press the CALL button.

Call waiting

- Answer a second call without hanging up the fi rst call by pressing the CALL button for 1second. Press the CALL button for 1second to return to the original call.

- Briefl y press the CALL button to terminate both calls at once.

Rejecting a call

- Activate call reject by pressing the CALL button for 1 second when the handset rings.

* These functions may only be used if your handset supports them. For further information about using these features, please consult your handset’s user manual.

SMS reader

The HBS-700 Bluetooth Headset supports SMS reading on Android

TM devices.

based

In the Android TM Marketplace search for the LG ‘BT Reader’ application and install on your device to use this function.

* The 2D barcode shown below helps you download the ‘BT Reader’ application from Android Market TM .

9

10

Summary of button functions

Function

Power on

Power off

Volume up

Volume down

Transferring a call

Answering a call

Ending a call

Call waiting

Last number redial

Voice dialing

(handset must support)

Call reject

Idle

Ringing

Pairing mode

(Manual)

Power off

Battery status check Idle

Play

Pause

Power on

Music on

Stop

Next song

Previous song

Fast forward

Rewind

Bass Boost

HBS-700 Status

Power off

Action

Move the power switch to the ‘ON’ side.

Power on

Talking

Talking

Talking

Ringing

Talking

Talking

Idle

Move the power switch to the ‘OFF’ side.

Briefl y press the VOLUME UP button.

Briefl y press the VOLUME DOWN button.

Press and hold VOLUME UP button for 3 seconds.

Briefl y press the CALL button.

Briefl y press the CALL button.

Press the CALL button for 1 second.

Press the CALL button for 1 second.

Music on

Music on

Music on

Music on

Music on

Music on

Briefl y press the CALL button.

Press the CALL button for 1 second.

Press the CALL button and move the power switch to the ‘ON’ side at the same time for 4 seconds.

Press the VOLUME DOWN button for 3 seconds.

Briefl y press the PLAY/PAUSE/STOP button.

Briefl y press the PLAY/PAUSE/STOP button.

Press and hold the PLAY/PAUSE/STOP button for 1 second.

Briefl y press the FF button.

Briefl y press the REW button.

Press and hold the FF button.

Press and hold the REW button.

Press and hold VOLUME UP and VOLUME

DOWN buttons simultaneously for 1 second.

Function HBS-700 Status

Power on

Power off

Operating

Pairing mode

Headset / hands-free profi le connected

Charging

Call connected

Charging

Charging complete

LED indication

Action

The blue LED light fl ickers 4 times.

The blue LED light fl ickers 4 times and then turns off.

The blue LED light stays on.

The blue LED light fl ickers 2 times every 5 seconds.

The blue LED light fl ickers 2 times every 5 seconds.

The blue LED stays on.

LED turns off.

Troubleshooting

Issue

Does not turn on

Unable to communicate with the LG Bluetooth ®

Headset HBS-700

Unable to pair the

HBS-700 with the

Bluetooth

®

device

Possible problem Resolution

Check whether the battery of the HBS-700 is fully charged. Charge the battery.

Check whether the handset supports the headset or hands-free Bluetooth profi les.

Check whether the battery of the HBS-700 is low.

Determine whether your handset supports the headset or handsfree Bluetooth profi les.

Charge the battery.

Check and make sure the headset is on.

Check and make sure the headset is placed in pairing mode.

Low sound (speaker) Check the speaker volume.

Move the power switch to the ‘ON’ side to turn on the headset.

With the Power off, press the

CALL button and move the power switch to the ‘ON’ side at the same time for 4 seconds to manually place the headset in pairing mode.

lncrease the volume level.

11

Specifi cation

Item

Bluetooth ® specifi cation

Battery

Talk Time

Music play time

Stand by time

Charging time

Operation temperature

Dimension / weight

Description

2.1+EDR (Headset / Hands-Free / A2DP Profi les)

Battery 3.7V / 195mAh Li-Polymer

Up to 10Hrs

Up to 10 Hrs

Up to 360Hrs

< 2.5Hrs

-10°C ~ 60°C

135.6mm(W) X 167.3mm(L) X 16.9mm(T) / 32g

12

Precautions

Do not drop the device.

Do not modify, repair, or disassemble.

Do not expose directly to water, alcohol, benzene, etc. for cleaning.

Do not expose directly to fl ammables.

Do not place or keep the device near fl ammables.

Keep the device away from excessive humidity and dust.

Do not place heavy objects on the device.

Only use the headset with an original LG charger, otherwise it may be damaged.

• Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• There is a risk of explosion if the battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.

• The neck strap is made of a shape memory alloy. However, bending the neck strap repeatedly is not recommended.

Declaration of Confi rmation

FCC NOTICE TO USERS:

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and

(2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

CE NOTICE TO USERS:

Hereby, LG Electronics Inc. declares that this HBS-700 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Additional Information

1. Radio frequency exposure

This Bluetooth

®

Stereo Headset HBS-700, is a radio transmitter and receiver. When in operation it communicates with a Bluetooth ® equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fi elds (microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low

(0.001 watts). Your Bluetooth

®

Headset is designed to operate in compliance with the

RF exposure guidelines and limits set by national authorities and international health agencies when used any compatible LG Electronics mobile phone.

13

14

Additional Information

2. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. Although this is uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion or fi re resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

3.Emergency calls

IMPORTANT!

This Bluetooth ® headset and the electronic device connected to the headset operate using radio signals, mobile and landline networks as well as user

- programmed functions, which cannot guarantee connection under all conditions.

Therefore you should never rely solely upon any electronic device for essential communications (e.g. medical emergencies). Remember, in order to make or receive calls, the headset and the electronic device connected to the headset must be switched on and in a service area with adequate mobile signal strength.

Emergency calls may not be possible on all mobile phone networks or when certain network services and/or phone features are in use. Check with your local service provider.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the fi rst few times it is used. Do not expose the battery to extreme temperatures, never above +60°C(+140°F) or under -20°C(-4°F). For maximum battery capacity, use the battery at room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10°C(+50°F) and +45°C (+113°F). For your safety, do not remove the battery incorperated in the product. If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

5. Recycling the battery in your Bluetooth

®

headset

The battery in your Bluetooth ® Headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner who removes the battery will dispose of it according to local regulations.

Additional Information

6. Conditions

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.

- If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units.

Replaced parts or components will become the property of LG Electronics.

- This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modifi cation or adjustment, acts of God or damage resulting from liquid.

- This warranty does not cover product failures due to improper repair installations, modifi cations or service performed by a non- LG Electronics authorised person.

Tampering with any of the seals on the product will void the warranty.

- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR

ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION

THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED

WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS

BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY

NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS

OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE

DISCLAIMED BY LAW.

• Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. The warranty provided does not affect the consumer’s statutory rights under applicable national legislation in force, nor the consumer’s rights against the dealer arising from their sales/purchase contract.

15

16

Limited warranty

Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact centre to get further information.

Important safety information

Avoiding hearing damage

Permanent hearing loss may occur if you use your headset at a high volume.

Set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffl ed speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected.

Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use the headset at high volume.

• Avoid turning up the volume to block out noisy surroundings.

• Turn the volume down if you can’t hear people speaking near you.

Using Headsets safely

Use of headsets to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive whilst driving. Stop using this device if you fi nd it disruptive or distracting whilst operating any type of vehicle or performing any other activity that requires your full attention.

HBS-700

Manual del usuario

Auricular estéreo BLUETOOTH

®

Español

English

Rev 2.0 US

Reservados todos los derechos.

LG Electronics Inc., 2011

Nota: lea atentamente toda la información antes de usar HBS-700 para evitar daños en el producto y lograr el mejor rendimiento.

Any modifi cations or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc

www.lg.com

HBS-700

User Manual

BLUETOOTH

®

Stereo Headset

English

Español

Rev 2.0 US

All rights reserved.

LG Electronics Inc., 2011

Note: Please read all information carefully prior to using HBS-700 in order to prevent damages to the product and to enjoy the best performance.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
