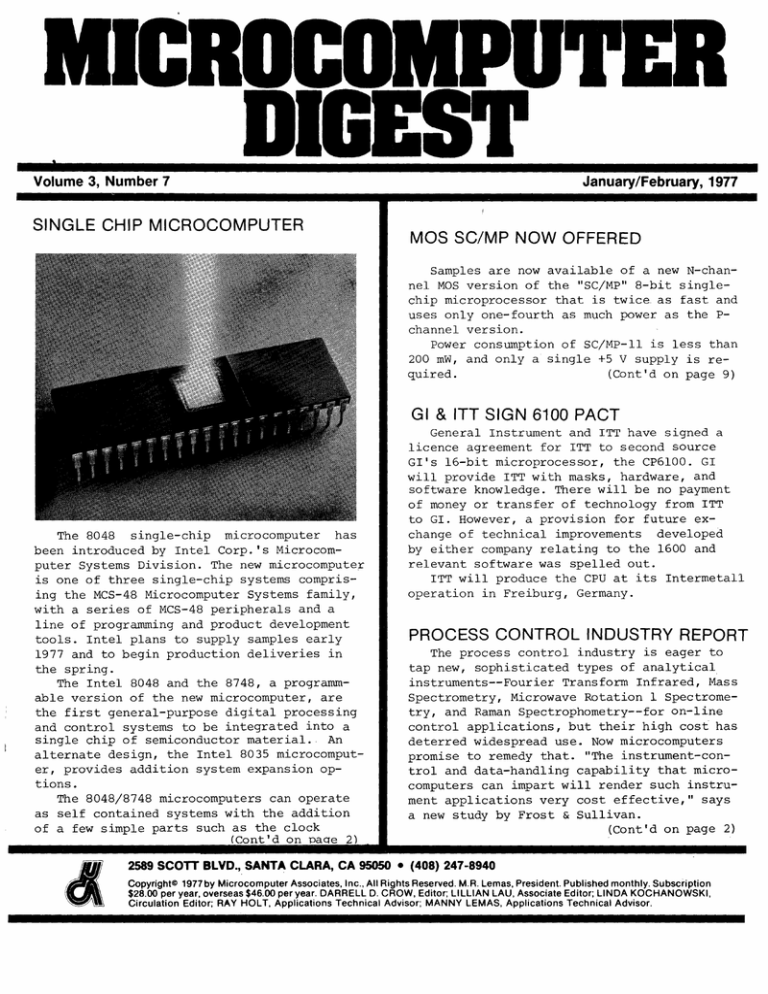

ROC
DIGEST
Volume 3, Number 7
SINGLE CHIP MICROCOMPUTER
January/February, 1977
MOS SC/MP NOW OFFERED
Samples are now available of a new N-channel MOS version of the "SC/MP" 8-bit singlechip microprocessor that is twice as fast and
uses only one-fourth as much power as the Pchannel version.
Power consumption of SC/MP-ll is less than
200 mW, and only a single +5 V supply is required.
(Cont'd on page 9)
GI & ITT SIGN 6100 PACT
The 8048 single-chip microcomputer has
been introduced by Intel Corp. 's Microcomputer Systems Division. The new microcomputer
is one of three single-chip systems comprising the MCS-48 Microcomputer Systems family,
with a series of MCS-48 peripherals and a
line of programming and product development
tools. Intel plans to supply samples early
1977 and to begin production deliveries in
the spring.
The Intel 8048 and the 8748, a programmable version of the new microcomputer, are
the first general-purpose digital processing
and control systems to be integrated into a
single chip of semiconductor material., An
alternate design, the Intel 8035 microcomputer, provides addition system expansion options.
The 8048/8748 microcomputers can operate
as self contained systems with the addition
of a few simple parts such as the clock
(Cont'd on paqe 2)
General Instrument and ITT have signed a
licence agreement for ITT to second source
GI's 16-bit microprocessor, the CP6100. GI
will provide ITT with masks, hardware, and
software knowledge. There will be no payment
of money or transfer of technology from ITT
to GI. However, a provision for future exchange of technical improvements developed
by either company relating to the 1600 and
relevant software was spelled out.
ITT will produce the CPU at its Intermetall
operation in Freiburg, Germany.
PROCESS CONTROL INDUSTRY REPORT
The process control industry is eager to
tap new, sophisticated types of analytical
instruments--Fourier Transform Infrared, Mass
Spectrometry, Microwave Rotation 1 Spectrometry, and Raman Spectrophometry--for on-line
control applications, but their high cost has
deterred widespread use. Now microcomputers
promise to remedy that. "The instrument-control and data-handling capability that microcomputers can impart will render such instrument applications very cost effective," says
a new study by Frost & Sullivan.
(Cont'd on page 2)
2589 SCOTT BLVD., SANTA CLARA, CA 95050 • (408) 247-8940
[email protected] 1977by Microcomputer Associates, Inc., All Rights Reserved. M.R. lemas, President. Published monthly. Subscription
$28.00 per year, overseas $46.00 per year. DARREll D. CROW, Editor; LILLIAN lAU, Associate Editor; LINDA KOCHANOWSKI,
Circulation Editor; RAY HOLT, Applications Technical Advisor; MANNY lEMAS, Applications Technical Advisor.
Volume 3, Number 7
January/February, 1977
2
SPECIAL FEA TURES
SINGLE CHIP MICROCOMPUTER
crystal, timing resistors and capacitors, and
cable drivers.
The chip, itself, contains all functions
required for digital processing and control,
and all generally required I/O logic interfaces, latches and buffers. Basic subsystems
on the chip are:
o 8-bit central processor with an internally expandable register stack array, 96
instructions and 2.5 us instruction cycle.
o Basic peripherals and utilities, including
a programmable interval time/event
counter, two built-in priority interrupt
vectors, system clock generator and a
full set of timing and control utilities.
IK program storage in ROM and EPROM and
a 64-byte static RAM for read/write data
storage, registers and stack
o 32-line I/O subsystem with three lines for
interrupts, jump tests and extra clock
rate, and five system bus controls.
The processor can service inputs. and outputs on the same ports, set and reset bits,
and perform logical processing operations on
data right as the I/O ports.
The instruction set is designed to simplify
applications programming, enhance throughput
and increase the effective capacity of the
resident program memory. It includes numerous
branch instructions to make logic functions
easy to implement. Most instructions are single-byte.
The central processor can operate as a
byte processor (8-bit parallel binary processor), 4-bit binary or BCD arithmetic processor.
The number of registers and stack levels can
be modified by the programmer to suit the application.
The 8035 microcomputer adds program memory
size options to the basic system. Although it
does not contain a program memory, it can address and execute identical programs and is
plug-compatible with the 8048/8748.
The three microcomputers have the same addressing structure, which allows either in.ternal or peripheral memory to be addressed
without changing program addresses. This feature also facilitates product testing.
The
8048/8748 microcomputers can be programmed
for the applications and the same program memory space can be used to access a peripheral
containing special test programs.
The register array and the hardware stack,
which is used for program nesting, is integrated with data memory to provide more flexibility in processing capability.
(Cont'd on page 9)
EDITORIAL
1977 -
NEW ADVANCES
This year promises to be MICROCOMPUTER DIGEST's best ever. Starting with the March issue we'll be changing our name to MICROCOMPUTER
DIGEST AND INDUSTRY REPORT.
It debuts a new
monthly feature, "Industry Report." This column will critically analyze every segment of thl
industry beginning with "Current Status and
Future Trends" next month.
We're also moving our publication date to
the first. A number of our readers have indicated a preference for this date.
The January/
Febuary combination issue is our first step.
March will follow in approximately 10 days
with the April issue delivered on your doorstep
on Old Fools Day.
Tpis year we've had to follow the other magazines and up our prices to keep pace with risingproduction, paper and labor costs. Foreign
subscribers will note we are asking for payment
with orders and renewals to further cut accounting costs. Advert~sing rates are also rising a
bit in May making today the opportune time to
advertise on an annual basis at the old rates.
In July we unveil our heart's pride and joy,
the all new MICROCOMPUTER DIGEST AND INDUSTRY
REPORT ANNUAL REFERENCE INDEX. We're in the
midst of collecting data for this magnificent
volume, so have your company send a complete
package of all microcomputers, peripherals,
memories, and support products as well as a
complete list of distributors, reps, and
stores that are handling your products. Deadline for information packets is May 31, 1977.
Have a plesant and prosperous 1977.
~4l£;;:o
Darrell D. Crow, Editor
PROCESS CONTROL INDUSTRY REPORT
(from page 1)
Such potential power, inherent in micro
computers, accounts for some glowing projections in the F&S study. Shipments of industrial microcomputer equipment at $45 million in
1975 will soar to $1.2 billion by 1985, for
example, the study says. Here's another big,
broad application area: Industry is turning
to multiplexed, wire digital communications
to reduce inplant writing costs, and microcomputers can be "an effective vehicle"
to do
(Cont'd on page 4)
Print Your Heart Out.
With help from the Digital Group, naturally.
Now, that small computer system you own or have been
considering for personal or business use suddenly becomes a lot more usable-with the addition of a full-size
impact printer from the Digital Group. A printer designed
for small computers that need big output {like yours).
With the Digital Group printer, you can print your heart
out ... and it won't cost an arm and a reg. The Digital
Group printer is available for less than $500. Th.at's
right-$500.
Just look at these specifications:
•
•
•
•
•
•
•
•
•
•
Fast-120 characters per second
96 characters per line
12 characters per inch horizon tal
6 lines per inch
Makes up to 4 copies simultaneously
Character set and pitch variable under software
control-double width characters, etc.
5 x 7 character matrix
Ribbon has built-in re-inkers for a life of
10,000,000 characters
Paper can be either a standard 8 1/2-inch roll, fanfold
or cut page
Interfaces to 8-bit parallel ports
There are lots of capabilities and outstanding features of the
Digital Group printer... and (as always) tne best news is
our price. Kit prices start as low as $495 for the printer and
interface card. It simply can't be beat.
Find out all the facts about the Digital Group printer now.
Just fill in the coupon below or give us a call for the details.
We think you'll find a place for our printer in your system
... and in your heart.
------------------P.O. Box 6528
Denver, Colorado 80206
(303) 777-7133
Quick. I want to print my heart out.
Send me all the details on your full-size impact printer.
Name ______________
~
____________________________
Address ___________________________________
City /State /Zip __________________________________
Please print.
Volume 3, Number 7
this job"the 241-page study says. "In petroleum refining, for example, digital data communications can reduce the total installed
cost of a control system by as much as 30 percent."
Shipments of MPU's to indystry alone at
$22 million in 1975 will soar to $405 million
by 1985, the study projects. Memory sales at
$18 million in 1975 will climb to $570 million
by 1985. Meanwhile, interface and I/O components whole sales tallied a mere $5 million
last year and will reach $200 million.
The fastest growing market within the I/O
category, in turn, are data conversions devices-' analog/digital converters, data trans, mission devices, clock circuits, interrupt
circuits, I/O buffers, and so on. Their share
of the total I/O market at between 20% to 25%
in 1975 will increase to as much as 50% by
1985. "in this sector, non microprocessor manufacturers stand a good chance to achieve a
major share of the market," the study points
out. Analog Devices and Teledyne Semiconductor,
for example, have their own component manufacturing facilities, and as a result they could
achieve substantial penetration.
The st~dy also revealed:
oBit-slice microprocessors will become a
major growth area as its share of the CPU market, virtually nil currently, rises to 5% in
1977 and 20% in 1985. "As the superior processing capability of bipolar bit slice unit becomes appreciated by industrial designers, who
do not now understand the technology, its usage will grow at a rate faster than that of
MPU shipments overall," the study says.
o The 8-bit microprocessor, which accounted for 60% of all shipments by unit volume in
1975 will decline to a 35% market share by
1985. The 16-bit units on the other hand,
which has a 10% market share currently, will
snare a 45% market some 10 years out. Indeed,
shipments of 16-bit units at $2 million in
1975 are projected to soar to $183 million in
1985.
o The outlook for the 4-bit microprocessor
is entirely different. Shipments at $5 1/2
million in 1975 will inch up to $7 million by
1977, and then decline to a negligible amount
by the end of the decade. Current sales for
the 12-bit devices is less than $1 million and
accounts for no more than 3% of the total market. And though this figure will increase to 5% over the near term, the device,
"will begin to fade from the scene starting
about 1978."
Among end users,
the chemical industry
'will comprise the largest single industrial
market for microcomputers by 1985. Here, they
4
January/February, 1977
will be used as components in distributed control networks, data transmission networks,
and dedicated controllers, in addition to
their use in measuring instruments.
Microcomputer-based instruments will also
be widespread in the petroleum industry to account for a $110 million annual market by
1985. Another big growth area is food and
beverage industry whose trend to synthetic
foods is creating a need for more exciting
measurement and control techniques. Other big
end user categories include iron and steel,
aluminum, extractive metals, pulp and paper,
rubber and plastic, waste and water treatment,
and virtually every other process industry.
Discrete parts manufacturers, who currently comprise the industrial microcomputer's
largest end user market, will continue to
adopt the technology. Programmable logic controllers are increasingly acquiring greater
arithmetic capability, digital throughput,
and signal-processing for example, and such
a trend clearly points to an increased reli~
ance on microcomputers in the design of such
equipment, the study says. Digital Equipment
for example, has essentially stopped development work on its series 14 programmable logic
controllers and, instead, is pressing forward
on an LSI-II based product line.
I Microcomputer use does
face some hurdles
in industry, the study notes. Lack of product
standardization is one, for example. "This is
a principal concern among prospective users,"
the study finds. Report #431 106 Fulton St.,
New York, NY 10038 (2'12) 233-1080.
SINGLE CHIP Fa OFFERING
Mostek Corp., has unveiled a new singlechip microcomputer that offers complete F-8
software and hardware compatibility, 2K x 8
of mask PROM and a single +5 volt power requirement. The N/MOS device, MK 3870, is fully .
compatible with the existing F-8 multi-chip
family and can execute the entire F-8 instruction set.
System implemented with the 3870 but eventually requiring more memory or I/O can simply
upgrade to the expandble MK 3850 without major
redesign or software development. Feature include 2K bytes of mask PROM,
64 bytes of
scratchpad RAM and a module 'N' binary timer
and multiple clock modes. The 3870 is supported with a complete line of developmental
tools--the Software Development Board, the
Application Interface Module and the Emulator-70 for field prototyping.
The 3870 will be available in the first
Volume 3, Number 7
January/February, 1977
5
quarter of 1977 with prices under $10 for 100
units. 1215 W. Crosby Rd., Carrollton, TX
75006 (214) 242-0444.
$499.00, with the 2k x 8 RAM card priced at
$160.00 each. 2900 Semiconductor Drive, Santa
Clara, CA 95051 (408) 737-5173.
8X300 EVALUATION KIT
8085 MICROCOMPUTER SYSTEM
An evaluation kit that allows design engineers to evalute the Signetics 8X300 bipolar
microprocessor for planned applications is
now available from Signetics.
The single-board evaluation kit includes
bipolar microprocessor, 4-I/O ports, 256 bytes
of RAM. PROMs in the kit are preprogrammed
with I/O control logic, RAM control and RAM
diagnostic programs.
The microprocessor kit 8X300 KTlOOSK, is
unit priced at $299. 811 East Arques Ave.,
Sunnyvale, CA 94086; (404) 739-7700.
Intel expects to begin shipping the 8085_
Microcomputer System to equipment manufacturers in sample quantities during lQ77.
The new system is an extension of the 8080
microcomputer system and runs 8080 programs
without modification and is entirely bus-compatible with 8080 components.
Each 8085 component is said to replace a
group of three to five 8080 components, buffers are required only in the largest systems,
timing margins are relaxed and pinouts are
organized for X-Y layout of PC board wiring.The new system includes the MCS-85 Microcomputer System components family, compatible
MCS-80 devices, and a line of support products. The support products are low-cost updates of those used to develop 8080 system
software and hardware design.
Minimum system configuration would consist
of the 8085, 8155, 2K RAM, I/O Timer, and
8355 16K ROM & I/O or 8755 16K erasable ROM
& I/O .
These three devices provide CPU, 256 bytes
of RAM 2K program storage, 38 programmable
parallel I/O lines, serial I/O ports, system
clock, system controller, multi-level vectored
interrupt control and programmable interval
timer and event counter.
Typical instruction cycle time is 1.3 us.
System performance overlaps that of TTL logic
systems, allowing it to be used in high-performance applications ranging from controllers
to 8-bit minicomputers. 3065 Bowers Ave.,
Santa Clara, CA 95051: (408) 246-7501.
LOW-COST DEVELOPMENT SYSTEM
Hardware and software designs that involve
the "SC/MP" 8-bit microprocessor can easily
be developed and quickly tested with a new
Low-Cost Development System (LCDS) now available from National Semiconductor.
According to Hashmukh Patel, marketing manager for the SC/MP microprocessor family, the
Low-Cost Development System is a simple controller configured with a SC/MP CPU card
plugged into one of four sockets in a card bus
on a 10 x 12" motherboard. Along with the CPU
card, the motherboard also contains a l6-key,
dual function hexidecimal keyboard, four keys
that control function, three control switches
and 6 digit hexidecimal LED display.
With the basic LCDS configuration alone,
control logic scratchpad memory and ROM-based
firmware on the motherboard allow the user to
alter the SC/MP registers and memory locaters,
run SC/MP programs in continous or single
instruction mode, and even operate with an
optional TTY using SC/MP DEBUG.
The LCDS features easy interfacing and expansion: four pre-wired 72-pin edge connector
sockets provide a plug-in interface for SC/MP
family cards, and also allow interconnection
of additional SC/MP applications hardware.
The built-in control and monitor functions
in the interface logic of the LCDS permit
transfer of control between resident firmware
and application programs generated by the user.
The firmware subroutines allow entry of software debug commands via the control and display panel or an optional teletype.
A 2k x 8 read/write memory card and a 4k x
8 ROM/PROM cards, are also available.
Pricing of single units of the LCDS is
TECHNOLOGY
MICROCONTROLLER OFFERED
WD/40, a single chip microcontroller for
dedicated computing and control applications,
is a new standalone 40-pin device requiring
few or no support circuits. It contains its
own register file, mask programmable control
ROM, output PLA, internal oscillator, and
power reset circuitry. The Western Digital
chip requires only a single power supply and
is directly TTL compatible. An editor, assembler, and simulator are also available.
Another chip comes in a 64-pin package
with internal control RQM inputs and outputs
available on the outside for direct connec-
Volume 3, Number 7
tion to PROMs. A development board containing
the 64-pin chip and PROMs is also available.
WD/40 has two programmable interrupts and
one wait input. Scanned output and 16 static
outputs can drive an S-digit numeric display.
Its instruction set is applications rather
than computer oriented; instruction format
is register-to-register. Multiple-digit arithmetic operations such as adds and subtracts
are programmed at the instruction level. A
program ROM of 4K bits and one level of subroutine are provided. Internal register file
storage (exclusive of output registers) is
12S bits. 312S Red Hill Ave. P.O.Box 21S0,
Newport Beach,CA 92663.
MMI RELEASES MFGR. RIGHTS
'Randal Data Systems reports it has acquired
manufacturing, rights to the 605-A microprocessor formerly built by Monolithic Memories Inc.,
and used in Randal's Link 100 and 200 computer
systems. Randal also acquired manufacturing
rights to Monolithic Memories' boards which
use Intel and NEC 4K RAMs.
January/February, 1977
6
S23S), all built using schottky bipola'r technology. Two other interface circuits, a microprocessors interface latch element (MILE)
manufactured by silicon-gate CMOS process
(DPS301) and an S-bit bi-directional bus
transreceiver fabricated by low-power schottky process (DPS304) should be available by
March 1st. 2900 Semiconductor Dr., Santa
Clara, CA 95051 (40S) 737-5000.
TWO-CHIP 6800
Although Farichild will be producing a
second source version of the 6S00 microprocessor, Motorola has opted not to supply the
two-chip F-S chip. Instead, the firm will concentrate on a two-chip version of its own 6S00
aimed at the same low-end market as the F-S.
Introduction of the MC6S01 is scheduled for
2Q77.
Motorola, however, has not ruled out the
possibility of producing the new single chip
F-S. The firm is reportedly feeling the market pulse.
SATELLITE MICROPROCESSOR
TRANSITRON MICRO RESURRECTED
Parts Purchasing of Fort Lee, NJhas revealed they are in the process of purchasing
Transitron's 16-bit bipolar microcomputer for
under $3 million. The micro, scrapped last
summer, will be manufactured in the u.S. with
overseas assembly.
Parts Purchasing bought the entire Transitron Microcomputer division and is now receiving estimates from several semiconductor
firms for manufacturing costs. The micro is
expected to be marketed in 1975.
A microprocessor to be used in communication satellites from 19S0 on is now in the
chip fabrication stage at Hawker Siddeley
Dynamics facilities in Stevenage, England. The
NMOS microprocessor incorporates two unique
features: direct, high-level language pro-'
gramming that provides a one-to-one compiliation into assembly language instructions, and
sophisticated self-repair redundant facilities.
Flight trials are scheduled for 1975.
AMI TO BUILD AMD'S 4K RAM
8080 INTERFACE/SUPPORT CIRCUITS
An expanded line of interface and support
circuits for the SOSOA microprocessor family
plus two new additional versions of the SOSOA
cpu are now available from National Semi
conductor Corp.
National's pin-for-pin and function-forfunction replacement for the SOSOA device,
available since June, is being joined by the
INSSOSOA-l and INSSOSO-2. The SOSOA-l features
a 1.3 us cycle and the -2 has a 1.5 us cycle.
The interface devices being introduced include an S-bit I/O port (DPS212), a clock generator and driver (DPS224) and a single-chip
system controller and bus driver (DP222S, DP-
Advanced Micro Devices has licensed American Microsystems, Inc. to build its proprietary 4096-bit MaS static memory family.
For
an undisclosed sum, AMD will provide detailed
technical assistance for the design of the
AM9130/9140 and related low-power versions.
AMD will also provide updated information as
device improvements are made.
These TTL compatible circuits require only
+5 V and are organized lK x 4 and 4K x 1.
The standard device offers speeds to 200 ns
with maximum power dissipation of 550 mW,
while the low-power version offers maximum
power dissipation of 350 mW with speeds to
250 ns.
Volume 3, Number 7
January/February, 1977
7
MICROCOMPUTER SOFTWARE
NEW ASSEMBLER-EDITOR VERSION
SOFTWARE DEVELOPMENT SYSTEM
IMS Assoc. is introducing a new version of
its assembler-editor package for 8080 micros.
The $40 price includes paper tape source listing and user manual.
The package can now handle multiple device
driver routines which are generated by the
system itself. Also, the assembler's symbol
table space.has been enlarged to 8K. The debugger can handle multiple breakpoints, number conversions, and has tracing capability.
1922 Republic Ave., San Leandro, CA 94577
(415) 483-2093
A software system to generate micro-instructions for use with the AM2900--AMDASM--system
has been developed by Advanced Micro Devices.
Documentation now available explains how
to interact with AMDASM to microprogram all
control signals and memory to reduce prototype and developing time for 2900 systems.
This microprogram assembler provides software assistance and documentation for writing and modifying microprograms and generating
tapes for PROM programmers. AMDASM includes
a framework for a common language, automatic
accounting information and billing control.
Budget limits, character rate option and
batch rates make AMDASM cost competitive with
in-house versions.
AMDASM is on the time-sharing service of
Computer Science Corp.
It is accessible from
a standard time sharing terminal from most
malor cities.
(40.8) 732-2400
6502 PROGRAM EXCHANGE CENTER
In the market for 6502 programs? One western company has recently opened the 6502
Program Exchange Center. For 50¢ you can obtain a complete listing of available software.
2920 Moana, Reno, NV 89509
RELOCATABLE TRACING SIMULATOR
Peters Associates is marketing their latest software entrant, TRACE-80, a relocatable
tracing simulator for 8080-based systems with
4K memory.
Major featu!es of the interactive debugging
aid include selection of registers for printing, display on writing to user requested
areas of memory, and the capability of running
the user program at full speed until a breakpoint returns control to TRACE-80.
In an alternate mode, TRACE printing is surpressed
while a circular queue stores machine status
for the last 100 instructions or branch commands. A breakpoint causes display of this
list. TRACE-80 also warns of probable errors
in the user program, such as store instructions to a non-data area, execution of undefined commands, and failure to return properly from a subroutine.
TRACE-80 includes a relocating loader, relocatable object tape, test cases and full
documentation for a one time license fee of
$500. P.O. Box 61622, Sunnyvale, CA 94088
(408) 245-1519.
MICROC SYMBOLIC LANGUAGE
SLAM, (Symbolic Language Adapted for Microcomputers), a compact, powerful operating
system designed to operate on Intel's Intellec
8/MOD 80 and MDS microcomputer systems, has
been introduced by PennMicro.
SLAM incorporates a text editor and a high
level language interpreter in a package occupying less than 3200 bytes of memory, according to the company.
With SLAM, a user can create a program
using the text editor, then run it immediately using only the microcomputer and a TTY.
SLAM uses a high-level lang,uage similar to .
BASIC and l6-bit signed decimal numbers.
It
features powerful I/O and bit masking operations, has a variety of conditional and subroutine commands, and is totally symbolic in
nature--the user need not assign registers
or memory addresses. An optional feature permits program development while the microcomputer is operating other real-time systems.
SLAM is loaded and entered using the Intel
system monitor.
It is supplied on paper tape,
ready to load without modification. A complete instruction manual is supplied. SLAM
is available directly from PeenMicro for $99;
delivery is stock to two weeks.
FANTOM II -
MONITOR/DEBUGGER
Wintek is offering the FANTOM-ll, a lK monitor/debug program for the Wince 6800 microcomputer.
It allows single step execution of
user programs, insertion and deletion of bre
break points, and setup of interrupt vectors.
FANTOM II also enables the user to load memory, print and punch memory, display registers, go to user's programs, and reset.
902
N. 9th St., Lafayette, IN 47904
(317) 7426802.
Volume 3, Number 7
BASIC ETC.
Ease of program development and straightforward'program execution are goals .of BASIC
ETC, an interpreter for 8080-based microcomputer small business applications and game
programming.
The program uses the lower 8K or memory
plus at least lK of RAM for scratchpad.
Features include full string capability, n-dimensional arrays, variable precision arithmetic,
and DMA and I/O addressing.
There are 27
error codes, 31 commands and statements, eight
standard functions and user defined functions.
Priced at $125, media is either paper or audio
cassette tape.
6345 Central Expressway, Richardson, TX 75080.
RESIDENT 8080 FORTRAN COMPILER
A resident FORTRAN compiler, said to run on
any 8080 system with a minimum of 16K bytes, is
available now from Unified Technologies, Inc.
The program produces a formatted output, handles one to 31 character symbolic names, and
will perform single or double byte integer
arithmetic. An optional floating point package is available.
Priced at $750, the compiler is available
on an IBM-type diskette, paper tape, or PROM.
Islington, Ontario.
DOS AND BASIC SYSTEM OFFERED
A disc operating system and a compiled
BASIC language system for the 8080 micro are
being offered by Intelligent Computer Systems.
Included in the software are debug capability,
an assembler, text editor, BASIC compiler and
a BASIC interpreter.
Software features include sequential and
random-access £ile manipulation, print editing, assembly-routine linking, sub-routine
linking and program chaining through console
control. Also included are binary and logic
operations, 7-digit variables, 255 character
string variables and two-dimensional arrays.
777 Middlefield Rd., Suite 40, Mountain View,
CA 94043
(415) 961-8941
NATIONAL CSS EXPANDS LIBRARY
A substantial increase in its microcomputer
software library, currently consisting of 25
microcomputers from 15 manufacturers, has
been announced by National CSS, Inc. Added
products includes AMD 9080A, SMS MCCAP, NSC
SC/MP, and Zilog Z-80. Products from AMI,
Electronic Arrays, Fairchild, Intel, MOS Technology, Raytheon, RCA, Rockwell Int., Signet-
January/February, 1977
8
ics, Texas Instruments, and Intermetrics are
also available on the network, which is
claimed to have the largest library available
on an inter-active, time-sharing basis.
542
Westport Ave., Norwalk, CT 06851
TWO PASS MACRO ASSEMBLER
A two-pass macro assembler, a linking loader and a text editor designed for use on 8080based microcomputer development systems, is
being offered by muPro, Inc.
The assembler and linking loader, are
available in cross or resident versions, with
the resident version requiring 8K bytes of
memory and 2K bytes for the loader. The text
editor requires 4K bytes of resident memory.
Both resident programs can be purchased
together for $1,250.
The assembler is said
to provide a cross-referenced symbol table and
enable high-level syntax to be used for structures such as loops and conditional branching.
Resident assembler and loaders are priced
at $975 each while the cross version is $1250.
The text editor is $350, media is either paper
tape or diskette copy. Sunnyvale, CA.
FORT 80
A FORTRAN compiler, FORT 80, compiles a
subset of ANSI FORTRAN IV, which produces 8080
machine-language object code.
It requires
16K-bytes of memory: 12K for the compiler and
the remainder for work space.
The object code produced by FO~T/80 can be
linked to additional machine language subroutines to make a complete program. Symbolic
names containing 1 to 31 characters may be
used. However, only single and double-byte
integer arithmetic is permitted.
A library of useful subroutines and functions comes with the compiler, including absolute values, random 8-bit number, and the
square root of positive and SQRT integers.
Available on either a floppy disc or on paper
tape, the price is $750. 4800 Dundas St. W.,
Suite 209, Islington, Onto M9A IBI (416) 2361159.
UTI PACKAGE
The UTI package offered by Pragmatic Systems, is written in 8080 assembly and contains commonly used code conversions, I/O
routines for numbers and character strings,
and I/O drivers for commonly used peripherals.
A source listing of the program with user
documentation is $3.35. Mountain View, CA
Volume 3, Number 7
MICROCOMPUTERS
MOS SC/MP NOW OFFERED
(from page 1)
The new version takes 1 us to complete a
microcycle, and typical instruction execution
time is 5 us. The SC/MP II is fully compatible with its predecessor in terms of pin-configuration, object code, and software, and
with slight modifications to the crystal frequencies, it will be compatible with all
SC/MP support equipment.
Sample quantities are immediately available
at $17.76 in single units. 2900 Semiconductor
Dr., Santa Clara, CA 95051 (408) 737-5173.
460Z CPU EXPANDER
The Ohio Scientific Instruments' 460Z CPU
expander is a totally new computer building
block with phenomenal performance and flexibility. The 460Z's main purpose is to allow
a user to run 8080, Z-80, and 6100
software on OSI's 400 system without modifying
the software.
The 460Z contains a Z-80 and Intersil's
6100 microprocessor, four PIAs for control,
and several multiplexers and demultiplexers.
The OSI 460Z, like most other 400 series
boards, is only $29 bare with manual. A special $99 introductory package includes 460Z
Bare Board with manual,IM6100 and a Z-80.
11679 Hayden St., Hiram, OH 44234.
SINGLE CHIP MICROCOMPUTER
The processor can use the programmable
timer to monitor and control I/O servicing delay, instead of software timing loops. In addition, the timer's 8-bit counter can be used
to count external operations, generate operating rates and perform other functions under
program control. Also, clock rates at different
frequencies are available for equipment control.
Two maskable, vectored priority interrupts
are built in. One can be used with the timer/
counter or for external inputs and the other
is dedicated to external inputs. Each vector
jumps the program to a specific memory address.
Other functions include the system clock
generator, reset control, single-step control,
and in the 8048, low-power standby. All three
microcomputers operate on a single +5V supply.
In addition, the 8748 has a 25 V input used
only during EPROM programming.
There are 32 I/O lines on each microcomputer.
Standard static RAMs, ROMs, or EPROMs interface with the bus through an 8212 I/O Port.
One 8212 can act as an address latch/buffer for
a large array of standard memory parts. It is
9
January/February, 1977
a Schottky TTL component of the MCS-80 family.
Intel said pricing would be posted once devices were available off the shelf. 3065 Bowers
Ave., Santa Clara, CA 95091 (408) 246-7501.
8080 USERS
Make software debugging almost fun with ...
TRACE-SO
A flexible resident tracing monitor for any
BOBO-based system with 4K memory.
Featuring:
Printing of register contents
after each instruction or branch,
Multiple breakpoints, allowing the
user program to run at full speed and
to return to TRACE-SO,
Display on memory write mode
Another human engineered debugging aid ..
from the people who care about
your mental health . ..
PETERS ASSOCIATES
P.O. BOX 61622
SUNNYVALE, CA 94088
(408) 245-1519
RUGGED MICROCOMPUTER SYSTEM
Omnibyte Corp., is offering a microcomputer
system housed in a rugged 16-slot card cage
interconnected by a printed circuit. A busoriented backplane requires no custom wiring.
Fourteen of its l6-slots will accept any
combination of RAM, ROM, or I/O cards. The
remaining two slots contain the CPU card and
a multifunction controller card. Oakbrook, IL
Z-80 MICROCOMPUTER CARD
A new generation CPU board has been integrated into the Digital Group's microcomputer
system.
Features of the Z-80 system includes 80
new instructions over the 8080 set, 696 operation codes, extensive l6-bit arithmetic,
three interrupt modes, built-in automatic dynamic memory refresh and eleven addressing
modes.
The Z-80 CPU is completely inter-changeable with Digital Group's (Cont'd next page.)
Volume 3, Number 7
10
8080A, 6800, and 6500 CPUs. A complete system
is priced as low as $475. P.o. Box 6528, Denver, CO 80206
(303) 861-1686.
COMPUTER POWER & LIGHT
Computer Power & Light is selling its new
COMPAL-80 microcomputer system for homes and
small businesses at $1863.
The fully assembled, guaranteed system includes an 8080A-based
CPU; two serial I/O ports (one configured for
audio tape cassette, the other as TTY or RS232), 12K of RAM, 16 x 64 characters and
graphics, 9" high resolution monitor; ASCII
keyboard, enclosures; and extended BASIC residing in 10K, including formatted PRINT, double
precision, all transcendental functions and
user defined fuctions.
COMPAL-80 is easily expanded into a small
business system with additional memory (up to
32K) dual floppy disc drive in IBM compatible
format; a choice of hard copy devides including matrix and daisy wheel printer; disc BASIC
with multiple file handling and management
features; and various application programs
written in BASIC. The typical business system
with printer sells for under $9000.
ASTRAL DESIGN INCLUDES CABINET
M&R Enterprises' 2000 microcomputer kit is
specifically designed for ease of assembly and
minimum debugging time. The basic Astral computer includes the cabinet, motherboard, card,
rack, power supply module and boards for the
front panel, 6800 processor and 8K RAM. The
only wiring consists of bringing line voltage
into the machine to the power supply and then
distributing power supply voltages to the motherboard. Sunnyvale, CA.
EDUCATIONAL/FIELD MICROCOMPUTER
Digital Electronic Corp. is now marketing
their DE68 Microcomputer designed for use in
the laboratory, classroom and field.
Using
the 6800 chip, the DE68 has a mnemonic translator that automatically converts characters
from the self contained alphanumeric keyboard
into machine language. Total PROM storage is
5.5K.
An optional DE/IOO+ Teaching Module is
available. It has LED displays, hex keyboard
and a random number that simulates a data
source for real-time acquisition programming.
The teaching module plugs into the DE68 via a
flat cable and contains 12 ICs, including a
PIA.
Price of the DE68 is $3000 without the DE-
January/February, 1977
681 printer, and $3500 with it. The teaching
module will sell for $100. Oakland, CA 94601
(41~) 532-2920.
FULLY ASSEMBLED APPLE COMPUTER
The Apple-l microcomputer comes fully assembled, tested and burned-in. The system's
basic price is $666 and includes 6502 micro,
regulated power supply, 4K-bytes of RAM, the
video interface and ROM monitor. 4K of memory
and cassette-tape,are available for an additional $195.
The microcomputer's video interface connects directly to either a monitor or a TV
set via an rf modulator. The interface displays 24 lines of 40 characters and features
automatic scrolling.
The Apple-l uses 16-pin, 4-K dynamic memory chips. But when the 16 K RAMs become
available, some minor modifications to the
Apple-l board will make it possible to replace the 4-K ~hips with the larger memories
for a total on-board capacity of 32-k bytes.
770 Welch Rd., Palo Alto, CA 94304 (415) 3264248.
JUPITER IIC HOUSES 6800
The Jupiter llC microcomputer hardware consists of an MC6800-based CPU, 8k of RAM, and
3k of ROM with a video-terminal interface, keyboard and a dual audio-cassette interface.
Software includes a monitor/debugger package
with interrupt handling and I/O monitor call
instructions. A programmable macro-editor, expanded assembler and proposed ANSI-standard
BASIC is included.
The Jupiter is available in kit for $2200
and $3200 assembled. Both offerings include
2 cassette units and a l2-in. B&W TV. Wave
Mate, 1015 W. 190th St., Gardena, CA 90248.
(213) 329-8941.
AMI'S 6800 SUPPORT KITS
American Microsystems, Inc., is offering
three S6800 microprocessor and support parts
in kit form. They include the EVK 99, priced
at $133, the EVK 100 at $295 and the EVK 200,
$495. A fully-assembled and tested version,
the EVK 300, is offered for $765.
The EVK 99 consists of a TW board with two
edge connectors and nine 6800 family parts,
including a 6800 to address up to 65K of memory, four 128 x 8 RAMs, and one PIA. The EVK
100 includes the same plus terminal communi-
Volume 3, Number 7
cations capability.
The EVK 200 comes with all the above features, including the I/O interfaces, memory,
a single EPROM device, on-board EPROM prorammer and a crystal clock.
The fully-assembled version of the kits,
the EVK 300, includes a tiny BASIC tape which
r.an be proqrammed into the four EPROM chips.
Z-1 DEVELOPMENT SYSTEM
The Z-l development system from peripheral
maker Cromemco is based on the Zilog Z-SO/4
chip. Besides the chip, the $2495 system has
SK RAM, SK PROM, PROM programmers, RS 232 interface and a 2S amp power supply. Mountain
View, CA.
PRO-LOG ANNOUNCES 9002 CARD
Pro-Log Corp., has added the PLS-S91 to
their line of microcomputer design cards. Based
on the EA9002, the card contains 64 bytes of
scratchpad RAM, 2K of PROM and 2K of ROM and
several I/O ports which consists three-latched
8-bit output ports and two S-bit input ports.
Output drive is 10TTL loads and input loading
is one TTL load.
The microcomputer has an instruction execution time of 3.2 us for one-byte and 6.4
us for two-byte instructions. The clock is onboard the card. Power requirements are 5V at
1.SA, and 10V at 0.5A. 2411A Garden Road,
Monterey, CA 93940, (40S) 372-4593.
8080 EXPANDABLE CARD RACKS
Two expandable SOSOA microcomputer card
rack systems pre-wired for 10 cards with connectors for 16 cards are being offered by ProLog.
The four-card CRS-Sl system, using 1702
PROMs includes an SOSOA, lK RAM, sockets for
2K ROM, four S-bit input ports and four S-bit
output ports. Price is $730 in single quantities.
The second system CRS-82, using 2708 PROMs,
also uses the 80S0A, and has characteristics
similar to the CRS-Sl system. Differences include 4096 words of ROM available, a 0.4SSus
state-time crystal clock and a $670 price.
QUAY USING Z-80 IN LATEST KIT
The Quay so AL microcomputer kit incorporates the Zilog Z-SO microprocessor and runs
at 2.5 MHz.
It requires a power supply and terminal device for independent operation, or one can
plug its 100-pin edge connector into an Altair
11
January/February, 1977
or Imsai bus.
The kit also incorporates a ROM-based monitor that allows memory alter, dump or load,
programming UV-EPROMs.
A serial I/O port permits use of RS 232C or
20 rnA terminals at rates ranging to 2400 baud.
A parallel input port services an 8-bit ASCII
keyboard and supports a memory-type TV monitor interface. The price is $450 in kit, $600
assembled. P.O. Box 386, Freehold, NJ 07728
(201) 68l-S700.
DIGITAL CASSETTE RECORDER
A microcomputer-controlled digital cassette
recorder, the dcr/lO comes complete with proper interface cable. The micro edits data to
produce consistent blocked records for computer analysis. Firmware control allows units
to accomodate serial or S-bit parallel data
at any baud rate, as well as any code conversion required. William Palmer Indust~~es,
1627 Pontius Ave., Los Angeles, CA 90025.
DEVELOPMENT/PRODUCTION CARD
An 80S0/90S0 microcomputer board that serves
both development and production application
is now being offered by Quarndon Electronics.
The QMS 80-llS0 offers 2K bytes of RAM, full
memory address decoding, built-in single-step
circuitry, RS232 and 20mA serial interface
and 1.5K bytes of PROM containing a monitor
program.
The QBUG monitor, expandable to include a
full mnemonic direct assembler, operates in
octal or hexadecimal and communicates with
either a serial or parallel terminal. 'It allows alteration of memory locations or blocks.
Four breakpoints may be set to display all the
register contents when a given address is en~
countered, and blocks of memory contents can
be moved to a new locations. Slack Lane, Derby,
England 32651.
ZILOG OFFERING FULL Z-80 CARD LINE
A new, compact microcomputer board set has
been introduced by Zilog. The board consists
of microcomputer board, MCB, and a disc controller board with RAM memory, MDC, and a 16K
RAM card, RBM.
The MCB uses the ZSO as its heart and contains 4K bytes of RAM with sockets available
for up to 4K bytes of ROM, PROM or EROM. The
board contains one serial channel for use by
CRT and two channels of parallel I/O. Other
features include:
o Programmable full duplex serial I/O port
wi th RS-232,
Volume 3, Number 7
12
o Universal parallel I/O programmable to define any direction and data-transfer characteristics for two 8-bit ports,
o Four programmable counter-time circuits
and driver/termination devices.
The disc controller board (MDC) allows the
user to store and retrieve data from up to
four floppy discs. This board also contains
12k RAM, 16-bit CRC generation and checking,
Z80-PIO used for disc status reading and control under CPU software control, data separator and data encoder that can be used for
single density drives, parallel/serial converter and wait control logic to allow the Z80CPU to transfer data to or from the disc under
software control, and parallel I/O port.
As part of these two boards, the Zilog Disc
Operating System, ZDOS, is provided.
Third part of the new board series is the
Memory Board (RBM) that allows the user to expand the series to 65K bytes in 16K increments.
This board uses low power, high speed RAMs.
Each board in the series needs only +5volts
to operate, and each can be operated as an indepe~dent modular unit.
The boards have a
standard 122 pin connector with 100 mil. spacing. Board size is 7.7 x 7.5" and fits in
0.5" spacings.
As an option, Zilog offers the board set in
a complete system including card cage, systems
chassis, power supply, two floppy discs and a
front panel. 10460 Bubb Rd., Cupertino, CA
95014 (408) 446-4666.
LOW-COST 1/0 MODULES
January/February, 1977
watts of power, or one th~rd that required by
standard TTL models. Optional expansion modules expand the 1850's input channels to 32,
48, or 64 channels.
The PCS 1804 is priced at $360, the 1820
at $400, the 1823 at $295, and the 16-channel
1850 at $700. Quantity discounts available
and shipments lQ77. 5467 Hill 23 Drive, Flint,
MI 48507, (313) 767-8920.
COMMUNICATIONS MICROCOMPUTER
A new, self-contained communications-oriented microcomputer for facilitating the firmware implementation of custom communication
controllers has been announced by Micom Systems Inc.
The 40 Series Communications Processor is
designed to perform such functions as data
concentration, channel contention, message
routing, polling control, speed and code conversion, protocol conversion, and voice response. The basic system is self-contained on
a single card Central Control Module, including
a LED display and a 10-position function switch
for diagnostic test or system monitoring.
Normally supplied in turnkey communications
controller systems complete with firmware,
the 40 series is also available to OEM's with
a complete Program Development System to facilitate firmware development. Prices start
at $1800. with delivery 45 days ARO. 9551 Irondale Ave., Chatsworth, CA 91311. TWX 910/4944910.
EXPAN·DED -
68
pcs has introduced a new line of low-cost,
off-the-shelf 1.0 modules for the company's
180 microcomputer.
A new AC/DC module, the PCS 1804, accepts
up to eight AC inputs, eight digital inputs
eight AC outputs and eight digital outputs.
The module optically isolates all signals
to minimize feedback, crosstalk, ground loops,
and noise generation.
A new multifunction module, the PCS 1820,
accepts up to 32 digital inputs and 32 digital
outputs under the control of a PCS 1806 or
1810 microcomputer. The 1820 also accepts up
to eight priority interrupt inputs and has
thr~e software programmable 16-bit counters.
A new TTL module, the PCS 1823, accepts up
to 64 TTL digital inputs and 64 TTL digital
outputs under the control of a PCS 1806 or
1810 microcomputer.
The company also announced an integrated,
low-cost power A/D module, the PCS 1850. Because this 16-channel module makes extensive
use of CMOS circuitry, it consumes only 1 1/2
Electronic Product Associates, Inc., has
announced a complete, microcomputer system
for $1186.00 called the Expanded-68, the computer is based on the Motorola/AMI/Hitachi
6800 microprocessor chip set.
Designed for system prototype development
use, the Expanded-68 comes complete with 8K of
memory, power supply, 16 digit keyboard, TCC3
adapter, hexadecimal LED display, expansion
cabinet, 36 pin edge connector, and Mik-bug.
Also availble for direct interfacing are: dual
floppy disc drive, IMP-l printer, 132 column
printer, TV interface, and a full ASCII key~
board. 1157 Vega St., San Diego, CA 92110.
(714) 276-8911.
MOLDING CENTRAL SYSTEM
A molding central system first introduced
by the Instruments Division of Barber-Colman
Co. features microcomputer control. MACO 11
controls all molding machine parameters and
alarm set points.
Volume 3, Number 7
MICROCOMPUTER BASED PRODUCTS
PICK & PACK MACHINE
A computer-based pick and pack machine
which loads four standard die trays is being
offered by Mechanization Associates. A microcomputer is used to calculate the last filled
die position in each tray, and then calculate
the movement required to move from the present
position to the next empty pocket in the tray
selected.
BUFFERED TAPE CASSETTE TERMINAL
MFE has designed a u8080-controlled buffered tape cassette terminal built around the
MFE 2508B cassette drive. The Model 5000 performs edit, search, and communications functions.
Operating at speeds up to 120 cps, the
$1995 drive stores 175,000 bytes of formatted
data. It employs read/alter/write and CRC for
error detection. It also includes routines for
error correction. Salem. NH 03079
p,C CUTS ENERGY COSTS
Lund Inc., is using PCS' Micropac 180 microcomputer control system to cut energy costs
17% in six of its Minneapolis supepmarkets.
The 180 controls the operations and maintains the performance efficiency of refrigerators, freezers, the central heaters, unit
heaters, water heaters, air conditioners, ventilator fans and curtain doors which control
the passage of air of varying temperature into and out of the 36,000 sq. ft. buildings.
DTC ADDS TWO MICROCOMPUTERS
Micro File MK II and MK IV microcomputer
systems from Data Terminals and Communications
come with two and four floppy disc driveseach with over 300,000 bytes of storage.
Of the two serial I/O ports provided, one
handles a data terminal and the other a data
communications line, each at independent speed
speeds and ranging from 110 to 9600 baud. An
included operating system provides file management and utility routines for data transmission and reception.
MK II with two floppy disc drives cost
$4,295, and with the MI IV with four floppy
disc--$6,750. 1190 Dell Ave., Campbell CA
95008.
PAPER TAPE DUPLICATING
Shepardson Microsystems
10601 S. De Anza Blvd., Cupertino, CA 95014
(408) 257-2996
January/February, 1977
13
CPU USES DEC'S LSI-11 MICRO
General Robotics Corp. has introduced the
GRCll/03, a CPU based on DEC's LSI-II micro.
The $4,995 unit, housed in a five and onequarter inch chassis, is said to be suitable
for rack-mounting or tabletop operation. The
standard GRCll/03 includes an extended instrucstruction set, floating point arithmetic, 20K
RAM, extended memory addressing to 512K words
and serial I/O module with switch-selectable
data rates.
WORD PROCESSOR
NBI of Boulder, CO has introduced a $9,990
Intel 8080 based word processor. The unit
has super and subscripts repagination, document assembly capability and standard editing
functions. The unit includes a Dysan d~skette
drive and Qume daisy wheel printer.
SYSTEM LINKS 8080 TO HOST CPU
Beckman Instruments, Inc.'s new microcomputer-based computer interface system contains
an Intel 8080 microprocessor that links the
process controller to a host data processing
system. The system connects the analog functions of the control loop with a central computer via a five-wire, bi-directional data
hiqhwav.
TYCHOM'S WORD PROCESSOR
A $7,000 microcomputer-controlled word processor has been released by Tyc~om Systems.
Editerm includes an 8080, 4K RAM, tape cassette, baseplate and interfacing for an IBM Selectric. Options include floppy disc, Diablo
Hytype Printer, and an IBM-compatible magnetic
card reader/writer. Fairchild, NJ.
MICRO-CONTROLLED WEAPONS
When the F-18 aircraft strike fighter makes
her maiden voyage in mid-1978, an Intel 8080
will be in the pilot seat of a microcomputercontrolled weapons firing system. The 8080
was chosen because it has double-precision accuracy and can be programmed to operate like a
16-bit machine. The micro will allow the Navy
to change the F-18 weapons complement mostly
through software changes.
PROCESS CONTROLLER
The microcomputer~b~sed Model.l17815 Process controller from Orbitran Co. provides
logic storage and control for a variety of in-
~. . . .; F"I~IS1i~
~~e"I' ~~~IS1i~
~~
~....,...~
~
~-o"I"
~
__ o~
o~...
e:EC ...
<:.... lE::_~~ ~~
,.e ...e ....e>E>
-.
--t~t
~~
~
9-1. 8£ "-:4D~~ <::=~
~~~~
~e~
~~~
San Francisco Bay Area - Where It All Started - Has Its First Home Computing Convention
7,000 to 10,000 People
100 Conference Presentations
200 Commercial & Homebrew Exhibits
Two Banquets with Outstanding Speakers
Special-Interest Social Centers
Publication of Proceedings Being Planned
In Northern California's Largest Convention Facility, San Francisco's Civic Auditorium
--.~--NFEBENCE SECTIONS ON HOME COMPUTING
Being Planned
•
•
•
•
•
•
•
•
Computer Graphics on Home Computers
Computer-Driven & Computer-AssiSted Music Systems
Speech Synthesis Using Home Computers
Computers & Amateur Radio
Computer Games: Alphanumeric & Graphic
Personal Computers for the Physically Handicapped
Computers & Systems for Small Businesses
Tutorials for Hardware Novices & Software Novices
•
•
•
•
•
•
•
Software Design for Personal Computers
Microprogrammable Microprocessors for Hobbyists
Optical Scanning for Inexpensive Program & Data Input
Floppy Disc Systems for Home Computers
Hardware &. Software Standards for Personal Systems
Seminars for Qub Leaders, Editors, Organizers, etc.
Personal Computers in Education (associated with a
University of California short-course)
- - AND MUCH MORE - -
PBESENT·WOBLD a FUTURE·WOBLD BANQUET SPEAKERS
Banquets to be Held in San Francisco's St. Francis Hotel
Fascinating Speakers will Discuss the Past, Present, & Future
• Frederik Pohl, Science Fiction Writer;
• Henry Tropp, Mathematician, and Principal
Investigator for History of Computers
Lecturer to NASA, American Astronautical
Society, New York Academy of Sciences,
Project jointly sponsored by the
World Future Society, etc.
Smithsonian Institution & AFIPS
Robots You Can Make for Fun & Profit
The 1940's: The FIRST Personal Computing Era
• John Whitney, Pioneer Computer Film Maker,
Computer graphics experimenter under grants
from NEA, Guggenheim Foundation, & IBM
Digital Pyrotechnics: The Computer in Visual Arts
mputer Faire
• Ted Nelson, Author & Fantast, Director of the
Xanadu Electronic Literary Network,
Lecturer at Swarthmore College
Those Unforgettable Next Two Years
Cut out, or photocopy; then fold, and tape in position.
-----------------------~------------
I
o::t
<0
<0
I
Q.
~
N
LD
OJ
I
i:D
IJJ
GET YOUR FREE COpy
l-
o::t
I-
+-
e(
w
OF THE
a:
<{
SILICON GULCH GAZETTE
• Details of the programs & speakers
• Information about the banquets' arrangements
• Accommodations information, & registration forms
for the St Francis Hotel (Faire Headquarters Hotel),
& the other three Computer Faire hotels
• Pre-registration details for the Faire
(reduced admission for those who pre-register)
• Details of the Proceedings expected to be published
• Articles about the homebrew exhibits
• Weather information, & tourist trivia regarding
San Francisco
• Listings of the commercial exhibitors
• AND, just to make it interesting:
- "Hot news': & raging rumors from "Silicon Valley"
(lhe San Francisco Ba y Area)
- Product announcements, equipment descriptions,
hardware & software news, etc.
u..
,t
•I
~
•I
IJJ
i
0:::
C
C
e(
I
~--"---"---."-"--"-".
1
•
I•
/1/
CO·SPORSOBS DlCLUDE AMATEUB,
PROFESSIORAL. EDUCATIORALGROUPS
• The two largest amateur computer groups: '
Homebrew Computer Club
Southern California Computer,Society (SCCS)
• Both Bay Area Chapters of the Association for
Compqting Machinery (ACM)
San Francisco Peninsula Chapter
Golden Gate Chapter
• IEEE Computer Society's Santa Clara Valley Chapter
• California Mathematics Council
• Stanford University's Electrical Engineering Dept.
• University of California's Lawrence Hall of Science
• People's Computer Company (PCC)
• Community Computer Center
• Bay Area Microcomputer Users Group (BAMUG)
• Professional & Technical Consultants Assn (PATCA)
• Amateur Research Center
I
<i.
~
:J
~
~
..J
«
~
>
..J
~
~
.~
:E
~
W
2:
(I)
::::>
III
Q
«
c..
w
CO
~
co
...J
...J
Q)
3:
Q)
w
CIl
CIl
w u
a:
>CO
Z
Q)
C)
co
+-'
CIl
0
c..
0
z
(!)
<{
r-
en
2
1'-
t'l
~!
N
0
~
~
0\
,. 0 ~
~ ~ ~
~ ~
0\
r--.
.
It')
~
><
0
=:.l
-<U
0
~
~
-<
0
lit
~
~~\
-<Q.
~
~
-------------------------------------
Volume 3, Number 7
a desired profile, stored and retrieved using
digital and microcomputer techniques. Capacity for up to 40 line segments is available
with process resolution to one part in 1000.
Programming entry into the micro's memory is
via keyboard on the front panel. Sixteen
pushbuttons allow the operator to select 28
functions.
Box 24064, Minneapolis, MN 55424.
TRAFFIC CONTROL SIGNALS
New York state's Department of Transportation is installing over one hundred 6800 microcomputer-based traffic control signal systems. The system receives data from up to 44
sensors on vehicle presence and speed, pedestrian presence and others , giving green ligh,t
priority to the direction of the heaviest
traffic.
INTERACTIVE TERMINALS
Log Abax has introduced a new interactive
terminal that contains a microprocessor. The
8008 lets the terminal communicate in ASCII,
BCD, and Telex codes at speeds from 75 to 4800
baud, either synchronously or asynchronously.
Operation in full-duplex, half-duplex and
echoplex modes is possible.
SLASH 6 COMPUTER
Harris Corp. 's SLASH 6 computer is designed
around a high-performance, 8-bit bipolar microprocessor.
Its I/O structure permits the
sharing of peripherals in multiple CPU configurations. The memory is expandable in 48K
byte increments to 768K bytes maximum. SLASH
6 with 48K bytes of memory is priced $14,500.
MICROS MANNING WEATHER POST
8080 microcomputers will be working alongside Air Force observers later this year to
demonstrate automated techniques for airfield
operation weather support. The Modular Automated Weather System Monitor (MAWS), is expected to handle most of the observing and short
range forecasting chores of a base weather
station. Weather data will be processed faster, in greater detail, and for a lower cost
than is presently being done.
MICRO AIMS ARMY'S LATEST TANK
The Army's new XMl battle tank, now in the
development stage at Chrysler Corp., includes
a digital ballistic computer with a microcomputer designed to determine proper aiming off-
January/February, 1977
16
sets for the weapon system in horizontal and
vertical planes.
COMMUNICATIONS MICRO
International Computer Products, Inc. 's
TD-l Termidisk communications-oriented microcomputer is equipped with one to four standard
IBM compatible diskettes.
The $2,450 unit is
designed for data collection, time-sharing and
business communications.
Interfacing is via
20 rnA current loop or RS232.
2925 Merrell
Road, Dallas, TX 75229.
AUTOMATIC CONTROLLER
Available with either CRT or LED displays,
a new $2600 automatic controller that uses a
microprocessor for positioning up to four axes
for a combination of linear or circular motion
is being offered by Anorad Corp.
The system features a 12 V CMOS bus interconnecting the microprocessor to all input and
output devices. All logic controls are CMOS.
SMART VOLTMETER
John Fluke Mfg. Co. 's Model 8500A 5~ digit
voltmeter is using an 8080 microcomputer to
achieve efficiency and versatility.
The microprocessor allows communications with the
instrument from either a front panel or a remote keyboard terminal.
DECWRITER GAINS INTELLIGENCE
Providing intelligence, system programmability, and buffer memory for DECwriter LA36
or LA180 terminals, a new Communications Controller from Applied Systems Corp., controls
data networks at rates up to 9600 baud using
asynchronous/synchronous modems or computer
interface adapters.
An 8080 microprocessor provides communications protocol control, code conversion/editing, local data processing, or custom programming functions for one or more terminals.
Included are network communications line adapters plus optional peripheral interface
for CRTs, flexible discs, or tape cassettes.
26401 Harpet Ave., St. Clair Shores, MI 48081.
AIRBORNE ALTITUDE SYSTEM
Osborne-Hoffman, Inc. has selected RCA's
1802D CMOS microprocessor for use in an airborne altitude system. Information is displayed in both digital 'and analog form.
The
digital shows altitude or depth within 1%.
Volume 3, Number 7
BEl USING MICRO
Consisting of both motor/encodes and controller, a microcomputer-based BEl Electronics
MPS 10 system provides many pre-programmed
n~nlinear position output functions upon external digital command. With 42 arc-min resolution and 1 rms accuracy this system offers
almos 512 output instructions. 1101 McAlmont
St., Little Rock, AR 72203
(501) 372~7351.
January/February, 1977
17
microprocessor, PIA, and BK of memory.
Three diagnostic routines stored in the
program not only minimize the machine's downtime, but also checks every working component
in the machine on a routine basis.
One diagnostic routine checks out all the
bulbs for burned-out lamps, while another
routine determines if trouble is present in
anyone of the switches. Another diagnostic
briefly turns on all the solenoids in sequence
to make sure they are all working.
It also
checks the LED digits by cycling the scoring
digits from 0-9 and back to zero.
ENVIRONMENTAL SYSTEM
Beukers Laboratories has incorporated five
6BOO microcomputers into their WL-3DS Environmental System. The micros perform preprocessing on atmosphere profile measurements supplied by free falling sensors. Data is then
logged on tape and sent to a Nova microcomputer for processing.
DATA COLLECTION TERMINAL
Coastal Data Services' microcomputer-based
data collection terminal, the Smart Clock, interfaces with virtually any type of processor.
The terminal, which can operate in either a
real-time/on-line or stand-alone mode, reads
up to 16 digits of Hollerith code from plastic
ID badges and IBM cards, and will also accept
numeric information via 10 pushbuttons.
HIS COMPUTERS USING 2900'S
Honeywell Information Systems model 6/43
small computers, recently introduced, are designed using Advanced Micro Devices' 2900 bitslice microprocessors. The HIS computers,
which have a floating point processor option,
use 17 of the AMD 2901s on a single board.
Four additional 40-pin microprocessors are use
for matrix shifters to assist the floating
point processor. They are also included on
the floating point processor board. These
four CPUs are manufactured by Honeywell.
The micros are mounted on a 16 x 16" multilayer etched board, which also contains the
Honeywell-made MPUs, PROM firmware, megabus
interface circuitry, various support logic and
a logic voltage regulator.
PIN-BALL ANYONE?
A microcomputer-controlled pin-ball machine
by Mirco Games is said to have a number of substantial advantages over its electromechanical
relay-operated counterparts. Called the "Spirit of '76", the pinball machine uses a 6S00
OIL FLOW MEASUREMENT SYSTEM
Because of the soaring cost of petroleum
products, major oil and chemical companies are
now demanding more accurate measurement of
their products at every point between the well
head and the end consumer. A microcomputerbased flow measurement system, developed by
UGC Industries, Inc. of Shereveport, LA, is
now providing petroleum processors with an economical, highly accurate means for measuring
their spectrum of products in. widespread locations.
Based around the Process Computer Systems'
lS06 microcomputer, the "Microflo" measurement
system can calculate the flow of liquids, gases, or steam in volume, mass, standard 60 0 F
barrels, or other units of measure.
INTERFACE UNIT
Emerson Electric Company, Industrial Controls Division has introduced a new BOBO-based
RS 232 interface that will be offered as an
option with the company's 2000 Series Tape Pac
recorder systems. Price is $1000.
aoaO-BASED TERMINALS/CONTROLLER
To aid OEMs in capitalizing on the explosive growth of data collection needs, a new
line of compact SOBO-based terminals and controllers, System Control Units (SCUs) have
been introduced by Epic Data Corp.
Three SCUs are available. Model 1647-1 electro-optically reads up to 12 columns on 3\
inch wide punched badges with SO-column ANSI
format.
Time of day can be shown in hours and
minutes on the numeric display.
The Model 1647-2 also has the ability to
accept data from both punched badges and SOcolumn ANSI cards. The Model 1647-3 further
offers 40 user-defined keys and up to 10 LEDs
for prompting. Prices range from $995 to
$1615. Bellevue, WA
(206) 332-S724.
Volume 3, Number 7
18
January/February, 1977
MICROCOMPUTER SUPPORT
TIME DIVISION MULTIPLEXER
LOGIC-WAVEFORM ANALYZER
A microcomputer-based.time-division multiplexer from Computer Transmission Corp. (T~N)
accomodates up to 16 asynchronous or synchronous digital data channels or any mixture of
both. The $10,000 M13l8 Multitran multiplexer can be used in point-to-point multiplexing between terminal clusters and central
computers and is fully compatible with the
company's M3200 Network Switching and Management System.
Designed for hardware and software debugging
of microcomputer system, the model DM 230
logic-waveform analyzer has a built-in memory
with a capacity of 128 32-bit words.
The start or stop address is set on a 4digit hexadecimal thumbwheel switch, and digital data is displayed on a six-digit hexadecimal readout. For a real-time look at analog
waveforms, including timing relationships and
noise spikes, the instrument allows a standard single-channel oscilloscope to be used as
a 32-channel measuring tool.
Access to the microprocessor under test is
by means of a clip-on probe. A probe buffer is
positioned close to the probe to minimize
loading of the MUT. Different microprocessors
require separate buffers.
The price of the DM is $2,900 which includes
one buffer; additional buffers are $750. Delivery time is 60 days. 169 Ridgedale Ave.,
Morristown, NJ 07960 (201) 267-4990 (353)
ELECTRONIC SCALE
StreeterAmet's microcomputer-based Quantomatic 4500 electronic weighing indicator
handles most operations involved in static
weighing and simple batching. Large LED display over-capacity, motion, minus weights, and
zero zone. The instrument can measure in either
pounds or kilograms.
Three models accommodate tare weight, identification, preset weight control, time and
date and related information.
PROGRAMMABLE INSTRUMENT
E-H Laboratories has developed automatic
integrated, modular measurement system, the
8200.
It is compact and microcomputer controlled.
The 8200's 6800 allows the execution of
complex test sequences and can provide for the
analysis of test results. It runs the programs
generated by the operator and entered through
a keyboard or an IEEE-488 interface into a
programmable memory. The system is expandable.
Depending on which instruments are included,
the model 8200 is priced between $35,000 and
$40,000.
INTELLIGENT TERMINAL
Using two 8080s, the React intelligent terminal system can either communicate with a
host computer or operate offline in a freestanding mode. Users can program in Intel's
PL/M high level language and can access from
250K to IM bytes of floppy storage and 16K to
32K bytes of RAM.
Also part of the system are up to three
CRTs and a serial impact printer. Teletype
33/35 protocol is standard, but the system can
also operate under binary synchronous and IBM's
SDLC. Raleigh, NC.
PICODAC 80 TRAINING COMPUTER
Designed as a training computer to teach
microcomputer principles and programming,
Picodac 80 allows analysis and display of the
CPU with registers, flags, program counter and
stack pointer, and permits visualization of
elements such as memory, inputs, and outputs.
This enables debugging of various structure,
addressing modes and interrupts.
Introduced by Laboratories d'Electronique
et d'Automatique du Nord, the microcomputer
contains an 8080 microprocessor with clock,
bus amplifier, RAM, and PROM, which are all
pluggable boards. The console, providing LED
binary displays and switches, is controlled
by the program constituted in the memory board.
236, rue Sadi Carnot, 59320 Haubourdin, France.
GENERAL PURPOSE INTERFACE
The UPC 6001 offered by SMC Microsystems
Corp., isa general purpose interface circuit
designed to act as a subcontroller between 8080
peripherals such as cassette recorders, floppy
discs, punched-card readers, and etc. It can
also provide full control for direct memory
access (DMA) operation.
The MaS device contains control and status
registers that are programmed to handle single
character, block (multicharacter), or multiblock transfers on DMA or interrupt basis.
35 Marcus Blvd., Hauppauge, NY 11787
(516)
273-3100.
Volume 3, Number 7
TESTING FACILITY OPENED
Microtest of Sunnyvale, CA has just opened
a new facility dedicated to testing all industry standard microprocessors.
The company
also claims it can run the complex test patterns for most types of RAMs and ROMs, including 4K and 16K dynamic RAMs.
(408) 739-8001.
PDP-11 j.tC DEVELOPMENT KIT
A new kit, MAXll, contains a cross assembler
simulator, and PROM programmer, and converts
a DEC PDP-II into a microcomputer development
system. Written in macro assembly language,
the cross assembler features user defined
macro library, local symbols, symbolic cross
reference, assembly list control, full nested
macros, and conditional assembly. It executes
under DOS at the rate of, and uses the same
kind of format as Macro II.
It is able to
examine and modify location and register,
search ROM, modify object file output on the
system, and change radix of typeout.
The $3550 kit is presently available for
Intel 4040, 8080 and Motorol 6800. 6 Preston
Ct., Bedford, MA 01730. Aivex Inc.
(617)
275-2333.
MANUAL EPROM PROGRAMMER
The l702A Manual EPROM Programmer features
hex keypad, two digit hex address and two digit hex data display. Controls include load,
clear, go, step, key/copy, data in/data out,
and counter up/down.
The profile card includes high voltage pulse
regulator, timing, 8-bit address and 8-bit data drivers/receivers. Programming is in 20
minutes--copying in 5 minutes. Requires +5,
-9 and +80 volts. Assembled version is $299.
95 and kit is $189.95. 1244 Lambert Circle,
Garden Grove, CA 92641
(714) 539-0735.
THREE PROGRAMMERS MARKETED
Three different types of PROM programmers
are offered by CCIP. The PRO-2000 VLC is
used for programming only l702A PROMs. Information is inputted via switches and is displayed on LEDs,
The other two programmers are microcomputer
controlled and accept the PROM types l702A,
2704, and 2708. A hexadecimal keyboard provides input data to the PRO-200l, and data is
presented in hexadecimal format, on a LED
display. Optionally, a TTY or paper-tape
reader can be connected.
January/February, 1977
19
The PRO-2002 unit must be connected to a
TTY. The PROMs are programmed through the
keyboard as well as through the paper-tape
reader. Prices of the three programmers
range from $423 to $2116. 7104 ObersulumWillsback Schillerstrasse 2, West Germany
(07134) 3014.
EUROPEAN
Me
PROTOTYPE BOARDS
Vero Electronics is offering a series of microcomputer prototype boards that comply with
European DIN standards. All boards are preassembled with wire-wrap DIPS, testpoints,
and component mounting pins. A CPU board is
priced at $60.11, Memory $56.60, interface
$60.75. 171 Bridge Rd., Hauppage, NY 11787
(516) 234-0400.
PROGRAMMER BOARD
A PROM/RAM/PROM Programmer Board for the
Altair 8800, IMSAI-8080 and other SIOO bus
microcomputers is now available from Xybek.
This 2K memory board contains 256 bytes of
RAM and space for 1792 bytes of l702A PROMs.
One of the l702A sockets doubles as a l702A
programmer. The PRAMMER is not an I/O device,
but occupies any 2K slice of system memory.
The kit is complete with its own 80V power
supply and features on-board timing independent of the CPU clocks. It contains its own
microprogram for read and write control. Introductory price is $189 with the extension
kit at $15. Box 1631, Cupertino, CA 95014.
SOFTWARE MAINTENANCE PROGRAM
A spokesman for a local electronics firm
this week announced a digital computer program
that through fresh application of an old technique--virtually eliminates lost time due to
malfunction of computer components. Called
OREMA (oh-Ray-ma, from the Latin oremus, meaning "let us pray"), the program offers prayers at selected time intervals for the continued integrity of memory units, tape transports and other elements subject to depravity.
Basically liturgical in structure, Orema
uses standard petitions and intercess~ons stored on magnetics file tapes in Latin, Hebrew,
and FORTRAN. It holds regular Maintenance
Services thrice daily on an automatic cycle,
and operator intervention is required only
for mounting file-tapes and making responses,
such as "And with they spirit", on the TTY.
Prayers in Hebrew and FORTRAN are offered
directly to the Central Processing Unit, but
Latin prayers may go to the peripheral equip-
Volume 3, Number 7
January/February, 1977
20
ment for transfer to the Central Processor by
internal subroutines.
Although manufacturer-supplied prayer reels
cover all machine troubl~s known today, the
program will add punched card prayers to any
file-tape as needed after the final existing
Amen block. Classified prayer reels are available for government installations.
In trials on selected machines, OREMA reduced by 98.2% the average down time due to component failure. The manufacturer's spokesman emphasized, however, that OREMA presently
defends only against malfunctions of hardware.
Requested errors and other human blunders will
continue unchecked until completion of a later
version, to be called SIN OREMA.
16-BIT FLOATING POINT UNIT
A 16-bit floating point unit for m1n1S, micros, Model 00154 provides automatic leftright justify and operates in controlled-shift
modes. In automatic-up justify mode, the Interface Engineering Inc. unit accepts 16-bit
data and 4-bit exponent and shifts the message up until the most significant 1 appears
in the MSB position on the output lines. It
also counts the number of shifts and outputs
a corrected 4-bit exponent. The automaticdown justify mode reverses this process by
shifting the data right unbil the exponent becomes zero. In the controlled-shift mode, the
unit shifts data up to 15 places up or down,
using 4-bit shift command lines to define the
number of shifts.
Internally clocked and capable of shifting
16 lines in less than 5 us, the device requires one program instruction and provides
TTL compatible 1/0 loqic levels. The 00154 is
packaged in a fully encapsulated plug-in module. 386 Lindelof Ave., Stoughton, MA 02072
(617) 344-7383.
PROGRAMMER/DUPLICATOR
Pro-Log's combination programmer and duplicator for PROMs, the series 92, consists of a
master control unit and a plug-in PROM personality module. The M920 master control unit
sells for $995 with personality modules ranging in price from $350 to $550.
When the unit is connected to a TTY or similar terminal the 92 can be commanded to program, list, duplicate, and verify PROMs. The
unit is packaged in an attache case and weighs
less than 15 Ibs with the personality module.
Options include an RS 232 interface. 2411
Garden Rd., Monterey, CA 93940.
INTELLIGENT BREADBOARD
IMS Associates has introduced an intelligent breadboard for the development of discrete logic, I/O interfacing, memory systems
and microcomputer circuits. Supplied as a
complete integrated package, the console connects directly with the IMSAI-8080 computer,
allowing circuits to be implemented in hardware and transferred to software in a step-bystep manner. Hardware/software trade-offs can
be easily studied and circuit designs tested
extensibly since the computer and breadboard
communicate via the computer's programmable
parallel I/O Board.
Features of the $435 kit include easy access to signals for probing, connection of
mUltiple computers and breadboards, use of LEOs
as latched and unlatched level indicators, and
capacitors into solderless terminal strips.
14860 Wicks Blvd., San Leandro, CA 94577.
SMARTER FLOPPIES
The addition of an Intel 8080 microcomputer
to the Three Phoenix Co. 's FO-33 floppy disc
tester allows for new tests such as amplitude,
resolution determination, dropout, extra pulse,
and modulation.
The microcomputer also allows users to select exactly what tests they wish to have performed, or to develop their own custom tests.
In the future, the manufacturer plans to offer
requesting users custom software packages.
-0632 N. 21st Ave., Phoenix, AZ 85029 (602)
944-2222.
SUPPORT PRODUCTS
Shepardson Microsystems has announced the
first in a line of products being developed to
aid users of microcomputers in their system
development. The first product, Model 2708
PROM programmer, is an intelligent programmer
that will program all major manufacturer's
2704 and 2708 PROMs. Model 2708, listed at
$850, provides RS 232 and 20 rnA current loop
interfacing and an internal microprocessor.
Full editing capability is provided for
users to move, alter, and store data. A paper
tape reader can be used to input the desired
data, and a paper tape can be generated to
store the PROM data for later user or modification. The paper tape may be in BNPF, BHLF,
binary or ACSII hexadecimal format.
The programmer will also automatically adapt
to any terminal baud rate up to. 6000 baud. The
user can modify both the pulse width and the
Volume 3, Number 7
plant production operations. The unit provides 24 output control lines which may be expanded to 120 separately controllable lines.
Software programming can be provided by the
company. Lakeside, CA.
MEMORIES AND PERIPHERALS
DESKTOP DISPLAY TERMINAL
The VT7l/t desktop display terminal for the
printing and publishing industry is designed
around DEC's LSI-II microcomputer. The terminal permits internal storage and editing of
up to 40,000 characters of copy. Custom editing features can be added to the system.
PROGRAMMABLE DATALOGGER
The 90MC is a microcomputer-based field
programmable datalogger and monitor. Consolidated Control's unit features include acquisition rates up to 100 points per sec; capacity
to 1,000 points with four mUltiplexing assemblers; programmable alarms; and battery protected programming. Bethel, CT.
j.LC-BASED SWITCHBOARD
Datapoint Corp. is introducing a microcomputer-based switchboard designed to cut large
corporation telephone bills by 30 to 50%. Info switch first checks the priority rating of
a caller's identity number and tries to select
the least expensive route using WATS, FX, tie
lines, or other voice communications facilities. If all circuits are busy, and the priority number warrants it, the call is put
through via Dial Direct.
The switching equipment consists of a microprocessor with a 300 ns cycle, a 16K ROM
program, a 4K RAM temporary storage and a
reed-relay switch matrix.
MODULAR p,C SYSTEM
Artronix, Inc. has announced a multiprocessor modular microcomputer system designed for
medium and small sized businesses. A two-CPU
96K-byte system with 160M bytes of mass storage, line printer, and 16 terminals is priced
at $100,000.
21
January/February, 1977
MATRIX TELEPRINTER
A microcomputer controlled l80cps ~atrix
teleprinter has been introduced by MI. Dubbed the Design 2400 KSR/T, the unit is priced
at $4,440, and includes an RS232 interface and
keyboard, and is controlled by an Intel 8008.
PROGRAMMABLE POS TERMINAL
NCR has introduced a microcomputer controlled, programmable POS that, it says, will replace its NCR 280 retail terminal.
The NCR 2151 terminal uses an Intel 8080
MPU, has 32K bytes of RAM expandable to 64K,
an 8-position LED display and 30 programmable
LED descriptors.
The terminals are programmed to user specifications, and employ distributed processing
techniques that share functions between the
terminal, in-store concentrator, small computer and host mainframe.
The basic terminal with 32K of RAM is
available at a price of $4,145. Dayton, OH.
j.LC IN MILITARY PROGRAMS
United Technologies Corp.'s Norden division
is developing a microcomputer based upon AMD's
Mil Spec AM2901 4-bit bipolar slices. Configured in a l6-bit system, the microcomputer
will be used in two military programs. One as
a digital moving target indicator and automatic target detector system designed to be integrated with an existing U.S. Navy shipboard
surveillance radar. The second is an update
of Norden's F-lllD display equ~pment.
p.C DIGITAL CASSETTE RECORDER
DCRllO, a microcomputer-based digital cassette recorder, logs data from any user-specified instrument in formats readable by TI's
Silent 733ASR, Wang's 2200 series and DEC's
Decassette. The $1885 OCR/lO is standard with
custom cabling for interfacing to the data
sampling instrument. William Palmer Industries, 1627 Pontius Ave., Los Angeles 90025
REDUCES PROGRAMMING COSTS
WIRE BONDER
Hughes Aircraft's Industrial Products division has introduced a wire bonding system that
is controlled by a microcomputer. HMC-1460 is
equipped with a memory capable of storing 200
wires, expandable to 1,000 wires. Basic system price is $19,750.
The Model 5600 MicroDATA TRAK reduces programming costs and increases flexibility for
industrial process programmers by providing
one or two analog set point programs for process manipUlation vs time, plus seven programmable on/off event functions. Programs are
generated by best-fit straightline segments of
Volume 3, Number 7
number of loops in programming a PROM, when
used in conjunction with a terminal.
20823
Stevens Creek Blvd. Bldg. C4-H, Cupertino, CA
95014
(408) 257-9900.
MICROCOMPUTER ANALYZER
Biomation's Model 168-D microcomputer ana~
lyzer records a history of up to 256 memory
accesses and displays the information on a
9" CRT in hex notation using memory maps or
as a function of time.
It comes with a personality module for either 8080A or 6800 microprocessors. Maximum record rate is 10MHz.
Price is $5,650 with cabling. 10411 Bubb Rd.,
Cupertino, CA 95014.
GAl VIRTUAL CONSOLE
General Automation, Inc. has available a
new virtual console for its GA-16/220 and GA16/330 microcomputers.
Four functions comprise the virtual console; an extended programmer's console capability via local/remote/CRT/TTY, a serial I/O
port, an autoload capability and a set of
lights and controls on the edge of the CPU
boards.
Heart of the console is GA's BASIC utility
Software PROM package. This provides console
control and displays functions as well as a
complete set of user debugging facilities.
For example, a programmer can display and
change any register, display and change any
memory location, display a block of data from
memory, load and dump binary tapes, store pattern in memory, single step, set multiple
traps and "Go".
Access to the virtual console is through
RS 232 and current loop serial I/O port servicing CRT, TTY or modem. 1055 S. East St.,
Anaheim, CA 92805
(714) 778-4800.
PORTABLE CRT LOADER/MONITOR
The portable Model 395 Microcomputer-based
CRT loader/monitor offers contact/relay symbology, keyboard loading, and real-time online monitoring. Each contact in the control
circuit is displayed on the CRT as entered
from the keyboard", providing immediate verification of the program and permitting editin
and correction. Any two complete control
circuits, each containing up to seven series
elements and four parallel paths, can be displayed simultaneously in the run/monitor mode.
The entire memory program can be stored on
magnetic tape cassettes or punched paper tape
for use in verification, dumping and relbad-
January/February, 1977
22
ing, or programming other controllers. When
interfaced to a teleprinter, the unit will provide hardcopy printout of the program in ladder diagram format, with cross-reference
listing. 425 W. Philadelphia St., York, PA
17405.
SELECTRIC-LIKE j.LC TERMINAL
Multiterm Corp's latest data terminal, Model T-3000, features an internal 8080 microcomputer for system control and flexibility.
The
$2,875 unit prints error codes for noise pulses, failures in the communications link or operator-keyed entry errors.
Styled after the IBM Selectric typewriter,
the terminal uses a Diablo printer mechanism.
Interfacing is RS232 in ASCII code.
2612
Artesia Blvd., Redondo Beach, CA 90278.
44-COLUMN DOT MATRIX PRINTER
IMS Associates' new 44-column dot matrix
printer designed for use with the IMSAI-8080
computer as well as other computers, offers
hardcopy output at $399 in kit, and $549 assembled. Features include standard 64 character ASCII subset, double-sized characters
-are software selectable, and automatic line
wrap-around output lines. The printer offers
multiple copy printing using carbon or NCR paper, and can interface to a parallel output
port with handshaking. 1922 Republic Ave.,
San Leandro, CA 94577
(415) 483-2093.
8080 ANALOG INTERFACE CARDS
The four Sine-Trac 800 analog interface
cards mate into Intel's MDS 80 microcomputer
rack and operate under the control of its cpu.
Each of these cards can be accessed by the
8080 in either the program control, programmed
interrupt or DMA mode.
The aid board, at $845 for singles, accepts
32 single-ended or 16 differential analog inputs up to 10V, either unipolar or bipolar.
It converts each of these to 12-bit outputs in
binary, offset-binary or two's complement coding.
The $295 aid X board, expands the input anaalog interface in increments of 32 single-ended
ed channels per board up to a maximum of 256.
The $695 d/a board, outputs eight analog
channels from the digital input of the microcomputer'data bus. The $595 X d/a board, expands the analog-output capacity up to 256
channels in 8-channel steps.
Each card uses 5 V at 2 Amps. Datelek Systems GMBH, Becker-Gundahlstrasse 1, 8 Munich
71, West Germany,
(089) 78 4045.
Turn us on.
And the Digital Group will get you going.
One of the first things you'll discover when you get
started with microprocessors is that there's a lot more
involved than the hardware. That's why you should
consider a system's software, too.
With a Digital group system, you can get going
fast ... and you don't have to be a programming
genius to make your computer do something for
you. Turn us on, and your system really does what
you want it to do-easily and quickly. Because the Digital Group firmly believes that a computer without
usable software is useless.
Every system the Digital Group delivers has several
operating programs included with it. As soon as you
turn it on it's doing something! In addition, we make
available an ever-growing number of software packages for Digital Group systems at all levels of
support. (They're listed below.)
But first, how do you get started?
Wi th Tiny Basic Extended.
For only $5, you get the "beginning" and for an additional $5 you can get a cassette full of game programs
that work with it. Both are on audio cassette that your
Digital Group system can understand. You can list
the programs on the TV screen of your Digital Group
system and see exactly how they work step by step.
Volume 4-Hamurabi, Stars, 23-Matches,
20-Questions, Blackjack, Factor and Batum .. $5.00
Volume 5-Bomber, Lunar Lander,
Spacebattle, Matador and Dice ............ $5.00
Volume 6-Chief, Mr. Quizzer, Addition,
Subtraction and Multiplication ............ $5.00
"GALAXY"
1976, SCELBI Computer Consulting, Inc .... $7.50
ALSO:
Z-80 Educator .......................... $10.00
Z-80 Assembler ......................... $15.00
Z-80 Dis-Assembler ..................... $10.00
Z-80 Text/Editor .......................... $7.50
And many more.
Here's how to get going.
First, take a look at our hardware (we've pictured
it here in our new line of cabinets). Then just fill in the
coupon below for all the details on our systetnshardware and software-so you can turn us on.
Now the real fun begins.
Change the program. See what happens. Make it
work better. 'fry other variations. The best way to
learn how to program your computer is by studying
an easy-to-understand operating program and
changing it to see what happens. Bit by bit, understanding will come. (And it's nice to know that in the
meantime, your system can be working while you're
learning.)
When you're ready for more, so are we.
[email protected][J_O....;......;..W_ _)
p. O. Box 6528
Denver, Colorado 80206
Here are a few programs we have for you:
TINY BASIC EXTENDED ...................
TINY BASIC GAMES:
Volume I-Chomp, Checkers, Tic-tac-toe,
Digiguess and Brainteaser ................
Volume 2-Artillery, Dr. Therapy, Reverse,
Biorythm and Golf .......................
Volume 3-Taxman, Snark, crap, Number,
Square-Root and Clock ...................
c'[email protected][email protected][]_~=__o
-
$5.00
(303) 777-7133
OK, Get me going. I want all the details.
$5.00
Name ____________________________________
$5.00
Address ___________________________________
$5.00
City/State/ Zip _______________________________
Volume 3, Number 7
January/February, 1977
24
MICROCOMPUTER POWER SUPPLIES
DRIVE DESIGNED FOR MICROS
Deltron Inc. has introduced a series of
four output microcomputer power supplies designed for micro systems. Priced from $99
to $141 each, the units feature barrier block
output terminals and infinite resolution adjustments, and are capable of 115/220 VAC operation. The four terminals provide various
combinations of +5 V, +12 V, +15 V, 9 V, and
a variable output of 5 V to 24 V. North
Wales, PA.
Memodyne Corp. 's new cassette drive was designed for microcomputer applications and
comes in a portable case with front panel controls, I/O connectors and internal supply.
The recorder writes 7-bit ASCII or 8-bit parallel data using a standard Philips cassette.
Price is $775 in quantity. Newton Upper Falls
IBM ADDS 5100 SUPPORTS
IBM's General Systems division has introduced a matrix printer and a plotting software package for its 5100 portable computer.
The IBM 5103 Model 2, is priced at $4,175
and has 132 print positions and speeds up to
120 cps. The new software, Print Plot/Problem Solver Library, is available on magnetic
tape cartridge for a one time charge of $500.
The software enables the 5100 to use either
the 5103 Model 1 or Model 2 as a plotting
output device, or as a printer.
DISKETTE DRIVE CONTROLLER
PerSci, Inc. has designed their Model 1070
diskette drive controller with an 8080 microcomputer with internal disc operating software for all file management functions.
The
controller is said to be able to communicate
by file name and assume all housekeeping functions usually performed by a computer.
The unit is designed for and can interface
to most major microcomputers. A complete
sub-system would include the 1070, interface,
cabling, and from one to four Model 70 drives
or one to two Model 270 dual drives. Total
data capacity in a four diskette system exceeds one million kilobyte. Marina del Rey,
CA 90291,
(213) 821-5545.
SELF-CONTAINED PROGRAMMER KIT
Engineering Resources' 9700 kit is designed to build a completely self-contained programmer for 2708 and 2704 PROMs. Housed with
integral power supplies, the unit features
internal timing circuitry to handle PROM
timing requirements, allowing asynchoronous
operation and easy interfacing with virtually
any microcomputer system, and requiring only
simple programs for its control. Kit includes all hardware and design documentation.
1903 Alameda Padre Serra, Santa Barbara,
CA 91303.
MA.
SBC 80/10 FLOATING POINT UNIT
A new floating point unit from Cybernetics
Micro Systems will interface to an Intel MDS
800 or SBC 80/10 based system. Features include binary-to-floating point decimal conversion; all trig. functions; logs and powers;
co-ordinate transformation; mean and standard
deviation and more. Supply requirements are
+12, +5 and -lOVe
2460 Embarcadero Way, Palo
Alto, CA 94303 (415) 321-0410.
ANALOG SUPPLY
Compatible with any 8-bit microprocessor,
the Optical Electronics' 7462 DAC operates on
a single 5 V supply and provides 0- to 3 V analog output. The 8-bit device features standard binary digital coding and 00000000 digital input code for 0 analog output. P.O. Box
11140, Tucson, AZ 85734
(602) 624-1283.
PIIMP TRANSDUCERS
The Astrosystems Inc. 's new PI/MP family
of transducers supply position data in real
time to microcomputers. Single-turn resolutions are available to 12-bits and 3 decades
BCD. Multiturn units provide resolutions to
17 bits and 5 decades BCD.
Zero set and preset is available.
Each unit requires a maximum of 8 wires to
interface to a microcomputer. Prices start
at $550. 6 Nevada Dr., Lake Success, NY 11040
(516) 328-1600.
MODEL 380 TROUBLESHOOTER
The Model 380 Troubleshooter can serve as a
standard 10, 15 or 30 cps portable terminal,
yet has an operator switchable character set
that allows printing of nonprint characters
such as device control codes, tabs, etc. The
terminal operates on full upper/lower case
ASCII. Other codes are available.
The unit's built-in accousti9 coupler features AT&T's 103 and RS 232 compatibility. E.
66 Midland Ave., Paramus NJ 07652
Volume 3, Number 7
January/February, 1977
25
CASSETTE TAPE TRANSPORT
OPEN-LOOP MOTOR CONTROLLER
For use in microcomputer systems, the Model CS400 TTL-compatible cassette tape transport requires a 14-30 V power supply. The
transport manipulates serial data at 8kpbs and
records 800 bpi at 10 ips. with its dual
channels, CS-400 lets you write one track,
switch channels, change direction and continue
writing on the other track without rewinding.
The system utilizes Manchester phase encoding
and provides ANSI-compatible data.
It is priced at $350 each in 1000 lots.
11950 TWelfth Ave. South, Burnsville, MN
55337
(612) 890-5135.
Advanced Control System Corp. 's Model MCU652 is an open-loop stepping motor controller
made to interface with an 8- or 16-bit micro.
Single-step, index and slew functions with
override stop control are provided. Rates are
up to 10,000 steps/s, in increments of 1 step/s
The controller includes three command inputsstart forward, start reverse and stop. The
$800 unit is available with either automatic
or manual operating mode. Wakefield. MA.
MICRO FLOPPY DISKETTE DRIVE
Wango has introduced their Micro Floppy
diskette drive with a track-to-track access
time of 30 ms, a random average seek time of
370 ms, and a large-quantity price of $300.
The unit has a basic capacity of 109.4K
bytes on 35 tracks. However, a variety of
capacity-increasing features, adding tracks,
double density recording, using both sides of
the disc, and various combinations of these
techniques can increase the capacity to 498.8K
bytes. 5404 Jandy Pl., Los Angeles, CA 90066
(213) 390-8081.
MOTOROLA INCREASING LINE
Motorola has revealed it is increasing its
Micro Module line with eight new offerings as
well as a printer and software. Software additions will include an 8K BASIC interpreter
and DOS. The printer will be manufactured
by Okidata. Motorola did not detail the
functions of the eight new boards.
CASSETTE INTERFACE CARD
The RO-CHE Systems' controller controls up
to four cassettes and interfaces to a Tarbell
or MITS cassette board. The status bits generated by the interface boards are software
controlled to select which recorder to use,
and function desired. LEOs on the face of the
controller indicate which deck has been selected and when that deck is writing. The operator can program to position the tape, put it
in read mode, or provide for error recovery.
Price of the four-part controller is $125.
Van Nuys, CA.
PROGRAMMABLE VOICE READOUT
A solid state programmable voice readout
system for users with small quantity requirements and changing vocabularies is being marketed by Master Specialties Co. The system
uses PROMs for each new word, and Model 1650
permits vocabulary expansion from one to 112
words in standard half ATR rack, by adding
plug-in circuit boards.
Words may be announced by providing a 4-bit
word and 3-bit board address, and enable signal. A male voice is used to achieve high fidelity with natural human sound. 1640 Monrovia, Costa Mesa, CA 92627.
MICROFLOPPY
A floppy disc system with operating software and interface electronics to provide
complete plug compatibility with popular microcomputers, has been announced by iCOM, a division of Pertec Computer Corp.
Called the Microfloppy, the system is priced
at just $1,095. Model FD 2411 includes the
flexible disc drive, power supply, cabinet,
controller/interface card, power cord, fuse
and all cables. The unit, incorporating an
ICOM's FDOS-M software on diskette, is fully
factory assembled and tested, and is ready to
plug in. Additionally, as a limited time offer,an 8K BASIC software package is included
at no additional charge.
The iCOM FD2411 is 100% compatible with any
microcomputer using the popular Altair bus
format. The controller/interface card, contains all of the electronics necessary to interface the floopy disc to the microcomputer.
The card incorporates an LSI controller chip
that offers automatic track seek with verification, single or mUltiple record read/write
with automatic sector search, auto CRC, address mark detection, entire track read and
entire track write for diskette initialization.
6741 Variel Ave., Canoga Park, CA 91301
(213)
348-1391.
Volume 3, Number 7
January/February, 1977
26
PEOPLE, LITERA TURE AND EVENTS
p,P MARKETING GROUP FORMED
A new MOS microprocessor marketing organization to focus on specific industries and
applications, in addition to products, has
been announced by Norm Rothstein, MOS microprocessor marketing manager at Signetics.
The new organization creates five management functions, four of which have been filled.
PAUL D. HANSEN is product merchandising manager, GARY D. MILLER is product sales manager,
MICHAEL M. ZYLA is product planning manager,
and THOMAS MARSHALL is business manager.
The
post field support manager for the division
has not yet been filled, but will be soon,
according to Rothstein.
SOFTWARE SUBSIDIARY FORMED
MITS INC. has formed a new subsidiary company designed to provide Altair microcomputer
users with application software. Announcing
the formation of the Altair Software Distribution Company, MITS' President, Ed Roberts,
said, "The ASDC will provide a mechanism to
make certain that Altair computer users have
application software that meets their needs
and will be fully supported for years to come."
The Altair Software Distribution Company
will acquire software from persons around the
country. The software will then be carefully
evaluated, throughly checked for errors, documented and distributed through all Altair
Computer Centers. The ASDC will contract for
application software on either a direct purchase arrangement or on a continuing royalty
basis.
2450 Alamo S.E., Albuquerque, NM 87106.
PERSONAL COMPUTING SHOW
Personal Computing Magazine has announced
that Los Angeles, Philadelphia and Boston will
be the sites of the first regional Personal
Computing Shows. The shows will feature exhibits of new microcomputers for home, schools
and small businesses.
Tom Munnecke, president of Metasysterns in
Riverside CA, will conduct three seminars designed to show the average person how to program a personal computer. Patricia Wood, a
member of the Southern California Computer
Society will conduct a seminary on how to
build a computer from a kit. For the more advanced computerist, Dr. Adam Osborne, author
of the best seller, "Introduction to Microcomputers" and Dr. Rodnay Zaks, author of more
than thirty books and publications in the computer field, will teach six intensive courses
on microprocessors. A number of other special seminars and programs are being planned.
Dates and sites of these three shows are:
Los Angeles--March 19, International Hyatt
House; Philadelphia:-April 30, Marriott at
City Line; Boston--June 18, Hynes Auditorium.
Tickets are $10.
401 Louisiana S.E. Albuquer~
que, NM 87108
(505j' 266-1173.
FAIRCH1LD/DATA WORKS ACQUISITION
The acquisition of Data Works Instrumentation in Chatsworth, CA has been announced by
James D. Bowen, vice president and general
manager of the Instrumentatiqn Systems Group
of Fairchild Camera and Instrument Corp.
Data Works Instrumentation manufacturers
microcomputer-based data acquisition and analysis instruments used primarily in solar, environmental and process industries. .The instruments are fully programmable and perform
calculations on acquired data.
Details of
the acquisition were not released.
TRACE SEMINARS
Peters Associates is holding a series of
seminars on their line of resident tracing
programs for 8080, Z-80 and MC6800 microcomputer systems. For further information and
reservations for the free seminars contact
P.O. Box 61622, Sunnyvale, CA 94088
(408) 245-1519.
PEOPLE ON THE MOVE
Elmar Electronics in Mountain View, CA has
increased their Microcomputer Technical Staff
to four with DUNCAN PETERSON, a former consultant and staff member of the University of
California, Berkley.
JOHN TOROK has joined Intersil, Inc., as
product marketing engineer in the firm's Low
Power Product Marketing group, a new post
created as part of the group's recent expansion.
INTERFACE AGE, formerly SCCS INTERFACE is
now an independent publication covering the
home computer market. SCCS, however, is continuing to publish their magazine, INTERFACE,
as the official magazine of the computer society. Other recent hobby magazine startups
include PERSONAL COMPUTING by Benwill Publishing and KILOBAUD by Green Publishing.
EDWIN J. TURNEY, former vice president of
marketing at Electronic Arrays, Inc. and a
co-founder of Advance Micro Devices, Inc. has
been named to the newly-created position of
vice president of marketing and sales for
Semiconductor Products at Intersil, Inc.
Volume 3, Number 7
27
Publishers of 73 Magazine have bound their
most popular articles and editorials on hobby
computing into a new book, HOBBY COMPUTERS ARE
HERE.
$4.95, 73 Magazine" Peterborough, NH
03458
DR. JOSEPH P. HAWRANEK has been named manager of market support for National Semiconductor's Systems division.
Pro-Log Corp. has named YREL as their sales
rep for France.
SHIGEHIKO MURASE has joined National Semiconductor Corp. of Japan as manager of Distributor Sales.
As part of an expansion of Signetic's MOS
Microprocessor Marketing Group, THOMAS MARSHALL has joined fhe firm as MOS Microprocessor business manager.
Synertek has named GERALD DEMSKY to a new
position as microprocessor marketing manager.
H.R. ANDERSON is the new manager of Microprocessor Product Planning for Rockwell's Microelectronic Device division. He was formerly with NCR.
RCA's SOLID STATE division reports it is
now in production of several 1802 support
chips at its new West Palm Beach, FL facilities.
facilities.
PERTEC TO BUY MIT'S
Pertec Computer Corp. has reported that it
has signed a letter of intent to purchase MITs,
Inc., manufacturers of the Altair microcomputer. Although details were not released, the
purchase is said to be for $5 million worth
of Pertec stock. A definitive acquisition
agreement is expected to be completed sometime in Febuary, 1977.
4K RAM BULLETIN
Texas Instruments has published a l2-page
Application Summary Bulletin entitled "Introduction to Refreshing TI 4K Dynamic RAMs."
Bulletin MOSA3 introduces refresh principles and their implementation.
It also compares static and dynamic RAMs in terms of
speed, power consumption, refresh requirements,
relative costs, and power supply requirements.
Various kinds of simple refresh circuitry are
outlined and block diagrammed, including
transparent, cycle steal and burst methods.
Inquiry Answering Service, P.o. Box 5012,
M/S 308, Dallas TX 75222.
January/February, 1977
All programs in BASTC SOFTWARE LIBRARY are
reported to have been thoroughly listed and
executed on several computer systems, including microcomputers.
Each program is prefaced
with text describing the program, listing potential users/applications, giving instructions for running the program, states amount
of memory needed to store and executes each
program, and noting statements which may need
to be changed for certain implementation of
BASIC.
Volume 1, BUSINESS & RECREATIONAL PROGRAMS
is $24.95; Volume II, MATH, ENGINEERING STATISTICS & PLOTTING PROGRAMS is also $24.95;
Volume III, BILLING, A/R, INVENTORY, PAYROLL,
ETC. is tagged at $39.95. Combination price
of Volume I & II is $39.95 and $69.95 for
all three texts. P.O. Box 2096 Ashland, VA
23005.
MICRO-PRODUCT MARKET REPORT
The new micro-products market is growing
in every direction and Datapro's latest report on microcomputers covers 125 models-nearly four times as many as their report a
year ago.
Selection and utilization of microcomputers
is discussed for large, specialized systems,
or smaller stand-alone application systems.
This 32-page report offers comparison charts
and guidelines to aid in selecting microcomputers as well. Details on packaging, hardware chatacteristics, performance, software,
applications and pricing from 65 vendors is
said to be included.
$12, 1805 Underwood
Blvd., Delran NJ 08075.
TECHNITROL 8080 MANUAL
written for non-computer oriented professional, the l70-page examination of the Intel
8080 is said to cover flowcharting and programming techniques with typical problems.
$13.95
Technitrol, Inc., 1952 E. Allegheny Ave.,
Philadelphia, PA 19134.
NSC DROPS PACE PRICE
National Semiconductor Corp. has reduced
the price of its l6-bit single-chip PACE microprocessor, ISP-16A/520D, from $40 to $20
in 100 lots.
In quantities of 1000 to $15,
and in 5000 quantities to $13.
THREE VOLUME BASIC LIBRARY
6100 PRICE CUT BY 65%
A three volume collection of programs written in BASIC is now being offered by Scientific Research Instruments.
Intersil, Inc. has reduced prices on all
grades of its IM6l00 microprocessor up to 65%.
The IM6l00 CCPL, a 3.3 MHz circuit in a
Volume 3, Number 7
plastic package has been reduced from $25.20
to $15 in 100 lots. The IM6l00 IPL, a 4.eMHz
device in plastic, was cut from $46.80 to $16.
50 in 100 lots; and the IM6l00 AIPL, an 8.0
MHz chip was reduced from $67 to $23.60 in the
same quantities.
Military temperature range versions of the
4.0 MHz and 8.0 MHz devices were cut from
$100 to $52.80,aand $143 to $76.25, respectively. 10900 North Tantau Ave., Cupertino
CA 95014
(408) 996-5261.
F8 VIDEO GAME PRICES HIKED
Fairchild Camera & Instrument reports it
has raised the price of its F8-based video
game from $150 to $170. The price change is
said to be a result of design modifications
needed to meet Federal Communications Commission standards. The Fairchild game, Model
FVE 100, has two resident games, dual hand
controls, color and sound.
ZILOG BIDDING ON 8080 MARKET
Zilog has reduced the price of its Z-80 microprocessor by 51%, from $25.50 in 100 lots.
The firm also reduced~its large volume negotiated price on the device to under $10 from a
previous volume price in the $20 range.
The move is said to be prompted by the announcement of Intel's new 8085 family as. well
as Zilog's desire to compete with 8080A family
suppliers at the low-priced end of the general
purpose microprocessor market.
HARRIS FOLLOWS INTERSIL CUTS
Harris Semiconductor division reports it is
cutting prices on its 6100 microprocessor in
response to a similar move by Intersil. Harris
spokesman did not release specific prices, but
said the prices would be competitive.
100/0 MARKET INCREASE SEEN
The u.s. Commerce Department's 1977 Industrial Outlook released last month forecasts a
10% increase in this year's total u.S. electronics market to $58.39 billion. The largest market segment area is in the computer equipment--up 14% to $12 billion and tc~s up
15% to $2.61 billion.
SEMI SALES REACH $303 MILLION
u.s. Semiconductor manufacturers reported
total worldwide sales of $303 million during
the month of October.
October sales were divided $184 million for
January/February, 1977
28
SUPER JOLT
features TINY BASIC,
ASSEMBLER and DEBUGGER ROMs on board!
READY TO RUN IMMEDIATELY! CONNECT
THIS CARD TO MOST ANY TERMINAL AND
YOU'VE GOT ALL THE MICROCOMPUTER
HARDWARE AND SOFTWARE PROGRAMS
YOU MAY EVER WANT.
ON ONE
SINGLE
4%" x 7" PC
CARD YOU
GET ALL
THIS:
FULLY ASSEMBLED AND TESTED
• 8-bit 6502 processor • 1,024-byte static RAM • 32-bidirectional, programmable I/O lines • 1 MHz crystal controlled clock
• interval timer • 4 interrupts, including timer and non-maskable
• 3 serial interfaces: 20 mA current loop, RS 232 and TTL • 5,120
bytes resident ROM software including a single pass symbolic
assembler, a TINY BASIC and a Debug Monitor.
AVAILABLE NOW. $375 without assembler and
TINY BASIC ROMs, $575 with. ORDER DIRECT
or at participating computer stores. Other systems, cards and kits also available from $96.
MICROCOMPUTER ASSOCIATES, INC.
2589 Scott Blvd., Santa Clara 95050
integrated circuits and $119 million for discretes. This brought the year~to-date cumulative shipment total to $2.8 billion.
These figures were revealed in the monthly
Semiconductor Marketing Statistical report
published by WEMA, trade association for the
electronics industries. Data supplied by 49U:S.-based s~miconductor manufacturers, and
includes estimates of sales and bookings for
the few non participating companies.
Orders booked during October totalled $306
million, divided $180 million for integrated
circuits and $126 million for discretes. The
strong October sales resulted largely from
increased shipments in u.S. and western Europe
Markets, while other international markets
remained relatively flat.
HOBBY MARKET 250 0/0 GROWTH
The hobby computer market will increase
by 250% this year, from just under 7,500 units
last year to more than 18,600 units by January 1977, according to a market study by
Venture Development. The study identified
more than 100 computer clubs, nearly a dozen
(Cont'd on page 29)
Volume 3, Number 7
29
January/February, 1977
EDUCATION
8 - 9
MICROCOMPUTER COURSES, SEMINARS, CONFERENCES. Date, title, cost, location, sponsoring
organization (addresses on this page)
8 -11
January
10-13 Microprocessors Fundamentals
NSC
$395 Coral Gables, FL. (305) 661-7971
11-12 Microprocessor in Mfgr. and Control
$395 Cincinnati, OH Int. Compo Sys.
11-14 F8 Microprocessor $300 San Jose, CA
Fairchild Micro Systems
13-14 Microcomputer Software/Systems
$395
Cincinnati, OH Int. Compo Systems
14-18 Microprocessors and Microcomputers:
Theory and Applications
$425
George Washington University, WA D.C.
17-20 Microprocessors Fundamentals NSC
$395 Santa Clara, CA (408) 247-7924
17-21 SC/AMP Application
NSC
$395
Coral Gables, FL
(305) 661-7971
18
LSI-II Technical Seminar
Free
Palo Alto, CA
DEC
18-19 M1croprocessors in Mfgr. and Control
$395 Toronto, Canada, Int. Compo Sys.
18-20 Microprocessors $365 Hampton, VA
George Washington University
20-21 Microcomputer Software/System
$395
Toronto, Canada Int. Compo Systems
21-27 SC/AMP Application
NSC
$395
Santa Clara, CA (408) 247-7924
24-26 Integrated Circuits and Applications
$360 Washington D.C. George Washington
University
NSC
$395
24-27 PACE Application
Coral Gables, FL (305) 661-7971
25-27 Microprocessor Short Course with take
home Computer Wintek Corp., 902 N.9th
St., Lafayette, IN 47904 317 742-6802
RCA Cosmac
Free Elmar Electronics
27
2288 Charleston Rd., MT. VW. CA (415)
961-3611
25-28 F8 Microprocessor $400 Miami, Florida
Fairchild Micro Systems
$395
30- 3 Advanced Programming NSC
Coral Gables, FL (305) 661-7971
February
1- 3 Microprocessor Short Course with take
home computer Petersburg Beach, Fl
Wintek Corp., 902 N.9th St., Lafayette
IN 47904 (317) 742-6802
$495
2
Intel 8748 Free Elmar Electronics 6777
W.50th St., Commerce City, CO 303 2879611
'3
Intel 8748 Free $495 415 961-3611
Elmar Electronics 2288 Charleston Rd.,
Mt. Vw. CA
9 -11
10-11
14-16
14-17
21-24
21-24
22-25
23
24
24-25
28- 3
28- 3
28- 3
Microprocessors in Mfgr. and Control
$395 Newark, NJ Int. Compo Systems
F8 Microprocessor $300 San Jose, CA
Fairchild Micro Systems
Microprocessor Short Course with take
horne computer Wintek Corp., Los Angeles
902 N.9th St., Lafayette, IN 47904
(317) 742-6802
Microcomputer Software/System $395
Newark, NJ Int. Compo Sys.
Microprocessor Short Course with take
home computer Palo Alto, CA Wintek
Corp., 902 N.9th St., Lafayette, IN
47904
(317) 742-6802
SC/AMP Application
NSC
$395
Coral Gables, FL 305 661-7971
PACE Application
NSC
$395
Coral Gables, FL (305)
661-7971
Microprocessor Fundamentals NSC
$395 Santa Clara, CA (408) 247-7924
F8 Microprocessor
$300 San Jose, CA
Fairchild Micro Systems
NSC PACE Free Elmar Electronics 6777
W.50th St., Commerce City, CO 303 2879611
NSC PACE Free Elmar Electronics 6777
W.50th St., Commerce City, CO 303 2879611
Microprocessors and Design Automation
San Francisco, CA TC on Design Automation of the Computer Society
Advanced Programming NSC
$395
Coral Gables, FL 305 661-7971
COMPCON Spring '77 San Francisco, CA
COMPCON
$395
PACE Application
NSC
Santa Clara, CA 408 247-7924
March
1 -
3
2
3
7- 10
8- 10
8- 11
14-17
15-17
Microprocessor Short Course with take
horne computer WA D.C. wintek Corp.,
902 N.9th St., Lafayette, IN 47904
Motorola 2900 Free Elmar Electronics
6777 W. 50th St., Commerce City, CO
(303) 287-9611
Motorola 2900 Free Elmar Electronics
288 Charleston Rd., Mt. Vw. CA (415)
961-3611
Microprocessor Fundamentals NSC $395
Coral Gables, FL 305 661-7971
Microprocessor Short Course with take
home computer Boston, MA Wintek Corp.
902 N.9th St., Lafayette, IN 37904
F8 Microprocessor $400 Los Angeles
Fairchild Micro Systems
SC/AMP Application
NSC
$395
Coral Gables, FL 305 661-7971
Microprocessor Short Course with take
Volume 3, Number 7
21-24
21-24
22-24
22-25
23-25
28-31
28-31
30-31
April
2- 5
6-
7
6-
8
13
18-21
18-21
19-22
25-28
25-28
May
3- 6
9- 11
16-19
17-20
23-26
24-26
horne computer Chicago, IL Wintek Corp.,
902 N.9th St., Lafayette, IN 47904
Microprocessor Fundamentals
NSC
$395 Santa Clara, CA 408 247-7924
PACE Application
NSC $395
Coral Gables, FL 305 661-7971
Microprocessor Short Course with take
horne computer Huntsville, AL Wintek
Corp., 902 N.9th St., Lafayette, IN
F8 Microprocessor $300 San Jose, CA
Fairchild Micro Systems
Fourth Annual Computer Architechture
Symposium College Park, MD Dr. B. Wald
Advanced Programming NSC
$395
Coral Gables, FL 305 661-7971
SC/AMP Application
NSC
$395
Santa Clara, CA 408 247-7924
Intel Memory Sys. Design Seminar $15
Elmar Electronics 6777 W.50th· St.,
Commerce City, CO 303 287-9611
SC/AMP Application
NSC
$395
Santa Clara, CA 408 247-7924
Intel Memory Sys. Design Seminar $15
2288 Charleston Rd., Mt. Vw. CA (415)
961-3611
Microcomputer '77 Oklahoma City, OK
Dr. S.C. Lee, University of Oklahoma
Motorola 10800 Free Elmar Electronics
6777 W.50th St., Commerce City, CO
303 287-9611
Microprocessor Fundamentals
NSC
$395 Coral Gables, FL 305 661-7971
Microprocessor Fundamentals
NSC
$395 Santa Clara, CA 408 247-7924
F8 Microprocessor $300 San Jose, CA
Fairchild Micro Systems
NSC
$395
Advanced Programming
Coral Gables, Fl 305 661-7971
NSC
$395
PACE Application
Santa Clara, CA 408 247-7924
F8 Microprocessor Houston $400
Fairchild Micro Systems
EUROCON '77 Venice, Italy Eurocon
PACE Application
NSC
$395
Coral Gables, FL 305 661-7971
F8 Microprocessor
$300 San Jose, CA
Fairchild Micro Systems
Advanced Programming
NSC
$395
Coral Gables, FL 305 661-7971
International Minicomputer, Microcomputers and Microprocessors '77 Geneva
Switzerland Industrial and Scientific
Conference Management
30
January/February, 1977
June
7 - 8
7 -10
9 -10
Digital Electronics for Automation
Workshop VA Polytechnic Institute and
State University Blacksburg, VA 24061
(703) 951-6328
F8 Microprocessor $300 San Jose, CA
Fairchild Micro Systems
Microcomputer Interfacing Workshop
VA Polytechnic Institue and University
Blacksburg, VA 24061 (703) 951-6328
Sponsoring Organizations and Contacts:
COMPCON Spring '77 P.O. Box 639 Silver Spring,
Maryland 20801
DEC, 2565 Walsh Ave., Santa Clara, CA 95050
(408) 984-0200
Eurocon '77 AEI, Viale Monza 259, 20126 Milan
Italy
Fairchild Micro Systems 1725 Technology Drive
San Jose, CA 95110
(408)
998-0123
Industrial and Scientific Conference Management, 222 W. Adams St., Chicago, IL 60606
(312) 263-4866
George Washington University, Continuing Engineering Education Program, Washington D.C.
(202) 676-6106
Integrated Computer Systems, Inc., 445 Owerland Ave., Culver City, CA 90230 (213) 5599265
Dr. S.C. Lee, School of Electrical Engineering
University of Oklahoma Norman, OK 73019
National Semiconductor Corp., 2900 Semiconductor Dr., Santa Clara, CA 59051 (408) 732-5000
Pro-Log Corp., 2411 Garden Rd., Monterey, CA
93940 (408) 372-4593
TC on Design Automation of the.Computer
Society, Dr. W.M. vanCleeput, Stanford Univ.
Digital Systems Labs., Stanford, CA 94305
DR. B. Wald, Cornrnurnications Science, Naval
Research Lab., 4555 Overlook Ave., Washington
D.C.
20390
HOBBY MARKET 250 0/0 GROWTH
computer hobbyist publications, and more than
50 retail stores that presently serve some
20,000 hobbyists.
"As the market matures," the report notes,
"it will become increasingly important to
differentiate between these many groups. The
same products can appeal to several interests,
but its form and marketing approach must be
tailored to each segment. Manufacturers
who fail to appreciate this may find that
what is an excellent product to one group is
a 'rip off' to another group." Wellsesley
Hills, MA.
inial
AND
@[email protected]
ELMAR
ELECTRONICS
GROUP
LIBERTY
ELECTRONICS
THE
8748
IS HERE ...
THE
ONLY
3 rd GENERATION
MICROPROCESSOR
IT HAS ..... .
--SEMINARS------.
Denver, Colorado, Regancy I nn Hotel
Exit 108 - Interstate 25
Palo Alto, California, Rickeys Hyatt House
4219 EI Camino Real
8-BIT CPU SINGLE CHIP OPERATION
PIN COMPATIBLE ROM/EPROM VERSIONS
RESIDENT 1K X 8 EPROM PROGRAM MEMORY
RESIDENT 64 X 8 RAM DATA MEMORY
RESIDENT INTERVAL TIMER/EVENT COUNTER
RESIDENT CLOCK AND OSCILLATOR
RESIDENT POWER ON CLEAR
LEAPS TALL BUILDINGS IN A SINGLE BOUND
@
ELMAR ELECTRONICS
WYLE DlSJRIBUTlON GROUP
FOR FURTHER INFORMATION CALL
BI LL SCHARRENBERG
(415) 961-3611
@
LIBERTY ELECTRONICS
Southern California Information: Please contact Dennis Stick (213) 322-8100
MICRBCOMPU1'ER
Bulk Rate
Permit No. 243
Cupertino, CA
95014
IOf,W
PO BOX 1167, CUPERTINO, CA 95014 •
(408) 247·8940
!--~-MICRO COM PUT ER-~~~~--!
:
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
:
t
t
t
t
THAT MAKES SENSE
~\:)'?'-
<o~ o~~
SINGLE CARD MICROCOMPUTER SYSTEM
• 8 BIT MICROPROCESSOR (SEE BELOW)
• CRYSTAL-CLOCK CONTROLLED
• 1K x 8 STATIC RAM
• 2K x 8 PROM or 4K x 8 MASK ROM SOCKETS
• 24-32 BIDIRECTIONAL I/O LINES
• INTERRUPTS
• DMA CAPABILITY
• POWER-ON AUTO START
• FULL TEMPERATURE RANGE (0° TO 70°C)
• SMALL SIZE (LESS THAN 30 SQ. INCHES)
4.25" x 7" P.C. CARD
• ASSEMBLED AND TESTED
:
e~
o~~~
A CARD NEVER BEFORE EQUALLED
HIGHEST PERFORMANCE PER SQ. INCH
YOUR CHOICE OF
MICROPROCES'SORS
8080A
6502
6800
2650
IF YOU
COMMIT TO 100 OR MORE CARDS
YOUR PRICE IS
t
t
$275
&
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
PICK THE ONE THAT
BEST FITS YOUR
OEM APPLICATION
t
t
t
t
~6'oo
'1-<o~~
:-~-------~~~~~!~~~~~~~~~~~~~~~------
:
Microcomputer Associates Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
