The PERLND block within the HSPF input file contains parameters that affect the vertical and lateral
movement of water moisture through a pervious land segment. Figure 6-1 shows a schematic view of
the PERLND water budget terms and key HSPF parameters. The schematic illustrates the movement of
water among interception storage, upper zone storage, lower zone storage, groundwater storage, and
deep/inactive groundwater storage. The schematic also illustrates flux terms, such as overland flow and
interflow.
The algorithms that control the movement among these storage layers are described thoroughly in the
HSPF Users Manual (EPA, 2001).
Table 6-2 contains brief descriptions of the HSPF parameters used to characterize pervious land
surfaces, along with the HSPF input parameters used for the Sacramento area. The parameters that
often affect stormwater runoff most (INFILT, LZSN) are listed in the table below. These highlighted
parameters were the focus of our investigation of the range and variation among statewide HSPF
studies (detailed after Table 6-2) and our testing of prospective parameters. The descriptions and
parameter ranges in the table were adapted from EPA BASINS Technical Note 6 – Estimating Hydrologic
and Hydraulic Parameters for HSPF, which is available from the EPA web site:
http://www.epa.gov/waterscience/basins/bsnsdocs.html

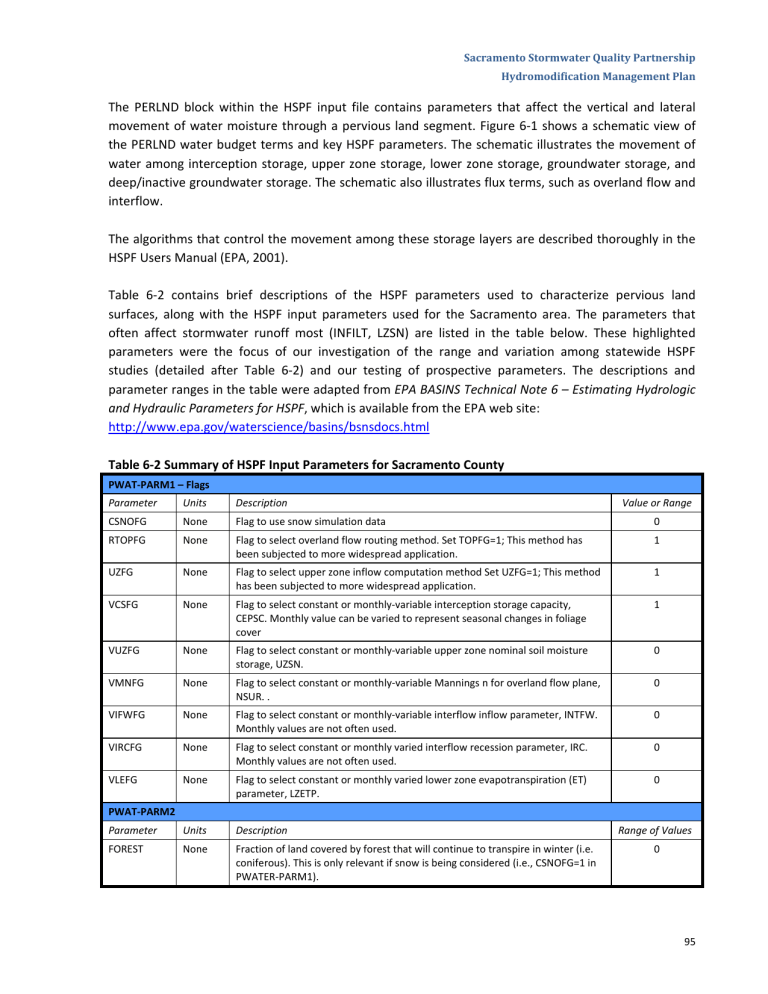

Table 6-2 Summary of HSPF Input Parameters for Sacramento County
PWAT-PARM1 – Flags
Parameter
Units
Description
CSNOFG
None
Flag to use snow simulation data
Value or Range
0
RTOPFG
None
Flag to select overland flow routing method. Set TOPFG=1; This method has
been subjected to more widespread application.
1
UZFG
None
Flag to select upper zone inflow computation method Set UZFG=1; This method
has been subjected to more widespread application.
1
VCSFG
None
Flag to select constant or monthly-variable interception storage capacity,
CEPSC. Monthly value can be varied to represent seasonal changes in foliage
cover
1
VUZFG
None
Flag to select constant or monthly-variable upper zone nominal soil moisture
storage, UZSN.
0
VMNFG
None
Flag to select constant or monthly-variable Mannings n for overland flow plane,
NSUR. .
0
VIFWFG
None
Flag to select constant or monthly-variable interflow inflow parameter, INTFW.
Monthly values are not often used.
0
VIRCFG
None
Flag to select constant or monthly varied interflow recession parameter, IRC.
Monthly values are not often used.
0
VLEFG
None
Flag to select constant or monthly varied lower zone evapotranspiration (ET)
parameter, LZETP.
0
PWAT-PARM2
Parameter
Units
Description
FOREST
None
Fraction of land covered by forest that will continue to transpire in winter (i.e.
coniferous). This is only relevant if snow is being considered (i.e., CSNOFG=1 in
PWATER-PARM1).
Range of Values
0
95
Sacramento Stormwater Quality Partnership
Hydromodification Management Plan
LZSN
Inches
Lower zone nominal soil moisture storage. This parameter affects the
proportion of water going to surface runoff, interflow and active groundwater
4.2 to 5.5
INFILT
in/hr
INFILT is the parameter that controls the overall division of the available
moisture from precipitation (after interception) into surface runoff. This is
NOT equivalent to a field-measured infiltration rate.
LSUR
Feet
Length of assumed overland flow plane. LSUR approximates the average length
of travel for water to reach any drainage path such as streams, swales, ditches,
etc.
120 to 200
SLSUR
ft/ft
Average slope of assumed overland flow path. Average SLSUR values for each
land use being simulated can often be estimated directly with GIS capabilities.
0.05 to 0.10
KVARY
1/inches
Groundwater recession flow parameter used to describe non-linear
groundwater recession rate
AGWRC
None
Groundwater recession rate, or ratio of current groundwater discharge to that
from 24 hours earlier
Parameter
Units
Description
PETMAX
Deg F
Temperature below which ET will be reduced to 50% of that in the input time
series
35
PETMIN
Deg F
Temperature at and below which ET will be zero. PETMIN represents the
temperature threshold where plant transpiration is effectively suspended
30
INFEXP
None
Exponent that determines how much a deviation from nominal lower zone
storage affects the infiltration rate. This parameter is commonly set to a value
of 2.
2
INFILD
None
Ratio of maximum and mean soil infiltration capacities. This parameter is
commonly set to a value of 2.
2
DEEPFR
None
The fraction of infiltrating water that is lost to deep/inactive aquifers with the
remaining fraction assigned to active groundwater storage that contributes
base flow to the stream.
0.4
BASETP
None
ET by riparian vegetation as active groundwater enters streambed; specified as
a fraction of potential ET, which is fulfilled only as outflow exists.
0.05
AGEWTP
None
Fraction of PERLND that is subject to direct evaporation from groundwater
storage, e.g. wetlands or marsh areas.
0.05
Parameter
Units
Description
CEPSC
inches
Amount of rainfall, in inches, which is retained by vegetation, never reaches the
land surface, and is eventually evaporated.
0.08
UZSN
inches
Nominal upper zone soil moisture storage. UZSN is related to land surface
characteristics, topography, and LZSN.
0.60
NSUR
None
Manning’s friction coefficient, n, for overland flow plane.
0.20
INTFW
None
Coefficient that determines the amount of water that enters the ground from
surface detention storage and becomes interflow
1.5
IRC
None
Interflow recession coefficient IRC is the ratio of the current daily interflow
discharge to the interflow discharge on the previous day.
0.7
LZETP
None
Index to lower zone evapotranspiration LZETP affects ET from the lower zone,
which represents the primary soil moisture storage and root zone of the soil
profile.
0.5
0.025 to 0.11
3
0.92
PWAT-PARM3
Range of Values
PWAT-PARM4
Range of Values
The parameter descriptions were obtained from the EPA BASINS Technical Note 6.
96
Notes: Figure adapted from the HSPF User’s Manual (EPA, 2001): http://www.epa.gov/waterscience/BASINS/b3docs/HSPF.pdf Sacramento Stormwater Quality Partnership Hydromodification Management Plan HSPF PERLND Water Moisture Schematic Figure 6‐1 Sacramento Stormwater Quality Partnership
Hydromodification Management Plan
The Consultant team collected and examined published studies that used HSPF to perform hydrologic
modeling. Whenever possible, the HSPF input files that were used in these studies were also collected
and reviewed. The following models and study areas were reviewed:
EPA BASINS Technical Note 6 - The EPA publication (July 2000) is a very useful guide that describes key
HSPF parameters and suggests initial values. This technical note provides BASINS users with guidance in
how to estimate the input parameters in the ATEMP, SNOW, PWATER, IWATER, HYDR, and ADCALC
portions of the HSPF model.
Calabazas Creek - In 1997, Aqua Terra Consultants used HSPF to study multipurpose design of detention
facilities in Calabazas Creek watershed for the Santa Clara Valley Water District.
Santa Monica Bay Watershed - The Southern California Coastal Water Research Project (SCCWRP) and
Tetra Tech created HSPF models to simulate hydrologic processes and pollutant loadings to Santa
Monica Bay. The specific parameter values were selected by calibrating an HSPF model to flow
monitoring data in the Santa Monica Bay watershed, specifically on Malibu Creek. The values represent
a composite of the various upstream soils and land uses.
Calleguas Creek - This project was a pilot study to evaluate the use of HSPF as a management tool for
comprehensive watershed assessment within the climatic, physiographic, and topographic conditions of
Ventura County. The Calleguas Creek model, developed by Aqua Terra Consultants, simulates watershed
hydrology using a combination of six different land use categories, topographic data and soils data.
Bay Area Hydrology Model (BAHM) - The Bay Area Hydrology Model (BAHM) uses a graphical user
interface and pre-selected HSPF parameters to simulate stormwater runoff from project sites and size
stormwater control facilities to mitigate the impacts of land use changes. BAHM includes HSPF
parameters for common soil and land use combinations.
6.2.7 Modeling the Hydraulic Response of BMPs
The consultant team has constructed representations of each LID BMP to be included in the BMP Sizing
Calculator in HSPF. For example, a stormwater planter with underdrain is represented with separate
surface ponding, growing medium, storage layers, an overflow relief outlet, a restricted underdrain
outlet (as appropriate), and transmissivity of underlying soils. The configuration of these BMP elements
and associated hydraulic characteristics can be varied to determine the configuration that provides the
best performance in the least amount of space. The HSPF method for representing storage facilities is
called an F-TABLE, and is described in Section 6.3.4 of this chapter.
6.2.8 Modeling Approach Limitations
For LID facility design, the maximum contributing drainage area to each facility is generally limited to a
maximum of 5 acres (most contributing drainage areas to LID facilities will be smaller than 5 acres).
However, multiple LID facilities can be incorporated into a given project site, potentially resulting in full
98
Sacramento Stormwater Quality Partnership
Hydromodification Management Plan
hydromodification compliance using LID approaches for a large project site. For project sites
incorporating the use of extended detention facilities for hydromodification flow control, the maximum
contributing drainage area to a detention basin is 200 acres. Projects with contributing drainage areas
(to an extended detention basin) greater than 200 acres shall develop a separate continuous simulation
runoff model to quantify the hydromodification flow control effects.
6.3 Hydromodification Control – LID BMPs
6.3.1 LID Sizing Factor Development
To compute sizing factors for each of the LID BMPs included in the sizing calculator, the impervious
runoff time series is routed through the BMP to develop a post-project “mitigated” runoff time series.
Each BMP mitigates post-project runoff by providing infiltration and/or reduction of discharge rates to
the drainage system. The post-project mitigated time series is then compared to the pre-project runoff
time series to assess BMP performance. The BMP size (for example, surface area) is varied over the
course of multiple model iterations until a size is identified that adequately matches post-project to preproject runoff. The runoff comparison is performed both for peak rates and durations. The following
standards, which are consistent with flow rate and duration control standards presented elsewhere in
this HMP, are applied to assess BMP performance:
•
Flow duration control - For flow rates ranging from 25% or 45% (as described in Chapter 5) of
the pre-project 2-year recurrence interval event (0.25Q2 or 0.45Q2) to the pre-project 10-year
runoff event (Q10), the post-project discharge rates and durations shall not deviate above the
pre-project rates and durations by more than 10% over and more than 10% of the length of the
flow duration curve. The specific lower flow threshold will depend on results from the channel
susceptibility assessment.
•
Peak flow control - For flow rates ranging from the lower flow threshold to Q5, the post-project
peak flows shall not exceed pre-project peak flows. For flow rates from Q5 to Q10, post-project
peak flows may exceed pre-project flows by up to 10% for a 1-year frequency interval. For
example, post-project flows could exceed pre-project flows by up to 10% for the interval from
Q9 to Q10 or from Q5.5 to Q6.5, but not from Q8 to Q10.
6.3.2 Scenarios Modeled
The HSPF software program is used to characterize pre-project runoff scenarios corresponding to the
previously discussed rainfall gauges, four (4) soil types, and two (2) ranges of slopes.
Table 6-3 summarizes the pre-project pervious area runoff scenarios included in the analyses.
