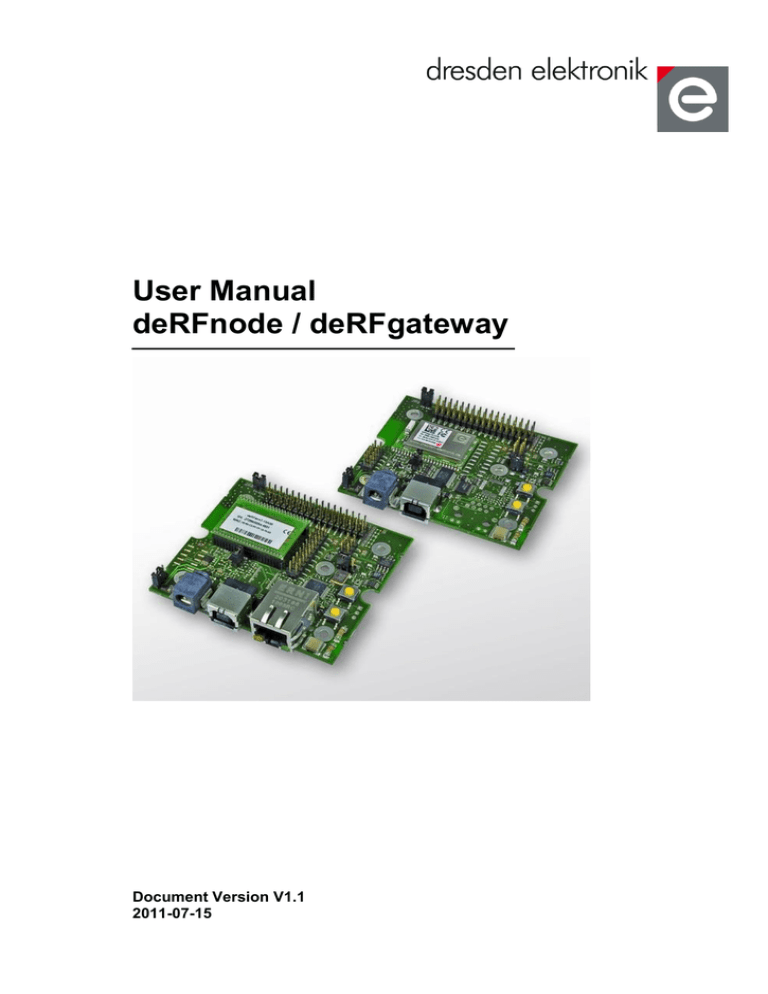

User Manual deRFnode / deRFgateway

Document Version V1.1

2011-07-15

User Manual

Version 1.1

2011-07-15

Table of contents

deRFnode and deRFgateway

1.

Overview ......................................................................................................................... 6

2.

Application ....................................................................................................................... 6

3.

Features .......................................................................................................................... 6

3.1.

Block diagram ......................................................................................................... 7

3.2.

Hardware selection table ........................................................................................ 7

3.3.

Feature list ............................................................................................................. 8

4.

Hardware selection examples ........................................................................................ 10

4.1.

Battery powered nodes in a small wireless sensor network .................................. 10

4.2.

6LoWPAN tree-network application ...................................................................... 10

4.3.

Point-to-Point connection for simple applications .................................................. 10

5.

Technical data ............................................................................................................... 11

5.1.

Mechanical ........................................................................................................... 11

5.2.

Operation conditions ............................................................................................. 11

5.3.

Electrical ............................................................................................................... 11

5.3.1.

Operational ranges.................................................................................... 11

5.3.2.

Current consumption ................................................................................. 12

6.

Overview of platforms .................................................................................................... 14

7.

Pin assignment .............................................................................................................. 17

7.1.

Radio module interface ......................................................................................... 17

7.2.

Debug interface .................................................................................................... 20

7.3.

JTAG for ARM ...................................................................................................... 21

7.4.

JTAG for AVR ....................................................................................................... 22

7.5.

User Interface ....................................................................................................... 22

7.6.

Jumper configuration ............................................................................................ 24

8.

Board features ............................................................................................................... 25

8.1.

Onboard sensors .................................................................................................. 26

8.1.1.

Temperature sensor .................................................................................. 26

8.1.2.

Ambient light sensor .................................................................................. 26

8.1.3.

Acceleration sensor ................................................................................... 27

8.2.

LEDs and buttons ................................................................................................. 27

8.2.1.

User LEDs ................................................................................................ 27

8.2.2.

User buttons.............................................................................................. 28

8.3.

USB interface ....................................................................................................... 28

8.3.1.

Native USB only for ARM based radio modules ........................................ 29

8.3.2.

USB serial for AVR based radio modules .................................................. 29

8.4.

Ethernet ................................................................................................................ 31

8.5.

Power supply ........................................................................................................ 32

8.6.

Supervisor ............................................................................................................ 34

8.7.

Current measurement ........................................................................................... 36

8.8.

USB supply voltage monitoring ............................................................................. 36

8.9.

Battery supply voltage monitoring ......................................................................... 37

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 2 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

9.

Programming ................................................................................................................. 38

9.1.

Requirements (HW/SW) ....................................................................................... 38

9.1.1.

Source code and compiler toolchain ......................................................... 38

9.1.2.

JTAG programming and adapter selection ................................................ 38

9.1.3.

JTAG programming software .................................................................... 38

9.2.

AVR based radio modules over JTAG .................................................................. 39

9.3.

ARM based radio modules over JTAG .................................................................. 41

9.4.

Software programming model ............................................................................... 42

9.4.1.

Enabling the reset supervisor .................................................................... 42

9.4.2.

Initialize and use I2C devices .................................................................... 42

9.4.3.

Using the USB interface ............................................................................ 44

9.4.4.

Measuring the battery voltage ................................................................... 45

9.4.5.

Accessing the external flash ...................................................................... 47

9.4.6.

Initialize and use the Ethernet transceiver ................................................. 48

9.4.7.

Minimize device power consumption ......................................................... 49

10.

Ordering information ...................................................................................................... 52

11.

Revision notes ............................................................................................................... 53

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 3 of 56

User Manual

Version 1.1

2011-07-15

Document history

Date Version

deRFnode and deRFgateway

Description

2011-04-15 1.0

2011-07-15 1.1

Initial version

Update feature list

Mailing list

Firm

DE

Division / Name

Dev. / A. Palm

Author / Check / Release

Firm Division / Name

Author

Check

Release

DE Dev. / A. Palm dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 4 of 56

User Manual

Version 1.1

2011-07-15

Abbreviations

Abbreviation Description

deRFnode and deRFgateway

ADC

ARM

AVR

BOD

CE

DBGU

EMAC

FCC

FTDI

GPIO

I

2

C

LDO

JTAG

µC, MCU

PCBA

PHY

RF

RMII

SMT

SPI

THT

Transceiver

TWI

U[S]ART

USB

Analog to Digital Converter

Advanced RISC Machine. A kind of processor architecture.

Names a family of microcontrollers from Atmel.

Brownout-Detection

Consumer Electronics

Debug Unit. An UART dedicated to print debug traces

– available on ARM microcontrollers only.

Ethernet Media Access Controller

Federal Communications Commission

USB to serial converter from FTDI

Generals Purpose Input Output

Inter-Integrated Circuit, another name for TWI.

Low-Dropout (Regulator)

Joint Test Action Group, defines a standardized interface for programming and debugging microcontrollers.

Micro Controller (Unit)

Printed Circuit Board Assembled

Physical layer, refers to the lowest possible layer in a layered communication model

Radio Frequency

Reduced Media Independent Interface

Surface Mount Technology

Serial Peripheral Interface

Through-Hole Technology

Transmitter / Receiver

Two-Wire Serial Interface

Universal [Synchronous/]Asynchronous Receiver Transmitter

Universal Serial Bus dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 5 of 56

User Manual

Version 1.1

2011-07-15

1. Overview

deRFnode and deRFgateway

The deRFnode and deRFgateway are demonstration and application platforms for the AVR and ARM based dresden elektronik radio modules. They support AVR and ARM programming and communication over Serial, USB and Ethernet interface. Assembled environmental sensors supplies data for a huge bandwidth of user defined applications.

2. Application

The main applications for the deRFgateway platform are:

Coordinator and Router device for IEEE 802.15.4 compliant networks

6loWPAN nodes

ZigBee

®

Gateway between IEEE 802.15.4 and IEEE 802.3

Wireless Sensor Networks

The main applications for the deRFnode platform are:

Stand-Alone End device for a IEEE 802.15.4 compliant network

applicable as coordinator for small networks

battery powered applications with a lifetime of several years

6loWPAN nodes

ZigBee

®

3. Features

The main features of deRFnode and deRFgateway are:

Compact size: 69 x 75 x 30 mm

Supports AVR or ARM based dresden elektronik radio modules

Variants for pluggable and solderable radio modules

USB and Ethernet interface

JTAG interface for AVR or ARM

Serial debug interface

Onboard Sensors: acceleration, temperature and luminosity

Onboard 4Mbit Serial Flash

Power Supply over USB, battery and 5V DC-Plug possible

2x buttons and 3x LEDs (free programmable)

User interface with all important signals (2x17 pins connector)

Switchable reset supervisor. Triggers on V

CC

<2.4V (deRFnode for AVR) respective on V

CC

<3.0V (deRFnode and deRFgateway for ARM).

CE for deRFnode

CE pending for deRFgateway

(The deRFgateway is intended for laboratory, development, demonstration or evaluation purposes only) dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 6 of 56

User Manual

Version 1.1

2011-07-15

3.1. Block diagram

deRFnode and deRFgateway

2x

SW

3x

LED

GPIO

UART/SPI

JTAG

Serial Flash

SPI

TWI

Radio Module

USB

Transceiver

1)

Ethernet

Transceiver

2)

USB

Ethernet

Temperature

Sensor

IRQ

ADC

Luminosity

Sensor

Reset

Supervisor

Acceleration

Sensor

Voltage

Regulator

1)

optionally (only on deRFnode-series with AVR, otherwise included in MCU)

2)

on deRFgateway only

Figure 1: block diagram deRFnode/deRFgateway-series

3.2. Hardware selection table

V

CC

From the electrical view, all deRF-radio modules may be combined with all deRFnode and deRFgateway baseboards. However, not every peripheral available on the baseboard is usable or accessible by the radio module due to routing constraints respective missing MCU features.

The portfolio of deRFnodes and deRFgateways will be added with new variants in the future.

All available platforms and variants are listed in Table 1.

Table 1: Available board and radio module combinations

Type code optimized for radio modules

plain variant

deRFnode-1TNP2-00N00 deRFnode-2TNP2-00N00 deRFgateway-1TNP2-00N00 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany deRFarm7 series deRFmega128 series deRFarm7 series

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 7 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Every variant is specifiable by a type code, which contains important key features of the plat-

form. Table 2 describes this code.

Table 2: Type code description

Hardware selection table

deRFnode deRFgateway

platform properties

-

- x x x x x x x x x - x x - x x x x x x x x x

1 Native USB

2 USB over FTDI

T THT

S SMT

A ARM7X

M ATMEGA

N None (no delivered radio module)

P Plain (only PCBA)

2 Revision 2

radio module properties

1 Sub-GHz transeiver

2 2.4GHz transceiver

2 128k internal Flash

5 512k internal Flash

A THT, pluggable

C SMT, solderable

0 0 Chip antenna

0 2 Coaxial plug

other

3.3. Feature list

0 0 N 0 0 w/o radio module

This section gives an overview of the supported radio modules and features in combination with deRFnode and deRFgateway. The solderable radio modules will not be offered in all variants. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 8 of 56

User Manual

Version 1.1

2011-07-15

Table 3: Feature list

Platform Radio module

deRFnode and deRFgateway

Supported features

deRFnode

1TNP2-00N00

1TNC2-00N00

2TNP2-00N00

2TNC2-00N00

deRFgateway

1TNP2-00N00

1TNC2-00N00

x x x x x x x x

x x x x x

x x x

x

x

x

x

x

x x

x x x x x x x

x x x x

x

x x x x

x

x

x

x

x

x

x

x

x dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 9 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

4. Hardware selection examples

The growing number of platform and radio module combinations makes it difficult and complex for the customer, to make the right choice of hardware depending on the customer application. The following section should give some examples for different applications.

4.1. Battery powered nodes in a small wireless sensor network

Application:

A small network consisting of about 30 end-devices (nodes) should measure and transmit the temperature sensor data every minute to one network coordinator (master). The coordinator is DC or USB powered all the time. The nodes are battery powered and are sleeping all the time, except when they should measure and transmit the sensor data.

Required components:

Platforms: deRFnode-2TNP2-00N00

Radio modules:

Software: deRFmega128-22A00 based on Atmel‟s MAC-Stack available on Development-Kit CD

4.2. 6LoWPAN tree-network application

Application:

A wireless network, that can be monitored and controlled via Ethernet by a Remote Access.

The nodes have their own unique MAC-address and a user-defined IP-address. They can be equipped with sensors and/or actuators, that read out sensor data and/or switch on/off a relay.

Required components:

Platforms: deRFnode-2TNP2-00N00 deRFgateway-1TNP2-00N00

Radio modules: deRFmega128-22A00 deRFarm7-25A00

Software: 6LoWPAN-Stack and Control Manager on Development-Kit CD

4.3. Point-to-Point connection for simple applications

Application:

The simplest network is a point-to-point connection between two devices. There is no need to use a complex protocol.

Required components:

Platforms: deRFnode-2TNP2-00N00

Radio modules:

Software: deRFmega128-22A00

Wi reless UART based on Atmel‟s MAC-Stack available on Development-Kit CD dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 10 of 56

User Manual

Version 1.1

2011-07-15

5. Technical data

deRFnode and deRFgateway

5.1. Mechanical

Table 4: Mechanical data

Mechanical

baseboard including radio module

Size of PCBA (L x W x H)

5.2. Operation conditions

The recommended operating conditions are as follow:

Supply voltage:

Temperature:

VCC = 3.3VDC ± 0.3VDC

T = -40°C to +85°C

5.3. Electrical

69 x 75 x 30 mm

5.3.1. Operational ranges

Since the voltage regulators threshold is fixed to 3.3V DC, operation is uncritical as long as input voltage is above 3.3V. Below, operation is not recommended since assembled components (MCU, Flash, EMAC, I2C-Sensors) will start to fail. The probability that they do grows, the lower the voltage is. For concrete working voltage ranges please refer to the table below as well as the respective components datasheets.

To avoid unstable behaviour, the board supplies a reset supervisor which drives a pin low, if the input voltage sinks below 2.4V DC (deRFnode/gateway for AVR) respective 3.0V DC

(deRFnode/-gateway for ARM). This pin is routed to the radio module MCUs reset entry

(Pin5). To enable a too low voltage causing a MCU reset, JP4 must be closed. On ARM-

MCUs the reset supervisor must be explicitly enabled (see section 8.4).

Table 5: Operational ranges

Device Remark Required operational voltage range

Current consumption

AT91SAM7X512 on deRFarm7 radio modules

AT86RF231 and

AT86RF212 any Atmel radio transceiver used on deRFarm7 radio modules

Atmega128RFA1 on deRFmega128 radio modules

DP83848C on deRFgateway for ARM only

Min Max Min Typ

3.0V 3.6V 60µA 90mA

2)

200mA

2)

1.8V 3.6V

≤0.2µA ~12mA 1)

<25mA

1.8V 3.6V 20nA

3.0V 3.3V 14mA

12,5mA

1,2)

---

Max

--- 2)

92mA dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected]de www.dresden-elektronik.de

Page 11 of 56

User Manual

Version 1.1

2011-07-15

BMA150

deRFnode and deRFgateway acceleration sensor

ISL29020 luminosity sensor

TMP102AIDRLT temperature sensor

AT25DF041A 4Mbit serial Flash

2.4V 3.6V 1µA 200µA 290µA

1.7V 3.6V 500nA

TBD TBD TBD

---

TBD

65µA

TBD

2.7V 3.6V 25µA 10mA 20mA

FT245RL USB for AVRs

1)

radio transceiver in listening state

2)

depends on external load

4.0V 5.25V 50µA 15mA 24mA

5.3.2. Current consumption

Test conditions: T = 25°C, Firmware executed from Flash, no external cabling (i.e. Level

Shifter, JTAG) unless stated otherwise.

5.3.2.1. DC-powered

The used AC/DC converter has an output voltage of 5VDC.

Table 6: HW Setup 1

Hardware setup (Condition: V

DC

= 5VDC) Working

deRFgateway-1TNP2-00N00 + deRFarm7 deRFnode-1TNP2-00N00 + deRFarm7 deRFnode-2TNP2-00N00 + deRFarm7

Sleep

1)

Idle

2)

Typ

3)

Max

4)

24mA 97mA

5)

161mA

6)

<200mA

250µA 37mA

5mA 34mA

41mA

38mA

<80mA

<80mA deRFnode-2TNP2-00N00 + deRFmega128

5.3.2.2. Battery-powered, variable voltage

10µA 10mA 20mA <40mA

When battery powered, the current consumption does not significantly differ from the values given above, only if using an AVR-based MCU, the current consumption sinks slightly. Remark the notes on working voltage above.

5.3.2.3. USB powered

When USB-powered, the current consumption increases to the values given above due to

USB transceiver activity: dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 12 of 56

User Manual

Version 1.1

2011-07-15

Table 7: HW Setup 2

deRFnode and deRFgateway

Hardware setup (Condition: V

USB

= 5VDC) Working

deRFgateway-1TNP2-00N00 + deRFarm7 deRFnode-1TNP2-00N00 + deRFarm7

Sleep

1)

Idle

2)

Typ

3)

Max

4)

24mA 97mA

5)

166mA

6)

<200mA

250µA 37mA 41mA <85mA deRFnode-2TNP2-00N00 + deRFarm7 14mA 45mA 49mA <85mA deRFnode-2TNP2-00N00 + deRFmega128 12mA 20mA 30mA <50mA

1)

… peripherals and MCU put to sleep as far as possible

2)

… all peripheral initialized but not accessed

3)

… typical application scenario (sensors accessed once each second, Transceiver off)

4)

… theoretical value, every onboard peripheral accessed

5)

… Ethernet cable not plugged

6)

… Ethernet cable plugged, 100Mbps Link established dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 13 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

6. Overview of platforms

Figure 2: Overlay of deRFnode and deRFgateway

Table 8: Overview headers

Header

Name Description

X1

X2

Radio module interface, 2x23 Pin Radio module header

ble platform variant

– only available for plugga-

X3 3 Pin Button extension

– only available for case variant

X4

X5

Ethernet RJ45 socket

Debug interface, 6 Pin Debug header

X6

X7

X8

JTAG for ARM, 20 Pin JATG header for ARM programmer

JTAG for AVR, 10 Pin JTAG header for AVR programmer

User Interface, 34 Pin user header

X9 5 VDC connector for power supply

X10 USB type B plug for power supply and data exchange dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 14 of 56

User Manual

Version 1.1

2011-07-15

X8

34 pin user

X1, X2

radio module

X7

10 pin JTAG

deRFnode and deRFgateway

X9

5 V DC

X10

USB type B

Figure 3: deRFgateway-1TNP2

X5

6 pin debug

X6

20 pin JTAG

X4

Ethernet RJ45 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 15 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 4: deRFnode-1TNP2

Figure 5: deRFnode-2TNP2

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 16 of 56

User Manual

Version 1.1

2011-07-15

7. Pin assignment

deRFnode and deRFgateway

This section describes the available headers on the deRFnode and deRFgateway platforms

as summarized in

Table 8

.

7.1. Radio module interface

The deRFnode and deRFgateway will support all dresden elektronik radio modules. Depending on the radio module and the platform, some features will not be supported. The details of radio module specific signals are available in the associated user manuals.

Figure 6: Header for radio modules

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 17 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

The next two tables give an overview of the radio module signals. Table 9 shows the signal

names of the deRFmega128 radio module series of dresden elektronik, Table 10 for the

deRFarm7 radio module series.

Table 9: Pin assignment for deRFmega128-series 22A00 / 22A02 / 22C00 / 22C02

Pin assignment

17

18

19

20

13

14

15

16

21

22

23

6

7

8

9

10

11

12

3

4

5

Pin

1

2

µC-Port (deRFmega128)

VCC

GND

AREF

PG1/DI1

RSTN

PG2

PD0/SCL/INT0

PG5/OC0B

PD1/SDA/INT1

PD3/TXD1/INT3

PD7/T0

PD5/XCK1

PB1/SCK/PCINT1

CLKI

PB2/MOSI/PCINT2/PDI

PB0/SSN/PCINT0

PB3/MISO/PCINT3/PDO

PB6/OC1B/PCINT6

40

41

PB4/OC2/PCINT4 42

PB7/OC0A/OC1C/PCINT7 43

36

37

38

39

PB5/OC1A/PCINT5

GND

GND

44

45

46

29

30

31

32

33

34

35

Pin

24

25

26

27

28

µC-Port (deRFmega128)

VCC

GND

PE0/RXD0/PCINT8

PD2/RXD1/INT2

PE1/TXD0

PD6/T1

PE2/XCK0/AIN0

PE3/OC3A/AIN1

PD4/ICP1

PE4/OC3B/INT4

PF0/ADC0

PE5/OC3C/INT5

PF1/ADC1

PE6/T3/INT6

PF4/ADC4/TCK

PE7/ICP3/CLKO/INT7

PF5/ADC5/TMS

PF2/ADC2

PF6/ADC6/TDO

RSTON

PF7/ADC7/TDI

GND

GND dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 18 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Table 10: Pin assignment for deRFarm7-series 25A00 / 25A02 / 25C00 / 25C02 / 15A00 / 15A02 /

15C00 / 15C02

Pin assignment

20

21

22

23

16

17

18

19

12

13

14

15

5

6

7

8

9

10

11

Pin

1

2

3

4

µC-Port (deRFarm7)

VCC

GND

ADVREF

USBDM

RSTN

PB3/ETX1

PA11/TWCK

PB26/TIOB1/RI1

PA10/TWD

PA1/ TXD0

PB25/TIOA1/DTR1

PB2/ETX0

PA18/SPI0_SPCK

PA3/RTS0/SPI1_NPCS2

PA17/SPI0_MOSI

PB0/ETXCK/EREFCK

PA16/SPI0_MISO

PB8/EMDC

PB6/ERX1

PB18/EF100/ADTRG

PB15/ERXDV/ECRSDV

GND

GND

43

44

45

46

39

40

41

42

35

36

37

38

28

29

30

31

32

33

34

Pin

24

25

26

27

µC-Port (deRFarm7)

VCC

GND

PA27/DRXD/PCK3

PA0/RXD0

PA28/DTXD

PA4/CTS0/SPI1_NPCS3

PB9/EMDIO

PB21/PWM2/PCK1

USBDP

PB19/PWM0/TCLK1

PB27/TIOA2/PWM0/AD0

PA14/SPI0_NPCS2/IRQ1

PB28/TIOB2/PWM1/AD1

PB5/ERX0

TCK

PB7/ERXER

TMS

PB1/ETXEN

TDO

JTAGSEL

TDI

GND

GND dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 19 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

7.2. Debug interface

The debug header may be used for device interconnecting via USART, like on a PC. Remember that a level shifter between TTL and RS232 may be required.

Figure 7: Debug header

The following table shows the signal description.

Table 11: Debug Header Pin assignment

Pin

1

3

5

Pin assignment

Function

TXD (UART0/DBGU)

SCK

RSTN

Pin

2

4

6

Function

VCC

RXD (UART0/DBGU)

GND dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 20 of 56

User Manual

Version 1.1

2011-07-15

7.3. JTAG for ARM

deRFnode and deRFgateway

The header layout conforms to the 20-pin assignment traditionally used for ARM MCUs.

Figure 8: JTAG for ARM header

The following table shows the signal description.

Table 12: JTAG for ARM header pin assignment

Pin assignment

15

17

19

7

9

11

13

Pin

1

3

5

Function

VCC

100K Pullup

TDI, 100K Pullup

TMS, 100K Pullup

TCK, 100K Pullup

TCK

TDO

RSTN

N/C

N/C

8

10

12

14

16

18

20

Pin

2

4

6

Function

VCC

GND

GND

GND

GND

GND

GND

GND

GND

GND dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 21 of 56

User Manual

Version 1.1

2011-07-15

7.4. JTAG for AVR

deRFnode and deRFgateway

The header layout conforms to the 10-pin assignment used usually for AVR.

Figure 9: JTAG AVR header

The following table shows the signal description.

Table 13: JTAG for AVR header pin assignment

Pin assignment

Pin

1

3

5

Function

TCK

TDO

TMS

Pin

2

4

6

Function

GND

VCC

RSTN

7 VCC

9 TDI

7.5. User Interface

8

10

N/C

GND

The User Interface header provides access to a series of IO port pins.

Figure 10: User header

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 22 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

The following table shows the signal description.

Table 14: User interface header pin assignment

Pin assignment

Pin Function deRFmega128

1 GND

2

3

4

5

VCC

SW2 or PD6/T1

PB5/OC1A/PCINT5

PD2/RXD1/INT2

6

7

8

9

PB4/OC2/PCINT4

PE2/XCK0/AIN0

PB3/MISO/PCINT3/PDO

PE3/OC3A/AIN1

10 PB0/SSN/PCINT0

11 PB6/OC1B/PCINT6

12 PB2/MOSI/PCINT2/PDI

Function deRFarm7

GND

VCC

SW2 or PA4/CTS0/SPI1_NPCS3

PB15/ERXDV/ECRSDV

PA0/RXD0

PB6/ERX1

PB9/EMDIO

PA16/SPI0_MISO

PB21/PWM2/PCK1

PB0/ETXCK/EREFCK

PB8/EMDC

PA17/SPI0_MOSI

13 PE4/OC3B/INT4

14 CLKI

15 PF0/ADC0

16 PB1/SCK/PCINT1

17 PF1/ADC1

18 PD5/XCK1

19 PE6/T3/INT6

20 PG1/DIG1

21 PE7/ICP3/CLKO/INT7

22 PD4/ICP1

23 PF2/ADC2

24 PD7/T0

25 PD3/TXD1/INT3

26 PD1/SDA/INT1

27 PG5/OC0B

28 PD0/SCL/INT0

29 PG2

30 RSTN dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

PB19/PWM0/TCLK1

PA3/RTS0/SPI1_NPCS2

PB27/TIOA2/PWM0/AD0

PA18/SPI0_SPCK

PB28/TIOB2/PWM1/AD1

PB2/ETX0

PB5/ERX0

USBDM

PB7/ERXER

USBDP

PB1/ETXEN

PB25/TIOA1/DTR1

PA1/ TXD0

PA10/TWD

PB26/TIOB1/RI1

PA11/TWCK

PB3/ETX1

RSTN

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 23 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

31 PB7/OC0A/OC1C/PCINT7 PB18/EF100/ADTRG

32 AREF

33 VCC

34 GND

7.6. Jumper configuration

ADVREF

VCC

GND

The following table shows the possible jumper configuration.

Table 15: Jumper configuration

Pin assignment

3

4

5

6

JP Function

1 GPIO Input diversity (SW2 = closed pin 1:2 / acceleration sensor interrupt output pin

= closed pin 2:3)

2 Power Supply Selection (Battery or DC / USB)

VBAT Monitor (closed=enabled)

Reset Supervisor (closed=enabled)

Current measurement of radio module

Select Button 1 depending on radio module (deRFarm7 or deRFmega128)

JP 5

JP 6

JP 3

JP 1

JP 4

JP 2

Figure 11: Jumper configuration

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 24 of 56

User Manual

Version 1.1

2011-07-15

8. Board features

deRFnode and deRFgateway

The deRFnode and deRFgateway platforms have a lot of available onboard features like three different sensors, user defined buttons and LEDs, USB and Ethernet interface, a supervisor and power supply monitoring.

LEDs

Flash

Supervisor

Adjustable

LDO

Fixed LDO

Acceleration sensor

Temperature sensor

Ambient light sensor

Button 1

Button 2

Figure 12: Board features

USB serial, assembled on

Node AVR

Ethernet-

PHY dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 25 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

8.1. Onboard sensors

Both platforms are assembled with onboard sensors: temperature, ambient light and acceleration. All sensors are accessible over two-wire-interface of deRFnode and deRFgateway.

The device addresses are noted in the following subsections. The data and clock lines are assembled with 10k pull-up resistors [R22] and [R23].

TWI clock: Pin 7

TWI data: Pin 9

8.1.1. Temperature sensor

The temperature sensor TMP102AIDRLT communicates over two-wire-interface with the microcontroller of the radio module. Details of operation are described in the datasheet.

TWI address: 1001 000 (R/W)

Write:

Read:

R/W = 0

R/W = 1

Figure 13: Temperature sensor TMP102AIDRLT

8.1.2. Ambient light sensor

The assembled ambient light sensor ISL29020IROZ-T7 communicates over two-wireinterface with the microcontroller of the radio module. Details of operation are described in the datasheet.

TWI address: 1000 100 (R/W)

Write: R/W = 0

Read: R/W = 1

Figure 14: Ambient light sensor ISL29020IROZ-T7

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 26 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

8.1.3. Acceleration sensor

The acceleration sensor BMA150 communicates over two-wire-interface with the microcontroller of the radio module. Details of operation are described in the datasheet.

The interupt output of BMA150 could be connected with Pin 11 by setting the jumper [JP1]

(pins 2 and 3).

TWI adress: 0111 000 (R/W)

Write: R/W = 0

Read: R/W = 1

Figure 15: Acceleration sensor BMA150

8.2. LEDs and buttons

The deRFnode and deRFgateway boards comprise three LEDs and two buttons, each userdefined controllable.

8.2.1. User LEDs

The three red LEDs are active-low and may be controlled by the radio module MCU.

LED1 [D1]: Pin 8

LED2 [D2]: Pin 31

LED3 [D3]: Pin 33

Figure 16: User LEDs

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 27 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

8.2.2. User buttons

The active-low buttons could be used for user defined inputs. The button [SW1] is controlled by two different pins, which are connected by assembling the 0 ohms resistor [R68] or [R69].

The placement depends on the platform and is the result of the support of different radio modules. The concerning pin of button 1 is used by the ARM based dresden elektronik radio module to support the ethernet interface. The pin of button 2 can only be used, if the interrupt feature of the acceleration sensor BMA150 is disabled.

Button 1 [SW1] on deRFnode: Pin 20

Button 1 [SW1] on deRFgateway: Pin 14

Button 2 [SW2]: Pin 29 by setting jumper [JP1] to pin 1 and 2.

Figure 17: User buttons

8.3. USB interface

Regarding the USB interface, the platforms deRFnode and deRFgateway come in two different flavours. The deRFgateway USB interface can only be accessed over native USB of the

ARM based dresden elektronik radio modules. The deRFnode platform is offered in two variants. One with native USB for deRFarm7 radio module and another variant with an USB serial converter for deRFmega128 radio modules. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 28 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

8.3.1. Native USB only for ARM based radio modules

The native USB interface is optimized for using the deRFgateway platforms together with deRFarm7 radio modules, which contain a SAM7X512 microcontroller with an implemented native USB interface. All necessary external parts for USB communication are placed on the deRFgateway.

USBDM:

USBDP:

Pin 4

Pin 32

Figure 18: Native USB interface

8.3.2. USB serial for AVR based radio modules

The serial USB interface is a variant of the deRFnode platform. The communication is realized by the transceiver circuit FT245RL and the level shifter circuits TXB0108.

Following USB data lines are used:

USB Bit 0: Pin 16

USB Bit 1: Pin 41

USB Bit 2: Pin 12

USB Bit 3: Pin 6

USB Bit 4: Pin 37

USB Bit 5: Pin 19

USB Bit 6: Pin 39

USB Bit 7: Pin 18 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 29 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 19: Serial USB interface part 1

The control of the FT245RL is established over the following signals:

USBRD:

USBWR:

RX:

TX:

Pin 27

Pin 10

Pin 30

Pin 21 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 30 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 20: Serial USB interface part 2

8.4. Ethernet

The Ethernet interface is offered only on the deRFgateway platform and can be used in combination with the deRFarm7 radio module, which contains an Ethernet-MAC.

The deRFgateway is assembled with the Ethernet-PHY DP83848I and runs in RMII-mode with a 50 MHz clock.

The Ethernet-PHY is connected with the radio module microcontroller over the following signal pins:

ETX0:

ETX1:

ERX0:

ERX1:

Pin 12

Pin 6

Pin 37

Pin 19

ETXEN:

ERXER:

ERXDV:

EMDC:

EMDIO:

Pin 41

Pin 39

Pin 21

Pin 18

Pin 30

MDINTR: Pin 20 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 31 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 21: Ethernet-PHY DP83848I

8.5. Power supply

The deRFgateway and deRFnode platform have two different low-dropout regulators (LDO).

The first variant is a fixed 3.3VDC supply voltage output for DC and/or USB-powered applications like deRFgateway with Ethernet. The second variant is an adjustable supply voltage output, a low quiescent current LDO, the output voltage can be configured by assembling the resistors [R56] and [R57].

Fixed LDO:

Adjustable LDO:

TPS79433DGN

TPS78001 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 32 of 56

User Manual

Version 1.1

2011-07-15

R49

deRFnode and deRFgateway

R48

R57

R56

Figure 22: Resistors adjustable supply voltage

Table 16: LDO configuration

Power supply LDO LDO Configuration

Platform

deRFnode-1TN2P-00N00 deRFnode-2TN2P-00N00 deRFgateway-1TN2P-00N00

fixed adjustable [R48] [R49] [R56] [R57] Vout

x

n.a. 0R n.a. n.a. 3.3VDC

x

Table 17: Adjustable LDO configuration

x 0R n.a. 2M 820K 3.3VDC n.a. 0R n.a. n.a. 3.3VDC

Power supply LDO

TPS78001

Adjustable voltage configuration

default

x

[R48]

0R

0R

0R

[R49]

n.a. n.a. n.a.

[R56]

2M n.a.

2M

[R57]

820K

820K

Vout

3.3VDC

2.7VDC n.a. 1.8VDC dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 33 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 23: Fixed LDO TPS79433DGN

Figure 24: Adjustable LDO TPS78001

8.6. Supervisor

The assembled low-power supervisor LTC2935ITS8-1 has selectable threshold voltages.

They can be set by the 0R resistors [R58], [R59], [R60], [R61], [R62] and [R63]. If the voltage level goes below the threshold, the supervisor sets a low active reset on Pin 5. This should provide an optimal function of deRFnode and deRFgateway. In some cases it is not useful to get a reset. If the jumper [JP4] will not be set, the supervisor reset signal will not affect the circuit.

Reset: Pin 5 dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 34 of 56

User Manual

Version 1.1

2011-07-15

R58

R58

R58

deRFnode and deRFgateway

R61

R62

R63

Figure 25: Resistors supervisor

Table 18: Supervisor configuration

Supervisor

Platform

deRFnode-1TN2P-00N00 deRFnode-2TN2P-00N00 deRFgateway-1TN2P-00N00

[R58] [R59] [R60] [R61] [R62] [R63] Threshold

n.a. 0R 0R 0R n.a. n.a. 3.0 VDC

0R n.a. 0R n.a. 0R n.a. 2.4 VDC n.a. 0R 0R 0R n.a. n.a. 3.0 VDC dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 35 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Figure 26: Supervisor LTC2935ITS8-1 with configuration resistors for deRFgateway

8.7. Current measurement

For current consumption tests of the radio module it is possible to place an ampere-meter on jumper [JP5].

Figure 27: Current measurement for radio module

8.8. USB supply voltage monitoring

The monitoring of the USB power supply can be used as USB detection. The USB voltage can be detected over a voltage divider on Pin 36.

USB detection: Pin 36

Figure 28: USB supply voltage monitoring

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 36 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

8.9. Battery supply voltage monitoring

It is useful to monitor the supply voltage of battery powered devices to detect the voltage level just before it is too low. The disadvantage is a quiescent current because of the assembled voltage divider. The battery monitoring can be activated by setting jumper [JP3] and read from Pin 34.

Battery monitoring: Pin 34

Figure 29: Battery supply voltage monitoring

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 37 of 56

User Manual

Version 1.1

2011-07-15

9. Programming

deRFnode and deRFgateway

9.1. Requirements (HW/SW)

Usually deRF-radio modules are shipped with a firmware not meeting your application requirements. Exchanging the modules firmware requires:

(1) a firmware binary file,

(2) a suitable JTAG programming adapter,

(3) some programming software.

Each of them is described in the following chapters. Dependent on the radio module used - either ARM-based (deRFarm7 series) or AVR-based (deRFmega128 series) - concrete recommendations will differ. Generally we suggest to use MS Windows™ as your developing platform, other operating systems are not supported yet.

The programming methods described below both base on using the JTAG interface. There will be a third programming option using the USB interface in near future.

9.1.1. Source code and compiler toolchain

If you bought one of our deRF-development kits, the included CD-ROM contains ready-touse application-example firmware binary files. In any other case or if you like to build custom firmware, source code files and a suitable compiler are required in addition. A good starting point for developing wireless soft ware are the “Atmel IEEE 802.15.4 MAC Software Package”

[1] or the “Atmel bitcloud“ [2]. Again our Kit-CD already provides the platform adaptions necessary to operate these protocol stacks with your target hardware.

As compiler toolchain, we suggest to use gcc. When working with an AVR MCU, the versions needed are avr-gcc respective arm-none-eabi-gcc for ARM-based MCUs. Basically the

IAR™ compiler may also be used but is not supported by dresden elektronik. Avr-gcc is included within the winavr package [3], arm-none-eabi-gcc comes with the yagarto-compiler package [4] and is extended by the yagarto tools [5]. Supported versions of both are available on our Kit-CD. When downloading, explicitly pay attention to use the version stated since newer releases may cause problems and are unsupported.

9.1.2. JTAG programming and adapter selection

For AVR-based programming, we suggest to use the Atmel AVR ISP mkII Programming adapter. In case of an ARM-based MCU you may either use the Atmel AT91SAM-ICE JTAG

Emulator [6], Segger J-Link [7], Amontec JTAGkey [8] or OpenOCD USB Adapter [9].

If you do not have a fully compatible combination of radio module and deRFnode/gateway- baseboard (refer to chapter 3), it may be required to upgrade the missing JTAG header and for ARM on AVR-boards also the 4x100K pull-up resistor network.

9.1.3. JTAG programming software

The required JTAG programming software differs depending on the chosen JTAG programming adapter. If you use winavr and a AVR ISP mkII, programming might be simply done by avrdude, a command-line tool which already comes with win-avr. If you prefer a GUI, take the free AVR-Studio from Atmel [10]. If you took SAM-ICE or the J-Link as programming adapter, it is recommended to use the SAM-Prog which is part of the SAM-BA programming soft ware [11]. Amontecs and Olimex‟ programming adapters may be accessed by Openocd

[13]. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 38 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

9.2. AVR based radio modules over JTAG

This chapter exemplarily describes the programming process for a AVR based radio module put on a “deRFnode/gateway for AVR”. It is assumed that the customer uses a AVR ISP mkII as programming device, Atmel AVR Studio as programming software (already installed) and the desired firmware binary is accessible.

(1) Plug the programmer to the baseboard; ensure that the board is DC- or USB-powered.

Figure 30: JTAGICE mkII plugged on deRFnode

(2) Open AVR Studio and connect to the programmer device (Tools|Program AVR|Connect).

Figure 31: AVR Studio

– select AVR programmer

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 39 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

(3) Try to identify the MCU, it must be an ATmega128RFA1.

Figure 32: AVR Studio

– select MCU

(4)

Switch to „program‟ tab, select the desired firmware binary, press „Program‟ and wait until finished:

Figure 33: AVR Studio

– program MCU

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 40 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

The programming procedure ends with a forced device reset after which the new firmware is executed.

9.3. ARM based radio modules over JTAG

In this chapter is described how to exchange the firmware of an ARM-based radio module using Atmel SAM-ICE JTAG Emulator and the SAM-Prog firmware updater which has already been installed. It is also assumed that the desired firmware binary was still compiled.

(1) Plug the programmer to the baseboard, ensure that the board is DC- or USB-powered.

Figure 34: SAM-ICE plugged on deRFgateway

(2) Open SAM-Prog, choose the appropriate firmware file, then click

„Yes‟. Be sure that the checkbox

„Auto-mode‟ is enabled. The firmware update process will be indicated by a flying sheet of paper.

(3) To complete the update procedure, restart the target device by temporary opening JP2 or removing power supply.

Figure 35: SAM-PROG

dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 41 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

9.4. Software programming model

This chapter is designated to describe how selected components of the deRFnode/gatewaybaseboard series may be accessed from a developer‟s point of view. As stated in the previous chapters, we only support the GCC, so the following explanations may not fully work with different compilers. Since this should not become a programming tutorial, please refer to the individual device datasheets for details. Also the code snippets given in the following chapters are only extracts. If you like to use them, it‟s up to you, to surround them with a working main application and add inclusions for necessary header files that may have been left.

For ARM-MCU based development, the AT91SAM7-Software Package [12] delivers besides many application examples the so called AT91Library, a large collection of higher-levelfunctions simplifying the development process. Since all following chapters base on it, download and e xtract it to a directory of your desire. Now change to the „packages‟ subdirectory, where you will find a set of application examples, one archive per application and compiler.

Delete all non-GNU-based examples and extract the resting to a common directory, confirm to overwrite files when asked. This is necessary, since the AT91Lib is provided in parts only where each is specially tailored to the belonging application example. Any path stated in future is to be seen relative to <extraction_root_directory>\at91sam7xek\packages\<common_example_directory>\at91lib.

9.4.1. Enabling the reset supervisor

As already described in chapter 3 the Reset Supervisors output pin is routed to the MCUs reset pin if JP 4 is shortcut. When using an AVR MCU, no further configuration is required.

But when using an ARM MCU, the reset pin functionality must be explicitly enabled. The required library module is

/peripherals/rstc/rstc.c; an invocation of

RSTC_SetUserResetEnable() may be used to enable or disable it.

9.4.2. Initialize and use I2C devices

All of the deRFnode/gateway boards include three environmental sensors which are accessible via the two-wire (aka I

2

C)-Interface (TWI). To use them, you basically have to perform the following steps:

(1) enable the TWI bus

(2) make the MCU the TWI master,

(3) configure the devices behavior and

(4) communicate with the device.

The first step is only necessary if you use deRFmega128-based radio modules. Here you explicitly have to enable the both pullup‟s on the SDA/SCL lines by setting PD6 to Low level:

DDRD |= (1<<PD6);

PORTD &= ~(1<<PD6);

// make PD6 an output pin

// switch to Low level

The second step is quite simple since there already exist ready-to-use functions. On AVR

MCUs, you may use Peter Fleury‟s library or its improved version from Manfred Langemann

(ask your favourite search engine). On ARM, the AT91Lib provides equivalent functionality under drivers/twi and peripherals/twi. Independently of the implementation, you usually must decide for a interface speed. 100 up to 400kHz is a good value. TWI libraries may either run interrupt-driven or in polling mode. The latter case is enough for first tests while if excessive using the I2C interface, interrupt-based implementations should be preferred. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 42 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Assumed that you use an ARM MCU, the initialization might look like:

#define

PINS_TWI { ((1<<10) | (1<<11)), AT91C_BASE_PIOA,

AT91C_ID_PIOA, PIO_PERIPH_A, PIO_DEFAULT }

static

Twid twid; // managing datastructure

const

Pin pins[] = { PINS_TWI }; // SDA/SCL pins (PA10, PA11)

PIO_Configure(pins, PIO_LISTSIZE(pins));

PMC_EnablePeripheral( AT91C_ID_TWI); // enable twi peripheral

TWI_ConfigureMaster(AT91C_BASE_TWI, 100000, BOARD_MCK); // 100kHz

TWID_Initialize(&twid, AT91C_BASE_TWI); // initialize datastructure

AIC_ConfigureIT(AT91C_ID_TWI, 0, ISR_Twi); // configure and

AIC_EnableIT(AT91C_ID_TWI); // enable twi interrupt

During the next step the devices are configured. This includes activity intervals, resolution/ sensitivity, triggers when exceeding/falling below given limits, etc. Usually the sensors power up idle and must be explicitly started. Additionally the acceleration sensor includes a configuration EEPROM in which an overriding startup-configuration may be saved. Configuration is usually done by writing to device registers and incorporates:

(1) initiate a TWI start condition,

(2) write the configuration register address,

(3) write the configuration register value,

(4) send a TWI stop condition.

So if you i.e. want to activate the TMP102 temperature sensor measuring temperatures only upon request, select the configuration register MSB (0x01) and write in 0x80 to shut down the device. Here TWID_Write() encapsulates all the required steps in one function:

#define

BOARD_SENS_ADDR_TEMP (0x48) // sensor address, 1bit shifted

unsigned char

ucBuf[2]; // buffer for twi transmissions ucBuf[0] = 0x01; // configuration register, MSB ucBuf[1] = 0x80; // shutdown-mode

TWID_Write(&twid, BOARD_SENS_ADDR_TEMP, 0x00, 0x00, ucBuf, 0x02, NULL);

As like as configuration is performed, sensor values are read from device registers. Depending on the device, you may either read the current register value directly or must send a start command first and wait a certain time until measurement is available (otherwise you would read outdated values). To continue with the temperature sensor, a code snippet looks like: ucBuf[0] = 0x01; // configuration register, MSB ucBuf[1] = 0x81; // shutdown mode | one-shot

TWID_Write(&twid, BOARD_SENS_ADDR_TEMP, 0x00, 0x00, ucBuf, 0x02, NULL);

// wait at least 26 ms (depends on selected resolution), then

// select temperature register (MSB) and read 2 bytes from it ucBuf[0] = 0x00;

TWID_Write(&twid, BOARD_SENS_ADDR_TEMP, 0x00, 0x00, ucBuf, 0x01, NULL);

TWID_Read(&twid, BOARD_SENS_ADDR_TEMP, 0x00, 0x00, ucBuf, 0x02, NULL);

// convert value to a human-readable format ...

Besides the I

2

C communication lines, the acceleration sensor includes an interrupt line which may trigger under certain circumstances, i.e. acceleration increases above/decreases below/changes relatively to a configured threshold. These features might be used to detect the device falling or its motion at all. For all these cases, the sensor might drive its INT line high, as long as the condition is met. For detailed information, please refer to the BMA150 datasheet. Using this feature requires JP1 to shortcut pins 2-3 and configuration of an interrupt trigger on the MCU side. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 43 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

If you own a dresden elektronik deRFdevelopment-Kit, the included kit CD provides a complete I

2

C-library as well as out-of-the box working application examples for AVR and ARM which may be easily modified according to your needs.

9.4.3. Using the USB interface

The onboard USB interface is realized either native (on deRFnode/gateway for ARM) or based on a FTDI USB to parallel FIFO (on deRFnode/gateway for AVR). In USB-speech,

„native‟ means the MCU is able to talk directly to the USB-DM-/-DP-lines which is true for

ARM MCUs, but not for AVRs. So if using an AVR MCU on a ARM-baseboard, USB is nonfunctional. When incorporating the USB FIFO, 12 GPIO (8 data, 4 control) lines are reserved,

AND-/OR-gates and a octal driver equalize level differences.

Besides other applications of the USB interface, we focus only on a Communication Device

Class (CDC)-device here which simplified is a RS232-port tunneled over USB providing a virtual COM-Port on the PC-side.

For native USB with ARM MCUs, again the AT91Lib provides ready-to-use functions which are to be found in usb/device/core/USBD_UDP.c and usb/device/cdcserial/CDCDSerial-Driver.c. A typical initialization looks like:

CDCDSerialDriver_Initialize(); // initializes the CDC driver

USBD_Connect(); // connects external Pullup to USBDP

Afterwards data could be shared with the device driver with CDCDSerialDriver_Read() and CDCDSerialDriver_Write(), i.e. in your applications main loop.

When working with FTDI, the chip encapsulates the USB-protocol. The only interface are the control (RD, WR, RXF, TXE)- and data lines. Here the initialization procedure consists of:

(1) switching RD and WR to output pins, internal pullup‟s enabled,

(2) set RXF, TXE and data lines as input pins,

(3) optionally empty USB FIFO buffer by performing dummy reads.

Data bytes available for reading are signalized by RXF being L as long as the buffer is not completely empty. A byte can be read by toggling RD from H to L, then get the state on all 8 data lines and put RD back to H level.

Writing bytes is performed vice versa: First check the level on TXE - If it is H, the transceiver is busy or the internal buffer is full. Otherwise the transmission may start by setting the 8 data lines according to the transmit byte, then toggle WR from H to L and back. To improve performance, writing should always be done block wise.

The octal bus driver is automatically enabled by the internal USB_CE-signal if at least one of the RD- or WR- goes L (means reception/ transmission in progress). On the other side you should ensure that RD and WR are permanently driven H if you do not use the USB over

FDTI to prevent the bus driver energizing back the FTDI circuit.

For simplified detecting whether a USB cable is plugged or not, the VBUS signal may be used (active high). On the FTDI variant this only works reliable if RD and WR are driven H.

The device driver required on the PC side can be downloaded from the dresden elektronik website <<LINK>>. If you bought a dresden elektronik deRFdevelopment-Kit, the included kit

CD also provides the drivers and complete application examples which may be easily modified according to your needs. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 44 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

9.4.4. Measuring the battery voltage

The VBAT signal may be used to monitor the current battery voltage using the MCUs internal

A/D-converter. This requires a reference voltage. On ARM MCUs it must be provided externally on Pin3 which is available on the X8-Header at Pin 32. It is suggested to shortcut it to

VCC which is available on the same Header on Pins 2 and 33. Basically AVR MCUs can handle external reference voltages too but we recommend using the internal reference voltage since it avoids additional external shortcut connections and enables a more precise measurement. However in both cases during measurement, the GPIO-Pin 34 (e.g. on X8-

Header Pin 15) must not be used otherwise.

The measurement process includes:

(1) Initialization of the ADC,

(2) activation of the required ADC channel (0),

(3) perform the measurement,

(4) shut down the ADC.

For ARM MCUs, in peripherals/adc/adc.c the required library functions are to be found and their invocation sequence may look like:

#define

BOARD_ADC_FREQ 300000 // ADC Frequency

#define

ADC_STARTUP_TIME_MAX 20 // returning from Idle mode (µs)

#define

ADC_TRACK_HOLD_TIME_MIN 600 // Track&hold Acquisition Time (ns)

unsigned int

adc_out, V_bat;

const

Pin pin = {1<<27, AT91C_BASE_PIOB, AT91C_ID_PIOB, PIO_INPUT,

PIO_DEFAULT};

PIO_Configure(pin, 1);

ADC_Initialize( AT91C_BASE_ADC,

AT91C_ID_ADC,

AT91C_ADC_TRGEN_DIS,

0,

AT91C_ADC_SLEEP_NORMAL_MODE,

AT91C_ADC_LOWRES_10_BIT,

BOARD_MCK,

BOARD_ADC_FREQ,

ADC_STARTUP_TIME_MAX,

2*ADC_TRACK_HOLD_TIME_MIN);

ADC_EnableChannel(AT91C_BASE_ADC, ADC_CHANNEL_0);

ADC_StartConversion(AT91C_BASE_ADC);

// wait for conversion termination

while

(!ADC_IsChannelInterruptStatusSet( ADC_GetStatus(AT91C_BASE_ADC),

ADC_CHANNEL_0)) ;

// perform measurement adc_out = ADC_GetConvertedData(AT91C_BASE_ADC, ADC_CHANNEL_0);

// convert the measured value to real voltage (mV)

// voltage divider <-> V_bat = 4.73*V_meas

// max. resolution 10bit, V_ref=3.3V <-> V_ref/0x3FF = V_meas/adc_out

// <-> V_bat = 15.24*adc_out ~ (61*V_meas)/4

V_bat = (61*meas)/4;

// deactivate the ADC for power saving

ADC_DisableChannel(AT91C_BASE_ADC, ADC_CHANNEL_0); dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 45 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

For AVR MCUs, an equivalent code snippet is:

#define

VREF 1.6 // reference voltage; either 1.6 or 3.3 [V] uint16_t adc_val; // ADC measurement value

double

v_bat; // real battery voltage

double

c ; // conversion factor c = ((

double

)(1040/(

double

)220)) * VREF;

#if

(VREF==1.6)

// Select internal 1.6V reference voltage, left AVDREF pin open

ADMUX = (1 << REFS1) | (1 << REFS0);

#else

// External reference voltage on AVDREF pin, selected by default

#endif

// Analog channel (0) and gain selection (none) <-> MUX5:0 = 0b00000

// -> no changes required

// select prescaler for 500 kHz frequency

#if

(F_CPU == (16000000UL))

ADCSRA |= (1 << ADPS2) | (1 <<ADPS0); // Prescaler = 32

#elif

(F_CPU == (8000000UL))

ADCSRA |= (1 << ADPS2); // Prescaler = 16

#elif

(F_CPU == (4000000UL))

ADCSRA |= (1 << ADPS1) | (1 << ADPS0); // Prescaler = 8

#elif

(F_CPU == (1000000UL))

ADCSRA |= (1 << ADPS0); // Prescaler = 2

#else

#error

"unsupported F_CPU"

#endif

// put into free running mode (ADTS2:0 = 0b000) -> no changes required

// enable ADC

ADCSRA |= (1 << ADEN);

// Start Conversion, Clear ADIF

ADCSRA |= (1 << ADSC);

// wait for completion

while

(!(ADCSRA & (1 << ADIF))) ;

// get measurement adc_val = ADC;

// disable ADC

ADCSRA &= ~(1 << ADEN);

// convert to real battery voltage (mv) v_bat = c * adc_val; dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 46 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

9.4.5. Accessing the external flash

Each deRFnode/gateway board provides a serial flash device which is accessed via the SPI interface. Although being from Atmel‟s AT25 family, if behaves similar to the well-known

AT26-Flash devices. So when using an ARM MCU, the AT91 Library functions from memories/spi-flash/spid.c and ~/at26.c may be employed, to allow chip identification you still may add its JEDEC-ID (0x0001441F) to the table of device identifiers such like:

/// Array of recognized serial firmware dataflash chips.

static const

At26Desc at26Devices[] = {

...

// Other

{ "AT25DF041" , 0x0001441F, 1 * 512 * 1024, 256, 64 * 1024}

};

A typical initialization of the SPI flash driver may look like:

/// SPI0 pin definitions

#define

PIN_SPI0_MISO {1 << 16, AT91C_BASE_PIOA, AT91C_ID_PIOA,

PIO_PERIPH_A, PIO_PULLUP}

#define

PIN_SPI0_MOSI {1 << 17, AT91C_BASE_PIOA, AT91C_ID_PIOA,

PIO_PERIPH_A, PIO_DEFAULT}

#define

PIN_SPI0_SPCK {1 << 18, AT91C_BASE_PIOA, AT91C_ID_PIOA,

PIO_PERIPH_A, PIO_DEFAULT}

#define

PIN_SPI0_NPCS0 {1 << 14, AT91C_BASE_PIOA, AT91C_ID_PIOA,

PIO_PERIPH_A, PIO_DEFAULT}

#define

PINS_SPI0 PIN_SPI0_MISO, PIN_SPI0_MOSI, PIN_SPI0_SPCK

// Base address of SPI peripheral connected to the serialflash.

#define

BOARD_AT25_SPI_BASE AT91C_BASE_SPI0

// Identifier of SPI peripheral connected to the serialflash.

#define

BOARD_AT25_SPI_ID AT91C_ID_SPI0

// Pins of the SPI peripheral connected to the serialflash.

#define

BOARD_AT25_SPI_PINS PINS_SPI0, PIN_SPI0_NPCS0

static

Spid spid; /// SPI driver instance.

static

At26 at26; /// Serial flash driver instance.

static

Pin pins[] = { BOARD_AT25_SPI_PINS };

PIO_Configure(pins, PIO_LISTSIZE(pins));

AIC_ConfigureIT(BOARD_AT25_SPI_ID, 0, ISR_Spi);

SPID_Configure(&spid, BOARD_AT25_SPI_BASE, BOARD_AT25_SPI_ID);

AT26_Configure(&at26, &spid, BOARD_AT25_NPCS);

AIC_EnableIT(BOARD_AT25_SPI_ID);

Afterwards you may evaluate the number of pages and the pagesize since this is important for each further access:

unsigned int

numPages = AT26_PageNumber(&at26);

unsigned int

pageSize = AT26_PageSize(&at26);

Since low-level-accessing the flash device is not trivial, the application Exam ple „basicserialflashproject‟ from the AT91-Library already provides a set of functions necessary to perform read and write operations, erase, protect and unprotect the flash memory. For further details, please refer to basic-serialflash-project/main.c. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 47 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

If you like to access the external flash with an AVR MCU, a code snippet suitable for reading the manufacturer and device IDs (see AT25DF041 datasheet, chapter 10) is: uint8_t i, data[4];

/* Set MOSI, SCK and CS output, all others input */

DDRB = (1<<PB2)|(1<<PB1);

DDRE = (1<<PE5

/* Enable the SPI interface, make the MCU SPI master */

SPCR = (1<<SPE) | (1<<MSTR);

/* Select the serial clock SCK to be (FOSC/4) and double it

* (i.e. if CPU runs at 8MHz, SPI clock will be 4MHz)

*/

SPCR &= ~((1<<SPR0) | (1<<SPR1));

SPSR = (1<<SPI2X);

/* Start SPI transaction by setting CS low */

PORTE &= ~(1<<PE5);

/* Send the command byte (‘Read Manufacturer and Device ID’) */

SPDR = 0x9F;

/* wait for termination */

while

(!(SPSR & (1 << SPIF))) ;

for

(i=0; i<4; i++)

{

/* Do dummy write for initiating SPI read */

SPDR = SPI_DUMMY_VALUE;

/* wait for termination */

while

(!(SPSR & (1 << SPIF))) ;

/* Upload the received byte in the user provided location */

data[i] = SPDR;

}

/* Stop the SPI transaction by setting CS high */

PORTE |= (1<<PE5);

/* check the read Ids (must be 0x1F,0x44,0x01,0x00) ... */

As like as in all previous chapters, a ready-to-use library is provided on the CD-ROM belonging to the deRFdevelopment Kit.

9.4.6. Initialize and use the Ethernet transceiver

Only the deRFgateway boards are equipped with Ethernet circuitry hardware (PHY layer transceiver). The EMAC must be implemented in software. Although it is not impossible to do this with an AVR, we focus on using it with an ARM MCU here since as like as in all chapters before the AT91Lib includes even this part.

Transceiver and MCU are connected via RMII (Reduced Media Independent Interface). To save energy the Ethernet transceiver starts up in power-down mode (pull-down resistor on dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 48 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway transceiver pin 7). Alternatively the same port pin may act as an interrupt line. Due to a pulldown resistor, this is not possible in factory state. If you intend to use it, please remove R13.

The Ethernet initialization procedure consists of:

(1) Setup the EMAC (enable the EMAC peripheral, configure the PIO pins and the clock interface between MCU and transceiver, set the MAC address).

(2) Initialize the PHY (power up, setup up connection preferences like Auto negotiation,

LinkSpeed and Duplex behavior). This is done by writing to the PHYs register set.

(3) Initialize local reception and transmission buffers.

(4) Enable receiver and transmitter.

Afterwards it‟s up to the application, to process incoming frames and handle changes of the link state (Ethernet cable plugged/unplugged, changes of link speed). Since the transceiver only throws interrupts upon state changes, the application has to poll for incoming frames.

Due to complexity, we skipped printing code snippets here. If you bought a deRFdevelopment kit, the included KitCD will provide code examples in near future. Otherwise a good starting point is the At91Lib‟s basic-emac-project-application example. All EMAC

Library functions are to be found in peripherals/emac/emac.c while the PHY transceiver abstraction resists under components/ethernet/. The AT91Lib assumes you have a

DM9161 transceiver which unfortunately is not compatible with the DP83848C assembled on the deRFgateway board. For further information, please refer to the datasheets.

9.4.7. Minimize device power consumption

Optimizing the energy consumption is especially important when the device is battery powered to ensure a long battery lifetime. If the USB cable is plugged, the device gets its power through the USB line so in this case it makes no sense to think about power down modes. If finally Ethernet should be invoked, the power consumption is too large for reasonably powering the device via batteries, so here DC power should be used which implies that the energetic optimization is also obsolete. Reference values of power consumption are given in chapter 4.

The following list describes what might be done, to decrease the power consumption. Depending on your application requirements, not all points may be realizable.

(1) Power down the Ethernet transceiver:

If you did not explicitly activate it, the transceiver already is powered down. Otherwise configure the transceiver PWR_DOWN/INT line to be a Power-Down line by writing a logical zero to the MII Interrupt control register (MICR, address 0x11) bit 0. Also ensure that the MCU pin connected to the PWR-DOWN-line has no internal pull-up activated. The onboard pull-down resistor will now force an Ethernet transceiver power down.

(2) Power down the I2C sensors:

In factory default state and if you didn‟t configure them, only the acceleration sensor is active. Although we recommend to explicitly disable all three sensors. This comprises of sending stop conversion commands as well as disabling any auto-conversion mode. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 49 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

(3) Power down the radio transceiver:

This step depends on the radio module used. If you have a deRFmega128

–module, the respective power-reduction register is to be used:

#include <power.h>

PRR1 |= (1<<PRTRX24); // power down transceiver

-

-

-

-

Any other Atmel radio transceiver (e.g AT86RF212 on deRFarm7 series radio modules) has a internal state machine which may be switched to sleep state by toggling the levels on the SLP_TR and /RST lines:

SLP_TR L, /RST L  force RESET state wait 1µs, then set /RST H  TRX_OFF state put SLP_TR H  SLEEP state leave SLP_TR H (setting it back to L would result in transition back to TRX_OFF)

The following diagram (taken from AT86RF212s datasheet) illustrates the procedure:

Figure 36

: State control (source: ATMEL™ datasheet of AT86RF212 transceiver datasheet)

(4) Remove any unneeded external cabling such as a level shifter or your JTAG programming adapter (if your application allows).

(5) Switch off the onboard LEDs.

(6) Put the onboard Flash to Deep-Power-Down-Mode.

(7) Disable the onboard USB FIFO (only deRFnode/gateway for AVR):

On boards equipped with a FTDI USB FIFO, the USB transceiver may be disabled only by physically disconnecting the USB cable. Due to a hardware issue it may still happen, that the octal driver (IC9) energizes back the FIFO (IC8). To avoid that, ensure, that (in contrast to (8)), RD and WR always drive high current.

(8) Ensure that the MCU GPIO pins do not drive current.

Due to circuit design, some GPIO pins are set to GND, others have external pullup‟s or pull downs applied which are required for proper operation, but when sleeping, they still drive unnecessary current. Regardless of the used MCU, this may be achieved by first setting the pins to be outputs; internal pullup‟s enabled. Then read back the level on each pin - if it differs from the expected state (being H due to enabled pullup‟s), disable dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 50 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway individual pullup‟s. Be careful to left out the Pins connected to the transceiver or the USB

FIFO, as otherwise you would reactivate the devices powered down before (see above).

(9) Disable any unnecessary MCU-internal device. This includes running timers, transceivers

(UART, DBGU, TWI, SPI, native USB), ADC, watchdog.

On AVR MCUs, this may be achieved by writing to the Power Reduction Registers, like:

#include

<avr/power.h>

PRR0 = (1<<PRTIM0); // disable Timer 0 or using existing functions from power.h, such as power_timer1_disable().

On ARM MCUs the equivalent function call is PMC_DisablePeripheral(id) from peripheral/pmc/pmc.c where the peripheral IDs are to be found in the At91SAM7Xdatasheet. If you desire to switch off all devices at once,

PMC_DisableAllPeripherals() will do that.

The watchdog is configured slightly different. On AVR MCUs use:

#include <avr/wdt.h>

wdt_disable(); respective WD_Disable() from peripheral/wdt/wd.c on ARM MCUs.

If using native USB on ARM MCUs, the USB transceiver is disabled by invoking

UDP_DisableTransceiver() from usb/device/core/USBD_UDP.c.

(10) Disable BOD:

Slight improvements may be achived by disabling the Brown-out-detection feature. On

ARM MCUs, the GPNVM Bit0 has to be cleared by writing to the internal flash memory:

EFC_PerformCommand(AT91C_BASE_EFC0, AT91C_MC_FCMD_CLR_GP_NVM,

AT91C_MC_GPNVM0);

On AVR MCUs this is done by clearing the BODLEVEL bits (2:0) in the Fuse Low Byte.

(11) Slow down the MCU clock:

This differs depending on the radio module used. When it is deRFmega128 series based, simply put the MCU to sleep mode by writing to the sleep mode control register followed by executing the sleep instruction.

#include

<avr/io.h> // MCU register definitions

#include

<avr/sleep.h>

SMCR = (1<<SE) | (1<<SM1); // go into power down mode

sleep_cpu(); // execute sleep instruction

If using an ARM based MCU, the AT91Lib usb-device-massstorage-project example provides functions for switching the MCU main clock back to 32kHz.

For waking up the device again you may e.g. leave a timer running or configure a external interrupt trigger. The steps to be performed after wakeup include simplified the reverse procedure as described above, especially reinitialization of internal devices that have been powered down.

If you bought a deRFdevelopment kit, the Kit-CD includes a deRFnative example which demonstrates low-power modes. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 51 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

10. Ordering information

The ordering code for deRFnode and deRFgateway are listed in Table 19.

Table 19: Ordering information

Type code

plain variant

– no radio module included

deRFnode-1TNP2-00N00 deRFnode-2TNP2-00N00 deRFgateway-1TNP2-00N00

accessories

suitable case for deRFgateway and deRFnode

Order number

BN-031632

BN-031634

BN-031633 coming soon dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 52 of 56

User Manual

Version 1.1

2011-07-15

11. Revision notes

deRFnode and deRFgateway

Up to now for the deRFnode and deRFgateway platforms technical problems, malfunctions or any other critical issues are not known. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 53 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

References

[1] Atmel IEEE 802.15.4 MAC Software Package revision 2.5.2 http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4675

[2] Atmel BitCloud - ZigBee Pro http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4495

[3] winavr, version 20100110 http://sourceforge.net/projects/winavr/files/WinAVR/20100110/

[4] yagarto GNU arm toolchain, version 20100813 http://www.yagarto.de/#download

[5] yagarto tools, version 20100703 http://www.yagarto.de/#download

[6] Atmel SAM-ICE JTAG Emulator http://www.atmel.com/dyn/products/tools_card.asp?tool_id=3892

[7] Segger J-Link http://www.segger.com/cms/jlink.html

[8] Amontec JTAGkey www.amontec.com/jtagkey.shtml

[9] Olimex OpenOCD USB http://www.olimex.com/dev/arm-usb-ocd.html

[10] AVR Studio 4.18 http://www.atmel.com/dyn/products/tools_card.asp?tool_id=2725

[11] SAM-BA 2.10 http://www.atmel.com/dyn/products/tools_card.asp?tool_id=3883

[12] AT91SAM7X-512 Software package for IAR 5.2, Keil and GNU, revision 1.5 http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4343 http://www.atmel.com/dyn/resources/prod_documents/at91sam7x-ek.zip dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 54 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Straße 12

01237 Dresden

GERMANY

Tel. +49 351 - 31 85 00 | Fax +49 351 - 318 50 10

E-Mail [email protected]

General manager: Dipl.-Ing. L. Pietschmann

Commercial Registry: HRB 749 Dresden Municipal Court

Tax number: 201/107/00726

Sales tax identification number: DE 140125678

Trademarks and acknowledgements

• ZigBee ®

is a registered trademark of the ZigBee Alliance.

• 802.15.4™ is a trademark of the Institute of Electrical and Electronics Engineers (IEEE).

These trademarks are registered by their respective owners in certain countries only. Other brands and their products are trademarks or registered trademarks of their respective holders and should be noted as such.

Disclaimer

This note is provided as-is and is subject to change without notice. Except to the extent prohibited by law, dresden elektronik ingenieurtechnik gmbh makes no express or implied warranty of any kind with regard to this guide, and specifically disclaims the implied warranties and conditions of merchantability and fitness for a particular purpose. dresden elektronik ingenieurtechnik gmbh shall not be liable for any errors or incidental or consequential damage in connection with the furnishing, performance or use of this guide.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording, for any purpose other than th e purchaser‟s personal use, without the written permission of dresden elektronik ingenieurtechnik gmbh.

Copyright © 2011 dresden elektronik ingenieurtechnik gmbh. All rights reserved dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 55 of 56

User Manual

Version 1.1

2011-07-15

deRFnode and deRFgateway

Annex A: Schematics

This section contains the schematics of deRFgateway-1TNP2, deRFnode-1TNP2 and deR-

Fnode-2TNP2. dresden elektronik ingenieurtechnik gmbh

Enno-Heidebroek-Str. 12

01237 Dresden / Germany

Tel.: +49 351

– 31 85 00

Fax: +49 351

– 3 18 50 10 [email protected] www.dresden-elektronik.de

Page 56 of 56

DGND

DGND

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

DGND

VCC_module

THT-RF-Header for AVR/ARM based radio modules

X1

19

18

17

16

15

14

13

12

11

23

22

21

20

8

7

6

10

9

3

2

1

5

4

SLM-123-01-L-S

X2

36

37

38

39

40

41

42

43

44

45

46

30

31

32

33

34

35

24

25

26

27

28

29

HEADER-23

Pin26

Pin27

Pin28

Pin29

Pin30

Pin31

Pin32

Pin33

Pin34

Pin35

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin43

Pin44

VCC_module

DGND

DGND

DGND

no ground plane under radio module

R46 n.b.

0R00

R47 n.b.

0R00

R50

0R00

R51 n.b.

0R00

R53 n.b.

0R00

R54 n.b.

0R00

R3

R4

R5

R0

R1

R2

RF-Header Pin Description

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin2

Pin1

Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

|

| Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Pin23 GND GND | Pin24 VCC VCC

Pin22

Pin21

GND

PB5/OC1A/PCINT5

GND

PB15/ERXDV/ECRSDV

| Pin25

| Pin26

GND

PE0/RXD0/PCINT8

GND

PA27/DRXD/PCK3

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

PB7/OC0A/OC1C/PCINT7

PB4/OC2/PCINT4

PB6/OC1B/PCINT6

PB3/MISO/PCINT3/PDO

PB0/SSN/PCINT0

PB2/MOSI/PCINT2/PDI

CLKI

PB1/SCK/PCINT1

PD5/XCK1

PB18/EF100/ADTRG

PB6/ERX1

PB8/EMDC

PA16/SPI0_MISO

PB0/ETXCK/EREFCK

PA17/SPI0_MOSI

PA3/RTS0/SPI1_NPCS2

PA18/SPI0_SPCK

PB2/ETX0

| Pin27

| Pin28

| Pin29

| Pin30

| Pin31

| Pin32

| Pin33

| Pin34

| Pin35

PD2/RXD1/INT2

PE1/TXD0

PD6/T1

PE2/XCK0/AIN0

PE3/OC3A/AIN1

PD4/ICP1

PE4/OC3B/INT4

PF0/ADC0

PE5/OC3C/INT5

PA0/RXD0

PA28/DTXD

PA4/CTS0/SPI1_NPCS3

PB9/EMDIO

PB21/PWM2/PCK1

USBDP

PB19/PWM0/TCLK1

PB27/TIOA2/PWM0/AD0

PA14/SPI0_NPCS2/IRQ1

PD7/T0

PD3/TXD1/INT3

PD1/SDA/INT1

PG5/OC0B

PD0/SCL/INT0

PG2

RSTN

PG1/DIG1

AREF

GND

VCC

PB25/TIOA1/DTR1

PA1/ TXD0

PA10/TWD

PB26/TIOB1/RI1

PA11/TWCK

PB3/ETX1

RSTN

USBDM

ADVREF

GND

VCC

| Pin36

| Pin37

| Pin38

| Pin39

| Pin40

| Pin41

| Pin42

| Pin43

| Pin44

| Pin45

| Pin46

PF1/ADC1

PE6/T3/INT6

PF4/ADC4/TCK

PE7/ICP3/CLKO/INT7

PF5/ADC5/TMS

PF2/ADC2

PF6/ADC6/TDO

RSTON

PF7/ADC7/TDI

GND

GND

PB28/TIOB2/PWM1/AD1

PB5/ERX0

TCK

PB7/ERXER

TMS

PB1/ETXEN

TDO

JTAGSEL

TDI

GND

GND

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

U_Flash_Sensors

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

U_Ethernet

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

Pin36

Pin5

Pin34

U_Power_Supply

Pin36

Pin5

Pin34

SW2

/PWREN

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

U_Interfaces

SW2

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

U_USB

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

/PWREN

JP7

Nr.

Änderung

JP8 JP9

Datum

JP10

Name

JP11 JP12

Jumper Jumper Jumper Jumper Jumper Jumper

REFTOP4

REFTOP

REFTOP1

REFTOP

REFTOP5 REFTOP6

REFTOP

REFTOP2

REFTOP

REFTOP3

REFTOP REFTOP

S/N

Pb

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:24

Document File Name

Module_Connectors.SchDoc

DrawnBy: NOS/APA Sheet 1 of 6 Rev: 2.0

VBUS

Battery Supply (3xAA)

DGND

BT1

3xAA

Net-Suply from AC/DC-Adapter

X9

VBAT

VDC

DGND

JP2

JP-3

2

#VCC

PJ-002AH-SMT

DGND

D4

D-BAS40-05

5V Supply from USB Host

L3

DGND

[email protected]

C21

100nF

DGND

C20

4.7uF

n.b.

R25

47k0

/PWREN

/PWREN

USB5V

T1

IRLML6402

C22

4.7uF

3

IC5

VCC

2

1

GND

TCM810JVNB713 n.b.

R26

4k7 n.b.

R27

47k0

R52

47k0

R24

270R

C23

100nF n.b.

D5

D-BAS40

VCC

Current measurement of radio module

JP5

JP-2

VCC_module

DGND overlapping pads of same net

C17

1uF n.b.

R48

0R00

R49

0R00

DGND

Low Quiescent Current LDO 3,3VDC

IC2

1

IN OUT

5

2

GND n.b.

n.b.

R55

1M00

3

EN FB

TPS78001 adjustable Vcc:

2M + 820k bestückt = 3,3V nur 820k bestückt = 2,7V nur 2M bestückt = 1,8V

4 n.b.

R56

2M00 n.b.

R57

820k

DGND

8

IC17

IN OUT

6

EN BYP

3

FB GND

TPS79433DGN fixed version

1

4

5

DGND

C40

10nF

DGND

VCC

C18

1uF

VBUS Monitoring

USB5V

R28

30k0

VBAT Monitoring

JP3

VBAT

JP-2

R42

820k

R29

47k0

Pin36

DGND

R43

220k

Pin34

VCC VCC VCC VCC

Pin36 overlapping pads of same net n.b.

R58

0R00

Pin34

R59

0R00

R60

0R00

Programmable Supervisor

1

IC15

S2 VCC

2

S1 RST

3

S0 PFO

7

MR GND

LTC2935ITS8-1

8

6

5

4

R61

0R00 n.b.

R62

0R00 n.b.

R63

0R00

S2/S1/S0=Low/High/High >> Vth=3.00V

S2/S1/S0=High/Low/High >> Vth=2.40V

JP4

JP-2

VCC

DGND

Pin5

DGND DGND DGND

Pin5

DGND

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:25

Document File Name

Power_Supply.SchDoc

DrawnBy: NOS/APA Sheet 2 of 6 Rev: 2.0

USB Device Connection

X10

VP

DM

DP

GND

1

2

3

4

VBUS

#USBDM

#USBDP

DGND

S1

S2

USB Type B SHIELD

R44

470k

C34

10nF/2kV

R45

470k

VBUS

DGND

DGND

VBUS

R30

1K50

DGND

USB Data ARM

USBDM_ARM

USBDP_ARM

R33

0R00

R34

0R00 place pads directly on usb data lines to avoid stubs in assembly variants

R35

330k

R36

330k

R31

27R

R32

27R

C28

15pF

C29

15pF

Pin4

Pin32

Pin4

Pin32

DGND DGND DGND

D9

IP4220CZ6 n.b.

R37

0R00 n.b.

R38

0R00

USBDM_AVR

USBDP_AVR

USB Data AVR

USB5V n.b.

C30

47pF n.b.

C31

47pF

DGND DGND

USB_3.3V

16

15

19

27

28

20

4

17

IC8

FT245RL

USBDM

USBDP

/RESET

OSCI

OSCO

VCC

VCCIO

3V3OUT n.b.

RXF#

TXE#

RD#

WR

PWREN#

D0

D1

D2

D3

D4

D5

D6

D7

1

5

3

11

2

9

10

6

23

22

13

14

12 n.b.

C35

100nF n.b.

C32

100nF n.b.

C33

100nF

DGND DGND

USB_3.3V

USBWR# n.b.

C41

100nF

DGND

USB_3.3V

DGND

1

IC13

1

4

2 n.b.

5

VCC

GND

3

NC7SZ02M5

Nr.

Änderung

USBWR

DGND

USB_D0

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

RXF#

TXE#

USBRD#

USBWR

/PWREN

/PWREN

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

USB_3.3V

C36 n.b.

100nF

USB_D0 20

19

18

17

16

15

14

13

12

11

DGND

DGND DGND

IC47

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND n.b.

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

5

6

7

8

3

4

1

2

9

10

C43

VCC n.b.

100nF n.b.

R39

47k0

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

USB_3.3V

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

DGND

USB_Bit0

USB_Bit1

USB_Bit2

USB_Bit3

USB_Bit4

USB_Bit5

USB_Bit6

USB_Bit7

RXF#

TXE#

USBWR#

USB_3.3V

C37 n.b.

100nF

USBRD#

14

13

12

11

17

16

15

20

19

18

DGND

DGND DGND

IC9

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND n.b.

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

3

4

5

1

2

6

7

8

9

10

C38

VCC n.b.

100nF n.b.

R40

47k0

Pin27

Pin30

Pin21

Pin10

USB_3.3V

Pin27

Pin30

Pin21

Pin10

DGND

Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:25

Document File Name

USB.SchDoc

DrawnBy: NOS/APA Sheet 3 of 6 Rev: 2.0

Ethernet Plug & PHY

X4

A1

R3

220R

K1

3

4

1

2

5

6

7

8 AGND

S1

S2

S3

S4 SHIELD

R10

A2

220R

K2

2-406549-1 (RJ45/vollgesch.m.LED)

VCC

LED_LINK

TD+

TD-

RD+

RD-

AVCC next to RJ45

C2

100nF

C3

100nF

AGND AGND

LED_ACT

VCC L2 AVCC

742 792 66

C9

10uF

DGND

NT1

12

Net_Tie_2Net

AGND

C10

100nF

ETxCK

Pin16

ETH i

17

IC1

TD+

ETH i

ETH i

16

14

TD-

RD+

ETH i

13

RD-

R9

49R9

AVCC

C8

100nF

R8

49R9

R7

49R9

AVCC

R6

49R9

C7

100nF

AVCC

VCC

R16

2K7

R15

2K7

R14

2K7

L1

742 792 66

C6

10uF

R5

2K7

R4

20

21

2K7

C5

10uF

22

C4

19

Reserved

Reserved

AVDD33

AGND

AGND

AGND

DGND

DGND

C14

10uF

LED_ACT

LED_LINK

R12

4k7

24

23

18

37

RBIAS

PFBOUT

PFBIN1

PFBIN2

C13

100nF

C12

100nF

C11

100nF

10

11

12

8

9

TCK

TDO

TMS

/TRST

TDI

26

27

28

25

LED-Act(Col)/AN-EN

LED-Speed/AN1

LED-Link/AN0

25MHz-Out

DP83848I

Pin16

R1

22R

X2

33

X1

34

TxD3/SNI-Mode

TxD2

TxD1

TxD0

TxEN

TxCLK

RxER/MDIX-EN

RxD3/PHYAD4

RxD2/PHYAD3

RxD1/PHYAD2

RxD0/PHYAD1

41

46

45

44

43

3

2

1

6

5

4

RxCLK

RxDV/MII-Mode

COL/PHYAD0

CRS/CRS-DV/LED-CFG

MDC

MDIO

38

39

42

40

31

30

PWR-Down/Int

/RESET

7

29

IOVDD33

IOVDD33

48

32

IOGND

IOGND

DGND

35

47

36

3

Q1

OUT

R2

0R00

DGND

2

GND

50.0 MHz

OE

VCC

4

1

VCC

C1

100nF

DGND

R64

22R

R65

R66

22R

22R

R67

R11

22R

1K50

Pin6

Pin12

Pin41

Pin6

Pin12

Pin41

Pin39

Pin39

Pin19

Pin37

Pin19

Pin37

Pin21

Pin21

ETx1

ETx0

ETxEN

ERxER

ERx1

ERx0

ERxDV

VCC

Pin18

Pin30

Pin18

Pin30

EMDC

EMDIO

R13

1K50

DGND

Pin20

Pin5

Pin20

Pin5

/MDINTR

RSTN

VCC

C16

100nF

C15

100nF

DGND

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:25

Document File Name

Ethernet.SchDoc

DrawnBy: NOS/APA Sheet 4 of 6 Rev: 2.0

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

TDI

TMS

TCK

TDO

RSTN

Pin28

Pin13

Pin5

Debug-Header

VCC

X5

1

3

5

2

4

6

DEBUG-HEADER

VCC

Pin26

DGND

N1

4x100k

Pin44

Pin40

Pin38

Pin42

Pin5

JTAG-Header for ARM

X6

9

11

13

15

5

7

1

3

17

19

10

12

14

16

18

20

6

8

2

4

JTAG-HEADER-ARM

VCC

DGND

Pin38

Pin42

Pin40

VCC

Pin44

JTAG-Header for AVR

X7

5

7

9

1

3

6

8

10

2

4

JTAG-HEADER-AVR

VCC

DGND

Pin5

Separated PCB - only for case version

DGND_

SW5 n.b.

Taster

SW6 n.b.

Taster

DGND_

X12

SW1_

SW2_ n.b.

1

2

3

Sw-Extension

SW2

Pin27

Pin30

Pin31

Pin18

Pin33

Pin34

Pin36

Pin37

Pin39

Pin41

Pin10

Pin8

Pin6

Pin20

DGND

VCC

I/O-Header

X8

19

21

23

25

27

29

31

33

9

11

13

15

17

5

7

1

3

IO-HEADER

20

22

24

26

28

30

32

34

10

12

14

16

18

6

8

2

4

Buttons for User Input

SW1

SW1

Taster

DGND

SW2

Taster

SW2

VCC

Pin21

Pin19

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin4

Pin32

Pin11

Pin9

Pin7

Pin5

Pin3

DGND

LEDs for User Output

VCC

D1 rot

D2

D3 rot rot

R17

470R

R18

470R

R19

470R

Pin8

Pin31

Pin33

2

Pin20 for AVR

JP6

JP-3 for ARM

Pin14

SW1

SW2

DGND

X11

1

2

3

Sw-Extension

Separated PCB - only for case version

SW3

Taster

SW4

#DGND

Taster

#SW1

#SW2

#DGND

X3

1

2

3

Sw-Extension

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:25

Document File Name

Interfaces.SchDoc

DrawnBy: NOS/APA Sheet 5 of 6 Rev: 2.0

4M Bit Flash Memory

VCC

R20

R21

Pin15

Pin13

Pin35

4k7

4k7

Pin15

Pin13

Pin35

5

6

1

IC3

SI

SCK

CS

SO

7

HOLD

VCC

3

WP GND

AT25DF041A-SSHF

2

8

4

Pin17

VCC

DGND

C19

100nF

Pin17

VCC

Acceleration Sensor

TWI pull-ups

Internal TWI-Address: 0111 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

R22

10k

VCC

R23

10k

VCC

Pin7

Pin9

Pin7

Pin9

JP1

JP-3

2

BMA_INT

Pin11

SW2

Pin11

SW2

8

7

4

5

6

3

IC4

BMA150

CSB

SCK

SDI

SDO

INT

GND

VDD

VDDIO

BMA150

2

9

DGND

VCC

C24

100nF

DGND DGND

C25

100nF

Ambient Light Sensor

Internal TWI-Address: 1000 100 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin9

Pin7

DGND

6

5

4

IC6

SDA

SCL

A0

VDD

REXT

GND

ISL29020IROZ-T7

1

3

2

VCC

R41

499k

C26

10nF

DGND

Temperature Sensor

Internal TWI-Address: 1001 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin7

Pin9

DGND

1

6

IC7

SCL

SDA

4

AD0 VCC

3

ALERT GND

TMP102AIDRLT

5

VCC

2

DGND

C27

100nF

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFgateway-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.103.02

18.03.2011

Time: 10:13:26

Document File Name

Flash_Sensors.SchDoc

DrawnBy: NOS/APA Sheet 6 of 6 Rev: 2.0

DGND

DGND

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

DGND

VCC_module

THT-RF-Header for AVR/ARM based radio modules

X1

19

18

17

16

15

14

13

12

11

23

22

21

20

8

7

6

10

9

3

2

1

5

4

SLM-123-01-L-S

X2

36

37

38

39

40

41

42

43

44

45

46

30

31

32

33

34

35

24

25

26

27

28

29

HEADER-23

Pin26

Pin27

Pin28

Pin29

Pin30

Pin31

Pin32

Pin33

Pin34

Pin35

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin43

Pin44

VCC_module

DGND

DGND

DGND

no ground plane under radio module

R46 n.b.

0R00

R47

0R00

R50 n.b.

0R00

R51 n.b.

0R00

R53 n.b.

0R00

R54 n.b.

0R00

R3

R4

R5

R0

R1

R2

RF-Header Pin Description

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin2

Pin1

Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

|

| Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Pin23 GND GND | Pin24 VCC VCC

Pin22

Pin21

GND

PB5/OC1A/PCINT5

GND

PB15/ERXDV/ECRSDV

| Pin25

| Pin26

GND

PE0/RXD0/PCINT8

GND

PA27/DRXD/PCK3

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

PB7/OC0A/OC1C/PCINT7

PB4/OC2/PCINT4

PB6/OC1B/PCINT6

PB3/MISO/PCINT3/PDO

PB0/SSN/PCINT0

PB2/MOSI/PCINT2/PDI

CLKI

PB1/SCK/PCINT1

PD5/XCK1

PB18/EF100/ADTRG

PB6/ERX1

PB8/EMDC

PA16/SPI0_MISO

PB0/ETXCK/EREFCK

PA17/SPI0_MOSI

PA3/RTS0/SPI1_NPCS2

PA18/SPI0_SPCK

PB2/ETX0

| Pin27

| Pin28

| Pin29

| Pin30

| Pin31

| Pin32

| Pin33

| Pin34

| Pin35

PD2/RXD1/INT2

PE1/TXD0

PD6/T1

PE2/XCK0/AIN0

PE3/OC3A/AIN1

PD4/ICP1

PE4/OC3B/INT4

PF0/ADC0

PE5/OC3C/INT5

PA0/RXD0

PA28/DTXD

PA4/CTS0/SPI1_NPCS3

PB9/EMDIO

PB21/PWM2/PCK1

USBDP

PB19/PWM0/TCLK1

PB27/TIOA2/PWM0/AD0

PA14/SPI0_NPCS2/IRQ1

PD7/T0

PD3/TXD1/INT3

PD1/SDA/INT1

PG5/OC0B

PD0/SCL/INT0

PG2

RSTN

PG1/DIG1

AREF

GND

VCC

PB25/TIOA1/DTR1

PA1/ TXD0

PA10/TWD

PB26/TIOB1/RI1

PA11/TWCK

PB3/ETX1

RSTN

USBDM

ADVREF

GND

VCC

| Pin36

| Pin37

| Pin38

| Pin39

| Pin40

| Pin41

| Pin42

| Pin43

| Pin44

| Pin45

| Pin46

PF1/ADC1

PE6/T3/INT6

PF4/ADC4/TCK

PE7/ICP3/CLKO/INT7

PF5/ADC5/TMS

PF2/ADC2

PF6/ADC6/TDO

RSTON

PF7/ADC7/TDI

GND

GND

PB28/TIOB2/PWM1/AD1

PB5/ERX0

TCK

PB7/ERXER

TMS

PB1/ETXEN

TDO

JTAGSEL

TDI

GND

GND

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

U_Flash_Sensors

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

U_Ethernet

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

Pin36

Pin5

Pin34

U_Power_Supply

Pin36

Pin5

Pin34

SW2

/PWREN

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

U_Interfaces

SW2

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

U_USB

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

/PWREN

JP7

Nr.

Änderung

JP8 JP9

Datum

JP10

Name

JP11 JP12

Jumper Jumper Jumper Jumper Jumper Jumper

REFTOP4

REFTOP

REFTOP1

REFTOP

REFTOP5 REFTOP6

REFTOP

REFTOP2

REFTOP

REFTOP3

REFTOP REFTOP

S/N

Pb

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:44

Document File Name

Module_Connectors.SchDoc

DrawnBy: NOS/APA Sheet 1 of 6 Rev: 2.0

VBUS

Battery Supply (3xAA)

DGND

BT1

3xAA

Net-Suply from AC/DC-Adapter

X9

VBAT

VDC

DGND

JP2

JP-3

2

#VCC

PJ-002AH-SMT

DGND

D4

D-BAS40-05

5V Supply from USB Host

L3

DGND

[email protected]

C21

100nF

DGND

C20

4.7uF

n.b.

R25

47k0

/PWREN

/PWREN

USB5V

T1

IRLML6402

C22

4.7uF

3

IC5

VCC

2

1

GND

TCM810JVNB713 n.b.

R26

4k7 n.b.

R27

47k0

R52

47k0

R24

270R

C23

100nF n.b.

D5

D-BAS40

VCC

Current measurement of radio module

JP5

JP-2

VCC_module

DGND overlapping pads of same net

C17

1uF n.b.

R48

0R00

R49

0R00

DGND

Low Quiescent Current LDO 3,3VDC

IC2

1

IN OUT

5

2

GND

R55

1M00

3

EN FB

TPS78001 adjustable Vcc:

2M + 820k bestückt = 3,3V nur 820k bestückt = 2,7V nur 2M bestückt = 1,8V

4

R56

2M00

R57

820k

DGND

8

IC17

IN OUT

6

EN n.b.

BYP

3

FB GND

TPS79433DGN fixed version

1

4

5

DGND n.b.

C40

10nF

DGND

VCC

C18

1uF

VBUS Monitoring

USB5V

R28

30k0

VBAT Monitoring

JP3

VBAT

JP-2

R42

820k

R29

47k0

Pin36

DGND

R43

220k

Pin34

VCC VCC VCC VCC

Pin36 overlapping pads of same net n.b.

R58

0R00

Pin34

R59

0R00

R60

0R00

Programmable Supervisor

1

IC15

S2 VCC

2

S1 RST

3

S0 PFO

7

MR GND

LTC2935ITS8-1

8

6

5

4

R61

0R00 n.b.

R62

0R00 n.b.

R63

0R00

S2/S1/S0=Low/High/High >> Vth=3.00V

S2/S1/S0=High/Low/High >> Vth=2.40V

JP4

JP-2

VCC

DGND

Pin5

DGND DGND DGND

Pin5

DGND

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:44

Document File Name

Power_Supply.SchDoc

DrawnBy: NOS/APA Sheet 2 of 6 Rev: 2.0

USB Device Connection

X10

VP

DM

DP

GND

1

2

3

4

VBUS

#USBDM

#USBDP

DGND

S1

S2

USB Type B SHIELD

R44

470k

C34

10nF/2kV

R45

470k

VBUS

DGND

DGND

VBUS

R30

1K50

DGND

USB Data ARM

USBDM_ARM

USBDP_ARM

R33

0R00

R34

0R00 place pads directly on usb data lines to avoid stubs in assembly variants

R35

330k

R36

330k

R31

27R

R32

27R

C28

15pF

C29

15pF

Pin4

Pin32

Pin4

Pin32

DGND DGND DGND

D9

IP4220CZ6 n.b.

R37

0R00 n.b.

R38

0R00

USBDM_AVR

USBDP_AVR

USB Data AVR

USB5V n.b.

C30

47pF n.b.

C31

47pF

DGND DGND

USB_3.3V

16

15

19

27

28

20

4

17

IC8

FT245RL

USBDM

USBDP

/RESET

OSCI

OSCO

VCC

VCCIO

3V3OUT n.b.

RXF#

TXE#

RD#

WR

PWREN#

D0

D1

D2

D3

D4

D5

D6

D7

1

5

3

11

2

9

10

6

23

22

13

14

12 n.b.

C35

100nF n.b.

C32

100nF n.b.

C33

100nF

DGND DGND

USB_3.3V

USBWR# n.b.

C41

100nF

DGND

USB_3.3V

DGND

1

IC13

1

4

2 n.b.

5

VCC

GND

3

NC7SZ02M5

Nr.

Änderung

USBWR

DGND

USB_D0

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

RXF#

TXE#

USBRD#

USBWR

/PWREN

/PWREN

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

USB_3.3V

C36 n.b.

100nF

USB_D0 20

19

18

17

16

15

14

13

12

11

DGND

DGND DGND

IC47

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND n.b.

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

5

6

7

8

3

4

1

2

9

10

C43

VCC n.b.

100nF n.b.

R39

47k0

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

USB_3.3V

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

DGND

USB_Bit0

USB_Bit1

USB_Bit2

USB_Bit3

USB_Bit4

USB_Bit5

USB_Bit6

USB_Bit7

RXF#

TXE#

USBWR#

USB_3.3V

C37 n.b.

100nF

USBRD#

14

13

12

11

17

16

15

20

19

18

DGND

DGND DGND

IC9

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND n.b.

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

3

4

5

1

2

6

7

8

9

10

C38

VCC n.b.

100nF n.b.

R40

47k0

Pin27

Pin30

Pin21

Pin10

USB_3.3V

Pin27

Pin30

Pin21

Pin10

DGND

Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:44

Document File Name

USB.SchDoc

DrawnBy: NOS/APA Sheet 3 of 6 Rev: 2.0

Ethernet Plug & PHY

X4

A1

R3 n.b.

220R

K1

3

4

1

2

5

6

7

8 n.b.

AGND

S1

S2

S3

S4

A2

SHIELD n.b.

R10

220R

K2

2-406549-1 (RJ45/vollgesch.m.LED)

VCC

LED_LINK

TD+

TD-

RD+

RD-

AVCC next to RJ45 n.b.

C2

100nF n.b.

C3

100nF

AGND AGND

LED_ACT

VCC L2 n.b.

742 792 66 n.b.

C9

10uF

NT1

DGND

AVCC n.b.

Net_Tie_2Net

AGND

C10

100nF

ETxCK

Pin16

Pin16

R1 n.b.

22R

ETH i

17

IC1

TD+ X2

33

ETH i

ETH i

ETH i

16

14

13

TD-

RD+

RDn.b.

R5

2K7 n.b.

R4

2K7

20

21 n.b.

R9

49R9

AVCC n.b.

R8

49R9 n.b.

R7

49R9

AVCC n.b.

R6

49R9 n.b.

C8

100nF n.b.

C7

100nF

L1 n.b.

AVCC n.b.

742 792 66

C6

10uF

22 n.b.

C5

10uF n.b.

C4

19

AGND

DGND

R12

4k7 n.b.

24

23

18

37

VCC n.b.

R16

2K7 n.b.

R15

2K7 n.b.

R14

2K7

Reserved

Reserved

AVDD33

AGND

AGND

RBIAS

PFBOUT

PFBIN1

PFBIN2 n.b.

C14

10uF n.b.

C13 n.b.

100nF

C12 n.b.

100nF

C11

100nF

DGND

LED_ACT

LED_LINK

10

11

12

8

9

TCK

TDO

TMS

/TRST

TDI

26

27

28

25

LED-Act(Col)/AN-EN

LED-Speed/AN1

LED-Link/AN0

25MHz-Out

DP83848I

X1

34

TxD3/SNI-Mode

TxD2

TxD1

TxD0

TxEN

TxCLK

RxER/MDIX-EN

RxD3/PHYAD4

RxD2/PHYAD3

RxD1/PHYAD2

RxD0/PHYAD1

41

46

45

44

43

3

2

1

6

5

4

RxCLK

RxDV/MII-Mode n.b.

COL/PHYAD0

CRS/CRS-DV/LED-CFG

MDC

MDIO

38

39

42

40

31

30

PWR-Down/Int

/RESET

7

29

IOVDD33

IOVDD33

48

32

IOGND

IOGND

DGND

35

47

36 n.b.

R2

0R00

DGND

3

Q1

OUT OE n.b.

2

GND

50.0 MHz

VCC

R64 n.b.

22R

R65

Pin39

Pin39

Pin19

Pin37

Pin19

Pin37

22R

R67

R11 n.b.

1K50 n.b.

22R

VCC

Pin21

Pin21

Pin18

Pin30

Pin18

Pin30

R13 n.b.

1K50

DGND

Pin6

Pin12

Pin41

Pin6

Pin12

Pin41

VCC n.b.

C16

100nF n.b.

C15

100nF

DGND

Pin20

Pin5

Pin20

Pin5

1

VCC

4 n.b.

C1

100nF

DGND

ETx1

ETx0

ETxEN

ERxER

ERx1

ERx0

ERxDV

EMDC

EMDIO

/MDINTR

RSTN

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:44

Document File Name

Ethernet.SchDoc

DrawnBy: NOS/APA Sheet 4 of 6 Rev: 2.0

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

TDI

TMS

TCK

TDO

RSTN

Pin28

Pin13

Pin5

Debug-Header

VCC

X5

1

3

5

2

4

6

DEBUG-HEADER

VCC

Pin26

DGND

N1

4x100k

Pin44

Pin40

Pin38

Pin42

Pin5

JTAG-Header for ARM

X6

9

11

13

15

5

7

1

3

17

19

10

12

14

16

18

20

6

8

2

4

JTAG-HEADER-ARM

VCC

DGND

Pin38

Pin42

Pin40

VCC

Pin44

JTAG-Header for AVR

X7

5

7

9

1

3

6

8

10

2

4

JTAG-HEADER-AVR

VCC

DGND

Pin5

Separated PCB - only for case version

DGND_

SW5 n.b.

Taster

SW6 n.b.

Taster

DGND_

X12

SW1_

SW2_ n.b.

1

2

3

Sw-Extension

SW2

Pin27

Pin30

Pin31

Pin18

Pin33

Pin34

Pin36

Pin37

Pin39

Pin41

Pin10

Pin8

Pin6

Pin20

DGND

VCC

I/O-Header

X8

19

21

23

25

27

29

31

33

9

11

13

15

17

5

7

1

3

IO-HEADER

20

22

24

26

28

30

32

34

10

12

14

16

18

6

8

2

4

Buttons for User Input

SW1

SW1

Taster

DGND

SW2

Taster

SW2

VCC

Pin21

Pin19

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin4

Pin32

Pin11

Pin9

Pin7

Pin5

Pin3

DGND

LEDs for User Output

VCC

D1 rot

D2

D3 rot rot

R17

470R

R18

470R

R19

470R

Pin8

Pin31

Pin33

2

Pin20 for AVR

JP6

JP-3 for ARM

Pin14

SW1

SW2

DGND

X11

1

2

3

Sw-Extension

Separated PCB - only for case version

SW3

Taster

SW4

#DGND

Taster

#SW1

#SW2

#DGND

X3

1

2

3

Sw-Extension

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:44

Document File Name

Interfaces.SchDoc

DrawnBy: NOS/APA Sheet 5 of 6 Rev: 2.0

4M Bit Flash Memory

VCC

R20

R21

Pin15

Pin13

Pin35

4k7

4k7

Pin15

Pin13

Pin35

5

6

1

IC3

SI

SCK

CS

SO

7

HOLD

VCC

3

WP GND

AT25DF041A-SSHF

2

8

4

Pin17

VCC

DGND

C19

100nF

Pin17

VCC

Acceleration Sensor

TWI pull-ups

Internal TWI-Address: 0111 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

R22

10k

VCC

R23

10k

VCC

Pin7

Pin9

Pin7

Pin9

JP1

JP-3

2

BMA_INT

Pin11

SW2

Pin11

SW2

8

7

4

5

6

3

IC4

BMA150

CSB

SCK

SDI

SDO

INT

GND

VDD

VDDIO

BMA150

2

9

DGND

VCC

C24

100nF

DGND DGND

C25

100nF

Ambient Light Sensor

Internal TWI-Address: 1000 100 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin9

Pin7

DGND

6

5

4

IC6

SDA

SCL

A0

VDD

REXT

GND

ISL29020IROZ-T7

1

3

2

VCC

R41

499k

C26

10nF

DGND

Temperature Sensor

Internal TWI-Address: 1001 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin7

Pin9

DGND

1

6

IC7

SCL

SDA

4

AD0 VCC

3

ALERT GND

TMP102AIDRLT

5

VCC

2

DGND

C27

100nF

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-1TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.101.02

18.03.2011

Time: 10:13:45

Document File Name

Flash_Sensors.SchDoc

DrawnBy: NOS/APA Sheet 6 of 6 Rev: 2.0

DGND

DGND

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

DGND

VCC_module

THT-RF-Header for AVR/ARM based radio modules

X1

19

18

17

16

15

14

13

12

11

23

22

21

20

8

7

6

10

9

3

2

1

5

4

SLM-123-01-L-S

X2

36

37

38

39

40

41

42

43

44

45

46

30

31

32

33

34

35

24

25

26

27

28

29

HEADER-23

Pin26

Pin27

Pin28

Pin29

Pin30

Pin31

Pin32

Pin33

Pin34

Pin35

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin43

Pin44

VCC_module

DGND

DGND

DGND

no ground plane under radio module

R46 n.b.

0R00

R47

0R00

R50

0R00

R51 n.b.

0R00

R53 n.b.

0R00

R54 n.b.

0R00

R3

R4

R5

R0

R1

R2

RF-Header Pin Description

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin2

Pin1

Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

|

| Port deRFmega128

ATmega128RFA1 deRFarm7-x5xx1

AT91SAM7X512-CU

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Pin23 GND GND | Pin24 VCC VCC

Pin22

Pin21

GND

PB5/OC1A/PCINT5

GND

PB15/ERXDV/ECRSDV

| Pin25

| Pin26

GND

PE0/RXD0/PCINT8

GND

PA27/DRXD/PCK3

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

PB7/OC0A/OC1C/PCINT7

PB4/OC2/PCINT4

PB6/OC1B/PCINT6

PB3/MISO/PCINT3/PDO

PB0/SSN/PCINT0

PB2/MOSI/PCINT2/PDI

CLKI

PB1/SCK/PCINT1

PD5/XCK1

PB18/EF100/ADTRG

PB6/ERX1

PB8/EMDC

PA16/SPI0_MISO

PB0/ETXCK/EREFCK

PA17/SPI0_MOSI

PA3/RTS0/SPI1_NPCS2

PA18/SPI0_SPCK

PB2/ETX0

| Pin27

| Pin28

| Pin29

| Pin30

| Pin31

| Pin32

| Pin33

| Pin34

| Pin35

PD2/RXD1/INT2

PE1/TXD0

PD6/T1

PE2/XCK0/AIN0

PE3/OC3A/AIN1

PD4/ICP1

PE4/OC3B/INT4

PF0/ADC0

PE5/OC3C/INT5

PA0/RXD0

PA28/DTXD

PA4/CTS0/SPI1_NPCS3

PB9/EMDIO

PB21/PWM2/PCK1

USBDP

PB19/PWM0/TCLK1

PB27/TIOA2/PWM0/AD0

PA14/SPI0_NPCS2/IRQ1

PD7/T0

PD3/TXD1/INT3

PD1/SDA/INT1

PG5/OC0B

PD0/SCL/INT0

PG2

RSTN

PG1/DIG1

AREF

GND

VCC

PB25/TIOA1/DTR1

PA1/ TXD0

PA10/TWD

PB26/TIOB1/RI1

PA11/TWCK

PB3/ETX1

RSTN

USBDM

ADVREF

GND

VCC

| Pin36

| Pin37

| Pin38

| Pin39

| Pin40

| Pin41

| Pin42

| Pin43

| Pin44

| Pin45

| Pin46

PF1/ADC1

PE6/T3/INT6

PF4/ADC4/TCK

PE7/ICP3/CLKO/INT7

PF5/ADC5/TMS

PF2/ADC2

PF6/ADC6/TDO

RSTON

PF7/ADC7/TDI

GND

GND

PB28/TIOB2/PWM1/AD1

PB5/ERX0

TCK

PB7/ERXER

TMS

PB1/ETXEN

TDO

JTAGSEL

TDI

GND

GND

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

U_Flash_Sensors

Pin17

Pin15

Pin13

Pin9

Pin7

Pin11

Pin35

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

U_Ethernet

Pin21

Pin19

Pin16

Pin12

Pin6

Pin5

Pin20

Pin30

Pin18

Pin37

Pin39

Pin41

Pin36

Pin5

Pin34

U_Power_Supply

Pin36

Pin5

Pin34

SW2

/PWREN

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

U_Interfaces

SW2

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

U_USB

Pin21

Pin4

Pin19

Pin18

Pin16

Pin12

Pin6

Pin30

Pin32

Pin37

Pin39

Pin41

Pin10

Pin27

/PWREN

JP7

Nr.

Änderung

JP8 JP9

Datum

JP10

Name

JP11 JP12

Jumper Jumper Jumper Jumper Jumper Jumper

REFTOP4

REFTOP

REFTOP1

REFTOP

REFTOP5 REFTOP6

REFTOP

REFTOP2

REFTOP

REFTOP3

REFTOP REFTOP

S/N

Pb

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:03

Document File Name

Module_Connectors.SchDoc

DrawnBy: NOS/APA Sheet 1 of 6 Rev: 2.0

VBUS

Battery Supply (3xAA)

DGND

BT1

3xAA

Net-Suply from AC/DC-Adapter

X9

VBAT

VDC

JP2

JP-3

2

#VCC

DGND overlapping pads of same net

C17

1uF n.b.

R48

0R00

R49

0R00

DGND

Low Quiescent Current LDO 3,3VDC

IC2

1

IN OUT

5

2

GND

R55

1M00

3

EN FB

TPS78001 adjustable Vcc:

2M + 820k bestückt = 3,3V nur 820k bestückt = 2,7V nur 2M bestückt = 1,8V

4

R56

2M00

R57

820k

DGND

8

IC17

IN OUT

6

EN n.b.

BYP

3

FB GND

TPS79433DGN fixed version

1

4

5

DGND n.b.

C40

10nF

DGND

VCC

C18

1uF

PJ-002AH-SMT

DGND

D4

D-BAS40-05

5V Supply from USB Host

L3

USB5V

DGND

[email protected]

C21

100nF

C20

4.7uF

DGND

R25

47k0

/PWREN

/PWREN

3

IC5

VCC

RST

2

1

GND

TCM810JVNB713

R26

4k7

T1

IRLML6402

C22

4.7uF

R27

47k0

R24

270R

C23

100nF

D5

D-BAS40 n.b.

R52

47k0

DGND

VCC

Current measurement of radio module

JP5

JP-2

VCC_module

VBUS Monitoring

USB5V

R28

30k0

VBAT Monitoring

JP3

VBAT

JP-2

R42

820k

R29

47k0

Pin36

DGND

R43

220k

Pin34

VCC VCC VCC VCC

Pin36 overlapping pads of same net

Pin34

R60

0R00

Programmable Supervisor

R58

0R00 n.b.

R59

0R00

VCC n.b.

R61

0R00

1

IC15

S2 VCC

2

S1 RST

3

S0 PFO

7

MR GND

LTC2935ITS8-1

8

6

5

4

R62

0R00 n.b.

R63

0R00

S2/S1/S0=Low/High/High >> Vth=3.00V

S2/S1/S0=High/Low/High >> Vth=2.40V

DGND DGND DGND

JP4

JP-2

DGND

Pin5

Pin5

DGND

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:03

Document File Name

Power_Supply.SchDoc

DrawnBy: NOS/APA Sheet 2 of 6 Rev: 2.0

USB Device Connection

X10

VP

DM

DP

GND

1

2

3

4

VBUS

#USBDM

#USBDP

DGND

S1

S2

USB Type B SHIELD

R44

470k

C34

10nF/2kV

R45

470k

VBUS

DGND

DGND

D9

IP4220CZ6

USB Data ARM

USBDM_ARM

USBDP_ARM n.b.

R33

0R00 n.b.

R34

0R00 place pads directly on usb data lines to avoid stubs in assembly variants

VBUS DGND n.b.

R30

1K50

R35 R36 n.b.

330k n.b.

330k n.b.

R31

27R n.b.

R32

27R n.b.

C28

15pF n.b.

C29

15pF

Pin4

Pin32

Pin4

Pin32

DGND DGND DGND

R37

0R00

R38

0R00

USBDM_AVR

USBDP_AVR

USB Data AVR

USB5V n.b.

C30

47pF n.b.

C31

47pF

DGND DGND

USB_3.3V

IC8

FT245RL

16

15

19

USBDM

USBDP

/RESET

27

OSCI

28

20

4

17

OSCO

VCC

VCCIO

3V3OUT

C35

100nF

C32

100nF

DGND

C33

100nF

DGND

USB_3.3V

USBWR#

C41

100nF

DGND

USB_3.3V

DGND

1

IC13

1

4

2

5

VCC

GND

3

NC7SZ02M5

RXF#

TXE#

RD#

WR

PWREN#

D0

D1

D2

D3

D4

D5

D6

D7

1

5

3

11

2

9

10

6

23

22

13

14

12

Nr.

Änderung

USBWR

DGND

USB_D0

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

RXF#

TXE#

USBRD#

USBWR

/PWREN

/PWREN

USB_3.3V

USB_D0

USB_D1

USB_D2

USB_D3

USB_D4

USB_D5

USB_D6

USB_D7

C36

100nF

20

19

18

17

16

15

14

13

12

11

DGND

C43

VCC

DGND DGND

IC47

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

5

6

7

8

3

4

1

2

9

10

100nF

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

R39

47k0

USB_3.3V

Pin16

Pin41

Pin12

Pin6

Pin37

Pin19

Pin39

Pin18

DGND

USB_Bit0

USB_Bit1

USB_Bit2

USB_Bit3

USB_Bit4

USB_Bit5

USB_Bit6

USB_Bit7

USBRD#

RXF#

TXE#

USB_3.3V

USBWR#

C37

100nF

14

13

12

11

17

16

15

20

19

18

DGND

C38

VCC

DGND DGND

IC9

B1

VCCB

B2

B3

B4

B5

B6

B7

B8

GND

A1

VCCA

A2

A3

A4

A5

A6

A7

A8

OE

TXB0108

B=3,3V A=1.8V...3,3V

Vcca =< Vccb

3

4

5

1

2

6

7

8

9

10

100nF

Pin27

Pin30

Pin21

Pin10

R40

47k0

USB_3.3V

Pin27

Pin30

Pin21

Pin10

DGND

Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:03

Document File Name

USB.SchDoc

DrawnBy: NOS/APA Sheet 3 of 6 Rev: 2.0

Ethernet Plug & PHY

X4

A1

R3 n.b.

220R

K1

3

4

1

2

5

6

7

8 n.b.

AGND

S1

S2

S3

S4

A2

SHIELD n.b.

R10

220R

K2

2-406549-1 (RJ45/vollgesch.m.LED)

VCC

LED_LINK

TD+

TD-

RD+

RD-

AVCC next to RJ45 n.b.

C2

100nF n.b.

C3

100nF

AGND AGND

LED_ACT

VCC L2 n.b.

742 792 66 n.b.

C9

10uF

NT1

DGND

AVCC n.b.

Net_Tie_2Net

AGND

C10

100nF

ETxCK

Pin16

Pin16

R1 n.b.

22R

ETH i

17

IC1

TD+ X2

33

ETH i

ETH i

ETH i

16

14

13

TD-

RD+

RDn.b.

R5

2K7 n.b.

R4

2K7

20

21 n.b.

R9

49R9

AVCC n.b.

R8

49R9 n.b.

R7

49R9

AVCC n.b.

R6

49R9 n.b.

C8

100nF n.b.

C7

100nF

L1 n.b.

AVCC n.b.

742 792 66

C6

10uF

22 n.b.

C5

10uF n.b.

C4

19

AGND

DGND

R12

4k7 n.b.

24

23

18

37

VCC n.b.

R16

2K7 n.b.

R15

2K7 n.b.

R14

2K7

Reserved

Reserved

AVDD33

AGND

AGND

RBIAS

PFBOUT

PFBIN1

PFBIN2 n.b.

C14

10uF n.b.

C13 n.b.

100nF

C12 n.b.

100nF

C11

100nF

DGND

LED_ACT

LED_LINK

10

11

12

8

9

TCK

TDO

TMS

/TRST

TDI

26

27

28

25

LED-Act(Col)/AN-EN

LED-Speed/AN1

LED-Link/AN0

25MHz-Out

DP83848I

X1

34

TxD3/SNI-Mode

TxD2

TxD1

TxD0

TxEN

TxCLK

RxER/MDIX-EN

RxD3/PHYAD4

RxD2/PHYAD3

RxD1/PHYAD2

RxD0/PHYAD1

41

46

45

44

43

3

2

1

6

5

4

RxCLK

RxDV/MII-Mode n.b.

COL/PHYAD0

CRS/CRS-DV/LED-CFG

MDC

MDIO

38

39

42

40

31

30

PWR-Down/Int

/RESET

7

29

IOVDD33

IOVDD33

48

32

IOGND

IOGND

DGND

35

47

36 n.b.

R2

0R00

DGND

3

Q1

OUT OE n.b.

2

GND

50.0 MHz

VCC

R64 n.b.

22R

R65

Pin39

Pin39

Pin19

Pin37

Pin19

Pin37

22R

R67

R11 n.b.

1K50 n.b.

22R

VCC

Pin21

Pin21

Pin18

Pin30

Pin18

Pin30

R13 n.b.

1K50

DGND

Pin6

Pin12

Pin41

Pin6

Pin12

Pin41

VCC n.b.

C16

100nF n.b.

C15

100nF

DGND

Pin20

Pin5

Pin20

Pin5

1

VCC

4 n.b.

C1

100nF

DGND

ETx1

ETx0

ETxEN

ERxER

ERx1

ERx0

ERxDV

EMDC

EMDIO

/MDINTR

RSTN

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:03

Document File Name

Ethernet.SchDoc

DrawnBy: NOS/APA Sheet 4 of 6 Rev: 2.0

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

SW2

Pin21

Pin20

Pin19

Pin18

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin11

Pin10

Pin9

Pin8

Pin7

Pin6

Pin5

Pin4

Pin3

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

Pin26

Pin27

Pin28

Pin30

Pin31

Pin32

Pin33

Pin34

Pin36

Pin37

Pin38

Pin39

Pin40

Pin41

Pin42

Pin44

TDI

TMS

TCK

TDO

RSTN

Pin28

Pin13

Pin5

Debug-Header

VCC

X5

1

3

5

2

4

6

DEBUG-HEADER

VCC

Pin26

DGND

N1

4x100k

Pin44

Pin40

Pin38

Pin42

Pin5

JTAG-Header for ARM

X6

9

11

13

15

5

7

1

3

17

19

10

12

14

16

18

20

6

8

2

4

JTAG-HEADER-ARM

VCC

DGND

Pin38

Pin42

Pin40

VCC

Pin44

JTAG-Header for AVR

X7

5

7

9

1

3

6

8

10

2

4

JTAG-HEADER-AVR

VCC

DGND

Pin5

Separated PCB - only for case version

DGND_

SW5 n.b.

Taster

SW6 n.b.

Taster

DGND_

X12

SW1_

SW2_ n.b.

1

2

3

Sw-Extension

SW2

Pin27

Pin30

Pin31

Pin18

Pin33

Pin34

Pin36

Pin37

Pin39

Pin41

Pin10

Pin8

Pin6

Pin20

DGND

VCC

I/O-Header

X8

19

21

23

25

27

29

31

33

9

11

13

15

17

5

7

1

3

IO-HEADER

20

22

24

26

28

30

32

34

10

12

14

16

18

6

8

2

4

Buttons for User Input

SW1

SW1

Taster

DGND

SW2

Taster

SW2

VCC

Pin21

Pin19

Pin17

Pin16

Pin15

Pin14

Pin13

Pin12

Pin4

Pin32

Pin11

Pin9

Pin7

Pin5

Pin3

DGND

LEDs for User Output

VCC

D1 rot

D2

D3 rot rot

R17

470R

R18

470R

R19

470R

Pin8

Pin31

Pin33

2

Pin20 for AVR

JP6

JP-3 for ARM

Pin14

SW1

SW2

DGND

X11

1

2

3

Sw-Extension

Separated PCB - only for case version

SW3

Taster

SW4

#DGND

Taster

#SW1

#SW2

#DGND

X3

1

2

3

Sw-Extension

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:04

Document File Name

Interfaces.SchDoc

DrawnBy: NOS/APA Sheet 5 of 6 Rev: 2.0

4M Bit Flash Memory

VCC

R20

R21

Pin15

Pin13

Pin35

4k7

4k7

Pin15

Pin13

Pin35

5

6

1

IC3

SI

SCK

CS

SO

7

HOLD

VCC

3

WP GND

AT25DF041A-SSHF

2

8

4

Pin17

VCC

DGND

C19

100nF

Pin17

VCC

Acceleration Sensor

TWI pull-ups

Internal TWI-Address: 0111 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

R22

10k

VCC

R23

10k

VCC

Pin7

Pin9

Pin7

Pin9

JP1

JP-3

2

BMA_INT

Pin11

SW2

Pin11

SW2

8

7

4

5

6

3

IC4

BMA150

CSB

SCK

SDI

SDO

INT

GND

VDD

VDDIO

BMA150

2

9

DGND

VCC

C24

100nF

DGND DGND

C25

100nF

Ambient Light Sensor

Internal TWI-Address: 1000 100 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin9

Pin7

DGND

6

5

4

IC6

SDA

SCL

A0

VDD

REXT

GND

ISL29020IROZ-T7

1

3

2

VCC

R41

499k

C26

10nF

DGND

Temperature Sensor

Internal TWI-Address: 1001 000 (R/W)

R/W = 0 -> Write

R/W = 1 -> Read

Pin7

Pin9

DGND

1

6

IC7

SCL

SDA

4

AD0 VCC

3

ALERT GND

TMP102AIDRLT

5

VCC

2

DGND

C27

100nF

Nr.

Änderung Datum Name

Title

Size

A4

Date:

dresden elektronik ingenieurtechnik gmbh

D-01237 Dresden, Enno-Heidebroek-Str. 12

deRFnode-2TNP2-00N00

Telefon 0351 / 31 85 00

Telefax 0351 / 31 85 010

Document Number

5 646 16 02.105.02

18.03.2011

Time: 10:14:04

Document File Name

Flash_Sensors.SchDoc

DrawnBy: NOS/APA Sheet 6 of 6 Rev: 2.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
