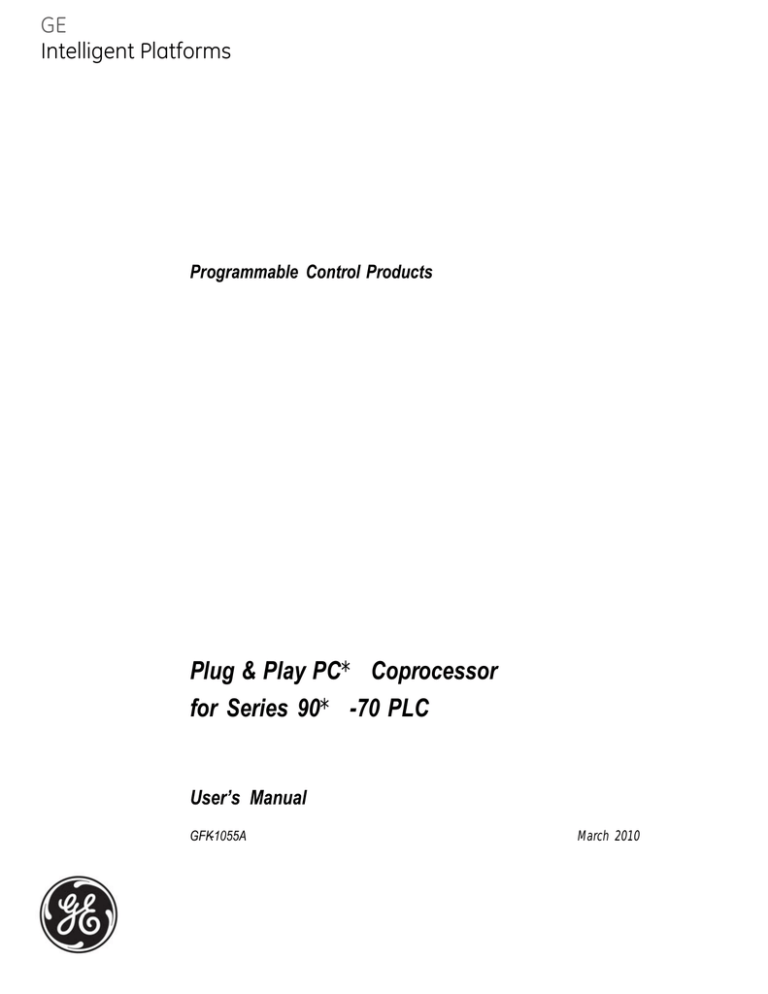

GE
Intelligent Platforms
ÎÎ
Programmable Control Products
Plug & Play PC* Coprocessor
for Series 90* -70 PLC
User’s Manual
GFK-1055A
March 2010
GFL-002
Warnings, Cautions, and Notes
as Used in this Publication
Warning
Warning notices are used in this publication to emphasize that hazardous voltages,
currents, temperatures, or other conditions that could cause personal injury exist in this
equipment or may be associated with its use.
In situations where inattention could cause either personal injury or damage to equipment,
a Warning notice is used.
Caution
Caution notices are used where equipment might be damaged if care is not taken.
Note:
Notes merely call attention to information that is especially significant to
understanding and operating the equipment.
This document is based on information available at the time of its publication. While efforts
have been made to be accurate, the information contained herein does not purport to cover all
details or variations in hardware or software, nor to provide for every possible contingency in
connection with installation, operation, or maintenance. Features may be described herein
which are not present in all hardware and software systems. GE Intelligent Platforms assumes
no obligation of notice to holders of this document with respect to changes subsequently made.
GE Intelligent Platforms makes no representation or warranty, expressed, implied, or statutory
with respect to, and assumes no responsibility for the accuracy, completeness, sufficiency, or
usefulness of the information contained herein. No warranties of merchantability or fitness for
purpose shall apply.
* indicates a trademark of GE Intelligent Platforms, Inc. and/or its affiliates. All other
trademarks are the property of their respective owners.
©Copyright 2010 GE Intelligent Platforms, Inc.
All Rights Reserved
Contact Information
If you purchased this product through an Authorized Channel Partner, please contact the seller
directly.
General Contact Information
Online technical support and
GlobalCare
http://www.ge-ip.com/support
1H2
Additional information
http://www.ge-ip.com/
3H
Solution Provider
[email protected]
4H
Technical Support
If you have technical problems that cannot be resolved with the information in this guide, please
contact us by telephone or email, or on the web at www.ge-ip.com/support
5H
Americas
Online Technical Support
www.ge-ip.com/support
6H7
Phone
1-800-433-2682
International Americas Direct Dial
1-780-420-2010 (if toll free 800 option is unavailable)
Technical Support Email
[email protected]
8H9
Customer Care Email
Primary language of support
[email protected]
10H
English
Europe, the Middle East, and Africa
Online Technical Support
www.ge-ip.com/support
12H3
Phone
+800-1-433-2682
EMEA Direct Dial
+352-26-722-780 (if toll free 800 option is unavailable or if
dialing from a mobile telephone)
Technical Support Email
[email protected]
14H5
Customer Care Email
Primary languages of support
[email protected]
16H7
English, French, German, Italian, Czech, Spanish
Asia Pacific
Online Technical Support
www.ge-ip.com/support
Phone
18H9
+86-400-820-8208
+86-21-3217-4826 (India, Indonesia, and Pakistan)
Technical Support Email
[email protected] (China)
20H1
[email protected] (Japan)
2H3
[email protected] (remaining Asia customers)
24H5
Customer Care Email
[email protected]
26H7
[email protected] (China)
28H
Preface
This manual provides the information necessary to enable you to integrate a Plug & Play
PC coprocessor into a wide variety of control applications. The contents of this manual
include descriptions of the hardware components, installation procedures, system
operation information, and maintenance information for the Plug & Play PC.
Revisions to this Manual
Changes to this manual reflect Revision C features of the Plug & Play PC product line.
Additionally, corrections have been made where necessary. The following list describes
the major revisions in this manual as compared to the previous version (GFK-1055):
D
The PCMCIA hard disk provided with the system, and the backup disk (ordered
separately) have 260 megabytes capacities. System setup parameters have changed
accordingly (see Appendix C).
D
D
The SETVPC utility has been improved for more reliable operation.
D
D
A new DDE test utility, Driver Tester, has been provided (see Chapter 4).
D
D
The new Readme First file contains helpful hints (See Chapter 3).
D
Other corrections and clarifications, including additional index entries, have been
made throughout the manual as necessary.
The system files have been configured to provide two boot options: single hard disk
and dual hard disk (see Chapter 3).
An explanation describing the use of UMBDDE and GEHCS Servers with the Plug &
Play PC has been added (see appendix E).
A directory has been provided in the front of Chapter 6, “Diagnostics” for
convenience in locating troubleshooting information.
Content of this Manual
Chapter 1. Introduction Introduces the VME-Personal Computer (VPC), explains the
Plug & Play PC concept, and highlights the features of the product.
Chapter 2. Unpacking, Inspection, and Installation Describes the suggested inspection
and preparation procedures and provides background information necessary for using
the VPC. Unpacking the product, initial inspection, installation requirements, and
installation procedures are covered.
Chapter 3. Power-up and Configuration Describes the first-time system power-up,
initial system configuration, and verification of proper system operation.
Chapter 4. Operation Describes normal operation of the VPC. The Windows desktop,
communications ports, and network operation are covered.
Chapter 5. Distribution Software Describes the software that is distributed with the
VPC under GE catalog number IC697PNP101. The operating systems, factory
automation software, sample applications, and utility programs are covered.
GFK-1055A
v
Preface
Chapter 6. Diagnostics Describes VPC troubleshooting. Procedures for performing
standard diagnostics are covered, as are common problems and solutions.
Appendix A. Specifications Summarizes the design, electrical, environmental, physical,
and compliance specifications for the VPC Coprocessor for Series 90-70 systems. Some
specifications may change depending on the peripheral cards that are installed in the
PCMCIA sockets.
Appendix B. How the Plug & Play Software Components Fit Together A diagram that
illustrates the relationships among the software components provided with the
Plug & Play PC.
Appendix C. Defaults Reference Describes the default AT Setup, VPC Embedded
Setup, CONFIG.SYS, AUTOEXEC.BAT, and SYSTEM.INI configuration settings as the
VPC was configured from the factory. These files can be found in the Backup directory
and should be used if you need to restore your VPC to the default settings.
Appendix D. Parallel InterLink Cable Pinouts Provides a diagram identifying pinouts
for building a parallel InterLink cable.
Appendix E. Using the UMBDDE and GEHCS Servers with the Plug & Play PC
Provides sample Visual Basic programs for using these drivers with the Plug & Play PC.
Any program that is capable of calling a DDE server using the
“APPLICATION|TOPIC|ITEM NAME” convention can be used in place of the Visual
Basic Program.
Related Publications
For more information, refer to these publications:
t
Series 90 -70 PLC Installation and Operation Manual (GFK-0262). This book describes
the modules of a Series 90-70 PLC system, and explains system setup and operation.
Logicmaster 90-70 User’s Manual (GFK-0263). Reference manual for system operators
and others using the Logicmaster 90-70 software to program, configure, monitor, or
control a Series 90-70 PLC and/or a remote drop.
Logicmaster 90 Software Reference Manual (GFK-0265). Reference manual which
describes program structure and defines program instructions for the Series 90-70 PLC.
Host Communications Drivers for Microsoft Windows User‘s Manual (GFK-1026).
Describes the capabilities of the Host Communications Drivers and how to use them.
GE Product Approvals, Standards, General Specifications (GFK-0867B or later)
We Welcome Your Comments and Suggestions
At GE Intelligent Platforms, we strive to produce quality technical documentation. After
you have used this manual, please take a few moments to complete and return the
Reader ’s Comment Card located on the next page.
Libby Allen
Senior Technical Writer
vi
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Contents
Chapter 1
Chapter 2
Chapter 3
GFK-1055A
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
The Plug & Play PC Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
The Pre-Configured System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
PCMCIA Hard Disk Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3
Loaded Hard Disk Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4
Where the Software and Documents are Located . . . . . . . . . . . . . . . . . . . . .
1-5
Unpacking, Inspection, and Installation . . . . . . . . . . . . . . . . . . . . . .
2-1
Electrostatic Discharge Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2
Included Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-3
2-3
2-3
2-4
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-5
Installing in the 90-70 Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the 90-70 Interface Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to an Ethernet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-5
2-6
2-6
2-6
2-7
2-7
Power-up and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1
Inserting the Boot Drive Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1
First-Time Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2
The Boot Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multiple Boot Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Readme First File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backplane Driver Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2
3-2
3-2
3-3
System Startup Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-4
Making a Backup Boot Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard Disk Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preferred Method for Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alternate Backup Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-5
3-5
3-6
3-7
Power-Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-8
Removing the Boot Drive Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-8
Logicmaster 90 Configuration of the VPC Card . . . . . . . . . . . . . . . . . . . . . . .
3-9
The VPC Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-10
Series 90-70 Plug & Play PC User’s Manual–August 1995
vii
Contents
Chapter 4
GFK-1055A
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1
Windows Desktop Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1
The First Time You Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1
DDE Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-2
The Upper Memory Block DDE Server . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-2
UMBDDE Driver Operation Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3
DDE Test Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3
PCMCIA Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4
Other Hard Disks or PCMCIA Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4
Serial Port Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-5
Parallel Port Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-6
Network Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-7
Using Ethernet With the Plug & Play PC . . . . . . . . . . . . . . . . . . . . . . . . . .
4-7
Installing TCP/IP Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8
The AUTOSET Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9
MEMMAKERUtility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9
Series 90-70 Plug & Play PC User’s Manual–August 1995
viii
Contents
Chapter 5
GFK-1055A
DistributionSoftware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1
Microsoft Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1
Microsoft DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1
Using the DOS InterLink Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-2
Logicmaster 90-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-4
Logicmaster 90 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-4
CIMPLICITY InTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
How to Order CIMPLICITY InTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
The CIMPLICITY InTouch Hardware Key . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
How to load CIMPLICITY InTouch Options on the Plug & Play PC . . .
5-6
CIMPLICITY InTouch Software Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-7
Host Communications Drivers for Windows . . . . . . . . . . . . . . . . . . . . . . .
5-8
DDE Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-8
Running the Application Demos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-9
Running the CIMPLICITY InTouch Demos . . . . . . . . . . . . . . . . . . . . . . . .
5-9
Running the Microsoft Visual Basic Demo . . . . . . . . . . . . . . . . . . . . . . . . .
5-12
Running the Excel Demos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-13
Running CIMPLICITY InTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-14
Moving the GEHCS Icon to the Startup Group . . . . . . . . . . . . . . . . . . . . .
5-14
Compatibility Between the UMBDDE and VME Drivers . . . . . . . . . . . . .
5-15
VME Port Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-15
TCP/IPPort Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-16
CIMPLICITY InTouch Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-16
Other Distribution Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-17
Customizing the Plug & Play Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .
5-18
Multiple Boot Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-18
Optimization of Cache and Swapfile for Different VPC Platforms . . . . .
5-19
Restrictions on the Use of SMARTDRV . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-19
Embedded VPC AT Settings for Hard Disk Drives
.................
5-20
Freeing Hard Disk Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-21
Installing New Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-22
Series 90-70 Plug & Play PC User’s Manual–August 1995
ix
Contents
Chapter 6
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-1
System Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Startup Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common Problems/Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCMCIA Hard Disk Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Invalid Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screens Not Visible on Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VME DDE Driver Settings Corrupted . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communication With the 90-70 CPU Not Established or Interrupted .
Application Timeouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data Coherency During CPU “Constant Sweep” Mode . . . . . . . . . . . . . .
Problems with Logicmaster 90 Operation . . . . . . . . . . . . . . . . . . . . . . . . .
Out of Memory Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recovery from the “Starting MS-DOS . . .” Hangup . . . . . . . . . . . . . . . . .
System Not Booting Properly/Unexpected Rebooting . . . . . . . . . . . . . . .
VPC/90-70 CPU Mismatch Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PLC Faults on the VPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-2
6-2
6-2
6-3
6-3
6-6
6-6
6-6
6-7
6-7
6-7
6-8
6-8
6-9
6-9
6-10
6-12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A-1
Functional Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interface Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC/AT Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCMCIA Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VMEbus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A-1
A-2
A-2
A-2
A-3
A-3
A-3
A-4
A-4
A-5
A-5
A-6
A-6
Appendix B
How the Plug & Play Software Components Fit Together . . . . . . .
B-1
Appendix C
Defaults Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C-1
VPC AT Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Embedded VPC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes Concerning Embedded Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONFIG.SYS File Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUTOEXEC.BAT File Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SYSTEM.INI File Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Changes to System Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C-2
C-4
C-5
C-6
C-7
C-9
C-11
C-12
Appendix A
GFK-1055A
Series 90-70 Plug & Play PC User’s Manual–August 1995
x
Contents
Appendix D
Cabling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D-1
Appendix E
Using the UMBDDE and GEHCS Servers . . . . . . . . . . . . . . . . . . . . .
E-1
Using the UMBDDE Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-1
Using the GEHCS VME Backplane Server . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-5
Accessing 90-70 PLC Data Using the Host Communication Toolkit . . . . . . .
E-7
UMBDDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-8
IO Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-8
DDE Server Operational Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-9
Debug Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-9
Help Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-9
Real Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-9
BCD Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-10
Discrete Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-10
Long Integer Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-10
ASCII String Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E-10
GFK-1055A
Series 90-70 Plug & Play PC User’s Manual–August 1995
xi
Chapter Introduction
1
This chapter explains the Plug & Play PC concept and highlights the features of the
VME-Personal Computer (VPC).
The Plug & Play PC Concept
The Plug & Play concept is simple: a PLC user should be able to plug a PC/AT compatible
coprocessor module into a Series 90 -70 system and, without going through the
frustrating and time-consuming task of configuration required by most PC/AT modules,
be ready to communicate with the PLC so that creation of relay ladder diagrams and
operator interface graphics can begin without delay. The VPC is an 80486
PC/A
T-compatible coprocessor that meets these requirements.
The Plug & Play PC is ready to operate with your Series 90-70 system right out of the box.
Install it into your 90-70 rack, turn it on, and you’re ready to go. No editing CONFIG.SYS
or AUTOEXEC.BAT files, and no fiddling with AT Setup to configure memory sizes, disk
drives, and communications ports as with other PC/AT systems. You don’t even have to
install any software: it’s all on the small, tough PCMCIA (Personal Computer Memory
Card International Association) hard disk card.
The Pre-Configured System
The Plug & Play PC system consists of a VPC and a PCMCIA hard disk card that comes
for Workgroups , MS-DOS , and host
preloaded with Microsoft Windows
communication drivers for Windows, Logicmaster 90-70 and InfoLink CD-ROM. The
PC configuration and applications are also preloaded.
CIMPLICITY InTouch, GE user interface development and run time software is
preloaded on the PCMCIA hard disk card, but is not fully enabled until the user
purchases a CIMPLICITY InTouch package. The CIMPLICITY InTouch software product
can be purchased separately. It is not necessary for you to re-install the purchased
CIMPLICITY InTouch Software.
GFK-1055A
1-1
1
a45409
(optional)
Plug & Play PC Installed in a 90-70 PLC Rack
PCMCIA Hard Disk Card
The PCMCIA hard disk card was developed for use with notebook and laptop PCs.
(PCMCIA is an industry standard that specifies mechanical, electrical, and software
interface compatibility requirements.) Because of the demands placed on notebook
computers, the emphasis is on ruggedness, small size, and low power consumption, all
features important in the industrial environment.
The VPC has two PCMCIA slots that can support Type I, Type II, or Type III PCMCIA
cards, taking maximum advantage of memory and I/O card technology. The Type III
distribution hard disk card supplied with the Plug & Play system provides operating
system, application, and data storage.
Note
Hard disks having different revision levels (A, B, or C) can not be
interchanged in the SOCKET B (boot drive) unless the VPC settings are
modified as outlined on page 5-20.
1-2
Revision
Capacity
C
260 MB
B
131 MB
A
105 MB
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
1
Ordering Information
The Plug & Play PC product line consists of PC Coprocessors, Kits, Backup Drives, and
Systems. At least one kit, which contains cables, preloaded software, user manuals and a
loaded PCMCIA hard drive, is required with each coprocessor to create a functional
system. A backup drive is a formatted hard drive that contains no software. At least one
backup drive is recommended, per application, per site.
Series 90-70 Plug & Play PC Catalog Numbers
IC697PNP101 Plug & Play System
Consists of IC697VPC462 and IC697PNP111.
IC697VPC462 Plug & Play PC
Coprocessor
VPC 462PC (486DX2/66, 8 Mbytes)
BNC F connector for Ethernet, Keyboard adapter cable, Retainer Clamps
Data Sheet for Plug & Play PC (GFK-1053)
Manufacturer’s MSDS for backup battery.
IC697VPC463 Plug & Play PC
Coprocessor
VPC 463PC (486DX2/66, 16 Mbytes)
BNC F connector for Ethernet, Keyboard adapter cable, Retainer Clamps
Data Sheet for Plug & Play PC (GFK-1053),
Manufacturer’s MSDS for backup battery
IC697VPC464 Plug & Play PC
Coprocessor
VPC 464PC (486DX2/66, 32 Mbytes)
BNC F connector for Ethernet, Keyboard adapter cable, Retainer Clamps
Data Sheet for Plug & Play PC (GFK-1053)
Manufacturer’s MSDS for backup battery
IC697PNP111 Plug & Play PC
Support Kit
PCMCIA hard drive (loaded hard disk)
DOS 6.22 or later, with Manual and backup diskettes
Windows for Workgroups, version 3.11
UMBDDE driver
VME DDE driver
Host Communication Drivers for Windows
Logicmaster 90-70, Serial Communications Version
CIMPLICITY InTouch (Installed. Runs in demo mode. Requires separate purchase of CIMPLICITY InTouch with enabling key and documentation.)
Parallel cable for use with InterLink Software (not a printer cable)
RS-422/485 cable for use with Serial Logicmaster 90
PCMPLUS Manual (Manual for PCMCIA drivers)
Windows manual and backup diskettes
InfoLink CD-ROM
GE license agreement for executable software (GFJ-317)
GE registration card (GFK-0404)
IC697PNP701 Backup PCMCIA
Hard Drive
GFK-1055A
Formatted hard disk, 260 MB capacity. No software included.
Manufacturer’s datasheet.
Chapter 2 Introduction
1-3
1
Loaded Hard Disk Contents
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
Capacity (MB)
B
C
131
260
Software Versions
Rev. B
Hard Disk
Rev. C
Hard Disk
MS-DOS
6.22
6.22
MS Windows for Workgroups
3.11
3.11
Logicmaster 90 Serial
5.01
6.01
1.07 HCT
1.03 VME
1.04TCP/IP
1.07 HCT
1.03 VME
1.04TCP/IP
SetVPC
1.04
1.05
UMBDDE driver
1.00
1.01
Phoenix PCMCIA
services
2.22
3.11
Item
GE Host Communication drivers for VME
andTCP/IP
Software Versions
1-4
Hardware Key Required:
CIMPLICITY InTouch
Item
Rev. B
Hard Disk
Rev. C
Hard Disk
GE
CIMPLICITY InTouch
5.0
5.1
No
Yes
GE
Series 90 Fault
Table Client
1.02
1.02
Yes
Yes
CIMPLICITY InTouch
GEHCS DDE Server
5.0
5.1
Yes
Yes
GE Symbol
Library
2.0
2.0
No
Yes
GE SNP DDE
driver
4.05
4.05
Yes
Yes
GE CCM DDE
driver
4.0
4.0
Yes
Yes
GE Genius driver
4.05
4.05
Yes
Yes
Series 90-70 Plug & Play PC User’s Manual–August 1995
for Demo
Mode
for Normal
Operation
GFK-1055A
1
Where the Software and Documents are Located
Note: See Appendix B for more information about how these software components fit
together.
Technical support for the PLC items listed on this page:
PLC Hotline
1-800-828-5747 (or 804-978-5747)
Internet address
[email protected] .GE.COM
Fax number
804-978-5099
Microsoft and Phoenix technical support information can be obtained from their
manuals.
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Items
Loaded on
Hard Disk*
Tech. Support
Documentation Source
MS-DOS
Yes
Microsoft (see manuals
for phone no.)
PNP package (Includes Microsoft
manuals.)
MS Windows for Workgroups
Yes
Microsoft (see manuals
for phone no.)
PNP package (Includes Microsoft
manuals.)
Logicmaster 90 Serial
Yes
PLC Hotline
CD-ROM with PNP package
GE Host Communication
drivers for VME and TCP/IP
Yes
PLC Hotline
GFK-1026 (separate purchase required). Also discussed in this
manual.
SetVPC
Yes
PLC Hotline
This manual (see “Index”)
UMBDDE driver
Yes
PLC Hotline
This manual (see “Index”)
Phoenix PCMCIA
services
Yes
Phoenix (see manuals
for phone no.)
Phoenix manual included with
PNP package
VME BIOS
In VPC
PLC Hotline
This manual (see “Index”)
VPC system BIOS
In VPC
PLC hotline
This manual (see “Index”)
*See page 1-4 for version information.
GFK-1055A
Chapter 2 Introduction
1-5
1
Technical support for the items listed on this page:
CIMPLICITY Hotline
1-800-762-6498.
Internet address
[email protected]
Fax number
518-464-4613
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁ
CIMPLICITY InTouch Item
Loaded on
Hard Disk
Documentation Source
GE
CIMPLICITY InTouch
Yes
See note
GE Series 90 Fault T able Client
Yes
Included with PNP documentation.
CIMPLICITY InTouch GEHCS
DDE Server
Yes
See note
GE
Library
Yes
Included with PNP documentation.
GE SNP DDE
driver
Yes
See note.
GE CCM DDE driver
Yes
See note
GE Genius Driver
Yes
See note
SQL (Structured Query Language)
No
See note
SPC (Statistical Process Control)
No
See note
Recipes
No
See note
Symbol
Note: Obtained when you purchase software/key from CIMPLICITY distributor.
GE Bulletin Board
In the PLC section of the GE on-line bulletin board, there is a “Plug & Play”
section. The phone number is 804-978-5458 (up to 19200 baud, 8 bits, no parity). Files on
this bulletin board are provided by GE “as-is” and no warranties apply.
1-6
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Chapter Unpacking, Inspection, and Installation
2
Unpacking, initial inspection, installation requirements, and installation procedures are
covered. It is necessary to follow procedures in this chapter to ensure that the VPC is in
good working order and is installed correctly.
Electrostatic Discharge Notice
Electrostatic discharge (ESD) is a major cause of electronic component failure. From the
time the product is removed from the antistatic bag to the time it is properly installed in
its card cage, extreme care should be taken to avoid damaging the board with static
electricity. A small electrostatic discharge, imperceptible to the eye and touch, could occur
without your knowing it, and could be enough to damage electronic components.
The VPC has been packaged in a static-safe bag which protects the product during
shipping. Before removing the VPC from its static-safe bag, be prepared to handle it in a
static-safe environment:
D You should wear a properly functioning antistatic strap and be sure that you are fully
grounded. Never touch the printed circuit board, or components on the board,
unless you are wearing an antistatic strap. Handle the board only by the front panel
if you are not properly grounded.
D
Any surface upon which you place the unprotected VPC should be static-safe,
facilitated by antistatic mats if possible.
D Extra caution should be taken in cold, dry weather when static easily builds up.
Unpacking
The VPC has been carefully packaged to ensure adequate protection from the rigors of
shipping. However, the possibility of shipping damage still exists. Close inspection of the
shipping carton should reveal how the package was handled by the shipper. If evidence
of damage or excessively rough handling is found, you should notify the shipper and
your GE distributor immediately.
Remove the VPC manuals and accessories. Only after making sure that you and your
work surface are protected from ESD, carefully remove the VPC from the shipping
carton.
GFK-1055
2-1
2
Initial Inspection
Warning
DO NOT apply power to the board if it has visible damage. Doing so
could introduce a fire or shock hazard, or cause further, possibly
irreparable damage.
Once the VPC has been unpacked, you should inspect it for damage which could have
occurred during shipping or unpacking. If there is damage, possibly in the form of bent
component leads or loose socketed components, contact your GE distributor for
instructions. Depending on the severity of the damage, the module may need to be sent
back to the factory to be repaired.
Since the VPC incorporates a number of socketed components including the CPU,
memory, Ethernet DC/DC converter, and BIOS ROMs, these should be inspected to make
sure they are seated fully in their sockets. If they are not, contact your factory
representative for instructions. Do not disassemble these boards.
Included Items
In addition to the VPC, several accessories are included with Plug & Play products. You
will want to make sure that you have the following items:
In the VPC box:
D
D
D
D
D
D
VPC
Keyboard adapter cable for AT to PS2 conversion
BNC F-type Ethernet connector
VPC datasheet (GFK-1053)
Retainer clamps
Backup battery Material Safety Data Sheet (MSDS)
In the PNP101 box:
D Loaded hard disk
D
D
D
D
D
D
D
D
D
2-2
VPC-to-90-70 CPU RS-485 serial cable (5 ft.)
Parallel InterLink cable (see Appendix D)
Microsoft MS-DOS backup disks and manual
PhoenixCardR Manager Plus User’s Manual
GE license agreement for executable software (GFJ-317)
Software subscription registration card for Logicmaster 90 (GFJ-0404)
IPI document (GFK-1058)
InfoLink CD-ROM with GE documentation
IPI document for Logicmaster 90
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
22
Installation Requirements
Before installing the VPC, you should make sure that your system meets the following
requirements.
General Requirements
You will need a GE Series 90-70 system, including the 90-70 rack and 100 watt
power supply, with at least one free slot available for the VPC. You will also need a
computer with a CD-ROM drive to access the electronic documentation for
Logicmaster 90 software.
Supported Configurations*
Backplane Communications
UMBDDE (VME Read/
Write)
VME DDE
Rack Location
CPU resident rack
2 max. per rack
2 max. per rack
2nd rack powered by CPU 2 max. per rack
resident rack power
supply
2 max. per rack
Expansion rack using its
own power supply
not supported
2 max. per rack
*Subject to available power.
Power Requirements
Caution
It is required that the GE 100 Watt power supply (IC697PWR711)
be used to power the rack containing the Plug & Play PCs. This power
supply provides the +5, +12, and –12 volts, which are required by the
Plug & Play PC. If use of the 55 Watt supply is attempted, the Plug &
Play PC will lock up in the boot up screen.
Caution
If the Plug & Play PC is to be used in an environment where power
cycles are likely to occur during disk access, or before Windows has
been properly exited, the system should be powered using an
uninterruptable power supply.
GFK-1055A
Chapter 2 Unpacking, Inspection, and Installation
2-3
2
Main System Requirements
In addition to the requirements above, the following items are necessary:
D A VGA or SVGA compatible monitor. You may prefer to use one of the readily
available industrially hardened VGA monitors.
D APC/AT compatible keyboard. You may prefer to use one that uses membrane
D
switches for harsh environments. Note that some keyboards have a switch that
selects either PC and PC/XT compatibility or PC/AT compatibility. If your keyboard
has such a switch, be sure it is set for PC/AT compatibility.
If a mouse is used, it must be a MicrosoftR serial mouse. The unit may not work
properly with a Microsoft “compatible” mouse from a different manufacturer.
2-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
22
Installation Procedures
Before applying power to the VPC, be sure the following installation steps are
completed.
Installing in the 90-70 Rack
The following rules should be followed when installing the VPC in a 90-70 rack:
D The VPC cannot be installed in a remote rack (i.e. a rack controlled by a Remote I/O
Scanner, IC697BEM733) if it is to communicate with the 90-70 CPU.
D A maximum of two VPCs can be installed in a single rack.
D The VPC must be in the same rack as the 90-70 CPU, or in a rack powered from the
CPU rack’s power supply.
D When using the VME DDE driver, there must not be any empty slots between the
90-70 CPU and the VPC.
Installation Steps
Note
If the VPC is installed in an expansion rack, it must be powered from the
main rack.
Note
The VPC hardware includes a plastic screw retainer on the back of each
rack mounting screw. The purpose of these retainers is to prevent the
screws from coming out of the VPC during shipment. Be sure to remove
the screw retainers before installing the VPC in the 90-70 rack.
1.
Holding the VPC by the top and bottom faceplate extensions, align the top and
bottom card edges of the VPC’s left circuit board with the card guide slots in the
90-70 rack.
2.
Carefully slide the VPC into the slot until it stops.
3.
Firmly push the VPC toward the back of the rack to ensure proper backplane
connector mating. When the VPC is fully inserted, the front panel of the VPC is flush
with the other front panels in your 90-70 system.
4.
For permanent installations, tighten the top and bottom screws that hold the VPC in
the rack.
5.
When using the VME DDE driver, if the Plug & Play PC is not installed in the main
PLC rack, the SYSTEM.INI file must be edited, as shown below, to contain the correct
rack ID. (See page C-11 for the default SYSTEM.INI file contents.) This can be done
after the system has been successfully powered up.
[vmesection]
vmerackid=0
Values for rack number are 0–7. Main rack ID=0.
GFK-1055A
Chapter 2 Unpacking, Inspection, and Installation
2-5
2
Attaching a Monitor
The 15-pin VGA connector for the video monitor is located on the VPC front panel, and
is labeled MONITOR. Carefully orient the cable’s connector properly with the video
connector on the VPC and connect them firmly.
Be careful when changing video monitors with the Plug & Play PC. If the system is
changed to a higher resolution (from the default 640x480) to work with a high resolution
monitor, and then the monitor is replaced with a lower resolution monitor, it will not be
possible to view any screens, including the power up screen.
To correct this problem, re-connect the higher resolution display, then set the video
driver to 640x480 resolution before connecting the low resolution display. This is a
characteristic of most PCs, but is more likely to happen with the Plug & Play PC due to
its use on the factory floor, where users may be likely to switch monitors.
Attaching a Keyboard
The miniature DIN keyboard connector is located on the VPC front panel and is directly
compatible with IBM PS/2 type keyboards. If your PC/AT compatible keyboard has the
normal circular DIN IBM PC-type keyboard connector you will need to use the supplied
cable adapter. Plug your keyboard into the front panel connector labeled KEYBOARD
before power is applied to the board.
Attaching a Mouse
Note
Use only a MicrosoftR serial mouse. Use of a mouse other than a
Microsoft mouse with the mouse drivers supplied by Windows will
result in erratic and unpredictable lockups.
Plug your mouse into the 9-pin D connector labeled COM1.
2-6
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
22
Connecting the 90-70 Interface Cable
To use Logicmaster 90, you need to connect the 90-70 to VPC interface cable that came in
your PNP101 package to the VPC and your Series 90-70 CPU. One end of the interface
cable has a 9-pin D connector and the other end has a 15-pin D connector. You should
plug the 9-pin end into the 9-pin D connector labeled COM2 on the VPC. The 15-pin end
should plug into the 15-pin D connector labeled SERIAL PORT on your Series 90-70 CPU.
Pinout (RS-422/485) COM2 Only
Pin
Signal
1
NC
2
RXD–
(RDA’)
3
TXD–
(SDA)
4
TXD+
(SDB)
5
SIGND
(ground)
6
RXD+
(RDB’)
7
NC
8
NC
9
NC
Connecting to an Ethernet Network
Connection to an Ethernet network is not required for VPC operation. However, if you
want to connect to a network, the best time to connect it is when you’re connecting the
other cables to the VPC. The BNC coaxial connector for Ethernet is located near the
bottom of the front panel and is labeled ETHERNET. It is recommended that you use the
F-type BNC connector that is included with the VPC for mating with the VPC. The more
common T-shaped connector can interfere with the adjacent board and with the
MONITOR connector of the VPC. The connector should have your network cable going
into one male end and out of the other.
Push the unconnected female side of the F connector onto the male BNC connector on
the VPC. Twist the locking mechanism on the F connector clockwise until it stops. Your F
connector should now be firmly connected to the VPC. To disconnect the VPC from the
network, simply twist the locking mechanism of the connector counter-clockwise and
pull the connector away from the VPC.
Note
Do not disconnect either Ethernet cable from the F connector without
shutting down your network. Disconnecting either cable will cause a
break in the network and halt network communication. The F connector
and cable assembly can be removed from the VPC without interrupting
other communications.
GFK-1055A
Chapter 2 Unpacking, Inspection, and Installation
2-7
Chapter Power-up and Configuration
3
This chapter presents procedures for first-time system power-up, initial system
configuration, and verification of proper system operation. The functions of the front
panel controls, indicators, and connectors are also described.
Inserting the Boot Drive Card
Before powering-up the VPC, you must first insert the distribution boot drive (the
“loaded hard disk”) into the top PCMCIA slot, labeled SOCKET B (See “VPC Front Panel”
on page 3-10). To do this, first orient the boot drive card so that the connector edge is
facing the PCMCIA slot, and so that the profile of the boot drive card resembles the
profile of the slot cut-out on the VPC. Firmly insert the boot card into the slot until the
ejector button extends out.
Caution
Do not insert or remove the boot drive card while the system is
powered up. Doing so can cause loss of unsaved data.
The revision B and later VPC hardware includes clamps to hold the hard disk in the
PCMCIA socket under high vibration conditions. It may be necessary to remove adjacent
connectors to allow the clamps to be installed and removed.
GFK-1055A
3-1
3
First-Time Power-Up
Once the VPC is installed and the boot drive card is inserted, you are ready to power up
the VPC for the first time. Turn on the power supply to the 90-70 rack and observe the
boot process on the VPC’s monitor.
Note
Do not power down or reboot (Control-Alt-Delete) while the power up
memory test is being performed. On rare occasions, this could corrupt
the CMOS setup memory, preventing the unit from powering up
correctly on the next power cycle. A common symptom of this problem
is the system hanging up with the message “Starting MS-DOS . . ”. If
your system hangs up with the above message, perform the procedure,
“Recovery from ‘Starting MS-DOS’ Hang-up” described on page 6-9.
The Boot Process
When the VPC starts up, it will first go through an extensive set of self-diagnostics. You
will see indications of the memory test and other tests as the VPC boots. After the
diagnostics are complete, the VPC will start MS-DOS. When MS-DOS is running, the
VPC will automatically start Microsoft Windows for Workgroups. Microsoft Windows
will load and present you with the Windows desktop.
Note
The Plug & Play PC will always fail the diagnostics keyboard test, even
with a functioning keyboard. This is not a cause for concern.
Multiple Boot Options
The CONFIG.SYS and AUTOEXEC.BAT files are configured for two separate boot
options. When the system is booted, you will be prompted to choose one of the options.
The first option,which is designed for a single hard disk system, does not load the software
drivers required to operate the second PCMCIA port (normally used for the backup
disk). This allows additional memory for Logicmaster 90 software to operate at peak
performance. (The power LED for the second drive will not light.)
The second option, which is designed for a dual hard disk system, loads the software
drivers that enable the second PCMCIA socket to work. If you use this option,
Logicmaster 90 will not operate at its highest performance level, although its
performance will probably be adequate for most applications. (The power LED for the
second drive will light.)
If you wish, you can select one of these options as the default for subsequent boot-ups,
eliminating the multiple-option bootup. Or, you can maintain the dual boot
configuration, but default to the double disk scenario. Refer to page 5-18 for instructions.
Readme First File
This file contains helpful hints for Plug & Play PC operation. To prevent this file from
being displayed on each startup, follow the instructions in the file. You can then view it
at any time by clicking on the First Time Startup icon in the Plug & Play program group.
3-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
3
Backplane Driver Options
The PNP101 software has two modes of backplane communications. The optional mode,
VME DDE, communicates with a built-in PLC backplane driver. The backplane driver is
available with release 5.5 or later PLC CPUs and requires a release 2 or later PNP101
package.
The default mode uses a UMBDDE that communicates with a 90-70 RLD application
program which is included in the Logicmaster 90-70 folder, UMB DEMO. All 90-70 PLCs
and PNP releases support this mode. If you are using the Plug & Play PC with a 90-70
CPU that does not have release 5.5 or later installed, you must use the UMBDDE mode.
Set Up Backplane Driver
When the VPC is started for the first time, you will need to perform a simple operation to
set up backplane communications:
Note
You can not use the VME DDE driver unless your 90-70 CPU has release
5.5 or later installed and you have CIMPLICITY InTouch hardware key.
1.
When you first power up Windows, enter the SetVPC program from the Plug & Play
Program Group, and select the driver that you plan to use.
2.
When SetVPC is running, select UMBDDE defaults or VME DDE defaults from the
File menu. Confirm your selection by clicking on the OK button.
3.
Choose Exit from the File menu and confirm that you want to save the changes you
made by clicking Yes.
4.
If you select UMBDDE defaults, you will need to load the UMBDDE driver from the
Plug & Play program group, and also use 90-70 CPU code similar to the code used for
the UMBDEMO program. This code must be part of any 90-70 CPU code used with
the Plug & Play PC when it is using the UMBDDE driver.
Once this step is complete, no further setup is required. If your system has entered
Microsoft Windows and the Windows desktop is showing on the monitor, the startup
process has been successfully completed. (See “System Startup Verification”.)
Changing the Backplane Driver Setup
The above setup, once performed, does not normally need to be changed. However, if
this becomes necessary:
D Power up the VPC with the loaded hard disk installed.
D Perform steps 1–3, above.
D Accept the changes and opt to reboot the system when prompted.
If you have been using the UMBDDE driver and you are changing to the VME driver for
use with CIMPLICITY InTouch, you should close the UMBDDE driver. The UMBDDE
driver cannot run at the same time as the VME driver.
GFK-1055A
Chapter 3 Power-up and Configuration
3-3
3
System Startup Verification
Note
Read the initial power-up screen before you delete it.
If your system has entered Microsoft Windows and the Windows desktop is showing on
the monitor, the startup process has been successfully completed. You should see that the
topmost window is titled Plug & Play and has icons for the distribution software. At this
point, we stronglyrecommend that you back up your loaded hard drive (the boot disk) if
you have not already done so (see page 3-5).
Caution
If you accidentally damage the boot-up sector of the hard disk and you
do not have a backup, you must obtain a new loaded hard disk. It is not
possible to boot from a floppy disk. This makes it very important to
have a backup disk.
After backing up your hard drive, you may wish to simply explore the system or jump
right into the Logicmaster 90 software, or other standard application. You can also run
the VPC demo applications to learn more about its capabilities.
If you had trouble reaching this stage, be sure to check that your Series 90-70 system is
functioning properly without the VPC installed. Also check that you have met all the
requirements for monitor, keyboard, etc., and that you have properly inserted the boot
drive card into SOCKET B before powering up the VPC.
3-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
3
Making a Backup Boot Disk
It can be very difficult, and is sometimes impossible to recover data on a hard disk which
has “crashed”. Hard disk crashes can be caused by improper power down procedures, as
described on page 3-8, and can also be caused by malfunctioning software.
Note that it is not possible to boot from a floppy disk with the Plug & Play PC since there
is no floppy disk.
It is very stronglyrecommended that regular backups of the hard disk be performed to the
hard disk IC697PNP701, or via InterLink to another computer. The backup process for
PNP101, which is described here, creates a bootable hard disk. The InterLink method will
save only data and is not the preferred technique.
The DOS SCANDISK function can sometimes be used to recover from errors, but most
hard disk errors are unrecoverable.
It is recommended that you purchase IC697PNP701, on a routine basis, and make a
complete bootable copy of the original hard disk, using the procedure on page 3-6.
NOTE: If you have not backed up your loaded hard disk, do this now.
Hard Disk Formatting
Note
The following procedure is not required for an IC697PNP701 disk. (It is
already formatted.) Use this procedure if you have purchased a disk
other than IC697PNP701.
If you are using an unformatted blank disk, it is necessary to first prepare the disk for
formatting, using the FDISK command. Use the following procedure:
GFK-1055A
1.
Be sure you are using a bootable 260 MB disk. This procedure will not work with the
105 MB boot disk, or the 131MB boot disk.
2.
Plug the new disk into SOCKET A.
3.
Boot up the VPC. When you are prompted, select the dual hard disk configuration
mode
4.
Go to DOS.
5.
Type PCMFDISK at the C:> prompt.
6.
From the main screen, press ALT-M and then C to create the partition.
7.
Hit ALT-S and then W to write the new partition information.
8.
Hit Alt-S-X to exit.
9.
Type FORMAT G: /S at the C:> prompt.
Chapter 3 Power-up and Configuration
3-5
3
Preferred Method for Backup
Before making a backup hard disk, you should first run SCANDISK from the DOS
prompt (not from a DOS box under Windows). This will ensure that the master hard disk
is clean, before copying it to other disks.
The following procedure can be used the FIRST time you back up your hard disk. It will
take about 15 minutes for all the files to be copied. Other backup procedures, which
might be better for your particular situation, are also possible.
1.
Click on the Windows File menu and choose Exit Windows in the Windows Program
Manager. Then click on OK. This returns you to the DOS prompt, C:>.
2.
Insert your backup (formatted) hard disk IC697PNP701 in drive G: “Socket A”, and
make sure that both the C: (SOCKET B) and G: (SOCKET A) disks are the same size.
Then type:
C:>cd\pnputils <Enter>
c:\PNPUTILS> BCKUP1ST <Enter>
. . . and follow the instructions on the screen
3.
Power down, and remove the C: (master) drive. Move the backup drive from Socket
A (drive G:) to Socket B (drive C:), then power up again.
4.
After entering Windows you will get a message about a corrupted swap file. Enter
Yes to delete it. From the Main Program Group, enter the Windows Control Panel,
386 enhanced section. Go to the virtual memory section. Answer Yes to the question
about setting the swapfile length to 0. Hit the Change button, then select the default
swapfile, hit Yes, and reboot Windows.
5.
At this point, you have a good backup copy of the original hard disk.
For subsequent backups, you need to backup only the files which are new. If your
real time clock has been set correctly, this can be done as follows:
Insert your backup hard disk in Socket A (drive G:), then type
C:>cd\pnputils <Enter>
c:\PNPUTILS> BACKUP <Enter>
. . . and follow the instructions on the screen
This requires much less time than a full backup, as described above. To ensure that
only recent files are backed up, you can modify the date in the following line in the
\PNPUTILS\BA
CKUP.BAT file:
C:>XCOPY C:\ G:\ /S /E /D:date
3-6
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
3
Alternate Backup Methods
Backing Up Using InterLink
You can use the MS-DOS InterLink utility to back up to another PC/AT or laptop
computer through the LPT1 parallel port or one of the serial ports. InterLink will allow a
hard or floppy disk on the other PC to appear as a DOS volume on the VPC. After
configuring InterLink and connecting to the other PC, simply copy your files to the other
PC’s hard or floppy disk using the XCOPY command in DOS, or the File Manager utility
under Windows. For information on configuring and using the InterLink facility, as well
as use of the XCOPY command, refer to the MS-DOS User’s Guide. See Chapters 4 and 5
for more information about using InterLink with the Plug & Play PC. This method does
not create a bootable backup disk.
Caution
Do not use InterLink on the parallel port without first disconnecting
the CIMPLICITY InTouch hardware key (with power off), or damage to
the key will result.
Remove and insert the hardware key with POWER OFF!!!
Do not plug anything into the back of the hardware key. If you own one of
these keys, you might want to tape over the back of it so that no one
plugs something into it accidentally.
Backing Up to a Network
Another good method of backup, especially for data files that change daily, is to backup
over a network. There are several different strategies for backing up over a network and
some depend on the capabilities of your Network Operating System (NOS). The
Windows for Workgroups documentation discusses the capabilities and limitations for
file sharing and copying across a network. Backing up to a file server, backing up to
another VPC’sorPC/AT’s hard disk, or having another system access your local disk and
perform backups are all viable backup strategies. Refer to your Windows for Workgroups
documentation or other NOS documentation for more information on sharing files and
disks and doing backups over the network.
GFK-1055A
Chapter 3 Power-up and Configuration
3-7
3
Power-Down
Note
If possible, before powering down your Plug & Play PC, be sure that all
DOS and Windows applications have been closed, and that you have
exited Windows. Otherwise, some information may not be written
properly to hard disk and unrecoverabledisk errors may occur.
To properly power down the VPC, assuming that you are in Windows, perform the
following steps:
1.
Quit or exit all open Windows applications. If you power down without quitting
Windows, files with .TMP extensions will accumulate in Windows applications
subdirectories. These files may need to be purged occasionally to free more disk
space.
2.
Choose Exit Windows from the Program Manager’s File menu.
3.
A message will appear asking you if you want to end the Windows session. Answer
YES.
4.
Once the DOS prompt (C:\>) appears, you can turn the system off.
5.
Some critical applications cannot allow loss of data between hard disk backups. In
other critical applications, it may not be practical to back up the hard disk. In some
other applications, it may not be possible to exit Windows properly prior to a power
shut down. For these applications, it is recommended that the 90-70 system which
includes the Plug & Play PC be powered by an uninterruptable power supply (UPS).
The DOS SCANDISK function can sometimes be used to recover from errors caused
by an unplanned power-down, but the proper course of action is to use a UPS, and
to make backups of the hard disk. SCANDISK should also be run on a regular basis
as a hard disk diagnostic.
Note
Do not power down or reboot (Control-Alt-Delete) while the power up
memory test is being performed. On rare occasions, this could corrupt
the CMOS setup memory, preventing the unit from powering up
correctly on the next power cycle. A common symptom of this problem
is the system hanging up with the message “Starting MS-DOS . . ”. If
your system hangs up with the above message, perform the procedure,
“Recovery from ‘Starting MS-DOS’ Hang-up” described on page 6-9.
Removing the Boot Drive Card
Remove the boot drive card only when the system is off. After the VPC is powered down,
press the PCMCIA slot ejector button in until the card is pushed part way out of the slot.
Pull the card the rest of the way out of the slot and keep it in a static-safe bag or carton.
3-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
3
Logicmaster 90 Configuration of the VPC Card
The VPC module has been integrated into the 90-70 PLC system in such a way that
communication between the VPC module and the 90-70 CPU can usually be established
even if the 90-70 does not have the correct configuration information for the VPC
module. However, the module should be configured as below to prevent CPU Fault Table
error messages.
In the LOGICMASTER 90 configuration package, when you configure the 90-70 I/O
structure, identify the VPC as a “Foreign VME Module”. Use the following procedure to
accomplish this:
1.
Highlight the rack/slot where the VPC is located.
2.
Select vme (F7).
3.
Select vme (F1).
4.
Highlight ‘3RD PTY VME’ and press ENTER.
5.
Press the down arrow button to highlight the Configuration Mode.
6.
Press the TAB button until ‘FULL MAIL’ shows on the screen and press ENTER.
7.
Press the down arrow button to highlight the Address.
8.
If the address shown is not correct, type in the correct value for the VPC’s rack and
slot location (see the table below), and then press ENTER.
9.
Press Esc. You can now continue with the configuration setup.
Address Allocation for VPC Rack and Slot Locations
Slot Number/Address Allocation
Rack Number
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
000000
E00000
D00000
C00000
B00000
A00000
900000
800000
020000
E20000
D20000
C20000
B20000
A20000
920000
820000
040000
E40000
D40000
C40000
B40000
A40000
940000
840000
060000
E60000
D60000
C60000
B60000
A60000
960000
860000
080000
E80000
D80000
C80000
B80000
A80000
980000
880000
0A0000
EA0000
DA0000
CA0000
BA0000
AA0000
9A0000
8A0000
0C0000
EC0000
DC0000
CC0000
BC0000
AC0000
9C0000
8C0000
0E0000
EE0000
DE0000
CE0000
BE0000
AE0000
9E0000
8E0000
Notes: All addresses shown are in Hexadecimal format
Rack 0 is the CPU rack.
GFK-1055A
Chapter 3 Power-up and Configuration
3-9
3
The VPC Front Panel
The following paragraphs describe the front panel of the VPC. The various ports, LED
indicators, and card slots are referenced by the names printed on the front panel.
a45410
SLOT 1 LED Indicator
The SLOT 1 indicator is illuminated when the VPC is
enabled as a slot one system controller. This LED should
not be lit in most Series 90-70 applications, as the slot
one position is reserved for the 90-70 CPU.
SLOT 1
ENET
ACTIVE
OK
BACC
BERR
ON
RESET
ENET LED Indicator
SOCKET B
ON
LPT1
The ACTIVE indicator is illuminated when the 80486
CPU of the VPC is active. Although it may flicker
occasionally when the CPU is waiting, it should never
stay off for long if the VPC is powered up, as this is an
indication that the system is locked up.
COM2
ACTIVE LED Indicator
COM1
The ENET indicator is illuminated when Ethernet
packets are being transmitted by the VPC. (This LED
does not blink when receiving data packets).
ETHERNET
The BACC indicator is illuminated when the VPC is
communicating over the backplane.
MONITOR
BACC LED Indicator
KEYBOARD
The OK indicator is illuminated when the VPC has
passed all startup diagnostics successfully. This LED is
also illuminated when the modeswitch is tripped and
for watchdog timer pulses. The LED may go off if there
is insufficient memory to load the VME DDE driver.
SOCKET A
OK LED Indicator
VPC
BERR LED Indicator
The BERR indicator is illuminated each time the VPC
encounters an error during communications over the
backplane. This LED does not remain illuminated after
an error is encountered.
3-10
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
3
RESET Momentary Switch
The RESET toggle switch, when depressed, causes the VPC to reset, restart, and reboot as
if it had just been powered up. To reset the board, simply depress and release the switch
quickly.
If the RESET switch is held down for several seconds, the OK indicator will light
indicating a modeswitch has been tripped. If a modeswitch is tripped, the board
configuration is reset so that critical subsystems are set up with default values that must
be changed. For more information on tripping the modeswitch, refer to “Invalid
Configuration” in chapter 6.
COM1 Serial Port
The COM1 serial port is an RS-232 communications port provided through a 9-pin D
connector. By default it is used for a Microsoft mouse.
COM2 Serial Port
The COM2 serial port is an RS-232 and RS-422/485 (default) communications port
provided through a 9-pin D connector. This port is normally used to connect the Series
90-70 CPU to the VPC for Logicmaster software operation.
LPT1 Parallel Port
The LPT1 parallel port is a Centronics-compatible communications port provided
through a 25-pin D connector. This port is generally used for connecting to laptop
computers and other PCs via InterLink, as well as to printers. Also, this port is usually
used for hardware keys for protected software applications such as CIMPLICITY
InTouch.
KEYBOARDPort
The KEYBOARD port is an IBM PS/2-style keyboard interface provided through a mini
circular DIN connector. Using the provided PS/2 to AT keyboard adapter cable, any
PC/A
T compatible keyboard can be plugged in.
MONITOR Port
The MONITOR port is a VGA/SVGA compatible video monitor interface provided
through a high-density 15-pin D connector. Standard VGA and Super VGA compatible
monitors can be plugged in.
ETHERNET Thinwire Connector
The ETHERNET port is a 10Base2 (thinwire) Ethernet interface provided through a BNC
coaxial connector. A standard thinwire Ethernet network can be connected.
GFK-1055A
Chapter 3 Power-up and Configuration
3-11
3
SOCKETA PCMCIA Card Slot
The SOCKET A card slot allows the use of PCMCIA memory and I/O cards. The slot is
compatible with Type I, Type II, and Type III cards. Refer to “PCMCIA Operation” in
chapter 4 for more information about using PCMCIA cards.
ON LED Indicator for Socket A
The ON indicator closest to the Socket A card slot indicates, when illuminated, that
Socket A has a card inserted and is on.
SOCKETB PCMCIA Card Slot
The SOCKET B card slot allows the use of PCMCIA memory and I/O cards. The slot is
compatible with Type I, Type II, and Type III cards. Socket B is primarily used for a boot
device, generally the distribution hard disk card supplied with a Plug & Play system,
which functions as a boot IDE hard disk.
ON LED Indicator for Socket B
The ON indicator closest to the Socket B card slot indicates, when illuminated, that
Socket B has a card inserted and is on. This should be the case most of the time, since the
boot drive card should be always be present in Socket B.
Retainer Clamps
These clamps can be used to hold hard disks in place in a high vibration environment.
3-12
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Chapter
4
Operation
This chapter describes normal operation of the VPC. The Windows desktop,
communications port, and network operation are covered.
General Operation
Windows Desktop Presentation
When your system is powered-up, the VPC will go through the boot process and then
enter Microsoft Windows. Once Windows is running, you will see the Windows desktop.
As shipped, the topmost window, titled Plug & Play, has icons for most of the
distribution software packages. Other than items in the Plug & Play and CIMPLICITY
InTouch 5.0 windows, all windows and icons are stock Microsoft Windows for
Workgroups. The provided Windows for Workgroups User’s Manual will guide you through
Windows.
Note
Windows for Workgroups 3.11 must be run in enhanced mode on the
Plug & Play PC. This is the default mode when shipped from the factory.
The First Time You Power Up
Revision B (and later) units are shipped with the UMBDDE driver default settings in the
embedded setup areas. When you first power up Windows, enter the SetVPC program
from the Plug & Play program group, and select the driver that you plan to use. You
cannot use the VMEDDE driver unless your 90-70 CPU has release 5.5 or later installed.
GFK-1055A
4-1
4
DDE Drivers
The loaded hard disk includes the VME DDE driver, as well as the UMBDDE driver
which was included in earlier releases. The VME DDE driver allows CIMPLICITY
InTouch access to 90-70 CPU memories without the need for associated 90-70 CPU logic.
Use of the VME DDE driver feature requires the presence of features in release 5.5 or later of the
90-70 CPU.
The Upper Memory Block DDE Server
The Upper Memory Block (UMB) Dynamic Data Exchange (DDE) server facilitates
backplane communications between the VPC and the 90-70 CPU. To set up the UMBDDE
server to automatically start in Windows, copy the icon (labeled UMBDDE Driver) to the
Startup Program Group. This makes it available for use by DDE-aware applications such
as CIMPLICITY InTouch.
The DDE Server effectively routes information between space in upper memory of the
VPC and any Windows DDE-aware applications that request service. The 90-70 CPU can
read and write data to the upper memory space of the VPC and, through the UMB DDE
server, can communicate with Windows applications.
Data moved by
90–70 CPU Demo Program=UMBDEMO
90–70 CPU
VME bus
VPC
VME Address
4E0000
%AI
4E8000
%Q
4E8800
%AQ
I
E000:0800
E000:8000
E000:8800
Tables
Fast Memory DDE
(UMBdde)
4E0800
VPC Shared Memory
%I
VPC Local Address
E000:0000
AI or R
Q
AQ or R
CIMPLICITY
In Touch Demo
or Visual Basic Demo
Block Diagram – UMBDDE Overview
4-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
4
As illustrated in the preceding figure, the 90-70 CPU discrete input values (%I), analog
input values (%AI), discrete output values (%Q), and analog output values (%AQ), are
mapped to shared memory on the VPC. Locations in this shared memory are accessible
from both the backplane VMEbus (and thus, the 90-70 CPU), and by the local VPC
processor. By default, the first discrete input, %I1, is accessed at VME address 4E0000.
From the VPC, that same memory location is at local address E000:0000. The default base
addresses of the other value types are shown in the figure. The UMBDDE server
program simply routes the values between the shared memory of the VPC and a
DDE-capable application such as CIMPLICITY InTouch.
The UMB DDE Server requires no configuration and should function with the factory
defaults. Reconfiguration is not recommended.
UMBDDE Driver Operation Details
BCD Read/Write
Function
Be aware that the BCD read and write function will produce unpredictable results if
invalid BCD data is read from the 90-70 CPU via the driver, or if you attempt to send
invalid BCD information to the 90-70 CPU via the driver.
DDE-related
Errors
DDE-related errors, such as Visual Basic error 285, can sometimes be “tuned out” by
using different UMBDDE operational parameters. Also note that the CPU containing the
UMBDEMO 90-70 or a similar program needs to be running to actually transfer the data
between the server and the CPU. Be sure all files are closed before you power down or
press the RESET switch.
DDE-related
Timeout Errors
The setting of the UMBDDE protocol parameters can have a significant effect on the
number of DDE-related timeout errors. The default settings of 100mS Protocol Timer
Tick, and 1000 mS Internal DDE Timer Tick sometimes result in DDE timeouts. If this
occurs in your application, try lowering the DDE Timer Tick value to a lower number
(e.g. 900). Also, overall DDE performance can be enhanced by lowering the Protocol
Timer Tick value, but at the expense of other programs which are operating.
On-line Help
The UMBDDE driver on-line help text is provided in this manual (see page E-8). This
information may be useful to those writing applications (e.g. Visual Basic, Visual C+ + , Excel,
Word, etc.) that use the UMBDDE driver to obtain information from the 90-70 PLC.
DDE Test Utilities
Driver Check Program
If executed, the Driver Check program will test for the presence of both the VMEDDE
and UMBDDE drivers. This program works only with topics UMBDDE|UMB and
GEHCS|VME, which are the default driver names used by the included demo
programs.
Driver Tester
This utility can read and write data in the 90-70 CPU. Before this utility is used, either the
UMBDDE driver, or the VMEDDE driver (GEHCS) must be loaded and operating. Also,
the UMBDDE driver requires CPU logic to be loaded in order to operate properly.
Source code for the Driver Tester utility, written in Visual Basic, is available on the GE
Bulletin Board (see page 1-6 for instructions).
GFK-1055A
Chapter 4 Operation
4-3
4
PCMCIA Operation
Note
The loaded hard disk contains files that have been optimized for use
with either the 8 MB, 16 MB, or 32 MB VPC memory sizes. A loaded hard
disk may not work properly if swapped between units of different sizes
(105/131/260 MB). Refer to the procedure in “Embedded VPC AT Settings
for Hard Disk Drives” on page 5-20.
SOCKET B is configured for ATA disk drive operation. When your VPC is operating,
SOCKET B should always contain the boot disk card. This card should not be removed
while the system is powered up. The distribution hard disk card contains a full set of
drivers for common PCMCIA cards. The PhoenixCARD Manager Plus User’s Manual,
included with the VPC, fully documents the use of PCMCIA cards and the included
drivers. Use it, as well as the documentation which came with the I/O or memory card,
when using PCMCIA cards other than the ATA hard disk cards. Following are some
additional suggestions for PCMCIA operation.
The hard disk in SOCKET A (Drive G:) can be inserted and removed with power on.
However, it is necessary that you wait at least 5 seconds before removing a drive after
plugging it in. You must also wait at least 5 seconds after removing a drive before
plugging it back in. Detection of newly inserted drives may not be reliable depending on
what else the VPC is doing. Specifically, if the VMEDDE driver is loaded, then hot
insertion will not work.
Other Hard Disks or PCMCIA Devices
The Plug & Play PC has been fully tested with the hard disks which GE supplies.
Other hard disks, or other PCMCIA devices, may not work properly and are not
guaranteed to work by GE.
Note
Because of the PCMCIA drivers which are used to access the Socket A port on the Plug &
Play PC, a hard drive will be misidentified as a floppy drive by some programs such as
the Microsoft Virus checker. This does not affect the proper use of these programs. Since
the hard drive is a removable medium, it is treated as a floppy by some of these
programs.
4-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
4
Serial Port Operation
The VPC has two serial ports, labeled COM1 and COM2. They are also referenced from
MS-DOS and Windows as COM1 and COM2. COM1 is an RS-232 compatible serial port.
COM2 is not only RS-232 compatible, but can also be used in RS-422/485 modes. The VPC
is pre-configured for COM2 RS-485 operation for use with the included Logicmaster
VPC-to-90-70 cable.
The COM1 port is generally used for a Microsoft serial mouse. The COM2 port is
generally used to connect to the 90-70 CPU for Logicmaster 90 software communications.
Caution
The serial and parallel ports are not isolated from VPC/Series 90-70
ground. Damage to equipment could result if equipment with a
different ground potential is connected to the VPC.
GFK-1055A
Chapter 4 Operation
4-5
4
Parallel Port Operation
The VPC has one parallel port, labeled LPT1 on the front panel and referenced in
MS-DOS and Windows as LPT1. The parallel port is a Centronics-compatible
bidirectional port provided through a 25-pin connector on the front panel.
In most VPC applications, the parallel port is used for communications with other PCs,
especially laptop computers, through the MS-DOS InterLink facility. Since the VPC has
no floppy disk drive for loading software, the InterLink utility allows you to use the
floppy disk drive of a PC to transfer files to and from the VPC. A 5-foot InterLink cable is
included in your VPC package specifically for this purpose. (See Chapter 5 for details on
using the InterLink utility.)
The parallel port can also be used to connect to a parallel printer. Also, hardware keys for
software packages are usually plugged into the parallel port. (The IC697PNP101 package
does not include hardware keys. These are purchased as part of a software package.)
Caution
Never plug anything into the back of the hardware key. (You could tape
over the back of your key so that no one will do this accidentally.)
Caution
When the CIMPLICITY InTouch hardware key is attached to the
parallel port do not use InterLink or any other data transfer program
which uses the parallel port. If you try this, your hardware key will be
damaged, and will need to be replaced.
Remove and insert the hardware key with POWER OFF!!!
If you need a permanent hookup for both InterLink and CIMPLICITY InTouch, leave the
hardware key attached to the parallel port, but use a serial InterLink cable
(documentation is in the on-line DOS Help text under InterLink).
Note
Normal printing with the hardware key attached will not damage the
key. However, on rare occasions, hardware keys can interfere with
proper parallel port operation. Using a hardware key and a parallel
printer connection simultaneously could yield improper results. If so,
remove the hardware key during print operations. (The hardware key is
not needed for MS-DOS or Microsoft Windows.)
The key is a physical piece of hardware, like your Plug & Play PC. If it is lost or stolen, it
will not be replaced. You should insure your hardware key against loss if you think it
necessary. Damaged keys will be replaced however. To replace a hardware key, call
CIMPLICITY Technical Support at (800) 762-6498. Be prepared to provide information
about the point count associated with the key, the CIMPLICITY InTouch product options
that you may have purchased, and shipping information. Most damaged hardware keys
can be replaced within 24 hours.
4-6
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
4
Network Operation
The VPC is equipped with an NE2000-compatible Ethernet adapter, which allows access
to thinwire (10Base2) Ethernet through the front panel BNC. To enable operation on a
network in Microsoft Windows for Workgroups, follow the instructions for configuring a
network in the Windows for Workgroups User’s Manual. Windows will say it has found an
NE2000 Ethernet adapter and will ask you if you want to use it. Click YES. Windows will
say that the adapter is on IRQ3, which is incorrect. You will need to change the adapter
interrupt to IRQ5.
Using Ethernet With the Plug & Play PC
The Plug & Play PC is an AT-compatible computer, and a multitude of Ethernet drivers
are available in the marketplace for an AT platform. The following Ethernet network
drivers are included with the Plug & Play PC as part of Windows for Workgroups 3.11:
D
D
D
D
D
NDIS (NE2000 compatible) – with Windows for Workgroups 3.11
NOVELL – With Windows for Workgroups 3.11
LANMANAGER – with With Windows for Workgroups 3.11
TCP/IP (on the Microsoft bulletin board as “Shareware”).
Beame and Whiteside TCP/IP (commercially available).
None of these Network drivers has been fully tested by GE. GE does not
guarantee their operation.
Please note that the port is thinwire only. (Low cost adapters from thinwire to thickwire
and 10BaseT, twisted pair are available). A BNC F connector is included with the VPC.
The Ethernet port talks only to the Plug & Play PC. Do not expect a direct connection to the
PLC. This is not a replacement for the Series 90-70 Ethernet module. An application
installed in the VPC may act as a data concentrator for a remote host. Call
GE Intelligent Platforms Technical Support, or refer to the GE Bulletin Board
for new information.
GFK-1055A
Chapter 4 Operation
4-7
4
Installing TCP/IP Software
The VME and TCP/IP Host Drivers read a file C:\WINDOWS\GEF CFG.INI, which
contains lookup tables that relate logical names to real world addresses. These logical
names are used by CIMPLICITY InTouch, or any other application that rides on top of
the Host Drivers.
As shipped with the Rev. B and later Plug & Play PC, the GEF_CFG.INI file contains the
correct default values required for the demos packaged with the Plug & Play PC to work
properly. The TCP/IP install program overwrites this file with one tuned for TCP/IP,
which changes the VME setups.
The correct VME settings are documented in Appendix C. As a precaution, the following
stepsarerecommended:
1.
BeforeinstallingTCP/IP, copy the file C:\WINDOWS\GEF CFG.INI to the
C:\BACKUP directory.
2.
Then modify the files C:\PNPUTILS\BCKUP1ST.BAT and
C:\PNPUTILS\BA
CKUP.BAT to include the following line:
COPY C:\WINDOWS\GEF CFG.INI C:\BACKUP\GEF CFG.NEW
The BKUP1ST.BAT file and the BACKUP.BAT files should be used routinely to back up
your hard disk. Other files, such as CONFIG.SYS and SYSTEM.INI, are already copied to
C:\BACKUP\*.NEW by the batch files. Implementing this procedure will add
GEF_CFG.INI to that list.
In the event of a major disaster after a new install (in this case TCP/IP), you will have the
original file as C:\BACKUP\GEFCFG.INI and will also have a fairly recent
C:\BACKUP\GEFINI.NEW.
4-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
4
The AUTOSET Utility
The onboard Ethernet interface of the VPC is NE2000 compatible and, therefore, should
be internally supported by most network operating systems (NOS), including Windows
for Workgroups. If, however, you need to configure it differently for some other NOS, the
AUTOSET utility provided on the distribution disk allows automatic and custom
configuration as well as diagnostic capabilities. The following paragraphs describe the
functions AUTOSET can perform.
Configure New Adapter Automatically
This option detects a free address and interrupt and configures the adapter to these. If no
board appears then an error message is displayed and the menu exited. If a board is
enabled correctly, the user is prompted to enter the architecture mode required (I/O Port
is the default mode). A search for a cable connection follows this, and, if thin Ethernet
cabling is correctly installed then the correct cable type is selected, otherwise a menu
prompting the user to enter the cable type is displayed. Finally, a menu displaying the
options selected is displayed. On exiting this menu, the menu of detected adapters will
be updated.
Configure New Adapter Manually
This option allows you to manually define the configuration for the Ethernet adapter to
use. You can select the Ethernet base address, the interrupt IRQ used, and the I/O
configuration to match requirements of other network operating systems. When this
menu is selected, the automatically-determined parameters for I/O Port address, and
interrupt are provided for the user as initial selections.
Change/Display Adapter Configuration
This option allows the user to change the configuration of the Ethernet adapter.
Adapter Initialization and Diagnostics
This option initializes and can perform diagnostics upon the Ethernet adapter. Ethernet
diagnostics are discussed in Chapter 6.
Advanced Network Diagnostics
This option allows the user to perform further diagnostic checks on the functionality of
the adapter. Ethernet diagnostics are discussed in Chapter 6.
MEMMAKER Utility
As shipped, the memory use of the VPC has been manually optimized for the
applications and device drivers provided. The use of a memory optimizer such as the
DOS MEMMAKER will provide no further memoryoptimization and can even reduce the
amount of memory available. Therefore, it is suggested that you refrain from using
MEMMAKER or other memory-freeing utility.
GFK-1055A
Chapter 4 Operation
4-9
Chapter Distribution Software
5
This chapter describes the software that is distributed with the VPC under GE
catalog numbers IC697PNP101 and IC697PNP111. The operating systems, factory
automation software, sample applications, and utility programs are covered.
The Plug & Play PC is a bundled product, and has been optimized for use with the
included software on the included hardware. This optimization involves configuration of
the DOS and Windows operating characteristics, which are found in the CONFIG.SYS,
AUTOEXEC.BAT, WIN.INI, and SYSTEM.INI files. Changes to these files should not be
made unless you have an expert grasp of the possible consequences.
D The loaded hard disk contains files that have been optimized for use with either
the 8 MB, 16 MB, or 32 MB memory sizes. A loaded hard disk should be swapped
between units of different sizes only if the default values for cache and swapfile
size have been retained. The default values are optional for 8 MB units, but are
required for 16 and 32 MB units.
D You should not try swap different sizes of hard disks (105/131/260 MB) for the
boot disk on a VPC. If you do so, some files may appear to be missing, or may be
corrupted. The VPC must be configured for a specific size of boot disk. It is
possible to configure a VPC platform for use with any of the three sizes of hard
disk as the boot disk. See page 5-20 for instructions.
D Windows for Workgroups 3.11 must be run in enhanced mode on the Plug &
Play PC. This is the default mode when shipped from the factory.
Microsoft Windows
Microsoft Windows, Microsoft’s industry-standard graphic user interface (GUI)
operating system software, is automatically started when the VPC is powered-up. All the
distribution software runs under Windows for ease-of-use and consistency across
applications.
Microsoft DOS
MS-DOS is Microsoft’s operating system for PC/ATs. Logicmaster 90 runs directly under
MS-DOS. It is supplied because Microsoft Windows is “bootstrapped” from it, meaning
that it must be running before Microsoft Windows is invoked. Exiting Microsoft
Windows causes the MS-DOS prompt to be displayed. You can run any standard DOS
applications and perform DOS commands. The InterLink program, which allows you to
transfer files from laptop computers and other PCs to the VPC through the parallel port,
is a DOS utility.
GFK-1055A
5-1
5
Using the DOS InterLink Utility
Caution
Do not use InterLink on the parallel port without first disconnecting
the CIMPLICITY InTouch hardware key, or damage to the key will
result.
Remove and insert the hardware key with POWER OFF!!!
Do not plug anything into the back of the hardware key. If you own one
of these keys, you might want to tape over the back of it so that no one
plugs something into it accidentally.
Note
If you need a permanent hookup for both InterLink and CIMPLICITY
purposes, leave the hardware key attached to the parallel port, but use a
serial InterLink cable (documentation is in the on-line DOS help text
under C:>HELP INTERLINK.
Because the Plug & Play PC does not have any floppy disks built in, and you may wish to
load additional software onto the Plug & Play PC, it may be necessary to use the DOS
InterLink program to copy files to the Plug & Play PC from a host computer connected
via the (LPT1) parallel port, and the included parallel InterLink cable. One of the serial
ports can also be used instead of the parallel port, but is significantly slower than the
parallel port. If the host computer’s parallel port is not bidirectional, then it may be
necessary to use the serial port. If this is the case, refer to the InterLink documentation in
the DOS manual. You will need to make your own serial cable, if required, or purchase
one commercially to use serial InterLink.
There are some things to remember about using InterLink:
D The INTERLNK.EXE program will normally be run on the Plug & Play PC. This
driver is included in the PNP CONFIG.SYS file. The host computer will normally
need to run the INTERSVR program. Refer to the DOS documentation for details
(either hard copy documentation, or HELP INTERLNK from the DOS prompt).
D Once InterLink is running on the VPC, and INTERSVR (see DOS HELP) is running
on the host computer, the host computer’s disks can be accessed as D:, E:, or F: drives
from the VPC. Standard DOS file commands can then be used with the host
computer drives.
D It is not possible to use the DOS InterLink program directly to the SOCKET A hard
disk. If necessary, use InterLink to copy programs to the SOCKET B hard disk, then
use DOS copy to transfer the files to the SOCKET A drive.
5-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
D When using InterLink to install software, it is possible that the install program could
modify the AUTOEXEC.BAT file on drive F: (the remote computer) instead of on
drive C: (the Plug & Play computer). If this occurs, you will need to manually modify
the Plug & Play PC AUTOEXEC.BAT file. It is also possible that the install program
will add the wrong drive letter to the path in AUTOEXEC.BAT. For example,
Logicmaster 90 will add F:\LM90 instead of C:\LM90 to the path in the
AUTOEXEC.BAT file. This also needs to be changed manually, if it occurs.
D On rare occasions, when loading software–especially copy protected software–it
may not be possible to install from the host computer to the Plug & Play hard disk.
You have at least two options:
h First: you can try reversing the roles of the Plug & Play PC client (which runs
INTERLNK.EXE) and the host server (which runs INTERSVR.EXE). You
would need to add the line:
DEVICE=INTERLINK.EXE
to the host computer CONFIG.SYS file. Then, reboot both computers, and
run INTERSVR.EXE from the Plug & Play computer. Finally, install the
software from the host computer’s floppy disk to the hard disk in the
Plug & Play PC.
h Or: you may need to actually install the new software on the host computer
first, then use InterLink to copy the files to the Plug & Play hard disk. When
this is the case, it is required that you go back and delete the files you
installed on the host computer, so that you do not have any unlicensed
copies of the software.
GFK-1055A
Chapter 5 Distribution Software
5-3
5
Logicmaster 90-70
Note
When you are planning to run Logicmaster 90-70 at the same time as
other applications, be sure to start Logicmaster 90-70 first. Otherwise,
Logicmaster 90-70 may not have enough memory to run.
Logicmaster 90 software is GE ladder logic programming and configuration
software for Series 90 programmable controllers. The distribution version is Logicmaster
90-70 Serial Comm for DOS which is set up to run in a DOS box under Microsoft
Windows.
To start Logicmaster 90 software, simply double-click on the icon labeled LM90 in the
Plug & Play window. The Logicmaster software opens up in full screen mode and uses
the whole screen. As such, you may think that Windows is no longer running. This is not
the case. Logicmaster 90 actually runs in a DOS box under Windows and as soon as you
exit Logicmaster 90, the Windows desktop reappears. In some cases, you may want to
run Logicmaster 90 and other Windows applications simultaneously. In this case, press
ALT-ENTER when Logicmaster 90 is loaded to present it in a window in Windows. Note:
The mouse has no effect within Logicmaster 90, because Logicmaster 90 is really a DOS
application.
Logicmaster 90 Operation
D When Logicmaster 90 is being run in a DOS box, and is re-enabled to the foreground,
it may temporarily lose communications. It may take up to 40 seconds to re-establish
communications.
D If the Logicmaster 90 cable from the Plug & Play serial port to the 90-70 CPU is
disconnected, it may take up to 21 seconds to detect a NO COMM condition. When
the cable is reconnected, it may take up to 3 seconds to clear the NO COMM
condition.
D Care should be exercised when invoking DOS box programs (such as Logicmaster 90)
from Windows. Sometimes a slight delay in running a program is encountered after
clicking on the icon for the DOS box program. There may be a tendency to click the
icon again, and accidentally invoke a second instance of the same program. If this
second instance of the program is actually invoked, there may be Windows integrity
errors, or other errors. If this occurs, restart Windows to correct the problem.
D If you encounter some difficulties running Logicmaster 90 under Windows, change
the Logicmaster 90 serial port communication parameters for MODEM
TURNAROUND TIME to 10 counts.
5-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
CIMPLICITY InTouch
CIMPLICITY InTouch software is GE Microsoft Windows-based user interface
development software. Features like quick application development and high-speed
connectivity are enhanced by the perfect match between the CIMPLICITY InTouch
software and the VPC hardware. If you purchase CIMPLICITY InTouch, you will receive
a hardware key that must be connected to the parallel port (LPT1) of the VPC for
CIMPLICITY InTouch to work properly. You will not need to load the software again.
How to Order CIMPLICITY InTouch
CIMPLICITY InTouch software and documentation is available through authorized GE
distributors. Please contact your local distributor for ordering information.
The CIMPLICITY InTouch Hardware Key
When you purchase CIMPLICITY InTouch, you receive a hardware enabling key. This
key is installed on the parallel printer port of the Plug & Play PC. The key enables the
CIMPLICITY InTouch software to operate in production (non demo) mode. It also allows
the DDE Servers to operate and exchange data with PLC and other physical devices.
Without the key installed on the computer, CIMPLICITY InTouch operates in demo mode
only for 60 minutes, and the VME DDE server does not work.
Caution
When running CIMPLICITY InTouch on the Plug & Play PC with the
hardware key attached to the parallel port, do not use InterLink or any
other data transfer program which uses the parallel port. If you try this,
your hardware key will be damaged, and will need to be replaced.
Remove and insert the hardware key with POWER OFF!!!
Do not plug anything into the back of the hardware key. If you own one of
these keys, you might want to tape over the back of it so that no one
plugs something into it accidentally.
Note
If you need a permanent hookup for both InterLink and CIMPLICITY,
leave the hardware key attached to the parallel port, but use a serial
InterLink cable (documentation is in the on-line DOS help text under
interlnk).
The key is a physical piece of hardware, like your Plug & Play PC. If it is lost or stolen, it
will not be replaced. You should insure your hardware key against loss if you think it
necessary. Damaged keys will be replaced however. To replace a hardware key, call
CIMPLICITY Technical Support at (800)762-6498. Be prepared to provide information
about the point count of the key, the CIMPLICITY InTouch product options that you may
have purchased, and shipping information. Most damaged hardware keys can be
replaced within 24 hours.
GFK-1055A
Chapter 5 Distribution Software
5-5
5
How to load CIMPLICITY InTouch Options on the Plug & Play PC
The Plug & Play PC comes with the basic CIMPLICITY InTouch software and DDE
Servers already loaded on the PC. The software runs only in demo mode until you
purchase a CIMPLICITY InTouch package and install the hardware key. It is not
necessary to reload the CIMPLICITY InTouch software that is already present on the PC.
Simply installing the hardware key enables the software to be used in a production
environment.
There are three CIMPLICITY InTouch product options that are not loaded on the PC
however. These are SPC (Statistical Process Control), Recipes, and SQL (Structured
Query Language):
D SPC – Allows full control of processes using statistical data. SPC charts can be
integrated into standard CIMPLICITY InTouch applications.
D Recipes – Allows the creation and use of production recipes using a spreadsheet
format. The recipes can be uploaded and downloaded from devices from standard
CIMPLICITY InTouch applications.
D SQL – Allows CIMPLICITY InTouch to exchange data with several third party
Database packages, using the SQL format.
These product options are distributed on 3.5-inch floppy disks. Since the Plug & Play PC
does not contain a floppy disk drive, the software must be loaded using the DOS
InterLink utility, as follows.
5-6
1.
Using the InterLink cable provided with the Plug & Play PC (referred to here as the
client PC), connect your Plug & Play PC’s printer port (after removing the
CIMPLICITY InTouch hardware key) to the printer port of another PC that contains a
floppy drive. This second PC is referred to as the server PC.
2.
The client PC is pre-configured to run the Interlink software when the PC starts. It
should not be necessary to make any configuration changes on the client PC.
3.
On the server PC, boot to a DOS environment, and at the command line prompt,
type intersvr. The screen should display an information screen with information
about the PC’s disk drives. If it does not, check that the DOS Path variable contains
DOS in the search path. Also check the DOS on-line help, which is invoked by typing
help intersvr or help interlnk at the DOS prompt.
4.
Place the floppy disk containing the CIMPLICITY InTouch product option in the
appropriate floppy drive of the server PC.
5.
From the client PC, accessing the File Manager utility should now show you more
disk drives than usual. Typically the drive represented as D: on the client PC is
mapped to the A: (floppy) drive on the server PC. Select from the available disk drive
icons until you find the one that corresponds to the floppy drive containing the
CIMPLICITY InTouch product option disk. Selecting that drive will show the
contents of the floppy disk.
6.
Double-click on the file named INSTALL.EXE. This begins the installation procedure
described in the manual that comes when you buy the product option. Continue the
installation procedure as prompted, until it is complete.
7.
When complete, you can terminate the InterLink program on the server PC by
pressing the ALT and F4 keys on the keyboard of the server PC. You can then
disconnect the cable connecting the two PC.
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
CIMPLICITY InTouch Software Icons
Icon Name
GFK-1055A
Function
InTouch
Allows you to create new CIMPLICITY InTouch applications, select existing
CIMPLICITY InTouch applications, and scan drives for existing CIMPLICITY
InTouch applications. You can also modify the directory list being displayed as
well as create and/or edit descriptions about the application.
WindowMaker
Automatically starts CIMPLICITY InTouch in the Development environment
(WindowMaker) using the last used CIMPLICITY InTouch application directory.
WindowViewer
Automatically starts CIMPLICITY InTouch in the RunTime environment (WindowViewer) using the last used CIMPLICITY InTouch application directory.
DB Dump
Database dump. A utility that allows you to create an exact copy of a current
CIMPLICITY InTouch application’s database in a Comma Separated Variable
(.CSV) file. This file can be modified using a spreadsheet or text editor program.
DB Load
Database load. A utility that allows you to upload a database created as a .CSV
file into an existing CIMPLICITY InTouch application. The database can be
created “from scratch” or can be a modified DBDump file.
WWLogger
A diagnostic tool that provides current, on-line technical information used for
debugging and may provide information required by CIMPLICITY Technical
Support.
InTouch System Diagnostics
(ISD)
A utility that provides software diagnostics about the selected CIMPLICITY
InTouch application in the form of a text printout. ISD works much like the
hardware diagnostics provided by Microsoft called MSD.
HistData
A utility that acts as a DDE Server for encrypted historical log files (*.LOG).
HistData is used with CIMPLICITY InTouch to retrieve requested historical data
from the log file and if required, converts it into a Comma Separated Variable
(.CSV) file for use with spreadsheets or text editors.
HDMerge
A utility that allows the merging of two or more historical .CSV files. The program requires that the historical log files first be converted from an encrypted
.LOG file to a .CSV file using the HistData utility.
DDE Server Simulator
A generic DDE Server designed to be used with CIMPLICITY InTouch as a testing or training tool only. This is NOT a true DDE Server for use in production.
GE PLC Fault Tables
Displays the Series 90 PLC Fault Table information. It works as a client and accepts data from DDE Servers that are receiving data from a Series 90 PLC.
NetDDE
A communication utility that allows CIMPLICITY InTouch applications to share
data across a network, using a variety of supported protocols.
GESNP
The GE Series Ninety Protocol (SNP) DDE Server. It communicates with
GE Series 90 PLC’s and serves data to CIMPLICITY InTouch applications.
GECCM
The GE CCM DDE Server. It communicates with GE PLC’s and
serves data to CIMPLICITY InTouch applications.
GEHCS
The GE Host Communications DDE Server. It communicates with the GE
Host Communication software using the VME protocol and TCP/IP.
Server Startup
A help utility that provides details on how to start up several types of DDE Servers, including the servers present on the Plug & Play PC.
Genius
The GE Genius DDE Server, which communicates with GE PLCs
and serves datat to CIMPLICITY InTouch applications.
Chapter 5 Distribution Software
5-7
5
Host Communications Drivers for Windows
The CIMPLICITY InTouch software sits on top of GE Host Communications
Drivers for Windows (IC641SWP050). The Host Communications Drivers software
provides a common programming interface for all underlying software drivers that may
be used to access the Series 90 PLC. For more information on the Host Communications
Drivers software, refer to the Host Communications Drivers for Microsoft Windows User’s
Manual (GFK-1026).
t
DDE Drivers
Note
To operate the VMEDDE driver, you must have a release 5.5 or later
90-70 CPU, and a CIMPLICITY InTouch hardware key.
The loaded hard disk (revision B and later) includes the VME DDE driver, as well as the
UMBDDE driver which was included in earlier releases. The VME DDE driver allows
CIMPLICITY InTouch access to 90-70 CPU memories without the need for associated
90-70 CPU logic.
All 90-70 CPU models support the UMBDDE driver. Some 90-70 CPUs have release 5.5
built in. Others can be upgraded. For more information about upgrades, refer to the
product literature for release 5.5 CPUs.
Note
The Plug & Play PC is shipped with the GEHCS VME DDE server. If this
program is also obtained from another source, and re-installed on top of
the existing version, the software may notify you that some files are
older than the existing copy. If the software displays the following
prompt, answer Yes.
Retain Newer Copy?
5-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Running the Application Demos
Warning
The Plug & Play PC demo programs provided for the 90-70 CPU are not
intended for use in a real application. Do not attempt use of the demo
programs on operating machinery.
Several VPC demonstrations that show the Plug & Play software in action are provided
on the distribution hard disk. Two CIMPLICITY InTouch demos and a Visual Basic demo
are provided.
Running the CIMPLICITY InTouch Demos
The first CIMPLICITY InTouch demo uses the UMBDDE driver to obtain information
from the 90-70 CPU. The second demo uses the VME DDE driver.
The demos require that a 90-70 CPU demo program be loaded to provide loop-around
data for both demos, as well as backplane communications for the UMBDDE demo.
Setting up the Series 90-70 for DDE Demos
To run the demonstration applications, you will need to download a demo program,
which simulates incoming values, to the 90-70 CPU. When using the VME DDE driver,
you should load the 90-70 CPU with the program VMEDEMO. When using the
UMBDDE driver, you must load the UMBDEMO program.
Warning
You are about to download a new program to your 90-70 PLC. The new
program will overwrite the current program, if there is one. Be sure
that the PLC is not actively controlling any machinery, because
downloading a new program will cause it to cease machine control.
Note: Before performing the following procedure, be sure to save the program running
in the PLC, if this has not already been done.
To load the demo program, follow these steps:
1.
GFK-1055A
Start the Logicmaster software by double-clicking on the Logicmaster 90 icon in the
Plug & Play window.
Chapter 5 Distribution Software
5-9
5
2.
When the application is running, press F2 to enter the Logicmaster 90 Configuration
Package. Press F1 and verify that your system configuration matches that shown
(CPU type, slot setups, etc.) The VPC should be configured as 3 PTY VME. If
necessary, refer to the Logicmaster documentation for more information on
determining and setting your system configuration. Press Esc twice and press Y to
exit the Logicmaster 90 Configuration Package menu.
3.
Press F1 to enter the Logicmaster 90 Programmer Package menu. Press F3 for PLC
Control and Status. Press F1 for Run/Stop PLC and press Tab until the PLC status is
STOP. Press Enter.
4.
Press Esc twice to get back to the Programmer Package menu. Press F8 for the folder
menu and then press F1 to see the list of available folders. Move the cursor to
UMBDEMO or VMEDEMO and press ENTER to select the folder. Press Esc twice to
return to the Programmer Package menu (or press Shift-F9 to go directly to the
Utilities menu).
5.
The 90-70 CPU status (OFFLINE, MONITOR, or ONLINE) is shown in the center of
the third line from the bottom of the screen. If the status is not shown as ONLINE,
press Alt-M until ONLINE is indicated at the bottom of the screen. Press Enter and
then press Y to begin downloading. As soon as the download is complete, Store
complete will be displayed.
6.
Press Esc twice to get back to the Programmer Package menu. Press F3 for PLC
Control and Status. Press F1 for Run/Stop PLC and press Tab until the PLC status is
RUN/OUT EN. Press Enter. (You can also change the PLC’s running state by pressing
Alt-R.)
If using the UMBDEMO program, the BACC indicator on the VPC front panel
should illuminate to show that the PLC is communicating with the VPC. Otherwise
the BACC LED will come on when you re-enter Windows. If not, and if the status of
the PLC is STOP/FAULT, you will need to clear the fault before proceeding. Refer to
your Logicmaster 90 documentation for instructions on clearing the fault condition.
5-10
7.
The demo program is now running. Press Esc twice to get back to the Programmer
Package Menu. If desired, you may press F1 for Program Display/Edit to view the
ladder logic program during execution. When the ladder logic program is displayed,
you should see that the PLC is simply updating counter values.
8.
Exit the Logicmaster software by pressing Esc, Y, and Esc again. (You can also exit
from anywhere in the Logicmaster software by pressing Ctrl-Break followed by Y.)
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
CIMPLICITY/UMBDDE Demo
Before running this demo, the UMBDDE driver must be selected using the SetVPC
utility, and then started up. Also, the 90-70 CPU program UMBDEMO must have been
loaded in the 90-70 CPU.
The proper sequence is:
S
Use SetVPC to select the UMBDDE driver (UMBDDE) if not already selected.
S
Start up the UMBDDE driver from the Plug & Play program group.
S
Start up the CIMPLICITY InTouch demo program.
Simply double-click on the InTouch icon (labeled UMBDEMO) in the Plug & Play
window. If you don’t have the hardware key for CIMPLICITY InTouch, it will
present you with a message that states that the key is not installed. If this is the case,
simply press the Ignore button to allow CIMPLICITY to run in demo mode.
Once the demo is running, there will be three buttons at the bottom of the screen. Pressing
the first one, View Analog Data Exchange, brings up a window which shows four thermometers, four corresponding buttons, and some changing values. Click on one of the four buttons for AI1 through AI4 and enter in any value. This value will be provided to the 90-70
CPU, and then the VPC will receive the value and update the corresponding thermometer.
Pressing the View Discrete Data Exchange button brings up a window which has eight light
switches and eight corresponding frowning faces. Simply click on a switch to turn it on or
off. The switch state will be sent to the 90-70 CPU, and the 90-70 CPU will update the VPC,
causing it to change the corresponding faces. This is basically a loopback from the 90-70 CPU.
When you are done with the demo, simply choose Exit from the File menu to end the demo
and return to the Plug & Play window.
Note
The SetVPC utility modifies the SYSTEM.INI file to switch between the
UMBDDE and VMEDDE backplane drivers. Never modify the
SYSTEM.INI file manually to accomplish this.
CIMPLICITY/VME DDE Demo
To use the VME DDE driver/CIMPLICITY driver, you must purchase a CIMPLICITY
InTouch package, and use the supplied hardware key. Refer to the CIMPLICITY InTouch
documentation for details.
Operation is similar to the UMBDDE demo described above, except that the VMEDEMO
program must be loaded in the 90-70 CPU, the VME DDE driver must be selected using
SetVPC, and you must click on the icon labeled VME Demo.
GFK-1055A
Chapter 5 Distribution Software
5-11
5
Running the Microsoft Visual Basic Demo
The Visual Basic Demo in the Plug & Play window provides a demonstration of VPC
communications using Microsoft’s Visual Basic. To run the demo, be sure the UMBDEMO
Program is loaded in the 90-70 CPU, and then double-click on the icon.
The UMBDEMO CPU program is used to change data in the CPU for a more useful
demo. The Visual Basic demo reads and writes directly to the backplane, and does not
use the UMBDDE driver or the VMEDDE driver, but does use the UMBDEMO CPU
program.
When you open the demo, you will see four buttons at the bottom of the settings
window:
D Clicking Look at I will bring up the familiar switches for setting discrete input values.
D The Look at Q button will bring up the faces which correspond to the discrete input
values. You can bring up both windows at once to see the changes occur.
D Selecting Look at AI will allow you to set analog values in AI1 through AI4. The
values are sent to the CPU when the Window is closed.
D Selecting Look at AQ will show thermometers corresponding to the values set in AI1
through AI4, as well as the automatically incrementing counters shown in AQ5
through AQ8. Again, this is a simple loopback.
When you are done with the demo, simply choose Close from the main demo screen to
end the demo and return to the Plug & Play window.
As an example for the Visual Basic programmer, the Visual Basic demo is provided, in
source code form, in the VBSOURCE directory on the distribution disk.
5-12
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Running the Excel Demos
R
An Excel demo program is provided in the PNPUTILS directory for use with the
UMBDDE driver. There are also some Excel demo programs in the CIMPLICITY InTouch
directory. If you do not have Excel installed on the Plug & Play PC, but you have it
installed on another PC, you can use the following procedure to run these programs.
This procedure covers the use of the demo program for the UMBDDE driver.
1.
Append the path statement in your autoexec.bat file on the Plug & Play PC to
include F:\WINDOWS\SYSTEM. Restart your Plug & Play PC.
2.
Remove the CIMPLICITY InTouch hardware key, if installed. Then, connect the
InterLink cable, and start INTERSVR on the remote computer which has Excel
installed.
3.
Start the UMBDDE driver from the Plug & Play program group.
4.
Be sure the 90-70 CPU program, UMBDEMO, is running.
5.
From the Windows program manager in the Plug & Play PC, type:
RUN F:\EXCEL\EXCEL C:PNPUTILS\UMBDEMO.XLS
You should be able to see the data changing in both tabular and graph form.
6.
If you load the other Excel demo programs, you may need to EDIT LINKS and
change the names of the DDE Topic names to be the same as are used in the
UMBDDE driver (Server name=UMBDDE, Topic name=UMB, item name
(example)=AQ5.)
Note: You will need to eventually remove the F:\WINDOWS\SYSTEMreferencefrom
your path command, or your system will hang up when you remove the InterLink cable,
or stop running INTERSVR on the remote computer.
GFK-1055A
Chapter 5 Distribution Software
5-13
5
Running CIMPLICITY InTouch
The Plug & Play PC loaded hard disk includes features as outlined in the software
contents section at the beginning of this document.
To fully enable the non-demo features of CIMPLICITY InTouch, you must purchase
CIMPLICITY InTouch and options from an authorized distributor. You will then obtain:
D The hardware key mentioned above (depending on what you purchase, the
hardware key will enable different functions in the software, which is already
loaded).
D CIMPLICITY InTouch Diskettes (this software is already installed in the Plug & Play
PC, and does not need installed again, unless this is an upgrade, or an option not
provided in the standard package).
D
D
D
D
CIMPLICITY InTouch Documentation.
CIMPLICITY InTouch Demo Documentation.
GE Series 90 Fault Table documentation and backup diskettes
CIMPLICITY InTouch Symbol Library documentation and backup diskettes
Do not reinstall CIMPLICITY InTouch after you purchase it (unless you have purchased a
later revision). Just use the hardware key to enable the software.
If you are purchasing options that were not included in the Plug & Play PC loaded hard
disk already, such as Structured Query Language (SQL), Statistical Process Control (SPC),
or Recipes, you must purchase the software and documentation from an authorized
distributor. The software must then be installed by the Plug & Play user. These options
are installed using InterLink. Refer to the InterLink section in this document, the
CIMPLICITY InTouch documentation, or call the CIMPLICITY Technical Support
Hotline.
Moving the GEHCS Icon to the Startup Group
The GEHCS CIMPLICITY InTouch server program calls the SRX driver to attach to the
90-70 CPU for communications. If CIMPLICITY InTouch is started up prior to the GEHCS
program being started, it will offer the option of starting GEHCS, which will then
attempt to start SRX automatically. With the present versions of GEHCS, SRX, and
CIMPLICITY InTouch, the GEHCS program takes longer to start up than the built-in
timeout period in CIMPLICITY InTouch. The net result is that you will be presented with
a second opportunity to start GEHCS even though it is actually running. At this point
you should hit the cancel button.
To avoid this problem altogether, you can start the GEHCS program prior to starting
CIMPLICITY InTouch. This can be done manually, or in a production environment, it can
be done by putting GEHCS in the Windows startup program group.
5-14
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Compatibility Between the UMBDDE and VME Drivers
The UMBDDE driver shipped with the revision A hard disks does not support 32-bit
words. The revision A UMBDDE driver supports AI and AQ (integers), I and Q (bits).
Revision B (and later revisions) support the above data types, plus the R (register) data
type, which can also be used with signed 16-bit data, BCD, bit, 32-bit long, 32-bit float,
and ASCII. This R type will provide compatibility with the VME server, in the event that
you develop a CIMPLICITY InTouch program with the UMBDDE driver, and then
transition to the VME DDE driver in the future.
With no modifications to the 90-70 CPU UMB demo program, reads to R references will
come from corresponding AI references, and writes to R references will be directed to
corresponding AQ references. In order to actually read and write R references in the
90-70 CPU, it is necessary to modify the 90-70 CPU demo program VME read and write
instructions to access registers instead of AI and AQ memory.
VME Port Definition
When using the VME DDE driver, the CIMPLICITY InTouch program uses the definition
below to pass information to the GEHCS, which reads the C:\WINDOWS\GEF_CFG.INI
file. There are four sections related to use with the Plug & Play PC. These must appear as
described below for the demos to work properly:
[VMEPLC]
DEST_ADDR = 10E00000
[VME]
TYPE = VME_PORT
[VMEPLC]
DEST_ADDR=10E00000
[testplc]
DEST_ADDR=10E00000
Refer to the CIMPLICITY InTouch manuals for more information.
GFK-1055A
Chapter 5 Distribution Software
5-15
5
TCP/IP Port Definition
When using the TCP/IP DDE server, CIMPLICITY InTouch uses the definition below to
pass information to GEHCS, which reads the C:\WINDOWS\GEF_CFG.INI file. The
GEF_CFG.INI file contains definitions for the ports and devices to be recognized by the
drivers that the server uses. For the server to function, the file must have the entries
described below:
;Ports
[TCPIP]
TYPE=TCPIP_ETH
[HCT_Timeout]
CONNECT_TIMEOUT=10000
REQUEST_TIMEOUT=175
In addition, for each PLC to be accessed by the server, a device name entry must be
made. For example,
[TESTPLC]
IP_ADDR=198.211.124.222
The device name enclosed in [ ] must correspond to the PLC Address provided in the GE
Host Communications DDE Server Topic Definition dialog. The IP_ADDR for a
given PLC is configured using the GSM software from GE.
CIMPLICITY InTouch Restrictions
In the configuration menus for the GEHCS, several of the configuration settings are
currently disabled.
D Configure/Com Port Settings. This selection applies only to serial interfaces. Since
the only protocols currently implemented in the server are VME and TCP/IP, this
setting is not applicable.
D Com Port setting in the Configure/Topic Definition dialog screen is disabled
D SNP-Serial setting in the Protocol Selection box is disabled.
In future releases of the GE Host Communication Server, the SNP communication
protocol will be available, and the currently disabled settings will be enabled.
5-16
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Other Distribution Files
Files on the distribution disk are divided into subdirectories by their purpose. The
following paragraphs describe these subdirectories and other files:
SetVPC
This icon appears in the Plug & Play window and allows you to perform specific board
configuration from Windows. You should rarely need to use this utility. It has online
help, and a Defaults button that will return the settings to shipping defaults. SetVPC
performs the same function as the embedded VPC Setup available during startup.
WINDIST Directory
This directory contains all the Windows for Workgroups distribution files. It is handy to
have all of them when installing printers and other setup tasks, since the VPC has no
floppy disk to load them with. However, if you need to free disk space on the
distribution disk, removing this directory and the files in it will have no effect on system
operation, other than requiring installation files to be provided via InterLink when
performing advanced setup in Windows.
PCMPLUS Directory
This directory contains all the drivers and files necessary to support many of the
PCMCIA cards on the market. Hard disk cards, memory cards, and I/O cards are all
supported by these drivers. They are fully documented in the PhoenixCard Manager Plus
User’s Manual that came with your VPC.
DOS Directory
This directory contains files used by the MS-DOS operating system.
WINDOWS Directory
This directory contains all the files used by the Windows operating system. The
Windows configuration file, SYSTEM.INI, is in this directory.
AUTOEXEC.BAT, CONFIG.SYS, and SYSTEM.INI Configuration
These are your primary system configuration files. AUTOEXEC.BAT and CONFIG.SYS
reside in the root (topmost) directory of your distribution disk, while SYSTEM.INI is in
the WINDOWS directory. When you install new driver software or applications, you
may be required to modify these files, or they may be modified automatically by
installation programs. However, you should be aware that changing them incorrectly
may cause improper operation. Rarely should you need to modify these files. The ”VPC
Defaults Reference” in Appendix C gives the factory default contents of these
configuration files, in case you need to restore them after an incorrect modification.
Backup Directory
Copies of the AUTOEXEC.BAT, CONFIG.SYS, and SYSTEM.INI Configuration files as
shipped are provided in the BACKUP directory, and have .GEF extensions. To use them,
simply copy over the problematic file with the one from the BACKUP directory. Be sure
to rename the replacement file to give it the correct extension.
GFK-1055A
Chapter 5 Distribution Software
5-17
5
Customizing the Plug & Play Configuration
Multiple Boot Options
The CONFIG.SYS and AUTOEXEC.BAT files are configured for two separate boot
options. Every time the system is rebooted, you will be prompted to choose either the
single disk option or the dual hard disk option.
D If you wish to avoid the multiple option boot-up, do one of the following
procedures:
To always use the single disk option, type at the C:> prompt:
COPY
C:\BACKUP\CONFIG.ONE
C:\CONFIG.SYS
COPY
C:\BACKUP\AUTOEXEC.12
C:\AUTOEXEC.BAT.
To always use the dual disk option, type at the C:> prompt:
COPY C:\BACKUP\CONFIG.TWO
COPY
C:\CONFIG.SYS
C:\BACKUP\AUTOEXEC.12
C:\AUTOEXEC.BAT.
D If you wish to maintain the dual boot configuration, but default to the double disk
scenario, make the following change in the CONFIG.SYS file:
from:
menudefault=single,5
to:
menudefault=double,5
The “5“ allows 5 seconds to manually reselect the boot option before the system
defaults to the configuration described.
Note
The CONFIG.SYS and AUTOEXEC.BAT, files as shipped in the C:\ main
directory, are also included in the \BACKUP directory as CONFIG.GEF
and AUTOEXEC.GEF.
5-18
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Optimization of Cache and Swapfile for Different VPC Platforms
The loaded hard disks are shipped with Windows setup files that configure 1 MB of
cache memory and an 8 MB swapfile on disk. This default setting works with models
VPC462 (8 MB memory), VPC463 (16 MB memory), and VPC 464 (32 MB memory).
If the default values (same as VPC462) are used throughout, hard disks can be swapped
back and forth between the three models.
However, if you are using the loaded hard disk with only the VPC463 or VPC464, some
performance improvements can be made by adjusting the cache size to 4 MB. This can be
done in the Windows control panel under the 386 ENH icon. Select the Virtual Memory
button, then select Change. Adjust the cache size to 4096K, then selecting OK, return
back through the menus.
These suggested settings are shown in the following table. Depending on the programs
in use on the Plug & Play PC, other values of cache and swapfile may provide better
performance.
Default
VPC462B
VPC463B
VPC464B
Cache
1 MB
1 MB
4 MB
4 MB
Swapfile
8 MB
8 MB
*
*
*Use the size that Windows recommends in the Virtual Memory window.
Restrictions on the Use of SMARTDRV
The SMARTDRV.EXE program is loaded in AUTOEXEC.BAT to enhance disk drive
performance in DOS. The Windows cache size is set at 0 as in the line below:
c:\dos\smartdrv.exe /x /u 2048 0
If this number is increased on a VPC462 (8 MB), a situation may occur where not enough
physical memory is available to allocate to the VPC’s dual ported RAM, which
communicates with the backplane. When this occurs, the OK LED will go out during the
loading of Windows, and the VMEDDE driver will not work.
GFK-1055A
Chapter 5 Distribution Software
5-19
5
Embedded VPC AT Settings for Hard Disk Drives
It is possible to configure a VPC platform for use with revision A, B, or C hard disks as
the SOCKET B boot disk (FIXED DISK 0). (Note: the Fixed Disk 1 setting should be
NONE.)
To change the settings:
1.
Power cycle or reboot the VPC with the old disk drive. When prompted, press F2 to
access the Setup Program.
2.
Change the settings in the VPC AT Settings for the new disk drive. Correct CMOS
settings for the boot hard disk (FIXED DISK 0) size are listed below:
For the revision A (105 MB) drive:
Type [User]
CY:[810]
HD:[15]
ST:[17]
LZ:[810]
WP:[NONE]
For the revision B (131 MB) drive:
Type [User]
CY:[1008]
HD:[15]
ST:[17]
LZ:[1008]
WP:[NONE]
For the revision C (260 MB) drive:
Type [User]
CY:[936]
HD:[16]
3.
Save the settings.
4.
Power down and insert the new disk drive.
ST:[34]
LZ:[936]
WP:[NONE]
A fast way to select these settings is to:
1.
Use the F5 /F6 keys to select [AUTO].
2.
Press F10.
3.
Use F5 /F6 to select [USER].
4.
Press F10, Esc.
If you use a disk with the wrong settings, a “Fixed Disk Error,” or other disk-related error,
could occur during powerup. To change to a different capacity hard disk, you must boot
up with the old disk, change the settings for the new disk, then power down and insert
the new disk.
If a hard disk is inserted in SOCKET A, the size is automatically detected. No
reconfiguration is required to change to a different capacity disk in Socket A.
5-20
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
5
Freeing Hard Disk Space
As shipped, revision A hard disks had approximately 22 MB of space remaining, and
revision B loaded hard disks have approximately 47 MB of space remaining. In the event
that additional space is needed, the following steps can be used:
1.
Reduce the swapfile setting to a lower number, or 0. This may have a negative effect
on performance in some cases, but may not be noticeable in many other cases.
2.
Delete the files in the C:\WINDIST directory (see below) which are no longer needed.
This can provide about 20MB of additional space depending on how many files are
erased. After Windows is up and running successfully with all printers, networks,
etc. successfully installed, the files in this directory may no longer be needed.
3.
Purchase the IC697PNP701 hard disk and use it in SOCKET A as an extra drive.
4.
Use Ethernet to access additional files from a remote server.
5.
During development of an application, CIMPLICITY InTouch creates backup files of
the form *.?bk. After the development of an application is complete, these files can
be deleted from their respective application directories.
Application Demos
The application demos can be found in the following directories:
Demo
Directory
UMBDDE
INTOUCH\WW_DEMO
VME
INTOUCH\VME_DEMO
Visual Basic
PNPUTILS
CIMPLICITY InTouch
If you don’t plan to purchase CIMPLICITY InTouch, you can remove the INTOUCH
directory and all CIMPLICITY InTouch application directories. Although this will yield
some space, it will prevent you from running the CIMPLICITY InTouch demos.
GFK-1055A
Chapter 5 Distribution Software
5-21
5
Installing New Software
Caution
The Plug & Play PC is a bundled product, and has been optimized for
use with the included software on the included hardware. This
optimization involves configuration of the DOS operating
characteristics, which are found in the CONFIG.SYS, AUTOEXEC.BAT,
WIN.INI, and SYSTEM.INI files. Changes to these files should not be
made unless you have an expert grasp of the possible consequences.
When you install new software, sometimes this software automatically makes changes to
some of the files below, causing inadvertent side effects on the operation or performance
of programs which were previously running successfully.
If CIMPLICITY InTouch or Logicmaster 90 stops operating properly, or performance is
severely hampered after installing some unrelated program, you may need to remove
the offending programs and restore the original system files. The original system files are
included in the loaded hard disk \BACKUP directory.
It is recommended that before installing new software, that you copy the original system
files, listed below, which represent the last known good configuration to the C:\BACKUP
directory as a precaution.
D
D
D
D
D
D
D
C:\CONFIG.SYS
C:\AUTOEXEC.BAT
C:\LM90\LM90.PIF
C:\LM90\LM90.D
AT
C:\LM90\%COM070.PSU
C:\Windows\SYSTEM.INI
C:\Windows\WIN.INI
When programs that adversely affect performance of Logicmaster 90 have been installed,
it is possible that Logicmaster 90 will continue to operate when invoked directly from
DOS, instead of from Windows via the MS-DOS prompt, or from the Windows Icon.
5-22
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Chapter Diagnostics
6
This chapter describes VPC troubleshooting. Standard diagnostics procedures, common
problems, and solutions are covered. The following topics are included:
D
System Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
h Startup Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
h Ethernet Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
D
Common Problems/Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
h
h
h
h
h
h
h
h
h
h
D
D
GFK-1055A
PCMCIA Hard Disk Problems . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Invalid Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Screens Not Visible on Monitor . . . . . . . . . . . . . . . . . . . . . . . 6-6
Communication With 90-70 CPU
Not Established or Interrupted . . . . . . . . . . . . . . . . . . . . . . . 6-7
Application Timeouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Data Coherency During CPU “Constant Sweep” Mode . . 6-7
Problems with Logicmaster 90 Operation . . . . . . . . . . . . . . 6-8
Out of Memory Error Message . . . . . . . . . . . . . . . . . . . . . . . 6-8
Recovery from the“Starting MS-DOS . . .” Hangup . . . . . . 6-9
System Not Booting Properly/Unexpected Rebooting . . . 6-9
VPC/90-70 CPU Mismatch Scenarios . . . . . . . . . . . . . . . . . . . . . 6-10
PLC Faults on the VPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
6-1
6
System Diagnostics
The VPC has comprehensive self-diagnostic capabilities. Most of them are provided in
the ROM BIOS and are automatically executed during startup.
Startup Diagnostics
When the VPC is powered-up, it performs an extensive set of self-diagnostics. If you
suspect a problem with the VPC, power-on the board and watch the screen carefully. If
the board boots all the way into Windows without any error messages, it is unlikely you
have a hardware problem.
Note
The Plug & Play PC will always fail the diagnostics keyboard test, even
with a functioning keyboard. This is not a cause for concern.
Ethernet Diagnostics
If you are having problems with on-board Ethernet, or with your Ethernet network in
general, built-in Ethernet diagnostics are available under MS-DOS. To run the diagnostic
program, follow these steps:
1.
Close all open applications and exit Windows, if applicable. Restart the VPC by
toggling the front panel RESET switch.
2.
As the boot process begins, be prepared to press F8. After the memory test is
complete you will see the message: Loading MS-DOS.... Press F8 immediately
thereafter.
3.
You will be asked if you want to execute each command in your CONFIG.SYS file. To
each command, respond NO. You will then be asked if you want to process your
AUTOEXEC.BAT file. Again, respond NO.
4.
At the DOS prompt, type CD PNPUTILS to change your current directory.
5.
Then type AUTOSET to run the Ethernet setup/diagnostics program.
6.
Once AUTOSET is running, choose Diagnostics. You should be able to observe
network traffic.
7.
If, after configuring your network in Windows, the network adapter doesn’t seem to
be working, be sure you changed the default interrupt for the network adapter from
IRQ3 to IRQ5.
6-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
Common Problems/Solutions
PCMCIA Hard Disk Problems
Second PCMCIA Hard Disk Disappears
If the VPC no longer recognizes the second PCMCIA hard disk after you have removed
it and reinserted it and removed it again, you did not allow enough time between
insertion and removal for the disk to spin up, thus confusing the software. Be sure to
wait several seconds before removing a disk you just put in. A power cycle, soft reboot
(Control Alt Delete), or quickly toggling the RESET switch should clear this condition.
Generally, hard disks should be inserted and removed with the power off.
Hard Disk Error Messages
If you encounter hard disk error messages, try turning 32 BIT DISK ACCESS OFF. This
parameter can be accessed from the Windows Control Panel (386 Enh, Virtual Memory,
Change).
32 BIT FILE ACCESS should remain ON, since this provides much faster disk
performance. These are the factory ship defaults.
Timeout Period for Missing Drive
If an attempt is made to access a nonexistent drive–for example, C:>DIR B: where the
B: drive is not installed–it may take in excess of 15 seconds for DOS to return the
prompt: General failure reading drive B: – Abort, Retry, Fail?
This is normal operation.
Hard Drive Misidentified as a Floppy Drive
Because of the PCMCIA drivers which are used to access the SOCKET A port on the Plug
& Play PC, a hard drive will be misidentified as a floppy drive by some programs such as
the Microsoft Virus checker. This does not affect the proper use of these programs. Since
the hard drive is a removable medium, it is treated as a floppy by some of these
programs.
Notes on Swapping Boot Disks
GFK-1055A
D
The loaded hard disk contains files that have been optimized for use with either
the 8 MB, 16 MB, or 32 MB memory sizes. A loaded hard disk should not be
swapped between units of different sizes unless the default values for cache and
swapfile size have been retained.
D
You should not try to boot from a hard disk that has a capacity different from
the capacity that the VPC is configured for. (For example, do not try to replace a
131 MB boot disk with a 260 MB disk.) If you do so, some files may appear to be
missing, or may be corrupted. However, it is possible to configure a VPC
platform for use a different capacity hard disk as the boot disk. See page 5-20 for
instructions.
Chapter 6 Diagnostics
6-3
6
Missing Files
Lost files can result from removing a hard disk while it was being accessed for a write
operation. Also, random files or groups of files can be lost if power is lost to the hard disk
while a write operation is occurring. Some applications, such as the CIMPLICITY
InTouch Logger program write regularly to the disk in a background mode. Close the
applications that are writing before removing disks or powering down.
Steps to recover missing files:
If you can boot the drive:
1.
Use the Microsoft Undelete utility from the Applications program group. Or,
after exiting Windows, try using the UNDELETE command from the DOS
prompt.
2.
If UNDELETE does not work, exit Windows, and from the DOS prompt, run
SCANDISK. SCANDISK may identify the problem and fix it for you.
3.
If you can’t recover the files using UNDELETE or SCANDISK, try reinstalling
the missing files. If these files are Windows distribution files, and you have not
erased the C:\WINDIST directory, you may be able to reinstall to the
C:\WINDOWSdirectory from C:\WINDIST. If other files are missing, or they are
not Windows files, you may need to use InterLink to a host computer to reinstall
the missing files (or download them via the Ethernet port).
If you can’t boot the drive:
6-4
1.
If you have another bootable drive, put the bootable driver in SOCKET B and
put the bad drive in SOCKET A. Try using the SCANDISK (SCANDISK G:) and
UNDELETE commands on that disk. (Drive G: is the default shipping
configuration for SOCKET A, the bad hard disk.)
2.
If step 1 doesn’t work, run the full hard disk backup (icon is in the Windows
Plug & Play program group) from your backup disk to your “bad” disk. After
doing this backup, run SCANDISK on both disks. Also, be sure to fix the
corrupted swap file after the backup.
3.
If you can’t boot the drive and you don’t have a backup, your only alternative is
to obtain a new bootable drive. When you obtain the new drive, it may be
possible to recover some of the files from the bad drive. If you send in your drive
for replacement, all your old files will be lost.
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
To avoid these problems in the future:
GFK-1055A
1.
Make sure you are using a 100 watt 90-70 power supply. The hard drives need
+12V, which this power supply provides.
2.
Try turning 32-bit DISK ACCESS OFF in the Windows Control Panel, 386 Enh,
Virtual Memory screens.
3.
When inserting or removing the SOCKET A hard disk with power on, wait at
least 5 seconds after plugging a drive in before removing it. Also wait at least 5
seconds after removing a drive before plugging one back in.
4.
Never remove or insert boot drive in SOCKET B with power on the system. If
you have a revision VPC or later VPC, you might want to use the hard disk
clamp to discourage people from pushing the SOCKET B ejection button to see
what happens.
5.
If you have unpreventable power shutdowns in your application, consider the
use of an uninterruptable power supply for the 90-70/VPC. Windows does not
provide any hooks to allow a graceful shutdown in the event of a power failure.
6.
If the drive rattles when you shake it, there may be a permanent problem.
Although the PCMCIA drives supplied with the Plug & Play PC are very rugged,
they will not withstand being dropped on the floor or a hard table top. There is
no way to recover data from an hard disk that has been dropped, and now
rattles when you shake it. If you plan to take your hard disk out of the VPC, and
transport it to other locations, purchase a PCMCIA hard drive carry case from
your local computer store.
7.
Do not power down, or hit the RESET switch while the VPC is performing its
power-up memory check. Refer to “Recovery from the ’Starting MS-DOS . . .’
Hangup” on page 6-9.
8.
Make a bootable backup using a spare hard disk.
Chapter 6 Diagnostics
6-5
6
Invalid Configuration
Because the VPC is a plug and play product, you should rarely have to use AT Setup or
modify your AUTOEXEC.BAT, CONFIG.SYS, or SYSTEM.INI configuration files. If you
do, however, you should be aware that incorrectly modifying configuration files or setup
parameters can cause the board to operate improperly, or not at all. If an invalid
configuration prevents you from reaching Setup to correct the error, you will need to
perform what is known as “Tripping the Modeswitch”. The Modeswitch is a device built
into the VPC that causes low-level settings of the VPC to return to defaults which will
ensure that you can at least reach the Setup utility to correct any faulty configuration.
To trip the modeswitch, simply hold the RESET switch down for at least five seconds.
When the OK LED is illuminated, you have tripped the modeswitch successfully and the
board should boot far enough for you to enter Setup upon the release of the switch.
After tripping the modeswitch, follow the startup instructions again (see on “Backplane
Driver Options” on page 3-3.)
When you install new software, sometimes this software automatically makes changes
to some of the above files, causing inadvertent side effects on the operation or
performance of programs which were previously running successfully.
If CIMPLICITY InTouch or Logicmaster 90 stops operating properly, or performance is
severely hampered after installing some unrelated program, you may need to remove
the offending programs and restore the original system files. The original system files are
included in the loaded hard disk \BACKUP directory. If you periodically save these files,
you will have a more recent backup.
Screens Not Visible on Monitor
Be careful when changing video monitors with the Plug & Play PC. If the system is
changed to a higher resolution (from the default 640x480) to work with a high resolution
monitor, and then the monitor is replaced with a lower resolution monitor, it will not be
possible to view any screens, including the power up screen. To correct this problem,
re-connect the higher resolution display, then set the video driver to 640x480 resolution
prior to connecting the low resolution display. This is a characteristic of most PCs, but is
more likely to happen with the Plug & Play PC due to its use on the factory floor.
VME DDE Driver Settings Corrupted
To operate properly, the VME DDE driver needs to have the
DEVICE=C:\WINDOWS\VME.386 line present (not remarked out) in the SYSTEM.INI
file. In addition, the embedded AT settings in the VPC itself must be set for correct
VME DDE operation. The SetVPC program sets these parameters in tandem when the
VME DDE or UMBDDE drivers are selected. The SetVPC program also reads the
SYSTEM.INI file to determine which driver has already been loaded.
If the SYSTEM.INI file is manually edited (not using SetVPC) to add or remove the line
above, the SetVPC program may become confused, and not allow the VME DDE driver
embedded settings to be set up because it thinks the VME DDE driver is already loaded.
To recover from this situation, use SetVPC to select the UMBDDE driver, reboot, then
reselect the VME DDE driver. Do not edit this file manually.
The Plug & Play PC is shipped correctly configured, but this condition may occur if
another program volunteers to “set up the VME driver”, and you answer “yes”.
6-6
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
Communication With the 90-70 CPU Not Established or Interrupted
The VPC Module has been integrated into the 90-70 PLC system in such a way that
communications between the VPC module and the 90-70 CPU can sometimes be
established – even if the 90-70 does not have the correct configuration information for
the VPC module. However, some combinations of configuration mismatches and other
factors can prevent communication between the 90-70 CPU and the VPC. Refer to
“Configuration Issues” on page 6-10 for descriptions of instances that can affect
communication.
In addition to the VPC correctly configured in both the logical and physical
configurations, and configured for FULL_MAIL communication, the VME DDE driver
communication link between the 90-70 CPU and the VPC relies upon the operation of
the FULL_MAIL driver that runs on the VPC. Because the FULL_MAIL driver is a
Windows driver, FULL_MAIL communication is supported only while Windows is
running on the VPC (and the FULL_MAIL driver is installed).
If the FULL_MAIL driver is not running, the 90-70 PLC logs faults against the VPC into
its PLC Fault Table. Possible causes of these faults are described in “PLC Faults on the
VPC”, beginning on page 6-12 .
Note
The fault contact read by the 90-70 CPU into the fault tables for the VPC
is “undefined” and should not be used.
Application Timeouts
The Plug & Play VPC is normally set up to communicate over the VME backplane, using
either the VME DDE driver or the UMBDDE driver, to the 90-70 CPU. If the CPU gets
tied up with other activities, such as an Logicmaster 90 download from an external
computer, or a redundant Genius bus switch, the 90-70 CPU may temporarily not
respond to requests generated by the VPC.
After a maximum of 8 seconds, the CPU will send the VPC application a message saying
that it is busy. Depending on the application running in the Plug & Play PC, this message
may or may not affect operation.
Data Coherency During CPU “Constant Sweep” Mode
The 90-70 CPU has a “constant sweep” mode of operation. While this mode is active,
data transmissions to and from cards in the backplane, including a Plug & Play PC, may
be interrupted at unexpected times.
This may result as “non-coherent data” either in the Plug & Play PC or in the 90-70 CPU.
If coherent data is required, constant sweep mode should not be used.
GFK-1055A
Chapter 6 Diagnostics
6-7
6
Problems with Logicmaster 90 Operation
D
When Logicmaster 90 is running in a DOS box and is re-enabled to the
foreground, it may temporarily lose communications. It may take up to 40
seconds to re-establish communications.
D
Care should be exercised when invoking DOS box programs (such as
Logicmaster 90) from Windows. Sometimes a slight delay in running a program
is encountered after clicking on the icon for the DOS box program. There may be
a tendency to click the icon again, and accidentally invoke a second instance of
the same program. If this second instance of the program is actually invoked,
there may be Windows integrity errors, or other errors. If this occurs, it may be
necessary to re-start Windows to correct the problem.
D
If the Logicmaster 90 cable from the Plug & Play serial port to the 90-70 CPU is
disconnected, it may take up to 21 seconds to detect a NO COMM condition.
When the cable is reconnected, it may take up to 3 seconds to clear the NO
COMM condition.
D
If you encounter error messages running Logicmaster 90 under Windows, be
sure that the Logicmaster 90 serial port communication parameter for MODEM
TURNAROUND TIME is set to 10 counts (Revision C and later). (If
communication errors occur while the Plug & Play PC is being heavily used to
perform multiple tasks, it may be necessary to increase this value.)
D
If Logicmaster 90 is being run at the same time as other programs, start up
Logicmaster 90 before other programs are started.
Out of Memory Error Message
If you are already running some Windows applications, and you try to run Logicmaster
90, when you try to load the programming package or the configuration package you
may get a Logicmaster 90 message indicating that there is not enough memory to load
the program. If this occurs, try loading Logicmaster 90 before invoking other programs.
If you get an Out Of Memory error message when running multiple Windows
applications simultaneously, it may be possible to reconfigure the Plug & Play PC to
allow these programs to run at the same time. You can try reducing the cache size in the
Windows Control Panel as described above. This change may result in performance
degradation of Windows programs, and DOS programs running under Windows, but
they may allow more programs to be run at the same time under Windows.
6-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
Recovery from the “Starting MS-DOS . . .” Hangup
To avoid this problem, do not power down, or press Control Alt Delete while the power
up memory test is being performed. On rare occasions, this may corrupt the CMOS
setup memory, and the unit will not power up correctly on the next power cycle. A
common symptom of this is that the system hangs up with the message “Starting
MS-DOS.....”.
If your system hangs up with the Starting MS-DOS . . . message, perform the
following procedure to recover from this problem.
1.
Power down the system, and power it up again.
2.
While the system is performing its memory test, press F2, and then enter the AT
Setup menu.
3.
Enter the Extended BIOS setup screen.
4.
Change the Quick Boot selection to NO.
5.
Save the change, and press Esc to leave the program.
6.
The system will reboot and perform a complete diagnostic, which should clear the
problem. This may take much longer than the normal boot-up process.
7.
After the system has successfully booted up again, power cycle the system.
8.
When the system is powering up, press F2 and again enter the AT Setup and
Extended BIOS setup screens.
9.
Set the Quick Boot selection to YES.
10. Save this selection, and press Esc to leave the setup program.
11. Reboot your system. After rebooting, the system should be back to normal.
System Not Booting Properly/Unexpected Rebooting
If an Ethernet driver is active, you must physically terminate the bus, or the system will
not boot properly, or may reboot unexpectedly. To work around this problem
temporarily, you can start Windows without the Ethernet network by typing:
c:> win\n
GFK-1055A
Chapter 6 Diagnostics
6-9
6
VPC/90-70 CPU Mismatch Scenarios
If the VPC is not correctly configured by Logicmaster 90, the following error conditions
described in scenarios 1–4, below can occur.
Note: The fault contact read by the 90-70 CPU into the fault tables for the VPC is
“undefined” and should not be used.
1: Rack Location Mismatch/Communication Established
A logical configuration is stored to the 90-70 CPU and this configuration indicates that a
non-VPC IOM (Intelligent Option Module) should be present in the rack location where
a VPC is physically located.
After power cycling the 90-70 PLC, a system configuration mismatch fault will be logged
(because the VPC was in the slot where a non-VPC module was configured). However,
even with the configuration mismatch fault, the FULL_MAIL driver in the VPC will be
able to establish communication with the 90-70 CPU.
Note: Types of IOMs include the following 90-70 modules: Programmable Coprocessor
Module (PCM), Genius Bus Controller (GBC), Ethernet Module (EM7), Peer Subnet
Module (PSM), and Communications Memory Module (CMM).
2: Rack Location Mismatch/Communication Not Established
A 90-70 logical configuration is stored to the 90-70 CPU and this configuration indicates
that an I/O module is physically located where the VPC is installed. After power cycling
the 90-70 PLC, a system configuration mismatch fault will be logged because the VPC
was in the slot where an I/O module was configured.
In this scenario, the FULL_MAIL driver in the VPC will not be able to establish
communication with the 90-70 CPU. If, after the power-cycle, the 90-70 CPU is in RUN
mode as the VPC starts up MS Windows, the CPU will log six Unrecognized VME
Interrupt Source faults in the PLC fault table (one fault for each time that the
FULL_MAIL driver attempts to establish communication). The faults occur because the
FULL_MAIL driver sends a VME interrupt to the 90-70 CPU to initiate communication.
Note: These problems will also occur if the AM code or the VME interrupt ID for the
VPC is mismatched.
3: VME Offset Mismatch/Communication Working
A 90-70 PLC system containing a VPC is running and communication between the VPC
and 90-70 CPU is established and working. Then a 90-70 logical configuration containing
the VPC is stored from Logicmaster 90 to the 90-70 CPU. This logical configuration, with
the exception of the VPC’s VME offset, matches the physical configuration of the VPC.
In this situation, even though the VME offset of the new logical configuration does not
match the physical configuration of the VPC, the communications link between the VPC
and the 90-70 CPU will not be broken. Because the communication link between the
90-70 CPU and the VPC was present and working correctly before the new logical
configuration was stored, the CPU will not break the existing communications link.
6-10
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
4: VME Offset Mismatch/No Communication
If the 90-70 PLC in “Scenario 3” is power cycled after the new logical configuration is
stored, communication between the VPC and the 90-70 CPU will be lost.
If this happens, communication between the VPC and the 90-70 CPU can not be
re-established until the VME offset mismatch is corrected, stored to the 90-70 PLC, and
the 90-70 PLC is power cycled. An alternative to power cycling the 90-70 PLC is to restart
the FULL_MAIL driver, and then restart the VPC. This can be done by exiting and then
restarting Windows, thereby re-initializing communication with the 90-70 CPU when
the FULL_MAIL driver is installed.
GFK-1055A
Chapter 6 Diagnostics
6-11
6
PLC Faults on the VPC
When the VPC is present, correctly configured in both the logical and physical
configurations, and configured for FULL_MAIL communication, the communication link
between the 90-70 CPU and the VPC relies upon the operation of the FULL_MAIL driver
that runs on the VPC. Because the FULL_MAIL driver is a Windows driver, FULL_MAIL
communication is supported only while Windows is running on the VPC (and the
FULL_MAIL driver is installed).
Under certain circumstances, the 90-70 PLC logs faults against the VPC into its PLC Fault
Table. Such instances are:
Reset of, Addition of, or Extra Option Module Fault
Because the VPC must be installed in the main rack (rack 0), or in an expansion rack that
has same power supply as the main rack, the 90-70 CPU and the VPC always power up
together. The 90-70 CPU completes its power-up sequence much faster than the VPC can
execute its power-up sequence (RAM tests, start MS-DOS, start MS Windows, and install
the FULL_MAIL driver). The 90-70 PLC does not log any PLC faults due to the long
power-up time of the VPC. However, when the FULL_MAIL driver is initialized (MS
Windows startup on the VPC), the 90-70 CPU logs a Reset of, addition of, or
extra option module diagnostic fault into the PLC fault table.
Loss of or Missing Option Module Fault
Once communication between the 90-70 CPU and the VPC (via the FULL_MAIL driver)
is established, any activity that breaks this link results in a Loss of or missing
option module informational fault being logged into the PLC fault table. Some
examples of such activity follow.
6-12
D
Exiting Windows: The FULL_MAIL driver will cease running and the VPC’s VME
dual port memory disabled to the 90-70 CPU, resulting in a communication failure.
D
Resetting the VPC (via the RESET switch or the Control-Alt-Del key sequence):
The VME dual port memory on the VPC is disabled, resulting in loss of
communication. (Do not press the RESET switch down too long. This will cause a
MODESWITCH change, and you will need to run SETVPC again when you return
to Windows. See “Invalid Configuration” on page 6-6.)
D
The VPC locking up: If the VPC locks up in such a way that the FULL_MAIL driver
no longer operates, the 90-70 CPU may detect a communication loss and log a
module loss fault.
D
Storing a logical configuration to the 90-70 CPU–even though it matches the
physical configuration–when the VPC is in MS DOS (i.e. MS Windows is not active)
results in a Loss of or missing option module fault. Again, because the
FULL_MAIL driver is not running, the VPC’s dual port memory is inaccessible to the
90-70 CPU.
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
6
Loss of Module Configurable Fault Action
The Loss of or missing module fault, when logged against the VPC, is logged as
an informational fault. Although the 90-70 PLC can be configured to go to the stop mode
on a loss of module fault, this informational fault for the VPC module will not cause the
PLC system to stop.
Note
If the loss of the VPC module is critical to the application and therefore
should stop the PLC, you must implement a “heartbeat” relationship
between the VPC application program and the 90-70 CPU application
program. Then, if the 90-70 CPU application detects a heartbeat failure
(i.e. loss of VPC communication), it will command the 90-70 CPU to stop
(Service Request #13).
GFK-1055A
Chapter 6 Diagnostics
6-13
Appendix Specifications
A
This appendix summarizes the design, electrical, environmental, physical, and
compliance specifications for the VPC Coprocessor for Series 90-70 systems.[ Some
specifications may change depending on the peripheral cards that are installed in the
PCMCIA sockets.
Functional Specifications
Models
VPC462,VPC463, VPC464
Description
80486PC/AT compatible coprocessor for
GE Series 90-70 systems
HardwareCompatibility
GE Series 90-70 backplane
Processor
80486DX2 @ 66MHz
Memory
VPC462
VPC463
VPC464
8 Megabytes
16 Megabytes
32 Megabytes
ConfigurationJumpers
None, all software controlled configuration
BIOS Memory
256K flash for field update capability
PCMCIA Hard Drive Capacity
260 Megabytes (Rev. C)
131 Megabytes (Rev B)
105 Megabytes (Rev A)
PCMCIA Hard Drive MTBF
300,000 hours
[ Refer to GFK-0867B, or later for product standards and general specifications.
GFK-1055A
A-1
A
Serial Number
Each VPC has several serial number labels that identify subcomponents on the unit. The
serial number for the complete VPC is located as shown below.
90-70 Backplane
Connector
Front Panel
Serial No.
Note: The VPC serial number is in the 0395XXX range.
Physical Characteristics
Dimensions
single Series 90-70 slot width
3.94 cm W. x 29.21 cm H. x 21.84 cm D.
(1.55” W. x 11.5” H. x 8.6” D.)
Construction
multiple multi-layer printed circuits assembled
as module
Weight
884.1g, no drives
Power Requirements
A-2
Power Required
max.
max.
max., no drives
max., one drive
max., two drives
IC697PWR711
+5VDC ±5% @ 3.8A
–12VDC ±5% @ 15mA
+12VDC ±5% @ 250mA
+12VDC ±5% @ 610mA
+12VDC ±5% @ 970mA
Battery
RAYOVAC BR2335 Coin Cell or equivalent
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
A
Interface Characteristics
PC/AT Bus
System Clock Rate
8MHz, fixed
Serial Interfaces
Number
2
Label
COM1, COM2
DOS/Windows reference
COM1, COM2
Compatibility
IBM PC
Interface type
(non-isolated)
COM1: RS-232
COM2:
RS-232/422/485
Signalsprovided
RxD, TxD, RTS, CTS, DSR, DTR, DCD, RI
Connector
DB9P
Pinout (RS-232) COM 1/2
Pin
GFK-1055A
Signal
Pinout (RS-422/485) COM2 Only
Pin
Signal
1
DCD
1
NC
2
RXD
2
RXD–
(RDA’)
3
TXD
3
TXD–
(SDA)
4
DTR
4
TXD+
(SDB)
5
SIGND
5
SIGND (ground)
6
DSR
6
RXD+
7
RTS
7
NC
8
CTS
8
NC
9
RI
9
NC
Appendix A Specifications
(RDB)
A-3
A
Parallel Interface
Number
1
Label
LPT1
DOS/Windows reference
LPT1
Compatibility
Centronicsparallel
Interface
Bufferedparallel
Connector
DB25S
Pinout
Pin
Signal
Pin
Signal
1
STROBE–
10
ACK–
2
PD0
11
BUSY
3
PD1
12
PE
4
PD2
13
SLCT
5
PD3
14
AUTOFD–
6
PD4
15
ERROR–
7
PD5
16
INIT–
8
PD6
17
SLCTIN–
9
PD7
18–25
GND
Keyboard Interface
Compatibility
IBMPC/AT
Connector
6-pin circular mini-DIN (PS/2 style), standard
PC/A
T cable adapter provided
Pinout
Pin
A-4
Signal
1
KBDAT
2
NC
3
GND
4
VCC
5
KBCLK
6
NC
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
A
Video Interface
Compatibility
IBM Video Graphics (VGA)
Super VGA Graphics (SVGA)
DisplaysSupported
VGA/SVGA
Connector
High-density 15-pin D
Video Memory
1MB of high speed VRAM
Capability
max, non-interlaced
max, interlaced
1024 x 768, 256 colors
1280 x 1024, 16 colors
Pinout
Pin
Signal
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
NC
10
GND
11
NC
12
NC
13
HSYNC
14
VSYNC
15
NC
Ethernet Interface
GFK-1055A
Type
IEEE 802.3 10Base2 (thinwire)
Connector
Front panel BNC
Software Interface
NE2000compatible
DriverCompatibility
NDIS
Appendix A Specifications
A-5
A
PCMCIA Interface
Sockets
2
Compatibility
PCMCIA Type I, Type II, or Type III (Marked A
and B. B is the boot drive and emulates IDE using the ATAspecification.)
VMEbus Interface
A-6
Capability
Master, slave, and system controller
Data Size
16 bit
Mailboxes
16, 64KB each
Byte Swapping
Programmable, preconfigured for 90-70 operation
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Appendix How the Plug & Play Software Components Fit
Together
B
A valid configuration consists of blocks over other blocks. You cannot cross a vertical line.
CIMPLICITY
InTouch
Driver
Tester
LM90
LM90
over OSI
See note.
LM90
over
TCP/IP
See note.
CIMPLICITY
InTouch
with GEHCS
Excel or
other DDE
client
ÉÉÉÉÉÉÉ
t
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
Customer developed Control 90
Code
(for example,
SRX TESTER)
(1995)
GE
Host Communication
Server
Serial
GEHCS DDE
GE
Host Communication
Toollkit interface
UMBDDE
GE Host Drivers
SNP
DDE
SRTP
CCM
DDE
VPC
Serial port
on VPC
SNP Serial port
GE
(any Series 90 CPU)
VME Backplane
Hardware Driver
90-70 VME
Backplane
GE
Beame
and
Whiteside
TCP/IP
TCP/IP
stack
Microsoft
TCP/IP-32 for
Windows for
Workgroups
SNP
Driver
(1995)
VME Host Driver
Serial
Port
VPC Ethernet Port
90-70 VME Backplane
E–net port
SNP serial port
any 90-70 CPU
Ladder Logic
including
VMBDEMO
code
= Software that is not provided
with Rev. B Plug & Play PC
E-Net
Device
Any SNP
device
Release 5.5 CPU or later
GE
ÉÉ
= VMEDDE components
Note: Use of these items on the Plug & Play PC requires substantial changes to configuration files. These changes
conflict with the default configuration settings (optimized for CIMPLICITY InTouch operation under Windows,
and Logicmaster 90 Serial under DOS and Windows).
GFK-1055A
B-1
Appendix Defaults Reference
C
This appendix describes the default AT Setup, VPC Embedded Setup, CONFIG.SYS,
AUTOEXEC.BAT, and SYSTEM.INI configuration settings as the VPC was configured
from the factory. These files can be found in the Backup directory and should be used if
you need to restore your VPC to the default settings.
Note:The factory default settings for revision A, B, and C units are shown. Do not
change these settings. Changing them will cause improper operation of the VPC.
GFK-1055A
C-1
C
VPC AT Settings
AT Settings
Current Date [
]
Current Time [
]
[640K] System Memory
8M [7168K] Extended Memory – for VPC462
16M [15360K] Extended Memory – for VPC463
32M [31744K] Extended Memory – for VPC464
Internal COMA: [COM1, 3F8H]
Internal COMB: [COM2, 2F8H]
Internal LPT1: [LPT1, 3BCH]
(For the 105 MB Hard disk – rev A)
Diskette Drive 0: [Not installed]
(For the 131 MB Hard disk – rev B)
Diskette Drive 0: [1.44MB, 3 1/2]
(For the 260 MB Hard disk – rev C)
Diskette Drive 0: [???????????
]
Diskette Drive 1: [Not installed]
(For the 105 MB Hard disk – rev A)
Fixed Disk 0: Type [User] CY:[810] HD:[15] ST:[17] LZ:[810] WP:[NONE]
(For the 131 MB Hard disk – rev B)
Fixed Disk 0 : Type [User] CY:[1008] HD:[15] ST:[17] LZ:[1008]
WP:[NONE]
(For the 260 MB Hard disk – rev C)
Fixed Disk 0 : Type [User] CY:[936] HD:[16] ST:[34] LZ:[936] WP:[NONE]
Fixed Disk 1: Type [None]
Video System: [EGA/VGA]
Power up speed: [Fast]
BIOS Shadow: [System in RAM]
[Video in RAM]
Internal Floppy: [Enabled]
Internal IDE: [Disabled]
System Memory Cache: [On]
C-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
Extended BIOS Features
Auto-park Disk: [No]
Quick Boot: [Yes]
Screen Saver: [Disabled]
Keyboard Click: [No]
Keyboard Rate: [22/Sec]
Keyboard Delay: [3/4 Sec]
Numlock Boot State: [Auto]
GFK-1055A
Appendix C Defaults Reference
C-3
C
Embedded VPC Settings
Note
Do not change these settings. Doing so will cause improper operation of
the VPC.
System Settings (F2):
System Controller = Off
Arbitration = PRI
Bus Request = BR(3)
Bus Release = RWD
Bus Timeout = 64
PCMCIA boot = Yes
SYSFAIL to VMEbus = No
SYSRESET to VMEbus = No
COM2 Driver = RS485
Interrupt Settings (F3):
All = No
VME Interrupts Enable = No
Handle VME Interrupts 1 = No
Handle VME Interrupts 2 = No
Handle VME Interrupts 3 = No
Handle VME Interrupts 4 = No
Handle VME Interrupts 5 = No
Handle VME Interrupts 6 = No
Handle VME Interrupts 7 = No
Slave Settings (F4):
A16 Slave Enable = No
A16 Base VME Address = See notes on page C-5.
A24 Slave Enable = See notes on page C-5.
A24 Slave Swap = M32
A24 Slave AM = 39 (NonPriv Data)
A24 Slave Window Size = 64K
A24 Slave VME Base = 4E0000
A24 Slave PC Base = 0E0000
E000 UMB = See notes on page C-5.
C-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
Notes Concerning Embedded Settings
The items identified on page C-4 may change depending on conditions.
The product is shipped with the following settings:
A16 Base VME Address = 1000
A24 Slave Enable = YES
E000 UMB = Shared RAM with VME
These settings result from the configuration which is used during factory testing. The
SetVPC program must be used to set one of the normal operating modes as described
below.
After the VPC is up and running Windows, if the UMBDDE DRIVER is selected in the
SetVPC program, the settings will be as follows:
A16 Base VME Address = depends on slot that VPC is installed in.
A24 Slave Enable = YES
E000 UMB = Shared RAM with VME
If the SetVPC program selects the VME DDE DRIVER, the settings will be changed by
SetVPC as follows:
A16 Base VME Address = depends on slot that VPC is installed in.
A24 Slave Enable = YES
E000 UMB = TSR Availability
If you hit F2 during a power cycle, enter the embedded VPC setup program, and then
hit F9 (NOT recommended, even though the key is identified as DEFAULT SETTINGS),
the settings will be:
A16 Base VME Address =depends on slot that VPC is installed in.
A24 Slave Enable = NO
E000 UMB = Shared RAM with VME
If this occurs, it is necessary to change the settings to the correct values for use with the
appropriate driver. Note that normal operating settings are those identified above as VME DDE
DRIVER, and UMBDDE DRIVER.
Note
The SetVPC utility modifies the SYSTEM.INI file to switch between the
UMBDDE and VMEDDE backplane drivers. Never modify the
SYSTEM.INI file manually to accomplish this.
GFK-1055A
Appendix C Defaults Reference
C-5
C
System Files
These files have been copied to the C:\BACKUP directory on the hard disk. You might
want to periodically copy current versions of these files to this directory as a security
precaution.
Setup files changed for revision B (compared to revision A):
D C:\Config.sys
D C:\Autoexec.bat
D C:\LM90\LM90.PIF
D C:\LM90\LM90.D
AT
D C:\LM90\%COM070.PSU
D C:\Windows\System.ini
D C:\Windows\Win.ini
Setup files changed for revision C (compared to revision B):
C-6
D
D
C:\Config.sys
D
GDF_CFG.INI
C:\Autoexec.bat
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
CONFIG.SYS File Contents
Revision C Hard Disk:
[menu]
menuitem=single, Single Hard Disk System & Optimal LM90 operation
menuitem=double, Double Hard Disk System
menudefault=single,5
[single]
DEVICE=C:\DOS\HIMEM.SYS
/TESTMEM:OFF
DEVICE=C:\DOS\EMM386.EXERAMHIGHSCAN I=B000–B7FF 1024 X=C800–CCFF X=E000–EFFF
BUFFERS=10,0
FILES=30
DOS=UMB
LASTDRIVE=H
FCBS=4,0
DOS=HIGH
STACKS=0,0
DEVICEHIGH/L:0;2,9424/S=C:\DOS\INTERLNK.EXE
DEVICEHIGH/L:1,12048=C:\DOS\SETVER.EXE
DEVICEHIGH/L:1,4560=C:\WINDOWS\IFSHLP.SYS
[double]
DEVICE=C:\DOS\HIMEM.SYS
/TESTMEM:OFF
DEVICE=C:\DOS\EMM386.EXE NOEMS I=B000–B7FF X=C800–CCFF X=E000–EFFF
BUFFERS=10,0
FILES=30
DOS=HIGH ,UMB
LASTDRIVE=H
STACKS=0,0
DEVICEHIGH/L:0;1,9424/S=C:\DOS\INTERLNK.EXE
DEVICEHIGH/L:1,12048=C:\DOS\SETVER.EXE
DEVICEHIGH=C:\PCMPLUS\CNFIGNAM.EXE
/DEFAULT
DEVICEHIGH/L:1,16656=C:\PCMPLUS\PCMSS.EXE
DEVICEHIGH/L:2,42176=C:\PCMPLUS\PCMCS.EXE
DEVICEHIGH/L:2,10784=C:\PCMPLUS\PCMA
TA.SYS
DEVICEHIGH/L:1,4560=C:\WINDOWS\IFSHLP.SYS
[common]
GFK-1055A
Appendix C Defaults Reference
C-7
C
Revision B Hard Disk:
The CONFIG.SYS file has been modified from rev. A to rev. B to provide additional
memory space to allow for the SMARTDRV program to operate, and for Logicmaster 90
to operate in an optimal fashion. This results in improved hard disk performance when
running under DOS, or when a DOS program is running under Windows in a DOS box.
Both the order of the statements, and the parameters listed are significant.
Note: Italicized comments give the purpose of each line and are not in the file.
DEVICE=C:\DOS\HIMEM.SYS
/TESTMEM:OFF
Used by Windows; TESTMEM is OFF to speed up
the boot process
DEVICE=C:\DOS\EMM386.EXE NOEMS I=B000–B7FF X=C800–C8FF X=E000–EFFF
Used to load DOS and TSRs into high memory; no expanded page frame is used; allow TSRs to
reside in the MONO memory space; exclude area which PCMCIA card services uses; exclude area used by
shared RAMandUMBdde
BUFFERS=10,0
DOSbuffers
FILES=30
DOS file handles
DOS=HIGH ,UMB
Load DOS high and enable
EMM386 to load TSRs high
LASTDRIVE=H
Set DOS last drive
STACKS=0,0
DEVICEHIGH/L:0;1,9424/S=C:\DOS\INTERLNK.EXE
DEVICEHIGH/L:1,12048=C:\DOS\SETVER.EXE
DEVICEHIGH/L:1,16656=C:\PCMPLUS\PCMSS.EXE/S0=1
PCMCIAsocket services
DEVICEHIGH/L:2,42176=C:\PCMPLUS\PCMCS.EXE/IRQ=12/ADDR=C8
DEVICEHIGH/L:2,10784=C:\PCMPLUS\PCMA
TA.SYS
PCMCIAATA device driver
DEVICEHIGH/L:1,4560=C:\WINDOWS\IFSHLP.SYS
Windows for Workgroups
networkdriver
Revision A Hard Disk:
DEVICE=C:\DOS\SETVER
.EXE
DEVICE=C:\DOS\HIMEM.SYS
/TESTMEM:OFF
DEVICE=C:\DOS\EMM386.EXE NOEMS I=B000–B7FF X=C800–C8FF X=E000–EFFF
BUFFERS=20,0
FILES=30
DOS=UMB,HIGH
LASTDRIVE=Z
DEVICEHIGH/L:1,4560=C:\WINDOWS\IFSHLP.SYS
DEVICEHIGH/L:1,16656=C:\PCMPLUS\PCMSS.EXE/S0=1
DEVICE=C:\PCMPLUS\PCMCS.EXE/IRQ=12/ADDR=C8
DEVICEHIGH/L:1,10784=C:\PCMPLUS\PCMA
TA.SYS
DEVICE=C:\DOS\INTERLNK.EXE
C-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
AUTOEXEC.BAT File Contents
Revision C Hard Disk:
@ECHO OFF
PROMPT $p$g
PATH
C:\PCMPLUS;C:\WINDOWS;C:\DOS;C:\PNPUTILS;C:\LM90
SET TEMP=C:\DOS
c:\dos\smartdr
v.exe /x /u 2048 0
goto %config%
:single
cls
typec:\backup\single.txt
copyc:\backup\single.txt
c:\backup\whichcfg.txt
wait 5
cls
goto end
:double
cls
typec:\backup\double.txt
copyc:\backup\double.txt
c:\backup\whichcfg.txt
wait 5
cls
:end
WIN
GFK-1055A
Appendix C Defaults Reference
C-9
C
Revision B Hard Disk:
The autoexec.bat file has been modified to load SMARTDRV on power up. With the
“2048 1024” settings, Smartdrv will provide DOS applications with a 2MB disk buffer.
When Windows applications are running, the buffer available for DOS applications may
be reduced to 1MB.
Note: Italicized comments give the purpose of each line and are not in the file.
@ECHO OFF
Do not display this file as it runs
PROMPT $p$g
Set prompt to show drive, path, and ‘>’
PATH
C:\WINDOWS;C:\DOS;C:\PNPUTILS;C:\LM90
Set pathlist
SET TEMP=C:\DOS
Set TEMP environment variable
C:\DOS\SMAR
TDRV 2048 1024 /x
Load Smartdrv with a 2MB buffer,
which Windows can reduce to 1 MB if required.
The /x switch turns off write caching.
Automatically run Windows
WIN
Revision A Hard Disk:
@ECHO OFF
PROMPT $p$g
PATH
C:\WINDOWS;C:\DOS;C:\PNPUTILS;C:\LM90
SET TEMP=C:\DOS
WIN
C-10
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
SYSTEM.INI File Contents
Note: Comments in italics in the table below give the purpose of each line and are not in
the file.
The following is added to [386Enh] section for all revisions:
;
;
*** Plug & Play Begin
;
;device=*vcd
Standard vxd replaced...
device=pcmvcd.386
with pcmvcd.386 device driver
PCMCIACom4=TRUE
PCMCIA COM port used by modem cards
COM4BASE=2E8
PCMCIA COM port base address used by modem cards
EMMExclude=C800-C8FF
Exclude Windows from using PCMCIA UMB area
EMMExclude=E000-EFFF
Exclude Windows from using shared RAM UMB area
LocalLoadHigh=TRUE
Allow UMBs to be available locally to each virtual machine.
This must be set true to allow Logicmaster 90 to run in a DOS
box in Windows
;
;
*** Plug & Play End
;
device=c:\windows\vme.386
GFK-1055A
Appendix C Defaults Reference
VME host driver. This is related to the VME DDE driver.
If the VME driver is not being used, this line must be remarked
out. The SetVPC normally remarks and unremarks this line
when the different driver defaults are selected in the Windows
SetVPC program. Do not modify this line manually.
C-11
C
Other Changes to System Files
Revision B and Later
WIN.INI
The background “wallpaper” selection has been turned off to provide additional
working memory.
%COM070.PSU
This file, which is accessed from the Logicmaster 90 “Programmer mode and Setup” and
“PLC Communications Serial Port Setup” menus, was changed to include a “MODEM
TURNAROUND TIME” of 10 counts. This improves Logicmaster 90 reliability when
running in an environment with Windows tasks running in the background.
Performance does not degrade perceptibly, so it is recommended that this 10 count
setting be maintained. After ensuring the 10 count setting, SAVE the new information
using the F7 key, then exit the menu.
LM90.DAT
This file determines where the Logicmaster 90 communication driver loads. With the
default settings provided in the other configuration files, sufficient “DOS” memory is
available to load the driver there. The factory default for this loading mode is “DOS”.
This selection is accessed from the “Logicmaster 90 Setup Package”, and “PLC
Communication Options” menus. The setting for DRIVER MEMORY AREA, should
always be DOS. For this setting to be effective, the F10 SAVE SETUP FILE key must be
pressed after exiting the PLC Communication Option menu.
LM90.PIF
The setting for “DETECT IDLE TIME” has been changed to “not checked”. This keeps
Logicmaster 90 active in a DOS box even though no keyboard input has been made
recently. Also, the settings for EMS and XMS memory required and desired have been
changed to EMS – 0 required, 0 desired. XMS – 0 required, 1024 desired. The
Logicmaster 90 program icon in the Plug & Play program group has been setup to use
the LM90.PIF file in the Logicmaster 90 directory. If you ever upgrade Logicmaster 90 to
another revision, the Logicmaster 90 installation program may copy a new LM90.PIF
into the Logicmaster 90 directory. You may want to copy over the new LM90.PIF with
the old one in the \BACKUP directory if it works better.
Demos
Revision A units were shipped with a Visual Basic demo, and a CIMPLICITY InTouch
demo. Both of these demos used the UMBDDE driver to obtain information from the
90-70 CPU, which needs to run a companion program at the same time. Revision B (and
later) units add another CIMPLICITY InTouch demo which uses the VME DDE driver.
This demo is located in the Plug & Play program group. To use this demo, you must
purchase a CIMPLICITY InTouch package, and use the supplied hardware key. Refer to
the CIMPLICITY InTouch documentation for details.
C-12
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
E
Other File Changes
The following factory test files were removed from the C:\backup directory:
CURRLST.TXT
DIFF.BAT
The SetVPC program was also improved to fix bugs and be more user friendly.
Revision C and Later
Modem Turnaround Time
The Logicmaster 90 “MODEM TURNAROUND TIME field has been changed from 10 to
0. This will improve Logicmaster 90 performance. If communication errors occur while
the Plug & Play PC is being heavily used to perform multiple tasks, you may need to
increase this value.
VME DDE Defaults
The C:\WINDOWS\GEF_CFG.INI file now includes the following lines. The new lines
provide proper operation with the DDE “application/topic” items that are used for all the
included demo programs
[VME]
TYPE=VME_POR T
[PORT_1]
TYPE=VME_POR T
[VMEPLC]
DEST_ADDR=10E00000
[testplc]
DEST_ADDR=10E00000
GFK-1055A
Appendix C Defaults Reference
C-13
Appendix Cabling Information
D
InterLink Cable
The InterLink cable included with the PNP101 is an RS-485 serial cable, intended for
connecting from the VPC to the 90-70 CPU. This cable is NOT the same as a parallel printer
cable although they may appear to be identical. On revision B (and later) units, the cable has a
label identifying it as an InterLink Cable. Documentation for a serial InterLink cable is
provided in the DOS on-line help under interlnk.
Pinouts:
GFK-1055A
1
1
2
15
3
13
4
12
5
10
6
11
10
5
11
6
12
4
13
3
15
2
25
25
H
H (shell)
D-1
C
VPC to CPU Cable Connections
9 pin female
D (to VPC)
15 pin male
D (to 90-70 CPU)
2
12
3
10
4
11
6
13
6
15
8
14
D-2
Series 90-70 Plug & Play PC User’s Manual –August 1995
GFK-1055
Appendix Using the UMBDDE and GEHCS Servers
E
This chapter provides a discussion of the use of the UMBDDE and GEHCS servers with
the Plug & Play PC. Examples using Visual Basic programs are provided. The UMBDDE
driver help text is provided at the end of the chapter.
The use of the Host Communication Toolkit to access 90-70 PLC table data is also
discussed.
Using the UMBDDE Driver
In the example shown on page E-2, a Visual Basic program is using the UMBDDE driver
to write the value +1234 to %AI1 in the 90-70 PLC. The default settings for the
UMBDDE driver have been used. In this example, the Visual Basic program could be
replaced with a Visual C/C++ program, an Excel Spreadsheet, a Word document,
CIMPLICITY InTouch, or any other program capable of calling a DDE server using the
APPLICATION|TOPIC! ITEM NAME convention.
The list of Item names that are supported by the UMBDDE driver are shown in the
UMBDDE Help text (from the on-line UMBDDE Help menu).
To use the server, follow these steps:
1.
Be sure the UMBDDE Defaults have been selected in the SetVPC program. You
must allow your computer to reboot after this selection.
2.
Be sure that the Plug & Play PC is configured by Logicmaster 90 as a 3rd party
card with Configuration mode = NONE.
3.
You must be running a 90-70 CPU logic program that has the essential elements
of the UMBDEMO program (supplied with the Plug & Play PC).
4.
Be sure the PLC is in RUN mode.
5.
You must start up the UMBDDE driver, either by putting it in the Windows
startup group, and then restarting Windows, or by manually double clicking on
the UMBDDE Driver Icon.
6.
The Visual Basic, C/C++, Excel, or other program must then call the UMBDDE
driver using the conventions of that language or application. Refer to the specific
documentation for that application.
7.
A hardware key is not required when using this approach. In addition, this
approach works with all 90-70 CPU models.
A sample application using this approach is available on the GE bulletin board.
GFK-1055A
E-1
D
Visual Basic Sample Program
Text1.LinkTopic = “UMBDDE|UMB” ‘APPLICATION|TOPIC
Text1.LinkItem = “AI1”
Text1.Text = “1234”
Text1.LinkMode = 2
Text1.LinkPoke ‘to send data
This could be a Visual C/C++
program, or Excel
spreadsheet macro,
etc.
UMBDDE Server
APPLICATION | TOPIC = UMBDDE|UMB
(Application is always UMBDDE,
TOPIC is configured in Configure menu.)
Correlates “AI1” with E0800 PC address.
PC Address E0800
Shared RAM in VPC
Physical mapping in PC/PLC
PLC Address 004E0800
VME Backplane
CONST
0039
CONST
004E0000
VME
RD_
WORD
LEN
00128
90-70 PLC Logic program segment
Reads the entire E0800 area.
%AI0001
Analog Input Table in 90-70 PLC
AI1 01234
E-2
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
D
The table below shows the correlation between the DDE Item name used in the Visual
Basic program and the PC Shared RAM address that is accessed. The UMBDDE defaults
are shown, and work correctly with the 90-70 CPU UMBDEMO logic program. Note that
writes and reads from the %R item type are actually mapped to %AI and %AQ. The %R
item type was added to provide compatibility with the GEHCS VME backplane server.
Note
The default values in the UMBDDE I/O configuration screen must NOT
be changed. It is possible to remap the DDE Item name to PC Address
correlation, but that is not recommended. Only under very exceptional
circumstances should these values be changed, and then only in
conjunction with support from GE.
Default UMBDDE
PC address accessed
(not including offset)
Read/Write From VB or
C/C++Program
%I
E0000
Write only
%AI
E0800
Write only
%Q
E8000
Read only
%AQ
E8800
Read only
%R (write to)
E0800
Write only
%R (read from)
E8800
Read only
Visual Basic
DDE Item Name
Note
Only one Plug & Play PC in a system can use the UMBDDE driver. If you
need to use more than one Plug & Play PC in a system, you must use
the GEHCS VME Backplane driver described on page E-5.
GFK-1055A
Appendix E Using the UMBDDE and GEHCS Servers With the Plug & Play PC
E-3
D
Note
When using the UMBDDE driver, or the GEHCS driver, it may be
necessary to implement a heartbeat function. The discussion that follows
applies to the UMBDDE driver, but a similar situation also exists for the
GEHCS driver.
Immediately after a power cycle, the 90-70 CPU will probably start running sooner than
the VPC module, the UMBDDE driver, and the application using the UMBDDE driver.
Data that the 90-70 CPU reads from the %AI area will not be valid until the UMBDDE
driver and its host application are running. Parts of the CPU logic program that require
data from the UMBDDE driver must be interlocked so that the data is not used if the
UMBDDE driver is not running. Also, data that the CPU sends to the %AQ area for the
UMBDDE application will not be used correctly until the UMBDDE driver is running.
The exact method of accomplishing proper operation depends on the details of the
90-70/Plug & Play PC application.
A simple method, which might be used for non-critical applications, is to defer operation
of the 90-70 Logic program for a fixed time period, and then assume the UMBDDE is up
and running with its application.
Another way to accomplish this is to create a program segment in the 90-70 logic that
writes the current real time “seconds” to the UMBDDE using VME Write. A Visual Basic
or Visual C/C++ program would read this value (perhaps every second, or every half
second) and reflect it back to the %AQ area, which the logic program reads. (You would
need the Visual Basic or Visual C/C++ program to run continuously while the UMBDDE
is operating.) The logic program would compare the seconds it sent with the seconds it
received back. If the two numbers are different by more than a preset value, the
UMBDDE driver is not yet running, and data from the UMBDDE should not be used,
nor should data be sent to it with the expectation that it will be used correctly.
E-4
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
D
Using the GEHCS VME Backplane Server
The GEHCS driver was designed for use with CIMPLICITY InTouch, but it can be used
to achieve high speed interaction between the 90-70 CPU and Plug & Play PC
applications. A CIMPLICITY InTouch hardware key is REQUIRED for operation. In
addition, 90-70 CPU release 5.5 must be installed in your PLC.
In the example on page E-6, a Visual Basic program is using the GEHCS driver to read
the value from %R2 in the 90-70 PLC. The default settings for the GEHCS driver have
been used. In this example, the Visual Basic program could be replaced with a Visual
C/C++ program, an Excel Spreadsheet, a Word document, CIMPLICITY InTouch, or any
other program capable of calling a DDE server using the convention:
APPLICATION|TOPIC ITEMNAME .
The list of Item names that are supported by the GEHCS driver are shown in the
GEHCS Help text (from the on-line GEHCS Help menu).
To use the server, the following conditions must be met:
1.
Be sure the VME Defaults have been selected in the SetVPC program. You must
allow your computer to reboot after this selection.
2.
Your 90-70 CPU must be release 5.5 or later.
3.
Be sure that the Plug & Play PC module is configured as a 3rd party VME card
with FULL MAIL services.
4.
Ensure that a CIMPLICITY InTouch Hardware key is installed.
5.
You must start up the GEHCS driver, either by putting it in the Windows
“startup” group and then restarting Windows, or by manually double clicking
on the GEHCS Driver Icon.
6.
The Visual Basic, C/C++, Excel, or other program must call the GEHCS driver
using the conventions of that language or application. Refer to the specific
documentation for that application.
A sample application using this approach is available on the GE bulletin board.
Note
See the discussion on page E-4 about implementation of a heartbeat
function. It may be necessary to implement this for the GEHCS driver.
GFK-1055A
Appendix E Using the UMBDDE and GEHCS Servers With the Plug & Play PC
E-5
D
Visual Basic Sample Program
Text1.LinkTopic = “GEHSC|VME ” ‘APPLICATION|TOPIC
Text1.LinkItem = “R2 S”
Text1.LinkMode = 2
Text1.LinkRequest
‘fetch the data
Rem Text box “text 1” will show the value “4321”
This could be a Visual C/C++
program, an Excel
spreadsheet macro,
etc.
GEHCS Server
APPLICATION | TOPIC = GEHCS|VME
(Application is always GEHCS, TOPIC is
configured in Configure menu). GEHCS reads
the GEF_CFG.INI file and learns that Topic VME
is a “VME port” and relates to PLC address
“VMEPLC”. Furthermore, VMEPLC relates to
the 90-70 address 10E00000 (PLC Mail
services).
Key Installed?
Topic Name = “VME” has been preconfigured.
The user can add others from the GEHCS
Configure menu.
Stop
No
Yes
+4321
Request
R2 (signed)
from MAIL
Services.
Host Driver
R2?
+4321
90-70 PLC Register Table
R2
E-6
+04321
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
D
Accessing 90-70 PLC Data Using the Host Communication Toolkit
IC641SWP052
Host Communication Toolkit for C/C++ Applications
IC641SWP055
Host Communication Toolkit for Visual Basic Applications
The 90-70 PLC table data can be accessed using either the GEHCS server (a CIMPLICITY
InTouch key is required), or via the lower level Host Driver/VME server using your own
Visual Basic, or Visual C/C++ program in conjunction with the GE Host
Communications Toolkit. Using the Host Communication Toolkit, other services such as
fault table access, date and time, RUN/STOP control, etc. are also available.
(The SRX Tester program is an example of this.)
To use the Host Driver/VME driver make sure the following conditions are met:
1.
Be sure the VME Defaults have been selected in the SetVPC program. You must
allow your computer to reboot after this selection.
2.
Your 90-70 CPU must be release 5.5 or later.
3.
Be sure that the Plug & Play PC module has been configured by Logicmaster 90
as a 3rd party VME card with FULL MAIL services.
4.
The Host Communications Toolkit – GE part number IC641SWP055
(Visual Basic Toolkit) or IC641SWP052 (C/C++ toolkit) can be used to create an
application that calls Host Driver/VME directly.(Sample source and executable
programs are provided with these part numbers.)
5.
To make the sample programs work properly, it is necessary to ensure that the
GEF_CFG.INI file contains the lines:
[testplc]
DEST_ADDR = 10e00000
[PORT_1]
TYPE = VME_PORT
Or, the sample code can be changed to use the names already contained in the
GEF_CFG.INI file.
Notes
Additional information is available in GFK-1063 (Visual Basic) and
GFK-0870 (C/C++).
A hardware key is not required to use this approach.
GFK-1055A
Appendix E Using the UMBDDE and GEHCS Servers With the Plug & Play PC
E-7
D
UMBDDE Driver Help Text
Note: The help text from the UMBDDE driver is reproduced here for your convenience.
UMBDDE
The DDE Server for the GE Series 90-70 PLC
UMBDDE is a standard DDE server developed especially for applications using the GE
Series 90-70 PLC. The following options are available in the two pull down menus
to customize the server to meet your DDE requirements:
In the Configure menu:
IO Configuration
DDE Server Operational Parameters
Debug Messages
In the Help menu:
Help Index
Using Help
About
IO Configuration
Selecting this option enables you to configure the following parameters:
Topic Name: This is the DDE topic name for used for DDE conversation.
UMB Segment: This option selects the upper memory block (UMB) segment address to
use for data transfer. The allowable choices are C0000, D0000, or E0000 hex.
Analog or Register: This option configures the offsets and block size within the UMB
space for Analog (AI and AQ) and Register (R) values. Register values map to AI and AQ
values in the following manner: Writes to a R value will map to the corresponding AI
offset. Reads from an R value will map to the corresponding AQ offset. R values are
unsigned 16-bit integers just like AI and AQ values unless overridden by a type suffix.
The following type suffixes are available:
Real Numbers
Signed Numbers
BCD Numbers
Discrete Points
Long Integer Numbers
32-bit Floating Point Numbers
ASCII String Items
Discrete: This option configures the offsets and block size within the UMB space for
Discrete (I and Q) values.
Going from left to right, the 3 boxes per line stand for the following:
Box 1 is the name of the DDE label mapped to the offset (Box 2). This value must be a
positive, non-zero number.
Box 2 is the UMB address for the data field. This is the same as saying the byte offset
from the UMB Segment listed above.
E-8
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
D
Box 3 is the number of individually accessible data units.
Use caution when altering the OFFSET and WORDS (POINTS) parameters. Careless setting of
these values can result in data overlapping and corruption, boundary overflow, and inefficient
usage of available space.
Update Interval: This is the time in milliseconds between data refreshes by the server.
When all IO Configurations are complete, select the OK button to save these settings.
Select the CANCEL button to close the window without making and parameter changes.
Selecting the DEFAULT button sets all the IO settings to their factory default settings.
DDE Server Operational Parameters
Selecting this menu option will allow you to configure the following settings:
Protocol Timer Tick: This is the timer tick value in milliseconds for the DDE protocol
used by this server.
Internal DDE Timer Tick: This is the internal DDE timer tick value in milliseconds.
DDE Block Size: This is the maximum size in bytes of a single DDE block transfer.
When all DDE server operational parameters are set, select the OK button to save these
settings. Select the CANCEL button to close the window without making and parameter
changes. Selecting the DEFAULT button sets all the DDE server operational parameters
to their factory default settings.
Debug Messages
Choosing this option will select or deselect the debug messages. When this option is
selected (checked), debug messages are sent to WWlogger, which is an error/message
logging program that compliments WonderWare InTouch software. Deselecting
(unchecking) this option disables all debug messages.
Help Index
Selecting this option will open the on-line help you are reading now.
Using Help
Selecting this option will open Windows “How to Use Help” on-line help.
About
Selecting this option will display release information about this application.
Real Numbers
Registers are normally assumed to be integer variables. The user can cause the Server to
convert register values to floating point by appending an “R” to the register name. For
example:
R950 R
This will cause the Server to convert the 16-bit register value to floating point before
sending it to the DDE Client (CIMPLICITY InTouch.) Don’t use this notation with
CIMPLICITY InTouch unless the CIMPLICITY InTouch tagname definition specifies
“DDE Real.”
Signed Numbers
GFK-1055A
Appendix E Using the UMBDDE and GEHCS Servers With the Plug & Play PC
E-9
D
A register can be interpreted as a signed 16-bit value with a range of -32,768 to 32,767 by
adding a blank space then S following item name. For example:
R100 S
BCD Numbers
A BCD (Binary Coded Decimal) register can be handled correctly by adding a blank
space, then (BCD) following the item name. For example:
R4087 (BCD)
This will cause the DDE Server to convert the register contents from BCD to binary
before sending it to the client application. It will convert values from binary to BCD
before sending to the PLC.
Discrete Points
Individual bits in registers can be used as discrete tagnames in CIMPLICITY InTouch by
entering the item name in the following format:
Rnn:b
This will cause the DDE Server to extract bit b (0-15) of the register nn. The value will be
returned to CIMPLICITY InTouch as a discrete.
Examples:
R1:0
–Least significant bit of R1.
R1:15
–Most significant bit of R1.
R10:3
–Bit 3 of R10.
Long Integer Numbers
A pair of registers can be interpreted as a long integer (or double precision integer) by
adding a blank space, then an L after the item name. For example:
R601 L
This notation causes the DDE Server to treat R601 and R602 as a signed 32-bit number
with R601 being the least significant half.
32-Bit Floating Point Numbers
A pair of registers can be interpreted as a floating point number by adding a blank space
then an F to the item name for lower numbered register of the pair. For example:
R1001 F
This notation causes the DDE Server to treat R1001 and R1002 as an IEEE 32-bit floating
point number.
ASCII String Items
A series of consecutive registers can be treated as an ASCII character string by adding a
blank space, then an M after the item name. For example:
R101–R150 M
This item name indicates that registers R101 through R150 contain a string of 100 ASCII
characters. Each register contains 2 characters with the low order byte first. A zero byte
in any register will be treated as the end of string.
E-10
Series 90-70 Plug & Play PC User’s Manual–August 1995
GFK-1055A
Index
Symbols
%COM070.PSU file, Rev B changes, C-12
*.?bk files, deleting, 5-21
removing, 3-8
swapping, 4-4 , 5-1 , 5-19 , 6-3
Boot options, 3-2
turning off, 5-18
Bulletin board, 1-6
Numbers
32 bit disk access, Hard disk error
messages, 6-3
C
32 bit file access, hard disk error messages,
6-3
Cable pinouts
InterLink cable, D-1
VPC to CPU, D-2
32-bit disk access, 6-3 , 6-5
Cache memory, 5-19
Capacity, hard disk, 1-2
A
Accessories, 2-2
ACTIVE indicator, 3-10
Addition of module, 6-12
Application demonstrations, 5-9–5-13
Application timeouts, 6-7
AT setup defaults, C-2
AUTOEXEC.BAT file, 5-17
default contents, C-9
B
BACC indicator, 3-10 , 5-10
Backing up the boot disk, 3-5–3-7
Backplane, communications, 3-10
Backplane driver options, 3-3
Backup directory, 5-17 , 5-18 , C-6
Battery, A-2
BCD read/write function, 4-3
BERR indicator, 3-10
BIOS
extended features, C-3
memory, A-1
ROM, 6-2
Boot drive card
available space, 5-21
inserting, 3-1
operation, 4-4
GFK-1055A
Catalog numbers
Host Communications Toolkits, E-7
IC614SWP050, 5-8
IC641SWP052, E-7
IC641SWP055, E-7
IC697PNP101, 5-1
IC697PNP111, 1-3 , 5-1
IC697PNP701, 1-3 , 3-6 , 5-21
IC697PWR711, 2-3
IC697VPC462, 1-3
IC697VPC463, 1-3
IC697VPC464, 1-3
Changes to system files
revision B, C-12
revision C, C-13
CIMPLICITY InTouch, new demo – VME,
C-12
CIMPLICITY InTouch software, 5-5
demo mode, 5-14
demos, 5-9
directory, deleting, 5-21
how to order, 5-5
how to purchase and what you get,
5-14
requirements for key, 1-6
restrictions, 5-16
VME Port definition/setup, 5-15
what is included on rev B hard disk, 1-6
what is included with loaded hard disk,
5-14
what must be purchased separately,
5-14
where documentation is obtained, 1-6
CIMPLICITY InTouch VME server, in
overall software structure, B-1
Clock rate, A-3
Index-1
Index
Communication
interrupted, 6-7
with 90-70 PLC, 3-9
DDE Test Utilities, 4-3
Communications loss
if Logicmaster 90 cable is disconnected,
6-8
Logicmaster 90 running in a DOS box,
6-8
Defaults, 3-11
AT Setup, C-2
AUTOEXEC.BAT file, C-9
CONFIG.SYS file, C-7
embedded VPC setup, C-4
Extended BIOS features, C-3
returning low-level settings to, 6-6
SYSTEM.INI file, C-11
Communications ports, 3-11
Compatibility
90-70 CPU models, 5-8
between the UMBDDE and VME DDE
drivers, 5-15
CONFIG.SYS file, 5-17
default contents, C-7
Configuration
board, 5-17
CIMPLICITY InTouch VME port
definition, 5-15
customizing, 3-2 , 5-18
files, changing, 5-1 , 5-22
for network operating system, 4-9
invalid, 6-6
Logicmaster 90, 3-9
system, 5-17
Windows software, 5-17
Configuration issues, 6-10–6-11
Connectors, 3-10–3-12
Constant sweep mode in 90-70 CPU,
effect on data coherency, 6-7
Control Alt Delete
during boot up, 3-2
used from Windows with no application
running, 3-2
Demonstration mode, for CIMPLICITY
InTouch, 5-9–5-11
Demos, 5-9–5-13
CIMPLICITY InTouch, 5-9–5-11
deleting to free disk space, 5-21
Excel, 5-13
Microsoft Visual Basic, 5-12
setting up for, 5-9
DEST_ADDR, CIMPLICITY InTouch setup
parameter, 5-15
DETECT IDLE TIME, Rev B changes in
LM90.PIF file, C-12
Diagnostics
adapter initialization, 4-9
automatic, 3-2 , 6-2
Ethernet, 6-2
keyboard test, 3-2 , 6-2
network, 4-9
Disk access, 32-bit, 6-3 , 6-5
Display, problems with, 2-6 , 6-6
Dongle key. See hardware key
DOS box programs, invoking multiple
instances, 6-8
DOS directory, 5-17
Controls, 3-10–3-12
DOS SCANDISK function, 3-8 , 6-4
Corrupted swap file, during backup
creation, 3-6
Drive G:, 4-4
Customizing, configuration, 3-2 , 5-18
Driver memory area, Logicmaster 90
setting, C-12
D
Data coherency, during CPU constant
sweep mode, 6-7
Date and time, changing, C-2
DDE drivers, 4-2 , 5-8
DDE-related errors, 4-3
Index-2
DDE Timer Tick, related to DDE timeouts,
4-3
Driver check, 4-3
Driver tester, B-1
See also Driver check
Driver Tester utility, 4-3
Drivers, Host Communications, 5-8
E
E000 UMB, C-4
GFK-1055A
Index
Electrostatic discharge, 2-1
Embedded settings
Extended BIOS features, C-3
notes, C-5
VPC setup, C-4
EMS memory settings, Rev B, C-12
GEF_CFG.INI
used for CIMPLICITY InTouch setup,
5-15
VME DDE default settings, C-13
GEHCS server, example, E-5
GEHCS server program, 5-14
ENET indicator, 3-10
ESD. See electrostatic discharge
ETHERNET connector, 3-11
Ethernet driver, 6-9
Ethernet interface, specification, A-5
Ethernet network
connecting to, 2-7
LED, 3-10
operation, 4-7
Excel, demos, 5-13
H
Hard disk
backing up, 3-5–3-7
error messages, 6-3
freeing space on, 5-21
settings for different boot disks, 5-20
SOCKET A, 4-4
SOCKET B, 4-4
timeout for missing drive, 6-3
Expansion rack, 2-3 , 2-5
Hard disk drive, problems, 6-3
to avoid, 6-5
Extended BIOS features, C-3
Hard disk error, C-12
Hard disk formatting, 3-5
Hard disk interchangeability, 5-1 , 6-3
F
Fault
loss of or missing option module, 6-12
reset of, addition of, or extra option
module, 6-12
Fault contact, VPC fault contact in 90-70
CPU, 6-7 , 6-10
Figures
Plug & Play PC, 1-2
UMBDDE driver overview, 4-2
VPC front panel, 3-10
Files, revision level changes, C-6
Fixed Disk error, when wrong size drive is
used, 5-20
Floppy drive, misidentification of
PCMCIA hard disk, 4-4
Formatting, hard disk, 3-5
Freeing hard disk space, 5-21
FULL_MAIL driver, 6-7 , 6-10–6-11 ,
6-12–6-13
Hard disk space improvement, 5-21
by reduced swapfile setting, 5-21
use of hard disk in SOCKET A, 5-21
Hardware key, 5-2 , 5-5
for CIMPLICITY InTouch software, 5-5
interference with port operation, 4-6
replacing, 4-6 , 5-5
Heartbeat failure, 6-13
Heartbeat function, E-4 , E-5
Help text, UMBDDE driver, E-8
Host Communication Toolkit, E-7
Host Communications Drivers, for
Windows, 5-8
I
IC697PNP701, used for hard disk backups,
3-5
Icons, CIMPLICITY InTouch software, 5-7
Indicators, 3-10–3-12
Inspection, 2-2
G
GE bulletin board,
GFK-1055A
1-6
Installation
procedures, 2-5–2-7
requirements, 2-3–2-4
Index-3
Index
Installing new software, 5-22
Intelligent Option Module, 6-10
running other programs with, 6-8
stops operating after new software
installed, 5-22
Interface cable, 90-70 to VPC, connecting,
2-7
Logicmaster 90 software, 5-4
operation, 5-4
Interface characteristics, A-3–A-6
Loss of module, configurable fault action,
6-13
InterLink cable, not the same as parallel
cable, D-1
LPT1 port, 3-11
InterLink communications, 4-6
InterLink utility
backup using, 3-7
for copying files, 5-2
Internal DDE Timer Tick, related to DDE
timeouts and overall performance,
4-3
M
Memory
Out of Memory error message, 6-8
use of reduced cache to improve, 6-8
Memory optimizers, 4-9
Interrupt settings, C-4
Microsoft Visual Basic, demo, 5-12
Invalid configuration, 6-6
Microsoft Windows, 3-4 , 4-1 , 5-1
IOM. See Intelligent Option Module
Mismatched configuration, 6-7 , 6-10–6-11
Missing drive, timeout period, 6-3
K
Keyboard, attaching, 2-6
Keyboard diagnostics, 3-2 , 6-2
Missing file(s), 6-4
Modem turnaround time
improving Logicmaster 90 performance,
6-8
in %COM070.PSU file, C-12 , C-13
Keyboard interface, specifications, A-4
Modeswitch, 3-10 , 3-11
tripping, 6-6
KEYBOARD port, 3-11
Monitor, attaching, 2-6
MONITOR port, 3-11
L
LED indicators, 3-10
LM90.DAT file, Rev B changes, C-12
LM90.PIF file, Rev B changes, C-12
Loaded hard disk, backing up, 3-5–3-7
Location of the VPC in a 90-70 rack,
restrictions, 2-5
Lock up, wrong 90-70 power supply used,
2-3
Logicmaster 90
configuration, 3-9
message – not enough memory, 6-8
operation, suggestions, restrictions, 6-8
program icon, C-12
reliability, C-12
running in a DOS box, communications
loss, 6-8
Index-4
Mouse, attaching, 2-6
MS-DOS, 3-2 , 5-1
MS-DOS, “Starting MS-DOS . . . ” hangup,
6-9
Multiple boot options, 3-2
turning off, 5-18
N
Network
backing up to, 3-7
operation, 4-7
Network adapter, not operating, 6-2
NO COMM condition, 6-8
O
OK indicator, 3-10 , 5-19
GFK-1055A
Index
ON indicators, 3-12
P
RESET switch, 3-11 , 6-12
Resolution, video monitor, 2-6 , 6-6
Parallel interface, specifications, A-4
RS-232 port, 3-11
Parallel port, 3-11
operation, 4-6
RS-422/485 port, 3-11
Part numbers, 1-3
PCMCIA devices, 4-4
PCMCIA hard disk drive
capacity, 1-2 , 1-4
described, 1-2
drivers, 5-17
loaded, contents, 1-4
not recognized, 6-3
operation, 4-4
potential problems, 6-3
slots, 3-12
S
Sample program, Visual Basic
using the GEHCS driver, E-6
using the UMBDDE driver, E-2
SCANDISK
before making a backup hard disk, 3-6
used to recover from disk errors, 3-5 ,
3-8 , 6-4
Screw retainers, 2-5
Self diagnostics, 3-2 , 6-2
PCMPLUS directory, 5-17
Serial interfaces, specifications, A-3
Phone numbers, technical support, 1-5
Serial InterLink cable, use when parallel
port is in use by hardware key, 4-6 ,
5-2 , 5-5
PIF file settings, C-12
Pinouts, A-3–A-6
InterLink cable, D-1
VPC to CPU cable, D-2
PLC Fault Table, 6-7 , 6-12
PLC Hotline, phone number, 1-5
Plug & Play PC, not installed in main PLC
rack, 2-5
Port definition
TCP/IP
, 5-16
VME, 5-15
Power cycles, recommendations, 3-8
Power requirements, 2-3 , A-2
Power supply requirements, 2-3
Power up memory test, 3-2 , 6-9
Power-down procedures, 3-8
Serial number, location of label, A-2
Serial ports, 3-11
operation, 4-5
Setup
changing backplane driver settings, 3-3
embedded VPC, C-4
UMBDDE mode, 3-3
VME DDE mode, 3-3
SETVPC program, 5-11 , 5-17
Rev B, C-13
SetVPC program, 6-6
setting operating modes, C-5
SLOT 1 indicator, 3-10
SMARTDRV, restrictions on the use of,
8MB VPC, 5-19
SOCKET A, misidentification of hard disk,
4-4 , 6-3
Readme First file, 3-2
Software
installing new, 5-22
list of items included on Rev B hard
disk, 1-5
Recipes, CIMPLICITY InTouch, 5-14
Software components, Plug & Play, B-1
Requirements
installation, 2-3
SPC
(Statistical Process Control), 1-6
R
GFK-1055A
power, 2-3
system, 2-3
Index-5
Index
CIMPLICITY InTouch, 5-14
Specifications
general, A-1
interface characteristics, A-3–A-6
physical, A-2
power requirements, A-2
SQL
(Structured Query Language), 1-6
CIMPLICITY InTouch, 5-14
Starting MS–DOS...., Error message, 6-9
Starting MS-DOS . . . hangup, 6-9
Startup verification, 3-4
Subdirectories, 5-17
Swapfile, 5-19
System requirements, 2-3
System settings, C-4
SYSTEM.INI file, 2-5 , 5-11 , 5-17 , 6-6 ,
C-5
default contents, C-11
U
TCP/IP port definition, 5-16
UMBDDE driver, 4-2 , 5-8 , 5-13
example, E-1
help text, E-8
in overall software structure, B-1
operation, 4-3
overview, 4-2
rev. B vs rev. A, 5-15
TCP/IP software, installing, 4-8
UMBDDE mode, setup, 3-3
Technical support
CIMPLICITY Hotline phone number,
1-6
e-mail addresses, 1-5–1-7
phone and fax numbers, 1-5–1-7
PLC Hotline phone number, 1-5
responsibility for different items, 1-5
Unpacking, 2-1
T
Table data, 90-70, accessing, E-7
Timeout errors, 4-3
Unrecoverable disk errors, 3-8
Upper Memory Block DDE server. See
UMB DDE
V
Timeout period, for missing drive, 6-3
Valid configuration, software, B-1
Timeouts, application timeouts, 6-7
Video interface, specification, A-5
Tripping the Modeswitch, 6-6
Video monitor
attaching, 2-6
changing, 2-6 , 6-6
Troubleshooting
application timeouts, 6-7
communication, 6-7
communication errors, 6-8
communications loss, 6-8
configuration issues, 6-7 , 6-10–6-11
DDE-related errors, 4-3
DDE-related timeout errors, 4-3
error messages, running Logicmaster 90
under Windows, 6-8
Index-6
Fixed Disk error, 5-20
hard disk error messages, 4-4 , 6-3
hard drive misidentified as a floppy, 6-3
invalid configuration, 5-22 , 6-6
missing drive timeout period, 6-3
missing file(s), 6-4
network adapter not operating, 6-2
non-coherent data, 6-7
Out of Memory message, 6-8
PCMCIA hard disk not recognized, 6-3
PLC faults, 6-7 , 6-12
screens not visible on monitor, 2-6 , 6-6
system hangs when InterLink cable
removed, 5-13
system not booting properly, 6-9
unexpected rebooting, 6-9
VME DDE driver settings corrupted,
5-19 , 6-6
wrong 90-70 power supply used, 2-3
Video Monitors, exercise care when
changing types, 6-6
Video monitors, exercise care when
changing types, 2-6
VME DDE driver, 4-2 , 5-8
GEF_CFG.INI settings, C-13
in overall software structure, B-1
GFK-1055A
Index
restrictions on installing VPC, 2-5
SYSTEM.INI file settings, 6-6 , C-11
VME DDE mode, setup, 3-3
VME Personal Computer. See VPC
VME_PORT, CIMPLICITY InTouch setup
parameter, 5-15
VPC, 1-2
front panel, 3-10
installation, 2-3–2-6
unpacking, 2-1–2-3
W
Wallpaper, in WIN.INI file, C-12
GFK-1055A
Watchdog timer, 3-10
WIN.INI file, Rev B changes, C-12
Windows
cache size, 5-19
Host Communications Drivers for, 5-8
Windows for Workgroups, 3-2 , 4-1
files, 5-17
starting up the first time, 4-1
X
XMS memory settings, Rev B, C-12
Index-7
