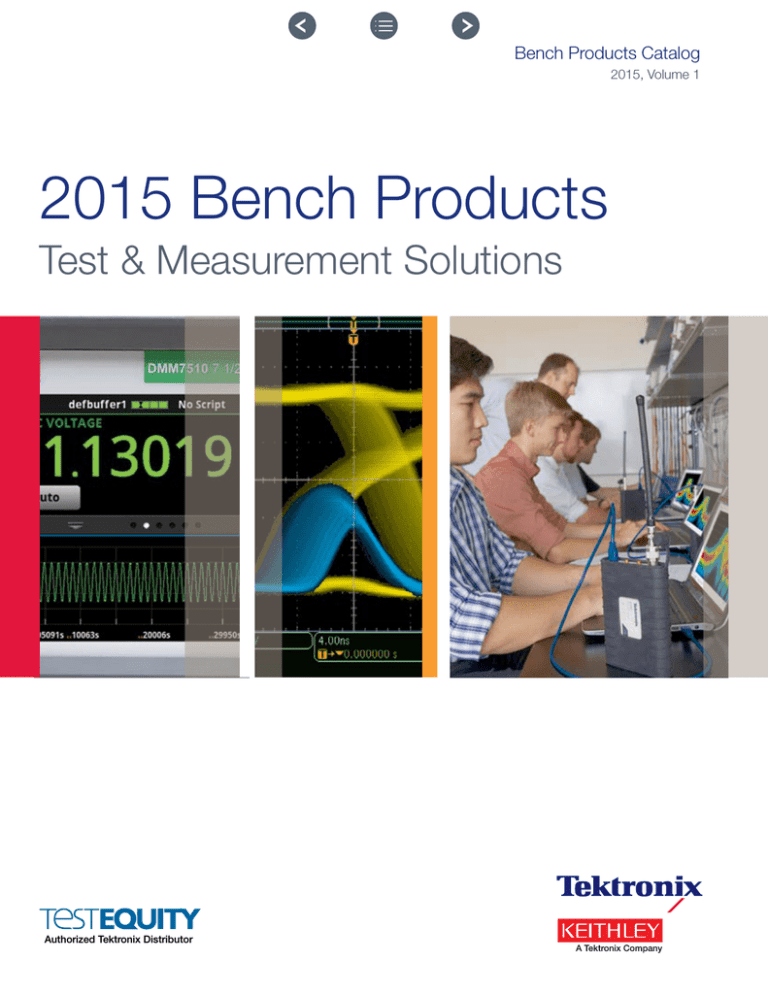

Bench Products Catalog

2015, Volume 1

2015 Bench Products

Test & Measurement Solutions

Authorized Tektronix Distributor

6 Instruments.1 Scope.

Infinite Versatility.

Digital Voltmeter

Protocol Analyzer

Logic Analyzer

Arbitrary/Function

Generator

Oscilloscope

Spectrum Analyzer

The 6-in-1 MDO3000 Mixed Domain Oscilloscope with a spectrum analyzer. Starting at $3,420.*

Designs have evolved, integrating analog, digital and RF technologies. Now, it’s the oscilloscope’s turn. Introducing the MDO3000

Mixed Domain Oscilloscope. Featuring a spectrum analyzer, function generator and more, it’s the only scope that comes with the instruments you use most, built-in. It’s also upgradeable, enabling you to add instruments and increase bandwidth as your needs grow. So you get unlimited versatility at a starting price that’s anything but limiting.

Win one at

tek.com/oneisthenewsix

6 Advanced Instruments Built In

Oscilloscope:

100 MHz-1 GHz models, 2 or 4 channels,

5 GS/s sample rate, 10 Mpoint record length

Spectrum Analyzer:

9 kHz-3 GHz with 3 GHz wide capture bandwidth

Logic Analyzer:

16 channels, 121 ps timing resolution

Arbitrary/Function Generator:

50 MHz, 13 standard plus arbitrary waveforms

Protocol Analyzer:

Serial data trigger, decode and analysis

Digital Voltmeter:

4-digits resolution

*Starting price includes an oscilloscope, spectrum analyzer and digital voltmeter. Other instruments and bandwidth may be added for additional cost.

© 2015 Tektronix, Inc.

2 www.tektronix.com

New Products

MDO3000 Series

This scope features six integrated instruments to capture analog, digital and RF signals with one scope. And add instruments, analysis functions and bandwidth as your needs change.

RSA306 USB Spectrum Analyzer

The RSA306 USB Spectrum Analyzer delivers full-featured spectrum analysis with 9 kHz to 6.2 GHz frequency coverage at half the cost of a standard solution.

It’s compact, weighs just 1.3 pounds, takes little space on your bench, and fits easily in your hand, bag, pocket or tool belt. It runs with the full-featured SignalVu-PC Vector Signal Analysis

(VSA) Software, which is now a free download!

Powerful – Real-time analysis capability and 9 kHz to

6.2 GHz frequency coverage

Affordable – Less than half the cost of a conventional unit, plus free SignalVu-PC Vector Signal Analysis (VSA) Software

Portable – USB Spectrum Analyzer ready to connect to a

PC with USB 3.0

Customizable – Create custom setups on your PC without worrying about losing your settings

Programmable – Use the programmatic interface to

SignalVu-PC or write your own measurement applications with the Applications Programming Interface.

DMM7510 7½-Digit Graphical

Sampling Multimeter

The DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results.

For an in-depth look at all of our products, including demos and 360-degree product explorers, please visit www.tektronix.com.

All information on www.tektronix.com supersedes all other information.

Table of Contents

4 Education Solutions

5-6 Service Solutions

7-12 Oscilloscope Selection Guide

Mixed Signal and Mixed Domain

13 MSO/DPO2000B Series

14 MDO3000 Series

15 MDO4000B Series

16 MSO/DPO4000B Series

Advanced Signal Analysis

17 MSO/DPO5000B Series

Basic

18 TBS1000B Series

19 TBS1000B-EDU Series

20 TBS1000 Series

Battery Powered and Handheld

21 THS3000 Series

22 TPS2000B Series

TDS

23 TDS2000C Series

24 TDS3000C Series

25 Probes and Accessories

26 Signal Generator Selection Guide

27 AFG1000

28 AFG2000

29 AFG3000C Series

30 TSG4100A Series

TekSmartLab

31 TSL3000B, TBX3000A

Spectrum Analyzers

32 RSA306 USB Spectrum Analyzer

33 RF Power Meters Selection Guide

34 PSM3000, 4000 and 5000 Series

35 SourceMeter ® SMU Instruments

Selection Guide

36-37 Model 2450/2460

38 Series 2400

39 Series 2600B

40 Series 2650A

41 Power Analyzer Selection Guide

42 PA1000 Series

43 PA4000 Series

44 Digital Multimeters Selection Guide

45 Keithley Models 2000, 2100, 2110

46 Keithley Models 2001, 2002, 2010

47 Keithley DMM7510

48 Tektronix DMM4020

49 Tektronix DMM4040/4050

50 Data Acquisition Selection Guide

51 Series 2700

52 Series 3700A

53 Ultra-Sensitive Measurement Instrument

Selection Guide

54 2182A Nanovoltmeter

55 6220/6221 Current Sources

56 6485, 6487 Picoammeters, 6482

Picoammeter & Voltage Source

57 6514/6517B/6430 Electrometers

58-59 Power Supplies Selection Guide

60 PWS2000 Series

61 PWS4000 Series

62 2200 Programmable Single Channel DC

Power Supplies with Remote Sensing

63 Model 2231A-30-3 Triple-Channel DC

Power Supply

64 2220/2230 Programmable Multiple Channel

DC Power Supplies with Remote Sensing

65 Series 2260B Programmable DC Power

Supplies

66 Series 2280S Precision Measurement DC

Power Supplies

67 Series 2268 850W DC Power Supplies

68 2290 High Voltage Power Supplies

69 2300 Portable Device Battery/Charger

Simulators

70 2303/2304A High Speed Power Supplies

71 Frequency Counter/Timers Selection

Guide

72 FCA3100/3000 Series

73 MCA3000 Series

www.tektronix.com

3

Education Solutions

Education Solutions

Tektronix provides a complete product portfolio to prepare students today for the real-life measurements of tomorrow. Our unique set of bench solutions includes the industry’s best test and measurement instruments from oscilloscopes, power supplies,

DMMs, generators, and spectrum analyzers to the industry’s first network-based instrument management solution for teaching labs. So, whether learning basic design skills or progressing to more advanced electrical engineering topics, students get practical, hands-on experience for the real world now on the instruments they’ll be using in the real word later.

TekSmartLab

TekSmartLab is the industry’s first networkbased instrument management solution for teaching labs that brings a more efficient lab experience.

See page 31

TBS1000B-EDU

Meet the world’s first dedicated teaching oscilloscope; the TBS1000B-EDU. Not only does it deliver the performance you expect to see in a Tektronix scope, it comes with an innovative courseware feature that allows students to review lab material, follow step by step instructions and document results, all on the oscilloscope.

We couldn’t make engineering easier, so we made it easier to teach and learn.

See page 19

AFG1000 Series

The AFG1000 Series Arbitrary/

Function Generator offers the best price performance ratio in its class. It’s tailored for educational users with 25 MHz bandwidth, 2 output channels, and 1 mVp-p to 10 Vp-p output amplitude across full bandwidth. It generates all kinds of waveforms needed in a lab.

See page 27

2231A-30-3

The Model 2231A-30-3 Triple Channel

DC Power Supply can output a total of

195W of power, providing the power levels needed to energize a wide range of circuits and devices for benchtop work.

Two channels can supply up to 30V at

3A each; the third channel can provide up to 5V at 3A. The Model 2231A-30-1 does not compromise on performance or convenience features, offering the versatility and ease of use you need, so it can be the only DC power supply on your bench.

See page 63

DMM2110

These cost effective, high precision instruments offer 5.5- and 6.5-digit accuracy and are ideal for a wide range of manual, semi-automatic, and production test applications. They can be used as stand-alone benchtop instruments and as components in test systems.

See page 45

RSA306

The RSA306 offers full-featured spectrum analysis at an unmatched price. Using the latest in commercial interfaces and available computing power, the RSA306 separates signal acquisition from measurement, dramatically lowering the cost of instrument hardware. Data analysis, storage and replay is performed on your personal computer, tablet or laptop which makes processing upgrades easy.

See page 32

4 www.tektronix.com

Service Solutions

The Tektronix Service

Advantage

Tektronix offers unequalled expertise, global reach and a customer-centric approach with every service option. From our full suite of Factory-Certified service plans for Tektronix equipment to our Multi-Vendor Service (MVS) calibration, we can ensure optimal performance for your entire inventory of test and measurement instruments.

Tektronix Service Highlights

Tektronix Factory Experts

Access to the engineering expertise that designed and built your products to ensure they are in peak performance. Our support engineers hold an average of 20 years of training and experience.

Comprehensive and Thorough Treatment

Software updates, safety and reliability modifications, and cosmetic enhancements are included if applicable.

Products are returned to you in “like-new” condition.

The Tektronix network of service centers offers worldwide support.

Efficiency and Convenience

Our team of professionals focus on getting your instruments back to you as soon as possible, minimizing your downtime and increasing your operating efficiency.

Flexible Repair and Calibration Service

Tektronix offers you the choice of a cost effective, flexible service package to meet your specific business needs.

Tektronix Factory-Certified Service Plans

Silver Care Silver Care Packages Gold Care

Choose between a 3- or 5-year extended warranty plan

No purchase orders, quotes, or approval delays – one phone call away starts the repair process

Covers equipment, parts, labor and transportation

Includes applicable software, safety and reliability updates

Faster repair time than without coverage

(average is 5 days faster)

All the benefits of our popular Silver Care

Plan in a convenient take-home package

Each package includes a unique activation code to effortlessly initiate and manage your service coverage online

May be purchased any time during the original warranty period

Choose between a 3- or 5-year extended warranty plan

Loaner product of equal or higher performance shipped within 24 hours

Priority access to Global Tektronix

Customer Call Center for technical support

30% discount on scheduled factorycertified calibration

Coverage of user-caused EOS and ESD damage

Typical downtime of 48 hours or less

Platinum Care

Custom-tailored plan with a typical downtime of less than

1 hour

Identically configured spare products dedicated to your facility

On-site calibration event and repair coverage

Priority access to technical support, and flexible contract duration and payment terms

Calibration

Choose from multi-year contracts and single event calibrations

Accredited and traceable calibration

Adjustments included to restore performance

Applicable software, safety, and reliability updates

Calibration records retention www.tektronix.com/service 5

Service Solutions

Multi-Vendor Service

Comprehensive Calibration and Repair for All Your Test, Measurement and Control Equipment

Service for more than 140,000 instruments from over 9,000 manufacturers

Broadest scope of accreditation

100+ global points of service

1 million calibrations annually

Performance

Calibration is the cornerstone of measurement confidence. Now

Tektronix can manage 100% of your calibration requirements, irrespective of product brand or origin. Our multi-vendor service tools simplify your calibration management program, minimizing downtime and improving operational efficiency.

Global Reach with Local Presence

Tektronix has the most extensive global network of resources.

With more than 100 points of service and 1,100 highly trained experts, our unmatched suite of capabilities and services are available locally to most of the world’s research and manufacturing centers.

Quality & Accuracy

Our comprehensive quality system is unmatched. Choose from multiple NIST traceable certificate options, including ANSI Z540.1,

ISO/IEC 17025 and ISO 9001:2008. Our customers have direct access to the quality they expect from Tektronix’ 65 years as an industry leader in test, measurement and monitoring solutions.

Optimize Asset Availability & Utilization

Tektronix provides industry-leading calibration and repair turnaround time on more than 140,000 products from over

9,000 manufacturers. The CalWeb

®

Asset Management System allows you to actively manage any downtime required for regular equipment maintenance and provides you with online, enterprisewide instrument visibility.

Industry Leader

Tektronix is the industry leading provider of calibration services for the life science, aerospace, and defense industries. With consistent high quality and comprehensive service, customers have turned to Tektronix, making us their first choice for outsourced calibration needs.

For more information on Tektronix multi-vendor service, visit service-solutions.tektronix.com

Or call us at 1-800-438-8165

6 www.tektronix.com/service

Choosing Your Oscilloscope

Oscilloscopes

Oscilloscope Selection Guides, Pages 8–13

Choosing Your Oscilloscope

Tektronix offers oscilloscopes for many different applications and uses. To help you choose the right scope for your needs, the most common criteria for selecting a scope are listed below, along with helpful tips for determining your requirements.

All oscilloscopes have a low-pass frequency response that rolls off at higher frequencies. Oscilloscope bandwidth is specified as being the frequency at which a sinusoidal input signal is attenuated to 70.7% of the signal’s true amplitude – the -3 dB point. Your oscilloscope must have sufficient bandwidth to capture all relevant frequency components of your signal. If you regularly work with digital signals, it may be easier to consider bandwidth by comparing signal and oscilloscope rise time specifications. Use an oscilloscope with a rise time specification five times faster than your signal rise time to keep error below 2%.

Rule: Bandwidth > 5 x Highest Signal Frequency

100

85

70.7

0.1

0.5

Frequency (GHz)

1.0

Figure 1: Typical frequency response curve for a general purpose oscilloscope

Record length is the number of samples the oscilloscope can digitize and store in a single acquisition. Since an oscilloscope can store only a limited number of samples, the waveform duration – or length of “time” captured – will be inversely proportional to the oscilloscope’s sample rate. A longer record length enables a longer time window to be captured with high resolution.

Rule: Captured Time = (Record Length) / (Sample Rate)

Digital Channels and Spectrum

Analyzer Input

Today’s oscilloscopes offer more than just analog channels for system-level troubleshooting of complex designs.

If you need to analyze a parallel bus or multiple serial buses, the

Tektronix MSO Series of mixed signal oscilloscopes and MDO

Series of mixed domain oscilloscopes offer 16 digital channels and up to 4 analog channels for analyzing multiple signals at once.

If you are working with RF signals, the Tektronix MDO Series of mixed domain oscilloscopes offers a built-in spectrum analyzer for time-correlated analysis of analog, digital and RF signals.

The faster an oscilloscope samples, the greater the resolution and detail of the displayed waveform, and the less likely that critical information or events will be lost. Tektronix recommends at least

5X oversampling to ensure signal details are captured and to avoid aliasing.

Rule: Sample Rate > 5 x (Highest Frequency Component)

Tektronix oscilloscopes offer a range of features and analysis capabilities. When choosing your scope, you should review available triggers, waveform search tools, automated measurements, and analysis packages such as serial bus analysis, jitter and power analysis to ensure they meet your needs. www.tektronix.com

7

Oscilloscopes Selection

Advanced Signal Analysis Oscilloscopes

Additional Resources

MSO/DPO5000B

Channels

Bandwidth

Spectrum Analyzer

Frequency Range

Sample Rate

Max Record Length

Trigger Types

Optional Serial Bus

Decode and Analysis

Connectivity

Waveform Math and Analysis

Software

Battery Operation

Upgrade

Starting Price

4 analog channels;

16 digital channels (MSO5000B)

350 MHz to 2 GHz

--

5 GS/s to 10 GS/s (analog);

60.6 ps (16.5 GS/s) MagniVu ™ (digital)

Up to 250 Mpoints

Edge, Sequence, Logic, Pulse Width, Glitch, Runt, Timeout, Transition, Set-up and Hold, Rise/Fall Time, Video, I

2

C*, SPI*, USB (Low, Full,

High)*, RS-232/422/485/UART*, Parallel (MSO5000B), Visual Trigger

*Optional

SR-AERO: MIL-STD 1553

SR-AUTO: CAN/LIN/FlexRay

SR-COMP: RS-232/422/485/UART

SR-DPHY: MIPI D-PHY

SR-EMBD: I

2

C, SPI

SR-ENET: 10/100Base-T Ethernet

SR-USB: USB

VNM: CAN, LIN

USB Host (x6), USB Device, LAN (10/100/1000 Base-T Ethernet, LXI Class C Compliant), Video Out, GPIB*

*Optional

53 Automated Measurements, Waveform and Screen Cursors, Arithmetic and Advanced Waveform Math, FFT, Measurement Statistics,

Waveform Histograms, Waveform Limit Testing

Optional:

BRR: BroadR-Reach Compliance Test; DDRA: DDR Memory Bus Analysis;

DJA: DPOJET Advanced Jitter and Eye Diagram Analysis; ET3: Ethernet Compliance Test Solution; MTM: Mask Testing; PWR: Power

Analysis; SignalVu Vector Signal Analysis; USB: USB Compliance Test Solution; MOST: MOST 50/150 Compliance Test Solution; HSIC:

HSIC Electrical Validation; USBPWR: USB Power Adapter/ EPS Compliance Automated Test Solution

--

--

Add 16 digital channels

Add extended record length, up to 250 Mpoints

Add serial bus compliance testing

Add measurements and analysis (power, jitter, limit/mask)

Add serial bus triggering and decode

$12,300

8 www.tektronix.com

Oscilloscopes Selection

Mixed Signal and Mixed Domain Oscilloscopes

Additional Resources

MSO/DPO2000B MDO3000

Channels

Bandwidth

Spectrum Analyzer

Frequency Range

Sample Rate

Max Record Length

Trigger Types

Optional Serial Bus

Decode and Analysis

Connectivity

Waveform Math and Analysis

Software

Battery Operation

Upgrade

Starting Price

2, 4 analog channels;

16 digital channels (MSO2000B)

70 MHz to 200 MHz

--

2, 4 analog channels;

16 digital channels (with MDO3MSO option)

100 MHz to 1 GHz

Standard: 9 kHz to Analog Bandwidth

Optional: 9 kHz to 3 GHz

1 GS/s (analog);

1 GS/s (digital, only 1 pod);

500 MS/s (digital, both pods)

1 Mpoints

2.5 GS/s to 5 GS/s (analog);

121.2 ps (8.25 GS/s) MagniVu

10 Mpoints

(digital)

Edge, Logic, Pulse Width, Runt, Set-up and Hold, Rise/Fall Time,

Video, I 2 C*, SPI*, CAN*, LIN*, RS-232/422/485/UART*,

Parallel (MSO2000B)

*Optional

DPO2AUTO: CAN and LIN

DPO2COMP: RS-232/422/485/UART

DPO2EMBD: I 2 C, SPI

DPO2BND: Enables DPO2AUTO, DPO2COMP, DPO2EMBD

USB Host, USB Device, GPIB*, Optional DPO2CONN Module: LAN

(10/100 Base-T Ethernet) and Video Out

*Optional

29 Automated Measurements, Waveform and Screen Cursors:

Arithmetic Waveform Math, FFT

PC communications software: OpenChoice

®

Desktop

Edge, Sequence, Logic, Pulse Width, Runt, Timeout, Set-up and

Hold, Rise/Fall Time, Video, Extended Video, I 2 C*, SPI*, CAN*, LIN*,

FlexRay*, RS-232/422/485/UART*, I 2 S/LJ/RJ/TDM*, MIL-

STD-1553*, USB 2.0*, Parallel (with MDO3MSO option)

*Optional

MDO3AERO: MIL-STD-1553

MDO3AUDIO: I

2

S, LJ, RJ, TDM

MDO3AUTO: CAN and LIN

MDO3COMP: RS-232/422/485/UART

MDO3EMBD: I

2

C, SPI

MDO3FLEX: FlexRay

MDO3USB: USB2.0

MDO3BND: Enables MDO3AERO, MDO3AUDIO, MDO3AUTO,

MDO3COMP, MDO3EMBD, MDO3FLEX, MDO3LMT, MDO3PWR,

MDO3USB

USB Host (x2), USB Device, LAN (10/100 Base-T Ethernet), Video

Out, GPIB*

*Optional

30 Automated Measurements, Waveform and Screen Cursors,

Arithmetic and Advanced Waveform Math, FFT, Measurement

Statistics

Optional:

MDO3PWR: Power Analysis

MDO3LMT: Limit/mask test

MDO3BND: Enables MDO3AERO, MDO3AUDIO, MDO3AUTO,

MDO3COMP, MDO3EMBD, MDO3FLEX, MDO3LMT, MDO3PWR,

MDO3USB

PC Communications Software: OpenChoice

®

Desktop

--

Add serial bus triggering and decode

$1,290

--

Increase bandwidth

Add Arbitrary/Function generator

Add 16 digital channels

Increase spectrum analyzer maximum frequency to 3 GHz

Add measurements and analysis (power, limit/mask)

Add serial bus triggering and decode

$3,420 www.tektronix.com

9

Oscilloscopes Selection

Mixed Signal and Mixed Domain Oscilloscopes

Additional Resources

MDO4000B MSO/DPO4000B

Channels

Bandwidth

Spectrum Analyzer

Frequency Range

Sample Rate

Max Record Length

Trigger Types

Optional Serial Bus

Decode and Analysis

Connectivity

Waveform Math and Analysis

Software

Battery Operation

Upgrade

Starting Price

4 analog channels;

16 digital channels;

1 spectrum analyzer input

100 MHz to 1 GHz (analog)

9 kHz - 3 GHz or 9 kHz - 6 GHz (MDO4000B only)

2, 4 analog channels;

16 digital channels (MSO4000B)

100 MHz to 1 GHz

--

2.5 GS/s to 5 GS/s (analog);

60.6 ps (16.5 GS/s) MagniVu

(digital)

Up to 20 Mpoints

2.5 GS/s to 5 GS/s (analog);

60.6 ps (16.5 GS/s) MagniVu

(digital)

Up to 20 Mpoints

RF Power Level**, Edge, Sequence, Logic, Pulse Width, Runt,

Timeout, Set-up and Hold, Rise/Fall Time, Video, Extended Video*, I

2

C*,

SPI*, USB*, Ethernet*, CAN*, LIN*, FlexRay*, RS-232/422/485/

UART*, I

2

S/LJ/RJ/TDM*, MILSTD-1553*, Parallel

*Optional

**With optional MDO4TRIG module, RF power level can be used as source for Pulse

Width, Timeout, Runt, Logic, Sequence

DPO4AERO: MIL-STD-1553

DPO4AUDIO: I 2 S, LJ, RJ, TDM

DPO4AUTO: CAN and LIN

DPO4AUTOMAX: CAN, LIN and FlexRay

DPO4COMP: RS-232/422/485/UART

DPO4EMBD: I

2

C, SPI

DPO4ENET: Ethernet

DPO4USB: USB

DPO4BND: Enables DPO4AERO, DPO4AUDIO, DPO4AUTO,

DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR,

DPO4USB, DPO4VID

USB Host (x4), USB Device, LAN (10/100/1000 Base-T Ethernet,

LXI Class C Compliant), Video Out, GPIB*

*Optional

45 Automated Measurements, Waveform and Screen Cursors,

Arithmetic Waveform Math, Spectrum Math, FFT, Advanced Math,

Measurement Statistics, Waveform Histograms

Optional:

DPO4LMT: Limit and Mask Testing

MDO4TRIG: Adv. RF Power Level Trigger

DPO4PWR: Power Analysis

DPO4VID: HDTV and Custom Triggering

PC Communications Software: OpenChoice ® Desktop

Vector Signal Analysis Software: SignalVu-PC

--

Edge, Sequence, Logic, Pulse Width, Runt, Timeout, Set-up and

Hold, Rise/Fall Time, Video, Extended Video*,I

2

C*, SPI*, USB*,

Ethernet*,CAN*, LIN*, FlexRay*, RS-232/422/485/UART*, I

2

S/LJ/RJ/

TDM*, MIL-STD-1553*, Parallel (MSO4000B)

*Optional

DPO4AERO: MIL-STD-1553

DPO4AUDIO: I 2 S, LJ, RJ, TDM

DPO4AUTO: CAN and LIN

DPO4AUTOMAX: CAN, LIN and FlexRay

DPO4COMP: RS-232/422/485/UART

DPO4EMBD: I

2

C, SPI

DPO4ENET: Ethernet

DPO4USB: USB

DPO4BND: Enables DPO4AERO, DPO4AUDIO, DPO4AUTO,

DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR,

DPO4USB, DPO4VID

USB Host (x4), USB Device, LAN (10/100/1000 Base-T Ethernet,

LXI Class C Compliant), Video Out, GPIB*

*Optional

42 Automated Measurements, Waveform and Screen Cursors,

Arithmetic and Advanced Waveform Math, Measurement Statistics,

Waveform Histograms

Optional:

DPO4LMT: Limit and Mask Testing

DPO4PWR: Power Analysis

DPO4VID: HDTV and Custom Triggering

PC Communications Software: OpenChoice ® Desktop

--

Add measurements and analysis (power, limit/mask, video, RF trigger)

Add serial bus triggering and decode

Add measurements and analysis (power, limit/mask, video, RF trigger)

Add serial bus triggering and decode

$9,600 $7,250

10 www.tektronix.com

Basic Oscilloscopes

Oscilloscopes Selection

Battery Powered Oscilloscopes with Isolated Channels

TBS1000

TBS1000B/

TBS1000B-EDU

THS3000 TPS2000B

Additional Resources

Channels

Bandwidth

Sample Rate

Max Record Length

Trigger Types

Optional Serial Bus

Decode and Analysis

Connectivity

Waveform Math and Analysis

Software

Battery Operation

Starting Price

4

60 MHz to 150 MHz

1 GS/s

2.5 k points

Edge, Pulse (width), Video

--

2

50 MHz to 200 MHz

1 GS/s to 2 GS/s

2.5 k points

Edge, Pulse (width), Video

--

4 (isolated)

100 MHz to 200 MHz

2.5 GS/s to 5 GS/s

10 k points

Edge, Pulse (width), Event,

Video, Non-interlaced

--

2, 4 (isolated)

100 MHz to 200 MHz

1 GS/s to 2 GS/s

2.5 k points

Edge, Pulse (width), Video

--

USB Host, USB Device, GPIB*

*Optional

USB Host, USB Device, GPIB*

*Optional

USB Host, USB Device

16 Automated Measurements,

Arithmetic Waveform Math, FFT,

Waveform Limit Testing,

Automated Datalogging

34 Automated Measurements,

Arithmetic Waveform Math, FFT,

Dual channel Frequency

Counter, Waveform Limit

Testing*, TrendPlot

function*,

Automated Datalogging*

* Not available on EDU models

PC Communications Software:

OpenChoice

®

Desktop, Educator

Classroom and Lab Resource

CD

--

PC Communications Software:

OpenChoice

®

Desktop Software,

PC Courseware Editor Tool,

Product Documentation and Lab

Resource CD

--

$1,010 $520

21 Automated Measurements,

Arithmetic Waveform Math, FFT

PC Communications Software:

OpenChoice

®

Desktop

One THSBAT Battery Pack

Included Standard

$4,310

RS-232 (includes RS-232-to-

USB Host Serial Cable),

Centronics, CompactFlash

11 Automated Measurements,

Arithmetic Waveform Math, FFT

Optional:

TPS2PWR1: Power

Measurement and Analysis

PC Communications Software:

OpenChoice

®

Desktop

One TPSBAT Battery Pack

Included Standard

$3,160

The World’s First Dedicated Teaching Oscilloscope

The TBS1000B-EDU Digital Storage Oscilloscope Series is designed specifically to meet the needs of today's schools and universities. It's the first oscilloscope to use the innovative new courseware system that enables educators to seamlessly integrate teaching materials onto an oscilloscope. Along with a powerful PC Courseware Editor

Tool and a courseware website, the TBS1000B-EDU supports a complete education ecosystem that uncovers new ways of enhancing the teaching and learning experience.

www.tektronix.com

11

Oscilloscopes Selection

TDS Series Oscilloscopes

Additional Resources

TDS2000C TDS3000C

Channels

Bandwidth

Sample Rate

Max Record Length

Trigger Types

Software

Battery Operation

Starting Price

2, 4

50 MHz to 200 MHz

500 MS/s to 2 GS/s

2.5 k points

Edge, Pulse (width), Video

2, 4

100 MHz to 500 MHz

1.25 GS/s to 5 GS/s

10 k points

Edge, Logic (Pattern, State), Pulse

(Glitch, Width, Runt, Slew Rate), Video,

Extended Video*, Comm*

*Optional

--

Optional Serial Bus

Decode and Analysis

Connectivity

--

Waveform Math and Analysis

USB Host, USB Device, GPIB*

*Optional

16 Automated Measurements, Arithmetic

Waveform Math, FFT, Waveform Limit

Testing, Automated Datalogging

PC Communications Software:

OpenChoice

--

$990

®

Desktop

USB Host, LAN

(10Base-T Ethernet)

Optional:

TDS3GV Module: GPIB, RS-232, and

Video Out

25 Automated Measurements, Arithmetic

Waveform Math, FFT

Optional:

TDS3LIM: Limit Testing

TDS3TMT: Telecom Mask Testing

TDS3VID: HDTV and Custom Video

Triggering

PC Communications Software:

OpenChoice

®

Desktop

Requires Optional TDS3BATC Battery

Pack

$5,590

Tektronix

Reference Library

With over 20,000 items in our premium content library, it is likely you can find answers on our website to whatever questions you have. Here is a list of our most popular downloaded content for oscilloscopes.

Visit www.tektronix.com to download your copy.

1. XYZs of Oscilloscopes

Primer

2. ABCs of Probes Primer

3. Fundamentals of the MDO4000B

Series Mixed Domain

Oscilloscopes

4. Fundamentals of Signal

Integrity Primer

5. Debugging Serial Buses in Embedded Systems

Designs Application Note

6. Power Supply

Measurement and

Analysis Primer

12 www.tektronix.com

Mixed Signal and Mixed Domain

Oscilloscopes

Product Highlights

1 Mpoint record length on all channels

Over 125 available trigger combinations, including setup/hold, serial packet and parallel data

Automated search and easy waveform navigation with

Wave Inspector

®

29 automated measurements and FFT analysis

5-year warranty

Quickly pan/zoom and automatically search your waveforms with Wave

Inspector ® .

MSO/DPO2000B Series

Test more, spend less with an oscilloscope that’s packed with features and is also light on price. Measure as many as 20 channels of analog and digital signals. Speed debug with automated serial and parallel bus analysis. Search your entire record instantly with Wave

Inspector

®

. Entry level has never been so powerful.

Automatically trigger, decode and search your serial buses with optional analysis modules.

Models

DPO2002B

MSO2002B

DPO2004B

MSO2004B

DPO2012B

MSO2012B

DPO2014B

MSO2014B

DPO2022B

MSO2022B

DPO2024B

MSO2024B

Application Modules

Serial Bus Triggering and Protocol Analysis

DPO2BND Enables DPO2AUTO,

DPO2COMP,

DPO2EMBD

$500

DPO2AUTO Automotive (CAN, LIN) $500

DPO2COMP Computer (RS-232)

DPO2EMBD Embedded (I

2

C, SPI)

$500

$500

Analog Channels

4

4

2

2

2

2

4

2

4

4

2

4

Recommended Accessories

DPO2CONN Ethernet and Video Out

Connectivity Module

$551

119-7465-xx TekVPI External Power

Supply

ACD2000 Soft Carrying Case

$89

$259

Digital Channels

--

16

--

16

--

16

--

16

--

16

--

16

Recommended Probes

Passive Voltage Probes

TPP0200 200 MHz, 300 V CAT II $59

Active Voltage Probes

TAP1500 *1 10X, 1.5 GHz, ± 8 V $2,260

Differential Voltage Probes

TDP0500

*1

500 MHz, ± 42 V/± 4.25 V $3,570

High Voltage Probes

THDP0200 *1 200 MHz, ± 1500 V/± 150 V $1,870

TMDP0200

*1

200 MHz, ± 750 V/± 75 V $1,870

THDP0100

*1

100 MHz, ± 6000 V/± 600 V $3,170

Current Probes

TCP2020 50 MHz, 20 A DC/20

A RMS/100 A Peak/10 mA Min

TCP0030A

*1

120 MHz, 30 A DC/30

A RMS/50 A Peak/1 mA Min

TCP0150

*1

20 MHz, 150 A

DC/150 A RMS/500 A

Peak/5 mA Min

*1 Requires 119-7465-xx TekVPI External Power Supply

$2,470

$3,750

$4,430

Analog Bandwidth Analog Sample Rate Pricing (USD)

70 MHz

70 MHz

70 MHz

70 MHz

100 MHz

100 MHz

100 MHz

100 MHz

200 MHz

200 MHz

200 MHz

200 MHz

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

1 GS/s

$1,290

$2,230

$2,050

$2,920

$1,680

$2,560

$2,440

$3,300

$2,380

$3,260

$2,930

$3,800

Another Product for Consideration

Need an arbitrary/function generator for your project?

The MDO3000 Series features six integrated instruments to capture analog, digital and RF signals with one scope.

Need more bandwidth? The MDO3000 Series offers up to 1 GHz analog bandwidth.

Ships with Product

One TPP0100 100MHz, 10X Passive Probe Per

Analog Channel (70 MHz model)

One TPP0200 200 MHz, 10X Passive Probe Per

Analog Channel (100 MHz & 200 MHz models)

One P6316 16 Channel Logic Probe (MSO only)

OpenChoice

®

Desktop Software

Calibration Certificate, Quick Reference Manual

& Documentation on CD, Power Cord

5-year Warranty www.tektronix.com/mso2000 13

Mixed Signal and Mixed Domain

Oscilloscopes

Product Highlights

Integrated 6-in-1 oscilloscope that offers a spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer and digital voltmeter

Spectrum Analyzer standard on all models

10 Mpoint record length on all channels

>280,000 wfm/s max. waveform capture rate with

FastAcq

Automated search and waveform navigation with

Wave Inspector

®

Monitor slowly changing

RF events at a glance with spectrogram display.

MDO3000 Series

This scope features six integrated instruments to capture analog, digital and RF signals with one scope. And add instruments, analysis functions and bandwidth as your needs change.

Models

MDO3012 2

MDO3014 4

MDO3022 2

MDO3024 4

MDO3032 2

MDO3034 4

MDO3052 2

MDO3054 4

MDO3102 2

MDO3104 4

Analog

Channels

Digital

Channels

(Optional)

16

16

16

16

16

16

16

16

16

16

Analog

Bandwidth

Analog

Sample

Rate

Digital Sample Rate

Main/MagniVu™

100 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

100 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

Spectrum

Analyzer

Input

200 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

200 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

350 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

350 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

500 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

500 MHz 2.5 GS/s 500 MS/s / 8.25 GS/s 1

1 GHz 5 GS/s 500 MS/s / 8.25 GS/s 1

1 GHz 5 GS/s 500 MS/s / 8.25 GS/s 1

Spectrum Analyzer Frequency

Range Standard/Optional

Pricing

(USD)

9 kHz - 100 MHz / 9 kHz - 3 GHz $3,420

9 kHz - 100 MHz / 9 kHz - 3 GHz $4,070

9 kHz - 200 MHz / 9 kHz - 3 GHz $4,080

9 kHz - 200 MHz / 9 kHz - 3 GHz $4,540

9 kHz - 350 MHz / 9 kHz - 3 GHz $7,040

9 kHz - 350 MHz / 9 kHz - 3 GHz $8,470

9 kHz - 500 MHz / 9 kHz - 3 GHz $8,930

9 kHz - 500 MHz / 9 kHz - 3 GHz $11,400

9 kHz - 1 GHz / 9 kHz - 3 GHz $10,700

9 kHz - 1 GHz / 9 kHz - 3 GHz $14,200

Instrument Options

**

MDO3AFG Arbitrary function generator

MDO3MSO 16 digital channels; includes P6316 digital probe and accessories

MDO3SA Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz

$800

$1,500

$2,550

MDO3SEC Add password protected security to enable or disable all communication ports and firmware upgrades

$450

Application Modules

MDO3BND Enables MDO3AERO,

MDO3AUDIO, MDO3AUTO,

MDO3COMP, MDO3EMBD,

MDO3FLEX, MDO3LMT,

MDO3PWR, MDO3USB

$1,150

Serial Bus Triggering and Protocol Analysis

MDO3AERO Aerospace

(MIL-STD-1553)

$1,150

MDO3AUDIO Audio (I 2 S, LJ, RJ and

TDM)

$1,150

MDO3AUTO Automotive (CAN, LIN) $1,150

MDO3COMP Computer (RS-232) $1,150

Application Modules

Serial Bus Triggering and Protocol Analysis

MDO3EMBD Embedded (I

2

C, SPI)

MDO3FLEX Automotive (FlexRay)

$1,150

$1,150

MDO3USB* USB 2.0 (LS, FS, HS)

Additional Analysis

MDO3PWR Power Analysis

$1,150

MDO3LMT Limit/Mask Test

Recommended Probes

Passive Voltage Probes

$1,450

$800

TPP0502 2X, 500 MHz, 300 V

CAT II

High Voltage Probes

$652

TMDP0200 250X/25X, 200 MHz,

± 750 V / ± 75 V

$1,870

THDP0200 1000X/100X, 100 MHz,

± 6000 V / ± 600 V

$1,870

TPP0850 50X, 800 MHz, 2500

V Peak

$821

* USB 2.0 HS only available on 1 GHz analog bandwidth models and only for HS analysis.

** Can be preconfigured from the factory or ordered as stand-along upgrade kits.

Recommended Probes

Current Probes

TCP0020 50 MHz, 20 A DC/20 A RMS/100 A

Peak/10 mA Min

TCP0030A 120 MHz, 30 A DC/30 A RMS/50 A

Peak/1 mA Min

TCP0150 20 MHz, 150 A DC/150 A RMS/500 A

Peak/5 mA Min

Ships with Product

$2,630

$3,750

$4,430

One Low C Passive Probe Per Channel, TPP1000 on 1 GHz Models, TPP0500B on 350 and 500 MHz

Models, TPP0250 on all 100 and 200 MHz Models

One P6316 16 Channel Logic Probe (with option

MDO3MSO only)

N-to-BNC Adapter

OpenChoice

®

Desktop

Calibration Certificate, Installation and Safety Manual,

& Documentation on CD

Accessory Bag

Front Panel Lauguage Overlay (if other than English)

Power Cord

3-year Warranty

14 www.tektronix.com/mdo3000

Mixed Signal and Mixed Domain

Oscilloscopes

MDO4000B Series

The new revolutionary oscilloscope with a built-in spectrum analyzer. Capture synchronized analog, digital and RF signals for a complete, time correlated system view of your device. See both time and frequency domains in one glance. View the RF spectrum at any point in time to see how it changes. Quickly and efficiently solve the most complicated design issues—with an oscilloscope as integrated as your designs.

Product Highlights

The world’s first oscilloscope with a built-in spectrum analyzer

Up to 3 GHz capture bandwidth on the spectrum analyzer input

Integrated spectral analysis tools: automated and manual markers, spectrogram display, RF vs. time traces

Advanced modulation analysis: MDO4000B with

SignalVu-PC offers industry’s widest bandwidth vector signal analyzer

>340,000 wfm/s max. waveform capture rate with

FastAcq

Use it as an oscilloscope

OR a spectrum analyzer

OR combined to capture synchronized analog, digital and RF signals.

See how your RF spectrum changes over time or device state.

Models

MDO4014B-3 4

MDO4034B-3 4

MDO4054B-3 4

MDO4054B-6 4

MDO4104B-3 4

MDO4104B-6 4

Analog

Channels

Digital

Channels

16

16

16

16

16

16

Analog

Bandwidth

Analog

Sample Rate

100 MHz 2.5 GS/s

350 MHz 2.5 GS/s

500 MHz 2.5 GS/s

500 MHz 2.5 GS/s

1 GHz 5 GS/s

1 GHz 5 GS/s

Application Modules

DPO4BND Enables DPO4AERO,

DPO4AUDIO, DPO4AUTO,

DPO4COMP, DPO4EMBD,

DPO4ENET, DPO4LMT,

DPO4PWR, DPO4USB,

DPO4VID

$1,500

Serial Bus Triggering and Protocol Analysis

DPO4-

AERO

Aerospace

(MIL-STD 1553)

$1,660

DPO4-

AUDIO

DPO4-

AUTO

DPO4-

AUTOMAX

Audio (I

TDM)

2

S, LJ, RJ and

Automotive (CAN, LIN,

FlexRay)

DPO4COMP Computer (RS-232)

DPO4-

EMBD

Embedded (I

2

C, SPI)

DPO4ENET Ethernet (10BASE-T,

100BASE-TX)

DPO4USB

*1

USB 2.0 (LS, FS, HS)

$1,500

Automotive (CAN, LIN) $1,500

$5,090

$1,500

$1,500

$1,660

$1,660

Additional Analysis

MDO4TRIG Adv. RF Power Level

Triggering

$1,800

DPO4PWR Power Analysis $1,850

DPO4LMT Limit and Mask Testing $938

DPO4VID $938

Signal-

Vu-PC

HDTV & Custom Video

Triggering

Vector Signal Analysis

Software

$1,990

Digital Sample Rate

Main/MagniVu

500 MS/s /16.5 GS/s 1

500 MS/s /16.5 GS/s 1

500 MS/s /16.5 GS/s 1

500 MS/s /16.5 GS/s 1

500 MS/s /16.5 GS/s 1

500 MS/s /16.5 GS/s 1

Spectrum

Analyzer Input

Spectrum Analyzer

Frequency Range

9 kHz – 3 GHz

9 kHz – 3 GHz

9 kHz – 3 GHz

9 kHz – 6 GHz

9 kHz – 3 GHz

9 kHz – 6 GHz

Pricing

(USD)

$9,600

$14,000

$17,400

$21,100

$21,500

$25,700

Recommended Service

SILV900 5-year Extended

Warranty

Recommended Probes

Passive Voltage Probes

TPP1000

TPP0500B 10X, 500 MHz, 300 V

CAT II

TPP0502

10X, 1 GHz, 300 V

CAT II

2X, 500 MHz, 300 V

CAT II

Active Voltage Probes

TAP1500 10X, 1.5 GHz, ± 8 V

Differential Voltage Probes

TDP0500 50X/5X, 500 MHz,

± 42 V/± 4.2 V

TDP1000 50X/5X, 1 GHz,

± 42 V/± 4.2 V

High Voltage Probes

THDP0200 500X/50X, 200 MHz,

± 1500 V/± 150 V

TPP0850 50X, 800 MHz, 2500

V Peak

Current Probes

TCP0030A 120 MHz, 30 A DC/30

A RMS/50 A Peak/1 mA Min

$1,010

$996

$653

$652

$2,260

$3,570

$4,030

$1,870

$821

$3,750

Ships with Product

Four TPP0500B ( ≤500 MHz models) or TPP1000

(1 GHz models) Passive Voltage Probes

One P6616 16 Channel Logic Probe

N-to-BNC Adapter (103-0045-00)

OpenChoice

®

Desktop Software, SignalVu PC

Software

Calibration Certificate, Quick Reference Manual

& Documentation on CD

Front Panel Cover, Accessory Bag, Power Cord

3-year Warranty

Learn more with

“Wi-Fi: Overview of the

802.11 Physical Layer and Transmitter

Measurements” primer.

*1 USB 2.0 HS only available on 1 GHz analog bandwidth models.

www.tektronix.com/mdo4000 15

Mixed Signal and Mixed Domain

Oscilloscopes

Product Highlights

Up to 20 Mpoint record length on all channels

>340,000 wfm/s max. waveform capture rate with

FastAcq

Over 125 available trigger combinations, including setup/hold, serial packet and parallel data

Automated search and easy waveform navigation with Wave Inspector

®

41 automated measurements and FFT analysis

Ships with one passive probe per analog channel, with up to 1 GHz bandwidth and an industry-best 3.9 pF of capacitive loading.

MSO/DPO4000B Series

Debug complex designs faster with an oscilloscope that’s as versatile as it is powerful.

Measure up to 20 channels of analog and digital signals. Analyze serial and parallel buses.

Instantly search your entire record with the time-saving Wave Inspector

®

. Finally, an oscilloscope that multitasks as well as you do.

Automatically trigger, decode and search your serial and parallel bus.

Models

Analog

Channels

Digital

Channels

Bandwidth

Record

Length (Max)

Analog Sample

Rate (Max)

DPO4014B

MSO4014B

DPO4034B

MSO4034B

4 -- 100 MHz 20M 2.5 GS/s

Replaced by MDO4014B-3. All the capabilities of MSO + Spectrum Analyzer

4 -- 350 MHz 20M 2.5 GS/s

Replaced by MDO4034B-3. All the capabilities of MSO + Spectrum Analyzer

DPO4054B

MSO4054B

4 -- 500 MHz 20M 2.5 GS/s

Replaced by MDO4054B-3. All the capabilities of MSO + Spectrum Analyzer

DPO4102B-L 2

DPO4102B 2

DPO4104B-L 4

--

--

--

1 GHz

1 GHz

1 GHz

5M

20M

5M

5 GS/s

5 GS/s

5 GS/s

DPO4104B 4

MSO4102B-L 2

MSO4102B 2

MSO4104B-L 4

MSO4104B

*1

4

--

16

16

16

16

1 GHz

1 GHz

1 GHz

1 GHz

1 GHz

20M

5M

20M

5M

20M

5 GS/s

5 GS/s

5 GS/s

5 GS/s

5 GS/s

Digital Sample Rate

Main/MagniVu

--

--

--

Pricing

(USD)

$7,250

$11,000

$14,400

--

--

--

$10,800

$13,500

$14,400

-$17,600

500 MS/s /16.5 GS/s $14,200

500 MS/s /16.5 GS/s $17,700

500 MS/s /16.5 GS/s $17,700

500 MS/s /16.5 GS/s $21,900

Another Product for Consideration

Working with RF? The MDO4000B Series is the world's only oscilloscope with a built-in spectrum analyzer for capturing and analyzing synchronized analog, digital and

RF signals.

Application Modules

DPO4BND Enables DPO4AERO,

DPO4AUDIO, DPO4AUTO,

DPO4COMP, DPO4EMBD,

DPO4ENET, DPO4LMT,

DPO4PWR, DPO4USB,

DPO4VID

$1,500

Serial Bus Triggering and Analysis

DPO4AERO Aerospace

(MIL-STD 1553)

$1,660

DPO4-

AUDIO *2

Audio (I

2

S, LJ, RJ and

TDM)

$1,500

DPO4AUTO Automotive (CAN, LIN) $1,500

DPO4-

AUTOMAX

Automotive (CAN, LIN,

FlexRay)

DPO4COMP Computer (RS-232)

DPO4EMBD

*3

Embedded (I

2

C, SPI)

DPO4ENET Ethernet (10Base-T,

100Base-Tx)

DPO4USB

*4

USB 2.0 (LS, FS, HS)

$5,090

$1,500

$1,500

$1,660

$1,660

16 www.tektronix.com/mso4000

Application Modules

Serial Bus Triggering and Analysis

DPO4PWR Power Analysis

DPO4LMT Limit and Mask Testing

$1,850

$938

$938 DPO4VID HDTV & Custom Video

Triggering

Recommended Probes

Passive Voltage Probes

TPP0502 2X, 500 MHz, 300 V

CAT II

High Voltage Probes

$652

$1,870 TMDP0200 200 MHz, ± 750 V/

± 75 V

TPP0850 50X, 800 MHz, 2500

V Peak

Current Probes

TCP0030A 120 MHz, 30 A DC/

30 A RMS/50 A Peak/

1 mA Min

$821

$3,750

Ships with Product

One TPP0500B ( ≤ 500 MHz models) or TPP1000

(1 GHz models) Passive Voltage Probe Per Analog

Channel

One P6616 16 Channel Logic Probe (MSO only)

OpenChoice ® Desktop Software

Calibration Certificate, Quick Reference Manual &

Documentation on CD

Front Panel Cover, Accessory Bag, Power Cord

3-year Warranty

*1

See the MDO4104B-3 for an MSO + Spectrum Analyzer.

*2

Not available on DPO4102B, DPO4102B-L models.

*3

For SPI, only 2-wire support is available on DPO4102B, DPO4102B-L.

*4

USB 2.0 HS only available on 1 GHz analog bandwidth models.

Advanced Signal Analysis

Oscilloscopes

Product Highlights

350 MHz, 500 MHz, 1 GHz, and 2GHz models

>250,000 wfm/s max. waveform capture rate with

FastAcq

technology

10 GS/s max sampling and 250 Mpoints memory

(optional)

Extensive analysis including jitter/timing and user defined math (i.e., MATLAB)

Visual tirggering standard with search and mark

Achieve greater than 11 bits vertical resolution with

Hi-Res sampling and reduce unwanted noise while capturing signal details.

MSO/DPO5000B Series

Today’s faster data rates and tighter timing margins requires an oscilloscope with outstanding signal acquisition performance and analysis capabilities. Tektronix MSO/

DPO5000B Series oscilloscopes provide exceptional signal fidelity, with 2 GHz and 10

GS/s sample rate, along with advanced analysis and math capabilities. MSO models include 16 digital timing channels, and all models can be equipped to decode common serial protocols, to provide a comprehensive view of your systems.

Perform advanced protocol triggering and decode on mid-speed and low-speed serial and buses (optional).

Models

DPO5034B 4

MSO5034B 4

DPO5054B 4

MSO5054B 4

DPO5104B 4

MSO5104B 4

DPO5204B 4

MSO5204B 4

Analog

Channels

Software Packages

Serial Bus Triggering and Protocol Analysis

SR-AERO MIL-STD-1553B $2,060

SR-AUTO CAN/LIN/FlexRay

SR-COMP Computer (RS-232)

$2,060

$2,060

SR-DPHY MIPI D-PHY

SR-EMBD Embedded (I 2 C, SPI)

SR-ENET

SR-USB

Ethernet

USB 2.0 (LS, FS, HS)

Compliance Test

BRR

ET3

MOST

USB2

BroadR-Reach

Ethernet

MOST50/150

USB 2.0

$2,120

$2,060

$2,060

$2,060

$2,060

$5,990

$2,880

$2,950

Additional Analysis

DDRA

DJA

DDR Memory $6,460

Advanced Jitter Analysis $4,450

HSIC HSIC Electrical

Characterization

$5,360

PS2, PS3 Power Solution Bundles Varies

PWR Power Analysis $2,300

SVE

USBPWR

SignalVu RF Analysis $2,020

USB Power Compliance $1,850

Additional software packages are available. For a complete listing, please visit www.tektronix.com/mso5000

Digital

Channels

--

16

--

16

--

16

--

16

Analog

Bandwidth

350 MHz

350 MHz

500 MHz

500 MHz

1 GHz

1 GHz

2 GHz

2 GHz

Analog Sample Rate

(4 Channels/2 Channels)

5 GS/s

5 GS/s

5 GS/s

5 GS/s

5 GS/s /10 GS/s

5 GS/s /10 GS/s

5 GS/s /10 GS/s

5 GS/s /10 GS/s

Recommended Probes

Passive Voltage Probes

TPP1000 10X, 1 GHz, 300 V CAT II $996

TPP0502 2X, 500 MHz, 300 V CAT II $652

Active Voltage Probes

TAP1500 10X, 1.5 GHz, ± 8 V

TAP2500 10X, 2.5 GHz, ± 4 V

Differential Voltage Probe

$2,260

$3,990

TDP0500 500 MHz, ± 42 V/± 4.2 V $3,570

TDP1000 1 GHz, ± 42 V/± 4.2 V $4,030

TDP1500 1.5 GHz, ± 8.5 V/± 850 mV $4,000

High Voltage Probes

TMDP0200 200 MHz, ± 750 V/± 75 V $1,870

THDP0200 200 MHz, ± 1500 V/± 150 V $1,870

THDP0100 100 MHz, ± 6000 V/± 600 V $3,170

TPP0850 50X, 800 MHz, 2500 V

Peak

Current Probes

$821

TCP0020 50 MHz, 20 A DC/20 A

RMS/100 A Peak/10 mA Min

$2,630

TCP0030A 120 MHz, 30 A DC/30 A

RMS/50 A Peak/1 mA Min

TCP0150 20 MHz, 150 A DC/150 A

RMS/500 A Peak/5 mA Min

$3,750

$4,430

Digital Sample Rate

Main/MagniVu

--

500 MS/s /16.5 GS/s

--

500 MS/s /16.5 GS/s

--

500 MS/s /16.5 GS/s

--

500 MS/s /16.5 GS/s

Ships with Product

Four TPP0500B (350 MHz and 500 MHz models) or TPP1000 (1 GHz and 2 GHz models)

Passive Voltage Probes

One P6616 16 Channel Logic Probe (MSO only)

Calibration Certificate, Quick Reference Manual

& Documentation on CD

Front Panel Cover, Accessory Bag, Power Cord

1-year Warranty

Instrument Options

Record Length

Opt. 5RL 50M/Ch

Opt. 10RL 125M/Ch

Limitations apply. See data sheet for full details.

Recommended Service

R3

R5

3-year Extended Warranty

5-year Extended Warranty

Pricing (USD)

$12,300

$15,600

$15,300

$18,600

$18,800

$22,100

$21,500

$24,800

$5,560

$12,100

Varies

Varies www.tektronix.com/mso5000 17

Basic Oscilloscopes

TBS1000B Series

More features, more scope; the TBS1000B is in a class all its own. With up to 200

MHz bandwidth, 34 automated measurements, limit testing, data logging, dual channel frequency counters, waveform trending and sample rates of up to 2 GS/s, the TBS1000B

Series is designed for extensive monitoring and analysis activities. It can handle everyday test challenges without challenging your budget.

Product Highlights

Two channel instruments

Extensive monitoring capability using TrendPlot

™ testing

Pass/Fail analysis with built in waveform limit testing

Automated data logging feature

Up to 2 GS/s sample rate on all channels

Dual channel frequency counters

Front-panel USB host port and rear-panel USB device port

TekSmartLab

™ supported

Use the TrendPlot

function to evaluate signal behavior over extended time periods.

Thoroughly analyze your waveforms with convenient math tools and 34 automated measurements.

Models

TBS1052B

TBS1072B

TBS1102B

TBS1152B

TBS1202B

Analog Channels

2

2

2

2

2

Analog Bandwidth

50 MHz

70 MHz

100 MHz

150 MHz

200 MHz

Analog Sample Rate

(per channel)

1 GS/s

1 GS/s

2 GS/s

2 GS/s

2 GS/s

Pricing (USD)

$550

$890

$1,190

$1,520

$1,820

Recommended Probes

Passive Voltage Probes

TPP0201

TPP0101

10X, 200 MHz, 300 V

CAT II

10X, 100 MHz, 300 V

CAT II

TPP0051

P2220

10X, 50 MHz, 300 V

CAT II

10X/1X, 200 MHz/6

MHz, 300 V CAT II/150

V CAT II

High Voltage Probes

P5200A

P5100A

P6015A

500X/50X, 50 MHz,

± 1300 V/± 130 V

100X, 500 MHz,

2500 V Peak

1000X, 75 MHz,

20 kV Peak

$59

$49

$25

$131

$1,010

$488

$2,000

Recommended Probes

Current Probes

P6021A

P6022

A621

A622

60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

$1,660

$1,820

$682

$677

Recommended Accessories

TEK-

USB-488

GPIB-to-USB converter $830

AC2100 Soft Carrying Case $136

Another Product for Consideration

Need an oscilloscope that simplifies the way you distribute lab work to students? The TBS1000B-EDU models have many of the same features and include integrated courseware capabilities.

Ships with Product

Two TPP0xx1 200 MHz, 100 MHz or 50 MHz Passive

Probes

Certificate of Calibration

CD with Customer Documentation

Installation & Safety Manual

Power Cord

5-year Warranty

Learn why a TBS1000B or TDS2000C instrument can be your most reliable and cost effective scope with the

“Reliability by Design” technical brief.

18 www.tektronix.com/tbs1000

Basic Oscilloscopes

TBS1000B-EDU Series

Meet the world’s first dedicated teaching oscilloscope; the TBS1000B-EDU. Not only does it deliver the performance you expect to see in a Tektronix scope, it comes with an innovative courseware feature that allows students to review lab material, follow step by step instructions and document results, all on the oscilloscope. We couldn’t make engineering easier, so we made it easier to teach and learn.

Product Highlights

Two channel instruments

Integrated courseware feature - perform labs directly on the oscilloscope

Autoset enable/disable capability

Included PC editor tool for easy lab creation

Up to 2 GS/s sample rate on all channels

Dual channel frequency counters

34 automated measurements and FFT analysis

TekSmartLab

supported

The Courseware Resource

Center is an interactive, multi-lingual website where educators can share lab material and ideas.

The FFT function can show both frequency and time domain waveforms simultaneously.

Models

TBS1052B-EDU

TBS1072B-EDU

TBS1102B-EDU

TBS1152B-EDU

TBS1202B-EDU

Analog Channels

2

2

2

2

2

Analog Bandwidth

50 MHz

70 MHz

100 MHz

150 MHz

200 MHz

Analog Sample Rate

(per channel)

1 GS/s

1 GS/s

2 GS/s

2 GS/s

2 GS/s

Pricing (USD)

$520

$790

$1,090

$1,420

$1,720

Recommended Probes

Passive Voltage Probes

TPP0201

TPP0101

TPP0051

10X, 200 MHz, 300 V

CAT II

10X, 100 MHz, 300 V

CAT II

10X, 50 MHz, 300 V

CAT II

P2220 10X/1X, 200 MHz/6

MHz, 300 V CAT II/150

V CAT II

High Voltage Probes

P5200A

P5100A

P6015A

500X/50X, 50 MHz,

± 1300 V/± 130 V

100X, 500 MHz,

2500 V Peak

1000X, 75 MHz,

20 kV Peak

$59

$49

$25

$131

$1,010

$488

$2,000

Recommended Probes

Current Probes

P6021A 60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

$1,660

P6022

A621

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

$1,820

$682

A622 100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

$677

Recommended Accessories

TEK-

USB-488

GPIB-to-USB converter $830

AC2100 Soft Carrying Case $136

Another Product for Consideration

Need more analysis features? The TBS1000B models offer the same great performance and include

Trendplot

, data logging and limit test capability.

Ships with Product

Two TPP0xx1 200 MHz, 100 MHz or 50 MHz, Passive

Probes

Certificate of Calibration

CD with Customer Documentation

Education CD with Course Editor SW and Lab

Examples

Installation & Safety Manual

Power Cord

5-year Warranty

Help students master the use of an oscilloscope with the included courseware software and labs.

www.tektronix.com/tbs1000 19

Basic Oscilloscopes

TBS1000 Series

Usually, entry-level instruments are as light in features as they are in price. But Tektronix

TBS1000 Series aren't usual instruments. Ideal for students, hobbyists or any person or organization on a tight budget, TBS1000 Series oscilloscopes deliver outstanding performance, including best-in-class digital real-time sampling, pass/fail testing, and familiar, easy-to-use controls. All at a price that's equally impressive.

Product Highlights

Four channel instruments

1 GS/s sample rate on all channels

7 inch WVGA high-res display

16 automated measurements, and FFT analysis

Built-in waveform limit testing

Built-in help system and probe check wizard

Front-panel USB host port and rear-panel USB device port

TekSmartLab

supported

Accurately capture signals with at least 10X oversampling on all channels with Digital Real-Time

Sampling technology.

Quickly store and transfer your waveforms and settings with the front panel USB port.

Models

TBS1064

TBS1104

TBS1154

Analog Channels

4

4

4

Analog Bandwidth

60 MHz

100 MHz

150 MHz

Analog Sample Rate

(per channel)

1 GS/s

1 GS/s

1 GS/s

Pricing (USD)

$1,010

$1,520

$1,830

Recommended Probes

Passive Voltage Probes

TPP0201

TPP0101

10X, 200 MHz, 300 V

CAT II

10X, 100 MHz, 300 V

CAT II

P2220 10X/1X, 200 MHz/6

MHz, 300 V CAT II/150

V CAT II

High Voltage Probes

P5200A

P5100A

P6015A

500X/50X, 50 MHz,

± 1300 V/± 130 V

100X, 500 MHz,

2500 V Peak

1000X, 75 MHz,

20 kV Peak

$59

$49

$131

$1,010

$488

$2,000

Recommended Probes

Current Probes

P6021A 60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

$1,660

P6022

A621

A622

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

$1,820

$682

$667

TCP2020 50 MHz, 20 A DC/20

A RMS/100 A Peak/10 mA Min

$2,470

Recommended Accessories

1103 TEKPROBE Power

Supply

$2,380

AC2100 Soft Carrying Case $136

Another Product for Consideration

Need a Lifetime Warranty? The TDS2000C Series offers the same great performance as the TBS1000 and includes a Lifetime Warranty.

Ships with Product

Four TPP0x01 100 MHz or 200 MHz, 10X Passive

Probes

OpenChoice

®

Desktop Software

Educator Classroom and Lab Resource CD

Calibration Certificate, Quick Reference Manual,

& Documentation on CD

Power Cord

5-year Warranty

Learn how to accurately capture your signals with the “Be Sure to

Be Sure to Capture the Complete Picture

Technical Brief

Capture the Complete

Picture” technical brief.

Tektronix Digital Real-time (DRT)

Sampling Technology

As an engineer or technician, you need the confidence and trust that you’re accurately capturing the details of your signal.

If an oscilloscope’s sample rate isn’t fast enough, signal details are lost, resulting in missing data and measurement errors.

The Solution…

Input 1 with Record Points

Sampling RateSampling Rate

Digital real-time oscilloscopes acquire signals in real time, capturing enough samples of the signal needed to faithfully reconstruct a waveform in a single acquisition cycle.

Input 2

20 www.tektronix.com/tbs1000

Battery Powered and Handheld

Oscilloscopes

Product Highlights

4 fully isolated and floating channels

21 automated measurements

600 VRMS CAT III, 1000 VRMS CAT II rated inputs

Measurement data logging with Trendplot

testing

7 hours of continuous battery operation

Four isolated input channels easily handle any type of mixed signal inputs.

THS3000 Series

Affordable performance in a rugged, portable design. This handheld, battery-powered oscilloscope is packed with features and analysis tools. With up to 5 GS/s sampling rate and four isolated channels that can measure up to 1000 Volts, you can quickly, reliably and accurately evaluate your signal characteristics on the bench or in the field.

User-defined limit testing can automatically monitor your signals and output

Pass or Fail results.

Models

THS3014

THS3014-TK

THS3024

THS3024-TK

Analog Channels

4

4

4

4

Recommended Probes

Passive Voltage Probes

THP0301 -

Y/B/M/G

300 MHz, 10X,

300 V CAT III

High Voltage Probes

$190

P5150 *1 50X, 500 MHz, 2500

V Peak, 1000 V RMS

CAT II

P5122 100X, 200 MHz,

1000 V RMS CAT II

Current Probes

P6021A 60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

$515

$287

$1,660

P6022

A621

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

$1,820

$682

A622

TCP2020

100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

50 MHz, 20 A DC/20

A RMS/100 A Peak/10 mA Min

$677

$2,470

*1

The P5150 is compatible with THS oscilloscopes, but 50X vertical scaling is not offered.

Analog Bandwidth

100 MHz

100 MHz

200 MHz

200 MHz

Recommended Accessories

THSBAT Additional Spare

Battery

$325

THSCHG

*2

Battery Charger $108

119-7900-00 AC Power Adapter

*2 Does not include AC power adapter.

Recommended Service

SILV400 5-year Extended

Warranty

$305

$453

Analog Sample Rate

2.5 GS/s

2.5 GS/s

5 GS/s

5 GS/s

Pricing (USD)

$4,310

$4,790

$4,850

$5,390

Another Product for Consideration

For very accurate ripple measurements on high voltage signals, the P5122 probe offers high impedance with minimal capacitive loading.

Ships with Product

Four THP0301-Y/B/M/G 300 V CAT III, 300 MHz 10X

Passive Probes

OpenChoice

®

Desktop Software

USB-A to Mini USB-B Cable for PC Communication

Lithium-ion Battery with 7 Hour Battery Life

Calibration Certificate, Installation/Safety Manual,

Documentation on CD

Carrying Handle, Hanging Strap

ACHHS Soft-sided Carry Case

*3

, AC Power Adapter with Power Cord

Hard-sided Travel Case

*4

Soft-sided Probe Case, Two Probe Replacement

Accessory Kits *4

3-year Warranty

*3

Non-TK models only

*4

TK models only

Learn more with the

“Fundamentals of

Floating Measurements and Isolated Input

Oscilloscopes” application note.

Fundamentals of Floating Measurements and Isolated Input Oscilloscopes

Application Note

This guide will provide you with a fundamental glossary of power measurement terms, explain the different options available for making floating measurements, and highlight the advantages and trade-offs of each option.

The most demanding floating measurement requirements are found in power control circuits, such as motor controllers, uninterruptible power supplies, and industrial equipment. In such application areas, voltages and currents may be large enough to present a hazard to users and/or test equipment.

When measuring floating high voltage signals there are many options to consider. Each option has its advantages and trade-offs.

www.tektronix.com/ths3000 21

Battery Powered and Handheld

Oscilloscopes

Product Highlights

10X oversampling on all channels

4 isolated analog channels

11 automated measurements and FFT analysis

Optional power analysis software

Safely and easily make floating measurements with the four isolated channels.

Battery pack gives you up to 4 hours of portable operation. Hot-swap the pack for 4 more hours!

TPS2000B Series

Great performance goes beyond the lab. Make floating or differential measurements with up to four isolated channels. Tackle challenging environments with backlit buttons and optional power analysis software. Capture signals with Digital Real-Time Sampling.

Models

TPS2012B

TPS2014B

TPS2024B

Application Modules

TPS2PBND2 TPS2PWR1 Module and Four P5122

Probes

$1,630

TPS2PWR1 Power Measurement and Analysis Module

$707

Recommended Accessories

1103 TEKPROBE Power

Supply

$2,380

AC2100

TPSBAT

TPSCHG

Soft Carrying Case

Additional Lithium-Ion

Battery Pack (one included standard with instrument)

External Battery

Charger

$136

$304

$530

Recommended Service

SILV200 5-year Extended

Warranty

Varies

Analog Channels

2

4

4

Analog Bandwidth

100 MHz

100 MHz

200 MHz

Recommended Probes

Passive Voltage Probes

TPP0201

TPP0101

10X, 200 MHz, 300 V

CAT II

10X, 100 MHz, 300 V

CAT II

P2220 10X/1X, 200 MHz/6

MHz, 300 V CAT II/150

V CAT II

High Voltage Probes

P5150 50X, 500 MHz, 2500

V Peak, 1000 V RMS

CAT II

P5122 100X, 200 MHz,

1000 V RMS CAT II

Current Probes

P6021A

P6022

A621

A622

TCP2020

60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

50 MHz, 20 A DC/20

A RMS/100 A Peak/10 mA Min

$59

$49

$131

$515

$287

$1,660

$1,820

$682

$677

$2,470

Analog Sample Rate

1 GS/s

1 GS/s

2 GS/s

Pricing (USD)

$3,160

$4,170

$4,700

Another Product for Consideration

For very accurate power measurements, the PA1000

Power Analyzer offers 0.05% basic accuracy.

Ships with Product

One TPP0101 100 MHz, 10X Passive Probe Per

Analog Channel (TPS2012B & TPS2014B)

One TPP0201 200 MHz, 10X Passive Probe Per

Analog Channel (TPS2024B)

OpenChoice

®

Desktop Software

RS-232 to USB Adapter Cable

One Lithium-Ion Battery with 4-hour Battery Life

Calibration Certificate, Quick Reference Manual,

& Documentation on CD

Front Panel Cover, AC Adapter with Power Cord

3-year Warranty

Learn more with the

“Fundamentals of

Floating Measurements and Isolated Input

Oscilloscopes” application note.

Fundamentals of Floating Measurements and Isolated Input Oscilloscopes

Application Note

This guide will provide you with a fundamental glossary of power measurement terms, explain the different options available for making floating measurements, and highlight the advantages and trade-offs of each option.

The most demanding floating measurement requirements are found in power control circuits, such as motor controllers, uninterruptible power supplies, and industrial equipment. In such application areas, voltages and currents may be large enough to present a hazard to users and/or test equipment.

When measuring floating high voltage signals there are many options to consider. Each option has its advantages and trade-offs.

22 www.tektronix.com/tps2000

TDS Series Oscilloscopes

TDS2000C Series

Big performance has never been so small. Featuring Digital Real-Time Sampling, you can trust your scope to accurately capture your signal. Add in USB connectivity, 16 automated measurements and even a built-in help system; this compact oscilloscope helps you get more done in less time. It’s true: big things do come in small packages.

Product Highlights

10X oversampling on all channels

Bright color display

16 automated measurements and FFT analysis

Built-in help system and probe check wizard

Front-panel USB host port and rear-panel USB device port

Lifetime Warranty

*1

TekSmartLab ™

supported

Accurately capture signals with at least 10X oversampling on all channels with

Digital Real-Time Sampling technology.

Easily check if your waveforms pass or fail your specifications with built-in waveform limit testing.

Models

TDS2001C

TDS2002C

TDS2004C

TDS2012C

TDS2014C

TDS2022C

TDS2024C

Analog Channels

2

4

2

4

2

2

4

Recommended Probes

Passive Voltage Probes

TPP0201

TPP0101

10X, 200 MHz, 300 V

CAT II

10X, 100 MHz, 300 V

CAT II

P2220 10X/1X, 200 MHz/6

MHz, 300 V CAT II/150

V CAT II

High Voltage Probes

P5200A

P5100A

P6015A

500X/50X, 50 MHz,

± 1300 V/± 130 V

100X, 500 MHz,

2500 V Peak

1000X, 75 MHz,

20 kV Peak

$59

$49

$131

$1,010

$488

$2,000

Analog Bandwidth

50 MHz

70 MHz

70 MHz

100 MHz

100 MHz

200 MHz

200 MHz

Recommended Probes

Current Probes

P6021A

P6022

A621

A622

60 MHz, 10.6 A

RMS/250 A Peak/10 mA Min

120 MHz, 4 A

RMS/100 A Peak/1 mA Min

5 Hz to 50 kHz, 1000 A

RMS/2000 A Peak/10 mA Min

100 kHz, 100 A DC/71

A RMS/100 A Peak/10 mA Min

$1,660

$1,820

$682

$677

TCP2020 50 MHz, 20 A DC/20

A RMS/100 A Peak/10 mA Min

$2,470

Recommended Accessories

1103 TEKPROBE Power

Supply

$2,380

AC2100 Soft Carrying Case $136

Analog Sample Rate

500 MS/s

1 GS/s

1 GS/s

2 GS/s

2 GS/s

2 GS/s

2 GS/s

Pricing (USD)

$990

$1,180

$1,840

$1,440

$2,150

$2,060

$2,490

Ships with Product

One TPP0x01 100 MHz or 200 MHz, 10X Passive

Probe Per Analog Channel

OpenChoice

®

Desktop Software

Calibration Certificate, Quick Reference Manual &

Documentation on CD

Power Cord

Lifetime Warranty

*1

*1 For complete details visit www.tektronix.com/lifetimewarranty

TDS2000 Series

The TDS2000 Series is one of the most popular oscilloscopes of all time. It has a proven track record and comes with a lifetime warranty. We are pleased to continue to offer it.

For new applications, make sure you learn about:

MSO/DPO2000B Series Oscilloscopes

70, 100 and 200 MHz models

2 or 4 analog channels

16 digital channels (MSO models)

1 Mpoint record length

Serial bus decoding and triggering options

5-year warranty www.tektronix.com/tds2000 23

TDS Series Oscilloscopes

Product Highlights

10 kpoints record length on all channels, all the time

3,600 wfm/s max. waveform capture rate with DPO technology

25 automated measurements and FFT analysis

Front-panel USB host port and optional rear-panel

Ethernet, GPIB, and RS-232 ports

Optional battery pack gives you up to 3 hours of portable operation.

TDS3000C Series

Performance meets portability. Featuring up to 500 MHz bandwidth and optional batterypowered operation, this oscilloscope is as capable as it is convenient. Capture fastchanging signals with Digital Real-Time Sampling. Maximize efficiency with WaveAlert

®

Anomaly Detection and 25 automated measurements. Performance and versatility--turns out you can take it with you.

Accurately capture signals with at least 5X oversampling on all channels with

Digital Real-Time Sampling technology.

Models

TDS3012C

TDS3014C

TDS3032C

TDS3034C

TDS3052C

TDS3054C

Application Modules

TDS3LIM Limit Testing

TDS3TMT

TDS3VID

Telecom Mask Test

Triggering

HDTV and Custom

Video Triggering

Analog Channels

4

2

4

2

4

2

$839

$1,570

$839

Recommended Accessories

1103 TEKPROBE Power

Supply

$2,380

TDS3GV GPIB, RS-232, and

VGA Communications

Module

TDS3BATC Lithium-ion Battery

TDS3ION

AC3000

Battery Charger

Soft Carrying Case

HCTEK4321 Hard Carrying Case

(requires AC3000)

Recommended Service

SILV400 5-year Extended

Warranty

$839

$685

$170

$259

$829

$453

Analog Bandwidth

100 MHz

100 MHz

300 MHz

300 MHz

500 MHz

500 MHz

Recommended Probes

Passive Voltage Probes

P6139B 10X, 500 MHz, 300 V

CAT II

Active Voltage Probes

P6243 10X, 1 GHz, ± 8 V

Differential Voltage Probes

P6246

*1

10X/1X, 400 MHz,

± 8.5 V/± 850 mV

High Voltage Probes

P5205A

P5210A

500X/50X, 100 MHz,

± 1300 V/± 130 V

1000X/100X, 50 MHz,

± 5600 V/± 560 V

P5100A 100X, 500 MHz,

2500 V Peak

Current Voltage Probes

TCP202A 50 MHz, 15 A DC/10.6

A RMS/50 A Peak/10 mA Min

*1 Requires 1103 TEKPROBE Power Supply

$472

$1,130

$3,620

$1,480

$2,980

$488

$2,430

Analog Sample Rate

1.25 GS/s

1.25 GS/s

2.5 GS/s

2.5 GS/s

5 GS/s

5 GS/s

Pricing (USD)

$5,590

$6,820

$8,230

$9,800

$11,800

$14,100

Ships with Product

One P6139B 500 MHz, 10X Passive Probe Per Analog

Channel

OpenChoice

®

Desktop Software

Calibration Certificate, Quick Reference Manual,

& Documentation on CD

Front Panel Cover, Power Cord

3-year Warranty

TDS3000 Series

The TDS3000C Series performs reliably in test stations around the world. It is also available with a battery pack, making it especially well-suited for field applications that require high bandwidth. We are pleased to continue to offer it.

For new applications, make sure you learn about:

MDO3000 Series Mixed Domain

Oscilloscopes

100, 200, 350, 500 MHz, and

1 GHz models

2 or 4 analog channels

16 digital channels (optional)

10 Mpoint record length

Integrated arbitrary/function generator (optional)

Serial bus decoding and triggering options

24 www.tektronix.com/tds3000

Probes and Accessories

Probes and Accessories

Tektronix probes and accessories are perfectly matched to our industry-leading oscilloscopes. With over 100 choices available, you will find the probe you need.

Low Voltage Differential

Probes

Bandwidth up to 33 GHz Easily measure differential signals

Low input capacitance: down to

< 0.3 pF

High common mode rejection ratio

(CMRR)

Wide range of probe tips for easier circuit access www.tek.com/differential-probelow-voltage

Low Voltage Single-ended

Probes

Bandwidth up to 4 GHz

True signal reproduction and fidelity

Low input capacitance: down to

< 0.8 pF

Small compact probe heads for probing small geometry circuit elements www.tek.com/low-voltage-probesingle-ended

High Voltage Differential

Probes

Dynamic range to ± 6000 V

Bandwidth up to 200 MHz

Most extensive set of probe accessories www.tek.com/differential-probehigh-voltage

High Voltage Single-ended

Probes

Bandwidth up to 800 MHz

Dynamic range to 2500 V

Best-in-class probe loading with input capacitance as low as 1.8 pF www.tek.com/high-voltage-probesingle-ended

Current Probes

Easy to use and accurate AC/DC current measurements

DC up to 2 GHz

Amplitude measurements from

1 mA to 2,000 A

Split core and solid core construction www.tek.com/current-probe

Optical

Broad Wavelength Response 500 to 950 nm or 1100 to 1700 nm

High-bandwidth DC up to 1.2 GHz

High Gain 1 V/mW

Low Noise <11 pW/

√Hz www.tek.com/optical-probe

Passive Probes

Best-in-class bandwidth up to 1

GHz

Best-in-class input capacitance as low as 3.9 pF which minimizes probe loading effects

Dynamic range to 300 V CAT II

Rugged and reliable www.tek.com/passive-probe

Carrying Cases and

Accessories

TekVPI Interface Adapter for

TekProbe probes

Probe holders and positioners

Probe power supply

Soft- and hard-sided cases www.tektronix.com/ probeaccessories

Interactive Probe Selector Tool

Need help finding the right probe for your application? The online Tektronix Probe Selector Tool will guide you through a few easy questions to match your need to the right probe. Visit us anytime, anywhere at: www.tektronix.com/probes

www.tektronix.com/probes 25

Signal Generators Selection

Signal Generators

The definition of versatility, Tektronix signal generators create a virtually unlimited range of standard and custom signals, from sine or pulse to ideal or distorted and anything in between.

TSG4100A Series AFG3000C Series AFG2000 AFG1000

Bandwidth

Channels

Memory Depth

Standard

Waveforms

Internal 6 MHz, External 200 MHz

1 LF and 1 RF

16M bits

CW

240 MHz, 100 MHz, 50MHz,

25 MHz, 10 MHz

1 or 2 (independent or synchronized)

4 x 128 k points

Sine, Sine(x)/x, Square, DC,

Ramp, Gaussian, Exponential

Decay, Pulse, Lorentz, Noise,

Arbitrary, Haversine,

Exponential Rise

AM, FM, PM, FSK, PWM,

External

Modulation

AM/FM/PM/Pulse, ASK/FSK/PSK/QAM/CPM/

VSB, GSM, GSM-EDGE, W-CDMA,APCO-25,

DECT, NADC, PDC,TETRA, and Audio clip

(Analog AM and FM)

Additional Modes

External IQ Waveform Input, Custom IQ

Waveform Generation, ARB Waveform

Generation (Remote Mode), Additive White

Gaussian noise

Starting Price

$7,800

Sweep, Burst, Add Noise

Impairment

$1,700

20 MHz

1

4 x 128 k points

Sine, Sine(x)/x, Square, DC,

Ramp, Gaussian, Exponential

Decay, Pulse, Lorentz, Noise,

Arbitrary, Haversine,

Exponential Rise

AM, FM, PM, FSK, PWM,

External

Sweep, Burst, Add Noise

Impairment

$1,430

25 MHz

2

8 k

Sine, Square, Pulse, Ramp,

Noise, and 45 Frequently

Used Arbitrary Waveforms

AM, FM, PM, FSK, External

Sweep, Burst

$715

Choosing Your Signal Generator

In electronic test and measurement, more often than not, a signal source is required to generate signals that are not available unless externally provided. Below is a list of common features that you may want to consider when choosing a signal generator for your application.

Sample rate, usually specified in terms of megasamples or gigasamples per second, denotes the maximum clock or sample rate at which the instrument can operate. The sample rate affects the frequency of the main output signal. In general, you should choose an instrument where the sampling frequency is twice that of the highest spectral frequency component of the generated signal to ensure accurate signal reproduction. The maximum sample rate also determines the smallest time increment that can be used to create waveforms. Typically this figure is simply the result of the calculation; T = 1/F, where T is the timing resolution in seconds and F is the sample rate.

Vertical resolution pertains to the binary word size, in bits, of the instrument’s DAC, with more bits equating to higher resolution.

The vertical resolution of the DAC defines the amplitude accuracy and distortion of the re-produced waveform. Although more is better, there is a general trade-off for most arbitrary waveform instruments; the higher the resolution, the lower the sample rate.

Tektronix signal generators offer a range of features and output capabilities. When choosing your signal generator, you should also evaluate standard waveforms, modulation capabilities, output amplitude and waveform editing software to ensure that the instrument meets your needs.

Memory depth, or record length, plays an important role in signal fidelity because it determines how many points of data can be stored to define a waveform. Deeper memory enables you to store more waveform detail and/or more cycles of the desired waveform.

26 www.tektronix.com

Signal Generators

Product Highlights

Full functional AFG with multiple run modes and a built-in 200 MHz frequency counter

1 mVpp to 10 Vpp output amplitude across full frequency range

Intuitive UI with 3.95" color display provides quick access to functions and parameters, and gives full confidence on settings

Fully supports TekSmartLab

A full functional AFG with modulation, sweep and burst modes.

AFG1000 Series

The AFG1000 Series Arbitrary/Function Generator offers the best price performance ratio in its class. It’s tailored for educational users with 25 MHz bandwidth, 2 output channels, and 1 mVp-p to 10 Vp-p output amplitude across full bandwidth. It generates all kinds of waveforms needed in a lab.

AFG1022 fully supported by

TekSmartLab

.

Model

AFG1022

Analog

Channels

2

Output

Bandwidth

25 MHz

Analog

Sample Rate

125 MS/s

Memory

Depth

8 k

Recommended Accessories

174-4401-

00

USB type A to type B cable – three feet

$10

$26 174-5194-00 USB type A to type B cable – six feet

012-1732-00 BNC to BNC CABLE - three feet

159-0107-00 Fuse, cartridge; 5 x

20 mm, 2 A, 250 V, time-delay

159-0397-00 Fuse, cartridge; 5 x

20 mm, 4 A, 250 V, time-delay

$27

$10

$10

Amplitude

(into 50 ohm)

1 mV p-p

to 10V p-p

Built-in Frequency

Counter

200 MHz, 6 digits

Pricing

(USD)

$715

Ships with Product

Power Cord

USB Cable

CD-ROM with Programmer Manual, Service Manual,

BNC to BNC cables

Fuses

Calibration Certificate www.tektronix.com/arbitrary-function-generator/afg1000 27

Signal Generators

AFG2000

Usually, generating a range of signals requires investing in a high-end signal generator. But with the Tektronix AFG2000 Arbitrary Function Generator, that’s no longer the case. With

20 MHz bandwidth, 14-bit resolution, and 250 MS/s sample rate, it can create simple and complex signals. But perhaps its most impressive feature is its entry-level price.

Product Highlights

High sample rate and stable time base ensure signal precision and stability

Intuitive UI and 3.5" color display provide quick access to functions and parameters, and give full confidence on settings

Form factor is ideal for both bench top and rack mount applications

Free ArbExpress software enables an easy way to create, edit and load arbitrary waveforms

Wide frequency range

(1 µHz to 20 MHz) supports amplifier and filter testing applications.

Quickly modify, create and transfer waveforms using the included ArbExpress

® software.

Models

AFG2021

Analog

Channels

1

Recommended Accessories

Cables

012-0482-00 BNC cable shielded,

3 ft.

012-1256-00 BNC cable shielded,

9 ft.

012-0991-00 GPIB cable, double shielded

011-0049-02 50

Ω BNC Terminator

Accessories

$238

$97

$563

$156

RMU2U Rackmount kit $155

013-0345-00 Fuse adapter, BNC-P to BNC-R

$359

159-0454-00 Fuse set, 3pcs, 0.125 A $25

Output

Bandwidth

20 MHz

Instrument Options

Opt. GL

Recommended Service

SILV200

Analog

Sample Rate

250 MS/s

GPIB/LAN Interface

(configured at time of purchase)

5-year Extended

Warranty

$100

$283

Memory Depth Amplitude (into 50

Ω)

Pricing (USD)

4 x 128 k 10 mV p-p

to 10 V p-p

$1,430

Ships with Product

User Manual

Power Cord

USB Cable

BNC to BNC cable

CD-ROM with Programmer Manual, Service Manual,

LabVIEW and IVI Drivers

CD-ROM with ArbExpress

®

Software

NIST-traceable Calibration Certificate

Learn more about the time-saving features of ArbExpress with the “Replicating

Real World Signals with an Arbitrary/

Function Generator” application note.

Replicating Real World Signals with an

Arbitrary/Function Generator

Application Note

Introduction

Nearly all consumer products today have circuits or devices that require the input of specific electronic signals in order for the product to perform correctly.

This input could be as simple as the signal from an automotive knock sensor, or as complex as a serial data communication bus signal such as Controller

Area Network (CAN) or Inter IC Bus (I2C) signal.

When designing and testing these devices, a mechanism is required to replicate the input signals. In many cases it may also be useful to add noise or other anomalies to the signals to test the devices under real world and stress conditions. A common approach is to create these signals using software applications or just capture a live signal using an oscilloscope. This created or captured waveform is then loaded in an Arbitrary/Function

28 www.tektronix.com/afg2000

Signal Generators

Product Highlights

High sample rate and stable time base ensure signal precision and stability

25 short-cut buttons and 5.6" color display provide quick access to functions and parameters, and give full confidence on settings

9 models with up to 240MHz bandwidth and up to

20Vp-p output amplitude cover customer needs in most applications

Free ArbExpress software enables an easy way to create, edit and load arbitrary waveforms

Large color display shows your settings and waveforms at a single glance.

AFG3000C Series

Test complex designs faster with a fully loaded function generator. Featuring 12 standard waveforms, plus arbitrary capability and many modulation options, this generator supports a wide range of application needs. Add in best-in-class performance and 25 shortcut keys and you have a generator that’s loaded with features and light on complexity.

Create and modify waveforms with ease with the included ArbExpress

® software.

Models

AFG3011C

AFG3021C

AFG3022C

AFG3051C

AFG3052C

AFG3101C

AFG3102C

AFG3251C

AFG3252C

2

1

2

2

1

1

2

1

1

Analog

Channels

Output

Bandwidth

10 MHz

25 MHz

25 MHz

50 MHz

50 MHz

100 MHz

100 MHz

240 MHz

240 MHz

Analog Sample Rate Memory Depth Amplitude (into 50 Ω)

250 MS/s

250 MS/s

4 x 128 k

4 x 128 k

250 MS/s 4 x 128 k

1 GS/s (<=16k), 250 MS/s (>16k) 4 x 128 k

1 GS/s (<=16k), 250 MS/s (>16k) 4 x 128 k

1 GS/s (

≤16k), 250 MS/s (>16k)

4 x 128 k

4 x 128 k 1 GS/s ( ≤16k), 250 MS/s (>16k)

2 GS/s (

≤16k), 250 MS/s (>16k)

2 GS/s ( ≤16k), 250 MS/s (>16k)

4 x 128 k

4 x 128 k

20 mV

10 mV

10 mV

10 mV

50 mV

50 mV p-p p-p p-p p-p p-p p-p

to 20 V

to 10 V

to 10 V

to 10 V

to 5 V

to 5 V p-p p-p p-p p-p

10 mV p-p

to 10 V p-p

20 mV p-p

to 10 V p-p

20 mV p-p

to 10 V p-p p-p p-p

Pricing

(USD)

$4,220

$1,700

$2,510

$2,590

$3,830

$3,990

$5,720

$8,230

$11,300

Recommended Accessories

Cables

$238 012-0482-00 BNC cable shielded,

3 ft.

012-1256-00 BNC cable shielded,

9 ft.

012-0991-00 GPIB cable, double shielded

Accessories

RM3100 Rackmount kit

$97

$448

$450

013-0345-00 Fuse adapter, BNC-P to BNC-R

$359

159-0454-00 Fuse set, 3pcs, 0.125A $25

Recommended Service

SILV400 5-year Extended

Warranty

$453

Ships with Product

Quick Start User Manual

Power Cord

USB cable

BNC to BNC cable

CD-ROM with Specifications and Performance

Verification Manual, Programmer Manual, Service

Manual, LabVIEW and IVI Drivers

CD-ROM with ArbExpress

Software

NIST-traceable Calibration Certificate

Learn more about the time-saving features of ArbExpress with the “Replicating

Real World Signals with an Arbitrary/

Function Generator” application note.

Replicating Real World Signals with an

Arbitrary/Function Generator

Application Note

Introduction

Nearly all consumer products today have circuits or devices that require the input of specific electronic signals in order for the product to perform correctly.

This input could be as simple as the signal from an automotive knock sensor, or as complex as a serial data communication bus signal such as Controller

Area Network (CAN) or Inter IC Bus (I2C) signal.

When designing and testing these devices, a mechanism is required to replicate the input signals. In many cases it may also be useful to add noise or other anomalies to the signals to test the devices under real world and stress conditions. A common approach is to create these signals using software applications or just capture a live signal using an oscilloscope. This created or captured waveform is then loaded in an Arbitrary/Function www.tektronix.com/afg3000 29

Signal Generators

TSG4100A Series

The TSG4100A Series RF Vector Signal Generator offers mid-range performance at an entry-level RF signal generator price, generating both analog and vector/digital signals for most popular applications. It’s only 5.6 kg, half a rack wide, and 2U high with LAN/RS-

232/USB/GPIB interfaces. A 4.3-inch LCD screen displays the parameters clearly, so you’ll understand your results intuitively.

Product Highlights

True DC to 2/4/6 GHz

≤±0.30 dB (typ) amplitude accuracy from 10 MHz to 6

GHz

Phase Noise: -113 dBc/Hz @ 20kHz offset from 0 dBm, 1 GHz CW carrier

Soft key upgrade to vector/digital modulation at very low cost, supporting 10 widely used formats

USB, GPIB, RS-232, and LAN interfaces

I/Q modulation inputs (max 400 MHz RF bandwidth)

A versatile RF solution for the generation, receiving and analysis of both analog and vector signals at budget point.

Good performance and flexible configurations for debug and troubleshooting.

Model Description

TSG4102A 0 to 2 GHz RF

SG, basic model

TSG4104A 0 to 4 GHz RF

SG, basic model

TSG4106A 0 to 6 GHz RF

SG, basic model

Phase Noise

(20kHz offset from 0 dBm, 1 GHz CW carrier)

-113 dBc/Hz

-113 dBc/Hz

-113 dBc/Hz

Amplitude Range Modulation formats

Pricing

(USD)

+16.5 to -110 dBm

+16.5 to -110 dBm

AM/FM/PM/Pulse; ASK/FSK/

PSK/QAM/CPM/MSK/VSB;

GSM/EDGE/TETRA/NADC/

W-CDMA/P-25/DECT, etc.

+16.5 to -110 dBm (< 4 GHz)

+10 to -110 dBm (> 4 GHz)

All the vector/digital modulation formats upgrade by soft keys

From

$7,800

From

$9,820

From

$13,200

Recommended Accessories

TS-

G4100A-ATT

30 dB, 5 W RF attenuator up to 6 GHz

$280

$3,700 Option VM00 Basic vector modulation package with internal 6 MHz modulation bandwidth

Option EIQ External 200 MHz modulation bandwidth

(requires Option VM00)

$1,600

Ships with Product

RF Cable

Documentation CD

Installation and Safety Instructions

Calibration Certificate

Power Cord

Learn more with the “Versatile

Vector & Digital Modulation Solution” application note.

Learn more with the “High

Accurate Low Amplitude RF Signal

Generation in Receiver Sensitivity

Test” application note.

30 www.tektronix.com/rf-vector-signal-generator

Education Solution –

TekSmartLab

TekSmartLab is the industry’s first network-based instrument management solution for teaching labs that brings a more efficient lab experience.

TekSmartLab

Instruments Supported

Oscilloscope

Tektronix TDS1000B, TDS1000C-SC,

TDS1000C-EDU, TBS1000, TBS1000B(-EDU),

TDS2000C, DPO/MSO2000 (B), MDO3000

Arbitrary Function Generators

Tektronix AFG1022, AFG2021, AFG3000(C)

Digital Multimeters

Keithley DMM2110, DMM2100

Power Supplies

Keithley 2230G(J)-30-1, 2220G(J)-30-1,

2220(J)-30-1, 2230(J)-30-1, 2231A-30-3

(requires Option 2231A-001)

TekSmartLab network diagram

Centralize configuration

Sample TekSmartLab Configuration

The following shows a sample setup of a TekSmartLab system with 20 benches and 80 instruments connected through Wi-Fi.

Item

TSL3000B

TBX3000A

Instruments

Qty Supplier

1

20

Tektronix

Tektronix

80 Tektronix

USB WIFI dongle 20

Router 1

Lab server 1

Provided by customer

Provided by customer

Provided by customer

Comments

One per lab

One per bench

Supported instruments. 1 one oscilloscope, one arbitrary function generator, one digital multimeter, and one power supply per bench. Option

2231A-001 required for the power supply 2231A-30-3.

Compatible USB-WIFI dongle

WIFI Router that can meet WI-

FI networking requirements.

Centralize Monitoring and remote assistance

Test Results online retrieving and saving

Automatic Instrument Asset

Information Recording www.tektronix.com/teksmartlab 31

Spectrum Analyzers

RSA306 USB Spectrum Analyzer

RF signal analysis in your hands!

The RSA306 offers full-featured spectrum analysis and deep signal analysis at a price unmatched by any previous offering. Using the latest in commercial interfaces and available computing power, the RSA306 separates signal acquisition from measurement, dramatically lowering the cost of instrument hardware. Data analysis, storage and replay is performed on your personal computer, tablet or laptop. Managing the PC separately from the acquisition hardware makes processing upgrades easy, and minimizes IT management issues.

SignalVu-PC software and an API for deep analysis and fast programmatic interaction.

The RSA306 operates with SignalVu-PC, a powerful program that is the basis of Tektronix performance signal analyzers. SignalVu-PC offers a deep analysis capability previously unavailable in value-priced solutions and a choice of options to further analyze the signal, for example WLAN or

Bluetooth signals, or for general purpose digital modulation analysis. Realtime processing of the DPX spectrum/spectrogram is enabled in your PC, further reducing the cost of hardware. Customers who need programmatic access to the instrument can choose either the SignalVu-PC programmatic interface or use the included application programming interface (API) that provides a rich set of commands and measurements. A MATLAB driver for the API is available, enabling operation with MATLAB and the Instrument

Control Toolbox.

Product Highlights

Full-featured spectrum analysis capability with included

Tektronix SignalVu-PC

software

27 spectrum and signal analysis measurements standard

Options for mapping, modulation analysis, WLAN and

Bluetooth standards support, pulse measurements, and frequency settling

Real-time Spectrum/Spectrogram display to minimize time spent on transient and interference hunting

Application programming interface (API) included for

Microsoft Windows environments

MATLAB instrument driver for use with Instrument

Control Toolbox

Streaming capture records long-term event

Applications

R&D

Interference Hunting

Field installation and maintenance

Education

Ships with Product

USB 3.0 cable (1 M)

SignalVu-PC software, documentation, USB key

Printed safety/installation manual

One-year Warranty

32 www.tektronix.com/spectrum-analyzer/rsa306

RF Power Meter Selection

RF Power Meters

Tektronix PSM Power Meter Series delivers the precision accuracy you need and the features you want, including exceptional temperature stability and throughput. Plus, with 13 models to choose from, it also delivers exceptional versatility.

PSM3000

Description

Power Meter

Average Power

Frequency Range

Dynamic Range

10 MHz - 8 / 18 / 26.5 GHz

-55 to +20 dBm

Data Transfer Rate

2000 Reads/sec

Measurements True Average Power; Duty Cycle Corrected

Pulse Power; Measurement Logging

Starting Price $2,680

PSM4000

Power Meter

Average / Peak / Pulse

10 MHz - 8 / 18.6 / 20 GHz

-60 to +20 dBm

2000 Reads/sec

Average Power (CW); Duty Cycle Corrected

Pulse Power; Peak Power, Duty Cycle; Peak and Average Burst Power; Measurement

Logging

$2,890

PSM5000

Power Meter

Average / Peak / Pulse + Profiling

50 MHz - 8 / 18.6 / 20 GHz

-60 to +20 dBm

2000 Reads/sec

Average Power (CW); Duty Cycle Corrected

Pulse Power; Peak Power, Pulse Power, Duty

Cycle; Peak and Average Burst Power;

Measurement Logging; Pulse Width, Rise/Fall,

Overshoot, Droop, Time Gated Measurements,

Pulse Waveform Display with Markers

$3,830

Choosing Your RF Power Meter

Power measurements are fundamental to the development cycle of any RF or microwave product, from radios to radars. To help you choose the right Power Sensor/Meter combination, the most common selection criteria are listed below, along with helpful tips for determining your requirements.

Measurement integrity is a combination of the cumulative measurement uncertainty and instrument stability. While the measurement uncertainty is usually specified, the instrument stability includes several factors. By providing calibration over the entire temperature operating ranges and not requiring zeroing prior to measurement, the improved stability of the power sensor/meter reduces possible human errors and assures the integrity of measured results.

Power measurements tend to dominate the test process of wireless device test. The speed of measurement should remain constant over the entire dynamic range of the sensor. USB connectivity and power enable high speed measurement throughput and help reduce system rack space.

Basic power measurements of continuous wave (CW) signals are fundamental to power sensor/meters. However, today’s modern signals include modulation, pulses, or other time-varying attributes. Being able to correct for duty cycle, measure peak power, signal statistics, and trigger inputs and outputs increases the utility of the power sensor/meter combination.

When integrating power measurements into a full system measurement process, you should review the available analysis software and hardware capabilities to determine if equipment redundancies can be eliminated. Advanced measurement analysis, like trend graphing, statistical measurements, measurement logging, and pulse profiling can replace more complex and expensive equipment needs and simplify device test.

www.tektronix.com

33

RF Power Meters

Product Highlights

8 GHz, 18 GHz, 20 GHz, and 26.5 GHz models

Models available with N and 3.5 mm connectors

Dynamic range as low as –60 dBm and as high as

+20 dBm

Uncertainty as low as 2.6%

Reading rates up to 2000 readings/sec

PSM3000, 4000 and 5000 Series

The PSM3000, PSM4000, and PSM5000 Series are compact power sensors/meters that deliver fast, accurate RF and microwave power measurements. A broad range of CW and pulse modulation measurements are available, depending on the series you choose.

Models

PSM3110

PSM3120

PSM3310

PSM3320

PSM3510

PSM4110

PSM4120

PSM4320

PSM4410

PSM5110

PSM5120

PSM5320

PSM5410

Description

True RMS Average

True RMS Average

True RMS Average

True RMS Average

True RMS Average

Power Meter

(Avg / Peak / Pulse)

Power Meter

(Avg / Peak / Pulse)

Power Meter

(Avg / Peak / Pulse)

Power Meter

(Avg / Peak / Pulse)

Power Meter

(Avg / Peak / Pulse + Profiling)

Power Meter

(Avg / Peak / Pulse + Profiling)

Power Meter

(Avg / Peak / Pulse + Profiling)

Power Meter

(Avg / Peak / Pulse + Profiling)

Recommended Accessories

174-6150xx

USB Cable, 2 m, 20

AWG

$49

174-6164xx

348-2013xx

SMB Female to BNC

Male, 1 m Trigger

Cable

Replacement

Rubber Boot

$76

$25

Frequency Range

10 MHz - 8 GHz

10 MHz - 8 GHz

10 MHz - 18 GHz

10 MHz - 18 GHz

10 MHz - 26.5 GHz

10 MHz - 8 GHz

10 MHz - 8 GHz

50 MHz - 18.6 GHz

50 MHz - 20 GHz

100 MHz - 8 GHz

100 MHz - 8 GHz

50 MHz - 18.6 GHz

50 MHz - 20 GHz

Recommended Service

SILV200 5-year Extended

Warranty (PSM3110,

PSM3120)

SILV400

SILV600

5-year Extended

Warranty (PSM3310,

PSM3320)

5-year Extended

Warranty (PSM3510)

Dynamic Range Connector Style Pricing (USD)

-55 to +20 dBm 3.5mm male

-55 to +20 dBm N-Male

-55 to +20 dBm 3.5mm male

-55 to +20 dBm N-Male

-55 to +20 dBm 3.5mm male

-60 to +20 dBm 3.5mm male

$2,680

$2,680

$3,570

$3,570

$4,550

$2,890

-60 to +20 dBm N-Male

-40 to +20 dBm N-Male

-40 to +20 dBm 3.5mm male

-60 to +20 dBm 3.5mm male

-60 to +20 dBm N-Male

-40 to +20 dBm N-Male

-40 to +20 dBm 3.5mm male

$283

$453

$675

Ships with Product

$2,890

$5,480

$5,480

$3,830

$3,830

$6,510

$6,510

2-meter USB Cable

Calibration Certificate, USB flash drive with User and

Safety Manual, Technical Reference Manual and the

Programmer Manual

3-year Warranty

34 www.tektronix.com

SourceMeter

®

Selection

SourceMeter

®

SMU Instruments

Keithley Instruments SourceMeter

®

SMU instruments source current or voltage and simultaneously measure current, voltage and resistance with high speed and accuracy. SourceMeter

®

SMU instruments offer a smart alternative to separate power supplies and DMMs, saving money and limited test bench space.

Channels

Model 2450/2460

Touchscreen

SourceMeter

®

Instruments

1

Series 2400 Bench

SourceMeter

®

SMU

Instruments

1

Series 2600B System

SourceMeter

®

SMU

Instruments

1-2 (optional expansion to 64 via

TSP-Link

®

)

6½-digit measurements

2650A High Power

System SourceMeter

®

SMU Instruments

1 (optional expansion to 32 via

TSP-Link

®

)

6½-digit measurements Accuracy

Max. Readings /

Second

Interface

6½-digit measurements

3,000

6½-digit measurements

2,000 20,000 38,500

1µSec/pt., 18-bit digitizer

Application

Features

Test Sequencing /

Scripting

Software

Starting Price

GPIB, USB 2.0, LXI/Ethernet,

Digital I/O

Capabilities of analyzers, curve tracers, and I-V systems at a fraction of their cost; touchscreen and icon menu system; built-in graphing

TSP

®

(Test Script Processing) technology embeds complete test programs inside the instrument for unmatched system-level speed

Test Script Builder and KickStart

Startup Software, LabVIEW and

IVI Drivers.

$5,400

GPIB, RS-232, Digital I/O

Convenient DMM-like user interface; 2/4/6 wire resistance with force I or V source modes, V-Force from 1 ΩV to 1.1KV, 10pA to 5A cont., 10A pulsed, 2W to 110W

Built-In ramp generator and list sweep modes, 100 point global machine state sequencer for fast test setup and execution

LabTracer 2.0 I-V curve utility and

IVI and LabVIEW drivers included.

$4,720

GPIB, LAN (LXI), USB, RS-232,

Digital I/O

True multi-channel parallel test via

TSP-Link. Up to 0.1 fA resolution.

TSP

®

(Test Script Processing) technology embeds complete test programs inside the instrument for unmatched system-level speed

Built-in, web browser-based characterization software, IVI,

LabVIEW, and IC-CAP drivers.

$6,650

GPIB, LAN (LXI), RS-232, Digital

I/O

2 pairs of A/D converters for simultaneous V and I measurement; up to 2000W pulsed power

TSP

®

(Test Script Processing) technology embeds complete test programs inside the instrument for unmatched system-level speed

Built-in, web browser-based characterization software, IVI,

LabVIEW, and IC-CAP drivers.

$16,200

Choosing Your Source Measure Unit (SMU) Instrument

A SMU instrument integrates precision power supply and digital multimeter (DMM) capabilities in one instrument while covering a wide dynamic range. SMUs source and measure simultaneously, making them ideal for characterizing and testing semiconductors and other non-linear devices and materials.

The true measure of speed is how quickly a final measurement or set of measurements (such as a suite of current vs. voltage parameters) is returned to the PC controller. This involves not only the number of readings/second, but also range and function change times.

Sourcing Resolution and

Output Stability

An SMU’s usable maximum resolution depends on its overall accuracy and the resolution of its analog-to-digital converter

(ADC). In general, the higher the resolution is, the higher the bit count on the ADC and the higher the accuracy will be.

Measurement Settling Time, Offset

Error, and Noise

When choosing between instruments, compare the time it takes a

SMU to settle the specified offset error. This can be seen in the

“bumpiness” of the resulting data curve, which indicates measurement noise; the smoother the data curve the less measurement noise. SMUs having a fast, flat, and noise-free settling time achieve more consistent results during a series of measurements taken over time.

Triaxial cables offer significant advantages over coaxial cables when making low current measurements. Triaxial cables have an extra shield that ensures lower leakage, better response, and greater noise immunity. www.keithley.com/products/dcac/currentvoltage 35

SourceMeter

®

SMU Instruments

Model 2450/2460 Advanced Touchscreen

SourceMeter

®

SMU Instruments

Touch, Test, Invent

®

with the intuitively smart, interactive SMU Instruments. The

Models 2450 and 2460 SMU Instruments are innovative, compact I-V solutions that offer the capabilities of I-V systems, curve tracers, and semiconductor analyzers at a fraction of their cost. With the intuitive touchscreen and icon-based control that novice

SMU users can appreciate and the exceptional versatility that experienced users need, the Models 2450 and 2460 enable users to learn faster, work smarter, and invent easier. Their user experience, performance, and application versatility, combined with proven Keithley precision and accuracy, will make the 2450 and 2460 the favorite goto instruments in the lab for years to come.

A Smart Toolkit Beyond the Touchscreen

Speed, ease of use, and learnability don’t stop with the 2450 and 2460 advanced touchscreen. Each instrument’s front panel features a context-sensitive HELP system, rotary navigation/control knob, front/rear input selector button, and banana jacks for basic bench applications. A USB 2.0 memory I/O port makes it easy to store data, save instrumentation configurations, load test scripts, and upgrade the system.

Product Highlights

Highly flexible, source and sink (four-quadrant) operation simultaneously measures voltage, current, and resistance in a single, integrated I-V instrument

Advanced, five-inch touchscreen user interface with multi-point, pan-pinch-zoom-swipe operation minimizes the learning curve and improves productivity

Graphical interface provides I-V curve tracing functionality for much less than the cost of traditional curve tracers

Lower current and voltage measurements ranges

(100nA, 10nA, 20mV) reduce need for additional expensive low level instruments (Model 2450)

High current and high power ranges (7A, 100W) for characterizing and testing high power materials and devices (Model 2460)

Front panel banana jack inputs and rear panel connections (triaxial connectors on 2450, mass terminated screw terminal on 2460) optimize signal integrity and convenience and save money on adapter accessories

PC-based instrument and control software enable instrument control without programming hassles

Four programming modes provide unmatched programming flexibility and system integration

Home page advanced source and measure display enables faster speed to answer.

Icon-based, flat menu system can reduce configuration steps by 50% and eliminates cumbersome, multi-layer menu structures.

The Models 2450 and 2460 are ideal for I-V functional test and characterization of a wide range of today’s modern devices, including:

Low and High Power Semiconductors

LEDs, High Brightness LEDs

Solar Cells, Solar Panels

Nanomaterials and Devices

Graphene

Printed/Flexible Electronics

Batteries/Electrochemistry

Sensors

Biotechnology

36 www.keithley.com

SourceMeter

®

SMU Instruments

With significantly lower wideband noise than its closest competitor, the 2450 is the perfect solution for I-V testing of next-generation devices.

Model 2450/2460 Advanced Touchscreen

SourceMeter

®

SMU Instruments

Trusted Precision, Accuracy, and Performance

The 2450 and 2460 are based on the trusted analog performance of Keithley’s Model

2400 SourceMeter SMU Instruments and offer a highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meters. These fourth-generation members of Keithley’s award-winning SMU family provide the superior precision, resolution, accuracy, and dependability that users have come to expect from Keithley SMU instruments.

Ships with Product

8608 High Performance Test Leads

2460-KIT Rear Panel Mating Mass Terminated Screw

Connector (Model 2460 ONLY)

USB-B-1 USB Cable, Type A to Type B, 1m (3.3 ft)

CS-1616-3 Safety Interlock Mating Connector

CA-180-3A TSP-Link

®

/Ethernet Cable

Documentation CD

QuickStart Guide

Test Script Builder Software

(available at www.keithley.com)

KickStart Startup Software

(available at www.keithley.com)

LabVIEW

®

and IVI Drivers

(available at www.keithley.com)

Model

2450

2450-NFP (with No Front Panel)

2450-RACK (without Handle)

2450-NFP (with No Front Panel or Handle)

2460

2460-NFP (with No Front Panel)

2460-RACK (without Handle)

2460-NFP (with No Front Panel or Handle)

Recommended Service

2450

2450-3Y-

EW

2450-5Y-

EW

C/2450-

3Y-17025

C/2450-

3Y-DATA

C/2450-

3Y-STD

C/2450-

5Y-17025

C/2450-

5Y-DATA

C/2450-

5Y-STD

1-year factory warranty extended to 3 years from date of shipment

1-year factory warranty extended to 5 years from date of shipment

KeithleyCare ® 3-year

ISO 17025 Calibration

Plan

KeithleyCare ® 3-year

Calibration w/Data Plan

KeithleyCare

®

3-year

Std. Calibration Plan

KeithleyCare

®

5-year

ISO 17025 Calibration

Plan

KeithleyCare

®

5-year

Calibration w/Data Plan

KeithleyCare ® 5-year

Std. Calibration Plan

$332

$591

$1,010

$692

$540

$1,580

$1,010

$942

Current Max / Min

1.000000A / 10.00000nA

7.000000A / 1.000000µA

Recommended Service

2460

2460-3Y-

EW

2460-5Y-

EW

C/2460-

3Y-17025

C/2460-

3Y-DATA

C/2460-

3Y-STD

C/2460-

5Y-17025

C/2460-

5Y-DATA

C/2460-

5Y-STD

1-year factory warranty extended to 3 years from date of shipment

1-year factory warranty extended to 5 years from date of shipment

KeithleyCare ® 3-year

ISO 17025 Calibration

Plan

KeithleyCare ® 3-year

Calibration w/Data Plan

KeithleyCare

®

3-year

Std. Calibration Plan

KeithleyCare

®

5-year

ISO 17025 Calibration

Plan

KeithleyCare

®

5-year

Calibration w/Data Plan

KeithleyCare ® 5-year

Std. Calibration Plan

$432

$768

$1,330

$912

$712

$2,080

$1,330

$1,220

Voltage Max / Min

200.0000V / 20.00000mV

100.0000V / 200.0000mV

Power

20W

100W

Pricing

(USD)

$5,400

$5,100

$5,400

$5,100

$7,500

$7,200

$7,500

$7,200 www.keithley.com

37

SourceMeter

®

SMU Instruments

Product Highlights

Wide I-V range from 1100V to 100nV and 10.5A pulse to 1pA

4-quadrant design simultaneously measures voltage, current, and resistance

Remote sense on V-source and measure plus guarded ohms mode

Built-In test sequencer

Includes LabTracer 2.0 I-V curve utility and IVI and

LabVIEW drivers

Standard GPIB and RS-232 interfaces; Banana (front / rear) Connectors

Model 2400 four-quadrant operation characteristics, a feature of all SourceMeter

SMU instruments.

Series 2400 SourceMeter

®

SMU Instruments

Series 2400 SourceMeter ® SMU instruments are single-channel models with I-V capability from 1100V to 100nV and 10.5A pulse to 1pA. They offer a smart alternative to separate power supplies and digital multimeters (DMMs) and provide a convenient

DMM-like user interface.

Model

2400 / 2401

2410

2440

2420 / 2425

2430

Current Max / Min

1.05A /10pA

1.05A /10pA

5.25A /100pA

3.15A /100pA

10.5A pulse /100pA

Recommended Service

C/2400-

3Y-17025

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2400*

C/2401-

3Y-17025

C/2410-

3Y-17025

C/2420-

3Y-17025

C/2425-

3Y-17025

(ISO-17025 accredited) calibrations within 3 years of purchase for

Model 2401*

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2410*

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2420*

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2425*

C/2430-

3Y-17025

C/2440-

3Y-17025

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2430*

(ISO-17025 accredited) calibrations within 3 years of purchase for

Models 2440*

*

Not available in all countries.

$1,070

$1,070

$1,290

$1,290

$1,390

$1,530

$1,390

38 www.keithley.com/series2400

Free LabTracer2 software for remote control and data sharing for applications ranging from the simple to complex.

Voltage Max / Min

200V/1µV (20V 2401)

1100V/1µV

40V/1µV

Up to 100V/1µV

100V/1µV

Power

20W

20W

50W

60W/100W

1000W

Pricing (USD)

$4,720 / $3,470

$6,750

$7,690

$6,760 / $8,050

$11,800

Ships with Product

Model 8605 Test Leads

LabVIEW Software Driver (downloadable)

LabTracer Software (downloadable)

Calibration Certificate (Basic)

Manual CD

Power Cord

Warranty

Read the white paper,

“Choosing the Optimal

Source Measurement

Unit Instrument for Your

Test and Measurement

Application.”

SourceMeter

®

SMU Instruments

Product Highlights

4-quadrant design simultaneously sources and measures voltage, current, and resistance

TSP ® (embedded Test Script Processor) architecture enables industry-best system-level speed

TSP-Link

®

for true SMU-per-pin and parallel test

Built-in software for quick and easy I-V test through web browser

GPIB, LAN (LXI), USB and RS-232

Built-in, Java-based test software runs directly from any web browser to boost productivity.

Series 2600B System SourceMeter

®

SMU Instruments

Series 2600B SourceMeter

®

SMU instruments are the industry’s most powerful, fastest, and highest resolution SMU instruments. Now they’re easier than ever to use with USB 2.0 connectivity, Model 2400 software emulation, and Java-based plug & play test software. Series 2600B models offer the industry’s widest dynamic range:

10A pulse to 0.1fA and 200V to 100nV.

Model

2601B

2602B

2604B

2611B

2612B

2614B

2634B

2635B

2636B

Current Max / Min Voltage Max / Min

3A DC, 10A pulse/100 fA

3A DC, 10A pulse/100 fA

3A DC, 10A pulse/100 fA

40V/100nV

1.5A DC, 10A pulse/100 fA 200V/100nV

1.5A DC, 10A pulse/100 fA

1.5A DC, 10A pulse/100 fA

1.5A DC, 10A pulse/1fA

1.5A DC, 10A pulse/0.1 fA

1.5A DC, 10A pulse/0.1 fA

TSP technology executes complete test programs from the 2600B’s non-volatile memory.

Max Readings /

Sec

20,000

20,000

20,000

20,000

20,000

20,000

20,000

20,000

20,000

No. of Channels Pricing (USD)

2

1

2

1

2

1

2

2

2

$6,650

$9,760

$8,090

$6,650

$9,760

$8,090

$12,700

$9,910

$15,300

Recommended Accessories

2600-BAN Banana Test Leads

Adapter

$168

8606 Probe Kit for 2600-

BAN

$62

2600-Std-

Res

Calibration Standard

1G ohm Resistor

$2,100

Recommended Service

26XXB-3Y-

EW_

3-Year KeithleyCare

Gold Plan

26XXB-5Y-

EW_

5-Year KeithleyCare

Gold Plan

C/26xxB-

3Y-XXXX

C/26xxB-

5Y-XXXX

Calibration Service

3 Years (17025 or

DATA or STD)

Calibration Service

5 Years (17025 or

DATA or STD)

Varies

Varies

Varies

Varies

Ships with Product

Operators and Programming Manuals

2600-ALG-2: Low Noise Triax Cable with Alligator

Clips, 2m (6.6 ft.) (two supplied with 2634B and

2636B, one with 2635B)

2600-Kit: Mating Screw Terminal Connectors with strain relief and covers (2601B/2602B/2604B/2611B/2

612B/2614B)

CA-180-3A: TSP-Link/Ethernet Cable (two per unit)

TSP Express Software Tool (embedded)

Test Script Builder Software (downloadable)

LabVIEW Driver (downloadable)

ACS Basic Edition Software (optional) www.keithley.com/series2600B 39

SourceMeter

®

SMU Instruments

2650A High Power System SourceMeter

®

SMU Instruments

The high current Model 2651A and high voltage Model 2657A High Power System

SourceMeter SMU instruments address such applications as testing power semiconductor devices, including diodes, FETs, and IGBTs, as well as characterizing newer materials such as gallium nitride, silicon carbide, and other compound semiconductor materials or devices.

Model Power Characteristics

2651A Up to 50A (or 100A with 2 units) and up to 2000W pulse / 200W DC power

2657A Up to 3,000V and up to 180W of power

4 Quadrant Source or

Sink Capabilities

Resolution

Up to ±40V and ±50A 100fA/1µV resolution

Up to 3000V @ 20mA or 1500V @ 120mA

1fA/100µV resolution

Product Highlights

Source and measure up to 3kV or 50A pulse, with best-in-class low current resolution

Up to 2000W pulse or 200W DC power per instrument

Optimized for characterizing and testing high power semiconductors,electronics, and materials

TSP and TSP-Link technology enables SMUper-pin parallel testing without the channel limits of a mainframe-based system.

The dual digitizing A/D converters sample at up to 1µs/point, enabling full simultaneous characterization of both current and voltage waveforms.

Applications

High Current, High Power

Device Testing

High Voltage, High Power,

Low Current Device Testing

Pricing

(USD)

$16,200

$20,200

Recommended Accessories

2600-KIT Low Impedance Cable

Assemble, 1m (3.3 ft)

$43

ACS-BA-

SIC

4299-6

Component

Charaterization

Software

Rack Mount Kit

$5,400

$147

8011

8010

8020

2657A-

LIM-3

2657A-

PM-200

SHV-

CA-553-2

HV-

CA-554-2

HV-

CA-571-3

HV-

CS-1613

Test Socket Kit

High Power Device Test

Fixture (Model 2657A)

High Power Interface

Panel

Low Interconnect

Module (Model 2657A)

200V Protection

Module (Model 2657A)

High Voltage Triax to

SHV Cable (1, 2, 3m)

(Model 2657A)

High Voltage Triax to

Triax Cable (0.5, 1, 2,

3m) (Model 2657A)

High Voltage Triax to

Unterminated Cable

(Model 2657A)

High Voltage Triax

Feedthrough Connector

(Model 2657A)

$1,170

$7,550

$5,000

$1,680

$1,190

$665

$777

$556

$777

40 www.keithley.com/highpower

Recommended Service

2651A-3Y-

EW

3-Year KeithleyCare

Gold Plan

2657A-3Y-

EW

C/2651A-

3Y-STD

C/2657A-

3Y-STD

C/2651A-

5Y-STD

C/2657A-

5Y-STD

3-Year KeithleyCare

Gold Plan

KeithleyCare 3-Yr Std

Cal Plan

KeithleyCare 3-Yr Std

Cal Plan

KeithleyCare 5-Yr Std

Cal Plan

KeithleyCare 5-Yr Std

Cal Plan

$1,010

$1,160

$887

$1,380

$1,470

$2,280

Ships with Product

7709-308A Digital I/O and Interlock Connector

CA-180-3A TSP-Link/Ethernet Cable

Documentation CD

Software Tools and Drivers CD

2651A-KIT-1A: Low Impedance Cable Assembly (1m)

(Model 2651)

CS-1592-2: High Current Phoenix Connector (male)

(Model 2651)

CS-1626-2: High Current Phoenix Connector (female)

(Model 2651)

CA-557-1: Sense Line Cable Assembly (1m)

(Model 2651)

Learn more with the

“Creating Multi-SMU

Systems with High

Power System

SourceMeter

Instruments” application note.

Power Analyzer Selection

Power Analyzers

Fully characterize your power-electronics design from input to output with Tektronix power analyzers. Designed for precision measurement of power-electronics circuits and devices, these analyzers give you what you need to measure conversion efficiency and perform compliance testing on single-phase or 3-phase devices.

Multi-Channel Power Analyzer

Power Input Modules

Basic Accuracy (V & I)

Measurement Bandwidth

Voltage Range

Current Range (internal shunts)

Starting Price

PA4000 Multi-Channel

PA4000_1CH, PA4000_2CH, PA4000_3CH, PA4000_4CH

1 – 4 (factory configured)

0.01% of reading + 0.04% of range (45-850 Hz)

DC, 0.1 Hz - 1 MHz

2V peak to 2000V peak

0.00025 A to 30 A RMS

$10,700

PA1000 Single-Phase

PA1000

1

0.05% of reading + 0.05% of range

DC, 0.1 Hz - 1 MHz

10V peak to 1000V peak

0.0002 A to 20A RMS

$2,850

Choosing Your Power Analyzer

Power analyzers are used for testing a wide range of power-electronics devices, from cell-phone chargers to 1000kW grid-connected inverters. To help you choose the best analyzer for your application, consider the criteria below.

Power analyzers are available in both fixed configurations (typically single-channel) and modular configurations. If your application is limited to single-phase devices, a single-channel analyzer may meet your needs. But if you need to measure conversion efficiency on these devices, a two-channel analyzer is required.

Testing of 3-phase devices of course requires a multi-phase analyzer. In many cases, two channels will be all you need for a two-wattmeter measurement on 3-wire inputs or outputs. A four- channel analyzer can measure both input and output simultaneously, to determine conversion efficiency. harmonics, or ENERGY STAR

for energy efficiency, you need an analyzer capable of meeting the test requirements specified by the standard. Even better, look for an analyzer supported by software applications that can automate instrument setup and reporting of test results in the exact format required for your application.

Will you be measuring milliamperes or hundreds of amperes?

Power analyzers vary in the features they offer for direct current inputs or connection to external current transducers. Ideally, the analyzer should have internal current shunts that allow you to connect your device directly, for best accuracy. If you will be testing a range of devices at different power levels, you may value both high- and low-range shunts. Finally, if your application requires external current transducers (usually required for current

>30Amps), make sure there are transducers available that are well-matched to the analyzer and offer the accuracy you need.

How much bandwidth is enough? The measurement bandwidth you need is usually determined by the switching speed of the device-under-test, or the highest-order harmonic that you are testing requires. Switching speeds of tens or hundreds of kHz are common in today’s designs. But new semiconductor technologies promise to increase speeds up to 2x or more in the near future.

Choose an analyzer that is capable of measuring your highest frequencies of interest, with some headroom for future-proofing.

Compliance Testing for

Regulatory Standards

If your application requires you to know that your device is compliant with regulatory standards such as IEC61000 for

Will you have a need to control the analyzer remotely or transfer measurement data to your PC? If so, you will want to look for an instrument that features the communication ports you need.

Depending on the analyzer model, some ports may be standard features or extra-cost options; be careful to choose the right instrument configuration that meets your requirements. www.tektronix.com

41

Power Analyzers

Product Highlights

0.05% basic reading accuracy

Dual shunts maximize accuracy for low and high current measurements

USB, Ethernet and GPIB interfaces.

PWRVIEW PC software for measurement and control.

Includes IEC62301 Ed.2 standby power.

Harmonics, Inrush and Energy (W-h) measurements.

Color display for 4 or

14 measurements and waveform, harmonics and energy trend graphics.

PA1000 Power Analyzer

The Tektronix PA1000 is your best choice for making precision power measurements on single-phase power supplies and all types of products connected to the AC line. Whether you need to test for compliance with energy-usage regulations such as ENERGY STAR

, or simply need to characterize your product's overall powerconversion performance and efficiency, you will find the PA1000 offers the most modern and complete test solution with performance and features unmatched by other single-phase analyzers.

PWRVIEW PC software for measurement and control.

Includes IEC62301 Ed.2 standby power measurement reporting.

Model

PA1000

Description

PA1000 Single-Phase

Power Analyzer

Recommended Accessories

CL200 Current Clamp, 0.5A

- 200A, for Tektronix

Power Analyzers

$268

CL1200 $422

BAL-

LAST-CT

BB1000-

XX

PA-

LEADSET

Current Clamp, 0.1A

- 1000A, for Tektronix

Power Analyzers

Differential current transformer for lighting applications. 1A, 1MHz

Breakout Box simplifies connections to AC power cords. NA, EU and UK versions.

Replacement Lead

Set for Tektronix

Power Analyzers (One

Channel Lead Set)

$357

$296

$233

BasicAccuracy

(V & I)

Voltage Input Range

Current Range

(internal shunts)

Pricing (USD)

0.05% (45-850 Hz) 10V peak to 1000V peak 0.0002 A to 20A RMS $2,850

Recommended Service

C3 Calibration Service

3 Years

C5

D1

$471

Calibration Service

5 Years

$910

Calibration Data Report $46

D3

D5

Calibration Data Report

3 Years (with Opt. C3)

Calibration Data Report

5 Years (with Opt. C5)

$92

$184

Ships with Product

Lead Set

User Manual

AC Power Cord

Certificate of Traceable Calibration

5-year Product Warranty

Available for Free Download

PWRVIEW PC Software for remote instrument setup, data transfer and offline analysis

Application notes, whitepapers and videos at: www.tek.com/application/power-measurement

Learn more with “Power Supply

Measurement with the PA1000

Power Analyzer,” click here.

BB1000-NA Breakout Box

42 www.tektronix.com/power-analyzer-series/pa1000

Power Analyzers

Product Highlights

1 to 4 input modules with precision phase-matched V

& I inputs, 1000 Vrms, 30 Arms direct input

Measurement BW: DC to 1 MHz

0.01% basic accuracy

Application specific test modes for Motor Drives,

Ballasts, Standby Power and Energy Integration

Harmonics measurement to 100th harmonic

Full-color TFT display with waveform graphics, vector, bar chart, trend

PA4000 Power Analyzers

Tektronix PA4000 Power Analyzers provide you with highly accurate power, energy and efficiency measurements. Precisely matched inputs and advanced signal processing deliver high measurement accuracy, even when power is distorted or noisy. The PA4000 performs all power measurements – and harmonics analysis, application-specific measurements, PC interfaces, and dual patent-pending Spiral

Shunt

current shunts per channel are all standard features. PWRVIEW for data transfer and PC analysis is available to download free from tektronix.com.

Model Description

PA4000 1CH PA4000 Power Analyzer with 1 input module

PA4000 2CH PA4000 Power Analyzer with 2 input modules

PA4000 3CH PA4000 Power Analyzer with 3 input modules

PA4000 4CH PA4000 Power Analyzer with 4 input modules

BasicAccuracy

(V & I)

Voltage Input Range

Current Range

(internal shunts)

0.01% (45-850 Hz) 2V peak to 2000V peak 0.00025 A to 30

Arms

0.01% (45-850 Hz) 2V peak to 2000V peak 0.00025 A to 30

Arms

0.01% (45-850 Hz) 2V peak to 2000V peak 0.00025 A to 30

Arms

0.01% (45-850 Hz) 2V peak to 2000V peak 0.00025 A to 30

Arms

Each input module features both high- and low-range current shunts.

USB, Ethernet and RS-232 ports are standard.

Pricing (USD)

$10,700

$13,600

$16,500

$19,300

Recommended Accessories

CT-60-S

CT-200-S

Fixed-Core Current

Transducer, High

Accuracy, up to 60A

Fixed-Core Current

Transducer, High

Accuracy, up to 200A

CT-400-S Fixed-Core Current

Transducer, High

Accuracy, up to 400A

CT-1000-S Fixed-Core Current

Transducer, High

Accuracy, up to 1000A

(requires external power supply)

CT-100-M Fixed-Core Current

Transducer, Hall Effect, up to 100A

CT-200-M Fixed-Core Current

Transducer, Hall Effect, up to 200A

CT-500-M Fixed-Core Current

Transducer, Hall Effect, up to 500A

CT-1000-M Fixed-Core Current

Transducer, Hall Effect, up to 1000A

$914

$914

$1,070

$2,090

$231

$252

$336

$410

Recommended Accessories

CL200 Current Clamp, 0.5A

- 200A, for Tektronix

Power Analyzers

$268

CL1200 $422

BAL-

LAST-CT

BB1000-

XX

PA-

LEADSET

Current Clamp, 0.1A

- 1000A, for Tektronix

Power Analyzers

Differential current transformer for lighting applications. 1A, 1MHz

Breakout Box simplifies connections to AC power cords. NA, EU and UK versions.

Replacement Lead

Set for Tektronix

Power Analyzers (One

Channel Lead Set)

$357

$296

$233

Recommended Service

C3 Calibration Service

3 Years

C5 Calibration Service

5 Years

Varies

Varies

Ships with Product

Lead Set (1 set per input module)

User Manual

AC Power Cord

Certificate of Traceable Calibration

5-year Product Warranty

Available for Free Download

PWRVIEW PC Software for remote instrument setup, data transfer and offline analysis

Application notes, whitepapers and videos at: www.tek.com/application/power-measurement

Learn more with “Power Analysis of

PWM Motor Drives,” click here.

www.tektronix.com/power-analyzer 43

Digital Multimeters Selection

Digital Multimeters

Designed to save time and reduce headaches, Tektronix and

Keithley Digital Multimeters are built to do more so you don’t have to. Each one is loaded with time-saving features like automated measurements, built-in analysis modes and front-panel shortcut buttons. Keithley’s highly regarded high performance digital multimeters (DMMs) include 7½ or 8½-digit solutions as well as flexible broad-purpose DMMs.

Keithley Model

2110

Tektronix

Model

DMM4020

5½ digit Resolution 5½ digit

Basic

Accuracy

0.012% 0.015%

Optional

Switch

Functions

Interface

Not Applicable Not Applicable

Keithley

Models 2000,

2100

6½ digit

0.0038%

(Model 2100)

0.0030%

(Model 2000)

10 Channel

(Model 2000)

Keithley Model

DMM7510

7 ½ digit

0.0014%

Future

Software

Starting

Price

Tektronix Models

DMM4040/4050

6½ digit

0.0035%

(DMM4040)

0.0024%

(DMM4050)

Not Applicable

Keithley

Models 2001,

2010

7½ digit

0.0024%

10 Channel

Keithley

Model 2002

8½ digit

0.0010%

10 Channel

USB-TMC GPIB

Option

KI-Tool and KI-Link

Startup Software,

LabVIEW and IVI drivers. Available at www.keithley.com

$622

RS-232, RS-232 to

USB Device

Adapter Included

--

$849

GPIB, RS-232

(Model 2000)

USB-TMC

(Model 2100)

KI-Tool and KI-Link

Startup Software

(Model 2100 only),

LabVIEW and IVI drivers. Available at www.keithley.com

$879

GPIB, USB

Device-TMC, Ethernet-

LXI, USB- Host

USB host, RS-232,

GPIB, Ethernet,

RS-232 to USB Device

Adapter Included

--

GPIB, RS-232

(Model 2010)

GPIB

(Model 2001)

LabVIEW Driver KickStart Startup

Software, LabVIEW,

IVI-COM/IVI-C, drivers,

Keithley LXI Discovery

Browser, Test Script

Builder

$3,990 $1,170 $3,050

GPIB

LabVIEW Driver

$6,270

Choosing Your Digital Multimeter

To help you choose the right digital multimeter for your needs, the most common selection criteria are listed below, along with helpful tips for determining your requirements.

Resolution refers to how fine a measurement a meter can make.

By knowing the resolution of a meter, you can determine if it is possible to see a small change in your signal. The terms digits and counts are used to describe a meter’s resolution. A 6.5-digit multimeter can display 6 full digits ranging from 0 to 9, and one

“half” digit, which displays only a 1 or is left blank. A 6.5-digit meter will display up to 1,999,999 counts of resolution.

Digital multimeters are capable of making a variety of different measurements. A basic DMM typically can measure voltage, current and resistance. Other measurements commonly supported are continuity and diode measurements. Continuity is a quick go/no-go resistance test that distinguishes between an open and a closed circuit. A diode test mode measures the actual voltage drop across a junction. Other possible measurement modes are frequency, period, temperature and capacitance.

Accuracy is the largest allowable error that will occur under specific operating conditions. In other words, it is an indication of how close the DMM’s displayed measurement is to the actual value of the signal being measured. Accuracy is usually expressed as a percent of reading. An accuracy of one percent of reading means that for a displayed reading of 100 volts, the actual value of the voltage could be anywhere between 99 volts and 101 volts.

44 www.keithley.com/dmm

Many of Keithley’s DMMs include the capability to add a scanner accessory, enabling measurements on multiple test points or devices.

Digital Multimeters

Product Highlights

Exceptional 6½-digit measurement integrity with high speed throughput (Model 2000)

Built-in slot for scanner card (Model 2000)

15 built-in measurement functions including thermocouples (Model 2110)

Full featured DMMs at a value price

USB Test and Measurement Class (USBTMC) interface

(Models 2110 and 2100)

The KI-Tool application for the Model 2100 provides charting and graphing capabilities without programming.

Models 2000, 2100, 2110

These cost effective, high precision instruments offer 5.5- and 6.5-digit accuracy and are ideal for a wide range of manual, semi-automatic, and production test applications. They can be used as stand-alone benchtop instruments and as components in test systems.

For multipoint measurement, plug a scanner card into the

Model 2000.

Model

2000

2100

2110

Resolution

Basic V DC Accuracy, 1 Year

(% Reading + % Range)

0.0030 + 0.0005

0.0038 + 0.0006

0.012 + 0.002

Measurements

Vac, Vdc, Idc, Iac, 2W

Ω, 4WΩ, Temp,

Freq, Period, dB, dBm, Cont., Diode

Vac, Vdc, Idc, Iac, 2W Ω, 4WΩ, Temp,

Freq, Period, Cont., Diode

Vac, Vdc, Idc, Iac, 2W

Ω, 4WΩ, Temp,

Freq, Period, dB, dBm, Cont., Diode,

Cap., Therm.

Interface

GPIB, RS-232

USB

USB (GPIB

Option)

Pricing (USD)

$1,140

$879

$622

Recommended Accessories

2000-

SCAN

10-channel Scanner

Card (Model 2000)

$622

2001-

SCAN

2001-

TSCAN

5808

5805

10-channel Scanner

Card with Two Highspeed channels

(Model 2000)

9-channel

Thermocouple Scanner

Card (Model 2000)

Low cost, Single Pin,

Kelvin Probes

Kelvin Probes,

0.9m (3ft)

$848

$1,140

$115

$238

5805-12

5809

Kelvin Probes,

3.6m (12ft)

Low Cost, Kelvin Clip

Lead Set

$313

$173

Recommended Accessories

7007-1 Shielded GPIB Cable,

1m (3.3ft)

$118

7007-2 $131

KP-

CI-488LPA

KUSB-

488B

4288-1

4299-3

4299-4

Shielded GPIB Cable,

2m (6.6ft)

IEEE-488 Interface/

Controller for the

PCI Bus

IEEE-488 USB to GPIB

Interface Adapter

Single Fixed

Rack Mount Kit

(Model 2000, 2100)

Single Rack Mount Kit

(Model 2100 and 2110)

Dual Rack Mount Kit

(Model 2100 and 2110)

$475

$539

$95

$108

$228

Ships with Product

Safety Test Leads

Product CD (Includes Users Manual, Drivers, Etc.)

USB Cable (Models 2100/2110)

KI Tool and KI Link Software (Models 2100/2110)

Calibration Certificate

Power Cord

1-year Warranty

3-year Warranty (Model 2110)

Learn more with the “Using the Dual

Measurement

Functionality and Dual

Measurement Display on the Keithley Model

2110 5½-Digit Dual-Display Digital

Multimeter” Application Note.

www.keithley.com/broadpurpose 45

Digital Multimeters

Product Highlights

Measurement functions include temperature, 4-wire resistance, peak detection, low ohms, and Agilent

3458A emulation (Model 2002)

Built-in slot for scanner card

Multiple measurement display (Models 2001 and 2002)

Dry circuit measure function limits test voltage when testing contact or connector resistances (Model 2010)

Add a plug-in scanner card to turn any of these DMMs into a complete scan and measure system.

Models 2001, 2002, 2010

Each Model 2001, 2002, and 2010 digital multimeter (DMM) offers superior measurement precision, sensitivity, and traceability. They also support plug-in scanner cards that allow you to quickly and economically create multi-channel measurement systems.

Model

2001

2002

2010

Resolution

Basic V DC Accuracy, 1 Year

(% Reading + % Range)

0.0024 + 0.0004

0.0010 + 0.00015

0.0024 + 0.0004

Measurements

Vac, Vdc, Idc, Iac, 2W

Ω, 4WΩ,

Temp, Freq, Period, Crest, Peak

Vac, Vdc, Idc, Iac, 2W

Ω, 4WΩ,

Temp, Freq, Period, Crest, Peak

Vac, Vdc, Idc, Iac, 2W Ω, 4WΩ,

Temp, Freq, Period, Cont., Diode,

Therm., Dry Circ.

Ω, Ratio

Interface

GPIB

GPIB

GPIB, RS-232

Use the multiple display capability (Model 2001/2002) to simultaneously display different aspects of one signal.

Pricing (USD)

$4,690

$6,270

$3,050

Recommended Accessories

2000-

SCAN

10-channel

Scanner Card

$622

2001-

SCAN

2001-

TSCAN

5805

10-channel Scanner

Card with Two

Highspeed Channels

9-channel

Thermocouple

Scanner Card

Kelvin Probes,

0.9m (3ft)

$841

$1,140

$238

5805-12 $313

5808

5809

7007-1

7007-2

KP-

CI-488LPA

KUSB-

488B

4288-1

Kelvin Probes,

3.6m (12ft)

Low Cost, Single Pin,

Kelvin Probes

Low Cost, Kelvin Clip

Lead Set

Shielded GPIB Cable,

1m (3.3ft)

Shielded GPIB Cable,

2m (6.6ft)

IEEE-488 Interface/

Controller for the

PCI Bus

IEEE-488 USB to GPIB

Interface Adapter

Single Fixed Rack

Mount Kit

$115

$173

$118

$131

$475

$539

$95

Ships with Product

Model 8605 High Performance Modular Test Leads

(Models 2001, 2002)

Model 1751 Safety Test Leads (Model 2010)

Option Slot Cover (Models 2001, 2002)

Calibration Data

User Manual, Service Manual

Power Cord

1-year Warranty

Learn more with the

“Peak Detection with the Model 2001 DMM”

Application Note.

46 www.keithley.com/highper

Digital Multimeters

Product Highlights

Precision multimeter with 3½- to 7½-digit resolution

100mV, 1 Ω, and 10µA ranges offer the sensitivity needed for measuring low level signals

Capture and display waveforms or transients with

1MS/sec digitizer

Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode

Display more with five-inch, high resolution touchscreen interface

Extensive software available including: Test Script

Builder, KickStart Startup Software, and LabVIEW and

IVI Drivers (available at www.keithley.com)

DMM7510 7½-Digit Graphical Sampling

Multimeter

The DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the Model DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results.

The high speed digitizing function allows capturing and displaying voltage and current waveforms.

Advanced triggering options make it possible to capture a signal at precisely the right point.

Model Resolution

DMM7510 7 ½

Basic V DC Accuracy, 1 Year

(% Reading + % Range)

0.0014 + 0.00012

Measurements

Vac, Vdc, Idc, Iac, 2W

Ω, 4WΩ, Temp,

Freq, Period, Cont., Diode, Dry Circ.,

Ω,

Ratio, Cap, Digitize V, Digitize I

Interface

GPIB, USB-

TMC, LAN-LXI

Pricing (USD)

$3,990

Recommended Accessories

5804 Kelvin (4-Wire)

Universal 10-Piece Test

Lead Kit

$213

5805 $238

5806

5808

5809

KP-

CI-488LPA

Kelvin (4-Wire) Spring-

Loaded Probes

Kelvin Clip Lead Set

Low Cost Single-pin

Kelvin Probe Set

Low Cost Kelvin Clip

Lead Set

IEEE-488 Interface for

PCI Bus

$282

$115

$173

$475

Recommended Accessories

KUSB-

488B

IEEE-488 USB-to-GPIB

Interface Adapter

$539

7007-1 Shielded GPIB Cable,

1m (3.2ft)

$118

7007-2

2450-

TLINK

8503

4299-8

Shielded GPIB Cable,

2m (6.5ft)

DB-9 to Trigger Link

Connector Adapter

DIN-to-BNC Trigger

Cable

Single Fixed Rack

Mount Kit

$131

$52

$93

$312

Ships with Product

1756 Test Leads

USB-B-1 USB Cable, Type A to Type B, 1m (3.3 ft)

CA-180-3A TSP-Link/Ethernet Cable

Documentation CD

DMM7510 QuickStart Guide

KickStart Software Quick Start Guide

Calibration Certificate

Power Cord

1-Year Warranty

Test Script Builder Software

(available at www.keithley.com)

KickStart Startup Software

(available at www.keithley.com)

LabVIEW

®

and IVI Drivers

(available at www.keithley.com)

Learn more with the

“Characterizing Power-up and Power-down

Transients Using the Model DMM7510

7½-Digit Graphical

Sampling Multimeter”.

www.keithley.com/products/dcac/dmm/graphsampling/?mn=DMM7510 47

Digital Multimeters

Product Highlights

5.5 digit resolution

Basic V dc accuracy of up to 0.015%

Volts, ohms, amps and frequency measurements

Dedicated dc leakage current measurement

CAT I 1000 V, CAT II 600 V

Make accurate 4-wire resistance measurements with only two test leads!

DMM4020

Make measurements, not compromises. Measure a variety of parameters— from volts, ohms and amps to frequency—with one instrument. Save time with front-panel shortcut keys and built-in limit testing. Performance. Reliability. Legendary ease of use. One instrument. Looks like you can have it all.

With the unique dual display, you can measure two different parameters of the same signal from one test connection.

Models

DMM4020

Display

Dual; Numeric

Resolution

(Digits)

5.5

Recommended Test Leads

Test Leads

196-3520xx

Premium Test Leads

(TL710 replacement/ spare)

TL705

TL725

2x4 Wire Ohm 1000V

Test Lead

2x4 Wire Ohm SMD

Test Tweezers

$37

$84

$112

Measurements

V ac, V dc, I dc, I ac, Ω,

Cont, Diode, Freq

Recommended Accessories

Accessories

ACD4000

HCTEK-

4321

RMU2U

013-0369xx

Soft Carrying Case

Hard Carrying Case

Rackmount Kit

Calibration Fixture

4-terminal short

$259

$829

$155

$49

Recommended Service

SILV100 5-year Extended

Warranty

$170

Basic V dc accuracy

(% Reading + % Range)

0.015 + 0.004 (yr.)

Pricing (USD)

$849

Another Product for Consideration

If you need greater accuracy, the DMM4050 provides

6.5 digits of resolution and up to 0.0024% basic V dc accuracy.

Ships with Product

One Set TL710 Test Leads

RS-232 to USB Adapter Cable

NI LabVIEW SignalExpress

TE (LE version) Software

Statement of Calibration Practices

User Manual & Documentation on CD

Power Cord

3-year Warranty

Learn more with the

“Using the DMM Series to Make Simple and Accurate

Resistance

Measurements” application note.

Using the DMM Series to make simple and accurate resistance measurements

Application Note

Using two wires to measure resistance is convenient, but causes measurement error. You can virtually eliminate this error by using four leads and a multimeter with separate source and measure terminals. Unfortunately, adding additional leads and connections makes the measurement more complicated. You have additional leads to connect and you may have to swap clips and probes as you change from voltage to resistance. Now a new concept enables you to take four-wire resistance measurements with just two leads.

48 www.tektronix.com/dmm4020

Digital Multimeters

Product Highlights

6.5 digit resolution

Basic V dc accuracy of up to 0.0024%

Volts, ohms, amps, frequency and period measurements

Capacitance and temperature measurements

(DMM4050)

CAT I 1000 V, CAT II 600 V

Make accurate 4-wire resistance measurements with only two test leads!

DMM4040/4050

Meet the multimeter to rule them all. Make a wide range of measurements—from volts, ohms and amps to frequency, temperature and capacitance—with one instrument.

Monitor and record measurements over time, or environmental changes with built-in histogram, TrendPlot ™ testing and statistics analysis modes. Get unparalleled ease of use with a dual display and USB connectivity. Hello, efficiency. Goodbye, complexity.

Models

DMM4040

DMM4050

Display

Dual; Numeric &

Graphical

Dual; Numeric &

Graphical

Resolution

(Digits)

6.5

6.5

See how your device is changing over time with built-in analysis modes –

TrendPlot ™ statistics.

, histograms and

Measurements

V ac, V dc, I dc, I ac,

Ω,

Continuity, Diode, Freq, Period

V ac, V dc, I dc, I ac, Ω,

Continuity, Diode, Freq, Period,

Temp., Capacitance

Basic V dc accuracy

(% Reading + % Range)

0.0035 + 0.0005

0.0024 + 0.0005

Pricing (USD)

$1,170

$1,450

Recommended Test Leads

Temperature Probes

TP750 100 Ohm RTD

Temperature Probe

(DMM4050 only)

$566

Test Leads

196-3520xx

$37

TL705

TL725

Premium Test Leads

(TL710 replacement/ spare)

2x4 Wire Ohm 1000V

Test Lead

2x4 Wire Ohm SMD

Test Tweezers

$84

$112

Recommended Accessories

Accessories

ACD4000

HCTEK-

4321

RMU2U

013-0369xx

Soft Carrying Case

Hard Carrying Case

Rackmount Kit

Calibration Fixture

4-terminal short

$259

$829

$155

$49

Recommended Service

SILV100 5-year Extended

Warranty

$170

Another Product for Consideration

The PWS DC Power Supply Series is designed to stack with the DMM Series, saving you bench space.

Ships with Product

One Set TL710 Test Leads

RS-232 to USB Adapter Cable

NI LabVIEW SignalExpress

TE (LE version) Software

Calibration Certificate

User Manual & Documentation on CD

Power Cord

3-year Warranty

Learn more with the

“Measurement Statistics and Histograms with the Tektronix

DMM4050 and

DMM4040

Multimeters” application note.

Measurement Statistics and Histograms with the Tektronix DMM4050 and DMM4040

Multimeters

Application Note

“What is the output voltage of the power supply?” This is one of the most common measurements made with digital multimeters. Similar questions arise about the frequency of oscillators, the value of resistors, operating temperature, or the

But taking a single reading gives you only part of the story.

An equally important question is: “How stable is the output of the power supply?” Understanding this, and other questions, requires looking at measurement statistics. What is the average

Tektronix DMM4050 and DMM4040 multimeters offer integrated analysis functions to help you answer these questions.

www.tektronix.com/dmm4050 49

Data Acquisition Selection

Data Acquisition

Systems

Keithley data acquisition systems combine precision measurement, switching, and control into a single, tightly integrated enclosure. They offer affordable alternatives to separate DMMs and switch systems, dataloggers/ recorders, plug-in card data acquisition equipment, and

VXI/PXI systems.

DMM Resolution

Switching Density

Special Features

Switch Features

Interface

Software

Starting Price

Series 2700

6½ Digits

Up to 80, 2-pole channels (2700/2701)

Up to 200, 2-pole channels (2750)

Front panel DMM jacks, Non-volatile memory buffer, Solid State temperature scanning

Up to 40, 2-pole Channels and 12 card options

GPIB, RS-232 (Models 2700 and 2750)

LAN, RS-232 (Model 2701)

KickStart Startup Software, LabVIEW and IVI drivers. Available at www.keithley.com

$1,650

Series 3700A

7½ Digits

Up to 576, 2-pole channels

USB Flash Drive support, 1 Ohm measure range, Solid State temperature scanning

Up to 96, 2-pole Channels and 10 card options

GPIB, LAN (LXI), USB-TMC, TSP-Link

®

Channel Expansion Bus

Test Script Builder, LXI Discovery Browser, LabVIEW and IVI drivers. Available at www.keithley.com

$2,030

Choosing Your Data Acquisition System

Designing the switching for an automated test system demands an understanding of the signals to be switched and the tests to be performed. The following is a cursory look at key decision points in the design of a switching system.

Multiplex switching can be used to connect one instrument to multiple devices or multiple instruments to a single device.

Multiplex switching permits multiple simultaneous connections and sequential or non-sequential switch closures. A matrix switch configuration is the most versatile because it can connect multiple inputs to multiple outputs. The isolated, or independent, switch configuration consists of individual relays, often with multiple poles, with no connections between relays. For scanner (or multiplex) cards, the channel is used as a switched input in measuring circuits or as a switched output in sourcing circuits. For switch cards, each channel’s signal paths are independent of other channels.

Three key relay types are used. Electromechanical relays offer the widest power range and a good life and speed at a relatively low cost. Reed relays cost more but offer less contact wear and bounce for a better life and speed than electromechanical.

Solid-state relays cost still more, but offer the best life and speed with no contact wear or bounce.

Connection types found on switch cards include both screw terminals and mass-terminated connectors. At the instrument level, TSP-Link master/slave connection offers easy system expansion between Series 3700A mainframes and to connect to

Series 2600B SourceMeter instruments.

50 www.keithley.com/datalogger

Data Acquisition

Product Highlights

6½-digit measurement engine

Front panel DMM jacks

300 volt isolation between channels and from any channel to ground to maintain signal integrity

Mass terminated or screw terminal connector options

Full per-channel card configurability

Non-volatile memory buffer

Choice of 12 switch/control plug-in modules

Series 2700

The Series 2700 System Switch/Multimeter combines precision measurement, switching, and control in a single, tightly integrated enclosure for either rack-mount or bench-top applications used by data loggers. The 2700 Series offers two- and five-slot models, as well as an Ethernet-based model for high speed and long distance communication.

Install up to five switch/ control modules in the

2750 mainframe or up to two in the 2700 and 2701 mainframes.

Screw terminals use oversize connectors for easier, mistake-free wiring.

Removable terminals available for some models.

Model

2700

2701

2750

Mainframe Size

2U, ½ Rack

2U, ½ Rack

Interfaces

Resolution (Digits),

Accuracy

GPIB, RS232 6½ Digits, 0.003%

Ethernet, RS232 6½ Digits, 0.003%

2U, Full Rack GPIB, RS232 6½ Digits, 0.003%

Advance Measure Functions

Temperature, 4-Wire Resistance

Temperature, 4-Wire Resistance

Temperature, 4-Wire Resistance,

Low Ohms

Pricing (USD)

$1,650

$1,990

$2,590

Plug-in Cards

7700 Dual 1x10 /

Electromechanical

Relay

7701

7702

7703

$501

Dual 1x16 /

Electromechanical

Relay

Dual 1x20 /

Electromechanical

Relay

$726

$951

Dual 1x16 / Reed Relay $1,140

7705 40 Independent Relay /

Electromechanical

Relay

$839

Recommended Accessories

7007-1 Shielded IEEE-488

Cable, 1m (2700,

2750)

$118

7007-2 $131

7788

7789

7790

Shielded IEEE-488

Cable, 2m (2700,

2750)

50-Pin D-Shell

Connector Kit (for 7703

& 7705 Mods.)

50-Pin/25-Pin D-Shell

Kit

50-Pin Male/Female,

25-Pin Male IDC

D-Shell Con. Kit

$91

$91

$91

Plug-in Cards

7706 16 Digital I/O,

2 Analog Outputs,

1x20 Multiplexer

7707

7708

7709

7710

7711

7712

32 Digital I/O,

1x10 Multiplexer

Dual 1x20 /

Electromechanical

Relay

6x8 /

Electromechanical

Relay

Dual 1x10 /

Solid State Relay

Dual 1x4, 2GHz /

RF Relay

Dual 1x4, 3.5GHz /

RF Relay

$951

$839

$951

$951

$726

$615

$2,240

Ships with Product

Product CD (Includes Users Manual, Drivers, Etc.)

Ethernet Crossover Cable (Model 2701 Only)

Calibration Certificate

Quick Reference Manual

ExceLINX Software

Power Cord

1-year Warranty

Learn more with the

“Switching Handbook:

A Guide to Signal

Switching in Automated

Test Systems.”

www.keithley.com/datalogger 51

Data Acquisition

Product Highlights

Mainframe variations (DMM and keypad/display optional)

High performance (1 Ohm resistance, 10µA DCI range)

7.5 Digit multimeter

High density switching (Up to 720 one-wire multiplexer channels, 2,688 one-wire matrix crosspoints)

TSP control and TSP-Link for Intelligent distributed control

Embedded startup/control software

Use the built-in web server interface to configure the system, build and run an automated scan list, and analyze data.

Series 3700A

The Series 3700A DMM/switch system offers a scalable, instrument grade switching and multi-channel measurement solution for automated testing of electronic devices.

The system includes a high performance DMM with up to six switch/control cards and can support up to 576 two-wire multiplexer channels for unrivaled density and low per channel cost.

Model

(Mainframe)

3706A

3706A-S

3706A-NFP

DMM

Yes

No

Yes

3706A-SNFP No

Model 3706A-NFP eliminates keypad and display for automated test rack applications.

Front Panel

Keypad & Display

Yes

Yes

No

No

Resolution (Digits),

Accuracy

NA

Interface

7½ Digits, 0.0025% GPIB, LAN (LXI), USB-TMC,

TSP-Link

®

Channel Expansion Bus

GPIB, LAN (LXI), USB-TMC,

TSP-Link

®

Channel Expansion Bus

7½ Digits, 0.0025% GPIB, LAN (LXI), USB-TMC,

TSP-Link

®

Channel Expansion Bus

NA GPIB, LAN (LXI), USB-TMC,

TSP-Link

®

Channel Expansion Bus

Pricing (USD)

$2,930

$2,260

$2,720

$2,030

Plug-in Cards

3720 Dual 1x30 Multiplexer:

300V, 2A, Auto-

CJC with 3720-ST accessory

3721

3722

3723

3724

Dual 1x20 Multiplexer:

300V, 3A, Auto-

CJC with 3721-ST accessory

Dual 1x48 Multiplexer:

300V, 2A

Dual 1x30 Multiplexer:

200V, 1.25A, Reed

Relay

Dual 1x30 Multiplexer:

200V, 0.12A, Solid

State Relay, Auto-

CJC with 3724-ST accessory

$1,220

$1,050

$1,680

$1,380

$1,750

Plug-in Cards

3730 6x16 Matrix: 300V, 2A $1,680

3731

3732

3740

6x16 Matrix: 200V, 2A,

Reed Relay

Quad 4x28 Matrix:

200V, 1.2A, Reed

Relay

Independent Relay: 28

Form C: 300V, 3A; 4

Form A: 250VAC, 7A

$2,200

$5,960

$1,050

3750 Control: 40 Digital I/O

2 Analog Outputs, 4

Counter

$1,410

Recommended Accessories

3706-BAN DMM Adapter Cable $221

3706-TLK Test Lead Kit

KUSB-

488B

4288-1

4288-10

IEEE-488 USB to GPIB

Interface Adapter

Single Fixed Rack

Mount Kit

Fixed Rear Rack Mount

Kit

$338

$539

$95

$120

Ships with Product

Test Script Builder Software Suite CD

Series 3700A Product CD (Includes LabVIEW, IVI C, and IVI.COM Drivers)

Ethernet Crossover Cable

Calibration Certificate

Quick Reference Manual

Power Cord

1-year Warranty

Learn more with the

“Optimizing Switched

Measurements with the

Series 3700 System

Switch/Multimeter and

Series 2600 System

SourceMeter

®

Instruments

Through the Use of TSP” application note.

52 www.keithley.com/datalogger

Ultra-Sensitive

Measurement Instruments

Scientists and researchers worldwide rely on Keithley Electrometers, Picoammeters, and Nanovoltmeters for making low-level measurements beyond the capabilities of a typical digital multimeter. Keithley Electrometers and Picoammeters provide low current and high resistance measurements and Keithley Nanovoltmeters measure low voltages.

Ultra-Sensitive Measurement

Instrument Selection

2182A

Nanovoltmeter

Current Min/Max

Voltage Min/Max

--

1nV / 100V

Resistance Min/Max 10n Ω /1GΩ

(with Model 6220 or 6221)

Resolution 7½ Digits

Input Connection /

Interface

Starting Price

Low Thermal / GPIB, RS-232

$3,330

6220 / 6221

Current Sources

100fA / 100mA

--

10n Ω/1GΩ

(with Model 2182A)

4½ Digits

3 Slot Triax / GPIB,

RS-232 (LAN on 6221)

$3,770

6485 / 6487 / 6482

Picoammeters / Picoammeter

& Voltage Source

1fA / 20mA

--

10 Ω/1PΩ

(with Model 6487)

5½ Digits (6485, 6487)

6½ Digits (6482)

BNC (6485) 3 Slot Triax (6482, 6487) /

GPIB, RS-232

6514 / 6517B / 6430

Electrometers

10aA / 100mA

1mV / 200V

10m Ω / 10PΩ

5½ Digits (6514, 6517B)

6½ Digits (6430)

3 Slot Triax / GPIB, RS-232

$1,820 $4,970

Choosing Your Specialized Low Level Instrument

To help you choose the appropriate specialized low level instrument for your application, the most common selection criteria are listed below, including helpful tips for determining the correct specialized low level instrument for your requirements.

Resolution means how fine a meter’s measurement is and lets you determine if it’s possible to see a small change in the signal.

Resolution is described by digits and counts. A 6.5-digit instrument can display six full digits ranging from 0 to 9, and one

“half” digit that displays either a 1 or is left blank. A 6.5-digit instrument can display up to 1,999,999 counts of resolution.

Accuracy is the largest allowable error that will occur under specific operating conditions and is an indication of how close the instrument’s displayed measurement is to the actual value of the signal measured. Accuracy is typically expressed as a percent of reading. For example, an accuracy of 1% of reading means that, for a displayed reading of 100 volts, the actual value of the voltage is between 99 volts and 101 volts.

Measurements

Low current/high resistance measurements evaluate the insulation qualities of materials or components. Typically, a voltage up to 500 or 1000 volts is applied and the resulting current is measured, which can be in the range of picoamperes (10E-12A) or lower. A digital multimeter may seem like the right instrument for these measurements. But if the current is below 1µA or the resistance is above 10M Ω, the correct solution is an Electrometer or

Picoammeter.

Low Voltage/Low Resistance

Measurements

Low resistance/low voltage measurements evaluate the conduction or contact qualities of materials or components.

Typically, a current under 100mA but as low as 1µA is applied and the resulting voltage is measured, which can be in the range of microvolts and even nanovolts. For low voltage, choose a

Nanovoltmeter or low noise multimeter. For low resistance, a

Nanovoltmeter/current source combination or switch/multimeter is the correct solution.

www.keithley.com/sensitive 53

Ultra-Sensitive Measurement

Instruments

2182A Nanovoltmeter

The two-channel Model 2182A Nanovoltmeter is optimized for making stable, low noise voltage measurements and for characterizing low resistance materials and devices reliably and repeatably. It provides higher measurement speed and significantly better noise performance for voltage meters than alternative low voltage measurement solutions.

Model

2182A

Voltage

1nV – 100V

Temperature

-200°C to 1820°C

Resistance

10n

Ω to 200MΩ

(requires 6220 or 6221)

Channels

2

Product Highlights

Low noise voltage measurements at high speeds

Delta mode coordinates measurements with a reversing current source at up to 24Hz with 30nV p-p noise (typical) for one reading. Averages multiple readings for greater noise reduction

Built-in thermocouple linearization and cold junction compensation

Dual channels

Comparison of the

Model 2182A’s DC noise performance with a nanovolt/ micro-ohmmeter’s.

Buffer Size

1,024 rdgs

Results from a Model 2182A and Model 6220 using the delta mode to measure a

10m

Ω resistor with a 20µA test current.

Pricing (USD)

$3,330

Recommended Accessories

6220 DC Precision Current

Source (used with

2182A for low current/ voltage measurement)

$3,770

6221 $5,020

4288-1

4288-2

KPCI-

488LPA

KUSB-

488B

2107-30

2182-KIT

2187-4

AC and DC Current

Source (used with

2182A for low current/ voltage measurement)

Single Fixed Rack

Mounting Kit

Dual Fixed Rack

Mounting Kit

IEEE-488 Interface/

Controller for the PCI

Bus

I EEE-488 USB-to-

GPIB Interface Adapter

Low Thermal Input

Cable with spade lugs,

9.1m (30 ft)

Low Thermal

Connector with strain relief

Input Cable with safety banana plugs

$95

$133

$475

$539

$336

$189

$406

Recommended Accessories

2188 Low Thermal

Calibration Shorting

Plug

$222

7007-1 $118

7007-2

7009-5

8501-1

8501-2

8503

Shielded GPIB Cable,

1m (3.2 ft)

Shielded GPIB Cable,

2m (6.5 ft)

Shielded RS-232

Cable, 1.5m (5 ft)

Trigger Link Cable,

1m (3.2 ft)

Trigger Link Cable,

2m (6.5 ft)

Trigger Link Cable to 2 male BNC connectors

$131

$59

$68

$74

$93

Ships with Product

2107-4 Low Thermal Input Cable with Spade Lugs,

1.2m (4 ft)

User Manual

Service Manual

Contact Cleaner

Power Cord

Alligator Clips

Learn more with the “Low-Level

Pulsed Electrical

Characterization with the Model 6221/2182A

Combination” application note.

54 www.keithley.com/model2182A

Ultra-Sensitive Measurement

Instruments

Product Highlights

10

14

Ω output impedance ensures stable current sourcing into variable loads

64k-point source memory for comprehensive test current sweeps

(Model 6221) Source AC currents from 4pA to 210mA peak to peak for AC characterization of components and materials. The 10MHz output update rate generates smooth sine waves up to 100kHz

Perform, analyze, and display differential conductance measurements.

6220 / 6221 Current Sources

Keithley precision current sources include both broad-purpose Model 6220 and high-performance Model 6221. Their high sourcing accuracy and built-in control functions make them ideal for Hall Effect, resistance (using delta mode), pulsed, and differential conductance measurements. Programmable pulse widths limit power dissipation.

Model

6220

6221

Current

100fA – 100mA

100fA – 100mA

Resistance

10n Ω to 200MΩ

(requires 2182A)

10n

Ω to 200MΩ

(requires 2182A)

Sweep Points

65,536 (64k)

65,536 (64k)

Measurements are line synchronized to minimize

50/60Hz interference.

PC Interface

GPIB, RS-232

GPIB, RS-232,

Ethernet

Pricing (USD)

$3,770

$5,020

Recommended Accessories

2182A Nanovoltmeter (used with 6220/6221 for low current/voltage measurement)

$3,330

$234 237-ALG-2 Low Noise Triax Cable,

3-slot triax to alligator clips

7007-1

7007-2

7007-4

Shielded GPIB Cable,

1m (3.2 ft)

Shielded GPIB Cable,

2m (6.5 ft)

Shielded IEEE-488

Cable, 4m (13.1 ft)

$118

$131

$147

7009-5

7078-

TRX-3

7078-

TRX-5

7078-

TRX-10

7078-

TRX-20

Shielded RS-232

Cable, 1.5m (5 ft)

Low Noise Triax

Cable, 3-Slot Triax

Connectors, 0.9m (3 ft)

Low Noise Triax

Cable, 3-Slot Triax

Connectors, 1.5m (5 ft)

Low Noise Triax

Cable, 3-Slot Triax

Connectors, 3m (10 ft)

Low Noise Triax

Cable, 3-Slot Triax

Connectors, 6m (20 ft)

$59

$164

$175

$190

$213

Recommended Accessories

8501-1 Trigger Link Cable with male Micro-DIN connectors at each end, 1m (3.3 ft)

$68

4288-1 $95

4288-2

KP-

CI-488LPA

KUSB-

488B

Single Fixed Rack

Mounting Kit

Dual Fixed Rack

Mounting Kit

IEEE-488 Interface/

Controller for the PCI

Bus

I EEE-488 USB-to-

GPIB Interface Adapter

$133

$475

$539

Ships with Product

6.6 ft (2m), Low Noise, Input Cable with Triax-to-

Alligator Clips

6.6 ft (2m) Trigger Link Cable to connect 622x to

2182A

Ethernet Crossover Cable (6221 only)

Communication Cable between 2182A and 622x

Safety Interlock Connector

Instruction manual on CD

Getting Started manual (hardcopy)

Software (downloadable)

Learn more with the

“Determining Resisitivity and Conductivity Type using a Four-Point

Collinear Probe and the

Model 6221 Current

Source” application note.

www.keithley.com/sources 55

Ultra-Sensitive Measurement

Instruments

Product Highlights

Measure currents down to 1fA

Voltage and resistance measurement options

Voltage burden <200µV (most models)

5½- to 6½-digit resolution (most models)

Feedback ammeter design for higher accuracy

Dark current characterization of a photodiode using

Picoammeter and voltage source (such as the Model

6482).

6485, 6487 Picoammeters,

6482 Picoammeter & Voltage Source

Keithley Picoammeters combine sensitive current measurement with high speed.

The Model 6485 Picoammeter offers fast, sensitive current measurement. The

Model 6487 offers improved measurement capability, and adds a high resolution

500V source. The Model 6482 offers two independent Picoammeter/voltage source channels.

Model

6482

6487

6485

MOSFET sub-threshold voltage test using

Picoammeters and voltage sources (such as the Model

6482).

Current Resistance Reading Rate Input Connections

1fA – 20mA (2 ch) N/A

10fA – 20mA

10fA – 20mA

900 rdgs/s

Up to 10

+16

Ω

1000 rdgs/s

N/A 1000 rdgs/s

3-slot triax, BNC (via included adapter)

3-slot triax

BNC

Pricing (USD)

$4,090

$4,010

$1,820

Recommended Accessories

4802-10 Low noise BNC Input

Cable, 3m (10ft) (for

6485)

$85

4803 $153

6517-

ILC-3

7007-1

7007-2

7007-4

7009-5

Low Noise Cable Kit

(for 6485)

Interlock Cable for

8009 Resistivity Test

Fixture (6487 Only)

Shielded IEEE-488

Cable, 1m (3.3 ft)

Shielded IEEE-488

Cable, 2m (6.6 ft)

Shielded IEEE-488

Cable, 4m (13.1 ft)

RS-232 Cable

$94

$118

$131

$147

$59

7078-

TRX-10

7078-

TRX-20

7754-3

8501-1

Low Noise Triax Cable,

3.0m (10 ft) (6487 Only)

Low Noise Triax Cable,

6.0m (20 ft) (6487Only)

BNC to Alligator Cable

(for 6485)

Trigger Link Cable with male Micro-DIN connectors at each end, 1m (3.3 ft)

$190

$213

$47

$68

Recommended Accessories

CS-565 BNC Barrel (for 6485) $17

Triax Barrel (for 6487) $115 237-

TRX-BAR

7078-

TRX-BNC

8009

Triax-to-BNC Adapter $80

4288-1

4288-2

KP-

CI-488LPA

KUSB-

488B

Resistivity Test Fixture

(for 6487)

Single Fixed Rack

Mounting Kit

Dual Fixed Rack

Mounting Kit

IEEE-488 Interface/

Controller for the PCI

Bus

$2,420

$95

$133

$475

IEEE-488 USB-to-GPIB

Interface Adapter

$539

Ships with Product

7078-TRX-BNCTriax-to-BNC Connector (2×)

(Model 6482)

CA-186-1B Ground Connection Cable, Banana to

Screw-Lug (Model 6487)

CAP-31 Protective Shield/Cap (3-lug) (Model 6487)

CS-459 Safety Interlock Plug (Model 6487)

7078-TRX-3 Low Noise Triax Input Cable, 1m (3 ft)

(Model 6487)

8607 High Voltage Banana Cable Set for Voltage

Source Output (Model 6487)

CAP-18 Protective Shield/Cap (2-lug) (Model 6485)

4801 Low Noise BNC Input (Model 6485)

Learn more with the “Low Current

Measurements” application note.

56 www.keithley.com/lowcurrent

Ultra-Sensitive Measurement

Instruments

Product Highlights

Measure low current & high voltage, resistance, and charge

Resistance measurements to 10P

Ω

Current sensitivity as low as 10aA (6430)

Voltage burden as low as 200µV

Superior accuracy and sensitivity

6514 / 6517B / 6430 Electrometers

Our high resistance Electrometers provide voltage source and high resistivity measurements for sensitive measurement. They combine flexible interfacing capabilities with current sensitivity, charge measurement capabilities, resolution, and speed. The Model 6430 offers unmatched low current sensitivity.

Model

6517B

6514

6430

Current

100aA – 20mA

100aA – 20mA

10aA – 100mA

Voltage

10µV – 200V

10µV – 200V

1µV – 200V

Resistance Charge

100

Ω – 10PΩ

10fC – 2µC

10m

Ω – 200GΩ

10fC – 20µC

1µ Ω – >20TΩ --

Input

Connections

3-slot triax

3-slot triax

3-slot triax

This illustrates how the

Model 6514's measurement can be adjusted to reflect the true dark current of the photodiode.

A Model 6517B is well suited for application where the volume resistivity needs to be measured.

Pricing (USD)

$8,110

$4,970

$14,300

Recommended Accessories

237-ALG-2 Low Noise Triax Cable,

3-slot triax to alligator clips

$234

$110 6517B-

ILC-3

7078-

TRX-3

7007-1

8501-1

8503

Interlock Cable (For

6517B only)

Low Noise Triax

Cable, 3-Slot Triax

Connectors, 0.9m (3 ft)

Shielded IEEE-488

Cable, 1m (3.2 ft)

Trigger Link Cable, 1m

(3.3 ft)

Trigger Link Cable to 2 male BNCs, 1m (3.3 ft)

8607 1kV Source Banana

Cables (for 6517B only)

6517-RH Humidity Probe with

Extension Cable

(6517B only)

6517-TP Temperature Bead

Probe (included with

6517B) (6517B only)

8009 Resistivity Test Fixture

(for 6517B)

$164

$118

$68

$93

$62

$553

$56

$2,420

Recommended Accessories

237-BNC-

TRX

Male BNC to 3-Lug

Female Triax Adapter

(for 6517B)

$115

237-

TRX-NG

$151

7078-

TRX-BNC

7078-

TRX-GND

4288-1

4288-2

6521

6522

KP-

CI-488LPA

KUSB-

488B

Triax Male-Female

Adapter with Guard

Disconnected

3-Slot Male Triax to

BNC Adapter

3-Slot Male Triax to

BNC Adapter with guard removed (for

6517B)

Single Fixed Rack

Mounting Kit

Dual Fixed Rack

Mounting Kit

Low Current Scanner

Card (for 6517B)

Voltage/Low Current

Scanner Card (for

6517B)

IEEE-488 Interface/

Controller for the PCI

Bus

IEEE-488 USB-to-GPIB

Interface Adapter

$80

$68

$95

$133

$2,210

$2,990

$486

$539

Ships with Product

Low Noise Triax Cable, 3-slot triax to alligator clips

(6514, 6517B)

6430-322-1B Low noise Triax Cable, 3-slot triax to alligator clips (20cm)

Dual Test Leads (6430)

6517-TP Thermocouple Bead Probe (6517B)

CS-1305 Interlock Connector (6517B)

PreAmp Cable 2m (6.6ft)

Learn more with the “Volume and

Surface Resistivity

Measurements of

Insulating Materials

Using the Model 6517A

Electrometer/High Resistance Meter” application note.

www.keithley.com/highresistance 57

Power Supply Selection

Power Supplies

Tektronix and Keithley power supplies offer a wide range of performance. Get single channel models with superior accuracy and 10nA current measurement resolution. New high voltage power supplies combine high voltage with sensitive, low current measurement for high voltage device testing and characterization and high voltage research. For multiple source needs, select a dual channel or triple channel supply. All channels are isolated and fully programmable. For testing battery-operated devices, consider a battery simulator.

Category

Keithley 2260B

Series (4 models)

Description Channels

1

Max Voltage/

Max Current

18V-72V/1.5A-6A

Tektronix

PWS2000 Series

(4 models)

Tektronix

PWS4000 Series

(5 models)

Keithley 2200

Series (5 models)

Keithley Model

2231A-30-3

Keithley

2220/2230 Series

(8 models)

Manual

USB Programmable

Single Channel

1

USB and GPIB

Programmable Single

Channel

Optional USB

Triple-channel

1

3

USB Multi-Channel;

USB and GPIB

Multi-Channel

2 (2220

Series)

3 (2230

Series)

20V-72V /1.2A-5A

20V-72V /1.2A-5A

Resolution

10mV, 10mA

1mV, 0.1mA

1mV, 0.1mA

CH1/2: 30V/3A

CH3: 5V/3A

10mV, 1mA

CH1/2-30V / 1.5A

(2220 Series)

CH1/2-30V / 1.5A,

CH3-6V / 5A (2230

Series)

30V-80V /

13.5A-72A

1mV, 1mA

1mV, 1mA

Keithley 2268

Series (6 models)

Keithley Models

2280S-32-6

2280S-60-3

Keithley Models

2290-5

2290-10

Keithley Models

2302, 2302-PJ,

2306, 2306-PJ,

2306-VS, 2308

Keithley Models

2303, 2303-PJ,

2304A

360W and 720W

Wide output range

USB, LAN, and

Optional GPIB

850W 1U high, half-rack wide, programmable, with

5V and 15V auxiliary outputs

Precision measurement

6½-digit measurement resolution

High Voltage

1

1

1

1

Battery simulator

Fast Transient

Response

1 (2302)

2 (2306,

2308)

1

20V-150V/

5.6A-42A

32V-60V/3.2A-6A

5kV / 5mA

(2290-5)

10kV / 1mA

(2290-10)

15V / 5A

15V / 5A (2303)

20V / 5A (2304A)

0.1mV, 10nA

1V, 1µA

1mV, 100nA

1mV, 100nA

Voltage

Accuracy

Current

Accuracy

0.03% ± 10mV 0.1% ± 5mA

0.03% ± 3mV 0.05% ± 1mA

0.03% ± 3mV 0.05% ± 1mA

0.06% ±

20mV

0.2% ± 10 mA

0.2% ± 10 mA 0.1% ± 15 mA

0.1% ± 10mV 0.1% ± 10mA

2.4mV, 0.67mA 0.1% of Full

Scale

0.02% ± 2mV

±0.01%

(2290-5),

±6V (2290-10)

0.05% + 3mV

0.05% + 3mV

0.2% of Full

Scale

±0.01%

(2290-5),

±5µA (2290-10)

0.2% + 1µA

0.2% + 1µA

Interface

USB

USB, GPIB

Optional USB

USB

USB & GPIB

(-G versions)

USB, LAN, analog, and optional GPIB

USB, GPIB,

LAN,RS-232,

RS-485, and analog

0.05% ± 250uA USB, GPIB, and LAN

Starting

Price

Not applicable $427

GPIB (2290-5),

GPIB, RS-232

(2290-10)

$3,890

GPIB

GPIB

$922

$958

$650

$983

$1,420

$2,500

$1,990

$2,770

$2,100

58 www.keithley.com/highspeedpower

Power Supply Selection

Choosing Your Programmable Power Supply

To help you choose the appropriate power supply for your application, the most common selection criteria are listed below.

Ensure that the power supply has sufficient voltage output and current output to meet your needs. Also ensure that the supply can deliver the required power. Some power supply V-I output characteristics offer a trade-off between maximum voltage and maximum current (hyperbolic V-I output).

Spurious AC components on the output of a DC supply are called ripple and noise. The term “ripple” refers to periodic AC on the output. When viewed in the frequency domain, ripple shows up as spurious responses. Unlike ripple, which is periodic, noise is random. A power supply’s ripple and noise is specified within a bandwidth, and should be specified for both current and voltage.

Voltage and current settings (sometimes called limits or programmed values) each have resolution and accuracy specifications associated with them. The resolution of these settings determines the minimum increment in which the output may be adjusted. The accuracy describes the extent to which the value of the output matches international standards and is typically expressed as ± (% of reading + offset).

When selecting your power supply, select the supply that has the functionality you need. Consider a multiple-channel supply as a cost-effective solution for applications requiring multiple power sources. For maximum accuracy, consider supplies that have remote sensing. When developing and testing battery-operated devices, consider a special purpose battery-simulating supply.

www.keithley.com/highspeedpower 59

Power Supplies

Product Highlights

Linear regulation

0.05% basic DC voltage accuracy

0.2% basic DC current accuracy

Less than 3 mVp-p ripple and noise

20 user-defined setup memories

The numeric keypad makes it easy to specify a precise current limit before you start your test.

PWS2000 Series Single Channel Power Supplies

More power. More features. More value. Support many different applications with wide output voltage and current ranges, and down to 10 mV/10 mA resolution. Save time with a numeric keypad for fast and accurate voltage/current selection. Strain less with a bright, large readout digital display. All backed by Tektronix reliability.

PWS Series power supplies are designed to be stacked with other Tektronix bench instruments to save you valuable bench space.

Models

PWS2185

PWS2323

PWS2326

PWS2721

Output Voltage

18 V

32 V

32 V

72 V

Recommended Accessories

RMU2U Rackmount Shelf Kit for 1 or 2 Units

$155

386-7598xx

Rackmount Cosmetic

Filler Panel

$37

Output Current

5 A

3 A

6 A

1.5 A

Recommended Service

R5 5-year Extended

Warranty

$170

Programmable

No

No

No

No

Pricing (USD)

$427

$427

$517

$427

Another Product for Consideration

The PWS4000 Series offers greater accuracy, additional features and programmability.

Ships with Product

Calibration Certificate

Technical Reference Manual & Documentation on CD

Power Cord

3-year Warranty

Learn more with the

“Choosing the Right

Power Supply for

Accurate Power

Delivery” application note.

Choosing the Right Power Supply for

Accurate Power Delivery

How to Interpret Linear Power Supply Specifications

Application Note

At first glance, a variable DC power supply appears to be a fairly simple device. However, it is a sophisticated, accurate, electrically-rugged workhorse. It has to reliably deliver stable, precise, clean voltage and current, no matter its load -- resistive, inductive, capacitive, low-impedance, highimpedance, steady-state or variable. How well the power supply fulfills this mission and where it hits its limits are defined in its specifications. Choosing the right power supply for your application requires a good understanding of how they are specified.

60 www.tektronix.com/pws2000

Power Supplies

Product Highlights

Linear regulation

0.03% basic DC voltage accuracy; 0.05% basic DC current accuracy

USB interface for remote programming

Less than 5 mVp-p ripple and noise

Remote sense, list mode and 40 user-defined setup memories

The numeric keypad makes it easy to specify a precise current limit before you start your test.

PWS4000 Series USB Programmable,

Single Channel Power Supplies

Precision. Now available at the touch of a button. Generate the power you need with down to 1 mV/0.1 mA resolution and a basic voltage accuracy of 0.03%. Accelerate complex tests with list mode and a USB port for remote programming. Save time with a numeric keypad for fast and accurate voltage/current selection. Performance. Accuracy.

Affordability. Meet your new power supply.

Models

PWS4205

PWS4305

PWS4323

PWS4602

PWS4721

Output Voltage

20 V

30 V

32 V

60 V

72 V

Output Current

5 A

5 A

3 A

2.5 A

1.2 A

Programmable

Yes

Yes

Yes

Yes

Yes

PWS Series power supplies are designed to be stacked with other Tektronix bench instruments to save you valuable bench space.

Pricing (USD)

$922

$1,090

$922

$1,090

$922

Recommended Accessories

RMU2U Rackmount Shelf Kit for 1 or 2 Units

$155

386-7598xx

Rackmount Cosmetic

Filler Panel

$37

Recommended Service

SILV100 5-year Extended

Warranty

$170

Another Product for Consideration

The DMM Series offers accurate voltage, current and resistance measurements for AC and DC signals.

Ships with Product

NI LabVIEW SignalExpress

TE (LE version) Software

Calibration Certificate

Technical Reference Manual & Documentation on CD

Power Cord

3-year Warranty

Learn more with the

“Choosing the Right

Power Supply for

Accurate Power

Delivery” application note.

Choosing the Right Power Supply for

Accurate Power Delivery

How to Interpret Linear Power Supply Specifications

Application Note

Introduction to Power Supply

Specifications

At first glance, a variable DC power supply appears to be a fairly simple device. However, it is a sophisticated, accurate, electrically-rugged workhorse. It has to reliably deliver stable, precise, clean voltage and current, no matter its load -- impedance, steady-state or variable. How well the power supply fulfills this mission and where it hits its limits are defined in its specifications. Choosing the right power supply for your application requires a good understanding of how they are specified.

www.tektronix.com/pws4000 61

Power Supplies

Product Highlights

Low noise, linear regulation

0.03% basic voltage output

0.05% basic current accuracy

1mV and 0.1mA output and measurement resolution

Seven programmable output lists with up to 80 steps/ list

GPIB and USB interfaces

Series 2200 rear panel.

2200 Programmable Single-Channel DC

Power Supplies with Remote Sensing

Keithley programmable single-channel DC power supplies offer an excellent combination of performance, versatility, and ease of use, including 0.03% basic accuracy, 0.1mA measurement resolution, and keypad data entry. Select from a variety of DC power supplies with voltages from 20V to 72V.

Model

2200-20-5

2200-30-5

2200-32-3

2200-60-2

2200-72-1

Max Output Voltage

20V

30V

32V

Max Output

Current

5A

5A

3A

60V

72V

2.5A

1.2A

Power

100W

150W

96W

150W

86W

Remote sensing compensates for voltage drops in the test leads by extending the power supply feedback loop to the input of the load.

Ripple and Noise

<1mV

RMS

, <3mVP-P

<1mV

RMS

, <4mVP-P

<1mV

RMS

, <4mVP-P

<1mV

RMS

, <5mVP-P

<1mV

RMS

, <3mVP-P

Pricing (USD)

$958

$1,130

$958

$1,130

$958

Recommended Accessories

CS-1638-

12

Rear Panel Mating

Connector, Single

Channel

$20

USB-B-1 USB Cable $14

4299-7

KP-

CI-488LPA

7007-05

7007-1

7007-2

7007-3

7007-4

Fixed Rack Mount Kit

IEEE-488 Interface

Board for PCI Bus

Double Shielded

IEEE-488 Cable,

0.5m (1.6ft)

Double Shielded

IEEE-488 Cable,

1m (3.2 ft)

Double Shielded

IEEE-488 Cable,

2m (6.5 ft)

Double Shielded

IEEE-488 Cable,

3m (10 ft)

Double Shielded

IEEE-488 Cable,

4m (13 ft)

$388

$486

$113

$118

$131

$141

$147

Recommended Service

Model

Number*-

EW

1 additional year of factory warranty

3 calibrations within 3 years of purchase

C/Model

Number*-

3Y-STD

C/Model

Number*-

3Y-DATA

C/Model

Number*-

5Y-STD

3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase

5 calibrations within 5 years of purchase

$113

$599

$472

$694

C/Model

Number*-

5Y-DATA

5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase

$940

* Insert Model Number. Example: C/2200-20-5-3Y-DATA.

Ships with Product

User Documentation and Driver CD

Rear Panel Mating Connector

Calibration Certificate

Power Cord

3-year Warranty

Learn more with the “Understanding

Linear Power Supply

Specifications” application note.

62 www.keithley.com/single

Power Supplies

Model 2231A-30-3 Triple-Channel DC Power

Supply

The Model 2231A-30-3 Triple Channel DC Power Supply can output a total of 195W of power, providing the power levels needed to energize a wide range of circuits and devices for benchtop work. Two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A. The Model 2231A-30-1 does not compromise on performance or convenience features, offering the versatility and ease of use you need, so it can be the only DC power supply on your bench.

Product Highlights

195W with two [email protected] outputs and one [email protected] output

All channels are isolated and programmable

0.06% basic voltage accuracy and 0.2% basic current accuracy

Double output levels by connecting two channels in series or parallel

Optional USB interface

Fully supported by TekSmartLab™

Connect the two 30V channels in series or parallel to double the output voltage to 60V or the supplied current to 6A.

2231A-30-3 fully supported by TekSmartLab™.

Model

2231A-30-3

Max Output Voltage Max Output Current Power

CH1:30V, CH2:30V,

CH3:5V

CH1:3A, CH2:3A,

CH3:3V

195W

Ripple & Noise

<1mV

RMS

, <5mV p-p

Pricing (USD)

$650

Recommended Accessories

RMU2U Rack Mount Kit $155

$37 386-7598-

XX

RMU2U Rack Mount

Cosmetic Filler Panel

2231A-001 USB Adaptor with USB

Cable

$60

Recommended Service

Model

Number*-

EW

1-Year KeithleyCare

®

Gold Plan

5-Year KeithleyCare

Gold Plan

Model

Number*-

5Y-EW

C/Model

Number*-

3Y-STD

C/Model

Number*-

5Y-STD

KeithleyCare 3-Yr Std

Calibration Plan

KeithleyCare 5-Yr Std

Calibration Plan

* Insert Model Number. Examples: 2231A-5Y-EW,

C/2200-20-5-3Y-DATA

$57

$116

$851

$1,400

Ships with Product

Documentation CD

Calibration Certificate

Power Cord

3-year Warranty

Learn more with the “Diode Clipper

Circuit” course.

www.keithley.com/multi 63

Power Supplies

Product Highlights

Dual and triple channel models

Two 30V/1.5A channels

One 6V/5A channel (on triple channel model)

All channels are isolated and programmable

USB interface, USB and GPIB on G versions

Fully supported by TekSmartLab

Model 2230G-30-1 rear panel.

2220/2230 Programmable Multiple Channel

DC Power Supplies with Remote Sensing

Keithley programmable multi-channel DC power supplies offer an excellent combination of performance, versatility, and ease of use including fully isolated channels, fully programmable channels, and all channel measurements displayed simultaneously. Choose either the dual channel DC power supply or the triple channel DC power supply.

Power two isolated circuits with isolated output channels.

Model Max Output Voltage Max Output Current Power Ripple and Noise

2220-30-1

2220G-30-1*

2220J-30-1 *

2220GJ-30-1 *

2230-30-1

2230G-30-1*

2230J-30-1*

2230GJ-30-1*

Ch 1: 30V, Ch 2:30V

Ch1: 30V, Ch 2: 30V,

Ch 3: 6V

*G versions include a GPIB interface; J versions for Japan.

Ch1: 1.5A, Ch 2: 1.5A

Ch1: 1.5A, Ch 2: 1.5A,

Ch 3: 5A

45W/channel; 90W total

Ch 1 and Ch 2: 45W each

Ch 3: 30W, 120W total

Recommended Accessories

CS-1655-

15

USB-B-1

Rear Panel Mating

Connector, Multi-

Channel

USB Cable

$20

$14

4299-7 Fixed Rack Mount Kit

$388

Recommended Service

Model

Number*-

EW

Model

Number*-

5Y-EW

C/Model

Number*-

3Y-STD

C/Model

Number*-

3Y-DATA

C/Model

Number*-

5Y-STD

C/Model

Number*-

5Y-DATA

1 additional year of factory warranty

2 additional years of factory warranty beyond the standard

3-year warranty

3 calibrations within 3 years of purchase

3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase

5 calibrations within 5 years of purchase

5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase

* Insert Model Number. Examples: 2220-30-1-5Y-EW,

C/2220-30-1-3Y-DATA

Varies

Varies

Varies

Varies

Varies

Varies

Recommended Accessories

Additional Recommended Accessories for

“G” Versions

$486 KP-

CI-488LPA

7007-05

7007-1

7007-2

7007-3

IEEE-488 Interface

Board for PCI Bus

Double Shielded

IEEE-488 Cable,

0.5m (1.6ft)

Double Shielded

IEEE-488 Cable,

1m (3.2 ft)

Double Shielded

IEEE-488 Cable,

2m (6.5 ft)

Double Shielded

IEEE-488 Cable,

3m (10 ft)

$113

$118

$131

$141

7007-4 Double Shielded

IEEE-488 Cable,

4m (13 ft)

$147

<1mVRMS, <3mV P-P

<1mVRMS, <3mV P-P

Ships with Product

User Documentation and Driver CD

Rear Panel Mating Connector

Calibration Certificate

Power Cord

3-year Warranty

Learn more with the

“Ensuring that Power

Supply Performance

Meets Your

Requirements” application note.

64 www.keithley.com/multi

Pricing (USD)

$983

(2220-30-1)

$1,180

(2220G-30-1)

Power Supplies

Product Highlights

Wide output range with constant power

Programmable voltage/current rise and fall times

Constant current priority setting

Programmable output resistance

USB, LAN, Analog Control, optional GPIB

40V/s

20V/s

10V/s

5V/s

Precisely control voltage rise time with the variable slew rate control.

Rear panel of Model 2260B-

30-36 or 2260B-80-13

Series 2260B Programmable DC Power

Supplies

Source a wide range of voltages and currents with Series 2260B Programmable DC

Power Supplies. All four supplies have constant power outputs to provide a flexible range of voltage and current output combinations. The 360W supplies can output as much as 30V or 80V or as much as 13.5A or 36A, while the 720W supplies can output twice as much current, 72A and 27A, with the same maximum voltage outputs. Series 2260B power supplies offer multiple interfaces that make them wellsuited for numerous applications, including research and design, quality control, and production test.

Model

2260B-30-36

2260B-80-13

2260B-30-72

2260B-80-27

Max Output

Voltage

30V

80V

30V

80V

Max Output

Current

36A

13.5A

72A

27A

Power

360W

360W

720W

720W

Ripple & Noise

<7 mV

RMS

, <60 mV p-p

<7 mV

RMS

, <60 mV p-p

<11 mV

RMS

, <80 mV p-p

<11 mV

RMS

, <80 mV p-p

Recommended Accessories

2260-001 Accessory Kit $36

2260-002 Simple IDC Tool $166

2260-003

2260-004

2260-005

2260-006

2260-007

Contact Removal Tool

Basic Accessories kit

$12

$14

Cable for 2 units in

Series connection

Cable for 2 units in

Parallel connection

$43

$43

Cable for 3 units in

Parallel connection

$66

GPIB To USB Adapter $383 2260B-

GPIB-USB

2260B-

EXTERM

2260B-

RMK-JIS

2260B-

RMK-EIA

Extended Terminal

Rack Mount Kit (JIS)

Rack Mount Kit (EIA)

$112

$179

$179

Recommended Service

Model

Number*-

EW

3-year factory warranty extended to

1 additional year from date of shipment

Model

Number*-

5Y-EW

C/Model

Number*-

3Y-STD

C/Model

Number*-

3Y-DAT

C/Model

Number*-

5Y-STD

C/Model

Number*-

5Y-DAT

3-year factory warranty extended to 5 years from date of shipment

KeithleyCare 3-Year

Standard Calibration

Plan

KeithleyCare 3-Year

Calibration with Data

Plan

KeithleyCare 5-Year

Standard Calibration

Plan

KeithleyCare 5-Year

Calibration with Data

Plan

Varies

Varies

Varies

Varies

Varies

Varies

* Insert Model Number. Examples: 2260B-30-36-5Y-EW,

C/2260B-30-36-3Y-DATA.

Ships with Product

2260B Basic Accessories Kit

Test Leads

USB Cable

Quick Start Guide

CD with Manuals and Software Drivers

Power Cord

3-year Warranty

Learn more with the

“Avoiding Inrush Current when Testing High

Power LEDs with Series

2260B Power Supplies” application note.

Pricing (USD)

$1,420

$1,420

$1,880

$1,880 www.keithley.com/products/dcac/highspeedpower 65

Power Supplies

Series 2280S Precision Measurement DC

Power Supplies

Series 2280S Precision Measurement, Low Noise, Programmable DC Power

Supplies are much more than just sources of clean power; they are also precision measurement instruments. They can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps. The

Model 2280S-32-6 can output up to 32V at up to 6A; the Model 2280S-60-3 can output up to 60V at up to 3.2A.

Product Highlights

10nA resolution to 6A with high accuracy, measure voltage and current with 6½-digit resolution

Capture dynamic load currents as short as 140µs

Output up to 192W of low noise, linear regulated power

Programmable rise and fall times eliminate voltage overshoot and undershoot transients

Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms

GPIB, USB, and LAN interfaces, built-in LXI web interface simplifies automated control/monitoring/data logging

Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms.

Remote control or monitor the supply using its web browser over the LAN LXI interface.

KickStart software DC power supply main screen.

Model

2280S-32-6

2280S-60-3

Max Output Voltage/

Current

32V/6A

60V/3.2A

Output Power

192W

192W

Recommended Accessories

2280-001 Rear Panel Mating connector and Cover

$71

$39 2280-Test-

Lead

Power Supply Test

Lead Kit, 1000V, 20A

Rating

CA-180-3A LAN Crossover Cable $10

USB-B-1

2450-

TLINK

4299-8

4299-9

4299-10

4299-11

USB Cable Type A to

B, 1m (3.3 ft)

Trigger Link cable to connect 2280S digital

I/O to Trigger Link

I/O on other Keithley instruments

Single Fixed Rack-

Mount Kit

Dual Fixed Rack-Mount

Kit

Dual Fixed Rack-

Mount Kit for one 2U

Graphical Display

Instrument and one

Series 26xx Instrument

Dual Fixed Rack-

Mount Kit for one 2U

Graphical Display

Instrument and one

Series 24xx, Series

2000, or 2U Agilent

Instrument

$14

$52

$312

$244

$635

$625

66 www.keithley.com/products/dcac/highspeedpower

Recommended Accessories

7007-05 Double Shielded

Premium IEEE-488

Interface Cables, 0.5m

(1.6 ft)

$113

7007-1 $118

7007-2

7007-3

7007-4

KP-

CI-488LPA

Double Shielded

Premium IEEE-488

Interface Cables, 1m

(3.2 ft)

Double Shielded

Premium IEEE-488

Interface Cables, 2m

(6.5 ft)

Double Shielded

Premium IEEE-488

Interface Cables, 3m

(10 ft)

Double Shielded

Premium IEEE-488

Interface Cables, 4m

(13 ft)

IEEE-488.2 Interface

Board for the PCI Bus

$131

$141

$147

$486

Max Current

Measurement Accuracy

±(0.05% + 10 µA)

±(0.05% + 10 µA)

Transient

Response Time

<50µs

<50µs

Ships with Product

KickStart software

2280-001 output mating connector

LAN crossover cable

Documentation CD

QuickStart guide

Calibrate Certificate

Power Cord

3-year Warranty

Pricing (USD)

$1,990

$1,990

Learn more with the

“Making Low Current

Measurements with a

Series 2280S Precision

Measurement DC

Power Supply” application note.

Power Supplies

Product Highlights

Compact 1U high, half-rack wide

5V and 15V auxiliary outputs

Isolated and non-isolated analog inputs and outputs

Foldback mode with programmable delay

Control up to 30 supplies through one interface

LAN, USB, GPIB, RS-232, RS-485, and analog I/O are all standard

Series 2268 rear panel showing all the interfaces.

Series 2268 850W DC Power Supplies

Series 2268 power supplies provide both analog and digital control options and a number of digital interface options and can operate in constant voltage (CV), constant current (CC), or constant power modes to address a broad array of applications. These high-efficiency, soft-starting power supplies provide reliable performance and long life. Packaged in low profile 1U high, half-rack width enclosures, they offer the highest power density in the smallest package.

PC

Sensors

PLC

Isolated

Analog

Input

Interlock

Safety Limit

Switches

Series 2268

DC Power Supply

Aux Out

15V

Output +

Output –

Aux Out

5V

Control Relay

DUT or

Load

Fixture

Control

Control a 2268 supply with analog inputs and control external devices with the auxiliary outputs.

Model Max Output Voltage Max Output Current Power

2268-20-42 20V

2268-40-21 40V

2268-60-14 60V

2268-80-10 80V

2268-100-8 100V

2268-150-5 150V

42A

21A

14A

10.5

8.5A

5.6A

850W

850W

850W

850W

860W

850W

Ripple

50mV p-p

50mV p-p

50mV p-p

80mV p-p

80mV p-p

100mV p-p

Noise

8mV

RMS

8mV

RMS

8mV

RMS

8mV

RMS

8mV

RMS

10mV

RMS

Pricing (USD)

$2,500

$2,500

$2,500

$2,500

$2,500

$2,500

Recommended Accessories

2268-HDR Hardware to Connect

Test Lead Lugs to the

2268-20-42 or 2268-

40-21

$8

2268-

RMK-1

2268-

RMK-2

Rack Mount Kit for One

Series 2268 DC Power

Supply

Rack Mount Kit for Two

Series 2268 DC Power

Supplies

$220

$140

CA-180-3A LAN Crossover Cable

USB-B-1

KP-

CI-488LPA

KUSB-

488B

USB Cable Type A to

B, 1m (3.3 ft)

IEEE-488.2 Interface

Board for the PCI Bus

IEEE-488.2 USB-GPIB

Interface Adapter for

USB Port

$10

$14

$475

$539

Recommended Accessories

7007-05 Double Shielded

Premium IEEE-488

Interface Cables, 0.5m

(1.6 ft)

$113

7007-1 $118

7007-2

Double Shielded

Premium IEEE-488

Interface Cables, 1m

(3.2 ft)

Double Shielded

Premium IEEE-488

Interface Cables, 2m

(6.5 ft)

$131

7007-3

7007-4

Double Shielded

Premium IEEE-488

Interface Cables, 3m

(10 ft)

Double Shielded

Premium IEEE-488

Interface Cables, 4m

(13 ft)

$141

$147

Ships with Product

CD with user manual

Test lead connection hardware (for 2268-20-42 and

2268-40-21 only)

Power cord

Recommended Service

Model

Number*-EW

1 additional year of factory warranty Varies

Model

Number*-

5Y-EW

C/Model

Number*-

3Y-STD

2 additional years of factory warranty beyond the standard 3-year warranty

3 calibrations within 3 years of purchase

Varies

Varies

3Y-DATA 3 (ANSI-Z540-1 compliant) calibrations within 3 years of purchase

Varies

5 calibrations within 5 years of purchase Varies C/Model

Number*-

5Y-STD

C/Model

Number*-

5Y-DATA

5 (ANSI-Z540-1 compliant) calibrations within 5 years of purchase

* Insert Model Number. Exampls: 2268-40-21-5Y-EW, C/2268-40-21-3Y-DATA.

Varies www.keithley.com/products/dcac/highspeedpower 67

Power Supplies

Product Highlights

Source voltages up to 5kV and 10kV

1µA current measurement resolution

Low noise for precision sourcing and sensitive measurements; selectable filters reduce noise to less than 3mV

RMS

on the 5kV supply

Safety interlock controls high voltage output

GPIB programmable

Protection module prevents damage to low voltage instrumentation

The Model 2290-PM-200

Protection Module protects low voltage measurement equipment from voltages greater than 200V.

2290 High Voltage Power Supplies

Series 2290 High Voltage Power Supplies facilitate high voltage device and material testing, as well as high energy physics experimentation. The Model 2290-5 5kV

Power Supply provides voltage outputs up to 5000V, and the Model 2290-10 10kV

Power Supply offers up to 10,000V. These supplies measure both output voltage with 1V resolution and output current with 1µA resolution.

Reverse breakdown testing of a high voltage diode using a

Keithley SourceMeter ® SMU instrument to measure leakage currents down to pA levels.

The Model 2290-PM-200 SMU

Protection Module protects the

SourceMeter SMU instrument from high voltage when the diode breaks down.

Model

2290-5

2290-10

Max Output

Voltage

5kV

10kV

Max Output

Current

5mA

1mA

Power

25W

10W

68

Recommended Accessories

For 2290-5

2290-5-

SHV

2290-5-

MHV

2290-5-

SHVBH

2290-5-

RMK-1

2290-5-

RMK-2

5kV SHV Female–SHV

Female Cable, 3m

(10 ft)

5kV SHV Female–MHV

Male Cable, 3m (10 ft)

5kV SHV Male

Bulkhead Connector

Single Fixed Rack

Mount Kit for 5kV

Power Supply

Dual Fixed Rack Mount

Kit for 5kV Power

Supply

For 2290-10

2290-10-

SHVUC

2290-10-

SHV

2290-10-

SHVBH

2290-10-

RMK-1

2290-10-

RMK-2

10kV SHV Male to

Unterminated Cable,

3m (10ft)

10kV SHV Male–SHV

Male Cable, 3m (10 ft)

10kV SHV Female

Bulkhead Connector

Single Fixed Rack

Mount Kit for 10kV

Power Supply

Dual Fixed Rack Mount

Kit for 10kV Power

Supply

$290

$350

$52

$210

$230

$750

$890

$130

$210

$230

Recommended Accessories

For both

10kV Protection Module $1,200 2290-PM-

200

2290-INT-

CABLE

$30

4299-7

KP-

CI-488LPA

KUSB-

488B

7007-05

7007-1

7007-2

7007-3

7007-4 www.keithley.com/products/dcac/highspeedpower

3-Pin Connector to

Unterminated Interlock

Cable

Fixed Shelf Rack Mount

Kit

IEEE-488.2 Interface

Board for the PCI Bus

IEEE-488.2 USB-GPIB

Interface Adapter for

USB port with built-in

2m (6.6 ft) cable

Double Shielded

Premium IEEE-488

Interface Cable, 0.5m

(1.6 ft)

Double Shielded

Premium IEEE-488

Interface Cable, 1m

(3.2 ft)

Double Shielded

Premium IEEE-488

Interface Cable, 2m

(6.5 ft)

Double Shielded

Premium IEEE-488

Interface Cable, 3m

(10 ft)

Double Shielded

Premium IEEE-488

Interface Cable, 4m

(13 ft)

$388

$486

$539

$113

$118

$131

$141

$147

Ripple

3mV

RMS

maximum with filter

1V

RMS

Pricing (USD)

$3,890

$4,900

Ships with Product

CD with User Manual, Software Drivers, and

Accessory Information

Power Cord

Learn more with the

“Breakdown and

Leakage Current

Measurements on High

Voltage Semiconductor

Devices Using Keithley

Series 2290 High Voltage Power

Supplies and Series 2600B System

SourceMeter Source Measure Unit

(SMU) Instruments” application note.

Recommended Service

Model Number*-

3Y-EW

Model Number*-

5Y-EW

C/Model

Number*-3Y-STD

1-Year Factory Warranty extended to 3 years from date of shipment

1-Year Factory Warranty extended to 5 years from date of shipment

KeithleyCare 3-Year Standard

Calibration Plan

* Insert Model Number. Examples: 2290-5-3Y-EW, C/2290E-10-3Y-STD.

Varies

Varies

Varies

Power Supplies

Product Highlights

Optimized for battery-powered device testing

100nA current measurement sensitivity

Load pulse current measurement: 33µs - 833µs

Variable output resistance: 0 - 1 Ω with 10mΩ resolution

Measure sleep, currents, standby currents, and full load currents to determine power consumption

Sink current to simulate a discharged battery

Model 2306 Rear Panel.

Series 2300 Portable Device Battery/Charger

Simulators

Keithley's battery simulating power supplies can simulate a battery's output characteristics and its discharged state. These supplies can measure low, sleep mode load current and pulsed output load current. Dual channel models facilitate testing portable device, charge control circuitry with a battery channel and a charger simulator channel.

Model

2302

2306

2308

2

2

Channels

1

Max Output Voltage /

Current

15 V / 5 A

15 V / 5 A

15 V / 5 A

Power

42W

45W

45W

Simplified schematic of a battery and the 2302/2306.

Transient Response to a

10X Load Current Change

<40µs recovery time and

<75mV voltage drop

<40µs recovery time and

<75 mV voltage drop

<35µs recovery time and

<90 mV voltage drop

Current Sink

Capacity

3A

3A

3A

Pricing (USD)

$2,770

$3,440

$3,140

Recommended Accessories

2306-DISP Remote Display

(2302, 2306, 2308)

$365

CS-846 $19

SC-182

4288-1

4288-2

KPCI-

488LPA

KUSB-

488B

Mating Output

Connector

Low Inductance

Coaxial Cable

Single Fixed Rack

Mount Kit

Dual Fixed Rack

Mount Kit

IEEE-488 Interface

Board for PCI Bus

IEEE-488 USB-to-GPIB

Interface Adapter

$0.50/ inch

$95

$133

$475

$539

Recommended Accessories

7007-05 Double Shielded

IEEE-488 Cable,

0.5m (1.6ft)

$113

7007-1 $118

7007-2

7007-3

7007-4

Double Shielded

IEEE-488 Cable,

1m (3.2 ft)

Double Shielded

IEEE-488 Cable,

2m (6.5 ft)

Double Shielded

IEEE-488 Cable,

3m (10 ft)

Double Shielded

IEEE-488 Cable,

4m (13 ft)

$131

$141

$147

Recommended Service

Model

Number*-

3Y-EW

1-year factory warranty extended to 3 years from date of shipment

Model

Number*-

PJ-3Y-EW

1-year factory warranty extended to 3 years from date of shipment

* Insert Model Number. Example: 2302-3Y-EW.

Varies

Varies

Ships with Product

User Documentation

Rear Panel Mating Connector

Calibration Certificate

Power Cord

1-year Warranty

Learn more with the

“Simulating Battery

Impedance with the

Models 2302 and 2306

Battery Simulators/

Chargers” application note.

www.keithley.com/battery 69

Power Supplies

Product Highlights

Ultra-fast response times to load changes

Optimized for battery-powered device testing

100nA current measurement sensitivity

Load pulse current measurement: 33µs - 833µs

Measure sleep, standby currents, and full load currents to determine power consumption

Sink current to simulate a discharged battery

Model 2303 or 2304A rear panel.

2303/2304A High Speed Power Supplies

The Model 2303/2304A Power Supplies provide both voltage control and power consumption monitoring for automated testing of portable, battery-operated devices. They are optimized for testing battery-operated, wireless communication devices such as cellular phones that undergo substantial load changes for very short time intervals.

Model

2303

2304A

Channels

Single

Output

Single

Output

Max Output Voltage /

Current

15V/3A or 9V/5A

20V/5A

Power

45W

100W

Transient Response to a

10X Load Current Change

<40µs recovery time and

<100mV voltage drop

<40µs recovery time and

<100mV voltage drop

Current Sink

Capacity

2A

3A

Keithley’s high speed power supplies maintain a stable voltage during large load changes.

Pricing (USD)

$2,100

$2,830

Recommended Accessories

2304-DISP Remote Display

(2303, 2304A)

$226

CS-846 $19

SC-182

4288-1

4288-2

KPCI-

488LPA

KUSB-

488B

Mating Output

Connector

Low Inductance

Coaxial Cable

Single Fixed Rack

Mount Kit

Dual Fixed Rack

Mount Kit

IEEE-488 Interface

Board for PCI Bus

IEEE-488 USB-to-GPIB

Interface Adapter

$0.50/ inch

$95

$133

$475

$539

Recommended Accessories

7007-05 Double Shielded

IEEE-488 Cable,

0.5m (1.6ft)

$113

7007-1 $118

7007-2

7007-3

7007-4

Double Shielded

IEEE-488 Cable,

1m (3.2 ft)

Double Shielded

IEEE-488 Cable,

2m (6.5 ft)

Double Shielded

IEEE-488 Cable,

3m (10 ft)

Double Shielded

IEEE-488 Cable,

4m (13 ft)

$131

$141

$147

Recommended Service

Model

Number*-

3Y-EW

C/Model

Number*-

3Y-ISO

1-year factory warranty extended to 3 years from date of shipment

3 (ISO-17025 accredited) calibrations within 3 years of purchase for Models

2303, 2303-PJ*

Varies

Varies

* Insert Model Number. Examples: 2303-3Y-EW, C/2303-3Y-ISO.

Ships with Product

User Documentation

Rear Panel Mating Connector

Calibration Certificate

Power Cord

1-year Warranty

Learn more with the

“Stabilizing Fast

Transient Response

Power Supply/Load

Circuits” application note.

70 www.keithley.com/battery

Frequency Counter/Timers Selection

Frequency Counter/Timers

Featuring the precision and intuitive operation you’ve come to expect from our oscilloscopes, Tektronix counter/timers are built with performance and convenience in mind. Featuring industryleading resolution, built-in measurement and analysis modes.

Frequency Range

Resolution

Data Transfer

Measurements

FCA3000

400 MHz, 3 GHz, 20 GHz

100 ps (time)

12 digits/s (freq)

250 k Samples/sec (internal)

5 k Samples/sec (block)

13 Automated Measurements

Frequency, Period, Ratio, Time Interval, Time

Interval Error, Pulse Width, Rise/Fall Time,

Phase Angle, Duty Cycle, Vmax, Vmin, Vp-p

Analysis Modes

Connectivity

Starting Price

TrendPlot

, Measurement Statistics, Allan

Deviation, Histogram

Rear panel: USB device port, GPIB

PC communications software: NI LabVIEW

SignalExpress

Tektronix Edition (LE Version)

$2,310

FCA3100

400 MHz, 3 GHz, 20 GHz

50 ps (time)

12 digits/s (freq)

250 k Samples/sec (internal)

15 k Samples/sec (block)

14 Automated Measurements

Frequency, Period, Ratio, Time Interval, Time

Interval Error, Pulse Width, Rise/Fall Time,

Phase Angle, Duty Cycle, Vmax, Vmin, Vp-p,

Totalize

TrendPlot

, Measurement Statistics, Allan

Deviation, Histogram

Rear panel: USB device port, GPIB

PC communications software: NI LabVIEW

SignalExpress

Tektronix Edition (LE Version)

$3,610

MCA3000

27 GHz, 40 GHz

100 ps (time)

12 digits/s (freq)

250 k Samples/sec (internal)

5 k Samples/sec (block)

13 Automated Measurements

Frequency, Period, Ratio, Time Interval, Time

Interval Error, Pulse Width, Rise/Fall Time,

Phase Angle, Duty Cycle, Vmax, Vmin, Vp-p

+ An Integrated Power Meter

TrendPlot

, Measurement Statistics, Allan

Deviation, Histogram

Rear panel: USB device port, GPIB

PC communications software: NI LabVIEW

SignalExpress

Tektronix Edition (LE Version)

$9,300

Choosing Your Counter/Timer

To help you choose the right counter/timer for your needs, the most common selection criteria are listed below, along with helpful tips for determining your requirements.

The frequency resolution is the smallest change the counter/timer can detect in closely spaced frequencies. The resolution is influenced by the time setting on the instrument, i.e., longer time settings (averaged) will display more digits. In general this feature is expressed as the number of digits per second shown on the instrument’s display (e.g., 12 digits/s). More digits indicate a higher frequency resolution.

The internal time base establishes the reference against which input signals are measured. The better the time base, the more accurate your measurements can be. Most counters employ a quartz crystal as the internal time base element which comes in 3 basic types; Room Temperature (RTXO), Temperature

Compensated (TCXO) and Oven Control (OCXO). TCXO and

OCXO devices are more stable and when used as the internal time base, the instrument will consistently yield accurate and reliable results.

For timing measurements this feature represents the smallest

“time” change that the instrument can detect. Time resolution is sometimes described as “single shot” resolution and is generally measured in picoseconds, e.g., 50 ps. The lower the number, the better the time resolution feature.

When choosing your counter/timer, you should review available analysis modes, such as trend plotting, measurement statistics, histograms and modulation domain analysis to ensure your needs are met.

www.tektronix.com

71

Frequency Counter/Timers

Product Highlights

12 digit/sec frequency resolution

50 ps (FCA3100) or 100 ps (FCA3000) single-shot time resolution

0.001° phase resolution

250 k readings/sec data transfer rate to internal memory

13 automated frequency, time, phase and voltage measurements

See how your device is changing over time with built-in analysis modes –

TrendPlot

, histograms and statistics.

FCA3100/3000 Series

Looking to capture small frequency and time changes? Look no further than this

Timer/Counter/Analyzer. Capture small changes in your signal with industry-leading frequency and time resolution. Quickly and accurately analyze signals with 13 automated measurements and comprehensive built-in analysis modes, including measurement statistics, histograms and trending. Get unparalleled ease of use with intuitive operation and USB connectivity. It’s everything you need in a Timer/Counter/Analyzer. And more.

Easily connect to a PC with the USB and GPIB ports.

Models

FCA3000

FCA3003

FCA3020

FCA3100

FCA3103

FCA3120

Recommended Accessories

174-4401xx

USB Host to Device

Cable, 3 Feet

$10

012-0991xx

GPIB Cable, Double

Shielded

$563

012-1256xx

ACD4000

BNC Male to BNC

Male, 9 Feet

Soft Carrying Case

$97

$272

HCTEK-

4321

RMU2U

Hard Carrying Case $829

$155

TVA3000

Rackmount Shelf Kit for 2 Units

TimeView

Modulation Domain

Analysis Software

$826

Max. Frequency

400 MHz

3 GHz

20 GHz

400 MHz

3 GHz

20 GHz

Channels

2

2 – 400 MHz

1 – 3 GHz

2 – 400 MHz

1 – 20 GHz

2

2 – 400 MHz

1 – 3 GHz

2 – 400 MHz

1 – 20 GHz

Instrument Options

MS Medium Stability OCXO

Timebase, 2 X 10 -7

HS High Stability OCXO

Timebase, 5 X 10

-8

RP

$717

$1,130

Rear-panel Connectors $166

Time Resolution

100 ps

100 ps

100 ps

50 ps

50 ps

50 ps

Recommended Service

SILV200 5-year Extended

Warranty (FCA3000,

FCA3003, FCA3100,

FCA3103)

SILV400 5-year Extended

Warranty (FCA3020,

FCA3120)

$283

$453

Frequency

Resolution

12 digit/s

12 digit/s

12 digit/s

12 digit/s

12 digit/s

12 digit/s

Pricing (USD)

$2,310

$3,380

$6,700

$3,610

$4,690

$7,980

Ships with Product

Trial Version of TimeView

Software and NI LabVIEW

SignalExpress

TE (LE version) Software

Calibration Certificate

User Manual on CD

Programmers Guide & Technical Specifications

Power Cord

3-year Warranty

Learn more with the

“Time and Frequency

Measurements for Oscillator

Manufacturers” application note.

Time and Frequency Measurements for Oscillator Manufacturers

Using the FCA3000 and FCA3100 Series Timer/Counter/Analyzers

Application Note

72 www.tektronix.com/fca3000

Frequency Counter/Timers

Product Highlights

12 digit/sec frequency resolution

100 ps single-shot time resolution

250 k readings/sec data transfer rate to internal memory

13 automated frequency, time, phase and voltage measurements

Integrated power meter

See how your device is changing over time with built-in analysis modes –

TrendPlot

, histograms and statistics.

MCA3000 Series

Feature-rich. Fully loaded. No matter how you say it, this microwave timer/counter is packed with functionality. Measure up to 40 GHz signals. And, get two extra 300 MHz timer/counter ports for added versatility. Quickly and accurately analyze signals with

13 automated measurements and comprehensive analysis modes, including statistics, histograms and trending. Get unparalleled ease of use with intuitive operation and USB connectivity. Finally, fully-loaded comes standard.

Easily connect to a PC with the USB and GPIB ports.

Models

MCA3027

MCA3040

Recommended Accessories

174-4401xx

USB Host to Device

Cable, 3 Feet

$10

012-0991xx

GPIB Cable, Double

Shielded

$563

$97 012-1256xx

AC4000

HCTEK-

4321

RMU2U

BNC Male to BNC

Male, 9 Feet

Soft Carrying Case

Hard Carrying Case

$259

$829

$155

TVA3000

Rackmount Shelf Kit for 2 Units

TimeView

Modulation

Domain Analysis

Software

$826

Max. Frequency

27 GHz

40 GHz

Channels

2 – 300 MHz

1 – 27 GHz

2 – 300 MHz

1 – 40 GHz

Time Resolution

100 ps

100 ps

Instrument Options

HS High Stability OCXO

Timebase, 5 X 10 -8

US Ultra High Stability

OCXO Timebase,

1.5 X 10 -8

$1,170

$2,340

Recommended Service

SILV600 5-year Extended

Warranty

$675

Frequency

Resolution

12 digit/s

12 digit/s

Pricing (USD)

$9,300

$13,700

Ships with Product

Trial Version of TimeView

Software and NI LabVIEW

SignalExpress

TE (LE version) Software

Calibration Certificate

User Manual on CD

Programmers Guide & Technical Specifications

Power Cord

3-year Warranty

Learn more with the

“Measurement

Statistics, Histograms and TrendPlot

Analysis

Modes” application note.

Measurement Statistics, Histograms and Trend Plot Analysis Modes

Using the Tektronix FCA and MCA Series Timer/Counter/Analyzers

Application Note

“How am I supposed to observe signal integrity, jitter or even drift issues in my frequency measurements with only a numeric readout?” A simple numeric reading gives you only part of the story. An equally important question is: “How stable is the oscillator frequency in my circuit after several periods?”

Understanding this and other questions requires looking at measurement statistics. What is the average value of my signal? What is the standard deviation or Allan deviation of my measurement? Tektronix FCA3000, FCA3100 and MCA3000

Series Timer/Counter/Analyzers offer integrated analysis functions to help you quickly answer these questions. www.tektronix.com/mca3000 73

Contact TestEquity

Need more product information or ready to purchase? Contact TestEquity. We are an authorized Tektronix Partner available for your product questions and needs.

www.testequity.com

800-732-3457 [email protected]

About TestEquity

TestEquity is a value added distributor of test and measurement equipment as well as tools and supplies for laboratories and electronics manufacturing. In business since 1971, the company provides new and selected pre-owned test equipment for sale, rent or lease. With resources that include a highly trained team of product specialists and a calibration laboratory accredited to ISO/IEC 17025 and ANSI/NCSL Z540-1 standards.

At TestEquity we've always emphasized quality, whether it is the quality of our service, the quality of our people or the quality of the overall experience you receive. In addition to providing you a vast selection of products, we simplify your purchasing options by providing technical and application support to ensure you find the perfect solution to meet your specific needs. It’s just part of the way we’re working to prove our value to you—every day.

TestEquity maintains its headquarters and manufacturing facilities in Moorpark, California with sales offices throughout the United States, Canada, and Mexico.

Copyright © 2015, Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

03/15 EA/RRD 48A-25025-15_TE

Authorized Tektronix Distributor

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
