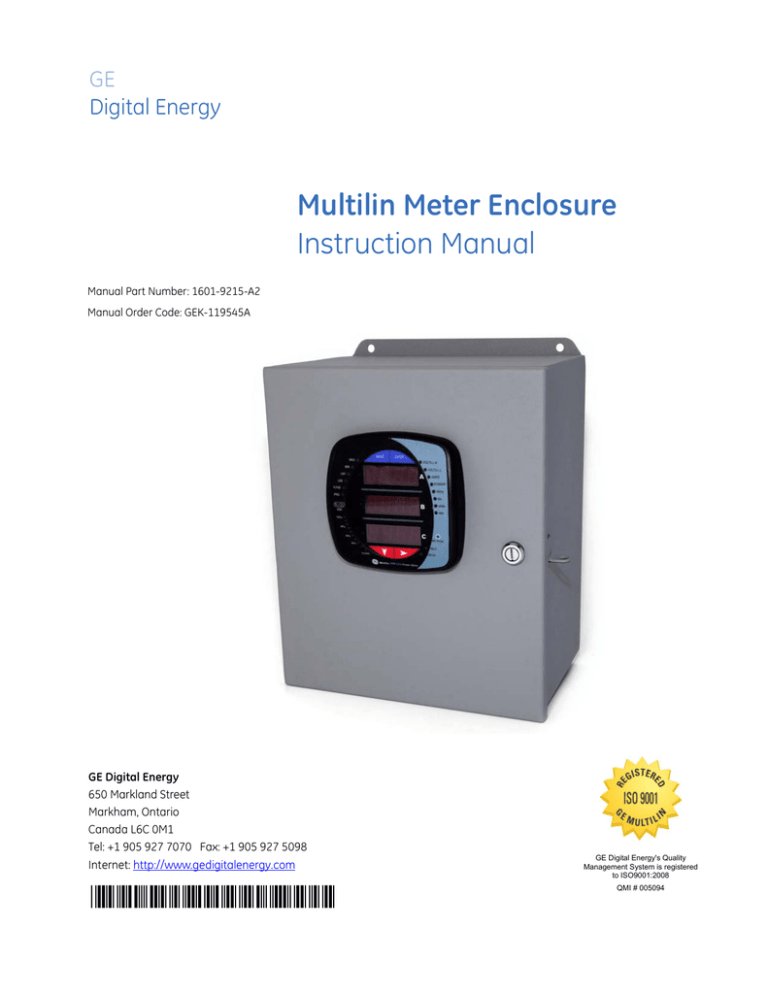

Multilin Meter Enclosure
Instruction Manual
Manual Part Number: 1601-9215-A2
Manual Order Code: GEK-119545A
GE Digital Energy
650 Markland Street
Markham, Ontario
Canada L6C 0M1
Tel: +1 905 927 7070 Fax: +1 905 927 5098
Internet: http://www.gedigitalenergy.com
*1601-9215-A1*
GE Digital Energy's Quality
Management System is registered
to ISO9001:2008
QMI # 005094
Copyright © 2015 GE Multilin Inc. All rights reserved.
Multilin Meter Enclosure Instruction Manual.
Multilin Meter Enclosure is a registered trademark of GE Multilin Inc.
The contents of this manual are the property of GE Multilin Inc. This documentation is
furnished on license and may not be reproduced in whole or in part without the permission
of GE Multilin Inc. The content of this manual is for informational use only and is subject to
change without notice.
Part numbers contained in this manual are subject to change without notice, and should
therefore be verified by GE Multilin Inc. before ordering.
Part number: 1601-9215-A2 (February 2015)
Note
General Safety Precautions
• Failure to observe and follow the instructions provided in the equipment manual(s)
could cause irreversible damage to the equipment and could lead to property
damage, personal injury and/or death.
• Before attempting to use the equipment, it is important that all danger and
caution indicators are reviewed.
• If the equipment is used in a manner not specified by the manufacturer or
functions abnormally, proceed with caution. Otherwise, the protection provided by
the equipment may be impaired and can result in Impaired operation and injury.
• Caution: Hazardous voltages can cause shock, burns or death.
• Installation/service personnel must be familiar with general device test practices,
electrical awareness and safety precautions must be followed.
• Before performing visual inspections, tests, or periodic maintenance on this device
or associated circuits, isolate or disconnect all hazardous live circuits and sources
of electric power.
• Failure to shut equipment off prior to removing the power connections could
expose you to dangerous voltages causing injury or death.
• All recommended equipment that should be grounded and must have a reliable
and un-compromised grounding path for safety purposes, protection against
electromagnetic interference and proper device operation.
• Equipment grounds should be bonded together and connected to the facility’s
main ground system for primary power.
• Keep all ground leads as short as possible.
• At all times, equipment ground terminal must be grounded during device
operation and service.
• In addition to the safety precautions mentioned all electrical connections made
must respect the applicable local jurisdiction electrical code.
• Before working on CTs, they must be short-circuited.
• To be certified for revenue metering, power providers and utility companies must
verify that the billing energy meter performs to the stated accuracy. To confirm the
meter’s performance and calibration, power providers use field test standards to
ensure that the unit’s energy measurements are correct.
• This product must be padlocked after service or commissioning is completed.
Safety words and definitions
The following symbols used in this document indicate the following conditions:
Indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
Note
Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
Note
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
Note
Indicates practices not related to personal injury.
Note
Indicates general information and practices, including operational information and
practices, that are not related to personal injury.
NOTE
Table of Contents
1: INTRODUCTION
PRODUCT HANDLING .................................................................................................................... 2
SAFETY PRECAUTIONS ................................................................................................................... 3
STORAGE ............................................................................................................................................. 3
COMPLIANCE ..................................................................................................................................... 3
SPECIFICATIONS ............................................................................................................................... 4
2: ORDERING
INFORMATION
ORDER CODES ................................................................................................................................... 5
3: INSTALLATION
RECOMMENDED PROCEDURES FOR WIRE ENTRY HOLE CUTTING ............................ 12
INSTALLATION ................................................................................................................................... 14
INSTALLATION STEPS ..................................................................................................................... 17
DOOR LOCKING INSTRUCTIONS ............................................................................................... 18
4: ELECTRICAL WIRING
WIRING INSTRUCTIONS ................................................................................................................ 20
WIRE DELTA, 3 CT HOOKUP ........................................................................................................ 23
5: OPERATION
METER ENCLOSURE OPERATION .............................................................................................. 25
6: MAINTENANCE
REMOVING A METER FROM SERVICE ...................................................................................... 28
REINSTALLING THE METER .......................................................................................................... 31
7: APPENDIX
CHANGE NOTES ................................................................................................................................ 33
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
I
II
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 1: Introduction
Introduction
The Multilin Meter Enclosure expands existing switchgear capability without expensive and
time-consuming redesign. It is simple to mount and wire the enclosure next to your
switchgear so it is ready to go, with no downtime at all. This is an ideal solution for a retrofit
when there is no metering compartment available.
The unit comes standard with a NEMA 1 enclosure and is factory wired with the meter
installed. Standard equipment includes voltage fuses, a shorting block for current
transformer connections, and a control power transformer if used with 277/480 Volt power
systems.
The Multilin Meter Enclosure can be ordered with the following meters:
— EPM 2200 power meter
— EPM 6000 multi-function meter
— EPM 6010 building automation power meter with native BACnet/IP protocol
— EPM 7000 advanced meter with data logging and extensive I/O
It is offered in two voltage configurations:
• 277 Volt enclosure (which comes equipped with a control power transformer)
• 120-240 Volt enclosure
See Chapter 2 for ordering instructions.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
1
CHAPTER 1: INTRODUCTION
1.1
Note
Product Handling
READ AND UNDERSTAND THE INSTRUCTONS CONTAINED IN THIS DOCUMENT BEFORE
ATTEMPTING TO UNPACK, INSTALL, OPERATE, OR MAINTAIN THIS EQUIPMENT.
Every effort is made to insure that the equipment arrives undamaged and ready to be
installed. Packing is designed to protect internal components as well as the enclosure. Do
not remove protective packing until you are ready to install the equipment.
When you receive the equipment, you should inspect the shipping container for any
obvious signs of rough handling and/or external damage that occurred during
transportation. Record any external and internal damage for reporting to the
transportation carrier and GE Multilin. All claims should be as specific as possible and
include general order numbers.
You will find a plastic bag of instruction booklets and/or CDs in the shipping container.
Store these documents in a safe place.
2
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 1: INTRODUCTION
1.2
Note
Safety Precautions
All safety codes, safety standards, and/or regulations must be strictly observed in the
installation, operation, and maintenance of this device.
Hazardous voltages that can cause death or severe personal injury are present inside
enclosure. Follow proper installation, operation, and maintenance procedures to avoid
these voltages.
Completely read and understand the material presented in this document before
attempting installation, operation, or application of the equipment. In addition, only
qualified persons should be permitted to perform any work associated with the
equipment. Any wiring instructions presented in this document must be followed precisely.
Failure to do so could cause permanent equipment damage.
All possible contingencies that may arise during installation, operation, or maintenance,
and all details and variations of this equipment do not purport to be covered by these
instructions. If further information is desired by purchaser regarding a particular
installation, operation, or maintenance of particular equipment, contact a GE Multilin (GE
Digital Energy) representative.
1.3
Storage
Although it has been well packaged, this equipment should not be stored outdoors. If the
equipment is to be stored indoors for any period of time, it should be stored with its
protective packaging in place. Refer to the EPM 6000/6010 and EPM7000 Installation and
Operation manuals, on the enclosed CD, for the meter’s storage requirements.
1.4
Compliance
Type 1 enclosure, UL / cUL Listed, file number: E358101.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
3
CHAPTER 1: INTRODUCTION
1.5
Specifications
ENVIRONMENTAL
Storage:.....................................................-20°C to +70°C
Operating Maximum:..........................-10°C to +50°C
Operating Nominal:............................. 0°C to +40°C
Humidity: ..................................................up to 95% RH, non-condensing
Enclosure rating:...................................NEMA 1 (Indoor Use)
Pollution degree:...................................II
Overvoltage Category........................ III (This product is designed for indoor use only)
MECHANICAL PARAMETERS
Dimensions:.............................................8.08" x 11.06" x 13.50" (L x W x H)/
205.23 mm x 280.92 mm x 342.9 mm (L x W x H)
Weight: ......................................................25 lb/ 11.4 kg
4
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 2: Ordering Information
Ordering Information
2.1
Order Codes
The order codes for the EPM 2200, EPM 6000, EPM 6010, and EPM 7000 are indicated
below.
Refer to the above EPM product manuals for full specifications.
Table 2–1: Order Codes for EPM 2200 with Meter Enclosure
Base Unit
Enclosure Option
PL2200
*
PL2200
|
|
|
EPM 2200 with Multilin Meter Enclosure
ENC120
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 120V
ENC277
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 277V
A1
|
Volts and Amps Meter
B1
|
Volts, Amps, Power and Frequency Meter
C1
|
Volts, Amps, Power, Frequency and Energy Counters
X
None
S
RS485 Card
Option
Communications
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
–
*
–
*
5
CHAPTER 2: ORDERING INFORMATION
Table 2–2: Order Codes for EPM 6000 with Meter Enclosure
Base Unit
PL6000
*
* –
*
PL6000
|
|
|
|
|
|
EPM 6000 with Multilin Meter Enclosure
ENC120
|
|
|
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 120V
Enclosure Option
–
ENC277
System
Frequency
–
*
–
*
–
*
|
|
|
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 277V
5
|
|
|
|
Frequency Option 50 Hz
6
|
|
|
|
Frequency Option 60 Hz
1A
|
|
|
Current Input 1A
5A
|
|
|
Current Input 5A
0
|
|
No THD Option
THD
|
|
THD, Limits Alarms & One KYZ Pulse Output
0
|
No LDC Option
S
Standard Serial Option
E
Ethernet Option
Current Input
THD
Power Supply
(Substitute LV PS)
Ethernet Option
Table 2–3: Order Codes for EPM 6010 with Meter Enclosure
Base Unit
Enclosure
Option
System
Frequency
Current Input
Software (THD)
Power Supply
6
PL6010
*
PL6010
|
–
*
|
–
*
|
–
*
|
–
*
|
EPM 6010 with Multilin Meter Enclosure
ENC120
|
|
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 120V
ENC277
|
|
|
|
NEMA1 Rated Indoor, Single Meter Enclosure, 277V
5
|
|
|
Frequency Option 50 Hz
6
|
|
|
Frequency Option 60 Hz
1A
|
|
Current Input 1A
5A
|
|
Current Input 5A
THD
|
THD, Limits Alarms and One KYZ Pulse Output
HI
HI Power Supply Option
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 2: ORDERING INFORMATION
Table 2–4: Order Codes for EPM 7000 with Meter Enclosure
Base Unit
Enclosure
Option
PL7000
*
PL7000
|
–
ENC120
ENC277
System
Frequency
Current Input
Software
Power Supply
I/O SLOT 1
I/O SLOT 2
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
*
|
|
–
*
|
|
–
*
|
|
–
*
|
–
*
|
|
|
–
*
|
|
EPM 7000 with Multilin Meter Enclosure
NEMA1 Rated Indoor, Single Meter Enclosure,
120V
NEMA1 Rated Indoor, Single Meter Enclosure,
277V
|
|
|
|
|
|
5
|
|
|
|
|
6
|
|
|
|
|
Frequency Option 60 Hz
1A
|
|
|
|
Current Input 1 A
5A
|
|
|
|
Current Input 5 A
A
|
|
|
Multimeter Function only
B
|
|
|
Data Logging 2 MB Memory
C
|
|
|
Power Quality Harmonics, 2 MB Memory
D
|
|
|
Limits and Control, 2 MB
E
|
|
|
F
|
|
|
HI
Frequency Option 50 Hz
64 Samples/cycle Waveform Recording, 3 MB
Memory
512 Samples/cycle Waveform Recording,
4 MB Memory
|
|
Hi Power Supply Option
X
|
None
C1
|
Four Channel Bi-directional 0-1 mA Outputs
C20
|
Four Channel Bi-directional 4-20 mA Outputs
E1
|
100 BaseT Ethernet
F1
|
Fiber Optic Serial Port-ST Terminated
F2
|
Fiber Optic Serial Port-Versatile Link
PS1
|
Four Pulse Outputs/Four Status Inputs
RS1
|
Two Relay status Outputs/Two Status Inputs
X
None
C1
Four Channel Bi-directional 0-1 mA Outputs
C20
Four Channel Bi-directional 4-20 mA Outputs
E1
100 BaseT Ethernet
F1
Fiber Optic Serial Port-ST Terminated
F2
Fiber Optic Serial Port-Versatile Link
PS1
Four Pulse Outputs/Four Status Inputs
RS1
Two Relay status Outputs/Two Status Inputs
7
CHAPTER 2: ORDERING INFORMATION
8
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 3: Installation
Installation
Note
All safety codes, safety standards, and/or regulations shall be strictly observed
installation, operation, and maintenance of this device. This device shall be installed in
an un-energized condition and as per the National Electric Code.
Choose a mounting location that offers a flat, rigid mounting surface capable of
supporting the weight of the equipment. The unit weighs 25 lbs (11.4 kg) maximum. Mount
the equipment in a suitable environment. These enclosures are designed for NEMA 1
environments and are manufactured of painted steel.
Check to make certain that there are no pipes, wires, or other mounting hazards in the
immediate mounting area that could create a problem. Also make sure you have enough
clearance around the enclosure to run wiring to it safely. GE Multilin recommends at least 2
feet of clearance around the enclosure.
Carefully remove all packing material from the unit. Even though an equipment inspection
was made when the equipment was received, make another careful inspection of the
enclosure and the devices inside as packing material is removed. Be especially alert for
distorted metal, loose wires, or damaged components. This is important because wiring
can come loose in shipping and could cause a short circuit or voltage to be on the wrong
terminal. Please inspect to make sure all the wiring is in the proper place. Refer to figures
3-1 and 3-2 for internal wiring schematics.
Note
Extreme care shall be taken when mounting the enclosure, and making wire entry
holes, to prevent metal chips, filings, and other contaminants from entering the
enclosure which may damage the equipment and create a hazardous condition.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
9
CHAPTER 3: INSTALLATION
Figure 3-1: 120V Internal Wiring Schematic
10
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
Figure 3-2: 277V Internal Wiring Schematic
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
11
CHAPTER 3: INSTALLATION
3.1 Recommended Procedures for Wire Entry Hole
Cutting
The enclosure does not come with wire entry holes (punch entries). They must be cut in the
location you want depending on the installation. See Figure 3-3: Location of
Recommended Punch Entries for the locations that are recommended.
Figure 3-3: Location of Recommended Punch Entries
Note
•
There are numerous methods for making wire entry holes in the enclosure but it is
imperative that no loose material generated during the process remains in the
enclosure. During installation and cutting the wire holes, all equipment mounted
inside or on the enclosure shall be protected from loose material.
•
No matter what procedure is used the installer shall verify that the hole cutting
process will not damage any of the wiring or components installed inside or on the
enclosure.
The two recommended procedures for cutting the wire entry holes are as follows:
•
Use a "C" frame punch to cut the wire entry holes. This type of punch does not require
a pilot hole. A typical "C" frame punch is shown below.
Figure 3-4: "C" Frame Punch
12
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
• Regular punch:
1.
Place a magnet inside the enclosure where the pilot hole is to be cut and
completely cover the area with masking tape (or other very sticky tape).
2.
Drill the pilot hole from the outside and do not let the drill pass more than ¼"
into the enclosure.
3.
Remove the tape, magnet, and cuttings and punch the hole.
After wiring and before energizing, vacuum the inside of the enclosure to make sure that it
is free of foreign material. If a vacuum is not available use an alternate method to clean
the inside of the enclosure. Do not use compressed air (or pressurized gas) to clean the
inside of the enclosure as this may force cuttings into areas that cannot be seen, creating a
hazardous condition.
Note
All wire entry into the enclosure shall be accomplished with the use of recognized
fittings or strain reliefs. Bare holes shall not be used.
All electrical connections made to this enclosure must meet the local electrical code.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
13
CHAPTER 3: INSTALLATION
3.2
Installation
Refer to the following diagrams for enclosure and mounting dimensions.
Figure 3-5: Enclosure Front Dimensions
14
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
Figure 3-6: Enclosure Side Dimensions
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
15
CHAPTER 3: INSTALLATION
Figure 3-7: Mounting Hole Dimensions
16
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 3: INSTALLATION
3.3
Installation Steps
1.
Install the 4 required mounting bolt anchors.
Upper
Mounting
Bolts
Figure 3-8: Mounting Bolt Installation, Upper Bolts
2.
Gently lift the enclosure and guide the top mounting holes over the anchors.
Install the two bolts but do not tighten them.
3.
While still supporting the enclosure, install the two lower mounting bolts in the
lower mounting flange, but do not completely tighten them. Use shims, if
required, to prevent deformation of the enclosure when tightening the bolts, if
the mounting surface is distorted.
4.
Tighten all four mounting bolts after any required shimming is completed. See
the figure below.
Mounting
Bolts (4)
Figure 3-9: Mounting Bolt Location
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
17
CHAPTER 3: INSTALLATION
3.4
Door Locking Instructions
The enclosure has been fitted with means for securing the door so it cannot be opened or
tampered with. The padlock bracket can be secured in place with a padlock (3/8 inch
shackle diameter). See the figure below.
)
g
Figure 3-10: Door with Lock
18
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 4: Electrical Wiring
Electrical Wiring
The Multilin Meter Enclosure is factory wired and tested. Installation requires solidly
mounting the enclosed unit and connecting field wiring. This document has diagrams of
wiring options. Review and understand the appropriate diagrams for the unit you have
ordered.
NoteNOTE:
Internal fuse block and CT shorting block terminations can accommodate #10 to #14
AWG wire. Consult your local and/or National Electric Code for external wiring
requirements.
Both enclosure models are pre-wired and programmed for a three-phase, four-wire Wye
system requiring 3 current transformers. The enclosures may also be used on three- wire
network systems (two CTs), single-phase three-wire systems (two CTs), or single-phaseNeutral two-wire systems (one CT "120" option only).
Enclosure models with a "277" in the part number contain a single phase step down
control power transformer designed for a primary of 480 VAC and secondary voltage of
120 VAC.
Note
The current inputs are only to be connected to external current transformers provided
by the installer. The CT's shall be Approved or Recognized and rated for the current of
the meter used.
A DISCONNECTING MEANS AND UPSTREAM PROTECTION SHOULD BE INSTALLED FOR ALL
CIRCUITS. A SHORT-CIRCUIT–TYPE TERMINAL BLOCK IS PROVIDED FOR THE CURRENT
TRANSFORMER CIRCUIT.
Table 4–1: Input Wiring Specifications
Location
Wire Size
Screw Size
Maximum Torque
Shorting Block
#6-22 AWG CU
#10-32
20 lbf-in (2.3 N-m)
Fuse Block
#10-18 AWG CU
#10-32
20 lbf-in (2.3 N-m)
Neutral Wire
#12 max CU
#8-32
6 lbf-in (0.68 N-m)
Earth Ground
#10-12 AWG CU
#8-32
10 lbf-in (1.2 N-m)
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
19
CHAPTER 4: ELECTRICAL WIRING
4.1
NoteWARNING!
Wiring Instructions
First connect Earth Ground as shown in the figure below.
EARTH GROUND
Figure 4-1: Earth Ground Connection
Understand the diagram(s) that pertain to your unit before you begin the field wiring. The
following figures show the available wiring options. Understand your system and use the
appropriate figures.
NoteWARNING!
20
CONTROL WIRING MAY HAVE VOLTAGE PRESENT THAT CAN CAUSE SEVERE PERSONAL
INJURY OR DEATH. DE-ENERGIZE ALL CONDUCTORS BEFORE BEGINNING TO PERFORM
ANY WIRING ACTIVITY WITHIN THE MULTILIN METER ENCLOSURE.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 4: ELECTRICAL WIRING
Figure 4-2: Wye Wiring for 120V Model
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
21
CHAPTER 4: ELECTRICAL WIRING
Figure 4-3: Wye Wiring for 277V Model
22
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 4: ELECTRICAL WIRING
4.2
Wire Delta, 3 CT Hookup
The enclosure is shipped pre-wired for a 4 wire Wye installation with the meter's voltage
reference (Vref) tied to the Neutral input (N(-)) via a jumper located on the connector of the
meter. If the enclosure is to be used on three wire Delta circuits where no neutral exists, the
jumper on the connector must be moved. This requires that the jumper's connection to N () must be removed and then moved to Vb to allow the meter's Vref to be common with Vb.
See the figure below.
Meter as Shipped
Meter Modified for Delta
Figure 4-4: Wiring as Shipped, and Modified for Delta
•
An external wired Neutral connection to the Neutral Terminal is not necessary.
•
You must reprogram the meter for a Delta 2 CT hookup. Using the meter’s faceplate
(see the figure below).
Menu
Enter
DOWN Arrow
RIGHT Arrow
Follow this procedure:
1.
Push the MENU button - rSt will be blinking on the top line of the display.
2.
Press the DOWN ARROW once. CFG (Configuration) moves to the top of the display.
3.
Press the ENTER button. You will see the Configuration menu, shown below.
RIGHT Arrow
MENU
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
ENTER
-
A
-
B
-
C
23
CHAPTER 4: ELECTRICAL WIRING
4.
Press the DOWN ARROW until you see Cnct, then press the ENTER button to go to the
Connection setting screen, shown below.
MENU
A
-
B
-
C
5.
The current setting is shown in the second line. Press the DOWN ARROW to choose 2
Ct del (Delta) - see the screen below.
6.
Press the MENU button twice. You will see the Store Settings screen (Stor ALL?).
MENU
7.
ENTER
-
A
-
B
-
C
The screen’s default setting is YES. To save the settings you’ve made, press the ENTER
button. You will see the confirmation screen (Stor ALL done) and then the meter resets.
MENU
24
ENTER
-
ENTER
-
A
-
B
-
C
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 5: Operation
Operation
5.1
Meter Enclosure operation
The meter enclosure with the 120 V option comes equipped with three 10mm x 38mm,
600V, 100mA, fast-acting fuses and one 10mm x 38mm, 500V, 3A, time delay fuse for the
protection of the meter’s sense voltage and control power circuits, respectively.
The meter enclosure with 277 V option comes equipped with three 10mm x 38mm, 600V,
500mA, fast-acting fuses and one 10mm x 38mm, 500V, 3A, time delay fuse for the
protection of the meter’s sense voltage and control power circuits, respectively.
A disconnecting means and upstream protection should be installed for all circuits. A
short-circuit type terminal block is provided for the current transformer circuit. The
terminal blocks for the current circuits are short-circuit type. Shorting screws are included
(see instructions in Section 6.1).
The temperature rating for enclosure operation is from -20ºC to +50ºC.
For specific meter operating instructions, in the enclosure, refer to the respective
EPM 2000, EPM 6000, EPM 6010, or EPM 7000 User manual on the enclosed CD.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
25
CHAPTER 5: OPERATION
26
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 6: Maintenance
Maintenance
The Multilin Meter Enclosure is designed to be relatively maintenance-free under normal
use. However, because of the variability of application conditions and the importance
placed on dependable operation and inspection, you should perform maintenance checks
on a regularly scheduled basis. Visually inspect for loose parts, wires, and/or hardware;
inspect for discoloration of insulation and damaged or discolored components; be alert for
accumulation of dirt and/or moisture on structure; check operation of disconnecting
means and continuity of fuses, where applicable.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
27
CHAPTER 6: MAINTENANCE
6.1
Removing a Meter From Service
Follow these steps:
NoteWARNING!
1.
De-energize all circuits feeding the case.
2.
If possible de-energize lines that the CTs are on.
3.
Install 4 shorting screws, where shown, on the CT connection block - instructions
follow.
If the meter must be removed from service, the secondary side of the current transformers
MUST be short circuited to prevent a dangerous high voltage condition from appearing
across the secondary wires of the current transformer. Arcing and damage to personnel
and/or equipment can occur if the screws provided on the shorting block are not
installed in the correct locations, prior to disconnecting any wires.
The four brass screws that are parked on each corner of the shorting block are used to
short the three high (+) sides and one low (-) side of the CT outputs to the brass bar that is
across the middle of the shorting block. The pre-installed jumper connects all lows
together.
The brass screws need to be screwed down until the end of the screw makes
contact with the terminal strip below, enabling the brass bar to become
electrically common with the terminal strip.
The figures below shows which terminals/holes the screws must be installed in to safely
short the secondary of the CTs.
28
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 6: MAINTENANCE
6KRUWLQJ
%ORFN6FUHZ
/RFDWLRQ
Install the
Ground
Screw First
Figure 6-1: Shorting the CTs
NoteWARNING!
When you re-install the meter, make sure all CT connections are made BEFORE
removing the shorting screws, and then return the screws to their holder. See Section
6.2.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
29
CHAPTER 6: MAINTENANCE
30
4.
Remove the 4 fuses from the fuse block.
5.
Un-screw and disconnect the 6 current leads (CTs) to the meter.
6.
Disconnect all connectors to the meter.
7.
Remove the 4 mounting nuts.
8.
Remove the meter.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
CHAPTER 6: MAINTENANCE
6.2
Reinstalling the Meter
Follow this procedure to reinstall the meter:
1.
Place meter in cover cutout.
2.
Tighten the 4 mounting nuts.
3.
Insert all connectors into the appropriate sockets on the back of the meter.
4.
Connect the 6 current leads (CTs) to the meter making sure they are attached in the
proper order.
5.
Install the 4 fuses in the fuse block.
6.
Remove the 4 shorting screws from the CT connection block and return them to their
storage positions. See the figure below.
Remove the
Ground
Screw Last
Figure 6-2: Shorting Screws Returned to Their Storage Positions
7.
Verify that no foreign material remains inside the enclosure, if there is clean it out.
8.
Energize all circuits and verify operation.
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
31
CHAPTER 6: MAINTENANCE
32
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
GE
Digital Energy
Multilin Meter Enclosure
Chapter 7: Appendix
Appendix
7.1
Change Notes
Table 7–1: Revision History
Manual P/N
Revision
Release Date
1601-9215
A1
April 2013
1601-9215
A2
February 2015
Table 7–2: Major Updates for 1601-9215-A2
Sect (A1)
Sect (A2)
Description
Title
Title
Manual part number to 1601-9215-A2
1.5
1.5
changed NEMA 1 (water resistant) to NEMA 1 (Indoor Use)
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
33
CHAPTER 7: APPENDIX
34
MULTILIN METER ENCLOSURE – INSTRUCTION MANUAL
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
