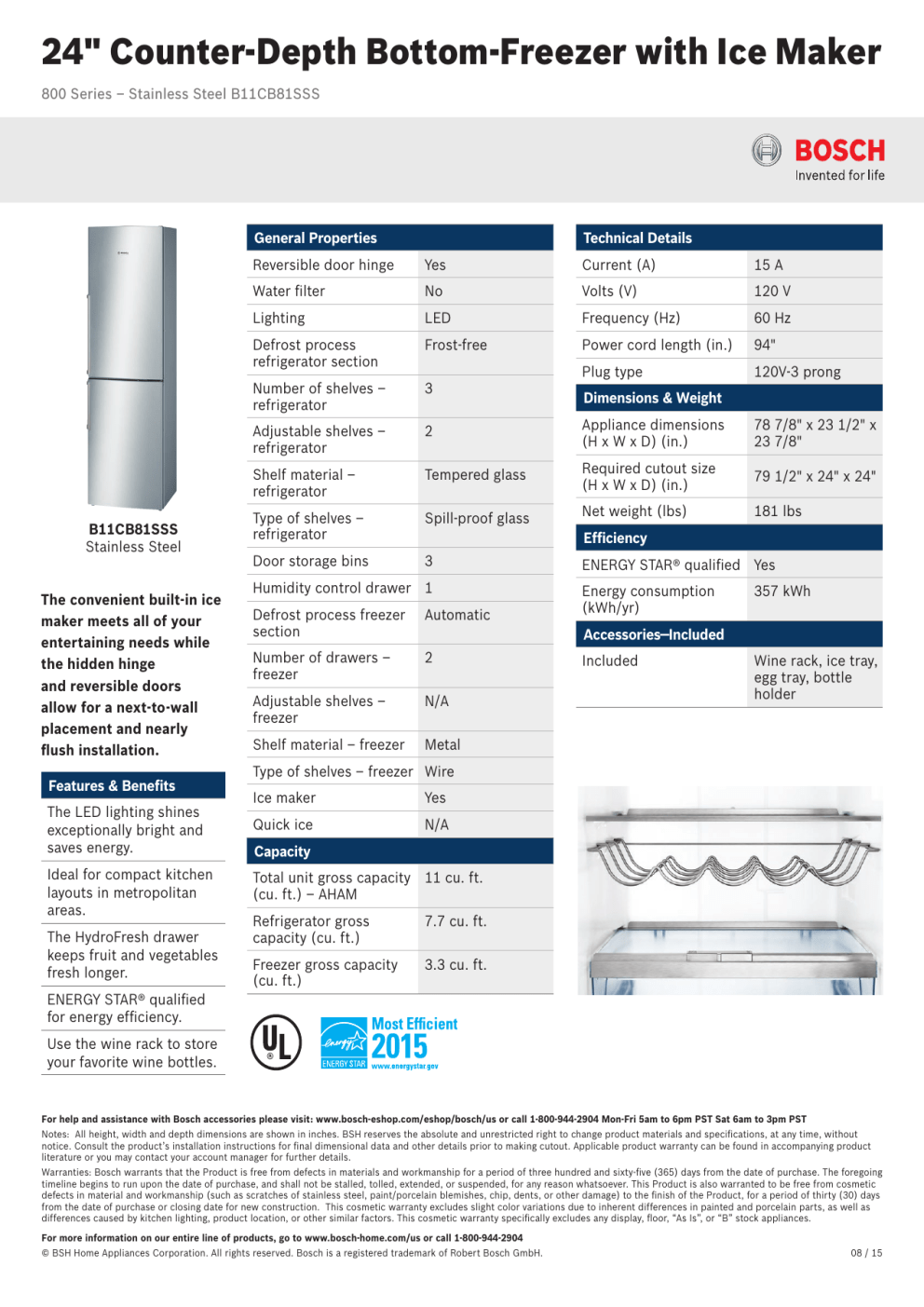

Bosch B11CB81SSS 24 Inch Bottom Freezer Refrigerator Spec Sheet

24" Counter-Depth Bottom-Freezer with Ice Maker
800 Series – Stainless Steel B11CB81SSS
General Properties
B11CB81SSS
Stainless Steel
The convenient built-in ice
maker meets all of your
entertaining needs while
the hidden hinge
and reversible doors
allow for a next-to-wall
placement and nearly
flush installation.
Features & Benefits
The LED lighting shines
exceptionally bright and
saves energy.
Ideal for compact kitchen
layouts in metropolitan
areas.
The HydroFresh drawer
keeps fruit and vegetables
fresh longer.
Technical Details
Reversible door hinge
Yes
Current (A)
15 A
Water filter
No
Volts (V)
120 V
Lighting
LED
Frequency (Hz)
60 Hz
Defrost process
refrigerator section
Frost-free
Power cord length (in.)
94"
Number of shelves –
refrigerator
3
Plug type
120V-3 prong
Adjustable shelves –
refrigerator
2
Appliance dimensions
(H x W x D) (in.)
78 7/8" x 23 1/2" x
23 7/8"
Shelf material –
refrigerator
Tempered glass
Required cutout size
(H x W x D) (in.)
79 1/2" x 24" x 24"
Type of shelves –
refrigerator
Spill-proof glass
Net weight (lbs)
181 lbs
Door storage bins
3
ENERGY STAR® qualified Yes
Humidity control drawer
1
Defrost process freezer
section
Automatic
Energy consumption
(kWh/yr)
Number of drawers –
freezer
2
Adjustable shelves –
freezer
N/A
Shelf material – freezer
Metal
Dimensions & Weight
Efficiency
357 kWh
Accessories—Included
Included
Wine rack, ice tray,
egg tray, bottle
holder
Type of shelves – freezer Wire
Ice maker
Yes
Quick ice
N/A
Capacity
Total unit gross capacity
(cu. ft.) – AHAM
11 cu. ft.
Refrigerator gross
capacity (cu. ft.)
7.7 cu. ft.
Freezer gross capacity
(cu. ft.)
3.3 cu. ft.
ENERGY STAR® qualified
for energy efficiency.
Use the wine rack to store
your favorite wine bottles.
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Applicable product warranty can be found in accompanying product
literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage) to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
08 / 15
24" Counter-Depth Bottom-Freezer with Ice Maker
800 Series – Stainless Steel B11CB81SSS
Installation Details
24"
24"
24"
791/2"
791/2"
A: Area for installation
of power connection.
24" A: Area for installation
B:Areaoffor
running
power connection.
the
water
B:Area
forline.
running
the water line.
A
15"
B
A
B
B
A
B
A
15"
515/81"/8"
4"4"
Measurement in inches
Measurement in inches
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Applicable product warranty can be found in accompanying product
literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage) to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
08 / 15
