Ikea 103.923.28 RYTMISK Wall Mounted Extractor Hood Stainless Steel Instruction manual

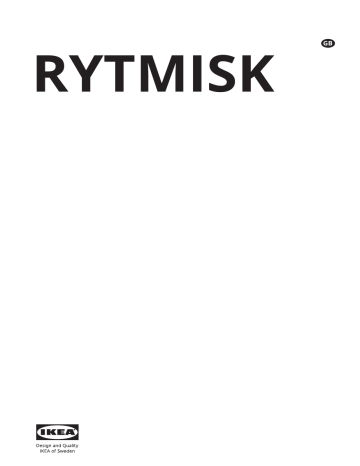

RYTMISK
GB
ENGLISH
5
4
B
1x
M
C
1x
13
A
B
1x
Warning Strips
1x
C
3x
4x
D
G
E
Warning strips show that specialist should do the connecting water, gasDand electricity:
F
2x
1x
E
1x
1x
H.1
1x
1x
1x
1x
1x
8
1x
AA-725973-1
RYTMISK
MANUAL
The electricity installation
specialist.
www.ikea.com
The gas installation specialist.
RYTMISK
0$18$/
ZZZLNHDFRP
The water installation
specialist.
ENGLISH
5
Product description
Upper chimney
Lower chimney
Hood body
LED Lighting
Grease filter
Control panel
Control panel
Light
To turn the lights on, press
the dial and release it
so that it pops out of its
housing.
To turn the lights off, push
the dial back inwards,
returning it to the off
position.
Press the dial and release
Motor
it so that it pops out of
Speed
its housing, then turn the
Adjustment dial to select one of the
available suction speeds.
ENGLISH
6
Energy efficiency
Product fiche information, according to 65/2014
Unit
Value
IKEA
Supplier’s name
RYTMISK 103.923.28
Model identifier
Annual Efficiency Consumption
kWh/a
Energy Efficiency Class
39,5
B
Fluid Dynamic Efficiency
18,2
Fluid Dynamic Efficiency Class
C
Lighting Efficiency
lux/Watt
Lighting Efficiency Class
37
A
Grease Filtering Efficiency
%
Grease Filtering Efficiency Class
85,1
B
Air flow at minimum speed
3
m /h
200
Air flow at maximum speed
m3/h
400
Air flow at boost speed
m3/h
N/A
Airborne acoustical
A-weighted sound Power Emission at minimum speed
dbA
53
Airborne acoustical
A-weighted sound Power Emission at maximum speed
dbA
65
Airborne acoustical
A-weighted sound Power Emission at boost speed
dbA
N/A
Power Consumption in off mode
Watt
0,0
Power Consumption in standby mode
Watt
N/A
Additional information according to 66/2014
Time increase factor
1,3
Energy Efficiency Index
66,6
Measured Air flow rate at best efficiency point
Measured air pressure at best efficiency point
m3/h
223,0
Pa
217
m3/h
400,0
Measured electric power input at best efficiency point
W
74,0
Nominal power of the lighting system
W
6,0
Average illumination of the lighting system on the cooking surface
lux
220
Sound power level at the highest setting
dBA
65
maximum air flow
To download the full version visit www.ikea.com















































