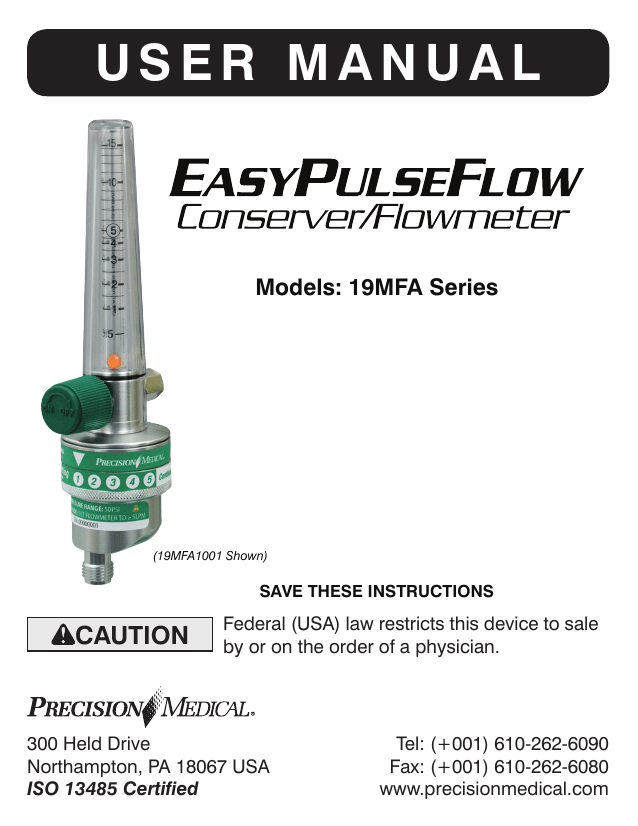

U S E R M A N U A L

Models: 19MFA Series

(19MFA1001 Shown)

CAUTION

SAVE THESE INSTRUCTIONS

Federal (USA) law restricts this device to sale by or on the order of a physician.

300 Held Drive

Northampton, PA 18067 USA

ISO 13485 Certified

Tel: (+001) 610-262-6090

Fax: (+001) 610-262-6080 www.precisionmedical.com

RECEIVING / INSPECTION

Remove the Precision Medical, Inc. EasyPulseFlow from the packaging and inspect for damage. If there is any damage, DO NOT USE and contact your Provider.

INTENdEd USE

The EasyPulseFlow flowmeter is intended for use by physicians, respiratory therapists, and other hospital personnel to administer selected doses of medical oxygen to patients suffering from hypoxia due to various etiologies and disease processes. The device delivers via nasal cannula a F

IO

2

of 100% oxygen at all settings when connected directly to 100% gas source. It is intended to be used as a device to provide continuous flow oxygen therapy or as an oxygen saving device that delivers pulsed volumes for oxygen therapy while reducing the drying of the patient airways.

REAd ALL INSTRUCTIONS BEFORE USING

This manual instructs a user to install and operate the EasyPulseFlow.

This is provided for your safety and to prevent damage to the

EasyPulseFlow. If you do not understand this manual, DO NOT USE the EasyPulseFlow and contact your Provider.

dANGER

This product is not intended as a life-sustaining or life-supporting device.

ExPLANATION OF ABBREVIATIONS

F

IO

2

Fractional Concentration of Inspired Oxygen

DISS psi l/min

Diameter Indexed Safety System

Pounds Per Square Inch

Liters Per Minute b/min bar

Breathes Per Minute

Barometric Pressure

1

SAFETY INFORMATION - WARNINGS ANd CAUTIONS dANGER

WARNING

CAUTION

CAUTION

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

CONSULT ACCOMPANYING DOCUMENTS

0473

Symbol for “USE NO OIL”

Symbol indicates the device complies with the requirements of Directive 93/42/EEC.

(On CE marked devices ONLY)

WARNING

• ALWAYS confirm prescribed dose before administering to patient and monitor on a frequent basis.

• Always follow ANSI and CGA standards for Medical Gas

Products and Oxygen Handling (G-4).

• NO OXYGEN is delivered when the pointer is between settings.

2

WARNING

• The EasyPulseFlow is not to be used in the Pulse mode by patients who breathe through their mouths.

• dO NOT use oils, greases, organic lubricants or any combustible materials on or near this product. Wash and dry hands properly prior to usage.

• dO NOT use a humidifier when administering Oxygen therapy on pulse settings.

• dO NOT use pulse settings while patient is sleeping unless continuous pulse oximetry is utilized.

• dO NOT smoke in an area where oxygen is being administered.

• The EasyPulseFlow is designed to operate with a single lumen, adult cannula with a maximum length of 7 foot (2.1 m).

• Flowmeter must meet specified inlet pressure range, see

“SPECIFICATIONS”.

• To use Pulse, Flow Control Knob must be set to 5 l/min or greater.

CAUTION

• Only personnel instructed and trained in its use should operate the EasyPulseFlow.

• The EasyPulseFlow contains magnetic, ferrous material that may affect the results of an MRI.

• dO NOT autoclave.

• dO NOT gas sterilize with EtO (Ethylene Oxide).

• dO NOT clean with aromatic hydrocarbons.

• Avoid dropping the EasyPulseFlow or placing it in a position where it could fall and become damaged.

• The EasyPulseFlow may not be able to detect all respiratory efforts of the patient. (Shallow breathers may not be able to trigger the EasyPulseFlow.)

• Operating the EasyPulseFlow outside its range of operating conditions may affect its accuracy and performance.

3

PRINCIPLES OF OPERATION

The Precision Medical, Inc. EasyPulseFlow is a combination of two (2) devices, a traditional Thorpe tube flowmeter and a pulse oxygen conserver.

The EasyPulseFlow is designed to be used with low pressure oxygen systems at specified Inlet Pressure. It consists of a back pressure compensated Thorpe tube flowmeter, a conserving module, and a selector dial to choose between Continuous Flow mode or Pulse mode.

In the Continuous Flow mode the flowmeter operates similar to a traditional

Thorpe tube flowmeter: the flow is determined by setting the flow control knob to the prescribed flow. In this mode it is capable of delivering metered flows from 0 to 15 l/min and up to 24 l/min at flush flow.

In the Pulse mode the device operates as an oxygen conserver. Settings of 1 through 5 are available and supply a similar F

IO

2

to the patient as continuous flow. The conserving module controls the pulse size and timing to the patient. It supplies a pulse of oxygen at the beginning of each breath. This reduces the oxygen demand on the system and limits the drying of the airways. The oxygen is supplied to the patient through the nasal cannula.

SPECIFICATIONS

Inlet Pressure Range:

Pulse Settings:

Continuous Flow Range:

Pulse Accuracy:

19MFA: 50 psi (3.4 bar)

19MFA AU: 4 bar (58.0 psi)

19MFA C

I

: 5 bar (72.5 psi)

1, 2, 3, 4 and 5

(similar F

IO

2

to continuous flow value)

0-15 l/min metered

(20-24 l/min max flush flow)

Within ±15% of the nominal bolus value (at each breath rate)

Continuous Flow Accuracy: ±0.25 l/min from 0.5 l/min up to 5 l/min

±0.5 l/min from 5 l/min up to 15 l/min

Savings Ratio:

Trigger Method:

Up to 5.7:1

Negative inspiratory effort from patient inhalation

4

Breathing Frequency:

Cannula Requirement:

Up to 35 b/min

Maximum 7 foot (2.1 m) long standard adult single lumen nasal cannula.

The effect on accuracy of flow due to variations in ambient temperature is standard accuracy +7.3% @ 32°F (0°C) and -3.0% @ 104°F (+40°C) .

The 19MFA flowmeter models are calibrated at specified inlet pressures as stated on Flowtube, 70°F (21°C), standard atmospheric pressure.

Operating Conditions:

Temperature:

35°F to 105°F (1.7°C to 40.6°C)

Altitude:

Sea level to 10,000 ft (0 to 3,048 m)

Storage Conditions:

Temperature: -40°F to 140°F (-40°C to 60°C)

Maximum Humidity: 95% Noncondensing

COMPONENT dESCRIPTION

CAUTION

Missing or illegible labels must be replaced, contact Precision Medical, Inc.

Oxygen

Inlet

Selector Dial /

Settings Label

Oxygen

Outlet

5

Thorpe

Tube

Flow Control

Knob

Indicator

Pointer / Label

Product Serial #

/ Warning Label

OPERATING INSTRUCTIONS

WARNING

Read this User Manual before installing or operating the

EasyPulseFlow.

CAUTION

Inspect the EasyPulseFlow for visual damage before use,

DO NOT USE if damaged.

CAUTION

• dO NOT use pediatric, low flow nasal cannulas or oxygen masks with the EasyPulseFlow.

• dO NOT block the cannula connection or kink cannula tubing when the Conserver is in use, this may damage the EasyPulseFlow.

OR

1. Verify order/need for oxygen administration.

2. Connect flowmeter to oxygen gas source, as stated on Flowtube.

3. Turn Selector Dial to align indicator pointer with Continuous Flow setting.

4. Turn Flow Control Knob to obtain appropriate flow rate.

A. To increase, turn knob counterclockwise

B. To decrease, turn knob clockwise

C. Set flow by aligning center of Float Ball with indicator lines on flow tube.

D. To obtain maximum flush flow, turn knob fully counterclockwise.

6

NOTE: Flush flow is any flow above the last calibrated line on the Thorpe Flow Tube with an unrestricted flow, as per

“SPECIFICATIONS”.

5. Connect oxygen administration equipment via DISS connector on bottom of flowmeter.

6. Assess effectiveness of oxygen therapy to the patient with pulse oximetry or arterial blood gas.

7. If patient is stabilized on nasal cannula at ≤ 5 l/min, switch to

pulse-dose mode as follows:

A. Remove any type of humidity bottle.

B. Turn Flow Control Knob to obtain a continuous flow of 5 l/min or greater.

C. Select pulse setting from 1 to 5, by turning the Selector Dial to align Indicator Pointer with pulse setting.

NOTE: DO NOT adjust Flow control knob on flowmeter. i. Choose pulse setting equal to continuous flow setting

(e.g. if patient is on 4 l/min continuous flow choose a pulse setting of 4).

ii. If patient is on a ½ liter increment choose the next closest higher pulse setting (e.g. if patient is on 2½ l/min place patient on pulse setting of 3).

iii. Instruct patient that oxygen will only flow during the first part of inspiration.

iv. Assess patient/conserver interaction to assure pulsing is occurring.

D. Re-assess patient’s oxygenation status via pulse oximetry or arterial blood gas.

8. Amount of oxygen may be weaned either by decreasing the continuous flow rate on the Thorpe tube flowmeter if patient is on continuous flow or by decreasing the pulse of oxygen if on pulse mode.

(If patient is on pulse mode, oxygen may only be decreased in increments of one (1)).

9. To turn off flowmeter, turn the Flow Control Knob fully clockwise.

NOTE: If nasal cannula is disconnected while on pulse oxygen therapy. (The device should not pulse oxygen into the atmosphere.) Limit of three (3) pulses per minute .

7

MAINTENANCE / CLEANING

1. Disconnect all connections before cleaning.

As needed:

2. Clean exterior surfaces of the EasyPulseFlow with a cloth dampened with mild detergent and water.

3. Wipe dry with a clean cloth.

4. Store the EasyPulseFlow in a clean area free of grease, oil, and other sources of contamination.

CAUTION

• dO NOT use cleaning solutions.

• dO NOT immerse the EasyPulseFlow in any kind of liquid.

• dO NOT attempt to repair the EasyPulseFlow.

• All repairs must be performed by Precision Medical, Inc. or

Authorized Representative.

RETURNS

Returned products require a Returned Goods Authorization (RGA) number, contact Precision Medical, Inc. All returns must be packaged in sealed containers to prevent damage. Precision Medical, Inc. will not be responsible for goods damaged in transit. Refer to Precision Medical,

Inc. Return Policy available on the Internet, www.precisionmedical.com.

Manuals available on our Website; www.precisionmedical.com

dISPOSAL INSTRUCTIONS

This device and its packaging contain no hazardous materials. No special precautions need to be taken when disposing the device and/ or its packaging.

Please Recycle

8

TROUBLESHOOTING

If the EasyPulseFlow fails to function, consult the Troubleshooting

Guide below. If problem cannot be solved, consult your Provider.

Problem

No flow/ pulse

Conserver not sensing breath

Patient desaturated in pulse mode

Probable Cause

• Flowmeter not securely attached to oxygen outlet

• Thorpe tube flowmeter not turned ON

• Selector Dial set between settings

• Selector Dial set between settings

• Cannula disconnected

• Nasal cannula kinked

• Humidity bottle in line

• Cannula greater than

7 ft long

• High flow cannula not being used

• Flowmeter set below

5 l/min in pulse mode

• Device not sensing patient breath

Remedy

• Securely attach flowmeter to oxygen outlet

• Turn ON the Thorpe tube flowmeter using

Flow Control Knob

• Position Selector Dial at correct setting

• Position Selector Dial at correct setting

• Connect cannula

• Replace cannula

• Remove humidity bottle

• ONLY use a 7 ft or less cannula

• Replace cannula with a high flow cannula

• Increase flow ≥ 5 l/min

• Change to continuous flow therapy

9

LIMITEd WARRANTY

ANd LIMITATION OF LIABILITY

Precision Medical, Inc. warrants that the EasyPulseFlow (the Product) will be free of defects in workmanship and/or material for the following periods:

Two (2) years from date of shipment.

Should any failure to conform to this warranty appear within the applicable period, Precision Medical, Inc. shall, upon written notification thereof and substantiation that the goods have been stored, installed, maintained and operated in accordance with Precision Medical, Inc.’s instructions and standard industry practice, and that no modifications, substitutions, or alterations have been made to the goods, correct such defect by suitable repair or replacement at its own expense.

ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES.

The representative of Precision Medical, Inc. or any retailers are not authorized to make oral warranties about the merchandise described in this contract, and any such statements shall not be relied upon and are not part of the contract for sale. Thus, this writing is a final, complete and exclusive statement of the terms of that contract.

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY WARRANTY OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER

WARRANTY OF QUALITY, WHETHER EXPRESS OR IMPLIED.

Precision Medical, Inc. shall not under any circumstances be liable for special, incidental or consequential damages including but not limited to lost profits, lost sales, or injury to person or property. Correction of non-conformities as provided above shall constitute fulfillment of all liabilities of Precision Medical,

Inc. whether based on contract, negligence, strict tort or otherwise. Precision

Medical, Inc. reserves the right to discontinue manufacture of any product or change product materials, designs, or specifications without notice.

Precision Medical, Inc. reserves the right to correct clerical or typographical errors without penalty.

10

dECLARATION OF CONFORMITY

Precision Medical, Inc

300 Held Drive

Northampton PA 18067, USA

Emergo Europe (European Office)

Molenstraat 15

2513 BH, The Hague

The Netherlands

Phone: +31 (0) 70.345.8570

Fax: +31 (0) 70.346.7299

0473

19MFA Series EasyPulseFlow

Classification: IIa

Classification criteria: Clause 3.2 Rule 11 of Annex IX of MDD

We hereby declare that an examination of the under mentioned production quality assurance system has been carried out following the requirements of the UK national legislation to which the undersigned is subjected, transposing

Annex II, 3 of the Directive 93/42/EEC on medical devices.

We certify that the production quality system conforms with the relevant provisions of the aforementioned legislation, and the result entitles the organization to use the CE 0473 marking on those products listed above.

Applied Standards: EN 980, EN 1041, EN ISO 14971, EN ISO 15001,

EN ISO 15002, EN ISO 18779, ISO 13485

Notified Body:

Address:

AMTAC Certification Services Limited

0473

Davy Avenue Knowlhill Milton Keynes MK5 8NL, UK

Certification Registration No’s: 1126 CE

Date of Expiry: 26 July 2017

devices already manufactured:

S/N traceability Device History Records

Validity of dOC: 26 July 2012 to Date of Expiry

Manufacture Representative: Quality Manager

Position: Quality Systems/ISO Representative

date of Issue: 26 July 2012

Tell us how we are doing!

Visit us at www.precisionmedical.com

506340 Rev2 072712 P rinted in

USA
