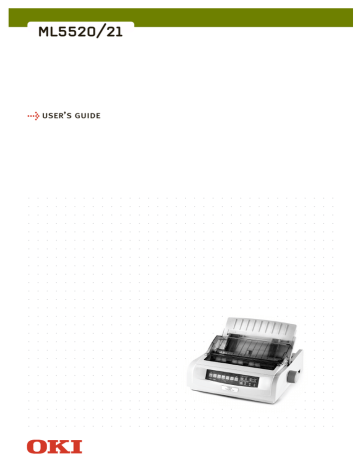

ML5520/21

user

’s guide

PREFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control.

The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from the Oki

Europe website: http://www.okieurope.com

Copyright © 2003. All rights reserved.

Energy Star is a trademark of the United States Environmental

Protection Agency.

Oki and Microline are registered trademarks of Oki Electric Industry

Company, Ltd.

Hewlett-Packard, HP, and LaserJet are registered trademarks of

Hewlett-Packard Company.

Microsoft, MS-DOS and Windows are registered trademarks of

Microsoft Corporation.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the

Council Directives 89/336/EEC (EMC) and 73/23/EEC

(LVD) as amended where applicable on the approximation of the laws of the member states relating to electromagnetic compatibility and low voltage.

PREFACE > 2

CONTENTS

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features / Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Printer Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Emulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using a Compatible Driver . . . . . . . . . . . . . . . . . . . . . . . 10

Interfaces - General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the USB Cable . . . . . . . . . . . . . . . . . . . . . . . 11

Using your printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Components: Rear Feed (Continuous Forms) . . . . . . . . . . . 13

Components: Top Feed (Single Sheets) . . . . . . . . . . . . . . . 13

Top of Form (TOF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Forms Tear-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting Top of Form (TOF) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Temporarily Changing the Top of Form . . . . . . . . . . . . . . . . 18

Resetting Top of Form to the Factory Default . . . . . . . . . . . 18

Forms Tear-Off Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Potential issues with software packages . . . . . . . . . . . 19

Changing the Forms Tear-Off Setting . . . . . . . . . . . . . . . . . 20

Manual Forms Tear-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Paper Park. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing Paper Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Continuous Forms to Single Sheets. . . . . . . . . . . . . . . . 21

Single Sheets to Continuous Forms. . . . . . . . . . . . . . . . 22

Printhead Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Print Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Character Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Epson and IBM Emulations. . . . . . . . . . . . . . . . . . . . . . . 26

Printer Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Emulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Menu Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Menu Mode Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Entering and Exiting Menu Mode . . . . . . . . . . . . . . . . . . 29

Resetting the Menu to the Factory Defaults . . . . . . . . . 29

CONTENTS > 3

Printing the Menu Settings. . . . . . . . . . . . . . . . . . . . . . . 29

Printing all Menu Settings . . . . . . . . . . . . . . . . . . . . . . . 29

Changing the Menu Settings . . . . . . . . . . . . . . . . . . . . . 29

Menu Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Explanation of Menu Items. . . . . . . . . . . . . . . . . . . . . . . 34

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Replacing the Ribbon Cartridge . . . . . . . . . . . . . . . . . . . . . . 42

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Rear Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Top Feed (Single Sheets) . . . . . . . . . . . . . . . . . . . . . . . . 54

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Rear Feed Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Rear Feed, Repeating Paper Jams . . . . . . . . . . . . . . . . . 57

Single Sheet Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . 60

Cleaning the Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Printer Control Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

IBM Proprinter III Commands. . . . . . . . . . . . . . . . . . . . . . . . 70

Epson FX Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Oki Microline Standard Commands . . . . . . . . . . . . . . . . . . 74

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Setting up your Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Installing the Ribbon Cartridge . . . . . . . . . . . . . . . . . . . . . . 83

Ribbon Cartridge Handling . . . . . . . . . . . . . . . . . . . . . . . 83

Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Computer Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Parallel (LPT), IEEE 1284 . . . . . . . . . . . . . . . . . . . . . . . . . 86

USB, Specification 1.1 Compliant . . . . . . . . . . . . . . . . . 86

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Testing the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Oki contact details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

CONTENTS > 4

NOTES, CAUTIONS AND WARNINGS

NOTE

A note appears in this manual like this. A note provides additional information to supplement the main text which may help you to use and understand the product.

CAUTION!

A caution appears in this manual like this. A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning appears in this manual like this. A warning provides additional information which, if ignored, may result in a risk of personal injury.

NOTES, CAUTIONS AND WARNINGS > 5

INTRODUCTION

>

>

>

>

Extremely reliable, durable operation: 20,000 hours Mean

Time Between Failures (MTBF) at 25% duty cycle and 35% page density.

Advanced paper handling, with built-in rear push tractor and zero-tear forms capability.

>

>

Very high print speeds:

>

High Speed Draft (HSD) Mode:

507 cps

Utility Mode:

380 cps

Near Letter Quality (NLQ) Mode:

95 cps

>

Super Speed Draft (SSD) Mode:

570 cps

This rugged 9-pin printer can meet the needs of harsh and demanding environments.

FEATURES / TIPS

Forms Tear-Off

The Forms Tear-Off feature allows a printed continuous forms page to be torn off without wasting paper or adjusting the printer.

When printing stops, Forms Tear-Off automatically moves the paper to align the perforation with the tear bar (located under the access cover), after a time interval which you select through the menu.

Paper remains in the tear-off position until the printer receives more data. Then, the paper moves back down for printing.

This feature has to be enabled.

Paper Park

Your printer’s paper park feature allows you to print a single sheet

(cut-sheet) page without removing continuous feed paper from the printer.

For more information, see “Paper Park” in “Using your Printer”.

INTRODUCTION > 6

Top of Form (TOF)

Top of Form (TOF) sets the print start position. The factory default is 1" from the top.

The TOF can be changed in increments of 1/144", for a single print job or set to a new default. The overall amount of adjustment is limited to avoid paper jams.

The first line prints at the red line of the plastic paper shield (1) on the printhead.

1

For more information, see “Top of Form (TOF)” in “Using your Printer”.

NOTE

The Forms Tear-Off and the Top of Form settings interact. For more information, see “Top of Form (TOF) and Forms Tear-Off” in “Using your

Printer”.

Turning the Platen Knob

Always turn the printer off before turning the platen knob! If you turn the platen knob when the printer is on, the Top of Form will misalign.

INTRODUCTION > 7

Controlling Access to the Printer

>

You can control access to the printer by changing the setting for the Operator Panel Function in the Menu from Full

Operation (the factory default) to Limited Operation.

>

When Limited Operation is selected, the PRINT QUALITY and

CHARACTER PITCH keys don’t work. This prevents these settings from being changed from the control panel when several people are using the printer.

For more information, see “Changing the Menu Settings” in “Using your

Printer”.

INTRODUCTION > 8

PRINTER DRIVERS

EMULATIONS

The factory default emulation for your printer is IBM PPR.

If you wish to change to one of the Epson or Microline emulations, see

“Using your Printer”.

PRINTER DRIVERS

The Oki driver for your printer is provided on the CD included with the printer. You can either load the Oki driver or select one of the compatible drivers listed below in your software application.

1.

Insert the CD into your CD-ROM drive.

NOTE

If the CD does not AutoPlay, click Start

→ Run → Browse, then browse to your CD-ROM drive, double-click Install.exe and click OK.

2.

3.

4.

Select your

Language.

When the Menu Installer window appears, click the

Driver

Installation button.

Follow the on-screen instructions.

INSTALLING THE DRIVER

NOTE

Installation of the Oki USB driver is only required for Windows 98. You may be called upon for your original Windows 98 CD. Please have this available.

1.

2.

When the [Add Printer] window appears, click [Next].

Select the directory on the CD where the drivers are located. on the Oki CD they are situated in:

X:\Drivers\WinVer\CodePage

where

X:

is CD drive letter;

PRINTER DRIVERS > 9

WinVer

is the Windows versions, and

CodePage

is the selected option.

NOTE

To find out more about Code pages, see Help on the Oki CD Browser.

3.

4.

After files have finished copying, click [Finish].

Switch your printer ON.

USING A COMPATIBLE DRIVER

The drivers below are listed by decreasing compatibility with your printer. Use one as close to the top of the list as possible.

IBM Proprinter III l

IBM Proprinter III —

factory setting

l

IBM Proprinter II

l

IBM Proprinter

Epson FX l

Epson FX 286e

l

Epson FX 850/1050

l

Epson FX 800/1000

INTERFACES - GENERAL

Your printer is equipped with a selection of data interfaces:

Under no circumstances attempt to use both parallel and USB ports simultaneously.

1.

2.

Parallel – For direct connection to a PC. This port requires a bi-directional (IEEE 1284 compliant) parallel cable.

USB – For connection to a PC running Windows 98 or above

(not Windows 95

upgraded to Windows 98) or Macintosh.

Windows NT 4.0 does not support USB. Administrator

PRINTER DRIVERS > 10

privileges are necessary for Windows 2000 and Windows XP installations.

This port requires a cable conforming to USB version 1.1 or above. A genuine cable displays the Trident symbol on both connectors.

Using an inferior cable can cause printing problems and special cables are needed for longer runs than five metres .

The operation of a printer is not assured if a USB compatible device is connected concurrently with other USB compatible machines.

When connecting multiple printers of the same type, they appear as *****, ***** (2), ***** (3), etc. These numbers depend on the order of connecting or turning on each printer.

CONNECTING THE USB CABLE

Due to the number of possible variants of operating systems it is not possible to describe every combination.

Terminology may vary between Windows operating systems and some knowledge is assumed. If you are unsure how to proceed, you should consult your computer documentation or system manager for details.

This example uses Windows 2000 Professional.

1.

Ensure the printer and computer are easily accessible and turn both units off. This is not strictly necessary but may prevent any problems being caused by the accidental dislodging of power or other cables.

2.

3.

4.

Plug the Series A male connector (a) into the the computer’s USB port or into a suitable USB hub.

Plug the Series B Male connector (b) into the printer’s USB port.

Switch on both the computer and printer.

a b

PRINTER DRIVERS > 11

5.

6.

7.

8.

9.

The printer will be identified immediately by the New Hardware

Wizard and install itself in the Printer folder. An additional item, USB Printing

Support will also appear in the Device

Manager each time the printer is switched ON and connected.

Check that the default paper size has been correctly set by looking at the settings in the Settings > Printers folder.

Under the printer's Properties > General tab, the current paper selection is shown. The printer picks up its initial setting from the Locale settings on the host computer. The paper size can be altered by using the drop down arrow and selecting an alternative size.

If the printer had formerly been used as a parallel or serial device and there is no output from the printer once a USB cable has been connected, check to see that the correct port has been selected. This information can also be found in the

Properties folder but under the Ports tab. Amend as necessary.

If there are printing problems, check to see whether there is a

USB connection active in the Control Panel. If there is no USB connection shown, you must install the hub.

Alternatively, there may be a problem if the printer is connected via a USB hub. Disconnect the printer cable from the hub and connect it directly to the computer.

PRINTER DRIVERS > 12

USING YOUR PRINTER

COMPONENTS: REAR FEED (CONTINUOUS FORMS)

The serial number of your printer is on a label fixed to the back of the printer.

1

6

7

5

1.

Sheet Guide

2.

Paper Lever

3.

ON-OFF Switch

4.

Platen Knob

2

3

4

5. Control Panel

6. Acoustic Cover

7. Access Cover

COMPONENTS: TOP FEED (SINGLE SHEETS)

1 2

7

6

1.

Paper Guides

2.

Sheet Guide

3.

Paper Lever

4.

ON-OFF Switch

3

4

5

5. Platen Knob

6. Control Panel

7. Acoustic Cover

USING YOUR PRINTER > 13

NOTE

For single-sheet printing, the paper lever must be in the middle position.

TOP OF FORM (TOF)

Top of Form (TOF) sets the print start position. The factory default is 1" from the top.

The TOF can be changed in increments of 1/144", for either a single print job, or all print jobs. The overall amount of adjustment is limited to avoid paper jams.

The first line prints at the red line of the plastic paper shield (1) on the printhead.

1

CAUTION!

If you turn the platen knob when the printer is not at Top of Form, the

TOF will misalign. Always feed the paper to TOF before turning the platen knob.

NOTE

> Your software may print the first line of print above or below where

TOF is set. You may need to adjust the TOF to meet your software’s requirements.

> The Top of Form and Forms Tear-Off settings of your printer interact.

How you set the Top of Form depends on whether Forms Tear-Off is

ON (set to 500 ms, 1 sec, or 2 sec) or OFF (the factory default setting).

USING YOUR PRINTER > 14

FORMS TEAR-OFF

There are two ways to determine the status of the Forms Tear-Off menu setting:

l

Print the Menu.

l

Use the TEAR key.

1

To print the Menu:

2 3

4

1.

2.

3.

4.

Make sure paper is loaded.

Hold

SHIFT (2), then press SEL (1) to enter the Menu Mode.

Press

PARK (4) to print the menu.

Look for the Form Tear-Off setting in the paper feed group you are using (Rear Feed, Bottom Feed or Top Feed—Forms Tear–

Off appears in the Top Feed group only if the optional Roll

Paper Stand is installed).

To use the TEAR key:

1.

2.

Make sure paper is loaded and wait 2 seconds.

Press TEAR (3).

l

If the paper moves

up

, Forms Tear-Off is

OFF

.

l

If the paper moves

down

, Forms Tear-Off is

ON

.

USING YOUR PRINTER > 15

SETTING TOP OF FORM (TOF)

CAUTION!

Do not use the platen knob to change the Top of Form. If you turn the platen knob when the printer is not at Top of Form, the TOF will misalign. Always feed the paper to TOF before turning the platen knob.

1

The first line prints at the red line of the plastic paper shield on the printhead.

Forms Tear-Off set to OFF - (default)

With paper loaded and the printer ON:

2

3

4

5

6

7

1.

2.

3.

4.

Press PARK (6) to park the paper.

Press FF/LOAD (4) to load the paper.

If the printer is ON line, press

SEL

|

MENU (1) to take the printer OFF line.

The SEL light goes out.

Press and hold SHIFT (2), then:

l

Press LF | Micro Feed Down (3) to set the TOF

higher

(the paper moves down).

l

Press FF/LOAD | Micro Feed Up (4) to set the TOF

lower

(the paper moves up).

(When you begin pressing the Micro Feed key, the printhead will move to the right).

5.

Press SEL | MENU (1) to place the printer back on line.

To reset the Top of Form to the factory default, see “Resetting Top of

Form to the Factory Default” later in this chapter.

USING YOUR PRINTER > 16

1

Forms Tear-Off set to ON

With paper loaded and the printer ON and selected:

2

3

4

5

6

7

1.

2.

3.

Press PARK (6) to park the paper.

The SEL light goes off and the red alarm light comes on.

Press FF | LOAD (4) to load the paper.

Wait briefly until the paper moves up to the tear position, then press and hold TEAR (5).

The paper moves to the current TOF and the SEL light is illuminated.

4.

5.

If the printer is ON line, press

SEL

|

MENU (1) to take the printer OFF line.

The SEL light goes out.

Hold down SHIFT (2), then:

l

Press LF | Micro Feed Down (3) to set the TOF

higher

(the paper moves down).

l

Press FF/LOAD | Micro Feed Up (4) to set the TOF

lower

(the paper moves up).

(When you begin pressing the Micro Feed key, the printhead will move to the right).

6.

Press SEL | MENU (1) to save the setting and place the printer back on line.

To reset the Top of Form to the factory default, see the next page.

USING YOUR PRINTER > 17

TEMPORARILY CHANGING THE TOP OF FORM

CAUTION!

Do not use the platen knob to change the Top of Form. If you turn the platen knob when the printer is not at Top of Form, the TOF will misalign. Always feed the paper to TOF before turning the platen knob!

To move the Top of Form position lower for one page only:

1.

Press

SEL to deselect the printer.

2.

Press

LF to lower the position of the Top of Form.

RESETTING TOP OF FORM TO THE FACTORY DEFAULT

The factory default setting for the Top of Form (where the printing should begin) is 1" down from the top of the page.

To reset the Top of Form to the factory default:

1.

Remove paper from the paper path.

2.

3.

4.

Turn the printer off.

Press and hold PARK + QUIET | TOF while turning on the printer.

Reload paper.

FORMS TEAR-OFF FEATURE

This feature is normally turned off. To use Forms Tear-Off, you must enter the menu and change the setting to the desired time interval

(see “Changing the Forms Tear- Off Settings”).

The Forms Tear-Off feature allows a printed continuous forms page to be torn off without wasting paper or adjusting the printer. It can be used for rear feed continuous forms, bottom feed continuous forms

(with the optional push tractor installed), or for top feed roll paper

(with optional roll paper stand installed).

When the printer is turned on, the paper feeds to the tear-off position.

USING YOUR PRINTER > 18

When data is received, the paper automatically moves down to the print position (TOF) and printing begins.

NOTE

You can also move the paper down to the print position manually by pressing TEAR.

When printing stops, Forms Tear-Off automatically moves the paper to align the perforation with the tear bar (located under the access cover), after the time interval which you selected through the menu.

Paper remains in the tear-off position until the printer receives more data. Then, the paper moves back down for printing.

NOTE

> The status of the Forms Tear-Off menu setting affects how you set the Top of Form: see “Top of Form (TOF) and Forms Tear-Off” earlier in this chapter.

> Do not use Forms Tear-Off with labels or multipart forms!

> Forms Tear-Off cannot be used when the optional pull tractor is engaged.

POTENTIAL ISSUES WITH SOFTWARE PACKAGES

If Forms Tear-Off is set to ON and the software package you are using

“pauses” for a long enough interval while sending data to the printer,

Forms Tear-Off may be activated. No data is lost, but this causes uneven print registration due to the paper movement.

If this occurs, use the menu to turn off this feature, then use the TEAR key to move the paper up to the tear position manually (see

“Changing the Forms Tear-off Settings”).

USING YOUR PRINTER > 19

CHANGING THE FORMS TEAR-OFF SETTING

The default setting for Forms Tear-Off is OFF.

1

2

3

4

5

6

7

To change the Forms Tear-Off setting:

1.

Press SHIFT (2) + SEL (1).

2.

3.

Press GROUP (3) repeatedly until the Rear Feed or Bottom Feed group shows in the first column of the printed line, depending on which paper feed you are using,

Press ITEM (4) repeatedly until Form Tear-Off appears in the second column:

4.

5.

Rear Feed Form Tear-Off Off

Press SET (5) until the time interval you wish to select appears in the third column:

Rear Feed Form Tear-Off 1 Sec

Press SHIFT (2) + SEL (1) to exit Menu Mode and save the setting.

MANUAL FORMS TEAR-OFF

If you don’t wish to engage the Forms Tear-Off feature, you can advance:

l

rear-feed continuous forms loaded on the built-in tractor

or

l

bottom-feed continuous forms loaded on the optional push tractor up to the tear-off position manually by pressing TEAR (5).

USING YOUR PRINTER > 20

PAPER PARK

CAUTION!

Never park labels.

Paper park allows you to switch to single-sheet printing without removing continuous feed paper from the printer.

When you wish to print single sheets, simply press

PARK (6) to retract the continuous form paper from the paper path, then lift the sheet guide, load the sheet and send the print job.

CHANGING PAPER PATHS

CONTINUOUS FORMS TO SINGLE SHEETS

1.

2.

Tear off any printed pages, then press PARK.

Raise the sheet guide (1) to the single-sheet feed position.

1

3.

Pivot the wire feed guide into the sheet guide.

USING YOUR PRINTER > 21

4.

Move the paper lever (1) to the middle position marked “TOP.”

1

5.

Adjust the paper guides (1) for the size of paper you are using, then place a sheet of paper in the sheet guide.

1

SINGLE SHEETS TO CONTINUOUS FORMS

1.

2.

Press FF/LOAD to remove the single-sheet paper.

Lower the sheet guide into the continuous-forms position.

USING YOUR PRINTER > 22

3.

Swing the wire feed guide over onto the pull-up roller.

4.

Move the paper lever to the appropriate position.

l

Rear feed:

l

Bottom feed:

5.

l

If necessary, load continuous-form paper.

Press FF/LOAD.

USING YOUR PRINTER > 23

PRINTHEAD GAP

1.

The printhead gap is the distance between the printhead and the platen.

CAUTION!

Make sure the printer is turned off before you open the access cover.

To adjust the gap, open the access cover and move the coloured lever

(1) to the recommended setting from the table.

1

Setting Media

3

4

1

2

5

Standard paper

2-part form (with carbon)

3-part form (with carbon)

4-part form (with carbon)

Envelopes or extra thick paper

NOTE

When the head gap is set to 2, 3, 4 or 5, the printer automatically slows down for better print quality with multipart forms.

USING YOUR PRINTER > 24

PRINT QUALITY

1

Press PRINT QUALITY (1) to select:

Utility (UTL)—the default: l

Medium quality, medium speed (380 cps)

Gothic typeface only

High Speed Draft (HSD): l

Lower quality, higher speed (507 cps)

Gothic typeface only

Super Speed Draft (SSD): l

Lowest quality, highest speed (570 cps)

Gothic typeface only

Near Letter Quality (NLQ): l

Highest quality, slowest speed (95 cps)

Courier or Gothic

NOTE

Front panel settings for print quality and character pitch are normally overridden by software commands.

USING YOUR PRINTER > 25

CHARACTER PITCH

1

Character pitch determines how many characters will print on each line. You can choose a specific fixed width for each character in characters per inch (cpi), or Proportional. The higher cpi settings are often used for spreadsheets.

Proportional ( PROP) sets character widths based on the character itself: e.g., the letter i is assigned a narrower width than the letter m.

This provides a more polished, typeset appearance.

NOTE

Front panel settings for character pitch are normally overridden when the SI command is received from your software.

EPSON AND IBM EMULATIONS

Set the character pitch by pressing CHARACTER PITCH (1) until the light beneath the desired setting is illuminated:

l

10 cpi; 12 cpi; 15 cpi; 17 cpi; 20 cpi or Proportional

MICROLINE Emulation

In the MICROLINE emulation, the Character Pitch choices are:

l

10 cpi; 12 cpi; 15 cpi; 17 cpi; 20 cpi, Proportional or nonproportional

To select Proportional, press the CHARACTER PITCH key until both the cpi value and PROP lights are illuminated.

To select non-proportional, press the CHARACTER PITCH key until the light for the cpi value you wish to use is illuminated.

USING YOUR PRINTER > 26

PRINTER RESET

1 2

3

4

5

Clearing some error conditions requires that you reset (reinitialise) the printer. To do this:

1.

2.

Press and release SEL (1) to take the printer off-line.

The

SEL

light goes out.

Press and hold

SHIFT

(2), then press the

RESET/CHARACTER

PITCH key (5).

NOTE

Pressing

SHIFT and RESET reinitialises the printer, but does not affect any menu settings and does not reset the printer to the factory defaults.

For information on resetting the printer to the factory defaults, see

“Resetting the Menu to the Factory Defaults” later in this chapter.

EMULATIONS

l

IBM

®

Proprinter III —

factory setting

l

Epson

®

FX

l

Oki

®

MICROLINE

®

Changing Emulations

Make sure paper is loaded.

1.

2.

Press and hold

Press

LF (3).

SHIFT

(2), then press

The following line will print:

SEL (1).

Printer Control Emulation Mode IBM PPR

3.

4.

Press

TEAR

(4) repeatedly until the emulation you wish to select prints in the right-hand column.

Press and hold

SHIFT (2), then press SEL (1) to save your setting and exit the Menu Mode.

USING YOUR PRINTER > 27

MENU MODE

In Menu Mode, use the front panel keys to change the defaults for the printer parameters. The changes made in the Menu Mode are automatically saved when you exit the Menu Mode and are retained, even when the printer is turned off.

NOTE

Please print the current Menu Mode settings before you reset or change them. This is the only way to have a record of the settings

.

MENU MODE KEYS

1

2 5 3

GROUP Key

Prints the next Group in the Menu.

With the SHIFT key, prints the previous Group.

4

ITEM Key

Prints the next Item in the Group.

With the SHIFT key, prints the previous Item in the Group.

SET Key

Prints the next setting for an Item.

With the SHIFT key, prints the previous setting for an Item.

PRINT Key

Prints a copy of all the Menu settings.

With the SHIFT key, prints the current settings for the Group selected.

MENU Light

ON when the printer is in the Menu Mode.

MENU MODE > 28

ENTERING AND EXITING MENU MODE

Hold down the SHIFT key while pressing SEL.

RESETTING THE MENU TO THE FACTORY DEFAULTS

1.

2.

Turn the printer off.

Press SEL and LF while turning the printer ON.

PRINTING THE MENU SETTINGS

1.

2.

3.

Make sure paper is loaded in the printer.

Press and hold SHIFT, then press SEL to enter the Menu Mode.

Press PRINT (PARK key).

PRINTING ALL MENU SETTINGS

To print out a listing of the settings for all menu items, regardless of the emulation selected or the accessories installed:

Make sure paper is loaded in the printer.

1.

Press and hold SHIFT, then press SEL to enter the Menu Mode.

2.

Press and hold SHIFT, then press PRINT QUALITY.

CHANGING THE MENU SETTINGS

1.

2.

3.

4.

5.

Press and hold SHIFT, then press SEL to enter the Menu Mode.

Use the GROUP, ITEM and SET keys to make your changes:

Press GROUP until the Group you wish to change appears in the first column.

Press ITEM until the Item you wish to change appears in the second column.

Press SET until the setting you want appears in the third column.

MENU MODE > 29

6.

Press and hold SHIFT, then press SEL to exit the Menu Mode and save your settings.

NOTE

If you turn off the printer without first exiting the Menu Mode, the changes you have made will be lost.

MENU SETTINGS

For a complete explanation of each menu item, see “Explanations of

Menu Items” later in this chapter.

The table following shows the items which may appear in the menu.

Settings which are engaged at the factory (defaults) are set in

bold

italic. Some groups or entries will only appear when a specific emulation is engaged, as noted.

Group

Printer

Control

Font

Item

Emulation Mode

Print Mode

Settings

IBM PPR, Epson FX, ML

NLQ Courier, NLQ Gothic, NLQ OCR-B,

Utility, HSD

DRAFT Mode

Pitch

Proportional Spacing

Style

Size

HSD, SSD

10 cpi, 12 cpi, 15 cpi, 17.1 cpi, 20 cpi

NO, YES

Normal, Italics

Single, Double

MENU MODE > 30

Group Item

Symbol Sets Character Set

Language Set

Zero Character

Code Page

Rear Feed Line Spacing

Form Tear-Off

Skip Over Perforation

Page Width (wide model)

Page Length

Bottom Feed Line Spacing

Form Tear-Off

Skip Over Perforation

Page Width (wide model)

Page Length

Settings

Set I, Set II [Epson and IBM mode]

Standard, Line Graphics, Block

Graphics [ML Mode]

ASCII, French, German, British,

Danish I, Swedish, Italian, Spanish I,

Japanese, Norwegian, Danish II,

Spanish II, Latin American,

French Canadian,

Dutch, TRS80, Swedish II,

Swedish III, Swedish IV, Turkish,

Swiss I, Swiss II, Publisher

Slashed,

Unslashed

USA, Canada French, Multilingual,

Portugal, Norway, Turkey,

Greek_437, Greek_869, Greek_928,

Greek_437 CYPRUS, Polska Mazovia,

Serbo Croatic I, Serbo Croatic II,

ECMA-94, Hungarian CWI,

Windows Greek,

Windows East Europe

Windows Cyrillic,

East Europe Latin II - 852,

Cyrillic I - 855, Cyrillic II - 866,

Kamenicky (MJK), ISO Latin 2,

Turkey_857, Windows Turkey,

Ukrainian, Bulgarian,

ISO Latin 6 (8859/10),

Windows Baltic, Baltic_774,

KBL-Lithuanian, Cyrillic Latvian,

Roman-8, Icelandic-861,

Multilingual 858, ISO 8859-15

Greek_737

6 LPI, 8 LPI

Off, 500 ms, 1 sec, 2 sec

No, Yes

13.6", 8"

11", 11-2/3", 12", 14", 17", 5", 3",

3.5", 4", 5.5", 6", 7", 8", 8.5"

6LPI, 8 LPI

Off, 500 ms, 1 sec, 2 sec

No, Yes

13.6", 8"

11", 11-2/3", 12", 14", 17", 5", 3",

3.25", 3.5", 4", 5.5", 6", 7", 8", 8.5

MENU MODE > 31

Group

Top Feed

Set-Up

Item Settings

Line Spacing

Form Tear-Off*

Bottom Margin

Page Width (wide model)

Page Length

Wait Time

Page Length Control

6 LPI, 8 LPI

Off, 500 ms, 1 sec, 2 sec

Valid, Invalid

8", 13.6"

11", 11-2/3", 12", 14", 17", 5", 3",

3.25", 3.5", 4", 5.5", 6", 7", 8", 8.5"

500 ms, 1 sec, 2 sec

by Actual Page Length, by MENU

Setting

* With RollPaper Stand fitted

Graphics

7 or 8 Bit Graphics*

Receive Buffer Size

Paper Out Override

Print Registration 1

Print Registration 2

7 or 8 Bits Data Word*

Operator Panel Function

Reset Inhibit

Print Suppress Effective

Auto LF

Auto CR**

CSF Bin Select***

Print DEL Code*

SI Select Pitch (10 cpi)**

SI Select Pitch (12 cpi)**

Time Out Print

Auto Select

Centring Position

CSF Type***

ESC SI Pitch

Select Language Set

Power Saving

Power Save Time

* When MICROLINE emulation selected.

** When IBM emulation selected.

*** When Cut Sheet Feeder fitted.

Bi-directional, Uni-directional

8,

7

1 Line, 32K, 64K, 128K

No, Yes

0, range to 0.25 mm to the right or left, set in 0.05 mm increments

Press SEL to shift registration to the left;press SHIFT + SEL to shift registration to the right.

0, range to 0.25 mm to the right or left, set in 0.05 mm increments press

SEL to shift registration to the left; press SHIFT + SEL to shift registration to the right.

8, 7

Full Operation, Limited Operation

No, Yes

No,

Yes

No, Yes

No, Yes

Bin 1, Bin 2

No, Yes

15 cpi,

17.1 cpi

12 cpi, 20 cpi

Valid, Invalid

No, Yes

DEFAULT, MODE 1, MODE 2

Wide, Narrow

17.1 cpi, 20 cpi

Combined, Code Page Only

Enable, Disable

5 min., 10 min., 15 min., 30 min.,

60 min.

MENU MODE > 32

Group

Parallel I/F

Serial I/F*

Item

I-Prime

Pin 18

Auto Feed XT*

Bi-Direction

Note:

*When Epson emulation selected.

Parity

Serial Data 7/8 bits

Protocol

Diagnostic Test

Busy Line

Baud Rate

DSR Signal

DTR Signal

Busy Time

* When Serial

I/F installed.

CSF Bin 1** Line Spacing

Bottom Margin

Page Width (Wide model)

Page Length

CSF Bin 2**

Line Spacing

Bottom Margin V

Page Length

* * When Cut

Sheet Feeder installed.

Settings

Buffer Print, Buffer Clear, Invalid

+5V, Open

Invalid, Valid

Enable, Disable

None, Odd, Even

8 Bits, 7 Bits

Ready/Busy, X/ON / X/OFF

No, Yes

SSD-, SSD+, DTR, RTS

19200 bps,

9600 bps, 4800 bps,

2400, 1200, 600, 300 bps

Valid, Invalid

Ready On Power Up, Ready On Select

200 ms, 1 sec.

6 LPI, 8 LPI

Valid, Invalid

8", 13.6"

11", 11-2/3", 12", 14", 17", 5", 3.5",

4", 5.5", 6", 7", 8", 8.5"

6 LPI, 8 LPI

Valid, Invalid

11", 11-2/3", 12", 14", 17", 5", 3.5",

4", 5.5", 6", 7", 8", 8.5"

MENU MODE > 33

EXPLANATION OF MENU ITEMS

These explanations are in alphabetical sequence to make it easier to look them up. Some items only appear when optional accessories are installed; others appear in several groups in the menu.

7 or 8 Bit Graphics, Default = 7

Change this setting to 8 if your system uses 8-bit graphics.

7 or 8 Bit Data Word, Default = 8

Change this setting to 7 if your system uses 7-bit data word lengths.

Auto CR, Default =No

IBM emulation only. If you want the printer to automatically add a carriage return when a Line Feed is received at the end of a line, change the setting to Yes.

Auto LF, Default = No

If your printout is consistently double spaced, select No; if it overprints, select Yes.

Auto Feed XT, Default = Invalid

Epson emulation only. In the Epson emulation, the XT signal on pin 14 of the parallel interface can control automatic line feed. Some interface cables are wired in such a way that automatic line feed is always in effect: this item eliminates this potential problem. If your system uses pin 14 of the parallel interface to control automatic line feed, change the setting to Valid.

Auto Select, Default = No

Determines whether or not your printer will automatically be selected after you load in paper. With the factory default engaged, the printer will be deselected so that you can set the Top of Form. If you always use the same Top of Form position, change the setting to Yes.

MENU MODE > 34

Baud Rate, Default = 9600 bps

Appears only if optional Serial Interface is installed. Set this to match your system’s transmission speed.

Bi-direction, Default = Enable

Change this setting if you wish to disable bi-directional transmission

(PnP) in Nibble mode.

Bottom Margin, Default = Valid

Change to Invalid if you want the printer to ignore the bottom margin setting.

CAUTION!

Setting the Bottom Margin to Invalid can cause loss of data and damage the printhead by allowing printing without paper.

Busy Line, Default = SSD-

Appears only when the optional Serial Interface is installed. If Ready/

Busy protocol (factory default) is selected, you can choose which line your system monitors for a busy signal:

l

SSD -9V, select SSD-

l

SSD +9V, select SSD+

l

DTR -9V, select DTR

l

RTS -9V, select RTS

Busy Time, Default = 200 ms

Appears only when the optional Serial Interface is installed. Sets the length of the busy signal when the Ready/Busy protocol (factory default) is engaged.

Centering Position, Default = DEFAULT

Used to limit printhead travel when printing narrow columns.

l

Select Mode 1 for the narrow carriage printer.

l

Select Mode 1 or Mode 2 for the wide carriage printer.

MENU MODE > 35

Character Set, Default = IBM Set II

Epson and IBM emulations only. Use this to switch character sets to

IBM Set II.

Character Set, Default = Standard

MICROLINE emulation only. Use this to switch the character set to Line

Graphics.

Code Page, Default = USA

Choose the Code Page character set you wish to use:

USA, Canada French, Multilingual, Portugal, Norway, Turkey,

Greek_437, Greek_869, Greek_928, Greek_437 CYPRUS,

Polska Mazovia, Serbo Croatic I, Serbo Croatic II, ECMA-94,

Hungarian CWI, Windows Greek, Windows East Europe,

Windows Cyrillic, East Europe Latin II - 852, Cyrillic I - 855,

Cyrillic II - 866, Kamenicky (MJK), ISO Latin 2, Turkey_857,

Windows Turkey, Ukrainian, Bulgarian, ISO Latin 6 (8859/10),

Windows Baltic, Baltic_774, KBL-Lithuanian, Cyrillic Latvian,

Roman-8, Icelandic-861, Multilingual 858, ISO 8859-15 Greek_737.

CSF Bin Select, Default = Bin 1

Appears only when the optional Dual-Bin Cut Sheet Feeder is installed. Use this to switch to Bin 2 as the default.

CSF Type, Default = Wide

To avoid paper jams, change this setting to Narrow if you are using the optional Cut Sheet Feeder on the wide model ML5521 printer.

Diagnostic Test, Default = No

Appears only when the optional Serial Interface is installed. Select

YES to perform a diagnostic test of the serial interface.

DRAFT Mode, Default = HSD

Applies only when the Print Mode is set to DRAFT. Selects the draft mode to be used: HSD (High Speed Draft) or SSD (Super Speed Draft).

MENU MODE > 36

DSR Signal, Default = Valid

Appears only when the optional Serial Interface is installed. Used with the Ready/Busy protocol (factory default) to select the way your system handles the DSR signal.

DTR Signal, Default = Ready On Power Up

Appears only when the optional Serial Interface is installed. Change to Ready On Select if the DTR signal is required when the printer is selected (leave as Ready On Power Up if the DTR signal is required when the printer is turned ON).

Emulation Mode, Default = IBM PPR

Selects the printer command set (emulation) you want to engage.

ESC SI Pitch, Default = 17 cpi

Sets the character pitch used when the ESC SI command is received.

Form Tear-Off, Default = Off

Choose 500 ms, 1 sec, or 2 sec to turn the Form Tear-Off feature ON and to set the time interval for the printer to wait before advancing the paper.

Graphics, Default = Bi-directional

Change to uni-directional graphics for better registration, but slower printing. With this set for bi-directional, you can optimise the registration using the Print Registration setting in the Menu.

I-Prime, Default = Buffer Print

Determines what the printer will do when it receives the I-Prime signal from the software.

l

Buffer Print: prints out the buffer contents before resetting.

l

Buffer Clear: dumps the buffer contents immediately.

l

Invalid: causes the printer to ignore the I-Prime command.

Select this setting if you wish to enter settings through the printer’s control panel which will not be automatically

MENU MODE > 37

overridden by the software’s settings when the I-Prime signal is sent.

Language Set, Default = ASCII

Replaces certain standard symbols with special characters used in foreign languages.

Line Spacing, Default = 6 lpi

Change to 8 lines per inch (lpi) to get more lines on a page.

Operator Panel Function, Default = Full Operation

Change to Limited Operation to deactivate the

PRINT QUALITY

and

CHARACTER PITCH

buttons, so that these features can only be controlled through your software. This prevents these from being changed from the control panel when several people are using the printer.

NOTE

This feature also prevents access to the Menu. To access the Menu in these circumstances, turn the printer off, then hold down the SEL key while turning ON the printer.

Page Length, Default = 11-2/3" or 1/2"

Selects the length of the paper you are using. This enables the printer to keep track of the initial printing position (TOF) on each page.

Page Length Control, Default = by Actual Page Length

If you wish to use the Paper End sensor to detect the actual paper end, use Actual Page Length setting. If you use “by Menu Setting”, the printer will disregard the Paper End (PE) and use the page length as set by the menu.

Page Width, Default = 13.6"

Wide carriage model only.

MENU MODE > 38

Paper Out Override, Default = No

Senses when less than 1" (25 mm) of paper remains and stops printing. Change to Yes to override the sensor and print closer to the bottom of the page.

CAUTION!

Engaging Paper Out Override can cause loss of data and damage the printhead by allowing printing without paper.

Parity, Default = None

Appears only when the optional Serial Interface is installed. Selects the type of parity your system uses: None, Odd or Even.

Pin 18, Default = +5V

Sets the signal on pin 18 to +5 volts or open.

Pitch, Default = 10 cpi

Choose the character width in characters per inch (cpi).

Power Save Time, Default = 5 min.

Sets the interval the printer waits for more data before it goes into the power save mode. Power Saving must be set to Enable (the factory default) for this to be effective.

Power Saving, Default = Enable

Change to Disable if you wish to prevent the printer from entering the

Power Save mode after the selected interval.

Print Mode, Default = Utility

Choose the quality and typeface of printing. Switch to NLQ Courier or

NLQ Gothic for Near Letter Quality printing. If you are printing draft-type documents, select DRAFT, then select either HSD or SSD under DRAFT Mode. Both of these Items are in the Font Group.

MENU MODE > 39

Print Registration, Default = 0

Change the setting as required to obtain the best registration for bidirectional printing.

Print Suppress Effective, Default = Yes

If your system uses the DC1 and DC3 codes for something other than the print suppress mode, change the setting to No.

Proportional Spacing, Default = No

Change the setting to Yes to engage proportional spacing of characters.

Protocol, Default = Ready/Busy

Appears only if the optional Serial Interface is installed. Change to

X-ON / X-OFF if that is the type of protocol your system uses.

Receive Buffer Size, Default = 64K

Selects the amount of memory devoted to holding received data.

Choosing 1 Line will tie up your computer while printing, but if you abort the print job, the printer will stop much sooner.

Reset Inhibit, Default = No

Select Yes if you wish the printer to ignore the reset command sent by software. This prevents your software from changing the settings you make through the front panel controls or through printer commands.

NOTE

This will also prevent your software from clearing out existing settings when you finish printing one document and switch to another.

Serial Data 7/8 Bits, Default = 8 Bits

Appears only if the optional Serial Interface is installed. Change to 7

Bits if your system uses a 7-bit data format.

MENU MODE > 40

SI Select Pitch 10 cpi, Default = 17.1 cpi

IBM emulation only. Sets the pitch to be engaged when the printer control panel is set for 10 cpi and the SI command is received.

SI Select Pitch 12 cpi, Default = 20 cpi

IBM emulation only. Sets the pitch to be engaged when the printer control panel is set for 12 cpi and the SI command is received.

Size, Default = Single

Change to Double for double width and height printing.

Skip Over Perforation, Default = No

Change to Yes if you want the printer to go to the next page when it comes within 1" (25 mm) of the bottom of the page. Keep it set to No if your software has its own page formatting controls.

Style, Default = Normal

Change to Italics if you want the printed characters to be slanted.

Time Out Print, Default = Valid

If your software spends a long time processing between portions of data it feeds to the printer, change the setting to Invalid to keep your printer from dumping the received data while it is waiting for more.

MENU MODE > 41

MAINTENANCE

REPLACING THE RIBBON CARTRIDGE

Important!

Make sure you have the correct replacement ribbon for your printer.

The wrong ribbon will not print when installed in your printer. Look for the printer model number on the ribbon package.

Ribbon Cartridge Handling

l

Leave unused ribbon cartridges in their packages until needed.

l

Careful; the ribbon ink may cause permanent stains.

l

Ribbon ink on skin or clothing can usually be removed with soap and water.

Make sure the printer is turned OFF.

1.

Open the access cover and center the printhead.

MAINTENANCE > 42

2.

Swing the used ribbon cartridge up off the printhead, lift it out, and discard it.

The printhead may be HOT.

WARNING!

3.

Unpack the new ribbon cartridge and install it.

Important!

Do not remove the ribbon shield (1) from the ribbon!

1

4.

Turn the take-up knob (1) in the direction of the arrow to take up any ribbon slack.

1

5.

Close the access cover and turn the printer back on.

If ribbon should contact the eyes:

Flush eyes with large quantities of water for 15 minutes, keeping eyelids open with fingers. Seek medical attention.

If ribbon should contact the skin

Wash thoroughly with soap and water.

MAINTENANCE > 43

LOADING PAPER

REAR FEED

If you have any paper in the paper path, remove it before installing rear feed paper.

2

1

3

1.

2.

3.

Lock Lever

Upper Tractor Cover

Pins

Loading Rear Feed Paper from the

Back

of the Printer

These instructions assume you have ready access to the back of the printer. If you do not, go to “Loading Rear Feed Paper from the Front of the Printer.”

Make sure the paper lever is forward (position marked “REAR”).

MAINTENANCE > 44

1.

Open the access cover (1).

1

2.

Grasp the sheet guide. Lift it slightly, then slide it back.

2

3

3.

1

Pivot the sheet guide forward and gently rest it against the roller assembly.

Careful! If you push the sheet guide too hard against the roller

assembly, it may dislodge it. If it does, be sure to reseat the roller assembly before continuing.

MAINTENANCE > 45

4.

From the back of the printer, locate the tractors (1).

5.

1

Open the lock levers (1) and move the right tractor (

as viewed from the back of the printer

) to the reference mark (2) matching the width of the paper you are loading. Then close the lock lever on the right tractor:

1

1

10 9.5

2

16

15

5520

5521

NOTE

The movement of the right tractor is limited to ensure that the paper covers the paper sensor.

6.

Open the tractor covers.

MAINTENANCE > 46

7.

Place continuous forms paper on the first two pins of either tractor.

Important! You must keep the number of paper holes engaged on

either pin the same. If you don’t the paper will skew and jam.

8.

Close the right tractor cover.

9.

Adjust the left tractor until the holes in the paper are centred on the pins then lock the lever and close the left tractor cover.

NOTE

If the paper is too loose, or too tight, it can cause jams.

MAINTENANCE > 47

10.

Lower the sheet guide and slide it towards the front of the printer until the marks align.

11.

Place the wire guide in the sheet guide on the pull-up roller assembly.

12.

Press FF/LOAD.

NOTE

The factory default setting for the Top of Form (where the printing should begin) is 1" down from the top of the page. To change the setting, see

“Top of Form (TOF)” in the previous chapter.

MAINTENANCE > 48

Loading Rear Feed Paper from the

Front

of the Printer

These instructions assume that you do not have ready access to the back of the printer. If you do, go back to “Loading Rear Feed Paper from the Rear of the Printer” earlier in this chapter.

2

1

3

1.

2.

Lock Lever

Upper Tractor Cover

3.

Pins

Make sure the paper lever is forward (position marked “REAR”).

1.

Open the access cover (1).

1

MAINTENANCE > 49

2.

Grasp the tabs and lift off the sheet guide.

3.

Pull up on the lock levers to release them.

NOTE

The movement of the left tractor (as viewed from the front of the printer) is restricted to ensure that the paper covers the paper out sensor.

4.

Move the left tractor to the position to match your paper size and push back on the lever to lock it in place, then move the right tractor to fit the width of the paper. You will find reference marks (1 in illustration below) on the printer for the two most common paper sizes:

10 9.5

16 15

1

5520

5521

MAINTENANCE > 50

5.

Open the tractor covers and place continuous forms paper on the first two pins of either tractor, then close the

left

tractor cover.

NOTE

You must keep the number of paper holes engaged on either pin the same. If you don’t the paper will skew and jam.

6.

Adjust the position of the right tractor to centre the holes in the paper on the pins. Then, close the right tractor cover and push back the lock lever. Do not stretch the paper.

If the paper is too loose or too tight it can cause jams.

MAINTENANCE > 51

7.

Reinstall the sheet feeder.

MAINTENANCE > 52

8.

Place the wire guide (1) in the sheet guide on the pull-up roller assembly.

9.

Press FF/LOAD.

NOTE

The factory default setting for the Top of Form (where the printing should begin) is 1" down from the top of the page. To change the setting, see

“Top of Form (TOF)” in the previous Chapter.

MAINTENANCE > 53

TOP FEED (SINGLE SHEETS)

If you have continuous form paper in the path, press PARK to remove it before loading single sheets.

Make sure the printer is on and deselected ( SEL light off).

1.

Move the paper lever (1) to the centre position (marked

“TOP”).

1

2.

Open the acoustic cover (1) and raise the sheet guide (2) to the single-sheet position. Pivot the wire feed guide (3) up into the sheet guide.

2

3

1

MAINTENANCE > 54

3.

Adjust the paper feed guides (1) for the width of the paper, then place a sheet of paper in the separator. The paper will feed into the printer.

1

NOTES

> If the paper does not feed in, remove it. Check the paper lever position. Make sure the ALARM light is ON: if it is flashing, hold the

SHIFT

key and press the

CHARACTER PITCH/RESET

key. Reload the sheet of paper.

> The factory default setting for the Top of Form (where the printing should begin) is 1" down from the top of the page. To change the setting, see “Top of Form (TOF)” in the previous chapter.

CLEARING PAPER JAMS

REAR FEED JAMS

1.

2.

Turn the printer OFF.

Use the platen knob to back the paper all the way out of the printer.

CAUTION!

Make sure the printer is turned OFF before you open the access cover.

MAINTENANCE > 55

3.

Open the access cover (1) and remove the pull-up roller assembly (2). Remove any torn paper.

2

4.

1

Lift the sheet guide (1) and reload paper. Make sure you lock the tractor covers.

5.

Lower the sheet guide, then install the pull-up roller assembly and close the access cover.

6.

Turn the printer ON and press FF/LOAD.

MAINTENANCE > 56

REAR FEED, REPEATING PAPER JAMS

If the paper keeps jamming, you may have:

l

defective paper

l

misaligned paper

l

bits of paper stuck in the paper path

Defective Paper

Replace the defective paper with a fresh stack.

Misaligned Paper

1.

Turn off the printer.

2.

3.

4.

Use the platen knob to back the paper all the way out of the printer.

Tear off a couple of sheets of paper, leaving a new, clean, square-cut edge.

Reload the paper and turn the printer back on.

Fragments of Paper in the Paper Path

1.

Turn off the printer.

2.

Use the platen knob to back the paper all the way out of the printer.

CAUTION!

Make sure the printer is turned OFF before you open the access cover.

MAINTENANCE > 57

3.

Open the access cover (1) and remove the pull-up roller assembly (2). Then grasp the tabs (3) on the sheet guide (4) and lift it off the printer.

2

4

3

3

1

4.

5.

Remove any torn pieces of paper.

Fold some continuous-form paper over three times to make a page four sheets thick. Then, load it on the tractors and close and lock the covers.

6.

7.

Use the platen knob to draw the quadruple-thick page around the platen. This brings out jammed pieces of paper.

Remove the paper pieces. Then, use the platen knob to back the paper out.

MAINTENANCE > 58

8.

Load standard paper, close and lock the tractor covers.

9.

Install the sheet guide, then install the pull-up roller assembly and close the access cover.

10.

Turn the printer on and press FF/LOAD.

MAINTENANCE > 59

SINGLE SHEET PAPER JAMS

1.

2.

Turn off the printer.

Use the platen knob to back the paper out.

3.

Open the access cover (1) and remove the pull-up roller assembly (2).

2

1

4.

5.

Remove any torn pieces from around the carriage.

Reinstall the pull-up roller assembly and close the access cover.

MAINTENANCE > 60

CLEANING THE HOUSING

You should clean the printer housing every six months (or after about

300 hours of operation).

CAUTION!

Never use strong solvents or strong detergents on the cabinet—they could damage the housing.

1.

2.

Turn off the printer.

Use the platen knob to back the paper out of the printer.

CAUTION!

Make sure the printer is turned off before you open the access cover.

3.

Open the access cover (1) and remove the pull-up roller assembly (2).

2

1

4.

Use a clean, dry cloth to dust around the carriage shaft and platen. Remove any loose bits of paper.

MAINTENANCE > 61

5.

Reinstall the pull-up roller assembly and close the access cover.

MAINTENANCE > 62

TROUBLESHOOTING

GENERAL INFORMATION

Here are some general things to check before proceeding with detailed troubleshooting.

l

Is the printer plugged in and turned ON?

l

Are the connections (power and interface) secure?

l

Is the product being operated under the proper ambient conditions?

l

Does the paper being used meet the specifications for this product?

l

Is the paper properly installed?

l

Is the ribbon properly installed?

l

Is an Oki ribbon being used?

l

Is the printhead gap correctly set?

l

Are the correct printer drivers being used for the printer?

NOTE

> Settings in your software application will normally override any settings in your printer driver.

> Printer driver settings normally override settings from the printer menu or printer front panel.

Problem

My word processor files do not print the way I have the menu and front panel set.

Solution

Remember:

l

Settings in your software application can override settings in your printer driver.

TROUBLESHOOTING > 63

l

Your printer driver settings can override any settings from the printer menu or printer front panel.

Before sending a file to the printer, many word processors send either an “initialization string” or an I-Prime signal to the printer.

The initialization string contains codes that override the panel and menu settings. To change your printer to ignore the reset code, enter the Menu Mode, go to the Set-Up group and change the setting for

Reset Inhibit to Yes.

The I-Prime signal will automatically override any front panel settings you have made. To eliminate this problem, enter the Menu Mode, go to the Parallel Interface group and change the setting for I-Prime to

Invalid.

For more information on changing menu settings, see “Changing the

Menu Settings” in Chapter 3.

Problem

Nothing happens when I turn ON the printer.

Solution

Check the power cord connection to the outlet and to the printer. If you are using a power strip, make sure it is turned ON, and that the fuse hasn’t blown or that the circuit breaker hasn’t tripped.

Problem

The printer does not print when the computer sends data.

Solutions

1.

Is the SEL light on? If not, press the SEL key.

2.

3.

Check that the interface cable is securely connected to both the printer and the computer.

If you have the optional serial interface board installed, check to be sure that it is firmly seated in the printer.

TROUBLESHOOTING > 64

Problem

I'm getting strange symbols, incorrect fonts, etc., when I try to print a document.

Solutions

1.

Check to be sure that the printer driver you have selected in your software matches the printer emulation.

2.

Press SHIFT and SEL keys, then press GROUP key.

This will print a line showing the emulation you have selected.

3.

If you have embedded any printer commands in your software, check to be sure that you entered them correctly.

Problem

Ink smears on the paper when I print narrow columns.

Solution

This may be caused by excessive printhead travel from the centering position. Enter the Menu and set the Centring Position to MODE 1. See

“Using Your Printer, Menu Mode.”

For the wide carriage printer, if MODE 1 doesn't work, try setting the

Centering Position to MODE 2.

Problem

I've installed a new ribbon and the printing is smeared and streaked.

Solution

The ribbon shield (1) is either loose or missing.

1

Remove the ribbon cartridge and check the ribbon shield.

If it is loose, secure it.

If it is missing, find it and install it.

TROUBLESHOOTING > 65

Problem

There are dots missing in my printouts.

Solution

The head gap may not be set correctly. Try moving the headgap lever to a lower setting. If that doesn’t help, the printhead may be damaged; call for service.

Problem

The ALARM light is flashing.

Solution

Try turning the printer OFF and then back ON again. If the light still blinks, call for service.

Problem

The ALARM light is ON and the Character Pitch 10 light is flashing.

Solution

This indicates that the paper lever is set at the wrong position for the paper you are trying to use. Move it to the proper setting.

Problem

The ALARM light is ON and the Character Pitch 15 light is flashing.

Solution

This indicates a paper jam. Press the

SEL

key and correct the paper jam situation. See “Clearing Paper Jams,” in Chapter 3.

Problem

The printer needs paper. The ALARM is not ON and I can’t load paper.

Solution

1.

Press and release the SEL key.

2.

Press and hold the SHIFT key and press the RESET /

CHARACTER PITCH key.

The ALARM light illuminates and you can now load paper.

TROUBLESHOOTING > 66

Problem

Continuous-form paper sticks to the sheet guide.

Solution

In cold dry weather, static charges can build up and make the paper cling to the sheet guide. Try moving the paper guides together so that the paper rests on the guides rather than on the separator.

Problem

The Print Quality and Character Pitch keys on the front panel don't work.

Solution

The Operator Panel Function in the printer menu can be used to disable these buttons (Limited Function). If the printer is part of a customized system or if it is used by a number of people, the system manager may have used this option to make sure the printer is always set properly.

Check with your system manager before changing any menu settings.

TROUBLESHOOTING > 67

PARTS AND ACCESSORIES

Purchasing Parts & Accessories

Before you purchase parts and accessories, make a note of your printer model number (see the front of the unit) and have the correct part number and description of the item you wish to purchase. Item descriptions and part numbers are provided in this section.

l

Consult the dealer where you purchased your printer.

l

Locate an Authorised Oki Reseller by visiting your local Oki web site. Links to all countries are provided on:

http://www.okieurope.com

5

3 x 2

4

2

7

1

6

Item Part number

ML5520

Part number

ML5521

Ribbon Cartridge (1)

Platen Knob (2)

Power Cord (3) - Euro

UK

01126301 01126301

2PP4025-2871P021 2PP4025-2871P021

YS4011-1272P001

YS4011-1273P001

Printhead (4)

Access Cover (5)

41923901

42115401

41923901

42115301

Sheet Guide (6) 1PA4094-7305G010 1PA4094-7308G011

Pull-up Roller Assembly (7) 42044701 42045701

PARTS AND ACCESSORIES > 68

1

2

3

4

5

Option

Pull Tractor, Top-Mount (1)

Push Tractor, Bottom-Mount (2)

Roll Paper Stand (3)

Cut Sheet Feeder (4)

Single Bin

Dual Bin

Serial Interface RS232C (5)

Part number Part number

ML5520 ML5521

09002365

09002366

09002332

09002369

09002370

N/A

09000691

09000692

09002351

09000695

09000696

09002351

PARTS AND ACCESSORIES > 69

PRINTER CONTROL CODES

This section lists the most commonly used printer control codes.

You will find a comprehensive listing of the control codes (English only) on your Printer CD.

To access it:

1.

Place the CD in your CD-ROM drive and wait for it to AutoPlay.

2.

3.

Select your printer model, then click Continue.

Click Documentation and follow the on-screen prompts to view the file.

IBM PROPRINTER III COMMANDS

IBM Command

Backspace

Carriage Return

Character Pitch:

Select 10 cpi

Select 12 cpi

Select 15 cpi

Select condensed Print

Character Sets:

IBM Set I

IBM Set II

Publisher

Slashed Zero

Unslashed Zero

Double Width ON

Double Width OFF

Emphasised Printing ON

Emphasised Printing OFF

Enhanced Printing ON

Enhanced Printing OFF

Form Feed

Form Length: n inches (n = 1 to 255) n lines (n = 1 to 255)

Horizontal Tab, Execute

ASCII

BS

CR

DC2

ESC:

ESC G

ESC SI, or SI

ESC 7

ESC 6

ESC ! Z

ESC ! @

ESC ! A

ESC W 1

ESC W 0

ESC E

ESC F

ESC G

ESC H

FF

ESC C NUL n

ESC C n

HT

Decimal

8

13

18

27 58

27 103

27 15, OR 15

27 55

27 54

27 33 90

27 33 64

27 33 65

27 87 49

27 87 48

27 69

27 70

27 71

27 72

12

27 67 0 n

27 67 n

9

PRINTER CONTROL CODES > 70

IBM Command

Italics ON

Italics OFF

Line Feed, Execute: w/ Carriage Return n/144" (n = 1 to 127) n/216" (n = 0 to 255)

Reverse

Auto Line Feed ON

Auto Line Feed OFF

Line Spacing:

Set Spacing to 1/8"

Set Spacing to 7/72"

Set Spacing to n/72"

Store Spacing Set by ESC A n

Set Spacing to n/144"

(n = 1 to 127)

Set Spacing to n/216"

(n = 0 to 255)

Overscore ON

Overscore OFF

Paper Out Sensor OFF

Paper Out Sensor ON

Print Quality, Select HSD

Print Suppress Mode ON

ML5520

ML5521

Print Suppress Mode Off

Proportional Spacing ON

Proportional Spacing OFF

Reset: Clear Print Buffer

Software I-Prime

Stop Printing

Subscript ON

Superscript ON

Subscript/Superscript OFF

Top of Form,

Set at Current Position

Underline Printing ON

Underline Printing OFF

Uni-Directional Print ON

Uni-Directional Print OFF

Vertical Tab, Execute

ASCII

ESC % G

ESC % H

LF

ESC % 5 n

ESC J n

ESC ]

ESC 5 1

ESC 5 0

ESC 0

ESC 1

ESC A n

ESC 2

ESC % 9 n

ESC 3 n

ESC _ 1

ESC _ 0

ESC 8

ESC 9

ESC # 0

ESC Q ETX

ESC Q SYN

DC1

ESC P 1

ESC P 0

CAN

ESC } NUL

ESC j

ESC S 1

ESC S 0

ESC T

ESC 4

ESC - 1

ESC - 0

ESC U 1

ESC U 0

VT

Decimal

27 37 71

27 37 72

10

27 37 53 n

27 74 n

27 93

27 53 49

27 53 48

27 48

27 49

27 65 n

27 50

27 37 57 n

27 51 n

27 95 49

27 95 48

27 56

27 57

27 35 48

27 81 3

27 81 22

17

27 80 49

27 80 48

24

27 125 0

27 106

27 83 49

27 83 48

27 84

27 52

27 45 49

27 45 48

27 85 49

27 85 48

11

PRINTER CONTROL CODES > 71

EPSON FX COMMANDS

Epson Command

Backspace

Carriage Return

Execute

Character Pitch:

Select 10 cpi

Select 12 cpi

Select 15 cpi

Begin 10 cpi

Cancel Condensed Print

Delete

Double Height ON

Double Height OFF

Double Width ON

Double Width OFF

Emphasised Printing ON

Emphasised Printing OFF

Enhanced Printing ON

Enhanced Printing OFF

Epson Set 1, Select

Epson Set 2, Select

Italics Printing ON

Italics Printing OFF

Form Feed

Form Length: n inches (n = 1 to 22) n lines (n = 1 to 127)

Horizontal Tab, Execute

Justification:

Left

Center

Right

Full

Line Feed, Execute:

Select 10 cpi

Select 12 cpi w/ Carriage Return n/216" (n = 0 to 255) n/144" (n = 1 to 127)

Reverse, n/216

ASCII

BS

CR

ESC P

ESC M

ESC g

ESC SI, or SI

DC2

DEL

ESC w 1

ESC w 0

ESC W 1

ESC W 0

ESC E

ESC F

ESC G

ESC H

ESC t 0

ESC t 1

ESC 4

ESC 5

FF

ESC C NUL n

ESC C n

HT

ESC a 0

ESC a 1

ESC a 2

ESC a 3

ESC P

ESC M

LF

ESC J n

ESC % 5 n

ESC j n

Decimal

8

13

27 80

27 77

27 103

27 15, OR 15

18

127

27 119 49

27 119 48

27 87 49

27 87 48

27 69

27 70

27 71

27 72

27 116 48

27 116 48

27 52

27 53

12

27 67 0 n

27 67 n

9

27 97 48

27 97 49

27 97 50

27 97 51

27 80

27 77

10

27 74 n

27 37 53 n

27 106

PRINTER CONTROL CODES > 72

Epson Command

Line Spacing.

Set Spacing to: n/144" (n = 0 to 127) n/216" (n = 0 to 255) n/72" (n=0 to 85 or 0 to 213)

1/6"

1/8"

7/72"

Paper Out Sensor OFF

Paper Out Sensor ON

Print Quality/Font:

Select HSD/SSD

(depends on setting for Draft Mode)

Select NLQ

Select Courier (NLQ only)

Select Gothic (NLQ only)

Select UTL

Print Speed:

Half-Speed ON

Half-Speed OFF

Print Suppress Mode ON

Print Suppress Mode OFF

Proportional Spacing ON

Proportional Spacing OFF

Reset Printer:

Clear Buffer & Initialise

Clear Print Buffer

Skip Over Perforation, Cancel

Software I-Prime

Subscript ON

Superscript ON

Subscript/Superscript OFF

Underline ON

Underline OFF

Uni-Directional Printing:

One Line only

ON

OFF

Vertical Tab, Execute

ASCII

ESC % 9 n

ESC 3 n

ESC A n

ESC 2

ESC 0

ESC 1

ESC 8

ESC 9

ESC ( 0

ESC x

ESC k

ESC k 1

ESC x 0

ESC s 1

ESC s 0

DC3

DC1

ESC p 1

ESC p 0

ESC @

CAN

ESC O

ESC } NUL

ESC S 1

ESC S 0

ESC T

ESC - 1

ESC - 0

ESC

ESC U 1

ESC U 0

VT

Decimal

27 37 57 n

27 51 n

27 65 n

27 50

27 48

27 49 n

27 56

27 57

27 64

24

27 79

27 125 0

27 83 49

27 83 48

27 84

27 45 49

27 45 48

27 60

27 85 49

27 85 48

11

27 40 48

27 107 48

27 107 49

27 115 49

27 115 48

27 115 49

27 115 48

19

17

27 112 49

27 112 48

PRINTER CONTROL CODES > 73

OKI MICROLINE STANDARD COMMANDS

Oki Command

Backspace

Carriage Return

Character Pitch:

Select 10 cpi

Select 12 cpi

Select 15 cpi

Select 17.1 cpi

Select 20 cpi

Character Sets:

Standard

Block Graphic

Line Graphic

Publisher

Slashed Zero

Unslashed Zero

Double Height ON

Double Height OFF

Double Width Printing

Emphasised Printing ON

Emphasised Printing OFF

Enhanced Printing ON

Enhanced Printing OFF

Form Feed

Horizontal Tab, Execute

Italics ON

Italics OFF

Line Feed, Commands: w/ Carriage Return wo/ Carriage Return n/144" (n = 1 to 127)

Reverse

Line Spacing:

Set Spacing to 1/6"

Set Spacing to 1/8"

Set Spacing to n/144"

(n = 1 to 127)

Skip Over Perforation:

1/3" increments

(n = 1 to 9)

Default

ASCII

BS

CR

RS

FS

ESC g

GS

ESC # 3

ESC T

ESC I

ESC H

ESC I

FF

HT

ESC ! /

ESC ! *

ESC ! 0

ESC ! 1

ESC ! 2

ESC ! Z

ESC ! @

ESC ! A

ESC US 1

ESC US 0

US

LF

ESC DC2

ESC % 5 n

ESC LF

ESC 6

ESC 8

ESC % 9 n

ESC g n n

ESC % S O

Decimal

8

13

30

28

27 103

29

27 35 51

27 33 48

27 33 49

27 33 50

27 33 90

27 33 64

27 33 64

27 31 49

27 31 48

31

27 84

27 73

27 71

27 73

12

9

27 33 47

27 33 42

10

27 18

27 37 53 n

27 10

27 54

27 56

27 37 57 n

27 71 nn

27 37 83 48

PRINTER CONTROL CODES > 74

Oki Command

Paper Out Sensor OFF

Paper Out Sensor ON

Print Quality:

Select HSD

Select NLQ Courier

Select NLQ Gothic

Select Utility

Print Speed:

Set to Full

Set to Half

Print Suppress ON

Print Suppress OFF

Proportional Printing:

ON

OFF

Reset: Clear Print Buffer

Shift-In

Shift-Out

Software I-Prime

Subscript Printing ON

Subscript Printing OFF

Superscript Printing ON

Superscript Printing OFF

Underline Printing ON

Underline Printing OFF

Uni-Directional Print ON

Uni-Directional Print OFF

Vertical Tab, Execute

ASCII

ESC E 1

ESC E 0

ESC # 0

ESC 1

ESC 3

ESC 0

ESC >

ESC <

DC3

DC1

ESC Y

ESCZ

CAN

SI

SO

ESC } NUL

ESC L

ESC M

ESC J

ESC K

ESC - C

ESC - D

ESC -

ESC =

VT

Decimal

27 69 49

27 69 48

27 35 48

27 49

27 51

27 48

27 62

27 60

19

17

27 89

27 90

24

15

14

27 125 0

27 76

27 77

27 74

27 75

27 67

27 68

27 45

27 61

11

PRINTER CONTROL CODES > 75

SPECIFICATIONS

Item Specification

Print Method

Printhead

Interfaces:

Standard:

Optional:

Receive Buffer Size

Reliability

Ribbon Life

Printhead Life

Centronics parallel, IEEE-1284 compliant

USB 1.1

RS-232C Serial

Maximum 128K

4 million characters, on average, 10 cpi utility

200 million characters average in 10 cpi utility mode at

25% duty and 35% page density

Mean Time Between

Failures (MTBF)

Mean Time to Repair (MTTR)

Emulations (co-resident)

Print Speed

Super Speed Draft

High Speed Draft (HSD)

Utility

Near Letter Quality (NLQ)

20,000 hours at 25% duty cycle and 35% page density

15 minutes

IBM Proprinter III

Epson FX

Oki MICROLINE Standard

Speed*

570 cps

507 cps

380 cps

95 cps

* cps = characters per second

Characters per Line (cpl) Setting

Impact dot matrix

9 pins, 0.30 mm (0.0118") diameter, with thermal protection

10 cpi

12 cpi

15 cpi

17.1 cpi

20 cpi

Graphics Resolution

IBM, Epson

Oki Microline

ML5520

80 cpl

96 cpl

120 cpl

137 cpl

160 cpl

Density

Single

Double

Quadruple

Single

Double

Quadruple

* dpi = Dots per Inch

ML5521

136 cpl

163 cpl

204 cpl

233 cpl

272 cpl

Max. Resolution (dpi)

60 x 216

120 x 216

240 x 216

72 x 72

144 x 144

288 x 144

SPECIFICATIONS > 76

Item Specification

Resident Fonts

Near Letter Quality

Utility

High Speed Draft

Super Speed Draft

Bar Codes

Courier, Gothic

Gothic

Gothic

Gothic

Code 39

UPC A, UPC E

EAN 8, EAN 13

Interleaved 2 of 5

Code 128

Postnet

Paper Thickness: Tractor Feed

Rear Feed:

Bottom Feed*:

*requires optional push or pull tractor.

0.014" (0.36 mm) max.

0.017" (0.44 mm) max.

SPECIFICATIONS > 77

Item Specification

Paper Specifications:

Single (Cut) Sheets

Feed:

Weight:

Width Range:

Top only

14 to 24 lb. US Bond (52.6 to 90 g/m 2 )

ML5520: 7.2" to 8.5" (183 to 216 mm)

ML5521: 7.2" to 14.3" (183 to 363.2 mm)

Single-part, continuous forms

Feed:

Weight:

Width Range:

Rear, Bottom*

12 to 24 lb. US Bond (45 to 90 g/m 2 )

ML5520: 3" to 10" (76.2 to 254 mm)

ML5521: 3" to 16" (76.2 to 406.4 mm)

Carbonless continuous forms

(orig. + 4 copies)

Feed:

Weight:

Width Range:

Rear, Bottom*

9 to 11 lb.

ML5520: 3" to 10" (76.2 to 254 mm)

ML5521: 3" to 16" (76.2 to 406.4 mm)

Interleaf continuous forms

(orig. + 4 copies)

Feed:

Weight:

Width Range:

Rear, Bottom*

10 to 12 lb. paper, 9 lb carbon

ML5520: 3" to 10" (76.2 to 254 mm)

ML5521: 3" to 16" (76.2 to 406.4 mm)

Labels

Feed:

Weight:

Width Range:

Bottom* only

Not applicable

ML5520: 3" to 10" (76.2 to 254 mm)

ML5521: 3" to 16" (76.2 to 406.4 mm)

Envelopes, single feed

Feed:

Weight:

Width Range:

Envelopes, continuous feed,

(non-overlap type)

Feed:

Weight:

Width Range:

Card Stock

Feed:

Weight:

Width Range:

Top only

Max. 24 lb.

6.5" to 9.5" (165 to 241 mm)

Bottom* only

Max. 24 lb.

6.5" to 9.5" (165 to 241 mm)

Bottom only*

Max. 100 lb. Index (180 g/m 2 )

Not applicable

* Bottom feed requires optional pull or push tractor

SPECIFICATIONS > 78

Item

Environmental Requirements

Temperature

Operating:

Storage:

Humidity

Operating:

Storage:

Electrical Requirements

Specification

41 to 95°F (5 to 36°C)

14 to 122°F (-10 to 50°C)

20 to 80% RH

5 to 95% RH

230 ac, (+15%, -14 %)

50 or 60 Hz (±2%)

58W - typical, 10W - idle

Physical Specifications

ML5520

Size (WxDxH*):

Weight:

ML5521

Size (WxDxH*):

Weight:

17.1" x 16.1" x 6"* (434 x 409 x 153 mm*)

16.7 lbs. (7.6 kg)

23.1" x 16.1" x 6"* (588 x 409 x 153 mm*)

21.1 lbs. (9.6 kg)

*Height dimensions do not include the acoustic cover.

SPECIFICATIONS > 79

SETTING UP YOUR PRINTER

LOCATION

l

Place your printer on a firm, solid surface.

l

Allow enough space around the printer to easily access the platen knob and the various paper feed paths.

l

Make sure a suitable grounded power outlet is available nearby.

UNPACKING

l

If any items are missing, contact your dealer immediately.

l

Keep your packing materials and carton in case you ever need to ship or transport the printer.

l

Interface cable and paper are sold separately.

1

3

2

1.

2.

3.

Printer

Ribbon Cartridge

Power Cord

SETTING UP YOUR PRINTER > 80

1.

Remove any packing tape, then grasp the tabs (1) at either end of the access cover and pivot it towards the front of the printer as far as it will go.

1

2.

Remove the printhead shipping restraint.

3.

Remove the shipping restraint from the pull-up roller assembly

(1).

1

SETTING UP YOUR PRINTER > 81

4.

Use the tabs (1) to lift and remove the sheet guide, then remove the shipping restraint.

1

5.

Reinstall the sheet guide: insert the clips on either side of the separator into the notches marked with a triangle, then press down to secure the separator in place.

1

SETTING UP YOUR PRINTER > 82

INSTALLING THE RIBBON CARTRIDGE

CAUTION!

Make sure you have the correct replacement ribbon for your printer.

The wrong ribbon will not print when installed in your printer.

RIBBON CARTRIDGE HANDLING

l

Leave unused ribbon cartridges in their packages until needed.

l

Careful; the ribbon ink may cause permanent stains.

l

Ribbon ink on skin or clothing can usually be removed with soap and water.

Make sure the printer is turned OFF.

1.

Open the access cover and center the printhead (1).

The printhead may be HOT.

WARNING!

SETTING UP YOUR PRINTER > 83

2.

Unpack the new ribbon cartridge and install it on the printhead.

1

CAUTION!

Do not remove the ribbon shield (1) from the ribbon!

3.

Turn the take-up knob (1) in the direction of the molded-in arrow to take up any ribbon slack.

1

4.

Close the access cover and turn the printer ON.

SETTING UP YOUR PRINTER > 84

POWER CONNECTION

Make sure both the printer and the computer are switched OFF.

1.

Plug the power cord into the back of the printer, then into a grounded outlet.

2.

Turn on the printer.

SETTING UP YOUR PRINTER > 85

COMPUTER CONNECTIONS

PARALLEL (LPT), IEEE 1284

l

Requires a bi-directional cable, max. length 6 ft. (1.8 m), not supplied.

l

Printer has a 36-pin socket

Make sure the printer and computer are both turned OFF.

1.

Attach a suitable

bi-directional

cable to the parallel connector on the back of the printer. Then attach and secure the cable to your computer.

2.

Turn the printer and computer back ON.

USB, SPECIFICATION 1.1 COMPLIANT

l

Requires a USB 1.1 cable, maximum length 19.7 ft. (5 m), not supplied.

l

Printer has a USB series “B” receptacle.

Make sure the printer and computer are both turned OFF.

SETTING UP YOUR PRINTER > 86

3.

Attach a suitable USB cable to the printer. Then attach the cable to your computer.

4.

Turn the computer and printer back on.

LOADING PAPER

For instructions on loading paper, see “Loading Paper” in the chapter on “Maintenance”.

TESTING THE PRINTER

l

Font Sample Test

l

Rolling ASCII Test

l

Hexadecimal Dump Mode

SETTING UP YOUR PRINTER > 87

Font Sample Test

The Font Sample Test prints a sample of the fonts standard to the printer.

The top of the printout shows the Printer Model, Emulation, Country

Code, Interface, and Firmware Revision Level.

Make sure paper is loaded.

1.

Turn the printer OFF.

2.

Press and hold the LF key while turning the printer back ON.

The printer will print a page of font samples and the test ends.

SETTING UP YOUR PRINTER > 88

Rolling ASCII Test

CAUTION!

Wide carriage Model ML5521:

If you are using 8.5 inch paper to run the tests, make sure the paper width selection in the printer menu is set to 8.5 inches. Otherwise, printing on the platen may damage the printer. See the chapter on

“Menu Mode” for more information.

The Rolling ASCII Print Test produces a continuous printout of all 96

ASCII characters in a rolling pattern in whatever typeface is selected

(default = LQ Courier).

The top of the printout shows the Printer Model, Emulation, Country

Code, and Firmware Revision Level.

Make sure continuous forms paper is loaded.

1.

Turn the printer OFF.

2.

Press and hold the QUIET/TOF key while turning the printer back ON. (If the printer comes on without starting the Rolling

ASCII test print, you did not hold the QUIET/TOF key long enough.)

3.

The printer prints the rolling ASCII text continuously.

Press SEL to end the test.

SETTING UP YOUR PRINTER > 89

Hexadecimal Dump Mode

When the printer is placed in the Hexadecimal Dump Mode, all data received, including text and printer commands, is printed in both hexadecimal and ASCII formats.

For example, the following line of BASIC code

LPRINT CHR$ (27);”0”;CHR$ (30);”THIS IS AN EXAMPLE OF A

HEXADECIMAL DUMP.” would print like this:

NOTE

In the ASCII format, all non-printable characters are represented by a period.

To engage the Hexadecimal Dump Mode:

Make sure paper is loaded.

1.

2.

Turn the printer OFF.

Hold the SEL and FF/LOAD keys for several seconds while turning on the printer.

To exit the Hexadecimal Dump Mode:

1.

Press the

SEL

key.

or

Turn the printer off, then on again.

SETTING UP YOUR PRINTER > 90

INDEX

A

Auto Carriage return....................34

Auto LF (Line Feed) ............... 32

,

34

Auto Select .................................32

B

Bar Codes ...................................77

Bi-directional printing .......... 32

,

40

Bottom Feed ...............................78

Form Tear-Off ..........................31

Line Spacing ...........................31

Skip Over Perforation...............31

Buffer

Clearing ..................................38

Receive Buffer Size ..................76

C

Carbonless continuous forms ......78

Card Stock..................................78

Centering printhead position.......65

Character Pitch ...........................39

Character Set..............................36

Character Width ..........................39

Characters Per Second (CPS) .........6

Computer Connections ................86

E

Electrical Requirements...............79

Emulations .................................27

Mode ......................................37

Envelopes...................................78

Environmental Requirements.......79

F

Font Sample Test ........................88

Fonts

Embedded Printer Commands ..65

Resident..................................77

Selecting.................................39

Forms Tear-Off ............................37

Top of Form .............................19

G

Graphics

Printing ............................ 32

,

37

GROUP, Menu Mode....................28

H

Height, Double Height Printing ....41

Hexadecimal Dump Mode............90

High Speed Draft.........................77

Humidity.....................................79

I

IBM

Character Set ..........................36

Initialization string......................63

Installing the Ribbon Cartridge ....83

Interleaf continuous forms ..........78

Interleaved 2 of 5 ........................77

I-Prime .......................... 33

,

38

,

63

Italics .........................................41

L

Labels ........................................78

Length, Page

Rear Feed ................................31

Top Feed .................................32

Limited Operation ................ 38

,

67

Line Spacing ...............................38

> 91

Bottom Feed ............................31

Rear Feed ................................31

Loading Paper.............................87

M

Margin, Bottom.................... 32

,

35

Mean Time Between Failures

(MTBF).......................................76

Mean Time to Repair (MTTR) ........76

Memory, Receive Buffer Size .......76

MENU light .................................28

N

Near Letter Quality ......................77

O

Operator Panel Function ..............67

P

Page Length

Rear Feed ................................31

Top Feed .................................32

Page Width

Bottom Feed ............................31

Rear Feed ................................31

Setting in the Printer Menu ......32

Top Feed .................................32

Paper

Static ......................................67

Thickness................................77

Widths ....................................32

Paper Jams .................................66

Paper Lever.................................66

Paper Out ...................................66

Override ........................... 32

,

39

Parallel (LPT), IEEE 1284 ..............86

Parallel Interface.........................33

I-PRIME Signal .........................63

Perforation, skip over........... 31

,

41

Pitch, character...........................39

Postnet.......................................77

Power Connection .......................85

Print Method...............................76

Print Mode..................................39

Print Registration ................. 32

,

40

Print Size....................................76

Print Speed............................ 6

,

76

Print Suppress ..................... 32

,

40

Printhead ...................................76

Proportional Spacing ..................40

R

Rear Feed

Form Tear-Off ................... 31

,

32

Line Spacing............................31

Skip Over Perforation...............31

Receive Buffer Size .....................76

Reliability ...................................76

Ribbon Shield ................ 43

,

65

,

84

Rolling ASCII Test ........................89

RS-232C Serial Interface .............76

S

Serial Interface Option ................64

Setting up your Printer ................80

Skip Over Perforation ..................31

Software

Embedded commands .............65

Matching drivers to

emulations.............................65

Software vs. printer settings ....63

Super Speed Draft.......................77

Symbol Sets ...............................38

> 92

T

Temperature Specifications .........79

Testing the Printer ......................87

Thickness, Paper.........................77

Time Out.............................. 32

,

41

Top Feed.....................................78

Bottom Margin ........................32

Line Spacing ...........................32

Top of Form.................................34

Forms Tear-Off.................... 7

,

19

Paper Shield....................... 7

,

14

Typefaces

Selecting.................................39

U

Uni-directional printing,

graphics ....................................32

Unpacking ..................................80

USB, Specification 1.1

Compliant..................................86

Utility

Front Panel Light......................77

Print Speeds..............................6

Utility Mode Print Quality .........25

W

Wait Time ...................................32

Width

Character ................................39

Double width printing ..............41

Page

Bottom Feed.........................31

Rear Feed.............................31

Top Feed ..............................32

Paper

Setting in the Printer

Menu ..................................32

> 93

OKI CONTACT DETAILS

Oki Systems (UK) Limited

550 Dundee Road

Slough Trading Estate

Slough, SL1 4LE

Tel:44 (0) 1753 819819

Fax:44 (0) 1753 819899 http://www.oki.co.uk

Oki Systems Ireland Limited

The Square Industrial Complex

Tallaght, Dublin 24, Ireland

Tel:+353 1 4049590

Fax:+353 1 4049591 http://www.oki.ie

OKI Systems (Ireland) Ltd

40 Sydenham Park

Belfast, BT4 1PW

Tel:+44 44 (0)28 90 20 1110 http://www.oki.ie

Technical Support for all of

Ireland:

Tel : +353 1 4049570

Fax: +353 1 4049555

E-mail: [email protected]

Oki Data Corporation

4-11-22 Shibaura, Minato-ku,

Tokyo 108-8551, Japan

Tel : (81) 3 5445 6158

Fax : (81) 3 5445 6189 http://www.okidata.co.jp

Oki Data (Singapore) Pte. Ltd.

78 Shenton Way, #09-01,

Singapore 079120

Tel: (65) 221 3722

Fax : (65)421 1688 http://www.okidata.com.sg

Oki Systems (Thailand) Ltd.

956 Udomvidhya Building 6th

Floor, Rama IV Rd., Bangkok

10500, Thailand

Tel : (662) 636 2535

Fax: (662) 636 2536 http://www.okisysthai.com

Oki Hong Kong Limited

Suite 1909, Tower3,

China Hong Kong City,

33 Canton Rd., Tsimshatsui,

Kowloon, Hong Kong

Tel: (852) 2736 0130

Fax : (852) 2376 3725

The IPL Group

63-85 Victoria Street

Beaconsfield NSW 2015,

Australia

Tel : (61) 2 9690 8200

Fax : (61) 2 9690 8300 http://www.oki.com.au

Comworth Systems Ltd.

10 Constellation Drive Mairangi

Bay, Auckland,

New Zealand

Tel : (64) 9 477 0500

Fax : (64) 9 477 0549 http://www.comworth.co.nz

> 94

ML5520/21

Central House

Balfour Road, Hounslow

TW3 1HY

United Kingdom tel +44 (0) 20 8219 2190

Fax +44 (0) 20 8219 2199

07044201 Iss.02

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
