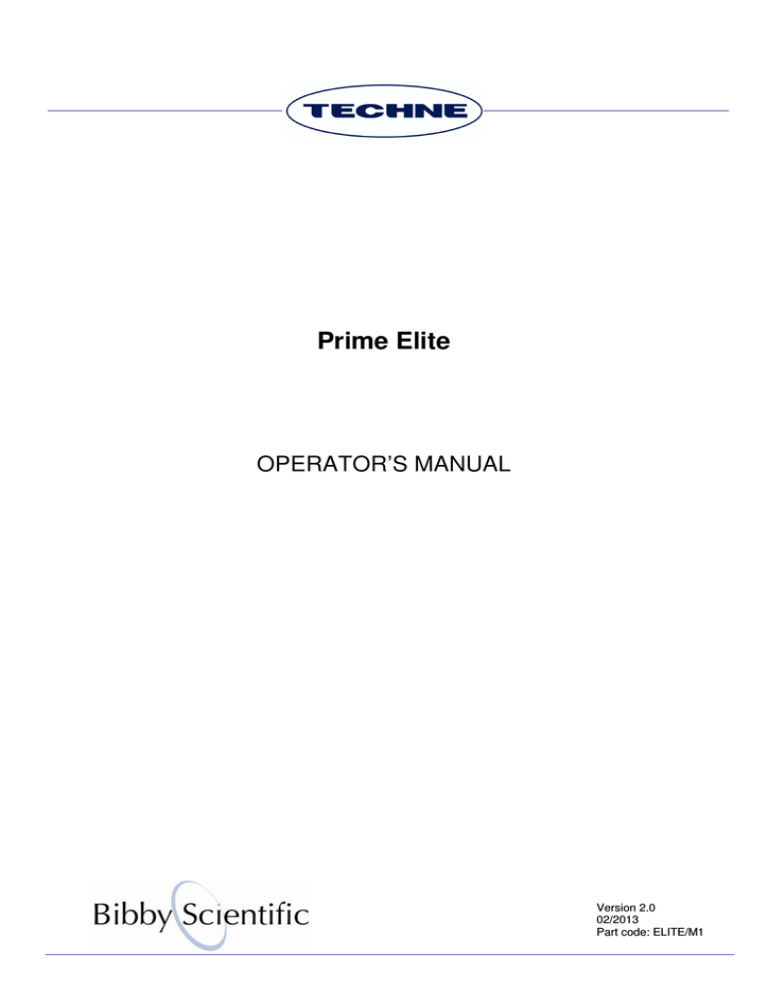

OPERATOR’S MANUAL
Version 2.0
02/2013
Part code: ELITE/M1
CONTENTS
INTRODUCTION
BEFORE USE
Unpacking
SAFETY INFORMATION
English
Français
Deutsch
Italiano
Español
CONTACT INFORMATION
Prime Elite SPECIFICATION
INSTALLATION
GENERAL SOFTWARE FEATURES
Introduction
Template programs
Incremented/decremented time and temperature
Gradient
Oligonucleotide Tm calculator
PROGRAMMING TEXT, TEMPERATURE AND TIME
Text entry
Temperature entry
Time entry
INSTRUMENT SETTINGS AND DEFAULTS
User preferences
Instrument settings
Program defaults
Service settings
Gradient calculator
Oligonucleotide Tm calculator
CREATE A NEW PROGRAM
Name the program
Insert/delete a stage
Insert/delete a step
Insert/delete a pause
Program options
Settings
View
Delete
Up and down arrows
Save
Cancel
RUN A PROGRAM
Running a program from the shortcut list
The pre-run screen
PAGE
3
4
4
5
5
7
9
11
13
15
16
18
20
20
20
21
21
22
23
23
23
27
30
30
31
34
35
35
36
38
38
39
40
40
40
44
44
45
45
45
45
46
46
47
1
The run screen
Searching for a program not in the shortcut list
Running a program not on the shortcut list
EDITING A PROGRAM
Editing saved programs
Editing templates
Editing password-protected programs
CURRENT STATUS
VIEW FILES
File searching
Viewing a program file
Viewing a temperature log file
Copying files
Deleting files
UPDATING THE Prime Elite SOFTWARE
FAQs
TECHNICAL SUPPORT AND SERVICING
ADDITIONAL INFORMATION
User Maintenance
Fault Finding
Fuses
Insulation Testing
REPLACEMENT PARTS
DECLARATION OF CONFORMITY
2
48
49
51
53
53
53
54
55
56
56
58
58
59
61
62
63
64
65
65
65
65
65
66
67
INTRODUCTION
The Prime Elite is an advanced gradient thermal cycler designed to accurately and rapidly control the
temperatures of samples between 4ºC (or 20°C below ambient) and 100°C. It has many scientific
applications including PCR, reverse transcription, ligation and sequencing. It is available in a range of
block formats to allow for most commonly used consumables including 0.2ml x 96 well plates and
0.2ml tubes, 0.5ml tubes and 384 well plates. The heated lid automatically applies the correct
pressure to suit the consumable used.
The Prime Elite is programmed via a 5.7” colour VGA LCD touch screen using simple and intuitive
software. Programs and run progress can be viewed as a temperature/step graphical display, allowing
the user to readily check the status or position within a run. Files can be saved with user names and/or
keywords which allows for rapid searching and retrieval. A USB port on the front of the unit allows
transfer of files to and from a USB memory stick and for the easy update of instrument software.
The thermal block incorporates the very latest in Peltier design featuring the Thermal Energy Recovery
®
System (TERS ). This allows the Prime Elite to achieve ramp rates of up to 5ºC/s and is also energy
saving, resulting in reduced running costs.
The Prime Elite can be used as a stand-alone unit or, for high-throughput applications, to control up to
three additional Satellite units via USB connections. Satellite units can also be remotely controlled
from a PC using the Techne Workbench software. Programs and temperature files are saved as text
files for integration into a LIMS System.
3
BEFORE USE
Before using the Prime Elite please make sure you have read this manual carefully. If there is any
doubt relating to the proper use of this equipment, the staff at Bibby Scientific Ltd. or your supplier
will be happy to assist you.
UNPACKING
When unpacking the unit please ensure that the following have been removed from the packaging:
•
Prime Elite with block
•
Mains cables (UK, EU and US)
•
USB cable
•
Operator’s manual
•
Warranty card
The user is advised to keep the original packaging in case the instrument ever needs to be returned
for service or repair. Bibby Scientific Ltd. accepts no responsibility for damage incurred unless the
unit is correctly packed and transported in its original packaging.
4
SAFETY INFORMATION
Please read all the information in this manual before using the Prime Elite.
WARNING
HIGH TEMPERATURES ARE DANGEROUS: they can cause serious burns to operators and ignite
combustible material. Users should be aware of the following potential hazards:
•
USE CARE AND WEAR PROTECTIVE GLOVES TO PROTECT HANDS
•
DO NOT use combustible substances near hot objects
•
DO NOT operate the instrument in the vicinity of inflammable liquids or gases
•
DO NOT place any liquid directly into the instrument.
OPERATOR SAFETY
All operators of Techne equipment must have available the relevant literature needed to ensure their
safety. It is important that only suitably trained personnel operate this equipment, in accordance with
the instructions contained in this manual and with general safety standards and procedures. If the
equipment is used in a manner not specified by Bibby Scientific Ltd. the protection provided by the
equipment to the operator may be impaired.
All Techne instruments are designed to conform to international safety requirements and are fitted
with an over-temperature cut-out. If a safety problem should be encountered, switch off the unit at the
mains socket and remove the plug from the electricity supply.
INSTALLATION
The instrument should be carried using both hands. Never move or carry the instrument when in use
or connected to the mains electricity supply.
1. All Techne instruments are supplied with a power cable; this may be integral or plug-in.
2.
Before connecting the instrument to the mains electricity supply, check the voltage
against the rating plate (located on the back of the unit). Please note that the unit
must be earthed to ensure proper electrical safety. Connect the mains cable to a
suitable plug according to the table below.
Connections
220/240V, 50/60Hz
110V/120V, 50/60Hz
Live
Brown
Black
Neutral
Blue
White
Earth
Green/yellow
Green
3. UK ONLY: The fused plug supplied with the mains cable is fitted with a 10 amp fuse to protect the
instrument and the operator.
4. The units are rated to operate at 100-230V, 50/60Hz.
5. Place the unit on a suitable flat bench or in a fume cupboard if required, ensuring that the air inlet
vents on the underside are free from obstruction.
6. Plug the mains cable into the socket on the back of the instrument.
7. Switch on the instrument using the switch located on the front of the unit.
Replacement cable
2
Should the mains lead need replacement, a cable of 1mm of harmonized code H05VV-F connected
to an IEC320 plug should be used. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.
5
ENVIRONMENTAL CONDITIONS
The Prime Elite is designed operate under the following conditions:
•
Indoor use
•
Ambient temperature range +5ºC to +40ºC
•
Altitude to 2000m
•
Relative humidity not exceeding 80%
•
Mains supply fluctuations not exceeding 10%
•
Over voltage category II IEC 60364-4-443
•
Pollution degree 2
Note: The control specifications are quoted at an ambient temperature of 20ºC. The specification
may deteriorate outside an ambient temperature of between 10ºC and 30ºC.
The instrument has been tested for radio frequency interference and is certified under EN61326.
WARRANTY
Bibby Scientific Ltd warrants this instrument to be free from defects in material and workmanship,
when used under normal laboratory conditions for four (4) years. In the event of a justified claim,
Bibby Scientific Ltd will replace any defective component or replace the unit free of charge. This
warranty does not apply if damage is caused by fire, accident, misuse, neglect, incorrect adjustment
or repair, damage by incorrect installation, adaption, modification, fitting of non-approved parts or
repair by unauthorised personnel. Bibby Scientific Ltd liability is limited to the cost of repair or
replacement of the product and excludes in particular, indirect and consequential loss, damage,
costs or expenses, including but not limited to wasted time, materials and expenditure or loss of use,
profit, production, revenue, expected savings or goodwill. To make a claim please contact the
supplier of the instrument. This warranty is in addition to, and does not affect any statutory rights.
This manual has been prepared for the convenience of Techne’s customers and nothing in this
manual shall be taken as a warranty, condition or representation concerning the description,
merchantability, fitness for purpose or otherwise of the unit or components.
Notwithstanding the description and specification(s) of the instruments contained in the operator’s
manual, Techne reserves the right to make such changes as it sees fit to the instruments or to any of
the components.
6
L'INFORMATION DE SÛRETÉ
Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser le Prime Elite.
AVERTISSEMENT
Les TEMPÉRATURES ÉLEVÉES SONT DANGEREUSES car elles peuvent provoquer de graves
brûlures chez l’opérateur et enflammer les matériaux combustibles. Les utilisateurs doivent porter
une attention toute particulière aux points suivants :
•
PROCEDER AVEC PRUDENCE ET PORTER DES GANTS POUR SE
PROTEGER LES MAINS
•
NE PAS utiliser de matériaux combustibles auprès d’objets chauds.
•
NE PAS utiliser l’appareil à proximité de liquides ou de gaz inflammables
•
NE PAS verser de liquides directement dans l’appareil.
SECURITE DE L’OPERATEUR
Tous les utilisateurs de produits Techne doivent avoir pris connaissance des consignes et instructions
nécessaires à la garantie de leur sécurité. Important: cet appareil doit impérativement être manipulé
par un personnel qualifié et être utilisé selon les instructions données dans ce document, en accord
avec les normes et procédures de sécurité générales. Dans le cas où cet appareil ne serait pas utilisé
selon les consignes précisées par Bibby Scientific Ltd., la protection pour l’utilisateur ne serait alors
plus garantie.
Tous les appareils Techne sont conçus pour répondre aux normes de sécurité internationales et sont
dotés d’un coupe-circuit en cas de surchauffe. En cas de problème de sécurité, couper l’alimentation
électrique au niveau de la prise murale et enlevez la prise connectée à l’appareil.
INSTALLATION
Porter l'appareil à deux mains. Ne jamais déplacer ou transporter l’appareil lorsqu’il est en
fonctionnement ou branché à l’alimentation électrique.
1. Tous les appareils Techne sont livrés avec un câble d'alimentation, qui peut être intégré à l'appareil
ou à raccorder.
2.
Avant de raccorder l’appareil à l’alimentation électrique sur secteur, vérifier la tension
requise indiquée sur la plaque d’identification (située au dos de l’appareil). Il est
important que l’appareil soit relié à la terre pour assurer la protection électrique
requise. Brancher le câble secteur sur une prise appropriée, voir tableau ci-après.
Connexions
220/240 V, 50/60 Hz
110/120 V, 50/60 Hz
Phase
Marron
Noir
Neutre
Bleu
Blanc
Terre
Vert/jaune
Vert
3. ROYAUME-UNI SEULEMENT: La prise avec fusible intégré fournie avec le câble secteur est
munie d’un fusible 10 A destiné à protéger l’appareil et l’utilisateur.
4. Les unités sont évaluées pour fonctionner à 100-230V, 50/60Hz.
5. Placer l’appareil sur une surface plane ou si nécessaire sous une hotte d’aspiration, veiller à ce
que les trous d’aération situés sous l’appareil ne soient pas obstrués.
6. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil.
7. Allumer l'appareil utilisant le commutateur situé sur l'avant de l'unité.
7
Câble de rechange
S’il s’avère nécessaire de remplacer le cordon d’alimentation, utiliser un câble de 1 mm² conforme à
la norme H05VV-F relié à une prise IEC320. EN CAS DE DOUTE, CONSULTER UN ELECTRICIEN
QUALIFIE.
CONDITIONS ENVIRONNEMENTALES
Le Prime Elite est conçu pour fonctionner dans les conditions suivantes:
•
Pour un usage intérieur seulement
•
Température ambiante +5°C à +40°C
•
Altitude inférieure à 2000m
•
Humidité relative ne dépassant pas 80%
•
Fluctuations de l’alimentation n’excédant pas 10% de la valeur nominale
•
Catégorie II IEC 60364-4-443 de surtension
•
Degré de pollution 2
Remarque: Les paramètres sont indiqués pour une température ambiante de 20°C. Ces
caractéristiques peuvent se détériorer en dehors d’une température ambiante de 10 à 30°C.
L’appareil a été testé en matière de radiofréquences et est certifié selon la norme EN61326.
GARANTIE
Bibby Scientific Ltd garantit cet instrument contre tout vice de matière et de fabrication, quand il est
utilisé dans des conditions normales de laboratoire pendant quatre (4) ans. En cas de réclamation
justifiée, Bibby Scientific Ltd procèdera gratuitement au remplacement de tout élément défectueux ou
au remplacement de l'appareil. Cette garantie ne s'applique pas aux dommages provoqués par les
incendies, accidents, mésusages, négligences, réglages ou réparations incorrects, aux dommages
dus à une installation incorrecte, adaption, modification, au montage de pièces non homologuées ou
réparation par un personnel non autorisé. La responsabilité de Bibby Scientific Ltd se limite aux coûts
de réparation ou de remplacement du produit et exclut, en particulier, les pertes, dommages, coûts ou
dépenses indirects et conécutifs, parmi lesquels, mais sans s'y limiter, les pertes de temps, de
matériaux et les dépenses ou perte d'utilisation, de profit, de production, de chiffre d'affaires,
d'économies escomptées ou écarts d'acquisition. En cas de réclamation, veuillez prendre contact avec
le fournisseur de cet appareil. Cette garantie s'ajoute à vos droits légaux et n'affecte en rien ces
derniers.
Le présent manuel a été exclusivement rédigé à l’attention des clients de la marque Techne et rien
dans son contenu ne doit être pris comme une garantie, une condition ou une affirmation concernant
la description, la commercialisation, l’adéquation à un usage particulier de l'appareil ou de ses
composants.
Malgré la description et les caractéristiques techniques des appareils données dans le manuel de
l’utilisateur, la société Techne se réserve le droit d’apporter les changements nécessaires à l’appareil
ou à tout élément qui entre dans sa composition.
8
SICHERHEITS- INFORMATIONEN
Lesen Sie diese Anleitung vor Verwendung des Prime Elite bitte sorgfältig durch.
ACHTUNG
HOHE TEMPERATUREN STELLEN EINE GEFAHRENQUELLE DAR. Sie können schwere
Brandverletzung verursachen und brennbare Stoffe entzünden. Der Benutzer sollt sich mit den
möglichen Gefahren vertraut machen:
•
UMSICHTIG VORGEHEN UND SCHUTZHANDSCHUHE TRAGEN
•
KEINE brennbaren Stoffe in der Nähe heißer Gegenstände verwenden
•
Das Gerät NICHT in der Nähe entzündlicher Flüssigkeiten oder Gase betreiben
•
Flüssigkeiten NICHT direkt auf das Gerät auftragen.
SICHERHEIT DES BEDIENPERSONALS
Alle Benutzer von Techne Geräten müssen Zugang zu der entsprechenden Literatur haben, um ihre
Sicherheit zu gewähren. Es ist wichtig, daß diese Geräte nur von entsprechend geschultem Personal
betrieben werden, das die in dieser Gebrauchsanweisung enthaltenen Maßnahmen und allgemeine
Sicherheitsbestimmungen und - vorkehrungen beachtet. Wenn das Gerät anders eingesetzt wird als
vom Hersteller empfohlen, kann dies die persönliche Sicherheit des Anwenders beeinträchtigen.
Die Geräte von Techne entsprechen den internationalen Sicherheitsbestimmungen und sind mit einem
automatischen Übertemperaturabschalter ausgestattet. Wenn ein Sicherheitsproblem auftreten sollte,
muß das Gerät ausgeschaltet und vom Stromnetz getrennt werden.
INBETRIEBNAHME
Das Gerät mit beiden Händen tragen. Das Gerät unter keinen Umständen transportieren, wenn es in
Betrieb ist, oder während das Gerät noch am Netz angeschlossen ist.
1.
Alle Geräte von Techne werden mit einem Netzkabel geliefert, das entweder eingesteckt wird
oder fest mit dem Gerät verbunden ist.
2.
Vor dem Anschluss bitte kontrollieren, ob die Stromversorgung den Angaben auf dem
Typenschild (auf der Geräterückseite) entspricht. Um die elektrische Sicherheit zu
gewährleisten, muss dieses Gerät geerdet werden. Schließen Sie das Netzkabel
entsprechend der folgenden Tabelle an einen geeigneten Stecker an.
Anschluss
220/240V, 50/60Hz
110V/120V, 50/60Hz
Phase
Braun
Schwarz
Neutral
Blau
Weiß
Erde
Grün/Gelb
Grün
3.
NUR FÜR GROSSBRITANNIEN: der mit dem Netzkabel gelieferte Sicherungsstecker enthält
eine 10 Amp. Sicherung zum Schutz des Geräts und des Anwenders.
4.
Die Maßeinheiten werden veranschlagen, um an 100-230V, 50/60Hz zu funktionieren.
5.
Stellen Sie das Gerät auf einen geeigneten ebenen Tisch oder in einem Abzugsschrank auf und
sorgen Sie dafür, dass die Lufteinlassschlitze auf der Geräteunterseite nicht blockiert sind.
6.
Stecken Sie das Netzkabel in die Buchse auf der Geräterückseite ein.
7.
Schalten Sie das Instrument unter Verwendung des Schalters an, der auf der Frontseite der
Maßeinheit gelegen ist.
9
Ersatzkabel
2
Bei einem eventuellen Austausch des Netzkabels wird ein Kabel vom Typ H05VV-F mit 1 mm
Adernquerschnitt und Europastecker (IEC 320) benötigt. IM ZWEIFELSFALL EINEN ELEKTROFACHMANN HINZUZIEHEN.
UMWELTBEDINGUNGEN
Der Prime Elite ist für den Einsatz unter folgenden Bedingungen ausgelegt:
•
Gebrauch in Innenräumen
•
Umgebungstemperatur zwischen +5ºC to +40ºC
•
Höhe: bis zu 2000 m
•
Relative Feuchte nicht über 80%
•
Netzspannungsschwankungen nicht über 10%
•
Überspannungsklasse 2 IEC 60364-4-443
•
Verschmutzungsgrad 2
Hinweis: Die Gerätespezifikationen beziehen sich auf eine Umgebungstemperatur von 20ºC und
können sich außerhalb des Bereichs 10ºC bis 30ºC verschlechtern.
Das Gerät wurde auf HF-Störeinflüsse geprüft und entspricht den EMV-Bedingungen nach EN61326.
GARANTIE
Bibby Scientific Ltd gewährleistet, dass dieses Gerät vier (4) Jahre lang keine Material- oder
Herstellungsfehler aufweist, wenn es unter normalen Laborbedingungen verwendet wird. In einem
berechtigten Garantiefall wird Bibby Scientific Ltd alle defekten Komponenten oder das Gerät
kostenlos austauschen. Diese Garantie gilt nicht, wenn der Schaden durch ein Feuer, einen Unfall,
Missbrauch, Nachlässigkeit, falsche Einstellungen oder Reparaturen, falsche Installation,
Adaptierung, Veränderung, den Einbau nicht zugelassener Teile oder die Reparatur durch nicht
autorisiertes Personal verursacht wurde. Die Garantie von Bibby Scientific Ltd ist beschränkt auf die
Kosten der Reparatur oder den Austausch des Produkts und schließt ausdrücklich indirekte und
nachfolgende Verluste, Schäden, Kosten oder Ausgaben aus, einschließlich aber nicht beschränkt
auf Zeit-, Material- und Geldverlust oder den Verlust des Gebrauchs, von Gewinn, Produktion,
Einkommen, erwarteten Einsparungen und des Firmenwerts. Um einen Garantiefall zu melden,
wenden Sie sich bitte an den Vertriebspartner des Geräts. Diese Garantie gilt zusätzlich zu und nicht
anstelle von geltendem Recht.
Diese Anleitung wurde zur Information der Kunden von Techne erstellt und stellt in keinster Weise
eine Gewährleistung, Bedingung oder Darstellung bezüglich der Beschreibung, Marktgängigkeit oder
Zweckdienlichkeit dieser Geräte oder Bauteile dar.
Unabhängig von Beschreibung und Spezifikation(en) des hier beschriebenen Geräts behält sich
Techne das Recht vor, Änderungen an diesem Gerät oder dessen Bauteilen vorzunehmen.
10
INFORMAZIONI DI SICUREZZA
Leggere attentamente il presente manuale prima di usare il Prime Elite.
AVVERTENZA
Le ALTE TEMPERATURE SONO PERICOLOSE in quanto possono provocare serie ustioni agli
operatori e dare fuoco al materiale combustibile. Gli utenti devono conoscere i seguenti pericoli
potenziali:
•
PRESTARE ATTENZIONE ED INDOSSARE GUANTI PROTETTIVI PER LE
MANI
•
NON usare sostanze combustibili vicino ad oggetti caldi
•
NON mettere in funzione lo strumento nei pressi di liquidi o gas infiammabili
•
NON collocare alcun tipo di liquido direttamente nello strumento.
SICUREZZA DELL'OPERATORE
Il personale che utilizza l’apparecchiatura Techne deve avere a disposizione la documentazione
necessaria al fine di assicurare la loro incolumità. È importante che solo personale adeguatamente
addestrato utilizzi questo apparecchio, in conformità alle istruzioni contenute in questo manuale e nel
rispetto delle normative e procedure generali di sicurezza. Se l’apparecchio è utilizzato in modo non
specificato da Bibby Scientific Ltd., la protezione fornita dall’apparecchiatura all’utilizzatore potrebbe
essere a rischio.
Tutte le unità Techne sono state progettate in conformità ai requisiti internazionali di sicurezza e sono
equipaggiate con un interruttore anti surriscaldamento. Se si dovesse verificare qualche problema di
sicurezza, disconnettere l’apparecchio dalla rete.
INSTALLAZIONE
Occorre trasportare lo strumento usando entrambe le mani. Non spostare né trasportare lo
strumento quando è in funzione o collegato all’alimentazione elettrica di rete.
1.
Tutti gli strumenti Techne sono forniti con un cavo di alimentazione; può essere integrale o
plugin.
2.
Prima di collegare lo strumento all'alimentazione elettrica di rete, controllare la
tensione confrontandola con la targhetta riportante i valori nominali (si trova sul retro
dell'unità). Notare che al fine di garantire la corretta sicurezza elettrica, occorre
che l'unità sia messa a terra. Collegare il cavo di rete ad una presa idonea secondo
la tabella riportata alla pagina successiva.
Connessione
220/240V, 50/60Hz
110V/120V, 50/60Hz
Sotto tensione
Marrone
Nero
Neutro
Blu
Bianco
Terra
Verde/giallo
Verde
3.
SOLO REGNO UNITO: la spina con fusibile fornita con il cavo di rete è dotata di un fusibile da 10
Amp per proteggere lo strumento e l'utente.
4.
Le unità sono stimate funzionare a 100-230V, 50/60Hz.
5.
Collocare l'unità su un banco piano idoneo o in una cappa aspirante se necessario, assicurandosi
che gli sfiati delle prese d'aria nella parte inferiore non siano ostruiti.
6.
Inserire il cavo di rete nella presa che si trova sul retro dello strumento.
11
7.
Accendere lo strumento per mezzo dell'interruttore situato sulla parte anteriore dell'unità.
Cavo di ricambio
2
Qualora occorra sostituire il cavo di rete, si dovrà utilizzare un cavo di 1mm codice armonizzato
H05VV-F collegato ad una spina IEC 320. IN CASO DI DUBBIO, RIVOLGERSI A UN
ELETTRICISTA QUALIFICATO.
CONDIZIONI AMBIENTALI
Il Prime Elite è stato progettato per funzionare nelle seguenti condizioni:
•
uso interno
•
range di temperatura ambiente da +5ºC a +40ºC
•
altitudine massima 2000 m.
•
umidità relativa non superiore all’80%
•
oscillazione dell’alimentazione di rete non superiore al 10%
•
categoria di sovratensione II IEC 60364-4-443
•
grado di inquinamento 2
Nota: le specifiche di controllo sono indicate ad una temperatura ambiente di 20ºC. Le specifiche
potrebbero peggiorare fuori da una temperatura ambiente compresa tra 10ºC e 30ºC.
Lo strumento è stato collaudato per interferenze da radiofrequenze ed è certificato secondo la norma
EN61326.
GARANZIA
Bibby Scientific Ltd garantisce che, per un periodo di quattro (4) anni e se utilizzato nelle normali
condizioni di laboratorio, questo strumento non presenterà alcun difetto dei materiali o di
fabbricazione. In caso di reclamo giustificato, Bibby Scientific Ltd sostituirà qualsiasi componente
difettoso o rimpiazzerà l'unità in modo gratuito. Questa garanzia non si applica ai danni causati da
incendio, incidenti, utilizzo improprio, negligenza, regolazioni o riparazioni scorrette, danni dovuti a
installazione non corretta, adattamenti, modifiche o installazione di parti non approvate oppure
riparazioni eseguite da personale non autorizzato. La responsabilità di Bibby Scientific Ltd è limitata al
costo della riparazione o della sostituzione del prodotto ed esclude in particolare qualsiasi perdita
indiretta o secondaria, danno, costo o spesa, ivi inclusi, a titolo di esempio e in modo non esaustivo,
perdite di tempo, materiali e spese oppure perdite di utilizzo, profitto, produzione, ricavo, risparmio
atteso o avviamento. Per esporre un reclamo, contattare il fornitore dello strumento. Questa garanzia
è in aggiunta ai diritti di legge e non ha alcun effetto su di essi.
Il presente manuale è stato preparato ad uso dei clienti di Techne e niente di quanto in esso
contenuto costituisce garanzia, condizione o rappresentanza riguardo la descrizione, la
commerciabilità, l'idoneità allo scopo o altrimenti dell'unità o dei componenti.
Nonostante la descrizione e le specifiche dello strumento contenuti nel manuale dell'operatore,
Techne si riserva il diritto di apportare le modifiche ritenute opportune agli strumenti o a qualsiasi loro
componente.
12
INFORMACIÓN DE SEGURIDAD
Lea atentamente este manual antes de utilizar el Prime Elite.
ADVERTENCIA
LAS ALTAS TEMPERATURAS SON PELIGROSAS, ya que pueden ocasionar quemaduras graves a
los operarios y prender el material combustible. Los usuarios deben conocer los posibles riesgos:
•
TENGA CUIDADO Y LLEVE
PROTEGERSE LAS MANOS
GUANTES
DE
PROTECCIÓN
•
NO utilice sustancias combustibles cerca de objetos calientes
•
NO utilice el instrumento cerca de líquidos o gases inflamables
•
NO coloque un líquido directamente en el instrumento.
PARA
SEGURIDAD DEL OPERARIO
Todos los usuarios de equipos Techne deben disponer de la información necesaria para asegurar su
seguridad. De acuerdo con las instrucciones contenidas en este manual y con las normas y
procedimientos generales de seguridad, es muy importante que sólo personal debidamente
capacitado opere estos aparatos. De no ser así, la protección que el equipo le proporciona al usuario
puede verse reducida.
Todos los equipos Techne han sido diseñados para cumplir con los requisitos internacionales de
seguridad y traen incorporados un sistema de desconexión en caso de sobre temperatura. En caso
de que surgiera un problema de seguridad, desconecte el equipo de la red.
INSTALACIÓN
El instrumento se debe transportar con las dos manos. No mueva ni lleve el instrumento cuando se
utilice o esté conectado al suministro eléctrico principal.
1.
Todos los instrumentos Techne se suministran con un cable de alimentación, que puede ser
integrado o ‘enchufable’.
2.
Antes de conectar el instrumento al suministro eléctrico, compruebe que el voltaje
coincida con el indicado en la placa de régimen (situada en la parte trasera de la
unidad). El instrumento debe disponer de una toma de tierra para garantizar la
seguridad eléctrica adecuada. Conecte el cable de alimentación a un enchufe
adecuado según la siguiente tabla.
Conexión
220/240V, 50/60Hz
110V/120V, 50/60Hz
Con corriente
Marrón
Negro
Neutro
Azul
Blanco
Toma de tierra
Verde/amarillo
Verde
3.
SÓLO PARA EL REINO UNIDO: El enchufe suministrado con el cable de alimentación incluye
un fusible de 10 amperios para ofrecer protección al instrumento y al usuario.
4.
Las unidades se clasifican para funcionar en 100-230V, 50/60Hz.
5.
Sitúe la unidad sobre una mesa plana o en una campana de laboratorio si es necesario, y
asegúrese de que los orificios de ventilación situados en la parte inferior no tienen ninguna
obstrucción.
6.
Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento.
7.
Encienda el instrumento usando el interruptor situado en el frente de la unidad.
13
Cable de repuesto
2
Si es necesario sustituir el cable de alimentación, se debe utilizar un cable de 1mm de código
armonizado H05VV, conectado a un enchufe IEC320. EN CASO DE DUDA, PÓNGASE EN
CONTACTO CON UN ELECTRICISTA.
CONDICIONES AMBIENTALES
El Prime Elite está diseñado para utilizarse en las condiciones siguientes:
•
Uso en interior
•
Intervalo de temperatura ambiente +5ºC a +40ºC
•
Altitud: hasta 2000 m
•
Humedad relativa no superior al 80%
•
Fluctuaciones del suministro eléctrico no superiores al 10%
•
Categoría de sobrevoltaje II IEC 60364-4-443
•
Nivel de contaminación 2
Nota: Las especificaciones de control corresponden a una temperatura ambiental de 20ºC. Las
especificaciones pueden empeorar si se utiliza el instrumento fuera del intervalo de temperatura
comprendido entre 10ºC y 30ºC.
Se han realizado pruebas para comprobar la interferencia de radiofrecuencia del instrumento, el cual
cumple la normativa EN61326.
GARANTÍA
Bibby Scientific Ltd garantiza que este equipo estará libre de defectos de materiales y mano de obra,
si se utiliza en condiciones normales de laboratorio, durante un período de cuatro (4) años. En caso
de reclamación justificada, Bibby Scientific Ltd sustituirá cualquier componente defectuoso o
cambiará la unidad gratuitamente. Esta garantía no es aplicable si los daños han sido ocasionados
por incendios, accidentes, usos inapropiados, negligencias, ajustes o reparaciones incorrectas, así
como si se trata de daños ocasionados por la instalación, adaptación, modificación o incorporación
en el instrumento de piezas no aprobadas o su reparación por personal no autorizado. La
responsabilidad de Bibby Scientific Ltd se limita al coste de la reparación o sustitución del producto,
y excluye específicamente pérdidas, daños, costes o gastos indirectos o accidentales, incluyendo
pero sin estar limitado a ello, pérdidas de tiempo, materiales y gastos o pérdida de uso, beneficios,
producción, ingresos, ahorros previstos u oportunidades comerciales. Si desea realizar una
reclamación, póngase en contacto con el suministrador del equipo. Esta garantía complementa y no
afecta a sus derechos legales.
Este manual se ha preparado con una finalidad informativa para los clientes de Techne y ninguna
parte del manual se deberá considerar como una garantía, condición o reflejo con respecto a la
descripción, comerciabilidad, idoneidad para un fin determinado o de otro tipo de la unidad o sus
componentes.
Con independencia de la descripción y las especificaciones del instrumento que se indican en el
manual del operario, Techne se reserva el derecho de realizar cambios en el instrumento o en
cualquiera de sus componentes cuando lo estime oportuno.
14
CONTACT INFORMATION
For technical, sales or servicing information, contact your local Techne distributor or:
UK
Bibby Scientific Ltd.
Beacon Road
Stone
Staffordshire
ST15 0SA
UK
Tel: +44 (0)1785 812121
Fax: +44 (0)1785 810405
E-mail: [email protected]
www.techne.com
North and South America
Bibby Scientific US Inc. t/a Techne Inc.
3 Terri Lane, Suite 10
Burlington, N.J. 08016
USA
Toll Free (in NA): 800-225-9243
Tel: +1 609 589 2560
Fax: +1 609 589 2571
E-mail: [email protected]
www.techneusa.com
France
Bibby Scientific Limited
Bâtiment Le Deltaparc Parc Silic PN2
7 rue du Canal
BP 55437 VILLEPINTE
95944 ROISSY Charles de Gaulle
France
Tel: +33(0)148 63 78 03
Fax: +33(0)148 63 78 01
E-mail: [email protected]
www.bibby-scientific.com
Asia
Bibby Scientific - Singapore
Prudential Tower, Level 26
30 Cecil Street
Singapore 049712
Tel: +65 6631 2976
Fax: +44 (0) 1785 810405
e-mail: [email protected]
www.bibby-scientific.com
Middle East
Bibby Scientific Middle East Ltd.
PO Box 27887, Engomi 2433
Nicosia
Cyprus
Tel: +357 22 660 423
Fax: +357 22 660 424
e-mail: [email protected]
15
PRIME ELITE SPECIFICATION
TEMPERATURE
Block temperature range
Block uniformity
Temperature accuracy
Gradient availability
Maximum gradient
Minimum gradient
Column uniformity with a 10ºC gradient
Pre-run sample cooling
Temperature set point adjustment
4°C or 20ºC below ambient to 100ºC
<±0.3ºC
<±0.2ºC
10°C to 100°C
30ºC (16ºC with the 384-well block)
1ºC
<±0.3ºC
Yes, 4ºC
0.1ºC
HEATING/COOLING RATE
Maximum heating rate
Minimum heating rate
Maximum cooling rate
Minimum cooling rate
5.0ºC/s
0.1ºC/s
3.0ºC/s
0.1ºC/s
HEATED LID
Selectable heated lid temperature
Pre-heat lid
Warm up time from ambient
Over-temperature cut-out
Regulated heated lid pressure
35 to 115ºC or off
Yes
<2 min
Yes
Automatic
The heated lid is only operational if the block temperature is set above 35ºC
PROGRAMMING*
Program interface
Maximum number of programs stored
Maximum number of stages per program
Maximum number of steps per stage
Maximum number of cycles per stage
Programmable ramp rate
Maximum hold time
Minimum hold time
Gradient calculator
Incremented/decremented temperature
Incremented/decremented time
Pause facility
Program naming
Password protection
Keyword selection
Run completion time
End of program alarm
Auto resume on power failure
Oligonucleotide Tm calculator
5.7” colour VGA LCD touch screen
1000
99
99
99
Yes, 0.1ºC/s steps
99h 59m 59s
1s
Yes
Yes
Yes
Yes
Alpha numeric plus symbols
Yes
Yes
Yes
Yes
Yes with options of 10min, 30min, 1h or always
1
Yes, based on the Nearest-Neighbour method
*Programming for Satellite units is via a Prime Elite unit or Techne Workbench PC software.
Breslauer, K.J.; Frank, R.; Blocker, H. and Marky, L.A. (1986) Proc. Natl. Acad. Sci. USA 83, pp
3746-3750.
1
16
INTERCONNECTIVITY
Connection to PC control software
Software updates
Yes (Satellite units only)
Free of charge from www.techne.com
COMMUNICATION PORTS
Prime Elite:
Connections for Satellite units:
Connection for memory stick:
3 x USB ports on rear of unit
USB port on front of unit
Satellite unit:
Connection to PC or Prime Elite:
USB port on rear of unit
DIMENSIONS
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
312
276
375
14
POWER
Voltage
Power
100-230V
1000W
17
INSTALLATION
See also the Safety Information sections on pages 5 to 14.
Front view
Prime Elite
1.
2.
3.
4.
5.
Prime Elite Satellite
Prime Elite 5.7” colour VGA LCD touch screen display.
Drawer release push panel.
Prime Elite USB port for memory stick.
Power on/off
Prime Elite Satellite ID and status indicator.
Rear view
1.
2.
3.
4.
18
Lifting Handle.
USB ports for connection of Satellite units (Prime Elite only).
USB port for connection to PC or Prime Elite (Satellite units only).
Mains cable inlet.
Installation
1.
Place the unit on a suitable flat bench, ensuring that the air inlet vents on the front and rear are
free from obstruction. Two units may be stacked one on top of the other (Prime Elite on a Satellite
or Satellite on Satellite).
2.
Plug the mains cable into the socket on the back of the instrument.
3.
Connect to the mains electricity supply with the plug provided or one wired correctly for the
supply. Switch the power ON using the switch located on the front of the unit. The front display will
then light up.
4.
Open the drawer by pushing on the front drawer panel then pull the drawer forwards to access the
block.
5.
Place the samples in the block. If individual tubes or strip tubes are being used, space these out
evenly across the block to equalise the pressure from the heated lid.
6.
To close the drawer, push back into the unit until it locks in place.
Connecting Satellite units to the Prime Elite
The Prime Elite has three USB ports on the rear of the unit for connection of Satellite units. Three
Satellite units can be connected directly to the Prime Elite as shown in the configuration below.
USB memory stick
19
GENERAL SOFTWARE FEATURES
INTRODUCTION
The Prime Elite software allows the user to quickly and easily create thermal cycling programs using a
simple and clear touch screen format. The software is structured into five modules which are accessed
from the Home Screen. These allow the user to:
• Run an existing program, selecting from
templates or programs saved on the unit.
• Create a new program.
• Set instrument and program defaults and
preferences. Includes calculator tools.
• View the current status of connected units.
• View and search for files stored on the unit.
TEMPLATE PROGRAMS
To help with programming, a number of program templates are installed on the unit which are
available to copy and edit or can be run directly without changes. Details of the installed program
templates are given below.
Instrument and program defaults
Parameter
Heated Lid
Heated lid before program
Sample cooling
Pause before program
Initial denaturation
Hot start
Final extension
Final hold
2 Step Template
105ºC
On
On
Off
94ºC, 05m00s
Off
72ºC, 05m00s
10ºC
3 Step Template
105ºC
On
On
Off
94ºC, 05m00s
Off
72ºC, 05m00s
10ºC
RT-PCR Template
105ºC
On
On
Off
94ºC, 05m00s
Off
72ºC, 07m00s
10ºC
Thermal cycling conditions
Stage 1
Number of cycles
Step 1
Step 2
Step 3
Stage 2
Number of cycles
Step 1
Step 2
Step 3
20
2 Step Template
3 Step Template
RT-PCR Template
30
94.0ºC, 00m30s
60.0ºC, 01m00s
30
94.0ºC, 00m30s
55.0ºC, 00m30s
72.0ºC, 00m30s
1
45.0ºC, 40m00s
94.0ºC, 05m00s
40
94.0ºC, 01m00s
55.0ºC, 00m50s
72.0ºC, 01m00s
The Ice Bucket and Ligation programs are simple temperature holds, with the former having an infinite
hold at 4ºC and the latter at 15ºC. In both of these programs the heated lid is switched off and the
initial denaturation, hot start and final extension functions disabled.
INCREMENTED/DECREMENTED TIME AND TEMPERATURE
The software allows the user to either increment or decrement the time and/or temperature of a step
within a cycling stage. These features are used with applications such as touchdown PCR where the
annealing temperature is gradually decreased during the cycling process and long PCR, where due to
the size of the product, long annealing/extension times are required and the extension time is
increased by 15 to 20s per cycle during the final stages of the reaction.
GRADIENT
The gradient feature of the Prime Elite can be useful in optimising the annealing conditions for primers.
A gradient can be set around a temperature in any step of a program. The set temperature is the
temperature in the middle columns of the block and the gradient is the variation at the two extremes of
the block; the left hand columns being the coolest and the right hand columns the hottest.
1 2 3 4 5 6 7 8 9 10 11 12
A
B
C
D
E
F
G
H
Lowest
temperature
Set
temperature
Highest
temperature
Gradient
The maximum temperature gradient range which can be set is 30ºC and the minimum is 1ºC; the
lowest temperature is 10ºC or 20ºC below ambient and the hottest temperature is 100ºC. Examples
are given in the table below:
Lowest temperature
(ºC)
50
10
80
Set temperature
(ºC)
55
25
90
Highest temperature
(ºC)
60
40
100
Gradient
(ºC)
10
30
20
A gradient calculator is included in the Settings module so the user can obtain an accurate estimation
of the temperature of each column during the gradient stage. The temperatures for any particular
gradient are calculated from an algorithm stored in the block firmware.
21
OLIGONUCLEOTIDE TM CALCULATOR
One of the most important parameters in a PCR is the annealing temperature of the reaction. This can
be determined theoretically using various software programmes to calculate the melting temperature
(Tm) of the primers.
The Tm is defined as the temperature at which half the DNA strands are single stranded and half are
double stranded when base paired to a complimentary strand. Using annealing temperatures that are
well below the Tm of the primers can result in mismatching, false priming and may lead to primer-dimer
artefacts. Annealing temperatures that are significantly higher than the primer Tm may result in
reduced priming or prevent priming altogether.
1
The Prime Elite uses the Nearest-Neighbour method for calculating the Tm of an oligonucleotide .
The Tm is calculated using the following equation:
+
Tm
=
{(∆Hº x 1000)/(A + ∆Sº + R ln(C/4))} - 273.15 + 16.6 x log[Na ]
∆Hº
A
∆Sº
R
C
[Na+]
=
=
=
=
=
=
The sum of the Nearest-Neighbour enthalpy changes (Kcal/mol)
Helix initiation correction constant
-1
-1
The sum of the Nearest-Neighbour entropy changes (cal K mol )
-1
-1
The Gas Constant (1.99 cal K mol )
Concentration of the oligo (M)
Concentration of monovalent ions (M)
Where:
1
Breslauer, K.J.; Frank, R.; Blocker, H. and Marky, L.A. (1986) Proc. Natl. Acad. Sci. USA 83, pp
3746-3750.
The Oligonucleotide Tm calculator can be found in the Settings module where the user can input the
oligonucleotide sequence, its concentration in the reaction and the salt concentration of the reaction
mix.
22
PROGRAMMING TEXT, TEMPERATURE AND TIME
This section gives instructions for the basic programming of text, temperature and time which are
required in later sections.
TEXT ENTRY
When giving a name to a program or stage, or when entering a keyword or a password, a text entry
screen will be opened.
Touch individual characters to create the name.
• For words with all upper case letters touch
CAPS.
• Touch SHIFT if only the first letter is required in
upper case.
• For numbers touch 123.
• For commonly used symbols touch SYM.
• Touch the space bar (not labelled) for spaces
between characters.
• To clear the typed name, touch CLR.
• To delete the last character touch DEL.
Once the name is complete, touch OK.
TEMPERTURE ENTRY
When touching a temperature parameter a temperature entry screen will open. There are two forms of
temperature entry screen:
• A simple form for adjusting the temperature of the instrument parameters such as the heated lid
and program parameters such as initial denaturation and final extension.
• An advanced form when programming step temperatures within a cycling stage that includes the
options for introducing an incremented/decremented step temperature, for example in touchdown
PCR, or a temperature gradient.
Simple temperature entry
• Enter the temperature by typing in the required
value. The decimal point can be used for 0.1ºC
resolution.
• To clear the entry press DEL.
• If an entered temperature is invalid, a prompt will
indicate the acceptable range.
• Once the temperature is correct, touch OK to
return to the previous screen.
• Touch Cancel to return to the previous screen if
no changes are required.
23
Advanced temperature entry
• First ensure the number of cycles for the stage has been set then enter the required hold
temperature as described above.
Note: Increase/Decrease Per Cycle will be inactive unless the number of cycles set is greater than 1.
To increase the step temperature per cycle:
• For an increase in temperature per cycle, touch
the button below Increase Per Cycle to turn this
function on. Next touch the temperature entry
button below this.
A new screen will open which is similar to the
simple temperature entry screen. The maximum
increase in temperature per cycle (based on the
number of cycles and the temperature limits of the
unit) will be shown.
• Enter the required value.
• Touch DEL to clear the entry.
• If an entered incremented temperature is invalid,
a prompt will indicate the acceptable range.
• Touch OK to accept and return to the previous
screen.
The increase in temperature per cycle will now be
displayed.
• Touch OK again to return to the programming
screen.
• Touch Cancel to return to the programming
screen if no changes are required.
24
The temperature value will now appear orange in
the programming screen indicating that it contains a
modified function.
To decrease the step temperature per cycle:
• For a decrease in temperature per cycle, touch
the button below Decrease Per Cycle to turn
this function on. Next touch the temperature
entry button below this.
A new screen will open which is similar to the
simple temperature entry screen. The maximum
decrease in temperature per cycle (based on the
number of cycles and the temperature limits of the
unit) will be shown.
• Enter the required value.
• Touch DEL to clear the entry.
• If an entered decremented temperature is
invalid, a prompt will indicate the acceptable
range.
• Touch OK to return to the previous screen.
The decrease in temperature per cycle will now be
displayed.
• Touch OK again to return to the programming
screen.
• Touch Cancel to return to the programming
screen if no changes are required.
25
The temperature value will now appear orange in
the programming screen indicating that it contains a
modified function.
Note: It is not possible to both increase and
decrease the temperature of the same step.
To enter a temperature gradient on a step:
• Touch the button below Temperature Gradient
to turn this function on. Next touch the
temperature entry button below this.
A new screen will open which is similar to the
simple temperature entry screen. The maximum
temperature gradient (based on the set hold
temperature and the temperature limits of the unit)
will be shown.
• Enter the required value.
• Touch DEL to clear the entry.
• If an entered gradient temperature is invalid, a
prompt will indicate the acceptable range.
• Touch OK to return to the previous screen. The
temperature gradient for the step will now be
displayed.
• Touch OK again to return to the programming
screen.
• Touch Cancel to return to the programming
screen if no changes are required.
26
The temperature value will now appear orange in
the programming screen indicating that it contains a
modified function.
TIME ENTRY
When touching a time parameter a time entry screen will open. There are two forms of time entry
screen:
• A simple form for adjusting the time of the program parameters such as initial denaturation and final
extension.
• An advanced form when programming step hold times within a cycling stage that includes the
options for introducing incremented/decremented time, for example in long PCR.
Simple time entry
• Enter the time using the + or – buttons to
increase or decrease the number of hours,
minutes or seconds.
• Using the – button with the value set at 0 will
scroll to the maximum permitted value.
• Touching Hide Hours will remove the hour time
selector and just display selectors for minutes
and seconds.
• Once the time is correct, touch OK to return to
the previous screen.
• Touch Cancel to return to the previous screen if
no changes are required.
Advanced time entry
• First ensure the number of cycles for the stage has been set then enter the required hold time as
described above.
Note: Increase/Decrease Per Cycle will be inactive unless the number of cycles set is greater than 1.
27
To increase the step hold time per cycle:
• For an increase in hold time per cycle, touch the
button below Increase Per Cycle to turn this
function on. Next touch the time entry button
below this.
A new screen will open which is similar to the
simple time entry screen. The maximum increase
in hold time per cycle (based on the number of
cycles and the time limits of the unit) will be shown.
• Enter the required value using the + and buttons.
• If an entered incremented time is invalid, a
prompt will indicate the acceptable range.
• Touch OK to return to the previous screen.
The increase in hold time per cycle will now be
displayed.
• Touch OK again to return to the programming
screen.
• Touch Cancel to return to the programming
screen if no changes are required.
The time value will now appear orange in the
programming screen indicating that it contains a
modified function.
28
To decrease the step hold time per cycle:
• For a decrease in hold time per cycle, touch the
button below Decrease Per Cycle to turn this
function on. Next touch the time entry button
below this.
A new screen will open which is similar to the
simple time entry screen. The maximum decrease
in hold time per cycle (based on the number of
cycles and the time limits of the unit) will be shown.
• Enter the required value.
• If an entered decremented time is invalid, a
prompt will indicate the acceptable range.
• Touch OK to return to the previous screen.
The decrease in hold time per cycle will now be
displayed.
• Touch OK again to return to the programming
screen.
• Touch Cancel to return to the programming
screen if no changes are required.
The time value will now appear orange in the
programming screen indicating that it contains a
modified function.
Note: It is not possible to both increase and
decrease the time of the same step.
29
INSTRUMENT SETTINGS AND DEFAULTS
From the Home Screen, touch the Settings button to access the instrument Settings menu.
• Touch any of the buttons to view and edit the
settings.
• Touch More Settings to access further options.
• Once all the settings and defaults have been set
as required, touch Save to save the changes
and return to the Home Screen.
• If you do not wish to change any settings, touch
Cancel to return to the Home Screen.
USER PREFERENCES
Language
• Touch the Language button to set the required
language. The options are English, French,
Spanish, Italian and German.
Temperature Display
• Touch the Temperature units button to set the
required temperature units. The options are ºC
and ºF.
Home Screen File List Sort
This sets the user preference for listing the program
shortcuts on the Home Screen.
• Touch the button to set the required sorting
preference. The options are recently used first or
most used first.
• Touch More
preferences.
Settings
for
further
user
Select Multiple Items in File Manager
This allows either multiple files or only single files
to be selected for copying and deleting when using
the File Manager in the View files module.
• Touch to select on or off.
• Touch Back to return to the Settings menu.
30
INSTRUMENT SETTINGS
Temperature Log Recording
To record the temperature logs (block temperature
profile) of each run, touch the button to set this to
Always. If temperature logs are not required, set to
Never.
Auto Resume On Power Loss
This determines the time limit after which the unit
will restart after a power failure. For example, if the
Auto Resume is set to 30 minutes, the unit will
restart at the beginning of the step at which it was
interrupted if the power failure lasted for 30 minutes
or less but not if it was for longer.
Setting Auto Resume to Always will always allow
the unit to re-start irrespective of the length of the
power failure.
Date and Time Settings
Use these settings to set the current date, time and
date format on the unit.
• When set, touch Back to return to the Settings
menu.
Date
• Touch Set Date in order to enter the current
date.
• Use the + and – keys to set the date values.
• When the correct date has been set, touch OK
to return to the previous screen.
• Touch Cancel to return to the previous screen if
no changes are required.
31
Time
• Touch Time in order to enter the current time
using the 24 hour clock.
• Use the + and – keys to set the time values.
• When the correct time has been set, touch OK
to return to the previous screen.
• Touch Cancel to return to the previous screen if
no changes are required.
Date Format
Touch the Date button to set the required date
format.
The options are dd/mm/yy or mm/dd/yy.
• Touch Back to return to the Settings menu.
• Touch More Settings
instrument settings.
to
access
further
Administrator Settings
This allows an administrator to remove passwords
from password-protected programs, change the
Administrator password and restore the unit to its
factory settings.
• Touch None
password.
and
enter
the
administrator
The default password is 1234.
• Touch OK to enter the Administrator Settings
menu.
• Touch Cancel to return to the menu without
making any changes.
Remove Passwords
• From the Administrator menu touch Remove
Passwords.
• Touch the file with the password to be removed.
• Touch Remove Password.
The password will now be removed and the
program can be deleted if required.
• Touch Close to return to the menu.
32
Change Administrator Password
This allows the administrator to change the default
password (1234).
• From the Administrator menu touch Change
Administrator Password.
• Touch None entered and enter the new
password.
• Touch the second None entered to confirm the
new password.
Note: It is recommended that the administrator
keeps a record of the new password.
• Touch OK to return to the menu or Cancel to
return without making any changes.
Restore Factory Settings
All changes to the instrument defaults and settings
can be removed and the unit returned to its factory
settings.
• From the Administrator menu touch Restore
Factory Settings.
• Touch the None button
administrator password.
and
enter
the
• Touch Restore Settings and the unit will be
reset to factory defaults.
• Touch Cancel to return to the Settings menu
without making any changes.
33
PROGRAM DEFAULTS
The program default settings will apply to every new program created on the Prime Elite. However
individual programs can be edited as required.
Heated Lid
Use this to set the heated lid temperature to
approximately 10ºC higher than the hottest block
temperature in the program.
• Touch On/Off to toggle between settings.
• Touch the temperature button to set the
required lid temperature (35 to 115ºC).
Preheat lid
Set to On to pre-heat the lid to the set temperature
before the thermal cycling program begins.
• Touch On/Off to toggle between settings.
Sample Cooling
Set to On to cool the block to 4ºC while the lid preheats.
• Touch On/Off to toggle between settings.
• Touch More Settings for further program defaults or Back to return to the Settings menu.
Pause
This will cause the unit to pause before the program
starts at the ambient temperature of the block
(unless Sample Cooling has been set to On; in this
case the unit will pause with the block held at 4ºC)
and the program will not commence until the unit is
manually un-paused.
• Touch On/Off to toggle between settings.
Initial Denaturation
Use this to denature the sample and/or activate the
enzyme before the thermal cycling program begins.
• Touch On/Off to toggle between settings.
• Touch the time button to set the required hold
time.
• Touch the temperature button to set the
required temperature.
Hot Start
This will cause the unit to pause at the set temperature. The program will not continue until the unit is
manually un-paused.
• Touch On/Off to toggle between settings.
• Touch the temperature button to set the required temperature.
34
•
Touch More Settings for further program defaults or Back to return to the Settings menu.
Final Extension
Use this to add a final extension step to the
program to ensure complete amplification of the
products.
• Touch On/Off to toggle between settings.
• Touch the time button to set the required hold
time.
• Touch the temperature button to set the
required temperature.
Final Hold
This will hold the block at the set temperature at the end of a program until the user manually stops the
unit.
• Touch On/Off to toggle between settings.
• Touch the temperature button to set the required temperature.
• Touch More Settings to return to the top of the Program Defaults menu or Back to return to the
Settings menu.
SERVICE SETTINGS
The service settings are for the use of authorised service engineers only. A service engineer’s
password is required to access these settings.
GRADIENT CALCULATOR
The Gradient Calculator can be used to calculate the temperature for each column of the block for a
user-specified temperature and gradient range.
• Touch the target temperature button and enter
the required temperature.
• Touch OK.
• Touch the gradient button and enter the
required gradient range followed by OK.
• Touch OK.
The calculated temperatures for each of the
columns of the block will now be displayed.
Note: With the 384-well block, the columns are
paired as it is not possible to individually control 24
columns. Therefore only 12 column temperatures
are available across this block.
35
OLIGO TM CALCULATOR
The oligo Tm calculator can be used to estimate the Tm of the PCR primers and help in selecting an
appropriate annealing temperature for the thermal cycling program.
• Touch Enter The Oligo Sequence in order to
input the sequence of the primer.
• Touch the A C G T buttons to enter the primer
sequence.
• Touch DEL to delete the last character.
• Touch CLR to delete the whole sequence.
• Use the arrow keys to scroll through the
sequence.
• Touch OK to return to the calculator screen.
• Enter the primer concentration in the PCR mix.
• Enter the monovalent salt concentration of
the PCR mix.
• Touch Calculate to calculate the Tm of the
primer.
36
• To check the Tm of another primer with the same
primer and salt concentrations, touch Back and
enter the new primer sequence.
• Touch Reset to clear the entries.
• Touch Back to return to the Settings menu.
• Once all the settings and defaults have been set as required, touch Save to save the changes and
return to the Home Screen.
• If you do not wish to change any settings, touch Cancel to return to the Home Screen.
37
CREATE A NEW PROGRAM
From the Home Screen, touch the Create A New Program button. This will open a screen where you
can build a program by adding stages and steps and define the temperatures and hold times.
The function of each of the buttons on this screen is
described below.
NAME THE PROGRAM
• Touch this button to give the program a name.
• Type in the required name using the text entry
screen.
• Once the name is complete, touch OK to return
to the programming screen.
• Touch Cancel to return to the programming
screen if no changes are required.
When saving the program, if the chosen name has
already been used for another program, the
message box shown opposite will appear.
• Touch OK to return to the Programming screen.
• Touch the program name and enter a different
name.
• Once the name is complete, touch OK to return
to the programming screen.
• Touch Save to save the program.
38
INSERT/DELETE A STAGE
A stage is a section of a program that consists of a number of individual steps that can be cycled
(repeated) a defined number of times.
Insert a new stage
• To insert a stage in a program, touch Insert a
new stage. A stage with one step will be
inserted.
Stage 1
• Touch this to give the stage a name (optional).
Enter the name using the text entry screen.
1 cycle
• Touch this to edit the number of cycles (repeats)
for the stage. Enter the required number of
cycles then touch OK.
Temperature
• Touch the temperature button to edit the
temperature of the step and add any
increment/decrement or gradient features.
Time
• Touch the time button to edit the hold time of
the step and to add any increment/decrement
time features.
Ramp rate
• Touch the ramp rate setting to adjust the ramp
rate.
The range is 0.1ºC/s (minimum) to 5.0ºC/s
maximum for heating and 3.0ºC/s for cooling. The
value can be entered to 1 decimal place. Ramp rate
will affect the heating or cooling rate from the
previous step to the current step.
• Once set, touch OK
Programming Screen.
to
return
to
the
Delete a stage
• To delete a stage, touch the stage area to
highlight it and then touch Delete.
39
INSERT/DELETE A STEP
Insert a new step
• Touch Insert a new step to insert the next step
in the current stage.
• Edit the new step temperature, hold time and
ramp rate as required.
Delete a step
• To delete a step, touch the step area to
highlight it and then touch Delete.
INSERT/DELETE A PAUSE
Insert a pause
• To insert a pause between stages, touch Insert
a pause.
The hold temperature will be that of the previous
step. The unit will not continue with the remainder
of the program until it is manually un-paused by the
user.
Delete a pause
• To delete a pause, touch the pause button to
highlight it and then touch Delete.
Note: To insert a pause between two previously
programmed stages, it is necessary to first delete
the later stages to where the pause is required.
PROGRAM OPTIONS
• Touch this to view the program defaults as set
up in the Settings module.
Any of these parameters can be edited by touching
the appropriate button and will be saved for the
current program only.
• Touch Program to return to the programming
screen.
40
User
User names can be entered and linked to the
program to help in searching and identifying
programs.
• To enter a user name, touch the None selected
button next to User.
• User names that have already been created will
be listed.
• To create a new user name, touch the Create a
new user button.
• Type in the user name and touch OK.
The new user name will be added to the list.
• To select a user name, touch the button to
highlight it. Touch it again to de-select it.
• To delete a user name from the list, select the
user name and touch Delete.
• Touch Done to return to Program Options.
The user name will now appear in the Program
Options screen.
• Touch the Program button to return the
programming screen.
41
Keywords
Keywords can be entered and linked to the program
to help in searching for related programs.
• To enter a keyword, touch the None selected
button next to Keywords.
• Other keywords that have already created will
be listed.
• To create a new keyword, touch the Create a
new keyword button.
• Type in the keyword and touch OK.
The new key word will be added to the list.
• To select a keyword, touch the button to
highlight it. Touch it again to de-select it. More
than one keyword can be selected
• To delete a keyword from the list, select the
keyword(s) and touch Delete.
• Touch Done to return to Program Options.
The keyword(s) will now appear on the Program
Options screen.
• Touch the Program button to return the
programming screen.
42
Passwords
A password can be created to protect the program
from being edited and deleted by other users. The
password will be requested if a user attempts to edit
or delete the program.
• To create a password, touch the None button
next to Password.
• Enter the required password then touch OK. The
password is case-sensitive.
• Touch Cancel to return to Program Options
without entering a password.
• Touch the Program button to return to the
Programming screen.
• To change or remove the password, from the
Program Options screen, touch the button next
to Password.
• On the Password Editing screen, touch the
None button and enter the password.
• To remove the password, touch Remove
Password.
• To change the password, touch Change
Password and type in the new password,
followed by OK.
• Touch Cancel to return to the Program Options
screen if no change is required.
43
SETTINGS
• Touch the Settings button to view the
instrument defaults as set up in the Settings
module.
Any of these parameters can be edited by touching
the appropriate button and will be saved for the
current program only.
• Touch Program to return to the programming
screen.
VIEW
• Touch View to see a graphical representation of
the program.
• If the program has more stages and steps that
are displayed on the screen, scroll through the
program by dragging a finger across the touch
screen.
The centre of the screen shows each temperature
step and hold time (not to scale). Stages are
indicated by a white bar spanning the steps within
the stage.
The bottom of the screen shows the name of the
program and the expected end time if it was started
immediately.
Note: The program is not saved at this point.
• Touch Start to start the program.
Note: It is not possible to send the program to connected Satellite units from a view screen.
• Touch Edit to edit the program.
• Touch Back to return to the Programming Screen.
Note: The temperature log will remain blank until the program has been started.
If a step has a gradient programmed into it, the bar
will be shown thicker and indicate the upper and
lower temperatures of the gradient range.
If a step has an incremented or decremented
temperature, this will be indicated by a white spot
next to the temperature.
If a step has an incremented or decremented time,
this will be indicated by a white spot next to the
time.
44
Gradient
Inc/dec
temperature
Inc/dec time
DELETE
This is used to delete an entry. First touch the required segment followed by Delete.
UP AND DOWN ARROWS
Use these buttons to scroll through a program.
SAVE
Touch this button to save the program.
CANCEL
Touch this button to cancel changes to the program and return to the Home Screen.
45
RUN A PROGRAM
From the Home Screen, touch one of the shortcuts to run one of the listed programs, or touch Run a
Program to search and select from other programs and templates saved on the unit. Selected
programs can be run directly or edited before running.
RUNNING A PROGRAM FROM THE SHORTCUT LIST
On the Home Screen, the Run a program area displays shortcuts to four programs. User Preferences
in the Settings module can be used to select whether this displays the four most recently used
programs or the four most frequently used programs.
• To run one of the programs in the shortcut list,
touch the button to open the Pre-run Screen.
If there is one or more Satellite unit(s) connected to
the Prime Elite, an additional screen will ask if you
wish to run the program on a selected Satellite unit
or the Prime Elite
• Touch the required button to select.
• Touch Cancel to return to the Home Screen.
If it is decided to run the program on a Satellite
unit, an additional screen will allow selection of the
required unit.
• Touch to select the required Satellite unit.
• Touch Identify if necessary to ensure the
correct Satellite unit has been selected. The
selected Satellite unit will beep and flash its
indicator lights.
• Touch Send.
• Touch Cancel to return to the previous screen.
46
Note: If the user attempts to send a program to unit
while it is already running, the warning screen
shown opposite will be displayed.
• Touch OK to exit.
THE PRE-RUN SCREEN
The Pre-run Screen shows a graphical representation of the program allowing for a rapid check of the
temperature parameters.
The centre of the screen shows each temperature
step and hold time (not to scale). Stages are
indicated by a white bar spanning the steps within
the stage.
The bottom of the screen shows the program name,
the date and the expected end time if it was started
immediately.
• Touch Start to start the program.
• Touch Edit to edit the program.
• Touch Back to return to the previous screen.
Note: The temperature log will remain blank until
the program has been started.
If a step has a gradient programmed into it, the bar
will be shown thicker and indicate the upper and
lower temperatures of the gradient range.
Gradient
Inc/dec
temperature
Inc/dec time
If a step has an incremented or decremented
temperature, this will be indicated by a white spot
next to the temperature.
If a step has an incremented or decremented time,
this will be indicated by a white spot next to the
time.
47
THE RUN SCREEN
The Run Screen will be displayed after a program has been started. It shows the instrument status and
the progress of a run.
Once the program has been started, the timers in
the top right hand corner of the screen will indicate
how long the program has been running and the
total run time. The progress bar at the top of the
screen also indicates how far the run has
progressed.
The status of the block is indicated by the step bars
which display the activity of the block (i.e. ramping
to temperature), paused or the count down time of
the step.
Progress through the program is indicated by the
stage bar(s) which show at which cycle of the
program the unit is currently at.
Adaptive ramp rate
The first time a program is run, the unit estimates the total run time based on the ramp rates set in the
program. After the first cycle has completed the actual time taken to complete the cycle is then used to
re-calculate the total run time. Subsequent runs of the same program will therefore have a more
accurate estimate of total run time. The estimate also takes into account the ambient room
temperature; therefore run times will also depend on ambient temperature.
• Touch Stop to stop the program. A prompt will
ask you to confirm the stop.
• Touch Temperature log to view the block
temperatures. The previous two minutes of
temperature readings can be viewed by scrolling
across the screen using a finger. The complete
log is written and saved on the unit.
Note: Touch Program View to return to the
program status.
• Touch Pause to pause the program.
• If paused, touch Continue to un-pause the
program.
Note: If the drawer is opened while the unit is running, the program will pause and only resume when
the drawer is closed.
Note: It is possible to access all modules of the software while the unit is running a program.
• Touch Back to return to the Home Screen and access other modules.
Once the run has finished, Program Finished will be displayed instead of End time.
48
Viewing a running program from the Home
Screen:
• Touch Current status.
• Touch the area for the required instrument.
• Touch View.
SEARCHING FOR A PROGRAM NOT IN THE SHORTCUT LIST
There are four ways to search for a program if it is not in the shortcut list:
•
•
•
•
Search from the complete list of saved programs.
Search by keyword.
Search by user.
Search by both keyword and user.
Search from a list
• To search for a program saved on the unit,
touch Run a Program to open the Program
Selection Screen.
• Use the + and – buttons to scroll up and down
the list of stored programs.
• Touch Sort By Program Name to list the
programs in order. The options are:
•
•
•
•
Program Name (ABC)/(ZYX)
Recently Used (123)/(321)
Most Used (123)/(321)
User (ABC)/(ZYX)
Search the programs by keyword
• Touch Search by Keyword and this will open
the list of keywords stored on the unit.
• Select one or more keywords by touching the
buttons to highlight them. Touch again to deselect.
• When all keywords have been selected, touch
Done to return to the Program selection screen.
Only the programs with the selected keyword(s)
saved with them will be listed.
• To clear the keyword search, touch Clear
Keyword Search.
49
Search the programs by user
• Touch Search by User and this will open the list
of user names stored on the unit.
• Select the required user name by touching the
appropriate button to highlight it. Touch again to
de-select.
• When the user name has been selected, touch
Done to return to the Program selection screen.
Only the programs with the selected user name
saved with them will be listed.
• To clear the user name search, touch Clear
User Search.
Search the programs by keyword and user
• Touch Search by Keyword and this will open
the list of keywords stored on the unit.
• Select one or more keywords by touching the
buttons to highlight them. Touch again to deselect.
• When all keywords have been selected, touch
Done to return to the Program selection screen.
Only the programs with the selected keyword(s)
saved with them will be listed.
• Touch Search by User and this will open the list
of user names saved with previously keywordsearched programs.
• Select the required user name by touching the
appropriate button to highlight it. Touch again to
de-select.
• When the user name has been selected, touch
Done to return to the Program selection screen.
Only the programs with both the selected user
name and key word(s) saved with them will be
listed.
50
RUNNING A PROGRAM NOT ON THE SHORTCUT LIST
• Once the required program has been identified,
touch it to highlight it.
The Program Selector Screen will show a summary
of the program, the instrument settings and a
graphical representation of the thermal cycling
program.
• Touch Edit to edit the program if required.
• Touch Back to return to the Home Screen.
• Touch Start to proceed to the Pre-run Screen.
If there is one or more Satellite unit(s) connected to
the Prime Elite, an additional screen will ask if you
wish to run the program on a selected Satellite unit
or the Prime Elite
• Touch the required button to select.
• Touch Cancel to return to the Home Screen.
If it is decided to run the program on a Satellite unit,
an additional screen will allow selection of the
required unit.
• Touch to select the required Satellite unit.
• Touch Identify if necessary to ensure the
correct Satellite unit has been selected. The
selected Satellite unit will beep and flash its
indicator lights.
• Touch Send.
• Touch Cancel to return to the previous screen.
51
Note: If the user attempts to send a program to unit
while it is already running, the warning screen
shown opposite will be displayed.
• Touch OK to exit.
• From the Pre-run Screen, touch Start to run the
program.
See THE RUN SCREEN on page 48 for further
information on instrument status and progress
during a run.
52
EDITING A PROGRAM
EDITING SAVED PROGRAMS
First select the required program by searching the Run a program module.
• To edit a selected program, touch the Edit
button.
Any of the Program Options, Settings or thermal
cycling parameters can be edited.
• Once all the required changes have been
made, touch Save.
Note: this will overwrite the existing program.
To copy a program for editing, please see section
VIEW FILES.
EDITING TEMPLATES
Editing templates can be a quick method of creating
a program by just changing a few key parameters.
However it is not possible to save changes to the
templates installed on the thermal cycler.
If the edited program is a template, touching Save
will open the message box shown opposite.
• Touch the None button next to New Program
Name and enter a name for the edited program.
• Touch Save As New Program to save the
changes.
The re-named program will now be listed in the
program list.
53
EDITING PASSWORD PROTECTED PROGRAMS
If the edited program is password protected,
touching Save will open the message box shown
opposite. To save the changes either:
• Touch the None button next to Password and
enter the correct password followed by Save.
Note: this will overwrite the existing program.
or
• Touch the None button next to New Program
Name and enter a new name for the edited
program, followed by Save as a New Program.
The re-named program will now be listed as a
separate program in the program list.
54
CURRENT STATUS
The Current Status area of the Home Screen provides status information on the Prime Elite and any
connected Satellite units.
On the Home Screen, the Current status area
shows the versions of software and firmware loaded
on the unit.
• Touch the Current status button to view the
status of the Prime Elite and any connected
units.
The Prime Elite and any satellite units connected to
it will be listed. The ID shows the serial number of
the unit in brackets and for Satellite units the ID
number allocated in square brackets.
If a unit is running a program, as shown by the
status, the Run Screen can be viewed. Runs can
then be paused or stopped as required.
• Touch the area to select the required unit.
• Touch View.
• Touch Cancel to return to the Home Screen.
Reset Satellite IDs
When first connected, a Satellite unit is allocated an
ID number by the Prime Elite. The ID numbers can
be reset following the instructions given below.
• Remove the USB cables from the rear of the
Satellite units.
• Touch Reset Satellite IDs.
• During the next 120 seconds, re-insert the USB
cables in the order you wish the Satellite IDs to
occur.
• When done, touch OK.
55
VIEW FILES
The View files module opens the File Manager and allows access to all the program and temperature
log files. From here it is possible to copy program files to the unit for editing. Files can also be deleted
or copied to a USB memory stick for transfer to a PC or storage.
FILE SEARCHING
There are four ways to search for a file:
• Search program files or temperature logs from
the complete list of saved files.
• Search by keyword.
• Search by user.
• Search by keyword and user.
• To search for a file saved on the unit, touch
View files to open the File Manager screen.
Search from a list
• Touch Programs And Logs to display either
programs only, temperature logs only or both.
• Use the up and down arrow buttons to scroll
through the list of saved files.
• Touch Sort By Program Name to list the
programs in order. The options are:
•
•
•
•
Program Name (ABC)/(ZYX)
Recently Used (ABC)/(ZYX)
Most Used (ABC)/(ZYX)
User (ABC)/(ZYX)
Search the files by keyword
• Touch Search By Keyword and this will open
the list of keywords stored on the unit.
• Select one or more keywords by touching the
buttons to highlight them. Touch again to deselect.
• When all keywords have been selected, touch
Done to return to the File Manager screen.
Only the files with the selected keyword(s) saved
with them will be listed.
• To clear the keyword search, touch Clear
Keyword Search.
56
Search the files by user
• Touch Search By User and this will open the list
of user names stored on the unit.
• Select the required user name by touching the
appropriate button to highlight it. Touch again to
de-select.
• When the user name has been selected, touch
Done to return to the File Manager screen.
Only the programs with the selected user name
saved with them will be listed.
• To clear the user name search, touch Clear
User Search.
Search the files by keyword and user
• Touch Search By Keyword and this will open
the list of keywords stored on the unit.
• Select one or more keywords by touching the
buttons to highlight them. Touch again to deselect.
• When all keywords have been selected, touch
Done to return to the Program selection screen.
Only the programs with the selected keyword(s)
saved with them will be listed.
• Touch Search By User and this will open the list
of user names saved with previously keywordsearched files.
• Select the required user name by touching the
appropriate button to highlight it. Touch again to
de-select.
• When the user name has been selected, touch
Done to return to the File Manager screen.
Only the files with both the selected user name and
key words saved with them will be listed.
57
VIEWING A PROGRAM FILE
• Touch Programs And Logs to display Only
Programs.
• Search for the required program file and touch it
to highlight it.
• Touch View to open the temperature profile
(Pre-run Screen) of the program.
• Touch Start to start the program.
Note: It is not possible to send a program to a
connected Satellite unit from the View screen.
• Touch Edit to edit the program.
• Touch Back to return to the previous screen.
Note: The temperature log will remain blank until
the program has been started.
VIEWING A TEMPERATURE LOG FILE
It is not possible to view a temperature log file on
the Prime Elite. It must first be copied to a USB
memory stick then viewed on a PC using the
Techne Workbench software, which can be
downloaded free of charge from www.techne.com
• See the directions given in the next section for
copying files to a USB memory stick.
• Copy the files to a PC and open the Workbench
software.
• Use Settings to select the path for the saved
files or click on Open to browse for the saved
files.
• Select the required temperature log and click
Open.
Note: Since the .temperaturelogdata file is a text
file, it can also be opened in applications such as
Excel for further analysis.
58
When opening a temperature log file, the
Temperature Log Monitor screen will be displayed.
To view the complete temperature log, drag the
mouse across the screen to scroll through the data
points.
The view will show a graphical representation of the
actual temperature changes, second by second,
throughout thermal cycling program.
Clicking on the Program View button of this screen
will display the program that generated the
temperature log.
For further information on using the Techne
Workbench software, see the separate user manual
which can be downloaded from www.techne.com
COPYING FILES
Files can either be copied onto the unit for editing,
or to and from a USB memory stick.
To copy files to the unit:
• Select one or more files for copying by touching
the appropriate file button.
Note: Multiple file selection is optional and can be
set up in the User Preferences section of the
Settings Module.
or
• Touch Select All to select all files.
• Touch Copy.
A message box will confirm that the files have been
copied.
The copied file(s) will now be highlighted and listed
as Copy of… and can be edited as required.
59
To copy files to a USB memory stick:
• Insert a USB memory stick into the port on the
front of the unit.
A message screen will appear confirming that the
USB memory stick has been inserted.
• Touch Cancel to return to the File Manager
Screen.
• Select one or more files for copying by touching
the appropriate file button.
or
• Touch Select All to select all files.
• Touch Copy.
A message screen will appear giving the option of
saving the files to the unit or to the USB memory
stick.
• Touch the upper button to save the file(s) to the
USB memory stick.
• Touch Cancel to return to the File Manager
screen.
The file(s) will be saved on the USB memory stick
in a folder called FileSystem as a .cyclerprogram
file.
To copy files from a USB memory stick:
• Insert a USB memory stick into the port on the
front of the unit.
A message screen will appear confirming that the
USB memory stick has been inserted.
• Touch Yes to view the programs on the USB
memory stick within the File Manager.
A USB button will be visible in the top right corner
indicating that the files are being read from the
USB memory stick.
• Select one or more files for copying by touching
the appropriate file button.
or
• Touch Select All to select all files.
• Touch Copy.
A message screen will appear giving the option of
saving the files to the unit or to the USB memory
stick.
60
• Touch the upper button to save the file(s) to the
Prime Elite unit.
• Touch Cancel to return to the File Manager
screen.
DELETING FILES
Unused or old files can be permanently deleted
from the unit or a USB memory stick.
• Select one or more files for deleting by touching
the appropriate file button.
Note: Multiple file selection is optional and can be
set up in the User Preferences section of the
Settings Module.
or
• Touch Select All to select all files.
• Touch Delete. A message box will appear
asking for confirmation of delete.
• Touch Yes to confirm the delete.
• Touch Cancel to abort the delete.
If the delete is confirmed, a message box will
confirm that the files have been deleted.
• Touch OK.
61
UPDATING THE PRIME ELITE SOFTWARE
The Prime Elite software can be updated by downloading the latest version from the Techne website
www.techne.com. You will need a USB memory stick on which to save the update.
Note that the update tool requires at least Windows XP SP2 and the Microsoft .Net Framework 3.5
SP1, which, if needed, can be downloaded from:
http://www.microsoft.com/downloads/details.aspx?familyid=AB99342F-5D1A-413D-831981DA479AB0D7&displaylang=en
• From the website, click on Support followed by
Software Downloads.
• Select the Prime Elite Update and choose the
option to run the file.
• Insert a USB memory stick into the PC and click
to select.
• Click on Prepare the USB memory stick.
This will copy the update to the USB memory stick.
• Turn the Prime Elite off and insert the USB stick
into the front USB port.
• Turn the Prime Elite on and follow the
instructions on the screen.
The update will take several minutes. When
finished, the home screen will be displayed.
• Remove the USB memory stick from the Prime
Elite.
62
FAQS
Q1
A1
How do I adjust the pressure of the heated lid for my tubes or plates?
No adjustment is necessary. The lid automatically applies the correct pressure. Ensure
that all consumables used in the block are of the same height.
Q2
A2
Do I need a different block for fully skirted plates?
No. The Prime Elite 96-well block will accommodate fully skirted as well as half-skirted and
non-skirted PCR plates.
Q3
A3
What is “Sample Cooling”?
Sample cooling can be applied during the lid pre-heat phase. This maintains the block at
4ºC while the lid is heating to temperature and avoids any increase in sample temperature
due to the heated lid before the thermal cycling program begins.
Q4
A4
How does TERS work?
®
TERS harnesses the heat released during the cooling phase for use in the next heating
phase. By switching the fans off for a very short time at the end of the cooling period the
heat is not removed from the heat sink, but is instead stored as heat energy. Heat is
therefore available as soon as the Peltiers switch from cooling to heating. This results in
faster heating, requires less energy to heat the block and subsequently costs less to run.
Q5
A5
What is "Hot start"?
The Hot Start step is used to pause the machine at a specific temperature, typically
around 70°C, after the initial template denaturation. The reason is to allow the manual
addition of unmodified Taq DNA polymerase which may lose activity if added during the
initial denaturation step. Heat-activated Taq or Hot Start enzymes do not require this step.
Q6
A6
What is the incremented time and temperature function for?
Incremented/decremented time and temperature are used to increase or decrease either
the time or temperature incrementally over the number of cycles in a stage.
Incrementation of extension time is used with 'Long PCR' which is when large template
fragments are to be amplified (e.g. 27kb lambda DNA, 40kb genomic DNA). Decremented
temperature is used for protocols such as 'Touchdown PCR' where the first cycle starts
with a high annealing temperature and over the number of cycles in the stage there is a
gradual decrease in the temperature. This ensures that only the specific product is
amplified.
Q7
A7
What is a gradient thermal cycler?
Gradient blocks enable a particular temperature step in a protocol to be programmed so
that the temperature varies across the block. By specifying a temperature and the gradient
to be applied, each column will achieve a different temperature. The set temperature is in
the middle of the block, the lowest on the left and the highest on the right. The gradient is
the total difference across the block, for example if the set temperature was 60°C and the
gradient 10°C then the temperatures would range from approximately 55°C to 65°C from
left to right.
Q8
A8
Why is a temperature gradient required?
The annealing temperature of the specific primers used in DNA amplification often
requires optimisation. Instead of running multiple experiments with different annealing
temperatures the gradient thermal cycler allows the testing of up to 12 different annealing
temperatures simultaneously.
®
63
TECHNICAL SUPPORT AND SERVICING
If you require further technical or application assistance please contact Techne at:
E-mail: [email protected]
Phone: +44 (0)1785 810433
Fax: +44 (0)1785 810405
For servicing information please contact:
Service Department
Bibby Scientific Ltd.
Beacon Road
Stone
Staffordshire
ST15 0SA
E-mail: [email protected]
Phone: +44 (0)1785 810475
Fax: +44 (0)1785 810405
In the USA please contact [email protected] or call +1 609 589 2560.
We are continually striving to improve our products and software. If you have any comments and
suggestions on how we can do things better please send them to us at: [email protected]
64
ADDITIONAL INFORMATION
USER MAINTENANCE
Before cleaning your unit, disconnect it from the power supply. The outer case of the Prime Elite may
be cleaned with a cloth dipped in water or ethanol (hexane or 50% methanol can also be used). No
part of the case or cover should be immersed in the solvents. Do not use aggressive solvents such
as acetone or abrasive cleaners. The block may be wiped with water, ethanol or propan-2-ol and
may be decontaminated by wiping with 2% Neutracon or 1% bleach solution.
Before using any cleaning or decontamination method except those recommended here, the
responsible person should check with Techne that the proposed method will not damage the
equipment.
FAULT FINDING
Note that this equipment should only be dismantled by properly trained personnel. Removing the
outer cover exposes potentially lethal mains voltages. There are no user serviceable parts within this
equipment.
Should you have any problems with your Prime Elite which cannot be easily remedied, you should
contact your supplier and return the unit if necessary. Please include details of the fault observed and
remember to return the unit in its original packing. Bibby Scientific Ltd. accepts no responsibility for
damage to units which are not properly packed for shipping: if in doubt, contact your supplier, giving
the full serial number of the unit.
FUSES
If the display on the front panel is not lit, one of the two fuses may have blown. Check that there is no
external cause, such as a faulty plug or lead. Check both fuses and replace the faulty fuse with a
new one of the correct value (fuse values are given on the label next to the power inlet). Note that
fuses should only be replaced by a qualified electrician.
The holder for the two fuses is built into the mains input socket. First remove the power cable and
then gently prise the fuse drawer open with a flat-bladed screwdriver or similar tool. Each fuse can be
removed by using the screwdriver as a lever.
Exchange the faulty fuse in the fuse holder for a working fuse of the correct value. Finally, replace
the fuse drawer in the fuse compartment and push the drawer shut. Fuses which blow repeatedly
indicate a serious fault and you should return the unit to your supplier for repair.
INSULATION TESTING
This equipment is fitted with RFI suppression circuitry. Any check of the electrical insulation by
means of high voltage dielectric testing (for example as in BS EN 61010-1) must be carried out using
only a DC voltage.
This unit contains semiconductor components which may be damaged by electric field effects.
65
REPLACEMENT PARTS
The following replacement parts can be obtained from Bibby Scientific Ltd. or your Techne
distributor:
Product code
HH179(S)
HH180(S)
FCABLEUS
6205046
ELITE/M1
ELITE/02/B
ELITE/05/B
ELITE/384/B
Description
UK 230V mains lead with plug
European mains lead with plug
US mains lead with plug
USB cable
Operator’s Manual
Prime Elite gradient block for 96 x 0.2ml micro tubes or plates
Prime Elite gradient block for 60 x 0.5ml micro tubes
Prime Elite gradient block for 384 well plates
Please note that replacement blocks can only be fitted by a trained service engineer.
66
DECLARATION OF CONFORMITY
67
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
