Cisco DNA Center Installation Guide

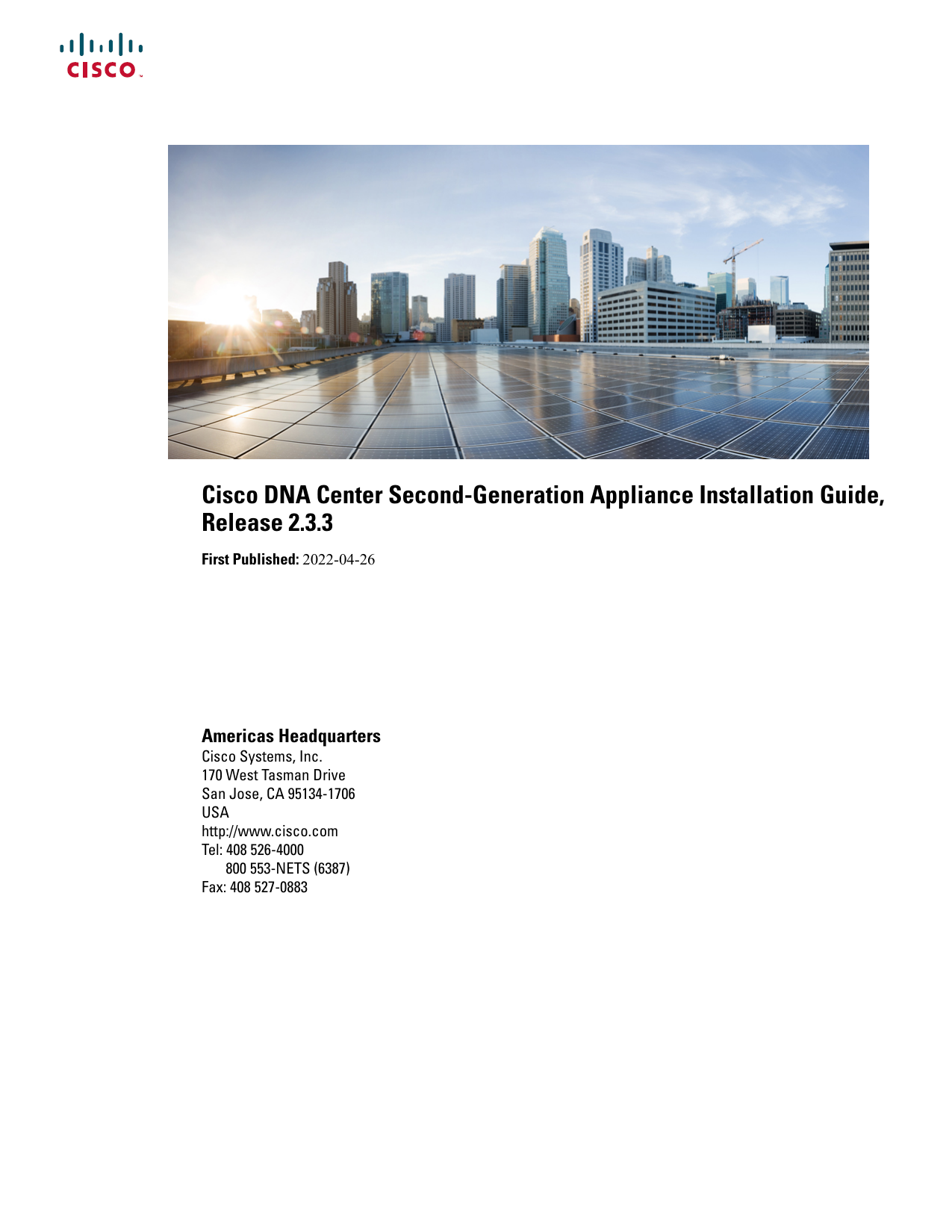

Cisco DNA Center Second-Generation Appliance Installation Guide,
Release 2.3.3
First Published: 2022-04-26
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
https://www.cisco.com/c/en/us/about/legal/trademarks.html. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a
partnership relationship between Cisco and any other company. (1721R)
© 2022
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
Review the Cisco DNA Center Appliance Features
1
Appliance Hardware Specifications 1
Front and Rear Panels 4
Physical Specifications 17
Environmental Specifications 18
Power Specifications 19
CHAPTER 2
Plan the Deployment 21
Planning Workflow 21
Cisco DNA Center and Cisco Software-Defined Access 22
Interface Cable Connections 22
Required IP Addresses and Subnets 25
Required Internet URLs and Fully Qualified Domain Names 28
Provide Secure Access to the Internet 31
Required Network Ports 31
Required Ports and Protocols for Cisco Software-Defined Access 33
Required Configuration Information 40
Required First-Time Setup Information 41
CHAPTER 3
Install the Appliance
43
Appliance Installation Workflow 43
Unpack and Inspect the Appliance 43
Review the Installation Warnings and Guidelines 44
Review the Rack Requirements 46
Connect and Power On the Appliance 46
Check the LEDs 47
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
iii
Contents
CHAPTER 4
Prepare the Appliance for Configuration
51
Preparation for Appliance Configuration Overview 51
Enable Browser Access to Cisco Integrated Management Controller 52
Execute Preconfiguration Checks 57
NIC Bonding Overview 60
Appliance Support 61
Enable NIC on an Upgraded Appliance 61
Reimage the Appliance 67
Verify the Cisco DNA Center ISO Image 67
Create a Bootable USB Flash Drive 68
Using Etcher 69
Using the Linux CLI 69
Using the Mac CLI 70
Reinitialize the Virtual Drives on a Cisco DNA Center Appliance 70
Install the Cisco DNA Center ISO Image 71
Cisco DNA Center Appliance Configuration 72
CHAPTER 5
Configure the Appliance Using the Maglev Wizard
73
Appliance Configuration Overview 73
Maglev Wizard Interface Configuration Order
73
Configure the Primary Node Using the Maglev Wizard 74
Configure a Secondary Node Using the Maglev Wizard 95
Upgrade to the Latest Cisco DNA Center Release 115
CHAPTER 6
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
117
Appliance Configuration Overview 117
Browser-Based Configuration Wizards 117
Browser-Based Wizard Prerequisites 118
Configure an Appliance Using the Install Configuration Wizard 118
Configure the Primary Node Using the Advanced Install Configuration Wizard 131
Configure a Secondary Node Using the Advanced Install Configuration Wizard 149
Upgrade to the Latest Cisco DNA Center Release 170
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
iv
Contents
CHAPTER 7
Configure the 112-Core Appliance Using the Browser-Based Wizard
171
Appliance Configuration Overview 171
Browser-Based Configuration Wizards 171
Browser-Based Wizard Prerequisites 172
Configure an Appliance Using the Install Configuration Wizard 172
Configure the Primary Node Using the Advanced Install Configuration Wizard 185
Configure a Secondary Node Using the Advanced Install Configuration Wizard 204
Upgrade to the Latest Cisco DNA Center Release 225
CHAPTER 8
Complete First-Time Setup 227
First-Time Setup Workflow 227
Compatible Browsers 227
Complete the Quick Start Workflow 227
Integrate Cisco ISE with Cisco DNA Center 233
Group-Based Access Control: Policy Data Migration and Synchronization 236
Configure Authentication and Policy Servers 239
Configure SNMP Properties 242
CHAPTER 9
Troubleshoot the Deployment
243
Troubleshooting Tasks 243
Log Out 243
Reconfigure the Appliance Using the Configuration Wizard 244
Power-Cycle the Appliance 245
Using the Cisco IMC GUI 246
Using SSH 247
APPENDIX A
Review High Availability Cluster Deployment Scenarios
249
New HA Deployment 249
Existing HA Deployment of the Primary Node with Standard Interface Configurations 250
Existing HA Deployment of Primary Node with Nonstandard Interface Configurations 251
Activate High Availability 251
Additional HA Deployment Considerations 252
Telemetry 252
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
v
Contents
Wireless Controller 252
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
vi
CHAPTER
1
Review the Cisco DNA Center Appliance
Features
• Appliance Hardware Specifications, on page 1
• Front and Rear Panels, on page 4
• Physical Specifications, on page 17
• Environmental Specifications, on page 18
• Power Specifications, on page 19
Appliance Hardware Specifications
Cisco supplies Cisco Digital Network Architecture (DNA) Center in the form of a rack-mountable, physical
appliance. The second-generation Cisco DNA Center appliance consists of either a Cisco Unified Computing
System (UCS) C220 M5 small form-factor (SFF) chassis or Cisco UCS C480 M5 chassis, both with the
addition of one Intel X710-DA2 network interface card (NIC) and one Intel X710-DA4 NIC. Six versions of
the second-generation appliance are available:
• 44-core appliance: Cisco part number DN2-HW-APL
• 44-core promotional appliance: Cisco part number DN2-HW-APL-U
• 56-core appliance: Cisco part number DN2-HW-APL-L
• 56-core promotional appliance: Cisco part number DN2-HW-APL-L-U
• 112-core appliance: Cisco part number DN2-HW-APL-XL
• 112-core promotional appliance: Cisco part number DN2-HW-APL-XL-U
The following tables summarize the appliance's hardware specifications.
Table 1: 44-Core Cisco DNA Center Appliance Hardware Specifications
Feature
Description
Chassis
One rack-unit (1RU) chassis.
Processors
Two 22-core Intel 6238 2.1 GHz processors
Memory
Eight 32 GB DDR4 2933 MHz registered DIMMs (RDIMMs)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
1
Review the Cisco DNA Center Appliance Features
Appliance Hardware Specifications
Feature
Description
Storage
• 2 x 480 GB in RAID 1
• 2 x 1.9 TB in RAID 1
• 6 x 1.9 TB in RAID 10
Disk Management (RAID)
• RAID 1 on slots 1 through 4
• RAID 10 on slots 5 through 10
Network and Management I/O
Supported connectors:
• Two 10-Gbps Ethernet ports on the Intel X710-DA2 NIC
• One 1-Gbps RJ-45 management port (Marvell 88E6176)
• Two 10GBase-T LOM ports (Intel X550 controller embedded on the
motherboard)
The following connectors are available but not typically used in the day-to-day
operation of Cisco DNA Center:
• One RS-232 serial port (RJ-45 connector)
• One VGA (DB-15) connector
• Two USB 3.0 connectors
• One front-panel KVM connector that is used with the KVM cable, which provides
two USB 2.0, one VGA (DB-15), and one serial port (RS-232) RJ-45 connector.
Note that the Intel X710-DA4 NIC, which provides four 10-Gbps Ethernet ports, has
been disabled in this release of Cisco DNA Center and will be enabled in a future
release of the product.
Power
Two 770 W AC power supplies.
Redundant as 1+1.
Cooling
Seven hot-swappable fan modules for front-to-rear cooling.
Video
Video Graphics Array (VGA) video resolution up to 1920 x 1200, 16 bpp at 60 Hz,
and up to 512 MB of video memory (8 MB is allocated by default).
Table 2: 56-Core Cisco DNA Center Appliance Hardware Specifications
Feature
Description
Chassis
One rack-unit (1RU) chassis.
Processors
Two 28-core Intel 8280 2.7 GHz processors
Memory
Twelve 32 GB DDR4 2933 MHz RDIMMs
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
2
Review the Cisco DNA Center Appliance Features
Appliance Hardware Specifications
Feature
Storage
Description
• 2 x 480 GB in RAID 1
• 2 x 1.9 TB in RAID 1
• 6 x 1.9 TB in RAID 10
Disk Management (RAID)
• RAID 1 on slots 1 through 4
• RAID 10 on slots 5 through 10
Network and Management I/O
Supported connectors:
• Two 10-Gbps Ethernet ports on the Intel X710-DA2 NIC
• One 1-Gbps RJ-45 management port (Marvell 88E6176)
• Two 10GBase-T LOM ports (Intel X550 controller embedded on the
motherboard)
The following connectors are available but not typically used in the day-to-day
operation of Cisco DNA Center:
• One RS-232 serial port (RJ-45 connector)
• One VGA (DB-15) connector
• Two USB 3.0 connectors
• One front-panel KVM connector that is used with the KVM cable, which provides
two USB 2.0, one VGA (DB-15), and one serial port (RS-232) RJ-45 connector.
Note that the Intel X710-DA4 NIC, which provides four 10-Gbps Ethernet ports, has
been disabled in this release of Cisco DNA Center and will be enabled in a future
release of the product.
Power
Two 770 W AC power supplies.
Redundant as 1+1.
Cooling
Seven hot-swappable fan modules for front-to-rear cooling.
Video
Video Graphics Array (VGA) video resolution up to 1920 x 1200, 16 bpp at 60 Hz,
and up to 512 MB of video memory (8 MB is allocated by default).
Table 3: 112-Core Cisco DNA Center Appliance Hardware Specifications
Feature
Description
Chassis
Four rack-unit (4RU) chassis.
Processors
Two CPU modules, each with two 28-core Intel 8276 2.2 GHz processors
Memory
Twenty-four 32 GB DDR4 2933 MHz RDIMMs
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
3
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Feature
Description
Storage
• 2 x 480 GB in RAID 1
• 2 x 3.8 TB in RAID 1
• 16 x 1.9 TB in RAID 10
Disk Management (RAID)
• RAID 1 on drive bays 1 and 2
• RAID 10 on slots 3 through 18
• RAID 1 on drive bays 19 and 20
Network and Management I/O
Supported connectors:
• Two 10 Gbps Ethernet ports on the Intel X710-DA2 NIC
• Two 10 Base-T Gbps Ethernet ports
• One Gigabit Ethernet management port
The following connectors are available but not typically used in the day-to-day
operation of Cisco DNA Center:
• One RS-232 serial port (RJ-45 connector)
• One VGA (DB-15) connector
• Three USB 3.0 connectors
• One front-panel KVM connector that is used with the KVM cable, which provides
two USB 2.0, one VGA (DB-15), and one serial port (RS-232) RJ-45 connector.
Note that the Intel X710-DA4 NIC, which provides four 10-Gbps Ethernet ports, has
been disabled in this release of Cisco DNA Center and will be enabled in a future
release of the product.
Power
Four 1600 W AC power supplies.
Redundant as 3+1 (must be configured via the Cisco Integrated Management
Controller).
Cooling
Four hot-swappable fan modules with two fans in each for front-to-rear cooling.
Video
VGA video resolution up to 1600 x1200, 16 bpp at 60 Hz, and up to 256 MB of video
memory.
Front and Rear Panels
The following figures and tables describe the front and rear panels of the Cisco DNA Center appliance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
4
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Note
If you are viewing this guide on Cisco.com, click any of its figures to view a full-sized version.
Figure 1: 44 and 56-Core Appliance Front Panel
Component
Description
1
A total of 10 drives are available on the appliance:
• Two 480 GB SAS SSD (in slots 1 and 2).
• Eight 1.9 TB SATA SSD (in slots 3 through 10).
Each installed drive has a fault LED and an activity LED.
When the drive fault LED is:
• Off: The drive is operating properly.
• Amber: The drive has failed.
• Amber, blinking: The drive is rebuilding.
When the drive activity LED is:
• Off: There is no drive in the sled (no access, no fault).
• Green: The drive is ready.
• Green, blinking: The drive is reading or writing data.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
5
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Component
Description
2
Power button/power status LED. When the LED is:
• Off: There is no AC power to the appliance.
• Amber: The appliance is in standby power mode. Power is supplied only to the Cisco
Integrated Management Controller (Cisco IMC) and some motherboard functions.
• Green: The appliance is in main power mode. Power is supplied to all the server
components.
3
Unit identification button and LED. When the LED is:
• Off: Unit identification is inactive.
• Blue: Unit identification is active.
4
System status LED. When the LED is:
• Green: The appliance is running in a normal operating condition.
• Green, blinking: The appliance is performing system initialization and memory
checks.
• Amber, steady: The appliance is in a degraded operational state, which may be due
to one or more of the following causes:
• Power supply redundancy is lost.
• CPUs are mismatched.
• At least one CPU is faulty.
• At least one DIMM is faulty.
• At least one drive in a RAID configuration failed.
• Amber, 2 blinks: There is a major fault with the system board.
• Amber, 3 blinks: There is a major fault with the memory DIMMs.
• Amber, 4 blinks: There is a major fault with the CPUs.
5
Power supply status LED. When the LED is:
• Green: All power supplies are operating normally.
• Amber, steady: One or more power supplies are in a degraded operational state.
• Amber, blinking: One or more power supplies are in a critical fault state.
6
Fan status LED. When the LED is:
• Green: All fan modules are operating properly.
• Amber, steady: One fan module has failed.
• Amber, blinking: Critical fault, two or more fan modules have failed.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
6
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Component
Description
7
Network link activity LED. When the LED is:
• Off: The Ethernet link is idle.
• Green, blinking: One or more Ethernet LOM ports are link-active, with activity.
• Green: One or more Ethernet LOM ports are link-active, but there is no activity.
8
Temperature status LED. When the LED is:
• Green: The appliance is operating at normal temperature.
• Amber, steady: One or more temperature sensors have exceeded a warning threshold.
• Amber, blinking: One or more temperature sensors have exceeded a critical threshold.
9
Pull-out asset tag.
10
KVM connector. Used with a KVM cable that provides two USB 2.0, one VGA, and one
serial connector.
Figure 2: 112-Core Appliance Front Panel
Component
Description
1
Power button/power status LED. When the LED is:
• Off: There is no AC power to the appliance.
• Amber: The appliance is in standby power mode. Power is supplied only to the Cisco
IMC and some motherboard functions.
• Green: The appliance is in main power mode. Power is supplied to all the server
components.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
7
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Component
Description
2
Unit identification button and LED. When the LED is:
• Off: Unit identification is inactive.
• Blue: Unit identification is active.
3
System status LED. When the LED is:
• Green: The appliance is running in a normal operating condition.
• Amber, steady: The appliance is in a degraded operational state, which may be due
to one or more of the following causes:
• Power supply redundancy is lost.
• CPUs are mismatched.
• At least one CPU is faulty.
• At least one DIMM is faulty.
• At least one drive in a RAID configuration failed.
• Amber, blinking: The appliance is in a critical fault state, which may be due to one
or more of the following causes:
• Boot failure
• Fatal processor and/or bus error detected
• Over-temperature condition
4
Fan status LED. When the LED is:
• Green: All fan modules are operating properly.
• Amber, steady: Fan modules are in a degraded state. One fan module has a fault.
• Amber, blinking: Two or more fan modules have faults.
5
Temperature status LED. When the LED is:
• Green: The appliance is operating at normal temperature. No error conditions detected.
• Amber, steady: One or more temperature sensors have exceeded a warning threshold.
• Amber, blinking: One or more temperature sensors have exceeded a critical
non-recoverable threshold.
6
Power supply status LED. When the LED is:
• Green: All power supplies are operating normally.
• Amber, steady: One or more power supplies are in a degraded operational state.
• Amber, blinking: One or more power supplies are in a critical fault state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
8
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Component
Description
7
Network link activity LED. When the LED is:
• Off: The Ethernet LOM port link is idle.
• Green: One or more Ethernet LOM ports are link-active, but there is no activity.
• Green, blinking: One or more Ethernet LOM ports are link-active, with activity.
8
A total of 20 drives are available on the appliance:
• Two 480 GB SATA SSD (in drive bays 1 and 2).
• Sixteen 1.9 TB SATA SSD (in slots 3 through 18).
• Two 3.8 TB SATA SSD (in drive bays 19 and 20).
Note
Drive bays 21 through 24 are not used by the appliance.
Each installed drive has a fault LED and an activity LED.
When the drive fault LED is:
• Off: The drive is operating properly.
• Amber: The drive has failed.
• Amber, blinking: The drive is rebuilding.
When the drive activity LED is:
• Off: There is no drive in the sled (no access, no fault).
• Green: The drive is ready.
• Green, blinking: The drive is reading or writing data.
9
KVM connector. Used with a KVM cable that provides two USB 2.0, one VGA, and one
serial connector.
10
Pull-out asset tag.
11
CPU module bay 1.
12
CPU module bay 2.
Figure 3: 44 and 56-Core Appliance Rear Panel
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
9
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Note
If NIC bonding has been enabled on your Cisco DNA Center appliance, two instances of the Enterprise,
Intracluster, Management, and Internet port are available to configure and use. See NIC Bonding Overview,
on page 60 for more information.
Callout
Description
1
Modular LAN-on-motherboard (mLOM) card bay (x16 PCIe lane)
2
Two USB 3.0 ports
3, 10
1-Gbps/10-Gbps Management Port (Network Adapter 3): This Ethernet port can support
1 Gbps and 10 Gbps, depending on the link partner capability. It is identified as Network
Adapter 3 in the Maglev Configuration wizard. Connect this port to a switch that provides
access to your enterprise management network.
• The primary instance (callout 3) is labeled 1 on the rear panel.
• The secondary instance (callout 10) is the fourth port on the Intel X710-DA4 NIC
in the appliance's PCIe riser 2/slot 2.
This port has a link status LED and a link speed LED. When the status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
10
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Callout
Description
4, 11
1-Gbps/10-Gbps Internet Port (Network Adapter 4): This Ethernet port can support 1
Gbps and 10 Gbps, depending on the link partner capability. It is identified as Network
Adapter 4 in the Maglev Configuration wizard. This port is optional and is used for
connecting to the Internet when it is not possible to do so via the 10-Gbps Enterprise
port. Connect to the Internet or a proxy server that has connections to the Internet.
• The primary instance (callout 4) is labeled 2 on the rear panel.
• The secondary instance (callout 11) is the third port on the Intel X710-DA4 NIC in
the appliance's PCIe riser 2/slot 2.
This port has a link status LED and a link speed LED. When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
5
VGA video port (DB-15).
6
1-Gbps Cisco IMC Port: This is the embedded port to the right of the VGA video port
and to the left of the RJ45 serial port. It is assigned an IP address when you enable
browser access to the appliance's Cisco IMC GUI (see Enable Browser Access to Cisco
Integrated Management Controller). This port is reserved for out-of-band management
of the appliance chassis and software. Connect this port to a switch that provides access
to your enterprise management network.
This port has a link status LED and a link speed LED. When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
7
Serial port (RJ-45 connector)
8
Rear unit identification button and LED
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
11
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Callout
Description
9
Power supplies (up to two: redundant as 1+1). Each power supply has a power supply
fault LED and an AC power LED.
When the fault LED is:
• Off: The power supply is operating normally.
• Amber, blinking: An event warning threshold has been reached, but the power
supply continues to operate.
• Amber, solid: A critical fault threshold has been reached, causing the power supply
to shut down (for example, a fan failure or an over-temperature condition).
When the AC Power LED is:
• Off: There is no AC power to the power supply.
• Green, solid: AC power is OK, DC output is OK.
• Green, blinking: AC power is OK, DC output is not enabled.
For more details, see Power Specifications.
12, 15
10-Gbps Enterprise Port (Network Adapter 1): This port is identified as Network Adapter
1 in the Maglev Configuration wizard. Connect it to a switch with connections to the
Enterprise network.
• The primary instance (callout 15) is the left-hand port on the Intel X710-DA2 NIC
in the appliance's PCIe riser 1/slot 1.
• The secondary instance (callout 12) is the second port on the Intel X710-DA4 NIC
in the appliance's PCIe riser 2/slot 2.
This port has a link status (ACT) LED and a link speed (LINK) LED.
When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 100 Mbps or less.
• Green: Link speed is 10 Gbps.
• Amber: Link speed is 1 Gbps.
Note
Although capable of operating at lower speeds, this port is intended to operate
at 10 Gbps only.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
12
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Callout
Description
13, 14
10-Gbps Intracluster Port (Network Adapter 2): This port is identified as Network Adapter
2 in the Maglev Configuration wizard. Connect this port to a switch with connections to
the other nodes in the cluster.
• The primary instance (callout 14) is the right-hand port on the Intel X710-DA2 NIC
in the appliance PCIe riser 1/slot 1.
• The secondary instance (callout 13) is first port on the Intel X710-DA4 NIC in the
appliance's PCIe riser 2/slot 2.
This port is located on the Intel X710-DA4 NIC, which is located in the appliance's PCIe
riser 2/slot 2.
This port has a link status (ACT) LED and a link speed (LINK) LED.
When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the link speed LED is:
• Off: Link speed is 100 Mbps or less.
• Green: Link speed is 10 Gbps.
• Amber: Link speed is 1 Gbps.
Note
16
Although capable of operating at lower speeds, this port is intended to operate
at 10 Gbps only.
Threaded holes for dual-hole grounding lug.
Figure 4: 112-Core Appliance Rear Panel
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
13
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Figure 5: 112-Core Appliance Rear Panel Slots
Note
If NIC bonding has enabled on your Cisco DNA Center appliance, two instances of the Enterprise, Intracluster,
Management, and Internet port are available to configure and use. See NIC Bonding Overview, on page 60
for more information.
Callout
Description
1
Serial port COM 1 (DB-9 connector)
2
VGA video port (DB-15 connector)
3
Not used at this time
4, 13
1-Gbps/10-Gbps Management Port (Network Adapter 3): This Ethernet port can support
1 Gbps and 10 Gbps, depending on the link partner capability. It is identified as Network
Adapter 3 in the Maglev Configuration wizard. Connect this port to a switch that provides
access to your enterprise management network.
• The primary instance (callout 4) is labeled 1 on the rear panel.
• The secondary instance (callout 13) is the top port on the Intel X710-DA4 NIC in
the appliance's PCIe riser 2/slot 12.
This port has a link status LED and a link speed LED. When the status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
14
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Callout
Description
5, 12
1-Gbps/10-Gbps Internet Port (Network Adapter 4): This Ethernet port can support 1
Gbps and 10 Gbps, depending on the link partner capability. It is identified as Network
Adapter 4 in the Maglev Configuration wizard. This port is optional and is used for
connecting to the Internet when it is not possible to do so via the 10-Gbps Enterprise
port. Connect to the Internet or a proxy server that has connections to the Internet.
• The primary instance (callout 5) is labeled 2 on the rear panel.
• The secondary instance (callout 12) is the second port from the top on the Intel
X710-DA4 NIC in the appliance's PCIe riser 2/slot 12.
This port has a link status LED and a link speed LED. When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
6
1-Gbps Cisco IMC Port: This is the 10/100/1000 Ethernet dedicated management port
(Base-T), which is located to the right of the Management port. It is identified as 3 on
the rear panel. This port is assigned an IP address when you enable browser access to
the appliance's Cisco IMC GUI (see Enable Browser Access to Cisco Integrated
Management Controller). It is reserved for out-of-band management of the appliance
chassis and software. Connect this port to a switch that provides access to your enterprise
management network.
This port has a link status LED and a link speed LED. When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 10 Mbps or less.
• Green: Link speed is 1 Gbps.
• Amber: Link speed is 100 Mbps.
7
Rear identification button/LED
8
Three USB 3.0 ports
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
15
Review the Cisco DNA Center Appliance Features
Front and Rear Panels
Callout
Description
9
Power supplies 1 – 4: hot-swappable and redundant as 3+1 (configured in Cisco IMC).
See Power Specifications for more information.
10, 15
10-Gbps Intracluster Port (Network Adapter 2): This port is identified as Network Adapter
2 in the Maglev Configuration wizard. Connect this port to a switch with connections to
the other nodes in the cluster.
• The primary instance (callout 15) is the bottom port on the Intel X710-DA2 NIC
in the appliance PCIe riser 1/slot 9.
• The secondary instance (callout 10) is the bottom port on the Intel X710-DA4 NIC
in the appliance's PCIe riser 2/slot 12.
This port has a link status (ACT) LED and a link speed (LINK) LED.
When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the link speed LED is:
• Off: Link speed is 100 Mbps or less.
• Green: Link speed is 10 Gbps.
• Amber: Link speed is 1 Gbps.
Note
Although capable of operating at lower speeds, this port is intended to operate
at 10 Gbps only.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
16
Review the Cisco DNA Center Appliance Features
Physical Specifications
Callout
Description
11, 16
10-Gbps Enterprise Port (Network Adapter 1): This port is identified as Network Adapter
1 in the Maglev Configuration wizard. If NIC bonding is enabled on your appliance,
connect this port to a switch with connections to the enterprise network.
• The primary instance (callout 16) is the top port on the Intel X710-DA2 NIC in the
appliance PCIe riser 1/slot 9.
• The secondary instance (callout 11) is the third port from the top on the Intel
X710-DA4 NIC in the appliance's PCIe riser 2/slot 12.
This port has a link status (ACT) LED and a link speed (LINK) LED.
When the link status LED is:
• Off: No link is present.
• Green, blinking: Traffic is present on the active link.
• Green: Link is active, but there is no traffic present.
When the speed LED is:
• Off: Link speed is 100 Mbps or less.
• Green: Link speed is 10 Gbps.
• Amber: Link speed is 1 Gbps.
Although capable of operating at lower speeds, this port is intended to operate
at 10 Gbps only.
Note
14
Threaded holes for dual-hole grounding lug.
Physical Specifications
The following table lists the physical specifications for the appliance. Unless indicated, the specifications
apply to the 44, 56, and 112-core appliances.
Table 4: Physical Specifications
Description
Specification
Height
44 and 56-core appliance: 1.7 in. (4.32 cm)
112-core appliance: 6.9 in. (17.6 cm)
Width
44 and 56-core appliance:
• Without handles: 16.9 in. (43.0 cm)
• Including handles: 19.0 in. (48.3 cm)
112-core appliance: 19.0 in. (48.3 cm)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
17
Review the Cisco DNA Center Appliance Features
Environmental Specifications
Description
Specification
Depth (length)
44 and 56-core appliance:
• Without handles: 29.8 in. (75.6 cm)
• Including handles: 30.98 in. (78.7 cm)
112-core appliance: 32.7 in. (83.1 cm)
Front Clearance
3 in. (76 mm)
Side Clearance
1 in. (25 mm)
Rear Clearance
6 in. (152 mm)
Maximum weight (fully loaded chassis)
44 and 56-core appliance: 37.5 lb. (17.0 kg)
112-core appliance: 146 lb. (66.2 kg)
Environmental Specifications
The following table lists the environmental specifications for the Cisco DNA Center appliance. Unless
indicated, the specifications apply to the 44, 56, and 112-core appliances.
Table 5: Environmental Specifications
Description
Specification
Temperature, operating
41 to 95°F (5 to 35°C)
Derate the maximum temperature by 1°C for every
1000 ft. (305 meters) of altitude above sea level.
Temperature, nonoperating (when the appliance is
stored or transported)
–40 to 149°F (–40 to 65°C)
Humidity (RH), operating
10 to 90%, noncondensing at 82°F (28°C)
Humidity (RH), nonoperating (when the appliance is 5 to 93% at 82°F (28°C)
stored or transported)
Altitude, operating
0 to 10,000 ft. (0 to 3,048 m)
Altitude, nonoperating (when the appliance is stored 0 to 40,000 ft. (0 to 12,192 m)
or transported)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
18
Review the Cisco DNA Center Appliance Features
Power Specifications
Description
Specification
Sound power level, measure A-weighted per ISO7779 44 and 56-core appliance: 5.5
LwAd (Bels), operation at 73°F (23°C)
112-core appliance:
• Minimum configuration: 7.08
• Typical configuration: 7.67
• Maximum configuration: 8.24
Sound pressure level, measure A-weighted per
ISO7779 LpAm (dBA), Operation at 73°F (23°C)
44 and 56-core appliance: 40
112-core appliance:
• Minimum configuration: 57.6
• Typical configuration: 63.5
• Maximum configuration: 70.5
Power Specifications
The specifications for the power supplies provided with the Cisco DNA Center appliance are listed in the
table below. The 44 and 56-core appliance ships with two 770 W power supplies (Cisco part number
UCSC-PSU1-770W) and the 112-core appliance ships with four 1600 W AC power supplies (Cisco part
number UCSC-PSU1-1600W). Unless indicated, the specifications apply to both power supplies.
Table 6: AC Power Supply Specifications
Description
Specification
AC input voltage
770 W:
• Nominal range: 100–120 VAC, 200–240 VAC
• Range: 90–132 VAC, 180–264 VAC
1600 W:
• Nominal range: 200–240 VAC
• Range: 180–264 VAC
AC input frequency
Nominal range: 50 to 60 Hz
(Range: 47–63 Hz)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
19
Review the Cisco DNA Center Appliance Features
Power Specifications
Description
Specification
Maximum AC input current
770 W:
• 9.5 A at 100 VAC
• 4.5 A at 208 VAC
1600 W: 9.5 A at 200 VAC
Maximum input volt-amperes
770 W: 950 VA at 100 VAC
1600 W: 1250 VA at 200 VAC
Maximum output power per PSU
770 W: 100–120 VAC
1600 W: 200–240 VAC
Maximum inrush current
770 W: 15 A at 35° C
1600 W: 30 A at 35° C
Maximum hold-up time
770 W: 12 ms
1600 W: 80 ms
Power supply output voltage
12 VDC
Power supply standby voltage
12 VDC
Efficiency rating
Climate Savers Platinum Efficiency (80Plus Platinum
certified)
Form factor
RSP2
Input connector
IEC320 C14
Note
You can get more specific power information for the exact configuration of your appliance by using the Cisco
UCS Power Calculator: http://ucspowercalc.cisco.com
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
20
CHAPTER
2
Plan the Deployment
• Planning Workflow, on page 21
• Cisco DNA Center and Cisco Software-Defined Access, on page 22
• Interface Cable Connections, on page 22
• Required IP Addresses and Subnets, on page 25
• Required Internet URLs and Fully Qualified Domain Names, on page 28
• Provide Secure Access to the Internet, on page 31
• Required Network Ports, on page 31
• Required Ports and Protocols for Cisco Software-Defined Access, on page 33
• Required Configuration Information, on page 40
• Required First-Time Setup Information, on page 41
Planning Workflow
You must perform the following planning and information-gathering tasks before attempting to install,
configure, and set up your Cisco DNA Center appliance. After you complete these tasks, you can continue
by physically installing your appliance in the data center.
1. Review the recommended cabling and switching requirements for standalone and cluster installations.
For more information, see Interface Cable Connections.
2. Gather the IP addressing, subnetting, and other IP traffic information that you will apply during appliance
configuration. For more information, see Required IP Addresses and Subnets.
3. Prepare a solution for the required access to web-based resources. For more information, see Required
Internet URLs and Fully Qualified Domain Names and Provide Secure Access to the Internet.
4. Reconfigure your firewalls and security policies for Cisco DNA Center traffic. For more information, see
Required Network Ports. If you are using Cisco DNA Center to manage a Cisco Software-Defined Access
(SD-Access) network, also see Required Ports and Protocols for Cisco Software-Defined Access.
5. Gather the additional information used during appliance configuration and first-time setup. For more
information, see Required Configuration Information and Required First-Time Setup Information.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
21
Plan the Deployment
Cisco DNA Center and Cisco Software-Defined Access
Cisco DNA Center and Cisco Software-Defined Access
You can use Cisco DNA Center to manage any type of network, including networks that employ the Cisco
SD-Access fabric architecture. Cisco SD-Access transforms conventional networks into intent-based networks,
where business logic becomes a physical part of the network, making it easy to automate day-to-day tasks
such as configuration, provisioning, and troubleshooting. The Cisco SD-Access solution reduces the time
taken to adapt the network to business needs, improves issue resolutions, and reduces security-breach impacts.
A complete discussion of the Cisco SD-Access solution is outside the scope of this guide. Network architects
and administrators planning to implement a Cisco SD-Access fabric architecture for use with Cisco DNA
Center can find additional information and guidance from the following resources:
• For more information on how Cisco DNA Center leverages Cisco SD-Access to automate solutions that
are not possible with normal networking approaches and techniques, see Software Defined Access:
Enabling Intent-Based Networking.
• For guidance in using Cisco SD-Access access segmentation to enhance network security, see the
Software-Defined Access Segmentation Design Guide.
• For guidance on deploying SDA with Cisco DNA Center, see the Software-Defined Access Deployment
Guide.
• For more information on the digital network architecture that is the foundation of Cisco DNA Center
and the Cisco SD-Access solution, and the roles that other Cisco and third-party products and solutions
play in this innovative architecture, see the Cisco DNA Design Zone.
Interface Cable Connections
Connect the ports on the appliance to a switch that provides the following types of network access. At a
minimum, you must configure the Enterprise and Intracluster port interfaces, as they are required for Cisco
DNA Center functionality.
When NIC bonding is enabled on an appliance, a secondary instance of the Enterprise, Intracluster,
Management, and Internet ports resides on the Intel X710-DA4 NIC. Connect these ports to a switch that's
different from the one that you will connect the primary instance of these ports to (see NIC Bonding Overview,
on page 60 for more information).
Note
During appliance configuration, the Maglev Configuration wizard does not let you proceed until you assign
the Cluster Link option to an interface. For both single-node and three-node deployments in a production
environment, assign the Intracluster port as the Cluster Link.
Be aware that the interface marked as the Cluster Link cannot be changed after configuration completes. Later,
if you must change the interface marked as the Cluster Link, you are required to reimage the appliance. (For
a description of the tasks you need to complete in order to reimage your Cisco DNA Center appliance, see
Reimage the Appliance, on page 67.) With this in mind, we recommend that you set up the Cluster Port with
an IP address, so as to allow for expansion to a three-node cluster in the future. Also, make sure that the cluster
link interface is connected to a switch port and is in the UP state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
22
Plan the Deployment
Interface Cable Connections
• (Required) 10-Gbps Enterprise Port (Network Adapter 1): The purpose of this port is to enable Cisco
DNA Center to communicate with and manage your network. Connect this port to a switch with
connections to the enterprise network and configure one IP address with a subnet mask for the port.
Primary instance:
• On the 44 and 56-core appliance, this is the left-hand port on the Intel X710-DA2 NIC that resides
in PCIe slot 1.
• On the 112-core appliance, this is the top 10-Gbps port on the Intel X710-DA2 NIC that resides in
PCIe slot 9.
Secondary instance:
• On the 44 and 56-core appliance, this is the second port on the Intel X710-DA4 NIC that resides in
PCIe slot 2.
• On the 112-core appliance, this is the third 10-Gbps port from the top on the Intel X710-DA4 NIC
that resides in PCIe slot 12.
• (Required) 10-Gbps Intracluster Port (Network Adapter 2): The purpose of this port is to enable
communications among the primary and secondary nodes in a cluster. Connect this port to a switch with
connections to the other nodes in the cluster and configure one IP address with a subnet mask for the
port.
Primary instance:
• On the 44 and 56-core appliance, this is the right-hand port on the Intel X710-DA2 NIC that resides
in PCIe slot 1.
• On the 112-core appliance, this is the bottom 10-Gbps port on the Intel X710-DA2 NIC that resides
in PCIe slot 9.
Secondary instance:
• On the 44 and 56-core appliance, this is the first port on the Intel X710-DA4 NIC that resides in
PCIe slot 2.
• On the 112-core appliance, this is the bottom 10-Gbps port on the Intel X710-DA4 NIC that resides
in PCIe slot 12.
• (Optional) 1-Gbps/10-Gbps Management Port (Network Adapter 3): This port provides access to
the Cisco DNA Center GUI, allowing users to use the software on the appliance. Connect this port to a
switch with connections to your enterprise management network, and configure one IP address with a
subnet mask for the port.
Primary instance: Labeled 1 on the appliance's rear panel.
Secondary instance:
• On the 44 and 56-core appliance, this is the fourth port on the Intel X710-DA4 NIC that resides in
PCIe slot 2.
• On the 112-core appliance, this is the top 10-Gbps port on the Intel X710-DA4 NIC that resides in
PCIe slot 12.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
23
Plan the Deployment
Interface Cable Connections
• (Optional) 1-Gbps/10-Gbps Internet Port (Network Adapter 4): This port, labeled 2 on the rear panel,
is optional. Use it only if you cannot connect the appliance to the Internet (including to your Internet
proxy server) using the 10-Gbps Enterprise Port (Network Adapter 1). If you need to use this port, connect
it to a switch with connections to your Internet proxy server and configure one IP address with a subnet
mask for the port.
Primary instance: Labeled 2 on the appliance's rear panel.
Secondary instance:
• On the 44 and 56-core appliance, this is the third port on the Intel X710-DA4 NIC that resides in
PCIe slot 2.
• On the 112-core appliance, this is the second 10-Gbps port from the top on the Intel X710-DA4
NIC that resides in PCIe slot 12.
• (Optional, but strongly recommended) 1-Gbps Cisco IMC Port: This port provides browser access
to the Cisco Integrated Management Controller (Cisco IMC) out-of-band appliance management interface
and its GUI. Its purpose is to allow you to manage the appliance and its hardware. Connect this port to
a switch with connections to your enterprise management network and configure an IP address with a
subnet mask for the port.
The following figures show the recommended connections for a single-node Cisco DNA Center cluster, as
well as the label that's assigned to each interface:
Figure 6: Recommended Cabling for 44 and 56-Core Appliance
Figure 7: Recommended Cabling for 112-Core Appliance
The connections for each node in a three-node Cisco DNA Center cluster are the same as those for a single-node
cluster and use the same ports. Do the following when you cable a three-node cluster:
• Connect the primary instance of each node's Enterprise, Intracluster, Management, and Internet Port, as
well as the Cisco IMC port, to the primary switch.
• Connect the secondary instance of each node's Enterprise, Intracluster, Management, and Internet Port
to the secondary switch.
For more details on each of the ports, see the rear panel diagram and accompanying descriptions for your
chassis in Front and Rear Panels.
Note
Multinode cluster deployments require all the member nodes to be in the same network and at the same site.
The appliance does not support distribution of nodes across multiple networks or sites.
When cabling the 10-Gbps enterprise and cluster ports, note that the ports support only the following media
types:
• SFP-10G-SR (Short range, MMF)
• SFP-10G-SR-S (Short range, MMF)
• SFP-10G-LR (Long range, SMF)
• SFP-H10GB-CU1M (Twinax cable, passive, 1 Meter)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
24
Plan the Deployment
Required IP Addresses and Subnets
• SFP-H10GB-CU3M (Twinax cable, passive, 3 Meters)
• SFP-H10GB-CU5M (Twinax cable, passive, 5 Meters)
• SFP-H10GB-ACU7M (Twinax cable, active, 7 Meters)
Required IP Addresses and Subnets
Before beginning the installation, you must ensure that your network has sufficient IP addresses available to
assign to each of the appliance ports that you plan on using. Depending on whether you are installing the
appliance as a single-node cluster or as a primary or secondary node in a three-node cluster, you will need
the following appliance port (NIC) addresses:
• Enterprise Port Address (Required): One IP address with a subnet mask.
• Cluster Port Address (Required): One IP address with a subnet mask.
• Management Port Address (Optional): One IP address with a subnet mask.
• Internet Port Address (Optional): One IP address with a subnet mask. This is an optional port, used
only when you cannot connect to the cloud using the Enterprise port. You do not need an IP address for
the Internet port unless you must use it for this purpose.
• CIMC Port Address (Optional, but strongly recommended): One IP address with a subnet mask.
Note
All of the IP addresses called for in these requirements must be valid IPv4 addresses with valid IPv4 netmasks.
Ensure that the addresses and their corresponding subnets do not overlap. Service communication issues can
result if they do.
You will also need the following additional IP addresses and dedicated IP subnets, which are prompted for
and applied during configuration of the appliance:
• Cluster Virtual IP Addresses: One virtual IP (VIP) address per configured network interface per cluster.
This requirement applies to three-node clusters and single-node clusters that are likely to be converted
into a three-node cluster in the future. You must supply a VIP for each network interface you configure.
Each VIP should be from the same subnet as the IP address of the corresponding configured interface.
There are four interfaces on each appliance: Enterprise, Cluster, Management, and Internet. At a minimum,
you must configure the Enterprise and Cluster port interfaces, as they are required for Cisco DNA Center
functionality. An interface is considered configured if you supply an IP address for that interface, along
with a subnet mask and one or more associated gateways or static routes. If you skip an interface entirely
during configuration, that interface is considered as not configured.
Note the following:
• If you have a single-node setup and do not plan to convert it into a three-node cluster in the future,
you are not required to specify a VIP address. However, if you decide to do so, you must specify a
VIP address for every configured network interface (just as you would for a three-node cluster).
• If the intracluster link for a single-node cluster goes down, the VIP addresses associated with the
Management and Enterprise interfaces also go down. When this happens, Cisco DNA Center is
unusable until the intracluster link is restored (because the Software Image Management [SWIM]
and Cisco Identity Services Engine [ISE] integration is not operational and Cisco DNA Assurance
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
25
Plan the Deployment
Required IP Addresses and Subnets
data is not displayed because information cannot be gathered from Network Data Platform [NDP]
collectors).
• You cannot use a link-local IP address for a host interface.
• Default Gateway IP Address: The IP address for your network's preferred default gateway. If no other
routes match the traffic, traffic will be routed through this IP address. Typically, you should assign the
default gateway to the interface in your network configuration that accesses the internet. For information
on security considerations to keep in mind when deploying Cisco DNA Center, see the Cisco Digital
Network Architecture Center Security Best Practices Guide.
• DNS Server IP Addresses: The IP address for one or more of your network's preferred Domain Name
System (DNS) servers. During configuration, you can specify multiple DNS server IP addresses by
entering them as a space-separated list.
• (Optional) Static Route Addresses: The IP addresses, subnet masks, and gateways for one or more
static routes. During configuration, you can specify multiple static-route IP addresses, netmasks, and
gateways by entering them as a space-separated list.
You can set one or more static routes for an interface on the appliance. You should supply static routes
when you want to route traffic in a specific direction other than the default gateway. Each of the interfaces
with static routes will be set as the device the traffic will be routed through in the IP route command
table. For this reason, it is important to match the static route directions with the interface though which
the traffic will be sent.
Static routes are not recommended in network device routing tables such as those used by switches and
routers. Dynamic routing protocols are better for this. However, you should add static routes where
needed, to allow the appliance access to particular parts of the network that can be reached no other way.
• NTP Server IP Addresses: The DNS-resolvable hostname or IP address for at least one Network Time
Protocol (NTP) server.
During configuration, you can specify multiple NTP server IP addresses/masks or hostnames by entering
them as a space-separated list. For a production deployment, we recommend that you configure a minimum
of three NTP servers.
Specify these NTP servers during preflight hardware synchronization, and again during the configuration
of the software on each appliance in the cluster. Time synchronization is critical to the accuracy of data
and the coordination of processing across a multihost cluster. Before deploying the appliance in a
production environment, make sure that the time on the appliance system clock is current and that the
NTP servers you specified are keeping accurate time. If you are planning to integrate the appliance with
ISE, you should also ensure that ISE is synchronizing with the same NTP servers as the appliance.
• Container Subnet: Identifies one dedicated IP subnet for the appliance to use in managing and getting
IP addresses for communications among its internal application services, such as Assurance, inventory
collection, and so on. By default, Cisco DNA Center configures a link-local subnet (169.254.32.0/20)
for this parameter, and we recommend that you use this subnet. If you choose to enter another subnet,
ensure that it does not conflict with or overlap any other subnet used by Cisco DNA Center's internal
network or any external network. Also ensure that the minimum size of the subnet is 21 bits. The subnet
you specify must conform with the IETF RFC 1918 and RFC 6598 specifications for private networks,
which support the following address ranges:
• 10.0.0.0/8
• 172.16.0.0/12
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
26
Plan the Deployment
Required IP Addresses and Subnets
• 192.168.0.0/16
• 100.64.0.0/10
For details, see RFC 1918, Address Allocation for Private Internets, and RFC 6598, IANA-Reserved
IPv4 Prefix for Shared Address Space.
Important
• Ensure that you specify a valid CIDR subnet. Otherwise, incorrect bits will
be present in the 172.17.1.0/20 and 172.17.61.0/20 subnets.
• After configuration of your Cisco DNA Center appliance is completed, you
cannot assign a different subnet without first reimaging the appliance (see
Reimage the Appliance for more information).
• Cluster Subnet: Identifies one dedicated IP subnet for the appliance to use in managing and getting IPs
for communications among its infrastructure services, such as database access, the message bus, and so
on. By default, Cisco DNA Center configures a link-local subnet (169.254.48.0/20) for this parameter,
and we recommend that you use this subnet. If you choose to enter another subnet, ensure that it does
not conflict with or overlap any other subnet used by Cisco DNA Center's internal network or any external
network. Also ensure that the minimum size of the subnet is 21 bits. The subnet you specify must conform
with the IETF RFC 1918 and RFC 6598 specifications for private networks, which support the following
address ranges:
• 10.0.0.0/8
• 172.16.0.0/12
• 192.168.0.0/16
• 100.64.0.0/10
For details, see RFC 1918, Address Allocation for Private Internets, and RFC 6598, IANA-Reserved
IPv4 Prefix for Shared Address Space.)
If you were to specify 10.10.10.0/21 as your Container subnet, you could also specify a Cluster subnet
of 10.0.8.0/21 since these two subnets do not overlap. Also note that the configuration wizard detects
overlaps (if any) between these subnets and prompts you to correct the overlap.
Important
• Ensure that you specify a valid CIDR subnet. Otherwise, incorrect bits will
be present in the 172.17.1.0/20 and 172.17.61.0/20 subnets.
• After configuration of your Cisco DNA Center appliance is completed, you
cannot assign a different subnet without first reimaging the appliance (see
Reimage the Appliance for more information).
The recommended total IP address space for the two Container and Cluster subnets contains 4,096 addresses,
broken down into two /21 subnets of 2,048 addresses each. The two /21 subnets must not overlap. The Cisco
DNA Center internal services require a dedicated set of IP addresses to operate (a Cisco DNA Center
microservice architecture requirement). To accommodate this requirement, you must allocate two dedicated
subnets for each Cisco DNA Center system.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
27
Plan the Deployment
Required Internet URLs and Fully Qualified Domain Names
One reason the appliance requires this amount of address space is to maintain system performance. Because
it uses internal routing and tunneling technologies for east-west (inter-node) communications, using overlapping
address spaces forces the appliance to run Virtual Routing and Forwarding (VRF) FIBs internally. This leads
to multiple encaps and decaps for packets going from one service to another, causing high internal latency at
a very low level, with cascading impacts at higher layers.
Another reason is the Cisco DNA Center Kubernetes-based service containerization architecture. Each appliance
uses the IP addresses in this space for each Kubernetes K8 node. Multiple nodes can make up a single service.
Currently, Cisco DNA Center supports more than 100 services, each requiring several IP addresses, and new
features and corresponding services are being added all the time. The address space requirement is purposely
kept large at the start to ensure that Cisco can add new services and features without running out of IP addresses
or requiring customers to reallocate contiguous address spaces simply to upgrade their systems.
The services supported over these subnets are also enabled at Layer 3. The Cluster space, in particular, carries
data between application and infrastructure services, and is heavily used.
The RFC 1918 and RFC 6598 requirement is because of the requirement by Cisco DNA Center to download
packages and updates from the cloud. If the selected IP address ranges do not conform with RFC 1918 and
RFC 6598, this can quickly lead to problems with public IP address overlaps.
Required Internet URLs and Fully Qualified Domain Names
The appliance requires secure access to the following table of URLs and Fully Qualified Domain Names
(FQDNs).
The table describes the features that make use of each URL and FQDN. You must configure either your
network firewall or a proxy server so that IP traffic can travel to and from the appliance and these resources.
If you cannot provide this access for any listed URL and FQDN, the associated features will be impaired or
inoperable.
For more on requirements for proxy access to the internet, see Provide Secure Access to the Internet.
Table 7: Required URLs and FQDN Access
In order to...
...Cisco DNA Center must access these URLs and FQDNs
Download updates to the system and application package
software; submit user feedback to the product team.
Recommended: *.ciscoconnectdna.com:4431
Customers who want to avoid wildcards can specify these URLs
instead:
• https://www.ciscoconnectdna.com
• https://cdn.ciscoconnectdna.com
• https://registry.ciscoconnectdna.com
• https://registry-cdn.ciscoconnectdna.com
Cisco DNA Center update package.
https://*.ciscoconnectdna.com/*
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
28
Plan the Deployment
Required Internet URLs and Fully Qualified Domain Names
In order to...
...Cisco DNA Center must access these URLs and FQDNs
Smart Account and SWIM software downloads.
https://apx.cisco.com
https://cloudsso.cisco.com/as/token.oauth2
https://*.cisco.com/*
https://download-ssc.cisco.com/
Authenticate with the cloud domain.
https://dnaservices.cisco.com
Integrate with ThousandEyes.
*. awsglobalaccelerator.com
api.thousandeyes.com
Manage Cisco Enterprise Network Function Virtualization
Infrastructure Software (NFVIS) devices.
*.amazonaws.com
Collect product usage telemetry.
https://data.pendo.io
Allow API calls to enable access to Cisco CX Cloud Success https://api-cx.cisco.com
Tracks. Otherwise, the enhancements made to extended
configuration-based scanning for the Security Advisories,
Bug Identifier, and EOX features that Machine Reasoning
Engine (MRE) supports will not operate as expected.
Integrate with Webex.
• http://analytics.webexapis.com
• https://webexapis.com
User feedback.
https://dnacenter.uservoice.com
Integrate with Cisco Meraki.
Recommended: *.meraki.com:443
Customers who want to avoid wildcards can specify these URLs
instead:
• dashboard.meraki.com:443
• api.meraki.com:443
• n63.meraki.com:443
Check SSL/TLS certificate revocation status using
OCSP/CRL.
• http://ocsp.quovadisglobal.com
• http://crl.quovadisglobal.com/*
• http://x3ocsp.identrust.com
• http://validation.identrust.com/crl/hydrantidcao1.crl
Note
These URLs do not utilize the proxy server that's configured
for Cisco DNA Center. Confirm that Cisco DNA Center
can access the URLs directly.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
29
Plan the Deployment
Required Internet URLs and Fully Qualified Domain Names
In order to...
...Cisco DNA Center must access these URLs and FQDNs
Allow authorized Cisco TAC engineers to collect
troubleshooting data when Cisco DNA Center Remote
Support functionality is enabled.
• http://rabbitmq.dev.cisco-aws-lm.com:80
Note
A TLS web socket resides within this connection,
protecting certificate authority (CA) operations at the
payload level.
• https://ca.dev.cisco-aws-lm.com:80
Integrate with cisco.com and Cisco Smart Licensing.
*.cisco.com:443
Customers who want to avoid wildcards can specify these URLs
instead:
• software.cisco.com
• cloudsso.cisco.com
• cloudsso1.cisco.com
• cloudsso2.cisco.com
• apiconsole.cisco.com
• api.cisco.com
• apx.cisco.com
• sso.cisco.com
• apmx-prod1-vip.cisco.com
• apmx-prod2-vip.cisco.com
• tools.cisco.com
• tools1.cisco.com
• tools2.cisco.com
• smartreceiver.cisco.com
Render accurate information in site and location maps.
• www.mapbox.com
• *.tiles.mapbox.com/* :443. For a proxy, the destination is
*.tiles.mapbox.com/*
For Cisco AI Network Analytics data collection, configure
your network or HTTP proxy to allow outbound HTTPS
(TCP 443) access to the cloud hosts.
• https://api.use1.prd.kairos.ciscolabs.com (US East Region)
• https://api.euc1.prd.kairos.ciscolabs.com (EU Central Region)
Access a menu of interactive help flows that let you complete https://ec.walkme.com
specific tasks from the GUI.
Access the licensing service.
https://swapi.cisco.com
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
30
Plan the Deployment
Provide Secure Access to the Internet
1
Cisco owns and maintains ciscoconnectdna.com and its subdomains. The Cisco Connect DNA infrastructure meets Cisco
Security and Trust guidelines and undergoes continuous security testing. This infrastructure is robust, with built-in load balancing
and automation capabilities, and is monitored and maintained by a cloud operations team to ensure 24x7x365 availability.
Provide Secure Access to the Internet
By default, the appliance is configured to access the internet in order to download software updates, licenses,
and device software, as well as provide up-to-date map information, user feedback, and so on. Providing
internet connections for these purposes is a mandatory requirement.
Using an HTTPS proxy server is a reliable way to access remote URLs securely. We recommend that you
use an HTTPS proxy server to provide the appliance with the access it needs to the URLs listed in Required
Internet URLs and Fully Qualified Domain Names. During appliance installation, you are prompted to enter
the URL and port number of the proxy server you want to use for this purpose, along with the proxy's login
credentials (if the proxy requires them).
As of this release, the appliance supports communication with proxy servers over HTTP only. You can place
the HTTPS proxy server anywhere within your network. The proxy server communicates with the internet
using HTTPS, while the appliance communicates with the proxy server via HTTP. Therefore, we recommend
that you specify the proxy's HTTP port when configuring the proxy during appliance configuration.
If you need to change the proxy setting after configuration, you can do so using the GUI.
Required Network Ports
The following tables list the well-known network service ports that the appliance uses. You must ensure that
these ports are open for traffic flows to and from the appliance, whether you open them using firewall settings
or a proxy gateway.
Additional ports, protocols, and types of traffic must be accommodated if you are deploying the appliance in
a network that employs SDA infrastructure. For details, see Required Ports and Protocols for Cisco
Software-Defined Access.
Note
For information on security considerations when deploying Cisco DNA Center, see the Cisco Digital Network
Architecture Center Security Best Practices Guide.
Table 8: Ports: Incoming Traffic
Port Number
Permitted Traffic
Protocol (TCP or UDP)
22
SSH
TCP
67
BOOTP
UDP
80
HTTP
TCP
111
NFS (used for Assurance backups) TCP and UDP
123
NTP
UDP
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
31
Plan the Deployment
Required Network Ports
Port Number
Permitted Traffic
Protocol (TCP or UDP)
162
SNMP
UDP
443
HTTPS
TCP
514
Syslog
UDP
2049
NFS (used for Assurance backups) TCP and UDP
2222
SSH
TCP
9991
Multicast Domain Name System
(mDNS)
TCP
20048
NFS (used for Assurance backups) TCP and UDP
32767
NFS (used for Assurance backups) TCP and UDP
Table 9: Ports: Outgoing Traffic
Port Number
Permitted Traffic
Protocol (TCP or UDP)
22
SSH (to network devices and Cisco ISE)
TCP
23
Telnet (to network devices)
TCP
53
DNS
UDP
80
Port 80 can be used for an outgoing proxy configuration.
TCP
Other common ports (such as 8080) can also be used when a
proxy is configured using the Configuration wizard (if a proxy
is already in use for your network).
To access Cisco-supported certificates and trust pools,
configure your network to allow outgoing IP traffic from the
appliance to the Cisco addresses listed at:
https://www.cisco.com/security/pki/
123
NTP
UDP
161
SNMP agent
UDP
443
HTTPS
TCP
5222, 8910
Cisco ISE XMP for PxGrid
TCP
9060
Cisco ISE ERS API traffic
TCP
Note
Additionally, you can configure your network to allow outgoing IP traffic from the appliance to the Cisco
addresses at: https://www.cisco.com/security/pki/. The appliance uses the IP addresses listed at the above
URL to access Cisco-supported certificates and trust pools.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
32
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
Required Ports and Protocols for Cisco Software-Defined
Access
This topic details the ports, protocols, and types of traffic native to a typical Cisco SD-Access fabric deployment
that is similar to the one shown in the following figure.
Figure 8: Cisco SD-Access Fabric Infrastructure
If you have implemented Cisco SD-Access in your network, use the information in the following tables to
plan firewall and security policies that secure your Cisco SD-Access infrastructure properly while providing
Cisco DNA Center with the access it requires to automate your network management.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
33
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
Table 10: Cisco DNA Center Traffic
Source
Port2
Source
Destination
Port
Destination
Description
Any
Cisco DNA
Center
UDP 53
DNS Server
From Cisco DNA Center to DNS server
Any
Cisco DNA
Center
TCP 22
Fabric underlay
From Cisco DNA Center to fabric
switches' loopbacks for SSH
Any
Cisco DNA
Center
TCP 23
Fabric underlay
From Cisco DNA Center to fabric
switches' loopbacks for TELNET
Any
Cisco DNA
Center
UDP 161
Fabric underlay
From Cisco DNA Center to fabric
switches' loopbacks for SNMP device
discovery
ICMP
Cisco DNA
Center
ICMP
Fabric underlay
From Cisco DNA Center to fabric
switches' loopbacks for SNMP device
discovery
Any
Cisco DNA
Center
TCP 443
Fabric underlay
From Cisco DNA Center to fabric
switches for software upgrades (also to
the internet if there is no proxy)
Any
Cisco DNA
Center
UDP 6007
Switches and
routers
From Cisco DNA Center to switches
and routers for NetFlow
Any
Cisco DNA
Center
TCP 830
Fabric underlay
From Cisco DNA Center to fabric
switches for Netconf (Cisco SD-Access
embedded wireless)
UDP 123
Cisco DNA
Center
UDP 123
Fabric underlay
From Cisco DNA Center to fabric
switches for the initial period during
LAN automation
Any
Cisco DNA
Center
UDP 123
NTP Server
From Cisco DNA Center to NTP server
Any
Cisco DNA
Center
TCP 22, UDP Cisco Wireless
161
Controller
From Cisco DNA Center to Cisco
Wireless Controller
ICMP
Cisco DNA
Center
ICMP
Cisco Wireless
Controller
From Cisco DNA Center to Cisco
Wireless Controller
Any
AP
TCP 32626
Cisco DNA Center Used for receiving traffic statistics and
packet capture data used by the Cisco
DNA Assurance Intelligent Capture
(gRPC) feature.
2
Cluster, PKI, SFTP server, and proxy port traffic are not included in this table.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
34
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
Table 11: Internet Connectivity Traffic
Source
Port
Source
Destination Destination
Port
Description
Any
Cisco DNA Center TCP 443
registry.ciscoconnectdna.com
Download Cisco DNA
Center package updates
Any
Cisco DNA Center TCP 443
www.ciscoconnectdna.com
Download Cisco DNA
Center package updates
Any
Cisco DNA Center TCP 443
registry-cdn.ciscoconnectdna.com Download Cisco DNA
Center package updates
Any
Cisco DNA Center TCP 443
cdn.ciscoconnectdna.com
Download Cisco DNA
Center package updates
Any
Cisco DNA Center TCP 443
software.cisco.com
Download device software
Any
Cisco DNA Center TCP 443
cloudsso.cisco.com
Validate Cisco.com and
Smart Account credentials
Any
Cisco DNA Center TCP 443
cloudsso1.cisco.com
Validate Cisco.com and
Smart Account credentials
Any
Cisco DNA Center TCP 443
cloudsso2.cisco.com
Validate Cisco.com and
Smart Account credentials
Any
Cisco DNA Center TCP 443
apiconsole.cisco.com
CSSM Smart Licensing API
Any
Cisco DNA Center TCP 443
sso.cisco.com
Cisco.com credentials and
Smart Licensing
Any
Cisco DNA Center TCP 443
api.cisco.com
Cisco.com credentials and
Smart Licensing
Any
Cisco DNA Center TCP 443
apx.cisco.com
Cisco.com credentials and
Smart Licensing
Any
Cisco DNA Center TCP 443
dashboard.meraki.com
Meraki integration
Any
Cisco DNA Center TCP 443
api.meraki.com
Meraki integration
Any
Cisco DNA Center TCP 443
n63.meraki.com
Meraki integration
Any
Cisco DNA Center TCP 443
dnacenter.uservoice.com
User feedback submission
Any
Cisco DNA Center TCP 443
Admin Client
*.tiles.mapbox.com
Render maps in the browser
(for access through proxy;
the destination is
*.tiles.mapbox.com/*)
Any
Cisco DNA Center TCP 443
www.mapbox.com
Maps and Cisco Wireless
Controller country code
identification
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
35
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
Table 12: Cisco Software-Defined Access Fabric Underlay Traffic
Source
Port3
Source
Destination Port
Destination
Description
UDP 68
Fabric
underlay
UDP 67
DHCP server
From fabric switches and routers to
the DHCP server for DHCP Relay
packets initiated by the fabric edge
nodes.
Any
Fabric
underlay
TCP 80
Cisco DNA
Center
From fabric switch and router
loopback IPs to Cisco DNA Center
for PnP
Any
Fabric
underlay
TCP 443
Cisco DNA
Center
From fabric switch and router
loopback IPs to Cisco DNA Center
for image upgrade
Any
Fabric
underlay
UDP 162
Cisco DNA
Center
From fabric switch and router
loopback IPs to Cisco DNA Center
for SNMP Traps
Any
Fabric
underlay
UDP 514
Cisco DNA
Center
From fabric switches and routers to
Cisco DNA Assurance
Any
Fabric
underlay
UDP 6007
Cisco DNA
Center
From fabric switches and routers to
Cisco DNA Center for NetFlow
Any
Fabric
underlay
UDP 123
Cisco DNA
Center
From fabric switches to Cisco DNA
Center; used when doing LAN
automation
ICMP
Fabric
underlay
ICMP
Cisco DNA
Center
From fabric switch and router
loopbacks to Cisco DNA Center for
SNMP: device discovery
UDP 161
Fabric
underlay
Any
Cisco DNA
Center
From fabric switch and router
loopbacks to Cisco DNA Center for
SNMP: Device Discovery
Any
Fabric
underlay
UDP 53
DNS Server
From fabric switches and routers to
DNS server for name resolution
TCP and
Fabric
UDP 4342 underlay
TCP and UDP 4342 Fabric Routers
and Switches
LISP-encapsulated control messages
TCP and
Fabric
UDP 4342 underlay
Any
Fabric Routers
and Switches
LISP control-plane communications
Any
Fabric
underlay
UDP 4789
Fabric Routers
and Switches
Fabric-encapsulated data packets
(VXLAN-GPO)
Any
Fabric
underlay
UDP
ISE
1645/1646/1812/1813
From fabric switch and router
loopback IPs to ISE for RADIUS
ICMP
Fabric
underlay
ICMP
From fabric switches and routers to
ISE for troubleshooting
ISE
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
36
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
UDP
Fabric
1700/3799 underlay
Any
ISE
From fabric switches to ISE for
care-of address (CoA)
Any
Fabric
underlay
UDP 123
NTP Server
From fabric switch and router
loopback IPs to the NTP server
Any
control-plane UDP and TCP
4342/4343
Cisco Wireless
Controller
From control-plane loopback IP to
Cisco Wireless Controller for
Fabric-enabled wireless
3
Border routing protocol, SPAN, profiling, and telemetry traffic are not included in this table.
Table 13: Cisco Wireless Controller Traffic
Source Port
Source
Destination
Port
Destination
Description
UDP
Cisco Wireless
5246/5247/5248 Controller
Any
AP IP Address
Pool
From Cisco Wireless Controller
to an AP subnet for CAPWAP
ICMP
Cisco Wireless
Controller
ICMP
AP IP Address
Pool
From Cisco Wireless Controller
to APs allowing ping for
troubleshooting
Any
Cisco Wireless
Controller
• TCP 443 Cisco DNA
(Cisco
Center
AireOS
wireless
controllers)
From Cisco Wireless Controller
to Cisco DNA Center for
Assurance
• TCP 25103
(Cisco
9800
wireless
controllers)
Any
Cisco Wireless
Controller
UDP
69/5246/5247
TCP 22
AP IP Address
Pool
From Cisco Wireless Controller
to an AP subnet for CAPWAP
Any
Cisco Wireless
Controller
UDP and TCP
4342/4343
Control plane
From Cisco Wireless Controller
to control-plane loopback IP
address
Any
Cisco Wireless
Controller
TCP 22
Cisco DNA
Center
From Cisco Wireless Controller
to Cisco DNA Center for device
discovery
UDP 161
Cisco Wireless
Controller
Any
Cisco DNA
Center
From Cisco Wireless Controller
to Cisco DNA Center for SNMP
Any
Cisco Wireless
Controller
UDP 162
Cisco DNA
Center
From Cisco Wireless Controller
to Cisco DNA Center for SNMP
traps
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
37
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
Any
Cisco Wireless
Controller
TCP 16113
Cisco Mobility From Cisco Wireless Controller
Services Engine to Cisco MSE and Spectrum
(MSE) and
Expert for NMSP
Cisco Spectrum
Expert
ICMP
Cisco Wireless
Controller
ICMP
Cisco DNA
Center
From Cisco Wireless Controller
to allow ping for troubleshooting
Any
Cisco Wireless
Controller and
various syslog
servers
UDP 514
Cisco Wireless
Controller
Syslog (optional)
Any
Cisco Wireless
Controller
UDP 53
DNS Server
From Cisco Wireless Controller
to DNS server
Any
Cisco Wireless
Controller
TCP 443
ISE
From Cisco Wireless Controller
to ISE for Guest SSID web
authorization
Any
Cisco Wireless
Controller
UDP 1645,1812 ISE
From Cisco Wireless Controller
to ISE for RADIUS
authentication
Any
Cisco Wireless
Controller
UDP 1646,
1813
ISE
From Cisco Wireless Controller
to ISE for RADIUS accounting
Any
Cisco Wireless
Controller
UDP 1700,
3799
ISE
From Cisco Wireless Controller
to ISE for RADIUS CoA
ICMP
Cisco Wireless
Controller
ICMP
ISE
From Cisco Wireless Controller
to ISE ICMP for troubleshooting
Any
Cisco Wireless
Controller
UDP 123
NTP server
From Cisco Wireless Controller
to NTP server
Table 14: Fabric-Enabled Wireless AP IP Address Pool Traffic
Source
Port
Source
Destination Port Destination
Description
UDP 68
AP IP Address
Pool
UDP 67
DHCP server
From an AP IP Address pool to
DHCP server.
ICMP
AP IP Address
Pool
ICMP
DHCP server
From an AP IP Address pool to
ICMP for troubleshooting.
Any
AP IP Address
Pool
514
Various
Syslog—Destination configurable.
Default is 255.255.255.255.
Any
AP IP Address
Pool
UDP
Cisco Wireless
69/5246/5247/5248 Controller
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
38
From an AP IP Address pool to
Cisco Wireless Controller for
CAPWAP.
Plan the Deployment
Required Ports and Protocols for Cisco Software-Defined Access
ICMP
AP IP Address
Pool
ICMP
Cisco Wireless
Controller
From an AP IP Address pool to
Cisco Wireless Controller, allowing
ping for troubleshooting.
Table 15: ISE Traffic
Source Port4
Source Destination
Port
Destination
Description
Any
ISE
TCP 64999
Border
From ISE to border node for SGT
Exchange Protocol (SXP)
Any
ISE
UDP 514
Cisco DNA Center
From ISE to syslog server (Cisco DNA
Center)
UDP
ISE
1645/1646/1812/1813
Any
Fabric underlay
From ISE to fabric switches and routers
for RADIUS and authorization
Any
UDP
1700/3799
Fabric underlay,
Cisco Wireless
Controller
From ISE to fabric switch and router
loopback IP addresses for RADIUS
Change of Authorization (CoA).
ISE
UDP port 3799 must also be open from
ISE to the wireless controller for CoA.
ICMP
ISE
ICMP
Fabric underlay
From ISE to fabric switches for
troubleshooting
Any
ISE
UDP 123
NTP Server
From ISE to NTP server
UDP
ISE
1812/1645/1813/1646
Any
Cisco Wireless
Controller
From ISE to Cisco Wireless Controller
for RADIUS
ICMP
ICMP
Cisco Wireless
Controller
From ISE to Cisco Wireless Controller
for troubleshooting
4
ISE
Note: High availability and profiling traffic are not included in this table.
Table 16: DHCP Server Traffic
Source
Port
Source
Destination
Port
Destination
Description
UDP 67
DHCP
server
UDP 68
AP IP Address Pool From DHCP server to fabric APs
ICMP
DHCP
server
ICMP
AP IP Address Pool ICMP for troubleshooting: Fabric to
DHCP
UDP 67
DHCP
server
UDP 68
Fabric underlay
From DHCP to fabric switches and routers
ICMP
DHCP
server
ICMP
Fabric underlay
ICMP for troubleshooting: Fabric to
DHCP
UDP 67
DHCP
server
UDP 68
User IP Address
Pool
From DHCP server to fabric switches and
routers
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
39
Plan the Deployment
Required Configuration Information
ICMP
DHCP
server
ICMP
User IP Address
Pool
ICMP for troubleshooting: User to DHCP
Table 17: NTP Server Traffic
Source
Port
Source
Destination
Port
Destination
Description
UDP 123
NTP
Server
Any
ISE
From NTP server to ISE
UDP 123
NTP
Server
Any
Cisco DNA Center
From NTP server to Cisco DNA Center
UDP 123
NTP
Server
Any
Fabric underlay
From NTP server to fabric switch and
router loopback
UDP 123
NTP
Server
Any
Cisco Wireless
Controller
From NTP server to Cisco Wireless
Controller
Table 18: DNS Traffic
Source
Port
Source
Destination
Port
Destination
Description
UDP 53
DNS
Server
Any
Fabric underlay
From DNS server to fabric switches
UDP 53
DNS
Server
Any
Cisco Wireless
Controller
From DNS server to Cisco Wireless
Controller
Required Configuration Information
During appliance configuration, you will be prompted for the following information, in addition to the Required
IP Addresses and Subnets:
• Linux User Name: This is maglev. This user name is the same on all the appliances in a cluster,
including the primary node and secondary nodes, and cannot be changed.
• Linux Password: Identifies the password for the Linux user name maglev. This password ensures
secure access to each appliance using the Linux command line. If required, you can assign a different
Linux password for each maglev Linux user name on each appliance in a cluster.
You must create the Linux password because there is no default. The password must meet the following
requirements:
• Minimum length of eight characters.
• Cannot contain a tab or a line break.
• Contains characters from at least three of the following categories:
• Uppercase letters (A–Z)
• Lowercase letters (a–z)
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
40
Plan the Deployment
Required First-Time Setup Information
• Numbers (0–9)
• Special characters (for example, ! or #)
The Linux password is encrypted and hashed in the Cisco DNA Center database. If you are deploying a
multinode cluster, you will also be prompted to enter the primary node's Linux password on each of the
secondary nodes.
• Password Generation Seed (Optional): Instead of creating a Linux password, you can enter a seed
phrase and click Generate Password. The Maglev Configuration wizard generates a random and secure
password using this seed phrase. You can further edit the generated password by using the Auto Generated
Password field.
• Administrator Passphrase: Identifies the password used for web access to Cisco DNA Center in a
cluster. This is the password for the superuser account admin, which you use to log in to Cisco DNA
Center for the first time (see Complete the Quick Start Workflow, on page 227). You are prompted to
change this password when you log in for the first time.
You must create this password because there is no default. The Administrator Passphrase must meet the
same requirements as the Linux password, described earlier.
• Cisco IMC User Password: Identifies the password used for access to the Cisco IMC GUI. The factory
default is password, but you are prompted to change it when you first set up Cisco IMC for access using
a web browser (see Enable Browser Access to Cisco Integrated Management Controller).
The Cisco IMC user password must meet the same requirements as the Linux password described earlier.
It can be changed back to password only by a reset to factory defaults.
• Primary Node IP Address: Required only when you are installing secondary nodes in a cluster. This
is the IP address of the cluster port on the primary node (see Interface Cable Connections).
Required First-Time Setup Information
After you have configured your appliances, log in to Cisco DNA Center and complete the essential setup
tasks. During this first-time setup, you should have the following information:
• New Admin Superuser Password: You will be prompted to enter a new password for the Cisco DNA
Center admin super user. Resetting the super user password enhances operational security. This is
especially important if, for example, the enterprise staff who installed and configured the Cisco DNA
Center appliance is not a Cisco DNA Center user or administrator.
• Cisco.com Credentials: The Cisco.com user ID and password that your organization uses to register
software downloads and receive system communications through email.
• Cisco Smart Account Credentials: The Cisco.com Smart Account user ID and password your
organization uses for managing your device and software licenses.
• IP Address Manager URL and Credentials: The host name, URL, admin user name, and admin
password of the third-party IP address manager (IPAM) server you plan to use with Cisco DNA Center.
This release supports InfoBlox and Bluecat.
• Proxy URL, Port, and Credentials: The URL (host name or IP address), port number, user name, and
user password of the proxy server you plan to use with Cisco DNA Center in order to get updates to the
Cisco DNA Center software, manage device licenses, and retrieve other downloadable content.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
41
Plan the Deployment
Required First-Time Setup Information
• Cisco DNA Center Users: User names, passwords, and privilege settings for the new Cisco DNA Center
users you will be creating. We recommend that you always use one of these new user accounts for all
your normal Cisco DNA Center operations. Avoid using the admin super user account for activities,
except reconfiguring Cisco DNA Center and operations where super user privileges are explicitly required.
For details about how to launch and respond to the first-time setup wizard that prompts you for this information,
see Complete the Quick Start Workflow, on page 227.
You will also need the following information to complete the remaining setup tasks, which can be done after
your first login:
• ISE Server IP and Credentials: You will need the Cisco ISE server IP address and credentials,
administrative user name, and password. These are needed to log in to and configure your organization's
ISE server to share data with Cisco DNA Center, as explained in Integrate Cisco ISE with Cisco DNA
Center.
Installation of or upgrade to Cisco DNA Center checks to see if Cisco ISE is configured as an
authentication and policy (AAA) server. If the correct version of Cisco ISE is already configured, you
can start migrating group policy data from Cisco ISE to Cisco DNA Center.
If Cisco ISE is not configured, or if the required version of Cisco ISE is not present, Cisco DNA Center
installs, but Group Based Policy is disabled. You must install or upgrade Cisco ISE and connect it to
Cisco DNA Center. You can then start the data migration.
Cisco DNA Center data present in the previous version is preserved when you upgrade. The data migration
operation merges data from Cisco DNA Center and Cisco ISE. If the migration encounters a conflict,
preference is given to data from Cisco ISE.
If Cisco DNA Center becomes unavailable, and it is imperative to manage policies before Cisco DNA
Center becomes available once more, there is an option in Cisco ISE to override the Read-Only setting.
This allows you to make policy changes directly in Cisco ISE. After Cisco DNA Center is available
again, you must disable the Read-Only override on Cisco ISE, and re-synchronize the policy data on
Cisco DNA Center Group Based Access Control Settings page. Only use this option when absolutely
necessary, since changes made directly in Cisco ISE are not propagated to Cisco DNA Center.
• Authorization and Policy Server Information: If you are using Cisco ISE as your authentication and
policy server, you will need the same information listed in the previous bullet, plus the ISE CLI user
name, CLI password, server FQDN, a subscriber name (such as cdnac), the ISE SSH key (optional), the
protocol choice (RADIUS or TACACS), the authentication port, the accounting port, and retry and
timeout settings.
If you are using an authorization and policy server that is not Cisco ISE, you will need the server's IP
address, protocol choice (RADIUS or TACACS), authentication port, accounting port, and retry and
timeout settings.
This information is required to integrate Cisco DNA Center with your chosen authentication and policy
server, as explained in Configure Authentication and Policy Servers, on page 239.
• SNMP Retry and Timeout Values: This is required to set up device polling and monitoring, as explained
in Configure SNMP Properties.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
42
CHAPTER
3
Install the Appliance
• Appliance Installation Workflow, on page 43
• Unpack and Inspect the Appliance, on page 43
• Review the Installation Warnings and Guidelines, on page 44
• Review the Rack Requirements, on page 46
• Connect and Power On the Appliance, on page 46
• Check the LEDs, on page 47
Appliance Installation Workflow
Complete the tasks described in this chapter to physically install your Cisco DNA Center appliance. Complete
these tasks for each appliance you want to install, and be sure to install all of the appliances before configuring
the primary node.
After you have completed all of these tasks successfully, continue with the steps described in Preparation for
Appliance Configuration Overview.
Unpack and Inspect the Appliance
Caution
When handling internal appliance components, wear an ESD strap and handle modules by the carrier edges
only.
Step 1
Remove the appliance from its cardboard container and save all the packaging material (in case the appliance requires
shipping in the future).
Step 2
Compare the shipment with the equipment list provided by your customer service representative. Verify that you have
all the items.
Step 3
Check for damage and report discrepancies or damage, if any, to your customer service representative immediately. Have
the following information ready:
• Invoice number of the shipper (see the packing slip)
• Model and serial number of the damaged unit
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
43
Install the Appliance
Review the Installation Warnings and Guidelines
• Description of damage
• Effect of damage on the installation
Review the Installation Warnings and Guidelines
Note
Warning
Before you install, operate, or service a server, review the Regulatory Compliance and Safety Information for
Cisco UCS C-Series Servers for important safety information.
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. Use the statement number provided at the end of each
warning to locate its translation in the translated safety warnings that accompanied this device.
Statement 1071
Warning
To prevent the system from overheating, do not operate it in an area that exceeds the maximum
recommended ambient temperature of: 95°F (35°C).
Statement 1047
Warning
The plug-socket combination must be accessible at all times, because it serves as the main disconnecting
device.
Statement 1019
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than: 250 V, 15 A. Statement 1005
Warning
Installation of the equipment must comply with local and national electrical codes.
Statement 1074
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
44
Install the Appliance
Review the Installation Warnings and Guidelines
Warning
This unit is intended for installation in restricted access areas. A restricted access area can be accessed
only through the use of a special tool, lock, and key, or other means of security.
Statement 1017
The following four warnings are specific to the 112-core appliance:
Warning
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available.
Statement 1024
Warning
For Nordic countries (Norway, Finland, Sweden and Denmark) this system must be installed in a
Restricted Access Location, where the voltage of the main ground connection of all equipment is the
same (equipotential earth) and the system is connected to a grounded electrical outlet.
Statement 328
Warning
High leakage current – earth connection essential before connection to system power supply.
Statement 342
Warning
This equipment must be externally grounded using a customer-supplied ground wire before power is
applied. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available.
Statement 366
Caution
To ensure proper airflow, it is necessary to rack the appliances using rail kits. Physically placing the units on
top of one another or stacking without the rail kits blocks the air vents on top of the appliances, which could
result in overheating, higher fan speeds, and higher power consumption. We recommend that you mount your
appliances on rail kits when you are installing them into the rack because these rails provide the minimal
spacing required between the appliances. No additional spacing between the appliances is required when you
mount the units using rail kits.
Caution
Avoid UPS models that use ferroresonant technology. These UPS models can become unstable with systems
such as the Cisco UCS, which can have substantial current-draw fluctuations because of fluctuating data traffic
patterns.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
45
Install the Appliance
Review the Rack Requirements
When you install an appliance, follow these guidelines:
• Plan your site configuration and prepare the site before installing the appliance. See the Cisco UCS Site
Preparation Guide for help with the recommended site planning and preparation tasks.
• Ensure that there is adequate space around the appliance to enable servicing, and for adequate airflow.
The airflow in this appliance is from front to back.
• Ensure that the site's air-conditioning meets the thermal requirements listed in Environmental
Specifications.
• Ensure that the cabinet or rack meets the requirements listed in Review the Rack Requirements.
• Ensure that the site's power meets the requirements listed in Power Specifications. If available, use a
UPS to protect against power failures.
Review the Rack Requirements
For proper operation, the rack in which you install the appliance must meet the following requirements:
• A standard 19-in. (48.3-cm) wide, four-post EIA rack, with mounting posts that conform to English
universal hole spacing, per section 1 of ANSI/EIA-310-D-1992.
• The rack post holes can be square 0.38-in. (9.6 mm), round 0.28-in. (7.1 mm), #12-24 UNC, or #10-32
UNC when you use the supplied slide rails.
• The minimum vertical rack space per server must be:
• For the 44 and 56-core appliance, one RU, which equals 1.75 in. (44.45 mm).
• For the 112-core appliance, four RUs, which equals 7.0 in. (177.8 mm).
Connect and Power On the Appliance
This section describes how to power on the appliance and check that it is functional.
Step 1
Attach the supplied power cord to each power supply in the appliance and then attach the power cords to a grounded AC
power outlet. See Power Specifications for details.
Wait for approximately two minutes to let the appliance boot into standby power mode during the first boot up.
The Power Status LED indicates the appliance's power status:
• Off: There is no AC power present in the appliance.
• Amber: The appliance is in standby power mode. Power is supplied only to the CIMC and some motherboard
functions.
• Green: The appliance is in main power mode. Power is supplied to all the appliance components.
For more information on these and other appliance LEDs, see Front and Rear Panels.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
46
Install the Appliance
Check the LEDs
Step 2
Connect a USB keyboard and VGA monitor to the server, using the supplied KVM cable connected to the KVM connector
on the front panel. Alternatively, you can use the VGA and USB ports on the rear panel. You can only connect to one
VGA interface at a time.
Check the LEDs
After you have powered up the appliance, check the state of the front-panel and rear-panel LEDs and buttons
to ensure it is functioning.
The following illustrations show the LEDs for a functional appliance after physical installation and first
power-up and before configuration.
Figure 9: 44 and 56-Core Appliance Front Panel LEDs
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
47
Install the Appliance
Check the LEDs
LED
1
Desired Status Indicator
• Drive Fault LEDs: Off
• Drive Activity LEDs: Green
2
Power Status: Green
3
Unit identification: Off
4
System Status: Green
5
Power Supply Status: Green
6
Fan Status: Green
7
Network Link Activity: Off
8
Temperature Status: Green
Figure 10: 112-Core Appliance Front Panel LEDs
LED
Desired Status Indicator
1
Power Status: Green
2
Unit identification: Off
3
System Status: Green
4
Fan Status: Green
5
Temperature Status: Green
6
Power Supply Status: Green
7
Network Link Activity: Off
8
Drive Fault LEDs: Off
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
48
Install the Appliance
Check the LEDs
LED
Desired Status Indicator
9
Drive Activity LEDs: Green
10
CPU module power status: Green
11
CPU module fault: Off
Figure 11: 44 and 56-Core Appliance Rear Panel LEDs
LED
Desired Status Indicator
1
After initial power-up, all the ports should have their Link Status and Link Speed LEDs
showing as off.
After network settings are configured and tested using either the Maglev Configuration
wizard (see Configure the Primary Node Using the Maglev Wizard and Configure a
Secondary Node Using the Maglev Wizard) or browser-based configuration wizard (see
Configure the Primary Node Using the Advanced Install Configuration Wizard, on page
131 and Configure a Secondary Node Using the Advanced Install Configuration Wizard,
on page 149), the Link Status and Link Speed LEDs for all cabled ports should be green.
The LED for all uncabled ports should remain unchanged.
2
AC Power Supply Status LEDs: Green
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
49
Install the Appliance
Check the LEDs
Figure 12: 112-Core Appliance Rear Panel LEDs
LED
Desired Status Indicator
1
After initial power-up, all the ports should have their Link Status and Link Speed LEDs
showing as off.
After network settings are configured and tested using either the Maglev Configuration
wizard (see Configure the Primary Node Using the Maglev Wizard and Configure a
Secondary Node Using the Maglev Wizard) or browser-based configuration wizard (see
Configure the Primary Node Using the Advanced Install Configuration Wizard, on page
185 and Configure a Secondary Node Using the Advanced Install Configuration Wizard,
on page 204), the Link Status and Link Speed LEDs for all cabled ports should be green.
All uncabled port LEDs should be unchanged.
2
AC Power Supply Status LEDs: Green
If you see LEDs with colors other than those shown above, you may have a problem condition. See Front and
Rear Panels for details on the likely causes of the status. Be sure to correct any problem conditions before
proceeding to configure the appliance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
50
CHAPTER
4
Prepare the Appliance for Configuration
• Preparation for Appliance Configuration Overview, on page 51
• Enable Browser Access to Cisco Integrated Management Controller, on page 52
• Execute Preconfiguration Checks, on page 57
• NIC Bonding Overview, on page 60
• Reimage the Appliance, on page 67
• Cisco DNA Center Appliance Configuration, on page 72
Preparation for Appliance Configuration Overview
Before you can successfully configure your Cisco DNA Center appliance, first complete the following tasks:
1. Enable browser access to the appliance's Cisco IMC (see Enable Browser Access to Cisco Integrated
Management Controller).
2. Use Cisco IMC to check and adjust important hardware and switch settings (see Execute Preconfiguration
Checks).
3. If the Intel X710-DA4 network interface card (NIC) that shipped with your appliance is currently disabled,
you need to enable it in order to make use of NIC bonding (see Enable NIC on an Upgraded Appliance,
on page 61).
4. Cisco DNA Center software is preinstalled on your appliance, but you may need to reinstall the software
in certain situations (such as before you change the current cluster link configuration). If this is the case,
you must also complete the tasks described in Reimage the Appliance.
Note
If you do not need to reimage your appliance, proceed to the "Appliance Configuration Overview" top
specific to the configuration wizard you want to use:
• Appliance Configuration Overview
• Appliance Configuration Overview
• Appliance Configuration Overview
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
51
Prepare the Appliance for Configuration
Enable Browser Access to Cisco Integrated Management Controller
Enable Browser Access to Cisco Integrated Management
Controller
After installing the appliance, as described in Appliance Installation Workflow, use the Cisco IMC configuration
utility to assign an IP address and gateway to the appliance's CIMC port. This gives you access to the Cisco
IMC GUI, which you should use to configure the appliance.
After you complete the Cisco IMC setup, log in to Cisco IMC and run the tasks listed in Execute
Preconfiguration Checks to ensure correct configuration.
Tip
To help ensure the security of your deployment, Cisco IMC prompts you to change the Cisco IMC user's
default password when you boot the appliance for the first time. To change the Cisco IMC user password
later, use the Cisco IMC GUI, as follows:
1. From the top-left corner of the GUI, click the Toggle Navigation icon (
User Management.
) and then choose Admin >
The Local User Management tab should already be selected.
2. Check the check box for user 1, and then click Modify User.
The Modify User Details dialog box opens.
3. Check the Change Password check box.
4. Enter and confirm the new password, and then click Save.
Step 1
Access the appliance console by attaching either of the following:
• A KVM cable to the KVM connector on the appliance's front panel (component 11 on the front panel illustrated
in Front and Rear Panels)
• A keyboard and monitor to the USB and VGA ports on the appliance's rear panel (components 2 and 5, respectively,
on the rear panel illustrated in Front and Rear Panels).
Step 2
Make sure that the appliance's power cord is plugged in and the power is on.
Step 3
Press the Power button on the front panel to boot the appliance.
The Cisco IMC configuration utility boot screen should be displayed, as shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
52
Prepare the Appliance for Configuration
Enable Browser Access to Cisco Integrated Management Controller
Step 4
As soon as the boot screen is displayed, press F8 to perform Cisco IMC configuration.
The CIMC configuration utility displays the CIMC User Details screen, as shown below.
Step 5
Enter the default CIMC user password (the default on a new appliance is password) in the Enter current CIMC
Password field.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
53
Prepare the Appliance for Configuration
Enable Browser Access to Cisco Integrated Management Controller
Step 6
Enter and confirm the new CIMC user password in the Enter new CIMC password and Re-Enter new CIMC
password fields.
When you press Enter after entering the new password in the Re-Enter new CIMC password field, the Cisco IMC
configuration utility displays the NIC Properties screen, as shown below.
Step 7
Perform the following actions:
• NIC mode: Select Dedicated.
• IP (Basic): Select IPV4.
• CIMC IP: Enter the IP address of the CIMC port.
• Prefix/Subnet: Enter the subnet mask for the CIMC port IP address.
• Gateway: Enter the IP address of your preferred default gateway.
• Pref DNS Server: Enter the IP address of your preferred DNS server.
• NIC Redundancy: Select None.
Step 8
Press F1 to specify Additional settings.
The Cisco IMC configuration utility displays the Common Properties screen, as shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
54
Prepare the Appliance for Configuration
Enable Browser Access to Cisco Integrated Management Controller
Step 9
Perform the following actions:
• Hostname: Enter a hostname for CIMC on this appliance.
• Dynamic DNS: Uncheck the check box to disable this feature.
• Factory Defaults: Uncheck the check box to disable this feature.
• Default User (Basic): Leave these fields blank.
• Port Properties: Enter new settings or accept the defaults shown in these fields.
• Port Profiles: Uncheck the check box to disable this feature.
Step 10
Press F10 to save the settings.
Step 11
Press Escape to exit and reboot the appliance.
Step 12
After the settings are saved and the appliance finishes rebooting, open a compatible browser on a client machine with
access to the subnet on which the appliance is installed, and enter the following URL:
https://CIMC_ip_address, where CIMC_ip_address is the Cisco IMC port IP address that you entered in
Step 7.
Your browser displays a main Cisco IMC GUI login window similar to the one shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
55
Prepare the Appliance for Configuration
Enable Browser Access to Cisco Integrated Management Controller
Step 13
Log in using the Cisco IMC user ID and password you set in Step 5.
If the login is successful, your browser displays a Cisco Integrated Management Controller Chassis Summary
window similar to the one shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
56
Prepare the Appliance for Configuration
Execute Preconfiguration Checks
Execute Preconfiguration Checks
After installing the appliance (as described in Appliance Installation Workflow) and setting up access to the
Cisco IMC GUI (as described in Enable Browser Access to Cisco Integrated Management Controller), use
Cisco IMC to perform the following preconfiguration tasks, which help ensure correct configuration and
deployment:
1. Synchronize the appliance hardware with the Network Time Protocol (NTP) servers you use to manage
your network. These must be the same NTP servers whose hostnames or IPs you gathered for use when
planning your implementation, as explained in Required IP Addresses and Subnets. This is a critical task
that ensures that your Cisco DNA Center data is synchronized properly across the network.
2. Reconfigure the switches connected to the 10-Gbps appliance ports to support higher throughput settings.
Step 1
Log in to the appliance's Cisco IMC using the Cisco IMC IP address, user ID, and password you set in Enable Browser
Access to Cisco Integrated Management Controller.
If the login is successful, your browser displays the Cisco Integrated Management Controller Chassis Summary
window, as shown below.
Step 2
Synchronize the appliance's hardware with the Network Time Protocol (NTP) servers you use to manage your network,
as follows:
a) From the top-left corner of the Cisco IMC GUI, click the Toggle Navigation icon ( ).
b) From the Cisco IMC menu, select Admin > Networking, and then choose the NTP Setting tab.
c) Make sure that the NTP Enabled check box is checked and enter up to four NTP server host names or addresses in
the numbered Server fields, as shown in the example below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
57
Prepare the Appliance for Configuration
Execute Preconfiguration Checks
d) Click Save Changes. Cisco IMC validates your entries and then begins to synchronize the time on the appliance's
hardware with the time on the NTP servers.
Note
Step 3
Unlike the previous generation of Cisco DNA Center appliances, second generation appliances do not use
a virtual interface card (VIC). You do not need to configure the network interface card (NIC) that comes
installed on your second generation appliance to support high throughput in Cisco IMC, as this is already
enabled by default.
Reconfigure your switches to match the high-throughput settings on the appliance, as follows:
a) Using a Secure Shell (SSH) client, log in to the switch to be configured and enter EXEC mode at the switch prompt.
b) Configure the switch port.
On a Cisco Catalyst switch, enter the following commands. For example:
MySwitch#Config terminal
MySwitch(config)#interface tengigabitethernet 1/1/3
MySwitch(config-if)#switchport mode access
MySwitch(config-if)#switchport access vlan 99
MySwitch(config-if)#speed auto
MySwitch(config-if)#duplex full
MySwitch(config-if)#mtu 1500
MySwitch(config-if)#no shut
MySwitch(config-if)#end
MySwitch(config)#copy running-config startup-config
On a Cisco Nexus switch, enter the following commands to disable Link Layer Discovery Protocol (LLDP) and
priority flow control (PFC). For example:
N7K2# configure terminal
N7K2(config)# interface eth 3/4
N7K2(config-if)# no priority-flow-control mode auto
N7K2(config-if)# no lldp transmit
N7K2(config-if)# no lldp receive
Note the following:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
58
Prepare the Appliance for Configuration
Execute Preconfiguration Checks
• These commands are examples only.
• The switch port on Cisco DNA Center second generation appliances must be set to access mode in order to
function properly. Trunk mode is not supported, as it is on first generation appliances.
c) Run the show interface tengigabitethernet portID command and verify that the port is connected, running, and has
the correct MTU, duplex, and link-type settings in the command output. For example:
MySwitch#show interface tengigabitethernet 1/1/3
TenGigabitEthernet1/1/3 is up, line protocol is up (connected)
Hardware is Ten Gigabit Ethernet, address is XXXe.310.8000 (bia XXX.310.8000)
MTU 1500 bytes, BW 10000000 Kbit/sec, DLY 10 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive not set
Full-duplex, 10GB/s, link type is auto, media type is SFP-10Gbase-SR
d) Run the show run interface tengigabitethernet portID command to configure the switch ports where the cables from
the Intel X710-DA2 NIC ports are connected. For example:
MySwitch#show run interface tengigabitethernet 1/1/3
Building configuration...
Current configuration : 129 bytes
! interface TenGigabitEthernet1/1/3
switchport access vlan 99
ip device tracking maximum 10
end
MySwitch#
e) Run the show mac address-table interface tengigabitethernet portID command and verify the MAC address from the
command output. For example:
MySwitch#show mac address-table interface tengigabitethernet 1/1/3
Mac Address Table
––––––––––––––––––––––––––––––––––––––––––-Vlan
Mac Address
Type
Ports
––-––––––––––––––––-99
XXXe.3161.1000
DYNAMIC
Te1/1/3
Total Mac Addresses for this criterion: 1
MySwitch#
What to do next
When this task is complete, do one of the following:
• If you need to reinstall Cisco DNA Center software before you configure your appliance, see Reimage
the Appliance.
• If you are ready to configure your appliance, proceed to the "Appliance Configuration Overview" topic
specific to the configuration wizard you want to use:
• Appliance Configuration Overview
• Appliance Configuration Overview
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
59
Prepare the Appliance for Configuration
NIC Bonding Overview
NIC Bonding Overview
On any given Cisco DNA Center appliance, you can configure the Enterprise, Intracluster, Management, and
Internet interface. If you enable network interface controller (NIC) bonding on an appliance, each of these
interfaces has two instances: The primary instance (located on either your appliance's motherboard or Intel
X710-DA2 NIC) is connected to one switch, and the secondary instance (located on your appliance's Intel
X710-DA4 NIC) is connected to a different switch. NIC bonding consolidates the two instances of each
interface into a single logical interface, appearing as a single device with one MAC address. Depending on
the bonding mode that you choose when configuring the interfaces on your appliance, this feature provides
the following benefits when enabled:
Note
Both single-node and three-node Cisco DNA Center clusters support NIC bonding.
• Active-Backup mode: By default, this is the bonding mode that's configured for your appliance's interfaces
when this feature is enabled on your appliance. It enables high availability (HA) for the two interfaces
that Cisco DNA Center has grouped together. When the interface that's currently active goes down, the
other interface takes its place and becomes active.
Note
When this mode is enabled on an interface that supports both 1-Gbps and 10-Gbps
throughput, Cisco DNA Center automatically sets the throughput to 1-Gbps.
• LACP mode: When selected, the two interfaces that Cisco DNA Center has grouped together share the
same speed and duplex settings. This provides load balancing and higher bandwidth for the interfaces.
In order to enable this mode, the following items must first be in place:
• The Linux utility ethtool must support the base drivers that are used to retrieve the speed and duplex
mode of each interface.
• The switch that is connected to the Enterprise port must support dynamic interface aggregation.
• After you enable LACP on the switch, ensure that you have set the LACP mode to active (which
places the switch port connected to your appliance into an active negotiating state, in which the port
initiates negotiations with remote ports by sending LACP packets) and the LACP rate to fast (which
changes the rate at which the LACP control packets are sent to an LACP-supported interface from
the default every 30 seconds to once every second).
Note
You can only enable LACP mode on your appliance's Enterprise and Intracluster
interfaces. The Management and Internet Access interfaces only support
Active-Backup mode.
Before you use NIC bonding in your production environment, you should do the following:
• Confirm that your appliance supports this feature. See Appliance Support, on page 61.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
60
Prepare the Appliance for Configuration
Appliance Support
• If the Intel X710-DA4 NIC that shipped with your appliance is currently disabled, you need to enable it
in order to make use of NIC bonding (see Enable NIC on an Upgraded Appliance, on page 61).
• Determine where the secondary ports are located on your appliance's rear panel. See Front and Rear
Panels, on page 4.
• View the recommended appliance–switch cabling. See Interface Cable Connections, on page 22.
Appliance Support
All second-generation Cisco DNA Center appliances support NIC bonding:
• 44-core appliance: Cisco part number DN2-HW-APL
• 44-core promotional appliance: Cisco part number DN2-HW-APL-U
• 56-core appliance: Cisco part number DN2-HW-APL-L
• 56-core promotional appliance: Cisco part number DN2-HW-APL-L-U
• 112-core appliance: Cisco part number DN2-HW-APL-XL
• 112-core promotional appliance: Cisco part number DN2-HW-APL-XL-U
Enable NIC on an Upgraded Appliance
In order to enable the Intel X710-DA4 NIC on an appliance that you plan to upgrade to Cisco DNA Center
2.3.3 from a previous version, complete the following procedure.
Step 1
Confirm that your appliance has the Intel X710-DA4 NIC installed.
a) Log in to the appliance's Cisco IMC.
b) In the Summary window's Server Properties area, confirm that the following values are set:
• PID: DN2-HW-APL for a 44-core appliance, DN2-HW-APL-L for a 56-core appliance, or DN2-HW-APL-XL
for a 112-core appliance (see the following example).
• BIOS Version: This value should start with either C220M5 for a 44 and 56-core appliance or C480M5 for a
112-core appliance (see the following example).
c) Choose
> Chassis > Inventory > Network Adapters.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
61
Prepare the Appliance for Configuration
Enable NIC on an Upgraded Appliance
d) In the Network Adapters table, confirm that the Intel X710-DA4 Quad Port network adapter is listed for one of the
following slots:
• For a 44 or 56-core appliance, PCIe Slot 2.
• For a 112-core appliance, PCIe Slot 12 (see the following example).
Step 2
Confirm that the your appliance's PCIe card is enabled:
a) Choose
> Compute.
The BIOS > Configure BIOS > I/O tab opens.
b) If necessary, set the following parameters to Enabled and then click Save:
• For a 44 or 56-core appliance, PCIe Slot 2 OptionROM and PCIe Slot 2 Link Speed.
• For a 112-core appliance, PCIe Slot 12 OptionROM and PCIe Slot 12 Link Speed (see the following example).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
62
Prepare the Appliance for Configuration
Enable NIC on an Upgraded Appliance
c) Do one of the following:
• If you needed to set these two parameters to Enabled for your appliance, reboot your appliance and then proceed
with its configuration. You do not need to complete the rest of this procedure.
• If you have a 112-core appliance and only see one of these parameters displayed in the I/O tab, proceed to Step
3 and complete the rest of this procedure.
Step 3
Boot into your appliance's BIOS:
a) From Cisco IMC, start a KVM session.
b) Power cycle the appliance by clicking the Host Power link and then choosing Power Cycle.
c) During startup, press the F2 key as soon as you see the following screen to boot into your appliance's BIOS and open
the Aptio Setup Utility.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
63
Prepare the Appliance for Configuration
Enable NIC on an Upgraded Appliance
Step 4
Enable the PCIe card:
a) From the Aptio Setup Utility's Main tab, open the Advanced tab and then choose LOM and PCIe Slots
Configuration.
b) In the LOM and PCIe Slots Configuration tab, choose PCIE Link Speed Configuration.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
64
Prepare the Appliance for Configuration
Enable NIC on an Upgraded Appliance
c) In the PCIE Link Speed Configuration tab, scroll down to PCIE SlotID: 12's Link Enable option and then press
Enter.
d) Choose Enable, then press ENTER.
Your screen should look like the following example:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
65
Prepare the Appliance for Configuration
Enable NIC on an Upgraded Appliance
e) Press the ESC key twice to return to the main BIOS menu, then open the Save & Exit tab.
f) Choose the Save Changes and Reset option, then press Enter.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
66
Prepare the Appliance for Configuration
Reimage the Appliance
Your appliance reboots and opens the configuration wizard. Proceed with the configuration of your appliance.
Important After you have enabled your appliance's NIC, if you reset your appliance to the default settings in Cisco
IMC (
Step 5
> Admin > Utilities > Reset to factory Default), you will need to complete this procedure again.
Upgrade to Cisco DNA Center 2.3.3.
In the Cisco DNA Center Upgrade Guide, complete the upgrade procedure specific to your current version.
During the upgrade, Cisco DNA Center will prepare your appliance to use the Intel X710-DA4 NIC. After the upgrade
completes and your appliance reboots, Cisco IMC recognizes this NIC and the four interfaces that reside on it. Counting
the four interfaces located on the Intel X710-DA2 NIC and appliance motherboard, that makes a total of eight interfaces
on your appliance.
Step 6
Complete the configuration wizard to finalize the use of the Intel X710-DA4 NIC on your appliance, as described in
Reconfigure the Appliance Using the Configuration Wizard, on page 244.
Reimage the Appliance
Situations that require you to reimage your Cisco DNA Center appliance, such as recovering from a backup
or changing your cluster link configuration, might arise. To do so, complete the following procedure.
Step 1
Download the Cisco DNA Center ISO image and verify that it is a genuine Cisco image.
See Verify the Cisco DNA Center ISO Image.
Step 2
Create a bootable USB drive that contains the Cisco DNA Center ISO image.
See Create a Bootable USB Flash Drive.
Step 3
Reinitialize the virtual drives that are managed by your appliance’s RAID controller.
See Reinitialize the Virtual Drives on a Cisco DNA Center Appliance, on page 70.
Step 4
Reinstall Cisco DNA Center onto your appliance.
See Install the Cisco DNA Center ISO Image.
Verify the Cisco DNA Center ISO Image
Prior to deploying Cisco DNA Center, we strongly recommend that you to verify that the ISO image you
downloaded is a genuine Cisco image.
Before you begin
Obtain the location of the Cisco DNA Center ISO image (through email or by contacting the Cisco support
team).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
67
Prepare the Appliance for Configuration
Create a Bootable USB Flash Drive
Step 1
Download the Cisco DNA Center ISO image (.iso) from the location specified by Cisco.
Step 2
Download the Cisco public key (cisco_image_verification_key.pub) for signature verification from the location specified
by Cisco.
Step 3
Download the secure hash algorithm (SHA512) checksum file for the ISO image from the location specified by Cisco.
Step 4
Obtain the ISO image's signature file (.sig) from Cisco support through email or by download from the secure Cisco
website (if available).
Step 5
(Optional) Perform an SHA verification to determine whether the ISO image is corrupted due to a partial download.
Run one of the following commands (depending upon your operating system):
• On a Linux system: sha512sum ISO-image-filename
• On a Mac system: shasum -a 512 ISO-image-filename
Microsoft Windows does not include a built-in checksum utility, but you can use the certutil tool:
certutil -hashfile <filename> sha256 | md5
For example:
certutil -hashfile D:\Customers\FINALIZE.BIN sha256
On Windows, you can also use the Windows PowerShell to generate the digest. For example:
PS C:\Users\Administrator> Get-FileHash -Path D:\Customers\FINALIZE.BIN
Algorithm Hash Path
SHA256 B84B6FFD898A370A605476AC7EC94429B445312A5EEDB96166370E99F2838CB5 D:\Customers\FINALIZE.BIN
Compare the output of the command you run to the SHA512 checksum file that you downloaded. If the command output
does not match, download the ISO image again and run the appropriate command a second time. If the output still does
not match, contact Cisco support.
Step 6
Verify that the ISO image is genuine and from Cisco by verifying its signature:
openssl dgst -sha512 -verify cisco_image_verification_key.pub -signature signature-filename ISO-image-filename
Note
This command works in both MAC and Linux environments. For Windows, you need to download and install
OpenSSL (available here) if you have not already done so.
If the ISO image is genuine, running this command should display a Verified
do not install the ISO image and contact Cisco support.
Step 7
OK message. If this message fails to appear,
After confirming that you have downloaded a Cisco ISO image, create a bootable USB drive that contains the Cisco DNA
Center ISO image. See Create a Bootable USB Flash Drive.
Create a Bootable USB Flash Drive
Complete one of the following procedures to create a bootable USB flash drive from which you can install
the Cisco DNA Center ISO image.
Before you begin:
• Download and verify your copy of the Cisco DNA Center ISO image. See Verify the Cisco DNA Center
ISO Image.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
68
Prepare the Appliance for Configuration
Using Etcher
• Confirm that the USB flash drive you are using has a capacity of at least 64 GB.
Using Etcher
Step 1
Download and install Etcher (Version 1.3.1 or later), an open-source freeware utility that allows you to create a bootable
USB drive on your laptop or desktop.
Linux, macOS, and Windows versions of Etcher are currently available. You can download a copy at
https://www.balena.io/etcher/.
Note
Use only the Windows version of Etcher on machines running Windows 10, as there are known compatibility
issues with older versions of Windows.
Step 2
From the machine on which you installed Etcher, connect a USB drive and then start Etcher.
Step 3
In the top-right corner of the window, click
and verify that the following Etcher settings are set:
• Auto-unmount on success
• Validate write on success
Step 4
Click Back to return to the main Etcher window.
Step 5
Click Select Image.
Step 6
Navigate to the Cisco DNA Center ISO image you downloaded previously, select it, and then click Open.
The name of the USB drive you connected should be listed under the drive icon (
). If it is not:
a. Click Select drive.
b. Click the radio button for the correct USB drive, and then click Continue.
Step 7
Click Flash! to copy the ISO image to the USB drive.
Etcher configures the USB drive as a bootable drive with the Cisco DNA Center ISO image installed.
Using the Linux CLI
Step 1
Verify that your USB flash drive is recognized by your machine:
a) Insert a flash drive into your machine's USB port.
b) Open a Linux shell and run the following command: lsblk
The command lists the disk partitions that are currently configured on your machine, as illustrated in the following
example:
$ lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 446.1G 0 disk
├─sda1 8:1 0 1M 0 part
├─sda2 8:2 0 28.6G 0 part /
├─sda3 8:3 0 28.6G 0 part /install2
├─sda4 8:4 0 9.5G 0 part /var
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
69
Prepare the Appliance for Configuration
Using the Mac CLI
├─sda5 8:5 0 30.5G 0 part [SWAP]
└─sda6 8:6 0 348.8G 0 part /data
sdb 8:16 0 1.8T 0 disk
├─sdb1 8:17 0 426.1G 0 part /data/maglev/srv/fusion
└─sdb2 8:18 0 1.3T 0 part /data/maglev/srv/maglev-system
sdc 8:32 0 3.5T 0 disk
└─sdc1 8:33 0 3.5T 0 part /data/maglev/srv/ndp
sdd 8:48 1 28.7G 0 disk
└─sdd1 8:49 1 12G 0 part
c) Confirm that an sdd partition (which indicates the presence of a USB flash drive) is listed.
Step 2
Burn the Cisco DNA Center ISO image you downloaded previously onto your USB flash drive: time sudo dd
if=/data/tmp/ISO-image-filename of=/dev/flash-drive-partition bs=4M && sync
For example, to create a bootable USB drive using an ISO image named CDNAC-SW-1.330.iso, you would run the
following command: time sudo dd if=/data/tmp/CDNAC-SW-1.330.iso of=/dev/sdd bs=4M && sync
Using the Mac CLI
Step 1
Determine the disk partition associated with your USB flash drive:
a) Open a Terminal window and run the following command: diskutil list
The command lists the disk partitions that are currently configured on your machine.
b) Insert a flash drive into your machine's USB port and run the diskutil list command a second time.
The partition that was not listed the first time you ran this command corresponds to your flash drive. For example,
let's assume that your flash drive's partition is /dev/disk2.
Step 2
Unmount the flash drive's partition: diskutil unmountDisk flash-drive-partition
Continuing our example, you would enter diskutil unmountDisk /dev/disk2
Step 3
Using the Cisco DNA Center ISO image you downloaded previously, create a disk image: hdiutil convert -format
UDRW -o Cisco-DNA-Center-version ISO-image-filename
Continuing our example, let's assume that you are working with a Cisco DNA Center ISO image named
CDNAC-SW-1.330.iso. You would run the following command, which creates a macOS disk image named CDNAC-1.330.dmg:
hdiutil convert -format UDRW -o CDNAC-1.330 CDNAC-SW-1.330.iso
Important Ensure that the ISO image does not reside on a Box partition.
Step 4
Create a bootable USB drive: sudo dd if=macOS-disk-image-filename of=flash-drive-partition bs=1m
Continuing our example, you would run the following command: sudo dd if=CDNAC-1.330.dmg of=/dev/disk2 bs=1m
The ISO image is about 18 GB in size, so this can take around an hour to complete.
Reinitialize the Virtual Drives on a Cisco DNA Center Appliance
Complete the following procedure to reinitialize the virtual drives on your Cisco DNA Center appliance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
70
Prepare the Appliance for Configuration
Install the Cisco DNA Center ISO Image
Step 1
Log in to the appliance's Cisco IMC using the Cisco IMC IP address, user ID, and password you set in Enable Browser
Access to Cisco Integrated Management Controller.
Step 2
From the top-left corner of the Cisco IMC GUI, click the Toggle Navigation icon (
Step 3
From the Cisco IMC menu, choose Storage > Cisco 12G Modular Raid Controller.
Step 4
Click the Virtual Drive Info tab.
Step 5
Check the check box for the first virtual drive that's listed (drive number 0), then click Initialize.
Step 6
From the Initialize Type drop-down list, choose Full Initialize.
Step 7
Click Initialize VD.
Step 8
Repeat Steps 5 through 7 for the appliance's other virtual drives.
).
Install the Cisco DNA Center ISO Image
Complete the following procedure to install the Cisco DNA Center ISO image onto your appliance.
Before you begin
Create the bootable USB drive from which you will install the Cisco DNA Center ISO image. See Create a
Bootable USB Flash Drive.
Step 1
Connect the bootable USB drive with the Cisco DNA Center ISO image to the appliance.
Step 2
Log in to Cisco IMC and start a KVM session.
Step 3
Power on or power cycle the appliance:
• Choose Power > Power On System if the appliance is not currently running.
• Choose Power > Power Cycle System (cold boot) if the appliance is already running.
Step 4
In the resulting pop-up window, click Yes to acknowledge that you are about to execute a server control action.
Step 5
When the Cisco logo appears, either press the F6 key or choose Macros > User Defined Macros > F6 from the KVM
menu.
The boot device selection menu appears.
Step 6
Select your USB drive and then press Enter.
Step 7
In the GNU GRUB bootloader window, choose Cisco DNA Center Installer and then press Enter.
Note
The bootloader automatically boots the Cisco DNA Center Installer instead if you do not make a selection
within 30 seconds.
After installation of the Cisco DNA Center ISO image is completed, the installer reboots and opens the Maglev
Configuration wizard's welcome screen. Depending on whether you are going to configure a primary or secondary cluster
node, proceed to Step 4 in either Configure the Primary Node Using the Maglev Wizard, on page 74 or Configure a
Secondary Node Using the Maglev Wizard, on page 95.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
71
Prepare the Appliance for Configuration
Cisco DNA Center Appliance Configuration
Cisco DNA Center Appliance Configuration
When installation of the Cisco DNA Center ISO image completes, the installer reboots and opens the Maglev
Configuration wizard's welcome screen. To complete the reimaging of your appliance, complete the steps
described in Configure the Appliance Using the Maglev Wizard, on page 73.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
72
CHAPTER
5
Configure the Appliance Using the Maglev
Wizard
• Appliance Configuration Overview, on page 73
• Maglev Wizard Interface Configuration Order , on page 73
• Configure the Primary Node Using the Maglev Wizard, on page 74
• Configure a Secondary Node Using the Maglev Wizard, on page 95
• Upgrade to the Latest Cisco DNA Center Release, on page 115
Appliance Configuration Overview
You can deploy the appliance in your network in one of the following two modes:
• Standalone: As a single node offering all the functions. This option is usually preferred for initial or test
deployments and in smaller network environments. If you choose Standalone mode for your initial
deployment, you can add more appliances later to form a cluster. When configuring the standalone host,
ensure that it is set it up as the first, or primary, node in the cluster.
• Cluster: As a node that belongs to a three-node cluster. In this mode, all the services and data are shared
among the hosts. This is the preferred option for large deployments. If you choose Cluster mode for your
initial deployment, be sure to finish configuring the primary node before configuring the secondary
nodes.
To proceed, complete the following tasks:
1. Configure the primary node in your cluster. See Configure the Primary Node Using the Maglev Wizard,
on page 74.
2. If you have installed three appliances and want to add the second and third nodes to your cluster, see
Configure a Secondary Node Using the Maglev Wizard, on page 95.
Maglev Wizard Interface Configuration Order
The order in which Cisco DNA Center appliance interfaces are configured in the Maglev Configuration wizard
differ between the first and second-generation appliance, as illustrated in the following table. Refer to these
Cisco part numbers to determine whether you have a first or second-generation appliance:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
73
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
• First-generation 44-core appliance: DN1-HW-APL
• Second-generation:
• 44-core appliance: DN2-HW-APL
• 44-core promotional appliance: DN2-HW-APL-U
• 56-core appliance: DN2-HW-APL-L
• 56-core promotional appliance: DN2-HW-APL-L-U
• 112-core appliance: DN2-HW-APL-XL
• 112-core promotional appliance: DN2-HW-APL-XL-U
Cisco DNA Center Appliance
Interface and Function
Appliance Type
Configuration Order in the Maglev
Wizard
Enterprise: Links the appliance to First-generation
your enterprise network.
Second-generation
Network Adapter #4
Intracluster: Links the appliance First-generation
to your cluster nodes.
Second-generation
Network Adapter #1
Management: Allows you to
First-generation
access the Cisco DNA Center GUI
from your management network. Second-generation
Network Adapter #2
Internet: Provides internet access First-generation
when another interface is not
Second-generation
available for this purpose.
Network Adapter #3
Network Adapter #1
Network Adapter #2
Network Adapter #3
Network Adapter #4
Configure the Primary Node Using the Maglev Wizard
Perform the steps in this procedure to configure the first installed appliance as the primary node. You must
always configure the first appliance as the primary node, whether it will operate standalone or as part of a
cluster.
If you are configuring the installed appliance as a secondary node for an existing cluster that already has a
primary node, follow the steps described in Configure a Secondary Node Using the Maglev Wizard, on page
95 instead.
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
74
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
Before you begin
Ensure that you:
• Collected all of the information specified in Required IP Addresses and Subnets and Required
Configuration Information.
• Installed the first appliance, as described in Appliance Installation Workflow.
• Configured Cisco IMC browser access on the primary node, as described in Enable Browser Access to
Cisco Integrated Management Controller.
• Checked that the primary node appliance's ports, and the switches they use, are properly configured, as
described in Execute Preconfiguration Checks.
• Confirmed that you are using a compatible browser. For a list of compatible browsers, see the Release
Notes document for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The Maglev Configuration wizard uses ping to verify the
gateway and DNS server you specify. This ping might get blocked if a firewall is in place and ICMP is
not enabled on that firewall. When this happens, you will not be able to complete the wizard.
Step 1
Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed, and
log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a hyperlinked menu at the top of the window, as shown below.
Step 2
From the hyperlinked menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select Java-based KVM, you will need to launch the Java startup file from your browser or file manager in
order to view the KVM console in its own window. If you select HMTL-based KVM, it launches the KVM console
in a separate window or tab automatically.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
75
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to the Maglev Configuration wizard prompts.
Step 3
With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle, and switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If you are asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Step 4
Click Start a Cisco DNA Center Cluster to begin configuring the primary node.
The screen updates.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
76
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Step 5
Choose one of the following options:
• Start using DNAC pre manufactured cluster: Choose this option to configure an appliance with its default
settings in place:
• Intracluster interface IP address: 169.254.6.66
• Intracluster interface subnet mask: 255.255.255.128
• Container subnet: 169.254.32.0/20
• Cluster subnet: 169.254.48.0/20
• IPv4 addressing
• Admin superuser's password: maglev1@3
You will not be able to change any of these settings, so choose this option only if you want to use them.
• Start configuration of DNAC in advanced mode: Choose this option to configure an appliance that doesn't use
one or more of the default settings listed in the previous bullet. Also choose this option if you want to use IPv6
addressing on your appliance.
The screen updates.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
77
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Step 6
Do the following, then click next>> to proceed:
a) Specify whether the applications and services running on your Cisco DNA Center appliance will use IPv4 or IPv6
addressing.
b) (Optional) Check the Enable FIPS Mode check box to enable FIPS mode on your Cisco DNA Center appliance.
Note the following points:
• Beginning with release 2.3.3, Cisco DNA Center supports the Federal Information Processing Standard (FIPS),
a government certification standard that specifies best practices for implementing cryptographic algorithms,
handling key material and data buffers, and working with the operating system. When FIPS mode is enabled,
you cannot import images from a URL. You can only import images from either your computer or cisco.com.
Also, you will need to enter a password that's at least 8 characters long for the default admin superuser in the
USER ACCOUNT SETTINGS screen.
• This Maglev Configuration wizard screen is the only place you can enable FIPS mode.
• If you selected the Start using DNAC pre manufactured cluster option in the previous step, you will not
see this wizard screen. As a result, you will not be able to enable FIPS mode.
• Cisco DNA Center does not support SNMPv2c device credentials when FIPS mode is enabled. You must
specify SNMPv3 credentials instead.
• You cannot enable FIPS mode on an appliance that has been upgraded from a previous Cisco DNA Center
version. You can only enable it on an appliance that came with version 2.3.3 already installed.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
78
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
• After FIPS mode has been enabled on an appliance, the only way you can disable it is to reimage your appliance
(to erase all existing data). You can then reconfigure the appliance with FIPS mode disabled. See Reimage
the Appliance, on page 67 for more information.
• When FIPS mode is enabled, you can only enable KeyWrap if Cisco DNA Center and Cisco ISE haven't
already been integrated. See Configure Authentication and Policy Servers, on page 239 for more information.
• After configuring your appliance, you can do the following to confirm whether FIPS mode is enabled:
1. Open an SSH console to the appliance and run the ssh -p 2222 maglev@appliance's-IP-address command.
2. Enter the default admin superuser's password to log in to the appliance.
3. Run the magctl fips status command.
Step 7
(Optional) Do the following to enable Layer 2 portchannel mode (with VLAN tagging) for the appliance. This will
create a single bonded interface that connects to your network using both the primary and secondary instance of your
appliance's Enterprise (interface? port?). After making your selections, click next>> to proceed.
a) Choose the VLAN mode option to enable dot1q/VLAN trunking and convert your appliance's Enterprise, Cluster,
Management, and Internet interfaces into VLAN subinterfaces that reside on the bonded interface (as illustrated in
the following figure). By default, this interface operates in Active-Backup mode (which enables HA).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
79
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
b) If you want this interface to operate in LACP mode instead (which enables load balancing and higher bandwidth),
you must also choose the LACP option.
c) When you enter the settings for your appliance's Enterprise interface, ensure that you enter a unique VLAN ID for
the bonded interface in the VLAN ID of Interface field.
Important
• The bonded interface feature is not commonly used. Only enable it if it's required by your Cisco DNA
Center deployment. If you just want to enable NIC bonding, you can do so in the next two wizard screens.
• This feature assumes that one of the following deployment types are used:
• A deployment where an appliance's Enterprise and Cluster interfaces are configured.
• A deployment where an appliance's Enterprise, Cluster, and Management interfaces are configured.
The wizard discovers all of the ports on the appliance and presents them to you one by one, in separate screens, in the
following order:
a. (Required) 10-Gbps Enterprise Port—Network Adapter #1
b. (Required) 10-Gbps Cluster Port—Network Adapter #2
c. (Optional) 1-Gbps/10-Gbps Management Port—Network Adapter #3
d. (Optional) 1-Gbps/10-Gbps Internet Port—Network Adapter #4
If the wizard fails to display either or both of the Enterprise and Cluster ports during the course of configuration, it
might indicate that these ports are nonfunctional or disabled. These two ports are required for Cisco DNA Center
functionality. If you discover that they are nonfunctional, choose cancel to exit the configuration wizard immediately.
Be sure that you have completed all of the steps provided in Execute Preconfiguration Checks before resuming the
configuration or contacting the Cisco Technical Assistance Center (for more information, see the "Get Assistance from
the Cisco TAC" topic in the Release Notes document).
Step 8
The wizard first presents the 10-Gbps Enterprise port as NETWORK ADAPTER #1. As explained in Interface Cable
Connections, this is a required port used to link the appliance to the enterprise network. Apply the host IP address,
netmask, and other values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required
Configuration Information for the values to enter).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
80
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the configuration values for NETWORK ADAPTER #1, as shown in the table below.
Table 19: Primary Node Entries for Network Adapter #1: 10-Gbps Enterprise Port
Host IPv4/IPv6 Address field
Enter the IP address for the Enterprise port. This is required.
IPv4 Netmask/IPv6 Prefix Length Do one of the following:
field
• If you selected IPv4 addressing, enter the netmask for the port's IP address.
This is required.
• If you selected IPv6 addressing, enter the prefix length (in bits). Valid values
range from 10 through 127.
Default Gateway IPv4/IPv6
Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you are entering multiple DNS
servers, separate the IP addresses in the list with spaces.
Important For each appliance in your cluster, configure a maximum of three DNS
servers. Problems can occur if you configure more than three DNS
servers for an appliance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
81
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format, separated by spaces:
<network>/<netmask>/<gateway>. This is usually required on the Cisco DNA
Center Management port only.
Vlan ID of Interface field
Enter the VLAN ID for the bonded interface you enabled in the previous step. If
you didn't enable it, this field will not be displayed.
Cluster Link field
Leave this field blank. It is required on the Cluster port only.
LACP Mode field
Do one of the following:
• Leave this field blank and the port will operate in Active-Backup mode. This
mode provides fault tolerance by aggregating two Ethernet interfaces into a
single logical channel. When the interface that's currently active goes down,
the other interface takes its place and becomes active.
• Check the check box to enable LACP mode on this port. This mode aggregates
two Ethernet interfaces that share the same speed and duplex settings into a
single logical channel. This provides load balancing and higher bandwidth.
For more information about Cisco DNA Center's implementation of NIC bonding,
see NIC Bonding Overview, on page 60.
Note
This field is displayed if you didn't choose any of the options in the
previous step.
After you finish entering the configuration values, click next>> to proceed. The wizard validates the values you entered
and issues an error message if any are incorrect. If you receive an error message, check that the value you entered is
correct, then reenter it. If needed, click <<back to reenter it.
Step 9
After successful validation of the Enterprise port values you entered, the wizard presents the 10-Gbps Cluster port and
presents it as NETWORK ADAPTER #2. As explained in Interface Cable Connections, this port is used to link the
appliance to the cluster, so apply the host IP address, netmask, and other values that are appropriate for this purpose
(see Required IP Addresses and Subnets and Required Configuration Information for the values to enter).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
82
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the configuration values for NETWORK ADAPTER #2, as shown in the table below.
Table 20: Primary Node Entries for Network Adapter #2: 10-Gbps Cluster Port
Host IPv4/IPv6 address field
Enter the IP address for the Cluster port. This is required. Note that you cannot
change the address of the Cluster port later.
If you selected the Start using DNAC pre manufactured cluster
option previously, 169.254.6.66 will already be set in this field and you
will not be able to enter a different address.
Note
IPv4 Netmask/IPv6 Prefix Length Do one of the following:
field
• If you selected IPv4 addressing, enter the netmask for the port's IP address.
This is required.
Note
If you selected the Start using DNAC pre manufactured cluster
option previously, 255.255.255.128 will already be set in this field
and you will not be able to enter a different netmask.
• If you selected IPv6 addressing, enter the prefix length (in bits). Valid values
range from 10 through 127.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
83
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Default Gateway IPv4/IPv6
address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you are entering multiple DNS
servers, separate the IP addresses in the list with spaces.
Important For each appliance in your cluster, configure a maximum of three DNS
servers. Problems can occur if you configure more than three DNS
servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format, separated by spaces:
<network>/<netmask>/<gateway>. This is usually required on the Management
port only.
Cluster Link field
Check the check box to set this port as the link to a Cisco DNA Center cluster.
This is required on the Cluster port only.
LACP Mode field
Do one of the following:
• Leave this field blank and the port will operate in Active-Backup mode. This
mode provides fault tolerance by aggregating two Ethernet interfaces into a
single logical channel. When the interface that's currently active goes down,
the other interface takes its place and becomes active.
• Check the check box to enable LACP mode on this port. This mode aggregates
two Ethernet interfaces that share the same speed and duplex settings into a
single logical channel. This provides load balancing and higher bandwidth.
For more information about Cisco DNA Center's implementation of NIC bonding,
see NIC Bonding Overview, on page 60.
Note
This field is displayed if you didn't choose any of the options in Step
7.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 10
After successful validation of the Cluster port values you entered, the wizard presents the 1-Gbps/10-Gbps Management
port and presents it as NETWORK ADAPTER #3. As explained in Interface Cable Connections, this port is used to
access the Cisco DNA Center GUI from your management network. Apply the host IP address, netmask, and other
values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required Configuration
Information for the values to enter).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
84
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the configuration values for NETWORK ADAPTER #3, as shown in the table below.
Table 21: Primary Node Entries for Network Adapter #3: 1-Gbps/10-Gbps Management Port
Host IPv4/IPv6 address field
Enter the IP address for the Management Port. This is required only if you are
using this port to access the Cisco DNA Center GUI from your management
network; otherwise, you can leave it blank.
IPv4 Netmask/IPv6 Prefix Length Do one of the following if you entered an IP address:
field
• If you selected IPv4 addressing, enter the netmask for the port's IP address.
This is required.
• If you selected IPv6 addressing, enter the prefix length (in bits). Valid values
range from 10 through 127.
Default Gateway IPv4/IPv6
address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
85
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you are entering multiple DNS
servers, separate the IP addresses in the list with spaces.
Important
• For NTP, ensure port 123 (UDP) is open between Cisco DNA
Center and your NTP server.
• For each appliance in your cluster, configure a maximum of three
DNS servers. Problems can occur if you configure more than three
DNS servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format, separated by spaces:
<network>/<netmask>/<gateway>.
Cluster Link field
Leave this field blank. It is required on the Cluster port only.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 11
After successful validation of the Management port values you entered, the wizard presents the 1-Gbps/10-Gbps Internet
port as NETWORK ADAPTER #4. As explained in Interface Cable Connections, this is an optional port used to link
the appliance to the Internet when you cannot do so through the 10-Gbps Enterprise port. Apply the host IP address,
netmask, and other values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required
Configuration Information for the values to enter).
Enter the configuration values for NETWORK ADAPTER #4, as shown in the table below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
86
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Table 22: Primary Node Entries for Network Adapter #4: 1-Gbps/10-Gbps Internet Port
Host IPv4/IPv6 address field
Enter the IP address for the Internet port. This is required only if you are using
the Internet port for internet connection; otherwise, you can leave it blank.
IPv4 Netmask/IPv6 Prefix Length Do one of the following if you entered an IP address:
field
• If you selected IPv4 addressing, enter the netmask for the port's IP address.
This is required.
• If you selected IPv6 addressing, enter the prefix length (in bits). Valid values
range from 10 through 127.
Default Gateway IPv4/IPv6
address field
Enter a default gateway IP address to use for the Internet port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you are entering multiple DNS
servers, separate the IP addresses in the list with spaces.
Important For each appliance in your cluster, configure a maximum of three DNS
servers. Problems can occur if you configure more than three DNS
servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format, separated by spaces:
<network>/<netmask>/<gateway>. This is usually required on the Management
port only.
Cluster Link field
Leave this field blank. It is required on the Cluster port only.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 12
After the network adapter configuration is complete, the wizard prompts you to enter configuration values for the
NETWORK PROXY that you are using, as shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
87
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the configuration values for the NETWORK PROXY, as shown in the table below.
Table 23: Primary Node Entries for Network Proxy
HTTPS Proxy field
Enter the URL or host name of an HTTPS network proxy used to access the
Internet.
Note
• Connection from Cisco DNA Center to the HTTPS proxy is
supported only through HTTP in this release.
• If you enter an IPv6 URL that contains a port number, enclose the
IP address portion of the URL in square brackets. In this example,
443 is the port number:
http://[2001:db8:85a3:8d3:1319:8a2e:370:7348]:443/
HTTPS Proxy Username field
Enter the user name used to access the network proxy. If no proxy login is required,
leave this field blank.
HTTPS Proxy Password field
Enter the password used to access the network proxy. If no proxy login is required,
leave this field blank.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
88
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Step 13
After network proxy configuration completes, the wizard prompts you to enter virtual IP addresses for the primary
node, in MAGLEV CLUSTER DETAILS (as shown below).
Enter a space-separated list of the virtual IP addresses used for traffic between the cluster and your network. This is
required for both three-node clusters and single-node clusters that will be converted into a three-node cluster in the
future. If you have a single-node cluster setup and plan to stick with it, skip this step and proceed to the next step.
Important You must enter one virtual IP address for each configured network interface. You will not be able to complete
the wizard unless you do so. These addresses are tied to the cluster link's status, which must be in the UP
state.
You also have the option to specify the fully qualified domain name (FQDN) for your cluster. Cisco DNA Center uses
this domain name to do the following:
• It uses this hostname to access your cluster’s web interface and the Representational State Transfer (REST) APIs
used by devices in the enterprise network that Cisco DNA Center manages.
• In the Subject Alternative Name (SAN) field of Cisco DNA Center certificates, it uses the FQDN to the define
the Plug and Play server that should be used for device provisioning.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Step 14
After you have entered the cluster details, the wizard prompts you to enter USER ACCOUNT SETTINGS values, as
shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
89
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the values for USER ACCOUNT SETTINGS, as shown in the table below.
Table 24: Primary Node Entries for User Account Settings
Linux Password field
Enter a Linux password for the maglev user that's a minimum of 8 characters long.
Re-enter Linux Password field
Confirm the Linux password by entering it a second time.
Password Generation Seed field
If you do not want to create the Linux password yourself, enter a seed phrase in
this field and then press <Generate Password> to generate the password.
Auto Generated Password field
(Optional) The seed phrase appears as part of a random and secure password. If
desired, you can either use this password "as is", or you can further edit this
auto-generated password.
Press <Use Generated Password> to save the password.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
90
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Administrator Password field
Enter a password for the default admin superuser, used to log in to Cisco DNA
Center for the first time.
Note the following points:
• If you enabled FIPS mode earlier in the wizard, ensure that this password is
at least 8 characters long.
• If you chose the Start using DNAC pre manufactured cluster option in
Step 5, the default password (maglev1@3) has already been set for the
appliance and cannot be changed in the configuration wizard. As a result,
this and the following field are not displayed in this screen.
Re-enter Administrator Password Confirm the administrator password by entering it a second time.
field
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Step 15
After you have entered the user account details, the wizard prompts you to enter NTP SERVER SETTINGS values.
Enter the values for NTP SERVER SETTINGS, as shown in the table below.
NTP Servers field
Enter one or more NTP server addresses or hostnames,
separated by spaces. At least one NTP address or hostname
is required. For a production deployment, we recommend
that you configure a minimum of three NTP servers.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
91
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this check
box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your NTP server configuration.
Step 16
After you have specified the appropriate NTP servers, the wizard prompts you to enter MAGLEV ADVANCED
SETTINGS values, as shown below.
Note
If you chose the Start using DNAC pre manufactured cluster option in Step 5, the default Container and
Cluster subnets have already been set for the appliance and cannot be changed in the configuration wizard.
As a result, you will not see the following wizard screen. Proceed to Step 17.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
92
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Enter the configuration values for MAGLEV ADVANCED SETTINGS, as shown in the table below.
Table 25: Primary Node Entries for Maglev Advanced Settings
Container Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center uses to manage internal
services. By default, this is already set to 169.254.32.0/20, and we recommend
that you use this subnet. If you choose to enter another subnet, ensure that it does
not conflict with or overlap any other subnet used by the Cisco DNA Center internal
network or an external network. For more information, see the Container Subnet
description in Required IP Addresses and Subnets, on page 25.
Cluster Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center uses to manage internal
cluster services. By default, this is already set to 169.254.48.0/20, and we
recommend that you use this subnet. If you choose to enter another subnet, ensure
that it does not conflict with or overlap any other subnet used by the Cisco DNA
Center internal network or an external network. For more information, see the
Cluster Subnet description in Required IP Addresses and Subnets, on page 25.
Enable Intracluster IPSec check
box
Check to enable IPsec connections between the nodes in a 3-node high availability
(HA) cluster.
When you are finished, click next>> to proceed. Correct validation errors, if any, as you did in previous screens.
Step 17
After you have entered the Maglev advanced settings, a final message appears, stating that the wizard is ready to apply
the configuration (as shown below).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
93
Configure the Appliance Using the Maglev Wizard
Configure the Primary Node Using the Maglev Wizard
Click proceed>> to complete the configuration wizard.
The host will reboot automatically and display messages on the KVM console as it applies your settings and brings up
services. This process can take several hours. You can monitor its progress via the KVM console.
At the end of the configuration process, the appliance power-cycles again, then displays a CONFIGURATION
SUCCEEDED! message.
What to do next
• If you are deploying this appliance in standalone mode only, perform the first-time setup: First-Time
Setup Workflow.
• If you are deploying this appliance as the primary node in a cluster, configure the second and third
installed appliances in the cluster: Configure a Secondary Node Using the Maglev Wizard, on page 95.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
94
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Perform the steps in this procedure to configure the second and third appliances in the cluster.
Important
In order to build a three-node cluster, the same version of the System package must be installed on your three
Cisco DNA Center appliances. Otherwise, unexpected behavior and possible downtime can occur.
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
When joining each new secondary node to the cluster, you must specify the first host in the cluster as the
primary node. Note the following when joining secondary nodes to a cluster:
• Be sure to join only a single node to the cluster at a time. Do not attempt to add multiple nodes at the
same time, because this results in unpredictable behavior.
• Before adding a new node to the cluster, be sure that all installed packages are deployed on the primary
node. You can check this by using Secure Shell to log in to the primary node's Cisco DNA Center
Management port as the Linux User (maglev) and then running the command maglev package status.
All installed packages should appear in the command output as DEPLOYED. In the following example, a
few packages were not installed, such as the application-policy and sd-access packages. They are the
only packages whose status is NOT_DEPLOYED. Your package status should look similar to this before
configuring a secondary node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
95
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
• Expect some service downtime during the cluster attachment process for each secondary node. Services
will need to be redistributed across the nodes and the cluster will be down for periods of time during that
process.
Before you begin
Ensure that you:
• Configured the first appliance in the cluster, following the steps in Configure the Primary Node Using
the Maglev Wizard, on page 74.
• Collected all of the information specified in Required IP Addresses and Subnets and Required
Configuration Information.
• Installed the second and third appliances, as described in Appliance Installation Workflow.
• Have done the following:
1. Ran the maglev package status command on the first appliance.
You can also access this information from the Cisco DNA Center GUI by clicking the Help icon
( ) and choosing About > Packages.
2. Contacted the Cisco TAC, gave them the output of this command, and asked them to point you to
the ISO that you should install on your second and third appliances.
• Configured Cisco IMC browser access on both secondary appliances, as described in Enable Browser
Access to Cisco Integrated Management Controller.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
96
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
• Checked that both the secondary appliances' ports and the switches they use are properly configured (as
described in Execute Preconfiguration Checks).
• Confirmed that you are using a compatible browser. For a list of compatible browsers, see the Release
Notes document for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The Maglev Configuration wizard uses ping to verify the
gateway and DNS server you specify. This ping might get blocked if a firewall is in place and ICMP is
not enabled on that firewall. When this happens, you will not be able to complete the wizard.
Step 1
Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed, and
log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a hyperlinked menu at the top of the window, as shown below.
Step 2
From the hyperlinked menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select Java-based KVM, you will need to launch the Java startup file from your browser or file manager in
order to view the KVM console in its own window. If you select HMTL-based KVM, it launches the KVM console
in a separate window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to the Maglev Configuration wizard prompts.
Step 3
With the KVM displayed, reboot the appliance by choosing one of the following options:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle, and switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If you are asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
97
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Step 4
Click Join a Cisco DNA Center Cluster to begin configuring the secondary node.
The screen updates.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
98
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Step 5
Do the following, then click next>> to proceed:
a) Specify whether the applications and services running on your Cisco DNA Center appliance will use IPv4 or IPv6
addressing.
b) (Optional) Check the Enable FIPS Mode check box to enable FIPS mode on your Cisco DNA Center appliance.
Note the following points:
• Beginning with release 2.3.3, Cisco DNA Center supports the Federal Information Processing Standard (FIPS),
a government certification standard that specifies best practices for implementing cryptographic algorithms,
handling key material and data buffers, and working with the operating system. When FIPS mode is enabled,
you cannot import images from a URL. You can only import images from either your computer or cisco.com.
Also, you will need to enter a password that's at least 8 characters long for the default admin superuser in the
USER ACCOUNT SETTINGS screen.
• This Maglev Configuration wizard screen is the only place you can enable FIPS mode.
• If you selected the Start using DNAC pre manufactured cluster option in the previous step, you will not
see this wizard screen. As a result, you will not be able to enable FIPS mode.
• Cisco DNA Center does not support SNMPv2c device credentials when FIPS mode is enabled. You must
specify SNMPv3 credentials instead.
• You cannot enable FIPS mode on an appliance that has been upgraded from a previous Cisco DNA Center
version. You can only enable it on an appliance that came with version 2.3.3 already installed.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
99
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
• After FIPS mode has been enabled on an appliance, the only way you can disable it is to reimage your appliance
(to erase all existing data). You can then reconfigure the appliance with FIPS mode disabled. See Reimage
the Appliance, on page 67 for more information.
• After configuring your appliance, you can do the following to confirm whether FIPS mode is enabled:
1. Open an SSH console to the appliance and run the ssh -p 2222 maglev@appliance's-IP-address command.
2. Enter the default admin superuser's password to log in to the appliance.
3. Run the magctl fips status command.
Step 6
(Optional) To set Layer 2 LACP portchannel mode (with VLAN tagging) for the appliance, choose both the VLAN
mode and LACP options. After making your selection, click next>> to proceed.
Important The VLAN mode option enables dot1q/VLAN trunking, while the LACP option enables the NIC bonding
mode that provides load balancing and higher bandwidth for your appliance's Enterprise and Intracluster
interfaces. This pairing of options is not commonly used, so only choose both if they're required by your
Cisco DNA Center deployment. If you only want to enable NIC bonding, you can do so in the next two
wizards screens.
The wizard discovers all of the ports on the appliance and presents them to you one by one, in separate screens, in the
following order:
a. (Required) 10-Gbps Enterprise Port—Network Adapter #1
b. (Required) 10-Gbps Cluster Port—Network Adapter #2
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
100
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
c. (Optional) 1-Gbps/10-Gbps Management Port—Network Adapter #3
d. (Optional) 1-Gbps/10-Gbps Internet Port—Network Adapter #4
If the wizard fails to display either or both of the Enterprise and Cluster ports during the course of configuration, it
might indicate that these ports are nonfunctional or disabled. These two ports are required for Cisco DNA Center
functionality. If you discover that they are nonfunctional, choose cancel to exit the configuration wizard immediately.
Be sure that you have completed all of the steps provided in Execute Preconfiguration Checks before resuming the
configuration or contacting the Cisco Technical Assistance Center (for more information, see the "Get Assistance from
the Cisco TAC" topic in the Release Notes document).
Step 7
The wizard first presents the 10-Gbps Enterprise port as NETWORK ADAPTER #1. As explained in Interface Cable
Connections, this is a required port used to link the appliance to the enterprise network. Apply the host IP address,
netmask, and other values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required
Configuration Information for the values to enter).
Enter the configuration values for NETWORK ADAPTER #1, as shown in the table below.
Table 26: Secondary Node Entries for Network Adapter #1: 10-Gbps Enterprise Port
Host IPv4/IPv6 Address field
Enter the IP address for the Enterprise port. This is
required.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
101
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
IPv4 Netmask/IPv6 Prefix Length field
Do one of the following if you entered an IP address:
• If you selected IPv4 addressing, enter the netmask
for the port's IP address. This is required.
• If you selected IPv6 addressing, enter the prefix length
(in bits). Valid values range from 10 through 127.
Default Gateway IPv4/IPv6 address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you
are entering multiple DNS servers, separate the IP
addresses in the list with spaces.
Important For each appliance in your cluster, configure a
maximum of three DNS servers. Problems can
occur if you configure more than three DNS
servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format,
separated by spaces: <network>/<netmask>/<gateway>.
This is usually required on the Cisco DNA Center
Management port only.
Vlan Id of Interface field
Enter the VLAN ID that will be tagged over the LACP
link to be created for the appliance you are configuring.
Note
Cluster Link field
This field is displayed only if you set Layer 2
LACP portchannel mode for the appliance by
choosing both options in the previous step.
Leave this field blank. It is required on the Cluster port
only.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
102
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
LACP Mode field
Do one of the following:
• Leave this field blank and the port will operate in
Active-Backup mode. This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• Check the check box to enable LACP mode on this
port. This mode aggregates two Ethernet interfaces
that share the same speed and duplex settings into a
single logical channel. This provides load balancing
and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Note
This field is displayed if you didn't choose any
of the options in the previous step.
After you finish entering the configuration values, click next>> to proceed. The wizard validates the values you entered
and issues an error message if any are incorrect. If you receive an error message, check that the value you entered is
correct, then reenter it. If needed, click <<back to reenter it.
Step 8
After successful validation of the Enterprise port values you entered, the wizard presents the 10-Gbps Cluster port and
presents it as NETWORK ADAPTER #2. As explained in Interface Cable Connections, this port is used to link the
appliance to the cluster, so apply the host IP address, netmask, and other values that are appropriate for this purpose
(see Required IP Addresses and Subnets and Required Configuration Information for the values to enter).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
103
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Enter the configuration values for NETWORK ADAPTER #2, as shown in the table below.
Table 27: Secondary Node Entries for Network Adapter #2: 10-Gbps Cluster Port
Host IPv4/IPv6 address field
Enter the IP address for the Cluster port. This is required.
Note that you cannot change the address of the Cluster
port later.
IPv4 Netmask/IPv6 Prefix Length field
Do one of the following if you entered an IP address:
• If you selected IPv4 addressing, enter the netmask
for the port's IP address. This is required.
• If you selected IPv6 addressing, enter the prefix length
(in bits). Valid values range from 10 through 127.
Default Gateway IPv4/IPv6 address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
104
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you
are entering multiple DNS servers, separate the IP
addresses in the list with spaces.
Important For each appliance in your cluster, configure a
maximum of three DNS servers. Problems can
occur if you configure more than three DNS
servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format,
separated by spaces: <network>/<netmask>/<gateway>.
This is usually required on the Management port only.
Vlan Id of Interface field
Enter the VLAN ID that will be tagged over the LACP
link to be created for the appliance you are configuring.
Note
This field is displayed only if you set Layer 2
LACP portchannel mode for the appliance by
choosing both options in Step 6.
Cluster Link field
Check the check box to set this port as the link to a Cisco
DNA Center cluster. This is required on the Cluster port
only.
LACP Mode field
Do one of the following:
• Leave this field blank and the port will operate in
Active-Backup mode. This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• Check the check box to enable LACP mode on this
port. This mode aggregates two Ethernet interfaces
that share the same speed and duplex settings into a
single logical channel. This provides load balancing
and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Note
This field is displayed if you didn't choose any
of the options in Step 6.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 9
After successful validation of the Cluster port values you entered, the wizard presents the 1-Gbps/10-Gbps Management
port and presents it as NETWORK ADAPTER #3. As explained in Interface Cable Connections, this port is used to
access the Cisco DNA Center GUI from your management network. Apply the host IP address, netmask, and other
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
105
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required Configuration
Information for the values to enter).
Enter the configuration values for NETWORK ADAPTER #3, as shown in the table below.
Table 28: Secondary Node Entries for Network Adapter #3: 1-Gbps/10-Gbps Management Port
Host IPv4/IPv6 address field
Enter the IP address for the Management Port. This is
required only if you are using this port to access the Cisco
DNA Center GUI from your management network;
otherwise, you can leave it blank.
IPv4 Netmask/IPv6 Prefix Length field
Do one of the following:
• If you selected IPv4 addressing, enter the netmask
for the port's IP address. This is required.
• If you selected IPv6 addressing, enter the prefix length
(in bits). Valid values range from 10 through 127.
Default Gateway IPv4/IPv6 address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
106
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you
are entering multiple DNS servers, separate the IP
addresses in the list with spaces.
Important
• For NTP, ensure port 123 (UDP) is open
between Cisco DNA Center and your NTP
server.
• For each appliance in your cluster,
configure a maximum of three DNS
servers. Problems can occur if you
configure more than three DNS servers for
an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format,
separated by spaces: <network>/<netmask>/<gateway>.
Cluster Link field
Leave this field blank. It is required on the Cluster port
only.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 10
After successful validation of the Management port values you entered, the wizard presents the 1-Gbps/10-Gbps Internet
port as NETWORK ADAPTER #4. As explained in Interface Cable Connections, this is an optional port used to link
the appliance to the Internet when you cannot do so through the 10-Gbps Enterprise port. Apply the host IP address,
netmask, and other values that are appropriate for this purpose (see Required IP Addresses and Subnets and Required
Configuration Information for the values to enter).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
107
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Enter the configuration values for NETWORK ADAPTER #4, as shown in the table below.
Table 29: Secondary Node Entries for Network Adapter #4: 1-Gbps/10-Gbps Internet Port
Host IPv4/IPv6 address field
Enter the IP address for the Internet port. This is required
only if you are using the Internet port for internet
connection; otherwise, you can leave it blank.
IPv4 Netmask/IPv6 Prefix Length field
Do one of the following:
• If you selected IPv4 addressing, enter the netmask
for the port's IP address. This is required.
• If you selected IPv6 addressing, enter the prefix length
(in bits). Valid values range from 10 through 127.
Default Gateway IPv4/IPv6 address field
Enter a default gateway IP address to use for the Internet
port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
108
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
IPv4/IPv6 DNS Servers field
Enter the IP address of the preferred DNS server. If you
are entering multiple DNS servers, separate the IP
addresses in the list with spaces.
Important For each appliance in your cluster, configure a
maximum of three DNS servers. Problems can
occur if you configure more than three DNS
servers for an appliance.
IPv4/IPv6 Static Routes field
Enter one or more static routes in the following format,
separated by spaces: <network>/<netmask>/<gateway>.
This is usually required on the Management port only.
Cluster Link field
Leave this field blank. It is required on the Cluster port
only.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your network adapter configurations.
Step 11
After the network adapter configuration is complete, the wizard prompts you to enter configuration values for the
NETWORK PROXY that you are using, as shown below.
Enter the configuration values for the NETWORK PROXY, as shown in the table below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
109
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Table 30: Secondary Node Entries for Network Proxy
HTTPS Proxy field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
• Connection from Cisco DNA Center to the
HTTPS proxy is supported only through HTTP
in this release.
• If you enter an IPv6 URL that contains a port
number, enclose the IP address portion of the
URL in square brackets. In this example, 443 is
the port number:
http://[2001:db8:85a3:8d3:1319:8a2e:370:7348]:443/
HTTPS Proxy Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
HTTPS Proxy Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Step 12
After network proxy configuration completes, the wizard prompts you to identify the Cluster port on the primary node
and primary node login details, in MAGLEV CLUSTER DETAILS (as shown below).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
110
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Enter the values for MAGLEV CLUSTER DETAILS, as shown in the table below.
Table 31: Secondary Node Entries for Maglev Cluster Details
Maglev Primary Node field
Enter the IP address of the Cluster port on the primary
node in the cluster. If you have followed the
recommendations for port assignment, this will be the IP
address of Network Adapter #2 on the primary node.
Username field
Enter maglev.
Password field
Enter the Linux password you configured on the primary
node.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Step 13
After you have entered the cluster details, the wizard prompts you to enter USER ACCOUNT SETTINGS values, as
shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
111
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
Enter the values for USER ACCOUNT SETTINGS, as shown in the table below.
Table 32: Secondary Node Entries for User Account Settings
Linux Password field
Enter a Linux password for the maglev user.
Re-enter Linux Password field
Confirm the Linux password by entering it a second time.
Password Generation Seed field
If you do not want to create the Linux password yourself,
enter a seed phrase in this field and then press <Generate
Password> to generate the password.
Auto Generated Password field
(Optional) The seed phrase appears as part of a random
and secure password. If required, you can either use this
password as is, or you can further edit this auto-generated
password.
Click <Use Generated Password> to save the password.
Administrator Password field
Enter a password for the default admin superuser, used to
log in to Cisco DNA Center for the first time.
Re-enter Administrator Password field
Confirm the administrator password by entering it a second
time.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
112
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens.
Step 14
After you have entered the user account details, the wizard prompts you to enter NTP SERVER SETTINGS values.
Enter the values for NTP SERVER SETTINGS, as shown in the table below.
NTP Servers field
Enter one or more NTP server addresses or hostnames,
separated by spaces. At least one NTP address or hostname
is required. For a production deployment, we recommend
that you configure a minimum of three NTP servers.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
113
Configure the Appliance Using the Maglev Wizard
Configure a Secondary Node Using the Maglev Wizard
NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this check
box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
After you provide the necessary information, click next>> to proceed. Correct validation errors, if any, as you did in
previous screens. The wizard validates and applies your NTP server configuration.
Step 15
When you are finished entering the NTP server settings, a final message appears, stating that the wizard is ready to
apply the configuration (as shown below).
Click proceed>> to complete the configuration wizard.
The host will reboot automatically and display messages on the KVM console as it applies your settings and brings up
services. This process can take several hours. You can monitor its progress via the KVM console.
At the end of the configuration process, the appliance power-cycles again, then displays a CONFIGURATION
SUCCEEDED! message.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
114
Configure the Appliance Using the Maglev Wizard
Upgrade to the Latest Cisco DNA Center Release
What to do next
• If you have an additional appliance to deploy as the third and final node in the cluster, repeat this procedure.
• If you have finished adding hosts to the cluster, perform the first-time setup: First-Time Setup Workflow.
Upgrade to the Latest Cisco DNA Center Release
For information about upgrading your current release of Cisco DNA Center, see the Cisco DNA Center
Upgrade Guide.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
115
Configure the Appliance Using the Maglev Wizard
Upgrade to the Latest Cisco DNA Center Release
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
116
CHAPTER
6
Configure the 44/56-Core Appliance Using the
Browser-Based Wizard
• Appliance Configuration Overview, on page 117
• Configure an Appliance Using the Install Configuration Wizard, on page 118
• Configure the Primary Node Using the Advanced Install Configuration Wizard, on page 131
• Configure a Secondary Node Using the Advanced Install Configuration Wizard, on page 149
• Upgrade to the Latest Cisco DNA Center Release, on page 170
Appliance Configuration Overview
You can deploy the 44 or 56-core appliance in your network in one of the following modes:
• Standalone: As a single node offering all the functions. This option is usually preferred for initial or test
deployments and in smaller network environments. If you choose Standalone mode for your initial
deployment, this will be your first, or primary, node. Note that you can add more appliances later to form
a cluster.
• Cluster: As a node that belongs to a three-node cluster. In this mode, all the services and data are shared
among the hosts. This is the preferred option for large deployments. If you choose Cluster mode for your
initial deployment, be sure to finish configuring the primary node before configuring the secondary
nodes.
To proceed, first configure the primary node in your cluster. Then, if you have installed three appliances and
want to add the second and third nodes to your cluster, configure the secondary nodes.
Browser-Based Configuration Wizards
Cisco DNA Center offers two browser-based wizards that you can use to configure your appliance. Read their
descriptions to determine which of these wizards you should complete.
Important
These wizards are available for use if you are configuring a new appliance that came with Cisco DNA Center
2.3.3 already installed. If you upgraded from a previous version and want to use these wizards, contact Cisco
TAC for assistance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
117
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Browser-Based Wizard Prerequisites
Install Configuration Wizard
This wizard streamlines the appliance configuration process by setting default values for the Enterprise,
Management, and Internet Access interfaces (which all reside on the appliance’s Enterprise port) as well as
the Intracluster interface. Use this wizard if you are okay with using the default interface settings and want
to get your appliance up and running as quickly as possible. Note that you cannot use this wizard to do the
following:
• To configure a cluster’s secondary nodes.
• To configure a first-generation 44-core Cisco DNA Center appliance.
Advanced Install Configuration Wizard
This wizard provides access to all of the available appliance settings that you can modify. Use this wizard if
you want to specify interface settings that are different from the default settings. Also use this wizard if you
are configuring the second or third node in your cluster.
Browser-Based Wizard Prerequisites
To use either of the browser-based wizards and ensure that it configures your appliance properly, complete
the following tasks:
• Designate the Enterprise interface on your appliance to use the IP address, subnet mask, and default
gateway that a DHCP server assigns to it. When you configure this interface in the wizard, you will not
be able to change the IP address or subnet mask that have been assigned to it. You will only be able to
change its default gateway. The topics in this chapter assume that the Enterprise interface was chosen
for this purpose.
• Confirm that the IP address assigned by the DHCP server is reachable by the machine from which you
will complete the wizard.
• For the Enterprise and Intracluster interfaces, verify that both interfaces are connected and in the UP
state.
If you want to specify your own IP address, subnet mask, and default gateway for your appliance's Enterprise
interface (and not use the values assigned by a DHCP server), ensure that you complete the Static IP Address
Settings screen.
Configure an Appliance Using the Install Configuration Wizard
Perform this procedure to configure either a three-node cluster's primary node or a standalone node using the
Install configuration wizard. The wizard simplifies the configuration process by setting up the Enterprise,
Management, and Internet interfaces on the same port using default settings. The following second generation
Cisco DNA Center appliances support configuration using this wizard:
• 44-core appliance: Cisco part number DN2-HW-APL
• 44-core promotional appliance: Cisco part number DN2-HW-APL-U
• 56-core appliance: Cisco part number DN2-HW-APL-L
• 56-core promotional appliance: Cisco part number DN2-HW-APL-L-U
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
118
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The first generation 44-core Cisco DNA Center appliance (Cisco part number DN1-HW-APL) cannot be
configured using this wizard.
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Important
You cannot use this wizard to configure the second or third appliance in a three-node cluster. To do so,
complete the steps described in Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 149. Also, you cannot use this wizard to enable LACP mode on your appliance's Enterprise
and Intracluster interfaces.
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure any of the appliances in a three-node cluster, ensure that you have logged out of those
appliances. Otherwise, the Quick Start workflow (which you complete to discover your network's devices
and enable telemetry) will not start after you have configured your cluster's appliances and log in to Cisco
DNA Center for the first time.
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the following
appliances:
• 44-core promotional appliance (Cisco part number DN2-HW-APL-U)
• 56-core promotional appliance: (Cisco part number DN2-HW-APL-L-U)
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
• Installed the appliance as described in Appliance Installation Workflow.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
119
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
• Configured Cisco IMC browser access on this appliance, as described in Enable Browser Access to Cisco
Integrated Management Controller.
• Checked that the appliance's ports and the switches it uses are properly configured, as described in Execute
Preconfiguration Checks.
• Are using a browser that is compatible with Cisco IMC and Cisco DNA Center. For a list of compatible
browsers, see the Release Notes for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and the DNS servers you will specify in the
following procedure. This wizard uses Ping to verify the DNS server you specify. This ping can be
blocked if there is a firewall between Cisco DNA Center and the DNS server and ICMP is not enabled
on that firewall. When this happens, you will not be able to complete the wizard.
Step 1
Start the Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
120
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Note the URL listed in the Web Installation field.
d) Open this URL to bring up the Appliance Configuration screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
121
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
e) Click the Start a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
122
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
f) Click the Install radio button, then click Start.
The Overview slider opens. Click > to view a summary of the tasks that the wizard will help you complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four interfaces that are available
on your Cisco DNA Center appliance:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
123
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The wizard will help you configure the Enterprise and Intracluster ports, which are required for Cisco DNA Center
functionality. If the wizard fails to display either or both of these ports in the next screen, they may be non-functional
or disabled. If you discover that they are non-functional, choose Exit to exit the wizard immediately. Be sure you
have completed all of the steps provided in Execute Preconfiguration Checks before resuming configuration or
contacting the Cisco Technical Assistance Center (TAC).
Step 2
Complete the Install configuration wizard:
a) Click Next.
The Configure The Enterprise Port screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
124
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The configuration wizard sets up the Enterprise, Management, and Internet Access interfaces on the Enterprise port.
The wizard also prepopulates values for almost all of the listed parameters.
If your network resides behind a firewall, do the following:
• Click the allow access to these URLs link to view a popup window that lists the URLs that Cisco DNA Center
must be able to access.
• Click the open these ports link to view a popup window that lists the network service ports that must be available
for Cisco DNA Center to use.
b) In the DNS field, enter the IP address of the preferred DNS server. To enter additional DNS servers, click the Add
(+) icon.
Important You can configure a maximum of three DNS servers. Problems can occur if you configure more than three
DNS servers for an appliance.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
c) Review the interface settings that have been set, then click Configure.
d) After initial interface configuration has completed, click Next to proceed to the next wizard screen.
The Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
125
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
e) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 33: Primary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
Connection from Cisco DNA Center to the
HTTPS proxy is supported only via HTTP in
this release.
Port field
Enter the port your appliance used to access the network
proxy.
Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
126
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Advanced
Appliance Settings screen opens.
f) Enter configuration values for your cluster.
Table 34: Primary Node Entries for Advanced Appliance Settings
Cluster Virtual IP Addresses
To access from Enterprise Network and For Intracluster Enter the virtual IP address that will be used for traffic
between the cluster and both the Enterprise and
Access fields
Intracluster interfaces on your appliance. This is required
for single-node clusters that will be converted into a
three-node cluster in the future. If you have a single-node
cluster setup and don't plan to move to a three-node cluster
setup, you can leave the fields in this section blank.
Important If you choose to configure a virtual IP address,
you must enter one for each configured
network interface. You will not be able to
complete the wizard unless you do so. These
addresses are tied to the cluster link's status,
which must be in the UP state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
127
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Fully Qualified Domain Name (FQDN) field
Enter the fully qualified domain name (FQDN) for your
cluster. Cisco DNA Center does the following with this
hostname:
• It uses this hostname to access your cluster’s web
interface and the Representational State Transfer
(REST) APIs used by devices in the enterprise
network that Cisco DNA Center manages.
• In the Subject Alternative Name (SAN) field of
Cisco DNA Center certificates, it uses the FQDN to
the define the Plug and Play server that should be
used for device provisioning.
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
NTP Server Settings
NTP Server field
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Subnet Settings
Container Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal services. By default, this is
already set to 169.254.32.0/20, and you cannot enter
another subnet.
Cluster Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal cluster services. By default, this
is already set to 169.254.48.0/20, and you cannot enter
another subnet.
From here, do one of the following:
• To close the wizard, click Exit. A pop-up window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Summary screen
opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
128
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Note
To download the appliance configuration as a JSON file, click the here link.
g) Scroll to the bottom of the screen and review all of the settings that you have entered while completing the wizard.
If necessary, click the appropriate Edit link to open the wizard screen in which you want to make updates.
h) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
The wizard screen continuously updates during the process, indicating the tasks that are currently being completed
and their progress, as well as any errors that have occurred. To save a local copy of this information as a text file,
click the Download link.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
129
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Step 3
After appliance configuration completes, click the copy icon in the Cisco DNA Center - Admin Credential area to copy
the default admin superuser password.
Important Cisco DNA Center automatically sets this password when you complete the Install configuration wizard. Ensure
that you click the copy icon before you proceed. Otherwise, you will not be able to log in to Cisco DNA Center
for the first time.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
130
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Note
As a security measure, you'll be prompted to change this password after you log in. For more information, see
Complete the Quick Start Workflow, on page 227.
What to do next
As you are deploying this appliance in standalone mode, continue by performing first-time setup: First-Time
Setup Workflow.
Configure the Primary Node Using the Advanced Install
Configuration Wizard
Perform the following steps to configure the first installed appliance as the primary node using the Advanced
Install configuration wizard. You must always configure the first appliance as the primary node, whether it
will operate standalone or as part of a cluster.
Important
The following second generation Cisco DNA Center appliances support configuration using this wizard:
• 44-core appliance: Cisco part number DN2-HW-APL
• 44-core promotional appliance: Cisco part number DN2-HW-APL-U
• 56-core appliance: Cisco part number DN2-HW-APL-L
• 56-core promotional appliance: Cisco part number DN2-HW-APL-L-U
The first generation 44-core Cisco DNA Center appliance (Cisco part number DN1-HW-APL) cannot be
configured using this wizard.
If you are configuring the installed appliance as a secondary node for an existing cluster that already has a
primary node, follow the steps in Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 149 instead.
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
131
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the following
appliances:
• 44-core promotional appliance (Cisco part number DN2-HW-APL-U)
• 56-core promotional appliance: (Cisco part number DN2-HW-APL-L-U)
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
• Installed the first appliance as described in Appliance Installation Workflow.
• Configured Cisco IMC browser access on the primary node, as described in Enable Browser Access to
Cisco Integrated Management Controller.
• Checked that the primary node's ports and the switches it uses are properly configured, as described in
Execute Preconfiguration Checks.
• Are using a browser that is compatible with Cisco IMC and Cisco DNA Center. For a list of compatible
browsers, see the Release Notes for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The wizard uses ping to verify the gateway and DNS
server you specify. This ping might get blocked if a firewall is in place and ICMP is not enabled on that
firewall. When this happens, you will not be able to complete the wizard.
Step 1
Start the Advanced Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
132
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Note the URL listed in the Web Installation field.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
133
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
d) Open this URL to bring up the Appliance Configuration screen.
e) Click the Start a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
134
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
f) Click the Advanced Install radio button, then click Start.
The Advanced Install Overview slider opens. Click > to view a summary of the tasks that the wizard will help you
complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four appliance interfaces that you
can configure.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
135
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Important At a minimum, you must configure the interfaces on your appliance's Enterprise and Cluster ports, as they
are required for Cisco DNA Center functionality. If the wizard fails to display either or both of these ports
during the course of configuration, they may be non-functional or disabled. If you discover that they are
non-functional, choose Exit to exit the wizard immediately. Be sure you have completed all of the steps
provided in Execute Preconfiguration Checks before resuming configuration or contacting the Cisco
Technical Assistance Center (TAC).
Step 2
Complete the Advanced Install configuration wizard:
a) Click Next.
The Will this appliance join a cluster? screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
136
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
b) Click the No radio button (as you are configuring your cluster's primary node), then click Next.
The How would you like to set up your appliance interfaces? screen opens.
If your network resides behind a firewall, do the following:
• Click the allow access to these URLs link to view a popup window that lists the URLs that Cisco DNA Center
must be able to access.
• Click the open these ports link to view a popup window that lists the network service ports that must be available
for Cisco DNA Center to use.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
137
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
c) Indicate whether you want to configure dedicated Management and Internet Access interfaces, then click Next.
The Configure Your Enterprise Network Interface screen opens.
d) Enter configuration values for the Enterprise interface.
As explained in Interface Cable Connections, this is a required interface used to link the appliance to the enterprise
network. See Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more
detailed description of the values you need to enter.
Table 35: Primary Node Entries for the Enterprise Interface
LACP Mode slider
Choose one of the following network interface controller (NIC) bonding modes
for the Enterprise interface:
• Active-Backup mode: This mode provides fault tolerance by aggregating
two Ethernet interfaces into a single logical channel. When the interface
that's currently active goes down, the other interface takes its place and
becomes active.
• LACP mode: This mode aggregates two Ethernet interfaces that share the
same speed and duplex settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's implementation of NIC bonding,
see NIC Bonding Overview, on page 60.
Host IP Address field
Enter the IP address for the Enterprise port. This is required.
Subnet Mask field
Enter the netmask for the port's IP address. This is required.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
138
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Default Gateway IP Address field Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
Note
You designated this interface to use the default gateway assigned to
it by a DHCP server. Complete the following steps to specify a
different gateway:
1. Delete the IP address that is currently listed in this field and then
click Exit.
This will bring you back to the first wizard screen.
2. Return to the Enterprise port's wizard screen and enter the gateway
IP address you want to use.
DNS field
Enter the IP address of the preferred DNS server. To enter additional DNS servers,
click the Add (+) icon.
Important For each node in your cluster, configure a maximum of three DNS
servers. Problems can occur if you configure more than three DNS
servers for an appliance.
Add/Edit Static Route link
To configure a static route, click this link and then do the following:
1. Enter the route's network IP prefix, subnet mask, and nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Intracluster Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
139
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
e) Enter configuration values for your Intracluster interface.
As explained in Interface Cable Connections, this required port is used to link the appliance to your cluster. See
Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more detailed description
of the values you need to enter.
Note
• If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this
step and then proceed to Step 2f (which describes how to configure your Management interface).
• If you opted to configure the Enterprise and Management interfaces on the same port, complete this
step and then skip ahead to Step 2g (which describes how to configure your Internet Access interface).
• If you opted to configure the Enterprise, Management, and Internet Access interfaces on the same
port, complete this step and then skip ahead to Step 2h.
Table 36: Primary Node Entries for the Intracluster Interface
LACP Mode slider
Choose one of the following NIC bonding modes for the Intracluster interface:
• Active-Backup mode: This mode provides fault tolerance by aggregating
two Ethernet interfaces into a single logical channel. When the interface
that's currently active goes down, the other interface takes its place and
becomes active.
• LACP mode: This mode aggregates two Ethernet interfaces that share the
same speed and duplex settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's implementation of NIC bonding,
see NIC Bonding Overview, on page 60.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
140
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Host IP Address field
Enter the IP address for the Cluster port. This is required. Note that you cannot
change the address of the Cluster port later.
Subnet Mask field
Enter the netmask for the port's IP address. This is required.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Management Network Interface screen opens.
f) (Optional) Enter configuration values for the Management port.
As explained in Interface Cable Connections, this port is used to access the Cisco DNA Center GUI from your
management network. If you chose to configure a dedicated Management interface, enter the information described
in the following table. (See Required IP Addresses and Subnets, on page 25 and Required Configuration Information
for a more detailed description of the values you need to enter.)
Note
If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this step
and then skip ahead to Step 2h.
Table 37: Primary Node Entries for the Management Port
Host IP Address field
Enter the IP address for the Management port.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
141
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Subnet Mask field
Enter the netmask for the port's IP address.
Default Gateway IP Address field Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
DNS field
Enter the IP address of the preferred DNS server. To enter additional DNS servers,
click the Add (+) icon.
Important
• For NTP, ensure port 123 (UDP) is open between Cisco DNA
Center and your NTP server.
• For each appliance in your cluster, configure a maximum of three
DNS servers. Problems can occur if you configure more than
three DNS servers for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the following:
1. Enter the route's network IP prefix, subnet mask, and nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Internet Access Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
142
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
g) (Optional) Enter configuration values for the Internet Access interface.
As explained in Interface Cable Connections, this is an optional port used to link the appliance to the Internet when
you cannot do so through the Enterprise port. If you chose to configure a dedicated Internet Access interface, enter
the information described in the following table. (See Required IP Addresses and Subnets, on page 25 and Required
Configuration Information for a more detailed description of the values you need to enter.)
Table 38: Primary Node Entries for the Internet Access Port
Host IP Address field
Enter the IP address for the Internet Access port.
Subnet Mask field
Enter the netmask for the port's IP address. This is required if you entered an IP
address in the previous field.
Default Gateway IP Address field Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP address for at least one of
your appliance's interfaces. Otherwise, you will not be able to complete
the configuration wizard.
DNS field
Enter the IP address of the preferred DNS server. To enter additional DNS servers,
click the Add (+) icon.
Important For each appliance in your cluster, configure a maximum of three
DNS servers. Problems can occur if you configure more than three
DNS servers for a node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
143
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Add/Edit Static Route link
To configure a static route, click this link and then do the following:
1. Enter the route's network IP prefix, subnet mask, and nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
h) Review the settings that you have entered for the primary node's interfaces.
If you need to make any changes, click the Edit link for the relevant interface.
i) When you are happy with the interface settings, click Configure.
j) After initial interface configuration has completed, click Next.
The wizard's Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
144
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
k) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 39: Primary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy used to access the
Internet.
Note
Connection from Cisco DNA Center to the HTTPS proxy is supported
only via HTTP in this release.
Port field
Enter the port your appliance used to access the network proxy.
Username field
Enter the user name used to access the network proxy. If no proxy login is
required, leave this field blank.
Password field
Enter the password used to access the network proxy. If no proxy login is required,
leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
145
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid and the port is up, the wizard's
Advanced Appliance Settings screen opens.
l) Enter configuration values for your cluster.
Table 40: Primary Node Entries for Advanced Appliance Settings
Cluster Virtual IP Addresses
Enter the virtual IP address that will be used for traffic
between the cluster and the interfaces that you have
configured on your primary node. This is required for
both three-node clusters and single-node clusters that will
If you configured the Management or Internet
be converted into a three-node cluster in the future. If you
Access interface on the same port as the
have a single-node cluster setup and don't plan to move
Enterprise interface, its corresponding field is
to a three-node cluster setup, you can leave the fields in
not displayed in this section.
this section blank.
To access from Enterprise Network, To access from
Management Network, For Internet Access, and For
Intracluster Access fields
Note
Important If you choose to configure a virtual IP address,
you must enter one for each configured
network interface. You will not be able to
complete the wizard unless you do so. These
addresses are tied to the cluster link's status,
which must be in the UP state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
146
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Fully Qualified Domain Name (FQDN) field
Enter the fully qualified domain name (FQDN) for your
cluster. Cisco DNA Center does the following with this
hostname:
• It uses this hostname to access your cluster’s web
interface and the Representational State Transfer
(REST) APIs used by devices in the enterprise
network that Cisco DNA Center manages.
• In the Subject Alternative Name (SAN) field of
Cisco DNA Center certificates, it uses the FQDN to
the define the Plug and Play server that should be
used for device provisioning.
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
Cisco DNA Center Admin Credentials
Password and Confirm Password fields
Enter and then confirm the password for the default admin
superuser, used to log in to Cisco DNA Center for the
first time.
Note
As a security measure, you'll be prompted to
change this password after you log in. For
more information, see Complete the Quick
Start Workflow, on page 227.
NTP Server Settings
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
NTP Server field
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Turn On NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this
check box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
147
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Subnet Settings
Container Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal services. By default, this is
already set to 169.254.32.0/20, and we recommend that
you use this subnet.
Cluster Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal cluster services. By default, this
is already set to 169.254.48.0/20, and we recommend that
you use this subnet.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Summary screen
opens.
Note
To download the appliance configuration as a JSON file, click the here link.
m) Review all of the settings that you have entered while completing the wizard. If necessary, click the appropriate Edit
link to open the wizard screen in which you want to make updates.
n) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
148
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
The wizard screen continuously updates during the process, indicating the tasks that are currently being completed
and their progress, as well as any errors that have occurred. To save a local copy of this information as a text file,
click the download icon.
What to do next
When this task is complete:
• If you are deploying this appliance in standalone mode only, continue by performing first-time setup:
First-Time Setup Workflow.
• If you are deploying this appliance as the primary node in a cluster, configure the second and third
installed appliances in the cluster: Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 149.
Configure a Secondary Node Using the Advanced Install
Configuration Wizard
Perform the following steps to configure the second and third nodes in the cluster using the Advanced Install
configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
149
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Important
• In order to build a three-node cluster, the same version of the System package must be installed on your
three Cisco DNA Center appliances. Otherwise, unexpected behavior and possible downtime can occur.
• The following second generation Cisco DNA Center appliances support configuration using the Advanced
Install configuration wizard:
• 44-core appliance: Cisco part number DN2-HW-APL
• 44-core promotional appliance: Cisco part number DN2-HW-APL-U
• 56-core appliance: Cisco part number DN2-HW-APL-L
• 56-core promotional appliance: Cisco part number DN2-HW-APL-L-U
The first generation 44-core Cisco DNA Center appliance (Cisco part number DN1-HW-APL) cannot
be configured using this wizard.
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
When joining each new secondary nodes to the cluster, you must specify the first appliance in the cluster as
the primary node. Note the following when joining secondary nodes to a cluster:
• Before adding a new node to the cluster, be sure that all installed packages are deployed on the primary
node. You can check this by using Secure Shell to log in to the primary node's Cisco DNA Center
Management port as the Linux User (maglev) and then running the command maglev package status.
All installed packages should appear in the command output as DEPLOYED. In the following example, a
few packages were not installed, such as the application-policy and sd-access packages. They are the
only packages whose status is NOT_DEPLOYED. Your package status should look similar to this before
configuring a secondary node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
150
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Be sure to join only a single node to the cluster at a time. Do not attempt to add multiple nodes at the
same time, as doing so will result in unpredictable behavior.
• Expect some service downtime during the cluster attachment process for each secondary node. Services
will need to be redistributed across the nodes and the cluster will be down for periods of time during that
process.
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the following
appliances:
• 44-core promotional appliance (Cisco part number DN2-HW-APL-U)
• 56-core promotional appliance: (Cisco part number DN2-HW-APL-L-U)
• Configured the first appliance in the cluster, following the steps in Configure the Primary Node Using
the Advanced Install Configuration Wizard, on page 131.
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
151
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Installed the second and third appliances as described in Appliance Installation Workflow.
• Have done the following:
1. Ran the maglev package status command on the first appliance.
You can also access this information from the Cisco DNA Center GUI by clicking the Help icon
( ) and choosing About > Packages.
2. Contacted the Cisco TAC, gave them the output of this command, and asked them to point you to
the ISO that you should install on your second and third appliances.
• Configured Cisco IMC browser access on both secondary nodes as described in Enable Browser Access
to Cisco Integrated Management Controller.
• Checked that both secondary nodes' ports and the switches they use are properly configured, as described
in Execute Preconfiguration Checks.
• Are using a compatible browser. For a list of compatible browsers, see the Release Notes for the version
of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The wizard uses ping to verify the gateway and DNS
server you specify. This ping might get blocked if a firewall is in place and ICMP is not enabled on that
firewall. When this happens, you will not be able to complete the wizard.
Step 1
Start the Advanced Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
152
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Note the URL listed in the Web Installation field.
d) Open this URL to bring up the Appliance Configuration screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
153
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
e) Click the Join a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
154
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
f) Click the Advanced Install radio button, then click Start.
The Advanced Install Overview slider opens. Click > to view a summary of the tasks that the wizard will help you
complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four appliance interfaces that you
can configure.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
155
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Important At a minimum, you must configure the interfaces on your appliance's Enterprise and Cluster ports, as they
are required for Cisco DNA Center functionality. If the wizard fails to display either or both of these ports
during the course of configuration, they may be non-functional or disabled. If you discover that they are
non-functional, choose Exit to exit the wizard immediately. Be sure you have completed all of the steps
provided in Execute Preconfiguration Checks before resuming configuration or contacting the Cisco
Technical Assistance Center (TAC).
Step 2
Complete the Advanced Install configuration wizard:
a) Click Next.
The Will this appliance join a cluster? screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
156
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
b) Click the Yes radio button, then click Next.
The How would you like to set up your appliance interfaces? screen opens.
c) Indicate whether you want to configure dedicated Management and Internet Access interfaces, then click Next.
The Configure Your Enterprise Network Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
157
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
d) Enter configuration values for the Enterprise interface.
As explained in Interface Cable Connections, this is a required interface used to link the appliance to the enterprise
network. See Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more
detailed description of the values you need to enter.
Table 41: Secondary Node Entries for the Enterprise Interface
LACP Mode slider
Choose one of the following network interface controller
(NIC) bonding modes for the Enterprise interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Enterprise port. This is
required.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
158
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Note
You designated this interface to use the default
gateway assigned to it by a DHCP server.
Complete the following steps to specify a
different gateway:
1. Delete the IP address that is currently listed
in this field and then click Exit.
This will bring you back to the first wizard
screen.
2. Return to the Enterprise port's wizard
screen and enter the gateway IP address
you want to use.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Intracluster Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
159
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
e) Enter configuration values for your Intracluster interface.
As explained in Interface Cable Connections, this required port is used to link the appliance to your cluster. See
Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more detailed description
of the values you need to enter.
Note
• If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this
step and then proceed to Step 2f (which describes how to configure your Management interface).
• If you opted to configure the Enterprise and Management interfaces on the same port, complete this
step and then skip ahead to Step 2g (which describes how to configure your Internet Access interface).
• If you opted to configure the Enterprise, Management, and Internet Access interfaces on the same
port, complete this step and then skip ahead to Step 2h.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
160
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Table 42: Secondary Node Entries for the Intracluster Interface
LACP Mode slider
Choose one of the following NIC bonding modes for the
Intracluster interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Cluster port. This is required.
Note that you cannot change the address of the Cluster
port later.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Management Network Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
161
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
f) (Optional) Enter configuration values for the Management port.
As explained in Interface Cable Connections, this port is used to access the Cisco DNA Center GUI from your
management network. If you chose to configure a dedicated Management interface, enter the information described
in the following table. (See Required IP Addresses and Subnets, on page 25 and Required Configuration Information
for a more detailed description of the values you need to enter.)
Note
If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this step
and then skip ahead to Step 2h.
Table 43: Secondary Node Entries for the Management Port
Host IP Address field
Enter the IP address for the Management port.
Subnet Mask field
Enter the netmask for the port's IP address.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
162
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important
• For NTP, ensure port 123 (UDP) is open
between Cisco DNA Center and your
NTP server.
• For each appliance in your cluster,
configure a maximum of three DNS
servers. Problems can occur if you
configure more than three DNS servers
for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Internet Access Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
163
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
g) (Optional) Enter configuration values for the Internet Access interface.
As explained in Interface Cable Connections, this is an optional port used to link the appliance to the Internet when
you cannot do so through the Enterprise port. If you chose to configure a dedicated Internet Access interface, enter
the information described in the following table. (See Required IP Addresses and Subnets, on page 25 and Required
Configuration Information for a more detailed description of the values you need to enter.)
Table 44: Secondary Node Entries for the Internet Access Port
Host IP Address field
Enter the IP address for the Internet Access port.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required if you entered an IP address in the previous field.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
164
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
h) Review the settings that you have entered for the secondary node's interfaces.
If you need to make any changes, click the Edit link for the relevant interface to return to its wizard screen.
i) When you are happy with the interface settings, click Configure.
j) After initial interface configuration has completed, click Next.
The Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
165
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
k) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 45: Secondary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
Connection from Cisco DNA Center to the
HTTPS proxy is supported only via HTTP in
this release.
Port field
Enter the port your appliance used to access the network
proxy.
Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
166
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Primary Node
Details screen opens.
l) To establish a connection with your cluster's primary node, enter its IP address and login credentials, and then click
Next.
The Advanced Appliance Settings screen opens.
m) Enter configuration values for your cluster.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
167
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Table 46: Secondary Node Entries for Advanced Appliance Settings
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
NTP Server Settings
NTP Server field
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Turn On NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this
check box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid, the wizard's Summary screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
168
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Note
To download the appliance configuration as a JSON file, click the here link.
n) Review all of the settings that you have entered while completing the wizard. If necessary, click the appropriate Edit
link to open the wizard screen in which you want to make updates.
o) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
The wizard screen continuously updates during the process, indicating the tasks that are currently being completed
and their progress, as well as any errors that have occurred. To save a local copy of this information as a text file,
click the download icon.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
169
Configure the 44/56-Core Appliance Using the Browser-Based Wizard
Upgrade to the Latest Cisco DNA Center Release
What to do next
When this task is complete:
• If you have an additional appliance to deploy as the third and final node in the cluster, repeat this procedure.
• If you are finished adding nodes to the cluster, continue by performing first-time setup: First-Time Setup
Workflow.
Upgrade to the Latest Cisco DNA Center Release
For information about upgrading your current release of Cisco DNA Center, see the Cisco DNA Center
Upgrade Guide.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
170
CHAPTER
7
Configure the 112-Core Appliance Using the
Browser-Based Wizard
• Appliance Configuration Overview, on page 171
• Configure an Appliance Using the Install Configuration Wizard, on page 172
• Configure the Primary Node Using the Advanced Install Configuration Wizard, on page 185
• Configure a Secondary Node Using the Advanced Install Configuration Wizard, on page 204
• Upgrade to the Latest Cisco DNA Center Release, on page 225
Appliance Configuration Overview
You can deploy the 112-core appliance in your network in one of the following modes:
• Standalone: As a single node offering all the functions. This option is usually preferred for initial or test
deployments and in smaller network environments. If you choose Standalone mode for your initial
deployment, this will be your first, or primary, node. Note that you can add more appliances later to form
a cluster.
• Cluster: As a node that belongs to a three-node cluster. In this mode, all the services and data are shared
among the hosts. This is the preferred option for large deployments. If you choose Cluster mode for your
initial deployment, be sure to finish configuring the primary node before configuring the secondary
nodes.
To proceed, first configure the primary node in your cluster. Then, if you have installed three appliances and
want to add the second and third nodes to your cluster, configure the secondary nodes.
Browser-Based Configuration Wizards
Cisco DNA Center offers two browser-based wizards that you can use to configure your appliance. Read their
descriptions to determine which of these wizards you should complete.
Important
These wizards are available for use if you are configuring a new appliance that came with Cisco DNA Center
2.3.3 already installed. If you upgraded from a previous version and want to use these wizards, contact Cisco
TAC for assistance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
171
Configure the 112-Core Appliance Using the Browser-Based Wizard
Browser-Based Wizard Prerequisites
Install Configuration Wizard
This wizard streamlines the appliance configuration process by setting default values for the Enterprise,
Management, and Internet Access interfaces (which all reside on the appliance’s Enterprise port) as well as
the Intracluster interface. Use this wizard if you are okay with using the default interface settings and want
to get your appliance up and running as quickly as possible. Note that you cannot use this wizard to configure
a cluster’s secondary nodes.
Advanced Install Configuration Wizard
This wizard provides access to all of the available appliance settings that you can modify. Use this wizard if
you want to specify interface settings that are different from the default settings. Also use this wizard if you
are configuring the second or third node in your cluster.
Browser-Based Wizard Prerequisites
To use either of the browser-based wizards and ensure that it configures your appliance properly, complete
the following tasks:
• Designate the Enterprise interface on your appliance to use the IP address, subnet mask, and default
gateway that a DHCP server assigns to it. When you configure this interface in the wizard, you will not
be able to change the IP address or subnet mask that have been assigned to it. You will only be able to
change its default gateway. The topics in this chapter assume that the Enterprise interface was chosen
for this purpose.
• Confirm that the IP address assigned by the DHCP server is reachable by the machine from which you
will complete the wizard.
• For the Enterprise and Intracluster interfaces, verify that both interfaces are connected and in the UP
state.
If you want to specify your own IP address, subnet mask, and default gateway for your appliance's Enterprise
interface (and not use the values assigned by a DHCP server), ensure that you complete the Static IP Address
Settings screen.
Configure an Appliance Using the Install Configuration Wizard
Perform this procedure to configure either a three-node cluster's primary node or a standalone node using the
Install configuration wizard. The wizard simplifies the configuration process by setting up the Enterprise,
Management, and Internet interfaces on the same port using default settings. The following second generation
Cisco DNA Center appliances support configuration using this wizard:
• 112-core appliance: Cisco part number DN2-HW-APL-XL
• 112-core promotional appliance: Cisco part number DN2-HW-APL-XL-U
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
172
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Important
You cannot use this wizard to configure the second or third appliance in a three-node cluster. To do so,
complete the steps described in Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 204. Also, you cannot use this wizard to enable LACP mode on your appliance's Enterprise
and Intracluster interfaces.
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure any of the appliances in a three-node cluster, ensure that you have logged out of those
appliances. Otherwise, the Quick Start workflow (which you complete to discover your network's devices
and enable telemetry) will not start after you have configured your cluster's appliances and log in to Cisco
DNA Center for the first time.
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the 112-core
promotional appliance (Cisco part number DN2-HW-APL-XL-U).
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
• Installed the appliance as described in Appliance Installation Workflow.
• Configured Cisco IMC browser access on this appliance, as described in Enable Browser Access to Cisco
Integrated Management Controller.
• Checked that the appliance's ports and the switches it uses are properly configured, as described in Execute
Preconfiguration Checks.
• Are using a browser that is compatible with Cisco IMC and Cisco DNA Center. For a list of compatible
browsers, see the Release Notes for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and the DNS servers you will specify in the
following procedure. This wizard uses Ping to verify the DNS server you specify. This ping can be
blocked if there is a firewall between Cisco DNA Center and the DNS server and ICMP is not enabled
on that firewall. When this happens, you will not be able to complete the wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
173
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Step 1
Start the Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
174
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Note the URL listed in the Web Installation field.
d) Open this URL to bring up the Appliance Configuration screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
175
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
e) Click the Start a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
176
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
f) Click the Install radio button, then click Start.
The Overview slider opens. Click > to view a summary of the tasks that the wizard will help you complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four interfaces that are available
on your Cisco DNA Center appliance.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
177
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The wizard will help you configure the Enterprise and Cluster ports, which are required for Cisco DNA Center
functionality. If the wizard fails to display either or both of these ports in the next screen, they may be non-functional
or disabled. If you discover that they are non-functional, choose Exit to exit the wizard immediately. Be sure you
have completed all of the steps provided in Execute Preconfiguration Checks before resuming configuration or
contacting the Cisco Technical Assistance Center (TAC).
Step 2
Complete the Install configuration wizard:
a) Click Next.
The Configure The Enterprise Port screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
178
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The configuration wizard sets up the Enterprise, Management, and Internet Access interfaces on the Enterprise port.
The wizard also prepopulates values for almost all of the listed parameters.
If your network resides behind a firewall, do the following:
• Click the allow access to these URLs link to view a popup window that lists the URLs that Cisco DNA Center
must be able to access.
• Click the open these ports link to view a popup window that lists the network service ports that must be available
for Cisco DNA Center to use.
b) In the DNS field, enter the IP address of the preferred DNS server. To enter additional DNS servers, click the Add
(+) icon.
Important You can configure a maximum of three DNS servers. Problems can occur if you configure more than three
DNS servers for an appliance.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
c) Review the interface settings that have been set, then click Configure.
d) After initial interface configuration has completed, click Next to proceed to the next wizard screen.
The Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
179
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
e) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 47: Primary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
Connection from Cisco DNA Center to the
HTTPS proxy is supported only via HTTP in
this release.
Port field
Enter the port your appliance used to access the network
proxy.
Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
180
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Advanced
Appliance Settings screen opens.
f) Enter configuration values for your cluster.
Table 48: Primary Node Entries for Advanced Appliance Settings
Cluster Virtual IP Addresses
To access from Enterprise Network and For Intracluster Enter the virtual IP address that will be used for traffic
between the cluster and both the Enterprise and
Access fields
Intracluster interfaces on your appliance. This is required
for single-node clusters that will be converted into a
three-node cluster in the future. If you have a single-node
cluster setup and don't plan to move to a three-node cluster
setup, you can leave the fields in this section blank.
Important If you choose to configure a virtual IP address,
you must enter one for each configured
network interface. You will not be able to
complete the wizard unless you do so. These
addresses are tied to the cluster link's status,
which must be in the UP state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
181
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Fully Qualified Domain Name (FQDN) field
Enter the fully qualified domain name (FQDN) for your
cluster. Cisco DNA Center does the following with this
hostname:
• It uses this hostname to access your cluster’s web
interface and the Representational State Transfer
(REST) APIs used by devices in the enterprise
network that Cisco DNA Center manages.
• In the Subject Alternative Name (SAN) field of
Cisco DNA Center certificates, it uses the FQDN to
the define the Plug and Play server that should be
used for device provisioning.
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
NTP Server Settings
NTP Server field
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Subnet Settings
Container Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal services. By default, this is
already set to 169.254.32.0/20, and you cannot enter
another subnet.
Cluster Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal cluster services. By default, this
is already set to 169.254.48.0/20, and you cannot enter
another subnet.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Summary screen
opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
182
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Note
To download the appliance configuration as a JSON file, click the here link.
g) Scroll to the bottom of the screen and review all of the settings that you have entered while completing the wizard.
If necessary, click the appropriate Edit link to open the wizard screen in which you want to make updates.
h) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
The wizard screen continuously updates during the process, indicating the tasks that are currently being completed
and their progress, as well as any errors that have occurred. To save a local copy of this information as a text file,
click the Download link.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
183
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure an Appliance Using the Install Configuration Wizard
Step 3
After appliance configuration completes, click the copy icon in the Cisco DNA Center - Admin Credential area to copy
the default admin superuser password.
Important Cisco DNA Center automatically sets this password when you complete the Install configuration wizard. Ensure
that you click the copy icon before you proceed. Otherwise, you will not be able to log in to Cisco DNA Center
for the first time.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
184
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Note
As a security measure, you'll be prompted to change this password after you log in. For more information, see
Complete the Quick Start Workflow, on page 227.
What to do next
As you are deploying this appliance in standalone mode, continue by performing first-time setup: First-Time
Setup Workflow.
Configure the Primary Node Using the Advanced Install
Configuration Wizard
Perform the following steps to configure the first installed appliance as the primary node using the Advanced
Install configuration wizard. You must always configure the first appliance as the primary node, whether it
will operate standalone or as part of a cluster.
Important
The following second generation Cisco DNA Center appliances support configuration using this wizard:
• 112-core appliance: Cisco part number DN2-HW-APL-XL
• 112-core promotional appliance: Cisco part number DN2-HW-APL-XL-U
If you are configuring the installed appliance as a secondary node for an existing cluster that already has a
primary node, follow the steps in Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 204 instead.
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
185
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the 112-core
promotional appliance (Cisco part number DN2-HW-APL-XL-U).
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
• Installed the first appliance as described in Appliance Installation Workflow.
• Configured Cisco IMC browser access on the primary node, as described in Enable Browser Access to
Cisco Integrated Management Controller.
• Checked that the primary node's ports and the switches it uses are properly configured, as described in
Execute Preconfiguration Checks.
• Are using a browser that is compatible with Cisco IMC and Cisco DNA Center. For a list of compatible
browsers, see the Release Notes for the version of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The wizard uses ping to verify the gateway and DNS
server you specify. This ping might get blocked if a firewall is in place and ICMP is not enabled on that
firewall. When this happens, you will not be able to complete the wizard.
Step 1
Start the Advanced Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
186
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Note the URL listed in the Web Installation field.
d) Open this URL to bring up the Appliance Configuration screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
187
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
e) Click the Start a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
188
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
f) Click the Advanced Install radio button, then click Start.
The Advanced Install Overview slider opens. Click > to view a summary of the tasks that the wizard will help you
complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four appliance interfaces that you
can configure.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
189
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Important At a minimum, you must configure the Enterprise and Intracluster ports, as they are required for Cisco
DNA Center functionality. If the wizard fails to display either or both of these ports during the course of
configuration, they may be non-functional or disabled. If you discover that they are non-functional, choose
Exit to exit the wizard immediately. Be sure you have completed all of the steps provided in Execute
Preconfiguration Checks before resuming configuration or contacting the Cisco Technical Assistance Center
(TAC).
Step 2
Complete the Advanced Install wizard:
a) Click Next.
The Will this appliance join a cluster? screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
190
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
b) Click the No radio button (as you are configuring your cluster's primary node), then click Next.
The How would you like to set up your appliance interfaces? screen opens.
If your network resides behind a firewall, do the following:
• Click the allow access to these URLs link to view a popup window that lists the URLs that Cisco DNA Center
must be able to access.
• Click the open these ports link to view a popup window that lists the network service ports that must be available
for Cisco DNA Center to use.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
191
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
c) Indicate whether you want to configure dedicated Management and Internet Access interfaces, then click Next.
The Configure Your Enterprise Network Interface screen opens.
d) Enter configuration values for the Enterprise interface.
As explained in Interface Cable Connections, this is a required interface used to link the appliance to the enterprise
network. See Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more
detailed description of the values you need to enter.
Table 49: Primary Node Entries for the Enterprise Interface
LACP Mode slider
Choose one of the following network interface controller
(NIC) bonding modes for the Enterprise interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Enterprise port. This is
required.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
192
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Note
You designated this interface to use the default
gateway assigned to it by a DHCP server.
Complete the following steps to specify a
different gateway:
1. Delete the IP address that is currently listed
in this field and then click Exit.
This will bring you back to the first wizard
screen.
2. Return to the Enterprise port's wizard
screen and enter the gateway IP address
you want to use.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
193
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Intracluster Interface screen opens.
e) Enter configuration values for your Intracluster interface.
As explained in Interface Cable Connections, this required port is used to link the appliance to your cluster. See
Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more detailed description
of the values you need to enter.
Note
• If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this
step and then proceed to Step 2f (which describes how to configure your Management interface).
• If you opted to configure the Enterprise and Management interfaces on the same port, complete this
step and then skip ahead to Step 2g (which describes how to configure your Internet Access interface).
• If you opted to configure the Enterprise, Management, and Internet Access interfaces on the same
port, complete this step and then skip ahead to Step 2h.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
194
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Table 50: Primary Node Entries for the Intracluster Interface
LACP Mode slider
Choose one of the following NIC bonding modes for the
Intracluster interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Cluster port. This is required.
Note that you cannot change the address of the Cluster
port later.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Management Network Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
195
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
f) (Optional) Enter configuration values for the Management port.
As explained in Interface Cable Connections, this port is used to access the Cisco DNA Center GUI from your
management network. If you chose to configure a dedicated Management interface, enter the information described
in the following table. (See Required IP Addresses and Subnets, on page 25 and Required Configuration Information
for a more detailed description of the values you need to enter.)
Note
If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this step
and then skip ahead to Step 2h.
Table 51: Primary Node Entries for the Management Port
Host IP Address field
Enter the IP address for the Management port.
Subnet Mask field
Enter the netmask for the port's IP address.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
196
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important
• For NTP, ensure port 123 (UDP) is open
between Cisco DNA Center and your
NTP server.
• For each appliance in your cluster,
configure a maximum of three DNS
servers. Problems can occur if you
configure more than three DNS servers
for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Internet Access Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
197
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
g) (Optional) Enter configuration values for the Internet Access interface.
As explained in Interface Cable Connections, this is an optional port used to link the appliance to the Internet when
you cannot do so through the Enterprise port. If you chose to configure a dedicated Internet Access interface, enter
the information described in the following table. (See Required IP Addresses and Subnets, on page 25 and Required
Configuration Information for a more detailed description of the values you need to enter.)
Table 52: Primary Node Entries for the Internet Access Port
Host IP Address field
Enter the IP address for the Internet Access port.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required if you entered an IP address in the previous field.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
198
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
h) Review the settings that you have entered for the primary node's interfaces.
If you need to make any changes, click the Edit link for the relevant interface.
i) When you are happy with the interface settings, click Configure.
j) After initial interface configuration has completed, click Next to proceed to the next wizard screen.
The wizard's Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
199
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
k) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 53: Primary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
Connection from Cisco DNA Center to the
HTTPS proxy is supported only via HTTP in
this release.
Port field
Enter the port your appliance used to access the network
proxy.
Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
200
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid and the port is up, the wizard's
Advanced Appliance Settings screen opens.
l) Enter configuration values for your cluster.
Table 54: Primary Node Entries for Advance Appliance Settings
Cluster Virtual IP Addresses
Enter the virtual IP address that will be used for traffic
between the cluster and the interfaces that you have
configured on your primary node. This is required for
both three-node clusters and single-node clusters that will
If you configured the Management or Internet
be converted into a three-node cluster in the future. If you
Access interface on the same port as the
have a single-node cluster setup and don't plan to move
Enterprise interface, its corresponding field is
to a three-node cluster setup, you can leave the fields in
not displayed in this section.
this section blank.
To access from Enterprise Network, To access from
Management Network, For Internet Access, and For
Intracluster Access fields
Note
Important If you choose to configure a virtual IP address,
you must enter one for each configured
network interface. You will not be able to
complete the wizard unless you do so. These
addresses are tied to the cluster link's status,
which must be in the UP state.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
201
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Fully Qualified Domain Name (FQDN) field
Enter the fully qualified domain name (FQDN) for your
cluster. Cisco DNA Center does the following with this
hostname:
• It uses this hostname to access your cluster’s web
interface and the Representational State Transfer
(REST) APIs used by devices in the enterprise
network that Cisco DNA Center manages.
• In the Subject Alternative Name (SAN) field of
Cisco DNA Center certificates, it uses the FQDN to
the define the Plug and Play server that should be
used for device provisioning.
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
Cisco DNA Center Admin Credentials
Password and Confirm Password fields
Enter and then confirm the password for the default admin
superuser, used to log in to Cisco DNA Center for the
first time.
Note
As a security measure, you'll be prompted to
change this password after you log in. For
more information, see Complete the Quick
Start Workflow, on page 227.
NTP Server Settings
NTP Server field
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Turn On NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this
check box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
202
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure the Primary Node Using the Advanced Install Configuration Wizard
Subnet Settings
Container Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal services. By default, this is
already set to 169.254.32.0/20, and we recommend that
you use this subnet.
Cluster Subnet field
A dedicated, non-routed IP subnet that Cisco DNA Center
uses to manage internal cluster services. By default, this
is already set to 169.254.48.0/20, and we recommend that
you use this subnet.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Summary screen
opens.
Note
To download the appliance configuration as a JSON file, click the here link.
m) Review all of the settings that you have entered while completing the wizard. If necessary, click the appropriate Edit
link to open the wizard screen in which you want to make updates.
n) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
203
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
The configuration process takes roughly 90 minutes. The wizard screen continuously updates during the process,
indicating the tasks that are currently being completed and their progress, as well as any errors that have occurred.
To save a local copy of this information as a text file, click the download icon.
What to do next
When this task is complete:
• If you are deploying this appliance in standalone mode only, continue by performing first-time setup:
First-Time Setup Workflow.
• If you are deploying this appliance as the primary node in a cluster, configure the second and third
installed appliances in the cluster: Configure a Secondary Node Using the Advanced Install Configuration
Wizard, on page 204.
Configure a Secondary Node Using the Advanced Install
Configuration Wizard
Perform the following steps to configure the second and third appliances in the cluster using the Advanced
Install configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
204
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Important
• In order to build a three-node cluster, the same version of the System package must be installed on your
three Cisco DNA Center appliances. Otherwise, unexpected behavior and possible downtime can occur.
• The following second generation Cisco DNA Center appliances support configuration using this wizard:
• 112-core appliance: Cisco part number DN2-HW-APL-XL
• 112-core promotional appliance: Cisco part number DN2-HW-APL-XL-U
Important
You can only use this wizard to complete the initial configuration of a new Cisco DNA Center appliance. To
reimage an appliance that's been configured previously, you will need to use the Maglev Configuration wizard
(see Configure the Appliance Using the Maglev Wizard, on page 73).
Note
Ensure that all of the IP addresses you enter while completing this procedure are valid IPv4 addresses with
valid IPv4 netmasks. Also make sure that the addresses and their corresponding subnets do not overlap. Service
communication issues can result if they do.
Important
Before you configure the appliances in a three-node cluster, ensure that you have logged out of those appliances.
Otherwise, the Quick Start workflow (which you complete to discover your network's devices and enable
telemetry) will not start after you have configured your cluster's appliances and log in to Cisco DNA Center
for the first time.
When joining each new secondary node to the cluster, you must specify the first host in the cluster as the
primary node. Note the following when joining secondary nodes to a cluster:
• Before adding a new node to the cluster, be sure that all installed packages are deployed on the primary
node. You can check this by using Secure Shell to log in to the primary node's Cisco DNA Center
Management port as the Linux User (maglev) and then running the command maglev package status.
All installed packages should appear in the command output as DEPLOYED. In the following example, a
few packages were not installed, such as the application-policy and sd-access packages. They are the
only packages whose status is NOT_DEPLOYED. Your package status should look similar to this before
configuring a secondary node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
205
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Be sure to join only a single node to the cluster at a time. Do not attempt to add multiple nodes at the
same time, as doing so will result in unpredictable behavior.
• Expect some service downtime during the cluster attachment process for each secondary node. Services
will need to be redistributed across the nodes and the cluster will be down for periods of time during that
process.
Before you begin
Ensure that you:
• Installed the Cisco DNA Center software image onto your appliance, as described in Reimage the
Appliance, on page 67.
Important
This is only applicable if you are going to configure a promotional appliance,
because the Cisco DNA Center software image is not preinstalled on the 112-core
promotional appliance (Cisco part number DN2-HW-APL-XL-U).
• Configured the first appliance in the cluster, following the steps in Configure the Primary Node Using
the Advanced Install Configuration Wizard, on page 185.
• Collected all of the information called for in Required IP Addresses and Subnets, on page 25 and Required
Configuration Information.
• Installed the second and third appliances as described in Appliance Installation Workflow.
• Have done the following:
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
206
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
1. Ran the maglev package status command on the first appliance.
You can also access this information from the Cisco DNA Center home page by clicking the Help
icon (
) and choosing About > Show Packages.
2. Contacted the Cisco TAC, gave them the output of this command, and asked them to point you to
the ISO that you should install on your second and third appliances.
• Configured Cisco IMC browser access on both secondary nodes as described in Enable Browser Access
to Cisco Integrated Management Controller.
• Checked that both secondary nodes' ports and the switches they use are properly configured, as described
in Execute Preconfiguration Checks.
• Are using a compatible browser. For a list of compatible browsers, see the Release Notes for the version
of Cisco DNA Center you are installing.
• Enabled ICMP on the firewall between Cisco DNA Center and both the default gateway and the DNS
server you specify in the following procedure. The wizard uses ping to verify the gateway and DNS
server you specify. This ping might get blocked if a firewall is in place and ICMP is not enabled on that
firewall. When this happens, you will not be able to complete the wizard.
Step 1
Start the Advanced Install configuration wizard:
a) Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed,
then log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary
window, with a blue link menu at the upper right, as shown below.
b) From the blue link menu, choose Launch KVM and then select either Java based KVM or HTML based KVM.
If you select the Java-based KVM, you will need to launch the Java startup file from your browser or file manager
in order to view the KVM console in its own window. If you select the HMTL-based KVM, it will launch the KVM
console in a separate browser window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and
respond to Maglev Configuration Wizard prompts.
c) With the KVM displayed, reboot the appliance by making one of the following selections:
• In the main Cisco IMC GUI browser window: Choose Host Power > Power Cycle. Then switch to the KVM
console to continue.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
207
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
• In the KVM console: Choose Power > Power Cycle System (cold boot).
If asked to confirm your choice to reboot the appliance, click OK.
After displaying reboot messages, the KVM console displays the Maglev Configuration wizard welcome screen.
Note the URL listed in the Web Installation field.
d) Open this URL to bring up the Appliance Configuration screen.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
208
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
e) Click the Join a Cisco DNA Center Cluster radio button, then click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
209
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
f) Click the Advanced Install radio button, then click Start.
The Advanced Install Overview slider opens. Click > to view a summary of the tasks that the wizard will help you
complete.
g) Click Start Workflow to start the wizard.
The Appliance Interface Overview screen opens, providing a description of the four appliance interfaces that you
can configure.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
210
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Important At a minimum, you must configure the interfaces on your appliance's Enterprise and Cluster ports, as they
are required for Cisco DNA Center functionality. If the wizard fails to display either or both of these ports
during the course of configuration, they may be non-functional or disabled. If you discover that they are
non-functional, choose Exit to exit the wizard immediately. Be sure you have completed all of the steps
provided in Execute Preconfiguration Checks before resuming configuration or contacting the Cisco
Technical Assistance Center (TAC).
Step 2
Complete the Advanced Install configuration wizard:
a) Click Next.
The Will this appliance join a cluster? screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
211
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
b) Click the Yes radio button, then click Next.
The How would you like to set up your appliance interfaces? screen opens.
c) Indicate whether you want to configure dedicated Management and Internet Access interfaces, then click Next.
The Configure Your Enterprise Network Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
212
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
d) Enter configuration values for the Enterprise interface.
As explained in Interface Cable Connections, this is a required interface used to link the appliance to the enterprise
network. See Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more
detailed description of the values you need to enter.
Table 55: Secondary Node Entries for the Enterprise Interface
LACP Mode slider
Choose one of the following network interface controller
(NIC) bonding modes for the Enterprise interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Enterprise port. This is
required.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
213
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Note
You designated this interface to use the default
gateway assigned to it by a DHCP server.
Complete the following steps to specify a
different gateway:
1. Delete the IP address that is currently listed
in this field and then click Exit.
This will bring you back to the first wizard
screen.
2. Return to the Enterprise port's wizard
screen and enter the gateway IP address
you want to use.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Intracluster Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
214
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
e) Enter configuration values for your Intracluster interface.
As explained in Interface Cable Connections, this required port is used to link the appliance to your cluster. See
Required IP Addresses and Subnets, on page 25 and Required Configuration Information for a more detailed description
of the values you need to enter.
Note
• If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this
step and then proceed to Step 2f (which describes how to configure your Management interface).
• If you opted to configure the Enterprise and Management interfaces on the same port, complete this
step and then skip ahead to Step 2g (which describes how to configure your Internet Access interface).
• If you opted to configure the Enterprise, Management, and Internet Access interfaces on the same
port, complete this step and then skip ahead to Step 2h.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
215
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Table 56: Secondary Node Entries for the Intracluster Interface
LACP Mode slider
Choose one of the following NIC bonding modes for the
Intracluster interface:
• Active-Backup mode: This mode provides fault
tolerance by aggregating two Ethernet interfaces into
a single logical channel. When the interface that's
currently active goes down, the other interface takes
its place and becomes active.
• LACP mode: This mode aggregates two Ethernet
interfaces that share the same speed and duplex
settings into a single logical channel. This provides
load balancing and higher bandwidth.
For more information about Cisco DNA Center's
implementation of NIC bonding, see NIC Bonding
Overview, on page 60.
Host IP Address field
Enter the IP address for the Cluster port. This is required.
Note that you cannot change the address of the Cluster
port later.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Management Network Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
216
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
f) (Optional) Enter configuration values for the Management port.
As explained in Interface Cable Connections, this port is used to access the Cisco DNA Center GUI from your
management network. If you chose to configure a dedicated Management interface, enter the information described
in the following table. (See Required IP Addresses and Subnets, on page 25 and Required Configuration Information
for a more detailed description of the values you need to enter.)
Note
If you opted to configure the Enterprise and Internet Access interfaces on the same port, complete this step
and then skip ahead to Step 2h.
Table 57: Secondary Node Entries for the Management Port
Host IP Address field
Enter the IP address for the Management port.
Subnet Mask field
Enter the netmask for the port's IP address.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
217
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important
• For NTP, ensure port 123 (UDP) is open
between Cisco DNA Center and your
NTP server.
• For each appliance in your cluster,
configure a maximum of three DNS
servers. Problems can occur if you
configure more than three DNS servers
for a node.
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Configure Your Internet Access Interface screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
218
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
g) (Optional) Enter configuration values for the Internet Access interface.
As explained in Interface Cable Connections, this is an optional port used to link the appliance to the Internet when
you cannot do so through the Enterprise port. If you chose to configure a dedicated Internet Access interface, enter
the information described in the following table. (See Required IP Addresses and Subnets, on page 25 and Required
Configuration Information for a more detailed description of the values you need to enter.)
Table 58: Secondary Node Entries for the Internet Access Port
Host IP Address field
Enter the IP address for the Internet Access port.
Subnet Mask field
Enter the netmask for the port's IP address. This is
required if you entered an IP address in the previous field.
Default Gateway IP Address field
Enter a default gateway IP address to use for the port.
Important Ensure that you enter a default gateway IP
address for at least one of your appliance's
interfaces. Otherwise, you will not be able to
complete the configuration wizard.
DNS field
Enter the IP address of the preferred DNS server. To enter
additional DNS servers, click the Add (+) icon.
Important For each appliance in your cluster, configure
a maximum of three DNS servers. Problems
can occur if you configure more than three
DNS servers for a node.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
219
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Add/Edit Static Route link
To configure a static route, click this link and then do the
following:
1. Enter the route's network IP prefix, subnet mask, and
nexthop IP address.
To configure additional static routes, click +.
2. Click Add.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid and the port is up, the wizard's Interface to Port Configuration screen opens.
h) Review the settings that you have entered for the secondary node's interfaces.
If you need to make any changes, click the Edit link for the relevant interface to return to its wizard screen.
i) When you are happy with the interface settings, click Configure.
j) After initial interface configuration has completed, click Next to proceed to the next wizard screen.
The Configure Proxy Server Information screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
220
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
k) Do one of the following:
• If your network does not use a proxy server to access the internet, click the No radio button and then click Next.
• If your network does use a proxy server to access the internet, enter the values described in the following table:
Table 59: Secondary Node Entries for Proxy Server Settings
Proxy Server field
Enter the URL or host name of an HTTPS network proxy
used to access the Internet.
Note
Connection from Cisco DNA Center to the
HTTPS proxy is supported only via HTTP in
this release.
Port field
Enter the port your appliance used to access the network
proxy.
Username field
Enter the user name used to access the network proxy. If
no proxy login is required, leave this field blank.
Password field
Enter the password used to access the network proxy. If
no proxy login is required, leave this field blank.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
221
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
The wizard validates the information you have entered and notifies you of any settings that need to be changed
before you can proceed with the wizard. If the settings you have entered are valid, the wizard's Primary Node
Details screen opens.
l) To establish a connection with your cluster's primary node, enter its IP address and login credentials, and then click
Next.
The Advanced Appliance Settings screen opens.
m) Enter configuration values for your cluster.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
222
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Table 60: Secondary Node Entries for Advanced Appliance Settings
CLI Credentials
Password and Confirm Password fields
Enter and then confirm the password for the maglev user.
NTP Server Settings
Enter at least one NTP server address or hostname. To
enter additional NTP server addresses or hostnames, click
the Add (+) icon.
NTP Server field
For a production deployment, Cisco recommends that
you configure a minimum of three NTP servers.
Turn On NTP Authentication check box
To enable the authentication of your NTP server before
it's synchronized with Cisco DNA Center, check this
check box and then enter the following information:
• The NTP server's key ID. Valid values range between
1 and 4294967295 (2^32-1).
This value corresponds to the key ID that's defined
in the NTP server's key file.
• The SHA-1 key value associated with the NTP
server's key ID. This 40-character hex string resides
in the NTP server's key file.
Note
Ensure that you enter a key ID and key value
for each NTP server that you configured in the
previous field.
From here, do one of the following:
• To close the wizard, click Exit. A popup window appears, indicating that the settings you have entered up to
this point will be saved. Click Exit again to confirm that you want to close the wizard. When you restart the
wizard and return to this screen, the settings that you entered previously will already be populated.
• To return to the previous wizard screen, click Back.
• To proceed to the next wizard screen, click Next.
The wizard validates the information you have entered, confirms that the port is up, and notifies you of any
settings that need to be changed before you can proceed with the wizard. If the settings you have entered are
valid, the wizard's Summary screen opens.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
223
Configure the 112-Core Appliance Using the Browser-Based Wizard
Configure a Secondary Node Using the Advanced Install Configuration Wizard
Note
To download the appliance configuration as a JSON file, click the here link.
n) Review all of the settings that you have entered while completing the wizard. If necessary, click the appropriate Edit
link to open the wizard screen in which you want to make updates.
o) To complete the configuration of your Cisco DNA Center appliance, click Start Configuration.
The configuration process takes roughly 90 minutes. The wizard screen continuously updates during the process,
indicating the tasks that are currently being completed and their progress, as well as any errors that have occurred.
To save a local copy of this information as a text file, click the download icon.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
224
Configure the 112-Core Appliance Using the Browser-Based Wizard
Upgrade to the Latest Cisco DNA Center Release
What to do next
When this task is complete:
• If you have an additional appliance to deploy as the third and final node in the cluster, repeat this procedure.
• If you are finished adding nodes to the cluster, continue by performing first-time setup: First-Time Setup
Workflow.
Upgrade to the Latest Cisco DNA Center Release
For information about upgrading your current release of Cisco DNA Center, see the Cisco DNA Center
Upgrade Guide.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
225
Configure the 112-Core Appliance Using the Browser-Based Wizard
Upgrade to the Latest Cisco DNA Center Release
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
226
CHAPTER
8
Complete First-Time Setup
• First-Time Setup Workflow, on page 227
• Compatible Browsers, on page 227
• Complete the Quick Start Workflow, on page 227
• Integrate Cisco ISE with Cisco DNA Center, on page 233
• Configure Authentication and Policy Servers, on page 239
• Configure SNMP Properties, on page 242
First-Time Setup Workflow
After you finish configuring all of the Cisco DNA Center appliances you have installed, perform the tasks
described in this chapter to prepare Cisco DNA Center for production use. Note the following points:
• For the parameter information you need to complete this work, see Required First-Time Setup Information.
• If you plan to deploy high availability (HA) in your production environment, you will need to redistribute
services among your cluster nodes to optimize HA operation (see Activate High Availability, on page
251). Complete this step after you have configured the SNMP settings for your appliances.
Compatible Browsers
The Cisco DNA Center GUI is compatible with the following HTTPS-enabled browsers:
• Google Chrome: Version 93 or later.
• Mozilla Firefox: Version 92 or later.
We recommend that the client systems you use to log in to Cisco DNA Center be equipped with 64-bit operating
systems and browsers.
Complete the Quick Start Workflow
After you have installed and configured the Cisco DNA Center appliance, you can log in to its GUI. Use a
compatible, HTTPS-enabled browser when accessing Cisco DNA Center.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
227
Complete First-Time Setup
Complete the Quick Start Workflow
When you log in for the first time as the admin superuser (with the username admin and the
SUPER-ADMIN-ROLE assigned), the Quick Start workflow automatically starts. Complete this workflow
to discover the devices that Cisco DNA Center will manage and enable the collection of telemetry from those
devices.
Before you begin
To log in to Cisco DNA Center and complete the Quick Start workflow, you will need:
• The admin superuser username and password that you specified while completing one of the following
procedures:
• Configure the Primary Node Using the Maglev Wizard, on page 74
• Configure the Primary Node Using the Advanced Install Configuration Wizard, on page 131 (44or 56-core appliance)
• Configure the Primary Node Using the Advanced Install Configuration Wizard, on page 185 (112-core
appliance)
• The information described in Required First-Time Setup Information, on page 41.
Step 1
After the Cisco DNA Center appliance reboot is completed, launch your browser.
Step 2
Enter the host IP address to access the Cisco DNA Center GUI, using HTTPS:// and the IP address of the Cisco DNA
Center GUI that was displayed at the end of the configuration process.
After entering the IP address, one of the following messages appears (depending on the browser you are using):
• Google Chrome: Your
connection is not private
• Mozilla Firefox: Warning:
Step 3
Potential Security Risk Ahead
Ignore the message and click Advanced.
One of the following messages appears:
• Google Chrome:
This server could not prove that it is GUI-IP-address; its security certificate is not trusted
by your computer's
operating system. This may be caused by a misconfiguration or an attacker intercepting your
connection.
• Mozilla Firefox:
Someone could be trying to impersonate the site and you should not continue.
Websites prove their identity via certificates. Firefox does not trust GUI-IP-address because
its certificate issuer is unknown,
the certificate is self-signed, or the server is not sending the correct intermediate certificates.
These messages appear because the controller uses a self-signed certificate. For information on how Cisco DNA Center
uses certificates, see the "Certificate and Private Key Support" section in the Cisco DNA Center Administrator Guide.
Step 4
Ignore the message and do one of the following:
• Google Chrome: Click the Proceed to GUI-IP-address (unsafe) link.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
228
Complete First-Time Setup
Complete the Quick Start Workflow
• Mozilla Firefox: Click Accept the Risk and Continue.
The Cisco DNA Center login screen appears.
Step 5
Do one of the following and then click Log In:
• If you completed the Maglev configuration wizard and chose the Start using DNAC pre manufactured cluster
option, enter the admin's username (admin) and password (maglev1@3).
• If you completed the Maglev configuration wizard and chose the Start configuration of DNAC in advanced mode
option, enter the admin's username (admin) and password that you set when you configured your Cisco DNA Center
appliance.
• If you completed the Install configuration wizard, enter the admin's username (admin) and paste the password
(maglev1@3) that you copied from the wizard's final screen.
• If you completed the Advanced Install configuration wizard, enter the admin's username (admin) and password that
you set when you configured your Cisco DNA Center appliance.
In the next screen, you are prompted to specify a new admin password (as a security measure).
Step 6
Do one of the following:
• If you don't want to change the admin password at this time, click Skip.
• To set a new admin password:
a. Enter the same password that you specified in Step 5.
b. Enter and confirm a new admin password.
c. Click Next.
Step 7
Enter your cisco.com username and password (which are used to register software downloads and receive system
communications) and then click Next.
Note
If you don't want to enter these credentials at this time, click Skip instead.
The Terms & Conditions screen opens, providing links to the software End User License Agreement (EULA) and any
supplemental terms that are currently available.
Step 8
After reviewing these documents, click Next to accept the EULA.
The Quick Start Overview slider opens. Click > to view a description of the tasks that the Quick Start workflow will
help you complete in order to start using Cisco DNA Center.
Step 9
Complete the Quick Start workflow:
a) Click Let's Do it.
b) In the Discover Devices: Provide IP Ranges screen, enter the following information and then click Next:
• The name for the device discovery job.
• The IP address ranges of the devices you want to discover. Click + to enter additional ranges.
• Specify whether you want to designate your appliance's loopback address as its preferred management IP address.
For more information, see the "Preferred Management IP Address" topic in the Cisco DNA Center User Guide.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
229
Complete First-Time Setup
Complete the Quick Start Workflow
c) In the Discover Devices: Provide Credentials screen, enter the information described in the following table for the
type of credentials you want to configure and then click Next:
Field
Description
CLI (SSH) Credentials
Username
Username used to log in to the CLI of the devices in your network.
Password
Password used to log in to the CLI of the devices in your network. The password
you enter must be at least eight characters long.
Name/Description
Name or description of the CLI credentials.
Enable Password
Password used to enable a higher privilege level in the CLI. Configure this
password only if your network devices require it.
SNMP Credentials: SNMPv2c Read tab
Note
Cisco DNA Center does not support SNMPv2c credentials when FIPS mode is enabled. You'll need to
enter SNMPv3 credentials instead. For more information regarding FIPS mode, see Configure the Primary
Node Using the Maglev Wizard, on page 74.
Name/Description
Name or description of the SNMPv2c read community string.
Community String
Read-only community string password used only to view SNMP information on
the device.
SNMP Credentials: SNMPv2c Write tab
Name/Description
Name or description of the SNMPv2c write community string.
Community String
Write community string used to make changes to the SNMP information on the
device.
SNMP Credentials: SNMPv3
Name/Description
Name or description of the SNMPv3 credentials.
Username
Username associated with the SNMPv3 credentials.
Mode
Security level that SNMP messages require:
• No Authentication, No Privacy (noAuthnoPriv): Does not provide
authentication or encryption.
• Authentication, No Privacy (authNoPriv): Provides authentication, but
does not provide encryption.
• Authentication and Privacy (authPriv): Provides both authentication and
encryption.
Note
When FIPS mode is enabled, Cisco DNA Center only supports
Authentication and Privacy mode.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
230
Complete First-Time Setup
Complete the Quick Start Workflow
Field
Description
Authentication Password
Password required to gain access to information from devices that use SNMPv3.
The password must be at least eight characters in length. Note the following
points:
• Some wireless controllers require that passwords be at least 12 characters
long. Be sure to check the minimum password requirements for your wireless
controllers. Failure to ensure these required minimum character lengths for
passwords results in devices not being discovered, monitored, or managed
by Cisco DNA Center.
• Passwords are encrypted for security reasons and are not displayed in the
configuration.
Authentication Type
Hash-based Message Authentication Code (HMAC) type used when either
Authentication and Privacy or Authentication, No Privacy is set as the
authentication mode:
• SHA: HMAC-SHA authentication.
• MD5: HMAC-MD5 authentication.
Note
Privacy Type
Cisco DNA Center does not support this authentication type when
FIPS mode is enabled.
Privacy type used when Authentication and Privacy is set as the authentication
mode. Choose one of the following privacy types:
• AES128: 128-bit CBC mode AES for encryption.
• CISCOAES192: 192-bit CBC mode AES for encryption.
• CISCOAES256: 256-bit CBC mode AES for encryption.
Note
• Discovery and Inventory features support only AES192 and
AES256 privacy types.
• Cisco DNA Assurance does not support any of these privacy
types.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
231
Complete First-Time Setup
Complete the Quick Start Workflow
Field
Description
Privacy Password
SNMPv3 privacy password that is used to generate the secret key for encrypting
messages are exchanged with devices supported with AES128, AES192, and
AES256 encryption standards. Passwords (or passphrases) must be at least eight
characters long.
Note the following points:
• Some wireless controllers require that passwords be at least 12 characters
long. Be sure to check the minimum password requirements for your wireless
controllers. Failure to ensure these required minimum character lengths for
passwords results in devices not being discovered, monitored, or managed
by Cisco DNA Center.
• Passwords are encrypted for security reasons and are not displayed in the
configuration.
NETCONF
The NETCONF port that Cisco DNA Center should use in order to discover
wireless controllers that run Cisco IOS-XE.
Port
d) In the Create Site screen, group the devices you are going to discover into one site in order to facilitate telemetry
and then click Next.
You can enter the site's information manually or click the location you want to use in the provided map.
e) In the Enable Telemetry screen, check the network components that you want Cisco DNA Center to collect telemetry
for and then click Next.
Note
If both the Enable Telemetry and Disable Telemetry options are grayed out, this indicates that either
devices are not capable of supporting telemetry or devices are running an OS version that does not support
telemetry enablement.
f) In the Summary screen, review the settings that you have entered and then do one of the following:
• If you want to make changes, click the appropriate Edit link to open the relevant screen.
• If you're happy with the settings, click Start Discovery and Telemetry. Cisco DNA Center validates your
settings to ensure that they will not result in any issues. After validation is complete, the screen updates.
Cisco DNA Center begins the process of discovering your network's devices and enabling telemetry for the
network components you selected. The process will take a minimum of 30 minutes (more for larger networks).
A message appears at the top of the homepage to indicate when the Quick Start workflow has completed.
g) Do one of the following:
• Click View Discovery to open the Discovery page and confirm that the devices in your network have been
discovered.
• Click the Go to Network Settings link to open the Device Credentials page. From here, you can verify that
the credentials you entered previously have been configured for your site.
• Click the View Activity Page link to open the Tasks page and view any tasks (such as a weekly scan of the
network for security advisories) that Cisco DNA Center has already scheduled to run.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
232
Complete First-Time Setup
Integrate Cisco ISE with Cisco DNA Center
• Click the Workflow Home link to access guided workflows that will help you set up and maintain your network.
Integrate Cisco ISE with Cisco DNA Center
Cisco DNA Center provides a mechanism to create a trusted communications link with Cisco ISE and to share
data with Cisco ISE in a secure manner. After Cisco ISE is registered with Cisco DNA Center, any device
that Cisco DNA Center discovers, along with relevant configuration and other data, is pushed to Cisco ISE.
You can use Cisco DNA Center to discover devices and then apply both Cisco DNA Center and Cisco ISE
functions to them because these devices will be displayed in both the applications. Cisco DNA Center and
Cisco ISE devices are all uniquely identified by their device names.
As soon as the devices are provisioned and assigned to a particular site in the Cisco DNA Center site hierarchy,
Cisco DNA Center devices are pushed to Cisco ISE. Any updates to a Cisco DNA Center device (such as
changes to IP address, SNMP or CLI credentials, Cisco ISE shared secret, and so on) will be sent to the
corresponding device instance on ISE automatically. Note that Cisco DNA Center devices are pushed to Cisco
ISE only when these devices are associated with a particular site where Cisco ISE is configured as its AAA
server.
Before you begin
Before attempting to integrate Cisco ISE with Cisco DNA Center, ensure that you have met the following
prerequisites:
• You have deployed one or more Cisco ISE hosts on your network. For information on supported Cisco
ISE versions, see the Cisco DNA Center Compatibility Matrix. For information on installing Cisco ISE,
see the Cisco Identity Services Engine Install and Upgrade guides.
• If you have a standalone Cisco ISE deployment, you must integrate Cisco DNA Center with the Cisco
ISE node and enable the pxGrid service and External RESTful Services (ERS) on that node.
Note
Although pxGrid 2.0 allows up to four pxGrid nodes in the Cisco ISE deployment,
Cisco DNA Center releases earlier than 2.2.1.x do not support more than two
pxGrid nodes.
• If you have a distributed Cisco ISE deployment:
• You must integrate Cisco DNA Center with the primary policy administration node (PAN), and
enable ERS on the PAN.
Note
We recommend that you use ERS through the PAN. However, for backup, you
can enable ERS on the PSNs.
• You must enable the pxGrid service on one of the Cisco ISE nodes within the distributed deployment.
Although you can choose to do so, you do not have to enable pxGrid on the PAN. You can enable
pxGrid on any Cisco ISE node in your distributed deployment.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
233
Complete First-Time Setup
Integrate Cisco ISE with Cisco DNA Center
• The PSNs that you configure in Cisco ISE to handle TrustSec or SD Access content and PACs must
also be defined in Work Centers > Trustsec > Trustsec Servers > Trustsec AAA Servers. For
more information, see the Cisco Identity Services Engine Administrator Guide.
• Only a user with Super Admin role permissions can integrate Cisco ISE with Cisco DNA Center.
• Cisco DNA Center does not support ERS API access if the Use CSRF Check for Enhanced Security
option is enabled in Cisco ISE.
• You must enable communication between Cisco DNA Center and Cisco ISE on the following ports: 443,
5222, 8910, and 9060.
• The Cisco ISE host on which pxGrid is enabled must be reachable from Cisco DNA Center on the IP
address of the Cisco ISE eth0 interface.
• The Cisco ISE node can reach the fabric underlay network via the appliance's NIC.
• Cisco DNA Center will check the certificate revocation status if Online Certificate Status Protocol (OCSP)
or certificate revocation list (CRL) validation is defined for the certificates used by the Cisco ISE services.
• The Cisco ISE admin node certificate must contain the Cisco ISE IP address or FQDN in either the
certificate subject name or the Subject Alternative Name (SAN).
• Your ability to use an FQDN-only system certificate depends on whether LAN automation is enabled in
your Cisco DNA Center deployment. For more information, see the alt_names section bullet in Step 3
of the Cisco DNA Center Security Best Practices Guide's "Generate a Certificate Request Using Open
SSL" topic.
Note
For Cisco ISE 2.4 Patch 13, 2.6 Patch 7, and 2.7 Patch 3, if you are using the
Cisco ISE default self-signed certificate as the pxGrid certificate, Cisco ISE might
reject that certificate after applying those patches. This is because the older
versions of that certificate have the Netscape Cert Type extension specified as
the SSL server, which now fails (because a client certificate is required).
This issue does not occur in Cisco ISE 3.0 and later. For more information, see
the Cisco ISE Release Notes.
For more information about configuring Cisco ISE for Cisco DNA Center, see the "Integration with Cisco
DNA Center" topic in the Cisco Identity Services Engine Administrator Guide.
Step 1
Enable the pxGrid service and ERS on Cisco ISE:
a) Log in to the primary policy administration node.
b) In the Cisco ISE GUI, click the menu icon ( ) and choose Administration > System > Deployment.
The Deployment Nodes window appears.
c) Click the hostname of the Cisco ISE node on which you want to enable the pxGrid service. In a distributed deployment,
this can be any Cisco ISE node in the deployment.
The Edit Node window appears.
d) In the General Settings tab, check the pxGrid check box, and click Save.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
234
Complete First-Time Setup
Integrate Cisco ISE with Cisco DNA Center
e)
f)
g)
h)
Step 2
In the Cisco ISE GUI, click the menu icon ( ) and choose Administration > System > Settings.
From the left navigation pane, click ERS Settings to open the ERS Settings window.
Click the Enable ERS for Read/Write radio button, and then click OK in the notification prompt.
Click Save.
Add the Cisco ISE node to Cisco DNA Center as a AAA server:
a) Log in to the Cisco DNA Center GUI.
b)
c)
d)
e)
Click the menu icon ( ) and choose System > System 360.
In the Identity Services Engine (ISE) pane, click the Configure link.
From the Authentication and Policy Servers window, click Add and choose ISE from the drop-down list.
Enter the following details in the Add ISE server slide-in pane:
• In the Server IP Address field, enter the IP address of the Cisco ISE server.
• Enter the Shared Secret used to secure communications between your network devices and Cisco ISE.
• In the Username and Password fields, enter the corresponding Cisco ISE admin credentials.
• Enter the FQDN for the Cisco ISE node.
• (Optional) Enter the virtual IP address of the load balancer behind which the Cisco ISE PSNs are located. If
you have multiple policy service node farms behind different load balancers, you can enter a maximum of six
virtual IP addresses.
• Connect to pxGrid: Check this check box under Advanced Settings to enable pxGrid connection.
If you want to use the Cisco DNA Center system certificate as the pxGrid client certificate (sent to ISE to
authenticate the Cisco DNA Center system as a pxGrid client), check the Use Cisco DNA Center Certificate
for pxGrid check box. You can use this option if all the certificates that are used in your operating environments
must be generated by the same Certificate Authority (CA). If this option is disabled, Cisco DNA Center will
send a request to Cisco ISE to generate a pxGrid client certificate for the system to use.
When you enable this option, ensure that:
• The Cisco DNA Center certificate is generated by the same CA as is in use by Cisco ISE (otherwise the
pxGrid authentication will fail).
• The Certificate Extended Key Use (EKU) field includes “Client Authentication”.
• In the Advanced Settings area:
• You can choose the protocol that must be used by checking the check box for RADIUS or TACACS
• Enter the required values in the following fields: Authentication Port, Accounting Port, Retries,
and (Timeout seconds).
Note
This option is available only if third-party certificates are used by Cisco DNA Center. If Cisco DNA
Center uses the default self-signed system certificate, then this option is disabled.
f) Click Add.
When the integration with Cisco ISE is initiated, you will see a notification that the certificate from Cisco ISE is not yet
trusted. You can view the certificate to see the details.
Click Accept to trust the certificate and continue with the integration process, or choose Decline if you do not wish to
trust the certificate and terminate the integration process.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
235
Complete First-Time Setup
Group-Based Access Control: Policy Data Migration and Synchronization
After the integration completes successfully, a confirmation message is displayed.
If there is any issue in the integration process, an error message is displayed. An option to edit or retry is displayed where
applicable.
• If the error message says that the Cisco ISE Admin credentials are invalid, click Edit and re-enter the correct
information.
• If errors are found with certificates in the integration process, you must delete the Cisco ISE server entry and restart
the integration from the beginning after the certificate issue has been resolved.
Step 3
Verify that Cisco DNA Center is connected to Cisco ISE, and that the Cisco ISE SGT groups and devices are pushed to
Cisco DNA Center:
a) Log in to the Cisco DNA Center GUI.
b) Click the menu icon ( ) and choose System > System 360.
c) In the Identity Services Engine (ISE) pane, verify that the status of all listed ISE servers is displayed as Available
or Configured.
d) In the Identity Services Engine (ISE) pane, click the Update link.
e) From the Authentication and Policy Servers window, verify that the status of the Cisco ISE AAA server is still
Active.
Step 4
Verify that Cisco ISE is connected to Cisco DNA Center and that the connection has subscribers:
a) Log in to the Cisco ISE nodes that are shown as pxGrid servers in the Identity Services Engine (ISE) pane.
b) Choose Administration > pxGrid Services and click the Web Clients tab.
You should see the pxGrid clients in the list with the IP address of the Cisco DNA Center server.
Group-Based Access Control: Policy Data Migration and Synchronization
When You Start Using Cisco DNA Center
In earlier releases of Cisco DNA Center, the Group-Based Access Control policy function stored some policy
Access Contracts and Policies locally in Cisco DNA Center. Cisco DNA Center also propagated that data to
Cisco ISE. Cisco ISE provides the runtime policy services to the network, which includes group-based access
control policy downloads to the network devices. Usually, the policy information in Cisco DNA Center
matches the policy information in Cisco ISE. But it is possible that the data is not in sync; the data may not
be consistent. Because of this, after installing or upgrading to Cisco DNA Center, the following steps are
necessary before you can use the Group-Based Access Control capabilities.
• Integrate Cisco ISE with Cisco DNA Center, if it is not already integrated.
• Upgrade Cisco ISE, if the version is not the minimum required. See the Cisco DNA Center Release Notes
for the required versions of Cisco ISE.
• Perform Policy Migration and Synchronization.
What Is “Migration and Synchronization”?
Cisco DNA Center reads all the Group-Based Access Control policy data in the integrated Cisco ISE and
compares that data with the policy data in Cisco DNA Center. If you upgraded from an earlier version, existing
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
236
Complete First-Time Setup
Group-Based Access Control: Policy Data Migration and Synchronization
policy data is retained. You must synchronize the policies before you can manage Group-Based Access Control
Policy in Cisco DNA Center.
How Does Migration and Synchronization Work?
Usually, the policy data in Cisco ISE and in Cisco DNA Center is consistent, so no special handling or
conversion of data is necessary. Sometimes, when there are minor discrepancies or inconsistencies, only some
of the data is converted during the migration. If there is a conflict, the data in Cisco ISE is given precedence,
so as not to introduce changes in policy behavior in the network. The following list describes the actions taken
during migration:
• Security Groups: The Security Group Tag (SGT), which is a numeric value, uniquely identifies a Security
Group. Cisco ISE Security Groups are compared to Security Groups in Cisco DNA Center.
• When the Name and SGT value are the same, nothing is changed. The information in Cisco DNA
Center is consistent with Cisco ISE and does not need to be changed.
• When a Cisco ISE Security Group SGT value does not exist in Cisco DNA Center, a new Security
Group is created in Cisco DNA Center. The new Security Group is given the default association of
“Default_VN.”
• When a Cisco ISE Security Group SGT value exists in Cisco DNA Center, but the names do not
match, the name from Cisco ISE Security Group replaces the name of that Security Group in Cisco
DNA Center.
• When the Cisco ISE Security Group Name is the same, but the SGT value is different, the Security
Group from Cisco ISE is migrated. It retains the name and tag value, and the Cisco DNA Center
Security Group is renamed. A suffix of “_DNA” is added.
Contracts
All the SGACLs in Cisco ISE that are referenced by policies are compared to Contracts in Cisco DNA Center.
• When the SGACL and Contract have the same name and content, there is no need for further action. The
information in Cisco DNA Center is consistent with Cisco ISE and does not need to be changed.
• When the SGACL and Contract have the same name, but the content is different, the SGACL content
from Cisco ISE is migrated. The previous Contract content in Cisco DNA Center is discarded.
When the SGACL name does not exist in Cisco DNA Center, a new Contract with that name is created, and
the SGACL content from Cisco ISE is migrated.
Note
When creating new Access Contracts based on Cisco ISE SGACL content, Cisco DNA Center parses the text
command lines, and, where possible, renders these SGACL commands as a modeled Access Contract. Each
ACE line renders as an “Advanced” application line. If a Cisco ISE SGACL contains text that cannot be
parsed successfully, the text content of the SGACL is not converted into modeled format. It is stored as raw
command line text. These SGACL text contracts may be edited, but no parsing or syntax checking of the text
content is performed during migration.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
237
Complete First-Time Setup
Group-Based Access Control: Policy Data Migration and Synchronization
Policies
A Policy is uniquely identified by a source group-destination group pair. All Cisco ISE TrustSec Egress Policy
Matrix policies are compared to the policies in Cisco DNA Center.
• When a policy for a source group-destination group references the same SGACL/Contract name in Cisco
ISE, no changes are made.
• When a policy for a source group-destination group references a different SGACL/Contract name in
Cisco ISE, the Cisco ISE Contract name is referenced in the policy. This overwrites the previous Contract
reference in Cisco DNA Center.
• The Cisco ISE default policy is checked and migrated to Cisco DNA Center.
Note
Cisco DNA Center supports a single contract in access policies. Cisco ISE has an option to use multiple
SGACLs in access policies, but this option is not enabled by default in Cisco ISE, and in general is not widely
used. Existing SDA customers who have been using the previous release of Cisco DNA Center to manage
Group-Based Access Control policy did not use this option.
If you enabled the option to allow multiple SGACLs on Cisco ISE and used this when creating policies, those
policies cannot be migrated to Cisco DNA Center in this release. The specific policy features that make use
of the “multiple SGACL” option and cannot be migrated are:
• Multiple SGACLs in a policy.
• Policy Level catch-all rules set to “Permit” or “Deny.” Only the value of “None” is currently supported
for migration to Cisco DNA Center.
• Default Policy set to use a customer-created SGACL, but only the standard values of “Permit IP,”
“Permit_IP_Log,” “Deny IP,” and “Deny_IP_Log” are currently supported for migration to Cisco DNA
Center.
If any of the preceding SGACLs are detected during the policy migration and synchronization operation, a
notification is generated, and you must choose between the following options to continue:
• Manage Group-Based Access Control policy in Cisco DNA Center: If this option is selected, all
management of Group-Based Access Control Policy is done in Cisco DNA Center. The user interface
screens in Cisco ISE for management of Cisco ISE Security Groups, SGACLs, and Egress Policies are
available in Read-Only mode. If there were any issues migrating policies (due to use of multiple SGACLs
in Cisco ISE), those policies have no contract selected in Cisco DNA Center. The policy uses the default
policy, and you can select a new contract for those policies after completing the migration. If there was
an problem migrating the default policy, the default policy is set to "Permit."
• Manage Group-Based Access Control Policy in Cisco ISE: If this option is selected, Cisco DNA
Center Group-Based Access Control policy management is inactive. No changes are made to Cisco ISE
and there is no effect on policy enforcement in the network. Group-Based Access Control policy is
managed in Cisco ISE at the TrustSec workcenter.
• Manage Group-Based Access Control policy in both Cisco DNA Center and Cisco ISE: This option
is not recommended for general use, because policy changes made in Cisco ISE are not synchronized
with Cisco DNA Center. The two systems cannot be kept in sync. This option is intended as a short-term
or interim option, and should only be considered when you enabled the “Allow Multiple SGACLs” option
in Cisco ISE. Use this option if you need more time and flexibility updating Cisco ISE.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
238
Complete First-Time Setup
Configure Authentication and Policy Servers
Configure Authentication and Policy Servers
Cisco DNA Center uses AAA servers for user authentication and Cisco ISE for both user authentication and
access control. Use this procedure to configure AAA servers, including Cisco ISE.
Before you begin
• If you are using Cisco ISE to perform both policy and AAA functions, make sure that Cisco DNA Center
and Cisco ISE are integrated.
• If FIPS mode is enabled for Cisco DNA Center, ensure that you enable KeyWrap when integrating Cisco
DNA Center and Cisco ISE. See Step 2e in Integrate Cisco ISE with Cisco DNA Center, on page 233.
Note
You cannot enable KeyWrap if Cisco DNA Center and Cisco ISE have already
been integrated. To enable this feature, you need to delete Cisco ISE and then
reintegrate it with Cisco DNA Center.
• If you are using another product (not Cisco ISE) to perform AAA functions, make sure to do the following:
• Register Cisco DNA Center with the AAA server, including defining the shared secret on both the
AAA server and Cisco DNA Center.
• Define an attribute name for Cisco DNA Center on the AAA server.
• For a Cisco DNA Center multihost cluster configuration, define all individual host IP addresses and
the virtual IP address for the multihost cluster on the AAA server.
• Before you configure Cisco ISE, confirm that:
• You have deployed Cisco ISE on your network. For information on supported Cisco ISE versions,
see the Cisco DNA Center Compatibility Matrix. For information on installing Cisco ISE, see the
Cisco Identity Services Engine Install and Upgrade guides.
• If you have a standalone ISE deployment, you must integrate Cisco DNA Center with the Cisco
ISE node and enable the pxGrid service and External RESTful Services (ERS) on that node.
Note
Although pxGrid 2.0 allows up to four pxGrid nodes in the Cisco ISE deployment,
Cisco DNA Center releases earlier than 2.2.1.x do not support more than two
pxGrid nodes.
• If you have a distributed Cisco ISE deployment:
• You must integrate Cisco DNA Center with the primary policy administration node (PAN),
and enable ERS on the PAN.
Note
We recommend that you use ERS through the PAN. However, for backup, you
can enable ERS on the PSNs.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
239
Complete First-Time Setup
Configure Authentication and Policy Servers
• You must enable the pxGrid service on one of the Cisco ISE nodes within the distributed
deployment. Although you can choose to do so, you do not have to enable pxGrid on the PAN.
You can enable pxGrid on any Cisco ISE node in your distributed deployment.
• The PSNs that you configure in Cisco ISE to handle TrustSec or SD Access content and PACs
must also be defined in Work Centers > Trustsec > Trustsec Servers > Trustsec AAA
Servers. For more information, see the Cisco Identity Services Engine Administrator Guide.
• You must enable communication between Cisco DNA Center and Cisco ISE on the following ports:
443, 5222, 8910, and 9060.
• The Cisco ISE host on which pxGrid is enabled must be reachable from Cisco DNA Center on the
IP address of the Cisco ISE eth0 interface.
• The Cisco ISE node can reach the fabric underlay network via the appliance's NIC.
• The Cisco ISE admin node certificate must contain the Cisco ISE IP address or FQDN in either the
certificate subject name or the Subject Alternative Name (SAN).
• The Cisco DNA Center system certificate must list both the Cisco DNA Center appliance IP address
and FQDN in the SAN field.
Note
For Cisco ISE 2.4 Patch 13, 2.6 Patch 7, and 2.7 Patch 3, if you are using the
Cisco ISE default self-signed certificate as the pxGrid certificate, Cisco ISE might
reject that certificate after applying those patches. This is because the older
versions of that certificate have the Netscape Cert Type extension specified as
the SSL server, which now fails (because a client certificate is required).
This issue does not occur in Cisco ISE 3.0 and later. For more information, see
the Cisco ISE Release Notes.
Step 1
Click the menu icon (
Step 2
From the Add drop-down list, choose AAA or ISE.
Step 3
To configure the primary AAA server, enter the following information:
) and choose System > Settings > External Services > Authentication and Policy Servers.
• Server IP Address: IP address of the AAA server.
• Shared Secret: Key for device authentications. The shared secret can contain up to 100 characters.
Step 4
To configure a Cisco ISE server, enter the following details:
• Server IP Address: IP address of the ISE server.
• Shared Secret: Key for device authentications.
• Username: Username that is used to log in to the Cisco ISE CLI.
Note
This user must be a Super Admin.
• Password: Password for the Cisco ISE CLI username.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
240
Complete First-Time Setup
Configure Authentication and Policy Servers
• FQDN: Fully qualified domain name (FQDN) of the Cisco ISE server.
Note
• We recommend that you copy the FQDN that is defined in Cisco ISE (Administration >
Deployment > Deployment Nodes > List) and paste it directly into this field.
• The FQDN that you enter must match the FQDN, Common Name (CN), or Subject Alternative Name
(SAN) defined in the Cisco ISE certificate.
The FQDN consists of two parts, a hostname and the domain name, in the following format:
hostname.domainname.com
For example, the FQDN for a Cisco ISE server can be ise.cisco.com.
• Virtual IP Address(es): Virtual IP address of the load balancer behind which the Cisco ISE policy service nodes
(PSNs) are located. If you have multiple PSN farms behind different load balancers, you can enter a maximum of
six virtual IP addresses.
Step 5
Click Advanced Settings and configure the settings:
• Connect to pxGrid: Check this check box to enable a pxGrid connection.
If you want to use the Cisco DNA Center system certificate as the pxGrid client certificate (sent to Cisco ISE to
authenticate the Cisco DNA Center system as a pxGrid client), check the Use Cisco DNA Center Certificate for
pxGrid check box. You can use this option if all the certificates that are used in your operating environments must
be generated by the same CA. If this option is disabled, Cisco DNA Center will send a request to Cisco ISE to
generate a pxGrid client certificate for the system to use.
When you enable this option, ensure that:
• The Cisco DNA Center certificate is generated by the same Certificate Authority (CA) as is in use by Cisco
ISE (otherwise, the pxGrid authentication fails).
• The Certificate Extended Key Use (EKU) field includes "Client Authentication."
• Protocol: TACACS and RADIUS (the default). You can select both protocols.
Attention If you do not enable TACAS for a Cisco ISE server here, you cannot configure the Cisco ISE server as a
TACACS server under Design > Network Settings > Network when configuring a AAA server for
network device authentication.
• Authentication Port: Port used to relay authentication messages to the AAA server. The default UDP port is 1812.
• Accounting Port: Port used to relay important events to the AAA server. The default UDP port is 1813.
• Port: The default TACACS port is 49.
• Retries: Number of times that Cisco DNA Center attempts to connect with the AAA server before abandoning the
attempt to connect. The default number of attempts is 3.
• Timeout: The time period for which the device waits for the AAA server to respond before abandoning the attempt
to connect. The default timeout is 4 seconds.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
241
Complete First-Time Setup
Configure SNMP Properties
Note
After the required information is provided, Cisco ISE is integrated with Cisco DNA Center in two phases. It
takes several minutes for the integration to complete. The phase-wise integration status is shown in the
Authentication and Policy Servers window and System 360 window:
Cisco ISE server registration phase:
• Authentication and Policy Servers window: "In Progress"
• System 360 window: "Primary Available"
pxGrid subscriptions registration phase:
• Authentication and Policy Servers window: "Active"
• System 360 window: "Primary Available" and "pxGrid Available"
If the status of the configured Cisco ISE server is shown as "FAILED" due to a password change, click Retry,
and update the password to resynchronize the Cisco ISE connectivity.
Step 6
Click Add.
Step 7
To add a secondary server, repeat the preceding steps.
Configure SNMP Properties
You can configure the retry and timeout values for SNMP.
Before you begin
Only a user with SUPER-ADMIN-ROLE permissions can perform this procedure. For more information, see
the Cisco DNA Center Administrator Guide.
Step 1
Click the menu icon (
Step 2
Configure the following fields:
) and choose System > Settings > Device Settings > SNMP.
• Retries: Number of attempts allowed to connect to the device. Valid values are from 1 to 3. The default is 3.
• Timeout (in Seconds): Number of seconds Cisco DNA Center waits when trying to establish a connection with a
device before timing out. Valid values are from 1 to 300 seconds, in intervals of 5 seconds. The default is 5 seconds.
Step 3
Click Save.
Note
To return to the default settings, click Reset and Save.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
242
CHAPTER
9
Troubleshoot the Deployment
• Troubleshooting Tasks, on page 243
• Log Out, on page 243
• Reconfigure the Appliance Using the Configuration Wizard, on page 244
• Power-Cycle the Appliance, on page 245
Troubleshooting Tasks
When troubleshooting issues with the appliance's configuration, you will normally perform the following
tasks:
1. If you are currently using the Cisco DNA Center GUI: Log Out.
2. To reconfigure the appliance's hardware, log in to and use the CIMC GUI, as explained in Steps 12 and
13 of Enable Browser Access to Cisco Integrated Management Controller.
3. To change the appliance configuration, launch and use the Maglev Configuration wizard, as explained in
Reconfigure the Appliance Using the Configuration Wizard.
4. Power-cycle the appliance so that your changes are active: Power-Cycle the Appliance, on page 245.
For more information about the appliance's network adapters, see the Managing Adapters section of the Cisco
UCS C-Series Servers Integrated Management Controller CLI Configuration Guide, Release 3.1. As noted
elsewhere, never attempt to manage the appliance hardware through the Linux CLI. Use only the CIMC GUI
or the Maglev Configuration wizard to change appliance settings.
Log Out
Follow the steps below to log out of the Cisco DNA Center GUI.
For security reasons, we recommend that you log out after you complete a work session. If you do not log
out yourself, you will be logged out automatically after 30 minutes of inactivity.
Step 1
Step 2
Click the menu icon ( ).
Click Sign out.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
243
Troubleshoot the Deployment
Reconfigure the Appliance Using the Configuration Wizard
This ends your session and logs you out.
Reconfigure the Appliance Using the Configuration Wizard
To reconfigure an appliance, you must use the Configuration wizard to update the appliance settings. You
cannot use the Linux CLI to do this. The normal Linux administration procedures that you might use to update
configuration settings on a standard Linux server will not work and should not be attempted.
After the appliance is configured, you cannot use the Configuration wizard to change all of the appliance
settings. Changes are restricted to the following settings only:
• Host IP address of the appliance
• DNS server IP addresses
• Default gateway IP address
• NTP server IP addresses
• Cluster Virtual IP address
• Cluster hostname (FQDN)
• Static routes
• Proxy server IP address
• Maglev user password
• Admin user password
Before you begin
You will need the Linux user name (maglev) and password that are currently configured on the target appliance.
Step 1
Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed, and
log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary window,
with a hyperlinked menu at the top of the window, as shown below.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
244
Troubleshoot the Deployment
Power-Cycle the Appliance
Step 2
From the hyperlinked menu, choose Launch KVM and then select either Java based KVM or HTML based KVM. If
you select Java-based KVM, you will need to launch the Java startup file from your browser or file manager in order
to view the KVM console in its own window. If you select HMTL-based KVM, it launches the KVM console in a
separate window or tab automatically.
Irrespective of the KVM type you choose, use the KVM console to monitor the progress of the configuration and respond
to the Maglev Configuration wizard prompts.
Step 3
When prompted, enter the Linux password.
Step 4
Enter the following command to access the Configuration wizard.
sudo maglev-config update
If you are prompted for the Linux password, enter it again.
Step 5
The Configuration wizard presents an abbreviated version of the same series of screens shown in, for example, Configure
a Secondary Node Using the Maglev Wizard. Make changes to the settings presented, if required. After you finish making
changes on each screen, choose [Next], as needed, to proceed through the Configuration wizard.
Step 6
At the end of the configuration process, a message appears, stating that the Configuration wizard is now ready to apply
your changes. The following options are available:
• [back]: Review and verify your changes.
• [cancel]: Discard your changes and exit the Configuration wizard.
• [proceed]: Save your changes and begin applying them.
Choose proceed>> to complete the installation. The Configuration wizard applies the changes you made.
At the end of the configuration process, a CONFIGURATION
SUCCEEDED!
message appears.
What to do next
Ensure your changes are applied and active by power-cycling the appliance. See Power-Cycle the Appliance,
on page 245.
Note
If you have updated the DNS Server IP addresses, we recommend that you perform a cold boot when
power-cycling the appliance. This ensures that your DNS changes are applied.
Power-Cycle the Appliance
Complete one of the following procedures on your Cisco DNA Center appliance to either halt it or perform
a warm restart. You can halt the appliance before you make hardware repairs, or you can initiate a warm
restart after you have corrected software issues.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
245
Troubleshoot the Deployment
Using the Cisco IMC GUI
Using the Cisco IMC GUI
If you want to use the KVM console that is accessible from the Cisco IMC GUI in order to halt your appliance
or perform a warm restart, complete the tasks described in this procedure.
Before you begin
Note that any hardware changes you make using the Cisco IMC GUI will be applied after the appliance
reboots.
Caution
Step 1
Power-cycling your appliance from the Cisco IMC GUI can result in the corruption or loss of data. Only do
so if your appliance is completely unresponsive to SSH, the Cisco IMC console, or the physical console.
Point your browser to the Cisco IMC IP address you set during the Cisco IMC GUI configuration you performed, and
log in to the Cisco IMC GUI as the Cisco IMC user (see Enable Browser Access to Cisco Integrated Management
Controller, on page 52).
After successful login, the appliance displays the Cisco Integrated Management Controller Chassis Summary window,
with a hyperlinked menu at the top of the window, as shown below.
Step 2
With the KVM displayed, reboot the appliance by choosing Host Power > Power Cycle .
If you are asked to confirm your choice to reboot the appliance, click OK.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
246
Troubleshoot the Deployment
Using SSH
Using SSH
If you want to use SSH in order to halt your appliance or perform a warm restart, complete the following
tasks:
Before you begin
You will need the following:
• Secure Shell (SSH) client software.
• The IP address that you configured for the 10-Gbps Enterprise port on the appliance that needs
reconfiguration. Log in to the appliance at this address, on port 2222.
To identify the Enterprise port, see the rear-panel figures in Front and Rear Panels, on page 4.
• The Linux user name (maglev) and the password that is currently configured on the target appliance.
Step 1
Using a Secure Shell (SSH) client, log in to the IP address of the Enterprise port of the appliance that needs to be
reconfigured, on port 2222:
ssh maglev@Enterprise-port's-IP-address -p 2222
Step 2
When prompted, enter the Linux password.
Step 3
Enter the command that is appropriate for the task you want to perform:
• To halt the appliance, enter: sudo shutdown -h now
• To initiate a warm restart, enter: sudo shutdown -r now
If you are prompted for the Linux password, enter it again.
Step 4
Review the command output that is displayed as the host shuts down.
Step 5
If you halted your appliance, power up the Maglev root process by turning the appliance back on, using the front-panel
power button.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
247
Troubleshoot the Deployment
Using SSH
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
248
APPENDIX
A
Review High Availability Cluster Deployment
Scenarios
Cisco DNA Center's implementation of high availability (HA) is described in the Cisco DNA Center High
Availability Guide. We recommend that you first review this information and then determine whether you
want to deploy HA in your production environment. If you choose to do so, complete the following tasks:
1. Complete the deployment procedure that is appropriate for your network:
• New HA Deployment
• Existing HA Deployment of the Primary Node with Standard Interface Configurations
• Existing HA Deployment of Primary Node with Nonstandard Interface Configurations
2. Activate High Availability on your Cisco DNA Center cluster.
3. See Additional HA Deployment Considerations and make any additional configurations that are necessary.
• New HA Deployment, on page 249
• Existing HA Deployment of the Primary Node with Standard Interface Configurations, on page 250
• Existing HA Deployment of Primary Node with Nonstandard Interface Configurations, on page 251
• Activate High Availability, on page 251
• Additional HA Deployment Considerations, on page 252
New HA Deployment
To install a brand new HA cluster, complete the following steps:
Step 1
Configure the first installed appliance as the primary node:
• If you are configuring an appliance using the Maglev Configuration wizard, see Configure the Primary Node Using
the Maglev Wizard, on page 74.
• If you are configuring an appliance using the browser-based configuration wizard, see the "Configure the Primary
Node Using the Advanced Install Configuration Wizard" topic specific to your appliance:
• Configure the Primary Node Using the Advanced Install Configuration Wizard
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
249
Review High Availability Cluster Deployment Scenarios
Existing HA Deployment of the Primary Node with Standard Interface Configurations
• Configure the Primary Node Using the Advanced Install Configuration Wizard
Step 2
Configure the second and third appliances in the cluster:
• If you are configuring an appliance using the Maglev Configuration wizard, see Configure a Secondary Node Using
the Maglev Wizard, on page 95.
• If you are configuring an appliance using the browser-based configuration wizard, see the "Configure a Secondary
Node Using the Advanced Install Configuration Wizard" topic specific to your appliance:
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
Existing HA Deployment of the Primary Node with Standard
Interface Configurations
To deploy an existing HA cluster, where the primary node uses the required interface cable configurations,
complete the following steps.
Step 1
Upgrade the primary node to Cisco DNA Center 2.3.3.
For information about upgrading your current release of Cisco DNA Center, see Cisco DNA Center Upgrade Guide.
Step 2
Confirm that you are using the required interface cable configurations on the primary node.
See Interface Cable Connections.
Step 3
Update the virtual IP address (if the virtual IP address is not yet added).
See Reconfigure the Appliance Using the Configuration Wizard.
Step 4
Configure the second and third appliances in the cluster:
• If you are configuring appliances using the Maglev Configuration wizard, see Configure a Secondary Node Using
the Maglev Wizard, on page 95.
• If you are configuring appliances using the browser-based configuration wizard, see the "Configure a Secondary
Appliance Using the Advanced Install Configuration Wizard" topic specific to your appliance:
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
Step 5
Enter the following command to check the GlusterFS size:
sudo du -h /data/maglev/srv/maglev-system/glusterfs/mnt/bricks/default_brick/ | tail -1 | awk '{print $1}'
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
250
Review High Availability Cluster Deployment Scenarios
Existing HA Deployment of Primary Node with Nonstandard Interface Configurations
If the GlusterFS file system size is larger than 150 GB, complete the steps described in Existing HA Deployment of
Primary Node with Nonstandard Interface Configurations.
Existing HA Deployment of Primary Node with Nonstandard
Interface Configurations
To deploy an existing HA cluster where the primary node uses nonstandard interface configurations, complete
the following steps.
Step 1
Upgrade the primary node to Cisco DNA Center 2.3.3.
For information about upgrading your current release of Cisco DNA Center, see Cisco DNA Center Upgrade Guide.
Step 2
Create a backup of the remote repository.
See the "Backup and Restore" chapter in the Cisco Digital Network Architecture Center Administrator Guide.
Step 3
Reimage the primary node with the required interface cable configuration.
See Interface Cable Connections and Install the Cisco DNA Center ISO Image. Make sure that the VIP has been configured
correctly on the primary node.
Step 4
On the primary node, install the same set of packages that you selected during the backup.
Step 5
Using the backup file that you created in Step 2, restore the remote repository's data.
Step 6
Configure the second and third appliances in the cluster.
• If you are configuring appliances using the Maglev Configuration wizard, see Configure a Secondary Node Using
the Maglev Wizard, on page 95.
• If you are configuring appliances using the browser-based configuration wizard, see the "Configure a Secondary
Appliance Using the Advanced Install Configuration Wizard" topic specific to your appliance:
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
• Configure a Secondary Node Using the Advanced Install Configuration Wizard
Activate High Availability
Cisco DNA Center's implementation of HA is described in the Cisco DNA Center High Availability Guide.
We recommend that you first review this information and then determine whether you want to deploy HA in
your production environment. If you choose to do so, complete the following steps:
1. Click the menu icon (
) and choose System > Settings > System Configuration > High Availability.
2. Click Activate High Availability.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
251
Review High Availability Cluster Deployment Scenarios
Additional HA Deployment Considerations
After you click Activate High Availability, Cisco DNA Center enters into maintenance mode. In this mode,
Cisco DNA Center is unavailable until the redistribution of services is completed. You should take this into
account when scheduling an HA deployment.
Note
Cisco DNA Center goes into maintenance mode every time you restore the database, perform a system upgrade
(not a package upgrade), and activate HA (as described above).
Additional HA Deployment Considerations
For an existing HA deployment, the following additional configurations must be made.
Note
For information about known HA bugs and workarounds, see “Open Bugs—HA" in the Release Notes for
Cisco Digital Network Architecture Center.
Telemetry
If you enabled telemetry for a device (without enabling the VIP), complete the following steps:
Step 1
Use the sudo maglev-config update command to update the cluster VIP.
Step 2
Disable telemetry on the device:
a. From the Cisco DNA Center home page, choose Network Telemetry from the Tools area.
The Network Telemetry window appears.
b. Click the Site View tab.
c. Check the check box of the device on which you want to disable telemetry, and then choose Actions > Disable
Telemetry.
Step 3
Reenable telemetry using the profile associated with the device previously.
Wireless Controller
You must update the wireless controllers in your network with the new VIP of Cisco DNA Center.
Cisco DNA Center Second-Generation Appliance Installation Guide, Release 2.3.3
