Manual - EH Wachs

Manual - EH Wachs

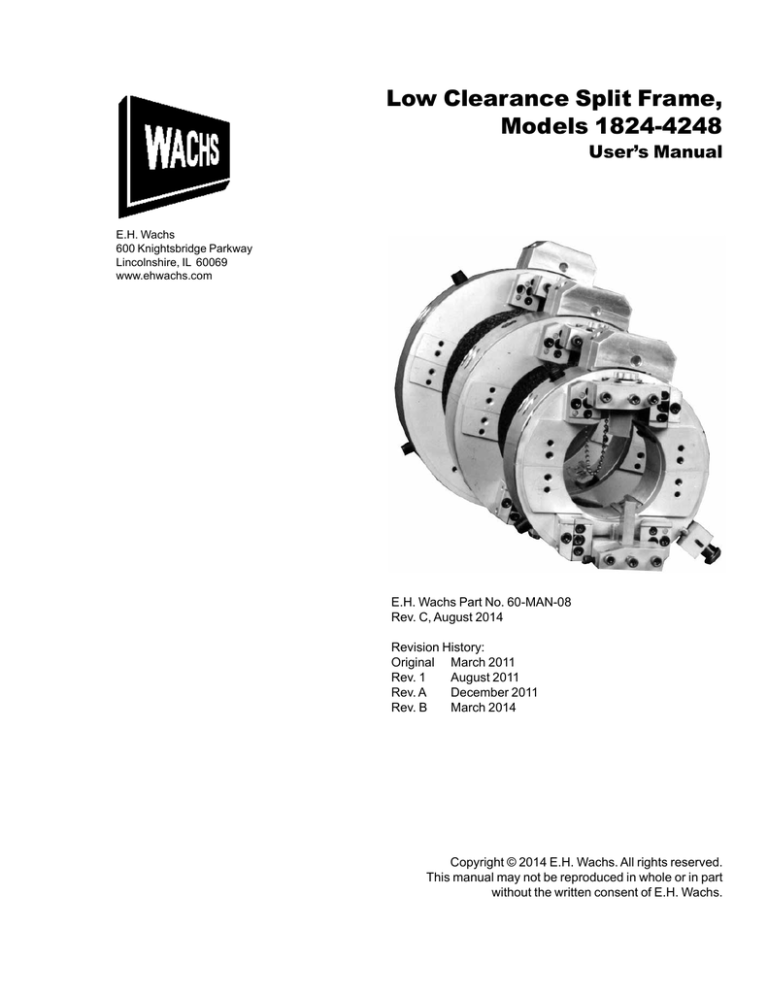

E.H. Wachs

600 Knightsbridge Parkway

Lincolnshire, IL 60069 www.ehwachs.com

Low Clearance Split Frame,

Models 1824-4248

User’s Manual

E.H. Wachs Part No. 60-MAN-08

Rev. C, August 2014

Revision History:

Original March 2011

Rev. 1 August 2011

Rev. A December 2011

Rev. B March 2014

Copyright © 2014 E.H. Wachs. All rights reserved.

This manual may not be reproduced in whole or in part without the written consent of E.H. Wachs.

issue Details:

Directives:

EU DEclaration oF conForMitY

WitH

coUncil DirEctiVE 2006/42/Ec

DATE:

1/1/2011

Place:

E.H.Wachs, Lincolnshire, IL USA

Machinery Safety Directive 2006/42/EC

conforming Machinery:

Model number:

Split Frame Macchines:

Low-Clearance Split Frame (LCSF)

Small-Diameter Split Frame (SDSF)

60-000-XX, 60-AIR-XX, 60-HYD-XX

80-0000-AX, 80-0000-RA, 80-4000-XX

Serial number:

Manufacturer: E.H. Wachs

600 Knightsbridge Parkway

Lincolnshire

IL 60069

USA

responsible representative:

Orbitalum Tools GmbH

Josef-Schüttler-Str. 17, 78224 Singen

Germany

Tel. +49 (0) 7731 - 792 872

Fax +49 (0) 7731 - 792 566

Harmonised Standards & other technical

Standards/Specifications applied or referenced:

EN ISO 12100-1:2003 + A1:2009

EN ISO 12100-2:2003 + A1:2009

EN 60201-1:2006 (for electric machines)

EN ISO 13857:2008

EN 982:1996 + A1:2008 (E) (for hydrailic machines)

EN 983:1996 (for pneumatic machines)

EN 13732-1:2006

EN ISO 14121-1:2007

EN ISO 13850:2008 (for pneumatic machines)

Provisions with which conformity is Declared:

Essential Health and Safety Requirements of Annex 1 of the

Machinery Directive

We hereby certify that the machinery descrived above conforms to the provisions of council Directive 2006/42/Ec on the approximation of the laws of the Member States relating to the safety of machinery.

Signed:

Signatory:

Pete Mullally

Quality Manager

E.H. Wachs

Table of Contents

Table of Contents

Chapter 1: About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Purpose of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Symbols and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Manual Updates and Revision Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical File Responsible Party . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safe Operating Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safe Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating and Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Hydraulic Powered Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Pneumatic Powered Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Loss or Shut-Off of Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Safety Alerts in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Protective Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Protective Clothing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Eye Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Hearing Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safe Operation of the LCSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Intended Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Proper Use of the LCSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Potential Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

LCSF Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Enclosed Bearing and Drive Gear System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Stop-on-Release Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Paddle-Style Trip Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Remote Operation Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Guidelines for Safe Setup, Operation, and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Pre-Operation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operator Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Disconnecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Safe Lifting and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Machine Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

E.H. Wachs Part No. 60-MAN-07, Rev. C iii

Low Clearance Split Frame, Models 204-1420

Chapter 3: Introduction to the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Overview of the LCSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Models and Model Designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

LCSF Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Split Frame Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Tool Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Clamp Pad Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Trip Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Hand Tool Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Noise Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Operating Envelope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

LCSF Models 1824-4248 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Extended Parting Slide, 60-415-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Extended Beveling Slide, 60-416-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Super Extended Parting Slide, 60-437-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Super Extended Beveling Slide, 60-438-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Univeral Counterbore Slide, 60-405-UC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Worm Gear Slides, 60-430-01/60-430-02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Front Drive Pinion Assembly, 60-425-04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

1.5 HP Right-Angle Air Drive, 60-423-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

2.5 HP Right-Angle Air Drive, 60-423-01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

2.5 HP Right-Angle Reversible Air Drive, 60-4010-01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Hydraulic Drive, 60-424-02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Chapter 4: Assembly, Disassembly, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Machine Disassembly for Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Storage/Shipping Cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Storage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Chapter 5: Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Planning the Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Tool Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Parting-Only Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Parting/O.D. Beveling Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

O.D. Beveling-Only Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Single-Point Beveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Operating Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Extended Slides (60-415-00/60-416-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Super Extended Slides (60-437-00/60-438-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Lifting and Rigging the LCSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Setting Up the LCSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 iv Part No. 60-MAN-07, Rev. C E.H. Wachs

Table of Contents

Clamp Leg Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Set-Up for In-line Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Set-Up for Open-Ended Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Installation on Vertical Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Positioning the Machine for the Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Clamp Pad Centering Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Install Tool Slides and Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Standard Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Extended Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Install the Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Dual Tooling Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Install the Trip Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Install the Drive Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Hydraulic Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Cutting Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Counterboring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Planning the Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Counterbore Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Cutting the Counterbore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

LCSF Cutting Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Remote Operation with the SF ACM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Control Panel Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Locating the ACM at the Worksite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Operating the ACM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Adjusting the Output Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Using the Venting Quick Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Configuring the Air Drive for the ACM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Air Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Air Trigger Modification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Chapter 6: Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Daily Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Tool Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Split Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Recommended Air Motor Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Servicing the SF ACM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Chapter 7: Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Adjusting the Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Extended Slide Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

E.H. Wachs Part No. 60-MAN-07, Rev. C v

Low Clearance Split Frame, Models 204-1420

Super Extended Slide Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Air Motor Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Disassembling Air Motor Subassemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Right Angle Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Gear Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Air Motor Vanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Right Angle Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Chapter 8: Parts Lists and Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Model 1824-4248 (24”-48” inch LCSF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Stationary Ring Assembly (Models 1824 through 4248) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Wiper Kit Assembly, 60-552-03 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Pinion Housing, 60-409-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Front Drive Pinion Housing, 60-425-04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Clamp Legs, 60-127-XX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Trip Assembly, 60-434-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Extended Parting Slide, 60-415-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Extended Beveling Slide, 60-416-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Super Extended Parting Slide, 60-437-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Super Extended Beveling Slide, 60-438-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Universal Counterbore Slide, 60-405-UC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Worm Gear Parting Slide, 60-430-01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Worm Gear Beveling Slide, 60-430-02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Worm Gear Slide Trip Assembly, 60-431-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Heavy Wall Parting Tool Holders, 60-433-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Heavy Wall Carbide Tool Kit, 60-712-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

1.5 HP Air Drive, 60-423-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

1.5 HP Air Drive, Ported Exhaust, 60-407-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

2.5 HP Air Drive, 60-423-01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

2.5 HP Reversible Air Drive, 60-4010-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Hydraulic Drive, 60-424-02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Hydraulic Drive, 60-424-01 (OBSOLETE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Split Frame Air Control Module (60-420-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Air Control Module Subassembly (60-375-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Air Control Module Subassembly (60-375-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Air Control Module Schematic (60-420-00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 vi Part No. 60-MAN-07, Rev. C E.H. Wachs

Table of Contents

Chapter 9: Accessories and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Hydraulic Power Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Recommended Spares . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Chapter 10: Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Return Goods Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

E.H. Wachs Part No. 60-MAN-07, Rev. C vii

Low Clearance Split Frame, Models 204-1420 viii Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 1, About This Manual

chapter 1

About This Manual

P urPose of

T his

M anual

This manual explains how to operate and maintain the Low Clearance Split Frame (LCSF). It includes instructions for set-up, operation, and maintenance. It also contains parts lists, diagrams, and service information to help you order replacement parts and perform user-serviceable repairs.

LCSF models are available in a wide range of sizes. This manual covers models from 24-inch

capacity (model 1824) through 48-inch capacity (model 4248) .

Carefully read Chapter 2, Safety, and follow all guidelines for safe operation of the LCSF.

E.H. Wachs Part No. 60-MAN-07, Rev. C 1

2

Low Clearance Split Frame, Models 204-1420

s yMbols and

W arnings

The following symbols are used throughout this manual to indicate special notes and warnings.

They appear in the out side column of the page, next to the section they refer to. Make sure you understand what each symbol means, and follow all instructions for cautions and warnings.

This is the safety alert symbol. It is used to alert you to potential personal

injury hazards. Obey all safety messages that follow this symbol to avoid

possible injury or death.

WarninG

A WARNING alert with the safety alert symbol indicates a potentially hazardous situa tion that

could result in

seri ous injury or death.

caUtion

A CAUTION alert with the safety alert symbol indicates a potentially hazardous situa tion that could result in minor or moderate injury.

A CAUTION alert with the damage alert symbol indicates a situation that will result in

damage to the equipment.

This is the equipment damage alert symbol. It is used to alert you to poten tial

equipment damage situations. Obey all messages that follow this sym bol to

avoid damaging the equipment or workpiece on which it is operating.

iMPortant

An IMPORTANT alert with the damage alert symbol indi cates a situation that may result in

damage to the equipment.

This symbol indicates a user note. Notes provide additional information to supple ment the instructions, or tips for easier operation.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 1, About This Manual: Manual Updates and Revision Tracking

M anual

u

PdaTes and

r evision

T racking

Current versions of E.H. Wachs manuals are also available in PDF format. You can request an electronic copy of this manual by email ing customer service at [email protected]

Occasionally, we will update manuals with improved opera tion or maintenance procedures, or with corrections if nec essary. When a manual is revised, we will update the revision history on the title page.

You may have factory service or upgrades performed on the equipment. If this service changes any technical data or operation and maintenance procedures, we will include a revised manual when we return the equipment to you.

T echnical

f ile

r esPonsible

P arTy

The low clearance split frame is manufactured by E.H. Wachs at the following address:

E.H. Wachs

600 Knightsbridge Parkway

Lincolnshire, IL 60069

U.S.A.

The following organization is the responsible party for maintaining the LCSF technical file in the

EU:

Orbitalum Tools GmbH

Josef-Schüttler-Str. 17

78224 Singen

Deutschland

E.H. Wachs Part No. 60-MAN-07, Rev. C 3

Low Clearance Split Frame, Models 204-1420

4 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety

Chapter 2

Safety

E.H. Wachs takes great pride in designing and manufactur ing safe, high-quality products. We make user safety a top priority in the design of all our products.

Read this chapter carefully before operating your E.H. Wachs equipment. It contains important safety instructions and recommendations.

s afe

o

PeraTing

g uidelines

Follow these guidelines for safe operation of all E.H. Wachs equipment.

READ THE OPERATING MANUAL .

Make sure you under stand all setup and operating instructions before you begin. Keep this manual with the machine.

INSPECT MACHINE AND ACCESSORIES BEFORE USE .

Before starting the machine, look for loose bolts or nuts, leak ing lubricant, rusted components, and any other physi cal conditions that may affect operation. Properly maintaining the machine can greatly decrease the chances for injury.

ALWAYS READ STICKERS AND LABELS .

Make sure all labels and stickers are in place, clearly

legible, and in good condition. Refer to “Safety Labels” later in this chapter for label locations on the machine. Replace any dam aged or missing safety labels; see Chapter 10 for order ing information.

KEEP CLEAR OF MOVING PARTS .

Keep hands, arms, and fingers clear of all rotating or moving parts. Always turn the machine off and disconnect the power source before doing any adjustments or service.

SECURE LOOSE CLOTHING AND JEWELRY .

Secure or remove loose-fitting clothing and jewelry, and securely bind long hair, to prevent them from getting caught in moving parts of the machine.

FOLLOW SAFE PROCEDURES FOR HANDLING LUBRICANTS .

Refer to the manufacturer’s instructions and the Mate rial Safety Data Sheets.

Look for this sym bol throughout the manual. It indicates a personal injury hazard.

E.H. Wachs Part No. 60-MAN-07, Rev. C 5

6

Low Clearance Split Frame, Models 204-1420

Safe Operating Environment

• Do not use this equipment in a potentially explosive atmosphere. Fire or explosion could result, with the risk of serious injury or death.

• Provide adequate lighting to use the equipment, in accordance with worksite or local regulations.

KEEP WORK AREA CLEAR .

Keep all clutter and nonessen tial materials out of the work area. Only people directly involved with the work being performed should have access to the area.

Operating and Maintenance Safety

• This equipment is to be operated and maintained only by qualified, trained personnel.

• Make sure the equipment is stable when attached to the workpiece for the operation. Ensuring stability of the installed tool is the responsibility of the operator.

• Make sure the workpiece is supported adequately for installation of the equipment. This includes supporting any workpiece “fall-off” section when severing the workpiece. Ensuring support of the workpiece is the responsibility of the operator.

• Tooling on any cutting equipment—including lathe tools, saw blades, milling tools, etc.—may get very hot. Do not touch tooling until you have made sure it is cool enough to handle.

• Wear gloves when removing or cleaning up chips and cutting debris. Chips can be very sharp and cause cuts.

• Before performing any service on the equipment, dis connect the power source. Follow all lock-out/tag-out procedures required at the worksite.

Hydraulic Powered Equipment

• Hydraulic components such as hoses, motors, and mani folds will get hot during operation and may cause burns. Do not touch hydraulic components, except for operator controls, during or after operating the machine.

WarninG

Injection of hydraulic fluid through the skin is a serious injury that can result in infection, tissue damage, and pos sible loss of limb. Seek medical treatment immediately. First aid is not sufficient treatment for injection injury.

Hydraulic injection injury

—A pinhole in a hydraulic hose or fitting can eject fluid with enough force to pierce skin. Check hoses and fittings regularly for leaks. Do not use bare hands to

check for leaks while the sys tem is pressurized . If you suspect a leak, move a piece of paper

or cardboard at least 6 inches (15 cm) over the suspicious area and watch for fluid spraying on the sur face.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operating Guidelines

Pneumatic Powered Equipment

• Air motors may get hot during operation and may cause burns. Do not touch the air motor, except for operator controls, during or after operating the machine.

• Before disconnecting the air line from the equipment, always turn off air at the source and bleed all residual air pressure at the air motor.

loss or Shut-off of Power Supply

• If the power source to the equipment is lost, disconnect power from the equipment and lock out the power sup ply immediately to prevent accidental restarting of the machine.

ELECTRIC POWERED EQUIPMENT

—If the electric drive shuts off because of its built-in thermal protection, dis connect the motor from the power source immediately.

• For all power sources, follow all lock-out/tag-out proce dures required at the worksite when disconnecting or servicing the equipment.

Safety Alerts in This Manual

The following alerts are used throughout this manual to indicate operator safety hazards. In all cases, these alerts include a notice describing the hazard and the means to avoid or reduce risk.

Carefully read all safety alerts.

This icon is displayed with any safety alert that indicates a personal injury hazard.

WarninG

This safety alert, with the personal injury hazard symbol, indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.

caUtion

This safety alert, with the personal injury hazard symbol, indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.

E.H. Wachs Part No. 60-MAN-07, Rev. C 7

Low Clearance Split Frame, Models 204-1420

Protective Equipment Requirements

Protective clothing

Wear safety shoes when operating or servicing the equip ment. Serious injury could result from

dropping the machine or its components.

notE

Gloves should be worn when cleaning up chips and other cutting debris. Chips can be very sharp and can cause serious cuts.

Do not wear gloves when the machine

is operating.

Do not wear gloves while operating the machine. Gloves can become entangled in moving parts,

resulting in serious injury. Gloves may be worn when setting up the machine or cleaning up after the operation, but take them off when operating the machine.

Eye Protection

Always wear impact-resistant eye protection while operat ing or working near this equipment.

For additional information on eye and face protection, refer to Federal OSHA regulations, 29 Code of Federal Regula tions, Section 1910.133., Eye and Face Protection and American National

Standards Institute, ANSI Z87.1, Occu pational and Educational Eye and Face Protection.

Hearing Protection

This equipment can produce noise levels above 80 dB. Hearing protection is required when operating the equip ment. The operation of other tools and equipment in the area, reflective surfaces, process noises, and resonant struc tures can increase the noise level in the area.

For additional information on hearing protection, refer to Federal OSHA regulations, 29 Code of

Federal Regulations, Section 1910.95, Occupational Noise Exposure and ANSI S12.6 Hearing

Protectors.

s afe

o

PeraTion of The

lcsf

Intended Uses

The low clearance split frame is designed to O.D. mount on in-line or open-ended pipe, and perform cut-off and weld prep (beveling, counterboring, and J-prep) operations. It uses cold-cutting lathe techniques, with a variety of acces sories and tooling for different cutting applications.

8 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Make sure to follow all safety guidelines and procedures required for machining operations at the work site, including personal protective equipment (PPE) . Do not use the LCSF in a manner that violates these guidelines .

Proper Use of the LCSF

• The LCSF should only be used by trained, qualified operators.

• The workpiece must be within the operating capacity of the LCSF model you are using. See operating envelope information and drawings in Chapter 3.

• Make sure the operating environment allows you to mount the machine securely and squarely on the work piece.

• Make sure there is adequate clearance around the LCSF and workpiece to operate the machine controls as described in the operating instructions (Chapter 5).

• Mount the LCSF with the pinion housing positioned for convenient mounting and operation of the drive motor.

• Use the LCSF only on empty, depressurized pipe.

Misuse

• Do not attempt to mount or operate the LCSF on non-cylindrical workpieces.

• Do not attempt to mount or operate the LCSF on any workpiece to which it cannot be securely mounted.

• Do not attempt to mount or operate the LCSF on any workpiece that is not stable enough to hold the LCSF.

• Do not mount the LCSF on the “fall-off” side of the cut line, unless you adequately rig and support the LCSF and workpiece.

• Do not disable any safety feature of the LCSF or remove any safety labeling. Replace worn or damaged safety labels immediately. (See “Safety Labels” later in this chapter.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 9

Low Clearance Split Frame, Models 204-1420

Potential Hazards

The following figures illustrate potential hazards of operat ing the low clearance split frame. Refer to the description of each hazard for guidelines on safe operation.

3

6

1,2

4

5

Figure 2-1. Potential operating hazards of the LCSF. See the descriptions below.

1. Rotating ring

—Keep clear of the rotating ring and tool slides when operating the LCSF. Contact with moving parts can cause serious injury.

2. Entanglement hazard for gloves or clothing

—Do not wear gloves or loose-fitting clothing when operating the LCSF. They can become entangled with moving parts, resulting in serious injury.

3 . Starwheel/trip pinch point

—Operate the trip using the trip lever only. Do not touch any part of the trip assembly, other than the lever, when operating the LCSF or when rotating it manually for any reason.

4. Sharp cutting tools

—Cut ting tools used with the LCSF can be very sharp. Be careful when handling the tools, and stay clear of them when the machine is operating.

5 . Chips

—The metal debris from the cutting process can be very sharp and very hot. Use care in cleaning debris from the machine and clean ing up the work area. Stop the machine before clearing chips. Use appropriate gloves when handling chips.

6. Hot surfaces

—Air motors and hydraulic components such as hoses, manifolds, and motors can become very hot during operation. Make sure these components are not hot before touching them.

10 Part No. 60-MAN-07, Rev. C E.H. Wachs

8

Chapter 2, Safety: Safe Operation of the LCSF

7

Figure 2-2. Potential operating hazards of the LCSF. See the descriptions below.

7. Air motor connection

—A pressurized air line can cause serious injury if it comes loose. Make sure the air line is secured to the equipment with a pin or other appropriate fastener.

8. Fall-off workpiece

—When you are severing the work piece, make sure the fall-off section is supported or that a catch device is in place. A support chain and scaffold ing are shown in the picture.

9

10

Figure 2-3. Potential operating hazards of the LCSF. See the descriptions below.

E.H. Wachs Part No. 60-MAN-07, Rev. C 11

Low Clearance Split Frame, Models 204-1420

9. Lifting the machine

—Use care when lifting the LCSF and its components to avoid injury. Machines and compo nents heaver than 40 lb (18 kg) should be lifted by two people or with a lifting device. Larger LCSF models are pro vided with lifting eyes for rig ging and lifting. See “Machine

Weights” later in this chapter for weights of all LCSF mod els and accessories.

10. Splitting the ring

—Align ment pins are provided to keep the rotating and station ary rings together when split ting the ring. Make sure you insert the pins before sepa rating the ring halves. If the pins are not inserted, the rotating ring could fall out of the stationary ring, causing personal injury and/or dam age to the machine.

LCSF Safety Features

The design of the low clearance split frame incorporates the following features for safe operation.

Enclosed Bearing and Drive Gear System

The LCSF bearings and drive gears are enclosed inside the machine to prevent operator contact with them while the machine is running.

Bearings

Drive gear

Figure 2-4. The bearings and drive gear are enclosed in the LCSF frame. The pinion housing covers the drive gear when installed.

Stop-on-release Power control

All drives for the LCSF (pneumatic and hydraulic) require the operator to hold the power control on to operate the machine. When the operator releases the power control, the LCSF stops immediately.

WarninG

Do not disable or override the stop-on-release feature. Letting the machine run when you are not holding the power control could result in serious injury.

12 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Figure 2-5. Hold the air motor trigger to operate the LCSF (left). When you release the trigger (right), the air motor shuts off.

Figure 2-6. Hold the hydraulic lever to operate the LCSF (left). When you release the lever

(right), the hydraulic motor shuts off.

Paddle-Style trip lever

The LCSF trip design allows the operator to engage and dis engage the trip from behind the machine, without reaching into the operating space of the rotating ring and slides. The paddle trip lever moves the trip pin in and out to control engagement of the trip.

Figure 2-7. The paddle-style trip lever allows you to engage and disengage the trip from the back of the LCSF, without putting your hands in the way of mov ing components.

E.H. Wachs Part No. 60-MAN-07, Rev. C 13

Low Clearance Split Frame, Models 204-1420

remote operation option

Remotely controlled operation is available as an option for all LCSF drives types.

• For pneumatic drives, order the remote control panel (part no. 60-420-00). The control panel is provided with its own operating instructions.

• For hydraulic drives, contact E.H. Wachs customer ser vice to discuss your operating environment and require ments.

Guidelines for Safe Setup, Operation, and Service

Pre-operation checklist

Every time you use the LCSF, perform the following checks to make sure it is in good operating condition:

• Check that all safety components are operating properly.

• Inspect it for damage or wear that could affect operation and safe use of the machine. Repair any defective com ponent before using the machine.

• Make sure the machine is clean and properly lubricated.

• Make sure that tooling is sharp and in good condition. Poor quality tooling can cause difficult cutting and the possibility of machine malfunction and/or injury.

• Check power connections (pneumatic, hydraulic, or electric) to make sure they are in good condition.

operating Safety

• Stop the LCSF drive motion to clear chips or make any machine adjustments.

• For parting (cut-off) operations, use a catch device to prevent the cut-off piece of the pipe from falling.

• Keep air and hydraulic hoses and electrical cords away from moving parts while operating the machine.

operator Position

The preferred position for operating the LCSF is behind the stationary ring, on the mounting side of the cut line.

14 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Figure 2-8. If possible, stand behind the LCSF to stay clear of moving parts while operating the controls.

If the operating environment does not allow you to stand behind the LCSF, make sure you install the machine so that you can operate the controls without coming in contact with moving parts.

Figure 2-9. When operating the LCSF from the front, stand to the side of the machine to operate the controls without reaching across the rotating ring.

Some accessories, such as the universal counterbore slide, require that you operate them from in front of the machine. Stand in a position that allows you to operate the machine controls without contacting moving parts.

E.H. Wachs Part No. 60-MAN-07, Rev. C 15

Low Clearance Split Frame, Models 204-1420

Figure 2-10. When using accessories that require you to operate their controls (shown with universal coun terbore slide), stand in a position where you can oper ate the machine without contacting moving parts.

Service checklist

• Disconnect power from the LCSF during service. See instructions in the following section.

• Remove accessories such as drive assemblies and tool slides unless they are part of the service procedure.

Disconnecting Power

The following photos show the means of disconnecting power for the LCSF. Follow all lock-out/ tag-out procedures at your work site.

WarninG

Before disconnecting the air line, always turn off air at the source and bleed all residual air pressure at the air motor. Disconnecting the air line while under pressure could result in serious injury.

PNEUMATIC POWER

—To disconnect power from the pneumatic LCSF, remove the air line from the air motor coupling.

16 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Figure 2-11. Disconnect pneumatic power by remov ing the air line from the pneumatic drive.

WarninG

Hydraulic components such as hoses, motors, and mani folds will get hot during oper ation and may cause burns. Use appropriate gloves or wait until the components cool before touching them.

HYDRAULIC POWER

—To disconnect power from the hydraulic LCSF, remove the hydraulic hoses from the fittings on the manifold.

Figure 2-12. Disconnect hydraulic power by remov ing the hydraulic hoses from the fittings on the mani fold.

E.H. Wachs Part No. 60-MAN-07, Rev. C 17

Low Clearance Split Frame, Models 204-1420

Safe Lifting and Handling

• Machines or assemblies over 40 lb (18 kg) must be lifted by two people or a lifting device. See the machine weight tables in the following section.

• It is the responsibility of the end user to determine whether a machine or assembly can be lifted by two or more people. A lifting device is recommended for machines or assemblies that cannot be handled easily by two people.

• LCSF models 610 and larger are equipped with eye bolts in the stationary ring for lifting.

• Do not rig or lift the LCSF while power is attached. Whenever possible, remove all accessories

(slides, trips, drive assembly, etc.) while lifting and handling the machine.

• Lift the LCSF only at approved lift points, as illustrated in the following figure.

Install lift eyes in adjacent holes and lift with chains

You can wrap a lifting strap around the ring to lift the assembled machine. Do not put the strap around or against an accessory component.

Figure 2-13. When lifting the assembled LCSF, use the lift eyes provided. You can also lift the machine using a lift strap around the ring. (16” machine, model 1016 shown.)

18 Part No. 60-MAN-07, Rev. C E.H. Wachs

Install lift eyes and lift with chains

Chapter 2, Safety: Safe Operation of the LCSF

Make sure alignment pin is installed (inserted through stationary ring on opposite side)

Figure 2-14. To lift a split machine, always use two lift eyes. Make sure the alignment pins are installed.

Machine Weights

Table 1 lists the weights for each LCSF model. Weights are included for the entire machine as well as each separable assembly. The following tables list the weights for slides, drives, and other accessories. To determine lifting weight, add weights of installed components to the machine assem bly.

Model

Part No.

1824

60-000-24

2228

60-000-28

2632

60-000-32

3036

60-000-36

3339

60-000-39

3642

60-000-42

4248

60-000-48

Table 1: LCSF Machine and Assembly Weights

Full Machine Weight*

Split Ring Weight

(Pinion Side)**

Split Ring Weight (Non-Pinion

Side)**

189 lb

(86 kg)

213 lb

(97 kg)

235 lb

(107 kg)

259 lb

(118 kg)

277 lb

(126 kg)

297 lb

(135 kg)

329 lb

(150 kg)

97 lb (44 kg)

109 lb (50 kg)

120 lb (55 kg)

132 lb (60 kg)

141 lb (64 kg)

151 lb (69 kg)

167 lb (76 kg)

92 lb (42 kg)

104 lb (47 kg)

115 lb (52 kg)

127 lb (58 kg)

136 lb (62 kg)

146 lb (66 kg)

162 lb (74 kg)

* With standard pinion housing installed; no slides or drive installed. Add 5.4 lb (2.5 kg) for front drive pinion.

** Rounded to nearest lb/kg. Sum may not add exactly to Full Machine Weight.

E.H. Wachs Part No. 60-MAN-07, Rev. C 19

Low Clearance Split Frame, Models 204-1420

Accessory

Extended Slide Kit

(standard on LCSF

1824-4248)

Super Extended Slide

Kit

O.D. Tracking Slide Kit

Worm Slide Kit

Table 2: LCSF Slide Kit Weights

Kit Part No.

Component

60-422-01

60-440-00

60-446-00

60-430-00

Extended parting slide

Extended beveling slide

Trip assembly and extension blocks

Super extended parting slide

Super extended beveling slide

Trip assembly and extension blocks

O.D. Tracking Parting Slide

O.D. Tracking Beveling Slide

O.D. Tracking Slide Trip Assembly

Worm Gear Parting Slide

Worm Gear Beveling Slide

Worm Slide Trip Assembly

Part

Number

Weight

60-415-00 8 lb (4 kg)

60-416-00 8 lb (4 kg)

60-401-00 1.4 lb (0.6 kg)

60-437-00 10 lb (4.5 kg)

60-438-00 10 lb (4.5 kg)

60-401-00 1.4 lb (0.6 kg)

60-446-01 42 lb (19.1 kg)

60-446-02 42 lb (19.1 kg)

60-446-03 11 lb (5 kg)

60-430-01 23 lb (10.5 kg)

60-430-02 24 lb (10.9 kg)

60-431-00 1.2 lb (0.5 kg)

Table 3: Accessory Slide Weights

Component

Universal Counterbore Slide

Bridge slide for model 1824 LCSF

Bridge slide for model 2228 LCSF

Bridge slide for model 2632 LCSF

Bridge slide for model 3036 LCSF

Bridge slide for model 3339 LCSF

Bridge slide for model 3642 LCSF

Bridge slide for model 4248 LCSF

Part Number

60-405-UC

60-428-24

60-428-28

60-428-32

60-428-36

60-428-39

60-428-42

60-428-48

Weight

10 lb (4.5 kg)

61 lb (27.7 kg)

62 lb (28.2 kg)

64 lb (29.1 kg)

65 lb (29.6 kg)

67 lb (30.5 kg)

68 lb (30.9 kg)

70 lb (31.8 kg)

20 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Table 4: Drive Component Weights

Component

Front drive pinion for 1824-4248

1.5 HP standard pneumatic drive

1.5 HP ported pneumatic drive

2.5 HP pneumatic drive

2.5 HP reversible pneumatic drive

Hydraulic drive

Part Number Weight

60-425-04

60-423-00

60-407-00

60-423-01

8 lb (4 kg)

9 lb (4 kg)

9 lb (4 kg)

13 lb (6 kg)

60-4010-01 14 lb (6 kg)

60-424-00 25 lb (11 kg)

installation Procedures

See the detailed instructions in Chapter 5 for installing the LCSF on the workpiece. Safe installation procedures are provided for mounting the machine on both horizontal and vertical workpieces.

Safety Labels

The following safety labels are provided on the LCSF. If any of these labels is damaged or missing, replace it imme diately. See Chapter 10 for ordering information.

Figure 2-15. The ear and eye protection label is attached to the drive motor of the LCSF.

Always wear ear and eye protection when operating the equipment. (Part no. 90-401-03.)

Figure 2-16. The air pressure label is attached to the air drive of pneumatic LCSF models.

Do not operate the equipment with greater than 90 psi (6.2 bar) air pressure. (Part no.

90-401-02.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 21

Low Clearance Split Frame, Models 204-1420

Figure 2-17. The hydraulic pressure label is attached to the LCSF hydraulic drive. Do not operate the equipment with greater than 2000 psi (138 bar) hydraulic pressure. (Part no.

90-402-01.)

Figure 2-18. The hot surface label is attached to the LCSF drive motor (pneumatic or hydraulic). Drive components may become hot enough to cause burns. Make sure they are not hot before touching them. (Part no. 90-403-00.)

Figure 2-19. Weight labels for the LCSF are attached to the pinion housing. Weights and part no. vary according to LCSF model. (Part no. 60-1279-XX.)

22 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 2, Safety: Safe Operation of the LCSF

Figure 2-20. The “Keep Hands Clear” label is attached to the stationary ring of the LCSF.

Stay clear of moving parts when the LCSF is operating. (Part no. 60-363-00.)

Figure 2-21. The alignment pin tag is attached to the ring on the alignment pin. Make sure to insert the pins before splitting the machine. (Part no. 60-1274-00.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 23

Low Clearance Split Frame, Models 204-1420

Figure 2-22. The alignment pin location label is attached to indicate the alignment pin holes. Two labels are on the LCSF, one for each pin location. (Part no. 60-1275-00.)

Figure 2-23. The Read Manual label is attached to the stationary ring of the LCSF. Make sure you under stand all operating and maintenance instructions before using the machine.

(Part no. 90-900-00.)

24 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 3, Introduction to the Equipment

Chapter 3

Introduction to the Equipment

o vervieW of The

lcsf

The E.H. Wachs Low Clearance Split Frame Machine (LCSF) is a portable pipe cutting and beveling system developed for on-site operation. The LCSF uses lathe type machining principles, with capabilities for cutting (sever process), beveling (form tool or single point), and counterboring.

Set up and operation is quick and simple, and the machine requires little maintenance other than lubrication. Split frame prepping is a safe, clean operation that neither affects the metallurgical qualities of the metal nor places airborne contaminants in the environment.

The LCSF assembly consists of two halves that can be dis assembled for installation on the pipe.

The stationary frame contains the clamping feet, which secure the machine to the pipe, and the pinion housing, which contains the drive gear that turns the rotating frame. The stationary frame is made from lightweight aluminum material. The rotating frame is of steel construction with hardened bearing raceways and has locations for mounting the tool slides and machining accessories.

Features

• Simple, lightweight, rugged design for cutting and prep ping in tight places.

• Works on all sizes, wall thicknesses, and material across the entire range of pipe diameter capacities.

• Self-squaring clamping system for easy set-up.

• Safe cold-cutting for use in any environment.

• Standard air motor drive with options for hydraulic or electric power.

• Adjustable bearings and hardened bearing raceways for maximum dependability and performance.

• Modular accessories for counterboring, compound bev eling, J-prepping, heavy-wall cutting, and internal cut ting.

• Remote operation capability for safe use in hazardous environments.

E.H. Wachs Part No. 60-MAN-07, Rev. C 25

Low Clearance Split Frame, Models 204-1420

Models and Model Designation

The low clearance split frame (LCSF) consists of 15 models for cutting and beveling pipes from 2”

(51 mm) to 48” (1219 mm) outside diameter (O.D.). Models from 1824 (24” capacity) to 4248

(48” capacity) are described in this manual. Each model covers a range of pipe sizes, as described in Table 1.

E.H. Wachs uses a model numbering system that designates the capacity of the machine. All model numbers include the following. (This information is required when ordering parts or tooling.)

Type: 60-000-08

Model: SF 408/3

Serial: 06-1234 (Example)

“SF” Designates Wachs Low Clearance Split Frame Machine, followed by the capacity of the

machine, and “/3” which designates the generation of design.

The following numbers indicate the capacity:

• 1824 will mount on 18” through 24” pipe

• 4248 will mount on 42” through 48” pipe.

26

Figure 3-1. The I.D. tag (mounted on the stationary ring next to the pinion housing) identifies the LCSF model, and includes the machine’s serial number.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 3, Introduction to the Equipment: LCSF Components

Model

Table 1: LCSF Models

Part Number

1824/3

2228/3

2632/3

3036/3

3339/3

3642/3

4248/3

60-000-24

60-000-28

60-000-32

60-000-36

60-000-39

60-000-42

60-000-48

See clamping leg charts in Chapter 5 for measured pipe size capacities.

Inches

18”–24”

22”–28”

26”–32”

30”–36”

33”-39”

36”–42”

42”–48”

Pipe Size Range

DN

450-600

550-700

650-800

750-900

825-975

900-1050

1050-1200

lcsf c oMPonenTs

The complete LCSF configuration includes the following components, illustrated in Figure 3-2.

Tool slides

Air motor

Split frame machine

Trip assembly

Clamp pad extensions

Tool kit

Figure 3-2. Standard equipment provided with the low clearance split frame.

E.H. Wachs Part No. 60-MAN-07, Rev. C 27

Low Clearance Split Frame, Models 204-1420

Standard Equipment

Split Frame Machine

The LCSF ring consists of one rotating ring and one station ary ring. Each ring splits into two pieces. When assembled, the rotating ring and stationary rings are integrated and split apart simultaneously for mounting on in-line piping appli cations. These rings are preassembled and adjusted prior to leaving the factory.

Figure 3-3 shows the assembled LCSF.

Rotating ring

Rotating ring

Stationary ring

Slide mounting location

Pinion housing (with motor attachment

Trip

Clamp legs

Slide mounting location

Split point (opened for illustration)

Clamp leg adjust­ ment screw

Figure 3-3. The photo shows the components of the LCSF.

tool Slides

Two sizes of tool slides are available for LCSF models 1824-4248: Extended and Super Extend-

ed slides. Super extended slides are standard on LCSF 1824 through LCSF 4248. Check the

packing list to see which slides you should have received with your LCSF.

Other types of slides are available for special applications such as counterboring, heavy-wall cutting, and out-of-round pipe. See the “Accessories” section below and the ordering information in Chapter 9 for information on these slides.

28 Part No. 60-MAN-07, Rev. C E.H. Wachs

Parting/beveling slide

60­416­00

Chapter 3, Introduction to the Equipment: LCSF Components

Parting slide

60­415­00

Figure 3-4. The photo shows the extended tool slides. Cutting stroke (slide travel) is 1.67”

(41.8 mm).

Parting slide

60­437­00

Parting/beveling slide

60­438­00

Figure 3-5. The photo shows the super extended tool slides, which are standard for LCSF models 1824 through 4248. Cutting stroke (slide travel) is 2.28” (57.9 mm).

clamp Pad Extensions notE

Clamp pad requirements are included on the envelope drawings at the end of this chapter.

Clamp pad extensions lengthen the LCSF clamp legs to allow the LCSF to cover its entire range of pipe diameters. The operating instructions in Chapter 5 include a table of clamp pad requirements for each LCSF size for the pipe diameter range it can cut.

E.H. Wachs Part No. 60-MAN-07, Rev. C 29

Low Clearance Split Frame, Models 204-1420

trip assembly

The trip assembly is composed of a trip housing, a trip pin, a trip lever, and two extension blocks.

The trip can be engaged or disengaged, depending upon feed requirements, by engaging or disengaging the trip lever. Refer to Tool Slide Mounting Location and Trip Assembly Configuration.

Drive Motor

The standard LCSF drive is an air motor. Two air motor sizes are available:

• A 1.5 HP motor is available for all LCSF models (avail able in conventional or right-angle configuration).

• A 2.5 HP motor is standard with LCSF models 1824 through 4248 (available in single-direction or reversible configuration).

Both air motors are interchangeable by design and can be used on any size LCSF as needed. For instance, the 2.5 HP motor can be used on a smaller LCSF for a heavy cutting application. The

1.5 HP air drive requires 55 cfm air flow at 90 psi (1,557 1/m @ 6.3 bar). The 2.5 HP air drive requires 65 cfm at 90 psi (1,841 1/m @ 6.3 bar).

A hydraulic drive is available as an option. The hydraulic drive requires 8-15 gpm hydraulic flow rate at 1500-2000 psi (30-57 l/m @ 103-138 bar).

Electric drives are available as special-order items. Contact E.H. Wachs customer service to

discuss requirements.

30 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 3, Introduction to the Equipment: LCSF Components

Table 2: LCSF Drive Options

Description Drive Option Part No.

Air Drive

60-423-00

60-407-00

Right angle 1.5 HP

Right angle 1.5 HP with ported exhaust

60-423-01 Right angle 2.5 HP

60-4010-01 Right angle reversible 2.5 HP

Hydraulic Drive 60-424-01

Electric Drive (Special)

Hydraulic motor with adapter

Electric motor with adapter; special order item

Input Requirements

55 cfm at 90 psi

(1,557 1/m @ 6.3 bar)

55 cfm at 90 psi

(1,557 1/m @ 6.3 bar)

65 cfm at 90 psi

(1,841 1/m @ 6.3 bar)

65 cfm at 90 psi

(1,841 1/m @ 6.3 bar)

8-15 gpm, 1500-2000 psi

(30-57 l/min, 103-138 bar)

Varies depending on requirements

Hydraulic drive

Pneumatic drive

Electric drive

Figure 3-6. The photo shows the drive options avail able with the LCSF.

Hand tool Kit

Each LCSF is delivered from the factory with all hand tools necessary for setup and operation. Kit

number 60-600-36 is provided with LCSF models 1824 through 4248). The fol lowing tables list the hand tools provided with the LCSF.

E.H. Wachs Part No. 60-MAN-07, Rev. C 31

Low Clearance Split Frame, Models 204-1420

Table 3: LCSF Hand Tool Kit, Models 1824-4248

(Part No . 60-000-36)

Description

Hex Wench Set, 5/64” - 1/4”

Deadblow Hammer

3/8” Hex Long Arm Wrench

1/2” 6-Point Socket, 1/2” Drive

1/4” Hex Driver Long Socket, 1/2” Drive

3/4” Combination Wrench

7/16” Combination Wrench

Square, 8”

1/2” Drive Ratchet Wrench

5/8” Hex Driver Long Socket, 1/2” Drive

7/8” Socket, 1/2” Drive

Scale, 6”

3/8” Hex Driver Long Socket, 1/2” Drive

Tool Box

Part #

90-800-06

60-814-00

90-800-10

90-800-15

90-800-18

90-800-30

90-800-38

90-800-54

90-800-63

90-800-65

90-800-67

90-800-70

90-800-76

60-227-00

Other tools may be required to perform certain maintenance operations. These are specified in the instructions for those procedures.

Accessories

The following accessory equipment is available for use with the LCSF. These items are purchased separately; see Chap ter 9 for descriptions and purchasing information.

• Hydraulic drive

• Electric drive

• Bridge slide

• O.D. tracking slides

• Counterbore slide

• Worm slides with heavy-wall tool holder and tool bit

• Front drive pinion

• External-internal casing cutter

• Extension legs

• Dial Indicator.

32 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 3, Introduction to the Equipment: Operating Envelope

Noise Levels

The noise levels in Table 4 were measured at 1 meter high and 1.6 meters away from the machine, equipped with the air motor drive. (Hydraulic and electric drives have lower noise levels.)

Table 4: LCSF Noise Levels

Continuous “A”-weighted sound pressure level at workstation

Peak “C”-weighted maximum sound pressure

Sound power level emitted by machine

62 dBA

95 dBA

89 dBA

o

PeraTing

e nveloPe

The drawings on the following pages illustrate the operating envelope for each of the LCSF models.

E.H. Wachs Part No. 60-MAN-07, Rev. C 33

Low Clearance Split Frame, Models 204-1420

LCSF Models 1824-4248

MODEL

LCSF1824

LCSF2228

DIM. "A"

OUTER DIAMETER

32.50 [825.5]

36.50 [927.1]

LCSF2632 40.50 [1028.7]

LCSF3036 44.50 [1130.3]

LCSF3339 47.50 [1206.5]

DIM. "B"

INNER DIAMETER

24.50 [622.3]

28.50 [723.9]

32.50 [825.5]

36.50 [927.1]

39.50 [1003.3]

DIM. "C"

DRIVE CL

-TABLE-

DIM. "D"

16.90 [429.3]

18.90 [480.1]

20.90 [530.9]

22.90 [581.7]

24.40 [619.8]

18.32 [465.4]

20.32 [516.2]

22.32 [567.0]

24.32 [617.8]

25.81 [655.7]

LCSF3642 50.50 [1282.7] 42.50 [1079.5] 25.90 [657.9] 27.32 [694.0]

LCSF4248

56.50 [1435.1] 48.50 [1231.9] 28.90 [734.1] 30.32 [770.2]

EXTENSION

LEG SET

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

NONE

60-408-10

60-408-20

60-408-30

DIM. "E" MIN.

CLAMPING DIA.

23.01 [584.4]

20.89 [530.5]

18.89 [479.7]

16.89 [428.9]

27.01 [685.9]

24.89 [632.1]

22.89 [581.3]

20.89 [530.5]

31.01 [787.5]

28.88 [733.7]

26.88 [682.9]

24.89 [632.1]

35.00 [889.1]

32.88 [835.3]

30.88 [784.5]

28.88 [733.7]

38.00 [965.2]

35.88 [911.4]

33.88 [860.6]

31.88 [809.8]

41.00 [1041.5]

38.88 [987.6]

36.88 [936.8]

34.88 [886.0]

47.00 [1193.9]

44.88 [1140.0]

42.88 [1089.2]

40.88 [1038.4]

DIM. "E" MAX.

CLAMPING DIA.

24.50 [622.3]

22.35 [567.7]

20.35 [516.9]

18.35 [466.2]

28.50 [723.9]

26.35 [669.3]

24.35 [618.5]

22.35 [567.7]

32.50 [825.5]

30.35 [770.9]

28.35 [720.1]

26.35 [669.3]

36.50 [927.1]

34.35 [872.5]

32.35 [821.7]

30.35 [770.9]

39.50 [1003.3]

37.35 [948.7]

35.35 [897.9]

33.35 [847.1]

42.50 [1079.5]

40.35 [1024.9]

38.35 [974.1]

36.35 [923.3]

48.50 [1231.9]

46.35 [1177.3]

44.35 [1126.5]

42.35 [1075.7]

2.63

66.7

3.56

90.5

DRIVE

INPUT

4.81

122.2

TRIP

LOCATION

3.70

94.0

"A"

OUTER DIAMETER

"B"

INNER DIAMETER

TRIP

LOCATION

"C"

DRIVE CL

"D"

34

TRIP

LOCATION

DIMENSIONS IN BRACKETS ARE MILLIMETERS

18°

45° TYP

"E"

CLAMPING

DIAMETER

TRIP

LOCATION

Extended Parting Slide, 60-415-00

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

PIPE DIAMETER (DIM. "A") SHOWN WITHOUT CLEARANCE.

WEIGHT = 7.5lb. [3.4kg]

6.99

[177.5]

6.18

[157.0]

5.68

[144.2]

.124

3.15

2.17

55.2

1.25

31.8

Chapter 3, Introduction to the Equipment: Operating Envelope

MODEL

LCSF 1824

LCSF 2228

LCSF 2632

LCSF 3036

LCSF 3642

LCSF 4248

N/A

N/A

N/A

N/A

N/A

N/A

-TABLE-

POSITION

DIM. "A"

DIAMETER

24.50

[622.3]

28.50

[723.9]

32.50

[825.5]

36.50

[927.1]

42.50

[1079.5]

48.50

[1231.9]

DIM. "B"

RADIUS

16.64

[422.6]

18.64

[473.7]

20.64

[524.3]

22.64

[575.1]

25.64

[651.3]

28.64

[727.5]

Slide travel and diameter/radius dimensions below are same for 60-415-00 parting slide and 60-416-00 beveling slide (next page).

1.92

48.7

1.67

42.4

TRAVEL

FEED RATE

.0026 PER TRIP

[.066]

.99

25.1

"A"

5.37

136.5

"B"

.17

4.3

2.50

63.5

.83

21.1

.31

7.9

3.48

88.5

35

Low Clearance Split Frame, Models 204-1420

Extended Beveling Slide, 60-416-00

7.80

[198.0]

7.11

[180.6]

1.61

40.8

.31

7.9

MODEL

LCSF 1824

LCSF 2228

LCSF 2632

POSITION

N/A

-TABLE-

DIM. "A"

DIAMETER

24.50

[622.3]

N/A

N/A

LCSF 3036

LCSF 3642

N/A

N/A

36.50

[927.1]

42.50

[1079.5]

LCSF 4248 N/A

DIM. "B"

RADIUS

16.64

[422.6]

22.64

[575.1]

25.64

[651.3]

7.05

[179.0]

6.36

[161.4]

5.73

[145.6]

5.00

[127.1]

3.11

78.9

4.29

109.0

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

PIPE DIAMETER (DIM. "A") SHOWN WITHOUT CLEARANCE.

WEIGHT = 7.5lb. [3.4 kg]

.99

25.1

.51

13.0

2.50

63.5

.17

4.3

.83

21.1

.125

3.18

3.54

90.0

1.50

38.1

1.25

31.8

2.23

56.6

.31

7.9

See 60-415-00 parting slide drawing on previous page for slide travel and diameter/radius dimensions.

36

Super Extended Parting Slide, 60-437-00

Chapter 3, Introduction to the Equipment: Operating Envelope

1.00 TYP.

25.4

2.28 TRAVEL

57.9

"A"

3.48

88.5

2.17

55.2

1.16

29.5

6.99

177.5

FEED RATE

.0026 PER TRIP

[.066]

.31

7.9

.99

25.1

"B"

Slide travel and diameter/radius dimensions above are same for 60-415-00 parting slide and 60-416-00 beveling slide (next page).

MODEL

LSCF 1824

LSCF 2228

LSCF 2632

LSCF 3036

LSCF 3642

LSCF 4248

POSITION

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

-TABLE-

30.33

[770.4]

32.33

[821.2]

32.32

[820.9]

34.32

[871.7]

36.32

[922.5]

DIM. "A"

PIPE

DIAMETER

20.35

[516.9]

22.35

[567.7]

24.35

[618.5]

24.34

[618.2]

26.34

[669.0]

28.34

[719.8]

28.33

[719.6]

38.31

[973.1]

40.31

[1023.9]

42.31

[1125.2]

44.30

[1074.7]

46.30

[1176.0]

48.30

[1226.8]

DIM. "B"

RADIAL

CLEARANCE

17.00

[431.8]

18.00

[457.2]

19.00

[482.6]

19.00

[482.6]

20.00

[508.0]

21.00

[533.4]

21.00

[533.4]

22.00

[558.8]

23.00

[584.2]

23.00

[584.2]

24.00

[609.6]

25.00

[635.0]

26.00

[660.4]

27.00

[685.8]

28.00

[711.2]

29.00

[736.6]

30.00

[762.0]

31.00

[787.4]

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

PIPE DIAMETER (DIM. "A") SHOWN WITHOUT CLEARANCE.

WEIGHT = 10lb. [4.5kg]

3.18

80.7

4.68

118.8

.12

3.1

5.68

144.2

6.30

160

37

Low Clearance Split Frame, Models 204-1420

Super Extended Beveling Slide, 60-438-00

See 60-437-00 parting slide drawing on previous page for slide travel and diameter/radius dimensions.

MODEL

LSCF 1824

LSCF 2228

LSCF 2632

LSCF 3036

LSCF 3642

LSCF 4248

POSITION

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

-TABLE-

DIM. "A"

PIPE

DIAMETER

20.35

[516.9]

22.35

[567.7]

24.35

[618.5]

24.34

[618.2]

26.34

[669.0]

28.34

[719.8]

28.33

[719.6]

30.33

[770.4]

32.33

[821.2]

32.32

[820.9]

34.32

[871.7]

36.32

[922.5]

38.31

[973.1]

40.31

[1023.9]

42.31

[1125.2]

44.30

[1074.7]

46.30

[1176.0]

48.30

[1226.8]

DIM. "B"

RADIAL

CLEARANCE

17.00

[431.8]

18.00

[457.2]

19.00

[482.6]

19.00

[482.6]

20.00

[508.0]

21.00

[533.4]

21.00

[533.4]

22.00

[558.8]

23.00

[584.2]

23.00

[584.2]

24.00

[609.6]

25.00

[635.0]

26.00

[660.4]

27.00

[685.8]

28.00

[711.2]

29.00

[736.6]

30.00

[762.0]

31.00

[787.4]

.31

7.9

COVER TOOL SLIDE (H.D.)

60-194-00

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

PIPE DIAMETER (DIM. "A") SHOWN WITHOUT CLEARANCE.

WEIGHT = 10lb. [4.5kg]

3.54

90.0

2.23

56.6

7.05

179.0

1.16

29.5

1.50

38.1

COVER H.D. DBL. BEVEL

60-214-00

.99

25.1

.51

13.0

.31

7.9

7.80

198.0

.125

3.18

.86

21.7

2.50

63.6

4.00

101.7

5.00

127.1

5.73

145.6

6.67

169.5

1.61

40.8

3.11

78.9

7.42

188.5

7.80

198.0

38

Univeral Counterbore Slide, 60-405-UC

3.86

98.0

3.56

90.5

Chapter 3, Introduction to the Equipment: Operating Envelope

7.61

193.3

7.56

192.0

7.57

192.3

60-000-04

THRU

60-000-48

60-416-00

OR

60-438-00

2.19 MAX. THICKNESS

55.5

7.69

195.4

PARTING

LINE

1.13 MAX. DEPTH

28.7

39

Low Clearance Split Frame, Models 204-1420

Worm Gear Slides, 60-430-01/60-430-02

MODEL

LSCF 1824

POSITION

-TABLE-

DIM. "A"

PIPE

DIAMETER

LOW

MID

LSCF 2228

LOW

MID

24.38

[619.2]

28.38

[720.8]

LOW

LSCF 2632

MID

LOW

LSCF 3036

MID

LSCF 3642

LSCF 4248

LOW

MID

LOW

MID

DIM. "B"

RADIAL

CLEARANCE

20.48

[520.1]

22.48

[570.9]

2.35 TRAVEL

59.7

"A"

"B"

40

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

PIPE DIAMETER (DIM. "A") SHOWN WITHOUT CLEARANCE.

7.10

180.3

5.82

147.9

.99

25.1

.28

7.0

3.59

91.3

2.32

58.9

BEVEL TOOL HOLDER

(60-312-00)

.51

13.0

.76

19.2

3.48

88.4

1.72

43.8

6.98

177.4

5.23

132.8

Front Drive Pinion Assembly, 60-425-04

-TABLE-

MODEL

LCSF1824

LCSF2228

LCSF2632

LCSF3036

DIM. "A"

21.20

[538.5]

23.20

[589.3]

25.20

[640.1]

LCSF3642

LCSF4248

30.20

[767.1]

33.20

[843.3]

DIMENSIONS IN BRACKETS ARE MILLIMETERS.

WEIGHT = 8lb. [4kg]

Chapter 3, Introduction to the Equipment: Operating Envelope

3.22

81.8

1.11

28.2

5.00

127.0

DRIVE

INPUT

"A"

DRIVE CL

41

Low Clearance Split Frame, Models 204-1420

1.5 HP Right-Angle Air Drive, 60-423-00

2.49

63.3

2.64

67.1

A

12.76

324.0

CL OF HANDLE

.50 SQ

12.7

A

OILER

A

R15.75

400.0

60° TYP

2.84

72.1

1.65

41.9

4.00

101.6

2.47

62.7

A

R23.75 REF

603.3

DIMENSIONS IN BRACKETS ARE MILLIMETERS

SPEED CONTROL AND OILER CAN BE RELOCATED FOR SPACE CONSTRAINTS

2.5 HP Right-Angle Air Drive, 60-423-01

2.49

63.3

SPEED

CONTROL

OILER

2.88

73.1

1.69

42.9

A

R19.25

489.0

16.36

415.6

A

CL OF HANDLE

.50 SQ

12.7

A

3.20

81.2

60° TYP

4.00

101.6

3.00

76.2

A

R27.25 REF

692.2

DIMENSIONS IN BRACKETS ARE MILLIMETERS

SPEED CONTROL AND OILER CAN BE RELOCATED FOR SPACE CONSTRAINTS

42

Chapter 3, Introduction to the Equipment: Operating Envelope

2.5 HP Right-Angle Reversible Air Drive, 60-4010-01

2.49

63.3

SPEED CONTROL

OILER

R18.08

459.2

14.92

379.0

CL OF HANDLE

3.20

81.2

60° TYP.

2.81

71.4

1.63

41.3

4.00

101.6

3.00

76.2

R26.57

675.0

DIMENSIONS IN BRACKETS ARE MILLIMETERS

43

Low Clearance Split Frame, Models 204-1420

Hydraulic Drive, 60-424-02

FLOW OUT

1/2 NPT

FLOW IN

1/2 NPT

8.231

209.1

11.631

295.4

WEIGHT: 25.4 lbs [11.5 kg]

MAXIMUM FLOW: 15 GPM [57 LPM]

PRESSURE: UP TO 2000 PSI [138 BAR]

PERFORMANCE DATA

FLOW

GPM [LPM]

2 [7.6]

4 [15.1]

6 [22.7]

8 [30.3]

10 [37.9]

12 [45.4]

14 [ 53.0]

15 [56.8]

RPM

47

94

141

188

235

282

330

353

.500

12.7

3.934

99.9

4.022

102.2

3.125

79.4

ROTATION

1.838

46.7

.423

10.7

6.688

169.9

INCREASE &

DECREASE FLOW KNOB

7.956

202.1

R3.705

94.1

SPRING RETURN OPERATOR

44

Chapter 4, Assembly, Disassembly, and Storage

Chapter 4

Assembly, Disassembly, and

Storage

M achine

d isasseMbly for

s

Torage

These instructions assume the LCSF machine has been dis connected from the power source and removed from the workpiece, as described in Chapter 5.

1.

2.

3.

4.

Remove the drive assembly (pneumatic or hydraulic) from the LCSF.

Retract the tool slides. It is not necessary to remove the standard tool slides to store the machine.

Clean the machine of debris such as metal chips and excess coolant.

Split the machine halves and examine the bearing raceway for metal chips.

5.

Figure 4-1. Check the bearing raceway for chips and clean it if necessary.

Apply two drops of Wachs way oil (60-1184-00) to the felt wiper before storing the machine.

E.H. Wachs Part No. 60-MAN-07, Rev. C 45

Low Clearance Split Frame, Models 204-1420

s

Torage

/s hiPPing

c ases

LCSF models 1824 through 4248 are stored and shipped in steel cases. The LCSF is separated into halves and mounted to brackets inside the case for secure storage. The cases have sheet-metal compartments for all components and accessories.

Mounting brackets

Figure 4-2. The LCSF is secured in its case with 2 mounting brackets.

46

Figure 4-3. To take the LCSF out of the case, remove the screws holding the brackets to the machine (left), then remove the brackets by taking out the screws attaching them to the case

(right).

iMPortant

Remove the brackets before lifting the LCSF out of the case, to avoid damaging them.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 4, Assembly, Disassembly, and Storage: Storage Guidelines

s

Torage

g uidelines

• Clean the machine by wiping off dirt, debris, and accu mulated oil or grease.

• Put oil in the air motor oiler, and operate the motor for a few seconds to lubricate its internal components.

• Lubricate the machine according to the instructions in Chapter 6.

• Spray or wipe a light coating of anti-corrosion lubricant on non-finished, non-painted surfaces.

• Put the machine in its storage case, with all components stored in their compartments.

• Secure large-range LCSFs in their cases using both mounting brackets.

• If possible, keep the storage case indoors and away from moisture.

E.H. Wachs Part No. 60-MAN-07, Rev. C 47

Low Clearance Split Frame, Models 204-1420

48 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions

Chapter 5

Operating Instructions

P lanning The

o

PeraTion

It is important to begin each project by visually inspecting the worksite. Important information can be gathered at this time to aid in the setup of the machine tool. The following items should be considered when doing this review:

• Work space constraints

• Proper scaffolding to support equipment and workers

• Machine operating clearances

• Power requirements to run equipment

• Containment of cutting debris /coolant during the oper ation

In order to perform machine set-up, be sure to take the fol lowing measurements:

• Radial clearance around the pipe.

• Axial clearances end to end.

• Verify the pipe schedule / size.

This information will help to determine if clamp pads will be required, what tool slides will be needed to perform the operation, and what tooling is necessary to complete the cut.

See the drawings at the end of Chapter 3 for machine dimensions of all LCSF models. The dimensions in the drawings will allow you to plan how to install the machine for the operating environment.

E.H. Wachs Part No. 60-MAN-07, Rev. C 49

Low Clearance Split Frame, Models 204-1420

Figure 5-1. Measure the radial clearance around the pipe surface.

Figure 5-2. Measure the axial clearance along the planned work area on the pipe.

Verify the actual diameter of the pipe. If you cannot mea sure the diameter directly (for instance, an in-line pipe with no open end), measure the circumference and divide by 3.14 (pi).

Example:

40.0” circumference / 3.14 = 12.74” diameter

50 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Planning the Operation

Figure 5-3. Verify the pipe circumference by measur ing.

Tool Selection

This section describes the features of each type of tooling, and explains the factors to consider when selecting specific tools for a given application.

When selecting tooling, you will typically want to use the shortest tool that will accomplish the operation you’re per forming. A shorter effective tool length (the distance between the tool holder and the cutting surface) increases rigidity, reducing vibration or chatter during cutting. Factors that affect the required tool length are the following:

• The difference in size between the LCSF machine and the pipe. Cutting performance is usually best with the smallest LCSF that will fit on the pipe.

• The mounting position of the slide on the LCSF (for slides with multiple positions). The slide should be as close as possible to the pipe O.D.

• The thickness of the pipe wall. A longer tool is required for heavy-wall pipe, to reach the I.D.

(Cutting heavy-wall pipe makes using the correct LCSF size and slide position even more important.)

It is possible to reduce the effective tool length of a longer tool by mounting it farther back in the tool holder, so that it extends behind the slide. However, this is not recommended for safety reasons. Having tools extend beyond the diameter of the machine is hazardous to the operator.

Refer to the tooling tables in Chapter 9 and operating enve lope drawings in Chapter 3.

Parting-only operation notE

Standard LCSF beveling slides are also referred to as “parting/beveling slides”, since the beveling tool holder is designed so that it can hold a parting tool instead.

(Part ing slide tool holders can only hold parting tools.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 51

Low Clearance Split Frame, Models 204-1420

For a parting (straight cut-off) operation, you will use 2 identical parting tools, one in in the parting slide and one in the beveling slide. The tool holders are designed with a part ing offset, so the tools cut a wider groove than the thickness of each tool. This prevents the tools from jamming in the groove and breaking off, or stalling the machine.

Standard parting blades are 3/16” thick, and are available in a variety of lengths. You can use solid high speed steel blades, or insert holders with carbide inserts. For heavier wall applications, 1/4” tools are available. See the tooling tables in Chapter 9 for available parting tools.

Pipe

O.D.

Pipe

I.D.

Cut-off line

Parting tools

Parting offset

Figure 5-4. The drawing illustrates the parting opera tion, with two offset parting tools. The parting offset distance is built into the parting and parting/beveling tool holders.

Parting/o.D. Beveling operation

For a parting/beveling operation, you will use a parting tool in the parting slide, and a beveling tool with the desired bevel angle in the beveling slide.

Beveling tools are made with the desired form (angle) built into the cutting edge of the tool. The tool feeds radially into the end of the pipe. This method is used mainly for thin wall pipe up to 1 inch. For heavier-wall pipe, single-point bevel ing is typically required; see “Single-Point Beveling” below.

Standard beveling tools are available with single angles or compound angles.

• 30° single angle

• 37.5° single angle

• 10° x 37.5° compound angle

• 10° x 30° compound angle

52 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Planning the Operation

Form tool beveling is fast on thinner wall pipe, and is easier to set up than single-point. However, it can have the follow ing disadvantages:

• there are a limited number of designs unless tools are specially made

• it requires cutting fluid to extend tool life

• it has limitations on heavy wall pipe; the maximum wall thickness that can be form tool beveled with a 10° x 37.5° form tool is 1-1/4 inch

• it machines a larger surface area, thus requiring a slower r.p.m. and maximun horsepower.

See the tooling tables in Chapter 9 for available beveling tools.

Figure 5-5. Standard form Tools: 10° x 37.5° Com pound Angle (top), and 37.5° Single Angle

(bottom)

E.H. Wachs Part No. 60-MAN-07, Rev. C 53

Low Clearance Split Frame, Models 204-1420

Parting tool

Land (if required)

Pipe

O.D.

Pipe

I.D.

Cut-off line

Beveling tool

Figure 5-6. The drawing illustrates the parting/bevel ing operation.

o.D. Beveling-only operation

If you are only beveling a pipe end that has already been cut off, use a beveling tool in the parting/ beveling slide. Leave the parting tool slide empty.

Land (if required)

Pipe

O.D.

Pipe

I.D.

Beveling tool

Figure 5-7. The drawing illustrates the O.D. bevel operation.

54 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Planning the Operation

Single-Point Beveling

Single-point beveling is performed on thick-walled pipes, where the cutting surface is too wide for a form tool to work effectively. Only the tip of the tool cuts; the tool feed is in two dimensions to follow the profile of the desired bevel.

Single-point beveling with the LCSF is performed using the bridge slide accessory, with a standard single-point tool holder and insert. See the Bridge Slide Accessory for Low-Clearance Split Frame

User’s Manual for instructions on beveling with the bridge slide.

Operating Envelopes

The drawings at the end of Chapter 3 illustrate the operating envelope for the available combinations of LCSF machines and tool slides.

In the table on each drawing, find the row for your LCSF model. The

DIM “A” DIAMETER

column indicates the maxi mum pipe diameter for the given LCSF machine and slide combination. (Note that the maximum pipe diameter is sometimes a little more than the nominal LCSF size.) Where multiple slide mounting positions are available, there is a separate row with dimensions for each position.

Extended Slides (60-415-00/60-416-00)

Parting slide 60-415-00 and beveling slide 60-416-00 are optional for LCSF models 1824 (24 inch) through 4248 (48 inch). The drawings and tables in Chapter 3 illustrate the operating envelopes for all slides.

Super Extended Slides (60-437-00/60-438-00)

Parting slide 60-437-00 and beveling slide 60-438-00 are the standard slides for LCSF models

1824 through 4248. The drawings and tables in Chapter 3 illustrate the operating envelopes for all slides.

These slides have three installation positions on the LCSF, indicated in the tables as

LOW

,

MEDIUM

, and

HIGH

. Choose the lowest slide position that will not collide with the pipe surface. This minimizes the extended length of the tool, increasing rigidity of the cutting system.

Setting the position is described in the section “Install Tool Slides and Tooling”, later in this chapter.

E.H. Wachs Part No. 60-MAN-07, Rev. C 55

Low Clearance Split Frame, Models 204-1420

l ifTing and

r igging The

lcsf

WarninG

All LCSF models 1824 and larger are too heavy to be lifted safely by one person. (See weight charts in Chapter 2.) Always use a lifting device to lift the large-range LCSF.

Model 1824 through 4248 LCSFs have 4 threaded holes (2 on each half of the stationary ring) for lifting eyes. Two lift eyes are provided with the machine.

To lift the entire machine (assembled ring), install the lift eyes in two adjacent threaded holes.

To lift one half of the machine (separated ring), install the lift eyes in both holes of the half you are lifting.

• Do not lift the ring half using only one lift eye.

• Make sure the alignment pin is installed through the rotating and stationary ring.

1.

Figure 5-8. Lift the assembled machine as shown.

Lift one half of the machine out of the case.

56 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Lifting and Rigging the LCSF

2.

Figure 5-9. Use a lifting device to lift each half of the machine out of the storage case.

Lay the ring half on the floor or a suitable work sur face.

Figure 5-10. Lay the ring half on the work surface.

E.H. Wachs Part No. 60-MAN-07, Rev. C 57

Low Clearance Split Frame, Models 204-1420

3.

Assemble the halves of the ring.

4.

Figure 5-11. Assemble the machine on the floor for use on an open-ended pipe.

To install the machine on an inline pipe, use a lift bar to pick up the machine as shown.

58

Figure 5-12. Assemble the ring halves around the pipe as shown.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

5.

Push the machine halves together and tighten the screws.

Figure 5-13. Assemble the halves of the machine around the pipe.

s eTTing

u

P The

lcsf

Clamp Leg Set-Up

1.

2.

Measure the O.D. of the pipe to be machined. (If nec essary, measure the circumference and divide by 3.14 to get the diameter.)

In the Clamp Pad Extension Charts on the following pages, find the column for your LCSF model.

notE

If your pipe O.D. is within the MAX/MIN range of 2 leg sets, it is generally better to select the longer legs. However, shorter legs may be an advantage if the pipe is out of round or if the work environ ment has limited clearance for mounting the LCSF.

3.

Find the MAX/MIN range that includes the diameter you measured in Step 1. Select the corresponding leg set in the table row. All legs have their part numbers and size range stamped on them.

Example: You have a model 1824 LCSF, and the pipe O.D. is 20.5”. You need to use the 1-1/2”

leg extension set, 60-408-15.

E.H. Wachs Part No. 60-MAN-07, Rev. C 59

Low Clearance Split Frame, Models 204-1420

4.

5.

Install the 4 legs in the set onto the clamp pads of the LCSF. The legs have captivated screws.

Tighten the screws securely.

Make sure the legs are fully retracted by turning the clamping screws counter-clockwise until they stop. The clamp screws require a 3/8” hex wrench.

PART NUMBER AND RANGE

Figure 5-14. Install the legs onto the clamp pads.

60 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

Table 1: CLAMP PAD EXTENSION CHART: LCSF 1824-3036 (18”-36”)

claMPinG ranGE lcSF 1824 incH MM lcSF 2228 incH MM lcSF 2632 incH MM lcSF 3036 incH MM

WITH NO

EXTENSION

60-408-05

1/2” EXT. SET

60-408-07

3/4” EXT. SET

60-408-10

1” EXT. SET

60-408-15

1-1/2” EXT. SET

60-408-20

2” EXT. SET

60-408-25

2-1/2” EXT. SET

60-408-28

2.8” EXT. SET

60-408-30

3” EXT. SET

60-408-31

3-1/8” EXT. SET

60-408-35

3-1/2” EXT. SET

60-408-40

4” EXT. SET

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

21.47

20.01

20.47

19.01

19.47

18.01

18.97

17.51

24.50

23.01

23.47

22.01

22.97

21.51

22.47

21.01

18.47

17.01

18.21

16.75

17.47

16.01

16.47

15.01

545.4

508.2

520.0

482.8

494.6

457.4

481.9

444.7

622.3

584.4

596.2

558.9

583.5

546.3

570.8

533.6

469.2

432.0

462.6

425.4

443.8

406.6

418.4

381.2

25.47

24.01

24.47

23.01

23.47

22.01

22.97

21.51

28.50

27.01

27.47

26.01

26.97

25.51

26.47

25.01

22.47

21.01

22.21

20.75

21.47

20.01

20.47

19.01

647.0

609.7

621.6

584.3

596.2

558.9

583.5

546.3

669.3

632.1

697.8

660.5

685.1

647.8

672.4

635.1

570.8

533.6

564.2

527.0

545.4

508.2

520.0

482.8

29.47

28.00

28.47

27.00

27.47

26.01

26.97

25.51

32.50

31.01

31.47

30.00

30.97

29.50

30.47

29.00

26.47

25.01

26.21

24.75

25.47

24.01

24.47

23.01

748.5

711.3

723.1

685.9

697.8

660.5

685.1

647.8

825.5

787.5

799.3

762.1

786.6

749.4

773.9

736.7

672.4

635.1

665.8

628.5

647.0

609.7

621.6

584.3

33.47

32.00

32.47

31.00

31.47

30.00

30.97

29.50

36.50

35.00

35.47

34.00

34.97

33.50

34.47

33.00

30.47

29.00

30.21

28.74

29.47

28.00

28.47

27.00

850.1

812.9

824.7

787.5

799.3

762.1

786.6

749.4

927.1

889.1

900.9

863.7

888.2

851.0

875.5

838.3

773.9

736.7

767.3

730.1

748.5

711.3

723.1

685.9

E.H. Wachs Part No. 60-MAN-07, Rev. C 61

Low Clearance Split Frame, Models 204-1420

Table 2: CLAMP PAD EXTENSION CHART:

LCSF 3339-4248 (39”-48”)

claMPinG ranGE lcSF 3339 incH MM lcSF 3642 incH MM lcSF 4248 incH MM

WITH NO

EXTENSION

60-408-05

1/2” EXT. SET

60-408-07

3/4” EXT. SET

60-408-10

1” EXT. SET

60-408-15

1-1/2” EXT. SET

60-408-20

2” EXT. SET

60-408-25

2-1/2” EXT. SET

60-408-28

2.8” EXT. SET

60-408-30

3” EXT. SET

60-408-31

3-1/8” EXT. SET

60-408-35

3-1/2” EXT. SET

60-408-40

4” EXT. SET

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

36.47

35.00

35.47

34.00

34.47

33.00

33.97

32.50

39.50

37.00

38.47

37.00

37.97

36.50

37.47

36.00

33.47

32.00

33.21

31.74

32.47

31.00

31.47

30.00

926.3

889.1

900.9

863.7

875.5

838.3

862.8

825.6

1003.1

939.8

977.1

939.9

964.4

927.2

951.7

914.5

850.1

812.9

843.5

806.3

824.7

787.5

799.3

762.1

39.47

38.00

38.47

37.00

37.47

36.00

36.97

35.50

42.50

41.00

41.47

40.00

40.97

39.50

40.47

39.00

36.47

35.00

36.21

34.74

35.47

34.00

34.47

33.00

1002.5

965.3

977.1

939.9

951.7

914.5

939.0

901.8

1079.5

1041.5

1053.3

1016.1

1040.6

1003.4

1027.9

990.7

926.3

889.1

919.7

882.5

900.9

863.7

875.5

838.3

45.47

44.00

44.47

43.00

43.47

42.00

42.97

41.50

48.50

47.00

47.47

46.00

46.97

45.50

46.47

45.00

42.47

41.00

42.21

40.74

41.47

40.00

40.47

39.00

1154.9

1117.7

1129.5

1092.3

1104.1

1066.9

1091.4

1054.2

1231.9

1193.9

1205.7

1168.5

1193.0

1155.8

1180.3

1143.1

1078.7

1041.5

1072.1

1034.9

1053.3

1016.1

1027.9

990.7

Set-Up for In-line Pipe

To mount the LCSF on in-line pipe, you will have to split the machine into halves by removing the frame locking screws at the split points.

1.

Make sure the two frame locking pins are installed to keep the rotating and stationary rings together.

62 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

2.

3.

Figure 5-15. Insert the frame locking pins through the machine.

Lay machine on a secure surface.

Using a 1/4” hex wrench, loosen the 6 captivated screws, four in the stationary frame and two in the rotating frame.

Figure 5-16. Loosen the captivated screws to separate the halves.

E.H. Wachs Part No. 60-MAN-07, Rev. C 63

Low Clearance Split Frame, Models 204-1420

4.

Pull the two halves of the machine apart at the split lines. Use an equal amount of force on each side to prevent the halves from binding.

notE

Use reasonable force to sep arate the halves. If you can’t pull them apart, check to make sure you have ade quately loosened the 6 capti vated screws.

5.

Figure 5-17. Pull the machine apart at the split lines. Use equal force on each side to separate the halves without binding.

notE

Two people will be required to perform the set-up.

With the halves split, place the upper half (with the pinion housing) on top of the workpiece.

Make sure you are attaching the stationary frame to a section of the pipe that will support its weight . Do not clamp the machine onto a pipe section or end that will “fall off” after cutting .

64 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

6.

Figure 5-18. On horizontal pipe, set the side of the machine with the pinion housing on top of the pipe.

Lift the bottom half of the machine into place under the top half. Align the dowel pin holes with the dowel pins to ensure proper fit, and press the halves together.

notE

To install the machine on ver tical pipe, you will need two people to support both halves, or a stable support beneath the machine.

Figure 5-19. Fit the halves together on the pipe.

E.H. Wachs Part No. 60-MAN-07, Rev. C 65

Low Clearance Split Frame, Models 204-1420

iMPortant

7.

8.

Be sure that all frame locking SHCS are equally tightened before continuing with mount ing procedure. Failure to do so may cause damage to drive gears.

Partially tighten one of the frame locking SHCS in the rotating frame. This will secure the machine while the other bolts are tightened.

Using a 1/4” hex wrench, snug down all of the frame locking screws to bring the split lines together, then securely tighten the screws.

Figure 5-20. Tighten the frame locking screws.

Set-Up for Open-Ended Pipe

For open-ended workpieces, slide the machine over the pipe end. It is not necessary to split the machine. Make sure you are attaching the stationary frame to a section of the pipe that will

support its weight . Do not clamp the machine onto a pipe section or end that will “fall off” after cutting .

Make sure all locking frame screws are tight and detent pins are installed in the machine. Use the same clamping and positioning procedures as for in-line pipe.

66 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

Installation on Vertical Pipe

The LCSF can be installed on in-line or open-ended vertical pipe, with the machine in a horizontal position. Set-up and operating procedures are the same as for horizontal pipe. However, observe the following guidelines for machining vertical (or other non-horizontal angle) workpieces.

notE

For difficult installation envi ronments, a custom mounting adapter can be provided.

The adapter can be bolted or welded to the workpiece to hold the LCSF in place for installation. Contact E.H. Wachs customer support to discuss requirements.

• Make sure the machine is adequately supported until you tighten the clamp feet securely on the workpiece.

• Refer to the weight chart in Chapter 2 to determine if multiple operators or a lifting device are needed to help support the machine.

• The LCSF is easier to handle in a horizontal position when the ring halves are assembled. If possible, install it as an assembled ring.

• If you need to split the machine to install on in-line pipe, make sure each half is supported until installation is complete. Two lifting devices may be required, one for each half of the machine.

• Use a scaffolding or other support structure(s) if avail able. Make sure the LCSF rests stably on the support.

• When performing a parting operation, make sure the workpiece is securely supported both above and below the LCSF.

Positioning the Machine for the Cut

1.

2.

With the frame halves securely tightened, move the machine to the cut line position marked on the pipe.

Using the scale, set your machine 2-1/4” (57 mm) back from the line or punch mark at the position where you mount the tool slides. (See the cut line identified in the envelope drawings in Chapter 3.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 67

Low Clearance Split Frame, Models 204-1420

Figure 5-21. Measure 2-1/4” back from the punch mark.

Clamp Pad Centering Procedure

notE

For easy visualization, we often refer to positions on the LCSF by numbers on a clock.

1.

Starting with the clamp pad nearest the 12 o’clock position, tighten the clamping screw until the gap at the top and the bottom of the machine are approxi mately equal.

68 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

2.

Snug the clamp pad nearest the 6 o’clock position.

notE

Clamp legs are secured with Integrated Captivated Socket Head Cap Screws

(SHCS) to secure themselves to the sta tionary ring.

3.

Figure 5-22. Tighten the clamping screw until the leg is just snug on the pipe.

Snug the clamping screws nearest the 3 and 9 o’clock positions. At this point the machine is rough centered and you may begin making the final adjustments.

E.H. Wachs Part No. 60-MAN-07, Rev. C 69

Low Clearance Split Frame, Models 204-1420

4. notE

With the clamping screws snug, you should be able to nudge the LCSF on the pipe.

If necessary, SLIGHTLY loosen the clamp pads at the 6 and 12 o’clock position, or the 3 and 9 o’clock positions. You can tap on the LCSF with the provided rubber hammer to nudge it.

Place the short end of the provided square on the pipe with the ruler side against the stationary ring at the 12 o’clock position. Check the LCSF’s squareness to the O.D. of the pipe. If there is a gap, adjust the machine until the gap is closed.

5.

6.

7.

Figure 5-23. Use the square to make sure the machine is perpendicular to the pipe.

When the LCSF is square to the pipe, check the dis tance from the slide mounting location on the machine to the cut line. It should be 2-1/4” (57 mm). If neces sary, nudge the machine to adjust the position.

When the LCSF is square and at the correct location, tighten the clamping screws.

Start at the clamp leg nearest the 12 o’clock position. Using a scale, measure the distance from the surface of the pipe to the inner surface of the LCSF at that location. Write the measurement down.

70 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Setting Up the LCSF

8.

Figure 5-24. Measure the gap at the clamp leg near est the 12 o-clock position.

Move to the clamp leg 180° opposite the one in the previous step and measure the distance between the pipe surface and the inner surface of the LCSF. Write this measurement down.

9.

Add the two measurements together. Divide the result by 2. This number is the distance the

LCSF should be from the pipe at both clamp pad locations.

10.

EXAMPLE:

• The distance at the first location is 1.7 inches.

• The distance at the second location is 2.1 inches.

• Add 1.7 to 2.1, then divide by 2. The result is 1.9 inches, which is the desired distanced between the pipe and LCSF at each location.

Using the scale as you make the adjustments, turn the clamp pad screws alternately until you have the same pipe-to-LCSF distance at both locations.

11.

Repeat this procedure at the two clamp leg locations 90° from the first two.

12.

Measure at all four locations again. Re-adjust if neces sary.

13.

Remove the frame locking pins and manually rotate the machine a full 360°.

notE

You should make a final check for squareness after the clamp pads are tightened

E.H. Wachs Part No. 60-MAN-07, Rev. C 71

Low Clearance Split Frame, Models 204-1420

14.

Figure 5-25. Remove the frame locking pins.

If you can’t turn the rotating frame by hand, the clamp legs may be too tight, binding the machine. One at a time, loosen and then re-snug the clamping screws. Try to rotate the machine again.

72 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

15.

Figure 5-26. Rotate the machine by hand.

If you still can’t turn the machine, see the section “Bearing Adjustment” in Chapter 7.

i nsTall

T ool

s lides and

T ooling

Standard Slides

The standard slides for LCSF models 1824 through 4248 are the “super extended” parting and beveling slides (part nos. 60-437-00 and 60-438-00).

On the back of each of the tool slides are pairs of holes for three mounting positions, as shown in

Figure 5-27. Two mounting pins are provided to use in the appropriate hole pair. The hole pairs represent the three possible mounting positions: high (farthest from machine I.D.), middle, and low (closest to machine I.D.).

Choose the lowest slide position that will not collide with the pipe surface. (Refer to the operating envelope drawings in Chapter 3.) This minimizes the extended length of the tool, increasing rigidity of the cutting system.

1.

Insert the mounting pins in the required holes for the pipe size:

• Use the “high” position if the pipe diameter is less than 2” (25 mm) smaller than the machine size (for instance, 34.5” pipe with 36 inch LCSF).

• Use the “middle” position if the pipe diameter is 2”-4” (25-51 mm) smaller than the machine size (for instance, 33” pipe with 36 inch LCSF).

E.H. Wachs Part No. 60-MAN-07, Rev. C 73

Low Clearance Split Frame, Models 204-1420

• Use the “low” position if the pipe diameter is more than 4” (51 mm) smaller than the machine size (for instance, 31” pipe with 36 inch LCSF).

Low

Middle

High

2.

Figure 5-27. Insert the mounting pins in the slide.

Mount the tool slide to the rotating frame by inserting the pins in the mounting holes at each slide position. Tighten the four 5/16 -18 SHCS in each slide with the supplied hex key set.

3.

Figure 5-28. Tighten the SHCS on each side of the tool slide.

Using a 3/16” hex wrench, turn the starwheels on both slides clockwise to fully retract the slides.

74 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

Extended Slides

You can install the extended slides (60-415-00/60-416-00). When used on model 1824-4248

LCSFs, these slides have only one mounting position.

1.

2.

Mount the tool slides to the rotating frame by inserting the pins in the mounting holes at each slide position. Tighten the four 5/16 -18 SHCS in each slide with the supplied hex key set.

Using a 3/16” hex wrench, turn the starwheels on both slides clockwise to fully retract the slides.

Install the Tooling

For a straight cut-off operation, install a parting tool in both the parting and beveling slide. It is

important that you use two parting tools . The tools are offset to prevent binding and stalling of

the machine.

For a parting and bevel operation, install a parting tool and a beveling tool. See the information in

“Tool Selection” ear lier in this chapter.

1.

To install parting tools, loosen the 2 tool set screws and the 4 tool cover screws. Insert the tool as shown in Figure 5-29.

Tool set screws

Tool cover screws

2.

3.

4.

Cutting edge

Figure 5-29. Installing the parting tool with the cut ting edge in the cutting direction as shown.

Snug all 4 tool cover screws, then tighten them.

Tighten the 2 tool set screws.

To install a beveling tool, loosen the 2 tool set screws in the tool cover plate, and the set screw in the side of the tool holder.

E.H. Wachs Part No. 60-MAN-07, Rev. C 75

Low Clearance Split Frame, Models 204-1420

Set screws

5.

Figure 5-30. There are three set screws for beveling tools.

Insert the beveling tool with the cutting edge in the direction of rotation, as shown in Figure

5-31.

Cutting edge

6.

7.

8.

Figure 5-31. Insert the bevel tool in the holder with the cutting edge in the direction of rotation.

Snug the set screw on the side of the tool holder, then tighten the 2 set screws on the tool cover. Tighten the side set screw.

Turn the rotating ring by hand to check the tooling clearances. Make sure the tools do not touch the pipe, and that there is enough slide travel for the tooling to reach the I.D. Refer to the slide envelope drawings in Chapter 3.

Set the tooling . Bring the parting tool 1/8 inch away from the pipe and the bevel tool 1/8 inch

away from the pipe. Check tool extension and slide travel again, as in the previous step.

76 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

Figure 5-32. The tip of the parting tool should be about 1/8” (3 mm) from the pipe surface.

9.

Figure 5-33. The tip of the beveling tool should be about 1/8” (3 mm) from the pipe surface.

Rotate the machine manually to make sure the tool clears all the way around the pipe.

E.H. Wachs Part No. 60-MAN-07, Rev. C 77

Low Clearance Split Frame, Models 204-1420

Figure 5-34. Rotate the machine to check tool clear ances.

Dual tooling Setup

You can “stack” parting and beveling tools in the beveling slide to prevent tool binding on heavywall pipe. This setup helps clear chips as the cutting groove deepens.

1.

Figure 5-35. You can use a combination of parting and beveling tools in the beveling slide.

Install the required parting tool in the parting slide tool holder. Set the cutting tip of the tool

1/16” from the surface of the pipe and tighten the screws in the tool cover.

78 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

2.

3.

4.

Install the required beveling tool in the beveling slide tool holder. Set the cutting edge of the beveling tool 1/16” from the surface of the pipe.

Snug the screws on the beveling tool cover, then securely tighten the screw(s) on the tool block holding the side of the tool. (Number of screws depends on the slide model.)

Loosen the screws in the beveling tool cover and insert the parting tool on top of the beveling tool.

5.

Figure 5-36. Insert the tooling as shown with the off set between the parting blades at 1/16 inch from each other.

Adjust the position of the parting tool in the beveling slide for the desired land thickness. To increase the land, set the parting tool beyond the tip of the beveling tool. The land thickness will be 3/32” plus the distance the parting tool extends past the beveling tool.

6. notE

Example: For a 1/4” land, extend the parting tool 5/32” beyond the beveling tool

(3/32” + 5/32” = 1/4”).

Start the tooling with a 1/16 to 1/8 inch gap from the pipe surface and proceed to the installation of the trip assembly.

E.H. Wachs Part No. 60-MAN-07, Rev. C 79

Low Clearance Split Frame, Models 204-1420

Figure 5-37. Set the tip of the parting tool 1/8” (3 mm) from the pipe surface.

Figure 5-38. The photo shows the parting tool 1/8” (3 mm) above the punch mark.

Install the Trip Assembly

Configure the trip assembly for the slide position on the LCSF (low, middle, or high position).

• Attach the trip directly (with no extension blocks) to the LCSF for slides in the low position.

• Attach the trip with one extension block for slides in the middle position.

• Attach the trip with two extension blocks for slides in the high position.

Different length screws are provided for each configuration.

80 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

1.

Figure 5-39. The trip assembly is provided with 2 extension blocks, and 3 sizes of screws for the 3 con figurations (no block, 1 block, or 2 blocks).

Pull out the trip lever swivel pin and remove the lever from the trip assembly.

2.

Figure 5-40. Pull out the pin and remove the trip lever.

If extension blocks are required, align the block(s) with the bottom of the trip mount. Stack the blocks so that the raised tabs on the top interlock with the slot on the bottom of the adjacent piece.

E.H. Wachs Part No. 60-MAN-07, Rev. C 81

Low Clearance Split Frame, Models 204-1420

Middle slide position

High slide position

3.

4.

Figure 5-41. Use the required number of extension blocks for the slide position.

Insert the required screws through the base of the trip mount and the holes in the extension block(s), as shown above.

Put the trip assembly in place on the stationary ring and tighten the three screws.

5.

6.

Figure 5-42. The trip assembly is shown with 2 exten sion blocks, corresponding to the slides in the “high” position.

Put the trip lever in place, with the “fork”in the lever engaged on the trip plunger. Insert the swivel pin.

Push the trip lever down to disengage the trip.

82 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

7.

Figure 5-43. Push the trip lever down to lift the trip pin into the disengaged position.

Time the starwheel feed system and take all the backlash out of the feed mechansim.

notE

The feed rate for all tool slides is 0.0312” (0.79 mm) per revolution of the star wheel.

This equals 0.0026” (0.066 mm) per revolution of machine.

• To take the backlash out, turn the starwheel counter-clockwise (direction of feed) until all backlash is gone and you can feel a slight resistance.

• To time the starwheel, make sure a point of the star is aligned with the machined line

(usually marked in red) on the top of the tool block.

Figure 5-44. Time the starwheel. You can align any point of the wheel with the red line on the tool block.

E.H. Wachs Part No. 60-MAN-07, Rev. C 83

Low Clearance Split Frame, Models 204-1420

8.

9.

Repeat step 5 for the other slide.

Engage the trip pin by pulling up on the trip lever.

Figure 5-45. Engage the trip pin by pulling up on the paddle lever.

Install the Drive Motor

The air and hydraulic drive motors are provided with adapt ers to attach to the LCSF pinion housing. See the appropri ate section below for the drive motor you are using.

notE

The drive motor may be placed in several different positions. The motor should be mounted in a position that allows the operator the easi est and safest access possible.

air Motor

1.

Loosen the two 5/16-18” SHCS located on the back of the pinion housing.

2.

Align two of the bolt holes in the drive motor mount ing flange with the two SHCSs in the pinion housing and slip the flange over the SHCS. All air motors use the same style flange.

84 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

3.

4.

5.

Figure 5-46. Align the bolt holes in the motor flange with the two SHCS in the pinion housing.

notE

The square drive shaft on the motor must insert fully into the socket in the pinion hous ing. If necessary, turn the rotating frame slightly back and forth by hand until the drive hex seats itself properly.

Tighten the 2 motor mounting screws to secure the drive motor.

Re-time the starwheel.

Attach the power supply to the drive motor.

Hydraulic Motor

The hydraulic motor is supplied with an adapter to attach to the LCSF pinion housing. First attach the adapter to the LCSF, then mount the motor on the adapter.

1.

The hydraulic motor is supplied with the adapter attached. Remove the two screws holding the motor to the adapter.

E.H. Wachs Part No. 60-MAN-07, Rev. C 85

Low Clearance Split Frame, Models 204-1420

2.

Figure 5-47. Remove the hydraulic drive screws to detach the drive motor from the adapter.

Remove the 2 motor mounting screws from the pinion housing and set them aside. The hydraulic motor adapter includes screws for mounting to the pinion housing.

3.

Figure 5-48. Remove the pinion housing motor mounting screws and store them in a secure place.

Attach the hydraulic motor adapter to the pinion hous ing and securely tighten the 2 screws.

86 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Install Tool Slides and Tooling

Figure 5-49. Attach the hydraulic drive adapter to the pinion housing.

4.

Figure 5-50. Tighten the 2 screws holding the hydrau lic drive adapter to the pinion housing.

Insert the hydraulic motor shaft through the adapter so that the square shaft fits into the pinion. Turn the motor as required to align the shaft and fully seat the motor flange on the adapter.

notE

The drive shaft fits snugly into the socket in the pinion. You may have to “wiggle” the drive to insert the shaft into the socket.

E.H. Wachs Part No. 60-MAN-07, Rev. C 87

Low Clearance Split Frame, Models 204-1420

5.

Figure 5-51. Insert the hydraulic drive shaft through the adapter so that the square drive fits into the pinion socket.

Attach the motor to the adapter using the 2 screws pro vided. Tighten the screws securely.

88

Figure 5-52. Tighten the 2 screws holding the drive to the adapter.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Cutting Operation

6.

Connect the hydraulic hoses to the motor as shown. Make sure the pressure and return (tank) lines are con nected to the correct fittings.

iMPortant

The standard hydraulic hose fittings are female for the pressure side and male for the return side. Make sure the fittings and connections are correct. Operating the LCSF in the reverse direction can damage the machine.

Pressure connector

Return connector

Figure 5-53. Connect the hydraulic hoses to the drive as shown.

c uTTing

o

PeraTion

Set up the LCSF, tool slides, and drive motor as described in the previous sections.

WarninG

Failure to support the work piece and the fall-off piece could result in serious injury and/or damage to the machine.

If you are doing a severing operation, make sure the work piece is adequately supported on boths sides of the cut line. If necessary, use a catch device for the fall-off piece.

1.

2.

Check that power connections (air or hydraulic) to the LCSF are securely attached.

Make sure that tooling is installed correctly and securely.

E.H. Wachs Part No. 60-MAN-07, Rev. C 89

Low Clearance Split Frame, Models 204-1420

3.

4.

Turn on the power (air or hydraulic) at the source.

Set the speed control on the drive motor to the lowest setting. Engage the drive motor on/off lever to start the machine. If the machine does not start, increase the speed control slightly.

WarninG

Keep clear of moving parts while operating the LCSF.

Faster Slower

Slower

Faster

Air motor Hydraulic motor

5.

Figure 5-54. The photos show the speed adjustment controls on the drive motors. Set the speed control to the minimum before starting the LCSF on a new setup.

notE

If the starwheel does not con tact the trip pin smoothly, stop the machine immediately and follow starwheel timing proce dures.

Engage the trip and operate the machine slowly (3-4 RPM) to verify that the trip is turning the starwheel.

90 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Cutting Operation

6.

Figure 5-55. Pull the trip lever up to engage the trip.

Set the speed control to increase the speed to the desired RPM. Continue machine operation.

The tool slides will advance until the tools begin to cut the workpiece.

Faster

7.

Figure 5-56. Turn the air motor throttle to increase the speed.

Once the tool bits begin to remove material from the workpiece, be sure to apply liberal amounts of coolant for the duration of the machining process.

E.H. Wachs Part No. 60-MAN-07, Rev. C 91

Low Clearance Split Frame, Models 204-1420

8.

You may need to disengage the trip occasionally to adjust the feed rate or to let chips clear out of the cut. Push the trip lever down as the machine is rotating, and operate the machine for 2-3 rotations. Pull the trip lever up to re-engage the trip and continue cutting.

notE

Using coolant is strongly rec ommended to enhance cut ting and increase tool life. If worksite requirements pre vent you from using coolant, you may need to adjust oper ating speed, feed rate (using the trip), or tooling.

9.

Figure 5-57. Push the trip lever down to disengage the trip.

If you need to manually clear chips from the cut or the machine, disengage the trip as described above. Then stop the machine before clearing chips.

WarninG

Use a wire brush or a pliers to avoid touching the chips, which can be hot and very sharp.

Wear appropriate gloves for cleaning up chips.

10.

When you have finished clearing chips, start the machine without the trip engaged. Operate it for at least one rotation before engaging the trip.

92 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Counterboring

11.

Continue operating the LCSF until the machining operation is complete.

caUtion

When cutting, never extend the male tool holder of the tool beyond the red line scribed on the tool slide body.

12.

Release the on/off lever to stop the LCSF.

c ounTerboring

If a counterbore is to be performed, be sure to leave an over sized land. This will allow for material removal without vio lating the land thickness.

Planning the Operation

1.

Determine the amount of material that needs to be machined from the I.D. of the pipe.

Measure the existing pipe I.D. and subtract this value from the “planned” I.D. The difference is the amount of material that needs to be machined from the existing pipe I.D.

E.H. Wachs Part No. 60-MAN-07, Rev. C 93

Low Clearance Split Frame, Models 204-1420

Figure 5-58. Measure the I.D. of the pipe.

Example:

94

Figure 5-59. The width of the counterbore is ½ of the difference between the existing I.D. and planned I.D.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Counterboring

Planned I.D. dimension

Existing I.D. dimension

16.85”

16.55”

Difference 0.30”

Divide by 2 0.15” Per side

Thus, the existing diameter needs to be counterbored to increase the existing I.D. by 0.30”, or

0.15” per side.

2.

Determine the thickness that can be removed with each pass.

As a rule of thumb, you can cut about 0.060” on most pipe materials without causing excess machine vibration, damag ing the tooling, or stalling the machine. Depending on the material you are cutting, you may need to decrease this thickness. On some materials, you may be able to cut a thicker pass, but in general you should not exceed more than about half the width of the tool taper.

3.

Determine the depth for the first counterbore pass.

Because the counterbore tool is tapered, you must start out making longer passes than the desired counterbore depth. Each pass is shorter than the previous one, until the final pass completes the

I.D. of the required straight bore to the desired depth.

Figure 5-60. In this example, three passes with the counterbore tool are required to achieve the desired straight counterbore depth.

In Figure 5-61, the planned counterbore depth is 0.375” of straight bore. (This is a value that is specified in the weld prep detail.) A general rule of thumb is the counterbore depth is just deep enough to locate the transition of the straight bore/taper intersection out of the weld x-ray zone, or behind the end of the weld prep as shown in Figure 5-61.

E.H. Wachs Part No. 60-MAN-07, Rev. C 95

Low Clearance Split Frame, Models 204-1420

Figure 5-61. Counterbore depth

From Step 1, 0.15” needs to be removed from the wall thickness. If the taper on the counterbore tool bit is 4:1, we can determine the depth of the first counterbore pass:

Figure 5-62. The depth of the tapered part of the bore is a function of the tool taper and the counterbore thickness.

0.15” x 4 (taper ratio) = 0.60” (length of the tapered portion)

+ 0.375” (length of straight bore)

= 0.975” (Total counterbore depth including the lead out angle)

coUntErBorE PlanninG ForMUla

The knowns: Angle = 14 1/2° or 4 to 1 taper ratio

Material per pass .050

Total material removed of .150

96 Part No. 60-MAN-07, Rev. C E.H. Wachs

Need to find how deep to bore, or c of our angle:

Chapter 5, Operating Instructions: Counterboring

Formula to find Side c:

c = b x cot. B

(cot. B = 3.8667)

c = .150 x 3.8667 is .580

To calculate desired amount to be removed:

c = .050 x 3.8667

c = .193

First Pass Depth

Second Pass Depth

Third Pass Depth

.580 - .193 = .387 + .375 = .762

.762 - .193 = .569

.569 - .193 = .376

E.H. Wachs Part No. 60-MAN-07, Rev. C 97

Low Clearance Split Frame, Models 204-1420

Counterbore Set-up

1.

2.

3.

Remove the tooling from the slides. Clean, then place the tooling in a secure location

Remove the front cap from the bevel slide only.

Attach the counterbore slide using the four 5/16” SHCS to the bevel slide.

4.

Figure 5-63. Attach the counterbore slide.

Secure the final 5/16” SHCS on the side of the bevel slide to complete installation.

98

Figure 5-64. Secure the SCHS on the side of the bevel slide.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Counterboring

5.

Install the counterbore bit into the tool slot and secure with screws.

Figure 5-65. Install the counterbore tool into the slot.

Cutting the Counterbore

1.

Feed the cutting tool into the pipe by turning the axial feed handle counter clockwise until the flat of the tool is inside the pipe face.

Figure 5-66. Turn the feed handle counter clockwise.

E.H. Wachs Part No. 60-MAN-07, Rev. C 99

Low Clearance Split Frame, Models 204-1420

2.

Turn the radial feed handle counterclockwise until the cutting tool lightly touches the pipe wall.

3.

Figure 5-67. Turn the radial feed handle until the tool lightly touches the pipe.

Adjust the counterbore slide for the first cut by turning the radial toolslide feed screw clockwise (each revolu tion is .0312”).

notE

Turn the axial feed knob clockwise to move the tool away from the pipe face.

100

Figure 5-68. Adjust the counterbore slide by turning the radial feed screw clockwise.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Counterboring

Figure 5-69. Axial (.0312) and radial (.0784) adjust ment per revolution.

4.

Figure 5-70. First pass of the counterbore tool

Engage air motor and set the speed at approximately 6 - 8 rpm.

5. notE

The incremental decal on the radial feed handle is not the radial feed depth indica tor.

Each line on the decal irepresents a .020” cut on the overall I.D.

Hold the axial feed handle as the machine rotates. This feeds the tool into the pipe.

E.H. Wachs Part No. 60-MAN-07, Rev. C 101

Low Clearance Split Frame, Models 204-1420

6.

7.

Once the tool begins to cut, release the axial feed han dle. Holding the feed handle for approximately 1/4 turn per revolution, will feed the tool into the pipe gradually. The longer the handle is held, the greater the feed rate.

Use the depth gauge on the support block monitor to observe the depth of the counterboring operation. As soon as the desired depth is reached, stop the machine.

caUtion

Cutting chips are VERY sharp. DO NOT touch them with bare hands. Serious injury could result.

8.

Figure 5-71. Depth gauge on the support block.

Measure the I.D. of the pipe. If the desired I.D. has been attained, remove the counterbore assembly. If the I.D. measurement required has not been achieved, repeat steps 3 - 9.

lcsf c uTTing

a ccessories

The following LCSF accessories are provided with their own user’s manuals for setup and operation:

• Bridge Slide Accessory for Low Clearance Split Frame (manual part no. 60-MAN-03).

• Large LCSF O.D. Tracking Slide —for LCSF models 1824 to 4248 (manual part no. 60-MAN-

04).

• External-Internal Casing Cutter (EICC) (manual part no. 60-MAN-05).

102 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

r eMoTe

o

PeraTion WiTh The

sf acM

The split frame air control module (SF ACM) provides remote operation for E.H. Wachs split frame machines. The ACM is fully self-contained, requiring no power source other than compressed air. It is enclosed in a durable case that includes a handle and wheels for easy portability.

The SF ACM works with all LCSF and SDSF pneumatic drives:

• adapter 90-302-02 is required to operate the LCSF

• adapter 90-302-01 is required to operate the SDSF.

Air input connector

Control panel

Handheld pendant

Output hose to split frame

Figure 5-72. The photo shows the major components of the SF ACM. The case includes wheels and a retractable handle for easy transport.

Connectors

Input

Output

1/2” female NPT (1/2-18 NPT per ANSI B1.20.1). Install appropriate fitting for your air supply.

Quick disconnect to air motor fitting, pro vided (part no. 90-302-01 for SDSF; part no. 90-302-02 for LCSF).

E.H. Wachs Part No. 60-MAN-07, Rev. C 103

Low Clearance Split Frame, Models 204-1420

Control Panel Reference

Figure 5-73 illustrates and describes the features of the ACM control panel.

Reset button (required at startup, after emer­ gency stop, or after loss of input pressure)

Pendant enable switch

(shown in ON position)

Emergency off switch

ON/OFF lockout

(shown in unlocked position)

ON/OFF valve

(shown in OFF position)

Output pressure gauge

Figure 5-73. The photo illustrates the ACM controls.

Pressure regulator

104 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

Locating the ACM at the Worksite

Before you connect the ACM, decide where you will locate it for operating the split frame machine.

• The ACM has a 15 ft (4.6 m) output hose, allowing you to locate it up to 15 ft from the split frame.

• The ACM remote pendant has a 6 ft (1.8 m) hose. You must stand within this distance of the

ACM while oper ating the split frame, so that you have ready access to the controls and emergency stop.

Figure 5-74. Position the ACM at a convenient dis tance from the split frame machine.

E.H. Wachs Part No. 60-MAN-07, Rev. C 105

Low Clearance Split Frame, Models 204-1420

Operating the ACM

Before connecting the ACM, mount the split frame machine on the workpiece as described in the machine’s user manual. Set up the machine so that it is ready to operate, and install the air drive on the machine.

The air drive must be configured to be “always on” for use with the ACM. See “Configuring the Air

Drive for the ACM” on page 118.

Before connecting the ACM, the control panel should be in the pre-operation state, as shown in

Figure 5-75.

notE

An instruction sticker for set ting up and operating the ACM is attached to the inside of the case lid.

ACM Operation Sticker (part no. 60-1296-00).

106 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

1.

Figure 5-75. The ACM controls should be in the pre-operation state, as shown, before connecting the air lines.

Make sure the air supply is turned off at the source.

2. notE

The ACM is supplied with a female 1/2” NPT fitting on the input connector. Install an appropriate coupling for your air supply line.

Attach the air supply line to the input connector of the ACM.

3.

4.

Figure 5-76. Connect the line from the air source to the input connector on the ACM.

Remove the output hose and control pendant from the case. Connect the output hose to the air drive connec tor on the split frame machine.

Align the air motor and route all hoses so that the hoses do not come in contact with any moving parts.

E.H. Wachs Part No. 60-MAN-07, Rev. C 107

Low Clearance Split Frame, Models 204-1420

caUtion

Do not allow the hoses to contact moving parts. This could damage the hoses or components of the split frame.

Figure 5-77. Route the hoses so they do not touch moving parts of the split frame.

notE

The quick disconnect on the ACM output hose requires a specific fitting on the air motor. This fitting is provided with the ACM (90-302-01 for SDSF; 90-302-02 for

LCSF).

108 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

5.

6.

7.

Figure 5-78. Connect the ACM output hose to the air motor fitting.

Turn on the air supply at the source.

Make sure the emergency stop button on the control panel is pulled out.

Push in the lock-out tab on the ON/OFF valve.

8.

Figure 5-79. Press in the lock-out tab to enable the ON/OFF valve.

Turn the ON/OFF valve counter-clockwise to the ON position.

E.H. Wachs Part No. 60-MAN-07, Rev. C 109

Low Clearance Split Frame, Models 204-1420

9.

Figure 5-80. Turn the ON/OFF valve counter-clock wise to the ON position (shown in OFF position).

notE

You do not need to press Reset every time you restart the machine. Reset is required only after loss of supply pressure or an emer gency stop.

Press the Reset button on the control panel.

10.

Figure 5-81. The Reset button resets the ACM after a loss of pressure or an emergency stop.

Turn the Remote Enable switch to the ON position.

110 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

11.

Figure 5-82. Turn the Remote Enable switch on to allow operation using the handheld pendant.

The handheld pendant will now operate the split frame machine.

caUtion

Keep the pendant and its hoses away from moving parts. Allowing hoses to con tact the equipment could damage them.

Figure 5-83. Squeeze the trigger on the handheld pen dant to operate the machine.

E.H. Wachs Part No. 60-MAN-07, Rev. C 111

Low Clearance Split Frame, Models 204-1420

adjusting the output Pressure

Use the pressure regulator on the control panel to adjust the output pressure to 90 psi (6.2 bar).

1. notE

The maximum output pres sure is 116 psi (8.0 bar).

Pull the knob up and turn it to adjust the pressure.

• To increase pressure, turn it clockwise.

• To decrease pressure, turn it counter-clockwise.

DECREASE

PRESSURE

INCREASE

PRESSURE

2.

Figure 5-84. Pull up on the pressure knob and turn it to adjust the pressure.

To lock the pressure regulator so that it can’t be adjusted, turn the knob (without pulling it) to expose the lock tabs. You can install a lock on the tabs.

112 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

Figure 5-85. Without pulling the pressure knob, you can turn it to expose the lock tabs. Put a lock through the tab to prevent the pressure from being adjusted.

Using the Venting Quick Disconnect

A venting quick disconnect is provided on the air line that connects to the air drive of the split frame machine. This disconnect offers two convenient features:

• A “release position” vents line pressure before you dis connect the air line from the drive.

• The connector closes when it is disconnected, prevent ing air flow from a loose air line.

Operate the venting quick disconnect as shown in the fol lowing figures.

1.

To connect the air line, push the disconnect onto the fitting until it clicks and locks in place.

E.H. Wachs Part No. 60-MAN-07, Rev. C 113

Low Clearance Split Frame, Models 204-1420

2.

Figure 5-86. Push the air line disconnect onto the air drive fitting until it locks in place.

To release the air line, first pull the collar back to the release position. The disconnect will come partly off the fitting and the line pressure is released.

notE

A symbol on the disconnect shows the steps to remove it from the fitting.

114 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

3.

Figure 5-87. To release the disconnect, pull the collar back. The disconnect will snap back to the release position. (This will vent air in the air line.)

To fully remove the air line, press the collar forward and pull the disconnect off the fitting.

Figure 5-88. Push the collar forward and pull the dis connect to remove it from the fitting.

E.H. Wachs Part No. 60-MAN-07, Rev. C 115

Low Clearance Split Frame, Models 204-1420

Configuring the Air Drive for the ACM

air Fitting

The quick disconnect on the ACM output hose requires a specific air nipple fitting on the air motor.

This nipple is provided with the ACM (part no. 90-302-01 for the SDSF; part no. 90-302-02 for the

LCSF). Remove the existing fit ting on the air motor and install the replacement nipple.

Figure 5-89. Install the supplied nipple onto the air motor for use with the ACM.

Air Trigger Modification

For remote operation, the air drive on the split frame must be modified for an “always on” configuration. Two alterna tives for this configuration are provided with the ACM:

• A trigger strap for temporary use.

• An “open throttle plate” for long-term or permanent use.

Both devices fully open the on/off valve on the air drive. Use the air drive with these devices

installed only when you are operating the split frame with the ACM.

To use the trigger strap, wrap it around the air drive trigger, pull it tight through the buckle, and attach the Velcro.

Use the following procedure to install the open throttle plate.

1.

2.

Disconnect the air supply from the air drive, and remove it from the split frame machine. Set it on a workbench or stable work surface.

With a hammer or mallet and a punch, drive out the mounting pin holding the trigger to the air drive. Remove the trigger.

116 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 5, Operating Instructions: Remote Operation with the SF ACM

3.

Figure 5-90. Use a punch to drive out the pin holding the air trigger.

Put the open throttle plate in place at the trigger loca tion, and insert the pin.

4.

Figure 5-91. Attach the open throttle plate with the trigger pin.

With the hammer and punch, drive in the pin until it is flush

E.H. Wachs Part No. 60-MAN-07, Rev. C 117

Low Clearance Split Frame, Models 204-1420

5.

Figure 5-92. Drive in the pin to secure the open throt tle plate.

caUtion

When the open throttle plate is installed, do not connect the air drive directly to an air source.

Use it only with the ACM. Turning on the air sup ply with the throttle open could cause damage or injury.

The open throttle plate holds the air valve open on the motor.

118

Figure 5-93. The photo shows the correct installation of the open throttle plate.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 6, Routine Maintenance

Chapter 6

Routine Maintenance

d aily

M ainTenance

After each use, clean debris from all moving parts, includ ing the rotating ring and slide components. This will pro long the life of the machine, and prevent contamination of the storage/shipping case.

1.

2.

Use a brush or compressed air to remove loose debris from all sliding and rotating surfaces.

Neutralize any corrosive fluids that the machine may have come into contact with during operation, by wip ing surfaces with a clean cloth sprayed with a house hold cleaning solvent.

l ubricaTion

Tool Slides

Lubricate all moving parts every 10 hours of operation. Use Mobil-lith AW-2 or equivalent.

Air Motor

An in-line oiler lubricates the air motor. You can adjust the drip rate of the oiler by turning the needle valve in the oiler using a flat screwdriver. Turn the screw counter-clockwise to increase the drip rate.

notE

The numbers on the dial do not indicate the number of drips per minute.

E.H. Wachs Part No. 60-MAN-07, Rev. C 119

Low Clearance Split Frame, Models 204-1420

Figure 6-1. Use the needle valve screw to adjust the drip rate of the air motor oiler.

To check the drip rate of the oiler, run the air motor for one minute while holding a sheet of paper in front of the air out let port. The paper should become stained with oil. If the paper is not oily, increase the drip rate on the oiler. If the paper becomes saturated or gets oily within a few seconds, decrease the drip rate.

As a general guideline, the standard LCSF air motor (1.5 HP) should use about 6-10 drops of oil per minute. The heavy-duty and reversible air motors (2.5 HP) should use about 8-12 drips per minute.

recommended air Motor lubricants

Air Motor Grease

Standard duty: NLGI Grade 2 grease (such as Chevron Black Pearl,

CPS 24591)

High temperature: Amsoil Synthetic GVC or equivalent

Air Motor Oil

Wachs air motor oil:

Pint (p/n 02-407-00)

Gallon (p/n 02-402-00)

Felt Wipers

Felt wipers are installed in the stationary ring to clean and lubricate the raceway as the LCSF rotates. All LCSF models have two felt wipers, one in each section of the stationary ring. There are

3 sizes of wipers, used with the range of LCSF models:

• LCSF model 204 (4”) uses wiper 60-1176-00.

• LCSF models 206-1420 (6”-20”) use wiper 60-1178-00.

• LCSF models 1824-4248 (24”-48”) use wiper 60-1181-00.

120 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 6, Routine Maintenance: Servicing the SF ACM

60­1176­00 60­1178­00 60­1181­00

3.

4.

5.

Figure 6-2. The photo shows the LCSF felt wipers.

Use the following procedure to access and service the felt wipers. Apply oil to the wipers every time you use the LCSF. Inspect them to see if they are worn, damaged, or excessively dirty, and replace them if necessary.

Note: Current LCSF machines have spring-loaded wiper brackets to keep the wiper in contact with the raceway. Some machines were supplied without spring-loaded brackets; if your LCSF does not have springs, you will need to adjust the wiper position when re-assembling the machine. See notes in the instructions below.

6.

7.

Lay the LCSF on a workbench with the rotating ring up.

Remove the slides and the pinion housing.

Rotate the machine to align the split lines on the stationary and rotating rings. Insert the frame locking pins.

Separate the machine at the split lines. Refer to the instructions in the LCSF User’s Manual.

To access the felt wipers, remove the frame locking pins and turn the rotating ring out of the stationary ring until you can see the wiper.

E.H. Wachs Part No. 60-MAN-07, Rev. C 121

Low Clearance Split Frame, Models 204-1420

8.

Figure 6-3. Turn the rotating ring out of the stationary ring far enough to access the wipers.

Remove the wiper from the bracket and inspect it for wear, damage or buildup of debris.

122

Figure 6-4. Inspect the wiper for wear, damage, or debris.

• You can clean debris from the wiper with compressed air. If there is debris such as metal chips embedded in the wiper, replace it.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 6, Routine Maintenance: Servicing the SF ACM

9.

• Check the contact edge of the wiper for wear. If the corners are worn off or the wiper is deformed, replace it.

• Some dirt and discoloration on the wiper is normal. If it is extremely dirty, and the dirt affects the consistency of the fabric, replace the wiper.

Replace the wiper in the bracket. Make sure the notched edge of the wiper is down (toward the stationary ring).

Notched edge (60­1178­00 and 60­1181­00)

10.

Figure 6-5. Replace the wiper in the bracket, with the notched edge down.

Apply two drops of way oil directly to the wiper. (Way oil available from E.H. Wachs, part no. 60-1184-00.)

11.

Turn the rotating ring back, pushing the wiper into the bracket to fit inside the raceway.

E.H. Wachs Part No. 60-MAN-07, Rev. C 123

Low Clearance Split Frame, Models 204-1420

12.

Figure 6-6. Push the wiper into the bracket and turn the rotating ring into position.

NOTE: If your LCSF does not have spring-loaded wiper brackets, adjust the position of the

wiper so that it is in firm contact with the raceway when you turn the rotating ring back into the stationary ring.

124

Adjust wiper position to contact raceway

Figure 6-7. For machines without spring-loaded wiper brackets, make sure the wiper is in contact with the raceway. Adjust the wiper position if necessary.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 6, Routine Maintenance: Servicing the SF ACM

s ervicing The

sf acM

After each use, check for water in the bottom of the ACM case. The ACM includes a draining filter that can release a small amount of water during operation. Lift the control panel out of the case and pour out any water that has accu mulated. Wipe the case dry and replace the control panel.

caUtion

Remove the control panel from the case before tipping it. The panel is not fastened in the case and can fall out if you turn the case over.

notE

Remove the output hose and control pendant before lifting the control panel out of the case.

Figure 6-8. Lift the control panel out of the case for service or to drain out accumulated water.

The filter should be checked periodically. The filter is accessible when you have the control panel out of the case. To remove the filter, pull the locking tab down and turn the filter to the left.

notE

The 5 micron filter element is available from E.H. Wachs or from the manufacturer

(Rexroth, part no. 1829207068).

E.H. Wachs Part No. 60-MAN-07, Rev. C 125

Low Clearance Split Frame, Models 204-1420

Figure 6-9. To remove the filter, pull the locking tab down with your thumb and turn the filter to the left.

126 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7

Service and Repair

Chapter 7, Service and Repair

T roubleshooTing

Trouble

Machine won’t run

Machine runs slowly

Tool slide does not feed

Tool penetration causes tool to bind

Machine moves during cut

Machine chatters during cut

Poor cutting quality

Possible Cause Remedy

Detent pins not removed

Power supply not on

Remove pins

Check power supply

Improper bearing preload Refer to maintenance for adjustment

Improper speed or gear box setting Turn throttle on the motor p.s.i. not correct

Trip pin not engaged

Needs 80 - 100 p.s.i.

Engage trip pin

Trip pin assembly in wrong position Add or remove spacers

Stripped feed screw or nut Replace part or add dovetail

Improper tool slide adjustment

Worn feed screw / feed nut

Tool bit is dull

Loose clamp pads

Speed control too fast

Tool bit is dull

Improper ring adjustment

Tool bit is dull

Improper tool installation

Readjust tool slide

Replace feed screw / feed nut

Replace bit

Tighten clamp pads

Reduce speed

Replace bit

Readjust ring

Replace bit

Reinstall bit

E.H. Wachs Part No. 60-MAN-07, Rev. C 127

Low Clearance Split Frame, Models 204-1420

a djusTing The

b earings

LCSF Machines with Fixed Bearings (2009 and Later)

LCSF machines manufactured since 2009 have fixed reference bearings for improved bearing adjustment. (Machines manufactured before 2009 have a different bearing adjustment procedure; see the instructions in the LCSF User Manual.)

If you are not sure if your machine has fixed bearings, take off the bearing cap at one of the fixed bearing positions. Fixed bearings do not have a hex end for turning the eccentric. The figures below shows the positions of the fixed bearings on the LCSF models noted in the captions.

Fixed position bearings

Figure 7-1. The drawing shows the positions of the fixed bearings for LCSF models 1824-

4248 (24” through 48”).

128 Part No. 60-MAN-07, Rev. C E.H. Wachs

Fixed bearing

(no hex end)

Chapter 7, Service and Repair: Adjusting the Bearings

Adjustable bearings

(with hex end)

1.

Figure 7-2. To check if your LCSF machine has the fixed-bearing design, remove the bearing caps at the fixed bearing positions. If the shaft has no hex in it, as shown, it is a fixed bearing.

notE

Remove the pinion housing assembly and tool slides before beginning bearing adjustment.

Required tools:

• 3/16” hex wrench

• 9/16” socket wrench

• Alignment pins (60-098-00)

• Bearing adjustment wrench (60-089-00)

notE

If you are installing new guide wheel bearings, assemble the bearings, eccentric shafts, and bearing spacers to the stationary ring.Tighten the 3/8-16 nylock hex nut enough to allow eccentric shafts to rotate smoothly.

To prepare existing guide wheel bearings for adjustment procedure, loosen the 3/8-16

Nylock hex nut only enough to allow eccentric shafts to rotate smoothly. Make a mark on the edge of each bearing with a permanent marker. These marks will help you check that the bearings are turning later in this proce dure.

E.H. Wachs Part No. 60-MAN-07, Rev. C 129

Low Clearance Split Frame, Models 204-1420

2.

Figure 7-3. Mark the edge of each bearing.

Rotate all eccentric shafts to position the guide wheel bearings toward the inside of the stationary ring.

3.

Figure 7-4. Rotate the eccentric shafts so that the high point of each bearing faces the inside of the ring.

Slide the rotating ring into the stationary ring, then repeat with the other half of the machine.

130 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Adjusting the Bearings

4.

Figure 7-5. Slide rotating ring into stationary ring.

Assemble the ring halves, tightening the captivated screws of the stationary ring first.

5.

Figure 7-6. Assemble the ring halves and tighten the captivated screws.

caUtion

Use a crane or other lifting device to lift the LCSF. There is a risk of injury from lifting the machine, or from setting or dropping it on hands or feet.

Position the machine with the rotating ring face down on the workbench and check for free play between the rotating and stationary rings. (The stationary ring should “wobble” on the rotating ring.) Disassemble the machine and repeat Step 2 if play is not felt.

E.H. Wachs Part No. 60-MAN-07, Rev. C 131

Low Clearance Split Frame, Models 204-1420

6.

7.

Figure 7-7. Check for play between the rotating and stationary rings.

Do not insert the alignment pins.

Starting at position #1 shown in the figures below, turn the eccentric shaft counter-clockwise until you feel the bearing just touch the groove. Tighten the 9/16 nylock hex nut.

Pos. #2

Pos. #4

Pos. #1

Pos. #3

8.

9.

Figure 7-8. Adjust the bearings in the order shown, then work around the machine toward the pinion, alternating side to side. (Models 1824-4248.)

Adjust the bearing at position #2 in the same way.

Continue to adjust the bearings around the ring, alternating side to side. Finish with the bearings below the pinion, between the fixed bearings.

132 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Extended Slide Adjustment

10.

Rotate the machine through at least one full revo lution, looking through an alignment pin hole to check that all guide wheel bearings turn with the machine. (The marks you made earlier will help you see if the bearings are turning.)

• You should be able to rotate the machine by hand. If you cannot, repeat the entire adjustment procedure.

• The machine should rotate smoothly, with no sticking points. If it sticks or catches at any point, try to re-adjust the bearings at the split lines where the machine catches. If you cannot get it to operate smoothly with a slight adjustment, repeat the entire adjustment procedure.

• If any adjustable bearing is not turning, try to adjust it again. If you cannot get it to turn with a slight adjustment, repeat the entire adjustment procedure.

• If either of the fixed bearings is not turning, repeat the entire adjustment proce dure.

Pre-2009 Machine (Without Fixed Reference Bearings)

The following procedure is for LCSFs with a serial number starting with

08

or less (08-XXXX), manufactured before 2009.

11.

Remove any tool slides installed on the rotating ring.

12.

Using a 1/4” hex wrench, split the LCSF. Remove the rotating ring from the stationary frame.

13.

Figure 7-9. Separate the stationary and rotating rings.

Clean out the area around the guide wheel bearings (37-005-00) in the stationary frame and the “V” groove area of the rotating ring.

E.H. Wachs Part No. 60-MAN-07, Rev. C 133

Low Clearance Split Frame, Models 204-1420

14.

Figure 7-10. Clean debris from the stationary ring.

Inspect the “V” groove area of the rotating ring for deformation, cracking, and/or pitting. If the ring is damaged, you will need to replace it.

15.

Figure 7-11. Inspect the “V” groove of the rotating ring for wear or damage.

Check to make sure each bearing spins freely by hand.

16.

Remove the plastic caps on the back of the stationary ring and inspect the bearing assemblies.

Replace any worn or broken components.

notE

134 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Extended Slide Adjustment

Each bearing assembly con sists of a bearing, a spacer, an eccentric shaft, a washer, and a lock nut). See assem bly drawings in Chapter 8 for specific part numbers for your LCSF model.

17.

Figure 7-12. Remove the plastic caps to inspect the bearing assemblies.

Using a 1/2” socket wrench, break loose the 5/16”-18 lock nuts (90-065-03).

E.H. Wachs Part No. 60-MAN-07, Rev. C 135

Low Clearance Split Frame, Models 204-1420

18.

Figure 7-13. Loosen the lock nuts.

Turn the eccentric shafts so that the lines on top of them point toward the frame center.

19.

Figure 7-14. Set the marks on the eccentric shafts toward the center of the ring.

Insert the rotating ring halves back into the stationary ring halves.

20.

Reassemble the machine halves using a 1/4” hex wrench.

21.

An optional bearing fixture plate (60-205-00) is available to make adjusting the bearings easier. Install the plate on the rotating ring at one of the slide mount ing positions, using two

(2) 5/16”-18 x 7/8” SHCS and a 1/4” hex wrench.

136 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Extended Slide Adjustment

notE

The bearing fixture plate keeps the eccentric shafts from turning as you tighten the bearing lock nuts. This keeps the guide wheel bear ings within the “V” groove preload of 10-15 in-lb.

Figure 7-15. Install the bearing fixture plate on the rotating ring at the slide mounting position.

22.

Figure 7-16. The fixture plate will hold the eccentric shaft as you set the bearing wheel against the “V” groove.

If you do not have the bearing fixture plate, you will need to use a 3/16” hex wrench to

hold the eccen tric shaft. Since this is done while tightening the 5/16”-18 lock nut, you must be careful to keep adequate “V” groove preload (10-15 in-lb) on the eccentric shaft.

E.H. Wachs Part No. 60-MAN-07, Rev. C 137

Low Clearance Split Frame, Models 204-1420

23.

Refer to the Figure 7-9 for your LCSF model, and locate the #1 position eccentric shaft.

24.

Figure 7-17. Bearing Adjustment Sequence Chart

Turn the eccentric shaft counter-clockwise until the guide wheel bearing touches the rotating ring “V” groove. Torque 10-15 in-lb.

25.

Secure the eccentric shaft using the bearing fixture plate and tighten the lock nut to 150 in-lb.

138 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Super Extended Slide Adjustment

26.

Figure 7-18. Secure the eccentric shaft.

Repeat Steps 14 and 15 for the #2, #3, and #4 posi tions.

27.

Check that the rotating ring is centered to the station ary frame using the supplied square. If not centered, repeat Steps 14 and 15.

28.

Figure 7-19. Center the rotating ring to the stationary frame.

Turn the rotating ring by hand around the stationary frame. The machine should turn smoothly and consis tently. Check the backlash between the rotating ring and the pinion gear.

29.

Repeat Steps 14 and 15 for the remaining bearings.

30.

Check that all guide wheel bearings rotate while the machine turns. Look through the holes in the rotating ring while turning the machine.

E.H. Wachs Part No. 60-MAN-07, Rev. C 139

Low Clearance Split Frame, Models 204-1420

31.

Figure 7-20. Check for bearing rotation as you turn the rotating ring.

Turn the rotating ring by hand around the stationary ring. The machine should turn smoothly and consis tently, and should stop immediately when you stop turning it. If it doesn’t operate this way, repeat the bearing adjustment procedure.

e xTended

s lide

a djusTMenT

To check the tension on the tool slide, attempt to turn the starwheel at the front of the slide. It should be very difficult to turn with your bare hand, but you should be able to turn it by hand with a rag or some form of cushion.

notE

The star wheel should require approximately 15-17 in-lbs of torque to turn.

The slide tension is adjusted using four (4) set screws on the dovetail on one side of the slide. The dovetail “clamps” the male tool slide, and the screws adjust how tightly the dove tail holds the male slide.

Use the following procedure to completely reset the slide tension.

1.

Loosen the four (4) 1/4-20 jam nuts and set screws on the side of the slide.

140 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

2.

3.

4.

Figure 7-21. Loosen the jam nuts (top), then loosen the set screws (bottom).

Remove the four (4) 1/4-20 x 7/8” socket head cap screws from the adjustable dovetail.

Remove the four (4) 1/4-20” cap screws from the star wheel plate.

Clean the slide as best you can and apply a thin layer of grease on the face of the adjustable dovetail.

E.H. Wachs Part No. 60-MAN-07, Rev. C 141

Low Clearance Split Frame, Models 204-1420

5.

6.

Figure 7-22. Remove the dovetail and clean the slide.

Turn the starwheel until the tool slide is in the central position.

Replace the adjustable dovetail and the four (4) 1/4-20 x 7/8” socket head cap screws.

7.

8.

Figure 7-23. Replace the dovetail and SHCS.

Position the adjustable dovetail so that there is no gap between it and the slide base.

Tighten the 1/4-20 x 7/8” socket head cap screws so they are “snug”. You do not want them to be fully tightened or the tension will not be set correctly.

142 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

9.

Figure 7-24. Tighten the SHCS until snug.

Replace the center two (2) 1/4-20 set screws and tighten them until the adjustable dovetail is touching the tool slide.

10.

Figure 7-25. Replace the set screws and tighten.

Make sure the dovetail stays as straight as possible.

11.

Tighten the 1/4-20 set screws and turn the star wheel at the same time until you feel tension in the star wheel. Try to keep the tension on the set screws as even as possible.

E.H. Wachs Part No. 60-MAN-07, Rev. C 143

Low Clearance Split Frame, Models 204-1420

12.

Figure 7-26. Tighten set screws while turning the star wheel.

Move the tool slide to the top and adjust the 1/4-20 set screw until you feel the same amountof tension as in the middle.

13.

Repeat the process for the bottom of the slide.

14.

Fully tighten the four (4) 1/4-20 x 7/8” socket head cap screws on the adjustable dovetail.

144

15.

Figure 7-27. Tighten SHCS on dovetail.

Tighten the four (4) 1/4-20” socket cap screws on the starwheel plate.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

16.

Check the tension on the full range of the slide. It should be the same.

17.

Figure 7-28. Check the tension on the slide by driving it to both ends of the feed screw.

If you can still turn the starwheel with your bare hand, you need to slightly tighten the four

(4) set screws once again so that the tension is the same throughout the travel of the tool slide.

18.

If a torque wrench is available, attach to the feed screw while turning the star wheel. Turning the star wheel should require 15-17 in/lb of torque.

Figure 7-29. Adjust the feed screw with the torque wrench.

E.H. Wachs Part No. 60-MAN-07, Rev. C 145

Low Clearance Split Frame, Models 204-1420

s uPer

e xTended

s lide

a djusTMenT

Use the following procedure to completely reset the tension on the slide.

1.

Remove the three (3) 1/4-20 x 7/8” socket head cap screws from both dovetails on either side of the tool slide and remove both dovetails.

2.

Figure 7-30. Remove the SHCS from both dovetails.

Keep track of the position and order of the shims that are under one or both of the dovetails.

3.

Figure 7-31. Keep track of the position and order of the shims.

Clean the slide, dovetails, and shims. The slides will not adjust correctly if they are dirty.

146 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

4.

5.

6.

Figure 7-32. Clean the slide, dovetails, and shims.

Lightly grease the face of the dovetails.

Replace the shims in the same order and position in which you removed them.

Replace one of the dovetails and tighten down the three 1/4-20 x 7/8” socket head cap screws.

.

Figure 7-33. Replace the dovetail and the SCHS.

E.H. Wachs Part No. 60-MAN-07, Rev. C 147

Low Clearance Split Frame, Models 204-1420

7.

If you can turn the starwheel by hand you will need to remove the first full shim and check the tension.

8.

Figure 7-34. Check the tension by turning the star wheel.

If the tension is still incorrect, you will need to add or remove shims as required to obtain proper adjustment of the slide.

• Adding a shim decreases the tension.

• Removing a shim increases the tension.

148

Figure 7-35. Adjust tension until correct.

Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

9.

The slide should have even tension throughout the travel of the tool slide. With the torque wrench, it should read 15-17 in/lbs.

If you cannot move the starwheel easily with your bare hand when you have the two dovetails off the slide, there may be a problem with the feed screw or feed nut. Clean them as well as you can. If you still cannot turn the starwheel with your bare hand, you may need a replacement part or to send the slide in for service.

a ir

M oTor

M ainTenance

See the exploded view drawings for air motors in the “Parts Lists and Drawing” section of this manual.

1.

2.

3.

Clamp the flats of the handle in a vise with the tool in a vertical position.

Using a suitable wrench, loosen (left hand threads) the clamp nut and remove the angle head assembly. Unscrew and remove the clutch housing and gear case assemblies. Clamp the gear case in the vise and unscrew the clutch housing.

Slip the motor unit out the front of the handle. It may be necessary to bump the handle on the work bench to loosen the motor.

Disassembling Air Motor Subassemblies

right angle Head

1.

Remove the bearing cap lock screw (1/16 hex) and unscrew (left hand threads) the bearing cap. Clamp the square drive in the vise and use a soft mallet to drive the angle head off. Press the spindle out of the driven gear and then press the spindle out of the ball bearing.

2.

Unscrew and remove the bearing retainer and grease plug. Use a suitable driver to drive the pinion gear out of the housing.

Gear case

1.

Slip the entire gear train out the rear of the gear case. The 2nd reduction idler gears may be removed for inspection by driving the idler gear pins out the rear of the spider.

Motor

1.

Use a soft faced mallet to drive the rotor out of the front rotor bearing. This will allow the removal of the front bearing plate, cylinder, and five (5) rotor blades from the rotor.

2.

Clamp the rotor lightly in the vise and unscrew the rotor lock nut.

E.H. Wachs Part No. 60-MAN-07, Rev. C 149

Low Clearance Split Frame, Models 204-1420

3.

Rest the rear bearing plate on the vise jaws and use a soft faced mallet to drive the rotor out of the rear rotor bearing.

Handle

1.

Unscrew the inlet bushing for inspection of the throttle components. Wash the air inlet screen in a solvent and blow it out in the reverse direction of normal airflow. Replace if damaged or clogged.

Reassembly

The tool is reassembled in the reverse order of disassembly.

1.

2.

3.

4.

Clean all parts thoroughly in a solvent and inspect for damage or wear.

Check all bearings for wear which can be detected by excessive end play and/or roughness that would indi cate a brinelled condition.

The rotor blades should be replaced if they measure less than 3/8” (9.5 mm) at either end.

All gear teeth, bearings, and pins should receive a close inspection and be replaced if necessary. All gears and open bearings should receive a generous amount of No. 2 Moly grease during reassembly.

Motor

1.

Install the rear rotor bearing into the rear bearing plate. Make sure the outer bearing race is firmly seated in the bearing plate.

iMPortant: During reas sembly of the complete tool, it is important that the motor be free. After the tool is com pletely assembled, the right angle square drive spindle should turn freely using a small hand wrench. If the spindle does not turn freely, the motor should be checked for proper spacing. Do not run the tool until the spindle turns freely. Failure to do this could result in damage to motor components.

2.

3.

4.

Clamp the rotor body lightly in the vise with the threaded end up and slip the rear bearing plate assem bly onto the rotor shaft far enough for the bearing lock nut to start.

Tighten the lock nut until there is approximately .0015” clearance between the rotor and bearing plate. The outer bearing race should be firmly seated and the rotor bumped forward when checking this clearance.

Pack both rotor bearings with a good grade of No. 2 Moly grease after assembly of the motor unit.

150 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 7, Service and Repair: Air Motor Maintenance

air Motor Vanes

Before installing new rotor vanes, you may need to grind them to ensure precise sizing according to the following chart.

Air Motor

Part No.

60-329-00

60-211-00

Description

2-1/2 HP

1-1/2 HP

Rotor Blade

Part No.

899927

869569

Min. Length Max. Length

2.745”

2.244”

2.748”

2.247”

right angle Head

When installing needle bearings, press only on the bearing’s stamped end. The pinion needle bearing should be slipped on the pinion gear and pressed into the housing to the fol lowing depth:

• 3- 3/16” (81 mm).

1.

Tighten the pinion bearing retainer to 35 to 40 lb-ft (47.5 to 54.2 Nm) ensure proper gear make-up.

2.

Torque the driven gear bearing cap to 100/110 lb-ft (135/149 Nm).

notE

When assembling the angle head to the complete tool, the clamp nut (left hand threads) must be torqued to 100/110 lb-ft (135/149 Nm).

E.H. Wachs Part No. 60-MAN-07, Rev. C 151

Low Clearance Split Frame, Models 204-1420

152 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 8, Parts Lists and Drawings

Chapter 8

Parts Lists and Drawings

This chapter contains exploded view drawings with parts lists for all LCSF models, including sub-assemblies. To identify and order parts, locate the assembly for your LCSF model. Sub-assemblies are called out by part number on top-level assemblies.

E.H. Wachs Part No. 60-MAN-07, Rev. C 153

ITEM NO.

PART NUMBER QTY DESCRIPTION

LCSF MODEL

60-000-24

60-000-28

60-000-32

60-000-36

60-000-39

60-000-42

60-000-48

TABLE

STATIONARY

FRAME ASSEMBLY

60-1250-24

60-1250-28

60-1250-32

60-1250-36

60-1250-39

60-1250-42

60-1250-48

ROTATING

FRAME ASSEMBLY

60-1271-24

60-1271-28

60-1271-32

60-1271-36

60-1271-39

60-1271-42

60-1271-48

SEE TABLE

SEE TABLE

154 Part No. 60-MAN-07, Rev. C E.H. Wachs

Stationary Ring Assembly (Models 1824 through 4248)

ITEM

NO.

7

8

5

6

9

3

4

1

2

PART NUMBER QTY.

SEE TABLE

SEE TABLE

60-259-00

60-262-00

90-069-13

90-096-10

90-099-13

90-219-11

90-219-19

DESCRIPTION

1 RING, STATIONARY-UPPER

1 RING, STATIONARY-LOWER

2 SCREW, CAPTIVATED

2 DRILL BUSHING

4 INSERT, 5/16-18 X 2D (.62 LG.) HELICAL

2 PIN, 1/2 x 1.00 DOWEL

2 INSERT, 1/2-13 X 1.5D (.75 LG.) HELICAL

2 INSERT, 3/4-10 X 1.5D (1.12 LG) HELICAL

8 INSERT, 3/4-10 X 2.5D (1.19 LG) HELICAL

STATIONARY

RING ASSEMBLY

60-249-24

60-249-28

60-249-32

60-249-36

60-249-42

60-249-48

TABLE

STATIONARY

RING, UPPER

60-250-24

60-250-28

60-250-32

60-250-36

60-250-42

60-250-48

STATIONARY

RING, LOWER

60-251-24

60-251-28

60-251-32

60-251-36

60-251-42

60-251-48

Chapter 8, Parts Lists and Drawings:

9

2

7

3

E.H. Wachs

8

6

9

3

1

4

7

5

4

6

8

Part No. 60-MAN-07, Rev. C 155

1

3

ITEM PART NUMBER QTY.

1

2

3

60-1181-00

60-1182-00

60-1183-00

DESCRIPTION

2 WIPER, 24-50 LCSF

2 SPACER, 24-50 LCSF WIPER

2 BRACKET, 24-50 LCSF WIPER

Wiper Kit, 60-552-03.

Used with these LCSF models:

60-000-24, 60-000-28, 60-000-32,

60-000-36, 60-000-42, 60-000-48.

2

156 Part No. 60-MAN-07, Rev. C E.H. Wachs

Pinion Housing, 60-409-00

ITEM PART NUMBER

8

9

6

7

10

3

4

1

2

5

11

60-1231-00

60-1232-00

60-1233-00

60-1234-00

60-1235-00

60-1236-00

60-181-00

90-050-11

90-060-07

90-060-27

90-076-05

NOTES: WEIGHT = 4.9lb [10.8kg]

QTY.

2

2

1

1

4

1

1

1

1

1

2

DESCRIPTION

GEAR, PINION

HOUSING, PINION

PINION COVER

BEARING, DBL ROW ANG CONTACT

BEARING, DEEP GROOVE BALL

RING, RETAINING

LABEL, STARWHEEL

SHCS, 1/4-20 x 1-1/8

SHCS, 5/16-18 X 3/4

SHCS, 5/16-18 X 2-3/4

PIN, 3/8 X 1/2 DOWEL

8

3

Chapter 8, Parts Lists and Drawings:

10

9

1

4

6

5

7

11

2

E.H. Wachs Part No. 60-MAN-07, Rev. C 157

Low Clearance Split Frame, Models 204-1420

Front Drive Pinion Housing, 60-425-04

ITEM PART NUMBER QTY.

7

8

5

6

3

4

1

2

9

10

11

12

60-125-00

60-341-01

60-342-01

60-343-01

60-344-01

60-345-00

90-060-07

90-060-10

90-060-20

90-069-12

90-076-07

90-076-10

DESCRIPTION

3

1 HOUSING, PINION-FRONT 24"-48" LCSF

1 HOUSING, PINION-REAR 24"-48" LCSF

1 GEAR, PINION-FRONT DRIVE 24"-48" LCSF

1 GEAR, IDLER-FRONT DRIVE LCSF 24"-48"

1

2

4 SHCS, 5/16-18 X 1

2

2

2 SHCS, 5/16-18 X 2

2 INSERT, 5/16-18 X 1.5 D (.47 LG) HELICAL

2

10

7

11

1

5

1

158

8

12

3

Part No. 60-MAN-07, Rev. C

1

4

6

9

E.H. Wachs

Clamp Legs, 60-127-XX

ITEM PART NUMBER QTY.

1

2

3

WHERE USED

90-060-05

90-065-09

DESCRIPTION

1 EXTENSIONS, CLAMP PAD

2 SHCS, 5/16-18 X 1/2

2 NUT, 5/16 PUSH

ITEM

1

PART NUMBER

60-027-05

60-027-07

60-027-10

60-027-15

60-027-20

60-027-25

60-027-28

60-027-30

60-027-31

60-027-35

60-027-40

QTY.

1

-WHERE USED-

DESCRIPTION

EXTENSIONS, CLAMP LEG

NOTE: LCSF models 204 through 1420 have 4 clamp legs.

See clamp leg charts in Chapter 5 for pipe size configurations.

ASSEMBLY

NUMBER

60-127-05

60-127-07

60-127-10

60-127-15

60-127-20

60-127-25

60-127-28

60-127-30

60-127-31

60-127-35

60-127-40

Chapter 8, Parts Lists and Drawings:

ORDERING NUMBERS

INDIVIDUAL

CLAMP PADS

SIZE

60-127-05 0.5”

60-127-07 0.75”

60-127-10 1.0”

60-127-15 1.5”

60-127-20 2.0”

60-127-25 2.5”

60-127-28 2.8”

60-127-30 3.0”

60-127-31 3.1”

60-127-35 3.5”

60-127-40 4.0”

CLAMP PAD

SETS (QTY. 4)

60-408-05

60-408-07

60-408-10

60-408-15

60-408-20

60-408-25

60-408-28

60-408-30

60-408-31

60-408-35

60-408-40

3

1

2

E.H. Wachs Part No. 60-MAN-07, Rev. C 159

Low Clearance Split Frame, Models 204-1420

Trip Assembly, 60-434-00

ITEM PART NUMBER QTY.

7

8

5

6

9

3

4

1

2

43-067-00

60-068-00

60-1048-00

60-1049-00

60-1050-00

60-266-00

60-338-00

90-026-55

90-059-08

DESCRIPTION

2 SCREW, CAPTIVATED

2 SHIM, TRIP SCREW

1 SPOOL

1 LEVER

1 QUICK PIN

1 HOUSING, TRIP

1 PIN, TRIP

1 1/8" X 1/2" PIN

1 SPRING PLUNGER

WEIGHT = 1lb. [.5kg]

4

160

2

1

5

9

Part No. 60-MAN-07, Rev. C

3

7

6

8

E.H. Wachs

Extended Parting Slide, 60-415-00

ITEM PART NUMBER

13

14

15

16

9

10

11

12

17

18

19

7

8

5

6

3

4

1

2

60-119-00

60-188-01

60-189-00

60-190-00

60-191-00

60-192-00

60-194-00

60-195-00

60-196-00

60-229-00

90-050-05

90-050-08

90-054-08

90-055-04

90-056-12

90-059-05

90-060-12

90-065-09

90-060-08

QTY.

DESCRIPTION

1 PLATE ASSEMBLY, FEED SCREW

1 SUPPORT, TOOL SLIDE

1 PLATE, WEAR (H.D.)

1 DOVETAIL, ADJUSTABLE (H.D.)

1 DOVETAIL, FIXED (H.D.)

1 SLIDE, MALE-PARTING (H.D.)

1 COVER, TOOL SLIDE (H.D.)

1 SCREW, FEED (H.D.)

2 PIN, ALIGNMENT

1 NUT, FEED (H.D. STAR-FEED)

2 SHCS, 1/4-20 X 1/2

8 SHCS, 1/4-20 X 7/8

4 SSS, 1/4-20 X 7/8

4 NUT, 1/4-20 JAM

2 PIN, 1/4 X 1-1/4 DOWEL

2 LH SHCS, 1/4-20 X 1/2

4 SHCS, 5/16-18 X 1-1/4

4 NUT, 5/16 PUSH

6 SHCS, 5/16-18 X 7/8

1

Chapter 8, Parts Lists and Drawings:

11

16

5

8

3

2

9

17

15

12

17

17

4

13

14

19

E.H. Wachs

7

18

6

10

12

17

Part No. 60-MAN-07, Rev. C 161

ITEM PART NUMBER

13

14

15

16

9

10

11

12

17

18

19

20

21

7

8

5

6

3

4

1

2

60-119-00

60-188-01

60-189-00

60-190-00

60-191-00

60-193-00

60-194-00

60-195-00

60-196-00

60-214-00

60-229-00

90-050-05

90-050-08

90-054-08

90-055-04

90-056-12

90-059-05

90-060-12

90-060-17

90-065-09

90-060-08

QTY.

DESCRIPTION

1 PLATE ASSEMBLY, FEED SCREW

1 SUPPORT, TOOL SLIDE

1 PLATE, WEAR (H.D.)

1 DOVETAIL, ADJUSTABLE (H.D.)

1 DOVETAIL, FIXED (H.D.)

1 SLIDE, MALE FORM TOOL (H.D.)

1 COVER, TOOL SLIDE (H.D.)

1 SCREW, FEED (H.D.)

2 PIN, ALIGNMENT

1 COVER, H.D. DBL. BEVEL

1 NUT, FEED (H.D. STAR-FEED)

2 SHCS, 1/4-20 X 1/2

8 SHCS, 1/4-20 X 7/8

4 SSS, 1/4-20 X 7/8

4 NUT, 1/4-20 JAM

2 PIN, 1/4 X 1-1/4 DOWEL

2 LH SHCS, 1/4-20 X 1/2

5 SHCS, 5/16-18 X 1-1/4

4 SHCS, 5/16-18 X 1-3/4

8 NUT, 5/16 PUSH

8 SHCS, 5/16-18 X 7/8

5

1

8

3

18

16

13

18

12

17

2

9

4

18

4

14

15

162

21

19

21

7

20

6

20

18

11

13

18

10

Part No. 60-MAN-07, Rev. C E.H. Wachs

Super Extended Parting Slide, 60-437-00

ITEM PART NUMBER

13

14

15

16

9

10

11

12

17

18

19

20

7

8

5

6

3

4

1

2

43-043-00

43-064-00

60-192-00

60-194-00

60-196-00

60-229-00

60-315-00

60-319-00

60-320-00

60-322-00

60-335-00

60-339-00

60-340-00

90-016-55

90-019-43

90-050-08

90-060-12

90-065-05

90-065-09

90-060-08

QTY.

DESCRIPTION

4 THRUST WASHER

2 BEARING, THRUST

1 SLIDE, MALE-PARTING (H.D.)

1 COVER, TOOL SLIDE (H.D.)

2 PIN, ALIGNMENT

1 NUT, FEED (H.D. STAR-FEED)

1 SUPPORT, TOOL SLIDE

1 SCREW, FEED

1 WHEEL, STAR

1 SHIM, DOVETAIL

2 DOVETAIL

2 BUSHING, FEED SCREW

1 BLOCK, FEED SCREW

1 PIN, 5/64 X 1/2 ROLL

1 KEY, 3/32 X 3/8 WOODRUFF

6 SHCS, 1/4-20 X 7/8

4 SHCS, 5/16-18 X 1-1/4

1 NUT, 5/16-24 SLOTTED

4 NUT, 5/16 PUSH

10 SHCS, 5/16-18 X 7/8

20

4

16

11

17

Chapter 8, Parts Lists and Drawings:

20

14

13

12

1

2

1

9

18

8

15

1

2

1

12

16

19

3

11

10

6

7

5

17

E.H. Wachs Part No. 60-MAN-07, Rev. C 163

22

ITEM PART NUMBER

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

17

18

19

20

21

22

43-043-00

43-064-00

60-193-00

60-194-00

60-196-00

60-214-00

60-229-00

60-315-00

60-319-00

60-320-00

60-322-00

60-335-00

60-339-00

60-340-00

90-016-55

90-019-43

90-050-08

90-060-12

90-060-17

90-065-05

90-065-09

90-060-08

QTY.

DESCRIPTION

4 THRUST WASHER

2 BEARING, THRUST

1 SLIDE, MALE FORM TOOL (H.D.)

1 COVER, TOOL SLIDE (H.D.)

2 PIN, ALIGNMENT

1 COVER, H.D. DBL. BEVEL

1 NUT, FEED (H.D. STAR-FEED)

1 SUPPORT, TOOL SLIDE

1 SCREW, FEED

1 WHEEL, STAR

1 SHIM, DOVETAIL

2 DOVETAIL

2 BUSHING, FEED SCREW

1 BLOCK, FEED SCREW

1 PIN, 5/64 X 1/2 ROLL

1 KEY, 3/32 X 3/8 WOODRUFF

6 SHCS, 1/4-20 X 7/8

5 SHCS, 5/16-18 X 1-1/4

4 SHCS, 5/16-18 X 1-3/4

1 NUT, 5/16-24 SLOTTED

8 NUT, 5/16 PUSH

12 SHCS, 5/16-18 X 7/8

4

17

22

19

12

18

18

21

3

7

6

21

22

9

16

1

2

1

13

15

14

13

1

2

1

10

20

8

5

17

12

11

18

164 Part No. 60-MAN-07, Rev. C E.H. Wachs

Universal Counterbore Slide, 60-405-UC

12

16

17

9

Chapter 8, Parts Lists and Drawings:

ITEM PART NUMBER QTY.

14

15

16

17

10

11

12

13

8

9

6

7

3

4

1

2

22

23

24

18

19

20

21

60-134-04

60-140-10

60-145-00

60-146-00

60-146-01

60-147-01

60-148-00

60-149-00

60-150-00

60-151-00

60-152-02

60-157-00

60-236-10

90-036-52

90-046-51

90-050-30

90-060-06

90-060-12

90-065-09

90-065-53

90-074-06

90-075-00

60-135-00

DESCRIPTION

1 BAR-BORING-C'BORE

2 KEY, BORING BAR

1 INSERT, KEYLOCKING

1 LABEL, C'BORE DEPTH

1 LABEL, RADIAL FEED

1 SCREW, FEED

1 BLOCK, SUPPORT LC1-12

1 PLATE, THRUST LC1-12

1 BUSHING, LC1-12

1 WASHER, SPRING

1 KNOB, FEED

1 BUSHING LC1-3

1 WELDMENT, C'BORE FRAME

2 PIN, 5/32 X 1/4 ROLL

1 PIN, 3/16 X 1 ROLL

4 SHCS, 1/4-20 X 3

2 SHCS, 5/16-18 X 5/8

4 SHCS, 5/16-18 X 1-1/4

4 NUT, 5/16 PUSH

4 WASHER, 5/16 AN

2 SSS, 3/8-16 X 5/8

2 NUT, 3/8-16 JAM

1 INDICATOR LC1-12

WEIGHT = 10lb. [4.5kg]

13

7

15

10

11

8

6

3

19

21

4

24

1

18

14

E.H. Wachs

20

23

22

2

Part No. 60-MAN-07, Rev. C 165

22

31

32

33

34

35

36

27

28

29

30

23

24

25

26

ITEM PART NUMBER QTY.

13

14

15

16

9

10

11

12

17

18

19

20

21

7

8

5

6

3

4

1

2

43-067-00

53-087-00

60-235-00

60-288-00

60-290-00

60-291-00

60-292-00

60-293-00

60-294-00

60-295-00

60-296-00

60-296-01

60-306-00

60-307-00

60-308-00

60-309-00

60-310-00

60-311-00

60-313-02

60-314-00

90-024-04

DESCRIPTION

4 SCREW, CAPTIVATED

1 NUT, FEED

1 KEY, MODIFIED

2 BEARING, SHOULDER

1 BLOCK, FEED

1 STAR WHEEL

1 SPACER

1 GEAR, WORM

1 WORM

2 BEARING

1 WORM GEAR COVER

1 WORM SLIDE FRICTION BUSHING

1 SCREW, FEED

1 SLIDE, MALE

1 PLATE, MOUNTING

1 GIB

1 DOVETAIL-LEFT

1 DOVETAIL-RIGHT

1 HOLDER, PARTING TOOL-LOW

1 COVER, PARTING TOOL

2 SSS, 8-32 X 1/8

90-029-43

90-044-07

90-045-04

90-046-57

90-050-07

90-056-07

90-056-12

90-060-07

90-060-10

90-064-15

90-065-04

90-070-12

90-095-07

90-205-09

90-500-05

WOODRUFF

1 SSS, 10-24 X 3/4

1 NUT, 10-24 NYLOCK

1 PIN, 3/16 X 3/4 ROLL

2 SHCS, 1/4-20 X 3/4

2 PIN, 1/4 X 3/4 DOWEL

4 PIN, 1/4 X 1-1/4 DOWEL

4 SHCS, 5/16-18 X 3/4

10 SHCS, 5/16-18 X 1

4 SSS, 5/16-18 X 1-1/2

4 NUT, 5/16-18 JAM

4 SHCS, 3/8-16 X 1-1/4

1 NUT, 1/2-20 NYLK THN

1 NUT, 5/8-18 CASTLE

1 1/4-28 GREASE ZERK

WEIGHT = 23.2lb. [10.5kg]

26

1

20

27

14

16

30

19

30

32

31

30

17

2

28

28

18

33

33

25

35

10

12

9

22

21

7

15

13

4

29

5

23

24

10

6

3

29

4

8

34

11

36

166 Part No. 60-MAN-07, Rev. C E.H. Wachs

Worm Gear Beveling Slide, 60-430-02

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

17

18

19

20

21

22

23

36

37

38

32

33

34

35

28

29

30

31

24

25

26

27

43-067-00

53-087-00

60-235-00

60-288-00

60-290-00

60-291-00

60-292-00

60-293-00

60-294-00

60-295-00

60-296-00

60-296-01

60-306-00

60-307-00

60-308-00

60-309-00

60-310-00

60-311-00

60-312-00

60-313-03

60-314-00

90-024-04

90-029-43

90-044-07

90-045-04

90-046-57

90-050-07

90-054-08

90-056-07

90-056-12

90-060-07

90-060-10

90-064-15

90-065-04

90-070-12

90-095-07

90-205-09

90-500-05

ITEM PART NUMBER QTY. DESCRIPTION

4 SCREW, CAPTIVATED

1 NUT, FEED

1 KEY, MODIFIED

2 BEARING, SHOULDER

1 BLOCK, FEED

1 STAR WHEEL

1 SPACER

1 GEAR, WORM

1 WORM

2 BEARING

1 WORM GEAR COVER

1 WORM SLIDE FRICTION BUSHING

1 SCREW, FEED

1 SLIDE, MALE

1 PLATE, MOUNTING

1 GIB

1 DOVETAIL-LEFT

1 DOVETAIL-RIGHT

1 HOLDER, BEVEL TOOL

1 HOLDER, PARTING TOOL-HIGH

1 COVER, PARTING TOOL

2 SSS, 8-32 X 1/8

WOODRUFF

1 SSS, 10-24 X 3/4

1 NUT, 10-24 NYLOCK

1 PIN, 3/16 X 3/4 ROLL

4 SHCS, 1/4-20 X 3/4

2 SSS, 1/4-20 X 7/8

4 PIN, 1/4 X 3/4 DOWEL

4 PIN, 1/4 X 1-1/4 DOWEL

4 SHCS, 5/16-18 X 3/4

14 SHCS, 5/16-18 X 1

4 SSS, 5/16-18 X 1-1/2

4 NUT, 5/16-18 JAM

4 SHCS, 3/8-16 X 1-1/4

1 NUT, 1/2-20 NYLK THN

1 NUT, 5/8-18 CASTLE

1 1/4-28 GREASE ZERK

1

21

27

32

20

32

17

29

14

16

32

2

30

30

Chapter 8, Parts Lists and Drawings:

18

35

27

32

19

29

28

35

26

?

10

12

9

23

22

15

13

7

4

5

24

25

10

31

22

4

8

36

3

31

11

38

6

34

33

E.H. Wachs Part No. 60-MAN-07, Rev. C 167

168

6

3

LOCTITE 262

ITEM PART NUMBER QTY.

3

4

1

2

5

6

52-113-00

60-267-00

60-268-00

90-026-55

90-059-08

90-900-52

DESCRIPTION

2 SCREW, CAPTIVATED

1 HOUSING, TRIP

1 TRIP

1 1/8" X 1/2" PIN

1 SPRING PLUNGER

1 KNOB, 1/4-20 X 10D PUSH

WEIGHT = .4lb. [.2kg]

1

4

1

2

5

Part No. 60-MAN-07, Rev. C E.H. Wachs

Heavy Wall Parting Tool Holders, 60-433-00

ITEM PART NUMBER QTY.

3

4

1

2

5

6

43-067-00

60-034-01

60-034-02

60-314-00

90-050-07

90-056-07

DESCRIPTION

8 SCREW, CAPTIVATED

1 LOW HEAVY WALL PARTING TOOL HOLDER

1 HIGH HEAVY WALL PARTING TOOL HOLDER

2 COVER, PARTING TOOL

4 SHCS, 1/4-20 X 3/4

4 PIN, 1/4 X 3/4 DOWEL

5

1

4

2

6

Chapter 8, Parts Lists and Drawings:

1

5

4

6

3

E.H. Wachs Part No. 60-MAN-07, Rev. C 169

3

ITEM PART NUMBER QTY.

1

2

3

60-712-01

60-712-02

60-713-00

DESCRIPTION

1 HOLDER, HEAVY WALL CARBIDE

1 INSERT EXTRACTOR

1 .313 INSERT (60-712-00)

1. THE PURCHASE OF A HOLDER (60-712-01) ALSO

INCLUDES THE INSERT EXTRACTOR TOOL (60-712-02).

1.77 REF.

45.0

1

2

170 Part No. 60-MAN-07, Rev. C E.H. Wachs

1.5 HP Air Drive, 60-423-00

Chapter 8, Parts Lists and Drawings:

ITEM NO.

PART NUMBER

3.1.13

3.1.14

3.1.15

3.1.16

3.1.17

3.1.18

3.1.19

3.1.19.1

3.1.19.2

3.1.19.3

3.1.19.4

3.2

3.2.1

3.2.1.1

3.2.1.2

3.2.1.3

3.2.1.3.1

3.2.1.3.2

3.2.2

3.1.5

3.1.6

3.1.7

3.1.8

3.1.9

3.1.10

3.1.11

3.1.12

1

2

3

3.1

3.1.1

3.1.2

3.1.3

3.1.4

05-082-00

60-210-00

60-211-00

CLE-201812

CLE-202632

CLE-203109

CLE-202481

CLE-202011

CLE-617754

CLE-202626

CLE-202055

CLE-202508

CLE-864195

CLE-869933

CLE-843656

CLE-864973

CLE-622062

CLE-869931

CLE-622881

CLE-203111

CLE-832079

CLE-203203

CLE-201638

CLE-204178

CLE-202105

CLE-845409

CLE-869855

CLE-201311

CLE-201308

CLE-203105

CLE-204809

CLE-203107

CLE-203062

CLE-846659

CLE-861485

DESCRIPTION

OILER, AIR LINE

FLANGE, 1.5 HP CLECO-AIR

CLECO AIR MOTOR (55NL-3T-960)

SUBASSY; HANDLE

PAD; MUFFLER

PAD; MUFFLER

PIN; VALVE

SEAL RING

O-RING

DEFLECTOR; EXHAUST

THROTTLE VALVE

INLET SPACER

PIN; LEVER

BUSHING; INLET

SCREEN

SPRING; THROTTLE VALVE

O-RING

SEAT; THROTTLE VALVE

O-RING

HANDLE - REVERSIBLE

SPRING

NUT, METERING

SUBASSY; LOCKOFF LEVER

LEVER; LOCKOFF

TOGGLE

PIN; SPRING

SPRING; TOGGLE

SUBASSY, GEAR TRAIN

GEAR SPIDER

2ND RED GEAR SPIDER

2ND GEAR PIN (3/16 DOWEL)

IDLER GEAR; 2ND RED.

BUSHING

GEAR 20T, IDLER GEAR

SPIDER; OPEN

QTY.

3

3

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

2

3.6.6

3.6.9

3.6.4

(SEE NOTE-2)

3.6.1

3.17

3.6.3

(SEE NOTE-2)

3.6.7

3.6.2

3.6.5

7

3.6.8

6

3.2.1.1

3.2.1.2

3.2.2.1

3.2.3.1

3.2.4

3.2.1.3.2

3.2.1.3.1

3.2.2.2

3.7

3.15

ITEM NO.

PART NUMBER

3.12

3.13

3.14

3.15

3.16

3.17

4

5

3.6.7

3.6.8

3.6.9

3.7

3.8

3.9

3.10

3.11

6

7

8

3.5

3.6

3.6.1

3.6.2

3.6.3

3.6.4

3.6.5

3.6.6

3.2.2.1

3.2.2.2

3.2.3

3.2.3.1

3.2.4

3.3

3.3.1

3.4

CLE-832125

CLE-867532

CLE-867526

CLE-844774

CLE-867544

CLE-203101

CLE-863887

CLE-203102

CLE-843444

CLE-861496

CLE-867507

CLE-842517

CLE-867511

CLE-867512

CLE-867546

CLE-867547

CLE-867548

CLE-882661

CLE-207288

CLE-865352

CLE-867520

CLE-867521

CLE-867522

CLE-867528

CLE-867536

CLE-869569

CLE-869572

CLE-203989

CLE-619377

CLE-382633

66-100-00

90-098-01

90-403-00

90-401-02

90-401-03

DESCRIPTION QTY.

IDLE GEAR PIN

GEAR SPIDER

GEAR; IDLER

BEARING; NEEDLE (B-36)

GEAR CASE (50T)

CYLINDER

PIN; SLOTTED SPRING

ROTOR

BEARING; BALL

HEAD, ANGLE (T-4)

ANGLE HEAD; LONG HEAVY DUTY

BALL BEARING

PINION

GEAR

PLUG, PIPE

BALL BEARING

BEARING

NEEDLE BEARING

SPINDLE, 1/2" SQ. DRIVE

ROTOR LOCK NUT

PLATE, MAKE-UP

LOCK NUT

SNAP RING

MOTOR MAKE UP PLATE

PLATE; FRONT BEARING

ROTOR BLADE

PLATE; REAR BEARING

BEARING CAP

BEARING

PROTECTOR, SPLINE

VALVE; SPEED CONTROL

NIPPLE, 1/2 CLOSE LP BLACK

LABEL, BURN HAZARD/HOT SURFACE 1

LABEL, PRESSURE-AIR

LABEL, EAR AND EYE PROTECTION

1

1

1

2

1

1

1

1

1

5

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

1

3

1

3.1.7

3.1.4

3.11

3.16

3.12

3.13

3.1.6

8

3.1.12

3.1.13

3.1.14

3.1.11

3.1.1

3.1.8

3.1.2

3.1.15

3.4

3.1.5

3.3.1

3.14

3.5

3.1.3

3.1.19.2

3.1.10

3.1.17

5

3.1.18

3.9

3.1.9

1

3.10

3.8

3.1.16

3.1.19.3

3.1.19.1

3.1.19.4

5

E.H. Wachs

4

Part No. 60-MAN-07, Rev. C 171

ITEM NO.

PART NUMBER

1.12

1.13

1.14

1.15

1.16

1.17

2

3

1.6.7

1.6.8

1.6.9

1.7

1.8

1.9

1.10

1.11

4

5

6

1.5

1.6

1.6.1

1.6.2

1.6.3

1.6.4

1.6.5

1.6.6

1.2.2.1

1.2.2.2

1.2.3

1.2.3.1

1.2.4

1.3

1.3.1

1.4

1.1.8

1.1.9

1.1.10

1.1.11

1.1.12

1.1.13

1.1.14

1.1.15

1

1.1

1.1.1

1.1.2

1.1.3

1.1.4

1.1.5

1.1.7

60-211-00

CLE-201812

CLE-202632

CLE-203109

CLE-202481

CLE-202011

CLE-617754

CLE-202055

CLE-202508

CLE-864195

CLE-869933

CLE-843656

CLE-864973

CLE-622062

CLE-869931

CLE-622881

1.1.16

1.1.17

1.1.17.1

1.1.17.2

1.1.17.3

1.1.17.4

1.1.18

1.1.19

CLE-203111

CLE-201638

CLE-204178

CLE-202105

CLE-845409

CLE-869855

CLE-832079

CLE-203203

1.2

1.2.1

1.2.1.1

1.2.1.2

CLE-201311

CLE-201308

CLE-203105

CLE-204809

1.2.1.3

CLE-203107

1.2.1.3.1

CLE-203062

1.2.1.3.2

CLE-846659

1.2.2

CLE-861485

CLE-832125

CLE-867532

CLE-867526

CLE-844774

CLE-867544

CLE-203101

CLE-863887

CLE-203102

CLE-843444

CLE-861496

CLE-867507

CLE-842517

CLE-867511

CLE-867512

CLE-867546

CLE-867547

CLE-867548

CLE-882661

CLE-207288

CLE-865352

CLE-867520

CLE-867521

CLE-867522

CLE-867528

CLE-867536

CLE-869569

CLE-869572

CLE-203989

CLE-619377

CLE-382633

60-210-00

66-100-00

90-098-01

60-215-00

05-082-00

QTY.

1

1

1

1

1

1

1

5

2

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

3

1

3

1

1

1

3

2

1

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

DESCRIPTION

CLECO AIR MOTOR (55NL-3T-960)

SUBASSY; HANDLE

PAD; MUFFLER

PAD; MUFFLER

PIN; VALVE

SEAL RING

O-RING

THROTTLE VALVE

INLET SPACER

PIN; LEVER

BUSHING; INLET

SCREEN

SPRING; THROTTLE VALVE

O-RING

SEAT; THROTTLE VALVE

O-RING

HANDLE - REVERSIBLE

SUBASSY; LOCKOFF LEVER

LEVER; LOCKOFF

TOGGLE

PIN; SPRING

SPRING; TOGGLE

SPRING

NUT, METERING

SUBASSY, GEAR TRAIN

GEAR SPIDER

2ND RED GEAR SPIDER

2ND GEAR PIN (3/16 DOWEL)

IDLER GEAR; 2ND RED.

BUSHING

GEAR 20T, IDLER GEAR

SPIDER; OPEN

IDLE GEAR PIN

GEAR SPIDER

GEAR; IDLER

BEARING; NEEDLE (B-36)

GEAR CASE (50T)

CYLINDER

PIN; SLOTTED SPRING

ROTOR

BEARING; BALL

HEAD, ANGLE (T-4)

ANGLE HEAD; LONG HEAVY DUTY

BALL BEARING

PINION

GEAR

PLUG, PIPE

BALL BEARING

BEARING

NEEDLE BEARING

SPINDLE, 1/2" SQ. DRIVE

ROTOR LOCK NUT

PLATE, MAKE-UP

LOCK NUT

SNAP RING

MOTOR MAKE UP PLATE

PLATE; FRONT BEARING

ROTOR BLADE

PLATE; REAR BEARING

BEARING CAP

BEARING

PROTECTOR, SPLINE

FLANGE, 1.5 HP CLECO-AIR

VALVE; SPEED CONTROL

NIPPLE, 1/2 CLOSE LP BLACK

COLLECTOR, EXHAUST

OILER, AIR LINE

1.6.5

1.6.8

1.2.4

2

1.6.4

1.6.6

1.6.9

1.2.1.3.2

1.6.1

1.6.3

1.6.7

1.2.1.3.1

1.2.1.1

1.2.1.2

1.2.2.2

1.2.2.1

1.6.2

1.9

1.2.3.1

1.8

1.10

172

WEIGHT: 9 LB. [4.1 kg.]

1.11

1.16

1.12

1.13

1.4

1.3.1

1.14

1.5

1.7

1.15

1.1.4

1.1.1

1.1.2

1.1.5

1.1.3

5

1.1.17.2

1.1.9

1.1.16

1.1.17.3

Part No. 60-MAN-07, Rev. C

1.1.17.4

1.1.17.1

1.1.7

1.1.12

1.1.13

1.1.14

1.1.11

1.1.8

1.1.15

4

6

4

3

E.H. Wachs

3.1.14

3.1.15

3.1.13

3.1.12

3.1.11

3.1.10

3.1.9

2.5 HP Air Drive, 60-423-01

ITEM NO. PART NUMBER

3.1.13

3.1.14

3.1.15

3.1.16

3.1.16.1

3.1.16.2

3.1.16.3

3.1.16.4

3.2

3.3

3.3.1

3.3.2

3.4

3.5

3.6

3.7

3.7.1

3.1.5

3.1.6

3.1.7

3.1.8

3.1.9

3.1.10

3.1.11

3.1.12

1

2

3

3.1

3.1.1

3.1.2

3.1.3

3.1.4

05-082-00

60-328-00

60-329-00

CLE-201811

CLE-H203150

CLE-864195

CLE-202481

CLE-869943

CLE-615018

CLE-202050

CLE-202051

CLE-869933

CLE-622881

CLE-202508

CLE-843656

CLE-864973

CLE-202055

CLE-622062

CLE-869931

CLE-201638

CLE-204178

CLE-202105

CLE-845409

CLE-869855

CLE-203147

CLE-203149

CLE-848809

CLE-812918

CLE-869927

CLE-869925

CLE-865352

CLE-861914

CLE-869906

DESCRIPTION

OILER, AIR LINE

FLANGE, H.D. CLECO-MOTOR

CLECO AIR MOTOR - 75-NL-3V-959

SUB ASSY; HANDLE - 230959

HANDLE

PIN; LEVER

PIN; VALVE

MUFFLER

O-RING

SPACER, EXHAUST DEFLECTOR

DEFLECTER, EXHAUST

BUSHING; INLET

O-RING

INLET SPACER

SCREEN

SPRING; THROTTLE VALVE

THROTTLE VALVE

O-RING

SEAT; THROTTLE VALVE

SUBASSY; LOCKOFF LEVER

LEVER; LOCKOFF

TOGGLE

PIN; SPRING

SPRING; TOGGLE

ROTOR

CYLINDER

CYLINDER CASTING

PIN, CYLINDER

ROTOR BLADE

REAR BRG PLT

ROTOR LOCK NUT

SUBASSY; GEAR TRAIN (75-3)

GEAR CASE 50T

QTY.

1

1

5

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

4

1

1

1

1

1

1

1

1

1

3.1.1

3.1.16.4

3.1.16.1

3.1.3

Chapter 8, Parts Lists and Drawings:

3.8

3.3.1

3.13

ITEM NO. PART NUMBER

3.10.4

3.10.5

3.10.6

3.10.7

3.10.8

3.10.9

3.10.10

3.11

3.12

3.13

3.14

4

5

3.6

7

8

9

3.7.2

3.7.3

3.7.4

3.7.5

3.7.6

3.7.6.1

3.7.6.2

3.7.7

3.7.7.1

3.7.7.2

3.8

3.9

3.10

3.10.1

3.10.2

3.10.3

CLE-869905

CLE-869908

CLE-869907

CLE-869903

CLE-869898

CLE-869898-X

CLE-832125

CLE-869900

CLE-866160

CLE-844774

CLE-869923

CLE-869929

CLE-861904

CLE-869874

CLE-861903B

CLE-861903A

CLE-207289

CLE-869882

CLE-867546

CLE-869881

CLE-869880

CLE-869877

CLE-847659

CLE-869878

CLE-869879

CLE-847528

CLE-847960

66-100-00

90-098-01

CLE-203989

90-403-00

90-401-02

90-401-03

DESCRIPTION QTY.

SPIDER; CAGE

GEAR SHAFT

NEEDLE ROLLER

2ND RED IDGEAR

OPEN SPIDER

OPEN SPIDER CAST

IDLE GEAR PIN

IDLER GEAR 1ST RED IDL GR

SEMI; IDLER GEAR

BEARING; NEEDLE (B-36)

FRONT BRG PLT

SPACER, MOTOR

SUBASM; RA HEAD (V-1/2 SQ)

ANGLE HEAD

GEAR SET*

GEAR SET*

1/2 S.D. SPINDLE

BEARING

PLUG, PIPE

SPINDLE BEARING

THRUST BRG

BEARING RETAIN

BEARING

CLAMP NUT

CLAMP RING

BALL BEARING

SET SCREW

VALVE; SPEED CONTROL

NIPPLE, 1/2 CLOSE LP BLACK

BEARING CAP

LABEL, BURN HAZARD/HOT SURFACE 1

LABEL, PRESSURE-AIR

LABEL, EAR AND EYE PROTECTION

2

1

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

6

3

1

1

1

3

39

3

2

3.10.7

3.10.4

3.10.3

3.7.1

8

3.9

3.7.2

3.7.4

3.10.6

3.10.1

3.10.5

3.7.6.1

7

3.7.3

3.7.5

3.7.6.2

3.11

3.7.7.2

3.7.7.1

3.12

3.3.2

4

1

5

3.1.8

5

3.1.16.2

3.1.16.3

3.1.2

3.1.4

3.1.7

3.1.6

3.1.5

9

3.2

3.5

3.4

3.6

3.13

3.6

3.14

3.10.2

3.10.8

3.10.10

3.10.9

WEIGHT = 13.4 lb. [6.1 kg]

E.H. Wachs Part No. 60-MAN-07, Rev. C 173

Low Clearance Split Frame, Models 204-1420

2.5 HP Reversible Air Drive, 60-4010-00

ITEM NO. PART NUMBER

1.2

1.2.1

1.2.2

1.3

1.4

1.4.1

1.4.2

1.4.3

1.1.15

1.1.16

1.1.17

1.1.18

1.1.19

1.1.20

1.1.21

1.1.22

1

1.1

1.1.1

1.1.2

1.1.3

1.1.4

1.1.5

1.1.6

1.1.7

1.1.8

1.1.9

1.1.10

1.1.11

1.1.12

1.1.13

1.1.14

60-329-01

CLE-201330

CLE-203151

CLE-202050

CLE-202051

CLE-615018

CLE-869943

CLE-202055

CLE-202508

CLE-622062

CLE-843656

CLE-864973

CLE-869931

CLE-869933

CLE-202481

CLE-864195

CLE-865063

CLE-869942

CLE-847234

CLE-867554

CLE-869939

CLE-869940

CLE-617510

CLE-622881

CLE-203148

CLE-848810

CLE-812918

CLE-203147

CLE-861913

CLE-869906

CLE-869904

CLE-869902

1.1.4

DESCRIPTION

CLECO AIR MOTOR - 75RNL-4V-4

SUBASSY; HANDLE

HANDLE

SPACER, EXHAUST DEFLECTOR

DEFLECTER, EXHAUST

O-RING

MUFFLER

THROTTLE VALVE

INLET SPACER

O-RING

SCREEN

SPRING; THROTTLE VALVE

SEAT; THROTTLE VALVE

BUSHING; INLET

PIN; VALVE

PIN; LEVER

LEVER, THROTTLE

REVERSE RING

O-RING

SCREW, REVERSING VALVE

SPACER

VALVE, REVERSING

O-RING

O-RING

CYLINDER

CYLINDER CASTING

PIN, CYLINDER

ROTOR

SUBASM; GEAR TRAIN

GEAR CASE 50T

2ND RED SPIDER

IDLER GEAR 2ND RED IDL GR

QTY.

1

3

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

4

1

1

1

1

1.1.17

ITEM NO. PART NUMBER

1.11.2

1.11.3

1.11.4

1.11.5

1.11.6

1.11.7

1.11.8

1.11.9

4

5

2

3

6

1.11.10

1.12

1.13

1.14

1.4.4

1.4.5

1.4.6

1.4.6.1

1.4.6.2

1.4.7

1.4.7.1

1.4.7.2

1.5

1.6

1.7

1.8

1.9

1.10

1.11

1.11.1

CLE-869907

CLE-869908

CLE-869897

CLE-832125

CLE-869897-X

CLE-869899

CLE-844774

CLE-869899-X

CLE-865352

CLE-869901

CLE-869923

CLE-869928

CLE-869929

CLE-869927

CLE-861904

CLE-869874

CLE-861903B

CLE-861903A

CLE-207289

CLE-869882

CLE-867546

CLE-869881

CLE-869880

CLE-869877

CLE-847659

CLE-869879

CLE-869878

CLE-847528

05-082-00

60-328-00

66-100-00

90-098-01

90-403-00

DESCRIPTION

NEEDLE ROLLER

GEAR SHAFT

1ST RED SPIDER

IDLE GEAR PIN

OPEN SPIDER CAST

1ST RED IDLER GEAR (A&B)

BEARING; NEEDLE (B-36)

SEMI; IDLER GEAR

ROTOR LOCK NUT

1ST RED. PINION (A&B)

FRONT BRG PLT

REAR BRG PLATE

SPACER, MOTOR

ROTOR BLADE

SUBASM; RA HEAD (V-1/2 SQ)

ANGLE HEAD

GEAR SET*

GEAR SET*

1/2 S.D. SPINDLE

BEARING

PLUG, PIPE

SPINDLE BEARING

THRUST BRG

BEARING RETAIN

BEARING

CLAMP RING

CLAMP NUT

BALL BEARING

OILER, AIR LINE

FLANGE, H.D. CLECO-MOTOR

VALVE; SPEED CONTROL

NIPPLE, 1/2 CLOSE LP BLACK

LABEL, BURN HAZARD/HOT SURFACE

QTY.

1

2

1

1

1

1

2

1

2

1

1

1

1

1

1

1

1

1

1

1

5

1

1

1

1

1

1

1

3

39

3

1

6

1.1.19

1.11.9

4

1.1.3

1.1.21

1.4.7.2

1.11.10

1.1.20

5

2

1.1.5

1.1.2

1.5

1.14

1.4.7.1

1.4.6.1

1.11.8

1.11.2

1.8

5

1.1.12

1.1.22

1.1.4

1.1.16

1.3

1.4.2

1.4.3

1.4.6.2

1.4.5

1.4.4

1.12

1.13

1.1.7

1.1.9

1.1.13

1.2.2

1.10

1.2.1

1.7

6

1.11.1

1.11.3

1.1.10

1.4.1

1.1.6

1.1.15

1.9

1.14

1.1.11

1.1.18

1.1.14

1.6

1.11.5

1.11.6

1.1.8

1.1.1

1.11.4

1.11.7

WEIGHT = 14 lb. [6.4 kg]

3

174 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 8, Parts Lists and Drawings:

7

26

23

2

1

SEE NOTE 2

25

12

35

19

36

29

SEE NOTE 1

32

3

33

ITEM PART NUMBER QTY.

18

19

20

15

16

17

21

22

23

10

11

12

8

9

6

7

13

14

3

4

5

1

2

29

30

31

32

33

24

25

26

27

28

34

35

36

37

02-199-00

02-203-00

53-073-00

60-1186-00

60-198-00

60-199-00

60-213-00

76-072-00

76-073-00

76-074-00

76-075-00

76-175-00

76-176-00

76-177-00

76-180-00

76-181-00

76-182-00

76-183-00

76-185-00

90-026-56

90-026-58

90-026-61

90-054-02

90-055-18

90-059-48

90-060-12

90-061-34

90-065-52

90-078-67

90-088-84

90-088-86

90-090-15

90-098-79

90-098-89

90-401-01

90-402-01

90-403-02

DESCRIPTION

2

1

0

2

8

2

4

4

1

0

1

1

1

1

1

1

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

MOTOR COUPLING, DRIVE PIN

ADAPTOR, DRIVE MOTOR

HYDRAULIC MOTOR

LCSF FLOW DIRECTION LABEL

VALVE, MRV DIRECTIONAL CONTROL

MANIFOLD, SDB HYDRAULIC

HYD. MOTOR MOUNT

PLATE, MRV ANTI-ROTATION

CAP, MRV OPERATOR

SPRING, TORSION

PLATE, SPRING COVER

RETAINING RING, 43/64

1 VALVE, PRESSURE RELIEF

1 VALVE, PRESSURE COMPENSATED FLOW CONTROL

RING, 26MM EXT RETAINING

DETENT SPRING

SPACER

HANDLE, 5/16"-18

FLOW CONTROL LABEL

PIN, 1/8 x 5/8 ROLL

PIN, 1/8 X 7/8 ROLL

PIN, 1/8 X 1.125 ROLL

SSS, 1/4-20 x 1/4

NUT, 1/4-20 ACORN

1/4 x 1 WOODDRUFF KEY

SHCS, 5/16-18 X 1-1/4

HHCS, 5/16-18 X 3-1/2"

WASHER, 5/16 FLAT

O-RING -112

PLUG, -04 ZERO-LEAK ORB

PLUG, -06 ZERO-LEAK ORB

SHCS, 1/2-13 X 1-1/2

ADAPTER, 1/2 NPT M X 1/2 ORB M - STRAIGHT

ADAPTER, 1/2 ORB M X 1/2 NPT M - 90

LABEL, EYE PROTECTION

LABEL, PRESSURE-HYD.

LABEL, BURN HAZARD/HOT SURFACE

13

34

14

31

6

28

4 5

20

8

21

10

30

37

27

11

15

18

16

17

NOTE :

1.

-112 (BUNA-N) O-RING COMES WITH HYDRAULIC MOTOR FOR

REPLACEMENTS CONTACT E.H. WACHS PART NUMBER #90-078-67

2. WOODRUFF KEY SUPPLIED WITH MOTOR E.H. WACHS PART MUMBER #90-059-48

E.H. Wachs

22

24

9

Part No. 60-MAN-07, Rev. C 175

Low Clearance Split Frame, Models 204-1420

Hydraulic Drive, 60-424-02

176 Part No. 60-MAN-07, Rev. C E.H. Wachs

Hydraulic Drive, 60-424-01 (OBSOLETE)

FLOW OUT

FLOW IN

1/2 NPT

1/2 NPT

8.231

209.1

11.631

295.4

Chapter 8, Parts Lists and Drawings:

WEIGHT: 25.4 lbs [11.5 kg]

MUST ATTACH MOTOR MOUNT TO PINION HOUSING

PRIOR TO MOUNTING HYDRAULIC MOTOR.

MAXIMUM FLOW: 15 GPM [57 LPM]

PRESSURE: UP TO 2000 PSI [138 BAR]

PERFORMANCE DATA

FLOW

GPM [LPM]

2 [7.6]

4 [15.1]

6 [22.7]

8 [30.3]

10 [37.9]

12 [45.4]

14 [ 53.0]

15 [56.8]

RPM

47

94

141

188

235

282

330

353

.500

12.7

3.934

99.9

4.022

102.2

3.125

79.4

ROTATION

1.838

46.7

.423

10.7

6.688

169.9

INCREASE &

DECREASE FLOW KNOB

7.956

202.1

R3.705

94.1

SPRING RETURN OPERATOR

E.H. Wachs Part No. 60-MAN-07, Rev. C 177

Low Clearance Split Frame, Models 204-1420

Split Frame Air Control Module Schematic (60-375-00)

B

178 Part No. 60-MAN-07, Rev. C E.H. Wachs

Remote Control Hand Pendant (60-373-00)

Chapter 8, Parts Lists and Drawings:

ITEM PART NUMBER QTY.

5

6

7

3

4

1

2

56-206-00

60-1280-00

60-1281-00

60-1282-00

90-038-02

90-046-51

90-902-02

DESCRIPTION

1 LEVER, LOCKOFF

1 HANDLE, SF REMOTE CONTROL

1 VALVE, CARTRIDGE

1 RING, SNAP .375 INTERNAL

2 ADAPTER, 1/8 NPTM X 1/4 PTC BRASS

1 PIN, 3/16 X 1 ROLL

6 FT HOSE, 1/4" OD x 1/8" ID TWIN-LINE PU

1

4

3

2

5

7

6

E.H. Wachs Part No. 60-MAN-07, Rev. C 179

Low Clearance Split Frame, Models 204-1420

180 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 9, Accessories and Spare Parts

Chapter 9

Accessories and Spare Parts

a ccessories

The following equipment accessories expand the operating capabilities of the low clearance split frame.

Bridge slides

Accessory

Extended Tool Slides

O.D. Tracking Slides (spring-loaded slides to track the surface of out-ofround pipe) for 1824 through 4248 models

Counterbore slide

Table 1: Tool Slide Assemblies

Description Part No.

Parting slide

Beveling slide

60-415-00

60-416-00

Slide kit (parting slide, bev eling slide, trip, extension blocks) 60-422-01

Parting slide 60-446-01

Beveling slide

Trip

Mounts to bevel slide for I.D. counterboring

Single point beveling and counterboring applications with

LCSF models 1824 through 4248

60-446-02

60-446-03

60-405-UC

60-428-24

60-428-28

60-428-32

60-428-36

60-428-39

60-428-42

60-428-28

E.H. Wachs Part No. 60-MAN-07, Rev. C 181

Low Clearance Split Frame, Models 204-1420

Table 2: Drive Motors and Components

Description

1.5 HP right angle air drive

1.5 HP right angle air drive with ported exhaust col lector

Heavy duty 2.5 HP right angle air motor

2.5 HP right angle reversible air motor

Hydraulic drive

Front drive pinion housing for 18”-48” LCSF

Air treatment module (for all air motors)

Part No.

60-423-00

60-407-00

60-423-01

60-4010-01

60-424-01

60-425-04

26-407-00

182 Part No. 60-MAN-07, Rev. C E.H. Wachs

T ooling

Chapter 9, Accessories and Spare Parts: Tooling

Part No.

43-711-00

43-711-00P

Description

Table 3: LCSF Parting Tools

3/16” x 3-7/16” (4.76 x 87 mm) HSS parting tool

43-711-01

43-711-01P

3/16” x 5” (4.76 x 127 mm) HSS parting tool

60-711-00

60-711-00P

1/4” x 6” (6.35 x 152 mm) HSS parting tool

60-716-00

4.3” (110 mm) carbide insert holder kit for 3/16” (4.76 mm) parting insert

60-717-00 3/16” (4.76 mm) car bide insert

60-714-00

4.3” (110 mm) carbide insert holder kit for 1/4” (6.35 mm) parting insert

60-715-00 1/4” (6.35 mm) carbide insert

60-SPT-11 3/16” wide special order

60-SPT-12 1/4” wide special order

Design depends on application

60-SPT-13 1/2” wide special order

HSS = High Speed Steel

60-SPT-XX are made to customer specifications; call for quotation.

Part numbers with “P” suffix are Premium Wachs tooling for high-alloy materials.

E.H. Wachs Part No. 60-MAN-07, Rev. C 183

Low Clearance Split Frame, Models 204-1420

Description

HSS Inside Bevel Tool

30° x 3-1/8” (79 mm)

Table 4: LCSF Beveling and Counterbore Tools

Part No.

Application

37.5° x 3-1/8” (79 mm)

43-702-05

43-703-05

30° x 5” (127 mm)

37.5° x 5” (127 mm)

53-701-01

53-703-01P

53-701-00

53-703-00P

HSS Outside Bevel Tool

30° x 3-1/8” (79 mm)

30° x 5” (127 mm)

37.5° x 3-1/8” (79 mm)

37.5° x 5” (127 mm)

HSS Double Bevel Tool

30° x 3-1/8” (79 mm)

30° x 5” (127 mm)

43-707-05

43-707-06

43-708-05

43-708-06

43-709-05

43-709-06

37.5° x 3-1/8” (79 mm)

37.5° x 5” (127 mm)

43-710-05

43-710-06

HSS Compound Bevel Tool

10° x 37.5° x 4” (102 mm) inside

10° x 37.5° x 4” (102 mm) outside

10° x 37.5° x 5” (127 mm) inside

10° x 30° x 5” (127 mm) inside

43-712-01

43-712-02

53-705-00

53-704-00

Short bevel tool for most materials. 30° - 1”

(25 mm) and 37.5° - 3/4”

(19 mm) maximum wall.

Long bevel tool for most materials. 30° - 1”

(25 mm) and 37.5° - 3/4”

(19 mm) maximum wall.

Outside bevel tool for most materials. 30° - 1”

(25 mm) and 37.5° - 3/4”

(19 mm) maximum wall.

Double bevel tool for most materials. 3/4”

(19 mm) maxi mum wall.

Compound bevel tool for most materials. 1-1/4”

(32 mm) maximum wall for both tools.

HSS Counterbore Tool 60-700-04

4:1 taper; counterbores most materials. Requires 60-405-US universal counterbore slide or 60-420-XX bridge slide.

HSS = High Speed Steel

Part numbers with “P” suffix are Premium Wachs tooling for high-alloy materials.

Special Application Tooling

184 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 9, Accessories and Spare Parts: Tooling

Table 4: LCSF Beveling and Counterbore Tools

Description Part No.

Application

3/4” wide x 3-1/8” HSS single angle bevel

1-1/2” wide x 3-1/8” HSS single angle outside bevel

1-1/2” wide x 3-1/8” HSS double bevel

3/4” wide x 5” HSS single angle bevel

60-SPT-02

60-SPT-03

60-SPT-05

60-SPT-02

Design depends on application

1-1/2” wide x 5” HSS sin gle angle outside bevel

60-SPT-04

1-1/2” wide x 5” HSS double bevel

60-SPT-06

60-SPT-XX are made to customer specifications; call for quotation.

Part No.

Table 5: LCSF Compound Angle Beveling Tools

Description

43-712-01 10° x 37.5° inside bevel

53-704-00 10° x 30° inside bevel

53-705-00 10° x 37.5° inside bevel

43-712-02 10° x 37.5° outside bevel

Design depends on application

HSS = High Speed Steel

60-SPT-XX are made to customer specifications; call for quotation.

E.H. Wachs Part No. 60-MAN-07, Rev. C 185

Low Clearance Split Frame, Models 204-1420

Part No.

52-701-01

52-701-00P

52-711-01

52-711-02

52-711-03

Table 6: Single Point Tooling (Used with Bridge Slide)

Description

HSS tool bit for single point facing and beveling. Standard 3/8” x 3/8”

(9.53 x 9.53 mm).

HSS 3/32” (2.38 mm) radius tool bit for J-prep

HSS 1/8” (3.18 mm) radius tool bit for J-prep

HSS 3/16” (4.76 mm) radius tool bit for J-prep

60-707-00

Tool holder for HSS tool bits

HSS = High Speed Steel

Part numbers with “P” suffix are Premium Wachs tooling for high-alloy materials.

186 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 9, Accessories and Spare Parts: Recommended Spares

h ydraulic

P oWer

u niTs

The following Wachs hydraulic power units (HPUs) are designed to operate low clearance split frames and similar tools.

Table 7: Hydraulic Power Units for LCSF

Power Unit

HCM-1G gas powered, 8 gpm @ 1500 psi (30 l/min @ 103 bar)

HCM-2E2 electric powered, 8 gpm @ 1500 psi

(30 l/min @ 103 bar)

HCM-2E4 electric powered, 8 gpm @ 1500 psi

(30 l/min @ 103 bar)

HCM-2G gas powered, 10 gpm @ 1500 psi

(38 l/min @ 103 bar)

HCM-3D diesel powered, 10 gpm @ 1500 psi

(38 l/min @ 103 bar)

HCM-3G gas powered, 14 gpm @ 1500 psi

(53 l/min @ 103 bar)

HCM-4D diesel powered, 14 gpm @ 1500 psi

(53 l/min @ 103 bar)

HPU-15 electric powered, 0-15 gpm @ 1500 psi

(0-57 l/min @ 103 bar)

HSM-5D diesel powered (skid mount), 14 gpm @ 1500 psi (53 l/min @ 103 bar)

HTM-5D diesel powered (trailer mount), 14 gpm @ 1500 psi (53 l/min @ 103 bar)

Tandem Pump Offshore diesel powered, 15 gpm @ 2000 psi (57 l/min @ 140 bar)

Part No.

14-000-01

14-000-06

14-000-07

14-000-08

14-000-09

14-000-25

14-000-26

14-000-20

14-000-31

14-000-32

14-000-12

r ecoMMended

s

Pares

Spare parts and fastener kits are available for the LCSF. Select the kit(s) appropriate for your LCSF model. Separate kits are provided for the base LCSF machine and for the tool slides.

(Note that the spare parts kits include fastener kits. Fastener kits can also be purchased separately.)

E.H. Wachs Part No. 60-MAN-07, Rev. C 187

Low Clearance Split Frame, Models 204-1420

Kit No.

60-551-02

60-551-04

60-551-05

Table 8: LCSF Spare Parts Kits

Description

Spare Parts Kit for LCSF, 24” through 48”

(models 1824 through 4248)

Spare Parts Kit for Extended

Slide Set (60-422-01)

Spare Parts Kit for Super

Extended Slide Set (60-440-00)

Part Description

Rear Pinion Bearing

SHCS, 1/2-13 x 2-1/2 Captivated

Bearing Eccentric

Bearing Spacer

SHCS, 3/4-10 x 3 Captivated

Bearing, Guide Wheel

Swing Bolt

Detent Pin

SHSB, 1/2 X 1-1/2

1/2” Eye Bolt

Kit, LCSF 24”-48” Fasteners

Feed Screw

Alignment Pin

Feed Nut

Shim Kit

Trip Pin

Kit, LC Slide Fasteners

Spring Plunger, 1/4-20 x 1/2

Alignment Pin

Feed Nut

Feed Screw

Shim, 0.002”

Trip Pin

Feed Screw Bushing

Kit, Extended Slide Fasteners

Spring Plunger, 1/4-20 x 1/2

Part No.

90-097-65

90-099-01

60-550-02

60-195-00

60-196-00

60-229-00

60-232-00

60-338-00

60-125-00

60-207-00

60-256-00

60-257-00

60-259-00

60-260-00

60-263-00

60-264-00

60-550-03

90-059-08

60-196-00

60-229-00

60-319-00

60-322-00

60-338-00

60-339-00

60-550-05

90-059-08

Qty

1

2

2

2

1

1

1

1

2

2

2

6

6

6

1

2

2

2

1

5

1

1

2

2

1

1

188 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 9, Accessories and Spare Parts: Recommended Spares

Kit No.

60-551-06

60-551-07

Table 8: LCSF Spare Parts Kits

Description

Spare Parts Kit for Worm Slide

Set (60-430-00)

Spare Parts Kit for Universal

Counterbore Slide

Part Description

SHCS, 1/4-20 x 3/4 Captivated

Feed Nut

Modified Key

Trip Pin

Shoulder Bearing

Starwheel

Worm Gear

Feed Screw

Kit, Worm Slide Fasteners

Spring Plunger, 1/4-20 x 1/2

Feed Screw

Bushing LC1-12

Bushing LC1-3

Rev. 1 to Rev 2 Upgrade Kit

Kit, Universal Counterbore Slide

Fasteners

Part No.

43-067-00

53-087-00

60-235-00

60-268-00

60-288-00

60-291-00

60-293-00

60-306-00

60-550-06

90-059-08

60-147-00

60-150-00

60-157-00

60-370-00

60-550-07

Qty

1

1

1

1

1

1

1

1

2

1

1

1

1

2

1

E.H. Wachs Part No. 60-MAN-07, Rev. C 189

Low Clearance Split Frame, Models 204-1420

190 Part No. 60-MAN-07, Rev. C E.H. Wachs

Chapter 10, Ordering Information

Chapter 10

Ordering Information

To place an order, request service, or get more detailed information on any E.H. Wachs products, call us at one of the following numbers:

U.S. 800-323-8185

International: 847-537-8800

You can also visit our Web site at: www.ehwachs.com

o rdering

r ePlaceMenT

P arTs

When ordering parts, refer to the drawings and parts lists in Chapter 8. Please provide the part description and part number for all parts you are ordering.

r ePair

i nforMaTion

Please call us for an authorization number before returning any equipment for repair or factory service. We will advise you of shipping and handling. When you send the equip ment, please include the following information:

• Your name/company name

• Your address

• Your phone number

• A description of the problem or the work to be done.

Before we perform any repair, we will estimate the work and inform you of the cost and the time to complete it.

E.H. Wachs Part No. 60-MAN-07, Rev. C 191

Low Clearance Split Frame, Models 204-1420

W arranTy

i nforMaTion

Enclosed with the manual is a warranty card. Please fill out the registration card and return to E.H.

Wachs. Retain the owner’s registration record and warranty card for your information.

r eTurn

g oods

a ddress

Return equipment for repair to the following address.

E.H. Wachs

600 Knightsbridge Parkway

Lincolnshire, Illinois 60069 USA

192 Part No. 60-MAN-07, Rev. C E.H. Wachs
