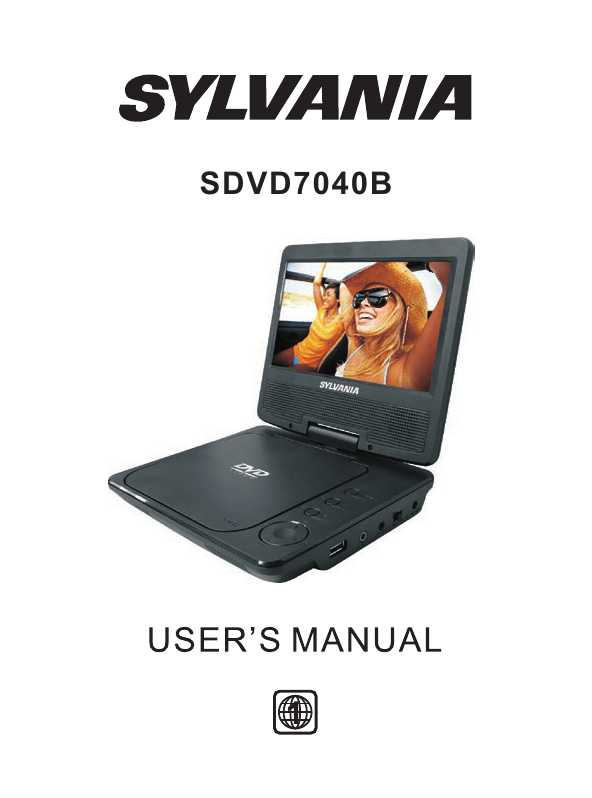

User Manual

SDVD7040B

Table Of Contents

Safety Precaution

System Setup

Specification

1

18

22

Safety Precaution

Thank you for choosing our portable DVD player.

The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation.

Warning: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device.

2) Do not use this unit near water. Do not place over the unit any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, exposed to moisture, does not operate normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction.

1

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

2

Package

DVD Player

Remote Control with battery

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Main Features

High brightness color 7" LCD screen

Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc.

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD, speed forward/backward, repeat function

Swiveling LCD Screen

for use.

180° 180°

1

1

1

1

1

3

Main Unit Controls

1

13

2

3

4

5

6

7

8

9

10

11

12

1. SD card slot

2. MODE button

3.

Play/Pause / VOL+

(press shortly to play/pause,

press longly to add volume.)

4. STOP / VOL

-

(press shortly to stop, press

longly to reduce volume.)

4

5.

6.

7. Open knob

8. DC IN 9-12V

9. Power ON/OFF switch

10. AV OUT

11. Earphone jack

12. USB Port

13. Rating label position

System Connection

Powering And Installation

Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle.

Please refer to the following illustration.

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Note

1. Car cigarette lighter adaptor is available to use only when the car cigarette

lighter with DC 12V negative grounding.

2. The mains plug is used as the disconnect device, the disconnect device

should remain readily operable.

Using SD/MMC card

Upon using an SD or MMC card, insert it into the corresponding slot flatly with label side upward until you hear a click.

Using USB

Upon using an USB, insert it into the USB slot directly.

5

Connecting With External Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV CABLE

Not supplied

VIDEO IN

TV

AUDIO IN

AMPLIFIER

Left front speaker

Center speaker Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Note:

There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

6

The Remote Control

1. Number button

2. TITLE (To display title

information)

3. AUDIO (To select audio

language)

4. SETUP (To go to or exit

setup menu)

5. / Previous/Next

button (To go to previous/

next chapter or scene

1

during playing)

6. / Fast forward/

backward button (To scan

forward/backward at 2, 4,

8, 16, or 32 times )

2

3

4

5

6

7. OSD (To display disc

information during playing

such as elapsed and

remaining time)

8. Play / pause

9. STOP ( Press once to

10

7

8

9

stop playback, then press

to resume playback

from the point where you

stopped; press stop button

twice to stop playback completely.)

10. ENTER (To confirm)

11. MODE (To select the source refer to P17)

12. ZOOM(To zoom in the image during the playback)

13. MENU (To enter or exit menu root)

14. SUBTITLE (To select subtitle language when playing DVD disc)

15. ANGLE (To change viewing angle when playing disc with multi-angle)

16. A-B (Repeat a specific portion from point A to B, press it again to cancel

repeat playing)

17. REPEAT (To repeat playing title, chapter or track)

18. RETURN (To return to the main menu)

19. MUTE (To turn to mute)

20. VOL +/- (To adjust the volume)

11

12

13

14

15

16

17

18

19

20

7

The Use Of Remote Control

Please put the battery into the remote control as per illustration below.

1

2

CR2025

When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. Please refer to the following illustration.

CR2025

30

0

30

0

Notice

1. To avoid falling off or place near damp environment.

2. To avoid infrared receiving window of the unit being under direct sunlight.

3. Please use a new battery to replace old one if the remote control doesn't

work.

8

Basic Operation

DVD

MPEG4 SVCD

VCD CD MP3 XVID

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, XVID.

1. In the Source Mode, you can press " ", " ", to select and "ENTER" key

to enter the source you want.

DVD SD USB

2. Open the disc door and insert a disc into the door with the label side facing

up.

3. Close the disc door. The unit will load the disc and start playing.

4. Press to once to stop playback; then press to resume playback from

the point where you stoped; press twice to stop playback completely).

5. During playback, press to pause; press it again to resume playback.

6. When the playing is finished, please turn off the power by sliding ON/OFF

switch to OFF.

7. For some DVD disc with Title or Chapter menu, press "MENU" button to

enter menu page, and use to select. Press ENTER to confirm.

Note:

Please do not disconnect USB devices or plug out SD/MMC cards while they are working with the unit. Functional failure may occur in case of wrong operations.

Menu

Play/pause

Title

Cursor button

ENTER

9

Fast Forward And Fast Backward

DVD VCD CD

MPEG4 SVCD

When playing disc of DVD, MPEG4, SVCD, VCD, CD, the unit can search forward or backward.

1. Press , the unit will search forward.

Press it repeatedly ,the unit will play at

2, 4, 8, 16, 32 times of speed.

2X 4X

32X 16X 8X

2. Press , the unit will search backward.

Press it repeatedly, the unit will play at

2, 4, 8, 16, 32 times of speed.

2X 4X

Search forward

Search backward

32X 16X 8X

Repeat Playing

DVD

MPEG4 SVCD

VCD CD

When playing disc of DVD, MPEG4, SVCD, VCD, CD, user can repeat playing one chapter, title or all the whole disc.

For DVD disc, press "repeat" button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

Chapter Title All

Repeat off

For MP3 disc, press "repeat" to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat playing.

Repeat one Repeat folder

Repeat off

10

Repeat Playing Of Favorite Scene

DVD VCD CD MP3

MPEG4 SVCD

When playing disc of DVD, MPEG4, SVCD, VCD,

CD, MP3, user can repeatedly play a specific section.

During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between A-B.

Press it the third time, the unit will return to normal playback.

A

AB

Number

A-B

Angle

Select Angle

DVD

During playing DVD disc with multi-angle, press

"Angle", button, the followings will be displayed on screen.

Press number buttons to select the angle you desire.

To return to normal playing,please press "Angle" the unit will play the disc in the default angle.

Note

The function is available only for discs with multi-angle.

11

1 /4

2 /4

3 /4

4 /4

Zoom in/out

When playing disc of JPEG user can zoom in or zoom out the image.

During playback, press Zoom button, the image will be enlarged; press it again the image will be enlarged again; press it fifth time, the image will zoom out, press it repeatedly and the image will return to normal status.

100%

125%

150%

200%

75%

50%

When playing disc of DVD,VCD user can zoom in/out the image.

During playback,press Zoom button,the image will be enlarged;press it again the image will be enlarged again;press it fourth time the image will zoom out,press it repeatedly and the image will return to normal status.

When the image is enlarged, user can press

to move the image.

Zoom in

2X

3X

4X

½

1

/

3

¼

12

Playing JPEG File In Data Disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. Press "MENU" to browse JPEG files.

3. Press " " to select a JPEG file and press "ENTER" button to confirm.

Note: you can press MENU to return to the folder list. Press " " or

"ENTER" to preview the file selected

4. To rotate the picture counter-clockwise, press " "; Press " " to rotate

the picture clockwise.

5. Press OSD button when viewing pictures, you can select different refresh

mode as follows:

6. During viewing files, " " may appear when pressing "Angle" or "Subtitle"

or "Audio" or "A-B" or "Title" etc; in this situation these options are

unavailable to operate.

7. When viewing JPEG files, press " ", pictures will be displayed in

thumbnail mode, press or "ENTER" button to select one

picture to view.

Playing MP3 Files In Data Disc

1. Place MP3 disc into the disc door .

/

choose a MP3 file; Press " " or

"ENTER" button to play the file

selected.

13

00 36 03

Dir 001

43

\Ctyy\

......

Mp3 TRACK01

Mp3

TRACK02

Mp3 TRACK03

Mp3 TRACK04

Mp3 TRACK05

SD/MMC/USB Main Menu

After Enter the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. press "ENTER" key to confirm.

Browser Mode

Detail explanation please refer to P15

Photo Mode

Detail explanation please refer to P15-16

Music Mode

Detail explanation please refer to P17

Movie Mode

Detail explanation please refer to P17

Note: Media cards formatted in exFAT file system not supported.

14

Browser Mode

In the Browser Mode ,the system will show the list of file and folder.

" ", " ", "ENTER" key: select and play

" " : Enter the folder

" " : Quit the folder

00 00 03

001/008

\Ctyy\

43

Note : if you want to return

to the Main Menu , first, the system must be in List of file and folder status, and you can press "RETURN"

KEY to return to the Main

Menu.

Mp3

......

TRACK01

Mp3

TRACK02

Mp3

TRACK03

Mp3 TRACK04

Mp3 TRACK05

Photo Mode

Slide Show Menu Prev Next

In the Photo Mode, the System will show the thumbnail Mode first.

" ", " ", " ", " ", "ENTER": select and play.

Slide Show : play the JPEG

Menu : Enter the Help Menu.

Prev : Page Up.

Next : Page Down.

15

When playing JPEG :

1.To rotate the picture counter-clockwise, press " "; Press " " to rotate the

picture clockwise

2. Press OSD button when viewing pictures, you can select different refresh

mode as follows:

3. During viewing files, " " may appear when pressing " Angle " or "Subtitle"

or "Audio" or "A-B" or "Title" etc; in this situation these options are

unavailable to operate.

4. When viewing JPG files, press " " or "RETURN" key , pictures will be

displayed in thumbnail mode, press or “ENTER” button to

select one picture to view.

Note: If want to return the Main Menu , you can Press "Return" key in the

thumbnail mode.

16

Music Mode

In the Music Mode, the system will show the list of music file, like MP3 and so on.

Press " ", " ", "ENTER", select and play.

Press " / " to fastward/ backward MP3 during playing.

Mp3

TRACK01

128Kbps

Press " / " to select the bottom function when in

"stop" status.

Page-: Page Up.

: Play

Page+: Page Down

Mp3

Mp3

Mp3

Mp3

TRACK02

TRACK03

TRACK04

TRACK05

P P

00 00 03 43

001/008

Repeat Off

Note: Press "Return" Key to

Return to the Main Menu

Movie Mode

In the Movie Mode ,the system will show the list of Movie file, like AVI and so on.

" ", " ", "ENTER" Key :

Select and Play.

001/006

When playing movie you can press "MENU" and "Return"

Key to back to the list of movie file status. And if you want to Return to the Main

Menu, Please Press "Return" key in list of Movie file status.

AVI

AVI

AVI

AVI

AVI

AVI

MOVIE01

MOVIE02

MOVIE03

MOVIE04

MOVIE05

MOVIE06

17

CD Ripping

During playing the CD/HDCD disc, you can enter CD Ripping function.

By pressing subtitle button, DVD player will be able to change the

CD format into MP3 format, and then store it in the USB.

Options

Speed Normal

Bitrate 128kbps

Create Id3 Yes

Device USB 1

SUMMARY

Selected Track 0

Selected Time 00:00

Start Exit

CD RIP

Track

Track 01 03:36

Track 02 03:36

Track 03 03:36

Track 04 03:36

Track 05 03:36

Track 06 03:36

Track 07 03:36

Selected all Selected nono

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices, 96 Kbps,

112Kbps,128Kbps, 196Kbps,256Kbps and 320 Kbps.

Create ID3: In this item, you can create ID3.

Device: This item indicates whether

USB is connected with DVD player.

Exit: Exit to the previous menu.

Select all: Select all the files in

the disc for changing and storing.

Ripping

Track Progress

CD RIP

Selected track

Track 01 9%

Total Progress

Select none: Remove all the files in

the disc.

Start: Move the cursor to the item

and press Enter button, the changing begins.

Cancel

SUMMARY

Now ripping

Track 01/01

During the changing, you can select CANCEL to stop the changing.

System Setup

Setup Menu -- Main Page

General Setup

Video Setup

Preference Setup

Press "Setup" button, the main menu will be displayed on the screen

In the General Setup Page, Press button to highlight this item.

Press ENTER button to access.

Press button to select the setting.

Press ENTER button to confirm your selection.

Press button to exit.

18

General Setup Page

General Setup

TV Display Wide

Normal/PS

Angle Mark ON

Normal/LB

OSD Lang ENG

Wide

Screen Saver ON

:Move

:Return :Entry

General Setup

TV Display Wide

Angle Mark ON

OSD Lang ENG

Off

Screen Saver ON

On

:Move :Return :Entry

General Setup

TV Display Wide

Angle Mark ON

OSD Lang ENG

English

Screen Saver ON

French

German

Italian

:Move :Return :Entry

General Setup

TV Display Wide

Angle Mark ON

OSD Lang ENG

Screen Saver ON

On

Off

:Move :Return :Entry

TV display:

Enter this option, user can set screen display format (Nomal/PS, Nomal/LB, Wide)

The default is "Wide".

Note

The function depends on the display ratio

with which the DVD disc is recorded.

Please choose "Wide(16:9)" when using

a 16:9 wide screen TV set.

Angle Mark:

Enter this option to set the angle during playback.

Optional setting: ON,OFF.

The default is: ON.

OSD Language:

In the option user can set OSD menu language (English, French, German, Italian).

The default: English.

Screen Saver

Enter this option to set whether to activate the screen saver function.

The default is ON.

19

Video Setup Page

Video Setup

TV Type NTSC

Quality

Panel Quality

PAL

NTSC

TV Type:

Enter this option to select TV type

(PAL, NTSC)

The default is NTSC.

:Move :Return

Video Setup

TV Type NTSC

Quality

Panel Quality

:Entry

Set the Video Quality of AV OUT

:Move :Return

Video Setup

TV Type NTSC

Quality

Panel Quality

:Entry

Set the Video Quality of PANEL

:Move :Return :Entry

Preference Page

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Preference Setup

English

French

German

Italian

Default

:Move :Return :Entry

Audio:

Enter this option,user can select preferred audio language for DVDs.

The default is English.

Note

The audio language depend on the material

on each disc.

User can also change the audio language

durin g play back by pressing the Audio button.

20

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

English

French

German

Italian

Off

:Move

:Return :Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

:Move :Return

English

French

German

Italian

:Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

:Move :Return

1 KID SAFE

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC 17

8 ADULT

:Entry

Preference Setup

Audio ENG

Subtitle Off

Disc Menu ENG

Parental

Default

Reset

:Move :Return :Entry

Subtitle

Select your preferred language to show the subtitles on the screen.

The default is OFF.

The subtitle languages depend on the information available on each disc, You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu

This function allows you to choose the menu language stored on the disc.

The default is English.

Note:the disc menu languages depend on the information available on the disc.

Parental:

Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.

Optional parental control levels: KID SAFE,

G, PG,PG 13,PGR, R, NC17, ADULT.

The default is ADULT.

The default password:8888.

Default:

Select this item and press " ENTER" button to reset.

21

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 7 inch

Picture resolution: 480x234(RGB)

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75 Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80 dB

Dynamic range: Better than 85 dB

USB: support USB 1.1

Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature:0~40 °C

Weight: 0.6 kg

Dimensions (W x D x H): 176 x 157 x 40 mm

Battery Type: Li Polymer

22

Rechargeable Battery Use

The unit utilizes long-life Li polymer battery for portable power supply. The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It is enough to recharge no longer than 4H each time. Fully recharged battery can last about 2.5 hours with earphones on.

Precautions Related To Battery Recharge

The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it is fully charged.

Using And Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing

and unattended;

4. Avoid having the unit collide with any objects, and place away from all

possible heat sources or damp areas.

Caution:

Danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.

Removal Of Waste Battery

Batter y

Main PCB

Battery

Before to discard EOL unit, please remove the waste battery by below steps: a. Pull out the screws on the bottom cover by the screwdriver to unpack the

unit.

b. Pull out the screws on the Main PCB board by the screwdriver to unpack

the PCB board and then the battery can be seen.

c. Remove the battery socket from the board.

23

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1. The disc's software restricts it.

2. The disc's software doesn't support the

feature (e.g., angles)

3. The feature is not available at the moment.

4. You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged. Try another disc;

It is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;

If you try to skip through the warning information and credits at the beginning of a movie, you won't be able to. This part of the movie is often programmed to prohibit skipping through it.

lf at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment

Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.

24

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
