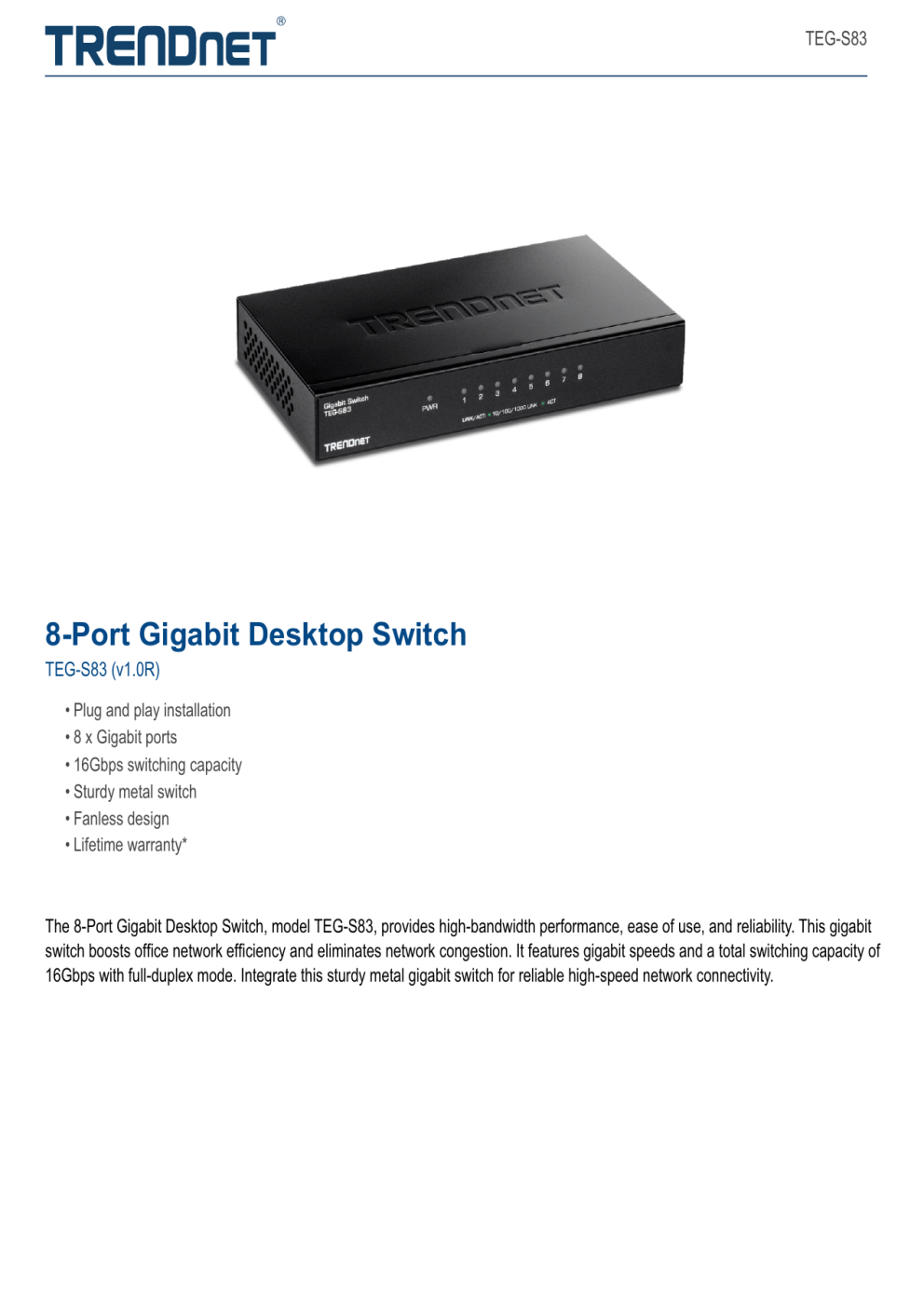

8-Port Gigabit Desktop Switch
TEG-S83 (v1.0R)
• Plug and play installation
• 8 x Gigabit ports
• 16Gbps switching capacity
• Sturdy metal switch
• Fanless design
• Lifetime warranty*
The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit
switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of
16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.
Gigabit Speeds
Compact Design
Gigabit ports provide high-speed network
connections to eight devices, and a 16Gbps
switching capacity allows data traffic to flow
smoothly, reducing traffic bottlenecks.
With a compact and lightweight metal housing
design, this gigabit switch is well-suited for
desktop installations.
Fanless design lowers energy consumption,
and eliminates distracting noise for quiet
environments that require silent operation.
Easy Setup
Switching Capacity
Simply power up the gigabit network
switch and plug in connected devices
8 x Gigabit Ethernet ports
16Gbps switching capacity
Jumbo Frame
Housing Design
This gigabit Ethernet switch sends
larger packets, or Jumbo Frames (up
to 9KB), for increased performance
Fanless design lowers energy
consumption and eliminates operating
Compact and lightweight metal
LED Indicators
LEDs on the gigabit switch convey
power, link, and activity
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
Device Interface
• 8 x Gigabit ports
• LED indicators
Data Transfer Rate
• Ethernet: 10Mbps (half duplex), 20Mbps (full
• Fast Ethernet: 100Mbps (half duplex),
200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)
• Switching Capacity: 16Gbps
• RAM Buffer: 192KB
• MAC Address Table: 4K entries
• Forwarding Rate: 11.9Mpps (64-byte packet
• Jumbo Frames: 9KB
• Input: 100 – 240V AC, 50/60 Hz, 0.2A
• Output: 5 V DC, 1A external power adapter
• Max. Consumption: 3.2W
Operating Humidity
• Max. 90% non-condensing
Dimensions (L x W x H)
• 160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.)
• 414g (14.6 oz.)
• CE
• Lifetime warranty
• Fanless design
• 1,451,740 hours
Operating Temperature
Package Contents
• TEG-S83
• Quick Installation Guide
• Power Adapter (5V DC, 1A)
• 0° – 40° C (32° – 104° F)
TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a
one-year warranty.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] •
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at
any time, without notice. For the most recent product information please visit Copyright © TRENDnet. All Rights Reserved.
Updated: 3/17/2022
