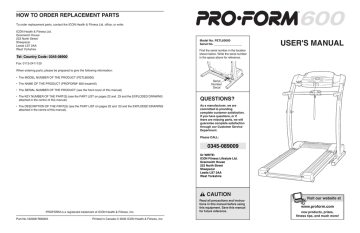

HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:
ICON Health & Fitness Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
Model No. PETL60000
Serial No.
USER'S MANUAL
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Tel: Country Code: 0345-08900
Fax: 0113-2411120
When ordering parts, please be prepared to give the following information:
¥ The MODEL NUMBER OF THE PRODUCT (PETL60000)
¥ The NAME OF THE PRODUCT (PROFORM¨ 600 treadmill)
¥ The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
Serial
Number
Decal
¥ The KEY NUMBER OF THE PART(S) (see the PART LIST on pages 22 and 23 and the EXPLODED DRAWING
attached in the centre of this manual)
QUESTIONS?
¥ The DESCRIPTION OF THE PART(S) (see the PART LIST on pages 22 and 23 and the EXPLODED DRAWING
attached in the centre of this manual).
As a manufacturer, we are
committed to providing
complete customer satisfaction.
If you have questions, or if
there are missing parts, we will
guarantee complete satisfaction
through our Customer Service
Department.
Please CALL:
0345-089009
Or WRITE:
ICON Fitness Lifestyle Ltd.
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
CAUTION
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
Part No.162008 R0600A
Printed in Canada © 2000 ICON Health & Fitness, Inc.
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
¨
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the centre of this manual.
2
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122**
123*
124
21
1
2
2
1
1
2
2
1
2
1
1
1
1
1
1
2
1
4
1
1
2
1
4
Screw
Lock Knob
Extension Leg
Extension Leg Cap
Shock
Choke
Pulse Bar Bolt
Pulse Bar Washer
Pulse Bar
Handrail Foam Grip
Lock Knob Sleeve
Spring
Lock Pin Collar
Pin Clip
Lock Pin
Console Base Bottom
Upright Endcap
Choke Bracket
Base Pad Spacer
Rear Foot Spacer
I-Fit.com CD (not included)
3 lbs. (1.3 kg) Weight
Latch Assembly
Wood Screw
125
126*
127
128
129
130
131
#
#
#
#
#
#
#
#
#
#
1
2
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
50Ó Wire Harness
Extension Leg Assembly
Belly Pan Foot
Foam Tape
Filter
Motor Square Bushing
Motor Isolator Plate
8Ó White Wire, 2F
4Ó Black Wire, M/F
8Ó Blue Wire, 2F
4Ó Blue Wire, 2F
4Ó Black Wire, 2F
4Ó Green Wire, F/Ring
8Ó Green Wire, F/Ring
8Ó Green Wire, 2 Ring
6Ó Green/Yellow
User's Manual
* Includes all parts shown in the box
**For more information about the optional hand weight
set, see page 17
# These parts are not illustrated
23
PART LISTÑModel No. PETL60000
R0600A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the centre of this manual.
22
Key
No. Qty.
1
2
3
4*
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
1
4
1
2
1
1
1
2
4
1
1
2
1
8
1
4
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
3
2
4
2
1
2
1
1
4
4
2
15
1
2
1
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
Description
Key
No. Qty.
Description
Motor Belt
Pulley/Flywheel/Fan
3/8Ó Motor Flange Nut
Motor/Pulley/Flywheel/Fan
Incline Motor Bolt
Incline Motor Spacer
Incline Motor
Stop Bracket
Electronics Nut
Star Washer
Optic Switch
Frame
Electronics Bolt
Incline Optic Disk
3/8Ó Nut
UK Power Cord
Plastic Stand-Off
Hood Bracket (short)
Hood Bracket (long)
Caution Decal
Reed Switch
Reed Switch Clip
Motor/Controller Wire
Controller
Electronics Bracket
Circuit Breaker
Receptacle
Tension Bolt Sleeve
On/Off Switch
Power Inlet Bracket
Incline Leg
Frame Pivot Bolt
Frame Pivot Spacer
Upright Wire Harness
Front Roller Adj. Bolt
Roller Adj. Washer
Motor Tension Nut/Front Roller Nut
Motor Carriage Bolt
Cap Screw
Left Foot Rail Cap
Foot Rail
Front Roller/Pulley
Magnet
Platform Screw
Isolator
Isolator Screw
Fastener
Shield
Belt Guide
Book Holder
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78**
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Front Belly Pan
Euro Power Cord
Cable Tie Clamp
Belly Pan Screws
Walking Belt
20Ó Wire Harness
Rear Roller
Rear Isolator
Rear Foot
Rear Foot Screw
Ground Wire
Hex Screw
Belly Pan
Rear Endcap
Rear Roller Adj. Bolt
Motor
Latch Decal
Rear Platform Screw
Electronics Screw
Latch Catch
Walking Platform
8Ó Cable Tie
Jack
Motor Tension Bolt
Foot Rail Insert
Small Screw
Console
2 lbs. (1 kg) Weight
Plastic Trim
10Õ I-Fit Wire
Circuit Board
Upright
Incline Leg Pivot Bolt
Static Warning Decal
Handrail Extension
Wheel Bolt
Console Base
Motor Tension Washer
Console/Catch Screw
Key/Clip
Incline Motor Belly Pan
Right Foot Rail Cap
Motor Tension Spacer
Motor Hood
Front Wheel
Incline Motor Shield
Base Pad
12Ó Audio Wire
Electronics Bracket Grommet 1Ó
Allen Wrench
1
1
4
13
1
1
1
2
2
6
1
28
1
1
2
1
1
2
2
1
1
5
1
1
2
6
1
2
1
1
1
1
2
2
2
2
1
1
10
1
1
1
1
1
2
1
6
1
2
1
IMPORTANT PRECAUTIONS
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
12. If an extension cord is needed, use only a 3conductor, 1mm2 (14 gauge) cord that is no
longer than 1.5 meters.
2. Use the treadmill only as described in this
manual.
13. Keep the power cord away from heated surfaces.
3. Place the treadmill on a level surface, with at
least 2 metres of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
4. When choosing a location for the treadmill,
make sure that the location and position permit access to a plug.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should not be used by persons
weighing more than 115 kg.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page
8), plug the power cord into an earthed circuit. When replacing the fuse, on ASTA approved BS1362 type should be fitted to the
fuse carrier. A 13 amp fuse should be used.
No other appliance should be on the same
circuit.
15. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/off switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the location of the on/off switch.)
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 18.) You
must be able to safely lift 20 kg in order to
raise, lower, or move the treadmill.
20. Do not change the incline of the treadmill by
placing objects under the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
3
22. When using i-Fit.com CDÕs and videos, an
electronic ÒchirpingÓ sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
ÒchirpÓ and be prepared for speed and/or incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
23. When using i-Fit.com CDÕs and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
ÒchirpÓ is heard, the speed and/or incline will
change to the next settings of the CD or video
program.
24. Always remove i-Fit.com CDÕs and videos
from your CD player or VCR when you are not
using them.
25. Inspect and tighten all parts of the treadmill
regularly.
26. Never insert or drop any object into any
opening.
27.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorised service representative. Servicing
other than the procedures in this manual
should be performed by an authorised service
representative only.
28. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
CONDITIONING GUIDELINES
WARNING:
Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your exercise program. RememberÑthese are general guidelines only. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible,
please call our Customer Service Department at 0345-089009 to order a free replacement decal (see the
front cover of this manual). Apply the decal in the location shown.
Note: This decal is shown at 38% of actual size.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your Òtraining zone.Ó The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor on the console. If your heart rate is too
high or too low, adjust the speed and incline of the
treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
4
uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-upÑStart each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exerciseÑnever
hold your breath.
A Cool-downÑFinish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
EXERCICE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
21
PROBLEM: The walking belt slows when walked on
BEFORE YOU BEGIN
SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1mm ) cord that is no longer
than 5 feet (1.5 meters).
2
b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 7 to
10 cm off the walking platform. Be careful to keep the
walking belt centred. Plug in the power cord, insert
the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
7Ð10 cm
Thank you for selecting the revolutionary PROFORM¨
600 treadmill. The treadmill combines advanced technology with innovative design to help you get the most
from your exercise program in the convenience and privacy of your home. And when youÕre not exercising, the
unique PROFORM¨ 600 can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our our Customer Service Department at
0345-089009. To help us assist you, please note the
product model number and serial number before calling. The model number of the treadmill is PETL60000.
The serial number can be found on a decal attached to
the treadmill (see the front cover of this manual for the
location).
Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labelled.
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department.
Water Bottle
Holder (bottle
not included)
PROBLEM: The walking belt is off-centre
SOLUTION: a. If the walking belt has shifted to the left, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt
clockwise, and the right bolt counterclockwise, 1/4 of a
turn each. Be careful not to overtighten the walking belt.
Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is
centred.
Book Holder
Console
a
Pulse Sensor
Handrail
Key/Clip
LEFT SIDE
RIGHT SIDE
Lock Knob
b. If the walking belt has shifted to the right, first remove the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn the left rear roller adjustment bolt counterclockwise, and the right bolt clockwise,
1/4 of a turn each. Be careful not to overtighten the
walking belt. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the
walking belt is centred.
b
On/Off Switch
Circuit
Breaker
Walking Belt
Front
Wheel
PROBLEM: The walking belt slips when walked on
SOLUTION: a. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts
clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of
the walking belt 7 to 10 cm off the walking platform. Be
careful to keep the walking belt centred. Plug in the
power cord, insert the key and carefully walk on the
treadmill for a few minutes. Repeat until the walking belt
is properly tightened.
Foot Rail
a
Power Cord
Rear Roller
Adjustment Bolts
Cushioned Walking Platform
PROBLEM: The incline of the treadmill does not change correctly or does not change when i-Fit.com
CDÕs and videos are played
20
SOLUTION: a. With the key inserted in the console, press one of the incline buttons. While the incline is
changing, remove the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate
the incline.
5
ASSEMBLY
TROUBLE-SHOOTING
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver
.
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department
at 0345-089009.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
PROBLEM: The power does not turn on
If you have additional questions, please call our our Customer Service Department at 0345-089009.
1. With the help of a second person, carefully raise the
treadmill to the upright position.
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See HOW TO PLUG IN
THE POWER CORD on page 8.) If an extension cord is needed, use only a 3-conductor, 14gauge (1mm2) cord that is no longer than 1.5 meters (5 feet). Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. See step 1 on page 10.
1
c. Check the circuit breaker located on the treadmill near
the power cord. If the switch protrudes as shown, the
circuit breaker has tripped. To reset the circuit breaker,
wait for five minutes and then press the switch back in.
While a second person tips the treadmill to one side and
holds it, insert one of the Extension Legs (103) into the
treadmill as shown. Make sure that the Extension Leg is
turned so the Base Pad (97) is on the bottom.
d. Check the on/off switch located on the treadmill near
the power cord. The switch must be in the on position.
Next, tip the treadmill to the other side and insert the
other Extension Leg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(103) are resting flat on the floor.
103
c
Tripped
Tripped
Reset
d
e. Check the fuse in the power cord shown on page 7. If
the fuse is blown, replace it with an equivalent fuse.
97
Reset
On
Position
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If
the circuit breaker has tripped, wait for five minutes and then press the switch back in.
2. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extension Legs (103) remain in the Uprights.
2
b. Check the fuse in the power cord. Replace the fuse if required.
97
b. Make sure that the power cord is plugged in.
Attach each Extension Leg (103) with two Screws (101)
and a Base Pad (97) as shown.
97
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 10.
d. Make sure that the on/off switch is in the on position.
With the help of a second person, carefully tip the
Uprights (82) back to the vertical position.
101
e. If the treadmill still will not run, please call our Customer Service Department.
PROBLEM: The speed display on the console does not function properly
Note: One replacement Thick Base Pad (97) may be
included. Use the extra Pad if one becomes worn or
needs to be replaced.
103
97
82
101
103
97
97
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the screws from the hood and
carefully remove the hood. Locate the Reed Switch (21)
and the Magnet (43) on the left side of the Pulley (42).
Turn the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the Magnet
and the Reed Switch is about 3 mm. If necessary,
loosen the Small Screw (76) and move the Reed Switch
slightly. Retighten the Screw. Re-attach the hood, and run
the treadmill for a few minutes to check for a correct
speed reading.
3 mm
76
21
42
43
Top
View
PROBLEM: The pulse display on the console does not function properly
SOLUTION: a. Wash your hands prior to using the pulse sensor. Clean the sensor with a damp cloth and soap.
6
b. Make sure that there is not a bright light or direct sunlight shining directly on the pulse sensor.
19
3. Locate the plastic tie in the post on the left Upright (82).
Hold a Handrail Extension (85) in the position shown.
Insert the plastic tie into the Handrail Extension as you
insert the Handrail Extension into the post. Attach the
Handrail Extension with three Small Screws (76). Note:
The plastic tie is tied to the 50Ó Wire Harness (125). Be
careful to avoid damaging the Hand Pulse Wire. The
50Ó Wire Harness is used with the optional chest
pulse sensor (see page 17).
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
1
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 20 kg in order
to raise, lower, or move the treadmill.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 30¡Celsius.
Post
76
Plastic Tie 125
110
Slide a Handrail Foam Grip (110) onto the Handrail
Extension (85). Press one Fastener (47) into the Handrail
Foam Grip.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the latch pin is
aligned with the hole in the catch. Insert the latch pin into
the catch. Make sure that the latch pin is fully inserted
into the catch.
3
82
Attach the other Handrail Extension and Handrail Foam
Grip to the right Upright (not shown). Note: There is not a
pulse wire in the right Upright.
2
Open
4. Make sure that the Lock Knob Sleeve (111) is fully inserted into the left Upright (82).
47
4
Remove the Lock Knob (102) from the Lock Pin (115).
Make sure that the Lock Pin Collar (113) and the Spring
(112) are on the Lock Pin. Insert the Lock Pin into the left
Upright (82) and tighten the Lock Knob onto it.
Lock
Knob
76
85
82
Closed
Pin
Catch
102
112
113
115
HOW TO MOVE THE TREADMILL
111
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch
pin is fully inserted into the catch.
5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet
from damage, place a mat under the treadmill.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
Base
Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Refer to drawing 2 above. Hold the treadmill with your right hand as shown. Using your left hand, pull the latch
knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.
2. Refer to drawing 1. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. CAUTION: To
decrease the possibility of injury, bend your legs and keep your back straight.
18
7
8
OPERATION AND ADJUSTMENT
Follow your progress with the LED track and
the four displays.
See step 5 on page 10.
THE PERFORMANT LUBETM WALKING BELT
Measure your pulse, if desired.
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such
substances will deteriorate the walking belt and cause excessive wear.
9
HOW TO PLUG IN THE POWER CORD
10
1
Use only a power cord type H05VV-F with a conductor of at least
1mm2, with a country recognised plug and an appliance coupler.
DANGER:
Improper connection of the
equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to
whether the product is properly earthed. Do not modify the plug provided with the productÑif it will not fit
the outlet, have a proper outlet installed by a qualified
electrician.
When the program is finished, remove the
key.
Socket on treadmill
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-earthing conductor
and an earthing plug.
Two power cords are included. Select the one that will fit your
outlet. Refer to drawing 1. Plug the indicated end of the power
cord into the socket on the treadmill. Refer to drawing 2. Plug
the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances. Note: In Italy, an adapter (not included) must be
used between the power cord and the outlet. Important: The
treadmill is not compatible with GFCI-equipped outlets.
See step 6 on page 11.
Step onto the foot rails and remove the key from
the console. Keep the key in a secure place. Note:
If the displays and various indicators on the
console remain lit after the key is removed, the
console is in the ÒdemoÓ mode. Refer to the instructions below and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position.
2
Outlet
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also
allows you to switch the console from miles per hour to
kilometres per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
To select the information mode, hold down the stop
button while inserting the key into the console. When
the information mode is selected, the following information will be shown:
The distance/laps display will
show the total number of miles
that the walking belt has moved.
The time/incline display will
show the total number of hours
the treadmill has been used.
IMPORTANT: The
calories/fat calories/pulse
display should be blank. If
a ÒdÓ appears in the display,
the console is in the ÒdemoÓ
mode. This mode is intended
to be used only when a treadmill is displayed in a store.
When the console is in the
demo mode, the power cord
can be plugged in, the key
can be removed from the
console, and the displays and
indicators on the console will
automatically light in a preset sequence, although the
buttons on the console will not operate. If a ÒdÓ appears in the calories/fat calories/pulse display
when the information mode is selected, press the
speed ▼ button so the calories/fat calories/pulse
display is blank.
To exit the information mode, remove the key from the
console.
OPTIONAL HAND WEIGHTS
Optional hand weights
let you include upperbody exercise in your
workouts. The hand
weights fit into convenience holders in the
console. To purchase
the hand weights,
contact our Customer
Service Department.
at 0345-089009.
OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor offers
hands-free operation and continuously monitors your
heart rate during your workouts. To purchase the
optional chest pulse sensor contact our Customer
Service Department at 0345-089009.
An ÒE,Ó for english miles, or an
ÒM,Ó for metric kilometres, will
appear in the speed/min-mile
display. Press the speed ▲
button to change the unit of
measurement.
8
17
HOW TO USE PROGRAMS DIRECTLY FROM
OUR INTERNET SITE
Our new internet site at www.iFit.com allows you to access a large selection of programs that interactively
control your treadmill to help you achieve your specific
exercise goals. In addition, you can play iFit.com audio
and video programs directly from the internet. You can
use even more features on our internet site. Explore
www.iFit.com for details.
To use programs from our internet site, the treadmill
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 13. In addition, you must have at least a 56K modem and an
account with an internet service provider. A list of additional system and software requirements will be found
on our internet site.
Next, make sure that the
on/off switch near the
On
power cord is in the on poPosition
sition. In addition, make
sure that the power cord is
properly plugged in (see
HOW TO PLUG IN THE POWER CORD on page 8).
Follow the steps below to use a program from our
internet site.
1
Insert the key fully into the console.
When the key is
inserted, the four displays and various indicators on the console
will light.
2
Press the mode button.
When the key is inserted, the manual
mode will automatically
be selected. To use a
program from our internet site, press the
mode button. The
iFit.com indicator will light.
16
3
Go to your computer and start an internet
connection.
4
Start your web browser, if necessary, and go to
our internet site at www.iFit.com.
5
Follow the desired links on our internet site to
select a program.
DIAGRAM OF THE CONSOLE
Manual Indicator
Displays
LED Track
Displays
iFit.com Indicator
Read and follow the on-line instructions for using a
program.
6
Follow the on-line instructions to start the
program.
When you start the program, an on-screen countdown will begin.
7
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the key onto the waistband of your clothing.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking.
During the program, an electronic ÒchirpingÓ sound
will alert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always
listen for the ÒchirpÓ and be prepared for speed
and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the speed or incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the program at any time, press the stop
button on the console. The time/incline display will
begin to flash. To restart the program, press the
start button. After a moment, the walking belt will
begin to move at 1.0 mph. When the next
ÒchirpÓ is heard, the speed and incline will
change to the next settings of the program.
When the program is completed, the walking belt
will stop and the time/incline display will begin to
flash. Note: To use another program, press the
stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard, make
sure that the iFit.com indicator is lit and that
the time/incline display is not flashing. In addition, make sure that the audio cable is properly
connected, that it is fully plugged in, and that it
is not wrapped around a power cord.
Stop
Button
Mode
Button
Incline
Buttons
Start
Button
Key
CAUTION: Before operating the
console, read the following precautions.
¥ Do not stand on the walking belt when turning on the power.
¥ Always wear the clip (see the drawing
above) while operating the treadmill.
¥ Adjust the speed in small increments to
avoid sudden jumps in speed.
¥ To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed
water bottle in the water bottle holder.
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be controlled with a
touch of a button. As you exercise, the LED track and
the four displays will provide continuous exercise feedback. You can even measure your heart rate using the
built-in pulse sensor.
The console also features advanced iFit.com interactive technology. IFit.com technology is like having a
personal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFit.com CD programs (one CD is included).
IFit.com CD programs automatically control the speed
Speed
Buttons
Clip
and incline of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. Each CD features
two different programs designed by certified personal
trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFit.com video programs (videocassettes are not included). Video programs offer the
same benefits as iFit.com CD programs, but add the
excitement of working out with a class and an instructorÑthe hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our new internet site at www.iFit.com
and access even more programs. Choose from a selection of basic programs that interactively control the
speed and incline of your treadmill to help you achieve
your personal exercise goals. Or, use iFit.com audio
and video programs directly from our internet site. Visit
www.iFit.com for complete details and to learn about
other iFit.com features.
To purchase iFit.com CDÕs or iFit.com videocassettes
call Customer Service Department. For information
about other optional accessories, see page 17.
To use the manual mode of the console, follow the
steps beginning on page 10. To use iFit.com CD or
video programs, refer to page 14. To use iFit.com
programs directly from our internet site, see page
16.
Note: If there is a thin sheet of clear plastic on the face
of the console, remove it.
9
HOW TO USE THE MANUAL MODE
4
To change the incline of
the treadmill, press the incline buttons. Each time
one of the buttons is
pressed, the incline will
change by 0.5%. The incline range is 1.5% to
12%. Note: When one of
the incline buttons is pressed, the time/incline display will show the incline setting for seven seconds. After the buttons are pressed, it may take a
moment for the treadmill to reach the selected incline setting.
Before operating the console, make sure that the
On
on/off switch near the
Position
power cord is in the on
position. Next, make sure
that the power cord is
properly plugged in (see HOW TO PLUG IN THE
POWER CORD on page 8).
When you are ready to begin exercising, step onto the
foot rails of the treadmill. Find the clip attached to the
key (see the drawing on page 9), and slide the clip
onto the waistband of your clothing. Follow the steps
below to use the manual mode.
1
Follow your progress with the LED track and
the four displays.
The LED TrackÑ
The LED track
represents a distance of 1/4 mile.
As you exercise,
the indicators
around the track
will light one at a
time until you have completed 1/4 mile. A new lap
will then begin.
Select the manual mode.
When the key is inserted, the manual
mode will automatically
be selected. If the
iFit.com indicator is lit,
press the mode button
to select the manual
mode.
3
5
Insert the key fully into the console.
When the key is
inserted, the four displays and various indicators on the console
will light.
2
Change the incline of the treadmill as desired.
Mode Button
Press the start button or the speed ▲ button to
start the walking belt.
A moment after the button is pressed, the walking belt will begin to
move at 1 mph. Hold the
handrails and carefully
begin walking. As you
exercise, change the speed of the walking belt as
desired by pressing the speed buttons.
Distance/laps displayÑ
Arrow
This display shows the
distance that you have
walked or run and the
number of laps you have
completed (one lap
equals 1/4 mile). The display will alternate
between one number and the other every seven
seconds, as shown by the arrows in the display.
Time/incline displayÑ
This display shows the
elapsed time and the incline level of the treadmill.
The incline level will be
shown for seven seconds
each time the incline is adjusted.
4
¥ make sure that the iFit.com indicator is lit and
that the time/incline display is not flashing. If
the time/incline display is flashing, press the
start button or the speed Æ button on console.
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your personal trainer will begin guiding you through your
workout. Simply follow your personal trainerÕs
instructions. Note: If the time/incline display is
flashing, press the start button or the speed Æ button on the console. The treadmill will not respond
to a CD or video program while the time/incline
display is falshing.
During the CD or video program, an electronic
ÒchirpingÓ sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the ÒchirpÓ and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the speed or incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the program at any time, press the STOP
button on the console. The time/incline display will
begin to flash. To restart the program, press the
start button again. After a moment, the walking
belt will begin to move at 1 mph. When the next
ÒchirpÓ is heard, the speed and incline will
change to the next settings of the CD or video
program. The program can also be stopped by
pressing the stop button on your CD player or
VCR.
When the CD or video program is completed, the
walking belt will stop and the time/incline display
will begin to flash. Note: To use another CD or
video program, press the stop button or remove
the key and go to step 1 on page 14.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard:
¥ adjust the volume of your CD player or VCR. If
the volume is too high or too low, the console
may not detect the program signals
¥ make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord
¥ if you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
5
Follow your progress with the LED track and
the four displays.
See step 5 on page 10.
6
Measure your pulse, if desired.
See step 6 on page 11.
7
When the iFit.com CD or video program is
finished, remove the key.
Step onto the foot rails
and remove the key from
the console. Keep the
key in a secure place.
Note: If the displays
and various indicators
on the console remain lit after the key is removed, the console is in the ÒdemoÓ mode.
Refer to page 17 and turn off the demo mode.
CAUTION: Always remove iFit.com CDÕs and
videocassettes from your CD player or VCR
when you are finished using them.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position.
To stop the walking belt, press the stop button.
The time/incline display will begin to flash. To
restart the walking belt, press the start button or
the speed ▲ button.
10
15
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 13.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included Adaptor.
Plug the Adaptor into the AUDIO OUT jack on your
VCR.
A
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
AUDIO OUT
RIGHT
LEFT
Audio
Cable
Adaptor
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included Adaptor.
Plug the Adaptor into an RCA Adaptor (available at
electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA Adaptor. Plug the RCA Adaptor into the
AUDIO OUT jack on your VCR.
B
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
3 4
OUT
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFit.com CDÕs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE COMPUTER TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
12. Note: One iFit.com CD is included. To purchase
other iFit.com CDÕs or to purchase iFit.com videocassettes, call our Customer Service Department.
Make sure that the on/off
switch near the power cord
On
is in the on position. In
Position
addition, make sure that the
power cord is properly
plugged in (see HOW TO
PLUG IN THE POWER CORD on page 8).
When you are ready to begin exercising, step onto the
foot rails of the treadmill. Find the clip attached to the
key (see the drawing on page 9), and slide the clip
onto the waistband of your clothing. Follow the steps
below to use an iFit.com CD or video. Note: The instructions included in the CD case describe how to
use the CD with a variety of PROFORM treadmills.
Some instructions may not apply to this treadmill.
1
When the key is
inserted, the four displays
and various indicators
on the console will light.
2
Press the mode button.
When the key is inserted, the manual
mode will automatically
be selected. To use an
iFit.com CD or video
program, press the
mode button. The
iFit.com indicator will light.
RCA Adaptor
Audio
Cable
Insert the key fully into the console.
Adaptor
Wire removed from
AUDIO OUT jack
3
6
Note: When using the pulse sensor, make sure
that your hands are clean. The pulse sensor
should also be kept clean with a damp cloth and
mild detergent.
To measure your
Sensors
pulse, stand on
the foot rails and
place both
thumbs on the
pulse sensors as
shown. Do not
press too hard,
or the circulation in your
thumbs will be
restricted and
your pulse will
not be detected.
Next, wait until
the heart-shaped
indicator in the calories/fat calories/pulse display
flashes steadily. After a few seconds, three
dashes will appear in the display and your pulse
will be shown. Hold your thumbs on the sensor for
another 15 seconds for the most accurate reading.
Speed/min-mile
displayÑThis display
shows the speed of the
walking belt and your
current pace (pace is
measured in minutes per
mile). Every seven seconds, the display will
change from one number to the other, as shown
by the arrows in the display.
Note: The speed/min-mile display can show
speed in either miles per hour or kilometres per
hour. To determine which unit of measurement is
selected, hold down the stop button while inserting the key into the console. An ÒE,Ó for english
miles, or an ÒM,Ó for metric kilometres, will appear
in the display. Press the
speed ▲ button to change
the unit of measurement.
When the desired unit of measurement is selected,
remove and then reinsert the key. Note: For simplicity, all instructions in this manual refer to miles.
To reset the displays, press the stop button to stop
the walking belt and then press the stop button
again.
Measure your pulse, if desired.
If the displayed pulse appears to be too high or too
low, or if your pulse is not displayed, lift your
thumbs off the sensors and allow the display to
reset. Then, place your thumbs on the sensors as
described above. Try the pulse sensor several
times until you become familiar with it. Remember
to stand still while measuring your pulse.
7
When you are finished exercising, remove the
key.
Step onto the foot rails,
press the stop button,
and remove the key from
the console. Keep the
key in a secure place.
Note: If the displays
and various indicators on the console remain
lit after the key is removed, the console is in
the ÒdemoÓ mode. Refer to page 17 and turn off
the demo mode.
Insert the iFit.com CD or videocassette.
If you are using an iFit.com CD, insert the CD into
your CD player. If you are using an iFit.com videocassette, insert the videocassette into your VCR.
14
Calories/fat
calories/pulse
displayÑThis display
shows the approximate
numbers of calories and
fat calories you have
burned (see FAT BURNING on page 21). Every seven seconds, the display will change from one number to the other, as
shown by the arrows in the display. This display
will also show your heart rate when the pulse sensor is used (see step 6 on this page).
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position.
11
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFit.com CDÕs, the treadmill must be connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
12 and 13 for connecting instructions. To use iFit.com
videocassettes, the treadmill must be connected to
your VCR. See page 14 for connecting instructions. To
use iFit.com programs directly from our internet
site, the treadmill must be connected to your home
computer. See page 13 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE STEREO
HOW TO CONNECT YOUR HOME STEREO
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included Adaptor.
Plug the Adaptor into the LINE OUT jack on your
stereo.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included Adaptor. Plug
the Adaptor into an AUDIO OUT jack on your stereo.
A
A
A
HOW TO CONNECT YOUR PORTABLE CD PLAYER
CD
VCR
AUDIO OUT
Amp
RIGHT
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
A
PHONES LINE OUT
LINE OUT
LINE OUT
Audio
Cable
LEFT
LINE OUT
Audio
Cable
Adaptor
Audio
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
PHONES
B
Headphones
Audio
Cable
LINE OUT
LINE OUT
Adaptor
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included Adaptor.
Plug the Adaptor into an RCA Adaptor (available at
electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA Adaptor. Plug the RCA Adaptor into the LINE
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-Adaptor
(available at electronics stores). Plug the Y-Adaptor
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-Adaptor.
B
PHONES
Audio
Cable
B
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-Adaptor
(available at electronics stores). Plug the Y-Adaptor
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-Adaptor.
B
CD
Audio
Cable
VCR
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-Adaptor
(available at electronics stores). Plug the Y-Adaptor
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-Adaptor.
Amp
3.5mm
Y-Adaptor
LINE OUT
Headphones/Speakers
Audio
Cable
RCA
Adaptor
Adaptor
PHONES
PHONES
Audio
Cable
Wire removed from
LINE OUT jack
3.5mm
Y-Adaptor
Headphones
12
C
PHONES
Audio
Cable
3.5mm
Y-Adaptor
Headphones
13
4*
37
5
7
3
66
1
6
2
14
3
54
39
28
99
93
62
26
10
9
10
62
99
74
27
98
29
30
62
88 69
48
22
21
131
15 62
18
13
17
13
19
15
62
81
8
9
10
11
25
62
129
40
15
39
33
41
92
15
44
41
118
37
42
52
33
32
15
106
128
71
89
24
31
62
75
62
45
36
62
43
45
130
38
35
32
75
15
5
51
44
44
54
54
70
16
54
62
68
44
58
127
46
101
45
62
134
55
54
47
46
12
49
45
58
57
47
59
47
60
47
67
36
64
36
62
61
62
53
63
65
65
124
62
120
REMOVE THIS EXPLODED DRAWING FROM THE
USERÕS MANUAL. SAVE THE EXPLODED DRAWING
FOR FUTURE REFERENCE.
59
60
To identify the parts shown on this exploded drawing, refer to the PART LIST on pages 22 and 23 of the
USERÕS MANUAL.
EXPLODED DRAWINGÑModel No. PETL60000
R0600A
87
117
76
90
78**
50
122**
107
116
108
60
54
77
117
125
125
76
85
54
123*
110
109
112
102
89
76
89
113
115
60
111
110
107
82
83
84
108
114
47
89
76
121
23
86
56
95
80
15
47
20
91
101
73
119
97
96
101
101
62
101
15
103
101
97
84
101
101
34
126*
83
104
119
97
119
105
101
97 95
101
20
97
101
103
72
86
94
100
126*
104
119
97
101
101
