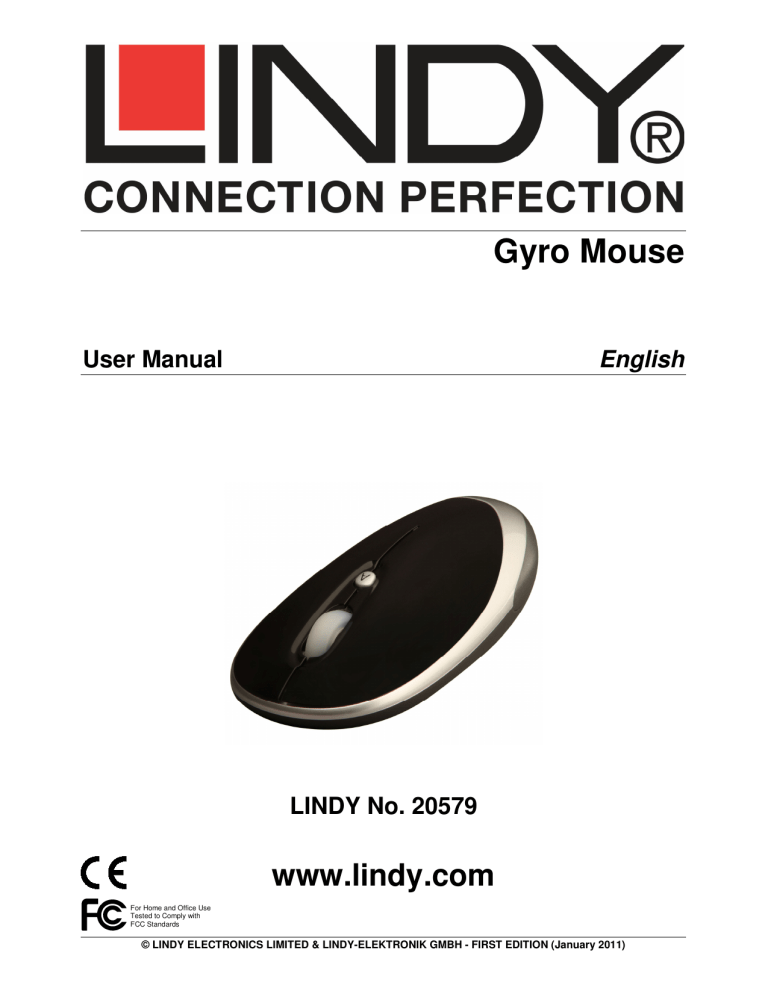

Gyro Mouse
Gyro Mouse
User Manual
English
LINDY No. 20579
www.lindy.com
For Home and Office Use
Tested to Comply with
FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (January 2011)
Introduction
Thank you for purchasing the LINDY Gyro Mouse. The Gyro Mouse allows you to operate your
computer by 3D gestures in the air at a range of up to 10m, thanks to its double axis gyro
motion sensing technology, or by traditional 2D desktop control using the high resolution 1600
dpi laser sensor.
Features
•
•
•
•
•
•
•
•
MEMS Motion Sensing Module – for gesture control
1600/800 dpi laser sensor
Adjustable sensitivity to suit your application
2.4GHz Wireless RF technology with 10m range
3 button technology with scroll wheel as 3rd button
Requires 2 AAA batteries (not included), can be used with rechargeable batteries
Easy Plug & Play installation
Works with all USB enabled operating systems
Package Contents
• LINDY Gyro Mouse
• USB RF Dongle
• This manual
Installation
1. Move the On/Off switch located on the underside of the Gyro Mouse into the Off position.
2. Squeeze the sides towards the back of the mouse as indicated in the diagram and then pull
the battery cap off to reveal the battery compartment.
3. Insert two AAA batteries (Alkaline or Rechargeable), taking care to insert them the correct
way round, then replace the battery cap.
1
2
4. Now insert the USB RF Dongle into an available USB
port on your computer and turn the On/Off switch to the
On position.
5. Holding the mouse approximately 15cm away from the
USB RF Dongle, click the Wireless connect button. The
Indicator Light on the front of the mouse will flash blue 4
times to confirm that a connection has been made.
6. The Gyro Mouse is now installed and ready to use.
3
Operation
There are 2 modes of function, 2D and 3D, the mouse
will switch to 2D mode by default when switched on.
3D Mode
Within 3D Mode there are two types of operation,
Presentation and Full Time.
To use the Gyro Mouse in Presentation mode, simply
keep the 3D Active Button pressed as you use the
mouse. As soon as you release the 3D Active Button
the mouse will revert to 2D Mode.
To use the Gyro Mouse in Full Time mode double press the 3D Active Button. The mouse will
now remain in 3D mode until you next press the 3D Active Button.
2D Mode
Within 2D Mode there are two types of operation, 800dpi and 1600dpi. To toggle between these
options simply press and hold the left and right mouse keys until the Indicator light flashes blue.
Two flashes indicate that the mouse is in 800dpi mode, four flashes indicate 1600dpi mode.
Gaming Mode
In addition to 2D and 3D operation the Gyro Mouse also has a handy gaming feature which
allows you to keep the cursor steady when double clicking, whilst maintaining quick cursor
response. To enable the gaming mode simply press and hold the right mouse button and scroll
wheel until the Indicator light flashes blue four times. To return to standard mode press and hold
the right mouse button and scroll wheel until the Indicator light flashes blue twice.
Trouble Shooting
The indicator light is flashing red - The batteries in your Gyro Mouse are almost flat and need
replacing. Switch the mouse off and exchange the batteries.
The mouse is not working – Power off the mouse, remove the battery cap and check that the
batteries are inserted correctly. Now power on the mouse, and hold the Connect button whilst
holding the mouse within 15cm of the USB RF Dongle. The Indicator Light on the front of the
mouse will flash blue 4 times to confirm that a connection has been made.
The cursor is drifting – Check whether the Indicator Light is flashing Red, if so please change
the batteries. Alternatively, press the 3D Active button once to disable the gyro, and then place
the mouse on a steady surface for 2 seconds before re-enabling 3D mode.
2D / 3D mode not working – Power off the mouse, and then hold the 3D Active button whilst
powering the mouse on until the Indicator Light stops flashing. The mouse is now reset and
should function correctly.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced technician for help
You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
CE Certification
This equipment complies with the requirements relating to electromagnetic compatibility, EN301 489 for IEC/EN61000-4-2/3 the
essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States
relating to electromagnetic compatibility.
WEEE (Waste of Electrical and Electronic Equipment),
Recycling of Electronic Products
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic
equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must
enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please
follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from
your national WEEE recycling agency.
Deutsch
Die Europäische Union hat mit der WEEE Direktive umfassende Regelungen für die Verschrottung und das Recycling von
Elektro- und Elektronikprodukten geschaffen. Diese wurden von der Bundesregierung im Elektro- und Elektronikgerätegesetz –
ElektroG in deutsches Recht umgesetzt. Dieses Gesetz verbietet vom 24.März 2006 an das Entsorgen von entsprechenden,
auch alten, Elektro- und Elektronikgeräten über die Hausmülltonne! Diese Geräte müssen den lokalen Sammelsystemen bzw.
örtlichen Sammelstellen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren
Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller.
Français
En 2006, l'union Européenne a introduit la nouvelle réglementation (DEEE) pour le recyclage de tout équipement électrique et
électronique.
Chaque Etat membre de l’ Union Européenne a mis en application la nouvelle réglementation DEEE de manières légèrement
différentes. Veuillez suivre le décret d’application correspondant à l’élimination des déchets électriques ou électroniques de
votre pays.
Italiano
Nel 2006 l’unione europea ha introdotto regolamentazioni (WEEE) per la raccolta e il riciclo di apparecchi elettrici ed elettronici.
Non è più consentito semplicemente gettare queste apparecchiature, devono essere riciclate. Ogni stato membro dell’ EU ha
tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un
apparecchio elettrico o elettronico.
Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato.
